Review

Biphenarenes, Versatile Synthetic Macrocycles for Supramolecular Chemistry

by
Wenjie Zhang
1,
Wenzhi Yang
1 and
Jiong Zhou
1,2,*
1
Department of Chemistry, College of Sciences, Northeastern University, Shenyang 110819, China
2
Guangdong Provincial Key Laboratory of Functional Supramolecular Coordination Materials and Applications, Jinan University, Guangzhou 510632, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(11), 4422; https://doi.org/10.3390/molecules28114422
Submission received: 25 April 2023 / Revised: 18 May 2023 / Accepted: 24 May 2023 / Published: 29 May 2023
(This article belongs to the Section Organic Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The development of supramolecular chemistry has always been accompanied by the innovation of macrocyclic hosts. The synthesis of novel macrocycles with unique structures and functions will bring new development opportunities for supramolecular chemistry. As a new generation of macrocyclic hosts, biphenarenes have customizable cavity sizes and diverse backbones, overcoming the limitation that the cavities of traditionally popular macrocyclic hosts are generally smaller than 10 Å. These features undoubtedly endow biphenarenes with distinguished host–guest properties, which have attracted more and more attention. In this review, the structural characteristics and molecular recognition properties of biphenarenes are summarized. In addition, the applications of biphenarenes in adsorption and separation, drug delivery, fluorescence sensing and other fields are introduced. Hopefully, this review will provide a reference for the study of macrocyclic arenes, especially biphenarenes.

1. Introduction

In the middle of the last century, the discovery of crown ethers laid the foundation for the development of synthetic molecules that could engage in non-covalent interactions [1]. Then, the concepts of supramolecular chemistry and host–guest chemistry came into being [2,3,4]. In the development of supramolecular chemistry, the synthesis of novel macrocyclic hosts with special properties is an enduring topic [5,6,7,8]. Macrocyclic hosts, including crown ethers [9,10], cyclodextrins [11,12,13,14,15], calixarenes [16], cucurbiturils [17,18,19], pillararenes [20,21,22,23,24,25,26], coronarenes [27] and oxatubarenes [28], are attractive supramolecular hosts with inherent cavities. Thanks to their excellent host–guest properties, macrocyclic hosts play important roles in the fields of chemistry [29,30,31,32], materials science [33,34,35,36], biology [37,38,39,40,41], etc.
In 2015, Li and co-workers constructed a series of customizable macrocycles named biphenarenes using a modular synthetic strategy [42]. Since then, the host–guest properties, supramolecular assembly behaviors and functional applications of biphenarenes have been widely explored [43,44,45,46]. On the one hand, it is easy to obtain biphenarene derivatives containing alkoxy, hydroxy and anionic/cationic groups due to the easy synthesis and derivatization of biphenarenes. The selective complexation of cationic, anionic and neutral guest molecules with biphenarenes can be achieved in different solvents [47,48,49,50]. On the other hand, biphenarenes with large cavities can be prepared by reasonably adjusting the number of structural units, overcoming the limitation of traditional macrocycles with small cavities (≤10 Å). Customizable cavity sizes make it possible to encapsulate large guests or molecules, which will effectively expand the application range of biphenarenes. The discovery of biphenarenes has greatly enriched the toolbox of synthetic macrocyclic hosts and will also promote the further development of supramolecular chemistry.
To date, there are few reviews on biphenarenes and they mainly focus on the synthesis and structure of biphenarenes [49]. In this review, the structures and molecular recognition properties of biphenarenes are discussed in detail. In addition, applications of biphenarenes in adsorptive separation, drug delivery and fluorescence sensing are summarized. Owing to their interesting structural characteristics and rich host–guest properties, biphenarenes have broad development prospects in the construction of functional materials. It is expected that this review will provide reference for the study of biphenarenes and their functional materials.

2. Structures of Biphenarenes

Macrocyclic hosts are useful tools for the research of non-covalent interactions [51,52,53]. Host–guest properties of traditional macrocycles (such as crown ethers, cyclodextrins, calixarenes, cucurbiturils and pillararenes) have been widely studied in the past few decades [54,55,56,57,58]. However, traditional macrocycles typically have cavity sizes of less than 10 Å (Table 1), and it is very challenging to prepare giant macrocycles. This makes them generally suitable for binding small- or medium-sized guests, but it is difficult to accommodate large guest molecules. Increasing the number of structural units is a common way to increase the cavity size of macrocycles. However, the simple addition of structural units tends to distort the structures of macrocycles, and it is difficult to obtain macrocycles with large cavities. This severely limits the further applications of macrocyclic hosts. In addition, for traditional macrocycles, functional groups are usually introduced through their portals rather than the skeleton.
In order to solve these problems, many macrocyclic compounds with large, rigid cavities have been developed. For example, cycloparaphenylenes, consisting of a simple string of benzene, have attracted scientists because of their simple and beautiful structure and potential applications in materials science and supramolecular chemistry [59,60]. In 2015, Li and co-workers synthesized a new macrocyclic host named biphenarenes, which including basic biphen[n]arenes, functional biphen[n]arenes, and cage compounds [42]. Typically, biphenarenes are made up of 4,4′-biphenol or 4,4′-biphenol ether units linked by methylene bridges at the 3- and 3′-positions. The synthesis of biphenarenes is based on the linking of reaction modules to form macrocycles by Friedel–Crafts alkylation. In addition, modular synthetic strategy is a versatile method for the synthesis of biphenarenes, which can increase the cavity sizes by changing the structural units (Figure 1) [48,49]. For example, the cavity sizes of biphenarenes can be easily increased using long and rigid structural units or increasing the number of structural units. Meanwhile, gram-scale synthesis of biphenarenes is easily achieved in a laboratory. The purification of biphenarenes can be achieved by column chromatography and recrystallization. Furthermore, biphenarenes are easy to prepare since they can be obtained by a one-step condensation reaction using commercial reagents. Biphenarenes show good performance in adsorptive separation, sensing and drug delivery, and have broad application prospects in chemistry, biology, materials science and other fields.
Compared with traditional macrocycles, the structures of biphenarenes have two advantages:
(i) Large cavity. Like many other structurally related macrocyclic hosts, biphenarenes are formed from suitable electron-rich aromatic building blocks and formaldehyde by repeated Friedel–Crafts alkylation. The normal strategy to increase cavity size involves increasing the number of subunits along the ring, but this can concomitantly lead to an increase in conformational flexibility accompanied by a collapse of the cavity. In contrast, the cavity size of biphenarenes is increased by incorporating spacers (or functional modules) between the terminal aromatic units of the building blocks, making macrocycles with large cavity easily accessible. Because the structural units of biphenarenes are independent of each other, the cavity sizes can be easily expanded using long and rigid structural units without affecting the cyclization reaction. For example, Li and co-workers synthesized macrocyclic hosts of terphen[n]arenes (TPns, n = 3–6) and quaterphen[n]arenes (QPns, n = 3–6) [61]. TPns and QPns have larger cavities and better self-assembly properties compared to traditional macrocycles because of their longer and more rigid structural units (Table 2). Among them, the largest macrocyclic molecule QP6 has a cavity size of more than 30 Å, which is much larger than that of classic macrocyclic hosts. The customizable cavity sizes of biphenarenes facilitate the encapsulation of large guest molecules (such as polypeptides or other biomacromolecules) and effectively enrich their host–guest properties. Due to these advantages, biphenarenes have potential applications in the field of supramolecular self-assembly.
Table
Table 1. Chemical structures and diameters of traditional macrocyclic hosts.
Table 1. Chemical structures and diameters of traditional macrocyclic hosts.
Macrocyclic HostChemical StructureDiameter (Å)Ref.
α-CyclodextrinMolecules 28 04422 i0014.7–5.3[11]
β-CyclodextrinMolecules 28 04422 i0026.0–6.5[12]
γ-CyclodextrinMolecules 28 04422 i0037.5–8.3[14]
Per-ethylated pillar[5]areneMolecules 28 04422 i0044.7[4]
Per-ethylated pillar[6]areneMolecules 28 04422 i0056.7[62]
Cucurbit[6]urilMolecules 28 04422 i0063.9[56]
Cucurbit[7]urilMolecules 28 04422 i0075.4[56]
Cucurbit[8]urilMolecules 28 04422 i0086.9[56]
(ii) Easy functionalization. Furthermore, the development of new applications of macrocyclic hosts is inseparable from the functionalization of macrocycles [62,63,64]. Whereas the skeletons of most macrocycles cannot be changed, their functional substituents can be introduced on their portals [65,66,67]. The synthesis of biphenarenes is achieved through modular synthetic strategy, and the functionalization can not only introduce functional substituents on their portals, but also realize functionalization by changing the functional modules. By changing the functional modules of biphenarenes by modular synthesis, endo-functionalized macrocycles can be easily synthesized (Figure 2) [47]. This method not only expands the cavity sizes of biphenarenes, but also enriches their host–guest properties and functions. In this way, phenyl, naphthyl, benzofuranyl, benzothiophyl and even π-electron-rich donors (e.g., anthryl, pyrenyl, azophenyl) can also be introduced into the macrocyclic backbones of biphenarenes.
The structural properties of biphenarenes make the synthesis of functional macrocycles more economical and efficient. It is possible to integrate different functional building units into a macrocycle, greatly expanding the toolbox of biphenarenes. The diversity of structures and functions of biphenarenes show extensive binding abilities and extraordinary self-assembly behaviors, laying the foundation for their vigorous development in the field of supramolecular chemistry.

3. Molecular Recognition

Molecular recognition plays an important role in biological systems, ion detection, environmental pollution control, etc. [68,69,70,71]. Macrocyclic hosts are widely used in molecular recognition because of their high affinity and selectivity for cationic or neutral guests [72,73,74,75]. Compared with traditional macrocyclic hosts, the unique structure and easy functionalization of biphenarenes give them excellent abilities to selectively bind various types of guests [76,77,78]. These features provide a useful platform for the construction of interesting supramolecular systems. In addition, biphenarenes are easy to obtain and functionalize, which provides flexibility for building efficient recognition systems, and is expected to become popular macrocyclic hosts in the future.
Since most biological functions and processes occur in aqueous media, molecular recognition in water is extremely important [71]. Li and co-workers designed and synthesized anionic water-soluble biphen[3]arenes (H1) and investigated their host–guest complexation with a series of cationic guests of different sizes and shapes (G1–G10) (Figure 3A) [78]. The cleavage of the ether groups in perethylated biphen[3]arene and perethylated biphen[4]arene by reaction with excess BBr3 in CH2Cl2 could quantitatively produce H2 and H3, respectively. The binding strength of H1-H3 to these guests was quantitatively estimated by 1H NMR titration (Table 3). The 1H NMR spectra showed that all protons of G2 were shielded in the presence of H1, indicating that H1 formed a host–guest inclusion complex with G2 (Figure 3B). At the same time, the color change of the solution before and after the complexation also indicated the occurrence of the host–guest complexation (Figure 3C). This phenomenon also made H1 a good material for the detection of G2, indicating the potential application of H1 in the detection of guest molecules such as paraquat.
Huang, Yu and co-workers studied the molecular recognition of a series of water-soluble biphenarenes [77,79]. They found that G11 could act as an axis through the cavity of H1, forming a 1:1 complex (Figure 4A) [77]. The existence of host–guest complexation was confirmed by 1H NMR (Figure 4B). Interestingly, under the appropriate molar ratio, H1 and G12 showed an obvious Tyndall effect in aqueous solution, and there were abundant aggregates (Figure 4C). By adjusting the pH value, the conversion between micelles formed by G12 and vesicles based on G12⸦H1 was realized. Subsequently, they also investigated the host–guest complexation of cationic water-soluble biphen[3]arene with sodium 1-hexanesulfonate, and further used it to alter the aggregation behavior of amphiphilic guests in water [79]. In addition, they synthesized [2]calix[1]biphenyl-type hybrid[3]arene with a biphenyl unit, showing good complexation with 1-dihexylammonium hexafluorophosphate [80]. Recently, they constructed the first nonporous adaptive crystals of [2]calix[1]biphenyl-type hybrid[3]arene for the efficient separation of benzene and cyclohexane [81].
The electron-rich cavities of biphenarenes have a strong affinity for various cationic and electron-deficient neutral guests, and show excellent molecular recognition abilities. This renders them useful as sensors, nanomaterials, ion or molecular transporters and supramolecular amphiphiles. In particular, research on water-soluble biphenarenes will help to understand and model biological processes. Because of the easy modification, water-soluble biphenarenes have been widely studied and have shown great potential in molecular recognition.

4. Adsorption and Separation

Adsorption and separation are fundamental technologies in many industrial fields [82]. They can be used to efficiently extract, concentrate and refine compounds, and play a role in separation and purification in the production process [83,84,85,86,87,88,89]. Adsorption and separation are widely used in the fields of environmental protection [89,90], the chemical industry [36,91,92], water treatment [93] and nuclear waste concentration [94,95,96]. As important chemical raw materials, hydrocarbons are separated and purified mainly by distillation and fractionation in traditional petrochemical production. However, traditional separation technologies suffer from high costs and low efficiency, while accounting for a large part of the world’s energy consumption [86].
In recent years, a variety of porous materials have been used for adsorption and separation in order to develop economical and efficient adsorption and separation technologies. For instance, zeolites [97,98], metal–organic frameworks (MOFs) [98,99,100,101,102,103] and covalent organic frameworks (COFs) [104,105] have rigid structures, high specific surface areas and regular adjustable pores. They are widely used in the fields of adsorption and separation, environmental improvement, industrial production and biomedicine. However, these porous materials also have drawbacks that cannot be ignored. The structures of MOFs are easily destroyed in high temperature or acid–base environments, and their chemical stability is weak. Furthermore, the rigid structures of these materials lead to poor solubility and lack of solution processing properties [106,107].
Macrocyclic hosts such as crown ethers, cyclodextrins, calixarenes, cucurbiturils and pillararenes are widely used for adsorption and separation of gases, organic pollutants, nuclear wastes and hydrocarbons [108,109,110,111,112,113]. With the rapid development of macrocyclic hosts, excellent results have been obtained in the field of adsorption and separation of hydrocarbons [114,115,116,117]. For example, Huang and co-workers reported the application of nonporous adaptive crystal (NAC) materials based on pillararenes in adsorptive separation of important hydrocarbons and nuclear waste pollution [118,119]. Compared with traditional porous materials, NACs are nonporous in the initial crystalline state, but transformations of intrinsic or extrinsic pores along with crystal structures are induced by preferential guest molecules [120,121]. More importantly, NACs are able to return to their original nonporous structures after the removal of the guest molecules. Macrocycle-based NAC materials are uniquely attractive in the field of hydrocarbon adsorption and separation because of their excellent adsorption and separation properties, recyclability and stability.
As a new generation of macrocyclic hosts, biphenarenes also play an indispensable role in adsorption and separation. In 2016, Yang and co-workers first synthesized [2]biphenyl-extended-pillar[6]arenes ([2]Bp-ExP6) with rigid nanocavities [122]. m-xylene and toluene could be efficiently bound in the cavity of [2]Bp-ExP6, indicating that [2]Bp-ExP6 has great potential in the purification of hydrocarbons. Later, Li and co-workers efficiently synthesized 2,2′,4,4′-biphen[3]arenes (H4) for the separation of cis- and trans-1,2-dichloroethylene (cis-DCE and trans-DCE) isomers (Figure 5A) [44]. They found that H4α exhibited selective adsorption to cis-DCE (Figure 5B). The time-dependent solid–vapor adsorption of H4α with cis-/trans-DCE mixtures showed that the uptake of cis-DCE was very rapid, almost reaching saturation after only 10 min. At the same time, H4α showed excellent selectivity for cis-/trans-DCE mixtures. The adsorption capacity of H4α for cis-DCE was close to 0.7 equivalent, while that for trans-DCE was only 0.05 equivalent (Figure 5C). Repeatedly performing the experiment showed that the adsorption selectivity and adsorption capacity of H4α toward cis-DCE did not change significantly (Figure 5D). Activated H4α crystals had good separation efficiency and recyclability. The simple synthesis, excellent selectivity and recyclability of biphenarenes make them be one of the most promising NAC materials.
In order to meet the growing demand for energy and mitigate the greenhouse effect, scientists are stepping up research into clean and efficient nuclear energy [123,124]. However, the contamination of nuclear waste is a major challenge facing the development of nuclear energy. One is radioactive iodine, a volatile contaminant of nuclear waste. 129I has a particularly long half-life (~107 years) and is a dangerous isotope of iodine. 131I has a short half-life (8.02 days), but is highly volatile and can interfere with metabolic processes in the human body. Therefore, it is very important to develop materials that capture highly volatile iodine. Li and co-workers designed and synthesized H5-H12 with different cavity sizes (Figure 6A) [61]. Interestingly, cyclic pentamers and hexamers (H7, TP6, QP5 and QP6) could easily form supramolecular organogels (G-H7, H8, G-H11 and G-H12) in dichloromethane/hexane solutions. Among them, G-H7 could be used as an excellent material for iodine capture, not only effectively adsorbing iodine molecules in water, but also efficiently capturing iodine vapor (Figure 6B). When G-H7 was exposed to iodine vapor, the adsorption amount of iodine increased gradually with time, indicating that G-H7 had a good adsorption ability for iodine vapor (Figure 6C). After exposure to iodine vapor, the color of the xerogel gradually changed from white to almost black. At the same time, approximately 92% of the iodine in G-H7 was rapidly absorbed within 30 min (Figure 6D). In addition, G-H7 had high recyclability and chemical stability (Figure 6E). Therefore, H5-H12 hold broad application prospects in pollutant sequestration.
In addition, many biphenarene analogues also show excellent adsorption and separation properties. Yang and co-workers obtained an elongated-geminiarene by replacing the xylylene units with biphenylene units [125]. With large-scale synthesis, a nano-sized cavity and excellent solid-state host–guest properties, elongated-geminiarene combines the advantages of both geminiarenes and biphenarenes. The elongated-geminiarene-based crystalline materials showed high efficiency in the separation of aromatic and cyclic aliphatic compounds. They also found that [2]biphenyl-extended pillar[6]arene derivatives could effectively separate carbon dioxide [126]. In addition, Huang and co-workers reported the synthesis of hybrid[3]arene by 4,4′-biphenol diethyl ether and 1,3,5-trimethoxybenzene [118]. With the hybrid[3]arene-based NAC materials, benzene can be completely separated from a mixture of benzene and cyclohexane.
Biphenarenes show a great development scope in the field of adsorption and separation due to the advantages of simple synthesis, stable structure and excellent properties. In addition, biphenarenes with large cavities show great potential for adsorbing and separating large sizes of guests.

5. Drug Delivery

Drug delivery has enabled the development of many drug products [127,128,129]. Drug delivery can enhance the delivery of drugs to target cells and minimize off-target effects. As therapeutics evolve from small molecules to nucleic acids, peptides, proteins and monoclonal antibodies, drug delivery also faces new challenges.
Macrocyclic hosts have gained remarkable achievements in the field of drug delivery [130,131]. The non-covalent interactions between various hosts and guests enable highly adjustable combinations and intelligent stimuli-response properties. The excellent stimuli-responsive properties enable macrocyclic hosts to trigger drug release in response to pH, light, chemical or electrochemical stimuli [132,133,134,135]. To meet the needs of supramolecular nanomedicine, the cavities of macrocyclic hosts must be large enough to accommodate various drug–drug coupling molecules. However, limited by the cavity size, traditional macrocyclic hosts are excellent molecular containers for small- or medium-sized guests, but cannot accommodate biomacromolecules. Biphenarenes can be modularized by the selection of long and rigid structural units to obtain macrocycles with large cavities. As the cavity size of macrocyclic hosts increases, large guest molecules can be encapsulated, which effectively expands the application of macrocyclic hosts in drug delivery [136,137].
Li and co-workers found that two water-soluble quaterphen[n]arenes (H13, H14) with large-sized cavities and interesting host–guest properties were able to achieve an overall complexation towards peptides (Figure 7A) [138]. The host–guest inclusion modes significantly inhibited the hemolytic toxicity of pexiganan (PXG) in rabbit red blood cells (rRBCs) and improved its metabolic stability without affecting the antibacterial activity (Figure 7B). When the concentration of PXG was 160 mM, the hemolysis rate of rRBCs taking up PXG/H13 (80.51 ± 2.83%) was about 20% lower than that of rRBCs without H13. More importantly, H14 significantly reduced the hemolysis rate of rRBC to 26.94 ± 0.96% (Figure 7C,D), indicating that the strong complexation of H14 effectively blocked the reaction of PXG with rRBCs. This typical example illustrates the potential application of biphenarenes in the encapsulation of biological macromolecules such as peptides/proteins.
Li and co-workers further synthesized a water-soluble quaterphen[n]arenes bearing dendritic multicarboxylate moieties (H15) (Figure 8A) [139]. Compound H15 was found to have a high binding affinity for LyeTxΙ (LyeTxΙ is a high-molecular-weight biotoxin isolated from Lycosa erythrognatha spider venom) and its association constant (Ka) was (7.01 ± 0.18) × 107 M−1. They found that the cytotoxicity of H15 to cells was negligible (Figure 8B). On the contrary, the cytotoxicity of LyeTxI was significantly reduced in the presence of H15 (Figure 8C). Host–guest complexation of LyeTxI and H15 protected the cell membrane by destroying LyeTxI and significantly inhibited cytotoxicity and hemolysis of erythrocytes (Figure 8D–F). In addition, the survival rate of LyetxI-poisoned mice was improved by emergency administration of H15. This result indicates that a supramolecular strategy based on host–guest complexation by large-sized macrocycles is expected to be a general method to detoxify macromolecular biotoxins.
Recently, Li and co-workers designed and synthesized quaternary ammonium per-functionalized biphen[n]arenes (H16, H17) with excellent biofilm resistance (Figure 9A) [140]. Compared with phosphate-buffered saline, cefazolin sodium (CFZ)/H16 and CFZ/H17 could effectively disrupt cell colonies in mature E. coli biofilms and reduce the bacterial density (Figure 9B). Furthermore, administration of CFZ/H16 or CFZ/H17 complexes induced significant destruction of biofilms and a sharp reduction in E. coli bacteria (Figure 9C). At the same time, the surface morphology of E. coli exposed to free CFZ showed membrane lysis, and the complex of H16 or H17 retained the antibacterial effect of CFZ (Figure 9D). This study demonstrated that biphenarene-based disruptors can effectively preserve the broad-spectrum sterilizing effect of antibiotic agents.
In addition, a series of novel macrocyclic hosts named biphenyl-extended pillararenes have been designed by Yang and co-workers [44,141]. These macrocycles have rigid skeleton structures and multifunctional modification sites similar to pillararenes. Biphenyl-extended pillararenes have the advantages of an electron-rich cavity structure with extended size and high synthesis yield due to the introduction of biphenyl units. Yao and co-workers successfully synthesized anionic water-soluble [2]biphenyl-extended-pillar[6]arene (H18) (Figure 10A) [142]. Based on the host−guest molecular recognition between H18 and chlorambucil (CB), a supramolecular nanoprodrug (SNP) was fabricated using H18 and the drug−drug conjugate guest (IR806-CB). In the acidic tumor cell microenvironment with a high concentration of glutathione (GSH), SNP could be rapidly degraded and efficiently released to activate CB through the GSH cleavage of the disulfide linker. Under the near-infrared irradiation, IR806 produced hyperthermia and ROS to kill tumor cells. Near-infrared fluorescence imaging showed that the SNP nanoprodrug had excellent tumor aggregation and drug retention (Figure 10B). The hyperthermia study further demonstrated that SNP had significant photothermal conversion efficiency and tumor-targeting ability (Figure 10C). By monitoring the tumor size, it was found that both IR806 + NIR and SNP groups had significant inhibitory effects on tumor growth (Figure 10D–F). These results proved that SNP formed by H18 and IR806-CB could significantly improve therapeutic efficiency through synergistic photodynamic therapy, photothermal therapy and chemotherapy.
Overall, the fascinating structures and large cavities of biphenarenes lay the foundation for drug delivery and cancer therapy.

6. Fluorescence Sensing

Fluorescence sensors are widely used to detect various analytes because of their high sensitivity, strong specificity and fast response speed [143]. Organic luminescent materials with high quantum efficiency have attracted wide attention due to their applications in sensors, bioimaging, laser displays, light-emitting diodes and anti-counterfeiting technologies [144,145,146,147]. It is important to design organic luminescent materials with a simple molecular structure, adjustable properties and excellent thermal stability for the construction of high-performance fluorescence sensors. However, most organic luminescent materials suffer from quenching effects in the aggregate state due to the formation of detrimental aggregates such as excimers and exciplexes. This severely limits their applications in fluorescence sensing and organic luminescent materials. In contrast, aggregation-induced emission (AIE) molecules are non-emissive in dilute solutions, but their luminescence is significantly enhanced when the molecules are aggregated [148]. AIE materials with high solid-state luminescence efficiency are expected to fundamentally solve the ACQ problem of traditional organic luminescent materials [149,150]. Therefore, there is an urgent requirement to develop a new fluorescence enhancement strategy. This not only contributes to the construction of excellent fluorophores and materials, but also plays an important role in understanding the relationship between luminescence mechanisms and molecular structures.
Based on this, Li and co-workers proposed an effective and universal strategy for enhancing solid-state emission of luminophores, known as macrocyclization-induced emission enhancement (MIEE) [151]. A benzothiadiazole-based macrocycle (H19) with three methylene bridges was obtained (Figure 11A). H19 exhibited redshift emission compared to BT-M (Figure 11B). In addition, the photoluminescence spectra showed that H19 had a higher solid state fluorescence quantum yield than BT-M. MIEE not only effectively improved the fluorescence efficiency of organic luminophores, but also has good universality, which is conducive to the development of organic luminophores.
Recently, Li and co-workers developed a synthetic strategy for heterogeneous macrocycles that aimed to integrate different functional groups into one macrocyclic backbone [152]. They successfully obtained isomeric macrocycles containing functional groups of fluorenone and fluorenol by both post-modification and one-pot methods (Figure 12A). Notably, the photophysical characterization revealed that the fluorenol was part of the energy donor and the fluorenone was part of the energy acceptor (Figure 12B). Macrocycles H20, H21 and H22 showed similar photoluminescence spectra with the same yellow emission peak at 554 nm which was assigned to the emission of the fluorenone moiety, while H23 had a blue emission peak at 393 nm (Figure 12C). Moreover, the emission intensity of the fluorenone moiety followed the order of H22 > H21 > H20 (Figure 12D). Meanwhile, intramolecular energy transfer had no effect on the radiation attenuation of fluorenone (Figure 12E). The obtained isomeric macrocycles showed interesting intramolecular energy transfer and fluorescence enhancement due to well-matched absorption/emission spectra and the close distance between the energy donor and the acceptor. This work provides a new method for the efficient synthesis of multiphase functional macrocycles.
It is not difficult to see that the modular synthetic strategy of biphenarenes is beneficial to the development of functional macrocyclic hosts with different properties. In addition, by integrating different structural units into one macrocycle, more interesting structures and applications can be developed and explored.

7. Conclusions

In conclusion, the modular synthetic strategy gives biphenarenes rich functions and host–guest properties. Compared with traditional macrocyclic hosts, biphenarenes have unique advantages such as customizable cavity size, diverse skeletons and alternative binding sites. As a kind of “young” macrocycle, biphenarenes have shown their brilliance in the fields of supramolecular chemistry, and will have broad development space in the future. Through the modular synthetic strategy, different building units can be used to obtain macrocyclic hosts with large cavities. This opens up a broad perspective for the complexation of macromolecules. At present, biphenarenes play important roles in drug delivery, and cancer diagnosis and treatment. Furthermore, since biphenarenes can be easily functionalized, supramolecular functional materials can be constructed by introducing functional modules or post-modification methods. The structures and properties of biphenarenes are expected to be expanded greatly by the reasonable design of diverse skeletons. We hope that this review will deepen the interest in supramolecular macrocyclic chemistry and stimulate the research on biphenarenes and synthetic macrocyclic hosts.

Author Contributions

Conceptualization, W.Z. and J.Z.; writing—original draft preparation, W.Z.; writing—review and editing, W.Y. and J.Z.; supervision, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (22101043), the Fundamental Research Funds for the Central Universities (N2205013), the Open Fund of Guangdong Provincial Key Laboratory of Functional Supramolecular Coordination Materials and Applications (2022A07) and Northeastern University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pedersen, C.J. Cyclic polyethers and their complexes with metal salts. J. Am. Chem. Soc. 1967, 89, 7017–7036. [Google Scholar] [CrossRef]
  2. Cram, D.J.; Cram, J.M. Host–guest chemistry. Science 1974, 183, 803–809. [Google Scholar] [CrossRef] [PubMed]
  3. Lehn, J.-M. Supramolecular chemistry. Science 1993, 260, 1762–1763. [Google Scholar] [CrossRef] [PubMed]
  4. Ohtani, S.; Kato, K.; Fa, S.; Ogoshi, T. Host–guest chemistry based on solid-state pillar[n]arenes. Coord. Chem. Rev. 2022, 462, 214503. [Google Scholar] [CrossRef]
  5. Gutsche, C.D. Calixarenes. Acc. Chem. Res. 1983, 16, 161–170. [Google Scholar] [CrossRef]
  6. Lee, J.W.; Samal, S.; Selvapalam, N.; Kim, H.-J.; Kim, K. Cucurbituril homologues and derivatives: New opportunities in supramolecular chemistry. Acc. Chem. Res. 2003, 36, 621–630. [Google Scholar] [CrossRef]
  7. Yan, M.; Zhou, J. Methylene-bridged naphthotubes: New macrocyclic arenes with great potential for supramolecular chemistry. Org. Chem. Front. 2023, 10, 2340–2345. [Google Scholar] [CrossRef]
  8. Dsouza, R.N.; Pischel, U.; Nau, W.M. Fluorescent dyes and their supramolecular host/guest complexes with macrocycles in aqueous solution. Chem. Rev. 2011, 111, 7941–7980. [Google Scholar] [CrossRef]
  9. Gokel, G.W.; Leevy, W.M.; Weber, M.E. Crown ethers: Sensors for ions and molecular scaffolds for materials and biological models. Chem. Rev. 2004, 104, 2723–2750. [Google Scholar] [CrossRef]
  10. Han, Y.; Meng, Z.; Ma, Y.-X.; Chen, C.-F. Iptycene-derived crown ether hosts for molecular recognition and self-assembly. Acc. Chem. Res. 2014, 47, 2026–2040. [Google Scholar] [CrossRef]
  11. Chen, Y.; Liu, Y. Cyclodextrin-based bioactive supramolecular assemblies. Chem. Soc. Rev. 2010, 39, 495–505. [Google Scholar] [CrossRef] [PubMed]
  12. Crini, G. A history of cyclodextrins. Chem. Rev. 2014, 114, 10940–10975. [Google Scholar] [CrossRef]
  13. Tao, W.; Liu, Y.; Jiang, B.; Yu, S.; Huang, W.; Zhou, Y.; Yan, D. A linear-hyperbranched supramolecular amphiphile and its self-assembly into vesicles with great ductility. J. Am. Chem. Soc. 2012, 134, 762–764. [Google Scholar] [CrossRef] [PubMed]
  14. Hu, Q.-D.; Tang, G.-P.; Chu, P.K. Cyclodextrin-based host–guest supramolecular nanoparticles for delivery: From design to applications. Acc. Chem. Res. 2014, 4, 2017–2025. [Google Scholar] [CrossRef] [PubMed]
  15. Brewster, M.E.; Loftsson, T. Cyclodextrins as pharmaceutical solubilizers. Adv. Drug Deliv. Rev. 2007, 59, 645–666. [Google Scholar] [CrossRef] [PubMed]
  16. Guo, D.-S.; Liu, Y. Calixarene-based supramolecular polymerization in solution. Chem. Soc. Rev. 2012, 41, 5907–5921. [Google Scholar] [CrossRef]
  17. Ni, X.-L.; Xiao, X.; Cong, H.; Zhu, Q.-J.; Xue, S.-F.; Tao, Z. Self-assemblies based on the “outer-surface interactions” of cucurbit[n]urils: New opportunities for supramolecular architectures and materials. Acc. Chem. Res. 2014, 47, 1386–1395. [Google Scholar] [CrossRef]
  18. Barrow, S.J.; Kasera, S.; Rowland, M.J.; Barrio, D.J.; Scherman, O.A. Cucurbituril-based molecular recognition. Chem. Rev. 2015, 115, 12320–12406. [Google Scholar] [CrossRef]
  19. Tang, B.; Li, W.-L.; Chang, Y.; Yuan, B.; Wu, Y.; Zhang, M.-T.; Xu, J.-F.; Li, J.; Zhang, X. A supramolecular radical dimer: High-efficiency NIR-II photothermal conversion and therapy. Angew. Chem. Int. Ed. 2019, 58, 15526–15531. [Google Scholar] [CrossRef]
  20. Ogoshi, T.; Kanai, S.; Fujinami, S.; Yamagishi, T.-A.; Nakamoto, Y. para-Bridged symmetrical pillar[5]arenes: Their lewis acid catalyzed synthesis and host–guest property. J. Am. Chem. Soc. 2008, 130, 5022–5023. [Google Scholar] [CrossRef]
  21. Sun, Y.; Ma, J.; Zhang, F.; Zhu, F.; Mei, Y.; Liu, L.; Tian, D.; Li, H. A light-regulated host–guest-based nanochannel system inspired by channelrhodopsins protein. Nat. Commun. 2017, 8, 260. [Google Scholar] [CrossRef] [PubMed]
  22. Feng, W.; Jin, M.; Yang, K.; Pei, Y.; Pei, Z. Supramolecular delivery systems based on pillararenes. Chem. Commun. 2018, 54, 13626–13640. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, Y.-Y.; Jiang, X.-M.; Gong, G.-F.; Yao, H.; Zhang, Y.-M.; Wei, T.-B.; Lin, Q. Pillararene-based AIEgens: Research progress and appealing applications. Chem. Commun. 2021, 57, 284–301. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, J.; Hua, B.; Li, Q.; Zhou, J.; Yang, J. Acid/base-controllable FRET and self-assembling systems fabricated by rhodamine B functionalized pillar[5]arene-based host–guest recognition motifs. Org. Lett. 2018, 20, 365–368. [Google Scholar] [CrossRef] [PubMed]
  25. Cao, D.; Kou, Y.; Liang, J.; Chen, Z.; Wang, L.; Meier, H. A facile and efficient preparation of pillararenes and a pillarquinone. Angew. Chem. Int. Ed. 2009, 48, 9721–9723. [Google Scholar] [CrossRef]
  26. Duan, Q.; Cao, Y.; Li, Y.; Hu, X.; Xiao, T.; Lin, C.; Pan, Y.; Wang, L. pH-responsive supramolecular vesicles based on water-soluble pillar[6]arene and ferrocene derivative for drug delivery. J. Am. Chem. Soc. 2013, 135, 10542–10549. [Google Scholar] [CrossRef]
  27. Guo, Q.-H.; Fu, Z.-D.; Zhao, L.; Wang, M.-X. Synthesis, structure, and properties of O6-corona[3]arene[3]tetrazines. Angew. Chem. Int. Ed. 2014, 53, 13548–13552. [Google Scholar] [CrossRef]
  28. Yang, L.-P.; Wang, X.; Yao, H.; Jiang, W. Naphthotubes: Macrocyclic hosts with a biomimetic cavity feature. Acc. Chem. Res. 2020, 53, 198–208. [Google Scholar] [CrossRef] [PubMed]
  29. Geng, W.-C.; Sessler, J.L.; Guo, D.-S. Supramolecular prodrugs based on host–guest interactions. Chem. Soc. Rev. 2020, 49, 2303–2315. [Google Scholar] [CrossRef]
  30. Liu, Z.; Nalluri, S.K.M.; Stoddart, J.F. Surveying macrocyclic chemistry: From flexible crown ethers to rigid cyclophanes. Chem. Soc. Rev. 2017, 46, 2459–2478. [Google Scholar] [CrossRef]
  31. Mako, T.L.; Racicot, J.M.; Levine, M. Supramolecular luminescent sensors. Chem. Rev. 2019, 119, 322–477. [Google Scholar] [CrossRef] [PubMed]
  32. Yan, M.; Zhou, J. Pillararene-based supramolecular polymers for cancer therapy. Molecules 2023, 28, 1470. [Google Scholar] [CrossRef] [PubMed]
  33. Amabilino, D.B.; Smith, D.K.; Steed, J.W. Supramolecular materials. Chem. Soc. Rev. 2017, 46, 2404–2420. [Google Scholar] [CrossRef] [PubMed]
  34. Li, J.; Wang, J.; Li, H.; Song, N.; Wang, D.; Tang, B.Z. Supramolecular materials based on AIE luminogens (AIEgens): Construction and applications. Chem. Soc. Rev. 2020, 49, 1144–1172. [Google Scholar] [CrossRef]
  35. Yang, X.; Wu, B.; Zhou, J.; Lu, H.; Zhang, H.; Huang, F.; Wang, H. Controlling intracellular enzymatic self-assembly of peptide by host–guest complexation for programming cancer cell death. Nano Lett. 2022, 22, 7588–7596. [Google Scholar] [CrossRef]
  36. Chen, Z.; Wang, Q.; Wu, X.; Li, Z.; Jiang, Y.-B. Optical chirality sensing using macrocycles, synthetic and supramolecular oligomers/polymers, and nanoparticle based sensors. Chem. Soc. Rev. 2015, 44, 4249–4263. [Google Scholar] [CrossRef]
  37. Webber, M.J.; Langer, R. Drug delivery by supramolecular design. Chem. Soc. Rev. 2017, 46, 6600–6620. [Google Scholar] [CrossRef]
  38. Webber, M.J.; Appel, E.A.; Meijer, E.W.; Langer, R. Supramolecular biomaterials. Nat. Mater. 2016, 15, 13–26. [Google Scholar] [CrossRef]
  39. Zhou, J.; Rao, L.; Yu, G.; Cook, T.R.; Chen, X.; Huang, F. Supramolecular cancer nanotheranostics. Chem. Soc. Rev. 2021, 50, 2839–2891. [Google Scholar] [CrossRef]
  40. Ding, Y.; Tong, Z.; Jin, L.; Ye, B.; Zhou, J.; Sun, Z.; Yang, H.; Hong, L.; Huang, F.; Wang, W.; et al. An NIR discrete metallacycle constructed from perylene bisimide and tetraphenylethylene fluorophores for imaging-guided cancer radio-chemotherapy. Adv. Mater. 2022, 34, e2106388. [Google Scholar] [CrossRef]
  41. Hazarika, B.; Singh, V.P. Macrocyclic supramolecular biomaterials in anti-cancer therapeutics. Chin. Chem. Lett. 2023, in press. [CrossRef]
  42. Chen, H.; Fan, J.; Hu, X.; Ma, J.; Wang, S.; Li, J.; Yu, Y.; Jia, X.; Li, C. Biphen[n]arenes. Chem. Sci. 2015, 6, 197–202. [Google Scholar] [CrossRef] [PubMed]
  43. Dai, L.; Ding, Z.-J.; Cui, L.; Li, J.; Jia, X.; Li, C. 2,2′-Biphen[n]arenes (n = 4–8): One-step, high-yield synthesis, and host–guest properties. Chem. Commun. 2017, 53, 12096–12099. [Google Scholar] [CrossRef]
  44. Wang, Y.; Xu, K.; Li, B.; Cui, L.; Li, J.; Jia, X.; Zhao, H.; Fang, J.; Li, C. Efficient separation of cis- and trans-1,2-dichloroethene isomers by adaptive biphen[3]arene crystals. Angew. Chem. Int. Ed. 2019, 58, 10281–10284. [Google Scholar] [CrossRef]
  45. Zhang, W.; Yang, W.; Chen, J.; Wang, Y.; Yan, M.; Zhou, J. An amphiphilic water-soluble biphen[3]arene with tunable lower critical solution temperature behavior. New J. Chem. 2022, 46, 21453–21457. [Google Scholar]
  46. Chen, J.; Chen, L.; Zhang, Y.; Zhao, L.; Dong, M.; Meng, Z.; Meng, Q.; Li, C. The effective taste masking of alkaloids by a water-soluble terphen[3]arene. Chem. Commun. 2022, 58, 3370–3373. [Google Scholar] [CrossRef]
  47. Xu, K.; Li, B.; Yao, S.; Li, Z.; Lu, Y.; Dong, M.; Qiu, J.; Luo, L.; Li, C. Modular introduction of endo-binding sites in a macrocyclic cavity towards selective recognition of neutral azacycles. Angew. Chem. Int. Ed. 2022, 61, e202203016. [Google Scholar]
  48. Xu, K.; Zhang, Z.-Y.; Zhou, Z.; Li, C. Prospering the biphen[n]arenes family by tailoring reaction modules. Chin. Chem. Lett. 2022, 33, 2451–2454. [Google Scholar] [CrossRef]
  49. Zhang, Z.-Y.; Li, C. Biphen[n]arenes: Modular synthesis, customizable cavity sizes, and diverse skeletons. Acc. Chem. Res. 2022, 55, 916–929. [Google Scholar] [CrossRef]
  50. Xu, K.; Zhang, Z.-Y.; Yu, C.; Wang, B.; Dong, M.; Zeng, X.; Gou, R.; Cui, L.; Li, C. A modular synthetic strategy for functional macrocycles. Angew. Chem. Int. Ed. 2020, 59, 7214–7218. [Google Scholar] [CrossRef]
  51. Mattia, E.; Otto, S. Supramolecular systems chemistry. Nat. Nanotechnol. 2015, 10, 111–119. [Google Scholar] [CrossRef] [PubMed]
  52. Chen, Y.; Sun, S.; Lu, D.; Shi, Y.; Yao, Y. Water-soluble supramolecular polymers constructed by macrocycle-based host–guest interactions. Chin. Chem. Lett. 2019, 30, 37–43. [Google Scholar] [CrossRef]
  53. Hu, W.; Ye, B.; Yu, G.; Huang, F.; Mao, Z.; Ding, Y.; Wang, W. Recent development of supramolecular cancer theranostics based on cyclodextrins: A review. Molecules 2023, 28, 3441. [Google Scholar] [CrossRef] [PubMed]
  54. Yan, M.; Zhou, J. Suprasomes: An emerging platform for cancer theranostics. Sci. China Chem. 2023, 66, 613–614. [Google Scholar] [CrossRef]
  55. Crini, G.; Fourmentin, S.; Fenyvesi, É.; Torri, G.; Fourmentin, M.; Morin-Crini, N. Cyclodextrins, from molecules to applications. Environ. Chem. Lett. 2018, 16, 1361–1375. [Google Scholar] [CrossRef]
  56. Lagona, J.; Mukhopadhyay, P.; Chakrabarti, S.; Isaacs, L. The cucurbit[n]uril family. Angew. Chem. Int. Ed. 2005, 44, 4844–4870. [Google Scholar] [CrossRef]
  57. Wang, M.; Li, Q.; Li, E.; Liu, J.; Zhou, J.; Huang, F. Vapochromic behaviors of a solid-state supramolecular polymer based on exo-wall complexation of perethylated pillar[5]arene with 1,2,4,5-tetracyanobenzene. Angew. Chem. Int. Ed. 2021, 60, 8115–8120. [Google Scholar] [CrossRef]
  58. Yu, G.; Zhou, J.; Shen, J.; Tang, G.; Huang, F. Cationic pillar[6]arene/ATP host–guest recognition: Selectivity, inhibition of ATP hydrolysis, and application in multidrug resistance treatment. Chem. Sci. 2016, 7, 4073–4078. [Google Scholar] [CrossRef]
  59. Omachi, H.; Segawa, Y.; Itami, K. Synthesis of cycloparaphenylenes and related carbon nanorings: A step toward the controlled synthesis of carbon nanotubes. Acc. Chem. Res. 2012, 45, 1378–1389. [Google Scholar] [CrossRef]
  60. Lewis, S.E. Cycloparaphenylenes and related nanohoops. Chem. Soc. Rev. 2015, 44, 2221–2304. [Google Scholar] [CrossRef]
  61. Li, B.; Wang, B.; Huang, X.; Dai, L.; Cui, L.; Li, J.; Jia, X.; Li, C. Terphen[n]arenes and quaterphen[n]arenes (n = 3–6): One-pot synthesis, self-assembly into supramolecular gels, and iodine capture. Angew. Chem. Int. Ed. 2019, 58, 3885–3889. [Google Scholar] [CrossRef] [PubMed]
  62. Qi, Z.; Schalley, C.A. Exploring macrocycles in functional supramolecular gels: From stimuli responsiveness to systems chemistry. Acc. Chem. Res. 2014, 47, 2222–2233. [Google Scholar] [CrossRef]
  63. Strutt, N.L.; Zhang, H.; Schneebeli, S.T.; Stoddart, J.F. Functionalizing pillar[n]arenes. Acc. Chem. Res. 2014, 47, 2631–2642. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, K.; Jordan, J.H.; Velmurugan, K.; Tian, X.; Zuo, M.; Hu, X.-Y.; Wang, L. Role of functionalized pillararene architectures in supramolecular catalysis. Angew. Chem. Int. Ed. 2021, 60, 9205–9214. [Google Scholar] [CrossRef]
  65. Dong, R.; Zhou, Y.; Huang, X.; Zhu, X.; Lu, Y.; Shen, J. Functional supramolecular polymers for biomedical applications. Adv. Mater. 2015, 27, 498–526. [Google Scholar] [CrossRef] [PubMed]
  66. Zhou, J.; Hua, B.; Shao, L.; Feng, H.; Yu, G. Host–guest interaction enhanced aggregation-induced emission and its application in cell imaging. Chem. Commun. 2016, 52, 5749–5752. [Google Scholar] [CrossRef]
  67. Wu, J.-R.; Wu, G.; Yang, Y.-W. Pillararene-inspired macrocycles: From extended pillar[n]arenes to geminiarenes. Acc. Chem. Res. 2022, 55, 3191–3204. [Google Scholar] [CrossRef]
  68. Rebek, J., Jr. Molecular Recognition with model systems. Angew. Chem. Int. Ed. 1990, 29, 245–255. [Google Scholar] [CrossRef]
  69. Ariga, K.; Ito, H.; Hill, J.P.; Tsukube, H. Molecular recognition: From solution science to nano/materials technology. Chem. Soc. Rev. 2012, 41, 5800–5835. [Google Scholar] [CrossRef]
  70. Persch, E.; Dumele, O.; Diederich, F. Molecular recognition in chemical and biological systems. Angew. Chem. Int. Ed. 2015, 54, 3290–3297. [Google Scholar] [CrossRef]
  71. Escobar, L.; Ballester, P. Molecular recognition in water using macrocyclic synthetic receptors. Chem. Rev. 2021, 121, 2445–2514. [Google Scholar] [CrossRef]
  72. Zhou, J.; Yu, G.; Li, Y.; Shen, J.; Wang, M.; Li, Z.; Wei, P.; Tang, J.; Huang, F. [2]Pseudorotaxane-based supramolecular optical indicator for the visual detection of cellular cyanide excretion. Chem. Eur. J. 2019, 25, 14447–14453. [Google Scholar] [CrossRef] [PubMed]
  73. Kumar, A.; Sun, S.-S.; Lees, A.J. Directed assembly metallocyclic supramolecular systems for molecular recognition and chemical sensing. Coord. Chem. Rev. 2008, 252, 922–939. [Google Scholar] [CrossRef]
  74. Zhou, J.; Yu, G.; Huang, F. Supramolecular chemotherapy based on host–guest molecular recognition: A novel strategy in the battle against cancer with a bright future. Chem. Soc. Rev. 2017, 46, 7021–7053. [Google Scholar] [CrossRef] [PubMed]
  75. Tashiro, S.; Shionoya, M. Novel porous crystals with macrocycle-based well-defined molecular recognition sites. Acc. Chem. Res. 2020, 53, 632–643. [Google Scholar] [CrossRef]
  76. Lande, D.N.; Rao, S.S.; Gejji, S.P. Deciphering noncovalent interactions accompanying 7,7,8,8-tetracyanoquinodimethane encapsulation within biphene[n]arenes: Nucleus-independent chemical shifts approach. ChemPhysChem 2016, 17, 2197–2209. [Google Scholar] [CrossRef]
  77. Zhou, J.; Yu, G.; Shao, L.; Hua, B.; Huang, F. A water-soluble biphen[3]arene: Synthesis, host–guest complexation, and application in controllable self-assembly and controlled release. Chem. Commun. 2015, 51, 4188–4191. [Google Scholar] [CrossRef]
  78. Ma, J.; Deng, H.; Ma, S.; Li, J.; Jia, X.; Li, C. Molecular binding behavior of bipyridium derivatives by water-soluble carboxylato-biphen[3]arene. Chem. Commun. 2015, 51, 6621–6624. [Google Scholar] [CrossRef]
  79. Zhou, J.; Yang, J.; Zhang, Z.; Yu, G. A cationic water-soluble biphen[3]arene: Synthesis, host–guest complexation and fabrication of a supra-amphiphile. RSC Adv. 2016, 6, 77179–77183. [Google Scholar] [CrossRef]
  80. Zhou, J.; Yang, J.; Hua, B.; Shao, L.; Zhang, Z.; Yu, G. The synthesis, structure, and molecular recognition properties of a [2]calix[1]biphenyl-type hybrid[3]arene. Chem. Commun. 2016, 52, 1622–1624. [Google Scholar] [CrossRef]
  81. Zhou, J.; Yu, G.; Li, Q.; Wang, M.; Huang, F. Separation of benzene and cyclohexane by nonporous adaptive crystals of a hybrid[3]arene. J. Am. Chem. Soc. 2020, 142, 2228–2232. [Google Scholar] [CrossRef] [PubMed]
  82. Li, J.-R.; Kuppler, R.J.; Zhou, H.-C. Selective gas adsorption and separation in metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1477–1504. [Google Scholar] [CrossRef]
  83. Li, J.-R.; Ma, Y.; McCarthy, M.C.; Sculley, J.; Yu, J.; Jeong, H.-K.; Balbuena, P.B.; Zhou, H.-C. Carbon dioxide capture-related gas adsorption and separation in metal–organic frameworks. Coord. Chem. Rev. 2011, 255, 1791–1823. [Google Scholar] [CrossRef]
  84. Perez-Botella, E.; Valencia, S.; Rey, F. Zeolites in adsorption processes: State of the art and future prospects. Chem. Rev. 2022, 122, 17647–17695. [Google Scholar] [CrossRef] [PubMed]
  85. Lv, D.; Zhou, P.; Xu, J.; Tu, S.; Xu, F.; Yan, J.; Xi, H.; Yuan, W.; Fu, Q.; Chen, X.; et al. Recent advances in adsorptive separation of ethane and ethylene by C2H6-selective MOFs and other adsorbents. Chem. Eng. J. 2022, 431, 133208. [Google Scholar] [CrossRef]
  86. Sholl, D.S.; Lively, R.P. Seven chemical separations to change the world. Nature 2016, 532, 435–437. [Google Scholar] [CrossRef]
  87. Wang, H.; Li, J. Microporous metal–organic frameworks for adsorptive separation of C5-C6 alkane isomers. Acc. Chem. Res. 2019, 52, 1968–1978. [Google Scholar] [CrossRef]
  88. Fan, W.; Zhang, X.; Kang, Z.; Liu, X.; Sun, D. Isoreticular chemistry within metal–organic frameworks for gas storage and separation. Coord. Chem. Rev. 2021, 443, 213968. [Google Scholar] [CrossRef]
  89. Amooghin, E.A.; Sanaeepur, H.; Luque, R.; Garcia, H.; Chen, B. Fluorinated metal–organic frameworks for gas separation. Chem. Soc. Rev. 2022, 51, 7427–7508. [Google Scholar] [CrossRef]
  90. Wang, J.; Zhuang, S. Covalent organic frameworks (COFs) for environmental applications. Coord. Chem. Rev. 2019, 400, 213046. [Google Scholar] [CrossRef]
  91. Yang, L.; Qian, S.; Wang, X.; Cui, X.; Chen, B.; Xing, H. Energy-efficient separation alternatives: Metal–organic frameworks and membranes for hydrocarbon separation. Chem. Soc. Rev. 2020, 49, 5359–5406. [Google Scholar] [CrossRef]
  92. Wang, M.; Fang, S.; Yang, S.; Li, Q.; Khashab, N.M.; Zhou, J.; Huang, F. Separation of ethyltoluene isomers by nonporous adaptive crystals of perethylated and perbromoethylated pillararenes. Mater. Today Chem. 2022, 24, 100919. [Google Scholar] [CrossRef]
  93. Mudhoo, A.; Sillanpaa, M. Magnetic nanoadsorbents for micropollutant removal in real water treatment: A review. Environ. Chem. Lett. 2021, 19, 4393–4413. [Google Scholar] [CrossRef]
  94. Zhang, X.; Maddock, J.; Nenoff, T.M.; Denecke, M.A.; Yang, S.; Schroder, M. Adsorption of iodine in metal–organic framework materials. Chem. Soc. Rev. 2022, 51, 3243–3262. [Google Scholar] [CrossRef] [PubMed]
  95. Wang, P.; Xu, Q.; Li, Z.; Jiang, W.; Jiang, Q.; Jiang, D. Exceptional iodine capture in 2D covalent organic frameworks. Adv. Mater. 2018, 30, e1801991. [Google Scholar] [CrossRef] [PubMed]
  96. Yao, S.; Fang, W.-H.; Sun, Y.; Wang, S.-T.; Zhang, J. Mesoporous assembly of aluminum molecular rings for iodine capture. J. Am. Chem. Soc. 2021, 143, 2325–2330. [Google Scholar] [CrossRef] [PubMed]
  97. Yu, M.; Noble, R.D.; Falconer, J.L. Zeolite membranes: Microstructure characterization and permeation mechanisms. Acc. Chem. Res. 2011, 44, 1196–1206. [Google Scholar] [CrossRef]
  98. Li, Y.; Li, L.; Yu, J. Applications of zeolites in sustainable chemistry. Chem 2017, 3, 928–949. [Google Scholar] [CrossRef]
  99. Chai, Y.; Han, X.; Li, W.; Liu, S.; Yao, S.; Wang, C.; Shi, W.; Da-Silva, I.; Manuel, P.; Cheng, Y.; et al. Control of zeolite pore interior for chemoselective alkyne/olefin separations. Science 2020, 368, 1002–1006. [Google Scholar] [CrossRef] [PubMed]
  100. Li, J.-R.; Sculley, J.; Zhou, H.-C. Metal–organic frameworks for separations. Chem. Rev. 2012, 112, 869–932. [Google Scholar] [CrossRef] [PubMed]
  101. Sumida, K.; Rogow, D.L.; Mason, J.A.; McDonald, T.M.; Bloch, E.D.; Herm, Z.R.; Bae, T.H.; Long, J.R. Carbon dioxide capture in metal–organic frameworks. Chem. Rev. 2012, 112, 724–781. [Google Scholar] [CrossRef]
  102. Mukherjee, S.; Sensharma, D.; Qazvini, O.T.; Dutta, S.; Macreadie, L.K.; Ghosh, S.K.; Babarao, R. Advances in adsorptive separation of benzene and cyclohexane by metal–organic framework adsorbents. Coord. Chem. Rev. 2021, 437, 213852. [Google Scholar] [CrossRef]
  103. Cui, W.-G.; Hu, T.-L.; Bu, X.-H. Metal–organic framework materials for the separation and purification of light hydrocarbons. Adv. Mater. 2019, 32, 1806445. [Google Scholar] [CrossRef]
  104. Fan, H.; Peng, M.; Strauss, I.; Mundstock, A.; Meng, H.; Caro, J. MOF-in-COF molecular sieving membrane for selective hydrogen separation. Nat. Commun. 2021, 12, 38. [Google Scholar] [CrossRef]
  105. Wang, Z.; Zhang, S.; Chen, Y.; Zhang, Z.; Ma, S. Covalent organic frameworks for separation applications. Chem. Soc. Rev. 2020, 49, 708–735. [Google Scholar] [CrossRef] [PubMed]
  106. Eddaoudi, M.; Kim, J.; Rosi, N.; Vodak, D.; Wachter, J.; OÕKeeffe, M.; Yaghi, O.M. Systematic design of pore size and functionality in isoreticular MOFs and their application in methane storage. Science 2002, 295, 469–472. [Google Scholar] [CrossRef] [PubMed]
  107. Huang, N.; Zhai, L.; Coupry, D.E.; Addicoat, M.A.; Okushita, K.; Nishimura, K.; Heine, T.; Jiang, D. Multiple-component covalent organic frameworks. Nat. Commun. 2016, 7, 12325. [Google Scholar] [CrossRef]
  108. An, S.; Xu, Q.; Ni, Z.; Hu, J.; Peng, C.; Zhai, L.; Guo, Y.; Liu, H. Construction of covalent organic frameworks with crown ether struts. Angew. Chem. Int. Ed. 2021, 60, 9959–9963. [Google Scholar] [CrossRef]
  109. Ma, J.; Zhang, Y.; Zhao, B.; Jia, Q. Supramolecular adsorbents in extraction and separation techniques—A review. Anal. Chim. Acta 2020, 1122, 97–113. [Google Scholar] [CrossRef]
  110. Wang, M.; Zhou, J.; Li, E.; Zhou, Y.; Li, Q.; Huang, F. Separation of monochlorotoluene isomers by nonporous adaptive crystals of perethylated pillar[5]arene and pillar[6]arene. J. Am. Chem. Soc. 2019, 141, 17102–17106. [Google Scholar] [CrossRef]
  111. Zhu, W.; Li, E.; Zhou, J.; Zhou, Y.; Sheng, X.; Huang, F. Highly selective removal of heterocyclic impurities from toluene by nonporous adaptive crystals of perethylated pillar[6]arene. Mater. Chem. Front. 2020, 4, 2325–2329. [Google Scholar] [CrossRef]
  112. Wang, M.; Zhou, J. Discovery of non-classical complex models between a cationic water-soluble pillar[6]arene and naphthalenesulfonate derivatives and their self-assembling behaviors. Soft Matter 2019, 15, 4127–4131. [Google Scholar] [CrossRef] [PubMed]
  113. Zhou, S.; Jin, L.; Gu, P.; Tian, L.; Li, N.; Chen, D.; Marcomini, A.; Xu, Q.; Lu, J. Novel calixarene-based porous organic polymers with superfast removal rate and ultrahigh adsorption capacity for selective separation of cationic dyes. Chem. Eng. J. 2022, 433, 134442. [Google Scholar] [CrossRef]
  114. Wang, L.-J.; Bai, S.; Han, Y.-F. Water-soluble self-assembled cage with triangular metal-metal-bonded units enabling the sequential selective separation of alkanes and isomeric molecules. J. Am. Chem. Soc. 2022, 144, 16191–16198. [Google Scholar] [CrossRef]
  115. Zhang, G.; Hua, B.; Dey, A.; Ghosh, M.; Moosa, B.A.; Khashab, N.M. Intrinsically porous molecular materials (IPMs) for natural gas and benzene derivatives separations. Acc. Chem. Res. 2021, 54, 155–168. [Google Scholar] [CrossRef] [PubMed]
  116. Tan, L.-L.; Zhu, Y.; Long, H.; Jin, Y.; Zhang, W.; Yang, Y.-W. Pillar[n]arene-based supramolecular organic frameworks with high hydrocarbon storage and selectivity. Chem. Commun. 2017, 53, 6409–6412. [Google Scholar] [CrossRef]
  117. Guo, S.-T.; Cui, P.-F.; Liu, X.-R.; Jin, G.-X. Synthesis of carborane-backbone metallacycles for highly selective capture of n-pentane. J. Am. Chem. Soc. 2022, 144, 22221–22228. [Google Scholar] [CrossRef]
  118. Wu, J.-R.; Yang, Y.-W. Synthetic macrocycle-based nonporous adaptive crystals for molecular separation. Angew. Chem. Int. Ed. 2021, 60, 1690–1701. [Google Scholar] [CrossRef]
  119. Jie, K.; Zhou, Y.; Li, E.; Huang, F. Nonporous adaptive crystals of pillararenes. Acc. Chem. Res. 2018, 51, 2064–2072. [Google Scholar] [CrossRef]
  120. Yang, W.; Samanta, K.; Wan, X.; Thikekar, T.U.; Chao, Y.; Li, S.; Du, K.; Xu, J.; Gao, Y.; Zuilhof, H.; et al. Tiara[5]arenes: Synthesis, solid-state conformational studies, host–guest properties, and application as nonporous adaptive crystals. Angew. Chem. Int. Ed. 2020, 59, 3994–3999. [Google Scholar] [CrossRef]
  121. Atwood, J.L.; Barbour, L.J.; Jerga, A.; Schottel, B.L. Guest transport in a nonporous organic solid via dynamic van der waals cooperativity. Science 2002, 298, 1000–1002. [Google Scholar] [CrossRef] [PubMed]
  122. Gao, B.; Tan, L.L.; Song, N.; Li, K.; Yang, Y.-W. A high-yield synthesis of [m]biphenyl-extended pillar[n]arenes for an efficient selective inclusion of toluene and m-xylene in the solid state. Chem. Commun. 2016, 52, 5804–5807. [Google Scholar] [CrossRef] [PubMed]
  123. Hurley, D.H.; El-Azab, A.; Bryan, M.S.; Cooper, M.W.D.; Dennett, C.A.; Gofryk, K.; He, L.; Khafizov, M.; Lander, G.H.; Manley, M.E.; et al. Thermal energy transport in oxide nuclear fuel. Chem. Rev. 2022, 122, 3711–3762. [Google Scholar] [CrossRef]
  124. Parsons, J.; Buongiorno, J.; Corradini, M.; Petti, D. A fresh look at nuclear energy. Science 2019, 363, 105. [Google Scholar] [CrossRef] [PubMed]
  125. Wu, J.-R.; Wang, Y.; Yang, Y.-W. Elongated-geminiarene: Syntheses, solid-state conformational investigations, and application in aromatics/cyclic aliphatics separation. Small 2020, 16, e2003490. [Google Scholar] [CrossRef]
  126. Dai, D.; Yang, J.; Zou, Y.-C.; Wu, J.-R.; Tan, L.-L.; Wang, Y.; Li, B.; Lu, T.; Wang, B.; Yang, Y.-W. Macrocyclic arenes-based conjugated macrocycle polymers for highly selective CO2 capture and iodine adsorption. Angew. Chem. Int. Ed. 2021, 60, 8967–8975. [Google Scholar] [CrossRef]
  127. Ma, X.; Zhao, Y. Biomedical applications of supramolecular systems based on host–guest interactions. Chem. Rev. 2015, 115, 7794–7839. [Google Scholar] [CrossRef]
  128. Fenton, O.S.; Olafson, K.N.; Pillai, P.S.; Mitchell, M.J.; Langer, R. Advances in biomaterials for drug delivery. Adv. Mater. 2018, 30, e1705328. [Google Scholar] [CrossRef]
  129. Manzari, M.T.; Shamay, Y.; Kiguchi, H.; Rosen, N.; Scaltriti, M.; Heller, D.A. Targeted drug delivery strategies for precision medicines. Nat. Rev. Mater. 2021, 6, 351–370. [Google Scholar] [CrossRef]
  130. Zhang, J.; Ma, P.X. Cyclodextrin-based supramolecular systems for drug delivery: Recent progress and future perspective. Adv. Drug Deliv. Rev. 2013, 65, 1215–1233. [Google Scholar] [CrossRef]
  131. Yu, G.; Zhu, B.; Shao, L.; Zhou, J.; Saha, M.L.; Shi, B.; Zhang, Z.; Hong, T.; Li, S.; Chen, X.; et al. Host–guest complexation-mediated codelivery of anticancer drug and photosensitizer for cancer photochemotherapy. Proc. Natl. Acad. Sci. USA 2019, 116, 6618–6623. [Google Scholar] [CrossRef] [PubMed]
  132. Vargason, A.M.; Anselmo, A.C.; Mitragotri, S. The evolution of commercial drug delivery technologies. Nat. Biomed. Eng. 2021, 5, 951–967. [Google Scholar] [CrossRef] [PubMed]
  133. Lu, B.; Zhang, Z.; Ji, Y.; Zhou, S.; Jia, B.; Zhang, Y.; Wang, J.; Ding, Y.; Wang, Y.; Yao, Y.; et al. Icing on the cake: Combining a dual PEG-functionalized pillararene and an A-D-A small molecule photosensitizer for multimodal phototherapy. Sci. China Chem. 2022, 65, 1134–1141. [Google Scholar] [CrossRef]
  134. Qin, Y.; Tong, F.; Zhang, W.; Zhou, Y.; He, S.; Xie, R.; Lei, T.; Wang, Y.; Peng, S.; Li, Z.; et al. Self-delivered supramolecular nanomedicine with transformable shape for ferrocene-amplified photodynamic therapy of breast cancer and bone metastases. Adv. Funct. Mater. 2021, 31, 210464. [Google Scholar] [CrossRef]
  135. Mo, R.; Jiang, T.; DiSanto, R.; Tai, W.; Gu, Z. ATP-triggered anticancer drug delivery. Nat. Commun. 2014, 5, 3364. [Google Scholar] [CrossRef] [PubMed]
  136. Yu, G.; Zhou, J.; Chi, X. Pillar[10]arene-based size-selective host-guest complexation and its application in tuning the LCST behavior of a thermoresponsive polymer. Macromol. Rapid Commun. 2015, 36, 23–30. [Google Scholar] [CrossRef]
  137. Wu, D.; Li, Y.; Yang, J.; Shen, J.; Zhou, J.; Hu, Q.; Yu, G.; Tang, G.; Chen, X. Supramolecular nanomedicine constructed from cucurbit[8]uril-based amphiphilic brush copolymer for cancer therapy. ACS Appl. Mater. Interfaces 2017, 9, 44392–44401. [Google Scholar] [CrossRef]
  138. Chen, J.; Meng, Q.; Zhang, Y.; Dong, M.; Zhao, L.; Zhang, Y.; Chen, L.; Chai, Y.; Meng, Z.; Wang, C.; et al. Complexation of an antimicrobial peptide by large-sized macrocycles for decreasing hemolysis and improving stability. Angew. Chem. Int. Ed. 2021, 60, 11288–11293. [Google Scholar] [CrossRef]
  139. Zhao, L.; Chen, J.; Tian, L.; Zhang, Y.; Chen, L.; Du, X.; Ma, M.; Li, J.; Meng, Q.; Li, C. Supramolecular detoxification of macromolecular biotoxin through the complexation by a large-sized macrocycle. Adv. Healthc. Mater. 2022, 11, e2200270. [Google Scholar] [CrossRef]
  140. Du, X.; Ma, M.; Zhang, Y.; Yu, X.; Chen, L.; Zhang, H.; Meng, Z.; Jia, X.; Chen, J.; Meng, Q.; et al. Synthesis of cationic biphen[4, 5]arenes as biofilm disruptors. Angew. Chem. Int. Ed. 2023, 62, e202301857. [Google Scholar] [CrossRef]
  141. Dai, D.; Li, Z.; Yang, J.; Wang, C.; Wu, J.R.; Wang, Y.; Zhang, D.; Yang, Y.-W. Supramolecular assembly-induced emission enhancement for efficient mercury(II) detection and removal. J. Am. Chem. Soc. 2019, 14, 4756–4763. [Google Scholar] [CrossRef]
  142. Ding, Y.; Yu, W.; Wang, J.; Ma, Y.; Wang, C.; Wang, Y.; Lu, B.; Yao, Y. Intelligent supramolecular nanoprodrug based on anionic water-soluble [2]biphenyl-extended-pillar[6]arenes for combination therapy. ACS Macro Lett. 2022, 11, 830–834. [Google Scholar] [CrossRef]
  143. Marimuthu, M.; Arumugam, S.S.; Sabarinathan, D.; Li, H.; Chen, Q. Metal–organic framework based fluorescence sensor for detection of antibiotics. Trends Food Sci. Technol. 2021, 116, 1002–1028. [Google Scholar] [CrossRef]
  144. Sahoo, S.K.; Sharma, D.; Bera, R.K.; Crisponi, G.; Callan, J.F. Iron(III) selective molecular and supramolecular fluorescent probes. Chem. Soc. Rev. 2012, 41, 7195–7227. [Google Scholar] [CrossRef] [PubMed]
  145. Zhou, J.; Zhang, Y.; Yu, G.; Crawley, M.R.; Fulong, C.R.P.; Friedman, A.E.; Sengupta, S.; Sun, J.; Li, Q.; Huang, F.; et al. Highly emissive self-assembled BODIPY-platinum supramolecular triangles. J. Am. Chem. Soc. 2018, 140, 7730–7736. [Google Scholar] [CrossRef]
  146. Shi, B.; Jie, K.; Zhou, Y.; Zhou, J.; Xia, D.; Huang, F. Nanoparticles with near-infrared emission enhanced by pillararene-based molecular recognition in water. J. Am. Chem. Soc. 2016, 138, 80–83. [Google Scholar] [CrossRef]
  147. Guo, C.; Sedgwick, A.C.; Hirao, T.; Sessler, J.L. Supramolecular fluorescent sensors: An historical overview and update. Coord. Chem. Rev. 2021, 427, 213560. [Google Scholar] [CrossRef] [PubMed]
  148. Hong, Y.; Lam, J.W.Y.; Tang, B.Z. Aggregation-induced emission. Chem. Soc. Rev. 2011, 40, 5361–5388. [Google Scholar] [CrossRef]
  149. Zhou, J.; Yu, G.; Huang, F. AIE opens new applications in super-resolution imaging. J. Mater. Chem. B 2016, 4, 7761–7765. [Google Scholar] [CrossRef] [PubMed]
  150. Ding, D.; Li, K.; Liu, B.; Tang, B.Z. Bioprobes based on AIE fluorogens. Acc. Chem. Res. 2013, 46, 2441–2453. [Google Scholar] [CrossRef] [PubMed]
  151. Li, S.; Liu, K.; Feng, X.-C.; Li, Z.-X.; Zhang, Z.-Y.; Wang, B.; Li, M.; Bai, Y.-L.; Cui, L.; Li, C. Synthesis and macrocyclization-induced emission enhancement of benzothiadiazole-based macrocycle. Nat. Commun. 2022, 13, 2850. [Google Scholar] [CrossRef] [PubMed]
  152. Liu, A.; Meng, X.; Shen, C.-C.; Zhang, Z.-Y.; Li, C. Facile synthesis of heterogeneous macrocycles for intramolecular energy transfer. Chem. Commun. 2022, 58, 12684–12687. [Google Scholar] [CrossRef] [PubMed]
Molecules 28 04422 g001 550

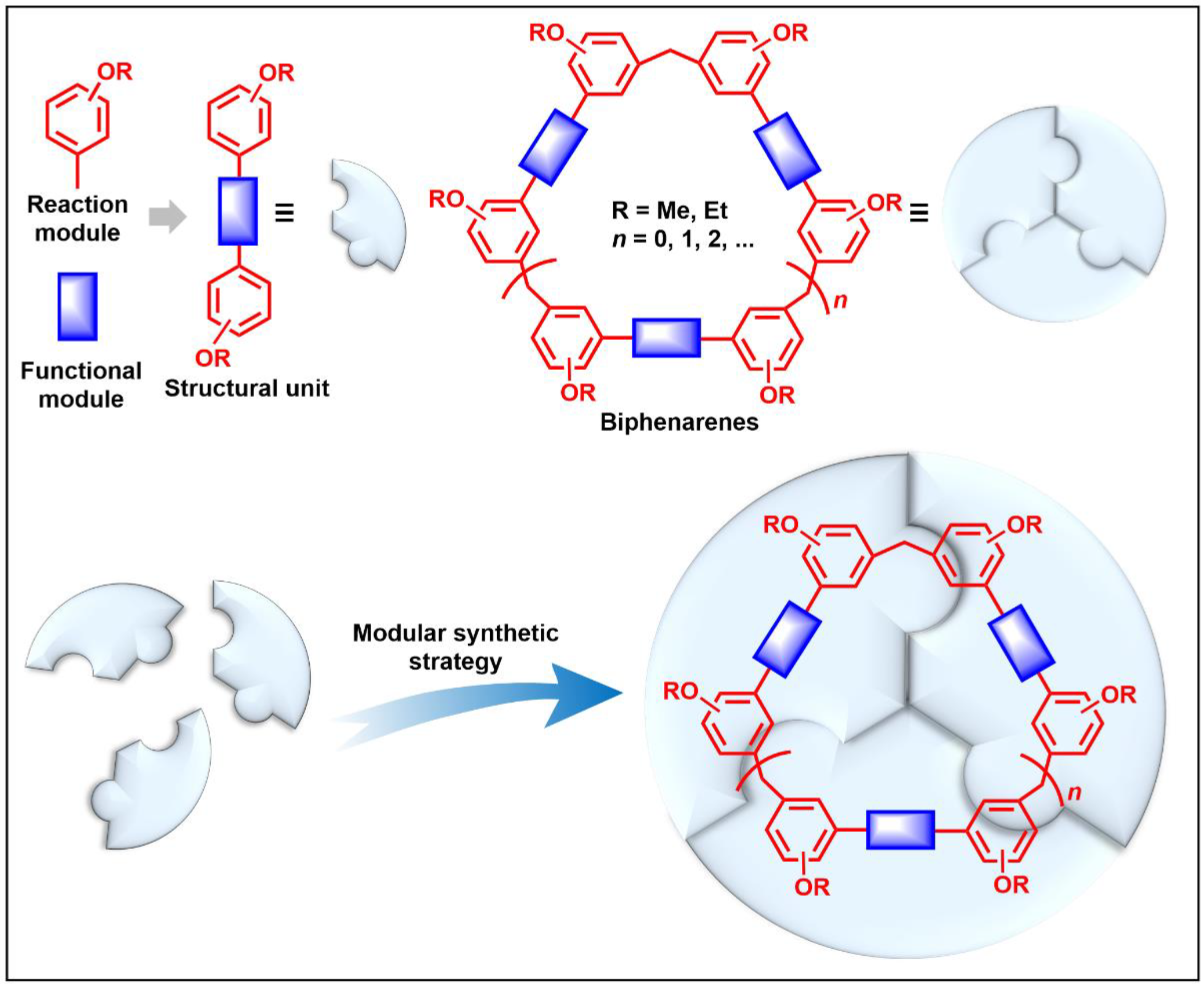

Figure 1. Modular synthetic strategy of biphenarenes.
Figure 1. Modular synthetic strategy of biphenarenes.
Molecules 28 04422 g001
Molecules 28 04422 g002 550

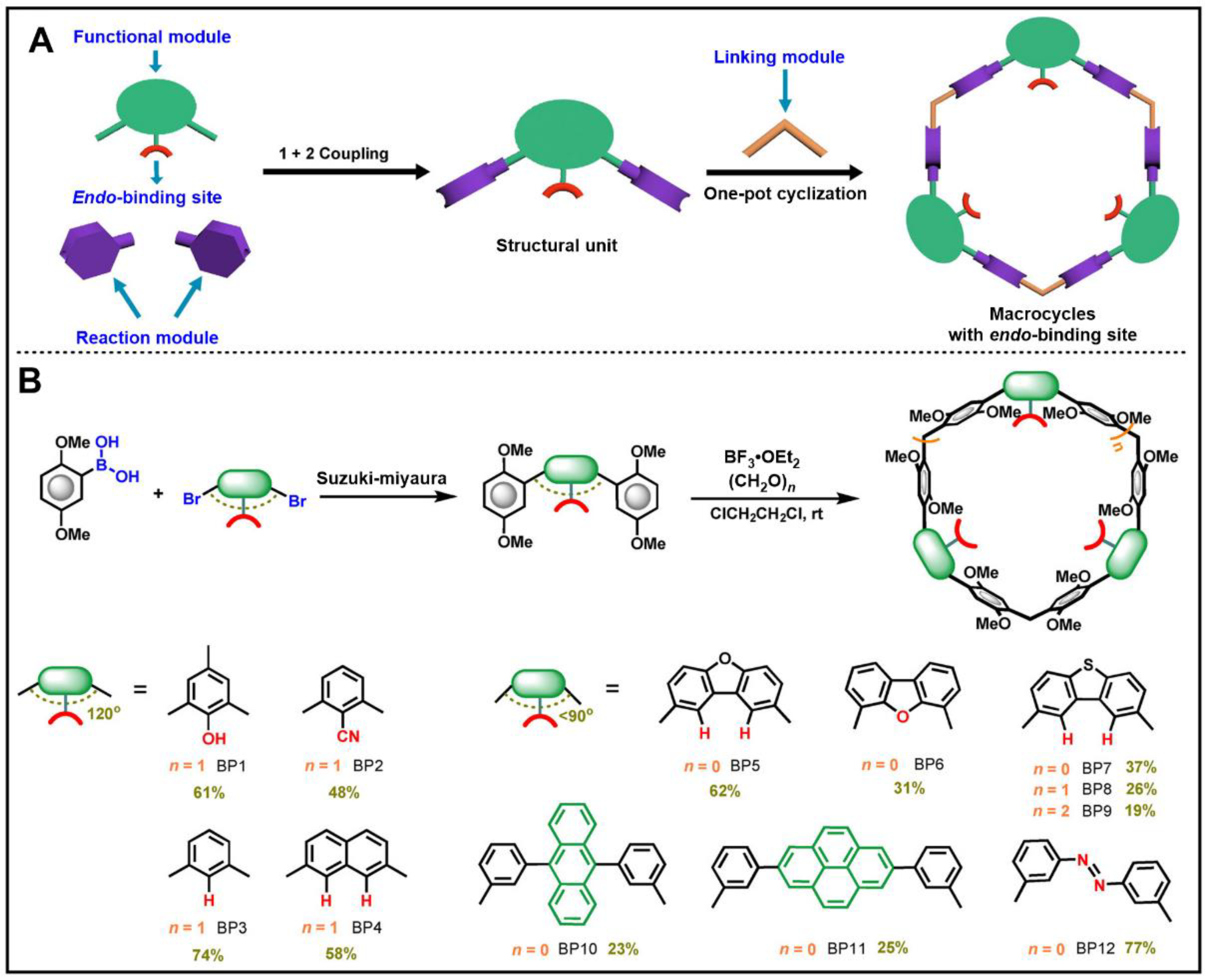

Figure 2. (A) Cartoon representation of modular introduction of endo-binding sites in macrocyclic cavity. (B) Modular synthesis of macrocycles with customizable endo-binding sites. Reproduced from ref. [47] with permission from John Wiley and Sons.
Figure 2. (A) Cartoon representation of modular introduction of endo-binding sites in macrocyclic cavity. (B) Modular synthesis of macrocycles with customizable endo-binding sites. Reproduced from ref. [47] with permission from John Wiley and Sons.
Molecules 28 04422 g002
Molecules 28 04422 g003 550
Figure 3. (A) Structures of biphenarenes and cationic guests. (B) 1H NMR spectra of (I) G2, (II) G2 + H1 and (III) H1. (C) Color changes of G2 and G5 after complexing with H1. Reproduced from ref. [78] with permission from the Royal Society of Chemistry.
Figure 3. (A) Structures of biphenarenes and cationic guests. (B) 1H NMR spectra of (I) G2, (II) G2 + H1 and (III) H1. (C) Color changes of G2 and G5 after complexing with H1. Reproduced from ref. [78] with permission from the Royal Society of Chemistry.
Molecules 28 04422 g003
Molecules 28 04422 g004 550

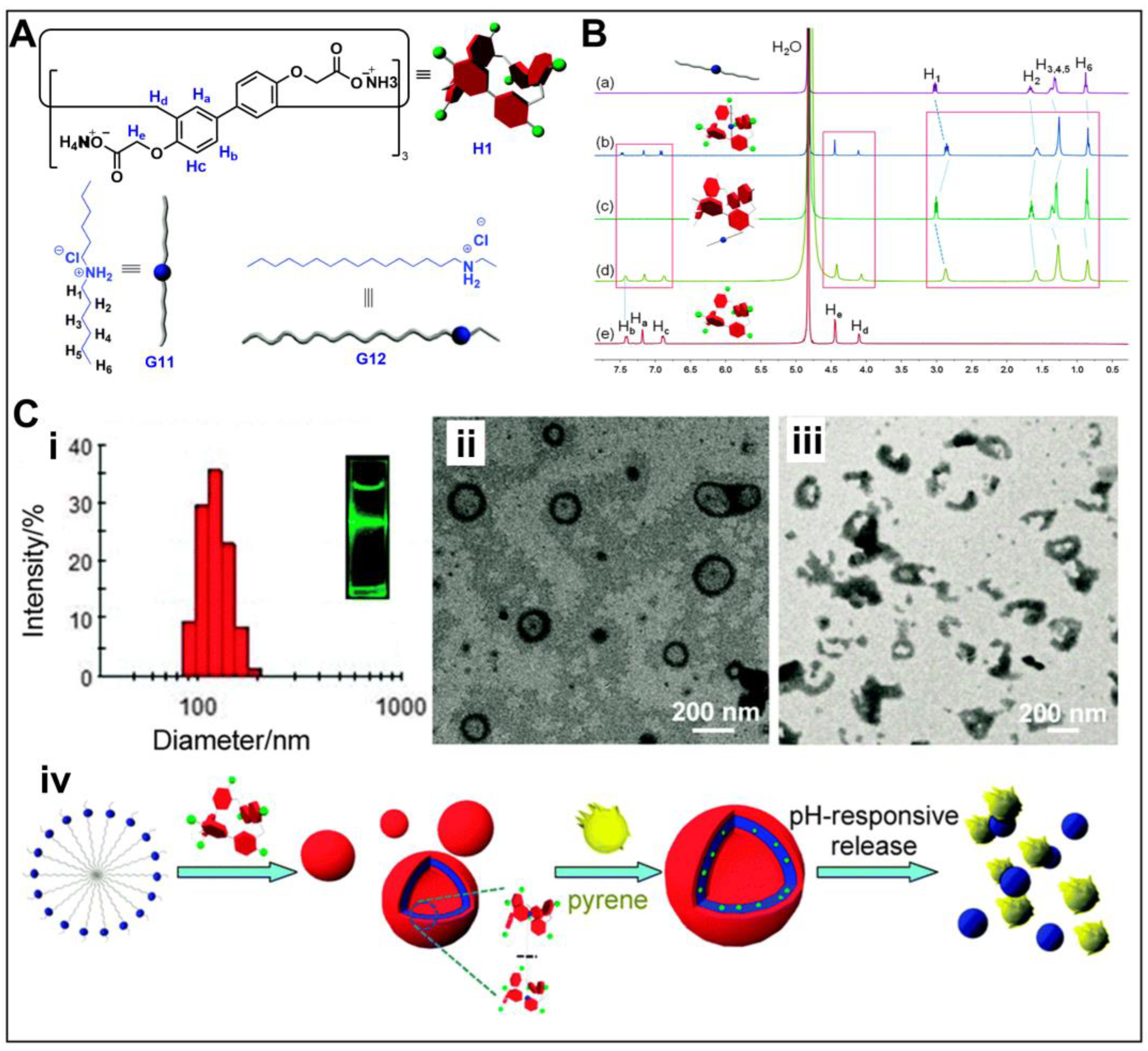

Figure 4. (A) Structures of H1, G11 and G12. (B) 1H NMR spectra: (a) G11; (b) H1 and G11; (c) after addition of 2 µL of aqueous DCl solution (35 wt%) to (b); (d) after addition of 3.5 µL of aqueous NaOD solution (30 wt%) to (c); (e) H1 (1.00 mM) (Red boxes, 1H NMR spectra change of H1 before and after addition of DCl and NAOD). (C) Self-assembling behaviors of H1⸧G12 (i) DLS data of H1⸧G12 aggregates; TEM images: (ii) H1⸧G12 aggregates; (iii) H1⸧G12 aggregates after the solution pH was adjusted to 4.0; (iv) illustration of the formation of the aggregates and the process of pH-responsive release of pyrene molecules. Reproduced from ref. [77] with permission from the Royal Society of Chemistry.
Figure 4. (A) Structures of H1, G11 and G12. (B) 1H NMR spectra: (a) G11; (b) H1 and G11; (c) after addition of 2 µL of aqueous DCl solution (35 wt%) to (b); (d) after addition of 3.5 µL of aqueous NaOD solution (30 wt%) to (c); (e) H1 (1.00 mM) (Red boxes, 1H NMR spectra change of H1 before and after addition of DCl and NAOD). (C) Self-assembling behaviors of H1⸧G12 (i) DLS data of H1⸧G12 aggregates; TEM images: (ii) H1⸧G12 aggregates; (iii) H1⸧G12 aggregates after the solution pH was adjusted to 4.0; (iv) illustration of the formation of the aggregates and the process of pH-responsive release of pyrene molecules. Reproduced from ref. [77] with permission from the Royal Society of Chemistry.
Molecules 28 04422 g004
Molecules 28 04422 g005 550

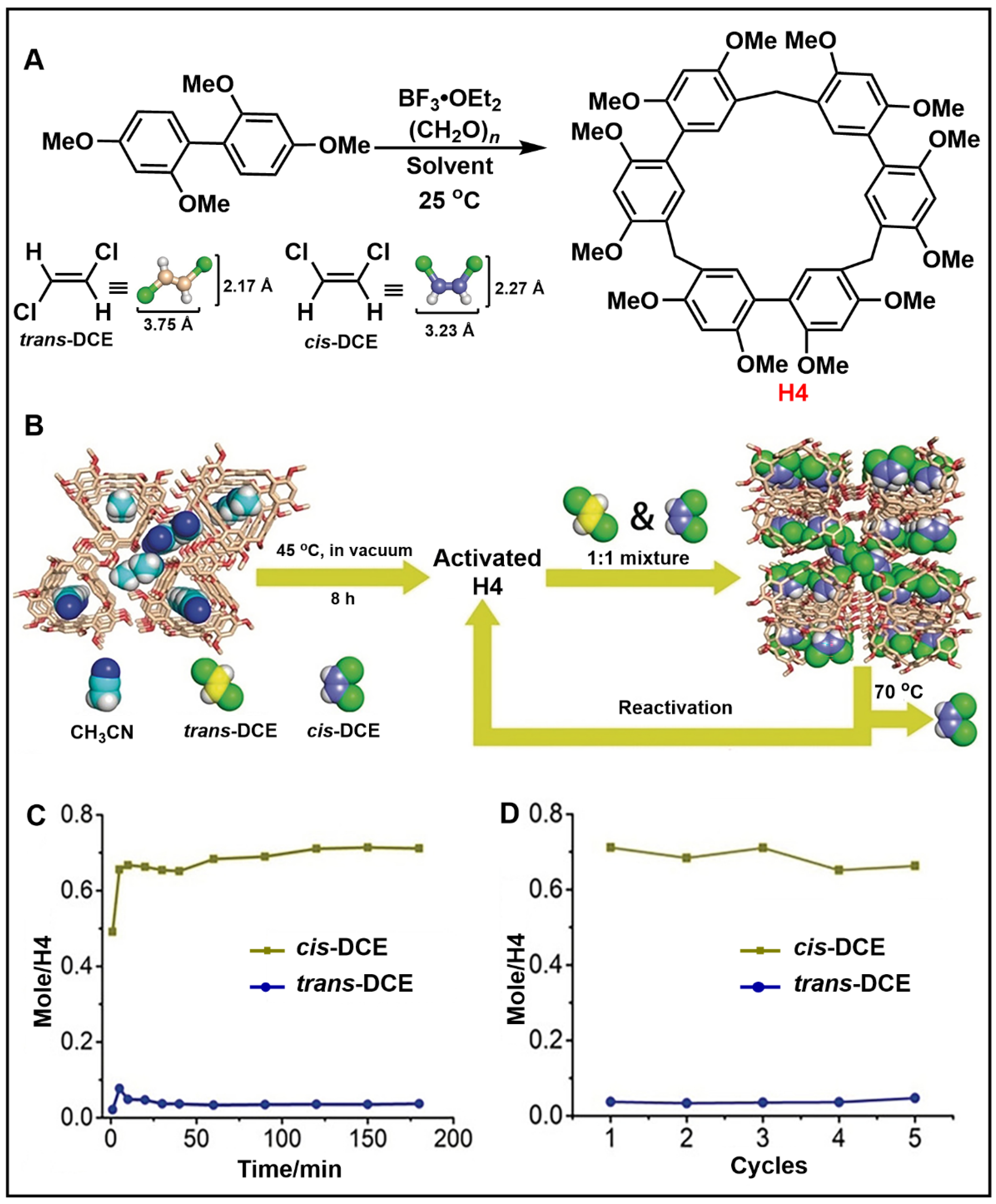

Figure 5. (A) Synthesis of H4 and structures of cis-DCE and trans-DCE. (B) Schematic representation of purification of the DCE isomer by H4. (C) Time-dependent solid–vapor adsorption plots of H4α. (D) Cyclic adsorption capacities of H4α. Reproduced from ref. [44] with permission from John Wiley and Sons.
Figure 5. (A) Synthesis of H4 and structures of cis-DCE and trans-DCE. (B) Schematic representation of purification of the DCE isomer by H4. (C) Time-dependent solid–vapor adsorption plots of H4α. (D) Cyclic adsorption capacities of H4α. Reproduced from ref. [44] with permission from John Wiley and Sons.
Molecules 28 04422 g005
Molecules 28 04422 g006 550

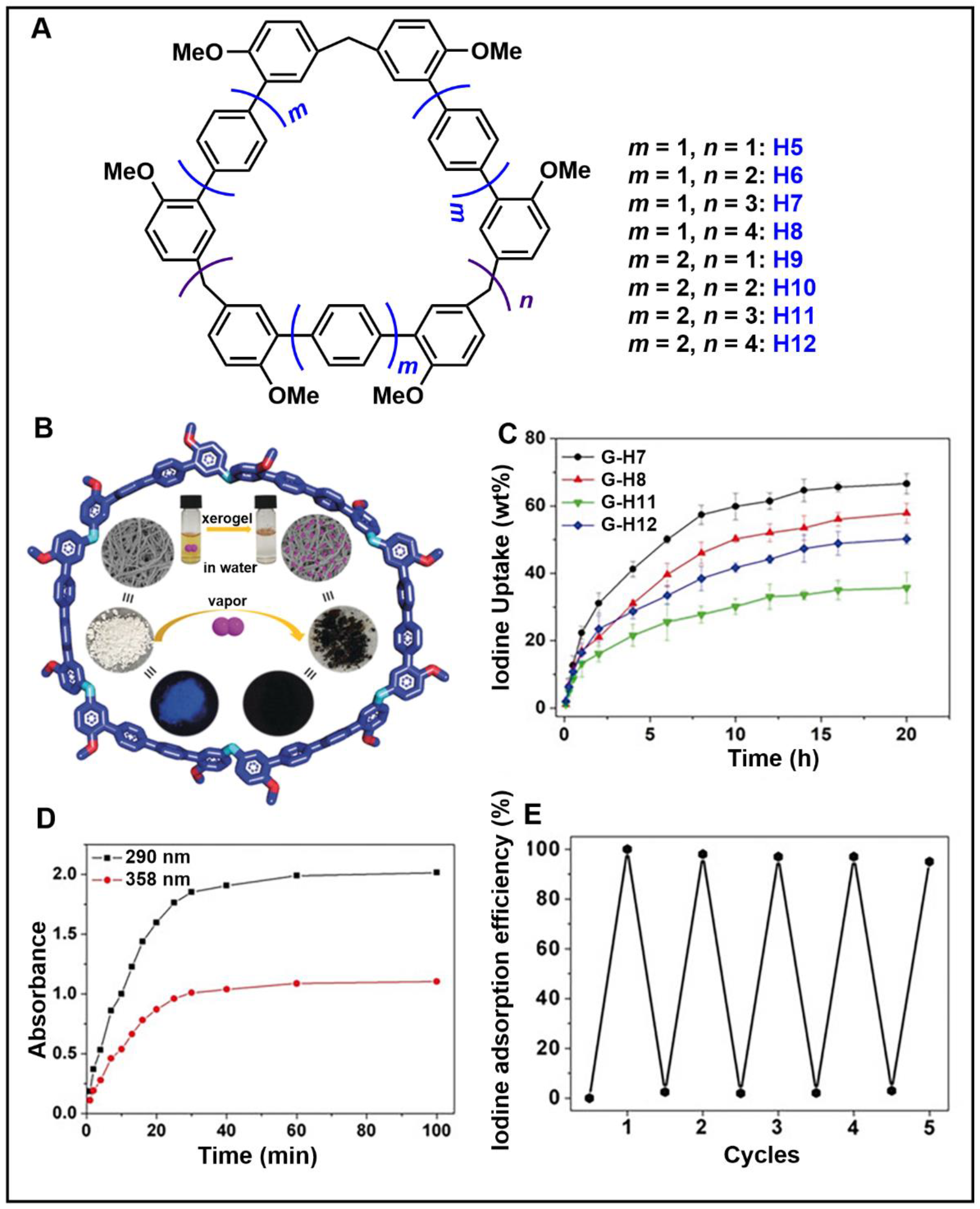

Figure 6. (A) Structures of H5-H12. (B) Schematic representation of the iodine capture process. (C) Time-dependent iodine uptake by xerogels. (D) Top: color changes of G-H7 after adsorption of iodine; bottom: fluorescence images of G-H7 and iodine@G-H7 under a UV lamp (365 nm). (E) Cyclic adsorption and desorption efficiencies of G-H7 for iodine. Reproduced from ref. [61] with permission from John Wiley and Sons.
Figure 6. (A) Structures of H5-H12. (B) Schematic representation of the iodine capture process. (C) Time-dependent iodine uptake by xerogels. (D) Top: color changes of G-H7 after adsorption of iodine; bottom: fluorescence images of G-H7 and iodine@G-H7 under a UV lamp (365 nm). (E) Cyclic adsorption and desorption efficiencies of G-H7 for iodine. Reproduced from ref. [61] with permission from John Wiley and Sons.
Molecules 28 04422 g006
Molecules 28 04422 g007 550

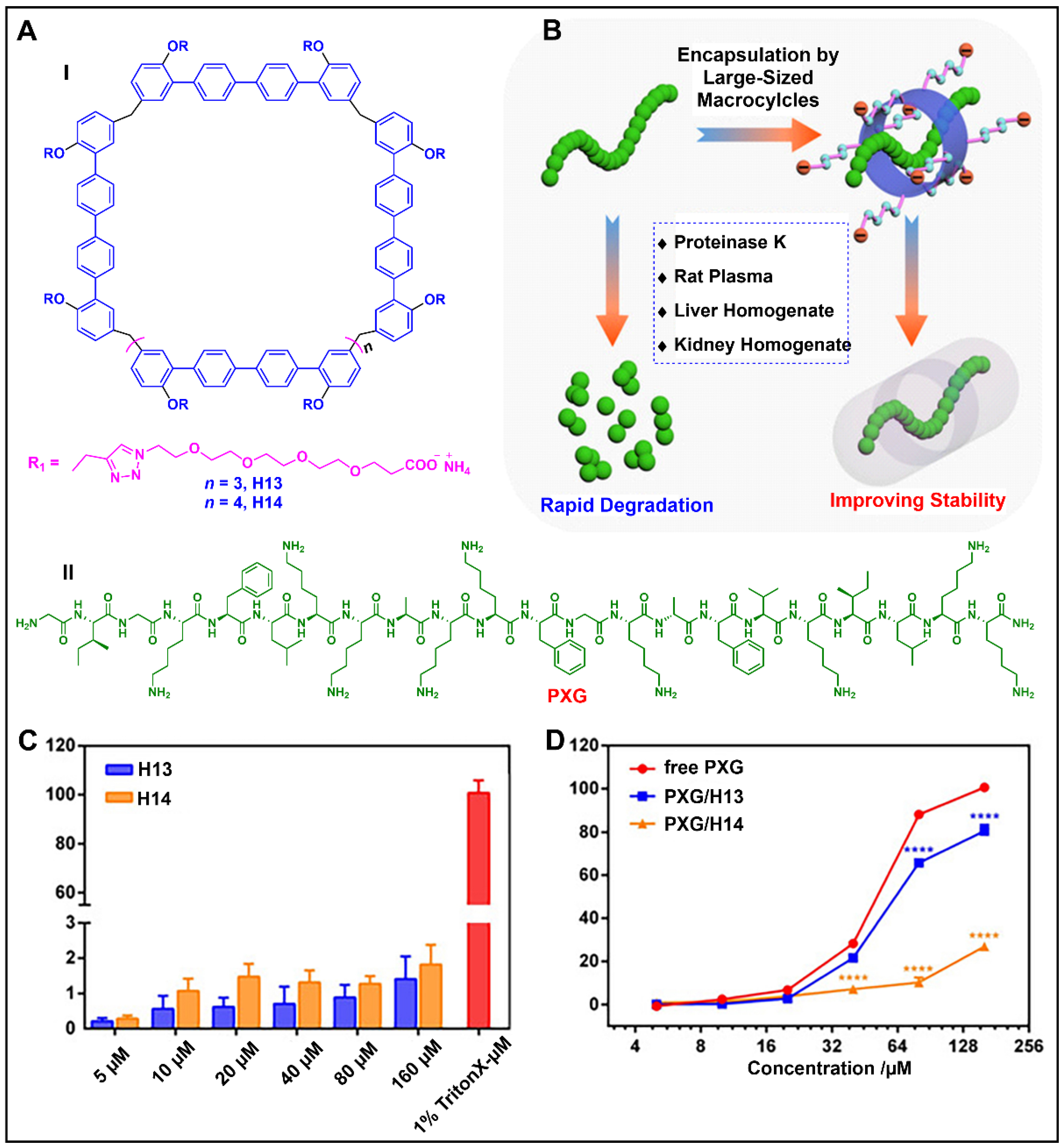

Figure 7. (A) Structure of quaterphen[n]arenes (H13, H14) (I) and PXG (II). (B) Schematic representation of H13/H14 improving the metabolic stability of a peptide. (C) Hemolysis of H13 and H14 toward rRBCs, rRBCs incubated with 1% Triton X-100 were used as a positive control. (D) Cytotoxicity of free PXG and PXG complex, ☆☆☆☆ p < 0.0001. Reproduced from ref. [138] with permission from John Wiley and Sons.
Figure 7. (A) Structure of quaterphen[n]arenes (H13, H14) (I) and PXG (II). (B) Schematic representation of H13/H14 improving the metabolic stability of a peptide. (C) Hemolysis of H13 and H14 toward rRBCs, rRBCs incubated with 1% Triton X-100 were used as a positive control. (D) Cytotoxicity of free PXG and PXG complex, ☆☆☆☆ p < 0.0001. Reproduced from ref. [138] with permission from John Wiley and Sons.
Molecules 28 04422 g007
Molecules 28 04422 g008 550

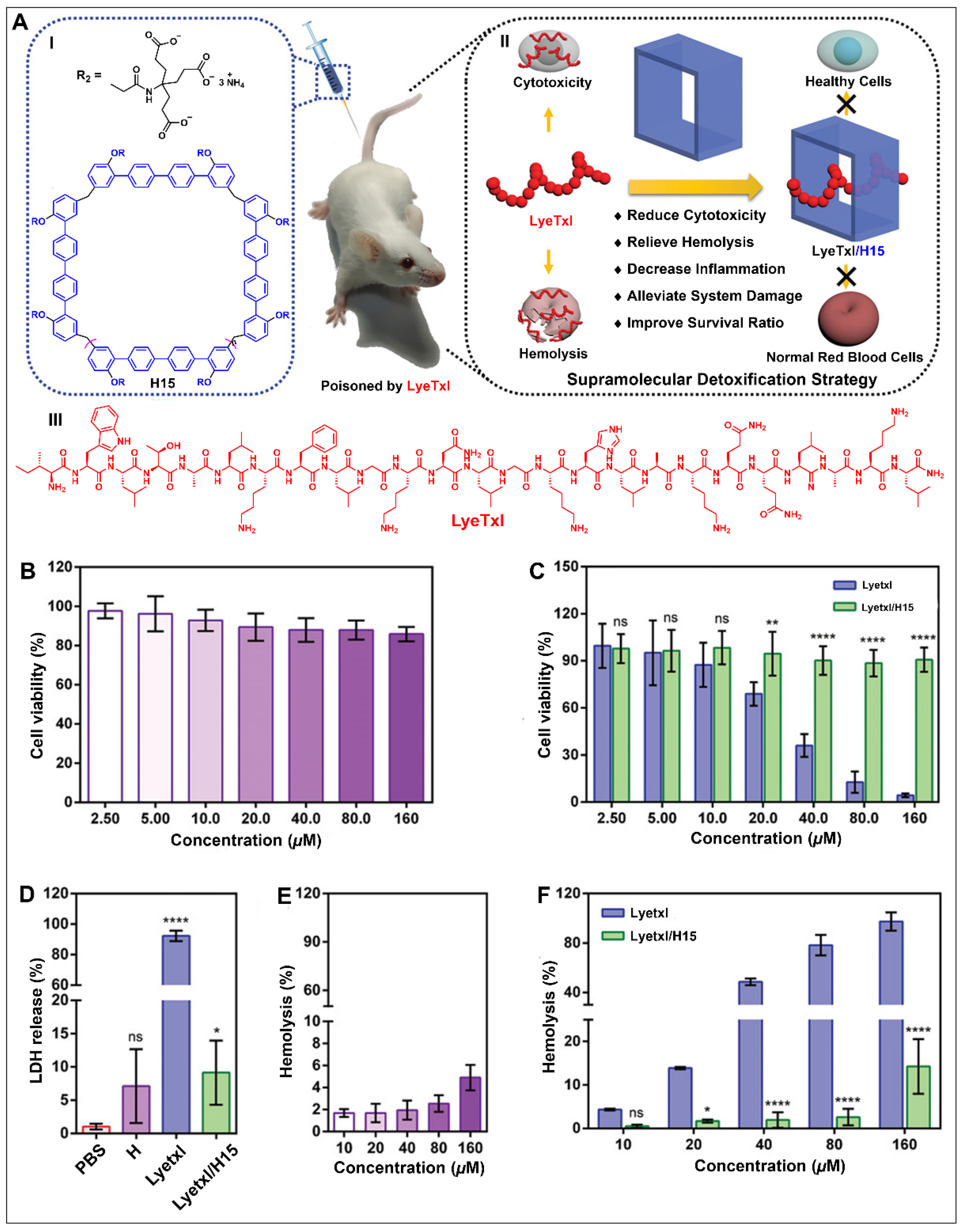

Figure 8. (A) Structure of quaterphen[n]arenes (H15) (I), schematic illustration of H15 as a supramolecular antidote against LyeTxI (II) and structure of LyeTxI (III). (B) Viability of human normal renal epithelial cells (293T) cells treated with different concentrations of H15. (C) Viability of 293T cells administered with different concentrations of free LyeTxI and LyeTxI/H15. (D) LDH release of 293T cells treated with LyeTxI in the absence and presence of H15. (E) Hemolysis of H15 toward rRBCs. (F) Hemolytic activity of free LyeTxI and LyeTxI/H15. ns, not significant. ☆ p < 0.05, ☆☆ p < 0.01, ☆☆☆☆ p < 0.0001. Reproduced from ref. [139] with permission from John Wiley and Sons.
Figure 8. (A) Structure of quaterphen[n]arenes (H15) (I), schematic illustration of H15 as a supramolecular antidote against LyeTxI (II) and structure of LyeTxI (III). (B) Viability of human normal renal epithelial cells (293T) cells treated with different concentrations of H15. (C) Viability of 293T cells administered with different concentrations of free LyeTxI and LyeTxI/H15. (D) LDH release of 293T cells treated with LyeTxI in the absence and presence of H15. (E) Hemolysis of H15 toward rRBCs. (F) Hemolytic activity of free LyeTxI and LyeTxI/H15. ns, not significant. ☆ p < 0.05, ☆☆ p < 0.01, ☆☆☆☆ p < 0.0001. Reproduced from ref. [139] with permission from John Wiley and Sons.
Molecules 28 04422 g008
Molecules 28 04422 g009 550

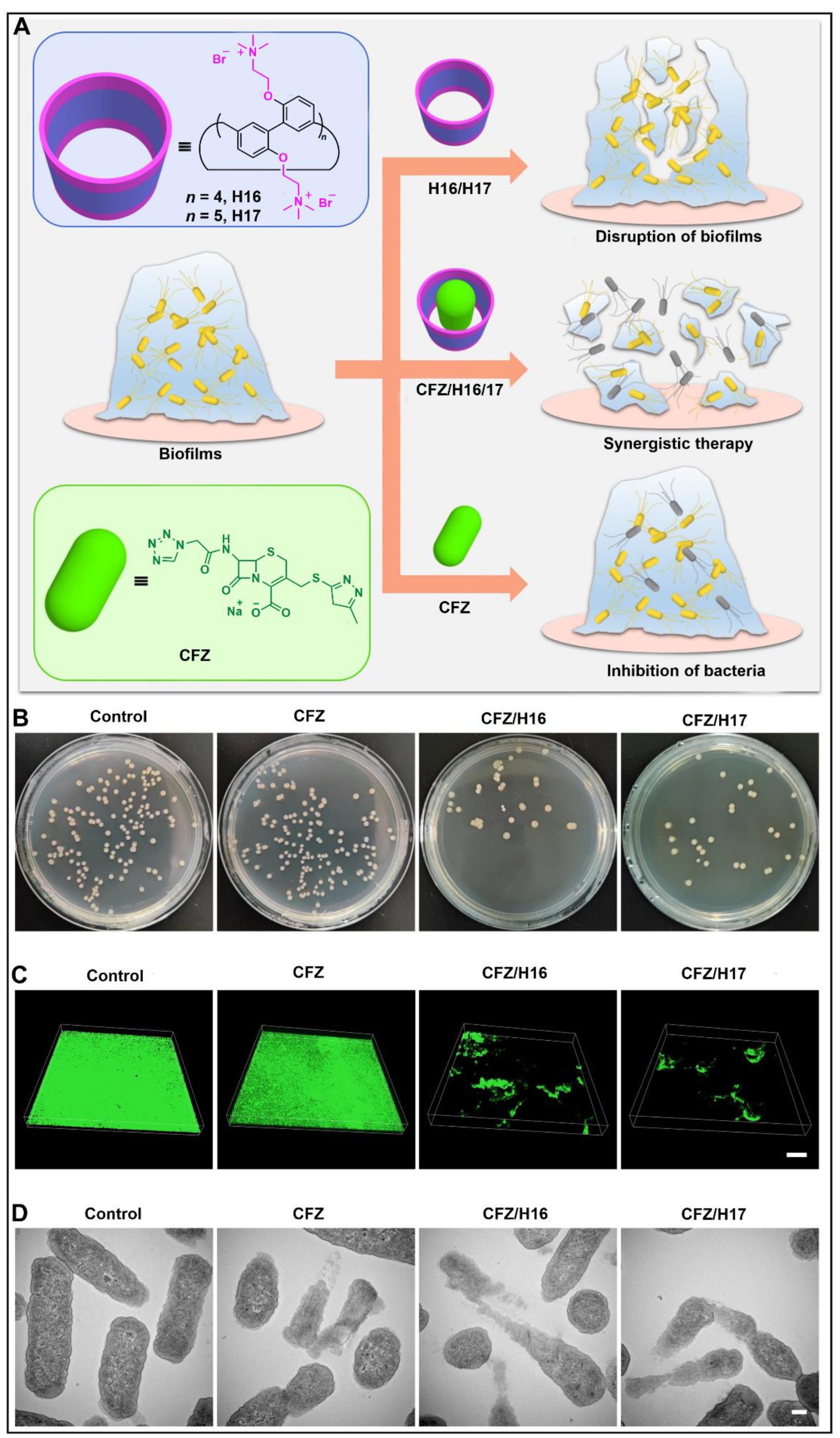

Figure 9. (A) Structures of H16, H17 and CFZ, and schematic illustration of supramolecular synergistic antibacterial strategy. (B) Images of colony-forming units of E. coli after different treatments. (C) CLSM 3D images of E. coli biofilms after different treatments. (D) TEM images of ultrathin sections of E. coli after different treatments. Reproduced from ref. [140] with permission from John Wiley and Sons.
Figure 9. (A) Structures of H16, H17 and CFZ, and schematic illustration of supramolecular synergistic antibacterial strategy. (B) Images of colony-forming units of E. coli after different treatments. (C) CLSM 3D images of E. coli biofilms after different treatments. (D) TEM images of ultrathin sections of E. coli after different treatments. Reproduced from ref. [140] with permission from John Wiley and Sons.
Molecules 28 04422 g009
Molecules 28 04422 g010 550

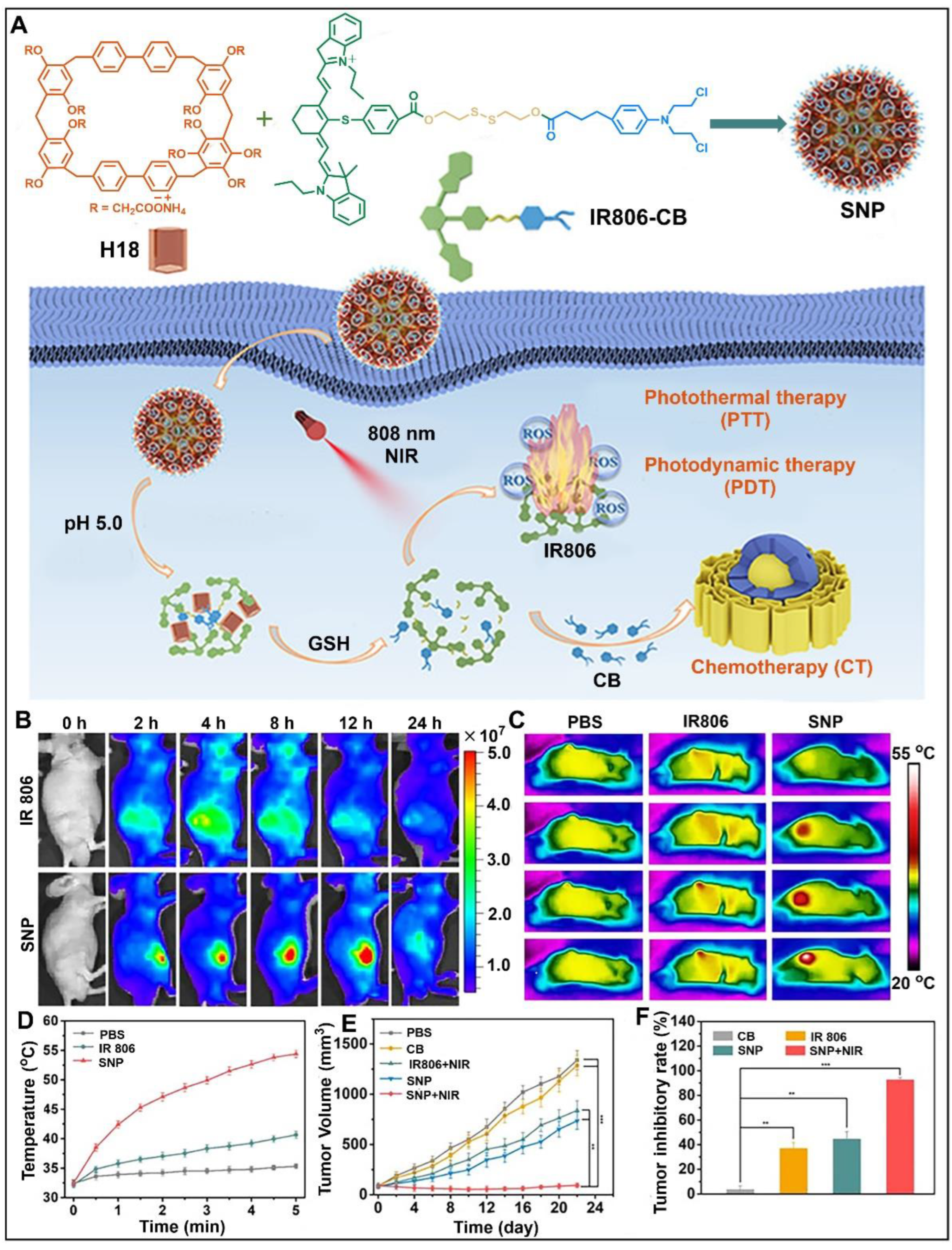

Figure 10. (A) Schematic illustration of the fabrication of supramolecular nanoprodrug SNP and the mechanism of PDT-PTT-CT combination therapy. (B) In vivo fluorescent imaging of HeLa tumor-bearing mice after intravenous injection of IR806 and SNP at selected time intervals. (C) Near-infrared thermal images and (D) temperature profiles of mice treated with free IR806 or SNP under NIR irradiation. (E) Tumor volume changes and (F) tumor inhibition rates for different groups. ☆☆ p < 0.01, ☆☆☆ p < 0.001. Reproduced from ref. [142] with permission from the American Chemical Society.
Figure 10. (A) Schematic illustration of the fabrication of supramolecular nanoprodrug SNP and the mechanism of PDT-PTT-CT combination therapy. (B) In vivo fluorescent imaging of HeLa tumor-bearing mice after intravenous injection of IR806 and SNP at selected time intervals. (C) Near-infrared thermal images and (D) temperature profiles of mice treated with free IR806 or SNP under NIR irradiation. (E) Tumor volume changes and (F) tumor inhibition rates for different groups. ☆☆ p < 0.01, ☆☆☆ p < 0.001. Reproduced from ref. [142] with permission from the American Chemical Society.
Molecules 28 04422 g010
Molecules 28 04422 g011 550

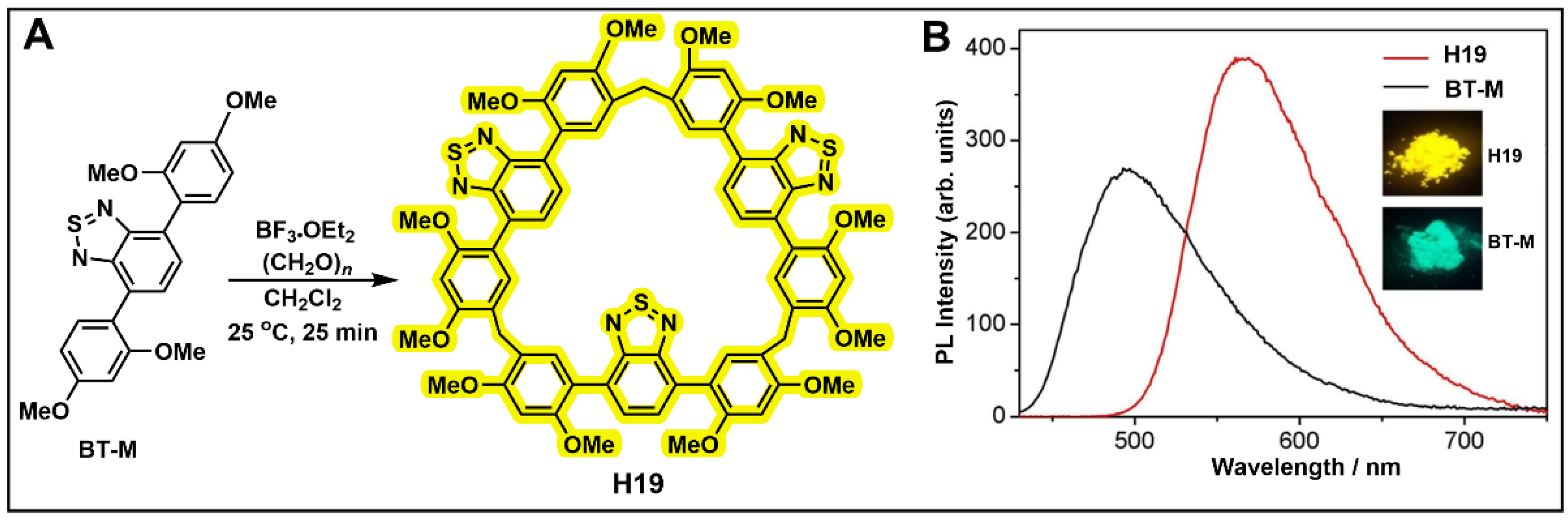

Figure 11. (A) The synthetic route of H19. (B) Photoluminescence spectra of BT m and H19 in the solid state. (reproduced with permission of Springer Nature from ref. [151]).
Figure 11. (A) The synthetic route of H19. (B) Photoluminescence spectra of BT m and H19 in the solid state. (reproduced with permission of Springer Nature from ref. [151]).
Molecules 28 04422 g011
Molecules 28 04422 g012 550

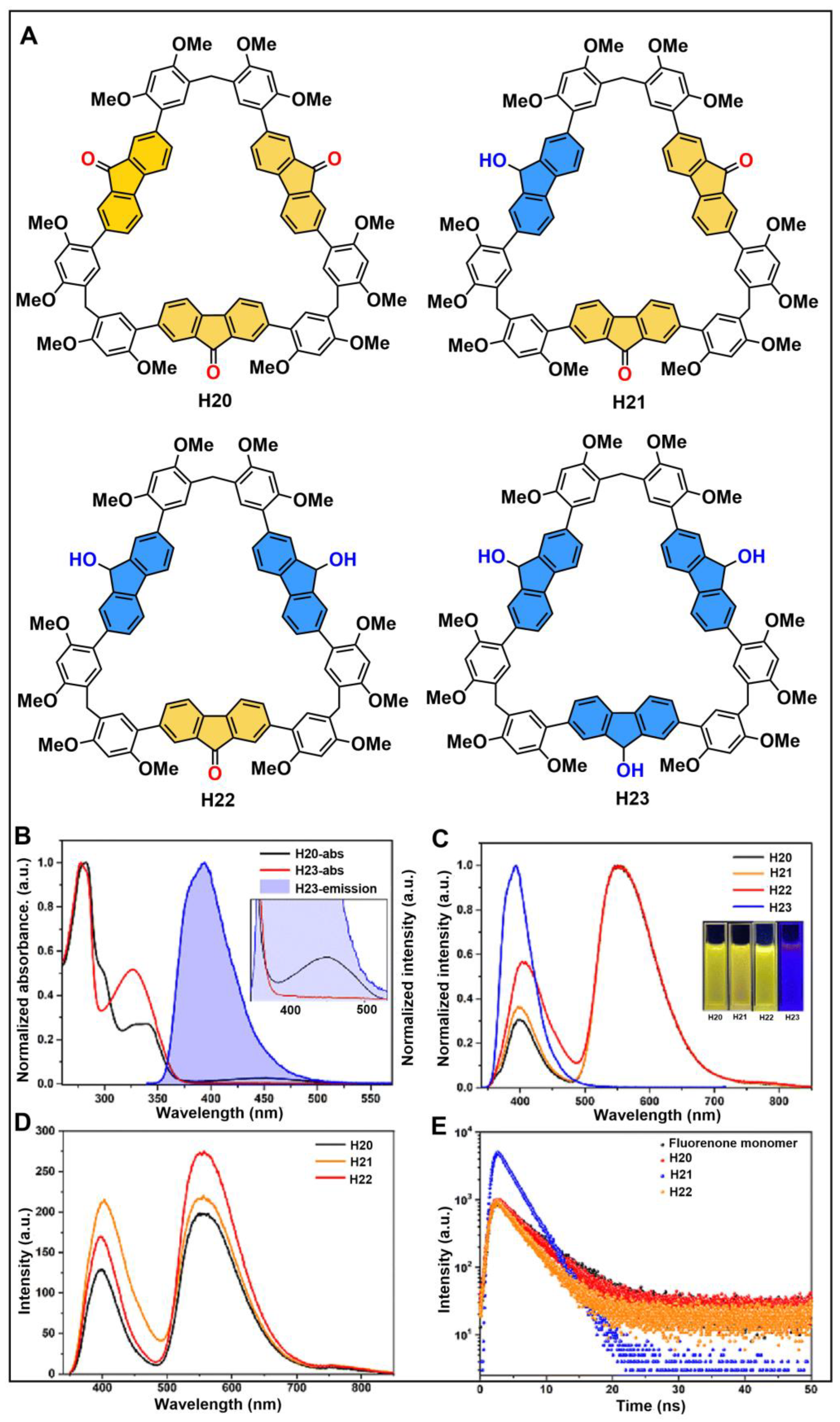

Figure 12. (A) Structures of heterogeneous macrocycles. (B) UV-vis spectra of H20, H23 and photoluminescence spectra of H3. (C) Normalized photoluminescence spectra of H20, H21, H22 and H23. (D) Photoluminescence spectra of H20, H21 and H22. (E) Time-resolved PL decay of fluorenone monomer, H20, H21 and H22. Reproduced from ref. [152] with permission from the Royal Society of Chemistry.
Figure 12. (A) Structures of heterogeneous macrocycles. (B) UV-vis spectra of H20, H23 and photoluminescence spectra of H3. (C) Normalized photoluminescence spectra of H20, H21, H22 and H23. (D) Photoluminescence spectra of H20, H21 and H22. (E) Time-resolved PL decay of fluorenone monomer, H20, H21 and H22. Reproduced from ref. [152] with permission from the Royal Society of Chemistry.
Molecules 28 04422 g012
Table
Table 2. Chemical structures and diameters of typical biphenarenes.
Table 2. Chemical structures and diameters of typical biphenarenes.
Macrocyclic HostChemical StructureDiameter (Å)Ref.
Terphen[3]areneMolecules 28 04422 i0099.86[61]
Terphen[4]areneMolecules 28 04422 i01013.85[61]
Terphen[5]areneMolecules 28 04422 i01116.47[49]
Terphen[6]areneMolecules 28 04422 i01221.59[49]
Quaterphen[3]areneMolecules 28 04422 i01315.76[61]
Quaterphen[4]areneMolecules 28 04422 i01417.86[61]
Quaterphen[5]areneMolecules 28 04422 i01521.48[61]
Quaterphen[6]areneMolecules 28 04422 i01630.82[61]
Table
Table 3. Association constants (Ka) for the host–guest complexes of biphenarenes with different guests.
Table 3. Association constants (Ka) for the host–guest complexes of biphenarenes with different guests.
HostGuestSolventKa (M−1)
H1G1D2O(1.1 ± 0.2) × 104
H1G2D2O(2.4 ± 0.1) × 104
H1G3D2O(5.1 ± 0.3) × 104
H1G4D2O(4.7 ± 0.4) × 103
H1G5D2O(9.6 ± 1.7) × 103
H1G6D2O(1.5 ± 0.2) × 103
H3G7acetone-d6(0.32 ± 0.04) × 102
H3G8acetone-d6(1.6 ± 0.2) × 102
H3G9acetonitrile-d3(2.4 ± 0.3) × 102
H3G10acetone-d6/CD2Cl2
(1:1, v/v)		(3.1 ± 0.3) × 103
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, W.; Yang, W.; Zhou, J. Biphenarenes, Versatile Synthetic Macrocycles for Supramolecular Chemistry. Molecules 2023, 28, 4422. https://doi.org/10.3390/molecules28114422

AMA Style

Zhang W, Yang W, Zhou J. Biphenarenes, Versatile Synthetic Macrocycles for Supramolecular Chemistry. Molecules. 2023; 28(11):4422. https://doi.org/10.3390/molecules28114422

Chicago/Turabian Style

Zhang, Wenjie, Wenzhi Yang, and Jiong Zhou. 2023. "Biphenarenes, Versatile Synthetic Macrocycles for Supramolecular Chemistry" Molecules 28, no. 11: 4422. https://doi.org/10.3390/molecules28114422

Article Metrics

Back to TopTop
