Phosphorus Doping Strategy-Induced Synergistic Modification of Interlayer Structure and Chemical State in Ti₃C₂T_x toward Enhancing Capacitance

Abstract

Heteroatom doping is considered an effective method to substantially improve the electrochemical performance of Ti₃C₂T_x MXene for supercapacitors. Herein, a facile and controllable strategy, which combines heat treatment with phosphorous (P) doping by using sodium phosphinate (NaH₂PO₂) as a phosphorus source, is used to modify Ti₃C₂T_x. The intercalated ions from NaH₂PO₂ act as “pillars” to expand the interlayer space of MXene, which is conducive to electrolyte ion diffusion. On the other hand, P doping tailors the surface electronic state of MXene, optimizing electronic conductivity and reducing the free energy of H⁺ diffusion on the MXene surface. Meanwhile, P sites with lower electronegativity owning good electron donor characteristics are easy to share electrons with H⁺, which is beneficial to charge storage. Moreover, the adopted heat treatment replaces –F terminations with O-containing groups, which enhances the hydrophilicity and provides sufficient active sites. The change in surface functional groups increases the content of high valence-stated Ti with a high electrochemical activity that can accommodate more electrons during discharge. Synergistic modification of interlayer structure and chemical state improves the possibility of Ti₃C₂T_x for accommodating more H⁺ ions. Consequently, the modified electrode delivers a specific capacitance of 510 F g⁻¹ at 2 mV s⁻¹, and a capacitance retention of 90.2% at 20 A g⁻¹ after 10,000 cycles. The work provides a coordinated strategy for the rational design of high-capacitance Ti₃C₂T_x MXene electrodes.

1. Introduction

Electrochemical energy storage devices are considered one of the most promising energy storage technologies to solve the global energy crisis, with batteries and supercapacitors as the two main devices [1,2]. In particular, supercapacitors have significant advantages such as high specific energy, high power density, long cycle life, and rapid charging and discharge [3,4,5], which can be classified into electrical double layer capacitors (EDLCs) and pseudocapacitors (PCs) [6]. EDLCs tend to exhibit lower energy density due to the limited accessible surface area, instead, PCs can store more charges by their Faradaic redox mechanism [7,8]. However, most well-studied pseudocapacitive materials, such as conducting polymers and transition metal oxides, suffer from volumetric swelling/contraction, limited cycling performance, and high electrode resistance [9,10]. Thus, the exploration of new electrode materials with outstanding electrochemical performance is an imminent challenge for developing high-performance energy storage devices.

MXene, a family of two-dimensional (2D) transition metal carbide/nitride, has attracted great attention as a pseudocapacitive electrode material in electrochemical energy storage due to its good conductivity, excellent hydrophilicity, large specific surface area, high mechanical strength, and adjustable interlayer spacing [11,12,13,14,15,16,17]. The most promising type of MXene, Ti₃C₂T_x, is obtained by etching Al layers in the Ti₃AlC₂ MAX phase with HF [18,19,20], HCl–LiF [21], or Lewis acidic molten salt [22], where T represents terminal groups –O, –OH, or –F on the surface of Ti₃C₂T_x, and x is the number of terminal groups [23,24]. In H₂SO₄ electrolyte, Ti₃C₂T_x has a high theoretical capacitance due to the efficient electric double layer (EDL) charge accumulation in the interlayer space and the fast pseudocapacitive proton insertion/desertion by surface redox reactions [25].

Generally, the capacitive performance of MXene is primarily determined by its surface chemistry state, which dictates the interaction mechanism and binding strength between the adsorbates and MXenes and thus contributes to the electrochemical performance [26]. Among the terminations of MXene (–O, –OH, –F), –O groups with lower electronegativity (3.5) own good electron donor characteristics, which not only facilitates the electrostatic accumulation of electrons at the electrode surface, giving rise to the increase in EDL capacitance but also works as active sites for proton bonding/debonding, leading to the enhancement in pseudocapacitance. Moreover, when MXene is doped with heteroatom N with lower electronegativity (3.04), a significant improvement in electrochemical performance is achieved by structural, compositional, and surface electronic regulation. For example, Yang et al. prepared nitrogen-doped Ti₃C₂T_x by annealing in ammonia, which yields 192 F g⁻¹ at 1 mV s⁻¹ in 1 M H₂SO₄ and remains 67% of initial capacitance over the scan rates from 1 to 200 mV s⁻¹ [27]. Zhang et al. prepared a nitrogen-doped Ti₃C₂T_x film electrode with a hydrothermal method using hydrazine hydrate as a nitrogen source, which delivers 340 F g⁻¹ at 2 mV s⁻¹ and no capacitance degradation after 10,000 cycles in 1 M H₂SO₄ [28]. Pu et al. prepared a new type of N-doped MXene electrode from non-toxic biological chitosan, which delivers 286.28 F g⁻¹ and maintains almost 100% retention after 10,000 cycles [29]. Therefore, we believe that introducing phosphorus heteroatom with lower electronegativity (2.19) can develop a higher capacitance MXene electrode by trimming the electron donor capability, and modifying the surface electrical and chemical properties. In addition, P heteroatom doping is considered an effective and convenient modification strategy to improve the electrochemical performance of carbon materials [30,31]. Although there are several reported works in regard to P doping MXene in supercapacitors, the doping effect is not ideal and the underlying doping mechanism, especially the doping positions/configurations, and their effect on capacitance enhancement are still unexplored.

Inspired by the above motivation, in this work, a phosphorus doping strategy (high-temperature heat treatment with NaH₂PO₂ as the phosphorus source) was employed to obtain the electrode material of supercapacitor (P–Ti₃C₂T_x) with high specific capacitance and excellent cyclic performance. Morphology and component characterization, DFT calculation, and electrochemical kinetic analysis have been used to give deep insight into the mechanism of improvement in electrochemical performance. As revealed, P doping improved electrical conductivity and reduced the free energy of H⁺ diffusion on the MXene surface. Meanwhile, the intercalated ions acted as “pillars” to expand the interlayer space of MXene, which is conducive to electrolyte ion diffusion. Moreover, the adopted high-temperature heat treatment in the P doping strategy replaced –F terminations with O-containing groups, which enhances the hydrophilicity and provides sufficient electrochemical active sites for H⁺. Synergistic modification of interlayer structure and chemical state improves the possibility of Ti₃C₂T_x for accommodating more H⁺ ions, further enhancing the capacitance of Ti₃C₂T_x.

2. Results and Discussion

2.1. Materials Characterization

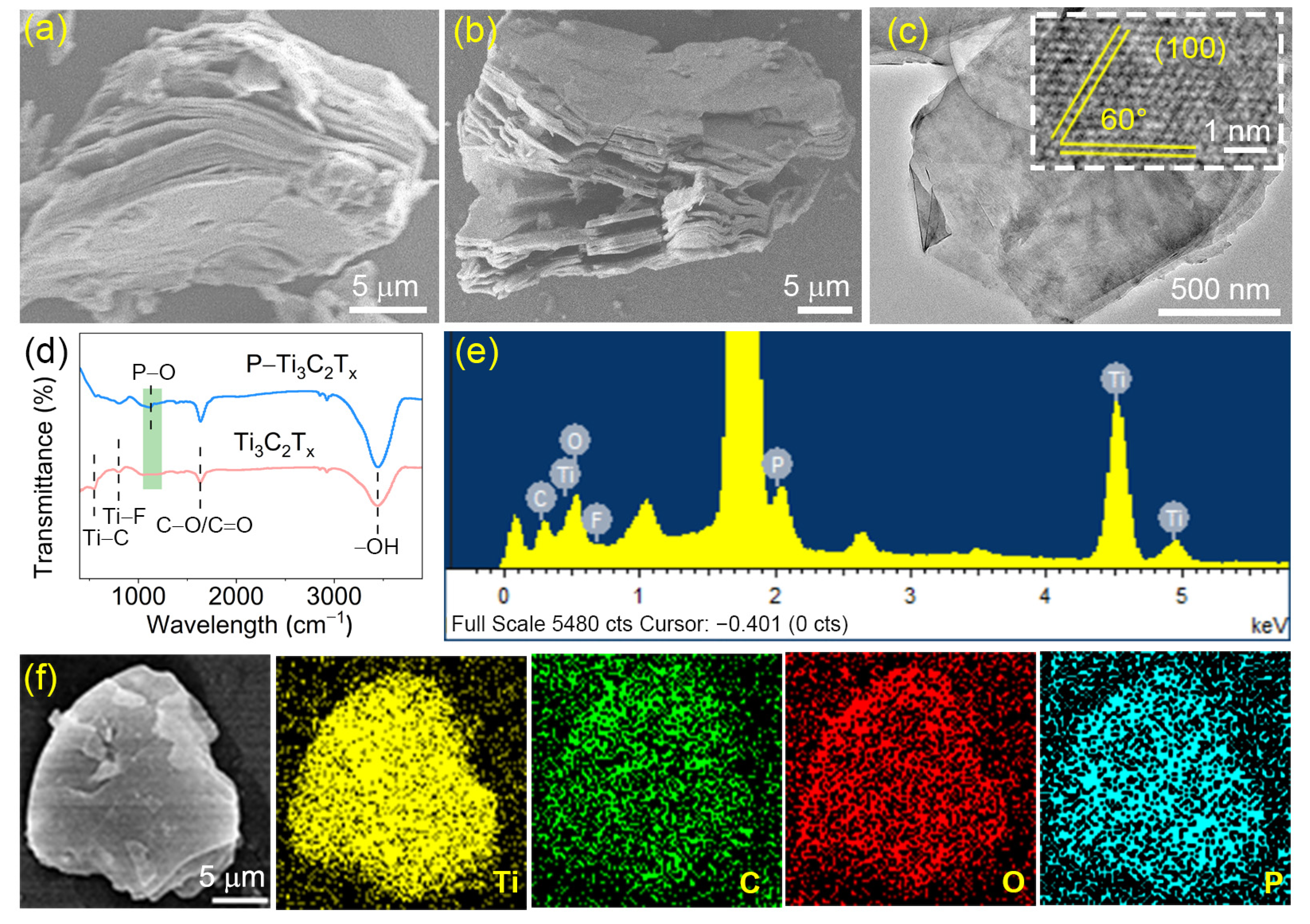

The morphologies and microstructures of the prepared samples were analyzed by using scanning electron microscopy (SEM) and transmission electron microscopy (TEM). Ti₃C₂T_x and P–Ti₃C₂T_x display the same structure with an accordion shape (Figure 1a,b), proving that the surface morphology of Ti₃C₂T_x is not affected after annealing treatment with NaH₂PO₂·H₂O. The smooth and thin P–Ti₃C₂T_x nanosheets are observed in the TEM image (Figure 1c), further indicating the maintenance of a lamellar structure. Moreover, a high-resolution transmittance electron microscopy (HRTEM) image of P–Ti₃C₂T_x (Figure 1c insert) shows a hexagonal structure demonstrated by different grain orientations with 60° angles and lattice fringes of 0.26 nm which is attributed to the (100) lattice planes of the Ti₃C₂T_x. Fourier transform infrared (FTIR) spectra were used to investigate the change in the surface chemical state of Ti₃C₂T_x upon P doping (Figure 1d), which indicates the presence of several common peaks belonging to Ti₃C₂T_x MXene, such as Ti–C (~555 cm⁻¹), Ti–F (~800 cm⁻¹), C–O/C=O (~1640 cm⁻¹) and –OH (~3440 cm⁻¹) in the range of 400–4000 cm⁻¹ [32,33,34]. Notably, the new peak in P–Ti₃C₂T_x appearing near 1120 cm⁻¹ corresponds to the P–O bond, which suggests that P atoms are successfully doped in Ti₃C₂T_x [26]. In addition, the energy dispersive spectroscopy (EDS) spectrum and element mapping images display the presence and uniform distribution of Ti, C, O, and P elements in P–Ti₃C₂T_x (Figure 1e,f), testifying that P atoms are successfully doped, which match well with the result of FTIR analysis.

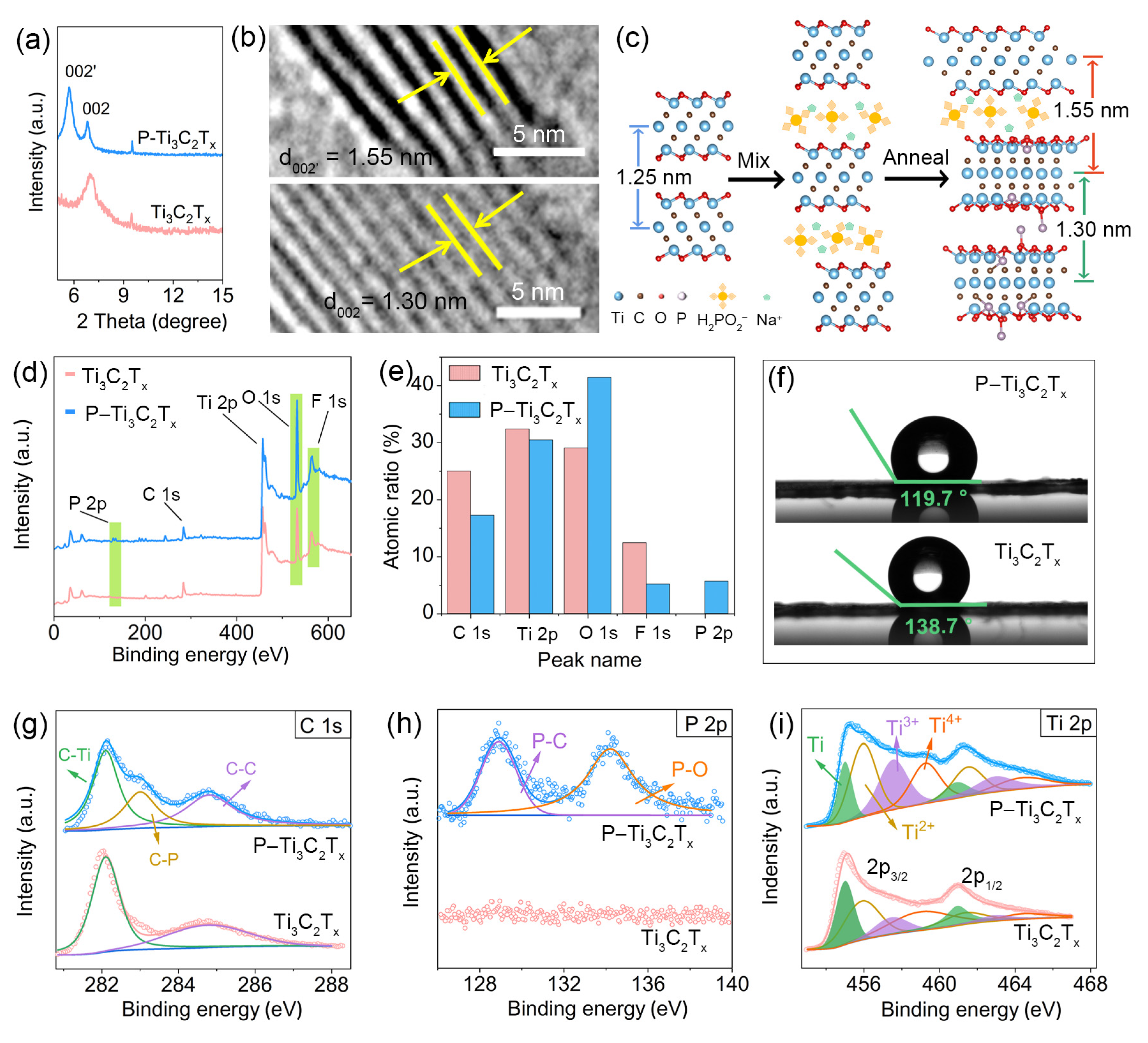

To further investigate the lattice structure of MXene, X-ray diffraction (XRD) and HRTEM characterization was conducted. As shown in Figure 2a, the characteristic (002) peak of Ti₃C₂T_x shifted to a lower angle after the introduction of the P atom. According to the Bragg equation, the lattice spacing changes from 1.25 nm to 1.30 nm and 1.55 nm. The corresponding HRTEM images of P–Ti₃C₂T_x (Figure 2b) also exhibit characteristic lattice fringe spaces of 1.55 nm of (002′) and 1.30 nm of (002), which match well with the XRD results. The expansion of interlayer space should attribute to the successful insertion of Na⁺ and H₂PO₂⁻ in the layers of Ti₃C₂ during the ultrasonic treatment, which also leads to the P–Ti₃C₂T_x exhibiting a larger BET specific surface area than pristine Ti₃C₂T_x (Table S1). To exclude that the expansion of interlayer spacing is due to the annealing treatment, the XRD pattern of Ar–Ti₃C₂T_x under the same conditions without NaH₂PO₂·H₂O was also conducted. As shown in Figure S3, the (002) peak of Ar–Ti₃C₂T_x moved to the right, indicating the expansion of interlayer spacing is not caused by heat treatment. The larger interlayer spacing and specific surface area favor undoubtedly the rapid diffusion of electrolyte ions and provide enough space to accommodate more electrolyte ions. Moreover, we noted that the characteristic peaks of TiO₂ (PDF# 21-1272) appear in Ar–Ti₃C₂T_x, and the TiO₂ with lower conductivity losses partial pseudocapacitance of the Ti₃C₂T_x (Figure S3). Fortunately, due to the reductive nature of NaH₂PO₂, MXene is not oxidized in the P doping process. In addition, the (002) peak of P–Ti₃C₂T_x also splits into two peaks (002 and 002′) as shown in Figure 2a. Here, we presume that the split-up of the (002) peak in P–Ti₃C₂T_x is due to the partial decomposition of the intercalated H₂PO₂⁻ during annealing. Na⁺ and H₂PO₂⁻ ions enter MXene interlayers in the ultrasonic process, expanding the interlayer spacing. Then, the partial decomposition of H₂PO₂⁻ during annealing makes the enlarged interlayer spacing become smaller. Even so, fortunately, P–Ti₃C₂T_x still keeps larger interlayer spacing compared with that of pristine Ti₃C₂T_x. Figure 2c illustrates the structure evolution of Ti₃C₂T_x during the preparation of P–Ti₃C₂T_x and the phenomenon of (002) peak splitting.

X-ray photoelectron spectroscopy (XPS) studies were then initiated to further investigate the change in component and valence states of Ti₃C₂T_x MXene on P doping. The full XPS spectra of P–Ti₃C₂T_x and Ti₃C₂T_x shown in Figure 2d reveal that they all possess Ti, C, O, and F elements. Notably, the P peak appears in P–Ti₃C₂T_x, which proves the successful introduction of P atoms. The P atom is less electronegative and easily shares electrons with electrolyte ions (H⁺), which is beneficial to charge storage. Moreover, the intensity of the F 1s peak decreased whereas the intensity of the O 1s peak increased after doping, suggesting that part of the fluorine group was detached from the surface of Ti₃C₂T_x and replaced with oxygen-containing functional groups during the annealing treatment. This is consistent with the previous study that –F is unstable and –O is more stable [35]. The detailed change in atomic ratio of various elements in MXene is displayed in Figure 2e where after implementing the P doping strategy, the O atom content increased from 29.05% to 41.47%, and the F atom content decreased from 12.56% to 5.47%. To further confirm the variation in the surface functional groups of MXene, the surface contact angles of water on P–Ti₃C₂T_x and pristine Ti₃C₂T_x were tested, respectively. As shown in Figure 2f, the contact angle of water on P–Ti₃C₂T_x considerably decreased due to the enhancement of the content of O-containing groups, which increases the hydrophilicity of MXene and is conducive to the contact between active sites and electrolyte ions, thus enhancing the electrochemical performance of the electrode. Based on the previously reported electrochemical reaction occurring in Ti₃C₂T_x MXene [26]: ${\mathrm{Ti}}_3{\mathrm{C}}_2{\mathrm{O}}_{\mathrm{x}}{\left(\mathrm{OH}\right)}_{\mathrm{y}}{\mathrm{F}}_{\mathrm{z}}+{\mathsf{\delta }\mathrm{H}}^{+}+{\mathsf{\delta }\mathrm{e}}^{+}\leftrightarrow {\mathrm{Ti}}_3{\mathrm{C}}_2{\mathrm{O}}_{\mathrm{x}-\mathsf{\delta }}{\left(\mathrm{OH}\right)}_{\mathrm{y}+\mathsf{\delta }}{\mathrm{F}}_{\mathrm{z}}$, we suppose that the reduction in the number of –F functional groups and the increase in O-containing groups would greatly improve the capacitance [4].

High-resolution XPS can better analyze the change in the valence state of various atoms. From high-resolution XPS spectra of C 1s (Figure 2g), we can see that the Ti₃C₂T_x shows two peaks around 282.1 eV and 284.8 eV corresponding to C–Ti and C–C [36], respectively. Interestingly, P–Ti₃C₂T_x displays an additional C–P bond at 283.0 eV, which possibly is caused by P doping to the exposed edge of Ti₃C₂T_x [37]. The P 2p spectrum is further studied to analyze the mechanism of P doping (Figure 2h). It can be observed that there is no P peak in the pristine Ti₃C₂T_x, while in the P–Ti₃C₂T_x sample, two peaks appear. By Gaussian fitting, the P–C bond and P–O bond can be corresponding at 128.9 eV and 134.2 eV, respectively [26,37]. It means the P dopant can be attached to the surface of Ti₃C₂T_x by adsorption/substitution. The presence of P–O groups would optimize the redox reaction process due to the lower electronegativity of the P atom. Moreover, the Ti 2p spectra obtained by Gaussian fitting are shown in Figure 2i. The Ti 2p_3/2 spectra can be deconvoluted into four configurations, in which the binding energies are assigned to Ti (~455 eV), Ti²⁺ (~456 eV), Ti³⁺ (~457.6 eV), and Ti⁴⁺ (~459.3 eV) [36]. Furthermore, we can see that the content of the +3 valence state in P–Ti₃C₂T_x (28.4%) is higher compared with Ti₃C₂T_x (13.4%). The increase in valence may be due to the transition of the terminal group –F to O-containing groups on the surface of Ti₃C₂T_x and the introduction of P during annealing treatment. The higher valence can hold more electrons during the discharge process, thus increasing its specific capacitance [8].

2.2. Density Functional Theory Calculations

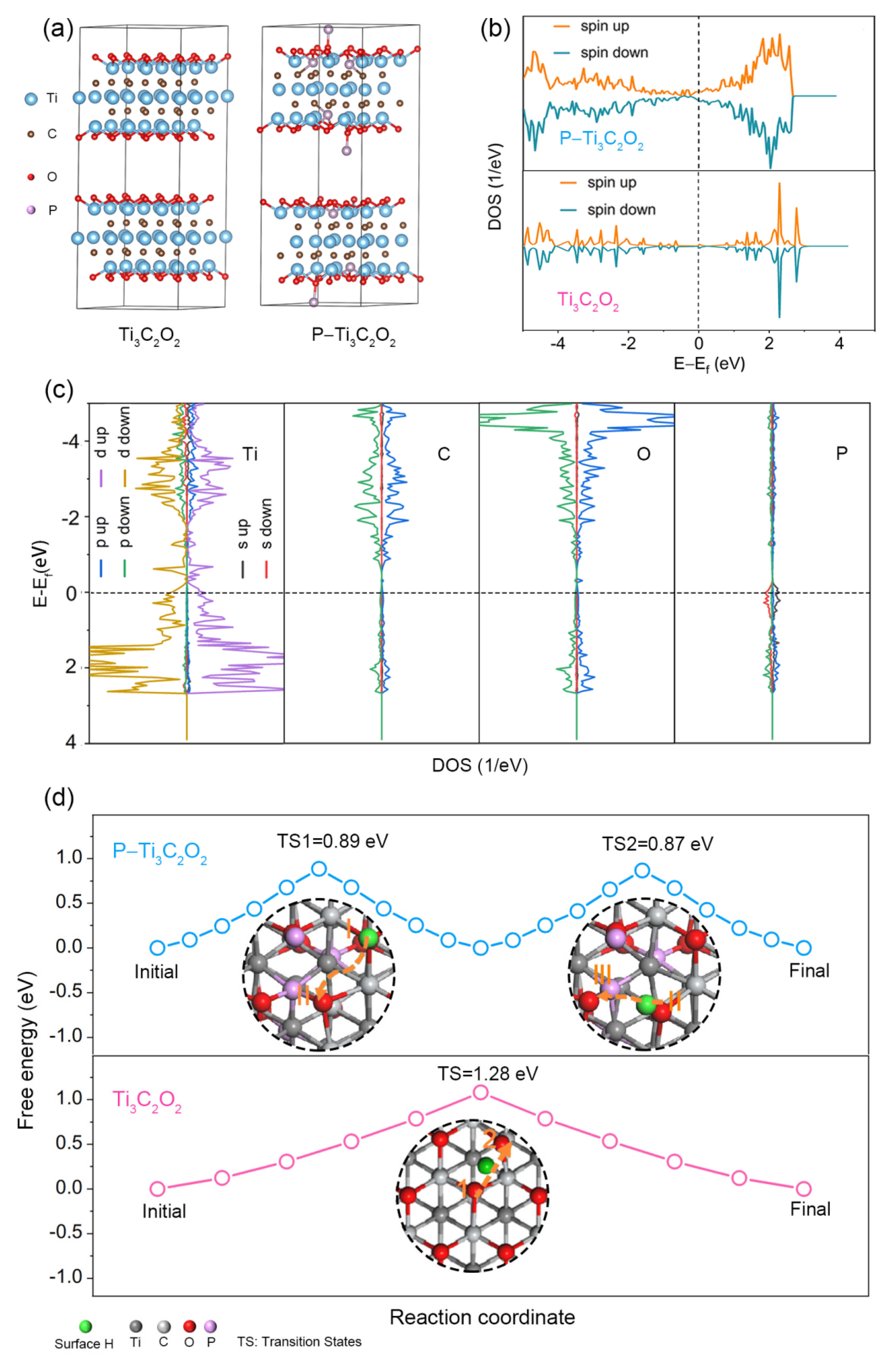

To better understand the effect of P doping on the properties of MXene, we conducted theoretical calculations of the electronic structure before and after P doping. A supercell of Ti₃C₂O₂ was constructed as the initial calculated model because O is the dominant functional group after annealing treatment (Figure 3a). Furthermore, according to the atomic ratio of P/Ti in the XPS result and the proportion of P–O and P–C bonds in P 2p spectra (Figure 2e,h), five Ti atoms are substituted by five P atoms, and the other three P atoms are bonded with O atoms directly in the supercell to approximate the P atoms concentration in P–Ti₃C₂T_x. The constructed structure denoted as P–Ti₃C₂O₂ is shown in Figure 3a. Figure 3b displays the total density of states (TDOS) of P–Ti₃C₂O₂ and Ti₃C₂O₂, respectively. The modulation of electronic configuration and spin polarization leads to the variation of DOS curves of P–Ti₃C₂O₂ for both the up-spin and down-spin states. Both Ti₃C₂O₂ and P–Ti₃C₂O₂ display non-zero peaks across the Fermi level, which implies they possess zero band gaps. Notably, the P–Ti₃C₂O₂ has higher DOS whether at the valence band (VB) or at the conduction band (CB) across the Fermi level, manifesting that electrons could easily migrate from VB to CB, implying the enhanced electronic conductivity of P–Ti₃C₂O₂. As the partial density of states (PDOS) of P–Ti₃C₂O₂ and Ti₃C₂O₂ shown (Figure 3c and Figure S4), CB of Ti₃C₂O₂ and P–Ti₃C₂O₂ is mainly contributed by Ti 3d, while the VB originates from the hybridization of Ti 3d, C 2p and O 2p. Moreover, the P atom made a considerable contribution to DOS at the Fermi level, leading to P–Ti₃C₂O₂ owning much higher electronic conductivity.

The migration and diffusion of electrolyte ion H⁺ in electrode materials also affect the electrochemical performance of electrode materials. The calculation results based on the DFT of the free energy for hydrogen atoms diffusion on Ti₃C₂O₂ and P–Ti₃C₂O₂ surfaces in different paths are shown in Figure 3d. (Optimization model structures of H diffusion on the surface of P–Ti₃C₂O₂ and Ti₃C₂O₂ and the detailed diffusion process are shown in Figure S5). Surface H prefers to attach to oxygen atoms on the surface of MXene, so the possible path for H diffusion is chosen between the two nearest O sites. For Ti₃C₂O₂, the surface H directly diffuses from one O site to the nearest O site, that is, from site 1 to 2, and the diffusion free energy is 1.28 eV. For P–Ti₃C₂O₂, we choose two possible paths for the diffusion of H on the surface taking into the effect of P doping, i.e., H diffuses from site Ⅰ to Ⅱ, or from site Ⅱ to Ⅲ. The diffusion free energies for both paths are 0.89 and 0.87 eV, respectively, which is lower than that in Ti₃C₂O₂. The lower diffusion free energy undoubtedly facilitates the diffusion of electrolyte ions on the electrode material surface.

2.3. Electrochemical Performances of Electrodes

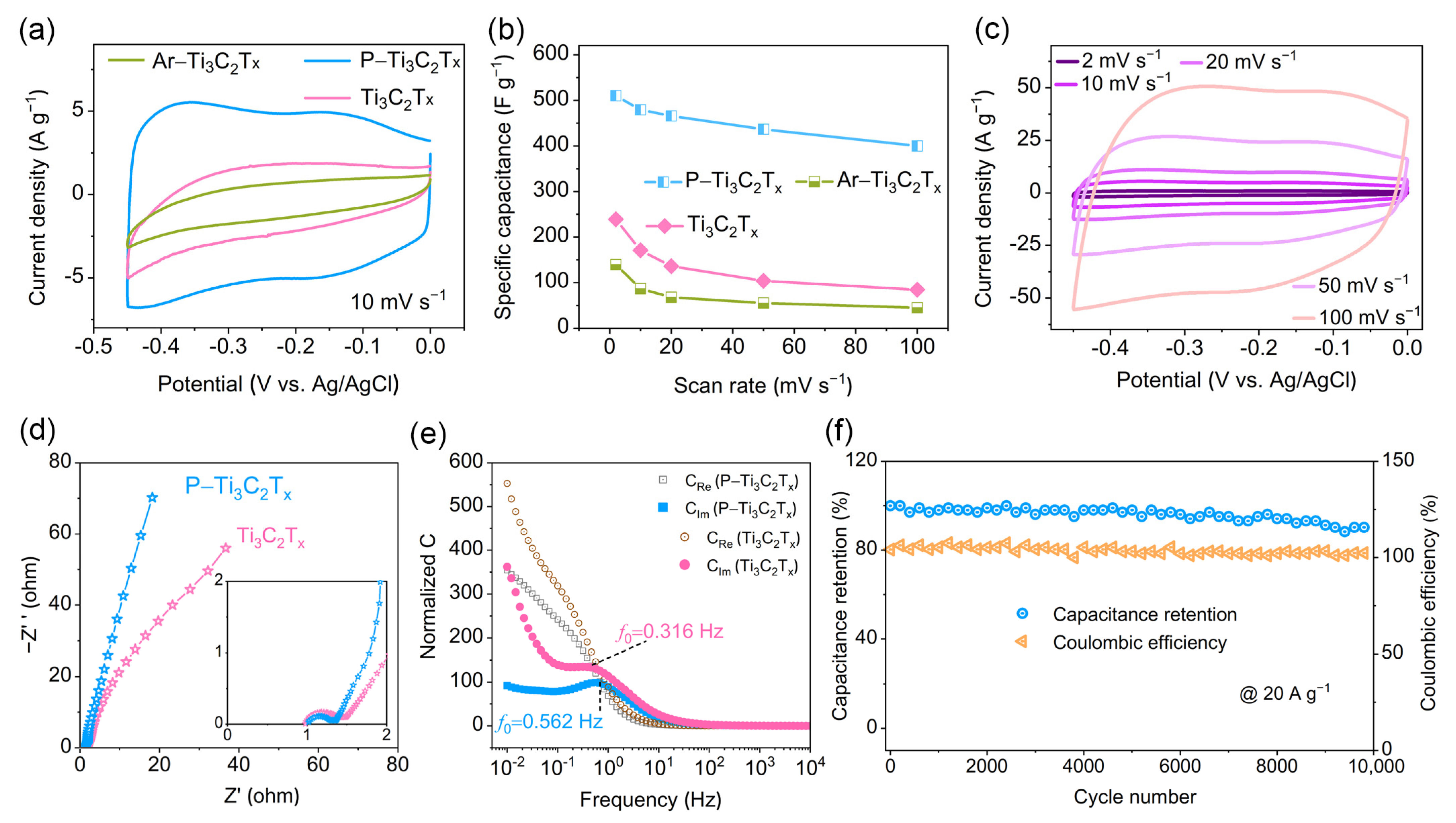

To verify the practical effect of the change in the interlayer spacing and the introduction of doped P atoms on the electrochemical performance, we first performed CV tests of Ti₃C₂T_x and P–Ti₃C₂T_x in 1 M H₂SO₄ solution. In Figure 4a, the CV curves of all samples display a rectangular shape, showing capacitive behavior, in which P–Ti₃C₂T_x has a greater current response. Noticeably, a pair of weak peaks in low voltage (around −0.15 V) appear in the CV curves of the P–Ti₃C₂T_x electrode, which may be due to the Faraday reaction caused by the doped P atom because it is less electronegative and prefers to share electrons with H; consequently, it can take part in reaction at relatively low voltages. The specific capacitance at different scan rates calculated by CV curves is shown in Figure 4b. The specific capacitance of P–Ti₃C₂T_x reached 510 F g⁻¹ at 2 mV s⁻¹, which is higher than that of most reported similar electrode materials, including P–Ti₃C₂T_x, N–doped Ti₃C₂T_x and N, P–doped graphene (Table S2). At the scan rate of 100 mV s⁻¹, the CV curve of P–Ti₃C₂T_x has no obvious distortion (Figure 4c), and it still delivers a capacitance of 400 F g⁻¹ (Figure 4b), capacitance retention maintaining 78% from 2 mV s⁻¹ to 100 mV s⁻¹, which is higher than 35% of pristine Ti₃C₂T_x. To eliminate the influence of annealing, Ar–Ti₃C₂T_x was synthesized under the same condition without NaH₂PO₂. As shown in Figure S6, Ar–Ti₃C₂T_x deliveres a minimum electrochemical response area at the same scan rate, that is, it has the smallest specific capacitance, which may be due to the formation of TiO₂ in the annealing treatment process without NaH₂PO₂ with reductive nature.

EIS data can help us investigate the electrical conductivity, charge transfer kinetics, and ion diffusion properties of the electrode. In EIS plots, the high-frequency semicircle diameter is related to the charge transfer resistance (R_ct) and the diagonal line in the low-frequency region shows charge storage behavior. As shown in Figure 4d and Table S3, P–Ti₃C₂T_x possesses lower R_ct than pure Ti₃C₂T_x and a higher value of fractional exponent α of constant phase element (CPE), suggesting that P–Ti₃C₂T_x has a higher electrical conductivity and a more rapid ion diffusion path. This is consistent with the above results for the DOS and H diffusion free energies analysis. Figure 4e shows that P–Ti₃C₂T_x possesses a smaller characteristic relaxation time constant of τ₀ (τ₀ = f₀⁻¹), proving the high-rate performance of P–Ti₃C₂T_x [38,39,40].

For supercapacitors, the long cycle stability of the electrode is one of the key points, because the specific capacitance of the device over time depends on it. Figure 4f exhibits the extended GCD tests approaching 10,000 cycles at a high current density of 20 A g⁻¹ for P–Ti₃C₂T_x. Notably, after 10,000 cycles, P–Ti₃C₂T_x still remains at 90.2% of initial capacitance, which is higher than that of pristine Ti₃C₂T_x (81.3%, Figure S7) and its Coulombic efficiency of P–Ti₃C₂T_x is close to 100% in the whole cycles. The enhanced cycle stability may be due to the expanded interlayer space, which allows rapid insertion and removal of electrolyte ions without obvious structure change during the charge–discharge processes.

To gain insight into the charge storage mechanism of the electrodes, the surface capacitive contribution and the diffusion control contribution are analyzed. First, we plotted the log i-log v curve, using Formula [41]:

$$\log i=b·\log v+\log a$$

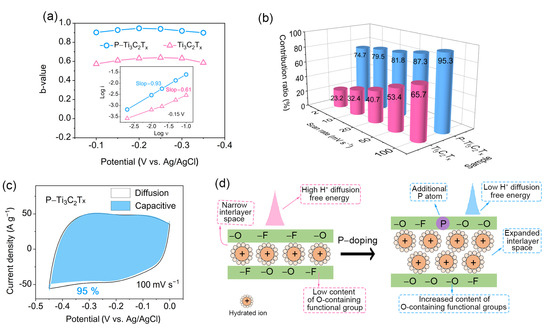

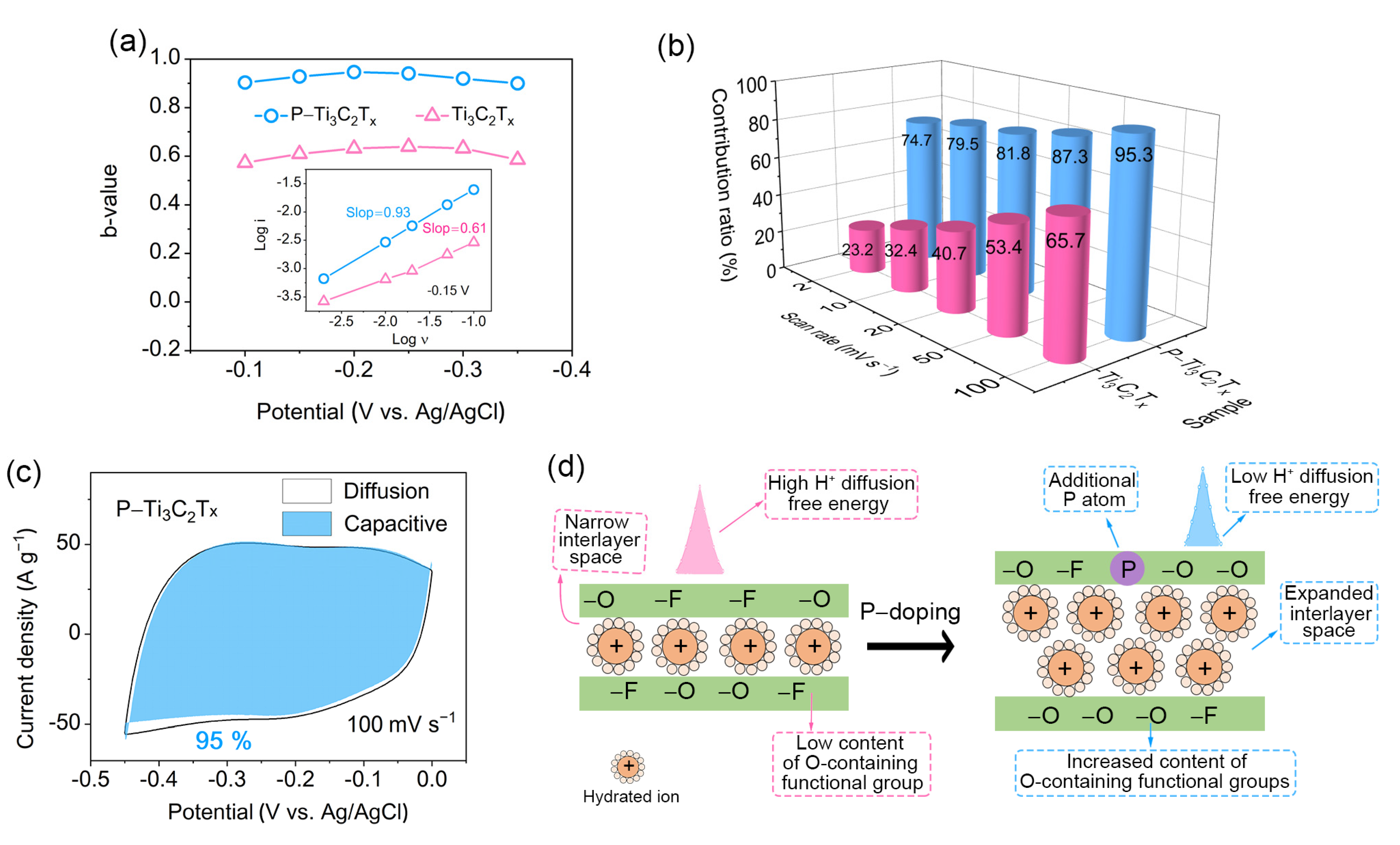

where i and v present currents under various voltage and scan rates of CV curves, respectively. b and a present slope of the log i-log v plot and constant. Figure 5a displays the b-values of P–Ti₃C₂T_x and Ti₃C₂T_x as calculated at different voltages corresponding to the CV curves. It is clear that P–Ti₃C₂T_x owns higher b values (closed to 1) than pure Ti₃C₂T_x (closed to 0.5), indicating P–Ti₃C₂T_x shows a surface-controlled charge storage behavior in the electrochemical processes whereas the electrochemical processes of pristine Ti₃C₂T_x are dominated by diffusion-controlled charge storage behavior. More specifically, the contribution proportion of the two mechanisms in total capacitance can be quantitatively distinguished at a randomizing scan rate according to the following Formula [42]:

$$i \left(V\right)=k_1·v+k_2·v^{1/2}$$

where $i \left(V\right)$corresponds to the current at the specific voltage, $v$ stands for the scan rate, $k_1·v$ and $k_2·v^{1/2}$ represent the surface capacitive control and the diffusion control, respectively. The results show that the proportion of surface capacitive contribution increases with the increase in scan rates for both electrodes (Figure 5b,c, Figures S8 and S9). Notably, the proportion of the surface capacitive contribution of P–Ti₃C₂T_x is always larger than that of pure Ti₃C₂T_x at various scan rates, which is consistent with the b-value analysis results. The high surface capacitance contribution implies that there is a fast ion diffusion in P–Ti₃C₂T_x, which is mainly due to the expanded interlayer spacing and lower diffusion free energy in P–Ti₃C₂T_x. We can also understand the electrochemical process of P–Ti₃C₂T_x MXene from the in situ electrochemical EIS results. Figure S10 shows the in situ EIS diagram during the discharge process. In the low-frequency range of Nyquist plots around open circuit potential (−0.02 V), the curve is characterized by a diagonal. When the voltage changes from −0.02 V to −0.06 V, the imaginary part of the impedance rises sharply (almost vertically), indicating that the inserted hydrated cation increases the interlayer spacing, resulting in fast and free ion transport. As the discharge reaction proceeds, the diagonals of the EIS plots are always approximately perpendicular, indicating a uniform and expanded interlayer space exists in P–Ti₃C₂T_x, which improves ion accessibility to the active site, resulting in high specific energy storage capacity. Here, the decrease in impedance imaginary part value from −0.06 V to −0.25 V should be attributed to the continuous accumulation of charge.

As discussed above, the enhanced electrochemical performance should be ascribed to several reasons as follows (Figure 5d). The expansion of interlayer spacing facilitates rapid H⁺ transport. The increased content of O-containing functional groups increases the hydrophilicity of the electrode, which is conducive to the contact of MXene surface with the electrolyte and thus increases active site accessibility. The increase in O-containing functional groups provides more active sites and the doped P atoms bring additional active sites, which greatly increase the specific capacitance. The change in surface functional groups causes the increase in Ti content of the high valence state with an electrochemical activity that can accommodate more electrons during discharge. Moreover, the introduction of P increases the electrical conductivity of MXene and reduces the free energy of H⁺ diffusion on the MXene surface, which is conducive to electrochemical reactions.

3. Experiment

3.1. Synthesis of Pristine Ti₃C₂T_x MXene

The Ti₃C₂T_x MXene was prepared by etching Al layer from Ti₃AlC₂ MAX phase which was prepared in the house laboratory by the solid−liquid reaction synthesis method [43] (Figures S1 and S2). In detail, 3 g Ti₃AlC₂ powder was slowly added into 60 mL etching solution (9 M HCl, 12 M LiF) at room temperature for 20 days to remove the Al layer. The suspension was rained by vacuum filtration and the sediment was washed with 1 M HCl followed by deionized water until the pH reached 6. Finally, the obtained product was dried at 60 °C overnight to produce Ti₃C₂T_x powder.

3.2. Synthesis of P–Ti₃C₂T_x and Ar–Ti₃C₂T_x

The P–Ti₃C₂T_x was fabricated by annealing a mixture of Ti₃C₂T_x powder and NaH₂PO₂∙H₂O. In brief, 200 mg Ti₃C₂T_x powder was mixed with 20 mL DI water to form a suspension under ultra-sonic treatment for 5 min, and then 2 g NaH₂PO₂·H₂O was dissolved in the above suspension. Then, the mixed solution was freeze-dried, placed in a tube furnace, and annealed under Ar flow at 400 °C for 2 h with a heating rate of 2 °C min⁻¹. Finally, the resulting product was rinsed with DI water to remove the resultant phosphate salts. Ar–Ti₃C₂T_x was prepared under the same condition without NaH₂PO₂∙H₂O.

3.3. Material Characterizations

The microstructure morphology and element distribution were characterized using a JEOL JSM-6700F (JEOL Japan Electronics Co., Ltd., Tokyo, Japan) field emission FESEM equipped with EDS equipment. More detailed structural information was acquired by using a JEM-2100PLUS (JEOL Japan Electronics Co., Ltd.) TEM equipment. The FTIR spectroscopy was performed on a Nicolet IS10 (Thermo Fisher Scientific, Waltham, MA, USA) device. The XRD pattern of the samples was recorded using a Rigaku MiniFlex (Rigaku Corporation, Tokyo, Japan) X-ray diffractometer. N₂ adsorption–desorption tests were performed using Micromeritics ASAP2460-2 (Micromeritics Instruments Corporation, Norcross, GA, USA). The XPS spectra analysis was performed to further characterize the chemical compositions on a Thermo ESCALAB Xi⁺ (Thermo Fisher Scientific (China) Co., Ltd., Shanghai, China) device with an Al-Ka excitation source.

3.4. Computational Detail

Density functional theory (DFT) was performed by Vienna Ab-initio Simulation Package (VASP) software [44] with the projector augmented wave (PAW) method [45]. The convergence threshold of energy was set as 10⁻⁵ eV and the convergence threshold of maximum stress was 0.05 eV/Å. The cut-off energy was set as 400 eV, and the k-points were 2 × 2 × 1. Hubbard U correction was set, and the U value was 4.0 eV for 3d orbit Ti.

3.5. Electrochemical Measurements

Electrochemical performance tests were carried out in a three-electrode system on an electrochemical workstation (CHI 660E, Shanghai Chenhua Instrument Co., Shanghai, China) at room temperature, where Ag/AgCl, Pt wire, and 1 M H₂SO₄ solution as reference electrode, counter electrode, and electrolyte, respectively. For working electrode, a mixture of 80 wt% active material, 10 wt% polyvinylidene fluoride, and 10 wt% carbon black in N-methyl pyrrolidone was ground in an agate mortar until the slurry was grain-free, and then coated on copper foil and dried at 60 °C for 12 h. The electrochemical performances were studied by cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) techniques.

4. Conclusions

In summary, P-doped Ti₃C₂T_x MXene was prepared by a simple annealing method with NaH₂PO₂ as phosphorus source, which delivers a high specific capacitance of 510 F g⁻¹ and 400 F g⁻¹ at the scan rate of 2 mV s⁻¹ and 100 mV s⁻¹. Morphology and component characterization, DFT calculation, and electrochemical kinetic analysis have been used to give deep insight into the mechanism of improvement in electrochemical performance. The expansion of interlayer spacing facilitates rapid H⁺ transport. The increased content of O-containing functional groups and the introduction of P atoms not only increase the hydrophilicity of the electrode material but also bring more active sites. The change in surface functional groups causes the increase in Ti content of the high valence state with a higher electrochemical activity that can accommodate more electrons during discharge. Moreover, the introduction of P improves the electrical conductivity of MXene and reduces the free energy of H⁺ diffusion on the MXene surface. Synergistic modification of interlayer structure and chemical state improves the possibility of Ti₃C₂T_x for accommodating more H⁺ ions. This work opens avenues for the development of other 2D materials in constructing high-energy storage systems by heterogeneous atom doping.
