Comparison of Chemical Compositions and Antioxidant Activities for the Immature Fruits of Citrus changshan-huyou Y.B. Chang and Citrus aurantium L.

by
Qixin Zhang
1,2,
Wenying Song
1,2,
Guanqi Tao
1,2,
Qin Li
1,2,
Lixia Wang
1,3,
Wenkang Huang
1,2,
Lijuan Gao
1,2,
Lai Yin
1,2 and
Yiping Ye
1,2,*
1
School of Pharmacy, Hangzhou Medical College, Hangzhou 310013, China
2
Key Laboratory of Neuropsychiatric Drug Research of Zhejiang Province, Hangzhou Medical College, Hangzhou 311300, China
3
Changshan Characteristic Industry Development Center, Quzhou 324000, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(13), 5057; https://doi.org/10.3390/molecules28135057
Submission received: 2 June 2023 / Revised: 25 June 2023 / Accepted: 26 June 2023 / Published: 28 June 2023
Browse Figures
Versions Notes

Abstract

:
Quzhou Aurantii Fructus (QAF), the dried immature fruit of Citrus changshan-huyou Y.B. Chang, is similar to Aurantii Fructus (AF), the dried immature fruit of Citrus aurantium L. or its cultivars, in terms of composition, pharmacological action, and appearance. However, potential chemical markers to distinguish QAF from AF remain unknown owing to the lack of a comprehensive systematic chemical comparison aligned with discriminant analysis. To achieve a better understanding of the differences in their composition, this study aimed to identify the basic chemical compounds in QAF (n = 42) and AF (n = 8) using ultra-performance liquid chromatography coupled with electron spray ionization and quadrupole time-of-flight mass spectrometry (UPLC−QTOF/MS) and gas chromatography coupled with mass spectrometry (GC−MS). Principal component analysis (PCA), orthogonal partial least squares-discriminant analysis (OPLS−DA), and hierarchical clustering analysis (HCA) were used to further analyze, screen, and verify potential chemical markers; the antioxidant capacity was assayed in vitro. A total of 108 compounds were found in QAF and AF, including 25 flavonoids, 8 limonoids, 2 coumarins, and 73 volatile components. The chemometric analysis indicated that the main components in QAF and AF were very similar. Trace differential components, including 9 flavonoids, 2 coumarins, 5 limonoids, and 26 volatile compounds, were screened as potential chemical markers to distinguish between QAF and AF. Additionally, the antioxidant capacity of QAF was found to be greater than that of AF. This research provides insights into the quality control and clinical application of QAF.

1. Introduction

Rutaceae is a significant plant family that has complex kinship and contributes to food and medicine, playing an indispensable role in daily life. Citrus changshan-huyou Y.B. Chang (HY), a cultivar belonging to the Rutaceae family, is a hybrid of Citrus aurantium L. (sour orange, SC) and Citrus grandis (L.) Osbeck (pummelo) [1]. It has been cultivated for approximately 600 years since the Ming Dynasty, mainly in Quzhou City, Zhejiang Province; its cultivation has now become one of the mainstay industries in the local agricultural economy, offering a great variety of agricultural and subsidiary products. Quzhou Aurantii Fructus (QAF), the dried immature fruit of HY, is gathered from the end of June to July. In 2018, it was selected as the new “Zhejiang Eight Flavors” cultivar of traditional Chinese medicine, with efficacy in regulating qi and relieving stagnation. The major bioactive constituents in QAF include volatile oils, flavonoids, terpenes (especially limonoids), coumarins, and steroids and their glycosides [2,3]. QAF has been shown to possess extensive pharmacological properties, such as improving functional dyspepsia [4], antioxidant capacity [5], anti-inflammatory activity [6], anti-tussive and expectorant effects [7], hypolipidemic effect [8], hypoglycemic effect [9], protection of organs [10], and hepatoprotective activity [10,11,12].
Aurantii Fructus (AF) is the dried immature fruit of SC or its cultivars. AF has been extensively used in clinical practice owing to its excellent biological activity, hypotoxicity, and low cost. It is difficult to distinguish QAF from AF based on appearance after processing [4,13], and they have a lot similarities in pharmacological action. QAF is often used as AF in commercial products, accounting for 30% of the total market in some regions of China, because of their similar efficacy and morphological traits. However, there is a significant difference in their legal status, since AF is recorded in the “Pharmacopoeia of The People’s Republic of China” (2020 edition) (ChP), while QAF is recorded in “The Processing Standards of Traditional Chinese Medicine of Zhejiang Province” (2015 edition), limiting its application severely. Based on textual research, plant classification surveys, and comparative studies of flavonoid components and efficacy, some researchers believe that QAF is a cultivated variety of AF and that the legal status of QAF medicinally used as AF should be restored [1,14,15].
The constituents of QAF and AF have been extensively investigated individually, and previous research has shown that they have the same chemical compositions [16,17]. He et al. analyzed AF using liquid chromatography coupled with mass spectrometry (LC-MS) and gas chromatography coupled with mass spectrometry (GC−MS) and reported 104 compounds containing eight structural types [18]. Yue identified seven flavonoids and three coumarins in QAF using LC-MS, which were also found in AF [19]. The volatile compounds in QAF and AF are similar, but differences do exist [2]; however, a systematic, comprehensive comparison of the fundamental chemical constituents is still lacking, which would allow them to be distinguished.
It provides a new insight and approach to combine chromatography and chemometrics for the chemical characterization and identification of Chinese medicine. Principal component analysis (PCA), orthogonal partial least squares-discriminant analysis (OPLS−DA), and hierarchical clustering analysis (HCA) are commonly used chemometric models [20]. PCA is an unsupervised learning method that relies on dimensionality reduction and can eliminate noise and circumstantial characteristics while retaining the principal features and trends [21], which are generally used for preliminary evaluation of whether the sample has variance or whether the data have the capacity to categorize the sample [22]. OPLS−DA is a supervised discriminant analysis statistical method that uses partial least squares regression to model the relationship between data and sample categories, and OPLS−DA is mainly used to screen differential variables of samples in different groups [22,23]. HCA is a data analysis method without supervision, which creates a hierarchical nested clustering tree by calculating the similarity between different types of data points and is not affected by the expected results [24].
In this study, the volatile composition of 42 batches of QAF and 8 batches of AF was identified by GC−MS, and their flavonoids, coumarins, and limonoids compositions were detected by ultra-performance liquid chromatography coupled with quadrupole time-of-flight mass spectrometry (UPLC−QTOF/MS). Differential components were then screened and verified using chemometric analysis, including principal component analysis (PCA), orthogonal partial least squares-discriminant analysis (OPLS−DA), and hierarchical clustering analysis (HCA). Finally, the antioxidant capacity was assessed to explore the differences in the pharmacological activities of QAF and AF.

2. Results and Discussion

2.1. UPLC−QTOF/MS Analysis and Identification

The chemical compositions of QAF and AF were successfully identified under optimal chromatographic and MS conditions; TIC obtained in the positive and negative ion modes of 50 samples are presented in Figure 1. The major components in QAF and AF were well separated and detected within 30 min. A total of 35 compounds were identified in both QAF and AF, based on the accurate mass determination of their precursor ions and MSE fragments in positive and negative ion modes. An overview of all major chromatographic peaks is presented, along with their retention times, MS data, and corresponding chemical compositions, in Table 1. The primary chemical components in QAF and AF were flavonoids, particularly flavanone, flavonoid glycosides, polymethoxyflavone, and flavone. However, other compounds were also present, such as coumarins and limonoids. The compounds are labelled in the representative chromatograms for the QAF and AF samples in positive and negative modes (Figure 2A–D).

2.1.1. Flavonoids

Flavonoids are considered the most significant bioactive constituents obtained from QAF and AF, with the same nuclear 2-phenylchromone, and are classified into flavones, flavanones, flavonols, and isoflavones. They exhibit similar dissociation mechanisms in mass spectrometry after protonation, such as the retro-Diels–Alder reaction (RDA), and absorption wavelengths in the ranges of 300–400 nm and 240–280 nm.
In this study, 25 flavonoids, mainly flavones and flavanones, were identified by UPLC-QTOF-MS. Of these, 13 compounds were analyzed and unambiguously identified by comparing their retention time, characteristic absorption wavelengths in the range 190–400 nm, and m/z values with reference standards. These compounds included naringin (8), neohesperidin (10), poncirin (17), naringenin (19), hesperetin (20), isosinensetin (21), 3′-demethylnobiletin (22), 6-demethoxytangeretin (26), nobiletin (29), 4′,5,6,7-tetramethoxyflavone (30), 3-methoxynobiletin (32), tangeretin (33), and 5-demethylnobiletin (35). The numbers in parentheses refer to the labels for these compounds in Figure 2A–D and Table 1.
The remaining compounds were tentatively identified by comparing the precise mass data and fragmentation patterns using the formula predictor of MassLynx and those in the literature. For instance, both compounds 2 and 3 exhibited quasimolecular ions [M + H]+ ions at m/z 597.1813, 597.1819 and [M − H]− ions at m/z 595.1667, 595.1664, with the molecular formula C27H32O15. The fragment ions 289.0689, 289.0723 [M + H−C12H20O9]+ and 287.0551, 287.2336 [M – H − C12H20O9]− were detected, indicating the release of glycone. After RDA, major fragment ions 459.8731, 459.0476 [M – H − C8H8O2]−, and 151.0897, 151.3640 [M – H − C12H20O9 − C8H8O2]− for compounds 2 and 3 were obtained as a result of the damage to the original nucleus and the loss of C8H8O2 (136 Da); however, the presence of 417.1266, 417.1095 [M + H − C9H8O4]+ was based on the loss of C9H8O4 (180 Da). Compounds 2 and 3 were tentatively identified as eriocitrin and neoeriocitrin, respectively [18]. Similarly, compounds 1, 4, 5, 6, 7, 9, 13, 14, 18, and 25 were presumed to be vicenin-2, naringin 6″-rhamnoside, hesperetin 5-O-glucoside, narirutin, hesperetin 7-(2,6-dirhamnosylglucoside), hesperidin, naringin 6″-malonate, brutieridin, melitidin, and sinensetin, respectively, by comparing the information from previous references [18,25,26,27,28,29] and the standard database.

2.1.2. Limonoids

Limonoids, highly oxygenated triterpenoid compounds, are the main cause of bitter taste in their aglycone and glucoside forms [30]. In this study, eight compounds were identified as limonoids through UPLC−QTOF/MS analysis, and their structures were either identified or provisionally assigned. Compounds 27 and 34 were identified as limonin and obacunone, respectively, based on a comparison with standard compounds. Compound 15 exhibited [M − H]− ions at m/z 693.2759, inferred as quasimolecular ions with the chemical formula C34H46O15. Fragment ions at m/z 531.1981 [M – H − C6H10O5]− could be generated, indicating the release of glycones. Additionally, the existence of ions at m/z 485.0921 [M – H − C6H10O5 − HCOOH]− and m/z 161.2311 suggested the possible presence of a lactone group and the fragmentation of the chemical structure. The 487.1647 [M – H − C6H10O5 − CO2]− ions were produced from decarboxylation in the seven-membered ring. Compound 15 was deduced to be a nomilin glucoside by comparison with data from a previous study [31]. Compounds 12, 16, 24, 28, and 31 were presumed to be obacunoic acid-17-β-D-glucoside, nomilinic acid 17-β-D-glucoside, obacunoic acid, nomilinic acid, and nomilin, respectively, using similar methods [18,26,27].

2.1.3. Coumarins

Compounds 11 and 23 generated identical deprotonated molecule [M + H]+ ions at m/z 261.1134 and 261.1128, suggesting that they are isomers with the chemical formula C15H16O4. Owing to the chemical structure containing hydroxyl, carbonyl, and methoxyl groups, fragment ions at m/z 102.0995 [M + H − C4H8O − CH3O – CO − CO]+, 130.0093 [M + H − C4H8O − CH3O − CO]+, 158.9663 and 158.5279 [M + H − C4H8O − CH3O]+, 189.0565 and 189.0538 [M + H − C4H8O]+, and 243.1025 and 243.0934 [M + H − H2O]+ were found in both compounds. Compound 23 was identified as isomeranzin, based on a comparison with the reference standard. Compound 11 was deduced to be meranzin through a comparison with compound 23 and information from previous studies [18,27].
In summary, 35 common compounds were identified in both QAF and AF using UPLC−QTOF/MS, including 25 flavonoids, 8 limonoids, and 2 coumarins; among them, 4 compounds, namely, naringin 6″-rhamnoside (4), hesperetin 7-(2,6-dirhamnosylglucoside) (7), naringin 6″-malonate (13), and nomilin glucoside (15), were identified in QAF and AF for the first time.
Additionally, very similar chromatographic peaks appeared in the 42 batches of QAF from different plantings, based on both positive and negative ion modes of UPLC−QTOF/MS. These were also very similar to those in the eight batches of AF from different planting locations (Figure 1). However, there were clear distinctions in the abundance of some chromatographic peaks between QAF and AF, indicating that the quantities of the corresponding compounds differed between QAF and AF.

2.2. Analysis of Volatile Compounds by GC−MS

All 50 batches of samples and n-alkane solution were analyzed, and TIC was acquired in the full scan mode for QAF and AF (Figure 2C,D).
In total, 73 compounds were identified in QAF and AF (Table 2). The relative content of the volatile compounds in QAF and AF was calculated using the area normalization method without a correction factor. The area percentages (%) of the volatile compounds in the 8 batches of AF and 42 batches of QAF are listed in Table 2. Limonene (48), a natural cyclic monoterpene, was the major compound in the volatile oils of both QAF and AF, with an average percentage of 65.76% (range 60.64–71.09% for 42 batches of QAF) and 85.93% (range 79.98–88.61% for 8 batches of AF), respectively. This result is consistent with those of previous studies [32,33]. The other high average percentages (≥1.00%) in QAF were γ-terpinene (51, 8.86%), germacrene D (81, 7.99%), germacrene B (92, 1.91%), β-myrcene (43, 1.13%), α-cadinol (102, 1.02%), and dysoxylonene (88, 1.00%); while the other high average percentages (≥1.00%) in AF were γ-terpinene (51, 2.66%), linalool (53, 1.86%), β-myrcenein (43, 1.62%), and germacrene D (81, 1.13%). Some compounds, such as sesquithujene (74), γ-elemene (76), α-guaiene (77), cis-β-farnesene (78), a-bulnesene (86), β-sesquiphellandrene (89), δ-cadinene (90), 2-(4-ethenyl-4-methyl-3-prop-1-en-2-ylcyclohexyl)propan-2-ol (91), (−)-globulol (94), guaiol (95), γ-eudesmole (97), isosparthulenol (99), cadin-4-en-10-ol (101), neointermedeol (103), isointermedeol (104), β-sinensal (105), juniper camphor (106), palmitic acid (107), and phytol (108), were only detected in QAF; the average relative content was below 0.44%. p-mentha-1,3,8-triene (55), (+)-trans-p-mentha-2,8-dien-1-ol (56), limonene oxide, cis- (57), (+)-cis-limonene 1,2-epoxide (58), (+)-cis-carveol (67), carvone (68), and perillaldehyde (69) were found only in AF; the average relative content was below 0.05%. These results suggest a distinct difference in the chemical composition of the volatiles present in QAF and AF.

2.3. Chemometric Analysis

2.3.1. PCA

In this study, the peak areas of 50 batches of samples from GC−MS and UPLC−QTOF/MS were set as x variables, and the PCA score plots were created using Origin 2023. The cumulative variance contribution of the two principal components, PC1 and PC2, accounted for 60.8% for UPLC−QTOF/MS and 69.2% for GC−MS (Figure 3A,B). In addition, the samples in each group were essentially within a 95% confidence ellipse. These results demonstrate that the PCA model was reasonable and acceptable. Two distinct groups corresponding to QAF and AF were observed based on the UPLC−QTOF/MS and GC−MS data, indicating that the chemical compounds in QAF and AF were significantly different.
As shown in Figure 3A,B, the data points for the QAF group were more closely clustered than those of the AF group, indicating that there were no clear differences in the chemical compositions in the QAF group even though these samples came from 14 different planting bases in four provinces. This was confirmed by the results of PCA based on UPLC−QTOF/MS and GC−MS data for the QAF group from 14 different planting bases (Figure S1).

2.3.2. OPLS−DA

OPLS−DA is a relational model between omics data and a set of samples. In this study, a supervised OPLS−DA method was adopted to further identify differences in chemical composition between QAF and AF and to screen potential chemical markers.
In the OPLS−DA model, Q2 and R2 are vital parameters for evaluating the rationality of the model. In this study, Q2 and R2 (Q2 = 0.961, R2 X = 0.702, R2 Y = 0.983) were both greater than 0.5 in UPLC−QTOF/MS according to Simca 14.1. A permutation test for OPLS−DA was performed 200 times to assess the predictability of the model (Figure S2). All test boxes were lower than the original boxes, and the intersections of curvilinear regressions and coordinate axes were in the negative semi-axis, indicating that the models were acceptable. A three-dimensional (3D) score scatterplot derived from the UPLC−QTOF/MS data is shown in Figure 3C. The data points for the 50 samples were classified into two groups corresponding to QAF and AF. These results were consistent with the results of PCA.
To screen the differential components, variable influence on projection (VIP) was adopted. Components with a VIP value > 1 and p < 0.05, were selected as potential chemical markers. As shown in Figure 3D, a total of sixteen differential compounds with VIP value > 1 and p < 0.05 were identified; these included nine flavonoids, two coumarin and five limonoids, including eriocitrin (2), neoeriocitrin (3), hesperetin 5-O-glucoside (5), meranzin (11), obacunoic acid-17-β-D-glucoside (12), poncirin (17), melitidin (18), hesperetin (20), isomeranzin (23), obacunoic acid (24), sinensetin (25), 6-demethoxytangeretin (26), nomilinic acid (28), 4′,5,6,7-tetramethoxyflavone (30), nomilin (31), and obacunone (34). Previous research has shown that flavonoids can be used as markers to differentiate citrus varieties [34], which confirms our results.
However, the major components, including narirutin (6), naringin (8), hesperidin (9), neohesperidin (10), and naringenin (19), showed no difference between QAF and AF. Previous research has shown that these components were the principal biologically active ingredients assimilated in rat plasma after the oral ingestion of AF and QAF extracts [35]. The pharmacological functions of these flavonoids have been shown to mainly regulate gastrointestinal dysmotility [19], which is in accordance with the conventional clinical applications of QAF and AF. It is well-known that all the pharmacological activities of herbal medicines are significantly related to the composition of their bioactive compounds, implying that QAF and AF have very similar pharmacological effects.
The relevant R2 X = 0.766, R2 Y = 0.990, and Q2 = 0.981 in the OPLS−DA model from the GC−MS data indicated that the model had good prediction and goodness-of-fit. The 3D score scatterplot of OPLS−DA is displayed in Figure 3E and suggests two separate groups, corresponding to QAF and AF. Based on the permutation test results, shown in Figure S3, the models were appropriate. A total of 26 volatile compounds with VIP values > 1 and p < 0.05 (Figure S4) were selected as chemical markers for discriminating between QAF and AF. Previous reports have observed differences between the volatile components of QAF and AF using HS-GC-IMS [2]; however, the total average relative content of the 26 differential components in the volatile oils of QAF and AF was 13.20%.

2.3.3. HCA

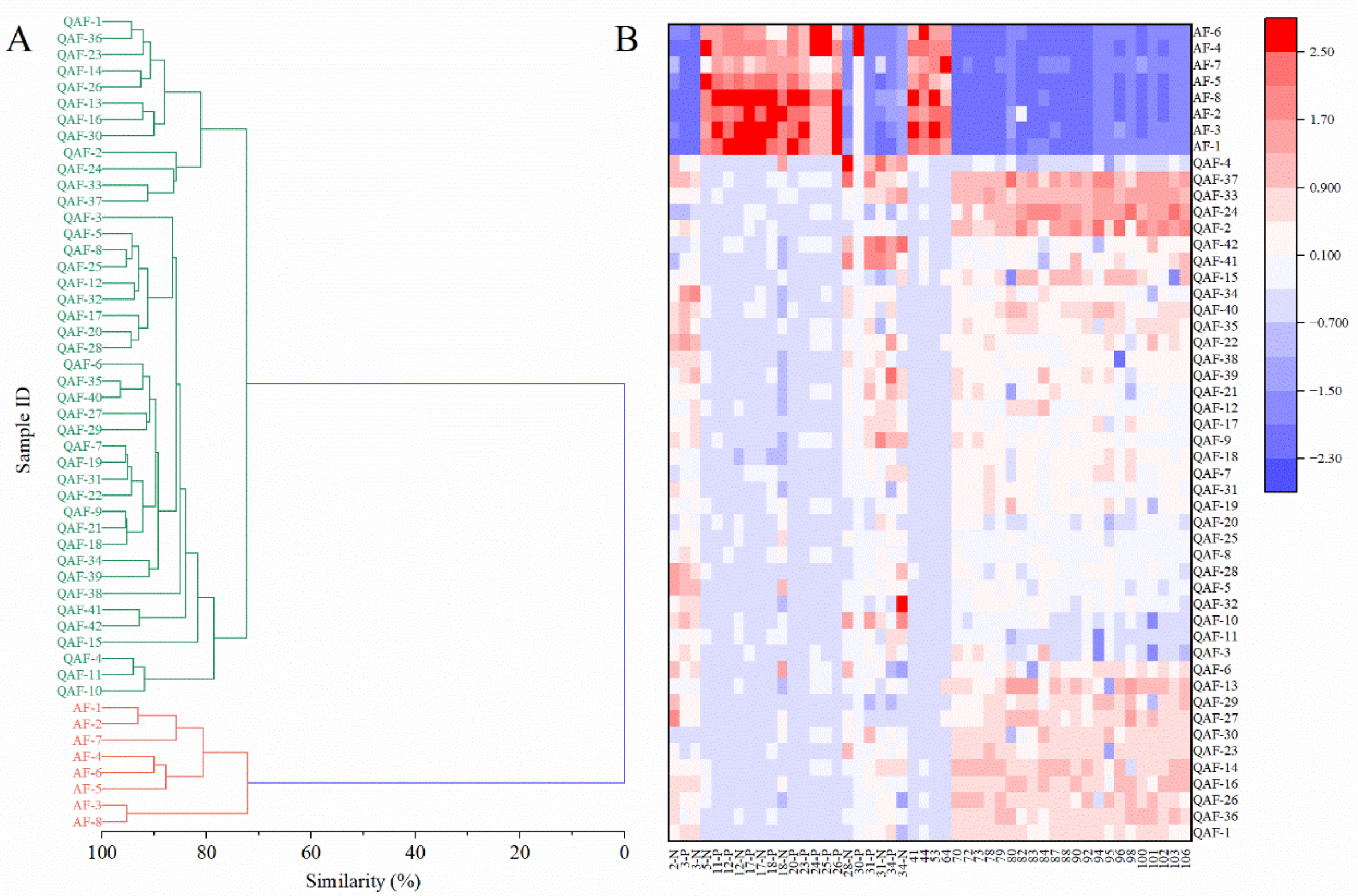

To further validate the results of OPLS−DA, area data of all differential peaks with VIP > 1 and p < 0.05 in GC−MS and UPLC−QTOF/MS were imported into Origin 2023 software for HCA.
The data was analyzed using the group average as a clustering method and similarity as a distance type. In the cluster dendrogram, the samples were divided into two groups: one group comprised only the species QAF and the other group was composed of the species AF. Using a similarity > 70% as the standard, all 42 batches of QAF and 8 batches of AF were correctly classified by HCA (Figure 4A). The outcome of HCA was in agreement with that of the PCA and OPLS−DA, indicating that the selected differential components were valid and could discriminate between QAF and AF.
A heatmap was employed to visualize the differences between QAF and AF, which included all the peaks of the differential components (Figure 4B). The quantities of eriocitrin (2), neoeriocitrin (3), nomilinic acid (28), nomilin (31), obacunone (34), δ-elemene (70), copaene (72), (−)-cis-β-elemene (73), cis-β-farnesene (78), humulene (79), γ-muurolene (80), δ-selinene (82), valencen (83), bicyclogermacrene (84), γ-cadinene (87), dysoxylonene (88), δ-cadinene (90), germacrene B (92), (−)-globulol (94), guaiol (95), junenol (96), hinesol (98), T-muurolol (100), cadin-4-en-10-ol (101), α-cadinol (102), neointermedeol (103), and juniper camphor (106) were higher in QAF; the contents of the other differential components were higher in AF.
In total, all components, including nine flavonoids, two coumarins, five limonoids, and twenty-six volatile compounds, could serve as biological markers to distinguish between QAF and AF and help to verify the botanical origin of crude drugs in an application.
Rutaceae is an important source of food and medicine and has played an important role in the history of traditional Chinese medicine, mostly in qi-regulating drugs, and has a good influence on the digestive and respiratory systems on the basis of abundant flavonoids [7,36]. Flavonoids are the main components of QAF and AF that exert the pharmacological effect of regulating gastrointestinal motility [37,38], and they are also the main indicators in the comprehensive quality evaluation model of medicinal herbs [39]. As shown in the TIC (Figure 1), the main components of QAF and AF were similar in composition, but there existed differences in trace components. Chemometric analysis validated the differences presented by the TIC and presented them in a more visual way, while specific differential components were screened out, which provided a basis for the identification of herbs. Fingerprint analysis combined with clustering analysis could distinguish QAF from other Rutaceae herbs in a holistic perspective [40], but the analysis of differential components was missing. Flavonoids and volatile oils could also be used as signature components to distinguish herbs of the Rutaceae family [41,42], which was consistent with our results. In addition, the result of OPLS−DA showed that coumarins and limonoids could also be used as markers to distinguish QAF from AF.

2.4. Antioxidant Capacity

To explore the impact of the differences in composition between QAF and AF in terms of efficacy, DPPH, ABTS, and FRAP methods were used to determine the total antioxidant activity of the extract solutions of QAF and AF (Figure 5).

2.4.1. Antioxidant Capability Assay

The standard curve for DPPH was y = 0.0137x + 0.0045 (R² = 0.998). The average scavenging DPPH radical for QAF and AF was 1.212 μg Trolox/mL (range 0.764–1.779 μg Trolox/mL) and 0.965 μg Trolox/mL (range 0.711–1.306 μg Trolox/mL), respectively (Figure 5A). The DPPH radical scavenging ability of QAF was significantly higher than that of AF (** p < 0.01).
The standard curve of ABTS was y = 2.6561x − 0.0039 (R² = 0.9988). The average scavenging ABTS radical for QAF and AF was 0.335 μmol Trolox/mL (range 0.269–0.385 μmol Trolox/mL) and 0.268 μg Trolox/mL (range 0.202–0.341 μmol Trolox/mL), respectively (Figure 5B). The ABTS radical scavenging ability of the QAF group was significantly higher than that of the AF group (** p < 0.01).
The ABTS standard curve was y = 0.1035x + 0.0101 (R² = 0.9985). The reducing power of QAF and AF had an average percentage of 0.100 mol Trolox/mL (range 0.060–0.125 μmol Trolox/mL) and 0.103 mol Trolox/mL (range 0.07–0.123 μmol Trolox/mL), respectively (Figure 5C). The ferric-reducing antioxidant power of QAF was similar to that of AF.

2.4.2. Antioxidant Potency Composite (APC)

APC was selected to characterize the total antioxidant capacities of the samples. The APC index was computed using the method described by Seeram et al. [43]. Briefly, an identical weight coefficient was allocated to three tests, the best point in each test was set to an index value of 100, and the index points for all other samples were computed using the following equation: antioxidant index point = [(sample point/best point) × 100]. The APC values for QAF ranged from 56.81 to 94.82, while those for AF varied from 49.48 to 82.28 (Figure 5D). The APC of QAF was significantly greater than that of AF (** p < 0.01), suggesting that QAF has greater antioxidant ability than AF.
Oxidative stress is a predominant factor in the development of various diseases, including liver, cardiovascular, neurodegenerative, and digestive system diseases as well as psychiatric disorders, and is a potential therapeutic target [44,45,46,47,48]. Studies have shown that QAF can suppress radical production and scavenge radicals to achieve a hepatoprotective effect in vivo and in vitro [11], as well as hypolipidemic effect in hamsters with hyperlipidemia by alleviating oxidative stress [49]. The differences in antioxidant capacity between QAF and AF may impact their ability to treat certain diseases, which needs to be further verified due to different antioxidant mechanisms in vivo and in vitro. In this study, QAF and AF were compared based on their total antioxidant capacity as determined by the DPPH, ABTS, and FRAP methods. Our results suggest that the total antioxidant capacity of QAF was significantly better than that of AF, indicating that QAF has better antioxidant ability than AF, which was consistent with the previous findings [50]; however, the antioxidant capacity of QAF may change with different processing methods [51].

3. Materials and Methods

3.1. Chemicals and Reagents

All standards (purity ≥ 98.0%) were obtained from Chengdu Push Bio-technology Co., Ltd. (Sichuan, China), including naringin (PS012062), neohesperidin (PS010413), poncirin (PS010580), naringenin (PS010691), hesperetin (PS000219), isosinensetin (PS011270), 3′-demethylnobiletin (PS011281), 6-demethoxytangeretin (PS011274), limonin (PS010690), nobiletin (PS012026), 4′,5,6,7-tetramethoxyflavone (PS211213-08), 3-methoxynobiletin (PS010634), tangeretin (PS010637), obacunone (PS010281), 5-demethylnobiletin (PS011601), and meranzin (PS020754). A mixed solution of n-alkane standards was obtained from o2si Smart Solutions® (North Charleston, SC, USA). Antioxidant assay kits for 1,1-Diphenyl-2-picrylhydrazyl radical (DPPH; BL897B), 2,2′-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) (ABTS; BL859B), and ferric-ion-reducing antioxidant potential (FRAP; BL858B) were purchased from Labgic Technology Co., Ltd. (Beijing, China).

3.2. Plant Materials

To eliminate the impact of harvest time on the constituent compounds [52,53], 42 batches of QAF and 8 batches of AF were collected from June 25th to July 11th. The AF samples were obtained from Jiangxi Province and identified as Citrus aurantium L. In contrast, 34 batches of QAF were harvested from 11 different planting bases in Zhejiang Province, and the remaining 8 batches of QAF were provided from Hubei (n = 3), Hunan (n = 3), and Jiangxi (n = 2) Provinces. All the batches were identified as Citrus changshan-huyou Y.B. Chang, and their voucher specimens were preserved at Hangzhou Medical College. The sample IDs, time of gathering, origin, and other pertinent information are listed in Table S1.

3.3. Preparation of Standard Solutions and Sample Solutions

To prepare the standard stock solutions, all the reference standards were weighed and dissolved in 50% methanol and stored at 4 °C until use.
The optimal extraction method was determined by the comparison of different methanol concentrations. The samples were crushed into a fine powder and passed through a 100 mesh (150 μm) sieve. The powder (0.25 g) was accurately weighed into a 25 mL brown glass volumetric flask with an appropriate amount of 50% methanol (v/v). The total weight was recorded, and the mixture was subjected to 20 min of ultrasonic extraction at 40 kHz. After cooling to 25 °C, the flask was reweighed and a further amount of 50% methanol (v/v) was added to offset any loss. The extracts were then filtered through 0.22 μm membranes (JLSP042201) obtained from Tianjin Keyilong Lab Equipment Co., Ltd. (Tianjin, China) and stored at 4 °C until UPLC−QTOF/MS analysis. The sample solutions for the antioxidant assay were extracted using the same method, but at different concentrations: 0.5, 1, and 16 mg of crude drug /mL for the ABTS, DPPH, and FRAP assays, respectively.

3.4. UPLC−QTOF/MS Analysis and Data Processing

Standard solutions and sample solutions (3 µL) were analyzed on an ACQUITY UPLC system equipped with a photodiode array (PDA) (190–400 nm) and an ACQUITY UPLC® CSHTM C18 column (2.1 × 100 mm, 1.7 μm) (Waters Corporation, Milford, MA, USA), maintained at 30 °C. A mobile phase comprising 0.1% aqueous formic acid solution (A) and acetonitrile (B) was used for gradient elution at a flow rate of 0.3 mL/min. The gradient program was set as follows: 0–3.5 min, 15–16% B; 3.5–5.5 min, 16–20% B; 5.5–10 min, 20–37% B; 10–20 min, 37–40% B; 20–28 min, 40–56% B; and 28–30 min, 56–100% B.
A Synapt G2 QTOF system (Waters Corporation, Milford, MA, USA) equipped with an electron spray ionization (ESI) interface was used to perform mass spectrometry under positive and negative ions in the range of m/z 100–1000 Da, using sodium formate to make the correction standard curve and leucine enkephalin as a lock mass ([M + H]+ 556.2771, [M − H]− 554.2615) for adjustment. Nitrogen and argon were selected as the cone and collision gases, respectively. The ESI source was optimized with the following settings: 3.3/−2.5 kV capillary voltage, 120 °C source temperature, 500 L/h desolvation gas flow, 350 °C desolvation temperature, 30 V cone voltage, 50 L/h cone gas flow, 15–30 V collision energy ramp, and 20–40 V transfer collision energy ramp. Mass spectrometry data were collected for each analyte and processed in the QTOF MSE mode.
Possible molecular formulae were inferred based on the parent and fragment ion information using the self-built database of compounds, previously reported compounds, and MassLynx V4.2 software (Waters Corporation, Milford, MA, USA), with a mass error of less than 5 ppm between the theoretical and measured mass values. To identify the compounds, the target compound information, key fragment ions, and fragmentation pathways were compared with those of standard compounds or those in the literature.

3.5. Extraction of Volatile Oil and GC−MS Analysis

Volatile oils were extracted from QAF and AF via steam distillation, according to the procedure outlined in ChP (2020 edition); dried using anhydrous sodium sulfate; and analyzed using optimal GC−MS analysis conditions after dissolving in ethyl acetate.
GC−MS analyses of the volatile oil and n-alkane solution were performed using an Agilent 7890B gas chromatograph coupled to an Agilent 5975C mass spectrometer with a triple-axis detector (TAD), equipped with an Agilent DB-5MS capillary column (30 m × 0.25 mm, 0.25 μm) and an Agilent 7693 automatic sampler (Agilent Technologies, Santa Clara, CA, USA).
The temperatures of the injector, ion source, and detector were 200 °C, 230 °C, and 270 °C, respectively. The GC oven temperature was initially held at 70 °C for 2 min, then raised to 90 °C at a rate of 5 °C/min, held for 1 min and then raised to 100 °C at 3 °C/min, then to 135 °C at 10 °C/min, then to 185 °C at a rate of 2 °C/min, held for 1 min, and finally increased to 280 °C at 20 °C/min and held for 5 min; an electron impact ionization (EI) of 70 eV was used. Data in the range of 40–400 atom mass units (amu) were collected and analyzed in SCAN mode, with a solvent delay time of 3 min.
Masshunter GC/MS acquisition B.07.06.2704 and Workflows B.08.00 (Agilent Technologies) were used for data acquisition and processing, respectively. The retention index (RI) using a DB-5MS column was calculated using closely eluted n-alkanes as the standard. The volatile compounds were identified by a comparison of the fragmentation patterns and RI with the mass spectral library in the National Institute of Standards and Technology (NIST, version NIST 17), using a standard of MS matching similarity ≥90%, and those in the literature [25,32,54].

3.6. Chemometric Analysis

A total of 50 samples were analyzed and the total ion chromatograms (TIC) were obtained. Automatic integration, including automatic noise measurement and smoothing, was performed for TIC of UPLC−QTOF/MS in positive and negative ions with MassLynx software to obtain the peak area of each compound. The peaks of each component in the volatile oil were also extracted by automatic integration of Workflows software to obtain a reasonable background deduction. The areas of their common peaks from UPLC−QTOF/MS in the positive and negative ion modes and GC−MS were set as x variables and normalized to perform chemometric analysis. PCA was used to determine whether there were differences between QAF and AF. OPLS−DA was then used to explore the potential differential components; the results were validated using HCA. Chemometric analyses were performed using Simca 14.1 (MKS Umetrics, Umea, Sweden) and Origin 2023 (OriginLab, Northampton, MA, USA).

3.7. Antioxidant Capacity Assays

The antioxidant capacity of the sample extract solution was determined using DPPH, ABTS, and FRAP antioxidant assay kits following the manufacturer’s instructions. The absorbance of samples and standards was measured on a BioTek Cytation 1 Cell Imaging Multimode Reader (Agilent Technologies), and data collection was performed using Gen 5 3.08 (Agilent Technologies).
Sample solutions were prepared according to the method described in Section 3.3 and diluted with 50% methanol. Appropriate concentrations were chosen to determine the absorbance within a rational scope to obtain accurate data. All results were converted to a potency at 1 mg/mL drug concentration. The Trolox equivalent antioxidant capacity was calculated for each sample, with units of μmol Trolox/mL for ABTS and FRAP and μg Trolox/mL for DPPH; a higher value indicated a stronger potency.

3.7.1. DPPH Radical Scavenging Assay

DPPH was weighed and dissolved in absolute ethanol. A standard curve was generated using 0, 10, 20, 30, 40, and 60 μg/mL Trolox standard solutions, with the concentration of Trolox and the radical scavenging activity (RSA) set as the x and y variables, respectively. A 50 μL sample extract solution was mixed with 150 μL of DPPH solution in a 96-well plate; the absorbance was determined at 517 nm after being placed at 25 °C for 30 min in the dark. RSA was calculated using the following equation: RSA (%) = (1 − A/A0) × 100 (where A0 is the absorbance of the control and A is the absorbance of the sample). Finally, the antioxidant capacity was calculated using the standard curve.

3.7.2. ABTS Radical Scavenging Assay

The working solution was prepared according to the manufacturer’s instructions. A standard curve was generated using 0, 0.04, 0.08, 0.16, and 0.20 μmol/mL Trolox standard solutions with the concentration of Trolox and the difference of absorbance (ΔA; ΔA = A0 − A, where A0 is the absorbance of the control and A is the absorbance of the sample) set as the x and y variables, respectively. The absorbance was measured at 419 nm after a 96-well plate containing 10 μL of sample extract solution and 190 μL of the working solution was left at 25 °C for 6 min in the dark. The ΔA value was calculated and the antioxidant capacity was determined using the standard curve.

3.7.3. FRAP Assay

The working solution was prepared according to the manufacturer’s instructions. A standard curve was generated using 0, 0.4, 1.2, 2.0, 2.8, and 3.6 μmol/mL Trolox standard solutions, with the concentration of Trolox and the difference of absorbance at 590 nm set as the x and y variables, respectively. To assess the antioxidant capacity, 5 μL of sample extract solution, 25 μL of distilled water, and 170 μL of working solution were mixed in a 96-well plate at 25 °C for 10 min in the dark. The ΔA was calculated and the antioxidant capacity was determined using the standard curve.

3.7.4. Statistical Analysis of Antioxidant Capacity

Three replicates were performed for each sample and data were expressed as the means ± standard deviation. Comparison between the QAF and AF groups was performed by unpaired t-test or Wilcoxon rank–sum test using SPSS software (version 23.0; IBM Corp., Armonk, NY, USA). Results with a p value p < 0.05 were considered statistically significant.

4. Conclusions

This study presents a systematic comparison of the total chemical components and antioxidant capacity of QAF and AF, using UPLC−QTOF/MS and GC−MS for the first time. A total of 108 compounds, 25 flavonoids, 8 limonoids, 2 coumarins, and 73 volatile compounds, were systemically identified as the foundational components of QAF and AF. Four of these compounds were identified in QAF and AF for the first time. The results of the chemometric analysis indicated that the main components in QAF and AF were very similar. The trace differential components, 26 volatile compounds, 9 flavonoids, 2 coumarins, and 5 limonoids, were screened as potential metabolic markers for discriminating decoctions of QAF and AF to determine their origins. Furthermore, a comparison of the total antioxidant capacity revealed that QAF had a greater antioxidant capacity than AF. As an AF cultivar, QAF can be used as a source of AF, but further investigation is required to understand its properties and applications.
These findings suggest the chemical composition characterization combined with chemometric analysis is an effective approach to distinguish the origin and determine the authenticity of Rutaceae herbs to ensure clinical efficacy and regulate the production of preparation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28135057/s1, Table S1: Sample information of Quzhou Aurantii Fructus and Aurantii Fructus. Figure S1: The PCA results of QAF from 14 different planting bases in four provinces, including: (A) UPLC−QTOF/MS PCA 2D score scatterplot; B, GC−MS PCA 2D score scatterplot (balls in blue, green, red, and black represented the sample from Zhejiang (ZJ), Jiangxi (JX), Hunan (HN), and Hubei (HB), respectively). Figure S2: OPLS−DA permutation test of UPLC−QTOF/MS for 200 times (blue and green balls represented Q2 and R2, respectively). Figure S3: OPLS−DA permutation test of GC−MS for 200 times (blue and green balls represented Q2 and R2, respectively); and (B) predictive VIP in GC−MS (red bars mean the compound VIP > 1). Figure S4: Predictive VIP in OPLS−DA of GC−MS (red bars mean the compound VIP > 1).

Author Contributions

Q.Z.: conceptualization, data curation, formal analysis, methodology, software, writing—original draft, and visualization. W.S.: data curation, methodology, investigation, and formal analysis. G.T.: conceptualization, methodology, software, and data curation. Q.L.: software, investigation, and writing—review and editing. L.W.: resources, investigation, and visualization. W.H.: methodology, project administration, supervision, validation, and writing—review and editing. L.G.: supervision, visualization, and writing—review and editing. L.Y.: conceptualization, resources, supervision, and funding acquisition. Y.Y.: conceptualization, methodology, data curation, visualization, supervision, funding acquisition, and writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Zhejiang Province Traditional Chinese Medicine Science and Technology Project grant number 2021ZX004 and 2023ZL354, Zhejiang Provincial Science and Technology Council grant number 2020C03053.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Most of the relevant data is made available in this article. All others are provided as Supplementary Data attached to the submission.

Acknowledgments

We would like to thank researchers of the Center of Safety Evaluation and Research, Hangzhou Medical College and Zhejiang Institute for Food and Drug Control for their assistance in this study.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

List of Abbreviations

ABTS, 2,2′-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid); AF, Aurantii Fructus; ChP, Pharmacopoeia of The People’s Republic of China; DPPH, 1,1-Diphenyl-2-picrylhydrazyl radical; FRAP, ferric-ion-reducing antioxidant potential; GC−MS, gas chromatography coupled with mass spectrometry; HCA, hierarchical clustering analysis; HY, Citrus changshan-huyou Y.B. Chang; LC-MS, liquid chromatography coupled with mass spectrometry; OPLS−DA, orthogonal partial least squares–discriminant analysis; PCA, principal component analysis; PDA, photodiode array; QAF, Quzhou Aurantii Fructus; SC, Citrus aurantium L.; TAD, Triple-Axis Detector; UPLC−QTOF/MS, ultra-performance liquid chromatography coupled with quadrupole time-of-flight mass spectrometry; VIP, variable influence on projection.

References

  1. Zhao, W.; Huang, Q.; Zhang, W.; Yue, C.; Song, J. Research for the Original Plant of Chinese Medicinal Materials Qu Aurantii Fructus. Chin. J. Mod. Appl. Pharm. 2019, 36, 1652–1655. [Google Scholar]
  2. Fang, C.; He, J.; Xiao, Q.; Chen, B.; Zhang, W. Development of the Volatile Fingerprint of Qu Aurantii Fructus by HS-GC-IMS. Molecules 2022, 27, 4537. [Google Scholar] [CrossRef]
  3. Hu, Y.; Liu, J.; Li, H.; Tang, W.; Li, X.; Guo, Y. Chemical Constituents from Citrus changshan-huyou and Their Anti-Inflammatory Activities. Chem. Biodivers. 2020, 17, e2000503. [Google Scholar] [CrossRef]
  4. Ma, Y.; Chen, H.; Fang, X.; Wang, X.; Ge, W. A Comparative Study on Regulating Qi Effect of Quzhiqiao (Fructus Aurantii from Zhejiang) and Fructus Aurantii from The Other Three Major Producing Areas on Functional Dyspepsia Rats. Chin. J. Tradit. Med. Sci. Technol. 2021, 28, 722–726. [Google Scholar]
  5. Xu, G.; Ye, X.; Chen, J.; Liu, D. Effect of heat treatment on the phenolic compounds and antioxidant capacity of citrus peel extract. J. Agric. Food Chem. 2007, 55, 330–335. [Google Scholar] [CrossRef]
  6. Li, L.; Chen, J.; Lin, L.; Pan, G.; Zhang, S.; Chen, H.; Zhang, M.; Xuan, Y.; Wang, Y.; You, Z. Quzhou Fructus Aurantii Extract suppresses inflammation via regulation of MAPK, NF-κB, and AMPK signaling pathway. Sci. Rep. 2020, 10, 1593. [Google Scholar] [CrossRef] [Green Version]
  7. Xu, X. Studies on Antitussive and Expectorant Effects of Water Extract from the Changshan-huyou Peel. China Pharm. 2011, 14, 227–228. [Google Scholar]
  8. Ling, Y.; Shi, Z.; Yang, X.; Cai, Z.; Wang, L.; Wu, X.; Ye, A.; Jiang, J. Hypolipidemic effect of pure total flavonoids from peel of Citrus (PTFC) on hamsters of hyperlipidemia and its potential mechanism. Exp. Gerontol. 2020, 130, 110786. [Google Scholar] [CrossRef]
  9. Ying, Y.; Wan, H.; Zhao, X.; Yu, L.; He, Y.; Jin, W. Pharmacokinetic-Pharmacodynamic Modeling of the Antioxidant Activity of Quzhou Fructus Aurantii Decoction in a Rat Model of Hyperlipidemia. Biomed. Pharm. 2020, 131, 110646. [Google Scholar] [CrossRef]
  10. Wang, J.; Li, T.; Cai, H.; Jin, L.; Li, R.; Shan, L.; Cai, W.; Jiang, J. Protective effects of total flavonoids from Qu Zhi Qiao (fruit of Citrus paradisi cv. Changshanhuyou) on OVA-induced allergic airway inflammation and remodeling through MAPKs and Smad2/3 signaling pathway. Biomed. Pharmacother. 2021, 138, 111421. [Google Scholar] [CrossRef]
  11. Shi, Z.; Li, T.; Liu, Y.; Cai, T.; Yao, W.; Jiang, J.; He, Y.; Shan, L. Hepatoprotective and Anti-Oxidative Effects of Total Flavonoids From Qu Zhi Qiao (Fruit of Citrus Paradisi cv.Changshanhuyou) on Nonalcoholic Steatohepatitis In Vivo and In Vitro Through Nrf2-ARE Signaling Pathway. Front. Pharmacol. 2020, 11, 483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Jiang, J.; Yan, L.; Shi, Z.; Wang, L.; Shan, L.; Thomas, E. Hepatoprotective and anti-inflammatory effects of total flavonoids of Qu Zhi Ke (peel of Citrus changshan-huyou) on non-alcoholic fatty liver disease in rats via modulation of NF-kappaB and MAPKs. Phytomedicine 2019, 64, 153082. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, L.; Song, J.; Zhao, S.; Yang, Y.; Yue, C.; Feng, J.; Dai, D.; Mao, P.; Jin, J.; Wang, Y.; et al. Pharmacodynamic Comparison of Qi Regulating and Depression Dispersing between Citrus changshan-huyou and Aurantii Fructus From Different Sources. Chin. J. Exp. Tradit. Med. Formulae 2016, 22, 156–160. [Google Scholar]
  14. Zheng, C.; Zhao, W.; Song, J.; Wang, L.; Zhang, W. Demonstration and Study of Qu Aurantii Fructus Medicinally Used as Aurantii Fructus. Chin. J. Mod. Appl. Pharm. 2022, 39, 2096–2102. [Google Scholar]
  15. Zhao, W.; Guo, Z.; Zhang, W.; Huang, Q.; Yi, Z.; Song, J. Study on original plant species and geographical distribution of Fructus Aurantii. China J. Chin. Mater. Med. 2018, 43, 4361–4364. [Google Scholar]
  16. Gao, L.; Zhang, H.; Xiang, Z.; Jiang, J.; Yuan, C.; Song, J. Citrus aurantium ‘Changshan-huyou’-An ethnopharmacological and phytochemical review. Front. Pharmacol. 2022, 13, 983470. [Google Scholar] [CrossRef]
  17. Suntar, I.; Khan, H.; Patel, S.; Celano, R.; Rastrelli, L. An Overview on Citrus aurantium L.: Its Functions as Food Ingredient and Therapeutic Agent. Oxid. Med. Cell. Longev. 2018, 2018, 7864269. [Google Scholar] [CrossRef] [Green Version]
  18. He, Y.; Li, Z.; Wang, W.; Sooranna, S.R.; Shi, Y.; Chen, Y.; Wu, C.; Zeng, J.; Tang, Q.; Xie, H. Chemical Profiles and Simultaneous Quantification of Aurantii fructus by Use of HPLC-Q-TOF-MS Combined with GC−MS and HPLC Methods. Molecules 2018, 23, 2189. [Google Scholar] [CrossRef] [Green Version]
  19. Yue, C. The Survey of Chemical Components and Pharmacological Effects in Citruschangshan-huyou YB.Chang. and to Compared with Fructus Aurantii. Master’s Thesis, Zhejiang Chinese Medical University, Hangzhou, China, 2015. [Google Scholar]
  20. Hu, J.; Wang, J.; Qin, B.; Wang, L.; Li, X. Chemometric Analyses for the Characterization of Raw and Stir-Frying Processed Drynariae Rhizoma Based on HPLC Fingerprints. Evid. Based Complement. Alternat Med. 2021, 2021, 6651657. [Google Scholar] [CrossRef]
  21. Lever, J.; Krzywinski, M.; Altman, N. Principal component analysis. Nature Methods 2017, 14, 641–642. [Google Scholar] [CrossRef] [Green Version]
  22. Kang, C.; Zhang, Y.; Zhang, M.; Qi, J.; Zhao, W.; Gu, J.; Guo, W.; Li, Y. Screening of specific quantitative peptides of beef by LC-MS/MS coupled with OPLS−DA. Food Chem. 2022, 387, 132932. [Google Scholar] [CrossRef] [PubMed]
  23. More, G.K.; Vervoort, J.; Steenkamp, P.A.; Prinsloo, G. Metabolomic profile of medicinal plants with anti-RVFV activity. Heliyon 2022, 8, e08936. [Google Scholar] [CrossRef] [PubMed]
  24. Bordonaba, J.G.; Terry, L.A. Biochemical profiling and chemometric analysis of seventeen UK-grown black currant cultivars. J. Agric. Food Chem. 2008, 56, 7422–7430. [Google Scholar] [CrossRef]
  25. Li, P.; Zeng, S.; Duan, L.; Ma, X.; Dou, L.; Wang, L.; Li, P.; Bi, Z.; Liu, E. Comparison of Aurantii Fructus Immaturus and Aurantii Fructus based on multiple chromatographic analysis and chemometrics methods. J. Chromatogr. A 2016, 1469, 96–107. [Google Scholar] [CrossRef]
  26. Bai, Y.; Zheng, Y.; Pang, W.; Peng, W.; Wu, H.; Yao, H.; Li, P.; Deng, W.; Cheng, J.; Su, W. Identification and Comparison of Constituents of Aurantii Fructus and Aurantii Fructus Immaturus by UFLC-DAD-Triple TOF-MS/MS. Molecules 2018, 23, 803. [Google Scholar] [CrossRef] [Green Version]
  27. Cheung, T.; Li, W.; Ho, H.; Liang, Z.; Huang, C. Chemical variation in Aurantii Fructus before and after processing based on UHPLC-Q-TOF-MS. China J. Chin. Mater. Med. 2016, 41, 2070–2080. [Google Scholar]
  28. Tsiokanosa, E.; Tsafantakisa, N.; Termentzib, A.; Aligiannisa, N.; Skaltsounisa, L.A.; Fokialakisa, N. Phytochemical characteristics of bergamot oranges from the Ionian islands of Greece: A multi-analytical approach with emphasis in the distribution of neohesperidose flavanones. Food Chem. 2021, 343, 128400. [Google Scholar] [CrossRef] [PubMed]
  29. William, J.; John, P.; Ch, A.R.; Raza, S.A.; Adnan, A.; Mumtaz, M.W.; Sharif, S.; Mukhtar, H.; Akhtar, M.T. Antioxidant activity, α-glucosidase inhibition and phytochemical profiling of Hyophorbe lagenicaulis leaf extracts. PeerJ 2019, 7, e7022. [Google Scholar] [CrossRef] [Green Version]
  30. Zaare-Nahandi, F.; Hosseinkhani, S.; Zamani, Z.; Asadi-Abkenar, A.; Omidbaigi, R. Delay expression of limonoid UDP-glucosyltransferase makes delayed bitterness in citrus. Biochem. Biophys. Res. Commun. 2008, 371, 59–62. [Google Scholar] [CrossRef]
  31. Tian, Q.; Ding, X. Screening for limonoid glucosides in Citrus tangerina (Tanaka) Tseng by high-performance liquid chromatography-electrospray ionization mass spectrometry. J. Chromatogr. A 2000, 874, 13–19. [Google Scholar] [CrossRef]
  32. Zhao, X. Studies on Chemical Components and Pharmacological and Biological Activities in Huyou Peels (Citrus Changshan-Huyou Y.B. Chang). Ph.D. Thesis, Zhejiang University, Hangzhou, China, 2003. [Google Scholar]
  33. Zhang, J.; Liu, M.; Yan, D.; Sun, X.; Tu, J.; Liu, Y.; Li, N.; Gong, Q. Study on acute toxicity and GC−MS chemical constituent analysis of volatile oil of Fructus aurantii pieces made by methods of Pharmacopoeia and Zhang-bang method. China J. Tradit. Chin. Med. Pharm. 2018, 33, 689–693. [Google Scholar]
  34. Wang, S.; Yang, C.; Tu, H.; Zhou, J.; Liu, X.; Cheng, Y.; Luo, J.; Deng, X.; Zhang, H.; Xu, J. Characterization and Metabolic Diversity of Flavonoids in Citrus Species. Sci. Rep. 2017, 7, 10549. [Google Scholar] [CrossRef]
  35. Ma, C.; Gao, W.; Gao, Y.; Man, S.; Huang, L.; Liu, C. Identification of chemical constituents in extracts and rat plasma from Fructus Aurantii by UPLC-PDA-Q-TOF/MS. Phytochem. Anal. 2011, 22, 112–118. [Google Scholar] [CrossRef]
  36. Lou, Z.; Wang, J.; Zhang, G. Research progress on effects and mechanisms of traditional Chinese medicine for qi-regulating and their components on digestive system disease. China J. Tradit. Chin. Med. Pharm. 2018, 33, 1004–1007. [Google Scholar]
  37. Feng, J.; Song, J.; Zhao, S.; Xu, L.; Zhang, W.; Lei, M. Study on Spectrum-activity Relationship of Flavonoids in Qu Aurantii Fructus for Regulation of Gastrointestinal Motility. Chin. J. Mod. Appl. Pharm. 2022, 39, 2241–2245. [Google Scholar]
  38. Qiao, R.; Zhou, L.; Zhong, M.; Zhang, M.; Yang, L.; Yang, Y.; Chen, H.; Yang, W.; Yuan, J. Spectrum-effect relationship between UHPLC-Q-TOF/MS fingerprint and promoting gastrointestinal motility activity of Fructus aurantii based on multivariate statistical analysis. J. Ethnopharmacol. 2021, 279, 114366. [Google Scholar] [CrossRef]
  39. Feng, J.; Li, J.; Song, J.; Wang, S.; Mao, B. Comprehensive Evaluation of Citrus Paradisi from Different Producing Areas by Entropy Weight TOPSIS Method. China Pharm. 2021, 32, 1312–1318. [Google Scholar]
  40. Yue, C.; Ma, L.; Song, J.; Zhang, W.; Zhao, W. Establishment of the HPLC Fingerprints of Citrus Changshan-huyou and Analysis of Its Characteristic Components. Chin. J. Mod. Appl. Pharm. 2018, 35, 1217–1220. [Google Scholar]
  41. Chen, H.; Li, X.; Yang, J.; Zhang, X. Imultaneous Determination and Chemometric Analysis of Fourteen Flavonoids in Fructus Aurantii from Four Origins by UPLC-MS/MS. Mod. Tradit. Chin. Med. Mater. Med. World Sci. Technol. 2023, 25, 519–526. [Google Scholar]
  42. Li, C.; Cai, Q.; Wu, X.; Tan, Z.; Huang, S.; Wei, C.; Zhang, W.; Chen, Z.; Zhang, L.; Xiang, H. Variation in Compositions and Biological Activities of Essential Oils from Four Citrus Species: Citrus limon, Citrus sinensis, Citrus paradisi, and Citrus reticulata. Chem. Biodivers. 2022, 19, e202100910. [Google Scholar] [CrossRef]
  43. Seeram, N.P.; Aviram, M.; Zhang, Y.; Henning, S.M.; Feng, L.; Dreher, M.; Heber, D. Comparison of antioxidant potency of commonly consumed polyphenol-rich beverages in the United States. J. Agric. Food Chem. 2008, 56, 1415–1422. [Google Scholar] [CrossRef]
  44. Cichoż-Lach, H.; Michalak, A. Oxidative stress as a crucial factor in liver diseases. World J. Gastroenterol. 2014, 20, 8082–8091. [Google Scholar] [CrossRef] [PubMed]
  45. Feitosa, C.M.; Oliveira, G.L.d.S.; Cavalcante, A.d.N.; Chaves, S.K.M.; Rai, M. Determination of Parameters of Oxidative Stress in vitro Models of Neurodegenerative Diseases-A Review. Curr. Clin. Pharmacol. 2018, 13, 100–109. [Google Scholar] [CrossRef] [PubMed]
  46. Ng, F.; Berk, M.; Dean, O.; Bush, A.I. Oxidative stress in psychiatric disorders: Evidence base and therapeutic implications. Int. J. Neuropsychopharmacol. 2008, 11, 851–876. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Tian, T.; Wang, Z.; Zhang, J. Pathomechanisms of Oxidative Stress in Inflammatory Bowel Disease and Potential Antioxidant Therapies. Oxid. Med. Cell. Longev. 2017, 2017, 4535194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Zhao, S.; Cheng, C.; Zhang, C.; Huang, Y. Interplay Between Oxidative Stress, Cyclooxygenases, and Prostanoids in Cardiovascular Diseases. Antioxid. Redox Signal. 2021, 34, 784–799. [Google Scholar] [CrossRef]
  49. Ye, A.; Jiang, J.; Li, R.; Jin, L.; Wu, X.; Wang, J. Study on Hypolipidemic Effect of Pure Total Flavonoids from Qu Aurantii Fructus on Golden Hamsters of Hyperlipidemia and Its Potential Mechanism. Chin. J. Mod. Appl. Pharm. 2020, 37, 1938–1946. [Google Scholar]
  50. Zheng, X.; Liu, C.; Wang, D.; Bi, X.; Yang, B.; Sun, C. Flavonoids contents and antioxidant activities in Citrus paradisi cv. Changshan Huyou during development. Acta Agric. Zhejiangensis 2015, 27, 1185–1191. [Google Scholar]
  51. Wang, L.; Wang, L.; Wu, T.; Zhao, S.; Zheng, M.; Lu, S. Effects of different processing methods on the contents of the pharmacodynamic index components and antioxidant activity of Citrus aurantium. China Pharm. 2022, 33, 830–835. [Google Scholar]
  52. Song, J.; Feng, J.; Hu, J.; Xu, L.; Fu, H. Study on the Dynamic Changes of Three Contents in Citrus Changshan Huyou Fruit in Different Growth Periods. Chin. J. Mod. Appl. Pharm. 2014, 31, 1474–1478. [Google Scholar]
  53. Wang, H.; Huang, Y.; Liang, Y.; Zhang, X.; Xie, H.; Zhang, S. Suitable harvest period of Aurantii Fructus based on UPLC-Q-TOF-MS metabolomics. China J. Chin. Mater. Med. 2022, 47, 3175–3184. [Google Scholar]
  54. Xing, N.; Shu, Z.; Xu, B.; Jiao, W.; Li, Z.; Wang, Q.; Kuang, H. GC−MS Analysis of Volatile Oil Components in Fructus Aurantii from Different Regions and Study of Its Antitumor Activity. Inf. Tradit. Chin. Med. 2015, 32, 1–6. [Google Scholar]
Molecules 28 05057 g001 550

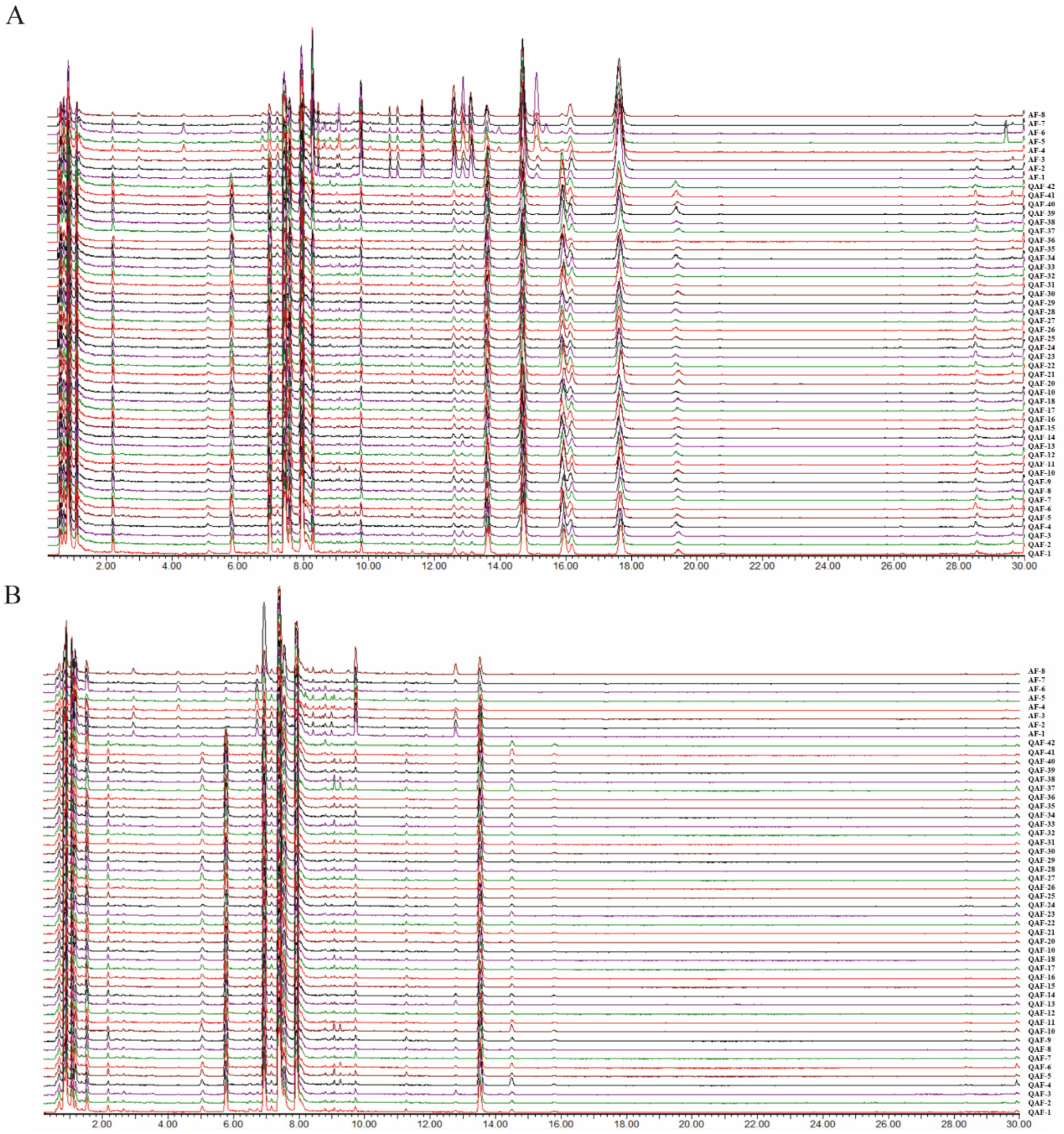

Figure 1. The comparison of total ion chromatograms (TIC) of UPLC−QTOF/MS of QAF and AF in positive (A) and negative (B) ions.
Figure 1. The comparison of total ion chromatograms (TIC) of UPLC−QTOF/MS of QAF and AF in positive (A) and negative (B) ions.
Molecules 28 05057 g001
Molecules 28 05057 g002 550

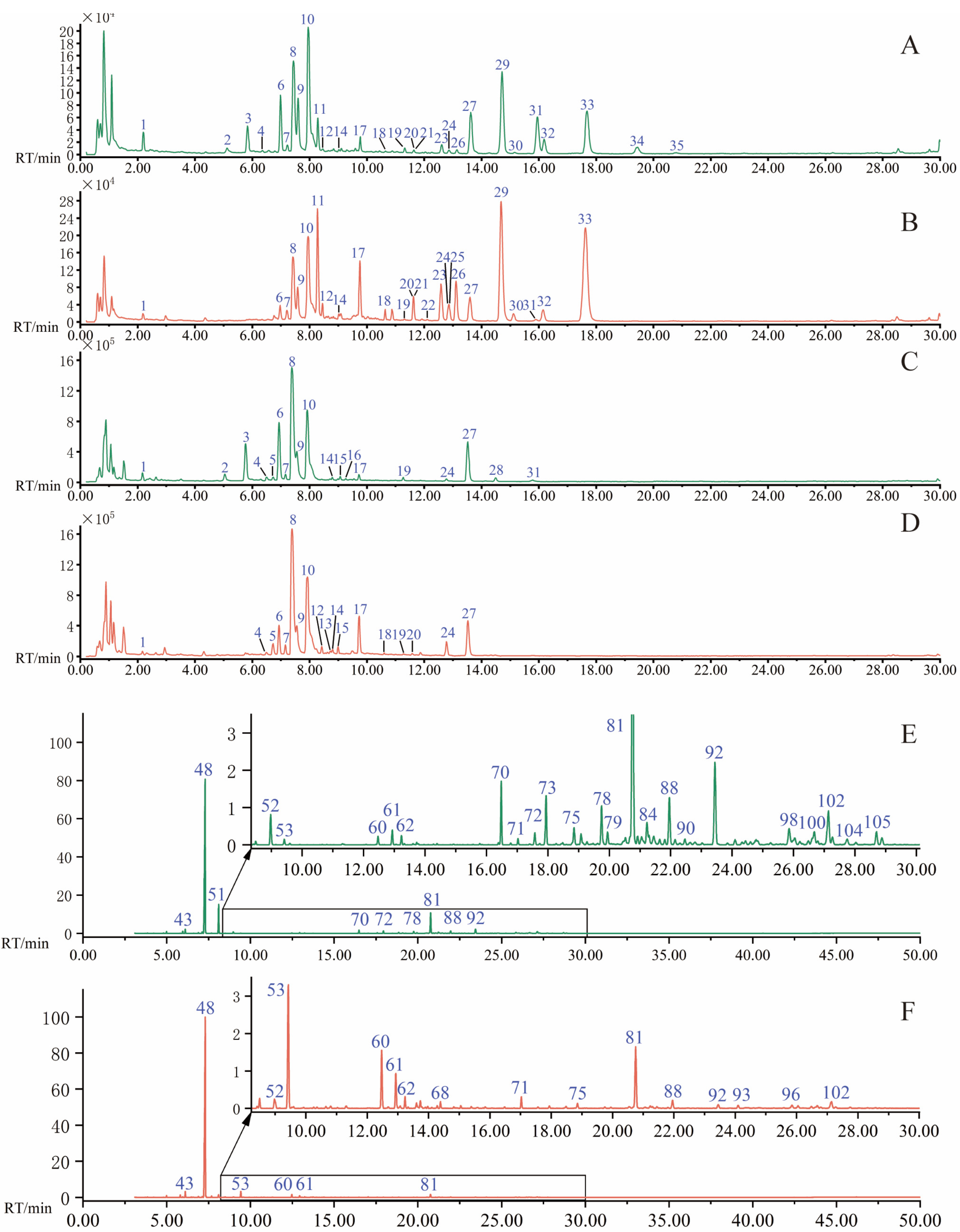

Figure 2. TIC of QAF and AF by UPLC−QTOF/MS under positive and negative ions and GC−MS: (A) TIC of QAF in positive ions; (B) TIC of AF in positive ions; (C) TIC of QAF in negative ions; (D) TIC of AF in negative ions; (E) TIC of GC−MS of QAF; and (F) TIC of GC−MS of AF (the range from 8.2 min to 30 min is enlarged in GC−MS).
Figure 2. TIC of QAF and AF by UPLC−QTOF/MS under positive and negative ions and GC−MS: (A) TIC of QAF in positive ions; (B) TIC of AF in positive ions; (C) TIC of QAF in negative ions; (D) TIC of AF in negative ions; (E) TIC of GC−MS of QAF; and (F) TIC of GC−MS of AF (the range from 8.2 min to 30 min is enlarged in GC−MS).
Molecules 28 05057 g002
Molecules 28 05057 g003 550

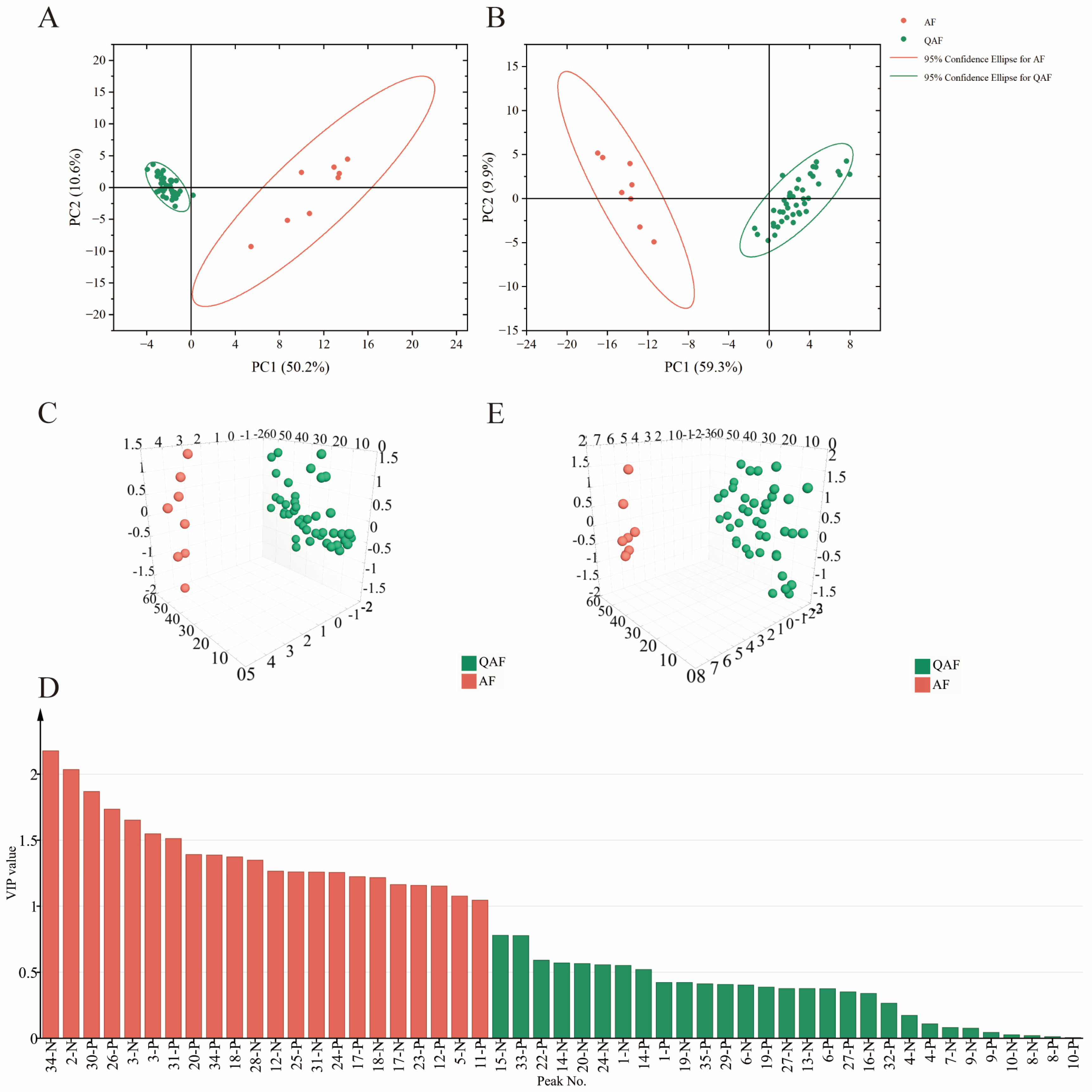

Figure 3. The result of chemometric analysis including: the 2D score scatterplot of PCA based on the areas of their common peaks from UPLC−QTOF/MS in the positive and negative ion modes (A) and GC−MS (B); OPLS−DA 3D score scatterplot of UPLC−QTOF/MSUPLC−QTOF/MS (C) and (E) (red and green balls represent the samples of AF and QAF, respectively); predictive VIP in OPLS−DA of UPLC−QTOF/MSUPLC−QTOF/MS (D) (red bars mean the compound VIP > 1).
Figure 3. The result of chemometric analysis including: the 2D score scatterplot of PCA based on the areas of their common peaks from UPLC−QTOF/MS in the positive and negative ion modes (A) and GC−MS (B); OPLS−DA 3D score scatterplot of UPLC−QTOF/MSUPLC−QTOF/MS (C) and (E) (red and green balls represent the samples of AF and QAF, respectively); predictive VIP in OPLS−DA of UPLC−QTOF/MSUPLC−QTOF/MS (D) (red bars mean the compound VIP > 1).
Molecules 28 05057 g003
Molecules 28 05057 g004 550
Figure 4. The results of HCA, including: (A) a cluster dendrogram (red and green samples came from AF and QAF, respectively), and (B) a heatmap (with the increase in peak area, the color of the bar present from blue to red, as shown in the bar at the upper right). Area data of all differential peaks with VIP > 1 and p < 0.05 were from UPLC−QTOF/MS in the positive and negative ion modes and GC−MS and normalized.
Figure 4. The results of HCA, including: (A) a cluster dendrogram (red and green samples came from AF and QAF, respectively), and (B) a heatmap (with the increase in peak area, the color of the bar present from blue to red, as shown in the bar at the upper right). Area data of all differential peaks with VIP > 1 and p < 0.05 were from UPLC−QTOF/MS in the positive and negative ion modes and GC−MS and normalized.
Molecules 28 05057 g004
Molecules 28 05057 g005 550
Figure 5. The results of antioxidant capacity: (A) DPPH; (B) ABTS; (C) FRAP (The Trolox equivalent antioxidant capacity was calculated for each sample, with units of μmol Trolox/mL for ABTS and FRAP and μg Trolox/mL for DPPH; a higher value indicated a stronger potency); and (D) APC. (n = 42 in QAF and n = 8 in AF) when AF group is compared with QAF group; ** p < 0.01; and ns represents p ˃ 0.05.
Figure 5. The results of antioxidant capacity: (A) DPPH; (B) ABTS; (C) FRAP (The Trolox equivalent antioxidant capacity was calculated for each sample, with units of μmol Trolox/mL for ABTS and FRAP and μg Trolox/mL for DPPH; a higher value indicated a stronger potency); and (D) APC. (n = 42 in QAF and n = 8 in AF) when AF group is compared with QAF group; ** p < 0.01; and ns represents p ˃ 0.05.
Molecules 28 05057 g005
Table
Table 1. The chemical compositions identified from QAF and AF by UPLC−QTOF/MS in positive and negative ion modes.
Table 1. The chemical compositions identified from QAF and AF by UPLC−QTOF/MS in positive and negative ion modes.
Comp
No.		RT
(min)		CompoundsCategoryMFMeasured Mass (m/z)Error b
(ppm)		Fragment Ions (m/z)Peak No.
12.16vicenin-2flavoneC27H30O15595.1662 [M + H]+−0.2257.3252, 295.0883, 478.0288, 577.15231-P
593.1505 [M − H]−−0.2162.8622, 431.2102, 473.1420, 475.16991-N
25.02eriocitrinflavanoneC27H32O15597.1813 [M + H]+−1289.0689, 417.1266, 451.1285, 565.14642-P
595.1667 [M − H]−0.7151.0897, 287.0551, 308.7538, 459.87312-N
35.76neoeriocitrinflavanoneC27H32O15597.1819 [M + H]+0289.0723, 417.1095, 435.1271, 451.12603-P
595.1664 [M − H]−0.2151.3640, 287.2366, 308.1440, 459.04763-N
46.48naringin 6″-rhamnoside cflavanoneC33H42O18727.2449 [M + H]+0151.2614, 193.0523, 342.1341, 657.74664-P
725.2293 [M − H]−0273.0728, 419.1294, 511.0328, 595.19024-N
56.73hesperetin 5-O-glucosideflavanoneC22H24O11463.1245 [M − H]−1.1125.0201, 217.1107, 241.2611, 374.87355-N
66.93narirutinflavanoneC27H32O14581.1868 [M + H]+−0.3153.0183, 273.0751, 419.1333, 465.12386-P
579.1712 [M − H]−−0.3151.0176, 157.7385, 271.0313, 381.95196-N
77.16hesperetin 7-(2,6-dirhamnosylglucoside) cflavanoneC34H44O19757.2553 [M + H]+−0.3303.0877, 431.1317, 449.1411, 611.20907-P
755.2397 [M − H]−−0.3251.0554, 485.1661, 579.2084, 609.25437-N
87.40naringin aflavanoneC27H32O14581.1867 [M + H]+−0.5157.7210, 331.71218-P
579.1713 [M − H]−−0.2273.0771, 104.1233, 419.1310, 435.13028-N
97.56hesperidinflavanoneC28H34O15611.1973 [M + H]+−0.5303.0822, 431.1323, 465.1415, 579.17009-P
609.1815 [M − H]−−0.7131.7915, 286.0830, 301.0629, 579.16989-N
107.92neohesperidin aflavanoneC28H34O15611.1976 [M + H]+0273.0708, 303.0882, 449.1455, 465.139610-P
609.1819 [M − H]−0189.8311, 249.3724, 313.9281, 519.197910-N
118.25meranzincoumarinC15H16O4261.1134 [M + H]+2.7130.0093, 158.9663, 189.0565, 243.102511-P
128.43obacunoic acid-17-β-D-glucosidelimonoidC29H32O17653.1721 [M + H]+0.5373.1664, 473.146312-P
651.1559 [M − H]−−0.3263.2244, 471.1717, 583.1901, 609.192412-N
138.79naringin 6″-malonate cflavanoneC30H34O17665.1720 [M − H]−0.3271.0612, 545.2758, 501.1102, 621.176913-N
148.99brutieridinflavanoneC34H42O18755.2411 [M + H]+1.696.9604, 303.0997, 419.7484, 611.198914-P
753.2265 [M − H]−3.1317.0820, 577.1470, 609.1931, 753.230314-N
159.07nomilin glucoside climonoidC34H46O15693.2759 [M − H]−0.1161.2311, 485.0921, 487.1647, 531.198115-N
169.26nomilinic acid 17-β-D-glucosidelimonoidC34H48O16711.2880 [M − H]−2.2125.8538, 362.0775, 463.1354, 651.135716-N
179.73poncirin aflavanoneC28H34O14595.2027 [M + H]+0287.0934, 433.144517-P
593.1868 [M − H]−−0.3177.3632, 328.8036, 428.1852, 565.353917-N
1810.61melitidinflavoneC33H40O17725.2294 [M + H]+0.1272.0680, 579.2518, 561.111018-P
723.2137 [M − H]−0.1452.0145, 578.1447, 603.192618-N
1911.27naringenin aflavanoneC15H12O5273.0768 [M + H]+1.8244.0607, 124.0807, 120.019219-P
271.0606 [M − H]−0116.9294, 200.385919-N
2011.58hesperetin aflavanoneC16H14O6303.0862 [M + H]+−2.3285.068420-P
301.0714 [M − H]−0.7150.0010, 178.9742, 108.034420-N
2111.58iso-sinensetin aflavoneC20H20O7373.1289 [M + H]+0.5163.0424, 297.149321-P
2212.073′-demethylnobiletin aflavoneC20H20O8389.1221 [M + H]+−3.9148.0940, 359.124022-P
2312.54isomeranzin acoumarinC15H16O4261.1128 [M + H]+0.4102.0995, 158.5279, 189.0538, 243.093423-P
2412.79obacunoic acidlimonoidC26H32O8473.2174 [M + H]+−0.2261.1100, 373.1358, 455.219924-P
471.2008 [M − H]−−2.3137.1152, 203.5991, 391.5844, 453.197124-N
2512.82sinensetinflavoneC20H20O7373.1287 [M + H]+0312.0947, 358.108525-P
2613.056-demethoxytangeretin aflavoneC19H18O6343.118 1 [M + H]+−0.3132.0033, 218.0295, 234.5551, 282.233526-P
2713.52limonin alimonoidC26H30O8471.2019 [M + H]+0323.6053, 403.2028, 425.196127-P
469.1864 [M − H]−0.4116.9230, 235.9201, 286.0120, 386.137727-N
2814.49nomilinic acidlimonoidC28H36O10531.2230 [M − H]−0126.3261, 377.4469, 471.2180, 487.245228-N
2914.61nobiletin aflavoneC21H22O8403.1396 [M + H]+0.7385.0027, 311.8877, 242.030029-P
3015.014′,5,6,7-tetramethoxyflavone aflavoneC19H18O6343.1181 [M + H]+−0.3118.0903, 218.1613, 297.615130-P
3115.79nomilinlimonoidC28H34O9515.2282 [M + H]+0.2161.0510, 411.1992, 469.1833, 497.200931-P
513.2133 [M − H]−1.6206.9667, 250.7199, 438.1786, 453.191931-N
3216.043-methoxynobiletin aflavoneC22H24O9433.1498 [M + H]+−0.2375.1141, 193.0924, 240.1472, 257.040632-P
3317.49tangeretin aflavoneC20H20O7373.1287 [M + H]+0159.9747, 311.190033-P
3419.18obacunone alimonoidC26H30O7455.2072 [M + H]+0.4393.1996, 297.609534-P
453.1915 [M − H]−0.4294.8072, 386.0809, 425.980634-N
3520.555-demethylnobiletin aflavoneC20H20O8389.1228 [M + H]+−2.1330.2824, 158.9681, 176.982435-P
Note: a These compounds were accurately identified with reference standards; b errors (ppm) were obtained by formula prediction software in the mass spectrometer; c these compounds were identified in QAF and AF for the first time; Arabic figures are the serial numbers of compounds according to RT; P and N represent the peaks under positive and negative ions separately in Peak No.; RT = retention time; and MF = molecular formula.
Table
Table 2. The chemical compositions identified from the volatile oil of QAF and AF by GC−MS.
Table 2. The chemical compositions identified from the volatile oil of QAF and AF by GC−MS.
No.Rt/minCompoundsRI aMFMWQAFAF
Average Percentage
(n = 42)		RangeAverage Percentage
(n = 8)		Range
363.717ethylbenzene\ bC8H10106.160.02%0.01–0.02%0.02%0.02%
373.844p-xylene\C8H10106.160.10%0.09–0.11%0.12%0.11–0.13%
384.224m-xylene\C8H10106.160.05%0.05–0.06%0.06%0.05–0.06%
394.804α-thujene926C10H16136.230.12%0.06–0.19%0.07%0.02–0.13%
404.985(+)-α-pinene935C10H16136.230.57%0.35–0.83%0.58%0.46–0.73%
415.810β-thujene974C10H16136.230.05%0.02–0.07%0.54%0.29–0.73%
425.954β-pinene981C10H16136.230.62%0.38–0.74%0.26%0.11–0.74%
436.106β-myrcene988C10H16136.231.13%0.95–1.35%1.62%1.48–1.73%
446.461octanal1003C8H10O128.210.01%0–0.03%0.12%0.08–0.16%
456.609α-phellandrene1008C10H16136.230.05%0.04–0.06%0.08%0.05–0.11%
466.888α-terpinene1017C10H16136.230.21%0.18–0.24%0.24%0.18–0.32%
477.112o-cymene1025C10H14134.220.56%0.40–0.89%0.58%0.04–1.13%
487.290limonene1030C10H16136.2365.76%60.64–71.09%85.93%79.98–88.61%
497.332β-phellandrene1032C10H16136.230.14%0–0.21%0.20%0–0.33%
507.671(Z)-β-ocimene1043C10H16136.230.10%0.08–0.13%0.46%0.38–0.62%
518.102γ-terpinene1057C10H16136.238.86%7.93–9.50%2.66%0.47–5.98%
528.973terpinolene1085C10H16136.230.52%0.47–0.55%0.30%0.21–0.53%
539.413linalool1100C10H18O154.250.10%0.07–0.14%1.86%1.27–2.44%
549.599nonanal1105C9H18O142.240.02%0–0.04%0.02%0–0.05%
559.929p-mentha-1,3,8-triene1114C10H14134.22NDND0.01%0–0.04%
5610.259(+)-trans-p-mentha-2,8-dien-1-ol1123C10H16O152.23NDND0.00%0–0.04%
5710.652limonene oxide, cis-1134C10H16O152.23NDND0.03%0–0.04%
5810.808(+)-trans-limonene oxide1138C10H16O152.23NDND0.03%0–0.05%
5911.312β-terpineol1152C10H18O154.250.02%0–0.04%0.05%0–0.08%
6012.470(−)-terpinen-4-ol1184C10H18O154.250.18%0.13–0.23%0.76%0.46–1.26%
6112.931α-terpineol1197C10H18O154.250.29%0.19–0.40%0.56%0.40–0.70%
6213.231decanal1207C10H20O156.260.13%0.10–0.18%0.15%0.13–0.18%
6313.324octyl acetate1211C10H20O2172.260.01%0–0.03%0.00%0–0.02%
6413.608carveol1222C10H16O152.230.00%0–0.05%0.10%0.05–0.18%
6513.726nerol1227C10H18O154.250.02%0–0.06%0.09%0.03–0.18%
6613.777citronellol1229C11H20O156.260.00%0–0.02%0.01%0–0.04%
6713.971(+)-cis-carveol1236C10H16O152.23NDND0.02%0–0.04%
6814.280carvone1248C10H14O150.22NDND0.05%0.02–0.08%
6915.045perillaldehyde1278C10H14O150.22NDND0.03%0–0.04%
7016.479δ-elemene1334C15H24204.350.85%0.63–1.01%0.03%0–0.07%
7117.024neryl acetate1355C12H20O2196.290.08%0.06–0.10%0.15%0.10–0.20%
7217.578copaene1376C15H24204.350.22%0.15–0.27%0.01%0–0.05%
7317.938(−)-β-elemene 1389C15H24204.350.81%0.63–0.98%0.03%0–0.08%
7418.272sesquithujene1402C15H24204.350.01%0–0.02%NDND
7518.855caryophyllene1420C15H24204.350.36%0.25–0.49%0.07%0–0.10%
7619.079γ-elemene1428C15H24204.350.22%0.12–0.29%NDND
7719.274α-guaiene1434C15H24204.350.05%0.03–0.06%NDND
7819.748cis-β-farnesene1449C15H24204.350.69%0.47–0.90%0.01%0–0.04%
7919.942humulene1455C15H24204.350.24%0.17–0.32%0.00%0–0.03%
8020.526γ-muurolene1474C15H24204.350.17%0–0.35%0.01%0–0.04%
8120.762germacrene D1481C15H24204.357.99%5.95–9.56%1.13%0.83–1.52%
8220.919δ-selinene1486C15H24204.350.13%0.07–0.20%0.02%0–0.11%
8321.050valencen1491C15H24204.350.20%0.07–0.33%0.00%0–0.03%
8421.223bicyclogermacrene1496C15H24204.350.48%0.25–0.73%0.02%0–0.06%
8521.295α-muurolene1498C15H24204.350.11%0–0.21%0.01%0–0.05%
8621.642a-bulnesene1508C15H24204.350.10%0.07–0.14%NDND
8721.798γ-cadinene1512C15H24204.350.09%0.06–0.15%0.00%0–0.02%
8821.959dysoxylonene1517C15H24204.351.01%0.65–1.45%0.12%0–0.25%
8922.145β-sesquiphellandrene1522C15H24204.350.10%0.07–0.14%NDND
9022.458δ-cadinene1530C15H24204.350.11%0.06–0.19%NDND
9123.0212-(4-ethenyl-4-methyl-3-prop-1-en-2-ylcyclohexyl)propan-2-ol1546C15H26O222.370.03%0–0.05%NDND
9223.439germacrene B1557C15H24204.351.91%1.34–2.40%0.05%0–0.11%
9324.095spathulenol1575C15H24O220.350.14%0.10–0.24%0.02%0–0.07%
9424.437(−)-globulol1584C15H26O222.370.08%0–0.16%NDND
9524.775guaiol1594C15H26O222.370.20%0.02–0.32%NDND
9625.854junenol1621C15H26O222.370.46%0–0.81%0.05%0–0.10%
9726.027γ-eudesmole1625C15H26O222.370.25%0–0.49%0.01%0–0.12%
9826.200hinesol1629C15H26O222.370.09%0.05–0.18%0.00%0–0.01%
9926.475isosparthulenol1636C15H24O220.350.08%0–0.18%NDND
10026.674t-muurolol1641C15H26O222.370.46%0.29–0.77%0.02%0–0.11%
10126.780cadin-4-en-10-ol1643C15H26O222.370.08%0–0.13%NDND
10227.135α-cadinol1652C15H26O222.371.02%0.63–1.59%0.15%0–0.24%
10327.266neointermedeol1655C15H26O222.370.21%0.01–0.37%NDND
10427.748isointermedeol1667C15H26O222.370.10%0–0.30%NDND
10528.700β-sinensal1690C15H22O218.330.34%0.21–0.49%NDND
10628.877juniper camphor1694C15H26O222.370.19%0.09–0.31%NDND
10740.633palmitic acid1965C16H32O2256.420.22%0–0.71%NDND
10843.766phytol2105C20H40O296.500.03%0–0.11%NDND
Note: a The retention index (RI) using DB-5MS column is calculated using closely eluted n-alkanes as the standard; b the retention times of these compounds were shorter than the n-alkanes that can be detected under these conditions; and ND: the target compounds were not detected or the contents of them were less than the quantitation limit in the samples.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, Q.; Song, W.; Tao, G.; Li, Q.; Wang, L.; Huang, W.; Gao, L.; Yin, L.; Ye, Y. Comparison of Chemical Compositions and Antioxidant Activities for the Immature Fruits of Citrus changshan-huyou Y.B. Chang and Citrus aurantium L. Molecules 2023, 28, 5057. https://doi.org/10.3390/molecules28135057

AMA Style

Zhang Q, Song W, Tao G, Li Q, Wang L, Huang W, Gao L, Yin L, Ye Y. Comparison of Chemical Compositions and Antioxidant Activities for the Immature Fruits of Citrus changshan-huyou Y.B. Chang and Citrus aurantium L. Molecules. 2023; 28(13):5057. https://doi.org/10.3390/molecules28135057

Chicago/Turabian Style

Zhang, Qixin, Wenying Song, Guanqi Tao, Qin Li, Lixia Wang, Wenkang Huang, Lijuan Gao, Lai Yin, and Yiping Ye. 2023. "Comparison of Chemical Compositions and Antioxidant Activities for the Immature Fruits of Citrus changshan-huyou Y.B. Chang and Citrus aurantium L." Molecules 28, no. 13: 5057. https://doi.org/10.3390/molecules28135057

APA Style

Zhang, Q., Song, W., Tao, G., Li, Q., Wang, L., Huang, W., Gao, L., Yin, L., & Ye, Y. (2023). Comparison of Chemical Compositions and Antioxidant Activities for the Immature Fruits of Citrus changshan-huyou Y.B. Chang and Citrus aurantium L. Molecules, 28(13), 5057. https://doi.org/10.3390/molecules28135057

Article Metrics

Back to TopTop
