Review

Spiro-Flavonoids in Nature: A Critical Review of Structural Diversity and Bioactivity

1
Department of Biochemistry and Crop Quality, Institute of Soil Science and Plant Cultivation—State Research Institute, 8 Czartoryskich Street, 24-100 Puławy, Poland
2
Department of Chemistry of Natural Products, Medical University of Lublin, 1 Chodźki Street, 20-093 Lublin, Poland
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(14), 5420; https://doi.org/10.3390/molecules28145420
Submission received: 15 June 2023 / Revised: 9 July 2023 / Accepted: 12 July 2023 / Published: 14 July 2023
(This article belongs to the Special Issue Natural Polyphenols: Isolation, Characterization and Health Benefits)

Abstract

:
Based on the literature data from 1973 to 2022, this work summarizes reports on spiro-flavonoids with a spiro-carbon at the center of their structure and how this affects their isolation methods, stereochemistry, and biological activity. The review collects 65 unique structures, including spiro-biflavonoids, spiro-triflavonoids, spiro-tetraflavonoids, spiro-flavostilbenoids, and scillascillin-type homoisoflavonoids. Scillascillin-type homoisoflavonoids comprise spiro[bicyclo[4.2.0]octane-7,3′-chromane]-1(6),2,4-trien-4′-one, while the other spiro-flavonoids contain either 2H,2′H-3,3′-spirobi[benzofuran]-2-one or 2′H,3H-2,3′-spirobi[benzofuran]-3-one in the core of their structures. Spiro-flavonoids have been described in more than 40 species of eight families, including Asparagaceae, Cistaceae, Cupressaceae, Fabaceae, Pentaphylacaceae, Pinaceae, Thymelaeaceae, and Vitaceae. The possible biosynthetic pathways for each group of spiro-flavonoids are summarized in detail. Anti-inflammatory and anticancer activities are the most important biological activities of spiro-flavonoids, both in vitro and in vivo. Our work identifies the most promising natural sources, the existing challenges in assigning the stereochemistry of these compounds, and future research perspectives.

1. Introduction

A spiro compound, or spirane (from Latin spīra, meaning twist or coil), is an organic compound containing two or more rings connected by only one common carbon atom and exhibiting a twisted structure [1,2]. Spiro-containing substances have central or axial chirality and 3D structural properties in relation to their intrinsic rigidity [3]. These scaffolds have been found to possess pharmacological potencies and a wide range of biological activities. Spiro compounds are of increasing interest in medicinal chemistry and contribute to a large number of approved drugs and drug candidates [4].
Flavonoids have a 15-carbon backbone consisting of two benzene rings (rings A and B) connected by a 3-carbon linker (represented as C6-C3-C6 compounds). This linker can form a heterocyclic C (pyran or pyrone) ring. In the absence of this additional system, such flavonoids are called chalcones and are usually precursors in the biosynthesis of various classes of flavonoids. Spiro-flavonoids, on the other hand, are characterized by the presence of one or more spiro-carbons derived from the C-3 carbon of the corresponding flavonoid. This class of compounds is divided into two main groups: monomers and heterooligomers. Monomeric spiro-flavonoids include only scillascillin-type homoisoflavonoids with the structure spiro[bicyclo[4.2.0]octane-7,3′-chromane]-1(6),2,4-trien-4′-one (Figure 1A), which are derivatives of 3-benzylchroman-4-one [5]. The name homoisoflavonoids, which is used for compounds with a 3-benzylchroman-4-one backbone, suggests that they are formed biosynthetically in nature similar to isoflavonoids, that is, by a characteristic 2,3-aryl migration step, while they are formed by modifying the typical C6-C3-C6 backbone of flavonoids by inserting an additional carbon atom. Depending on the number of flavonoid units, oligomeric spiro-flavonoids are further divided into the following subclasses: spiro-biflavonoids (flavanone-flavan-3-ol or flavan-3-ol-chalcone dimers), spiro-triflavonoids (flavanone-flavan-3-ol trimers), spiro-tetraflavonoids (mixed combinations of flavan/flavan-3-ol-chalcone), and atypical spiro-flavostilbenoids (dimers and flavanone-stilbenoid trimers) [6,7]. The presence of the 2H,2′H-3,3′-spirobi[benzofuran]-2-one (Figure 1B) or 2′H,3H-2,3′-spirobi[benzofuran]-3-one (Figure 1C) systems connects all compounds belonging to the class of oligomeric spiro-flavonoids. To date, no spiro-flavonoids have been described that have an iso- or neoflavonoid unit in their structure.
The only review paper on spiro-flavonoids was published by Fedorova et al. [8] and covered eight spiro-biflavonoids and one spiro-triflavonoid that had been isolated prior to 2010, without any discussion of their stereochemistry. Thanks to modern and increasingly available spectroscopic techniques, more than 50 additional spiro-flavonoids have been characterized to date, resulting in a total of 65 unique structures, and are reported here. Difficulties in assigning stereochemistry, artifacts, and discovering spiro-flavonoids already described under another name were discussed.
This review summarizes the literature data for the years 1973–2022, including the authors’ studies, on the occurrence in nature, methods of isolation, elucidation of structures, assignment of stereochemistry, bioactivity, and putative biosynthesis of spiro-flavonoids.
POWO “Plants of the World Online” [9] and IPNI “International Plant Names Index” [10] were used to verify the plant and family names (Table 1). Common numbering of carbon atoms of spiro compounds was used according to Nakashima et al. (2016) and Pecio et al. (2023) [7,11].

2. Occurrence in Nature

Spiro-flavonoids are a fairly large group of polyphenolic compounds (although less numerous by an order of magnitude than biflavonoids [12]), and to our knowledge a total of 65 have been described, including spiro-biflavonoids, spiro-triflavonoids, spiro-tetraflavonoids, spiro-flavostilbenoids, and scillascillin-type homoisoflavonoids (Table 2, Table 3, Table 4, Table 5 and Table 6). These first four groups of compounds reported here are composed of two or more nonidentical flavonoid and/or stilbene units, whereas homoisoflavonoids, with one exception, are monomeric structures. Interestingly, to date, no glycosylated forms of spiro-flavonoids have been described. Spiro-biflavonoids are the most abundant group, followed by scillascillin-type homoisoflavonoids and spiro-flavostilbenoids (29, 17, and 13 compounds described, respectively), while only four spiro-tetraflavonoids and two spiro-triflavonoids were described. They have been isolated from eight plant families represented by 46 species. The main sources of spiro-flavonoids are plants belonging to the Asparagaceae (34 compounds), Pinaceae (16), and Thymelaeaceae (10) families, especially species from Yucca (18 compounds), Larix (10), Abies (9), Drimiopsis (8), and Daphne (7) genera. In the case of Asparagaceae, most of the compounds (sixteen) belong to the group of scillascillin-type homoisoflavonoids, thirteen to spiro-flavostilbenoids, and five to spiro-biflavonoids. On the other hand, Pinaceae and Thymelaeaceae were predominantly spiro-biflavonoid sources, as were Cupressaceae and Pentaphylacaceae. Both woody aerial parts and roots were used to isolate spiro-biflavonoids and spiro-flavostilbenoids. Spiro-tri and spiro-tetraflavonoids were isolated from twigs and bark, and the main sources of scillascillin-type homoisoflavonoids were bulbs.
Table 1. Spiro-flavonoids described between 1973 and 2022.
Table 1. Spiro-flavonoids described between 1973 and 2022.
FamilyPlantPartCompoundReferences
AsparagaceaeBessera elegans Schult.f.bulbs57[13]
Chionodoxa luciliae Boiss.bulbs49–52[14]
Drimiopsis barteri Bakerbulbs and leaves50, 56, 60, 61, 64[15]
Drimiopsis burkei Baker bulbs53, 62[15]
Drimiopsis maculata Lindl. & Paxtonbulbs52, 56[16,17]
Eucomis schijffii Reynekebulbs49[17,18]
Furcraea bedinghausii K.Kochroots38, 39[19]
Ledebouria graminifolia (Baker) Jessopbulbs58, 61[20]
Ledebouria hyderabadensis M.V.Ramana, Prasanna & Venubulbs49[21]
Ledebouria ovatifolia (Baker) Jessopbulbs49, 50[22]
Ledebouria socialis (Baker) Jessopbulbs63, 64[22]
Merwilla natalensis (Planch.) Spetabulbs49[23]
Muscari armeniacum H.J.Veitchbulbs52, 54[24]
Muscari botryoides (L.) Mill.bulbs52, 54, 56[24]
Muscari comosum (L.) Mill.bulbs53[25]
Muscari neglectum Guss. ex Ten.bulbs53–56[26]
Scilla scilloides (Lindl.) Drucebulbs49, 51, 52, 59[27]
Yucca gloriosa L.roots38–48[11,28,29]
Yucca schidigera Roezl ex Ortgiesbark1, 5–7, 29, 36–41, 44, 46–48[30,31,32,33]
CistaceaeFumana procumbens (Dunal) Gren. & Godr.whole plant23[34]
CupressaceaeGlyptostrobus pensilis (D.Don) K.Kochtrunk bark1–4, 10, 11[35]
FabaceaeCaesalpinia sappan L.heartwood65[36]
PentaphylacaceaeAnneslea fragrans Wall.twigs2, 8, 9, 30[37,38]
PinaceaeAbies chensiensis Tiegh.aerial parts1–3[39]
Abies delavayi Franch. var. delavayiaerial parts1[40]
Abies georgei Orraerial parts1, 12[41]
Abies sachalinensis (F.Schmidt) Mast.bark1, 4, 12–17[42]
Larix decidua Mill.bark1–3[43]
Larix gmelinii (Rupr.) Kuzen.bark1, 14, 18, 31[6,44,45]
Larix olgensis Henry var. koreana Nakaibark14, 16, 19–21[46]
Larix sibirica Ledeb.bark1, 14, 31[44]
Pinus massoniana Lamb.bark35[47]
Tsuga longibracteata W.C.Chengbark1, 2[48]
ThymelaeaceaeDaphne aurantiaca Dielsstem bark22, 24[49]
Daphne feddei H.Lév.stem bark22, 24, 26, 27[50]
Daphne genkwa Siebold & Zucc. roots23[51]
Daphne kiusiana Miq.stem22, 24[52]
Daphne kiusiana var. atrocaulis (Rehder) F.Maek.stem22[53]
Daphne linearifolia Hartaerial parts23–25, 28[54]
Daphne mucronata Royle shoots23[55]
Daphne odora Thunb.roots 22, 24[56,57]
Edgeworthia chrysantha Lindl.stem and twigs22, 24, 32–34[58]
Stellera chamaejasme L. roots23[59]
Thymelaea microphylla Coss. & Durieuroots23[60]
Wikstroemia indica (L.) C.A.Mey.roots22, 23[61,62]
VitaceaeVitis amurensis Rupr.seeds16[63]

3. Methods of Extraction and Isolation

Due to their differing lipophilicity, spiro-flavonoids were extracted using different organic solvents and their mixtures, mainly with water (Table 7). Therefore, spiro-biflavonoids were extracted most frequently with EtOH, MeOH, and their aqueous solutions (in more than 2/3 of the publications); spiro-triflavonoids with ethyl acetate (EtOAc) or an aqueous solution of EtOH; spiro-tetraflavonoids with an aqueous solution of acetone; and spiro-flavostilbenoids with MeOH and its aqueous solutions or acetone. On the other hand, scillascillin-type homoisoflavonoids were extracted from plant material using dichloromethane (DCM), its solution with MeOH, or MeOH alone, but also diethyl ether. In general, MeOH, EtOH, and their aqueous solutions were the extractants most commonly used. The extraction process was usually carried out by maceration at room temperature (28 papers), 15 articles reported extraction at boiling point (heat reflux method), and the remaining 13 publications did not provide this information. Column chromatography (CC) and liquid–liquid extraction technique (LLE) were frequently used as the first step of the compound isolation procedure, and the LLE fraction obtained with EtOAc was used in further steps. The pre-purification of crude extracts by CC was most commonly performed by normal phase, followed by reversed phase, and much less frequently by gel filtration chromatography (GPC). Normal-phase CC mainly used gradients of many different solvents: CHCl3, DCM, diethyl ether, EtOAc, n-hexane, and MeOH. Reversed-phase CC almost exclusively used gradients of MeOH and H2O, while MeOH was used for CC GPC. Interestingly, in the first stage of spiro-biflavonoid isolation, LLE was used more extensively than CC, while the opposite was true for scillascillin-type homoisoflavonoids. The next isolation step involved the use of CC (mainly normal phase), regardless of the spiro-compound group, followed by the use of thin-layer chromatography (TLC), medium-pressure-, and high-performance liquid chromatography (MPLC and HPLC). The final isolation steps usually involved CC combined with MPLC, HPLC, and TLC.

4. Stereochemistry of the Isolated Spiro-Flavonoids

The presence of up to 8 stereogenic centers in the known spiro-flavonoid molecules and the associated possibility of up to 128 pairs of enantiomers (28 = 256) occurring in nature makes it a challenging task to assign the relative configuration (RelC), let alone the absolute configuration (AbsC). When molecules with multiple stereogenic centers are studied, the determination of the relative configuration is particularly important for the assignment of the AbsC. In such a case, the determination of the AbsC by a single chiroptical spectroscopic method may lead to an incorrect assignment of the absolute configuration, especially if no prediction is made by quantum mechanical (QM) calculation methods and only by comparison with the spectra of previously described compounds (empirical methods). This is because in some cases, even QM (e.g., ECD)-calculated spectra may match more than one diastereoisomer, and interactions of different chromophores should be taken into account for correct AbsC assignment [64,65].

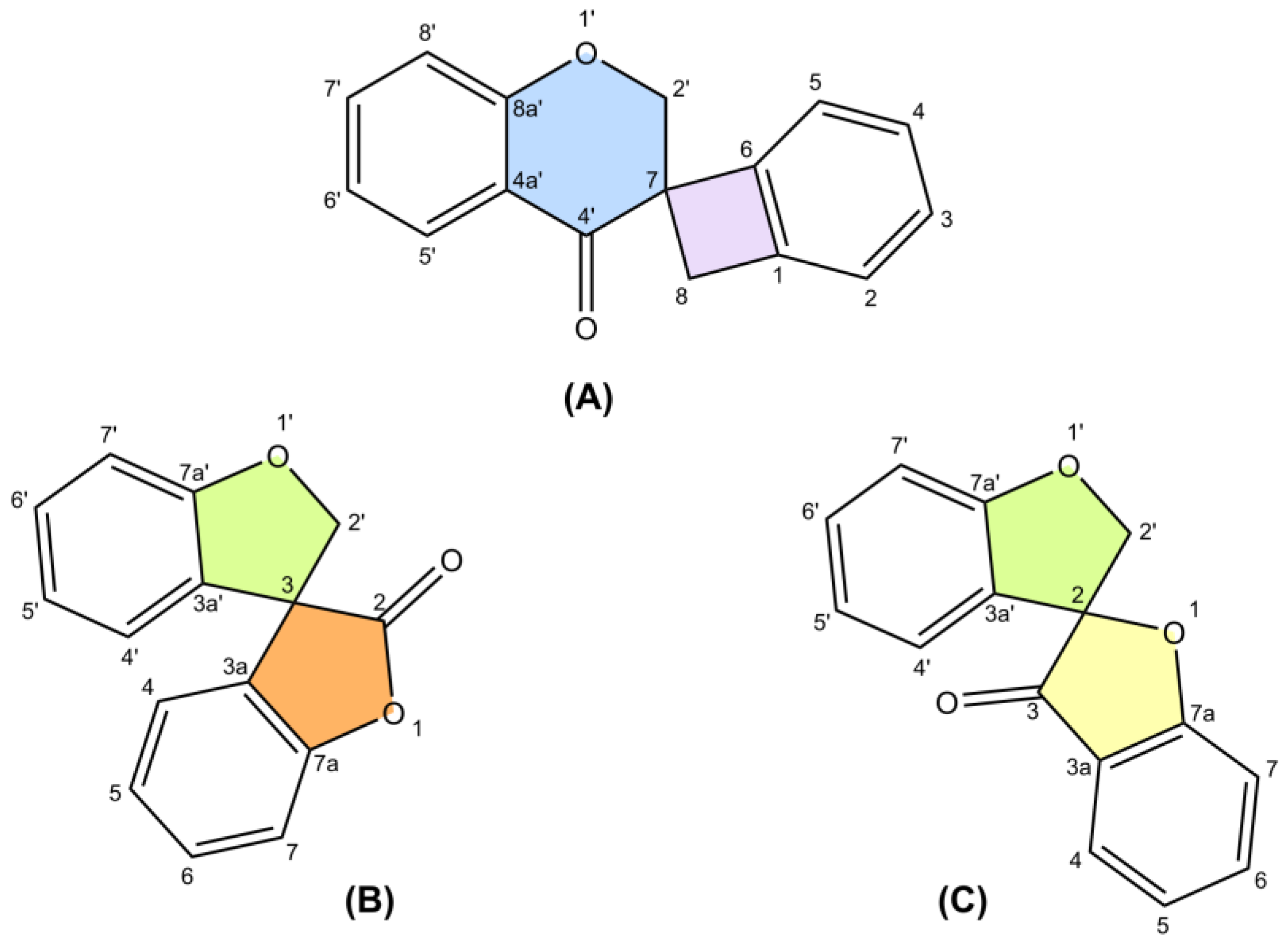

Spiro-flavonoids are compounds that contain four-, five-, and six-membered rings in their structure. To determine the relative configuration in cyclic compounds with three- to six-membered rings, which exhibit a predictable conformational behavior, it is usually sufficient to extract some NMR parameters, such as the 1H-1H vicinal coupling constants (3JHH) (and the corresponding dihedral angles via the Karplus equation [66]) and nuclear Overhauser effect spectroscopy (NOESY) correlations. Additional information can be obtained in systems containing electronegative substituents directly attached to the α-carbon (i.e., oxygen, nitrogen, or halogen) can be obtained by measuring the values of the heteronuclear coupling constants—if the value of 2JHC is large (4–7 Hz), the position of the electronegative substituent is gauche relative to the geminal proton, and becomes small (0–2 Hz) if it is antiperiplanar. On the other hand, 3JHC, similar to 3JHH, follows the Karplus relation and can also be used to determine additional constraints on dihedral angles—the values of this constant are lower (1–3 Hz) for gauche than for anti-periplanar conformation (5–8 Hz) [31,67,68,69]. An empirical rule developed by Nakashima et al. (2016) [11], which allows easy determination of the relative configuration for the spiro-carbon (C-3) and its neighboring carbon (C-2), was applied on the basis of the observation of 13C NMR chemical shifts for some spiro-flavonoids (abiesinols A-H, yuccalides A-C, yuccaols A-E, and gloriosaols A-E) reported in this review. Namely, for the 13C NMR shifts measured in the acetone-d6 and methanol-d4, the γ-lactone carbonyl group (C-4) located in the δC range of 174.6–176.9 indicates a syn-relationship between C-4 and the aromatic substituent located at the C-2 carbon, due to the anisotropic shielding effect exerted by the aromatic substituent on C-4, and thus the rel-(2R,3S) configuration. On the other hand, the γ-lactone carbonyl group, which has an anti-relationship with the aromatic substituent in C-2, has chemical shifts in the range δC 178.6–181.1, indicating a rel-(2R,3R) configuration. An additional tool, increasingly used for RelC determination, is the use of quantum-based Gauge-Independent Atomic Orbital (GIAO) NMR shift calculations via a modified DP4+ probability method, which allows one to determine with high probability which of the possible stereoisomers is the correct one [70].
The techniques used to determine AbsC are direct methods, such as electronic and vibrational circular dichroism (ECD and VCD), but also indirect (or relative) methods, such as circular dichroism using empirical methods, NMR with chiral derivatization agents [71] (e.g., Mosher’s method [72,73]). The crux of Mosher’s method lies in the difference in anisotropic effects between two diastereomers prepared from the substrate (molecule) of interest with a pair of enantiomeric chiral derivatizing agents (CDAs). In practice, the differences in chemical shifts (ΔδRS or ΔδSR) between the two substrate derivatives are used to assign AbsC. The most common CDA is MTPA (α-methoxy-α-trifluoromethylphenylacetic acid), commonly known as Mosher’s reagent. This method typically involves the double derivatization of substrates with two CDA enantiomers and therefore requires a relatively large sample amount. In recent years, however, ECD has become a particularly popular method for determining AbsC. ECD involves an electron transition and can therefore be predicted theoretically by QM calculations. With the measured CD spectrum with the TDDFT (Time-Dependent Density-Functional Theory)-calculated CD spectrum of an assumed configuration, one can easily assign the AbsC of a chiral compound. Another advantage of this technique is that only sub μg amounts of the sample needed to obtain the spectrum, which measures the difference in the chiral response of a molecule to UV/Vis modulation between the left and right polarized states [74]. To our knowledge, X-ray diffraction (XRD), which is a direct method that can be used to determine AbsC and is considered to be very reliable [75], has only been used for the determination of RelC of spiro-flavonoids.

4.1. Spiro-Biflavonoids

4.1.1. Larixinol Sub-Group (121) and Yuccaone A (29)

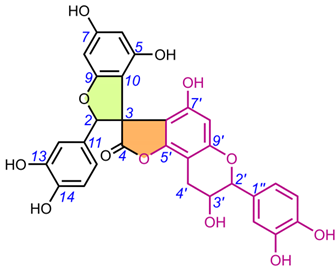

One of the first spiro-biflavonoids discovered was larixinol (1), isolated from the bark of Larix gmellini (Rupr.) Kuzen. [45,76]. Its structure (Table 2) and its relative configuration were assigned by X-ray crystallographic analysis as rel-(2R,3R,2′R,3′R), but its absolute configuration was not confirmed until almost a quarter of a century later by Wada et al. (2009), who isolated abiesinol E (=larixinol) from the bark of Abies sachalinensis (F.Schmidt) Mast., and assigned its absolute configuration as 2R,3R,2′R,3′R using Mosher’s method [42]. A total of eight abiesinols (A–H) (1, 4, 1217) were reported in the same article. Their relative configurations were determined using 3JHH coupling constants and NOEs, and their AbsCs were determined using the Mosher method and by comparing optical rotations and ECD spectral data. Interestingly, abiesinol G (16) had the same chemical structure and stereochemistry as vitisinol first isolated from the seeds of Vitis amurensis Rupr. [63], while abiesinol C = olgiensisinol A (14) first isolated from stem bark of Larix olgensis Henry var. koreana Nakai [46] (Table 2). In the latter work, the authors used spatial anisotropic shielding effects for the γ-lactone carbon and NOESY to determine the RelC, and a comparison of ECD spectra with the literature data was used to determine the AbsC of olgensisinol A and B (19). The authors of this work also reported the relative configuration of other unusual spiro-biflavonoids, olgiensisinols C and D (20, 21), but no attempt was made to determine their AbsC. Yuccalechins A-C (57) (Table 2), extracted from the bark of Yucca schidigera and described by Pecio et al. (2019) [31], are another example of compounds whose AbsC was determined with high reliability using measurements of ECD spectra and TDDFT of calculated ECD spectra. In this publication, the authors used measurements of different coupling constants (3JHH, 1JHC, 2JHC, and 3JHC), spatial anisotropic shielding effects for 13C NMR chemical shifts, and NOESY correlations for the determination of RelC, as well as QM calculations with the DP4+ method. Similarly, spatial anisotropic shielding effects of 13C NMR and NOESY correlations were used to determine RelC, and QM calculations of ECD spectra were used to determine AbsC of fragranols B and C (8, 9) (Table 2) by Omar et al. (2020) [38].
Several papers have also been published in which RelC/AbsC have been determined in a way that casts doubt on their accuracy. For example, Li et al. (2009) [39] report 3-epi-larixinol (2) and 3,2′-epi-larixinol (3) whose AbsC were implicitly suggested using 3JHH coupling constants, NOESY correlations, and optical rotations. Unfortunately, the authors did not measure ECD spectra and nor did they use Mosher’s method, which could be critical to determining the stereochemistry. Following this line of thought, it turns out that if the absolute configuration of 3,2′-epi-larixinol, i.e., (2S,3R,2R,3S), is taken as true, it corresponds exactly to yuccalechin B (6), but its optical rotations differ in sign and value (+25.0 vs. −175.0, respectively), and the chemical shifts of 1H and 13C differ significantly, e.g., for H-2/C-2, C-4, and H-2/C-2′ (δHC 5.79/95.3, 181.0, 4.57/83.1 vs. 6.13/90.6, 177.1, 4.99/81.6). Another example that raises questions about the use of empirical methods to determine AbsC is the work of Xiong et al. (2020) [35], which describes spiropensilisol A and B (10, 11). The relative configurations of these compounds were determined using 3JHH coupling constants, 13C NMR anisotropic shielding effects, and NOEs. Using this method, the authors proposed the AbsC of spiropensilisol B as (2S,3S,2′R,3′S)-11, which coincides with the configuration of yuccalechin C (7). However, the ECD spectra show a significant difference around 220 nm between these two compounds. On the other hand, based only on 1H and 13C NMR chemical shifts and optical rotations, Yang et al. (2011) [41] proposed 13-hydroxylarixinol as a new natural compound isolated from Abies georgei Orr. Assuming that the AbsC determination for this compound by this route is correct, its absolute configuration corresponds to that of abiesinol A (12), which questions the novelty of this discovery. Similarly, in the work of Piacente et al. (2004) [33], the authors reported the presence of larixinol only on the basis of 1H and 13C NMR values, while Pecio et al. (2019) [31] did not confirm the presence of larixinol, but reported three compounds in the same plant with the same planar structure but different stereochemistry, i.e., yuccalechins A-C. The presence of an unusual spiro-biflavonoid, yuccaone A (29), was also reported in the bark of Y. schidigera [32,33], the RelC of which was determined by NOESY correlation as (2R*,4R*,2′S*,3′R*). On the other hand, Fedorova et al. (2007) [6] only partially assigned the RelC of spiro-biflavonoid larisinol (18) using 1H/13C NMR analysis.

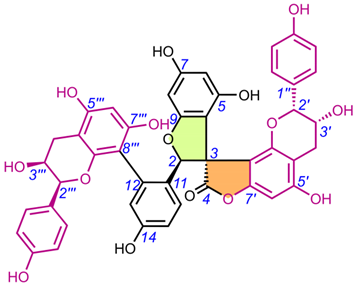

4.1.2. Daphnodorin C Sub-Group (2228)

Daphnodorin C (22) is the simplest representative of a group of compounds isolated from a Daphne Tourn. ex L. genus, with a chemical structure quite similar to the larixinol group (Table 2). However, instead of a γ-butyrolactone ring, it has a 3-oxotetrahydrofuran ring, indicating a different biosynthetic pathway. This compound, first described by Baba et al. in 1986, was isolated from the roots and bark of Daphne odora Thunb. [77]. Its relative configuration was determined by XRD and NOESY correlations, and AbsC (2S,3S,2′S) was assigned by chemical degradation (H2SO4/EtOH), resulting in a product with a known absolute configuration (daphnodorin A) [78]. Another representative of this group of compounds is genkwanol A (23), isolated from the roots of Daphne genkwa Siebold & Zucc. [51]. Its structure and AbsC (2R,3R,2′R,3′S) were determined by Baba et al., 1987, by chemical transformation (HCl/MeOH) to daphnodorin B and comparison of Cotton effects observed in the ECD spectra [78]. AbsC (2S,3S,2′R,3′S) of daphnodorin I (24), which is a diastereoisomer of genkwanol A, was determined in a similar manner, i.e., by chemical conversion of 24 to daphnodorin B (using HCl/MeOH), and comparison of their ECD spectra [57]. Malafronte et al. (2012) isolated and elucidated the structures of 4′-methylgenkwanol A (25) and 2″-hydroxygenkwanol A (28) from Daphne linearifolia Hart. The compounds had identical AbsC, (2R,3S,2′R,3′S), determined by comparison of 1H/13C and ECD data with those of genkwanol A [54]. 2″-Methoxy-daphnodorin C (26) and 2″-methoxy-2-epi-daphnodorin C (27) were isolated from Daphne feddei H.Lév. and their stereochemistry was determined by NMR data consistent with daphnodorin C and XRD analysis, which confirmed their RelC as (2R*,3S*,2′R*)-26 and (2R*,3S*,2′S*)-27, respectively [50].

4.2. Spiro-Triflavonoids (3031)

Fragranol A, a spiro-triflavonoid containing two spiro-centers and six chiral carbon atoms, was isolated from twigs of Anneslea fragrans (Table 3) [37]. The RelC of the comp. 30 was determined by NOESY correlations and spatial anisotropic shielding effects around the spiro-centers. Fragranol A AbsC was confirmed by QM ECD calculations and assigned as (2S,3S,2′S,3′R,2″R,3″S). Ivanova et al. (2006) partially assigned the RelC of spiro-triflavonoid triflarixinol (31) using 1H/13C NMR analysis, infrared spectroscopy, and melting point measurements of recrystallized compounds [44]. However, the authors did not attempt to determine the AbsC.

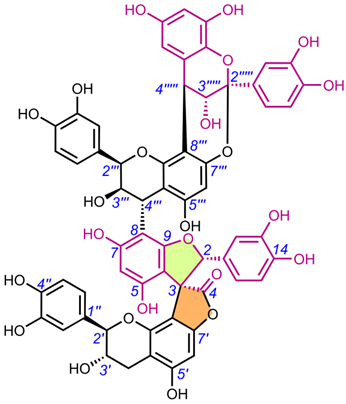

4.3. Spiro-Tetraflavonoids (3235)

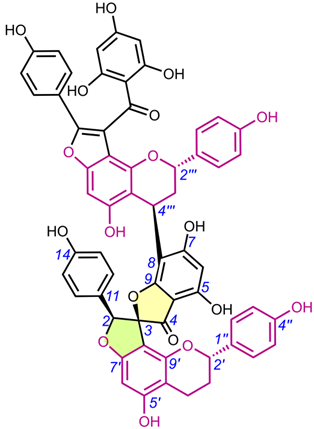

Edgechrins (Table 4) are condensed daphnodorin dimers—daphnodorin C-(4′β→6‴)-daphnodorin A, daphnodorin C-(4′β→6‴)-daphnodorin B, daphnodorin A-(4‴β→8)-daphnodorin C (comp. 32–34, respectively), and their structures were elucidated by the 1H-, 13C- and DEPT, COSY, and NOESY NMR spectra [58]. The HMBC correlations were used to determine the linkage between dimers. Their AbsC were assigned by biogenetic considerations and supported by the empirical method: comparison of Cotton effects observed in the ECD spectra. The ECD spectra were compared with daphnodorins A, B, and C. The authors report that they performed NOESY NMR measurements. However, they do not present the use of NOE to determine RelC or to confirm AbsC against known biogenetic monomers. Furthermore, the absolute configurations of the structures are not explicitly reported. Moreover, the absolute configurations in the text of the article did not match the stereochemistry of the structures shown in the figures, which seems to undermine the correctness of the stereochemistry determination. Zhou et al. (2020) [47] reported another interesting tetrameric spiro-flavonoid, pinuspirotetrin (35), which they described as a proanthocyanidin. It was isolated from the bark of Pinus massoniana Lamb. This compound represents the first heterodimeric (4 → 8 linked) proanthocyanidin containing a spiro-type and an A-type dimer. The authors determined the AbsC of this unusual structure in a plausible manner, using combined spectroscopic methods, i.e., NOESY NMR correlations and an empirical method based on the use of ECD spectra and Cotton effects for known compounds, to establish the stereochemistry of 35.

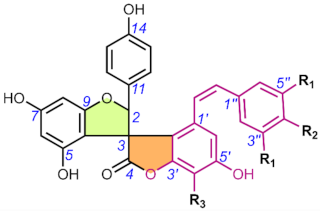

4.4. Spiro-Flavostilbenoids (3648)

Spiro-flavostilbenoids are derivatives of trans-resveratrol (trans-3,4′,5-trihydroxystilbene) or trans-3,3′,5,5′-tetrahydroxy-4′-methoxystilbene (THMS) and naringenin. Structures of yuccaols A-E (3640) were first described by Oleszek et al. (2001) [30] and Piacente et al. (2004) [33], while yuccalides A-C (4143) and gloriosaols A-E (4448) (Table 5) were described throughout the next decade [11,28,29]. The authors of these articles reported only the relative configurations for the isolated compounds—rel-(2R,3S) for compounds 36, 39, 41, 43, rel-(2R,3R) for compounds 37, 38, 40, 42, rel-(2R,3R,2′R,3′R) for 44, rel-(2S,3S,2′R,3′R) for 45, rel-(2R,3S,2′R,3′S) for 46, rel-(2R,3R,2′R,3′S) for 47, and rel-(2R,3S,2′R,3′R) for 48. These were determined by NOESY correlations and, in the case of gloriosols A-E, by QM geometry calculations and GIAO 1H chemical shifts. Chiroptical properties in the form of optical rotations have been measured for all members of the group, except for gloriosaols D and E isolated as a mixture. However, ECD spectra have been obtained for yuccalides A-C and yuccaols C-E. More recently, Pecio et al. (2023) [7] established AbsCs for yuccaols A-E, yuccalide A, and gloriosaols A and C-E extracted from the bark of Y. schidigera by comparing experimental and calculated TDDFT ECD spectra. The absolute configurations of yuccalides B-C and gloriosaol B have not yet been determined.

4.5. Scillascillin-Type Homoisoflavonoids (4965)

The first homoisoflavonoids with a spiro-structure, scillascillin (49) and 2-hydroxy-7-O-methyl-scillascillin (50), were isolated from the bulbs of Scilla scilloides (Lindl.) Druce by Kouno et al. (1973) (Table 6) [5]. Corsaro et al. (1992) measured Cotton effects for compounds 49 and 51 (2-hydroxy-scillascillin) and assigned their AbsCs as 3R [14]. Adinolfi et al. (1990) determined the AbsC as 3R of the scillascillin-type homoisoflavonoids of Muscari spp., i.e., isomuscomosin (52), muscomosin (53), 3′,4′,5-trihydroxy-7-methoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (54), 5,5′-dihydroxy-4′,7-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (55), and 3′,5-dihydroxy-4′,7-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (56) using several methods [79]. The compounds were first methylated with diazomethane in ether, and 5254, 56 gave the same dextrorotatory product, namely 5-hydroxy-3′,4′,7-trimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one. This product was then esterified at C-5 with p-bromobenzoyl chloride, followed by reduction with sodium borohydride to give a deoxygenated compound at C-4, which was again p-bromobenzoylated. The RelC and AbsC of the products were determined by NMR and confirmed by measurements of their CD curves and XRD [79]. The AbsC of 55 was assigned based on the measurement of its Cotton effects and X-ray crystallography. Waller et al. (2013) could not directly determine AbsC at C-2 of 2-hydroxy-7-O-methyl-scillascillin (50) due to the instability of the hemiacetal ring [22]. Acetylation of this compound solved this problem by yielding two diastereomers, and their AbsCs were confirmed as 2R,3R and 2S,3R using NMR and ECD experiments by comparing experimental and calculated TDDFT ECD spectra. The AbsC of comp. 57 (5,7,3′-trihydroxy-4′-methoxy-6-methylspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]-trien]-4-one) was determined to be 3R by extensive NMR analysis, based on the similarity of the experimental CD spectra to those of comp. 59 (scillavone A) [27]. In contrast, Nishida et al. (2008) determined the RelC of comp. 59 by XRD and then its AbsC (3R) by comparison of Cotton effects with the literature data [79]. The AbsC of compounds 58 and 6064 has not yet been determined [15,20,22], although the literature to date indicates that the scillascillin-type homoisoflavonoids described so far have only the 3R configuration.
Compound 65 (protosappanin D) belongs to the group of dimeric protosappanin-type homoisoflavonoids, which are characterized by the presence of a biphenyl sappanin moiety forming a methyloxocane ring. It has a very interesting structure with two spiro systems, but its spectral and physicochemical properties have not been reported, not to mention its AbsC. Washiyama et al. (2009) only mentioned that it was extracted from Sappan Lignum (Caesalpinia sappan heartwood) purchased from Uchida Wakanyaku Ltd. [36].

5. Biosynthesis of Spiro-Flavonoids

Since studies on the biosynthesis of spiro-flavonoids have not yet been performed, it seems appropriate to present possible mechanisms in light of the knowledge of flavonoid biosynthesis. It is generally accepted that flavonoids are synthesized in the cytosol, and the enzymes involved are connected to the endoplasmic reticulum [80,81]. The pathway begins with the formation of the C6-C3-C6 skeleton by chalcone synthase (CHS), which catalyzes the synthesis of naringenin chalcone from one molecule of p-coumaroyl-CoA and three molecules of malonyl-CoA. In the biosynthesis of flavonoids, the unstable chalcone is stereospecifically converted to the flavanone, (2S)-naringenin, by chalcone isomerase (CHI). In the absence of CHI, the isomerization of chalcone occurs spontaneously, producing the racemic mixture of (2S)-naringenin and (2R)-naringenin, but the enzyme-catalyzed reaction is 107 times faster than the spontaneous one [82,83]. (2S)-Flavanones are the exclusive substrates of downstream enzymes of the flavonoid pathway, and thus CHI guarantees the efficient formation of biologically active (2S)-flavonoid isomers. Interestingly, Arabidopsis mutants lacking CHI activity have been reported to accumulate only trace amounts of flavonoids [84].
During flavonoid biosythesis, flavanones can undergo desaturation by flavone synthase I, which produces apigenin from (2S)-naringenin. Subsequently, flavanones can also be regioselectively and stereoselectively converted to (2R,3R)-dihydroflavonols (the presence of the 3-hydroxyl group reverses the priority sequence of the Cahn–Ingold–Prelog specification of absolute configuration [85]) via the intermediate C-3 flavanone radical [86] by hydroxylation of a pro-R hydrogen in C-3 catalyzed by both flavanone 3β-hydroxylase and flavone synthase [87]. These enzymes are classified as soluble 2-oxoglutarate-dependent dioxygenases due to their requirement for the cofactors 2-oxoglutarate, molecular oxygen, ferric iron (Fe2+), and ascorbate. Only (2S)-naringenin, but not the (2R)-enantiomer, was reported to be a substrate for flavanone 3β-hydroxylase from Petunia hybrida [88]. On the other hand, in addition to the oxidation of trans-(2R,3R)-dihydrokaempferol, but not that of trans-(2S,3S)-dihydrokaempferol to kaempferol, flavonol synthase catalyzes the conversion of (2S)- or (2R)-naringenin to the corresponding trans-dihydrokaempferol [87]. Subsequently, dihydroflavonols are reduced to flavan-3,4-diols by dihydroflavonol 4-reductase and leucoanthocyanidin reductase during the biosynthesis of flavan-3-ols, also involving anthocyanidin reductase and anthocyanidin synthase.
Stilbene synthase is closely related to CHS, catalyzing a similar set of reactions, but performing a divergent cyclization reaction to generate stilbenes with the C6-C2-C6 backbone, which compete with CHS for the same substrates (p-coumaroyl-CoA and malonyl-CoA) [89]. There is also evidence that stilbene synthase (STS) has evolved from CHS several times during evolution [81]. Both chalcone and stilbene synthase lead to a tetraketide intermediate in the form of CoA thioester followed by C6-C1 Claisen condensation to give chalcone in the case of CHS, while C2-C7 aldol condensation with loss of CO2 leads to resveratrol in the case of STS. Competition between two metabolic pathways, the flavonoid pathway controlled by chalcone synthase on the one hand and the stilbene pathway controlled by STS on the other, may occur with respect to precursor availability. Deprivation of CHS of its substrates results in reduced levels of some flavonoids, such as rutin or naringenin in transgenic tomato, levels of flavonols in recombinant strawberry, or pale fawn color in Arabidopsis [90,91,92,93]. The expression of stilbene synthase genes has been shown to contribute to the constitutive defense against pathogens in grapevines [94]. It has been suggested that the formation of resveratrol dimers and higher oligomers, thought to be phytoalexins, is a plant response to stress caused by fungal infection, UV radiation, or physical trauma [95,96,97]. Various modifications can occur on the stilbene core under the catalytic action of peroxidases; this is the basis of the polymerization process leading to the formation of oligomeric structures of resveratrol, as well as other reactions involving “decorating” enzymes (methyltransferases, prenyltransferases, hydroxylases, and glucosyltransferases). This oxidative coupling of resveratrol to form oligomeric compounds was extensively studied in Vitis vinifera L. [98] and proceeds through the coupling of oxidatively generated phenoxyl radicals, as originally proposed [99]. The dimerization process can proceed in several regioisomeric coupling modes (3-8′, 8-10′, 8-8′, and 8-12′). After this step, the formed highly reactive p-quinone methides can undergo a series of regioselective Friedl–Crafts reactions, nucleophilic trappings, or tatutomerizations, leading to an impressive number of possible products: resveratrol derivatives. However, the presence of oligomeric forms of resveratrol has not been reported in plants containing spiro-flavonoids that contain a stilbene moiety in the structure.
Existing hypotheses regarding the mechanisms of spiro-flavonoid formation require at least two oxidation steps and suggest that these compounds are formed by trapping a putative carbocation intermediate in the oxidative conversion of flavanone to flavonol [30,45], or by radical coupling of two oxidatively generated phenoxyl radicals [7,47]. The hypothesis that assumes the formation of a flat carbocation does not specify how exactly it would be formed. However, the free radical mechanism also produces a flat trigonal radical that can react on either side. In general, the process of formation of spiro-flavonoids may not be directly related to the biosynthesis in the cytoplasm. Their formation outside photosynthetic tissue could be due, as in the case of resveratrol oligomers, to interference with ion transport and related redox processes [100]. Rather, the necessary substrates can be transported across cell membranes to the lignifying zone in the cell wall, where they undergo enzymatic oxidation (dehydrogenation). As in lignin synthesis by radical coupling of monolignols, the enzymes laccase and peroxidase may be involved in this oxidation, but further experimental data should be collected to support these statements [101,102]. Interestingly, Pecio et al. (2023) [7] observed that all spiro-flavonoids isolated from the bark of Y. schidigera and the spiro-biflavonoid fragranol B (8), as well as the spiro-triflavonoid fragranol A (30) from the bark of Anneslea fragrans, have (2R)-naringenin in their structures [37,38], while abiesinoles A-H from the bark of Abies sachalinensis contain (2S)-naringenin or (2S)-eriodictyol [42]. This indicates a certain stereoselectivity in their formation.

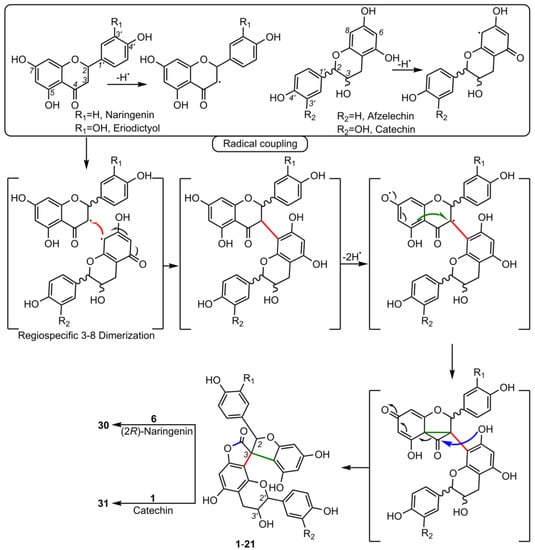

Scheme 1 shows a hypothetical biosynthetic relationship between flavanones, flavan-3-ols, and larixinol-type spiro-bi- and spiro-triflavonoids (121, 3031, respectively) according to the mechanism proposed by Zhou et al. (2020) and Pecio et al. (2023) [7,47]. Their formation begins with the regiospecific coupling of two radicals (linkage 3–8). In the next step of oxidation, a triplet diradical is formed, which undergoes a Favorskii-type rearrangement by forming a cyclopropanone intermediate [103]. This intermediate is lactonized by nucleophilic substitution to form a benzofuranone ring through preferred exo-trig cyclization [104,105].

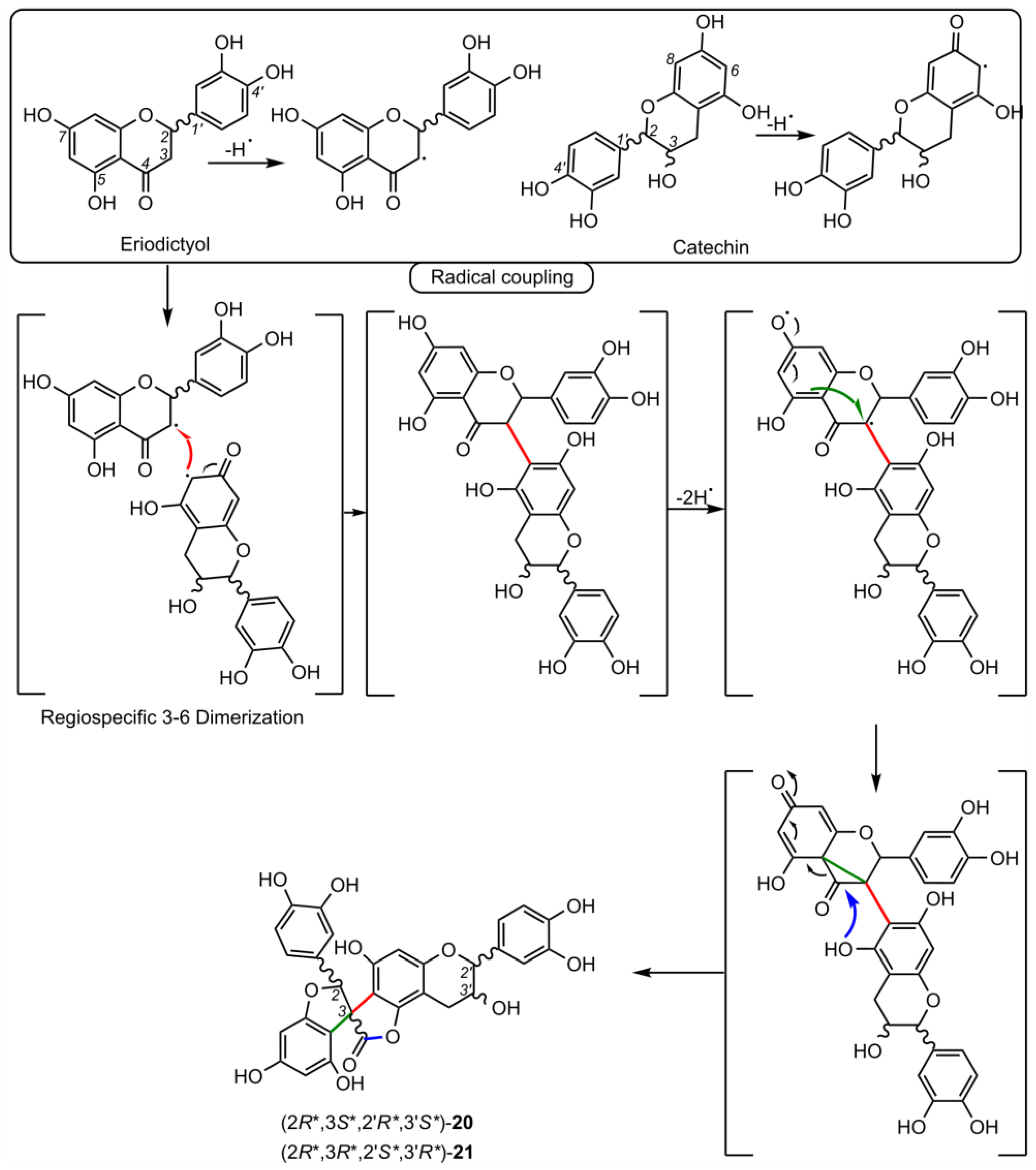

Olgensisinols C and D (2021) can be formed similarly, the only difference being that the initial radical coupling requires a 3–6 linkage (Scheme 2).

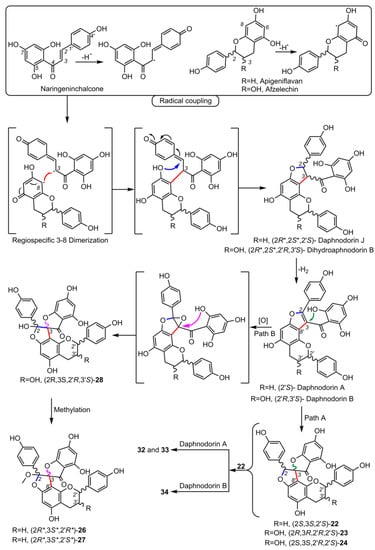

The biosynthesis of the spiro-biflavonoids of the daphnodorin C type (Scheme 3), on the other hand, appears to proceed in a slightly different manner and is initiated by the coupling of the naringeninchalcone radical with the apigeniflavan or afzelechin radical (flavan-3-ol). This results in the formation of an activated p-methide quinone, which then undergoes nucleophilic substitution with a hydroxyl group to give a benzofuran ring and two known compounds, daphnodorins B and J. These in turn can be dehydrogenated to the next known compounds, daphnodorins A and B, which undergo two divergent reactions (paths A and B). Path A involves cyclization through the attack of the hydroxy group on the C-3 of the double bond, producing compounds 2224, while path B involves epoxidation of the double bond C-2/C-3 and subsequent opening of the oxirane ring and simultaneous cyclization to a spiro-type system (28).

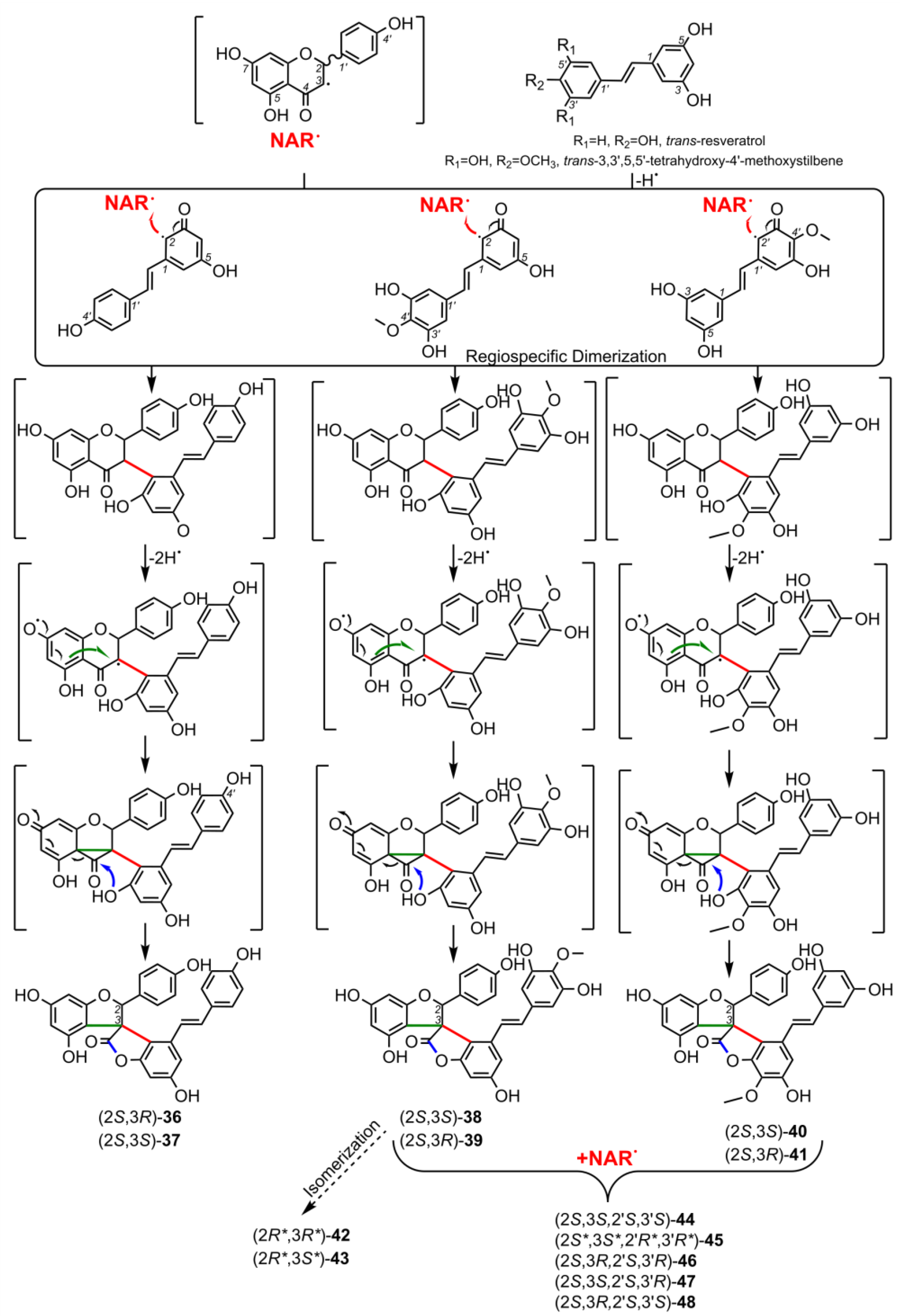

It also appears that the mechanism behind the biosynthesis of the spiro-flavostilbenoids is similar to the one shown in Scheme 1 and Scheme 2. That is, diastereoisomeric pairs of compounds 3637, 3839, and 4041 are formed as a result of a regiospecific coupling of the naringenin radical with a stilbene-type radical (resveratrol or THMS). Interestingly, compounds 3841 undergo further coupling with the naringenin radical to give compounds 4448 and probably also form more complex polymeric structures [106] (Scheme 4).

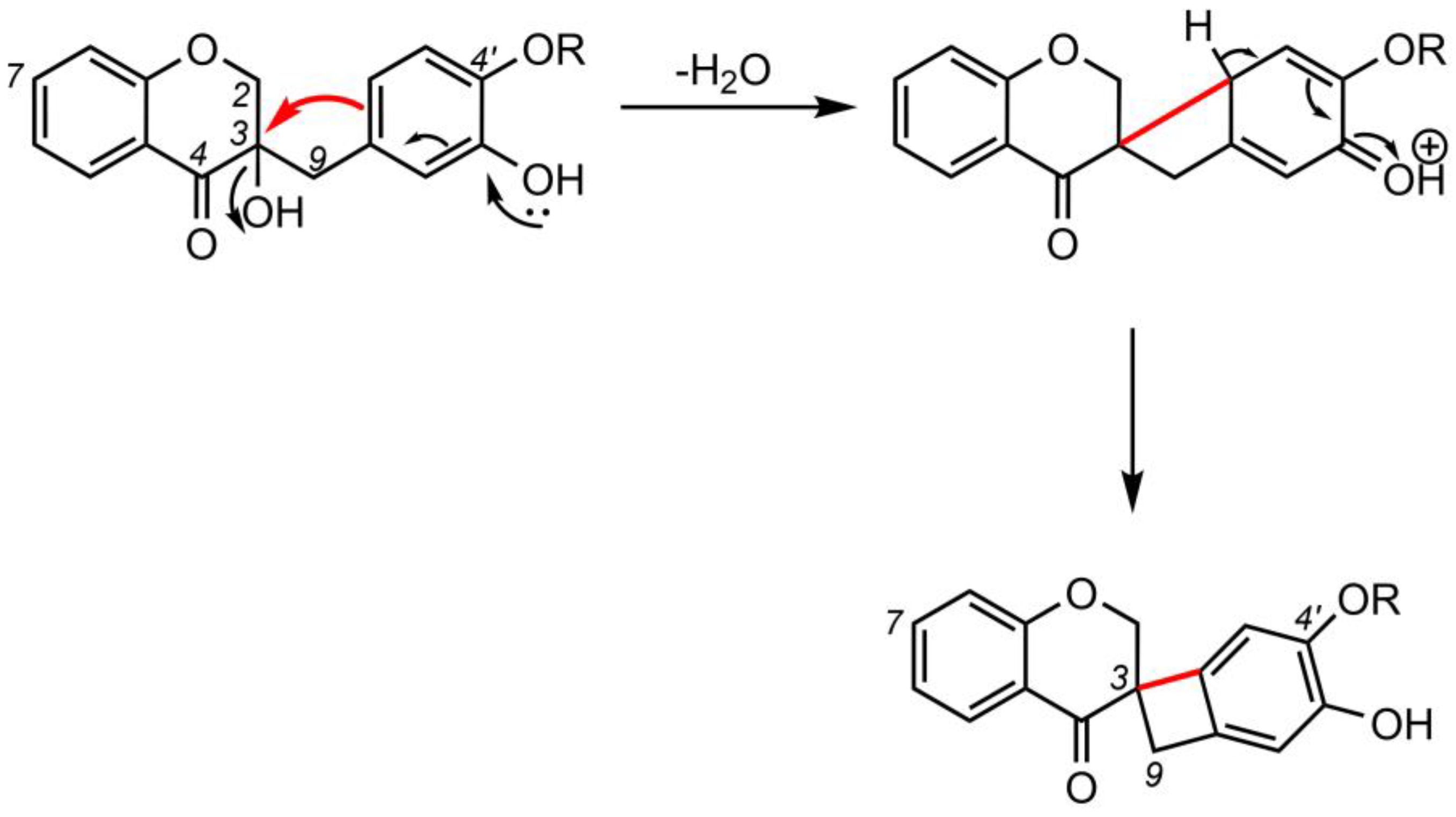

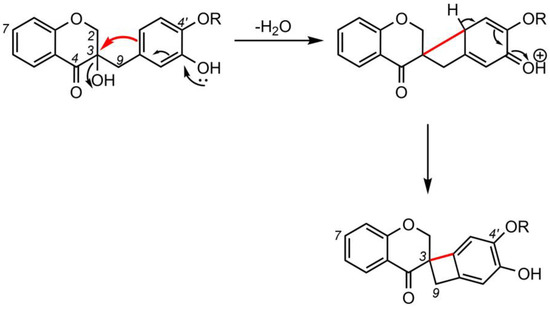

The hypothetical mechanisms of homoisoflavonoids formation are described in detail in the work of Castelli & Lopez [107], to which the reader is referred. However, the only works devoted to the study of the biosynthesis of these compounds (specifically, 3-benzylchroman-4-one eucomin from Eucomis bicolor) was presented by Dewick [108,109], who showed, by means of feeding experiments with isotopically labeled DL-phenylalanine-[1-14C, L-phenylalanine-[U-14C], sodium acetate-[2-14C], and L-methionine-[methyl-14C], that 2′-methoxychalcones are biosynthetic intermediate precursors of the homoisoflavonoids sappanin-, scillascillin-, and brazilin-type. The results showed that the C6-C3 unit from phenylalanine was completely incorporated into the eucomin molecule, becoming the C-4, C-3, C-9, and the aromatic B ring, while the O-methyl on the B ring originated from methionine, which was also the source of C-2 (in the pyran ring C). The A-ring, on the other hand, was entirely from acetate. There is one difference from the biosynthesis of flavonoids—an additional atom derived from methionine, which is localized as a methyl group in the 2′-methoxychalcone molecule. The proposed mechanism for the formation of homoisoflavonoids from 2′-methoxychalcone included several oxidation steps necessary to activate the appropriate positions in the molecule for the chemical sense of a given transformation. However, what is missing from the literature is any indication of what processes, either enzymatic or abiotic, are responsible for the transformation of these chalcones into the corresponding homoisoflavonoids. Nevertheless, Dewick suggested that the formation of the 3-spiro-cyclobutene ring in scillascillin-type homoisoflavonoids may be related to the transformation of the corresponding sappanin-type homoisoflavonoid [109] (Scheme 5).

6. Biological Activities of Spiro-Flavonoids

In recent years, interest in spiro-compounds as drug candidates has increased [4,110,111,112]. Spiro-derivatives were shown to exert a broad range of biological activities, such as antioxidant, anti-inflammatory, neuroprotective, antimicrobial, antidiabetic, anticancer/cytotoxic, antiviral, antimalarial, etc. [4,106,110,112,113,114]. Their pharmacological potential is attributed directly to their inherent three-dimensionality, versatility, rigidity of spiro-cyclic scaffolds, good balance between flexibility and conformational restriction, and structural similarity to important pharmacophore centers [110,113,115]. Spiro-scaffolds are often developed successfully as drug candidates compared to compounds with too many flat aromatic rings (heterocycles) [110,113,115]. However, there is a gap in the synthesis of diverse, architecturally complex spiro-flavonoids. Therefore, the biological activities described here refer to compounds of natural origin. Table S1 (Supplementary Materials) details information on the main biological activities, along with the models used and test results for each substance.

6.1. Antioxidant Activity

The antioxidant capacity of the spiro-biflavonoid larixinol (1) originating from Larix decidua bark was evaluated in vitro using the DPPH assay (2,2-diphenyl-1-picrylhydrazyl) [43]. Compared to reference substances, larixinol was three times less active. Piacente et al. (2004) and Bassarello et al. (2007) tested the ability of 1 and yuccaols A-E (3640), yuccaone A (29) from Yucca schidigera bark, and gloriosaols A-E (4448) from Y. gloriosa root to scavenge the ABTS•+ radical (2,2′-azino-bis(3-ethylbenzothiozoline-6-sulfonic acid) diammonium salt) [28,33]. Their activity was expressed as Trolox Equivalent Antioxidant Capacity (TEAC) values and compared to quercetin (positive control) (Table 3). Comp. 4446, and a mixture of gloriosaol D and E (47 and 48), showed the best antioxidant capacity in this study, much higher than quercetin [28]. Moderate ABTS•+ scavenging was observed for the dimeric spiro-flavonoids studied, with activity decreasing in the following order: yuccaol E, larixinol, yuccaol C, yuccaol D, and the weakest for yuccaol A and B, and yuccaone A (40, 1, 38, 39, 36, 37, 29, respectively) [33]. Compounds 3640 in β-carotene/linoleic acid autoxidation assay showed significant activity, greater than the positive control—2,6-di-tert-butyl-4-methoxyphenol at 120 min [33]. Isolates 1, 29 were not as active as positive control in this assay [33].
The 15-LOX (lipoxygenase) inhibition assay was used to test the ability of 37 and 44 isolated from the bark of Y. schidigera to protect polyunsaturated acids from peroxidation [106]. Their antioxidant activity was higher (EC50 = 9.66 µg/mL for yuccaol B, EC50 = 12.34 µg/mL for gloriosaol A) compared to the positive control: ascorbic acid (EC50 = 21.52 µg/mL) [106].
Nishida et al. (2013) [116] investigated antioxidant activities in DPPH (Trolox, curcumin, and α-tocopherol as positive controls), hydrogen peroxide (H2O2; Trolox as a positive control), and nitric oxide (NO; Trolox and curcumin as positive controls) scavenging assays of scillascillin-type homoisoflavonoids 49, 51, 52, and 59 isolated from bulbs of Scilla scilloides. Isomuscomosin (52) tested at 500 μM showed more than 90% DPPH radical scavenging activity (EC50 = 22.9 μM; the other compounds tested were below 40%). In the H2O2 assay, scillascillin (49) and 2-hydroxy-scillascillin (51) showed activity below 40%, while isomuscomosin (52) and scillavone A (59) were highly active at 99.3% and 85.4%, respectively. In NO assays, the compounds tested were inactive (below 40% inhibition).

6.2. Anti-Inflammatory Activity

Li et al. (2009) investigated the ability of spiro-biflavonoids (1–3) to reduce the level of NO production in macrophage cell line RAW 264.7, induced by lipopolysaccharide (LPS) [39]. Only larixinol showed NO inhibitory activity at 100 µg/mL with and IC50 value of 60.0 μg/mL [39]. Daphnodorin C and I (22, 24) and 2″-methoxy-daphnodorin C and 2″-methoxy-2-epi-daphnodorin C (26, 27) were tested for inhibitory activity against LPS-induced NO production in RAW 264.7 macrophages [49,50]. Only 26 and 27 showed statistically significant inhibitory activity of 32% and 58%, respectively, against an increase of NO at a concentration of 100 µg/mL (compared to 50% for the positive control, aminoguanidine at 25 µM). Compounds 22 and 24, isolated from the stems of Daphne kiusiana Miq., were investigated for their anti-inflammatory potential in the treatment of chronic obstructive pulmonary disease [52]. Comp. 22 most effectively suppressed the inflammatory response in both in vitro (phorbol 12-myristate 13-acetate)-stimulated human lung epithelial cells NCI-H292 and in an in vivo chronic obstructive pulmonary disease model, using mice exposed to cigarette smoke and LPS. Daphnodorin C (22) negatively affected the expression of inflammatory genes by inhibiting nuclear factor kappa light chain enhancer of activated B cells (NF-κB) and specific MAPK signaling pathways (mitogen-activated protein kinases) (JNK and p38) and suppressed reactive oxygen species (ROS) products in vitro and in vivo. Daphnodorin C at 20 mg/kg was comparable to the positive control roflumilast at 5 mg/kg [52].
A series of spiro-flavostilbenoids (yuccaols A-E, 3640) from Y. schidigera bark was tested for anti-inflammatory activity using in vitro assays of COX-1, COX-2, and LTB4 (leukotriene B4) formation mediated by 5-LOX. Comp. 36 and 37, containing resveratrol as a stilbenic moiety, showed the highest inhibition against COX-1 and moderate inhibition against COX-2 [117]. Comp. 40, which has a THMS moiety in its structure, expressed a slightly lower COX-1 and COX-2 inhibitory activity than comp. 36 and 37. The investigated spiro-flavostilbenoids did not inhibit the formation of LTB4 [117]. In another in vitro study, yuccaols A-C (3638) were tested on the J774.A1 murine macrophage cells activated with Escherichia coli LPS [118]. The anti-inflammatory effect was observed only for compounds 36 and 38 when they were added 1 h before LPS stimulation. Yuccaol C showed the highest activity. It significantly inhibited the iNOS (inducible nitric oxide synthase) protein and NO formation through NF-κB deactivation in a dose-dependent manner, while yuccaol A inhibited significantly only NO release at the highest concentration [118]. Spiro-flavostilbenoids 3843 were evaluated for anti-inflammatory activity on the mouse macrophage cell line RAW 264.7 [11]. Cells were preincubated with the compounds at 100 µM for 1 h and then stimulated with LPS. Yuccalide B (42), yuccaol C (38), and yuccaol E (40), which had the same relative configuration, effectively suppressed the mRNA level of iNOS. Yuccaols C-E significantly reduced transcription of the inflammatory cytokines IL-6 and IL-1β [11].
Waller et al. (2013) tested a series of homoisoflavonoids (at 10 μM) isolated from Ledebouria socialis and L. ovatifolia, including socialinone (63) and C-2 acetylated forms of 2-hydroxy-7-O-methyl-scillascillin (50) for the inhibitory activity of COX-1 (SC-560 as a positive control) and COX-2 (DuP-607 as a positive control) [22]. These compounds were found to be inactive in COX-2 assay. Nishida et al. (2014) [119] investigated the anti-inflammatory properties of scillascillin-type homoisoflavonoids from bulbs of Scilla scilloides, 49, 51, 52, and 59, using lipoxygenase (nordihydroguaiaretic acid as a positive control) and hyaluronidase (tannic acid as a positive control) as a model of in vitro inflammation. However, the compounds were not active at any of the concentrations tested (500, 750, and 1000 μM). Furthermore, the authors tested the anti-inflammatory effect of scillascillin-type homoisoflavonoids on LPS-activated RAW 264.7 mouse macrophages. Compound 59 showed weak inhibitory activity at 10 μM, while 49, 51, 52, and 59 inhibited NO production level up to 50% at 50 μM. In another work [120], isomuscomosin (52) and compound 56 showed similar moderate anti-inflammatory activity in a microsomal fraction assay, while scillascillin (49) showed low activity (at concentrations of 250 μg/mL against indomethacin as a positive control). These compounds were found to be inactive in the COX-1 and COX-2 assays. Protosappanin D (65) and other constituents of Caesalpinia sappan were investigated using an in vitro assay with the J774.1 cell line [36]. Their inhibitory effects on NO and prostaglandin E2 (PGE2), as well as their suppressive effects on the expression of tumor necrosis factor-α (TNF-α), IL-6, COX-2, and iNOS mRNA level, were evaluated. As a result, 65 inhibited both NO (IC50 = 9.6 μM) and PGE2 (IC50 = 7.8 μM) production. It showed the strongest suppression of TNF-α (IC50 = 14.2 μM), IL-6 (IC50 = 3.0 μM), COX-2 (IC50 = 21.4 μM), and iNOS mRNA expression (IC50 = 13.2 μM) among the substances tested.

6.3. Neuroprotective Activity

Spiro-flavostilbenoids (3641, 44, 4648) and spiro-biflavonoids (6, 7) from the bark of Y. schidigera were tested in vitro for their inhibitory activity against cholinesterases [7,31]. Acetylcholinesterase (AChE) from electric eel and butyrylcholinesterase (BChE) from horse serum were used in a modified Ellman spectrophotometric assay [7,31]. Compared to galantamine (positive control), the compounds tested showed moderate or weak inhibition of AChE. However, yuccaol B (37) and gloriosaol A (44) were the most potent inhibitors of BChE, with IC50 lower than the positive control (81.3 μM for 37, 64.9 μM for 44, and 124.0 μM for galantamine) [7]. Among yuccaols, the (2S,3S) diastereoisomers showed the highest anticholinesterase activity. The molecular interactions between the most active compounds (37, 44) and human AChE/BChE were studied in silico. These compounds interacted similarly with the peripheral anionic site of AChE and were located deep in the catalytic site of BChE [7]. The neuroprotective effect of yuccaol B and gloriosaol A was also confirmed in vivo using adult zebrafish models [106]. The Y-maze test was used to assess the function of spatial working memory function, while the novel tank diving test was used to measure anxiety in Danio rerio. Spiro-flavostilbenoids 37 and 44 at doses of 1, 3, and 5 µg/L attenuated scopolamine-induced amnesia and anxiety, and improved precognitive and anxiolytic activities, to the level of the control group (untreated with scopolamine) [106].

6.4. Anticancer and Antitumor Activity

Spiro-biflavonoids abiesinols A-F (1, 4, 1215), derived from the bark of Abies sachalinensis, were screened in vitro for antitumor-initiating activity, and then one of the most active compounds (12) was tested in vivo for a skin cancer chemopreventive effect [121]. Their inhibitory effect on the activation of NOR 1 ((±)-(E)-methyl-2-[(E)-hydroxyimino]-5-nitro-6-methoxy-hex-3-enamide), a donor of nitric oxide, was evaluated in Chang human liver cells, using curcumin as a reference compound. The inhibitory activity of all compounds tested was similar to that of curcumin; only abiesinols E (1) and F (4), which have fewer OH groups in their structure than abiesinols A-D, were slightly less active. A two-step skin carcinogenesis assay was performed using specific-pathogen-free female ICR mice (6 weeks old). Abiesinol A (12) was administered orally (0.0025% of body weight) for 2 weeks; skin carcinogenesis was induced with a single dose of peroxynitrite (ONOO-) and promoted with 12-O-tetradecanoylphorbol-13-acetate applied topically twice a week for 20 weeks [121]. Compound 12 showed significant antitumor-initiating activity in the in vivo test, the percentage of papilloma bearing mice was reduced to 33% at week 11, tumor formation was delayed by 2 weeks, and at the end of the experiment the average number of papillomas per mouse was reduced by a factor of 2, compared to the control group (no abiesinol A treatment) [121]. In contrast, the spiro-biflavonoids 3-epi-larixinol (2) and fragranols B and C (8, 9), as well as the spiro-triflavonoid fragranol A (30), were not active against the human pancreatic cancer cell line PANC-1 in an in vitro assay. Compounds 2, 8, 9, and 30 did not kill tumor cells at the maximum tested amount of 100 μM [37,38]. Spiro-biflavonoid genkwanol A (23), isolated from the aerial part of Fumana procumbens (Dunal) Gren. & Godr., was evaluated in vitro for its anticancer activity against A549 (adenocarcinomic human basal alveolar epithelial cell line), MCF-7 (human breast cancer cell line), HeLa (human cervical cancer cell line), and BEAS-2B (human bronchial epithelial cell line) cells using the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide) assay [34]. Compound 23, at the highest concentration tested (20 μg/mL), was active only against A549 cells, showing a 16.8% inhibition of cell viability [34]. Similarly, 23 had a moderate antimitotic effect, compared to the positive controls of colchicine and vinblastine in the microtubule polymerization bioassay in vitro [61]. In another work, the affinity of 23, daphnodorin I (24), 2″-hydroxygenkwanol A (28), and 4′-methylgenkwanol A (25) to Hsp90 protein, one of the most promising targets for anticancer therapy, was tested in vitro [54]. All spiro-biflavonoids interacted with the immobilized protein, but comp. 28 was the most efficient [54].
Spiro-flavostilbenoids 3638 inhibited Kaposi sarcoma (KS) cell proliferation, migration, and synthesis of the inflammatory mediator PAF (platelet-activating factor) in vitro [122]. Yuccaol C (38) was the most active, and it completely blocked the growth of the VEGF (vascular endothelial growth factor)-induced cells, more efficiently attenuated p38 and p42/44 MAP kinase signaling pathways activated by VEGF, and completely suppressed cell migration of KS cells after the PAF treatment. Moreover, yuccaols A-C inactivated VEGF-induced PAF biosynthesis through acetyl transferase blockade and enhanced PAF degradation through lysophospholipid transacetylase activation [122]. The cytostatic and pro-apoptotic activities of gloriosaols A-C (4446) were tested in vitro against different cancer cell lines: MCF7 (breast carcinoma), HepG2 (hepatoblastoma), U937 (monocytic leukemia), Molt4 (lymphoblastic leukemia), and Jurkat (T-cell leukemia) [123]. Inhibition of cancer cell growth was observed after 24 h treatment with increasing concentrations of 4446. These stereoisomers showed different antiproliferative potentials: 46 had the lowest EC50 values, and the best effect was observed towards the U937 cell line, followed by 44 and 45 [123]. At the highest doses of 10–25 µM, gloriosaol C (46) induced apoptosis in the most sensitive cell line, U937, and tended to switch to necrosis at doses above 30 µM. However, the cytotoxic (proapoptotic) effect of 46 against human peripheral blood mononuclear cells was distinctly weaker. Gloriosaol C-induced apoptosis at doses > 10 µM caused mitochondrial depolarization and cytochrome c release in U937 cells [123]. The 4446 tests altered the intracellular redox balance by increasing ROS (reactive oxygen species) release in U937 cancer cells exposed to these compounds for 1 h, and reducing ROS levels in cells simultaneously exposed to a pro-oxidant agent; that is, t-butyl hydroperoxide. The best pro-oxidant and antioxidant effect was observed for 46 at doses higher than 10 µM. This is one of the mechanisms by which these stereoisomers (4446) were able to induce apoptosis in U937 cells. [123].
Schwikkard et al. (2019) [124] reported the antiproliferative activity of several structurally diverse homoisoflavonoids (including 49, 52, 53, 63, and 64) from Ledebouria ovatifolia and Chionodoxa luciliae Boiss. against endothelial tumor cells (human retinal microvascular endothelial cells) and ocular tumor cells (uveal melanoma 92-1 and retinoblastoma Y79). The authors indicate that the activity of homoisoflavonoids tested was generally related to the substitution pattern of their A and B rings. However, the presence of the spiro-ring rendered the tested scillascillin-type homoisoflavonoids completely inactive, regardless of the substituents in the A and B rings. Likewise, Matsuo et al. (2014) [13] evaluated (3R)-5,7-dihydroxy-6-methyl-3-(3′-hydroxy-4′-methoxybenzyl)chroman-4-one and compound 57 (isolated from Bessera elegans), which differed only in the presence of the 3-spiro-cyclobutene ring (formed by the coupling of C-3 and C-2′ carbons), for cytotoxicity against human HL-60 promyelocytic leukemia cells and normal human diploid TIG-3 fibroblasts. The homoisoflavonoid without the cyclobutene ring showed a potent tumor-selective cytotoxic activity against HL-60 cells, while 57 was noncytotoxic (and noncytotoxic against TIG-3). On the other hand, Chinthala et al. (2014) [21] performed an in vitro anticancer assay using scillascillin (49) isolated from Ledebouria hyderabadensis against the human cancer cell lines MCF-7 (breast cancer) and DU-145 (prostate cancer). Scillascillin showed significant activity (IC50 of 9.59 ug/mL and 11.32 μg/mL, respectively). Doxorubicin was used as a positive control. Its IC50 against the tested cell lines was 1.86 and 13.71 μg/mL, respectively.

6.5. Cytotoxicity/Mutagenicity

The lack of cytotoxicity of spiro-biflavonoid larixinol (1) at a dose of 100 µg/mL was confirmed in the RAW264.7 macrophages using the MTT assay [39]. No cytotoxicity of daphnodorin C (22) and daphnodorin I (24) at concentrations of 2.5–20 µM was detected against NCI-H292 human lung epithelial cells using the Cell Counting Kit-8 assay [52]. Spiro-flavostilbenoids 36–38 (yuccaols A-C) showed no toxicity against J774.A1 murine monocyte/macrophage cells at doses of 0.1–100 µM in an MTT test [118]. These compounds, at doses of 10–500 µg, confirmed their non-toxicity and demonstrated their non-mutagenicity in Salmonella typhimurium strains TA97, TA98, TA100, and TA102 tested by the microsome test (Ames test) [125].

6.6. Antiplatelet Activity

Sakuma et al. (1998) [126] tested spiro-biflavonoid daphnodorin C (22) isolated from Daphne odora roots for the activities of 12-lipoxygenase (12-LOX) and cyclooxygenase (COX). 12-LOX converts arachidonic acid to 12-hydroperoxy-5,8,10,14-eicosatetraenoic acid, which is subsequently reduced to 12-hydroxy-5,8,10,14-eicosatetraenoic acid (12-HETE). 12-HETE has been reported to induce platelet aggregation. COX, on the other hand, produces prostaglandin endoperoxides. These are converted by thromboxane synthase to 12-hydroxy-5,8,10-heptadecatrienoic acid (HHT). Daphnodorin C (22) caused 34.1% inhibition of 12-HETE formation and 26.6% inhibition of HHT at a concentration of 100 μM. This makes 22 a dual inhibitor of 12-LOX and COX in platelets.
In vitro, the spiro-flavostilbenoids 36 and 38 yuccaols A and C showed an inhibitory effect on platelet aggregation induced by thrombin and ADP (adenosine diphosphate) in a dose-dependent manner. Pig blood platelets pretreated with the compounds 36 and 38 at their highest concentration (25 μg/mL) caused a suppression of thrombin-induced aggregation by about 50% [127].

6.7. Antidiabetic Activity

A series of spiro-biflavonoid diastereoisomers (14, 10, 11) isolated from the stem bark of Glyptostrobus pensilis were screened in vitro for their ability to inhibit human protein tyrosine phosphatase 1B (PTP1B). This enzyme negatively regulates insulin signaling or epidermal growth factor pathways [35]. Spiropensilisol A (10) showed the best activity, inhibiting the enzyme to the same extent as a positive control (oleanolic acid) with an IC50 =3.3 µM. The remaining compounds tested were also active, with an IC50 ≤ 17.1 µM. Using a molecular modeling approach, compound 10 was shown to interact with the catalytic site of the PTP1B enzyme [35]. Daphnodorins C and I (22, 24) and spiro-tetraflavonoids edgechrins A, B, and D (32, 34, 33) isolated from Edgeworthia chrysantha Lindl. were tested for α-glucosidase inhibitory activity, using p-nitrophenyl α-D-glucoside as substrate [58]. All compounds significantly inhibited α-glucosidase, but dimeric compounds 3234 had a stronger activity than 22 and 24 (IC50 1.09, 0.96, 2.13 versus 4.00 and 19.0, respectively, with 73.6 μM for the positive control, acarbose).

6.8. Antibacterial, Antifungal, and Antiviral Activity

Inamori et al. (1987) [128] tested the antifungal activity of spiro-biflavonoid daphnodorin C (22) against pathogens including Pyricularia oryzae, Rhizoctonia solani, Phytophora infestans, Botrytis cinerea, Puccinia recondita, and Erysiphe graminis, and its insecticidal activity (against Spodoptera litura, Nilaparvata lugens, Callosobruchus chinensis, and Tetranychus urticae). It showed antifungal activity only against P. oryzae associated with Oriza sativa as a plant host. The leaves of rice plant were incubated with daphnodorin C for 3 d before being inoculated with fungal spores for 5 d. The protective value of 22 was 89–90% at a concentration of 200–500 ppm. The insecticidal activity was negligible. Genkwanol A (23) caused an in vitro morphological deformation of the phytopathogenic fungus responsible for rice blast—P. oryzae. Compared to antifungal controls, that is, griseofulvin and nocodazole, 23 had lower minimum morphological deformation concentration [61].
Daphnodorin C (22), isolated from the bark of Dahpne odora Thunb., showed moderate inhibition of HIV-1 replication in MT-4 cells [129]. Compared to a positive control, 2′,3′-dideoxycytidine- 5′-triphosphate, comp. 22 had a weak inhibitory effect on HIV-1 reverse transcriptase. The authors suggest that daphnodorin C has anti-HIV-1 effects through inhibition of the early stage of viral replication [129]. Genkwanol A (23), derived from the root of Wikstroemia indica (L.) C.A.Mey., showed moderate activity against human immunodeficiency virus type 1 (HIV-1) in T4 lymphocytes (CEM cell line) [61].
Antibacterial activity of scillascillin-type homoisoflavonoids 49, 52, and 56 isolated from Drimiopsis maculata Lindl. & Paxton, and Eucomis schijffii Reyneke, was screened against Staphylococcus aureus, using the bioautographic and microplate assays [130]. Significant inhibitory activity was obtained for scillascillin (49), with a minimum inhibitory concentration (MIC) value of 0.50 mM (neomycin, positive control, had MIC = 0.0025 mM), while compound 52 (isomuscomosin) exhibited bacteriostatic activity with a bacteriostatic concentration value of 1.97 mM.

6.9. Phytotoxic Activity

Spiro-biflavonoid genkwanol A (23), isolated from the roots of Stellera chamaejasme L., showed strong phytotoxic activity against Arabidopsis thaliana seedlings, although only at relatively high concentrations (200 μg/mL), with an IC50 of 74.8 μg/mL, by inhibiting root growth [59]. This was confirmed by measuring the level of endogenous auxin in the root tip of the transgenic A. thaliana DR5::GUS line. This level was significantly reduced by 23 as a result of inhibition of auxin transport. At the same time, comp. 23 was not secreted into the soil by the roots of S. chamaejasme. Therefore, it is unlikely that it is responsible for the allelopathic effect exerted by this plant in nature.

6.10. Other Activities

Angiotensin II plays a key role in regulating blood pressure, and Takai et al. (1999) [131] tested the inhibition of human chymase-dependent angiotensin II-forming activity by daphnodorin A, daphnodorin B, and daphnodorin C (22) isolated from D. odora. The compound did not inhibit chymase-generated angiotensin II formation, but also did not affect the formation of angiotensin-converting enzyme-dependent angiotensin II and, unlike daphnodorin A, did not inhibit purified human tryptase.
The spiro-biflavonoids genkwanol A (23) and 2″-hydroxygenkwanol A (28) were tested in vitro for poly(ADP-ribose) polymerase 1 (PARP-1) inhibitory activity [132]. PARP-1 is an enzyme involved in the pathogenesis of cancer, inflammation, diabetes, and neurodegenerative diseases. Compound 28 binds efficiently to the PARP-1 protein catalytic domain in the nicotine binding pocket. 2″-Hydroxygenkwanol A strongly inhibited PARP-1 activity at submicromolar concentrations at a level comparable to the positive control—3-aminobenzamide [132].
Fusi et al. (2010) [17] investigated the vasorelaxant effects of scillascillin-type homoisoflavonoids 49, 52, and 56 obtained from D. maculata and E. schijffii using rat aortic ring preparations. The authors reported that both 60 mM K+ (K60) and phenylephrine-induced tonic contractions were inhibited, in a concentration-dependent manner, by all homoisoflavonoids tested. Compound 56 was found to be the most effective vasorelaxing agent. This was in part due to the activation of soluble guanylyl cyclase. Sasaki et al. (2010) [133] investigated the vasorelaxant activity of protosappanin D (65) isolated from C. sappan on the rat aorta and mesenteric artery. The authors reported that 65 exhibited vasorelaxing activity on both phenylephrine-preconstricted blood vessels and that its activity was independent of the aortic endothelium and dependent on the mesenteric artery endothelium. The involvement of NO and prostaglandin as endothelium-derived relaxing factors was demonstrated in further experiments with NG-nitro-L-arginine and indomethacin.

7. Conclusions and Further Directions

Spiro-flavonoids, due to the presence of an unusual structural element such as spiro-carbon, are attracting increasing interest because of their chemical and biological properties. A total of 65 spiro-flavonoid structures which were monomeric, as well as bi-, tri-, and tetrameric, belonging to several groups differing in the type of polyphenolic units and the way they are combined, were isolated and characterized. Spiro-biflavonoids were the most abundant group, most frequently isolated from the families Pinaceae, Thymelaeaceae, Cupressaceae, and Pentaphylacaceae. In turn, the richest source of spiro compounds (thirty-four structures) was the Asparagaceae family, from which all known scillascillin-type homoisoflavonoids and all spiro-flavostilbenoids were derived. Most of the oligomeric spiro-flavonoids were isolated from woody plant parts (twigs, bark, and roots), while monomeric scillascillin-type homoisoflavonoids were obtained from bulbs. Methods used to isolate them mainly included classical extraction by maceration at room temperature using pure organic solvents of relatively different polarity and their mixtures, most often with water. The subsequent separation steps also included classical separation techniques based on the difference in solubility in two immiscible liquids (liquid–liquid extraction), as well as the use of column liquid chromatography in normal and reversed-phase systems and gel filtration. However, normal-phase column chromatography was the most widely used technique. As modern chemistry strives to be as “green” as possible, future studies should use extraction methods based on less toxic solvents, such as CO2 supercritical fluid extraction or deep eutectic solvents.
The relative and absolute configurations of the complex structures of spiro-flavonoids, frequently containing multiple chiral carbons (including spiro-carbons), have been determined by a number of spectroscopic techniques, including nuclear magnetic resonance (NMR), electronic circular dichroism (ECD), X-ray diffraction (XRD), and chemical methods using chiral derivatizing agents. NMR and XRD are the methods most commonly used to determine their relative configurations, although an increasing number of cases of the use of quantum mechanical (QM) calculations (e.g., modified DP4+ probability method) are reported in the literature. Empirical methods have been used to assign absolute configuration, including the comparison of Cotton effects between known and newly described compounds. However, this method seems to be far from sufficient for structures with more than one chirality center, so it is necessary to systematically and correctly use QM techniques to predict ECD spectra using time-dependent density-functional theory calculations.
This review also summarizes the topic of possible pathways for spiro-flavonoid biosynthesis. The available knowledge provides some clues pointing towards mechanisms involving radical coupling reactions. Nevertheless, it is noteworthy that there are essentially no works that explore this topic in depth, for example, using isotopic labeling, which we believe should provide a direction for future research.
The potential health benefits of spiro-flavonoids have been summarized and the available results indicate significant anti-inflammatory, neuroprotective, antitumor/anticancer, and antidiabetic properties in vitro and in vivo of some spiro-biflavonoids and spiro-flavostilbenoids. On the other hand, scillascillin-type homoisoflavonoids showed good vasorelaxant activity. Therefore, future research should focus on these aspects of their activity.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28145420/s1, Table S1: Biological activity of spiro-flavonoids with information on the models used and results for the substances tested.

Author Contributions

Ł.P.: writing—original draft preparation, conceptualization, visualization; S.P.: writing—original draft preparation and visualization; T.M.: writing—review and editing, conceptualization and supervision; W.O.: conceptualization, resources and supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Special thanks to Jerzy Żuchowski for proofreading the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

12-HETE12-Hydroxy-5,8,10,14-eicosatetraenoic acid
AbsC Absolute configuration
ABTS 2,2′-Azino-bis(3-ethylbenzothiozoline-6-sulfonic acid) diammonium salt
AChEAcetylcholinesterase
BChEButyrylcholinesterase
CCColumn chromatography
CDA Chiral derivatizing agent
CHSChalcone synthase
COSYCorrelation spectroscopy
COX Cyclooxygenase
DEPT Distortion enhancement by polarization transfer
DPPH2,2-Diphenyl-1-picrylhydrazyl
EC50 Half maximal effective concentration
ECD Electronic circular dichroism
GIAO Gauge-independent atomic orbital
GPCGel permeation chromatography
HHT12-Hydroxy-5,8,10-heptadecatrienoic acid
HIV-1Human immunodeficiency virus type 1
HMBCHeteronuclear multiple bond correlation
IC50 Half maximal inhibitory concentration
iNOS Inducible nitric oxide synthase
KS Kaposi’s sarcoma
LLELiquid–liquid extraction
LOX Lipoxygenase
LPSLipopolysaccharide
LTB4 Leukotriene B4
MAPKMitogen-activated protein kinases
MICMinimum inhibitory concentration
MPLCMedium-pressure liquid chromatography
MTPAα-methoxy-α-trifluoromethylphenylacetic acid
MTT 3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyl-2H-tetrazolium bromide
NF-κBNuclear factor kappa-light-chain-enhancer of activated B cells
NMR Nuclear magnetic resonance
NO Nitric oxide
NOESYNuclear Overhauser effect spectroscopy
NOR 1(±)-(E)-Methyl-2-[(E)-hydroxyimino]-5-nitro-6-methoxy-hex-3-enamide
NPNormal phase
PAF Platelet-activating factor
PARP-1Poly(ADP-ribose) polymerase 1
PGE2Prostaglandin E2
PLCPreparative thin-layer chromatography
PTP1BHuman protein tyrosine phosphatase 1B
QM Quantum mechanical
RelC Relative configuration
ROS Reactive oxygen species
RPReversed phase
STSStilbene synthase
TDDFTTime-Dependent Density-Functional Theory
TEACTrolox Equivalent Antioxidant Capacity
THMStrans-3,3′,5,5′-Tetrahydroxy-4′-methoxystilbene
TLCThin-layer chromatography
TNF-αTumor necrosis factor-α
UV/VisUltraviolet/Visible
VCD Vibrational circular dichroism
VEGF Vascular endothelial growth factor
XRD X-ray diffraction

References

  1. Moss, G.P. Extension and Revision of the Nomenclature for Spiro Compounds. Pure Appl. Chem. 1999, 71, 531–558. [Google Scholar] [CrossRef]
  2. Ding, A.; Meazza, M.; Guo, H.; Yang, J.W.; Rios, R. New Development in the Enantioselective Synthesis of Spiro Compounds. Chem. Soc. Rev. 2018, 47, 5946–5996. [Google Scholar] [CrossRef]
  3. Rios, R. Enantioselective Methodologies for the Synthesis of Spiro Compounds. Chem. Soc. Rev. 2012, 41, 1060–1074. [Google Scholar] [CrossRef] [PubMed]
  4. Hiesinger, K.; Dar’in, D.; Proschak, E.; Krasavin, M. Spirocyclic Scaffolds in Medicinal Chemistry. J. Med. Chem. 2021, 64, 150–183. [Google Scholar] [CrossRef] [PubMed]
  5. Kouno, I.; Komori, T.; Kawasaki, T. Zur Struktur Der Neuen Typen Homo-Isoflavanone Aus Bulben von Scilla scilloides Druce. Tetrahedron Lett. 1973, 14, 4569–4572. [Google Scholar] [CrossRef]
  6. Fedorova, T.E.; Ivanova, S.Z.; Fedorov, S.V.; Babkin, V.A. Larisinol, a New Spirobiflavonoid from Larix gmelinii Bark. Chem. Nat. Compd. 2007, 43, 208–209. [Google Scholar] [CrossRef]
  7. Pecio, Ł.; Alilou, M.; Kozachok, S.; Orhan, I.E.; Eren, G.; Şenol Deniz, F.S.; Stuppner, H.; Oleszek, W. Absolute Configuration of Spiro-Flavostilbenoids from Yucca schidigera Roezl Ex Ortgies: First Indication of (2R)-Naringenin as the Key Building Block. Phytochemistry 2023, 207, 113584. [Google Scholar] [CrossRef]
  8. Fedorova, T.E.; Ivanova, S.Z.; Babkin, V.A. Spiroflavonoid Compounds: Structure and Distribution in Nature Review. Russ. J. Bioorg. Chem. 2010, 36, 793–801. [Google Scholar] [CrossRef]
  9. POWO. Plants of the World Online. Facilitated by the Royal Botanic Gaedens, Kew. 2022. Available online: http://www.plantsoftheworldonline.org/ (accessed on 29 August 2022).
  10. IPNI. International Plant Names Index. 2022. Available online: https://www.ipni.org (accessed on 29 August 2022).
  11. Nakashima, K.; Abe, N.; Oyama, M.; Inoue, M. Yuccalides A–C, Three New Phenolic Compounds with Spiro-Structures from the Roots of Yucca gloriosa. Fitoterapia 2016, 111, 154–159. [Google Scholar] [CrossRef]
  12. He, X.; Yang, F.; Huang, X. Proceedings of Chemistry, Pharmacology, Pharmacokinetics and Synthesis of Biflavonoids. Molecules 2021, 26, 6088. [Google Scholar] [CrossRef] [PubMed]
  13. Matsuo, Y.; Kurihara, R.; Akagi, N.; Mimaki, Y. Two New Homoisoflavonoids from the Bulbs of Bessera elegans. Nat. Prod. Commun. 2014, 9, 1725–1727. [Google Scholar] [CrossRef] [Green Version]
  14. Corsaro, M.M.; Lanzetta, R.; Mancino, A.; Parrilli, M. Homoisoflavanones from Chionodoxa luciliae. Phytochemistry 1992, 31, 1395–1397. [Google Scholar] [CrossRef]
  15. Ngamga, D.; Bipa, J.; Lebatha, P.; Hiza, C.; Mutanyatta, J.; Bezabih, M.-T.; Tane, P.; Abegaz, B.M. Isoquinoline Alkaloids and Homoisoflavonoids from Drimiopsis barteri Bak and D. burkei Bak. Nat. Prod. Commun. 2008, 3, 769–777. [Google Scholar] [CrossRef] [Green Version]
  16. Koorbanally, C.; Crouch, N.R.; Mulholland, D.A. Scillascillin-Type Homoisoflavanones from Drimiopsis maculata (Hyacinthaceae). Biochem. Syst. Ecol. 2001, 29, 539–541. [Google Scholar] [CrossRef] [PubMed]
  17. Fusi, F.; Ferrara, A.; Koorbanally, C.; Crouch, N.R.; Mulholland, D.A.; Sgaragli, G. Vascular Myorelaxing Activity of Isolates from South African Hyacinthaceae Partly Mediated by Activation of Soluble Guanylyl Cyclase in Rat Aortic Ring Preparations. J. Pharm. Pharmacol. 2010, 60, 489–497. [Google Scholar] [CrossRef]
  18. Koorbanally, C.; Crouch, N.R.; Langlois, A.; Du Toit, K.; Mulholland, D.A.; Drewes, S.E. Homoisoflavanones and Spirocyclic Nortriterpenoids from Three Eucomis Species: E. comosa, E. schijffii and E. pallidiflora Subsp. Pole-Evansii (Hyacinthaceae). S. Afr. J. Bot. 2006, 72, 428–433. [Google Scholar] [CrossRef] [Green Version]
  19. Teponno, R.B.; Ponou, B.K.; Fiorini, D.; Barboni, L.; Tapondjou, L.A. Chemical Constituents from the Roots of Furcraea bedinghausii Koch. Int. Lett. Chem. Phys. Astron. 2013, 16, 9–19. [Google Scholar] [CrossRef]
  20. Mutanyatta, J.; Matapa, B.G.; Shushu, D.D.; Abegaz, B.M. Homoisoflavonoids and Xanthones from the Tubers of Wild and in Vitro Regenerated Ledebouria graminifolia and Cytotoxic Activities of Some of the Homoisoflavonoids. Phytochemistry 2003, 62, 797–804. [Google Scholar] [CrossRef]
  21. Chinthala, Y.; Chinde, S.; Kumar, A.N.; Srinivas, K.V.N.S.; Kumar, J.K.; Sastry, K.P.; Grover, P.; Ramana, M.V. Anticancer Active Homoisoflavone from the Underground Bulbs of Ledebouria hyderabadensis. Pharmacogn. Res. 2014, 6, 303–305. [Google Scholar] [CrossRef] [Green Version]
  22. Waller, C.P.; Thumser, A.E.; Langat, M.K.; Crouch, N.R.; Mulholland, D.A. COX-2 Inhibitory Activity of Homoisoflavanones and Xanthones from the Bulbs of the Southern African Ledebouria socialis and Ledebouria ovatifolia (Hyacinthaceae: Hyacinthoideae). Phytochemistry 2013, 95, 284–290. [Google Scholar] [CrossRef] [Green Version]
  23. Moodley, N.; Mulholland, D.A.; Crouch, N.R. Eucosterol-Type Nortriterpenoids from Merwilla natalensis. J. Nat. Prod. 2004, 67, 918–920. [Google Scholar] [CrossRef]
  24. Adinolfi, M.; Corsaro, M.M.; Lanzetta, R.; Laonigro, G.; Mangoni, L.; Parrilli, M. Ten Homoisoflavanones from Two Muscari Species. Phytochemistry 1986, 26, 285–290. [Google Scholar] [CrossRef]
  25. Adinolfi, M.; Barone, G.; Belardini, M.; Lanzetta, R.; Laonigro, G.; Parrilli, M. Homoisoflavanones from Muscari comosum Bulbs. Phytochemistry 1985, 24, 2423–2426. [Google Scholar] [CrossRef]
  26. Barone, G.; Corsaro, M.M.; Lanzetta, R.; Parrilli, M. Homoisoflavanones from Muscari neglectum. Phytochemistry 1988, 27, 921–923. [Google Scholar] [CrossRef]
  27. Nishida, Y.; Eto, M.; Miyashita, H.; Ikeda, T.; Yamaguchi, K.; Yoshimitsu, H.; Nohara, T.; Ono, M. A New Homostilbene and Two New Homoisoflavones from the Bulbs of Scilla scilloides. Chem. Pharm. Bull. 2008, 56, 1022–1025. [Google Scholar] [CrossRef] [Green Version]
  28. Bassarello, C.; Bifulco, G.; Montoro, P.; Skhirtladze, A.; Benidze, M.; Kemertelidze, E.; Pizza, C.; Piacente, S. Yucca gloriosa: A Source of Phenolic Derivatives with Strong Antioxidant Activity. J. Agric. Food Chem. 2007, 55, 6636–6642. [Google Scholar] [CrossRef] [PubMed]
  29. Bassarello, C.; Bifulco, G.; Montoro, P.; Skhirtladze, A.; Kemertelidze, E.; Piacente, S. Gloriosaols A and B, Two Novel Phenolics from Yucca gloriosa: Structural Characterization and Configurational Assignment by a Combined NMR-Quantum Mechanical Strategy. Tetrahedron 2007, 63, 148–154. [Google Scholar] [CrossRef]
  30. Oleszek, W.; Sitek, M.; Stochmal, A.; Piacente, S.; Pizza, C.; Cheeke, P. Resveratrol and Other Phenolics from the Bark of Yucca schidigera Roezl. J. Agric. Food Chem. 2001, 49, 747–752. [Google Scholar] [CrossRef] [PubMed]
  31. Pecio, Ł.; Alilou, M.; Kozachok, S.; Orhan, I.E.; Eren, G.; Deniz, F.S.S.; Stuppner, H.; Oleszek, W. Yuccalechins A-C from the Yucca schidigera Roezl Ex Ortgies Bark: Elucidation of the Relative and Absolute Configurations of Three New Spirobiflavonoids and Their Cholinesterase Inhibitory Activities. Molecules 2019, 24, 4162. [Google Scholar] [CrossRef] [Green Version]
  32. Piacente, S.; Bifulco, G.; Pizza, C.; Stochmal, A.; Oleszek, W. A Novel Phenolic Spiro Derivative, Yuccaone A, from Yucca schidigera Bark. Tetrahedron Lett. 2002, 43, 9133–9136. [Google Scholar] [CrossRef]
  33. Piacente, S.; Montoro, P.; Oleszek, W.; Pizza, C. Yucca schidigera Bark: Phenolic Constituents and Antioxidant Activity. J. Nat. Prod. 2004, 67, 882–885. [Google Scholar] [CrossRef] [PubMed]
  34. Emerce, E.; Gürbüz, P.; Doğan, Ş.D.; Kadioglu, E.; Süntar, I. Cytotoxic Activity-Guided Isolation Studies on Fumana procumbens (Dunal) Gren. & Godr. Rec. Nat. Prod. 2019, 13, 189–198. [Google Scholar] [CrossRef]
  35. Xiong, J.; Hu, C.L.; Wang, P.P.; Gao, D.D.; Huang, F.; Li, J.; Hu, J.F. Spirobiflavonoid Stereoisomers from the Endangered Conifer Glyptostrobus pensilis and Their Protein Tyrosine Phosphatase 1B Inhibitory Activity. Bioorg. Med. Chem. Lett. 2020, 30, 126943. [Google Scholar] [CrossRef] [PubMed]
  36. Washiyama, M.; Sasaki, Y.; Hosokawa, T.; Nagumo, S. Anti-Inflammatory Constituents of Sappan Lignum. Biol. Pharm. Bull. 2009, 32, 941–944. [Google Scholar] [CrossRef] [Green Version]
  37. Omar, A.M.; Sun, S.; Kim, M.J.; Tawila, A.M.; Dibwe, D.F.; Phrutivorapongkul, A.; Toyooka, N.; Awale, S. Fragranol A: A New Class of Spiro-Triflavanoid Hybrid with an Unprecedented Carbon Skeleton from Anneslea fragrans. Tetrahedron Lett. 2020, 61, 152099. [Google Scholar] [CrossRef]
  38. Omar, A.M.; Sun, S.; Kim, M.J.; Tawila, A.M.; Dibwe, D.F.; Phrutivorapongkul, A.; Toyooka, N.; Awale, S. Highly Oxygenated Spiro-Biflavanoids from Anneslea fragrans Twigs. Phytochem. Lett. 2020, 40, 21–25. [Google Scholar] [CrossRef]
  39. Li, Y.-L.; Yang, X.-W.; Li, S.-M.; Tang, J.; Tian, J.-M.; Peng, X.-Y.; Huang, D.-S.; Zhang, W.-D. Two New Spirobiflavonoids from Abies Chensiensis with Moderate NO Production Inhibitory Activity. Planta Med. 2009, 75, 1534–1537. [Google Scholar] [CrossRef]
  40. Yang, X.-W.; Li, S.M.; Li, Y.L.; Feng, L.; Shen, Y.H.; Lin, S.; Tian, J.M.; Zeng, H.W.; Wang, N.; Steinmetz, A.; et al. Chemical Constituents of Abies delavayi. Phytochemistry 2014, 105, 164–170. [Google Scholar] [CrossRef]
  41. Yang, X.-W.; Li, Y.L.; Li, S.M.; Shen, Y.H.; Tian, J.M.; Zhu, Z.J.; Feng, L.; Wu, L.; Lin, S.; Wang, N.; et al. Mono- and Sesquiterpenoids, Flavonoids, Lignans, and Other Miscellaneous Compounds of Abies georgei. Planta Med. 2011, 77, 742–748. [Google Scholar] [CrossRef]
  42. Wada, S.; Hitomi, T.; Tanaka, R. Phenolic Compounds Isolated from the Bark of Abies sachalinensis. Helv. Chim. Acta 2009, 92, 1610–1620. [Google Scholar] [CrossRef]
  43. Baldan, V.; Sut, S.; Faggian, M.; Dalla Gassa, E.; Ferrari, S.; De Nadai, G.; Francescato, S.; Baratto, G.; Dall’Acqua, S. Larix decidua Bark as a Source of Phytoconstituents: An LC-MS Study. Molecules 2017, 22, 1974. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Ivanova, S.Z.; Fedorova, T.E.; Ivanova, N.V.; Fedorov, S.V.; Babkin, V.A. Triflarixinol—A New Spiroflavonoid from the Bark of the Larch Tree. Khimiya Rastit. Syr’ya 2006, 1, 37–40. [Google Scholar]
  45. Shen, Z.; Haslam, E.; Falshaw, C.P.; Begley, M.J. Procyanidins and Polyphenols of Larix gmelini Bark. Phytochemistry 1986, 25, 2629–2635. [Google Scholar] [CrossRef]
  46. Yang, B.-H.; Zhang, W.-D.; Liu, R.-H.; Tan, C.-H.; Li, T.-Z.; Zhang, C.; Xu, X.-K.; Su, J. Spiro-Biflavonoids from Larix olgensis Henry Var. Koreana Nakai. Helv. Chim. Acta 2005, 88, 2892–2896. [Google Scholar] [CrossRef]
  47. Zhou, B.; Alania, Y.; Reis, M.C.; McAlpine, J.B.; Bedran-Russo, A.K.; Pauli, G.F.; Chen, S.-N. Rare A-Type, Spiro-Type, and Highly Oligomeric Proanthocyanidins from Pinus massoniana. Org. Lett. 2020, 22, 5304–5308. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, G.; Nie, Q.; Weng, Q.; Zhang, M.; Ding, L.; Zhou, Y.; Chen, F.; Xiao, S. Chemical Constituents from Tsuga longibracteata and Its Chemotaxonomic Study. Biochem. Syst. Ecol. 2018, 77, 4–6. [Google Scholar] [CrossRef]
  49. Liang, S.; Tian, J.-M.; Feng, Y.; Liu, X.-H.; Xiong, Z.; Zhang, W.-D. Flavonoids from Daphne aurantiaca and Their Inhibitory Activities against Nitric Oxide Production. Chem. Pharm. Bull. 2011, 59, 653–656. [Google Scholar] [CrossRef] [Green Version]
  50. Liang, S.; Tang, J.; Shen, Y.-H.; Jin, H.-Z.; Tian, J.-M.; Wu, Z.-J.; Zhang, W.-D.; Yan, S.-K. Biflavonoids from Daphne feddei and Their Inhibitory Activities against Nitric Oxide Production. Chem. Pharm. Bull. 2008, 56, 1729–1731. [Google Scholar] [CrossRef] [Green Version]
  51. Baba, K.; Takeuchi, K.; Tabata, Y.; Taniguchi, M.; Kozawa, M. Chemical Studies on the Constituents of the Thymelaeaceous Plants. IV. Structure of a New Spiro Biflavonoid, Genkwanol A, from the Root of Daphne genkwa Sieb. et Zucc. Yakugaku Zasshi 1987, 107, 525–529. [Google Scholar] [CrossRef] [Green Version]
  52. Ryu, H.W.; Lee, J.W.; Kim, M.O.; Lee, R.W.; Kang, M.J.; Kim, S.M.; Min, J.H.; Oh, E.S.; Song, Y.N.; Jung, S.; et al. Daphnodorin C Isolated from the Stems of Daphne kiusiana Miquel Attenuates Airway Inflammation in a Mouse Model of Chronic Obstructive Pulmonary Disease. Phytomedicine 2022, 96, 153848. [Google Scholar] [CrossRef]
  53. Bai, Z.; Zhou, D.; Meng, Q.; Fang, M.; Chen, G.; Hou, Y.; Li, N. Characteristic Biflavonoids from Daphne Kiusiana Var. Atrocaulis (Rehd.) F. Maekawa. Nat. Prod. Res. 2022, 37, 1557–1564. [Google Scholar] [CrossRef]
  54. Malafronte, N.; Vassallo, A.; Dal Piaz, F.; Bader, A.; Braca, A.; De Tommasi, N. Biflavonoids from Daphne linearifolia Hart. Phytochem. Lett. 2012, 5, 621–625. [Google Scholar] [CrossRef]
  55. Ghanadian, M.; Ali, Z.; Khan, I.A.; Balachandran, P.; Nikahd, M.; Aghaei, M.; Mirzaei, M.; Sajjadi, S.E. A New Sesquiterpenoid from the Shoots of Iranian Daphne mucronata Royle with Selective Inhibition of STAT3 and Smad3/4 Cancer-Related Signaling Pathways. DARU J. Pharm. Sci. 2020, 28, 253–262. [Google Scholar] [CrossRef] [PubMed]
  56. Baba, K.; Takeuchi, K.; Hamasaki, F.; Kozawa, M. Chemical Studies on the Constituents of the Thymelaeaceous Plants. I. Structures of Two New Flavans from Daphne odora Thunb. Chem. Pharm. Bull. 1986, 34, 595–602. [Google Scholar] [CrossRef] [Green Version]
  57. Taniguchi, M.; Baba, K. Three Biflavonoids from Daphne odora. Phytochemistry 1996, 42, 1447–1453. [Google Scholar] [CrossRef]
  58. Zhou, T.; Zhang, S.W.; Liu, S.S.; Cong, H.J.; Xuan, L.J. Daphnodorin Dimers from Edgeworthia chrysantha with α-Glucosidase Inhibitory Activity. Phytochem. Lett. 2010, 3, 242–247. [Google Scholar] [CrossRef]
  59. Yan, Z.; Guo, H.; Yang, J.; Liu, Q.; Jin, H.; Xu, R.; Cui, H.; Qin, B. Phytotoxic Flavonoids from Roots of Stellera chamaejasme L. (Thymelaeaceae). Phytochemistry 2014, 106, 61–68. [Google Scholar] [CrossRef] [PubMed]
  60. Ghanem, H.; Haba, H.; Marcourt, L.; Benkhaled, M.; Wolfender, J.L. Microphynolides A and B, New Spiro-γ-Lactone Glycosides from Thymelaea microphylla. Nat. Prod. Res. 2014, 28, 1732–1738. [Google Scholar] [CrossRef] [PubMed]
  61. Hu, K.; Kobayashi, H.; Dong, A.; Iwasaki, S.; Yao, X. Antifungal, Antimitotic and Anti-HIV-1 Agents from the Roots of Wikstroemia indica. Planta Med. 2000, 66, 564–567. [Google Scholar] [CrossRef]
  62. Shao, M.; Huang, X.J.; Liu, J.S.; Han, W.L.; Cai, H.B.; Tang, Q.F.; Fan, Q. A New Cytotoxic Biflavonoid from the Rhizome of Wikstroemia indica. Nat. Prod. Res. 2016, 30, 1417–1422. [Google Scholar] [CrossRef]
  63. Wang, J.-N.; Hano, Y.; Nomura, T.; Chen, Y.-J. Procyanidins from the Seeds of Vitis amurensis. Phytochemistry 2000, 53, 1097–1102. [Google Scholar] [CrossRef]
  64. Johnson, J.L.; Raghavan, V.; Cimmino, A.; Moeini, A.; Petrovic, A.G.; Santoro, E.; Superchi, S.; Berova, N.; Evidente, A.; Polavarapu, P.L. Absolute Configurations of Chiral Molecules with Multiple Stereogenic Centers without Prior Knowledge of the Relative Configurations: A Case Study of Inuloxin C. Chirality 2018, 30, 1206–1214. [Google Scholar] [CrossRef] [PubMed]
  65. Ding, Y.; Li, X.-C.; Ferreira, D. Theoretical Calculation of Electronic Circular Dichroism of a Hexahydroxydiphenoyl-Containing Flavanone Glycoside. J. Nat. Prod. 2009, 72, 327–335. [Google Scholar] [CrossRef] [Green Version]
  66. Karplus, M. Vicinal Proton Coupling in Nuclear Magnetic Resonance. J. Am. Chem. Soc. 1963, 85, 2870–2871. [Google Scholar] [CrossRef]
  67. Bifulco, G.; Dambruoso, P.; Gomez-Paloma, L.; Riccio, R. Determination of Relative Configuration in Organic Compounds by NMR Spectroscopy and Computational Methods. Chem. Rev. 2007, 107, 3744–3779. [Google Scholar] [CrossRef] [PubMed]
  68. Alabugin, I.V. Probing Stereoelectronic Effects with Spectroscopic Methods. In Stereoelectronic Effects: A Bridge between Structure and Reactivity; John Wiley & Sons, Ltd.: Chichester, UK; Hoboken, NJ, USA, 2016; pp. 1–7. ISBN 9781118906378. [Google Scholar]
  69. Hameed, R.; Van Mourik, T.; Khan, A. 13C-1H Coupling Constants as a Conformational Tool for Structural Assignment of Quinic and Octulosonic Acid. J. Mol. Model. 2018, 24, 324. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Grimblat, N.; Zanardi, M.M.; Sarotti, A.M. Beyond DP4: An Improved Probability for the Stereochemical Assignment of Isomeric Compounds Using Quantum Chemical Calculations of NMR Shifts. J. Org. Chem. 2015, 80, 12526–12534. [Google Scholar] [CrossRef]
  71. Kong, L.Y.; Wang, P. Determination of the Absolute Configuration of Natural Products. Chin. J. Nat. Med. 2013, 11, 193–198. [Google Scholar] [CrossRef]
  72. Sullivan, G.R.; Dale, J.A.; Mosher, H.S. Correlation of Configuration and 19F Chemical Shifts of α-Methoxy-α-trifluoromethylphenylacetate Derivatives. J. Org. Chem. 1973, 38, 2143–2147. [Google Scholar] [CrossRef]
  73. Dale, J.A.; Mosher, H.S. Nuclear Magnetic Resonance Enantiomer Regents. Configurational Correlations via Nuclear Magnetic Resonance Chemical Shifts of Diastereomeric Mandelate, O-Methylmandelate, and α-Methoxy-α-trifluoromethylphenylacetate (MTPA) Esters. J. Am. Chem. Soc. 1973, 95, 512–519. [Google Scholar] [CrossRef]
  74. Petrovic, A.G.; Navarro-Vázquez, A.; Alonso-Gómez, J.L. From Relative to Absolute Configuration of Complex Natural Products: Interplay between NMR, ECD, VCD, and ORD Assisted by Ab Initio Calculations. Curr. Org. Chem. 2010, 14, 1612–1628. [Google Scholar] [CrossRef]
  75. Valentín-Pérez, Á.; Rosa, P.; Hillard, E.A.; Giorgi, M. Chirality Determination in Crystals. Chirality 2022, 34, 163–181. [Google Scholar] [CrossRef]
  76. Shen, Z.; Falshaw, C.P.; Haslam, E.; Begleyc, M.J. A Novel Sprio-Biflavonoid from Larix gmelini. J. Chem. Soc. Chem. Commun. 1985, 1135–1137. [Google Scholar] [CrossRef]
  77. Baba, K.; Takeuchi, K.; Doi, M.; Kozawa, M. Chemical Studies on the Constituents of the Thymelaeaceous Plants. III. Structure of a Novel Spiro Biflavonoid, Daphnodorin C, from Daphne odora THUNB. Chem. Pharm. Bull. 1987, 35, 1853–1859. [Google Scholar] [CrossRef] [Green Version]
  78. Baba, K.; Takeuchi, K.; Doi, M.; Inoue, M.; Kozawa, M. Chemical Studies on the Constituents of the Thymelaeaceous Plants. II. Stereochemistry of Daphnodorin A and Daphnodorin B. Chem. Pharm. Bull. 1986, 34, 1540–1545. [Google Scholar] [CrossRef] [Green Version]
  79. Adinolfi, M.; Barone, G.; Giordano, F.; Lanzetta Michelangelo Parrilli, R. Absolute Configuration of Benzocyclobutene Homoisoflavanones from Muscari Species. Tetrahedron 1990, 46, 6565–6574. [Google Scholar] [CrossRef]
  80. Grotewold, E. The Genetics and Biochemistry of Floral Pigments. Annu. Rev. Plant Biol. 2006, 57, 761–780. [Google Scholar] [CrossRef]
  81. Tropf, S.; Lanz, T.; Rensing, S.A.; Schröder, J.; Schröder, G. Evidence That Stilbene Synthases Have Developed from Chalcone Synthases Several Times in the Course of Evolution. J. Mol. Evol. 1994, 38, 610–618. [Google Scholar] [CrossRef]
  82. Forkmann, G.; Heller, W. Confirm. In Comprehensive Natural Products Chemistry; Elsevier: Amsterdam, The Netherlands, 1999; pp. 713–748. [Google Scholar]
  83. Bednar, R.A.; Hadcock, J.R. Purification and Characterization of Chalcone Isomerase from Soybeans. J. Biol. Chem. 1988, 263, 9582–9588. [Google Scholar] [CrossRef]
  84. Shirley, B.W.; Kubasek, W.L.; Storz, G.; Bruggemann, E.; Koornneef, M.; Ausubel, F.M.; Goodman, H.M. Analysis of Arabidopsis Mutants Deficient in Flavonoid Biosynthesis. Plant J. 1995, 8, 659–671. [Google Scholar] [CrossRef]
  85. Cahn, R.S.; Ingold, C.K.; Prelog, V. The Specification of Asymmetric Configuration in Organic Chemistry. Experientia 1956, 12, 81–94. [Google Scholar] [CrossRef]
  86. Zeb, N.; Rashid, M.H.; Mubarak, M.Q.E.; Ghafoor, S.; de Visser, S.P. Flavonol Biosynthesis by Nonheme Iron Dioxygenases: A Computational Study into the Structure and Mechanism. J. Inorg. Biochem. 2019, 198, 110728. [Google Scholar] [CrossRef] [PubMed]
  87. Lukačin, R.; Wellmann, F.; Britsch, L.; Martens, S.; Matern, U. Flavonol Synthase from Citrus unshiu Is a Bifunctional Dioxygenase. Phytochemistry 2003, 62, 287–292. [Google Scholar] [CrossRef]
  88. Britsch, L.; Grisebach, H. Purification and Characterization of (2S)-Flavanone 3-hydroxylase from Petunia hybrida. Eur. J. Biochem. 1986, 156, 569–577. [Google Scholar] [CrossRef] [PubMed]
  89. Ferrer, J.-L.; Austin, M.B.; Stewart, C.; Noel, J.P. Structure and Function of Enzymes Involved in the Biosynthesis of Phenylpropanoids. Plant Physiol. Biochem. 2008, 46, 356–370. [Google Scholar] [CrossRef] [Green Version]
  90. Hanhineva, K.; Kokko, H.; Siljanen, H.; Rogachev, I.; Aharoni, A.; Kärenlampi, S.O. Stilbene Synthase Gene Transfer Caused Alterations in the Phenylpropanoid Metabolism of Transgenic Strawberry (Fragaria×ananassa). J. Exp. Bot. 2009, 60, 2093–2106. [Google Scholar] [CrossRef] [Green Version]
  91. Jeandet, P.; Vannozzi, A.; Sobarzo-Sánchez, E.; Uddin, M.S.; Bru, R.; Martínez-Márquez, A.; Clément, C.; Cordelier, S.; Manayi, A.; Nabavi, S.F.; et al. Phytostilbenes as Agrochemicals: Biosynthesis, Bioactivity, Metabolic Engineering and Biotechnology. Nat. Prod. Rep. 2021, 38, 1282–1329. [Google Scholar] [CrossRef]
  92. Liu, Z.; Zhuang, C.; Sheng, S.; Shao, L.; Zhao, W.; Zhao, S. Overexpression of a Resveratrol Synthase Gene (PcRS) from Polygonum Cuspidatum in Transgenic Arabidopsis Causes the Accumulation of Trans-Piceid with Antifungal Activity. Plant Cell Rep. 2011, 30, 2027–2036. [Google Scholar] [CrossRef]
  93. Nicoletti, I.; De Rossi, A.; Giovinazzo, G.; Corradini, D. Identification and Quantification of Stilbenes in Fruits of Transgenic Tomato Plants (Lycopersicon esculentum Mill.) by Reversed Phase HPLC with Photodiode Array and Mass Spectrometry Detection. J. Agric. Food Chem. 2007, 55, 3304–3311. [Google Scholar] [CrossRef] [PubMed]
  94. Jaillon, O.; Aury, J.M.; Noel, B.; Policriti, A.; Clepet, C.; Casagrande, A.; Choisne, N.; Aubourg, S.; Vitulo, N.; Jubin, C.; et al. The Grapevine Genome Sequence Suggests Ancestral Hexaploidization in Major Angiosperm Phyla. Nature 2007, 449, 463–467. [Google Scholar] [CrossRef] [Green Version]
  95. González-Barrio, R.; Beltrán, D.; Cantos, E.; Gil, M.I.; Espín, J.C.; Tomás-Barberán, F.A. Comparison of Ozone and UV-C Treatments on the Postharvest Stilbenoid Monomer, Dimer, and Trimer Induction in Var. ‘Superior′ White Table Grapes. J. Agric. Food Chem. 2006, 54, 4222–4228. [Google Scholar] [CrossRef]
  96. Pezet, R.; Perret, C.; Jean-Denis, J.B.; Tabacchi, R.; Gindro, K.; Viret, O. δ-Viniferin, a Resveratrol Dehydrodimer: One of the Major Stilbenes Synthesized by Stressed Grapevine Leaves. J. Agric. Food Chem. 2003, 51, 5488–5492. [Google Scholar] [CrossRef] [PubMed]
  97. Timperio, A.M.; D’Alessandro, A.; Fagioni, M.; Magro, P.; Zolla, L. Production of the Phytoalexins Trans-Resveratrol and Delta-Viniferin in Two Economy-Relevant Grape Cultivars upon Infection with Botrytis cinerea in Field Conditions. Plant Physiol. Biochem. 2012, 50, 65–71. [Google Scholar] [CrossRef]
  98. Calderón, A.A.; Zapata, J.M.; Pedreño, M.A.; Muñoz, R.; Barceló, A.R. Levels of 4-Hydroxystilbene-Oxidizing Isoperoxidases Related to Constitutive Disease Resistance in in Vitro-Cultured Grapevine. Plant Cell. Tissue Organ Cult. 1992, 29, 63–70. [Google Scholar] [CrossRef]
  99. Langcake, P.; Pryce, R.J. A New Class of Phytoalexins from Grapevines. Experientia 1977, 33, 151–152. [Google Scholar] [CrossRef]
  100. Gorham, J.; Coughlan, S.J. Inhibition of Photosynthesis by Stilbenoids. Phytochemistry 1980, 19, 2059–2064. [Google Scholar] [CrossRef]
  101. Sangha, A.K.; Parks, J.M.; Standaert, R.F.; Ziebell, A.; Davis, M.; Smith, J.C. Radical Coupling Reactions in Lignin Synthesis: A Density Functional Theory Study. J. Phys. Chem. B 2012, 116, 4760–4768. [Google Scholar] [CrossRef]
  102. Elder, T.; Rencoret, J.; del Río, J.C.; Kim, H.; Ralph, J. Radical Coupling Reactions of Hydroxystilbene Glucosides and Coniferyl Alcohol: A Density Functional Theory Study. Front. Plant Sci. 2021, 12, 319. [Google Scholar] [CrossRef]
  103. Givens, R.S.; Heger, D.; Hellrung, B.; Kamdzhilov, Y.; Mac, M.; Conrad, P.G.; Cope, E.; Lee, J.I.; Mata-Segreda, J.F.; Schowen, R.L.; et al. The Photo-Favorskii Reaction of p-Hydroxyphenacyl Compounds Is Initiated by Water-Assisted, Adiabatic Extrusion of a Triplet Biradical. J. Am. Chem. Soc. 2008, 130, 3307–3309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Baldwin, J.E. Rules for Ring Closure. J. Chem. Soc. Chem. Commun. 1976, 734–736. [Google Scholar] [CrossRef]
  105. Baldwin, J.E.; Thomas, R.C.; Kruse, L.I.; Silberman, L. Rules for Ring Closure: Ring Formation by Conjugate Addition of Oxygen Nucleophiles. J. Org. Chem. 1977, 42, 3846–3852. [Google Scholar] [CrossRef]
  106. Pecio, Ł.; Kozachok, S.; Brinza, I.; Stefan Boiangiu, R.; Hritcu, L.; Mircea, C.; Flavia Burlec, A.; Cioanca, O.; Hancianu, M.; Wronikowska-Denysiuk, O.; et al. Neuroprotective Effect of Yucca schidigera Roezl Ex Ortgies Bark Phenolic Fractions, Yuccaol B and Gloriosaol A on Scopolamine-Induced Memory Deficits in Zebrafish. Molecules 2022, 27, 3692. [Google Scholar] [CrossRef] [PubMed]
  107. Castelli, M.V.; López, S.N. Homoisoflavonoids: Occurrence, Biosynthesis, and Biological Activity. In Studies in Natural Products Chemistry; Elsevier: Amsterdam, The Netherlands, 2017; Volume 54, pp. 315–354. [Google Scholar]
  108. Dewick, P.M. Biosynthesis of the 3-Benzylchroman-4-One Eucomin. J. Chem. Soc. Chem. Commun. 1973, 438–439. [Google Scholar] [CrossRef]
  109. Dewick, P.M. Biosynthesis of the 3-Benzylchroman-4-One Eucomin in Eucomis bicolor. Phytochemistry 1975, 14, 983–988. [Google Scholar] [CrossRef]
  110. Zheng, Y.; Tice, C.M.; Singh, S.B. The Use of Spirocyclic Scaffolds in Drug Discovery. Bioorg. Med. Chem. Lett. 2014, 24, 3673–3682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Zheng, Y.J.; Tice, C.M. The Utilization of Spirocyclic Scaffolds in Novel Drug Discovery. Expert Opin. Drug Discov. 2016, 11, 831–834. [Google Scholar] [CrossRef] [Green Version]
  112. Benabdallah, M.; Talhi, O.; Nouali, F.; Choukchou-Braham, N.; Bachari, K.; Silva, A.M.S. Advances in Spirocyclic Hybrids: Chemistry and Medicinal Actions. Curr. Med. Chem. 2018, 25, 3748–3767. [Google Scholar] [CrossRef]
  113. Acosta-Quiroga, K.; Rojas-Peña, C.; Nerio, L.S.; Gutiérrez, M.; Polo-Cuadrado, E. Spirocyclic Derivatives as Antioxidants: A Review. RSC Adv. 2021, 11, 21926–21954. [Google Scholar] [CrossRef]
  114. Yang, J.; Wang, Y.; Guan, W.; Su, W.; Li, G.; Zhang, S.; Yao, H. Spiral Molecules with Antimalarial Activities: A Review. Eur. J. Med. Chem. 2022, 237, 114361. [Google Scholar] [CrossRef]
  115. Lovering, F.; Bikker, J.; Humblet, C. Escape from Flatland: Increasing Saturation as an Approach to Improving Clinical Success. J. Med. Chem. 2009, 52, 6752–6756. [Google Scholar] [CrossRef]
  116. Nishida, Y.; Wada, K.; Toyohisa, D.; Tanaka, T.; Ono, M.; Yasuda, S. Homoisoflavones as the Antioxidants Responsible from Bulbs of Scilla scilloides. Nat. Prod. Res. 2013, 27, 2360–2362. [Google Scholar] [CrossRef] [PubMed]
  117. Wenzig, E.M.; Oleszek, W.; Stochmal, A.; Kunert, O.; Bauer, R. Influence of Phenolic Constituents from Yucca schidigera Bark on Arachidonate Metabolism in Vitro. J. Agric. Food Chem. 2008, 56, 8885–8890. [Google Scholar] [CrossRef] [PubMed]
  118. Marzocco, S.; Piacente, S.; Pizza, C.; Oleszek, W.; Stochmal, A.; Pinto, A.; Sorrentino, R.; Autore, G. Inhibition of Inducible Nitric Oxide Synthase Expression by Yuccaol C from Yucca schidigera Roezl. Life Sci. 2004, 75, 1491–1501. [Google Scholar] [CrossRef] [PubMed]
  119. Nishida, Y.; Sugahara, S.; Wada, K.; Toyohisa, D.; Tanaka, T.; Ono, M.; Yasuda, S. Inhibitory Effects of the Ethyl Acetate Extract from Bulbs of Scilla scilloides on Lipoxygenase and Hyaluronidase Activities. Pharm. Biol. 2014, 52, 1351–1357. [Google Scholar] [CrossRef] [Green Version]
  120. Du Toit, K.; Elgorashi, E.E.; Malan, S.F.; Drewes, S.E.; Van Staden, J.; Crouch, N.R.; Mulholland, D.A. Anti-Inflammatory Activity and QSAR Studies of Compounds Isolated from Hyacinthaceae Species and Tachiadenus longiflorus Griseb. (Gentianaceae). Bioorg. Med. Chem. 2005, 13, 2561–2568. [Google Scholar] [CrossRef]
  121. Wada, S.-I.; Hitomi, T.; Tokuda, H.; Tanaka, R. Anti-Tumor-Initiating Effects of Spiro-Biflavonoids from Abies sachalinensis. Chem. Biodivers. 2010, 7, 2303–2308. [Google Scholar] [CrossRef]
  122. Balestrieri, C.; Felice, F.; Piacente, S.; Pizza, C.; Montoro, P.; Oleszek, W.; Visciano, V.; Balestrieri, M.L. Relative Effects of Phenolic Constituents from Yucca schidigera Roezl. Bark on Kaposi’s Sarcoma Cell Proliferation, Migration, and PAF Synthesis. Biochem. Pharmacol. 2006, 71, 1479–1487. [Google Scholar] [CrossRef]
  123. Nigro, P.; Bloise, E.; Turco, M.C.; Skhirtladze, A.; Montoro, P.; Pizza, C.; Piacente, S.; Belisario, M.A. Antiproliferative and Pro-Apoptotic Activity of Novel Phenolic Derivatives of Resveratrol. Life Sci. 2007, 81, 873–883. [Google Scholar] [CrossRef]
  124. Schwikkard, S.; Whitmore, H.; Sishtla, K.; Sulaiman, R.S.; Shetty, T.; Basavarajappa, H.D.; Waller, C.; Alqahtani, A.; Frankemoelle, L.; Chapman, A.; et al. The Antiangiogenic Activity of Naturally Occurring and Synthetic Homoisoflavonoids from the Hyacinthaceae (Sensu APGII). J. Nat. Prod. 2019, 82, 1227–1239. [Google Scholar] [CrossRef] [Green Version]
  125. Czeczot, H.; Podsiad, M.; Skrzycki, M.; Stochmal, A.; Oleszek, W. Evaluation of the Mutagenic Activity of Phenolics from the Bark of Yucca schidigera Roezl. Acta Pol. Pharm. 2003, 60, 357–362. [Google Scholar]
  126. Sakuma, S.; Fujimoto, Y.; Tsunomori, M.; Tagano, S.; Nishida, H.; Baba, K.; Fujita, T. Effects of Daphnodorin A, B and C, New Flavans Isolated from Traditional Chinese Medicine, on the 12. Lipoxygenase and Cyclooxygenase Metabolism of Arachidonic Acid in Rabbit Platelets. Prostaglandins, Leukot. Essent. Fat. Acids 1998, 58, 143–146. [Google Scholar] [CrossRef] [PubMed]
  127. Olas, B.; Wachowicz, B.; Stochmal, A.; Oleszek, W. Anti-Platelet Effects of Different Phenolic Compounds from Yucca schidigera Roezl. Bark. Platelets 2002, 13, 167–173. [Google Scholar] [CrossRef] [PubMed]
  128. Inamori, Y.; Takeuchi, K.; Baba, K.; Kozawa, M. Antifungal and Insecticidal Activities of Daphnodorins A, B and C. Chem. Pharm. Bull. 1987, 35, 3931–3934. [Google Scholar] [CrossRef] [Green Version]
  129. Yusa, K.; Oh-hara, T.; Tsukahara, S.; Baba, K.; Taniguchi, M.; Kozawa, M.; Takeuchi, S.; Hara, H.; Tsuruo, T. Inhibition of Human Immunodeficiency Virus Type 1 (HIV-1) Replication by Daphnodorins. Antivir. Res. 1994, 25, 57–66. [Google Scholar] [CrossRef] [PubMed]
  130. Du Toit, K.; Elgorashi, E.E.; Malan, S.F.; Mulholland, D.A.; Drewes, S.E.; Van Staden, J. Antibacterial Activity and QSAR of Homoisoflavanones Isolated from Six Hyacinthaceae Species. S. Afr. J. Bot. 2007, 73, 236–241. [Google Scholar] [CrossRef] [Green Version]
  131. Takai, S.; Sakaguchi, M.; Jin, D.; Baba, K.; Miyazaki, M. Effects of Daphnodorin A, Daphnodorin B and Daphnodorin C on Human Chymase-Dependent Angiotensin II Formation. Life Sci. 1999, 64, 1889–1896. [Google Scholar] [CrossRef]
  132. Dal Piaz, F.; Ferro, P.; Vassallo, A.; Vasaturo, M.; Forte, G.; Chini, M.G.; Bifulco, G.; Tosco, A.; De Tommasi, N. Identification and Mechanism of Action Analysis of the New PARP-1 Inhibitor 2″-Hydroxygenkwanol A. Biochim. Biophys. Acta-Gen. Subj. 2015, 1850, 1806–1814. [Google Scholar] [CrossRef]
  133. Sasaki, Y.; Suzuki, M.; Matsumoto, T.; Hosokawa, T.; Kobayashi, T.; Kamata, K.; Nagumo, S. Vasorelaxant Activity of Sappan Lignum Constituents and Extracts on Rat Aorta and Mesenteric Artery. Biol. Pharm. Bull. 2010, 33, 1555–1560. [Google Scholar] [CrossRef] [Green Version]
Figure 1. Core structures of monomeric scillascillin-type homoisoflavonoids (A) and oligomeric spiro-flavonoids (B,C).
Figure 1. Core structures of monomeric scillascillin-type homoisoflavonoids (A) and oligomeric spiro-flavonoids (B,C).
Molecules 28 05420 g001
Scheme 1. Hypothetical biosynthetic routes to larixinol-type spiro-flavonoids (adapted from Pecio et al. (2023) [7]).
Scheme 1. Hypothetical biosynthetic routes to larixinol-type spiro-flavonoids (adapted from Pecio et al. (2023) [7]).
Molecules 28 05420 sch001
Scheme 2. Hypothetical biosynthetic routes to olgensisinols C and D.
Scheme 2. Hypothetical biosynthetic routes to olgensisinols C and D.
Molecules 28 05420 sch002
Scheme 3. Hypothetical biosynthetic routes to daphnodorin C-type spiro-flavonoids.
Scheme 3. Hypothetical biosynthetic routes to daphnodorin C-type spiro-flavonoids.
Molecules 28 05420 sch003
Scheme 4. Hypothetical biosynthetic routes to spiro-flavostilbenoids (adapted from Pecio et al. (2023) [7]).
Scheme 4. Hypothetical biosynthetic routes to spiro-flavostilbenoids (adapted from Pecio et al. (2023) [7]).
Molecules 28 05420 sch004
Scheme 5. Hypothetical biosynthetic routes to scillascillin-type homoisoflavonoids (adapted from P.M. Dewick (1975) [109]).
Scheme 5. Hypothetical biosynthetic routes to scillascillin-type homoisoflavonoids (adapted from P.M. Dewick (1975) [109]).
Molecules 28 05420 sch005
Table 2. Chemical structures of spiro-biflavonoids.
Table 2. Chemical structures of spiro-biflavonoids.
Molecules 28 05420 i001
CompoundNameR1R2Stereochemistry
C30H22O10 (MW = 542.49)
1Larixinol (=Abiesinol E)HH(2R,3R,2′R,3′R)
2 a3-Epi-larixinolHH(2R*,3R*,2′R*,3′S*)
3 a3,2′-Epi-larixinolHH(2S*,3R*,2′R*,3′S*)
4Abiesinol FHH(2R,3S,2′R,3′R)
5Yuccalechin AHH(2S,3R,2′R,3′R)
6Yuccalechin BHH(2S,3R,2′R,3′S)
7Yuccalechin CHH(2S,3S,2′R,3′S)
8Fragranol BHH(2S,3R,2′S,3′R)
9Fragranol CHH(2R,3S,2′S,3′R)
10Spiropensilisol AHH(2R*,3S*,2′R*,3′S*)
11Spiropensilisol BHH(2S*,3S*,2′R*,3′S*)
C30H22O11 (MW = 558.49)
12 aAbiesinol A (=13-Hydroxylarixinol)HOH(2R,3R,2′R,3′R)
13Abiesinol BHOH(2R,3S,2′R,3′R)
14Abiesinol C (=Olgensisinol A)OHH(2R,3R,2′R,3′R)
15Abiesinol DOHH(2R,3S,2′R,3′R)
C30H22O12 (MW = 574.49)
16Abiesinol G (=Vitisinol)OHOH(2R,3R,2′R,3′R)
17Abiesinol HOHOH(2R,3S,2′R,3′R)
18LarisinolOHOH(2R*,3R*,2′R*,3′S*)
19Olgensisinol BOHOH(2R,3S,2′S,3′S)
Molecules 28 05420 i002
CompoundNameStereochemistry
C30H22O12 (MW = 574.49)
20Olgensisinol C(2R*,3S*,2′R*,3′S*)
21Olgensisinol D(2R*,3R*,2′S*,3′R*)
Molecules 28 05420 i003
CompoundNameR1R2R3Stereochemistry
C30H22O9 (MW = 526.49)
22Daphnodorin CHHH(2S,3S,2′S)
C30H22O10 (MW = 542.49)
23Genkwanol AOHHH(2R,3R,2′R,3′S)
24Daphnodorin IOHHH(2S,3S,2′R,3′S)
C31H24O10 (MW = 556.52)
25 a4′-Methylgenkwanol AOHHCH3(2R,3S,2′R,3′S)
26 a2″-Methoxy-daphnodorin CHOCH3H(2R*,3S*,2′R*)
27 a2″-Methoxy-2-epi-daphnodorin CHOCH3H(2R*,3S*,2′S*)
C30H22O11 (MW = 558.49)
28 a2″-Hydroxygenkwanol A (2R,3S,2′R,3′S)
Molecules 28 05420 i004
CompoundNameStereochemistry
C29H22O9 (MW = 514.48)
29Yuccaone A(2R*,4R*,2′S*,3′R*)
a The name of the compound refers to the name given in the original publication, while the names according to the numbering in the figure are: 3′-epi-larixinol (2), 3′,2-epi-larixinol (3), 3″-hydroxylarixinol (12), 4″-methylgenkwanol A (25), 2-methoxy-dpahnodorin C (26), 2-methoxy-2′-epi-daphnodorin C (27), and 2-hydroxygenkwanol (28).

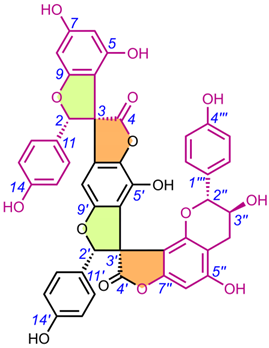

Table 3. Chemical structures of spiro-triflavonoids.
Table 3. Chemical structures of spiro-triflavonoids.
Molecules 28 05420 i005
CompoundNameStereochemistry
C45H30O15 (MW = 810.71)
30Fragranol A(2S,3S,2′S,3′R,2″R,3″S)
Molecules 28 05420 i006
31Triflarixinol(2R*,3R*,2′R*,3′R*,2‴S*,3‴S*)
Table 4. Chemical structures of spiro-tetraflavonoids.
Table 4. Chemical structures of spiro-tetraflavonoids.
Molecules 28 05420 i007
CompoundNameRStereochemistry
C60H42O18 (MW = 1050.97)
32Edgechrin AH(2S*,3S*,2′S*,4′R*,2‴S*)
C60H42O19 (MW = 1066.97)
34Edgechrin BOH(2S*,3S*,2′S*,4′R*,2‴R*,3‴S*)
Molecules 28 05420 i008
CompoundName Stereochemistry
C60H42O18 (MW = 1050.97)
33Edgechrin D (2S*,3S*,2′S*,2‴S*,4‴R*)
Molecules 28 05420 i009
CompoundName Stereochemistry
C60H44O24 (MW = 1148.98)
35Pinuspirotetrin (2R,3S,2′R,3′S,2‴R,4‴R,2‴″S,3‴″R,4‴″R)

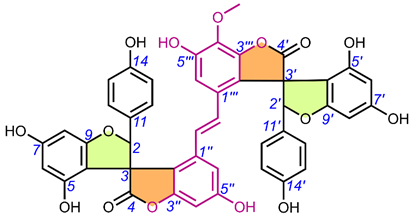

Table 5. Chemical structures of spiro-flavostilbenoids.
Table 5. Chemical structures of spiro-flavostilbenoids.
Molecules 28 05420 i010
CompoundNameR1R2R3Stereochemistry
C29H20O8 (MW = 496.47)
36Yuccaol AHOHH(2S,3R)
37Yuccaol BHOHH(2S,3S)
C30H22O10 (MW = 542.49)
38Yuccaol COHOCH3H(2S,3S)
39Yuccaol DOHOCH3H(2S,3R)
40Yuccaol EOHHOCH3(2S,3S)
41Yuccalide AOHHOCH3(2S,3R)
Molecules 28 05420 i011
CompoundNameR1R2R3Stereochemistry
C30H22O10 (MW = 542.49)
42Yuccalide BOHOCH3H(2R*,3R*)
43Yuccalide COHOCH3H(2R*,3S*)
Molecules 28 05420 i012
CompoundNameStereochemistry
C45H30O15 (MW = 810.71)
44Gloriosaol A(2S,3S,2′S,3′S)
45Gloriosaol B(2S*,3S*,2′R*,3′R*)
46Gloriosaol C(2S,3R,2′S,3′R)
47Gloriosaol D(2S,3S,2′S,3′R)
48Gloriosaol E(2S,3R,2′S,3′S)
Table 6. Chemical structures of scillascillin-type homoisoflavonoids. Protosappanin D (65) is a dimeric protosappanin-type homoisoflavonoid.
Table 6. Chemical structures of scillascillin-type homoisoflavonoids. Protosappanin D (65) is a dimeric protosappanin-type homoisoflavonoid.
Molecules 28 05420 i013
CompoundNameR1R2Stereochemistry
C17H12O6 (MW = 312.27)
49ScillascillinHH(3R)
C18H14O7 (MW = 342.30)
502-Hydroxy-7-O-methyl-scillascillinOHCH3rac-(2R*,3R)
C17H12O7 (MW = 328.27)
512-Hydroxy-scillascillinOHH(3R*)
Molecules 28 05420 i014
CompoundNameR1R2R3R4R5R6Stereochemistry
C17H14O6 (MW = 314.29)
523′,5,7-Trihydroxy-4′-methoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (=isomuscomosin)HOHCH3HHH(3R)
534′,5,7-Trihydroxy-3′-methoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (=muscomosin)HOCH3HHHH(3R)
543′,4′,5-Trihydroxy-7-methoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneHOHHHCH3H(3R)
C18H16O6 (MW = 328.32)
555,5′-Dihydroxy-4′,7-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneHHCH3OHCH3H(3R)
563′,5-Dihydroxy-4′,7-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneHOHCH3HCH3H(3R)
575,5′,7-Trihydroxy-4′-methoxy-6-methylspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]-trien]-4-oneHHCH3OHHCH3(3R)
585,7-Dihydroxy-3′,4′-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneHOCH3CH3HHH(3R*)
C18H16O7 (MW = 344.32)
592′,5,7-Trihydroxy-3′,4′-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (=scillavone A)OHOCH3CH3HHH(3R)
602′,4′,5-Trihydroxy-3′,7-dimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneOHOCH3HHCH3H(3R*)
C19H18O6 (MW = 342.34)
615-Hydroxy-3′,4′,7-trimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneHOCH3CH3HCH3H(3R*)
C19H18O7 (MW = 358.34)
625,7-Dihydroxy-2′,3′,4′-trimethoxyspiro[2H-1-benzopyran-3(4H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneOCH3OCH3CH3HHH(3R*)
632′,5-Dihydroxy-3′,4′,7-trimethoxyspiro[4H-1-benzopyran-3(2H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-one (=socialinone)OHOCH3CH3HCH3H(3R*)
C20H20O7 (MW = 372.37)
645-Hydroxy-2′,3′,4′,7-tetramethoxyspiro[4H-1-benzopyran-3(2H),7′-bicyclo[4.2.0]octa[1,3,5]trien]-4-oneOCH3OCH3CH3HCH3H(3R*)
Molecules 28 05420 i015
CompoundNameStereochemistry
C32H28O12 (MW = 604.56)
65Protosappanin DUnknown
Table 7. Summary of spiro-flavonoid isolation methods.
Table 7. Summary of spiro-flavonoid isolation methods.
GroupCompoundExtraction SolventIsolation 1st StepIsolation 2nd StepIsolation Final StepsReferences
Spiro-biflavonoids1Acetone (maceration)LLE H2O-CHCl3-EtOAc *CC GPC LH-20 (EtOH)CC NP Silica gel (CHCl3-MeOH)[45]
22, 24Acetone-H2O (7:3, v/v)
(maceration, r.t.)
CC RP HP20
(gr. MeOH-H2O)
CC GPC LH-20 (gr. MeOH-H2O) for 22 or CC RP MCI (gr. MeOH-H2O) for 24CC RP MCI (MeOH-H2O) → CC RP C8 (MeOH-H2O) for 22
or CC RP HW-40F (MeOH-H2O) for 24
[58]
1, 4, 12–17CHCl3MeOH
(maceration, r.t., successively)
CC RP Diaion HP-20
(MeOH-H2O)
CC NP Silica gel
(gr. CHCl3-MeOH)
MPLC NP Silica gel → CC GPC LH-20 (MeOH) → HPLC RP C18 (MeOH-H2O)[42]
23CHCl3-MeOH (2:1, v/v)
(reflux)
CC RP C18 (gr. MeOH-H2O)FLASH CC NP Silica gel
(gr. CHCl3-MeOH-Acetone)
FLASH CC NP Silica gel (Hexanes-EtOAc-MeOH) → CC NP Silica gel (EtOAc-CHCl3-MeOH-H2O) → HPLC RP C18 (CH3CN-H2O)[55]
1, 14, 18, 22, 24EtOAc (reflux)CC NP Silica gel (gr. CHCl3-MeOH) for 1, 14, 18 or CC NP Silica gel (gr. n-Hexane-EtOAc) for 22, 24CC NP Silica gel (CHCl3-MeOH)
or CC GPC LH-20 (MeOH) for 22
CC GPC LH-20 (MeOH) for 24[6,44,56,57]
23EtOH (r.t.)LLE H2O-Petroleum ether-CHCl3-EtOAcCC NP Silica gel
(gr. CHCl3-MeOH)
[59]
1–3EtOH-H2O (40%, v/v)
(stirring, r.t.)
HPLC RP C18 (CH3CN-H2O w/FA) [43]
23EtOH-H2O (7:3, v/v)
(maceration, r.t.)
LLE H2O-Petroleum ether-DCM-EtOAc-n-BuOHCC NP Silica gel
(gr. Petroleum Ether-EtOAc-MeOH)
CC NP Silica gel (gr. DCM-MeOH) → CC GPC LH-20 (MeOH) → TLC RP (MeOH-H2O)[60]
23EtOH-H2O (75%, v/v) (reflux)LLE H2O-EtOAc-n-BuOHCC NP Silica gel (gr. CHCl3-MeOH)HPLC RP C18 (MeOH-H2O)[61]
1–3EtOH-H2O (80%, v/v)LLE H2O-CHCl3-EtOAc-n-BuOHCC NP Silica gel (gr. CHCl3-MeOH)CC RP C18 (MeOH-H2O) → CC GPC LH-20 (MeOH)[39]
14, 16, 19–21EtOH-H2O (80%, v/v)LLE H2O-CHCl3-EtOAcCC RP XAD-7 HP (gr. MeOH-H2O)CC GPC LH-20 (gr. MeOH-H2O) → CC RP MCI gel CHP-20P (EtOH-H2O) for 14, 16, 19 or CC GPC LH-20 (gr. MeOH-H2O) → CC GPC LH-20 (MeOH-H2O) → CC RP C18 (MeOH-H2O) for 20, 21[46]
16EtOH-H2O (80%, v/v)LLE H2O-CHCl3-EtOAc-n-BuOHCC RP Diaion HP-20 (MeOH-H2O)CC GPC LH-20 (gr. MeOH-H2O) → CC RP MCI CHP-20P (MeOH-H2O) → HPLC RP C18 (CH3CN-H2O w/AcOH)[63]
1, 12EtOH-H2O (80%, v/v)
(reflux)
LLE H2O-CHCl3-EtOAc-n-BuOHCC NP Silica gel (gr. CHCl3-Acetone)MPLC RP C18 (MeOH-H2O) → CC GPC LH-20 (MeOH)[41]
1EtOH-H2O (85:15, v/v)
(maceration, r.t.)
LLE H2O-CHCl3-EtOAc-n-BuOHCC NP Silica gel (gr. CHCl3-Acetone)MPLC RP C18 (MeOH-H2O) → CC GPC LH-20 (MeOH)[40]
2, 8, 9EtOH-H2O (95%, v/v)
(maceration, r.t.)
LLE H2O-EtOAcMPLC NP Silica gel (DCM-EtOAc)TLC NP Silica gel (DCM-EtOAc) [38]
22EtOH-H2O (95%, v/v)
(reflux)
LLE H2O-Petroleum ether-EtOAcCC NP Silica gel (gr. DCM-MeOH)CC NP Silica gel (unknown solvent) → HPLC RP C18 (MeOH-H2O)[53]
1, 2, 22EtOH-H2O (95%, v/v)
(r.t.)
LLE H2O-Petroleum ether-EtOAc-n-BuOHCC NP Silica gel (gr. CHCl3-MeOH) for 22 or CC NP Silica gel (Petroleum ether-Acetone) for 1, 2CC GPC LH-20 (CHCl3-MeOH) for 22 or HPLC RP C18 (MeOH-H2O) → CC GPC LH-20 (MeOH) for 1, 2[48,62]
22, 24, 26, 27MeOHLLE H2O-Petroleum ether-EtOAc-n-BuOHCC NP Silica gel (gr. CHCl3-MeOH)CC RP C18 (gr. MeOH-H2O) → CC GPC LH-20 (MeOH) or CC GPC LH-20 (MeOH) for 22, 24[49,50]
22, 24MeOH(maceration, r.t.)LLE H2O-n-Hexane-EtOAc-n-BuOHCC RP C18 (MeOH-H2O)HPLC RP C18 (CH3CN-H2O)[52]
29MeOH (maceration, r.t.)CC GPC LH-20 (MeOH)CC RP C18 (CH3CN-H2O w/H3PO4) [32]
23MeOH (reflux)CC NP Silica gel (gr. n-Hexane-EtOAc → CHCl3-MeOH)CC GPC LH-20 (MeOH-H2O)CC RP MCI CHP 20P (MeOH-H2O)[51]
1MeOH (r.t.)CC RP C18 (gr. MeOH-H2O)CC RP C18 (gr. CH3CN-H2O) [33]
5–7MeOH (r.t.)LLE H2O-n-Hexane-
EtOAc
CC GPC LH-20 (MeOH)CC NP Silica gel (gr. CHCl3-Acetone-AcOH) → HPLC RP C18 (CH3CN/MeOH-H2O)[31]
23MeOH-H2O (80%, v/v)
(37 °C)
LLE H2O-n-BuOHCC GPC LH-20 (MeOH)CC NP Silica gel (gr. cyclohexane-EtOAc-MeOH) → CC MPLC RP (CH3CN-H2O)[34]
1–4, 10, 11MeOH-H2O (90%, v/v) (r.t.)CC GPC LH-20HPLC RP C18 [35]
23–25, 28n-Hexane → CHCl3CHCl3-MeOH (9:1, v/v) → MeOH
(maceration, r.t., successively)
CC GPC LH-20 (MeOH)HPLC RP C18 (MeOH-H2O) [54]
Spiro-triflavonoids31EtOAc (reflux)CC NP Silica gel
(gr. CHCl3-MeOH)
CC NP Silica gel (CHCl3-MeOH) [44]
30EtOH-H2O (95%, v/v)
(maceration, r.t.)
LLE H2O-EtOAcMPLC NP Silica gel
(gr. DCM-EtOAc-MeOH)
MPLC NP Silica gel (gr. DCM-MeOH)[37]
Spiro-tetraflavonoids32–34Acetone-H2O (7:3, v/v)
(maceration, r.t.)
CC RP HP20
(gr. MeOH-H2O)
CC GPC LH-20 (gr. MeOH-H2O)CC NP Silica gel (DCM-MeOH) → CC RP HW-40F (MeOH-H2O) → CC RP C8 (MeOH-H2O) → CC RP C18 (MeOH-H2O) for 32 or CC RP HW-40F (MeOH-H2O) → HPLC RP C18 (MeOH-H2O) → HPLC RP C18 (CH3CN-H2O) for 33 or CC NP Silica gel (DCM-MeOH) → CC RP C18 (MeOH-H2O) for 34[58]
35Pine bark extract **LLE H2O-EtOAcCPC Hexane-EtOAc-MeOH-H2O (2-4-1-4) → CPC Hexane-EtOAc-MeOH-H2O (0.5-4-1-4) CC GPC LH-20 (EtOH) → CC RP C18 (MeOH-H2O) → HPLC RP C18 (CH3CN-H2O w/FA)[47]
Spiro-flavostilbenoids38–43Acetone (r.t.)CC RP DMS
(gr. MeOH-H2O-Acetone)
CC GPC LH-20 (MeOH)HPLC RP C18 (MeOH-H2O) → HPLC RP C18 (CH3CN-H2O)[11]
38, 39MeOHLLE H2O-EtOAc-n-BuOHCC NP Silica gel
(gr. n-Hexane-EtOAc-MeOH)
CC NP Silica gel (n-Hexane-EtOAc) → CC GPC LH-20 (MeOH)[19]
36–40MeOH (r.t.)CC RP C18
(gr. MeOH-H2O)
CC RP C18 (gr. CH3CN-H2O H3PO4)
or CC RP C18 (gr. CH3CN-H2O)
[30,33]
41, 44, 46–48MeOH (r.t.)LLE H2O-n-Hexane-EtOAcCC GPC LH-20 (MeOH)CC NP Silica gel (gr. CHCl3-Acetone-AcOH) → HPLC RP C18 (CH3CN/MeOH-H2O)[31]
38–40, 44–48MeOH-H2O (80%, v/v)LLE H2O-EtOAcCC GPC LH-20 (MeOH)HPLC RP C18 (gr CH3CN-H2O w/TFA)[28,29]
Scillascillin-type homoisoflavonoids49, 52, 56DCM (agitation or shaker, r.t.)CC NP Silica gel
(unknown solvent or DCM)
[16,23]
49, 50DCM → EtOAc → MeOH
(shaker, successively)
CC NP Silica gel
(n-Hexane-DCM-MeOH)
CC NP Silica gel (DCM-Et2O) [22]
49DCM → MeOH (agitation, r.t.)CC NP Silica gel (DCM) [18]
63, 64DCM → MeOH
(shaker, successively)
CC NP Silica gel
(gr. n-Hexane-DCM-MeOH)
TLC NP Silica gel (EtOAc-DCM) [22]
50, 56, 60–62, 64DCM-MeOH (1:1, v/v) → MeOH
(maceration, r.t., successively)
LLE MeOH-CHCl3-H2O
(lower phase)
CC NP Silica gel (gr. DCM-MeOH)CC NP Silica gel (gr. CHCl3-Light Petroleum) → recrystallization (MeOH) for 50 or CC GPC LH-20 (unknown solvent) → CC NP Silica gel (gr. CHCl3-MeOH) → TLC (unknown solvent) for 60 or CC GPC LH-20 (unknown solvent) → CC NP Silica gel (gr. CHCl3-Light Petroleum) → TLC (CHCl3-Light Petroleum-MeOH) for 56, 61, 62, 64[15]
53DCM-MeOH (1:1, v/v) → MeOH
(maceration, r.t., successively)
LLE (MeOH-H2O, 70%, v/v)-Light Petroleum-CHCl3-EtOAc-n-BuOH (lower phase)CC NP Silica gel
(gr. Light Petroleum-EtOAc)
CC NP Silica gel
(gr. Light Petroleum-CHCl3-MeOH)
[15]
58, 61DCM-MeOH (1:1, v/v) → MeOH
(maceration, r.t., successively)
CC NP Silica gel
(gr. Petrol-EtOAc-MeOH)
TLC NP Silica gel (CHCl3-MeOH)TLC NP Silica gel (CHCl3)[20]
52, 54, 56Light petrol → Et2O → MeOH
(Soxhlet, successively)
CC NP Silica gel
(gr. n-Hexane-Et2O-MeOH)
CC NP Silica gel (gr. n-Hexane-Acetone)HPLC NP Silica gel (CHCl3-MeOH) → PLC NP Silica gel (CHCl3-Acetone)[24]
53–56Light petrol → Et2O → MeOH
(Soxhlet, successively)
CC NP Silica gel
(CHCl3-EtOAc)
PLC NP Silica gel (Benzene-EtOAc) → PLC NP Silica gel (CHCl3-Acetone) or PLC NP Silica gel (Benzene-EtOAc) → crystallization (MeOH) [26]
57MeOH (reflux)CC RP Diaion HP20
(gr. MeOH-H2O → MeOH → EtOH → EtOAc)
CC NP Silica gel (gr CHCl3-MeOH-H2O)CC NP Silica gel (CHCl3-MeOH-H2O) → CC RP C18 (MeOH-H2O)[13]
49, 51, 52, 59MeOH (r.t.)LLE H2O-EtOAcCC NP Silica gel (gr. n-Hexane-Acetone)CC RP C18 (gr. MeOH-H2O) → HPLC RP C18 (MeOH-H2O) → crystallization (n-Hexane-Acetone)
or CC RP C18 (gr. MeOH-H2O) → HPLC RP C18 (MeOH-H2O) → HPLC NP Silica gel (CHCl3-MeOH)
[27]
53Petrol → Et2O
(Soxhlet, successively)
CC NP Silica gel
(gr. n-Hexane-Et2O)
CC NP Silica gel (gr. CHCl3-EtOAc)CC NP Silica gel (Benzene-EtOAc) → TLC NP Silica gel (n-Hexane-Et2O-dioxane)[25]
49–52Petrol → Et2O → MeOH
(Soxhlet, successively)
CC NP Silica gel
(gr. CHCl3-MeOH)
TLC NP Silica gel (Benzene-EtOAc)PLC NP Silica gel (Benzene-EtOAc)[14]
* The fraction obtained with the solvent highlighted in underlined font was used in further isolation steps; r.t. = room temperature; ** extraction solvent not disclosed; DCM = CH2Cl2; LLE = liquid–liquid extraction; CC = column chromatography; TLC = thin-layer chromatography; PLC = preparative thin-layer chromatography; HPLC = high-performance liquid chromatography; MPLC = medium-pressure liquid chromatography; GPC = gel permeation chromatography; CPC = centrifugal partition chromatography; NP = normal phase; RP = reversed phase; FA = formic acid; TFA = trifluoroacetic acid.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pecio, Ł.; Pecio, S.; Mroczek, T.; Oleszek, W. Spiro-Flavonoids in Nature: A Critical Review of Structural Diversity and Bioactivity. Molecules 2023, 28, 5420. https://doi.org/10.3390/molecules28145420

AMA Style

Pecio Ł, Pecio S, Mroczek T, Oleszek W. Spiro-Flavonoids in Nature: A Critical Review of Structural Diversity and Bioactivity. Molecules. 2023; 28(14):5420. https://doi.org/10.3390/molecules28145420

Chicago/Turabian Style

Pecio, Łukasz, Solomiia Pecio, Tomasz Mroczek, and Wiesław Oleszek. 2023. "Spiro-Flavonoids in Nature: A Critical Review of Structural Diversity and Bioactivity" Molecules 28, no. 14: 5420. https://doi.org/10.3390/molecules28145420

Article Metrics

Back to TopTop
