Communication

Russian Doll-like 3d–4f Cluster Wheels with Slow Relaxation of Magnetization †

by
Lan Liu
1,‡,
Panpan Yang
1,‡,
Zhihui Qiu
1,*,
Kai Wang
2,*,
Dongcheng Liu
1,
Yuning Liang
1,
Huancheng Hu
1,
Huahong Zou
1,
Fupei Liang
1,2 and
Zilu Chen
1,*
1
School of Chemistry and Pharmaceutical Sciences, Guangxi Normal University, Guilin 541004, China
2
Guangxi Key Laboratory of Electrochemical and Magnetochemical Functional Materials, College of Chemistry and Bioengineering, Guilin University of Technology, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
†
Electronic supplementary information (ESI) available: General materials and methods, crystallography details, PXRD patterns, additional figures for structural and magnetic properties. CCDC 2252491-2252493 respectively correspond to 1–3.
‡
These authors contributed equally to this work.
Molecules 2023, 28(15), 5906; https://doi.org/10.3390/molecules28155906
Submission received: 24 July 2023 / Revised: 3 August 2023 / Accepted: 4 August 2023 / Published: 6 August 2023
(This article belongs to the Special Issue Recent Advances in Coordination Chemistry of Metal Complexes)
Browse Figures
Versions Notes

Abstract

:
The solvothermal reactions of LnCl3·6H2O and MCl2·6H2O (M = Co, Ni) with 2,2′-diphenol (H2L1) and 5,7-dichloro-8-hydroxyquinoline (HL2) gave three 3d–4f heterometallic wheel-like nano-clusters [Ln7M6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl(CH3CN)6]Cl2·xH2O (Ln = Dy, M = Co, x = 3 for 1; Ln = Dy, M = Ni, x = 0 for 2; Ln = Tb, M = Ni, x = 0 for 3) with similar cluster structure. The innermost Ln(III) ion is encapsulated in a planar Ln6 ring which is further embedded in a chair-conformation M6 ring, constructing a Russian doll-like 3d–4f cluster wheel Ln(III)⸦Ln6⸦M6. 2 and 3 show obvious slow magnetic relaxation behavior with negligible opening of the magnetic hysteresis loop. Such a Russian doll-like 3d–4f cluster wheel with the lanthanide disc isolated by transition metallo-ring is rarely reported.

1. Introduction

Research on 3d–4f single-molecule magnets (SMMs) has mushroomed since the first report of 3d–4f SMM by Matsumoto’s group in 2004 [1,2,3,4,5]. The fundamental interest in SMMs is the potential applications in molecular spintronics and nanoscale magnetic devices [6,7]. As we all know, lanthanide ions such as Dy(III) and Tb(III) have a high-spin ground state and large uniaxial magnetic anisotropy [6,8,9,10,11,12]. In 2021, two chiral Dy(III) macrocyclic complexes with a record anisotropy barrier exceeding 1800 K and a relaxation time approaching 2500 s at 2.0 K for all known air-stable SMMs were obtained. The nearly perfect axiality of the ground Kramers doublet (KD) enables the open hysteresis loops up to 20 K in the magnetically diluted sample [13]. Different from 4f ions, the intrinsic crystal field effects of transition metal ions are strong but with much weaker spin–orbit coupling, which limits the effective orbital contribution of a single transition metal ion and leads to weak magnetic anisotropy [14,15,16,17,18]. Therefore, the magnetic anisotropies of 3d–4f SMMs are largely contributed by 4f ions. However, the paramagnetic 3d metal ions such as Co2+ and Mn3+ can help to effectively regulate magnetic exchange in 3d–4f SMMs [19,20,21,22]. Thus, the combination of 3d–4f metal ions can not only achieve high ground state spin and strong magnetic anisotropy, but also enhance the magnetic exchange between metal ions, which is facile for obtaining SMMs with superior performance.
In the past decade, a lot of efforts have been made in the development of 3d–4f SMMs, achieving rich and colorful structures with the aim to improve SMM performances. In 2007, a four-shell, nesting doll-like 3d–4f cluster containing 108 metal ions was reported. The metal ions are arranged into an unprecedented four-shell nesting doll-like structure of Ni(II)6Gd2(III)⸦Gd20(III)⸦Gd32(III)⸦Ni(II)48 to generate a giant cluster [23]. In 2020, the group of Jun-Liang Liu reported one Dy-NC-Fe-CN-Dy SMM and one Dy-NC-Co-CN-Dy SMM with a record barrier of 659 and 975 K among d–f SMMs [24]. However, the performances of these reported SMMs are still far from expected. Furthermore, there are a lot of other issues to be solved, such as the effective regulation and enhancement of magnetic coupling between 3d and 4f metal ions and the explanation of the relaxation mechanism [25,26,27,28]. Therefore, it is still of great significance to design and synthesize more 3d–4f SMMs with novel structures to improve SMM performances and to understand the magneto–structural correlation.
As well known, the performances of these 3d–4f SMMs are closely correlated with their structures including the coordination geometry of single lanthanide ion which tunes the anisotropy of single lanthanide ion, as well as the topological arrangement of metal ions in the cluster which adjusts the synergistic effect of metal ions and intermetallic interactions in the cluster. Ligands play an important role in obtaining expected aesthetic structures [29,30,31,32,33,34], which requires the appropriate selection of bridging groups for tuning intermetallic interactions, spacers between the bridging groups for further adjusting the intermetallic interactions through changing the intermetallic distances, and non-coordinating groups for controlling the growth of targeted clusters in dimensionalities.
With an overall consideration of all the above-mentioned information, we selected two ligands of 2,2′-diphenol (H2L1) and 5,7-dichloro-8-hydroxyquinoline (HL2) to synergistically construct 3d-4f clusters as depicted in Scheme 1. We succeeded in obtaining three 3d–4f heterometallic wheel-like nano-clusters [Ln7M6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl-(CH3CN)6]Cl2·xH2O (Ln = Dy, M = Co, x = 3 for 1; Ln = Dy, M = Ni, x = 0 for 2; Ln = Tb, M = Ni, x = 0 for 3), which show similar Russian doll-like 3d-4f wheel skeleton of Ln(III)⸦Ln6⸦M6. Their structures and magnetic properties were investigated in detail.

2. Results and Discussion

The sample purities for the titled clusters were confirmed by their experimental powder X-ray diffraction (PXRD) curves which fit well with their simulated ones from their structures as shown in Figure S1. The infrared spectra of 1–3 were recorded, which display similar features. Thus, only the infrared spectrum of 1 is presented in Figure 1 and discussed here in detail with the infrared spectra of 2 and 3 shown in Figure S2. It shows bands at 1583, 1492, 1434, 1372, 1289, and 1245 cm−1 for C=C and C–C stretching vibrations of the quinoline and diphenyl skeletons, 1448 cm−1 for C=N stretching vibration, 1105 cm−1 for C–O stretching vibration, and 1042 and 868 cm−1 for C–Cl stretching vibration [35]. This information supports the composition of 1. The structures of titled clusters were determined from single crystal X-ray diffraction analysis with related data shown in Figure 2, Figures S3 and S4 and Tables S1–S4.

2.1. Crystal Structures

The structural analysis results revealed a space group of Pa-3 (cubic system) for 1, and R-3 (trigonal system) for 2 and 3. But they present similar composition and structure with the formula of [Ln7M6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl(CH3CN)6]Cl2·xH2O (Ln = Dy, M = Co, x = 3 for 1; Ln = Dy, M = Ni, x = 0 for 2; Ln = Tb, M = Ni, x = 0 for 3), in which seven Ln(III) ions and six octahedral M(II) ions are linked by six (L1)−, six (L2)2−, six OH−, and six CH3O− ligands. Thus, only the structure of 1 was discussed here in detail as an example for further understanding the structural features of the titled 3d–4f heterometallic wheel-like nano-clusters as shown in Figure 2a. Dy1 in 1 is eight-coordinated in a square antiprism geometry as revealed by the SHAPE calculation with the eight O atoms provided by two OH−, two CH3O−, one two (L1)2−, and two (L2)− ligands. The central Dy2 ion in 1 is disordered over two symmetry-related positions in an occupancy ratio of 0.5:0.5. The Co(II) ions in 1 show severely distorted octahedral geometries with the two N and four O atoms from one CH3CN, one CH3O−, one (L2)− and two (L1)2− ligands. Each (L1)2− ligand bridges one Dy(III) and two Co(II) ions with each of its two phenolic O atoms linking one Dy(III) and one Co(II) ion, presenting a bridging mode of μ3-η1:η1:η2. Each (L2)− ligand chelates one Co(II) ion and uses its phenolic O atom to link this Co(II) ion and two Dy(III) ions, showing a bridging mode of μ3−η1:η1:η2.
The coordination unit of [Dy7Co6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl(CH3CN)6]2+ can be divided into three shells. The first shell is the peripheral Co6 ring (Figure 2b) which is formed from six Co(II) ions linked by six (L1)2− ligands with each Co(II) further chelated by one (L2)2−. The second shell is the Dy6 ring (Figure 2c), in which each neighboring two Dy(III) ions are triply bridged by three O atoms from one OH−, one CH3O−, and one (L2)− ligand. The Co6 and Dy6 rings are consolidated through six (L1)2− and six (L2)2− ligands, leading to the construction of a Russian doll-like Co6Dy6 metallacrown ether (Figure 2d) with the Dy6 ring embedded in the Co6 ring. Interestingly, the Dy6 ring presents a planar conformation; however, the Co6 ring shows a chair conformation as depicted in Figure 2e. The third shell is the innermost Dy(III) ion which is disordered over two positions and is situated on the axial position of the S6 axis in the molecule. It means that the innermost Dy(III) ion is encapsulated by a Dy6 metallacrown ether which is further encapsulated by a Co6 ring, forming a Russian doll-like 3d–4f Cluster wheel symbolized as “Dy(III)⸦Dy6⸦Co6” with the inner “Dy(III)⸦Dy6” disc protected by a Co6 ring. It represents the first kind of Russian doll-like cluster wheel with a lanthanide disc encapsulated in a transition metal ring, although a lot of 3d–4f clusters have already been reported with diverse skeletons such as icosahedron, icosidodecahedron, and ring [36,37,38,39,40].

2.2. Magnetic Properties

Under a direct current (DC) magnetic field of 1000 Oe, the change of molar magnetic susceptibilities of 1–3 (Figure 3) with temperature (2–300 K) was measured. The χmT values of 1–3 at 300 K are 109.52, 105.40, and 88.69 cm3 K mol−1, respectively, which approach the theoretically calculated values of 110.44, 105.19, and 88.74 cm3 K mol−1 for the corresponding free six transition metal ions (with g = 2) and seven lanthanide ions. The value for compound 1 is higher than that expected due to the orbital contribution of the Co(II) ions. With the temperature decreasing, the χmT values of 1–3 decrease slowly in the high-temperature range and then quickly in the low-temperature range, with the lowest values of 61.00, 94.31, and 54.29 cm3 K mol−1 at 2 K for 1 and 3, respectively. This kind of behavior revealed in their χmT versus T curves is largely due to thermal depopulation of the Mj sublevels of the lanthanide ions arising from the splitting of the spin–orbit coupling ground term by the ligand crystal field and dipole–dipole interactions between molecules [41].
The isothermal magnetizations of 1–3 were measured as a function of field at different temperatures of 2, 3, and 5 K, which were plotted as M versus H and M versus H/T curves (Figures S5–S7). Their magnetizations increase fast at the beginning and then slowly with the increasing field as revealed in both isothermal M versus H and M versus H/T curves. Furthermore, their M versus H/T curves recorded at different temperatures do not overlap in the high H/T range. These features help us to conclude the possible existence of magnetic anisotropy, as well as possible low-lying excited states of their metal ions. The further hysteresis measurements at 2 K for 1–3 (Figure S8) revealed just imperceptible hysteresis loops [42,43].
Subsequently, the dynamic magnetic properties of 1–3 were studied in detail by measuring their temperature- and frequency-dependent in-phase (χ′) and out-of-phase (χ″) alternating current (ac) magnetic susceptibilities. It revealed in Figure S9 nearly zero χ″ value and obvious temperature dependence for the χ′ value with indistinguishable frequency dependency of χ′ value for 1 under zero dc field. However, non-zero χ″ value and obvious temperature dependence χ′ value were observed for 2 and 3 (Figure 4, Figures S10 and S11) under zero dc field together with obvious frequency dependency of χ′ value. But no peaks were found for the χ″-v curves of all title clusters probably due to the quantum tunneling effect (QTM). No appropriate external dc fields were found for the suppression of QTM. Nevertheless, all of these can confirm the presence of slow magnetic relaxation in 2 and 3. Considering the fact of absence of maximums in their χ″-v curves, the barriers of 2 and 3 were estimated by fitting their ln(χ″/χ′) versus 1/T curves (Figure S12) based on the equation of ln(χ″/χ′) = ln(2πvτ0) + Ueff/kBT [44,45,46], giving Ueff/kB ≈ 0.53(8) K and τ0 ≈ 7.6(2) × 10−6 for 2, and Ueff/kB ≈ 0.38(8) K and τ0 ≈ 8.0(4) × 10−6 for 3.
The magnetic interactions between Ln(III) ions in 2 and 3, as well as between Ln(III) ion and Ni(II) ion, are presumably weak because the 4f orbitals of Ln(III) ions are deeply buried and shielded by 5p and 6s orbitals and, thus, cannot effectively overlap with the valence orbitals of bridging atoms [47]. Furthermore, the Ni(II) ions in 2 and 3 are well separated by the (L1)2− ligand with a separation of 6.0119(1) and 6.0342(1) Å, which does not favor effective magnetic interaction between Ni(II) ions. The weak intermetallic magnetic interaction, together with the coordination symmetries of single metal ions (especially Dy(III) and Tb(III) ion) in 2 and 3, cannot induce enough coercive fields for suppressing QTM, thus leading to poor magnetic performance of 2 and 3, such as the negligible opening of magnetic hysteresis loop and low barrier [48,49,50].

3. Materials and Methods

3.1. General Materials and Methods

All chemical reagents were commercially obtained and used directly. The Fourier transform infrared (FT-IR) data of these complexes were collected on PerkinElmer Spectrum One FT-IR spectrometer using the corresponding KBr Pellets in the wavenumber range of 4000–400 cm−1. The powder X-ray diffraction (PXRD) measurements were carried out on a Rigaku D/max 2500 v/pc diffractometer equipped with Cu-Kα radiation (λ = 1.5418 Å) at 40 kV and 40 mA, with a step size of 0.02° in 2θ and a scan speed of 5 °min−1. Elemental analyses for C, H, and N for the four complexes were performed on an Elementar Micro cube C, H, N elemental analyzer.

3.2. Synthesis

3.2.1. Synthesis of [Dy7Co6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl(CH3CN)6]Cl2·3H2O (1)

A methanol solution (1 mL) of DyCl3·6H2O (0.05 mmol, 0.0185 g), CoCl2·6H2O (0.05 mmol, 0.0119 g), H2L1 (0.1 mmol, 0.0186 g), and an acetonitrile solution (1 mL) of HL2 (0.05 mmol, 0.0107 g) were mixed and subsequently added into an 18 cm-long Pyrex tube with one end closed. After the following addition of trimethylamine (0.25 mmol, 35 μL), the Pyrex tube was sealed under vacuum and put in an oven at 90 °C. After a reaction duration of 1 day, it was slowly cooled to room temperature, giving red crystals with a yield of 31% (calculated based on Dy). Elemental analysis (%) (C144H120N12O33Cl15Co6Dy7), calculated: C, 37.85, H, 2.65, and N, 3.68. Found: C, 37.53, H, 2.76, and N, 3.85. IR (KBr pellet, cm−1, Figure 1): 3410 s, 3054 w, 2926 m, 2928 m, 1583 w, 1492 s, 1448 s, 1434 s, 1372 s, 1289 s, 1245 m, 1105 w, 1042 m, 868 m, 756 s, 673 m, and 632 m.

3.2.2. Synthesis of [Dy7Ni6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl(CH3CN)6]Cl2 (2)

The synthesis of 2 is similar to that for 1 using NiCl2·6H2O instead of CoCl2·6H2O. The yield for 2 is about 22% (calculated on the amount of Dy). Elemental analysis (%) (C144H114N12O30Cl15Ni6Dy7), calculated: C, 38.32, H, 2.55, and N, 3.72. Found: C, 37.98, H, 2.85, and N, 3.52. IR (KBr pellet, cm−1, Figure S2): 3417 s, 3056 w, 3009 w, 2973 w, 2937 w, 1582 w, 1492 s, 1462 s, 1433 s, 1364 s, 1289 s, 1251 m, 1109 w, 1041 m, 868 m, 748 s, 665 m, and 607 m.

3.2.3. Synthesis of [Tb7Ni6(L1)6(L2)6(µ3-OH)6(OCH3)6Cl(CH3CN)6]Cl2 (3)

The synthesis of 3 is similar to that for 2 using TbCl3·6H2O instead of DyCl3·6H2O. The yield for 3 is about 25% (calculated on the amount of Dy). Elemental analysis (%) (C144H114N12O30Cl15Ni6Tb7), calculated: C, 38.53, H, 2.56, and N, 3.74. Found: C, 38.78, H, 2.50, and N, 3.52. IR (KBr pellet, cm−1, Figure S2): 3590 w, 3049 w, 3006 w, 2967 w, 2930 w, 2899 w, 2808 w, 2290 w, 1583 w, 1492 s, 1457 s, 1432 s, 1364 s, 1282 s, 1245 m, 1109 w, 1034 m, 868 m, 756 s, 665 m, 635 m, and 605 m.

4. Conclusions

In summary, we succeeded in obtaining three similar 3d–4f heterometallic wheel-like Ln7M6 nano-clusters, in which seven square antiprismatic Dy(III) ions and six octahedral Co(II) ions are linked by six (L1)−, six (L2)2−, six OH−, and six CH3O− ligands. The (L1)2− ligand bridges one Dy(III) and two Co(II) ions with each of its two phenolic O atoms linking one Dy(III) and one Co(II) ion. Each (L2)− ligand chelates one Co(II) ion and uses its phenolic O atom to link this Co(II) ion and two Dy(III) ions. The most interesting is that the innermost Ln (III) ion is encapsulated in a planar Ln6 ring which is further embedded in a chair-conformation M6 ring, constructing a Russian doll-like 3d-4f cluster wheel Ln(III)⸦Ln6⸦M6. This kind of Russian doll-like cluster wheel with a lanthanide disc encapsulated in a transition metal ring is rarely reported. Magnetic tests showed that both 2 and 3 show obvious slow magnetic relaxation behavior with negligible opening of the magnetic hysteresis loop.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28155906/s1. Figure S1. (a), (b), (c) correspond to the powder diffraction patterns of complexes 1–3, respectively. Figure S2. Infrared spectra of complexes 2 (left) and 3 (right). Figure S3. (a) Coordination mode diagram of Dy(III); (b) Coordination mode diagram of Co(II); (c) Ligand (L1)2− coordination pattern diagram; (d) Coordination pattern of ligand (L2)−. Figure S4. Metal skeleton of Co6Dy6 metallacrown ether in 1. Figure S5. M-H (a) and M-HT−1 (b) curves of 1. Figure S6. M-H (a) and M-HT−1 (b) curves of 2. Figure S7. M-H (a) and M-HT−1 (b) curves of 3. Figure S8. Hysteresis curves measured at 2 K for 1 (a), 2 (b), 3 (c) with the scan rate of 200 Oe/s. Figure S9. Temperature-dependent (a) and frequency-dependent (b) ac magnetic susceptibilities under zero dc field for 1. Figure S10. Temperature-dependent (a) and frequency-dependent (b) ac magnetic susceptibilities under zero dc field for 2. Figure S11. Temperature-dependent (a) and frequency-dependent (b) ac magnetic susceptibilities under zero dc field for 3. Figure S12. (a) and (b) correspond to ln(χ″/χ′) versus 1/T plots for complexes 2 and 3, respectively. Table S1. Crystal data and structural refining parameters for 1–3. Table S2 Selected bond lengths (Å) and angles (º) for complex 1. Table S3 Selected bond lengths (Å) and angles (º) for complex 2. Table S4 Selected bond lengths (Å) and angles (º) for complex 3.

Author Contributions

Conceptualization, Z.C. and L.L.; methodology, P.Y. and F.L.; software, H.Z.; validation, Z.C., K.W. and H.Z.; formal analysis, Y.L.; investigation, P.Y. and L.L.; resources, D.L., Z.Q. and Z.C.; data curation, P.Y. and L.L.; writing—original draft preparation, L.L.; writing—review and editing, Z.C. and L.L.; visualization, Z.C. and L.L.; supervision, Z.C. and L.L.; project administration, H.H., H.Z. and Z.Q.; funding acquisition, Z.C., D.L. and H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 12064002, 22061004, and 22261007 And the Guangxi Natural Science Foundation of China, grant number 2020GXNSFAA159132 and AD20238043.

Institutional Review Board Statement

Not applicable for studies not involving humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Material. CCDC 2252491, 2252492 and 2252493 for 1–3, respectively, contain the supplementary crystallographic data for this paper, which can be freely accessed via www.ccdc.cam.ac.uk/data_request/cif, or by emailing [email protected], or by contacting The Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44-1223-336033.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Osa, S.; Kido, T.; Matsumoto, N.; Re, N.; Pochaba, A.; Mrozinski, J. A Tetranuclear 3d-4f Single Molecule Magnet: [CuIILTbIII(Hfac)2]2. J. Am. Chem. Soc. 2004, 126, 420–421. [Google Scholar] [CrossRef] [PubMed]
  2. Ahmed, N.; Ansari, K.U. Experimental and Theoretical Insights into Co-Ln Magnetic Exchange and the Rare Slow-Magnetic Relaxation Behavior of [Co2IIPr]2+ in a Series of Linear [Co2IILn]2+ Complexes. Dalton Trans. 2022, 51, 4122–4134. [Google Scholar] [CrossRef] [PubMed]
  3. Boyce, S.A.J.; Moutet, J.; Niederegger, L.; Simler, T.; Nocton, G.; Hess, C.R. Influence of a Lanthanide Ion on the Ni Site of a Heterobimetallic 3d-4f Mabiq Complex. Inorg. Chem. 2021, 60, 403–411. [Google Scholar] [CrossRef]
  4. Shao, D.; Wang, X.Y. Development of Single-Molecule Magnets. Chin. J. Chem. 2020, 38, 1005–1018. [Google Scholar]
  5. Qin, Y.R.; Gao, Q.; Chen, Y.M.; Liu, W.; Lin, F.; Zhang, X.F.; Dong, Y.P.; Li, Y.H. Four Mixed 3d-4f 12-Metallacrown-4 Complexes: Syntheses, Structures and Magnetic Properties. J. Cluster Sci. 2016, 28, 891–903. [Google Scholar] [CrossRef]
  6. Ashebr, T.G.; Li, H.; Ying, X.; Li, X.L.; Zhao, C.; Liu, S.T.; Tang, J.K. Emerging Trends on Designing High-Performance Dysprosium(III) Single-Molecule Magnets. ACS Mater. Lett. 2022, 4, 307–319. [Google Scholar] [CrossRef]
  7. Layfield, R.A. Organometallic Single-Molecule Magnets. Organometallics 2014, 33, 1084–1099. [Google Scholar] [CrossRef]
  8. Yu, S.; Hu, Z.B.; Chen, Z.L.; Li, B.; Zhang, Y.Q.; Liang, Y.N.; Liu, D.C.; Yao, D.; Liang, F.P. Two Dy(III) Single-Molecule Magnets with Their Performance Tuned by Schiff Base Ligands. Inorg. Chem. 2019, 58, 1191–1200. [Google Scholar] [CrossRef]
  9. Zhang, K.; Montigaud, V.; Cador, O.; Li, G.P.; Le Guennic, B.; Tang, J.K.; Wang, Y.Y. Tuning the Magnetic Interactions in DyIII4 Single-Molecule Magnets. Inorg. Chem. 2018, 57, 8550–8557. [Google Scholar] [CrossRef] [Green Version]
  10. Nie, M.; Liang, J.; Zhao, C.; Lu, Y.; Zhang, J.; Li, W.; Wang, C.; Wang, T. Single-Molecule Magnet with Thermally Activated Delayed Fluorescence Based on a Metallofullerene Integrated by Dysprosium and Yttrium Ions. ACS Nano 2021, 15, 19080–19088. [Google Scholar] [CrossRef]
  11. Ma, Y.J.; Hu, J.X.; Han, S.D.; Pan, J.; Li, J.H.; Wang, G.M. Manipulating on/Off Single-Molecule Magnet Behavior in a Dy(III)-Based Photochromic Complex. J. Am. Chem. Soc. 2020, 142, 2682–2689. [Google Scholar] [CrossRef] [PubMed]
  12. Li, Y.L.; Wang, H.L.; Zhu, Z.H.; Liang, F.P.; Zou, H.H. Recent Advances in the Structural Design and Regulation of Lanthanide Clusters: Formation and Self-Assembly Mechanisms. Coord. Chem. Rev. 2023, 493, 215322. [Google Scholar] [CrossRef]
  13. Zhu, Z.; Zhao, C.; Feng, T.; Liu, X.; Ying, X.; Li, X.L.; Zhang, Y.Q.; Tang, J. Air-Stable Chiral Single-Molecule Magnets with Record Anisotropy Barrier Exceeding 1800 K. J. Am. Chem. Soc. 2021, 143, 10077–10082. [Google Scholar] [CrossRef]
  14. Sharples, J.W.; Collison, D. The Coordination Chemistry and Magnetism of Some 3d-4f and 4f Amino-Polyalcohol Compounds. Coord. Chem. Rev. 2014, 260, 1–20. [Google Scholar] [CrossRef] [Green Version]
  15. Smolko, L.; Černák, J.; Kuchár, J.; Sabolová, D.; Boča, R. Tetracoordinate Cobalt(II) Complexes with Neocuproine: Single-Molecule Magnets with Potential Biological Activity. Chem. Pap. 2017, 72, 877–882. [Google Scholar] [CrossRef]
  16. Yang, P.P.; Yu, S.; Quan, L.X.; Hu, H.C.; Liu, D.C.; Liang, Y.N.; Li, B.; Liang, F.P.; Chen, Z.L. Structure and Magnetic Properties of Two Discrete 3d-4f Heterometallic Complexes. ChemistrySelect 2020, 5, 9946–9951. [Google Scholar] [CrossRef]
  17. Mikuriya, M.; Yano, S.; Yoshioka, D.; Paulsen, C.; Lhotel, E.; Wernsdorfer, W.; Luneau, D. Hexanuclear and Heptanuclear Nickel(II) Complexes of with a Non-Schiff-Base Tetradentate Ligand: An Example of Slow Motion Ferromagnetic Phase Transition at Very Low Temperature. J. Supercond. Novel Magn. 2019, 32, 2805–2810. [Google Scholar] [CrossRef]
  18. Milios, C.J.; Inglis, R.; Vinslava, A.; Bagai, R.; Wernsdorfer, W.; Parsons, S.; Perlepes, S.P.; Christou, G.; Brechin, E.K. Toward a Magnetostructural Correlation for a Family of Mn6 SMMs. J. Am. Chem. Soc. 2007, 129, 12505–12511. [Google Scholar] [CrossRef]
  19. Li, Q.; Peng, Y.; Qian, J.; Yan, T.; Du, L.; Zhao, Q. A Family of Planar Hexanuclear Coln Clusters with Lucanidae-Like Arrangement and Single-Molecule Magnet Behavior. Dalton Trans. 2019, 48, 12880–12887. [Google Scholar] [CrossRef]
  20. Savva, M.; Skordi, K.; Fournet, A.D.; Thuijs, A.E.; Christou, G.; Perlepes, S.P.; Papatriantafyllopoulou, C.; Tasiopoulos, A.J. Heterometallic MnIII4Ln2 (Ln = Dy, Gd, Tb) Cross-Shaped Clusters and Their Homometallic MnIII4MnII2 Analogues. Inorg. Chem. 2017, 56, 5657–5668. [Google Scholar] [CrossRef]
  21. Mishra, A.; Wernsdorfer, W.; Parsons, S.; Christou, G.; Brechin, E.K. The Search for 3d-4f Single-Molecule Magnets: Synthesis, Structure and Magnetic Properties of a [MnIII2DyIII2] Cluster. Chem. Commun. 2005, 2086–2088. [Google Scholar] [CrossRef] [PubMed]
  22. Rosado Piquer, L.; Dey, S.; Castilla, A.L.; Teat, S.J.; Cirera, J.; Rajaraman, G.; Sanudo, E.C. Microwave Assisted Synthesis of Heterometallic 3d-4f M4Ln Complexes. Dalton Trans. 2019, 48, 12440–12450. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kong, X.J.; Ren, Y.P.; Chen, W.X.; Long, L.S.; Zheng, Z.P.; Huang, R.B.; Zheng, L.S. A Four-Shell, Nesting Doll-Like 3d–4f Cluster Containing 108 Metal Ions. Angew. Chem. 2008, 120, 2432–2435. [Google Scholar] [CrossRef]
  24. Liu, Y.; Chen, Y.C.; Liu, J.; Chen, W.B.; Huang, G.Z.; Wu, S.G.; Wang, J.; Liu, J.L.; Tong, M.L. Cyanometallate-Bridged Didysprosium Single-Molecule Magnets Constructed with Single-Ion Magnet Building Block. Inorg. Chem. 2020, 59, 687–694. [Google Scholar] [CrossRef]
  25. Tangoulis, V.; Nastopoulos, V.; Panagiotou, N.; Tasiopoulos, A.; Itskos, G.; Athanasiou, M.; Moreno, P.E.; Wernsdorfer, W.; Schulze, M.; Malina, O. High-Performance Luminescence Thermometer with Field-Induced Slow Magnetic Relaxation Based on a Heterometallic Cyanido-Bridged 3d-4f Complex. Inorg. Chem. 2022, 61, 2546–2557. [Google Scholar] [CrossRef] [PubMed]
  26. Lu, H.; Diefenbach, K.; Li, Z.J.; Bao, H.; Guo, X.; Wang, J.Q.; Albrecht, S.T.E.; Lin, J. Structural Complexity and Magnetic Orderings in a Large Family of 3d-4f Heterobimetallic Sulfates. Inorg. Chem. 2020, 59, 13398–13406. [Google Scholar] [CrossRef]
  27. Yang, P.P.; Hu, H.C.; Yu, S.; Liu, D.C.; Liang, Y.N.; Zou, H.H.; Liang, F.P.; Chen, Z.L. Superb Alkali-Resistant DyIII2NiII4 Single-Molecule Magnet. Inorg. Chem. 2021, 60, 14752–14758. [Google Scholar] [CrossRef]
  28. Majee, M.C.; Towsif, A.S.M.; Mondal, D.; Maity, M.; Weselski, M.; Witwicki, M.; Bienko, A.; Antkowiak, M.; Kamieniarz, G.; Chaudhury, M. Synthesis and Magneto-Structural Studies on a New Family of Carbonato Bridged 3d-4f Complexes Featuring a [Co3Ln3(CO3)] (Ln = La, Gd, Tb, Dy and Ho) Core: Slow Magnetic Relaxation Displayed by the CobaltII-DysprosiumIII Analogue. Dalton Trans. 2018, 47, 3425–3439. [Google Scholar] [CrossRef]
  29. Chen, S.S.; Su, H.F.; Long, L.S.; Zheng, L.S.; Kong, X.J. Hydrolysis-Promoted Building Block Assembly: Structure Transformation from Y12 Wheel and Y34 Ship to Y60 Cage. Inorg. Chem. 2021, 60, 16922–16926. [Google Scholar] [CrossRef]
  30. Che, Z.W.; Chen, J.T.; Wang, T.T.; Yan, H.; Zhou, T.D.; Guo, R.; Sun, W.B. Wheel-Like Gd42 Polynuclear Complexes with Significant Magnetocaloric Effect. CrystEngComm 2022, 24, 3363–3368. [Google Scholar] [CrossRef]
  31. Zheng, X.Y.; Jiang, Y.H.; Zhuang, G.L.; Liu, D.P.; Liao, H.G.; Kong, X.J.; Long, L.S.; Zheng, L.S. A Gigantic Molecular Wheel of Gd140: A New Member of the Molecular Wheel Family. J. Am. Chem. Soc. 2017, 139, 18178–18181. [Google Scholar] [CrossRef]
  32. Xemard, M.; Cordier, M.; Molton, F.; Duboc, C.; Le, G.B.; Maury, O.; Cador, O.; Nocton, G. Divalent Thulium Crown Ether Complexes with Field-Induced Slow Magnetic Relaxation. Inorg. Chem. 2019, 58, 2872–2880. [Google Scholar] [CrossRef] [PubMed]
  33. Manoli, M.; Inglis, R.; Manos, M.J.; Nastopoulos, V.; Wernsdorfer, W.; Brechin, E.K.; Tasiopoulos, A.J. A [Mn32] Double-Decker Wheel. Angew. Chem. Int. Ed. 2011, 50, 4441–4444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Li, K.Y.; Zhuang, Z.H.; Chen, W.; Liao, W.P. Anion-Directed Assembly of Nickel-Calixarene Complexes: Constructing Isolated {Ni8}, {Ni20}, {Ni24}, and {Ni32} Clusters. Cryst. Growth Des. 2020, 20, 4164–4168. [Google Scholar] [CrossRef]
  35. Vranec, P.; Potocnak, I.; Sabolova, D.; Farkasova, V.; Ipothova, Z.; Pisarcikova, J.; Paulikova, H. Low-Dimensional Compounds Containing Bioactive Ligands. V: Synthesis and Characterization of Novel Anticancer Pd(II) Ionic Compounds with Quinolin-8-Ol Halogen Derivatives. J. Inorg. Biochem. 2014, 131, 37–46. [Google Scholar] [CrossRef] [PubMed]
  36. Zheng, H.; Du, M.H.; Lin, S.C.; Tang, Z.C.; Kong, X.J.; Long, L.S.; Zheng, L.S. Assembly of a Wheel-Like Eu24Ti8 Cluster under the Guidance of High-Resolution Electrospray Ionization Mass Spectrometry. Angew. Chem. Int. Ed. 2018, 57, 10976–10979. [Google Scholar] [CrossRef]
  37. Vignesh, K.R.; Langley, S.K.; Moubaraki, B.; Murray, K.S.; Rajaraman, G. Large Hexadecametallic {MnIII-LnIII} Wheels: Synthesis, Structural, Magnetic, and Theoretical Characterization. Chem. Eur. J. 2015, 21, 16364–16369. [Google Scholar] [CrossRef] [PubMed]
  38. Lun, H.J.; Xu, L.; Kong, X.J.; Long, L.S.; Zheng, L.S. A High-Symmetry Double-Shell Gd30Co12 Cluster Exhibiting a Large Magnetocaloric Effect. Inorg. Chem. 2021, 60, 10079–10083. [Google Scholar] [CrossRef]
  39. Leng, J.D.; Liu, J.L.; Tong, M.L. Unique Nanoscale {Cu36IILn24III} (Ln = Dy and Gd) Metallo-Rings. Chem. Commun. 2012, 48, 5286–5288. [Google Scholar] [CrossRef]
  40. Li, N.F.; Luo, X.M.; Wang, J.; Wang, J.L.; Mei, H.; Song, Y.; Xu, Y. Largest 3d-4f 196-NuclearGd158Co38 Clusters with Excellent Magnetic Cooling. Sci. China Chem. 2022, 65, 1577–1583. [Google Scholar] [CrossRef]
  41. Quan, H.B.; Sheng, L.B.; Zou, H.H.; Liu, Z.Y.; Liu, D.C.; Li, B.; Chen, M.S.; Liang, F.P. Synthesis, Structure, and Magnetic Properties of a Twist Linear Tetranuclear CoIII2LnIII2 Complexes. J. Cluster Sci. 2017, 29, 75–81. [Google Scholar] [CrossRef]
  42. Parmar, V.S.; Mills, D.P.; Winpenny, R.E.P. Mononuclear Dysprosium Alkoxide and Aryloxide Single-Molecule Magnets. Chem. Eur. J. 2021, 27, 7625–7645. [Google Scholar] [CrossRef]
  43. Yang, J.W.; Tian, Y.M.; Tao, J.; Chen, P.; Li, H.F.; Zhang, Y.Q.; Yan, P.F.; Sun, W.B. Modulation of the Coordination Environment around the Magnetic Easy Axis Leads to Significant Magnetic Relaxations in a Series of 3d-4f Schiff Complexes. Inorg. Chem. 2018, 57, 8065–8077. [Google Scholar] [CrossRef] [PubMed]
  44. Bartolomé, J.; Filoti, G.; Kuncser, V.; Schinteie, G.; Mereacre, V.; Anson, C.E.; Powell, A.K.; Prodius, D.; Turta, C. Magnetostructural Correlations in the Tetranuclear Series of {Fe3LnO2} Butterfly Core Clusters: Magnetic and Mössbauer Spectroscopic Study. Phys. Rev. B 2009, 80, 014430. [Google Scholar] [CrossRef]
  45. Liu, S.J.; Zhao, J.P.; Song, W.C.; Han, S.D.; Liu, Z.Y.; Bu, X.H. Slow Magnetic Relaxation in Two New 1d/0d DyIII Complexes with a Sterically Hindered Carboxylate Ligand. Inorg. Chem. 2013, 52, 2103–2109. [Google Scholar] [CrossRef]
  46. Zhang, S.; Shi, W.; Li, L.; Duan, E.; Cheng, P. Lanthanide Coordination Polymers with “Fsy-Type” Topology Based on 4,4’-Azobenzoic Acid: Syntheses, Crystal Structures, and Magnetic Properties. Inorg. Chem. 2014, 53, 10340–10346. [Google Scholar] [CrossRef]
  47. Kumar, P.; Swain, A.; Acharya, J.; Li, Y.; Kumar, V.; Rajaraman, G.; Colacio, E.; Chandrasekhar, V. Synthesis, Structure, and Zero-Field Smm Behavior of Homometallic Dy2, Dy4, and Dy6 Complexes. Inorg. Chem. 2022, 61, 11600–11621. [Google Scholar] [CrossRef] [PubMed]
  48. Guo, Y.N.; Xu, G.F.; Wernsdorfer, W.; Ungur, L.; Guo, Y.; Tang, J.k.; Zhang, H.J.; Chibotaru, L.F.; Powell, A.K. Strong Axiality and Ising Exchange Interaction Suppress Zero-Field Tunneling of Magnetization of an Asymmetric Dy2 Single-Molecule Magnet. J. Am. Chem. Soc. 2011, 133, 11948–11951. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, J.; Yang, M.F.; Sun, J.; Li, H.; Liu, J.J.; Wang, Q.L.; Li, L.C.; Ma, Y.; Zhao, B.; Cheng, P. Enhancing the Energy Barrier of Dysprosium(III) Single-Molecule Magnets by Tuning the Magnetic Interactions through Different N-Oxide Bridging Ligands. CrystEngComm 2019, 21, 6219–6225. [Google Scholar] [CrossRef]
  50. Du, J.; Wei, S.; Jiang, Z.; Ke, H.; Sun, L.; Zhang, Y.; Chen, S. Influence of Lattice Water Molecules on the Magnetization Dynamics of Binuclear Dysprosium(III) Compounds: Insights from Magnetic and Ab Initio Calculations. Phys. Chem. Chem. Phys. 2023, 25, 11717–11724. [Google Scholar] [CrossRef]
Molecules 28 05906 sch001

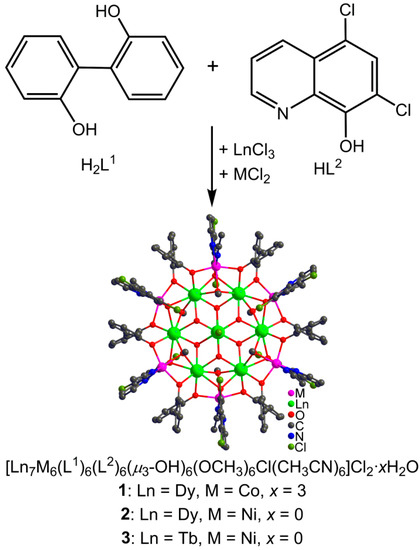

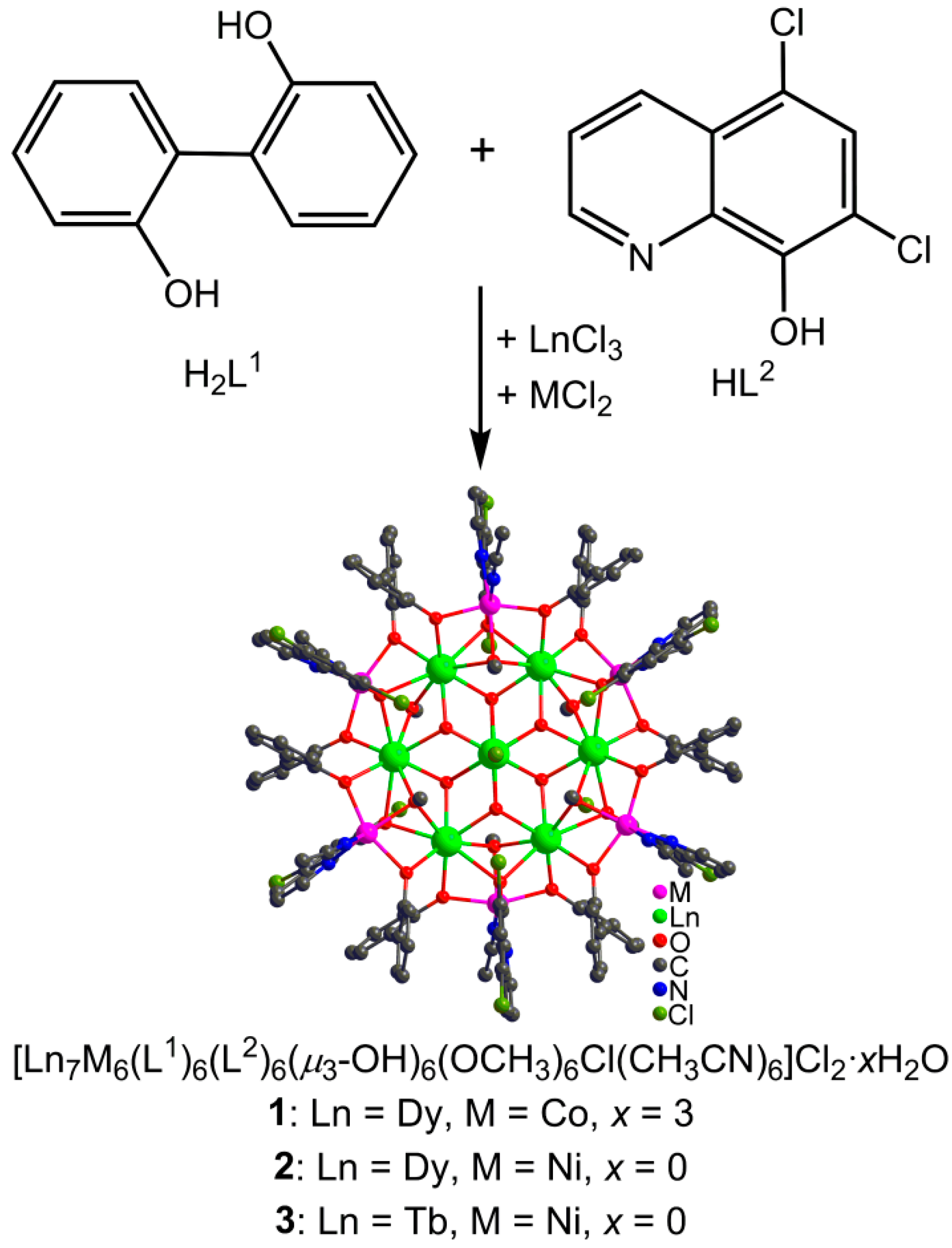

Scheme 1. Preparation of 1–3.
Scheme 1. Preparation of 1–3.
Molecules 28 05906 sch001
Molecules 28 05906 g001

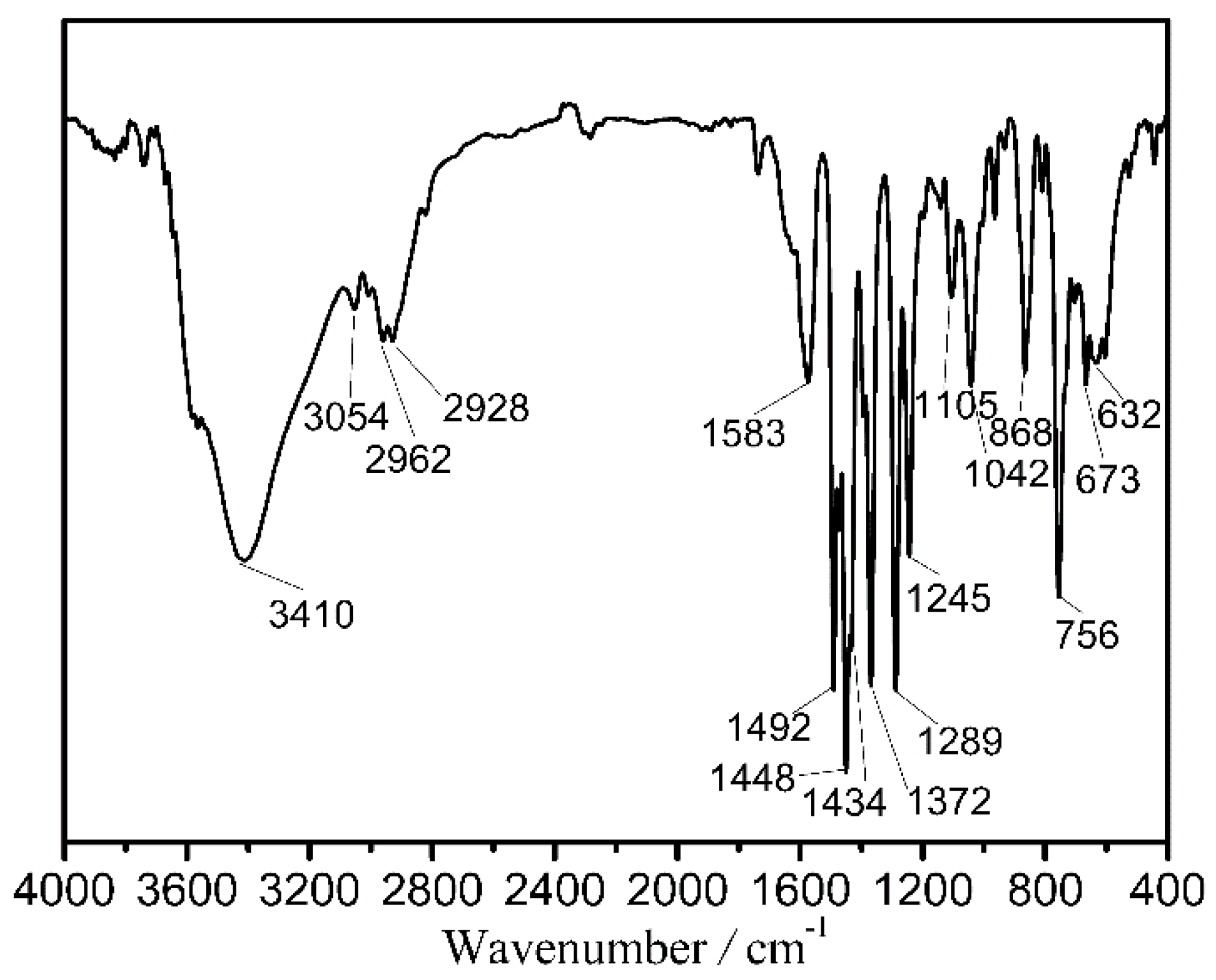

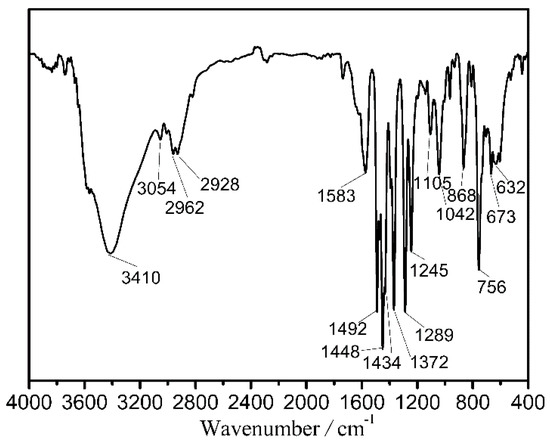

Figure 1. Infrared spectrum of 1.
Figure 1. Infrared spectrum of 1.
Molecules 28 05906 g001
Molecules 28 05906 g002

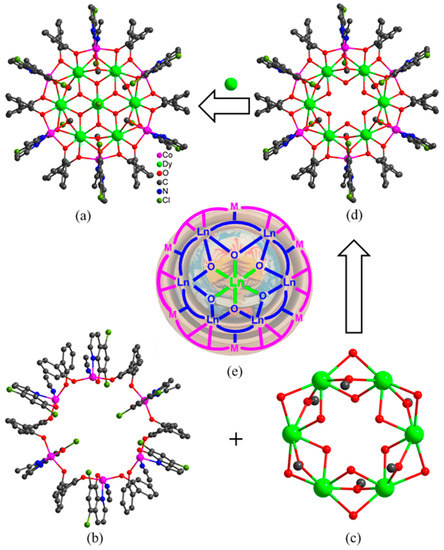

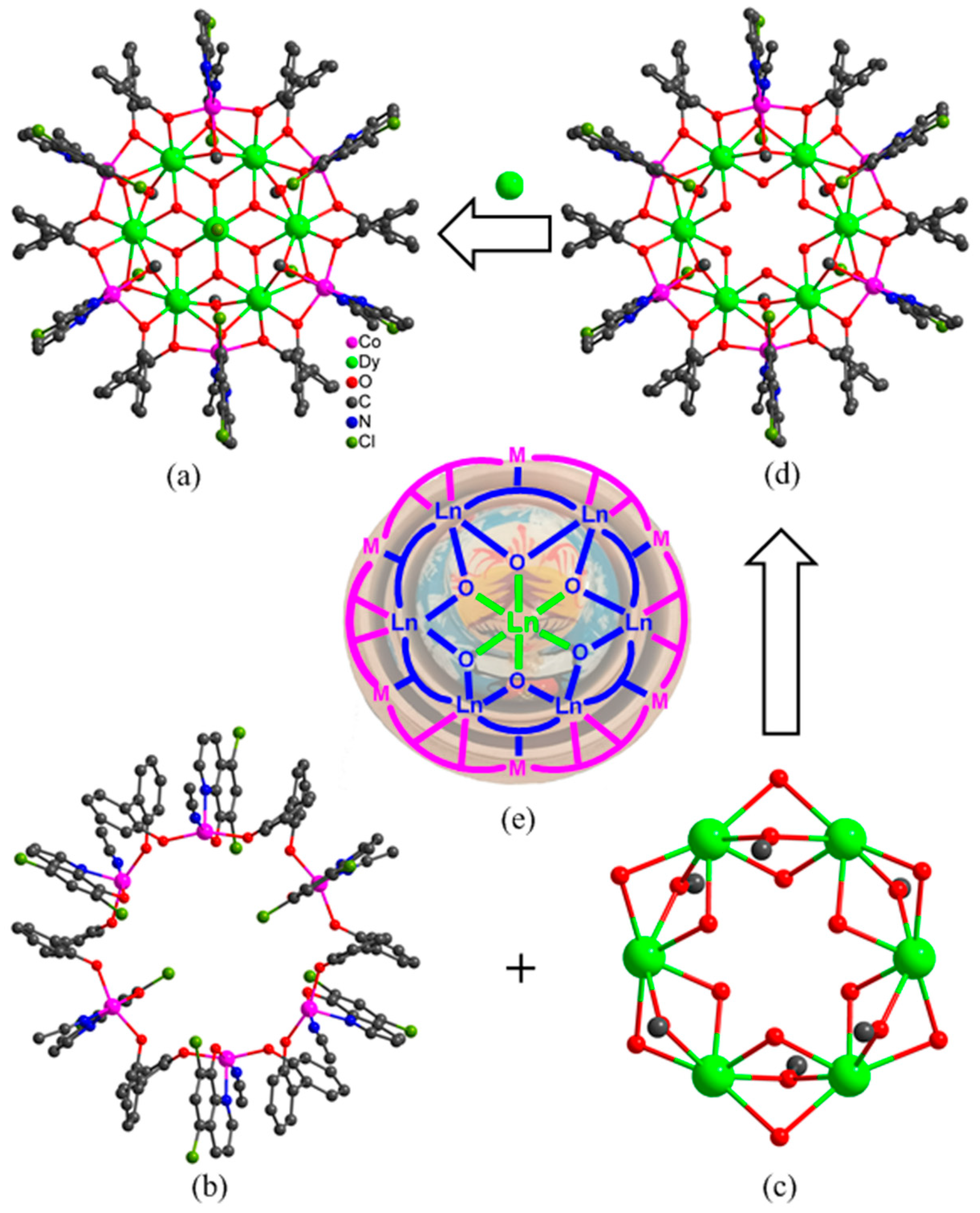

Figure 2. Molecular structure (a), peripheral Co6 ring (b), inner Dy6 ring (c), Co6Dy6 metallacrown ether (d) and a show of the Russian doll-like skeleton of “Dy(III)⸦Dy6⸦Co6” (e) in 1.
Figure 2. Molecular structure (a), peripheral Co6 ring (b), inner Dy6 ring (c), Co6Dy6 metallacrown ether (d) and a show of the Russian doll-like skeleton of “Dy(III)⸦Dy6⸦Co6” (e) in 1.
Molecules 28 05906 g002
Molecules 28 05906 g003

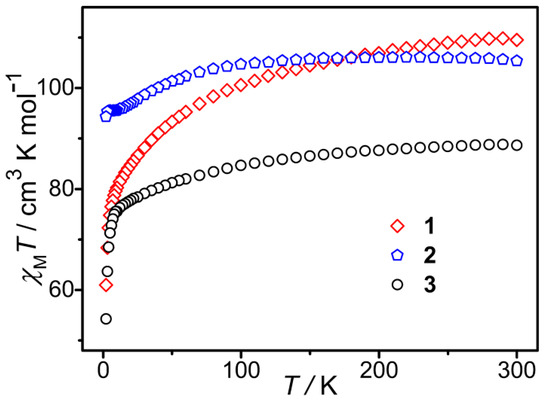

Figure 3. χmT−T curves for 1–3.
Figure 3. χmT−T curves for 1–3.
Molecules 28 05906 g003
Molecules 28 05906 g004

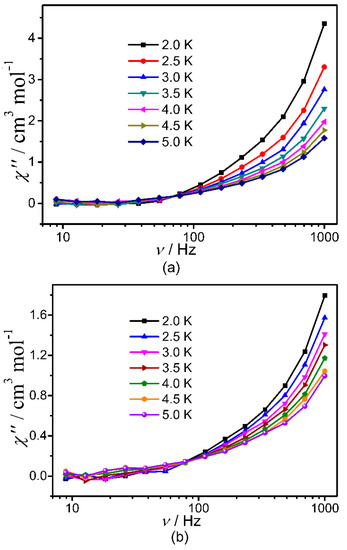

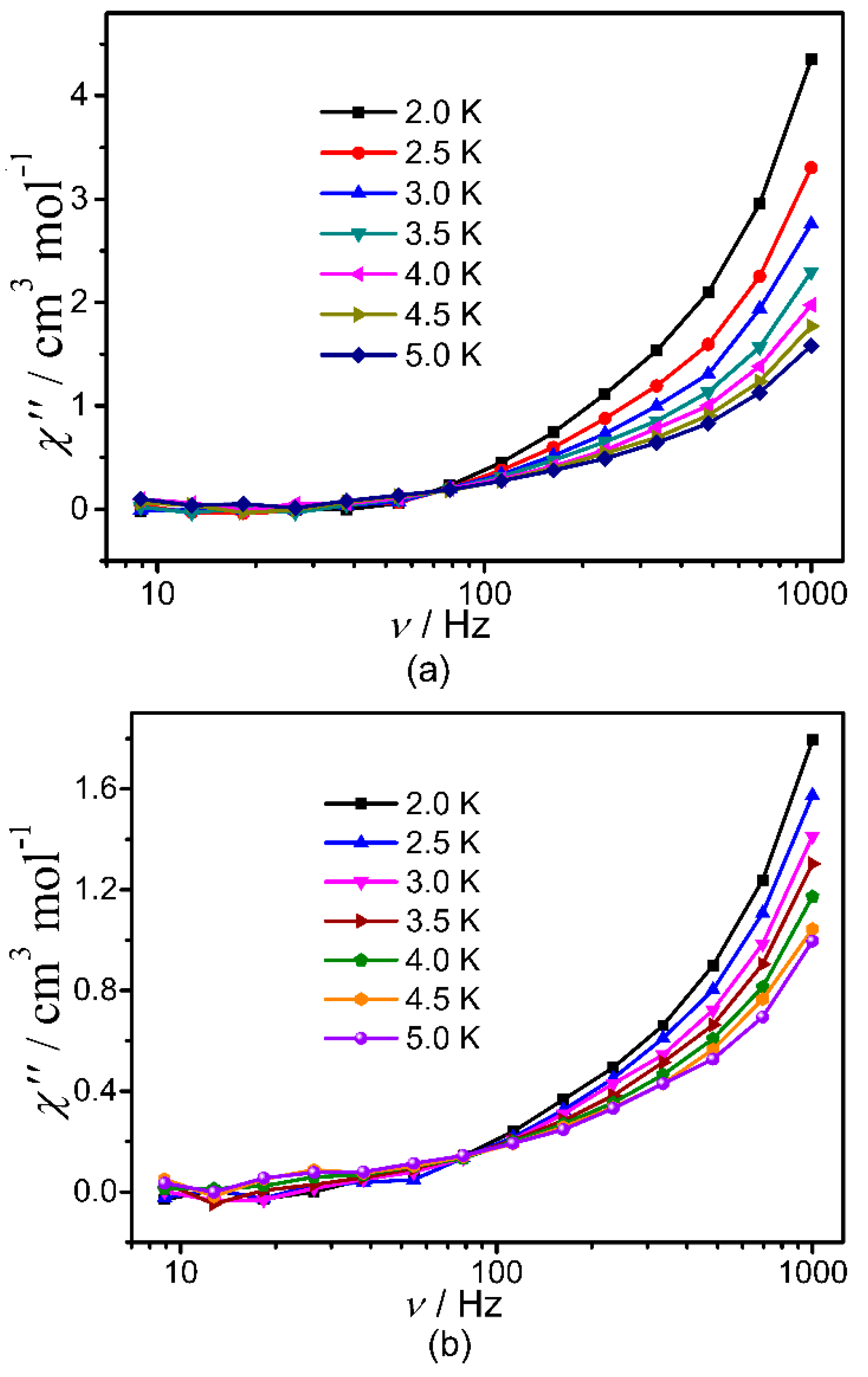

Figure 4. χ″−v curves for 2 (a) and 3 (b) under zero-field.
