Article

Aroma Difference Analysis of Partridge Tea (Mallotus oblongifolius) with Different Drying Treatments Based on HS-SPME-GC-MS Technique

Hainan Key Laboratory of Biology of Tropical Flowers and Trees Resources, Forestry Institute, Hainan University, Haikou 570228, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(19), 6836; https://doi.org/10.3390/molecules28196836
Submission received: 17 August 2023 / Revised: 20 September 2023 / Accepted: 25 September 2023 / Published: 27 September 2023

Abstract

:
Partridge tea has high medicinal value due to its rich content of terpenoids, phenols, flavonoids, and other related bioactive components. In order to study the best drying method for partridge tea, four treatments, including outdoor sun drying (OD), indoor shade drying (ID), hot-air drying (HAD), and low-temperature freeze-drying (LTD), were performed. The results showed that the OD and HAD treatments favored the retention of the red color of their products, while the ID and LTD treatments were more favorable for the retention of the green color. The HS-SPME-GC-MS results showed that a total of 82 compounds were identified in the four drying treatments of partridge tea, and the most abundant compounds were terpenoids (88.34–89.92%). The HAD-treated tea had the highest terpenoid content (89.92%) and high levels of flavor compounds typical of partridge tea (52.28%). OPLS-DA and PCA showed that α-copaene, β-bourbonene, caryophyllene, α-guaiene, and δ-cadinene could be considered candidate marker compounds for judging the aroma quality of partridge tea with different drying treatments. This study will not only provide a basis for processing and flavor quality control but also for spice and seasoning product development in partridge tea.

Graphical Abstract

1. Introduction

Partridge tea (Mallotus oblongifolius (Miq.) Muell. Arg.) is an evergreen shrub of the genus Mallotus in the family Euphorbiaceae [1], and is mainly distributed in Hainan Province, Guangdong Province, and Guangxi Province, China [2]. Partridge tea is also an alternative tea beverage plant with strong medicinal value in Hainan Province (the southernmost province of China) [3]. Numerous biologically active components, including terpenes, phenols, and flavonoids, have been identified in partridge tea, which has anti-diabetic, anti-oxidation, anti-obesity, anti-bacterial, and anti-inflammatory properties [4,5,6,7,8].
The drying method plays a significant role in tea processing, as it directly affects the aroma, taste, color, and shelf life of tea [9]. Previously, the traditional drying methods for partridge tea were indoor shadow drying (ID) and outdoor sun drying (OD), which were time-consuming and left the tea vulnerable to environmental factors. However, nowadays, there are numerous alternative methods available for drying tea leaves. For example, two modern drying methods for tea leaves are low-temperature freeze-drying technology (LTD) and hot-air-drying technology (HAD). HAD of agricultural products is one of the most popular preservation methods because of its simplicity and low cost [10]. Moreover, previous studies had found that the polyphenol content, volatile compound content, and antioxidant capacity of hot-air-dried tea were higher than those of outdoor sun-dried tea [11]. It is well known that LTD is a drying technology that allows the product to change very little from its original state [12]. Previous research found that low-temperature freeze-dried rose tea, compared to dryer-dried, not only had improved physicochemical properties, but the color of the tea could also be retained better [13]. HAD and LTD have also been widely used in some vegetables and fruits [14], such as garlic, maoberry fruits, and lemon [15,16,17]. However, HAD and LTD have not been applied in the product processing of partridge tea.
The quality of tea is mainly determined by major factors such as color, taste, and aroma. And the formation of these factors is affected by various factors such as the processing method, tea tree variety, growing conditions, and harvesting season [18]. Particularly, aroma is the soul of tea and one of the key factors that attracts consumers [19]. However, the aroma components of tea are volatile, and the extraction process is easily affected by external conditions, so an effective aroma determination method is crucial [20]. There are many methods available for the extraction of volatile compounds, including stir bar sorptive extraction [21], solvent-assisted flavor evaporation [22], supercritical carbon dioxide extraction [23], and solid phase microextraction (SPME). Among these methods, SPME stands out as it eliminates the need for solvent extraction and instead utilizes a fiber coated with an adsorbent phase to adsorb the plant volatiles [24]. This not only allows for the adsorption of the original plant odor, but also makes the experiment easier. Gas chromatography–mass spectrometry (GC-MS) is a widely used technique for analyzing volatiles. It has a very high sensitivity and can not only obtain an overall aroma profile of the sample but also determine individual components qualitatively and quantitatively [25]. It has been widely used to identify the VOCs of many teas, such as fu brick tea [26], oolong tea [27], and dark tea [28]. This technique has the advantages of simplicity, speed, short operating time, low sample volume, no use of organic solvents, and high sensitivity [29]. Consequently, GC-MS has found extensive application in the field of food analysis, particularly in traceability analysis and variety identification [30]. In addition, data analysis on volatomics is crucial as it allows for the summarization of large and multidimensional data generated from volatomics using powerful multivariate statistical methods. Orthogonal Projections to Latent Structures Discriminant Analysis (OPLS-DA) is a supervised discriminant analysis statistical method. Partial least squares regression is used to model the relationship between metabolite expression and sample category to achieve the prediction of sample category, and it can be used for the screening of differential metabolites in metabolomics [31].
In this study, samples of partridge tea were treated with the traditional drying techniques of ID and OD as well as the current emerging drying techniques of HAD and LTD. HS-SPME-GC-MS was used to extract and characterize the volatile components of partridge tea, which will contribute to a better understanding of how the different drying methods influence the volatile compounds and enable us to scientifically elucidate the chemical basis for the aromatic qualities in partridge tea.

2. Results and Discussion

2.1. Appearance of Partridge Tea under Different Drying Methods

The appearance of the HAD- and LTD-treated tea had less leaf curling relative to the OD- and ID-treated tea, their L* values were significantly higher than those of the OD- and ID-treated tea, and the HAD and LTD treatments resulted in a brighter color (Figure 1 and Table 1). In addition, there was also a significant difference between the HAD- and LTD-treated tea; the b* value of the HAD-treated tea was significantly higher than that of the LTD-treated tea, but its a* value was significantly lower than that of the LTD-treated tea, so the HAD treatment led to better retention of the yellow appearance of the partridge tea, while the LTD treatment led to better retention of the red appearance of the partridge tea.
Cells in the leaves shrink due to uneven dehydration during slow drying, so the dried leaves curl [32], whereas the HAD-treated leaves had less leaf curling due to their high drying temperature and faster water dissipation. The reason for less curling of the leaves in the LTD-treated tea was that during the freeze-drying process, the solid water protects the basic structure and shape of the product with minimal volume change [33]. Higher temperatures during tea drying result in elevated theaflavins, theasinensins, thearubigins, and theabrownins, and most of these substances show a yellow color [34,35], so most of the partridge tea samples dried at higher temperatures showed yellow and yellow-brown colors. The lower temperature could better preserve the original color of the samples to achieve better preservation [12].
Table 1. Detailed descriptions of color parameters used for the classification.
Table 1. Detailed descriptions of color parameters used for the classification.
ParametersODIDHADLTD
L*38.95 ± 3.33 b40.56 ± 3.83 b47.28 ± 1.90 a48.14 ± 3.07 a
a*11.69 ± 2.09 b11.91 ± 1.44 b5.55 ± 2.25 c16.95 ± 2.00 a
b*5.72 ± 3.46 b5.52 ± 2.41 b13.86 ± 4.29 a1.11 ± 0.64 c
Note: L* denotes luminance; a* denotes poor red-green, b* denotes poor yellow-blue [36,37]. Data are presented as mean ± standard deviation (n = 6). Mean values with different lowercase letters in the same column indicate significant differences according to the least significant difference (LSD) test (p < 0.05).

2.2. Classification of Volatile Compounds in Partridge Tea

A total of 82 compounds, including 41 alkenes, 19 aldehydes, 14 alcohols, 3 ketones, 1 alkane, and 4 esters, were identified in the four dried treatments of partridge tea via HS-SPME-GC-MS. As shown in Figure 2, there were differences in the percentages of volatile component species in different dried samples. Terpenoids were the highest in both content and quantity among the 82 compounds. The highest content of terpenoids (89.92%) was found in the HAD-treated partridge tea, along with ID (89.23%), OD (88.34%), and LTD (88.80%), indicating that the HAD-treated partridge tea was able to retain more flavor compounds. Terpenes are natural compounds found primarily in the plant world [38]. Most terpenes have antibacterial, anticancer, anti-inflammatory, and other biological activities [39], and are widely used in the pharmaceutical, food, and cosmetic industries [40]. Therefore, the HAD treatment was favorable for improving the nutritional and medicinal value of partridge tea.

2.3. Identification of Volatile Compounds in Partridge Tea

Among the 82 compounds identified (Table 2, Figure 3), 55 components were significantly different between the four drying treatments (p < 0.05). In this study, the content of α-copaene, β-bourbonene, caryophyllene, α-guaiene, α-caryophyllene, and δ-cadinene was found to be higher and all were terpenes, and are typical partridge tea flavor compounds according to previous studies [41]. These flavor compounds were highest in the HAD-treated (52.28%), followed by the OD-treated (49.64%), and then, the LTD-treated (45.34%) and ID-treated (43.78%) tea. All of these typical flavor compounds of partridge tea have a chemical structure of C15H24 and are sesquiterpenoids, which have excellent anti-tumor, anti-inflammatory, and antibacterial properties [42]. Particularly, caryophyllene and β-bourbonene have been confirmed to have good anticancer activity, and caryophyllene shows a selective antiproliferative effect on colorectal cancer cells [43,44]. β-bourbonene was shown to inhibit the proliferation of prostate cancer PC-0M cells [45]. Our results show that the HAD drying method was more favorable for the retention of terpenoids, and the HAD-treated partridge tea had better biological activities such as anticancer and antivirus.

2.4. Orthogonal Partial Least Squares Discriminant Analysis

PCA and OPLS-DA were used to downgrade and screen the differential components of partridge tea treated with different drying methods, and then, classify the chemotypes according to the dominant compounds among the different drying treatments. PCA showed that PC1 and PC2 accounted for 51.6% of the total variability of the model. As shown in Figure 3B (R2X = 0.691, R2Y = 0.977, Q2 = 0.904), the orthogonal partial least squares (OPLS-DA) analysis was performed to obtain the variable importance of projection (VIP) values (important variable in the projection).
Based on the results of OPLS-DA, volatile compounds with VIP values > 2 were selected, and the S-plot showed 12 compounds with significant differences among the four different drying treatments of partridge tea (data point triangle on the plot) (Figure 4C–H), including 2-methyl-2-butenal, (e)-2-hexenal, α-copaene, β-bourbonene, β-maaliene, caryophyllene, isogermacrene d, α-guaiene, (e)-β-famesene, eremophilene, (+)-ledene, and δ-cadinene. These 12 compounds were significantly different in the four different drying treatments and could be considered candidate marker compounds for judging the aroma quality of partridge tea with different drying treatments, and provide a reference for the use of partridge tea for making fragrances and aromatics as well as for the control of partridge tea product quality.

3. Materials and Methods

3.1. Sample Preparation

The experimental samples were collected on 12 March 2023 at the Wild Partridge Tea Germplasm Resource Nursery of Hainan University, and we selected partridge tea plants with relatively consistent leaf color and growth conditions as the sample collection objects. The four groups of samples were collected from the third fresh leaves under the buds, with three replicates in each group, and each replicate was collected with about 50 g for the subsequent drying process (Table 3).

3.2. Volatile Extraction via HS-SPME Procedure

The samples obtained from different drying treatments were crushed and 0.5 g added to a headspace flask, and the headspace flask was placed in a water bath at 65 °C for extraction. Before extraction, the solid-phase microextraction head was aged at the gas chromatography inlet at 250 °C for 10 min. After a period of sample equilibration (5 min), the needle of the SPME device was inserted into the vial through the septum, and the fiber was exposed to the vial headspace for 40 min. After that time, the fiber was retracted into the needle assembly, removed from the vial, transferred to the injection port of the GC unit, and immediately desorbed.

3.3. Separation of Volatile Organic Compounds via GC-MS

An Agilent 7890A GC system, coupled with a Tekmar 5975C mass spectrometer (Agilent/Tekmar, Santa Clara, CA, USA), was applied in the present study. An Agilent HP-5MS capillary column (30 m × 0.25 mm, 0.25 μm) was employed to separate the volatiles. Helium (>99.99%) was used as the carrier gas at a constant flow rate of 1 mL/min. The GC oven temperature was maintained at 40 °C for 4 min, ramped at a rate of 5 °C/min to 160 °C, and ramped at a rate of 10 °C/min to 260 °C. The mass spectrometer conditions were as follows: electron ionization energy of 70 eV, ion source temperature of 230 °C, interface temperature of 280 °C, and mass scan range of 50–550 m/z.

3.4. Identification and Relative Quantification of Volatile Organic Compounds via GC-MS

The obtained chromatograms were analyzed by determining the peak areas, retention times, spectra, and base peaks on the chromatograms, and then, each peak was examined by referring to the characteristic mass spectra of the compounds listed on the National Institute of Standards and Technology (NIST14. L). Compounds were identified based on their similarity indexes (>80%) as well as retention indexes. The relative contents of each compound in the volatile compounds of tea samples were obtained via the area normalization method.

3.5. Determination of Color Differences Using a Colorimeter

A portable colorimeter (LS173B, Shenzhen Linshang Technology Co., Ltd., Shenzhen, China) was utilized to measure the color differences of partridge tea leaves subjected to four different drying treatments. Six dried leaves were selected for each treatment group. Before taking measurements, the colorimeter was calibrated using black and white references. The leaves were then placed tightly against the test holes, completely covering them, and measurements were subsequently recorded.

3.6. Statistical Analysis

Results were expressed as the mean ± SD (n = 3) for each analysis. Statistical analysis was performed via one-way analysis of variance (ANOVA) using IBM SPSS 26.0 (SPSS Inc., Chicago, IL, USA). Differences between the groups were evaluated via the Duncan test for multiple comparisons. Origin 2018c (OriginLab, Northampton, MA, USA) was used for graphic drawing. p < 0.05 was considered to indicate a statistically significant difference. SIMCA 14.1 (Sartorius AG, Göttingen, Germany) software was used for orthogonal partial least squares discriminant analysis (OPLS-DA).

4. Conclusions

In this study, HS-SPME-GC-MS and a colorimeter were used to identify volatile compounds and the appearance quality of partridge tea using four drying methods. It was found that the drying methods had a greater influence on the appearance of the tea leaves. Cold drying methods (ID and LTD) had a greater effect on the retention of leaf color, while the two relatively hot-air drying methods (OD and HAD) had a poorer effect on the retention of leaf color, with an overall darker brown color. In addition, a total of 82 compounds were identified in the different drying treatments for partridge tea. Among them, terpenoids were the most important class of compounds contributing to the aroma composition of partridge tea. And HAD had the highest terpenoid content among the four drying treatments. Meanwhile, we found that the five active ingredients were α-copaene, β-bourbonene, caryophyllene, α-guaiene, and δ-cadinene, and the HAD treatment had a relatively good retention effect on these compounds, which could be used as marker compounds to evaluate the quality of partridge tea. This study investigated the effect of different drying methods on the volatile compounds and the appearance quality of partridge tea, which provides a basis for the selection of processing methods for partridge tea. Finally, this study confirmed essential volatile compounds via a chemometric method in partridge tea, which provides a basis for the application of partridge tea in spices and seasonings.

Author Contributions

Conceptualization, X.G. and J.L.; methodology, X.G., X.F., J.L. and M.T.; software, X.G.; validation, X.G., X.F. and M.T.; formal analysis, X.G. and X.F.; investigation, X.G.; resources, J.L.; data curation, X.G.; writing—original draft preparation, X.G. and J.L.; writing—review and editing, X.G., J.L. and X.F.; visualization, X.G. and X.F.; supervision, X.F. and J.L.; project administration, J.L.; funding acquisition, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Key Research and Development Program of Hainan Province (ZDYF2020104).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We appreciate the Hainan Key Laboratory of Biology of Tropical Flowers and Trees Resources for their technical support.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Chen, H. Flora of Hainan (Volume II); Science Press: Beijing, China, 1956; Volume 156. [Google Scholar]
  2. Yan, W.; Li, J. Research Progress of Mallotus obongifolius in Hainan. Chin. Agric. Sci. Bull. 2016, 28, 200–204. [Google Scholar]
  3. Yan, W.; Li, J.; Zheng, D.; Friedman, C.; Wang, H. Analysis of genetic population structure and diversity in Mallotus oblongifolius using ISSR and SRAP markers. Peer J. 2019, 7, e7173. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, J.; Zhang, X.; Huo, D.; Cao, C.; Li, Y.; Liang, Y.; Li, B.; Li, L. Preliminary characterization, antioxidant and α-glucosidase inhibitory activities of polysaccharides from Mallotus furetianus. Carbohydr. Polym. 2019, 215, 307–315. [Google Scholar] [CrossRef] [PubMed]
  5. Armstrong, L.; Mariana, A.V.; Wu, Y.; Antônio Esmerino, L.; Azevedo, L.; Zhang, L.; Granato, D. Optimizing the extraction of bioactive compounds from pu-erh tea (Camellia sinensis var. assamica) and evaluation of antioxidant, cytotoxic, antimicrobial, antihemolytic, and inhibition of α-amylase and α-glucosidase activities. Food Res. Int. 2020, 137, 109430. [Google Scholar] [CrossRef] [PubMed]
  6. Li, S.; Zhang, W.; Wang, R.; Li, C.; Lin, X.; Wang, L. Screening and identification of natural α-glucosidase and α-amylase inhibitors from partridge tea (Mallotus furetianus Muell-Arg) and in silico analysis. Food Chem. 2022, 388, 133004. [Google Scholar] [CrossRef] [PubMed]
  7. Li, H.; Wang, L.; Luo, Y. Composition Analysis by UPLC-PDA-ESI (-)-HRMS and Antioxidant Activity Using Saccharomyces cerevisiae Model of Herbal Teas and Green Teas from Hainan. Molecules 2018, 23, 2550. [Google Scholar] [CrossRef] [PubMed]
  8. Lin, D.; Ding, Y.; Cheng, Y.; Chen, Y.; Tang, Y.; Wu, X.; Cheng, Y. Efficacy and Mechanism of Mallotus furetianus Müll. Arg. Extract on Nonalcoholic Fatty Liver Disease. Evid.-Based Complement. Altern. Med. Ecam 2022, 2022, 4897463. [Google Scholar] [CrossRef]
  9. Ng, Z.X.; Than, M.J.Y.; Yong, P.H. Peperomia pellucida (L.) Kunth herbal tea: Effect of fermentation and drying methods on the consumer acceptance, antioxidant and anti-inflammatory activities. Food Chem. 2021, 344, 128738. [Google Scholar] [CrossRef]
  10. Seremet Ceclu, L.; Botez, E.; Nistor, O.V.; Andronoiu, D.G.; Mocanu, G.D. Effect of different drying methods on moisture ratio and rehydration of pumpkin slices. Food Chem. 2016, 195, 104–109. [Google Scholar] [CrossRef]
  11. Yan, Z.; Zhou, Z.; Jiao, Y.; Huang, J.; Yu, Z.; Zhang, D.; Chen, Y.; Ni, D. Hot-Air Drying Significantly Improves the Quality and Functional Activity of Orange Black Tea Compared with Traditional Sunlight Drying. Foods 2023, 12, 1913. [Google Scholar] [CrossRef]
  12. Ciurzyńska, A.; Lenart, A.; Kawka, P. Influence of chemical composition and structure on sorption properties of freeze-dried pumpkin. Dry. Technol. 2013, 31, 655–665. [Google Scholar] [CrossRef]
  13. Imaniar, D.I.; Karyadi, J.N.; Marfu’ah, S.; Akbar, M.A. Physical quality change of rose tea during freeze drying. IOP Conf. Ser. Earth Environ. Sci. 2019, 365, 012035. [Google Scholar] [CrossRef]
  14. Wang, D.; Javed, H.U.; Shi, Y.; Naz, S.; Ali, S.; Duan, C.Q. Impact of Drying Method on the Evaluation of Fatty Acids and Their Derived Volatile Compounds in ‘Thompson Seedless’ Raisins. Molecules 2020, 25, 608. [Google Scholar] [CrossRef] [PubMed]
  15. Guo, X.; Hao, Q.; Qiao, X.; Li, M.; Qiu, Z.; Zheng, Z.; Zhang, B. An evaluation of different pretreatment methods of hot-air drying of garlic:drying characteristics, energy consumption and quality properties. LWT 2023, 180, 114685. [Google Scholar] [CrossRef]
  16. Kittibunchakul, S.; Temviriyanukul, P.; Chaikham, P.; Kemsawasd, V. Effects of freeze drying and convective hot-air drying on predominant bioactive compounds, antioxidant potential and safe consumption of maoberry fruits. LWT 2023, 184, 114992. [Google Scholar] [CrossRef]
  17. Zhao, R.; Xiao, H.; Liu, C.; Wang, H.; Wu, Y.; Ben, A.; Wang, Y. Dynamic changes in volatile and non-volatile flavor compounds in lemon flavedo during freeze-drying and hot-air drying. LWT 2023, 175, 114510. [Google Scholar] [CrossRef]
  18. Fang, Q.; Luo, W.; Zheng, Y.; Ye, Y.; Hu, M.; Zheng, X.; Lu, J.; Liang, Y.; Ye, J. Identification of Key Aroma Compounds Responsible for the Floral Ascents of Green and Black Teas from Different Tea Cultivars. Molecules 2022, 27, 2809. [Google Scholar] [CrossRef]
  19. Xu, J.; Zhang, Y.; Yan, F.; Tang, Y.; Yu, B.; Chen, B.; Lu, L.; Yuan, L.; Wu, Z.; Chen, H. Monitoring Changes in the Volatile Compounds of Tea Made from Summer Tea Leaves by GC-IMS and HS-SPME-GC-MS. Foods 2022, 12, 146. [Google Scholar] [CrossRef]
  20. Lin, J.; Zhang, P.; Pan, Z.; Xu, H.; Luo, Y.; Wang, X. Discrimination of oolong tea (Camellia sinensis) varieties based on feature extraction and selection from aromatic profiles analysed by HS-SPME/GC-MS. Food Chem. 2013, 141, 259–265. [Google Scholar] [CrossRef]
  21. Richter, T.M.; Eyres, G.T.; Silcock, P.; Bremer, P.J. Comparison of four extraction methods for analysis of volatile hop-derived aroma compounds in beer. J. Sep. Sci. 2017, 40, 4366–4376. [Google Scholar] [CrossRef]
  22. Schlumpberger, P.; Stübner, C.A.; Steinhaus, M. Development and evaluation of an automated solvent-assisted flavour evaporation (aSAFE). Eur. Food Res. Technol. 2022, 248, 2591–2602. [Google Scholar] [CrossRef]
  23. Barghamadi, A.; Mehrdad, M.; Sefidkon, F.; Yamini, Y.A.; Khajeh, M. Comparison of the Volatiles of Achillea millefolium L. Obtained by Supercritical Carbon Dioxide Extraction and Hydrodistillation Methods. J. Essent. Oil Res. 2009, 21, 259–263. [Google Scholar] [CrossRef]
  24. Carazzone, C.; Rodríguez, J.P.G.; Gonzalez, M.; López, G.-D. Volatilomics of Natural Products: Whispers from Nature. In Metabolomics-Methodology and Applications in Medical Sciences and Life Sciences; IntechOpen: London, UK, 2021; Volume 11, p. 13. ISBN 0000957720. [Google Scholar]
  25. Lytou, A.E.; Panagou, E.Z.; Nychas, G.E. Volatilomics for food quality and authentication. Curr. Opin. Food Sci. 2019, 28, 88–95. [Google Scholar] [CrossRef]
  26. Zheng, X.; Hu, T.; Xie, H.; Ou, X.; Huang, J.; Wang, C.; Liu, Z.; Li, Q. Characterization of the key odor-active compounds in different aroma types of Fu brick tea using HS-SPME/GC-MSO combined with sensory-directed flavor analysis. Food Chem. 2023, 426, 136527. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, D.; Liu, Z.; Chen, W.; Lan, X.; Zhan, S.; Sun, Y.; Su, W.; Lin, C.; Ni, L. Comparative study of the volatile fingerprints of roasted and unroasted oolong tea by sensory profiling and HS-SPME-GC-MS. Curr. Res. Food Sci. 2023, 6, 100442. [Google Scholar] [CrossRef] [PubMed]
  28. Xiao, Y.; Huang, Y.; Chen, Y.; Zhu, M.; He, C.; Li, Z.; Wang, Y.; Liu, Z. Characteristic fingerprints and change of volatile organic compounds of dark teas during solid-state fermentation with Eurotium cristatum by using HS-GC-IMS, HS-SPME-GC-MS, E-nose and sensory evaluation. LWT 2022, 169, 113925. [Google Scholar] [CrossRef]
  29. Lv, S.; Wu, Y.; Zhou, J.; Lian, M.; Li, C.; Xu, Y.; Liu, S.; Wang, C.; Meng, Q. The study of fingerprint characteristics of Dayi Pu-Erh tea using a fully automatic HS-SPME/GC-MS and combined chemometrics method. PLoS ONE 2014, 9, e116428. [Google Scholar] [CrossRef]
  30. Cuevas, F.J.; Moreno-Rojas, J.M.; Ruiz-Moreno, M.J. Assessing a traceability technique in fresh oranges (Citrus sinensis L. Osbeck) with an HS-SPME-GC-MS method. Towards a volatile characterisation of organic oranges. Food Chem. 2017, 221, 1930–1938. [Google Scholar] [CrossRef]
  31. Worley, B.; Powers, R. PCA as a practical indicator of OPLS-DA model reliability. Curr. Metabolomics 2016, 4, 97–103. [Google Scholar] [CrossRef]
  32. Jeong, S.; Park, S.H.; Kim, C. Simulation of Morphology Changes in Drying Leaves. Comput. Graph. Forum 2013, 32, 204–215. [Google Scholar] [CrossRef]
  33. Bhatta, S.; Stevanovic Janezic, T.; Ratti, C. Freeze-Drying of Plant-Based Foods. Foods 2020, 9, 87. [Google Scholar] [CrossRef] [PubMed]
  34. Drynan, J.W.; Clifford, M.N.; Obuchowicz, J.; Kuhnert, N. The chemistry of low molecular weight black tea polyphenols. Nat. Prod. Rep. 2010, 27, 417–462. [Google Scholar] [CrossRef] [PubMed]
  35. Kim, Y.; Goodner, K.L.; Park, J.; Choi, J.; Talcott, S.T. Changes in antioxidant phytochemicals and volatile composition of Camellia sinensis by oxidation during tea fermentation. Food Chem. 2011, 129, 1331–1342. [Google Scholar] [CrossRef]
  36. Li, J.; Shao, Y.; Yao, Y.; Yu, Y.; Cao, G.; Zou, H.; Yan, Y. A novel quality evaluation method for magnolia bark using electronic nose and colorimeter data with multiple statistical algorithms. J. Tradit. Chin. Med. Sci. 2020, 7, 221–227. [Google Scholar] [CrossRef]
  37. Zong, X.; Sheng, X.; Li, L.; Zan, J.; Jiang, Y.; Zou, H.; Shen, S.; Yuan, H. Rapid Detection of Moisture Content in the Processing of Longjing Tea by Micro-Near-Infrared Spectroscopy and a Portable Colorimeter Based on a Data Fusion Strategy. Horticulturae 2022, 8, 1007. [Google Scholar] [CrossRef]
  38. Chen, Y.; Hu, B.; Xing, J.; Li, C. Endophytes: The novel sources for plant terpenoid biosynthesis. Appl. Microbiol. Biotechnol. 2021, 105, 4501–4513. [Google Scholar] [CrossRef] [PubMed]
  39. Amirzakariya, B.Z.; Shakeri, A. Bioactive terpenoids derived from plant endophytic fungi: An updated review (2011–2020). Phytochemistry 2022, 197, 113130. [Google Scholar] [CrossRef]
  40. Yang, W.; Chen, X.; Li, Y.; Guo, S.; Wang, Z.; Yu, X. Advances in Pharmacological Activities of Terpenoids. Nat. Prod. Commun. 2020, 15, 1934578X20903555. [Google Scholar] [CrossRef]
  41. Qin, S.; Li, J.; Kareem, A.; Wang, Y. GC-MS Analysis of Volatile Components in Partridge Tea (Mallotus obongifolius). HortScience Horts 2019, 54, 1288–1292. [Google Scholar] [CrossRef]
  42. Bosco, A.; Golsteyn, R.M. Emerging Anti-Mitotic Activities and Other Bioactivities of Sesquiterpene Compounds upon Human Cells. Molecules 2017, 22, 459. [Google Scholar] [CrossRef]
  43. Fidyt, K.; Fiedorowicz, A.; Strządała, L.; Szumny, A. β-caryophyllene and β-caryophyllene oxide-natural compounds of anticancer and analgesic properties. Cancer Med. 2016, 5, 3007–3017. [Google Scholar] [CrossRef]
  44. Dahham, S.S.; Tabana, Y.M.; Iqbal, M.A.; Ahamed, M.B.; Ezzat, M.O.; Majid, A.S.; Majid, A.M. The Anticancer, Antioxidant and Antimicrobial Properties of the Sesquiterpene β-Caryophyllene from the Essential Oil of Aquilaria crassna. Molecules 2015, 20, 11808–11829. [Google Scholar] [CrossRef]
  45. Wang, Z.; Liu, F.; Yu, J.; Jin, J. β-Bourbonene attenuates proliferation and induces apoptosis of prostate cancer cells. Oncol. Lett. 2018, 16, 4519–4525. [Google Scholar] [CrossRef]
Figure 1. Differences in appearance before and after different drying treatments of partridge tea.
Figure 1. Differences in appearance before and after different drying treatments of partridge tea.
Molecules 28 06836 g001

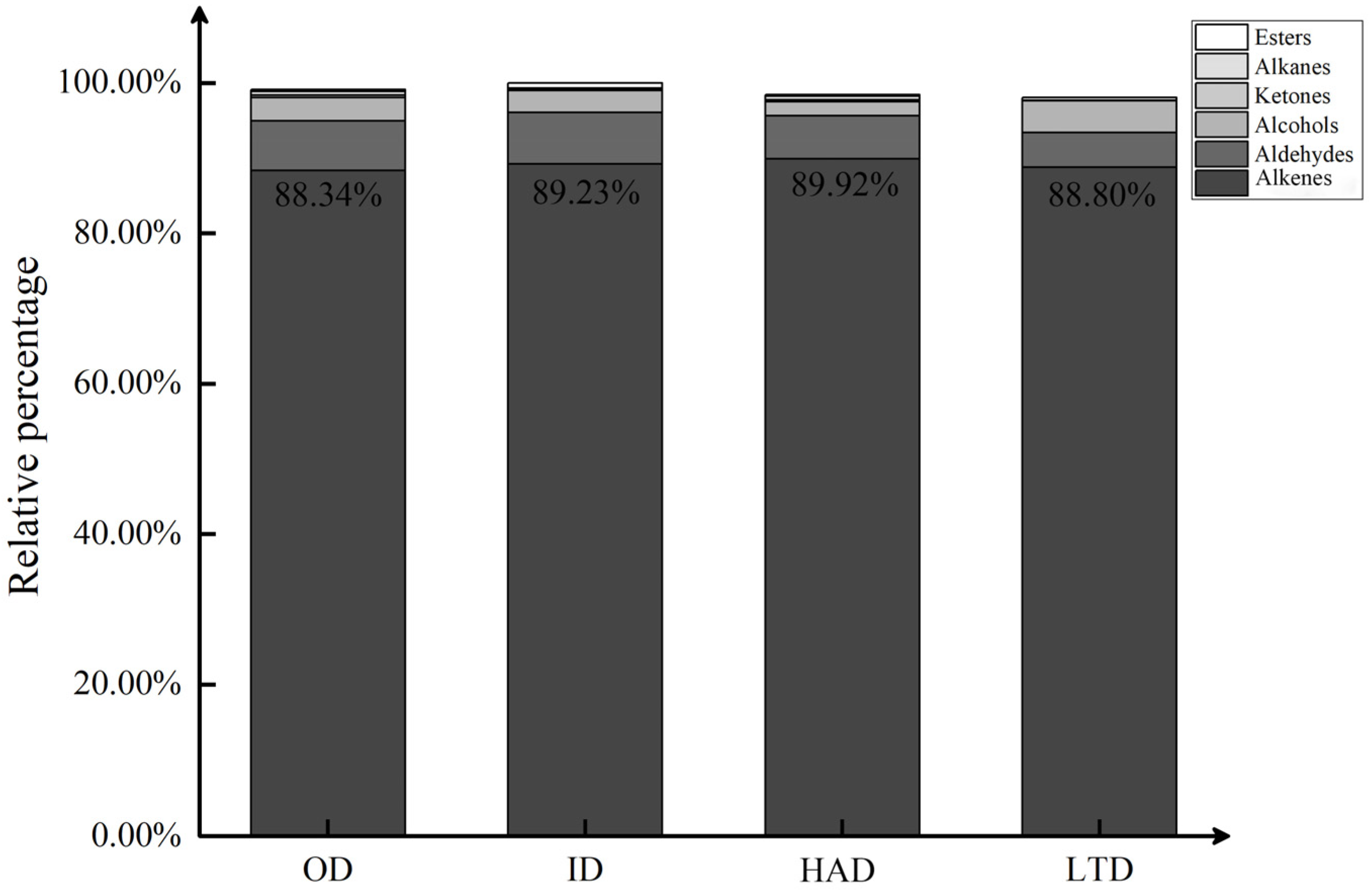

Figure 2. Histogram of relative content of different categories of volatile substances.
Figure 2. Histogram of relative content of different categories of volatile substances.
Molecules 28 06836 g002

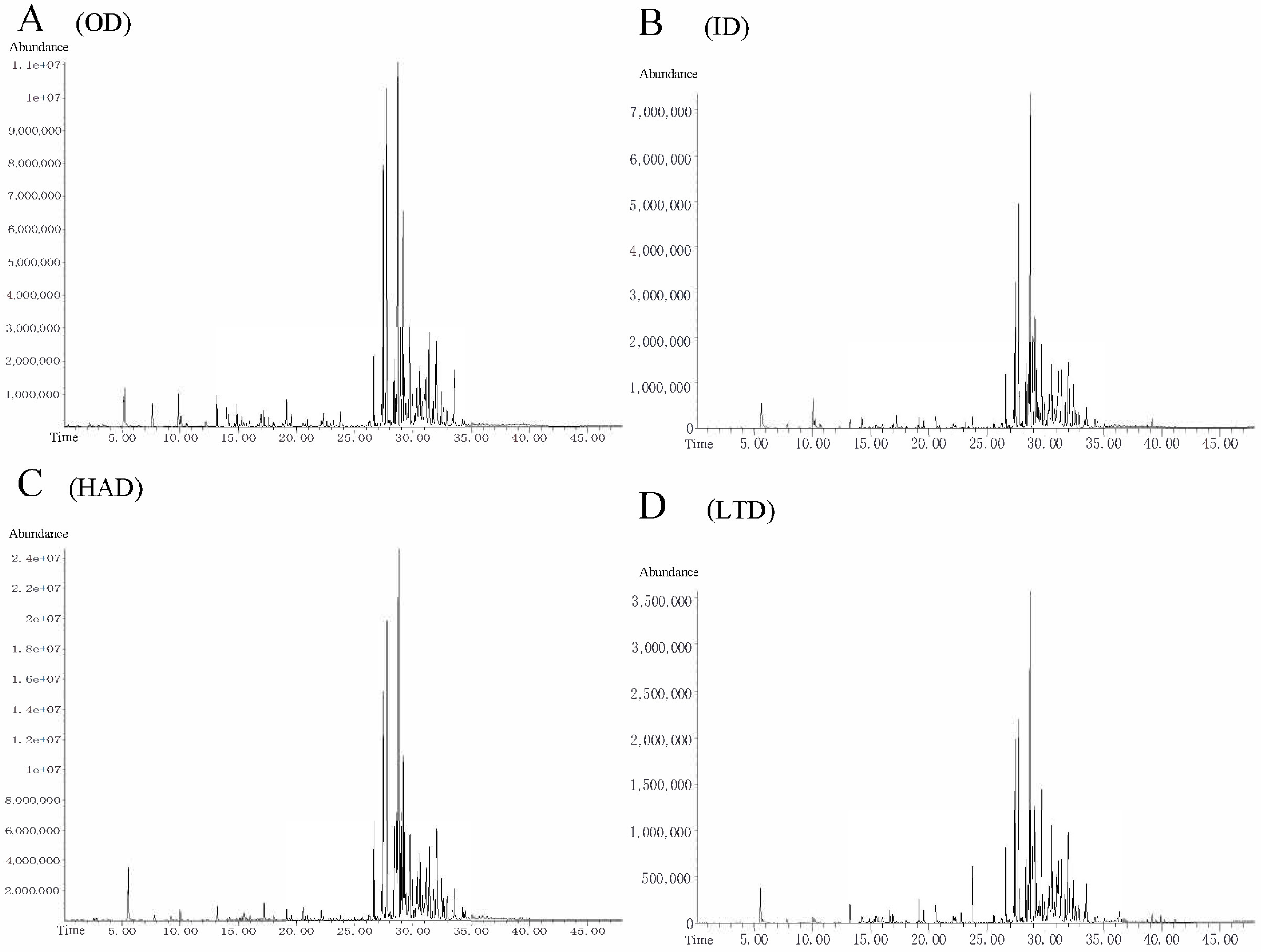

Figure 3. GC chromatograms of changes in OD (A), ID (B), HAD (C), and LTD (D).
Figure 3. GC chromatograms of changes in OD (A), ID (B), HAD (C), and LTD (D).
Molecules 28 06836 g003

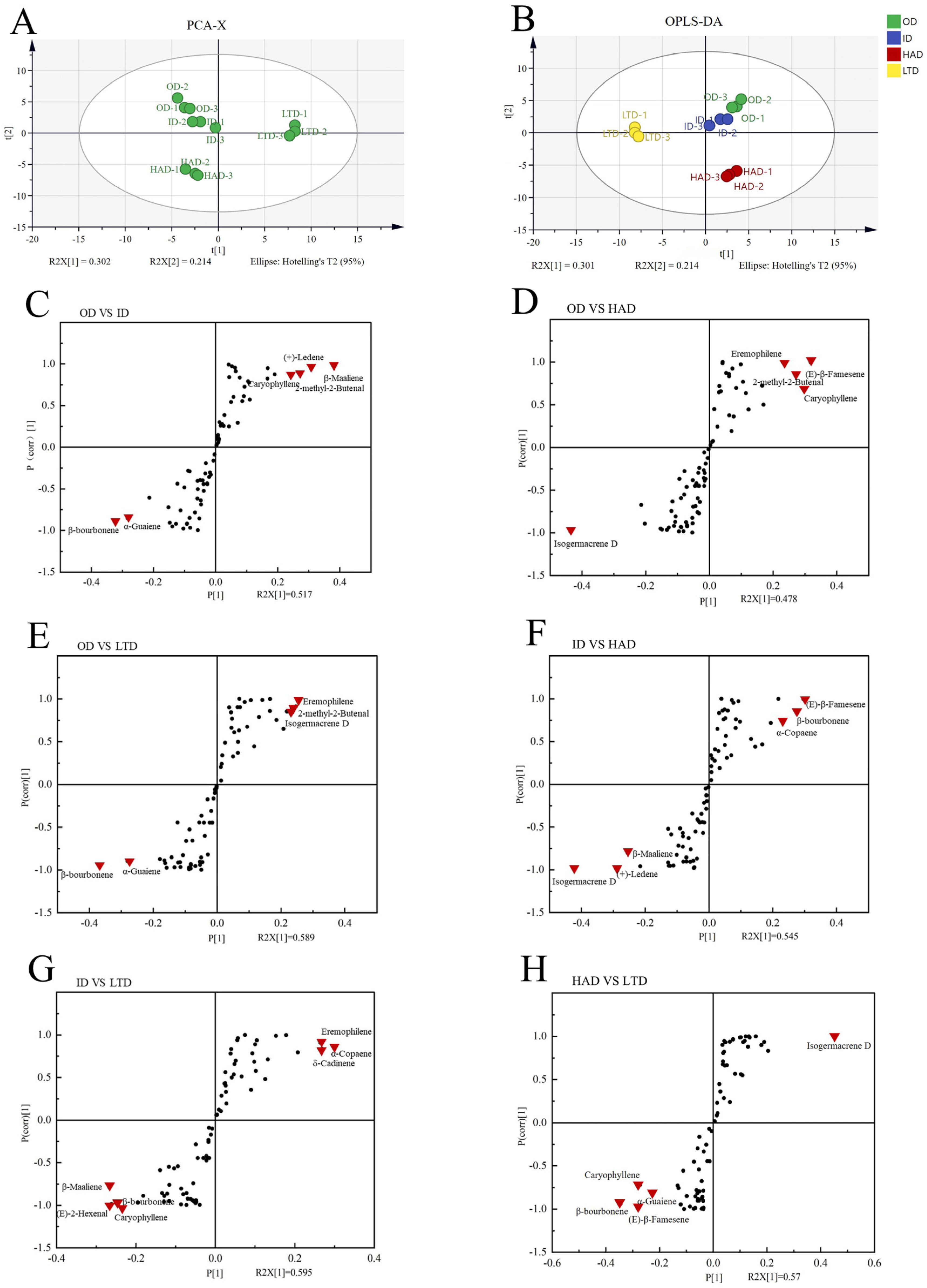

Figure 4. Principal component analysis (PCA) (A), orthogonal partial least squares (OPLS-DA) (B). The S-plot (CH) shows the six different comparative models, and the candidate marker compounds within each model (data point triangle on the plot).
Figure 4. Principal component analysis (PCA) (A), orthogonal partial least squares (OPLS-DA) (B). The S-plot (CH) shows the six different comparative models, and the candidate marker compounds within each model (data point triangle on the plot).
Molecules 28 06836 g004
Table 2. Relative percentage content of volatiles of different drying treatments for partridge tea.
Table 2. Relative percentage content of volatiles of different drying treatments for partridge tea.
No.CompoundsFormulaRTRIOD (%)ID (%)HAD (%)LTD (%)
12-Methyl-2-butenalC5H8O5.247370.42 ± 0.73 b2.18 ± 0.21 a2.58 ± 0.96 a2.22 ± 0.33 a
2cis-2-PentenolC5H10O6.757690.02 ± 0.03 a0.03 ± 0.05 a0.05 ± 0.02 aNd a
3HexanalC6H12O7.628000.94 ± 0.14 a0.42 ± 0.15 b0.33 ± 0.09 bc0.19 ± 0.00 c
4FurfuralC5H4O29.21835Nd bNd b0.25 ± 0.05 aNd b
5(E)-2-HexenalC6H10O9.888501.06 ± 0.31 b1.94 ± 0.29 a0.58 ± 0.20 c0.21 ± 0.02 c
63-Hexen-1-olC6H12O10.18858Nd cNd c0.08 ± 0.04 b0.14 ± 0.00 a
7(E)-2-Hexen-1-olC6H12O10.508610.09 ± 0.03 b0.19 ± 0.03 a0.03 ± 0.06 bcNd c
8SorbaldehydeC6H8O12.199130.23 ± 0.04 a0.05 ± 0.09 bNd bNd b
9α-PineneC10H1613.169390.63 ± 0.36 a0.79 ± 0.42 a0.46 ± 0.06 a0.88 ± 0.13 a
10(Z)-2-HeptenalC7H12O13.979580.20 ± 0.35 a0.02 ± 0.04 a0.10 ± 0.04 aNd a
11(E)-2-HeptenalC7H12O13.989620.49 ± 0.09 a0.05 ± 0.08 b0.03 ± 0.06 b0.09 ± 0.01 b
12BenzaldehydeC7H6O14.179660.53 ± 0.21 a0.56 ± 0.10 a0.19 ± 0.04 b0.52 ± 0.02 a
13β-PineneC10H1614.84974Nd b0.09 ± 0.03 a0.01 ± 0.02 bNd b
14Matsutake alcoholC8H16O14.889760.54 ± 0.12 a0.16 ± 0.08 b0.11 ± 0.07 bNd b
15PrenylacetoneC8H14O15.109800.09 ± 0.08 a0.02 ± 0.03 a0.08 ± 0.02 a0.02 ± 0.03 a
16(E,E)-2,4-HeptadienalC7H10O15.9710070.21 ± 0.08 a0.15 ± 0.01 a0.18 ± 0.03 a0.23 ± 0.02 a
172-EthylhexanolC8H18O16.651015Nd bNd bNd b0.59 ± 0.09 a
18LimoneneC10H1616.6910300.07 ± 0.03 a0.07 ± 0.02 a0.05 ± 0.01 aNd b
19BenzenemethanolC7H8O16.8910330.25 ± 0.05 b0.28 ± 0.09 b0.11 ± 0.01 c0.58 ± 0.01 a
20BenzeneacetaldehydeC8H8O17.1810420.51 ± 0.17 a0.44 ± 0.10 a0.58 ± 0.14 a0.08 ± 0.01 b
21β-OcimeneC10H1617.321044Nd b0.04 ± 0.01 a0.04 ± 0.01 aNd b
22(E)-2-OctenalC8H14O17.6110560.23 ± 0.03 a0.08 ± 0.03 b0.06 ± 0.01 bNd c
233,5-Octadien-2-oneC8H12O18.0410810.20 ± 0.04 a0.13 ± 0.01 b0.17 ± 0.02 abNd c
24LinaloolC10H18O19.0510980.16 ± 0.03 ab0.20 ± 0.09 a0.08 ± 0.02 bc0.02 ± 0.03 c
25NonanalC9H18O19.1411020.74 ± 0.12 ab0.60 ± 0.17 bc0.41 ± 0.10 c0.87 ± 0.09 a
26BenzeneethanolC8H10O19.5511140.36 ± 0.07 b0.23 ± 0.12 bc0.21 ± 0.04 c0.52 ± 0.03 a
27Cucumber aldehydeC9H14O20.7411510.03 ± 0.06 bNd b0.15 ± 0.02 aNd b
28(E)-2-NonenalC9H16O20.9111610.23 ± 0.05 a0.03 ± 0.06 c0.15 ± 0.02 bNd c
291-DodeceneC12H2421.8511920.26 ± 0.00 a0.14 ± 0.09 a0.20 ± 0.10 a0.23 ± 0.02 a
30MyrtenolC10H16O22.2211940.16 ± 0.04 a0.14 ± 0.04 a0.03 ± 0.00 b0.16 ± 0.04 a
31DecanalC10H20O22.3112000.40 ± 0.04 a0.16 ± 0.04 b0.07 ± 0.12 b0.19 ± 0.02 b
32(E,E)-2,4-NonadienalC9H14O22.6012140.21 ± 0.08 a0.01 ± 0.02 bNd bNd b
33β-CyclocitralC10H16O22.9212180.11 ± 0.02 ab0.12 ± 0.03 a0.08 ± 0.01 b0.02 ± 0.03 c
34cis-3-Hexenyl valerateC11H20O223.1812350.21 ± 0.06 b0.47 ± 0.20 a0.11 ± 0.06 bNd b
35Butanoic acid, 3-methyl-, hexyl esterC11H22O223.331244Nd b0.06 ± 0.02 aNd bNd b
36GeraniolC10H18O23.7612500.37 ± 0.06 b0.67 ± 0.19 b0.17 ± 0.03 b1.30 ± 0.48 a
37(E)-2-DecenalC10H18O23.9812600.07 ± 0.01 aNd bNd bNd b
38α-CitralC10H16O24.2412690.01 ± 0.02 b0.07 ± 0.01 aNd bNd b
39δ-ElemeneC15H2426.2913160.25 ± 0.04 b0.41 ± 0.08 a0.20 ± 0.01 b0.39 ± 0.04 a
40α-CubebeneC15H2426.6313482.33 ± 0.07 a2.34 ± 0.23 a2.37 ± 0.47 a2.55 ± 0.22 a
413-Methyl-tridecaneC14H3026.9413710.02 ± 0.04 a0.03 ± 0.06 a0.13 ± 0.04 a0.04 ± 0.08 a
42YlangeneC15H2427.2913720.90 ± 0.05 b0.86 ± 0.05 b1.04 ± 0.02 a0.88 ± 0.11 b
43α-CopaeneC15H2427.4413766.28 ± 1.61 a5.68 ± 0.73 a7.71 ± 1.41 a8.22 ± 1.14 a
44β-BourboneneC15H2427.72138211.50 ± 1.11 a8.96 ± 0.14 b11.39 ± 1.23 a7.34 ± 0.36 b
45CypereneC15H2428.1613900.11 ± 0.01 a0.13 ± 0.07 a0.15 ± 0.02 a0.03 ± 0.05 b
46α-GurjeneneC15H2428.3714010.77 ± 1.33 a0.02 ± 0.03 a1.39 ± 2.41 a0.87 ± 1.30 a
47β-MaalieneC15H2428.381413Nd b3.14 ± 0.27 a0.84 ± 1.45 b0.89 ± 1.54 b
48α-SantaleneC15H2428.5514201.73 ± 0.15 a2.38 ± 0.11 a2.67 ± 0.76 a1.95 ± 0.54 a
49CaryophylleneC15H2428.71142813.82 ± 0.69 b15.28 ± 0.07 ab16.98 ± 2.77 a13.66 ± 0.27 b
50CalareneC15H2428.9314344.09 ± 0.32 a4.38 ± 0.08 a3.49 ± 1.26 a3.39 ± 0.19 a
51Isogermacrene DC15H2428.9414394.79 ± 0.77 b5.17 ± 0.75 bNd c6.53 ± 0.52 a
52α-GuaieneC15H2429.1214407.06 ± 1.07 a5.03 ± 0.13 bc6.52 ± 1.24 ab4.49 ± 0.25 c
53AromandendreneC15H2429.2614412.07 ± 0.31 b2.80 ± 0.31 a2.58 ± 0.44 ab1.87 ± 0.30 b
54α-CaryophylleneC15H2429.7214526.02 ± 1.55 a4.39 ± 1.00 a4.33 ± 0.39 a5.01 ± 0.81 a
55AlloaromadendreneC15H2429.9414541.64 ± 0.35 a1.67 ± 0.25 a1.31 ± 0.17 a1.22 ± 0.22 a
56β-CopaeneC15H2430.1014590.98 ± 0.14 a0.89 ± 0.13 a0.41 ± 0.02 b0.97 ± 0.01 a
57Germacrene dC15H2430.1214610.36 ± 0.12 a0.29 ± 0.05 a0.29 ± 0.06 a0.35 ± 0.13 a
58γ-GurjuneneC15H2430.2614710.11 ± 0.20 b0.44 ± 0.12 aNd bNd b
59γ-MuuroleneC15H2430.3414742.45 ± 0.48 a2.34 ± 0.13 a2.70 ± 0.26 a2.78 ± 0.54 a
60(E)-β-FameseneC15H2430.581476Nd bNd b2.51 ± 0.21 aNd b
61β-SelineneC15H2430.8114791.35 ± 0.23 a1.38 ± 0.20 a1.07 ± 0.29 a0.94 ± 0.06 a
62EremophileneC15H2431.021486Nd bNd b1.35 ± 0.08 a1.95 ± 0.77 a
63(+)-LedeneC15H2431.1114892.87 ± 0.42 b5.05 ± 0.34 a2.59 ± 0.19 b4.20 ± 0.92 a
64α-BulneseneC15H2431.4015034.03 ± 0.21 a3.34 ± 0.54 a3.50 ± 0.52 a3.14 ± 0.34 a
65γ-CadineneC15H2431.7215071.21 ± 0.33 b1.50 ± 0.19 ab1.24 ± 0.09 b1.84 ± 0.27 a
66δ-CadineneC15H2432.0015084.97 ± 0.82 b4.45 ± 1.25 b5.37 ± 0.32 ab6.61 ± 0.25 a
67CubeneneC15H2432.4315121.55 ± 0.05 a2.01 ± 0.57 a1.56 ± 0.30 a1.94 ± 0.36 a
68Selina-4(15),7(11)-dieneC15H2432.6215440.85 ± 0.04 a0.95 ± 0.13 a1.11 ± 0.22 a0.94 ± 0.05 a
69α-CalacoreneC15H2032.881546Nd bNd bNd b0.80 ± 0.04 a
70Selina-3,7(11)-dieneC15H2432.9015500.75 ± 0.08 ab0.81 ± 0.17 ab1.11 ± 0.25 a0.34 ± 0.58 b
71E-NerolidolC15H26O33.3715510.48 ± 0.29 a0.48 ± 0.06 a0.47 ± 0.07 a0.45 ± 0.10 a
72Germacrene BC15H2433.5715562.44 ± 0.22 a1.98 ± 0.68 ab1.30 ± 0.45 b1.36 ± 0.47 b
73(+)-SpathulenolC15H24O34.2715570.51 ± 0.27 a0.38 ± 0.05 a0.41 ± 0.09 a0.25 ± 0.01 a
74Caryophyllene oxideC15H24O34.4715610.48 ± 0.19 a0.11 ± 0.20 bc0.38 ± 0.01 abNd c
75LedolC15H26O35.0915650.14 ± 0.04 a0.15 ± 0.04 a0.12 ± 0.03 a0.18 ± 0.04 a
76α-CorocaleneC15H2035.4916290.02 ± 0.02 b0.02 ± 0.03 b0.01 ± 0.01 b0.07 ± 0.01 a
77CadaleneC15H1836.8016740.03 ± 0.03 b0.01 ± 0.02 b0.02 ± 0.02 b0.09 ± 0.01 a
78GuaiazuleneC15H1838.7717720.05 ± 0.05 a0.03 ± 0.03 a0.03 ± 0.01 a0.07 ± 0.02 a
79Isopropyl myristateC17H34O239.1818230.02 ± 0.04 b0.15 ± 0.13 ab0.07 ± 0.02 b0.25 ± 0.03 a
80NeophytadieneC20H3839.411837Nd aNd a0.04 ± 0.00 aNd a
81Hexahydrofarnesyl acetoneC18H36O39.5118470.07 ± 0.06 aNd aNd a0.04 ± 0.06 a
82Diisobutyl phthalateC16H22O439.921868Nd aNd aNd a0.09 ± 0.09 a
Note: OD stands for outdoor sun drying; ID stands for indoor shade drying; HAD stands for oven hot-air drying; LTD stands for low-temperature freeze-drying. Nd stands for not detected. Results are expressed as mean ± standard error. Different letters in the same row indicate significant differences at p < 0.05.
Table 3. Basic information on tea samples.
Table 3. Basic information on tea samples.
Sample NameYearDrying MethodTemperatureLocation
OD2023Outdoor sun drying30–35 °CHainan, China
ID2023Indoor shade drying25 ± 2 °C
HAD2023Hot-air drying70 °C
LTD2023Low-temperature drying1. Temperature down to −25 °C lyophilization for 4 h; 2. temperature down to −30 °C lyophilization for 10 h; 3. temperature up to −25 °C lyophilization for 2 h; 4. temperature up to −5 °C lyophilization for 5 h; 5. temperature up to 15 °C drying for 5 h; 6. temperature up to 30 °C drying for 6 h, drying completed.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Gui, X.; Feng, X.; Tang, M.; Li, J. Aroma Difference Analysis of Partridge Tea (Mallotus oblongifolius) with Different Drying Treatments Based on HS-SPME-GC-MS Technique. Molecules 2023, 28, 6836. https://doi.org/10.3390/molecules28196836

AMA Style

Gui X, Feng X, Tang M, Li J. Aroma Difference Analysis of Partridge Tea (Mallotus oblongifolius) with Different Drying Treatments Based on HS-SPME-GC-MS Technique. Molecules. 2023; 28(19):6836. https://doi.org/10.3390/molecules28196836

Chicago/Turabian Style

Gui, Xinxin, Xueping Feng, Minqiang Tang, and Juanling Li. 2023. "Aroma Difference Analysis of Partridge Tea (Mallotus oblongifolius) with Different Drying Treatments Based on HS-SPME-GC-MS Technique" Molecules 28, no. 19: 6836. https://doi.org/10.3390/molecules28196836

Article Metrics

Back to TopTop
