Article

Chemical Composition and Cytotoxicity Evaluation of Artemisia judaica L. Essential Oil from Saudi Arabia

1
School of Pharmacy and Pharmaceutical Sciences, Panoz Institute, Trinity Biomedical Sciences Institute, Trinity College Dublin, D02 PN40 Dublin, Ireland
2
Department of Pharmaceutical Sciences, Faculty of Pharmacy, Umm Al-Qura University, Makkah 21955, Saudi Arabia
3
School of Pharmacy, University of Pavia, 27100 Pavia, Italy
4
Trinity Centre for Natural Products Research—NatPro, Trinity College Dublin, D02 PN40 Dublin, Ireland
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(12), 2882; https://doi.org/10.3390/molecules29122882
Submission received: 14 May 2024 / Revised: 14 June 2024 / Accepted: 15 June 2024 / Published: 18 June 2024
(This article belongs to the Special Issue Essential Oils in Human Health)

Abstract

:
Gas chromatography (GC) and gas chromatography–mass spectrometry (GC–MS) analyses were conducted on essential oil extracted from Saudi Arabian Artemisia judaica L. (A. judaica) aerial parts, resulting in the identification of 58 constituents, representing 93.0% of the total oil composition. The oil primarily consisted of monoterpenes (38.6%), sesquiterpenes (14.1%), and other compounds such as ethyl esters and cyclic ketones (40.3%). The main components identified were piperitone (16.5%), ethyl cinnamate (12.9%), and camphor (9.7%). Multivariate statistical analyses (MVAs), including principal component analysis (PCA) and agglomerative hierarchical clustering (AHC) analysis, were employed to compare the chemical makeup of this oil with 20 other A. judaica oils from various regions. The study revealed distinct clusters, highlighting unique chemotypes and geographic variations. Particularly, the oil from the current study demonstrated a specialized chemical profile with significant concentrations of specific compounds, contributing significantly to its distinctiveness. Further cytotoxicity testing on RAW264.7 macrophages suggested that concentrations below 20 μg/mL of A. judaica oil are suitable for future pharmacological investigations. This study provides valuable insights into the chemical diversity, geographic variations, and potential biomedical applications of these essential oils.

1. Introduction

Artemisia is one of the largest and most diverse genus within the Asteraceae family. It comprises approximately 500 species distributed worldwide and is known for its aromatic characteristics. The species within this genus are well recognized for their bitter taste, mainly attributed to the terpenoids and sesquiterpene lactones they contain [1]. The genus encompasses a variety of herbs and small shrubs that have been utilized in folk and traditional medicine for various purposes, such as respiratory disorders, allergies, hypertension, and others [2]. The genus Artemisia also holds significance in the industry for its diverse range of properties, including its effectiveness against microbes and insects, its antioxidant capabilities, and its role in combating malaria, along with its contribution to perfumery through the production of aromatic compounds [3].
A. judaica L. is one of the species within the Artemisia genus, specifically found in Mediterranean countries such as Saudi Arabia, Egypt, Algeria, Libya, and Jordan [4]. Thriving in desert environments, particularly sandy wadi beds, this perennial, aromatic shrub reaches heights of 20–30 inches. Characterized by a bushy growth habit and a woody base, A. judaica bears yellowish flowers atop a short stem. Fine hairs cover its branches, and its leaves, arranged alternately, are short, grayish, and hairy and feature dissected rounded heads [5,6].
Traditionally, this plant is known by different local names, such as Shih in Saudi Arabia, Beithran in Jordan, or Teheregle in Algeria, and has been used in folk medicine for the treatment of various diseases. Some traditional uses of A. judaica include treating gastrointestinal problems, skin diseases, and atherosclerosis, acting as an immune stimulant, reducing fever and stress, and regulating menstruation [7]. It has also been traditionally consumed as a tea in Egypt or used as a food condiment (due to its strong fragrance) in many places in the Middle East and Africa [8].
Chemical analysis of A. judaica revealed the presence of flavonoids, phenolics, triterpenes, and sesquiterpene lactones such as judaicin [9]. Additionally, A. judaica, being an aromatic plant, has its volatile constituents identified from various geographical regions and climates. Apart from anthropogenic factors, environmental conditions play a significant role in determining the volatile composition of the plant [10]. The overall analysis of A. judaica essential oil constituents indicates that the monoterpene piperitone is the primary constituent across different genotypes [11,12]. Moreover, other chemical constituents, such as camphor, ethyl cinnamate, and spathulenol, have been found in relatively high concentrations in specific plant genotypes [11]. Furthermore, environmental factors and geographical locations have been observed to influence the major constituents of the essential oil from different A. judaica [4].
Therefore, this study aimed to conduct a detailed analysis (using GC and GC–MS) of the essential oil extracted from A. judaica collected from Saudi Arabia. The study also aimed to compare its chemical composition with oils from other A. judaica samples across various geographic locations, employing multivariate statistical analyses such as agglomerative hierarchical clustering (AHC) analysis and principal component analysis (PCA). Considering that monoterpene diversity and morphology can reflect gene flow patterns [13], the primary objective of the multivariate analyses was to gain insights into the heredity of chemical traits within this species. Furthermore, the secondary objective of this study was to assess the cytotoxic effects of A. judaica essential oil on Raw 264.7 macrophage cells.

2. Results

Hydrodistillation of the aerial parts of A. judaica yielded a yellow oil with a light woody fragrance. GC and GC–MS analyses allowed for the identification of 58 compounds, comprising 92.7% of the total peak areas. The oil was dominated by monoterpenes (M; 38.6%), followed by sesquiterpenes (S; 14.1%) and other compounds (O; 40.33%), such as ethyl esters and cyclic ketone. The major components of the oil were identified as piperitone (39; 16.5%), ethyl cinnamate (50; 12.9%), and camphor (27; 9.7%). The Total Ion Chromatogram (TIC) of the essential oil of A. judaica is presented in Figure 1. These compounds have already been reported as volatile metabolites of some other Artemisia species [4,6,14]. The other constituents identified in the oil are compiled in Table 1. The chemical structures of the characteristic known compounds found in the analyzed oil are given in Figure 2.

3. Discussion

The AHC dendrogram (Figure 3) reveals three distinct clusters (C1–C3) among the samples (Table 2). Cluster C3 exclusively groups four essential oils (A.JA1a, A.JA2a, A.JA1b, and A.JA2b), all originating from Algeria. This cluster’s distinctiveness stems from the unique chemical profile of its central object, A. JA1a. In AHC, the central object represents the “average” chemical profile within a cluster. A. JA1a exhibits a significantly higher concentration of piperitone (71.1%) compared with Clusters 1 and 2 (samples from Jordan, Saudi Arabia, Egypt, and Libya). Additionally, some compounds, like (+)-camphor, are absent or present in much lower concentrations in Cluster 3 compared with the other clusters. While Clusters 1 and 2 show moderate to high concentrations of (+)-camphor (e.g., Cluster C2: 16.1%), Cluster 3 either lacks or has negligible amounts. This clustering pattern suggests a distinct chemotype or genetic variant of A. judaica specific to Algeria, showcasing a consistent and characteristic chemical profile within this subset of samples. The Köppen–Geiger climate classification system can offer insights into why piperitone levels were higher in Algerian samples [15].
Cluster C1 primarily comprises essential oil samples from Saudi Arabia (A.J0, A.JSJ, A.JS1, and A.JS3) and one sample from Egypt (A.JE3), specifically collected from the Matrouh Governorate in North Egypt. Cluster 1 stands out for its relatively lower concentrations of certain compounds compared with the other clusters. For instance, the level of piperitone in Cluster 1 is around 0.5%, indicating a moderate presence of this compound in the essential oils within this cluster. It is worth noting that there is some variation within the cluster, as evidenced by sample AJS0, which has a higher piperitone concentration (16.5%). While piperitone serves as a main constituent contributing to the aroma and potential therapeutic properties of A. judaica essential oils [29], its lower concentration in Cluster 1 suggests a unique chemical profile distinct from Clusters 2 and 3.
The unique chemical profile observed in Cluster 1 (C1) of A. judaica samples, obtained from Saudi Arabia and Egypt’s Matrouh Governorate, is likely influenced by a combination of environmental and genetic factors. The Köppen–Geiger climate classification system identifies both regions as predominantly hot desert climates (BWh/BSh) [30], which may induce the production of specific volatile compounds like camphor, known for their potential roles in heat stress tolerance [31,32], herbivore deterrence [33], and pollinator attraction [34]. Furthermore, variations in soil composition and altitude within the C1 regions, as well as genetic variability within and between Artemisia populations, could contribute to the observed chemical diversity [35,36,37].
All remaining samples from Egypt, Saudi Arabia, Libya, and Jordan, excluding those already classified in Cluster C3 and Cluster C1, were deemed statistically not different and subsequently grouped within Cluster C2. Cluster 2 also demonstrates unique characteristics based on the central object A.JJ1 in the provided table. A.JJ1’s chemical composition profile differs notably from the central objects of Clusters 1 and 3. Specifically, A.JJ1 exhibits a distinct concentration of chemical compounds such as (+)-camphor, piperitone, chrysanthenone epoxide, z-ethyl cinnamate, and e-ethyl cinnamate, which are either absent or present in lower concentrations in the central objects of Clusters 1 and 3. Conversely, compounds like filifolone and ent-spathulenol, prominent in Clusters 1 and 3, are notably low in A.JJ2, highlighting a specific chemical composition profile that sets it apart from the other clusters analyzed. This clustering outcome suggests that these samples share similar volatile composition, indicating potential chemical similarity or comparable chemotypes across these regions. The Köppen–Geiger climate classification system can provide context for this grouping [15], as regions with similar climatic conditions, such as hot desert climates (BWh/BSh) [30], prevalent in these countries, may foster similar chemical profiles in A. judaica populations. Factors such as environmental stressors, soil characteristics, and genetic variability within the plant species may also contribute to the observed chemical similarities among samples in Class C2, despite their geographic diversity [37,38,39].
The PCA conducted on the A. judaica essential oil dataset revealed insightful patterns and relationships among the chemical compounds present in the samples (Figure 4). One particularly unique observation, AJ0, stood out in the analysis. Positioned in the lower right quadrant of the PCA plot, AJ0 exhibited distinct characteristics compared with the other samples. This distinctiveness can be attributed to its high values or concentrations of key chemical compounds contributing significantly to the F1 dimension, namely, pseudocumene, l-verbenone, oxoisophorone, and nordavanone. However, piperitone levels appeared to play a particularly crucial role. High piperitone concentration in AJ0, especially compared with other Saudi samples, likely explains its outlier status in the PCA plot. The analysis suggests that variations in piperitone levels are key to understanding AJ0’s unique chemical makeup within the context of A. judaica essential oils.
While the PCA revealed a unique sample (AJ0) with high piperitone concentration, A. judaica, in general, seems to be dominated by this monoterpene, found across various plant families. The dominance of piperitone in A. judaica suggests a potentially significant role in the overall biological activity of the oil. While first discovered in eucalyptus oil in 1907 [40], piperitone is also prevalent within the mint family (Labiatae), particularly the genus Mentha [41]. Interestingly, piperitone exists in two isoforms, and the specific ratio of these isomers varies depending on the plant [42]. For A. judaica, future research should explore whether the specific makeup of these piperitone isomers contributes to its potential therapeutic effects.
Based on the known properties of piperitone, we can speculate on its potential contributions within A. judaica. Piperitone is recognized for its antimicrobial, antifungal, and anti-inflammatory properties [43]. Interestingly, A. judaica essential oil itself exhibits similar antifungal and anti-inflammatory activities [6]. This alignment suggests that piperitone might be one of the key contributors to these effects, potentially explaining the traditional use of A. judaica oil for treating ailments like gastrointestinal issues and skin conditions, often linked to microbial activity. Furthermore, piperitone exhibits insect repellent qualities [44], which might explain the traditional use of A. judaica as a food condiment to repel insects.
Evidence from other Artemisia species strengthens the case for the pharmacological potential of piperitone. Abdelgaleil and collaborators have isolated piperitone from A. herba alba and demonstrated strong antifungal activity against specific mold strains [29]. This suggests a broader role for piperitone within the Artemisia genus, and further investigation is crucial to confirm these possibilities for A. judaica essential oil.
A. judaica oil (AJ0) exhibited concentration-dependent cytotoxicity on RAW264.7 macrophages (Figure 5). Concentrations up to 20 µg/mL showed no significant decrease in cell viability, while higher concentrations were cytotoxic. There is a limited number of studies on A. judaica oil cytotoxicity and in vitro anti-inflammatory activity. Most papers are either conducted on the A. judaica extract or test the oil in vivo. However, there is a previous study reporting no cytotoxicity of A. judaica oil towards macrophages (Raw 264.7) and hepatocytes (HepG2) at concentrations up to 1.0 µg/mL. Interestingly, this study also observed decreased NO production in macrophages with the increase in oil concentration, suggesting potential anti-inflammatory properties [6].
To understand the cytotoxic mechanism at high concentrations, future studies could investigate pathways like apoptosis or oxidative stress. For therapeutic applications, especially those targeting anti-inflammatory or immunomodulatory effects, concentrations below 20 µg/mL are recommended. Further research should identify specific bioactive compounds responsible for cytotoxicity and explore the oil’s therapeutic potential by using primary cells or animal models.

4. Materials and Methods

4.1. Chemicals and Reagents

Dimethyl sulfoxide (DMSO), of cell culture grade (99.9% purity), was purchased from Panreac (Barcelona, Spain). Dulbecco’s Modified Eagle’s Medium (DMEM) high in glucose was purchased from Sigma Aldrich (Saint Louis, MO, USA), and fetal bovine serum (FBS) was purchased from Gibco Biosciences (Miami, FL, USA). The Alamar Blue assay kit was purchased from Thermo Fisher Scientific, Waltham, MA, USA.

4.2. Plant Material

Samples of A. judaica were collected from Jabal Al-Lawz, Saudi Arabia, in November 2022. The plant was identified by Prof. Ammar Bader, and a voucher specimen (SA-AJ 2019-2) was deposited in the herbarium of the pharmacognosy lab, Umm Al-Qura University.

4.3. Essential Oil Extraction

Aerial parts of A. judaica (100 g) were mixed with 1000 mL of distilled water and subjected to steam distillation for 3 h at 100 °C by using a Clevenger apparatus (Cruinn Diagnostics Ltd., Dublin, Ireland) as described by Ornano et al. [45]. During the process, the essential oils, vaporized and carried by the steam, were condensed and separated from the water. The yield of the essential oils was 0.7% (v/w), calculated as the volume (mL) obtained per gram of plant material. The resulting pale-yellow essential oil with a characteristic odor was stored at 4 °C in an amber vial until further analysis.

4.4. Chromatographic Analysis

The GC–MS analysis was conducted in triplicate by using a Hewlett-Packard 6890N gas chromatograph equipped with a DB-5MS fused-silica capillary column (5% phenylmethylsiloxane, 30 m × 0.25 mm, film thickness of 0.25 μm; Agilent Technologies Inc., Santa Clara, CA, USA) and coupled with a 5975B mass selective detector from the same company as described by [46]. The apparatus was set up to operate at 70 eV over a mass range of 35–500 amu and a scanning speed of 0.34, and it was equipped with a DB-5MS fused-silica capillary column (Agilent Technologies, USA). The temperature was regulated to increase by 5 °C per minute, allowing a gradual increase from 70 °C to 290 °C. The injector temperature was 250 °C, the interface temperature was 300 °C, and the carrier gas was helium (1.0 mL/min). Each ml of oil was dissolved in Et2O (1:1000 ratio) and then injected in pulsed split mode. The split ratio was 40:1, and the flow rate was initially set to 1.5 mL/min for the first thirty seconds and then adjusted to 1.0 mL/min for the remainder of the run. The GC (FID) studies mirrored the GC–MS conditions. No correction factors from the GC peak areas were employed in the calculation of the percentage composition.

4.5. Compound Identification

The identification of the essential oil compounds was achieved by (I) experimentally determining their linear retention indices (RI) on a DB-5MS column by using n-alkanes (C8-C40) (Agilent Technologies, USA) as reference points and comparing them with published RI values [47] and (II) tentatively identifying compounds by cross-referencing mass spectra data with established MS libraries, including Wiley 6, NIST02, and NIST 17 [48].

4.6. Multivariate Statistical Analyses (MVAs)

The essential oil components of 22 Artemisia samples, including the current study, were collectively analyzed by using multivariate analyses (MVAs), specifically principal component analysis (PCA) and agglomerative hierarchical clustering (AHC). AHC and PCA were conducted by using the Excel program plugin XLSTAT, version 2021.1.1. Both statistical methods utilized the percentages of individual oil constituents as variables, considering only those constituents with a percentage higher than 1% in at least one sample. AHC employed Pearson dissimilarity with aggregation criteria including simple linkage, unweighted pair-group average, and complete linkage, along with Euclidean distance utilizing aggregation criteria such as weighted pair-group average, unweighted pair-group average, and Ward’s method. A PCA of the Pearson (n) type was also carried out.

4.7. Cytotoxicity Assay

4.7.1. Cell Culture and Treatment

Murine macrophages (RAW264.7 cells) were cultured in DMEM high in glucose, supplemented with 10% fetal bovine serum (FBS), at 37 °C in a 5% CO2 incubator. Once RAW264.7 cells reached 80% confluency, they were detached and seeded in 96-well plates (1 × 105 cells/well). After 24 h, cells were treated with A. judaica oil at concentrations of 100, 80, 40, 20, 10, 5, and 2.5 µg/mL for 24 h.

4.7.2. Cell Viability Assay

The Alamar Blue assay was used to quantitatively assess RAW264.7 cell viability after exposure to the A. judaica oil, following the manufacturer’s instructions. Briefly, following incubation with various concentrations of the oil or the DMSO vehicle diluted in serum-free culture medium for 24 h, the medium was removed, and cells were incubated for another 2 h in the presence of 2% Alamar Blue dye. Post-incubation, fluorescence was recorded at wavelengths of 560 nm (excitation) and 590 nm (emission) by using Fluorstar Optima, BMG labtech, Germany.

4.8. Statistical Analysis

All statistical analyses were conducted by using GraphPad Prism 9.0 software (GraphPad Software, San Diego, CA, USA). The results are presented as means ± standard deviation (SD) from at least three independent experiments, each performed in triplicate. Statistical significance between groups was determined by using one-way ANOVA followed by Dunnett’s or Duncan’s multiple comparison post hoc test, as appropriate. A p-value < 0.05 or <0.01 was considered statistically significant.

5. Conclusions

In conclusion, multivariate analyses of A. judaica essential oil revealed distinct chemical profiles based on geographic origin, with sample AJ0 being identified as an outlier due to its unique composition. These findings highlight the importance of considering both geographic origin and chemical composition when studying essential oils and their potential applications. Cytotoxicity assays on murine macrophages indicated that A. judaica essential oil is safe for further pharmacological research at concentrations below 20 µg/mL. Future investigations should further explore the biological potential of A. judaica essential oil.

Author Contributions

Conceptualization, F.B., B.A. and Y.B.; methodology, F.B., B.A. and Y.B. writing—original draft preparation, B.A. and Y.B.; writing—review and editing B.A. and F.B; supervision, F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was conducted under a sponsored PhD project (grant No. 4102001655) funded by the Saudi Arabia Ministry of Higher Education.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Al-Qudah, M.A.; Onizat, M.A.; Alshamari, A.K.; Al-Jaber, H.I.; Bdair, O.M.; Muhaidat, R.; Al Zoubi, M.; Al-Bataineh, N. Chemical composition and antioxidant activity of Jordanian Artemisia judaica L. as affected by different drying methods. Int. J. Food Prop. 2021, 24, 482–492. [Google Scholar] [CrossRef]
  2. Miara, M.D.; Bendif, H.; Rebbas, K.; Rabah, B.; Hammou, M.A.; Maggi, F. Medicinal plants and their traditional uses in the highland region of Bordj Bou Arreridj (Northeast Algeria). J. Herb. Med. 2019, 16, 100262. [Google Scholar] [CrossRef]
  3. Guetat, A.; Al-Ghamdi, F.A.; Osman, A.K. The genus Artemisia L. in the northern region of Saudi Arabia: Essential oil variability and antibacterial activities. Nat. Prod. Res. 2017, 31, 598–603. [Google Scholar] [CrossRef] [PubMed]
  4. Mohammed, H.A.; Qureshi, K.A.; Ali, H.M.; Al-Omar, M.S.; Khan, O.; Mohammed, S.A. Bio-evaluation of the wound healing activity of Artemisia judaica L. as part of the plant’s use in traditional medicine; Phytochemical, antioxidant, anti-inflammatory, and antibiofilm properties of the plant’s essential oils. Antioxidants 2022, 11, 332. [Google Scholar] [CrossRef] [PubMed]
  5. Abad, M.J.; Bedoya, L.M.; Apaza, L.; Bermejo, P. The Artemisia L. genus: A review of bioactive essential oils. Molecules 2012, 17, 2542–2566. [Google Scholar] [CrossRef]
  6. Abu-Darwish, M.; Cabral, C.; Gonçalves, M.; Cavaleiro, C.; Cruz, M.; Zulfiqar, A.; Khan, I.; Efferth, T.; Salgueiro, L. Chemical composition and biological activities of Artemisia judaica essential oil from southern desert of Jordan. J. Ethnopharmacol. 2016, 191, 161–168. [Google Scholar] [CrossRef] [PubMed]
  7. Zeng, H.; Alan, A.; Saxena, P. Evaluation of in vitro shoots of Artemisia judaica for allelopathic potential. Acta Physiol. Plant. 2009, 31, 1237–1248. [Google Scholar] [CrossRef]
  8. Youssef, R.S. Medicinal and non-medicinal uses of some plants found in the middle region of Saudi Arabia. J. Med. Plants Res. 2013, 7, 2501–2513. [Google Scholar]
  9. Moharram, F.A.; Nagy, M.M.; El Dib, R.A.; El-Tantawy, M.M.; El Hossary, G.G.; El-Hosari, D.G. Pharmacological activity and flavonoids constituents of Artemisia judaica L aerial parts. J. Ethnopharmacol. 2021, 270, 113777. [Google Scholar] [CrossRef]
  10. Janacković, P.; Novaković, J.; Soković, M.; Vujisić, L.; Giweli, A.A.; Dajić-Stevanović, Z.; Marin, P.D. Composition and antimicrobial activity of essential oils of Artemisia judaica, A. herba-alba and A. arborescens from Libya. Arch. Biol. Sci. 2015, 67, 455–466. [Google Scholar] [CrossRef]
  11. Al-Wahaibi, L.H.N.; Mahmood, A.; Khan, M.; Alkhathlan, H.Z. Comparative study on the essential oils of Artemisia judaica and A. herba-alba from Saudi Arabia. Arab. J. Chem. 2020, 13, 2053–2065. [Google Scholar] [CrossRef]
  12. Bora, K.S.; Sharma, A. The genus Artemisia: A comprehensive review. Pharm. Biol. 2011, 49, 101–109. [Google Scholar] [CrossRef]
  13. Irving, R.S.; Adams, R.P. Genetic and biosynthetic relationships of monoterpenes. In Recent Advances in Phytochemistry; Elsevier: Amsterdam, The Netherlands, 1973; Volume 6, pp. 187–214. [Google Scholar]
  14. Ravid, U.; Putievsky, E.; Katzir, I.; Carmeli, D.; Eshel, A.; Schenk, H.P. The essential oil of Artemisia judaica L. chemotypes. Flavour Fragr. J. 1992, 7, 69–72. [Google Scholar] [CrossRef]
  15. Peel, M.C.; Finlayson, B.L.; McMahon, T.A. Updated world map of the Köppen-Geiger climate classification. Hydrol. Earth Syst. Sci. 2007, 11, 1633–1644. [Google Scholar] [CrossRef]
  16. Elshamy, A.; Abd-ElGawad, A.; Mohamed, T.; El Gendy, A.E.N.; Abd El Aty, A.A.; Saleh, I.; Moustafa, M.F.; Hussien, T.A.; Pare, P.W.; F Hegazy, M.E. Extraction development for antimicrobial and phytotoxic essential oils from Asteraceae species: Achillea fragrantissima, Artemisia judaica and Tanacetum sinaicum. Flavour Fragr. J. 2021, 36, 352–364. [Google Scholar] [CrossRef]
  17. El-Gohary, A.E.; Elsayed, A.A.; El-Garf, I.A.; Sabry, R.M.; Khalid, K.A.; Ahmed, S.S. Evaluation of essential oils in two Artemisia species that are grown wildly in eastern desert of Egypt. J. Essent. Oil Bear. Plants 2021, 24, 186–192. [Google Scholar] [CrossRef]
  18. El-Sabrout, A.M.; Zoghroban, A.A.; Abdelgaleil, S.A. Chemical composition and effects of four essential oils on mortality, development and physiology of the West Nile virus vector, Culex pipiens. Int. J. Trop. Insect Sci. 2020, 40, 789–799. [Google Scholar] [CrossRef]
  19. El-Massry, K.F.; El-Ghorab, A.H.; Farouk, A. Antioxidant activity and volatile components of Egyptian Artemisia judaica L. Food Chem. 2002, 79, 331–336. [Google Scholar] [CrossRef]
  20. Amin, S.M.; Hassan, H.M.; El Gendy, A.E.N.G.; El-Beih, A.A.; Mohamed, T.A.; Elshamy, A.I.; Bader, A.; Shams, K.A.; Mohammed, R.; Hegazy, M.E.F. Comparative chemical study and antimicrobial activity of essential oils of three Artemisia species from Egypt and Saudi Arabia. Flavour Fragr. J. 2019, 34, 450–459. [Google Scholar] [CrossRef]
  21. Zeragui, B.; Hachem, K.; Halla, N.; Kahloula, K. Essential oil from Artemisia judaica L.(ssp. sahariensis) flowers as a natural cosmetic preservative: Chemical composition, and antioxidant and antibacterial activities. J. Essent. Oil Bear. Plants 2019, 22, 685–694. [Google Scholar]
  22. Bandeira Reidel, R.V.; Nardoni, S.; Mancianti, F.; Anedda, C.; El Gendy, A.E.-N.G.; Omer, E.A.; Pistelli, L. Chemical composition and antifungal activity of essential oils from four Asteraceae plants grown in Egypt. Z. Naturforschung C 2018, 73, 313–318. [Google Scholar] [CrossRef] [PubMed]
  23. Hellali, N.; Mahammed, M.H.; Masrouk, H. Physico-Chemical Study and Evaluation of Antimicrobial and Antioxidant Activities of Artemisia judaica L. Essential Oil, Growing in Illizi, Algeria. Asian J. Chem. 2017, 29, 181. [Google Scholar] [CrossRef]
  24. Benmansour, N.; Benmansour, A.; El Hanbali, F.; González-Mas, M.; Blázquez, M.; El Hakmaoui, A.; Akssira, M. Antimicrobial activity of essential oil of Artemisia judaica L. from Algeria against multi-drug resistant bacteria from clinical origin. Flavour Fragr. J. 2016, 31, 137–142. [Google Scholar] [CrossRef]
  25. Abd-Elhady, H. Insecticidal activity and chemical composition of essential oil from Artemisia judaica L. against Callosobruchus maculatus (F.)(Coleoptera: Bruchidae). J. Plant Prot. Res. 2012, 52, 347–352. [Google Scholar] [CrossRef]
  26. Abdallah Sallam, S.M.; Mohamed Abdelgaleil, S.A.; da Silva Bueno, I.C.; Abdelwahab Nasser, M.E.; Araujo, R.C.; Abdalla, A.L. Effect of some essential oils on in vitro methane emission. Arch. Anim. Nutr. 2011, 65, 203–214. [Google Scholar] [CrossRef] [PubMed]
  27. Dob, T.; Chelghoum, C. Chemical composition of the essential oil of Artemisia judaica L. from Algeria. Flavour Fragr. J. 2006, 21, 343–347. [Google Scholar] [CrossRef]
  28. Hazam, S.; Touati, S.; Touati, L.; Saher, L.; Khedidji, H.; Ait Kaki, S.; Chemat, S. Promising Algerian essential oils as natural acaricides against the honey bee mite Varroa destructor (Acari: Varroidae). Exp. Appl. Acarol. 2024, 92, 87–107. [Google Scholar] [CrossRef]
  29. Abdelgaleil, S.A.M.; Abbassy, M.A.; Belal, A.-S.H.; Abdel Rasoul, M.A.A. Bioactivity of two major constituents isolated from the essential oil of Artemisia judaica L. Bioresour. Technol. 2008, 99, 5947–5950. [Google Scholar] [CrossRef]
  30. Beck, H.E.; Zimmermann, N.E.; McVicar, T.R.; Vergopolan, N.; Berg, A.; Wood, E.F. Present and future Köppen-Geiger climate classification maps at 1-km resolution. Sci. Data 2018, 5, 180214. [Google Scholar] [CrossRef]
  31. Wen, D.; Guan, Y.; Jiang, L.; Chen, S.; Chen, F.; Liu, B.; Niinemets, Ü.; Jiang, Y. Heat-stress induced sesquiterpenes of Chrysanthemum nankingense attract herbivores but repel herbivore feeding. Arthropod-Plant Interact. 2023, 17, 111–122. [Google Scholar] [CrossRef]
  32. Hong, B.; Ma, C.; Yang, Y.; Wang, T.; Yamaguchi-Shinozaki, K.; Gao, J. Over-expression of AtDREB1A in chrysanthemum enhances tolerance to heat stress. Plant Mol. Biol. 2009, 70, 231–240. [Google Scholar] [CrossRef] [PubMed]
  33. Sinclair, A.; Jogia, M.K.; Andersen, R.J. Camphor from juvenile white spruce as an antifeedant for snowshoe hares. J. Chem. Ecol. 1988, 14, 1505–1514. [Google Scholar] [CrossRef] [PubMed]
  34. Reis, M.G.; Pansarim, E.R.; da Silva, U.F.; do Amaral, E.; Marsaioli, J. Pollinator attraction devices (floral fragrances) of some Brazilian orchids. Arkivoc 2004, 6, 89–97. [Google Scholar] [CrossRef]
  35. Hussain, M.; Kiran, S.; Sayed, I.; Khazir, J.; Maqbool, T.; Ibrahim, M.; Kaur, S.; Mir, B.A.; Rahi, P. Altitude-dependent influence of Artemisia brevifolia on its rhizosphere microbiome in Ladakh region of the Western Himalayas. Rhizosphere 2024, 30, 100918. [Google Scholar] [CrossRef]
  36. Gaafar, R.M.; Hamouda, M.M.; Ahmed, H.I.S.; El-Shazly, H.H.; Badr, A. Genetic differentiation in the medicinal plant Artemisia judaica L. populations in Saint-Catherine area, South Sinai, Egypt. Plant Gene 2017, 12, 80–87. [Google Scholar] [CrossRef]
  37. Jadaun, J.S.; Yadav, R.; Yadav, N.; Bansal, S.; Sangwan, N.S. Influence of Genetics on the Secondary Metabolites of Plants. In Natural Secondary Metabolites: From Nature, Through Science, to Industry; Springer: Berlin/Heidelberg, Germany, 2023; pp. 403–433. [Google Scholar]
  38. Reshi, Z.A.; Ahmad, W.; Lukatkin, A.S.; Javed, S.B. From Nature to lab: A review of secondary metabolite biosynthetic pathways, environmental influences, and in vitro approaches. Metabolites 2023, 13, 895. [Google Scholar] [CrossRef] [PubMed]
  39. Verma, R.S.; Padalia, R.C.; Chauhan, A.; Upadhyay, R.K.; Singh, V.R. Productivity and essential oil composition of rosemary (Rosmarinus officinalis L.) harvested at different growth stages under the subtropical region of north India. J. Essent. Oil Res. 2020, 32, 144–149. [Google Scholar] [CrossRef]
  40. Pons, A.; Lavigne, V.; Darriet, P.; Dubourdieu, D. Identification and analysis of piperitone in red wines. Food Chem. 2016, 206, 191–196. [Google Scholar] [CrossRef]
  41. Burbott, A.J.; Hennessey Jr, J.P.; Johnson Jr, W.C.; Loomis, W.D. Configuration of piperitone from oil of Mentha piperita. Phytochemistry 1983, 22, 2227–2230. [Google Scholar] [CrossRef]
  42. Ravid, U.; Putievsky, E.; Katzir, I. Enantiomeric distribution of piperitone in essential oils of some Mentha spp., Calamintha incána (Sm.) Heldr. and Artemisia judaica L. Flavour Fragr. J. 1994, 9, 85–87. [Google Scholar] [CrossRef]
  43. Abdolpour, F.; Shahverdi, A.-R.; Rafii, F.; Fazeli, M.-R.; Amini, M. Effects of Piperitone on the Antimicrobial Activity of Nitrofurantoin and on Nitrofurantoin Metabolism by Enterobacter cloacae. Pharm. Biol. 2007, 45, 230–234. [Google Scholar] [CrossRef]
  44. Kendra, P.E.; Montgomery, W.S.; Tabanca, N.; Schnell, E.Q.; Vázquez, A.; Menocal, O.; Carrillo, D.; Cloonan, K.R. Piperitone (p-Menth-1-En-3-One): A New Repellent for Tea Shot Hole Borer (Coleoptera: Curculionidae) in Florida Avocado Groves. Biomolecules 2023, 13, 656. [Google Scholar] [CrossRef] [PubMed]
  45. Ornano, L.; Venditti, A.; Sanna, C.; Ballero, M.; Maggi, F.; Lupidi, G.; Bramucci, M.; Quassinti, L.; Bianco, A. Chemical composition and biological activity of the essential oil from Helichrysum microphyllum Cambess. ssp. tyrrhenicum Bacch., Brullo e Giusso growing in La Maddalena Archipelago, Sardinia. J. Oleo Sci. 2015, 64, 19–26. [Google Scholar] [PubMed]
  46. Alsharif, B.; Babington, G.A.; Radulović, N.; Boylan, F. Volatiles of Capparis cartilaginea Decne. from Saudi Arabia. Plants 2022, 11, 2518. [Google Scholar] [CrossRef]
  47. Van Den Dool, H.; Kratz, P.D. A generalization of the retention index system including linear temperature programmed gas-liquid partition chromatography. J. Chromatogr. 1963, 11, 463–471. [Google Scholar] [CrossRef]
  48. (NIST) National Institute of Standards and Technology. NIST Chemistry WebBook. Available online: https://webbook.nist.gov/chemistry/name-ser/ (accessed on 2 May 2024).

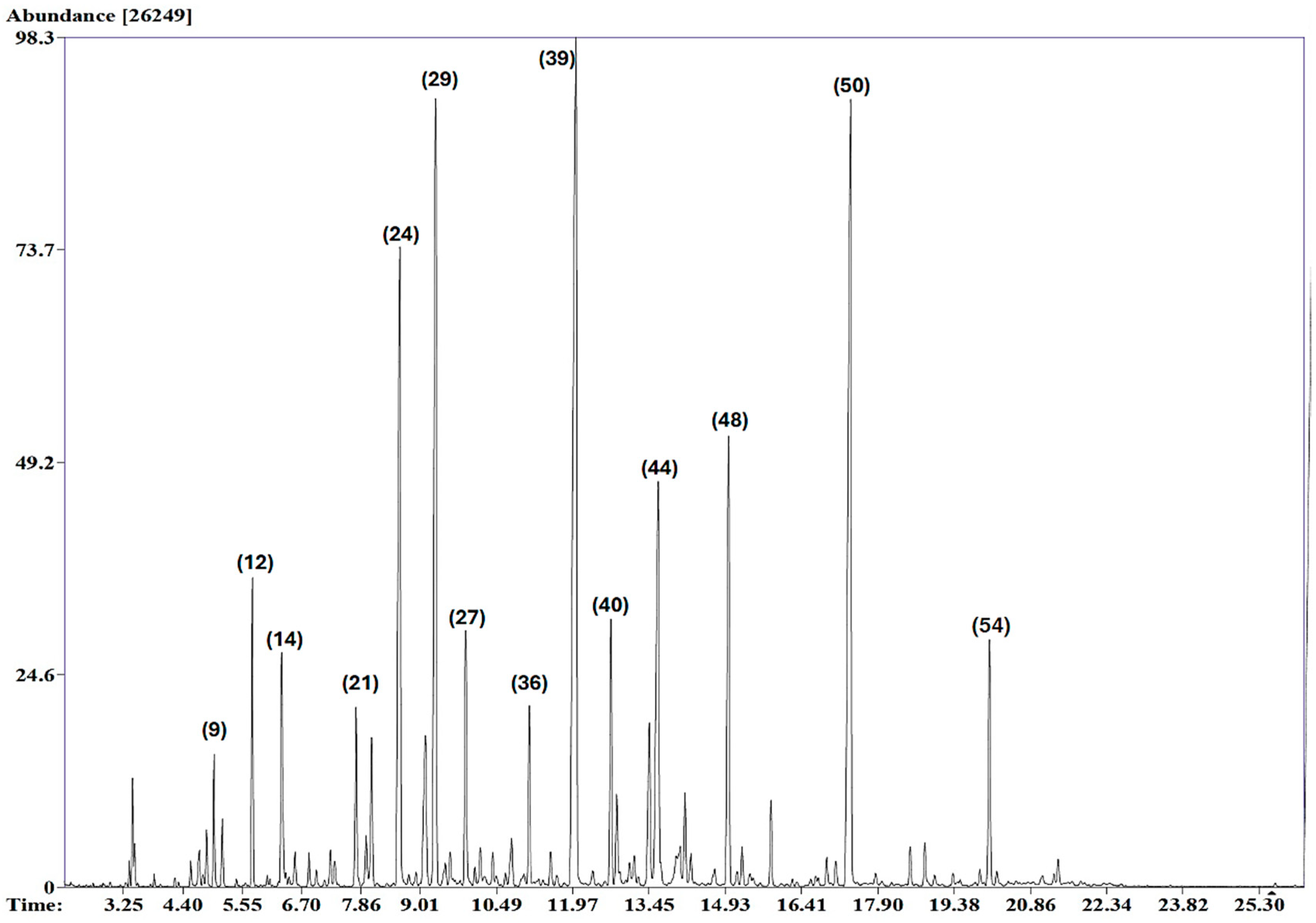

Figure 1. Total Ion Chromatogram (TIC) of the essential oil of A. judaica.
Figure 1. Total Ion Chromatogram (TIC) of the essential oil of A. judaica.
Molecules 29 02882 g001
Figure 2. Chemical structures of the main compounds identified in A. judaica essential oil.
Figure 2. Chemical structures of the main compounds identified in A. judaica essential oil.
Molecules 29 02882 g002

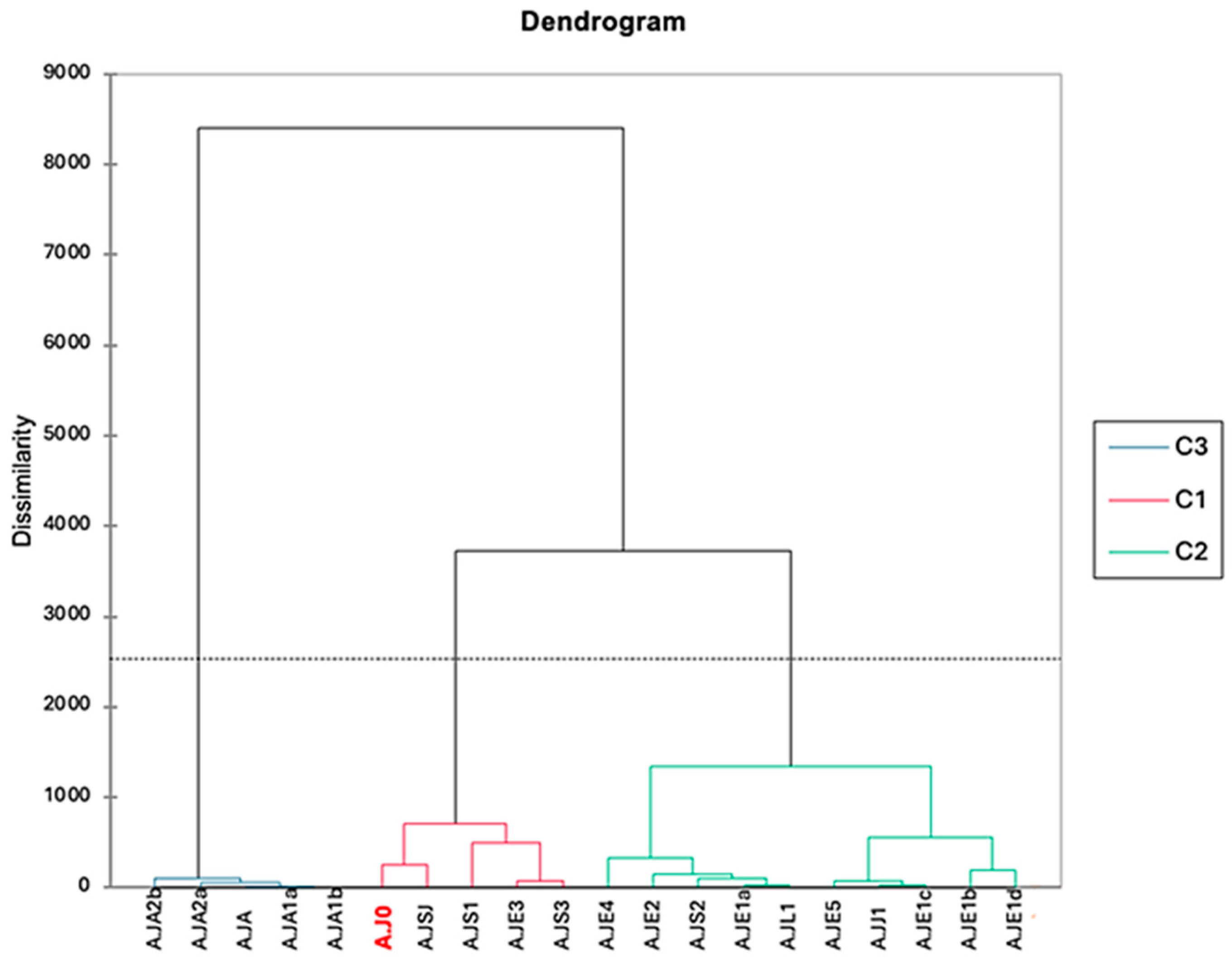

Figure 3. Dendrogram generated from the agglomerative hierarchical clustering (AHC) analysis illustrating the dissimilarity relationships in chemical composition among 20 essential oil samples. The dissimilarities were computed by using Euclidean distance, and Ward’s method was employed as the aggregation criterion.
Figure 3. Dendrogram generated from the agglomerative hierarchical clustering (AHC) analysis illustrating the dissimilarity relationships in chemical composition among 20 essential oil samples. The dissimilarities were computed by using Euclidean distance, and Ward’s method was employed as the aggregation criterion.
Molecules 29 02882 g003

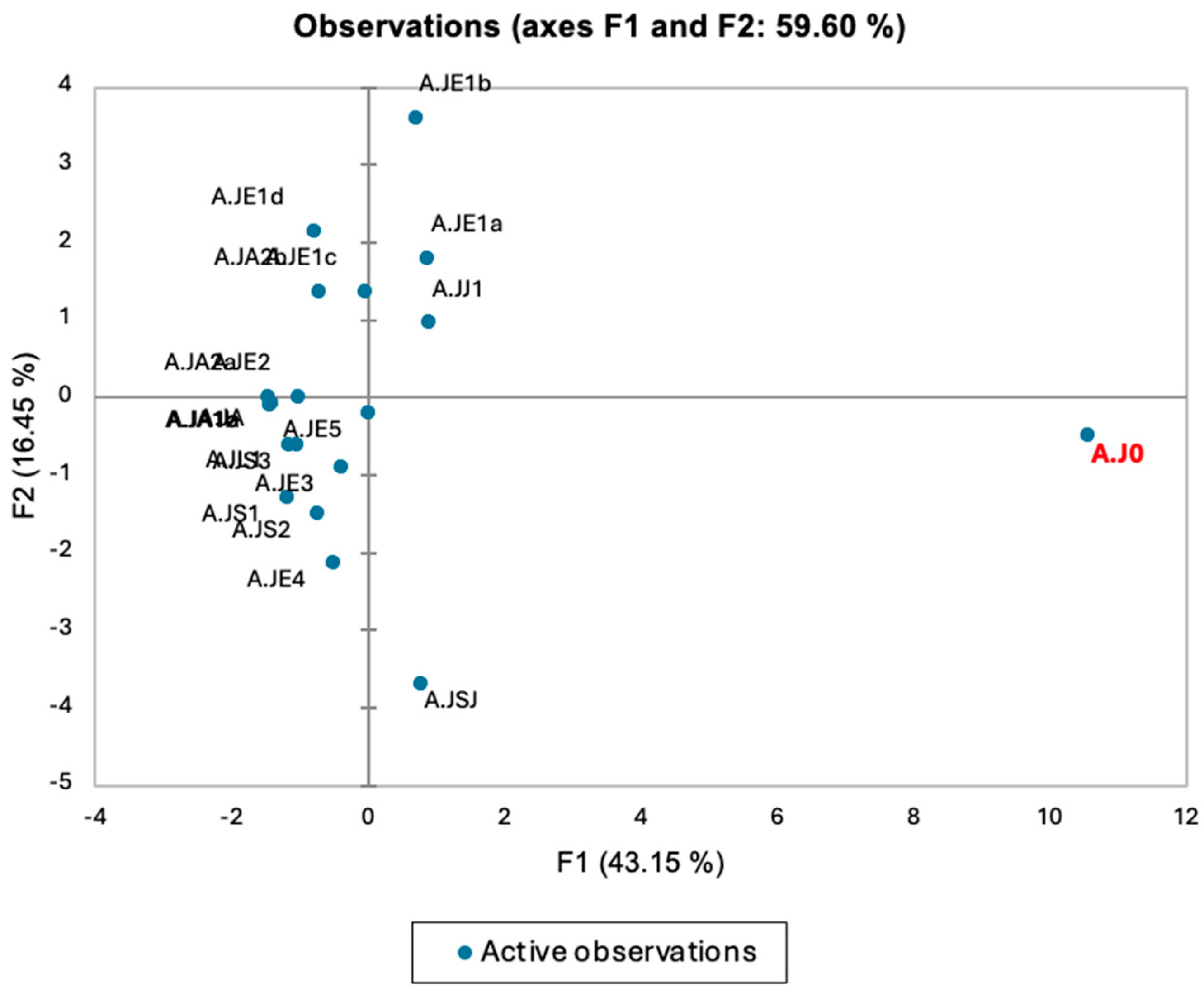

Figure 4. Ordination plot resulting from principal component analysis (PCA) applied to 20 oil samples. Axes F1 and F2 correspond to the first and second principal components, respectively. Axis F1 explains approximately 43.2% of the total variance, while axis F2 contributes an additional 16.5%.
Figure 4. Ordination plot resulting from principal component analysis (PCA) applied to 20 oil samples. Axes F1 and F2 correspond to the first and second principal components, respectively. Axis F1 explains approximately 43.2% of the total variance, while axis F2 contributes an additional 16.5%.
Molecules 29 02882 g004

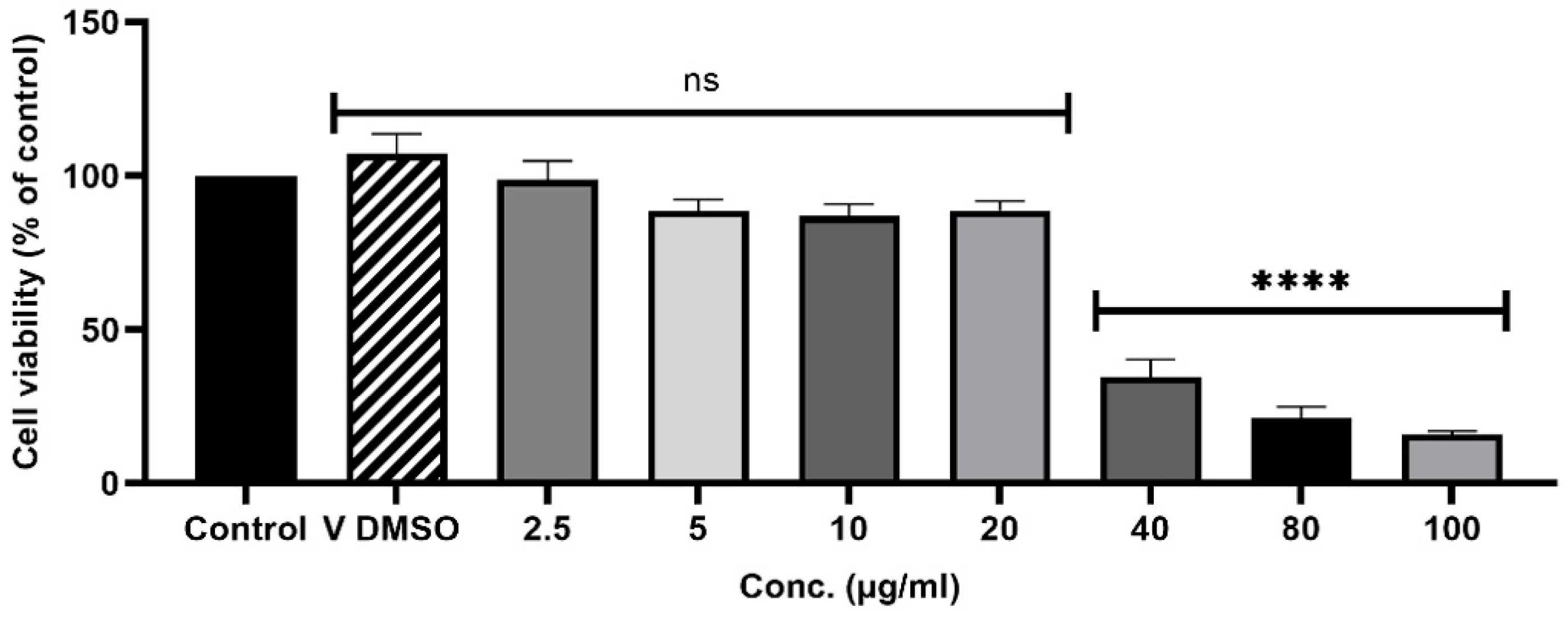

Figure 5. Effect of essential oil of A. judaica on macrophages (Raw 264.7) viability by the Alamar blue assay. Negative Ctrl (control); tested concentrations of the essential oil (2.5–100 µL/mL). Results are expressed as percentages of Alamar blue reduction by control cells. Each value represents the mean ± SD of three independent experiments performed in duplicate (**** p < 0.0001, compared with control). ns = not statistically significant.
Figure 5. Effect of essential oil of A. judaica on macrophages (Raw 264.7) viability by the Alamar blue assay. Negative Ctrl (control); tested concentrations of the essential oil (2.5–100 µL/mL). Results are expressed as percentages of Alamar blue reduction by control cells. Each value represents the mean ± SD of three independent experiments performed in duplicate (**** p < 0.0001, compared with control). ns = not statistically significant.
Molecules 29 02882 g005
Table 1. Composition of the aerial parts’ essential oil of A. judaica from Saudi Arabia.
Table 1. Composition of the aerial parts’ essential oil of A. judaica from Saudi Arabia.
CompoundsPeak Area %Retention TimeRetention Index (a)Class (b)Identification
5-Tert-Butyl-1,3 Cyclopentadiene (1)0.23.4837OGC–MS
Ethyl-2-Methylbutanoate (2)0.63.4843OGC–MS
Ethyl Isovalerate (3)0.33.5846OGC–MS
2,6-Dimethyl-1,5-Heptadiene (4)0.13.8881MGC–MS
5-Ethyl-5-Methyl-5-Vinyl Tetrahydrofuran (5)0.14.2912OGC–MS
Tricyclene (6)0.24.6931OGC–MS
Propyl-2-Methylbutanoate (7)0.44.7941OGC–MS
Propyl Isovalerate (8)0.14.8945OGC–MS
Camphene (9)0.95.0955OGC–MS
Benzaldehyde (10)0.55.2952OGC–MS
6-Methyl-5-Hepten-2-One (11)0.15.4984MGC–MS
Pseudocumene (12)2.45.81002OGC–MS
O-Allyltoluene (13)0.16.01015OGC–MS
Mesitylene (14)2.46.31028OGC–MS
6-Methyl-5-Octen-2-One (15)0.16.41032MGC–MS
Lavender Lactone (16)0.36.61039OGC–MS
cis-Arbusculone (17)0.36.91052OGC–MS
2,6-Dimethyl-1,5-Heptadien-3-Ol (18)0.27.01059OGC–MS
trans-Arbusculone (19)0.37.31071OGC–MS
1-Isopropyl-3-Methylenecyclohexane (20)0.27.31075OGC–MS
L-Verbenone (21)1.77.81094MGC–MS
Dehydrosabinaketone (22)0.68.01103SGC–MS
Filifolone (23)1.58.11107MGC–MS
Isophorone (24)8.68.61129OGC–MS
1,3,3-Trimethylcyclohex-1-Ene-4-Carboxaldehyde (25)0.28.91141OGC–MS
Oxoisophorone (26)2.39.11156OGC–MS
(+)-Camphor (27)9.79.31141MGC–MS
cis-Chrysanthenol (28)0.39.61168MGC–MS
Camphol (29)2.69.91184MGC–MS
4-Terneol (30)0.210.11188SGC–MS
P-Cymen-8-Ol (31)0.410.21192MGC–MS
Cryptone (32)0.210.31195MGC–MS
(+)-A-Terpineol (33)0.310.41248MGC–MS
Verbenone (34)0.710.81263MGC–MS
trans-Carveol (35)0.211.01272MGC–MS
Nordavanone (36)1.711.11276SGC–MS
Ethyl Phenylacetate (37)0.411.51293OGC–MS
Cuminal (38)0.111.71298OGC–MS
Piperitone (39)16.512.01249MGC–MS
Bornyl Acetate (40)2.612.71313MGC–MS
Thymol (41)1.012.81345MGC–MS
Carvacrol (42)0.313.11354MGC–MS
cis-Methyl Cinnamate (43)0.413.21358MGC–MS
Chrysanthenone Epoxide (44)6.413.61377SGC–MS
Piperitenone (45)1.014.21398SGC–MS
Ethyl Dihydrocinnamate (46)0.414.31402OGC–MS
Capric Acid (47)0.314.71421OGC MS
Z-Ethyl Cinnamate (48)5.115.01433OGC–MS
Davanafuran (49)0.815.81467SGC–MS
E-Ethyl Cinnamate (50)12.917.41543OGC–MS
Artedouglasia Oxide D (51)0.418.51581SGC–MS
Artedouglasia Oxide A (52)0.518.81593SGC–MS
Laciniata Furanone H (53)0.119.01601OGC MS
Artedouglasia Oxide C (54)0.119.41618SGC–MS
Artedouglasia Oxide B (55)0.111.71641SGC–MS
Ent-Spathulenol (56)16.512.01650SGC–MS
Caryophyllene Oxide (57)2.612.71706SGC–MS
Methyl Jasmonate (58)1.012.81710OGC–MS
Total93.0
Monoterpenes (M)38.6
Sesquiterpenes (S)14.1
Others (O)40.3
(a) RI: retention index experimentally determined on a DB-5MS column relative to the Rt of n-alkanes (C8–C40); the compounds are listed in the order of elution. (b) Compound identification: RI and mass spectra mass spectra (MS) data compared against commercially available MS libraries Wiley 6, NIST02, and NIST 17.
Table 2. List of A. judaica essential oil samples used for statistical analysis.
Table 2. List of A. judaica essential oil samples used for statistical analysis.
TaxonPlant PartOriginLocationCodeReference
1. A. judaicaAerial partsSaudi ArabiaJabal el LawzA.J0Present study
2. A. judaicaAerial partsJordanAl-MudawarthA.JJ1[6]
3. A. judaicaAerial partsSaudi ArabiaNorthern regionA.JS1[3]
4. A. judaicaAerial partsSaudi ArabiaNorthern Qassim regionA.JS2[4]
5. A. judaicaAerial partsEgyptSinaiA.JE1a[16]
6. A. judaicaAerial partsEgyptGabal Ataka, Suez desertA.JE2[17]
7. A. judaicaAerial partsSaudi-Jordan BorderNear Saudi-Jordan bordersA.JSJ[1]
8. A. judaicaAerial partsEgyptMatrouh GovernorateA.JE3[18]
9. A. judaicaAerial partsSaudi ArabiaRiyadh regionA.JS3[11]
10. A. judaicaAerial partsEgyptNoarth CoastA.JE4[19]
11. A. judaicaAerial partsEgyptSaint Catherine in South SinaiA.JE1b[20]
12. A. judaicaAerial partsAlgeriaTassili n’AjjerA.JA1a[21]
13.  A. judaicaAerial partsEgyptEl Sharkia GovernorateA.JE5[22]
14.  A. judaicaAerial partsAlgeriaWeddi tasset in Illizi A.JA2a[23]
15.  A. judaicaAerial partsAlgeriaTamenerast desert, south AlgeriaA.JA1b[24]
16.  A. judaicaAerial partsLibyaWestern HamadaA.JL1[10]
17.  A. judaicaAerial partsEgyptEl-Arish Region of Sinai PeninsulaA.JE1c[25]
18.  A. judaicaAerial partsEgyptAlexandria state and the Sinai PeninsulaA.JE1d[26]
19.  A. judaicaAerial partsAlgeriaIn Amenas desert, near Illizi city.A.JA2b[27]
20.  A. judaicaAerial partsAlgeriaTamanrassetA.JA[28]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alsharif, B.; Bashir, Y.; Boylan, F. Chemical Composition and Cytotoxicity Evaluation of Artemisia judaica L. Essential Oil from Saudi Arabia. Molecules 2024, 29, 2882. https://doi.org/10.3390/molecules29122882

AMA Style

Alsharif B, Bashir Y, Boylan F. Chemical Composition and Cytotoxicity Evaluation of Artemisia judaica L. Essential Oil from Saudi Arabia. Molecules. 2024; 29(12):2882. https://doi.org/10.3390/molecules29122882

Chicago/Turabian Style

Alsharif, Bashaer, Yasmin Bashir, and Fabio Boylan. 2024. "Chemical Composition and Cytotoxicity Evaluation of Artemisia judaica L. Essential Oil from Saudi Arabia" Molecules 29, no. 12: 2882. https://doi.org/10.3390/molecules29122882

Article Metrics

Back to TopTop
