Article

Synthesis of New Isoxazolidine Derivatives Utilizing the Functionality of N-Carbonylpyrazol-Linked Isoxazolidines

Key Laboratory of Green Chemical Engineering and Technology of Heilongjiang Province, College of Materials Science and Chemical Engineering, Harbin University of Science and Technology, Harbin 150080, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(15), 3454; https://doi.org/10.3390/molecules29153454
Submission received: 20 June 2024 / Revised: 19 July 2024 / Accepted: 21 July 2024 / Published: 23 July 2024
(This article belongs to the Special Issue Heterocyclic Chemistry with Applications (Second Edition))

Abstract

:
Using Ni(II) as the catalyst, electron-deficient 3,5-dimethylacryloylpyrazole olefin was reacted with C,N-diarylnitrones alone for 10 min to prepare novel five-member heterocyclic products, 4-3,5-dimethylacryloylpyrazole isoxazolidines with 100% regioselectivity and up to 99% yield. And then, taking these cycloadducts as substrates, six kinds of derivatization reactions, like ring-opening, nucleophilic substitution, addition-elimination and reduction, were studied. Experimental results showed that all kinds of transformations could obtain the target products at a high conversion rate under mild conditions, a finding which provided the basic methods for organic synthesis methodology research based on an isoxazolidine skeleton.

1. Introduction

Isoxazolidine compounds are a part of the azole family and contain O and N atoms in the 1,2-positions; these compounds serve as influential building blocks for bioactive molecules and natural products [1,2]. Also, isoxazolidine compounds are often utilized as multipurpose intermediates in research subjects as diverse as organic synthesis, medicinal chemistry and material science [3,4,5]. Among the existing methods, the 1,3-dipolar cycloaddition of nitrone with olefin is an important method used to gain structurally diverse isoxazolidines [6,7]. The molecular structure of nitrones and alkenes plays a key role in the rate, selectivity and conversion of the cycloaddition reaction; therefore, selecting auxiliary groups with good inducing functions for nitrones and alkenes is of great significance. On the other hand, as can be seen from the structural characteristics of olefin, the leaving activity of the olefin auxiliary group is all-important in researching whether other active functional groups can be easily introduced into the isoxazolidine rings.
A previous work reported by our group showed that 3,5-dimethylpyrazolylcarbonyl olefin is an excellently reactive electron-deficient olefin in the 1,3-dipole cycloaddition reaction [8]. However, (pyrazolylcarbonyl)isoxazolidine derivatizations are rarely systematically studied. In view of this, we attempted to modify isoxazolidine intermediates by employing 3,5-dimethylpyrazolylcarbonyl as an acylating reagent in the study of isoxazolidine derivatization.
Due to the outstanding performance of the isoxazolidine structural fragment in various fields, the construction of novel isoxazolidine derivants through simple and effective synthetic methods has long been a hot topic among organic synthetic chemists. In general, most of the works investigating isoxazolidines-involved derivatization reactions focus on the study of ring-opening reduction to form β-alkamine, and the rearrangement to form amino alcohols and preparation as lactams [9,10,11,12]. Meanwhile, the 4-isoxazolidine derivatives with varying substituents exemplify an important way of increasing the application value of these compounds, since they retain the heterocyclic skeletons and also provide reaction sites in synthetic chemistry [13,14]. Figure 1 shows the 4-substituted isoxazolidine derivatives in several drug molecules or natural products [15,16,17,18].
In this paper, novel 4-functionalized isoxazolidines attaching a 3,5-dimethylpyrazolylcarbonyl group with 100% regioselectivity and up to 99% yield were synthesized through a 1,3-dipolar cycloaddition process of C,N-diarylnitrones to 3,5-dimethylacryloylpyrazole alkene using a Ni (II) catalyst. Subsequently, we exploited six kinds of transformations, including ring-opening, nucleophilic substitution, and reduction, to construct a series of new 4-substituted isoxazolidine derivatives with moderate to excellent yields under mild conditions; the specific routes are shown in Figure 2.

2. Results and Discussion

In this paper, firstly, 4-(3,5-dimethylpyrazol-1-ylcarbonyl) isoxazolidines (16) were synthesized, and secondly, six kinds of isoxazolidine derivatives (740) were synthesized from these ingredients. The structures and yields of the isoxazolidines and their derivatives are shown in Figure 3.

2.1. Synthesis of 2,3-Diaryl-4-(3,5-dimethylpyrazolylcarbonyl)isoxazolidines 16

For the 1,3-dipolar cycloaddition reaction of C,N-diarylnitrones with 3,5-dimethylacryloylpyrazole olefin studied in this paper, the reaction took only 10 min to give 4-substituted isoxazolidine products with 100% regioselectivity when using 10 mol% Ni(ClO4)2·6H2O·as catalyst; the structure of 2-phenyl-3-(9-anthryl)-4-(3,5-dimethylpyrazolylcarbonyl)isoxazolidine (6) was confirmed by single-crystal X-ray diffraction (Table 1). The effects of different groups of nitrones on the 1,3-dipolar cycloaddition were probed. When there was no substituent on the benzene ring Ar2 of the N-atom, the yield of cycloadduct 1 reached 90% for 10 min (Entry 1). When the benzene ring of Ar2 contained electron-donating groups (-CH3 and -C2H5), the yields of 2 and 3 reached 99% (Entries 2–3). However, when it contained electron-withdrawing groups (-Cl and -CN), the yields of 4 and 5 dropped to 80% and 85%, respectively (Entries 4–5). Additionally, when the benzene ring of Ar1 was replaced by bulky 9-anthryl substituents, the cycloaddition went smoothly and the yield of 6 was 70% at the same reaction time (Entry 6). The results showed that different substituents on the benzene ring Ar2 of C,N-diarylnitrones had good substrate universality relative to the product conversion.

2.2. Study of the Reduction Reactions of (Pyrazolylcarbonyl)isoxazolidines

As depicted in Figure 4, the (pyrazolylcarbonyl)isoxazolidine-derived molecule had two easily reducible reactive sites (a and b), which created the possibility of the preparation of diverse isoxazolidine derivatives. Currently, the study of isoxazolidine derivatizations is mainly focused on the ring-opening hydrogenation reduction (in the site a) to acquire β-alkamine with the aid of suitable reducing agents. Compared to the isoxazolidine ring, due to the high reactivity of the pyrazolylcarbonyl, the carbonyl group in this structure is more prone to reduction reactions. Therefore, the methodology of choosing the appropriate reducing agent and selectively opening the isoxazolidine ring while retaining the pyrazole group to prepare new β-alkamines or retaining the isoxazolidine ring to prepare the 4-position carbonyl group-reduced products is a challenging task. Some known samples have revealed ring-opening reduction catalysts like Raney-Ni [19], Zn/H+ [20], Mo(CO)6 [21] and Pd/C [22,23], which have catalyzed ring-opening reductions of isoxazolidine to generate β-alkamine. The experiment described, however, found that only the 3,5-dimethylpyrazolyl group was unaffected within the method of Pd/C catalyst hydrogenation. Given this, the effects of different groups of (pyrazolylcarbonyl)isoxazolidines on the reduction reaction were investigated by the use of a Pd/C catalyst.
As for the ring-opening hydrogenation reduction of (pyrazolylcarbonyl)isoxazolidines, Table 2 showed that the differences in the groups of (pyrazolylcarbonyl)isoxazolidines had a relatively large influence, causing significant differences in the reaction times and product yields. The yield of product 7 was 87% for 2 h when the benzene ring Ar2 of the N-atom had no substituent (Entry 1). When the benzene ring of Ar2 contained electron-donating substituents (-CH3 and -C2H5), the yields of 8 and 9 were distinctly increased to 95%, although the reaction time was shortened to 1 h (Entries 2–3). When the benzene ring of Ar2 contained electron-withdrawing groups (-Cl and -CN) and the Ar1 substituent was the 9-anthryl group, products 10, 11 and 12 had, respectively, yields of 70, 84 and 60%, and respective reaction times of 8, 3 and 8 h (Entries 4–6). It is known that 4-hydroxymethylated isoxazolidine derivants have some uses in medicinal chemistry and other subjects [24,25]. Here, the use of sodium borohydride (NaBH4) to induce the reduction reaction of isoxazolidines was studied. When the molar ratio of reactant to NaBH4 was 1:4, a yield of 13 achieved a maximum value of 92% for 5 h (Entries 7). The effects of substituents of (pyrazolylcarbonyl)isoxazolidines on the reaction were also studied, and the results showed that differences in the substituents had little effect on the reactions under the same conditions (Entries 8–12).

2.3. Study of the Nucleophilic Reactions of (Pyrazolylcarbonyl)isoxazolidines

From the perspective of some works in the literature and potential applications [26,27,28], the introduction of four functional groups (-C(CH3)2OH, -COCH3, -CONHNH2 and -COOC2H5) into the 4-position of the isoxazolidine ring was very important. Therefore, the involvement of the 3,5-dimethylpyrazolylcarbonyl group in the derivatization reactions broadened the synthetic utility of the isoxazolidines.

2.3.1. Study of the Nucleophilic Substitution Reactions with Organometallic Reagents

The involvement of (pyrazolylcarbonyl)isoxazolidine in a nucleophilic substitution reaction with Grignard reagent CH3MgBr constituted an efficient method to obtain 2-(2-(aryl)-3-arylisoxazolidin-4-yl)propan-2-ol (1924) in 70–75% yields at 0 °C for 2 h under argon. To retain a methyl ketone fragment, we tried to lower the amount of CH3MgBr and the reaction temperature. However, the stronger leaving property of the 3,5-dimethylpyrazolylcarbonyl group and the stronger reactivity of CH3MgBr led to the methyl ketones produced being eventually converted into tertiary alcohols. To address this, CH3MgBr was replaced with the less reactive (CH3)2CuLi, and 4-acetyl-2,3-diarylisoxazolidines (2528) with methyl ketone fragments in 65–70% yields were obtained under the same conditions (Table 3).
Initially, the product was generated in the tertiary alcohol stage by controlling the input amount of the CH3MgBr. There was hardly any reaction when the amount of CH3MgBr was lower than 1 equivalent at 0 °C (Entries 1–2). When the amount of CH3MgBr increased to 1, 5 and 10 equivalents, the yields of product 19 with a tertiary alcohol structure reached 7%, 30% and 73% for 2 h, respectively (Entries 3–7). Additionally, the target had an identical yield (73%) for 30 min when using 11-equivalent amounts of CH3MgBr (Entry 8). The ingredients disappeared and only a small amount of product was synthesized across a duration of 30 min when the reaction temperature was raised to room temperature (Entry 9), possibly because the hyperalkalinity of CH3MgBr caused the decomposition of both the ingredients and the product. Further, 19 had respective yields of only 65% and 52% when the amount of CH3MgBr was 11 equivalents and the reaction temperature was further reduced to −10 °C and −20 °C for 3 h (Entries 10–11). Meanwhile, experiment’s results showed that different groups of 4-(pyrazolylcarbonyl)isoxazolidines had little effect on the reaction under the 10-equivalent amounts of CH3MgBr for 2 h at 0 °C (Entries 12–16).
4-Acetyl-2,3-diarylisoxazolidines (2528) in 68–70% yields were readily prepared when using 3-equivalent amounts of the less reactive (CH3)2CuLi at 0 °C. Unexpectedly, the reaction could not be reproduced when the experiment was repeated later (Entry 17). We carefully observed and studied the experimental results and found that the polytetrafluoroethylene stir-bar surface exposed a small amount of iron dust in the original reaction system. Simultaneously, we consulted some literature on nucleophilic substitution reactions involving organometallic reagents and found that iron catalysts could catalyze this reaction. Subsequently, we tried using iron powder as catalyst, and the experimental results showed that the reaction could proceed smoothly [29]. Hence, when the molar ratio of (pyrazolylcarbonyl)isoxazolidine and (CH3)2CuLi was 1:3, acetylation products were obtained with a trace amount of Fe powder catalysis at 0 °C under argon (Entries 18–21).

2.3.2. Study of the Hydrazinolysis and Alcoholysis Reactions of (Pyrazolylcarbonyl)isoxazolidines

To explore the nucleophilicity of (pyrazolylcarbonyl)isoxazolidines toward 80w% hydrazine hydrate, hydrazinolysis reactions were performed under mild conditions (Table 4). When there was no substituent in the benzene ring of (pyrazolylcarbonyl)isoxazolidines, the yield of 29 reached 70% at 0 °C for 1 h (Entry 1). The yield of product was reduced to 45% when the reaction temperature was raised to room temperature (Entry 2), likely due to the strong alkalinity of 80w% hydrazine hydrate, which led to partial hydrolysis of the (pyrazolylcarbonyl)isoxazolidine [30]. The yield of product was increased to 92% when reaction time was extended to 3 h at 0 °C (Entries 3–4), and the yield of product slightly roset (93% yield) when the reaction time was prolonged to 4 h (Entry 5). When the benzene ring on the N-atom contained electron-donating groups (-CH3, -C2H5), the yields of compounds 30 and 31 reached 93% and 95%, respectively (Entries 6–7). When it contained electron-withdrawing groups (-Cl, -CN), compounds 32 and 33 had respective yields of 92% and 91% (Entries 8–9). And when the benzene ring on Ar1 was replaced with a larger volume of 9-anthryl, the yield of 34 reached 90% for 3 h (Entry 10).
Next, to explore the nucleophilicity of (pyrazolylcarbonyl)isoxazolidines toward nucleophiles, the effects of varying nucleophile dosages, reaction temperatures, reaction times and varying groups of isoxazolidines within the alcoholysis reaction were tested (Table 5). Using methods described in the literature [23,31], no products were generated, according to TLC analysis, when using a 0.8 equivalent of sodium methoxide (CH3ONa) at room temperature for 30 min (Entry 1), probably because the strong reactivity of CH3ONa led to the loss of ingredients thorough decomposition. Products 35′ had respective yields of 60% and 73% when using 0.8 equivalent and 1.1 equivalents of CH3ONa at 0 °C for 5 min (Entries 2–3). However, the utilization of 1.1 equivalents of sodium ethoxide (EtONa) further enhanced the yield of 35 (93% yield) at 0 °C for 5 min (Entry 4). With the continuous extension of the reaction time, the quantity of the products would gradually become less until the product almost completely disappeared after 25 min (Entries 5–8). The yield of product was significantly reduced when using less than 1 equivalent of EtONa (Entries 9–10). Consequently, when the molar ratio of (pyrazolylcarbonyl)isoxazolidine with EtONa was 1:1.1, ethyl 2,3-diarylisoxazolidin-4-ylcarboxylate (3540) with 92–94% yields was gained at 0 °C for 5 min under argon (Entries 4 and 11–15).

3. Experimental Design

3.1. Instrumentation and Materials

IR spectra were recorded by a Thermo Nicolet 370 Fourier transform infrared (FTIR) spectrometer, with the samples in KBr pellets. The 1H and 13C NMR spectra were obtained using a Bruker 300 NMR spectrometer (300 and 75 MHz, respectively) in CDCl3. Abbreviations for data cited are as follows: s, singlet; d, doublet; t, triplet; dd, doublet of doublets; m, multiplet. The residual solvent signals were served as references and the chemical shifts converted to the TMS scale (CDCl3: δH = 7.26 ppm, δC = 77.16 ppm). High-resolution mass spectra were obtained on a Waters G2-XS QTof mass spectrometer. Melting points were determined with a Tektronix X-6 micro-melting-point apparatus and are uncorrected.
All chemicals and reagents were purchased from sellers and employed as received.

3.2. Synthesis Methods

The starting materials, specifically, the alkene and nitrones, were obtained according to a previously published method [32].

3.2.1. Synthesis of 2,3-Diaryl-4-(3,5-dimethylpyrazolylcarbonyl)isoxazolidines (16)

Compounds (16) were prepared by the reported procedure [8]. 3,5-dimethylacryloyl pyrazole alkene (447 mg, 2.98 mmol), Ni(ClO4)2·6H2O (109 mg, 0.298 mmol) and isopropanol (2 mL) were added to CH2Cl2 (20 mL), and, next, a solution of C,N-diaryl nitrones (646 mg, 3.28 mmol) in CH2Cl2 (10 mL) was added dropwise. The reaction was stirred for 10 min at room temperature. The solvent was evaporated in a vacuum and the crude products were purified by preparative TLC (eluent: petroleum ether/ethyl acetate = 20/1) to gain the cycloadducts 16. Corresponding data and spectra are given in the Supplementary Materials.

3.2.2. Synthesis of 2-(3,5-Dimethylpyrazol-1-ylcarbonyl)-3-(arylamino)-3-arylpropan-1-ol (712)

Compounds 1 or 26 (50 mg, 0.144 mmol) and 5% Pd/C (25 mg, 0.231 mmol) were added to EA (4 mL), and the mixture was stirred for 1–8 h under a hydrogen atmosphere, while the reaction was monitored by TLC (Rf = 0.23 (PE/EA = 5/1). The reaction mixture was purified by preparative TLC (eluent: PE/EA = 5/1) to obtain products 712. Corresponding data and spectra are given in the Supplementary Materials.

3.2.3. Synthesis of 4-Hydroxymethyl-2,3-diphenylisoxazolidine (1318)

Compounds 1 or 26 (50 mg, 0.144 mmol) and NaBH4 (21.79 mg, 0.576 mmol) were added to THF (4 mL) at 0 °C under a nitrogen atmosphere. The mixture was gradually returned to room temperature and continuously stirred for 5 h, and the reaction was monitored by TLC (Rf = 0.33 (petroleum ether/ethyl acetate = 2/1)). The reaction mixture was quenched with a small amount of water, and then washed with saturated salt water and extracted with ethyl acetate, and the organic phase was evaporated in a vacuum. The crude product was purified by preparative TLC (eluent: PE/EA = 3/1) to obtain products 1318. Corresponding data and spectra are given in the Supplementary Materials.

3.2.4. Synthesis of 2-(2-(Aryl)-3-arylisoxazolidin-4-yl)propan-2-ol (1924)

Compounds 1 or 26 (50 mg, 0.144 mmol) were dissolved in THF (4 mL), and next, a 3.0 M CH3MgBr solution in Et2O (480 μL, 1.44 mmol) was added dropwise at 0 °C under a nitrogen atmosphere. The mixture was gradually returned to room temperature and continuously stirred for 2 h, and the reaction was monitored by TLC (Rf = 0.3 (PE/EA = 5/1)). The reaction mixture was quenched with a small amount of water, and then washed with saturated salt water and extracted with ethyl acetate, and the organic phase was evaporated in a vacuum. The crude product was purified by preparative TLC (eluent: PE/EA = 4/1) to obtain products 1924. Corresponding data and spectra are given in the Supplementary Materials.

3.2.5. Synthesis of 4-Acetyl-2,3-diarylisoxazolidines (2528)

Compounds 1 or 26 (50 mg, 0.144 mmol) and Fe powder (25 mg, 0.447 mmol) were dissolved in CH2Cl2 (4 mL), and next, a 0.5 M (CH3)2CuLi solution in Et2O (864 μL, 0.432 mmol) was added dropwise at 0 °C under a nitrogen atmosphere. The mixture was gradually returned to room temperature and continuously stirred for 1 h, and the reaction was monitored by TLC (Rf = 0.6 (PE/EA = 5/1)). The reaction mixture was quenched with a small amount of water, and then washed with saturated salt water and extracted with ethyl acetate, and the organic phase was evaporated in a vacuum. The crude product was purified by preparative TLC (eluent: PE/EA = 10/1) to gain products 2528. Corresponding data and spectra are given in the Supplementary Materials.

3.2.6. Synthesis of 2,3-Diaryl-4-ylcarbonylhydrazineisoxazolidines (2934)

Compounds 1 or 26 (50 mg, 0.144 mmol) were dissolved in CH2Cl2 (4 mL), and next, 80w% hydrazine hydrate (1 mL, 19.2 mmol) was added dropwise at 0 °C. The mixture was gradually returned to room temperature and continuously stirred for 3 h, and the reaction was monitored by TLC (Rf = 0.1 (PE/EA = 1/1)). The reaction mixture was washed with saturated salt water and extracted with CH2Cl2, and the organic phase was evaporated in a vacuum. The crude product was crystallized from a mixture of PE-EA (10:1, v/v) to furnish products 2934. Corresponding data and spectra are given in the Supplementary Materials.

3.2.7. Synthesis of Ethyl 2,3-Diarylisoxazolidin-4-ylcarboxylate (3540)

Compounds 1 or 26 (50 mg, 0.144 mmol) were dissolved in CH2Cl2 (4 mL), and next, a solution of EtONa (10.75 mg, 0.158 mmol) in ethyl alcohol (1 mL) was added dropwise at 0 °C. The mixture was stirred for 5 min and the reaction was monitored by TLC (Rf = 0.8 (PE/EA = 10/1)). The reaction mixture was quenched with a small amount of water, the solvent was evaporated in vacuum, and the mixture was then washed with saturated salt water, extracted with ethyl acetate, and the organic phase was evaporated in vacuum. The crude product was then purified by preparative TLC (eluent: PE/EA = 20/1) to build products 3540. Corresponding data and spectra are given in the Supplementary Materials.

3.3. X-ray Structural Analysis of Compound 6

A crystal of compound 6 was gained by recrystallization from the CH2Cl2 solution. X-ray single-crystal structural data were obtained with a Bruker Apex Smart CCDC Venture diffractometer at 293(2)K. CCDC 2234690 contains the supplementary crystallographic data for compound 6. These data are accessed on 6 January 2023 and can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44-1223-336033; E-mail: [email protected]).

4. Conclusions

In summary, 4-isoxazolidine intermediates featuring a 3,5-dimethylpyrazolylcarbonyl side group were selected as befitting substrates which might be used to construct novel diversified isoxazolidine derivatives by six kinds of transformations, like ring-opening, nucleophilic substitution, addition-elimination and reduction. The results showed that 5% Pd/C induced the ring-opening reaction of isoxazolidine, forming 2-(3,5-dimethylpyrazol-1-ylcarbonyl)-3-(arylamino)-3-arylpropan-1-ol, and there was no influence on the 3,5-dimethylpyrazolylcarbonyl side group. The isoxazolidine ring was selectively retained and the pyrazolylcarbonyl portion was successfully reduced to primary alcohol by the use of a NaBH4 reducing agent. Utilizing the good reactivity and leaving-group ability of the 3,5-dimethylpyrazolylcarbonyl side group, the 4-isoxazolidine derivatives containing varying functional groups (-CH2OH, -C(CH3)2OH, -COCH3, -COOC2H5, and -CONHNH2) were expediently produced in generally good-to-high yields (up to 95% yield) under mild conditions. The method described provides a valuable reference for the derivations of other heterocyclic compounds, and the construction of isoxazolidines featuring diverse functional groups may offer a more comprehensive structural database for the development of new drugs and functional materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29153454/s1. Spectral data and references are available. Figures S1–S40: 1H and 13C NMR spectra; Tables S1 and S2: Crystallographic data of compound 6.

Author Contributions

Conceptualization, X.C. and J.Y.; methodology, X.C. and J.Y.; writing—original draft preparation, X.C.; writing—review and editing, Y.W., X.C., W.W. and Y.L.; supervision, Y.Y.; funding acquisition, J.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Foundations of China (Nos. 22278098, 21908034 and 22008045 to J.Y.) and the Natural Science Foundations of Heilongjiang Province (Nos. LH2021H001 and LH2023B013 to J.Y.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the Article/Supplementary Materials; further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Mosbah, H.; Chahdoura, H.; Mannai, A.; Snoussi, M.; Aouadi, K.; Abreu, R.M.V.; Bouslama, A.; Achour, L.; Selmi, B. Biological Activities Evaluation of Enantiopure Isoxazolidine Derivatives: In Vitro, In Vivo and In Silico Studies. Appl. Biochem. Biotechnol. 2019, 187, 1113–1130. [Google Scholar] [CrossRef] [PubMed]
  2. Ghannay, S.; Bakari, S.; Msaddek, M.; Vidal, S.; Kadri, A.; Aouadi, K. Design, synthesis, molecular properties and in vitro antioxidant and antibacterial potential of novel enantiopure isoxazolidine derivatives. Arab. J. Chem. 2020, 13, 2121–2131. [Google Scholar] [CrossRef]
  3. Berthet, M.; Cheviet, T.; Dujardin, G.; Parrot, I.; Martinez, J. Isoxazolidine: A Privileged Scaffold for Organic and Medicinal Chemistry. Chem. Rev. 2016, 116, 15235–15283. [Google Scholar] [CrossRef] [PubMed]
  4. Piotrowska, D.G.; Andrei, G.; Schols, D.; Snoeck, R.; Łysakowska, M. Synthesis, anti-varicella-zoster virus and anti-cytomegalovirus activity of quinazoline-2,4-diones containing isoxazolidine and phosphonate substructures. Eur. J. Med. Chem. 2017, 126, 84–100. [Google Scholar] [CrossRef]
  5. Alhaffar, M.T.; Umoren, S.A.; Obot, I.B.; Ali, S.A.; Solomon, M.M. Studies of the anticorrosion property of a newly synthesized green isoxazolidine for API 5L X60 steel in acid environment. J. Mater. Res. Technol. 2019, 8, 4399–4416. [Google Scholar] [CrossRef]
  6. Bilodeau, D.A.; Margison, K.D.; Serhan, M.; Pezacki, J.P. Bioorthogonal Reactions Utilizing Nitrones as Versatile Dipoles in Cycloaddition Reactions. Chem. Rev. 2021, 121, 6699–6717. [Google Scholar] [CrossRef] [PubMed]
  7. Angyal, A.; Demjén, A.; Wölfling, J.; Puskás, L.G.; Kanizsai, I. Acid-Catalyzed 1,3-Dipolar Cycloaddition of 2H-Azirines with Nitrones: An Unexpected Access to 1,2,4,5-Tetrasubstituted Imidazoles. J. Org. Chem. 2020, 85, 3587–3595. [Google Scholar] [CrossRef]
  8. Li, M.; Cao, X.; You, J.; Yu, Y.; Wu, W.; Liu, B. Asymmetric 1,3-Dipolar Cycloaddition Reaction of C,N-Diarylnitrone with N-α,β-Unsaturated Acyl Compounds Catalyzed by Chiral Bisoxazoline Metal Complex. Chin, J. Org. Chem. 2019, 39, 1642–1649. [Google Scholar] [CrossRef]
  9. Lahiri, R.; Palanivel, A.; Kulkarni, S.A.; Vankar, Y.D. Synthesis of Isofagomine–Pyrrolidine Hybrid Sugars and Analogues of (−)-Steviamine and (+)-Hyacinthacine C5 Using 1,3-Dipolar Cycloaddition Reactions. J. Org. Chem. 2014, 79, 10786–10800. [Google Scholar] [CrossRef]
  10. Tran, T.Q.; Diev, V.V.; Starova, G.L.; Gurzhiy, V.V.; Molchanov, A.P. Cycloaddition of C,C-Disubstituted Ketonitrones with Acceptor Methylenecyclopropanes and Subsequent Rearrangement Cascade of 5-Spirocyclopropane-isoxazolidines. Eur. J. Org. Chem. 2012, 2012, 2054–2061. [Google Scholar] [CrossRef]
  11. Chakrabarty, S.; Chatterjee, I.; Wibbeling, B.; Daniliuc, C.G.; Studer, A. Stereospecific Formal [3+2] Dipolar Cycloaddition of Cyclopropanes with Nitrosoarenes: An Approach to Isoxazolidines. Angew. Chem. Int. Edit. 2014, 53, 5964–5968. [Google Scholar] [CrossRef] [PubMed]
  12. Pagar, V.V.; Liu, R.S. Gold-Catalyzed Cycloaddition Reactions of Ethyl Diazoacetate, Nitrosoarenes, and Vinyldiazo Carbonyl Compounds: Synthesis of Isoxazolidine and Benzo[b]azepine Derivatives. Angew. Chem. Int. Edit. 2015, 127, 5005–5008. [Google Scholar] [CrossRef]
  13. Doyle, L.; Heaney, F. NH-Isoxazolo-bicycles; new molecular scaffolds for organocatalysis. Tetrahedron 2011, 67, 2132–2138. [Google Scholar] [CrossRef]
  14. Miyoshi, T.; Miyakawa, T.; Ueda, M.; Miyata, O. Nucleophilic α-arylation and α-alkylation of ketones by polarity inversion of N-alkoxyenamines: Entry to the umpolung reaction at the α-carbon position of carbonyl compounds. Angew. Chem. Int. Ed. 2011, 50, 928–931. [Google Scholar] [CrossRef] [PubMed]
  15. Galietti, F.; Giorgis, G.E.; Oliaro, A.; Boaro, D.; Ardizzi, A.; Barberis, S.; Massaglia, G.M. Tolerability to terizidone (TZ) in the treatment of pulmonary tuberculosis in dialyzed patients. Minerva Med. 1991, 82, 477–481. [Google Scholar] [PubMed]
  16. Miyachi, H. Analysis of patent applications relating to peroxisome proliferator-activated receptor (PPAR) ligands in 2004. Expert Opin. Ther. Pat. 2005, 15, 1521–1530. [Google Scholar] [CrossRef]
  17. Yotsu-Yamashita, M.; Kim, Y.H.; Dudley, S.C., Jr.; Choudhary, G.; Pfahnl, A.; Oshima, Y.; Daly, J.W. The structure of zetekitoxin AB, a saxitoxin analog from the Panamanian golden frog Atelopus zeteki: A potent sodium-channel blocker. Proc. Natl. Acad. Sci. USA 2004, 101, 4346–4351. [Google Scholar] [CrossRef] [PubMed]
  18. Sirotkina, E.V.; Efremova, M.M.; Novikov, A.S.; Zarubaev, V.V.; Orshanskaya, I.R.; Starova, G.L.; Kostikov, R.R.; Molchanov, A.P. Regio- and diastereoselectivity of the cycloaddition of aldonitrones with benzylidenecyclopropane: An experimental and theoretical study. Tetrahedron 2017, 73, 3025–3030. [Google Scholar] [CrossRef]
  19. Budzińska, A.; Sas, W. Preparation of highly substituted 7-oxa-1-azabicyclo[2.2.1]heptanes from 4-nitro-1-butene derivatives. Route to polysubstituted piperidines. Tetrahedron 2001, 57, 2021–2030. [Google Scholar] [CrossRef]
  20. Molander, G.A.; Cavalcanti, L.N. Synthesis of Trifluoromethylated Isoxazolidines: 1,3-Dipolar Cycloaddition of Nitrosoarenes, (Trifluoromethyl)diazomethane, and Alkenes. Org. Lett. 2013, 15, 3166–3169. [Google Scholar] [CrossRef]
  21. Shibue, T.; Hirai, T.; Okamoto, I.; Morita, N.; Masu, H.; Azumaya, I.; Tamura, O. Stereoselective synthesis of tubuvaline methyl ester and tubuphenylalanine, components of tubulysins, tubulin polymerization inhibitors. Tetrahedron Lett. 2009, 50, 3845–3848. [Google Scholar] [CrossRef]
  22. Bates, R.W.; Hirao, H.; Tay, Y.S.; Sae-Lao, P. A total synthesis of (+)-negamycin through isoxazolidine allylation. Org. Biomol. Chem. 2014, 12, 4879–4884. [Google Scholar] [CrossRef] [PubMed]
  23. Kashima, C.; Takahashi, K.; Fukuchi, I.; Fukusaka, K. Diastereoselective 1,3-dipolar cycloaddition of 2-(α,β-unsaturated) acyl-3-phenyl-l-menthopyrazoles. Heterocycles 1997, 44, 289–304. [Google Scholar] [CrossRef]
  24. Rescifina, A.; Chiacchio, M.A.; Corsaro, A.; Clercq, E.D.; Iannazzo, D.; Mastino, A.; Piperno, A.; Romeo, G.; Romeo, R.; Valveri, V. Synthesis and Biological Activity of Isoxazolidinyl Polycyclic Aromatic Hydrocarbons:  Potential DNA Intercalators. J. Med. Chem. 2006, 49, 709–715. [Google Scholar] [CrossRef] [PubMed]
  25. Romeo, R.; Navarra, M.; Giofre, S.V.; Carnovale, C.; Cirmi, S.; Lanzam, G.; Chiacchio, M.A. Synthesis and biological activity of new arenediyne-linked isoxazolidines. Bioorgan. Med. Chem. 2014, 22, 3379–3385. [Google Scholar] [CrossRef] [PubMed]
  26. Acharjee, N.; Banerji, A. A molecular electron density theory study to understand the interplay of theory and experiment in nitrone-enone cycloaddition. J. Chem. Sci. 2020, 132, 65. [Google Scholar] [CrossRef]
  27. Oukani, H.; Pellegrini-Moïse, N.; Jackowski, O.; Chrétien, F.; Chapleur, Y. The 1,3-dipolar cycloaddition reaction of chiral carbohydrate-derived nitrone and olefin: Towards long-chain sugars. Carbohyd. Res. 2013, 381, 205–214. [Google Scholar] [CrossRef] [PubMed]
  28. Floresta, G.; Talotta, C.; Gaeta, C.; Rosa, M.D.; Chiacchio, U.; Neri, P.; Rescifina, A. γ-Cyclodextrin as a Catalyst for the Synthesis of 2-Methyl-3,5-diarylisoxazolidines in Water. J. Org. Chem. 2017, 82, 4631–4639. [Google Scholar] [CrossRef] [PubMed]
  29. Bauer, I.; Knölker, H.J. Iron catalysis in organic synthesis. Chem. Rev. 2015, 115, 3170–3387. [Google Scholar]
  30. Pak, I.G.; Tyrkov, A.G. Acid and alkaline hydrolysis of substituted 5-aryl-1,2-oxazolidine-3,3-dicarbonitriles. Russ. J. Org. Chem. 2011, 47, 1908–1910. [Google Scholar] [CrossRef]
  31. Beltaïef, I.; Arfaoui, A.; Amri, H. An Expeditious Synthesis of [1,2]Isoxazolidin-5-ones and [1,2]Oxazin-6-ones from Functional Allyl Bromide Derivatives. Molecules 2010, 15, 4094–4101. [Google Scholar] [CrossRef] [PubMed]
  32. Vasu, D.; Liu, R.S. Gold-catalyzed cyclization-cycloaddition cascade reactions of allenyl acetals with nitrones. Chem. Eur. J. 2012, 18, 13638–13641. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Drugs and natural products containing 4-substituted isoxazolidine rings.
Figure 1. Drugs and natural products containing 4-substituted isoxazolidine rings.
Molecules 29 03454 g001

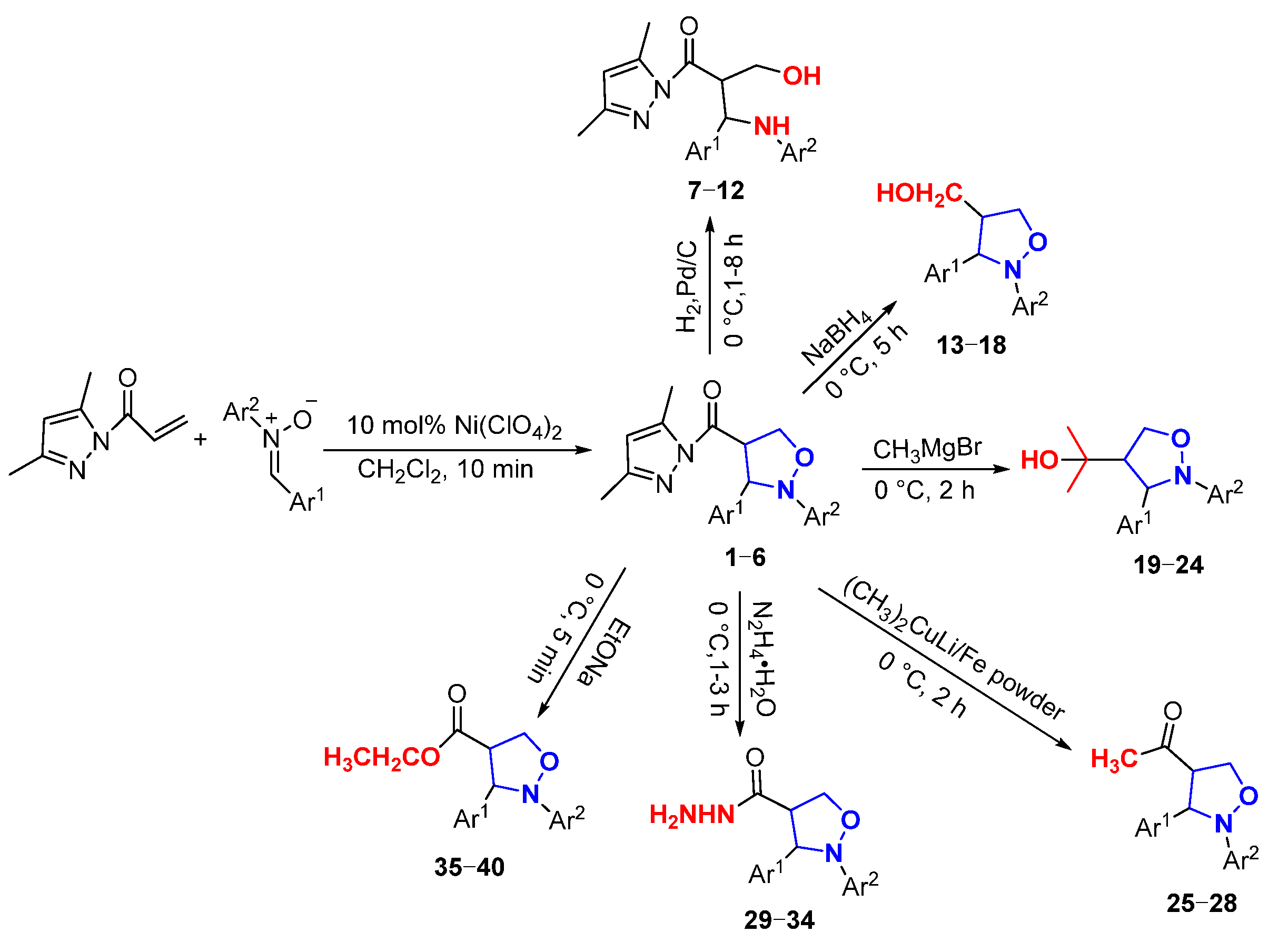

Figure 2. The synthesis routes of isoxazolidines and their further derivatization reactions.
Figure 2. The synthesis routes of isoxazolidines and their further derivatization reactions.
Molecules 29 03454 g002

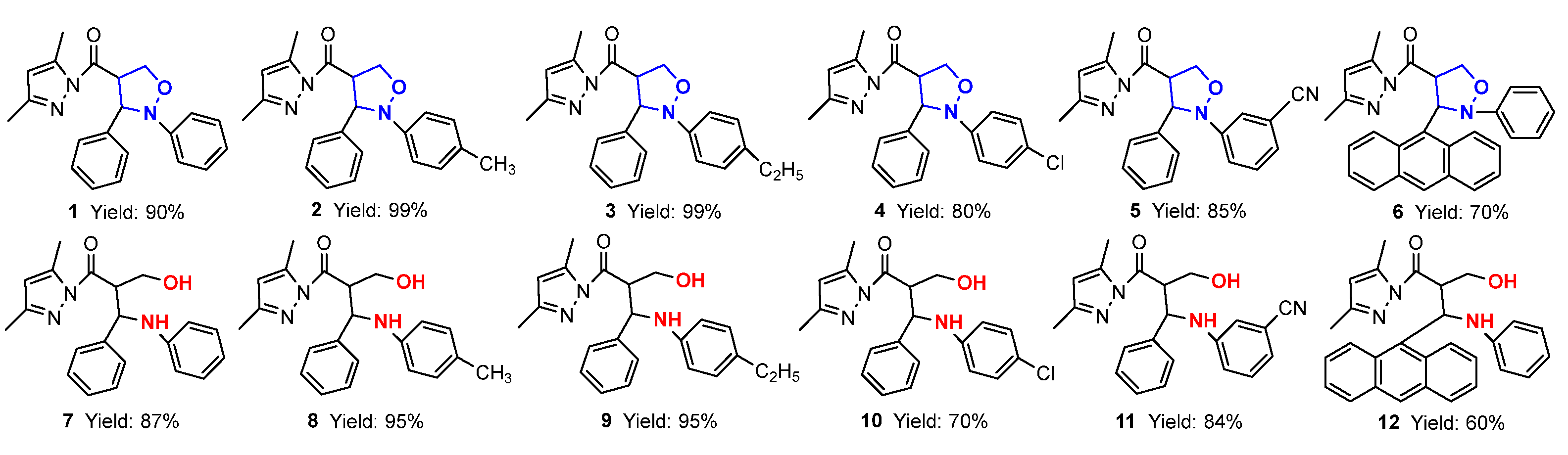

Figure 3. The structures and yields of isoxazolidines and their derivatives.
Figure 3. The structures and yields of isoxazolidines and their derivatives.
Molecules 29 03454 g003aMolecules 29 03454 g003b

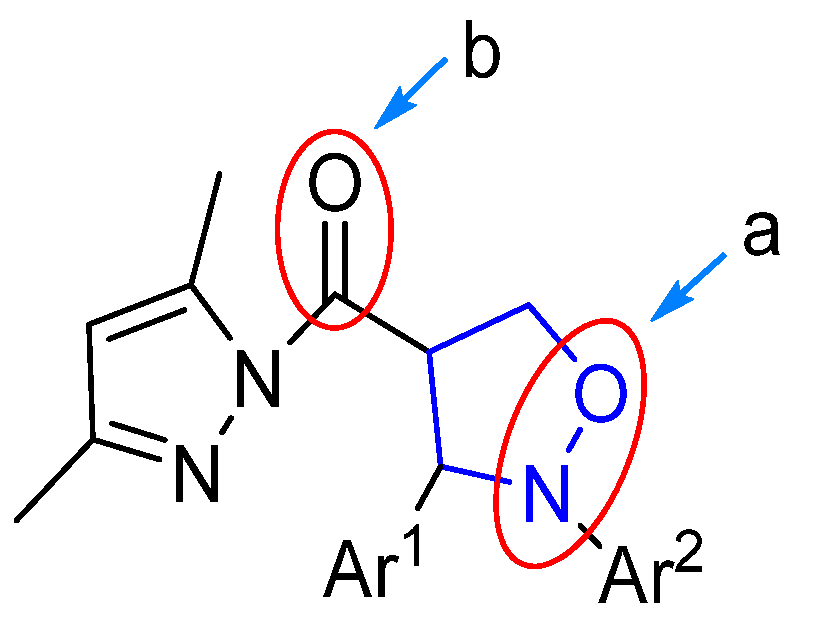

Figure 4. Reduction position of (pyrazolylcarbonyl)isoxazolidine.
Figure 4. Reduction position of (pyrazolylcarbonyl)isoxazolidine.
Molecules 29 03454 g004

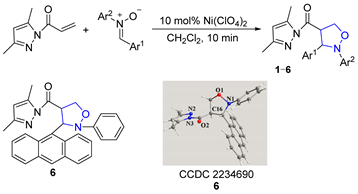

Table 1. Effect of nitrone substituents on 1,3-dipolar cycloaddition.
Table 1. Effect of nitrone substituents on 1,3-dipolar cycloaddition.
Molecules 29 03454 i001
EntrySubstrateProductYield a/%
Ar1Ar2
1PhenylPhenyl190
2Phenyl4-CH3 Phenyl299
3Phenyl4-C2H5 Phenyl399
4Phenyl4-Cl Phenyl480
5Phenyl3-CN Phenyl585
69-anthrylPhenyl670
a Isolated yields.

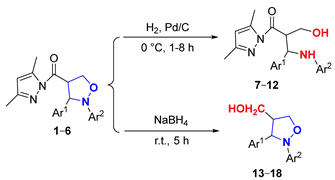

Table 2. Effects of different groups of (pyrazolylcarbonyl)isoxazolidines on the Pd/C reduction reaction.
Table 2. Effects of different groups of (pyrazolylcarbonyl)isoxazolidines on the Pd/C reduction reaction.
Molecules 29 03454 i002
EntrySubstrateTime/hProductYield a/%
Ar1Ar2
1PhenylPhenyl2787
2Phenyl4-CH3 Phenyl1895
3Phenyl4-C2H5 Phenyl1995
4Phenyl4-Cl Phenyl81070
5Phenyl3-CN Phenyl31184
69-anthrylPhenyl81260
7PhenylPhenyl51392
8Phenyl4-CH3 Phenyl51494
9Phenyl4-C2H5 Phenyl51593
10Phenyl4-Cl Phenyl51692
11Phenyl3-CN Phenyl51794
129-anthrylPhenyl51891
a Isolated yields.

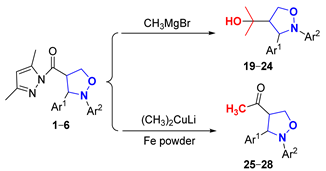

Table 3. Effect of different reaction factors on a metallic organics nucleophilic substitution reaction.
Table 3. Effect of different reaction factors on a metallic organics nucleophilic substitution reaction.
Molecules 29 03454 i003
EntrySubstrateReagentEquiv. RatioTemp./°CTime/hProductYield a/%
Ar1Ar2
1PhenylPhenylCH3MgBr0.80219-
2PhenylPhenylCH3MgBr1.00219-
3PhenylPhenylCH3MgBr2.002197
4PhenylPhenylCH3MgBr5.0021930
5PhenylPhenylCH3MgBr7.0021956
6PhenylPhenylCH3MgBr9.0021970
7PhenylPhenylCH3MgBr10.0021973
8PhenylPhenylCH3MgBr11.000.51973
9PhenylPhenylCH3MgBr11.0r.t.0.519Trace
10PhenylPhenylCH3MgBr11.0−1031965
11PhenylPhenylCH3MgBr11.0−2031952
12Phenyl4-CH3 PhenylCH3MgBr10.0022075
13Phenyl4-C2H5 PhenylCH3MgBr10.0022175
14Phenyl4-Cl PhenylCH3MgBr10.0022272
15Phenyl3-CN PhenylCH3MgBr10.0022373
169-anthrylPhenylCH3MgBr10.0022470
17PhenylPhenyl(CH3)2CuLi3.00125-
18PhenylPhenyl(CH3)2CuLi/Fe3.0012569
19Phenyl4-CH3 Phenyl(CH3)2CuLi/Fe3.0012670
20Phenyl4-C2H5 Phenyl(CH3)2CuLi/Fe3.0012770
21Phenyl4-Cl Phenyl(CH3)2CuLi/Fe3.0012868
a Isolated yields.

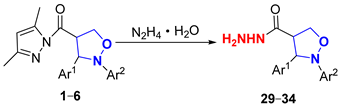

Table 4. Effect of (pyrazolylcarbonyl)isoxazolidine substituents on hydrazinolysis reactions.
Table 4. Effect of (pyrazolylcarbonyl)isoxazolidine substituents on hydrazinolysis reactions.
Molecules 29 03454 i004
EntrySubstrateTemp./°CTime/hProductYield a/%
Ar1Ar2
1PhenylPhenyl012970
2PhenylPhenylr.t.12945
3PhenylPhenyl022985
4PhenylPhenyl032992
5PhenylPhenyl042993
6Phenyl4-CH3 Phenyl033093
7Phenyl4-C2H5 Phenyl033195
8Phenyl4-Cl Phenyl033292
9Phenyl3-CN Phenyl033391
109-anthrylPhenyl033490
a Isolated yields.

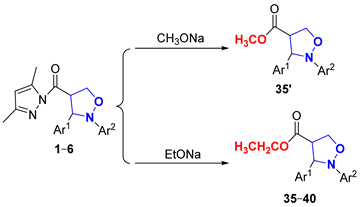

Table 5. Effect of different reaction factors on the EtONa alcoholysis reaction.
Table 5. Effect of different reaction factors on the EtONa alcoholysis reaction.
Molecules 29 03454 i005
EntrySubstrateReagentEquiv. RatioTemp./°CTime/minProductYield a/%
Ar1Ar2
1PhenylPhenylCH3ONa0.8r.t.30--
2PhenylPhenylCH3ONa0.80535′60
3PhenylPhenylCH3ONa1.10535′73
4PhenylPhenylEtONa1.1053593
5PhenylPhenylEtONa1.10103553
6PhenylPhenylEtONa1.10153537
7PhenylPhenylEtONa1.10203514
8PhenylPhenylEtONa1.102535Trace
9PhenylPhenylEtONa0.8053541
10PhenylPhenylEtONa0.5053522
11Phenyl4-CH3 PhenylEtONa1.1053693
12Phenyl4-C2H5 PhenylEtONa1.1053793
13Phenyl4-Cl PhenylEtONa1.1053892
14Phenyl3-CN PhenylEtONa1.1053994
159-anthrylPhenylEtONa1.1054093
a Isolated yields.
