A High-Performance Mn/TiO₂ Catalyst with a High Solid Content for Selective Catalytic Reduction of NO at Low-Temperatures

Abstract

Mn/TiO₂ catalysts with varying solid contents were innovatively prepared by the sol–gel method and were used for selective catalytic reduction of NO at low temperatures using NH₃ (NH₃-SCR) as the reducing agent. Surprisingly, it was found that as the solid content of the sol increased, the catalytic activity of the developed Mn/TiO₂ catalyst gradually increased, showing excellent catalytic performance. Notably, the Mn/TiO₂ (50%) catalyst demonstrates outstanding denitration performance, achieving a 96% NO conversion rate at 100 °C under a volume hourly space velocity (VHSV) of 24,000 h⁻¹, while maintaining high N₂ selectivity and stability. It was discovered that as the solid content increased, the catalyst’s specific surface area (SSA), surface Mn⁴⁺ concentration, chemisorbed oxygen, chemisorption of NH₃, and catalytic reducibility all improved, thereby enhancing the catalytic efficiency of NH₃-SCR in degrading NO. Moreover, NH₃ at the Lewis acidic sites and NH⁴⁺ at the Bronsted acidic sites of the catalyst were capable of reacting with NO. Conversely, NO and NO₂ adsorbed on the catalyst, along with bidentate and monodentate nitrates, were unable to react with NH₃ at low temperatures. Consequently, the developed catalyst’s low-temperature catalytic reaction mechanism aligns with the E-R mechanism.

1. Introduction

In recent years, as industry has rapidly developed, environmental pollution has become a pressing issue. Industrial NO_x emissions cause significant environmental damage, including acid rain, the greenhouse effect, and haze. Additionally, the high mobility of NO_x compounds can easily lead to global issues [1,2,3,4]. To the human body, NO_x is one of the causes of respiratory diseases, posing a serious threat to personal safety [5]. The issue of NO_x emissions has garnered widespread attention across countries. Developing technologies that can effectively handle NO_x has become essential for addressing air pollution.

Currently, the NH₃-SCR technique is the most widely applied mature flue gas denitrification technology, with its core being the selective catalyst [6]. The traditional commercial V₂O₅-WO₃(MoO₃)/TiO₂ catalyst exhibits its highest activity within the temperature range of 250–400 °C achieving a NO_x conversion rate of up to 90% [7]. However, the catalytic activity drops significantly when the flue gas temperature falls below 200 °C.

Recent research indicates that manganese-based catalysts have exhibited exceptional low-temperature catalytic activity. This is primarily attributed to the high concentration of active oxygen species within these catalysts and the numerous acidic sites present on the MnO_x surface, enabling them to efficiently facilitate the NH₃-SCR reaction even at low temperatures [8,9]. TiO₂ boasts a large specific surface area, endowing it with robust adsorption and loading capabilities. The loading capacity influences the denitrification efficiency, making it a favored choice as the support for denitrification catalysts [10]. The Mn/TiO₂ catalyst exhibits outstanding catalytic performance at low temperatures, positioning it as a focal point in the research of low-temperature denitrification techniques [11,12].

Research has found that compared with traditional MnO_x-TiO₂ catalysts, the incorporation of metal elements such as Ce, Fe, Pb, Sb, Sm, and Pr, along with the preparation of composite supports, can significantly enhance the catalyst’s low-temperature catalytic performance [13,14,15,16,17,18,19,20]. Wu et al. [21] synthesized a series of Mn/TiO₂ catalysts modified by doping with different transition metals (Fe, Cu, Ni, Cr) using the sol–gel method. Among them, the Fe_0.1Mn_0.4/TiO₂ catalyst has the highest catalytic activity. Lu et al. [22] first prepared the TiO₂Gr composite nanocarrier using the sol–gel method, and then loaded the Mn and Ce active components onto the composite nanocarrier using the impregnation method, synthesizing a series of CeMn/TiO₂Gr catalysts. When the Ce/Mn molar ratio is 0.3 and the mass fraction of Ce and Mn is 7%, the catalyst exhibits the best catalytic performance. Chen et al. [23] synthesized a series of Co_0.2CexMn_0.8-xTi₁₀ catalysts by the sol–gel method. The results showed that the Co_0.2Ce_0.35Mn_0.45Ti₁₀ sample had the best NH₃-SCR activity. Co and Ce doping can provide more acid sites and NO adsorption sites, further improving the catalytic activity of the catalyst.

Currently, there are many reports in the literature about catalysts prepared by the sol–gel method, but there is less research on the impact of changes in sol solid content on the catalytic performance of the catalysts. This paper mainly uses the sol–gel method to prepare a series of Mn/TiO₂ catalysts with varying solid contents, investigating the mechanism linking the impact of solid content variations on catalyst structure and performance, and further explores the reaction mechanism of Mn/TiO₂ (50%) catalyst sample NH₃-SCR degradation of NO at low temperatures.

2. Results and Discussion

2.1. Catalytic Performance of Catalysts

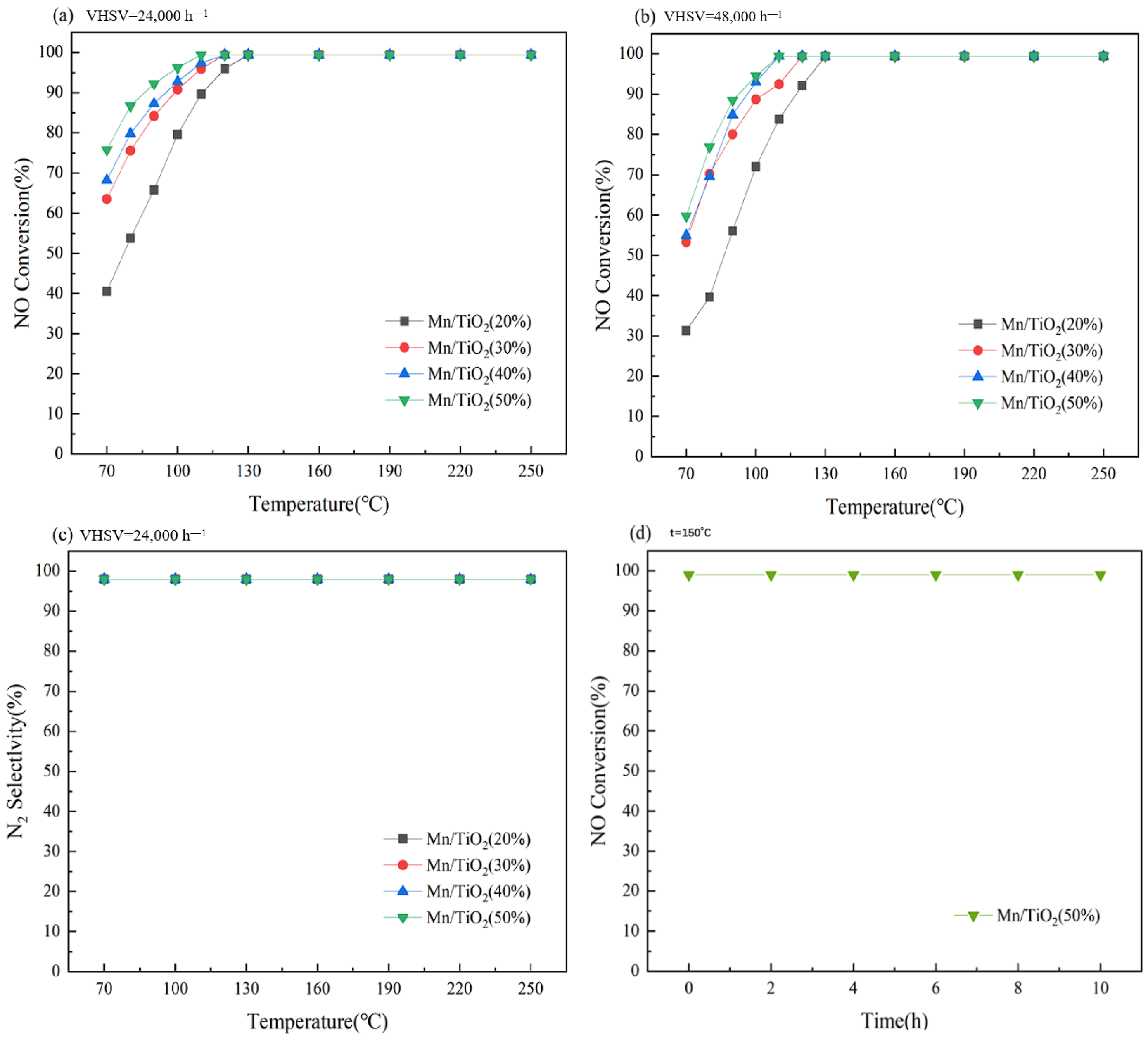

To investigate the NH₃-SCR catalytic efficacy of the catalysts, the catalyst’s activity was assessed via a reactor setup. Figure 1a illustrates the variations in NO conversion rates for various catalysts at a VHSV of 24,000 h⁻¹. The NO conversion rate of each catalyst showed good catalytic performance in the temperature range of 70–130 °C, and the conversion rate gradually increased with the increase in solid content, indicating that the reaction efficiency gradually improved. It is speculated that this is mainly due to the increase in solid content, such that the specific surface area of the catalyst tends to increase. The Mn/TiO₂ (50%) catalyst achieved a NO conversion rate of 96% at 100 °C and sustained a rate of 99% across the temperature range of 110–250 °C. Figure 1b shows the changes in NO conversion rates of various catalysts at a VHSV of 48,000 h⁻¹. The catalytic activity of the catalysts has slightly decreased, but the NO conversion rate of the Mn/TiO₂ (50%) catalyst remains the highest, reaching 99% even after 110 °C. Therefore, it can be predicted that the Mn/TiO₂ (50%) catalyst has a higher contact surface area, resulting in higher catalytic reaction efficiency. As shown in Figure 1c, the N₂ selectivity of all the catalysts remains above 98%. Figure 1d depicts the stability test curve for the Mn/TiO₂ (50%) catalyst at 150 °C. The graph demonstrates that the catalyst maintains excellent stability for 10 h. In order to further clarify the mechanism and reasons for the impact of increased solid content on the catalytic performance of catalysts, a series of characterization analyses were subsequently conducted.

2.2. Morphology, Crystallinity, and Porous Property Analysis

To observe the impact of varying solid contents on the surface micromorphology of Mn/TiO₂ catalysts, SEM observations were conducted on catalysts. Figure 2 displays the SEM images of catalysts. The particles on the surface of the catalyst are spherical, with uniform size and local agglomeration (with Mn/TiO₂ (50%) being more obvious), but the overall dispersion is good, indicating that catalysts with different solid contents have similar microstructures on their surfaces.

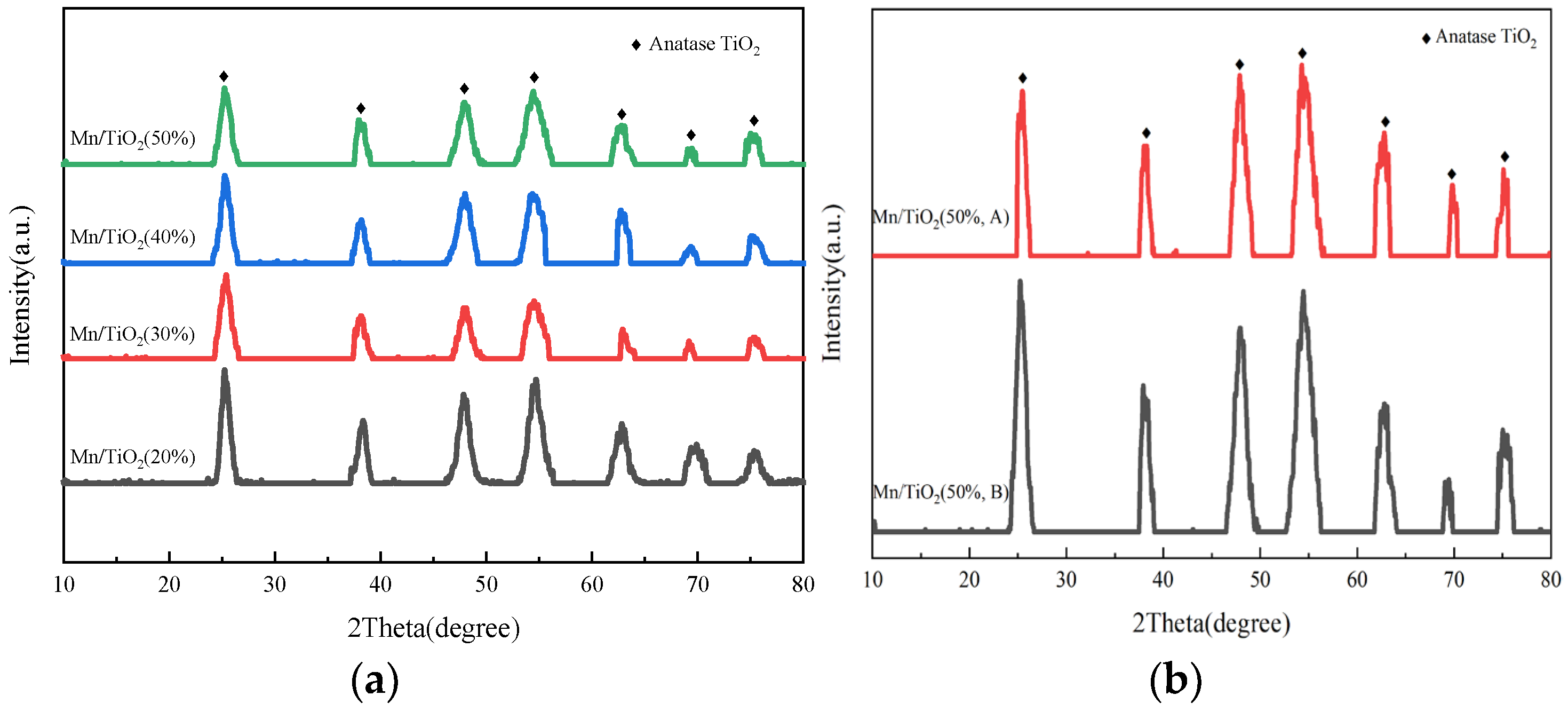

Figure 3a displays the XRD patterns of Mn/TiO₂ catalysts with varying solid contents. The figures reveal that all catalysts display similar characteristic XRD diffraction peaks, and the solid content variations do not alter the crystal forms of the catalysts. Diffraction peaks near 2θ = 25.2°, 38.0°, 47.9°, 54.4°, 62.8°, 69.1°, and 75.1° are characteristic of anatase TiO₂, which is conducive to enhanced low-temperature SCR catalytic performance. No characteristic peaks of manganese oxides were detected on the surfaces of the catalysts, suggesting that manganese oxides are either highly evenly dispersed on the catalyst surfaces, exist in an amorphous state, or are present in concentrations too low to be detected by XRD [24]. The XRD analysis indicates that the diffraction peak intensity of Mn/TiO₂ (20%) is the highest. As the solid content of Mn/TiO₂ increases, the intensity of the characteristic peaks diminishes, and the crystallinity of the TiO₂ support decreases, The change in solid content has an impact on the diffraction peak of the titanium dioxide carrier. As depicted in Figure 3b, even after the catalyst stability test, similar peaks are still present; the peak at 2θ = 25.2° weakens slightly, suggesting that the catalyst’s structure remains largely unchanged after the stability test. At the same time, XRF tests were conducted on the active metal loading before and after the stability test of the catalyst. The Mn content of the active metal before the catalyst reaction was 19.50%, and the content remained at 19.22% after the stability test. Therefore, it once again strongly supports the conclusion of stability testing.

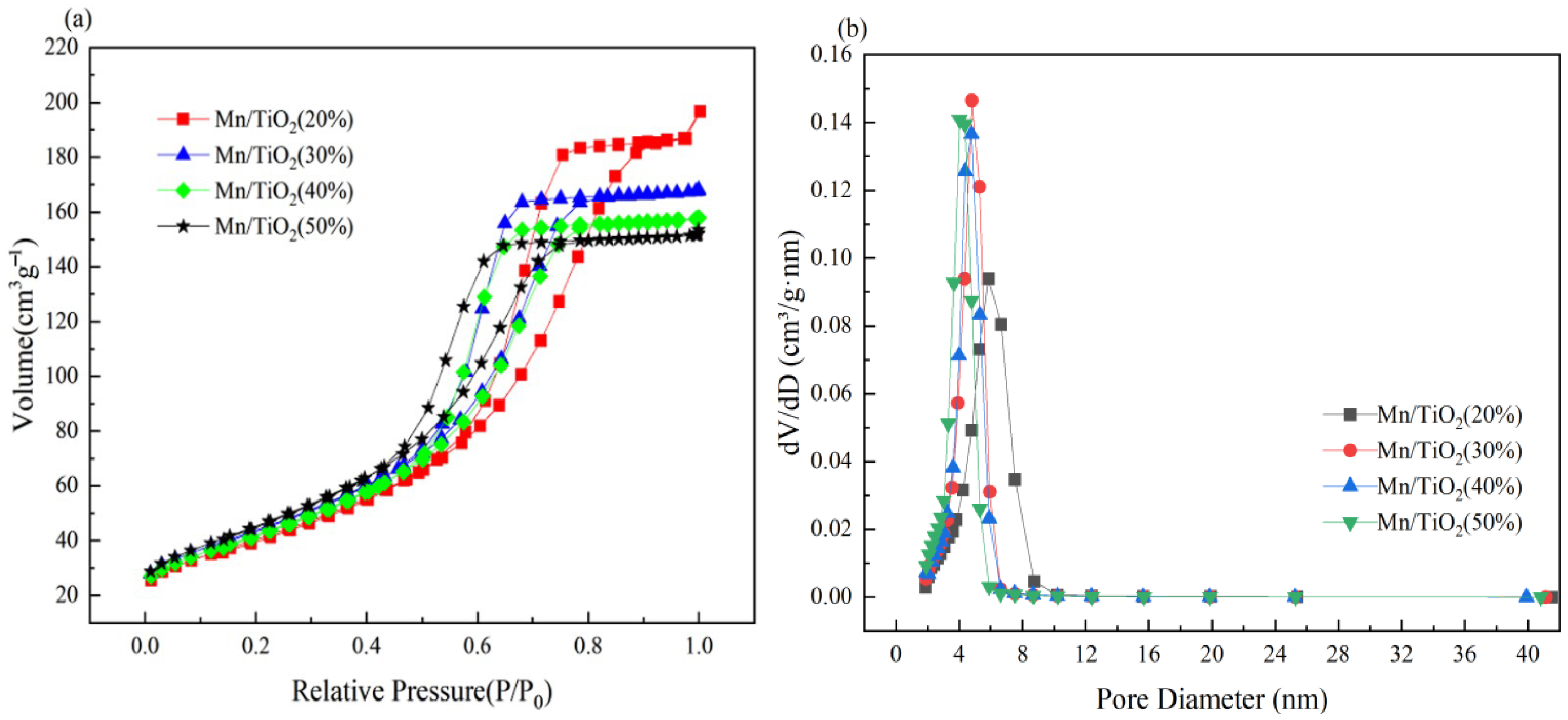

Figure 4 shows the adsorption–desorption isotherm and pore size distribution curve of the catalysts. As illustrated in Figure 4a, the adsorption–desorption isotherms of catalysts display characteristic IV and H 2 type hysteresis loops, confirming that all catalysts possess mesoporous structures [25,26]. Figure 4b presents the pore structure distribution curve. As depicted, the pore sizes of the catalysts primarily fall within the range of 2–10 nm.

Table 1. The data related to SSA and pore size of catalysts.

Catalyst Sample	SBET (m2/g)	Pore Volume (cm3/g)	Average Pore Diameter (nm)
Mn/TiO2 (20%)	146.44	0.2908	6.15
Mn/TiO2 (30%)	158.76	0.2613	5.03
Mn/TiO2 (40%)	152.77	0.2458	4.89
Mn/TiO2 (50%)	165.34	0.2365	4.38

provides the data related to the SSA and pore size of catalysts. The SSA and pore volume data were derived from BET and BJH analyses. As indicated in Table 1, with an increase in solid content, the SSA of the catalyst markedly increases from 146.44 m²/g to 165.34 m²/g. This suggests that an increase in solid content positively impacts the catalyst’s SSA. This likely stems from a more uniform distribution of active components on the catalyst surface, leading to smaller pore sizes and an increased number of pores with higher solid content. Among the catalysts, Mn/TiO₂ (50%) exhibits the highest SSA, favoring an increase in the adsorbed amount and rate of reactants on the catalyst surface, and enhancing the desorption of reaction products, thus boosting the catalyst’s low-temperature SCR catalytic performance [27]. This validates the results of performance testing and predictive analysis very well.

2.3. XPS Analysis

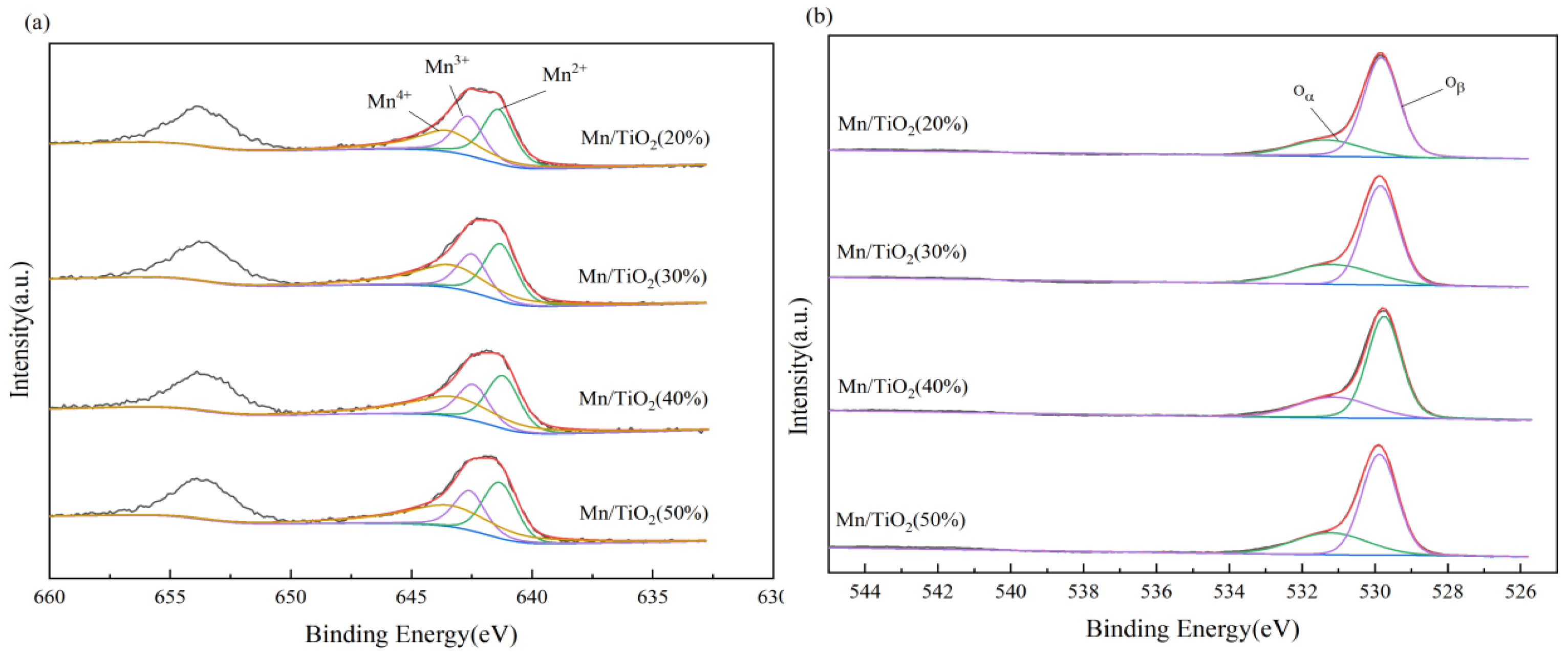

To study the impact of valence changes of surface elements on the catalytic performance of catalysts, XPS measurements were conducted on all catalysts. As depicted in Figure 5a, the primary peaks of Mn 2p3/2 and Mn 2p1/2 are located at approximately 642.0 eV and 653.5 eV, respectively. Peak fitting of Mn 2p3/2 yielded three electronic peaks: Mn²⁺ (641.4 ± 0.1 eV), Mn³⁺ (642.6 ± 0.1 eV), and Mn⁴⁺ (643.6 ± 0.1 eV) [27]. As indicated in

Table 2. Surface atom concentration and peak area of catalysts.

Catalyst Sample	Mn4+/Mnn+ (%)	Oα/(Oα + Oβ) (%)	H2-TPR Peak Area (%)	NH3-TPD Peak Area (%)
Mn/TiO2 (20%)	35.24	22.77	83.21	76.28
Mn/TiO2 (30%)	42.07	31.06	95.87	78.57
Mn/TiO2 (40%)	44.55	29.87	97.44	84.28
Mn/TiO2 (50%)	45.40	31.41	100.00	100.00

, as the solid content of the catalyst increases, the ratio of Mn⁴⁺/(Mn²⁺ + Mn³⁺ + Mn⁴⁺) progressively increases. Therefore, the Mn⁴⁺ content is highest for Mn/TiO₂ (50%) catalysts. High concentration of Mn⁴⁺ enhances low-temperature SCR catalytic reduction reactions [24].

Figure 5b displays two overlapping peaks at 529.8 eV and 531.5 eV, resulting from the fitting of the O 1s peaks [28]. The peak at 529.8 eV corresponds to lattice oxygen (O_β), whereas the peak at 531.5 eV corresponds to chemisorbed oxygen (O_α). On the catalyst surface, O_α demonstrates a greater migration rate than O_β. An elevated ratio of O_α/(O_α + O_β) improves the oxidation capability of NO at low temperatures and speeds up the SCR reaction during these conditions [24,25,26,27,28,29]. Table 2 demonstrates that Mn/TiO₂ (50%) exhibits the highest Mn⁴⁺/Mnⁿ⁺ and O_α/(O_α + O_β) ratios, suggesting that as the solid content increases, both the Mn⁴⁺ concentration and chemisorbed oxygen content on the catalyst surface rise, contributing to its superior catalytic performance at low temperatures. This conclusion once again strongly supports the performance testing results of the catalyst.

2.4. H₂-TPR, NH₃-TPD Analysis

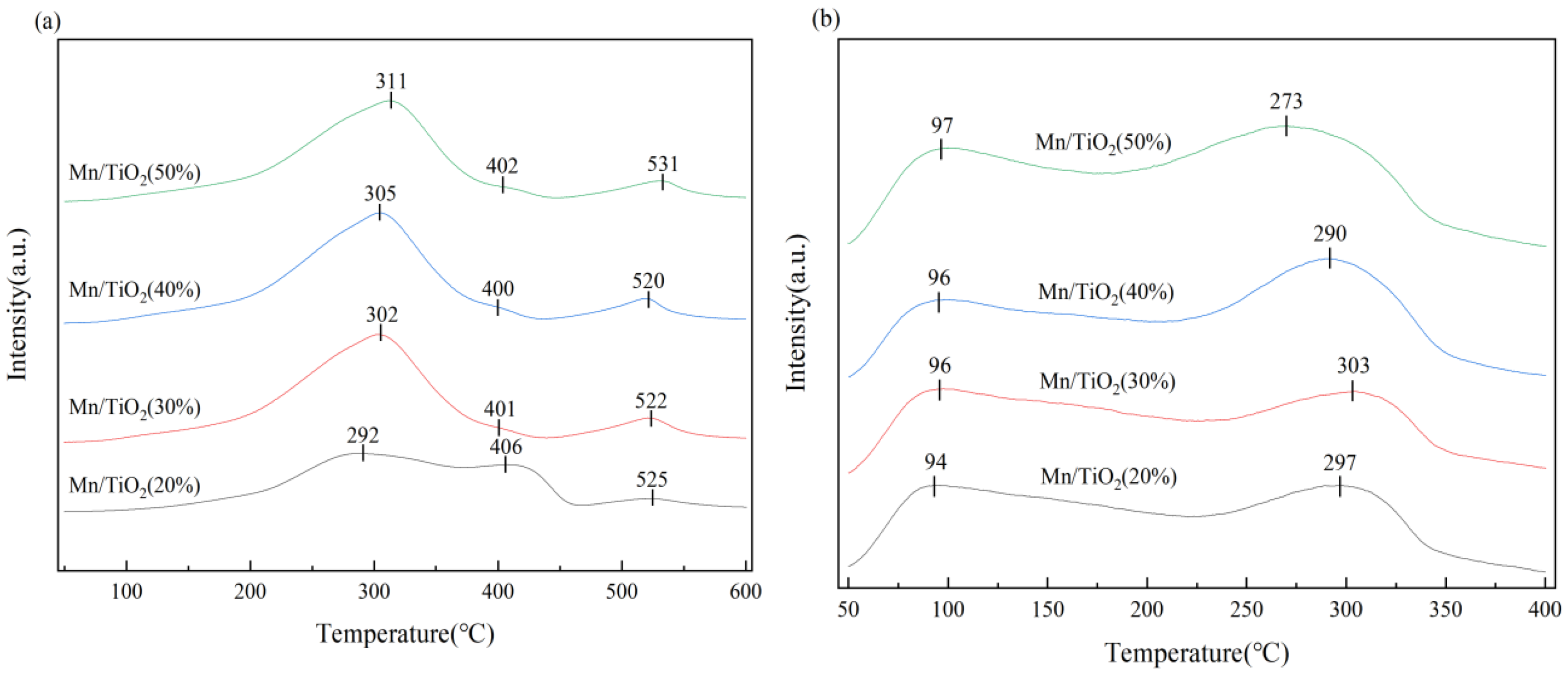

To explore the impact of varying solid contents on the redox performance of Mn/TiO₂ catalysts, H₂-TPR tests were conducted on catalysts. Figure 6a displays the H₂-TPR spectra for catalysts, revealing three reduction peaks between 250–550 °C. The reduction peak around 300 °C is attributed to the transformation from MnO₂ to Mn₂O₃, the peak near 400 °C to the transition from Mn₂O₃ to Mn₃O₄, and the peak near 520 °C to the reduction from Mn₃O₄ to MnO [30,31,32]. With the increase in solid content of the catalyst, the reduction peaks of the Mn/TiO₂ catalysts generally shift towards higher temperatures. Calculations of the peak areas, as detailed in Table 2, reveal that the Mn/TiO₂ (50%) catalyst exhibits the largest peak area, suggesting an abundance of reducing substances within the catalyst, therefore enhancing the low-temperature SCR reaction.

Studies have demonstrated that a positive correlation exists between the number of acidic sites on the surface of catalysts and their catalytic activity. Consequently, catalysts were subjected to NH₃-TPD characterization. Figure 6b displays the NH₃-TPD spectra for catalysts, revealing two distinct strong desorption peaks. Literature records indicate that the desorption peak near 100 °C is attributed to NH₃ adsorbed on Bronsted acidic sites (weak acids) [33,34], while the peak near 300 °C corresponds to NH₃ adsorbed on medium-strength acid sites [34]. The surface acidity of the catalyst was semi-quantitatively obtained by calculating the peak area of the NH₃-TPD spectrum; as shown in Table 2, the Mn/TiO₂ (50%) catalyst exhibited the largest peak area for NH₃ desorption, indicating the highest number of acid sites on its surface. Additionally, the graph demonstrates that the Mn/TiO₂ (50%) catalyst achieves its peak area at low temperatures ranging from 50 to 150 °C, correlating with its superior low-temperature catalytic activity, which aligns with performance test results.

2.5. In Situ DRIFTS

In order to illustrate the types of ammonia and NO formed by NH₃-SCR and the reaction mechanism, in situ drift measurements were conducted on the Mn/TiO₂ (50%) catalyst. Figure 7a presents the in situ infrared spectrum of the NO + O₂ adsorption reaction over time, following the pre-adsorption of NH₃ on the Mn/TiO₂ (50%) catalyst at 120 °C. Upon introducing NH₃ gas, the absorption peaks at 1195 cm⁻¹ and 1617 cm⁻¹ are attributed to the vibrations of NH₃ species on Lewis acidic sites, while the characteristic peaks at 1399 cm⁻¹ and 1691 cm⁻¹ are due to NH⁴⁺ on Bronsted acidic sites. Upon introducing NO and O₂ into the reaction tank, the peak corresponding to ammonia adsorption decreases. As the levels of NO and O₂ in the reaction cells increase, the peak intensities of NH₃ (1195 cm⁻¹) on Lewis acidic sites and NH⁴⁺ (1691 cm⁻¹) on Bronsted acidic sites gradually diminish. This experiment demonstrates that both NH₃ on Lewis acidic sites and NH⁴⁺ on Bronsted acidic sites are capable of reacting with NO + O₂.

Figure 7b presents the in situ infrared spectrum of the NH₃ adsorption reaction over time, following the pre-adsorption of NO + O₂ on the Mn/TiO₂ (50%) catalyst at 120 °C. Upon introducing the NO + O₂ gas, the absorption peak at 1621 cm⁻¹ is attributed to the weak adsorption peaks of NO and NO₂, the peak at 1524 cm⁻¹ to bidentate nitrate, and the peak at 1470 cm⁻¹ to monodentate nitrate. Upon switching to NH₃, the intensities of the three absorption peaks remained nearly unchanged, with new characteristic peaks emerging at 1176 and 1613 cm⁻¹, attributed to the characteristic peaks of ammonia species. NO and NO₂ adsorbed on the catalyst, along with bidentate and monodentate nitrates, are unable to react with NH₃ at low temperatures. As indicated in Figure 7a, the reaction mechanism of the Mn/TiO₂ catalyst is determined to be the E-R mechanism (Figure 8) [28].

3. Experimental Section

3.1. Preparation of Catalysts

A series of Mn/TiO₂ catalysts with varying solid contents were synthesized by the sol–gel method. The specific steps are as follows: first, put Ti[CH₃(CH₂)₃O]₄ (AR, Sinopharm Chemical, Shanghai, China) into a mixed solution containing CH₃COOH (AR, Sinopharm Chemical), CH₃CH₂OH (AR, Sinopharm Chemical) and ultrapure water (UP, laboratory-made), then add Mn(NO₃)₂ (AR, 50 wt% in H₂O, Shanghai MacLean reagent), stir vigorously at room temperature for 5 h, and then place in a drying oven at 30 °C for 144 h to obtain the gel. The solid obtained was dried at 60 °C for 8 h, then at 120 °C for 8 h, followed by calcination in air atmosphere at 400 °C for 4 h and sieving to produce a 40–60 mesh finished catalyst. The Mn/TiO₂ catalysts had solid contents of 20%, 30%, 40%, and 50%, respectively, the Mn/Ti molar ratio was fixed at 0.3. The synthesized catalyst is denoted as Mn/TiO₂ (x), where x indicates the solid content of the sol (x = (m_{Ti[CH3(CH2)3O]4} + m_Mn(NO3)2)/(m_{Ti[CH3(CH2)3O]4} + m_Mn(NO3)2 + m_solvent), x varies with the change of m_solvent). The loading amount of active metal remains constant.

3.2. Characterizations

Scanning electron microscopy (JSM-7610FPlus, JEOL, Tokyo, Japan) was employed to observe the microstructure and morphology of the surfaces of catalysts. The stability test of the catalyst before and after the active metal loading test was conducted using an X-ray diffraction spectrometer (EDX-7000, Shimadzu, Kagoshima, Japan). The specific surface area (SSA) and pore volume of catalysts were determined by the N₂ adsorption–desorption principle (ASAP2460, Micromeritics, Norcross, GA, USA), and calculated using the Brunauer–Emmett-Teller (BET) and Barrett–Joyner–Halenda (BJH) methods. The crystal structure of catalysts was measured using X-ray diffraction (XRD-7000, Shimadzu, Kagoshima, Japan). X-ray photoelectron spectroscopy (Escalab 250xi, ThermoFisher, Waltham, MA, USA) was used to analyze the valence state and composition of the elements on the catalysts surface, with the Al K Alpha target serving as the excitation source, and the C1s peak (284.8 eV) employed to calibrate the elements for catalysts. H₂-TPR and NH₃-TPD were measured using a temperature programmed chemical adsorption analyzer TPD/TPR (AutoChem II 2920, Micromeritics, Norcross, GA, USA). Firstly, the catalyst sample was subjected to drying pretreatment at 300 °C, followed by N₂ (30 mL/min) blowing for 1 h. Then, NH₃ (or H₂) was adsorbed for 1 h under 10% NH₃/N₂ (or 10% H₂/N₂). The Fourier Transform Infrared Spectrometer (INVENIO S, Bruker, Karlsruhe, Germany) was used for in situ diffuse reflectance infrared spectroscopy experiments. The catalyst sample was purged with N₂ at 300 °C for 30 min, and then stabilized at 120 °C for subsequent measurements.

3.3. Performance Testing of Catalysts

The denitrification performance of the catalyst was tested in a fixed-bed quartz tube reactor. As illustrated in Figure 9, the reaction gas comprises 0.6% NO, 0.3% NH₃, high-purity O₂, and high-purity N₂, with respective concentrations of (350 ppm) NO, (350 ppm) NH₃, 5% O₂, and 5% N₂ as the equilibrium gas. The catalyst (40–60 mesh), with a bed height of 1 cm (approximately 0.88 g), was placed at the temperature-controlled section of the reaction tube. The total gas flow rates were set at 300 mL/min and 600 mL/min, and the VHSV values were 24,000 h⁻¹ and 48,000 h⁻¹. An online gas analyzer (GW-2000) was used to measure the NO content in the tail gas following the reaction. A specific gas detection tube (MHY-15232) was used to measure the NH₃ content at both the inlet and outlet and an N₂O detector (FGD2-C-N2O) was employed to determine the N₂O content generated in the reaction’s exhaust gas. The conversion rate of NO and the selectivity towards N₂ were calculated using the following Formulas (1) and (2).

$$NO conversion(\%)={\displaystyle \frac{{\left[NO\right]}_{in}-{\left[NO\right]}_{out}}{{\left[NO\right]}_{in}}}\times 100\%$$

(1)

$$N_2 selectivity(\%)={\displaystyle \frac{{\left[NO\right]}_{in}+{\left[{NH}_3\right]}_{in}-{\left[NO\right]}_{out}-{\left[{NH}_3\right]}_{out}-{\left[{NO}_2\right]}_{out}-{2\left[N_{2}O\right]}_{out}}{{\left[NO\right]}_{in}+{\left[{NH}_3\right]}_{in}-{\left[NO\right]}_{out}-{\left[{NH}_3\right]}_{out}}}\times 100\%$$

(2)

4. Conclusions

Mn/TiO₂ catalysts with varying solid contents were innovatively prepared by the sol–gel method for NO removal at low temperature. The developed Mn/TiO₂ catalysts exhibited outstanding performance in the selective catalytic reduction (SCR) process, utilizing NH₃ as the reductant, for NO removal at low temperatures. Furthermore, as the solid content increased, the catalyst’s activity at low temperatures gradually enhanced. Notably, the Mn/TiO₂ (50%) catalyst demonstrates outstanding denitration performance, achieving a 96% NO conversion rate at 100 °C, and remained at 99% within the temperature range of 110–250 °C under a VHSV of 24,000 h⁻¹, while maintaining high N₂ selectivity and stability. Meanwhile, the correlation mechanism between performance test results and the increase in solid content was discovered through characterization testing: as the solid content increased, the catalyst’s specific surface area, surface Mn⁴⁺ concentration, and chemisorbed oxygen content all increased, positively impacting the SCR-NH₃ low-temperature activity of the catalyst. Additionally, as the solid content of the catalyst increased, the number of acid sites on the catalyst surface and the reduction performance of the catalyst also increased, thereby enhancing the SCR-NH₃ reaction activity at low temperatures. Furthermore, NH₃ at the Lewis acidic sites and NH⁴⁺ at the Bronsted acidic sites of the catalyst were capable of reacting with NO. Conversely, NO and NO₂ adsorbed on the catalyst, along with bidentate and monodentate nitrates, were unable to react with NH₃ at low temperatures. Consequently, the developed catalyst’s low-temperature catalytic reaction mechanism aligns with the E-R mechanism.
