Arylboronic Acid Pinacol Esters as Stable Boron Sources for Dihydrodibenzoborepin Derivatives and a Dibenzoborole

by
Himeko Kawaguchi
,
Kotomi Fuse
,
Nanoka Maeda
and
Takuya Kuwabara
*
Department of Chemistry and Biochemistry, Graduate School of Humanities and Sciences, Ochanomizu University, 2-1-1, Otsuka, Bunkyo-ku, Tokyo 112-8610, Japan
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(17), 4024; https://doi.org/10.3390/molecules29174024
Submission received: 23 July 2024 / Revised: 21 August 2024 / Accepted: 23 August 2024 / Published: 25 August 2024
(This article belongs to the Section Organometallic Chemistry)
Browse Figures
Versions Notes

Abstract

:
The general synthesis of boron-containing cyclic compounds (boracycles) necessitates toxic organotin precursors or highly reactive boron halides. Here, we report the synthesis of seven- and five-membered boracycles utilizing arylboronic acid pinacol esters (ArBpins) as stable boron sources. Grignard reagents generated from 2,2′-dibromodibenzyl or 2,2′-dibromobiphenyl reacted with ArBpins, where Ar = 9-anthryl (Anth), 2,4,6-trimethylphenyl (Mes), or 2,4,6-triisopropylphenyl (Tip), to give 10,11-dihydro-5H-dibenzo[b,f]borepins or dibenzoborole derivatives. This Bpin-based method was successfully applied to a one-shot double boracycle formation, providing a dihydrodibenzoborepin–anthracene–dihydrodibenzoborepin triad molecule in a good yield. The dihydrodibenzoborepin bearing the Anth group was directly converted to the unsaturated borepin by NBS/AIBN. All products were characterized by NMR, HRMS, and in some cases, single-crystal X-ray diffraction analysis. Additionally, the photophysical properties of the products are also reported.

Graphical Abstract

1. Introduction

Boron-containing unsaturated cyclic compounds (hereafter referred to as boracycles) have been studied intensively in many fields, including materials science [1,2,3,4] and aromatic/antiaromatic chemistry [5,6]. This is due to their unique conjugation system involving the vacant p orbital of the boron atom. Of particular interest are fused boroles and borepins, five- and seven-membered boracycles, respectively, owing to their 4π-antiaromaticity and 6π-aromaticity as well as fluorescent properties [7,8,9,10].
Synthetic methods for boracycles can be roughly divided into three types: (1) tin–boron transmetalation, (2) salt-elimination reaction, and (3) intramolecular CH borylation (Scheme 1) [11,12,13,14]. The tin–boron transmetalation method has been a reliable route to many types of boracycles including dibenzoboroles (also known as 9-borafluorenes) and dibenzoborepins [8,15,16,17,18,19]. Similarly to the synthesis of other heterocycles [20], the salt-elimination reaction between metalated carbons, e.g., organolithiums and Grignard reagents, and haloboranes (BX3 and RBX2, where X = Cl, Br) is also widely employed [15]. Additionally, intramolecular cyclization via CH borylation has been developed as a convenient approach, particularly for the synthesis of boron-containing PAHs (polycyclic aromatic hydrocarbons) in the last decade [21,22,23,24]. However, the aforementioned methods rely on toxic organotin compounds and highly reactive haloboranes. Therefore, the development of alternative boracycle synthesis using less toxic chemicals is highly demanded from the viewpoint of sustainable chemistry.
One possible solution is using boronate esters [B(OR)3 and R′B(OR)2] as boron sources, and indeed, such boracycle formation has been reported. For example, the Yamaguchi’s group has reported the synthesis of dibenzoboroles and dibenzoborepins using ArB(OMe)2 as a boron source [10,25]. Additionally, stepwise boracycle formations involving arylboronic acid esters have also been developed [7,26,27,28]. Given the widespread application of arylboronic acid pinacol esters (ArBpins) in cross-coupling chemistry owing to their stability and moderate reactivity [29], we envisage that ArBpins can be useful and stable boron sources for boracycle synthesis. However, to the best of our knowledge, ArBpins have never been used as boron sources for boracycles, although the usage of B2pin2 for the synthesis of Mes2BBpin has been reported [30]. An additional advantage of using ArBpin is that its synthetic methods have been well-established: Miyaura borylation [31,32], CH borylation [33,34], and nucleophilic borylation. Therefore, the synthesis of boracycles using ArBpin would enable facile access to various boracycles which could serve as acceptor units in donor–acceptor-type molecules. In this report, we present the synthesis of seven- and five-membered boracycles utilizing ArBpin as the boron source. This method enables the straightforward synthesis of donor–acceptor- and acceptor–π–acceptor-type molecules with borepin acceptors. The photophysical properties of the newly synthesized borepin derivatives are also documented.

2. Results and Discussion

2.1. Synthetic Studies

The synthesis of 5-(9-anthryl)-5H-dibenzo[b,f]borepin 1-sp2 and its saturated analog 1-sp3 using AnthBpin (Anth = 9-anthryl) as a boron source was investigated (Table 1). The treatment of AnthBpin and dilithium reagents [(Z)-2,2′-dilithiostilbene (2Li-sp2) and 2,2′-dilithiodibenzyl (2Li-sp3)] did not provide 1-sp2 or 1-sp3 (entries 1 and 2). Switching the nucleophile to the Grignard reagent (2Mg-sp3) resulted in the isolation of 1-sp3 with a 62% yield (entry 3). Therefore, the type of nucleophile is important in this ArBpin-based boracycle synthesis. It is noteworthy that 1-sp3 was successfully purified by column chromatography, although it has a 9-anthryl group that is sterically less demanding compared to widely used protecting groups such as Mes (2,4,6-trimethylphenyl) and Tip (2,4,6-triisopropylphenyl). When AnthB(OMe)2 was employed as a boron source, the yield of 1-sp3 decreased to 31% (entry 4), indicating that the bidentate character of the pinacol group stabilizes a reaction intermediate and/or suppresses undesired side reactions. Our attempts to synthesize 1-sp2 by this method are unsuccessful because the preparation of Grignard reagent 2Mg-sp2 from (Z)-2,2′-dibromostilbene and magnesium causes the concomitant formation of phenanthrene and the E-isomer (entry 5 and Table S1). This type of Z/E isomerization of stilbene by alkaline metals and an FeI complex has been reported [35,36,37].
To explore the substrate scope of this ArBpin-based boracycle synthesis, other reagents were next subjected to the reaction (Scheme 2). When MesBpin [38] and TipBpin [39] were allowed to react with 2Mg-sp3 in THF under reflux, the yields of the corresponding dihydrodibenzoborepins 3 and 4 were only 16 and 4%, respectively. However, using cyclopentyl methyl ether (CPME) as a solvent improved the yields (59% for 3 and 46% for 4). The higher boiling point of CPME (106 °C) compared to that of THF (66 °C) would be a key factor in the efficient reaction when bulky Ar groups are employed. The reaction using 9-Br-10-Bpin-anthracene [40] provided 10-bromoanthryl derivative 5-sp3 (64% yield), the bromo substituent of which can be used for further functionalization. Moreover, the one-shot double boracycle formation was achieved when 9,10-(Bpin)2-anthracene was used as a substrate to generate a dihydrodibenzoborepin–anthracene–dihydrodibenzoborepin triad molecule 6-sp3 in a 66% yield. On the contrary, our attempts to synthesize 6-sp3 using tin–boron transmetalation were unsuccessful; the reactions of in situ generated 5-chloro-5H-dibenzo[b,f]borepin, which was prepared from 5,5-dimethyl-5H-dibenzo[b,f]stannepin and BCl3, and 9,10-dilithioanthracene provided a complex mixture, highlighting the usefulness of the Bpin-based method.
We next investigated the conversion of 1-sp3 to the corresponding unsaturated one (1-sp2) because the direct synthesis of 1-sp2 from the reaction in Table 1 failed (Scheme 3). According to the literature, the bromination of a dihydroborepin with N-bromosuccinimide (NBS) and subsequent elimination reaction using a base would be a promising route [41]. However, the bromination of 1-sp3 using 1.1 equiv NBS and 0.25 equiv azobis(isobutyronitrile) (AIBN) did not yield the benzylic bromination product 1Br-sp3 but 5-sp3 in a 68% yield. Thus, the bromination of 5-sp3 under the same conditions was next carried out, which provided a 3:2 mixture of 5-sp3 and 5-sp2, and again, no 1Br-sp3 was obtained. Increasing the amount of AIBN to 0.5 equiv allowed the isolation of 5-sp2 with a 55% yield. Notably, one-pot synthesis of 5-sp2 was also achieved by a treatment of 1-sp3 with 2 equiv of NBS and 0.5 equiv of AIBN (73% yield). The bromo substituent in 5-sp2 was replaced by a hydrogen atom via a lithiation/protonation process to afford 1-sp2 in a 89% yield.
This ArBpin-based method is also applied for the synthesis of a dibenzoborole. We selected a Tip borole 7 as the target molecule because this molecule can be purified by column chromatography owing to the bulky Tip group [25]. Grignard reagent 8Mg [42] generated from 2,2′-dibromobiphenyl reacted with TipBpin in THF under reflux to afford 7 in a 19% yield (Scheme 4). Although this yield is inferior to the reported method using 8Mg and TipB(OMe)2 (45%) [25], it is worth noting that TipBpin can also be used as a stable boron source for dibenzoborole synthesis. In this case, the reaction in CPME instead of THF under reflux did not give 7 at all, probably due to the lower thermal stability of antiaromatic 7.

2.2. Single-Crystal X-ray Diffraction Analysis

Figure 1 illustrates the crystal structures of 3, 5-sp3 and 6-sp3 and that of 4 is shown in Figure S2. Each asymmetric unit of 3, 4 and 6-sp3 contains two independent molecules which are structurally similar. The dihydrodibenzoborepin skeleton of 5-sp3 is partially disordered over two positions with a ratio of 58:42. In the packing structure of 5-sp3, the intermolecular Br…Br distance is 3.321 Å, much shorter than the sum of the van der Waals radii (3.70 Å), as shown in Figure S3, suggesting the existence of the halogen bond categorized as type I [43,44]. The packing structure of 6-sp3 shows that the CH-π and halogen-π interactions between the co-crystallized chlorobenzene molecule and the anthryl units of the two independent molecules are important (Figure S3) [45].
Table 2 shows the selected bond lengths and angles for these dihydrodibenzoborepins. Each boron atom has a planar three-coordinated structure with the sum of the C–B–C angles about 360°. These compounds have highly twisted structures with the C1–B1–C15–C16 torsion angles (80.2(2)–89.80(14)°) being larger than those in related 9-diarylborylanthracenes and 9,10-bis(diarylboryl)anthracenes (ca. 45–63°), where Ar = Mes and 2,6-dimethyl-4-trimethylammoniumphenyl [46,47]. Therefore, the bridging ethylene units in the dihydrodibenzoborepin skeletons induce a large dihedral angle between the dihydrodibenzoborepins and π- or donor units, which hinders effective conjugation between the vacant p orbital of the boron atom and the π electrons of the Mes and 9-anthryl groups. Accordingly, the B1–C15 bonds are slightly longer than the B1–C1/C6 bonds (ca. 1.59 vs. 1.57 Å). The dihydrodibenzoborepin skeletons are distorted, with the C1–C2–C5–C6 torsion angles around 20°, in contrast to the only slightly bent structures of aromatic dibenzoborepins [8,48].

2.3. Photophysical Properties and Theoretical Calculations

Although the photophysical properties of aromatic dibenzoborepins are well-investigated [8,49], little is known about those of dihydrodibenzoborepins. Therefore, we explored the absorption and emission properties of 1-sp3 and 6-sp3 as well as 1-sp2. Figure 2 shows the absorption and emission spectra of 1-sp3 and 1-sp2 recorded in different solvents (hexane, toluene, THF, CHCl3 and CH2Cl2). Spectra for 6-sp3 were recorded only in CH2Cl2 due to the poor solubility in non-halogenated solvents (Figure S4). These photophysical data are summarized in Table 3.
No significant solvent dependency was observed in the absorption spectra of 1-sp3 and 1-sp2. Dihydrodibenzoborepin derivatives 1-sp3 and 6-sp3 show a broad and weak absorption ranging from ca. 450 to 400 nm, resulting from charge transfer (CT) from the anthracene unit to the dihydrodibenzoborepin acceptor, whereas the CT absorption is weak in 1-sp2 probably due to the aromatic character of borepin, which reduces the Lewis acidity of the boron atom [50]. Three absorption peaks of around 350–400 nm originating from the anthracene unit are slightly redshifted compared to those of anthracene by ca. 10 nm [51], the reason for which would be the inductive effect of the electropositive boron atoms (vide infra).
As mentioned above, the dihydrodibenzoborepin units are almost perpendicular to the central anthracene core, which causes a less effective conjugation between them. Therefore, it is important to compare the photophysical properties of 1-sp3, 1-sp2, 6-sp3 and related borylanthracenes. The absorption maxima of 9-[B(Mes)2]anthracene and 9,10-bis[B(Mes)2]anthracene, whose anthracene unit tilts ca. 53° with respect to the boron-centered plane, are 420 and 455 nm [52,53], redshifted compared to those of 1-sp3 and 6-sp3 (390 and 398 nm). This difference is rationalized by the different degree of π(anthracene)–p*(boron) conjugation.
In contrast to the absorption spectra, the emission spectra of 1-sp3 and 1-sp2 are highly dependent on the solvents, as commonly found in donor–acceptor-type molecules [54,55,56]. Stokes shifts of 1-sp3 varied from ca. 3500 to 6300 cm−1, being larger than those of 1-sp2, as the solvent polarity increases. These larger Stokes shifts in 1-sp3 suggests that the dihydrodibenzoborepin skeleton is more flexible than the dibenzoborepin, allowing a greater structural relaxation in the excited state. Compound 1-sp3 shows two types of emission peaks: (1) an anthracene-based emission with three peak tops around 360 to 430 nm and (2) a broadened CT emission peak ranging from 450 to 530 nm. Interestingly, the strength of these two emissions depends on the solvent; the anthracene-based emission is dominant in THF, whereas the CT emission is a major contributor in the other solvents. The lower contribution of the CT emission in THF can be rationalized by the coordination of THF to the vacant p orbital of the boron atoms. Although a similar trend is found in the spectra of 1-sp2, the anthracene-based emission peaks are broadened, the reason for which is not clear at this point.
To better understand the electronic structures, frontier molecular orbitals (MOs) for 1-sp3, 1-sp2 and 6-sp3 as well as anthracene were calculated with CAM-B3LYP/6-31G(d,p)//B3LYP/6-31G(d) (Figure 3) [57,58]. As expected from the highly twisted structures, a π(anthracene)–p*(boron) conjugation is not found in the MOs. Importantly, the energy levels for the anthracene-based MOs increase as the number of the borepin unit increases, illustrated by the values of −6.45 eV (anthracene), −6.2 eV (1-sp3 and 1-sp2) and −6.06 eV (6-sp3) in the HOMOs, this due to the σ-donating character of the boron atoms [59]. The effective cyclic conjugation in the dibenzoborepin markedly raises the energy levels of the MOs derived from the dibenzoborepin moiety in 1-sp2 compared to those of the corresponding MOs in 1-sp3 [−6.99 eV (HOMO−1 in 1-sp2) vs. −7.82 eV (HOMO−2 in 1-sp3) and −0.58 eV (LUMO in 1-sp2) vs. −0.72 eV (LUMO in 1-sp3)]. These differences account for the strong absorption around 315 and 330 nm found only in 1-sp2.

3. Materials and Method

3.1. General Considerations

All manipulations were performed under an argon atmosphere by using standard Schlenk techniques. Et2O, THF, hexane, benzene, toluene and CPME were dehydrated by 4A molecular sieves. All reagents were purchased from Sigma-Aldrich Japan (Tokyo, Japan), FUJIFILM Wako Pure Chemical Corporation (Osaka, Japan), Tokyo Chemical Industry Co., LTD. (Tokyo, Japan), Kanto Chemical Co., Inc. (Tokyo, Japan) or Nacalai Tesque (Kyoto, Japan) and used as received unless otherwise stated. Column chromatography was carried out using Wakogel silica 60N (particle size: 40–100 μm). (Z)-2,2′-Dibromostilbene [8], 2,2′-dibromodibenzyl [60], 2-(9-anthryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (AnthBpin) [61], 9,10-Bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)anthracene [Anth(Bpin)2] [62], AnthB(OMe)2 [63], 2-(2,4,6-trimethylphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (MesBpin) [38] and 2-(2,4,6-triisopropylphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (TipBpin) [64] were synthesized according to the literature. 1H, 13C{1H} and 11B{1H} NMR spectra were recorded on a JEOL ECZL-500R spectrometer at 20 °C unless otherwise stated. Chemical shifts are reported in δ and referenced to residual 1H and 13C{1H} NMR signals of the deuterated solvents as internal standards or to the 11B NMR signal of BF3·Et2O in CDCl3 (δ 0) as an external standard. Multiplicities are abbreviated as singlet (s), doublet (d), triplet (t), quartet (q), septet (sept), multiplet (m) and broad (br). Labels for NMR assignments are shown in Figure S1. The HRMS data were obtained by a Bruker ultrafleXtreme using 9-nitroanthracene as a matrix. Diffraction data were collected on a Bruker APEX II (for 3 and 6-sp3) or Bruker D8 QUEST (for 4 and 5-sp3) with Mo Kα radiation (λ = 0.71075 Å) at –110 to −80 °C. The structures were solved by direct methods using SHELXS. The refinements were performed using SHELXL-2019/3 [65]. The positions of the non-hydrogen atoms were determined by SHELXT 2018/2 [66]. All non-hydrogen atoms were refined on Fo2 anisotropically by full-matrix least-square techniques. All hydrogen atoms were placed at the calculated positions with fixed isotropic parameters. UV–vis absorption and emission spectra were recorded using JASCO V-650 and JASCO FP-6600 spectrometers. Theoretical calculations were performed using the Gaussian 16 program [67]. The optimized structures of 1-sp3 and 6-sp3 are in good agreement with the corresponding X-ray structures. All local minima were confirmed by vibrational frequency calculations showing zero imaginary frequencies.

3.2. Preparation of 2Mg-sp3

THF (5.0 mL) was added to a 25 mL Schlenk tube containing Mg turnings (109.4 mg, 4.500 mmol, 3.0 equiv) and 2,2′-dibromodibenzyl (510.0 mg, 1.500 mmol) at room temperature. The reaction mixture was refluxed for 2 h. After cooling to room temperature, insoluble materials were filtered off under argon to give a gray solution of 2Mg-sp3 in THF (about 0.3 M).

3.3. Synthesis of 5-(9-Anthryl)-5H-9,10-dihydrodibenzo[b,f]borepin (1-sp3) Using AnthBpin

AnthBpin (71.0 mg, 0.193 mmol, 1.0 equiv) in THF (3.0 mL) was added to a solution of 2Mg-sp3 (0.3 M in THF, 0.64 mL, 0.19 mmol). The reaction mixture was refluxed overnight, after which the solvent was removed in vacuo. The product was purified by column chromatography (hexane:CH2Cl2 = 9:1) to yield 1-sp3 (44.1 mg, 0.120 mmol, 62%) as a yellow solid. 1H NMR (500 MHz, CDCl3): δ = 8.47 (s, 1H, o), 8.05 (d, 3JHH = 8.5 Hz, 2H, m), 7.46 (dd, 3JHH = 8.5 Hz, 4JHH = 1.0 Hz, 2H, j), 7.40 (ddd, 3JHH = 8.5 Hz, 3JHH = 6.5 Hz, 4JHH = 1.0 Hz, 2H, l), 7.36 (td, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, d), 7.33 (dd, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, c), 7.29 (dd, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, f), 7.21 (ddd, 3JHH = 8.5 Hz, 3JHH = 6.5 Hz, 4JHH = 1.0 Hz, 2H, k), 6.91 (td, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, e), 3.45 (s, 4H, a); 13C{1H} NMR (126 MHz, CDCl3): δ = 152.5 (4°, b), 146.3 (4°, h), 143.2 (3°, f), 140.1 (4°, g), 133.7 (3°, d), 133.3 (4°, i), 131.3 (4°, n), 130.3 (3°, j), 128.81 (4°, c), 128.78 (3°, m), 126.00 (3°, e), 125.95 (3°, o), 125.1 (3°, l), 124.6 (3°, k), 37.9 (2°, a); 11B{1H} NMR (160 MHz, CDCl3): δ = 71.1; HRMS m/z calcd for C28H21B+ [M]+: 368.1736, found: 368.1736; Mp: 142 °C (decomp.).

3.4. Synthesis of 5-(2,4,6-Trimethylphenyl)-5H-9,10-dihydrodibenzo[b,f]borepin (3)

THF (2.0 mL) was added to a two-neck flask containing granular Mg (0.0878 mg, 3.61 mmol). To this flask, a THF solution (2.0 mL) of 2,2′-dibromodibenzyl (0.4081 g, 1.200 mmol) was added dropwise. After refluxing for 25 h, the solution was transferred to a Schlenk flask by a syringe to remove the remaining Mg. A THF solution of thus obtained 2Mg-sp3 (estimated to be 0.3 M. 1.97 mL, ca. 0.59 mmol) was added to a two-neck flask containing MesBpin (0.1320 g, 0.5363 mmol) and 5.8 mL of CPME, and the mixture was refluxed for 33 h. After removing the solvent in vacuo, the crude product was purified by column chromatography (eluent: hexane:EtOAc = 20:1) followed by washing with iPrOH to give 3 as a white powder (98.9 mg, 0.318 mmol, 59%). Using THF instead of CPME decreased the yield to 16%. Single crystals suitable for X-ray diffraction analysis were obtained by a CH2Cl2/iPrOH solution. 1H NMR (500 MHz, CDCl3) δ 7.59 (d, 3JHH = 7.5 Hz, 2H, f), 7.40 (t, 3JHH = 7.5 Hz, 2H, d), 7.26 (d, 3JHH = 7.5 Hz, 2H, c), 7.15 (t, 3JHH = 7.5 Hz, 2H, d), 6.87 (s, 2H, j), 3.25 (s, 4H, a), 2.38 (s, 3H, m), 1.97 (s, 6H, l). 13C{1H} NMR (126 MHz, CDCl3) δ 152.6 (4°, b), 145.3 (4°, h), 141.9 (3°, f), 139.2 (4°, g), 137.4 (4°, i), 136.4 (4°, k), 133.3 (3°, d), 128.7 (3°, c), 127.0 (3°, j), 126.0 (3°, e), 37.7 (2°, a), 22.7 (1°, l), 21.4 (1°, m). 11B{1H} NMR (160 MHz, CDCl3) δ 69.3. HRMS for C23H23B (3) [M]+: 310.1893. Found: 310.1881. M.P.: 143 °C.

3.5. Synthesis of 5-(2,4,6-Triisopropylphenyl)-5H-9,10-dihydrodibenzo[b,f]borepin (4)

A THF solution of 2Mg-sp3 (estimated to be 0.3 M. 1.30 mL, ca. 0.39 mmol) was added to a two-neck flask containing TipBpin (0.1287 g, 0.3900 mmol) and 5.5 mL of CPME, and the mixture was refluxed for 22 h. After removing the solvent in vacuo, the crude product was purified by column chromatography (eluent: hexane:CH2Cl2 = 5:1) followed by PTLC (eluent: hexane:CH2Cl2 = 3:1) to give 4 as a white powder (69.9 mg, 0.177 mmol, 45%). Using THF instead of CPME decreased the yield to 4%. Single crystals suitable for X-ray diffraction analysis were obtained by a CH2Cl2/iPrOH solution. 1H NMR (500 MHz, CDCl3) δ 7.65 (dd, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, f), 7.38 (td, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, d), 7.25 (d, 3JHH = 7.5 Hz, 2H, c), 7.16 (t, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, e), 7.00 (s, 2H, j), 3.23 (s, 4H, a), 2.96 (sept, 3JHH = 6.9 Hz, 1H, n), 2.27 (sept, 3JHH = 6.7 Hz, 2H, l), 1.33 (d, 3JHH = 6.9 Hz, 6H, o), 0.96 (d, 3JHH = 6.7 Hz, 12H, m). 13C{1H} NMR (126 MHz, CDCl3) δ 152.1 (4°, b), 148.6 (4°, i), 148.1 (4°, k), 143.3 (3°, f), 142.6 (4°, h), 140.2 (4°, g), 133.1 (3°, d), 128.6 (3°, c), 125.4 (3°, e), 120.2 (3°, j), 37.8 (2°, a), 35.5 (3°, l), 34.3 (3°, n), 24.4 (1°, m), 24.1 (1°, o). 11B{1H} NMR (160 MHz, CDCl3) δ 68.9. HRMS for C29H35B (1a) [M+H]+: 395.2832, found: 395.2920. M.P.: 126 °C.

3.6. Synthesis of 5-(10-Bromo-9-anthryl)-5H-9,10-dihydrodibenzo[b,f]borepin (5-sp3)

A solution of 2Mg-sp3 (0.3 M in THF, 8.2 mL, 2.46 mmol) was added to a THF (30 mL) solution of BrAnthBpin (901.0 mg, 2.455 mmol, 1.0 equiv). The reaction mixture was refluxed overnight, after which the solvent was removed in vacuo. The product was purified by column chromatography (hexane:CH2Cl2 = 9:1) to yield 5-sp3 (698.7 mg, 1.571 mmol, 64%) as a yellow solid. Single crystals suitable for X-ray diffraction analysis were obtained by the slow diffusion of hexane into a CH2Cl2 solution. 1H NMR (500 MHz, CDCl3): δ = 8.59 (dt, 3JHH = 9.0 Hz, 4JHH = 1.0 Hz, 2H, m), 7.53 (ddd, 3JHH = 9.0 Hz, 3JHH = 6.5 Hz, 4JHH = 1.0 Hz, 2H, l), 7.46 (dt, 3JHH = 8.5 Hz, 4JHH = 1.0 Hz, 2H, j), 7.37 (td, 3JHH = 7.5 Hz, 4JHH = 1.0 Hz, 2H, d), 7.34 (dd, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, c), 7.26 (d, 2H, f), 7.24 (m, 2H, k), 6.91 (td, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 2H, e), 3.44 (s, 2H, a). 13C{1H} NMR (126 MHz, CDCl3): δ = 152.6 (4°, b), 147.0 (4°, h), 143.3 (3°, f), 139.7 (4°, g), 133.9 (3° and 4°, d and i), 130.7 (3°, j), 130.1 (4°, n), 128.9 (3°, c), 128.2 (3°, m), 126.9 (3°, l), 126.0 (3°, e), 124.8 (3°, k), 122.2 (4°, o), 37.8 (2°, a). 11B{1H} NMR (160 MHz, CDCl3): δ = 70.6. HRMS m/z calcd for C28H20BBr+ [M]+: 446.0841, found: 446.0898. Mp: 113 °C (decomp.).

3.7. Synthesis of 9,10-Bis(5H-9,10-Dihydrodibenzo[b,f]borepin-5-yl)anthracene (6-sp3)

A solution of 2Mg-sp3 (0.3 M in THF, 9.27 mL, 2.78 mmol, 2.0 equiv) was added to a solution of Anth(Bpin)2 (598.6 mg, 1.392 mmol, 1.0 equiv) in THF (24.0 mL). The reaction mixture was refluxed overnight, during which a yellow solid precipitated. The yellow solid insoluble in THF was filtered off and washed with CH2Cl2 to yield 6-sp3 (414.7 mg, 0.9187 mmol, 66%) as a yellow solid. Single crystals suitable for X-ray diffraction analysis were obtained by standing a saturated chlorobenzene solution of 6-sp3. 1H NMR (500 MHz, CDCl3): δ = 7.50 (dd, 3JHH = 8.0 Hz, 4H, j), 7.48 (dd, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 4H, f), 7.41 (td, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, 4H, d), 7.35 (td, 3JHH = 8.0 Hz, 4JHH = 1.5 Hz, 4H, c), 7.12 (dd, 3JHH = 7.0 Hz, 4H, k), 7.02 (td, 4H, 3JHH = 7.5 Hz, 4JHH = 1.5 Hz, e), 3.48 (s, 8H, a); 13C{1H} NMR (126 MHz, CDCl3): δ = 152.4 (4°, b), 143.3 (3°, f), 133.7 (3°, d), 132.8 (4°, i), 130.8 (3°, j), 128.8 (3°, c), 126.1 (3°, e), 124.1 (3°, k), 37.9 (2°, a). Two signals (g and h) were not observed due to the low solubility in CDCl3 as well as the quadrupolar relaxation caused by 11B. 11B{1H} NMR signals could also not be observed due to low solubility. HRMS m/z calcd for C42H32B2+ [M]+: 558.2690, found: 558.2721. Mp: 151 °C (decomp.).

3.8. Synthesis of 5-sp2 from 5-sp3

NBS (88.9 mg, 0.499 mmol, 1.1 equiv) and AIBN (37.3 mg, 0.227 mmol, 50 mol%) were added to a solution of 5-sp3 (203.0 mg, 0.4540 mmol) in benzene (8.0 mL) at room temperature. The reaction mixture was refluxed overnight, after which the solvent was removed in vacuo. The product was purified by short pad column chromatography (hexane:CH2Cl2 = 5:3). The obtained yellow solid was dissolved in CH2Cl2 and cooled at −15 °C to yield 5-sp2 (112.0 mg, 55%) as a yellow solid. 1H NMR (500 MHz, CDCl3): δ = 8.65 (dt, 3JHH = 9.0 Hz, 2H, m), 7.89 (dt, 3JHH = 9.0 Hz, 2H, c), 7.70 (m, 4H, d + j), 7.54 (m, 4H, a + l), 7.37 (d, 3JHH = 7.5 Hz, 2H, f), 7.18 (m, 4H, e + k). 13C{1H} NMR (126 MHz, CDCl3): δ = 147.5 (4°, h), 144.4 (4°, b), 142.8 (3°, f), 140.6 (4°, g), 134.5 (3° and 4°, a and i), 133.4 (3°, d), 133.2 (3°, c), 131.2 (3°, j), 130.2 (4°, n), 128.2 (3°, m), 127.4 (3°, e), 126.9 (3°, l), 124.8 (3°, k), 122.2 (4°, o). 11B{1H} NMR (160 MHz, CDCl3): δ = 65.9. HRMS m/z calcd for C28H18BBr+ [M]+: 444.0685, found: 444.0640. Mp: 169 °C (decomp.).

3.9. Synthesis of 1-sp2 from 5-sp2

n-BuLi (2.0 M in cyclohexane, 0.084 mL, 0.168 mmol, 1.1 equiv) was added to a solution of 5-sp2 (68.1 mg, 0.1529 mmol) in THF (1.0 mL) at −78 °C. After 1 h, the reaction mixture was quenched with iPrOH. The solvents were evaporated at reduced pressure. Compound 1-sp2 was obtained as yellow solid (49.9 mg, 0.136 mmol, 89%). 1H NMR (600 MHz, CDCl3): δ = 8.56 (s, 1H, o), 8.11 (d, 3JHH = 8.5 Hz, 2H, m), 7.90 (dd, 3JHH = 8.0 Hz, 2H, c), 7.75 (d, 3JHH = 8.0 Hz, 2H, f), 7.70 (t, 3JHH = 7.5 Hz, 2H, d), 7.54 (s, 2H, a), 7.42 (t, 3JHH = 7.5 Hz, 2H, l), 7.38 (d, 3JHH = 8.0 Hz, 2H, j), 7.18 (t, 3JHH = 7.8 Hz, 2H, e), 7.14 (t, 3JHH = 8.0 Hz, 2H, k). 13C{1H} NMR (150 MHz, CDCl3): δ = 146.7 (4°, h), 144.2 (4°, b), 142.8 (3°, f), 140.9 (4°, g), 134.5 (3°, a), 133.8 (4°, i), 133.2 (3°, d), 133.0 (3°, c), 131.3 (4°, n), 130.7 (3°, j), 128.8 (3°, m), 127.3 (3°, e), 125.9 (3°, o), 125.0 (3°, l), 124.5 (3°, k). 11B{1H} NMR (160 MHz, CDCl3): δ = 66.1. HRMS m/z calcd for C28H19B+ [M]+: 366.1580, found: 366.1564. Mp: 186 °C (decomp.).

3.10. Synthesis of 7

A two-necked flask was charged with 2,2′-dibromobiphenyl (177.1 mg, 0.5677 mmol), Mg (27.6 mg, 1.135 mmol) and THF (1.4 mL). After refluxing this mixture for 1 h, a THF solution of TipBpin (131.1 mg, 0.3973 mmol) was added to the flask at room temperature. The mixture was refluxed for 24 h to give yellow solution, the solvent of which was removed under reduced pressure. Crude mixture thus obtained was purified by column chromatography (eluent: hexane:CH2Cl2 = 20:1) to give 7 as a yellow powder (27.9 mg, 0.0762 mmol, 19% yield). The 1H NMR data of 7 were identical to those of the reported one in ref. [25].

4. Conclusions

We have developed a novel synthetic method for dihydrodibenzoborepin and dibenzoborole skeletons utilizing ArBpins as stable boron sources, which exclude the use of toxic organotin reagents and haloboranes. This method enabled the one-shot double formation of boracycles to give 6-sp3, which could not be obtained by a well-established transmetalation route using an organotin compound. The dihydrodibenzoborepins 1-sp3 and 5-sp3 were directly converted into dibenzoborepin 5-sp2 under refluxing with NBS/AIBN. In the crystalline state, compounds 3, 4, 5-sp3 and 6-sp3 adopt a highly twisted structure because of the steric hindrance between the bulky Ar substituents and the dihydrodibenzoborepins. Spectroscopic studies reveal that 1-sp3 and 1-sp2 exhibit solvatofluorochromic properties. We believe that this Bpin-based boracycle synthesis would be a viable alternative to the conventional approach.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29174024/s1, Figure S1: labels for NMR assignments of the products; additional synthetic procedures; Table S1: preparation and quenching reactions of 2Mg-sp2; Figure S2: molecular structures of 4; Figure S3: packing structures of 5-sp3 and 6-sp3; Figure S4: absorption (solid line) and emission spectra (broken line) of 6-sp3; Table S2. crystallographic data for 3, 4, 5-sp3 and 6-sp3; Cartesian coordinates for 1-sp3, 1-sp2 and 6-sp3; Figures S5–S24: 1H, 13C{1H} and 11B{1H} NMR spectra of the new compounds.

Author Contributions

Conceptualization, T.K.; methodology, H.K.; validation, H.K., K.F. and N.M.; investigation, H.K., K.F. and N.M.; resources, T.K.; data curation, T.K.; writing—original draft preparation, T.K.; writing—review and editing, H.K., K.F. and N.M.; visualization, T.K.; supervision, T.K.; project administration, T.K.; funding acquisition, T.K. and H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JSPS KAKENHI, grant number 22K05078, and The Sasakawa Scientific Research Grant from The Japan Science Society, grant number 2023-3030.

Data Availability Statement

Crystallographic data for the reported compounds in this article have been deposited at the Cambridge Crystallographic Data Centre: CCDC 2371388 (3), 2371389 (4), 2371390 (5-sp3), 2371391 (6-sp3). These data can be obtained free of charge via https://www.ccdc.cam.ac.uk/structures/.

Acknowledgments

The authors thank Kana Kobayashi of Ochanomizu University for her help on measuring HRMS for some products.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ji, L.; Griesbeck, S.; Marder, T.B. Recent developments in and perspectives on three-coordinate boron materials: A bright future. Chem. Sci. 2017, 8, 846–863. [Google Scholar] [CrossRef] [PubMed]
  2. Yamaguchi, S.; Wakamiya, A. Boron as a key component for new π-electron materials. Pure Appl. Chem. 2006, 78, 1413–1424. [Google Scholar] [CrossRef]
  3. Hirai, M.; Tanaka, N.; Sakai, M.; Yamaguchi, S. Structurally Constrained Boron-, Nitrogen-, Silicon-, and Phosphorus-Centered Polycyclic π-Conjugated Systems. Chem. Rev. 2019, 119, 8291–8331. [Google Scholar] [CrossRef] [PubMed]
  4. Huang, Z.; Wang, S.; Dewhurst, R.D.; Ignat’ev, N.V.; Finze, M.; Braunschweig, H. Boron: Its Role in Energy-Related Processes and Applications. Angew. Chem. Int. Ed. 2020, 59, 8800–8816. [Google Scholar] [CrossRef]
  5. Braunschweig, H.; Kupfer, T. Recent developments in the chemistry of antiaromatic boroles. Chem. Commun. 2011, 47, 10903–10914. [Google Scholar] [CrossRef]
  6. Messersmith, R.E.; Tovar, J.D. Assessment of the aromaticity of borepin rings by spectroscopic, crystallographic and computational methods: A historical overview. J. Phys. Org. Chem. 2015, 28, 378–387. [Google Scholar] [CrossRef]
  7. Iida, A.; Yamaguchi, S. Thiophene-Fused Ladder Boroles with High Antiaromaticity. J. Am. Chem. Soc. 2011, 133, 6952–6955. [Google Scholar] [CrossRef]
  8. Mercier, L.G.; Piers, W.E.; Parvez, M. Benzo- and Naphthoborepins: Blue-Emitting Boron Analogues of Higher Acenes. Angew. Chem. Int. Ed. 2009, 48, 6108–6111. [Google Scholar] [CrossRef]
  9. Messersmith, R.E.; Siegler, M.A.; Tovar, J.D. Aromaticity Competition in Differentially Fused Borepin-Containing Polycyclic Aromatics. J. Org. Chem. 2016, 81, 5595–5605. [Google Scholar] [CrossRef]
  10. Ando, N.; Kushida, T.; Yamaguchi, S. A planarized B-phenyldibenzoborepin: Impact of structural constraint on its electronic properties and Lewis acidity. Chem. Commun. 2018, 54, 5213–5216. [Google Scholar] [CrossRef]
  11. Iqbal, S.A.; Pahl, J.; Yuan, K.; Ingleson, M.J. Intramolecular (directed) electrophilic C–H borylation. Chem. Soc. Rev. 2020, 49, 4564–4591. [Google Scholar] [CrossRef] [PubMed]
  12. Su, X.; Bartholome, T.A.; Tidwell, J.R.; Pujol, A.; Yruegas, S.; Martinez, J.J.; Martin, C.D. 9-Borafluorenes: Synthesis, Properties, and Reactivity. Chem. Rev. 2021, 121, 4147–4192. [Google Scholar] [CrossRef] [PubMed]
  13. Oda, S.; Hatakeyama, T. Development of One-Shot/One-Pot Borylation Reactions toward Organoboron-Based Materials. Bull. Chem. Soc. Jpn. 2021, 94, 950–960. [Google Scholar] [CrossRef]
  14. He, J.; Rauch, F.; Finze, M.; Marder, T.B. (Hetero)arene-fused boroles: A broad spectrum of applications. Chem. Sci. 2021, 12, 128–147. [Google Scholar] [CrossRef]
  15. Eisch, J.J.; Hota, N.K.; Kozima, S. Synthesis of pentaphenylborole, a potentially antiaromatic system. J. Am. Chem. Soc. 1969, 91, 4575–4577. [Google Scholar] [CrossRef]
  16. Eisch, J.J.; Galle, J.E.; Kozima, S. Bora-aromatic systems. Part 8. The physical and chemical consequences of cyclic conjugation in boracyclopolyenes. The antiaromatic character of pentaarylboroles. J. Am. Chem. Soc. 1986, 108, 379–385. [Google Scholar] [CrossRef] [PubMed]
  17. Chase, P.A.; Piers, W.E.; Patrick, B.O. New Fluorinated 9-Borafluorene Lewis Acids. J. Am. Chem. Soc. 2000, 122, 12911–12912. [Google Scholar] [CrossRef]
  18. Wakamiya, A.; Mishima, K.; Ekawa, K.; Yamaguchi, S. Kinetically stabilized dibenzoborole as an electron-accepting building unit. Chem. Commun. 2008, 579–581. [Google Scholar] [CrossRef] [PubMed]
  19. Su, B.; Kinjo, R. Construction of Boron-Containing Aromatic Heterocycles. Synthesis 2017, 49, 2985–3034. [Google Scholar]
  20. Kuwabara, T.; Saito, M. 3.17—Siloles, Germoles, Stannoles, and Plumboles. In Comprehensive Heterocyclic Chemistry IV; Black, D.S., Cossy, J., Stevens, C.V., Eds.; Elsevier: Oxford, UK, 2022; pp. 798–832. [Google Scholar]
  21. Hatakeyama, T.; Hashimoto, S.; Seki, S.; Nakamura, M. Synthesis of BN-Fused Polycyclic Aromatics via Tandem Intramolecular Electrophilic Arene Borylation. J. Am. Chem. Soc. 2011, 133, 18614–18617. [Google Scholar] [CrossRef]
  22. Hirai, H.; Nakajima, K.; Nakatsuka, S.; Shiren, K.; Ni, J.; Nomura, S.; Ikuta, T.; Hatakeyama, T. One-Step Borylation of 1,3-Diaryloxybenzenes Towards Efficient Materials for Organic Light-Emitting Diodes. Angew. Chem. Int. Ed. 2015, 54, 13581–13585. [Google Scholar] [CrossRef] [PubMed]
  23. Nakatsuka, S.; Yasuda, N.; Hatakeyama, T. Four-Step Synthesis of B2N2-Embedded Corannulene. J. Am. Chem. Soc. 2018, 140, 13562–13565. [Google Scholar] [CrossRef]
  24. Matsui, K.; Oda, S.; Yoshiura, K.; Nakajima, K.; Yasuda, N.; Hatakeyama, T. One-Shot Multiple Borylation toward BN-Doped Nanographenes. J. Am. Chem. Soc. 2018, 140, 1195–1198. [Google Scholar] [CrossRef]
  25. Yamaguchi, S.; Shirasaka, T.; Akiyama, S.; Tamao, K. Dibenzoborole-Containing π-Electron Systems: Remarkable Fluorescence Change Based on the “On/Off” Control of the pπ–π* Conjugation. J. Am. Chem. Soc. 2002, 124, 8816–8817. [Google Scholar] [CrossRef] [PubMed]
  26. Iida, A.; Sekioka, A.; Yamaguchi, S. Heteroarene-fused boroles: What governs the antiaromaticity and Lewis acidity of the borole skeleton? Chem. Sci. 2012, 3, 1461–1466. [Google Scholar] [CrossRef]
  27. Brend’amour, S.; Gilmer, J.; Bolte, M.; Lerner, H.-W.; Wagner, M. C-Halogenated 9,10-Diboraanthracenes: How the Halogen Load and Distribution Influences Key Optoelectronic Properties. Chem. Eur. J. 2018, 24, 16910–16918. [Google Scholar] [CrossRef]
  28. Urban, M.; Durka, K.; Górka, P.; Wiosna-Sałyga, G.; Nawara, K.; Jankowski, P.; Luliński, S. The effect of locking π-conjugation in organoboron moieties in the structures of luminescent tetracoordinate boron complexes. Dalton Trans. 2019, 48, 8642–8663. [Google Scholar] [CrossRef]
  29. Lennox, A.J.J.; Lloyd-Jones, G.C. Selection of boron reagents for Suzuki–Miyaura coupling. Chem. Soc. Rev. 2014, 43, 412–443. [Google Scholar] [CrossRef]
  30. Asakawa, H.; Lee, K.-H.; Lin, Z.; Yamashita, M. Facile scission of isonitrile carbon–nitrogen triple bond using a diborane(4) reagent. Nat. Commun. 2014, 5, 4245. [Google Scholar] [CrossRef]
  31. Ishiyama, T.; Murata, M.; Miyaura, N. Palladium(0)-Catalyzed Cross-Coupling Reaction of Alkoxydiboron with Haloarenes: A Direct Procedure for Arylboronic Esters. J. Org. Chem. 1995, 60, 7508–7510. [Google Scholar] [CrossRef]
  32. Ishiyama, T.; Miyaura, N. Metal-catalyzed reactions of diborons for synthesis of organoboron compounds. Chem. Rec. 2004, 3, 271–280. [Google Scholar] [CrossRef]
  33. Hartwig, J.F. Borylation and Silylation of C–H Bonds: A Platform for Diverse C–H Bond Functionalizations. Acc. Chem. Res. 2012, 45, 864–873. [Google Scholar] [CrossRef]
  34. Mkhalid, I.A.I.; Barnard, J.H.; Marder, T.B.; Murphy, J.M.; Hartwig, J.F. C–H Activation for the Construction of C–B Bonds. Chem. Rev. 2010, 110, 890–931. [Google Scholar] [CrossRef] [PubMed]
  35. Levin, G.; Ward, T.A.; Szwarc, M. Electron-transfer catalyzed cis-trans isomerization of stilbene. Stability of sodium cis-stilbenide and the existence of sodium salts of cis- and of trans-stilbene dianions. J. Am. Chem. Soc. 1974, 96, 270–272. [Google Scholar] [CrossRef]
  36. Ito, S.; Kuwabara, T.; Ishii, Y. A Tin Analogue of the Cycloheptatrienyl Anion: Synthesis, Structure, and Further Reduction to Form a Dianionic Species. Organometallics 2020, 39, 640–644. [Google Scholar] [CrossRef]
  37. Sieg, G.; Müller, I.; Weißer, K.; Werncke, C.G. Taming the stilbene radical anion. Chem. Sci. 2022, 13, 13872–13878. [Google Scholar] [CrossRef] [PubMed]
  38. Grenz, D.C.; Schmidt, M.; Kratzert, D.; Esser, B. Dibenzo[a,e]pentalenes with Low-Lying LUMO Energy Levels as Potential n-Type Materials. J. Org. Chem. 2018, 83, 656–663. [Google Scholar] [CrossRef] [PubMed]
  39. Yuan, K.; Suzuki, N.; Mellerup, S.K.; Wang, X.; Yamaguchi, S.; Wang, S. Pyridyl Directed Catalyst-Free trans-Hydroboration of Internal Alkynes. Org. Lett. 2016, 18, 720–723. [Google Scholar] [CrossRef]
  40. Pospiech, S.; Bolte, M.; Lerner, H.-W.; Wagner, M. Diborylated Magnesium Anthracene as Precursor for B2H5−-Bridged 9,10-Dihydroanthracene. Chem. Eur. J. 2015, 21, 8229–8236. [Google Scholar] [CrossRef]
  41. van Tamelen, E.E.; Brieger, G.; Untch, K.G. Synthesis of a borepin. Tetrahedron Lett. 1960, 1, 14–15. [Google Scholar] [CrossRef]
  42. Matsuoka, W.; Ito, H.; Sarlah, D.; Itami, K. Diversity-oriented synthesis of nanographenes enabled by dearomative annulative π-extension. Nat. Commun. 2021, 12, 3940. [Google Scholar] [CrossRef] [PubMed]
  43. Pedireddi, V.R.; Reddy, D.S.; Goud, B.S.; Craig, D.C.; Rae, A.D.; Desiraju, G.R. The nature of halogen···halogen interactions and the crystal structure of 1,3,5,7-tetraiodoadamantane. J. Chem. Soc. Perkin Trans. 2 1994, 2353–2360. [Google Scholar] [CrossRef]
  44. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef]
  45. Matter, H.; Nazaré, M.; Güssregen, S.; Will, D.W.; Schreuder, H.; Bauer, A.; Urmann, M.; Ritter, K.; Wagner, M.; Wehner, V. Evidence for C−Cl/C−Br⋅⋅⋅π Interactions as an Important Contribution to Protein–Ligand Binding Affinity. Angew. Chem. Int. Ed. 2009, 48, 2911–2916. [Google Scholar] [CrossRef]
  46. Förster, C.; Seichter, W.; Schwarzer, A.; Weber, E. Supramolecular behaviour of bulky arylboranes in the crystalline state. Supramol. Chem. 2010, 22, 571–581. [Google Scholar] [CrossRef]
  47. Griesbeck, S.; Ferger, M.; Czernetzi, C.; Wang, C.; Bertermann, R.; Friedrich, A.; Haehnel, M.; Sieh, D.; Taki, M.; Yamaguchi, S.; et al. Optimization of Aqueous Stability versus π-Conjugation in Tetracationic Bis(triarylborane) Chromophores: Applications in Live-Cell Fluorescence Imaging. Chem. Eur. J. 2019, 25, 7679–7688. [Google Scholar] [CrossRef] [PubMed]
  48. Iida, A.; Saito, S.; Sasamori, T.; Yamaguchi, S. Borylated Dibenzoborepin: Synthesis by Skeletal Rearrangement and Photochromism Based on Bora-Nazarov Cyclization. Angew. Chem. Int. Ed. 2013, 52, 3760–3764. [Google Scholar] [CrossRef]
  49. Chen, C.; Harhausen, M.; Liedtke, R.; Bussmann, K.; Fukazawa, A.; Yamaguchi, S.; Petersen, J.L.; Daniliuc, C.G.; Fröhlich, R.; Kehr, G.; et al. Dibenzopentalenes from B(C6F5)3-Induced Cyclization Reactions of 1,2-Bis(phenylethynyl)benzenes. Angew. Chem. Int. Ed. 2013, 52, 5992–5996. [Google Scholar] [CrossRef] [PubMed]
  50. Ashe, A.J.; Klein, W.; Rousseau, R. Evaluation of the aromaticity of borepin: Synthesis and properties of 1-substituted borepins. Organometallics 1993, 12, 3225–3231. [Google Scholar] [CrossRef]
  51. Jones, R.N. The Ultraviolet Absorption Spectra of Anthracene Derivatives. Chem. Rev. 1947, 41, 353–371. [Google Scholar] [CrossRef]
  52. Yamaguchi, S.; Akiyama, S.; Tamao, K. Tri-9-anthrylborane and Its Derivatives:  New Boron-Containing π-Electron Systems with Divergently Extended π-Conjugation through Boron. J. Am. Chem. Soc. 2000, 122, 6335–6336. [Google Scholar] [CrossRef]
  53. Charlot, M.; Porrès, L.; Entwistle, C.D.; Beeby, A.; Marder, T.B.; Blanchard-Desce, M. Investigation of two-photon absorption behavior in symmetrical acceptor–π–acceptor derivatives with dimesitylboryl end-groups. Evidence of new engineering routes for TPA/transparency trade-off optimization. Phys. Chem. Chem. Phys. 2005, 7, 600–606. [Google Scholar] [CrossRef] [PubMed]
  54. Kosower, E.M. Intramolecular donor-acceptor systems. 9. Photophysics of (phenylamino)naphthalenesulfonates: A paradigm for excited-state intramolecular charge transfer. Acc. Chem. Res. 1982, 15, 259–266. [Google Scholar] [CrossRef]
  55. Kuwabara, T.; Orii, J.; Segawa, Y.; Itami, K. Curved Oligophenylenes as Donors in Shape-Persistent Donor–Acceptor Macrocycles with Solvatofluorochromic Properties. Angew. Chem. Int. Ed. 2015, 54, 9646–9649. [Google Scholar] [CrossRef] [PubMed]
  56. Hermann, M.; Wassy, D.; Esser, B. Conjugated Nanohoops Incorporating Donor, Acceptor, Hetero- or Polycyclic Aromatics. Angew. Chem. Int. Ed. 2021, 60, 15743–15766. [Google Scholar] [CrossRef] [PubMed]
  57. Yanai, T.; Tew, D.P.; Handy, N.C. A new hybrid exchange–correlation functional using the Coulomb-attenuating method (CAM-B3LYP). Chem. Phys. Lett. 2004, 393, 51–57. [Google Scholar] [CrossRef]
  58. Francl, M.M.; Pietro, W.J.; Hehre, W.J.; Binkley, J.S.; Gordon, M.S.; DeFrees, D.J.; Pople, J.A. Self-consistent molecular orbital methods. XXIII. A polarization-type basis set for second-row elements. J. Chem. Phys. 1982, 77, 3654–3665. [Google Scholar] [CrossRef]
  59. Zhu, J.; Lin, Z.; Marder, T.B. Trans Influence of Boryl Ligands and Comparison with C, Si, and Sn Ligands. Inorg. Chem. 2005, 44, 9384–9390. [Google Scholar] [CrossRef]
  60. Kupracz, L.; Kirschning, A. Multiple Organolithium Generation in the Continuous Flow Synthesis of Amitriptyline. Adv. Synth. Catal. 2013, 355, 3375–3380. [Google Scholar] [CrossRef]
  61. Zhang, H.; Yu, T.; Zhao, Y.; Fan, D.; Xia, Y.; Zhang, P. Synthesis, crystal structure, photo- and electro-luminescence of 3-(4-(anthracen-10-yl)phenyl)-7-(N,N′-diethylamino)coumarin. Synth. Met. 2010, 160, 1642–1647. [Google Scholar] [CrossRef]
  62. Zhu, Y.; Rabindranath, A.R.; Beyerlein, T.; Tieke, B. Highly Luminescent 1,4-Diketo-3,6-diphenylpyrrolo[3,4-c]pyrrole- (DPP-) Based Conjugated Polymers Prepared Upon Suzuki Coupling. Macromolecules 2007, 40, 6981–6989. [Google Scholar] [CrossRef]
  63. Filthaus, M.; Oppel, I.M.; Bettinger, H.F. Supramolecular structures and spontaneous resolution: The case of ortho-substituted phenylboronic acids. Org. Biomol. Chem. 2008, 6, 1201–1207. [Google Scholar] [CrossRef] [PubMed]
  64. Yuan, K.; Wang, X.; Wang, S. Cascade Dehydrogenative Hydroboration for the Synthesis of Azaborabenzofulvenes. Org. Lett. 2018, 20, 1617–1620. [Google Scholar] [CrossRef] [PubMed]
  65. Sheldrick, G. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef]
  66. Sheldrick, G. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef]
  67. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16 Rev.A.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
Molecules 29 04024 sch001

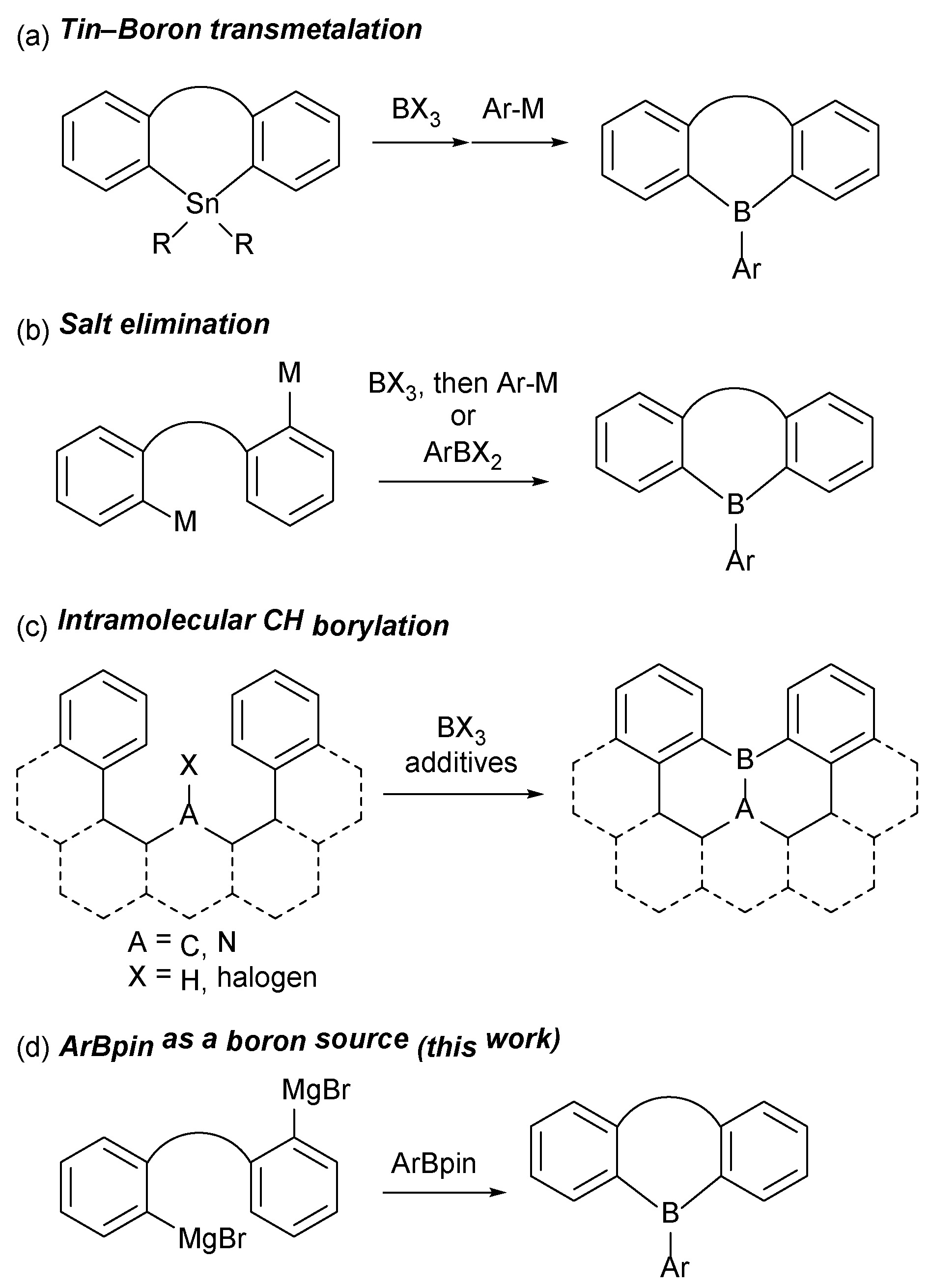

Scheme 1. (a–c) General synthesis of boracycles and (d) ArBpin-based synthesis (this work). M = Li, MgBr; X = halogen.
Scheme 1. (a–c) General synthesis of boracycles and (d) ArBpin-based synthesis (this work). M = Li, MgBr; X = halogen.
Molecules 29 04024 sch001
Molecules 29 04024 sch002

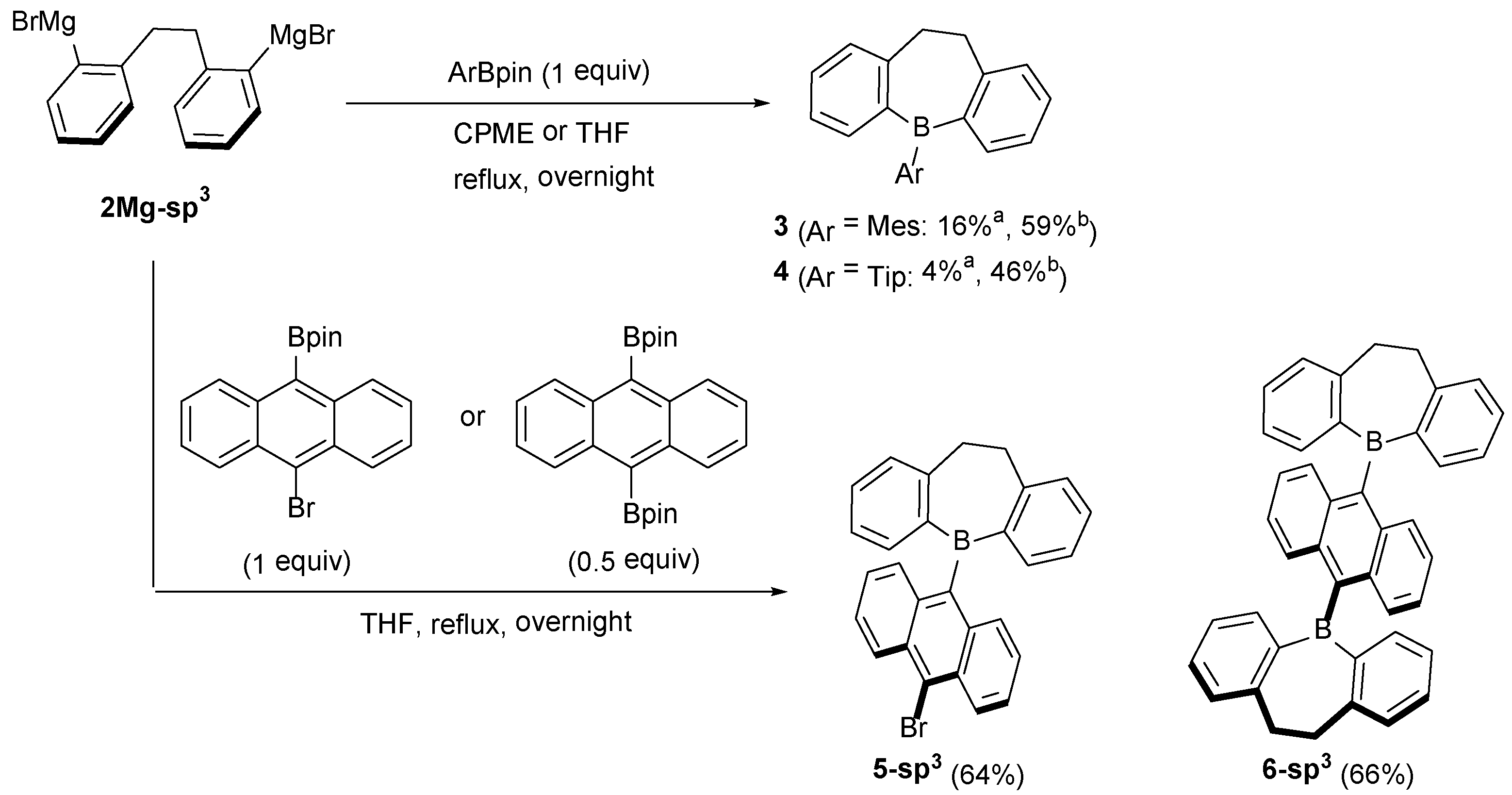

Scheme 2. Reactions of 2Mg-sp3 and ArBpins. a: Yields in THF. b: Yields in CPME.
Scheme 2. Reactions of 2Mg-sp3 and ArBpins. a: Yields in THF. b: Yields in CPME.
Molecules 29 04024 sch002
Molecules 29 04024 sch003

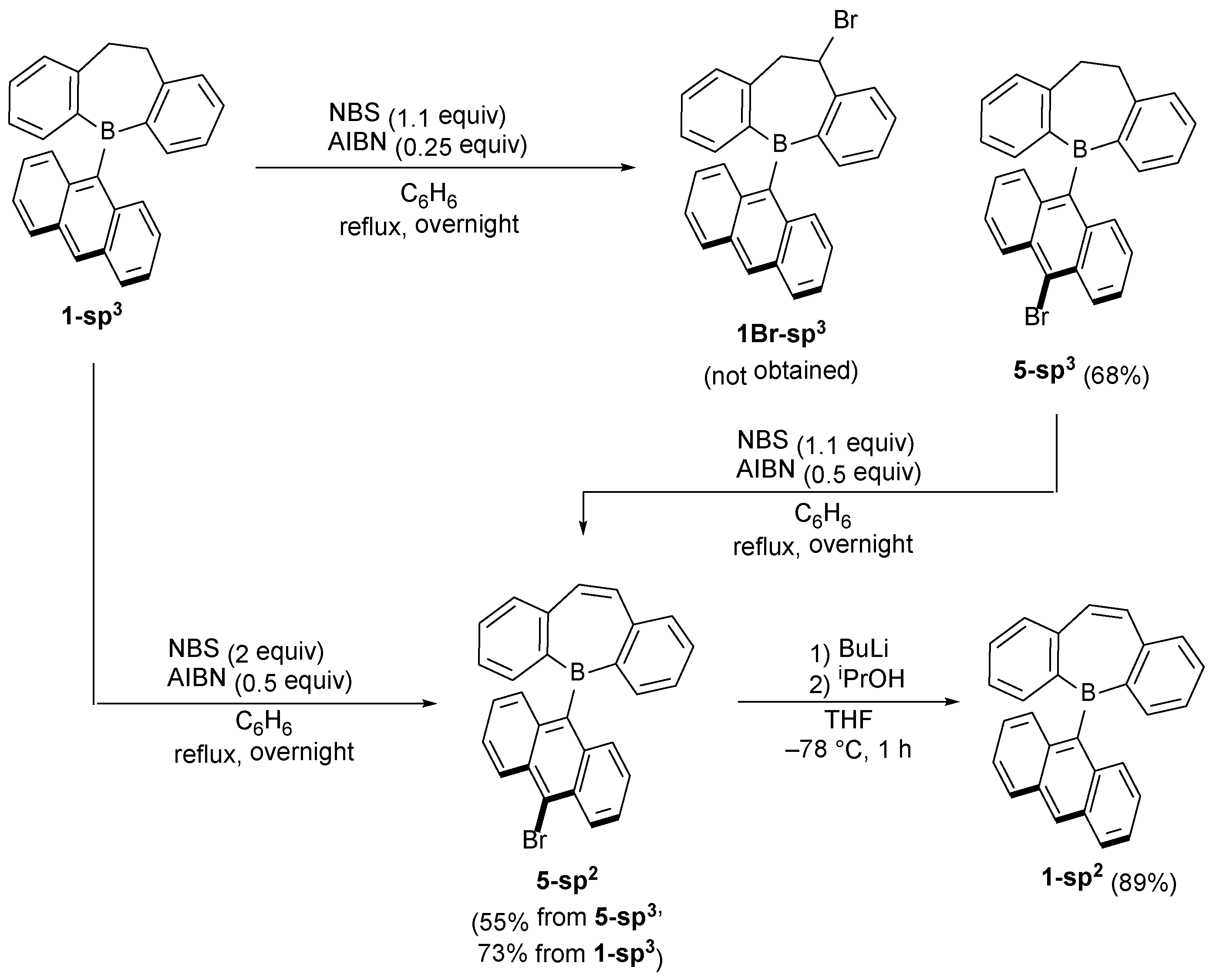

Scheme 3. Reactions of saturated borepins and NBS/AIBN, and synthesis of 1-sp2.
Scheme 3. Reactions of saturated borepins and NBS/AIBN, and synthesis of 1-sp2.
Molecules 29 04024 sch003
Molecules 29 04024 sch004

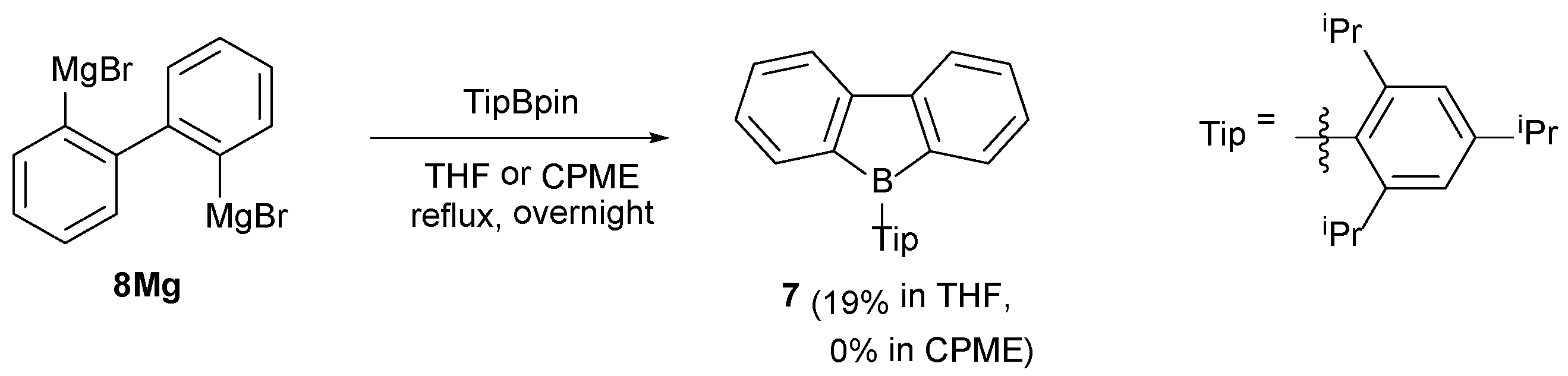

Scheme 4. Synthesis of dibenzoborole 7 using the ArBpin-based method.
Scheme 4. Synthesis of dibenzoborole 7 using the ArBpin-based method.
Molecules 29 04024 sch004
Molecules 29 04024 g001

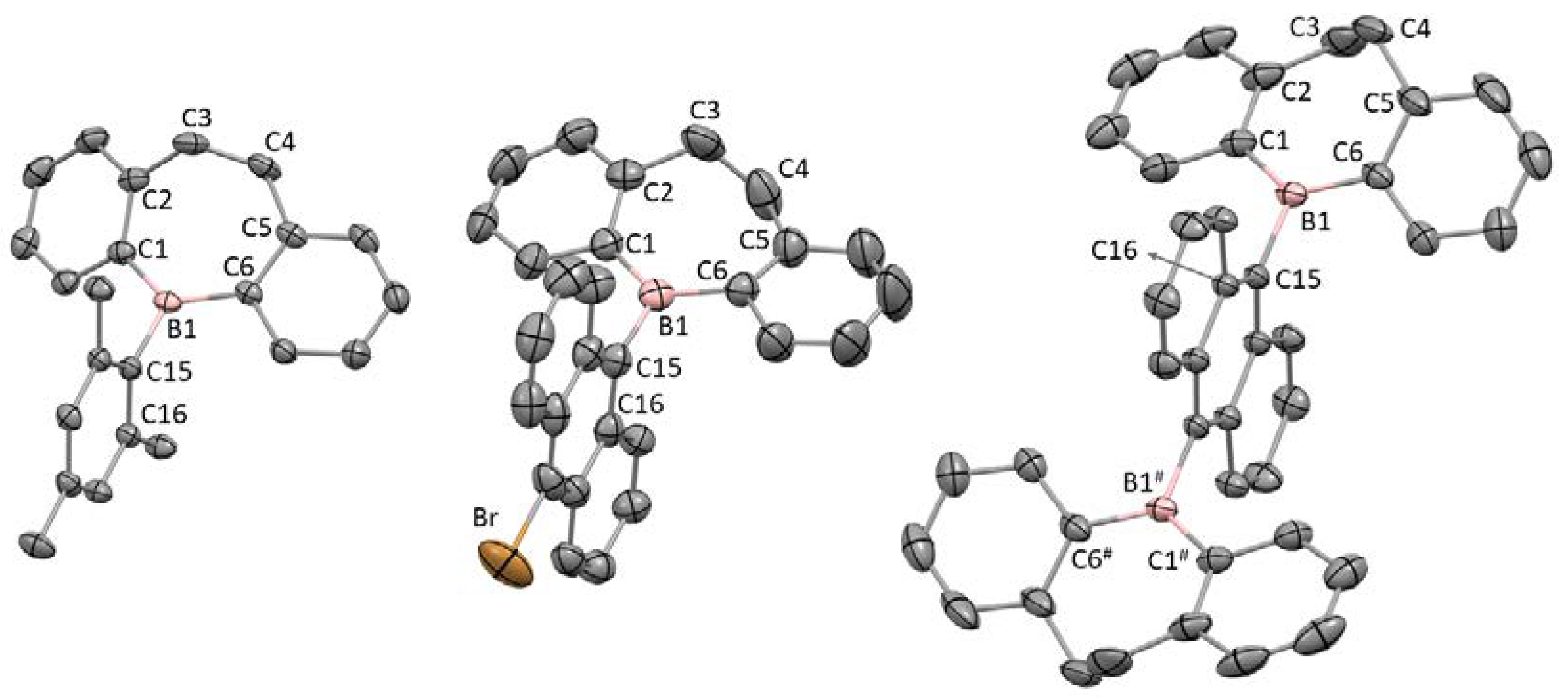

Figure 1. The crystal structures of 3 (left), 5-sp3 (center) and 6-sp3 (right) with thermal ellipsoid plots of a 50% probability. All hydrogen atoms and a co-crystalized chlorobenzene molecule in 6-sp3 are omitted for clarity. Only one of the two independent molecules are shown for 3 and 6-sp3. Only the major disordered structure of 5-sp3 is shown.
Figure 1. The crystal structures of 3 (left), 5-sp3 (center) and 6-sp3 (right) with thermal ellipsoid plots of a 50% probability. All hydrogen atoms and a co-crystalized chlorobenzene molecule in 6-sp3 are omitted for clarity. Only one of the two independent molecules are shown for 3 and 6-sp3. Only the major disordered structure of 5-sp3 is shown.
Molecules 29 04024 g001
Molecules 29 04024 g002

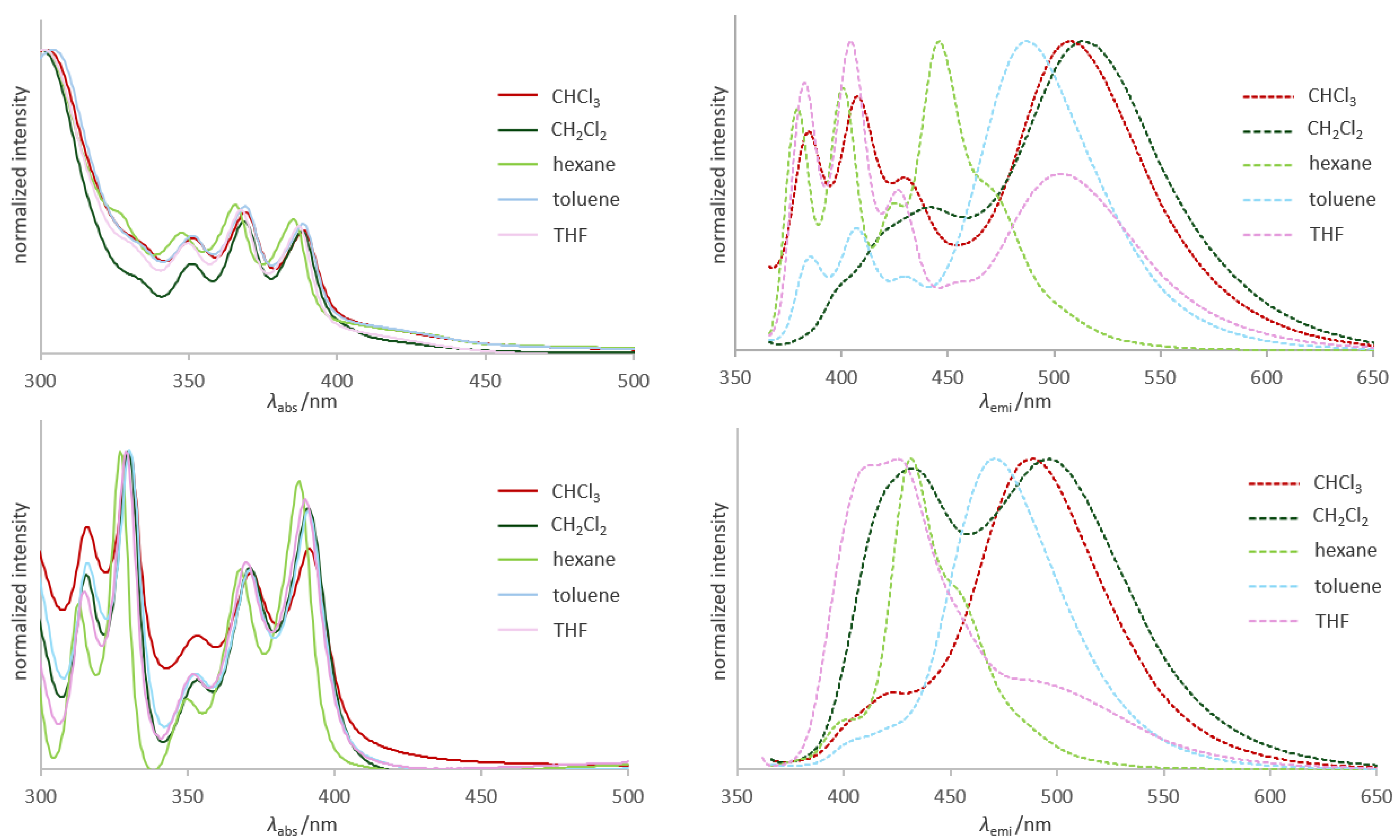

Figure 2. UV–vis absorption and emission spectra of 1-sp3 (top) and 1-sp2 (bottom) in various solvents (excited at 350 nm. c = 2.8 × 10−5 M). Solid lines indicate absorption spectra, and broken lines emission spectra.
Figure 2. UV–vis absorption and emission spectra of 1-sp3 (top) and 1-sp2 (bottom) in various solvents (excited at 350 nm. c = 2.8 × 10−5 M). Solid lines indicate absorption spectra, and broken lines emission spectra.
Molecules 29 04024 g002
Molecules 29 04024 g003

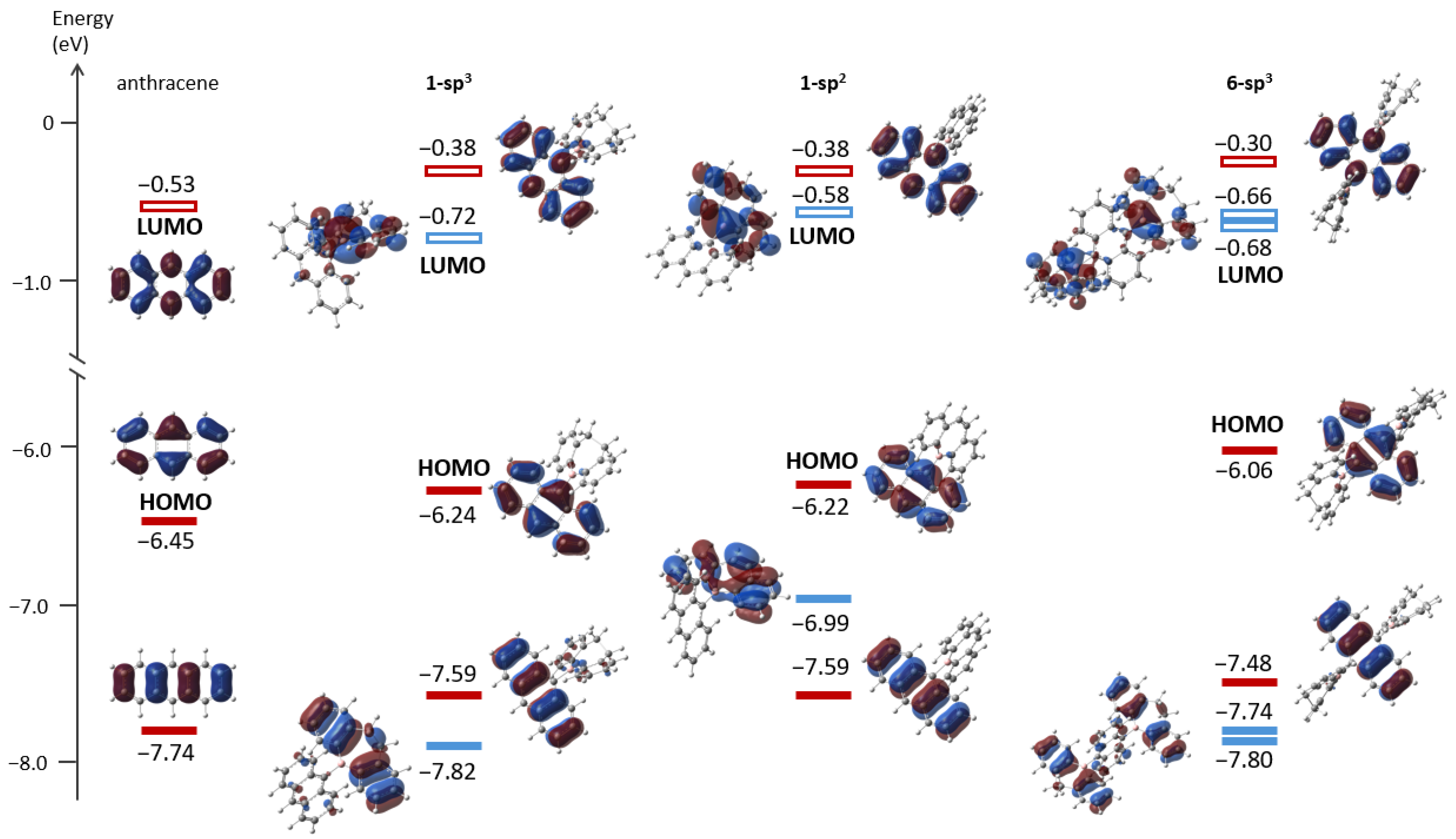

Figure 3. Frontier molecular orbitals and their energy levels (eV) for anthracene, 1-sp3, 1-sp2 and 6-sp3 at CAM-B3LYP/6-31G(d,p)//B3LYP/6-31G(d) (isovalue = 0.03). Red bars: MOs mainly from anthracene. Blue bars: MOs mainly from (dihydro)dibenzoborepins.
Figure 3. Frontier molecular orbitals and their energy levels (eV) for anthracene, 1-sp3, 1-sp2 and 6-sp3 at CAM-B3LYP/6-31G(d,p)//B3LYP/6-31G(d) (isovalue = 0.03). Red bars: MOs mainly from anthracene. Blue bars: MOs mainly from (dihydro)dibenzoborepins.
Molecules 29 04024 g003

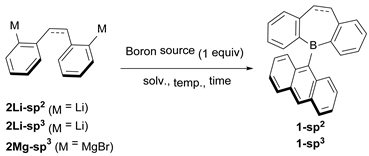

Table 1. Synthesis of 1-sp2 and 1-sp3 using AnthBpin and AnthB(OR)2.
Table 1. Synthesis of 1-sp2 and 1-sp3 using AnthBpin and AnthB(OR)2.
Molecules 29 04024 i001
Entry Boron Source Nucleophile Conditions Yield
1AnthBpin2Li-sp2C6H6/Et2O, 5 °C to r.t., overnight1-sp2 (–)
2AnthBpin2Li-sp3C6H6/Et2O, 5 °C to r.t., overnight1-sp3 (–)
3AnthBpin2Mg-sp3THF, reflux, overnight1-sp3 (62%)
4AnthB(OMe)22Mg-sp3THF, reflux, overnight1-sp3 (31%)
5AnthBpin2Mg-sp2 aTHF, reflux, overnight1-sp2 (–)
a A mixture of 2Mg-sp2, its E-isomer and phenanthrene was used.
Table 2. Selected bond lengths [Å] and angles [°].
Table 2. Selected bond lengths [Å] and angles [°].
35-sp36-sp3
B1–C1/C61.5682(18)/
1.5706(19)		1.562(5)/
1.567(5)		1.572(3)/
1.569(4)
B1–C151.5866(17)1.592(5)1.594(3)
C1–B1–C15–C1689.80(14)89.2(4)80.2(2)
C1–C2–C5–C619.1(1)20.2(6)18.9(2)
Table 3. Absorption and emission properties of 1-sp3, 1-sp2 and 6-sp3.
Table 3. Absorption and emission properties of 1-sp3, 1-sp2 and 6-sp3.
Solventλabs/nm (ε)λemi/nmStokes Shift/cm−1
1-sp3hexane385 (9300), 366 (10,000), 348 (8300)380, 400, 425, 4463550
toluene388 (9300), 369 (11,000), 351 (8400) 385, 407, 431, 4875240
THF387 (9700), 367 (11,000), 350 (8400)382, 404, 426, 5035960
CHCl3389 (7200), 369 (8300), 348 (6800)384, 407, 430, 5086020
CH2Cl2 388 (9400), 369 (10,000), 351 (6900)441, 5136280
1-sp2hexane388 (14000), 368 (10,000), 350 (3900),
327 (16,000), 313 (8600)		432, 4513600
toluene391 (17,000), 371 (13,000), 353 (6400),
330 (21,000), 316 (14,000)		4714340
THF390 (15,000), 370 (12,000), 352 (5400),
329 (18,000), 315 (10,000)		410, 425 2110
CHCl3391 (15,000), 372 (13,000), 353 (9100),
330 (22,000), 316 (16,000)		4895130
CH2Cl2391 (12,000), 371 (9200), 353 (4000),
330 (14,000), 316 (8700)		432, 4965410
6-sp3CH2Cl2398 (9300), 378 (10,000), 360 (7900)5326330
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kawaguchi, H.; Fuse, K.; Maeda, N.; Kuwabara, T. Arylboronic Acid Pinacol Esters as Stable Boron Sources for Dihydrodibenzoborepin Derivatives and a Dibenzoborole. Molecules 2024, 29, 4024. https://doi.org/10.3390/molecules29174024

AMA Style

Kawaguchi H, Fuse K, Maeda N, Kuwabara T. Arylboronic Acid Pinacol Esters as Stable Boron Sources for Dihydrodibenzoborepin Derivatives and a Dibenzoborole. Molecules. 2024; 29(17):4024. https://doi.org/10.3390/molecules29174024

Chicago/Turabian Style

Kawaguchi, Himeko, Kotomi Fuse, Nanoka Maeda, and Takuya Kuwabara. 2024. "Arylboronic Acid Pinacol Esters as Stable Boron Sources for Dihydrodibenzoborepin Derivatives and a Dibenzoborole" Molecules 29, no. 17: 4024. https://doi.org/10.3390/molecules29174024

Article Metrics

Back to TopTop
