Research Progress of Fluorescent Probes for Detection of Glutathione (GSH): Fluorophore, Photophysical Properties, Biological Applications

Abstract

Intracellular biothiols, including cysteine (Cys), glutathione (GSH), and homocysteine (Hcy), play a critical role in many physiological and pathological processes. Among them, GSH is the most abundant non-protein mercaptan (1–10 mM) in cells, and the change in GSH concentration level is closely related to the occurrence of many diseases, such as Parkinson’s disease, Alzheimer’s disease, and neurological diseases. Fluorescent probes have attracted much attention due to their advantages of high specificity, high sensitivity, high selectivity, low cost, and high quantum yield. Methods that use optical probes for selective detection of GSH in vitro and in vivo are in high demand. In this paper, we reviewed the most recent five years of research on fluorescence probes for the detection of GSH, including the specific detection of GSH, dual-channel identification of GSH and other substances, and the detection of GSH and other biothiols. According to the type of fluorophore, we classified GSH fluorescent probes into eight classes, including BODIPY, 1,8-Naphthalimide, coumarin, xanthene, rhodamine, cyanine, benzothiazoles, and others. In addition, we roundly discuss the synthesis, detection mechanism, photophysical properties, and biological applications of fluorescent probes. We hope that this review will inspire the exploration of new fluorescent probes for GSH and other related analyses.

1. Introduction

Intracellular biothiols, including cysteine (Cys), glutathione (GSH), and homocysteine (Hcy) (Figure 1), play a critical role in many physiological and pathological processes [1,2]. GSH is composed of glutamic acid, cysteine, and glycin [3]. It is widely present in living cells at intracellular concentrations of 1–10 mM, much higher than Cys (30–200 μM) and Hcy (5–15 μM) [4,5]. It plays a vital role in biochemical defense systems and has a range of physiological functions [6]. As an important antioxidant in the body, it protects the sulfhydryl groups in liver proteins and enzymes, maintaining their REDOX state through the mutual conversion of the forms of reduced sulfhydryl (GSH) and disulfide oxide (GSSG) [7,8]. GSH levels vary widely between healthy and unhealthy people, and abnormal GSH levels in tissues have been linked to a variety of diseases, such as liver damage [9], heart disease [10], leukopenia [11], AIDS [12], Parkinson’s disease [13], Alzheimer’s disease [14], and many neurological disorders [15,16,17]. Therefore, it is of great significance to establish a high specificity and high sensitivity GSH detection method for clinical diagnosis and basic research.

At present, GSH detection methods mainly include the enzyme cycle method [18,19], high-performance liquid chromatography (HPLC) [20,21,22], liquid chromatography/mass spectrometry (LC/MS) [23,24], colorimetry [25,26,27], flow cytometry (FCM) [28,29,30], capillary electrophoresis [31,32], the electrochemical method [33,34], electrochemiluminescence (ECL) [35,36], and the nuclear magnetic resonance method (NMR) [37,38]. However, fluorescent probes have attracted wide attention due to their advantages of high specificity, high sensitivity, high selectivity, low cost, and high quantum yield. What’s more, GSH in vivo and in vitro can be visually detected using fluorescent probes [39,40]. At present, remarkable progress has been made in the development and application of GSH probes. In this paper, we review the fluorescent probes used to detect GSH in the last five years and classify them according to fluorophore type. As shown in Figure 1, it is divided into eight categories: BODIPY, 1,8-Naphthalimide, coumarin, xanthene, rhodamine, cyanine, benzothiazoles, and others.

2. Fluorescent Probe of GSH

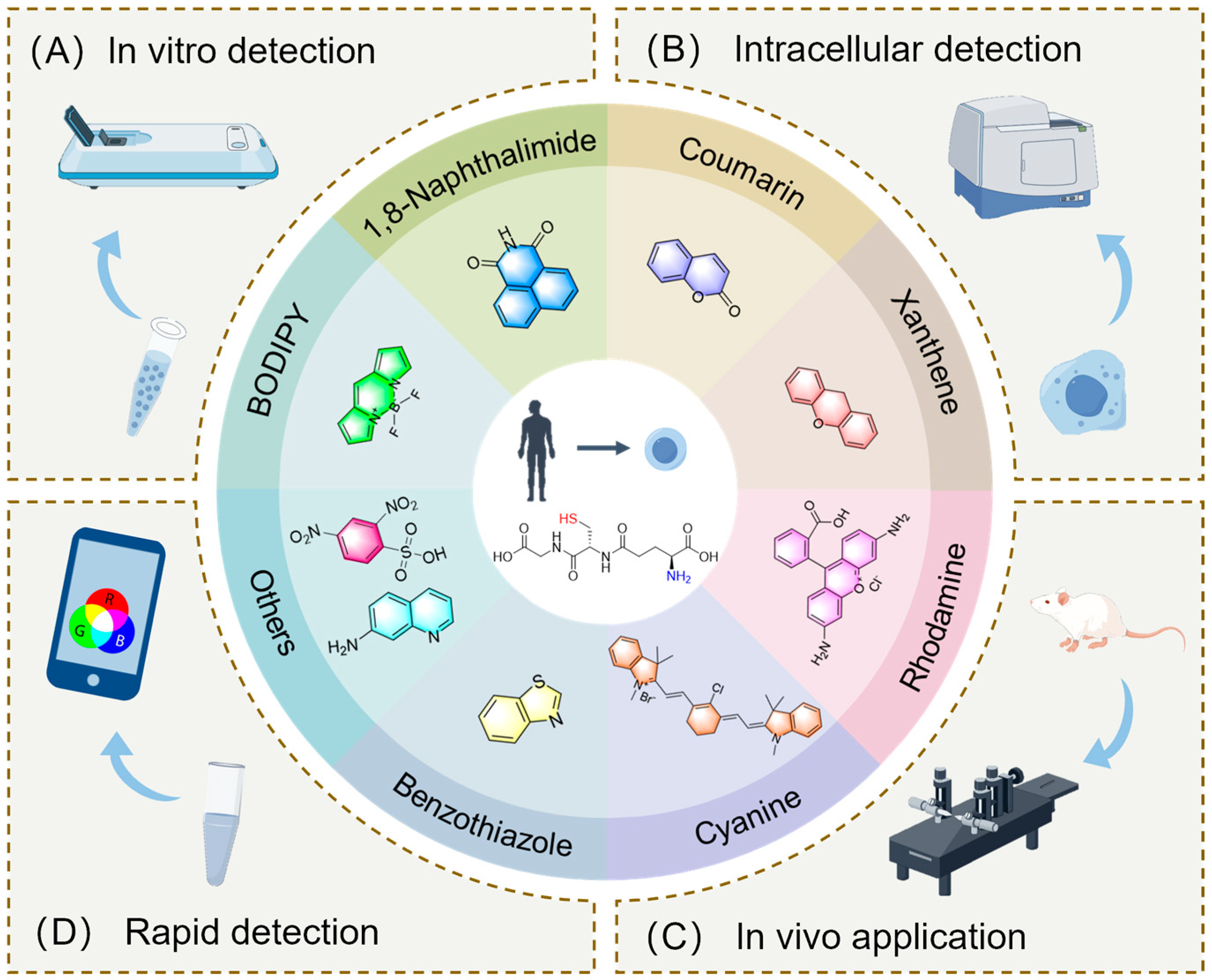

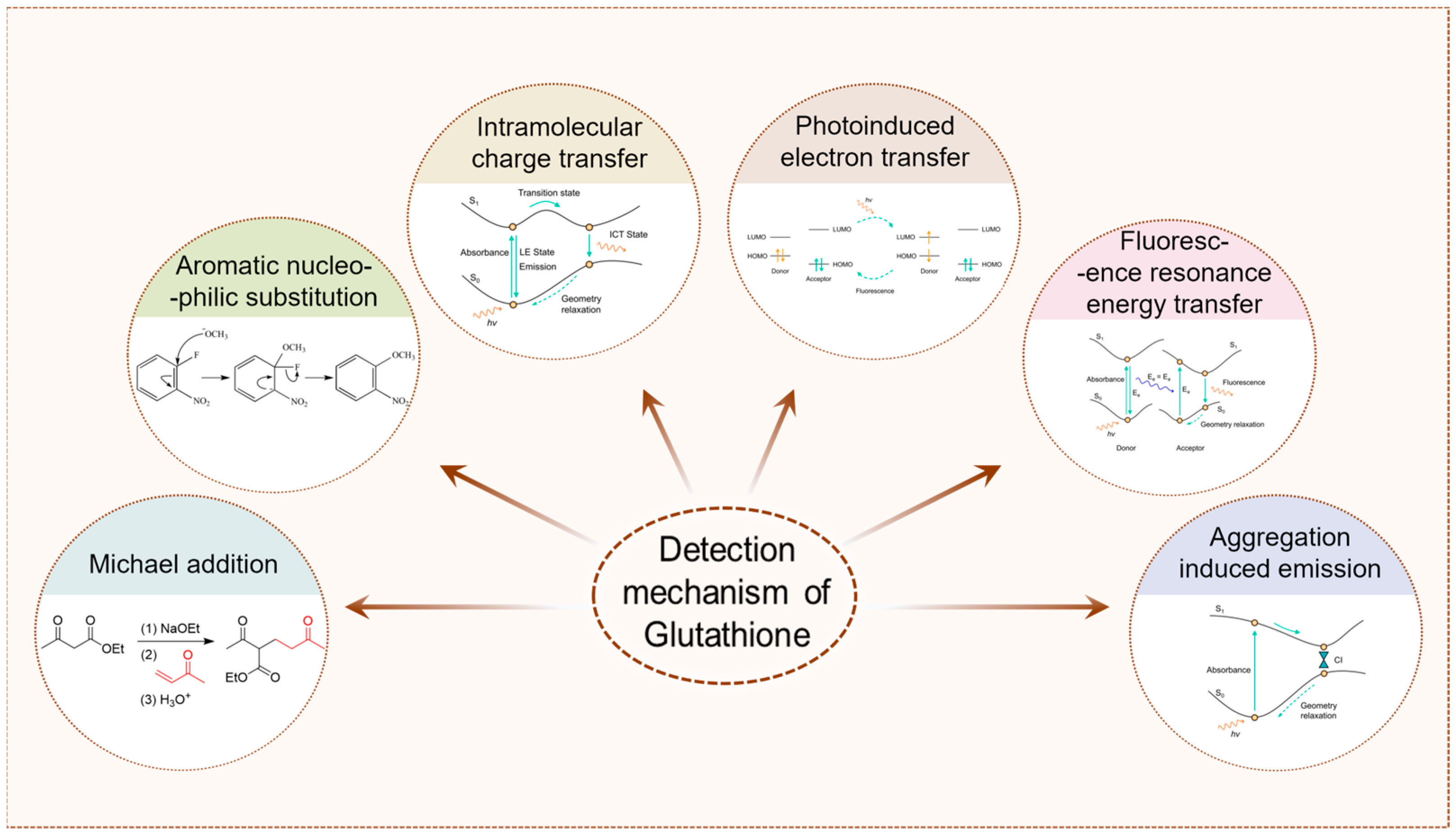

The recent five years of GSH fluorescent probes are reviewed in eight sections, each of which is classified according to fluorophore type. We discuss the synthesis of probes, detection mechanism, photophysical properties, selectivity, sensitivity, and exogenous and endogenous GSH recognition. As shown in Figure 2, the detection mechanisms of GSH in this paper include Michael addition, aromatic nucleophilic substitution (S_NAr), intramolecular charge transfer (ICT), photoinduced electron transfer (PET), fluorescence resonance energy transfer (FRET), and aggregation-induced emission (AIE). In each of the following sections, we collate GSH-specific assays, dual-channel probes for identifying GSH and other substances, and multi-channel probes for identifying GSH and other mercaptans. We hope that our review can provide a useful reference for more researchers to develop the next generation of fluorescent probes for detecting GSH.

2.1. Fluorescent Probe Based on BODIPY

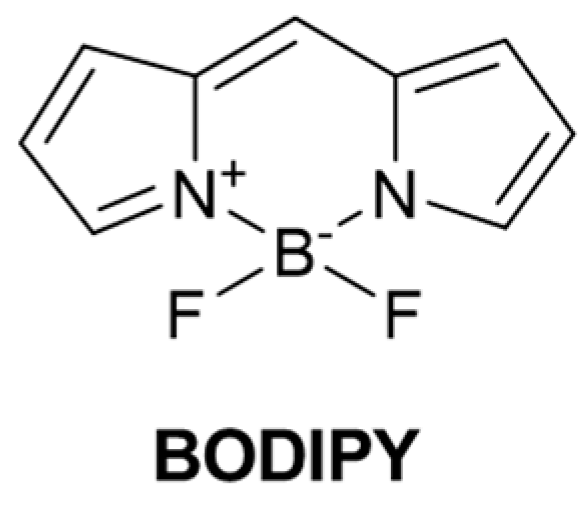

BODIPY fluorophore is composed of two pyrrole rings and a boron atom connected by a benzene ring or other substituent group [41] (Figure 3). BODIPY has the advantages of structural versatility, unique small Stokes shift, high fluorescence quantum yield, high molar extinction coefficient, high solubility, good optical stability, and pH insensitivity and is widely used in biomarkers, fluorescence probes, and biological imaging [42].

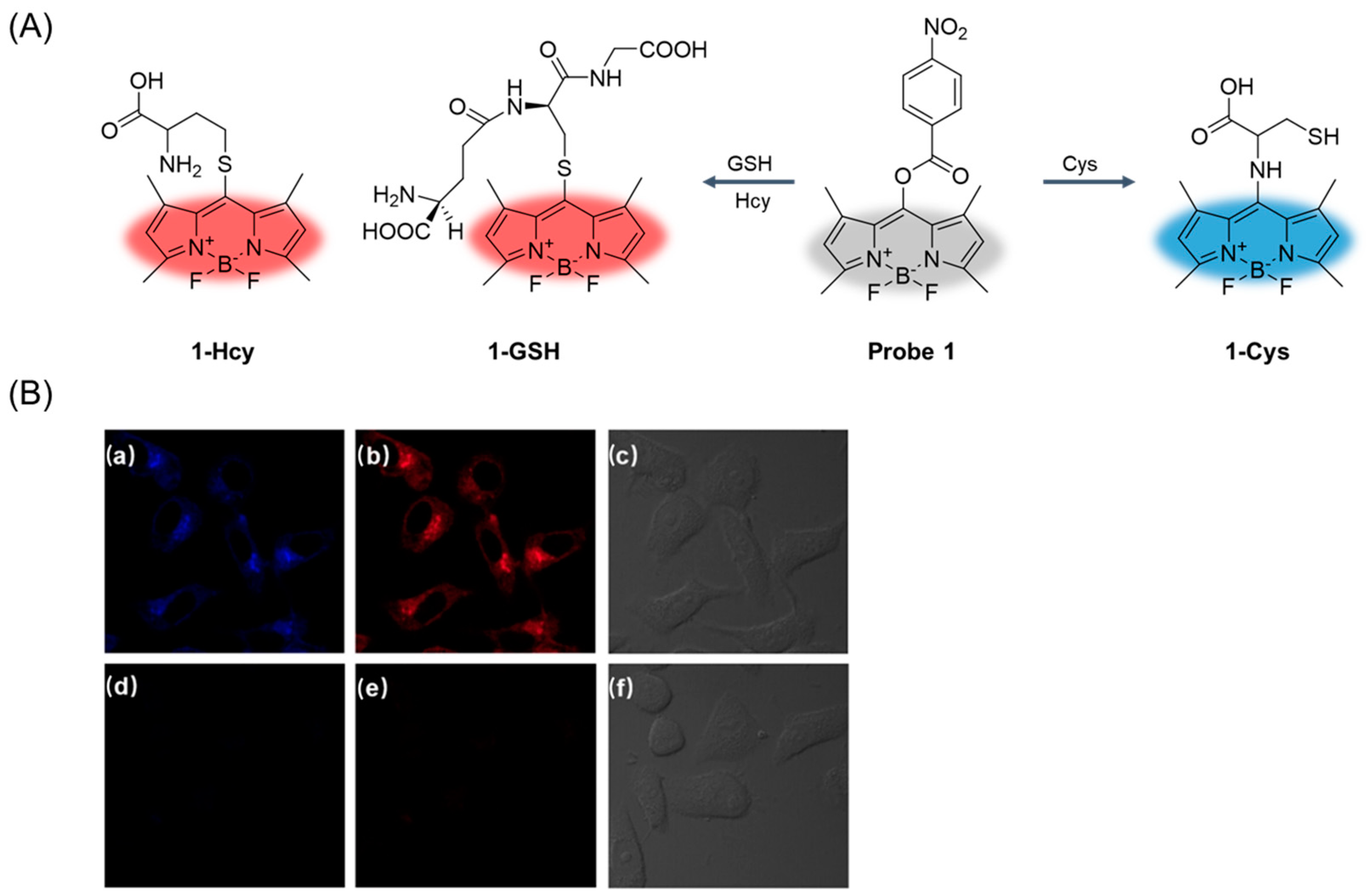

In 2018, Ji et al. [43] reported a fluorescent probe, Probe 1, for simultaneous differentiation of Cys and Hcy/GSH from dual emission channels (Figure 4A). BODIPY dye was used as the fluorophore of the probe, 1-, 3-, 5-, and 7-positions contained tetramethyl groups, and the median position contained N-, O-, or S-aryl substituents as leaving groups. a-PET or d-PET effect occurred during the recognition process. When excited at 420 nm, the fluorescence of Cys was enhanced at 439 nm, when excited at 500 nm, the fluorescence of Hcy/GSH was enhanced at 544 nm, and the fluorescence intensity increased with time. The fluorescence response of the probe to Cys and Hcy/GSH was similar. The fluorescence enhancement increased with the increase in pH value, and the optimal pH range was 7.2–7.6. The probe has the advantages of high selectivity and sensitivity. The probe can simultaneously sense Cys and Hcy/GSH in HeLa cells using multicolor imaging (Figure 4B) and provides a suitable strategy for multi-component analysis in living systems.

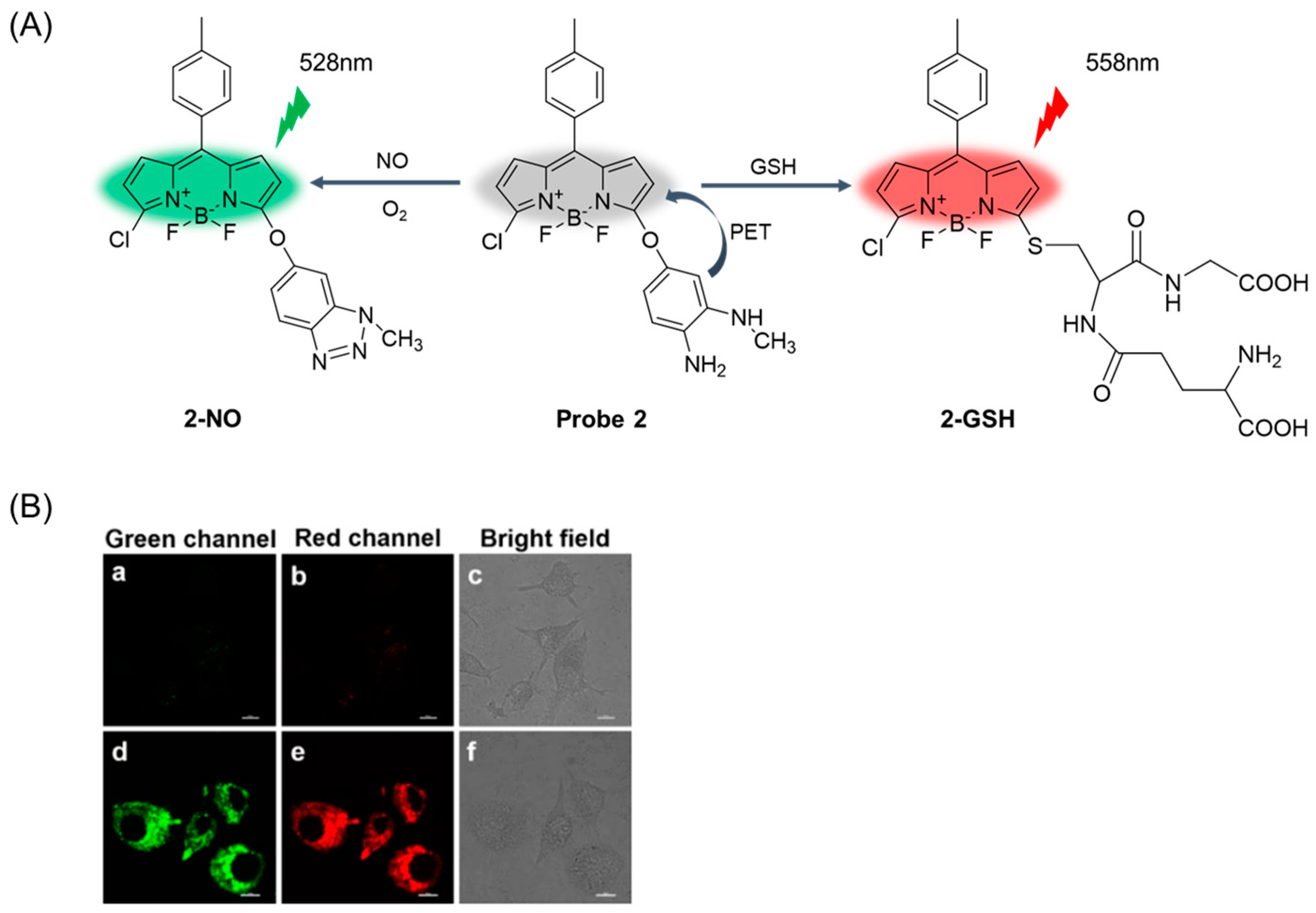

In 2019, Chen et al. [44] reported a fluorescent probe, Probe 2, with BODIPY as a fluorophore and 4-amino-3-(methylamino-phenol) as a responsive fluorescence regulator of nitric oxide (NO) and GSH. As shown in Figure 5A, the probe can detect NO and GSH simultaneously from dual emission channels. A PET effect occurred during recognition, with the NO-mediated conversion of diamine to triazole triggering the fluorescence of the green channel and the GSH-induced aromatic nuclear substitution reaction (S_NAr) leading to the red-shifted emission of the red channel. The probe had high selectivity for NO and GSH from different emission channels. The probe was successfully used to detect exogenous and endogenous NO and GSH in macrophages. Importantly, the probe visualized the elevation of NO and GSH in the inflammatory mediators induced by interferon-γ (IFN-γ), lipopolysaccharide (LPS), and L-arginine (L-Arg) in Raw264.7 cells (Figure 5B), thus providing more insight into the physiological relationship between NO and GSH.

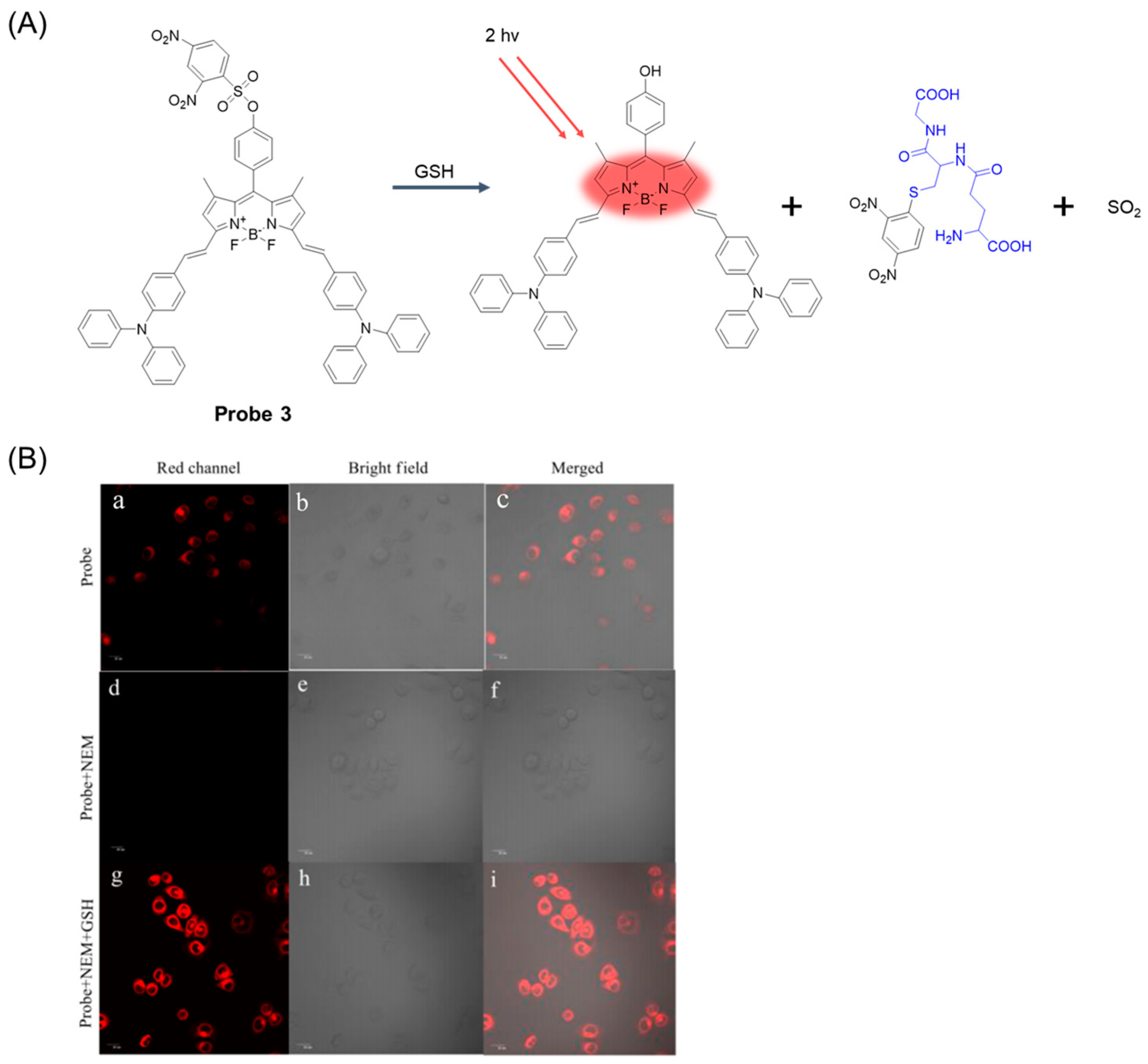

In 2019, Huang et al. [45] developed a near-infrared two-photon fluorescence probe, Probe 3, (Figure 6A), which can specifically detect GSH. The probe was conjugated by 4-(diphenylamino) benzaldehyde at the 3- and 5-positions of BODIPY by Knoevenagel condensation as a near-infrared fluorophore with a longer wavelength. 2, 4-dinitrobenzene sulfonyl group (DNBS) was introduced in the 8-position of BODIPY, which acts as a fluorescence quencher and thiol recognition part. The fluorescence intensity at 719 nm increased with the increase in GSH concentration in the probe solution, and the detection limit was 25.46 nM. The intensity of GSH emission from the probe remained constant between pH 6.0 and 9.0. The probe has the advantages of high selectivity, high sensitivity, and low toxicity. In addition, the probe has been successfully used to monitor exogenous and endogenous GSH in MCF-7 cells (Figure 6B) and can be used for cell imaging after the addition of GSH to living cells.

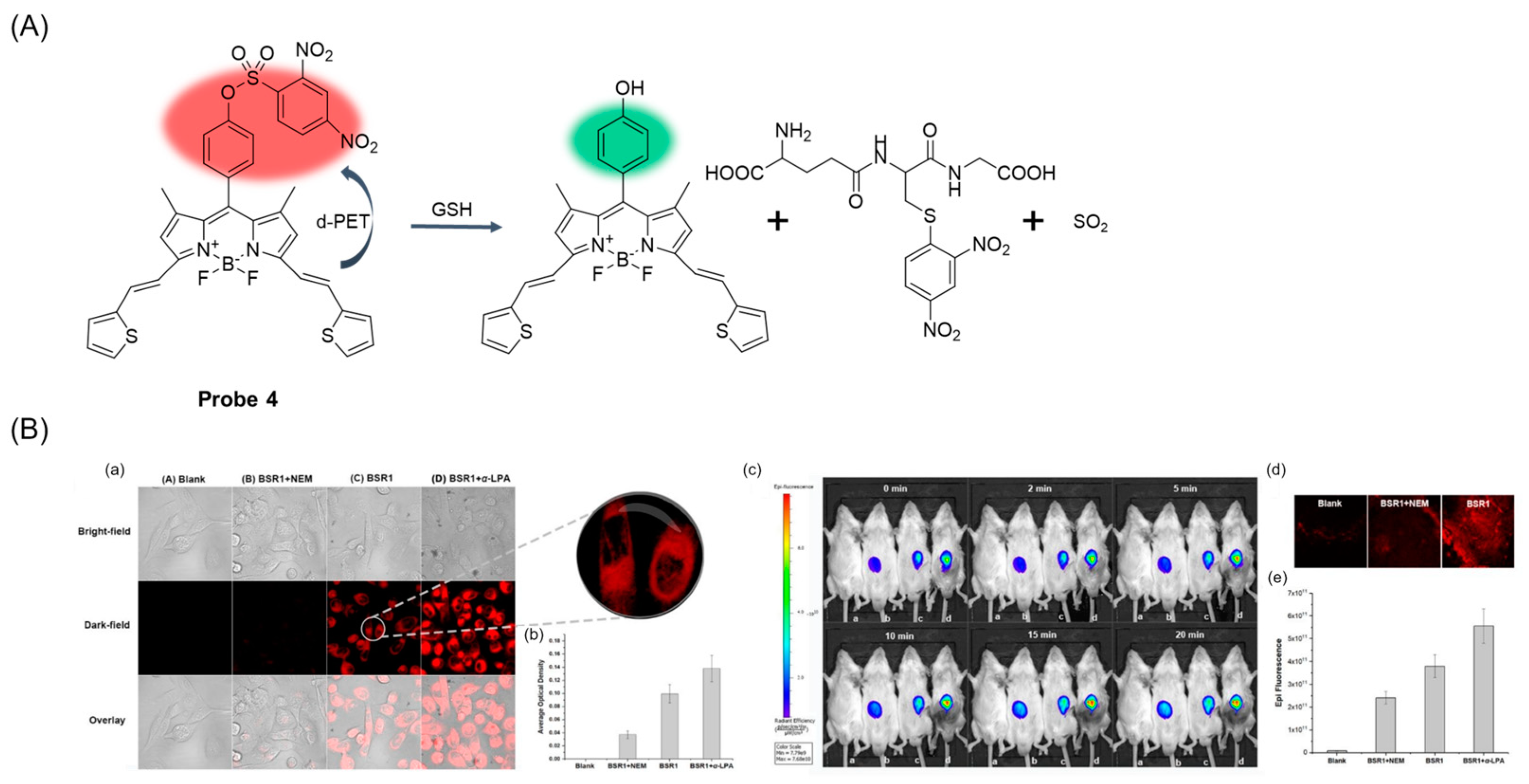

In 2019, Chen et al. [46] reported a novel thiophene-vinyl BODIPY near-infrared fluorescent probe, Probe 4, which can detect GSH well both in vivo and in vitro. As shown in Figure 7A, BODIPY acts as the fluorophore of the probe, and a d-PET effect occurs during the recognition process. When the concentration of GSH increased gradually, the fluorescence intensity at 663 nm increased gradually, and the detection limit was 83 nM. The probe showed remarkable fluorescence performance for GSH detection at a physiological pH between 6.0 and 9.0. In addition, the probe has the advantages of high selectivity and low toxicity and has shown excellent performance for in vitro and in vivo detection of GSH (Figure 7B). More importantly, the probe can be used for visual monitoring of drug-induced acute liver injury.

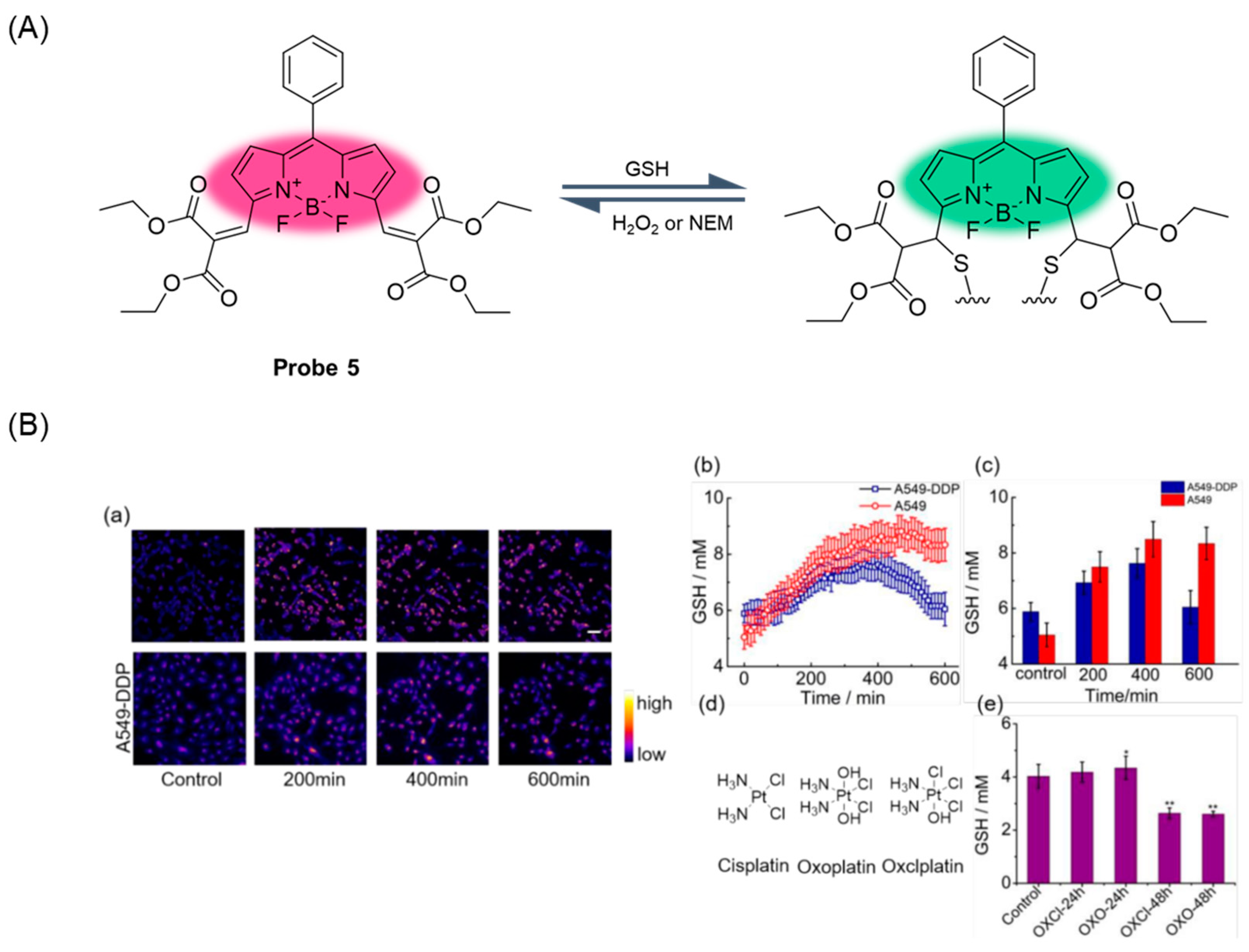

In 2020, Liu et al. [47] reported an example of a rate-fluorescence probe, Probe 5, for real-time monitoring of fluctuations in GSH levels in cells treated with cisplatin. As shown in Figure 8A, the probe uses BODIPY as a fluorophore and reacts as a reversible Michael addition with H₂O₂ and N-Ethylmaleimide (NEM). The probe was prepared via a conventional TFA-catalyzed condensation reaction of benzaldehyde with pyrrole, followed by oxidation with 2,3-dichloro-5,6-dicyano-1,4benzoquinone (DDQ) and cyclization with BF₃·Et₂O in a one-pot three-step process. The probe has the advantages of a wide response range, fast response speed, high selectivity, and low toxicity. In cisplatin-sensitive A549 cells, GSH concentration increased until cell death, while in cisplatin-resistant cell lines, GSH level first increased to the maximum and then fell back to the initial concentration without significant apoptosis (Figure 8B). The results showed that the different trends of GSH fluctuation could help to distinguish cisplatin-resistant cells from cisplatin-sensitive cells.

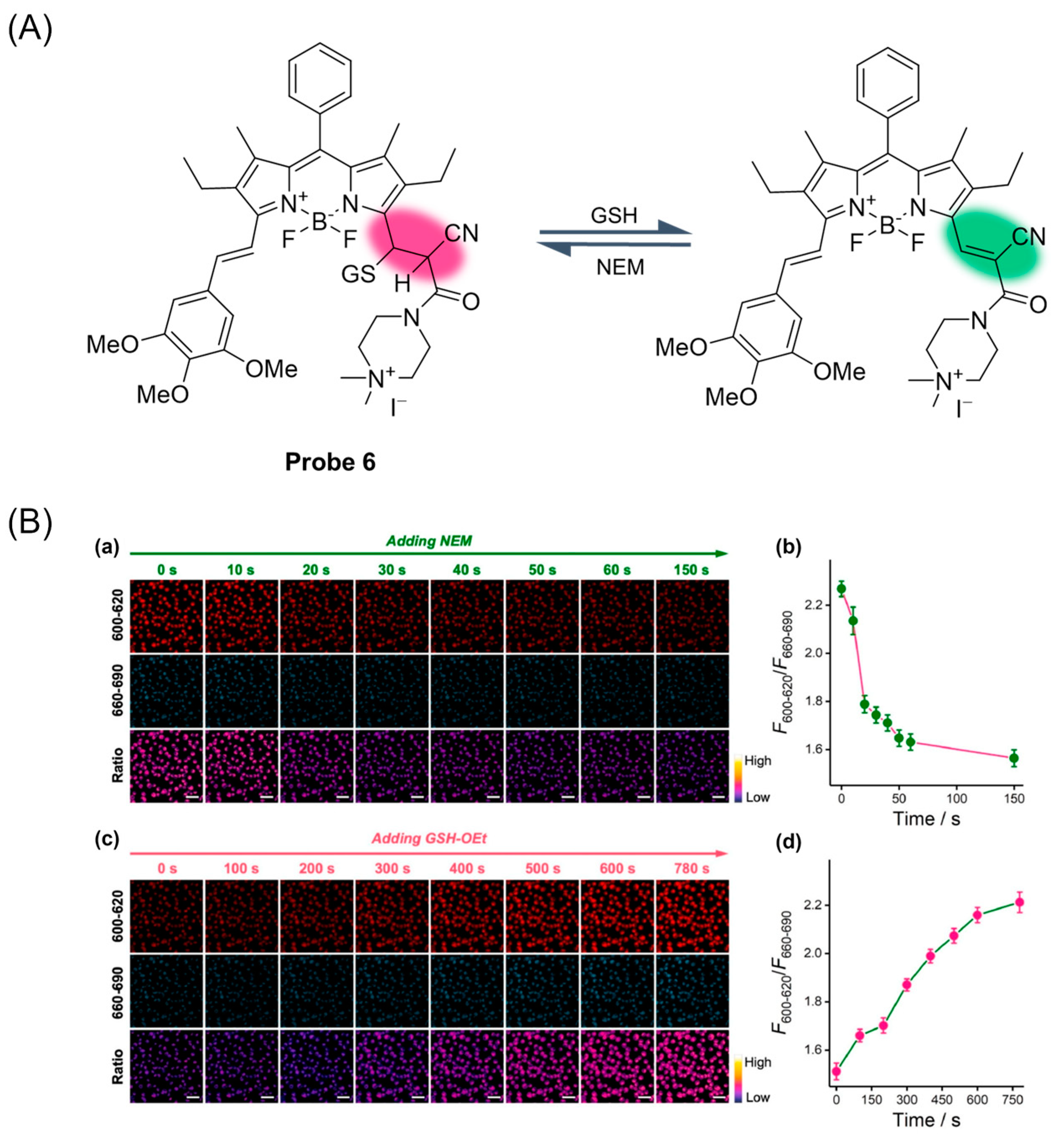

In 2020, Zhang et al. [48] reported a case of a reversible fluorescent probe, Probe 6, based on BODIPY’s α-arylene Michael addition reaction that could rapidly react with GSH (Figure 9A). The reversible reaction between the probe and GSH was proven by the GSH/NEM cycle test. With the increase in GSH concentration, the fluorescence intensity increased and showed the highest peak at 609 nm. The dissociation constant of the probe was calculated to be 1.55 mM, the fluorescence quantum yield was measured to be 0.11, and the limit of detection was calculated to be 3.4 μM. The probe is not affected by pH in the range of 3.0–10.0, and it has good photostability and high selectivity. The low cytotoxicity of the probe was also demonstrated by methyl thiazolyl tetrazolium (MTT) assay. In addition, the probe has been preliminarily applied to real-time visual detection of GSH dynamics in living cells (Figure 9B).

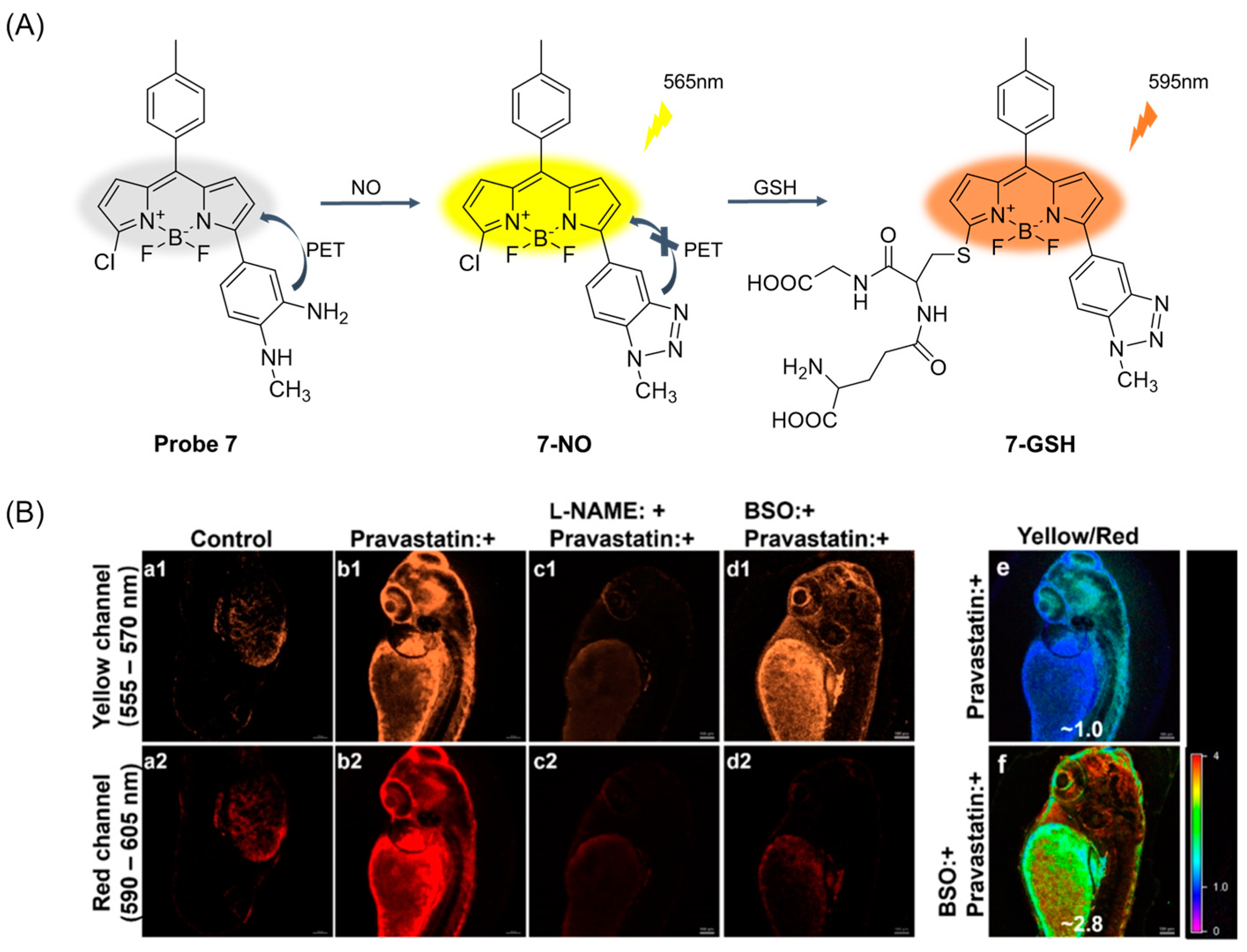

In 2021, Chen et al. [49] designed and synthesized a fluorescent probe, Probe 7, by combining the OPD part of the BODIPY core at the 5-position as the NO capture indicator and chlorine at the 3-position as the GSH response site. The probe is highly selective and sensitive and detects NO and GSH sequentially, but it can only detect the increase in GSH caused by the presence of NO. As shown in Figure 10A, the probe first reacts with NO, showing yellow fluorescence enhancement at 565 nm, and further activates the reaction site with GSH, showing redshift emission at 595 nm. CCK-8 assay showed that the probe had low toxicity to cells. In addition, the probe visualized NO-induced GSH up-regulation in pravastatin (or VC) treated HUVECs and zebrafish (Figure 10B) for the first time, demonstrating the link between NO and GSH during treatment.

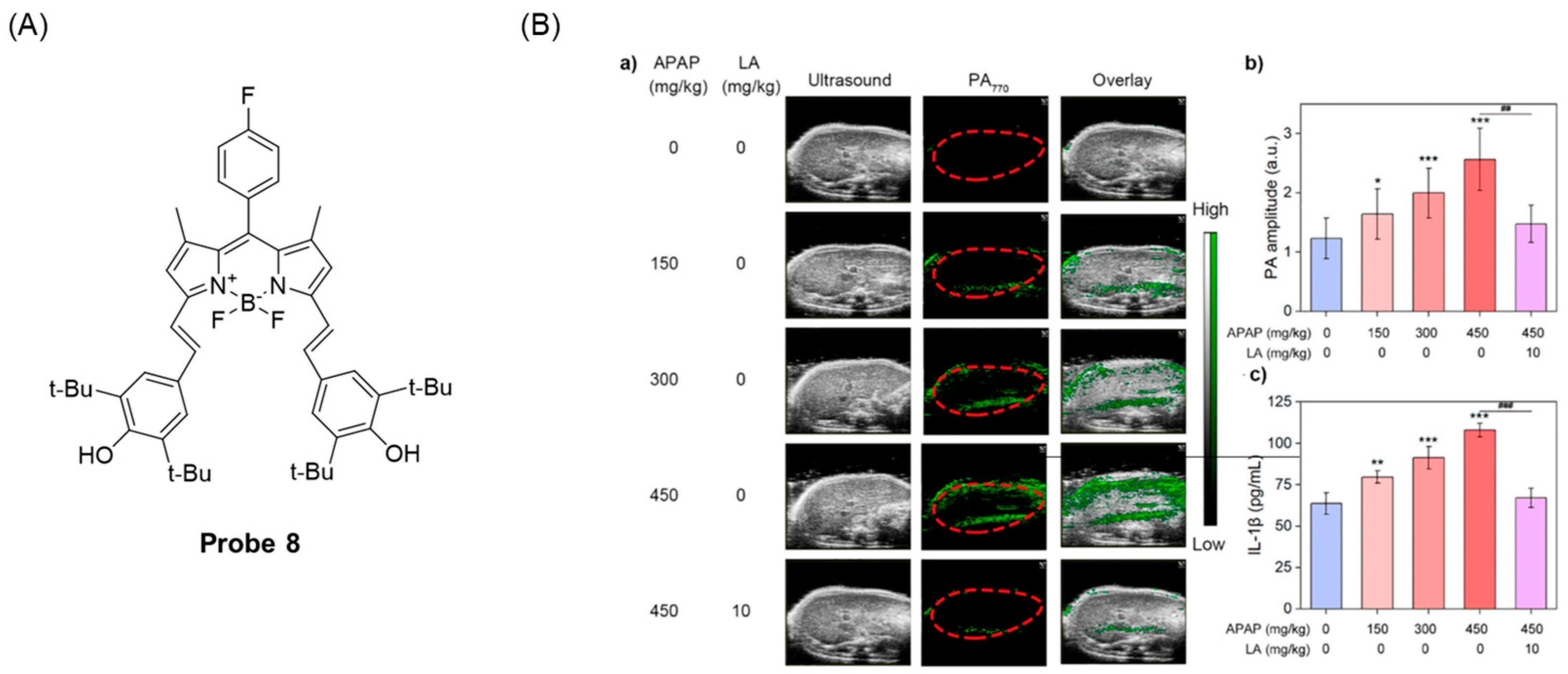

In 2022, Chan et al. [50] reported a case of a reversible near-infrared photoacoustic (PA) probe, Probe 8, (Figure 11A) based on the BODIPY fluorophore. The probe is based on the oxidation and reduction process of the 2,6-di-tert-butylphenol group to achieve PA imaging of ClO⁻/GSH. During the selective oxidation of ClO⁻ and reduction recovery of GSH, the absorption of the probe between 648 and 795 nm changes significantly. The probe has high sensitivity and specificity to the ClO⁻/GSH oxygenated reductive loop, and the MTT test and H&E staining test proved that the probe had low toxicity and good biocompatibility. The detection limit of GSH by the probe was 7.2 μM. It was proven that the probe has been successfully applied to the visual measurement of ClO⁻/GSH in the inflammatory microenvironment and ALI model (Figure 11B).

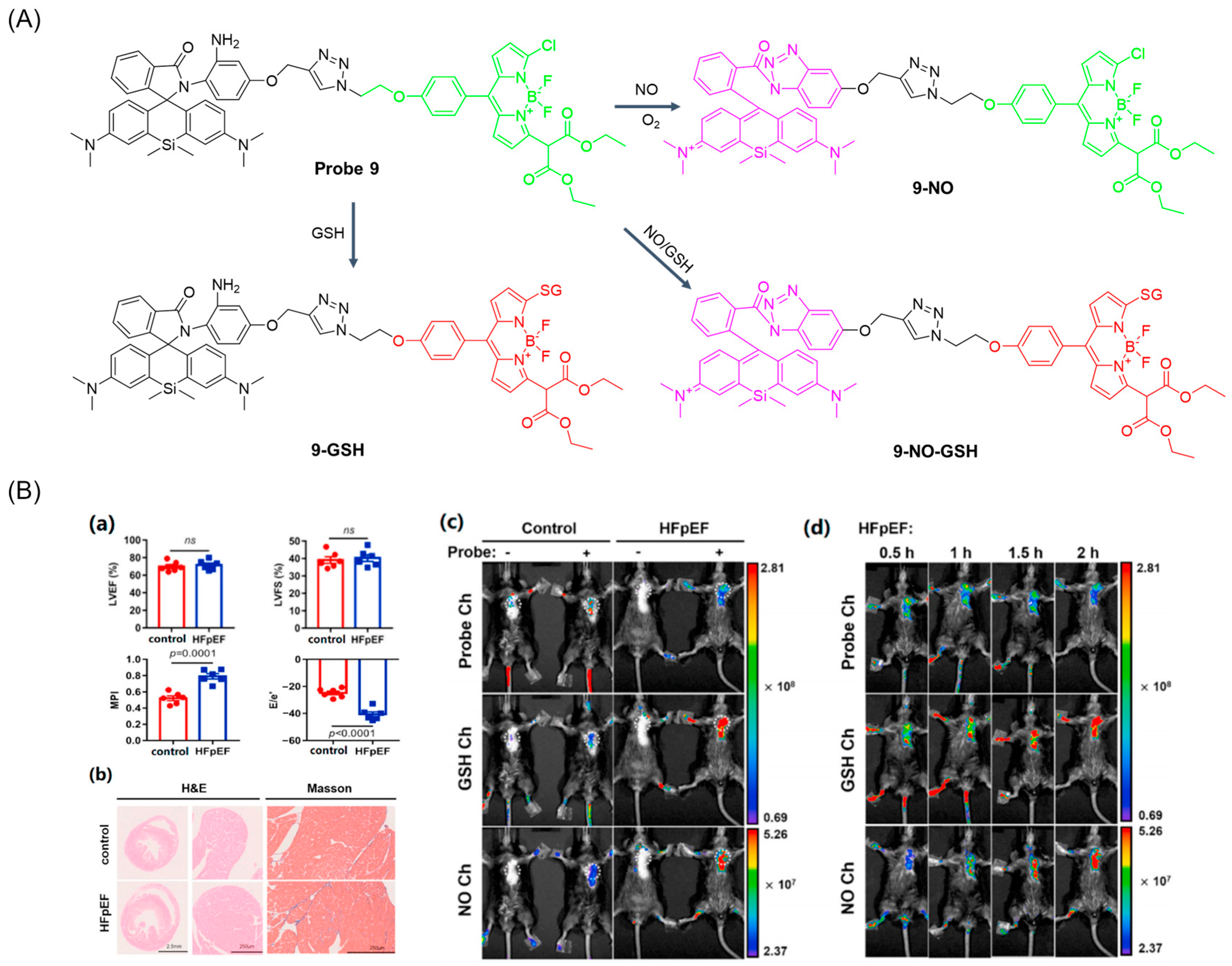

In 2022, Chen et al. [51] developed a case of a fluorescent probe, Probe 9, containing both rhodamine and BODIPY fluorophores for simultaneous and independent detection of NO and GSH. As shown in Figure 12A, the probe itself had a green fluorescence response at 525 nm, and after adding GSH, the chlorine on the fluorophores BODIPY was replaced by a “SNAR-rearrangement” mechanism, opening the redshift fluorescence emission channel. The fluorescence intensity of the fluorescence emission at 558 nm had a good linear relationship with the concentration of GSH in the range of 0 to 50 μM, and the detection limit was 2.3 × 10⁻⁷ M. The probe showed high selectivity and sensitivity to NO and GSH under physiological pH conditions. Cell imaging showed that the probe had low cytotoxicity and good biocompatibility. Moreover, imaging of GSH and NO with this probe clearly showed cardiac oxidative and nitrifying stress in the hearts of heart failure with preserved ejection fraction (HFpEF) mice (Figure 12B), promising to distinguish between normal and HFpEF mice. The probe provides a molecular imaging tool that may help guide and improve the treatment of HFpEF.

In this section, Probes 1–9 are the focus of discussion for BODIPY fluorophore, and

Table 1. Summary of the relevant parameters of GSH probes based on BODIPY fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 1	1	High selectivity	500	544	/ *	HeLa	[43]
Probe 2	1	Dual-channel	538	558	5.6 × 10−8 M	Raw264.7	[44]
Probe 3	ST-BODIPY	High selectivity, High sensitivity	670	719	25.46 nM	MCF-7	[45]
Probe 4	BSR1	High selectivity, High sensitivity	600	663	83 nM	NCI-H1975, HepG2, Mouse	[46]
Probe 5	1	Ratiometric, Reversible	F488/F543	F544/F608	/ *	HeLa, A549-DDP, A549	[47]
Probe 6	αBD-GSH	Quick response, Reversible	594	609	3.4 μM	A549, HeLa, 293T	[48]
Probe 7	1	High selectivity, High sensitivity	532	595	2.9 × 10−8 M	HUVECs, Zebrafish	[49]
Probe 8	DiOH-BDP	High selectivity, Reversible	/ *	/ *	7.2 μM	Raw264.7, AML-12	[50]
Probe 9	1	High selectivity, Three channels	540	558	2.3 × 10−7 M	H9C2, Mouse	[51]

* “/” Means not mentioned in the literature.

summarizes the selectivity, sensitivity, and applications of these probes. Probes 1, 2, 7, 8, and 9 use dual-channel or three-channel detection of GSH and other substances. Probes 3 and 4 are specific for GSH recognition and have advantages in sensitivity. Probes 5 and 6 recognize GSH specifically and are reversible, restoring the original fluorescence of the probe in the presence of H₂O₂ or NEM.

2.2. Fluorescent Probe Based on 1,8-Naphthalimide

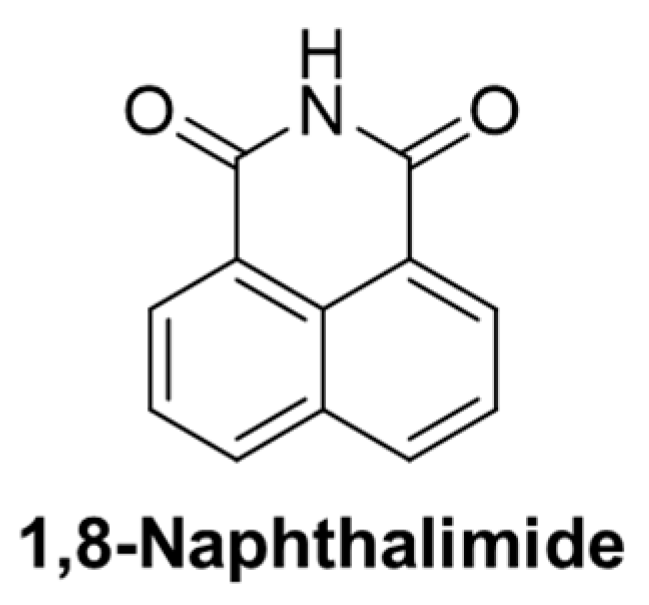

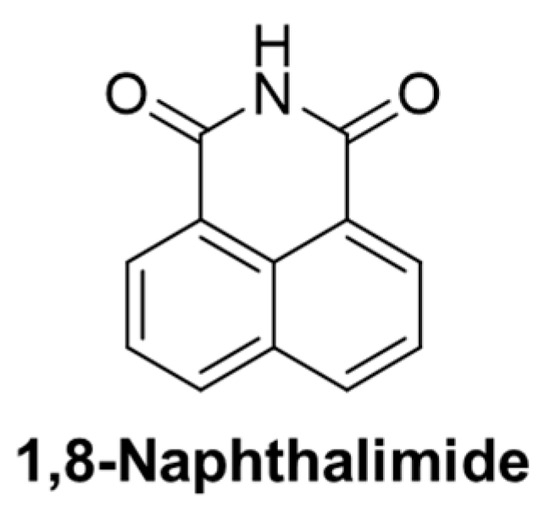

The 1,8-Naphthalimide fluorophore (Figure 13) is an ideal scaffold with adjustable photophysical properties, good photostability, and a large Stokes shift [52]. Sensory properties of 1,8-Naphthalimide-based materials include photoinduced electron transfer (PET), intramolecular charge transfer (ICT), fluorescence resonance energy transfer (FRET), and aggregation-induced emission quenching or enhancement (AIEQ/AIEE). 1, 8-Naphthalimide fluorophore structure is easily modified and has synthetic versatility, which is widely used in the construction of probes [53].

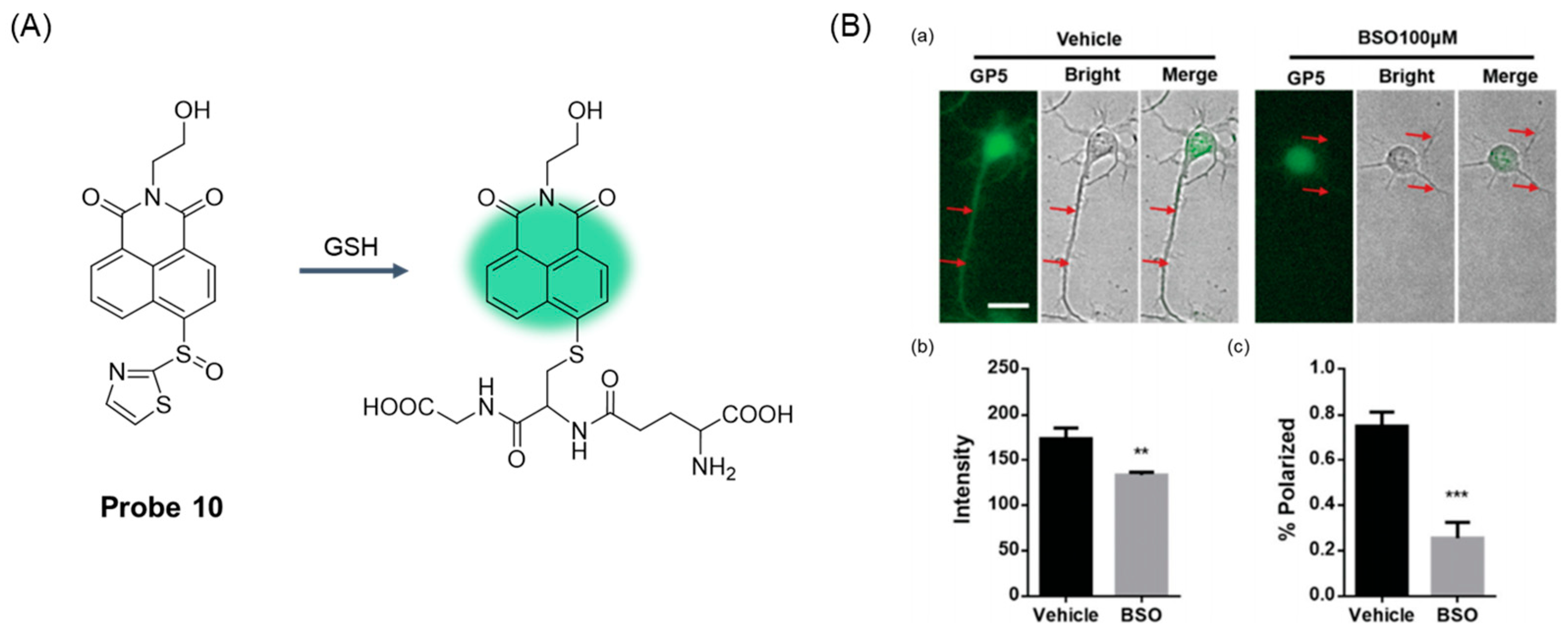

To improve the sensitivity of the probe to GSH detection, in 2020, Zong et al. [54] developed a GSH super-sensitive probe, Probe 10, (Figure 14A) using sulfonyl as a fluorophore, which can detect the subtle GSH fluctuations of developing neurons very sensitively. The probe had excellent selectivity for GSH in living cells. The fluorescence intensity was linearly correlated with GSH concentration in the range of 5–70 μM, and the detection limit was calculated to be 0.11 μM. MTT assay showed that the probe had low cytotoxicity. More importantly, inhibition of GSH was found to delay neuronal polarization by using this probe, revealing for the first time the indispensable role of GSH in neuronal polarization (Figure 14B).

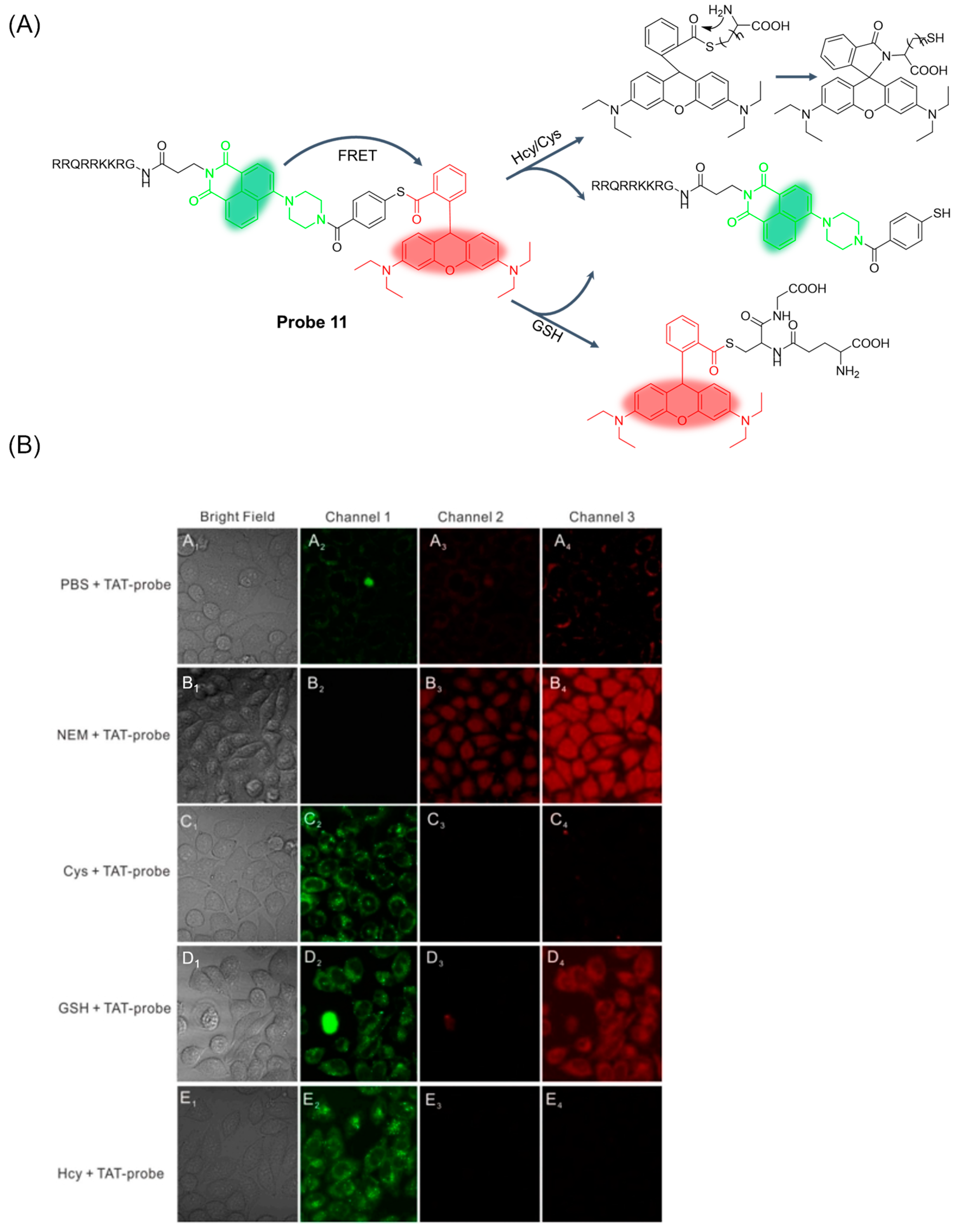

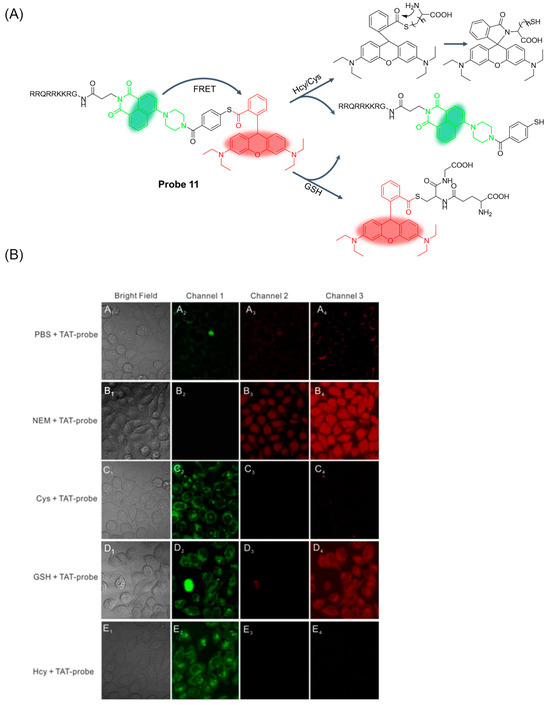

In 2020, Su et al. [55] reported a membrane-penetrating peptide-modified proportional two-photon fluorescence probe, Probe 11, which was constructed by the cell penetrating peptide (TAT), 1, 8-naphthalimide, and rhodamine B. As shown in Figure 15A, the probe simultaneously distinguished and sequentially detected Cys, Hcy, and GSH through two different excitation and emission channels. When excited at 404 nm, the probe showed a change in the fluorescence intensity ratio (I_520nm/I_585nm) with the addition of thiols. When excited at 545 nm, the probe showed enhanced red fluorescence (λ_em = 585 nm) for GSH and fluorescence quenching for Hcy or Cys. This specific fluorescence response indicates that the probe can efficiently detect thiols and distinguish between GSH and Cys/Hcy in mitochondria. The detection limit of the probe for GSH was 5.15 μM. In addition, the time-dependent emission spectra showed that the reaction process was completed within 20 min, and the probe had a fast reaction speed. Moreover, the probe was shown to have low toxicity by the MTT test and was experimentally studied in HeLa cells (Figure 15B).

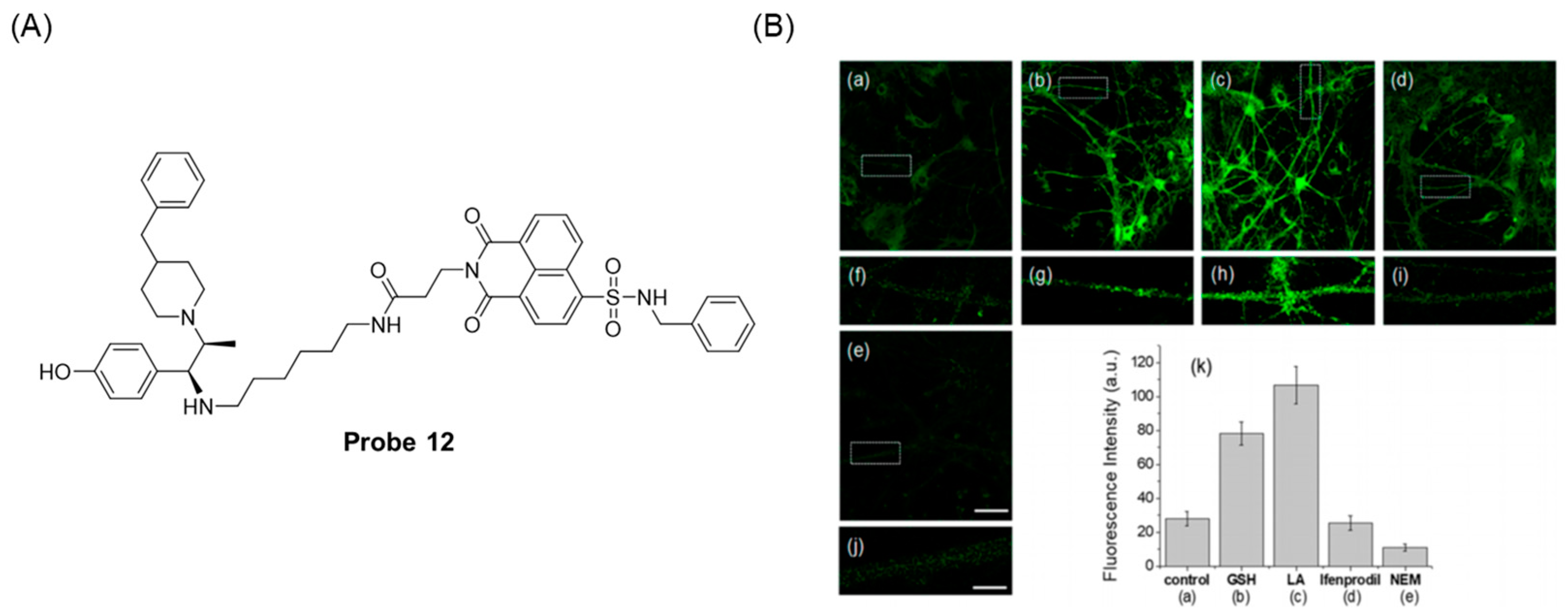

In 2021, Kwon et al. [56] reported a case of a GSH-specific fluorescent probe, Probe 12, capable of targeting the N-methyl-D-aspartate (NMDA) receptor. As illustrated in Figure 16A, the probe consisted of 1,8-Naphthalimide as a two-photon fluorophore, sulfonamide as a GSH reactive group, and an interferon component as a guide group for the NMDA receptor. After the addition of GSH and Cys/Hcy, the probe showed high selectivity to GSH and showed significant fluorescence enhancement at 495 nm. The detection limit of GSH by the probe was 9.3068 × 10⁻³ M. In addition, the probe has been successfully used for GSH monitoring in neuronal cells (Figure 16B) and rat hippocampal tissue slices under 750 nm excitation of two-photon fluorescence microscopy.

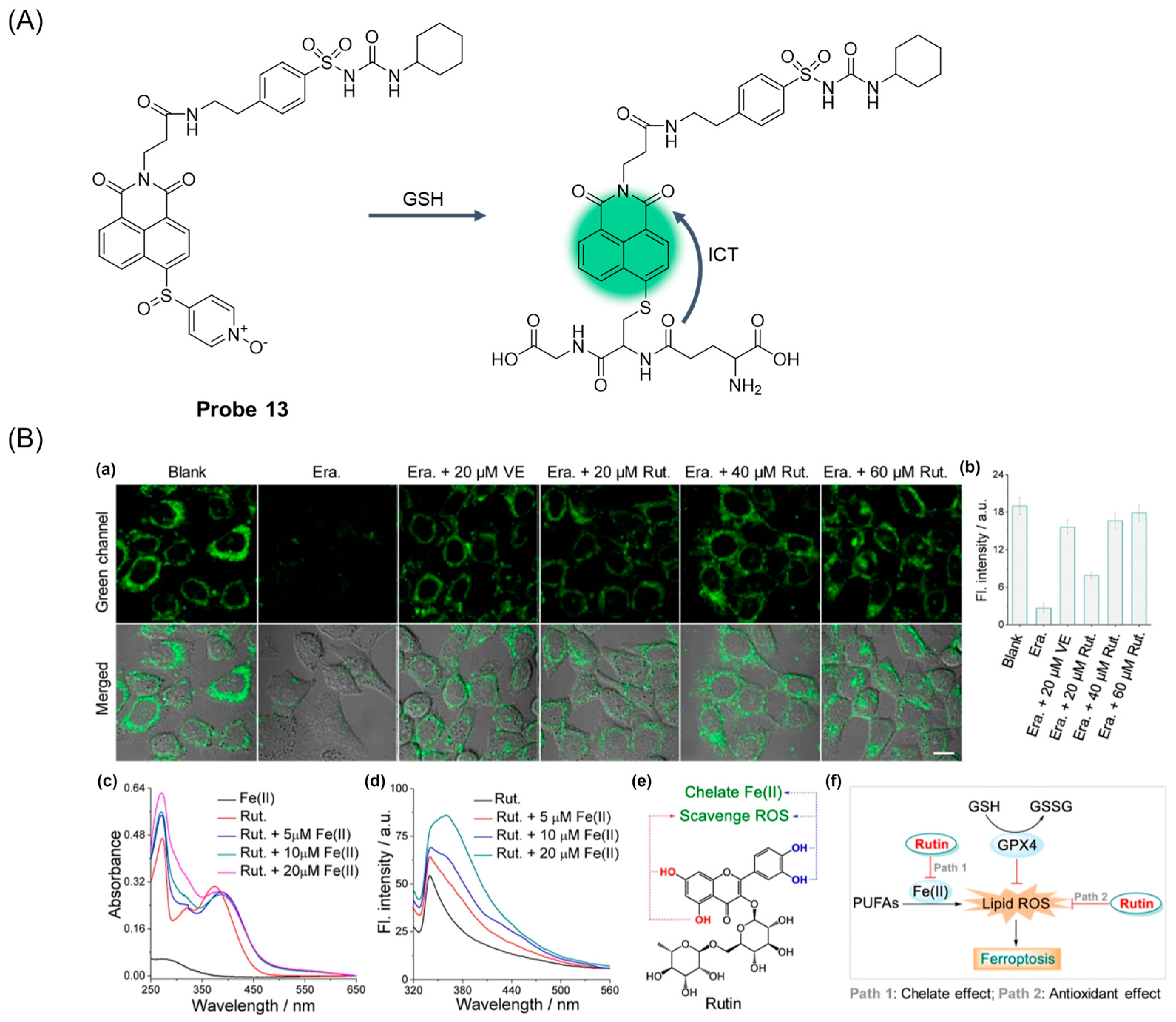

In 2023, Chen et al. [57] designed and synthesized an endoplasmic reticulum targeting fluorescent probe, Probe 13, (Figure 17A) using 1,8-Naphthalimide as fluorophore, and the recognition mechanism is due to the ICT effect. After adding GSH, the probe showed obvious fluorescence enhancement at 523 nm, and the fluorescence intensity showed a good linear relationship with the concentration of GSH in the range of 0–400 μM; the detection limit was 0.12 μM. The probe showed high sensitivity and selectivity to GSH. The probe can be used for visual monitoring of GSH in living cells under a physiological pH environment (pH = 7.0–9.0) and has low cytotoxicity. The probe has excellent endoplasmic reticulum targeting ability and can detect the level of GSH in the endoplasmic reticulum during erastin-induced ferroptosis (Figure 17B).

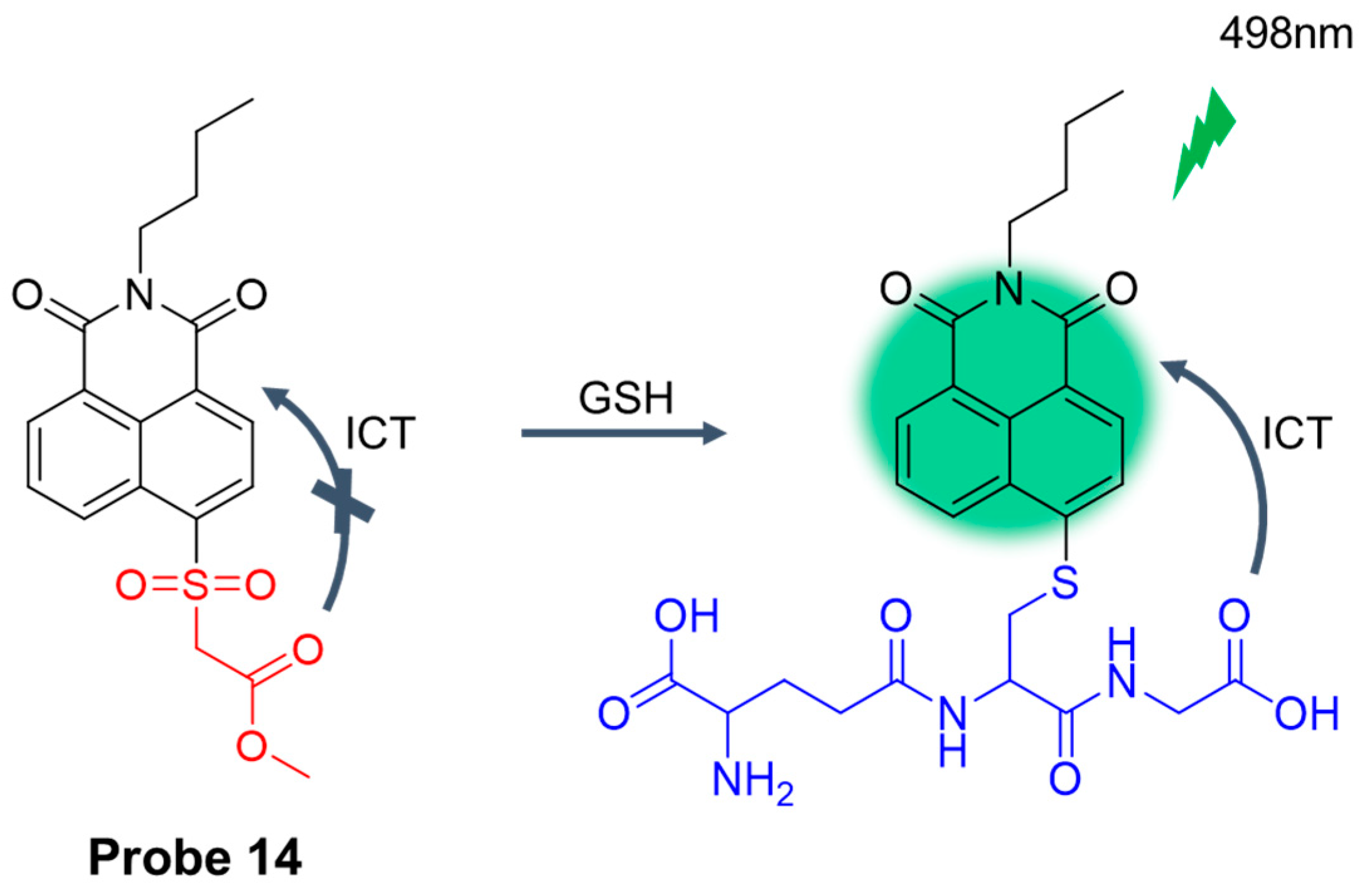

In 2023, Zhang et al. [58] designed and synthesized a nucleophilic aromatic substituted fluorescent probe, Probe 14, based on naphthyl amine skeleton. The accuracy of the probe in quantifying GSH in cells and tissues was comparable to that of HPLC. As shown in Figure 18, after adding GSH, the probe showed obvious fluorescence enhancement at 498 nm. The probe had a clear response to GSH within the physiological pH. The probe has the advantages of high reaction activity, selectivity, stability, and low cell toxicity. The probe can accurately quantify the GSH content in the liver of mice with X-rays, reveal a significant reduction in GSH in the liver, and indicate that the fluctuations in GSH content can be seen as indicators of oxidative stress induced by radiation. In addition, the GSH content was quantitatively measured by the probe on the GSH content of the mice in the Parkinson’s disease (PD) model, and the results showed that the content of GSH could reflect the ability of the body to clear free radicals.

In this section, Probes 10–14 are the focus of discussion for 1,8-Naphthalimide fluorophore, and

Table 2. Summary of the relevant parameters of GSH probes based on 1,8-Naphthalimide fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 10	GP5	High selectivity	405	496	0.11 μM	SH-SY5Y, Primary cortical neuronal cells	[54]
Probe 11	TAT-probe	Dual-channel, Ratiometric	545	585	5.15 μM	HeLa	[55]
Probe 12	1	High selectivity, Two-photon	350	495	9.3068 × 10−3 M	Primary cortical neuronal cells, Section of rat hippocampus	[56]
Probe 13	ER-G	High selectivity, High sensitivity	405	523	0.12 μM	HeLa	[57]
Probe 14	R13	High selectivity	390	498	/ *	HeLa, HepG2, Mouse live, Mouse Parkinson’s disease model	[58]

* “/” Means not mentioned in the literature.

summarizes the selectivity, sensitivity, and applications of these probes. Probes 10, 13, and 14 are highly selective for GSH recognition, and Probe 11 is a dual-channel discriminator for GSH and Cys/Hcy.

2.3. Fluorescent Probe Based on Coumarin

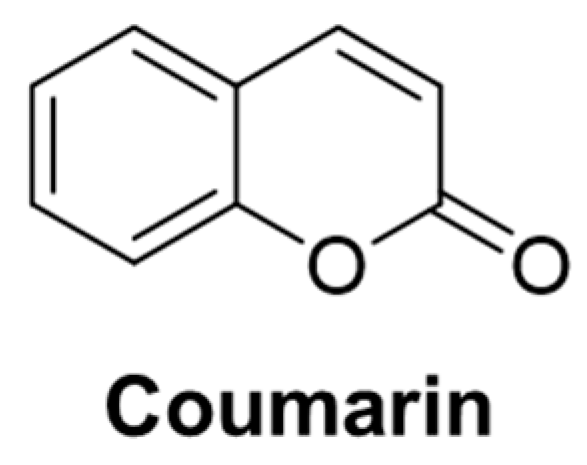

Coumarin (Figure 19), also known as 1,2-benzopyranone and o-xanaphthone, has the advantages of adjustable optical properties, easy synthesis, excellent cell membrane permeability, and favorable biocompatibility [59]. Fluorescent probes using coumarin as fluorophores have become the imaging tool of choice for real-time and non-invasive monitoring of target analytes in biological systems [60].

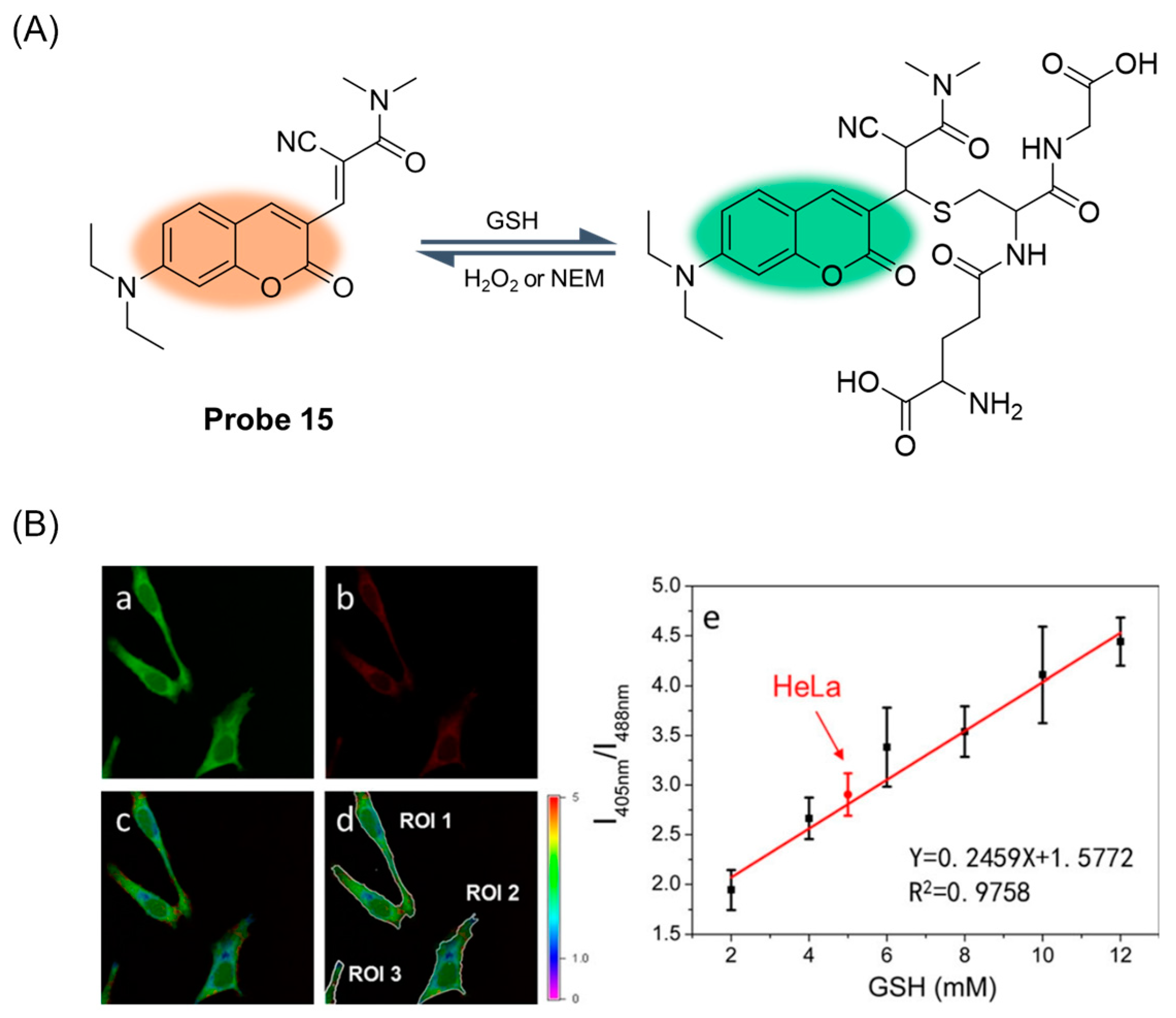

In 2017, Liu et al. [61] developed a ratio fluorescence probe, Probe 15, (Figure 20A) for quantitative monitoring of cellular GSH. Referring to previous studies, they accelerated the Michael addition reaction by introducing a strong electron-withdrawing substituent (CN) into the α-carbon of the probe’s unsaturated carbonyl group. After the addition of GSH, the fluorescence peak at 560 nm decreased, and the new peak at 488 nm gradually increased, showing a proportional fluorescence response. The probe had a suitable dissociation constant (K_d = 2.59 mM) and fast response time (t_1/2 = 5.82 s). It has been proven that the probe has very low cytotoxicity and high selectivity to GSH. In addition, the probe was applied to determine the concentration of GSH in living HeLa cells (5.40 ± 0.87 mM) (Figure 20B) and was able to monitor the changes in GSH/H₂O₂ redox pairs in the cells in real time.

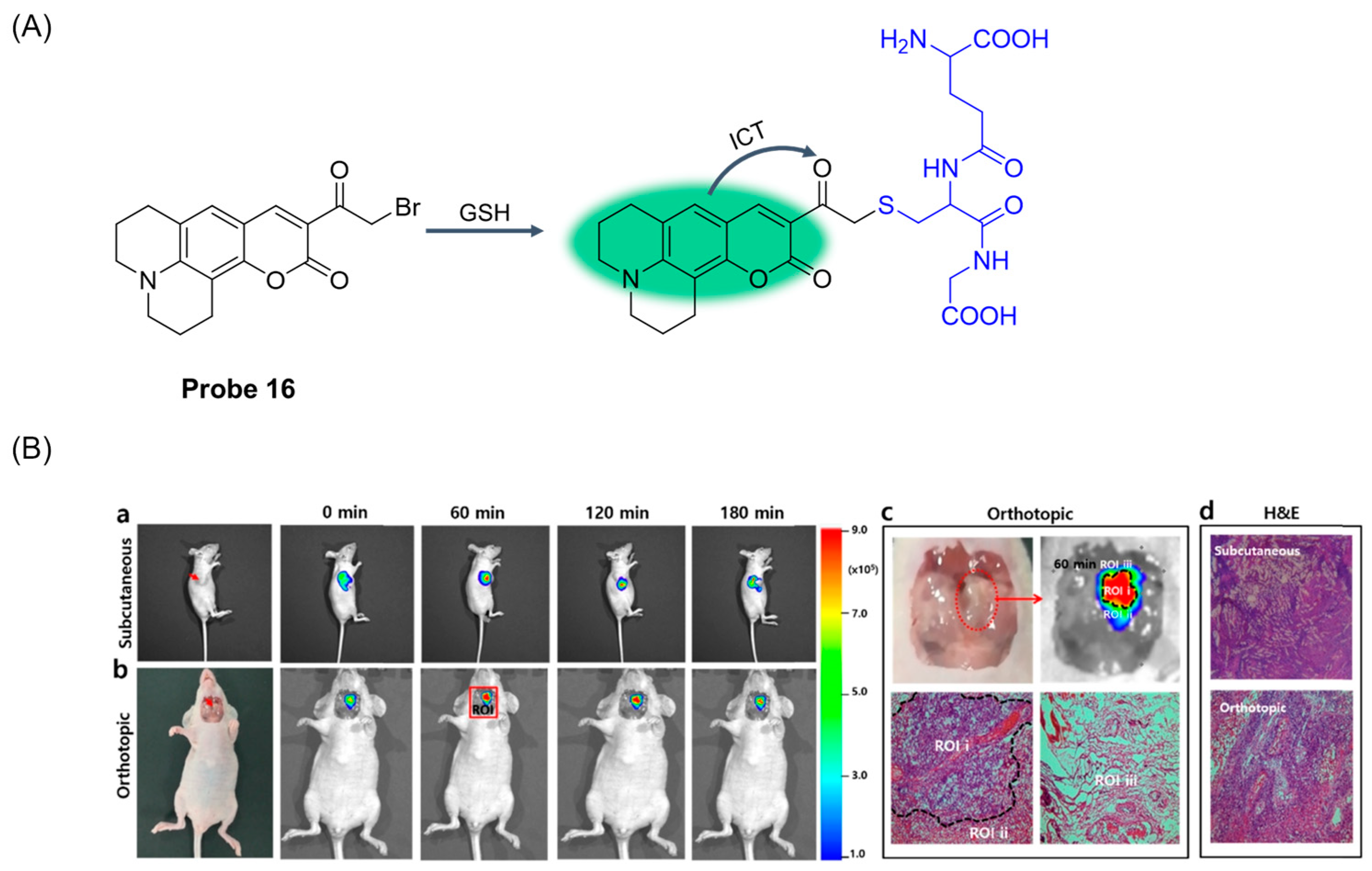

To further explore whether GSH can be used as a bioindicator to identify tumor lesions at the cellular level, Zou et al. [62] developed a two-photon fluorescence probe, Probe 16, based on coumarin derivation 16 in 2019. As shown in Figure 21A, after adding GSH, the probe showed an obvious fluorescence emission at 520 nm, and an ICT effect occurred in the recognition process. After recognition, the fluorescence intensity increased with the increase in GSH concentration, and the detection limit was 90 μM. The probe maintained a relatively stable pH range and had the advantages of low cytotoxicity and high biocompatibility. The probe can detect GSH sensitively and selectively in complex biological systems with a fluorescence quantum yield of 0.375. In addition, the application of the probe in a tumor-bearing mouse model demonstrated its in vivo bioimaging and tumor recognition capabilities (Figure 21B). The probe has been successfully used to determine the surgical margin between tumor and non-tumor tissue in fresh laryngeal cancer specimens.

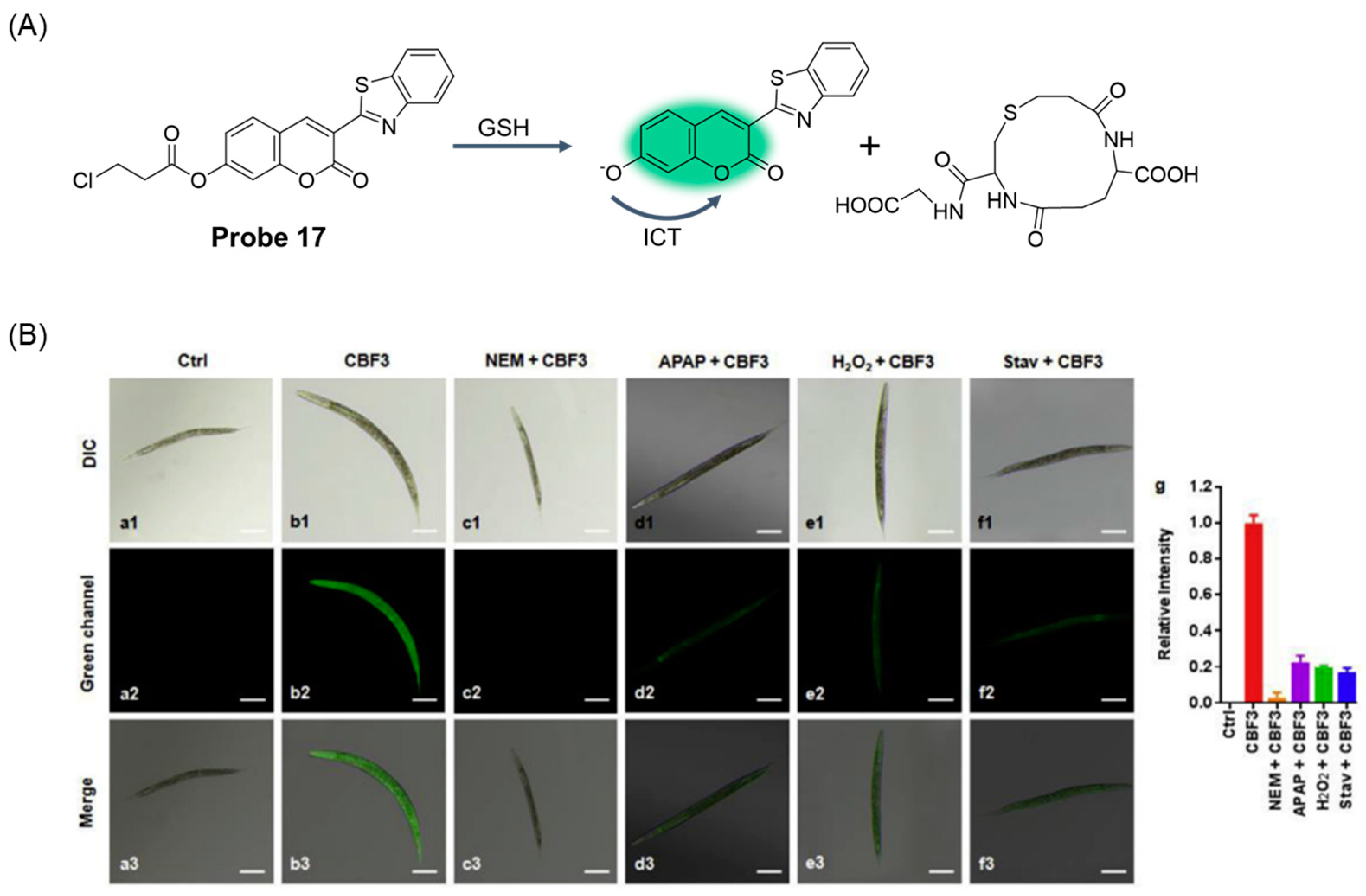

In 2020, Li et al. [63] developed a coumarin-based fluorescent probe, Probe 17, (Figure 22). The reaction mechanism was confirmed by LC-MS and NMR analysis and density functional theory calculations such as nucleophilic substitution/cyclic and ICT. The probe showed high selectivity, high sensitivity, and good stability for GSH detection. With the increase in GSH concentration, the fluorescence of the probe at 495 nm was gradually enhanced, showing a good linear relationship. The fluorescence quantum yield of the probe for GSH was 0.85, and the detection limit was 9.2 nM. In addition, the probe can quantitatively detect GSH not only in serum samples but also in living cells and C. elegans under various oxidative stress conditions.

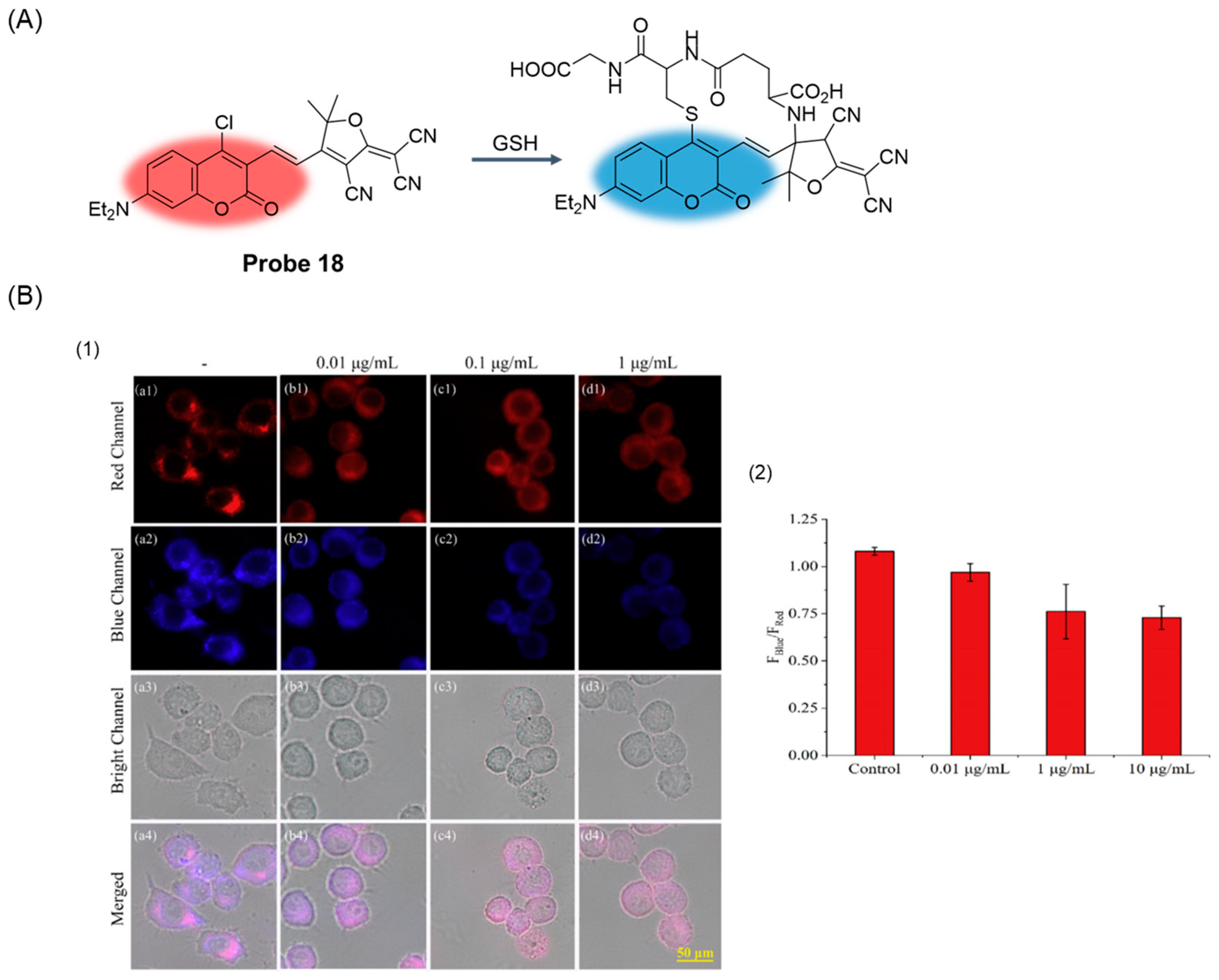

In 2020, Niu et al. [64] designed and synthesized a novel fluorescent probe, Probe 18, (Figure 23A) characterized by chlorinated coumarin-TCF through the condensation reaction of chlorinated coumarin-aldehyde and TCF. Under physiological pH conditions, the probe can detect GSH with high selectivity and sensitivity. After the addition of GSH, the fluorescence of the probe at 471 nm is enhanced, and the relationship is linear with the concentration of GSH in the range of 0–40 μM, and the detection limit is calculated to be 5.5 nM. CCK-8 assay proved that the probe had low toxicity to cells. In addition, the probe can be used to observe endogenous and exogenous GSH in different kinds of cells through fluorescence imaging. It has also been successfully used to monitor cellular GSH dynamics caused by H₂O₂ and LPS-induced redox imbalances (Figure 23B).

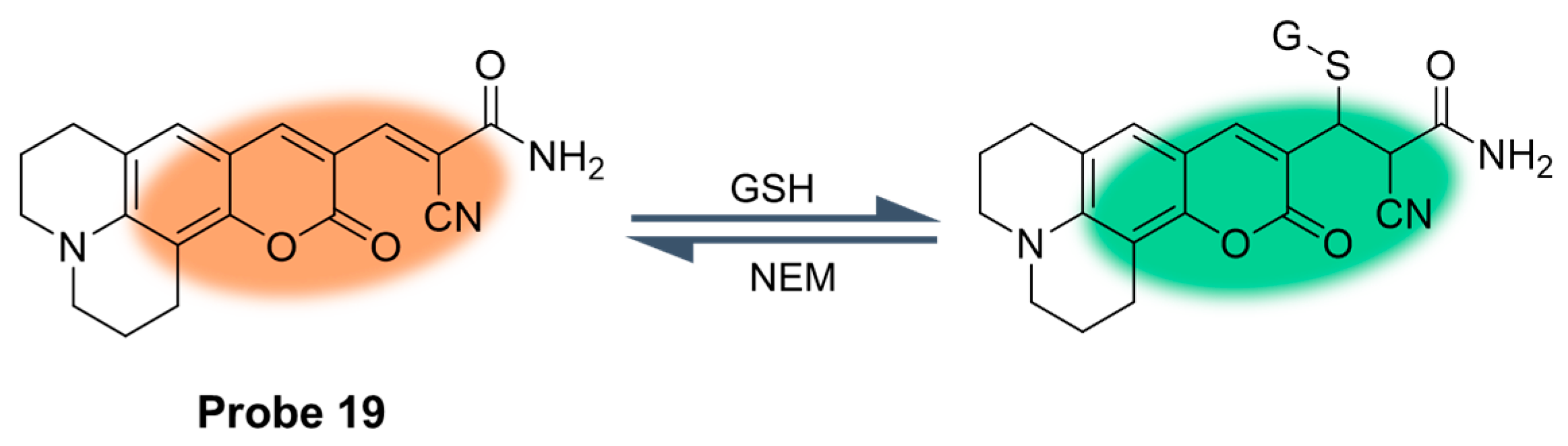

In 2020, Tian et al. [65] developed a rate-fluorescence probe, Probe 19, based on a coumarin Michael addition reaction. The reaction rate of the probe with GSH was very fast, as shown in Figure 24, and a reversible reaction occured after NEM treatment. The addition of GSH to the probe produced a fluorescence emission peak at 505 nm, while the original emission peak at 587 nm was weakened. The ratio of fluorescence intensity F₅₀₅/F₅₈₇ increased with the concentration of GSH from 0.1 to 10 mM. The probe showed high selectivity to GSH and low toxicity by an MTT test. In addition, the probe was successfully applied to real-time monitoring of GSH levels in living cells. Furthermore, an image processing program was developed and validated to quantify fluorescence intensity in cells.

In 2020, Khatun et al. [66] developed a ratio fluorescence probe, Probe 20, based on coumarin fluorophore for monitoring GSH levels in the nucleus. In the presence of GSH, the probe showed a change in the ratio of the ultraviolet absorption spectrum to the emission spectrum, which shifted from 410 nm to 350 nm blue, and the fluorescence emission spectrum shifted from 510 nm to 460 nm blue. As shown in Figure 25A, in the presence of reactive oxygen analogs GSSG and H₂O₂, Michael’s addition of GSH to the probe was reversible. The probe had a dissociation constant (K_d) of 2.47 mM under physiological pH conditions. The probe showed the advantages of high selectivity and low toxicity to GSH. In addition, the probe was able to specifically target GSH in the nucleolus of living cells (Figure 25B), suggesting that the probe could be a useful tool for tracking GSH during the cell cycle.

In 2021, Niu et al. [67] developed a coumarin-based long-wavelength emitting fluorescent probe, Probe 21. As shown in Figure 26A, the probe can distinguish between GSH and hydrogen polysulfides (H₂S_n, n > 1). With the addition of GSH, the probe showed a green fluorescence emission at 530 nm (λ_ex = 430 nm). In the presence of H₂S_n, the probe exhibited enhanced red fluorescence at 680 nm (λ_ex = 560 nm). The probe had good stability, selectivity, and high sensitivity. The probe could quantitatively detect GSH and H₂S_n with detection limits of 0.12 μM and 0.19 μM, respectively. The MTT test proved that the probe had low toxicity to living cells. In addition, the probe can be used to detect endogenous GSH and H₂S_n in living cells (Figure 26B) by two-color fluorescence imaging.

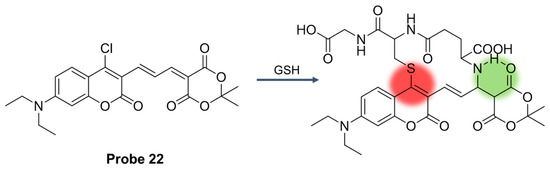

In 2021, Liu et al. [68] developed a coumarin-based, double-reactive site fluorescent probe, Probe 22. The probe reacted with the sulfhydryl or amino group of mercaptan through the S_NAr process. As illustrated in Figure 27, the initial fluorescence of the probe was quenched after GSH was added, and a new fluorescence signal appeared at 547 nm. The concentration of GSH was in the range of 0–25 μM, the fluorescence intensity was linear with the concentration, and the detection limit was 0.16 μM. The probe showed high selectivity and specificity for GSH. In the pH 6.0–9.0 range, the probe could label changes in GSH concentration in living cells and tissue sections with a fluorescent response.

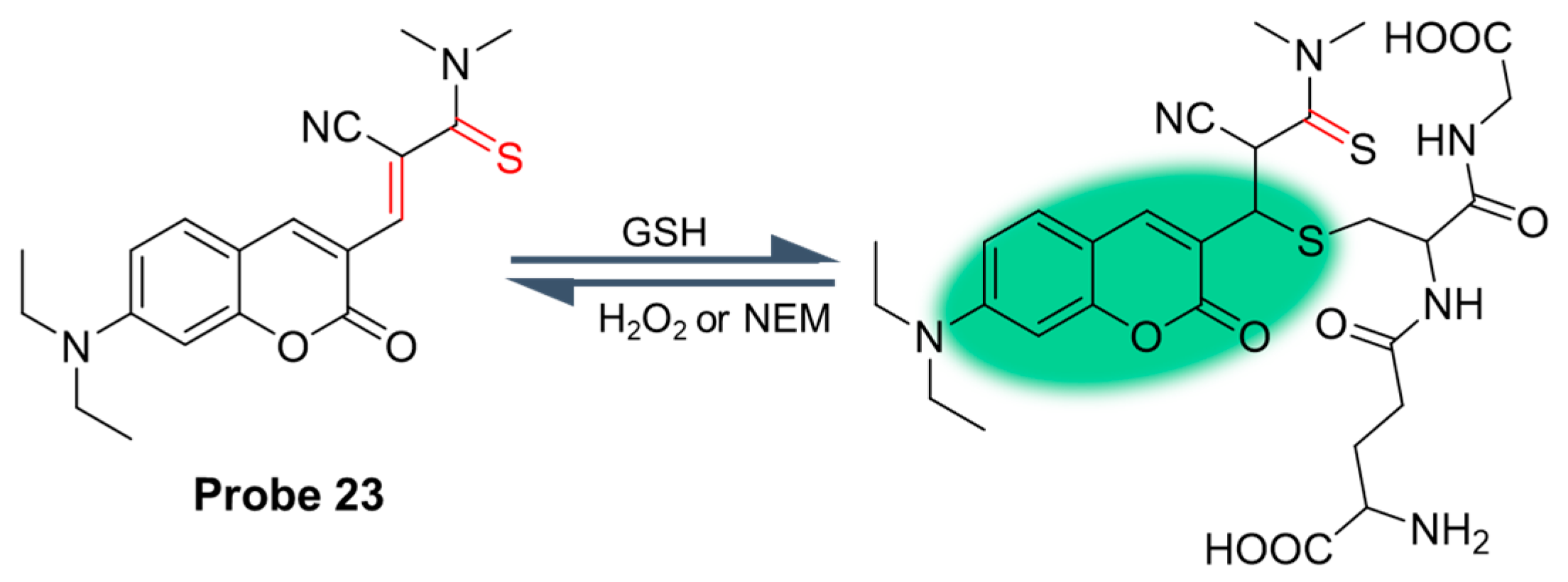

In 2022, Hou et al. [69] developed a reversible fluorescent probe, Probe 23, based on coumarin for real-time quantitative monitoring of GSH in cells. As shown in Figure 28A, after adding GSH, the fluorescence of the probe was enhanced at 486 nm. The fluorescence intensity showed a good linear relationship with GSH concentration in the range of 0–6 mM, and the detection limit was 4.5 μM. With the depletion of GSH and the addition of H₂O₂, the probe reformed and showed a reversible fluorescence signal. The probe could detect GSH under physiological conditions, and had good stability, high selectivity, and very low toxicity. In addition, the probe effectively imaged GSH changes in living HeLa cells and determined the GSH concentration in HeLa cells to be 4.25 mM (Figure 28B).

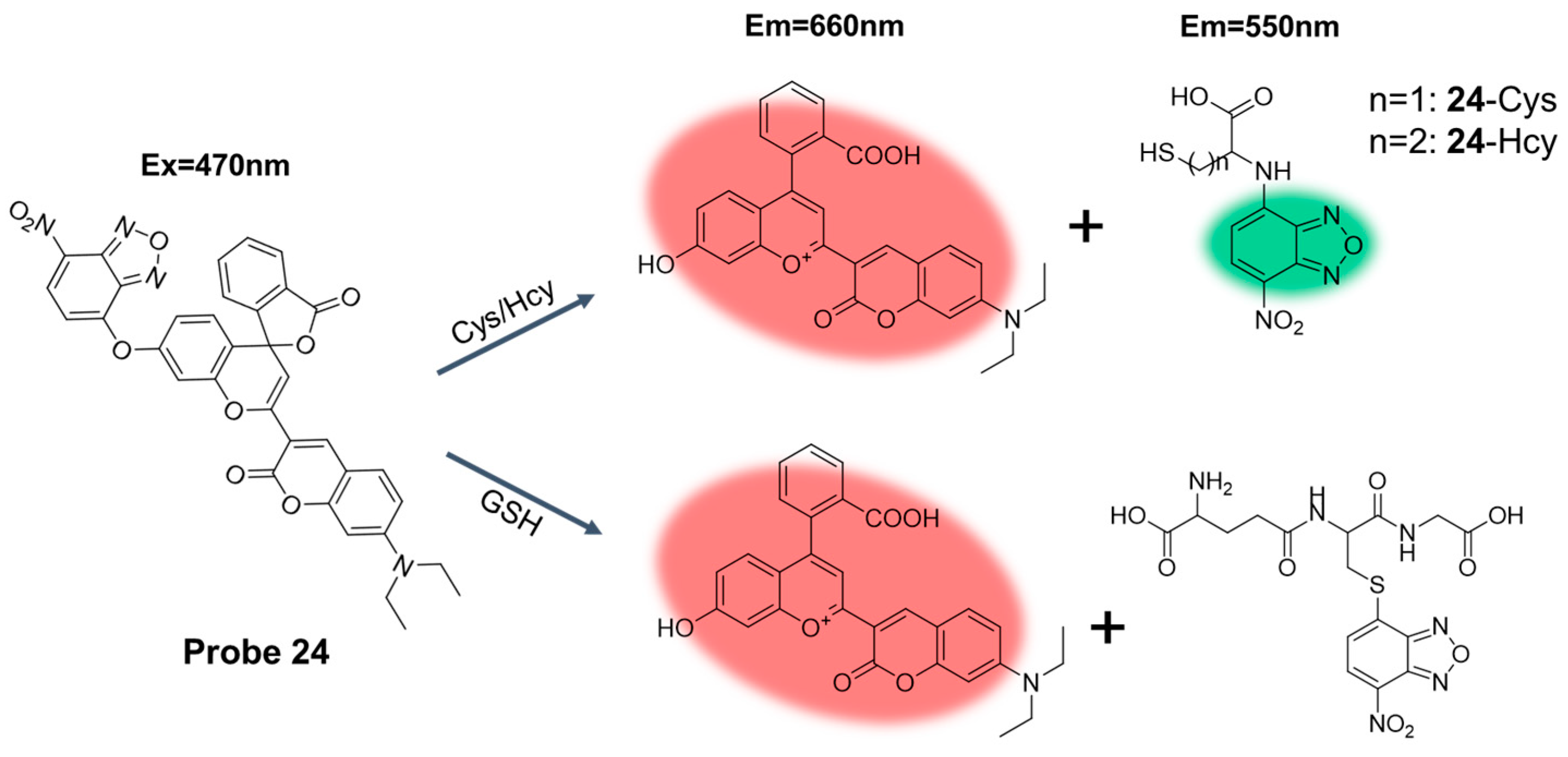

In 2022, Liu et al. [70] designed and synthesized a near-infrared fluorescence probe, Probe 24, using coumarin as a fluorophore. As illustrated in Figure 29, at 470 nm excitation, the probe was able to distinguish separated GSH/H₂S and Cys/Hcy from dual emission channels. After the addition of GSH, the probe observed a significant fluorescence enhancement at 660 nm, and the color of the solution changed from yellow to light blue. In addition, the fluorescence intensity had a good linear correlation with the concentration of GSH in the range of 0 to 20 μM, and the detection limit was 0.199 μM. After adding the identifier to the probe, the fluorescence emission peak almost did not change within 7 days, showing high stability. Moreover, the probe had the advantages of high sensitivity, high specificity, and low cytotoxicity. In addition, the probe was successfully applied to distinguish GSH/H₂S and Cys/Hcy in living cells and zebrafish.

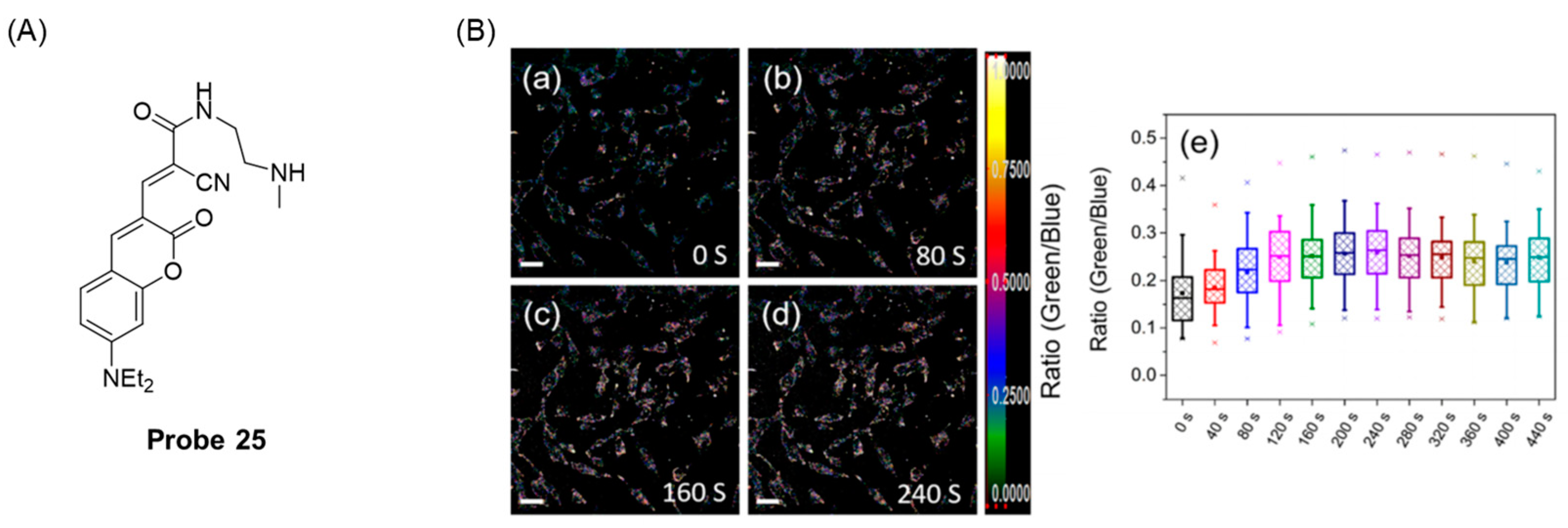

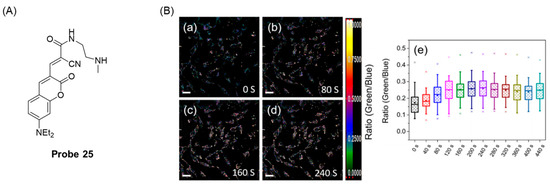

In 2022, Liu et al. [71] synthesized a ratio fluorescence probe, Probe 25, (Figure 30A) for detecting GSH using coumarin as a fluorophore. However, the smaller the K_d(GSH), the stronger the affinity between the double bond and the sulfhydryl group. The molecular binding affinity of the probe to GSH was enhanced through a reversible Michael addition reaction. The K_d(GSH) of the probe was 18.54 μM, and the affinity for GSH was 113 times that of coumarin itself. With the addition of GSH, the absorption peak at 566 nm decreased rapidly and the absorption peak at 470 nm increased. The fluorescence change was most obvious in the range of 0–0.5 mM GSH concentration, and the detection limit was 148 nM. In addition, the probe had the advantages of high sensitivity, good selectivity, fast response (forward t_1/2 = 30 s, reverse t_1/2 = 111 s), and good pH stability (pH = 6.0–10.0). In addition, the probe achieved dynamic real-time sensing of GSH in living HeLa cells (Figure 30B).

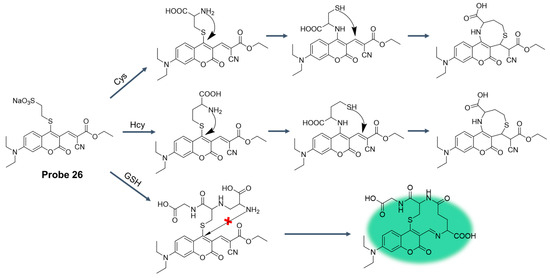

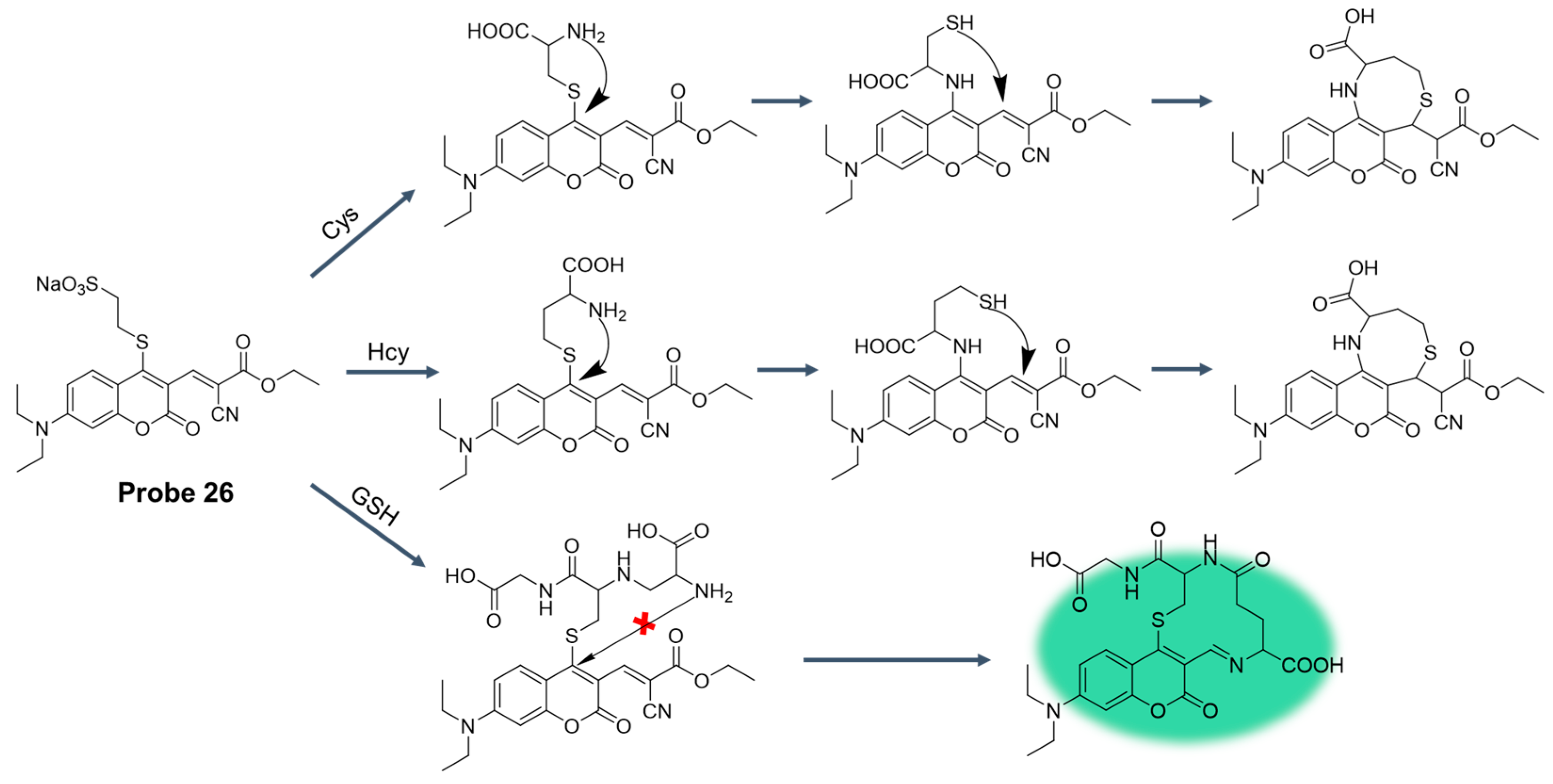

In 2023, Du et al. [72] designed and synthesized a fluorescence probe, Probe 26, using coumarin as a fluorophore. The introduction of sodium 2-mercaptoethanesulfonate on coumarin as the leaving group increased the water solubility of the probe and provided multiple reaction sites with double bonds. As shown in Figure 31, the probe could detect Cys, Hcy, and GSH in aqueous solution by fluorescence and ultraviolet spectra at different excitation wavelengths. When the excitation wavelength was 490 nm and GSH was added into the probe, the fluorescence color of the solution changed from colorless to light green, and the maximum emission peak appeared at 553 nm. The detection limit of glutathione was 0.92 μM at low concentration. In addition, the probe had good photostability and low cytotoxicity. In addition, the probe has been successfully used in cell experiments to detect endogenous and exogenous biological mercaptans.

In this section, Probes 15–26 are the focus of discussion for coumarin fluorophore, and

Table 3. Summary of the relevant parameters of GSH probes based on coumarin fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 15	QG-1	High selectivity, Ratiometric, Reversible, Quick response	450	F488/F560	/ *	HeLa	[61]
Probe 16	Cou-Br	High selectivity, High sensitivity, Two-photon	460	520	90 μM	FaDu, A549, HepG2, OVCRA-3, SGC-7901	[62]
Probe 17	CBF3	High selectivity, High sensitivity	455	495	9.2 nM	HepG2, C. elegans	[63]
Probe 18	1	High selectivity, High sensitivity	370	471	5.5 nM	BEL-7402, Zebrafish, Raw264.7	[64]
Probe 19	RP-2	High selectivity, Ratiometric, Reversible, Quick response	F420/530	F505/F587	/ *	HeLa	[65]
Probe 20	GScp	High selectivity, Reversible, Ratiometric	F350/F410	F460/F510	0.245 μM	A549, HepG2, HeLa, SW-480, LO2, BEAS-2B	[66]
Probe 21	DCM-Cou-SePh	Dual-channel, High sensitivity	430	530	0.12 μM	MGC-803, Raw264.7	[67]
Probe 22	GSH547	High selectivity, High sensitivity, Ratiometric	F440/F560	F547/F650	0.16 μM	HeLa, Liver tissue	[68]
Probe 23	QG-S	Reversible, Good stability	405	486	4.5 μM	HeLa	[69]
Probe 24	FC-NBD	Dual-channel, High sensitivity	470	660	0.199 μM	HeLa, Zebrafish	[70]
Probe 25	rCP-NN-βCD	Reversible, High sensitivity, Ratiometric	F409/F506	F470/F566	148 nM	HeLa	[71]
Probe 26	SWJT-14	Good stability	490	553	0.92 μM	HeLa	[72]

* “/” Means not mentioned in the literature.

summarizes the selectivity, sensitivity, and applications of these probes. Probes 16, 17, 18, and 22 can specifically recognize GSH with high sensitivity. Probes 15, 19, 20, 23, and 25 are highly selective for GSH recognition and can react reversibly in the presence of H₂O₂ or NEM. Probes 21, 24, and 26 are dual-channel or three-channel differentiators that detect GSH and other substances.

2.4. Fluorescent Probe Based on Xanthene

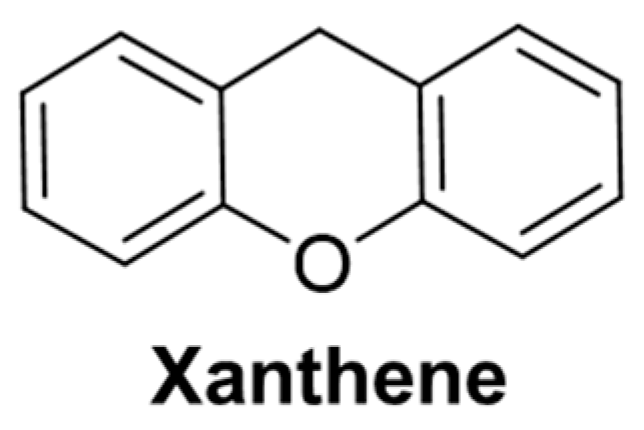

As a photo redox catalyst, xanthene fluorophore (Figure 32) has excellent photophysical properties such as high fluorescence quantum yield, high molar extinction coefficient, high reactivity, good photostability, and chemical stability [73]. Xanthene fluorescent dye is an ideal material for a fluorescence probe skeleton, which is widely used in visible-light-induced organic synthesis [74].

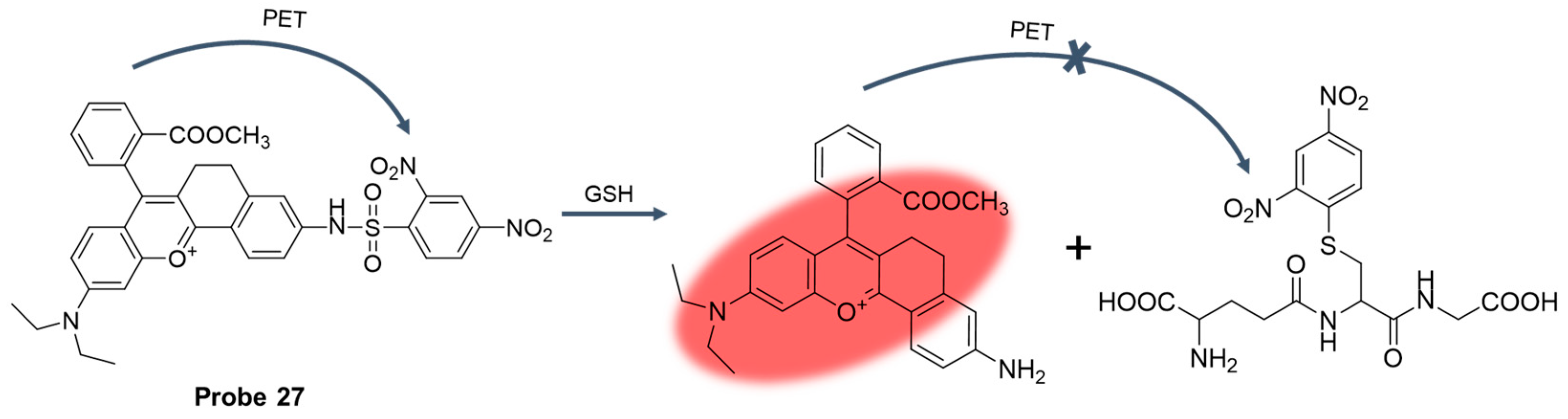

In 2019, Wan et al. [75] developed a fluorescent probe, Probe 27, with xanthene as the fluorophore and DNBS as the recognition site. As shown in Figure 33, the probe blocked the occurrence of PET during the recognition of GSH. With the addition of GSH, the probe had an obvious fluorescence emission at 630 nm. The fluorescence intensity showed a good linear relationship with the concentration of GSH in the range of 1–6 mM, and the detection limit was 13.1 μM. The probe showed good selectivity and anti-interference to GSH and could directly monitor GSH under physiological pH conditions. Moreover, cell activity experiments showed that the probe was biocompatible and had low cytotoxicity. In addition, the probe was successfully applied to fluorescence imaging of living cells.

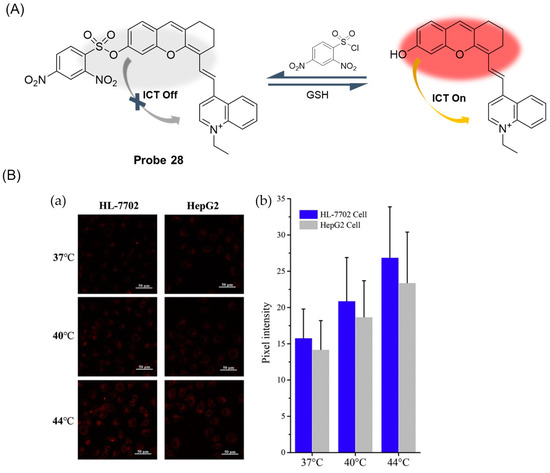

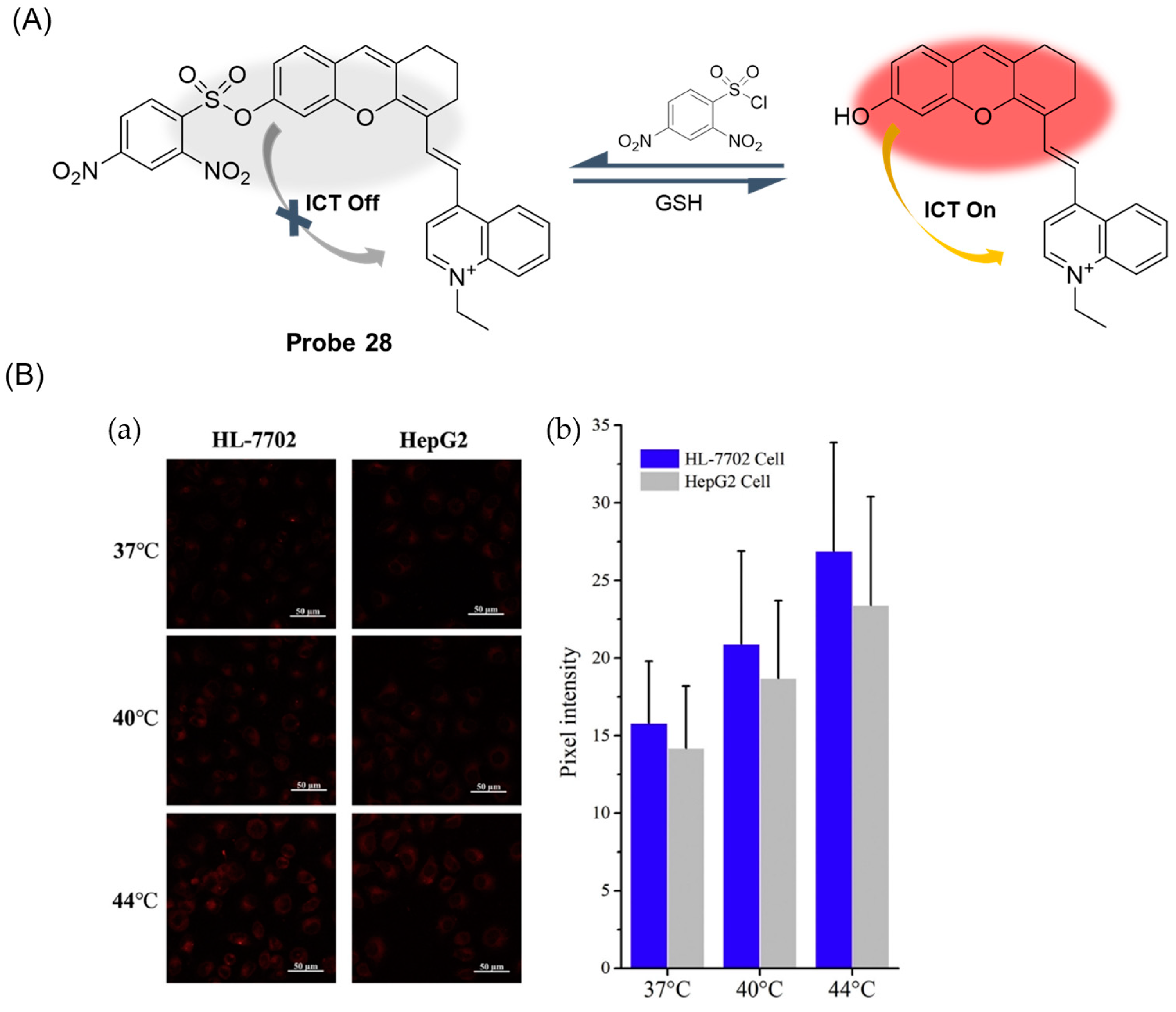

In 2019, Liang et al. [76] designed and synthesized a water-soluble near-infrared fluorescent probe, Probe 28, with DNBS as the recognition unit for sensitive real-time monitoring of changes in intracellular GSH concentration. As shown in Figure 34A, the probe achieved the “on-off” fluorescence response to GSH through the nucleophilic substitution reaction based on the sulfhydryl group. After the addition of GSH, the probe had an obvious fluorescence emission peak at 728 nm, the fluorescence intensity was linear with the concentration of GSH in the range of 0–5 μM, and the detection limit was 69 nM. When pH was 7.0, the fluorescence intensity after probe identification reached the highest, and the fluorescence signal was not affected in the temperature range of 22–50 °C. The probe recognized GSH very quickly, reaching its maximum value within 1 min. Moreover, the probe showed high selectivity for GSH. Finally, cell imaging experiments showed that the probe had low cytotoxicity and was applied to study the fluctuation of GSH concentration in living cells under high-temperature stress (Figure 34B).

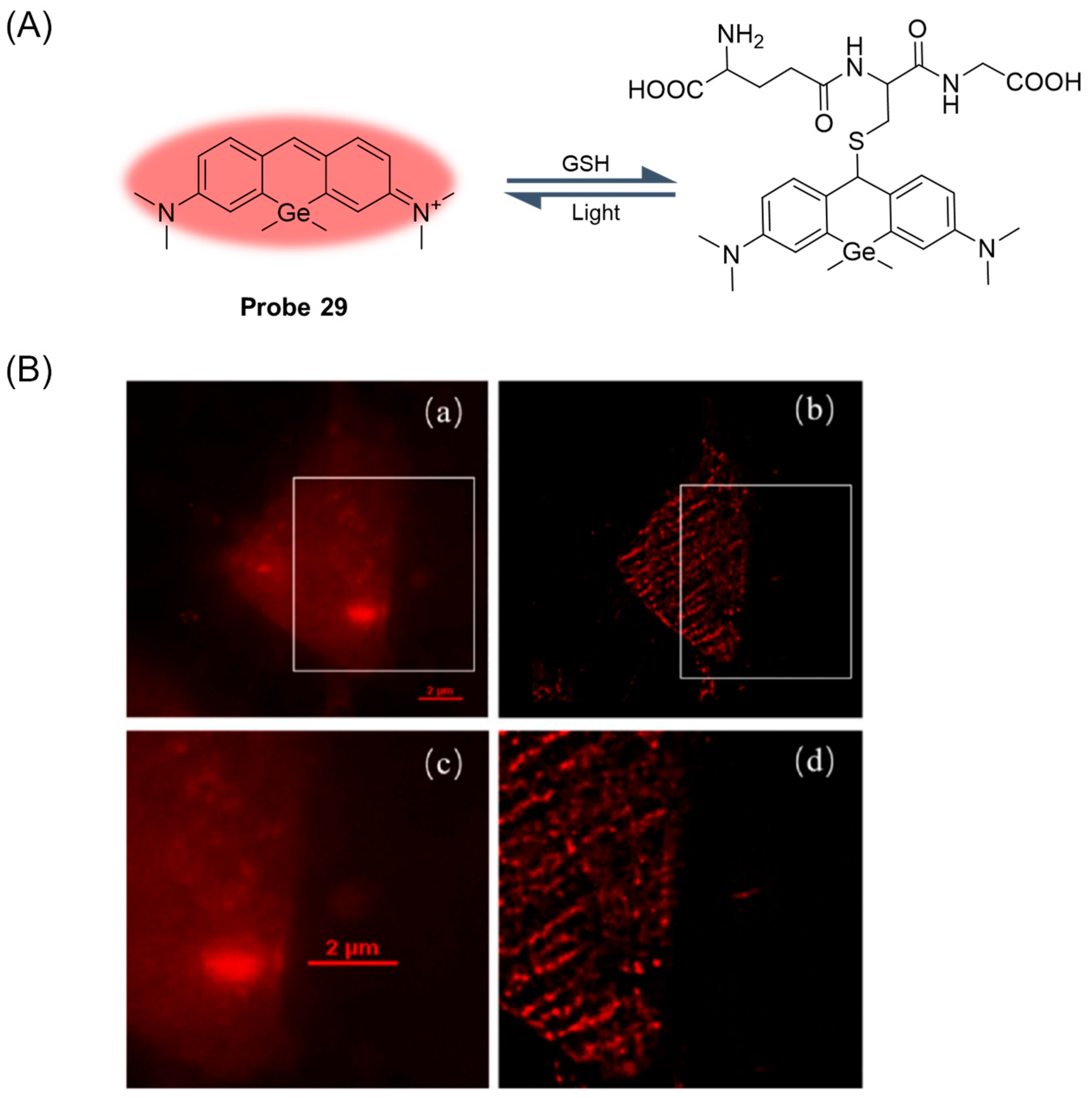

In 2022, Shu et al. [77] designed and synthesized a reversible fluorescent probe, Probe 29, by introducing Ge atoms into a conventional O-pyronine (OP) dye. The probe showed a high fluorescence intensity at 644 nm. As illustrated in Figure 35A, after adding GSH, a nucleophilic addition reaction occurred within 1 min and the fluorescence was quenched. Moreover, the adduct dissociated and restored the original fluorescence of the probe under ultraviolet illumination, showing a reversible fluorescence response. There was a good linear relationship between fluorescence intensity and GSH concentration in the range of 0 to 6 μM, and the detection limit was 0.07 μM. The probe could detect intracellular GSH quickly, sensitively, and specifically. Moreover, the probe had the advantages of good spectral characteristics, excellent mitochondrial targeting ability, and good cell permeability, and has been successfully used for the imaging of GSH in mitochondria. In addition, the probe has been successfully applied to super-resolution fluorescence imaging of mitochondria in living cells (Figure 35B).

In this section, Probes 27–29 are the focus of discussion for xanthene fluorophore, and

Table 4. Summary of the relevant parameters of GSH probes based on xanthene fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 27	ADS	High selectivity	550	630	13.1 μM	HeLa	[75]
Probe 28	EQR-S	High selectivity, High sensitivity, Quick response, Reversible	585	728	69 nM	HL-7702, HepG2	[76]
Probe 29	GeP	High selectivity, High sensitivity, Reversible, Quick response	595	644	0.07 μM	HeLa	[77]

summarizes the selectivity, sensitivity, and applications of these probes. Probes 27–29 are highly selective for GSH recognition, and probes 27 and 28 introduce DNBS in probe construction. Probes 28 and 29 can react with GSH rapidly, and probe 29 can react reversibly under light.

2.5. Fluorescent Probe Based on Rhodamine

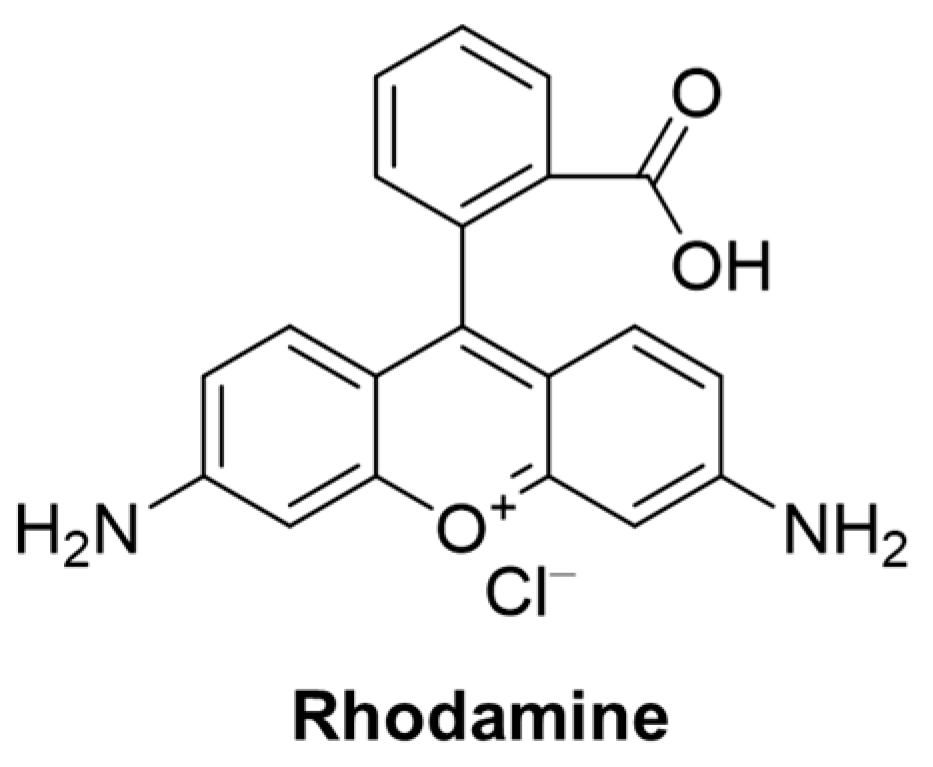

Rhodamine fluorophore (Figure 36) has been widely used in medical and biological applications due to its unique transition from a helicoid form (non-fluorescent) to an open-loop form (fluorescent), excellent light stability, wide wavelength range, pH insensitivity, high fluorescence quantum yield, and high extinction coefficient [78,79].

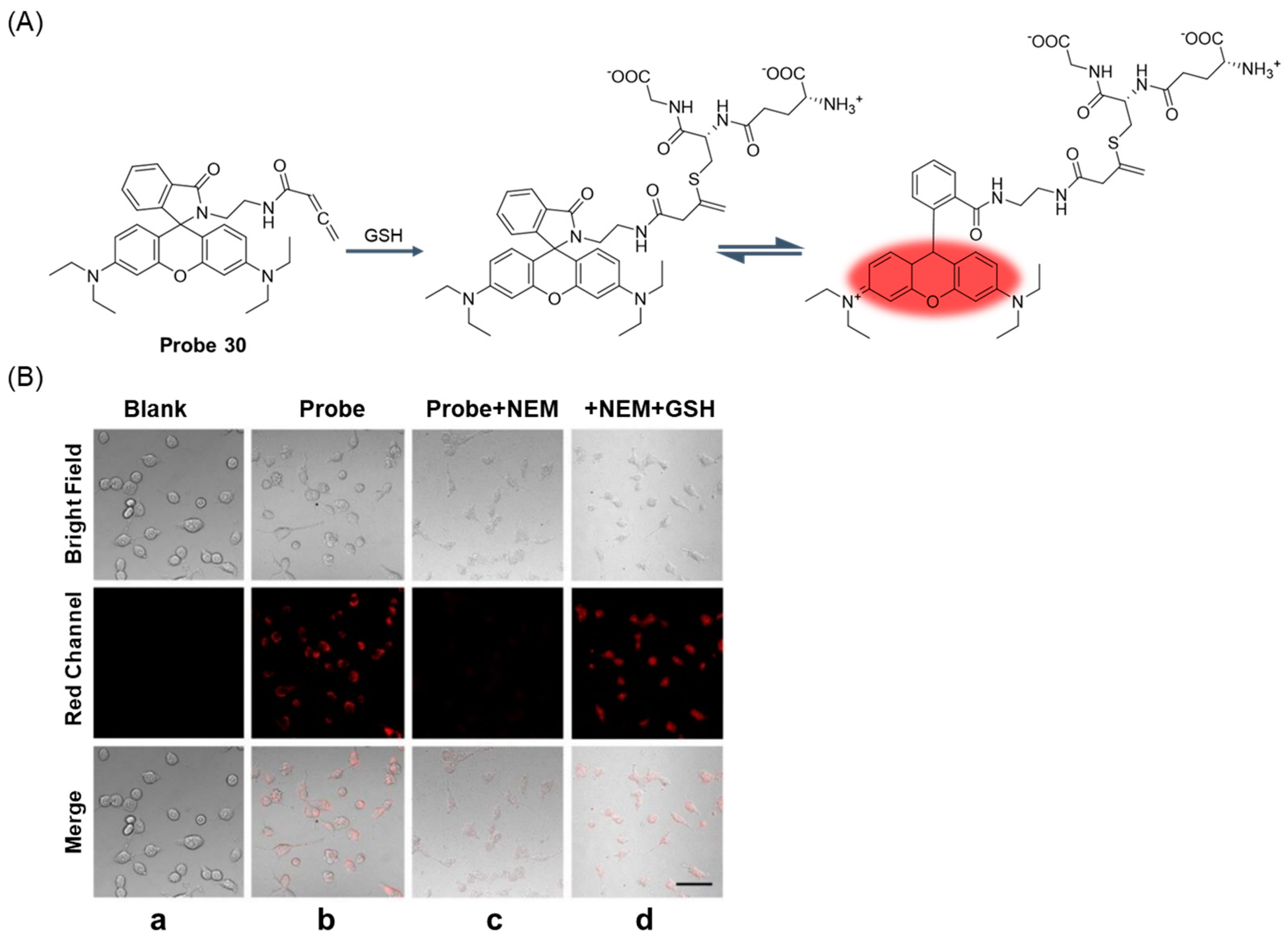

In 2020, Li et al. [80] developed a fluorescent probe, Probe 30, with rhodamine B as a fluorophore for the selective detection of GSH in solution. As illustrated in Figure 37A, the probe turned on fluorescence through a specific reaction between acrylamide and GSH sulfhydryl groups. When GSH was added, the fluorescence of the probe was enhanced at 585 nm. The fluorescence intensity and GSH concentration showed a good linear relationship in the range of 0–20 μM, and the detection limit was 1.0 μM. Moreover, the MTT assay proved that the probe had the advantages of good cell biocompatibility, permeability, and low cytotoxicity. The probe could detect GSH under physiological conditions and showed high selectivity. In addition, the probe could detect changes in GSH concentration in living cells (Figure 37B).

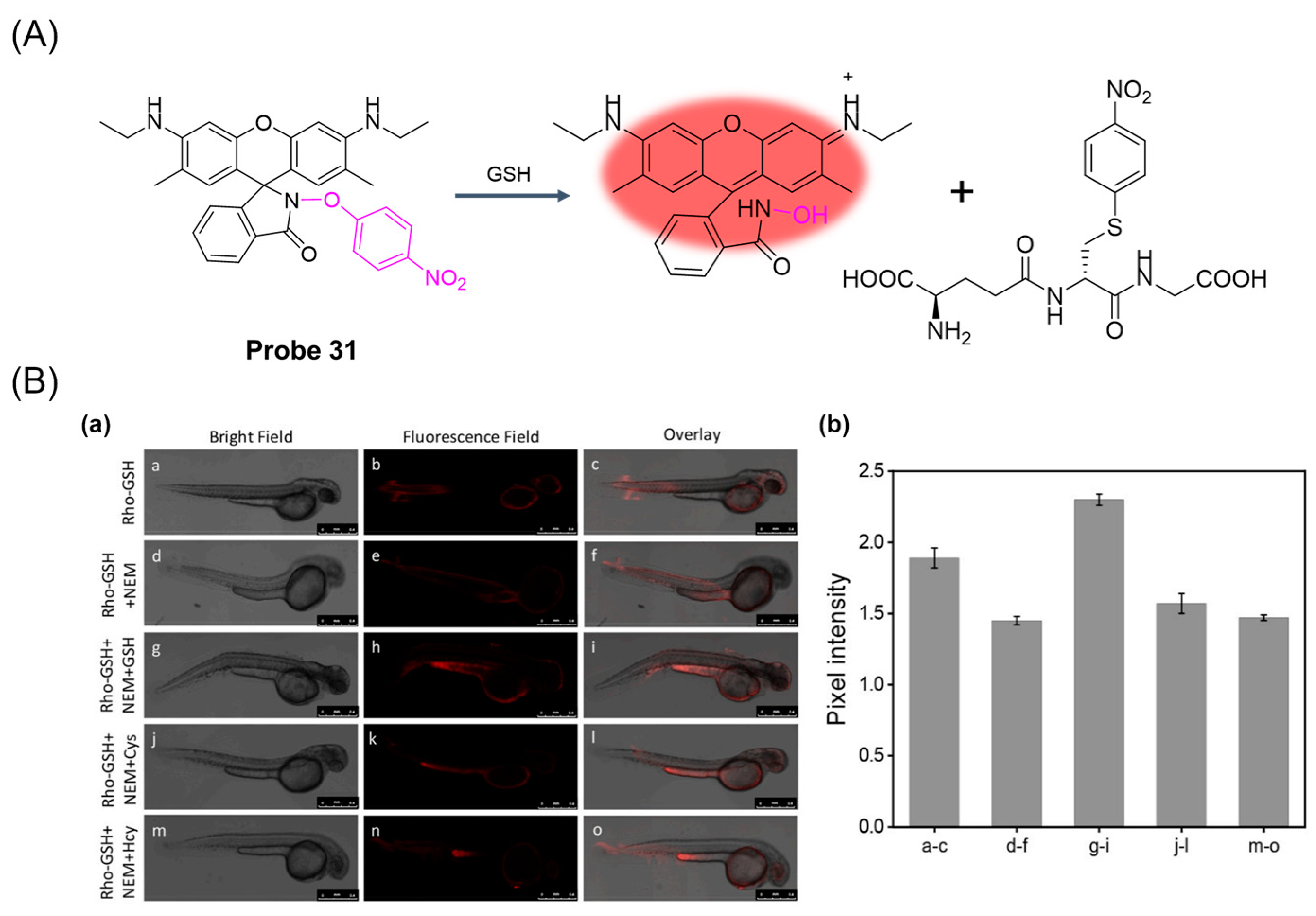

In 2022, Zhou et al. [81] designed and synthesized a rhodamine fluorescent probe, Probe 31, with nitrobenzene as the recognition group for monitoring and imaging GSH in vivo and in vitro. As shown in Figure 38A, after the addition of GSH, nucleophilic substitution and helix ring-opening reactions occurred, showing a significant increase in fluorescence at 557 nm. The fluorescence intensity of the probe showed a good linear relationship with GSH concentration in the range of 0–5 mM, and the detection limit was 49.60 μM. The probe showed high selectivity, fast response (3 s), and anti-interference in GSH detection. In addition, the probe was successfully applied to GSH imaging in living cells and zebrafish (Figure 38B), demonstrating the selectivity of GSH imaging relative to Cys and Hcy. The probe was also able to selectively distinguish between cancer cells and normal cells through fluorescence imaging.

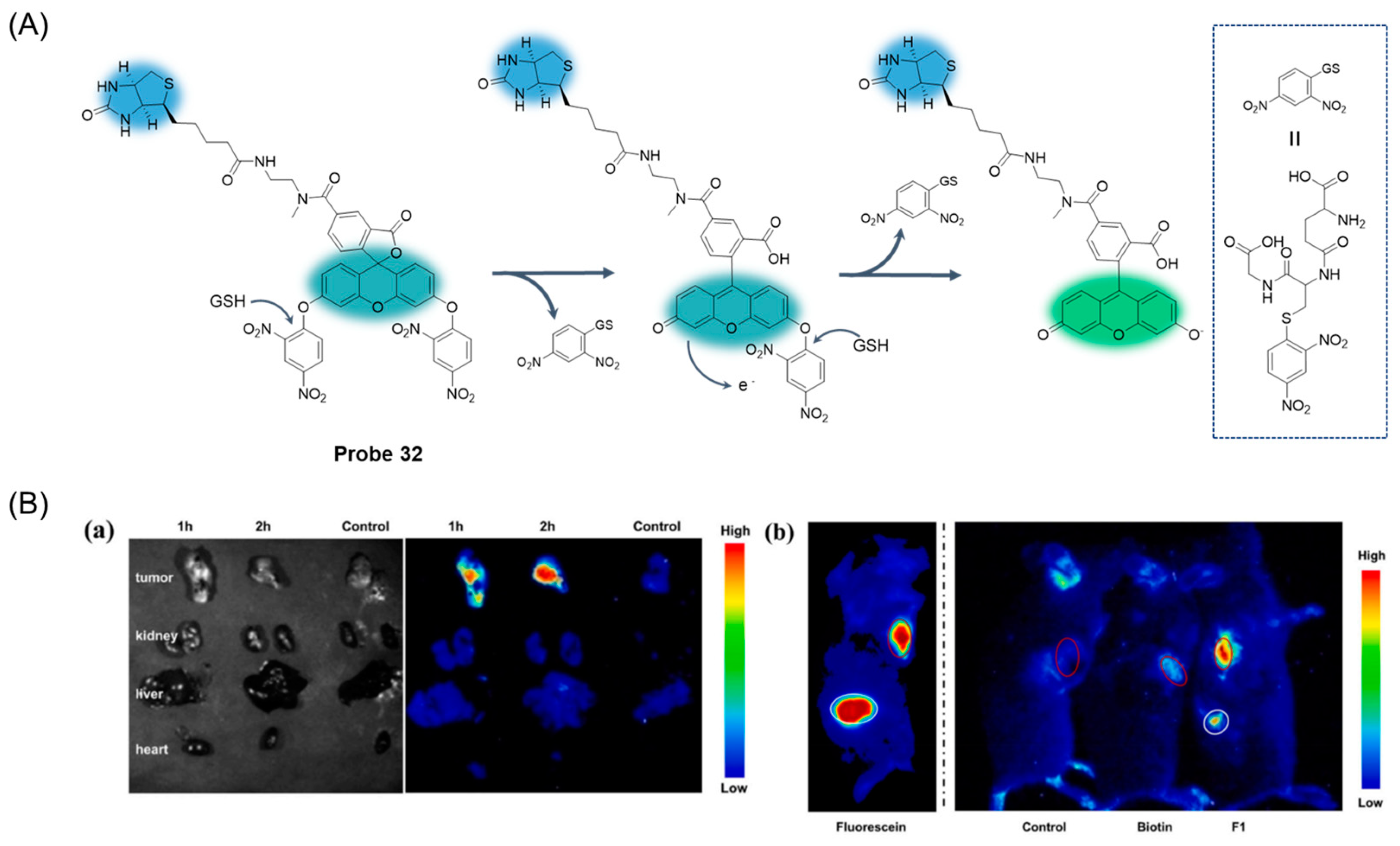

In 2022, Lu et al. [82] designed and synthesized a GSH-activated biotin-labeled fluorescent probe, Probe 32, for selective colorectal cancer imaging. As shown in Figure 39A, after adding GSH, a nucleophilic reaction occurred between GSH and 2,4-dinitrobenzene, which promoted the activation of the fluorescence effect. When the concentration of GSH was 0 to 300 μM, the fluorescence response was enhanced at 530 nm and showed an obvious linear relationship with a detection limit of 37 μM. Through the CCK8 assay, the probe showed very low toxicity to both cancer cells and normal cells. Imaging of a variety of cells showed that the probe could specifically recognize GSH and showed excellent tumor cell uptake and GSH activation. Moreover, the probe had good tumor tissue imaging ability and good tissue selectivity in MC38 mice (Figure 39B) and could also effectively identify CRC clinical samples. In addition, the study highlights the importance of hydrophobicity in biotin-labeled activable molecules.

In this section, Probes 30–32 are the focus of discussion for rhodamine fluorophore, and

Table 5. Summary of the relevant parameters of GSH probes based on rhodamine fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 30	RBA	High selectivity	560	585	1.0 μM	MCF-7	[80]
Probe 31	Rho-GSH	High selectivity, Quick response	510	557	49.6 μM	HepG2, Zebrafish, LO2	[81]
Probe 32	F1	High selectivity	450	530	37 μM	RKO, DLD-1, HCT116, CaCO2, Mgc-803, NCIN87, CP HO48, FHS 74Int, MC-38	[82]

summarizes the selectivity, sensitivity, and applications of these probes. Probe 31 can respond to GSH quickly, while probes 30 and 32 require a two-step reaction to restore fluorescence.

2.6. Fluorescent Probe Based on Cyanine

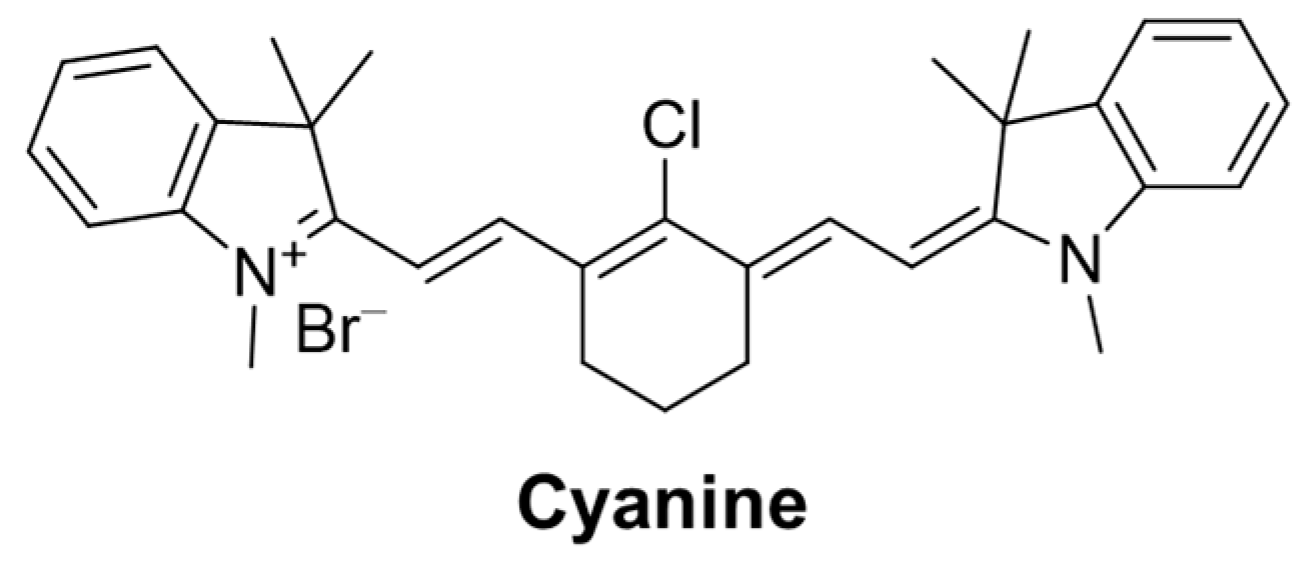

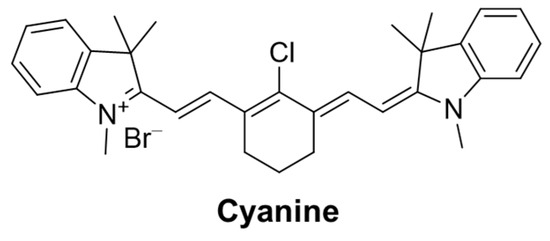

Cyanine dyes (Figure 40) have good optical properties such as a high molar extinction coefficient, high fluorescence quantum yield, long absorption and emission wavelength, good biocompatibility, and low toxicity [83]. Cyanine dyes are widely distributed in the spectrum of approximately 350 nm to 1300 nm, as well as the easily adjustable fluorescence spectrum from the UV-visible to near-infrared range. Therefore, cyanine dyes and their derivatives have outstanding advantages such as fluorescent probes [84].

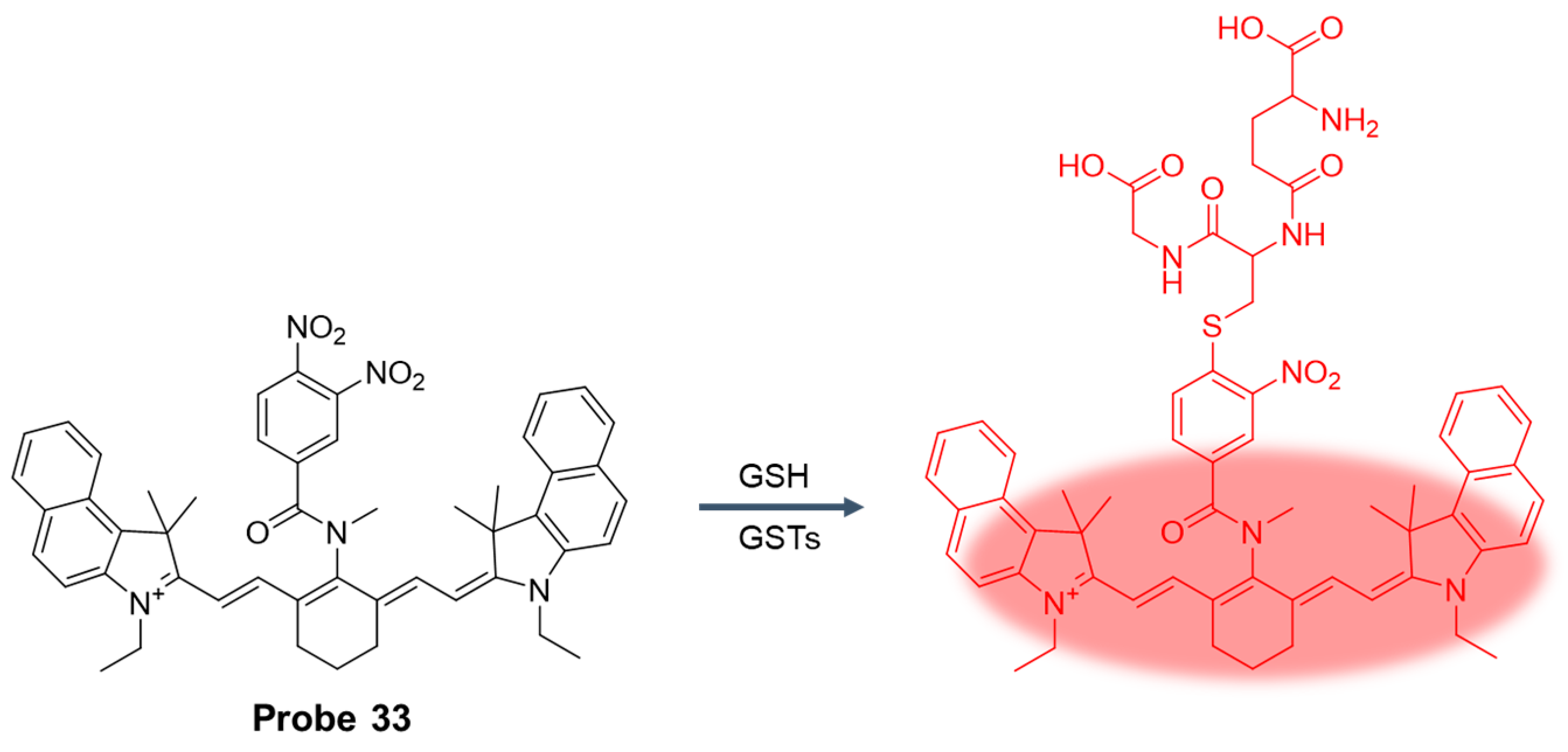

In 2019, He et al. [85] reported a near-infrared fluorescent probe, Probe 33, to detect concentration fluctuations of glutathione S-transferase (GST) in cells and mouse models. As shown in Figure 41, GST catalyzes the two-step SNAr addition/elimination mechanism of GSH and the probe, impeding the process of dPET and inducing fluorescence recovery. After the addition of hGSTP1, the fluorescence intensity was significantly enhanced at 810 nm and showed a good linear relationship in the concentration range of 1–1.1 μg/mL, and the detection limit was 10 ng/mL. The fluorescence kinetics curve showed that a high concentration of hGSTP1 could make the fluorescence signal reach a stable level within 15 min, indicating that the probe could respond to hGSTP1 quickly. Under physiological conditions, the probe was incubated with various biological species, and the probe showed excellent selectivity for hGSTP1. Moreover, with the help of this probe, it was confirmed that intracellular GSTs play an important role in the severity of pulmonary fibrosis. Pulmonary fibrosis also leads to a state of intracellular oxidative stress, which also induces an increase in GST levels. In addition, the synergistic treatment of the GST inhibitors TLK117 and pirfenidone (PFD) had a better therapeutic effect in a mouse model of pulmonary fibrosis than the two drugs alone.

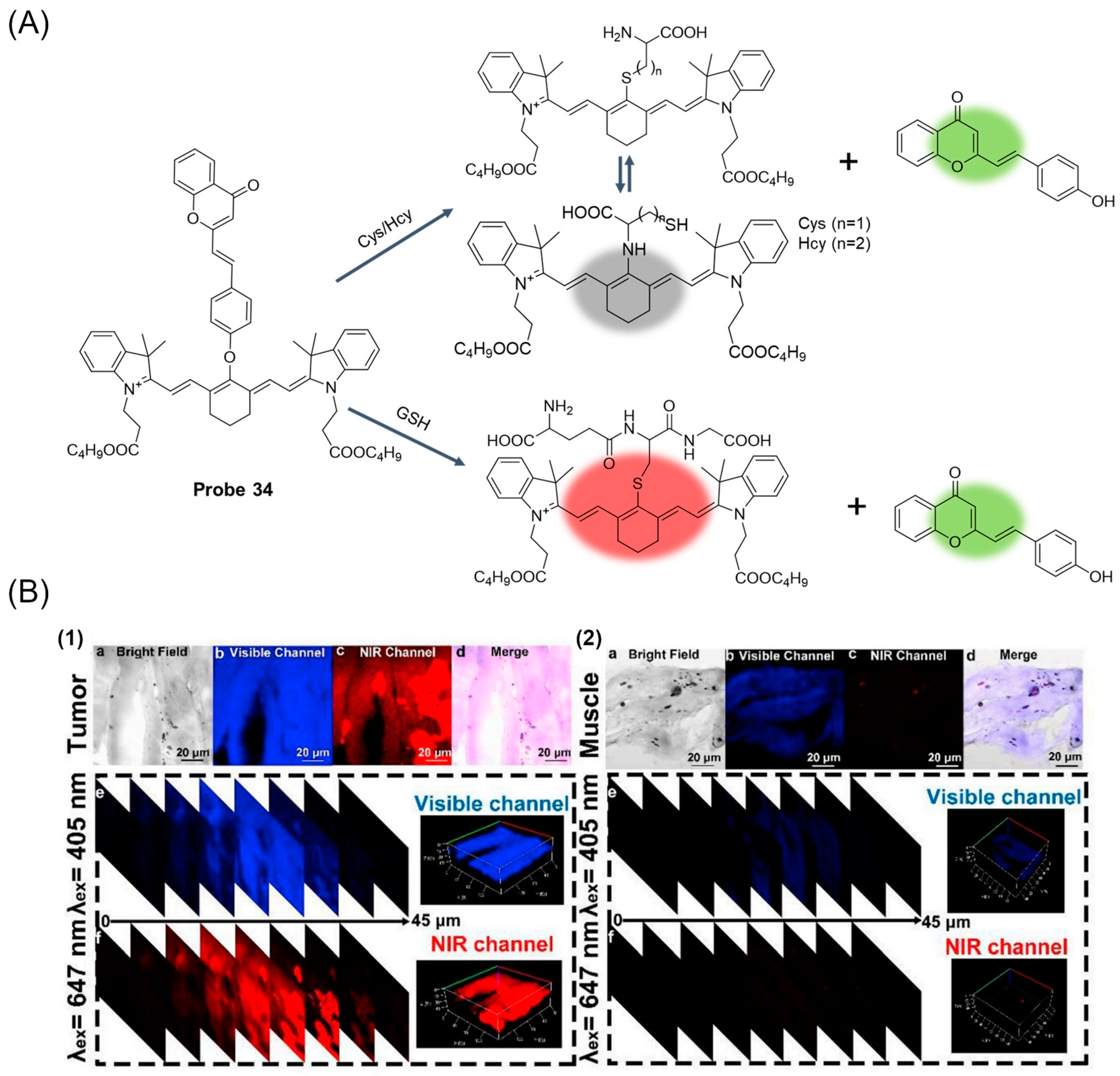

In 2019, Xu et al. [86] designed and synthesized a dual-channel fluorescent probe, Probe 34, consisting of two fluorophores, cyanine (Cy) and dicyanomethylene-4H-pyran (DC), for selective recognition of GSH. As shown in Figure 42A, the probe can be used to detect GSH, Hcy, and Cys in different emission channels. After the addition of GSH, the probe showed significant fluorescence enhancement at both 520 nm and 810 nm at excitation wavelengths of 358 nm and 700 nm. According to the titration experiment of the probe with different concentrations of GSH in two different fluorescence emission channels, the detection limits of 24 nM and 32 nM were calculated, indicating that the probe is a highly sensitive fluorescence probe for the detection of GSH in vitro. The MTT test showed that the probe had good biocompatibility and very low toxicity. Confocal fluorescence imaging of U87 and L02 cells showed that the probe reacted with intracellular GSH to produce double fluorescence, which could simultaneously monitor endogenous GSH in both green and red channels. Fluorescence colocalization analysis showed that the probe had excellent mitochondrial localization ability and could distinguish between tumor and inflammatory sites in tumor-bearing mouse models (Figure 42B). In addition, the anatomy of the H22 tumor experiment demonstrated the potential of the probe as a fluorescent inducer for clinical use in nude mice.

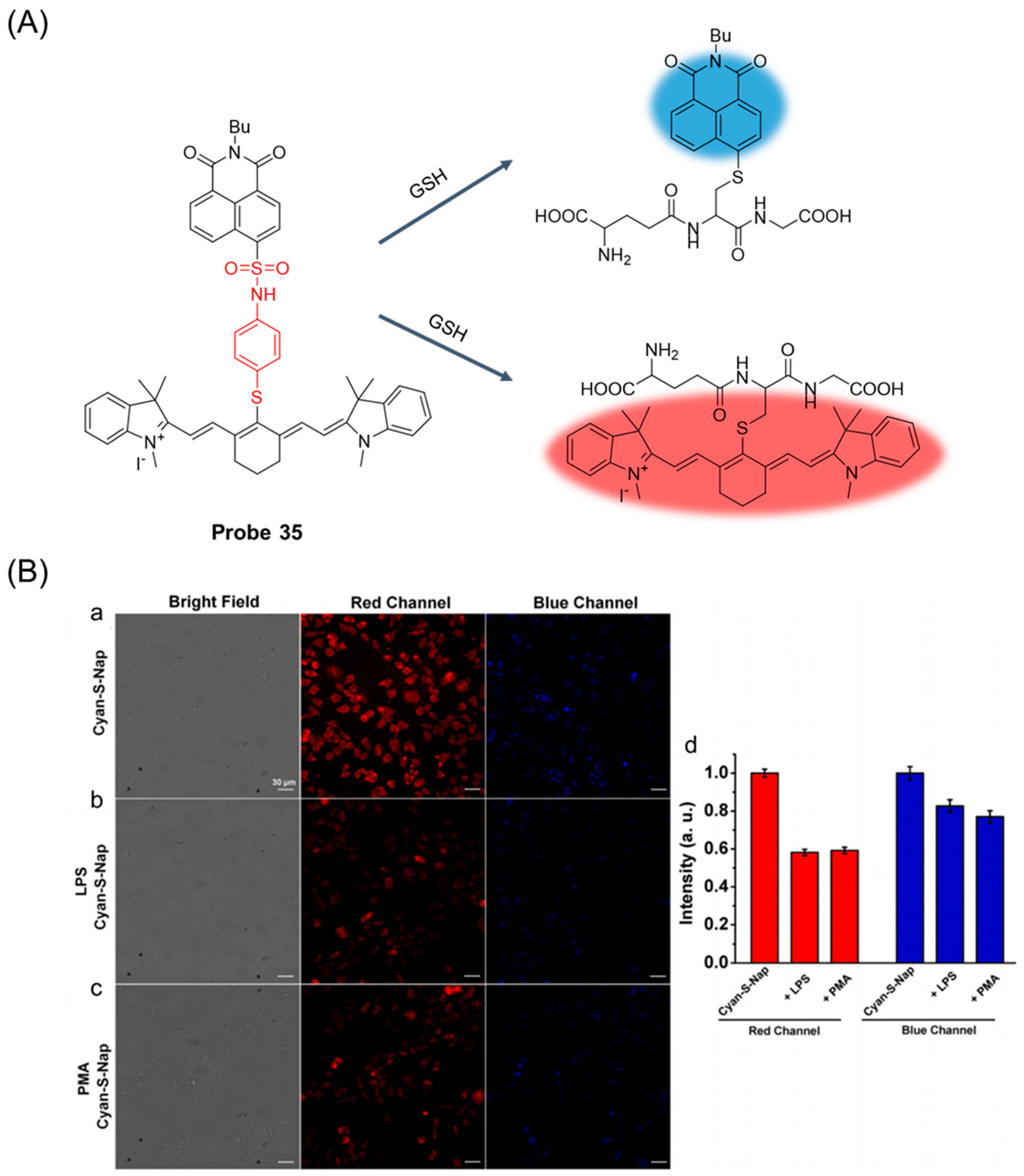

In 2023, Bao et al. [87] designed and synthesized a new double-reactive double-channel fluorescent probe, Probe 35, for selective detection of GSH. As shown in Figure 43A, the probe could simultaneously detect GSH in the near infrared and visible regions, using heptamethine cyanine and naphthalimide as fluorophores, respectively. After the addition of GSH, the fluorescence signal of the probe at 492 nm and 802 nm was significantly increased simultaneously. The probe had high selectivity and sensitivity to GSH, with detection limits of 5.68 μM and 0.36 μM in visible and near-infrared channels, respectively. In addition, cell imaging studies have shown that the probe has the ability to visualize intracellular GSH and to track ROS-induced changes in cellular GSH concentrations in biological systems (Figure 43B).

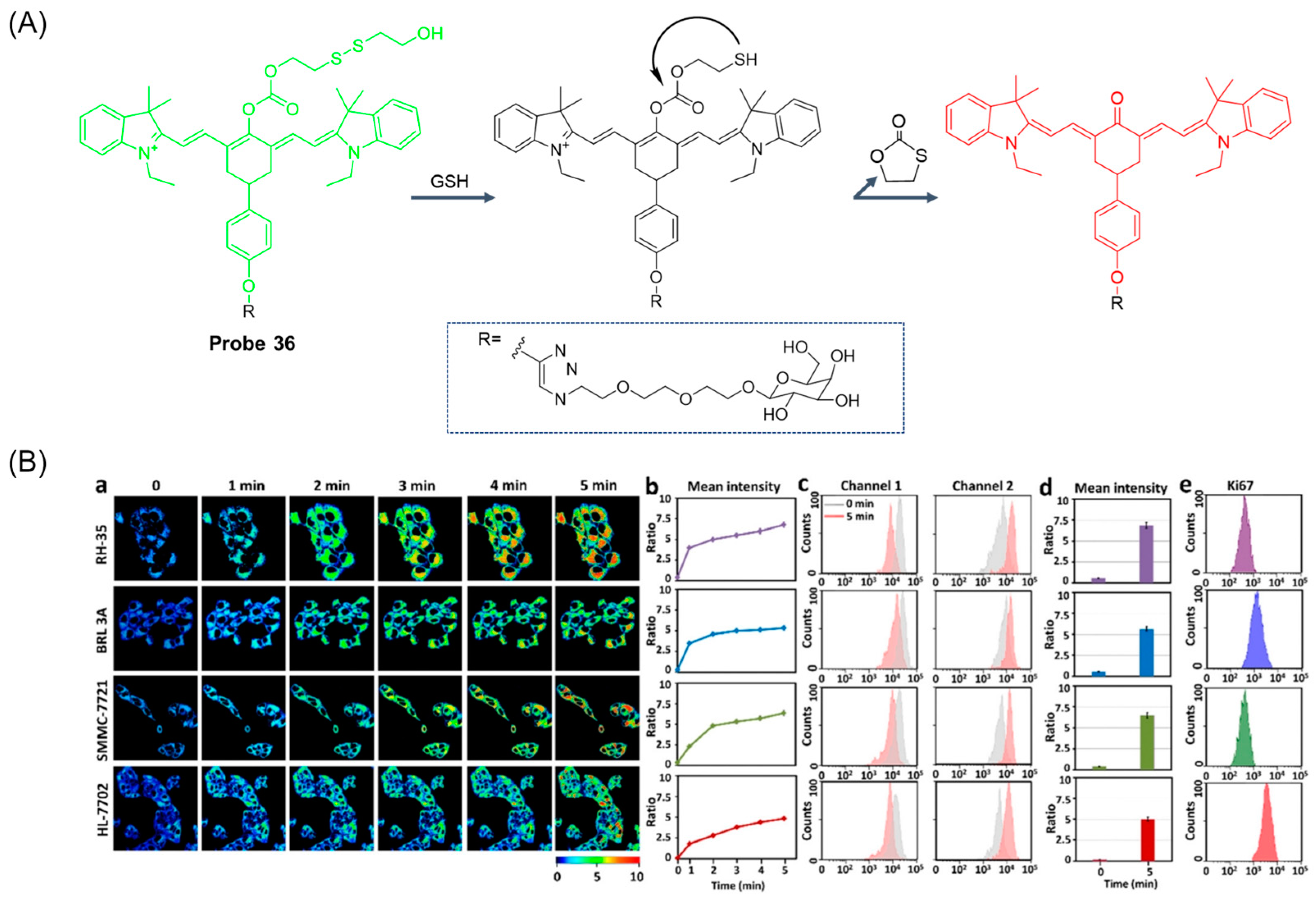

In 2023, Han et al. [88] designed and synthesized a rate-type near-infrared fluorescence probe, Probe 36, for specific detection of GSH changes in living cells and mouse models of liver cancer. As illustrated in Figure 44A, the probe used heptamethine ketone cyanine as a fluorophore, bis (2-hydroxyethyl) disulfide as a fluorescence regulator, and D-galactose as a targeted part. After addition of GSH, the fluorescence of the probe at 783nm was decreased, and the fluorescence at 613nm was significantly enhanced. The fluorescence intensity ratio F_613nm/F_783nm was positively correlated with the GSH concentration in the range of 0–10 mM, the actual detection limit was 2 μM, and the theoretical detection limit was 65 nM. Dynamic experiments showed that the probe reached a response plateau in 5 min after adding GSH (10 mM), which can be used as an effective tool for real-time bioimaging of intracellular GSH. In addition, probes have been shown to detect GSH production in live RH-35, BRL 3A, SMMC-7721, and HL-7702 cells (Figure 44B) as well as changes in endogenous GSH concentrations in live RH-35.

In this section, Probes 33–36 are the focus of discussion for cyanine fluorophore, and

Table 6. Summary of the relevant parameters of GSH probes based on cyanine fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 33	Cy-GST	High selectivity, High sensitivity	730	810	10 ng/mL	IMR-90, RLE-6TN, Mouse	[85]
Probe 34	Cy-DC	High selectivity, High sensitivity, Dual-channel	358/700	520/810	24/32 nM	L02, U87MG, Mouse	[86]
Probe 35	Cyan-S-Nap	Dual-channel, High selectivity	380/492	720/810	5.68/0.36 μM	HeLa, HepG2, Raw264.7	[87]
Probe 36	CyO-Disu	Ratiometric, High selectivity, High sensitivity	F535/F710	F613/F783	65 nM	RH-35, BRL 3A, SMMC-7721, HL-7702	[88]

summarizes the selectivity, sensitivity, and applications of these probes. Probes 33, 34, 35, and 36 have high selectivity for GSH recognition, and Probe 35 can recognize GSH simultaneously under different excitation wavelengths of two channels.

2.7. Fluorescent Probe Based on Benzothiazole

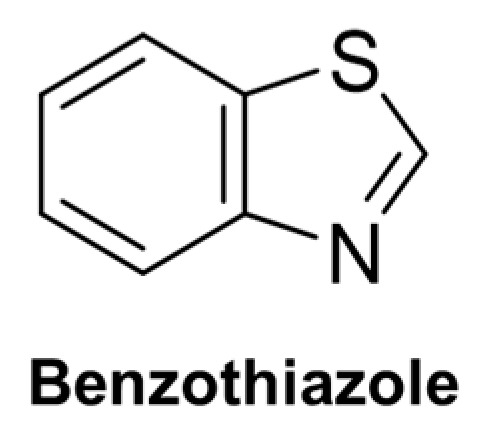

The introduction of certain structures or functional groups on benzothiazole (Figure 45) and its derivatives containing benzene and thiazole rings can be used to construct benzothiazole fluorescent probes. Based on the mechanisms of photoinduced electron transfer (PET), excited state intramolecular proton transfer (ESIPT), intramolecular charge transfer (ICT), and aggregation-induced emission (AIE), the obtained fluorescence probes can interact specifically with the analyte to change its luminescence characteristics and realize the detection of the analyte [89]. Benzothiazole fluorescent probes show advantages such as a large Stokes shift, high quantum yield, and excellent color transformation and can be used for substance detection, harmful substance analysis, and cell imaging [90].

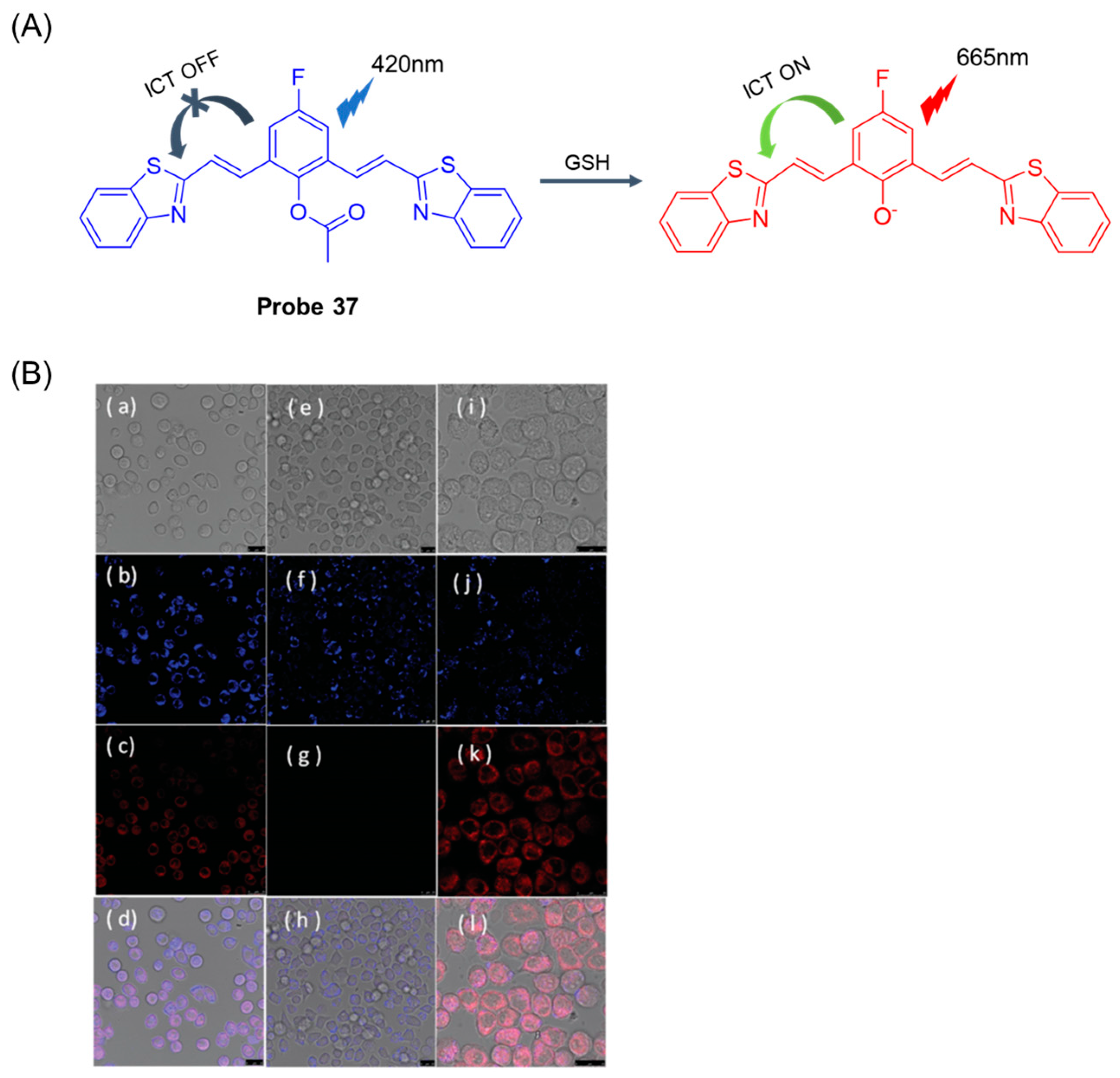

In 2019, Zhou et al. [91] developed a near-infrared ratio fluorescence probe, Probe 37, based on benzothiazole fluorophores. As shown in Figure 46A, in the composition of the probe, the active phenol group is masked by the acetyl group, which acts not only as a trigger for ICT fluorescence but also as a recognition site for GSH. In aqueous solution, the probe itself showed strong blue short-wavelength fluorescence emission at 426 nm and weak near-infrared fluorescence emission at 665 nm. When GSH was added, the near-infrared fluorescence was significantly enhanced, and the short-emission fluorescence was decreased. The selectivity experiments showed that the probe was highly selective to GSH and could distinguish the color changes before and after recognition. The fluorescence intensity ratio (I_665nm/I_426nm) was linearly correlated with the concentration of GSH from 0 to 100 μM, and the detection limit was 0.35 μM. In addition, the probe had low cytotoxicity and has been successfully used for rate-fluorescence bioimaging of GSH in living HeLa cells (Figure 46B).

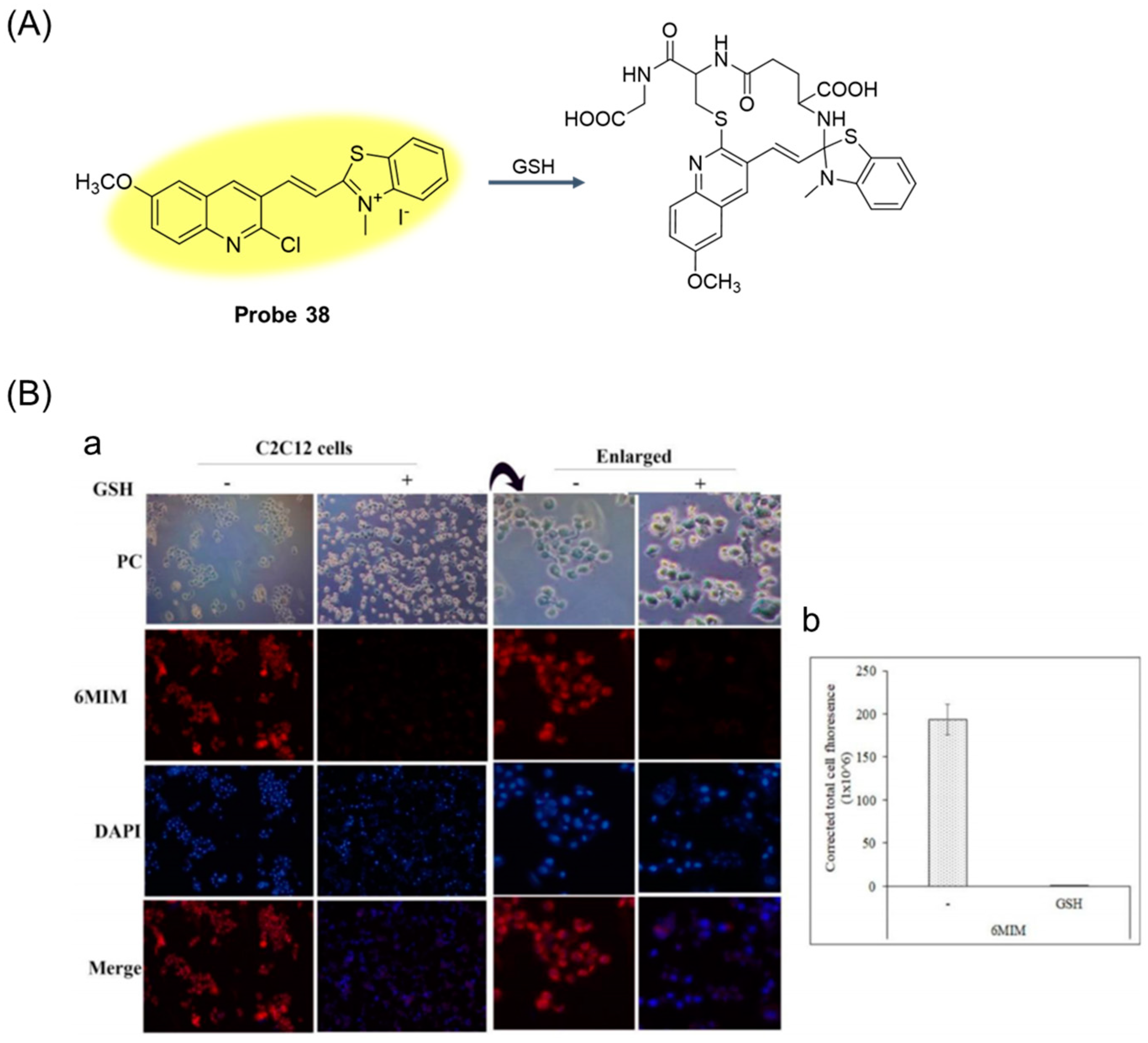

In 2020, Mani et al. [92] designed and synthesized a quinoline semi-cyanine fluorescent probe, Probe 38, with strong ICT properties for selective detection of GSH. As shown in Figure 47A, after adding GSH, the color of the solution changed from yellow to colorless, and the fluorescence quantum yield decreased from 15% to 1.3%. As the concentration of GSH increased, the emission peak decreased steadily to 522 nm and a new emission peak appeared at 428 nm. The fluorescence intensity and GSH concentration increased linearly in the range of 30 μM–75 μM, and the detection limit was 100 nM. Moreover, the probe had the advantages of a simple preparation method, good light stability, and good performance. Cell experiments have shown that the probe has low cytotoxicity and can be used as a potential tool to detect GSH in living cells (Figure 47B). In addition, the probe was used in conjunction with a smartphone RGB color value application, enabling real-time online analysis of GSH with a minimum detection limit of 120 nM.

In this section, Probes 37 and 38 are the focus of discussion for benzothiazole fluorophore, and

Table 7. Summary of the relevant parameters of GSH probes based on benzothiazole fluorophore.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 37	HBT-GSH	Ratiometric, High selectivity	350	F665/F426	0.35 μM	HeLa	[91]
Probe 38	6MIM	High selectivity, High sensitivity, Smartphone integration	380	F428/F522	100 nM	C2C12	[92]

summarizes the selectivity, sensitivity, and applications of these probes. Probes 37 and 38 have high selectivity and sensitivity for GSH recognition, among which Probe 38 can be used in combination with smartphone RGB color value applications.

2.8. Other GSH Fluorescent Probes

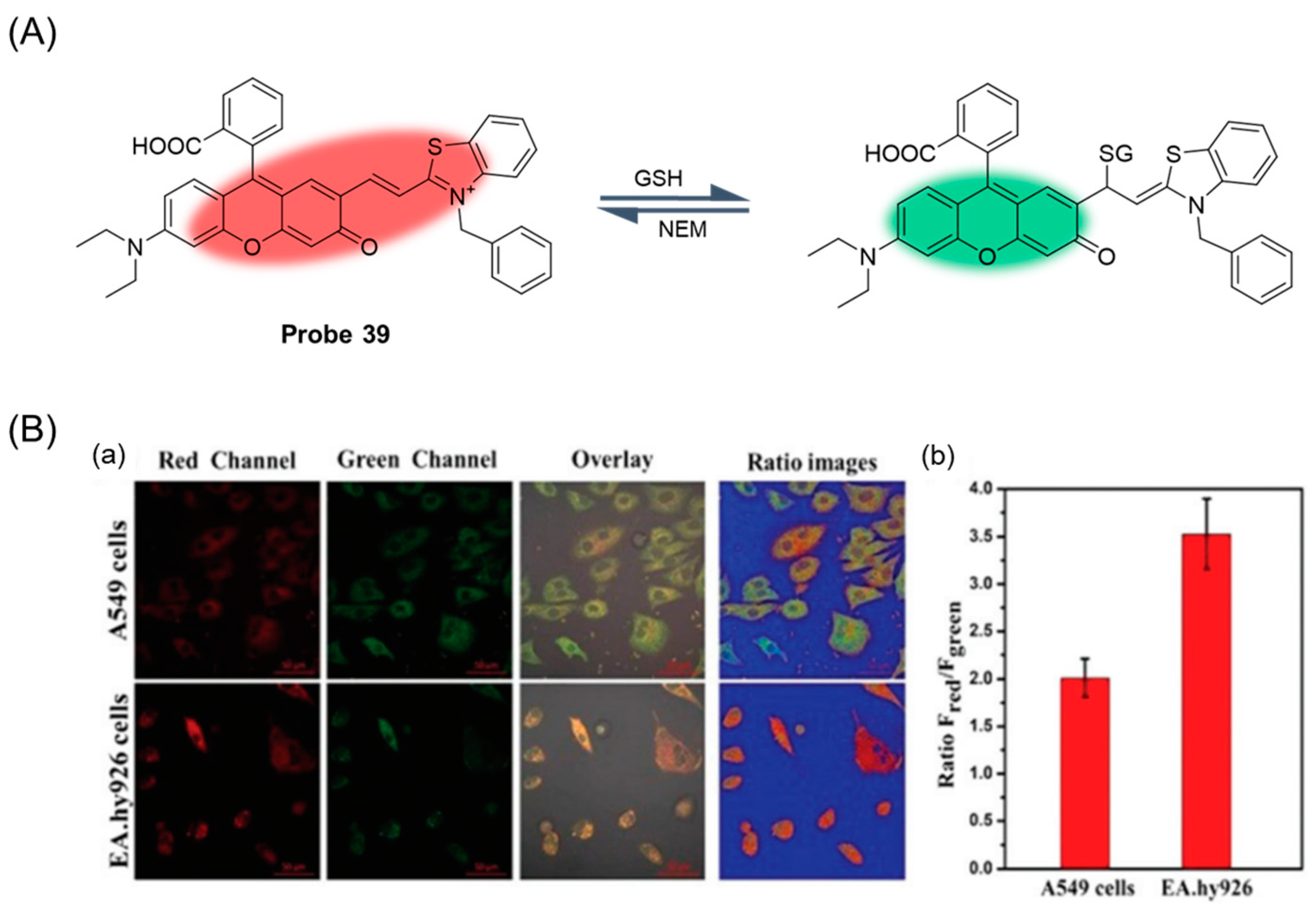

In 2019, Ren et al. [93] developed a reversible fluorescent probe, Probe 39, (Figure 48A) based on rhodol-hemocyanin fluorescent dye to detect changes in intracellular GSH levels. After the addition of GSH, the maximum emission peak of the probe at 688 nm gradually decreased, while a new emission peak appeared at 560 nm. The fluorescence intensity ratio I_560nm/I_688nm showed a good linear relationship with GSH concentration in the range of 0–7 mM, and the detection limit was 9.43 μM. Moreover, the probe was able to respond quickly with GSH within 1 min, and the half-life (t_1/2) was calculated to be 89 ms. Moreover, the probe could detect GSH under physiological pH conditions and had high selectivity and good photostability. In addition, the probe had low cytotoxicity and has been successfully applied to fluorescence imaging of GSH concentration fluctuations in living cells (Figure 48B).

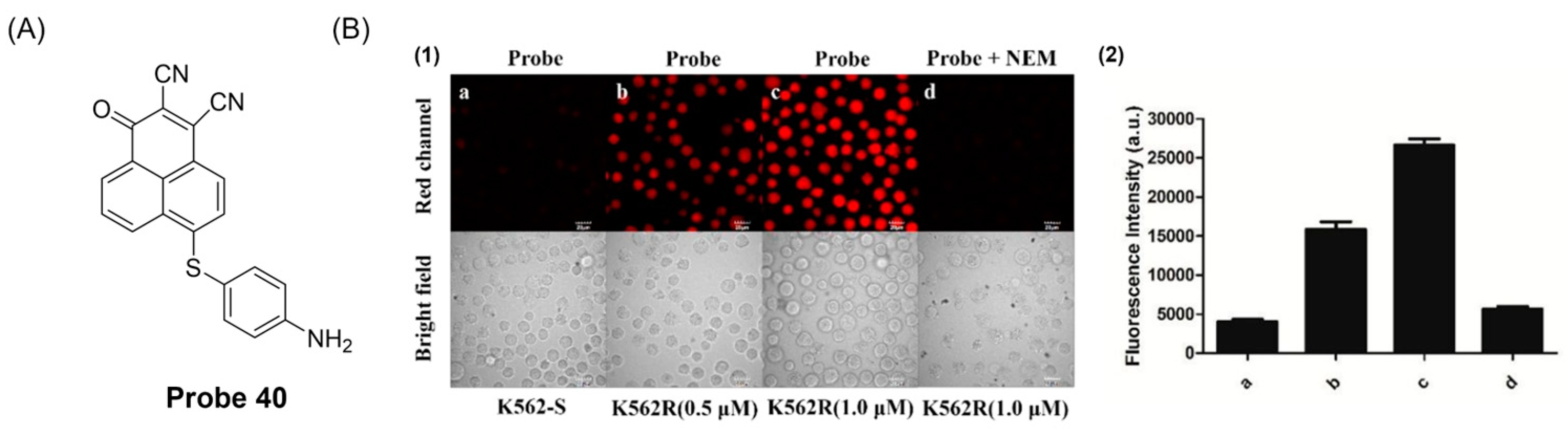

In 2019, Zhang et al. [94] developed a fluorescence probe, Probe 40, (Figure 49A) using OPD as a fluorophore based on the S_NAr mechanism. When GSH was added, the fluorescence emission was significantly enhanced at 606 nm and showed high selectivity. The probe was stable under physiological pH conditions and showed significant fluorescence response to GSH when the pH value was 7.0–8.0. The fluorescence intensity after recognition increased linearly with the increase in GSH concentration in the range of 0–10 μM, and the detection limit was 2.3 × 10⁻⁸ M. In addition, the MTT test proved that the probe had low cytotoxicity. The probe has been successfully applied to fluorescence imaging of GSH in living cells and organisms, and for the first time it measured GSH levels in different imatinib-resistant K562 tumor cells (Figure 49B).

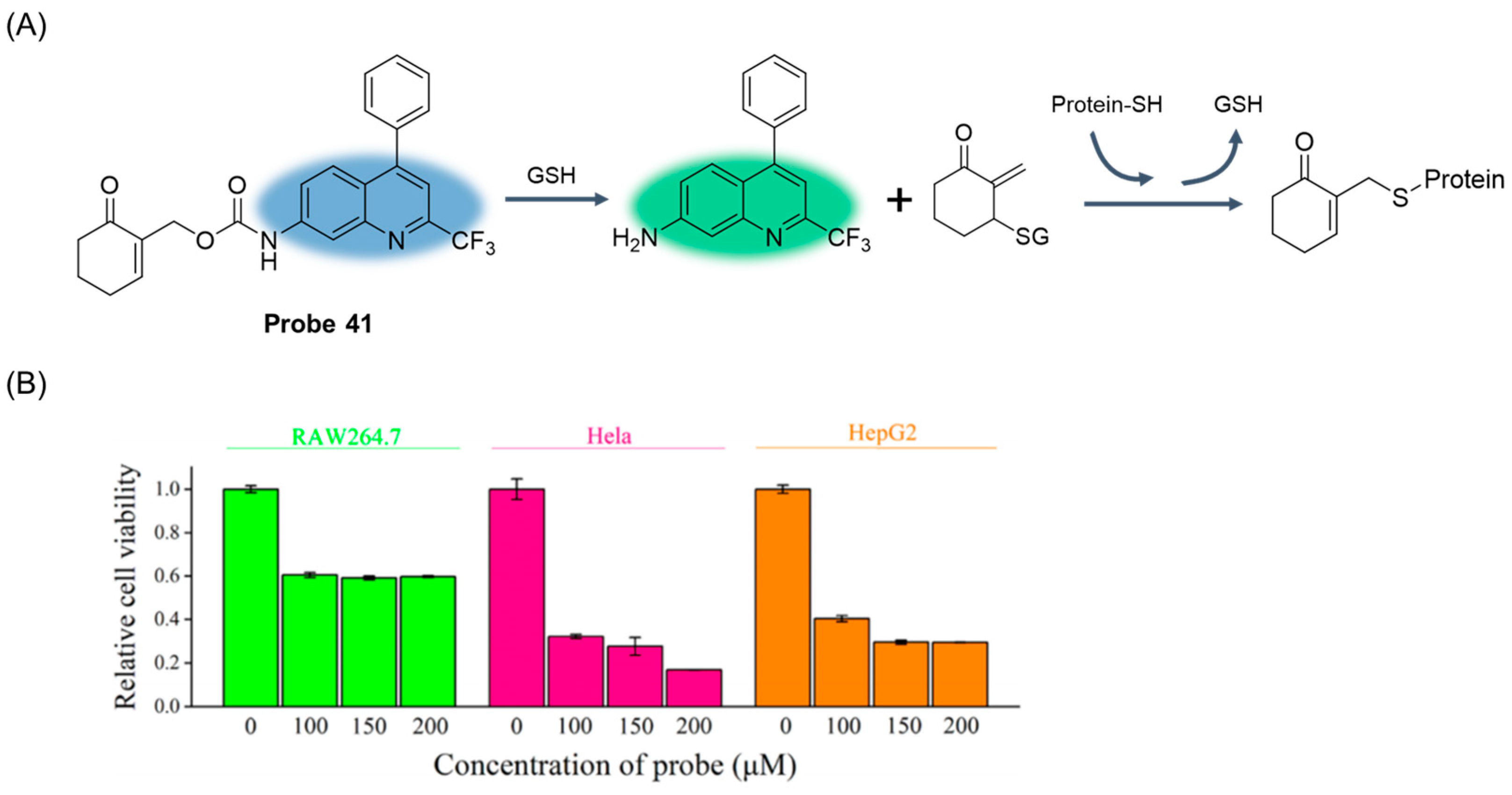

In 2021, Rong et al. [95] designed and synthesized a fluorescence probe, Probe 41, targeting GSH in the Golgi apparatus, with 4-CF3-7-aminoquinoline as the fluorescent body. After the addition of GSH, the fluorescence intensity of the probe at 425 nm decreased and a new absorption peak appeared at 510 nm. The fluorescence intensity ratio I_510nm/I_425nm showed a significant linear relationship with the concentration of GSH in the range of 0–75 μM, and the detection limit was 0.49 μM. As illustrated in Figure 50A, after the probe reacted with GSH, the ester group was broken and the active molecule and 4-CF3-7-aminoquinoline fluorescence were released. The active molecule covalently binds to the mercaptan on the Golgi protein, causing the abnormality of the Golgi apparatus, thus playing a role in killing cancer cells. In addition, the probe has been successfully applied to track changes in GSH concentration levels in the Golgi apparatus by ratio fluorescence imaging. More importantly, the probe is selectively toxic to cancer cells (Figure 50B) and is expected to be used as a new cancer treatment drug in the comprehensive course of cancer treatment.

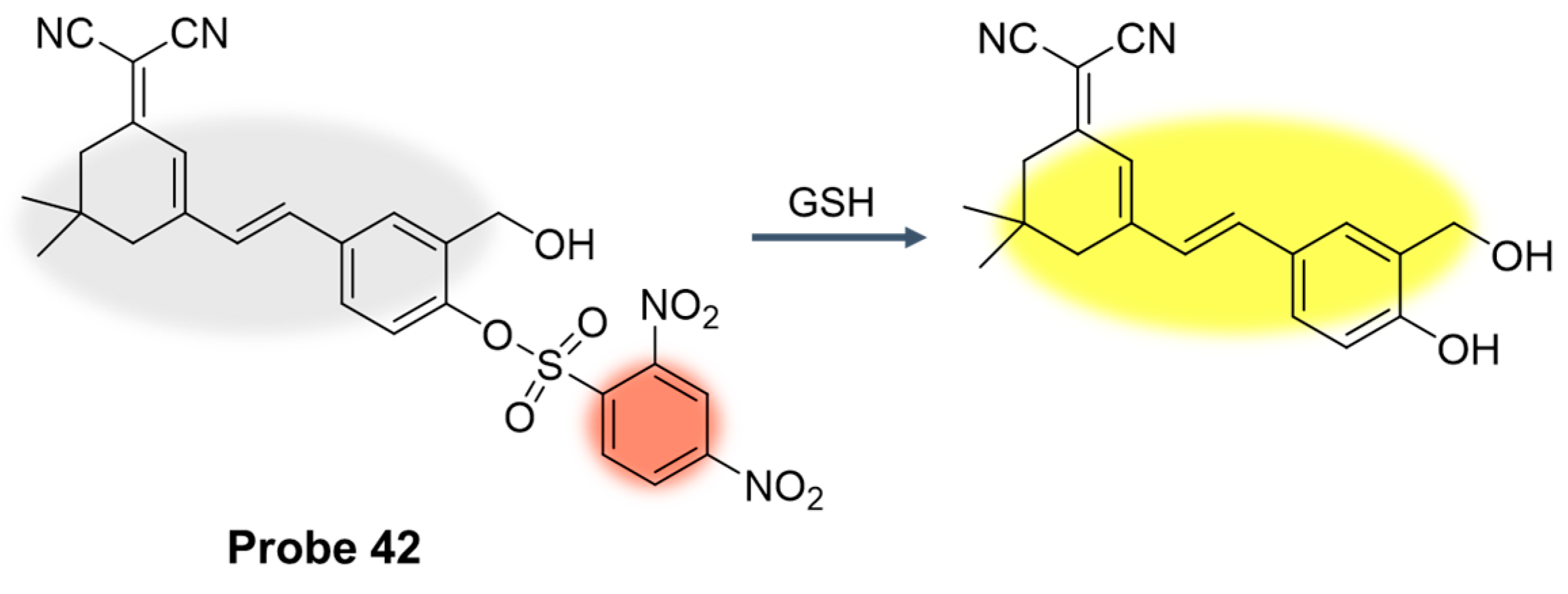

In 2022, Yuan et al. [96] prepared four kinds of fluorescent probes by adjusting the functional group at the ortho position of the dicyanoisophorone core. The results of fluorescence response and molecular simulation showed that Probe 42 showed the strongest binding affinity. As shown in Figure 51, the probe used dinitrobenzene sulfonic acid as a recognition site and fluorescence quencher. The probe showed a dual-channel spectral response to human serum albumin (HSA) and GSH. After the addition of HSA, a fluorescence emission at 660 nm was observed under excitation of 500 nm, while the presence of GSH did not cause interference. The probe showed a good linear relationship with HSA in the range of 0.5–18 μM, and the detection limit was 35 nm. However, by switching the excitation wavelength to 400 nm, the probe reacted with GSH with a yellow fluorescence emission at 575 nm. The probe showed a good linear relationship with GSH concentration in the range of 5–60 μM, and the detection limit was 4.65 μM. In addition, the cell imaging results showed that the probe had low cytotoxicity and is expected to be applied to monitor the changes in HSA and endogenous/exogenous GSH in HepG2 cells.

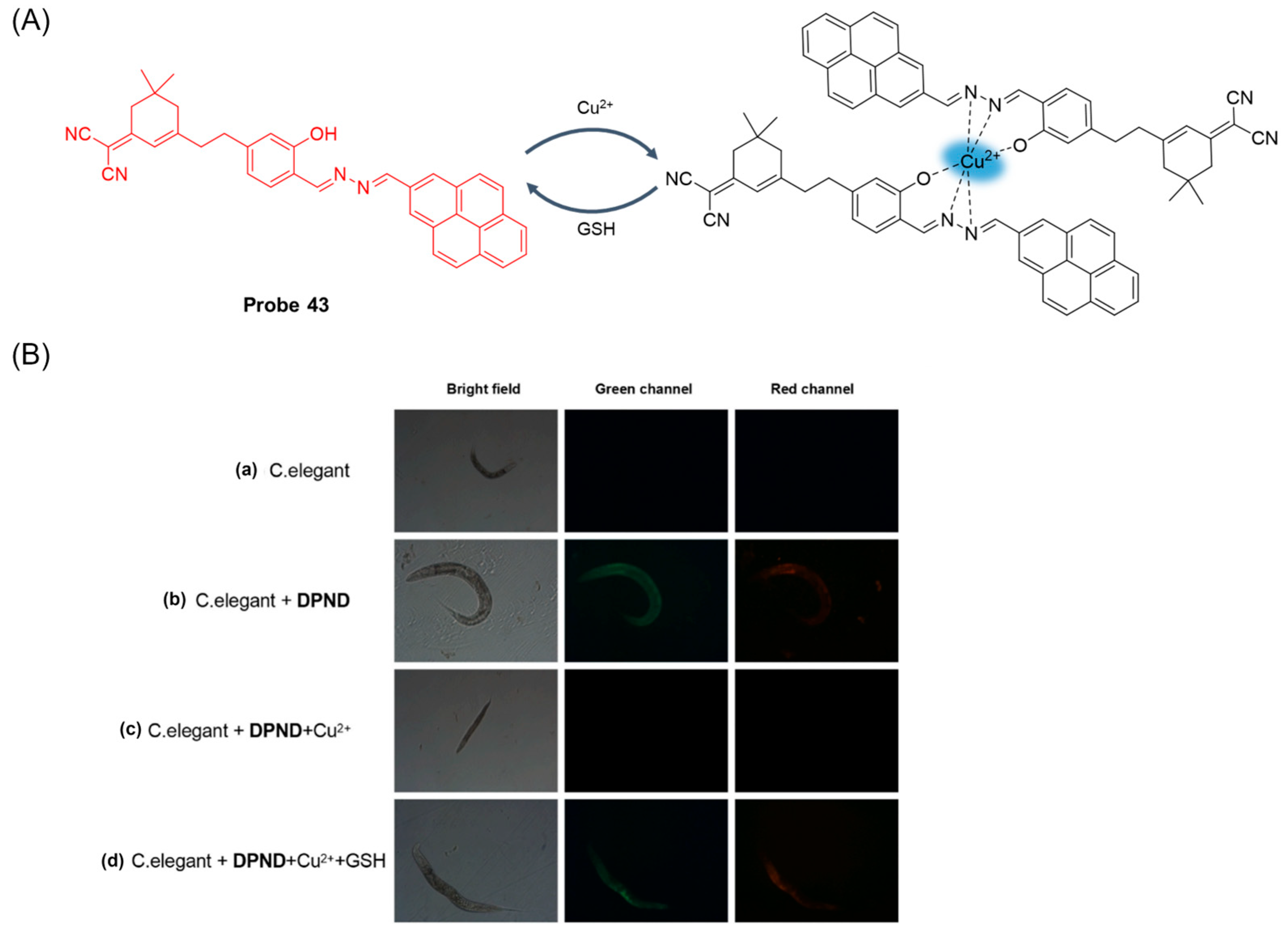

In 2023, Yao et al. [97] designed and synthesized a novel AIE fluorescent probe, Probe 43, for GSH detection. As illustrated in Figure 52A, the probe first underwent the “off” property of coordination with the metal cation Cu²⁺, which reduced the fluorescence intensity of the probe itself to 1/10th of the original. After adding GSH, 43-Cu²⁺ highly selectively recognized GSH and produced a fluorescent “on” property. The fluorescence intensity was linearly proportional to GSH concentration in the range of 0.0–80 μM, and the detection limit was 1.17 μM. The response time of the probe and Cu²⁺ was 180 s, and the response time of probe 43-Cu²⁺ and GSH was 360 s, both of which had fast response speed. In addition, the probe showed a reversible “off–on” fluorescence response and good stability during the alternations of Cu²⁺ and GSH. The fluorescence intensity of the probe did not change in the range of pH 5.0–8.0, indicating that it was suitable for physiological conditions. Most importantly, the improved probe showed extremely low cytotoxicity and could be used to determine GSH changes in mouse, C. elegans (Figure 52B), and Hela cells.

In this section, Probes 39–43 are the focus of discussion for other fluorophores. Other fluorophores include Rhodro-hemocyanin fluorescent dye, 1-oxo-1H-phenalene-2,3-dicarbonitrile (OPD), 4-CF3-7-aminoquinoline, and dinitro-benzene sulfonic acid, and

Table 8. Summary of the relevant parameters of GSH probes based on other fluorophores.

Number	Original Name	Merits	λex (nm)	λem (nm)	LOD	Applications	Reference
Probe 39	RdH	Ratiometric, High selectivity, Quick response, Reversible	F510/F610	F560/F688	9.43 μM	A549, EA.hy926	[93]
Probe 40	O-NH2	High selectivity, High sensitivity	474	606	2.3 × 10−8 M	HeLa, K562S, K562R, D. magna, zebrafish	[94]
Probe 41	GT-GSH	Ratiometric, High selectivity	320	F510/F425	0.49 μM	HeLa, Raw264.7, HepG2	[95]
Probe 42	M-OH-SO3	Dual-channel	400	575	4.65 μM	HepG2	[96]
Probe 43	DPND	AIE, High selectivity	/ *	F624/F594	1.17 μM	C. elegans, HeLa, Mouse	[97]

* “/” Means not mentioned in the literature.

summarizes the selectivity, sensitivity, and applications of these probes. Probes 39, 40, 41, and 43 have high selectivity for GSH recognition, and probe 39 can react with GSH quickly and reversibly in the presence of NEM. Probe 42 belongs to the dual-channel identification of GSH and other substances, and probe 43 is a probe with AIE characteristics.

3. Conclusions

GSH plays an important role in living organisms, and abnormal levels of GSH are thought to be associated with the occurrence of many diseases. Therefore, the development of fluorescent probes that can be used to monitor GSH concentration levels in organisms is very important, which can help in the diagnosis and treatment of diseases. According to the chemical reaction properties of GSH, the GSH selective fluorescent probe was constructed using a variety of recognition mechanisms, such as Michael addition, aromatic nucleophilic substitution (S_NAr), intramolecular charge transfer (ICT), photoinduced electron transfer (PET), fluorescence resonance energy transfer (FRET), and aggregation-induced emission (AIE). In this paper, we reviewed the sensitive and selective detection of GSH by fluorescent probes developed within the past five years, classified them according to fluorophore types, and systematically discussed the synthesis methods, detection mechanisms, photophysical properties, and bioimaging applications of the probes. However, in the process of developing GSH fluorescent probes, there are still some problems that need to be further studied. These challenges can be summarized as follows: (1) the need to develop highly selective and specific GSH fluorescent probes; (2) new fluorophores requiring low cost and high fluorescence quantum yield; (3) more reaction mechanisms need to be explored to improve the response speed and sensitivity of the probe; and (4) the actual clinical application of GSH fluorescent probes still needs further research. In short, we hope that this review will be helpful to researchers in related fields and inspire them to develop next-generation GSH fluorescent probes. We believe that GSH fluorescent probes can eventually be widely used in the diagnosis and treatment of diseases and as a powerful tool for further research in the fields of chemistry, biology, food, and medicine.
