C-C Bonding in Molecular Systems via Cross-Coupling-like Reactions Involving Noncovalently Bound Constituent Ions

Abstract

Carbon-based molecules are of universal importance for a huge variety of chemical and biological processes. The complication of the structure of such molecules proceeds via the bonding of carbon atoms. An efficient mechanism for such reactions proceeds via cross-coupling, related to the association of bond-terminating counter-ions. Here, an uncommon version of such a process is investigated, with at least some ions bound in the system noncovalently and/or switching the bonding mode in due course. The analyzed sample reactions involve a single C-C bond formation in environmentally relevant halocarbon species and involve alkali–halide ion-pair components. A consistent ab initio computational study predicts the related energy barriers to alter significantly in the presence of the ion pair. Different channels are checked, with the carbon–halogen bond cleavage preceding or following the actual C-C bonding and with the counter-ions located closely or farther apart. The relative heights of the corresponding energy barriers are found to be switched by the ion pair. The above results suggest a possibility of facilitating such reactions without expensive catalysts.

1. Introduction

The formation of C-C bonds is a central process in chemistry (e.g., with regard to polymerization, film and crystal growth, and various other ways of developing complex structures) and biology (in particular with relevance for the growth of living organisms). It is therefore difficult to overestimate its importance and the need to better understand its features and versatility.

One of the efficient mechanisms (celebrated by a Noble Prize award [1]) of forming C-C bonds is cross-coupling, which proceeds via the close approach of, e.g., halogen (X) and metal (M) atoms terminating bonds originating on different C atoms. This can lead to the M-X associating into a metal–halide diatom, accompanied by coupling the released C bonds and binding these C atoms. The purpose of the present work is to evaluate the feasibility of such a process for the associating atoms attached to the carbon bases noncovalently, especially not next to each other.

One realistic version of such a situation is the case when one of the atoms, e.g., X, is initially attached covalently, and the reaction leads to its transition to noncovalent attachment before the association with M occurs. This can be exemplified by the recently studied M-CF₃ + CF₄ → C₂F₆ + MF cross-coupling-like reaction [2] proceeding via the transformation of CF₄ into CF₃-F with one unbonded F (to form, in particular, a metastable intermediate M-C₂F₆-F complex), further associating with an alkali metal atom M. The latter atom, in turn, can be already attached noncovalently in the reactant species (here, M-CF₃).

Ion pairs noncovalently attached to molecules may not necessarily result in bond formation via a cross-coupling or (e.g., in case of halo-organic rather than organic species) a cross-coupling-like reaction. In other cases, they could cause a reshaping of a trapped molecule, such as the unfolding of its bent structure under the pressure of mutually attracting counter-ions [3,4] or a molecule’s isomerization via bond rearrangement, as in M-BzO₃-X → M-C₆O₃H₆ [5] and M-cubane-X → M-ladderene-X [6]. Additionally, an ion-pair-framed molecule could also preserve its integrity and overall shape while the system demonstrates notable modifications of its other properties. These can include polarity (with outstanding dipoles up to dozens of Debye), microwave and IR spectra (with considerably increased intensities), etc., as in M-C_nH_nF_n-X (n = 3–6) [4,7,8,9,10], M-Bz-X [11,12,13,14], and M-C_nH_2n-X (n = 3, 6) [8,15,16]. In the latter case, the inserted nonpolar molecule (e.g., a hydrocarbon) stretches the ion pair, resulting in metastability of the system, while the polar insert (such as an all-cis halo-hydrocarbon) can stabilize the system relative to the separate molecule and ion pair, and even make it more stable than the isomeric complex of the directly attached components, as in molecule-MX. MX-trapped larger molecules (or, in other words, molecules such as the receptors of both M and X) have also been investigated [17], including, for instance, cyclic species such as hexacyclen and calixpyrrole [18,19]. In particular, cyclic inserts have appropriate concave electron densities (lower at centers) accommodating the framing ions and preventing their association around the trapped molecules, especially the nonpolar ones.

In particular, alkali-metal and halogen atoms represent a typical suitable pair in cross-coupling reactions due to their strong ionic bonding. The present work investigates a cross-coupling-like reaction M-CCl₃ + CCl₄ → C₂Cl₆ + MCl more completely than its previously studied F-based counterpart [2], including a variety of M-CCl₃ reactant conformers and following a couple of possible reaction channels. Significant differences in the alteration in the relevant potential barrier are found as compared to the previous case.

It is worth noting that CCl₄ has currently been phased out because of concerns about its environmental impact (precursor to refrigerants depleting ozone in the atmosphere) and safety (negative effects on the nervous system, liver, and kidneys) [20]. C₂Cl₆ has been used for extreme-pressure lubricants as well as in veterinary practice and for treatments against fungi and insects [21]. So, reacting CCl₄ into C₂Cl₆ transforms a harmful substance into a useful one, and improving the process efficiency would be beneficial.

2. Results and Discussion

First, the halocarbon system itself is considered. Next, an alkali metal atom is added in different ways, and the resulting alterations in the parameters of interest are analyzed.

2.1. CCl₃-CCl₄ → C₂Cl₆-Cl

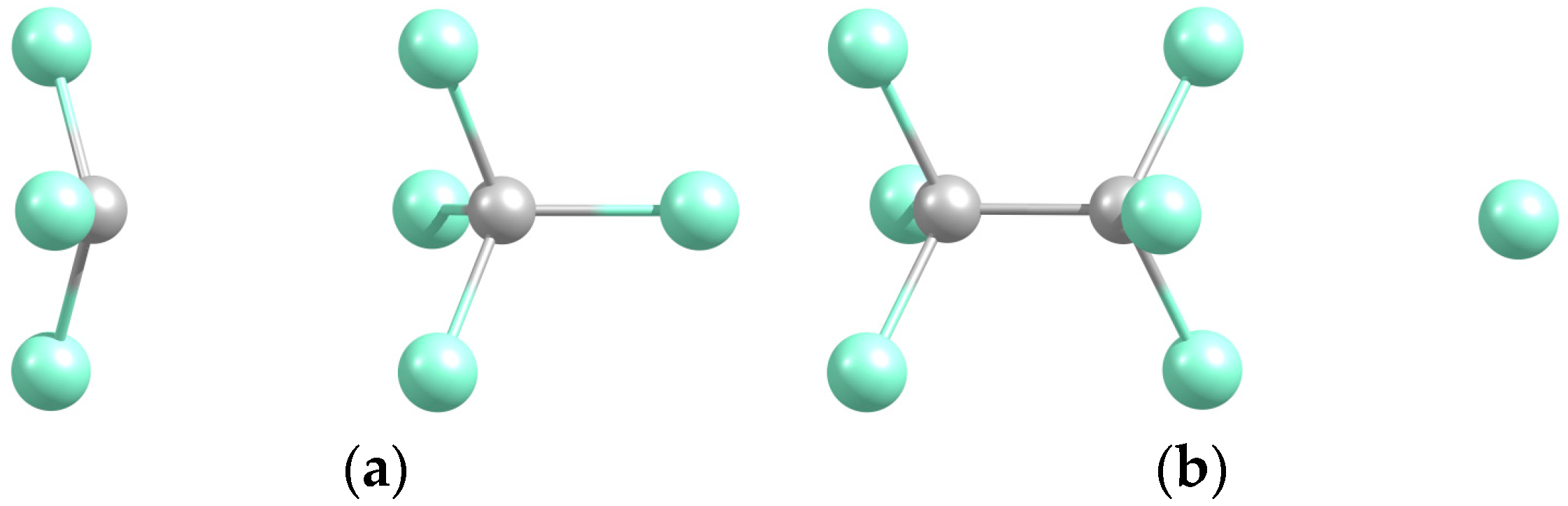

We begin with the reactant and product systems, then follow their transformation. The optimized Cl₃-CCl₄ structure has the components in a staggered (in terms of the CCl bonds) arrangement (Figure 1), while C₂Cl₆-Cl corresponds to the atom positioned axially relative to the molecule. Both complexes are weakly bound (

Table 1. Equilibrium parameters (dissociation energies, distances) of the studied systems.

System	De/eV	Re(C-C)	Re(C-Cl *)
CCl3-CCl4 (a)	0.231	3.586	1.736
C2Cl6-Cl (b)	0.095	1.554	3.743

* Axial Cl atom (positioned at the system axis). Letters with systems correspond to those in Figure 1.

), the former being more stable due to the dipole-induced dipole interaction.

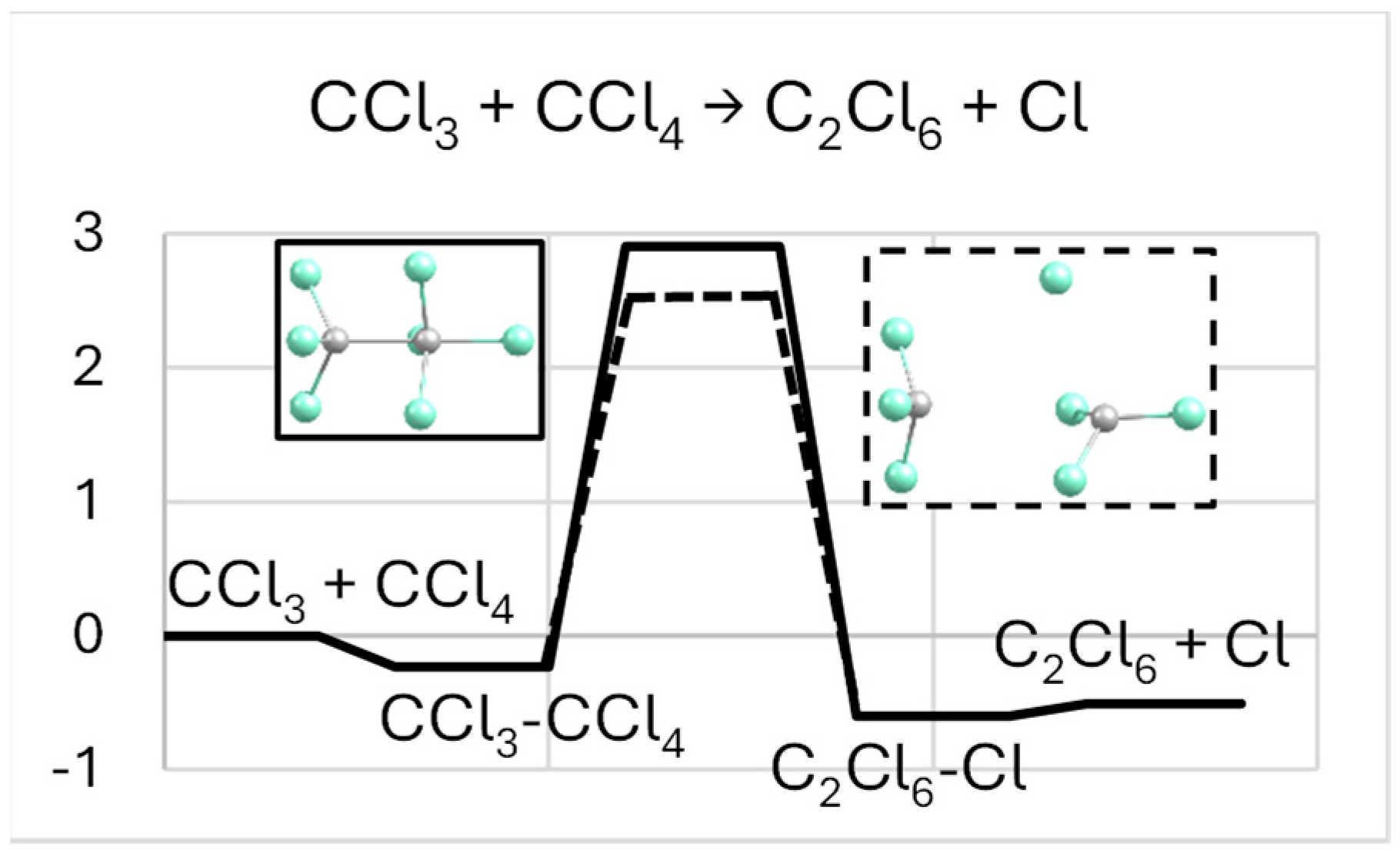

Shrinking the C-C distance in CCl₃-CCl₄ while reoptimizing the rest of the atomic coordinates presses the two molecules axially into one another, inverting the CCl₃ part of CCl₄ (like an umbrella in a strong wind) and detaching its axial Cl atom (positioned at the system axis). This leads to C-C bonding and C₂Cl₆-Cl forming over a barrier of about 3 eV (Figure 2). In comparison, for the analogous reaction CF₃-CF₄ → C₂F₆-F, the barrier was predicted to be somewhat lower, about 2.4 eV [2]. A similar transformation can also be achieved via stretching the radial (facing the CCl₃ molecule) C-Cl bond in CCl₄, which causes the CCl₃ remainder to axially align and merge with the CCl₃ molecule into C₂Cl₆, followed by about equally weak sideways attachment of the withdrawn Cl to it. The corresponding energy barrier is found to be about 0.5 eV lower.

2.2. NaCCl₃

Here, we start with NaCCl₃ complexes, then proceed to their interactions with CCl₄.

2.2.1. Structures and Stabilities

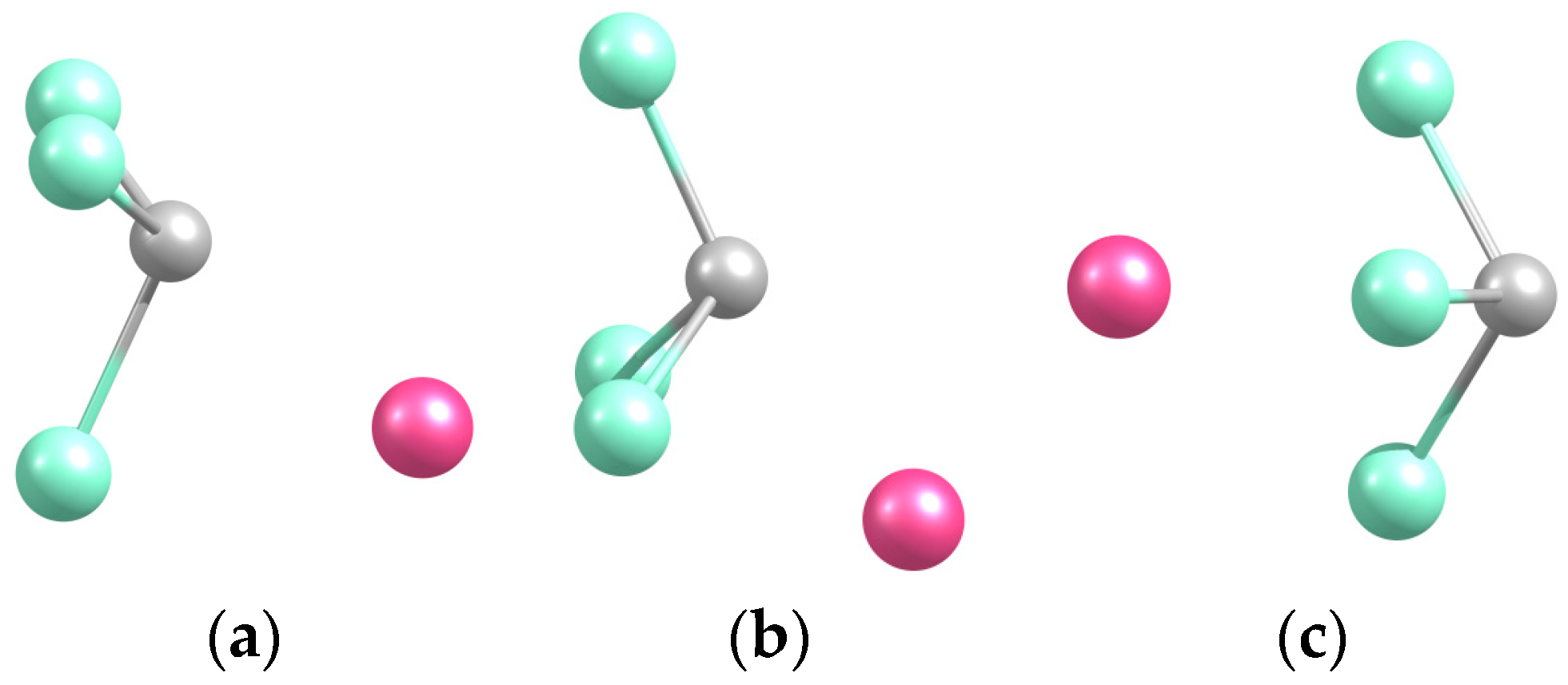

Three conformers were predicted, with Na in front of a CCl edge, a CCl₂ face (the structure is denoted NaCl₂CCl based on the proximity of atoms), and the Cl₃ base (NaCl₃C) (Figure 3). The three structures are close in energy, within 0.1 eV, the first one being the least and the second one being the most bound (

Table 2. Equilibrium parameters (dissociation energies, distances) of binary systems.

System	De/eV	Re(Na-C)/Å	Re(Na-Cl *)
Na-CCl3 (a)	2.334	2.297	2.638
Na-Cl2CCl (b)	2.408	2.225	2.697
Na-Cl3C (c)	2.339	2.831	2.613

* Nearest Cl atom(s). Letters of systems correspond to those in Figure 3.

). The latter correlates with the shortest Na-C distance (C being the most negatively charged, as discussed below) and with the proximity of Na to two Cl atoms. The near-equal stability of NaCCl₃ and NaCl₃C can also be correlated to an interplay between the relative Na-C separation (shorter in the former) and the number of Cl atoms in proximity to Na (larger in the latter). The analogous NaCF₃ system exhibits similar features to its conformers [2].

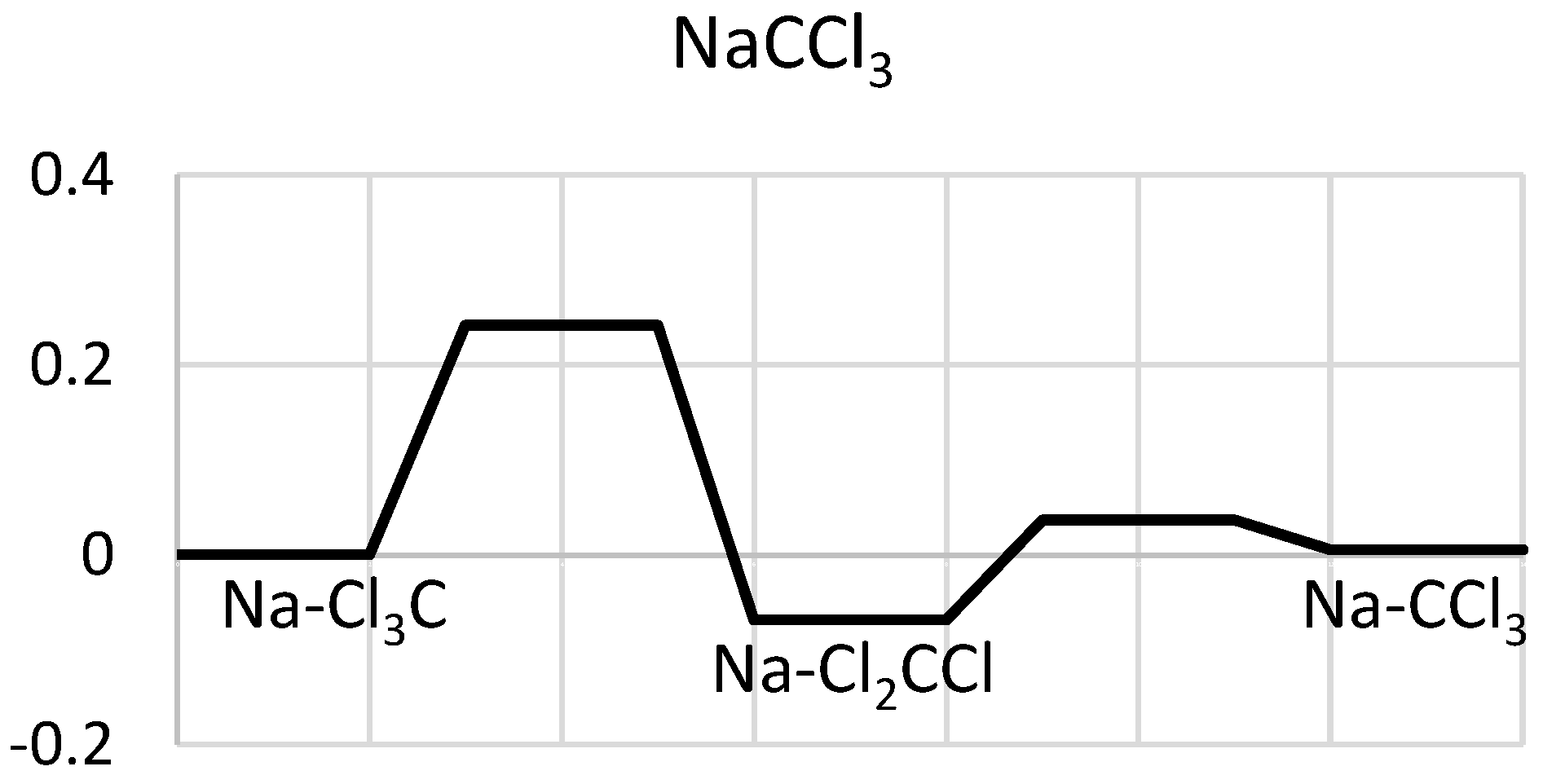

The NaCl₃C species is separated by a one-quarter eV barrier from NaCl₂CCl, and NaCCl₃ is near-degenerate with NaCl₃C (Figure 4), with a tiny energy barrier (under 0.05 eV) towards NaCl₂CCl. The intuitive axial position of Na in front of C corresponds to a saddle point.

2.2.2. Charge Distributions

For all conformers, the Na atom expectedly transfers electron density (near-unit charge) to CCl₃ (

Table 3. Natural atomic charges in the binary systems.

System	q(Na)/e	q(C)	q(Cl)
Na-CCl3	0.956	−0.549	−0.080, −0.247
Na-Cl2CCl	0.956	−0.520	−0.036, −0.200
Na-Cl3C	0.918	−0.302	−0.205

). The Cl atoms closer to Na are more negative, and the C atom is also less negative in Na-Cl₃C, where it is farther from Na.

Such charge distributions correlate to the “collective” electrostatic bonding introduced for such systems recently [22] and are here associated with a few negative centers (C and Cl atoms). Apparently, the degree of collectivity varies among the three conformers, ranging from two (C and one Cl) to four (C and three Cls) major anionic contributors.

2.2.3. Simulated IR Spectra

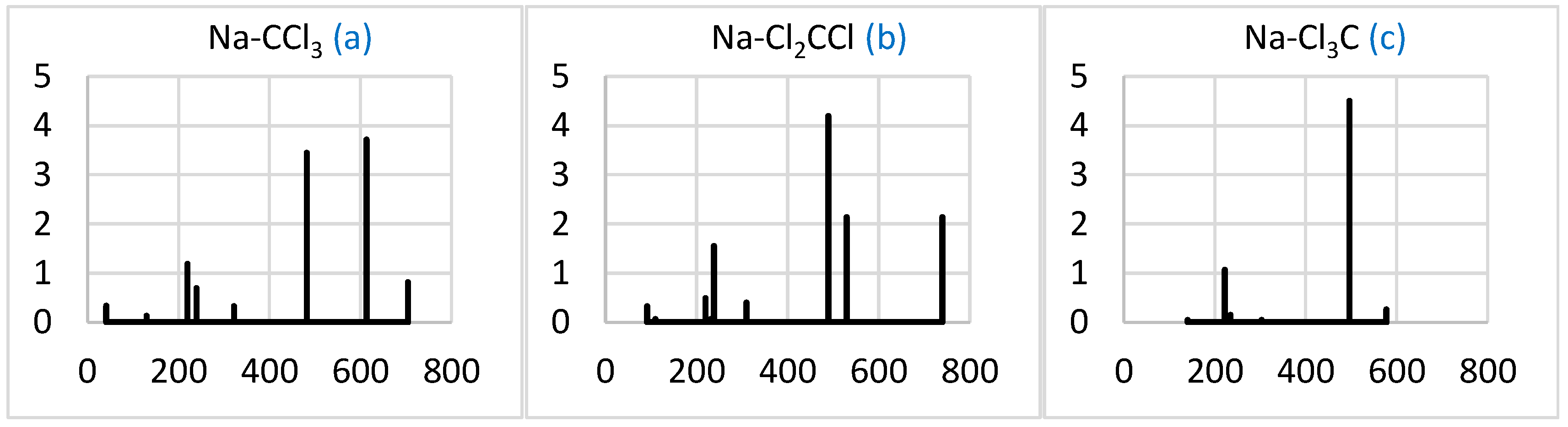

The predicted IR intensity distribution is sensitive to the Na-CCl₃ conformation (Figure 5). The spectra are mainly concentrated around 500 cm^–1. The most symmetric Na-Cl₃C is dominated by a single band splitting in two (about 130 cm^–1 apart) in Na-CCl₃ and (to a lesser extent) Na-Cl₂CCl. The latter conformer, however, also develops a significant higher-frequency band near 740 cm^–1. The weaker band near 200 cm^–1 is common for the three conformers.

2.3. NaCCl₃-CCl₄ → C₂Cl₆-NaCl

Next, each of the above NaCCl₃ conformers is complexed with a CCl₄ molecule.

2.3.1. Structures and Stabilities

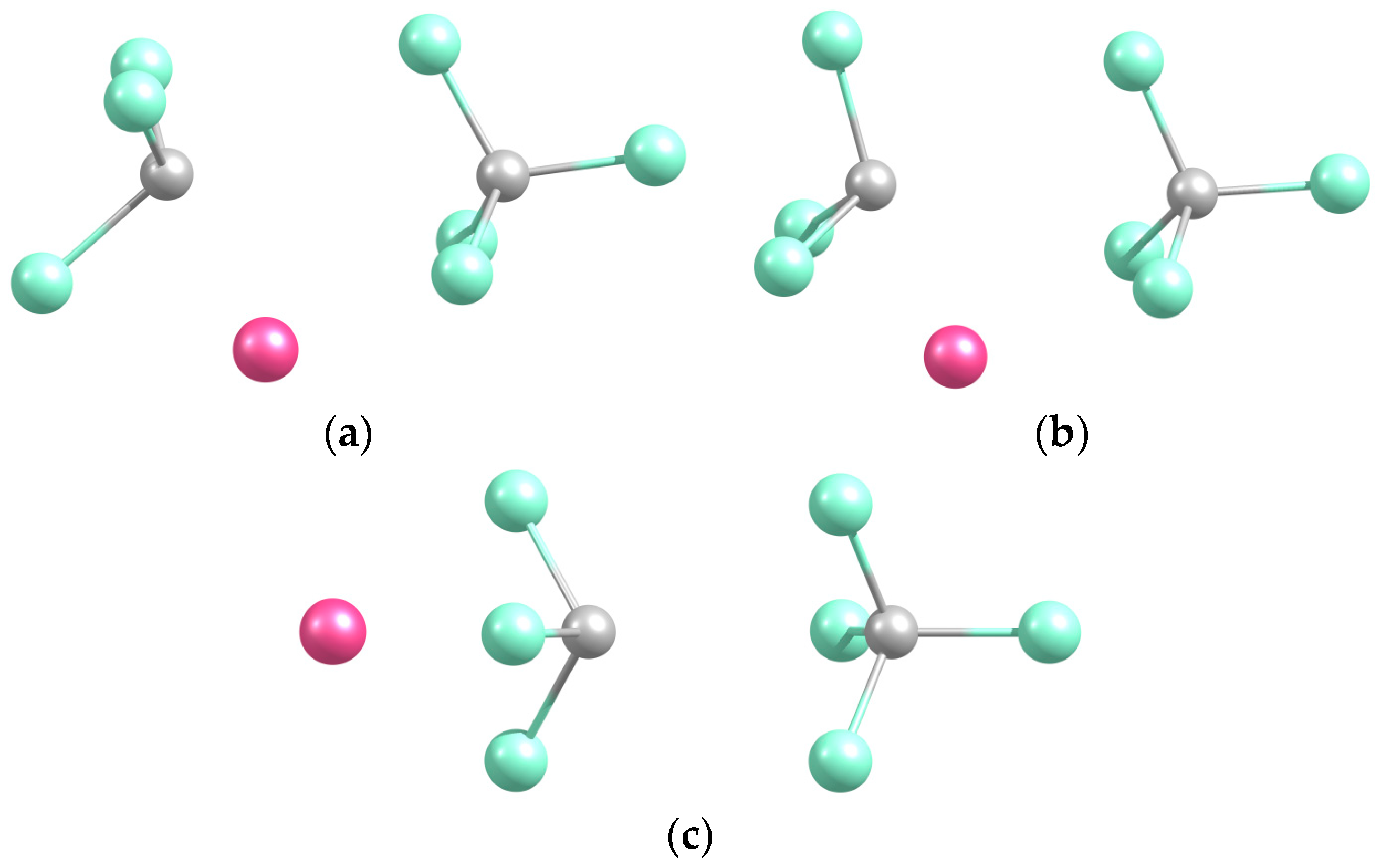

The optimized structures have the CCl₃ units of NaCCl₃ oriented similarly to those of Cl₃-CCl₄ (Figure 6), with slight distortions due to the Na components. In fact, these systems can also be produced from Cl₃-CCl₄ by attaching Na sideways or axially. In particular, Na-CCl₃-CCl₄ somewhat stabilizes the Na facing the CCl edge of CCl₃ due to this position now being in the hollow among three Cl atoms, while Na-Cl₂CCl-CCl₄ aligns CCl₃ and CCl₄ in terms of the C-Cl bonds via making a square hollow for Na among four Cl atoms. As a result, the C-C distance slightly stretches in those cases but slightly shrinks in Na-Cl₃C-CCl₄ (

Table 4. Equilibrium parameters (dissociation energies, distances) of the ternary systems.

System	De/eV	Re(Na-C #)/Å	Re(C-C)	Re(C-Cl *)	Re(Na-Cl &)
Na-CCl3-CCl4 (a)	0.488 †	2.286	3.797	1.729	2.635
Na-Cl2CCl-CCl4 (b)	0.465 †	2.231	3.756	1.730	2.680
Na-Cl3C-CCl4 (c)	0.235 †	2.825	3.349	1.745	2.615
NaCl-C2Cl6 (A)	0.502 ‡	3.309	1.555		2.384
Na-C2Cl6-Cl (L $) (B)	−1.869 ‡	3.101	1.557	3.334	2.579
Na-C2Cl6-Cl (C)	−2.391 ‡	2.828	1.549	3.275	2.732

^# Nearest C atom. * Axial Cl atom (positioned at the system axis). ^& Nearest Cl atom(s). ^† Relative to binary complex + CCl₄. ^‡ Relative to NaCl + C₂Cl₆. ^$ L-shaped. Letters of systems correspond to those in Figure 6 and Figure 7.

) by about 0.2 Å in both cases.

The two complexes with Na on a side are near-equally stable, while the one with axially positioned Na is about half as stable (Table 4), consistent with the weaker interaction of Na with the more remote CCl₄. The higher stabilization for Na-CCl₃-CCl₄ than for Na-Cl₂CCl-CCl₄ (inverting their relative stability compared to that of Na-CCl₃ vs. Na-Cl₂CCl) could be related to strain in the latter due to the abovementioned Na-caused relative rotation of the CCl₃ and CCl₄ units from the staggered to the aligned arrangement.

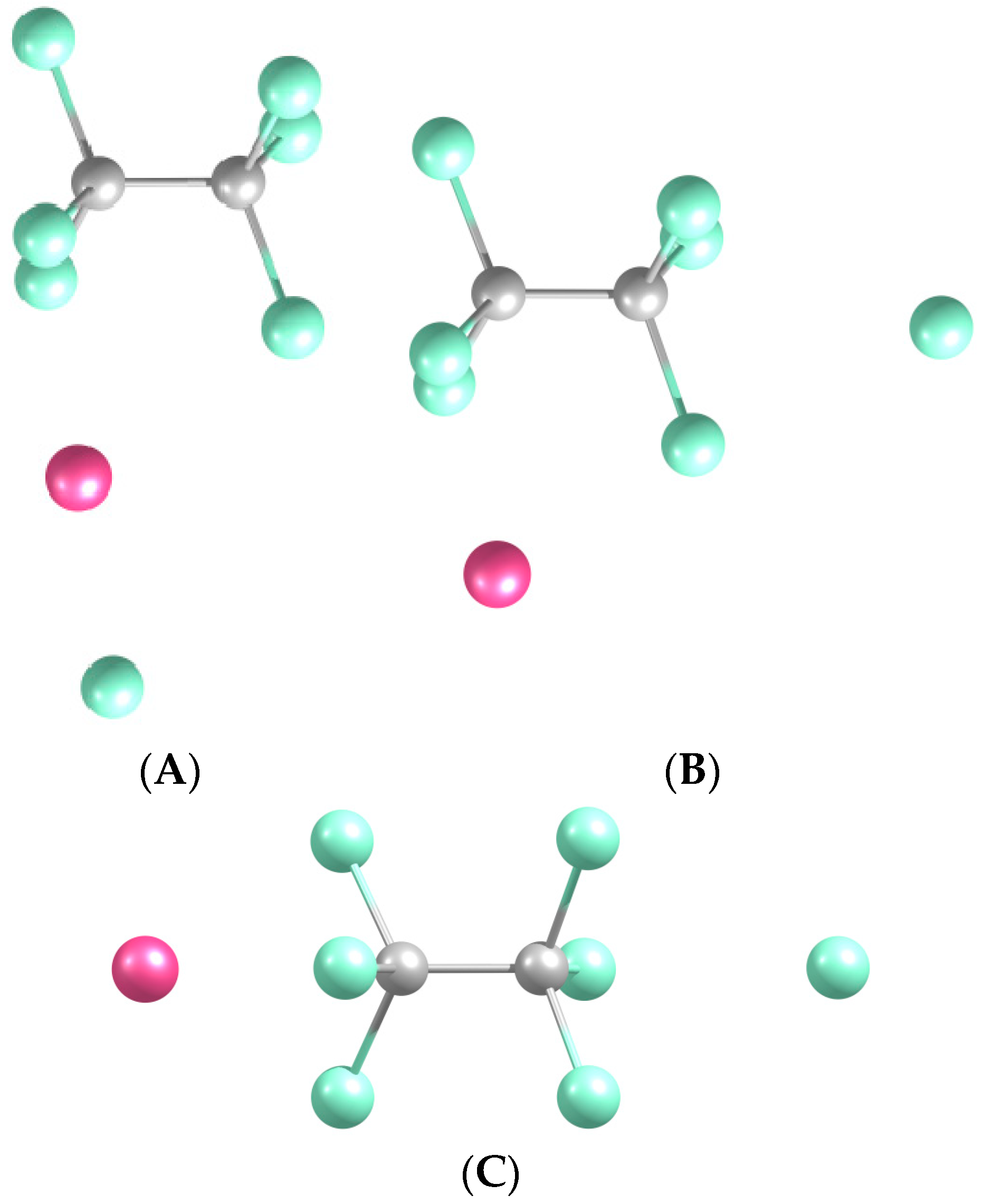

Shrinking the C-C bond leads to the formation of C₂Cl₆, with the axially positioned Cl of CCl₄ detaching, similar to the case when no Na is present. For the original Na-Cl₂CCl-CCl₄ and Na-Cl₃C-CCl₄, the resulting geometries again resemble those obtained via the attachment of Na to the C₂Cl₆-Cl system perpendicular to or along its axis (Figure 7), respectively, producing Na-C₂Cl₆-Cl (L-shaped) and Na-C₂Cl₆-Cl complexes. The former has the Na atom attached to the side of C₂Cl₆ but with a tiny potential barrier separating the Na and axial Cl from an association around C₂Cl₆ into NaCl and with the formation of a C₂Cl₆-NaCl system, with NaCl attached sideways and pointing to C₂Cl₆ from its Na end. The latter system is also a direct product of the case of the corresponding Na-CCl₃-CCl₄ transformation.

Essentially, the Na–Cl distance (hence, charge separation in the ion pair) determines the relative stabilities of the three above structures (Table 4), from moderately stable (by a half eV), electrostatically bound C₂Cl₆-NaCl, to metastable Na-C₂Cl₆-Cl (both conformers). The Cl atom here is the one not bonded to the C atoms and accepts the electron density from Na (see Section 2.3.2 below). And, the metastability means a higher energy relative to C₂Cl₆ + NaCl (in this case, due to the far-separated counter-ions), hence a negative D_e value.

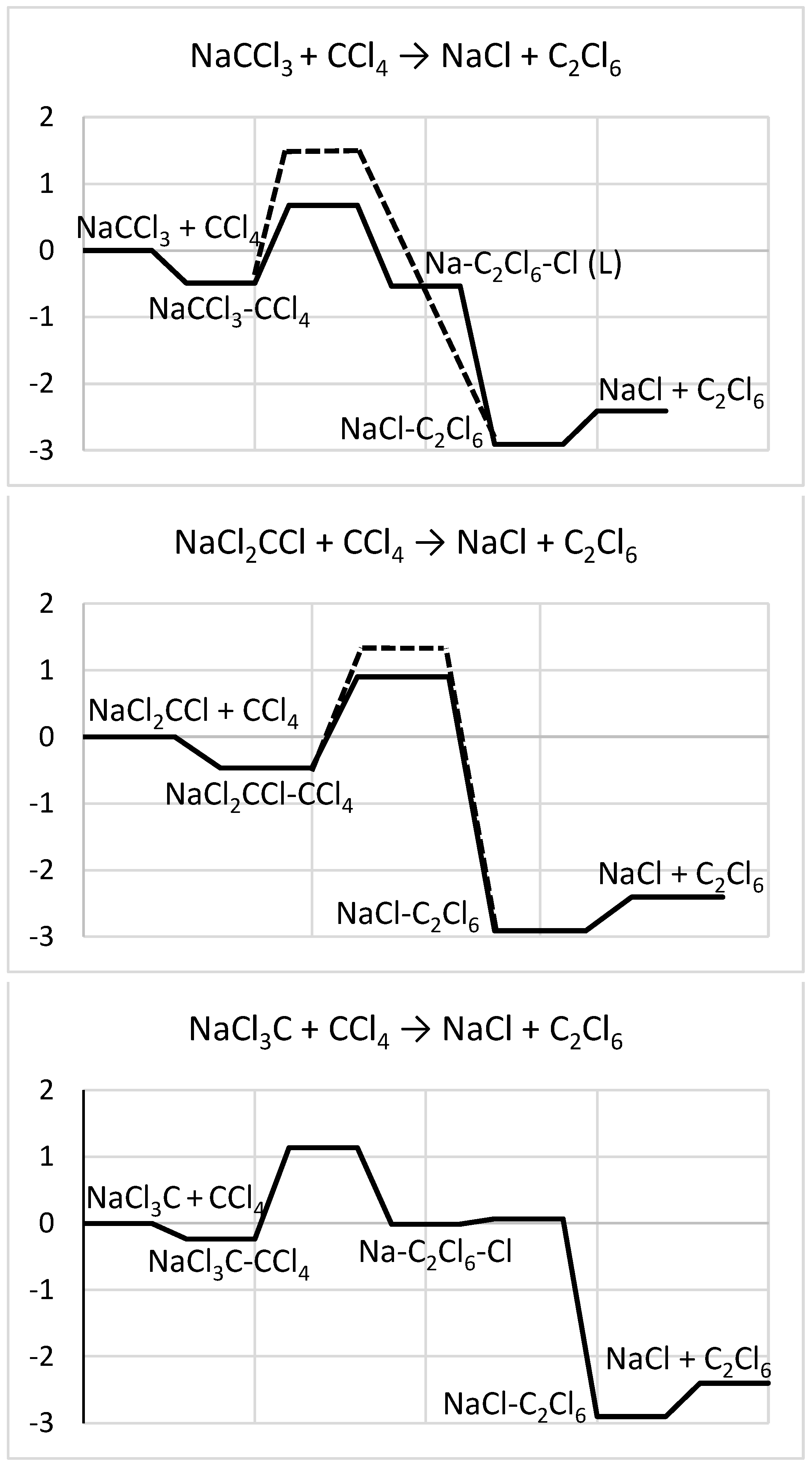

The original (reactant) and resulting (product) species are again separated by a potential barrier (Figure 8), similar to the case without Na. However, the presence of Na strongly reduces its height (about three–fourfold), progressively from Na-Cl₃C + CCl₄ (about 1.1 eV) to Na-CCl₃ + CCl₄ (about 0.7 eV). Such a barrier suppression could be assigned to the attraction between the Na and axial (released in the process) Cl, increasing with decreasing Na–Cl distance in this order of conformers. In addition, the Na-C₂Cl₆-Cl complex with the molecule axially trapped between the counter-ions shows a very low potential barrier (under 0.1 eV) to their association (around the molecule), leading to the sideways-attached NaCl-C₂Cl₆ system. In comparison, the corresponding barrier for the similar F-based case (only the Na-F₃C-CF₄ system considered) reduces weakly, to 1.7 eV [2], and is determined by a metastable Na-C₂F₇ species (not having a Cl-based counterpart) slightly lower in energy than Na-C₂F₆-F.

The alternative channel via C-Cl bond stretching also exhibits considerable potential-barrier reductions for Na-CCl₃ + CCl₄ and Na-Cl₂CCl + CCl₄, even though smaller (about twofold, to 1.4–1.5 eV). In particular, when Cl is pulled away in the latter case, the structure of the former system is recovered, and the process then follows the same steps. As a result of the different variations, the relative heights of the two barriers interchange as compared to those of the no-Na case. For Na-Cl₃C + CCl₄, however, the detaching Cl atom of CCl₄ is overtaken by the CCl₃ component, thus forming another CCl₄, which blocks the formation of C₂Cl₆. A possible reason for the latter could be that the Na in the axial position pulls Cl towards the C of CCl₃, favoring new C-Cl bond formation (unlike for the other cases with Na positioned off-axis and pulling Cl sideways from the C of CCl₃). As a result, an isomeric Na-CCl₄-CCl₃ system is produced, with Na on the CCl₄ side. The potential barrier here is about 3.2 eV.

2.3.2. Charge Distributions

In all the Na-containing systems studied here, Na is positively charged by almost unity. In the “reactant” species, the electron density is transferred to the CCl₃ component, with the (closed-shell) CCl₄ molecule remaining almost neutral (

Table 5. Natural atomic charges in the reactant systems.

System	q(Na)/e	q(CCl3)	q(CCl4)
Na-CCl3-CCl4 (a)	0.927	−0.957	0.030
Na-Cl2CCl-CCl4 (b)	0.920	−0.950	0.030
Na-Cl3C-CCl4 (c)	0.919	−0.929	0.010

Letters of systems correspond to those in Figure 6.

). And, in the “products”, the charge concentrates on the unbonded Cl atom (

Table 6. Natural atomic charges in the product systems.

System	q(Na)/e	q(Cl)	q(C2Cl6)
NaCl-C2Cl6 (A)	0.914	−0.951	0.037
Na-C2Cl6-Cl (L $) (B)	0.949	−0.983	0.034
Na-C2Cl6-Cl (C)	0.954	−0.984	0.030

^$ L-shaped. Letters of systems correspond to those in Figure 7.

), while C₂Cl₆ is essentially neutral, even when it is positioned between Na and Cl, i.e., directly in the way of the charge transfer. The Na-C₂Cl₆-Cl complex may thus be considered a result of “harpooning” through the trapped molecule.

2.3.3. Simulated IR Spectra

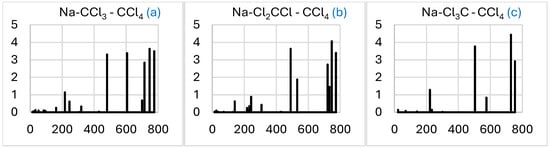

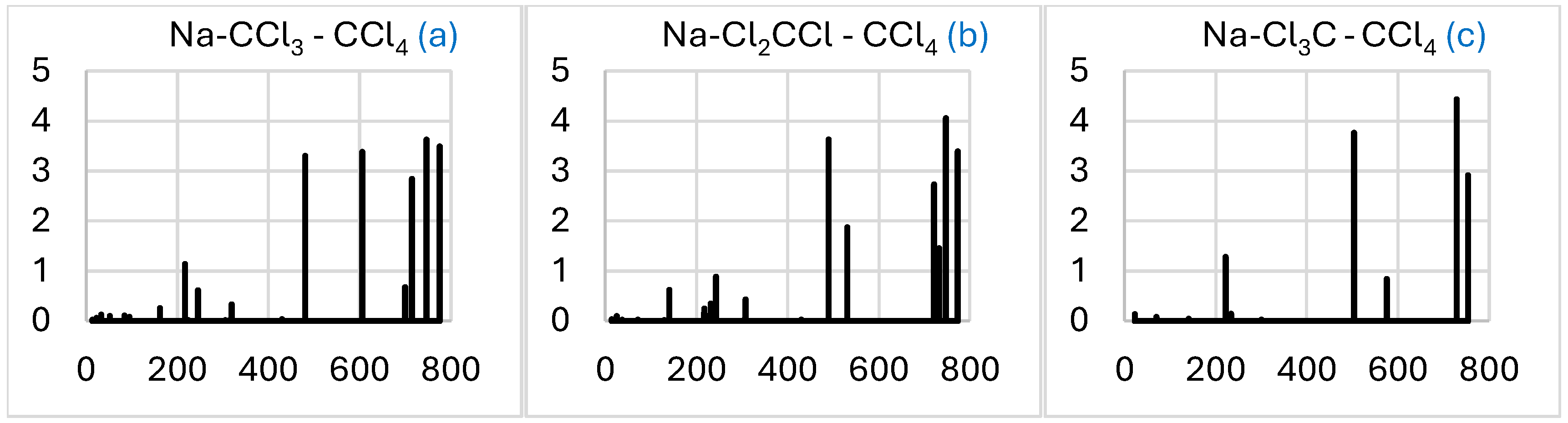

The comparison of the simulated IR spectra for the three Na-CCl₃-CCl₄ conformers with those for the corresponding Na-CCl₃ (Figure 5) shows a common feature—a few intense closely packed higher-frequency bands in the range of 700–800 cm^–1 (Figure 9). The number of different bands is smaller for Na-Cl₃C-CCl₄ due to the higher symmetry of the system, and their origin is apparently the CCl₄ molecule, with its main near-800 cm^–1 band red-shifted due to the interaction with Na-CCl₃.

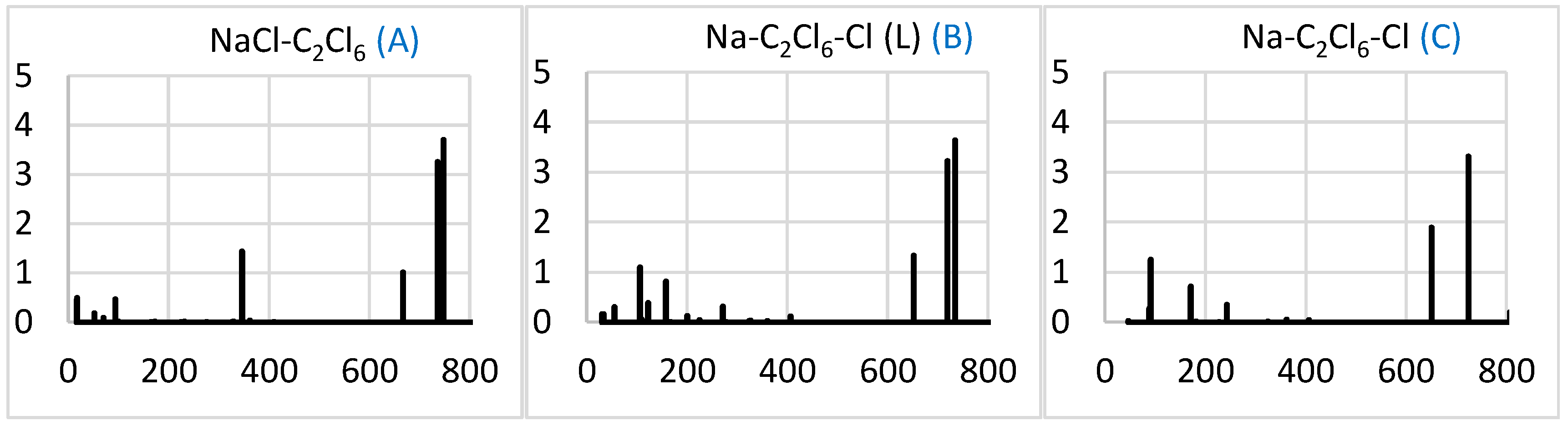

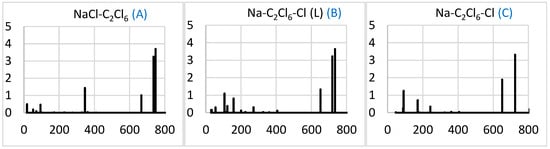

The IR spectra of the three products are mainly similar, being dominated by the band matching the near-750 cm^–1 band of C₂Cl₆ (Figure 10). Again, this band is split in NaCl-C₂Cl₆ and (more appreciably) Na-C₂Cl₆-Cl (L), due to the interaction with the other components, but not in the more symmetric Na-C₂Cl₆-Cl. Another notable modification of the spectra in the complexes is a set of additional less-intense bands at low frequencies, mainly under 400 cm^–1 for NaCl-C₂Cl₆ and under 200 cm^–1 for both Na-C₂Cl₆-Cl conformers.

A comparison of the spectra in Figure 9 and Figure 10 shows that the main variation is the cancellation of the intense bands in the range of about 450–600 cm^–1, apparently associated with the CCl₃ component. This is consistent with the consumption of this component in the reaction that enables its spectroscopic control.

2.4. CsCCl₃-CCl₄ → C₂Cl₆-CsCl

Here, a comparison with the analogous Cs-based systems is briefly highlighted. The heavier Na-CCl₃ counterpart, Cs-CCl₃, exhibits very similar near-degenerate CCl₃-Cs and Cs-Cl₂CCl conformers, the latter again being slightly more stable. However, a structure with Cs bridging C and one Cl is not found. These species are about 0.5 eV more strongly bound than the Na-based counterparts, likely due to a stronger charge transfer from the less-electronegative Cs and its higher polarizability.

The corresponding complexes with CCl₄ are bound about equally for CCl₃-Cs and Cs-Cl₂CCl and comparably to the Na-based analogues. The corresponding Na-Cl₂CCl-CCl₄ complex is slightly more bound (by about 0.2 eV), perhaps due to the smaller Na being closer to CCl₄ (which is less significant for Na-Cl₃C-CCl₄ in view of the larger Na-CCl₄ separation).

The potential energy barriers for the formation of C₂Cl₆ via C-C bond shrinking in Cs-Cl₃C-CCl₄ and Cs-Cl₂CCl-CCl₄ are about 0.9 and 1.0 eV, respectively. These are about 0.2 eV lower or 0.1 eV higher than those for the Na-based analogues and about 0.5 eV lower than for the corresponding fluorocarbon system [2]. The final product is the same in either case, C₂Cl₆-CsCl, with an intermediate metastable Cs-C₂Cl₆-Cl system (stabilized by even lower potential barriers than in Na-C₂Cl₆-Cl) for the former channel. For C-Cl bond stretching, the potential barriers are about 3.2 eV for Cs-Cl₃C-CCl₄ and 2.1 eV for Cs-Cl₂CCl-CCl₄. These values are, respectively, the same as for Na-Cl₃C-CCl₄ and about 0.6 eV higher than for Na-Cl₂CCl-CCl₄. Again, similar to the Na-based case, for the former channel, the formation of C₂Cl₆ is blocked, while the latter channel leads to C₂Cl₆-CsCl.

3. Computational Methods

In the present work, the studied molecular systems involve both covalent and noncovalent interactions between their fragments. To consistently deal with both such components, a reasonable combination of sufficient accuracy and affordable computation time is offered by the Moller–Plessett perturbation theory of the 2nd order (MP2). Here, the appropriate aug-cc-pVTZ basis set for C and Na, and the relativistic effective core potentials (Stuttgart RLC ECP) [23] for Cl and Cs were selected. The above theoretical approach was employed via the ab initio program package NWChem [24].

The tests included the most relevant interactions in the system, C-Cl and Na-Cl. Specifically, the dissociation energies and equilibrium distances for CCl₄ and NaCl were calculated, leading to D_e(Cl-CCl₃) = 3.507 eV at R_e = 1.735 Å and D_e(Na-Cl) = 4.235 eV at R_e = 2.378 Å, favorably comparing to the respective experimental values of 3.074 eV at 1.767 Å and 4.272 ± 0.087 eV at 2.361 Å. Additionally, the dipole moment of NaCl was calculated as 9.25 D, closely matching the 9.00 D from the experiments.

The computational procedure involved full optimizations of the system geometries and confirmations of energy minima in terms of vibrational frequency analyses. The transition states, if found instead, were dealt with using the associated eigenvectors.

The IR intensity spectra were also produced based on NWChem calculations within the harmonic approximation. In particular, test comparisons of the predictions at this level and the available experimental [25] spectra for CCl₄ and C₂Cl₆ show very close matches in the band frequencies and relative intensities.

The atomic charges were evaluated using the natural population analysis (NPA) [26]. It was employed via JANPA software (version 2.02) [27].

4. Conclusions

A C-C bond-forming reaction involving small chlorocarbons was considered at a consistent MP2 level of theory with and without an alkali metal added. Three near-degenerate conformers of Na-CCl₃ species were employed, differing in the position of Na relative to CCl₃. Each conformer makes a distinct corresponding conformer of the reactant complex Na-CCl₃-CCl₄. Upon reaction, the final product complex is C₂Cl₆-NaCl for most cases, with possible intermediate systems, including uncommon Na-C₂Cl₆-Cl with the ion-pair-trapped molecule. In particular, the latter and similar cases involve the “umbrella” inversion of the CCl₃ unit, while, in other cases, it is just reoriented.

Two possible channels of the reaction can be followed, with either the C-C distance shortened or the C-Cl bond stretched (followed by C-C bonding). In the absence of Na, the corresponding potential barriers are comparable, the one for the former channel being about a half eV higher. Upon adding Na, the potential barriers are considerably reduced for both channels, more so for direct C-C bonding (by an impressive factor of 3–4). This also interchanges the relative heights of the barriers, making the C-Cl bond-stretch-related channel less likely. In particular, such a potential barrier reduction is much stronger compared to that of the corresponding fluorocarbon system.

The effect is apparently due to the formation of a Na–Cl ion-pair, which involves the Cl atom detaching from CCl₄ and subsequently associating with Na. C-Cl bond stretching or C-C bond shrinking releases Cl, respectively, close to Na, which corresponds to a cross-coupling-like process, or distant from Na, via an intermediate structure with this Cl atom noncovalently bound as well. The alkali metal thus appears to be an inexpensive promoter of the process, which usually needs costly catalysts such as Pd.

In particular, CCl₃ can be produced via the photolysis of CCl₄, while atomic Na could likely be obtained by laser vaporization. Na-CCl₃ complexes could possibly be formed experimentally in crossed beams of these components or by the photolysis of tetrachloromethane in presence of sodium vapor. The latter option might even facilitate the complete reaction under study here, perhaps then to be compared with a similar process in the absence of Na to test the predictions.

The simulated IR spectra are sensitive to the system structure and facilitate the experimental identification of the relevant species. The spectral variation allows tracking the reaction progress as well.
