Article

Synthesis of a Small Library of Glycoderivative Putative Ligands of SGLT1 and Preliminary Biological Evaluation

by
Giuseppe D’Orazio
1,* and
Barbara La Ferla
2,*
1
Department of Chemistry, Università degli Studi di Milano, Via C. Golgi 19, 20133 Milan, Italy
2
Department of Earth and Environmental Sciences DISAT, Università degli Studi di Milano-Bicocca, Piazza della Scienza 1, 20126 Milan, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(21), 5067; https://doi.org/10.3390/molecules29215067
Submission received: 18 September 2024 / Revised: 19 October 2024 / Accepted: 24 October 2024 / Published: 26 October 2024
(This article belongs to the Special Issue Glycomimetics: Design, Synthesis and Bioorganic Applications)
Browse Figures
Versions Notes

Abstract

:
Sodium–glucose co-transporter 1 (SGLT1) is primarily expressed on the membrane of enterocytes, a type of epithelial cell found in the intestines, where it mediates the unidirectional absorption of glucose and galactose. Beyond its well-established role in nutrient absorption, SGLT1 also plays a protective role in maintaining the integrity of the intestinal barrier. Specifically, the natural ligand of SGLT1 (d-glucose) and a synthetic C-glucoside developed by our group can induce a protective anti-inflammatory effect on the intestinal epithelium. In this paper, we report the creation of a small library of C-glycoside, putative ligands for SGLT1, to gain further insights into its unclear mechanism of action. Preliminary biological experiments performed on an in vitro model of doxorubicin-induced mucositis, a severe intestinal inflammatory condition, indicate that the aromatic moiety present in all the compounds of the library is crucial for biological activity, while the sugar component appears to have less influence. These findings will be exploited to develop new, more potent anti-inflammatory compounds and to better understand and rationalize the protective mechanism of action.

Graphical Abstract

1. Introduction

Sodium–glucose co-transporter 1 (SGLT1) is a high-affinity/low-capacity glucose and galactose transporter, mainly expressed on the apical membrane of intestinal epithelium cells and of cells of the S3 segment of the proximal tubule of kidneys [1,2,3,4]. SGLT1 is responsible for the unidirectional glucose and galactose absorption across the brush border membrane in the intestine [2,3,5], for sugar reuptake in kidneys, and for glucose uptake across the blood–brain barrier (BBB) [3]. Its fundamental physiological function has made this protein an important molecular target for the development of compounds able to inhibit sugar absorption, to be exploited as potential antidiabetic drugs [6,7,8,9], as well as compounds able to treat cardiovascular disorders [1,10,11].
SGLT1 plays a crucial role in the intestinal barrier by facilitating glucose absorption in the small intestine. Recent research has highlighted its importance not only in nutrient absorption but also in maintaining gut health. Studies have shown that SGLT1 influences gut microbiota composition and intestinal permeability, which are vital for overall metabolic health [12,13,14]. Additionally, the interaction of SGLT1 with other glucose transporters like GLUT2 is essential for efficient glucose uptake and regulation [5]. Emerging evidence suggests that SGLT1 inhibitors could modulate these processes, offering potential therapeutic avenues for metabolic disorders [15,16,17]. The crucial physiological function of this transporter reflects its wide expression in many tissues [18]. Significant efforts have been made to elucidate the physiological, functional, and structural features of this transporter; currently, the knowledge of its functional behavior is profound. Alongside the established physiological function, during the last decades, a new immunological role ascribable to this protein has been discovered; in fact, several works indicate its involvement in the d-glucose-mediated protection of the intestinal mucosa against a series of injuries caused by pathogens expressing lipopolysaccharides (LPSs) [19,20,21,22]. In our previous work, we observed that high glucose concentrations and a set of glycomimetics, tested both in vitro and orally on mice, were able to protect the intestinal epithelium from LPS-induced inflammatory injury in the murine models of septic shock, and data suggest an SGLT1 engagement in this phenomenon [23,24]. Among the synthesized glycomimetics, the most active was found to be compound 1 (Figure 1) which exerts a high protective effect at a concentration of several orders of magnitude lower than d-glucose [24]. This compound is a C-glycoside, a carbohydrate derivative where a carbon atom replaces the anomeric oxygen. This substitution greatly improves the chemical and metabolic stability of these compounds [25]. Glycoderivatives and glycomimetics, derived from carbohydrates, have attracted growing interest in drug development. They are promising candidates for anti-diabetic, antiviral, and antitumor therapies [26,27,28,29,30,31,32,33,34,35,36,37]. Their significance in drug discovery stems from their capacity to overcome the limitations of natural carbohydrates, including low stability under physiological conditions and suboptimal drug-like properties. In our previous research, we observed a significant protective role of C-glucoside 1 engagement towards intestinal mucosa in chemotherapy-induced mucositis [38]. Mucositis is a common pathological state and a serious side effect in patients treated with doxorubicin and 5-fluorouracil-based chemotherapy regimen for head and neck cancer and it derives from the direct cytotoxic effect of the drugs on the mucosal cells. The anticancer agents induce apoptosis and reduced proliferation in epithelial cells, leading to enhanced permeability and ulceration of the mucosae. For these reasons, it is necessary to develop new supporting therapies for chemotherapy-induced mucositis. Furthermore, we recently reported the preparation of a set of gold nanoparticles (AuNPs) decorated with the derivatives of d-glucose and C-glucoside 1 [39]. These AuNPs act as chemical tools to assess and evaluate the multivalent activation of SGLT1, as supported by the existing literature [40,41,42,43].
Our research has focused on understanding the protective role of glucose and of synthesized glycomimetics. In addition to studying potential intracellular processes, we are working on constructing a signal transduction pathway that connects SGLT1 activation to the blockage of the inflammatory response. Our efforts are also aimed at investigating how d-glucose and C-glycosides can activate SGLT1, involving it in cellular protection events. After creating a library of potential SGLT1 ligands [24], which mainly differ in the aromatic moiety, we decided to build a new small library of C-glucoside 1 analogs to explore the role of the sugar portion in the compounds’ activity [44]. The synthesized compounds have undergone preliminary testing for their protective activity in in vitro models of doxorubicin-induced mucositis [32] to gather initial information about the structure-activity relationship.

2. Results and Discussion

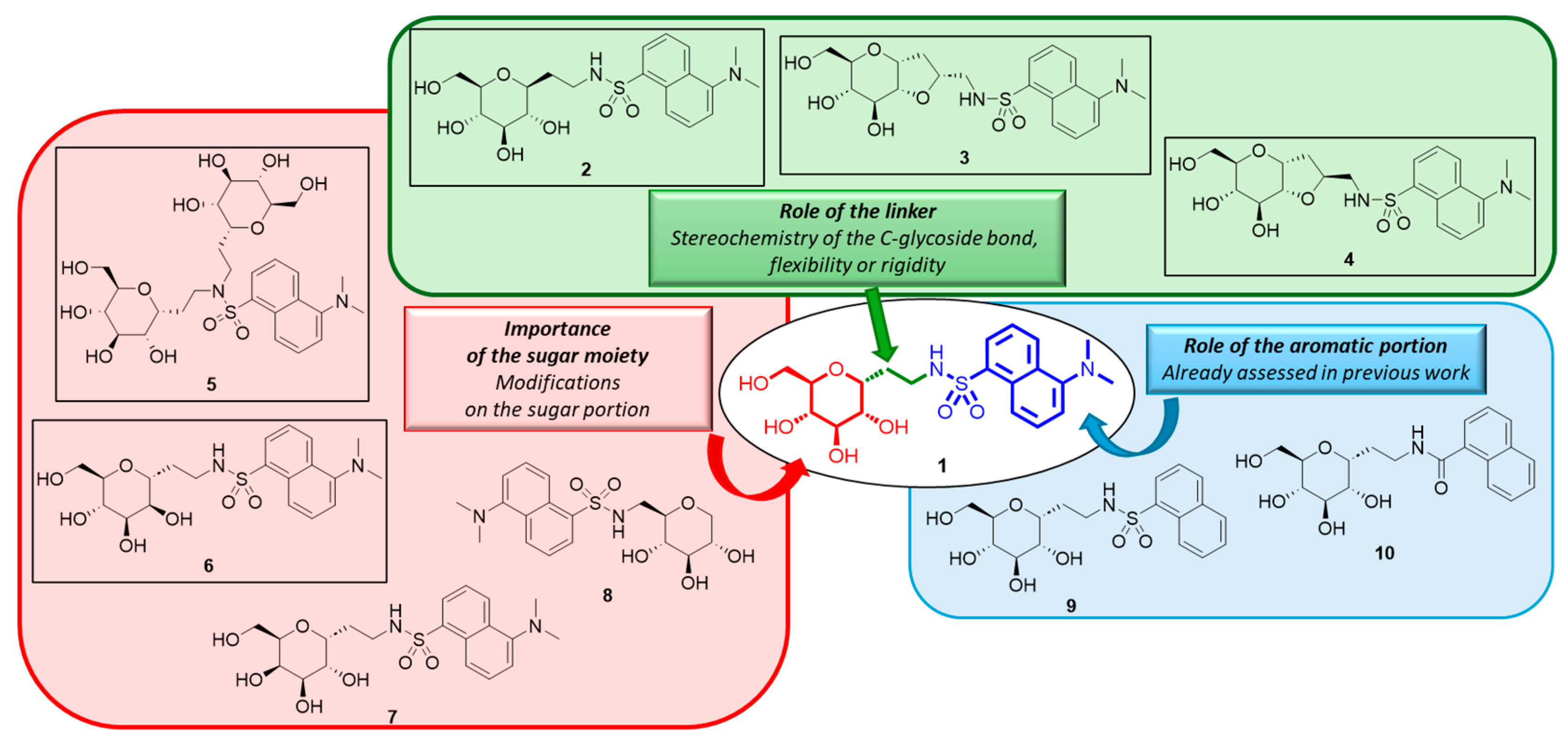

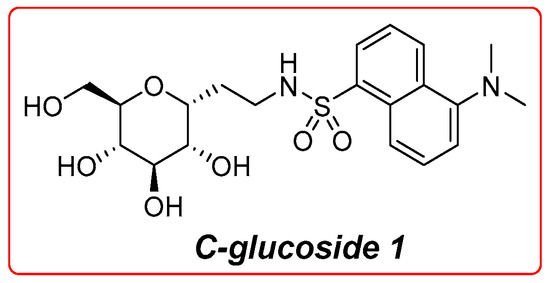

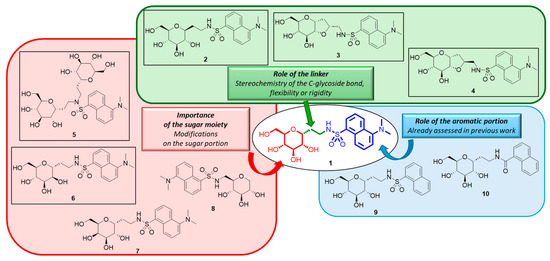

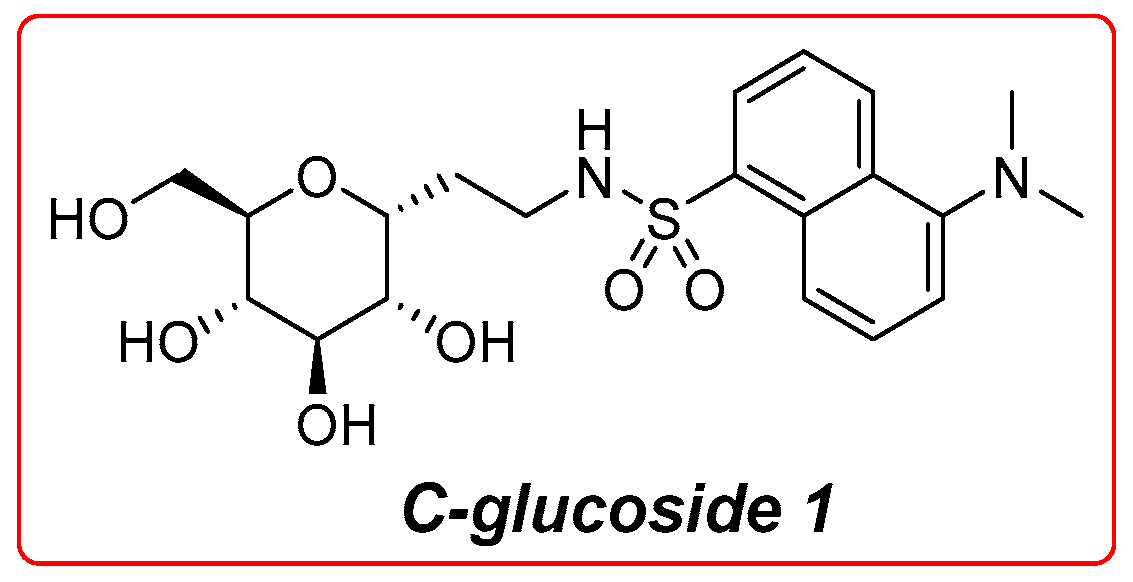

Compound 1 (Figure 1) is a C-glucoside with a dansyl residue connected to a glucopyranose ring through an ethyleneamine spacer. The synthetic approach developed for this compound was previously described [24]. The biological evaluation of the small glycomimetic library prepared in that work aimed to identify the structural requirements correlated with anti-inflammatory activity on HT29 cell lines treated with LPS. The results indicated that the C-galactose analog is still effective as an anti-inflammatory agent, similar to compound 1. The study also showed that the aromatic entity is crucial for the activity and that the absence of the dimethylamino group on the naphthyl moiety leads to a decrease in the anti-inflammatory effect. In this work, we shifted our focus to the importance of the sugar portion and the conformation/configuration of the spacer between the sugar part and the aromatic entity. In detail, we introduced rigidity through a second furanose cycle in compounds 3 and 4, synthesized the mannose derivative 6, and compound 5 bearing two sugar entities. These new analogs were tested for their anti-inflammatory effects in vitro alongside other C-glucoside 1 analogs (compounds 7–10) previously synthesized and reported in our past work [24] (Figure 2). Specifically, new compounds 2, 3, and 4 represent the analogs of 1 with modifications on the linker/spacer between the sugar and aromatic portion (green box), while compounds 5 and 6 have variations associated with the sugar region (red box). The analogs of compound 1 with different aromatic portions (compounds 9 and 10) were the subject of our previous study [24].

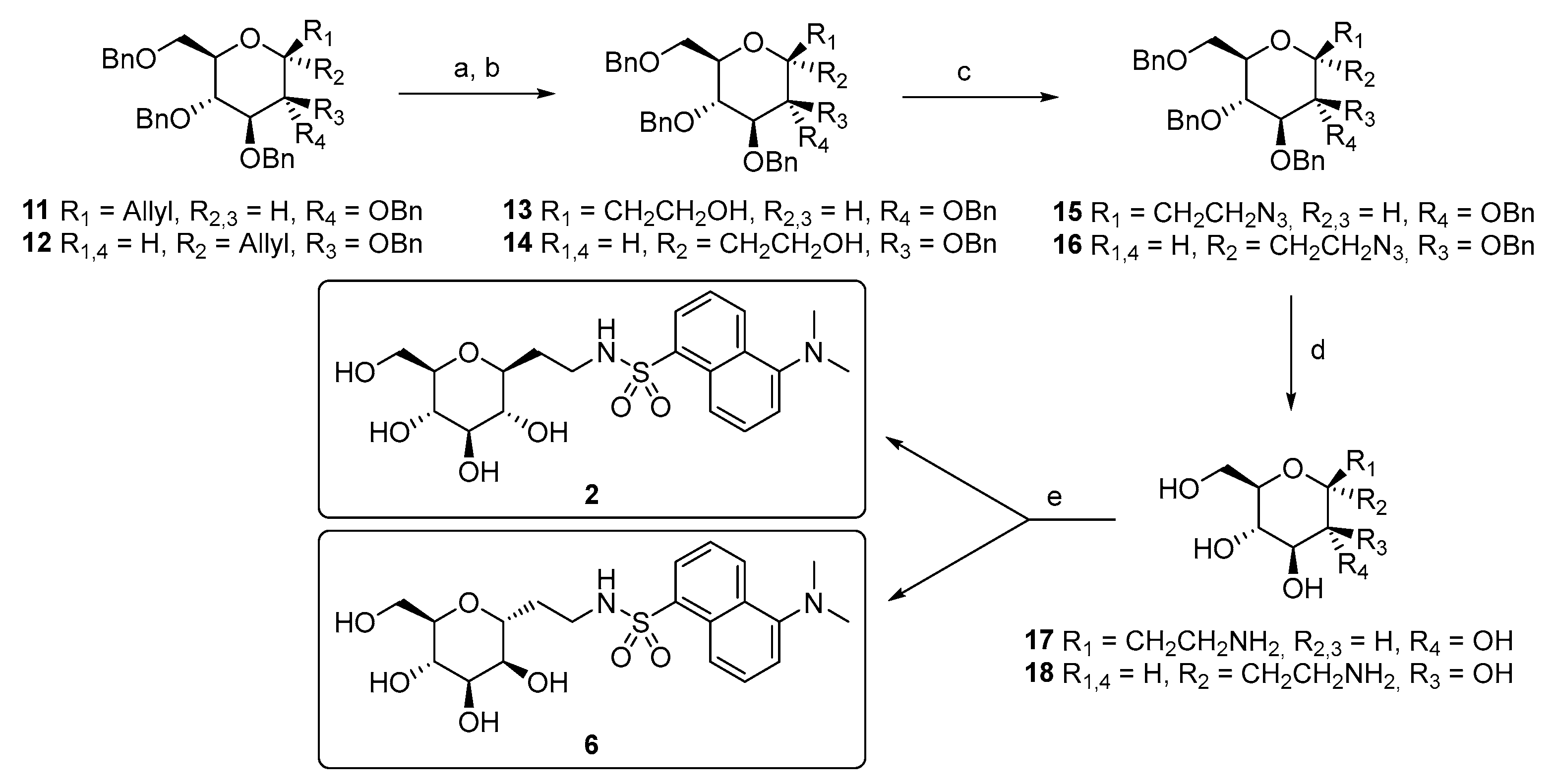

Compound 2 is the β-glucoside analog of 1. We planned to design and synthesize this compound because according to our hypothesis, β-glucosides should not have anti-inflammatory activity. This class of compounds acts as the inhibitors of SGLT1, rather than the activators/agonists of this transporter/receptor, as we believe compound 1 does. One example is the most important SGLT1 inhibitor, phlorizin, which binds to SGLT1, preventing glucose absorption mediated by the transporter. Furthermore, phlorizin can inhibit the glucose-mediated protective effect against inflammatory and apoptotic insults [21,22,23]. A similar approach was taken for compound 6, the manno-analog. It is well established that d-mannose is neither recognized nor transported by SGLT1 [45]; therefore, assuming that our bioactive C-glycosides exert anti-inflammatory activity, as SGLT1 agonists, through a binding event to the same sugar interaction site, compound 6 should not have a protective effect. The synthetic pathways for compounds 2 and 6 are depicted in Scheme 1.
The synthesis starts from the known tetrabenzyl C-allyl glycoside precursors 11 [46,47] and 12 [48]. Through ozone-mediated oxidation and the subsequent hydride reduction, alcohols 13 and 14 were obtained, which were then transformed into the azido derivatives 15 and 16 using Mitzunobu reaction conditions. Hydrogenation/hydrogenolysis on the latter afforded unprotected C-ethyleneamine derivatives 17 and 18, which were then converted into the final products 2 and 6 by reacting with dansyl chloride.
Compound 5 is a side product that was isolated during the synthesis of C-glucoside 1 following the synthetic strategy shown in Scheme 2. We investigated an alternative pathway for the production of 1 on a large scale, in which the ethylene amino linker was created by introducing the carbamate-protected amino group through a modified version of the classical reductive amination on intermediate aldehyde 21.
Molecules 29 05067 sch002

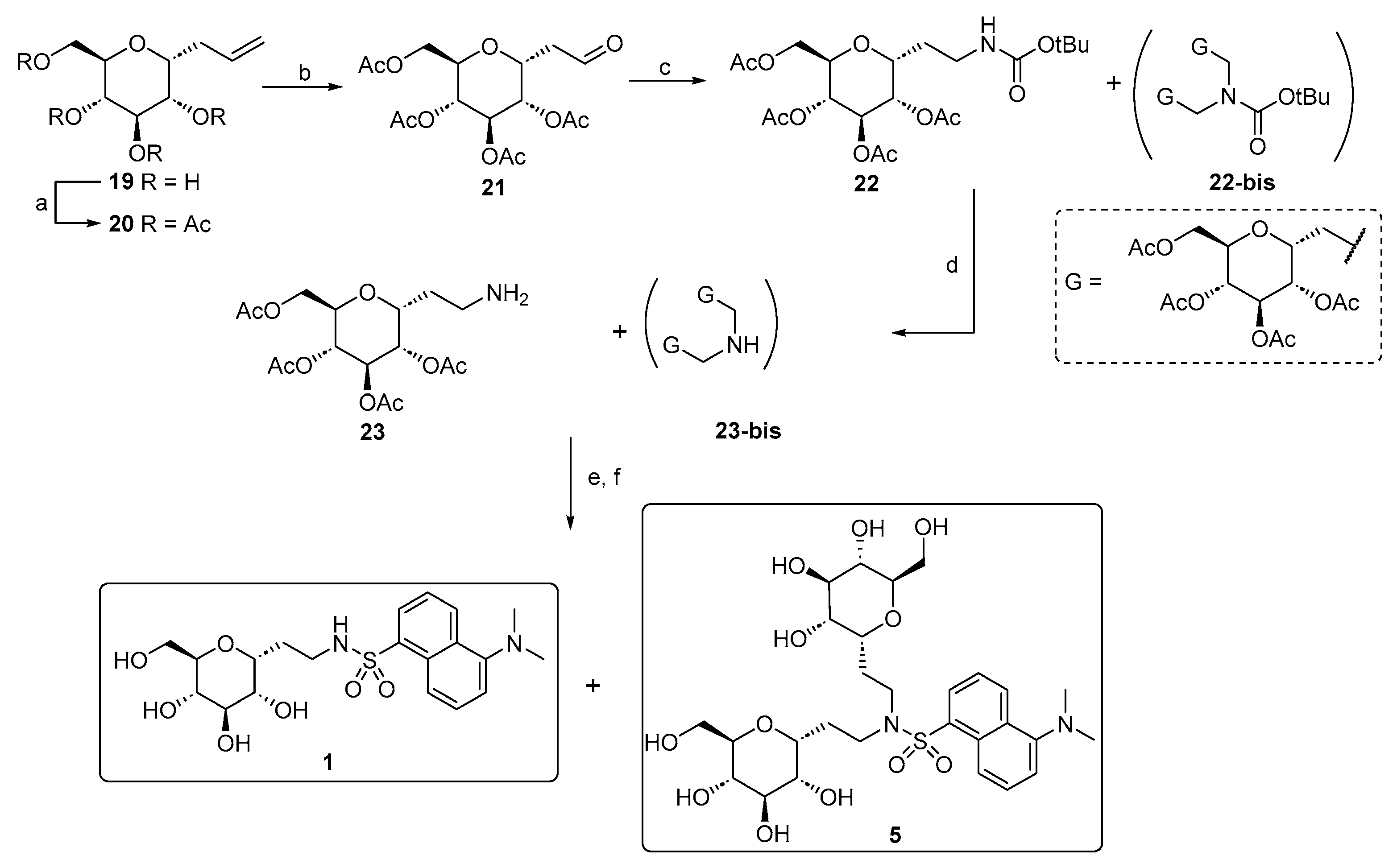

Scheme 2. Synthesis of compounds 1 and 5. Reagents and conditions: (a) Ref. [47]; (b) OsO4, NaIO4, tBuOH/Acetone/H2O, r.t., and 5 h [49]; (c) tert-butylcarbamate, Et3SiH, TFA, CH3CN, r.t., and 3 h; (d) TFA 50% in CH2Cl2, r.t., and 2 h; (e) dansyl chloride, Et3N, MeOH, r.t., and 3 h; (f) MeONa, MeOH, r.t., and 2 h.
Scheme 2. Synthesis of compounds 1 and 5. Reagents and conditions: (a) Ref. [47]; (b) OsO4, NaIO4, tBuOH/Acetone/H2O, r.t., and 5 h [49]; (c) tert-butylcarbamate, Et3SiH, TFA, CH3CN, r.t., and 3 h; (d) TFA 50% in CH2Cl2, r.t., and 2 h; (e) dansyl chloride, Et3N, MeOH, r.t., and 3 h; (f) MeONa, MeOH, r.t., and 2 h.
Molecules 29 05067 sch002
It is plausible that the formation of a glucosyl dimer (compound 22-bis) occurs during this final reaction step, as it has been reported that the formation of di- and tri-alkylated species often occurs in such reactions.
Compounds 3 and 4 are the bicyclic derivatives of 1, containing a terminal amino group used for the dansyl linkage. The preparation of these compounds was initially planned as part of the development of C-glucoside 1 analogs with improved water solubility. We observed the poor solubility of 1 in aqueous media (0.5 mg/mL, 1 mM) and aggregation phenomena over time at higher concentrations, which could affect the homogeneity of the aqueous solutions and ultimately the compound’s pharmacokinetics. This behavior may be attributed to an intrinsic amphiphilicity of 1; indeed, the flexibility of the linker may favor both the stacking of the aromatic moieties and hydrophobic interactions between the glucose and aromatic rings [50]. Therefore, we hypothesized that the insertion of a bicyclic scaffold could provide higher structural rigidity, preventing the formation of aggregates, and increasing water solubility, which would positively impact the compound’s efficacy. Furthermore, the introduction of a more rigid bicyclic system, compared to the linear and more flexible structure of 1, could have a significant impact (either positive or negative) on the binding ability towards the putative SGLT1 binding site for these glycoderivatives. This binding is crucial for activation and ultimately for the anti-inflammatory and protective effect.

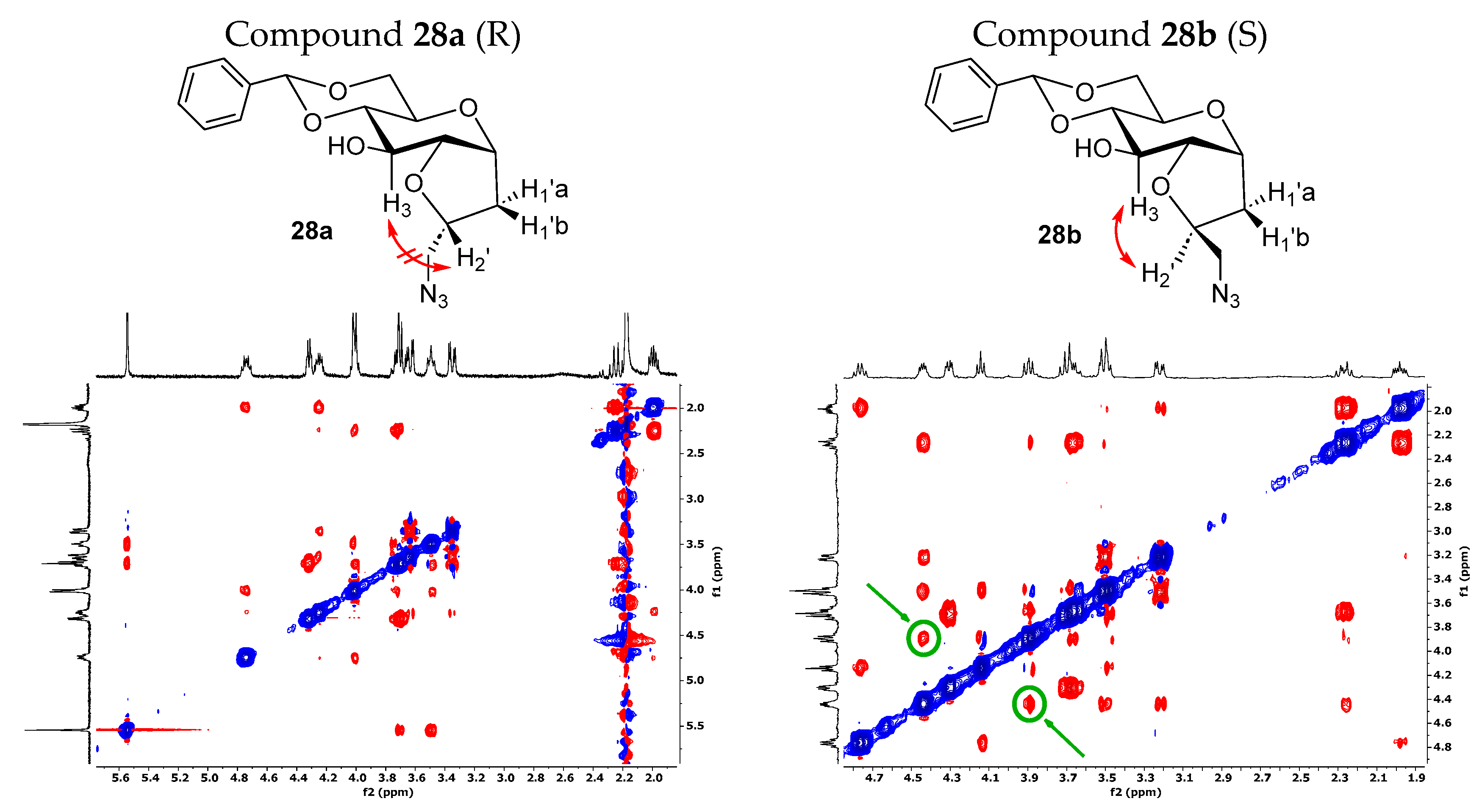

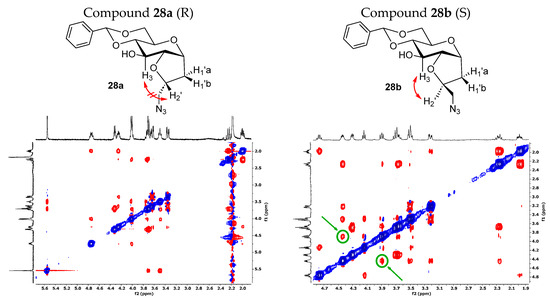

The synthetic approach adopted for the preparation of the bicyclic variants has previously been developed by our group [51,52]. The principal transformation is the halocyclization reaction between the hydroxyl group at the C-2 position and the allylic double bond of α-C-allyl-glucopyranoside 19, mediated by iodine-donating species, such as I2 or N-iodosuccinimide (NIS). This reaction generates an iodomethyl-2,7-dioxabicyclo[4.3.0]nonane scaffold, as a mixture of two diastereoisomers, depending on the side of attack of the 2-OH group on the iodonium intermediate. The resulting bicyclic C-glucoside structure bears an electrophilic site that has been exploited for a substitution reaction with sodium azide, generating the azido derivatives 25, which can then be easily converted into the respective primary amines. During the synthesis, attempts to separate the two diastereoisomers using silica gel chromatography failed. Therefore, we completed the synthesis using 26 as a diastereoisomeric mixture, reacting it with dansyl chloride to produce 27 in a 7:3 ratio of the two diastereoisomers, as determined by a 1H-NMR analysis (Scheme 3).
Molecules 29 05067 sch003

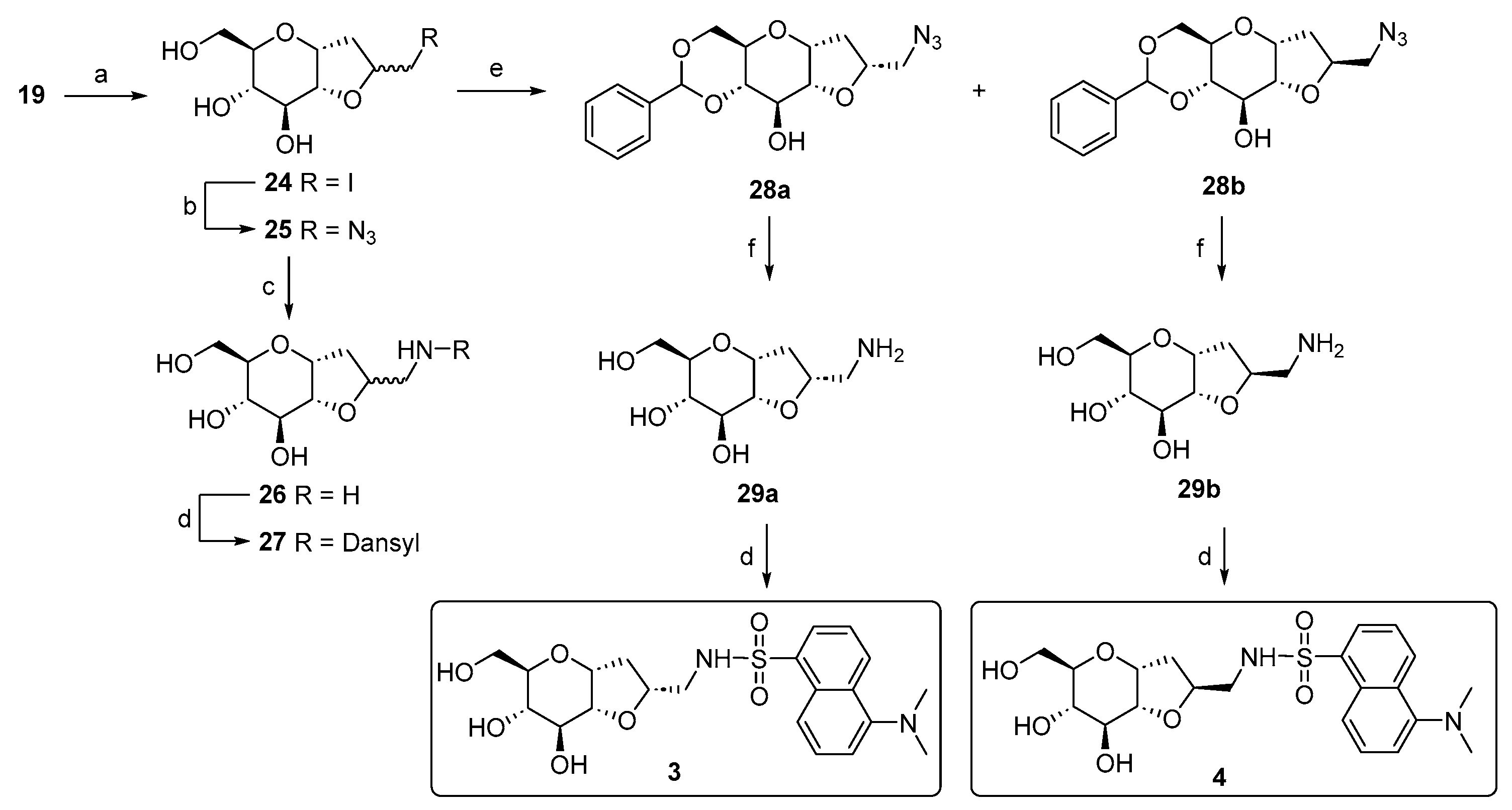

Scheme 3. Synthesis scheme of bicyclic dansyl-C-glucosides 27, 3, and 4. Reagents and conditions: (a) Ref. [48]; b) NaN3, DMF, 80 °C, and 24 h [51]; (c) Pd(OH)2/C, H2 atm., MeOH, r.t., and 12 h [51]; (d) dansyl chloride, Et3N, MeOH, r.t., 3 h [53], 50% for 27, 41% for 3, and 57% for 4; (e) benzaldehyde dimethylacetal, CSA, dry DMF, 70 °C, 12 h, and 78% (51% for 28a and 27% for 28b); (f) Pd(OH)2/C, H2 atm., AcOH, r.t., and 24 h, quant.
Scheme 3. Synthesis scheme of bicyclic dansyl-C-glucosides 27, 3, and 4. Reagents and conditions: (a) Ref. [48]; b) NaN3, DMF, 80 °C, and 24 h [51]; (c) Pd(OH)2/C, H2 atm., MeOH, r.t., and 12 h [51]; (d) dansyl chloride, Et3N, MeOH, r.t., 3 h [53], 50% for 27, 41% for 3, and 57% for 4; (e) benzaldehyde dimethylacetal, CSA, dry DMF, 70 °C, 12 h, and 78% (51% for 28a and 27% for 28b); (f) Pd(OH)2/C, H2 atm., AcOH, r.t., and 24 h, quant.
Molecules 29 05067 sch003
We noticed a significantly higher water solubility for compound 27 compared to that of compound 1. This result, along with the promising preliminary cellular assays (Figures 5 and 6), prompted us to plan and design a new synthetic route to obtain the pure diastereoisomeric forms of 27. This was carried out to address two crucial aspects: (1) determining if the higher water solubility observed for 27 is an intrinsic behavior of the mixture or depends to a larger extent on one of the two diastereoisomers; (2) separating the two optical forms to discern their respective biological activity. In other words, we wanted to investigate if the biological activity relies on only one stereoisomer, or if the difference in stereochemistry is not crucial for the potential effect. Additionally, the resolution of the diastereoisomeric mixture allowed us to assign the correct stereochemistry of the newly formed chiral center. The separation of the two stereoisomers was achieved by adopting a strategy that had previously succeeded with the galactose analog [54]. Specifically, the mixture of the azido compound 25 was derivatized with a benzylidene acetal protecting group on the C4 and C6 positions of the bicyclic C-glucoside, using benzaldehyde dimethyl acetal in the presence of camphor sulfonic acid (CSA) as the catalyst. This facilitated an easy separation of the two stereoisomers through silica gel-flash chromatography. The subsequent reaction steps were carried out on the isolated diastereoisomers 28a and 28b. Firstly, a hydrogenolysis/hydrogenation reaction reduced the azide and simultaneously cleaved the acetal protecting group. Next, amines 29a and 29b were transformed into the respective sulphonamides by reacting with dansyl chloride. The final yields for compounds 3 and 4 (Scheme 3) reflect the diastereoisomeric excess of the iodocyclization reaction and thus the ratio between the two optical forms of 25. To assign the correct stereochemistry of the new chiral center, a 2D 1H-NOESY analysis was performed on the azido intermediates 28a and 28b (Figure 3). In the NOESY spectrum of 28b, a clear cross peak between H2’ and H3 was observed, indicating their spatial proximity, which is characteristic of the diastereoisomer with an (S)-configuration at C2’. This cross peak was absent in the spectrum of the other diastereoisomer, as expected for the C2’ (R)-configuration, where the two protons are not in spatial proximity to generate a cross peak, corresponding to compound 28a.
The water solubility of the two final sulfonamide compounds was found to be completely different. Compound 3 was soluble at concentrations ranging from 0.5 to 5 mg/mL in water, while compound 4 was completely water-insoluble, even at concentrations lower than 0.5 mg/mL. Compound 27, initially synthesized as a diastereoisomeric mixture of 3 and 4 in a 7:3 ratio, is well water-soluble within these concentration ranges, as 70% of it is composed of 3. Surprisingly, we also observed a significant difference in fluorescence color between the two different optical forms (Figure 4) when the two compounds, in their solid form, were exposed to a UV lamp set at 365 nm. These observations are consistent with the differences in the physical and chemical characteristics that distinguish the two diastereoisomeric forms of the same molecule, as defined.
Newly synthesized compounds 2–6, compound 27 (as a mixture), and previously synthesized compounds 1 and 7–10 [24] (Figure 2) were tested for their protective activity on an in vitro model of doxorubicin-induced cytotoxicity using the SGLT1-overexpressing Caco-2 cell line (Figure 5). Unfortunately, compound 4 was excluded from the assessment due to its poor solubility in the water medium.

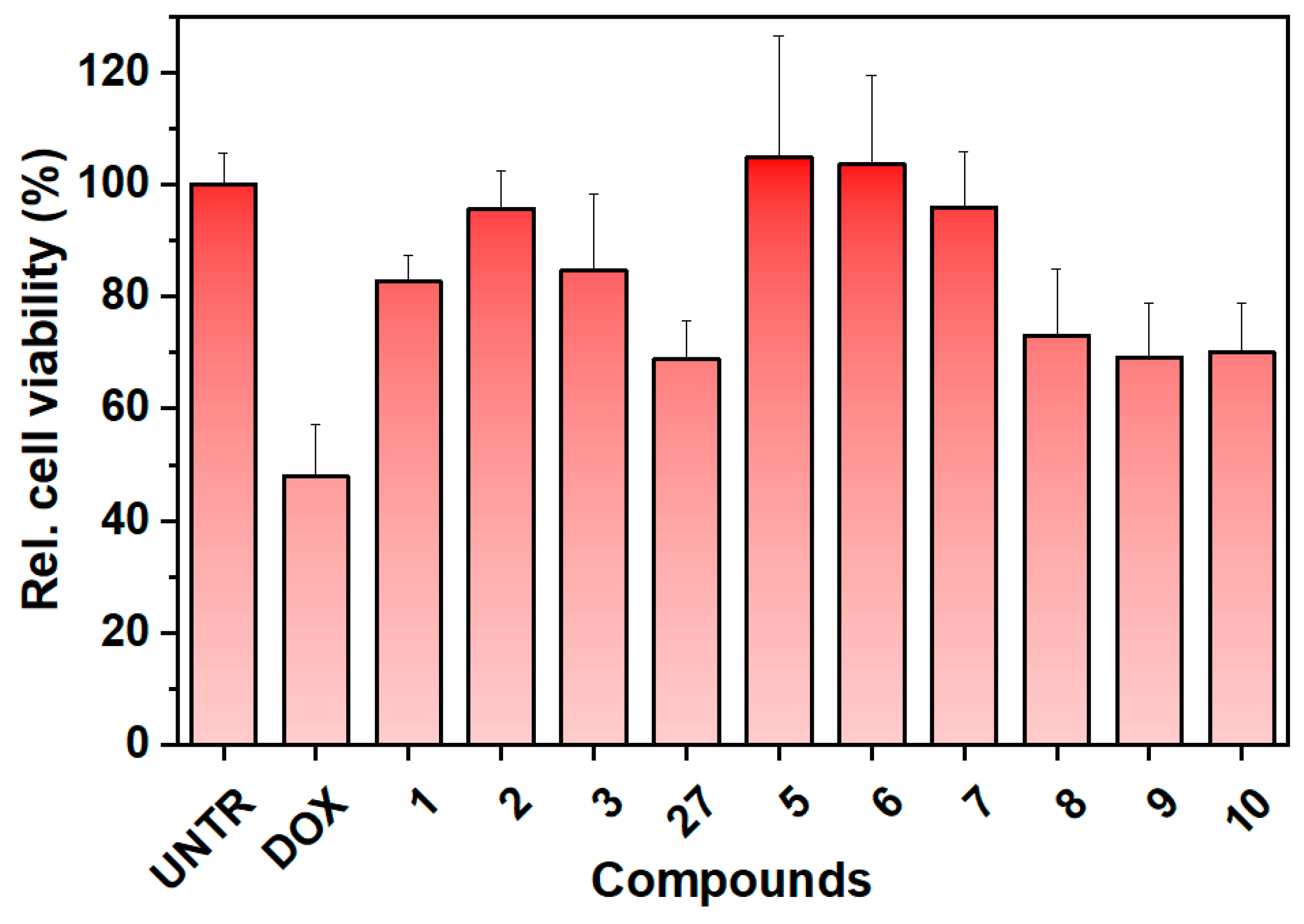

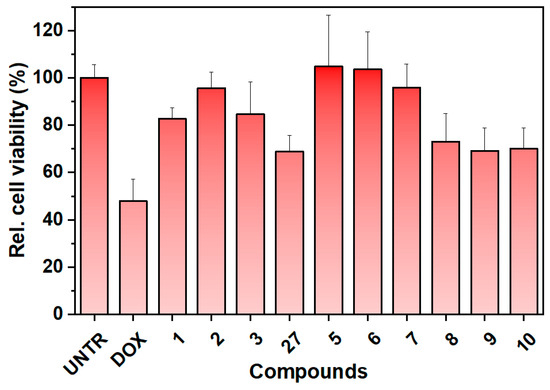

The preliminary results shown in Figure 5 indicate that the presence of the aromatic moiety (such as dansyl or naphthyl residues) is crucial for the protective activity of the tested compounds on cells. The sugar portion seems to have less influence, as cytoprotection is observed at 5 µg/mL for almost all the compounds comprising the β-glucoside and the manno-derivatives, for which we did not expect activity. The best cell viability results are associated with compounds 1 (C-glucoside 1, the lead compound), 2 (β-C-glucoside analog), 3 ((R)-bicyclic derivative), 5 (dimer analog), 6 (manno-derivative), and 7 (galacto-derivative). Compounds 27 (diastereomeric mixture of the bicyclic derivative), 8, 9, and 10 show a slightly reduced ability to preserve cell viability. The reduced activity of compound 27 can be attributed to the presence of the poorly soluble bicyclic derivative 4 in the mixture, which is primarily composed of the soluble portion associated with compound 3. This affects the overall availability of the mixture and consequently the final biological effect. Structurally, compound 8 differs significantly from compound 1, with the dansyl residue located on the amino group at C6 of a 1-deoxyglucoside, which may explain its lower activity. Compounds 9 and 10 lack the dimethylamino group on the naphthyl ring, which is a key functional group for binding and activity. This finding is consistent with our previous work [24]. The similar activity seen in compounds 2, 3, 5, 6, and 7 may be attributed to their higher structural similarity compared to 8, 9, and 10. All these compounds are C-glycosides with a dansyl residue separated from the sugar ring by a two-carbon atom spacer. Using longer spacer chains reduces the protective activity [24]. The stereochemistry of the C-glycosidic bond and the configuration of the monosaccharide residue do not seem to be important for the overall biological efficacy. Despite the high specificity in monosaccharides recognition and translocation by SGLT1, other aspects must be considered.
Doxorubicin-induced cytotoxicity is associated with and results from severe inflammatory injury to intestinal epithelial cells, as reported in [38]. Severe inflammation leads to local damage of the intestinal mucosa, and several studies indicate the prominent role of the inflammation-inducer Tumor Necrosis Factor-α (TNF-α) in inducing inflammatory states [55,56,57]. TNF-α activates the transcription factors nuclear factor kappa B (NF-κB) and activator protein-1 (AP-1), which are key modulators of the inflammatory response [56]. Therefore, we decided to assess the ability of our synthesized compound to reduce the production of inflammatory markers in Caco-2 cells. One of the main pro-inflammatory cytokines produced by the Caco-2 cell line in response to TNF-α stimulation is Interleukin-8 (IL-8) [23,24,38,56]. The Caco-2 cells were treated with TNF-α in the presence or absence of the synthesized compounds. The mRNA levels of IL-8 produced by the cells were then measured using a qPCR protocol (Figure 6) [58,59]. Similar to the observations in the cytotoxicity experiments, compounds 2–7 and mixture 27 showed higher level of the inhibition of relative IL-8 expression compared to compounds 8–10. The C-glycosidic framework and the presence of the dimethylamino group on the aromatic region are confirmed to be important for binding to SGLT1 and the resulting anti-inflammatory activity. However, it should be noted that no significant differences were observed among the C-glycosidic compounds. Additionally, the high level of IL-8 induction by TNF-α (TNFa bar in Figure 6), which is more than 15-fold compared to untreated cells (UNTR), must be considered. Considering the performed experiments, these preliminary results suggest that these compounds deserve significant attention. They also indicate that further investigations are needed to unravel their effective interaction with the transporter.
Various hypotheses have been proposed to describe the molecular recognition and translocation events involving SGLT1. Wright and Kinne suggested the existence of multiple sugar-binding sites in SGLT1, with one site being less stereospecific for sugar recognition [60,61,62,63,64]. It is hypothesized that the binding site for the synthesized C-glycosides in SGLT1 may overlap with the binding site involved in sugar recognition. For compounds 2, 3, 5, 6, and 7, which contain the crucial dansyl residue, this ensures the highest level of recognition, targeting an unknown portion of the SGLT1 binding site. The presence of the sugar portion and the correct distance between the two regions allow for non- or less-stereospecific recognition by the same binding site region involved in sugar recognition.

3. Materials and Methods

3.1. Cell Cultures and Treatments

Cell lines Caco-2/bbe and Caco-2/bbe permanently transfected with SGLT-1 (kind gift of Prof. Mark Donowitz, MD, Johns Hopkins University School of Medicine, Baltimore) were cultured in DMEM high-glucose medium (4.5 g/L) (Euroclone, Pero, Italy) supplemented with 10% FBS (Euroclone), 1% glutamine (Euroclone), and 15 mM sterile HEPES solution (Euroclone) at 37 °C. For Caco-2/bbe/SGLT1 cells, 250 µg/mL G418 gentamicin bisulfate salt solution (Sigma-Aldrich, St. Louis, MO, USA) was added as an antibiotic agent; for normal Caco-2/bbe, a penicillin/streptamicin solution (Euroclone) was added. For viability assays, 1 × 105 Caco-2 cells were plated on 96 flat-bottom well plates and treated after 24 h with doxorubicin (100 µM) with the compounds at concentrations of 5 µg/mL (8–10 µM). The cells were cultured at 37 °C and their viability was evaluated after 48 h with a Neutral Red assay kit (Merck©, Darmstadt, Germany). The absorbance of the extracted dye was measured using a plate reader at a wavelength of 540 nm according to the datasheet. For IL-8 gene expression experiments, total RNA was extracted from the compound-treated or untreated cell line and then processed as reported in [58,59]. The experimental data of the biological activity tests were processed and analyzed using Origin Pro, Version 2023b (OriginLab Corporation, Northampton, MA, USA).

3.2. Synthesis of Compounds

General remarks. All the commercial chemicals were purchased from Merck© (Darmstadt, Germany). All the chemicals were used without further purification. All the required anhydrous solvents were dried with molecular sieves for at least 24h prior to use. Thin layer chromatography (TLC) was performed on silica gel 60 F254 plates (Merck©, Darmstadt, Germany) with detection under UV light when possible, or by charring with a solution of (NH4)6Mo7O24 (21g), Ce(SO4)2 (1 g), concentrated H2SO4 (31 mL) in water (500 mL), or with an ethanol solution of ninhydrin or with Dragendorff spray reagent. Flash-column chromatography was performed on silica gel 230–400 mesh (Merck©, Darmstadt, Germany) or using the Isolera Flash Chromatography System (Biotage Sweden AB™, Uppsala, Sweden). 1H and 13C NMR spectra were recorded at 25 °C, unless otherwise stated, with a Varian Mercury 400 MHz instrument (Varian Inc., Palo Alto, CA, USA). Chemical shift assignments, reported in parts per million, were referenced to the corresponding solvent peaks. Mass spectra were recorded on an ABSciex 2000 QTRAP LC/MS/MS system with an ESI source (ABSciex©, Framingham, MA, USA).
2-(2,3,4,6-tetra-O-benzyl-β-d-glucopyranosyl)-ethanol 13
In a 50 mL CH2Cl2 solution of 11 (1.42 g, 2.51 mmol) at −78 °C, O3 was bubbled until a pale blue color appeared, indicating the end of the reaction. The reaction was followed by TLC (petroleum ether/EtOAc 8:2). After 1 h, the excess of O3 was removed by purging the reaction with a stream of argon at −78 °C and then Ph3P (6.15 mmol, 2.45 eq) was added. The reaction was stirred for 12 h at r.t. Ph3P oxide was removed from the crude through a rapid filtration on a plug of silica gel using petroleum ether/EtOAc 7:3 as an eluent mixture. A 1H-NMR performed on the crude confirmed the complete transformation of the allyl group into an aldehyde function. A total of 736 mg of crude aldehyde (1.3 mmol) was dissolved in a mixture of CH2Cl2/MeOH 1:1 (6 mL, 0.2 M) at r.t. NaBH4 (5.19 mmol, 4 eq) was added and the reaction was stirred vigorously at r.t. The reaction was followed by TLC (petroleum ether/EtOAc 7:3). At the end of the reaction, the solvent was evaporated; the residue was suspended in a volume of a saturated solution of sodium carbonate and stirred vigorously for 30 min. The aqueous phase was extracted with EtOAc (3×). The organic phases were combined, dried with sodium sulfate, and filtrated. The product was purified from the residue by flash chromatography (petroleum ether/EtOAc 7:3) to provide compound 13 (646 mg, 1136 mmol, 66% over two steps).
Data for aldehyde intermediate (crude material): 1H NMR (400 MHz, CDCl3) δ 9.72 (s, 1H, CHO), 7.40–7.03 (m, 20H, CH Ar), 4.98–4.86 (m, 3H, CH2Ph), 4.82 (d, J = 10.7 Hz, 1H, CH2Ph), 4.63–4.55 (m, 3H, CH2Ph), 4.51 (d, J = 12.2 Hz, 1H, CH2Ph), 3.83 (td, J = 9.1, 4.5 Hz, 1H, H1), 3.77–3.63 (m, 4H, H2, H4, H6a, H6b), 3.52–3.44 (m, 1H, H5), 3.34 (t, J = 9.1 Hz, 1H, H3), 2.77–2.67 (m, 1H, H1’a), 2.57 (ddd, J = 16.2, 7.9, 2.4 Hz, 1H, H1’b).
13C NMR (101 MHz, CDCl3) δ 200.44 (C2’ (CHO)), 138.47, 138.06, 137.69 (Cq Ar × 4), 129.79, 128.73, 128.68, 128.64, 128.58, 128.53, 128.34, 128.19, 128.05, 127.98, 127.92, 127.86, 127.83, 127.80 (C Ar × 20), 87.22, 81.25, 79.25, 78.39 (C1, C2, C3, C4, C5), 75.73, 75.21 (CH2Ph × 4), 74.58 (C5), 68.75 (C6), 46.20 (C1’).
C36H38O6; calcd. mass 566.69; ESI-MS: m/z 567.61 [M + H]+.
Data for compound 13. 1H NMR (400 MHz, CDCl3) δ 7.38–7.23 (m, 18H, CH Ar), 7.23–7.13 (m, 2H, CH Ar), 4.93–4.87 (m, 3H, CH2Ph), 4.83 (d, J = 10.8 Hz, 1H, CH2Ph), 4.64 (d, J = 10.9 Hz, 1H, CH2Ph), 4.59–4.49 (m, 3H, CH2Ph), 3.79 (t, J = 5.4 Hz, 2H, H2’a,b), 3.73–3.64 (m, 2H, H6a, H3), 3.63–3.54 (m, 2H, H6b, H2), 3.54–3.44 (m, 2H, H1, H5), 3.35 (t, J = 9.2 Hz, 1H, H4), 2.12–2.00 (m, 1H, H1’a), 1.84–1.67 (m, 1H, H1’b).
13C NMR (101 MHz, CDCl3) δ 138.55, 138.02, 137.97, 137.95 (Cq Ar), 128.63, 128.61, 128.58, 128.56, 128.17, 128.11, 128.08, 127.99, 127.96, 127.86, 127.83 (C Ar × 20), 87.11 (C3), 81.85 (C2), 80.00 (C1), 78.72 (C4), 78.57 (C5), 75.75, 75.47, 75.21, 73.60 (CH2Ph), 69.17 (C6), 61.68 (C2’), 33.80 (C1’).
C36H40O6; calcd. mass 568.61; ESI-MS: m/z 569.64 [M + H]+.
2-(2,3,4,6-tetra-O-benzyl-α-d-mannopyranosyl)-ethanol 14
A solution of compound 12 (2,27 g, 4 mmol) in dry CH2Cl2 (30 mL, ≈0.1 M) was cooled to −78 °C, and ozone was bubbled through the solution for approximately 3 h until the solution turned blue. The ozone was then removed from the reaction by bubbling argon through the solution and Ph3P (3.3 g, 12.5 mmol, 3 eq) was added at −78 °C. The solution was slowly warmed to r.t. and stirred overnight. The reaction was followed by TLC (petroleum ether/EtOAc 8:2). The crude product was passed through a plug of silica gel, as reported for compound 13. A 1H-NMR performed on the crude confirmed the complete transformation of the allyl group into an aldehyde function. The crude aldehyde was dissolved in a mixture of CH2Cl2/MeOH 1:1 (80 mL, ≈0.05 M). NaBH4 (605 mg, 16 mmol, 4 eq related to compound 12) was added at r.t. and the reaction was stirred at r.t. for 2 h. The product was extracted as for compound 13 and purified by flash chromatography (petroleum ether/EtOAc 6:4). A total of 1363 mg (2.4 mmol, 60% yield over two steps) of alcohol 14 were obtained.
1H NMR (400 MHz, CDCl3) δ 7.39–7.23 (m, 18H, CH Ar), 7.23–7.16 (m, 2H, CH Ar), 4.63–4.45 (m, 8H, CH2Ph), 4.21–4.13 (m, 1H, H1), 4.01–3.94 (m, 1H, H5), 3.84–3.74 (m, 4H, H3, H6a, H2’a,b), 3.71 (t, J = 5.7 Hz, 1H, H4), 3.66–3.55 (m, 2H, H2, H6b), 2.71 (s, 1H, OH), 1.93–1.81 (m, 1H, H1’a), 1.80–1.71 (m, 1H, H1’b).
13C NMR (101 MHz, CDCl3) δ 138.13, 138.11, 137.69, 137.66 (Cq Ar), 129.84, 128.56, 128.53, 128.52, 128.47, 128.11, 128.00, 127.92, 127.91, 127.88, 127.77 (C Ar), 76.29 (C2), 76.00 (C3), 74.91 (C4), 73.63 (C5), 73.40 (CH2Ph), 72.49 (CH2Ph), 72.25 (C1), 71.74 (CH2Ph), 68.68 (C6), 61.56 (C2’), 32.25 (C1’).
C36H40O6; calcd. mass 568.71; ESI-MS: m/z 569.6 [M + H]+, 591.5 [M + Na]+.
2-(2,3,4,6-tetra-O-benzyl-β-d-glucopyranosyl)-1-azidoethane 15
Compound 13 (631 mg, 1.1 mmol) was dissolved in dry THF (5.5 mL, 0.2 M) and Ph3P (3.3 mmol, 3 eq) was added. The solution was cooled to 0 °C and DIAD (3.3 mmol, 3 eq) was added dropwise. After 10 min, 3.5 mmol (3.2 eq) of diphenylphosphoryl azide (PhO)2P(O)N3 was added at 0 °C and the reaction was stirred for 1 h at r.t. The reaction was followed by TLC (petroleum ether/EtOAc 8:2) and the product was purified from the crude by flash chromatography (eluent petroleum ether/EtOAc 9:1) to provide compound 15 (621 mg, 1.03 mmol, 93%).
1H NMR (400 MHz, CDCl3) δ 7.38–7.23 (m, 18H CH Ar), 7.20–7.13 (m, 2H CH Ar), 4.98–4.87 (m, 3H, CH2Ph), 4.84 (d, J = 10.8 Hz, 1H, CH2Ph), 4.69–4.61 (m, 2H, CH2Ph), 4.58 (d, J = 10.8 Hz, 1H, CH2Ph), 4.54 (d, J = 12.2 Hz, 1H, CH2Ph), 3.76–3.64 (m, 4H, H2, H3, H4, H6a), 3.45–3.37 (m, 3H, H1,H5, H6b), 3.35 (dd, J = 9.2, 2.3 Hz, 1H, H2’a), 3.33–3.25 (m, 1H, H2’b), 2.17–2.04 (m, 1H, H1’a), 1.75–1.63 (m, 1H, H1’b).
13C NMR (101 MHz, CDCl3) δ 138.63, 138.23, 138.19, 138.00 (Cq Ar), 128.66, 128.61, 128.56, 128.52, 128.22, 128.09, 128.03, 127.95, 127.90, 127.87, 127.82 (C Ar), 87.36 (C3), 81.94 (C2), 78.93 (C1), 78.48 (C4), 76.39 (C5), 75.74, 75.39, 75.13, 73.62 (CH2Ph), 68.95 (C6), 48.04 (C2’), 29.85 (C1’).
C36H39N3O5; calcd. mass 593.72; ESI-MS: m/z 594.68 [M + H]+.
2-(2,3,4,6-tetra-O-benzyl-α-d-mannopyranosyl)-1-azidoethane 16
Compound 14 (653 mg, 1.148 mmol) was converted into azido derivative 16 following the same procedure for compound 15. The crude product was purified by flash chromatography (eluent petroleum ether/EtOAc 9:1) to afford 549 mg (0.925 mmol, 80%) of azido derivative 16.
1H NMR (400 MHz, CDCl3) δ 7.39–7.19 (m, 20H CH Ar), 4.63 (d, J = 11.7 Hz, 1H, CH Ar), 4.60–4.50 (m, 7H, CH Ar), 4.09–4.02 (m, 1H, H1), 3.91 (dd, J = 10.6, 4.8 Hz, 1H, H5), 3.86–3.77 (m, 3H, H3, H6a, H4), 3.73 (dd, J = 10.1, 4.6 Hz, 1H, H6b), 3.58 (dd, J = 6.3, 2.8 Hz, 1H, H2), 3.49–3.32 (m, 2H, H2’a,b), 1.93–1.73 (m, 2H, H1’a,b).
13C NMR (101 MHz, CDCl3) δ 138.35, 138.14, 138.07, 138.02 (Cq Ar), 128.52, 128.50, 128.45, 128.12, 128.03, 128.00, 127.88, 127.81, 127.68 (C Ar), 75.95 (C2), 75.55 (C3), 74.54 (C4), 74.05 (C5), 73.40 (CH2Ph), 73.27 (CH2Ph), 72.36 (CH2Ph), 71.52 (CH2Ph), 68.89 (C1), 68.76 (C6), 48.06 (C2’), 29.93 (C1’).
C36H39N3O5; calcd. mass 593.72; ESI-MS: m/z 594.6 [M + H]+.
2-(β-d-glucopyranosyl)-ethanamine 17
Azide 15 (610 mg, 1.026 mmol) was dissolved in a mixture of EtOAc/MeOH and the solution was degassed under vacuum for 10 min. A catalytic amount of Pd(OH)2/C and 0.1 eq of AcOH were added and the reaction was stirred under a H2 atmosphere for 48 h. The reaction was followed by TLC (petroleum ether/EtOAc 8:2 and CH2Cl2/MeOH/NH3 5:5:1) until the disappearance of the starting compound. The reaction was filtered through a celite pad, concentrated, and used directly for the next reaction.
1H NMR on crude material (400 MHz, D2O) δ 3.89–3.75 (m, 1H, H6a), 3.63 (dt, J = 12.1, 4.5 Hz, 1H, H5, H6b), 3.34 (ddt, J = 18.4, 12.7, 8.3 Hz, 4H, H1, H2, H3, H4), 3.25–3.05 (m, 3H, H2’a,b, H5), 2.25–2.07 (m, 1H, H1’a), 1.84–1.69 (m, 1H, H1’b).
C8H17NO5; calcd. mass 207.23; ESI-MS: m/z 208.20 [M + H]+.
2-(α-d-mannopyranosyl)-ethanamine 18
Compound 16 (493 mg, 0.83 mmol) was dissolved in a mixture of EtOAc/MeOH and the solution was degassed under vacuum for 10 min. A catalytic amount of Pd(OH)2/C and 0.1 eq of AcOH were added and the reaction was stirred under a H2 atmosphere for 72 h. The reaction was followed by TLC (petroleum ether/EtOAc 9:1 and EtOAc/MeOH/H2O/AcOH 5:5:1:1) until the disappearance of the starting compound. The reaction was filtered through a celite pad, concentrated, and used directly for the next reaction.
1H NMR on crude compound (400 MHz, D2O) δ 4.03–3.95 (m, 1H, H6a), 3.87–3.75 (m, 3H, H6b, H3, H2), 3.70 (dd, J = 12.1, 6.8 Hz, 1H, H1), 3.60 (t, J = 8.9 Hz, 1H, H4), 3.55–3.46 (m, 1H, H5), 3.18–3.00 (m, 2H, H2’), 2.23–2.08 (m, 1H, H1’a), 1.95–1.77 (m, 1H, H1’b).
C8H17NO5; calcd. mass 207.23; ESI-MS: m/z 208.23 [M + H]+.
5-(N,N-Dimethylamino)-N-[2-(β-d-glucopyranosyl)ethyl]-1-naphthalensulfonamide 2
To a solution of crude compound 17 (225 mg) in a mixture of H2O/THF 1:1 (10 mL, 0.1 M), 285 µL of Et3N (2.05 mmol, 2 eq) was added at r.t. After 10 min, 410 mg (1.53 mmol, 1.5 eq) of dansyl chloride was added and the reaction was stirred at r.t. for 3 h. The reaction was followed by TLC (CH2Cl2/MeOH/NH3 5:5:1 and EtOAc/MeOH 9:1) and the product was purified by flash chromatography (eluent EtOAc/MeOH 9.5:0.5). A total of 154 mg (0.36 mmol, 35% over two steps) of compound 2 were obtained.
1H NMR (400 MHz, CD3OD) δ 8.56 (d, J = 8.5 Hz, 1H, CH Ar), 8.36 (d, J = 8.7 Hz, 1H, CH Ar), 8.20 (d, J = 7.3 Hz, 1H, CH Ar), 7.64–7.51 (m, 2H, CH Ar), 7.27 (d, J = 7.5 Hz, 1H, CH Ar), 3.62 (dd, J = 11.8, 2.2 Hz, 1H, H6a), 3.50 (dd, J = 11.8, 5.5 Hz, 1H, H6b), 3.21–3.09 (m, 2H, H4, H3), 3.09–2.96 (m, 3H, H1, H2’a,b), 2.95–2.79 (m, 8H, (CH3)2N-, H5, H2), 2.04–1.91 (m, 1H, H1’a), 1.50–1.37 (m, 1H, H1’b).
13C NMR (101 MHz, CD3OD) δ 153.20 (Cq Ar), 136.78 (Cq Ar), 131.25 (Cq Ar), 131.13 (C Ar), 130.94 (Cq Ar), 130.34 (C Ar), 129.08 (C Ar), 124.30 (C Ar), 120.66 (C Ar), 116.45 (C Ar), 81.18 (H4), 79.64 (H3), 78.08 (C1), 75.26 (C2), 71.62 (C5), 62.78 (C6), 45.83 ((CH3)2N- x2), 40.58 (C2’), 32.90 (C1’).
C10H28N2O7S; calcd. mass 440.51; ESI-MS: m/z 441.6 [M + H]+. [α]D20 +75 (c = 0.5, MeOH).
5-(N,N-Dimethylamino)-N-[2-(α-d-mannopyranosyl)ethyl]-1-naphthalensulfonamide 6
To a solution of crude compound 18 (186 mg) in MeOH (8 mL, 0.1 M), 230 µL of Et3N (1.66 mmol, 2 eq) was added at r.t. After 10 min, 330 mg (1.24 mmol, 1.5 eq) of dansyl chloride was added and the reaction was stirred at r.t. for 3 h. The reaction was followed by TLC (EtOAc/MeOH/H2O/AcOH 5:5:1:1 and EtOAc/MeOH 9:1) and the product was purified by flash chromatography (eluent EtOAc/MeOH 8.5:1.5). A total of 91 mg (0.2 mmol, 25% over two steps) of compound 6 were obtained.
1H NMR (400 MHz, CD3OD) δ 8.56 (d, J = 8.5 Hz, 1H, CH Ar), 8.34 (d, J = 8.7 Hz, 1H, CH Ar), 8.20 (d, J = 7.2 Hz, 1H, CH Ar), 7.63–7.54 (m, 2H, CH Ar), 7.27 (d, J = 7.5 Hz, 1H, CH Ar), 3.86–3.79 (m, 1H, H1), 3.71–3.64 (m, 2H, H6a,b), 3.58–3.45 (m, 3H, H2, H3, H4), 3.35 (m, 1H, H5), 2.95 (t, J = 6.9 Hz, 2H, H2’a,b), 2.88 (s, 6H, (CH3)2N-), 1.86–1.73 (m, 1H, H1’a), 1.62–1.48 (m, 1H, H1’b).
13C NMR (101 MHz, D2O) δ 150.57 (Cq Ar), 133.01 (Cq Ar), 130.21 (C Ar), 130.07 (C Ar), 128.87 (Cq Ar), 128.75 (Cq Ar), 128.64 (C Ar), 123.95 (C Ar), 119.28 (C Ar), 116.11 (C Ar), 78.57 (C5), 77.03 (C1), 75.35 (C2), 72.86 (C4), 68.96 (C3), 59.92 (C6), 44.86 ((CH3)2N-), 38.14 (C2’), 30.07 (C1’).
C20H28N2O7S; calcd. mass 440.51; ESI-MS: m/z 441.6 [M + H]+. [α]D20 +39 (c = 0.3, MeOH).
3-(2,3,4,6-tetra-O-acetyl-α-d-glucopyranosyl)-propene 20
The synthesis and characterization of this compound are described in [47]. All the NMR data are in agreement with those published.
2-(2,3,4,6-tetra-O-acetyl-α-d-glucopyranosyl)-ethanal 21
The synthesis and characterization of this compound are described in [49,65]. All the NMR results are consistent with the published data.
2-(2,3,4,6-tetra-O-acetyl-α-d-glucopyranosyl)-tert-butoxycarbonylaminoethane 22
Compound 21 (800 mg, 2.14 mmol) was dissolved in dry CH3CN (10 mL) under an argon atmosphere. Tert-butyl carbamate (6.42 mmol, 3 eq.), triethylsilane (6.42 mmol, 3 eq.), and TFA (6.21 mmol, 2.9 eq) were successively added to the solution. The reaction was followed by TLC (petroleum ether/EtOAc 7:3), which was stirred at r.t. After 3 h, Et3N was added to neutralize the reaction and the solvent evaporated. The residue was directly used for the next reaction step.
1H NMR on crude 22 (400 MHz, CDCl3) δ 5.51 (d, J = 18.6 Hz, 1H, NH), 5.18 (dd, J = 18.9, 9.9 Hz, 1H, H1), 5.01–4.78 (m, 3H, H2, H3, H4), 4.27–4.12 (m, 2H, H4, H6a), 4.07–3.95 (m, 1H, H6b), 3.92–3.76 (m, 1H, H5), 3.24–3.00 (m, 1H), 2.05–1.92 (m, 13H), 1.65 (s, 1H), 1.35 (s, 9H).
13C NMR on crude 22 (101 MHz, CDCl3) δ δ 170.60, 169.91, 169.58, 169.48 (4× COCH3), 155.80 (NHCO), 79.23 (CH3C-O-tBu), 70.76, 70,70 69.89, 69.19, 68.44 (C1, C2, C3, C4, C5), 62.00, 61.81 (C6, C2’), 37.08 (C2’), 28.69, 28.35, 28.28, 28.22 (4x CH3CO-Ac), 25.78 (C1’), 20.64 (CH3C-O-tBu x 3).
C21H33NO11; calcd. mass 475.49; ESI-MS: m/z 476.5 [M + H]+, 498.5 [M + Na]+.
2-(2,3,4,6-tetra-O-acetyl-α-d-glucopyranosyl)-ethaneamine 23
To a solution of crude 22 (1 g) in CH2Cl2 (7.5 mL), 7.5 mL of trifluoroacetic acid was added. The reaction was followed by TLC (EtOAc/MeOH/H2O/AcOH 7:3:1:1) and after 2 h the solvent was evaporated. Compound 23 was directly used for the next reaction without further purifications.
1H NMR on crude product (400 MHz, CDCl3) δ 5.15 (t, J = 8.9 Hz, 1H, H3), 4.91 (dd, J = 9.3, 5.6 Hz, 1H, H2), 4.83 (td, J = 8.9, 2.4 Hz, 1H, H4), 4.22–4.03 (m, 2H, H1, H6a), 3.94 (dd, J = 12.2, 2.7 Hz, 1H, H6b), 3.87–3.69 (m, 1H, H5), 2.79–2.52 (m, 2H, H2’), 2.01–1.86 (m, 13H, 3 x CH3CO, H1’a), 1.62–1.46 (m, 1H, H1’b).
13C NMR on crude product (101 MHz, CDCl3) δ 170.49, 169.85, 169.50, 169.38 (4x COCH3), 70.59, 69.94, 69.85, 68.94, 68.46 (C1, C2, C3, C4, C5), 62,04 (C6), 37.82 (C2’), 27.86 (C1’).
C16H25NO9; calcd. mass 375.37; ESI-MS: m/z 376.5 [M + H]+.
5-(N,N-Dimethylamino)-N,N-di-[2-(α-d-glucopyranosyl)ethyl]-1-naphthalensulfonamide 5
Compound 5 was isolated as a by-product during gram-scale synthesis of 1 depicted in Scheme 2 (see Results and Discussion). A total of 1 g of crude amine 23 was dissolved in dry CH2Cl2 (10 mL). An excess of Et3N and dansyl chloride were then added and the reaction stirred at r.t. The reaction was followed by TLC (petroleum ether/EtOAc 6:4 and EtOAc/MeOH/AcOH 6:3:1). After 3 h, the reaction was concentrated and the residue was subjected to flash chromatography on silica gel (petroleum ether/EtOAc 6:4). A total of 0.54 g (0.55 mmol) of the peracetylated precursor of dimer 5 and 300 mg (0.49 mmol) of the monomer derivative (compound 1 in peracetylated form) were obtained, as confirmed by an ESI-MS analysis (m/z 967.3 [M + H]+ for the dimer and 609.2 [M + H]+ for the monomer). The dimer was directly deprotected with MeONa (6 mL of 1 M solution in MeOH) in MeOH and CH2Cl2 (10 + 5 mL). After 2 h, the pH was adjusted to neutrality adding IRA-120 H+ resin. After its removal by filtration, the filtrate was concentrated to obtain 5 with quantitative yield.
1H NMR (400 MHz, CD3OD) δ 8.56 (d, J = 8.4 Hz, 1H, CH Ar), 8.29 (d, J = 8.7 Hz, 1H, CH Ar), 8.21 (d, J = 7.3 Hz, 1H, CH Ar), 7.63–7.53 (m, 2H, CH Ar), 7.25 (d, J = 7.5 Hz, 1H, CH Ar), 3.94–3.81 (m, 2H, H1 (x2)), 3.75 (d, J = 11.7 Hz, 2H, H6a (x2)), 3.65–3.47 (m, 6H, H6b (x2), H2 (x2), H2’a (x2)), 3.41 (t, J = 9.0 Hz, 2H, H3 (x2)), 3.37–3.27 (m, 4H, H5 (x2), H2’b (x2)), 3.20 (t, J = 9.1 Hz, 2H, H4 (x2)), 2.87 (s, 6H, (CH3)2N-), 2.03–1.75 (m, 4H, H1’a,b (x2)).
13C NMR (101 MHz, CD3OD) δ 153.15 (Cq Ar), 136.13 (Cq Ar), 131.52 (C Ar), 131.32 (Cq Ar), 131.25 (Cq Ar), 130.91 (C Ar), 129.18 (C Ar), 124.38 (C Ar), 120.64 (C Ar), 116.45 (C Ar), 75.16 (C3), 74.88 (C1), 74.53 (C5), 72.62 C2), 72.12 (C4), 62.99 (C6), 45.82 ((CH3)2N-), 45.71 (C2’), 24.92 (C1’).
C28H42N2O12S; calcd. mass 630.71; ESI-MS: m/z 631.3 [M + H]+ 653.3 [M + Na]+. [α]D20 +122 (c = 0.7, MeOH).
Compounds 24, 25, 26
The synthesis and characterization of this compound are described in [51]. All the NMR data are in agreement with those published.
Compound 27
The synthesis and characterization of this compound are described in [53]. All the NMR data are in agreement with those published.
(2R,4aR,5aR,7R,8aR,9R,9aS)-7-(azidomethyl)-2-phenyloctahydrofuro[2′,3′:5,6]pyrano[3,2-d][1,3]dioxin-9-ol 28a and (2R,4aR,5aR,7S,8aR,9R,9aS)-7-(azidomethyl)-2-phenyloctahydrofuro[2′,3′:5,6]pyrano[3,2-d][1,3]dioxin-9-ol 28b
Compound 24 (mixture of diastereoisomers) (1115 mg, 4.54 mmol) was dissolved in dry DMF (5 mL, ≈1 M). Benzaldehyde dimethylacetal (5.45 mmol, 1.2 eq) and camphorsulphonic acid (2.27 mmol, 0.5 eq) were added at r.t. The reaction was stirred at 70 °C for 12 h, and followed by TLC (petroleum ether/EtOAc 2:8). Et3N (5 mL) was added to neutralize the acidity of the reaction and the solvent was evaporated. The crude was purified by flash chromatography (eluent petroleum ether/EtOAc 6:4 to petroleum ether/EtOAc 1:1), obtaining compound 28a (777 mg, 2.33 mmol, 51% yield) and compound 28b (405 mg, 1.21 mmol, 27% yield) with an overall yield of 78%.
Data for 28a. 1H NMR (400 MHz, CDCl3) δ 7.50 (dd, J = 6.6, 2.9 Hz, 2H, CH Ar), 7.42–7.33 (m, 3H, CH Ar), 5.51 (s, 1H, H7), 4.66 (dt, J = 11.1, 7.0 Hz, 1H, H1), 4.32–4.22 (m, 1H, H6a), 4.16 (td, J = 9.9, 4.1 Hz, 1H, H2’), 4.00–3.87 (m, 2H, H2, H3), 3.71–3.63 (m, 2H, H5, H6b), 3.55 (dd, J = 13.0, 3.8 Hz, 1H, H3’a), 3.44 (dd, J = 11.6, 6.6 Hz, 1H, H4), 3.28 (dd, J = 13.0, 4.2 Hz, 1H, H3’b), 2.14 (dd, J = 22.3, 11.1 Hz, 1H, H1’a), 1.98–1.86 (m, 1H, H1’b).
13C NMR (101 MHz, CDCl3) δ 137.08 (CqAr), 129.25 (CHAr), 128.33 (CHAr), 126.31 (CHAr), 101.77 (CHPh), 79.84 (CH), 79.11 (CH), 75.94 (CH), 75.87 (CH), 73.36 (CH), 68.98 (CH2), 64.00 (CH), 54.14 (CH2), 29.71 (CH2).
C16H19N3O5; calcd. mass 333.34; ESI-MS: m/z 334.4 [M + H]+.
Data for 28b. 1H NMR (400 MHz, CDCl3) δ 7.49 (dd, J = 6.5, 3.0 Hz, 2H, CH Ar), 7.42–7.32 (m, 3H, CH Ar), 5.52 (s, 1H, H7), 4.73 (dd, J = 15.9, 8.9 Hz, 1H, H1), 4.39 (dq, J = 8.3, 4.1 Hz, 1H, H2’), 4.29 (dd, J = 9.6, 4.1 Hz, 1H, H6a), 4.11 (t, J = 7.1 Hz, 1H, H2), 3.84 (dd, J = 9.6, 7.3 Hz, 1H, H3), 3.68 (t, J = 9.8 Hz, 1H, H6b), 3.65–3.58 (m, 1H, H5), 3.52–3.39 (m, 2H, H4, H3’a), 3.18 (dd, J = 12.9, 4.2 Hz, 1H, H3’b), 2.22 (dt, J = 13.2, 9.1 Hz, 1H, H1’a), 1.94 (ddd, J = 13.3, 9.0, 4.5 Hz, 1H, H1’b).
13C NMR (101 MHz, CDCl3) δ 137.08 (Cq Ar), 129.39 (CH Ar), 128.45 (CH Ar), 126.35 (CH Ar), 101.89 (CHPh), 80.16 (CH), 79.97 (CH), 75.46 (CH), 75.30 (CH), 71.02 (CH), 69.09 (CH2), 63.83 (CH), 54.93 (CH2), 29.46 (CH2).
C16H19N3O5; calcd. mass 333.34; ESI-MS: m/z 334.4 [M + H]+.
(2R,3aR,5R,6S,7S,7aR)-2-(aminomethyl)-5-(hydroxymethyl)hexahydro-2H-furo[3,2-b]pyran-6,7-diol 29a
To a solution of compound 28a (94 mg, 0.28 mmol) in a mixture of MeOH/EtOAc (5 + 3 mL) were added a few drops of glacial acetic acid and a catalytic amount of Pd(OH)2/C. The reaction was stirred at r.t. under a hydrogen atmosphere until TLC (petroleum ether/EtOAc 1:1 and EtOAc/MeOH/H2O/AcOH 6:4:1:1) indicated the disappearance of the starting material. After 24 h, the reaction was then filtered through a pad of celite and the solution containing the product was concentrated. 1H-NMR confirmed the purity of the deprotected bicyclic sugar that was directly used for the next reaction without further purification (60 mg, 0.27 mmol, quant. yield).
1H NMR (400 MHz, CD3OD) δ 4.61 (s, 1H, H1), 4.38 (d, J = 8.7 Hz, 1H, H2’), 3.98–3.90 (m, 1H, H2), 3.79 (dd, J = 12.0, 6.8 Hz, 1H, H6a), 3.74–3.63 (m, 2H, H3, H4), 3.60–3.52 (m, 1H, H5), 3.43–3.33 (m, 1H, H6b), 3.13 (dd, J = 13.0, 3.0 Hz, 1H, H3’a), 2.92 (dd, J = 13.1, 8.8 Hz, 1H, H3’b), 2.19 (ddd, J = 13.5, 6.3, 2.6 Hz, 1H, H1’a), 1.86–1.75 (m, 1H, H1’b).
13C NMR (101 MHz, D2O) δ 85.34 (CH), 80.54 (CH), 76.40 (CH), 76.09 (CH), 75.35 (CH), 70.23 (CH), 62.68 (CH2), 45.17 (CH2), 36.37 (CH2).
C9H17NO5; calcd. mass 219.24; ESI-MS: m/z 220.2 [M + H]+.
(2S,3aR,5R,6S,7S,7aR)-2-(aminomethyl)-5-(hydroxymethyl)hexahydro-2H-furo[3,2-b]pyran-6,7-diol 29b
Compound 29b was obtained following the same procedure reported for 28b. Catalytic hydrogenolysis (41 mg, 0.123 mmol) afforded 27 mg (0.123 mmol, quant. yield) of amine 29b that was used directly for the next reaction.
1H NMR (400 MHz, CD3OD) δ 4.46 (s, 1H, H1), 4.30 (dd, J = 8.7, 4.6 Hz, 1H, H2’), 4.01 (dd, J = 12.1, 8.3 Hz, 1H, H6a), 3.89–3.82 (m, 1H, H4), 3.75 (dt, J = 8.1, 3.6 Hz, 2H, H2, H5), 3.62 (dd, J = 12.1, 3.2 Hz, 1H, H6b), 3.54 (t, J = 4.9 Hz, 1H, H3), 3.13 (dd, J = 13.2, 3.6 Hz, 1H, H3’a), 3.05 (dd, J = 13.2, 5.0 Hz, 1H, H3’b), 2.51–2.38 (m, 1H, H1’a), 1.96 (s, 1H, H1’b).
13C NMR (101 MHz, D2O) δ 85.24 (CH), 80.52 (CH), 77.03 (CH), 75.40 (CH), 74.99 (CH), 70.02 (CH), 62.32 (CH2), 45.98 (CH2), 36.56 (CH2).
C9H17NO5; calcd. mass 219.24; ESI-MS: m/z 220.2 [M + H]+.
N-(((2R,3aR,5R,6S,7S,7aR)-6,7-dihydroxy-5-(hydroxymethyl)hexahydro-2H-furo[3,2-b]pyran-2-yl)methyl)-5-(dimethylamino)naphthalene-1-sulfonamide 3
Bicyclic amine 29a (60 mg, 0.27 mmol) was dissolved in MeOH (5 mL); Et3N (0.57 mmol, 2.1 eq) and dansyl chloride (0.41 mmol, 1.5 eq) were added and the reaction was stirred at r.t. until TLC (EtOAc/MeOH 9:1 and EtOAc/MeOH/H2O/AcOH 6:4:1:1) indicated the end of the reaction. After 3 h, the crude reaction was subjected to flash chromatography on silica gel (eluent EtOAc/MeOH 9.5:0.5) which afforded 51 mg (0.11 mmol, 41% yield) of compound 3.
1H NMR (400 MHz, CD3OD) δ 8.56 (d, J = 8.5 Hz, 1H, CH Ar), 8.36 (d, J = 8.7 Hz, 1H, CH Ar), 8.19 (dd, J = 7.3, 1.1 Hz, 1H, CH Ar), 7.64–7.53 (m, 2H, CH Ar), 7.28 (d, J = 7.6 Hz, 1H, CH Ar), 4.40 (t, J = 7.6 Hz, 1H, H1), 4.11 (s, 1H, H2’), 3.75–3.60 (m, 3H, H6a, H2, H6b), 3.50 (dd, J = 9.5, 6.5 Hz, 1H, H3), 3.46 (dd, J = 10.7, 4.0 Hz, 1H, H5), 3.28–3.20 (m, 1H, H4), 3.00 (dd, J = 13.7, 4.6 Hz, 1H, H3’a), 2.93 (dd, J = 13.7, 5.3 Hz, 1H, H3’b), 2.88 (s, 6H, -N(CH3)2), 1.91 (ddd, J = 13.2, 6.5, 3.6 Hz, 1H, H1’a), 1.77–1.63 (m, 1H, H1’b).
13C NMR (101 MHz, CD3OD) δ 153.15 (Cq Ar), 137.14 (Cq Ar), 131.16 (Cq Ar), 131.12 (C Ar), 130.90 (Cq Ar), 130.01 (C Ar), 129.10 (C Ar), 124.30 (C Ar), 120.54 (C Ar), 116.41 (C Ar), 84.35 (C2’), 79.21 (C1), 77.47 (C2), 74.94 (C4), 74.31 (C3), 69.52 (C5), 62.29 (C6), 47.46 (C3’), 45.80 ((CH3)2N-), 35.01 (C1’).
C21H28N2O7S; calcd. mass 452.52; ESI-MS: m/z 453.4 [M + H]+. [α]D20 +12 (c = 0.3, MeOH).
N-(((2S,3aR,5R,6S,7S,7aR)-6,7-dihydroxy-5-(hydroxymethyl)hexahydro-2H-furo[3,2-b]pyran-2-yl)methyl)-5-(dimethylamino)-naphthalene-1-sulfonamide 4
Compound 29b (27 mg, 0.123 mmol) was converted into dansyl-sulphonamide derivative 4 (32 mg, 0.07 mmol, 57% yield) using the same procedure described for the diastereoisomer 29a.
1H NMR (400 MHz, CD3OD) δ 8.56 (d, J = 8.5 Hz, 1H, CH Ar), 8.36 (d, J = 8.7 Hz, 1H, CH Ar), 8.20 (dd, J = 7.3, 1.1 Hz, 1H, CH Ar), 7.59 (td, J = 8.8, 7.6 Hz, 2H, CH Ar), 7.28 (d, J = 7.2 Hz, 1H, CH Ar), 4.44 (dd, J = 12.0, 5.3 Hz, 1H, H1), 3.94–3.83 (m, 1H, H2’), 3.72 (dd, J = 12.0, 6.4 Hz, 1H, H6a), 3.64 (dd, J = 12.4, 3.2 Hz, 1H, H6b), 3.62–3.53 (m, 2H, H2, H3), 3.48–3.41 (m, 1H, H5), 3.36–3.27 (m, 1H, H4), 3.02 (dd, J = 5.4, 2.4 Hz, 2H, H3’a, b), 2.88 (s, 6H, -N(CH3)2), 2.00 (dt, J = 13.7, 7.0 Hz, 1H, H1’a), 1.71 (ddd, J = 13.1, 7.5, 5.3 Hz, 1H, H1’b).
13C NMR (101 MHz, CD3OD) δ 153.14 (Cq Ar), 136.95 (Cq Ar), 131.16 (Cq Ar), 131.14 (C Ar), 130.87 (Cq Ar), 130.06 (C Ar), 129.20 (C Ar), 124.28 (C Ar), 120.49 (C Ar), 116.43 (C Ar), 83.95 (C2’), 78.88 (C1), 78.23 (C2), 75.48 (C4), 74.92 (C3), 69.49 (C5), 62.30 (C6), 47.99 (C3’), 45.79 ((CH3)2N-), 34.88 (C1’).
C21H28N2O7S; calcd. mass 452.52; ESI-MS: m/z 453.4 [M + H]+. [α]D20 +60 (c = 0.3, MeOH).

4. Conclusions

In this work, we have described the design and synthesis of glycoderivatives, which are potential SGLT1 ligands that could act as cytoprotective agents and serve as molecular/chemical tools for studying the SGLT1-mediated cytoprotection process. The mechanism underlying this phenomenon is still unclear, particularly how C-glucoside 1, when interacting with SGLT1, acts as an anti-inflammatory/protective agent. The synthesis of the library involved introducing modifications to the sugar region and the spacer between the sugar and the aromatic group, thus expanding the diversity of chemical structures. This builds upon the first library of glycoderivatives targeting SGLT1, which was previously reported. The results obtained suggest that the aromatic/dansyl residue plays a primary role in the final cytoprotective effect, while the role of the sugar portion remains unclear.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29215067/s1, 1H-NMR, 2D NOESY and 13C-NMR spectra of synthesized compounds.

Author Contributions

Conceptualization, G.D. and B.L.F.; methodology, G.D. and B.L.F.; investigation, G.D. and B.L.F.; data curation, G.D. and B.L.F.; writing—original draft preparation, G.D. and B.L.F.; writing—review and editing, G.D. and B.L.F.; supervision, B.L.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within this article or in Supplementary Materials.

Acknowledgments

We acknowledge Cristiano Rumio, Diego Cardani, and Claudia Sardi for the execution of biological activity tests.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Banerjee, S.K.; McGaffin, K.R.; Pastor-Soler, N.M.; Ahmad, F. SGLT1 is a novel cardiac glucose transporter that is perturbed in disease states. Cardiovasc. Res. 2009, 84, 111–118. [Google Scholar] [CrossRef] [PubMed]
  2. Gorboulev, V.; Schürmann, A.; Vallon, V.; Kipp, H.; Jaschke, A.; Klessen, D.; Friedrich, A.; Scherneck, S.; Rieg, T.; Cunard, R.; et al. Na+-D-glucose cotransporter SGLT1 is pivotal for intestinal glucose absorption and glucose-dependent incretin secretion. Diabetes 2012, 61, 187–196. [Google Scholar] [CrossRef] [PubMed]
  3. Wright, E.M.; Loo, D.D.; Hirayama, B.A.; Turk, E. Surprising versatility of Na+-glucose cotransporters: SLC5. Physiology 2004, 19, 370–376. [Google Scholar] [CrossRef]
  4. Pragallapati, S.; Manyam, R. Glucose transporter 1 in health and disease. J. Oral. Maxillofac. Pathol. 2019, 23, 443–449. [Google Scholar] [CrossRef]
  5. Koepsell, H. Glucose transporters in the small intestine in health and disease. Pflugers Arch. 2020, 472, 1207–1248. [Google Scholar] [CrossRef]
  6. Tsimihodimos, V.; Filippas-Ntekouan, S.; Elisaf, M. SGLT1 inhibition: Pros and cons. Eur. J. Pharmacol. 2018, 838, 153–156. [Google Scholar] [CrossRef]
  7. Dyer, J.; Wood, I.S.; Palejwala, A.; Ellis, A.; Shirazi-Beechey, S.P. Expression of monosaccharide transporters in intestine of diabetic humans. Am. J. Physiol. Gastrointest. Liver Physiol. 2002, 282, G241–G248. [Google Scholar] [CrossRef]
  8. Koepsell, H. The Na+-D-glucose cotransporters SGLT1 and SGLT2 are targets for the treatment of diabetes and cancer. Pharmacol. Ther. 2017, 170, 148–165. [Google Scholar] [CrossRef] [PubMed]
  9. Song, P.; Onishi, A.; Koepsell, H.; Vallon, V. Sodium glucose cotransporter SGLT1 as a therapeutic target in diabetes mellitus. Expert. Opin. Ther. Targets 2016, 20, 1109–1125. [Google Scholar] [CrossRef]
  10. Li, Y.; Xu, G. Sodium glucose cotransporter 1 (SGLT1) inhibitors in cardiovascular protection: Mechanism progresses and challenges. Pharmacol. Res. 2022, 176, 106049. [Google Scholar] [CrossRef]
  11. Zhao, M.; Li, N.; Zhou, H. SGLT1: A Potential Drug Target for Cardiovascular Disease. Drug Des. Devel. Ther. 2023, 17, 2011–2023. [Google Scholar] [CrossRef] [PubMed]
  12. Afsar, B.; Afsar, R.E.; Lentine, K.L. The impact of sodium-glucose cotransporter inhibitors on gut microbiota: A scoping review. J. Diabetes Metab. Disord. 2024, 23, 497–508. [Google Scholar] [CrossRef] [PubMed]
  13. Peritore-Galve, F.C.; Kaji, I.; Smith, A.; Walker, L.M.; Shupe, J.A.; Washington, M.K.; Algood, H.M.S.; Dudeja, P.K.; Goldenring, J.R.; Lacy, D.B. Increased intestinal permeability and downregulation of absorptive ion transporters. Gut Microbes 2023, 15, 2225841. [Google Scholar] [CrossRef] [PubMed]
  14. Huang, C.Y.; Hsiao, J.K.; Lu, Y.Z.; Lee, T.C.; Linda, C.H. Anti-apoptotic PI3K/Akt signaling by sodium/glucose transporter 1 reduces epithelial barrier damage and bacterial translocation in intestinal ischemia. Lab. Investig. 2011, 91, 294–309. [Google Scholar] [CrossRef] [PubMed]
  15. Röder, P.V.; Geillinger, K.E.; Zietek, T.S.; Thorens, B.; Koepsell, H.; Daniel, H. The role of SGLT1 and GLUT2 in intestinal glucose transport and sensing. PLoS ONE 2014, 9, e89977. [Google Scholar] [CrossRef]
  16. Lehmann, A.; Hornby, P.J. Intestinal SGLT1 in metabolic health and disease. Am. J. Physiol. Gastrointest. Liver. Physiol. 2016, 310, G887–G898. [Google Scholar] [CrossRef]
  17. Martinussen, C.; Veedfald, S.; Dirksen, C.; Bojsen-Møller, K.N.; Svane, M.S.; Wewer Albrechtsen, N.J.; van Hall, G.; Kristiansen, V.B.; Fenger, M.; Holst, J.J.; et al. The effect of acute dual SGLT1/SGLT2 inhibition on incretin release and glucose metabolism after gastric bypass surgery. Am. J. Physiol. Endocrinol. Metab. 2020, 318, E956–E964. [Google Scholar] [CrossRef]
  18. Vrhovac, I.; Balen Eror, D.; Klessen, D.; Burger, C.; Breljak, D.; Kraus, O.; Radović, N.; Jadrijević, S.; Aleksic, I.; Walles, T.; et al. Localizations of Na+-D-glucose cotransporters SGLT1 and SGLT2 in human kidney and of SGLT1 in human small intestine, liver, lung, and heart. Pflugers Arch. 2015, 467, 1881–1898. [Google Scholar] [CrossRef]
  19. Yu, L.C.; Huang, C.Y.; Kuo, W.T.; Sayer, H.; Turner, J.R.; Buret, A.G. SGLT-1-mediated glucose uptake protects human intestinal epithelial cells against Giardia duodenalis-induced apoptosis. Int. J. Parasitol. 2008, 38, 923–934. [Google Scholar] [CrossRef]
  20. Yu, L.C.; Turner, J.R.; Buret, A.G. Giardia-induced intestinal epithelial apoptosis is rescued by SGLT-1-mediated glucose uptake. FASEB J. 2007, 21, A586. [Google Scholar] [CrossRef]
  21. Yu, L.C.; Turner, J.R.; Buret, A.G. LPS/CD14 activation triggers SGLT-1-mediated glucose uptake and cell rescue in intestinal epithelial cells via early apoptotic signals upstream of caspase-3. Exp. Cell Res. 2006, 312, 3276–3286. [Google Scholar] [CrossRef] [PubMed]
  22. Yu, L.C.; Flynn, A.N.; Turner, J.R.; Buret, A.G. SGLT-1-mediated glucose uptake protects intestinal epithelial cells against LPS-induced apoptosis and barrier defects: A novel cellular rescue mechanism? FASEB J. 2005, 19, 1822–1835. [Google Scholar] [CrossRef] [PubMed]
  23. Palazzo, M.; Gariboldi, S.; Zanobbio, L.; Selleri, S.; Dusio, G.F.; Mauro, V.; Rossini, A.; Balsari, A.; Rumio, C. Sodium-dependent glucose transporter-1 as a novel immunological player in the intestinal mucosa. J. Immunol. 2008, 181, 3126–3136. [Google Scholar] [CrossRef] [PubMed]
  24. La Ferla, B.; Spinosa, V.; D’Orazio, G.; Palazzo, M.; Balsari, A.; Foppoli, A.A.; Rumio, C.; Nicotra, F. Dansyl C-glucoside as a novel agent against endotoxic shock. ChemMedChem 2010, 5, 1677–1680. [Google Scholar] [CrossRef]
  25. Nicotra, F.; Airoldi, C.; Cardona, F. Synthesis of C- and S-Glycosides. In Comprehensive Glycoscience; Elsevier: Oxford, UK, 2007; pp. 647–683. [Google Scholar]
  26. Paiotta, A.; D’Orazio, G.; Palorini, R.; Ricciardiello, R.; Zoia, L.; Votta, G.; De Gioia, L.; Chiaradonna, F.; La Ferla, P. Design, Synthesis, and Preliminary Biological Evaluation of GlcNAc-6P Analogues for the Modulation of Phosphoacetylglucosamine Mutase 1 (AGM1/PGM3). Eur. J. Org. Chem. 2018, 2018, 1946–1952. [Google Scholar] [CrossRef]
  27. Ricciardiello, F.; Votta, G.; Palorini, R.; Raccagni, I.; Brunelli, L.; Paiotta, A.; Tinelli, F.; D’Orazio, G.; Valtorta, S.; De Gioia, L.; et al. Inhibition of the Hexosamine Biosynthetic Pathway by targeting PGM3 causes breast cancer growth arrest and apoptosis. Cell Death Dis. 2018, 9, 377. [Google Scholar] [CrossRef]
  28. Ernst, B.; Magnani, J.L. From carbohydrate leads to glycomimetic drugs. Nat. Rev. Drug Discov. 2009, 8, 661–677. [Google Scholar] [CrossRef]
  29. D’Orazio, G.; Parisi, G.; Policano, C.; Mechelli, R.; Codacci Pisanelli, G.; Pitaro, M.; Ristori, G.; Salvetti, M.; Nicotra, F.; La Ferla, B. Arsenical C-Glucoside Derivatives with Promising Antitumor Activity. Eur. J. Org. Chem. 2015, 2015, 4620–4623. [Google Scholar] [CrossRef]
  30. Nicotra, F.; Cipolla, L.; La Ferla, B.; Airoldi, C.; Zona, C.; Orsato, A.; Shaikh, N.; Russo, L. Carbohydrate scaffolds in chemical genetic studies. J. Biotechnol. 2009, 144, 234–241. [Google Scholar] [CrossRef]
  31. Tamburrini, A.; Colombo, C.; Bernardi, A. Design and synthesis of glycomimetics: Recent advances. Med. Res. Rev. 2020, 40, 495–531. [Google Scholar] [CrossRef]
  32. Hevey, R. Strategies for the Development of Glycomimetic Drug Candidates. Pharmaceuticals 2019, 12, 55. [Google Scholar] [CrossRef] [PubMed]
  33. Fernández-Tejada, A.; Cañada, F.J.; Jiménez-Barbero, J. Recent Developments in Synthetic Carbohydrate-Based Diagnostics, Vaccines, and Therapeutics. Chem.-Eur. J. 2015, 21, 10616–10628. [Google Scholar] [CrossRef] [PubMed]
  34. Compain, P.; Martin, O.R. Carbohydrate mimetics-based glycosyltransferase inhibitors. Bioorg. Med. Chem. 2001, 9, 3077–3092. [Google Scholar] [CrossRef] [PubMed]
  35. Barchi, J.J., Jr. Emerging roles of carbohydrates and glycomimetics in anticancer drug design. Curr. Pharm. Des. 2000, 6, 485–501. [Google Scholar] [CrossRef]
  36. Filice, M.; Palomo, J.M. Monosaccharide derivatives as central scaffolds in the synthesis of glycosylated drugs. RSC Adv. 2012, 2, 1729–1742. [Google Scholar] [CrossRef]
  37. D’Orazio, G.; Martorana, A.M.; Filippi, G.; Polissi, A.; De Gioia, L.; La Ferla, B. N-Spirofused Bicyclic Derivatives of 1-Deoxynojirimycin: Synthesis and Preliminary Biological Evaluation. ChemistrySelect 2016, 1, 2444–2447. [Google Scholar] [CrossRef]
  38. Cardani, D.; Sardi, C.; La Ferla, B.; D’Orazio, G.; Sommariva, M.; Marcucci, F.; Olivero, D.; Tagliabue, E.; Koepsell, H.; Nicotra, F.; et al. Sodium glucose cotransporter 1 ligand BLF501 as a novel tool for management of gastrointestinal mucositis. Mol. Cancer 2014, 13, 23. [Google Scholar] [CrossRef]
  39. D’Orazio, G.; Marradi, M.; La Ferla, B. Dual-Targeting Gold Nanoparticles: Simultaneous Decoration with Ligands for Co-Transporters SGLT-1 and B0AT1. Appl. Sci. 2024, 14, 2248. [Google Scholar] [CrossRef]
  40. Giudicelli, J.; Bertrand, M.F.; Bilski, S.; Tran, T.T.; Poiree, J.C. Effect of cross-linkers on the structure and function of pig-renal sodium-glucose cotransporters after papain treatment. Biochem. J. 1998, 330, 733–736. [Google Scholar] [CrossRef]
  41. Stevens, B.R.; Fernandez, A.; Hirayama, B.; Wright, E.M.; Kempner, E.S. Intestinal brush border membrane Na+/glucose cotransporter functions in situ as a homotetramer. Proc. Natl. Acad. Sci. USA 1990, 87, 1456–1460. [Google Scholar] [CrossRef]
  42. Takahashi, M.; Malathi, P.; Preiser, H.; Jung, C.Y. Radiation inactivation studies on the rabbit kidney sodium-dependent glucose transporter. J. Biol. Chem. 1985, 260, 10551–10556. [Google Scholar] [CrossRef] [PubMed]
  43. Turner, R.J.; Kempner, E.S. Radiation Inactivation Studies of the Renal Brush-border Membrane Phlorizin-binding Protein. J. Biol. Chem. 1982, 257, 794–797. [Google Scholar] [CrossRef]
  44. D’Orazio, G. Glycoderivatives: Drug Candidates and Molecular Tools. Doctoral Thesis, University of Milano-Bicocca, Milan, Italy, 2013. [Google Scholar]
  45. Wright, E.M.; Loo, D.D.F.; Hirayama, B.A. Biology of Human Sodium Glucose Transporters. Physiol. Rev. 2011, 91, 733–794. [Google Scholar] [CrossRef]
  46. Brenna, E.; Fuganti, C.; Grasselli, P.; Serra, S.; Zamboti, S. A novel general route for the synthesis of C-glycosyl tyrosine analogues. Chemistry 2002, 8, 1872–1878. [Google Scholar] [CrossRef] [PubMed]
  47. McGarvey, G.J.; LeClair, C.A.; Schmidtmann, B.A. Studies on the stereoselective synthesis of C-allyl glycosides. Org. Lett. 2008, 10, 4727–4730. [Google Scholar] [CrossRef]
  48. Cardona, F.; La Ferla, B. Synthesis of C-glycoconjugates from readily available unprotected C-allyl glycosides by chemoselective ligation. J. Carbohydr. Chem. 2008, 27, 203–213. [Google Scholar] [CrossRef]
  49. Štěpánek, P.; Vích, O.; Kniežo, L.; Dvořáková, H.; Vojtíšek, P. A short and efficient synthesis of alpha-C-(1→3)-linked disaccharides containing deoxyhexopyranoses. Tetrahedron Asymm. 2004, 15, 1033–1041. [Google Scholar] [CrossRef]
  50. Li, T.; Lee, H.B.; Park, K. Comparative stereochemical analysis of glucose-binding proteins for rational design of glucose-specific agents. J. Biomater. Sci. Polym. Ed. 1998, 9, 327–344. [Google Scholar] [CrossRef]
  51. La Ferla, B.; Cardona, F.; Perdigao, I.; Nicotra, F. Direct synthesis of glycidic bicyclic scaffolds in water without protecting groups. Synlett 2005, 17, 2641–2642. [Google Scholar] [CrossRef]
  52. Mari, S.; Cañada, J.F.; Jiménez-Barbero, J.; Bernardi, A.; Marcou, G.; Motto, I.; Velter, I.; Nicotra, F.; La Ferla, B. Synthesis and conformational analysis of galactose-derived bicyclic scaffolds. Eur. J. Org. Chem. 2006, 2006, 2925–2933. [Google Scholar] [CrossRef]
  53. Rumio, C.; Palazzo, M.; Balsari, A.; Nicotra, F.; La Ferla, B. Compounds with Glycidic Structure Active in the Therapy of Sistemic and Local Inflammation. PCT/EP2009/003267 date 5 July 2009. PCT WO2009135673A3. Available online: https://worldwide.espacenet.com/patent/search?q=pn%3DWO2009135673A3 (accessed on 30 December 2009).
  54. Palmioli, A.; Nicolini, G.; Tripodi, F.; Orsato, A.; Ceresa, C.; Donzelli, E.; Arici, M.; Coccetti, P.; Rocchetti, M.; La Ferla, B.; et al. Targeting GRP receptor: Design, synthesis and preliminary biological characterization of new non-peptide antagonists of bombesin. Bioorganic Chem. 2021, 109, 104739. [Google Scholar] [CrossRef] [PubMed]
  55. Ren, D.Y.; Li, C.; Qin, Y.Q.; Yin, R.L.; Du, S.W.; Ye, F.; Liu, H.F.; Wang, M.P.; Sun, Y.; Li, X.; et al. Lactobacilli reduce chemokine IL-8 production in response to TNF-α and Salmonella challenge of Caco-2 cells. Biomed. Res. Int. 2013, 2013, 925219. [Google Scholar] [CrossRef] [PubMed]
  56. Sonnier, D.I.; Bailey, S.R.; Schuster, R.M.; Lentsch, A.B.; Pritts, T.A. TNF-α induces vectorial secretion of IL-8 in Caco-2 cells. J. Gastrointest. Surg. 2010, 14, 1592–1599. [Google Scholar] [CrossRef] [PubMed]
  57. O’Hara, A.M.; Bhattacharyya, A.; Bai, J.; Mifflin, R.C.; Ernst, P.B.; Mitra, S.; Crowe, S.E. Tumor necrosis factor (TNF)-alpha-induced IL-8 expression in gastric epithelial cells: Role of reactive oxygen species and AP endonuclease-1/redox factor (Ref)-1. Cytokine 2009, 46, 359–369. [Google Scholar] [CrossRef] [PubMed]
  58. Sardi, C.; Martini, E.; Mello, T.; Camelliti, S.; Sfondrini, L.; Marcucci, F.; Kallikourdis, M.; Sommariva, M.; Rumio, C. Effect of acetylsalicylic acid on inflamed adipose tissue. Insulin resistance and hepatic steatosis in a mouse model of diet-induced obesity. Life Sci. 2021, 264, 118618. [Google Scholar] [CrossRef]
  59. Sardi, C. Diet and Inflammation: Focus on the Small Intestine and Adipose Tissue. Doctoral Thesis, University of Milan, Milan, Italy, 2015. [Google Scholar]
  60. Panayotova-Heiermann, M.; Eskandari, S.; Turk, E.; Zampighi, G.A.; Wright, E.M. Five transmembrane helices form the sugar pathway through the Na+/glucose cotransporter. J. Biol. Chem. 1997, 272, 20324–20327. [Google Scholar] [CrossRef]
  61. Panayotova-Heiermann, M.; Loo, D.D.; Kong, C.T.; Lever, J.E.; Wright, E.M. Sugar binding to Na+/glucose cotransporters is determined by the carboxyl-terminal half of the protein. J. Biol. Chem. 1996, 271, 10029–10034. [Google Scholar] [CrossRef]
  62. Puntheeranurak, T.; Wimmer, B.; Castaneda, F.; Gruber, H.J.; Hinterdorfer, P.; Kinne, R.K. Substrate specificity of sugar transport by rabbit SGLT1: Single-molecule atomic force microscopy versus transport studies. Biochemistry 2007, 46, 2797–2804. [Google Scholar] [CrossRef]
  63. Wimmer, B.; Raja, M.; Hinterdorfer, P.; Gruber, H.J.; Kinne, R.K. C-terminal loop 13 of Na+/glucose cotransporter 1 contains both stereospecific and non-stereospecific sugar interaction sites. J. Biol. Chem. 2009, 284, 983–991. [Google Scholar] [CrossRef]
  64. Puntheeranurak, T.; Kasch, M.; Xia, X.; Hinterdorfer, P.; Kinne, R.K. Three surface subdomains form the vestibule of the Na+/glucose cotransporter SGLT1. J. Biol. Chem. 2007, 282, 25222–25230. [Google Scholar] [CrossRef]
  65. Abdel-Rahman, A.A.H.; El Ashry, E.S.H.; Schmidt, R.R. Synthesis of C-(D-glycopyranosyl)ethylamines and C-(D-glycofuranosyl)methylamines as potential glycosidase inhibitors. Carbohydr. Res. 1999, 315, 106–116. [Google Scholar] [CrossRef]
Molecules 29 05067 g001
Figure 1. Structure of C-glucoside 1.
Figure 1. Structure of C-glucoside 1.
Molecules 29 05067 g001
Molecules 29 05067 g002
Figure 2. Structure of C-glucoside 1 analogs constituting the library object of this work. Newly synthesized compounds are black-circled.
Figure 2. Structure of C-glucoside 1 analogs constituting the library object of this work. Newly synthesized compounds are black-circled.
Molecules 29 05067 g002
Molecules 29 05067 sch001
Scheme 1. Synthesis of compounds 2 and 6. Reagents and conditions: (a) O3, CH2Cl2, −78 °C, and 1 h, then Ph3P, −78 °C to r.t., and 12 h; (b) NaBH4, CH2Cl2/EtOH, r.t., 3 h, 66% for 13, and 60% for 14 (two steps); (c) Ph3P, DIAD, (PhO)2PON3, THF dry, 0 °C to r.t., 1 h, 93% (15), and 80% (16); (d) H2, Pd(OH)2/C, AcOH, EtOAc/MeOH, r.t., and 24 h; (e) DansylCl, Et3N, H2O/THF, r.t., 3 h, 35% (2, over two steps), and 25% (6, over two steps).
Scheme 1. Synthesis of compounds 2 and 6. Reagents and conditions: (a) O3, CH2Cl2, −78 °C, and 1 h, then Ph3P, −78 °C to r.t., and 12 h; (b) NaBH4, CH2Cl2/EtOH, r.t., 3 h, 66% for 13, and 60% for 14 (two steps); (c) Ph3P, DIAD, (PhO)2PON3, THF dry, 0 °C to r.t., 1 h, 93% (15), and 80% (16); (d) H2, Pd(OH)2/C, AcOH, EtOAc/MeOH, r.t., and 24 h; (e) DansylCl, Et3N, H2O/THF, r.t., 3 h, 35% (2, over two steps), and 25% (6, over two steps).
Molecules 29 05067 sch001
Molecules 29 05067 g003
Figure 3. Two-dimensional 1H-NOESY experiments on compounds 28a and 28b. In the NOESY spectrum of 28b, a cross peak between H2’ and H3 is present, indicating their spatial proximity. Higher-resolution 2D 1H-NOESY spectra are reported in Supplementary Materials.
Figure 3. Two-dimensional 1H-NOESY experiments on compounds 28a and 28b. In the NOESY spectrum of 28b, a cross peak between H2’ and H3 is present, indicating their spatial proximity. Higher-resolution 2D 1H-NOESY spectra are reported in Supplementary Materials.
Molecules 29 05067 g003
Molecules 29 05067 g004
Figure 4. Optical behaviors of compounds 3 (on the left) and 4 (on the right) when exposed to a UVA lamp with an excitation wavelength of 365 nm.
Figure 4. Optical behaviors of compounds 3 (on the left) and 4 (on the right) when exposed to a UVA lamp with an excitation wavelength of 365 nm.
Molecules 29 05067 g004
Molecules 29 05067 g005
Figure 5. Preliminary viability experiments with the synthesized compounds. Neutral red assay for protective effect on doxorubicin-induced cytotoxicity on Caco-2 cells overexpressing SGLT1. The compounds were tested at 5 µg/mL, (8–10 µM). UNTR: untreated cells; DOX: cells treated with doxorubicin. The results are expressed as relative cell viability (%), as a percentage relative to the untreated cells.
Figure 5. Preliminary viability experiments with the synthesized compounds. Neutral red assay for protective effect on doxorubicin-induced cytotoxicity on Caco-2 cells overexpressing SGLT1. The compounds were tested at 5 µg/mL, (8–10 µM). UNTR: untreated cells; DOX: cells treated with doxorubicin. The results are expressed as relative cell viability (%), as a percentage relative to the untreated cells.
Molecules 29 05067 g005
Molecules 29 05067 g006
Figure 6. Effect of the synthesized compounds on IL-8 gene expression on the Caco-2 cell lines treated with TNFα as a pro-inflammatory cytokine. IL-8 gene expression was determined by real-time PCR. The compounds were tested at 5 µg/mL, (8–10 µM). UNTR: untreated cells; TNFα: Tumor necrosis factor-α. The results are expressed as relative IL-8 expression compared to the IL-8 expression on untreated cells.
Figure 6. Effect of the synthesized compounds on IL-8 gene expression on the Caco-2 cell lines treated with TNFα as a pro-inflammatory cytokine. IL-8 gene expression was determined by real-time PCR. The compounds were tested at 5 µg/mL, (8–10 µM). UNTR: untreated cells; TNFα: Tumor necrosis factor-α. The results are expressed as relative IL-8 expression compared to the IL-8 expression on untreated cells.
Molecules 29 05067 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

D’Orazio, G.; La Ferla, B. Synthesis of a Small Library of Glycoderivative Putative Ligands of SGLT1 and Preliminary Biological Evaluation. Molecules 2024, 29, 5067. https://doi.org/10.3390/molecules29215067

AMA Style

D’Orazio G, La Ferla B. Synthesis of a Small Library of Glycoderivative Putative Ligands of SGLT1 and Preliminary Biological Evaluation. Molecules. 2024; 29(21):5067. https://doi.org/10.3390/molecules29215067

Chicago/Turabian Style

D’Orazio, Giuseppe, and Barbara La Ferla. 2024. "Synthesis of a Small Library of Glycoderivative Putative Ligands of SGLT1 and Preliminary Biological Evaluation" Molecules 29, no. 21: 5067. https://doi.org/10.3390/molecules29215067

APA Style

D’Orazio, G., & La Ferla, B. (2024). Synthesis of a Small Library of Glycoderivative Putative Ligands of SGLT1 and Preliminary Biological Evaluation. Molecules, 29(21), 5067. https://doi.org/10.3390/molecules29215067

Article Metrics

Back to TopTop
