Direct Population of Triplet States for Efficient Organic Afterglow through the Intra/Intermolecular Heavy-Atom Effect

Abstract

Organic afterglow is a fascinating phenomenon with exceptional applications. However, it encounters challenges such as low intensity and efficiency, and typically requires UV-light excitation and facile intersystem crossing (ISC) due to its spin-forbidden nature. Here, we develop a novel strategy that bypasses the conventional ISC pathway by promoting singlet-triplet transition through the synergistic effects of the intra/intermolecular heavy-atom effect in aromatic crystals, enabling the direct population of triplet excited states from the ground state. The resulting materials exhibit a bright organic afterglow with a remarkably enhanced quantum efficiency of up to 5.81%, and a significantly increased organic afterglow lifetime of up to 157 microseconds under visible light. Moreover, given the high-efficiency visible-light excitable organic afterglow emission, the potential application is demonstrated in lifetime-resolved, color-encoded, and excitation wavelength-dependent pattern encryption. This work demonstrates the importance of the direct population method in enhancing the organic afterglow performance and red-shifting the excitation wavelength, and provides crucial insights for advancing organic optoelectronic technologies that involve triplet states.

1. Introduction

Organic afterglow, renowned for its distinctive mechanism of photoelectron storage and release, has recently garnered tremendous attention in various fields, including spectroscopy, photonics, and materials science [1,2,3]. Additionally, it has been widely acknowledged that organic afterglow is a kind of room-temperature phosphorescence due to the radiative decay of the triplet exciton. This is fundamentally distinct from thermally activated delayed fluorescence, which involves fluorescence due to the radiative decay of the singlet exciton [3,4]. In recent years, various organic afterglow phenomena have been observed, including single-component purely organic aromatic molecules [5], multi-component host–guest/exciplex systems [6], polymers [7], clusters [8], carbon dots [9], and metal–organic frameworks [10], and more and more strategies have been developed for the manipulation of the morphology, color, operational wavebands, and persistent duration [11,12,13]. These sought-after accomplishments have sparked a growing interest in the design of optical sensors, photocatalysts, detectors, bio-labels, and photonic devices [14,15,16,17]. Specifically, there are two general approaches to designing organic afterglow materials (Figure 1a). The first approach involves promoting intersystem crossing (ISC) to efficiently populate triplet excited states. This is achieved through the introduction of aromatic aldehyde groups, carbonyl groups, or heteroatoms [18,19]. The second approach focuses on enhancing intra/intermolecular interactions to inhibit nonradiative transitions, allowing the gradual release of excitons to the ground state (S₀). This is accomplished through the utilization of H-aggregation, crystallization, hydrogen bonds, or a rigid matrix [20,21,22,23]. However, organic afterglow suffers from low luminescent intensity and efficiency, and often requires UV-light excitation, which has harmful effects on living organisms [24]. These limitations significantly impede the development and applications of purely organic afterglow molecules. In 2019, Mao et al. introduced an innovative design method utilizing two-photon absorption, leading to a noticeable organic afterglow emission triggered by a near-infrared laser (808 nm) under ambient conditions [25]. Nevertheless, high ISC is still needed to populate triplet excited states (T_n) from the lowest singlet excited state (S₁) upon photoexcitation, which is usually difficult to realize in metal-free organic molecules.

Recognizing that efficient phosphorescence due to the spin-forbidden T₁→S₀ transition has been widely recognized [2,3,22], the reverse process of S₀→T₁ transition could also effectively populate T₁ without the participation of the S₁→T_n ISC pathway (Figure 1b). However, it is exceedingly weak in most organic materials, except for certain metal complexes and aromatic molecules [26,27,28]. In 2019, we demonstrated the significant potential of this direct population method in developing highly efficient organic afterglow materials for the first time [29]. This approach not only enhances organic afterglow efficiency by eliminating the involvement of high-lying excited states and unwanted relaxation processes, but also red-shifts the excitation wavelength, resulting in an intense organic afterglow emission with high quantum efficiency under visible-light excitation [28]. This advancement holds significant promise for expanding the application of organic afterglow materials in the biological field, particularly in bio-imaging. Maybe due to the notably lower cross-section compared to the spin-allowed excitation via the S₀→S₁ transition, only a limited number of organic afterglow molecules based on this strategy have been reported. Nevertheless, the strategy of bypassing the traditional S₁→T_n ISC to directly populate triplet excited states via S₀→T₁ absorption still holds promise.

In this study, we have successfully designed a series of organic afterglow molecules capable of efficient direct S₀→T₁ absorption by incorporating heavy-atom bromine into a molecule of 9-phenyl-9H-carbazole (PhCz) (Figure 1c). The introduction of the bromine atom induces a combined and synergetic intra/intermolecular heavy-atom effect, effectively stimulating enhanced S₀→T₁ transition in these Br-substituted aromatic molecules. Notably, this direct S₀→T₁ absorption strategy significantly improves afterglow properties, resulting in an enhanced efficiency of up to 5.81% and an elongated emission lifetime of up to 157 microseconds (ms) under visible light excitation at 400 nm. This represents a substantial improvement, being up to 15 times more in efficiency and with a 2.5 times longer emission lifetime compared to under UV irradiation at 295 nm. These findings underscore the remarkable advantages of S₀→T₁ absorption in metal-free organic materials for directly populating triplet states, thereby promoting the development of a highly efficient and long-lived organic afterglow. Additionally, a flexible pattern encryption device that relies on efficient visible-light excitable organic afterglow materials was developed, incorporating lifetime-resolved, color-encoded, and excitation wavelength-dependent features. The insights gained from this research provide fundamental understandings and valuable guidelines for the exploration and applications of direct triplet state population-involved organic optoelectronic materials.

2. Results and Discussion

2.1. Molecular Design and Synthesis

To facilitate S₀→T₁ absorption, the intra/intermolecular heavy-atom effect must be engaged and synergistically combined in optoelectronically active π-conjugated systems with efficient internal interactions in single molecular states and external effects in crystals. In contrast to previous methods, we directly incorporated heavy atoms into the carbazole chromophore moiety, thereby enhancing both the intra- and inter-molecular heavy-atom effects in the weak organic afterglow molecule PhCz, resulting in the design of heavy-atom incorporated organic aromatic afterglow molecules named PC2Br, PC3Br, PC27DBr, and PC36DBr (Figure 2a). Their synthesis proved to be convenient and efficient using a one-step Ullman reaction, yielding high efficiencies ranging from 65% to 90% (Scheme 1) [30]. Detailed information on the synthetic procedures, molecular structure characterizations, material purities, and single-crystal structures can be found in the Supporting Information (Figures S1–S13 and Table S1). Liquid chromatograph mass spectrometer (LC-MS) data were generated to demonstrate the material purities of 99.87%, 99.16%, 100.00%, and 99.59% for the final products, and no isomers of carbazole or bromocarbazole were found, which significantly mitigates any afterglow emission issues caused by purity [31].

2.2. Photophysical Property Investigation

The Br-substituted PhCz derivates (PCs) exhibit very similar ultraviolet-visible (UV-Vis) absorption spectra to those of PhCz in dilute solutions and thin films, and the weak absorption bands around 345 nm, stemming from the n–π* transitions of the carbazole moiety, are capable of enhancing ISC [20]. Characteristic fluorescent emission bands of the carbazole moiety were observed in the photoluminescence (PL) spectra of these compounds in both solution and films (Figures S14–S16). Interestingly, when these molecules formed crystals, extraordinary organic afterglow emission became apparent (Figure 2b). Accompanied by the fluorescence bands, the organic afterglow emission peaks around 560 nm can even be observed in the steady-state PL (SSPL) spectra (Figure 2c and Figure S17). After bromine substitution, the efficiency and emission lifetime of organic afterglow significantly decreased compared to PhCz under UV-light (295 nm) excitation due to the enhancement of the spin-orbit coupling (SOC) ability (Figure 2d and

Table 1. Photophysical properties of the molecules in the crystal at room temperature.

Comp.	Fluorescence		Organic Afterglow 1			Organic Afterglow 2
	λ (nm)	τ (ns)	λ (nm)	τ (ms)	φ (%)	λ (nm)	τ (ms)	φ (%)
PhCz	380	11.2	548	240	1.50	548	260	1.80
PC2Br	380	4.3	526	63	0.37	526	157	5.81
PC3Br	390	2.1	536	60	0.93	536	70	4.38
PC27DBr	397	2.4	572	50	0.56	572	88	3.36
PC36DBr	404	3.3	571	48	0.71	571	66	2.26

¹ Excited at 295 nm; ² excited at 400 nm.

) [32]. However, when these crystals were excited by 400 nm, stronger afterglow emissions with higher efficiencies were observed in the Br-substituted compounds compared to UV-light excitation (Table 1 and Figures S18 and S19).

Excitation spectra of the organic afterglow peaks were studied to understand the remarkably efficient visible light-excited afterglow emission, which demonstrated an enhanced organic afterglow efficiency and an elongated lifetime compared to the organic afterglow emission excited at 295 nm [33]. The PCs proved to be efficiently photoexcited by visible light, with the wavelength ranging from 350 to 470 nm under ambient conditions. This phenomenon is particularly evident in the PC36DBr crystal, exhibiting significantly strengthened afterglow peaks when the excitation wavelength is longer than 400 nm at room temperature. (Figure S20).

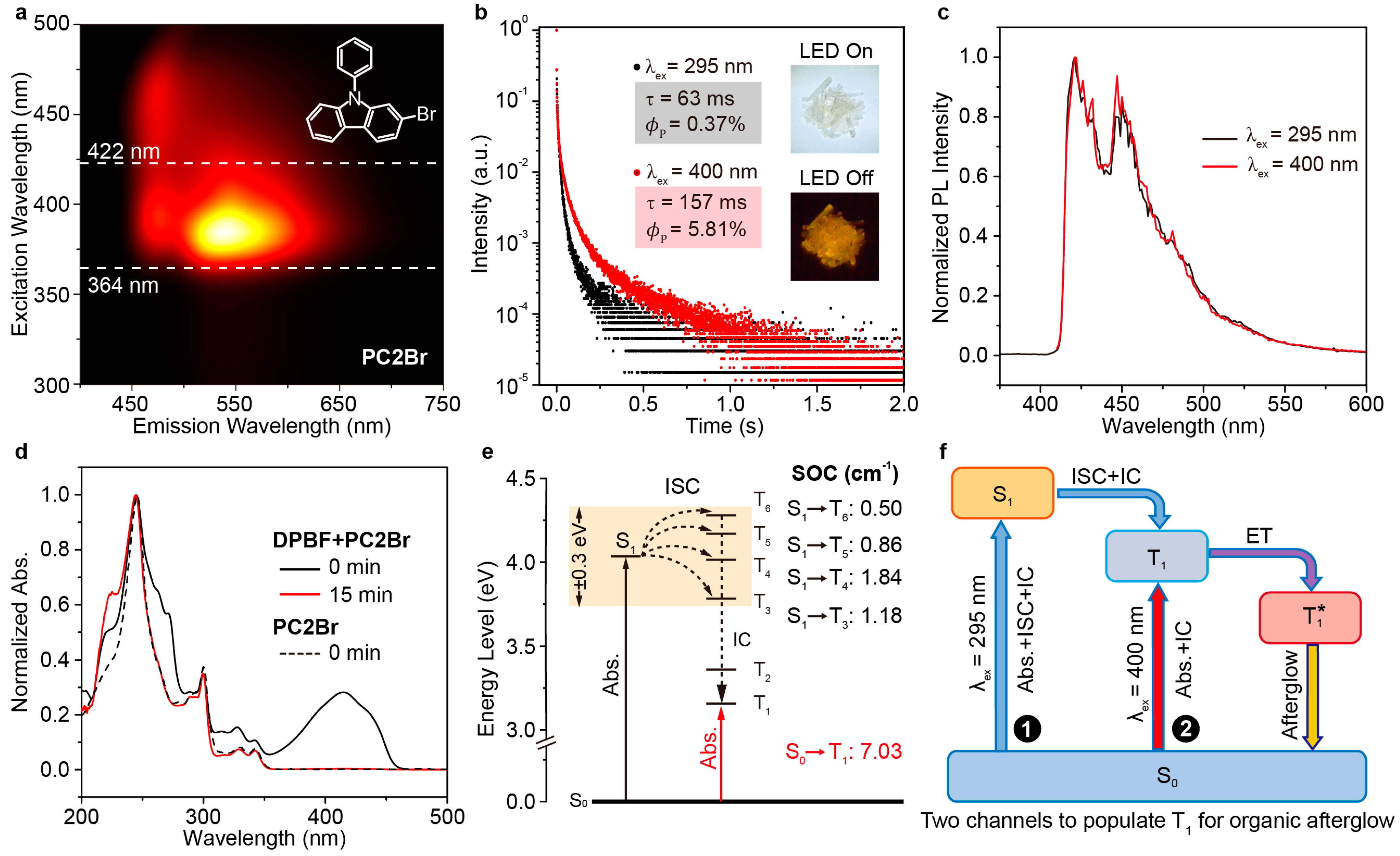

Taking the PC2Br crystal as a representative example, we initially conducted phosphorescence excitation–emission mapping with a delay time of 10 ms to investigate the remarkably efficient visible light-excited organic afterglow emission [34]. The organic afterglow emission around 530 nm appeared weak under UV light (295 nm) excitation but experienced a significant enhancement under visible light. Notably, the afterglow peaks were substantially strengthened when the excitation wavelength ranged from 364 to 422 nm in the PC2Br crystal at room temperature (Figure 3a). This enhancement resulted in an organic afterglow efficiency 15 times higher and an elongated lifetime 2.5 times longer compared to the 295 nm excited organic afterglow emission. The brominated compound PC2Br proves to be effectively photoexcited by visible light, extending to the point of being responsive to white LED light at room temperature (Figure 3b and Figure S21).

Is the organic afterglow emission effectively excited by visible light, even at longer wavelengths than their fluorescence peaks in solution and film states (345~365 nm)? To comprehend this phenomenon, we examined the phosphorescence spectra of brominated compounds in 2-methyl tetrahydrofuran (2-Me THF) solution at 77 K with a delay time of 10 ms (Figure S22). Under UV-light excitation at 295 nm, a phosphorescence spectrum similar to typical triplet features of carbazole was observed for PC2Br, with a T₁ energy of ~3.02 eV. With 400 nm visible-light excitation, an almost identical phosphorescence spectrum was obtained, suggesting that T₁ can indeed be populated by 400 nm photoexcitation even at the single-molecular state in dilute solution (Figure 3c). Since the energy of 400 nm excitation and 408 nm phosphorescence is very close, we propose that T₁ would be directly populated under visible-light excitation through S₀→T₁ absorption [29]. Excitation spectra of the phosphorescence peak in 2-Me THF were examined with increasing solution concentrations. It was observed that the primary peak of the phosphorescence excitation spectrum underwent a red shift, along with the emergence of new excitation peaks in the longer-wavelength range (Figure S23). This phenomenon indicates that as the solution concentration increases, the intermolecular heavy-atom effect becomes more pronounced, which is essential for achieving direct S₀→T₁ absorption.

In addition to the 400 nm excitable phosphorescence used to confirm the direct population of T₁, we conducted photodegradation experiments using 1,3-Diphenylisobenzofuran (DPBF) in the presence of the organic afterglow molecules and oxygen (Figure 3d) [35]. The characteristic absorption peaks (415 nm) of DPBF in the PC2Br solution gradually decreased in intensity with prolonged irradiation time, directly indicating the existence of triplet excited-states upon 400 nm photoexcitation. Control experiments were also conducted to verify the unique S₀→T₁ absorption in these heavy-atom molecules (Figure S24).

To gain a theoretical understanding of the direct S₀→T₁ absorption, we conducted first-principle time-dependent density functional theory (TD-DFT) investigations on these molecules (Figure S25) [36]. The calculated S₁ energy levels are considerably close (<0.3 eV) to several T_n, supporting facile ISC channels for S₁→T_n transitions in accordance with the energy gap law of PC2Br. Notably, these SOC values are significantly larger than those of heavy atom-free organic molecules (<0.1 cm⁻¹) (Figure 3e) [37]. Therefore, the 295 nm excited S₁ state can undergo transformation to T_n states through these ISC channels, and the T_n states can further relax to T₁ for organic afterglow through the traditional path to populate triplet states. More importantly, these heavy atom-modified molecules exhibit very high SOC values for the S₀→T₁ transition, even surpassing those of their S₁→T_n transitions, providing computational evidence for the direct S₀→T₁ absorption.

Based on the experimental and theoretical evidence, a two-way organic afterglow mechanism can be proposed (Figure 3f). The first way is traditional, involving four steps: S₀→S_n absorption and internal conversion (IC) between S_n, S₁→T_n ISC, IC between T_n, and triplet exciton trapping to form stabilized T₁ in aggregated structures (${\mathrm{T}}_1^{*}$) leading to the organic afterglow. The second pathway to populate T₁ for afterglow is direct S₀→T₁ absorption, bypassing the traditional ISC (S₁→T_n) and IC processes, followed by exciton trapping to form ${\mathrm{T}}_1^{*}$ leading to the organic afterglow. However, this way for organic afterglow involves only two excited states, T₁ and ${\mathrm{T}}_1^{*}$, while the radiative and non-radiative decays of other excited states needed in the first pathway are completely avoided. Therefore, the organic afterglow performance is significantly improved and the excitation wavelength is red-shifted compared to the traditional UV-light excitation method.

2.3. Crystal Structure Analysis

To gain deeper insights into the exceptional organic afterglow emission exhibited by these compounds, we investigated the molecular packing structures based on their single-crystal configurations [38]. Notably, robust π–π stacking involving two carbazole rings positioned parallel to each other was evident in the single crystals of PC2Br, PC3Br, PC27DBr, and PC36DBr (Figure S13). Despite not stacking entirely face-to-face due to the repulsion between the π electrons on each aryl ring, this closely packed configuration fosters efficient electronic intermolecular interactions between molecular orbitals. It is crucial to note that SOC calculation relies on isolated single molecular states, potentially overlooking intermolecular heavy-atom effects that enhance SOC. Indeed, apparent weak interactions between Br and the aromatic moiety of its adjacent molecule were identified through non-bonding covalent interaction (NCI) analysis (Figure S26) [39,40]. Therefore, an even more efficient S₀→T₁ transition can be anticipated in the condensed solid states through the intermolecular heavy-atom effect of these brominated molecules.

2.4. Lifetime-Resolved Flexible Pattern Encryption

Given the remarkable high-efficiency visible light-excited organic afterglow emission via direct S₀→T₁ absorption, we open avenues for lifetime-resolved, color-encoded and excitation wavelength-dependent pattern encryption by using heavy-atom incorporated organic afterglow molecules and commercially available fluorescent compounds on flexible filter paper substrates [29,41]. A fish outline was rendered using the organic afterglow molecule PC36DBr, and birds were painted in blue using the fluorescent dye bis[4-(9,9-dimethyl-9,10-dihydroacridine)]phenylsulfone (DMAC-DPS) (Figure 4a) [42]. The organic afterglow emitters and fluorescent dye exhibited similar steady-state emission color, ensuring effective encryption of the fish pattern, and only revealing the blue bird under a 365 nm UV lamp. Once the excitation lamp was turned off, the fish outline emerged in yellow afterglow emission, visible to the naked eye (Figure 4b). Furthermore, as DMAC-DPS and PC36DBr fluorescence cannot be excited by a white LED, the fish pattern remained effectively encrypted, with no discernible pattern under white LED illumination. Upon turning off the white LED, the fish outline became vividly visible in a brighter yellow afterglow emission (Figure 4c).

3. Materials and Methods

3.1. Synthesis and Characterization

Chemicals and solvents obtained from Aldrich or Acros, meeting analytical grade standards, were utilized without further purification. Unless otherwise specified, reactions were conducted under a dry argon atmosphere employing standard Schlenk techniques. ¹H and ¹³C nuclear magnetic resonance (NMR) spectra were acquired using a Bruker (Billerica, MA, USA) Ultra Shield Plus 400 MHz instrument, with CDCl₃ or DMSO as the solvent and tetramethylsilane (TMS) serving as the internal standard. Chemical shifts (δ) were reported in ppm and Hz. Splitting patterns were assigned as follows: s (singlet), d (doublet), and m (multiplet). LC-MS was performed on an Agilent (Santa Clara, CA, USA) 6230 Accurate-Mass TOF LC/MS using a mixed solvent of 50 vol% water and 50 vol% methanol as the eluent.

2-Bromo-9-phenyl-9H-carbazole (PC2Br): In a 100 mL round-bottom flask equipped with a stir bar, 2-bromo-9H-carbazole (1.00 g, 4.06 mmol), copper iodide (0.85 g, 4.47 mmol), potassium carbonate (1.12 g, 8.13 mmol), iodobenzene (0.68 mL, 1.24 g, 6.09 mmol), and 50 mL dry N, N-dimethylformamide (DMF) were combined. The mixture, under nitrogen protection, was stirred and allowed to react for 24 h at 180 °C. Following cooling to room temperature, the DMF solvent was removed by vacuum distillation. The resulting solid was dissolved in 120 mL dichloromethane (DCM) and washed with brine (60 mL). Subsequently, the mixture was subjected to three DCM extractions. The organic phase was collected and dried over MgSO₄. After the solvent removal under reduced pressure, the crude product was purified by column chromatography (using petroleum ether: DCM = 10:1 as the eluent) and recrystallized from DCM/hexane three times to obtain colorless crystals. Yield: 0.86 g (65%). ¹H NMR (400 MHz, CDCl₃): δ = 8.14 (d, 1H), 8.02 (d, 1H), 7.65 (m, 2H), 7.59–7.50 (m, 4H), 7.49–7.38 (m, 3H), 7.36–7.30 (m, 1H). ¹³C NMR (100 MHz, CDCl₃): δ = 141.73, 141.13, 137.09, 130.10, 127.95, 127.16, 126.39, 123.10, 122.76, 122.30, 121.50, 120.42, 120.31, 119.55, 112.83, 110.00. LC-MS (methanol–water 50:50 (v/v)): m/z calcd. for C₁₈H₁₂NBr [M+H]⁺: 322.02; found: 321.19.

3-Bromo-9-phenyl-9H-carbazole (PC3Br): Following a procedure similar to the synthesis of PC2Br, PC3Br was obtained using 3-bromo-9H-carbazole (1.00 g, 4.06 mmol). The yield was 0.93 g of colorless crystals (71%). ¹H NMR (400 MHz, DMSO): δ = 8.51 (d, 1H), 8.35–8.28 (m, 1H), 7.68 (m, 2H), 7.61 (m, 2H), 7.59–7.53 (m, 2H), 7.47 (m, 1H), 7.39–7.35 (m, 1H), 7.31 (m, 2H). ¹³C NMR (100 MHz, DMSO): δ = 140.99, 139.38, 136.87, 130.73, 129.09, 128.44, 127.55, 127.17, 125.15, 123.59, 122.14, 121.58, 120.91, 112.53, 112.07, 110.28. LC-MS (methanol–water 50:50 (v/v)): m/z calcd. for C₁₈H₁₂NBr [M + H]⁺: 322.02; found: 322.62.

2,7-Dibromo-9-phenyl-9H-carbazole (PC27DBr): Following the procedure used for the synthesis of PC2Br and PC3Br, PC27DBr was prepared using 2,7-dibromo-9H-carbazole (1.32 g, 4.06 mmol). The yield was 1.37 g of colorless crystals (84%). ¹H NMR (400 MHz, CDCl₃): δ = 7.98–7.96 (d, 1H), 7.68–7.65 (t, 1H), 7.59–7.49 (m, 2H), 7.44–7.41 (m, 1H). ¹³C NMR (100 MHz, CDCl₃): δ = 141.91, 136.44, 130.29, 128.40, 127.14, 123.62, 121.68, 121.49, 119.99, 113.06, 77.35, 77.03, 76.72. LC-MS (methanol–water 50:50 (v/v)): m/z calcd. for C₁₈H₁₁NBr₂ [M + H]⁺: 401.93; found: 401.14.

3,6-Dibromo-9-phenyl-9H-carbazole (PC36DBr): Similar to the synthesis of PC2Br, PC3Br, and PC27DBr, PC36DBr was prepared using 3,6-dibromo-9H-carbazole (1.32 g, 4.06 mmol). The yield was 1.47 g of colorless crystals (90%). ¹H NMR (400 MHz, DMSO): δ = 8.59 (d, 1H), 7.72–7.66 (m, 1H), 7.63–7.54 (m, 3H), 7.32 (d, 1H). ¹³C NMR (100 MHz, DMSO): δ = 139.76, 136.45, 130.79, 129.94, 128.72, 127.17, 124.16, 124.03, 112.91, 112.34. LC-MS (methanol–water 50:50 (v/v)): m/z calcd. for C₁₈H₁₁NBr₂ [M + H]⁺: 401.93; found: 401.03.

3.2. Single-Crystal X-ray Analysis

Single crystals were obtained through the slow evaporation of combined solutions of combined DCM and hexane at room temperature. X-ray crystallography analysis was performed using a Bruker Smart Apex CCD area detector diffractometer with graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å) at 293 K. The cell parameters were determined using SMART software (Version 5.625) and refined with SAINT on all observed reflections. Structures were solved via direct methods using the SHELX-97 program package (Version 97-2). Non-hydrogen atoms were located using alternating difference Fourier syntheses and least-squared refinement cycles, with the final cycles involving anisotropic refinement. Hydrogen atoms were positioned in calculated positions and refined as riding atoms with a uniform value of U_iso. The crystal structure was analyzed using Diamond 3.2 software. The crystallographic parameters for PC2Br, PC3Br, PC27DBr, and PC36DBr are summarized in Table S1. The CCDC reference numbers are Nos. 1973898, 1973897, 1973900, and 1973899, respectively.

3.3. Photophysical Property Investigations

UV-Vis spectra were recorded with a SHIMADZU (Tokyo, Japan) UV-3600 UV-VIS-NIR spectrophotometer. SSPPL and phosphorescence spectra, along with quantum yields, were measured using an Edinburgh FLSP980 fluorescence spectrophotometer. For steady-state photoluminescence and quantum yield measurements, we utilized a xenon arc lamp (Xe900), known for its excellent steady-state excitation capabilities. When capturing phosphorescence spectra, organic afterglow spectra, organic afterglow decay, and time-resolved excitation spectra, we employed a microsecond flash lamp (uF900) in conjunction with a gating technique. The uF900 flash lamp emits short (typically a few microseconds) and high-irradiance optical pulses suitable for measurements ranging from microseconds to seconds. Additionally, LED flash lamps were utilized to provide subnanosecond optical pulses across the UV-to-visible spectral range for fluorescence decay measurements. To ensure accurate steady-state spectra measurements, we adjusted the excitation wavelength from 400 nm to 395 nm and incorporated a 400 nm filter to mitigate the influence of stray light. The lifetimes (τ) of luminescence were determined by fitting the decay curve with a multi-exponential decay function.

$$I\left(t\right)={\displaystyle \sum _i{A}_i{e}^{-\frac{t}{\tau }}}$$

(1)

where A_i and τ_i represent the amplitudes and lifetimes of the individual components for multi-exponential decay profiles, respectively.

The quantum yields (φ) of the emission were the absolute ones performed by photon counting from the excitation source into an integration sphere with the ratio of photons emitted, as described in the following equation:

$$\phi =\frac{N^{em}}{N^{abs}}$$

(2)

In this equation, N^em is the number of emitted photons and N^abs is the number of absorbed photons. The organic afterglow efficiency is determined through peak differentiation-imitating analysis from the steady-state PL spectra.

Phosphorescence excitation–emission mapping was performed on a Hitachi (Tokyo, Japan) Fluorescence Spectrophotometer F-4700. The photographs were recorded by a Nikon D90 camera.

3.4. Probing the Formation of Triplet Excited States

To validate the generation of triplet excited states upon 400 nm excitation, experiments were conducted using well-dissolved PC2Br molecules (20 μM) in THF containing DPBF (50 μM) and dissolved molecular oxygen. A control experiment with only DPBF in THF (50 μM) was also performed, revealing negligible changes in the absorption spectra of DPBF after excitation at 400 nm for 15 min.

3.5. TD-DFT Calculations

TD-DFT calculations were conducted at the B3LYP/6-31G(d) level using the Gaussian 09 package. The S₀ geometry was fully optimized with B3LYP/6-31G(d), and the optimized stationary point underwent harmonic vibration frequency analysis to ensure the identification of real local minima. The excitation energies in the S_n and T_n states were obtained using the TD-DFT method based on the optimized molecular structure at S₀. SOC matrix elements between the singlet and triplet excited states were calculated using quadratic response function methods with the Dalton program at the optimized geometry of S₁, utilizing the B3LYP functional and 6-31G(d) basis set. Additionally, the SOC between the ground state and the T₁ was calculated using the same method but based on the optimized ground state geometry.

The intermolecular interactions between the heavy atom of Br and the π-conjugated moiety of the nearby molecule were analyzed using NCI analysis using Multiwfn version 3.3 software based on typical molecular packing structures in single crystals with B3LYP/6-31G(d). NCI isosurface plots were performed with color scaling in which the dark blue color represents attractive interactions, while the dark red color represents repulsive interactions. The plotted isosurfaces were demonstrated with RDG of 0.5 and −0.05 < sign(λ₂)ρ < 0.05, where sign(λ₂) denotes the sign of the second-largest Hessian eigenvalue, and ρ represents the electron density.

3.6. Flexible Pattern Encryption Application

Time-resolved, color-encoded and excitation wavelength-dependent encrypted images were fabricated as follows. On a filter paper substrate, the fish outline was first rendered using the organic afterglow molecule PC36DBr in Aloe vera gel (c.a. 40 mg/mL) by silk-screen printing. In the second step, the birds were painted in a thin film of a blue dye using the DMAC-DPS dispersed in Aloe vera gel (c.a. 40 mg/mL) using the same technology.

4. Conclusions

In summary, we have successfully developed a series of organic afterglow molecules capable of the direct population of triplet excited states through direct S₀→T₁ absorption. This achievement was realized by incorporating both intra- and intermolecular heavy-atom effects synergistically in aromatic organic crystals. The facilitated S₀→T₁ transition, validated through a combination of experimental and theoretical investigations, imparts unique features to organic afterglow, such as significantly improved organic afterglow efficiency, visible-light excitability, and a prolonged emission lifetime under ambient conditions. Furthermore, based on the strong and efficient organic afterglow, we successfully fabricated a flexible pattern-encryption device that is lifetime-resolved, color-encoded, and excitation wavelength-dependent. These findings provide new insights into the direct population of triplet excited states in metal-free organic optoelectronic molecules, and contribute fundamentally to our understanding of the organic afterglow mechanism and the molecular design of highly efficient visible-light excitable organic afterglow materials.
