Mercury Monohalides as Ligands in Transition Metal Complexes

by
Matteo Busato
1,2,
Jesús Castro
3,
Domenico Piccolo
1,4 and
Marco Bortoluzzi
1,5,*
1
Dipartimento di Chimica, Sapienza Università di Roma, P.le Aldo Moro 5, 00185 Rome, Italy
2
Dipartimento di Scienze Molecolari e Nanosistemi, Università Ca’ Foscari Venezia, 30172 Mestre, Italy
3
Departamento de Química Inorgánica, Facultade de Química, Universidade de Vigo, Edificio de Ciencias Experimentais, 36310 Vigo, Galicia, Spain
4
Dipartimento di Scienze Chimiche, Università di Padova, Via Marzolo 1, 35131 Padova, Italy
5
CIRCC (Consorzio Universitario Reattività Chimica e Catalisi), Via Celso Ulpiani 27, 70126 Bari, Italy
*
Author to whom correspondence should be addressed.
Molecules 2025, 30(1), 145; https://doi.org/10.3390/molecules30010145
Submission received: 6 December 2024 / Revised: 23 December 2024 / Accepted: 23 December 2024 / Published: 2 January 2025
(This article belongs to the Special Issue Featured Reviews in Organometallic Chemistry, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
The main categories of transition metal–mercury heterometallic compounds are briefly summarized. The attention is focused on complexes and clusters where the {Hg-Y} fragment, where Y represents a halide atom, interacts with transition metals. Most of the structurally characterized derivatives are organometallic compounds where the transition metals belong to the Groups 6, 8, 9 and 10. More than one {Hg-Y} group can be present in the same compound, interacting with the same or with different transition metals. The main synthetic strategies are discussed, and structural data of representative compounds are reported. According to the isolobality with hydrogen, {Hg-Y} can form from one to three M-{Hg-Y} bonds, but further interactions can be present, such as mercurophilic and Hg···halide contacts. The formal oxidation state of mercury is sometimes ambiguous and thus {Hg-Y} can be considered as a Lewis acid or base on varying the transition metal fragment. Density functional theory calculations on selected Group 6 and Group 9 model compounds are provided in order to shed light on this aspect.

Graphical Abstract

1. Transition Metal–Mercury Derivatives: General Aspects

Transition metal–mercury complexes were among the first compounds investigated in the field of direct metal–metal bonding. The fact that mercury can be readily attached to a large variety of transition metals has stimulated its use as a building block in the synthesis of mixed-metal clusters. Several examples of coordination and organometallic compounds where mercury formally behaves as a coordinating atom are thus present in the literature. As described in previous reviews [1,2,3,4,5], transition metal derivatives with mercury in the coordination sphere can be cataloged in few main categories.
The first possibility concerns species having general formula LnMm-Hg-Hg-MmLn, where the {Hg-Hg} group bonds two transition metal fragments. In most cases, the formal oxidation state of mercury is Hg(I). Recent examples are mixed-metal clusters having formulae [Hg2{(C6Cl5)2Pt(μ-OH)2Pt(C6Cl5)2}2]2− [6] (Figure 1a), [Hg2{Re7C(CO)21}2]4− [7] (Figure 1b), [Hg2M2(P2phen)3]2+ [M = Pd, Pt; P2phen = 2,9-bis-(diphenylphosphino)-1,10-phenanthroline] [8] (Figure 1c) and [Hg2{Pt3(RNC)3}2(diphos)3] [diphos = 1,5-bis(diphenylphosphino)pentane, 1,6-bis(diphenylphosphino)hexane; RNC = aromatic isocyanide] [9] (Figure 1d). The structure of [Hg2{(C6Cl5)2Pt(μ-OH)2Pt(C6Cl5)2}2]2− is formally described as two [(C6Cl5)2Pt(μ-OH)2Pt(C6Cl5)2]2− anions bridged by a [Hg2]2+ cation. Each mercury atom interacts with two platinum centers. The Hg-Hg distance is 2.552(3) Å, comparable with the Hg-Hg bond in mercurous nitrate, 2.5049(6) Å [10]. The Hg-Pt bond lengths are between 2.6629(10) and 2.9865(9) Å. [Hg2{Re7C(CO)21}2]4− is composed of two carbidoheptarhenate clusters linked by a [Hg2]2+ cation, with Hg-Hg distance equal to 2.610(4) Å. The six Hg-Re bonds are in the 2.911(3)–2.965(3) Å range. In the Group 10 clusters [Hg2M2(P2phen)3]2+, the phosphine ligands coordinate the zero-valent M centers that interact with a [Hg2]2+ cation [Hg-Pd 2.7419(5)–2.7960(5) Å, Hg-Pt 2.7823(5)–2.8447(6) Å]. [Hg2]2+ is also coordinated by the nitrogen atoms and exhibits Hg-Hg bond lengths comprised between 2.6881(4) Å [M = Pd] and 2.7362(6) Å [M = Pt]. In the [Hg2{Pt3(RNC)3}2(diphos)3] clusters, the diphosphines bridge two {Pt3(μ-RNC)3} triangles, forming a cage where two mercury atoms are enclosed. The Hg-Hg distances are between 2.826(2) and 2.8424(2) Å, while the Hg-Pt bonds are in the 2.858(3)–2.980(3) range. Different from the previous examples, the mercury centers are considered as zero-valent, which highlights the sometimes ambiguous oxidation state of mercury in transition metal derivatives.
In another group of compounds, a single mercury atom can behave as bridge between two or more transition metals. Selected examples are the trinuclear derivatives [Hg{Ni(PNP)}2] [PNP = pyrrolate-based pincer ligand] [11] (Figure 2a) and [Hg{W(η5-C5H5)(CO)3}2] [12] (Figure 2b). The Hg-Ni bonds in [Hg{Ni(PNP)}2] are 2.6488(4) and 2.6491(4) Å, while Hg-W distance of 2.7513(3) Å was measured for the two mercury-wolfram bonds in [Hg{W(η5-C5H5)(CO)3}2]. The mercury center can also join transition metal clusters. The structure of [Hg{Ru6C(CO)16}2]2− is composed of two carbidohexaruthenate fragments, each one forming two Hg-Ru bonds falling in the 2.787(2)–2.902(1) Å range [13]. In [Hg{Ru3(μ3-ampy)(CO)9}2] [Hampy = 2-amino-6-methylpyridine], two trinuclear ruthenium fragments are connected by a single mercury atom, forming four Ru-Hg bonds with lengths comprised between 2.839(1) and 2.859(1) Å [14]. Ruthenium clusters having formulae [HgRu6(CO)22]2− (Figure 2c), [Hg2Ru7(CO)26]2−, [Hg3Ru8(CO)30]2− and [Hg4Ru10(CO)32]4− were obtained by reacting [HRu3(CO)11]− or [HRu4(CO)12]3− with mercury(II) acetate or chloride [15]. The Hg-Ru bonds vary from 2.6726(13) to 2.9079(10) Å.
Mercury can also bridge transition metals with different coordination spheres. Recent compounds of this type are the polynuclear clusters [Ir2Cl2(μ-Cl)2(COD)2{HgIrCl(κ2C,N-HC^N^C)(COD)}2] and [Ir(C^N^C)(COD)HgIrCl2(COD)] (Figure 2d) [H2C^N^C = 2,6-bis(4-tert-butylphenyl)pyridine; COD = 1,5-cyclooctadiene]. The first structure can be formally described considering a divalent mercury center between a dinuclear [Ir2Cl2(μ-Cl)2(COD)2]2− cluster and a [IrCl(κ2C,N-HC^N^C)(COD)]− complex [Hg-Ir bonds 2.6314(3) and 2.5829(3) Å], while in the second compound Hg(II) joins the [Ir(C^N^C)(COD)]− and [IrCl2(COD)]− complexes, with Hg-Ir bond lengths equal to 2.5841(3) and 2.6656(3) Å [16]. Finally, mercury can bridge different transition metals. [Hg2{Co6C(CO)12}{W(η5-C5H5)(CO)3}2]2− [17] is composed by a carbidohexacobaltate cluster connected to two {W(η5-C5H5)(CO)3} fragments by means of two mercury centers, each one forming three Hg-Co bonds [2.711(2)–2.7261(19) Å] and a Hg-W bond [2.781(2) Å]. In [{Re(CO)4Mo(η5-C5H5)(CO)2(μ-PCy2)}Hg{W(η5-C5H5)(CO)3}] [Cy = cyclohexyl], mercury joins a dinuclear Re-Mo cluster with a {W(η5-C5H5)(CO)3} fragment [18]. The Hg-M bonds are equal to 2.790(1) Å [M = Re], 2.940(1) Å [M = Mo] and 2.780(1) Å [M = W].
The definition of the most correct formal oxidation state of mercury in heteropolymetallic species is generally not straightforward. Recently, Frenking, Malischewski and co-workers investigated the [Hg{Fe(CO)5}2]2+ (Figure 3a) and [Hg{Fe(CO)4}2]2− (Figure 3b) trinuclear species, characterized by Hg-Fe distances equal to 2.5745(7) and 2.546(2) Å, respectively [19,20,21]. According to the energy decomposition analysis with natural orbitals for chemical valence, in both cases the mercury center is best described as Hg(0) instead of Hg(II), thus behaving as a σ-donor toward the iron fragments.
The description of clusters containing more than one mercury atom in the structure must also account for mercurophilicity, i.e., the metallophilic interactions possibly occurring among mercury centers, in particular if belonging to the same compound [15,22,23,24,25]. Despite the fact that the examples of mercurophilic interactions in the literature are less abundant than those concerning aurophilicity, the possibility of closed-shell Hg(II)···Hg(II) interactions should be taken into account when the Hg···Hg distance is in the range of the Van der Waals contact (about 3.5 Å) or lower. For instance, a dimeric [Hg2]4+ unit with sub van der Waals Hg(II)···Hg(II) distance, 2.820(3) Å, is present in [Hg2{Os9(C)(CO)21}2]4− (Figure 4a) [26]. Such a compound derives from the cluster [Hg3{Os9(C)(CO)21}2]2− (Figure 4b), where a [Hg3]6+ triangular unit bridges two carbidoennaosmiate fragments. The Hg···Hg(II) distances in the trimercury fragment are comprised between 2.920(7) and 2.931(6) Å [27]. The shortest Os-Hg bond length measured for these clusters is 2.696(5) Å. As another example, the structure of the cation [Hg8{Ir(η5-C5Me5)(CO)}6] contains a central {Hg4} fragment with Hg···Hg distances between 2.982(2) and 3.0278(18) Å. Each mercury of {Hg4} bonds two iridium centers [28]. The compound also contains two {Hg3} triangles with Hg···Hg distances in the 2.962(2)–3.078(2) Å range.
In the last category of compounds, mercury is bonded to one or two Y ligands and directly to a metal center, with the formation of species having general formula LnMm-HgYy. The Y ligands can have different nature, according to the typical coordination chemistry of mercury [29,30,31,32,33]. Given the noticeable stability of the Hg-C σ-bonds, transition metal organomercury derivatives were investigated in detail. Mercury is usually bonded to two C-donor fragments that are part of the ancillary ligands surrounding the transition metal. Very short metallophilic interactions between Hg(II) and either Pd(II) or a Group 11 M(I) center were recently observed using quinolin-8-yl fragments able to form Hg-C together with M-N bonds [34]. Figure 5a shows the molecular structure of the Au(I) derivative, characterized by Hg(II)···Au(I) distance equal to 2.596(3) Å. Organomercury-bridged diphosphines are another class of compounds able to form heteropolymetallic complexes with short metal–mercury interactions [35,36,37,38]. The structure of a Pd(II) derivative [Hg(II)···Pd(II) 2.9828(6) Å] is shown in Figure 5b. Two Hg···M interactions can be present in the same molecule if the diphosphine behaves as a bridging ligand, as occurs in the bis(rhodium) complex formed with the ligand (η5-C5H5)Fe(PPh2C5H3-Hg-C5H3PPh2)Fe(η5-C5H5) and in the Au(I) and Au(III) derivatives [{Au(Ar)}2{Hg(C6H4PPh2)2}] and [{AuCl2(Ar)}2{Hg(C6H4PPh2)2}] [Ar = halide-substituted aryls] (see for instance Figure 5c) [39,40]. The Hg···Au(I) distances are between 3.1222(3) and 3.1950(3) Å, while the Hg···Au(III) distances are longer, 3.3973(3) Å. As another example, the reaction of a Cu(I) precursor with a Hg2N4-donor macrocycle afforded a heterometallic species with intramolecular Hg···Cu [2.919(7)–2.921(7) Å] and intermolecular Hg···Hg [3.203(4) Å] metallophilic contacts [41,42]. Unsupported interactions between HgR2 (R = organometallic ligand) and Group 10 or Group 11 transition metal complexes were however reported [43,44,45]. For instance, in the anion [{AuHg2(o-C6F4)3}{Hg3(o-C6F4)3}]− the two metallacycles are connected by a short Hg(II)···Au(I) contact, 3.097(2) Å, and the computed interaction energy is around 47.7 kcal mol−1 (Figure 5d).

2. Heterometallic Transition Metal Complexes with Mercury Dihalides

Divalent mercury halides are among the most common HgY2 compounds in the chemistry of mercury [46]. The interaction between transition metals in low oxidation state and mercury(II) halides was observed in a number of cases while studying the Lewis basicity of metal carbonyl complexes [47,48,49,50,51,52,53,54]. The synthetic approach was based on the direct reaction of a suitable transition metal carbonyl precursor with HgY2. Calorimetric measurements on the reaction between Group 6 transition metal carbonyl derivatives and mercury(II) halides in 1,2-dichloroethane solution indicated that the Hg-M bonds formed are at least as strong as the interactions of divalent mercury with conventional Lewis bases. In some cases, the Gibbs energy variation for the reaction is negative by about 7 kcal mol−1 [55]. Another reaction pathway involves the formal insertion of metallic mercury in the M-Y bond, even if such a reaction should be considered a redox process. For instance, dinuclear {Fe-HgI2} complexes with π-acceptor ligands surrounding the iron center were obtained by reacting [FeI2(CNR)4] [R = alkyl, aryl] with mercury in the presence of isocyanides and phosphines [56,57]. Yamamoto and co-workers isolated a product having formula [Ni(HgI2)(CNR)4] [R = 2,6-Me2C6H3] by reacting [NiI2(CNR)2] with mercury in the presence of isocyanide. Moreover, the authors assumed the formation of a transient [Ni(HgI2)(CNR)2] species while investigating the electrochemical behavior of [NiI2(CNR)2] with a mercury electrode [58].
The M-HgY2 interaction is generally described as a donation of electron density from the transition metal in a low oxidation state, behaving as Lewis base, to HgY2, which acts as Lewis acid. However, computational studies on [Ru(M’Cl2)(CO)3(PPh2py)2] [M’ = Zn, Cd, Hg; PPh2py = diphenyl-2-pyridylphosphine] revealed that such an assumption is correct for M’ = Zn, while the Ru←M’ back-donation is relevant for both M’ = Cd and M’ = Hg [59].

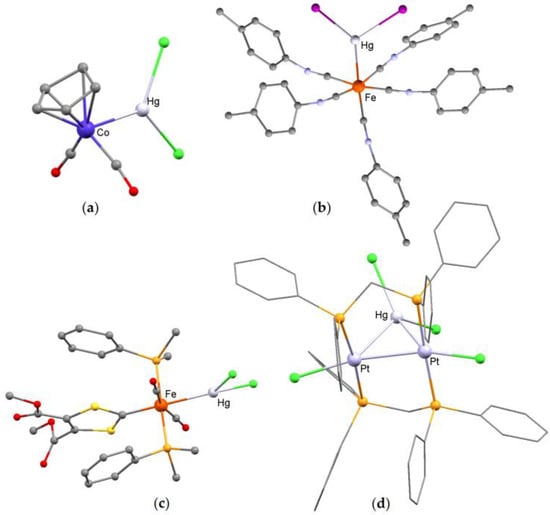

One of the earliest examples of M-HgY2 derivatives investigated by means of single-crystal X-ray diffraction is [Co(HgCl2)(η5-C5H5)(CO)2] (Figure 6a), showing a Hg-Co bond length equal to 2.578(4) Å. The compound was obtained from [Co(η5-C5H5)(CO)2] and HgCl2 [60]. It is worth noting that the use of the related isocyanide precursor [Co(η5-C5H5){CNC(O)C6H5}2] afforded a less stable heterobimetallic product [61]. Other species investigated by means of X-ray diffraction are [Fe(HgI2){CN(p-tolyl)}5] [Hg-Fe 2.551(1) Å] (Figure 6b) [56] and [Fe(HgCl2)(CO)2(PMe2Ph)2{CS2C2(CO2Me)2}] [Hg-Fe 2.546(1) Å] (Figure 6c) [62,63]. Structurally characterized examples of trinuclear metal complex showing bridging coordination mode for HgCl2 are [Pt2(HgCl2)Cl2(dppm)2] (Figure 6d) and [Rh2(HgCl2)(η5-C5H5)2(μ-dppm)(μ-CO)] [dppm = bis(diphenylphosphino)methane]. In the first species, the two Hg-Pt bond lengths are between 2.6991(8) and 2.7153(7) Å, contributing to the formation of an “A-frame” structure with HgCl2 at one vertex of the trimetallacycle [64]. Relevant parameters for the trinuclear rhodium derivative are Hg-Rh distances comprised between 2.692(1) and 2.744(2) Å and Hg-Cl bonds comprised between 2.534(3) and 2.581(3) Å [65].

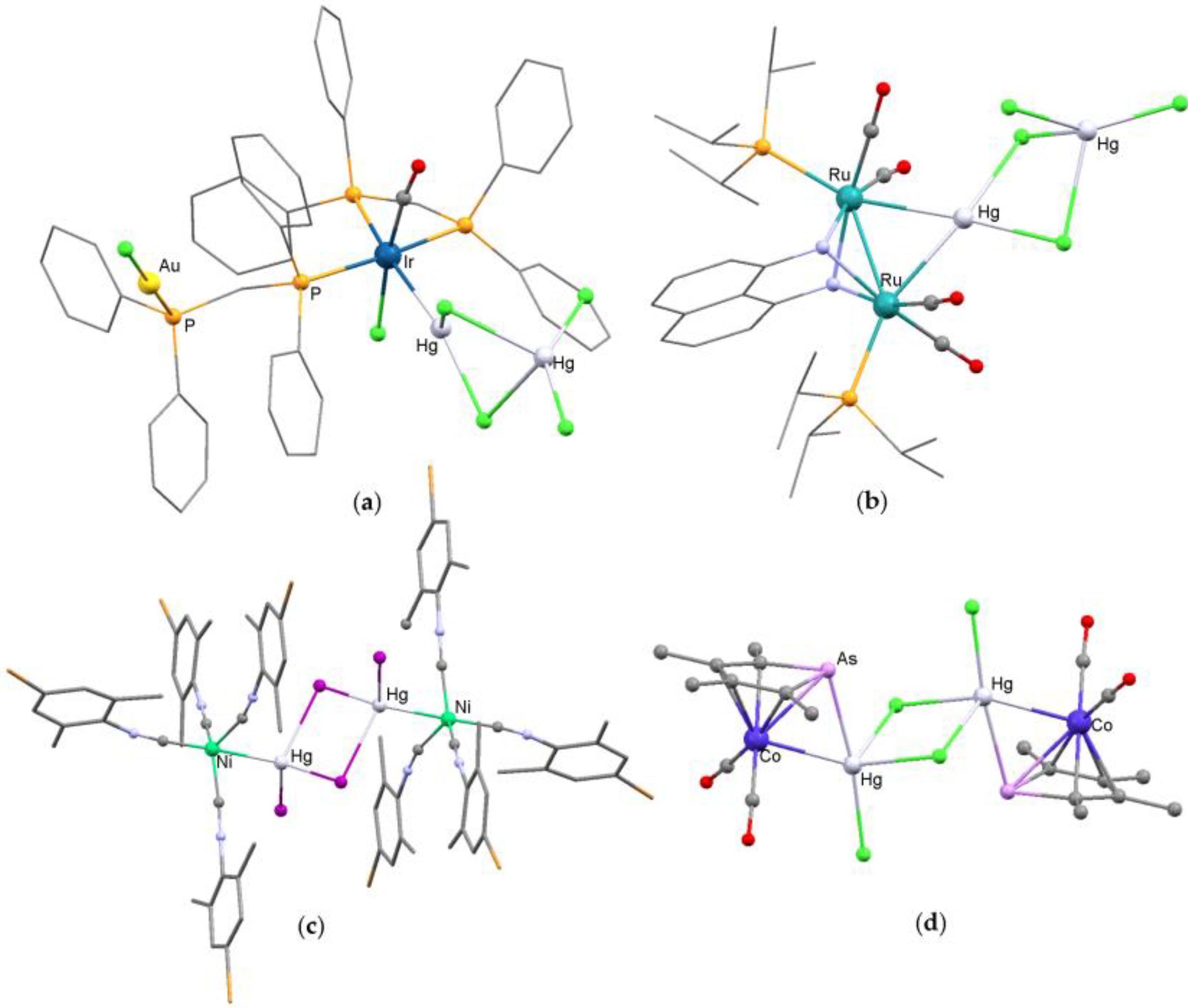

HgY2 can also bond with transition metal clusters through the interaction with halides. For instance, in the structure of [Pt2(dppp)2{(μ3-Cl)2HgI2}] [dppp = 1,3-bis(diphenylphosphino)propane], HgI2 is connected to the chloro-ligands bridging the Pt centers, and only a weak Hg···Pt interaction [3.1744(4) Å] is present [66].
The bond between the transition metal fragment and HgY2 can be enforced in the presence of suitable ancillary ligands. For instance, the complex [Fe(CO)4(PEtPhpy)] [PEtPhpy = 2-(ethylphenylphosphino)pyridine] undergoes an addition reaction with HgCl2 to afford the binuclear derivative [Fe(HgCl2)(CO)4(PEtPhpy)] (Figure 7a), where a Hg-Fe bond [2.608(1) Å] is present together with a Hg-N interaction [2.530(4) Å] [67]. In the compound [Fe(HgI2)(CO)3(PPh2py)2], obtained following the same approach, the interaction between HgI2 and the transition metal fragment is essentially due to the Hg-Fe bond [2.6780(2) Å], even if two weak mercury–nitrogen interactions are present, the shortest one with Hg-N distance equal to 2.658(2) Å [68]. In related complexes having the general formula [Fe(HgY2)(CO)3(Ph2Ppym)2] [Y = Cl, Br, I; Ph2Ppym = 2-(diphenylphosphino)pyrimidine], the Hg-Fe distances are comprised between 2.616(2) and 2.665(2) Å. In the case of Y = Cl, the mercury center weakly interacts with the nitrogen atoms of the pyrimidine rings [Hg-N 2.669(8) and 2.677(9) Å], while only the Fe-Hg bond is present for Y = Br and Y = I [69]. In the Group 8 derivatives [M(HgI2)(CO)3(PPh2CH2morph)2] [M = Fe, Ru; PPh2CH2morph = N-(diphenylphosphinomethyl)morpholine], the M-Hg bonds are 2.665(1) Å [M = Fe] and 2.7075(4) Å [M = Ru]. The shortest Hg-N distances are above 2.7 Å, indicating very weak mercury–nitrogen interactions [70,71]. On the other hand, in the complex [Pt{2,6-(Me2NCH2)2C6H3}{μ-(p-tolyl)NC(H)N(iPr)}HgBrCl] (Figure 7b) a formamidinate ligand behaves as bridge between a {Pt(N^C^N)} fragment and HgClBr. The Hg-N bond length is short, 2.156(11) Å, comparable with the Pt-N(formamidinate) one, 2.155(9) Å. Thanks to the Hg-Pt bond, 2.8331(7) Å, the platinum center assumes a pseudo-square-pyramidal geometry [72].
The formation of a Mm-HgY2 bond is not the only potential outcome from the reaction between a mercury(II) halide and a transition metal precursor or from the insertion of mercury in the M-Y bond. One of the most common possibilities is the presence in the molecular structure of fragments having general formula {Hg2Y2(μ-Y)2}, which can act as formal terminal ligands [73] or behave as bridges between two transition metal centers, these last connected [74,75] or not [76,77,78] by a M-M bond. The structures of [Ir{Hg(μ-Cl)2HgCl2}Cl(CO)(dppm){(μ-dppm)AuCl}] [Hg-Ir 2.618(3) Å], [Ru2{Hg(μ-Cl)2HgCl2}(C10H8N2)(CO)4(PiPr3)2] [C10H10N2 = 1,8-diaminonaphthalene; Hg-Ru 2.758(1) and 2.775(2) Å; Ru-Ru 2.827(2) Å] and [Ni(CNAr)4{HgI(μ-I)2HgI}Ni(CNAr)4] [Ar = 4-Br-2,6-Me2C6H2; Hg-Ni 2.619(3) Å] are shown as examples in Figure 8a–c. As for HgY2, the interaction of {HgY(μ-Y)2YHg} with the transition metal fragment can be supported by the coordination of suitable donor groups present in the ancillary ligands, as shown by Zhang and co-workers using 2-pyridylphosphines as bridging ligands between iron carbonyls and mercury [79]. For instance, in the structure of [Fe{Hg(μ-Cl)2HgCl2}(CO)4(μ-PPh2py)] one of the mercury centers interacts both with iron [Hg-Fe 2.570(2) Å] and with nitrogen [Hg-N 2.483(11) Å]. Hill and Kirk recently provided another example with the arsolyl-complex [{HgCl(μ-Cl)2HgCl}{Co(η5-C4Me4As)(CO)2}2]. Two isomers of the compound exist, which differ in the mutual syn or anti positions of the {Co(η5-C4Me4As)(CO)2} fragments with respect to the rhomboidal {HgCl(μ-Cl)2HgCl} core. Besides the Hg-Co bonds [2620(1)–2.6702(9) Å], Hg-As interactions are present, with distances comprised between 2.6334(6) and 2.7268(9) Å [80]. One of the isomers is shown in Figure 8d.

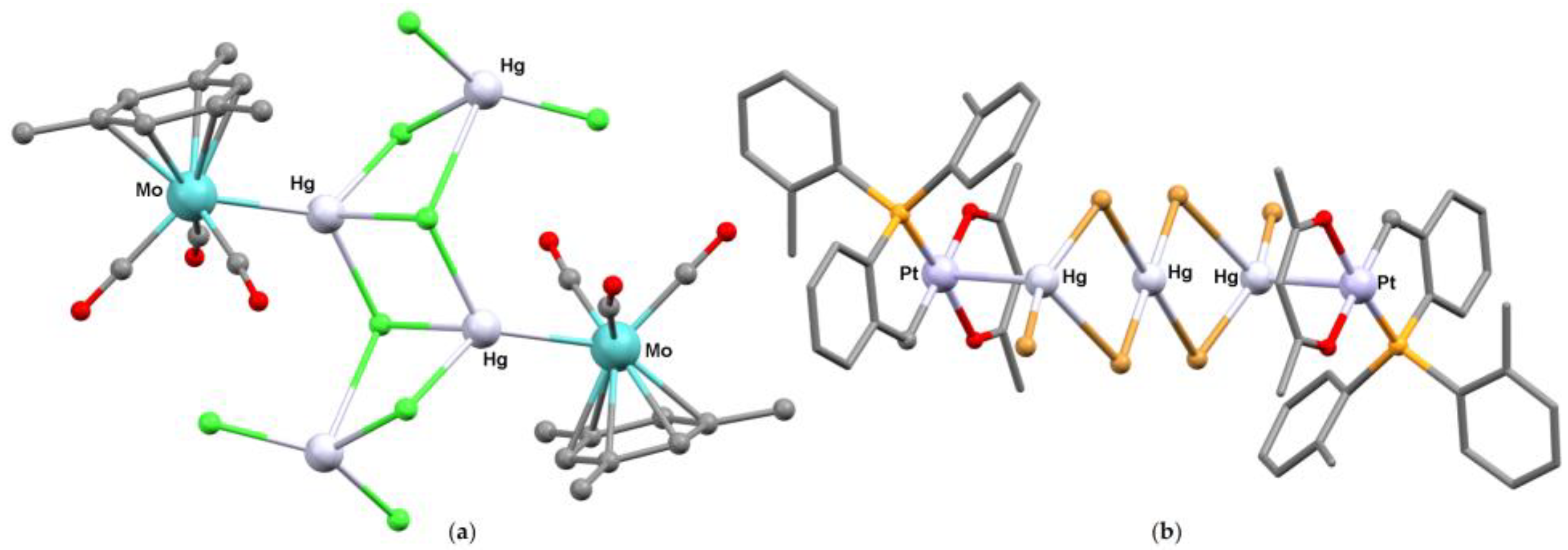

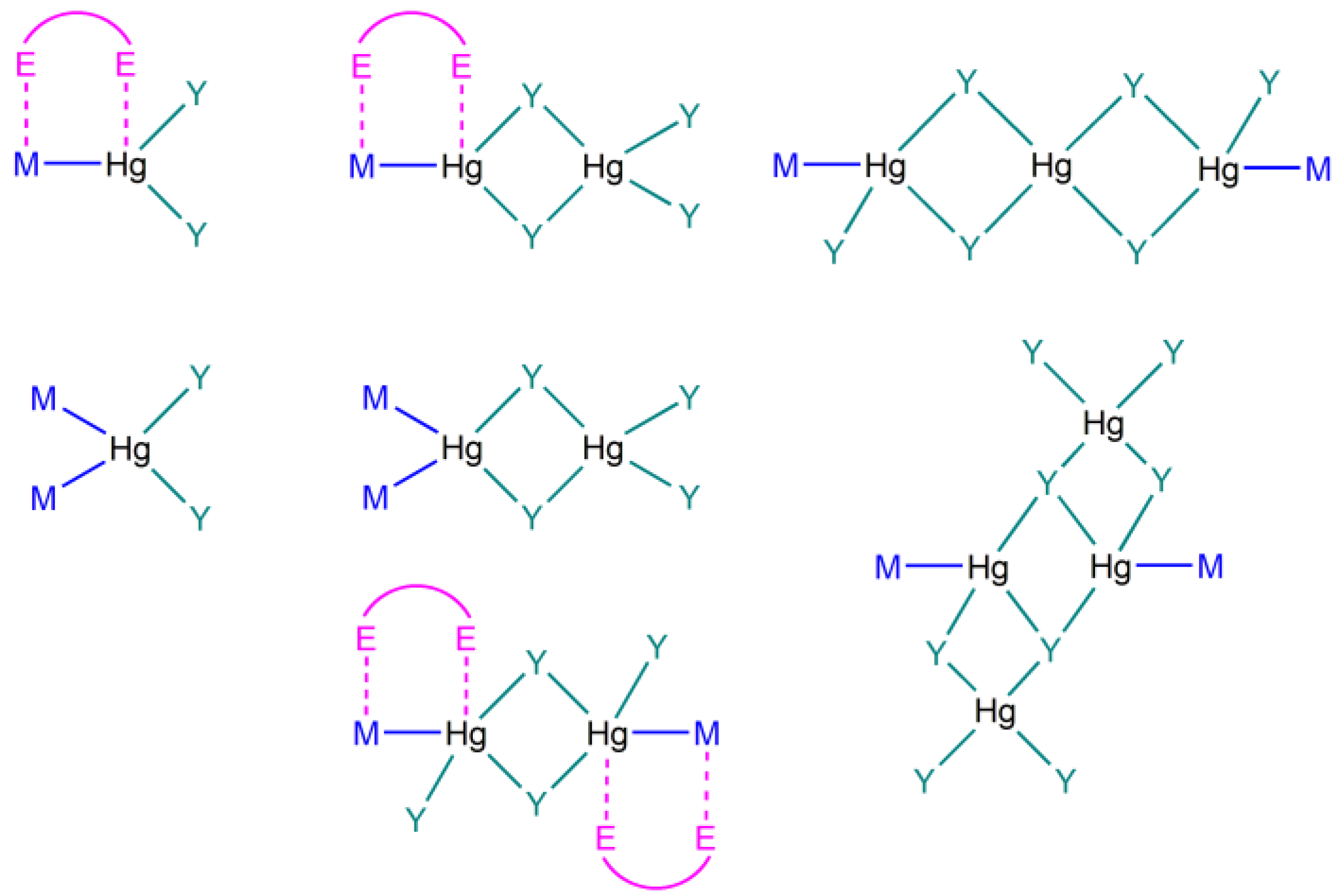

It is worth noting that the nuclearity of the {HgY2}x fragments can be also higher. The compound [{Hg2(μ3-Cl)2(μ-Cl)2(HgCl2)2}{Mo(η6-C6H3Me3)(CO)3}2] (Figure 9a) is composed of two organometallic molybdenum complexes joined by a {HgY2}4 unit. Two of the four mercury centers form Hg-Mo bonds [2.745(1) Å] [81]. The reaction of [Pt(C∧P)(acac)] [C∧P = CH2-C6H4-P(o-tolyl)2; acac = 2,4-pentanedionato] with HgBr2 afforded the structurally characterized polynuclear species [{Hg3(µ-Br)4Br2}{Pt(C∧P)(acac)}2] (Figure 9b), where the terminal mercury centers of the trimercury hexahalide fragment form two unsupported Hg-Pt bonds [2.808(1) Å]. The central mercury atom shows an uncommon square-planar environment [82]. The main coordination modes of the {HgY2}n fragments described in this section are sketched in Scheme 1.

3. Transition Metal–Mercury Monohalide Derivatives

The apparently simplest cases of transition metal–mercury halide derivatives are species having general formula LnMn-HgY, where a mercury monohalide formally behaves as a ligand in the coordination sphere of a transition metal center. Intriguing features are the isolobality of the {HgY} fragment with the hydrogen atom and the possibility of intramolecular {YHg···HgY} or intermolecular {YHg···YHg} interactions (vide infra).
As for the LnMn-HgY2 derivatives, a common synthetic approach is based on the reaction of HgY2 with suitable precursors (Equation (1)); thus, the formation of LnMn-HgY instead of LnMn-HgY2 can depend upon the experimental conditions.
[LnMn] + HgY2 → [LnMn-HgY]Y
For instance, on increasing the [Co(η5-C5H5)(CO)2]:HgCl2 ratio, the product isolated was not [Co(HgCl2)(η5-C5H5)(CO)2] [60], but a 1:3 adduct whose X-ray structure revealed the presence of [Co(HgCl)(η5-C5H5)(CO)2]Cl (Figure 10a) and two additional HgCl2 molecules [83]. The cation contains a Hg-Co bond [2.504(9) Å] significantly shorter than that found in [Co(HgCl2)(η5-C5H5)(CO)2] [2.578(4) Å]. A short Hg-Cl bond is present [2.348(16) Å] together with other three Hg---Cl contacts, all above 2.8 Å. The {Co-Hg-Cl} fragment is bent, with an angle of 153.5(5)°. As another example, [Ir(η5-C5Me5)(CO)2] reacts with an excess of HgCl2 to produce the heterometallic complex [Ir(HgCl)(η5-C5Me5)(CO)2][HgCl3]. Lowering the amount of HgCl2 caused the formation of [Ir(HgCl2)(η5-C5Me5)(CO)2] as a secondary product [84]. The X-ray crystal structure of [Ir(HgCl)(η5-C5Me5)(CO)2][HgCl3] shows a nearly linear {Ir-Hg-Cl} group [Hg-Ir 2.5870(11) Å, Hg-Cl 2.354(5) Å, Ir-Hg-Cl 172.12(15)°]. Long Hg···Cl interactions [2.914(6)–3.011(5) Å] connect the cation to the [HgCl3]− anion.
Other approaches for the synthesis of {M-Hg-Y} derivatives are based on the cleavage of metal–metal bonds by HgY2, using substrates such as LnM-Hg-MLn trinuclear complexes, M-SnR3 organostannyl species and dinuclear M-M clusters (Equations (2)–(4)) [85,86,87,88,89,90,91]. For instance, species having formulae [M(HgY)(η5-C5H5)(CO)n] [M = Mo, n = 3; M = W, n = 3; M = Fe, n = 2; Y = Br, I] and [Co(HgY)(CO)3L] [Y = Cl, Br; L = CO or phosphine] were prepared from the corresponding {M-Hg-M} precursors [85,86].
[LnM-Hg-MLn] + HgY2 → 2 [LnM-HgY]
[LnM-SnR3] + HgY2 → [LnM-HgY] + SnYR3
[LnM-MLn] + HgY2 → [LnM-HgY] + [LnM-Y]
The oxidative addition of HgY2 to a metal center in low oxidation state can also afford {M(HgY)(Y)} complexes (Equation (5)), as shown by the reaction between [Mo(CO)4(phenMe2)] [phenMe2 = 2,9-dimethyl-1,10-phenanthroline] and HgCl2, leading to [Mo(HgCl)Cl(CO)3(phenMe2)] [92]. {PtIV(HgY)Y} derivatives prepared through oxidative addition of HgY2 to divalent platinum complexes are further examples of such a synthetic strategy, deeply investigated by Puddephatt and co-workers [93,94,95,96]. Transition metal hydrides can also behave as precursors for the preparation of mercury monohalide derivatives, thanks to the formal exchange between isolobal {HgY} and {H} fragments (Equation (6)). Examples are [Co(HgY)L4-n(CO)n] [L = phosphite; n = 0–2] complexes obtained from the corresponding hydrides and HgY2 [97].
[LnM] + HgY2 → [Ln(Y)M-HgY]
[LnM-H] + HgY2 → [LnM-HgY] + HY
Besides [Co(HgCl)(η5-C5H5)(CO)2]Cl and [Ir(HgCl)(η5-C5Me5)(CO)2][HgCl3], several structurally characterized organometallic {M-Hg-Y} derivatives containing a single {HgY} unit are present in the literature, in particular for Group 6 transition metals. In [Mo(HgCl)(η5-C5H4R)(CO)3] [R = H, Me], the molybdenum center is seven-coordinated, and the Hg-Mo distance is unaffected by the substitution of the cyclopentadienyl ring [2.683(1) Å for R = H, 2.680(2) Å for R = Me]. The Hg-Cl bonds are comprised between 2.442(3) Å [R = H] and 2.398(5) Å [R = Me]. The {Mo-Hg-Cl} fragment is more bent in the cyclopentadienyl derivative [160.02(9)°] with respect to the methylcyclopentadienyl complex [172.0(1)°]. Both the compounds show contacts between {HgCl} fragments belonging to neighboring molecules, with Hg···Cl distances slightly above 3.0 Å [98,99,100]. [Mo(HgCl)(η5-C5H4Me)(CO)3] is depicted as an example in Figure 10b. Further analogous compounds with substituted cyclopentadienyl rings were synthesized and characterized, and the interest was focused on the 95Mo and 199Hg chemical shift values [101]. The cyclopentadienyl rings can be formally replaced by isolobal ligands, such as boratabenzenes. The structure of the complex [Mo(HgCl)(η5-3,5-Me2C5H3BNiPr2)(CO)3}] is comparable with that of [Mo(HgCl)(η5-C5H4Me)(CO)3] [102]. The Mo-Hg bond appears scarcely affected also by the replacement of one of the carbonyl ligands with a trivalent Group 15 ligand. For instance, the Hg-Mo distance in [Mo(HgI)(η5-C5H4Me)(CO)2(AsPhMe2)] is 2.685(3) Å, in line with the previous examples. The Hg-I bond length is 2.720(3) Å and the Mo-Hg-I angle is 167.40(8)°. The intramolecular Hg···I distances are long, 3.561(3) Å [103]. The related [W(HgCl)(η5-C5H5)(CO)2(PPh3)] complex, obtained by reacting [Hg{W(η5-C5H5)(CO)3}2] with PPh3 in the presence of chlorinated solvents, shows Hg-W and Hg-Cl bond lengths respectively equal to 2.667(1) and 2.382(4) Å and a W-Hg-Cl angle of 173.8(1)° [104]. For what concerns non-cyclopentadienylic Group 6 derivatives, the structures of [Mo(HgCl)Cl(CO)3(N-N)] [N-N = 2,2′-bipyridine, 2,9-dimethyl-1,10-phenanthroline] complexes were reported. The Hg-Mo bond lengths are between 2.700(7) and 2.724(2) Å, slightly longer than in the previously described molybdenum-mercury compounds [92,105].
No {M-Hg-Y} complex of Groups 3 and 4 elements is present in the literature. For what concerns Group 5 derivatives, the proposed general formula for the unique compounds synthesized is [Nb(HgY)2H(η5-C5H5)2]·xHgY2 [Y = Cl, Br, I; x = 0.5–1], but the characterization data are not supported by X-ray structure diffraction [106]. Crystal structures of dinuclear {M-Hg-Y} compounds belonging to Group 7 are also absent. Despite the fact that complexes of the type [M(HgY)(CO)5] [M = Mn, Re] were prepared from the cleavage of M-Sn or M-LnII [LnII = divalent lanthanide] bonds by HgY2, the characterization data are limited to elemental analyses and IR spectra [90,107]. Only spectroscopic data are available also for the carbonyl complexes [Mn(HgBr)(η5-C5H4Me)(SiPh2Me)(CO)2] [108], [Re(HgCl)(η5-C4H4BPh)(CO)3] [109] and [Re(HgY)2(η5-C5H5)(CO)2] [Y = Br, I] [110]. As for [Nb(HgY)2H(η5-C5H5)2]·xHgY2, the last species is described as containing two {HgY} fragments interacting with the same rhenium center. The only technetium derivative reported is [Tc(HgBr)(NAr)3] [Ar = 2,6-diisopropylphenyl] [111], but also in this case the X-ray structure is absent.
An example of a structurally characterized {M-Hg-Y} Group 8 derivative with unsupported Hg-M interaction is mer-[Fe(HgBr)(SiMePh2)(PMe3)(CO)3]. The Hg-Fe and Hg-Br bond lengths are 2.515(3) and 2.535(3) Å, respectively, and the Fe-Hg-Br angle is 161.0(1)°. The compound is a dimer at the solid state thanks to a second Hg···Br interaction, equal to 3.063(1) Å [112]. The compounds [{Fe(HgY)(CO)4}Hg{Fe(HgY)(CO)4}] [Y = Cl, Br] [113] allow the comparison between the Hg-M bonds involving {HgY} and {μ-Hg} fragments in the same molecule. The interactions of the iron centers with the bridging mercury atom are longer [2.562(2)–2.570(2) Å for Y = Cl; 2.637(3)–2.638(4) Å for Y = Br] than those with the mercury monohalides, in particular when Y = Br [2.518(2)–2.522(2) Å for Y = Cl; 2.351(3)–2.385(3) Å for Y = Br]. The structure of [{Fe(HgBr)(CO)4}Hg{Fe(HgBr)(CO)4}] is depicted in Figure 10c. Besides the Hg-Y bonds, in both the structures additional Hg···Y long interactions are present, above 3.1 Å. Another noticeable example of iron–mercury complex is [Fe(HgCl)2(CO)4], discovered in 1928 [114], where two {HgY} fragments interact with the same transition metal center. The structure of the related [Fe(HgBr)2(CO)4] complex (Figure 10d) revealed the presence of mercurophilic interaction between the cis-{HgBr} fragments, with Hg···Hg distance around 3.0–3.1 Å [115]. One or two carbonyl ligands of [Fe(HgY)2(CO)4] can be replaced by N-donor ligands [53]. The synthesis and reactivity of other {Fe-Hg-Y} complexes are reported in the literature, such as [Fe(HgY)(NO)(CO)3] [116] and [Fe(HgY)(η5-C5H5)(CO)2] [90,117,118], but unfortunately data from single-crystal X-ray diffraction were not collected. Bond lengths and angles are instead available for the osmium derivative [Os(HgCl)(NO)Cl2(PPh3)2], formed by oxidative addition of HgCl2 to [OsCl(CO)(NO)(PPh3)2] and loss of the carbonyl ligand. The transition metal center is six-coordinated and the Hg-Os distance is 2.577(6) Å. The {Os-Hg-Cl} fragment is almost linear, being the angle 177(1)° [119].
Besides [Co(HgCl)(η5-C5H5)(CO)2]Cl [83] and [Ir(HgCl)(η5-C5Me5)(CO)2][HgCl3] [84], examples of structurally characterized Group 9 {M-Hg-Y} complexes are [Co(HgY){P(OPh)3}4] [Y = Cl, Br] derivatives [120]. The Hg-Co distance is almost unaffected by the choice of the halide, falling in the 2.481(2)–2.485(2) Å range. The Co-Hg-Y angles are also strictly comparable, being 163.1(1) and 163.8(1)°. Unfortunately, the bond lengths and angles are not available for the related tetracarbonyl complexes [121]. In the case of iridium, crystal data were reported for [Ir(HgCl)Cl2(CO)(PPh3)2], dimer at the solid state [Hg-Ir 2.570(1) Å, [Hg-Cl 2.366(5) Å, Hg···Cl 3.148(5) Å, Ir-Hg-Cl 172.2(1)°], and for the isomorphous bromo-derivative [Ir(HgBr)ClBr(CO)(PPh3)2], both derived from the oxidative addition of HgY2 to Vaska’s complex trans-[IrCl(CO)(PPh3)2] [122]. Other compounds have the general formula [Ir(HgCl){CCCW(TpR2)(CO)2}2(CO)(PPh3)2] [TpR2 = tris(pyrazol-1-yl)borate, tris(3,5-dimethylpyrazol-1-yl)borate]. The Ir-Hg distances are between 2.5905(16) and 2.615(3) Å, while the {Ir-Hg-Cl} fragments are almost linear [123]. A recent example of structurally characterized Group 9–HgCl complex is [Ir(HgCl)(C^N^C)(COD)] [H2C^N^C = 2,6-bis(4-tert-butylphenyl)pyridine] [16]. The Hg-Ir distance is 2.5705(3) Å and the Ir-Hg-Cl angle is 171.64(4)°.
X-ray data for binuclear {M-Hg-Y} compounds with the transition metal center belonging to Group 10 and unsupported M-Hg bonds are available for M = Pd and M = Pt. As described before, {PtIV(HgY)Y} complexes can be obtained from the oxidative addition of HgY2 to suitable Pt(II) precursors, such as square-planar species with two C-donors and a bidentate N-donor in the coordination sphere [93,94,95,96]. The Hg-Pt distance is usually slightly above 2.5 Å and dimerization at the solid state can occur thanks to long Hg···Y interactions. The structure of [Pt(HgBr)BrMe2(bpyBu2)] [bpyBu2 =4,4′-di(tert-butyl)-2,2′-bipyridine] is shown as an example in Figure 10e. HgCl2 also reacts with the trinuclear cluster [Pt2Pd(μ-dpmp)2{CN(2,6-Me2C6H3)}2]2+ [dpmp = bis(diphenylphosphinomethyl)phenylphosphine], with the break of the Pt-Pd bond and the formation of [Pt2Pd(HgCl)(Cl)(μ-dpmp)2{CN(2,6-Me2C6H3)}2]2+, where the {HgCl} fragment is bonded to palladium [Hg-Pd 2.5830(5) Å], while the other halide interacts with one of the platinum centers. The mercury–palladium bond was described as HgI-PdI, and the additional interaction of mercury with one of the platinum atoms is suggested by the Hg···Pt distance equal to 2.8191(3) Å [124]. On considering another synthetic approach, the reaction of [PtH(PP3)]+ [PP3 = tris(2-diphenylphosphinoethyl)phosphine] with PhHgCl gave [Pt(HgCl)(PP3)]+, where the {HgCl} fragment occupies one of the apical positions of a trigonal bipyramid surrounding the platinum center. The Hg-Pt bond length is 2.5511(9) Å and the Pt-Hg-Cl angle is 174.63(7)° [125].
Molecules 30 00145 g010

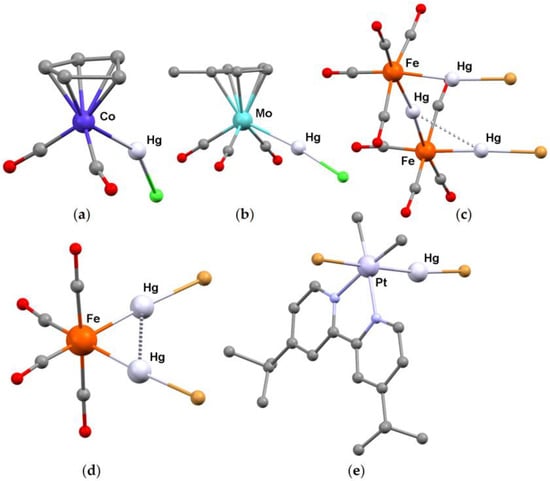

Figure 10. Molecular structures of (a) [Co(HgCl)(η5-C5H5)(CO)2]+ [83]; (b) [Mo(HgCl)(η5-C5H4Me)(CO)3] [100]; (c) [{Fe(HgBr)(CO)4}Hg{Fe(HgBr)(CO)4}] [113]; (d) [Fe(HgBr)2(CO)4] [115]; (e) [Pt(HgBr)BrMe2(bpyBu2)] [bpyBu2 =4,4′-di(tert-butyl)-2,2′-bipyridine] [95]. Color map: Hg, light grey; Pt, light violet; Mo, light blue; Co, blue; Fe, reddish orange; Br, dark orange; Cl, light green; N, light blue; O, red; C, grey. Hydrogen atoms and intermolecular interactions omitted.
Figure 10. Molecular structures of (a) [Co(HgCl)(η5-C5H5)(CO)2]+ [83]; (b) [Mo(HgCl)(η5-C5H4Me)(CO)3] [100]; (c) [{Fe(HgBr)(CO)4}Hg{Fe(HgBr)(CO)4}] [113]; (d) [Fe(HgBr)2(CO)4] [115]; (e) [Pt(HgBr)BrMe2(bpyBu2)] [bpyBu2 =4,4′-di(tert-butyl)-2,2′-bipyridine] [95]. Color map: Hg, light grey; Pt, light violet; Mo, light blue; Co, blue; Fe, reddish orange; Br, dark orange; Cl, light green; N, light blue; O, red; C, grey. Hydrogen atoms and intermolecular interactions omitted.
Molecules 30 00145 g010
As previously described for HgY2 and {HgY(μ-Y)2YHg}, also the interaction of the {HgY} fragment with a transition metal center can be enforced by the presence of donor atoms in the ancillary ligands able to interact with mercury. Functionalized phosphines such as 2-pyridylphosphine, tri(2-furyl)phosphine and related species allowed the preparation of compounds such as [Ru(HgCl)(PPh2py)2(CO)3][HgCl3], [Fe(HgI)(CO)3(Ph2PQu)2][HgI3] [PhPQu = 2-diphenylphosphino-4-methylquinoline], [M(HgCl)Cl2(CO)(PPh2py)2] [M = Rh, Ir] and [Rh(HgCl)(CO)Cl2{P(C4H3O)3}2], where Hg···N or Hg···O interactions support the Hg-M bonds [126,127,128,129]. In the cis-[M(HgY)2(PPh2py)(CO)3] [M = Ru, Y = Br; M = Os, Y = Cl] derivatives [130], one of the two {HgY} fragments shows an unsupported bond with the transition metal [Hg-Ru 2.602(2) Å; Hg-Os 2.627(1) Å], while the other one also interacts with the nitrogen atom of the pyridine fragment [Hg-Ru 2.628(2) Å, Hg-N 2.772(2) Å; Hg-Os 2.651(1) Å, Hg-N 2.67(1) Å]. Despite this difference, the Hg-Y bonds and M-Hg-Y angles in the same molecule are very similar [Hg-Br 2.540(3) and 2.538(4) Å; Hg-Cl 2.392(6) and 2.400(5) Å; Ru-Hg-Br 165.4(1) and 169.5(1)°; Os-Hg-Cl 177.5(1) and 176.4(1)°]. The structure of the osmium derivative is shown in Figure 11a.
The possibility of quite strong Hg-N interactions with the {M-Hg-Y} fragment is highlighted by the crystal structure of [Fe{HgCl(py)}2(CO)4], where the Hg center forms bonds with Fe [2.552(8) Å], Cl [2.61(1) Å] and the nitrogen atom of pyridine [2.51(6) Å]. The description of the compound at the solid state must, however, also account for a further intermolecular Hg···Cl interaction equal to 2.771(1) Å [131]. Another example is the triazenido-complex [Ir(HgCl){EtN3(4-Me-C6H4)}2(COD)] [Hg-Ir 2.618(1) Å], where one of the two triazenido-ligands bridges the iridium and mercury centers [Hg-N 2.42(1) Å] (Figure 11b). Mercury also forms an intramolecular [2.41(1) Å] and an intermolecular [3.08(1) Å] Hg-Cl bond [132].
Molecules 30 00145 g011

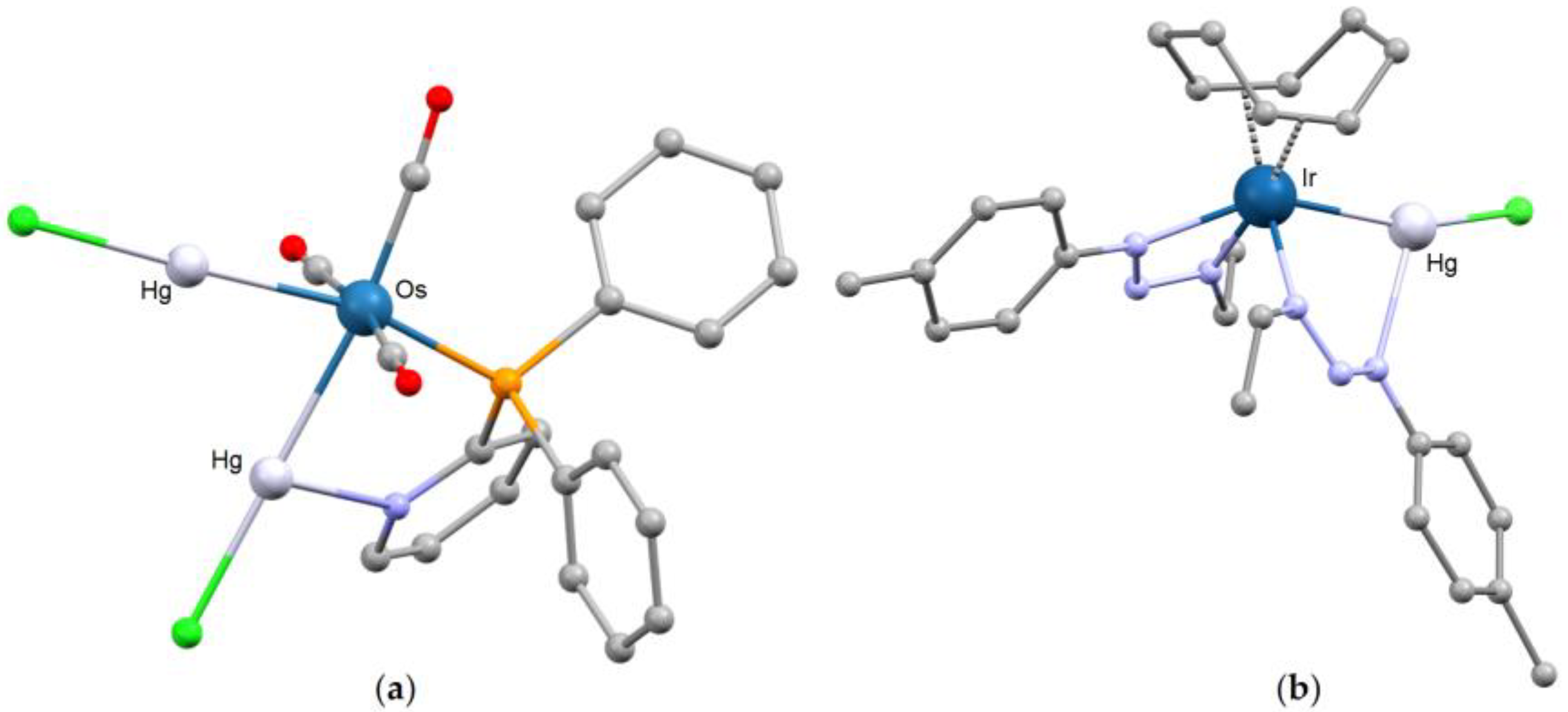

Figure 11. Molecular structures of (a) cis-[Os(HgCl)2(PPh2py)(CO)3] [PPh2py = diphenyl-2-pyridylphosphine] [130]; (b) [Ir(HgCl){EtN3(4-Me-C6H4)}2(COD)] [COD = 1,5-cyclooctadiene] [132]. Color map: Hg, light grey; Ir, dark blue; Os, blue; Cl, light green; P, orange; N, light blue; O, red; C, grey. Hydrogen atoms omitted.
Figure 11. Molecular structures of (a) cis-[Os(HgCl)2(PPh2py)(CO)3] [PPh2py = diphenyl-2-pyridylphosphine] [130]; (b) [Ir(HgCl){EtN3(4-Me-C6H4)}2(COD)] [COD = 1,5-cyclooctadiene] [132]. Color map: Hg, light grey; Ir, dark blue; Os, blue; Cl, light green; P, orange; N, light blue; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g011
{HgY} can formally behave both as a terminal and bridging ligand. For example, treatment of the trinuclear clusters [Fe3E(CO)9]2− [E = S, Se] with HgI2 afforded the {HgI}-bridged species [Fe3(HgI)E(CO)9]− (Figure 12a, E = S). The mercury center forms in both the cases two almost identical Hg-Fe bonds [2.6384(8) and 2.6385(7) Å for E = S; 2.605(2) and 2.608(2) Å for E = Se]. The Fe-Hg-Fe angles of the metallacycles are between 64.23(2) and 67.26(6)°, while the Hg-I bonds are between 2.641(1) and 2.6985(4) Å [133,134]. Another Group 8 cluster where {HgY} forms two Hg-M bonds [2.612(3) and 2.862(3) Å] is [Ru5C(HgCl)(CO)14(μ-Cl)], which is reported as a dimer because of the presence of an additional long intermolecular Hg···Cl interaction [2.961(11) Å] in addition to the Hg-Cl bond [2.412(10) Å]. However, the dissociation of the dimer in solution was proposed [13]. The previously described [Hg{Ru3(μ3-ampy)(CO)9}2] cluster [14] reacts with HgBr2 to form [Ru3(HgBr)(μ3-ampy)(CO)9], where a {Ru2Hg} triangle is present [Hg-Ru 2.735(2) and 2.744(2) Å, Ru-Hg-Ru 63.79(6)°]. Roughly comparable species are the clusters [Os3(HgCl)(μ3-C2Ph2)(μ-Cl)(CO)9] and [Ru3(HgBr)(CO)9(C6H9)], both showing dimerization at the solid state thanks to intermolecular Hg···Y interactions [135,136]. Dimerization at the solid state is not the only possibility when interactions among {HgY} fragments belonging to different molecules occur. An example is provided by the structure of [Os3(HgI)(CO)10(μ-η1-Ph)], which is reported as a tetramer. A pseudo-cubic central {Hg4I4} unit is present in the X-ray structure, where each mercury atom is connected to three iodides [2.9112(8), 2.9645(8) and 3.524(1) Å]. The I-Hg-I angles are 87.29(2) and 91.11(2)°. Moreover, each mercury center forms two Hg-Os bonds [2.7930(6) and 2.7978(7) Å] [137].
Examples of clusters with bridging {HgY} based on metal centers belonging to other Groups are [Rh2(HgCl)(μ-H)(CO)2{μ-(PhO)2PN(Et)P(OPh)2}2] [Hg-Rh 2.711(1) and 2.778(1) Å] [138], [Re2(HgI)(CO)8(μ-η1-C6H5)] [Hg-Re 2.7843(8) and 2.8051(7) Å] [139], [{Re2(HgCl)(CO)8(μ-PCy2)] [Hg-Re 2.777(1) and 2.784(1) Å] and [{Re(CO)4Mo(η5-C5H5)(CO)2(HgCl)(μ-PCy2)] [18]. In the last compound (Figure 12b), there are Hg-Re [2.707(1) Å] and Hg-Mo [2.896(1) Å] bonds and the Re-Hg-Mo angle is 73.6(1)°. Intermolecular Hg···Y interactions at the solid state are common for these species.
Despite the presence of two identical transition metals, the structure of [RhCl(PPh3)(CO)(HgCl)(μ-pz)2Rh(CO)(PPh3)] [pz = pyrazolate] is described as a {HgCl} fragment bridging Rh(I) and Rh(III) centers, with Hg-RhI and Hg-RhIII distances respectively equal to 2.804(3) and 2.586(2) Å [140]. The nature of the M-Hg bonds is a matter of discussion also in trinuclear platinum-mercury derivatives. The compound [HgBr{PtMe2Cl(bpyBu2)}{PtMe2(bpyBu2)}] [95,96] shows a covalent PtIV-HgBr bond [2.5767(7) Å], but the same {HgBr} fragment is also involved in a second Pt→Hg donor-acceptor interaction with a Pt(II) center [2.6973(4) Å]. Yamaguchi and Yoshiya isolated two coordination isomers of a trinuclear heterometallic derivative having general formula [HgPt2(CH3)2Cl4(phen)]2] [phen = 1,10-phenanthroline]. In the first isomer, [Hg{PtMe2Cl(phen)}2], the mercury atom forms two covalent Hg-Pt bonds [2.5459(8) and 2.5483(7) Å] and the two platinum centers are, including the bonds with mercury, six-coordinated. In the other isomer, [{PtMe2(phen)}{HgCl}{PtMe2Cl(phen)}] (Figure 12c), {HgCl} behaves as bridge between two platinum fragments. A covalent bond is present with the six-coordinated platinum [Hg-Pt 2.5744(6) Å], while a longer dative Pt→Hg bond, 2.6635(7) Å, joins a square-planar platinum fragment and {HgCl}, with the formation of a square-pyramidal geometry [141].
Molecules 30 00145 g012

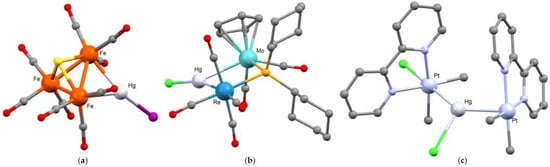

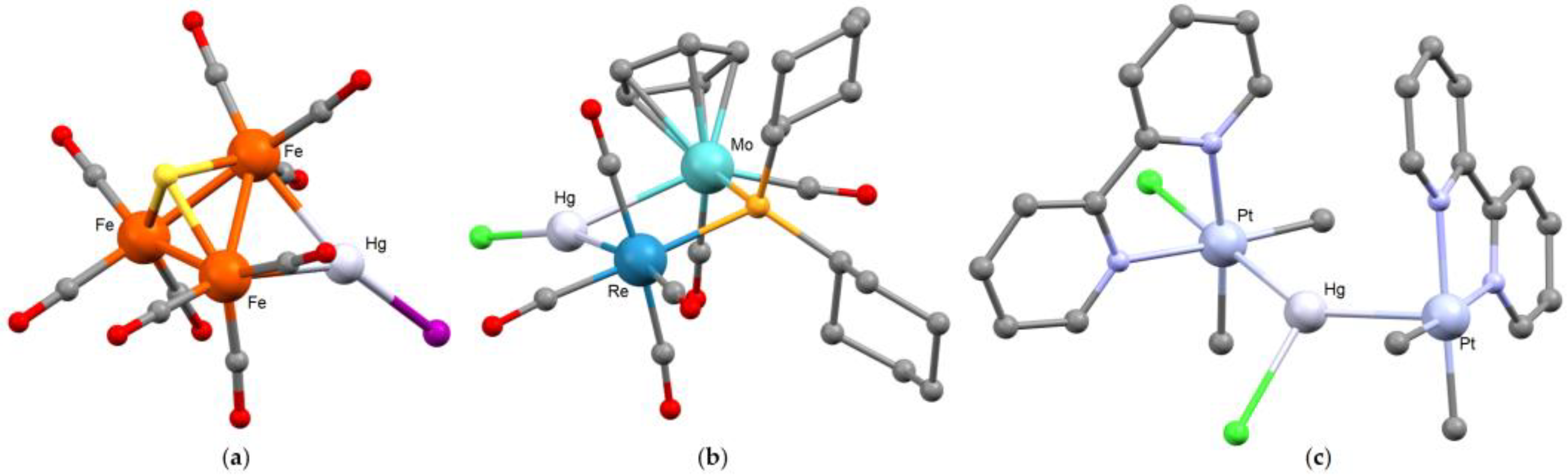

Figure 12. Molecular structures of (a) [Fe3(HgI)S(CO)9]− [133]; (b) [{Re(CO)4Mo(η5-C5H5)(CO)2(HgCl)(μ-PCy2)] [18]; (c) [{PtMe2(phen)}{HgCl}{PtMe2Cl(phen)}] [phen = 1,10-phenanthroline] [141]. Color map: Hg, light grey; Pt, light violet; Re, blue; Mo, light blue; I, purple; Cl, light green; S, yellow; P, orange; N, light blue; O, red; C, grey. Hydrogen atoms omitted.
Figure 12. Molecular structures of (a) [Fe3(HgI)S(CO)9]− [133]; (b) [{Re(CO)4Mo(η5-C5H5)(CO)2(HgCl)(μ-PCy2)] [18]; (c) [{PtMe2(phen)}{HgCl}{PtMe2Cl(phen)}] [phen = 1,10-phenanthroline] [141]. Color map: Hg, light grey; Pt, light violet; Re, blue; Mo, light blue; I, purple; Cl, light green; S, yellow; P, orange; N, light blue; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g012
{HgY} can also interact with three metal centers of the same cluster, as observable in the structures of [Ir6(HgCl)(CO)15]− and [Ir6(CO)14(HgCl)2]2− (Figure 13a,b), where one or two faces of the {Ir6} octahedra are capped by {HgCl} fragments, with the formation of three Hg-Ir bonds in the 2.768(2)–2.808(2) Å range [142,143]. Capping {HgY} fragments are present also in the structure of [Pt6(HgI)2(μ-CO)6(μ-dppm)3], with Hg-Pt distances varying from 2.770(2) to 2.867(1) Å [144]. A yet more complex situation was observed in the cluster [{Hg2Br2}{Pt3(HgBr)(μ-CO)3(PPhCy2)3}2] [145], where four {HgBr} fragments are present. Two of them compose a central {Hg2Br2} square-planar arrangement of two mercury atoms and two bridging bromine atoms, with Hg-Br bond lengths around 2.7 Å. The other two {HgBr} behave as capping ligands toward the two {Pt3} units. Each mercury atom forms three Hg-Pt bonds [Hg-Pt 2.853(1) Å]. The three M-Hg bonds can have quite different lengths, as in the clusters [Os10C(HgBr)(CO)24]− [Hg-Os bonds between 2.730(2) and 2.924(2) Å] [146], [Pd4(HgBr)2(CO)4(PEt3)4] [Hg-Pd bonds between 2.704(1) and 2.993(1) Å] [147,148], [Pt4(HgBr)2(μ-CO)4(PPh3)4] [Hg-Pt bonds between 2.736(1) and 3.113(1) Å] [149] and [Pt4(HgI)2(μ-CO)4(PMe2Ph)4] [Hg-Pt between 2.716(3) and 3.163(3) Å] [150]. The transition metals can be also different, as occurs in the cluster [Pt3Ru6(HgI)(µ3-H)2(CO)21]−, where the mercury center forms two Hg-Ru [2.741(2)–2.774(2) Å] and one Hg-Pt [2.893(1) Å] bonds [151]. The presence of M–M interactions is, however, not mandatory. In [Rh3(HgCl)(μ-Cl)3(dpmppp)L2]+ [dpmppp = meso-1,3-bis[(diphenylphosphinomethyl)phenylphosphino]propane; L = CO, CN(2,6-Me2C6H3)] the three rhodium centers are connected by a tetradentate phosphine, three bridging chloro-ligands and a {HgCl} fragment forming three Hg-Rh bonds in the 2.6408(8)–2.7414(9) Å range [152]. In [Pt3(HgCl)(μ-OH)3(C6F5)6]2− (Figure 13c), the three platinum atoms are connected by three μ-hydroxo ligands and {HgCl} [Hg-Pt 2.750(1)–2.875(1) Å] [153]. The main coordination modes of {HgY} described in this section are sketched in Scheme 2.

4. Computational Investigations on {M-Hg-Y} Derivatives

As revealed by the previous examples, the formal oxidation states in transition metal–mercury monohalide derivatives are sometimes ambiguous; thus, the {HgY} fragment can be considered as a Lewis acid or base on varying the transition metal fragment. [M(HgY)(η5-C5H5)(CO)3] [M = Cr, Mo, W; Y = Cl, Br, I] and [M(HgY)(η5-C5H5)(CO)2]+ [M = Cr, Mo, W; Y = Cl, Br, I] were selected as model compounds to investigate the M-HgY bonds from a computational point of view. The intermolecular interactions were omitted. Cartesian coordinates of all the optimized geometries from density functional theory (DFT) calculations are provided as Supplementary Materials, together with computed Hg-M and Hg-Y bond lengths and M-Hg-Y angles (Table S1). The stationary points obtained for [Cr(HgCl)(η5-C5H5)(CO)3] and [Co(HgCl)(η5-C5H5)(CO)2]+ are depicted as examples in Figure 14. The M-Hg bond lengths show a slight increase (0.02 Å or less) moving from Y = Cl to Y = I. The M-Hg-Y angles are between 175.0 and 177.5° for Group 6 derivatives and between 177.3 and 179.7° for Group 9 complexes. The lower linearity of the {M-Hg-Y} fragments experimentally observed in a number of cases appears to be attributable to intermolecular interactions such as Hg···Y contacts.

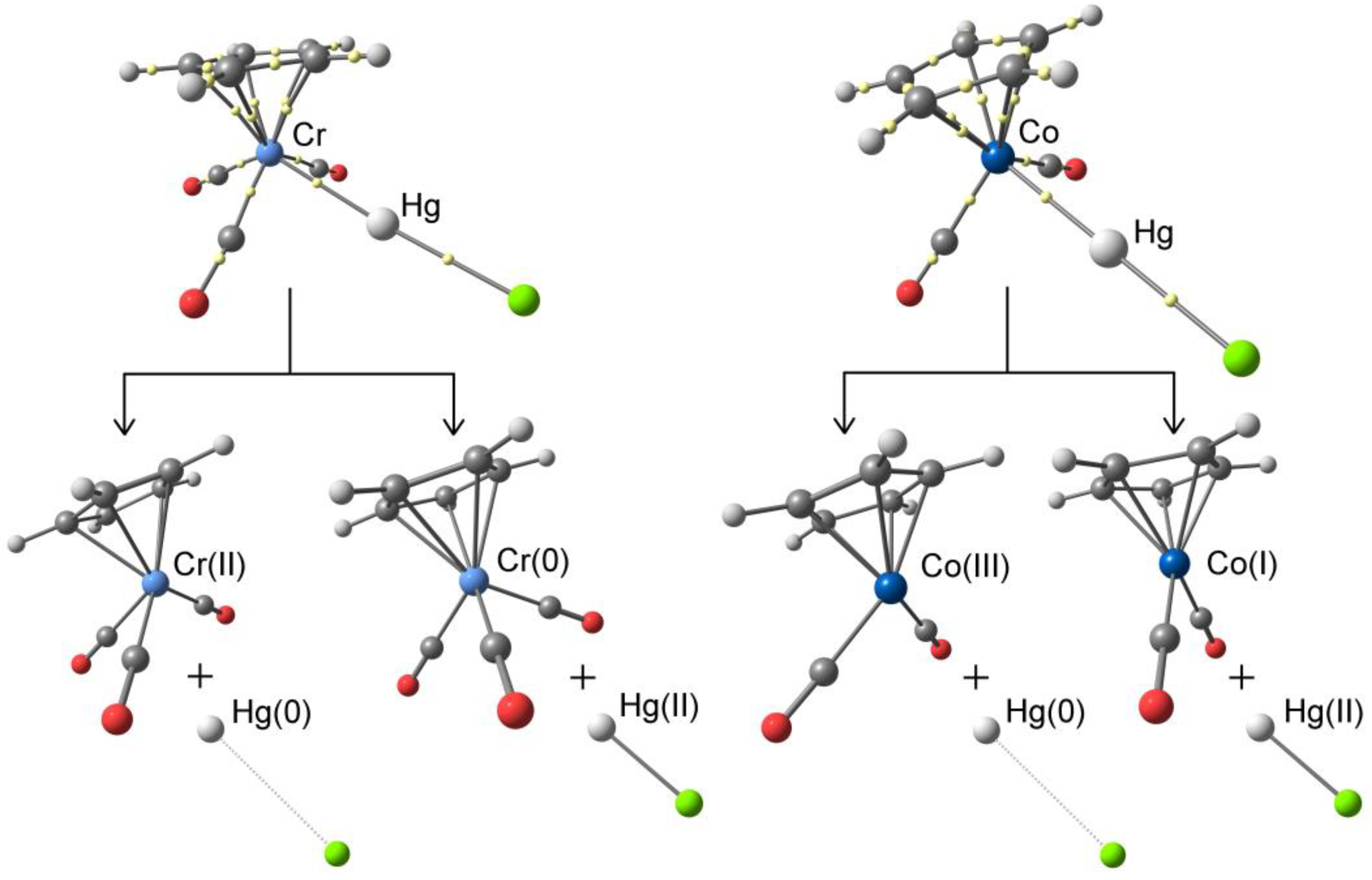

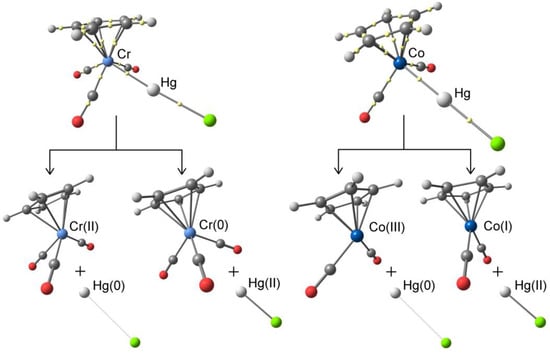

The Gibbs energy variation for the heterolysis reactions [M(HgY)(η5-C5H5)(CO)x]n+ → [M(η5-C5H5)(CO)x](n+1)+ + [HgY]− and [M(HgY)(η5-C5H5)(CO)x]n+ → [M(η5-C5H5)(CO)x](n−1)+ + [HgY]+ [n = 0, x = 3, M = Group 6; n = 1, x = 2, M = Group 9] were calculated by means of DFT calculations in the presence of acetone as continuous medium (Table 1). The first dissociation affords [HgY]− anions that behave as Lewis bases toward divalent Group 6 and trivalent Group 9 metal centers. Mercury can be considered as Hg(0). On the other hand, the [HgY]+ cations generated by the second pathway contain divalent mercury, and they interact with transition metal fragments that behave as Lewis bases thanks to their electron-rich metal centers.
The heterolysis with the lowest Gibbs energy variation should suggest the most reasonable formal oxidation states for mercury and transition metals in the complexes. As observable in Table 1, the Group 6 and Group 9 derivatives here considered have opposite behavior. The dissociation of [HgY]− from [M(HgY)(η5-C5H5)(CO)3] [M = Cr, Mo, W] is the most favorable path, so the compounds appear better described as M(II) complexes where the coordination sites are occupied by three carbonyls, a cyclopentadienyl ligand and [HgY]−. It is worth noting the low influence of the nature of both M and Y on the ΔG values, comprised between 51.1 and 55.4 kcal mol−1. The scarce energy variations on changing Y are in part attributable to the weak interactions between mercury and halides in [HgY]−. On the contrary, the heterolytic dissociations of the Hg-M bonds in [M(HgY)(η5-C5H5)(CO)2]+ [M = Co, Rh, Ir] should preferentially afford the [HgY]+ cations. Therefore, in the Group 9 derivatives, the mercury center is probably best described as Hg(II), behaving as Lewis acid towards electron-rich M(I) complexes. As in the previous cases, the choice of M scarcely affects the Gibbs energy variations. On the other hand, the dissociation requires less energy on increasing the atomic number of the halide, probably because of the increased stability of [HgY]+ with softer halides.

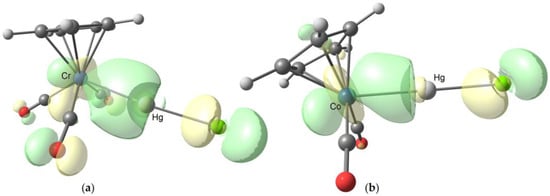

The outcome of the charge decomposition analysis on [Cr(HgCl)(η5-C5H5)(CO)3], partitioned as [Cr(η5-C5H5)(CO)3]+ and [HgCl]−, was {HgCl}→{Cr(η5-C5H5)(CO)3} donation of 0.222 electrons, while the opposite process resulted limited to 0.083 electrons. The same analysis on [Co(HgCl)(η5-C5H5)(CO)2]+, partitioned as [Co(η5-C5H5)(CO)2] and [HgCl]+, afforded {Co(η5-C5H5)(CO)3}→{HgCl} donation of 0.258 electrons, and only 0.021 electrons resulted back-donated. Roughly comparable values were obtained on changing the halide and the metal center, as reported in Table S2.
The Atoms-in-Molecules (AIM) analysis on [Cr(HgCl)(η5-C5H5)(CO)3] and [Co(HgCl)(η5-C5H5)(CO)2]+ revealed the presence of Hg-M (3, −1) bond critical points (BCPs) characterized by quite high values of electron density (ρ) and absolute values of potential energy density (V). The energy density (E) values are negative and the Laplacian of electron density ( ∇ 2 ρ) is positive, in line with Bianchi’s definition of metal–metal bond [154]. Selected data for the two compounds are collected in the caption of Figure 14. The occupied molecular orbitals mainly responsible for the Hg-M σ-overlaps are shown in Figure 15.
The AIM data for the other compounds, summarized in Table S3, indicate scarce influence of the nature of the halide on the ρ and V values at Hg-M (3, −1) BCP. For what concerns the Hg-Cl (3, −1) BCPs, the ρ and V values highlight a stronger bond in the cobalt derivative [ρ = 0.084 a.u., V = −0.094 a.u.) respect to the chromium complex [ρ = 0.075 a.u., V = −0.082 a.u.]. Such a result appears in line with the greater Lewis acid behavior proposed for the mercury center in [Co(HgCl)(η5-C5H5)(CO)2]+ respect to [Cr(HgCl)(η5-C5H5)(CO)3]. The AIM data at Hg-Y (3, −1) BCP remain roughly constant by replacing the metal center with heavier congeners, as observable in Table S3. The different strength of the Hg-Cl bonds was confirmed by the computed Mayer bond orders [155], equal to 0.670 in [Co(HgCl)(η5-C5H5)(CO)2]+ and 0.580 in [Cr(HgCl)(η5-C5H5)(CO)3]. Despite all the differences, the Hg-M Mayer bond order values in [Cr(HgCl)(η5-C5H5)(CO)3] and [Co(HgCl)(η5-C5H5)(CO)2]+ are strictly comparable, respectively equal to 0.650 and 0.646.

5. Computational Methods

The geometry optimizations were carried out with the r2SCAN-3c method [156], based on the meta-GGA r2SCAN functional [157] combined with a tailor-made triple-ζ Gaussian atomic orbital basis set, with relativistic effective core potentials for mercury and the heavier atoms [158,159]. The method also includes refitted D4 and geometrical counter-poise corrections for London dispersion and basis set superposition error [160,161]. The C-PCM implicit solvation model was added, considering acetone as continuous medium [162]. IR simulations were carried out using the harmonic approximation, from which zero-point vibrational energies and thermal corrections (T = 298.15 K) were obtained. Calculations were carried out using ORCA version 5.0.3 [163,164] and the output files were analyzed with Multiwfn version 3.8 [165].

6. Conclusions

The chemistry of heteropolymetallic transition metal–mercury compounds is complex and fascinating, and the examples provided in this review do not complete the portrait of possibilities offered by the presence of M-Hg bonds. As an example, iron–mercury clusters with high nuclearities and intriguing structures were isolated and characterized by Fenske and co-workers by reacting [Fe(HgY)2(CO)4] derivatives with phosphines and related species [166].
The present review is focused on mercury monohalides, whose modes of interaction with transition metal fragments are qualitatively comparable with those of the hydrogen atom thanks to the isolobal analogy. The {HgY} fragment, however, offers peculiar possibilities, such as the displacement of the halide and the presence of intra- and intermolecular mercurophilic and mercury–halide interactions. Mercury is also of interest because of the high atomic number and the consequent relativistic effects induced in transition metal compounds. Despite the well-known toxicity of mercury, which limits the use of its derivatives in synthetic chemistry, mercury monohalides can be considered as unusual ligands able to promote uncommon chemical and physical features in organometallic compounds, of potential interest in the fields of catalysis and functional materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30010145/s1, Table S1: Selected computed bond lengths and angles for [M(HgY)(η5-C5H5)(CO)3] [M = Cr, Mo, W; Y = Cl, Br, I] and [M(HgY)(η5-C5H5)(CO)2]+ [M = Cr, Mo, W; Y = Cl, Br, I]; Table S2: Output of the charge decomposition analysis on [M(HgY)(η5-C5H5)(CO)3] [M = Cr, Mo, W; Y = Cl, Br, I], partitioned as [M(η5-C5H5)(CO)3]+ and [HgY]−, and on [M(HgY)(η5-C5H5)(CO)2]+ [M = Cr, Mo, W; Y = Cl, Br, I], partitioned as [M(η5-C5H5)(CO)2] and [HgY]+; Table S3: AIM data for the Hg-M and Hg-Y (3, −1) BCPs in [M(HgY)(η5-C5H5)(CO)3] [M = Cr, Mo, W; Y = Cl, Br, I] and [M(HgY)(η5-C5H5)(CO)2]+ [M = Cr, Mo, W; Y = Cl, Br, I]; List S1: Cartesian coordinates of the DFT-optimized structures.

Author Contributions

Conceptualization, M.B. (Marco Bortoluzzi); methodology, M.B. (Matteo Busato), J.C. and M.B. (Marco Bortoluzzi); validation, M.B. (Matteo Busato), J.C., D.P. and M.B. (Marco Bortoluzzi); formal analysis, M.B. (Matteo Busato), J.C. and M.B. (Marco Bortoluzzi); investigation, M.B. (Matteo Busato), J.C., D.P. and M.B. (Marco Bortoluzzi); resources, J.C. and M.B. (Marco Bortoluzzi); data curation, M.B. (Matteo Busato), J.C., D.P. and M.B. (Marco Bortoluzzi); writing—original draft preparation, M.B. (Matteo Busato), J.C., D.P. and M.B. (Marco Bortoluzzi); writing—review and editing, M.B. (Matteo Busato), J.C., D.P. and M.B. (Marco Bortoluzzi); visualization, J.C.; supervision, M.B. (Marco Bortoluzzi); project administration, M.B. (Marco Bortoluzzi); funding acquisition, M.B. (Marco Bortoluzzi) All authors have read and agreed to the published version of the manuscript.

Funding

This work is part of the “Network 4 Energy Sustainable Transition-NEST” project (MIUR project code PE000021, Concession Degree No. 1561 of 11 October 2022), in the framework of the NextGenerationEu PNRR plan (CUP C93C22005230007).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

CINECA (Bologna, Italy) is gratefully acknowledged for computational resources and support.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Lewis, J. Metal-metal interaction in transition metal complexes. Pure Appl. Chem. 1965, 10, 11–36. [Google Scholar] [CrossRef]
  2. Burlitch, J.M. Compounds with Bonds between Transition Metals and either Mercury, Cadmium, Zinc or Magnesium. In Comprehensive Organometallic Chemistry; Wilkinson, G., Stone, F.G.A., Abel, E.W., Eds.; Pergamon Press: Oxford, UK, 1982; Volume 6, pp. 983–1041. [Google Scholar] [CrossRef]
  3. Dean, P.A.W. Mercury as a Ligand. In Comprehensive Coordination Chemistry; Wilkinson, G., Gillard, R.D., McCleverty, J.A., Eds.; Pergamon Press: Oxford, UK, 1987; Volume 2, pp. 1–6. [Google Scholar]
  4. Gade, L.H. Mercury, a Structural Building Block and Source of Localized Reactivity in Extended Metal-Metal Bonded Systems. Angew. Chem. Int. Ed. 1993, 32, 24–40. [Google Scholar] [CrossRef]
  5. Rosenberg, E.; Hardcastle, K.I. Cluster Complexes with Bonds Between Transition Elements and Zinc, Cadmium, and Mercury. In Comprehensive Organometallic Chemistry II; Abel, E.W., Gordon, F., Stone, A., Wilkinson, G., Eds.; Elsevier: Amsterdam, The Netherlands, 1995; Volume 10, pp. 323–350. [Google Scholar] [CrossRef]
  6. Ara, I.; Forniés, J.; Gabilondo, L.; Usón, M.A. New Pt-Hg clusters with pentachlorophenyl groups. Inorg. Chim. Acta 2003, 347, 155–160. [Google Scholar] [CrossRef]
  7. Wright, C.A.; Brand, U.; Shapley, J.R. Synthesis and Characterization of the Dimercury(I)-Linked Compound [PPN]4[(Re7C(CO)21Hg)2]. Oxidative Cleavage of the Mercury-Mercury Bond Leading to Carbidoheptarhenate Complexes of Mercury(II), Including [PPN][Re7C(CO)21Hg(S=C(NMe2)2)]. Inorg. Chem. 2021, 40, 4091–4896. [Google Scholar] [CrossRef]
  8. Catalano, V.J.; Malwitz, M.A. Pd(0) and Pt(0) Metallocryptands Encapsulating a Spinning Mercurous Dimer. Inorg. Chem. 2002, 41, 6553–6559. [Google Scholar] [CrossRef]
  9. Tanase, T.; Goto, E.; Takenaka, H.; Horiuchi, T.; Yamamoto, Y.; Kuwabara, J.; Osakada, K. Cage-Type Hexanuclear Platinum(0) Clusters with Diphosphine and Isocyanide Ligands Encapsulating Two Mercury(0) Atoms. Organometallics 2005, 24, 234–244. [Google Scholar] [CrossRef]
  10. Weil, M. Single Crystal Growth and Crystal Structure of Anhydrous Mercury(I) Nitrate, Hg2(NO3)2. Z. Anorg. Allg. Chem. 2003, 629, 1547–1552. [Google Scholar] [CrossRef]
  11. Kreye, M.; Freytag, M.; Jones, P.G.; Williard, P.G.; Bernskoetter, W.H.; Walter, M.D. Homolytic H2 cleavage by a mercury-bridged Ni(I) pincer complex [{(PNP)Ni}2{μ-Hg}]. Chem. Commun. 2015, 51, 2946–2949. [Google Scholar] [CrossRef]
  12. Song, L.-C.; Yang, H.; Dong, Q.; Hu, Q.-M. Unexpected metal-metal bond formation in the M-Hg-M (M = Cr, Mo, W) structural unit. Synthesis and characterization of [η5-RC5H4(CO)3M]2Hg complexes (R = H, M = W; R= CH3CO, M = Cr, Mo, W). J. Organomet. Chem. 1991, 414, 137–143. [Google Scholar] [CrossRef]
  13. Johnson, B.F.G.; Kwik, W.-L.; Lewis, J.; Raithby, P.R.; Saharan, V.P. Synthesis of mercury-linked ruthenium clusters: The X-ray structure of the new cluster dianion [{Ru6C(CO)16}2Hg]2− and the cluster [{Ru5C(CO)14(µ-Cl)}2Hg2Cl2]. J. Chem. Soc. Dalton Trans. 1991, 1037–1042. [Google Scholar] [CrossRef]
  14. Andreu, P.L.; Cabeza, J.A.; Llamazares, A.; Riera, V.; Bois, B.; Jeannin, Y. Mercury—Ruthenium mixed-metal carbonyl clusters containing 2-amido-6-methylpyridine (ampy) as a μ3,η2-ligand. Crystal structures of [Ru6(μ4-Hg)(μ3-ampy)2(CO)18]·2C4H8O and [Ru3(μ-HgBr)(μ3-ampy)(CO)9]. J. Organomet. Chem. 1991, 420, 431–442. [Google Scholar] [CrossRef]
  15. Cesari, C.; Bortoluzzi, M.; Femoni, C.; Iapalucci, M.C.; Zacchini, S. Mercurophilic interactions in heterometallic Ru-Hg carbonyl clusters. Inorg. Chim. Acta 2023, 545, 121281. [Google Scholar] [CrossRef]
  16. Cheung, W.-M.; Chong, M.-C.; Sung, H.H.-Y.; Cheng, S.-C.; Williams, I.D.; Ko, C.-C.; Leung, W.H. Synthesis, structure and reactivity of iridium complexes containing a bis-cyclometalated tridentate C^N^C ligand. Dalton Trans. 2021, 50, 8512–8523. [Google Scholar] [CrossRef] [PubMed]
  17. Reina, R.; Riba, O.; Rossell, O.; Seco, M.; de Montauzon, D.; Font-Bardia, M.; Solans, X. Cobalt/Mercury Carbide Clusters Based on Trigonal-Prismatic or Octahedral Co6C Skeletons—X-ray Crystal Structure of (NEt4)2[Co6C(CO)12{HgW(CO)3Cp}2]. Eur. J. Inorg. Chem. 2001, 2001, 1243–1249. [Google Scholar] [CrossRef]
  18. Haupt, H.-J.; Merla, A.; Flörke, U. Heterometallische Clusterkomplexe der Typen Re2(μ-PR2)(CO)8(HgY) und ReMo(μ-PR2)(η5-C5H5)(CO)6(HgY) (R = Ph, Cy; Y = Cl, W(η5-C5H5)(CO)3). Z. Anorg. Allg. Chem. 1994, 620, 999–1005. [Google Scholar] [CrossRef]
  19. Rupf, S.M.; Pan, S.; Moshtaha, A.L.; Frenking, G.; Malischewski, M. Structural Characterization and Bonding Analysis of [Hg{Fe(CO)5}2]2+ [SbF6]−2. J. Am. Chem. Soc. 2023, 145, 15353–15359. [Google Scholar] [CrossRef]
  20. Alvarez, S.; Ferrer, M.; Reina, R.; Rossell, O.; Seco, M. Anionic trimetallic compounds containing Fe-E-M skeletons (E = Zn, Cd, Hg; M = Fe, MO, W). Crystal structure of [NPPh3)2]2[(OC)4Fe-Hg-Fe(CO)4]. J. Organomet. Chem. 1989, 377, 291–303. [Google Scholar] [CrossRef]
  21. Sosinsky, B.A.; Shong, R.G.; Fitzgerald, B.J.; Norem, N.; O’Rourke, C. Reduction of the Group IIB tetracarbonylferrates in Lewis bases. Synthesis, characterization, and structural features of the (Na{THF}2)+2[M′(Fe(CO)4)2]2− (M′ = Zn, Cd, and Hg) series. Inorg. Chem. 1983, 22, 3124–3129. [Google Scholar] [CrossRef]
  22. Schmidbaur, H.; Schier, A. Mercurophilic Interactions. Organometallics 2015, 34, 2048–2066. [Google Scholar] [CrossRef]
  23. Echeverría, J.; Cirera, J.; Alvarez, S. Mercurophilic interactions: A theoretical study on the importance of ligands. Phys. Chem. Chem. Phys. 2017, 19, 11645–11654. [Google Scholar] [CrossRef]
  24. Pyykkö, P. Strong Closed-Shell Interactions in Inorganic Chemistry. Chem. Rev. 1997, 97, 597–636. [Google Scholar] [CrossRef] [PubMed]
  25. Vreshch, V.; Shen, W.; Nohra, B.; Yip, S.-K.; Yam, V.W.-W.; Lescop, C.; Réau, R. Aurophilicity versus Mercurophilicity: Impact of d10–d10 Metallophilic Interactions on the Structure of Metal-Rich Supramolecular Assemblies. Chem. Eur. J. 2012, 18, 466–477. [Google Scholar] [CrossRef] [PubMed]
  26. Gade, L.H.; Johnson, B.F.G.; Lewis, J.; Conole, G.; McPartlin, M. Redox–chemical core manipulation of [Os18Hg3C2(CO)42]2−; synthesis and crystal structure of the cluster [Os18Hg2C2(CO)42]4−. J. Chem. Soc. Dalton Trans. 1992, 3249–3254. [Google Scholar] [CrossRef]
  27. Gade, L.H.; Johnson, B.F.G.; Lewis, J.; McPartlin, M.; Kotch, T.; Lees, A.J. Photochemical core manipulation in high-nuclearity osmium-mercury clusters. J. Am. Chem. Soc. 1991, 113, 8698–8704. [Google Scholar] [CrossRef]
  28. Chiaradonna, G.; Ingrosso, G.; Marchetti, F. [{Ir(η5-C5Me5)CO)}6Hg8][CF3CO2]6, a Mixed-Metal Cluster with an Ir6Hg6 Twelve-Membered Ring and Additional Hg Centers and Metal-Metal Bonds. Angew. Chem. Int. Ed. 2000, 39, 3872–3873. [Google Scholar] [CrossRef]
  29. Levason, W.; McAuliffe, C.A. The Coordination Chemistry of Mercury. In The Chemistry of Mercury. Aspects of Inorganic Chemistry; McAuliffe, C.A., Ed.; Palgrave Macmillan: London, UK, 1977; pp. 47–135. [Google Scholar]
  30. Ali Morsali, A.; Masoomi, M.Y. Structures and properties of mercury(II) coordination polymers. Coord. Chem. Rev. 2009, 253, 1882–1905. [Google Scholar] [CrossRef]
  31. Melnik, M. Isomers in the chemistry of mercury coordination compounds. Cent. Eur. J. Chem. 2010, 8, 469–485. [Google Scholar] [CrossRef]
  32. Samie, A.; Salimi, A.; Garrison, J.C. Coordination chemistry of mercury(II) halide complexes: A combined experimental, theoretical and (ICSD & CSD) database study on the relationship between inorganic and organic units. Dalton Trans. 2020, 49, 11859–11877. [Google Scholar] [CrossRef]
  33. Beletskaya, I.P. In My Element: Mercury. Chem. Eur. J. 2019, 25, 7408–7409. [Google Scholar] [CrossRef]
  34. Raju, S.; Singh, H.B.; Butcher, R.J. Metallophilic interactions: Observations of the shortest metallophilic interactions between closed shell (d10···d10, d10···d8, d8···d8) metal ions [M···M′ M = Hg(II) and Pd(II) and M′ = Cu(I), Ag(I), Au(I), and Pd(II)]. Dalton Trans. 2020, 49, 9099–9117. [Google Scholar] [CrossRef]
  35. Tagne Kuate, A.C.; Lalancette, R.A.; Bockfeld, D.; Tamm, M.; Jäkle, F. Palladium(0) complexes of diferrocenylmercury diphosphines: Synthesis, X-ray structure analyses, catalytic isomerization, and C–Cl bond activation. Dalton Trans. 2021, 50, 4512–4518. [Google Scholar] [CrossRef] [PubMed]
  36. Tagne Kuate, A.C.; Lalancette, R.A.; Bannenberg, T.; Tamm, M.; Jäkle, F. Diferrocenylmercury diphosphine diastereomers with unique geometries: Trans-chelation at Pd(II) with short Hg(II)···Pd(II) contacts. Dalton Trans. 2019, 48, 13430–13439. [Google Scholar] [CrossRef] [PubMed]
  37. Lόpez-de-Luzuriaga, J.M.; Monge, M.; Olmos, M.E.; Pascual, D. Study of the Nature of Closed-Shell HgII···MI (M = Cu, Ag, Au) Interactions. Organometallics 2015, 34, 3029–3038. [Google Scholar] [CrossRef]
  38. Martin, A.; Bennett, M.A.; Contel, M.; Hockless, D.C.R.; Welling, L.L.; Willis, A.C. Bis{(2-diphenylphosphino)phenyl}mercury:  A P-Donor Ligand and Precursor to Mixed Metal−Mercury (d8−d10) Cyclometalated Complexes Containing 2-C6H4PPh2. Inorg. Chem. 2002, 41, 844–855. [Google Scholar] [CrossRef]
  39. Tagne Kuate, A.C.; Lalancette, R.A.; Bannenberg, T.; Jäkle, F. Diferrocenylmercury-Bridged Diphosphine: A Chiral, Ambiphilic, and Redox-Active Bidentate Ligand. Angew. Chem. Int. Ed. 2018, 57, 6552–6557. [Google Scholar] [CrossRef]
  40. López-de-Luzuriaga, J.M.; Monge, M.; Olmos, M.E.; Pascual, D. Experimental and Theoretical Comparison of the Metallophilicity between d10–d10 AuI–HgII and d8–d10 AuIII–HgII Interactions. Inorg. Chem. 2014, 53, 1275–1277. [Google Scholar] [CrossRef]
  41. Patel, U.; Sharma, S.; Singh, H.B.; Dey, S.; Jain, V.K.; Wolmershäuser, G.; Butcher, R.J. Intermetallic Bonds in Metallophilic Mercuraazametallamacrocycles of Synthetic Design. Organometallics 2010, 29, 4265–4275. [Google Scholar] [CrossRef]
  42. Patel, U.; Singh, H.B.; Wolmershäuser, G. Synthesis of a Metallophilic Metallamacrocycle: A HgII···CuI···HgII···HgII···CuI ···HgII Interaction. Angew. Chem. Int. Ed. 2005, 44, 1715–1717. [Google Scholar] [CrossRef]
  43. López-de-Luzuriaga, J.M.; Monge, M.; Olmos, M.E.; Pascual, D.; Lasanta, T. Amalgamating at the molecular level. A study of the strong closed-shell Au(I)···Hg(II) interaction. Chem. Commun. 2011, 47, 6795–6797. [Google Scholar] [CrossRef]
  44. Lasanta, T.; López-de-Luzuriaga, J.M.; Monge, M.; Olmos, M.E.; Pascual, D. Synthesis of the molecular amalgam [{AuHg2(o-C6F4)3}{Hg3(o-C6F4)3}]−: A rare example of a heterometallic homoleptic metallacycle. Dalton Trans. 2016, 45, 6334–6338. [Google Scholar] [CrossRef]
  45. Kim, M.; Taylor, T.J.; Gabbaï, F.P. Hg(II)···Pd(II) Metallophilic Interactions. J. Am. Chem. Soc. 2008, 130, 6332–6333. [Google Scholar] [CrossRef] [PubMed]
  46. Simon, M.; Jönk, P.; Wühl-Couturier, G.; Halbach, S. Mercury, Mercury Alloys, and Mercury Compounds. In Ullmann’s Encyclopedia of Industrial Chemistry; Wiley-VCH: Weinheim, Germany, 2012; Volume 22, pp. 578–580. [Google Scholar] [CrossRef]
  47. Ginzburg, A.G.; Aleksandrov, G.G.; Struchkov, Y.T.; Setkina, V.N.; Kursanov, D.N. Basicity of transiton metal carbonyl complexes: XIII. Reactions of the π-cyclopentadienyl complexes of molybdenum and tungsten with aprotic acids. J. Organomet. Chem. 1980, 199, 229–242. [Google Scholar] [CrossRef]
  48. Edelmann, F.; Behrens, P.; Behrens, S.; Behrens, U. Übergangsmetall-fulven-komplexe: XXVII. Basische fulven-komplexe. J. Organomet. Chem. 1986, 309, 109–116. [Google Scholar] [CrossRef]
  49. Pardo, M.P.; Cano, M. Reactions of tricarbonylpyridine complexes (NN)(py)M(CO)3 (M = Mo, W.; NN = 2,2′-bipyridine, 1,10-phenanthroline) with mercuric derivatives HgX2 (X = Cl, CN, SCN). J. Organomet. Chem. 1984, 270, 311–318. [Google Scholar] [CrossRef]
  50. Touchard, D.; Lelay, C.; Fillaut, J.-L.; Dixneuf, P.H. A Novel Roue to Thiocarbonyl-Metal Complexes via Electron Transfer to (η2-CS2R)-Metal Cations. J. Chem. Soc. Chem. Commun. 1986, 37–38. [Google Scholar] [CrossRef]
  51. Adams, D.M.; Cook, D.J.; Kemmitt, R.D.W. Reactions of mercuric halides with some substituted iron carbonyls; infrared spectra of the products and related adducts. J. Chem. Soc. A 1968, 1067–1072. [Google Scholar] [CrossRef]
  52. Cook, D.J.; Dawes, J.L.; Kemmitt, R.D.W. Some mercury halide–cobalt and –rhodium compounds. J. Chem. Soc. A 1967, 1547–1551. [Google Scholar] [CrossRef]
  53. Lewis, J.; Wild, S.B. Chemistry of polynuclear compounds. Part IV. Some amine-substituted mercury halide–iron carbonyl compounds. J. Chem. Soc. A 1966, 69–72. [Google Scholar] [CrossRef]
  54. Lobo, M.A.; Perpiñan, M.F.; Pardo, M.P.; Cano, M. Reactions of the carbonyl complexes M(CO)3(L)3 (L = py, M = Mo, W.; L = NH3, M = Mo) and M(CO)4(2-Mepy)2 (M = Mo, W) with HgX2 (X = Cl, CN, SCN). J. Organomet. Chem. 1983, 254, 325–332. [Google Scholar] [CrossRef]
  55. Graddon, D.P.; Gregor, I.K.; Siddiqi, I.A. Stability and bond strength in adducts of mercury(II) halides with transition metal carbonyl derivatives. J. Organomet. Chem. 1975, 102, 321–326. [Google Scholar] [CrossRef]
  56. Coco, S.; Espinet, P.; Mayor, F.; Solans, X. Insertion of mercury into iron–halogen bonds. X-Ray structure of [(p-MeC6H4NC)5Fe→HgI2]. J. Chem. Soc. Dalton Trans. 1991, 2503–2509. [Google Scholar] [CrossRef]
  57. Coco, S.; Mayor, F. Insertion of mercury into iron-iodine bonds leading to dinuclear (Fe-Hg) mixed isonitrile-phosphine complexes. J. Organomet. Chem. 1994, 464, 215–218. [Google Scholar] [CrossRef]
  58. Ehara, K.; Kumagaya, K.; Yamamoto, Y.; Takahashi, K.; Yamazaki, H. Unusual reductive behaviour of a trans-NiI2(RNC)2 complex at mercury and platinum electrodes. J. Organomet. Chem. 1991, 410, C49–C53. [Google Scholar] [CrossRef]
  59. Xu, X.; Fang, L.; Chen, Z.-X.; Yang, G.-C.; Sun, S.-L.; Su, Z.-M. Quantum chemistry studies on the Ru–M interactions and the 31P NMR in [Ru(CO)3(Ph2Ppy)2(MCl2)] (M = Zn, Cd, Hg). J. Organomet. Chem. 2006, 691, 1927–1933. [Google Scholar] [CrossRef]
  60. Nowell, I.N.; Russell, D.R. The crystal structure of the dicarbonylcyclopentadienylcobalt–mercuric chloride complex. Chem. Commun. 1967, 817. [Google Scholar] [CrossRef]
  61. Carter, S.J.; Foxman, B.M.; Stuhl, L.S. Direct synthesis of low-valent acyl isocyanide metal complexes. Preparation, structure and properties of (η5-C5H5)Co(CNCOR)2 complexes formed via reaction of (η5-C5H5)Co(CO)2 with acyl isocyanides. Organometallics 1986, 5, 1918–1920. [Google Scholar] [CrossRef]
  62. Le Bozec, H.; Dixneuf, P.H.; Adams, R.D. Stabilization of a metal-carbene intermediate by formation of a metal-mercury(II) bond. Synthesis and x-ray structure of [cyclic] Cl2HgFe(:C+SC(CO2Me):C(CO2Me)S)(CO)2(PMe2Ph)2. Organometallics 1984, 12, 1919–1921. [Google Scholar] [CrossRef]
  63. Khasnis, D.V.; Le Bozec, H.; Dixneuf, P.H.; Adams, R.D. Formation of donor-acceptor Fe(0)→Hg(II) bond for the stabilization of carbene-iron(0) complexes: Synthesis, characterization, and reactivity toward sulfur donor molecules and x-ray structure of Cl2HgFe(CO)2(PMe2Ph)2(CS2C2(CO2Me)2). Organometallics 1986, 5, 1772–1777. [Google Scholar] [CrossRef]
  64. Sharp, P.R. Synthesis and characterization of a platinum-mercury “A-frame” cluster. Inorg. Chem. 1986, 25, 4185–4189. [Google Scholar] [CrossRef]
  65. Faraone, F.; Lo Schiavo, S.; Bruno, G.; Bombieri, G. Mercury(II) chloride bridging two rhodium atoms. Preparation and X-ray crystal structure of [Rh2(η-C5H5)2(µ-CO)(µ-Ph2PCH2PPh2)(µ-HgCl2)]. J. Chem. Soc. Chem. Commun. 1984, 6–7. [Google Scholar] [CrossRef]
  66. Luo, G.-G.; Huang, R.-B.; Sun, D.; Lin, L.-R.; Zheng, L.-S. Synthesis, X-ray structures, and photoluminescence of heterometal trinuclear Hg(II)–Pt(I) and tetranuclear Hg(II)–Pd(I) complexes. Inorg. Chem. Commun. 2008, 11, 1337–1340. [Google Scholar] [CrossRef]
  67. Kuang, S.-M.; Zhang, Z.-Z.; Chinnakali, K.; Fun, H.-K.; Mak, T.C.W. Formation of donor–acceptor Fe(0)–Hg(II) bond in separation and stabilization of optically active iron(0) phosphine complexes. Absolute configuration of (+)-(R)-(CO)4Fe(μ-EtPhPpy)HgCl2. Inorg. Chim. Acta 1999, 293, 106–109. [Google Scholar] [CrossRef]
  68. Zhang, Z.-Z.; Cheng, H.; Kuang, S.-M.; Zhou, Y.-Q.; Liu, Z.-X.; Zhang, J.-K.; Wang, H.-G. Coordination chemistry of organometallic polydentate ligands. Studies on the syntheses and properties of Fe-M binuclear complexes prepared from organometallic tridentate ligand trans-Fe(CO)3(Ph2Ppy)2 (Ph2Ppy = 2-(diphenylphosphino)pyridine). J. Organomet. Chem. 1996, 516, 1–10. [Google Scholar] [CrossRef]
  69. Li, S.-L.; Zhang, Z.-Z.; Mak, T.C.W. The new organometallic polydentate ligand trans-bis(2-(diphenylphosphino) pyrimidine) tricarbonyliron(0) and its mono-, di- and tridentate coordination modes towards mercury(II) halide/pseudohalide. J. Organomet. Chem. 1997, 536–537, 73–86. [Google Scholar] [CrossRef]
  70. Song, H.-B.; Wang, Q.-M.; Zhang, Z.-Z.; Mak, T.C.W. Synthesis and structural characterization of hetero-binuclear complexes containing a Fe0→Mn+ bond bridged by a non-rigid P,N-phosphine ligand. J. Organomet. Chem. 2000, 605, 15–21. [Google Scholar] [CrossRef]
  71. Song, H.-B.; Zhang, Z.-Z.; Mak, T.C.W. Hetero-binuclear complexes containing a Ru0 → Mn+ bond bridged by P,N-phosphine ligands: Convenient synthesis of tridentate organometallic trans-Ru(CO)3(L)2  (L = phosphine bearing an N-donor substituent) ligands. New. J. Chem. 2002, 26, 113–119. [Google Scholar] [CrossRef]
  72. Van der Ploeg, A.F.M.J.; Van Koten, G.; Vrieze, K.; Spek, A.L.; Duisenberg, A.J.M. Crystal structure and molecular geometry of a square-pyramidal platinum(II) complex [{2,6-(Me2NCH2)2C6H3}Pt(μ-{(p-tol)NC(H)N(i-Pr)})HgBrCl] containing a PtII-to-HgII donor bond. Organometallics 1982, 1, 1066–1070. [Google Scholar] [CrossRef]
  73. Balch, A.L.; Catalano, V.J. Reactivity of complexes with weak metal-metal bonds. Reactions of Lewis acids with AuIr(CO)Cl(μ-Ph2PCH2PPh2)2](PF6). Inorg. Chem. 1992, 31, 2730–2734. [Google Scholar] [CrossRef]
  74. Cabeza, J.A.; Fernández-Colinas, J.M.; García-Granda, S.; Riera, V.; Van der Maelen, J.F. Selective insertion of mercury(II) halides into the ruthenium–mercury bonds of trinuclear Ru2Hg clusters. J. Chem. Soc. Chem. Commun. 1991, 168–170. [Google Scholar] [CrossRef]
  75. Cabeza, J.A.; Fernandez-Colinas, J.M.; Garcia-Granda, S.; Riera, V.; Van der Maelen, J.F. Addition of mercury(II) electrophiles to [Ru2(C10H8N2)(CO)4(PiPr3)2] and selective insertion versus addition in the reactions of mercury(II) electrophiles with trinuclear diruthenium mercury clusters. X-ray structures of [Ru2Hg(O2CCF3)2(C10H8N2)(CO)4(PiPr3)2] and [Ru2Hg2Cl4(C10H8N2)(CO)4(PiPr3)2]·CH2Cl2 (C10H10N2 = 1,8-diaminonaphthalene). Inorg. Chem. 1992, 31, 1233–1238. [Google Scholar] [CrossRef]
  76. Falvello, L.R.; Forniés, J.; Martín, A.; Navarro, R.; Sicilia, V.; Villarroya, P. Reactivity of [M(C∧P)(S2C-R)] (M = Pd, Pt; C∧P = CH2-C6H4-P(o-tolyl)2-κC,P.; R = NMe2, OEt) toward HgX2 (X = Br, I). X-ray Crystal Structures of [Pt{CH2-C6H4P(o-tolyl)2-κC,P}(S2CNMe2)HgI(μ-I)]2 and [PdBr(S2COEt){μ-P(o-tolyl)2-C6H4-CH2-}HgBr]·0.5HgBr2·C2H4Cl2. Inorg. Chem. 1997, 36, 6166–6171. [Google Scholar] [CrossRef]
  77. Yamamoto, Y.; Ehara, K.; Takahashi, K.; Yamazaki, H. Four- and Five-Coordinated Nickel(II) Isocyanide Complexes and Donor–Acceptor Complexes Containing Nickel and Mercury. Bull. Chem. Soc. Jpn. 1991, 64, 3376–3383. [Google Scholar] [CrossRef]
  78. Alvarez, B.; Alvarez, M.A.; Amor, I.; García, M.E.; Ruiz, M.A.; Suárez, J. Gold(I) and Related Heterometallic Derivatives of Dimolybdenum Complexes with Asymmetric Phosphinidene Bridges. Inorg. Chem. 2014, 53, 10325–10339. [Google Scholar] [CrossRef] [PubMed]
  79. Kuang, S.-M.; Cheng, H.; Sun, L.-J.; Zhang, Z.-Z.; Zhou, Z.-Y.; Wu, B.-M.; Mak, T.C.W. Coordination chemistry of organometallic polydentate ligands. Syntheses of Fe-M complexes using Fe(CO)4(Ph2Ppy-P)[Ph2Ppy = 2-(diphenylphosphino)pyridine] and trans-Fe(PhPMepy)2(CO)3 [PhPMepy = 2-(phenylmethylphosphino)pyridine] as a neutral bi- or tridentate ligand. Polyhedron 1996, 15, 3417–3426. [Google Scholar] [CrossRef]
  80. Kirk, R.M.; Hill, A.F. Arsolyl-supported intermetallic dative bonding. Chem. Sci. 2022, 13, 6830–6835. [Google Scholar] [CrossRef]
  81. Ciplys, A.M.; Geue, R.J.; Snow, M.R. Crystal structure of the dimeric 1:2 addition complex of tricarbonylmesitylenemolybdenum with mercury(II) chloride. J. Chem. Soc. Dalton Trans. 1976, 35–37. [Google Scholar] [CrossRef]
  82. Ara, I.; Falvello, L.R.; Forniés, J.; Sicilia, V.; Villarroya, P. Reactivity of [M(C∧P)(acac-O,O′)] [M = Pt, Pd; C∧P = CH2-C6H4-P(o-tolyl)2-κC,P; acac = 2,4-pentanedionato] toward HgX2 (X = Br, I, CH3COO, CF3COO). New Polynuclear Complexes Containing Pt−Hg Bonds. Molecular Structures of [{Pt(C∧P)(acac-O,O′)-HgBr(μ-Br)}2(μ-HgBr2)], an Unprecedented Square-Planar Bromomercurate Complex, and [{Pt(C∧P)(μ-O2CCH3)2Hg(μ3-acac2−-κC3,O)Hg(O2CCH3-κO)}·CHCl3]2, the First Complex Containing Asymmetric Dimercurated Acetylacetone. Organometallics 2000, 19, 3091–3099. [Google Scholar] [CrossRef]
  83. Nowell, I.W.; Russell, D.R. Structures of mercury(II) halide adducts with transition-metal Lewis bases. Part II. Crystal structure of the 1:3 complex between dicarbonyl-π-cyclopentadienylcobalt and mercury(II) chloride. J. Chem. Soc. Dalton Trans. 1972, 2396–2399. [Google Scholar] [CrossRef]
  84. Einstein, F.W.B.; Yan, X.; Zhang, X.; Sutton, D. Characterization of 1:1 heterobimetallic complexes of (η5-C5Me5)Ir(CO)2 with zinc, cadmium and mercury(II) chloride and the X-ray structure determination of the 1:2 mercury complex. J. Organomet. Chem. 1992, 439, 221–230. [Google Scholar] [CrossRef]
  85. Mays, M.J.; Robb, J.D. Exchange reactions involving transition-metal–mercury bonds. J. Chem. Soc. A 1968, 329–332. [Google Scholar] [CrossRef]
  86. Van Rentergem, M.; Van der Kelen, G.P. IR spectra of organophosphine substituted derivatives of (halomercury)tetracarbonylcobalt. J. Mol. Struct. 1985, 127, 47–55. [Google Scholar] [CrossRef]
  87. Cano, M.; Campo, J.A. Reactivity of the Mo-Sn bond. Reactions of [MoSnPh3(CO)3(η-C5H5)] with HgX2 (X = Cl, OCOCF3). Polyhedron 1991, 10, 133–134. [Google Scholar] [CrossRef]
  88. Roberts, R.M.G. Reactivity of Metal-Metal Bonds: I. Cleavage of molybdenum-tin and tungsten-tin bonds and synthesis of novel organomercury derivatives. J. Organomet. Chem. 1972, 40, 359–366. [Google Scholar] [CrossRef]
  89. Roberts, R.M.G. Reactivity of metal-metal bonds: II. Exchange reactions of trimethyltin derivatives of manganese and iron. J. Organomet. Chem. 1973, 47, 359–366. [Google Scholar] [CrossRef]
  90. Chipperfield, J.R.; Hayter, A.C.; Webster, D.E. Reactivity of main-group–transition-metal bonds. Part 7. Kinetics of the reaction of mercury(II) halides with compounds containing tin–chromium, –molybdenum, –tungsten, –manganese, –rhenium, and –iron bonds. J. Chem. Soc. Dalton Trans. 1977, 485–490. [Google Scholar] [CrossRef]
  91. Kumar, R.; Manning, A.R.; Murray, P.T. The reactions of [Fe2(η-C5H5)2(CO)4−n(CNMe)n] (n = 0–4) complexes with halogens and mercury(II) salts. J. Organomet. Chem. 1987, 323, 53–65. [Google Scholar] [CrossRef]
  92. Cano, M.; Panizo, M.; Campo, J.A.; Gutiérrez-Puebla, E.; Monge, M.A.; Ruiz-Valero, C. Reactivity of carbonyl complexes containing Mo-Hg bonds; reaction of tin(II) halides with [Mo(CO)3(NN)(HgX)(X)] (NN = bpy, phen, dmp); crystal structure of [Mo(CO)3(dmp)(HgCl)(Cl)]. Polyhedron 1994, 13, 1669–1676. [Google Scholar] [CrossRef]
  93. Fard, M.A.; Behnia, A.; Puddephatt, R.J. Stereochemistry of oxidative addition reactions of cycloneophyl complexes of Platinum(II): A methylene insertion reaction from dichloromethane. J. Organomet. Chem. 2019, 890, 32–42. [Google Scholar] [CrossRef]
  94. McCready, M.S.; Puddephatt, R.J. The Platinum Center is a Stronger Nucleophile than the Free Nitrogen Donors in a Dimethylplatinum Complex with a Dipyridylpyridazine Ligand. Organometallics 2015, 34, 2261–2270. [Google Scholar] [CrossRef]
  95. Janzen, M.C.; Jennings, M.C.; Puddephatt, R.J. Mechanism of Oxidative Addition of Mercury(II) Compounds to Platinum(II). Inorg. Chem. 2001, 40, 1728–1729. [Google Scholar] [CrossRef]
  96. Janzen, M.C.; Jennings, M.C.; Puddephatt, R.J. Oxidative addition of mercury(II) halides and carboxylates to platinum(II): Formation of Pt–Hg covalent and donor–acceptor bonds. Inorg. Chim. Acta 2005, 358, 1614–1622. [Google Scholar] [CrossRef]
  97. Anderson, L.B.; Conder, H.L.; Kudaroski, R.A.; Kriley, C.; Holibaugh, K.J.; Winland, J. Chemistry of transition-metal phosphine and phosphite complexes. 2. Preparation and properties of XHgCo[P(OC6H5)3]3L. Inorg. Chem. 1982, 21, 2095–2097. [Google Scholar] [CrossRef]
  98. Albright, M.J.; Glick, M.D.; Oliver, J.P. Studies on main group metal-transition-metal bonded compounds.6. The structure of η5-C5H5(CO)3MoHgCl. J. Organomet. Chem. 1978, 161, 221–231. [Google Scholar] [CrossRef]
  99. Bueno, C.; Churchill, M.R. Structural Studies on Some (η5-C5H5)M(CO)3X Molecules: (η5-C5H5)W(CO)3Cl, (η5-C5H5)Mo(CO)3Cl, and (η5-C5H5)Mo(CO)3HgCl. Inorg. Chem. 1981, 20, 2197–2202. [Google Scholar] [CrossRef]
  100. Cano, M.; Criado, R.; Gutierrez-Puebla, E.; Monge, A.; Pardo, M.P. Synthesis of heteronuclear carbonyl complexes (η5-C5H4CH3)(CO)3MoHgX (X = Cl, Br, I, SCN). Crystal structure of (η5-C5H4CH3)(CO)3MoHgCl. J. Organomet. Chem. 1985, 292, 375–383. [Google Scholar] [CrossRef]
  101. Cano, M.; Campo, J.A.; Pinilla, E.; Monge, A.; Pichon, R.; Salaün, J.-Y.; L’Haridon, P.; Szymoniak, J.; Kubicki, M.M. Effects of substitutions on cyclopentadienyl rings in complexes with molybdenum-mercury bonds. 95Mo and 199Hg NMR studies. Inorg. Chim. Acta 1995, 228, 251–254. [Google Scholar] [CrossRef]
  102. Auvray, N.; Baul, T.S.B.; Braunstein, P.; Croizat, P.; Englert, U.; Herberich, G.E.; Welter, R. Organometallic building blocks with amino-substituted cyclopentadienyl and boratabenzene ligands for the synthesis of heterometallic complexes and clusters. Dalton Trans. 2006, 2950–2958. [Google Scholar] [CrossRef]
  103. Mickiewicz, M.M.; Raston, C.L.; White, A.H.; Wild, S.B. Crystal structures of Bis[tricarbonyl(η-cyclopentadienyl)molybdato(0)]mercury(II) and trans-Dicarbonyl(dimethylphenylarsine)[iodomercurio(0)](η-methylcylopentadienyl) molybdenum(II). Aust. J. Chem. 1977, 30, 1685–1691. [Google Scholar] [CrossRef]
  104. Mullica, D.F.; Sappenfield, E.L.; Gipson, S.L.; Booth, A.J. Synthesis and structural analysis of trans-Cp(CO)2(PPh3)WHgCl. Inorg. Chim. Acta 1994, 227, 145–148. [Google Scholar] [CrossRef]
  105. Brotherton, P.D.; Epstein, J.M.; White, A.H.; Wild, S.B. Crystal structure of (2,2′-Bipyridyl)tricarbonylchloro(chloromercurio)molybdenum-(II). Aust. J. Chem. 1974, 27, 2667–2670. [Google Scholar] [CrossRef]
  106. Kergoat, R.; Kubicki, M.M.; Guerchais, J.E.; Norman, N.C.; Orpen, A.G. Bis(cyclopentadienyls) with transition metal–mercury bonds. Part 4. Formation of niobium–mercury bonds and X-ray crystal structure of [Nb(η-C5H5)2{HgS2CN(C2H5)2}3]. J. Chem. Soc. Dalton Trans. 1982, 633–638. [Google Scholar] [CrossRef]
  107. Suleimanov, G.Z.; Khandozhko, V.N.; Mekhdiev, R.Y.; Petrovskii, P.V.; Yanovskaya, I.M.; Lependina, O.L.; Kolobova, N.E.; Beletskaya, I.P. Study of the reactions of halogen and mercury halogen derivatives of metal carbonyls with samarium and ytterbium. Russ. Chem. Bull. 1988, 37, 583–588. [Google Scholar] [CrossRef]
  108. Kunz, E.; Schubert, U. Übergangsmetall-Silyl-Komplexe, 27. Silylsubstituierte Hetero-Mehrkern-Komplexe durch Umsetzung der anionischen Silyl-Komplexe [MeCpMn(CO)2SiR3]− und [Fe(CO)3(PPh3)SiR3]− mit Zink-, Cadmium- und Quecksilber-Dihalogeniden. Chem. Ber. 1989, 122, 231–234. [Google Scholar] [CrossRef]
  109. Braunstein, P.; Englert, U.; Herberich, G.E.; Neuschütz, M.; Schmidt, M.U. Heterometallic complexes with borole ligands. J. Chem. Soc. Dalton Trans. 1999, 2807–2812. [Google Scholar] [CrossRef]
  110. Kolobova, N.E.; Valueva, Z.P.; Kazimirchuk, E.I.; Andrianov, V.G.; Struchkov, Y.T. Synthesis and some properties of tetra[η5-cyclopentadienyldi-carbonylrheniummercury]. Russ. Chem. Bull. 1984, 33, 847–850. [Google Scholar] [CrossRef]
  111. Burrell, A.K.; Clark, D.L.; Gordon, P.L.; Sattelberger, A.P.; Bryan, J.C. Syntheses and Molecular and Electronic Structures of Tris(arylimido)technetium(VI) and -(V) Complexes Derived from Successive One-Electron Reductions of Tris(arylimido)iodotechnetium(VII). J. Am. Chem. Soc. 1994, 116, 3813–3821. [Google Scholar] [CrossRef]
  112. Reinhard, G.; Hirle, B.; Schubert, U. Übergangsmetall-silyl-komplexe: XLII. Einfluβ des phosphan-liganden auf bildung, struktur und stabilität der hetero-zweikernkomplexe (CO)3(R′3P)(R3Si)Fe—MLn (M = Cu, Ag, Au, Hg). J. Organomet. Chem. 1992, 427, 173–192. [Google Scholar] [CrossRef]
  113. Eisenmann, J.; Fenske, D.; Hezel, F. Neue phosphido- und phosphinidenverbrückte Quecksilbercluster: Die Kristallstrukturen der Mehrkernkomplexe [Hg3{Fe(CO)4}2X2] (X = Cl, Br) (1, 2), [Hg10{Fe(CO)4}4(PtBu)4Cl4] (3), [Hg14{Fe(CO)4}5(PtBu)8Cl2] (4), [SiMe3OPiPr3][Hg12{Fe(CO)4}7(PtBu)4(PtBuSiMe3)Br2] (5), [Hg5{Fe(CO)4}3(PtBu2)2Br2] (6), [Hg8{Fe(CO)4}4(P2Ph2)2(PnPr3)Cl4] (7), [Hg8{Fe(CO)4}4(P2Ph2)2(PPh2Et)Cl4] (8) und [Hg10{Fe(CO)4}6(P2Ph2)2(PnPr3)Br4] (9). Z. Anorg. Allg. Chem. 1998, 624, 1095–1104. [Google Scholar] [CrossRef]
  114. Hock, H.; Stuhlmann, H. Über die Einwirkung von Quecksilbersalzen auf Eisenpentacarbonyl. Chem. Ber. 1928, 61, 2097–2101. [Google Scholar] [CrossRef]
  115. Baird, H.W.; Dahl, L.F. The crystal and molecular structure of (BrHg)2Fe(CO)4. J. Organomet. Chem. 1967, 7, 503–514. [Google Scholar] [CrossRef]
  116. Casey, M.; Manning, A.R. The preparation, reactions, and infrared spectra of some derivatives of bis(tricarbonylnitrosyliron)mercury. J. Chem. Soc. A 1970, 2258–2261. [Google Scholar] [CrossRef]
  117. Kumar, R.; Manning, A.R. Regiospecificity in the reaction of [Fe2(η-C5H5)2(CO)4−n(CNMe)n] (n = 0–2) with mercury(II) halides. J. Organomet. Chem. 1981, 216, C61–C63. [Google Scholar] [CrossRef]
  118. Granifo, J.; Vargas, M.E. The insertion of the [M(CO)3(NN)] fragments (M = Mo, W.; NN = 2,2′-bipyridine; 1,10-phenanthroline; ethylenediamine) into the Hg-X (X = Cl, Br, I, N3, SCN) bonds of the [η5-C5H5Fe(CO)2(HgX)] complexes. Heterotrimetallic compounds with Fe-Hg-M-X bondings. Polyhedron 1989, 8, 1471–1475. [Google Scholar] [CrossRef]
  119. Bentley, G.A.; Laing, K.R.; Roper, W.R.; Waters, J.M. Preparation and crystal structure of dichloro(chloromercury)(nitrosyl)bis(triphenylphosphine)osmium(II). J. Chem. Soc. D 1970, 998. [Google Scholar] [CrossRef]
  120. Goodgame, D.M.L.; Slawin, A.M.Z.; Williams, D.J. Crystal structures of [Co{P(OPh)3}4(HgX)], X = Cl, Br; Non-linearity of Co-Hg-X arising from intramolecular phosphorus-mercury interactions. Polyhedron 1987, 6, 543–547. [Google Scholar] [CrossRef]
  121. Bonati, F.; Cenini, S.; Ugo, R. Interaction of tin(II) halides with compounds having mercury–metal bonds. J. Chem. Soc. A 1967, 932–935. [Google Scholar] [CrossRef]
  122. Brotherton, P.D.; Raston, C.L.; White, A.H.; Wild, S.B. Crystal structures of mercury(II) chloride and bromide addition complexes of carbonylchlorobis(triphenylphosphine)iridium(I). J. Chem. Soc. Dalton Trans. 1976, 1799–1802. [Google Scholar] [CrossRef]
  123. Dewhurst, R.D.; Hill, A.F.; Willis, A.C. Iridium tricarbido complexes via transmetallation with tricarbidomercurials. Dalton Trans. 2009, 3384–3387. [Google Scholar] [CrossRef]
  124. Hosokawa, A.; Kure, B.; Nakajima, T.; Nakamae, K.; Tanase, T. Intramolecular Metal–Metal Bond Rearrangement in a Pt2PdHg Heterometallic Cluster Forming a HgI–PdI Covalent Bond. Organometallics 2011, 30, 6063–6066. [Google Scholar] [CrossRef]
  125. Schuh, W.; Kopacka, H.; Wurst, K.; Peringer, P. Chemistry at the Sterically Shielded Mercury Centre of the [(η4-pp3)PtHg] Fragment. Eur. J. Inorg. Chem. 2001, 2001, 2399–2404. [Google Scholar] [CrossRef]
  126. Chan, W.-H.; Zhang, Z.-Z.; Mak, T.C.W.; Che, C.-M. Co-ordination chemistry of the organometallic tridentate ligand trans-[Ru(2-Ph2PC5H4N-P)2(CO)3] and crystal structures of metal complex derivatives. J. Chem. Soc. Dalton Trans. 1998, 803–810. [Google Scholar] [CrossRef]
  127. Xu, F.-B.; Sun, L.-J.; Xuan, Z.-A.; Zhang, W.-D.; Cheng, H.; Zhang, Z.-Z. Coordination chemistry of organometallic polydentate ligand Reactive chemistry of the tridentate ligand trans-Fe(Ph2PQu-P)2(CO)3 [Ph2PQu=2-diphenyl-phosphino-4-methylquinoline] and molecular structure of [Fe(CO)3(μ-Ph2PQu)2HgI]+[HgI3]−. Chin. J. Chem. 2000, 18, 722–728. [Google Scholar] [CrossRef]
  128. Kuang, S.-M.; Xue, F.; Thomas, C.W.; Mak, T.C.W.; Zhang, Z.-Z. Reaction of M(CO)Cl(L)2 with mercury(II) chloride (M = Ir, Rh; L = Ph2Ppy, P(fur)3) (Ph2Ppy = 2-(diphenylphospino)pyridine, P(fur)3 = tri-(2-furyl)phosphine). Inorg. Chim. Acta 1999, 284, 119–123. [Google Scholar] [CrossRef]
  129. Franciò, G.; Scopelliti, R.; Arena, C.G.; Bruno, G.; Drommi, D.; Faraone, F. IrPd, IrHg, IrCu, and IrTl Binuclear Complexes Bridged by the Short-Bite Ligand 2-(Diphenylphosphino)pyridine. Catalytic Effect in the Hydroformylation of Styrene Due to the Monodentate P-Bonded 2-(Diphenylphosphino)pyridine Ligands of trans-[Ir(CO)(Ph2PPy)2Cl]. Organometallics 1998, 17, 338–347. [Google Scholar] [CrossRef]
  130. Kuang, S.-M.; Xue, F.; Zhang, Z.-Y.; Mak, T.C.W.; Zhang, Z.-Z. Metal–metal bond cleavage in the trinuclear clusters M3(CO)12−n(Ph2Ppy)n (M = Ru, n = 3; Os, n = 1; Ph2Ppy = 2-(diphenylphosphino)pyridine) by Lewis acids. J. Organomet. Chem. 1998, 559, 31–36. [Google Scholar] [CrossRef]
  131. Baker, R.W.; Pauling, P. The crystal structure of bis(chloropyridylmercury)tetracarbonyliron, Fe(CO)4[HgCl(C5H5N)]2. J. Chem. Soc. D. 1970, 573–574. [Google Scholar] [CrossRef]
  132. Van Vliet, P.I.; Kokkes, M.; Van Koten, G.; Vrieze, K. Metal-metal bonded compounds V. Compounds with Ir(Rh)-Hg bonds containing a bridging and a chelating triazenido group, which interconvert intramolecularly. J. Organomet. Chem. 1980, 187, 413–426. [Google Scholar] [CrossRef]
  133. Miu, C.-Y.; Chi, H.-H.; Chen, S.-W.; Cherng, J.-J.; Hsu, M.-H.; Huang, Y.-X.; Shieh, M. Reactions of the μ3-sulfido triiron cluster [SFe3(CO)9]2− with functionalized organic halides and mercury salts: Selective reactivity, electrochemistry, and theoretical calculations. New. J. Chem. 2011, 35, 2442–2455. [Google Scholar] [CrossRef]
  134. Shieh, M.; Tsai, Y.-C.; Cherng, J.-J.; Shieh, M.-H.; Chen, H.-S.; Ueng, C.-H.; Peng, S.-M.; Lee, G.-H. Reactivity of [SeFe3(CO)9]2− with Electrophiles:  Formation of [SeFe2Ru3(CO)14]2−, [SeFe3(CO)9(μ-HgI)]−, Fe2(CO)6(μ-SeCHPhSe), and Se2Fe2(CO)6(μ-CH2)2. Organometallics 1997, 16, 456–460. [Google Scholar] [CrossRef]
  135. Fernández -G, J.M.; Rosales, M.J.; Toscano, R.A. The reactivity of [Os3(CO)10(C2Ph2)] towards phenyl mercury halides. Polyhedron 1988, 7, 2159–2163. [Google Scholar] [CrossRef]
  136. Fahmy, R.; King, K.; Rosenberg, E.; Tiripicchio, A.; Tiripicchio Camellini, M. Synthesis, structure, and reactivity of mercurial derivatives of an organoruthenium cluster. J. Am. Chem. Soc. 1980, 102, 3626–3628. [Google Scholar] [CrossRef]
  137. Adams, R.D.; Luo, Z.; Wong, Y.O. Bridging phenyl ligands. Unsaturated mercury-triosmium carbonyl cluster complexes containing bridging phenyl ligands. J. Organomet. Chem. 2015, 784, 46–51. [Google Scholar] [CrossRef]
  138. Field, J.S.; Haines, J.R.; Meintjies, E.; Sigwarth, B.; Van Rooyen, P.H. Reduction products of dinuclear [Rh2Cl2(CO)2 {μ-(PhO)2PN(Et)P(OPh)2}2]. Crystal structure of [Rh2HgCl(μ-H)(CO)2{μ-(PhO)2PN(Et)P(OPh)2}2]. J. Organomet. Chem. 1984, 268, c43–c47. [Google Scholar] [CrossRef]
  139. Adams, R.D.; Wong, Y.O. New rhenium carbonyl cluster complexes containing bridging hydrocarbyl and bridging mercury groups. J. Organomet. Chem. 2015, 784, 109–113. [Google Scholar] [CrossRef]
  140. Tiripicchio, A.; Lahoz, F.J.; Oro, L.A.; Pinillos, M.T. Preparation and X-ray structure of a rhodium(III)–rhodium(I) pyrazolate complex with a mercury atom asymmetrically bridging the metal atoms. J. Chem. Soc. Chem. Commun. 1984, 936–937. [Google Scholar] [CrossRef]
  141. Yamaguchi, T.; Yoshiya, K. Coordination Isomers of Trinuclear Pt2Hg Complex That Differ in Type of Metal-Metal Bond. Inorg. Chem. 2019, 58, 9548–9552. [Google Scholar] [CrossRef]
  142. Della Pergola, R.; Demartin, F.; Garlaschelli, L.; Manassero, M.; Martinengo, S.; Masciocchi, N.; Sansoni, M. Chemistry of iridium carbonyl cluster complexes. Synthesis and characterization of mixed-metal carbonyl clusters via capping reactions with HgCl2 and Au(PPh3)Cl. Crystal structures of [N(PPh3)2][Ir6(μ3-CO)3(CO)12(μ3-HgCl)]·0.5C6H12 and [NMe3(CH2Ph)][Ir6(μ3-CO)3(CO)12[μ3-Au(PPh3)]·C4H8O. Organometallics 1991, 10, 2239–2247. [Google Scholar] [CrossRef]
  143. Ceriotti, A.; Della Pergola, R.; Garlaschelli, L.; Manassero, M.; Masciocchi, N. Au-Ir and Hg-Ir Mixed-Metal Carbonyl Clusters. Synthesis, Characterization, and Solid State Structure of [Ir6(CO)15(AuPPh3)2] and [Ir6(CO)14(HgCl)2]2−. Organometallics 1995, 14, 186–193. [Google Scholar] [CrossRef]
  144. Hao, L.; Manojlovic-Muir, L.; Muir, K.W.; Puddephatt, R.J.; Spivak, G.J.; Vittal, J.J.; Yufit, D. The bicluster oxidative addition as a route to bicapped hexaplatinum clusters. Inorg. Chim. Acta 1997, 265, 65–74. [Google Scholar] [CrossRef]
  145. Albinati, A.; Dahmen, K.H.; Demartin, F.; Forward, J.M.; Longley, C.J.; Mingos, D.M.P.; Venanzi, L.M. A new class of planar (platinum-mercury) mixed metal clusters containing a [Pt3(CO)3(PR3)3] moiety capped by two HgX units. Inorg. Chem. 1992, 31, 2223–2229. [Google Scholar] [CrossRef]
  146. Gade, L.H.; Johnson, B.F.G.; Lewis, J.; McPartlin, M.; Powell, H.R. Systematic build-up of high-nuclearity osmium–mercury clusters. J. Chem. Soc. Dalton Trans. 1992, 921–931. [Google Scholar] [CrossRef]
  147. Bashilov, V.V.; Sokolov, V.I.; Reutov, O.A. Reactions of platinum(0) and palladium(0) complexes with mercury(II) compounds: New methods for the synthesis of organic platinum and palladium derivatives. Russ. Chem. Bull. 1982, 31, 1825–1842. [Google Scholar] [CrossRef]
  148. Mednikov, E.G.; Bashilov, V.V.; Sokolov, V.I.; Slovokhotov, Y.L.; Struchkov, Y.T. Synthesis and structure of the new heteronuclear palladium-mercury cluster. Polyhedron 1983, 2, 141–144. [Google Scholar] [CrossRef]
  149. Eremenko, N.K.; Kurasov, S.S.; Virovets, A.V.; Struchkov, Y.T.; Bashilov, V.V.; Sokolov, V.I. Synthesis of platinum-mercury clusters and the molecular structure of Pt4(HgBr)2(μ-CO)4(PPh3)4. Russ. Chem. Bull. 1997, 46, 164–167. [Google Scholar] [CrossRef]
  150. Dahmen, K.-H.; Imhof, D.; Venanzi, L.M.; Gerfin, T.; Gramlich, V. Synthesis and X-ray crystal structure of the heterometallic platinum-mercury cluster [{Pt4(μ-CO)4(PMe2Ph)4}{μ3-HgI}2]. J. Organomet. Chem. 1995, 486, 37–43. [Google Scholar] [CrossRef]
  151. Adams, R.D.; Barnard, T.S.; Cortopassi, J.E.; Zhang, L. Cluster Synthesis. 46. New Mixed-Metal Complexes of the Layer-Segregated Cluster Pt3Ru6(CO)21(μ3-H)(μ-H)3. Organometallics 1996, 15, 2664–2667. [Google Scholar] [CrossRef]
  152. Nakajima, T.; Kurai, S.; Noda, S.; Zouda, M.; Kure, B.; Tanase, T. Cyclic Trinuclear Rh2M Complexes (M = Rh, Pt, Pd, Ni) Supported by meso-1,3-Bis[(diphenylphosphinomethyl)phenylphosphino]propane. Organometallics 2012, 31, 4283–4293. [Google Scholar] [CrossRef]
  153. Casas, J.M.; Falvello, L.R.; Forniés, J.; Gomez, J.; Rueda, A. Synthesis and structural characterization of the luminescent tetranuclear complex [NBu4]2[(C6F5)6(μ-OH)3Pt3HgCl] with Pt-Hg bonds unsupported by covalent bridging ligands. J. Organomet. Chem. 2000, 593–594, 421–426. [Google Scholar] [CrossRef]
  154. Lepetit, C.; Fau, P.; Fajerwerg, K.; Kahn, M.L.; Silvi, B. Topological analysis of the metal-metal bond: A tutorial review. Coord. Chem. Rev. 2017, 345, 150–181. [Google Scholar] [CrossRef]
  155. Bridgeman, A.J.; Cavigliasso, G.; Ireland, L.R.; Rothery, J. The Mayer bond order as a tool in inorganic chemistry. J. Chem. Soc. Dalton Trans. 2001, 2095–2108. [Google Scholar] [CrossRef]
  156. Grimme, S.; Hansen, A.; Ehlert, S.; Mewes, J.-M. r2SCAN-3c: A “Swiss army knife” composite electronic-structure method. J. Chem. Phys. 2021, 154, 064103. [Google Scholar] [CrossRef] [PubMed]
  157. Furness, J.W.; Kaplan, A.D.; Ning, J.; Perdew, J.P.; Sun, J. Accurate and Numerically Efficient r2SCAN Meta-Generalized Gradient Approximation. J. Phys. Chem. Lett. 2020, 11, 8208–8215. [Google Scholar] [CrossRef] [PubMed]
  158. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  159. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  160. Kruse, H.; Grimme, S. A geometrical correction for the inter- and intra-molecular basis set superposition error in Hartree-Fock and density functional theory calculations for large systems. J. Chem. Phys. 2012, 136, 154101. [Google Scholar] [CrossRef]
  161. Caldeweyher, E.; Ehlert, S.; Hansen, A.; Neugebauer, H.; Spicher, S.; Bannwarth, C.; Grimme, S.A. Generally applicable atomic-charge dependent London dispersion correction. J. Chem. Phys. 2019, 150, 154122. [Google Scholar] [CrossRef]
  162. Cossi, M.; Rega, N.; Scalmani, G.; Barone, V. Energies, structures, and electronic properties of molecules in solution with the C-PCM solvation model. J. Comput. Chem. 2003, 24, 669–681. [Google Scholar] [CrossRef]
  163. Neese, F. The ORCA program system. WIREs Comput. Mol. Sci. 2012, 2, 73–78. [Google Scholar] [CrossRef]
  164. Neese, F. Software update: The ORCA program system—Version 5.0. WIREs Comput. Mol. Sci. 2022, 12, e1606. [Google Scholar] [CrossRef]
  165. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyser. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  166. Hezel, F.; Fenske, D.; Eisenmann, J.; Wetzel, T. Synthese und Kristallstructuren neuer phosphorverbrückter bimetallischer Cluster der Elemente Quecksilber und Eisen. Z. Anorg. Allg. Chem. 2000, 626, 290–301. [Google Scholar] [CrossRef]
Molecules 30 00145 g001

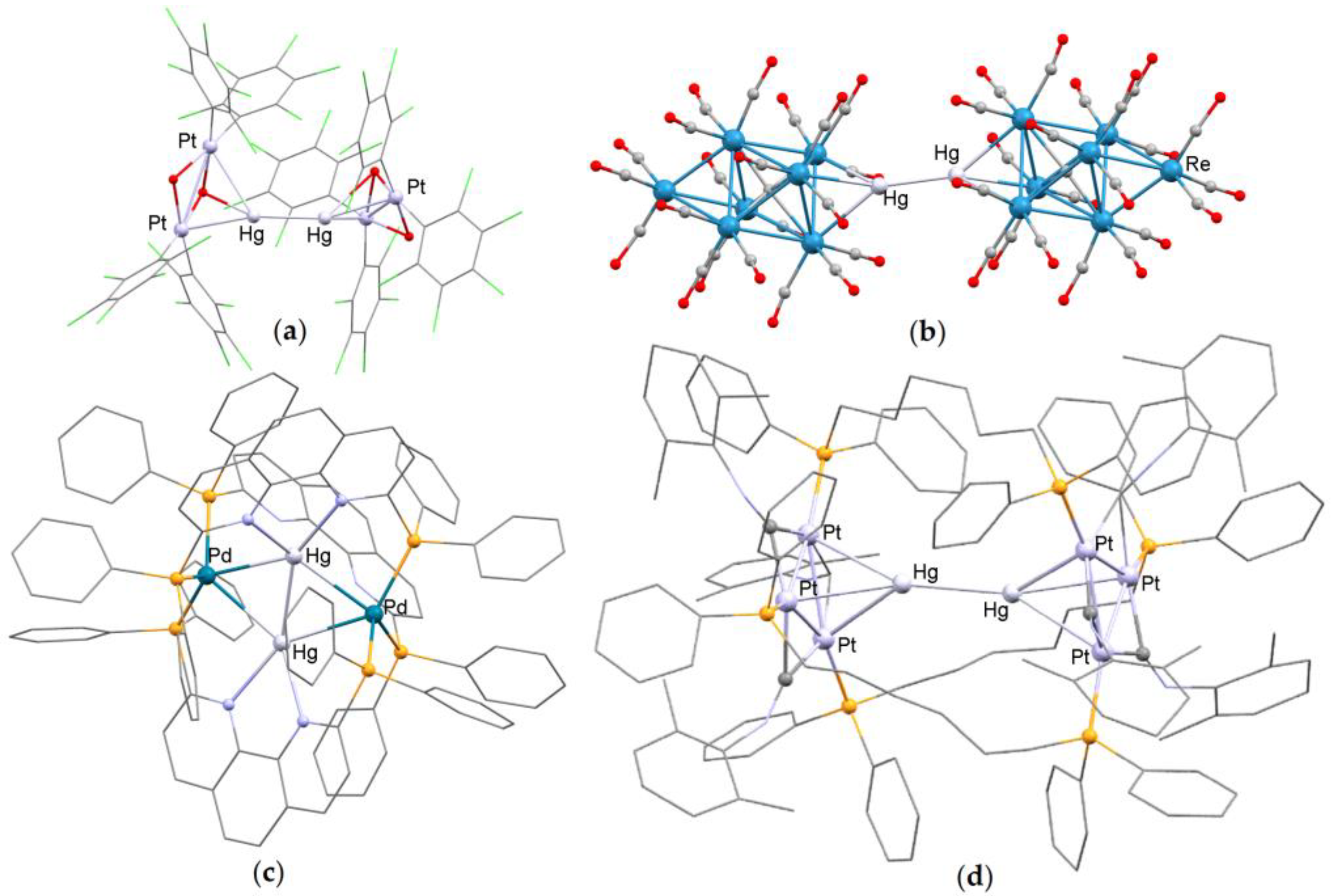

Figure 1. Molecular structures of (a) [Hg2{(C6Cl5)2Pt(μ-OH)2Pt(C6Cl5)2}2]2− [6]; (b) [Hg2{Re7C(CO)21}2]4− [7]; (c) [Hg2Pd2(P2phen)3]2+ [P2phen = 2,9-bis-(diphenylphosphino)-1,10-phenanthroline] [8]; (d) [Hg2{Pt3(RNC)3}2(diphos)3] [R = 2,6-Me2C6H3; diphos = 1,6-bis(diphenylphosphino)hexane] [9]. Color map: Hg, light grey; Pt, light violet; Re, blue; Pd, greenish blue; Cl, light green; P, orange; O, red; N, light blue; C, grey. Hydrogen atoms omitted.
Figure 1. Molecular structures of (a) [Hg2{(C6Cl5)2Pt(μ-OH)2Pt(C6Cl5)2}2]2− [6]; (b) [Hg2{Re7C(CO)21}2]4− [7]; (c) [Hg2Pd2(P2phen)3]2+ [P2phen = 2,9-bis-(diphenylphosphino)-1,10-phenanthroline] [8]; (d) [Hg2{Pt3(RNC)3}2(diphos)3] [R = 2,6-Me2C6H3; diphos = 1,6-bis(diphenylphosphino)hexane] [9]. Color map: Hg, light grey; Pt, light violet; Re, blue; Pd, greenish blue; Cl, light green; P, orange; O, red; N, light blue; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g001
Molecules 30 00145 g002

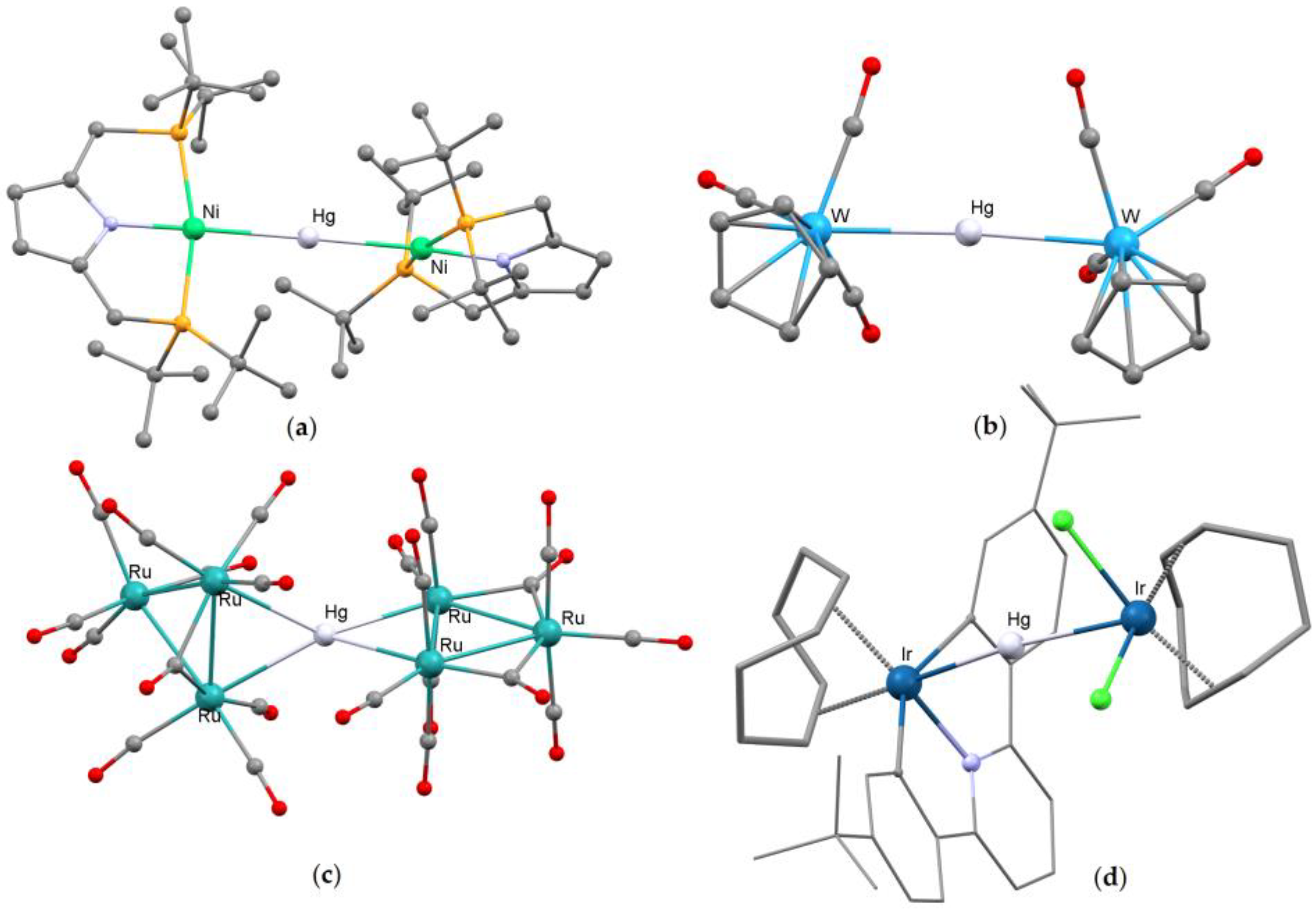

Figure 2. Molecular structures of (a) [Hg{Ni(PNP)}2] [PNP = 2,5-bis(di-tert-butylphosphanylmethyl)-pyrrolate] [11]; (b) [Hg{W(η5-C5H5)(CO)3}2] [12]; (c) [HgRu6(CO)22]2− [15]; (d) [Ir(C^N^C)(COD)HgIrCl2(COD)] [H2C^N^C = 2,6-bis(4-tert-butylphenyl)pyridine; COD = 1,5-cyclooctadiene] [16]. Color map: Hg, light grey; Ir, dark blue; W, blue; Ru, bluish green; Ni, green; Cl, light green; P, orange; O, red; N, light blue; C, grey. Hydrogen atoms omitted.
Figure 2. Molecular structures of (a) [Hg{Ni(PNP)}2] [PNP = 2,5-bis(di-tert-butylphosphanylmethyl)-pyrrolate] [11]; (b) [Hg{W(η5-C5H5)(CO)3}2] [12]; (c) [HgRu6(CO)22]2− [15]; (d) [Ir(C^N^C)(COD)HgIrCl2(COD)] [H2C^N^C = 2,6-bis(4-tert-butylphenyl)pyridine; COD = 1,5-cyclooctadiene] [16]. Color map: Hg, light grey; Ir, dark blue; W, blue; Ru, bluish green; Ni, green; Cl, light green; P, orange; O, red; N, light blue; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g002
Molecules 30 00145 g003

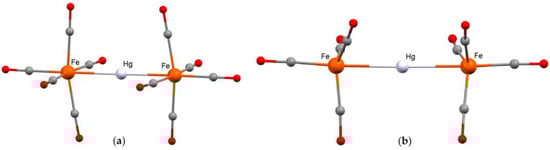

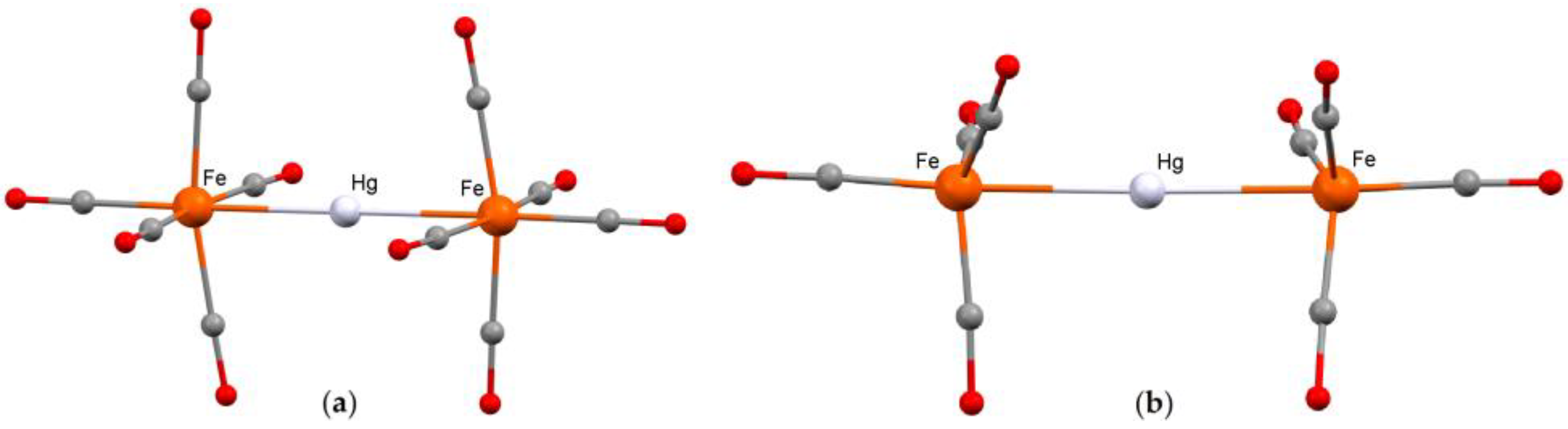

Figure 3. Molecular structures of (a) [Hg{Fe(CO)5}2]2+ [19]; (b) [Hg{Fe(CO)4}2]2− [20]. Color map: Hg, light grey; Fe, reddish orange; O, red; C, grey.
Figure 3. Molecular structures of (a) [Hg{Fe(CO)5}2]2+ [19]; (b) [Hg{Fe(CO)4}2]2− [20]. Color map: Hg, light grey; Fe, reddish orange; O, red; C, grey.
Molecules 30 00145 g003
Molecules 30 00145 g004

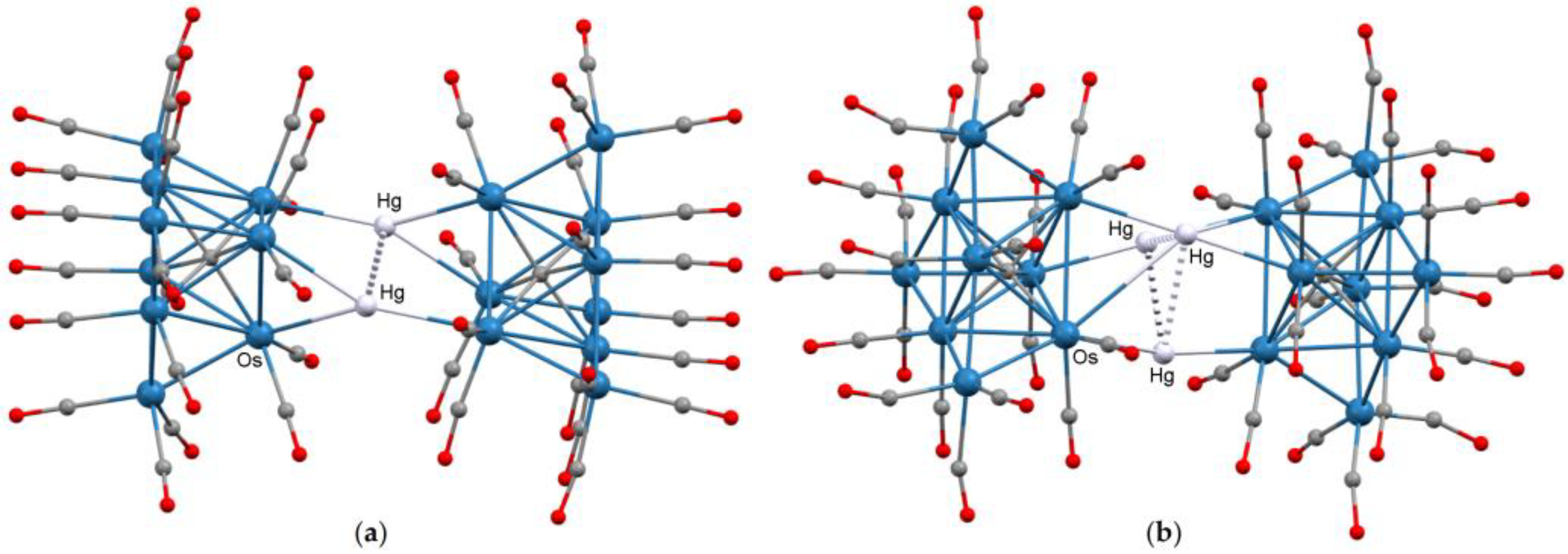

Figure 4. Molecular structures of (a) [Hg2{Os9(C)(CO)21}2]4− [26]; (b) [Hg3{Os9(C)(CO)21}2]2− [27]. Color map: Hg, light grey; Os, blue; O, red; C, grey.
Figure 4. Molecular structures of (a) [Hg2{Os9(C)(CO)21}2]4− [26]; (b) [Hg3{Os9(C)(CO)21}2]2− [27]. Color map: Hg, light grey; Os, blue; O, red; C, grey.
Molecules 30 00145 g004
Molecules 30 00145 g005

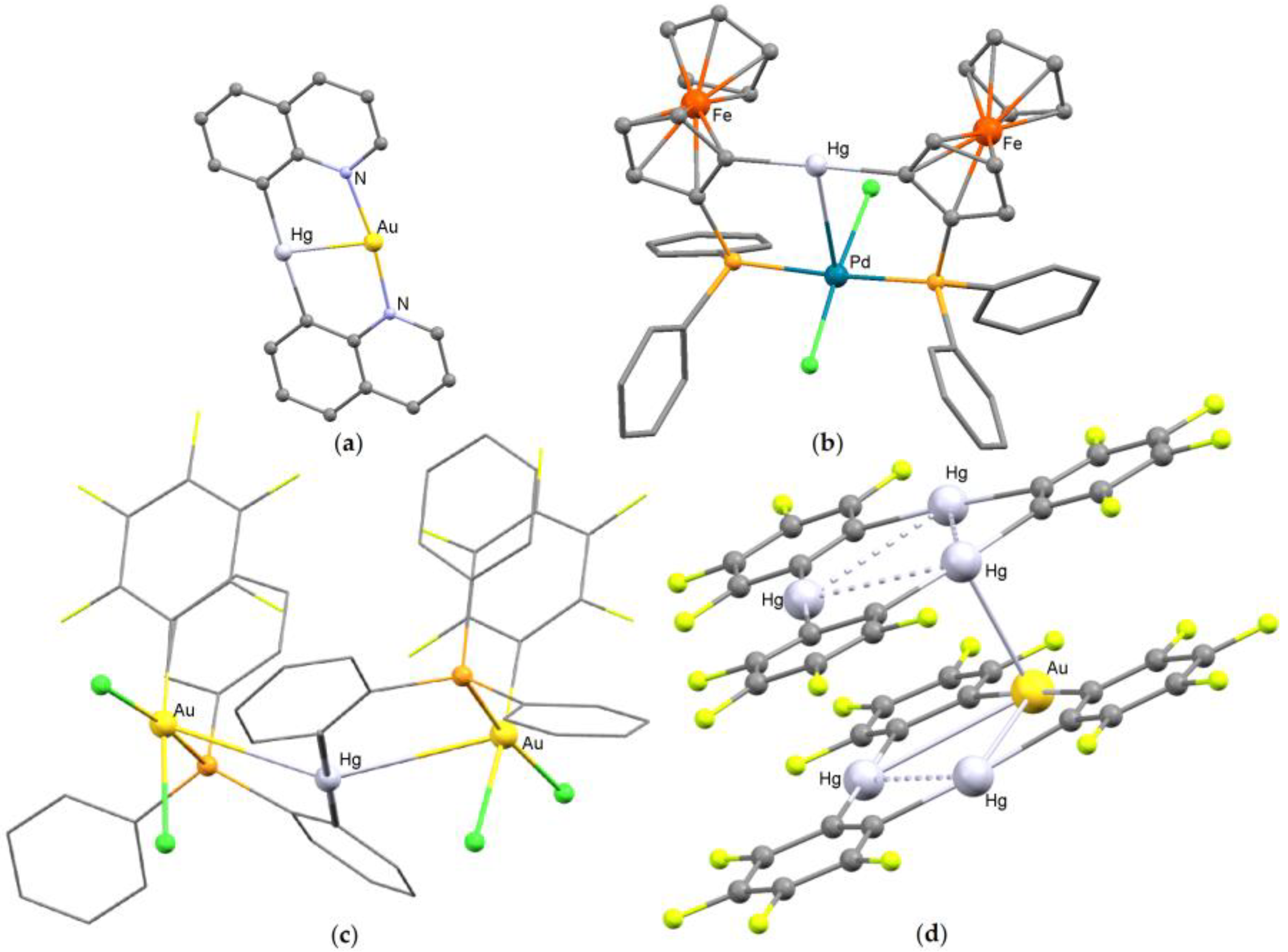

Figure 5. Molecular structures of (a) [Au{Hg(C9H6N)2}]+ [34]; (b) [PdCl2{Hg(C5H3PPh2-Fe-C5H5)2}] [36]; (c) [{AuCl2(C6F5)}2{Hg(C6H4PPh2)2}] [40]; (d) [{AuHg2(o-C6F4)3}{Hg3(o-C6F4)3}]− [44]. Color map: Hg, light grey; Au, yellow; Pd, greenish blue; Fe, reddish orange; Cl, light green; P, orange; F, greenish yellow; C, grey. Hydrogen atoms omitted.
Figure 5. Molecular structures of (a) [Au{Hg(C9H6N)2}]+ [34]; (b) [PdCl2{Hg(C5H3PPh2-Fe-C5H5)2}] [36]; (c) [{AuCl2(C6F5)}2{Hg(C6H4PPh2)2}] [40]; (d) [{AuHg2(o-C6F4)3}{Hg3(o-C6F4)3}]− [44]. Color map: Hg, light grey; Au, yellow; Pd, greenish blue; Fe, reddish orange; Cl, light green; P, orange; F, greenish yellow; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g005
Molecules 30 00145 g006

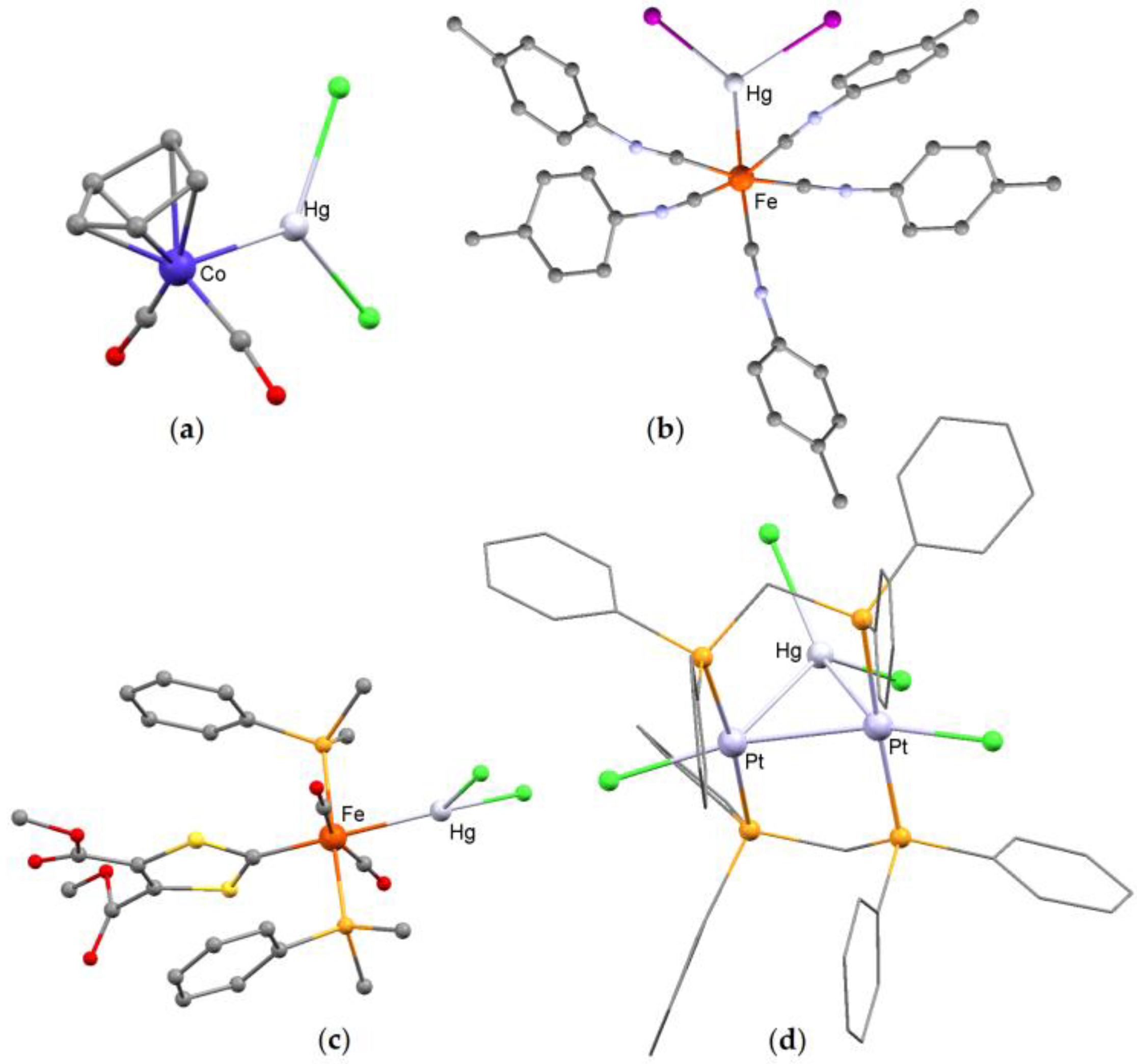

Figure 6. Molecular structures of (a) [Co(HgCl2)(η5-C5H5)(CO)2] [60]; (b) [Fe(HgI2){CN(4-MeC6H4)}5] [56]; (c) [Fe(HgCl2)(CO)2(PMe2Ph)2{CS2C2(CO2Me)2}] [62]; (d) [Pt2(HgCl2)Cl2(dppm)2] [dppm = bis(diphenylphosphino)methane] [64]. Color map: Hg, light grey; Pt, light violet; Co, blue; Fe, reddish orange; I, purple; Cl, light green; S, yellow; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Figure 6. Molecular structures of (a) [Co(HgCl2)(η5-C5H5)(CO)2] [60]; (b) [Fe(HgI2){CN(4-MeC6H4)}5] [56]; (c) [Fe(HgCl2)(CO)2(PMe2Ph)2{CS2C2(CO2Me)2}] [62]; (d) [Pt2(HgCl2)Cl2(dppm)2] [dppm = bis(diphenylphosphino)methane] [64]. Color map: Hg, light grey; Pt, light violet; Co, blue; Fe, reddish orange; I, purple; Cl, light green; S, yellow; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g006
Molecules 30 00145 g007

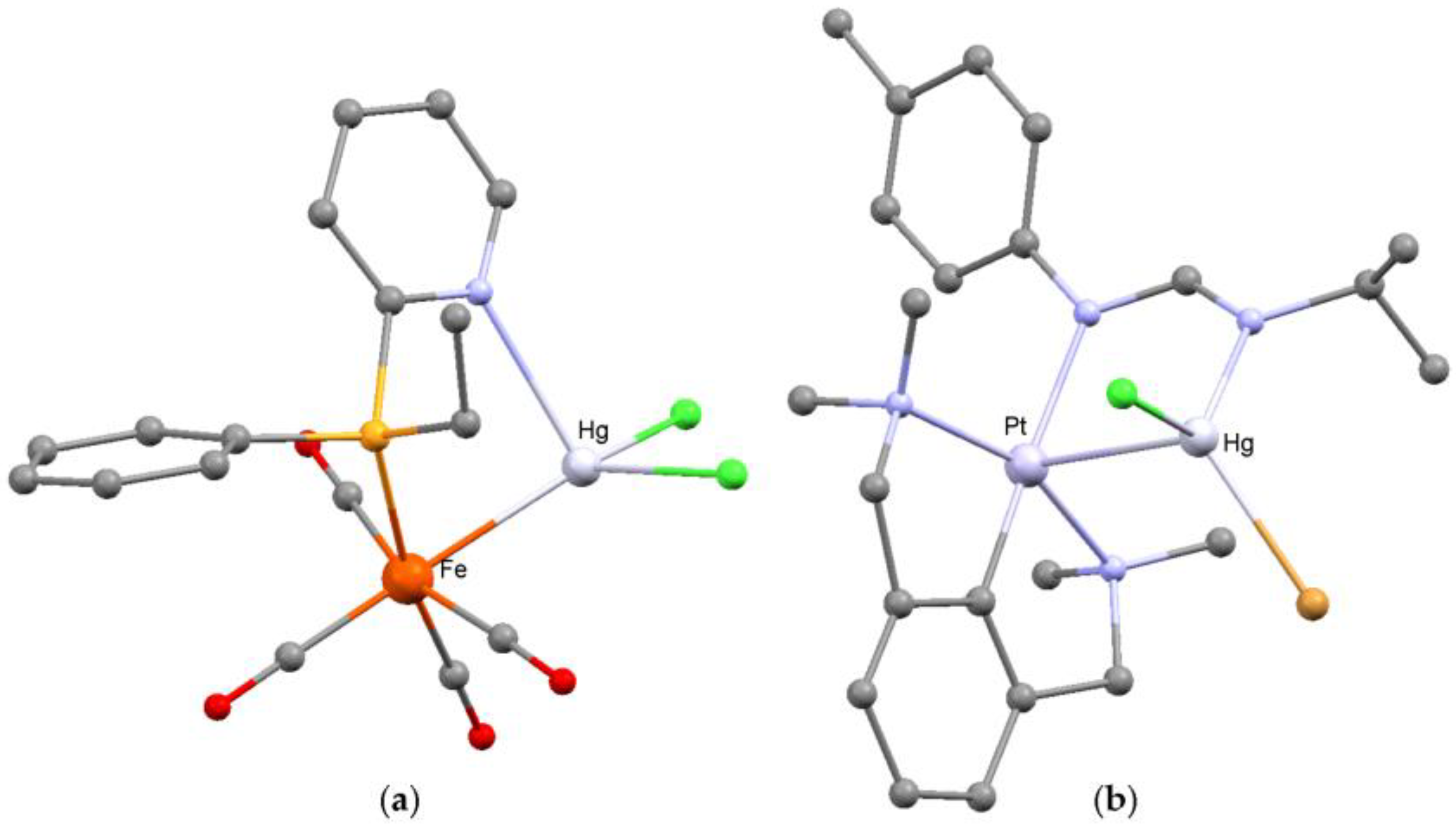

Figure 7. Molecular structures of (a) [Fe(HgCl2)(CO)4(PEtPhpy)] [PEtPhpy = 2-(ethylphenylphosphino)pyridine] [67]; (b) [Pt{2,6-(Me2NCH2)2C6H3}{μ-(p-tolyl)NC(H)N(iPr)}HgBrCl] [72]. Color map: Hg, light grey; Pt, light violet; Fe, reddish orange; Br, dark orange; Cl, light green; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Figure 7. Molecular structures of (a) [Fe(HgCl2)(CO)4(PEtPhpy)] [PEtPhpy = 2-(ethylphenylphosphino)pyridine] [67]; (b) [Pt{2,6-(Me2NCH2)2C6H3}{μ-(p-tolyl)NC(H)N(iPr)}HgBrCl] [72]. Color map: Hg, light grey; Pt, light violet; Fe, reddish orange; Br, dark orange; Cl, light green; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g007
Molecules 30 00145 g008
Figure 8. Molecular structures of (a) [Ir{Hg(μ-Cl)2HgCl2}Cl(CO)(dppm){(μ-dppm)AuCl}] [73]; (b) [Ru2{Hg(μ-Cl)2HgCl2}(C10H8N2)(CO)4(PiPr3)2] [C10H10N2 = 1,8-diaminonaphthalene] [75]; (c) [Ni(CNAr)4{HgI(μ-I)2HgI}Ni(CNAr)4] [Ar = 4-Br-2,6-Me2C6H2] [77]; (d) [{HgCl(μ-Cl)2HgCl}{Co(η5-C4Me4As)(CO)2}2] [80]. Color map: Hg, light grey; Au, yellow; Ir, dark blue; Ru, bluish green; Ni, green; Co, blue; I, purple; Br, dark orange; Cl, light green; As, violet; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Figure 8. Molecular structures of (a) [Ir{Hg(μ-Cl)2HgCl2}Cl(CO)(dppm){(μ-dppm)AuCl}] [73]; (b) [Ru2{Hg(μ-Cl)2HgCl2}(C10H8N2)(CO)4(PiPr3)2] [C10H10N2 = 1,8-diaminonaphthalene] [75]; (c) [Ni(CNAr)4{HgI(μ-I)2HgI}Ni(CNAr)4] [Ar = 4-Br-2,6-Me2C6H2] [77]; (d) [{HgCl(μ-Cl)2HgCl}{Co(η5-C4Me4As)(CO)2}2] [80]. Color map: Hg, light grey; Au, yellow; Ir, dark blue; Ru, bluish green; Ni, green; Co, blue; I, purple; Br, dark orange; Cl, light green; As, violet; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g008
Molecules 30 00145 g009
Figure 9. Molecular structures of (a) [{Hg2(μ3-Cl)2(μ-Cl)2(HgCl2)2}{Mo(η6-C6H3Me3)(CO)3}2] [81]; (b) [{Hg3(µ-Br)4Br2}{Pt(C∧P)(acac)}2] [C∧P = CH2-C6H4-P(o-tolyl)2; acac = 2,4-pentanedionato] [82]. Color map: Hg, light grey; Pt, light violet; Mo, light blue; Br, dark orange; Cl, light green; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Figure 9. Molecular structures of (a) [{Hg2(μ3-Cl)2(μ-Cl)2(HgCl2)2}{Mo(η6-C6H3Me3)(CO)3}2] [81]; (b) [{Hg3(µ-Br)4Br2}{Pt(C∧P)(acac)}2] [C∧P = CH2-C6H4-P(o-tolyl)2; acac = 2,4-pentanedionato] [82]. Color map: Hg, light grey; Pt, light violet; Mo, light blue; Br, dark orange; Cl, light green; P, orange; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g009
Molecules 30 00145 sch001

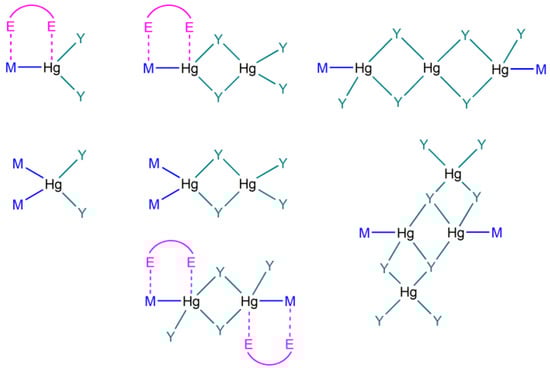

Scheme 1. Sketches of the main coordination modes of the {HgY2}n fragments (n = 1–4) described in Section 2. Y = halide, E = donor atom.
Scheme 1. Sketches of the main coordination modes of the {HgY2}n fragments (n = 1–4) described in Section 2. Y = halide, E = donor atom.
Molecules 30 00145 sch001
Molecules 30 00145 g013

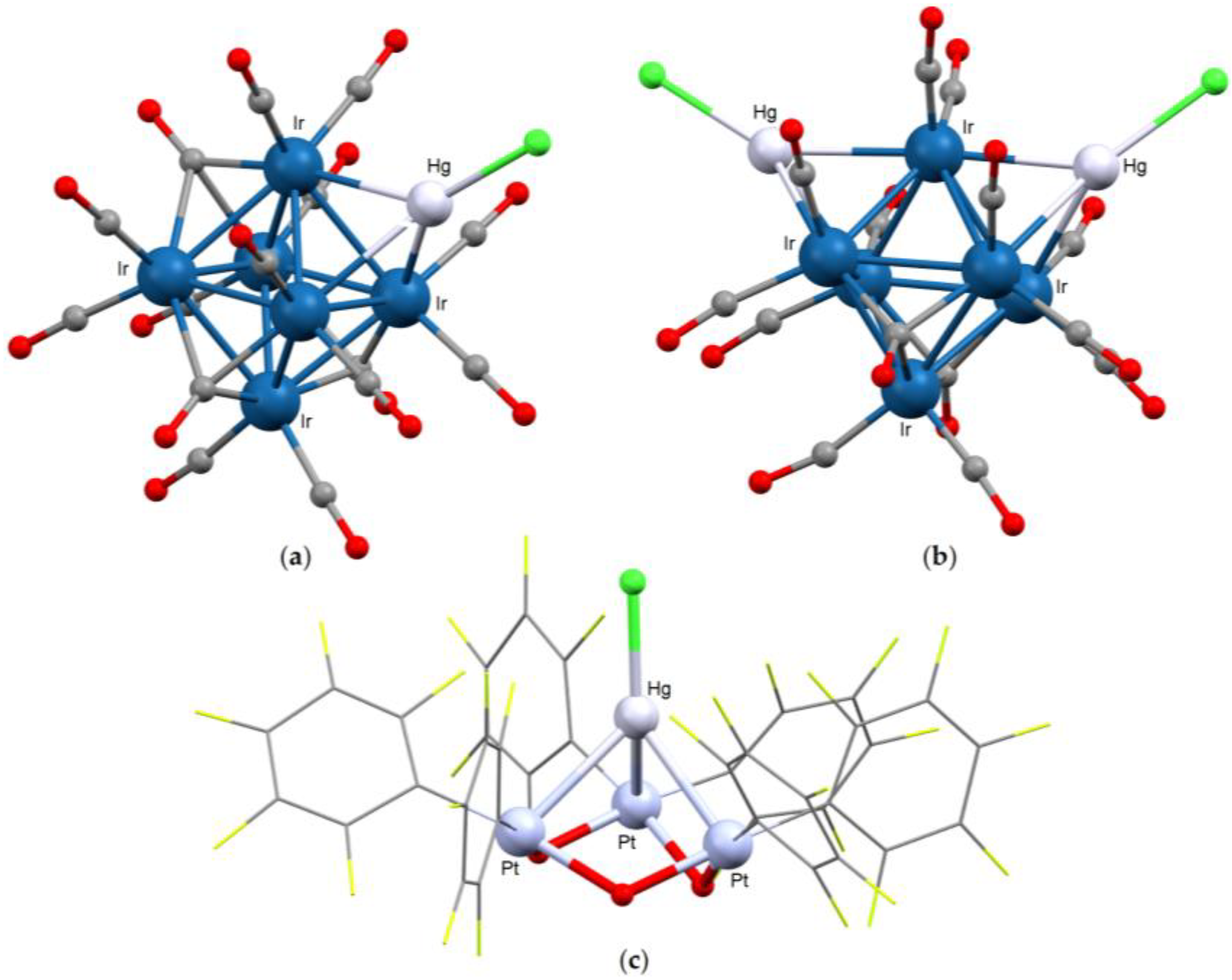

Figure 13. Molecular structures of (a) [Ir6(HgCl)(CO)15]− [142]; (b) [Ir6(CO)14(HgCl)2]2− [143]; (c) [Pt3(HgCl)(μ-OH)3(C6F5)6]2− [153]. Color map: Hg, light grey; Pt, light violet; Ir, dark blue; Cl, light green; F, greenish yellow; O, red; C, grey. Hydrogen atoms omitted.
Figure 13. Molecular structures of (a) [Ir6(HgCl)(CO)15]− [142]; (b) [Ir6(CO)14(HgCl)2]2− [143]; (c) [Pt3(HgCl)(μ-OH)3(C6F5)6]2− [153]. Color map: Hg, light grey; Pt, light violet; Ir, dark blue; Cl, light green; F, greenish yellow; O, red; C, grey. Hydrogen atoms omitted.
Molecules 30 00145 g013
Molecules 30 00145 sch002

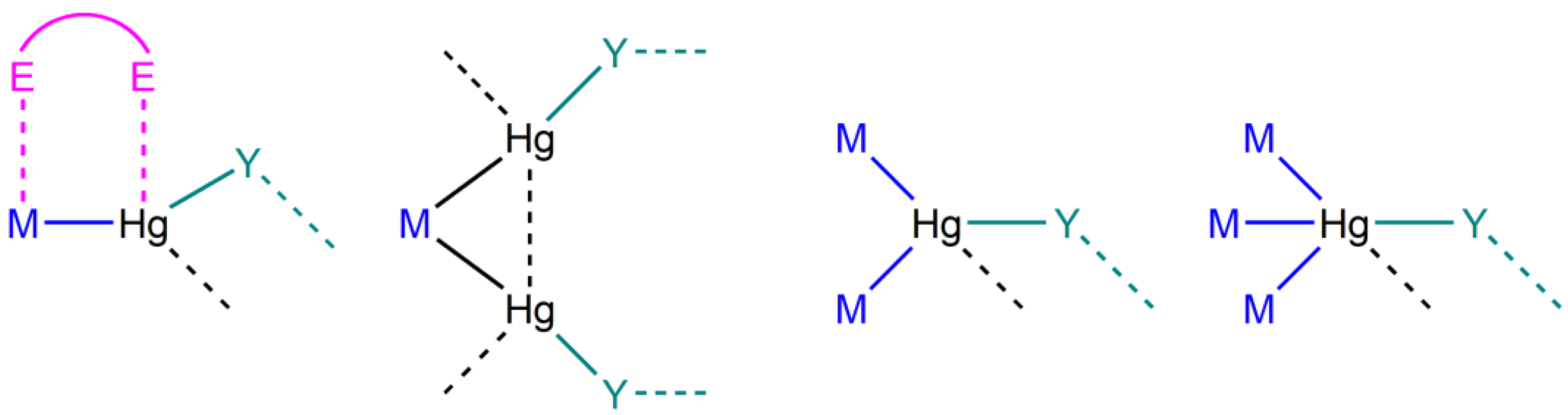

Scheme 2. Sketches of the main coordination modes of {HgY} described in Section 3. Y = halide, E = donor atom.
Scheme 2. Sketches of the main coordination modes of {HgY} described in Section 3. Y = halide, E = donor atom.
Molecules 30 00145 sch002
Molecules 30 00145 g014
Figure 14. DFT-optimized structures of [Cr(HgCl)(η5-C5H5)(CO)3] and [Co(HgCl)(η5-C5H5)(CO)2]+ and products of the heterolytic Hg-M dissociation reactions [C-PCM/r2SCAN-3c calculations]. Color map: Hg, light grey; Co, blue; Cr, light blue; Cl, light green; O, red; C, grey; H, white. (3, −1) BCPs represented as small light yellow spheres. Selected computed bond lengths (Å) and angles (°): [Cr(HgCl)(η5-C5H5)(CO)3], Hg-Cr 2.611, Hg-Cl 2.431, Hg-Cr-Cl 175.0; [Co(HgCl)(η5-C5H5)(CO)2]+, Hg-Co 2.495, Co-Cl 2.378, Hg-Co-Cl 179.6. Computed values at Hg-M (3, −1) BCPs [a.u.]: M = Cr, ρ 0.054, V −0.048, E −0.015, ∇ 2 ρ 0.074; M = Co, ρ 0.065, V −0.059, E −0.017, ∇ 2 ρ 0.102.
Figure 14. DFT-optimized structures of [Cr(HgCl)(η5-C5H5)(CO)3] and [Co(HgCl)(η5-C5H5)(CO)2]+ and products of the heterolytic Hg-M dissociation reactions [C-PCM/r2SCAN-3c calculations]. Color map: Hg, light grey; Co, blue; Cr, light blue; Cl, light green; O, red; C, grey; H, white. (3, −1) BCPs represented as small light yellow spheres. Selected computed bond lengths (Å) and angles (°): [Cr(HgCl)(η5-C5H5)(CO)3], Hg-Cr 2.611, Hg-Cl 2.431, Hg-Cr-Cl 175.0; [Co(HgCl)(η5-C5H5)(CO)2]+, Hg-Co 2.495, Co-Cl 2.378, Hg-Co-Cl 179.6. Computed values at Hg-M (3, −1) BCPs [a.u.]: M = Cr, ρ 0.054, V −0.048, E −0.015, ∇ 2 ρ 0.074; M = Co, ρ 0.065, V −0.059, E −0.017, ∇ 2 ρ 0.102.
Molecules 30 00145 g014
Molecules 30 00145 g015
Figure 15. DFT-optimized structures of (a) [Cr(HgCl)(η5-C5H5)(CO)3] and (b) [Co(HgCl)(η5-C5H5)(CO)2]+ with plots of the occupied molecular orbitals mainly responsible for the Hg-M σ-overlaps. Color map: Hg, light grey; Co, blue; Cr, light blue; Cl, light green; O, red; C, grey; H, white. Surfaces in yellow and green tones, isovalue = 0.04 a.u.
Figure 15. DFT-optimized structures of (a) [Cr(HgCl)(η5-C5H5)(CO)3] and (b) [Co(HgCl)(η5-C5H5)(CO)2]+ with plots of the occupied molecular orbitals mainly responsible for the Hg-M σ-overlaps. Color map: Hg, light grey; Co, blue; Cr, light blue; Cl, light green; O, red; C, grey; H, white. Surfaces in yellow and green tones, isovalue = 0.04 a.u.
Molecules 30 00145 g015
Table 1. Computed Gibbs energy variations [kcal mol−1; C-PCM/r2SCAN-3c calculations] for the heterolysis of the M-Hg bonds in selected complexes. C-PCM/r2SCAN-3c, acetone as continuous medium.
Table 1. Computed Gibbs energy variations [kcal mol−1; C-PCM/r2SCAN-3c calculations] for the heterolysis of the M-Hg bonds in selected complexes. C-PCM/r2SCAN-3c, acetone as continuous medium.
Complex[M(HgY)Ln]n+ → [MLn](n−1)+ + [HgY]+[M(HgY)Ln]n+ → [MLn](n+1)+ + [HgY]−
[Cr(HgCl)(η5-C5H5)(CO)3]76.852.5
[Cr(HgBr)(η5-C5H5)(CO)3]73.251.1
[Cr(HgI)(η5-C5H5)(CO)3]67.251.1
[Mo(HgCl)(η5-C5H5)(CO)3]78.653.1
[Mo(HgBr)(η5-C5H5)(CO)3]74.851.6
[Mo(HgI)(η5-C5H5)(CO)3]68.651.3
[W(HgCl)(η5-C5H5)(CO)3]80.155.4
[W(HgBr)(η5-C5H5)(CO)3]76.253.7
[W(HgI)(η5-C5H5)(CO)3]69.953.4
[Co(HgCl)(η5-C5H5)(CO)2]+51.187.1
[Co(HgBr)(η5-C5H5)(CO)2]+47.885.9
[Co(HgI)(η5-C5H5)(CO)2]+42.786.7
[Rh(HgCl)(η5-C5H5)(CO)2]+51.981.2
[Rh(HgBr)(η5-C5H5)(CO)2]+48.580.1
[Rh(HgI)(η5-C5H5)(CO)2]+43.380.8
[Ir(HgCl)(η5-C5H5)(CO)2]+55.987.6
[Ir(HgBr)(η5-C5H5)(CO)2]+52.386.2
[Ir(HgI)(η5-C5H5)(CO)2]+46.886.7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Busato, M.; Castro, J.; Piccolo, D.; Bortoluzzi, M. Mercury Monohalides as Ligands in Transition Metal Complexes. Molecules 2025, 30, 145. https://doi.org/10.3390/molecules30010145

AMA Style

Busato M, Castro J, Piccolo D, Bortoluzzi M. Mercury Monohalides as Ligands in Transition Metal Complexes. Molecules. 2025; 30(1):145. https://doi.org/10.3390/molecules30010145

Chicago/Turabian Style

Busato, Matteo, Jesús Castro, Domenico Piccolo, and Marco Bortoluzzi. 2025. "Mercury Monohalides as Ligands in Transition Metal Complexes" Molecules 30, no. 1: 145. https://doi.org/10.3390/molecules30010145

APA Style

Busato, M., Castro, J., Piccolo, D., & Bortoluzzi, M. (2025). Mercury Monohalides as Ligands in Transition Metal Complexes. Molecules, 30(1), 145. https://doi.org/10.3390/molecules30010145

Article Metrics

Back to TopTop
