One Step Regioselective Synthesis of 5-Aminoisoxazoles from Nitrile Oxides and α-Cyanoenamines

Abstract

The 1,3-dipolar cycloaddition of nitrile oxides to 1-cyanoenamines gives 5-aminoisoxazoles regioselectively. Moderate to good yields could be obtained depending on the method used to generate the nitrile oxides. The intermediate isoxazolines could not be isolated.

Introduction

Many 5-aminoisoxazoles are of biological interest and display fungicidal [1], antihelmintic [3] or bactericidal properties [1,4] or are useful for treatment of cerebrovascular disorders [2]. Few literature methods describe the preparation of 5-aminoisoxazoles. The nucleophilic substitution by an amine with a 5-chloroisoxazole was described for the first time by Schäfer [5], while the intramolecular cyclisation of thioenamines [6] and the dipolar cycloaddition involving a nitrile oxide and either a nitrodienamine [7], an enyne [8], or ethylene dienamine [9], all lead to 5-aminoisoxazoles in moderate yields.

Result and Discussion

We report a simple one-pot procedure for the preparation of 5-aminoisoxazoles in toluene using a 1,3-dipolar cycloaddition reaction between nitrile oxides and captodative α-cyanoenamines, as described below.

The 1,3-dipoles 1a-c were prepared by dehydrohalogenation of a chloroxime for R = p-ClPh (1a, method A) or dehydration of a primary nitro derivative by the Mukayama method [10] for R = Me (1b, method B), while nitromethane (method C) [11] was a particular case, as in contrast to the secondary aliphatic nitro derivatives, which in the presence of phenylisocyanate and triethylamine (method B) easily gave the corresponding nitrile oxides, nitromethane leads under the same conditions to the formation of the corresponding cyanoformanilide N-oxide and not the desired fulminic acid. 1-Cyanoenamine compounds 2a-c were prepared from α-chloroacetaldehyde following the procedure described by Temin [12] and improved by Boucher and Stella [13b]. The reactivity of these compounds has been the subject of many studies. They have significant dienophilic properties [13,14], and have been used in (2+2) [15] and (3+2) cycloaddition reactions [16]. The 1,3-dipolar cycloadditions of these 1-cyanoenamines with nitrile oxides 1a-c were carried out in toluene at room temperature overnight and led directly to the corresponding 5-aminoisoxazoles 5 without requiring isolation of the transient isoxazolines 3, which spontaneously eliminated HCN as shown in Scheme 1.

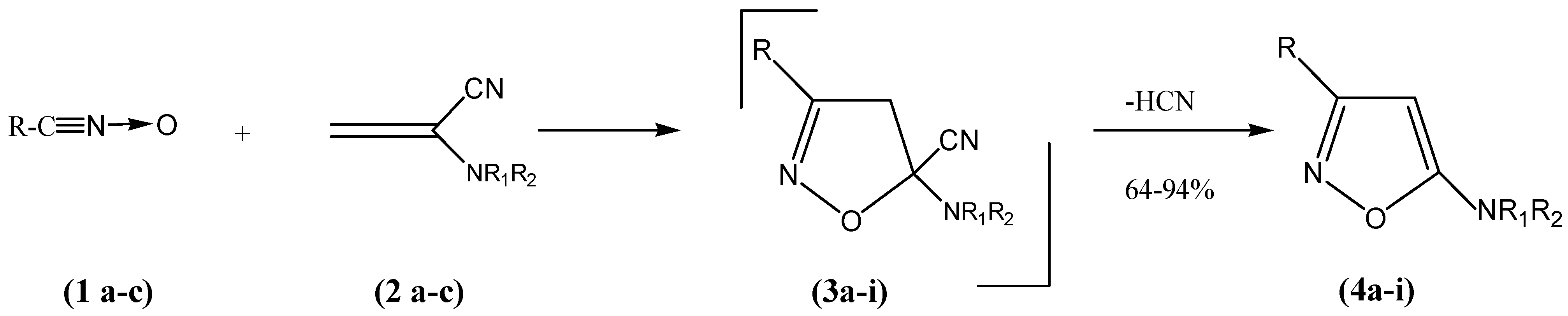

Scheme 1. Synthesis of 5-aminoisoxazoles 4a-i.

Scheme 1. Synthesis of 5-aminoisoxazoles 4a-i.

The cycloaddition reactions of the nitrile oxides 1 with the cyanoenamines 2 proved to be highly regioselective, leading to a single regioisomer. The regioselectivity of the cycloaddition reactions of nitrile oxides with dipolarophiles and their mechanism have been explained in the literature [17]. As in the case of the cycloaddition reactions of arylazides [16], the α-cyanoenamines 2 behave as the synthetic equivalents of the corresponding aminoacetylenes [18].

Table 1. Preparation of 5-aminoisoxazoles

Products	R	NR1R2	Yield (%) a
4a	p-ClPh		75
4b	p-ClPh		94
4c	p-ClPh		70
4d	Me		85
4e	Me		70
4f	Me		75
4g	PhNHCO		64b
4h	PhNHCO		58b
4i	PhNHCO		65b

^a Yields of isolated, pure products.^b The 5-aminoisoxazoles 4g-i were obtained by refluxing overnight after stirring 12 hours at room temperature.

Table 1. Preparation of 5-aminoisoxazoles

Products	R	NR1R2	Yield (%) a
4a	p-ClPh		75
4b	p-ClPh		94
4c	p-ClPh		70
4d	Me		85
4e	Me		70
4f	Me		75
4g	PhNHCO		64b
4h	PhNHCO		58b
4i	PhNHCO		65b

^a Yields of isolated, pure products.^b The 5-aminoisoxazoles 4g-i were obtained by refluxing overnight after stirring 12 hours at room temperature.

The yields were generally good and depended on the method used to generate the nitrile oxides. For methods A (compounds 4a-c) and B (compounds 4d-f) the yields ranged from70 to 95%, whereas for method C (compounds 4g-i), yields ranging from 58 to 65% were obtained.

Conclusions

The 1,3-dipolar cycloaddition of nitrile oxides with α-cyanoenamines is a one step, very efficient and simple method for the preparation of 5-aminoisoxazoles.

Experimental

General

Melting points and boiling points are uncorrected. Unless stated otherwise ¹H-NMR and ¹³C-NMR spectra were recorded for CDCl₃ solutions at 300 MHz and 75.5 MHz, respectively, on a Bruker AM300 spectrometer using TMS as internal standard. IR spectra were recorded on a BioRad FTS 175C spectrophotometer using KBr pellets. Column chromatography purifications were carried out using silica gel (60-230 mesh).

Synthesis of Nitrile Oxides 1a-c.

p-Chlorobenzonitrile oxide (1a) was obtained by the procedure described in ref. [19] (method A) from the corresponding chloroxime, by elimination of hydrochloric acid using triethylamine at low temperature. The nitrile oxides 1b and 1c were generated in situ by dehydration of nitroethane for 1b (method B) and nitromethane for 1c (method C).

Synthesis of α-Cyanoenamines 2a-c

1-Morpholinoacrylonitrile (2a) was obtained by Temin’s procedure, as modified by Boucher and Stella for the synthesis of 2-(N-methylanilino)acrylonitrile [13b]. The reaction was carried out by mixing a 50% aqueous solution of chloroacetaldehyde (39.25 g, 0.25 mol) and morpholine (0.25 mol) at room temperature for 2 h. An aqueous solution of potassium cyanide (0.30 mol) was then added slowly to the stirred solution, followed by dropwise addition of triethylamine to the mixture. The solid formed was filtered off and recrystallized from cyclohexane to give a 54% yield of a colorless solid; mp = 61-63°C; IR (film, cm^-1): 2220 (CN), 1590 (C=C); ¹H-NMR: δ (ppm) = 3.30 (m, J = 5.0Hz, 4H), 3.75 (m, J = 5.0Hz, 4 H), 4.66 (d, J = 1.8Hz, 1 H), 4.85 (d, J = 1.8Hz, 1 H); ¹³C-NMR (50.0MHz): δ = 48.0 (-CH₂-N-CH₂-), 55.9 (-CH₂-O-CH₂-), 101.3 (CH₂=C), 115.5 (CN), 130.1 (CH₂=C).

1-Piperidinoacrylonitrile (2b) was obtained by the procedure described for preparation of 2a by mixing a 50% aqueous solution of chloroacetaldehyde (39.25 g, 0.25 mol), piperidine (0.25 mol) and potassium cyanide (0.30 mol) at room temperature for 2 h. The mixture was treated with triethylamine and extracted with ether (3 x 40 mL). The solvent was removed and the crude product was purified by distillation to give 16.3g. (48%) of a colorless liquid; bp = 43-45°C/5x10^-2 torr.; IR (film, cm^-1): 2220 (CN), 1590 (C=C); ¹H-NMR: δ (ppm) = 1.6 (m, 6 H, -CH₂-CH₂-CH₂-), 2.99 (m,4 H, -CH₂-N-CH₂-), 4.55 (d, J = 1.8Hz, 1 H, vinylic), 4.72 (d, J = 1.8Hz, 1 H, vinylic); ¹³C-NMR: δ (ppm) = 23.7 (-CH₂-CH₂-CH₂-), 24.8 (-CH₂-CH₂-CH₂-), 48.8 (-CH₂-N-CH₂-), 99.9 (CH₂=C), 116.3(CN), 130.4(CH₂=C).

1-(N-methyl)-piperazinoacrylonitrile (2c) was obtained by the same procedure as described for (2a) from 0.25 mol of a 50% aqueous solution of α-chloroacetaldehyde and 0.25 mol of N-methyl-piperazine. The reaction yielded 13.2 g (35%) of 2c as a colorless liquid; bp = 60-65°C/5x10^-2 torr; IR (film, cm^-1): 2220 (CN), 1590 (C=C); ¹H-NMR: δ (ppm) = 2.32 (s, 3 H, CH₃), 2.47 (m, 4 H, -CH₂-N-CH₂-), 3.04 (m, 4 H), 4.61 (d, J =1.9Hz, 1 H, vinylic), 4.80 (d, J = 1.9Hz, 1 H, vinylic); ¹³C-NMR: δ (ppm) = 46.0 (-N-CH₃), 47.8 (-CH₂-N-CH₂-), 54.0 (-CH₂-N-CH₂-), 101.3 (CH₂=C), 115.5 (CN), 130.1 (CH₂=C).

General procedures for the synthesis of aminoisoxazoles 4.

Method A

Warning: The reaction releases hydrogen cyanide (a negligible quantity), so it is imperative to work under a hood with good ventilation. A 50 mL two-neck round bottom flask, flamed dried under N₂ and containing p-chlorobenzonitrile (2 mmol) in dry toluene (10 mL) was cooled in an ice bath while a solution of the 1-cyanoenamine (2 mmol) in dry toluene (10 mL) was added dropwise. The reaction mixture was stirred overnight at room temperature. The solvent was removed and the obtained oil was recrystallised from an appropriate solvent.

1-[3-(4-Chlorophenyl)-isoxazol-5-yl)morpholine (4a). White solid; yield = 75 %; mp = 137-138°C (recrystallised from ethyl ether); ¹H-NMR: δ (ppm) = 3.35 (dd, J = 5.0Hz, J = 4.8 Hz, 4 H,-CH₂-N- CH₂-), 3.80 (dd, J = 5.0Hz; J = 4.8Hz, 4 H,-CH₂-O-CH₂-), 5.30 (s,1 H, C₄-H), 7.40-7.64 (2d, J = 8.6Hz; 4 H; C₆H₄); ¹³C-NMR: δ (ppm) = 46.7-65.9 [-(CH₂)₂-N-(CH₂)₂-O], 76.6 (C₄); 127.8/128.3/128.9/135.6 (C_arom), 162.5 (C₅), 171.4 (C₃); Anal. Calcd. for C₁₃H₁₃ClN₂O₂: C, 58.99; H, 4.95; N, 10.58; found: C, 59.43; H, 5.23; N, 10.27.

1-[3-(4-Chlorophenyl)isoxazol-5-yl)piperidine (4b). White solid; yield = 94 %; mp = 110-112°C (recrystallised from 1:1 hexane/ether); ¹H-NMR: δ (ppm) = 2.00 [m, 6 H,-(CH₂)₃-], 3.33 (m, 4 H, -CH₂-N-CH₂-), 5.23 (s ,1 H, C₄-H), 7.40-7.64 (2d, J = 8.6Hz; 4 H, C₆H₄); ¹³C-NMR: δ (ppm) = 23.8-47.6 (-(CH₂)₅-N-), 127.8/128.6/128.8/135.5 (C_arom), 162.5 (C₅), 171.6 (C₃); Anal. Calcd. for C₁₄H₁₅ClN₂O: C, 64.00; H, 5.75; N, 10.66; found: C, 63.65; H, 6.08; N, 10.22.

1-[3-(4-Chloro-phenyl)isoxazol-5-yl)]-4-methylpiperazine (4c). Colorless solid; yield = 70 %; mp = 127-128°C (recrystallised from 1:1 hexane/ether); ¹H-NMR: δ (ppm) = 2.33 (s, 3 H, CH₃), 2.51 (dd, J = 5.0Hz, J = 5.1Hz, 4 H, -CH₂-N-CH₂-), 3.39 (dd, J = 5.0Hz, J = 5.1Hz, 4 H, -CH₂-N-CH₂-), 5.27 (s, 1H, C₄-H), 7.4-7.64 (2d, J = 8.6Hz, 4 H, C₆H₄); ¹³C-NMR: δ (ppm) = 171.3 (C3), 162.5 (C5), 127.8/128.4/128.8/135.5 (C_arom.), 76.4 (C₄), 46.4-53.8 [-CH₂)₂-N-CH₂)₂-N-], 46.1 (-N-CH₃); Anal. Calcd. for C₁₄H₁₆ClN₃O: C, 60.50; H, 5.81; N, 15.13; found: C, 60.16 ; H, 5.67; N, 14.85.

Method B

Warning: The reaction releases hydrogen cyanide (a negligible quantity), so it is imperative to work under a hood with good ventilation. Triethylamine (5 drops) was added slowly to a 50 mL two-neck round bottom flask, flame dried under N₂, containing the 1-cyanoenamine (5 mmol), nitroethane (6 mmol, 1.2 equivalents) and distilled phenylisocyanate (9 mmol, 1.8 equivalents) in dry toluene (15 mL). Diphenylurea precipitated. Stirring was continued overnight at room temperature. The urea was filtered off and the solution concentrated in vacuo. The obtained products were purified by column chromatography on silica gel or distillation.

4-(3-Methylisoxazol-5-yl)morpholine (4d). Colorless solid; yield = 85 %; mp = 42-45°C; TLC: Rf = 0.66 (80:20 v/v ether/heptane); ¹H-NMR: δ (ppm) = 2.15 (s, 3 H, CH₃), 3.27 (dd, J =5.0Hz, J = 4.8Hz, 4 H, -CH₂-N-CH₂-), 3.37 (dd, J =5.0Hz, J =5.1Hz; 4 H, -CH₂-O-CH₂-), 4.89 (s, 1 H, C₄-H); ¹³C-NMR: δ (ppm) = 170.8 (C₃), 161.3 (C₅), 79.4 (C₄), 46.6-65.8 [-CH₂)₂-N-CH₂)₂-O-], 46.6 (-N-CH₃), 11.7 (-CH₃); Anal. Calcd. for C₈H₁₂N₂O₂: C,57.13; H, 6.19; N, 16.33; found: C, 56.88; H, 6.72; N, 16.45.

1-(3-Methylisoxazol-5-yl)piperidine (4e). Colorless solid; yield = 70%; mp = 60-63°C; TLC: Rf=0.71 (80:20 ether/heptane); ¹H-NMR: δ (ppm) = 1.61 [m, 6 H, -(CH₂) ₃], 2.15 (s, 3 H, CH₃), 3.25 (m, 4 H, -CH₂-N-CH₂-), 4.81 (1H, C₄-H); ¹³C-NMR: δ (ppm) = 171.1 (C₃), 161.3 (C₅), 78.5 (C₄), 23.9/ 24.8/47.6 [-(CH₂)₅-N-], 11.8 (CH₃); Anal. Calcd. for C₉H₁₄N₂O: C,65.03; H, 8.49; N, 16.85; found: C, 64.94; H, 8.12; N, 16.45.

1-Methyl-4-(3-methylisoxazol-5-yl)piperazine (4f). Colorless liquid; yield = 75%; bp = 87-90°C/ 0.001 torr; ¹H-NMR: δ (ppm) = 2.15 (s, 3 H, CH₃ ), 2.32 (s, 3 H, N-CH₃), 2.48 (dd, J = 5.0Hz, J = 5.2Hz, -CH₂-N-CH₂-), 3.31 (dd, 4 H, J = 5.0Hz, J = 5.2Hz, -CH₂-N-CH₂-), 4.80 (s, 1 H, C₄-H); ¹³C-NMR: δ (ppm) = 170.7 (C₃), 161.3 (C₅), 79.2 (C₄), 53.9 (-CH₂-N-CH₂ -), 48.5 (-CH₂-N-CH₂), 46.1 (N-CH₃); 11.7(-CH₃); HRMS: calculated for C₉H₁₅N₃O: 181.1209; found: 181.1209.

Method C

Warning: The reaction releases hydrogen cyanide (a negligible quantity), so it is imperative to work under a hood with good ventilation. Triethylamine (5 drops) was added slowly to a 50 mL two-neck round bottom flask, flame dried under N₂, containing the 1-cyanoenamine (5 mmol), nitromethane (6 mmol, 1.2 equivalents) and distilled phenylisocyanate (10 mmol, 2 equivalents) in dry toluene (25 mL). Diphenylurea precipitated. Stirring was continued for 6 hours and then the suspension was refluxed overnight. The urea was filtered off and the solution concentrated in vacuo. The obtained products were purified by column chromatography on silica gel or by recrystallisation from alcohol.

N-phenyl-5-(morpholin-1-yl-)isoxazole-3-carboxamide (4g). Colorless solid; yield = 64%; mp = 147- 148°C (recrystallised from ethyl alcohol); ¹H-NMR: δ (ppm) = 3.33 (dd, J = 5.0Hz, J = 4.8Hz, 4 H, - CH₂-N-CH₂-), 3.77 (dd, J = 5.0Hz, J = 4.8Hz, 4 H, -CH₂-O-CH₂-), 5.58 (s, 1 H, C₄-H), 7.14/7.32/7.64 (H_arom.), 8.6 (s, 1 H, NH); ¹³C-NMR: δ (ppm) = 172.0 (CO), 159.9 (C3), 157.3 (C5), 120.1/124.8/129.1/137.1 (C phenyl), 78.6 (C₄), 46.5-65.8 [-CH₂)₂-N-CH₂)₂-O]; Anal. Calcd. for C₁₄H₁₅N₃O₃: C, 61.56; H, 5.53; N, 15.38; found: C, 61.35; H, 5.67; N, 15.24.

N-Phenyl-5-(piperidin-1-yl)isoxazole-3-carboxamide (4h). White solid; yield = 58%; mp = 120- 122°C; TLC: Rf=0.72 (80:20 ether/heptane); ¹H-NMR: δ (ppm) = 1.67 [m, 6 H, -(CH₃)₂-], 3.33 (m, 4 H, -CH₂-N-CH₂-), 5.50 (s, 1 H, C₄-H), 7.14-7.34-7.64 (H_arom.), 8.49 (s, 1 H, NH); ¹³C-NMR: δ (ppm) = 172.2 (CO), 159.8 (C3), 157.6 (C5), 119.9/124.6/129.0/137.2 (C phenyl), 77.4 (C4), 47.6 (-CH₂ - N-CH₂-), 23.7-24.8 [-(CH₂)₃-]; Anal. Calcd. for C₁₅H₁₇N₃O₂: C, 66.40; H, 6.32; N, 15.49; found: C, 66.65; H, 6.15; N, 15.55.

5-(4-Methylpiperazin-1-yl)-N-phenylisoxazole-3-carboxamide (4i). White solid; yield = 65%; mp = 130-131°C; TLC: Rf=0.69 (80:20 ether/heptane); ¹H-NMR: δ (ppm) = 2.31 (s, 3 H, N-CH₃), 2.50 (dd, J = 5.0Hz, J = 5.1Hz, 4 H, -CH₂-N-CH₂-), 3.40 (dd, J = 5.0Hz; J = 5.1Hz, -CH₂-N-CH₂-), 5.55 (s, 1 H, C₄-H), 7.14-7.33-7.64 (H_arom.), 8.49 (s, 1 H, NH); ¹³C-NMR: δ (ppm) = 171.9 (CO), 159.9 (C3), 157.3 (C5), 120.0/124.7/129.0/137.1 (C phenyl), 78.2 (C4), 46.8-53.8 [-CH₂)₂-N-CH₂)₂-], 46.2 (-N-CH₃), 46.8-53.8 [-CH₂)₂-N-CH₂)₂-]; Anal. Calcd. for C₁₅H₁₈N₄O₂: C, 62.92; H, 6.34; N, 19.57; found: C, 62.93; H, 6.24; N, 19.67.
