Formation and Morphology of Zn2Ti3O8 Powders Using Hydrothermal Process without Dispersant Agent or Mineralizer
Abstract
:1. Introduction
2. Experimental Procedure
2.1. Sample Preparation
2.2. Sample Characterization
3. Results and Discussion

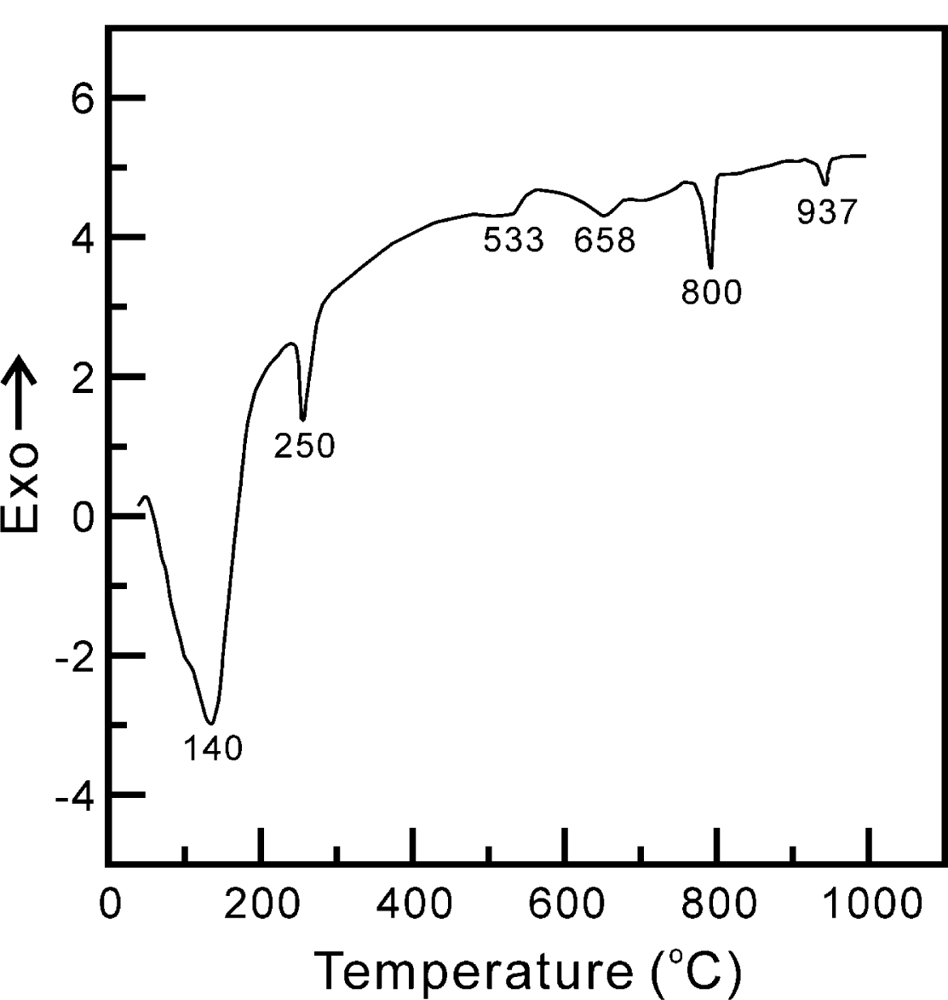

3.1. Thermal Behavior of the Zinc Titanate Precursor Powders
3.2. Phase Transition of Zinc Titanate Precursor Powders Calcined at Various Temperatures for 1 h
3.3. Microstructure of the Zinc Titanate Precursor Powders Calcined at Various Temperatures for 1 h
3.4. The Transmittance of Zinc Titanate Precursor Powders Calcined at 900 °C for 1 h
4. Conclusions

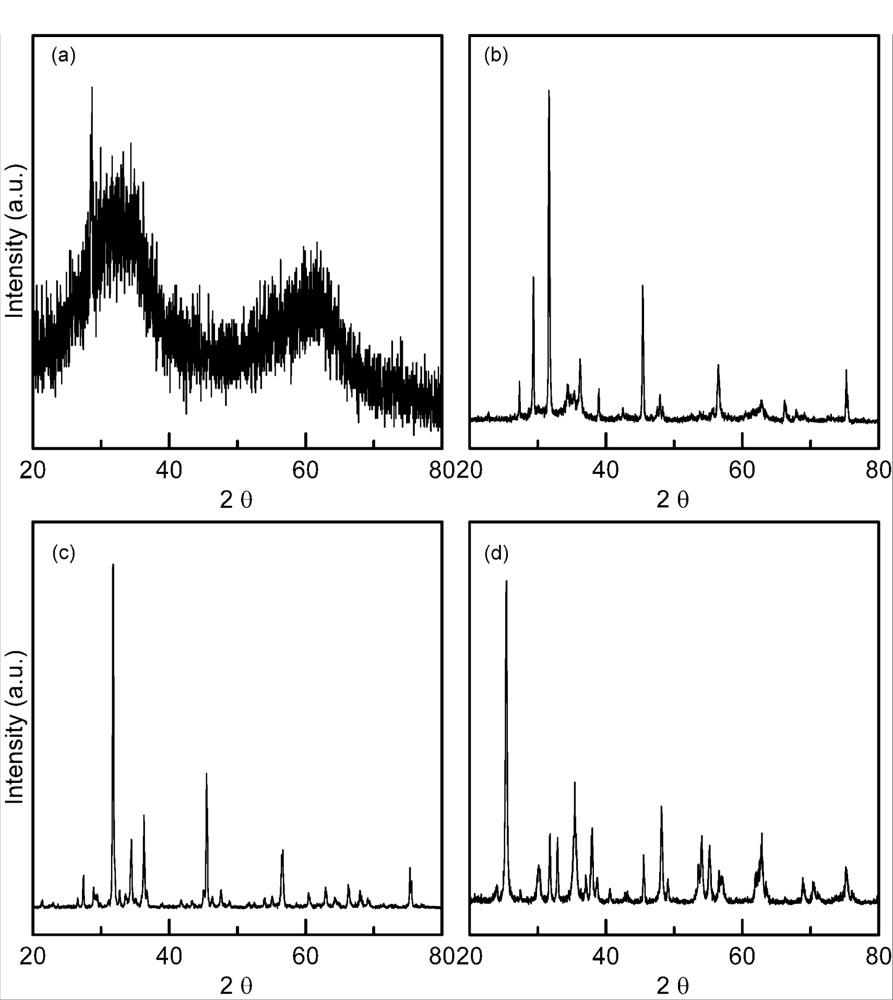

- When the zinc titanate precursor powders were prepared at pH = 7 and calcined at 600 °C for 1 h, the XRD results show that the phases of ZnO, anatase TiO2 and Zn2Ti3O8 coexisted in the sample. However, when calcined at 900 °C for 1 h, the XRD result reveals the existence of Zn2TiO4, rutile TiO2, and ZnO.

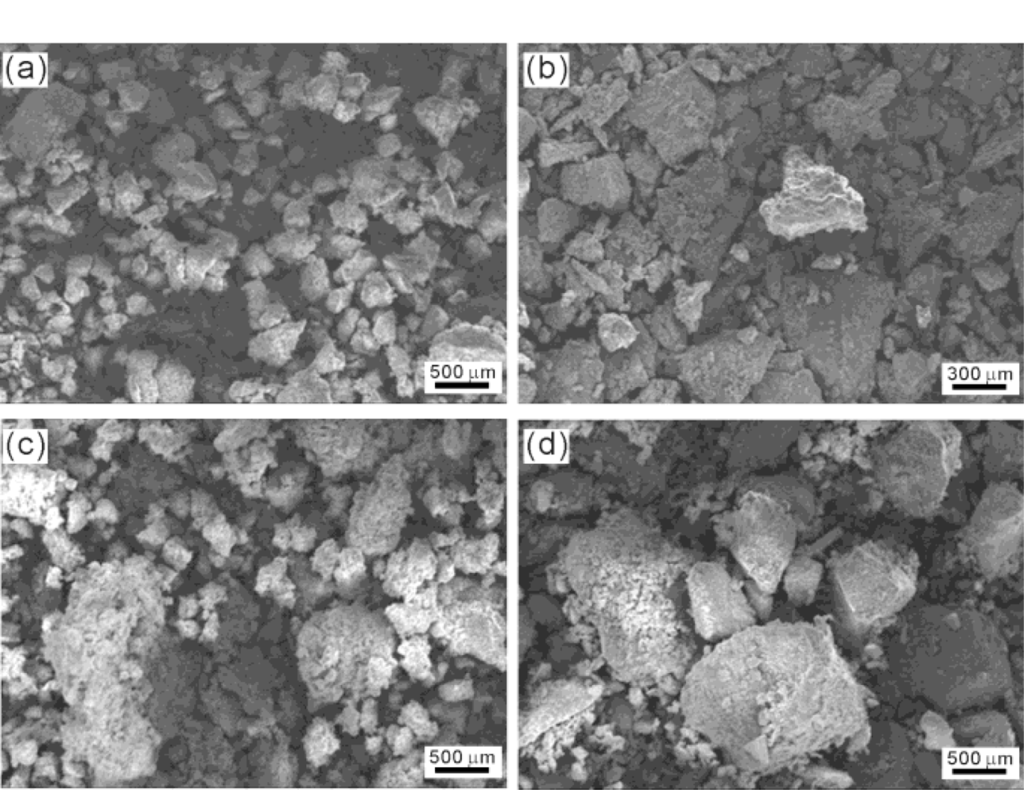

- The SEM results reveal significant agglomeration in both the freeze-dried and post-calcined samples.

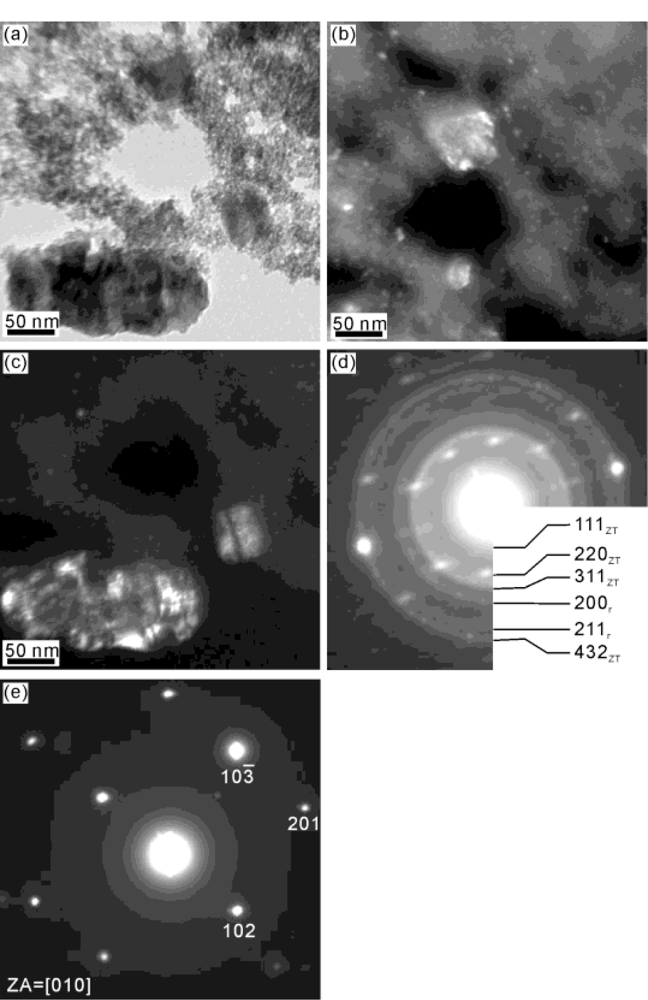

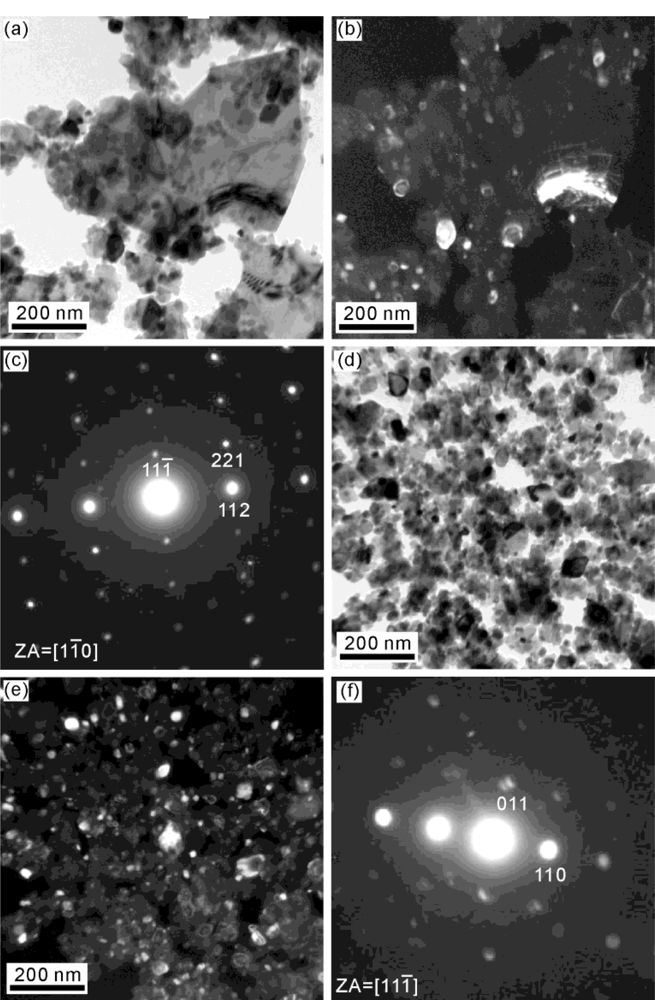

- The TEM and ED examination indicates the existence of near spherical Zn2Ti3O8 crystallites with size of about 5 nm on larger ZnO particles with a length of 200 nm and width of 100 nm. The microstructure ZnTiO3 shows a somewhat belt-shaped morphology, with a length of 200 nm and width of 50 nm for precipitates calcined at 900 °C for 1 h.

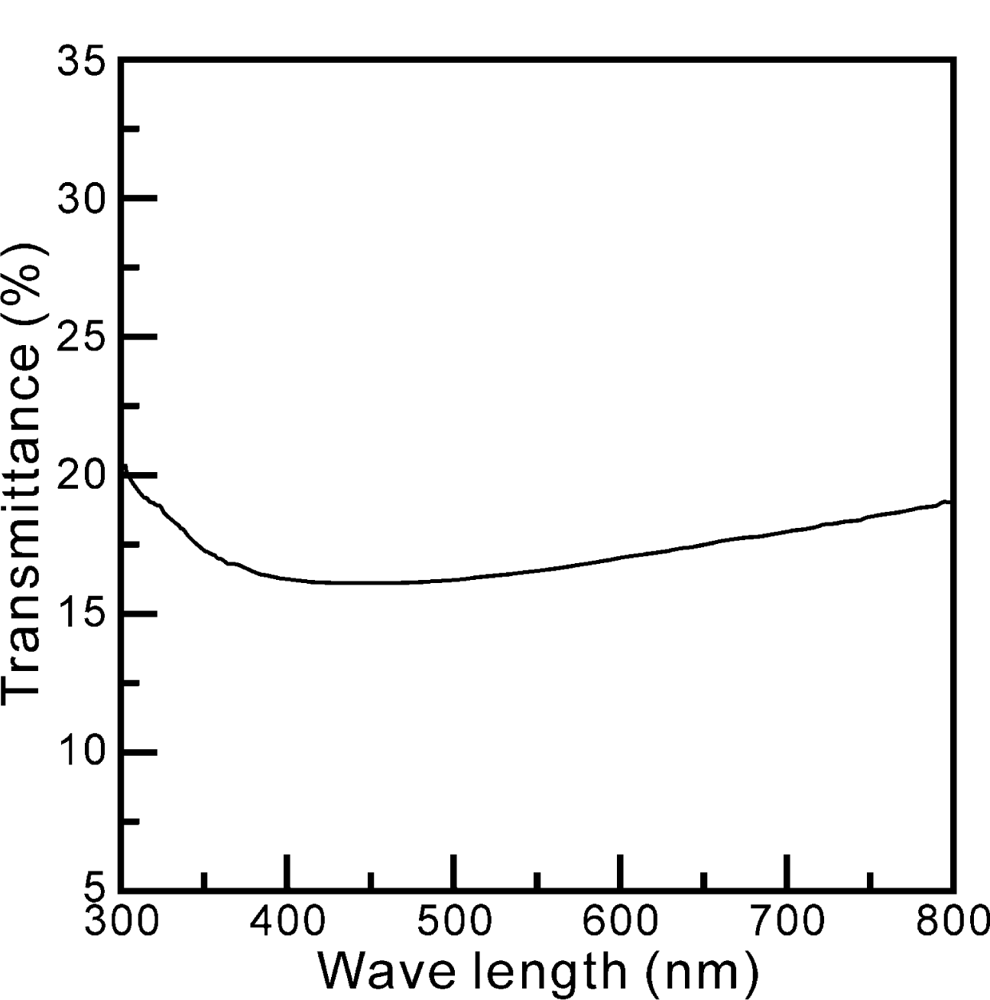

- The calcined samples have an acceptable transmittance when the wavelength is 400 nm. This result indicates that zinc titanate precursor powders calcined at 700 °C for 1 h can be used as an UVA-attenuating agent.
