Chromosome-Specific DNA Repeats: Rapid Identification in Silico and Validation Using Fluorescence in Situ Hybridization

by
Joanne H. Hsu
1,2,*,
Hui Zeng
2,
Kalistyn H. Lemke
2,
Aris A. Polyzos
2,
Jingly F. Weier
2,3,
Mei Wang
4,
Anna R. Lawin-O'Brien
5,
Heinz-Ulrich G. Weier
2 and
Benjamin O'Brien
6,7
1
Department of Molecular and Cell Biology, University of California, Berkeley (UCB), Berkeley, CA 94720, USA
2
Life Sciences Division, E.O. Lawrence Berkeley National Laboratory, 1 Cyclotron Road, Berkeley, CA 94720, USA
3
Department of Pathology, University of California, San Francisco (UCSF), CA 94143, USA
4
Department of Diabetes, City of Hope, 1500 Duarte Road, Duarte, CA 91010-3012, USA
5
Department of Fetal Medicine, Whipps Cross University Hospital, Barts Health NHS Trust, London E11 1NR, UK
6
William Harvey Research Institute, Queen Mary University London, Barts Health London, London EC1A 7BE, UK
7
Department of Anesthesiology, German Heart Institute, Berlin 13353, Germany
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2013, 14(1), 57-71; https://doi.org/10.3390/ijms14010057
Submission received: 2 December 2012 / Revised: 9 December 2012 / Accepted: 10 December 2012 / Published: 20 December 2012
(This article belongs to the Section Molecular Pathology, Diagnostics, and Therapeutics)
Browse Figures
Versions Notes

Abstract

:
Chromosome enumeration in interphase and metaphase cells using fluorescence in situ hybridization (FISH) is an established procedure for the rapid and accurate cytogenetic analysis of cell nuclei and polar bodies, the unambiguous gender determination, as well as the definition of tumor-specific signatures. Present bottlenecks in the procedure are a limited number of commercial, non-isotopically labeled probes that can be combined in multiplex FISH assays and the relatively high price and effort to develop additional probes. We describe a streamlined approach for rapid probe definition, synthesis and validation, which is based on the analysis of publicly available DNA sequence information, also known as “database mining”. Examples of probe preparation for the human gonosomes and chromosome 16 as a selected autosome outline the probe selection strategy, define a timeline for expedited probe production and compare this novel selection strategy to more conventional probe cloning protocols.

Graphical Abstract

1. Introduction

Errors during mitotic cell division may lead to chromosome mis-segregation. Aneuploid daughter cells can have severe consequences, not only for the affected cell, but for an organism as a whole. Examples of this detrimental effect are the failure of aneuploid oocytes to fertilize [1], a reduced rate of the nidation of zygotes [2], a higher rate of spontaneously aborted embryos carrying a maternally derived supernumerary chromosome 16 (Figure 1) or the devastating consequences of trisomies on the development of human fetuses [3–11], only few of which survive to pregnancy term [12,13]. Furthermore, aneuploidy is associated with poor prognosis in solid tumors. Spontaneous chromosome mis-segregation events in aneuploid cells promote chromosomal instability that may contribute to the acquisition of multidrug resistance in vitro[14]. Therefore, different clinical settings, ranging from in vitro fertilization (IVF) and pre-implantation genetic diagnosis (PGD), perinatal analysis involving fetal and newborn tissues and the analysis of children with unexplained clinical symptoms to cancer research, have utilized a method called ‘Fluorescence in situ hybridization (FISH)’.
In a nutshell, FISH is based on the formation of stable hybrids between DNA targets inside cells and labeled DNA probes molecules provided by the investigator [16]. The DNA probes can either be marked by a fluorochrome, which can then be detected in the microscope, or by a non-fluorescent, non-isotopical hapten, most often biotin or digoxigenin, which is detected by a fluorescent moiety, such as fluorochrome-labeled avidin or antibodies against digoxigenin. Different probe types are available to suit particular applications: whole chromosome painting probes allow the delineation of inter-chromosomal translocations in metaphase spreads [17–19], while intra-chromosomal rearrangements are detected in metaphase or interphase cells with chromosome band-specific probes [20–23] or DNA probes targeting somewhat smaller, gene- or locus-specific regions [24–29].
While FISH found widespread application in research laboratories, its acceptance in clinical settings is mostly hampered by a limited selection of commercially available, U.S. Federal Drug Administration (FDA)-approved tests and the typically labor-intensive, costly effort to produce DNA probes that perform well in multiplexed assays [30]. Our laboratories have an established track record of production of novel DNA probes and innovative cell assays, many of which have found their way into contemporary cancer research or PGD analysis [18,21,23,24,26,31–38]. To facilitate the broad distribution of molecular cytogenetic assays and make DNA probes, as well as multiplex FISH tests, available to the less experienced laboratory, we have undertaken probe production pilot studies, which take advantage of the vast resources generated in the course of the Human Genome Project, such as physical maps and recombinant DNA libraries.
Our initial studies focused on the preparation of novel DNA probes for chromosome scoring or “enumeration” in interphase cell nuclei and metaphase spreads, since these seem to remain the most common applications in research and the clinic [30,39]. The vast majority of these chromosome enumerator probes (CEPs) target highly reiterated, tandemly-repeated DNA sequences in order to bind many copies of a rather small probe sequence to the target, which may be confined to a tightly localized area or volume. Different ways of isolating and purifying such DNA probes exist [31,37,38,40–45]. To the best of our knowledge, the procedures described in the present communication allow a laboratory with common equipment to prepare specific DNA probes in just a few days and, thus, represent the most efficient, rapid and cost-conscious approach to the generation of chromosome-specific DNA probes.

2. Results and Discussion

The development of probes that bind specifically to individual human chromosomes depends on the type of DNA repeat sequences identified on the target chromosome. Here, we will detail the approaches for preparation of probes for the human chromosomes Y, X and 16, since each of these chromosomes presented particular challenges.

2.1. Hybridization Targets on the Human Gonosomes

Two human gonosomes or “sex chromosomes” are carried in diploid cells as one copy each of the X- and Y-chromosome in male cells and two copies of the X-chromosome in female cells. In humans, where imprinting of gonosomal genes exists and dosage-compensation appears to exist for only a small subset of genes, the presence of an extra sex chromosome may lead to clinically recognizable phenotypes, including Turner and Klinefelter syndrome, hypogonadism, etc.[9,46,47]. Since gain or loss of a single gonosomes may not fully impair embryonic or fetal survival, prenatal screening procedures have kept a close watch on the sex chromosome make-up of cell specimens [48–50].

2.2. Hybridization Targets for Enumeration of Human Chromosome 16

As mentioned earlier, the high frequency of spontaneous abortions with trisomy 16 [15] prompted our probe development. We chose the large block of DNA satellite II as a target for our probe development, since this heterochromatic block represents a very highly reiterated sequence (Figure 2).
The map positions of BAC discussed in this communication, as well as the BAC insert sizes and the Genbank accession numbers of insert end sequences, are listed in Table 1. The Y-specific BAC clone RP11-242E13 targets a highly repeated DNA sequence [52], while the X-specific clone RP11-294C12 targets a cluster of repeated alpha satellite DNA [38]. Thus, this probe combination is expected to bind to multiple sites along the long arm of the human Y chromosome and throughout the centromeric region of the X chromosome [31,38].
The probes for the human X and Y chromosome labeled with digoxigenin and Spectrum Green, respectively, were used in a dual color FISH experiments. After incubation of the slide with rhodamine-conjugated antibodies against digoxigenin (Roche Molecular), the results showed unambiguous labeling of the target region on metaphase chromosomes and the expected number of red or green signals (Figure 3).
Results of the in situ hybridization of BAC-derived probes for chromosome 16 is shown in Figures 4 and 5 using metaphase spreads and tissue sections, respectively. Since the four selected probes showed virtually identical hybridization patterns, only one example is displayed here.

2.3. Clinical Perspective

Chromosomal aberrations are very frequently seen in human oocytes and embryos and are often responsible for poor pregnancy outcomes in natural, as well as assisted, conceptions [13].
Chromosome 16 trisomy carries specific significance, as it is considered the most common aneuploidy at conception [53], with an incidence of ~1.5% in all clinically recognized pregnancies [12]. Trisomy 16, arising from new non-disjunctional events, is the most common cause of sporadic first trimester miscarriage (Figure 1) and generally not compatible with life [54]. And, as the rate of trisomies increases with maternal age, the proportion of miscarriages with numeric chromosomal errors, such as trisomy 16, increases the older the mother is [55].
In assisted conception, i.e., in vitro fertilization (IVF) and intracytoplasmatic sperm injection (ICSI), trisomy 16 or mosaic trisomy 16 in pre-implantation embryos are responsible for implantation failure, developmental arrest and miscarriage. Here, pre-implantation genetic diagnosis (PGD) represents a significant scientific advance for couples at risk of having children with heritable and debilitating genetic diseases. For couples who carry a balanced chromosomal translocation [25,56,57], PGD significantly decreases the risk of spontaneous miscarriage and significantly increases live-birth rates [58,59]. The technique described in this communication can be adapted to detect balanced translocations, when required by parents faced with such a problem. PGD algorithms often also include important new technologies, such as arrayCGH, for the detection of aneuploidy, balanced translocations and other chromosome anomalies [59].
Pre-implantation embryos not only present meiotically derived aneuploidy, but also post-zygotic chromosome segregation errors in the cleavage stage [56]. Mitotic chromosome mal-segregation may lead to exaggerated mosaicism, with a minority of embryos displaying a mixture of normal and aneuploid cells and most mosaic embryos presenting two or more abnormal cell lineages. Some embryos show failure of cellular mechanisms that control accurate chromosome segregation, becoming karyotypically unstable or “chaotic mosaics” [56,60]. Aneuploidy screening for embryo selection in assisted conception is developing fast, as it translates into improved clinical outcomes for infertile patients [61–63].

3. Experimental Section

3.1. Choosing DNA Probes That Bind to Specific Human Chromosomes

3.1.1. Selection of Probes for Satellite-Rich Regions of Human Chromosomes 16 and X

The UCSC Genome Browser GRCh37/hg19, built February 2009, was used to identify bacterial artificial chromosome (BAC) clones with high satellite DNA content in the non-centromeric and non-telomeric regions of the short and long arms of human chromosomes 16, X and Y [38]. The graphic user interface was set to display BAC end pairs and repeat DNA elements. A region with high satellite content was identified from which BAC probes were then chosen (i.e., chromosome 16: 46,385,500 bp-46,457,245 bp, chromosome X: 58,232,531 bp-61,922,800 bp).

3.1.2. Determining the Target Sequence on the Y Chromosome

The nucleic acid sequence used for data mining was defined in our previous studies on in vitro DNA amplification of Y chromosome-specific DNA repeat sequences. Specifically, we designed pairs of oligonucleotide primers to amplify stretches of 124 bp from the 3.6 kb pentanucleotide DNA repeat described by Nakahori et al. (DYZ1, Genbank accession number X06228) [31,52]. Primer annealing sites were chosen to have minimal homology with the human satellite III DNA repeat consensus sequence “TTCCA” [64,65]. Blood samples from six normal human volunteers were used to validate the Y chromosome-specific PCR assay [66,67].
Serial cell dilution experiments and artificial mixing of flow-sorted Y chromosome carrying cells in predetermined aliquots of white blood cells from female donors determined that the primer combination WYR 4 (5′-GAACCGTACGATTCCATTCCTTTTGAA-3′)–WYR 6 (5′-TTCCATTCCATTCCATTCCTTTCCTTT-3′), amplifying a 248 bp DNA fragment corresponding to position 2965–3212 in Genbank accession number X06228, was sufficiently specific to detect a single male cell in the background of 1 million female cells [68]. Samples comprised entirely of female cells did not yield this product [66,67].

3.1.3. Identifying a DNA Probe for the Target Sequence of Chromosome Y

We screened the human genome nucleotide DNA database at the NCBI for homologous sequences using one of the most widely used bioinformatics programs, Basic Local Alignment Search Tool (BLAST) [69]. The BLAST approach to rapid sequence comparison directly approximates alignments that optimize a measure of local similarity, the maximal segment pair score. The basic algorithm is simple, robust and versatile; it can be implemented in a number of ways and applied in a variety of contexts, including straightforward DNA and protein sequence database searches, motif searches, gene identification searches and in the analysis of multiple regions of similarity in long DNA sequences [69,70].
Execution of the BLAST querying the human genome database with the 27-nucleotide (nt) sequence “ATTCCGTACGATTCCATTCCTTTTGAA” from position 3089–3115 of the human Y-specific 3564 bp repeat (Genbank accession number X06228), performed at the NCBI web site [71], retrieved multiple hits. Parameters were set to identify clones with a range of levels of nucleic acid homology (setting: “Optimize for somewhat similar sequences”, (BLASTn)).

3.2. Fluorescence in situ Hybridization

Individual BAC clones were grown overnight in up to 10 mL of Luria broth (LB) medium containing 12.5 μg/mL chloramphenicol (Sigma, St. Louis, MO, USA), and the DNA was isolated using a ZR BAC DNA Miniprep Kit (Zymo Research, Irvine, CA, USA). For the preparation of DNA pools, clones were grown individually and pooled prior to DNA isolation. The isolation of high molecular weight BAC DNAs was confirmed on 1% agarose gels and quantitated by spectrophotometry (Nanodrop 2000, Thermo Scientific, Wilmington, DE, USA). Probe DNAs were labeled with biotin-14-dCTP (part of the BioPrime kit, Invitrogen, La Jolla, CA, USA), digoxigenin-11-dUTP (Roche Diagnostics, Indianapolis, IN, USA) or Spectrum Green-dUTP (Abbott, Downers Grove, IL, USA) by random priming using a commercial kit (BioPrime Kit, Invitrogen) [23]. When incorporating fluorochrome-labeled deoxynucleoside triphosphates, such as Spectrum Green-dUTP, the dTTP to dUTP ratio in the reaction was adjusted to 2:1 [26,72–74].
Between 0.5 μL and 1 μL of each probe, along with of 0.25 μL human COT1™ DNA (1 mg/mL, Invitrogen) and 0.25 μL salmon sperm DNA (20 mg/mL, 3′-5′, Boulder, CO), were added to 3.9 μL of hybridization master mix (50% formamide (FA), 20% dextran sulfate, in 2 × SSC and 50mM phosphate buffer pH 7.0) in a total volume of 6.9 μL. Hybridization and detection of bound probes followed our published procedures [37,44,75,76]. Biotinylated and digoxigenin-labeled probes were detected with avidin-fluorescein isothiocyanate (FITC) (Vector, Burlingame, CA, USA; green fluorescence) and rhodamine-conjugated antibodies against digoxigenin (Roche Diagnostics; red fluorescence).

3.3. Pretreatment of Tissue Sections with RNase and Pepsin

A pretreatment of the slides with RNase and pepsin followed by post-fixation with formalin buffer was required to reduce the background. Slides were soaked in 2 × SSC for 5 min at 21 °C on a shaking platform (20 × SSC is 3 M sodium chloride and 300mM tri-sodium citrate, pH 7.0). Slides were then placed into a Coplin jar with RNase solution (RNase solution: 50 μg/mL in 2 × SSC) and incubated for 15 min at 37 °C, then washed with 2 × SSC for 3 min on a shaker. Tissue sections were then treated with pepsin-buffer at 37 °C for 20 min (without agitation) (pepsin buffer: freshly prepared 50 μg/mL pepsin in 0.01 M HCl, pre-warmed to 37 °C). Sections were then washed twice for 5 min with 50 mM MgCl2 (in 1 × PBS) at 21 °C before they were dehydrated in an ethanol series (70%, 85%, 100%; 3 min each) and air dried.

3.4. Image Acquisition and Analysis

Fluorescence microscopy was performed on a Zeiss Axioskop or Axiovert.A1 microscope (Carl Zeiss GmbH, Oberkochen, Germany) equipped with a quadruple filter set for single wavelength excitation and observation of either DAPI, FITC, Texas Red/rhodamine/Cy3.5 or Cy5/Cy5.5 fluorescence (84000v2 Quad, ChromaTechnology, Brattleboro, VT, USA). Images were collected using an Axiocam HR camera (Carl Zeiss GmbH), and image processing was done using the Axiovision software (Carl Zeiss GmbH) or Photoshop software (Adobe, Inc., Mountain View, CA, USA).

4. Conclusions

For the fetal medicine specialist and neonatologists, greater clinical significance lies with the few embryos carrying a rare trisomy 16 mosaic aberration, which do not die in utero. “Confined placental mosaicism” (CPM) is used to describe trisomy 16 mosaicism, as the trisomic cells are predominantly confined to the placenta [46,77,78]. CPM mosaicism for trisomy 16 diagnosed at amniocentesis or chorion villous biopsy can bear a great dilemma for genetic counseling, as the pregnancy outcome is overall poor, but difficult to predict [53,54]. Among the fetuses reaching viability, up to 45% have at least one malformation, predominantly congenital heart defects, but also pulmonary, genitourinary, gastrointestinal or craniofacial anomalies. There is a significant increased risk of severe intrauterine growth restriction and preterm delivery, with consecutively high perinatal morbidity and mortality [79].
Irrespective of the clinical context, this state-of-the-art technique for identification, preparation and hybridization of FISH probes has the potential to take the feasibility and applicability of clinical investigations utilizing chromosome-specific DNA repeats to a whole new level [7,30]. At last, routine testing, as well as larger-scale studies, can be affordable, reliably delivered and readily adapted by smaller, clinical, non-academic laboratories.
In addition, since cells deriving from a failed trisomy 16 pregnancy are unique and readily identifiable, it would be feasible and of interest to use tailor-made probes, as described in this communication, to search for persistent fetal cells in maternal peripheral blood. The fate of these cells or, indeed, their significance is not yet understood.
It is important to note that the use of BAC clones for probe preparation is significantly faster and more efficient than the preparation of probes from yeast artificial chromosomes [80]. In our experience, the clones can be grown much faster, and BAC-derived probes need little or no optimization, so that the cycle from probe selection to hybridization results is reduced to less than half the time [45].

Acknowledgements

The skillful assistance of guests and staff of the Weier laboratory, LBNL, is gratefully acknowledged. This work was supported in part by a grant from the Leonard Rosenman Fund (BOB) and NIH grants CA123370, HD45736, CA132815 and CA136685 (HUW), carried out at the Earnest Orlando Lawrence Berkeley National Laboratory, under contract DE-AC02-05CH11231.
  • DisclaimerThis document was prepared as an account of work sponsored by the United States Government. While this document is believed to contain correct information, neither the United States Government nor any agency thereof, nor The Regents of the University of California, nor any of their employees, makes any warranty, express or implied, or assumes any legal responsibility for the accuracy, completeness, or usefulness of any information, apparatus, product, or process disclosed, or represents that its use would not infringe privately owned rights. Reference herein to any specific commercial product, process, or service by its trade name, trademark, manufacturer, or otherwise, does not necessarily constitute or imply its endorsement, recommendation, or favoring by the United States Government or any agency thereof, or The Regents of the University of California. The views and opinions of authors expressed herein do not necessarily state or reflect those of the United States Government or any agency thereof, or The Regents of the University of California.
  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Weier, H.U.; Weier, J.F.; Renom, M.O.; Zheng, X.; Colls, P.; Nureddin, A.; Pham, C.D.; Chu, L.W.; Racowsky, C.; Munne, S. Fluorescence in situ hybridization and spectral imaging analysis of human oocytes and first polar bodies. J. Histochem. Cytochem 2005, 53, 269–272. [Google Scholar]
  2. Magli, M.C.; Gianaroli, L.; Crippa, A.; Munne, S.; Robles, F.; Ferraretti, A.P. Aneuploidies of chromosomes 1, 4, and 6 are not compatible with human embryos’ implantation. Fertil. Steril 2010, 94, 2012–2016. [Google Scholar]
  3. Kohn, G.; Ornoy, A.; Ben-Tsur, Z.; Sadovsky, E.; Cohen, M.M. Successive spontaneous abortions with diverse chromosomal aberrations in human translocation heterozygote. Teratology 1975, 12, 283–289. [Google Scholar]
  4. Hook, E.B.; Schreinemachers, D.M.; Willey, A.M.; Cross, P.K. Rates of mutant structural chromosome rearrangements in human fetuses: Data from prenatal cytogenetic studies and associations with maternal age and parental mutagen exposure. Am. J. Hum. Genet 1983, 35, 96–109. [Google Scholar]
  5. Callen, D.F.; Ringenbergs, M.L.; Fowler, J.C.; Freemantle, C.J.; Haan, E.A. Small marker chromosomes in man: Origin from pericentric heterochromatin of chromosomes 1, 9, and 16. J. Med. Genet 1990, 27, 155–159. [Google Scholar]
  6. Benadiva, C.A.; Kligman, I.; Munne, S. Aneuploidy 16 in human embryos increases significantly with maternal age. Fertil. Steril 1996, 66, 248–255. [Google Scholar]
  7. Munne, S.; Magli, C.; Bahce, M.; Fung, J.; Legator, M.; Morrison, L.; Cohert, J.; Gianaroli, L. Preimplantation diagnosis of the aneuploidies most commonly found in spontaneous abortions and live births: XY, 13, 14, 15, 16, 18, 21, 22. Prenat. Diagn 1998, 18, 1459–1466. [Google Scholar]
  8. Starke, H.; Nietzel, A.; Weise, A.; Heller, A.; Mrasek, K.; Belitz, B.; Kelbova, C.; Volleth, M.; Albrecht, B.; Mitulla, B.; et al. Small supernumerary marker chromosomes (SMCs): Genotype-phenotype correlation and classification. Hum. Genet 2003, 114, 51–67. [Google Scholar]
  9. Pflueger, S.M.V. Cytogenetics of spontaneous abortion. In The Principles of Clinical Cytogenetics, 2nd ed; Gersen, S.L., Keagle, M.B., Eds.; Humana Press Inc: Totowa, NJ, USA, 2005; pp. 323–345. [Google Scholar]
  10. Malmanche, N.; Maia, A.; Sunkel, C.E. The spindle assembly checkpoint: Preventing chromosome mis-segregation during mitosis and meiosis. FEBS Lett 2006, 580, 2888–2895. [Google Scholar]
  11. Colls, P.; Silver, L.; Olivera, G.; Weier, J.; Escudero, T.; Goodall, N.; Tomkin, G.; Munne, S. Preimplantation genetic diagnosis for gender selection in the USA. Reprod. Biomed. Online 2009, 19, 16–22. [Google Scholar]
  12. Hassold, T.J.; Jacobs, P.A. Trisomy in man. Annu. Rev. Genet 1984, 18, 69–97. [Google Scholar]
  13. Hassold, T.J. Chromosome abnormalities in human reproductive wastage. Trends Genet. 1986, 105–110. [Google Scholar]
  14. Lee, A.J.; Endesfelder, D.; Rowan, A.J.; Walther, A.; Birkbak, N.J.; Futreal, P.A.; Downward, J.; Szallasi, Z.; Tomlinson, I.P.; Howell, M.; et al. Chromosomal instability confers intrinsic multidrug resistance. Cancer Res 2011, 71, 1858–1870. [Google Scholar]
  15. Lathi, R.B.; Westphal, L.M.; Milki, A.A. Aneuploidy in the miscarriages of infertile women and the potential benefit of preimplanation genetic diagnosis. Fertil. Steril 2008, 89, 353–357. [Google Scholar]
  16. Lichter, P.; Ward, D.C. Is non-isotopic in situ hybridization finally coming of age? Nature 1990, 345, 93–94. [Google Scholar]
  17. Weier, H.U.; Lucas, J.N.; Poggensee, M.; Segraves, R.; Pinkel, D.; Gray, J.W. Two-color hybridization with high complexity chromosome-specific probes and a degenerate alpha satellite probe DNA allows unambiguous discrimination between symmetrical and asymmetrical translocations. Chromosoma 1991, 100, 371–376. [Google Scholar]
  18. Weier, H.-U.; Pinkel, D.; Gray, J.W. Whole-chromosome complementary probe fluorescence staining. In Molecular Biology and Biotechnology; Meyers, R.A., Ed.; VCH Verlagsgesellschaft: Weinheim, Germany, 1995; pp. 965–968. [Google Scholar]
  19. Zitzelsberger, H.; Bruch, J.; Smida, J.; Hieber, L.; Peddie, C.M.; Bryant, P.E.; Riches, A.C.; Fung, J.; Weier, H.U.; Bauchinger, M. Clonal chromosomal aberrations in simian virus 40-transfected human thyroid cells and in derived tumors developed after in vitro irradiation. Int. J. Cancer 2001, 96, 166–177. [Google Scholar]
  20. Liehr, T.; Weise, A.; Heller, A.; Starke, H.; Mrasek, K.; Kuechler, A.; Weier, H.U.; Claussen, U. Multicolor chromosome banding (MCB) with YAC/BAC-based probes and region-specific microdissection DNA libraries. Cytogenet. Genome Res 2002, 97, 43–50. [Google Scholar]
  21. Zitzelsberger, H.; O’Brien, B.; Weier, H.U. Multicolor FISH techniques for the detection of inter- and intrachromosomal rearrangements. In FISH Technology; Rautenstrauss, B., Liehr, T., Eds.; Springer Verlag: Heidelberg, Germany, 2002; pp. 408–424. [Google Scholar]
  22. Liehr, T.; Nietzel, A.; Starke, H.; Heller, A.; Weise, A.; Kuechler, A.; Senger, G.; Ebner, S.; Martin, T.; Stumm, M.; et al. Characterization of small marker chromosomes (SMC) by recently developed molecular cytogenetic approaches. J. Assoc. Genet. Technol 2003, 29, 5–10. [Google Scholar]
  23. O’Brien, B.; Jossart, G.H.; Ito, Y.; Greulich-Bode, K.M.; Weier, J.F.; Munne, S.; Clark, O.H.; Weier, H.U.G. Chromosomal Rainbows’ detect oncogenic rearrangements of signaling molecules in thyroid tumors. Open Cell Signal. J 2010, 2, 13–21. [Google Scholar]
  24. Jossart, G.H.; O’Brien, B.; Cheng, J.F.; Tong, Q.; Jhiang, S.M.; Duh, Q.; Clark, O.H.; Weier, H.U. A novel multicolor hybridization scheme applied to localization of a transcribed sequence (D10S170/H4) and deletion mapping in the thyroid cancer cell line TPC-1. Cytogenet. Cell Genet 1996, 75, 254–257. [Google Scholar]
  25. Cassel, M.J.; Munne, S.; Fung, J.; Weier, H.U. Carrier-specific breakpoint-spanning DNA probes: An approach to preimplantation genetic diagnosis in interphase cells. Hum. Reprod 1997, 12, 2019–2027. [Google Scholar]
  26. Weier, H.U.; Rhein, A.P.; Shadravan, F.; Collins, C.; Polikoff, D. Rapid physical mapping of the human trk protooncogene (NTRK1) to human chromosome 1q21-q22 by P1 clone selection, fluorescence in situ hybridization (FISH), and computer-assisted microscopy. Genomics 1995, 26, 390–393. [Google Scholar]
  27. Greulich, K.M.; Kreja, L.; Heinze, B.; Rhein, A.P.; Weier, H.G.; Bruckner, M.; Fuchs, P.; Molls, M. Rapid detection of radiation-induced chromosomal aberrations in lymphocytes and hematopoietic progenitor cells by mFISH. Mutat. Res 2000, 452, 73–81. [Google Scholar]
  28. Greulich-Bode, K.M.; Wang, M.; Rhein, A.P.; Weier, J.F.; Weier, H.U. Validation of DNA probes for molecular cytogenetics by mapping onto immobilized circular DNA. Mol. Cytogenet 2008, 1, 28. [Google Scholar]
  29. Chen, X.N.; Korenberg, J.R. BAC resource for molecular cytogenetics. Methods Mol. Biol 2002, 204, 391–403. [Google Scholar]
  30. Munne, S.; Howles, C.M.; Wells, D. The role of preimplantation genetic diagnosis in diagnosing embryo aneuploidy. Curr. Opin. Obstet. Gynecol 2009, 21, 442–449. [Google Scholar]
  31. Weier, H.U.; Segraves, R.; Pinkel, D.; Gray, J.W. Synthesis of Y chromosome-specific labeled DNA probes by in vitro DNA amplification. J. Histochem. Cytochem 1990, 38, 421–426. [Google Scholar]
  32. Munne, S.; Grifo, J.; Cohen, J.; Weier, H.U. Chromosome abnormalities in human arrested preimplantation embryos: A multiple-probe FISH study. Am. J. Hum. Genet 1994, 55, 150–159. [Google Scholar]
  33. Weier, H.U.; Polikoff, D.; Fawcett, J.J.; Greulich, K.M.; Lee, K.H.; Cram, S.; Chapman, V.M.; Gray, J.W. Generation of five high-complexity painting probe libraries from flow-sorted mouse chromosomes. Genomics 1994, 21, 641–644. [Google Scholar]
  34. Munne, S.; Sultan, K.M.; Weier, H.U.; Grifo, J.A.; Cohen, J.; Rosenwaks, Z. Assessment of numeric abnormalities of X, Y, 18, and 16 chromosomes in preimplantation human embryos before transfer. Am. J. Obstet. Gynecol 1995, 172, 1191–1199. [Google Scholar]
  35. Munne, S.; Weier, H.U. Simultaneous enumeration of chromosomes 13, 18, 21, X, and Y in interphase cells for preimplantation genetic diagnosis of aneuploidy. Cytogenet. Cell Genet 1996, 75, 263–270. [Google Scholar]
  36. Weier, H.U.; Tuton, T.B.; Ito, Y.; Chu, L.W.; Lu, C.M.; Baumgartner, A.; Zitzelsberger, H.F.; Weier, J.F. Molecular cytogenetic characterization of chromosome 9-derived material in a human thyroid cancer cell line. Cytogenet. Genome Res 2006, 114, 284–291. [Google Scholar]
  37. Lu, C.M.; Kwan, J.; Baumgartner, A.; Weier, J.F.; Wang, M.; Escudero, T.; Munne, S.; Zitzelsberger, H.F.; Weier, H.U. DNA probe pooling for rapid delineation of chromosomal breakpoints. J. Histochem. Cytochem 2009, 57, 587–597. [Google Scholar]
  38. Zeng, H.; Weier, H.U.G.; Kwan, J.; Wang, M.; O’Brien, B. Data mining empowers the generation of a novel class of chromosome-specific DNA probes. J. Data Min. Genomics Proteomics 2011, 2, 108. [Google Scholar]
  39. Christensen, B.; Bryndorf, T.; Philip, J.; Lundsteen, C.; Hansen, W. Rapid prenatal diagnosis of trisomy 18 and triploidy in interphase nuclei of uncultured amniocytes by non-radioactive in situ hybridization. Prenat. Diagn 1992, 12, 241–250. [Google Scholar]
  40. Waye, J.S.; Durfy, S.J.; Pinkel, D.; Kenwrick, S.; Patterson, M.; Davies, K.E.; Willard, H.F. Chromosome-specific alpha satellite DNA from human chromosome 1: Hierarchical structure and genomic organization of a polymorphic domain spanning several hundred kilobase pairs of centromeric DNA. Genomics 1987, 1, 43–51. [Google Scholar]
  41. Waye, J.S.; Willard, H.F. Concerted evolution of alpha satellite DNA: Evidence for species specificity and a general lack of sequence conservation among alphoid sequences of higher primates. Chromosoma 1989, 98, 273–279. [Google Scholar]
  42. Weier, H.U.; Kleine, H.D.; Gray, J.W. Labeling of the centromeric region on human chromosome 8 by in situ hybridization. Hum. Genet 1991, 87, 489–494. [Google Scholar]
  43. Weier, H.U.; Gray, J.W. A degenerate alpha satellite probe, detecting a centromeric deletion on chromosome 21 in an apparently normal human male, shows limitations of the use of satellite DNA probes for interphase ploidy analysis. Anal. Cell. Pathol 1992, 4, 81–86. [Google Scholar]
  44. Baumgartner, A.; Weier, J.F.; Weier, H.U. Chromosome-specific DNA repeat probes. J. Histochem. Cytochem 2006, 54, 1363–1370. [Google Scholar]
  45. Lu, C.M.; Kwan, J.; Weier, J.F.; Baumgartner, A.; Wang, M.; Escudero, T.; Munne, S.; Weier, H.U. Rapid mapping of chromosomal breakpoints: from blood to BAC in 20 days. Folia Histochem. Cytobiol 2009, 47, 367–375. [Google Scholar]
  46. Kalousek, D.K. Pathogenesis of chromosomal mosaicism and its effect on early human development. Am. J. Med. Genet 2000, 91, 39–45. [Google Scholar]
  47. Guze, C. Human genetics-chromosome abnormalities. Carol’s Classroom Website. Available online: http://www.carolguze.com/text/442-5-chromosome_abnormalities.shtml accessed on 13 April 2011.
  48. Philip, J.; Bryndorf, T.; Christensen, B. Prenatal aneuploidy detection in interphase cells by fluorescence in situ hybridization (FISH). Prenat. Diagn 1994, 14, 1203–1215. [Google Scholar]
  49. Bryndorf, T. Development and clinical studies of in situ hybridization techniques in prenatal diagnosis. Dan. Med. Bull 1998, 45, 298–312. [Google Scholar]
  50. Bryndorf, T.; Lundsteen, C.; Lamb, A.; Christensen, B.; Philip, J. Rapid prenatal diagnosis of chromosome aneuploidies by interphase fluorescence in situ hybridization: A one-year clinical experience with high-risk and urgent fetal and postnatal samples. Acta Obstet. Gynecol. Scand 2000, 79, 8–14. [Google Scholar]
  51. Tarailo-Graovac, M.; Chen, N. Using RepeatMasker to identify repetitive elements in genomic sequences. Curr. Protoc. Bioinformatics 2009, 25. [Google Scholar] [CrossRef]
  52. Nakahori, Y.; Mitani, K.; Yamada, M.; Nakagome, Y. A human Y-chromosome specific repeated DNA family (DYZ1) consists of a tandem array of pentanucleotides. Nucleic Acids Res 1986, 14, 7569–7580. [Google Scholar]
  53. Wolstenholme, J. An audit of trisomy 16 in man. Prenat. Diagn 1995, 15, 109–121. [Google Scholar]
  54. Gardner, R.J.M.; Sutherland, G.R. Chromosome Abnormalities and Genetic Counseling, 2nd ed; Oxford University Press: New York, NY, USA, 1996; pp. 59–190. [Google Scholar]
  55. Ancel, P.Y.; Saurel-Cubizolles, M.J.; Di Renzo, G.C.; Papiernik, E.; Breart, G. Risk factors for 14–21 week abortions: A case-control study in Europe. The Europop Group. Hum. Reprod 2000, 15, 2426–2432. [Google Scholar]
  56. Delhanty, J.D.; Harper, J.C.; Ao, A.; Handyside, A.H.; Winston, R.M. Multicolour FISH detects frequent chromosomal mosaicism and chaotic division in normal preimplantation embryos from fertile patients. Hum. Genet 1997, 99, 755–760. [Google Scholar]
  57. Weier, H.U.; Munne, S.; Fung, J. Patient-specific probes for preimplantation genetic diagnosis of structural and numerical aberrations in interphase cells. J. Assist. Reprod. Genet 1999, 16, 182–191. [Google Scholar]
  58. Verlinsky, Y.; Tur-Kaspa, I.; Cieslak, J.; Bernal, A.; Morris, R.; Taranissi, M.; Kaplan, B.; Kuliev, A. Preimplantation testing for chromosomal disorders improves reproductive outcome of poor-prognosis patients. Reprod. Biomed. Online 2005, 11, 219–225. [Google Scholar]
  59. Munné, S. Preimplantation genetic diagnosis for aneuploidy and translocations using array comparative genomic hybridization. Curr. Genomics 2012, 13, 463–470. [Google Scholar]
  60. Practice Committee of Society for Assisted Reproductive Technology and Practice Committee of American Society for Reproductive Medicine. Preimplantation genetic testing: A Practice Committee opinion. Fertil. Steril. 2007, 88, 1497–1504.
  61. Soini, S.; Ibarreta, D.; Anastasiadou, V.; Ayme, S.; Braga, S.; Cornel, M.; Coviello, D.A.; Evers-Kiebooms, G.; Geraedts, J.; Gianaroli, L.; et al. The interface between assisted reproductive technologies and genetics: Technical, social, ethical and legal issues. Eur. J. Hum. Genet 2006, 14, 588–645. [Google Scholar]
  62. Otani, T.; Roche, M.; Mizuike, M.; Colls, P.; Escudero, T.; Munne, S. Preimplantation genetic diagnosis significantly improves the pregnancy outcome of translocation carriers with a history of recurrent miscarriage and unsuccessful pregnancies. Reprod. Biomed. Online 2006, 13, 869–874. [Google Scholar]
  63. Fiorentino, F.; Kokkali, G.; Biricik, A.; Stavrou, D.; Ismailoglu, B.; de Palma, R.; Arizzi, L.; Harton, G.; Sessa, M.; Pantos, K. Polymerase chain reaction-based detection of chromosomal imbalances on embryos: The evolution of preimplantation genetic diagnosis for chromosomal translocations. Fertil. Steril 2010, 94, 2001–2011. [Google Scholar]
  64. Cooke, H.J.; Hindley, J. Cloning of human satellite III DNA: Different components are on different chromosomes. Nucleic Acids Res 1979, 6, 3177–3197. [Google Scholar]
  65. Cooke, H.J.; McKay, R.D. Evolution of a human Y chromosome-specific repeated sequence. Cell 1978, 13, 453–460. [Google Scholar]
  66. Weier, H.U.; Reitsma, M.; Gray, J.W. Detection of fetal cells by in vitro DNA amplification. Analyt. Cell. Pathol 1989, 1, 313. [Google Scholar]
  67. Weier, H.U.; Reitsma, M.; Gray, J.W. Detection of fetal cells by in vitro DNA amplification. In Advances in Analytical Cellular Pathology; Proceedings of the First Conference of the European Society for Analytical Cellular Pathology, Schloss Elmau, F.R.G. Burger, G., Oberholzer, M., Vooijs, G.P., Eds.; Elsevier Science Publishers: Amsterdam, The Netherlands, 1990; pp. 105–106. [Google Scholar]
  68. Gray, J.W.; Weier, H.-U. Y chromosome specific nucleic acid probe and method for determining the Y in situ. U.S. Patent 6300066, 9 October 2001. [Google Scholar]
  69. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol 1990, 215, 403–410. [Google Scholar]
  70. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res 1997, 25, 3389–3402. [Google Scholar]
  71. NCBI/BLAST Home Page. Available online: http://ncbi.nih.gov/blast accessed on 14 December 2012.
  72. Weier, H.U. Quantitative DNA fiber mapping. Methods Cell Biol 2001, 64, 33–53. [Google Scholar]
  73. Weier, H.U.; Wang, M.; Mullikin, J.C.; Zhu, Y.; Cheng, J.F.; Greulich, K.M.; Bensimon, A.; Gray, J.W. Quantitative DNA fiber mapping. Hum. Mol. Genet 1995, 4, 1903–1910. [Google Scholar]
  74. Fung, J.; Hyun, W.; Dandekar, P.; Pedersen, R.A.; Weier, H.U. Spectral imaging in preconception/preimplantation genetic diagnosis of aneuploidy: Multicolor, multichromosome screening of single cells. J. Assist. Reprod. Genet 1998, 15, 323–330. [Google Scholar]
  75. Fung, J.; Weier, H.U.; Pedersen, R.A.; Zitzelsberger, H. Spectral imaging analysis of metaphase and interphase cells. In FISH Technology; Rautenstrauss, B., Liehr, T., Eds.; Springer Verlag: Heidelberg, Germany, 2002; pp. 363–387. [Google Scholar]
  76. Kwan, J.; Baumgartner, A.; Lu, C.M.; Wang, M.; Weier, J.F.; Zitzelsberger, H.F.; Weier, H.U. BAC-FISH assays delineate complex chromosomal rearrangements in a case of post-Chernobyl childhood thyroid cancer. Folia Histochem. Cytobiol 2009, 47, 135–142. [Google Scholar]
  77. Kalousek, D.K.; Vekemans, M. Confined placental mosaicism. J. Med. Genet 1996, 33, 529–533. [Google Scholar]
  78. Benn, P. Trisomy 16 and trisomy 16 Mosaicism: A review. Am. J. Med. Genet 1998, 79, 121–133. [Google Scholar]
  79. Yong, P.J.; Barrett, I.J.; Kalousek, D.K.; Robinson, W.P. Clinical aspects, prenatal diagnosis, and pathogenesis of trisomy 16 mosaicism. J. Med. Genet 2003, 40, 175–182. [Google Scholar]
  80. Fung, J.; Munné, S.; Duell, T.; Weier, H.-U.G. Rapid cloning of translocation breakpoints: From blood to YAC in 50 days. J. Biochem. Mol. Biol. Biophys 1998, 1, 181–192. [Google Scholar]
Ijms 14 00057f1 1024
Figure 1. The percentage of chromosomal trisomies found in miscarriages (after Lathi et al., Fertility and Sterility, 2008 [15] with permission).
Figure 1. The percentage of chromosomal trisomies found in miscarriages (after Lathi et al., Fertility and Sterility, 2008 [15] with permission).
Ijms 14 00057f1
Ijms 14 00057f2 1024

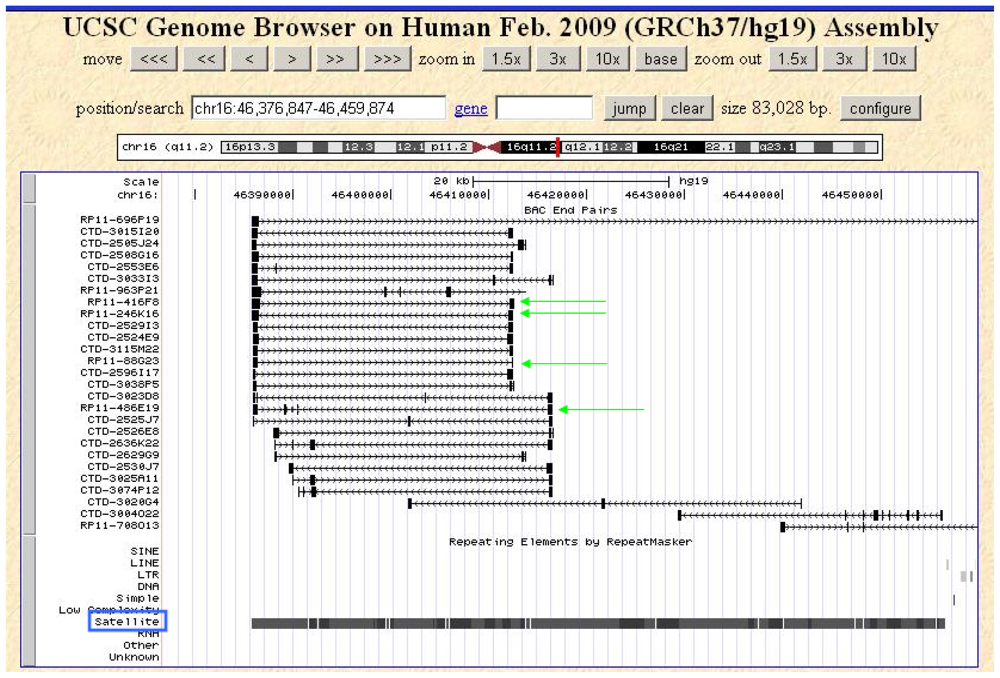

Figure 2. Selection of chromosome 16-specific, satellite DNA-containing bacterial artificial chromosome (BAC) clones. Bioinformatic analysis using RepeatMasker [51] indicated a region of chromosome 16 (vertical red bar in dark section in chromosome 16 ideogram, band 16q11.2 shown on top of the figure) that contains a dense assembly of tandemly repeated satellite DNA (blue box), but is free of other interspersed DNA repeats, which are not chromosome-specific. Four clones within this region were chosen for the present analysis (green arrows).
Figure 2. Selection of chromosome 16-specific, satellite DNA-containing bacterial artificial chromosome (BAC) clones. Bioinformatic analysis using RepeatMasker [51] indicated a region of chromosome 16 (vertical red bar in dark section in chromosome 16 ideogram, band 16q11.2 shown on top of the figure) that contains a dense assembly of tandemly repeated satellite DNA (blue box), but is free of other interspersed DNA repeats, which are not chromosome-specific. Four clones within this region were chosen for the present analysis (green arrows).
Ijms 14 00057f2
Ijms 14 00057f3 1024
Figure 3. Results of in situ hybridization of chromosome X and Y BAC probes. (A) Dual color hybridization showing highly specific signals on the X (red) and Y (green) chromosomes in metaphase cells. The two diploid interphase cell nuclei from a normal male donor show the expected pair of single signals. (B) The approximate locations of the hybridization targets shown along ideograms of the human X and Y chromosomes.
Figure 3. Results of in situ hybridization of chromosome X and Y BAC probes. (A) Dual color hybridization showing highly specific signals on the X (red) and Y (green) chromosomes in metaphase cells. The two diploid interphase cell nuclei from a normal male donor show the expected pair of single signals. (B) The approximate locations of the hybridization targets shown along ideograms of the human X and Y chromosomes.
Ijms 14 00057f3
Ijms 14 00057f4 1024
Figure 4. Results of in situ hybridization of a chromosome 16 BAC probe on metaphase spreads of ‘normal’ cells. (A) The dual color FISH results showing a normal diploid metaphase spread. The DAPI DNA counterstain is shown in gray; (B) Schematic diagram illustrating the relative positions of the chromosome 16 whole chromosome painting probe (Coatasome-16, Oncor) and the biotinylated DNA repeat probe prepared from BAC RP11-486E19 (detected with avidin-FITC, green).
Figure 4. Results of in situ hybridization of a chromosome 16 BAC probe on metaphase spreads of ‘normal’ cells. (A) The dual color FISH results showing a normal diploid metaphase spread. The DAPI DNA counterstain is shown in gray; (B) Schematic diagram illustrating the relative positions of the chromosome 16 whole chromosome painting probe (Coatasome-16, Oncor) and the biotinylated DNA repeat probe prepared from BAC RP11-486E19 (detected with avidin-FITC, green).
Ijms 14 00057f4
Ijms 14 00057f5 1024
Figure 5. Hybridization of the chromosome 16-specific DNA probe to 8 μm thick tissue sections cut from human placenta tissue. (A) Without proteolytic pretreatment, tissue sections stored for about eight years at ambient temperature showed a large amount of unspecific probe binding; (B) A combined RNAse/pepsin pretreatment eliminated unspecific binding, thus greatly facilitating signal enumeration.
Figure 5. Hybridization of the chromosome 16-specific DNA probe to 8 μm thick tissue sections cut from human placenta tissue. (A) Without proteolytic pretreatment, tissue sections stored for about eight years at ambient temperature showed a large amount of unspecific probe binding; (B) A combined RNAse/pepsin pretreatment eliminated unspecific binding, thus greatly facilitating signal enumeration.
Ijms 14 00057f5
Table
Table 1. Selection of BAC clones specific for satellite-rich regions of chromosomes X, Y and 16.
Table 1. Selection of BAC clones specific for satellite-rich regions of chromosomes X, Y and 16.
BACChr.BandStart (bp) *End (bp) *Insert (bp)BAC End Sequence Accession Number
RP11-242E13Yq12multiplemultiple98295AC068123
RP11-348G24Xp11.158,356,06158,564,667208607AQ528470, AQ528473
RP11-88G2316q11.246,385,82246,412,44526624AQ285754, AQ285753
RP11-246K1616q11.246,385,80846,412,48526678AQ478385, AQ478388
RP11-416F816q11.246,385,80846,412,48526678AQ551230, AQ661227
RP11-486E1916q11.246,385,92146,412,47026550AQ629869, AQ629871
Note:
*Data obtained from the National Center for Biotechnology Information (NCBI), National Institute of Health, mapviewer page, Build 37.2.

Share and Cite

MDPI and ACS Style

Hsu, J.H.; Zeng, H.; Lemke, K.H.; Polyzos, A.A.; Weier, J.F.; Wang, M.; Lawin-O'Brien, A.R.; Weier, H.-U.G.; O'Brien, B. Chromosome-Specific DNA Repeats: Rapid Identification in Silico and Validation Using Fluorescence in Situ Hybridization. Int. J. Mol. Sci. 2013, 14, 57-71. https://doi.org/10.3390/ijms14010057

AMA Style

Hsu JH, Zeng H, Lemke KH, Polyzos AA, Weier JF, Wang M, Lawin-O'Brien AR, Weier H-UG, O'Brien B. Chromosome-Specific DNA Repeats: Rapid Identification in Silico and Validation Using Fluorescence in Situ Hybridization. International Journal of Molecular Sciences. 2013; 14(1):57-71. https://doi.org/10.3390/ijms14010057

Chicago/Turabian Style

Hsu, Joanne H., Hui Zeng, Kalistyn H. Lemke, Aris A. Polyzos, Jingly F. Weier, Mei Wang, Anna R. Lawin-O'Brien, Heinz-Ulrich G. Weier, and Benjamin O'Brien. 2013. "Chromosome-Specific DNA Repeats: Rapid Identification in Silico and Validation Using Fluorescence in Situ Hybridization" International Journal of Molecular Sciences 14, no. 1: 57-71. https://doi.org/10.3390/ijms14010057

APA Style

Hsu, J. H., Zeng, H., Lemke, K. H., Polyzos, A. A., Weier, J. F., Wang, M., Lawin-O'Brien, A. R., Weier, H.-U. G., & O'Brien, B. (2013). Chromosome-Specific DNA Repeats: Rapid Identification in Silico and Validation Using Fluorescence in Situ Hybridization. International Journal of Molecular Sciences, 14(1), 57-71. https://doi.org/10.3390/ijms14010057

Article Metrics

Back to TopTop
