Molecular Modelling Study of the PPARγ Receptor in Relation to the Mode of Action/Adverse Outcome Pathway Framework for Liver Steatosis
Abstract
:1. Introduction
2. Results and Discussion

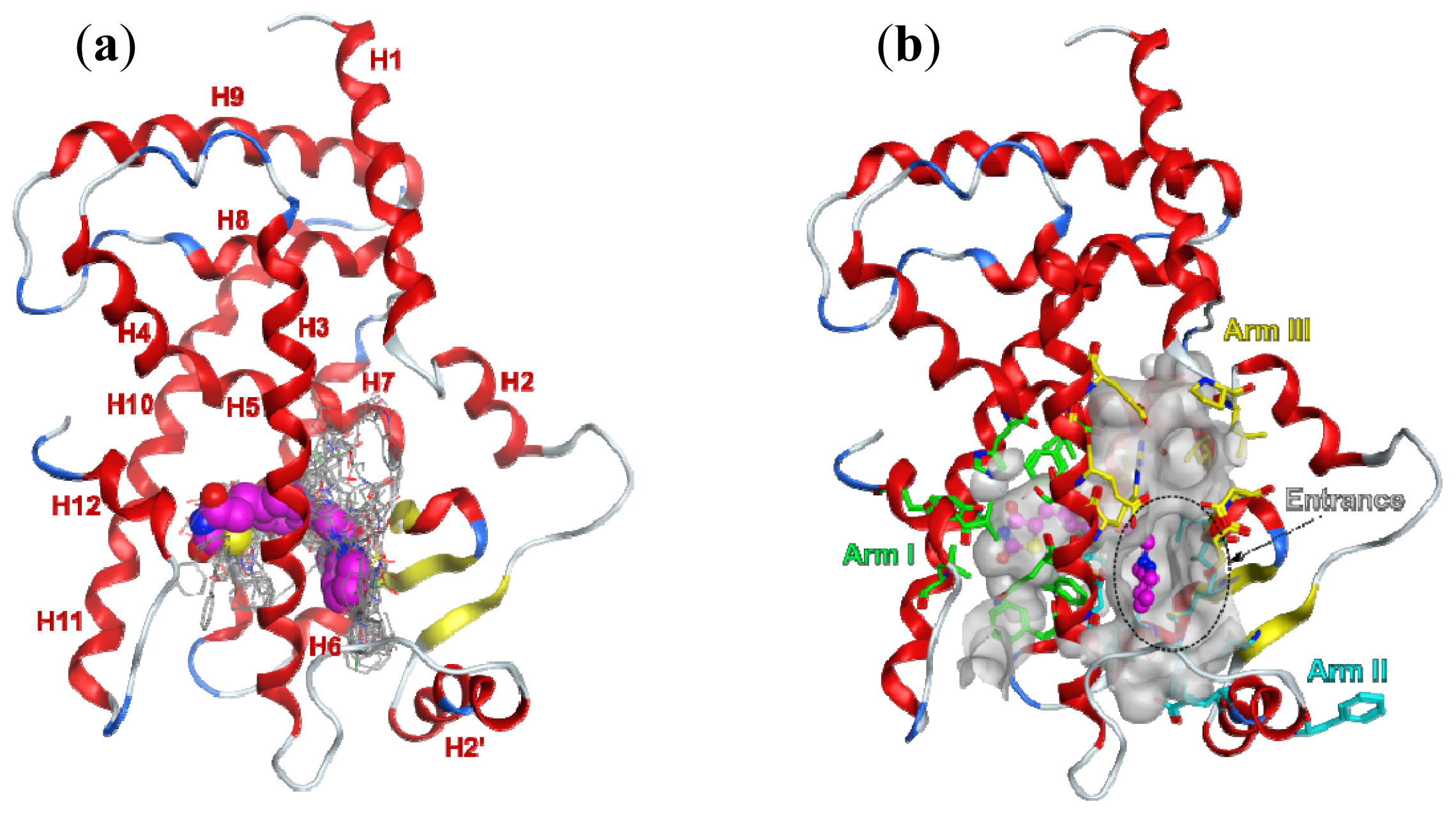

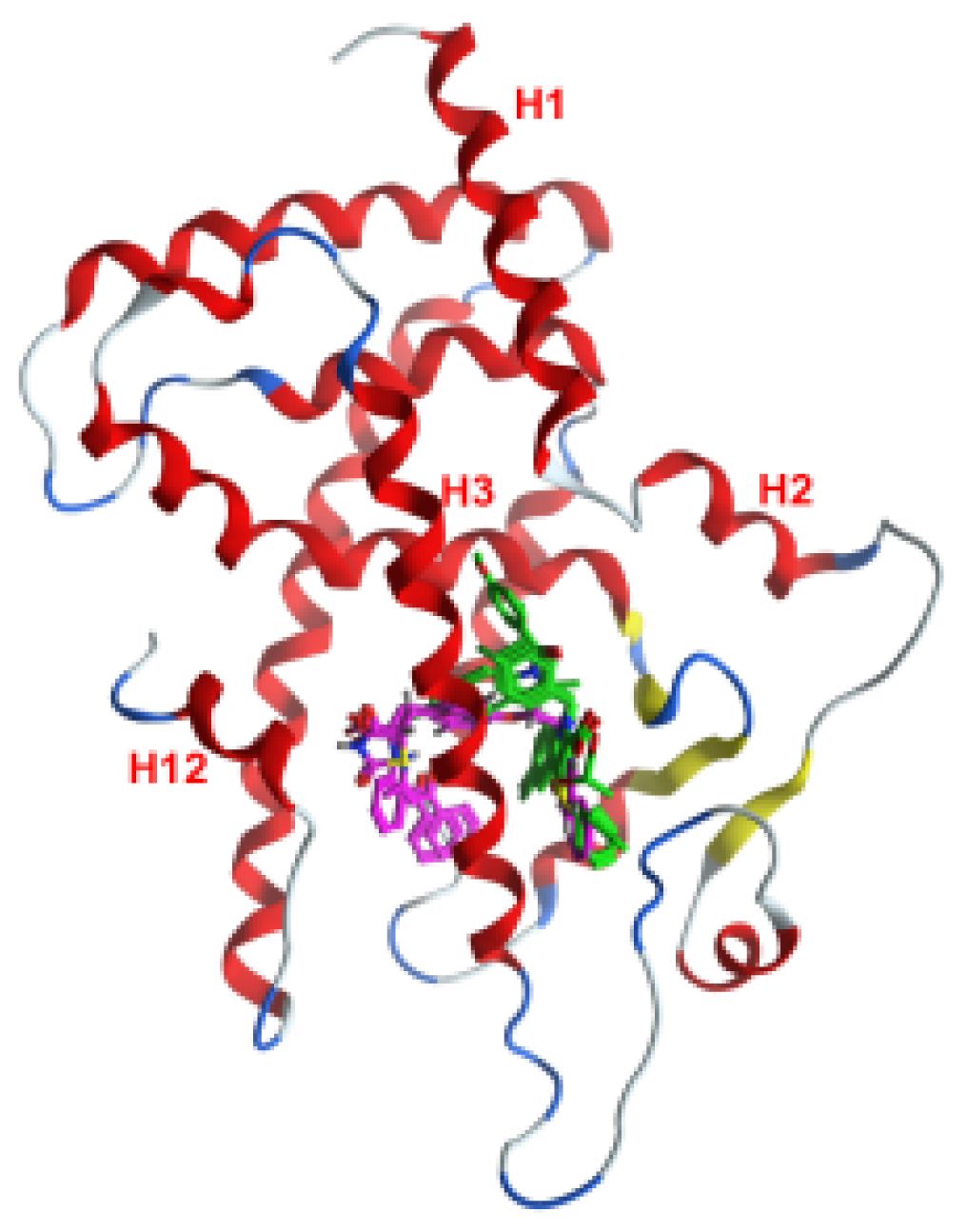

2.1. Analysis of the PPARγ LBD and Ligand-Receptor Interactions
2.2. Pharmacophore Development
3. Experimental Section
3.1. PPARγ Structural and Activity Data
3.2. Preparation of the Protein Structures (Protonate 3D)
3.3. Analysis of the Ligand-Receptor Interactions

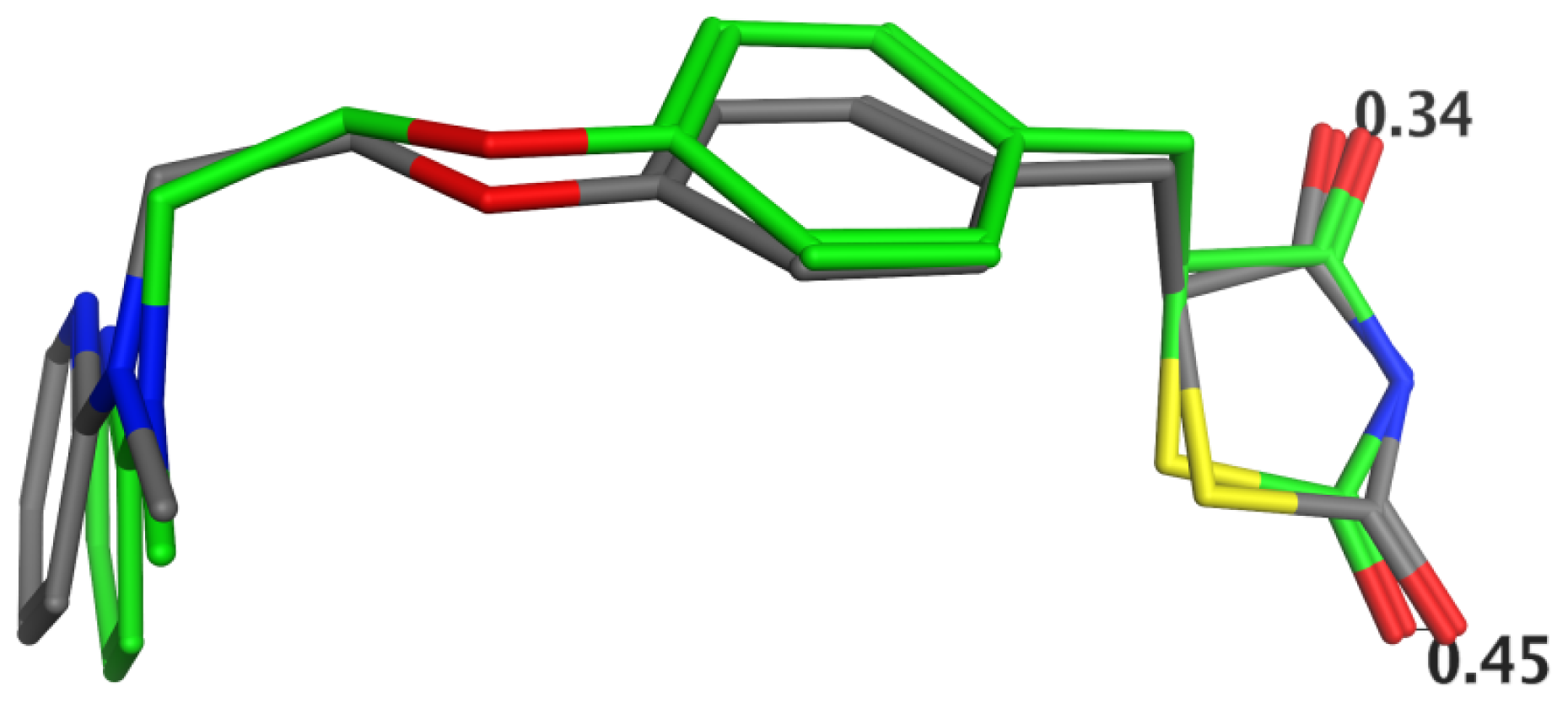

3.4. Superposition of the Complexes
3.5. Pharmacophore Development
4. Conclusions
Supplementary Information
ijms-15-07651-s001.pdfAcknowledgments
Conflicts of Interest
References
- Cronin, M.T.D.; Richarz, A.N. Mode of action working group: Use of mode of action related to repeated dose systemic toxicity—A framework for capturing Information. In Towards the Replacement of in Vivo Repeated Dose Systemic Toxicity Testing; Gocht, T., Schwarz, M., Eds.; Imprimerie: Mouzet, France, 2012; Volume 2, pp. 284–289. [Google Scholar]
- Organisation for Economic Co-operation and Development (OECD), Guidance Document on Developing and Assessing Adverse Outcome Pathways. In Series on Testing and Assessment No. 184; OECD: Paris, France, 2013.
- Fioravanzo, E.; Bassan, A.; Cronin, M.T.D.; Kovarich, S.; Manelfi, C.; Richarz, A.N.; Tsakovska, I.; Worth, A.P. Molecular modelling of LXR binding to evaluate the potential for liver steatosis. Toxicol. Lett 2013, 221, S83. [Google Scholar]
- Al Sharif, M.; Alov, P.; Cronin, M.; Fioravanzo, E.; Tsakovska, I.; Vitcheva, V.; Worth, A.; Yang, C.; Pajeva, I. Toward better understanding of liver steatosis MoA: Molecular modelling study of PPAR gamma receptor. Toxicol. Lett 2013, 221, S85. [Google Scholar]
- Al Sharif, M.; Alov, P.; Vitcheva, V.; Pajeva, I.; Tsakovska, I. Modes-of-action related to repeated dose toxicity: Tissue-specific biological roles of PPARγ ligand-dependent dysregulation in nonalcoholic fatty liver disease. PPAR Res 2014, 2014, 432647:1–432647:13. [Google Scholar]
- Landesmann, B.; Goumenou, M.; Munn, S.; Whelan, M. Description of Prototype Modes-Of-Action Related to Repeated dose Toxicity. Reference Report by the Joint Research Centre of the European Commission, Institute for Health and Consumer Protection. 2012. 40 Pages, EUR 25631 EN. Available online: http://publications.jrc.ec.europa.eu accessed on 27 March 2014.
- Costa, V.; Gallo, M.A.; Letizia, F.; Aprile, M.; Casamassimi, A.; Ciccodicola, A. PPARG: Gene expression regulation and next-generation sequencing for unsolved issues. PPAR Res 2010, 2010, 409168:1–409168:17. [Google Scholar]
- Kouskoumvekaki, I.; Petersen, R.K.; Fratev, F.; Taboureau, O.; Nielsen, T.E.; Oprea, T.I.; Sonne, S.B.; Flindt, E.N.; Jónsdóttir, S.Ó.; Kristiansen, K. Discovery of a Novel Selective PPARγ Ligand with Partial Agonist Binding Properties by Integrated in Silico/in Vitro Work Flow. J. Chem. Inf. Model 2013, 53, 923–937. [Google Scholar]
- Day, C. Thiazolidinediones: A new class of antidiabetic drugs. Diabet. Med 1999, 16, 179–192. [Google Scholar]
- Moya, M.; Gómez-Lechón, M.J.; Castell, J.V.; Jover, R. Enhanced steatosis by nuclear receptor ligands: A study in cultured human hepatocytes and hepatoma cells with a characterized nuclear receptor expression profile. Chem. Biol. Interact 2010, 184, 376–387. [Google Scholar]
- Pan, H.J.; Lin, Y.; Chen, Y.E.; Vance, D.E.; Leiter, E.H. Adverse hepatic and cardiac responses to rosiglitazone in a new mouse model of type 2 diabetes: Relation to dysregulated phosphatidylcholine metabolism. Vascul. Pharmacol 2006, 45, 65–71. [Google Scholar]
- Bruning, J.B.; Chalmers, M.J.; Prasad, S.; Busby, S.A.; Kamenecka, T.M.; He, Y.; Nettles, K.W.; Griffin, P.R. Partial agonists activate PPARgamma using a helix 12 independent mechanism. Structure 2007, 15, 1258–1271. [Google Scholar]
- Guasch, L.; Sala, E.; Castell-Auví, A.; Cedó, L.; Liedl, K.R.; Wolber, G.; Muehlbacher, M.; Mulero, M.; Pinent, M.; Ardévol, A.; et al. Identification of PPARgamma partial agonists of natural origin (I): Development of a virtual screening procedure and in vitro validation. PLoS One 2012, 7, e50816. [Google Scholar]
- Berman, H.M.; Westbrook, J.; Feng, Z.; Gilliland, G.; Bhat, T.N.; Weissig, H.; Shindyalov, I.N.; Bourne, P.E. The protein data bank. Nucleic Acids Res 2000, 28, 235–242. [Google Scholar]
- Waku, T.; Shiraki, T.; Oyama, T.; Maebara, K.; Nakamori, R.; Morikawa, K. The nuclear receptor PPARγ individually responds to serotonin- and fatty acid- metabolites. EMBO J 2010, 29, 3395–3407. [Google Scholar]
- Itoh, T.; Fairall, L.; Amin, K.; Inaba, Y.; Szanto, A.; Balint, B.L.; Nagy, L.; Yamamoto, K.; Schwabe, J.W. Structural basis for the activation of PPARγ by oxidized fatty acids. Nat. Struct. Mol. Biol 2008, 15, 924–931. [Google Scholar]
- Li, Y.; Zhang, J.; Schopfer, F.J.; Martynowski, D.; Garcia-Barrio, M.T.; Kovach, A.; Suino-Powell, K.; Baker, P.R.; Freeman, B.A.; Chen, Y.E.; et al. Molecular recognition of nitrated fatty acids by PPARγ. Nat. Struct. Mol. Biol 2008, 15, 865–867. [Google Scholar]
- Gampe, R.T., Jr.; Montana, V.G.; Lambert, M.H.; Miller, A.B.; Bledsoe, R.K.; Milburn, M.V.; Kliewer, S.A.; Willson, T.M.; Xu, H.E. Asymmetry in the PPARgamma/RXRalpha crystal structure reveals the molecular basis of heterodimerization among nuclear receptors. Mol Cell 2000, 5, 545–555. [Google Scholar]
- Liberato, M.V.; Nascimento, A.S.; Ayers, S.D.; Lin, J.Z.; Cvoro, A.; Silveira, R.L.; Martínez, L.; Souza, P.C.; Saidemberg, D.; Deng, T.; et al. Medium chain fatty acids are selective peroxisome proliferator activated receptor (PPAR)γ activators and pan-PPAR partial agonists. PLoS One 2012, 7, e36297. [Google Scholar]
- Chandra, V.; Huang, P.; Hamuro, Y.; Raghuram, S.; Wang, Y.; Burris, T.P.; Rastinejad, F. Structure of the intact PPAR-γ-RXR-nuclear receptor complex on DNA. Nature 2008, 456, 350–356. [Google Scholar]
- Nolte, R.T.; Wisely, G.B.; Westin, S.; Cobb, J.E.; Lambert, M.H.; Kurokawa, R.; Rosenfeld, M.G.; Willson, T.M.; Glass, C.K.; Milburn, M.V. Ligand binding and co-activator assembly of the peroxisome proliferator-activated receptor-gamma. Nature 1998, 395, 137–143. [Google Scholar]
- Li, Y.; Kovach, A.; Suino-Powell, K.; Martynowski, D.; Xu, H.E. Structural and biochemical basis for the binding selectivity of peroxisome proliferator-activated receptor gamma to PGC-1α. J. Biol. Chem 2008, 283, 19132–19139. [Google Scholar]
- Li, Y.; Choi, M.; Suino, K.; Kovach, A.; Daugherty, J.; Kliewer, S.A.; Xu, H.E. Structural and biochemical basis for selective repression of the orphan nuclear receptor liver receptor homolog 1 by small heterodimer partner. Proc. Natl. Acad. Sci. USA 2005, 102, 9505–9510. [Google Scholar]
- Pencheva, T.; Jereva, D.; Miteva, M.; Pajeva, I. Post-docking optimization and analysis of protein-ligand interactions of estrogen receptor alpha using ammos software. Curr. Comput. Aided Drug Des 2012, 9, 83–94. [Google Scholar]
- Xu, H.E.; Lambert, M.H.; Montana, V.G.; Plunket, K.D.; Moore, L.B.; Collins, J.L.; Oplinger, J.A.; Kliewer, S.A.; Gampe, R.T., Jr.; McKee, D.D.; et al. Structural determinants of ligand binding selectivity between the peroxisome proliferator-activated receptors. Proc. Natl. Acad. Sci. USA 2001, 98, 13919–13924. [Google Scholar]
- Ohashi, M.; Oyama, T.; Nakagome, I.; Satoh, M.; Nishio, Y.; Nobusada, H.; Hirono, S.; Morikawa, K.; Hashimoto, Y.; Miyachi, H. Design, synthesis, and structural analysis of phenylpropanoic acid-type PPARγ-selective agonists: Discovery of reversed stereochemistry-activity relationship. J. Med. Chem 2011, 54, 331–341. [Google Scholar]
- Zhang, H.; Ryono, D.E.; Devasthale, P.; Wang, W.; O’Malley, K.; Farrelly, D.; Gu, L.; Harrity, T.; Cap, M.; Chu, C.; et al. Design, synthesis and structure-activity relationships of azole acids as novel, potent dual PPAR alpha/gamma agonists. Bioorg. Med. Chem. Lett 2009, 19, 1451–1456. [Google Scholar]
- Casimiro-Garcia, A.; Bigge, C.F.; Davis, J.A.; Padalino, T.; Pulaski, J.; Ohren, J.F.; McConnell, P.; Kane, C.D.; Royer, L.J.; Stevens, K.A.; et al. Synthesis and evaluation of novel α-heteroaryl-phenylpropanoic acid derivatives as PPARalpha/gamma dual agonists. Bioorg. Med Chem 2009, 17, 7113–7125. [Google Scholar]
- Cronet, P.; Petersen, J.F.; Folmer, R.; Blomberg, N.; Sjöblom, K.; Karlsson, U.; Lindstedt, E.L.; Bamberg, K. Structure of the PPARalpha and -gamma ligand binding domain in complex with AZ 242; ligand selectivity and agonist activation in the PPAR family. Structure 2001, 9, 699–706. [Google Scholar]
- Bénardeau, A.; Benz, J.; Binggeli, A.; Blum, D.; Boehringer, M.; Grether, U.; Hilpert, H.; Kuhn, B.; Märki, H.P.; Meyer, M.; et al. Aleglitazar, a new, potent, and balanced dual PPARα/γ agonist for the treatment of type II diabetes. Bioorg. Med. Chem. Lett 2009, 19, 2468–2473. [Google Scholar]
- Oyama, T.; Toyota, K.; Waku, T.; Hirakawa, Y.; Nagasawa, N.; Kasuga, J.I.; Hashimoto, Y.; Miyachi, H.; Morikawa, K. Adaptability and selectivity of human peroxisome proliferator-activated receptor (PPAR) pan agonists revealed from crystal structures. Acta. Crystallogr. D Biol. Crystallogr 2009, 65, 786–795. [Google Scholar]
- Lin, C.H.; Peng, Y.H.; Coumar, M.S.; Chittimalla, S.K.; Liao, C.C.; Lyn, P.C.; Huang, C.C.; Lien, T.W.; Lin, W.H.; Hsu, J.T.; et al. Design an d structural analysis of novel pharmacophores for potent and selective peroxisome proliferator-activated receptor gamma agonists. J. Med. Chem 2009, 52, 2618–2622. [Google Scholar]
- Kuwabara, N.; Oyama, T.; Tomioka, D.; Ohashi, M.; Yanagisawa, J.; Shimizu, T.; Miyachi, H. Peroxisome proliferator-activated receptors (PPARs) have multiple binding points that accommodate ligands in various conformations: Phenylpropanoic acid-type PPAR ligands bind to PPAR in different conformations, depending on the subtype. J. Med. Chem 2012, 55, 893–902. [Google Scholar]
- Mahindroo, N.; Wang, C.C.; Liao, C.C.; Huang, C.F.; Lu, I.L.; Lien, T.W.; Peng, Y.H.; Huang, W.J.; Lin, Y.T.; Hsu, M.C.; et al. Indol-1-yl acetic acids as peroxisome proliferator-activated receptor agonists: Design, synthesis, structural biology, and molecular docking studies. J. Med. Chem 2006, 49, 1212–1216. [Google Scholar]
- Casimiro-Garcia, A.; Bigge, C.F.; Davis, J.A.; Padalino, T.; Pulaski, J.; Ohren, J.F.; McConnell, P.; Kane, C.D.; Royer, L.J.; Stevens, K.A.; et al. Effects of modifications of the linker in a series of phenylpropanoic acid derivatives: Synthesis, evaluation as PPARα/γ dual agonists, and X-ray crystallographic studies. Bioorg. Med. Chem 2008, 16, 4883–4907. [Google Scholar]
- Sauerberg, P.; Pettersson, I.; Jeppesen, L.; Bury, P.S.; Mogensen, J.P.; Wassermann, K.; Brand, C.L.; Sturis, J.; Wöldike, H.F.; Fleckner, J.; et al. Novel tricyclic-alpha-alkyloxyphenylpropionic acids: Dual PPARα/γ agonists with hypolipidemic and antidiabetic activity. J. Med. Chem 2002, 45, 789–804. [Google Scholar]
- Grether, U.; Bénardeau, A.; Benz, J.; Binggeli, A.; Blum, D.; Hilpert, H.; Kuhn, B.; Märki, H.P.; Meyer, M.; Mohr, P.; et al. Design and biological evaluation of novel, balanced dual PPARα/γ agonists. ChemMedChem 2009, 4, 951–956. [Google Scholar]
- Mahindroo, N.; Peng, Y.H.; Lin, C.H.; Tan, U.K.; Prakash, E.; Lien, T.W.; Lu, I.L.; Lee, H.J.; Hsu, J.T.; Chen, X.; et al. Structural basis for the structure-activity relationships of peroxisome proliferator-activated receptor agonists. J. Med. Chem 2006, 49, 6421–6424. [Google Scholar]
- Mahindroo, N.; Huang, C.F.; Peng, Y.H.; Wang, C.C.; Liao, C.C.; Lien, T.W.; Chittimalla, S.K.; Huang, W.J.; Chai, C.H.; Prakash, E.; et al. Novel indole-based peroxisome proliferator-activated receptor agonists: Design, SAR, structural biology, and biological activities. J. Med. Chem 2005, 48, 8194–8208. [Google Scholar]
- Mueller, J.J.; Schupp, M.; Unger, T.; Kintscher, U.; Heinemann, U. Binding Diversity of Pioglitazone by Peroxisome Proliferator-Activated Receptor-Gamma Unpublished work. 2011.
- Ebdrup, S.; Pettersson, I.; Rasmussen, H.B.; Deussen, H.J.; Frost Jensen, A.; Mortensen, S.B.; Fleckner, J.; Pridal, L.; Nygaard, L.; Sauerberg, P. Synthesis and biological and structural characterization of the dual-acting peroxisome proliferator-activated receptor alpha/gamma agonist ragaglitazar. J. Med. Chem 2003, 46, 1306–1317. [Google Scholar]
- Kuhn, B.; Hilpert, H.; Benz, J.; Binggeli, A.; Grether, U.; Humm, R.; Märki, H.P.; Meyer, M.; Mohr, P. Structure-based design of indole propionic acids as novel PPARalpha/gamma co-agonists. Bioorg. Med. Chem. Lett 2006, 16, 4016–4020. [Google Scholar]
- MOE (Molecular Operating Environment) Version 2013.08; Chemical Computing Group Inc: Montreal, QC, Canada, 2013.
- Gaulton, A.; Bellis, L.J.; Bento, A.P.; Chambers, J.; Davies, M.; Hersey, A.; Light, Y.; McGlinchey, S.; Michalovich, D.; Al-Lazikani, B.; et al. ChEMBL: A large-scale bioactivity database for drug discovery. Nucleic Acids Res 2012, 40, D1100–D1107. [Google Scholar]

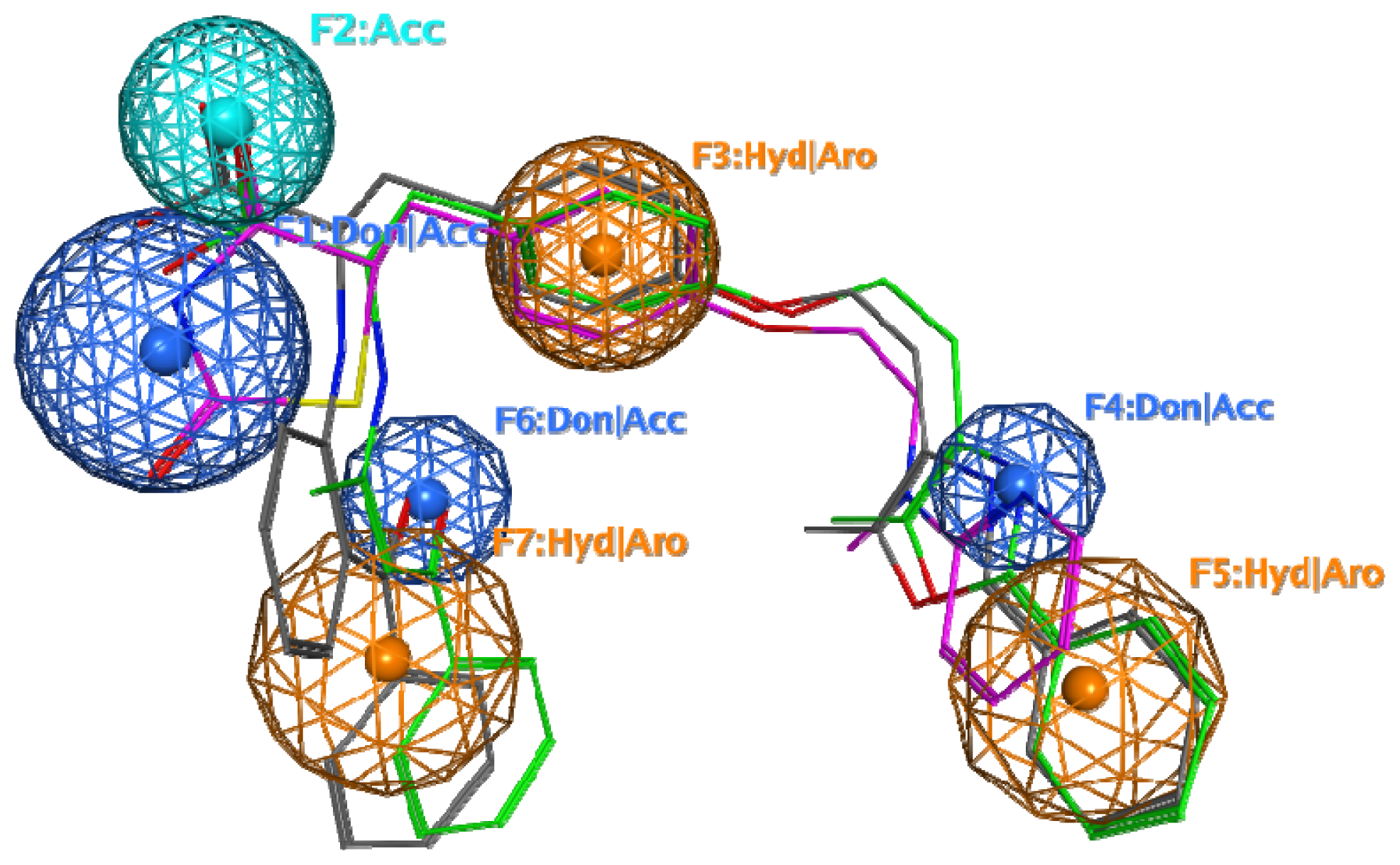

Pharmacophore feature | Location | Interactions |
---|---|---|
F1: Don/Acc | Arm I | Participates in HB interactions (donor and acceptor) with residues His449 (H11) and Tyr473 (H12); responsible for the direct interaction with H12 and stabilises its active position |
F2: Acc | Arm I | Participates in HB interactions (acceptor) with Ser289 (H3), His323(H5), Tyr 327 (H5); responsible for the stabilization of H12 in an active position |
F3: Hyd/Aro | Arm I | Fits to the hydrophobic environment; stabilises the positions of F1 and F2 features |
F4: Don/Acc | Arm II | Can participate in HB interactions directly or mediated by water molecules with Ser342 (H5), Cys285 (H3) and Arg 288 (H3); stabilises the pose of the ligand into the pocket |
F5: Hyd/Aro | Arm II | Fits to the hydrophobic environment; stabilises the pose of the ligand into the pocket |
F6: Don/Acc | Arm I | Can participate in HB interactions mediated by water; stabilises the pose of the ligand into the pocket |
F7: Hyd/Aro | Arm I | Fits to the hydrophobic environment; stabilises the pose of the ligand into the pocket |
Complex PDB ID, [Ref.] | Ligand PDB ID | Pharmacophore features | EC50 (nM) | ||||||
---|---|---|---|---|---|---|---|---|---|
F1 | F2 | F3 | F4 | F5 | F6 | F7 | |||
1K74 [25] | 544 | + | + | + | + | + | + | + | 0.2–2.7 |
1FM9 [18] | 570 | + | + | + | + | + | + | + | 0.339–6 |
1FM6 [18] | BRL | + | + | + | + | + | − | − | 2.4–2880 |
3AN4 [26] | M7R | − | + | + | + | + | − | − | 3.6 |
3BC5 [27] | ZAA | + | − | + | + | + | + | − | 4 |
3IA6 [28] | UNT | + | + | + | + | + | − | − | 13 |
1I7I [29] | AZ2 | + | + | + | − | − | − | + | 13–3528 |
3G9E [30] | RO7 | + | + | + | + | + | − | − | 21 |
3AN3 [26] | M7S | − | + | + | + | + | − | − | 22 |
2ZNO [31] | S44 | − | + | + | + | + | − | − | 41–70 |
3GBK [32] | 2PQ | + | + | + | + | + | − | − | 50 |
3VJI [33] | J53 | − | + | + | − | + | − | − | 58 |
2F4B [34] | EHA | + | − | + | − | + | − | − | 70 |
2Q8S [35] | L92 | + | + | + | + | + | − | − | 140 |
1KNU [36] | YPA | + | + | + | + | + | − | + | 170 |
3FEJ [37] | CTM | + | + | + | − | + | − | + | 210 |
2HWR [38] | DRD | + | + | + | − | + | − | − | 210 |
2ATH [39] | 3EA | + | + | + | − | + | − | − | 230 |
2XKW [40] | P1B | + | + | + | + | + | − | − | 280 |
1NYX [41] | DRF | + | + | + | − | + | − | − | 570–600 |
2GTK [42] | 208 | + | + | + | + | + | − | + | 760 |
