Promotion of Survival and Engraftment of Transplanted Adipose Tissue-Derived Stromal and Vascular Cells by Overexpression of Manganese Superoxide Dismutase

Abstract

Short-term persistence of transplanted cells during early post-implant period limits clinical efficacy of cell therapy. Poor cell survival is mainly due to the harsh hypoxic microenvironment transplanted cells face at the site of implantation and to anoikis, driven by cell adhesion loss. We evaluated the hypothesis that viral-mediated expression of a gene conferring hypoxia resistance to cells before transplant could enhance survival of grafted cells in early stages after implant. We used adipose tissue as cell source because it consistently provides high yields of adipose-tissue-derived stromal and vascular cells (ASCs), suitable for regenerative purposes. Luciferase positive cells were transduced with lentiviral vectors expressing either green fluorescent protein as control or human manganese superoxide dismutase (SOD2). Cells were then exposed in vitro to hypoxic conditions, mimicking cell transplantation into an ischemic site. Cells overexpressing SOD2 displayed survival rates significantly greater compared to mock transduced cells. Similar results were also obtained in vivo after implantation into syngeneic mice and assessment of cell engraftment by in vivo bioluminescent imaging. Taken together, these findings suggest that ex vivo gene transfer of SOD2 into ASCs before implantation confers a cytoprotective effect leading to improved survival and engraftment rates, therefore enhancing cell therapy regenerative potential.

1. Introduction

Cell therapy is an innovative approach for the treatment of some acute and chronic degenerative conditions [1]. Transplanted cells may promote tissue regeneration through different mechanisms, including cell differentiation, cell fusion and paracrine effects via the secretion of various cytokines, growth factors and/or microvesicles. At any rate, the therapeutic effect of cell-based therapies ultimately depends on the persistence of cells at the site of tissue injury. Poor transplanted cell survival soon after in vivo transfer is slowing research progress and clinical translation of cell therapy [2]. One of the major reasons for early implanted cell death is the lack of oxygenation resulting for delayed revascularization at the transplantation site. Oxygen diffusion only sustains cells to a distance of approximately 200 micron from the oxygen source [3]. Thus, direct injection into damaged tissue exposes transplanted cells to prolonged periods of hypoxia. In addition, cell transplantation procedures involve cell detachment from the extracellular matrix; disruption of cell-matrix contact also promotes a strong increase of reactive oxygen species (ROS) production, triggering anoikis [4]. Therefore, the benefits of cell transplantation could be improved by adapting donor cells in order to enhance their resistance to hypoxic stress [5,6,7,8].

Anti-death strategies have been explored to promote the survival of transplanted cells and increase the therapeutic potential of transplantation therapy [9,10,11]. These methods include continuous infusion of trophic factors and hypoxic preconditioning [12]. Alternatively, survival and regenerative capability of transplanted cells can be improved in vitro before transplantation [13,14,15,16].

Response to oxidative stress and anoikis are very complex and the networks of genes involved not fully elucidated. Cell exposure to low oxygen leads to an increased generation of oxygen species by dysfunctional mitochondria [17]. Accordingly, the mitochondrial superoxide scavenger superoxide dismutase 2 (MnSOD or SOD2) gene is strongly upregulated during hypoxic preconditioning, underlining its pivotal role in hypoxic stress resistance by ROS detoxification [18]. In fact, SOD2 helps in preventing peroxynitrite formation by conversion of superoxide anion to hydrogen peroxide, which is then reduced to water. Moreover, SOD2 expression in highly upregulated during cell detachment from the extracellular matrix in order to confer anoikis resistance [19].

Adipose tissue represents an attractive source for isolating stromal and vascular cells suitable for cell therapies aimed at tissue regeneration [20,21,22]. Adipose tissue-derived stromal cells (ASCs) [23] are collected from adipose tissue by collagenase digestion and differential centrifugation. ASCs are able to differentiate into several cells types of both mesodermal and nonmesodermal origin, including adipocytes, chondrocytes, osteocytes, myocytes, hepatocytes, endocrine pancreatic cells, and neurons [21]. In particular, ASCs are suitable for vascular regeneration, since they are able to differentiate into endothelial cells and form vessel-like structures that assume endothelial function in Matrigel [24,25,26]. Moreover, ASCs are able to exert an antioxidant effect via a paracrine mechanism [27].

Here we provide evidence that ex vivo genetic modification of ASCs by lentiviral-mediated SOD2 gene transfer provides a benefit by promoting cell survival to hypoxia in vitro and by enhancing engraftment in vivo.

2. Results

2.1. Lentiviral-Mediated Gene Transfer into Adipose-Tissue-Derived Stromal and Vascular Cells (ASCs)

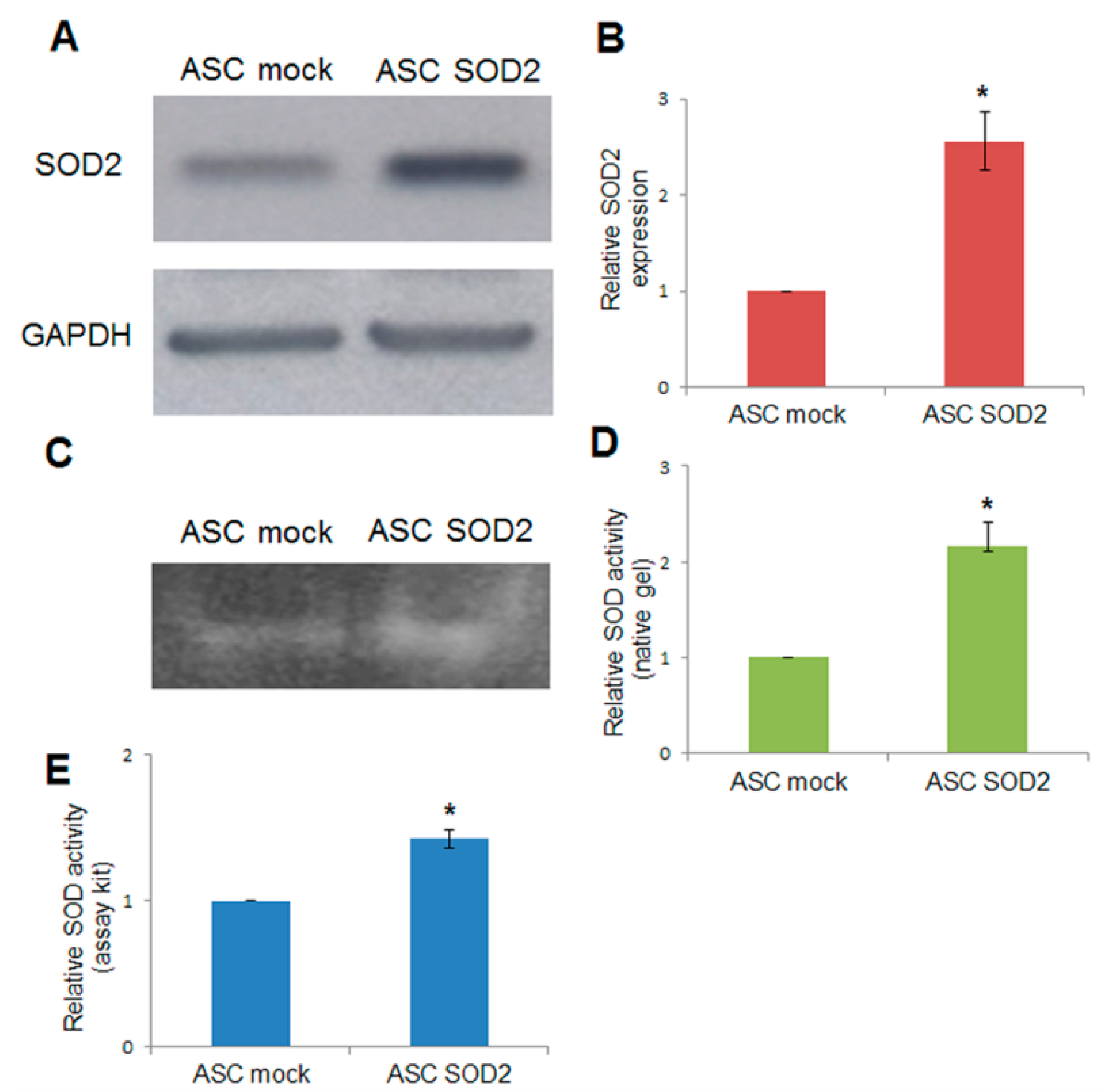

Adipose tissue-derived stromal and vascular cells were isolated from lipoaspirates obtained from human donors [24]. A lentiviral vector (LV) for expression of human superoxide dismutase 2 (SOD2) was generated and used for gene transfer into ASCs. Immunoblotting using anti-SOD2 antibodies followed by densitometric analysis revealed a 2.5-fold increased expression upon SOD2 gene transfer, compared to mock-transduced ASCs (Figure 1A,B). In addition, SOD activity was assayed by non-denaturing polyacrylamide gel electrophoresis followed by specific riboflavin-nitroblue tetrazolium staining and densitometric analysis (Figure 1C,D). Further determination of SOD activity after lentiviral-mediated SOD2 gene transfer into ASCs was obtained using a specific determination kit (Sigma-Aldrich, St. Louis, MO, USA) (Figure 1E). Both methods were in agreement in determining that enzymatic activity in SOD2 overexpressing cells was approximately 1.5–2.5 folds higher compared to mock-transduced cells.

We aimed at testing whether SOD2 overexpression into ASCs might result into enhanced cell engraftment rate in vivo upon transplant into an experimental animal model. A suitable way to assess improved engraftment of SOD2-expressing ASC, in comparison with mock transduced ASC, is by means of sensitive, noninvasive bioluminescent imaging (BLI) upon firefly luciferase gene transfer. To this end, we needed to obtain murine ASCs expressing both firefly luciferase and SOD2. We therefore tested the susceptibility of freshly isolated murine ASCs to lentiviral-mediated gene transfer in suspension, using a “Suspension with Lentiviral vectors and Immediately Transplanted (SLIT)” protocol originally developed for gene transfer into transplantable primary hepatocytes [28]. Extensive ex vivo expansion may affect chromosomal stability, differentiation potential and cell adhesion characteristic of ASCs, possibly modifying their homing capabilities [29]. The described methodology allows for high rates gene transfer through minimal in vitro manipulation, therefore reducing the issues associated with prolonged in vitro long-term cell expansion. We used a LV expressing enhanced green fluorescent protein (GFP) under the ubiquitous human phosphoglycerate kinase (PGK) promoter [30]. Upon lentiviral-mediated gene transfer at multiplicity of infection 30, in suspension for two hours we achieve up to 89% transduction, as assessed by GFP expression determined by flow cytometric (FACS) and fluorescent microscopy analysis performed after 48 h of culture in order to allow for efficient transgene expression. Using this procedure, we obtained firefly luciferase (fLuc) expressing ASCs, which were co-transduced with LV vectors expressing either GFP as control or SOD2. Luciferase-positive cells expressing either GFP or SOD2 had a comparable light emission profile as assessed by BLI imaging indicating that co-expression with a second transgene does not affect luciferase expression.

2.2. Lentiviral-Mediated Gene Transfer into ASCs of Superoxide Dismutase 2 (SOD2) Confers Improved Resistance to Hypoxia in Vitro

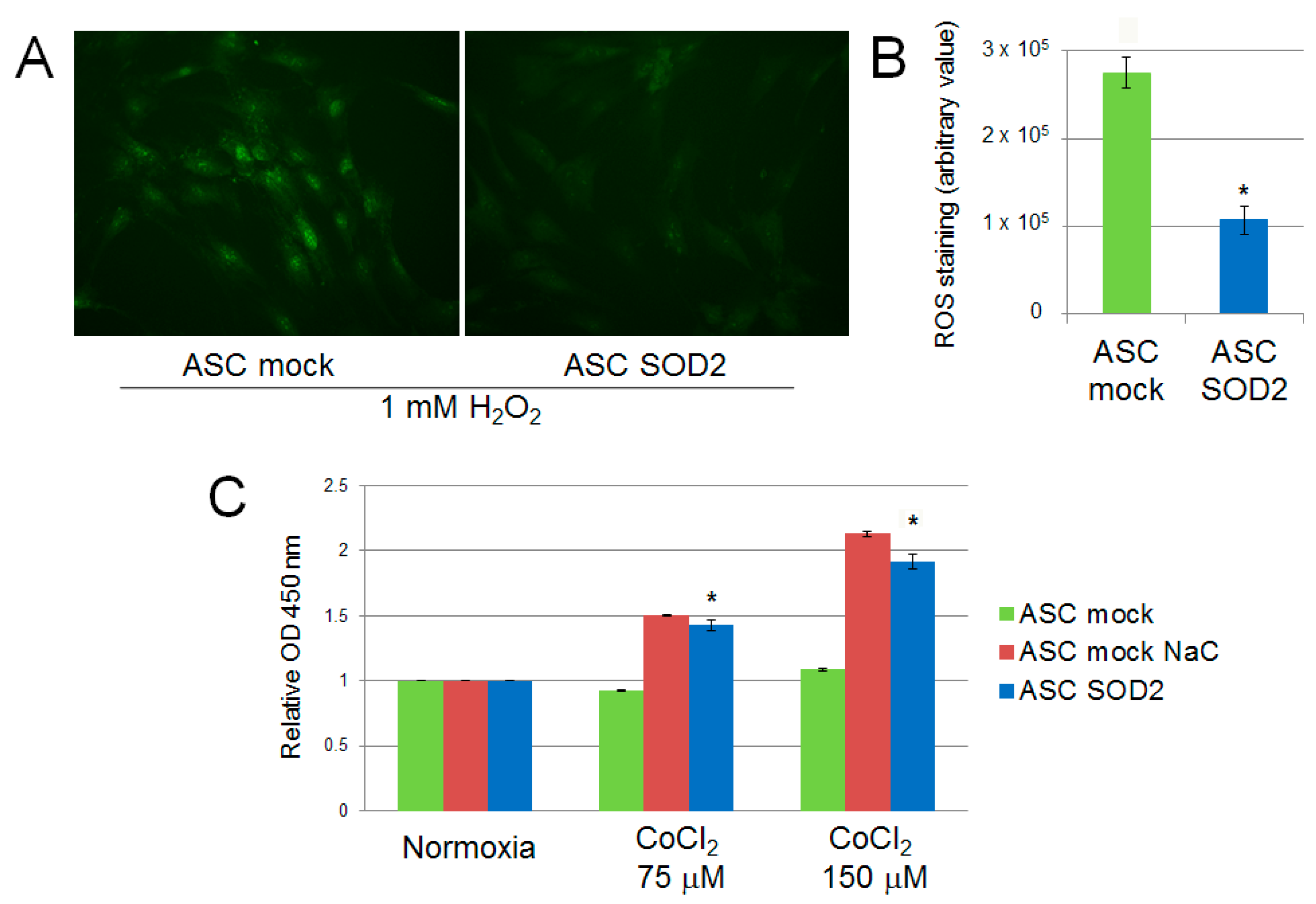

We evaluated the performance of mock- and SOD2-transduced human ASCs cultured in hypoxic condition in vitro. Firstly, we assessed the production of ROS following exposure of ASCs to 1 mM H₂O₂ for 30 min. SOD2-expressing cell culture displayed reduced ROS production following acute hypoxic stress, as determined by fluorescence microscopy with the ROS-sensitive CellROX oxidative stress reagent fluorogenic probe (Figure 2A). Additionally, ASCs were exposed to prolonged hypoxic conditions achieved by adding increasing concentration of CoCl₂ to the culture medium. After 24 h cell viability was assessed by the WST-1 cell proliferation assay kit, reveling that SOD2 expressing ASC viability was increased compared to mock ASC (p ≤ 0.05) and comparable to the levels of ASC mock cells treated with the antioxidant N-acetylcysteine (NaC) (Figure 2B).

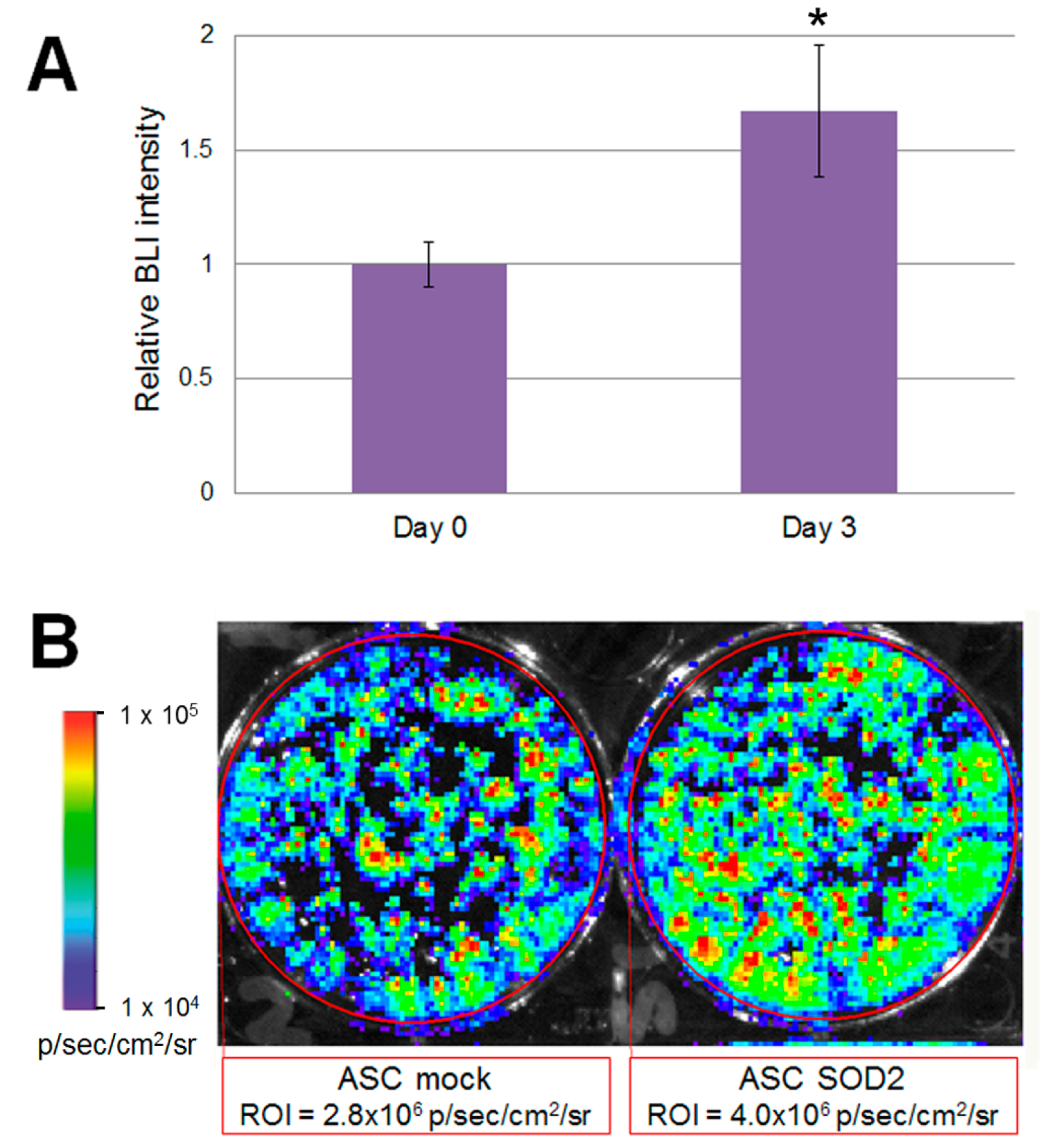

Accordingly, to validate our experimental design before studies involving animals, we wanted to test the performance of mock- and SOD2-transduced, luciferase expressing murine ASCs cultured in hypoxic condition in vitro. To mimic the hypoxic environment which cell face upon transplantation, we cultured luciferase-expressing ASCs in a modular airtight humidified chamber flushed with a gas mixture which consisted of 95% N₂ and 5% CO₂ for three days. Bioluminescent imaging (BLI) analysis was performed before hypoxia induction and after three days of culture in hypoxic condition (Figure 3). At the 72 h time point, BLI imaging signal detected in SOD2-overexpressing cells was statistically significantly higher than the one observed in mock transduced cells (Figure 3B). In the current experimental setting, stronger bioluminescence signal correlates with improved survival of SOD2-expressing cells, compared to mock (GFP)-transduced control. BLI analysis performed on cells undergoing the same gene transfer procedure, but maintained in normoxic condition did not reveal any significant difference amongst the groups.

2.3. ASCs Expressing SOD2 Have an Improved Engraftment Rate into a Matrigel Plug in Vivo

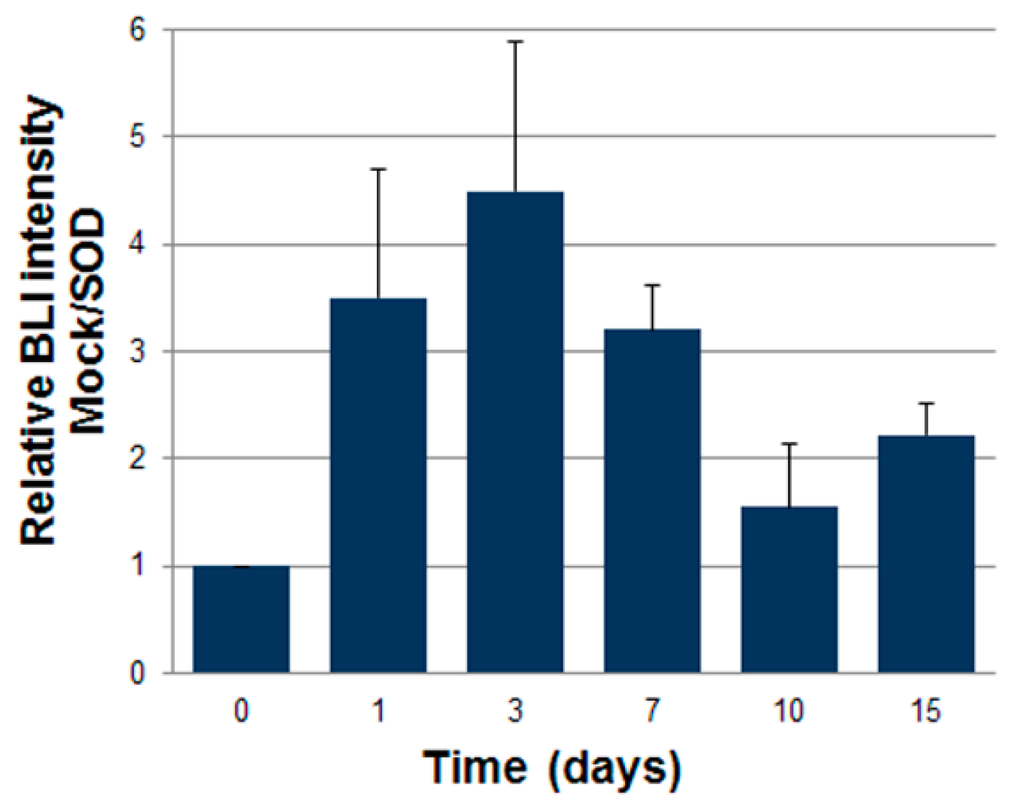

Luciferase expressing ASCs were transduced with LV vectors expressing either GFP as control or SOD2, as described above. Then cells were mixed with Cultrex and a plug containing 7 × 10⁵ cells was administered subcutaneously into syngeneic mice. We followed engraftment of ASCs by BLI performed at different time points after gel plug implant (Figure 4). The intensity of bioluminescence in the group of animals receiving SOD2-expressing ASCs was consistently higher than in the group receiving mock transduced cells, suggesting a role of SOD2 in promoting ASCs engraftment. At three days after implantation, selected animals were sacrificed, gel plugs were excised and BLI imaging performed (Figure 5). Quantification of the bioluminescence signal from excised gel plugs confirmed improved engraftment of cells expressing SOD2, compared to mock transduced cells (Figure 5).

3. Discussion

Finding new avenues to promote cell survival of transplanted cells would represent an important strategic advancement to the clinical success of cell therapy for regenerative medicine. Upon administration, transplanted cells encounter severe conditions, characterized by poor blood supply, low nutrients and excess of oxygen species (ROS), which initiate a cascade of events that leads to apoptotic cell death, preventing cell survival in the early stages after transplant [31]. Therefore, early survival of transplanted cells ultimately dictates their possibility of engraftment and, in the end, their therapeutic potential. In fact, even if it is not possible to rule out a possible beneficial effect triggered by nonviable cells [32], persistence of transplanted cells is critical for the success of cell-based therapies for tissue regeneration.

Oxidative stress is characterized by an imbalance between the pro-oxidant and anti-oxidant stimuli leading to lipid peroxidation and protein and DNA damages. To cope with increased ROS levels, cells up-regulate the expression of antioxidant enzymes such as superoxide dismutase and catalase, which limit the levels of superoxide and hydrogen peroxide, respectively. In particular, modulation of SOD2 has been observed in adipose tissue of obese patients, possibly to mitigate mitochondrial dysfunction correlated with the pathophysiology of obesity [33]. Accordingly, transplantation of genetically modified SOD2-overexpressing mesenchymal cells has been suggested as a new therapeutic approach for obesity-associated metabolic syndrome [34]. Moreover, SOD2 has been identified as one of the genes mediating the late phase of ischemic preconditioning, defined as an increased tolerance to ischemia and reperfusion induced by a previous sub-lethal period of ischemia [35]. Hypoxic preconditioning of stem cells has been associated with improved regenerative abilities and enhanced in vivo homing to the site of injury [5,12,36]. Moderate hypoxic preconditioning has also been associated with an increase of ASCs proangiogenic properties [37]. The cytoprotective effects of preconditioning can also be achieved by pharmacological treatment, heat shock intervention and gene transfer to promote expression of pro survival genes [11]. Unfortunately, development of SODs as pharmaceutical products has been hampered by unfavorable pharmacologic and pharmacokinetic properties of the enzymes [38,39]. To counteract SOD rapid renal clearance, gene therapy approaches have been proposed to achieve robust SOD expression and enhanced recovery of tissue injuries has been described [40].

We investigated the possibility of improving survival of transplanted cells against excessive ROS production by SOD2 ex vivo gene transfer. Hypoxia, due to poor vascularization, and anoikis, triggered by the lack of connection of cells with the extracellular matrix, are considered the main mechanisms responsible for reduced survival of transplanted cells. Both hypoxic stress and ECM detachment promotes ROS excess. SOD actively dismutates superoxide anions to hydrogen peroxide and molecular oxygen, thus neutralizing the oxygen radicals. Consequently, SOD overexpression is instrumental both to protect cells from oxidative stress and anoikis [19].

For precisely determining cells’ engraftment, persistence, and biodistribution after in vivo administration, we took advantage of the sensitive in vivo bioluminescence imaging technique (BLI). The procedure is non-invasive and facilitates repetitive imaging, thereby providing unprecedented insight to monitor on the same animal over time transplanted cell survival, proliferation and migration. Limitations of the procedure are associated to the fact that to produce a bioluminescence signal, which can be detected, transplanted luciferase-expressing cells should uptake and convert luciferin. Poor blood supply in the area of cell implantation may limit diffusion of luciferase administered by intraperitoneal administration. Conversely, during time, the formation of a vascular network into the Matrigel plug by ASCs may facilitate exposure of transplanted cells to luciferase, therefore leading to an increment of BLI signal. Another factor that should be taken into account in our experimental design is that the light-producing enzymatic conversion of luciferin to oxyluciferin requires ATP and oxygen [41]. Therefore, only living cells expressing luciferase will be able to produce a BLI signal; in other words, BLI intensity correlates with the number cells surviving the transplantation procedure. On the other hand, in the absence of an adequate oxygen supply, luciferase-expressing cells may not be able to fully convert luciferin, leading to an underestimation of the number of engrafted cells in a hypoxic environment.

In summary, we describe a gene therapy approach aimed at increasing the regenerative efficacy of cell therapy by conferring to the transplanted cells improved oxidative stress resistance. Notably, these results are in accordance with previous reports associating viral mediated overexpression of SOD with improved survival of transplanted pancreatic islet [42] and wound healing mediated be endothelial progenitor cells administration [43].

4. Experimental Section

4.1. Experimental Animals

We used adult FVB wild-type mice from colonies maintained in our institutional animal facility. All experimental procedures conformed to protocols approved by the Regina Elena National Cancer Institute Animal Care and Use Committee, and by the General Directorate for Animal Health and Veterinary Medicinal Products of the Italian Ministry of Health (Authorization n° 1001/2015-PR, 22 September 2015), according to the current National Legislation (Art. 31 D.lgs 26/2014, 4 March 2014).

4.2. Cells Isolation and Culture

Human ASC were isolated from lipoaspirates collected from the thigh and hip regions of 6 healthy, non obese (Body Mass Index below 30 kg/m²), Caucasian females (age range 25–56 years) undergoing liposuction, as previously described [24]. All donors gave their written informed consent in accordance with the standards of the University of Rome “La Sapienza” Ethical Committee (Authorization n° 1794/15, 13 February 2015) and the principles expressed in the Declaration of Helsinki. Murine adipose tissue-derived stromal cells (ASCs) [23] were isolated from 6–8 week-old FVB mice as previously described [44]. Briefly, inguinal subcutaneous fat pads were digested for 45 min in a shaking water bath at 37 °C in phosphate buffered saline (PBS) containing 2% bovine serum albumin (BSA) and 2 mg/mL collagenase A (Roche Diagnostics, Mannheim, Germany). Tissue debris were eliminated by filtration through a 40 µm cell strainer (BD Falcon, Franklin Lakes, NJ, USA) and cells collected by centrifugation (500× g). Cells were then washed in PBS, counted and used either for gene transfer procedures or culture. For cell culture cells were plated at 2.5 × 10⁴ cells/cm² in α-MEM supplemented with 20% FBS, 2 mM l-glutamine, 1% penicillin-streptomycin in incubator at 37 °C and 5% CO₂. The next day non-adherent cells were discarded, medium replaced and adipose-derived adherent stromal cells were allowed to grow until they reached 80% confluence.

We used different methods for induction of hypoxia in cell culture [45]. In some experiments, hypoxia was induced by placing cell culture dishes in airtight modular incubator chambers (Forma Scientific, Mountain View, CA, USA), flushed for 20 min with 95% N₂ plus 5% CO₂. In these conditions, oxygen concentration is approximately 1% [46]. Chambers were then sealed and placed in an incubator at 37 °C for the duration of the experiments. Alternatively, ASCs were incubated for 24 h in culture medium supplemented with CoCl₂ (Sigma-Aldrich, St. Louis, MO, USA). Oxidative stress induction was also achieved by adding 1 mM H₂O₂ to ASC culture medium for 30 min. The CellROX Oxidative Stress Reagents fluorogenic probe (Thermo Fisher Scientific, Waltham, MA, USA) was used to measure reactive oxygen species (ROS) in live cells according to manufacturer’s specifications. This cell-permeable dye is weakly fluorescent in reduced state while in the presence of ROS it is converted to the oxidized form which emits a fluorescence signal directly proportional to oxidation and thus to the amount of ROS. Quantification of green fluorescence was performed using the ImageJ software (National Institutes of Health, Bethesda, MD, USA), as previously described [16]. Cell proliferation was measured using the WST-1 cell proliferation assay kit (Takara, Clontech, Mountain View, CA, USA), according to manufacturer’s instructions.

4.3. Lentiviral Vectors Production

We generated a third-generation self-inactivating lentiviral vector (LV) expressing human SOD2 by cloning the full-length cDNA for SOD2 derived from pcDNA3SOD2 [47], as replacements to the E-GFP cDNA into the pCCLsin.cPPT.hPGK.E-GFP.Wpre (phosphoglycerate kinase promoter–enhanced jellyfish green fluorescent protein) plasmid [30], generously provided by Elisa Vigna (IRCC, Candiolo, Italy). Generation of a lentiviral vector expressing firefly luciferase has been previously described [48]. Recombinant vesicular stomatitis virus–pseudotyped LVs were obtained according to published protocols [49]. Titer of GFP-expressing LV stocks used as control was determined by serial dilution on HeLa cells and flow cytometry analysis and was above 1 × 10⁸ transducing units/mL (TU/mL).

4.4. Lentiviral-Mediated Gene Transfer into ASCs

Freshly isolated ASCs were transduced with a procedure named SLIT for “Suspension with Lentiviral vectors and Immediately Transplanted”, originally described for efficient lentiviral-mediated gene transfer into primary hepatocytes [28]. Briefly, uncultured ASCs were resuspended at a cell density of 5 × 10⁵ cells/mL in saline solution and exposed to lentiviral vectors at a multiplicity of infection of 30 for 2 h, with occasional shaking. Cells were then carefully washed and cultured as described above.

4.5. Immunoblotting and Activity Analysis

Expression of human SOD2 after lentiviral-mediated gene transfer was assessed by Western blot analysis using primary antibodies against SOD2 (1:1000) (Upstate Biotechnology–Millipore, Temecula, CA, USA), according to established protocols [50]. Densitometry analysis was performed using the ImageJ software (National Institutes of Health, Bethesda, MD, USA) to normalize the signals against glyceraldehyde phosphate dehydrogenase (GAPDH), considered as a loading control. SOD activity was assayed by non-denaturing polyacrylamide gel electrophoresis and staining with nitro blue tetrazolium, as previously described [50]. SOD activity was further assessed using the SOD determination kit (Sigma-Aldrich, St. Louis, MO, USA) according to the manufacturer’s instructions.

4.6. In Vivo Gel Plug Assay

The assay is based on the implant of Matrigel^® plugs and was performed as previously described [24]. Briefly, ASCs were resuspended in PBS and mixed with Cultrex^® growth factor reduced basement membrane extract (Trevigen Inc., Gaithersburgh, MD, USA). An aliquot of 400 µL of Cultrex^® containing 7 × 10⁵ cells was therefore injected subcutaneously into syngeneic mice.

4.7. Ex Vivo and in Vivo Optical Bioluminescent Imaging

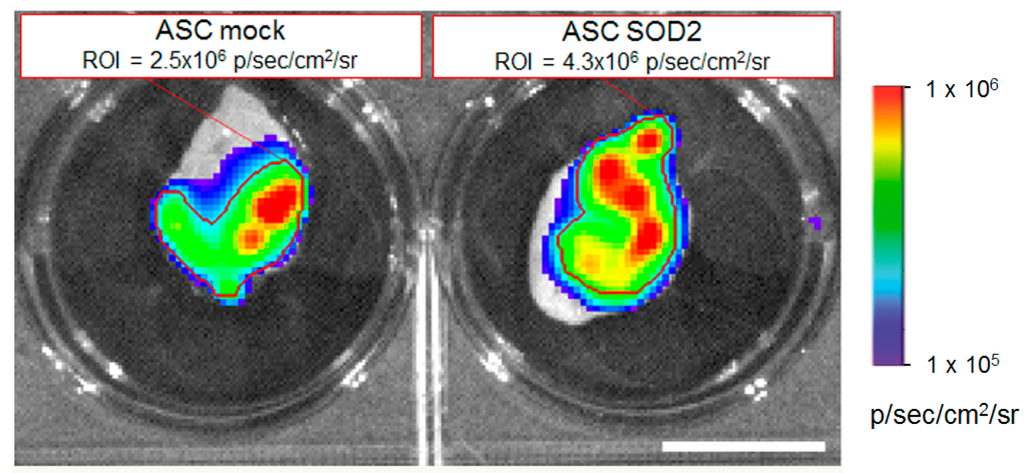

Bioluminescent imaging (BLI) analysis was performed using the IVIS^® Lumina II equipped with the Living Image^® software for data quantification (PerkinElmer, Waltham, MA, USA). For ex vivo imaging, ASCs and gel plug explants containing luciferase expressing cells were placed into clear bottom tissue culture dishes and incubated in a saline solution containing d-luciferin (PerkinElmer) (150 µg/mL) before analysis. For in vivo analysis, mice were anesthetized with Avertin^® (2,2,2-tribromoethanol; Sigma-Aldrich, St. Louis, MO, USA) (240 mg/kg) and d-luciferin dissolved in PBS (150 mg/kg body weight) was administered i.p. 10 min before analysis [48]. Photons emitted from luciferase-expressing ASCs transplanted into the animals were collected with final accumulation times of 1 to 5 min, depending on the intensity of the bioluminescence emission.

4.8. Statistical Analysis

Results are expressed as means ± standard error of the mean (SEM). Data analysis and comparisons between control and treated groups were performed and the significance of differences was assessed with Mann–Whitney U test for unpaired data; statistical significance level was set at p ≤ 0.05.

5. Conclusion

Ex vivo gene transfer of human manganese superoxide dismutase into adipose tissue-derived stromal cells before implantation confers a cytoprotective effect leading to improved survival to hypoxia in vitro and increased engraftment rates in vivo. Therefore, cell preconditioning mediated by SOD2 gene transfer might constitute a suitable method to increase the efficacy of cell-based therapies to promote tissue regeneration.
