Review

Discriminative Features in Three Autosomal Recessive Cutis Laxa Syndromes: Cutis Laxa IIA, Cutis Laxa IIB, and Geroderma Osteoplastica

1
Kariminejad-Najmabadi Pathology & Genetics Center, #2, 4th Street, Hasan Seyf Street, Sanat Square, Tehran 14667-13713, Iran
2
Department of Dermatopathology, Razi Dermatology Hospital, Tehran University of Medical Sciences, Tehran 14167-53955, Iran
3
Department of Pathology, Cancer Institute, Imam Khomeini Hospital Complex, Tehran University of Medical Sciences, Tehran 14197-33141, Iran
4
Clinical Genetics Division, Mofid Children’s Hospital, Faculty of Medicine, Shahid Beheshti University of Medical Sciences, Tehran 15514-15468, Iran
5
Genetic Research Centre, University of Social Welfare and Rehabilitation Sciences, Tehran 19857-13834, Iran
6
Mashhad Medical Genetic Counseling Center, Social Welfare and Rehabilitation Organization, Mashhad 91767-61999, Iran
7
Division of Pediatric Endocrinology and Inherited Metabolic Disorders, Department of Pediatrics, Tehran University of Medical Sciences, Tehran 14197-33141, Iran
8
Institute of Medical Biology, A*STAR, Singapore 138648, Singapore
9
Center for Metabolic Diseases, Department of Pediatrics, University Hospitals Leuven, Leuven 3000, Belgium
10
Department of Pediatrics, Radboud University Nijmegen Medical Center, Nijmegen, Gelderland 9102-6500, The Netherlands
11
Hayward Genetics Center, Tulane University Medical School, New Orleans, LA 70112, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(3), 635; https://doi.org/10.3390/ijms18030635
Submission received: 9 December 2016 / Revised: 28 February 2017 / Accepted: 6 March 2017 / Published: 15 March 2017

Abstract

:
Cutis laxa is a heterogeneous condition characterized by redundant, sagging, inelastic, and wrinkled skin. The inherited forms of this disease are rare and can have autosomal dominant, autosomal recessive, or X-linked inheritance. Three of the autosomal recessive cutis laxa syndromes, namely cutis laxa IIA (ARCL2A), cutis laxa IIB (ARCL2B), and geroderma osteodysplastica (GO), have very similar clinical features, complicating accurate diagnosis. Individuals with these conditions often present with cutis laxa, progeroid features, and hyperextensible joints. These conditions also share additional features, such as short stature, hypotonia, and congenital hip dislocation, but the severity and frequency of these findings are variable in each of these cutis laxa syndromes. The characteristic features for ARCL2A are abnormal isoelectric focusing and facial features, including downslanting palpebral fissures and a long philtrum. Rather, the clinical phenotype of ARCL2B includes severe wrinkling of the dorsum of the hands and feet, wormian bones, athetoid movements, lipodystrophy, cataract and corneal clouding, a thin triangular face, and a pinched nose. Normal cognition and osteopenia leading to pathological fractures, maxillary hypoplasia, and oblique furrowing from the outer canthus to the lateral border of the supraorbital ridge are discriminative features for GO. Here we present 10 Iranian patients who were initially diagnosed clinically using the respective features of each cutis laxa syndrome. Each patient’s clinical diagnosis was then confirmed with molecular investigation of the responsible gene. Review of the clinical features from the cases reported from the literature also supports our conclusions.

1. Introduction

Cutis laxa is a heterogeneous condition characterized by redundant, sagging, inelastic, and wrinkled skin. The many forms of this disorder may have autosomal dominant, autosomal recessive, or X-linked inheritance. The autosomal recessive cutis laxa conditions have been categorized into types I, II, and III. Autosomal recessive cutis laxa type I ARCL1; Online Mendelian Inheritance in Man (OMIM#219000) is characterized by systemic involvement with respiratory, cardiovascular, and gastrointestinal manifestations. It is further divided into types IA (ARCL1A, OMIM#219100), IB (ARCL1B, OMIM#614437), and IC (ARCL1C, OMIM# 613177) caused by mutations in the Fibulin 5 (FBLN5), EGF-CONTAINING FIBULIN-LIKE EXTRA CELLULAR MATRIX PROTEIN 2 (EFEMP2) (formerly fibulin-4 FBLN4), and LATENT TRANFORMING GROWTH FACTO_BETA_BINDING PROTEIN 4 (LTBP4) genes, respectively. Type II is divided into type IIA (ARCL2A, OMIM#219200) and IIB (ARCL2B, OMIM#612940) caused by abnormal ATP6V0A2 and PYCR1 genes, respectively [1,2,3] Type III is also divided into two types, type IIIA (ARCL3A, OMIM#219150) and IIIB (ARCL3B, OMIM#614438), caused by mutations in ALDEHYDE DEHYDROGENASE 18 FAMILY, MEMBER A1 (ALDH18A1) and PYCR1 genes respectively. Geroderma osteodysplastica (GO, OMIM#231070), another subtype of cutis laxa not included in this classification, is caused by recessive mutations in the GORAB gene. Whereas macrocephaly, alopecia, cutis laxa, and scoliosis syndrome (MACS, OMIM 613075) is caused by mutations in RIN2.
ARCL2A, ARCL2B, and GO manifest with many of the same features, making a definitive clinical diagnosis difficult. ARCL2A is characterized by generalized cutis laxa, persistent open fontanel, oxycephaly, and hyperextensible joints, with varying neurological, facial, and congenital abnormalities. Neurological findings typically observed include developmental delay, intellectual disability, hypotonia, microcephaly, hearing loss, seizures, and a cobble-like dysgenesis demonstrated by MRI of the brain [4,5,6]. Eye abnormalities, such as myopia and strabismus, may also be present. Facial dysmorphic features include frontal bossing, reverse V eyebrows, downslanting palpebral fissures, a long philtrum, and sagging cheeks with anteverted nares. Additional features that may be observed are intra-uterine growth retardation, blue sclera, pectus excavatum, inguinal hernia, flat feet, and congenital hip dislocation [7,8]. Biochemical analysis revealed that these patients have a combined defect of N- and O-glycosylation of serum proteins [1,4,9]. Affected individuals show a reduction in the isoeclectric focusing main protein band, corresponding to transferrin containing four sialic acid residues and increased amounts of disialo- and trisialo-transferrin that indicate altered N glycosylation over the normal range [4,9,10]. Serum apolipoprotein C III isoelectric focusing also reveals reduction of apolipoprotein CIII containing two sialic acid residues and increased amounts of monosialotransferrin. Infants may have a normal transferrin isofocusing profile in the first months of their lives but, if repeated later on, will develop the typical transferrin abnormality [9,10]. Biochemical analysis is good for identification of ARCL2A patients but it cannot be used for identification of ARCL2B and GO cases.
ARCL2B is characterized by intra-uterine growth retardation, cutis laxa, wrinkling of skin, particularly of dorsum of hands and feet, visible veins on the chest, congenital hip dislocation, hyperextensible joints, and adducted thumbs. Phenotypic facial features include a broad and prominent forehead, aged appearance, triangular face, and thin nose [11,12,13,14]. Neurological findings observed in this condition are hypotonia, developmental delay, intellectual disability, and dysgenesis or agenesis of the corpus callosum [11]. Normal intelligence has been reported in a few patients [15,16,17]. Some patients also demonstrate lipodystrophy, osteoporosis/osteopenia, and blue sclera. Biallelic PYCR1 mutations were identified in patients previously diagnosed with GO, wrinkly skin syndrome, or ARCL2 [2,3], but these mutations are now classified as ARCL2B.
GO was first described by Bamatter et al. in five members from a Swiss family [18]. This condition is characterized by premature aged appearance, drooping cheeks, maxillary hypoplasia, wrinkled skin, and osteopenia [15]. There is also an oblique furrowing extending from the outer canthus to the lateral border of the supraorbital ridge [19]. Due to the osteopenia, the bones, particularly the vertebrae, are susceptible to fracture [20]. Individuals affected by GO do not have any intellectual disability, but they may develop congenital hip dislocations, hypotonia and short stature. Hennies et al. identified recessive mutations in the GORAB gene in patients diagnosed with GO [21].
Rajab et al. reported on 22 patients with the diagnosis of wrinkly skin syndrome or GO and concluded that these are two distinct disorders. Genetic testing performed on many patients diagnosed with wrinkly skin syndrome showed mutations in ATP6V0A2 or PYCR1 [1,2].

2. Patients

An in depth clinical evaluation, with documentation of phenotypic features, was completed for each patient. Detailed clinical data was obtained by a standardized questionnaire. All families provided written informed consent according to institutional guidelines. Ethics approval was obtained by the Kariminejad-Najmabadi Pathology and Genetics Center ethical committee.
The observed characteristics and symptoms were then compared against the discriminative features of each cutis laxa syndrome to preliminarily diagnose each patient. The clinical diagnoses indicated which genes needed to investigated by Sanger sequencing in each case. In all cases the candidate genes suggested by the clinical phenotype were then confirmed by molecular investigation.
Here we report 10 patients with ARCL2A, ARCL2B, or geroderma osteodysplastic (GO) and discuss the clinical features that help differentiate between these three cutis laxa syndromes. The clinical findings from each patient are reported in Table 1. Table 2 is a comparison of the frequency of the clinical features observed in ARCL2A, ARCL2B, and GO as reported in the literature against the frequency in our cases (Table A1, Table A2 and Table A3).

3. Discussion

Although there is a large phenotypic overlap among the three types of cutis laxa syndromes, ARCL2A, ARCL2B, and GO, in this manuscript we highlight the main differences that allow for clinical discrimination amongst them.

3.1. Overlapping Features

Cutis laxa, progeroid features, hyperextensible joints, inelastic wrinkled skin, and flat feet are features found in all three cutis laxa syndromes (Figure 1a–o) (Table 2). All of our patients, regardless of the cutis laxa syndrome, demonstrated flat feet however the frequency of feature has not been reported in the literature. Hypotonia and congenital hip dislocation are also found in all three conditions, but the severity and frequency of these findings varies. Short stature and open fontanel are common findings in cutis laxa types 2A and 2B, but occur less frequently in GO (Table 2); however, in our patients ¾ showed short stature. Osteopenia is characteristic of both ARCL2B and GO, though it is much more severe in GO and may even lead to pathologic fractures, especially of the vertebral column. We cannot comment on osteopenia in ARCL2A as it was not evaluated in the cases reported in the literature.

3.2. Facial Features

Each of the cutis laxa syndromes has distinct facial features. The ARCL2A patients demonstrate frontal bossing, large open fontanels, reverse V eyebrows, downslanting palpebral fissures, strabismus, a long philtrum and sagging cheeks with anteverted nares. The downslanting palpebral fissures and long philtrum are particularly indicative of ARCL2A and may help in establishing the diagnosis. The ARCL2B patients present during infancy and childhood with thin triangular faces, broad foreheads, a thin nose, and thin skin. Patients with this syndrome usually lack the sagging cheeks commonly seen in infants with ARCL2A and GO (Figure 2b). Though there are only a few adults with ARCL2B reported in the literature, the evidence supports that in adulthood, this face is no longer triangular but, rather, becomes long, with a prominent chin [15,17] (Figure 2c). Patient with GO demonstrate maxillary hypoplasia, sagging cheeks, and oblique furrowing, which extends from the outer canthus to the lateral border of the supraorbital ridge. This characteristic is generally more prominent in infancy and childhood (Figure 2g,h).

3.3. Progeroid Features

Clinical findings vary as the children with these cutis laxa syndromes grow older. At birth, the ARCL2B patients are usually very small with many having intrauterine growth retardation. The adult ARCL2B patient, however, is not particularly short but usually has a low weight and exhibits lipodystrophy (Figure 2c). ARCL2B infants have very thin skin, visible veins over thorax and clenched hands, but these symptoms improve considerably as the patient grows older (Figure 2d–f). Infants with GO usually have normal birth weights and lengths. The progeroid features improve in the majority of patients as the child grows older and reaches adult age. This progression is most obvious in ARCL2A (Figure 2a) [5,7,17]. Contrary to the improvement in the progeroid features, the abnormal fat distribution seen in ARCL2A worsens with age (Figure 3a–c) [4].
Based on the patients examined in this study, it seems that joint hyperlaxity improves as the patients reach adulthood. Hyperlaxity was seen in all of our child and infant cases, but of the three adult cases reported in this manuscript (two ARCL2B patients and one GO patient), all had very mild to absent joint hyperlaxity.

3.4. Neurological Features

The neurological findings common to ARCL2A and ARCL2B patients are intellectual disability, hypotonia, psychomotor retardation, microcephaly, and seizures. Patients with GO, however, only demonstrate hypotonia if they demonstrate any neurological findings at all. Brain MRI imaging would be expected to differentiate between ARCL2A and ARCL2B based on the presence of cobblestone dysgenesis in ARCL2A compared to dysgenesis or agenesis of corpus callosum in cutis laxa IIB (Figure 4A–H) [2,5]. Brain MRI was not performed as part of this study and these features were not evaluated in our reported patients. Additionally, athetoid movements can occasionally be seen in ARCL2B and hearing loss has been reported in ARCL2A.
Microcephaly may be congenital or may develop during the course of the disease in ARCL2A [5]. Intellectual disability has been reported in ARCL2B but with the following exceptions: one large family with a complete deletion of PYCR1 gene [16], in another patient with the c.138+1G>A mutation [2], and in three patients with missense alterations not residing in exons 4 to 6 [17]. The frequency of intellectual disability in ARCL2A is 78% based on all the reported cases in the literature. Almost all of the patients with GO that have been reported in the literature have normal cognition (94%).

3.5. Discriminative Features in ARCL2A

The features unique to patients with ARCL2A are abnormal isoelectric focusing, downslanting palpebral fissures, and a long philtrum.

3.6. Discriminative Features in ARCL2B

Facial features specific for ARCL2B are a thin triangular face with pinched nose in infancy and childhood that progresses to a long face with a prominent chin in adulthood. Severe wrinkling of the dorsum of the hands and feet is also more prominent in ARCL2B compared to ARCL2A and GO. Though not seen in all patients with cutis laxa IIB, wormian bones, athetoid movements, lipodystrophy, cataracts and corneal clouding are highly specific for ARCL2B. These features are either not seen or very rarely seen in the other two cutis laxa syndromes [17].

3.7. Discriminative Features in GO

Patients with GO have normal mentation, whereas the majority of the patients with ARCL2A and ARCL2B have variable degrees of intellectual disability. While patients with ARCL2B may manifest osteopenia, osteopenia that is severe enough to cause pathologic fractures is more characteristic of GO. Facial features specific to GO are maxillary hypoplasia and oblique furrowing from the outer canthus to the lateral border of the supraorbital ridge.

4. Conclusions

In conclusion, we believe that in spite of great similarity in ARCL2A, ARCL2B, and GO syndromes, there are discriminative features unique to each condition that can guide accurate clinical diagnosis of cutis laxa syndrome subtypes, so that we were able to correctly make the clinical diagnosis. Sanger sequencing of the candidate gene would be much more cost effective to the general approach of next-generation sequencing cutis laxa panels.

Acknowledgments

The authors are thankful to Therese E. Gadomski for her critical review of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Clinical features in autosomal recessive cutis laxa 2A patients reported in the literature.
Table A1. Clinical features in autosomal recessive cutis laxa 2A patients reported in the literature.
Clinical FeaturesMorava et al., 2008 [4]Van Maldergem et al., 2008 [7]Hucthagowder et al., 2009 [6]Fischer et al., 2012 [23]Greally et al., 2014 [24]Gardeitchik et al. 2014 [22]Bahena-Bahena et al., 2014 [25]Ritelli et al., 2014 [26]Goyal et al., 2015 [27]Cohen et al., 2016 [28]Total
DiagnosisARCL2AARCL2AARCL2AARCL2AARCL2AARCL2AARCL2AARCL2AARCL 2AARCL2A
Intra-uterine growth retardation2/10NENENE3/3NENE++0/25/7
Postnatal growth delayNENE7/17NE0/3NE2/2-+NE10/24
Aged appearance10/1011/11NENENENE2/2++NE4/4
Persistent open fontanel10/1011/1116/1710/123/3NE2/2+NE0/232/37
Blue scleraNENENENENENENE++0/22/4
Intellectual disability8/1011/1112/176/113/3NE2/2-+2/227/37
Microcephaly7/104/1114/17NE3/3NE2/2-+2/223/26
Hypotonia8/1011/11NENE1/36/62/2-NE½10/13
seizures3/105/111/17NE1/32/60/2--1/25/30
Athetoid/dystonic movementsNENENENE0/31/60/2--0/21/15
Corpus callosum dysgenesisNE1/11NENE1/30/4NENENE0/21/9
Pachygryria/cobblestone like dysgenesis4/108/119/151/12/34/4NENENE2/218/25
Strabismus7/100/1113/17NENE2/6NE--1/216/27
Cataract/corneal cloudingNE0/110/17NENE1/6NE--0/20/27
OsteopeniaNENENENENENENENE-NENE
FracturesNE4/110/170/120/30/60/2+-0/21/44
Congenital hip dislocationNE8/8NENE0/3NENE-+0/21/7
Wormian bonsesNENENENENENENENENENENE
Hyperextensibility of joints9/10NE14/1710/123/3NE2/2NENE2/231/36
DislocationsNENENENE0/3NENE--0/20/7
Adducted thumbsNENENENE0/3NENENENE0/20/5
Wrinkled skin10/1011/1117/1713/133/3NE2/2++2/239/39
Visible veins on the chestNENENENENENENENE-NENE
herniaNE6/117/16NE2/3NE½+-0/211/25
Flat feetNENENENENENENE+NE0/21/3
ARCL2A, autosomal recessive cutis laxa 2A; NE, not evaluated.
Table A2. Clinical features in autosomal recessive cutis laxa 2B patients reported in the literature.
Table A2. Clinical features in autosomal recessive cutis laxa 2B patients reported in the literature.
Clinical FeaturesReversade et al., 2009 [2]Guernsey et al., 2009 [3]Yildirim et al., 2010 [16]Lin et al., 2011 [29]Kretz et al., 2011 [15]Dimopoulou et al., 2013 [17]Nouri et al., 2013 [30]Scherrer et al., 2013 [31]Gardeitchik et al. 2014 [22]Rahmati et al., 2015 [32]Goyal et al., 2015 [27]Alazami et al., 2016 [33]Vahidnezhed et al., 2016 [34]Total
DiagnosisARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2BARCL2B
Intra-uterine growth retardation29/315/54/42/26/623/25-1/1NE+++5/569/83
Postnatal growth delay4/135/50/41/26/621/28NE3/3NE+++NE43/64
Aged appearance31/315/54/42/26/629/30+3/3NE+++5/586/87
Persistent open fontanel3/63/32/31/2NE14/19NE3/3NE-++2/231/40
Blue scleraNE4/5NE1/21/613/30NENENE++-2/223/47
Intellectual disability34/355/54/42/23/627/29+3/3NENE++5/586/92
MicrocephalyNE4/52/42/24/519/27NE0/3NE-+-NE32/47
HypotoniaNE0/3NE0/2NE25/30NE2/35/5+--NE33/44
seizuresNENE2/40/20/63/33+0/35/5--+2/514/61
Athetoid /dystonic movements4/350/50/4½NE9/28NE0/33/5---NE17/85
Corpus callosum dysgenesis15/212/31/40/2NE4/13+NE2/5-NE+0/226/53
pachygryria0/210/30/40/2NE0/13-NE0/5-NE-0/20/53
StrabismusNENENE½1/612/27NE0/32/5---½17/43
Cataract/corneal clouding4/350/5NE0/20/64/27NE0/34/5--+0/212/88
Osteopenia12/180/14/40/23/314/16NE3/3NE---2/238/52
FracturesNE0/30/40/21/6NENE2/3NE---0/23/23
Congenital hip dislocation19/342/4¼½4/615/25NE3/3NE+++5/543/86
Wormian bonses6/91/24/40/21/18/12NENENE-NE-NE20/32
Hyperextensibility of joints35/35NE4/42/24/624/26NE3/3NENENE+2/275/79
DislocationsNENENE0/2NENENE0/3NENENE-2/22/8
Adducted thumbsNE3/34/4½4/613/26NE2/3NENENE+NE24/45
Wrinkled skin35/353/34/42/26/631/31+3/3NE+++5/593/93
Visible veins on the chestNE5/54/42/26/624/31NENENE+++2/246/53
hernia17/352/31/40/20/610/28NE3/3NE---NE33/81
Flat feetNENENENE5/6NENENENENENE-NE5/7
ARCL2B, autosomal recessive cutis laxa 2B; NE, not evaluated.
Table A3. Clinical features in Geroderma Osteodysplastica patients reported in the literature.
Table A3. Clinical features in Geroderma Osteodysplastica patients reported in the literature.
Clinical FeaturesNewman et al., 2008 [35]Al-Dosari et al., 2009 [19]Gardeitchik et al., 2014 [22]Alazami et al., 2016 [33]Total
DiagnosisGOGOGOGOGO
Intra-uterine growth retardationNENENENENE
Postnatal growth delay5/91/7NE2/278/43
Aged appearance10/107/7NE23/2740/44
Persistent open fontanelNE1/7NENE1/7
Blue sclera1/10NENENE1/10
Intellectual disability0/100/7NE0/270/44
Microcephaly0/100/7NE0/270/44
Hypotonia8/8NE3/32/2713/38
seizures0/10NE1/30/271/40
Athetoid/dystonic movements0/10NE0/30/270/40
Corpus callosum dysgenesisNENE0/3NE0/3
pachygryriaNENE0/3NE0/3
StrabismusNENE0/3NE0/3
Cataract/corneal cloudingNENE0/3NE0/3
Osteopenia10/106/7NE26/2742/44
Fractures9/105/7NE17/2731/44
Congenital hip dislocation4/102/7NE25/2731/44
Wormian bonsesNENENE15/2715/27
Hyperextensibility of joints10/10NENE26/2736/37
DislocationsNENENENENE
Adducted thumbsNENENENENE
Wrinkled skin10/107/7NE27/2744/44
Visible veins on the chest0/10NENE0/270/34
hernia0/10NENE0/270/34
Flat feetNENENENENE
NE, not evaluated.

References

  1. Kornak, U.; Reynders, E.; Dimopoulou, A.; van Reeuwijk, J.; Fischer, B.; Rajab, A.; Budde, B.; Nürnberg, P.; Foulquier, F.; Lefeber, D.; et al. Impaired glycosylation and cutis laxa caused by mutations in the vesicular H+-ATPase subunit ATP6V0A2. Nat. Genet. 2008, 40, 32–34. [Google Scholar] [CrossRef] [PubMed]
  2. Reversade, B.; Escande-Beillard, N.; Dimopoulou, A.; Fischer, B.; Chng, S.C.; Li, Y.; Shboul, M.; Tham, P.Y.; Kayserili, H.; Al-Gazali, L.; et al. Mutations in PYCR1 cause cutis laxa with progeroid features. Nat. Genet. 2009, 41, 1016–1021. [Google Scholar] [CrossRef] [PubMed]
  3. Guernsey, D.L.; Jiang, H.; Evans, S.C.; Ferguson, M.; Matsuoka, M.; Nightingale, M.; Rideout, A.L.; Provost, S.; Bedard, K.; Orr, A.; et al. Mutation in pyrroline-5-carboxylate reductase 1 gene in families with cutis laxa type 2. Am. J. Hum. Genet. 2009, 85, 120–129. [Google Scholar] [CrossRef] [PubMed]
  4. Morava, E.; Lefeber, D.J.; Urban, Z.; de Meileir, L.; Meinecke, P.; Gillessen Kaesbach, G.; Sykut-Cegielska, J.; Adamowicz, M.; Salafsky, I.; Ranells, J.; et al. Defining the phenotype in an autosomal recessive cutis laxa syndrome with a combined congenital defect of glycosylation. Eur. J. Hum. Genet. 2008, 16, 28–35. [Google Scholar] [CrossRef] [PubMed]
  5. Morava, E.; Wevers, R.A.; Willemsen, M.A.; Lefeber, D. Cobblestone-like brain dysgenesis and altered glycosylation in congenital cutis laxa, Debré type. Neurology 2009, 73, 1164. [Google Scholar] [CrossRef] [PubMed]
  6. Hucthagowder, V.; Morava, E.; Kornak, U.; Lefeber, D.J.; Fischer, B.; Dimopoulou, A.; Aldinger, A.; Choi, J.; Davis, E.C.; Abuelo, D.N.; et al. Loss-of-function mutations in ATP6V0A2 impair vesicular trafficking, tropoelastin secretion and cell survival. Hum. Mol. Genet. 2009, 18, 2149–2165. [Google Scholar] [CrossRef] [PubMed]
  7. Van Maldergem, L.; Yuksel-Apak, M.; Kayserili, H.; Seemanova, E.; Giurgea, S.; Basel-Vanagaite, L.; Leao-Teles, E.; Vigneron, J.; Foulon, M.; Greally, M.; et al. Cobblestone-like brain dysgenesis and altered glycosylation in congenital cutis laxa, Debre type. Neurology 2008, 71, 1602–1608. [Google Scholar] [CrossRef] [PubMed]
  8. Imaizumi, K.; Kurosawa, K.; Makita, Y.; Masuno, M.; Kuroki, Y. Male with type II autosomal recessive cutis laxa. Clin. Genet. 1994, 45, 40–43. [Google Scholar] [CrossRef] [PubMed]
  9. Morava, E.; Wopereis, S.; Coucke, P.; Gillessen-Kaesbach, G.; Voit, T.; Smeitink, J.; Wevers, R.; Grunewald, S. Defective protein glycosylation in patients with cutis laxa syndrome. Eur. J. Hum. Genet. 2005, 13, 414–421. [Google Scholar] [CrossRef] [PubMed]
  10. Wopereis, S.; Morava, E.; Grünewald, S.; Mills, P.B.; Winchester, B.G.; Clayton, P.; Coucke, P.; Huijben, K.M.; Wevers, R.A. A combined defect in the biosynthesis of N- and O-glycans in patients with cutis laxa and neurological involvement: The biochemical characteristics. Biochim. Biophys. Acta 2005, 1741, 156–164. [Google Scholar] [CrossRef] [PubMed]
  11. Al-Gazali, L.I.; Sztriha, L.; Skaff, F.; Haas, D. Gerodermia osteodysplastica and wrinkly skin syndrome: Are they the same? Am. J. Med. Genet. 2001, 101, 213–220. [Google Scholar] [CrossRef] [PubMed]
  12. Hamamy, H.; Masri, A.; Ajlouni, K. Wrinkly skin syndrome. Clin. Exp. Dermatol. 2005, 30, 590–592. [Google Scholar] [CrossRef] [PubMed]
  13. Nanda, A.; Alsaleh, Q.A.; Al-Sabah, H.; Marzouk, E.E.; Salam, A.M.; Nanda, M.; Anim, J.T. Gerodermia osteodysplastica/wrinkly skin syndrome: Report of three patients and brief review of the literature. Pediatr. Dermatol. 2008, 25, 66–71. [Google Scholar] [CrossRef] [PubMed]
  14. Rajab, A.; Kornak, U.; Budde, B.S.; Hoffmann, K.; Jaeken, J.; Nurnberg, P.; Mundlos, S. Geroderma osteodysplasticum hereditaria and wrinkly skin syndrome in 22 patients from Oman. Am. J. Med. Genet. 2008, 146, 965–976. [Google Scholar] [CrossRef] [PubMed]
  15. Kretz, R.; Bozorgmehr, B.; Kariminejad, M.H.; Rohrbach, M.; Hausser, I.; Baumer, A.; Baumgartner, M.; Giunta, C.; Kariminejad, A.; Häberle, J. Defect in proline synthesis: Pyrroline-5-carboxylate reductase 1 deficiency leads to a complex clinical phenotype with collagen and elastin abnormalities. J. Inherit Metab. Dis. 2011, 34, 731–739. [Google Scholar] [CrossRef] [PubMed]
  16. Yildirim, Y.; Tolun, A.; Tüysüz, B. The phenotype caused by PYCR1 mutations corresponds to geroderma osteodysplasticum rather than autosomal recessive cutis laxa type 2. Am. J. Med. Genet. A 2011, 155A, 134–140. [Google Scholar] [CrossRef] [PubMed]
  17. Dimopoulou, A.; Fischer, B.; Gardeitchik, T.; Schroter, P.; Kayserili, H.; Schlack, C.; Li, Y.; Brum, J.M.; Barisic, I.; Castori, M.; et al. Genotype-phenotype spectrum of PYCR1-related autosomal recessive cutis laxa. Mol. Genet. Metab. 2013, 110, 352–361. [Google Scholar] [CrossRef] [PubMed]
  18. Bamatter, F.; Franceschetti, A.; Klein, D.; Sierro, A. Gerodermie osteodysplastique hereditaire. Ann. Pediatr. 1950, 174, 126–127. [Google Scholar]
  19. Al-Dosari, M.; Alkuraya, F.S. A novel missense mutation in SCYL1BP1 produces geroderma osteodysplastica phenotype indistinguishable from that caused by nullimorphic mutations. Am. J. Med. Genet. A 2009, 149A, 2093–2098. [Google Scholar] [CrossRef] [PubMed]
  20. Hunter, A.G.; Martsolf, J.T.; Baker, C.G.; Reed, M.H. Geroderma osteodysplastica. A report of two affected families. Hum. Genet. 1978, 40, 311–324. [Google Scholar] [CrossRef] [PubMed]
  21. Hennies, H.C.; Kornak, U.; Zhang, H.; Egerer, J.; Zhang, X.; Seifert, W.; Kuhnisch, J.; Budde, B.; Natebus, M.; Brancati, F.; et al. Gerodermia osteodysplastica is caused by mutations in SCYL1BP1, a Rab-6 interacting golgin. Nat. Genet. 2008, 40, 1410–1412. [Google Scholar] [CrossRef] [PubMed]
  22. Gardeitchik, T.; Mohamed, M.; Fischer, B.; Lammens, M.; Lefeber, D.; Lace, B.; Parker, M.; Kim, K.J.; Lim, B.C.; Häberle, J.; et al. Clinical and biochemical features guiding the diagnostics in neurometabolic cutis laxa. Eur. J. Hum. Genet. 2014, 22, 888–895. [Google Scholar] [CrossRef] [PubMed]
  23. Fischer, B.; Dimopoulou, A.; Egerer, J.; Gardeitchik, T.; Kidd, A.; Jost, D.; Kayserili, H.; Alanay, Y.; Tantcheva-Poor, I.; Mangold, E.; et al. Further characterization of ATP6V0A2-related autosomal recessive cutis laxa. Hum. Genet. 2012, 131, 1761–1773. [Google Scholar] [CrossRef] [PubMed]
  24. Greally, M.T.; Kalis, N.N.; Agab, W.; Ardati, K.; Giurgea, S.; Kornak, U.; van Maldergem, L. Autosomal recessive cutis laxa type 2A (ARCL2A) mimicking Ehlers-Danlos syndrome by its dermatological manifestations: Report of three affected patients. Am. J. Med. Genet. A 2014, 164, 1245–1253. [Google Scholar] [CrossRef] [PubMed]
  25. Bahena-Bahena, D.; López-Valdez, J.; Raymond, K.; Salinas-Marín, R.; Ortega-García, A.; Ng, B.G.; Freeze, H.H.; Ruíz-García, M.; Martínez-Duncker, I. ATP6V0A2 mutations present in two Mexican Mestizo children with an autosomal recessive cutis laxa syndrome type IIA. Mol. Genet. Metab. Rep. 2014, 1, 203–212. [Google Scholar] [CrossRef] [PubMed]
  26. Ritelli, M.; Chiarelli, N.; Quinzani, S.; Dordoni, C.; Venturini, M.; Pezzani, L.; Calzavara-Pinton, P.; Colombi, M. Identification of two novel ATP6V0A2 mutations in an infant with cutis laxa by exome sequencing. J. Dermatol. Sci. 2014, 75, 66–68. [Google Scholar] [CrossRef] [PubMed]
  27. Goyal, M.; Singh, A.; Kornak, U.; Kapoor, S. The diagnostic dilemma of cutis laxa: A report of two cases with genotypic dissimilarity. Indian J. Dermatol. 2015, 60, 521. [Google Scholar] [PubMed]
  28. Cohen, R.; Halevy, A.; Aharoni, S.; Kraus, D.; Konen, O.; Basel-Vanagaite, L.; Goldberg-Stern, H.; Straussberg, R. Polymicrogyria and myoclonic epilepsy in autosomal recessive cutis laxa type 2A. Neurogenetics 2016, 17, 251–257. [Google Scholar] [CrossRef] [PubMed]
  29. Lin, D.S.; Yeung, C.Y.; Liu, H.L.; Ho, C.S.; Shu, C.H.; Chuang, C.K.; Huang, Y.W.; Wu, T.Y.; Huang, Z.D.; Jian, Y.R.; et al. A novel mutation in PYCR1 causes an autosomal recessive cutis laxa with premature aging features in a family. Am. J. Med. Genet. A 2011, 155A, 1285–1289. [Google Scholar] [CrossRef] [PubMed]
  30. Nouri, N.; Aryani, O.; Nouri, N.; Kamalidehghan B Houshmand, M. Cutis laxa type II with mutation in the pyrroline-5-carboxylate reductase 1 gene. Pediatr. Dermatol. 2013, 30, 265–267. [Google Scholar] [CrossRef] [PubMed]
  31. Scherrer, D.Z.; Baptista, M.B.; Matos, A.H.; Maurer-Morelli, C.V.; Steiner, C.E. Mutations in PYCR1 gene in three families with autosomal recessive cutis laxa, type 2. Eur. J. Med. Genet. 2013, 56, 336–339. [Google Scholar] [CrossRef] [PubMed]
  32. Rahmati, M.; Yazdanparast, M.; Jahanshahi, K.; Zakeri, M. Congenital cutis laxa type 2 associated with recurrent aspiration pneumonia and growth delay: Case report. Electron. Physician 2015, 7, 1391–1393. [Google Scholar] [PubMed]
  33. Alazami, A.M.; Al-Qattan, S.M.; Faqeih, E.; Alhashem, A.; Alshammari, M.; Alzahrani, F.; Al-Dosari, M.S.; Patel, N.; Alsagheir, A.; Binabbas, B.; et al. Expanding the clinical and genetic heterogeneity of hereditary disorders of connective tissue. Hum. Genet. 2016, 135, 525–540. [Google Scholar] [CrossRef] [PubMed]
  34. Vahidnezhad, H.; Karamzadeh, R.; Saeidian, A.H.; Youssefian, L.; Sotoudeh, S.; Zeinali, S.; Vasei, M.; Golnabi, F.; Baghdadi, T.; Uitto, J. Molecular dynamics simulation of the consequences of a PYCR1 mutation (p.Ala189Val) in patients with complex connective tissue disorder and severe intellectual disability. J. Investig. Dermatol. 2017, 137, 525–528. [Google Scholar] [CrossRef] [PubMed]
  35. Newman, W.G.; Clayton-Smith, J.; Metcalfe, K.; Cole, R.; Tartaglia, M.; Brancati, F.; Morara, S.; Novelli, A.; Liu, X.; Siminovitch, K.A.; et al. Geroderma osteodysplastica maps to a 4 Mb locus on chromosome 1q24. Am. J. Med. Genet. A 2008, 146A, 3034–3037. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Overlapping clinical features of ARCL2A, ARCL2B, and GO cases. (a) Frontal view of patients with cutis laxa IIA, case 1; (b) frontal view of patient with ARCL2B case 6, note pectus excavatum, translucent skin, and visible veins; (c) frontal view of patient with GO case 7, note sagging and overfolding of skin; (d,e) note wrinkling of skin in the dorsum of hands and increased palmar creases in case 1; (f,g) adducted thumb seen in case 6; (h,i) wrinkling of skin and increased palmar creases in case 7; (j) flat feet in ARCL2A case 1; (k) cutis laxa in ARCL2A in case 2; (l) flat feet and increased wrinkling in dorsum of feet in ARCL2B patient case 3; (m) hyperlaxity of joints in ARCL2B patient case 3; (n) flat feet in GO case 7; and (o) hyperlaxity of joints in GO in case 7.
Figure 1. Overlapping clinical features of ARCL2A, ARCL2B, and GO cases. (a) Frontal view of patients with cutis laxa IIA, case 1; (b) frontal view of patient with ARCL2B case 6, note pectus excavatum, translucent skin, and visible veins; (c) frontal view of patient with GO case 7, note sagging and overfolding of skin; (d,e) note wrinkling of skin in the dorsum of hands and increased palmar creases in case 1; (f,g) adducted thumb seen in case 6; (h,i) wrinkling of skin and increased palmar creases in case 7; (j) flat feet in ARCL2A case 1; (k) cutis laxa in ARCL2A in case 2; (l) flat feet and increased wrinkling in dorsum of feet in ARCL2B patient case 3; (m) hyperlaxity of joints in ARCL2B patient case 3; (n) flat feet in GO case 7; and (o) hyperlaxity of joints in GO in case 7.
Ijms 18 00635 g001
Figure 2. Comparison of aging in ARCL2A, ARCL2B, and GO. (a) Cutis laxa and facial dysmorphic features improves considerably in cutis laxa IIA as seen in three sisters affected with this condition; (b) the infant with ARCL2B has a triangular face (case 3); (c) The adult with ARCL2B has a long face with prognathism (case 5); (d) the trunk in patient with ARCL2B, the skin is translucent showing underlying vessels (case 3); (e) the trunk in the older patient shows improvement in translucency of skin (case 4); (f) the hand is tightly clenched in infancy in ARCL2B patient case 3 but can be easily opened as the child grows older; (g) infant with GO (case 9); (h) adult with GO (case 10); the GO patient has the least dysmorphic features and there is no dramatic change in facial features.
Figure 2. Comparison of aging in ARCL2A, ARCL2B, and GO. (a) Cutis laxa and facial dysmorphic features improves considerably in cutis laxa IIA as seen in three sisters affected with this condition; (b) the infant with ARCL2B has a triangular face (case 3); (c) The adult with ARCL2B has a long face with prognathism (case 5); (d) the trunk in patient with ARCL2B, the skin is translucent showing underlying vessels (case 3); (e) the trunk in the older patient shows improvement in translucency of skin (case 4); (f) the hand is tightly clenched in infancy in ARCL2B patient case 3 but can be easily opened as the child grows older; (g) infant with GO (case 9); (h) adult with GO (case 10); the GO patient has the least dysmorphic features and there is no dramatic change in facial features.
Ijms 18 00635 g002
Figure 3. (a,b) Abnormal fat distribution seen in cutis laxa IIA; (c) it may rarely be seen in GO patients; and (d) note lipodystrophy in cases 4 and 5.
Figure 3. (a,b) Abnormal fat distribution seen in cutis laxa IIA; (c) it may rarely be seen in GO patients; and (d) note lipodystrophy in cases 4 and 5.
Ijms 18 00635 g003

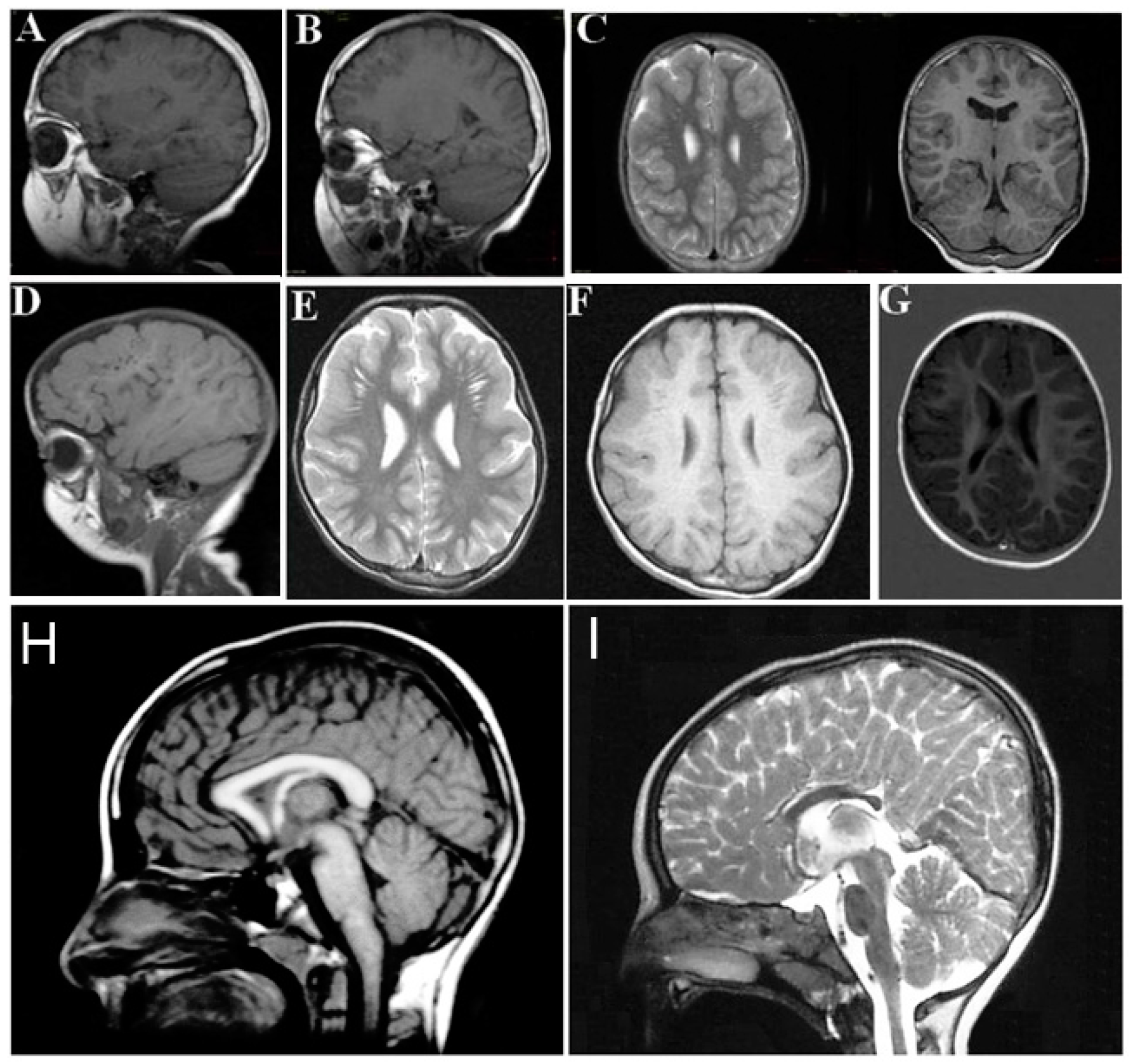

Figure 4. (A,B,D) demonstrate frontal and frontotemporal cobblestone-like brain dysgenesis on lateral T1 weighed images in three patients with cutis laxa IIA. Note the enlarged Virchow space under the abnormally-developed brain region; (C,E,F) shows sagittal images of fronto-temporal cobblestone-like brain dysgenesis on T2 and T1 weighted images in the same patients; (G) sagittal image showing mild, frontal cobblestone-like brain dysgenesis; (I) control showing normal-sized corpus callosum; and (H) agenesis of the corpus callosum in a cutis laxa IIB patient.
Figure 4. (A,B,D) demonstrate frontal and frontotemporal cobblestone-like brain dysgenesis on lateral T1 weighed images in three patients with cutis laxa IIA. Note the enlarged Virchow space under the abnormally-developed brain region; (C,E,F) shows sagittal images of fronto-temporal cobblestone-like brain dysgenesis on T2 and T1 weighted images in the same patients; (G) sagittal image showing mild, frontal cobblestone-like brain dysgenesis; (I) control showing normal-sized corpus callosum; and (H) agenesis of the corpus callosum in a cutis laxa IIB patient.
Ijms 18 00635 g004
Table 1. Comparison of clinical features of cutis laxa IIA, IIB, and GO syndrome, and 10 patients with these cutis laxa conditions.
Table 1. Comparison of clinical features of cutis laxa IIA, IIB, and GO syndrome, and 10 patients with these cutis laxa conditions.
DiagnosisCutis laxa IIAFamily I Case 1Family II Case 2 *Cutis laxa IIBFamily III Case 3FamilyIV Case 4 Family IV Case 5Family V Case 6 GOFamily VI Case 7Family VII Case 8 Family VIII Case 9Family IX Case 10
ARCL2AARCL 2AARCL2BARCL2BARCL2BARCL2BGOGOGOGO
Age at examination 4 years12 years 14 months35 years36 years1 year 9 years3 years6 months40 years
Sex FM FMMF FMFM
Intra-uterine growth retardation++++++++---+NE
height 108 cm 95th centile140 cm 10th centile 75 cm <50th centile173 cm <50th centile175 cm <50th centile68 cm <25th centile 115 cm <3rd centile69 cm <3rd centile65 cm 50th centile158 cm <3rd centile
weight 12 kg <3rd centile27 Kg <3rd centile 6.8 kg <3rd centile40 kg <3rd centile45 <3rd centile6.2 kg <3rd centile 24 kg <25th centile7.4 kg <3rd centile6.4 kg <50th centile50 kg <3rd centile
Head Circumference 47.5 cm <50th centile51 cm <50th centile 42 cm <2nd centile53 cm <50th centile54.5 <50th centile40 cm <2nd centile 50 cm <50th centile42 cm <2nd centile41 cm <25th centile 57.5 cm <98th centile
Facial features
Aged appearance+++/−++++++++++
Persistent open fontanel+NE++-NENE+NENE
Bossing forehead/broad forehead+++++
Downslanting palpebral fissures+++
Reverse V eyebrows+++
Long philtrum+++
Anteverted nares+++
Blue sclera++++
Triangular face ++++
Thin nose +++++
Long face + **++
prognathism + **++
Maxillary hypoplasia ++++
Oblique furrowing extending from the outer canthus to the lateral border of the supraorbital ridge +++
Drooping/sagging cheeks++++++/−
Neurological abnormalities
Developmental delay++++++++
Intellectual disability++Very mild+++++
Microcephaly +++
Hypotonia+++ at birth+++
Eye abnormalities
Myopia++NE
Strabismus+++
Skeleton
Pectus excavatum++++
Osteopenia++++NENENE+++++
Fractures +/−+++
Congenital hip dislocation+++++/−+
Skin & joints
Hyperextensibility of joints++++++/−+/−+++++
Dislocations +-+
Adducted thumbs ++++++
Clenched hands ++++
Increased palmar creases ++ ++++ ++++
Wrinkled skin+++++++++++++
Severe wrinkling of skin on dorsum of hands and feet ++++++
Visible veins on the chest ++++++
Inguinal hernia++++
Umbilical hernia +++
Lipodystrophy ++++
Flat feet+++ +++++
Causative gene Mutation cDNA Mutation proteinATP6V0A2c.2255C>T homozygous mutation in ATP6V0A2 novelc.754delT homozygous mutation in ATP6V0A2 22 c.797 G>A homozygous mutation in PYCR1 gene 2,3c. 355C>T homozygous mutation in PYCR1 gene 2c. 355C>T homozygous mutation in PYCR1 gene 2c.572G>A homozygous mutation in PYCR1 gene 15 c.-1_1GA>CT homozygous mutation in GORAB gene 21c.-1_1GA>CT homozygous mutation in GORAB genec.391C>T homozygous mutation in GORAB gene novelc.75_76delinsCT homozygous mutation in GORAB gene 21
other Glycosylation abnormalititesGlycosylation abnoramalities Cleft palate Small ASD
* Case 2 was previously reported by Gardeitchik et al., 2014 [22]; ** Case 6 was previously reported by Kretz et al., 2011 [15]; *** present in adulthood + present; − absent; F, Female; M, Male; NE, Not evaluated.
Table 2. Comparison of clinical features of cases with ARCL2A, ARCL2B, and GO in present cases and cases from the literature. NE, not evaluated.
Table 2. Comparison of clinical features of cases with ARCL2A, ARCL2B, and GO in present cases and cases from the literature. NE, not evaluated.
Clinical FeaturesARCL2A Total Cases from LiteratureARCL2A Present CasesARCL2B Total Cases from the LiteratureARCL2B Present CasesGO Total Cases from the LiteratureGO Present Cases
Number of Positive Cases from Number of Evaluated CasesFrequency (%)Number of Positive Cases from Number of Evaluated CasesFrequency (%)Number of Positive Cases From Number of Evaluated CasesFrequency (%)
Intra-Uterine Growth Retardation7/1741%2/278/8394%4/40/90%1/3
Postnatal Growth Delay10/2442%0/243/6467%4/48/5215%3/4
Aged Appearance25/25100%2/289/8798%4/449/5392%4/4
Persistent open Fontanel53/5891%1/130/4075%1/22/1217%0/2
Blue sclera2/450%1/223/4848%2/21/195%0/4
Intellectual Disability45/5878%2/286/9293%4/43/536%0/4
Microcephaly33/4770%0/232/4965%2/41/532%1/4
Hypotonia29/3583%2/233/4672%2/413/3834%0/4
Seizures13/5325%0/214/6223%0/41/492%0/4
Athetoid/Dystonic Movements1/156%0/217/8520%0/40/490%0/4
Corpus Callosum Dysgenesis2/2010%NE26/5349%NE0/30%NE
Pachygryria30/4665%NE0/530%NE0/30%NE
Strabismus21/4844%1/217/4835%1/40/30%0/4
Cataract/corneal clouding1/383%0/213/8815%0/40/30%0/4
OsteopeniaNENE1/238/5273%1/150/5296%4/4
Fractures5/559%0/23/2313%0/439/5374%2/4
Congenital hip dislocation9/1560%1/253/8662%1/436/5368%1/4
Wormian bonsesNENE0/220/3263%NE15/3642%NE
Hyperextensibility of joints40/4687%2/275/7995%4/445/4698%3/4
Dislocations0/70%0/22/825%2/4NENE0/4
Adducted thumbs0/50%0/228/4562%4/4NENE1/4
Wrinkled skin60/60100%2/293/93100%4/453/53100%4/4
Visible veins on the chestNENE0/246/5387%4/49/4321%0/4
Hernia17/3647%1/233/8439%2/41/432%2/4
Flat feet1/333%1/25/771%3/4NENE1/4

Share and Cite

MDPI and ACS Style

Kariminejad, A.; Afroozan, F.; Bozorgmehr, B.; Ghanadan, A.; Akbaroghli, S.; Khorram Khorshid, H.R.; Mojahedi, F.; Setoodeh, A.; Loh, A.; Tan, Y.X.; et al. Discriminative Features in Three Autosomal Recessive Cutis Laxa Syndromes: Cutis Laxa IIA, Cutis Laxa IIB, and Geroderma Osteoplastica. Int. J. Mol. Sci. 2017, 18, 635. https://doi.org/10.3390/ijms18030635

AMA Style

Kariminejad A, Afroozan F, Bozorgmehr B, Ghanadan A, Akbaroghli S, Khorram Khorshid HR, Mojahedi F, Setoodeh A, Loh A, Tan YX, et al. Discriminative Features in Three Autosomal Recessive Cutis Laxa Syndromes: Cutis Laxa IIA, Cutis Laxa IIB, and Geroderma Osteoplastica. International Journal of Molecular Sciences. 2017; 18(3):635. https://doi.org/10.3390/ijms18030635

Chicago/Turabian Style

Kariminejad, Ariana, Fariba Afroozan, Bita Bozorgmehr, Alireza Ghanadan, Susan Akbaroghli, Hamid Reza Khorram Khorshid, Faezeh Mojahedi, Aria Setoodeh, Abigail Loh, Yu Xuan Tan, and et al. 2017. "Discriminative Features in Three Autosomal Recessive Cutis Laxa Syndromes: Cutis Laxa IIA, Cutis Laxa IIB, and Geroderma Osteoplastica" International Journal of Molecular Sciences 18, no. 3: 635. https://doi.org/10.3390/ijms18030635

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
