Article

A Novel Workflow to Enrich and Isolate Patient-Matched EpCAMhigh and EpCAMlow/negative CTCs Enables the Comparative Characterization of the PIK3CA Status in Metastatic Breast Cancer

by
Rita Lampignano
,
Liwen Yang
,
Martin H. D. Neumann
,
André Franken
,
Tanja Fehm
,
Dieter Niederacher
and
Hans Neubauer
*
Department of Obstetrics and Gynecology, Heinrich Heine University of Duesseldorf, Life Science Center, Merowingerplatz 1A, Moorenstr. 5, 40225 Duesseldorf, Germany
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(9), 1885; https://doi.org/10.3390/ijms18091885
Submission received: 14 July 2017 / Revised: 21 August 2017 / Accepted: 25 August 2017 / Published: 31 August 2017
(This article belongs to the Special Issue Single Cell Technology)
Browse Figures
Versions Notes

Abstract

:
Circulating tumor cells (CTCs), potential precursors of most epithelial solid tumors, are mainly enriched by epithelial cell adhesion molecule (EpCAM)-dependent technologies. Hence, these approaches may overlook mesenchymal CTCs, considered highly malignant. Our aim was to establish a workflow to enrich and isolate patient-matched EpCAMhigh and EpCAMlow/negative CTCs within the same blood samples, and to investigate the phosphatidylinositol 3-kinase catalytic subunit alpha (PIK3CA) mutational status within single CTCs. We sequentially processed metastatic breast cancer (MBC) blood samples via CellSearch® (EpCAM-based) and via Parsortix™ (size-based) systems. After enrichment, cells captured in Parsortix™ cassettes were stained in situ for nuclei, cytokeratins, EpCAM and CD45. Afterwards, sorted cells were isolated via CellCelector™ micromanipulator and their genomes were amplified. Lastly, PIK3CA mutational status was analyzed by combining an amplicon-based approach with Sanger sequencing. In 54% of patients′ blood samples both EpCAMhigh and EpCAMlow/negative cells were identified and successfully isolated. High genomic integrity was observed in 8% of amplified genomes of EpCAMlow/negative cells vs. 28% of EpCAMhigh cells suggesting an increased apoptosis in the first CTC-subpopulation. Furthermore, PIK3CA hotspot mutations were detected in both EpCAMhigh and EpCAMlow/negative CTCs. Our workflow is suitable for single CTC analysis, permitting—for the first time—assessment of the heterogeneity of PIK3CA mutational status within patient-matched EpCAMhigh and EpCAMlow/negative CTCs.

Graphical Abstract

1. Introduction

Circulating tumor cells (CTCs) are epithelial cells identified in the peripheral bloodstream of patients suffering from cancer and are commonly considered to be responsible for metastases formation in the majority of epithelial solid tumors [1,2]. Since they may differ in genotype and phenotype from the primary tumor, their detection and molecular characterization are of great interest for diagnosis, prognosis and selection of proper medical treatments [3,4]. Despite many technologic improvements, investigating CTCs is still challenging, mainly due to their low numbers in the blood and the necessity of working at single-cell level to overcome intercellular heterogeneity. Currently used CTC-enrichment technologies focus either on the cells’ biological or physical properties [5]. Among them, epithelial cell adhesion molecule (EpCAM)-dependent enrichment techniques are the most widely used with the automated CellSearch® being so far the only Food and Drug Administration (FDA) approved system [6].
It has previously been demonstrated that there are different subpopulations of CTCs ranging in a continuum of phenotypes from the epithelial-like to the mesenchymal-like cells as a result of a process termed epithelial to mesenchymal transition (EMT) [7,8,9]. EMT takes place during tumorigenesis, leading to a loss of a cell’s epithelial features in favor of gaining mesenchymal properties [10,11]. As a consequence, within the same patient, some CTCs may express lower or no levels of EpCAM proteins making them ‘invisible’ for EpCAM-based capturing and detection methods [12,13]. Moreover, it was observed that these tumor cells, which have already initiated EMT, are correlated to worse prognosis—independently on their EpCAM expression—and therefore they might provide additional information about the evolution of the disease [8,9,14,15,16,17,18].
Thus, robust EpCAM-independent detection and isolation approaches are needed to enrich for such CTC subpopulations. Many research groups focused on CTC analysis to investigate their heterogeneity and to stratify metastatic breast cancer (MBC) patients in order to acquire a better cancer-related knowledge and to guide the choice of CTC-based therapeutic treatments.
One of the most studied signaling proteins in breast cancer is the phosphatidylinositol 3-kinase (PI3K), which participates in many significant signaling networks involved in cell growth and survival, and which is frequently altered in many types of human cancer [16,17]. The phosphatidylinositol 3-kinase catalytic subunit alpha (PIK3CA) gene encodes for p110α—the catalytic subunit of PI3K—and is one of the most frequently mutated genes in invasive breast cancer (~26% of the cases), with most mutations clustered in either the helical domain (coded in exon 9) or in the catalytic domain (coded in exon 20), therefore named ‘hotspot’ regions [17]. These mutations were shown to activate PI3K and related pathways, conferring a remarkable selective growth gain to the cell along with in vitro and in vivo tumorigenicity [17,18,19].
However, the prognostic relevance of these mutations has not been clearly figured out, yet. Some recent studies reported improved clinical outcome in patients with luminal breast cancer harboring PIK3CA activating mutations [20,21]. In contrast, a correlation between the existence of PIK3CA mutations and drug resistance was observed, notably in anti-HER2-treatment regimen [22,23,24,25,26]. Early studies on CTCs point towards the presence of PIK3CA hotspot mutations—along with the wild-type form of this gene—in MBC patients [27,28,29,30,31], regardless of the PIK3CA status in the primary tumor [29,30]. Additionally, Markou et al. [29] observed that patients carrying CTCs with mutated PIK3CA have a significant shorter overall survival than those without.
All the abovementioned observations emphasize the necessity of acquiring additional molecular insights into both primary tumors and single CTCs to shed light on the clinical relevance of PIK3CA mutations, and to achieve personalized HER2-targeted therapies.
To the best of our knowledge, the mutational analysis of the PIK3CA within EpCAMlow/negative CTCs has so far not been incorporated, and we believe that this information may actually contribute to understand the anti-HER2 treatment resistance in currently running clinical studies (e.g., DETECT III). Thus, the purpose of our study was to establish a workflow to enrich and isolate both EpCAMhigh and EpCAMlow/negative CTCs from the same MBC patient blood sample in order to assess the heterogeneity of the PIK3CA mutational status within the EpCAMlow/negative CTCs in comparison to the EpCAMhigh CTC-subpopulation.
For the former, we have recently presented a powerful workflow to enrich for, detect and isolate EpCAMhigh CTCs by combining both the CellSearch® system and the CellCelector™ micromanipulator [32]. In parallel, we confirmed the presence of EpCAMlow/negative CTCs in blood discarded after CellSearch® enrichment, further processed with immunomagnetic microbeads targeting proteins expressed on the surface of EpCAMlow/negative CTCs [13].
However, since this antibody-based approach might still lose a consistent fraction of CTCs with epithelial-mesenchymal plasticity, in the project herein described, we expanded our workflow for CTC isolation and single cell molecular investigation by incorporating an additional label-free CTC enrichment step by using the Parsortix™ system (Figure 1) on blood samples previously depleted for EpCAMhigh CTCs. Successively, we isolated patient-matched EpCAMhigh and EpCAMlow/negative CTCs and investigated the heterogeneity of their PIK3CA status in all the collected tumor cells via Sanger sequencing.
Our workflow was proved to be suitable for single CTC analysis and has enabled—for the first time—the characterization of the PIK3CA oncogene on patient-matched EpCAMhigh and EpCAMlow/negative CTCs.

2. Results

2.1. A Novel Workflow to Enrich and Isolate Patient-Matched EpCAMhigh and EpCAMlow/negative CTCs

We focused on establishing a robust method that allows the enrichment, isolation and downstream processing of single EpCAMlow/negative CTCs along with the collection of patient-matched EpCAMhigh cells. Our workflow starts by processing 7.5 mL blood sample through the CellSearch® system. After depletion of EpCAMhigh CTCs, EpCAM-depleted blood is collected and further processed within the Parsortix™ system, representing our workflow′s novel component. Cells captured within this system are labeled with fluorochrome-conjugated antibodies in the Parsortix™ cassette, released and micromanipulated with the CellCelector™ system within 48 h. CTCs are identified based on the following features: intact nuclei (DAPI), expression of cytokeratins, CD45-negativity, and a diameter of 5–40 µm. In addition, EpCAMlow/negative CTCs are verified by low or no expression of EpCAM. Successfully isolated cells are deposited in PCR tubes and processed for WGA prior to sequencing analysis.

2.2. Validation of Immunostaining on Cytospins

Prior to the establishment of the workflow, the immunostaining mastermix necessary to identify CTCs was validated on cell lines. The cell line MCF-7 was utilized as positive control for staining of cytokeratins (anti-C11/AE1/AE3-TRITC) and EpCAM (anti-vu14D9-AF488) and as negative control for CD45 (anti 3Z5S-AF647). On the contrary, leukocytes were utilized as positive control for CD45 and as negative control for cytokeratins and EpCAM. Cells were effectively stained for the expected markers (Figure S1).

2.3. Validation of Tumor Cell Enrichment via Parsortix™ System

First, capturing and harvesting rates within the Parsortix™ system were determined in 3 independent experiments using MCF-7 breast cancer cell line, whose diameter—measured via microscopy—was on average 18 ± 1.7 µm. In each Test 100 pre-labeled cells were spiked into healthy donor blood previously processed within the CellSearch® system. In order to determine capturing rates, cells in the cassette were scanned with the fluorescence microscope integrated in the CellCelector™. Captured cells were then harvested from the cassettes into tubes with 200 µL PBS. Cell suspensions were placed on glass slides and scanned under the fluorescent microscope in order to quantify harvested tumor cells. These were identified as described above. The average capturing rate for MCF-7 cells within disposable cassettes of 6.5 µm narrow passages was of 63 ± 17.8% and out of it, 72 ± 29.6% of cells could be harvested.

2.4. Establishment of in Situ Staining of Captured Tumour Cells

In order to optimize the workflow for clinical routine application, we subsequently established the semi-automated in situ staining of captured tumor cells. The in situ labeling approach was chosen over the staining in suspension in order to reduce the great cell loss due to pipetting procedures and/or centrifugation steps otherwise needed. Unlabeled CellSave®-fixed MCF7 cells were spiked into healthy donor blood samples after processing within the CellSearch® system. Cells captured inside the Parsortix™ cassette were permeabilized in situ and then incubated with the antibodies/DAPI mastermix. Harvested cells were scanned under the fluorescent microscope for an intact nucleus, for cytokeratins expression as well as for EpCAM expression. A successful staining of all the selected markers could be observed (Figure 2).

2.5. Processing of MBC Clinical Samples: Enrichment, Detection and Isolation of EpCAMhigh and EpCAMlow/negative Cells

From 07/2015 to 11/2016, 52 blood samples of 47 MBC patients were sequentially processed with our workflow. Patients´ characteristics for primary tumors and CTC fractions are reported in Table S1.
In 54% (n = 28) of blood samples, we observed both EpCAMhigh and EpCAMlow/negative cell subpopulations with no correlation in positivity rates (Figure 3).
Suitable cells for downstream analysis were selected based on their morphologic appearance and signal intensities, according to Polzer et al. [31]. We successfully isolated 107 EpCAMhigh and 145 EpCAMlow/negative cells from 13 patients. In Figure 4, representative images of isolated EpCAMhigh and EpCAMlow/negative cells are depicted.

2.6. Whole Genome Amplification of Single Isolated Cells

We tested whether enrichment and isolation conditions of our workflow were compatible with whole genome amplification in order to enable further genome analysis. We omitted the analysis of isolated cell line cells since these—in comparison to CTCs—are very robust feigning good conditions.
In order to characterize isolated EpCAMhigh and EpCAMlow/negative cells, these were lysed and WGA was performed. Quality control PCRs for the WGA products indicated that approximately 28% of WGA libraries from EpCAMhigh cells show high genomic integrity compared to 8% of EpCAMlow/negative cells (Table 1).

2.7. Mutational Analysis of PIK3CA Exons 9 and 20 in both CTC-Subpopulations

Afterwards, we investigated the status of the PIK3CA exons 9 and 20 in patient-matched EpCAMhigh and EpCAMlow/negative CTCs. WGA products were specifically amplified for PIK3CA sequences mainly flanking hotspots E542, E545, H1047, located in exons 9 and 20. Resulting amplicons of 38 EpCAMhigh and of 39 EpCAMlow/negative cells from 10 patients could be successfully sequenced for above reported hotspot mutations, known to cause constitutive activity of PIK3CA protein, involved in tumorigenesis [21,22].
Individual sequencing profiles of both EpCAMlow/negative and EpCAMhigh CTCs were compared to sequencing profiles of single MCF-7—known to harbor mutations in exon 9 (amino acid change at position E542 and E545)—and of single T47D cells harboring mutations in exon 20 (amino acid change at position 1047) [33,34].
In six patients out of ten, both fractions of CTCs were classified as wild-type (WT) for the investigated PIK3CA hotspots (Table 2).
In four patients (I, IX, X, XLVII) CTCs harboring PIK3CA hotspot mutations could be observed (Figure 5) as well as tumor cells carrying the WT form of the gene.
Patient I carried PIK3CA hotspot mutations in the EpCAMlow/negative CTC group only. The mutation E545K (codon 545 of the exon 9, glutamine to lysine) could be observed in one out of ten analyzed CTCs. The remaining 9 EpCAMlow/negative and 2 patient-matched EpCAMhigh CTCs carried the WT form of the gene.
Patients X and XLVII exhibited the mutated PIK3CA in EpCAMhigh CTCs only. In patient X the mutation H1047R (codon 1047 of the exon 20, histidine to arginine) could be detected in two out of 5 processed CTCs. The 3 remaining EpCAMhigh CTCs and 1 patient-matched EpCAMlow/negative CTC were classified as PIK3CA WT. In patient XLVII the rare mutation H1047L (codon 1047 of exon 20, histidine to leucine) could be detected in one out of 2 processed CTCs. The remaining EpCAMhigh CTC and 2 patient-matched EpCAMlow/negative CTCs were classified as PIK3CA WT.
A very heterogeneous situation was observed in patient IX who carried both mutated and the WT PIK3CA in both subpopulations of CTCs. Moreover, different hotspot mutations were observed within the two different fractions of CTCs. In one out of five EpCAMlow/negative CTCs, the mutation E545K was detected. Four residual EpCAMlow/negative CTCs were PIK3CA WT. In two out of eleven EpCAMhigh CTCs the mutation H1047L (codon 1047 of exon 20, glutamine to leucine) could be observed and the remaining 9 EpCAMhigh CTCs were classified as PIK3CA WT.
No other base exchanges could be detected within the whole sequencing profiles of both PIK3CA exons 9 and 20.

3. Discussion

The clinical relevance of EpCAMpositive CTCs was proved by several investigations [35,36,37]. However, whether transient and mesenchymal CTCs play a key role in the outcome of the patients is still an open question. Many studies reported the presence of EpCAMnegative CTCs in the blood of patients suffering from different types of cancer. In some of these investigations the potential clinical relevance of these tumor cells was examined [3,12,14,15,16,17,38,39], often highlighting the metastatic potential of EpCAMnegative CTCs [3,38,39]. In general, in all of the abovementioned studies the authors agree that this subpopulation of CTCs should be further analyzed to acquire further knowledge regarding their metastatic potential.
However, both enrichment and isolation steps for CTCs are still the bottleneck in the field of CTC analysis. Not many commercially available enrichment techniques can guarantee high cell recovery rates—regardless of protein expression—and low white blood cell contamination. Moreover, there are few technologies available to isolate single cells and most of them are time consuming, require high sample volumes, and face loss of cells.
We previously reported the existence of an EpCAMlow/negative subset of CTCs in MBC patients’ samples further processed after CellSearch® system [13]. Besides, we have recently described a powerful workflow to enrich EpCAMhigh CTCs and to micromanipulate them as single cells by combining the CellSearch® system and the CellCelector™ micromanipulator [32]. Finally, in the herein described project we optimized our methods incorporating the Parsortix™ system in order to enrich, detect and isolate EpCAMlow/negative tumor cells along with patient-matched EpCAMhigh CTCs.
The Parsortix™ system enables size-dependent enrichment of cells independently on the expression of cell surface proteins, unlike antibody dependent technologies (e.g., reported by Schneck et al. [13]). First and foremost, effective capturing and harvesting rates of the system was assessed by using cassettes with narrow passages of 6.5 µm. We observed an average of 63 ± 17.8% of captured pre-labeled MCF-7 cells and from them 72 ± 29.6% could be successfully harvested. Our data indicate slightly higher cell recovery rates than those reported by Xu et al. [40] who utilized cassettes with 10 µm narrow passages. In addition, our recovery rates are in concordance with results published by Hvichia et al. [41] who reported a range of capturing rates of 42–70% and a range of harvesting rates of 54–69% for cancer cell lines of different tumor entities (PANC1, A375, PC3, A549, T24) by utilizing 10 µm cassettes. Hence, all the data point out how recovery rates depend on both size and deformability of tumor cells, as previously already hypothesized [41].
The high capturing and harvesting rates of the Parsortix™ system are the basis for the effective CTC analysis since Neumann et al. [32] already demonstrated that single cell micromanipulation can be performed with 97% efficacy. Therefore, optimizing the in situ labeling of cells in Parsortix™ cassettes is of high importance in order to minimize cell loss, which was observed during in suspension staining procedures [40,41].
By applying the established novel workflow, we were able to successfully enrich, detect and isolate single EpCAMlow/negative and patient-matched EpCAMhigh cells. In 54% of blood samples positive for EpCAMhigh CTCs also EpCAMlow/negative cells could be detected without any correlation in numbers. The resulting combined CTC positivity rate is higher than that reported by de Wit et al. [12], who found both EpCAMhigh and EpCAMlow/negative cells in 19% (5/27) of metastatic lung cancer samples. This may be explained either by the application of different CTC enrichment methods or by different abundance of EpCAMlow CTCs within the different tumor entities investigated. However, in agreement to our results, de Wit et al. [12] reported a lack of correlation between numbers of both EpCAMhigh and EpCAMlow/negative cell fractions. Of great interest for our future studies is whether EpCAMlow/negative cells may provide prognostic and predictive information for early or MBC patients with no EpCAMhigh CTC in the CellSearch® analysis.
Moreover, we proved the feasibility of our workflow for single cell downstream analysis. WGA products were of high genomic integrity in 28% of EpCAMhigh CTCs, accordingly with data published by Polzer et al. [31]. In contrast, the unexpected finding of 8% WGA products of high genomic integrity among EpCAMlow/negative cells may point towards early apoptosis mechanisms activated in this CTC subpopulation. In future experiments, we aim to complement our staining protocol with indicators for apoptosis, a phenomenon that has was already observed in CTCs and related to patients’ outcomes in several studies [42,43,44,45,46].
In the scenario of future personalized medicine, the characterization of single CTCs besides their enumeration may also play a key role, identifying potential biomarkers (e.g., PIK3CA) to predict resistance to therapies. The status of the PIK3CA gene in MBC primary tumors as well as in CTCs is increasingly attracting attention since in patients it was often observed an increased resistance to anti-HER2 therapies caused by PI3K activating mutations [47,48]. In some reports, hotspot mutations in EpCAMpositive CTCs were already described [30,31,49,50,51] and a first correlation of the PIK3CA status with the overall survival and prognosis free survival was analyzed [49].
The ability to collect and isolate different subpopulation of CTCs and to perform a single cell analysis allowed us to asses—at our best knowledge for the first time—the heterogeneity of the PIK3CA status within single EpCAMlow/negative CTCs, along with patient-matched EpCAMhigh CTCs. We recorded the hotspot mutation E545K in EpCAMlow/negative CTCs from 2 patients (patients I and IX) and the mutation H1047R in EpCAMhigh CTCs from another patient (patient X). These are the two most frequently reported PIK3CA hotspot mutations in breast cancer tissues (www.mycancergenome.org) as well as in EpCAMpositive CTCs [30,31,49,50,51]. Interestingly, we could also detect the rare mutation H1047L in EpCAMhigh CTCs from two different patients (patient IX and XLVII), already described by Gasch et al. [51]. The identification of PIK3CA mutations in only EpCAMlow/negative CTCs in one patient (I) and in both EpCAMlow/negative and EpCAMhigh CTCs in another one (IX) is of high interest, suggesting that incorporating the analysis of the PI3K mutation status of EpCAMlow/negative cells might be of relevance for future CTC-based therapies targeting HER2-positive CTCs as envisioned in the DETECT III study.
Since genomic analysis within single cells require prior amplification—in our workflow Ampli1 WGA and PIK3CA specific PCRs—there is the chance that base exchanges may be introduced by polymerases. However, we excluded this possibility within our sequencing results, since only specific PIK3CA hotspot mutations could be detected within the whole sequencing profiles of both exons 9 and 20.
In the future, we aim to implement our molecular analysis with the assessment of the copy number variation profiles of the EpCAMlow/negative fraction of CTCs, in order to further confirm their malignancy and to investigate their clonal relatedness to the EpCAMhigh CTCs. In addition we will perform longitudinal follow-up analysis of the frequency of EpCAMlow/negative CTCs and of the PIK3CA mutational status to investigate their evolution during treatment regimen applied in the DETECT studies.

4. Materials and Methods

4.1. Cell Lines and Culture Conditions

For spiking and sequencing experiments, breast cancer cell lines MCF-7 and T47D were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA; catalogue numbers: HTB-22™ and HTB-133™). Cells were cultured in RPMI 1640 containing 10% fetal calf serum and 1% Penicillin-Streptomycin (all Gibco, Karlsruhe, Germany). For MCF-7, culture medium was supplemented with 25 mM HEPES (Gibco). For T47D cells 10 mM HEPES, 1 mM sodium pyruvate (Gibco) and 0.45% D-(β) Glucose solution (Sigma-Aldrich, Munich, Germany) was added. All cells were grown at 37 °C in a humidified atmosphere with 5% CO2. Both cell lines were authenticated via short tandem repeat (STRs) analysis. For spiking experiments, MCF-7 cells were fixed in CellSave® tubes for 24 h, at room temperature (RT).

4.2. Patient Material

Patient blood samples were collected within the German DETECT III/IV trials (III: NCT01619111, IV: NCT02035813; for more information: www.detect-studien.de) from patients with MBC. Written informed consent was obtained from all participating patients and the studies were approved by the Ethical Committee of the Eberhard-Karls University Tuebingen (responsible for DETECT III: 525/2011AMG1; approved on the 25 October 2012) and the local Ethical Committee of the Heinrich-Heine University Duesseldorf (DETECT III: MC-531; DETECT IV: MC-LKP-668; approved on the 17 December 2013).

4.3. Enrichment and Enumeration of EpCAMhigh CTCs via CellSearch®

The workflow starts by processing blood samples through the CellSearch® system (Menarini Silicon Biosystems, Bologna, Italy) in order to enrich and enumerate EpCAMhigh CTCs [27]. In order to reduce the possible presence of skin contaminating cells, first milliliters of drawn blood samples are discarded and only following 7.5 mL of blood are processed through the CellSearch®.
After analysis, CTCs were stored in CellSearch® cartridges at 4 °C in the dark and were micromanipulated within one week [32].

4.4. Enrichment of EpCAMlow/negative Cells with Parsortix™ System

Blood samples depleted of EpCAMhigh cells were processed within the Parsortix™ system to enrich potential EpCAMlow/negative CTCs which were not captured by the EpCAM-specific ferrofluid used during the CellSearch®-approach.
Blood samples were pumped through a disposable cassette (Cell Separation Cassette GEN3D6.5, ANGLE plc) containing narrow passages of 6.5µm in height blocking flow-through of cells larger than most white blood cells—among them CTCs. By virtue of a priming protocol—which flushes each new cassette with ethanol 100% (v/v)—clean processing conditions could be guaranteed.
Cells captured inside the cassette were stained in situ for nucleic acid (DAPI; Roche Diagnostics GmbH, Heilingenhaus, Germany), cytokeratins (clones C11/AE1/AE3 [12,13], TRITC conjugate; Aczon Srl, Monte San Pietro BO, Italy), EpCAM (clone VU1D9 [13], Alexa Fluor® 488 conjugated; Cell Signaling Technology Inc., Danvers, MA, USA) and CD45 (clone 35-ZS [13], Alexa Fluor® 647 conjugated; Santa Cruz Biotechnology Inc., Dallas, TX, USA). The expression of the above reported markers (except for CD45), together with a range diameter of 4–30 µm are the only criteria available at the current state of the art, for the CTC-detection [52]. Further details about the validation of this immunostaining are provided as supplementary material.
Stained cells were harvested from the system into a PCR tube by inverting the flow direction of the buffer. In order to minimize a possible stickiness of captured and stained cells inside the cassette, PBS was supplemented with EDTA 2 mM. Samples were stored at 4 °C in the dark and micromanipulated within two days.
The Parsortix™ system was automatically cleaned with a decontaminating solution between processing of different samples.

4.5. Detection and Isolation of EpCAMhigh and EpCAMlow/negative Cells via CellCelector™

The CellCelector™ (ALS, Jena, Germany) is a semi-automated micromanipulator consisting of an inverted fluorescent microscope (CKX41, Olympus, Tokyo, Japan) with a CCD camera system (XM10-IR, Olympus, Tokyo, Japan) and a robotic arm with a vertical glass capillary of 30 µm in diameter [53]; ALS GmbH). EpCAMhigh CTCs collected in CellSearch® cartridges and EpCAMlow/negative cells harvested from the Parsortix™ cassette were transferred onto glass slides, placed on the automatic stage of the CellCelector™ microscope and were allowed to deposit. Then, samples released from the CellSearch® cartridges were automatically scanned in 20× as previously described [32]. Parsortix™ samples were manually scanned with 40× magnification using the following fluorescence channels: bright field (cell morphology), DAPI (morphology of nuclei and DNA integrity), TRITC (cytokeratins), FITC (EpCAM) and Cy5 (CD45). The following exposure times were used: 50 ms for DAPI, 300 ms (TRITC and FITC), and 500 ms (Cy5). For the analysis the CellCelector™ software 3.0 (ALS, Jena, Germany) was used. Images of single cells were stored for later documentation.

4.5.1. Selection Criteria

All cells were analyzed using the following scan parameters: diameter (signals ranging from 5 to 40 µm) and grey value mean (fluorescence intensity of >2000 for cytokeratins signal). DAPIpos/Cytokeratinspos/EpCAMlow/neg/CD45neg events were identified and their morphologies were checked in bright field (BF). Only events with a round shape in BF, with specific fluorescence signals in the expected fluorescent channels only and without any sign of DNA fragmentation in DAPI—pointing towards apoptosis—were selected for further isolation. Prior to cell-isolation, images were checked by two operators experienced in CTC-detection via CellSearch® system.

4.5.2. Cell Isolation Parameters

Cell isolation was performed in DAPI as previously described [32]. Finally, PCR tubes containing single cells in 1 µL of buffer were stored at −80 °C until further processing.

4.6. Whole Genome Amplification of Isolated CTCs

Genomic DNA of isolated single cells was amplified using the Ampli1™ WGA-Kit (whole genome amplification) according to manufacturer’s protocol (Menarini Silicon Biosystems, Bologna, Italy). This procedure is based on a ligation-mediated PCR following a site-specific DNA restriction [54]. 1 µL of WGA products was analyzed for quality control utilizing the Ampli1™ QC-Kit (Menarini Silicon Biosystems, Bologna, Italy), which assays four genomic areas in a multiplex PCR. As positive control high quality genomic DNA from cell lines was used. QC-PCR products were loaded on a 2% agarose-TAE gel. The presence of 3 or 4 amplicons in the QC-PCR indicates a high genomic integrity of the WGA product. Less than 3 amplicons point towards a low genomic integrity [31].

4.7. Sanger Sequencing of the PIK3CA Exons 9 and 20 on CTCs

All WGA-products were processed in 2 specific PCRs amplifying PIK3CA exons 9 and 20 in a volume of 25 µL containing 1 U DreamTaq DNA polymerase (Thermo Fisher Scientific Inc., Waltham, MA, USA) and 1 µL of WGA-product as template. Primers were designed—in analogy to primers used in a previous study by Hurst and colleagues [55]—to produce amplicons covering hotspot codons mainly for E542, E545 (exon 9) and H1047 (exon 20; 0.2 µM each; Table 1). They were adapted to WGA restriction sites (MseI) and to exclude amplification of pseudogenes. PCR conditions were: 95 °C for 5 min, 35 cycles of 95 °C for 45 sec, 58 °C for 45 sec, 72 °C for 45 sec and finally 10 min at 72 °C. A 3% agarose-TAE gel electrophoresis was used to check for successful amplification. PCR products were purified using either the ExoSAP-IT® PCR Product Cleanup (Thermo Fisher Scientific Inc., Waltham, Massachusetts, USA) or the QIAEX II® Gel Extraction kit (Qiagen, Hilden, Germany) and DNA concentrations were measured with the NanoDrop™ Spectrophotometer (Thermo Fisher Scientific Inc., Waltham, MA, USA). Sanger sequencing was performed by the Genomics & Transcriptomics Laboratory (GTL) of the Biological and Medical Research Center of Düsseldorf (BMFZ) using primers designed elongating PCR primers with sequencing binding sites (Table 3).

5. Conclusions

In this study, we describe a robust workflow to enrich, detect and isolate patient-matched EpCAMhigh and EpCAMlow/negative CTCs from the same clinical blood sample by combining the CellSearch® system, the Parsortix™ system and the CellCelector™ micromanipulator. Furthermore, we show our workflow′s feasibility for molecular analysis and report low DNA integrity and PIK3CA mutational heterogeneity within EpCAMlow/negative CTCs compared to patient-matched EpCAMhigh CTCs. Although our molecular data are based on a small cohort of patients, they highlight that the assessment of the PIK3CA mutational status within EpCAMlow/negative CTCs along with the EpCAMhigh cells may provide further knowledge about resistance to HER2-targeted therapies and may help to choose optimal treatment strategies. In order to further support our findings, extended studies with larger cohorts of patients are planned.

Supplementary Materials

Supplementary materials can be found at www.mdpi.com/1422-0067/18/9/1885/s1.

Acknowledgments

We thank our colleagues Meier-Stiegen, Hohmann and Köhler for the CellSearch® samples processing, Willibald for cell culture, van den Bosch and Steinau for their technical support with micromanipulation. We also thank Köhrer and all the BMFZ team for the great support with the sequencing experiments. Last but not least, we thank all the patients enrolled in this project. Work was partly supported by CTCTrap grant (EU no. 305341).

Author Contributions

Conceived and designed the experiments: Rita Lampignano, Martin H.D. Neumann, Hans Neubauer. Performed the experiments: Rita Lampignano, Liwen Yang. Designed the primers: André Franken. Analyzed the data: Rita Lampignano, Liwen Yang, Hans Neubauer. Contributed reagents/materials/analysis tools: Dieter Niederacher, Tanja Fehm. Wrote the paper: Rita Lampignano, Hans Neubauer.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CTCCirculating Tumor Cell
EpCAMEpithelial Cell Adhesion Molecule
FDAFood and Drug Administration
EMTEpithelial to Mesenchymal Transition
MBCMetastatic Breast Cancer
PI3KPhosphatidylinositol 3-Kinase
PIK3CAPhosphatidylinositol 3-Kinase Catalytic subunit Alpha
WGAWhole Genome Amplification
WTWild-type

References

  1. Yu, M.; Stott, S.; Toner, M.; Maheswaran, S.; Haber, D.A. Circulating tumor cells: Approaches to isolation and characterization. J. Cell Biol. 2011, 192, 373–382. [Google Scholar] [CrossRef] [PubMed]
  2. Allard, W.J.; Matera, J.; Miller, M.C.; Repollet, M.; Connelly, M.C.; Rao, C.; Tibbe, A.G.J.; Uhr, J.W.; Terstappen, L.W.M.M. Tumor Cells Circulate in the Peripheral Blood of All Major Carcinomas but not in Healthy Subjects or Patients With Nonmalignant Diseases. Clin. Cancer Res. 2004, 10, 6897–6904. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, L.; Riethdorf, S.; Wu, G.; Wang, T.; Yang, K.; Peng, G.; Liu, J.; Pantel, K. Meta-Analysis of the Prognostic Value of Circulating Tumor Cells in Breast Cancer. Clin. Cancer Res. 2012, 18, 5701–5710. [Google Scholar] [CrossRef] [PubMed]
  4. Scher, H.I.; Jia, X.; de Bono, J.S.; Fleisher, M.; Pienta, K.J.; Raghavan, D.; Heller, G. Circulating Tumor Cell Number as a Prognostic Marker in Progressive Castration-Resistant Prostate Cancer: Use in Clinical Practice and Clinical Trials. Lancet Oncol. 2009, 10, 233–239. [Google Scholar] [CrossRef]
  5. Alix-Panabières, C.; Pantel, K. Technologies for detection of circulating tumor cells: Facts and vision. Lab Chip 2013, 14, 57–62. [Google Scholar] [CrossRef] [PubMed]
  6. Banys, M.; Müller, V.; Melcher, C.; Aktas, B.; Kasimir-Bauer, S.; Hagenbeck, C.; Hartkopf, A.; Fehm, T. Circulating tumor cells in breast cancer. Clin. Chim. Acta 2013, 423, 39–45. [Google Scholar] [CrossRef] [PubMed]
  7. Poruk, K.E. Circulating Tumor Cell Phenotype Predicts Recurrence and Survival in Pancreatic Adenocarcinoma. Ann. Surg. 2016, 264, 1073–1081. [Google Scholar] [CrossRef] [PubMed]
  8. Yu, M.; Bardia, A.; Wittner, B.S.; Stott, S.L.; Smas, M.E.; Ting, D.T.; Isakoff, S.J.; Ciciliano, J.C.; Wells, M.N.; Shah, A.M.; et al. Circulating Breast Tumor Cells Exhibit Dynamic Changes in Epithelial and Mesenchymal Composition. Science 2013, 339, 580–584. [Google Scholar] [CrossRef] [PubMed]
  9. Gorges, T.M.; Tinhofer, I.; Drosch, M.; Röse, L.; Zollner, T.M.; Krahn, T. Circulating tumour cells escape from EpCAM-based detection due to epithelial-to-mesenchymal transition. BMC Cancer 2012, 12, 178. [Google Scholar] [CrossRef] [PubMed]
  10. Bednarz-Knoll, N.; Alix-Panabières, C.; Pantel, K. Plasticity of disseminating cancer cells in patients with epithelial malignancies. Cancer Metastasis Rev. 2012, 31, 673–687. [Google Scholar] [CrossRef] [PubMed]
  11. Kalluri, R.; Weinberg, R.A. The basics of epithelial-mesenchymal transition. J. Clin. Investig. 2009, 119, 1420–1428. [Google Scholar] [CrossRef] [PubMed]
  12. De Wit, S.; van Dalum, G.van; Lenferink, A.T.M.; Tibbe, A.G.J.; Hiltermann, T.J.N.; Groen, H.J.M.; van Rijn, C.J.M.; Terstappen, L.W.M.M. The detection of EpCAM+ and EpCAM– circulating tumor cells. Sci. Rep. 2015, 5. [Google Scholar] [CrossRef]
  13. Schneck, H.; Gierke, B.; Uppenkamp, F.; Behrens, B.; Niederacher, D.; Stoecklein, N.H.; Templin, M.F.; Pawlak, M.; Fehm, T.; Neubauer, H. EpCAM-Independent Enrichment of Circulating Tumor Cells in Metastatic Breast Cancer. PLoS ONE 2015. [Google Scholar] [CrossRef] [PubMed]
  14. Aktas, B. Stem cell and epithelial-mesenchymal transition markers are frequently overexpressed in circulating tumor cells of metastatic breast cancer patients. Breast Cancer Res. 2009, 11, R46. [Google Scholar] [CrossRef] [PubMed]
  15. Mego, M. Prognostic Value of EMT-Circulating Tumor Cells in Metastatic Breast Cancer Patients Undergoing High-Dose Chemotherapy with Autologous Hematopoietic Stem Cell Transplantation. J. Cancer 2012, 3, 369–380. [Google Scholar] [CrossRef] [PubMed]
  16. Yokobori, T. Plastin3 is a novel marker for circulating tumor cells undergoing the epithelial-mesenchymal transition and is associated with colorectal cancer prognosis. Cancer Res. 2013, 73, 2059–2069. [Google Scholar] [CrossRef] [PubMed]
  17. Ueo, H. Circulating tumour cell-derived plastin3 is a novel marker for predicting long-term prognosis in patients with breast cancer. Br. J. Cancer 2015, 112, 1519–1526. [Google Scholar] [CrossRef] [PubMed]
  18. Lampignano, R.; Schneck, H.; Neumann, M.; Fehm, T.; Neubauer, H. Enrichment, Isolation and Molecular Characterization of EpCAM-Negative Circulating Tumor Cells. Adv. Exp. Med. Biol. 2017, 994, 181–203. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, W.; Lv, J.; Wang, L.; Wang, X.; Ye, L. The impact of heterogeneity in phosphoinositide 3-kinase pathway in human cancer and possible therapeutic treatments. Semin. Cell Dev. Biol. 2016. [Google Scholar] [CrossRef] [PubMed]
  20. Troxell, L.M. PIK3CA/AKT1 Mutations in Breast Carcinoma: A Comprehensive Review of Experimental and Clinical Studies. J. Clin. Exp. Pathol. 2012. [Google Scholar] [CrossRef]
  21. Bader, A.G.; Kang, S.; Vogt, P.K. Cancer-specific mutations in PIK3CA are oncogenic in vivo. Proc. Natl. Acad. Sci. USA 2006, 103, 1475–1479. [Google Scholar] [CrossRef] [PubMed]
  22. Zhao, J.J.; Liu, Z.; Wang, L.; Shin, E.; Loda, M.F.; Roberts, T.M. The oncogenic properties of mutant p110α and p110β phosphatidylinositol 3-kinases in human mammary epithelial cells. Proc. Natl. Acad. Sci. USA 2005, 102, 18443–18448. [Google Scholar] [CrossRef] [PubMed]
  23. Gonzalez-Angulo, A.M.; Blumenschein, G.R. Defining biomarkers to predict sensitivity to PI3K/Akt/mTOR pathway inhibitors in breast cancer. Cancer Treat. Rev. 2013, 39, 313–320. [Google Scholar] [CrossRef] [PubMed]
  24. Loi, S.; Michiels, S.; Baselga, J.; Bartlett, J.M.S.; Singhal, S.K.; Sabine, V.S.; Sims, A.H.; Sahmoud, T.; Dixon, J.M.; Piccart, M.J.; et al. PIK3CA Genotype and a PIK3CA Mutation-Related Gene Signature and Response to Everolimus and Letrozole in Estrogen Receptor Positive Breast Cancer. PLoS ONE 2013, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Cizkova, M.; Dujaric, M.-E.; Lehmann-Che, J.; Scott, V.; Tembo, O.; Asselain, B.; Pierga, J.-Y.; Marty, M.; de Cremoux, P.; Spyratos, F.; et al. Outcome impact of PIK3CA mutations in HER2-positive breast cancer patients treated with trastuzumab. Br. J. Cancer 2013, 108, 1807–1809. [Google Scholar] [CrossRef] [PubMed]
  26. Hanker, A.B.; Pfefferle, A.D.; Balko, J.M.; Kuba, M.G.; Young, C.D.; Sánchez, V.; Sutton, C.R.; Cheng, H.; Perou, C.M.; Zhao, J.J.; et al. Mutant PIK3CA accelerates HER2-driven transgenic mammary tumors and induces resistance to combinations of anti-HER2 therapies. Proc. Natl. Acad. Sci. USA 2013, 110, 14372–14377. [Google Scholar] [CrossRef] [PubMed]
  27. Martini, M.; Ciraolo, E.; Gulluni, F.; Hirsch, E. Targeting PI3K in Cancer: Any Good News? Front. Oncol. 2013, 3. [Google Scholar] [CrossRef] [PubMed]
  28. Cizkova, M.; Susini, A.; Vacher, S.; Cizeron-Clairac, G.; Andrieu, C.; Driouch, K.; Fourme, E.; Lidereau, R.; Bièche, I. PIK3CA mutation impact on survival in breast cancer patients and in ERα, PR and ERBB2-based subgroups. Breast Cancer Res. 2012, 14, R28. [Google Scholar] [CrossRef] [PubMed]
  29. Andersen, J.N.; Sathyanarayanan, S.; Bacco, A.D.; Chi, A.; Zhang, T.; Chen, A.H.; Dolinski, B.; Kraus, M.; Roberts, B.; Arthur, W.; et al. Pathway-Based Identification of Biomarkers for Targeted Therapeutics: Personalized Oncology with PI3K Pathway Inhibitors. Sci. Transl. Med. 2010, 2, 43ra55. [Google Scholar] [CrossRef] [PubMed]
  30. Schneck, H.; Blassl, C.; Meier-Stiegen, F.; Neves, R.P.; Janni, W.; Fehm, T.; Neubauer, H. Analysing the mutational status of PIK3CA in circulating tumor cells from metastatic breast cancer patients. Mol. Oncol. 2013, 7, 976–986. [Google Scholar] [CrossRef] [PubMed]
  31. Polzer, B.; Medoro, G.; Pasch, S.; Fontana, F.; Zorzino, L.; Pestka, A.; Andergassen, U.; Meier-Stiegen, F.; Czyz, Z.T.; Alberter, B.; et al. Molecular profiling of single circulating tumor cells with diagnostic intention. EMBO Mol. Med. 2014, 6, 1371–1386. [Google Scholar] [CrossRef] [PubMed]
  32. Neumann, M.H.D.; Schneck, H.; Decker, Y.; Schömer, S.; Franken, A.; Endris, V.; Pfarr, N.; Weichert, W.; Niederacher, D.; Fehm, T.; et al. Isolation and characterization of circulating tumor cells using a novel workflow combining the CellSearch® system and the CellCelector™. Biotechnol. Prog. 2017, 33, 125–132. [Google Scholar] [CrossRef] [PubMed]
  33. Hollestelle, A.; Elstrodt, F.; Nagel, J.H.A.; Kallemeijn, W.W.; Schutte, M. Phosphatidylinositol-3-OH Kinase or RAS Pathway Mutations in Human Breast Cancer Cell Lines. Mol. Cancer Res. 2007, 5, 195–201. [Google Scholar] [CrossRef] [PubMed]
  34. Kataoka, Y.; Mukohara, T.; Shimada, H.; Saijo, N.; Hirai, M.; Minami, H. Association between gain-of-function mutations in PIK3CA and resistance to HER2-targeted agents in HER2-amplified breast cancer cell lines. Ann. Oncol. Off. J. Eur. Soc. Med. Oncol. ESMO 2010, 21, 255–262. [Google Scholar] [CrossRef] [PubMed]
  35. Bidard, F.-C.; Peeters, D.J.; Fehm, T.; Nolé, F.; Gisbert-Criado, R.; Mavroudis, D.; Grisanti, S.; Generali, D.; Garcia-Saenz, J.A.; Stebbing, J.; et al. Clinical validity of circulating tumour cells in patients with metastatic breast cancer: A pooled analysis of individual patient data. Lancet Oncol. 2014, 15, 406–414. [Google Scholar] [CrossRef]
  36. Banys-Paluchowski, M.; Krawczyk, N.; Meier-Stiegen, F.; Fehm, T. Circulating tumor cells in breast cancer—Current status and perspectives. Crit. Rev. Oncol. Hematol. 2016, 97, 22–29. [Google Scholar] [CrossRef] [PubMed]
  37. Cabel, L.; Proudhon, C.; Gortais, H.; Loirat, D.; Coussy, F.; Pierga, J.-Y.; Bidard, F.-C. Circulating tumor cells: Clinical validity and utility. Int. J. Clin. Oncol. 2017, 22, 421–430. [Google Scholar] [CrossRef] [PubMed]
  38. Lustberg, M.B.; Balasubramanian, P.; Miller, B.; Garcia-Villa, A.; Deighan, C.; Wu, Y.; Carothers, S.; Berger, M.; Ramaswamy, B.; Macrae, E.R.; et al. Heterogeneous atypical cell populations are present in blood of metastatic breast cancer patients. Breast Cancer Res. BCR 2014, 16, R23. [Google Scholar] [CrossRef] [PubMed]
  39. Vishnoi, M.; Peddibhotla, S.; Yin, W.; T. Scamardo, A.; George, G.C.; Hong, D.S.; Marchetti, D. The isolation and characterization of CTC subsets related to breast cancer dormancy. Sci. Rep. 2015, 5, 17533. [Google Scholar] [CrossRef] [PubMed]
  40. Xu, L. Optimization and Evaluation of a Novel Size Based Circulating Tumor Cell Isolation System. PLoS ONE 2015, 10, e0138032. [Google Scholar] [CrossRef] [PubMed]
  41. Hvichia, G.E.; Parveen, Z.; Wagner, C.; Janning, M.; Quidde, J.; Stein, A.; Müller, V.; Loges, S.; Neves, R.P.; Stoecklein, N.H.; et al. A novel microfluidic platform for size and deformability based separation and the subsequent molecular characterization of viable circulating tumor cells. Int. J. Cancer 2016, 138, 2894–2904. [Google Scholar] [CrossRef] [PubMed]
  42. Deutsch, T.M.; Riethdorf, S.; Nees, J.; Hartkopf, A.D.; Schönfisch, B.; Domschke, C.; Sprick, M.R.; Schütz, F.; Brucker, S.Y.; Stefanovic, S.; et al. Impact of apoptotic circulating tumor cells (aCTC) in metastatic breast cancer. Breast Cancer Res. Treat. 2016, 160, 277–290. [Google Scholar] [CrossRef] [PubMed]
  43. Jansson, S.; Bendahl, P.-O.; Larsson, A.-M.; Aaltonen, K.E.; Rydén, L. Prognostic impact of circulating tumor cell apoptosis and clusters in serial blood samples from patients with metastatic breast cancer in a prospective observational cohort. BMC Cancer 2016, 16, 433. [Google Scholar] [CrossRef] [PubMed]
  44. Spiliotaki, M.; Mavroudis, D.; Kapranou, K.; Markomanolaki, H.; Kallergi, G.; Koinis, F.; Kalbakis, K.; Georgoulias, V.; Agelaki, S. Evaluation of proliferation and apoptosis markers in circulating tumor cells of women with early breast cancer who are candidates for tumor dormancy. Breast Cancer Res. BCR 2014, 16. [Google Scholar] [CrossRef] [PubMed]
  45. Kallergi, G.; Konstantinidis, G.; Markomanolaki, H.; Papadaki, M.A.; Mavroudis, D.; Stournaras, C.; Georgoulias, V.; Agelaki, S. Apoptotic Circulating Tumor Cells in Early and Metastatic Breast Cancer Patients. Mol. Cancer Ther. 2013, 12, 1886–1895. [Google Scholar] [CrossRef] [PubMed]
  46. Rossi, E.; Basso, U.; Celadin, R.; Zilio, F.; Pucciarelli, S.; Aieta, M.; Barile, C.; Sava, T.; Bonciarelli, G.; Tumolo, S.; et al. M30 Neoepitope Expression in Epithelial Cancer: Quantification of Apoptosis in Circulating Tumor Cells by CellSearch Analysis. Clin. Cancer Res. 2010, 16, 5233–5243. [Google Scholar] [CrossRef] [PubMed]
  47. Dirican, E.; Akkiprik, M.; Özer, A. Mutation distributions and clinical correlations of PIK3CA gene mutations in breast cancer. Tumor Biol. 2016, 37, 7033–7045. [Google Scholar] [CrossRef] [PubMed]
  48. Mukohara, T. PI3K mutations in breast cancer: Prognostic and therapeutic implications. Breast Cancer Targets Ther. 2015, 7, 111–123. [Google Scholar] [CrossRef] [PubMed]
  49. Markou, A.; Farkona, S.; Schiza, C.; Efstathiou, T.; Kounelis, S.; Malamos, N.; Georgoulias, V.; Lianidou, E. PIK3CA Mutational Status in Circulating Tumor Cells Can Change During Disease Recurrence or Progression in Patients with Breast Cancer. Clin. Cancer Res. 2014, 20, 5823–5834. [Google Scholar] [CrossRef] [PubMed]
  50. Pestrin, M.; Salvianti, F.; Galardi, F.; De Luca, F.; Turner, N.; Malorni, L.; Pazzagli, M.; Di Leo, A.; Pinzani, P. Heterogeneity of PIK3CA mutational status at the single cell level in circulating tumor cells from metastatic breast cancer patients. Mol. Oncol. 2015, 9, 749–757. [Google Scholar] [CrossRef] [PubMed]
  51. Gasch, C.; Oldopp, T.; Mauermann, O.; Gorges, T.M.; Andreas, A.; Coith, C.; Müller, V.; Fehm, T.; Janni, W.; Pantel, K.; et al. Frequent detection of PIK3CA mutations in single circulating tumor cells of patients suffering from HER2-negative metastatic breast cancer. Mol. Oncol. 2016, 10, 1330–1343. [Google Scholar] [CrossRef] [PubMed]
  52. Cristofanilli, M.; Budd, G.T.; Ellis, M.J.; Stopeck, A.; Matera, J.; Miller, M.C. Circulating tumor cells, disease progression, and survival in metastatic breast cancer. N. Engl. J. Med. 2004, 351. [Google Scholar] [CrossRef] [PubMed]
  53. Choi, J.H.; Ogunniyi, A.O.; Du, M.; Du, M.; Kretschmann, M.; Eberhardt, J.; Love, J.C. Development and optimization of a process for automated recovery of single cells identified by microengraving. Biotechnol. Prog. 2010, 26, 888–895. [Google Scholar] [CrossRef] [PubMed]
  54. Klein, C.A.; Schmidt-Kittler, O.; Schardt, J.A.; Pantel, K.; Speicher, M.R.; Riethmüller, G. Comparative genomic hybridization, loss of heterozygosity, and DNA sequence analysis of single cells. Proc. Natl. Acad. Sci. USA 1999, 96, 4494–4499. [Google Scholar] [CrossRef] [PubMed]
  55. Hurst, C.D.; Zuiverloon, T.C.; Hafner, C.; Zwarthoff, E.C.; Knowles, M.A. A SNaPshot assay for the rapid and simple detection of four common hotspot codon mutations in the PIK3CA gene. BMC Res. Notes 2009, 2, 66. [Google Scholar] [CrossRef] [PubMed]
Ijms 18 01885 g001 550

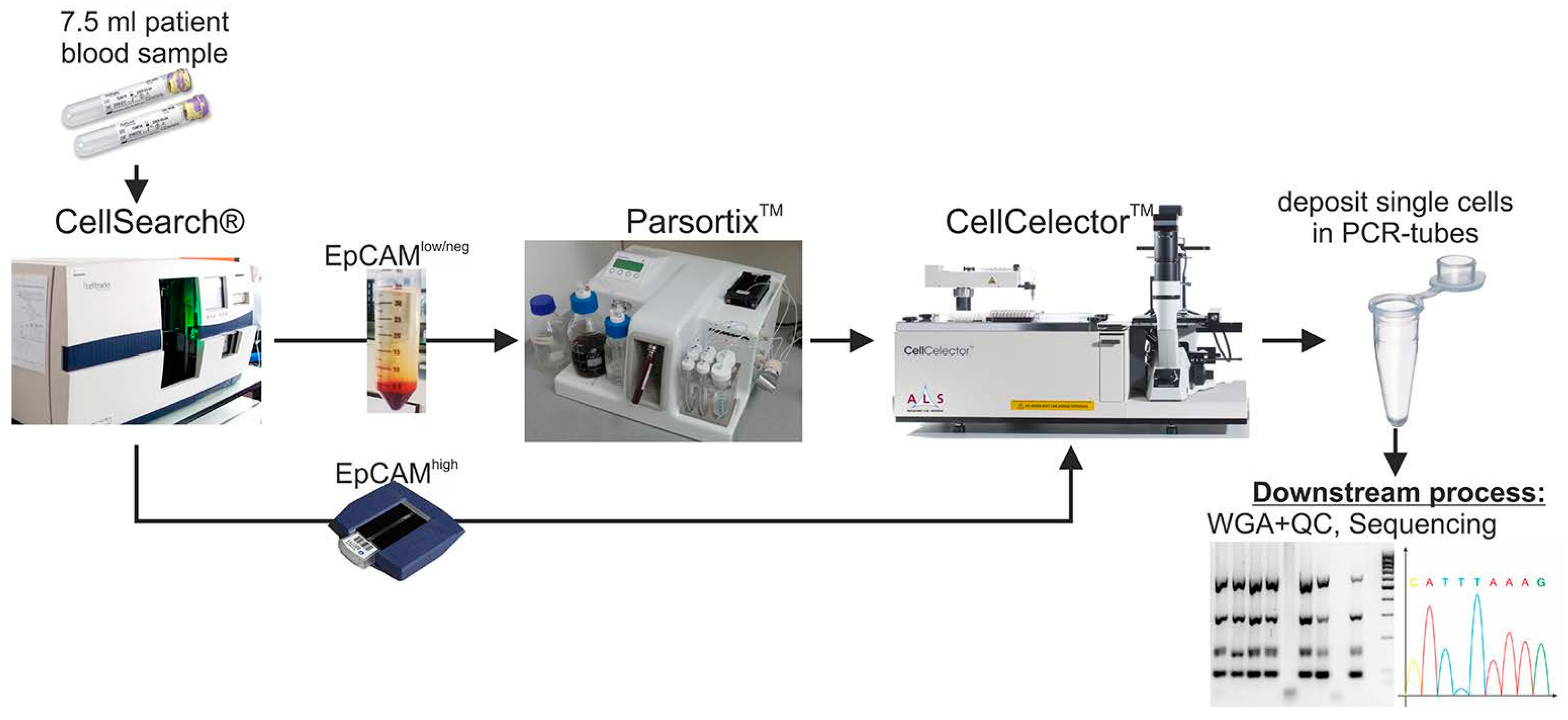

Figure 1. Parsortix™-CellCelector™ workflow. Patients’ blood samples are depleted of EpCAMhigh CTCs using CellSearch® and enriched for EpCAMlow/negative cells with the Parsortix™ system. Captured cells are stained for nuclei, cytokeratins, epithelial cell adhesion molecule (EpCAM) and CD45 within the Parsortix™ cartridge and then harvested. Tumor cells are detected and isolated via CellCelector™ micromanipulator into PCR tubes for further molecular characterizations. Inspired by our previous work [32].
Figure 1. Parsortix™-CellCelector™ workflow. Patients’ blood samples are depleted of EpCAMhigh CTCs using CellSearch® and enriched for EpCAMlow/negative cells with the Parsortix™ system. Captured cells are stained for nuclei, cytokeratins, epithelial cell adhesion molecule (EpCAM) and CD45 within the Parsortix™ cartridge and then harvested. Tumor cells are detected and isolated via CellCelector™ micromanipulator into PCR tubes for further molecular characterizations. Inspired by our previous work [32].
Ijms 18 01885 g001
Ijms 18 01885 g002 550

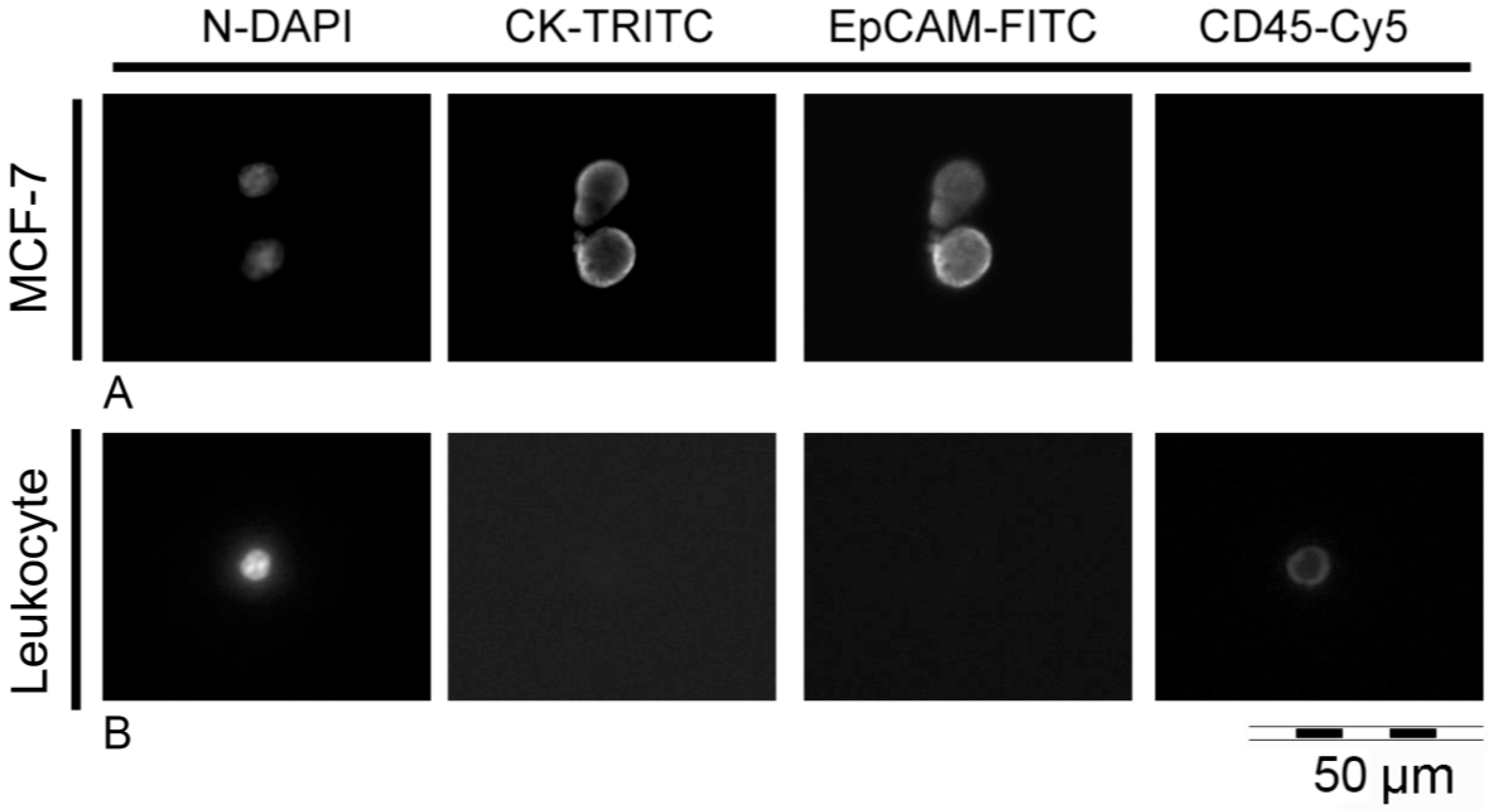

Figure 2. MCF-7 cells and a leukocyte labeled inside the Parsortix™ cassette. (A) MCF-7 cells were spiked into healthy donor blood samples and processed within the Parsortix™ system. After capturing within the cassette, tumour cells were permeabilized and stained in situ, and harvested from the system. In fluorescence microscopy MCF-7 cells exhibit signals for nucleic DNA (DAPI), cytokeratins (TRITC) and epithelial cell adhesion molecule (EpCAM-FITC); they are negative for CD45 expression (Cy5); (B) A leukocyte captured within the Parsortix™ system and stained in situ with the same DAPI/antibodies mastermix, shows positive staining of the nucleus (DAPI) and of CD45 (Cy5). There is no expression of cytokeratins (TRITC) and EpCAM (FITC). Magnification: 40×.
Figure 2. MCF-7 cells and a leukocyte labeled inside the Parsortix™ cassette. (A) MCF-7 cells were spiked into healthy donor blood samples and processed within the Parsortix™ system. After capturing within the cassette, tumour cells were permeabilized and stained in situ, and harvested from the system. In fluorescence microscopy MCF-7 cells exhibit signals for nucleic DNA (DAPI), cytokeratins (TRITC) and epithelial cell adhesion molecule (EpCAM-FITC); they are negative for CD45 expression (Cy5); (B) A leukocyte captured within the Parsortix™ system and stained in situ with the same DAPI/antibodies mastermix, shows positive staining of the nucleus (DAPI) and of CD45 (Cy5). There is no expression of cytokeratins (TRITC) and EpCAM (FITC). Magnification: 40×.
Ijms 18 01885 g002
Ijms 18 01885 g003 550

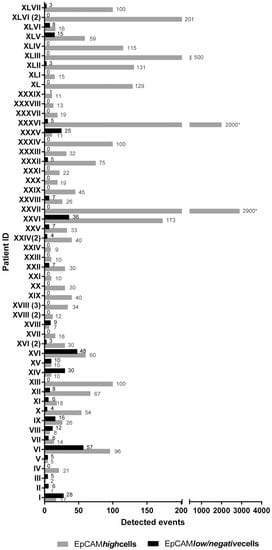

Figure 3. Clinical samples containing both EpCAMhigh and EpCAMlow/negative cells. Both subpopulation of potential tumor cells were detected in 54% (28/52) of blood samples of patients enrolled in this project. No correlation in positivity rate between the two fractions of cells was observed.
Figure 3. Clinical samples containing both EpCAMhigh and EpCAMlow/negative cells. Both subpopulation of potential tumor cells were detected in 54% (28/52) of blood samples of patients enrolled in this project. No correlation in positivity rate between the two fractions of cells was observed.
Ijms 18 01885 g003
Ijms 18 01885 g004 550

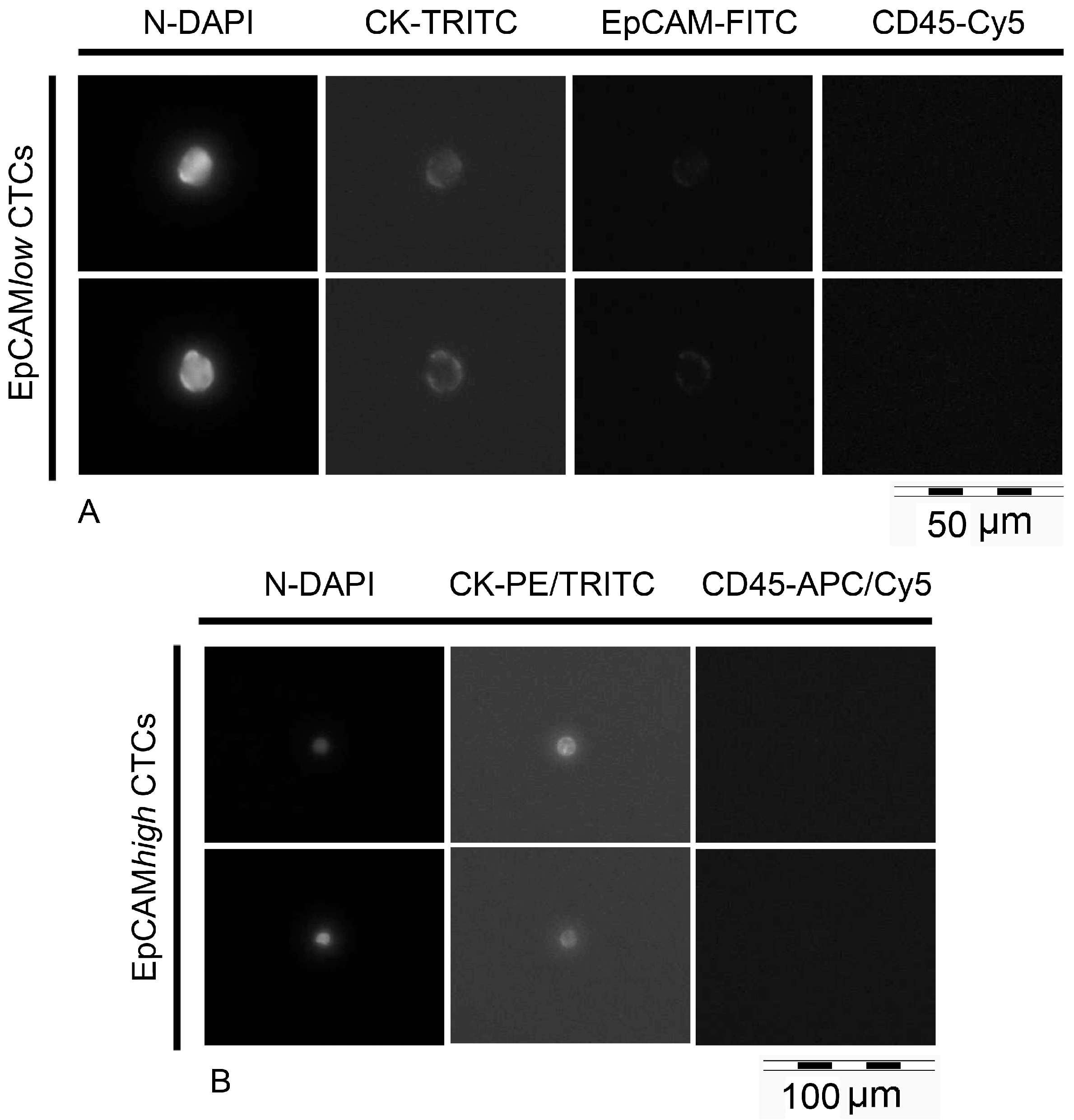

Figure 4. Isolated EpCAMlow/negative cells and EpCAMhigh cells. (A) Prior isolation of (epithelial cell adhesion molecule ) EpCAMlow/negative cells, selected events were manually scanned at a magnification of 40× in the following channels: DAPI for nucleic DNA, TRITC for cytokeratins, FITC for EpCAM, Cy5 for CD45. EpCAMlow/negative cells show positive staining of nucleic DNA and cytokeratins, very weak or no staining of EpCAM, and no staining of CD45. (B) EpCAMhigh cells enriched in CellSearch® cartridges were automatically scanned in the abovementioned fluorescent channels, at a magnification of 20×. They exhibit positive staining of nucleic DNA and cytokeratins, and no signals for CD45. After scanning, single cell isolation was performed in DAPI to assure the absence of contaminations.
Figure 4. Isolated EpCAMlow/negative cells and EpCAMhigh cells. (A) Prior isolation of (epithelial cell adhesion molecule ) EpCAMlow/negative cells, selected events were manually scanned at a magnification of 40× in the following channels: DAPI for nucleic DNA, TRITC for cytokeratins, FITC for EpCAM, Cy5 for CD45. EpCAMlow/negative cells show positive staining of nucleic DNA and cytokeratins, very weak or no staining of EpCAM, and no staining of CD45. (B) EpCAMhigh cells enriched in CellSearch® cartridges were automatically scanned in the abovementioned fluorescent channels, at a magnification of 20×. They exhibit positive staining of nucleic DNA and cytokeratins, and no signals for CD45. After scanning, single cell isolation was performed in DAPI to assure the absence of contaminations.
Ijms 18 01885 g004
Ijms 18 01885 g005 550

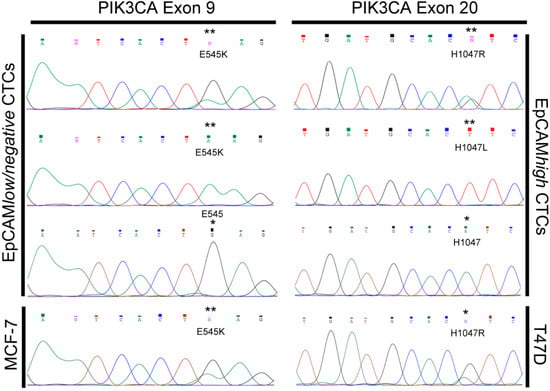

Figure 5. PIK3CA Exons 9 and 20 sequencing profiles. Single circulating tumor cells (CTCs) collected from four different patients and sequenced for PIK3CA exon 9 and exon 20 show Phosphatidylinositol 3-kinase catalytic subunit alpha (PIK3CA) hotspot mutations. Two EpCAMlow/negative CTCs from 2 different patients exhibit the mutation 9/E545K (**) when compared to the sequencing profile of a single MCF-7 cell (**). Two EpCAMhigh CTCs from different patients show the mutations 20/H1047R and the 20/H1047L (**) when compared to the sequencing profile of a single T47D cell (**). CTCs recorded as PIK3CA wild-type show no mutations (*). **: base exchange; * wild-type base.
Figure 5. PIK3CA Exons 9 and 20 sequencing profiles. Single circulating tumor cells (CTCs) collected from four different patients and sequenced for PIK3CA exon 9 and exon 20 show Phosphatidylinositol 3-kinase catalytic subunit alpha (PIK3CA) hotspot mutations. Two EpCAMlow/negative CTCs from 2 different patients exhibit the mutation 9/E545K (**) when compared to the sequencing profile of a single MCF-7 cell (**). Two EpCAMhigh CTCs from different patients show the mutations 20/H1047R and the 20/H1047L (**) when compared to the sequencing profile of a single T47D cell (**). CTCs recorded as PIK3CA wild-type show no mutations (*). **: base exchange; * wild-type base.
Ijms 18 01885 g005
Table
Table 1. WGA products of patients matched EpCAMhigh and EpCAMlow/negative cells. A cohort of 145 EpCAMlow/negative and 107 EpCAMhigh circulating tumor cells (CTCs) was processed for whole genome amplification (WGA). EpCAMlow/negative CTCs show a lower genomic integrity than EpCAMhigh CTCs (8% vs. 28%). #: number of patients involved in the WGA of CTCs.
Table 1. WGA products of patients matched EpCAMhigh and EpCAMlow/negative cells. A cohort of 145 EpCAMlow/negative and 107 EpCAMhigh circulating tumor cells (CTCs) was processed for whole genome amplification (WGA). EpCAMlow/negative CTCs show a lower genomic integrity than EpCAMhigh CTCs (8% vs. 28%). #: number of patients involved in the WGA of CTCs.
#Patient IDEpCAMhigh CTCsEpCAMlow/negative CTCs
Sorted CTCsHigh Integrity WGA ProductsLow Integrity WGA ProductsSorted CTCsHigh Integrity WGA ProductsLow INTEGRITY WGA Products
1I50519019
2V101202
3VI115624321
4VIII80812012
5IX26111516214
6X1349505
7XI734606
8XVI91827126
9XXIV (2)615404
10XXXV82618315
11XLI211514
12XLVI725404
13XLVII404312
107307714511134
28%72% 8%92%
Table
Table 2. Mutational status of PIK3CA exon 9 and exon 20 within patient-matched EpCAMhigh EpCAMlow/negative cells. Circulating tumor cells (CTCs) characterized by the heterogeneity of phosphatidylinositol 3-kinase catalytic subunit alpha (PIK3CA) exons 9 and 20 could be detected in 4/10 patients. In the remaining patients, CTCs were classified as PIK3CA-wildtype (WT). #: number of patients involved in the WGA of CTCs.
Table 2. Mutational status of PIK3CA exon 9 and exon 20 within patient-matched EpCAMhigh EpCAMlow/negative cells. Circulating tumor cells (CTCs) characterized by the heterogeneity of phosphatidylinositol 3-kinase catalytic subunit alpha (PIK3CA) exons 9 and 20 could be detected in 4/10 patients. In the remaining patients, CTCs were classified as PIK3CA-wildtype (WT). #: number of patients involved in the WGA of CTCs.
EpCAMhigh CTCs
#Patient IDPIK3CA Exon 9 Mutational AnalysisPIK3CA Exon 20 Mutational Analysis
Sequenced CTCsMutational StatusSequenced CTCsMutational Status
1I2WT1WT
2VI5WT2WT
3IX13WT112: p.H1047L (c.CAT > CTT); 9: WT
4X7WT52: p.H1047R (c.CAT > CGT); 3: WT
5XI1WT3WT
6XVI3WT3WT
7XXXV1WT3WT
8XXXVI1WT1WT
9XLVII3WT3WT
10XLVII2WT21: p.H1047L (c.CAT > CTT); 1: WT
38 34
EpCAMlow/negative CTCs
#Patient IDPIK3CA Exon 9 Mutational AnalysisPIK3CA Exon 20 Mutational Analysis
Sequenced CTCsMutational StatusSequenced CTCsMutational Status
1I101: p.E545K (c.CAG > AAG); 9: WT7WT
2VI7WT7WT
3IX51: p.E545K (c.CAG > AAG); 4: WT3WT
4X2WT1WT
5XI1WT1WT
6XVI0n.d.2WT
7XXXV8WT8WT
8XXXVI3WT3WT
9XLVII1WT1WT
10XLVII2WT2WT
39 35
Table
Table 3. Primer sequences for PCR amplification of exons 9 and 20 of PIK3CA and for Sanger sequencing.
Table 3. Primer sequences for PCR amplification of exons 9 and 20 of PIK3CA and for Sanger sequencing.
PIK3CA ExonPrimer NameSequence (5′→3′)Primer Length (bp)
9forwardCATCCGATGTACCTGATTGAACTGCATGCAGACAAAGAACAGCTCAAAGCAA52
reverseCATTCCTTAGATAGCTCGGAAGTCCATTGCATTTTAGCACTTACCTGTGAC52
20forwardCATCCGATGTACCTGATTGAACTGCATGCATTGATGACATTGCATACATTCG52
reverseCATTCCTTAGATAGCTCGGAAGTCCATTGCGTGGAAGATCCAATCCATTT50
SequencingforwardTCCGATGTACCTGATTGAAC20
reverseTTCCTTAGATAGCTCGGAAG20

Share and Cite

MDPI and ACS Style

Lampignano, R.; Yang, L.; Neumann, M.H.D.; Franken, A.; Fehm, T.; Niederacher, D.; Neubauer, H. A Novel Workflow to Enrich and Isolate Patient-Matched EpCAMhigh and EpCAMlow/negative CTCs Enables the Comparative Characterization of the PIK3CA Status in Metastatic Breast Cancer. Int. J. Mol. Sci. 2017, 18, 1885. https://doi.org/10.3390/ijms18091885

AMA Style

Lampignano R, Yang L, Neumann MHD, Franken A, Fehm T, Niederacher D, Neubauer H. A Novel Workflow to Enrich and Isolate Patient-Matched EpCAMhigh and EpCAMlow/negative CTCs Enables the Comparative Characterization of the PIK3CA Status in Metastatic Breast Cancer. International Journal of Molecular Sciences. 2017; 18(9):1885. https://doi.org/10.3390/ijms18091885

Chicago/Turabian Style

Lampignano, Rita, Liwen Yang, Martin H. D. Neumann, André Franken, Tanja Fehm, Dieter Niederacher, and Hans Neubauer. 2017. "A Novel Workflow to Enrich and Isolate Patient-Matched EpCAMhigh and EpCAMlow/negative CTCs Enables the Comparative Characterization of the PIK3CA Status in Metastatic Breast Cancer" International Journal of Molecular Sciences 18, no. 9: 1885. https://doi.org/10.3390/ijms18091885

APA Style

Lampignano, R., Yang, L., Neumann, M. H. D., Franken, A., Fehm, T., Niederacher, D., & Neubauer, H. (2017). A Novel Workflow to Enrich and Isolate Patient-Matched EpCAMhigh and EpCAMlow/negative CTCs Enables the Comparative Characterization of the PIK3CA Status in Metastatic Breast Cancer. International Journal of Molecular Sciences, 18(9), 1885. https://doi.org/10.3390/ijms18091885

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
