Current Trends of Microfluidic Single-Cell Technologies

Abstract

The investigation of human disease mechanisms is difficult due to the heterogeneity in gene expression and the physiological state of cells in a given population. In comparison to bulk cell measurements, single-cell measurement technologies can provide a better understanding of the interactions among molecules, organelles, cells, and the microenvironment, which can aid in the development of therapeutics and diagnostic tools. In recent years, single-cell technologies have become increasingly robust and accessible, although limitations exist. In this review, we describe the recent advances in single-cell technologies and their applications in single-cell manipulation, diagnosis, and therapeutics development.

1. Introduction

Cells are the fundamental operating units in living organisms. In multicellular organisms, cells communicate over small distances through direct contacts or over extended distances through chemical signals regulated by the microenvironment [1,2,3]. Such cell-cell and cell-matrix interactions are based on the gene expression of individual cells, with detrimental genetic aberrations leading to the development of diseases. The treatment of many diseases, such as diabetes, cancer, and neurodegenerative disorders, remains difficult due to the complex interaction of molecules and signaling pathways in and between cells [4,5,6]. To establish more effective treatments for these diseases, it is essential to target biomolecules and their respective cellular pathways to alter pathological conditions [7,8,9].

Over the past two decades, the ability to interrogate molecular and cellular pathways has improved rapidly [10,11,12,13,14] and has contributed to our better understanding of several diseases and the design of useful drugs [15,16,17]. However, as the throughput and complexity of various technologies designed to interrogate biological systems have increased, the cost and time associated with analyzing such large samples have also increased. Furthermore, many approaches to the study of cell biology involve the culturing of many cells together in a heterogeneous physiological state with different gene and biomolecule expression profiles. Data collected in such a bulk culture tend to lose low-frequency information [18,19] that may affect the accuracy of diagnosis and delay therapy [20,21,22]. Thus, it has become apparent that innovative methodologies are required to perform these analyses. The development of lab-on-a-chip, along with bio-micro electro mechanical systems (Bio-MEMS) or micro total analysis system (µTAS), may serve as a methodology that can provide high throughput data, with limited reagent consumption and assay complexity [23,24,25,26]. These systems are designed for single-cell assays at the 10–100 µm scale. Active monitoring of a single-cell in a well-controlled environment without the influences of nearby cells is essential to understand cell physiology.

Single-cell technologies (SCT) are a set of novel techniques developed for studying single-cells and their interactions with other cells and the microenvironment in well-defined conditions [27,28,29]. In contrast to bulk analysis that provides average data for a population, SCT can identify different cellular characteristics and molecular dynamics in a cell population, which is particularly useful in characterizing tumor-initiating cells [28,29].

In order to analyze single-cell characteristics, data can be collected from individual cells in static or dynamic conditions so that phenotypic and functional alterations in diseased cells can be traced back to genetic aberration. Bioinformatics techniques can be used to handle the collection of such large amounts of diverse data generated from individual cells [27]. In the last two decades, the rapid development of Lab on a Chip has demonstrated that single cell analysis is a powerful technique for cell manipulation, diagnostics, and therapeutic developments [27,30,31].

Here, we demonstrate different physical approaches for single cell manipulation such as dielectrophoresis, optical, acoustic, and microfluidic microprobes. Furthermore, single cell separation and diagnosis techniques are discussed using microfluidic Bio-MEMS devices integrated with photomechanical, laser capture micro dissection, and nano-capillary chip technologies. Single cell therapeutic and analysis techniques are performed using electroporation [32], optoporation, mechanoporation [33], capillary electrophoresis coupled with laser-induced fluorescence detection, flow cytometry, mass spectrometry, high-resolution microscopy, the resonating microelectromechanical system (MEMS), electro neural nanowire device, and nanostraw system. Thus, this review article intends to provide an overview of currently available techniques for single cell manipulation, analysis, and their applications in diagnostic as well as therapeutic development. The research perspective, future prospects of SCT, and its applications will also be discussed.

2. Single-Cell Manipulation

In-vitro cell growth conditions are often insufficient in reconstituting the cellular microenvironment at the high spatial resolution and cannot eliminate the interference of chemicals released from adjacent cells. Thus, establishing an ability to place a single-cell in the desired location through “single-cell manipulation” is essential for the investigation of cell physiology.

A range of procedures for the physical displacement of single-cells has been developed. These procedures include fluidic-based [34,35,36,37], physical-based [38,39,40,41], electric field driven approaches such as dielectrophoresis (DEP), optoelectronic tweezers (OET) [42,43,44,45,46,47,48], and optical techniques such as optical tweezers [49,50,51,52,53,54]. The basic theories, advantages, and disadvantages of these technologies are briefly described below (

Table 1. Single-cell manipulation techniques.

S. No.	Single-Cell Manipulation Techniques Using	Features	Advantages	Disadvantages	References
1	Microfluidics	Droplet microfluidics.	Cell isolation, precise control on small volumes, high throughput screening.	Transportation of droplets is tedious. Special care is required in material choice for functions.	[55,56,57,58]
		Microfluidic DLD, GEDI, GEM.	Efficient cell separation based on size, surface proteins.	Sophisticated fabrication.	[59,60,61]
		Hydrodynamic pressure.	Same chip can be used for multiple process.	Tedious design and fabrication.	[62,63,64]
		Fluidic microarray chip.	High throughput cell manipulation.	Less flexibility in single cell manipulation.	[65,66,67,68]

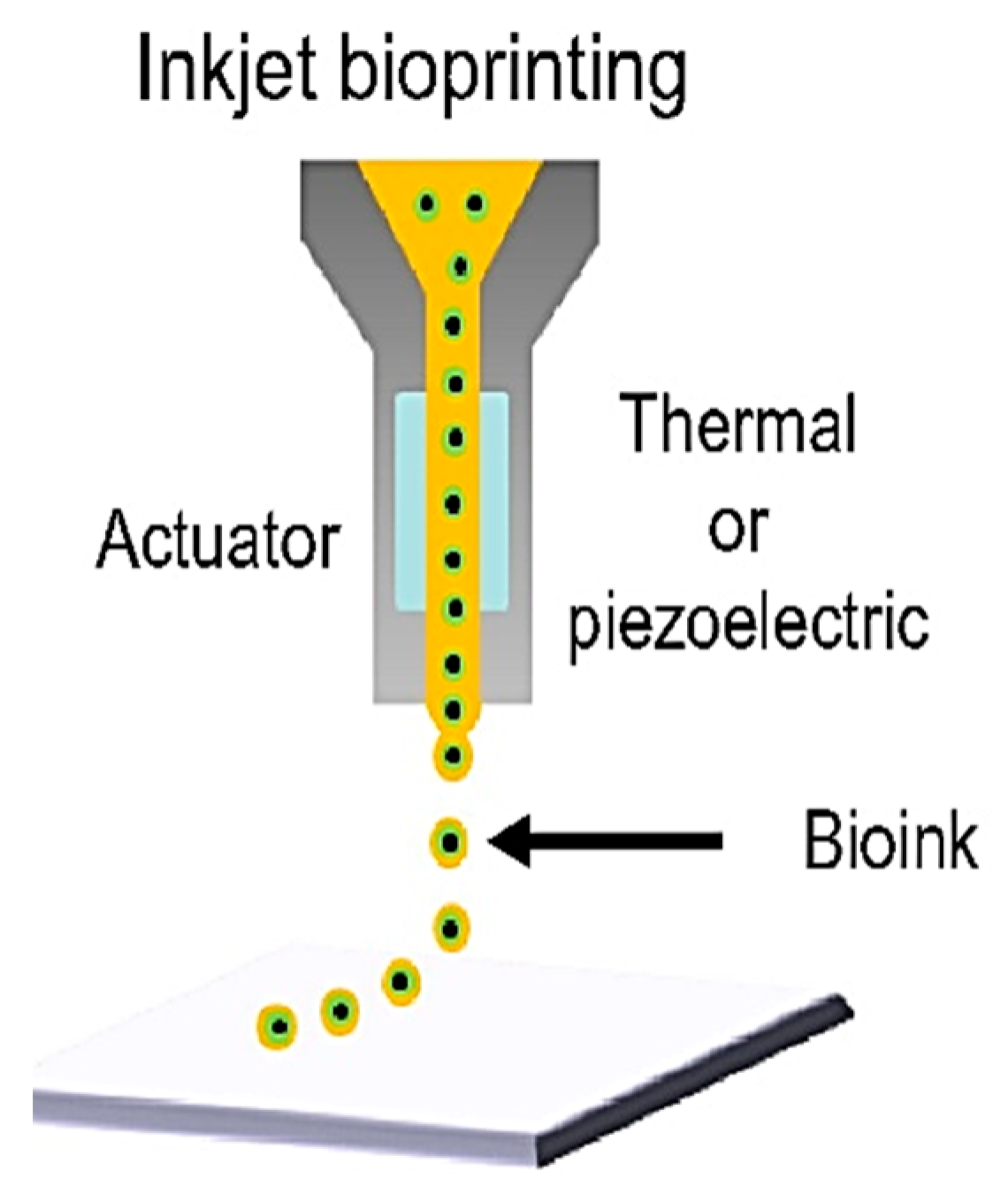

		Ink jet printing.	Cells can be displaced in the desired pattern.	Small volume of cell culture (8 µL)	[69]
		Micropipette array.	Increased throughput, useful for transporting cells within different microenvironments.	Trapping and release rates are compromised to increase cell viability.	[70]
2	Electric field	Dielectrophoresis.	Useful in handling inside microfluidic channels.	Complex electrode fabrication.	[71,72]
3	Optical energy	Optical tweezers.	Contactless handling, label-free, contamination-free.	Low throughput, high setup cost, substrate-specifi.c	[49,50,51]
		Multiple 3D optical traps.	Increases throughput as compared to optical tweezers, cell detection is incorporated.	Sophisticated instrument setup, diffraction of light limits the maximum number of cells that can be handled at one time.	[73]
4	Acoustic energy	3D acoustic tweezer.	Label-free, contact less, contamination free, safer as compared to the optical technique.	Sophisticated fabrication and calibration process.	[74]

). Also discussed are recent developments in parallel single-cell manipulation.

2.1. Fluidic-Based Manipulation

2.1.1. Droplet Microfluidics

Droplet microfluidics involves compartmentalizing reactions by isolating molecules, particles or cells into droplets [55]. This is achieved by isolating the target particles in aqueous microdroplets, which are separated by immiscible oil or similar fluids. This two-phase system allows for a level of control on the picoliter scale. Droplet-based microfluidic devices are valuable tools for single-cell handling due to their capability of isolating cells for further analysis. These cells can be transported through microchannels for a variety of downstream applications. A lab on a chip for digitally controlling single cell encapsulation and independent aqueous reagent microdroplet reactors for screening cell viability and cytotoxicity has been proposed by Brouzes et al. [75]. Allowing higher flexibility and feasibility to handle microdroplets, the aqueous medium is replaced by hydrogels as discussed by Zhu et al. [76]. A comprehensive overview of droplet microfluidics has been discussed by Shang et al. [56].

Jenifer et al. [57] showed the application of droplet-based microfluidic platforms in high throughput screening of Human Embryonic Kidney cells (HEK293T) (Figure 1). The microdroplets were generated by flow focusing a stream of cell suspension diluted in cell media, with perfluorinated oil. The concentration of nutrients inside the droplets was altered by varying the relative flow rates of the cell media and the cell suspension. The proliferation of both adherent and non-adherent cells in these microdroplets was observed for several days. Even after 14 days of incubation, greater than 90% of the drops remained intact, showing a very low degree of coalescence.

While the above techniques introduce devices where isolated droplets are generated on-chip, Yusof et al. reported a device for dispensing droplets into other devices via an inkjet-like single-cell printing technology by means of a piezo-actuator [69]. The schematic representation of inkjet printers is shown in Figure 2 [77]. While these devices are adept in terms of highly flexible cell manipulation, they are limited in their output because of the use of a single probe. Maintaining flexibility, accessibility, and increasing the number of probes favors higher throughput in single-cell manipulation. The single probe-tip device is appropriate for flexible cell manipulation.

2.1.2. Microfluidic Deterministic Lateral Displacement Technology

Using microstructures to control the fluidic field is a convenient way to isolate single cells. The major advantage of using fluidic-based cell manipulation is its simplicity. No exogenous electric or magnetic or optical fields need to be applied, which can complicate the instrument design and result in unwanted effects on cells. Numerous microfluidic chips have used microfilters that prevent cells of certain sizes from passing through [78,79]. More complex microstructures such as micropillar arrays can be used to separate cells of different sizes. One such design facilitated the isolation of circulating tumor cells from blood samples [80]. The CTC-iChip developed by Karabacak et al. [59] provides a novel way for the isolation of CTCs by using a two-stage magnetophoresis process (Figure 3). In the first stage, a continuous-flow system using deterministic lateral displacement (DLD) is used to separate the nucleated cells from blood. This is done by specifying a critical deflection diameter (D_c) for the DLD pillar arrays, such that the particles of interest have a diameter smaller than D_c and pass through the DLD pillar array without being deflected; while the particles having diameters larger than D_c would get deflected by the array. The second stage involves the use of inertial focusing to enable the precise lateral positioning of particles in a microfluidic channel, which then allows for highly efficient separation of target cells by magnetophoresis.

Kirby et al. modified DLD to develop a new microfluidic device called geometrically enhanced differential immunocapture (GEDI). This device has a pillar array designed to increase targeted cell to pillar collisions during the flow path. This is achieved by displacing the pillar rows with an incremental offset. These pillars are functionalized with the targeted cell’s antigen recognizing antibody. This results in the capture of targeted cells and undesired cell interactions are avoided. This technique has been successfully used for prostrate, breast, and gastric CTCs with a 2–400-fold increase in sensitivity [60].

Another antibody-based CTC cell trapping technique, geometrical enhanced mixing (GEM), has been developed by Sheng et al. [61] (Figure 4). It consists of a microfluidic mixer with optimized geometry for increasing transverse flow and flow folding to increase the cell interaction with antibody functionalized surfaces. The device achieves up to 90% cell capture efficiency with 84% purity.

2.1.3. Hydrodynamic Pressure Based Fluidic Manipulation

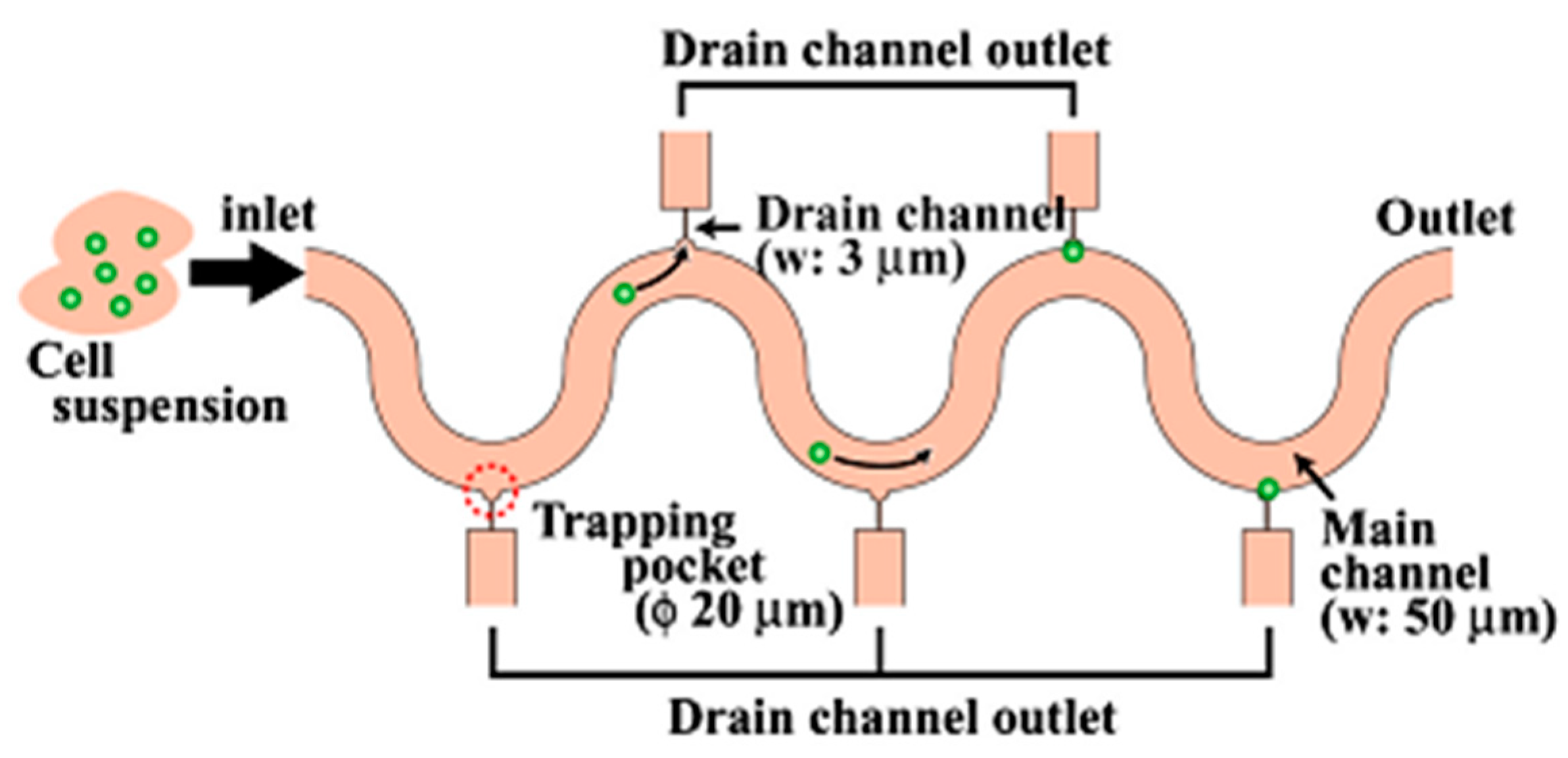

T Arakawa et al. [62] introduced a device that captures cells in small trapping micropockets, enabling further single cell processes such as isolation, tagging, and single-cell rupture (Figure 5). The device consists of microchannels that are serpentine in shape and consist of 64 or 512 trapping sites in each channel in series. The device allows cell trapping followed by isolation, tagging and rupture in succession in the same channel the cells are captured in. The serpentine channels’ geometric parameters are optimized based on cell size using finite element fluidic analysis. Arakawa et al. observed a capture rate of 70–83.2% in their experiments. The semicircular trapping pockets dimensions are decided as per the size of cells considered, to prevent the cells from washing away due to the sudden flow in the main channel. Finally, cell rupture is performed by injecting surfactant into the main channel. The cell membranes rupture and the cells’ contents are obtained by applying a negative pressure through the collection channels. Thus, cell trapping, tagging and rupture can be performed in succession on the same device.

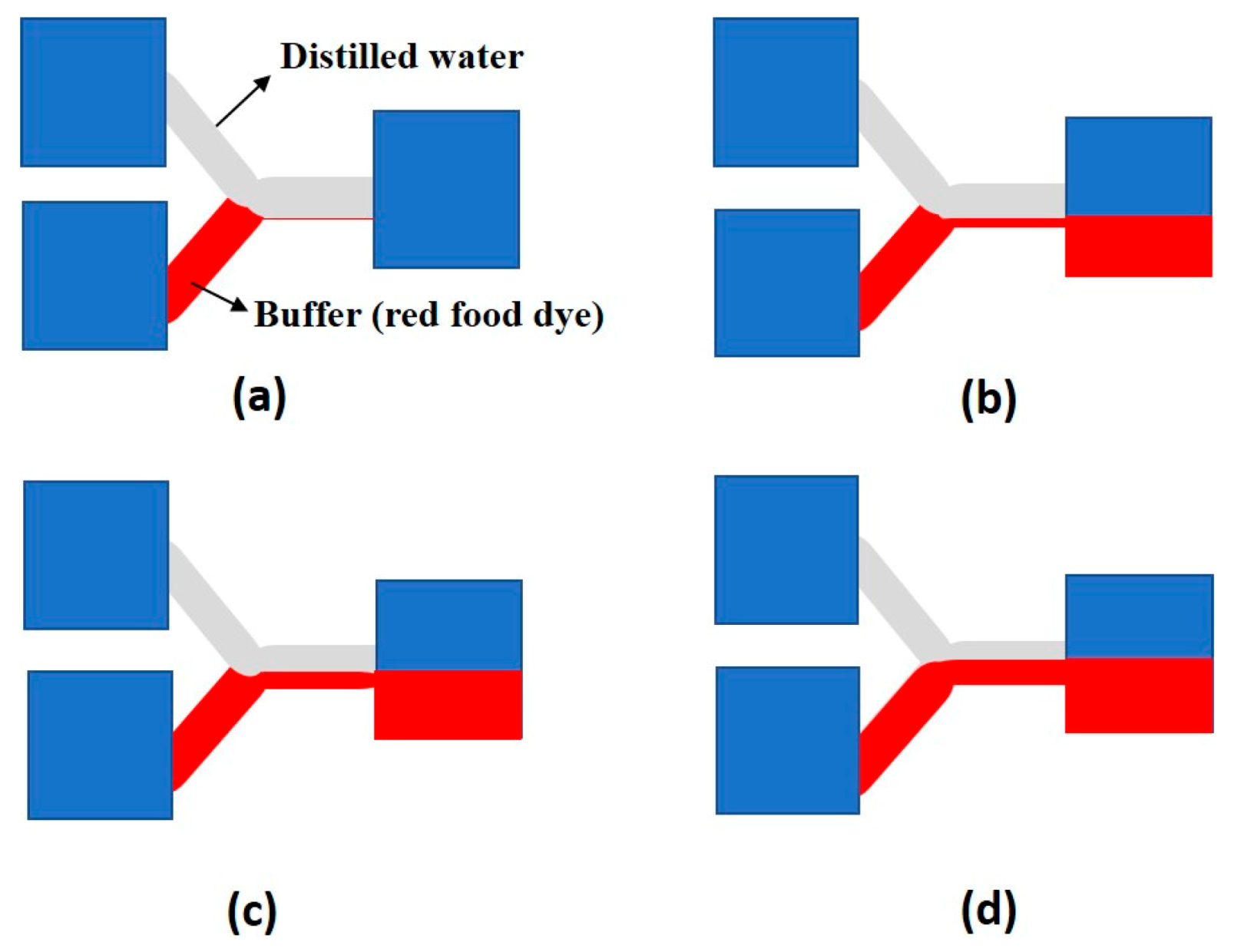

Bragheri and Osellame [63] introduced a chip to enable single cell manipulation by varying pressures from two sources: an input sample containing the cell suspension, and a buffer sample (Figure 6). The ratio of the pressures of input flowing from these two sources is the major factor determining the level of the buffer layer in the common channel. Both the sources originate from different heights and since the flows are laminar, the levels of both the samples can be controlled by just altering their input pressures. Lincoln et al. [64] showed that cells or microbeads tend to flow at the bottom of a channel under low flow rates. Thus, the positions of the cells in the common channel can be manipulated using this device.

2.1.4. Fluidic Microarray Chip for Cellular Manipulation

One of the problems faced when dealing with cells populations is that they typically are present in huge numbers and are individually vulnerable. Processing a large number of cells renders sophisticated experiments lengthy and difficult to repeat when one cell is handled at a time. In addition, one doesn’t want to lose important information from SCT during such procedures. Hence, it becomes essential to manipulate the maximum possible number of cells simultaneously while being consistent in maintaining their individuality. Several researchers have established the possibility of developing 2-D microwell arrays on semiconductor substrates or micromachining processes to achieve a highly parallel assay on a microchip [81,82,83].

Holding a cell through a glass pipette by suction flow is a standard technique for single-cell manipulation [84]. However, a recent parallel manipulation of single-cells by forming an array was reported by Nagai et al. [70], who described a device that comprised of 100 microprobes within a chip for single-cell manipulation. Figure 7 shows the principle of this array-based platform, where each microprobe in the array acted as a micropipette. A suction force is created by holding the chip over the desired cell culture matrix and applying negative pressure to the chip through a polydimethylsiloxane (PDMS) pump.

The dimension of the probe aperture and the suction pressure is optimized in such a way that individual cells are held by each probe. A microwell array is also designed such that individual cells can be released in each well on applying positive pressure through the PDMS pump to the chip. This study may promote a mechanical model for minimally invasive single-cell manipulation.

Hong et al. [36] and Chen et al. [37] effectively executed a cell-cell communication platform that can be used to co-culture a pair of cells in one chamber. For effective single-cell pairing, Frimat et al. [35] established a new cellular valving model to use within a differential resistance microfluidic circuit. Microfluidic control of cell pairing and fusion was studied by Skelley et al. [34]. Cell fusion was attained in an array format once the cells were paired [36,37]. The flexibility of the design for the use of different cell numbers and cell types can be improved using these chips.

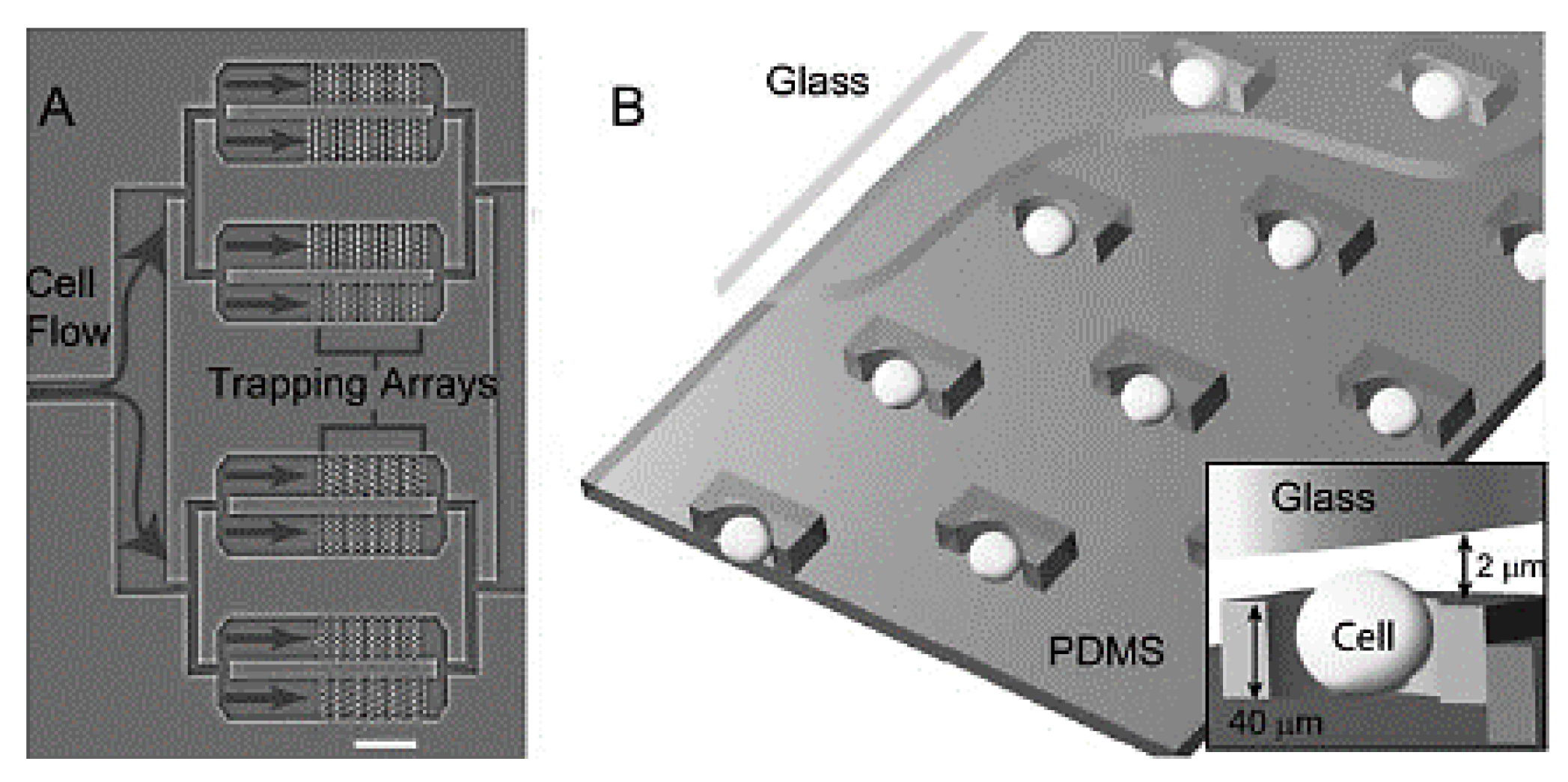

Di Carlo et al. [65] proposed a device for microfluidic-based culture of cells in ordered arrays with controlled dynamic perfusion; shown in Figure 8. They identified important parameters for the device, such as higher trapping efficiency observed in case of asymmetry in offset distances of rows as compared to symmetrically offset rows. They also observed the ideal depth to vary with the average size of the cell. In their experiments with HeLa cells, they found the single cell initial trapping rate to be 70% with the proposed device and above 85% retention of the cells in the trapped sites. The cells were shown to be adherent to the PDMS trapping sites and only 5% of the cells were apoptotic after 24 h, while 1% had undergone cell division.

Wlodkowic et al. [66] introduced a microfluidic platform for screening of anticancer drugs against single cells trapped in arrays. The device consists of an array of traps fabricated with PDMS (Figure 9). It showed a trapping efficiency of 10–20% for both U937 and HL60 cells in their experiments and over 85% of the cells initially trapped retained their position even after cell perfusion. Wlodkowic et al. also discussed the potential of the device in proliferation of the cells after trapping [67]. Thus, the microfluidic device allows for real-time trapping and screening of cells in small populations.

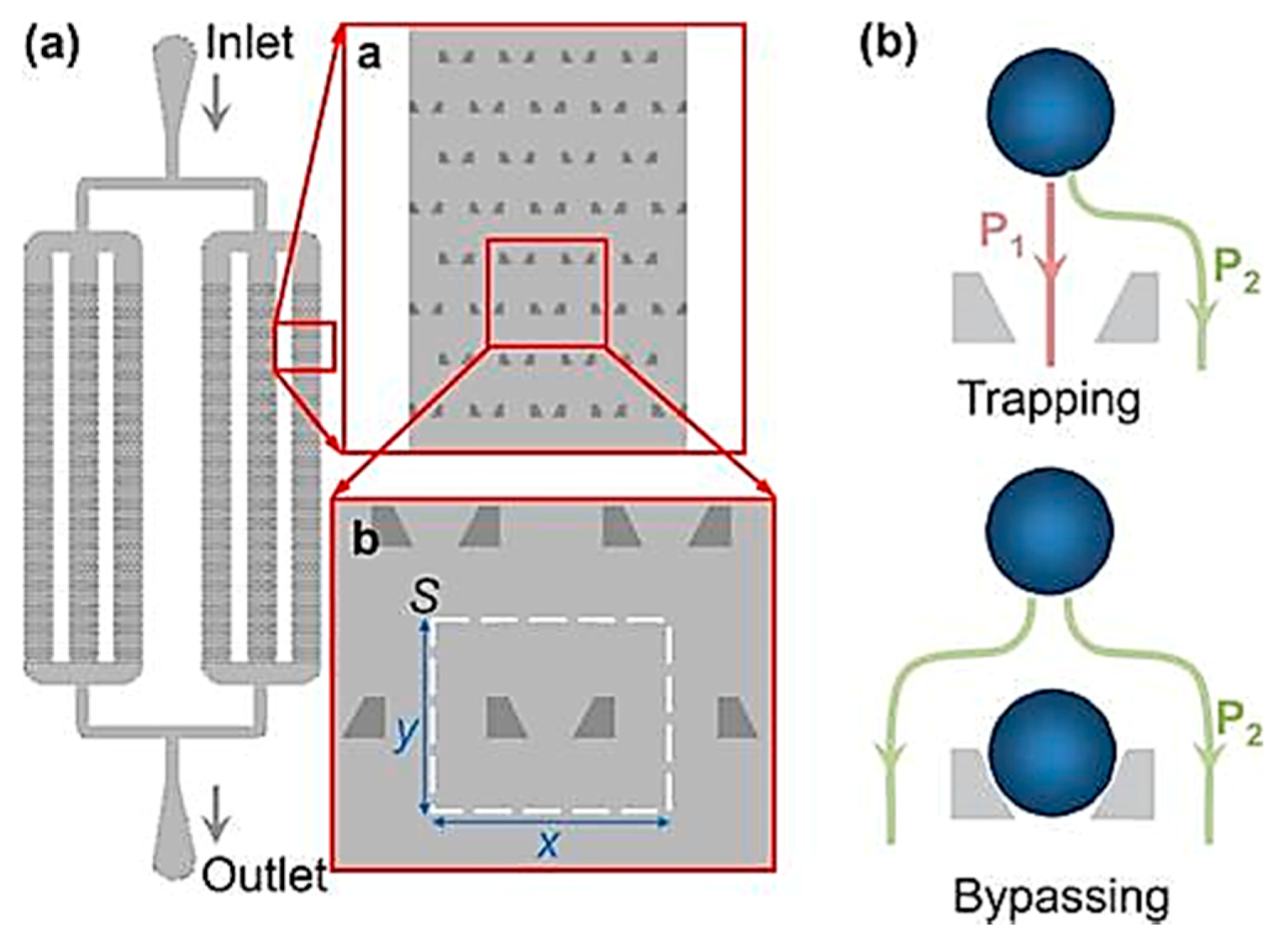

Xu et al. [68] proposed a novel cell trapping microfluidics-based device and developed a robust framework to identify and optimize parameters to maximize trapping efficiency in the proposed device (Figure 10). The device first captures microspheres flown into it via the PDMS-fabricated traps followed by capture of target cells on the trapped microspheres. The microspheres have embedded receptors to capture the cells [85]. The optimized device reported a trapping efficiency of 99% and a high trap density of 1438 traps/mm² in their experiments.

2.2. Electric Field-Driven Manipulation

Manipulation and patterning of cells can be achieved through the application of dielectrophoretic (DEP) conditions using non-uniform electric fields [71,72]. Hunt et al. 2006 & Kodama et al. 2013 reported on dielectrophoretic tweezer techniques as an alternative to suction for cell manipulation [86,87]. Lee et al. utilized the DEP tweezer technology for studying particle surface interaction in microfluidic devices, which further developed into a force spectroscopy technique [88]. Kim et al. automated the DEP tweezer-based force spectroscopy technique to manipulate particles in 3D [89].

2.3. Optical Manipulation

Optical tweezers are widely used for single cell optical manipulation. Figure 11 shows the schematic diagram of optical tweezers. When light strikes an object, its scattering is always accompanied with some momentum transfer to the object as per the law of conservation of momentum. This implies that while some photons in light beams get scattered off the incident surface of the object, some impart momentum to it in the direction of the beam. When a dielectric object is irradiated by a Gaussian laser beam, dielectric particles are attracted towards the center of the beam, since it is the region where the electric field is strongest. Thus, any small displacement away from the center of the beam causes a restoring force generated by the electric field gradient to act on the particle, pushing it back towards the center of the beam. In addition, the net pressure from the photons in the direction of the beam applies a positive force on the particle along the direction of beam propagation [90,91].

This technique can be effectively employed in precise single cell handling. The advantages of using optical methods have been reported by Chiou et al. 2005, Mirsaidov et al. 2008, and Juan et al. 2011. However, optical tweezers are prone to light diffraction and impose limitations on available substrates when handling multiple cells at the same time [49,50,51]. Liberale et al. [92] presented a new approach to integrating optical trapping with microfluidic devices for on-chip manipulation and analysis by using miniaturized optical tweezers. Their device shows great potential in cell manipulation and screening due to its versatility and ease of fabrication, whilst also ensuring cell safety.

To achieve parallel manipulation of cells, Wang et al. [73] combined hydrodynamics with the holographic optical tweezing operation to create multiple 3D optical traps to separate cells from a mixture (Figure 12). The 3D optical traps are integrated into a microfluidic device with an array of microwells to dock cells that pass over it through a microfluidic channel placed on a motorized stage. The docked cells are then observed through a microscope that scans the array to capture the image. Using an image processing technique, the desired cells are detected and an optical trap is created to trap specific cells using a continuous wave laser source. Multiple traps are created depending on the number of cells detected. The Z stage of the objective moves vertically upwards to levitate the trapped cells. The motorized stage then moves in an X–Y direction to transport the cells to the desired location. The entire process is controlled by software. Wang et al. reported a successful levitation rate of 78.5 ± 5.4% and a successful transfer rate of 97 ± 1.41% using this proposed system [93].

This technique achieves the parallel manipulation of cells. However, it requires a sophisticated experimental setup. In addition, the number of optical traps that can be generated is limited by the maximum laser power.

Wang et al. [94] introduced a system integrating optical tweezers into microfluidic technology for cell isolation, transport and deposition in a non-invasive manner (Figure 13). Their system uses digital image processing to identify important features such as cell size and fluorescence to identify target cells. The optical traps can be generated by their system at any position inside the region of interest to trap the cells once they are detected by the image processing module. To capture the cells, the fluid drags force, and the optical trapping force must neutralize each other so that the cell moves at a constant velocity and can be moved from the sample flow to the buffer flow using the optical tweezers module. They demonstrated the working of this system using Human Embryonic Stem cells and reported high purity and recovery rate of the target cells from the input sample.

2.4. Acoustic Based Mainpulation

Ding et al. introduced the first acoustic tweezers (Figure 14), which showed precision close to those of optical tweezers while having a power density orders of magnitude lesser than those of optical tweezers (10,000,000 times lesser) and optoelectronic tweezers (100 times lesser), thus making acoustic tweezers way more biocompatible. The device was employed in 2D acoustic manipulation of HeLa cells and micro-organisms by real-time control of a standing surface acoustic wave field. The device showed the ability of moving cells across the platform at a very high speed of up to 1600 μm/s. They used polystyrene microparticles to show how the device enabled precise and intricate manipulation on the 2D platform [95].

Another technique to manipulate multiple cells was demonstrated by Guo et al. They developed 3D acoustic tweezers to manipulate microparticles and cells (Figure 15). The figure shows electrodes used to create surface acoustic waves and the region of operation. The device creates standing waves by superimposing surface acoustic waves to form 3D trapping nodes. To achieve in-plane movement, they controlled the phase shift of the standing wave and the amplitude of the wave controlled the orthogonal movements [74].

3. Single-Cell Technologies (SCT) for Research and Diagnosis

In order to treat diseases properly, we need to understand the genetic information and metabolic pathways of abnormal cells. Efficient and sensitive detection of the chemical components within a single-cell is still challenging. In this section, we discuss some of the recently developed devices for detecting abnormal cells from a bulk of cells (

Table 2. Single-cell diagnosis techniques.

S. No.	Single-Cell Diagnosis Techniques Using	Features	Advantages	Disadvantages	References
1	Microfluidics	Flow cytometry, A microfluidic technique to sort cells based on their size, granularity, and fluorescence (FACS).	High throughput technique to analyze heterogeneous cell population. Gives high accuracy in sorting.	Not reliable for intracellular diagnosis. Spectral overlap observed in screening of multiple parameters.	[100]
		Cell affinity micro chromatography, a technique based on binding with surface immobilized ligands.	Targeted cells sorted based on surface proteins. Higher sensitivity and selectivity.	Low throughput. Limited by Surface interaction. Complex cell retrieval mechanism.	[101]
		Droplet microfluidics.	Microreactors for individual cells within a droplet, rare cell detection possible.	Huge data analysis required.	[102]
		Micro vortex.	Rare cell isolation is possible. High throughput is possible.	Purity of output is low.	[103]
2	Electric field	Dielectrophoresis technique uses non-uniform electric field.	Useful in the study of neural cells, cancer cells. High efficiency.	Limited to cells showing a response to electric fields. Low throughput.	[104]
3	Optical energy	Photomechanical cell detachment.	single-cell captured per microfluidic chamber allows tracking of individual cells. Surface proteins are preserved. Genetic analysis can provide information about key altering genes in cell lineage.	Low throughput. Expensive setup.	[105]
		Laser capture microdissection.	Allows live single-cell isolation. Even cell organelles can be isolated. Contactless technique.	Requires good optical resolution. Expensive setup.	[106]
5	Magnetic energy	MACS uses functionalized super-paramagnetic nanoparticles to tag cells.	High efficiency. Based on surface markers allows high selectivity and sensitivity. Allows sorting of multiple target cells.	Low throughput. Cell retrieval is difficult.	[107]
6	Omics technology	In Digital droplet, PCR sample is fractionated into droplets using water oil emulsion droplet technology. Each droplet is then allowed to react with the specific primer and probe. The droplets showing positive reaction are quantified.	Very high accuracy and sensitivity in detection of rare DNA target. Quantification of the concentration of targeted cell is possible.	Lengthy process. Redesigning of the process required if results are inconsistent.	[108]

).

3.1. Single-Cell Separation and Detection

Flow cytometry is an exceptional tool for single-cell sorting based on cell properties or fluorescence markers (1974) [96]. Fluorescence-Assisted Cell Sorting (FACS) is a type of cytometry where fluorescent-labelled cells can be separated from a heterogenous mixture of cells, on a cell-by-cell basis (Figure 16). One of the major advantages of FACS is its potential to measure multiple characteristics of cells based on the fluorescence specificities of the target constituents of the cells [97]. FACS also provides single cell data at extremely high throughput. However, DNA content analysis using FACS has shown variability in prognostic results, hence the technique is not very well accepted for DNA analysis of single cells [98].

Hence, droplet microfluidics for single-cell isolation fiber optics for target cell detection and lab-on-chip devices are combined to develop multiple cell sorting and collection through multiple channels with higher throughput [109]. Yet, for downstream single-cell analysis, the technique to separate targeted single-cells from bulk is essential. Separating cells and collecting them in 96 or 384 plate microwells is possible with FACS. However, cell sorting microfluidic devices based on antigen-antibody interactions have very high target specificity.

Fluorescent activated cell sorters and magnetically activated cell sorters to detect and separate cells are available [110,111]. However, they cannot be used directly for substrate-attached cells without disrupting their microenvironment. In addition, the lineage of cells is lost in these techniques. However, micro array-based chip technology can provide both high throughput and preservation of cell lineage. Cell detachment from a substrate in routine cell culture is generally achieved by the use of trypsin. However, extracellular surface proteins are lost in the process. A physical detachment of cells from the substrate can circumvent the loss of surface proteins. This can be useful in the downstream study of cell surface properties.

Keeping a track of cell lineage can be very useful in the study of cell differentiation and cell modification after division in diseased cells by acquiring comparative data from sister cells. Moreover, the influence of specific factors on sister cell development can be studied [112] and valuable data on the origin of genetic aberrations can be garnered [113]. However, such cell lineage tracking using conventional techniques is laborious and monotonous.

Improving on traditional dish-based approaches, the latest progress in microfluidics facilitates the monitoring and isolation of thousands of single-cells on a chip with high resolution [114,115,116,117,118]. Such approaches have allowed for the microscopical observation of single-cell self-renewal and differentiation processes [119,120]. While single-cell monitoring offers valuable information, microfluidic methods are developing numerous techniques to recover healthy individual cells for genotypic investigations, necessary for reducing complex cell rejuvenation and differentiation pathways [121]. In cell detachment procedures like poly (N-isopropylacrylamide) (PNIPAAm)-based detachment or trypsinization, all cells are isolated from the whole substrate without any specific cell isolation [122]. In photodegradation, photo-acid-generating cell culture substrates have lower specificity and allow improved cell release. However, this approach creates acidic by-products with potentially toxic effects and possibly disturbs cell expression and behavior [123].

Other approaches using localized trypsin or capillary vacuums have been demonstrated; though these are still restricted to open substrates [124,125]. Optical methods using infrared laser irradiation resulted in very poor cell viability owing to heat-induced cell necrosis [126]. Recently, single-cell detachment through laser-generated focused ultrasound (LGFU) was also reported [127,128]. The focused ultrasound-induced single bubble cavitational disruption (<100 μm precision) to separate target cells. These methods are also restricted to open substrates.

To overcome these drawbacks, Chen et al. developed a novel device [105,128] through which it is possible to preserve cell lineage data. Moreover, individual sister cells can be detached from the substrate without disturbing the microenvironment and can be collected for downstream analysis. Using this approach, gene expression signatures from sister cells were successfully compared and distinguishing factors were identified. The entire process was honed to consume less time and labor.

Figure 17 shows the schematic view of a single-cell detachment set-up. The composite material was composed of carbon nanotubes (CNT) and PDMS. Cells were cultured on the composite film. A targeted cell was then irradiated with a single laser pulse for 7 ns and a spot diameter of 10 µm. In response to the optical energy, the CNTs act as a transducer to convert the photo irradiation into thermal energy and finally produce microbubbles. These microbubbles ruptured the PDMS film to exert a shear stress of 600 Pa on the cells seeded on top of the composite material, sufficient to induce single-cell detachment. The further expansion of the microbubble caused lateral displacement of the targeted cell. The laser beam was focused over a region of 10 µm in diameter, conducive to single-cell detachment. Furthermore, this approach can be honed to generate local detachment of a cell section.

Upon integrating the composite film with the microchannel array, the detached cells were successfully retrieved. To study the sister cells, a microchamber was fabricated with microchannels for cell retrieval.

3.2. Antibody-Based Single-Cell Screening

Flow cytometry is capable of detecting and sorting cells, based on their size, shape, surface proteins and fluorescence markers. Over the past three decades [129], many methods have been developed to detect circulating fetal nucleated cells (CFNC); for example, high-throughput microscopy [130,131], filtration [132], magnetic-activated cell sorting (MACS) [133,134], gradient centrifuge [135,136], fluorescence-activated cell sorting (FACS) [137,138], and microchip technologies [139,140]. These techniques can isolate individual cells for further analysis.

Liquid biopsy shows significant promise for future diagnosis. However, detection and isolation of targeted individual cells from millions of cells remains a challenge. The detection and capture of a targeted circulating cell is a step of critical significance after obtaining a liquid biopsy sample. Such an approach prevents the need for invasive biopsies that are frequently required for prognosis, therapy assessment, and proteomic and genetic studies. However, this method has drawbacks that include poor detection and separation with low cell density (one cell per billion blood cells) and heterogeneity.

3.2.1. NanoVelcro Microchip

In contrast to current rare-cell sorting methodologies, “Nano Velcro” rare-cell assays may significantly improve the performance of rare-cell enrichment from blood [141,142]. By incorporating the Nano Velcro substrate with a superimposed microfluidic chaotic mixer, a Nano Velcro microchip can be produced. The microchip has been validated with high specificity and sensitivity for computing Circulating Tumor Cells (CTCs) in different solid tumors, including CTCs of lung cancer [143,144,145], kidney cancer [146], pancreatic cancer [147], and prostate cancer [148,149,150]. CTCs have been isolated by Nano Velcro microchips coated with electrospun poly (lactic-co-glycolic acid) (PLGA) nanofibers, coupled with a commercial laser capture microdissection (LCM) technique.

The non-invasive technique for prenatal diagnosis developed by Hou et al. [151] involved the fabrication of a microchip that acted as a Nano Velcro to detect circulating fetal nucleated cells (CFNC). Figure 18 schematically illustrates the structure of the Nano Velcro microchip, which is, an array of nanopillars designed with optimum pillar dimensions. Anti–Ep Cam antibody was used to functionalize the substrate to capture CFNC in the maternal blood. After the maternal blood was gradient centrifuged for red blood cell depletion, it was passed through a chaotic mixer. The Nano Velcro and the chaotic mixer easily slide inside a metal sandwich frame, which is customized to align and hold two components together. Upon passing the sample through the chaotic mixer, within the initial three lanes itself, the CFNCs were captured in the Nano Velcro. The LCM technique was used to focus on each individual CFNC to separate each single-cell from the Nano Velcro chip for genetic testing.

3.2.2. Microarray Chip Based Screening

Screening is the task of separating cells into numerous streamlines based on the distinction of their physical or chemical properties and obtain them through specific outlets. This phenomenon can be naturally observed in blood capillaries wherein red blood cells, due to their small size, flow in the central channel whereas white blood cells flow in the periphery.

Yamamura et al. proposed a device for efficiently screening individual active B cells from an array of lymphocytes and retrieving targeted cells (Figure 19) [152,153]. Jin et al. proposed a modified design with micro array chip for screening and separating individual cells that secrete targeted antibodies. This device uses the principle of highly sensitive and highly specific enzyme linked immunospot assay (ELISPOT) for the detection of antibody secretion. The chip has an array of hollow sites with optimized dimensions to capture individual lymphocytes. The surface of the chip is coated with immunoglobin specific antibody (IgG-Ab). These IgG-Ab trap the antibodies secreted by each individual cell around the trapping sites. On addition of targeted antibody specific fluorochrome tagged antigens, doughnut shaped fluorescent signals can be observed on the chip. Thus, targeted individual cells can be retrieved from the chip for further downstream analysis and application. This device can handle 234,000 individual cells at a time, thus proving to be a high throughput cell detection and retrieving system [154].

Development of antibodies for numerous diseases obtained from B cells is an upcoming field in therapeutics study. The antibodies for particular diseases can be obtained either by using media of cultured B cells or by gene cloning. However, this is an expensive and laborious technique. Next generation sequencing (NGS) is a useful technique wherein millions of B cells’ paired repertoires are profiled. However, it suffers from low screening throughput. In a recent advancement, Rajan et al. [102] demonstrated the use of droplet microfluidics for high throughput screening of paired repertoires. Individual B cells are captured in micro droplets along with the reagent. This allows high throughput screening, phage display and NGS.

3.2.3. Micro Vortex Based Cell Isolation

Stott et al. [155] showed the employment of microvortices to isolate rare cells from fluids. They extended the technique of mixing solutions by generating microvortices in fluidic channels via transverse flows introduced by Stroock et al. [156] to capture CTCs from whole blood. Stott et al. were able to detect rare clusters of 4–12 cells from input blood, which were not detected in the traditional CTC chip [80]. Khojah et al. [103] demonstrated the capture of different sizes of cells by tuning the fluid flow properties on chips having the same geometry under all cell inputs (Figure 20).

Trapping reservoirs of the same height but different aspect ratios were placed at a distance of 1 cm from the inlet of the rectangular flow channel. They defined three phases of flow, each varying in the range of Reynolds number of the flow in the main channel. In phase I, corresponding to 100 ≤ Re < 175, the larger particles were observed to spiral into the cavity and orbit around a vortex core which initially forms near the leading wall and moves towards the cavity’s center. Smaller particles were observed settling in large orbits, showing unstable behaviour and tendency of exiting the cavity over time. In phase II (175 ≤ Re < 225), large and small particles shared the same orbit trajectory around the vortex core. In phase III (225 ≤ Re < 300), the vortex core shifted from the center of the cavity to the trailing wall and small particles orbited closer to the vortex core, while large particles orbited away from the core and closer to the walls. Di Carlo et al. then tested the capture capacities of these three phase MCF-7 and MDA-MB-231 cells. They found phase I to be the optimal phase for MCF-7 capture and phase III to be the optimal phase for capture of MDA-MB-231 cells under different aspect ratios. Thus, the proposed system was able to capture cells of different sizes by varying the flow parameters

4. SCT for Therapeutics Development

Specific gene function studies within a single-cell and studies on gene response to drug molecules help scientists to understand the heterogeneity of a similar population of cells [157]. Many of these studies rely on introducing genes into cells. Several gene delivery methods have been developed, such as viral transduction, calcium phosphate precipitation, liposome, microinjection, sonoporation, electroporation, etc., [2,158,159,160,161,162,163,164]. Although none of these approaches offer all of the desired results at once, physical delivery techniques are advantageous in terms of high efficiency, high cell viability, better control, diverse cargo delivery capability, selectivity, cost-effectiveness, and reproducibility [27]. Viral transduction is a popular method used for the delivery of macromolecules. More than 90% of clinical trials being carried out are via viral transduction methods. The desired genetic material is incorporated in the genetic material of the viral vector. The viral vector is modified to suppress the disease-causing genes. This method is cell specific. The major advantage of viral transduction is that the viruses have natural mechanisms to overcome the cell membrane barrier of host cells. However, we cannot control the cargo dosage besides virus has limited genetic material carrying capability. Moreover, the viral transduction approach has immunogenic response issues and process customization is required after changing cargo and cell types [158]. In this section, we describe some of the recent techniques for therapeutics (

Table 3. Single-Cell therapeutic techniques.

S. No.	Single-Cell Therapeutic Techniques Using	Features	Advantages	Disadvantages	References
1	Viral vector	Genetically engineered viruses are used for transfection.	Promising intracellular uptake, targeted delivery.	Immunogenic effects, limitation in genetic material carrying capacity.	[158]
2	Electroporation	Use of electric field for making cell pores.	Cost effective, high delivery efficiency.	Low cell viability, formation of irreversible pore.	[158,165]
3	Optoporation	Use of laser for creating transient cell membrane pores.	Contactless delivery method, high transfection efficiency.	Low throughput for single cell delivery.	[166,167]
4	Mechanoporation	Transient membrane pores are formed by applying mechanical forces on cells.	High cell viability, high transfection efficiency.	Sometimes there is a compromise between high transfection efficiency and high cell viability.	[168,169,170,171]

).

4.1. Single-Cell Electroporation

Electroporation is a physical method used to deliver cargo into cells by creating nanopores in the cell membrane. Upon the application of an externally applied electric field, the cell membrane deforms creating membrane nanopores, when the applied voltage exceeds the cell membrane threshold voltage [172]. Single-cell electroporation was first demonstrated in 1998 when two carbon microelectrodes were placed in close proximity to a cell and an electric potential was applied between the electrodes; the cell membrane was deformed and molecules entered into the cell through diffusion [173]. Several other approaches to single-cell electroporation have been demonstrated using micropipettes [174], microfabricated devices [175] and microfluidics [176]. Longo et al. through their work created stable mammalian cell lines by transfecting them with desired cargo using electroporation [165]. Potter et al. demonstrated mammalian cell electroporation for in-vivo gene therapy in cancer treatment and DNA vaccination [177]. Even though these methods offer advantages such as high throughput and high efficiency, their application is still limited due to low cell viability [178,179].

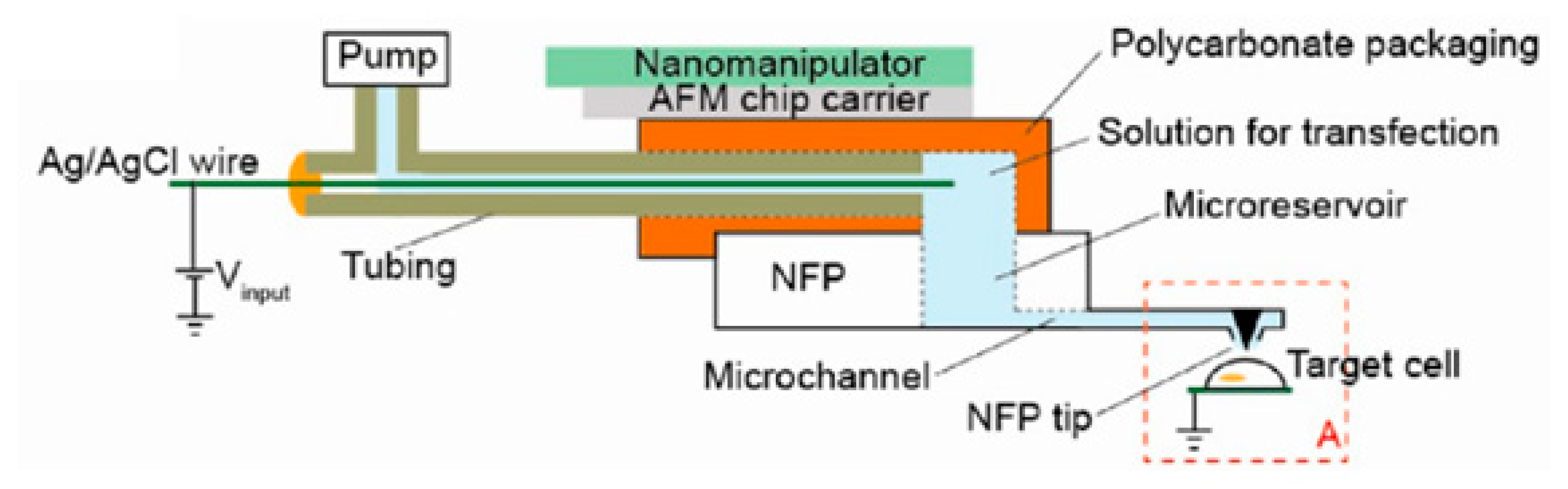

With a view to overcoming the low cell viability issue, Kang et al. [180] developed a technique known as nano fountain probe electroporation. Figure 21 schematically illustrates the nano fountain probe approach.

The chip is fabricated incorporating a microfluidic cargo flow channel into a cantilever with its opening at the tip. The chip has 12 microfluidic drug tube-embedded cantilevers, all connected to a common micro-reservoir. An electrical connection between the conductive wire and the conductive cell substrate generates a concentrated localized electric field at the individual cell site, creating a pore in its membrane. A drug can then enter into the cell through the capillary effect, or a micropump can be used to pump the drug into the cell. This gives better temporal resolution on the diffusive drug entry. Such a system accessorized with a micromanipulator or an AFM can deliver a drug to a precise location within the single cell and multiple single cells can be efficiently transfected as per requirement within the shorter time range. Since the inception of nano fountain probe single-cell electroporation, the voltage requirements needed to realize a successful result have been reduced from kilovolts to only a few volts. Use of a micro-reservoir prevents overconsumption of drug molecules and the system can be parallelized for high throughput applications. Drawbacks of this technique include the requirement of a conductive fluid for delivery, cell culture, and limitations in delivering large cargo into the cell.

Santra et al. proposed a device for selective and localized single cell nano electroporation (LSCNEP). This device consists of electrodes having 500 nm gap, fabricated on a glass chip to reduce the affected cell membrane area and ensure single cell electroporation. An insulator acting as the passivation layer avoids direct cell contact with the electrodes. This reduces any heating effect as well as creation of any harmful ions during the process. The cell is seeded on top of the device. On application of suitable voltage, an intense electric field acts on the local region of the cell membrane as shown in Figure 22 [162]. The device is capable of achieving high throughput, precise drug delivery controllability, and high cell viability (98%) [181].

4.2. Optoporation

4.2.1. Bulk Optoporation

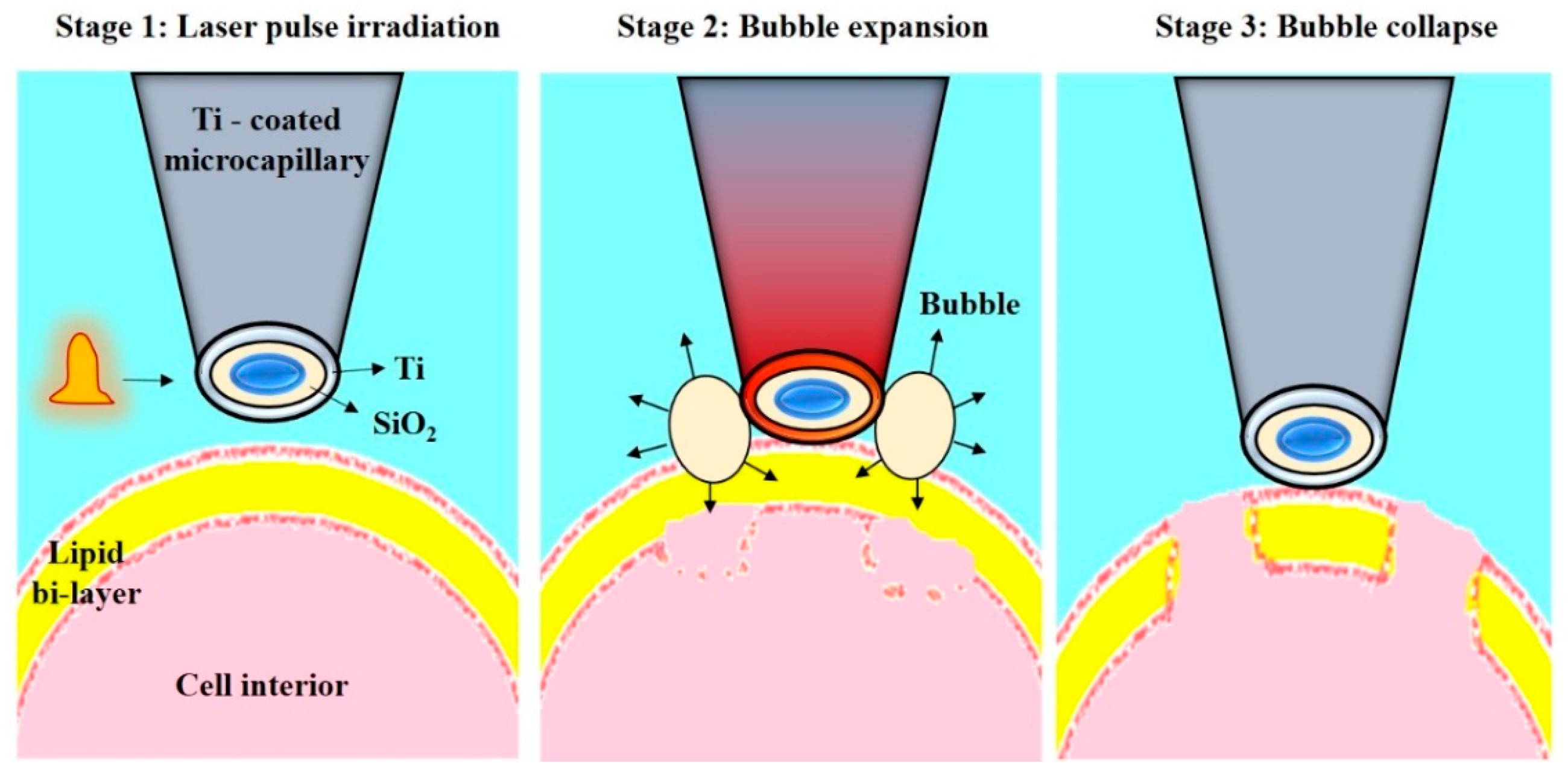

One of the most promising emerging technologies for intracellular delivery is photo or optoporation, where a laser is focused onto a cell membrane in the presence or absence of metallic nanoparticles to produce micro or nanobubbles, which disrupt the cell membrane and produce transient membrane pores to deliver molecules into cells [182]. Membrane permeability can be increased either by using a tightly focused laser beam (pulsed or continuous wave laser) or by a broad laser beam in combination with sensitizing nanoparticles [183]. In 1984, Tsukakoshi et al. reported an optoporation technique to deliver membrane impermeable molecules into a cell by creating pores using a pulsed laser [184]. Nikolskaya et al. used a continuous laser to deliver fluorescent molecules in neonatal rat cardiac cells. This study demonstrates high target specific delivery and high spatial resolution enabled by optoporation [185]. Andrew et al. used femtosecond pulsed laser for optoporating Chinese hamster ovarian cells [186]. Use of pulsed lasers over continuous lasers for optoporation gives better energy efficiency and reduces cell death.

In photothermal delivery, metal nanoparticles are used to create Localized Surface Plasmon Resonance (LSPR). The laser electric field generated is enhanced due to the lightening-rod effect. As a result, plasmonic bubbles are created in the surrounding medium, which generates shock waves. These shock waves disrupt the cell membrane to create transient pores [31]. Bastein et al. studied the visible and near-infrared laser wavelengths and their effects on intracellular delivery and cell viability after exposing mammalian cells. The study proved that the use of near-infrared wavelength can achieve better cell viability [187]. Ranhua Xiong et al. showed that the optoporation efficiency in presence of metal particles is higher as compared to direct laser exposure for live Hela cells [188]. However, nanoparticle-mediated intracellular delivery is limited to certain sizes and types of molecules, and is only suitable for specific cell-types [189]. All these approaches come under bulk level optical transfection.

4.2.2. Focused Laser Beam Based Single-Cell Optoporation

Waleed et al. reported single cell transfection of MCF-7 cells with pAcGFP1-C1 plasmid coated 1 µm amino-based polystyrene microparticles using a femtosecond laser (800 nm) in combination with optical tweezers (1064 nm) (Figure 23). This technique offered control over the amount of plasmid that is inserted into a cell, high selectivity, and aseptic conditions due to the non-contact nature of the technique. The main limitations of this technique are the low transfection efficiency of 12.7% and the low transfection frequency of 20 cells per hour [166], which makes it not feasible for practical applications.

4.2.3. Metal Nanostructure Assisted Single-Cell Optoporation

Wu et al. reported another single cell transfection technique based on metal light interaction based nano bubble, which created shear stress on cell membrane (Figure 24). They fabricated a nano blade by depositing 100-nm titanium on glass micropipette. This nano blade is held near the cell surface. Pulsed laser is irradiated on the titanium nano structure. As a result of LSPR, micro bubbles are created, which disrupt the cell membrane to create transient pores [190]. Using this technique, they pumped the cargo into the cell through a micropipette with 46% transfection efficiency and 90% cell viability [167].

4.3. Single-Cell Mechanoporation

This technique uses physical force to penetrate the cell membrane and deliver the drug inside the cells. Microinjection is an example of mechanoporation. A microneedle is used to inject the drug into the cytosol. A micromanipulator is used to hold the microneedle and control the pressure for cargo delivery. This technique allows high delivery efficiency and a throughput of about 1000 cells per hour. This system is further upgraded in the development of microfluidic devices with stationary needle probes and flowing cells to make the system more robust and increase throughput [27]. Thus, hollow engineered probes such as hollow micro-capillary arrays [168,169], hollow nanoneedle arrays [191] and carbon nanosyringe arrays [192] have been fabricated on the cellular scale. To achieve better penetration of the cell membrane and successive cellular injection, the wall thickness of the hollow probes is reduced. Limited efforts have been made to develop a microprobe array for single-cell manipulation. In particular, to reduce the stress concentration at the cell, Shibata et al. [193] fabricated a hollow microprobe array with hemispherical tips (Figure 25). This device is a microarray chip, designed for high-throughput intracellular delivery of single-cells that even allows for the manipulation of different types of single-cells in 3-D and parallel formats. For fabrication simplicity, only a single photomask was used to design the probes in previous studies [194]. The fabrication process established hitherto lacks approaches for monitoring the inner diameter, outer diameter and a wall thickness of the probes. It is essential to improve the fabrication process to control the probe dimensions and to optimize the structures used for single-cell manipulation.

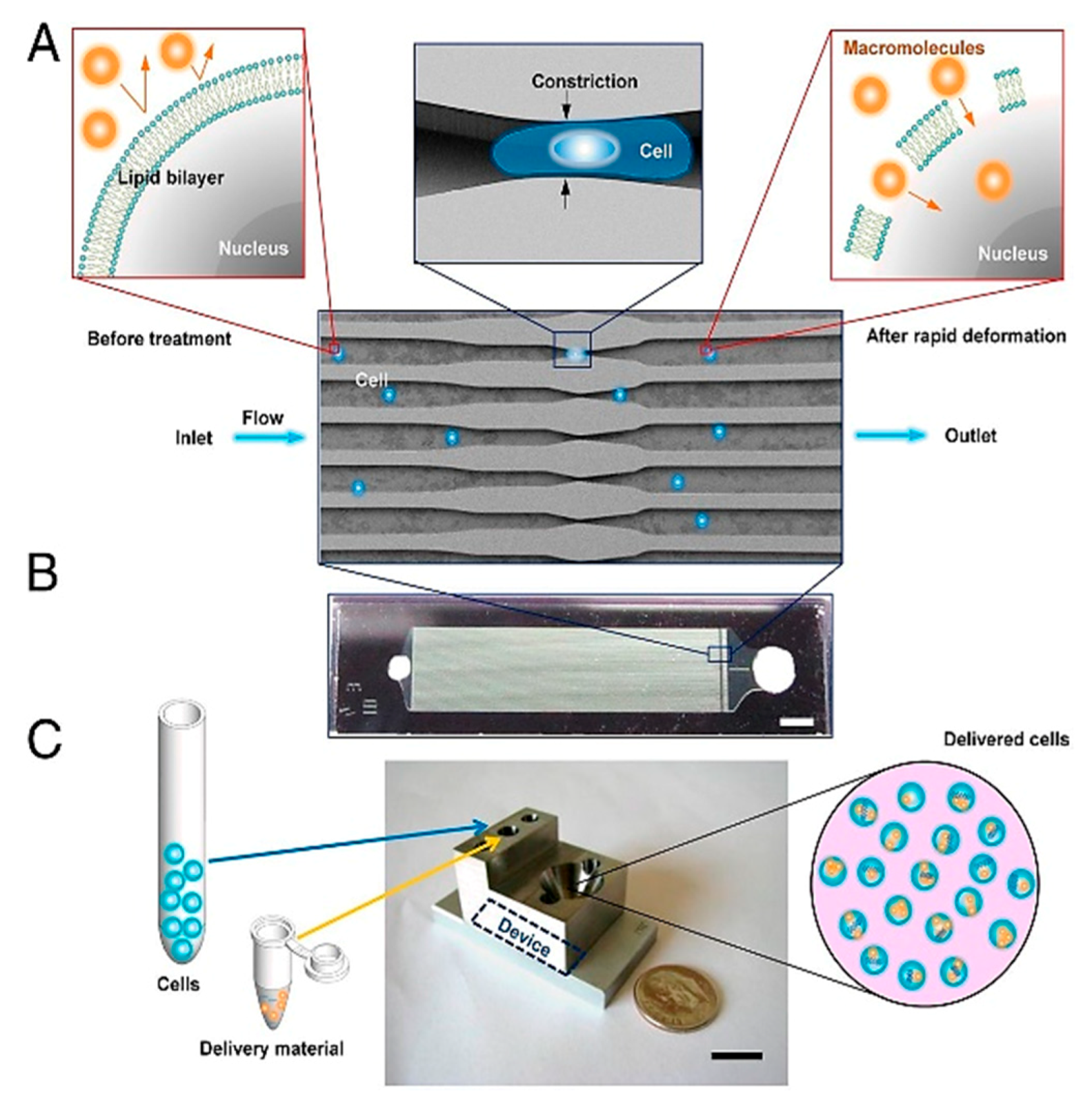

Recently, devices that used constrictions to apply physical stresses to cells for enabling drug delivery into cells have gained prominence in the field of mechanoporation. Sharei et al. [170] proposed the first constrictions-based device for drug delivery, which forces cells to pass through constrictions in series or parallel, causing transient pores to develop in the cell membranes during this process (Figure 26). The fluid surrounding the cells are loaded with drugs, which diffuse into the cells through these transient pores. This device showed a very high throughput rate of 20,000 cells/s and delivery efficiency between 70–90%. Szeto et al. [171] used the commercial Cell Squeeze platform, based on the device described by Sharei et al., to verify the delivery of drugs directly into the cytosol of cells and not endosomal compartments through various experiments. Szeto et al. also conducted experiments to optimize the device parameters for maximizing cell viability and delivery efficiency. They used B-cells for their experiments and reported cell viability above 95% after treatment with the platform along with more than 25-fold increase in internalization of desired particles into the B-cells compared to control conditions.

5. SCT Analytical Strategies

Substantial progress in nanotechnology over the last two decades has greatly improved sensitivity of analysis at an individual cell level. Here, we present some of the recent methods reported for analyzing a single-cell, including cell tracking software, along with their working principles. The design and application of several devices that are highly effective in analyzing intracellular molecules and cell growth rates will also be discussed (

Table 4. Single-cell analysis techniques.

S No.	Single-cell Analysis Techniques	Features	References
1	Single-cell differentiation	4D recording Allows tracking of targeted cell in X, Y and Z directions along with time. Software controlled motorized stage. BaSiC software allows detection of transcription factors as the stem cell undergoes differentiation. W-4PiSMSN allows imaging of cell cross section to view cell organelles based on high-resolution fluorescence microscopy.	[27,195]
2	Single-cell growth	SMR Cell mass and growth rate can be quantified. Quantification based on the resonance of suspended cantilever before and after cell growth cycle. Low-cost technique.	[196]
3	Cell membrane potential measurement	The localized potential of and within a cell can be measured. Useful in the study of neurons.	[197]
4	Intracellular access	This is a live cell extraction technique. Intracellular contents can be extracted over the cell cycle for analysis.	[198]
5	Genomics and Transcriptomics	Study of structure, function, and expression of cell genome/transcriptome (mRNA) in phenotypically varying cells. The transcriptomic study can give connecting link between the genetic makeup and phenotypic characteristics of cells. Uses Whole genome/transcriptome amplification (WGA/WTA) for NGS.	[199]
6	Proteomics	It is the study of cellular protein structure and functions. Uses techniques like mass spectroscopy and antigen-antibody reactions for the study of proteins.	[199]
7	Mass Spectrometry	Useful for analyzing and separating cellular components like DNA, RNA, proteins, metabolites based on their mass. CyTOF useful for detecting single cell surface and intracellular markers.	[200,201]

).

5.1. Better Visualization of Single-Cell Differentiation

Microscopic monitoring of a single-cell from a mass of cells for the entire duration of an experiment is challenging, partly because cells can divide and migrate rapidly. To recognize and track targeted cells, only a few microscope setups, established under vibration-free conditions, are available, which offer a combination of high-resolution micro-displacement stages with supporting software.

A number of proprietary software packages are available that share a similar strategic approach to cell tracking. In this approach, the region of interest is first selected by the operator using the software. The algorithm identifies the center of the cell and thus establishes a set of features for tracking the translocation of the center of a cell and its morphological change along subsequent frames. The micrometer-scale resolution stage is repositioned to the new location of the cell as soon as a large movement takes place beyond the starting position. As long as the X–Y stage facilitates micrometer level adjustments, a cell can be reliably tracked. In addition to such X–Y stage displacement, most modern systems allow for fine-tuning of the Z-axis to investigate cells suspended above the focal plane. Sub-micron adjustment of the Z-axis allows for the selection of vertical optical slices, thus enabling spatiotemporal 4D recording of cells for rendering and modeling [27]. Figure 27 schematically illustrates the tracking of individual cells from a population of live cells.

A software named BaSiC has been used to observe obscure changes involved in cell development. It can successfully detect transcription factors used by cells during decisive developmental steps. Such detection requires prolonged tracking of cells with background alterations and shading, which is tedious using traditional tools. However, BaSiC has an inbuilt background alteration correction algorithm, which is an exceptional tool for the study of early-onset transcriptional factors and is especially useful in stem cell studies. One of the key features of BaSiC is the use of the L1 norm for error measurement, which leads to faster convergence, thus requiring fewer images for processing compared to other techniques. This is especially appreciable in situations where only a limited number of images are available. Using the L1 norm also allows for sparser solutions, thus accommodating outliers such as noise better than other techniques. BaSiC also uses a spatially constant baseline signal B_i to account for varying background in subsequent images. Using this tool, developers observed hematopoietic stem cell differentiation. The results could visibly differentiate between the up-regulation of a certain transcription factor in one of its mature cell lineages which remained dormant in its other type of mature cell lineage, providing information on decisive factors in cell development [195].

Another software that deals with the issue of uneven illumination without requiring any reference images is CIDRE (correction intensity distributions using regularized energy minimization), introduced by Kevin Smith et al. [203] A predecessor to BaSiC, CIDRE too uses both the flat-field and dark-field to stitch images. One of the major assumptions of CIDRE is that the input images are uncorrelated. CIDRE matches the performance of BaSiC for larger collection of images. CIDRE estimates the zero light or dark light term z and the illumination gain v at all points simultaneously using an energy minimization technique [204]. The method models distortions to images by the following equation:

$$I\left(x\right)=\frac{I_0\left(x\right)-z\left(x\right)}{v\left(x\right)}$$

where I(x) refers to the true image and I₀(x) refers to the image captured by the sensor. Since v and z are already determined by the method as described above, the true image is extracted using this equation.

5.2. Quantifying Single-Cell Growth

The growth rate of a cell is governed by a combination of several factors. Even genetically identical cells can have different growth rates due to different combinations of intrinsic molecular noise and various deterministic behavioral programs [205,206,207,208,209]. Despite having important consequences for human health, this variation is less observable via population-based growth assays. Recently, a number of methods have been proposed for measuring single-cell growth. One of these techniques involves resonating MEMS structures where a low concentration cell suspension is allowed to flow through sealed microchannels. These microchannels are etched along the cantilever length. The cantilever itself is suspended in a vacuum cavity. The principle of the operation is a change in the natural frequency of the cantilever resonator on pumping the cell suspension through the microchannel (with respect to pumping suspension without cells). Gobin et al. used a suspended microchannel resonator (SMR) along with a picoliter scale microfluidic control to measure mass and determine the instantaneous growth rates of an individual cell [210]. Son et al. developed a microfluidic system, which can measure single-cell mass and cell-cycle progression simultaneously over multiple generations [211]. Another SMR chip designed by Burg et al. consists of a sealed microfluidic channel, which is placed inside a cantilever resonator. This cantilever is housed in an on-chip vacuum cavity. When a cell suspension flows through the interior of the cantilever, it transiently changes the cantilever’s resonant frequency in proportion to the mass of the cell. These methods measure the growth of a single-cell with high precision at the cost of throughput. To overcome this limitation, a serial array of such micro cantilevers containing intermediate delay channels was presented by Cermak et al. [196]. Figure 28 shows the SMR and its working principle.

The intermediate delay allows for the essential time-span required for cell division, which can be quantified in the microchannel embedded cantilever region. Thus, high precision using the single suspended microchannel resonator (SMR) can be achieved. Growth rates of over 1 cells/min can be obtained using this technique. Observation of variations in individual cell growth is a very important aspect of cancer studies as well as degenerative disease research. This approach can give important information on drug efficacy in terms of cell growth [196].

An important factor along with growth rate quantification is cell cycle inheritance. Sandler et al. [209] developed a model for cell cycle inheritance using microfluidic flow to deposit them into microwells, observing them using time-lapse microscopy. They developed a ‘kicked cell cycle’ model to explain the correlation observed between cousin cells; there seemed to be close to zero correlation between mother-daughter cells. The main feature in this model was the deterministic influence of the circadian phase at birth on the cell cycle duration [212]. They were successfully able to validate the observed correlations with their model, thus demonstrating the importance of a non-linear process, such as the circadian clock [213], on the determination of cell cycle variability.

5.3. Single-Cells in 3D View

Vast technical improvements in microscopical techniques have been made over recent decades to increase the contrast between signal and background. High-resolution fluorescence microscopic technologies are highly effective in understanding the molecular-level details that underpin living organism processes. The large spectral range of available fluorophores allows for simultaneous imaging of different cellular, subcellular, or molecular components. One important contribution to the development of SCT is whole cell 4Pi single-molecule switching nanoscopy (W-4PiSMSN), with three-dimensional individual cell imaging capability [214]. W-4PiSMSN can provide 10–20 nm axial resolution in the volumetric reconstruction of 10 µm thick samples. Cell sections which previously could only be visualized by electron microscopy could now be studied by W-4PiSMSN. This overcomes the electron microscopy associated drawback in terms of the ability to study the localization of proteins within a cell. The group successfully reconstructed Golgi complex-associated COPI vesicles, endoplasmic reticulum, nuclear pore complexes and cell cilia of COS-7 cells and icosahedra shaped capsids in bacteriophages.

5.4. Cell Membrane Potential Measurement

Scientists often strive to study the membrane potential change occurring within individual cells due to ion exchange performed during cell signaling. Techniques such as patch clamp, planar patch clamp, and their subtypes have been used to study ion exchange during intercellular signaling. However, such techniques are unable to preserve the cellular microenvironment during measurements. Furthermore, artificial stimulations need to be applied to the cell, typically using a micropipette, prior to measurement of its response. The drawback lies in the disturbance produced in the cytosol due to dilution with micropipette contents. In order to overcome these drawbacks, nanowire devices have been developed to measure intracellular potential with nominal invasiveness. These devices can measure the potential of one individual cell at a time, as well as a network of cells simultaneously.

One such device was developed by Liu et al. [197] (Figure 29); it employs an electric circuit model of the electro neuronal system, which has multiple electrodes connected to a single cell. These electrodes can measure the intracellular potential at multiple locations within a single cell. Moreover, it has the exceptional capability of uniquely controlling each individual electrode.

Each electrode is 10 µm in length and 200 nm in diameter. The electrodes are spaced at a distance of 4 µm from each other. The fabrication process is uniquely adapted to avoid any electrochemical interactions between the cell and the chip at any undesirable points except for the electrode tip required for cell contact. This allows precise control when obtaining a localized signal from intracellular locations. Low contact resistance and high input impedance are achieved to avoid any errors due to noise interference. This nanowire chip has been successfully used to measure sub-threshold postsynaptic potential in human-induced pluripotent stem cell-derived neurons in mouse and rat primary neurons with high signal to noise ratio [197]. The study was performed on the same cells in vitro over a period of six weeks with excellent neuronal activity preserved in human-induced pluripotent stem cell-derived neurons. The chip was proven capable of recording small quantity neurotransmitter variations with signal precision from an individual cell in a network of neuronal cells. Obtaining such data is vital to the study of pre-synaptic and post-synaptic disorders. It can also be useful in modeling any changes in potential frequency or magnitude of diseased conditions over normal conditions [197].

5.5. Cytometry

Several methods are available for single-cell analysis, including laser induced fluorescence, electrochemical detection (ECD) or mass spectrometry. These methods, accompanied by capillary electrophoresis, have attracted great attention for their ability to analyze low concentrations of biomolecules [215,216,217]. Zheng et al. developed a lactate sensor with a nanoscale optical fiber to detect extracellular lactate in cancer cells [218]. However, these methods are laborious in estimating the fluorescence intensity outside and inside living cells. Matrix Assisted Laser Desorption/Ionization-Mass Spectrometry (MALDI-MS) analysis of single peptide-containing vesicles was established by Li et al. [200], but the molecular weight of the detected biomolecules was restricted to 500 to 8000 Da. Electrochemical electrodes coupled with sampling capillaries for sampling very low concentrations of mammalian cells was developed by Woods et al. [219]. By means of a capillary-microfluidic device, Omiatek et al. [220] describe cell separation, lysis, and electrochemically measured the contents of single vesicles.

Another technique developed by Wu et al. [221] is capable of zeptomole-level detection of neurotransmitters released from single living cells using nanocapillary electrophoretic electrochemical (Nano-CEEC) chips. The chip is comprised of three units, a pair of targeting electrodes for capturing single-cells, a dual asymmetry electrokinetic flow device for sample collection, pre-concentration and separation, and an amperometric sensor for the detection and analysis of neurotransmitters. Figure 30 schematically illustrates the nano-CEEC chip for living single-cell analysis.

The entire process can be completed in 15 min, right from cell sampling to neurotransmitter detection. These devices might be potentially applicable for disease diagnosis.

Cytometry Time of Flight (CyTOF) is an advanced flow cytometry technique that overcomes the spectral overlap issue involved in studying multiple parameters with FACS. This technique allows the study of around 42 parameters simultaneously. Heavy metal isotopes are first attached to the antibodies for trapping targeted cells [222]. Once the targeted cell antigens are detected by antibodies, single cells are encapsulated in droplets by a nebulizer (Figure 31). These encapsulated cells are then passed through an inductively coupled plasma (ICP), which vaporizes them into an ion cloud. The Quadrupole Time of Flight (qTOF) mass spectrometry technique is used to measure mass to charge ratio, which can provide the spectra for tagged metal atoms [223]. Thus, the antibody-metal conjugation data along with the spectrum obtained by qTOF can provide cell marker analysis. Kay et al. reported analysis of natural killer cells by using the CyTOF technique. Huge diversity is observed in the expression of surface and intracellular markers expressed by natural killer cells based on the targeted disease. Such variability requires a large number of probes for analysis, which is made possible by the CyTOF technique [201]. However, CyTOF has lower throughput (1000 cells/s) as compared to FACS.

Erik Gerdtsson et al. [225] showed that the integration of Imaging Mass Cytometry (IMC) using metal-labeled antibodies into the existing high definition single-cell analysis [226] allowed the CTC profiling to be extended to include lot more protein biomarkers. The IMC process involves the coupling of laser ablation with single-cell mass cytometry performed using the CyTOF technology [227]. They reported a multiplexing level of 40 proteins, which can be used for the generation of informative biomarker panels. Thus, it shows high potential for complete characterization of blood samples and extraction of crucial biomarkers for assessing the liquid phase of cancer.

5.6. Single Cell Sequencing

Next Generation sequencing (NGS) is a sequencing technology that enables the sequencing of entire human genome within a day. In this technique, the entire genome is first divided into millions of fragments and sequenced in parallel. The data obtained from individual fragments are then mapped to a reference human genome via bioinformatics analysis. This process is repeated multiple times to get accurate data on any DNA mutation. NGS can also be used for extracting data from targeted genetic locations. It can be used for detecting novel diseases, as it interrogates each individual fragment without any prior knowledge of the gene loci. NGS has better sensitivity towards low-frequency variants due to its high sequencing depth [228]. NGS along with drop-seq technique has many applications in DNAseq, RNAseq and ATACseq (chromatin) of multiple individual cells. In RNAseq, mRNA is reverse transcribed to DNA, which is further used as the substrate for analysing the cells’ state based on RNA molecule expression profile. This can also be used for proteomic studies. Gawad et al. explained the significance of single-cell genomic analysis in understanding intratumor cell heterogeneity. Such analysis can provide dynamic data on the process of cancer development [229]. Buenrostro et al. showed that analysis of the single cell epigenome could be done quick enough to enable users to make better clinical decisions [230]. Some of the major technologies developed recently also include RNA-Seq to study gene expression in bulk tissues, specifically single-cell RNA-Seq done by Wu et al. [231]. This single-cell technique was shown to be quantitatively comparable to multiplexed quantitative PCR (qPCR) [232]. Another advancement in this technology is the development of highly multiplexed single-cell qPCR introduced by Vanlnsberghe et al. This device integrates all the steps for qPCR, including cell detection, isolation, and lysis for the measurement of qPCR reactions of 200 single cells in parallel. The data obtained revealed cell-to-cell heterogeneity for two cell types following cell differentiation [233]. The major difference between RNA-seq and qPCR is that the former allows a broader scope of gene analysis at lower sensitivity, which is the opposite for the qPCR technology.

5.7. Intracellular Access

The study of intracellular proteins and mRNA is a pivotal step in the study of pathogenesis. Many highly sensitive single-cell mRNA and protein detection methods, such as those based on phenotype heterogeneity and noise in cellular systems, have been developed [229,231]. These methods rely on lysing the cells to extract the intracellular contents for analysis. This limitation is particularly problematic when studying dynamic transformations. To overcome the limitation, many minimally invasive sampling devices have been designed to access the interior of cell matrices. One approach inserted atomic force microscope tips through a cell surface to make direct contact with the cytoplasm of living cells with high positional accuracy. This method was used to quantify mRNA expression in a single living cell without causing severe damage to the cell [232]. Saha-Shah et al. used nano-pipettes (diameters < 1 μm) to collect nano-liter volumes (<10 nL) of cell-matrix samples from single Allium Cepa cells [233]. However, this technique may impact cell survival and limit cell studies to cells of relatively large sizes. A recent development by Cao et al. [198] has studied the limitations involved with lysing cells in order to extract its contents.

Figure 32 shows the schematic representation of nanostraws and their operations. The chip has nanostraws embedded vertically in the cell culture substrate. On applying a bulk electric field, nanopores are created on cells. The intracellular contents drain out through the nanostraws into a buffer medium by diffusion. The nanostraws being 150 nm in diameter can be used for small molecules, proteins and mRNA extraction through nanopores existing for longer durations without cytosolic leakage. It provides a dynamic non-destructive intracellular sampling environment to study the same cell or set of cells throughout its cell cycle [198].

6. Development, Challenges, Applications and Future Prospects of Single-cell Technologies

The entire article provides a compact outlook to the reader about the stages involved in SCT development for different cellular characterization, disease analysis, etc. Manipulation of multiple cells and their behavior are essential to understand the in-vivo environment to reduce possible errors. The corresponding tools are continuously being developed; such as optical tweezer (1988) [234], manual micropipette (2001) [235], automated micropipette (2016) [236,237,238], manual pump based parallel micropipette array (2015) [70], etc. The optical tweezer was first introduced to trap bacterial cells in 1988 using an infrared laser source [236]. A decade later, dielectrophoretic tweezers were used for cell handling within microfluidic channels [239,240,241]. In 2000 [242,243,244,245], optical tweezers showed wide applications in the study of physical properties of cell, protein and DNA interactions. However, dielectrophoretic tweezers did not show such rapid development. Techniques such as rapid electrokinetic patterning (REP, 2008) and optoelectrokinetic tweezers (OET,) emerged in 2008 and 2013 [246,247,248]. As compared to single optical trap, multiple optical traps from single laser source were demonstrated recently in 2017. Compared to the recent developments in these techniques, microfluidic-based microarray probe shows a lack of cell selection flexibility, although it has the capability to increase throughput. However, the technique of 3D optical traps has lower throughput and is more expensive than microfluidic technique. Nevertheless, both dielectrophoresis and acoustic 3D trap allow in-situ single-cell handling. However, single-cell manipulation is a complex task and needs to overcome various challenges (such as increasing throughput and experimental repeatability for robust design flexibility) in control over cells and tools that can allow handling of many isolated cells simultaneously with high specificity.

Throughout this article, we have discussed lab-on-chip, microfluidic Bio-MEMS, and µTAS platform for cellular characterization and analysis. We interpret that the scope lies in the development of different tools and their applications. There is a wide gap in the availability of the current technology and requirement of actual tools. For example, antibody-antigen reactions are currently operated at a bulk level, which may conceal the low-frequency information of migrating cancer cells. Another problem is the incubation time required for these tests. Diagnostic tests have other limitations as well, which include, among others, the availability of appropriate reagents at all times. Hence, the applications of lab-on-a-chip technologies have garnered interest in overcoming these problems for precise diagnosis, and have been found to be the origin of most applications for single-cell technology development. This area of research needs more attention in the future.

Cell isolation, sorting, detection and analysis hold great promise for disease diagnosis. Blood is a medium of transport for various cells throughout the body. Thus, liquid biopsy can potentially provide relevant information for any disease. A few of the major challenges faced in this field are low targeted cell concentration, specific antibodies for capturing targeted cells, and unwanted cellular interference. Another important obstruction is lack of spatio-temporal context due to which downstream analysis becomes impossible [100]. There is huge diversity in omics analysis, making it more challenging for direct detection or expression of targeted genetic materials. Further, omics analysis requires high sample purity in adequate quantities. Among omics technologies, proteomics proves to be much more complex than genetic material analysis, mainly due to the lack of protein amplification techniques and lack of highly specific affinity probes [249]. The entire process is a combination of various steps, making it an interdisciplinary task. The techniques that we discussed in the article pave the way for a solution to some of the above challenges.

Cells manipulation and drug delivery through transient hydrophilic membrane pores involve sophisticated methods. In the future, modification and control of cell environment should be enabled such that cells can behave normally. Thus, regulating the cell microenvironment along with cell treatment can be the appropriate perspective towards treatment. It is necessary to understand the cause and changes in cell microenvironments, which is different for different cell individuals. Hence, the same medications do not have the same effect on different individuals. Thus, the requirement of individual medication arises. Endoscopy tools can be modified and incorporated with the lab-on-chip device, to analyze the cancer microenvironment and compare with the non-cancer environment of the same individual to understand the imbalance. Since a chemical imbalance is only a potent form of energy imbalance within the body, manipulation tools are necessary at every stage of this process. The packaging of required setup into a compact form is essential for an effective and efficient manipulation.

Figure 33 shows the schematic representation of applications of single-cell technologies. Multiplexed point of care (xPOCT) is an emerging field for personalized medicine. Precise and early diagnosis is the critical step towards treatment of any disease. Prescription of treatment for diseases based on single biomarkers obtained through screening can be ambiguous. Hence, we need techniques that are highly sensitive in detecting multiple biomarkers for a diseased condition. Towards this purpose, Bio-MEMS devices are already available and show a lot of potential for advancement. The advantages of Bio-MEMS devices include easy-to-use non-intervention-based systems, low sample requirement, and highly accurate results, compared to bulk pathological techniques. Thus, incorporating single cell technology chips is a prospective advancement in xPOCT [250].

SCT also has wide applications for cellular therapeutic development. We introduced the most popular and upcoming physical methods, such as electroporation, optoporation, and mechanoporation, for cellular therapy and analysis. While other techniques (such as sonoporation [251], gene gun [252] and magnetoporation are also available [253]), they suffer from a lack of control for single-cell transfection (with the exception of electroporation and photoporation). Another important tool for delivery is microinjection, which offers [254] low throughput, low repeatability, and lack of robustness. Electroporation has been used for creating transient cell membrane pores while electrophoresis enhances movement of nanoscale-sized charged particles into cells [255]. While constrictions-based devices are still novel in the field of mechanoporation, they show a lot of promise, owing to their high transfection rates and ability to successfully deliver tough cargo such as CRISPR-Cas9 complexes into cells [256]. These devices report a higher cell viability rate after treatment in comparison to other physical therapeutic methods such as electroporation. Furthermore, Ding et al. designed a device incorporating both electroporation and mechanoporation for nuclear transfection of DNA into mammalian cells, thus introducing a strong precedent for hybrid devices in the future [257]. We can expect to see more devices combining different transfection techniques in advantageous ways to achieve transfection of tough cargo like never before.

Over the last two decades, techniques for single-cell imaging have shown tremendous development. Integrating it with various manipulation technologies can allow improvement of cellular diagnostic and therapeutic applications. In addition, real-time monitoring techniques have made imaging-based analysis convenient.

SCT has contributed to the development of many potent tools to detect cancer cells, illuminate epigenetic variations, analyze, and personalize treatment, among others. Such information on epigenetic variations can provide important information on neuronal degenerative diseases, such as Alzheimer’s Disease, and Parkinson’s Disease. Many single cell technologies have been employed in cancer research in different capacities, such as the use of RNAseq in the study of hetereogeneity of tumors [258], enabling anti-cancer treatment resistance by using single cell detection [259], and the recent scTrio-seq technology introduced by Hou et al. [260]. Another important application in SCT is stem cell research, which opens new frontiers for organ transplantation. SCT in stem cell research has contributed to finding dormant neural cells, which undergo division in accidental situations [261]. To reach the ultimate goal of routine application for clinical settings, two key contests are important. Firstly, investigational costs and time consumption is comparatively high; these need to be abridged to a rational range. Furthermore, it is essential to establish several techniques to test samples, which is repetitive preparation to keep tissue samples in the clinic. This progress will support the clinical application of SCT, which has positive outlooks for cancer diagnostics and treatment for cancer patients.

7. Conclusions

In this review article, we have discussed the development of SCT. The entire article gives a broad perspective to the reader about the steps involved in the progress of SCT for diseases analysis. It also deliberates upon the knowledge of current SCT progress and its future trends. The article includes some of the recently developed SCT tools involved in disease diagnosis, analyzing it in single-cell platform and also treating it using novel therapeutic techniques for cargo delivery. The diagnosis mainly highlights the manipulation, detection, sorting, and isolation of single-cells or diseased cells from a bulk of heterogeneous cell types. Lab-on-chip is a well-suited technique that integrates multiple single-cell technologies based on downstream processing requirements. The combined use of microfluidics, laser optics, electrophoretic and electrochemical technology are discussed for single cell diagnosis. Subsequently, we also discussed the devices that are useful for analyzing individual cells to understand their physical and chemical interaction with the microenvironment. In addition, we demonstrated the application of SCT and other tools that have been developed to obtain therapeutics and drug delivery results with high cell viability. This review summarizes the recent trends of single-cell technologies applied for single-cell manipulation, diagnosis, therapeutics, analysis, drug delivery and their future prospects and limitations.
