Supercritical Fluid Extract of Angelica sinensis and Zingiber officinale Roscoe Ameliorates TNBS-Induced Colitis in Rats

by
Jia Liu
,
Ling Yu
,
Nuolan Mo
,
Hai Lan
,
Yan Zhang
,
Xin Liu
and
Qing Wu
*
School of Chinese Materia Medica, Beijing University of Chinese Medicine, Beijing 102488, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(15), 3816; https://doi.org/10.3390/ijms20153816
Submission received: 25 June 2019 / Revised: 28 July 2019 / Accepted: 2 August 2019 / Published: 5 August 2019
(This article belongs to the Section Bioactives and Nutraceuticals)
Browse Figures
Versions Notes

Abstract

:
Inflammatory bowel disease (IBD) is a worldwide healthcare problem calling for the development of new therapeutic drugs. Angelica sinensis and Zingiber officinale Roscoe are two common dietetic Chinese herbs, which are traditionally used for complementary treatment of gastrointestinal disorders. As bioactive constituents, volatile and pungent substances of these two herbs could be effectively extracted together by supercritical fluid extraction. In this study, the supercritical fluid extract of Angelica sinensis and Zingiber officinale Roscoe (AZ-SFE) was obtained by an optimized extraction process and it was chemically characterized. The anti-inflammatory effect and underlying mechanism of AZ-SFE were evaluated in a lipopolysaccharide (LPS)-induced RAW264.7 cell model and a 2, 4, 6-trinitrobenzenesulfonic acid (TNBS)-induced colitis rat model. AZ-SFE notably inhibited the production of NO in LPS-stimulated macrophages, and it inhibited the proliferation of Concanavalin A (Con A)-induced splenocytes with suppression of the Th1 immune response. In vivo, the study demonstrated that AZ-SFE significantly alleviated disease activity, colonic shortening, macroscopic damage and histological injury of TNBS-treated rats with reduction of oxidative stress, suppression of inflammatory cytokines, and modulation of hepcidin and serum iron. These findings suggested that AZ-SFE may be a promising supplement for current IBD therapy.

1. Introduction

Inflammatory bowel disease (IBD), including ulcerative colitis (UC) and Crohn’s disease (CD), is a worldwide healthcare problem characterized by chronic and recurring inflammation in the intestinal tract [1,2]. Up to date, the pathogenesis of IBD has not been clearly clarified, which may be relevant to genetic susceptibility, environmental factors, and intestinal flora, subsequently affecting the immune response, resulting in inflammation [2,3]. Also, oxidative stress could activate inflammatory mediators, which should not be neglected [4]. More seriously, it has been widely accepted that IBD is an important risk factor for the development of colorectal cancer [5]. Current treatments of IBD mainly rely on the usage of aminosalicylic acids, corticosteroids, thiopurines, and biologic drugs [6]. However, these drugs are often expensive and associated with side effects or undesirable clinical efficacy [7]. Therefore, investigation of novel therapeutic drugs for IBD treatment is needed.
Finding potential therapeutic candidates from natural products based on food and complementary and alternative medicine has become attractive, due to their long history of use. In recent years, a series of herbal compounds with anti-inflammatory effects have been reported with the possibility of treatment for IBD, such as gingerol, curcumin, resveratrol and anthocyanins [8,9,10]. Plant-derived substances capable of ameliorating IBD symptoms could potentially enlarge the scope of drug candidates.
Angelica sinensis and Zingiber officinale Roscoe are two common dietetic Chinese herbs which are traditionally applied for complementary treatment of gastrointestinal disorders [11]. The major components of them in common are volatile oils, which are a group of constituents with various bioactivities, including anti-inflammatory, anti-oxidant, and anti-cancer activities [12,13]. Previous studies proved the anti-inflammatory effects of Angelica sinensis’s volatile oils on acute inflammation model rats [14], and essential oils from Zingiber officinale Roscoe could inhibit leukocyte migration to exert an anti-inflammatory effect [15]. In addition, gingerols and their derivatives, as important constituents in Zingiber officinale Roscoe, are non-volatile pungent compounds with multiple functions, which have been reviewed by Butt et al. [16]. Specifically, gingerols showed protective effects on IBD mice and rats by reducing cytokines and adjusting oxidative stress [17,18]. A random clinical trial indicated that the supplementation of ginger powder orally could improve treatment of UC patients with significant reduction of malonic dialdehyde (MDA) [19]. Furthermore, our previous study proved the chemo-preventive potential of Angelica sinensis on an Azoxymethane/Dextran sodium sulphate induced colorectal cancer model [20]. Taken together, the combination of Angelica sinensis and Zingiber officinale Roscoe have potential for the treatment of IBD.
It is well known that choosing the proper extract method is necessary for the improvement of extract quality and yield. Supercritical fluid extraction is an efficient and environmentally friendly method to extract non-polar constituents from vegetal sources, especially for those thermal unstable compounds [21]. It is a great choice to extract potential anti-colitis components from the two above mentioned herbs by this method.
Many animal models have been applied to study IBD, such as chemical-induced colitis models, models of spontaneous colitis, and genetically engineered animal models. Among them, chemically induced models are most commonly used due to their reproducibility and ease of operation [22]. The chemical substance 2,4,6-trinitrobenzenesulfonic acid (TNBS) is commonly used for induction of IBD, and many previous studies used a TNBS-induced rodent model to evaluate the therapeutic potency of various substances on IBD [7,23].
Therefore, the first aim of this study was to obtain the supercritical fluid extract of Angelica sinensis and Zingiber officinale Roscoe (AZ-SFE) after optimization of extraction process parameters by orthogonal experimental design and to characterize it. In addition, the anti-inflammatory potential of AZ-SFE in vitro was investigated by detecting NO production on lipopolysaccharide (LPS)-induced RAW264.7 cells. Moreover, the anti-colitis effects of AZ-SFE on a TNBS-induced colitis rat model were evaluated through different biological activities.

2. Results

2.1. Qualitative Analysis of AZ-SFE Based on GC/MS Analysis

The qualitative analysis of AZ-SFE was based on NIST14 Standard Reference Database and literature references. As shown in Table 1, 34 compounds in AZ-SFE were identified, accounting for more than 95% of the total peak area. The component with the largest normalized peak area was Z-ligustilide (30.90%), followed by 6-gingerol (16.08%). Considering the lack of standard substances for other major compounds, such as zingiberene and α-farnesene, their contents were not detected in subsequent studies.

2.2. Optimization of Extraction Process of AZ-SFE by Orthogonal Experimental Design

The orthogonal experimental design was conducted for the optimization of three parameters (extraction pressure, temperature, and time) in the extraction process of AZ-SFE. As indicated in Table 2, experiment number 6 (55 °C, 30 MPa, extraction for 1 h) possessed the highest colligation score among experimental results. The importance ranking of three factors was: B (temperature) > A (pressure) > C (time), based on R value. Variance analysis indicated that extraction temperature was significant, while extraction pressure and time were non-significant (Table 3). Taken together, optimum extraction parameters were as follows: Extraction pressure at 30 MPa, extraction temperature at 55 °C, extraction for 1 h. For validation of the stability of the process, the experiment was conducted at optimal condition three times, and extracts obtained were analyzed by HPLC and GC/MS (Figure 1). The average yield of AZ-SFE was 2.88 ± 0.10%, content of ligustilide was 14.20 ± 0.11% (m/m), and content of 6-gingerol was 8.19 ± 0.19% (m/m). Particularly, more than 95% of ligustilide and 6-gingerol in plant materials were extracted under optimized conditions. Furthermore, the normalized area of each peak was stable with RSD less than 5% by GC/MS analysis. Hence, AZ-SFE with stable quality was acquired, which could be further studied.

2.3. Effects of AZ-SFE and Major Components on Cell Viability of RAW264.7 Cells

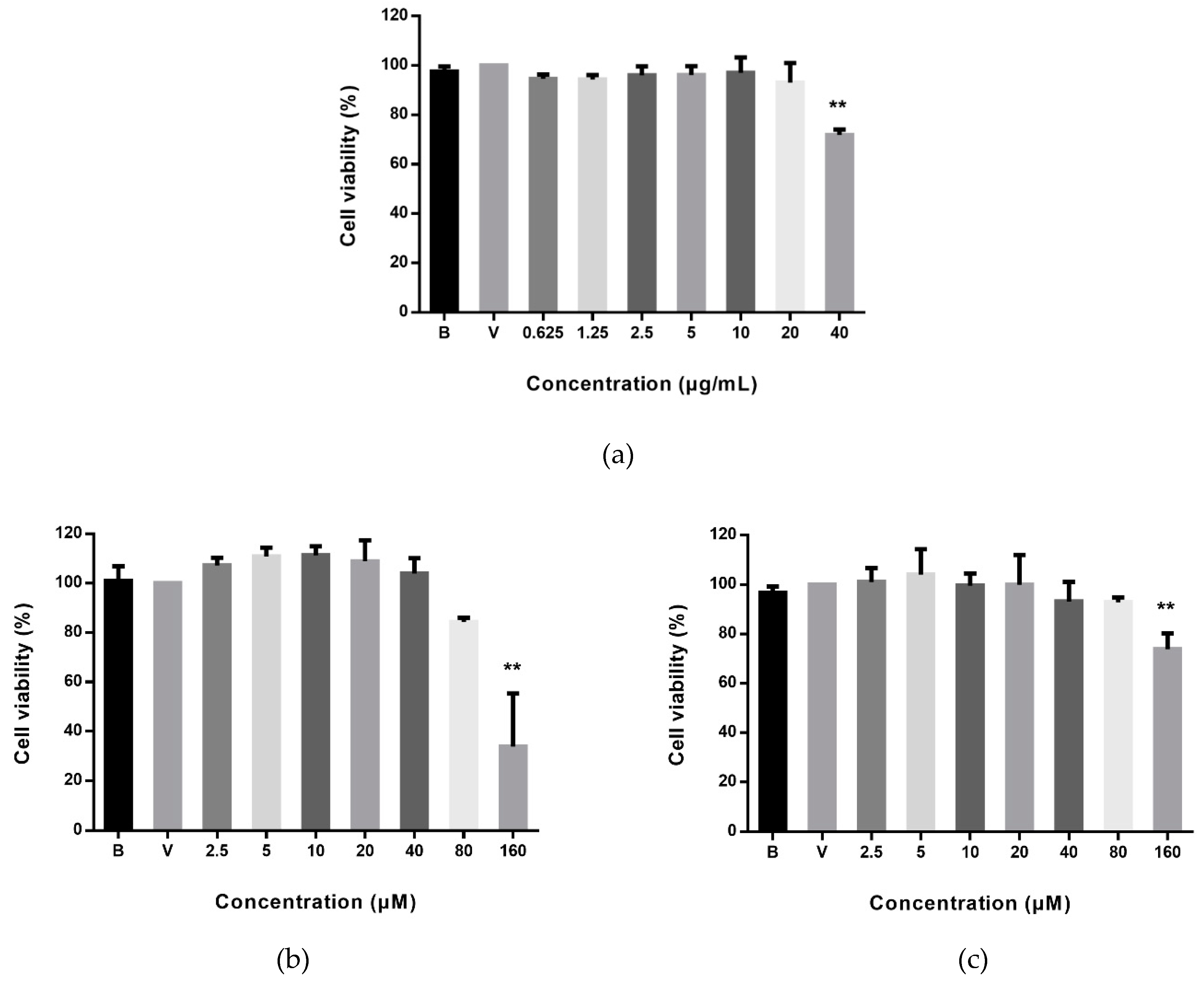

As shown in Figure 2, only the highest dose (40 μg/mL) of AZ-SFE detected significantly reduced cell viability of RAW264.7 cells, by approximately 30%. AZ-SFE ranging from 0–20 μg/mL without cytotoxicity was studied further. Meanwhile, the effects of ligustilide and 6-gingerol on cell viability of RAW264.7 cells were assessed. Results indicated that there was no significant cell proliferation inhibition (cell viability < 80%) at the concentrations of 2.5–80 μM for both ligustilide and 6-gingerol.

2.4. Effects of AZ-SFE and Major Components on NO Production in LPS-Induced RAW264.7 Cells

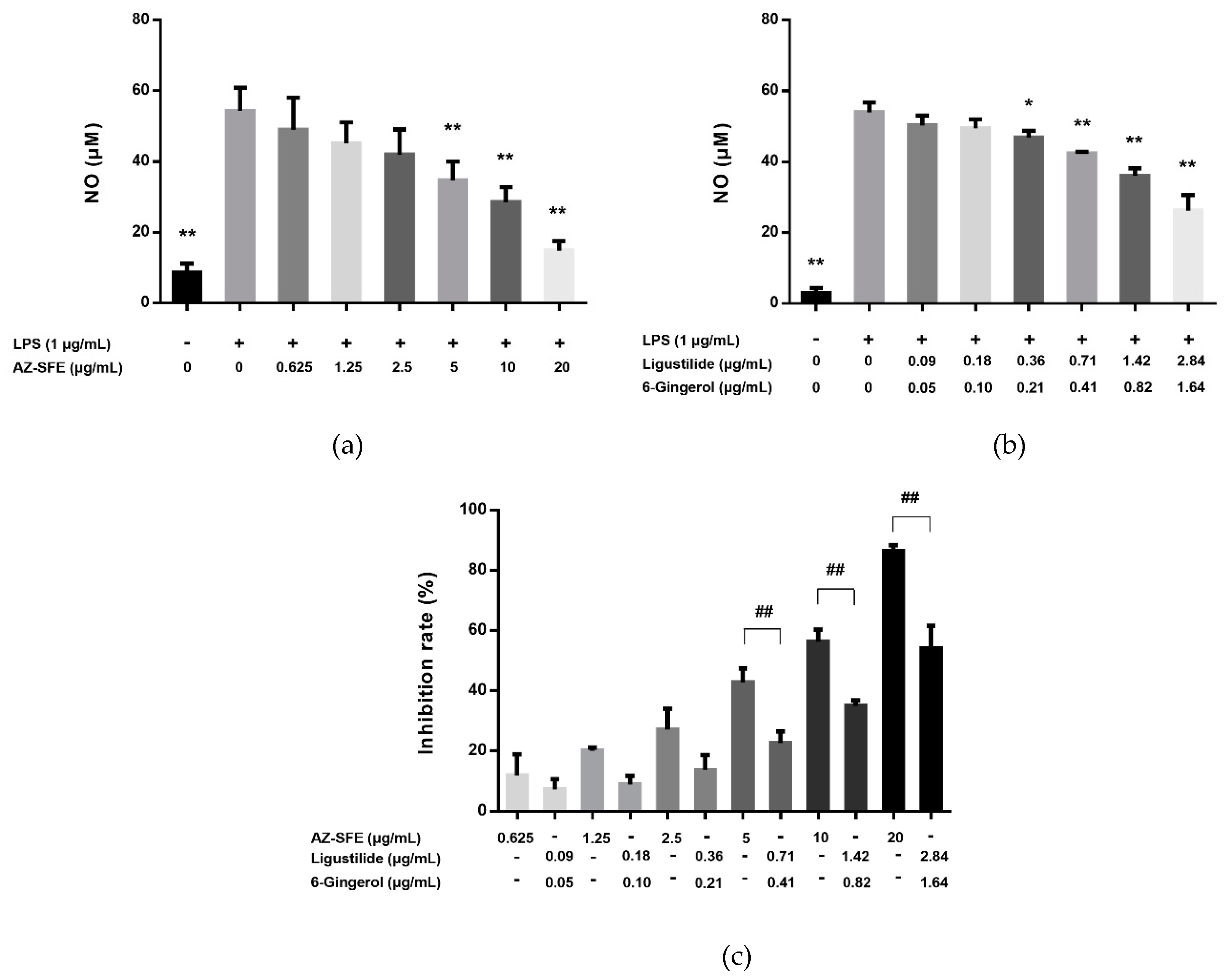

LPS significantly induced the production of NO compared with the blank control. Gradient concentrations of AZ-SFE could reduce the level of NO in a dose-dependent manner (Figure 3a). Moreover, the combination of two major components, ligustilide and 6-gingerol, according to their proportion in AZ-SFE, suppressed the production of NO with the same trend as AZ-SFE, but more moderately (Figure 3b). On one hand, they contributed to more than half of the inhibitory effect at the highest dose (54.08% vs 86.37%) with less than half of the content of AZ-SFE, indicating their predominant effects. On the other hand, the inhibition rates between AZ-SFE and combination of ligustilide and 6-gingerol were significantly different, indicating that other compounds also took part in the suppression of NO production, which should not be ignored (Figure 3c). Therefore, the total AZ-SFE instead of a combination of ligustilide and 6-gingerol was used for in vivo study.

2.5. Effects of AZ-SFE on Splenocyte Proliferation and Cytokine Secretion

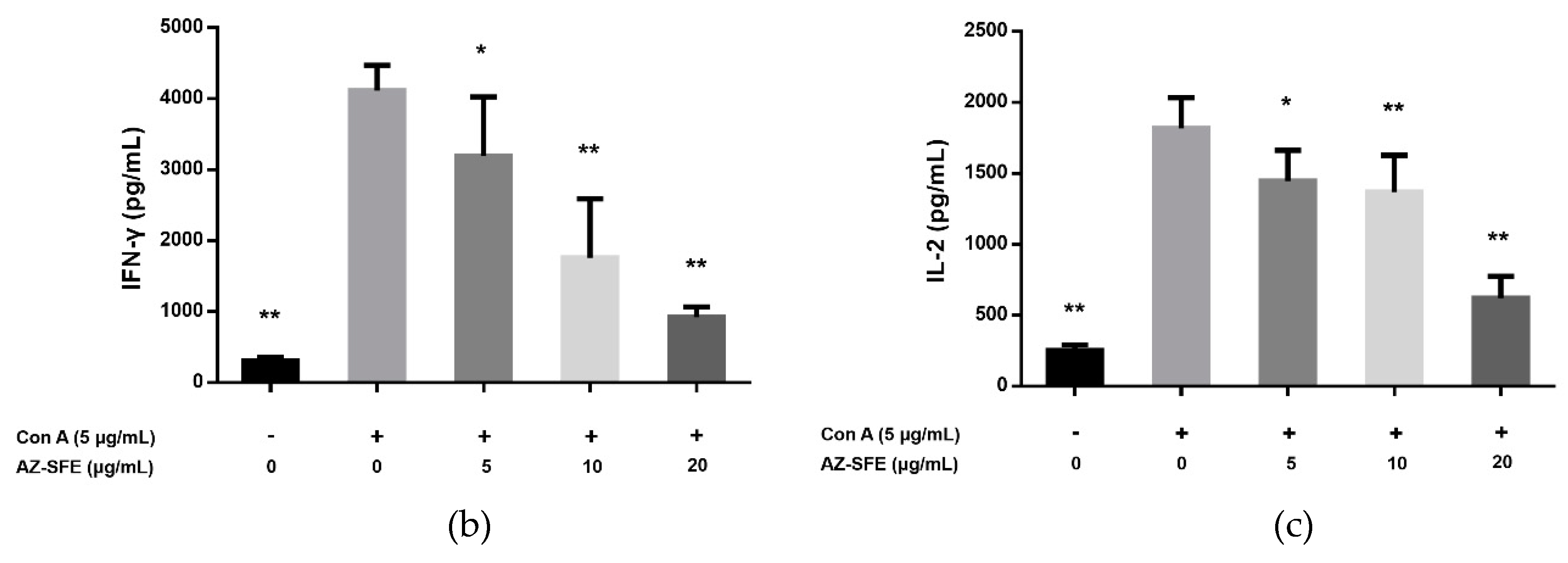

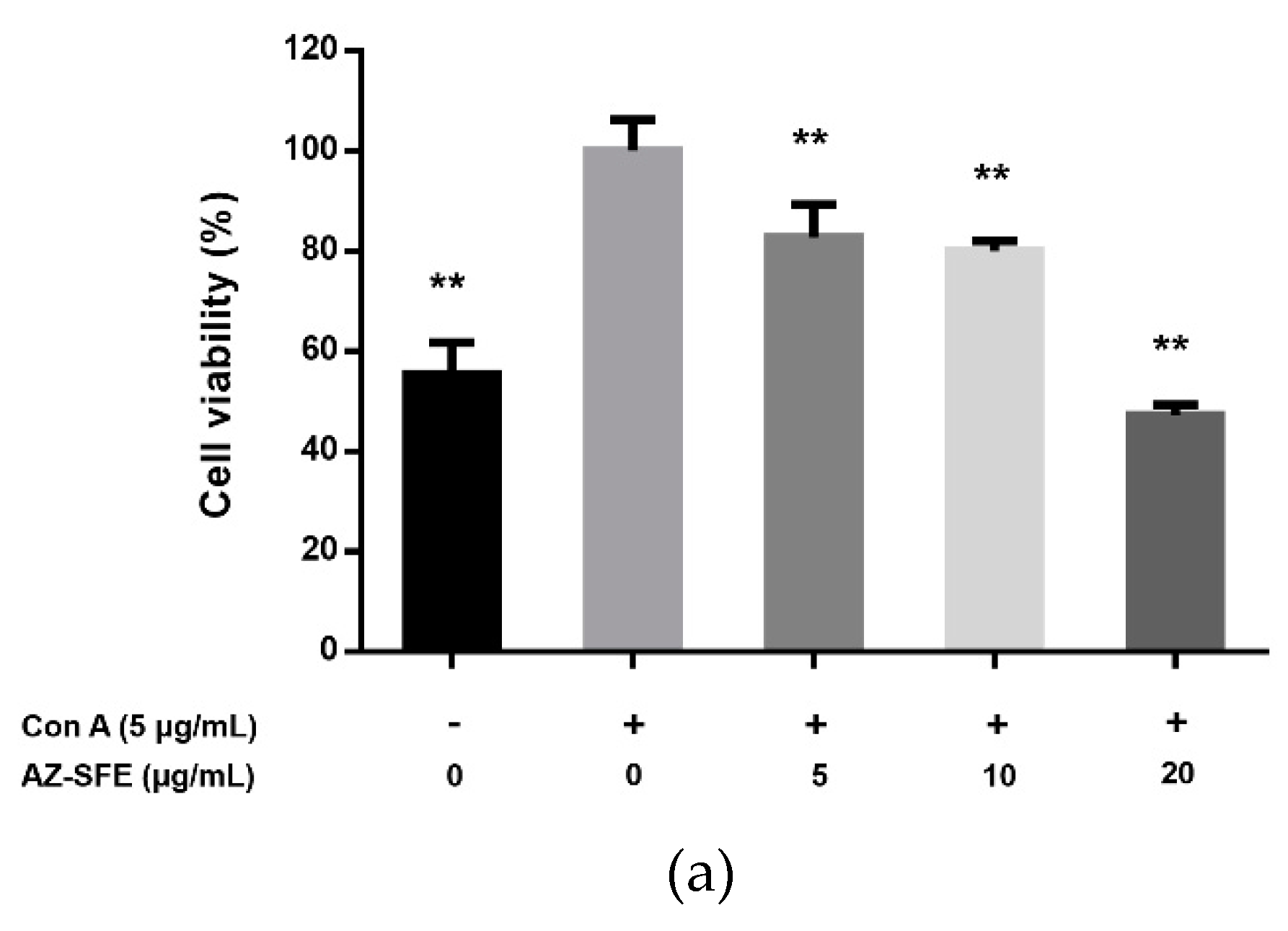

With the stimulation of 5 μg/mL of Concanavalin A (Con A), splenocytes of rats in the TNBS group were obviously proliferated ex vivo compared with blank control. Treatment with SFE (5, 10 and 20 μg/mL) could dose-dependently and significantly inhibit the Con A-induced proliferation (Figure 4a). Also, the levels of IFN-γ and IL-2 in supernatants were decreased by administration of AZ-SFE (Figure 4b,c).

2.6. Effects of AZ-SFE on Body Weight and Disease Activity Index

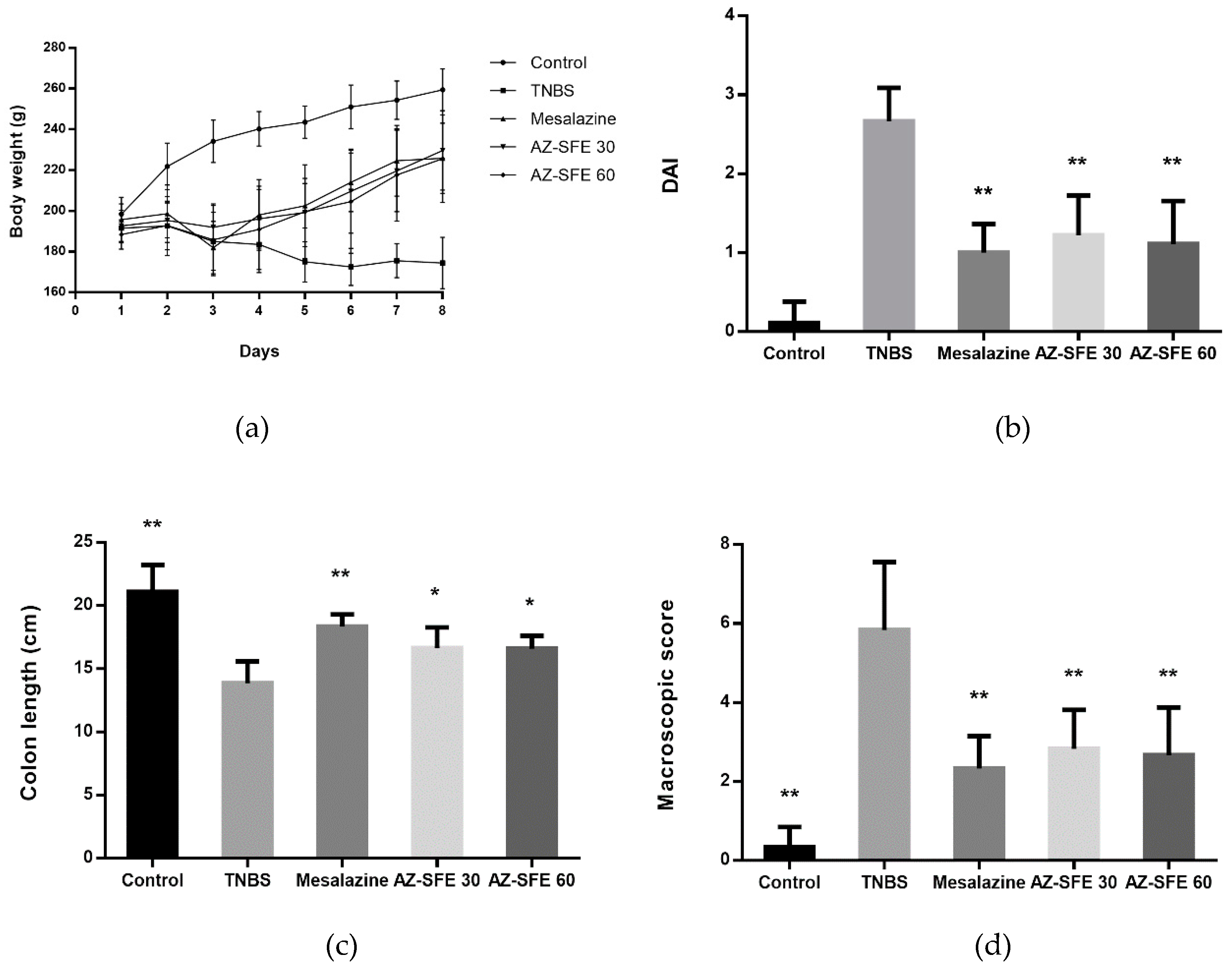

Rats treated by TNBS presented diarrhea the day after modelling (Day two), with some of them displayed obvious blood adhesion to the anus. In the TNBS group, the body weights were dropped through experiment period accompanied with a loss of appetite, mucous or loose stools, and fecal occult blood. After treatment with AZ-SFE and mesalazine, the body weight of rats recovered obviously (Figure 5a). Also, the issues of stool consistency and fecal blood were improved in all treatment groups. As indicated in Figure 5b, the disease activity index (DAI) score on Day eight in the TNBS group was significantly higher than that in control group. And the DAI scores in AZ-SFE and mesalazine groups were significantly lower than that in TNBS group. The macroscopic appearances of colon in different groups were shown in Figure S1.

2.7. Effects of AZ-SFE on Colon Length and Macroscopic Score

The colon length of each rat was measured before cutting longitudinally, and the results showed that the colons in TNBS group became shorter than those in control group. Treatment with AZ-SFE (30 and 60 mg/kg) markedly relieved the shortening of the colon. The macroscopic changes were observed and compared among all groups. The colons of TNBS-treated rats displayed mucosal edema, hyperemia, colonic wall thickening, ulceration, necrosis, and tissue adhesion, while colons in control group were healthy with normal appearances. The macroscopic scores in TNBS group were significantly increased compared to the control group. Treatment with mesalazine and two doses of AZ-SFE markedly reduced the macroscopic lesions in colonic tissue, resulting in significantly decreased scores. The colon length and macroscopic score were shown in Figure 5c,d, respectively.

2.8. Effects of AZ-SFE on Histopathology Improvement

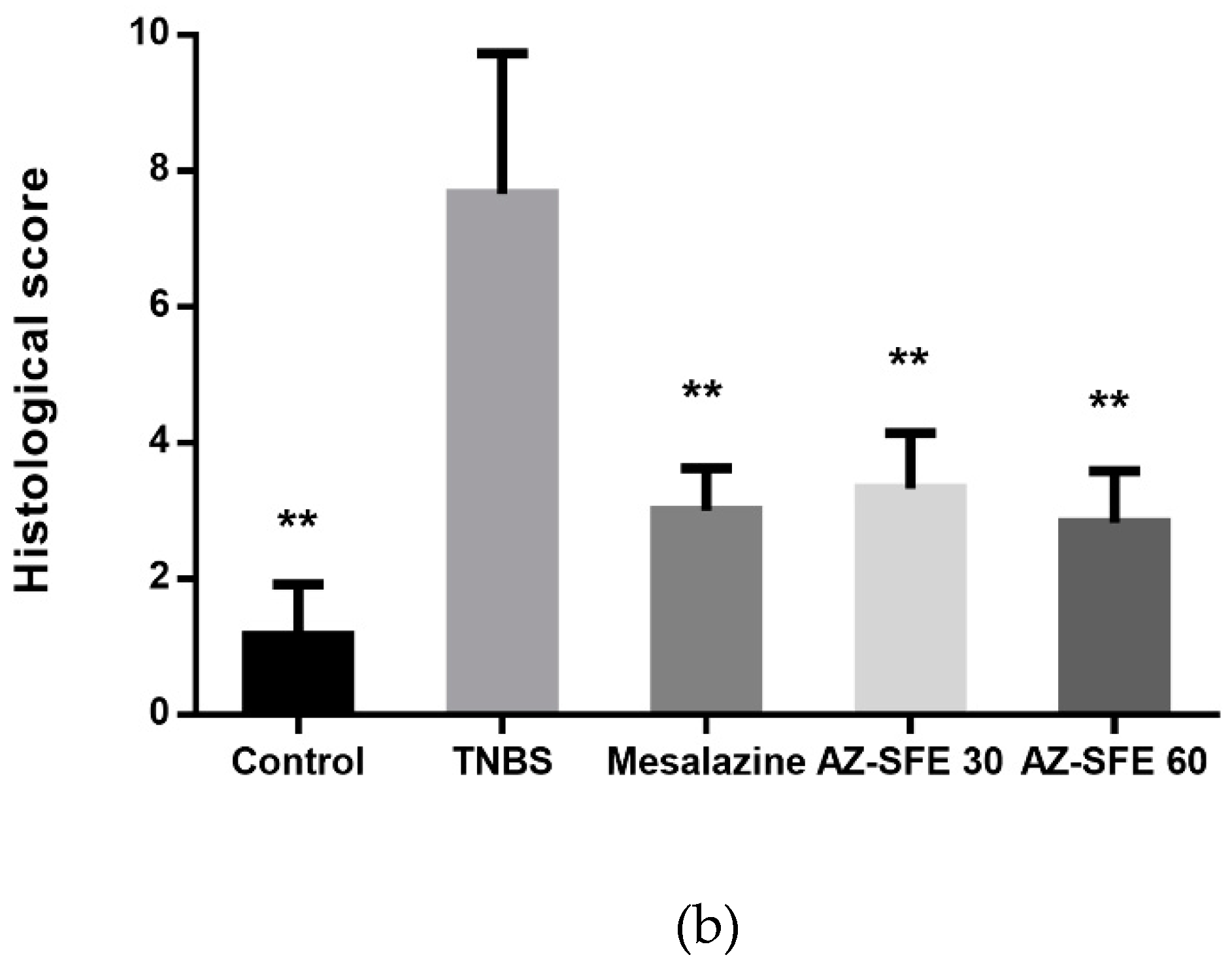

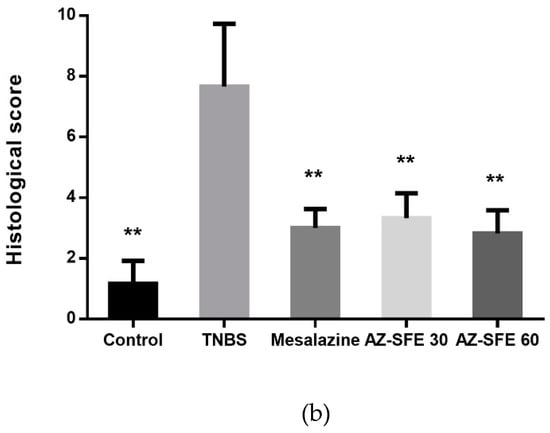

Hematoxylin and eosin (H&E) stained colonic tissue specimens were observed under microscope to analyze histological features (Figure 6a). In the control group, the colons showed intact mucosa, and clear crypt structure with adequate goblet cells. However, the TNBS group displayed severe infiltration of inflammatory cells, deformed or disappeared crypt, ulcers, and thickened blood vessel walls, representing a high level of histological damage. The samples in AZ-SFE and mesalazine groups indicated progressive amelioration of pathological states with reduction of inflammatory infiltration and significant lower histological scores compared with TNBS group (Figure 6b).

2.9. Effects of AZ-SFE on superoxide dismutase (SOD), malonic dialdehyde (MDA) and myeloperoxidase (MPO)

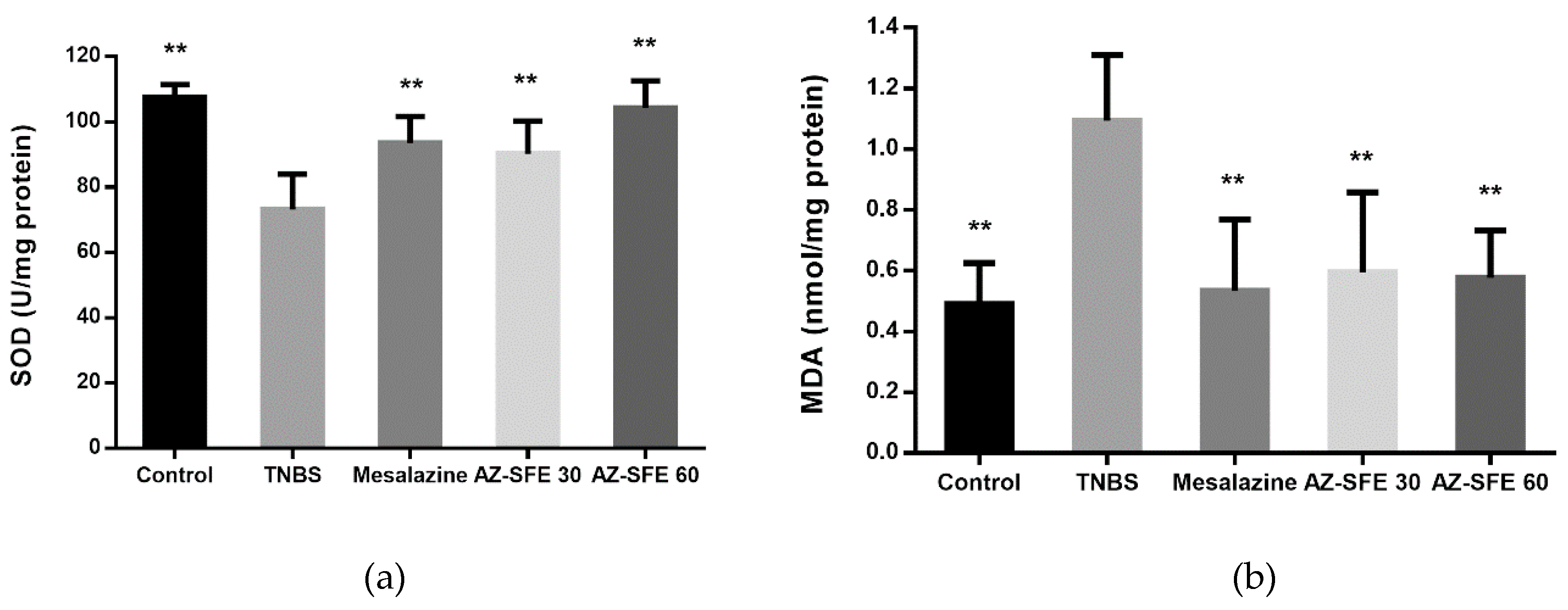

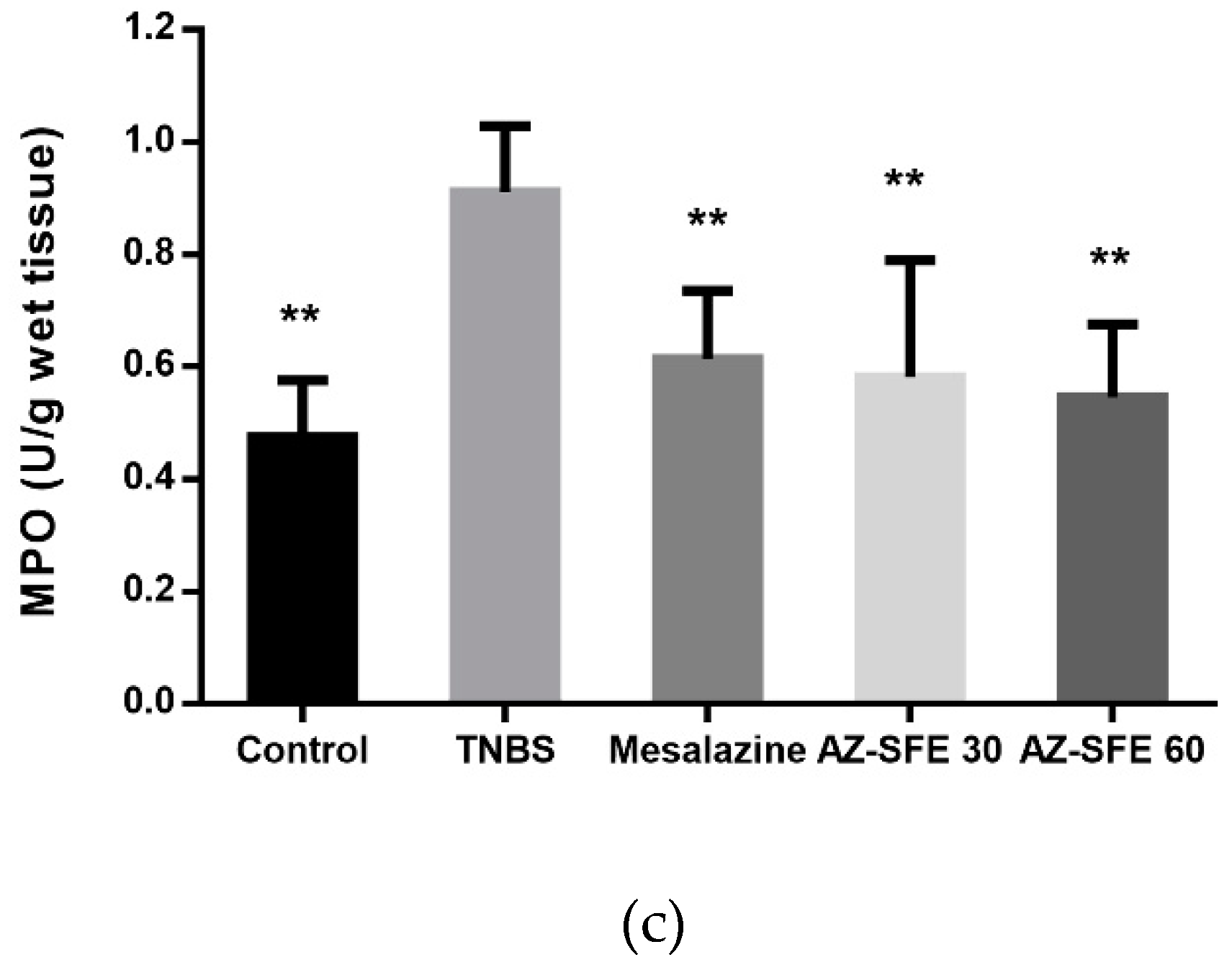

As shown in Figure 7, TNBS administration significantly reduced the activity of superoxide dismutase (SOD), which was recovered with the intervention of AZ-SFE and mesalazine. The MDA levels in the colons of the TNBS group significantly increased in comparison with control group and decreased after treatment with AZ-SFE and mesalazine. The myeloperoxidase (MPO) activity in TNBS group significantly increased compared with that in control group. After the treatment of AZ-SFE and mesalazine, the MPO levels were decreased.

2.10. Effects of AZ-SFE on Inflammatory Cytokines in Serum

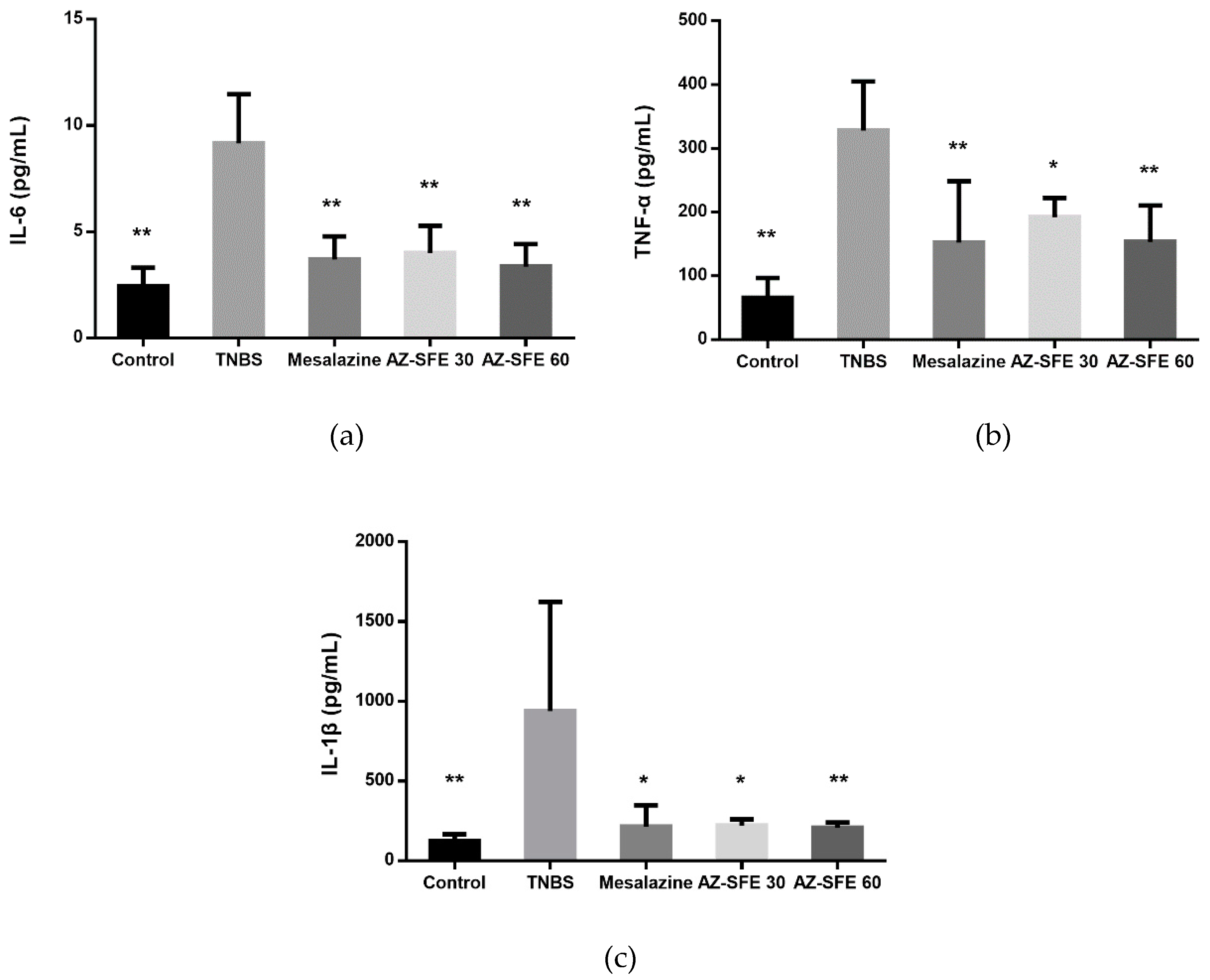

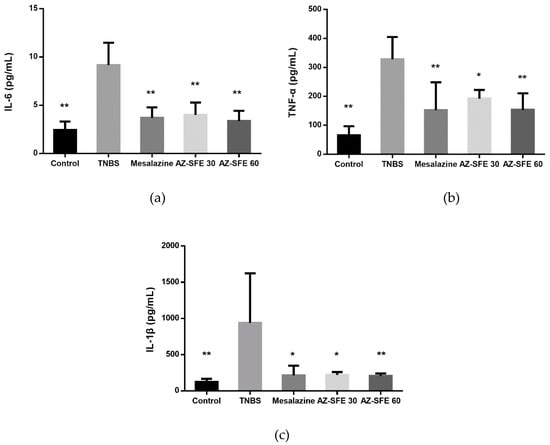

The levels of inflammatory cytokines (IL-6, TNF-α and IL-1β) were measured by ELISA. As shown in Figure 8, TNBS treatment significantly enhanced the production of cytokines compared with control group. Administration with two doses of AZ-SFE or mesalazine markedly inhibited the accumulations of three tested cytokines.

2.11. Effects of AZ-SFE on Serum Hepcidin and Serum Iron

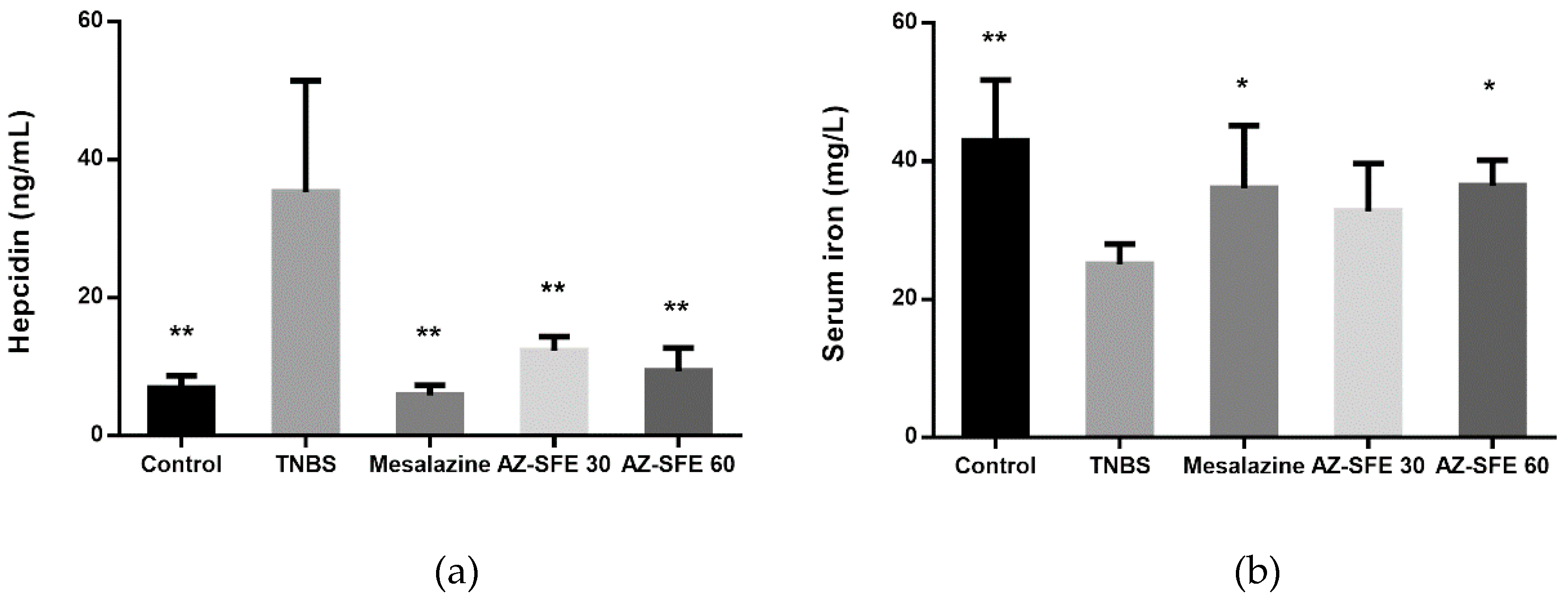

Hepcidin levels in serum were increased in TNBS treated rats compared with the control group, which were correlated with the similar tendency of IL-6, TNF-α, and IL-1β. However, treatment with AZ-SFE (30 and 60 mg/kg) significantly decreased the high expression of hepcidin, and the effect of AZ-SFE at 60 mg/kg was better than that of AZ-SFE at 30 mg/kg (Figure 9a). The serum iron was measured by chemical colorimetry. As indicated in Figure 9b, the concentration of serum iron in TNBS group was significantly lower than that in control group. After intervention by AZ-SFE or mesalazine, concentrations of serum iron were increased. Particularly, mesalazine and AZ-SFE (60 mg/kg) groups showed significant difference in comparison with TNBS group.

3. Discussion

Natural products from medicinal and edible plants are supposed to be alternative treatments for chronic inflammatory diseases [24,25]. The multiple active constituents in plants are considered to act simultaneously on different targets to exert therapeutic effect [23]. In the present study, we optimized the extraction process of AZ-SFE, and analyzed the extract both qualitatively and quantitatively by GC/MS and HPLC methods, respectively. Subsequently, the obtained AZ-SFE with a stable quality was applied to the ensuing bioactivity evaluation.
Macrophages as important immune cells play a vital role in the inflammation response. Shin et al. found that macrophages could be accumulated and activated in dextran sodium sulphate (DSS)-induced colonic tissues [26]. Activated macrophages can secrete many kinds of inflammatory mediators, resulting in the progression of inflammatory diseases. LPS-induced RAW264.7 macrophages are classically used to evaluate the anti-inflammatory effect in vitro. NO, a pro-inflammatory mediator synthesized by iNOS, can be overproduced under the stimulation of LPS. Therefore, the inhibitory ability of AZ-SFE on NO production was assessed to preliminarily evaluate the anti-inflammatory effect. Results proved the anti-inflammatory activity of AZ-SFE, because of the significant and dose-dependent suppression of NO production. The in vitro study encouraged us to further investigate the anti-colitis activity of AZ-SFE on TNBS-induced rat model.
Immunological abnormity is one of the factors involving the pathogenesis of IBD [27]. Immunosuppressors like azathioprine have been applied for the treatment of moderate to severe patients [6]. The spleen is an important immune organ, containing a large number of T lymphocytes which can be non-specifically stimulated by Con A. IFN-γ can induce macrophages to produce TNF-α, IL-1β, IL-2, and IL-6, which together aggravate inflammation and magnify Th1 response in a positive feedback regulation [7]. The proliferation of ex vivo splenocytes induced by Con A was suppressed by AZ-SFE. Additionally, the levels of IFN-γ and IL-2 in cell cultures were reduced by AZ-SFE in a dose-dependent manner. Based on our findings, it could be speculated that the immunoregulating effect of AZ-SFE is related to the modulation of Th1 response, and the anti-colitis mechanism of AZ-SFE involves immunoregulation.
In vivo study revealed an anti-inflammatory effect of AZ-SFE in TNBS-induced rats with the alleviation of disease activity and macroscopic damage. Furthermore, histological evaluation supported the reduction of pathological changes by AZ-SFE intervention. It has been widely accepted that oxidative stress is one of the important pathogenic factors involving the development of IBD [28]. Oxidative stress and the resulting lipid peroxidation could exacerbate free radical chain reactions, disrupt the integrity of intestinal mucosa, and activate inflammatory mediators [29]. SOD is an important antioxidant enzyme which is able to scavenge free radicals, and hinder oxidative damage [30]. MDA is a major product of lipid peroxidation as a consequence of oxidative stress [31]. Our results showed that AZ-SFE increased SOD activity and decreased MDA concentration in colonic tissue of TNBS-induced rats, indicating the amelioration of intestinal injury was at least partly related to the reduction of oxidative stress. Neutrophil infiltration is one of the most prominent histological features observed in IBD [29]. MPO activity can be used to evaluate the degree of neutrophil infiltration [32,33]. Our findings revealed that increased MPO activity induced by TNBS could be weakened after administration of AZ-SFE at test doses, showing the protective effect of AZ-SFE against tissue injury in experimental colitis.
Pro-inflammatory cytokines are important in the pathogenesis of IBD. Increased levels of pro-inflammatory cytokines have been detected in IBD patients [34,35]. TNF-α takes part in tissue inflammation through recruitment of leukocytes in an inflamed area, stimulation of expression of cytokines, and induction of cascade effects for other cytokines [36]. IL-6 also plays a vital role in the progression of colonic inflammation, which can promote lymphocyte proliferation, and is important in acute phase inflammation response [36,37]. IL-1β is another important cytokine to accelerate intestinal inflammation by facilitating the production of IL-17A, indicating IL-1β to be a promising target in IBD therapy [38]. Taken together, targeting pro-inflammatory cytokines is one of the therapeutic approaches for IBD treatment. In the current study, the production of IL-6, TNF-α, and IL-1β in serum of TNBS-induced rats was increased. Treatment with AZ-SFE in two doses significantly reduced the expression of tested cytokines, with the dose of 60 mg/kg showing the better effect.
Anemia is one of the symptoms of IBD, whose pathogenesis is related to the abnormal elevation of hepcidin, the key modulator of systemic iron homeostasis [39]. Hepcidin is an antimicrobial peptide which is mainly generated in liver in response to iron overload, or upregulation by pro-inflammatory stimuli, such as IL-6 [40]. The cellular iron export protein ferroportin is the receptor of hepcidin. The combination of hepcidin and ferroportin contributes to the reduction of circulating iron. Therefore, it is supposed that increased level of hepcidin leads to decreased serum iron, consequentially iron-restricted impairment of erythropoiesis, and even anemia [41]. Many researchers have been interested in finding the correlation between hepcidin and IBD, which up till now has not been fully clarified. Some reported the elevated expression of hepcidin in IBD patients, while others claimed no differences or even decreased hepcidin levels compared with healthy controls [42,43,44]. In the TNBS-induced rat colitis model, the expression of hepcidin in the colon could be increased associated with the activation of IL-6/STAT 3 pathway [45]. Also, hepcidin has been proposed to be directly involved in IBD pathogenesis, since the severity of experimental colitis could be relieved in Hfe knockout mice with low hepcidin expression [46]. Taken together, we intended to investigate the effect of AZ-SFE on the regulation of hepcidin in our study.
To some extent, our results support the explanation that the higher hepcidin level in TNBS group is the consequence of the more severe inflammation state, as Toblli et al. described [47]. Administration of AZ-SFE and mesalazine decreased the production of hepcidin, indicating the potency of AZ-SFE on the regulation of iron homeostasis. The expression of hepcidin was related to the production of IL-6, as shown in our research, which was consistent with former research. Also, the serum iron level was decreased in the TNBS group, while it was significantly increased by the administration of mesalazine and AZ-SFE (60 mg/kg). On one hand, the increased expression of hepcidin lead to the decrease of serum iron [41]. On the other hand, infiltrating cells may enter the blood and utilize serum iron for their proliferation, and the sequestration of serum iron by iron storage proteins may lead to the low level of serum iron [48]. These findings indicated that AZ-SFE could involve in the regulation of system iron homeostasis, which may be related to its anti-inflammatory activity.
Furthermore, intestinal epithelial cells provide a physical barrier to protect the body from pathogens as well as toxins [49]. The dysfunction of intestinal barrier, such as increased intestinal permeability plays an important role in the pathogenesis of IBD. Therefore, the protection and improvement of intestinal barrier function may be a potential therapeutic strategy for IBD [50]. The effects of AZ-SFE on the intestinal barrier will be investigated in our further research.

4. Materials and Methods

4.1. Chemicals and Reagents

Ligustilide (S13M9D55861) was obtained from Shanghai Yuanye Biotechnology Co., Ltd., (Shanghai, China). 6-gingerol (MUST-16122205) was purchased from Chengdu Man Site Biotechnology Co. Ltd., (Chengdu, China). Methanol and Acetonitrile were HPLC grade (Sigma-Aldrich, USA). High glucose DMEM was purchased from Corning Incorporated (Corning, NY, USA). Fetal bovine serum (FBS) was obtained from Biological Industries Ltd. (Herzliya, Israel). Penicilin/streptomycin was obtained from Invitrogen (Carlsbad, CA, USA). TNBS (P2297–10 mL) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Mesalazine was obtained from Ethypharm Pharmaceutical Co. Ltd., (Shanghai, China). All other reagents used were of analytical grade.

4.2. Plant Material and Preparation of AZ-SFE

Fresh Zingiber officinale Roscoe roots were bought in a local market (Beijing, China). Angelica sinensis was purchased from Beijing Sanhe Yaoye Co., Ltd. (Beijing, China). They were identified at the Beijing University of Chinese Medicine as per the identification standard of Pharmacopoeia of the People’s Republic of China, 2015. Fresh Zingiber officinalle Roscoe roots were cut into slices and dried at 40 °C. Then they were smashed into 40 mesh. Extraction was conducted using a HA220-50-06 supercritical fluid extraction system (Hua’an Supercritical Extraction Co., Ltd. Nantong, China). Ground powders (40 mesh) of Angelica sinensis and Zingiber officinalle Roscoe were weighted and extracted together at a ratio of 7:4 which is based on a traditional usage. When the temperatures in both extraction and separation vessels met the requirement, liquid CO2 was pumped into the extraction system at a flow rate of 25 L/h. The pressure of first separation vessel was 8 MPa; the temperature of first separation vessel was 55 °C; while those of second separation vessel were system tail pressure and 35 °C. After extraction, the products were collected from the first separation vessel, weighted and stored at −20 °C for further analysis.

4.3. GC/MS Analysis of AZ-SFE

GC/MS analysis of AZ-SFE was carried out on Agilent 7890B GC system coupled with 5977A mass selective detector (Agilent Technologies Inc., Santa Clara, CA, USA) in electronic ionization mode (ionization energy: 70 eV). The GC column was Agilent HP-5ms (30 m × 0.25 mm, 0.25 μm). AZ-SFE was dissolved in chloroform for analysis. The heating temperature was as follows: Hold at 50 °C for 5 min, rise to 170 °C at the rate of 10 °C/min, and hold for 5 min; then rise to 230 °C at the rate of 3 °C/min and hold for 3 min; finally rise to 280 °C at the rate of 5 °C/min and hold for 5 min. Inlet temperature and transmission line temperature were both 250 °C. Helium was used as carrier gas at a flow rate of 1 mL/min. The injection volume was 1 μL with a split ratio of 10:1. Ion source temperature was 230 °C and quadrupole the temperature was at 150 °C. The scan scale was 30–600 amu.

4.4. HPLC Analysis of AZ-SFE

The contents of ligustilide and 6-gingerol in AZ-SFE were detected by HPLC in a Thermo Ultimate 3000 HPLC system with a variable wavelength detector (Thermo Fisher Scientific Inc., San Francisco, CA, USA) using an Inertsil ODS-C18 column (4.6 mm × 250 mm, 5 μm). The column temperature was 30 °C, and 10 μL of the sample solution was injected for detection. AZ-SFE, ligustilide and 6-gingerol were dissolved in methanol as a sample solution and reference solution, respectively. The flow rate was 1 mL/min. For detection of ligustilide, the mobile phase was methanol-water (70:30), and the detection wavelength was 326 nm. For detection of 6-gingerol, the mobile phase was acetonitrile-methanol-water (40:5:55), and the detection wavelength was 280 nm [51]. The specificity, linearity, precision, repeatability, stability, and recovery rate of analytical methods were validated.

4.5. Optimization of Extraction Process of AZ-SFE

An L9 (34) orthogonal experiment design was conducted to investigate the optimum parameters in the extraction process. The factors and levels were listed in Table 4 according to pre-experiments and literature review. The extract yield, ligustilide content and 6-gingerol content were chosen as evaluation indexes with weight coefficients of 0.5, 0.3, and 0.2, respectively. The colligation score of each extraction was calculated based on weight coefficient after data normalization. Optimum extraction parameters were screened by both visual analysis and analysis of variance by SAS 8.0.

4.6. Cell Culture and MTT Cell Viability Assay

The RAW264.7 cell line was obtained from the Cell Resource Center, Chinese Academy of Medical Sciences (Beijing, China). RAW264.7 cells were cultured in high glucose DMEM supplemented with 10% FBS and 1% penicillin/streptomycin (complete medium) at 37 °C, 5% CO2. AZ-SFE was dissolved in DMSO to be 10 mg/mL as stock solution. MTT cell viability assay was conducted at first to select concentrations without cytotoxicity based on the method of Mosmann with minor modifications [52]. RAW264.7 cells were seeded in 96-well plates (1 × 104 cells/well) and cultured for 24 h. Then cells were incubated with gradient concentrations of AZ-SFE (0.625 to 40 μg/mL), ligustilide (2.5 to 160 μM), and 6-gingerol (2.5 to 160 μM) for 24 h. Then 10 μL of MTT solution (5 mg/mL) was added to each well and the cells were cultured for another 4 h. The supernatants were discarded and the formazan crystals formed in living cells were dissolved in DMSO. The plate was shaken in orbital shaker for 10 min, after which the optical density was measured at 490 nm using a microplate reader system (SPECTROstar Nano, BMG LABTECH, Ortenberg, Germany). The medium group contained only complete medium, and vehicle group contained 0.5% DMSO in complete medium. The cell viability was calculated as follows:
Viability% = OD/OD0 × 100%
Where OD represents the average optical density of samples at the same concentration, and OD0 represents for the average optical density of vehicle controls (0.5% DMSO in medium).

4.7. Measurement of NO Production in RAW264.7 Cells

RAW264.7 cells were seeded into 96-well plates (1 × 105 cells/well) and precultured for 24 h at 37 °C, 5% CO2. After discarding the supernatants, cells were treated with different concentrations of AZ-SFE (0.625 to 20 μg/mL) or the combinations of ligustilide and 6-gingerol, at their corresponding concentrations in AZ-SFE for 1 h. After stimulation with or without LPS (1 μg/mL) for 24 h, the cell supernatants were collected and detected for NO production by Griess method using a commercial kit (Beijing BioDee Biotechnology Co. Ltd., Beijing, China) [53]. Briefly, 50 μL of supernatant was mixed with the same volume of Griess reagent I and II. After incubation at room temperature for 5 min, the optical density was measured at 540 nm. The concentration of NO was calculated by comparing with sodium nitrite standard curve. The inhibition rate of NO was calculated as follows:
Inhibition rate% = (C1 − C)/(C1 − C0)
Where C1 represents the average concentration of model controls (1 μg/mL LPS in medium), C0 represents the average concentration of blank control and C represents the average concentration of samples at the same concentration.

4.8. Experimental Animals

Thirty male Sprague Dawley rats (180–200 g) were purchased from SPF Biotechnology Co., Ltd. (Beijing, China) and maintained in the animal experiment center of Beijing University of Chinese medicine. Animals were housed under controlled conditions of temperature (25 ± 2 °C) and humidity (50 ± 10%) with a 12-h light-dark cycle, and fed with standard diet and water. The experimental procedures were approved by the Animal Care and Research Ethics Committee of the Beijing University of Chinese Medicine.

4.9. Induction of Experimental Colitis and Intervention with AZ-SFE

Rats were randomly divided into 5 groups (n = 6): Control group, TNBS group, positive drug (mesalazine, 400 mg/kg) group, and AZ-SFE (30 and 60 mg/kg) groups. Colitis was induced by intrarectal administration of a single dose of TNBS, as described previously, with modifications [54]. Briefly, rats were anesthetized by 10% chloral hydrate (3 mL/kg), and TNBS (100 mg/kg) dissolved in ethanol (50%, v/v) was instilled into the colon, using a gavage needle lubricated by liquid paraffin, and inserted into 8 cm from anus. To ensure the agent within the entire colon and avoid drug leakage, rats were held in a head-down position for 3 min. Control group received only saline by the same method.
From the next day after modeling, drugs were administered once a day by gavage (1 mL/100 g body weight) for seven consecutive days. Then the rats were anesthetized and blood were collected from abdominal aorta. The entire colons were collected, and washed in cold saline. All specimens were stored at −80 °C before analysis.

4.10. Splenocyte Proliferation and Cytokine Detection

The spleens of rats in the TNBS group were aseptically taken out, and they were ground with PBS and filtered through 200 mesh. After removing red blood cells by lysis and centrifugation, splenocytes were obtained. Cells were precultured in RPMI 1640 complete medium (supplemented with 10% FBS and 1% penicillin/streptomycin) for 2 h to remove adherent cells. Then cells in suspension were counted and seeded into 96-well plates (5 × 105 cells/well). Cells were stimulated with 5 μg/mL Con A to maintain inflammation status, and AZ-SFE (5, 10 and 20 μg/mL) were supplemented and incubated for 24 h. Cells treated with Con A were named the Con A group, and cells without any intervention were labelled blank control group. After incubation, culture medium in each well was collected and centrifuged. Supernatants were collected for cytokine detection, and cells were cultured with MTT in medium for another 4 h, for proliferation detection. The optical density was measured at 550 nm. The levels of IL-2 and IFN-γ in supernatants were measured using ELISA kits (RayBiotech Inc., Norcross, GA, USA) according to the manufacturer’s instructions.

4.11. Evaluation of DAI

Body weight, stool consistency and fecal bleeding of rats were monitored daily, and the DAI was calculated as the average score of three above mentioned aspects. In weight loss, score 0 was assigned for no weight loss compared with the original body weight, 1 for loss of 1–5%, 2 for loss of 5–10%, 3 for loss of 10–20% and 4 for loss > 20%. For stool consistency, score 0 was assigned for normal stool, 2 was assigned for loose stool and 4 was assigned for diarrhea. For fecal bleeding, score 0 represented no blood, 2 represented occult blood and 4 represented obvious bleeding [55].

4.12. Evaluation of Macroscopic Damage

The colon was cut longitudinally and cleaned by cold saline for macroscopic observation. The macroscopic severity of colonic mucosal damage was determined according to the criteria of Luk et al. [56]. Briefly, the score was on a 0–10 scale. The more severe the damage was, the higher the score was.

4.13. Histological Analysis

Colon samples were fixed in 10% formalin at room temperature for 48 h, and embedded in paraffin blocks. Sliced sections (3 μm) were deparaffinized and stained with H&E. The sections were observed and photographed under an ECLIPSE Ts2R microscope (Nikon Corp., Tokyo, Japan). Colonic damage was evaluated according to previous standard [57] with a total score of 10.

4.14. Measurement of SOD, MDA and MPO in Colonic Tissue

Colonic tissues were homogenized, and the supernatants were collected for detection. The activities of SOD and MPO, as well as the level of MDA were analyzed with commercial test kits (Nanjing Jiancheng Bioengineering Institute, Nanjing, China).

4.15. Measurement of Pro-inflammatory Cytokines in Serum

Blood samples collected from abdominal aorta were placed at room temperature for 2 h to clot, and they were centrifuged at 3000 rpm for 10 min in order to collect serum. The levels of IL-6, TNF-α and IL-1β in serum were detected using ELISA kits, according to the manufacturer’s instructions. The kit for IL-6 was purchased from Cloud Clone Corp., (Wuhan, China), and those for TNF-α and IL-1β were obtained from RayBiotech Inc. (Norcross, GA, USA).

4.16. Measurement of Hepcidin and Serum Iron

Serum hepcidin was measured by competitive ELISA (Cloud Clone Corp., Wuhan, China). Concentrations of serum iron were detected by colorimetry using a test kit (Nanjing Jiancheng Bioengineering Institute, Nanjing, China).

4.17. Statistic Analysis

Data obtained were presented as the mean ± standard deviation (SD). Statistical analyses were performed using one-way ANOVA, followed by Dunnett’s multiple comparisons tests for multiple comparisons using in SAS 8.0. p < 0.05 was considered statistically significant.

5. Conclusions

Our present study prepared and characterized AZ-SFE. The ensuing in vitro and in vivo study indicated the potential of AZ-SFE for relieving colitis by decreasing oxidative stress, suppressing inflammatory mediators, inhibiting the Th1 immune response, and regulating iron homeostasis. In conclusion, AZ-SFE derived from traditional Chinese herbs could be a promising supplement for current IBD therapy, and the exact mechanism needs further investigation.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/15/3816/s1.

Author Contributions

Conceptualization, J.L., and Q.W.; formal analysis, J.L., Y.Z., and X.L.; funding acquisition, Q.W.; investigation, J.L., L.Y., N.M., and H.L.; supervision, Q.W.; visualization, J.L.; Writing—original draft, J.L.; writing—reviewing and editing, Q.W. All authors read and approved the final manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant number 81773915.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AZ-SFESupercritical fluid extract of Angelica sinensis and Zingiber officinale Roscoe
Con AConcanavalin A
CDCrohn’s disease
DAIDisease activity index
FBSFetal bovine serum
H&EHematoxylin and eosin
IBDInflammatory bowel disease
LPSLipopolysaccharide
MDAMalonic dialdehyde
MPOMyeloperoxidase
SODSuperoxide dismutase
TNBS2, 4, 6-Trinitrobenzenesulfonic acid
UCUlcerative colitis

References

  1. De Mattos, B.R.; Garcia, M.P.; Nogueira, J.B.; Paiatto, L.N.; Albuquerque, C.G.; Souza, C.L.; Fernandes, L.G.; Tamashiro, W.M.; Simioni, P.U. Inflammatory Bowel Disease: An Overview of Immune Mechanisms and Biological Treatments. Mediat. Inflamm. 2015, 2015, 493012. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, Y.Z.; Li, Y.Y. Inflammatory bowel disease: Pathogenesis. World J. Gastroenterol. 2014, 20, 91–99. [Google Scholar] [CrossRef] [PubMed]
  3. Szandruk, M.; Merwid-La, A.; Szelag, A. The impact of mangiferin from Belamcanda chinensis on experimental colitis in rats. Inflammopharmacology 2018, 26, 571–581. [Google Scholar] [CrossRef] [PubMed]
  4. Zhou, Y.H.; Yu, J.P.; Liu, Y.F.; Teng, X.J.; Ming, M.; Lv, P.; An, P.; Liu, S.Q.; Yu, H.G. Effects of Ginkgo biloba Extract on Inflammatory Mediators (SOD, MDA, TNF-α, NF-κBp65, IL-6) in TNBS-Induced Colitis in Rats. Mediat. Inflamm. 2006, 2006, 92642. [Google Scholar] [CrossRef] [PubMed]
  5. Grivennikov, S.I. Inflammation and colorectal cancer: Colitis-associated neoplasia. Semin. Immunopathol. 2013, 35, 229–244. [Google Scholar] [CrossRef] [PubMed]
  6. Ungaro, R.; Mehandru, S.; Allen, P.B.; Peyrin-Biroulet, L.; Colombel, J.F. Ulcerative colitis. Lancet 2017, 389, 1756–1770. [Google Scholar] [CrossRef]
  7. E Silva, F.G.D.; Paiatto, L.N.; Yamada, A.T.; Netto, F.M.; Simioni, P.U.; Tamashiro, W.M.S.C. Intake of Protein Hydrolysates and Phenolic Fractions Isolated from Flaxseed Ameliorates TNBS-Induced Colitis. Mol. Nutr. Food Res. 2018, 62, 1800088. [Google Scholar] [CrossRef] [PubMed]
  8. Recio, M.C.; Andújar, I.; Ríos, J.L. Anti-Inflammatory Agents from Plants: Progress and Potential. Curr. Med. Chem. 2012, 19, 2088–2103. [Google Scholar] [CrossRef]
  9. Sodagari, H.R.; Farzaei, M.H.; Bahramsoltani, R.; Abdolghaffari, A.H.; Mahmoudi, M.; Rezaei, N. Dietary anthocyanins as a complementary medicinal approach for management of inflammatory bowel disease. Expert Rev. Gastroenterol. Hepatol. 2015, 9, 807–820. [Google Scholar] [CrossRef]
  10. Chang, K.W.; Kuo, C.Y. 6-Gingerol modulates proinflammatory responses in dextran sodium sulfate (DSS)-treated Caco-2 cells and experimental colitis in mice through adenosine monophosphate-activated protein kinase (AMPK) activation. Food Funct. 2015, 6, 3334–3341. [Google Scholar] [CrossRef]
  11. Wang, T. Waitai Miyao Fang, 1st ed.; China Medical Science Press: Beijing, China, 2011; pp. 443–444. [Google Scholar]
  12. Edris, A.E. Pharmaceutical and Therapeutic Potentials of Essential Oils and Their Individual Volatile Constituents: A Review. Phytother. Res. 2007, 21, 308–323. [Google Scholar] [CrossRef] [PubMed]
  13. Shaaban, H.A.E.; El-Ghorab, A.H.; Shibamoto, T. Bioactivity of essential oils and their volatile aroma components: Review. J. Essent. Oil Res. 2012, 24, 203–212. [Google Scholar] [CrossRef]
  14. Zhong, L.J.; Hua, Y.L.; Ji, P.; Yao, W.L.; Zhang, W.Q.; Li, J.; Wei, Y.M. Evaluation of the Anti-inflammatory Effects of Volatile Oils from Processed Products of Angelica sinensis radix by GC–MS-Based Metabolomics. J. Ethnopharmacol. 2016, 191, 195–205. [Google Scholar] [CrossRef] [PubMed]
  15. de Melo, G.A.N.; Grespan, R.; Fonseca, J.P.; Farinha, T.O.; Da Silva, E.L.; Romero, A.L.; Bersani-Amado, C.A.; Cuman, R.K.N. Inhibitory effects of ginger (Zingiber officinale Roscoe) essential oil on leukocyte migration in vivo and in vitro. J. Nat. Med. 2011, 65, 241–246. [Google Scholar] [CrossRef] [PubMed]
  16. Butt, M.S.; Sultan, M.T. Ginger and its Health Claims: Molecular Aspects. Crit. Rev. Food Sci. Nutr. 2011, 51, 383–393. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, F.; Ma, N.; Gao, Y.F.; Sun, L.L.; Zhang, J.G. Therapeutic Effects of 6-Gingerol, 8-Gingerol, and 10-Gingerol on Dextran Sulfate Sodium-Induced Acute Ulcerative Colitis in Rats. Phytother. Res. 2017, 31, 1427–1432. [Google Scholar] [CrossRef] [PubMed]
  18. Ajayi, B.; Adedara, I.; Farombi, E. Protective mechanisms of 6-gingerol in dextran sulfate sodium-induced chronic ulcerative colitis in mice. Hum. Exp. Toxicol. 2018, 37, 1054–1068. [Google Scholar] [CrossRef] [PubMed]
  19. Nikkhah-Bodaghi, M.; Maleki, I.; Agah, S.; Hekmatdoost, A. Zingiber officinale and oxidative stress in patients with ulcerative colitis: A randomized, placebo-controlled, clinical trial. Complement. Med. 2019, 43, 1–6. [Google Scholar] [CrossRef]
  20. Zhao, B.; Kang, Q.; Peng, Y.; Xie, Y.; Chen, C.; Li, B.; Wu, Q. Effect of Angelica sinensis Root Extract on Cancer Prevention in Different Stages of an AOM/DSS Mouse Model. Int. J. Mol. Sci. 2017, 18, 1750. [Google Scholar] [CrossRef]
  21. Mesomo, M.C.; Scheer, A.D.P.; Perez, E.; Ndiaye, P.M.; Corazza, M.L. Ginger (Zingiber officinale R.) extracts obtained using supercritical CO2 and compressed propane: Kinetics and antioxidant activity evaluation. J. Supercrit. Fluids 2012, 71, 102–109. [Google Scholar] [CrossRef]
  22. Randhawa, P.K.; Singh, K.; Singh, N.; Jaggi, A.S. A Review on Chemical-Induced Inflammatory Bowel Disease Models in Rodents. Korean J. Physiol. Pharmacol. 2014, 18, 279–288. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Cota, D.; Mishra, S.; Shengule, S. Beneficial role of Terminalia arjuna hydro-alcoholic extract in colitis and its possible mechanism. J. Ethnopharmacol. 2019, 230, 117–125. [Google Scholar] [CrossRef] [PubMed]
  24. Debnath, T.; Kim, D.H.; Lim, B.O. Natural Products as a Source of Anti-Inflammatory Agents Associated with Inflammatory Bowel Disease. Molecules 2013, 18, 7253–7270. [Google Scholar] [CrossRef] [PubMed]
  25. Yuan, G.F.; Wahlquist, M.L.; He, G.Q.; Yang, M.; Li, D. Natural products and anti-inflammatory activity. Asia Pac. J. Clin. Nutr. 2006, 15, 143–152. [Google Scholar] [PubMed]
  26. Shin, J.S.; Cho, E.J.; Choi, H.E.; Seo, J.H.; An, H.J.; Park, H.J.; Cho, Y.W.; Lee, K.T. Anti-inflammatory effect of a standardized triterpenoid-rich fraction isolated from Rubus coreanus on dextran sodium sulfate-induced acute colitis in mice and LPS-induced macrophages. J. Ethnopharmacol. 2014, 158, 291–300. [Google Scholar] [CrossRef] [PubMed]
  27. Guan, Q.; Moreno, S.; Qing, G.; Weiss, C.R.; Lu, L.; Bernstein, C.N.; Warrington, R.J.; Ma, Y.; Peng, Z. The role and potential therapeutic application of myeloid-derived suppressor cells in TNBS-induced colitis. J. Leukoc. Biol. 2013, 94, 803–811. [Google Scholar] [CrossRef]
  28. Şengül, N.; Işık, S.; Aslım, B.; Uçar, G.; Demirbağ, A.E. The Effect of Exopolysaccharide-Producing Probiotic Strains on Gut Oxidative Damage in Experimental Colitis. Dig. Dis. Sci. 2011, 56, 707–714. [Google Scholar] [CrossRef]
  29. de Faria, F.M.; Luiz-Ferreira, A.; Socca, E.A.R.; De Almeida, A.C.A.; Dunder, R.J.; Manzo, L.P.; Da Silva, M.A.; Vilegas, W.; Rozza, A.L.; Pellizzon, C.H.; et al. Effects of Rhizophora mangle on Experimental Colitis Induced by TNBS in Rats. Evid. Based Complement. Altern. Med. 2012, 2012, 753971. [Google Scholar] [CrossRef]
  30. Li, Y.; Shen, L.; Luo, H.S. Luteolin ameliorates dextran sulfate sodium-induced colitis in mice possibly through activation of the Nrf2 signaling pathway. Int. Immunopharmacol. 2016, 40, 24–31. [Google Scholar] [CrossRef]
  31. Xing, J.F.; Sun, J.Y.; You, H.S.; Lv, J.; Sun, J.N.; Dong, Y.L. Anti-Inflammatory Effect of 3,4-Oxo-isopropylidene-shikimic Acid on Acetic Acid-Induced Colitis in Rats. Inflammation 2012, 35, 1872–1879. [Google Scholar] [CrossRef]
  32. Rashidian, A.; Muhammadnejad, A.; Dehpou, A.; Mehr, S.E.; Akhavan, M.M.; Shirkoohi, R.; Chamanara, M.; Mousavi, S.; Rezaya, S. Atorvastatin attenuates TNBS-induced rat colitis: The involvement of the TLR4/NF-kB signaling pathway. Inflammopharmacology 2016, 24, 109–118. [Google Scholar] [CrossRef]
  33. Mao, T.Y.; Shi, R.; Zhao, W.H.; Guo, Y.; Gao, K.L.; Chen, C.; Xie, T.H.; Li, J.X. Qingchang Wenzhong Decoction Ameliorates Dextran Sulphate Sodium-Induced Ulcerative Colitis in Rats by Downregulating the IP10/CXCR3 Axis-Mediated Inflammatory Response. Evid. Based Complement. Altern. Med. 2016, 2016, 4312538. [Google Scholar] [CrossRef]
  34. Ishiguro, Y. Mucosal proinflammatory cytokine production correlates with endoscopic activity of ulcerative colitis. J. Gastroenterol. 1999, 34, 66–74. [Google Scholar] [CrossRef]
  35. Stevens, C.; Walz, G.; Singaram, C.; Lipman, M.L.; Zanker, B.; Muggia, A.; Antonioli, D.; Peppercorn, M.A.; Strom, T.B. Tumor Necrosis Factor-α, Interleukin- 1β, and Interleukin-6 Expression in Inflammatory Bowel Disease. Dig. Dis. Sci. 1992, 37, 818–826. [Google Scholar] [CrossRef]
  36. Zhang, P.; Niu, F.L.; Liu, W.Z.; Shi, Y.; Lu, L.G. Anti-inflammatory mechanism of oxymatrine in dextran sulfate sodium-induced colitis of rats. World J. Gastroenterol. 2005, 11, 4912–4915. [Google Scholar] [CrossRef]
  37. Yang, X.L.; Guo, T.K.; Wang, Y.H.; Liu, X.; Wang, X.X.; Li, W.; Zhao, X.; Wang, L.P.; Yan, S.; Wu, D.; et al. Ginsenoside Rd attenuates the inflammatory response via modulating p38 and JNK signaling pathways in rats with TNBS-induced relapsing colitis. Int. Immunopharmacol. 2012, 12, 408–414. [Google Scholar] [CrossRef]
  38. Coccia, M.; Harrison, O.J.; Schiering, C.; Asquith, M.J.; Becher, B.; Powrie, F.; Maloy, K.J. IL-1β mediates chronic intestinal inflammation by promoting the accumulation of IL-17A secreting innate lymphoid cells and CD4+ Th17 cells. J. Exp. Med. 2012, 209, 1595–1609. [Google Scholar] [CrossRef]
  39. Wessling-Resnick, M. Iron homeostasis and the inflammatory response. Annu. Rev. Nutr. 2010, 30, 105–122. [Google Scholar] [CrossRef]
  40. Weiss, G.; Gasche, C. Pathogenesis and treatment of anemia in inflammatory bowel disease. Haematologica 2010, 95, 175–178. [Google Scholar] [CrossRef] [Green Version]
  41. Shanmugam, N.K.N.; Ellenbogen, S.; Trebicka, E.; Wang, L.; Mukhopadhyay, S.; Lacy-Hulbert, A.; Gallini, C.A.; Garrett, W.S.; Cherayil, B.J. Tumor Necrosis Factor a Inhibits Expression of the Iron Regulating Hormone Hepcidin in Murine Models of Innate Colitis. PLoS ONE 2012, 7, e38136. [Google Scholar] [CrossRef]
  42. Oustamanolakis, P.; Koutroubakis, I.E.; Messaritakis, I.; Malliaraki, N.; Sfiridaki, A.; Kouroumalis, E.A. Serum hepcidin and prohepcidin concentrations in inflammatory bowel disease. Eur. J. Gastroenterol. Hepatol. 2011, 23, 262–268. [Google Scholar] [CrossRef]
  43. Mecklenburg, I.; Reznik, D.; Fasler-Kan, E.; Drewe, J.; Beglinger, C.; Hruz, P.; Swiss IBD Cohort Study Group. Serum hepcidin concentrations correlate with ferritin in patients with inflammatory bowel disease. J. Crohn’s Colitis 2014, 8, 1392–1397. [Google Scholar] [CrossRef] [Green Version]
  44. Arnold, J.; Sangwaiya, A.; Bhatkal, B.; Geoghegan, F.; Busbridge, M. Hepcidin and inflammatory bowel disease: Dual role in host defence and iron homoeostasis. Eur. J. Gastroenterol. Hepatol. 2009, 21, 425–429. [Google Scholar] [CrossRef]
  45. Gotardo, É.M.; Ribeiro, G.de.; Clemente, T.R.; Moscato, C.H.; Tomé, R.B.; Rocha, T.; Jr, J.P.; Ribeiro, M.L.; Gambero, A. Hepcidin expression in colon during trinitrobenzene sulfonic acid-induced colitis in rats. World J. Gastroenterol. 2014, 20, 4345–4352. [Google Scholar] [CrossRef]
  46. Wang, L.J.; Johnson, E.E.; Shi, H.N.; Walker, W.A.; Wessling-Resnick, M.; Cherayil, B.J. Attenuated inflammatory responses in hemochromatosis reveal a role for iron in the regulation of macrophage cytokine translation. J. Immunol. 2008, 181, 2723–2731. [Google Scholar] [CrossRef]
  47. Toblli, J.E.; Cao, G.; Angerosa, M. Ferrous sulfate, but not iron polymaltose complex, aggravates local and systemic inflammation and oxidative stress in dextran sodium sulfate-induced colitis in rats. Drug Des. Devel. Ther. 2015, 9, 2585–2597. [Google Scholar] [CrossRef]
  48. Baykalir, B.G.; Aksit, D.; Dogru, M.S.; Yay, A.H.; Aksit, H.; Seyrek, K.; Atessahin, A. Lycopene Ameliorates Experimental Colitis in Rats via Reducing Apoptosis and Oxidative Stress. Int J. Vitam Nutr. Res. 2016, 86, 27–35. [Google Scholar] [CrossRef]
  49. Yue, Y.; Wu, S.; Li, Z.; Li, J.; Li, X.; Xiang, J.; Ding, H. Wild jujube polysaccharides protect against experimental inflammatory bowel disease by enabling enhanced intestinal barrier function. Food Funct. 2015, 6, 2568–2577. [Google Scholar] [CrossRef]
  50. McGuckin, M.A.; Eri, R.; Simms, L.A.; Florin, T.H.J.; Radford-Smith, G. Intestinal Barrier Dysfunction in Inflammatory Bowel Diseases. Inflamm. Bowel Dis. 2009, 15, 100–113. [Google Scholar] [CrossRef]
  51. Chinese Pharmacopoeia Commission. The Pharmacopoeia of the People’s Republic of China; 2015 ed. 1st part; China Medical Science Press: Beijing, China, 2015; p. 101. [Google Scholar]
  52. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  53. Liu, J.; Huang, H.; Huang, Z.; Ma, Y.; Zhang, L.; He, Y.; Li, D.; Liu, W.; Goodin, S.; Zhang, K.; et al. Eriocitrin in combination with resveratrol ameliorates LPS-induced inflammation in RAW264.7 cells and relieves TPA-induced mouse ear edema. J. Funct. Foods. 2019, 56, 321–332. [Google Scholar] [CrossRef]
  54. Zhou, Y.; Ruan, Z.; Zhou, X.; Huang, X.; Li, H.; Wang, L.; Zhang, C.; Liu, S.; Deng, Z.; Wu, G.; et al. A diet with lactosucrose supplementation ameliorates trinitrobenzene sulfonic acid-induced colitis in rats. Food Funct. 2015, 6, 162–172. [Google Scholar] [CrossRef]
  55. Han, F.; Zhang, H.; Xia, X.; Xiong, H.; Song, D.; Zong, X.; Wang, Y. Porcine β-defensin 2 attenuates inflammation and mucosal lesions in dextran sodium sulfate-induced colitis. J. Immunol. 2015, 194, 1882–1893. [Google Scholar] [CrossRef]
  56. Luk, H.H.; Ko, J.K.; Fung, H.S.; Cho, C.H. Delineation of the protective action of zinc sulfate on ulcerative colitis in rats. Eur. J. Pharmacol. 2002, 443, 197–204. [Google Scholar] [CrossRef]
  57. Darsigny, M.; St-Jean, S.; Boudreau, F. Cux1 transcription factor is induced in inflammatory bowel disease and protects against experimental colitis. Inflamm. Bowel Dis. 2010, 16, 1739–1750. [Google Scholar] [CrossRef]
Ijms 20 03816 g001 550

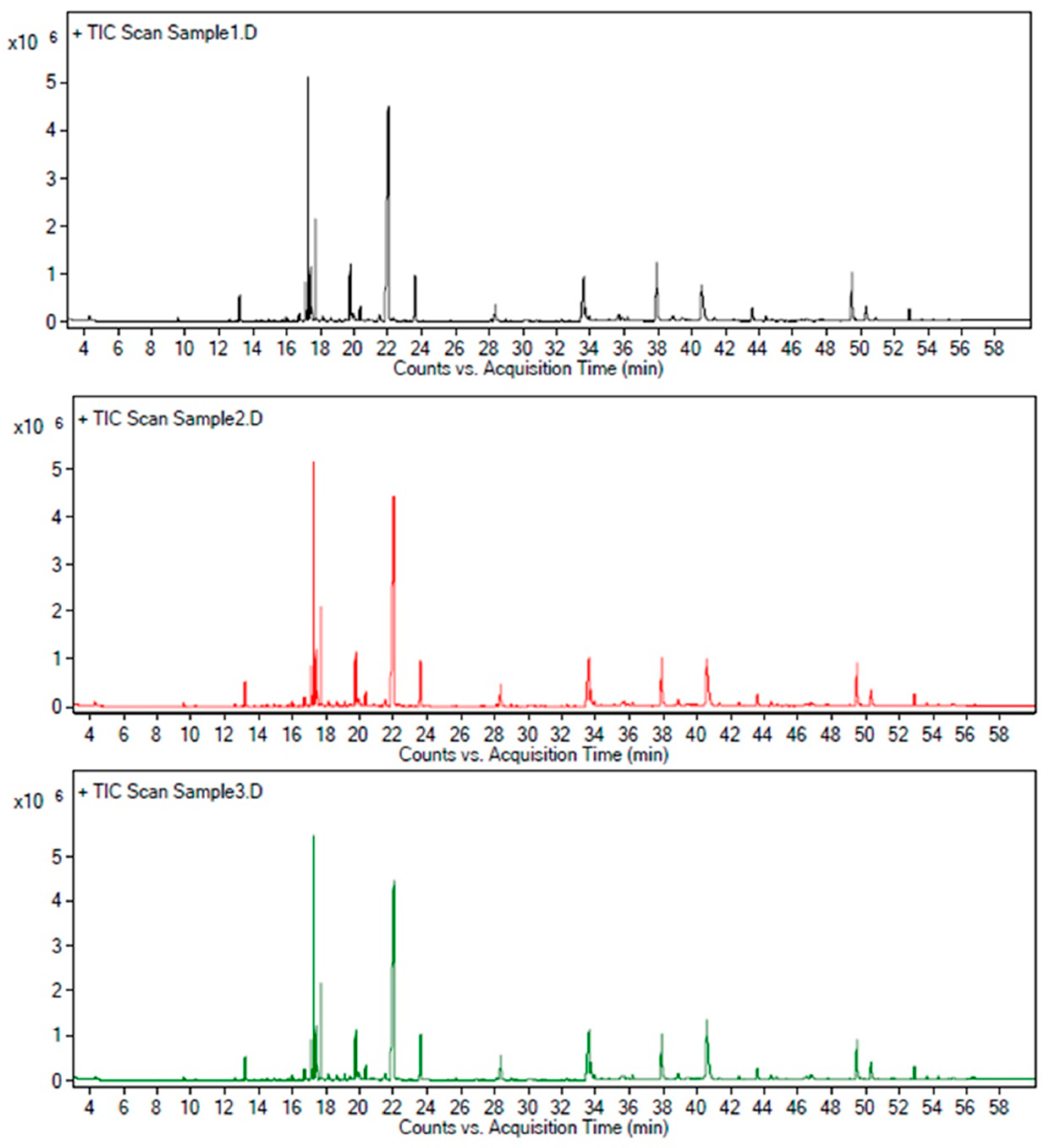

Figure 1. GC/MS total ion chromatogram of three batches of AZ-SFE extracted by optimized parameters.
Figure 1. GC/MS total ion chromatogram of three batches of AZ-SFE extracted by optimized parameters.
Ijms 20 03816 g001
Ijms 20 03816 g002 550

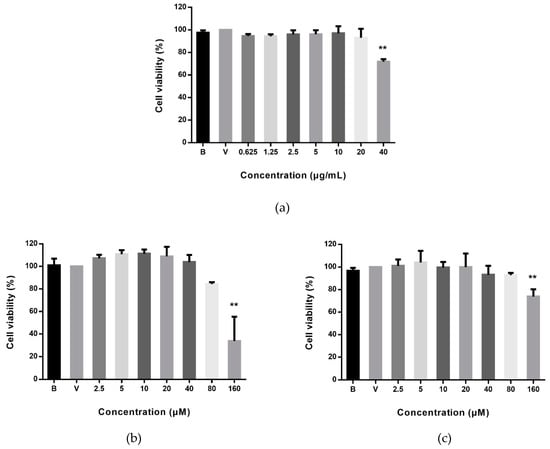

Figure 2. Cell viability of RAW264.7 cells after 24 h treatment of (a) AZ-SFE, (b) ligustilide, and (c) 6-gingerol detected by MTT assay. B represented medium group and V represented vehicle control group. Data are expressed as mean ± SD (n = 5) of three independent experiments. ** p < 0.01 versus vehicle control group.
Figure 2. Cell viability of RAW264.7 cells after 24 h treatment of (a) AZ-SFE, (b) ligustilide, and (c) 6-gingerol detected by MTT assay. B represented medium group and V represented vehicle control group. Data are expressed as mean ± SD (n = 5) of three independent experiments. ** p < 0.01 versus vehicle control group.
Ijms 20 03816 g002
Ijms 20 03816 g003 550
Figure 3. Effects of AZ-SFE and a combination of ligustilide and 6-gingerol on NO production in lipopolysaccharide (LPS)-induced RAW264.7 cells. Cells were pretreated for 1 h in the presence or absence of (a) AZ-SFE or (b) the combination of ligustilide and 6-gingerol, in a ratio according to their content in AZ-SFE, and then stimulated with LPS (1 μg/mL) for 24 h. (c) The inhibition rate was calculated by the formula indicated in Section 4.7. Data are expressed as mean ± SD (n = 3) of three independent experiments. * p < 0.05 and ** p < 0.01 versus LPS group. ## p < 0.01 between two compared groups.
Figure 3. Effects of AZ-SFE and a combination of ligustilide and 6-gingerol on NO production in lipopolysaccharide (LPS)-induced RAW264.7 cells. Cells were pretreated for 1 h in the presence or absence of (a) AZ-SFE or (b) the combination of ligustilide and 6-gingerol, in a ratio according to their content in AZ-SFE, and then stimulated with LPS (1 μg/mL) for 24 h. (c) The inhibition rate was calculated by the formula indicated in Section 4.7. Data are expressed as mean ± SD (n = 3) of three independent experiments. * p < 0.05 and ** p < 0.01 versus LPS group. ## p < 0.01 between two compared groups.
Ijms 20 03816 g003
Ijms 20 03816 g004a 550Ijms 20 03816 g004b 550
Figure 4. Effects of AZ-SFE (5, 10 and 20 μg/mL) on splenocyte proliferation and cytokine production. Cells treated without Con A and AZ-SFE were the blank control group, and cells incubated only with Con A were the Con A group. (a) Cell viability was detected by MTT assay, (b) IFN-γ and (c) IL-2 in supernatants were measured by ELISA. Data are presented as mean ± SD (n = 6). * p < 0.05, ** p < 0.01 versus Con A group.
Figure 4. Effects of AZ-SFE (5, 10 and 20 μg/mL) on splenocyte proliferation and cytokine production. Cells treated without Con A and AZ-SFE were the blank control group, and cells incubated only with Con A were the Con A group. (a) Cell viability was detected by MTT assay, (b) IFN-γ and (c) IL-2 in supernatants were measured by ELISA. Data are presented as mean ± SD (n = 6). * p < 0.05, ** p < 0.01 versus Con A group.
Ijms 20 03816 g004aIjms 20 03816 g004b
Ijms 20 03816 g005 550
Figure 5. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on (a) body weight change, (b) disease activity index, (c) length of colons, and (d) macroscopic score of colons in TNBS-induced colitis rat model. Data are presented as mean ± SD of 6 rats per group. * p < 0.05, and ** p < 0.01 versus TNBS group.
Figure 5. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on (a) body weight change, (b) disease activity index, (c) length of colons, and (d) macroscopic score of colons in TNBS-induced colitis rat model. Data are presented as mean ± SD of 6 rats per group. * p < 0.05, and ** p < 0.01 versus TNBS group.
Ijms 20 03816 g005
Ijms 20 03816 g006a 550Ijms 20 03816 g006b 550
Figure 6. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on histological change of TNBS-induced colitis in rats. (a) Representative H&E staining slices from colonic tissues, original magnification 100× I. Control group; II. TNBS group; III. Mesalazine group; IV–V. AZ-SFE groups (30 and 60 mg/kg). (b) Histological scores. Data are presented as mean ± SD of 6 rats per group. ** p < 0.01 versus TNBS group.
Figure 6. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on histological change of TNBS-induced colitis in rats. (a) Representative H&E staining slices from colonic tissues, original magnification 100× I. Control group; II. TNBS group; III. Mesalazine group; IV–V. AZ-SFE groups (30 and 60 mg/kg). (b) Histological scores. Data are presented as mean ± SD of 6 rats per group. ** p < 0.01 versus TNBS group.
Ijms 20 03816 g006aIjms 20 03816 g006b
Ijms 20 03816 g007a 550Ijms 20 03816 g007b 550
Figure 7. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on oxidative stress indicators in colons of TNBS-induced colitis in rats. (a) Superoxide dismutase (SOD). (b) Malonic dialdehyde (MDA). (c) Myeloperoxidase (MPO). Data are presented as mean ± SD of 6 rats per group. ** p < 0.01 versus TNBS group.
Figure 7. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on oxidative stress indicators in colons of TNBS-induced colitis in rats. (a) Superoxide dismutase (SOD). (b) Malonic dialdehyde (MDA). (c) Myeloperoxidase (MPO). Data are presented as mean ± SD of 6 rats per group. ** p < 0.01 versus TNBS group.
Ijms 20 03816 g007aIjms 20 03816 g007b
Ijms 20 03816 g008 550
Figure 8. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on production of pro-inflammatory cytokines in serum of TNBS-induced colitis in rats. (a) IL-6. (b) TNF-α. (c) IL-1β. Data are presented as mean ± SD of 6 rats per group. * p < 0.05 and ** p < 0.01 versus TNBS group.
Figure 8. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on production of pro-inflammatory cytokines in serum of TNBS-induced colitis in rats. (a) IL-6. (b) TNF-α. (c) IL-1β. Data are presented as mean ± SD of 6 rats per group. * p < 0.05 and ** p < 0.01 versus TNBS group.
Ijms 20 03816 g008
Ijms 20 03816 g009 550
Figure 9. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on the levels of (a) serum hepcidin and (b) serum iron of TNBS-induced colitis in rats. Data are presented as mean ± SD of 6 rats per group. * p < 0.05 and ** p < 0.01 versus TNBS group.
Figure 9. Effects of AZ-SFE (30 and 60 mg/kg) and mesalazine (400 mg/kg) on the levels of (a) serum hepcidin and (b) serum iron of TNBS-induced colitis in rats. Data are presented as mean ± SD of 6 rats per group. * p < 0.05 and ** p < 0.01 versus TNBS group.
Ijms 20 03816 g009
Table
Table 1. Qualitative analysis of Angelica sinensis and Zingiber officinale Roscoe’s supercritical fluid extract (AZ-SFE) based on GC/MS analysis.
Table 1. Qualitative analysis of Angelica sinensis and Zingiber officinale Roscoe’s supercritical fluid extract (AZ-SFE) based on GC/MS analysis.
No.Retention Time (min)Compound NameMolecular Formula
113.211DecanalC10H20O
217.137α-CurcumeneC15H22
317.202β-CopaeneC15H24
417.305ZingibereneC15H24
517.422α-FarneseneC15H24
617.480β-BisaboleneC15H24
717.706β-SesquiphellandreneC15H24
818.114HedycaryolC15H26O
919.129ZingiberenolC15H26O
1019.770ZingeroneC11H14O3
1119.930N-ButylphthalideC12H14O2
1220.003β-EudesmolC15H26O
1320.378N-ButylidenephthalideC12H12O2
1420.824DehydronerolidolC15H24O
1521.54SenkyunolideC12H16O2
1622.060Z-LigustilideC12H14O2
1723.657E-LigustilideC12H14O2
1828.392Hexadecanoic acidC16H32O2
1929.718Senkyunolide HC12H16O4
2033.626Linoleic acidC18H32O2
2135.346PanaxynoneC17H22O
2236.2196-ParadolC17H26O3
2337.9346-ShogaolC17H24O3
2438.9176-GingerdioneC17H24O4
2540.6386-GingerolC17H26O4
2642.5136-Gingerol monoacetateC19H28O5
2743.6138-ShogaolC19H30O4
2844.4356-Gingerdiol 3,5-diacetateC21H32O6
2944.7588-GingerdioneC19H28O4
3046.5186-DehydrogingerdioneC17H22O4
3146.7318-GingerolC19H30O4
3249.50010-ShogaolC21H32O3
3350.35310-GingerdioneC21H32O4
3455.21810-DehydrogingerdioneC21H30O4
Table
Table 2. Results of orthogonal experimental design for extraction optimization of AZ-SFE. A represented extraction pressure, B represented extraction temperature, C represented extraction time and D was blank.
Table 2. Results of orthogonal experimental design for extraction optimization of AZ-SFE. A represented extraction pressure, B represented extraction temperature, C represented extraction time and D was blank.
RunFactorEvaluation Index
ABCDYield (%)Ligustilide Content (%)6-Gingerol Content (%)Score
111111.7415.518.0376.23
212221.8415.148.9979.34
313332.2015.198.9185.35
421231.8815.049.5880.96
522312.3514.257.7483.77
623122.9214.058.5094.65
731321.6813.689.7075.17
832132.0615.548.6683.04
933212.2912.589.5783.23
K180.3177.4584.6481.08
K286.4682.0581.1883.05
K380.4887.7481.4383.12
R6.1510.293.462.04
Table
Table 3. Variance analysis of orthogonal experimental design for extraction optimization of AZ-SFE. * p < 0.05.
Table 3. Variance analysis of orthogonal experimental design for extraction optimization of AZ-SFE. * p < 0.05.
FactorDFAnova SSMean SquareFP
Pressure273.6536.839.120.0988
Temperature2159.4379.7119.750.0482 *
Time222.3611.182.770.2652
Error28.074.04
Table
Table 4. Factors and levels for orthogonal experiment design for optimization of SFE extraction process.
Table 4. Factors and levels for orthogonal experiment design for optimization of SFE extraction process.
LevelFactor
Pressure (MPa)Temperature (°C)Time (h)
ABC
120351
230452
340553

Share and Cite

MDPI and ACS Style

Liu, J.; Yu, L.; Mo, N.; Lan, H.; Zhang, Y.; Liu, X.; Wu, Q. Supercritical Fluid Extract of Angelica sinensis and Zingiber officinale Roscoe Ameliorates TNBS-Induced Colitis in Rats. Int. J. Mol. Sci. 2019, 20, 3816. https://doi.org/10.3390/ijms20153816

AMA Style

Liu J, Yu L, Mo N, Lan H, Zhang Y, Liu X, Wu Q. Supercritical Fluid Extract of Angelica sinensis and Zingiber officinale Roscoe Ameliorates TNBS-Induced Colitis in Rats. International Journal of Molecular Sciences. 2019; 20(15):3816. https://doi.org/10.3390/ijms20153816

Chicago/Turabian Style

Liu, Jia, Ling Yu, Nuolan Mo, Hai Lan, Yan Zhang, Xin Liu, and Qing Wu. 2019. "Supercritical Fluid Extract of Angelica sinensis and Zingiber officinale Roscoe Ameliorates TNBS-Induced Colitis in Rats" International Journal of Molecular Sciences 20, no. 15: 3816. https://doi.org/10.3390/ijms20153816

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
