The Function of Inositol Phosphatases in Plant Tolerance to Abiotic Stress

by
Qi Jia
1,2,*,
Defeng Kong
1,
Qinghua Li
3,
Song Sun
1,
Junliang Song
1,
Yebao Zhu
4,
Kangjing Liang
1,
Qingming Ke
3,
Wenxiong Lin
1,2 and
Jinwen Huang
1,2,*
1
Key Laboratory for Genetics Breeding and Multiple Utilization of Crops, Ministry of Education/College of Crop Science, Fujian Agriculture and Forestry University, Fuzhou 350002, China
2
Key Laboratory of Crop Ecology and Molecular Physiology (Fujian Agriculture and Forestry University), Fujian Province University, Fuzhou 350002, China
3
Putian Institute of Agricultural Sciences, Putian 351144, China
4
Rice Research Institute, Fujian Academy of Agricultural Sciences, Fuzhou 350018, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(16), 3999; https://doi.org/10.3390/ijms20163999
Submission received: 30 June 2019 / Revised: 12 August 2019 / Accepted: 13 August 2019 / Published: 16 August 2019
(This article belongs to the Special Issue Plant Protein and Proteome Altlas--Integrated Omics Analyses of Plants under Abiotic Stresses)
Browse Figures
Versions Notes

Abstract

:
Inositol signaling is believed to play a crucial role in various aspects of plant growth and adaptation. As an important component in biosynthesis and degradation of myo-inositol and its derivatives, inositol phosphatases could hydrolyze the phosphate of the inositol ring, thus affecting inositol signaling. Until now, more than 30 members of inositol phosphatases have been identified in plants, which are classified intofive families, including inositol polyphosphate 5-phosphatases (5PTases), suppressor of actin (SAC) phosphatases, SAL1 phosphatases, inositol monophosphatase (IMP), and phosphatase and tensin homologue deleted on chromosome 10 (PTEN)-related phosphatases. The current knowledge was revised here in relation to their substrates and function in response to abiotic stress. The potential mechanisms were also concluded with the focus on their activities of inositol phosphatases. The general working model might be that inositol phosphatases would degrade the Ins(1,4,5)P3 or phosphoinositides, subsequently resulting in altering Ca2+ release, abscisic acid (ABA) signaling, vesicle trafficking or other cellular processes.

1. Introduction

Myo-inositol (Inositol, Ins) and its derivative metabolites are ubiquitous in all eukaryotes as both lipids and soluble compounds playing important roles in stress responses, development, and many other processes [1,2]. Upon environmental stresses, some of them are vital in various signal transduction in plants, especially inositol(1,4,5)triphosphate (Ins(1,4,5)P3) and phosphatidylinositol(4,5)bisphosphate (PtdIns(4,5)P2) [3,4,5,6,7]. They pass the cellular messages via addition or removal of lipids or phosphates to Ins and its derivatives, which could be mediated by synthases, kinases, phospholipases, and phosphatases [8,9]. Thus, those related enzymes are crucial in the regulation of these signaling pathways. In comparison to the other well-studied enzymes, limited information has been reviewed for the phosphatases in the Ins and phosphatidylinositol (PtdIns) signaling in plants. Here, we focus on these phosphatases and their function in abiotic tolerance.

2. The Biosynthesis and Degradation of Inositol and Its Derivatives

Inositol could be synthesized from glycolytic glucose-6-phosphate (Glc6P) or be regenerated from various phosphate forms of inositol, which is produced during the metabolism of phosphoinositides. As shown in Figure 1, Glc6P is catalyzed to myo-inositol-3-phosphate (Ins3P) by myo-inositol-3-phosphate synthase (MIPS). Subsequently, Ins3P is dephosphorylated by inositol monophosphatase (IMP) to form inositol. IMP is also responsible for the dephosphorylation of myo-inositol-4-phosphate (Ins4P) [10,11]. Free inositol could be linked to glycerophospholipid to generate the basic inositol containing phospholipid, phosphatidylinositol (PtdIns), by phosphatidylinositol synthase (PIS) [5]. The hydroxyl groups of PtdIns could be phosphorylated at the positions 3, 4, and 5 of the lipid head group sequentially by a series of PtdIns kinases. Unlike the animals, plants have evolved only five phosphorylated isomers, including three PtdIns monophosphates (PtdIns3P, PtdIns4P, PtdIns5P) and two PtdIns bisphosphates (PtdIns(3,5)P2, PtdIns(4,5)P2). The other two, PtdIns(3,4)P2 and PtdIns(3,4,5)P3, identified in animals, have not been found in plants [4,12].
On the other hand, PtdIns4P and PtdIns(4,5)P2 can be hydrolyzed into diacylglycerol (DAG) and the corresponding phosphoinositide phosphates (PtdInsPs) by phospholipase C (PLC) (Figure 1) [13]. DAG and inositol-1,4,5-trisphosphate (Ins(1,4,5)P3, also abbreviated as IP3 in this article) are believed as second messages for various signal transduction. In brief, the membrane-localized DAG activates the protein kinase C (PKC) and the soluble InsP3 diffuses in cytosol to release Ca2+ from intracellular stores via a ligand-gated Ca2+ channel [5,14]. DAG can also be used to generate phosphatidic acid (PA), which is also an important signaling molecule [6]. Those inositol polyphosphates can be further phosphorylated by inositol polyphosphate multi kinases (IPKs) and stored as phytic acid (inositol-1,2,3,4,5,6-hexakisphosphate, InsP6) in seeds and other storage tissues [4,15]. InsP6 has been identified as a signaling molecular to regulate Ca2+ release as well [6]. Moreover, InsP6 could be converted to pyrophosphates, denoted as PPx-InsPs [16]. Notably under abiotic stress, there are crosstalks between the Ins signaling pathway and phytohormones, especially abscisic acid (ABA) [4,6].

3. Phosphatases in Inositol Signaling Pathways

Among the processes of inositol phosphate (IP) and the phosphoinositide (PI) signaling pathway, dephosphorylation is catalyzed by specific inositol phosphatases on various substrates (Figure 1). Until now, dozens of enzymes have been identified, including inositol polyphosphate 5-phosphatases (5PTases), suppressor of actin (SAC) phosphatases, SAL1 phosphatase/FIERY1 (FRY1) and its homologs, inositol monophosphatase (IMP), and phosphatase and tensin homologue deleted on chromosome 10 (PTEN)-related phosphatases (Figure 2). Most knowledge of them was obtained from the studies in the model plant Arabidopsis thaliana. These plant inositol phosphatases have a broad function in development and adaptation by altering the IP or PI signaling pathways. The general information of those Arabidopsis proteins was listed in Table 1. Interestingly, one certain inositol phosphatase could hydrolyze several substrates, even both inositol phosphate and phosphoinositide. One substrate could be degraded by more than one enzyme as well, suggesting their redundant roles in multiple aspects of life processes.
The 5PTases family is the biggest family of the mentioned inositol phosphatases, containing 15 members in Arabidopsis, 21 in rice, and 39 in soybean [17]. 5PTases hydrolyze the phosphate bond on the 5-position of the inositol ring from both inositol phosphate and phosphoinositide with the conserved inositol polyphosphate phosphatase catalytic (IPPc) domain. Due to the substrate specificity, mammalian 5PTases have been classified into four groups [18]. Group I, 5PTases hydrolyze only the water-soluble inositol polyphosphates (Ins(1,4,5)P3 and Ins(1,3,4,5)P4); group II the water-soluble inositol polyphosphates and the membrane-bound phosphoinositide; group III, Ins(1,3,4,5)P4 and PtdIns(3,4,5)P3 with a 3-position phosphate group; and group IV only phosphoinositide. Similar as the mammalian counterparts, plant 5PTases also have various substrate specificities. The substrates have been identified by biochemical evidences for twelve of the fifteen Arabidopsis 5PTases, including Group I, Group II, and Group IV 5PTases (Table 1). Since several 5PTases could hydrolyze Ins(1,4,5)P3 to prevent its accumulation, it is believed to terminate the corresponding Ins(1,4,5)P3 pathway and alter abscisic acid (ABA) signaling, Ca2+ release, and reactive oxygen species (ROS) production [19,20,21].
The SAC phosphatases are polyphosphoinositide phosphatases, containing the enzymatic SAC domain [22]. There are nine members in Arabidopsis [23]. Most Arabidopsis SAC phosphatases have a ubiquitous expression pattern, except for AtSAC6 which is only expressed in flowers under normal growth condition. Their expression was not altered by treatment with phytohormones (auxin, cytokinin, GA, and ABA) [23]. When two-week-old seedlings were treated with various stresses (dark, cold, salt, and wounding), only AtSAC6 has been identified to be induced by salt stress, indicating it would be involved in salt response [23]. Besides, the sac9 mutants exhibit a constitutive stress response with highly up-regulated stress-induced genes and over-accumulation of ROS [24]. Though there is limited knowledge on their substrate specificity, SAC phosphatases have been found to affect the accumulation of some certain phosphatidylinositol phosphates, such as PtdIns(4,5)P2, PtdIns(3,5)P2, and PtdIns4P, in addition to having a possible role in vesicle trafficking [24,25,26].
Comparing to 5PTases and SAC phosphatases, there are fewer members in the SAL, IMP, and PTEN families and most of them behave as bifunctional enzymes (Table 1). AtSAL1 and AtSAL2 exhibit the activities of not only inositol polyphosphate 1-phosphatase but also 3’(2’),5’-bisphosphate nucleotidase [47,56]. The other SAL1 homologues without inositol phosphatases are not listed here. AtSAL1 has been identified as an important player in response to various stresses, probably through both enzyme activities [48,49,51,53,63,64,65]. Three IMP members have been identified in Arabidopsis [11]. IMP and inositol monophosphatase-like 1 (IMPL1) exhibit bifunctional activities affecting both inositol and ascorbate synthesis pathways, whereas IMPL2 is a histidinol-phosphate phosphatase affecting histone biosynthesis pathways [57,66]. The IMPs from other plants have been shown to play a role in stress tolerance [67,68,69], which we will discuss later. PTEN members are also dual phosphatases for protein and phosphoinositide phosphates [62]. The transcript and protein analyses showed that AtPTEN2a and AtPTEN2b were up-regulated at transcriptional level, but not at protein level under salt and osmotic stress [62], suggesting their potential roles in plant adaptation to stress. But no further evidence has been reported yet.

4. Function of Inositol Phosphatases under Abiotic Stress

4.1. 5PTases and Plant Responses to Abiotic Stress

The capacity of 5PTases hydrolyzing IP3 is believed to be vital in the termination of IP3, consequently altering Ca2+ oscillations, ABA signaling, and other stress-related pathways. The transgenic Arabidopsis plants overexpressing mammalian type I (group I) inositol polyphosphate 5-phosphatase (InsP 5-ptase) exhibited increased drought tolerance with less water loss [70]. The contents of IP3 and IP6 were decreased in the transgenic lines as expected, thus attenuating ABA induction and Ca2+ signal transduction. The stomata were less responsive to the inhibition of opening by ABA and more sensitive to ABA-induced closure. Furthermore, the microarray data showed that dehydration-responsive element-binding protein 2A (DREB2A), encoding a drought-inducible ABA-independent transcription factor, and the DREB2A-regulated genes were induced in the InsP 5-ptase transgenic plants, suggesting the drought tolerance is mediated via the DREB2A-dependent pathway [70].
For plant 5PTases, it is common to take a role in the degradation process of inositol phosphate or phosphoinositide, terminating the IP3 signaling, thus altering of ABA pathway and Ca2+ release, which is believed to be vital in stress tolerance [19,21,34,39]. However, only three of the 15 At5PTases have been identified to play important roles in abiotic stress with genetic and biochemical evidences until now. At5PTase7 and At5PTase9 function in salt tolerance, and At5PTase13 in low nutrient and sugar stress [35,36,41].
The T-DNA insertion mutants of At5PTase7 or At5PTase9 increased salt sensitivity and the overexpression plants increased salt tolerance [35,36]. Mutation in either At5PTase7 or At5PTase9 reduced ROS production in the Arabidopsis roots after 10 to 15 min after salt treatment. Additionally, the expression of salt-responsive genes, such as RD29A and RD22, was not induced highly in both mutants as in the wild-type under salt stress [35,36]. It suggested that the defect in At5PTase7 or At5PTase9 would disturb ROS production and salt-responsive gene expression, probably hampering the subsequent rescue signal transduction. Interestingly, the At5PTase9 mutants appeared to have a better ability to resistant osmotic stress. Meanwhile, the At5PTase9 mutants decreased Ca2+ influx and fluid-phase endocytosis [36]. Though the At5PTase7 and At5PTase9 isomers take non-redundant roles in regulating plant responses to salt stress, they share the same substrates, membrane-bound phosphoinositide, indicating that phosphoinositide would be important in salt tolerance [36].
At5TPase13 is one of the four At5TPases (At5TPase12-15), which contain the plant specific WD40 repeats [38,44]. The T-DNA insertion mutants of At5TPase13 showed a reduction of root growth under limited nutrient conditions and germination rates in response to sugar stress, along with ABA insensitivity [41]. The yeast two-hybrid analyses suggested that its WD40 repeat domain interacts with the sucrose nonfermenting-1-related kinase (SnRK1.1), which is an energy/stress sensor [41]. The genetic and biochemical evidences indicated that At5TPase13 acts as a positive regulator of SnRK1.1 under low-nutrient or low-sugar conditions, as a negative regulator under severe starvation conditions through affecting the proteasomal degradation of SnRK1.1. Strangely, the At5ptase13 mutants accumulate less IP3 in response to sugar stress [41]. Again, At5PTase13 could alter cytosolic Ca2+ to regulate PHOYOTROPIN1 signaling under blue light [40].
Besides, several transcriptional analyses showed that the expression of multiple At5PTases is greatly up- or down-regulated in response to a series of abiotic stresses, such as cold, osmotic, salt, drought, oxidative, and heat [35,36,71]. Considering the general function of the known 5PTases in the inositol pathway, Ca2+ signaling, ABA responses, ROS generation, vesicle trafficking, and possible connection with other phytohormones [43,71], it could imply their potential roles in plant responses to abiotic stress.

4.2. SAL1 and Plant Responses to Abiotic Stress

AtSAL1, identified as a homologue of the yeast HAL2 in Arabidopsis and also well-known as FIERY1 (FRY1), has dual enzymatic activity of inositol phosphatase and nucleotidase, which play a role in both inositol signaling and nucleotide metabolite [47,48]. AtSAL1 functions broadly in responses to abiotic stresses, including salt, cold, lithium, drought, cadmium, high light, and oxidative, probably with the contributions of both enzymatic activity [48,49,51,52,53,63,72,73]. Here we will focus on its activity of inositol polyphosphate 1-phosphatase. Remarkably, it can hydrolyze the signaling molecular IP3, thus affecting the subsequent steps in a similar pattern of 5PTases, which we have discussed above.
It seems the effects of AtSAL1 on stress responses are controversial. Ectopic expression of AtSAL1 could increase lithium tolerance in yeast by modifying Na+ and Li+ effluxes [47]. Ectopic expression of its homologue in soybean, GmSAL1, could alleviate salinity stress in tobacco BY-2 cells [74]. Mutation in AtSAL1 would cause more sensitivity to salt, osmotic, and cold stress in Arabidopsis [48,72]. However, another Atsal1 mutant, hos2 with a single amino acid substitution exhibited as more resistant to lithium and salt stress [72]. Moreover, overexpression of AtSAL1 or ectopic expression of GmSAL1 could not enhance salt tolerance in Arabidopsis [49,74]. Loss function in AtSAL1 would enhance drought and cadmium resistance in Arabidopsis, suggesting it would be a negative regulator of stress tolerance [51,63]. Expressing the modified SAL1, by inserting the META motif from black yeast Aureobasidium pullulans, ApHal2, improved salt and drought tolerance in Arabidopsis [73]. It seems the presence of the META motif should be responsible for its ability on the stress tolerance, but the mechanism is still obscure.
The molecular mechanism of AtSAL1 in stress responses seems to be complicated for its multiple effects in various cellular processes. First, AtSAL1 would regulate stress tolerance and ABA responses via IP3 signaling. The Atsal1 mutants increase IP3 accumulation and the expression levels of ABA and stress genes, including RD29A, cold-specific CRT-binding factor 2 (CBF2), and CBF3 [48]. On the contrary, ectopic expression of GmSAL1 leads to a reduction of IP3 accumulation and suppression of the ABA-induced stomatal closure [74]. Furthermore, it also showed AtSAL1 could regulate Ca2+ release and modulate the auxin pathway by IP3 signaling in plant development [54,55]. It seems a similar consequence of AtSAL1 in the IP3 signaling as for 5PTases. Maybe further investigation will supply evidence that AtSAL1 takes a role in Ca2+ release and its downstream signaling in response to abiotic stress as well. Secondly, AtSAL1 also regulates the ion homeostasis via the IP3 pathway. Ectopic expression of AtSAL1 could modify Na+ and Li+ effluxes in yeast for lithium and salt tolerance [47]. GmSAL1-transgenic BY-2 cells could compartmentalize more Na+ in vacuolar for protection from salt stress [74]. Additionally, AtSAL1 takes a role more likely as a phosphoadenosine phosphatase under drought, high light, and oxidative stress, for only 3′-phosphoadenosine 5′-phosphate (PAP), not IP3, accumulated in the Atsal1 mutants, when suffering stresses [49,52,53,65]. The genetic evidences indicated that PAP accumulation could also affect the ABA pathway, relying on, rather, the negative regulator ABH1 in the branched ABA pathway, than ABI1 in the core ABA pathway [49]. AtSAL1 could protect 5′ to 3′ exoribonucleases (XRNs) by degrading PAP and subsequently modulate the expression of the corresponding nuclear genes, supposed as the chloroplast retrograde pathway [52,53,65]. Besides, the AtSAL1-deficient mutants have been found to attenuate endoplasmic reticulum (ER) stress under cadmium stress [63]. But no exploration has been made to determine its connection with the IP3 signaling or SAL1-PAP pathway. This would provide a new insight on the mechanism of AtSAL1 in various stress tolerance [63].

4.3. IMPs and Plant Responses to Abiotic Stress

IMPs were first identified in tomato to play a role in inositol synthesis with high sensitivity to lithium [10]. Their homologues in Arabidopsis have also been characterized as multi-functional enzymes involved in inositol, ascorbate, and histone biosynthesis [57,59,66], so do their homologues in other plants, such as rice (Oryza sativa L.), chickpea (Cicer arietinum L.), soybean (Glycine max), barley (Hordeum vulgare), and Medicago truncatula [68,69,75]. The genetic studies showed that IMPs play a role in seed development in Arabidopsis [11]. Chickpea IMP could also influence seed size/weight [76]. But few explorations have been made with Arabidopsis IMP on stress tolerance yet. Only some authors have tried assays in chickpea and rice suggesting that IMPs also function in response to abiotic stress [67,68,69]. But it is still unclear how IMPs influence the inositol pathway to confer stress.
Biochemical evidence demonstrated that CaIMP contains the same enzyme activity as Arabidopsis IMP and IMP activity is increased in chickpea seedlings under abiotic stresses, including salt, cold, heat, dehydration, and paraquat. It is consistent with the results of the transcript analyses by qRT-PCR, which showed that CaIMP is induced under abiotic stress and ABA treatment [69]. The CaIMP-transgenic Arabidopsis plants exhibited enhanced tolerance to abiotic stress, whereas the IMP-deficient Arabidopsis mutants increased the sensitivity to stress during seed germination and seedling growth. The inositol content and ascorbate content of the CaIMP-overexpressing lines are higher than the wild-type and the vector control, suggesting CaIMP would improve the plant tolerance to stress through both metabolic pathways [69]. Association analyses performed with 60 chickpea germplasm accessions showed that NCPGR90, a simple sequence repeat marker for phytic acid content and drought tolerance, is located to the 5’UTR of CaIMP [68]. The transcript lengths of CaIMP are different between the drought-tolerant and drought-susceptible accessions, suggesting this variation might regulate phytic acid contents in plants, thus conferring drought tolerance in chickpea [68]. In another study, this variation also causes the differential protein level and enzymatic activity of CaIMP [76].
Rice OsIMP is significantly upregulated by cold and ABA treatment by transcript analyses [67]. The promoter analyses on sequence also identified several important stress-responding cis-acting elements, including ABRE-element (abscisic acid responsiveness), LTR (low-temperature responsiveness), TCA-element (salicylic acid responsiveness), GARE-motif (gibberellins responsive), and MBS (MYB binding site). Ectopic expression of OsIMP in tobacco improved cold tolerance. The transgenic plants contained more inositol content, less hydrogen peroxide (H2O2), and less malondialdehyde (MDA), with increased antioxidant enzyme activities under normal and cold stress conditions [67]. It suggested that the accumulation of inositol by expressing OsIMP would modulate the antioxidant enzymes’ activities to conquer cold stress.

5. Conclusions

Substantial evidences demonstrate inositol phosphates, phosphoinositides, and the related inositol signaling play a crucial role in various life processes of development and environmental adaptation in plants [1,4,6,7,12]. When plants suffer abiotic stress from the environment, a membrane receptor would accept the stimulus and the membrane-associated phosphoinositides would pass the cellular message by producing second messages, lipid-bound DAG, and soluble IP3. Components involved in the inositol pathways have been noted for their general roles in stress tolerance. This article focused on the knowledge about inositol phosphatases, which are considered to be more important in the degradation pathway of IP3 signaling, and their function in plant responses to abiotic stress.
Around 30 members of inositol phosphatases from five families have been identified. Their functions and mechanisms are still largely unknown. Biochemical and physiological data, especially those from analytical techniques, have delineated their substrates and the affecting signals. Moreover, the genetic evidences elucidate the genes’ function and how to pass the signals. In general, loss-in-function of inositol phosphatases usually cause the accumulation of IP3 or phosphoinositides, thus facilitating Ca2+ release from cellular stores and affecting ABA or other phytohormones’ pathways. For their effects on lipid-bound phosphoinositides, several enzymes have been proved to be involved in vesicle trafficking. For most of the inositol phosphatases, the existed evidences could only support part of the model. There are also some other puzzles. Since phytic acid (InsP6) could also serve as a signaling molecule to regulate Ca2+ release [6], what is the role of inositol phosphatases in this process? There are multiple genes in the same family, especially 5PTases and SAC phosphatases. How do plants coordinate their function? Most of the knowledge about these enzymes is obtained from the mode plant Arabidopsis. Study from other plants is relatively rare. Do these inositol phosphatases take a universal role in all plants under abiotic stress? Hopefully, more exploration will expand our understanding about inositol phosphatases.

Author Contributions

Conceptualization, Q.J., J.H. and W.L.; invesitigation, Q.J., Q.L., Y.Z. and Q.K.; resources, Q.J., D.K., S.S., J.S.; writing—original draft preparation, Q.J.; writing—review and editing, Q.J., D.K. and Q.L.; visualization, Q.J.; supervison, Q.J. and J.H.; project administration, K.L., Q.K. and W.L.; funding acquisition, Q.J.

Funding

This work is funded by the National Natural Science Foundation of China (31501232), the China Postdoctoral Science Foundation (2014T70603, 2013M540527), the Fujian Agriculture and Forestry University (FAFU) Science Fund for Distinguished Young Scholars (xjq201629), and the FAFU Science Grant for Innovation (CXZX2018119).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

ABAabscisic acid
ABREabscisic acid responsiveness
BST1BRISTLED1
CBFCRT-binding factor
CVL1CVP2-like1
CVP2cotyledon vascular pattern2
DAGdiacylglycerol
DGPPdiacylglycerol pyrophosphate
DREB2Adehydration-responsive element-binding protein 2A
ERendoplasmic reticulum
FRA3fragile fiber 3
FRA7fragile fiber 7
FRY1FIERY1
Glc6Pglucose-6-phosphate
GAREgibberellins responsive
HOS2high expression of osmotic stress-regulated gene expression 2
IMPmyo-inositol monophosphatase
IMPLinositol monophosphatase-like
Insinositol
InsP 5-ptaseinositol polyphosphate 5-phosphatase
IPinositol phosphate
IP3Inositol(1,4,5)trisphosphate
IPKinositol polyphosphate multi kinase
IPPcinositol polyphosphate phosphatase catalytic
LTRlow-temperature responsiveness
MBSMYB binding site
MDAmalondialdehyde
MRH3root hair morphogenesis 3
MIPSmyo-inositol-3-phosphate synthase
Pphosphate
PAphosphatidic acid
PAP3′-phosphoadenosine 5’-phosphate
PAPS2’-PAP and 3’-phosphoadenosine 5’-phosphosulfate
PIphosphoinositide
PIP5KPtIns4P 5-kinase
PIP4KPtIns4P 4-kinase
PISphosphatidylinositol synthase
PKCprotein kinase C
PLCphospholipase C
PPx-InsPspyrophosphates
PTENphosphatase and tensin homologue deleted on chromosome 10
PtdInsphosphatidylinositol
RHD4root hair defective 4
RON1rotunda 1
ROSreactive oxygen species
SACsuppressor of actin
SnRK1.1sucrose nonfermenting-1-related kinase
TCAsalicylic acid responsiveness
VTC4vitamin C 4
XRN5′ to 3′ exoribonuclease
5PTasesinositol polyphosphate 5-phosphatases

References

  1. Valluru, R.; Van den Ende, W. myo-inositol and beyond—Emerging networks under stress. Plant Sci. 2011, 181, 387–400. [Google Scholar] [CrossRef] [PubMed]
  2. Michell, R.H. Inositol derivatives: Evolution and functions. Nat. Rev. Mol. Cell Biol. 2008, 9, 151–161. [Google Scholar] [CrossRef] [PubMed]
  3. Heilmann, M.; Heilmann, I. Plant phosphoinositides—Complex networks controlling growth and adaptation. Biochim. Biophys. Acta Mol. Cell Biol. Lipids 2015, 1851, 759–769. [Google Scholar] [CrossRef] [PubMed]
  4. Gillaspy, G.E. The cellular language of myo-inositol signaling. New Phytol. 2011, 192, 823–839. [Google Scholar] [CrossRef] [PubMed]
  5. Munnik, T.; Vermeer, J.E.M. Osmotic stress-induced phosphoinositide and inositol phosphate signalling in plants. Plant Cell Environ. 2010, 33, 655–669. [Google Scholar] [CrossRef] [PubMed]
  6. Hou, Q.; Ufer, G.; Bartels, D. Lipid signalling in plant responses to abiotic stress. Plant Cell Environ. 2016, 39, 1029–1048. [Google Scholar] [CrossRef] [PubMed]
  7. Xue, H.-W.; Chen, X.; Mei, Y. Function and regulation of phospholipid signalling in plants. Biochem. J. 2009, 421, 145–156. [Google Scholar] [CrossRef]
  8. Michell, R.H. Inositol and its derivatives: Their evolution and functions. Adv. Enzyme Regul. 2011, 51, 84–90. [Google Scholar] [CrossRef]
  9. Xiong, L.; Schumaker, K.S.; Zhu, J.-K. Cell signaling during cold, drought, and salt stress. Plant Cell 2002, 14, S165–S183. [Google Scholar] [CrossRef]
  10. Gillaspy, G.E.; Keddie, J.S.; Oda, K.; Gruissem, W. Plant inositol monophosphatase is a lithium-sensitive enzyme encoded by a multigene family. Plant Cell 1995, 7, 2175–2185. [Google Scholar]
  11. Sato, Y.; Yazawa, K.; Yoshida, S.; Tamaoki, M.; Nakajima, N.; Iwai, H.; Ishii, T.; Satoh, S. Expression and functions of myo-inositol monophosphatase family genes in seed development of Arabidopsis. J. Plant Res. 2011, 124, 385–394. [Google Scholar] [CrossRef] [PubMed]
  12. Heilmann, I. Phosphoinositide signaling in plant development. Development 2016, 143, 2044–2055. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Hong, Y.; Zhao, J.; Guo, L.; Kim, S.-C.; Deng, X.; Wang, G.; Zhang, G.; Li, M.; Wang, X. Plant phospholipases D and C and their diverse functions in stress responses. Prog. Lipid Res. 2016, 62, 55–74. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Van Leeuwen, W.; Ökrész, L.; Bögre, L.; Munnik, T. Learning the lipid language of plant signalling. Trends Plant Sci. 2004, 9, 378–384. [Google Scholar] [CrossRef] [PubMed]
  15. Xia, H.J.; Yang, G. Inositol 1,4,5-trisphosphate 3-kinases: Functions and regulations. Cell Res. 2005, 15, 83–91. [Google Scholar] [CrossRef] [PubMed]
  16. Williams, S.P.; Gillaspy, G.E.; Perera, I.Y. Biosynthesis and possible functions of inositol pyrophosphates in plants. Front. Plant Sci. 2015, 6, 67. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, Z.; Li, Y.; Luo, Z.; Kong, S.; Zhao, Y.; Zhang, C.; Zhang, W.; Yuan, H.; Cheng, L. Expansion and Functional Divergence of Inositol Polyphosphate 5-Phosphatases in Angiosperms. Genes 2019, 10, 393. [Google Scholar] [CrossRef] [PubMed]
  18. Majerus, P.W.; Kisseleva, M.V.; Norris, F.A. The Role of Phosphatases in Inositol Signaling Reactions. J. Biol. Chem. 1999, 274, 10669–10672. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Berdy, S.E.; Kudla, J.; Gruissem, W.; Gillaspy, G.E. Molecular characterization of At5PTase1, an inositol phosphatase capable of terminating inositol trisphosphate signaling. Plant Physiol. 2001, 126, 801–810. [Google Scholar] [CrossRef]
  20. Sanchez, J.-P.; Chua, N.-H. Arabidopsis PLC1 Is Required for Secondary Responses to Abscisic Acid Signals. Plant Cell 2001, 13, 1143–1154. [Google Scholar] [CrossRef]
  21. Burnette, R.N. An Arabidopsis Inositol 5-Phosphatase Gain-of-Function Alters Abscisic Acid Signaling. Plant Physiol. 2003, 132, 1011–1019. [Google Scholar] [CrossRef] [PubMed]
  22. Despres, B.; Bouissonnié, F.; Wu, H.-J.; Gomord, V.; Guilleminot, J.; Grellet, F.; Berger, F.; Delseny, M.; Devic, M. Three SAC1-like genes show overlapping patterns of expression in Arabidopsis but are remarkably silent during embryo development. Plant J. 2003, 34, 293–306. [Google Scholar] [CrossRef] [PubMed]
  23. Zhong, R.; Ye, Z.-H. The SAC Domain-Containing Protein Gene Family in Arabidopsis. Plant Physiol. 2003, 132, 544–555. [Google Scholar] [CrossRef] [PubMed]
  24. Williams, M.E.; Torabinejad, J.; Cohick, E.; Parker, K.; Drake, E.J.; Thompson, J.E.; Hortter, M.; Dewald, D.B. Mutations in the Arabidopsis phosphoinositide phosphatase gene SAC9 lead to overaccumulation of PtdIns(4,5)P2 and constitutive expression of the stress-response pathway. Plant Physiol. 2005, 138, 686–700. [Google Scholar] [CrossRef] [PubMed]
  25. Thole, J.M.; Vermeer, J.E.M.; Zhang, Y.; Gadella, T.W.J.; Nielsen, E. Root hair defective4 encodes a phosphatidylinositol-4-phosphate phosphatase required for proper root hair development in Arabidopsis thaliana. Plant Cell 2008, 20, 381–395. [Google Scholar] [CrossRef] [PubMed]
  26. Nováková, P.; Hirsch, S.; Feraru, E.; Tejos, R.; van Wijk, R.; Viaene, T.; Heilmann, M.; Lerche, J.; De Rycke, R.; Feraru, M.I.; et al. SAC phosphoinositide phosphatases at the tonoplast mediate vacuolar function in Arabidopsis. Proc. Natl. Acad. Sci. USA 2014, 111, 2818–2823. [Google Scholar] [CrossRef] [PubMed]
  27. Ercetin, M.E.; Gillaspy, G.E. Molecular characterization of an Arabidopsis gene encoding a phospholipid-specific inositol polyphosphate 5-phosphatase. Plant Physiol. 2004, 135, 938–946. [Google Scholar] [CrossRef] [PubMed]
  28. Gunesekera, B.; Torabinejad, J.; Robinson, J.; Gillaspy, G.E. Inositol Polyphosphate 5-Phosphatases 1 and 2 Are Required for Regulating Seedling Growth. Plant Physiol. 2007, 143, 1408–1417. [Google Scholar] [CrossRef] [Green Version]
  29. Ercetin, M.E. Molecular Characterization and Loss-of-Function Analysis of an Arabidopsis thaliana Gene Encoding a Phospholipid-Specific Inositol Polyphosphate 5-Phosphatase. Ph.D. Thesis, Virginia Polytechnic Institute and State University, Blacksburg, VA, USA, 19 May 2005. [Google Scholar]
  30. Jones, M.A.; Raymond, M.J.; Smirnoff, N. Analysis of the root-hair morphogenesis transcriptome reveals the molecular identity of six genes with roles in root-hair development in Arabidopsis. Plant J. 2006, 45, 83–100. [Google Scholar] [CrossRef]
  31. Parker, J.S.; Cavell, A.C.; Dolan, L.; Roberts, K.; Grierson, C.S. Genetic Interactions during Root Hair Morphogenesis in Arabidopsis. Plant Cell 2000, 12, 1961–1974. [Google Scholar] [CrossRef]
  32. Carland, F.M.; Nelson, T. COTYLEDON VASCULAR PATTERN2–Mediated Inositol (1,4,5) Triphosphate Signal Transduction Is Essential for Closed Venation Patterns of Arabidopsis Foliar Organs. Plant Cell 2004, 16, 1263–1275. [Google Scholar] [CrossRef] [PubMed]
  33. Carland, F.; Nelson, T. CVP2- and CVL1-mediated phosphoinositide signaling as a regulator of the ARF GAP SFC/VAN3 in establishment of foliar vein patterns. Plant J. 2009, 59, 895–907. [Google Scholar] [CrossRef] [PubMed]
  34. Rodriguez-Villalon, A.; Gujas, B.; van Wijk, R.; Munnik, T.; Hardtke, C.S. Primary root protophloem differentiation requires balanced phosphatidylinositol-4,5-biphosphate levels and systemically affects root branching. Development 2015, 142, 1437–1446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Kaye, Y.; Golani, Y.; Singer, Y.; Leshem, Y.; Cohen, G.; Ercetin, M.; Gillaspy, G.; Levine, A. Inositol Polyphosphate 5-Phosphatase7 Regulates the Production of Reactive Oxygen Species and Salt Tolerance in Arabidopsis. Plant Physiol. 2011, 157, 229–241. [Google Scholar] [CrossRef] [PubMed]
  36. Golani, Y.; Kaye, Y.; Gilhar, O.; Ercetin, M.; Gillaspy, G.; Levine, A. Inositol Polyphosphate Phosphatidylinositol 5-Phosphatase9 (At5PTase9) Controls Plant Salt Tolerance by Regulating Endocytosis. Mol. Plant 2013, 6, 1781–1794. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Ercetin, M.E.; Ananieva, E.A.; Safaee, N.M.; Torabinejad, J.; Robinson, J.Y.; Gillaspy, G.E. A phosphatidylinositol phosphate-specific myo-inositol polyphosphate 5-phosphatase required for seedling growth. Plant Mol. Biol. 2008, 67, 375–388. [Google Scholar] [CrossRef]
  38. Zhong, R.; Ye, Z.-H. Molecular and biochemical characterization of three WD-repeat-domain-containing inositol polyphosphate 5-phosphatases in Arabidopsis thaliana. Plant Cell Physiol. 2004, 45, 1720–1728. [Google Scholar] [CrossRef]
  39. Wang, Y.; Chu, Y.-J.; Xue, H.-W. Inositol polyphosphate 5-phosphatase-controlled Ins(1,4,5)P3/Ca2+ is crucial for maintaining pollen dormancy and regulating early germination of pollen. Development 2012, 139, 2221–2233. [Google Scholar] [CrossRef]
  40. Chen, X.; Lin, W.-H.; Wang, Y.; Luan, S.; Xue, H.-W. An Inositol Polyphosphate 5-Phosphatase Functions in PHOTOTROPIN1 Signaling in Arabidopis by Altering Cytosolic Ca2+. Plant Cell 2008, 20, 353–366. [Google Scholar] [CrossRef]
  41. Ananieva, E.A.; Gillaspy, G.E.; Ely, A.; Burnette, R.N.; Erickson, F.L. Interaction of the WD40 Domain of a myoinositol Polyphosphate 5-Phosphatase with SnRK1 Links Inositol, Sugar, and Stress Signaling. Plant Physiol. 2008, 148, 1868–1882. [Google Scholar] [CrossRef]
  42. Wang, Y.; Lin, W.-H.; Chen, X.; Xue, H.-W. The role of Arabidopsis 5PTase13 in root gravitropism through modulation of vesicle trafficking. Cell Res. 2009, 19, 1191–1204. [Google Scholar] [CrossRef] [PubMed]
  43. Lin, W.-H.; Wang, Y.; Mueller-Roeber, B.; Brearley, C.A.; Xu, Z.-H.; Xue, H.-W. At5PTase13 Modulates Cotyledon Vein Development through Regulating Auxin Homeostasis. Plant Physiol. 2005, 139, 1677–1691. [Google Scholar] [CrossRef] [PubMed]
  44. Zhong, R.; Burk, D.H.; Morrison, W.H.; Ye, Z.-H. FRAGILE FIBER3, an Arabidopsis gene encoding a type II inositol polyphosphate 5-phosphatase, is required for secondary wall synthesis and actin organization in fiber cells. Plant Cell 2004, 16, 3242–3259. [Google Scholar] [CrossRef] [PubMed]
  45. Zhong, R.; Burk, D.H.; Nairn, C.J.; Wood-Jones, A.; Morrison, W.H.; Ye, Z.-H. Mutation of SAC1, an Arabidopsis SAC domain phosphoinositide phosphatase, causes alterations in cell morphogenesis, cell wall synthesis, and actin organization. Plant Cell 2005, 17, 1449–1466. [Google Scholar] [CrossRef] [PubMed]
  46. Vollmer, A.H.; Youssef, N.N.; DeWald, D.B. Unique cell wall abnormalities in the putative phosphoinositide phosphatase mutant AtSAC9. Planta 2011, 234, 993–1005. [Google Scholar] [CrossRef] [PubMed]
  47. Quintero, F.J.; Garciadeblás, B.; Rodríguez-Navarro, A. The SAL1 gene of Arabidopsis, encoding an enzyme with 3’(2’),5’-bisphosphate nucleotidase and inositol polyphosphate 1-phosphatase activities, increases salt tolerance in yeast. Plant Cell 1996, 8, 529–537. [Google Scholar] [PubMed]
  48. Xiong, L.; Lee, B.; Ishitani, M.; Lee, H.; Zhang, C.; Zhu, J.K. FIERY1 encoding an inositol polyphosphate 1-phosphatase is a negative regulator of abscisic acid and stress signaling in Arabidopsis. Genes Dev. 2001, 15, 1971–1984. [Google Scholar] [CrossRef]
  49. Chen, H.; Zhang, B.; Hicks, L.M.; Xiong, L. A Nucleotide Metabolite Controls Stress-Responsive Gene Expression and Plant Development. PLoS ONE 2011, 6, e26661. [Google Scholar] [CrossRef]
  50. Kim, B.-H.; von Arnim, A.G. FIERY1 regulates light-mediated repression of cell elongation and flowering time via its 3′(2′),5′-bisphosphate nucleotidase activity. Plant J. 2009, 58, 208–219. [Google Scholar] [CrossRef]
  51. Wilson, P.B.; Estavillo, G.M.; Field, K.J.; Pornsiriwong, W.; Carroll, A.J.; Howell, K.A.; Woo, N.S.; Lake, J.A.; Smith, S.M.; Harvey Millar, A.; et al. The nucleotidase/phosphatase SAL1 is a negative regulator of drought tolerance in Arabidopsis. Plant J. 2009, 58, 299–317. [Google Scholar] [CrossRef]
  52. Estavillo, G.M.; Crisp, P.A.; Pornsiriwong, W.; Wirtz, M.; Collinge, D.; Carrie, C.; Giraud, E.; Whelan, J.; David, P.; Javot, H.; et al. Evidence for a SAL1-PAP Chloroplast Retrograde Pathway That Functions in Drought and High Light Signaling in Arabidopsis. Plant Cell 2011, 23, 3992–4012. [Google Scholar] [CrossRef] [PubMed]
  53. Chan, K.X.; Mabbitt, P.D.; Phua, S.Y.; Mueller, J.W.; Nisar, N.; Gigolashvili, T.; Stroeher, E.; Grassl, J.; Arlt, W.; Estavillo, G.M.; et al. Sensing and signaling of oxidative stress in chloroplasts by inactivation of the SAL1 phosphoadenosine phosphatase. Proc. Natl. Acad. Sci. USA 2016, 113, E4567–E4576. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Robles, P.; Fleury, D.; Candela, H.; Cnops, G.; Alonso-Peral, M.M.; Anami, S.; Falcone, A.; Caldana, C.; Willmitzer, L.; Ponce, M.R.; et al. The RON1/FRY1/SAL1 gene is required for leaf morphogenesis and venation patterning in Arabidopsis. Plant Physiol. 2010, 152, 1357–1372. [Google Scholar] [CrossRef] [PubMed]
  55. Zhang, J.; Vanneste, S.; Brewer, P.B.; Michniewicz, M.; Grones, P.; Kleine-Vehn, J.; Löfke, C.; Teichmann, T.; Bielach, A.; Cannoot, B.; et al. Inositol trisphosphate-induced Ca2+ signaling modulates auxin transport and PIN polarity. Dev. Cell 2011, 20, 855–866. [Google Scholar] [CrossRef] [PubMed]
  56. Gil-Mascarell, R.; López-Coronado, J.M.; Bellés, J.M.; Serrano, R.; Rodríguez, P.L. The Arabidopsis HAL2-like gene family includes a novel sodium-sensitive phosphatase. Plant J. 1999, 17, 373–383. [Google Scholar] [CrossRef] [PubMed]
  57. Torabinejad, J.; Donahue, J.L.; Gunesekera, B.N.; Allen-Daniels, M.J.; Gillaspy, G.E. VTC4 is a bifunctional enzyme that affects myoinositol and ascorbate biosynthesis in plants. Plant Physiol. 2009, 150, 951–961. [Google Scholar] [CrossRef] [PubMed]
  58. Conklin, P.L.; Gatzek, S.; Wheeler, G.L.; Dowdle, J.; Raymond, M.J.; Rolinski, S.; Isupov, M.; Littlechild, J.A.; Smirnoff, N. Arabidopsis thaliana VTC4 encodes L-galactose-1-P phosphatase, a plant ascorbic acid biosynthetic enzyme. J. Biol. Chem. 2006, 281, 15662–15670. [Google Scholar] [CrossRef] [PubMed]
  59. Nourbakhsh, A.; Collakova, E.; Gillaspy, G.E. Characterization of the inositol monophosphatase gene family in Arabidopsis. Front. Plant Sci. 2015, 5, 725. [Google Scholar] [CrossRef]
  60. Zhang, Y.; Li, S.; Zhou, L.-Z.; Fox, E.; Pao, J.; Sun, W.; Zhou, C.; McCormick, S. Overexpression of Arabidopsis thaliana PTEN caused accumulation of autophagic bodies in pollen tubes by disrupting phosphatidylinositol 3-phosphate dynamics. Plant J. 2011, 68, 1081–1092. [Google Scholar] [CrossRef]
  61. Gupta, R.; Ting, J.T.L.; Sokolov, L.N.; Johnson, S.A.; Luan, S. A tumor suppressor homolog, AtPTEN1, is essential for pollen development in Arabidopsis. Plant Cell 2002, 14, 2495–2507. [Google Scholar] [CrossRef]
  62. Pribat, A.; Sormani, R.; Rousseau-Gueutin, M.; Julkowska, M.M.; Testerink, C.; Joubès, J.; Castroviejo, M.; Laguerre, M.; Meyer, C.; Germain, V.; et al. A novel class of PTEN protein in Arabidopsis displays unusual phosphoinositide phosphatase activity and efficiently binds phosphatidic acid. Biochem. J. 2012, 441, 161–171. [Google Scholar] [CrossRef] [PubMed]
  63. Xi, H.; Xu, H.; Xu, W.; He, Z.; Xu, W.; Ma, M. A SAL1 Loss-of-Function Arabidopsis Mutant Exhibits Enhanced Cadmium Tolerance in Association with Alleviation of Endoplasmic Reticulum Stress. Plant Cell Physiol. 2016, 57, 1210–1219. [Google Scholar] [CrossRef] [PubMed]
  64. Litthauer, S.; Chan, K.X.; Jones, M.A. 3’-Phosphoadenosine 5’-Phosphate Accumulation Delays the Circadian System. Plant Physiol. 2018, 176, 3120–3135. [Google Scholar] [CrossRef] [PubMed]
  65. Phua, S.Y.; Yan, D.; Chan, K.X.; Estavillo, G.M.; Nambara, E.; Pogson, B.J. The Arabidopsis SAL1-PAP Pathway: A Case Study for Integrating Chloroplast Retrograde, Light and Hormonal Signaling in Modulating Plant Growth and Development? Front. Plant Sci. 2018, 9, 1171. [Google Scholar] [CrossRef] [PubMed]
  66. Petersen, L.N.; Marineo, S.; Mandala, S.; Davids, F.; Sewell, B.T.; Ingle, R.A. The Missing Link in Plant Histidine Biosynthesis: Arabidopsis myoinositol monophosphatase-like2 Encodes a Functional Histidinol-Phosphate Phosphatase. Plant Physiol. 2010, 152, 1186–1196. [Google Scholar] [CrossRef] [PubMed]
  67. Zhang, R.-X.; Qin, L.-J.; Zhao, D.-G. Overexpression of the OsIMP Gene Increases the Accumulation of Inositol and Confers Enhanced Cold Tolerance in Tobacco through Modulation of the Antioxidant Enzymes’ Activities. Genes 2017, 8, 179. [Google Scholar] [CrossRef] [PubMed]
  68. Joshi-Saha, A.; Reddy, K.S. Repeat length variation in the 5’UTR of myo-inositol monophosphatase gene is related to phytic acid content and contributes to drought tolerance in chickpea (Cicer arietinum L.). J. Exp. Bot. 2015, 66, 5683–5690. [Google Scholar] [CrossRef]
  69. Saxena, S.C.; Salvi, P.; Kaur, H.; Verma, P.; Petla, B.P.; Rao, V.; Kamble, N.; Majee, M. Differentially expressed myo-inositol monophosphatase gene (CaIMP) in chickpea (Cicer arietinum L.) encodes a lithium-sensitive phosphatase enzyme with broad substrate specificity and improves seed germination and seedling growth under abiotic stresses. J. Exp. Bot. 2013, 64, 5623–5639. [Google Scholar] [CrossRef]
  70. Perera, I.Y.; Hung, C.-Y.; Moore, C.D.; Stevenson-Paulik, J.; Boss, W.F. Transgenic Arabidopsis Plants Expressing the Type 1 Inositol 5-Phosphatase Exhibit Increased Drought Tolerance and Altered Abscisic Acid Signaling. Plant Cell 2008, 20, 2876–2893. [Google Scholar] [CrossRef]
  71. Lin, W.H.; Ye, R.; Ma, H.; Xu, Z.H.; Xue, H.W. DNA chip-based expression profile analysis indicates involvement of the phosphatidylinositol signaling pathway in multiple plant responses to hormone and abiotic treatments. Cell Res. 2004, 14, 34–45. [Google Scholar] [CrossRef]
  72. Xiong, L.; Lee, H.; Huang, R.; Zhu, J.-K. A single amino acid substitution in the Arabidopsis FIERY1/HOS2 protein confers cold signaling specificity and lithium tolerance. Plant J. 2004, 40, 536–545. [Google Scholar] [CrossRef] [PubMed]
  73. Gašparič, M.B.; Lenassi, M.; Gostinčar, C.; Rotter, A.; Plemenitaš, A.; Gunde-Cimerman, N.; Gruden, K.; Žel, J. Insertion of a Specific Fungal 3′-phosphoadenosine-5′-phosphatase Motif into a Plant Homologue Improves Halotolerance and Drought Tolerance of Plants. PLoS ONE 2013, 8, e81872. [Google Scholar] [CrossRef] [PubMed]
  74. Ku, Y.-S.; Koo, N.S.-C.; Li, F.W.-Y.; Li, M.-W.; Wang, H.; Tsai, S.-N.; Sun, F.; Lim, B.L.; Ko, W.-H.; Lam, H.-M. GmSAL1 hydrolyzes inositol-1,4,5-trisphosphate and regulates stomatal closure in detached leaves and ion compartmentalization in plant cells. PLoS ONE 2013, 8, e78181. [Google Scholar] [CrossRef] [PubMed]
  75. Ruszkowski, M.; Dauter, Z. Structural Studies of Medicago truncatula Histidinol Phosphate Phosphatase from Inositol Monophosphatase Superfamily Reveal Details of Penultimate Step of Histidine Biosynthesis in Plants. J. Biol. Chem. 2016, 291, 9960–9973. [Google Scholar] [CrossRef] [PubMed]
  76. Dwivedi, V.; Parida, S.K.; Chattopadhyay, D. A repeat length variation in myo-inositol monophosphatase gene contributes to seed size trait in chickpea. Sci. Rep. 2017, 7, 4764. [Google Scholar] [CrossRef] [PubMed]
Ijms 20 03999 g001 550

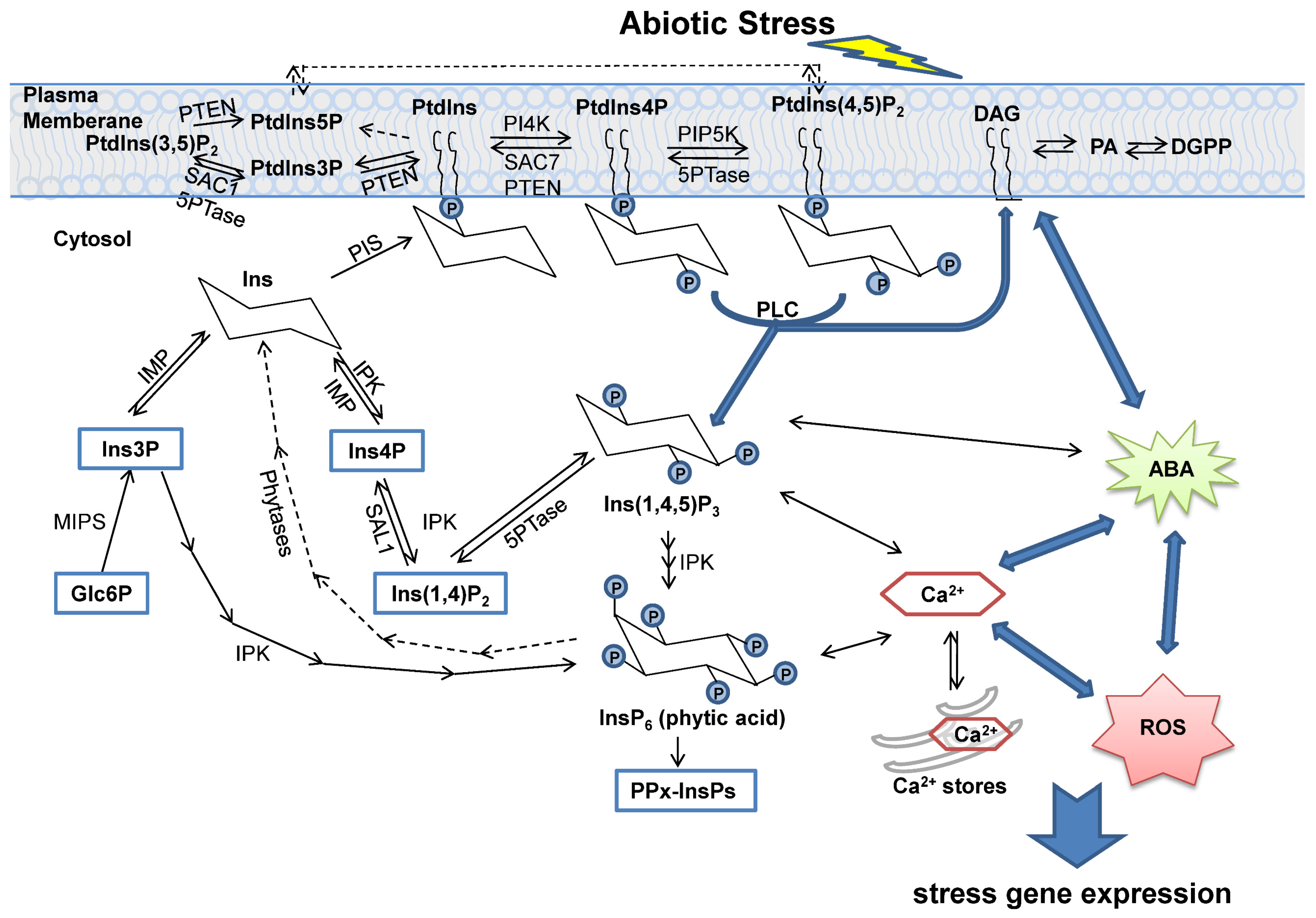

Figure 1. Schematic representation of inositol phosphatases in the plant inositol (Ins) signaling pathways under stress. It illustrated the network of the inositol phosphate (IP) and phosphoinositide (PI) signaling pathway, together with the stress responding processes, such as the ABA pathway, Ca2+ release, and ROS generation. The dashed arrows indicated the putative pathways. Ins is soluble, whereas phosphatidylinositol (PtdIns) is bound to the membrane. In the Ins signaling pathways, inositol(1,4,5)trisphosphate (Ins(1,4,5)P3, IP3), phytic acid (InsP6), diacylglycerol (DAG), and phosphatidic acid (PA) are all signaling molecules. ABA—abscisic acid, DGPP—diacylglycerolpyrophosphate, Glc6P—glucose-6-phosphate, IMP—inositol monophosphatase, IPK—inositol polyphosphate multi kinase, MIPS—myo-inositol-3-phosphate synthase, P—phosphate, PIP5K—PtIns4P 5-kinase, PI4K—phosphatidylinositol 4-kinase, PIS—phosphatidylinositol synthase, PKC—protein kinase C, PLC—phospholipase C, PPx-InsPs—pyrophosphates, PTEN—phosphatase and tensin homologue deleted on chromosome 10, PtdIns—phosphatidylinositol, ROS—reactive oxygen species, SAC—suppressor of actin, 5PTases—inositol polyphosphate 5-phosphatases.
Figure 1. Schematic representation of inositol phosphatases in the plant inositol (Ins) signaling pathways under stress. It illustrated the network of the inositol phosphate (IP) and phosphoinositide (PI) signaling pathway, together with the stress responding processes, such as the ABA pathway, Ca2+ release, and ROS generation. The dashed arrows indicated the putative pathways. Ins is soluble, whereas phosphatidylinositol (PtdIns) is bound to the membrane. In the Ins signaling pathways, inositol(1,4,5)trisphosphate (Ins(1,4,5)P3, IP3), phytic acid (InsP6), diacylglycerol (DAG), and phosphatidic acid (PA) are all signaling molecules. ABA—abscisic acid, DGPP—diacylglycerolpyrophosphate, Glc6P—glucose-6-phosphate, IMP—inositol monophosphatase, IPK—inositol polyphosphate multi kinase, MIPS—myo-inositol-3-phosphate synthase, P—phosphate, PIP5K—PtIns4P 5-kinase, PI4K—phosphatidylinositol 4-kinase, PIS—phosphatidylinositol synthase, PKC—protein kinase C, PLC—phospholipase C, PPx-InsPs—pyrophosphates, PTEN—phosphatase and tensin homologue deleted on chromosome 10, PtdIns—phosphatidylinositol, ROS—reactive oxygen species, SAC—suppressor of actin, 5PTases—inositol polyphosphate 5-phosphatases.
Ijms 20 03999 g001
Ijms 20 03999 g002 550

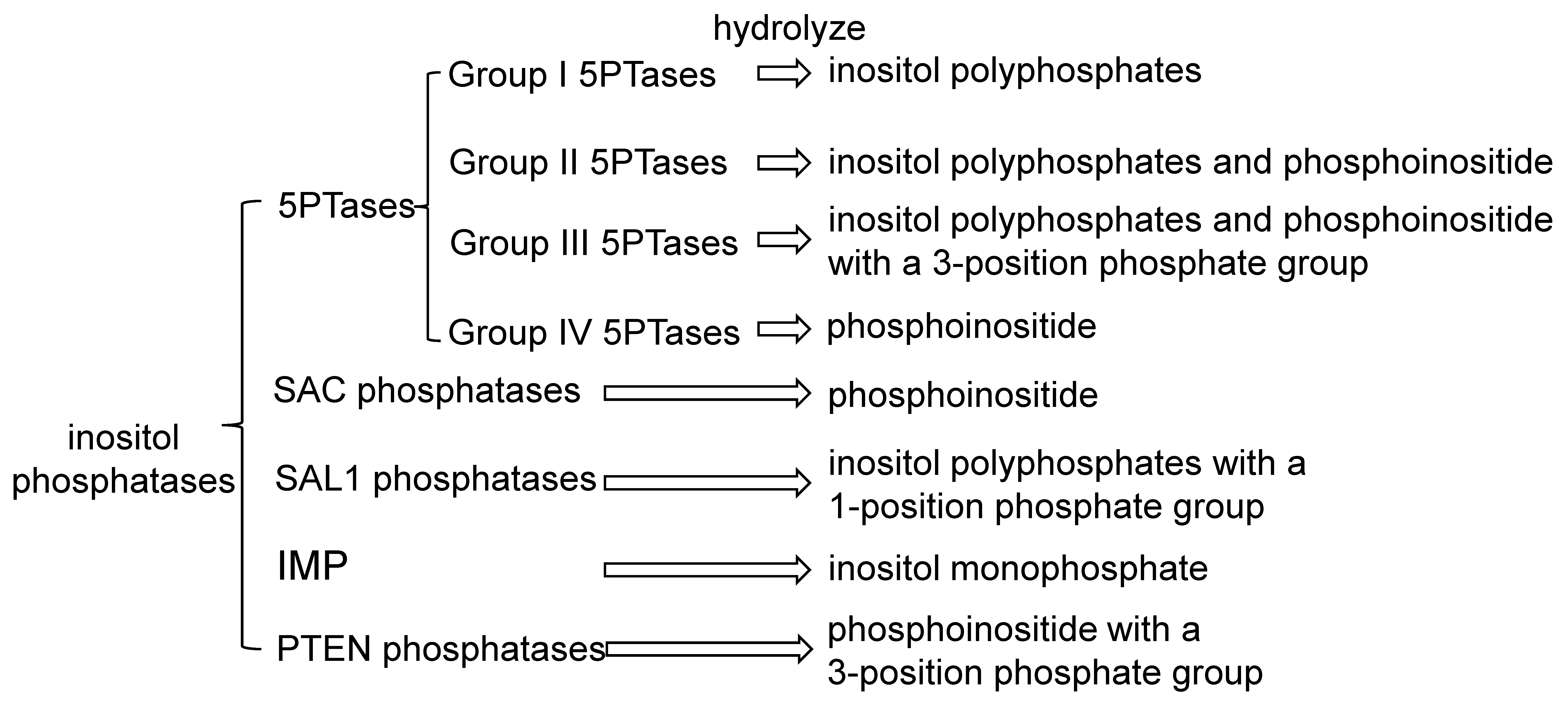

Figure 2. Inositol phosphatases and their inositol-related substrates overviewed in this study. IMP—inositol monophosphatase, PTEN—phosphatase and tensin homologue deleted on chromosome 10, SAC—suppressor of actin, 5PTases—inositol polyphosphate 5-phosphatases.
Figure 2. Inositol phosphatases and their inositol-related substrates overviewed in this study. IMP—inositol monophosphatase, PTEN—phosphatase and tensin homologue deleted on chromosome 10, SAC—suppressor of actin, 5PTases—inositol polyphosphate 5-phosphatases.
Ijms 20 03999 g002
Table
Table 1. Phosphatases of the inositol signaling pathway in Arabidopsis thaliana.
Table 1. Phosphatases of the inositol signaling pathway in Arabidopsis thaliana.
NameGene IDSubstratesCellular LocalizationExpression PatternsFunctionReferences
5PTase—hydrolyze inositol-5-phosphate
At5TPase1At1G34120Group II
Ins(1,4,5)P3, Ins(1,3,4,5)P4, PtdIns(4,5)P2		-leaf, flower, bolt, seedlingalter ABA and light signaling, stomatal opening,
seedling development		[19,21,27,28]
At5TPase2At4G18010Group II
Ins(1,4,5)P3, Ins(1,3,4,5)P4, PtdIns(4,5)P2		-leaf, flower, bolt, seedlingalter ABA signaling,
seedling development		[20,27,28]
At5TPase3At1G71710Group II
PtdIns(4,5)P2, PtdIns(3,4,5)P3, Ins(1,4,5)P3, Ins(1,3,4,5)P4,		---[29]
At5TPase4At3G63240Group IV
PtdIns(4,5)P2		---[29]
At5TPase5/MRH3/BST1At5G65090---root hair development[30,31]
At5TPase6/CVP2At1G05470Group IV
PtdIns(4,5)P2, PtdIns(3,4,5)P3		-vascular systemfoliar vein patterning,
root branching		[32,33,34]
At5TPase7/ CVL1At2G32010Group IV
PtdIns(4,5)P2, PtdIns(3,4,5)P3		plasma membrane, nuclear specklesvascular systemfoliar vein patterning, root branching, salt tolerance,
and ROS production		[33,34,35]
At5TPase8At2G37440-----
At5TPase9At2G01900Group IV
PtdIns(4,5)P2, PtdIns(3,4,5)P3		-rootsalt tolerance and ROS
production endocytosis		[36]
At5TPase10At5G04980-----
At5TPase11At1G47510Group IV
PtdIns(4,5)P2, PtdIns(3,5)P2, PtdIns(3,4,5)P3		cell surface or plasma membraneflower, leaf, root, silique, bolt, seedlingseedling development[27,37]
At5TPase12At2G43900Group I
Ins(1,4,5)P3		-pollen grain, leaf and flower (mostly); root, stem and young seedling (weakly)pollen dormancy/germination[38,39]
At5TPase13At1G05630Group I
Ins(1,4,5)P3,		nucleusyoung seedlings, flowerscotyledon vein development, alter auxin, ABA, sugar and PHOTOTROPIN1 signaling, root gravitropism,
vesicle trafficking		[38,39,40,41,42,43]
At5TPase14At2G31830Group II
PtdIns(4,5)P2, PtdIns(3,4,5)P3, Ins(1,4,5)P3		-pollen grain-[38,39]
At5TPase15/ FRA3At1G65580Group II
PtdIns(4,5)P2, PtdIns(3,4,5)P3, Ins(1,4,5)P3		-seedling, stem, root, flower, mature leaf (weak)secondary wall synthesis and actin organization[44]
SAC—hydrolyze phosphatidylinositol phosphates
SAC1/FRA7At1G22620PtdIns(3,5)P2Golgiubiquitous, predominant in vascular tissues and fibers of stemscell morphogenesis, cell wall synthesis, actin organization[23,45]
SAC2At3G14205-tonoplastubiquitousvacuolar function[23,26]
SAC3At3G43220-tonoplastubiquitousvacuolar function[23,26]
SAC4At5G20840-tonoplastubiquitousvacuolar function[23,26]
SAC5At1G17340-tonoplastubiquitousvacuolar function[23,26]
SAC6/SAC1bAt5G66020-endoplasmic reticulumpollen grainembryo development[22,23]
SAC7/SAC1c/RHD4At3G51460PtdIns4Pendoplasmic reticulummost tissues (strong)embryo development,
root hair development		[22,23,25]
SAC8/ AtSAC1aAt3G51830-endoplasmic reticulumhypocotyls of seedlings, pollen grain, most
tissues (week),		embryo development[22,23]
SAC9At3G59770--root (strong), leaf and shoot (weak)cell wall formation,
stress response		[23,24,46]
SAL—hydrolyze inositol-1-phosphate
AtSAL1/ AtFIERY1 (AtFRY1)/ HOS2/RON1At5G63980Ins(1,4)P2, Ins(1,3,4)P3,
PAP, PAPS		chloroplast, mitochondriavascular tissuealter ABA, auxin and stress signaling (cold, drought, salt, lithium, high light, cadmium), venation patterning[47,48,49,50,51,52,53,54,55]
AtSAL2At5G64000Ins(1,4)P2, PAP,---[56]
IMP—hydrolyze inositol-3-phosphate, inositol-4-phosphate
IMP/VTC4At3G02870Ins3P, Ins1P, L-Galactose-1-Pcytosolphotosynthetictissuesseed development, ascorbate biosynthesis, alter cold, salt and ABA responses[11,57,58,59]
IMPL1At1G31190Ins3P, Ins1P, Ins2P, L-Galactose-1-Pchloroplastubiquitousseed development[11,57,59]
IMPL2At4G39120Histidinol 1-Pchloroplastroot (strong), hypocotyl (weak)seed development,
histidinebiosynthesis		[11,57,59]
PTEN—hydrolyze inositol-3-phosphate
PTEN1At5G39400PtdIns(3,4,5)P3, phosphotyrosinvesicles, autophagic bodypollen grainpollen development[60,61]
PTEN2aAt3G19420PtdIns3P, PtdIns(3,4)P2, PtdIns(3,5)P2, PtdIns4P, PtdIns(3,4,5)P3, phosphotyrosin-seedling, leaf,
flower, silique		-[62]
PTEN2bAt3G50110PtdIns3P, phosphotyrosin-seedling, leaf,
flower, silique		-[62]
BST1, BRISTLED1; CVL1, CVP2-like1; CVP2, cotyledon vascular pattern2; FRA3, fragile fiber 3; FRA7, fragile fiber 7; HOS2, high expression of osmotic stress-regulated gene expression 2; IMP, myo-inositol monophosphatase; Ins, inositol, MRH3, root hair morphogenesis 3; P, phosphate; PAP, 3’-phosphoadenosine 5′-phosphate; PAPS, 2’-PAP and 3’-phosphoadenosine 5’-phosphosulfate; PTEN, phosphatase and tensin homologue deleted on chromosome 10, PtdIns, phosphatidylinositol, RHD4, root hair defective 4; RON1, rotunda 1; SAC, suppressor of actin, VTC4, vitamin C 4, 5PTases, inositol polyphosphate 5-phosphatases.

Share and Cite

MDPI and ACS Style

Jia, Q.; Kong, D.; Li, Q.; Sun, S.; Song, J.; Zhu, Y.; Liang, K.; Ke, Q.; Lin, W.; Huang, J. The Function of Inositol Phosphatases in Plant Tolerance to Abiotic Stress. Int. J. Mol. Sci. 2019, 20, 3999. https://doi.org/10.3390/ijms20163999

AMA Style

Jia Q, Kong D, Li Q, Sun S, Song J, Zhu Y, Liang K, Ke Q, Lin W, Huang J. The Function of Inositol Phosphatases in Plant Tolerance to Abiotic Stress. International Journal of Molecular Sciences. 2019; 20(16):3999. https://doi.org/10.3390/ijms20163999

Chicago/Turabian Style

Jia, Qi, Defeng Kong, Qinghua Li, Song Sun, Junliang Song, Yebao Zhu, Kangjing Liang, Qingming Ke, Wenxiong Lin, and Jinwen Huang. 2019. "The Function of Inositol Phosphatases in Plant Tolerance to Abiotic Stress" International Journal of Molecular Sciences 20, no. 16: 3999. https://doi.org/10.3390/ijms20163999

APA Style

Jia, Q., Kong, D., Li, Q., Sun, S., Song, J., Zhu, Y., Liang, K., Ke, Q., Lin, W., & Huang, J. (2019). The Function of Inositol Phosphatases in Plant Tolerance to Abiotic Stress. International Journal of Molecular Sciences, 20(16), 3999. https://doi.org/10.3390/ijms20163999

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
