Article

Genome-Wide Identification of Cyclophilin Gene Family in Cotton and Expression Analysis of the Fibre Development in Gossypium barbadense

by
Qin Chen
1,
Quan-Jia Chen
1,
Guo-Qing Sun
2,
Kai Zheng
1,
Zheng-Pei Yao
1,
Yu-Hui Han
1,
Li-Ping Wang
1,
Ya-Jie Duan
1,
Dao-Qian Yu
1,3 and
Yan-Ying Qu
1,*
1
College of Agronomy, Xinjiang Agricultural University, Urumqi 830052, China
2
Biotechnology Research Institute, Chinese Academy of Agricultural Sciences, Beijing 100081, China
3
Cotton Research Institute, Chinese Academy of Agricultural Sciences, Anyang 455000, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(2), 349; https://doi.org/10.3390/ijms20020349
Submission received: 22 December 2018 / Revised: 10 January 2019 / Accepted: 12 January 2019 / Published: 16 January 2019
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
Cyclophilins (CYPs) are a member of the immunophilin superfamily (in addition to FKBPs and parvulins) and play a significant role in peptidyl-prolyl cis-trans isomerase (PPIase) activity. Previous studies have shown that CYPs have important functions in plants, but no genome-wide analysis of the cotton CYP gene family has been reported, and the specific biological function of this gene is still elusive. Based on the release of the cotton genome sequence, we identified 75, 78, 40 and 38 CYP gene sequences from G. barbadense, G. hirsutum, G. arboreum, and G. raimondii, respectively; 221 CYP genes were unequally located on chromosomes. Phylogenetic analysis showed that 231 CYP genes clustered into three major groups and eight subgroups. Collinearity analysis showed that segmental duplications played a significant role in the expansion of CYP members in cotton. There were light-responsiveness, abiotic-stress and hormone-response elements upstream of most of the CYPs. In addition, the motif composition analysis revealed that 49 cyclophilin proteins had extra domains, including TPR (tetratricopeptide repeat), coiled coil, U-box, RRM (RNA recognition motif), WD40 (RNA recognition motif) and zinc finger domains, along with the cyclophilin-like domain (CLD). The expression patterns based on qRT-PCR showed that six CYP expression levels showed greater differences between Xinhai21 (long fibres, G. barbadense) and Ashmon (short fibres, G. barbadense) at 10 and 20 days postanthesis (DPA). These results signified that CYP genes are involved in the elongation stage of cotton fibre development. This study provides a valuable resource for further investigations of CYP gene functions and molecular mechanisms in cotton.

1. Introduction

Cyclophilins (CYPs) are a member of the immunophilin superfamily (in addition to FKBPs and Parvulins) and are identified by their highly conserved cyclophilin-like domain (CLD) [1]. In 1984, Handschumacher et al. first identified cyclophilin A (CyPA) from bovine thymocytes, which is the receptor of the immunosuppressive drug cyclosporine A (CsA) [2]. Subsequently, an 18-kDa protein with PPIase (peptidyl-prolyl cis-trans isomerase) activity, which can catalyse the cis/trans isomerisation process of Xaa-proline peptide bonds, was found by Fischer and Takahashi et al. This process is a rate-limiting step in protein folding. Fischer and Takahashi et al. also discovered that PPIase is the cyclosporin A-binding protein cyclophilin [3,4]. CYPs are ubiquitous proteins present in bacteria, plants and animals [5,6]. To date, genome-wide analysis has been used to identify 19 CYPs in the human genome, along with 6 CYPs in Escherichia coli, 8 CYPs in Saccharomyces cerevisiae, 9 CYPs in Schizosaccharomyces, 14 CYPs in Drosophila melanogaster, 17 CYPs in Caenorhabditis elegans and 12 CYPs in Leptosphaeria maculans [7,8]. In contrast, plants have a higher number of CYPs, with 29 in Arabidopsis thaliana, 27 in rice, 62 in soybean, 77 in B. napus and 39 in maize [9,10,11,12,13].
There are more studies on the classification, physiological function and molecular mechanism of human CYPs than of plant CYPs, for which few studies are available [14]. The first plant cyclophilins were described successively in tomato (Lycopersicon esculentum), maize (Zea mays), and oilseed rape (Brassica napus) in 1990 [15]. Recently, studies have shown that OsCYP2 interacts with a C2HC-type zinc finger protein (OsZFP) participating in auxin signalling pathways controlling lateral root development [16], and soybean cyclophilin GmCYP1 interacts with an isoflavonoid regulator GmMYB176, which is induced by various abiotic stresses [17]. The reports also revealed that the AtCYP20-3 mutant is hypersensitive to oxidative stress conditions [18]. Two Brassica rapa cyclophilin genes, ROC1-1 and ROC1-2, were involved in the light induction response [19]. Moreover, CYP1 acts as a virulence determinant in rice blasts, and CYP1 mutants show reduced virulence and are impaired in associated functions [20]. Furthermore, along with being involved in receptor signalling, abiotic stresses, photosynthetic reactions and immunisation against pathogens, CYPs play major roles in apoptosis, RNA processing and spliceosome assembly [18,21,22].
Cotton fibres are highly elongated from single-celled seed coats; they are not only important raw materials for the textile industry but also serve as ideal experimental materials for the study of cell elongation, cell wall formation and cellulose synthesis [23]. Two cultivated species of tetraploid cotton, G. hirsutum and G. barbadense, originated from a natural hybrid between A-genome cotton (such as G. arboreum) and D-genome cotton (such as G. raimondii) that occurred approximately 1–1.5 million years ago [24,25]. One of the major breeding targets of these cotton species is to improve fibre quality.
Recently, as more and more plant genome data have been published, genome-wide identification and analysis has become an effective method for rapidly predicting gene functions from a large family of genes. There are an increasing number of reports about plant gene families. For example, genome-wide identification and expression analysis of the chitinase gene family in Brassica rapa revealed that it plays a crucial role in the pathogen resistance of the host plants [26]; genome-wide identification and analysis of japonica and indica rice cultivars identified 502 candidate low-temperature-responsive genes and proposed a model that includes a pathway for cold stress-responsive signalling [27]; genome-wide analysis of gene expression profiling indicated that the COP9 signalosome is essential for correct expression of Fe homeostasis genes in Arabidopsis [28]; genome-wide analysis of small RNAs revealed 257 novel microRNAs related to cotton fibre elongation [29]; and genome-wide analysis of the WD40 protein family revealed that WD40 is involved in cotton fibre development [30]. However, little is known about the identification and function of the cyclophilin gene family in Gossypium. In particular, the association of this gene family with fibre development is unknown. Based on the cotton genome sequence database, we first identified 75, 78, 40 and 38 CYP genes from G. barbadense, G. hirsutum, G. arboreum and G. raimondii, respectively, and then investigated the expression patterns of GbCYPs in cotton fibre. These results provide a valuable resource for further investigation of the functions and molecular mechanisms of the CYP family in cotton.

2. Results

2.1. Identification of CYP Genes in Four Gossypium Species Based on the Conserved CLD Domain

Using the Hidden Markov Model (HMM) profile of the PPIase domain (PF00160) and CYP sequences from Arabidopsis (29), rice (27) and B. napus (77) as queries, a total of 80, 83, 42 and 38 predicted CYP gene sequences were identified from G. barbadense, G. hirsutum, G. arboreum and G. raimondii, respectively. The putative CYP members were then analysed by SMART and CDD databases to determine whether there was a complete or partially conserved CLD motif, removing sequences below the significance threshold. Finally, 75, 78, 40 and 38 CYP genes were identified from G. barbadense, G. hirsutum, G. arboreum, and G. raimondii, respectively. According to the naming method of AtCYPs by He and Romano et al. [9,31], 231 CYP genes encoding proteins from cotton were named by their relative molecular weight; we used immature proteins because different tools predict different cleavable signal peptides. Furthermore, proteins with similar molecular weights were consecutively numbered. The predicted CYP genes encoded proteins ranging between 64 and 185 amino acids, with predicted molecular weights ranging between 8.50 and 142.50 kDa. The minimum isoelectric point was 4.5 (GbCYP40-2), and the maximum isoelectric point was 11.5. Statistics showed that 62.3% of proteins were basic proteins. Of these, 120 cyclophilin proteins were localised in the cytoplasm, and the rest were localised in the nucleus, chloroplast, mitochondria, plasma membrane and extracellular tissues. Detailed information about the CYP gene family in cotton is displayed in Additional File 1: Table S1.

2.2. Phylogenetic Analysis

To analyse the evolutionary relationship of CYP family genes, we constructed an unrooted neighbour-joining (NJ) phylogenetic tree by the multiple alignment of 260 CYP proteins, comprising 29 AtCYPs from A. thaliana and 231 cotton CYPs from G. barbadense, G. hirsutum, G. arboretum and G. raimondii (Figure 1). The results showed that 182 cotton CYP proteins appeared in pairs (91 pairs), and every six were clustered together (2 GbCYPs, 2 GhCYPs, 1 GaCYP and 1 GrCYP). These proteins were classified into three major groups according to their genetic relationship, and Group I contained six subgroups, Ia, Ib, Ic, Id, Ie and If, similar to the Arabidopsis evolutionary tree grouping reported by Romano et al. [9,31]. Nine genes, GbCYP19-1, GbCYP20-3, GbCYP70, GhCYP20-4, GhCYP30-1, GhCYP89-1, GaCYP18-2, GaCYP20-2 and GaCYP89-1, only appeared in the cotton A-subgenome, while GbCYP18-2, GrCYP18-2 and GhCYP18-2 only appeared in the D-subgenome. GbCYP14-1, GbCYP14-2, GbCYP21-1, GbCYP22, GbCYP47-1 and GbCYP63 were endemic to island cotton. GhCYP12 and GhCYP19-1 only appeared in the upland cotton genome. Additionally, GaCYP15 and GrCYP23-1 were only in G. arboretum and G. raimondii, respectively. GhCYP18-1, GaCYP18-1 and GrCYP18-1 are homologous genes, but they were lost or mutated in island cotton. These 25 genes were far from other members of the CYP family in cotton.

2.3. Gene Structure and Domain Analysis

To obtain the gene structures of the cotton CYP genes, the intron/exon structures of 231 CYP genes were analysed by the GSDS online server, as displayed in Figure 2C and Additional File 2–4: Figures S1–S3. The analysis showed that 34 genes (GbCYP14-2, GbCYP16-1, GbCYP18-1 to GbCYP18-9, GhCYP12, GhCYP18-2 to GhCYP18-9, GhCYP18-11, GhCYP18-12, GaCYP15, GaCYP18-3 to GaCYP18-7 and GrCYP18-2 to GrCYP18-7) had only one exon, and there were 21 exons in GbCYP142, which had the largest number of exons. Conserved motif prediction showed that cyclophilins could be divided into single-domain (SD) and multi-domain (MD) groups. Among the 231 CYP genes, 182 genes encoded a single CLD domain, and the remaining 49 CYPs possessed other functional domains, such as TPR, coiled coil, U-box, RRM, WD40 and zinc finger domains (Figure 3). The CLD domain was composed of motifs 1, 2, 3, 4, 5, 6 and 7 (Figure 2B, Additional File 2–5: Figures S1–S3, Table S2). In contrast to the results of the phylogenetic analysis, most members belonging to the same subgroup had similar gene structures and functional domains.

2.4. Chromosomal Locations and Gene Collinearity Analysis

To determine the distributions of CYP genes on different chromosomes of cotton, we constructed a chromosome map with the information from four cotton genomes (Figure 4, Additional File 6: Figure S4). The results showed that most of these genes (221) were unequally located on 13 chromosomes, while 8 genes, GrCYP27, GrCYP42-1, GrCYP57, GrCYP72-2, GrCYP90, GhCYP12, GhCYP18-10, GhCYP28-1, GhCYP49-2 and GhCYP49-3, were located on different scaffolds. The number of genes distributed on each chromosome was different; A2-chr7 and D5-chr8 had the largest number of genes (6), while only one gene was found on A2-chr8, A2-chr10, D5-chr3, D5-chr4, AD1-D05 and AD2-D06. No CYP gene was found on the AD2-D05 chromosome of sea-island cotton.
To reveal the expansion mechanism of the CYP gene family, all intragenomic and intergenomic duplication data files of G. barbadense and three other Gossypium species were filtered by MCScanX. In total, we identified 8 pairs of tandem duplications (GbCYP63/GbCYP77, GbCYP66-1/GbCYP70, GhCYP18-8/GhCYP18-7, GhCYP89-1/GhCYP92, GhCYP89-2/GhCYP91, GaCYP18-6/GaCYP18-5, GaCYP89-1/GaCYP89-2 and GrCYP18-5/GrCYP18- 6) in the four cotton species, 39 pairs of segmental duplications in G. barbadense (Figure 4, Additional File 7: Table S3), and 117, 51 and 83 intergenomic duplications between G. barbadense and G. hirsutum, G. arboretum and G. raimondii, respectively (Figure 5). The details for the collinear gene pairs are listed in Additional File 8: Table S4. Among the 75 GbCYP genes, we identified 37 pairs of common orthologous CYP genes in the four Gossypium species. Using the nonsynonymous (Ka) and synonymous (Ks) substitution rates of each duplicated CYP gene pair, we ascertained that the evolutionary selection pressures of CYP genes in the four Gossypium species tended to be purified, and the structures of these genes, except for GbCYP18-1, GbCYP29, GbCYP40-3, GbCYP43-1, GbCYP47-2, GbCYP58, GhCYP18-4, GhCYP40-2, GhCYP45-2, GhCYP70-1, GaCYP31, GaCYP70 and GrCYP40-3, were highly conserved during evolution (Additional File 8).

2.5. Cis-Element Analysis of CYP Promoter Sequences

To analyse the CYP gene cis-acting element, we retrieved the 2000 bp upstream of the 75 GbCYP genes from the initiation codon. The statistics showed that all of the GbCYP genes included at least one of the 16 putative light-responsiveness elements (3-AF1, ACE, AE-box, chs-CMA1a, GA-motif, GATA-motif, G-box, GT1-motif, I-box, LAMP, Sp1, TCCC-motif, TCT-motif, ATCT-motif, Box 4 and MRE). In particular, 65 GbCYP genes included Box 4 elements (part of a conserved DNA module involved in light responsiveness), and 55 members contained the light-responsiveness element GT1-motif. Furthermore, the putative promoter region of 34 members included low-temperature-responsiveness elements (LTRs), 28 GbCYPs included drought- inducible elements (MBSs), and 21 GbCYPs had cis-acting elements involved in defence and stress responsiveness (TC-rich repeats). Moreover, eight types of hormone-related-response elements were identified: abscisic-acid-responsiveness (ABRE), auxin-responsiveness (AuxRR-core), gibberellin-responsiveness (GARE-motif, P-box), salicylic-acid-responsiveness (TCA-element) and MeJA-responsiveness (CGTCA-motif) elements (Figure 6, Additional File 9: Table S5).

2.6. Gene Expression Analysis

Based on the RNA-seq transcriptome data, the RPKMs of different tissues (seeds, stems, leaves and flowers) and fibre developmental stages (0 DPA ovules and 5 DPA, 10 DPA and 15 DPA fibres) were used to investigate the expression profiles of CYP family genes in sea-island cotton (Additional File 10: Table S6). The heat map shows that these GbCYP genes clustered in six pattern groups. In general, genes within the same subgroup showed similar expression patterns (Figure 7). The first group included GbCYP8, GbCYP21-1 and GbCYP37-2, which were highly expressed in seeds. In the second group, 14 genes were highly expressed in 5 and 10 DPA fibres. In the third group, 14 genes were highly expressed in leaves, while 4 genes were highly expressed in stems or flowers in the fourth group. The other genes in groups five and six were highly expressed in 0 DPA ovules. The various expression patterns suggested the functional divergence of different groups of GbCYP members in cotton.
To further study the relationship between GbCYPs and cotton fibre development, we isolated 35 genes with RPKM ≥ 5 at 5, 10 and 20 DPA for further real-time quantitative RT-PCR (qRT-PCR) analysis. Of these, 15 genes were highly expressed in 5 DPA fibres (Figure 8A and Figure 9), and GbCYP18-6, GbCYP27-2, GbCYP28, GbCYP37-4 and GbCYP37-5 were highly expressed in 10 DPA fibres (Figure 8B and Figure 9). GbCYP24-1 and GbCYP26-3 were highly expressed in 15 DPA fibres (Figure 8B). In addition, 13 genes were mainly expressed in 20 DPA fibres (Figure 8C and Figure 9). The results of qRT-PCR proved that the fold-change values of GbCYPs were reliable. It is notable that differentially expressed GbCYPs were mainly distributed in the second group.
Additionally, Xinjiang is the only long-staple cotton-producing area in China. Xinhai21 is a hybrid of the Giza variety from Egypt and has been the major cultivar in Xinjiang over the years, and Ashmon is a resource material that was introduced from Syria. Our research team investigated the quality of these two sea-island cotton fibres over the three years under field conditions and found that Xinhai21 had a greater fibre length than Ashmon (Table 1) [32]. To understand the role of GbCYPs during different developmental stages of cotton fibre, we chose Ashmon as the control material and analysed the expression profiles of six GbCYPs (GbCYP18-5, GbCYP18-6, GbCYP27-2, GbCYP36, GbCYP47-1 and GbCYP58) between Xinhai21 and Ashmon. As shown in Figure 9, there were significant differences in some fibre development stages. Generally, the expression levels of six Xinhai21 CYPs were higher than those of the same six Ashmon CYPs. GbCYP47-1 showed a progressive decrease from 5 DPA to 25 DPA in two cotton species, and GbCYP18-6 showed the highest overall expression levels at 10 DPA and 15 DPA and a 5-fold increase between 5 DPA and 10 DPA. The expression of GbCYP27-2 peaked at 10 DPA, and the expression levels of GbCYP18-5, GbCYP36 and GbCYP58 peaked at 20 DPA.

3. Discussion

3.1. Identification of the CYP Gene Family

In this study, we identified a total of 75, 78, 40 and 38 CYP genes from G. barbadense, G. hirsutum, G. arboreum, and G. raimondii, respectively. The number of CYP genes in tetraploid cotton was approximately twice that in diploid cotton. The evolutionary tree showed that more CYP proteins appeared in pairs and clustered together with 2 GbCYPs, 2 GhCYPs, 1 GaCYP and 1 GrCYP, which supported the cotton species polyploidisation event that occurred 1.5 million years ago [24,25]. Moreover, there were 25 genes far from other members of the CYP family in cotton, implying that these CYP family genes underwent different evolutionary processes. Some newly generated genes and pre-existing genes might have been deleted during cotton evolution. The chromosomal locations and collinearity showed that segmental duplications played a significant role in the expansion of CYP members in cotton, which was the same as the results reported in A. thaliana, rice, B. napus and other plants [9,10,11,12,13]. Approximately half (49.3%) of the common orthologous CYP genes are shared by all four Gossypium species, indicating that these collinear pairs might have already existed before the genome rearrangement. The promoter analysis results suggest that GbCYPs may play an important role in responses to light, stress and hormone signalling.

3.2. Gene Function Analysis Revealed CYP Contributions to Various Cellular Processes

Cyclophilins are present in all subcellular compartments, are involved in various metabolic processes, especially protein interactions, and act as molecular chaperones [5,33]. The CLD has an overall beta-barrel structure, which consists of eight antiparallel beta-strands and two alpha-helices and catalyses a rate-limiting step of the cis/trans isomerisation process in protein folding [34]. Interestingly, cyclophilins contain some special domains in addition to the CLD, suggesting that cyclophilin proteins have various biological functions in cotton.
As shown in Figure 3, we identified 28 cotton CYPs containing an additional tetratricopeptide repeat (TRP) domain at the C-terminus, and these CYPs were highly homologous to AtCYP40 (Additional File 1: Table S1). The TPR motif consists of a repetitive 34-amino acid sequence that is essential for AtCYP40 binding to Hsp90 (the heat shock protein 90). The TPR domain can regulate Hsp90 ATPase activity and aid in protein folding, trafficking and the assembly of multiprotein complexes [35]. Moreover, a complex of AGO1, HSP90, CYP40, with a small RNA duplex is a key intermediate of RNA-induced silencing complex (RISC) assembly and participates in posttranscriptional gene silencing [36]. The mutants of AtCYP40 show development defects [37]. Thus, we speculated that the 28 cotton CYPs and AtCYP40 may have similar functions.
In contrast, GaCYP70, GrCYP63, GhCYP70-1, GhCYP70-2 and GbCYP58 contained four WD40 (tryptophan-aspartate) repeats at the N-terminus and were highly homologous to AtCYP71. WD40 domains, which were originally identified in G-proteins, widely participate in protein–protein interactions, signal transduction and transcription regulation [38] and are involved in cotton fibre development during the initiation and elongation stages [30,39]. In addition, AtCYP71 interacts with histone H3 and is involved in chromatin assembly, determining the development of Arabidopsis [40].
Six cotton CYPs (GaCYP47, GrCYP47, GhCYP47, GhCYP48, GbCYP40-2 and GbCYP61) possess a coiled coil (CC) domain; this domain derives its name from a specific α-helix–α-helix interaction and is a modulator of downstream responses involved in immune signalling [41,42]. There are also four CYPs (GaCYP65, GrCYP65, GhCYP65-1 and GhCYP65-2) that contain a U-box motif and play a general role in ubiquitination [43]. Furthermore, GrCYP72-1, GhCYP70-3, GhCYP70-4, GbCYP47-1 and GbCYP79 contain an RNA recognition motif (RRM) and a CCHC-type (Zinc finger) motif and are homologous to AtCYP59. We called these types of cyclophilins cyclophilin-RNA interacting proteins (CRIPs). Loss of these proteins has been shown to affect transcription regulation and the subunit phosphorylation of RNA polymerase II [44].
Lastly, GbCYP142, the largest CYP in Gossypium, contains a transmembrane domain (TR) and two ribonuclease MRP protein subunits (POP1/POPLD), suggesting that GbCYP142 might be involved in the metabolism of RNA molecules [45]. In addition, GbCYP142, AtCYP21-4 and OsCYP21-4 are homologous genes. Research has shown that OsCYP21-4 expression levels are increased in response to various abiotic stresses [46]. These results underline the important functions of CYPs in many essential physiological processes of cotton growth, including fibre development.

3.3. Expression Analysis Revealed CYPs Involved in Cotton Fibre Development

Of the two tetraploid cultivated Gossypium species, G. barbadense is prized for its extra-long fibres. The RPKM values of various expression patterns from different G. barbadense tissues showed that lost CYPs were highly expressed in ovules and fibres. qRT-PCR showed that 35 GbCYPs were highly expressed in 5–20 DPA fibres. Furthermore, the expression levels of six Xinhai21 CYPs were higher than those of Ashmon CYPs. These results signify the potential function of CYPs in the elongation stage of cotton fibre development.
Recently, research has confirmed that the phloem constitutes a long-distance transport system for trafficking plant hormones and signals and for the distribution of nutrients throughout the plant. Giavalisco et al. identified 140 soluble phloem proteins of B. napus by 1-DE and high-resolution 2-DE, which included 9 CYP proteins [47], and Hanhart et al. performed LC-MS/MS analysis of phloem protein extract of B. napus and found 12 BnCYPs in the phloem [11]. Investigating the dgt (auxin-resistant diageotropica) mutant of tomato and using Fourier transform infrared spectroscopy revealed that cyclophilin (LeCYP) is a component of auxin signalling [48]. Yeast two-hybrid and pull-down assays demonstrated that AtCYP20-2 interacted with BZR1 and changed its conformation to regulate the activity of Brassinolide (BR) [49]. BR and auxin are integrant elements for cotton fibre initiation and elongation [50,51]. These results indicate that some cyclophilins probably have essential functions in long-distance hormone signalling that are involved in cotton fibre development.
In addition, Ramsay et al. reported that WD40 repeat proteins interacted with MYB and bHLH in a double direction to regulate cotton fibre development during the initiation and elongation stages [39]. We found that 5 CYPs contained WD40 repeats (Figure 3), and real-time qRT-PCR also confirmed that GbCYP58 was more highly expressed in Xinhai21 than in Ashmon. This finding indicates that some cyclophilins may be involved in cotton fibre development through protein-protein interactions. However, the real molecular mechanisms between cyclophilins and cotton fibre remain to be further studied.

4. Methods

4.1. Identification and Sequence Analysis of CYPs

We downloaded the G. arboreum (BGI, version 2.0), G. raimondii, (BGI, version1.0), and G. barbadense (HAU_v2.0) data from CottonGen (https://www. cottongen.org/). G. hirsutum acc. TM-1 and G. barbadense acc. XinHai21 were downloaded from http://mascotton.njau.edu.cn and http://www.chgc.sh.cn/, respectively, and the A. thaliana genome sequence data were from Phytozome v11.0 (http://www.phytozome.net/). The HMM profile of the cyclophilin-like domain (CLD, PF00160) was downloaded from the Pfam website (http://pfam.xfam.org/) and was used as the query to identify all possible cyclophilin-like sequences with HMMER software (http://hmmer.org). Furthermore, CDD (http://www.ncbi.nlm.nih.gov/cdd), Pfam (http://pfam.xfam.org/) and SMART (http://smart.embl-heidelberg.de/) databases were used to confirm the conserved CLD domain of the candidate sequence. The biophysical properties of the CYP proteins were calculated using the ExPASy online server tool (https://www.expasy.org/). These CYP genes were named on the basis of their molecular weight.

4.2. Phylogenetic and Possible Functional Analysis

Multiple protein sequence alignment of the CLD domains from G. raimondii, G. arboretum, G. hirsutum, G. barbadense and Arabidopsis was performed by ClustalW2 (http://www.genome.jp/tools- bin/clustalw), and the alignment was imported into MEGA 5.0 (Center for Evolutionary Medicine and Informatics, Arizona State University, Tempe, AZ, USA) with pairwise distance and the NJ algorithm to construct a phylogenetic tree using the p-distance method with 1000 bootstrap replications [52]. The exon/intron structure of the cotton CYP genes was analysed by GSDS 2.0 (http://gsds.cbi.pku.edu.cn/). The MEME programme (http://meme-suite.org/) was employed to identify the conserved motifs in the CYP sequences, with the following parameters: number of unique motifs: 15; maximum and minimum search widths: 32; and 6 amino acid residues. The promoter sequences (2 kb upstream from the translation start site) of the CYP genes were obtained from the G. barbadense genomes, and 75 GbCYP gene cis-acting regulatory elements were predicted by PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/).

4.3. Chromosomal Locations and Gene Collinearity Analysis

The physical chromosome locations of all CYPs were obtained from the gff3 files of four cotton species databases. Mapchart 2.0 (https://mapchart.net/) software was adopted to visually map the chromosomal location [53]. Gene duplication events were analysed using the Multiple Collinearity Scan toolkit (MCScanX: http://chibba.pgml.uga.edu/mcscan2/) [54]. To exhibit segmentally duplicated pairs and orthologous pairs of CYP genes from G. barbadense and the three other Gossypium species, we used Dual Systeny Plotter software (https://github.com/CJ-Chen/TBtools) to draw collinearity maps. Thereafter, the synonymous (Ks) and nonsynonymous (Ka) substitution rates of each duplicated CYP gene were estimated by the PAL2NAL programme (http://www.bork.embl.de/pal2nal/).

4.4. Gene Expression Analysis

The reads per kb per million reads (RPKM) values were obtained from the transcriptome data of Gossypium barbadense cv. Xinhai21 [25], which were provided by Tian-Zhen Zhang and his research group. We isolated the GbCYPs with RPKM ≥ 5 for further expression analysis.

4.5. RNA Isolation and qRT-PCR Analysis

Total RNA was isolated using the RNAprep Pure Plant Kit (TIARGEN, Beijing, China) and was treated with DNase I to remove genomic DNA. The RNA quality and purity were measured by a NanoDrop 2000 spectrophotometer (Thermo Scientific, massachusetts, USA), and 1 μg of total RNA was used to synthesise first-strand cDNA with the Transcriptor First Strand cDNA Synthesis Kit and oligo-dT primers at 42 °C for 60 min and 72 °C for 10 min. Real-time PCR was performed in a 7500 Fast Real-Time PCR system (Applied Biosystems, State of California, USA) using SYBR Green Master Mix. Three biological replicates were performed per cDNA sample, and each reaction was prepared in a total volume of 20 μl containing 10 μL of SYBR Green PCR Master Mix, 1 μL of each primer, 2 µL of diluted cDNA template, and 6 µL of ddH2O. The cotton UBQ7 gene was used as a reference, and the PCR conditions were as follows: 95 °C for 5 min followed by 40 cycles of 95 °C for 5 s and 60 °C for 34 s. The 36 primers (Table S1) were designed by Primer Premier 5, and the results were analysed with the 2−ΔΔCt method.

5. Conclusions

CYPs are ubiquitous proteins that are found in bacteria, plants and animals. There are a large number of CYPs in plants, but the functions of most plant CYPs are still elusive. For the first time, we performed a genome-wide analysis of CYP gene families in four Gossypium species. A total of 231 CYP genes were retrieved based on the conserved CLD domain and were clustered into three major groups and eight subgroups. Subsequently, a detailed analysis of their phylogeny, structures, conserved motifs, chromosomal locations, gene collinearity, cis-acting elements, and expression patterns in different fibre development stages was performed. The results revealed that most cyclophilin proteins are SD proteins, segmental duplications that played a significant role in the expansion of CYP members, and 52% of all CYPs are localised in the cytoplasm in cotton. Cyclophilin proteins may be involved in various processes of cotton growth and development. The expression patterns observed via qRT-PCR analysis showed that the expression levels of six Xinhai21 (long fibre) CYPs were higher than those of Ashmon (short fibre) CYPs, and GbCYP genes may be involved in the elongation stage of cotton fibre development. In addition, these results provide a valuable resource for further investigation of CYP gene functions in cotton.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/2/349/s1.

Author Contributions

Y.-Y.Q. and Q.-J.C. designed the research. Q.C., K.Z. and G.-Q.S. performed most of the data analysis and experiments. Z.-P.Y., Y.-H.H. and D.-Q.Y. performed part of the experiments. L.-P.W. and Y.-J.D. collected the data. All authors read and approved the final manuscript.

Funding

This research was funded by the key research and development tasks of Xinjiang (2016B01001–1).

Acknowledgments

The authors are very grateful to Tian-Zhen Zhang and his research group from Zhejiang University. The authors would also like to thank Professor Jin-Fa Zhang from New Mexico State University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, P.; Heitman, J. The cyclophilins. Genome Biol. 2005, 6, 226. [Google Scholar] [CrossRef] [PubMed]
  2. Handschumacher, R.E.; Harding, M.W.; Rice, J.; Drugge, R.J.; Speicher, D.W. Cyclophilin: A specific cytosolic binding protein for cyclosporin A. Science 1984, 226, 544–547. [Google Scholar] [CrossRef]
  3. Fischer, G.; Wittmann-Liebold, B.; Lang, K.; Kiefhaber, T.; Schmid, F.X. Cyclophilin and peptidyl-prolyl cis-trans isomerase are probably identical proteins. Nature 1989, 337, 476–478. [Google Scholar] [CrossRef] [PubMed]
  4. Takahashi, N.; Hayano, T.; Suzuki, M. Peptidyl-prolyl cis-trans isomerase is the cyclosporin A-binding protein cyclophilin. Nature 1989, 337, 473–475. [Google Scholar] [CrossRef] [PubMed]
  5. Galat, A. Variations of sequences and amino acid compositions of proteins that sustain their biological functions: An analysis of the cyclophilin family of proteins. Arch. Biochem. Biophys. 1999, 371, 149–162. [Google Scholar] [CrossRef] [PubMed]
  6. Galat, A. Function-dependent clustering of orthologues and paralogues of cyclophilins. Proteins 2004, 56, 808–820. [Google Scholar] [CrossRef]
  7. Pemberton, T.J.; Kay, J.E. Identification and comparative analysis of the peptidyl-prolyl cis/trans isomerase repertoires of H. sapiens, D. melanogaster, C. elegans, S. cerevisiae and Sz. Pombe. Int. J. Genom. 2005, 6, 277–300. [Google Scholar] [CrossRef]
  8. Singh, K.; Zouhar, M.; Mazakova, J.; Rysanek, P. Genome wide identification of the immunophilin gene family in Leptosphaeria maculans: A causal agent of Blackleg disease in Oilseed Rape (Brassica napus). Omics J. Integr. Biol. 2014, 18, 645–657. [Google Scholar] [CrossRef]
  9. Romano, P.G.; Horton, P.; Gray, J.E. The Arabidopsis cyclophilin gene family. Plant Physiol. 2004, 134, 1268–1282. [Google Scholar] [CrossRef]
  10. Mainali, H.R.; Chapman, P.; Dhaubhadel, S. Genome-wide analysis of Cyclophilin gene family in soybean (Glycine max). BMC Plant Biol. 2014, 14, 282. [Google Scholar] [CrossRef]
  11. Hanhart, P.; Thieß, M.; Amari, K.; Bajdzienko, K.; Giavalisco, P.; Heinlein, M.; Kehr, J. Bioinformatic and expression analysis of the Brassica napus L. cyclophilins. Sci. Rep. 2017, 7, 1514. [Google Scholar] [CrossRef]
  12. Ahn, J.C.; Kim, D.W.; You, Y.N.; Seok, M.S.; Park, J.M.; Hwang, H.; Kim, B.G.; Luan, S.; Park, H.S.; Cho, H.S. Classification of rice (Oryza sativa L. Japonica nipponbare) immunophilins (FKBPs, CYPs) and expression patterns under water stress. BMC Plant Biol. 2010, 10, 253. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, Q.; Wang, Y.; Chai, W.; Song, N.; Wang, J.; Cao, L.; Jiang, H.; Li, X. Systematic analysis of the maize cyclophilin gene family reveals ZmCYP15 involved in abiotic stress response. Plant Cell Tissue Organ Cult. 2017, 128, 543–561. [Google Scholar] [CrossRef]
  14. Schreiber, S.L. Chemistry and biology of the immunophilins and their immunosuppressive ligands. Science 1991, 251, 283–287. [Google Scholar] [CrossRef] [PubMed]
  15. Gasser, C.S.; Gunning, D.A.; Budelier, K.A.; Brown, S.M. Structure and expression of cytosolic cyclophilin/peptidyl-prolyl cis-trans isomerase of higher: Plants and production of active tomato cyclophilin in Escherichia coli. Proc. Natl. Acad. Sci. USA 1990, 87, 9519–9523. [Google Scholar] [CrossRef]
  16. Cui, P.; Liu, H.; Ruan, S.; Ali, B.; Gill, R.A.; Ma, H.; Zheng, Z.F.; Zhou, W. A zinc finger protein, interacted with cyclophilin, affects root development via IAA pathway in rice. J. Integr. Plant Biol. 2017, 59, 496–505. [Google Scholar] [CrossRef]
  17. Mainali, H.R.; Vadivel, A.K.A.; Li, X.; Gijzen, M.; Dhaubhadel, S. Soybean cyclophilin GmCYP1 interacts with an isoflavonoid regulator GmMYB176. Sci. Rep. 2017, 7, 39550. [Google Scholar] [CrossRef] [Green Version]
  18. Dominguez-Solis, J.R.; He, Z.; Lima, A.; Ting, J.; Buchanan, B.B.; Luan, S. A cyclophilin links redox and light signals to cysteine biosynthesis and stress responses in chloroplasts. Proc. Natl. Acad. Sci. USA 2008, 105, 16386–16391. [Google Scholar] [CrossRef] [Green Version]
  19. Yan, H.; Zhou, B.; He, W.; Nie, Y.; Li, Y. Expression characterisation of cyclophilin BrROC1 during light treatment and abiotic stresses response in Brassica rapa subsp. rapa ‘Tsuda’. Funct. Plant Biol. 2018, 45, 1223–1232. [Google Scholar] [CrossRef]
  20. Viaud, M.C.; Balhadère, P.V.; Talbot, N.J. A Magnaporthe grisea cyclophilin acts as a virulence determinant during plant infection. Plant Cell 2002, 14, 917–930. [Google Scholar] [CrossRef]
  21. Galat, A. Peptidylprolyl cis/trans isomerases (immunophilins): Biological diversity-targets-functions. Curr. Top. Med. Chem. 2003, 3, 1315–1347. [Google Scholar] [CrossRef]
  22. Horowitz, D.S.; Lee, E.J.; Mabon, S.A.; Misteli, T. A cyclophilin functions in pre-mRNA splicing. EMBO J. 2002, 21, 470–480. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kim, H.J.; Triplett, B.A. Cotton fiber growth in planta and in vitro. Models for plant cell elongation and cell wall biogenesis. Plant Physiol. 2001, 127, 1361–1366. [Google Scholar] [CrossRef]
  24. Li, F.; Fan, G.; Lu, C.; Xiao, G.; Zou, C.; Kohel, R.J.; Ma, Z.; Shang, H.; Ma, X.; Wu, J.; et al. Genome sequence of cultivated Upland cotton (Gossypium hirsutum TM-1) provides insights into genome evolution. Nat. Biotechnol. 2015, 33, 524–530. [Google Scholar] [CrossRef]
  25. Liu, X.; Zhao, B.; Zheng, H.J.; Hu, Y.; Lu, G.; Yang, C.Q.; Chen, J.D.; Chen, J.J.; Chen, D.Y.; Zhang, L.; et al. Gossypium barbadense genome sequence provides insight into the evolution of extra-long staple fiber and specialized metabolites. Sci. Rep. 2015, 5, 14139. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, J.; Piao, Y.; Liu, Y.; Li, X.; Piao, Z. Genome-wide identification and expression analysis of chitinase gene family in Brassica rapa reveals its role in clubroot resistance. Plant Sci. 2018, 270, 257–267. [Google Scholar] [CrossRef] [PubMed]
  27. Kumar, M.; Gho, Y.S.; Jung, K.H.; Kim, S.R. Genome-wide identification and analysis of genes, conserved between japonica and indica rice cultivars, that respond to low-temperature stress at the vegetative growth stage. Front. Plant Sci. 2017, 8, 1120. [Google Scholar] [CrossRef] [PubMed]
  28. Eroglu, S.; Aksoy, E. Genome-wide analysis of gene expression profiling revealed that COP9 signalosome is essential for correct expression of Fe homeostasis genes in Arabidopsis. BioMetals 2017, 30, 685–698. [Google Scholar] [CrossRef] [PubMed]
  29. Xue, W.; Wang, Z.; Du, M.; Liu, Y.; Liu, J.Y. Genome-wide analysis of small RNAs reveals eight fiber elongation-related and 257 novel microRNAs in elongating cotton fiber cells. BMC Genom. 2013, 14, 629. [Google Scholar] [CrossRef]
  30. Salih, H.; Gong, W.; Mkulama, M.; Du, X. Genome-wide characterization, identification, and expression analysis of the WD40 protein family in cotton. Genome 2018, 61, 539–547. [Google Scholar] [CrossRef] [PubMed]
  31. He, Z.; Li, L.; Luan, S. Immunophilins and parvulins. Superfamily of peptidyl prolyl isomerases in Arabidopsis. Plant Physiol. 2004, 134, 1248–1267. [Google Scholar] [CrossRef]
  32. Zheng, K.; Ni, Z.Y.; Qu, Y.Y.; Cai, Y.S.; Yang, Z.N.; Sun, G.Q.; Chen, Q.J. Genome-wide identification and expression analyses of TCP transcription factor genes in Gossypium barbadense. Sci. Rep. 2018, 8, 14526. [Google Scholar] [CrossRef]
  33. Ferreira, P.A.; Nakayama, T.A.; Pak, W.L.; Travis, G.H. Cyclophilin-related protein RanBP2 acts as chaperone for red/green opsin. Nature 1996, 383, 637–640. [Google Scholar] [CrossRef] [PubMed]
  34. Ke, H.M.; Zydowsky, L.D.; Liu, J.; Walsh, C.T. Crystal structure of recombinant human T-cell cyclophilin A at 2.5 A resolution. Proc. Natl. Acad. Sci. USA 1991, 88, 9483–9487. [Google Scholar] [CrossRef] [PubMed]
  35. Gur, M.; Blackburn, E.A.; Ning, J.; Narayan, V.; Ball, K.L.; Walkinshaw, M.D.; Erman, B. Molecular dynamics simulations of site point mutations in the TPR domain of cyclophilin 40 identify conformational states with distinct dynamic and enzymatic properties. J. Chem. Phys. 2018, 148, 145101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Iki, T.; Yoshikawa, M.; Meshi, T.; Ishikawa, M. Cyclophilin 40 facilitates HSP90-mediated RISC assembly in plants. EMBO J. 2012, 31, 267–278. [Google Scholar] [CrossRef] [PubMed]
  37. Smith, M.R.; Willmann, M.R.; Wu, G.; Berardini, T.Z.; Möller, B.; Weijers, D.; Poethig, R.S. Cyclophilin 40 is required for microRNA activity in Arabidopsis. Proc. Natl. Acad. Sci. USA 2009, 106, 5424–5429. [Google Scholar] [CrossRef] [Green Version]
  38. Jain, B.P.; Pandey, S. WD40 Repeat Proteins: Signalling Scaffold with Diverse Functions. Protein J. 2018, 37, 391–406. [Google Scholar] [CrossRef]
  39. Ramsay, N.A.; Glover, B.J. MYB–bHLH–WD40 protein complex and the evolution of cellular diversity. Trends Plant Sci. 2005, 10, 63–70. [Google Scholar] [CrossRef]
  40. Li, H.; Luan, S. The cyclophilin AtCYP71 interacts with CAF-1 and LHP1 and functions in multiple chromatin remodeling processes. Mol. Plant 2011, 4, 748–758. [Google Scholar] [CrossRef]
  41. Seung, D.; Schreier, T.B.; Bürgy, L.; Eicke, S.; Zeeman, S.C. Two plastidial coiled-coil proteins are essential for normal starch granule initiation in Arabidopsis. Plant Cell 2018. [Google Scholar] [CrossRef]
  42. Slootweg, E.J.; Spiridon, L.N.; Martin, E.C.; Tameling, W.I.; Townsend, P.D.; Pomp, R.; Pomp, R.; Roosien, J.; Drawska, O.; Sukarta, O.C.; et al. Distinct roles of non-overlapping surface regions of the coiled-coil domain in the potato immune receptor Rx1. Plant Physiol. 2018, 178, 1310–1331. [Google Scholar] [CrossRef] [PubMed]
  43. Zhou, J.; Liu, D.; Wang, P.; Ma, X.; Lin, W.; Chen, S.; Mishev, K.; Lu, D.P.; Kumar, R.; Vanhoutte, I.; et al. Regulation of Arabidopsis brassinosteroid receptor BRI1 endocytosis and degradation by plant U-box PUB12/PUB13-mediated ubiquitination. Proc. Natl. Acad. Sci. USA 2018, 115, E1906–E1915. [Google Scholar] [CrossRef]
  44. Bannikova, O.; Zywicki, M.; Marquez, Y.; Skrahina, T.; Kalyna, M.; Barta, A. Identification of RNA targets for the nuclear multidomain cyclophilin atCyp59 and their effect on PPIase activity. Nucleic Acids Res. 2012, 41, 1783–1796. [Google Scholar] [CrossRef] [Green Version]
  45. Lemieux, B.; Laterreur, N.; Perederina, A.; Noël, J.F.; Dubois, M.L.; Krasilnikov, A.S.; Wellinger, R.J. Active yeast telomerase shares subunits with ribonucleoproteins RNase P and RNase MRP. Cell 2016, 165, 1171–1181. [Google Scholar] [CrossRef]
  46. Lee, S.S.; Park, H.J.; Jung, W.Y.; Lee, A.; Yoon, D.H.; You, Y.N.; Kim, H.S.; Kim, B.G.; Ahn, J.C.; Cho, H.S. OsCYP21-4, a novel Golgi-resident cyclophilin, increases oxidative stress tolerance in rice. Front. Plant Sci. 2015, 6, 797. [Google Scholar] [CrossRef] [PubMed]
  47. Giavalisco, P.; Kapitza, K.; Kolasa, A.; Buhtz, A.; Kehr, J. Towards the proteome of Brassica napus phloem sap. Proteomics 2006, 6, 896–909. [Google Scholar] [CrossRef] [PubMed]
  48. Oh, K.C.; Ivanchenko, M.G.; White, T.J.; Lomax, T.L. The diageotropica gene of tomato encodes a cyclophilin: A novel player in auxin signaling. Planta 2006, 224, 133–144. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, Y.; Li, B.; Xu, Y.; Li, H.; Li, S.; Zhang, D.; Mao, Z.W.; Guo, S.Y.; Yang, C.H.; Weng, Y.X.; et al. The cyclophilin CYP20-2 modulates the conformation of BRASSINAZOLE-RESISTANT1, which binds the promoter of FLOWERING LOCUS D to regulate flowering in Arabidopsis. Plant Cell 2013, 25, 2504–2521. [Google Scholar] [CrossRef] [PubMed]
  50. Sun, Y.; Veerabomma, S.; Abdel-Mageed, H.A.; Fokar, M.; Asami, T.; Yoshida, S.; Allen, R.D. Brassinosteroid regulates fiber development on cultured cotton ovules. Plant Cell Physiol. 2005, 46, 1384–1391. [Google Scholar] [CrossRef] [PubMed]
  51. Zhang, M.; Zheng, X.; Song, S.; Zeng, Q.; Hou, L.; Li, D.; Zhao, J.; Wei, Y.; Li, X.B.; Luo, M. Spatiotemporal manipulation of auxin biosynthesis in cotton ovule epidermal cells enhances fiber yield and quality. Nat. Biotechnol. 2011, 29, 453. [Google Scholar] [CrossRef] [PubMed]
  52. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  53. Voorrips, R.E. MapChart: Software for the Graphical Presentation of Linkage Maps and QTLs. J. Hered. 2002, 93, 77–78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Wang, Y.; Tang, H.; DeBarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.-h.; Jin, H.; Marler, B.; Guo, H. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [PubMed]
Ijms 20 00349 g001 550

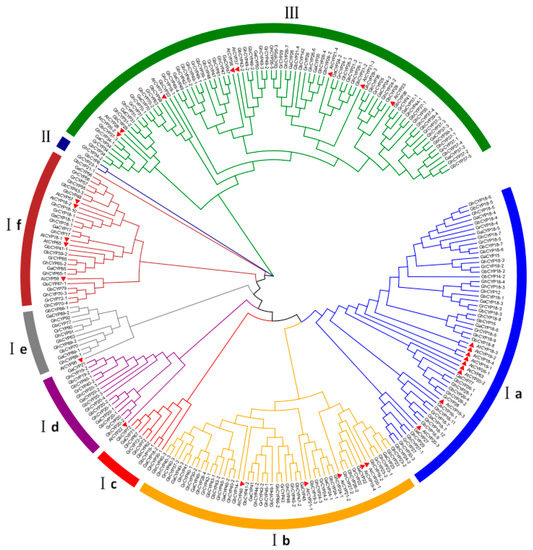

Figure 1. Phylogenetic tree of 260 cyclophilin (CYP) proteins from G. barbadense (A-subgenome 42, D-subgenome 33), G. hirsutum (A-subgenome 41, D-subgenome 37), G. arboretum (40), G. raimondii (38) and Arabidopsis (29). MEGA 6.0 was used to build the neighbour-joining (NJ) tree with 1000 bootstrap replicates. Different line colours indicate different subgroups of CYPs. AtCYPs are represented by red triangles.
Figure 1. Phylogenetic tree of 260 cyclophilin (CYP) proteins from G. barbadense (A-subgenome 42, D-subgenome 33), G. hirsutum (A-subgenome 41, D-subgenome 37), G. arboretum (40), G. raimondii (38) and Arabidopsis (29). MEGA 6.0 was used to build the neighbour-joining (NJ) tree with 1000 bootstrap replicates. Different line colours indicate different subgroups of CYPs. AtCYPs are represented by red triangles.
Ijms 20 00349 g001
Ijms 20 00349 g002 550

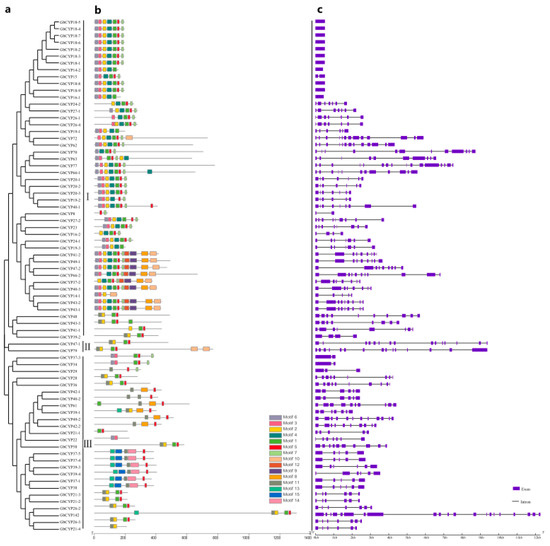

Figure 2. (a) Phylogenetic relationship, (b) motif analysis and (c) exon-intron gene structures of the CYP gene family in G. barbadense. a phylogenetic analysis of GbCYPs using the NJ method. b Motifs 1, 2, 3, 4, 5, 6 and 7 together compose the cyclophilin-like domain (CLD). Motif 8 is a TPR (tetratricopeptide repeat) domain function. c Structures of CYP genes.
Figure 2. (a) Phylogenetic relationship, (b) motif analysis and (c) exon-intron gene structures of the CYP gene family in G. barbadense. a phylogenetic analysis of GbCYPs using the NJ method. b Motifs 1, 2, 3, 4, 5, 6 and 7 together compose the cyclophilin-like domain (CLD). Motif 8 is a TPR (tetratricopeptide repeat) domain function. c Structures of CYP genes.
Ijms 20 00349 g002
Ijms 20 00349 g003 550

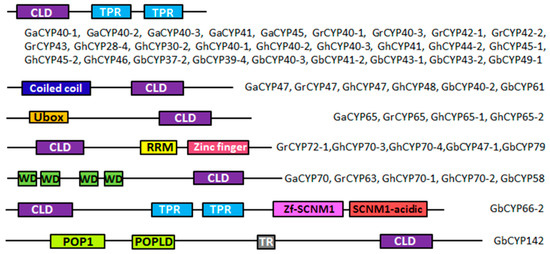

Figure 3. MD structures of 49 Gossypium CYPs. CLD = cyclophilin-like domain; TPR = tetratricopeptide repeat; U-box = U-box domain; RRM = RNA recognition motif; WD = tryptophan-aspartate repeat; Zf = Zinc finger of sodium channel modifier 1; POP1/POPLD = MRP protein subunit; TR = transmembrane domain.
Figure 3. MD structures of 49 Gossypium CYPs. CLD = cyclophilin-like domain; TPR = tetratricopeptide repeat; U-box = U-box domain; RRM = RNA recognition motif; WD = tryptophan-aspartate repeat; Zf = Zinc finger of sodium channel modifier 1; POP1/POPLD = MRP protein subunit; TR = transmembrane domain.
Ijms 20 00349 g003
Ijms 20 00349 g004 550

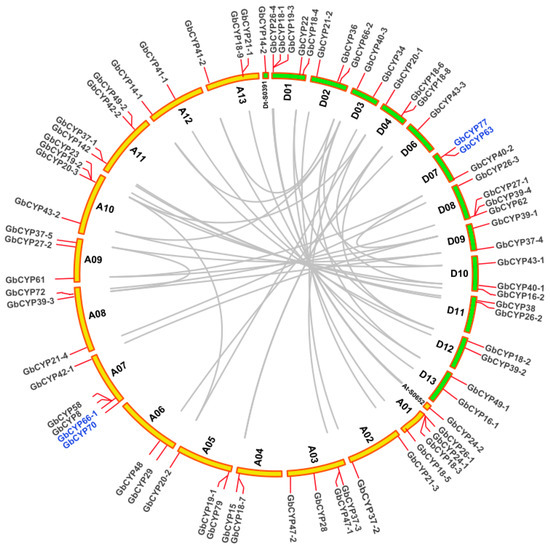

Figure 4. Chromosomal localisations and duplications of CYP genes on G. barbadense chromosomes. The duplicated CYP genes are indicated with grey lines and tandemly duplicated genes are marked with blue.
Figure 4. Chromosomal localisations and duplications of CYP genes on G. barbadense chromosomes. The duplicated CYP genes are indicated with grey lines and tandemly duplicated genes are marked with blue.
Ijms 20 00349 g004
Ijms 20 00349 g005 550

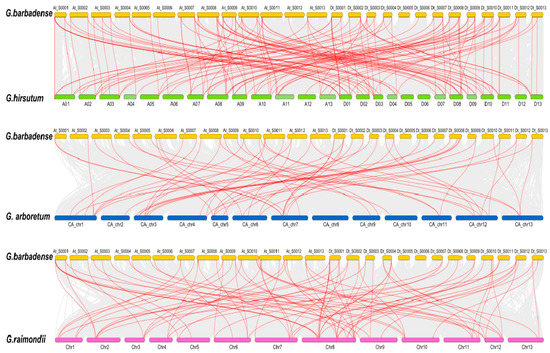

Figure 5. Collinearity analyses of CYP genes between G. barbadense and G. hirsutum, G. arboretum and G. raimondii. Duplication events within G. barbadense and the genomes of the other three Gossypium species are indicated with grey lines in the background, while the red lines highlight syntenic CYP gene pairs.
Figure 5. Collinearity analyses of CYP genes between G. barbadense and G. hirsutum, G. arboretum and G. raimondii. Duplication events within G. barbadense and the genomes of the other three Gossypium species are indicated with grey lines in the background, while the red lines highlight syntenic CYP gene pairs.
Ijms 20 00349 g005
Ijms 20 00349 g006 550

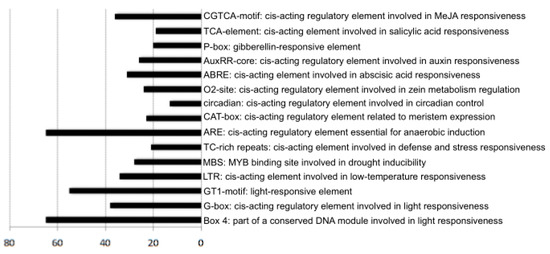

Figure 6. The main response cis-acting elements in GbCYP promoters.
Figure 6. The main response cis-acting elements in GbCYP promoters.
Ijms 20 00349 g006
Ijms 20 00349 g007 550

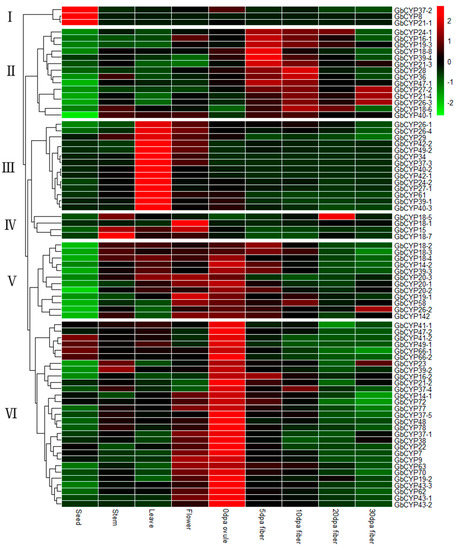

Figure 7. Expression patterns of GbCYP genes in different tissues. Nine tissues comprising seeds, stems, leaves, flowers, 0 days postanthesis (DPA) ovules, and 5, 10, 20 and 30 DPA fibres were investigated. Scale bars represent the log2 transformations of the RPKM values. The results can be classified into six pattern groups (I–VI).
Figure 7. Expression patterns of GbCYP genes in different tissues. Nine tissues comprising seeds, stems, leaves, flowers, 0 days postanthesis (DPA) ovules, and 5, 10, 20 and 30 DPA fibres were investigated. Scale bars represent the log2 transformations of the RPKM values. The results can be classified into six pattern groups (I–VI).
Ijms 20 00349 g007
Ijms 20 00349 g008 550

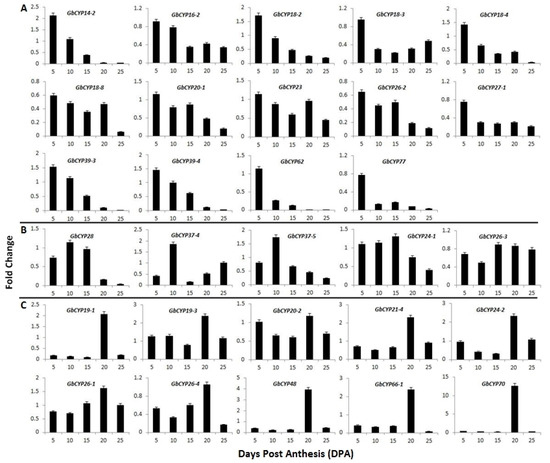

Figure 8. Expression patterns of 29 G. barbadense CYP genes during fibre development based on qRT-PCR. (A) Genes that were highly expressed at 5 DPA. (B) Genes that were highly expressed at 10 and 15 DPA. (C) Genes that were highly expressed at 20 DPA. GbUBQ7 was used as an internal reference to normalise the expression data. Error bars were calculated from the difference in the expression patterns of three biological replicates. The details of the primer sequences are listed in Additional File 11: Table S7.
Figure 8. Expression patterns of 29 G. barbadense CYP genes during fibre development based on qRT-PCR. (A) Genes that were highly expressed at 5 DPA. (B) Genes that were highly expressed at 10 and 15 DPA. (C) Genes that were highly expressed at 20 DPA. GbUBQ7 was used as an internal reference to normalise the expression data. Error bars were calculated from the difference in the expression patterns of three biological replicates. The details of the primer sequences are listed in Additional File 11: Table S7.
Ijms 20 00349 g008
Ijms 20 00349 g009 550

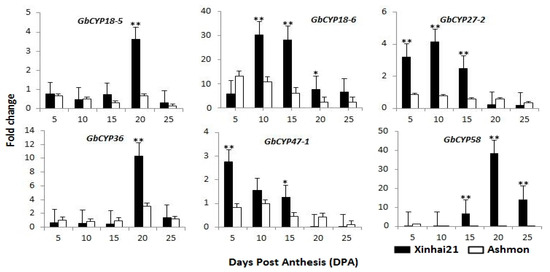

Figure 9. Expression profiles of six GbCYPs between Xinhai21 and Ashmon based on qRT-PCR. GbUBQ7 was used as an internal reference to normalise the expression data. Error bars were calculated from the difference in the expression patterns of three biological replicates. The asterisks and double asterisks indicate correlations at the 0.05 and 0.01 significance levels, respectively (t-test, * p < 0.05, ** p < 0.01).
Figure 9. Expression profiles of six GbCYPs between Xinhai21 and Ashmon based on qRT-PCR. GbUBQ7 was used as an internal reference to normalise the expression data. Error bars were calculated from the difference in the expression patterns of three biological replicates. The asterisks and double asterisks indicate correlations at the 0.05 and 0.01 significance levels, respectively (t-test, * p < 0.05, ** p < 0.01).
Ijms 20 00349 g009
Table
Table 1. Average cotton fibre quality parameters from 2014 to 2016.
Table 1. Average cotton fibre quality parameters from 2014 to 2016.
CottonFibre LengthFibre UniformityBreak ng TenacityFibre ElongationShort Fibre RateMaturityMicronaire ValueSpinning Index
mm%CN/tex%%
Xinhai2136.15 ± 0.4987.83 ± 0.2434.80 ± 0.586.10 ± 0.565.73 ± 1.440.87 ± 0.014.10 ± 0.12165.00 ± 2.83
Ashmon25.16 ± 0.5681.20 ± 0.9628.63 ± 2.009.06 ± 1.2911.26 ± 3.600.85 ± 0.015.30 ± 0.23104.33 ± 4.80
