Computational Study for the Unbinding Routes of β-N-Acetyl-d-Hexosaminidase Inhibitor: Insight from Steered Molecular Dynamics Simulations
Abstract
:1. Introduction
2. Results and Discussion

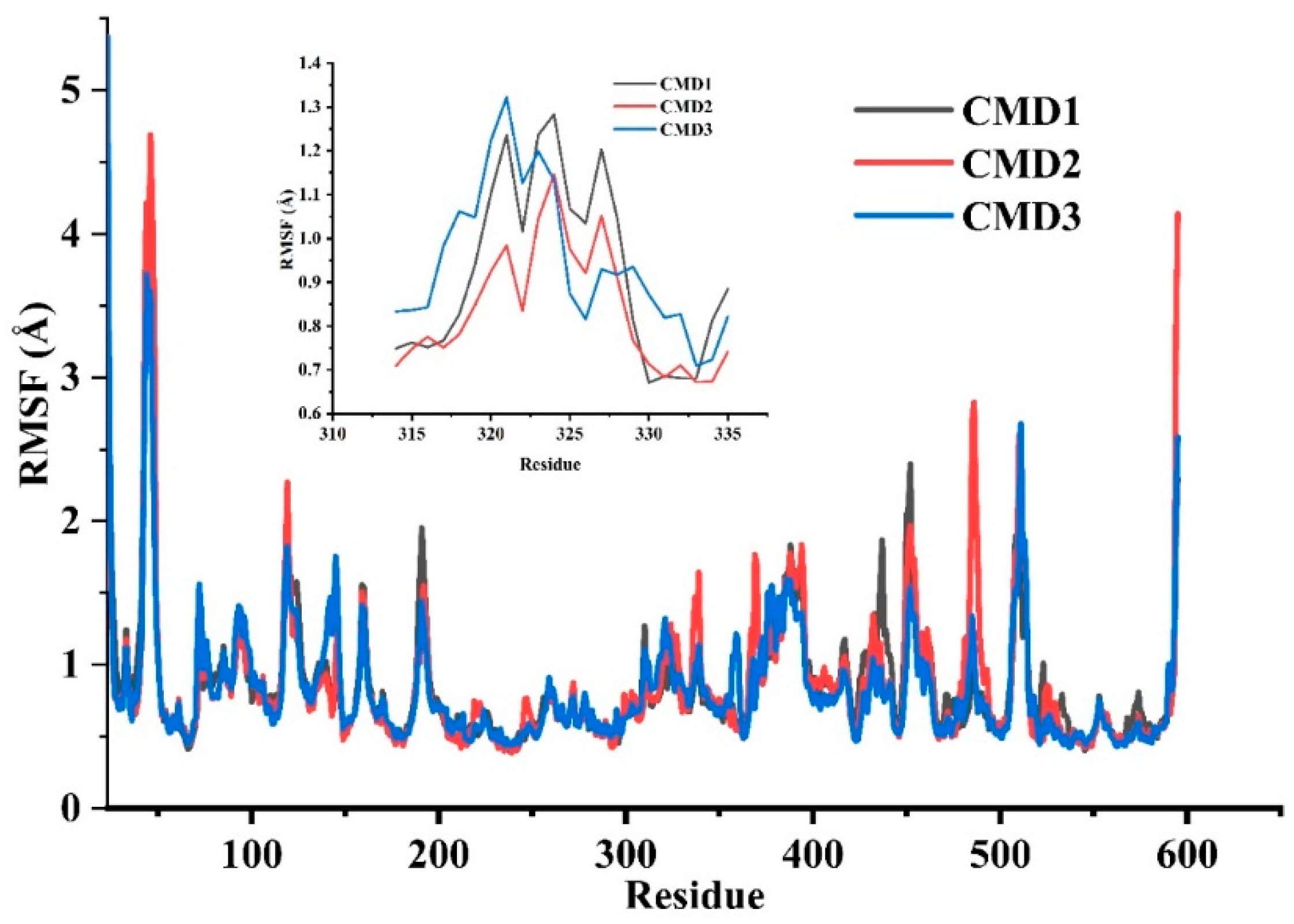

2.1. The Conformational Change of MD Simulation

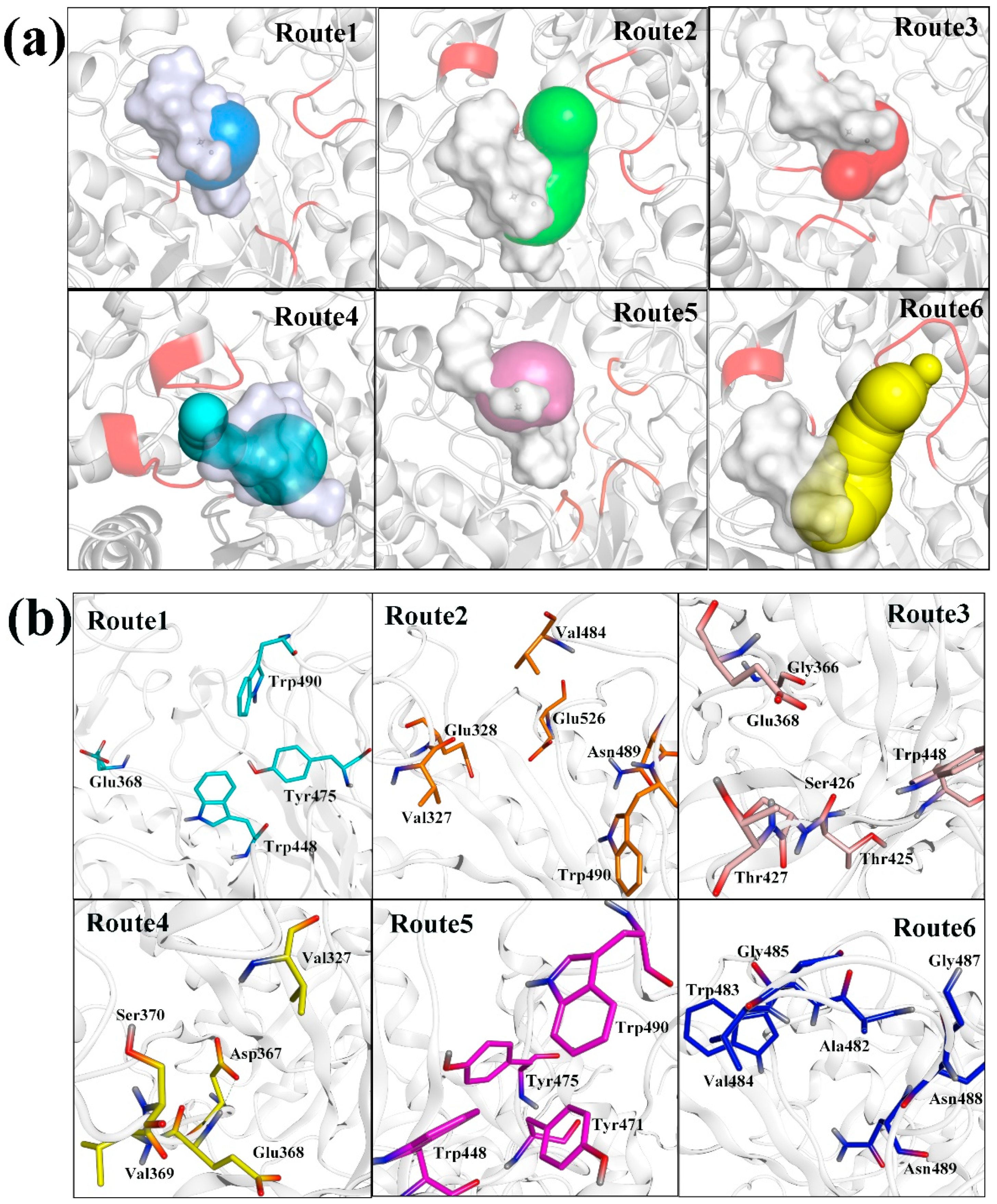

2.2. Analysis of Unbinding Pathways by CAVER

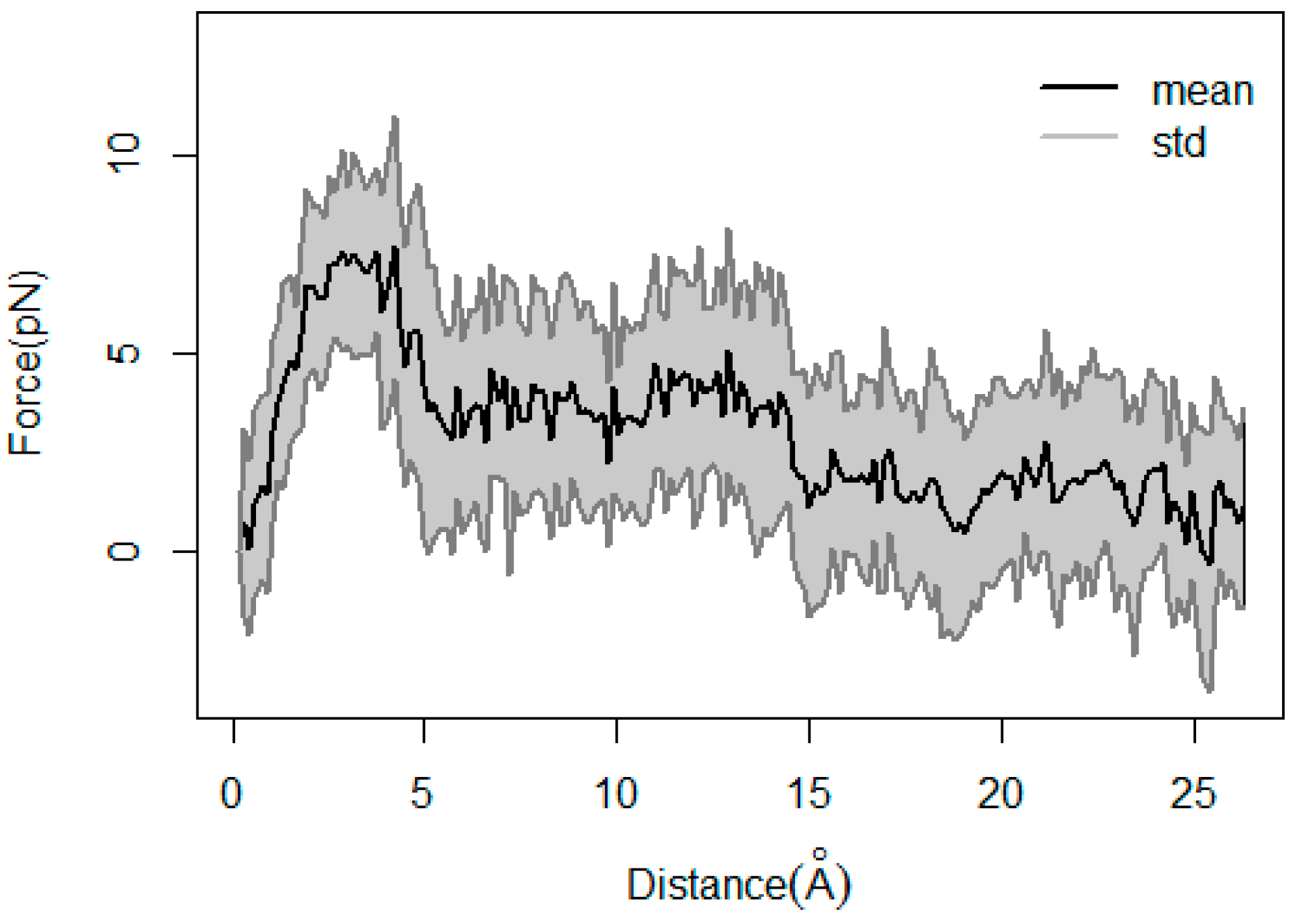

2.3. SMD Simulations

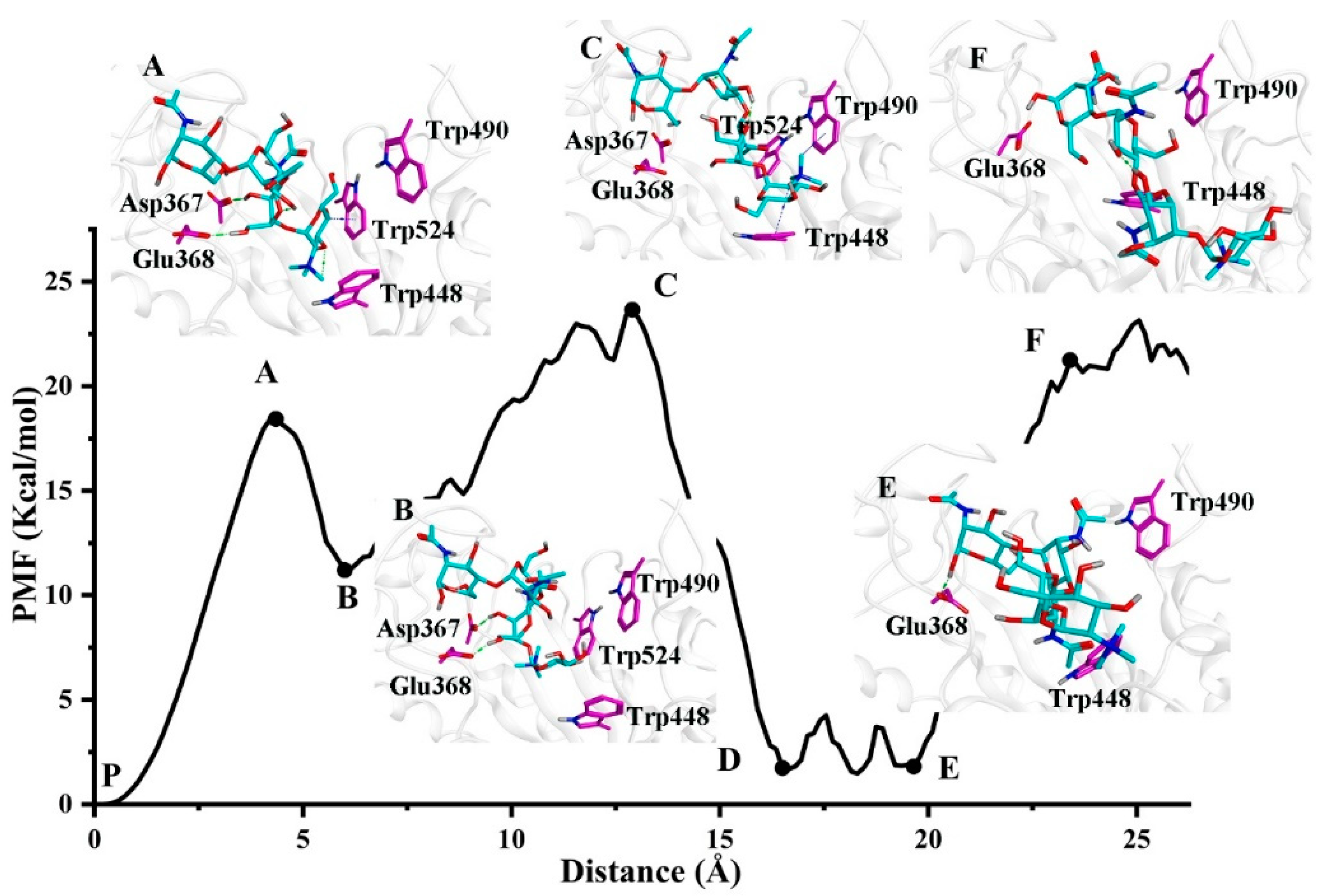

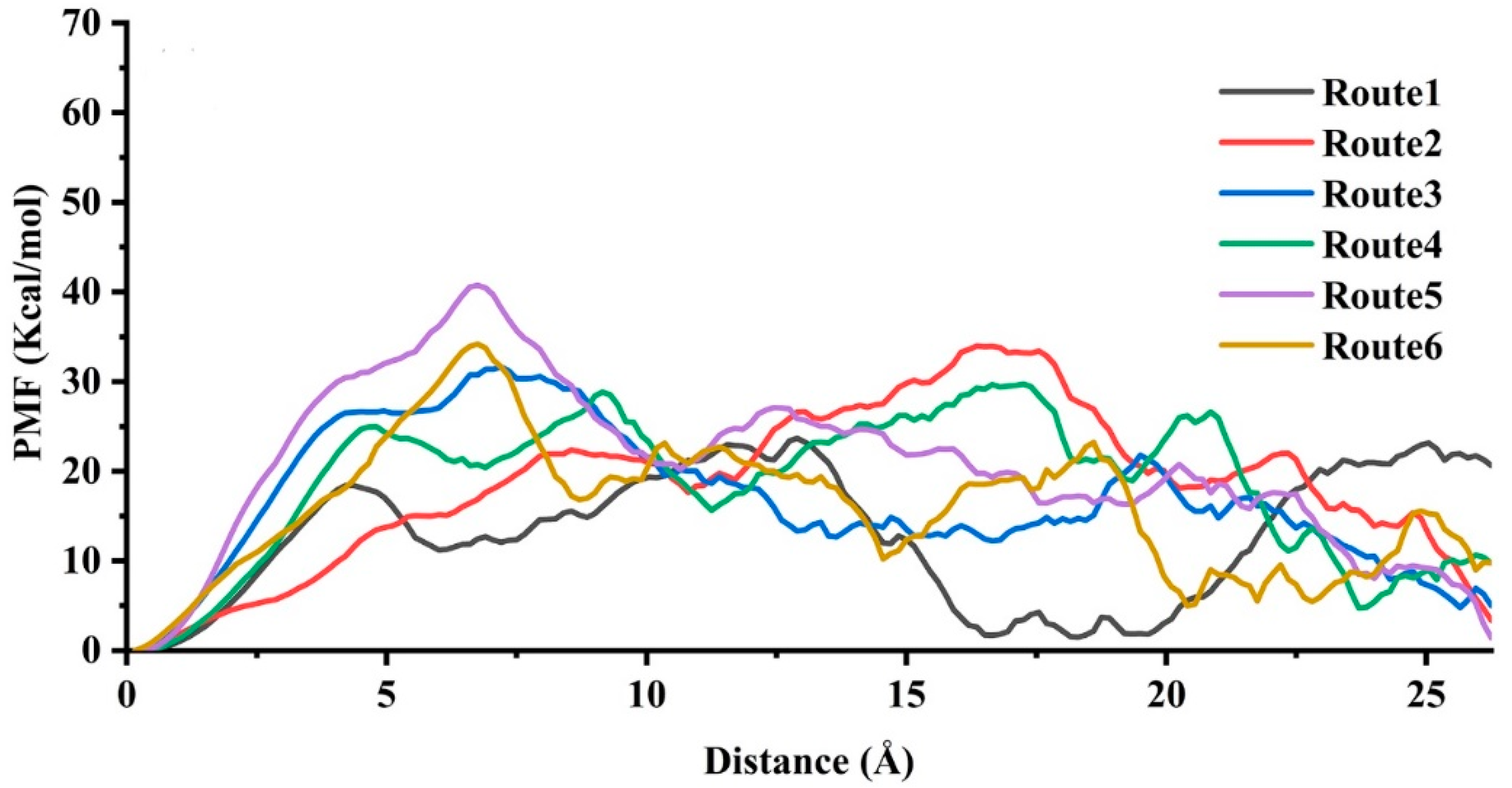

2.4. PMFs during the Unbinding Route of TMG-Chitotriomycin
2.5. Important Residues during the Unbinding of the Ligand
2.6. The “Open–Close” Conformational Change of Glu368 and Trp448
3. Materials and Methods
3.1. Preparation of Starting Structure
3.2. MD Simulations
3.3. CAVER
3.4. SMD Simulations
- (1)

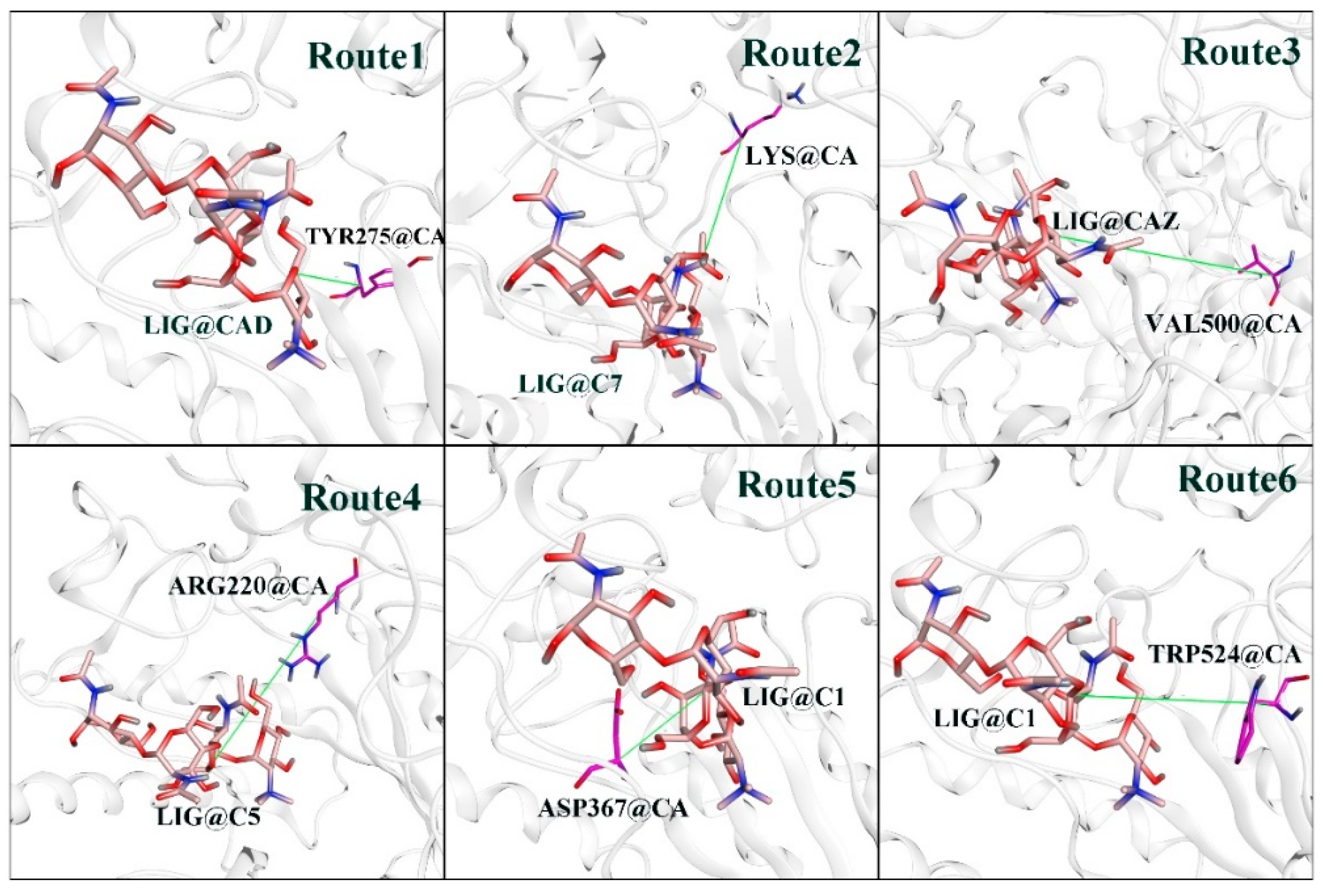

- The direction from the Cα atom of Tyr275 to the CAD atom of ligand (Figure 4, Route 1);
- (2)
- The direction from the Cα atom of Lys273 to the C7 atom of ligand (Figure 4, Route 2);
- (3)
- The direction from the Cα atom of Val500 to the CAZ atom of ligand (Figure 4, Route 3);
- (4)
- The direction from the Cα atom of Agr220 to the C5 atom of ligand (Figure 4, Route 4);
- (5)
- The direction from the Cα atom of Asp367 to the C1 atom of ligand (Figure 4, Route 5);
- (6)
- The direction from the Cα atom of Trp524 to the C1 atom of ligand (Figure 4, Route 6).
3.5. PMFs Calculation
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
OfHex1 | β-N-Acetyl-d-hexosaminidase from Ostrinia Furnacalis |
PMFs | Potential of mean forces |
MD | Molecular dynamics |
SMD | Steered molecular dynamics |
CMD1 | The first conventional molecular dynamics simulation |
CMD2 | The second conventional molecular dynamics simulation |
CMD3 | The third conventional molecular dynamics simulation |
RMSD | Root mean square deviation |
RMSFs | Root mean square fluctuations |
L478-496 | Loop residues 478-496 |
L314-355 | Loop residues 314-335 |
References
- Merzendorfer, H. Chitin metabolism in insects: Structure, function and regulation of chitin synthases and chitinases. J. Exp. Biol. 2003, 206, 4393–4412. [Google Scholar] [CrossRef] [PubMed]
- Kramer, K.J.; Koga, D. Insect chitin: Physical state, synthesis, degradation and metabolic regulation. Insect Biochem. 1986, 16, 851–877. [Google Scholar] [CrossRef]
- Intra, J.; Pavesi, G.; Horner, D.S. Phylogenetic analyses suggest multiple changes of substrate specificity within the glycosyl hydrolase 20 family. BMC Evol. Biol. 2008, 8, 214. [Google Scholar] [CrossRef] [PubMed]
- Slamova, K.; Bojarova, P.; Petraskova, L.; Kren, V. Beta-N-acetylhexosaminidase: What’s in a name? Biotechnol. Adv. 2010, 28, 682–693. [Google Scholar] [CrossRef]
- Cohen, E. Chitin synthesis and degradation as targets for pesticide action. Arch. Insect Biochem. Physiol. 1993, 22, 245–261. [Google Scholar] [CrossRef]
- Tews, I.; Perrakis, A.; Oppenheim, A.; Dauter, Z.; Wilson, K.S.; Vorgias, C.E. Bacterial chitobiase structure provides insight into catalytic mechanism and the basis of Tay-Sachs disease. Nature Struct. Biol. 1996, 3, 638–648. [Google Scholar] [CrossRef] [PubMed]
- Mark, B.L.; Mahuran, D.J.; Cherney, M.M.; Zhao, D.L.; Knapp, S.; James, M.N.G. Crystal structure of human beta-hexosaminidase B: Understanding the molecular basis of Sandhoff and Tay-Sachs disease. J. Mol. Biol. 2003, 327, 1093–1109. [Google Scholar] [CrossRef]
- Liu, T.; Zhang, H.; Liu, F.; Wu, Q.; Shen, X.; Yang, Q. Structural determinants of an insect beta-N-Acetyl-D-hexosaminidase specialized as a chitinolytic enzyme. J. Biol. Chem. 2011, 286, 4049–4058. [Google Scholar] [CrossRef] [PubMed]
- Knapp, S.; Vocadlo, D.; Gao, Z.N.; Kirk, B.; Lou, J.P.; Withers, S.G. NAG-thiazoline, an N-acetyl-beta-hexosaminidase inhibitor that implicates acetamido participation. J. Am. Chem. Soc. 1996, 118, 6804–6805. [Google Scholar] [CrossRef]
- Horsch, M.; Hoesch, L.; Vasella, A.; Rast, D.M. N-Acetylglucosaminono-1,5-lactone oxime and the corresponding (phenylcarbamoyl)oxime-novel and potent inhibitors of beta-N-acetylglucosaminidase. Eur. J. Biochem. 1991, 197, 815–818. [Google Scholar] [CrossRef]
- Liu, T.; Guo, P.; Zhou, Y.; Wang, J.; Chen, L.; Yang, H.; Qian, X.; Yang, Q. A crystal structure-guided rational design switching non-carbohydrate inhibitors’ specificity between two beta-GlcNAcase homologs. Sci. Rep. 2014, 4, 6188. [Google Scholar] [CrossRef] [PubMed]
- Usuki, H.; Nitoda, T.; Ichikawa, M.; Yamaji, N.; Iwashita, T.; Komura, H.; Kanzaki, H. TMG-chitotriomycin, an enzyme inhibitor specific for insect and fungal beta-N-acetylglucosaminidases, produced by actinomycete Streptomyces anulatus NBRC 13369. J. Am. Chem. Soc. 2008, 130, 4146–4152. [Google Scholar] [CrossRef] [PubMed]
- Liu, T.; Xia, M.; Zhang, H.; Zhou, H.; Wang, J.; Shen, X.; Yang, Q. Exploring NAG-thiazoline and its derivatives as inhibitors of chitinolytic beta-acetylglucosaminidases. FEBS Lett. 2015, 589, 110–116. [Google Scholar] [CrossRef]
- Liu, T.; Zhang, H.; Liu, F.; Chen, L.; Shen, X.; Yang, Q. Active-pocket size differentiating insectile from bacterial chitinolytic beta-N-acetyl-D-hexosaminidases. Biochem. J. 2011, 438, 467–474. [Google Scholar] [CrossRef] [PubMed]
- Wong, C.F. Steered molecular dynamics simulations for uncovering the molecular mechanisms of drug dissociation and for drug screening: A test on the focal Adhesion Kinase. J. Comput. Chem. 2018, 39, 1307–1318. [Google Scholar] [CrossRef]
- Colizzi, F.; Perozzo, R.; Scapozza, L.; Recanatini, M.; Cavalli, A. Single-molecule pulling simulations can discern active from inactive enzyme inhibitors. J. Am. Chem. Soc. 2010, 132, 7361–7371. [Google Scholar] [CrossRef]
- Kalyaanamoorthy, S.; Chen, Y.-P.P. A steered molecular dynamics mediated hit discovery for histone deacetylases. Phys. Chem. Chem. Phys. 2014, 16, 3777–3791. [Google Scholar] [CrossRef]
- Mino, G.; Baez, M.; Gutierrez, G. Effect of mutation at the interface of Trp-repressor dimeric protein: A steered molecular dynamics simulation. Eur. Biophys. J. Biophys. Lett. 2013, 42, 683–690. [Google Scholar] [CrossRef]
- Mohammadiarani, H.; Vashisth, H. Insulin mimetic peptide S371 folds into a helical structure. J Comput Chem. 2017, 38, 1158–1166. [Google Scholar] [CrossRef]
- Mohammadiarani, H. Simulation studies of signaling and regulatory proteins University of New Hampshire. Ph.D. Thesis, University of New Hampshire, Durham, NH, USA, 2017. [Google Scholar]
- Park, S.; Schulten, K. Calculating potentials of mean force from steered molecular dynamics simulations. J. Chem. Phys. 2004, 120, 5946–5961. [Google Scholar] [CrossRef]
- Torrie, G.M.; Valleau, J.P. Non-physical sampling distributions in monte-carlo free-energy estimation-umbrella sampling. J. Chem. Phys. 1977, 23, 187–199. [Google Scholar]
- Essex, J.W.; Severance, D.L.; TiradoRives, J.; Jorgensen, W.L. Monte Carlo simulations for proteins: Binding affinities for trypsin-benzamidine complexes via free-energy perturbations. J. Chem. Phys. B. 1997, 101, 9663–9669. [Google Scholar] [CrossRef]
- Kirkwood, J.G. Statistical mechanics of fluid mixtures. J. Chem. Phys. 1935, 3, 300–313. [Google Scholar] [CrossRef]
- Zhang, Z.; Wu, T.; Wang, Q.; Pan, H.; Tang, R. Impact of interfacial high-density water layer on accurate estimation of adsorption free energy by Jarzynski’s equality. J. Chem. Phys. 2014, 140, 034706. [Google Scholar] [CrossRef] [PubMed]
- Hu, S.; Dong, Y.W.; Zhao, X.; Zhang, L. Insights into the structure-affinity relationships and solvation effects between OfHex1 and inhibitors using molecular dynamics simulations. J. Mol. Graphics Modell. 2019, in press. [Google Scholar]
- Wang, J.M.; Wolf, R.M.; Caldwell, J.W.; Kollman, P.A.; Case, D.A. Development and testing of a general amber force field. J. Comput. Chem. 2004, 25, 1157–1174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Lindorff-Larsen, K.; Piana, S.; Palmo, K.; Maragakis, P.; Klepeis, J.L.; Dror, R.O.; Shaw, D.E. Improved side-chain torsion potentials for the Amber ff99SB protein force field. Proteins Struct. Funct. Bioinf. 2010, 78, 1950–1958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Jakalian, A.; Jack, D.B.; Bayly, C.I. Fast, efficient generation of high-quality atomic charges. AM1-BCC model: II. Parameterization and validation. J. Comput. Chem. 2002, 23, 1623–1641. [Google Scholar] [CrossRef] [PubMed]
- Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for simulating liquid water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
- Salomon-Ferrer, R.; Goetz, A.W.; Poole, D.; Le Grand, S.; Walker, R.C. Routine microsecond molecular dynamics simulations with AMBER on GPUs. 2. Explicit solvent particle mesh ewald. J. Chem. Theory Comput. 2013, 9, 3878–3888. [Google Scholar] [CrossRef]
- Goetz, A.W.; Williamson, M.J.; Xu, D.; Poole, D.; Le Grand, S.; Walker, R.C. Routine microsecond molecular dynamics simulations with AMBER on GPUs. 1. Generalized Born. J. Chem. Theory Comput. 2012, 8, 1542–1555. [Google Scholar] [CrossRef]
- Chovancova, E.; Pavelka, A.; Benes, P.; Strnad, O.; Brezovsky, J.; Kozlikova, B.; Gora, A.; Sustr, V.; Klvana, M.; Medek, P.; et al. CAVER 3.0: A tool for the analysis of transport pathways in dynamic protein structures. PLoS Comput. Biol. 2012, 8, e1002708. [Google Scholar] [CrossRef] [PubMed]
- Jarzynski, C. Nonequilibrium equality for free energy differences. Phys. Rev. Lett. 1997, 78, 2690–2693. [Google Scholar] [CrossRef]
- Jorgensen, W.L. Drug discovery: Pulled from a protein’s embrace. Nature 2010, 466, 42–43. [Google Scholar] [CrossRef] [PubMed]
Dissociation Routes | Average Radius | Average Length | Priority |
---|---|---|---|
Route 1 | 4.23 | 2.90 | 0.962 |
Route 2 | 3.30 | 9.14 | 0.906 |
Route 3 | 2.53 | 9.21 | 0.876 |
Route 4 | 2.34 | 19.51 | 0.806 |
Route 5 | 2.29 | 5.90 | 0.879 |
Route 6 | 1.35 | 15.65 | 0.730 |
Route | Residues | Probability (%) |
---|---|---|
1 | Tyr475 | 11 |
Trp490 | 14 | |
Glu368 | 11 | |
Trp448 | 14 | |
2 | Val484 | 10 |
Asn489 | 11 | |
Trp490 | 11 | |
Glu526 | 11 | |
Val327 | 11 | |
Glu328 | 10 | |
3 | Gly366 | 11 |
Glu368 | 14 | |
Thr425 | 14 | |
Ser426 | 14 | |
Thr427 | 13 | |
Trp448 | 14 | |
4 | Val327 | 19 |
Asp367 | 17 | |
Glu368 | 20 | |
Val369 | 14 | |
Ser370 | 13 | |
5 | Tyr471 | 23 |
Tyr475 | 14 | |
Trp490 | 27 | |
Trp448 | 27 | |
6 | Ala482 | 12 |
Gly485 | 11 | |
Gly487 | 10 | |
Asn488 | 11 | |
Trp483 | 9 | |
Val484 | 10 | |
Asn489 | 9 |
