Structural Isomerism and Enhanced Lipophilicity of Pyrithione Ligands of Organoruthenium(II) Complexes Increase Inhibition on AChE and BuChE

by
Jerneja Kladnik
1,
Samuel Ristovski
2,
Jakob Kljun
1,
Andrea Defant
3,
Ines Mancini
3,
Kristina Sepčić
2,* and
Iztok Turel
1,*
1
Faculty of Chemistry and Chemical Technology, University of Ljubljana, 1000 Ljubljana, Slovenia
2
Department of Biology, Biotechnical Faculty, University of Ljubljana, 1000 Ljubljana, Slovenia
3
Department of Physics, Bioorganic Chemistry Laboratory, University of Trento, 38123 Povo-Trento, Italy
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(16), 5628; https://doi.org/10.3390/ijms21165628
Submission received: 23 June 2020 / Revised: 25 July 2020 / Accepted: 1 August 2020 / Published: 6 August 2020
(This article belongs to the Section Molecular Neurobiology)
Browse Figures
Versions Notes

Abstract

:
The increasing number of Alzheimer’s disease (AD) cases requires the development of new improved drug candidates, possessing the ability of more efficient treatment as well as less unwanted side effects. Cholinesterase enzymes are highly associated with the development of AD and thus represent important druggable targets. Therefore, we have synthesized eight organoruthenium(II) chlorido complexes 1a–h with pyrithione-type ligands (pyrithione = 1-hydroxypyridine-2(1H)-thione, a), bearing either pyrithione a, its methyl (b-e) or bicyclic aromatic analogues (f–h) and tested them for their inhibition towards electric eel acetylcholinesterase (eeAChE) and horse serum butyrylcholinesterase (hsBuChE). The experimental results have shown that the novel complex 1g with the ligand 1-hydroxyquinoline-2-(1H)-thione (g) improves the inhibition towards eeAChE (IC50 = 4.9 μM) and even more potently towards hsBuChE (IC50 = 0.2 μM) in comparison with the referenced 1a. Moreover, computational studies on Torpedo californica AChE have supported the experimental outcomes for 1g, possessing the lowest energy value among all tested complexes and have also predicted several interactions of 1g with the target protein. Consequently, we have shown that the aromatic ring extension of the ligand a, though only at the appropriate position, is a viable strategy to enhance the activity against cholinesterases.

Graphical Abstract

1. Introduction

Due to world’s aging population there is a progressive increase of the cases related to dementia [1]. The most common type of dementia that affects elderly population is Alzheimer’s disease (AD). AD is a neurodegenerative disorder, which is mainly associated with progressive disabling cognitive impairment such as memory loss and difficulties in speech; however, behavior and sleeping function are often impacted too, and changes in personality can also occur [2]. The symptoms described are the result of the neuropathologic changes, which have mainly been related to the elevated levels of amyloid-β (Aβ) plaques, neurofibrillary tangles of tau protein and neuronal death. However, in clinical trials the approach of diminishing Aβ plaque levels has been unsuccessful [3]. Still, the amyloid hypothesis cannot be discarded and should rather be complemented with other systems involved in the progress of this multifaceted disease. Therefore, the cholinergic hypothesis of AD was developed, which states that the cognitive decrease in patients with AD is also associated with the loss of cholinergic function in the central nervous system [4]. Normally, acetylcholine (ACh) as a neurotransmitter binds to acetylcholine receptors, which further triggers an intracellular cascade of events that maintains cognitive processes. AD patients face the decrease of these receptors, which is connected to the gradual loss of cholinergic neurons due to higher amount of Aβ plaques [5].
As mentioned, targeting Aβ plaques has not been successful. Therefore, the research has also focused on other targets—cholinesterases (ChEs)—which could more efficiently confront AD. In the cholinergic system, there are two ChEs, namely acetylcholinesterase (AChE) and butyrylcholinesterase (BuChE). Both ChEs have an ability to bind and cleave ACh so that neuron excitation can be, over time, cut off [6,7]. Both ChEs belong to serine hydrolase enzyme family with a catalytic triad in their active site consisted of Ser, His, and Glu. Although both ChEs exhibit a high degree of structural similarity, BuChE has a larger active pocket, allowing the accommodation of bulkier substrates, and affording bigger substrate specificity [8]. In the brain of healthy humans, AChE is the main enzyme responsible for the hydrolysis of ACh. During the AD progression, the activity of AChE remains the same or eventually declines, whereas the progressive increase of BuChE activity is observed. Therefore, the research and development of therapeutics with dual inhibition of both AChE and BuChE is urgently needed. The inhibition of both ChEs keeps the level of ACh high enough to maintain sufficient cholinergic transmission in the brain of AD patients and diminishes symptoms that can occur due to the lack of nicotinic acetylcholine receptors [7,9].
Currently, there are three ChE inhibitors approved by FDA for the treatment of AD. Two of them are donepezil and galantamine, which are selective non-competitive and competitive AChE inhibitors, respectively, and another one is rivastigmine that pseudo-irreversibly inhibits AChE as well as BuChE. All three compounds can penetrate through the blood brain barrier and inhibit the mentioned ChEs in the central nerve system [10,11]. Data from clinical trials have shown that these drugs stabilize or slow down cognitive and functional impairment; however, they only express modest overall benefits considering behavioral symptoms or clinical global change outcomes of AD patients. Moreover, ChE inhibitors were reported to cause serious adverse effects that are mainly connected to gastrointestinal problems, e.g. vomiting, nausea, diarrhea, and anorexia [12]. Therefore, it is of great importance to develop new improved drug candidates with better activity against ChE in the central nervous system and less unwanted effects on the peripheral nervous system [13].
Metals also play important role in the development of AD. Abnormal elevated concentrations of iron, copper, and zinc were found in amyloid plaques in post-mortem brain tissues of the individuals with AD [14]. Moreover, it is also frequently mentioned that aluminum is somehow connected to AD, though its role is still not clearly known [15]. Therefore, drug design of chelators to restore the homeostasis of mentioned metals was also considered as one of the possible therapeutic approaches in treating AD [14]. However, as mentioned, cholinergic system seems to be the most promising therapeutic field to combat AD. Some ruthenium complexes, mainly ruthenium(II) polypyridyl compounds, have also been examined as AChE inhibitors [16,17,18], and some of them additionally inhibit Aβ aggregation [19,20,21]. Recently, we have reported a potent chlorido organoruthenium(II) complex with pyrithione 1a (Scheme 1) (a—pyrithione, also 1-hydroxypyridine-2(1H)-thione or 2-mercaptopyridine N-oxide) [22], which is an excellent reversible competitive inhibitor of three ChEs, namely electric eel AChE (eeAChE), human AChE (hAChE), and horse serum BuChE (hsBuChE) with low micromolar IC50 values (5.01 µM, 25.06 µM, and 7.52 µM, respectively). Complex 1a also inhibited enzyme glutathione-S-transferase, which is involved in chemotherapeutic drug resistance. Moreover, complex 1a showed no cytotoxicity against non-cancer HUVEC and NHEK-1 cells and also did not express any unwanted physiological response on the neuromuscular transition at pharmaceutically relevant concentrations. The latter finding is of the particular importance, as many AChE inhibitors show many adverse effects, including uncontrolled muscle contraction and the failure of neuromuscular transmission in the peripheric nervous system [23]. Another important aspect when developing new potential drugs is the behavior of the compound in human serum, which has also been thoroughly investigated for the complex 1a. Our data have shown that complex 1a mainly interacts with human serum albumin (70%) and, though more weakly, also with immunoglobulins G (5%), whereas 25% of the compound 1a remains unbound [24].
Taking into consideration all mentioned positive outcomes of organoruthenium(II)-pyrithionato systems, we have decided to further elucidate the potential of such types of complexes on the ChE enzymes. There have been several reports of AChE inhibitors that take part not only in affecting ChE activity, but also affect non-neuronal functions such as the regulation of cell proliferation, differentiation, and apoptosis. Clinically used drugs for the treatment of AD, e.g., galantamine and donepezil, have also been tested for such effects [25], where galantamine has induced antiproliferative activity against 3T3 cells and donepezil has triggered apoptosis on HL-60 human promyelocytic leukemia cells [26]. Moreover, there are also some chemotherapeutics, e.g., irinotecan [27], cyclophosphamide [28], sunitimib [29], and even cisplatin [30], that have expressed potent AChE inhibition. Compounds with such dual anticholinesterase as well as anticancer activity can be taken into consideration for the treatment of AD and cancer, concomitantly. Additionally, there is an interesting correlation between AD and cancer occurrence, as AD patients suffer less from cancer and cancer patients less from AD development. Such statistics points to some similar mechanisms of action involved in both disease processes, which can be used for the development of new efficient drugs for these two indications [31]. Apart from previously synthesized complexes 1a–e, which have been evaluated for their anticancer properties [32], we have extended our synthesis to bicyclic aromatic pyrithione analogues f–h and prepared their new chlorido organoruthenium(II) complexes 1f–h (Scheme 1). In the present work, novel experimental results on the inhibition towards eeAChE and hsBuChE by the compounds a–h and 1a–h are shown, supported by a docking study of the complexes 1a–h on Torpedo californica AChE (TcAChE). Molecular docking is indeed a useful tool used in drug discovery, very often able to relate to the experimental biological evaluation. It gives an indication on the relative energy values of the complexes between a macromolecular target and each ligand of a series of molecules, as well as on the number and types of interactions involved in the receptor site. To our knowledge, this is the first expanded study of the organoruthenium(II) pyrithione complexes on ChEs with an aim to provide comprehensive results that are needed in the development of new improved drugs for AD in the field of organometallic compounds.

2. Results and Discussion

2.1. Synthesis and Crystal Structures

Ligand a is a commercially available compound, whereas the ligands b–e and their corresponding chlorido complexes 1a–e were prepared according to Kladnik et al. [32]. Ligands f–h were prepared following the protocol reported by Cohen et al. [33,34] with modifications described in Section 3.3. New complexes with (iso)quinoline-derived pyrithione ligands 1f–h were synthesized by reacting the ruthenium cymene precursor (RuCym, [Ru(p-cymene)Cl2]2) with the appropriate pyrithione analog (f–h) in the presence of the base NaOMe. The reaction mixtures were stirred overnight in dichloromethane (DCM). After the reaction was completed (monitored by TLC) the solvent was evaporated and the reaction mixture was purified by column chromatography to eliminate all impurities, including the precipitated byproduct NaCl. After combining all fractions containing the product, the mobile phase was evaporated and the oily residue redissolved in DCM and evaporated again to completely remove methanol from mobile phase and facilitate precipitation. Complexes 1f–h precipitated from DCM/n-heptane mixture and the red precipitates were filtered under reduced pressure, followed by drying at 45 °C overnight. The complexes are air, moisture, and light stable.
All compounds were characterized by 1H NMR, UV-Vis, and IR spectroscopy as well as high-resolution electrospray ionization mass spectrometry (ESI-HRMS) and elemental analysis (C, H, N). New crystal structures for 1f and 1g were obtained by X-ray diffraction on monocrystals (Figure 1, Table S1, Figure S1).
The crystal structures of 1f and 1g show the typical piano-stool geometry of organoruthenium-cymene complexes. The ligands are expectedly coordinated through the oxygen and sulfur atoms of the thiohydroxamate moiety with bond lengths and values comparable to those of analog complexes of methyl-substituted pyrithiones. Interestingly, in the case of compound 1g the crystal packing of the compounds into layers is stabilized mainly by π-stacking interactions (Figure S2), while compound 1f exhibits weak hydrogen bonds between the cymene hydrogens and the coordinated oxygen atoms also observed in the parent ruthenium-pyrithione complex.

2.2. Stability of Organoruthenium(II) Pyrithione Complexes

The isolated chlorido complexes 1a–h are neutral molecules. However, when considering metal complexes as potential therapeutics the investigation of their stability in aqueous media is of utmost importance. It is well-known that organoruthenium(II) complexes bearing monodentate halide ions (e.g., Cl-) act as prodrugs in biological media, as halides are prone to the substitution with other surrounding solvent molecules [35,36,37,38]. These processes are often complex and best described as equilibria of more metal species in the final solutions. As reported by many other researchers, dealing with similar organometallic systems, Ru–Cl is a labile bond, subjected to give fast production of Ru–OH2 or Ru–OH species in aqueous media. As water molecules are neutral entities, newly formed Ru-OH2 species are positively charged, which might ease the electrostatic interactions between metal complexes and target proteins [35]. Moreover, when performing biological assays, solubilizing agents such as DMSO or ethanol are often added to prepare stock solutions. These molecules can, however, also react with metallodrugs possessing labile ligands [39]. In our previous studies, we have found that the behavior of the complexes depends on the type of the ligand and together with all above mentioned factors affect the kinetics of interactions with biomolecules, and thus, also their biological activity [40,41,42]. Previously, we have already reported stability investigations of some organoruthenium(II)-pyrithionato complexes [22,24,32] as well as of structurally related organoruthenium(II) compounds [40,41,42] by NMR, MS, and UV-Vis spectroscopies. Firstly, we have shown by 1H NMR that compound 1a is stable in DMSO-d6/D2O solvent system [22] and later also confirmed the stability of 1a complex in the D2O solution containing NaCl [24]. Furthermore, in another study on organoruthenium(II)-pyrithionato systems, we reported similar NMR experiments for the compound 1b, and in both cases the negligible release of p-cymene was observed. Moreover, none of the experiments showed the presence of the free O,S-ligand, which indicated an exceptional stability of the formed adducts. With the addition of NaCl to the investigated solutions high concentration of the halide ion in the extracellular fluids was mimicked, which may suppress mentioned hydrolysis. Therefore, it is speculated that the activation of the complexes to positively charged species occurs inside the cell with lower NaCl concentrations. The stability of 1b was further supported by the UV-Vis investigation in aqueous media where compound 1b resulted stable in phosphate buffer solution, cultural media RPMI and FP-RPMI, as well as plasma [32].
For the complexes 1e and 1g we have first checked whether the compounds remain stable under the conditions used for enzymatic assay on ChEs, where compounds are first dissolved in 100% EtOH and then progressively diluted with potassium phosphate buffer (v/v % of EtOH between 0.02–6.25%, where the small amount of added EtOH does not influence enzyme activity). All assays were carried out immediately after the solution preparation. Therefore, we have prepared 6.25% EtOH-d6/D2O solutions containing 80.2 mM K2HPO4 and 19.8 mM KH2PO4 (600 µL) for each complex (circa 4 mg) and recorded 1H NMR spectra immediately after the preparation of the solution and later after one hour. From the Figure S3, we can see that tested methyl as well as bicyclic aromatic pyrithione complex remain stable under conditions used. Thus, we can conclude that the tested complexes are responsible for enzymatic inhibition. Furthermore, we have also followed the stability of the complex 1e and 1g in D2O, containing 140 mM NaCl to assess the influence of high chlorido concentration present in plasma. After one day we could observe negligible changes in the spectra in case of both complexes (Figures S4B and S5B). The same was observed for the stability of the complexes, recorded only in D2O without NaCl present (Figures S4A and S5A), suggesting that under extra- and intracellular conditions the complexes should remain intact.
An additional evidence was provided by electrospray ionization-mass spectrometry (ESI-MS), taking advantage by sensitivity and soft ionization method of this technique, which allows to reveal non-covalent interactions with an efficient detection across a range of solvents, which we have already reported in some similar systems for organoruthenium(II) compounds [41,42]. In detail, ESI-MS analysis was carried out in positive ion mode by direct infusion from an aqueous solution of 1b prepared immediately before measurement and after three days. The same spectrum was observed showing only the isotopic pattern for the [M − Cl]+ ion (Figure 2), which is in good agreement with the 1H NMR stability data obtained immediately and after three days for the complexes 1e and 1g in D2O, where the complexes remain the main present species (Figures S4A and S5A). Replacing water with a MeOH solution of 1b gave identical behavior. Moreover, similar analyses changing solvent and time displayed only [M − Cl]+ ion with clusters at m/z 376 for the isomeric compounds 1c–e, at m/z 362 for 1a and at m/z 412 for 1f–h.

2.3. Enzymatic Assays

We have already reported that compound 1a exerts very good ChE-inhibitory activity [23]. Therefore, an expanded library of organoruthenium(II)-pyrithione complexes was prepared to get more extensive insight into their further potential in the treatment of AD. The obtained compounds a–h and 1a–h were first investigated for their inhibition against eeAChE and hsBuChE. By introducing the methyl group, we wanted to analyze the potential influence of small structural differences on the ChE-inhibitory activity. In fact, some methyl-substituted pyrithione ligands as well as their organoruthenium(II) complexes were already found to exert stronger biological activities than their non-methylated analogue, as reflected for instance in the inhibition of carbonic anhydrase [33] or in anticancer effects [32], respectively.
We have also decided to prepare pyrithione analogues with extended aromatic rings (f–h, 1f–h) to increase lipophilicity of the compounds, which is an important factor as optimal lipophilicity enhances chances in the success of drug discovery [43]. Therefore, (iso)quinoline-derived pyrithione ligands f–h were resynthesized and their novel organorutehinium(II) complexes were prepared to check whether this strategy could also be applied in the cholinergic system.
The IC50 values and inhibition constants (Ki) of the ligands a–h and organoruthenium(II) chlorido complexes 1a–h against eeAChE and hsBuChE are presented in Table 1. Ligands a–g were not active against eeAChE or hsBuChE and ligand h was only poorly active against eeAChE and hsBuChE, whereas complexes 1a–h showed a reversible competitive type of inhibition of both tested enzymes, with inhibitory constants in the low micromolar range. Comparing IC50 values of our compounds with those obtained with neostigmine bromide, which is a golden standard in ChE inhibition studies, it can be observed that complex 1g has comparable activity against eeAChE, whereas tested complexes 1a–h resulted as more potent inhibitors of hsBuChE.
Complexes inhibit eeAChE in low micromolar range with the lowest and the highest IC50 values of 4.9 µM and 14.3 µM for 1g and 1h, respectively. The introduction of electron-donating methyl group at meta and ortho positions of the N-oxide group of the complexes 1d and 1e resulted in the slight increase of the inhibitory potential towards eeAChEs in comparison to 1a. Considering hsBuChE inhibition, parallels can be drawn between investigated ChEs. Generally, the highest inhibition degree against hsBuChE was obtained for the complex 1g (IC50 = 0.2 µM), and among methyl substituted complexes also with 1e (IC50 = 0.7 µM). The lowest inhibition against hsBuChE was achieved with complex 1c, which, however, still remains in the low micromolar range with an IC50 value of 2.7 µM. Generally, the IC50 values obtained with hsBuChE are lower than those obtained with eeAChE. In particular, all three complexes bearing bicyclic aromatic ligands f–h exert their BuChE-inhibitory activities at very low concentrations. The reason behind might be the difference in the active gorge size of the eeAChE and hsBuChE, which is larger in case of the latter. Therefore, bigger complexes have easier access to the catalytic triad and more space to adjust the most convenient position and interactions with other amino acid residues to fit the hsBuChE active gorge.
Importantly, the results above point to some preliminary structure activity relationship. In both cases, methyl-substituted complexes 1d and 1e are better inhibitors of eeAChE as well as hsBuChE in comparison to unsubstituted 1a complex. Furthermore, when those two methyl groups at ortho and meta position of the N-oxide group are connected via the benzene ring, thus forming complex 1g, the inhibition against eeAChE and hsBuChE increases even more. Therefore, the position of the fused benzene ring regarding to the thiohydroxamic group on pyrithione a importantly influences inhibition, especially when taking into consideration the inhibition of eeAChE, where complex 1g exerts the highest, whereas 1h the lowest inhibition among all tested complexes. Thus, not only the increased lipophilicity, but also the structural isomerism plays a very important role.

2.4. Computational Study

Docking calculations were carried out to support experimental data on AChE inhibition, while the lack of results on the tridimensional structure for hsBuChE prevented such computational approach. In order to understand the interactions of the compounds 1a–h with the active sites of AChE, docking calculations were carried out using the AutoDock program. eeAChE was used in the experimental study, but the corresponding X-ray structure was available at a very low resolution (PDB, ID: 1C2O, 1C2B, and 1EEA, at 4.2–4.5 Å), though only as native enzymes without ligand. To overcome this problem, TcAChE 6G1V at 1.8 Å resolution could be used as a model system [44], relying on the fact that a comparison between these two structures showed a 0.59 TM-score indicating approximately the same fold [45]. Above all, the two enzymes showed the same amino acid residues in the active sites, except for tyrosine 330 in eeAChE, replaced by phenylalanyl 330 in TcAChE, indicating very similar receptor ability (Figure S18).
Table 2 reports the data by docking calculation for compounds 1a–h and neostigmine bromide used as the reference in experimental assays. Note that in the case of unusual elements, such as some transition metals, the calculation by AutoDock needs parameters in addition to the standard approach. Therefore, in this study on organoruthenium(II) complexes, the results must be taken with due caution. Despite this, we have obtained a good correlation between experimental data (with IC50 values in the range 5–14 µM and 4.3 µM for neostigmine bromide) and the docking results including energy values (from −10 to −7 Kcal/mol, and −7.0 Kcal/mol for neostigmine bromide), and both the number and type of interactions.
In detail, the best AChE inhibition observed for the complex 1g with 1-hydroxyquinoline-2-(1H)-thione ligand is in line with the lowest calculated energy value, combined with the presence of a H-bond involving tyrosine 121 even at a shorter distance than the one observed for neostigmine bromide, two π-stackings, and a series of hydrophobic interactions. In the methyl-pyrithione series, compound 1d displayed a good enzyme inhibition, associated to favorable docking results, including a low energy value and a high number of hydrophobic interactions (Figure 3).
Based on the most promising data obtained for 1g and 1d, the key descriptors to evaluate their drug-likeness have been regarded by ADME prediction (Figure S19). Both compounds show a good gastrointestinal absorption, which is essential for an oral drug administration. Moreover, for complex 1d it was also shown to penetrate the blood-brain barrier, a requirement for therapeutics active on the central nervous system.

3. Materials and Methods

3.1. Chemicals

Starting materials for the syntheses of the ligands a–h and other reagents for the synthesis of the complexes 1a–h, as well as the solvents, were purchased from commercial suppliers (Fluorochem, Hadfield, UK; Strem Chemicals, Cambridge, UK; Merck, Darmstadt, Germany) and used as received, with the exception of CHCl3 used in the reactions of N-oxidation for f′–h′, which was dried over Na2SO4 before use. For monitoring the progress of the reactions pre-coated TLC sheets ALUGRAM® SIL G/UV254 (Macherey-Nagel, Düren, Germany) were used and visualized under UV light. Merck Silica gel 60 (35–70 µm) as a stationary phase was employed to perform column chromatography.

3.2. Characterization

The physicochemical characterization of prepared compounds was performed by 1H NMR spectroscopy, CHN elemental analysis, high resolution electrospray ionization mass spectrometry (ESI-HRMS), infrared (IR), UV–Vis spectroscopy, and X-ray diffraction on monocrystal. 1H NMR spectra for f′–h′, f–h, and 1f–h together with IR spectra for 1f–h can be found in the Supplementary Materials (Figures S6–S14 and S15–S17, respectively). Characterization data for the compounds a–e and 1a–e was previously reported by Kladnik et al. [32].
1H NMR spectra were recorded using Bruker Avance III 500 spectrometer at room temperature at 500 MHz. Chemical shifts of 1H NMR spectra are referenced to deuterated solvent residual peaks of CDCl3, DMSO-d6, and D2O at 7.26, 2.50, and 4.79 ppm, respectively. The splitting of the proton resonances is defined as s = singlet, d = doublet, t = triplet, q = quartet, hept = heptet, m = multiplet, and bs = broad signal. Chemical shift (δ) are given in ppm and coupling constants (J) in Hz. NMR data processing was carried out with MestReNova version 11.0.4. Infrared spectra were recorded with a Bruker FTIR Alpha Platinum ATR spectrometer and high-resolution mass spectra (HRMS) on an Agilent 6224 Accurate Mass TOF LC/MS instrument. Elemental analyses were performed on a PerkinElmer 2400 II instrument (C, H, N). UV-Vis spectra for compounds were obtained on PerkinElmer LAMBDA 750 UV/Vis/near-IR spectrophotometer. Electrospray ionization (ESI)-MS mass spectra by direct infusion of aqueous or methanol solution of the compounds 1a–h were recorded using a Bruker Esquire-LC spectrometer (drying gas N2, 4 L/min, scan range m/z 100–1000, Skim1 15.2 V). Isotopic clusters were simulated by home-made software (University of Trento, Italy).
X-ray diffraction data was collected on an Oxford Diffraction SuperNova diffractometer with Mo/Cu microfocus X-ray source (Kα radiation, λMo = 0.71073 Å, λCu = 1.54184 Å) with mirror optics and an Atlas detector at 150(2) K. The structures were solved in Olex2 graphical user interface [46] by direct methods implemented in SHELXT and refined by a full-matrix least-squares procedure based on F2 using SHELXL [47]. All non-hydrogen atoms were refined anisotropically. The hydrogen atoms were placed at calculated positions and treated using appropriate riding models. The crystal structures have been submitted to the CCDC and have been allocated the deposition numbers 2006351 and 2006352 for the compounds 1f and 1g, respectively.

3.3. Syntheses

Ligands f–h were prepared according to the known procedure [33] with some modifications described below. General schemes for the synthesis of the ligands f–h and complexes 1f–h are presented in the Supplementary Materials (Scheme S1 and S2). Chlorido complexes 1f–h were prepared according to the adjusted previously reported procedures from our group [32].
General procedure f′–h′ (N-oxidation). Precursors 1-bromoisoquinoline, 2-bromoquinoline or 3-bromoisoquinoline (400 mg, 1 mol. equiv.) were combined with m-chloroperoxybenzoic acid (948 mg, m-CPBA, 2 mol. equiv., 70% purity) in CHCl3 (10 mL) and stirred at room temperature for 5 hours and overnight for f′ and g′–h′, respectively. The solution was first washed with 1 M NaOH (1 × 50 mL), and then, the water phase was extracted with CHCl3 (2 × 25 mL). The combined organic phases were dried over sodium sulfate, filtered, and evaporated under reduced pressure. The residue was purified by column chromatography on silica gel, eluting with 2% MeOH/DCM or 5% MeOH/DCM for f’–g’ or h’, respectively. After the solvent removal, a white solid was obtained that was dried at 45 °C overnight.
1-Bromoisoquinoline N-oxide (f’). Yield: 59%. 1H NMR (500 MHz, DMSO-d6): δ = 8.39 (d, 1H, J = 7.1 Hz, Ar–H), 8.02 (t, 2H, J = 7.5 Hz, Ar–H), 7.98 (d, 1H, J = 7.1 Hz, Ar–H), 7.83–7.78 (m, 1H, Ar–H), 7.72–7.66 (m, 1H, Ar–H).
2-Bromoquinoline N-oxide (g’). Yield: 19%. 1H NMR (500 MHz, DMSO-d6): δ = 8.55 (d, 1H, J = 8.8 Hz, Ar–H), 8.12 (d, 1H, J = 7.7 Hz, Ar–H), 7.94–7.84 (m, 3H, Ar–H), 7.80–7.75 (m, 1H, Ar–H).
3-Bromoisoquinoline N-oxide (h’). Yield: 85%. 1H NMR (500 MHz, DMSO-d6): δ = 9.23 (s, 1H, Ar–H), 8.57 (s, 1H, Ar–H), 7.90 (t, 2H, J = 8.4 Hz, Ar–H), 7.70–7.62 (m, 2H, Ar–H).
General procedure for f–h (thiolation). To appropriate bromo(iso)quinoline N-oxide f’–h’ (200 mg) saturated NaSH(aq) (10 mL) and water (10 mL) were added and left to stir at room temperature overnight for f–g or on reflux for 6 hours for h. The solution was acidified with 4 M HCl(aq) to pH ~1, followed by the immediate extraction with CHCl3 (2 × 30 mL). The combined organic layers were dried over sodium sulphate, filtered, and evaporated. The residue was triturated with acetone and the byproduct elemental sulphur S8 was filtered off. After evaporation of the mother liquor solution, a yellow-greyish solid was obtained. Ligands without further purification were used for the complexation with ruthenium precursor RuCym. In case the ligands were needed for the biological assays, column chromatography on silica gel was performed, eluting with hexane/ethyl acetate = 9/1 or 9.5/0.5 for f or g, respectively, to afford a yellow-greyish solid. Yields given below are from the obtained compounds before their purification by column chromatography. Yields for f–g after purification varied between 40–70% as obtained thiones are sensitive to silica gel and partly decompose, which was similarly observed in a previous study [48]. For the ligand h, we were not able to obtain analytically pure compound, as it totally degrades on silica gel; however, Adamek et al. reported the same compound h could be obtained with 4% yield using a reverse chromatography and crystallization [34].
2-Hydroxyisoquinoline-1-(2H)-thione (f). Yield: 88%. 1H NMR (500 MHz, DMSO-d6): δ = 12.10 (s, 1H, N–OH), 8.72 (d, 1H, J = 8.3 Hz, Ar–H), 8.23 (d, 1H, J = 7.3 Hz, Ar–H), 7.90 (d, 1H, J = 7.9 Hz, Ar–H), 7.83–7.78 (m, 1H, Ar–H), 7.73–7.68 (m, 1H, Ar–H), 7.31 (d, 1H, J = 7.3 Hz, Ar–H). ESI-HRMS (CH3CN) m/z for [M + H]+ (found (calcd)): 178.0329 (178.0321). Anal. Calcd for C9H7NOS: C, 61.00; H, 3.98; N, 7.90. Found: C, 60.95; H, 3.97; N, 7.79.
1-Hydroxyquinoline-2-(1H)-thione (g). Yield: 89%. 1H NMR (500 MHz, DMSO-d6): δ = 12.14 (s, 1H, N–OH), 7.94–7.90 (m, 2H, Ar–H), 7.85 (d, 1H, J = 9.1 Hz, Ar–H), 7.82–7.77 (m, 1H, Ar–H), 7.52 (d, 1H, J = 9.1 Hz, Ar–H), 7.50–7.46 (m, 1H, Ar–H). ESI-HRMS (CH3CN) m/z for [M + H]+ (found (calcd)): 178.0324 (178.0321). Anal. Calcd for C9H7NOS: C, 61.00; H, 3.98; N, 7.90. Found: C, 61.23; H, 3.81; N, 7.82.
2-Hydroxyisoquinoline-3-(2H)-thione (h). Yield: 88%. 1H NMR (500 MHz, DMSO-d6): δ = 12.97 (bs, 1H, N–OH), 9.73 (s, 1H, Ar–H), 8.09 (s, 1H, Ar–H), 7.95 (d, 1H, J = 8.0 Hz, Ar–H), 7.75–7.66 (m, 2H, Ar–H), 7.50–7.45 (m, 1H, Ar–H). ESI-HRMS (CH3CN) m/z for [M + H]+ (found (calcd)): 178.0306 (178.0321).
General procedure for 1f–h. A mixture of RuCym precursor (1 mol. equiv.), ligand f–h (2.2 mol. equiv.), and NaOMe (1.9 mol, equiv.) was stirred at room temperature in DCM overnight. Next day the solvent was evaporated under the reduced pressure on a rotary evaporator followed by the purification of the crude product by column chromatography on silica gel, eluting with 2% MeOH/DCM. After evaporating the mobile phase under reduced pressure, an oily residue was obtained. The residue was redissolved in DCM (approximately 10 mL) and the solvent was again evaporated to ensure total removal of MeOH. The oily product was again dissolved in 1–2 mL of DCM and the addition of the cold n-heptane (10–15 mL) resulted in the complex precipitation. If the complexes did not precipitate, the solvents were partly evaporated on the rotary evaporator to remove exceeded DCM and/or ultrasonic bath was used to ease the precipitation of the complexes. The suspension was left to stand for 30 min, after which the product was filtered under reduced pressure and washed with cold n-heptane. Obtained red solids were dried at 45 °C overnight.
[(η6-p-Cymene)Ru(2-hydroxyisoquinoline-1-(2H)-thionato)Cl] (1f). Yield: 71%. 1H NMR (500 MHz, CDCl3): δ = 8.63–8.59 (m, 1H, Ar–H f), 7.92 (d, 1H, J = 7.3 Hz, Ar–H f), 7.65–7.55 (m, 3H, Ar–H f), 7.11 (d, 1H, J = 7.3 Hz, Ar–H f), 5.53 (d, 2H, J = 6.1 Hz, Ar–H cym), 5.33 (d, 2H, J = 4.5 Hz, Ar–H cym), 2.85 (hept, 1H, J = 6.9 Hz, Ar–CH(CH3)2 cym), 2.27 (s, 3H, Ar–CH3 cym), 1.27 (d, 6H, J = 6.9 Hz, Ar–CH(CH3)2 cym). IR selected bands (cm−1, ATR): 3047, 2959, 1550, 1343, 1175, 939, 818, 772, 752, 667. UV-Vis (λ (nm) (ε (L mol−1 cm−1)) c = 5 × 10−5 M, MeOH): 304 (12030), 346 (sh) (5302), 392 (sh) (2486), 487 (600). ESI-HRMS (CH3CN) m/z for [M − Cl]+ (found (calcd)): 412.0319 (412.0309). Anal. Calcd for C19H20ClNORuS: C, 51.06; H, 4.51; N, 3.13. Found: C, 50.92; H, 4.47; N, 3.08.
[(η6-p-Cymene)Ru(1-hydroxyquinoline-2-(1H)-thionato)Cl] (1g). Yield: 64%. 1H NMR (500 MHz, CDCl3): δ = 8.54 (d, 1H, J = 8.5 Hz, Ar–H g), 7.69–7.63 (m, 2H, Ar–H g), 7.46–7.39 (m, 3H, Ar–H g), 5.57 (s, 2H, Ar–H cym), 5.32 (s, 2H, Ar–H cym), 2.86 (hept, 1H, J = 6.9 Hz, Ar–CH(CH3)2 cym), 2.29 (s, 3H, Ar–CH3 cym), 1.30 (d, 6H, J = 6.9 Hz, Ar–CH(CH3)2 cym). IR selected bands (cm−1, ATR): 3048, 2957, 1612, 1311, 1140, 905, 827, 764, 659, 528. UV-Vis (λ (nm) (ε (L mol−1 cm−1)) c = 5 × 10−5 M, MeOH): 280 (19434), 343 (6148), 417 (sh) (2404), 510 (sh) (568). ESI-HRMS (CH3CN) m/z for [M − Cl]+ (found (calcd)): 412.0314 (412.0309). Anal. Calcd for C19H20ClNORuS: C, 51.06; H, 4.51; N, 3.13. Found: C, 50.87; H, 4.21; N, 3.11.
[(η6-p-Cymene)Ru(2-hydroxyisoquinoline-3-(2H)-thionato)Cl] (1h). Yield: 49%. 1H NMR (500 MHz, CDCl3): δ = 8.75 (s, 1H, Ar–H h), 7.77 (s, 1H, Ar–H h), 7.55 (d, 1H, J = 8.4 Hz, Ar–H h), 7.47 (d, 2H, J = 3.7 Hz, Ar–H h), 7.33–7.28 (m, 1H, Ar–H h), 5.50 (d, 2H, J = 5.5 Hz, Ar–H cym), 5.29 (s, 2H, Ar–H cym), 2.88 (hept, 1H, J = 7.0 Hz, Ar–CH(CH3)2 cym), 2.28 (s, 3H, Ar–CH3 cym), 1.31 (d, 6H, J = 7.0 Hz, Ar–CH(CH3)2 cym). IR selected bands (cm−1, ATR): 3052, 2956, 1445, 1310, 1104, 879, 815, 742, 630, 464. UV-Vis (λ (nm) (ε (L mol−1 cm−1)) c = 5 × 10−5 M, MeOH): 313 (18644), 369 (sh) (4776), 484 (sh) (808). ESI-HRMS (CH3CN) m/z for [M − Cl]+ (found (calcd)): 412.0312 (412.0309). Anal. Calcd for C19H20ClNORuS: C, 51.06; H, 4.51; N, 3.13. Found: C, 51.00; H, 4.62; N, 3.12.

3.4. Cholinesterase Inhibition Assay

Cholinesterase activities were measured by the Ellman method [49] adapted for microtiter plates, as described in Ristovski et al. [23]. Stock solutions of the prepared ruthenium compounds (1 mg/mL) or neostigmine bromide (Sigma-Aldrich, St. Louis, MO, USA) as a positive control were prepared in 100% ethanol and progressively diluted in 100 mM potassium phosphate buffer (pH 7.4) to a final volume of 50 µL. Then, 1 mM acetylthiocholine chloride and 0.5 mM 5,5′-dithiobis-2-nitrobenzoic acid were dissolved in the same buffer and added to the wells of the microtiter plates to the final volume of 150 μL. Electric eel acetylcholinesterase (eeAChE) or horse serum BChE (hsBuChE) (both Sigma, St. Louis, MO, USA) were dissolved in the same buffer to 0.0075 U/mL. Fifty μL of each of the cholinesterases was added to start the reactions, which were followed spectrophotometrically at 405 nm and 25 °C for 5 min using a kinetic microplate reader (Dynex Technologies, Chantilly, VA, USA). Blank reactions without the inhibitors were run in the presence of the appropriate dilution of ethanol. Every measurement was repeated at least three times. For determination of the inhibitory constants, the kinetics were monitored using three different final substrate concentrations (0.125, 0.25, 0.5 mM). The inhibitory constants were determined only for the compounds that showed an IC50 <100 μM.

3.5. Computational Details

Calculations were carried out on a PC running at 3.4 GHz on an Intel i7 2600 quad core processor with 8 GB RAM and 1 TB hard disk, with Windows 7 Home Premium 64-bit SP1 as the operating system. The ligands structure 1a–c and 1e–g derive from X-ray crystallographic data, whereas the structures of compounds 1d and 1h were obtained by quantum chemical calculations using the Gaussian 03W revision E.01 package program set [50]. Restricted mode was used and performed in vacuo for geometry optimization. The basis set of choice was SDD [51]. The gradient-corrected DFT with the three-parameter hybrid functional (B3) [52] for the exchange part and the Lee–Yang–Parr correlation function [53] were utilized and the optimized structural parameters were employed in the vibrational energy calculations at the same DFT levels to characterize all stationary points as minima. For each optimized structure, no imaginary wavenumber modes were obtained, proving that a local minimum on the potential energy surface was found. All the structures were saved in pdb extension. The AutoDock Tools (ADT) package version 1.5.6rc3 [54] was used to generate the docking input files and to analyze the docking results, with Autodock 4.2.6 [55] used for the docking calculations. The AChE crystallographic structure was downloaded from the Protein Data Bank (PDB; http://www.pdb.org/). The structure of Torpedo californica AChE complexed with 12-amino-3-chloro-6,7,10,11-tetrahydro-5,9-dimethyl-7,11-methanocycloocta[b]quinolin-5-ium (6G1V) was determined by X-ray crystallography, with a resolution of 1.8 Å [56]. The structure was modified as follows: the ligand and all of the crystallization water molecules were removed, with the file saved in pdb extension; all hydrogen atoms were added using AutoDock Tools (ADT), and the Gasteigere Marsili charges were calculated, with the resulting file saved in pdbqt extension; rotatable bonds were defined for each ligand molecule. For the docking calculation, and for 6G1V, a grid box of 40 × 40 × 40 number of points in the x, y, and z directions was created, with spacing of 0.375 Å and centered at x = 3.655, y = −4.537, z = 20.935. The following parameters were used in docking calculation: number of independent Genetic Algorithm (GA) runs = 10; population size = 150; maximum number of evaluation = 2,500,000; maximum number of generations 27,000; maximum number of top individuals that automatically survive = 1; rate of gene mutation = 0.01; rate of crossover = 0.8; genetic algorithm crossover mode = twopt; Mean of Cauchy distribution for gene mutation = 0.0; Variance of Cauchy distribution for gene mutation = 1.0; Number of generations for picking worst individual = 10. To validate the accuracy of the calculation, the original ligand was re-docked; visual inspection of the data showed a very tight overlap. The results are expressed as the energy associated to each ligand-enzyme complex in terms of the Gibbs free energy values, with a standard error in AutoDock score function evaluated as 2.5 Kcal/mol. The visual ligand–enzyme interactions were displayed using the server Protein-Ligand Interaction Profiler (PLIP) [57]. ADME predictions were performed using the online server Swiss-ADME [58].

4. Conclusions

In this study we have prepared eight organoruthenium(II) chlorido complexes 1a–h with pyrithione a, its methyl-substituted ligands b–e, and bicyclic aromatic analogues f–h. New compounds 1f–h have been physicochemically characterized by 1H NMR, IR, UV-Vis spectroscopy, HRMS, and CHN elemental analysis. Additionally, crystal structures of the complexes 1f and 1g have been obtained, which have revealed pseudo-octahedral geometry with bidentately bound O,S-ligands to ruthenium(II) core and monodentate chlorido ligand completing the coordination sphere. For the best two performing complexes, 1e and 1g against eeAChE and hsBuChE, NMR stability tests in different D2O solutions were performed and showed that complexes remained stable. Furthermore, an ESI-MS study has confirmed that chlorido complexes stay stable in aqueous solutions with the same [M–Cl]+ peak observed after immediate dissolution of the complexes in water and after three days for all tested compounds. After confirming the stability, which is a prerequisite for further biological assays, ligands a–h and their organoruthenium(II) complexes 1a–h were evaluated as potential inhibitors against eeAChE and hsBuChE. Ligands showed no activity towards these enzymes, whereas notable differences in the activity have been achieved by various methyl-substituted and bicyclic aromatic pyrithione complexes in comparison to the referenced pyrithione complex 1a. Taking into consideration compounds 1b–e, complexes 1d and 1e with methyl substituents at the position 5 and 6 expressed improved inhibition against eeAChE and hsBuChE in comparison to 1a. Furthermore, after the aromatic ring extension at these two positions forming 1-hydroxyquinoline-2-(1H)-thione ligand g, the activity of the complex 1g towards both cholinesterases was further improved. Importantly, complex 1g expresses the best inhibition on eeAChE as well as hsBuChE, which is an advantage, as AChE plays important role at the early stages of the development of AD, continued by the increased activity of BuChE. Moreover, docking calculations confirmed complex 1g to possess the lowest calculated Gibbs free energy value and suggested H-bonding, π-stackings, and many other hydrophobic interactions with TcAChE. To conclude, binding of pyrithione-type ligands to ruthenium(II) resulted in potent metal inhibitors against tested cholinesterases, where tuning of the activity can be achieved by enhanced lipophilicity and certain positional changes on pyrithione scaffold.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/16/5628/s1.

Author Contributions

Conceptualization, K.S., I.M., and I.T.; synthesis, crystallization and characterization of the compounds, and NMR stability, J.K. (Jerneja Kladnik); X-ray analysis and interpretation of the data, J.K. (Jakob Kljun); enzymatic assays on eeAChE and hsBuChE and interpretation of the data, S.R., J.K. (Jerneja Kladnik), and K.S.; docking calculation, ADME prediction, and interpretation of the data, A.D. and I.M.; writing—original draft preparation, J.K. (Jerneja Kladnik); writing—review and editing, J.K. (Jakob Kljun), A.D., I.M., K.S., and I.T.; supervision, I.M., K.S., and I.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Slovenian Research Agency (ARRS) (grants P1-0175 and P1-0207) and Junior Researcher Grant for Jerneja Kladnik (39077).

Acknowledgments

We would like to acknowledge Katja Traven for the help with obtaining crystallographic data and Adriano Sterni at University of Trento for mass spectrometric data.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

AChacetylcholine
AChEacetylcholinesterase
ADAlzheimer’s disease
Aβamyloid-β
BuChEbutyrylcholinesterase
ChEcholinesterase
DCMdichloromethane
DMSOdimethyl sulfoxide
eeelectric eel
ESI-MSelectrospray ionization mass spectrometry
ESI-HRMShigh-resolution electrospray ionization mass spectrometry
hshorse serum
MeOHmethanol
NMRnuclear magnetic resonance
RuCymruthenium precursor [Ru(p-cymene)Cl2]2
TcTorpedo californica
TLCthin layer chromatography

References

  1. Selkoe, D.J. Alzheimer’s disease: Genes, proteins, and therapy. Physiol. Rev. 2001, 81, 741–766. [Google Scholar] [CrossRef] [PubMed]
  2. Tarawneh, R.; Holtzman, D.M. The clinical problem of symptomatic Alzheimer disease and mild cognitive impairment. Cold Spring Harb. Perspect. Med. 2012, 2. [Google Scholar] [CrossRef] [PubMed]
  3. Puzzo, D.; Gulisano, W.; Arancio, O.; Palmeri, A. The keystone of Alzheimer pathogenesis might be sought in Aβ physiology. Neuroscience 2015, 307, 26–36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Terry, A.V.; Buccafusco, J.J. The cholinergic hypothesis of age and Alzheimer’s disease-related cognitive deficits: Recent challenges and their implications for novel drug development. J. Pharmacol. Exp. Ther. 2003, 306, 821–827. [Google Scholar] [CrossRef] [PubMed]
  5. Fabiani, C.; Antollini, S.S. Alzheimer’s disease as a membrane disorder: Spatial cross-talk among beta-amyloid peptides, nicotinic acetylcholine receptors and lipid rafts. Front. Cell. Neurosci. 2019, 13, 28. [Google Scholar] [CrossRef] [Green Version]
  6. Talesa, V.N. Acetylcholinesterase in Alzheimer’s disease. Mech. Ageing Dev. 2001, 122, 1961–1969. [Google Scholar] [CrossRef]
  7. Greig, N.H.; Lahiri, D.K.; Sambamurti, K. Butyrylcholinesterase: An important new target in Alzheimer’s disease therapy. Int. Psychogeriatr. 2002, 14, 77–91. [Google Scholar] [CrossRef]
  8. Ekholm, M. Predicting relative binding free energies of substrates and inhibitors of acetylcholin- and butyrylcholinesterases. J. Mol. Struct. 2001, 572, 25–34. [Google Scholar] [CrossRef]
  9. Nordberg, A.; Ballard, C.; Bullock, R.; Darreh-Shori, T.; Somogyi, M. A review of butyrylcholinesterase as a therapeutic target in the treatment of Alzheimer’s disease. Prim. Care Companion CNS Disord. 2013, 15. [Google Scholar] [CrossRef]
  10. Wilkinson, D.G.; Francis, P.T.; Schwam, E.; Payne-Parrish, J. Cholinesterase inhibitors used in the treatment of Alzheimer’s disease the relationship between pharmacological effects and clinical efficacy. Drugs Aging 2004, 21, 453–478. [Google Scholar] [CrossRef]
  11. Pohanka, M. Inhibitors of acetylcholinesterase and butyrylcholinesterase meet immunity. Int. J. Mol. Sci. 2014, 15, 9809–9825. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Tan, C.C.; Yu, J.T.; Wang, H.F.; Tan, M.S.; Meng, X.F.; Wang, C.; Jiang, T.; Zhu, X.C.; Tan, L. Efficacy and safety of donepezil, galantamine, rivastigmine, and memantine for the treatment of Alzheimer’s disease: A systematic review and meta-analysis. J. Alzheimers Dis. 2014, 41, 615–631. [Google Scholar] [CrossRef] [PubMed]
  13. Moss, D.E. Improving anti-neurodegenerative benefits of acetylcholinesterase inhibitors in Alzheimer’s disease: Are irreversible inhibitors the future? Int. J. Mol. Sci. 2020, 21, 3438. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, Y.; Nguyen, M.; Robert, A.; Meunier, B. Metal ions in Alzheimer’s disease: A key role or not? Acc. Chem. Res. 2019, 52, 2026–2035. [Google Scholar] [CrossRef]
  15. Tomljenovic, L. Aluminum and Alzheimer’s disease: After a century of controversy, is there a plausible link? J. Alzheimer’s Dis. 2011, 23, 567–598. [Google Scholar] [CrossRef] [Green Version]
  16. Alatrash, N.; Narh, E.S.; Yadav, A.; Kim, M.J.; Janaratne, T.; Gabriel, J.; MacDonnell, F.M. Synthesis, DNA cleavage activity, cytotoxicity, acetylcholinesterase inhibition, and acute murine toxicity of redox-active ruthenium(II) polypyridyl complexes. ChemMedChem 2017, 12, 1055–1069. [Google Scholar] [CrossRef]
  17. Cardoso, C.R.; de Aguiar, I.; Camilo, M.R.; Lima, M.V.S.; Ito, A.S.; Baptista, M.S.; Pavani, C.; Venâncio, T.; Carlos, R.M. Synthesis, spectroscopic characterization, photochemical and photophysical properties and biological activities of ruthenium complexes with mono- and bi-dentate histamine ligand. Dalton Trans. 2012, 41, 6726–6734. [Google Scholar] [CrossRef]
  18. Mulcahy, S.P.; Li, S.; Korn, R.; Xie, X.; Meggers, E. Solid-phase synthesis of tris-heteroleptic ruthenium(II) complexes and application to acetylcholinesterase inhibition. Inorg. Chem. 2008, 47, 5030–5032. [Google Scholar] [CrossRef]
  19. Vyas, N.A.; Singh, S.B.; Kumbhar, A.S.; Ranade, D.S.; Walke, G.R.; Kulkarni, P.P.; Jani, V.; Sonavane, U.B.; Joshi, R.R.; Rapole, S. Acetylcholinesterase and Aβ aggregation inhibition by heterometallic ruthenium(II)-platinum(II) polypyridyl complexes. Inorg. Chem. 2018, 57, 7524–7535. [Google Scholar] [CrossRef]
  20. Vyas, N.A.; Bhat, S.S.; Kumbhar, A.S.; Sonawane, U.B.; Jani, V.; Joshi, R.R.; Ramteke, S.N.; Kulkarni, P.P.; Joshi, B. Ruthenium(II) polypyridyl complex as inhibitor of acetylcholinesterase and Aβ aggregation. Eur. J. Med. Chem. 2014, 75, 375–381. [Google Scholar] [CrossRef]
  21. Vyas, N.A.; Ramteke, S.N.; Kumbhar, A.S.; Kulkarni, P.P.; Jani, V.; Sonawane, U.B.; Joshi, R.R.; Joshi, B.; Erxleben, A. Ruthenium(II) polypyridyl complexes with hydrophobic ancillary ligand as Aβ aggregation inhibitors. Eur. J. Med. Chem. 2016, 121, 793–802. [Google Scholar] [CrossRef] [PubMed]
  22. Kljun, J.; Anko, M.; Traven, K.; Sinreih, M.; Pavlič, R.; Peršič, Š.; Ude, Ž.; Codina, E.E.; Stojan, J.; Lanišnik Rižner, T.; et al. Pyrithione-based ruthenium complexes as inhibitors of aldo-keto reductase 1C enzymes and anticancer agents. Dalton Trans. 2016, 45, 11791–11800. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ristovski, S.; Uzelac, M.; Kljun, J.; Lipec, T.; Uršič, M.; Zemljič Jokhadar, Š.; Žužek, M.C.; Trobec, T.; Frangež, R.; Sepčić, K.; et al. Organoruthenium prodrugs as a new class of cholinesterase and glutathione-S-transferase inhibitors. ChemMedChem 2018, 13, 2166–2176. [Google Scholar] [CrossRef] [PubMed]
  24. Marković, K.; Milačič, R.; Marković, S.; Kladnik, J.; Turel, I.; Ščančar, J. Binding kinetics of ruthenium pyrithione chemotherapeutic candidates to human serum proteins studied by HPLC-ICP-MS. Molecules 2020, 25, 1512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Lazarević-Pašti, T.; Leskovac, A.; Momić, T.; Petrović, S.; Vasić, V. Modulators of acetylcholinesterase activity: From Alzheimer’s disease to anti-cancer drugs. Curr. Med. Chem. 2017, 24, 3283–3309. [Google Scholar] [CrossRef]
  26. Jin, X.; Wang, M.; Shentu, J.; Huang, C.; Bai, Y.; Pan, H.; Zhang, D.; Yuan, Z.; Zhang, H.; Xiao, X.; et al. Inhibition of acetylcholinesterase activity and β-amyloid oligomer formation by 6-bromotryptamine A, a multi-target anti-Alzheimer’s molecule. Oncol. Lett. 2020, 19, 1593–1601. [Google Scholar] [CrossRef] [Green Version]
  27. Hyatt, J.L.; Tsurkan, L.; Morton, C.L.; Yoon, K.J.P.; Harel, M.; Brumshtein, B.; Silman, I.; Sussman, J.L.; Wadkins, R.M.; Potter, P.M. Inhibition of acetylcholinesterase by the anticancer prodrug CPT-11. Chem. Biol. Interact. 2005, 157, 247–252. [Google Scholar] [CrossRef]
  28. Aljafari, A.A.; Duhaiman, A.S.; Kamal, M.A. Inhibition of human acetylcholinesterase by cyclophosphamide. Toxicology 1995, 96, 1–6. [Google Scholar] [CrossRef]
  29. Huang, L.; Lin, J.; Xiang, S.; Zhao, K.; Yu, J.; Zheng, J.; Xu, D.; Mak, S.; Hu, S.; Nirasha, S.; et al. Sunitinib, a clinically used anticancer drug, is a potent AChE inhibitor and attenuates cognitive impairments in mice. ACS Chem. Neurosci. 2016, 7, 1047–1056. [Google Scholar] [CrossRef]
  30. Kamal, M.A.; Nasim, F.H.; Al-Jafari, A.A. Human erythrocyte acetylcholinesterase inhibition by cis-diamminediaquaplatinum (II): A novel kinetic approach. Cancer Lett. 1999, 138, 115–119. [Google Scholar] [CrossRef]
  31. Jończyk, J.; Godyń, J.; Stawarska, E.; Morak-Młodawska, B.; Jeleń, M.; Pluta, K.; Malawska, B. Dual action of dipyridothiazine and quinobenzothiazine derivatives—Anticancer and cholinesterase-inhibiting activity. Molecules 2020, 25, 2604. [Google Scholar] [CrossRef] [PubMed]
  32. Kladnik, J.; Kljun, J.; Burmeister, H.; Ott, I.; Romero-Canelon, I.; Turel, I. Towards identification of essential structural elements of organoruthenium(II)-pyrithionato complexes for anticancer activity. Chem. Eur. J. 2019, 25, 14169–14182. [Google Scholar] [CrossRef] [PubMed]
  33. Martin, D.P.; Blachly, P.G.; McCammon, J.A.; Cohen, S.M. Exploring the influence of the protein environment on metal-binding pharmacophores. J. Med. Chem. 2014, 57, 7126–7135. [Google Scholar] [CrossRef] [PubMed]
  34. Adamek, R.N.; Credille, C.V.; Dick, B.L.; Cohen, S.M. Isosteres of hydroxypyridinethione as drug-like pharmacophores for metalloenzyme inhibition. J. Biol. Inorg. Chem. 2018, 23, 1129–1138. [Google Scholar] [CrossRef]
  35. Pizarro, A.M.; Habtemariam, A.; Sadler, P.J. Activation mechanisms for organometallic anticancer complexes. In Medicinal Organometallic Chemistry; Jaouen, G., Metzler-Nolte, N., Eds.; Springer: Berlin/Heidelberg, Germany, 2010; Volume 32, pp. 21–56. [Google Scholar]
  36. Turel, I.; Kljun, J.; Perdih, F.; Morozova, E.; Bakulev, V.; Kasyanenko, N.; Byl, J.A.W.; Osheroff, N. First ruthenium organometallic complex of antibacterial agent ofloxacin. Crystal structure and interactions with DNA. Inorg. Chem. 2010, 49, 10750–10752. [Google Scholar] [CrossRef] [Green Version]
  37. Peacock, A.F.A.; Melchart, M.; Deeth, R.J.; Habtemariam, A.; Parsons, S.; Sadler, P.J. Osmium(II) and ruthenium(II) arene maltolato complexes: Rapid hydrolysis and nucleobase binding. Chem. Eur. J. 2007, 13, 2601–2613. [Google Scholar] [CrossRef]
  38. Grguric-Sipka, S.; Stepanenko, I.N.; Lazic, J.M.; Bartel, C.; Jakupec, M.A.; Arion, V.B.; Keppler, B.K. Synthesis, X-ray diffraction structure, spectroscopic properties and antiproliferative activity of a novel ruthenium complex with constitutional similarity to cisplatin. Dalton Trans. 2009, 3334–3339. [Google Scholar] [CrossRef]
  39. Diaz-Torres, R.; Alvarez, S. Coordinating ability of anions and solvents towards transition metals and lanthanides. Dalton Trans. 2011, 40, 10742–10750. [Google Scholar] [CrossRef]
  40. Seršen, S.; Kljun, J.; Kryeziu, K.; Panchuk, R.; Alte, B.; Körner, W.; Heffeter, P.; Berger, W.; Turel, I. Structure-related mode-of-action differences of anticancer organoruthenium complexes with β-diketonates. J. Med. Chem. 2015, 58, 3984–3996. [Google Scholar] [CrossRef]
  41. Briš, A.; Jašik, J.; Turel, I.; Roithova, J. Anti-cancer organoruthenium(II) complexes and their interactions with cysteine and its analogues. A mass-spectrometric study. Dalton Trans. 2019, 48, 2626–2634. [Google Scholar] [CrossRef]
  42. Sheng, Y.; Hou, Z.; Cui, S.; Cao, K.; Yuan, S.; Sun, M.; Kljun, J.; Huang, G.; Turel, I.; Liu, Y. Covalent versus noncovalent binding of ruthenium η6-p-cymene complexes to zinc-finger protein NCp7. Chem. Eur. J. 2019, 25, 12789–12794. [Google Scholar] [CrossRef] [PubMed]
  43. Waring, M.J. Lipophilicity in drug discovery. Expert. Opin. Drug Discov. 2010, 5, 235–248. [Google Scholar] [CrossRef] [PubMed]
  44. Botić, T.; Defant, A.; Zanini, P.; Žužek, M.C.; Frangež, R.; Janussen, D.; Kersken, D.; Knez, Ž.; Mancini, I.; Sepčić, K. Discorhabdin alkaloids from Antarctic Latrunculia spp. sponges as a new class of cholinesterase inhibitors. Eur. J. Med. Chem. 2017, 136, 294–304. [Google Scholar] [CrossRef] [PubMed]
  45. Zhang, Y.; Skolnick, J. TM-align: A protein structure alignment algorithm based on the TM-score. Nucleic Acids Res. 2005, 33, 2302–2309. [Google Scholar] [CrossRef] [PubMed]
  46. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  47. Sheldrick, G. SHELXT - Integrated space-group and crystal-structure determination. Acta Crystallogr. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  48. Jankowiak, A.; Kaszynski, P. 4-substituted 1-acyloxypyridine-2(1H)-thiones: Experimental and computational studies of the substituent effect on electronic absorption spectra. J. Org. Chem. 2009, 74, 7441–7448. [Google Scholar] [CrossRef]
  49. Ellman, G.L.; Courtney, K.D.; Andres, V.; Featherstone, R.M. A new and rapid colorimetric determination of acetylcholinesterase activity. Biochem. Pharmacol. 1961, 7, 88–95. [Google Scholar] [CrossRef]
  50. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A.; Vreven, T., Jr.; Kudin, K.N.; Burant, J.C.; et al. Gaussian, Revision E.01; Gaussian Inc.: Wallingford, CT, USA, 2004. [Google Scholar]
  51. Waller, M.P.; Bühl, M. Vibrational corrections to geometries of transition metal complexes from density functional theory. J. Comput. Chem. 2007, 28, 1531–1537. [Google Scholar] [CrossRef]
  52. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  53. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Sanner, M.F. Python: A programming language for software integration and development. J. Mol. Graph. Model. 1999, 17, 57–61. [Google Scholar] [PubMed]
  55. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef] [Green Version]
  56. Galdeano, C.; Coquelle, N.; Cieslikiewicz-Bouet, M.; Bartolini, M.; Perez, B.; Clos, M.V.; Silman, I.; Jean, L.; Colletier, J.P.; Renard, P.Y.; et al. Increasing polarity in tacrine and huprine derivatives: Potent anticholinesterase agents for the treatment of myasthenia gravis. Molecules 2018, 23, 634. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Protein-Ligand Interaction Profiler (PLIP)! Available online: Biotec.tu-dresden.de (accessed on 8 May 2020).
  58. Swiss ADME. Available online: http://www.swissadme.ch/ (accessed on 8 May 2020).
Ijms 21 05628 sch001 550

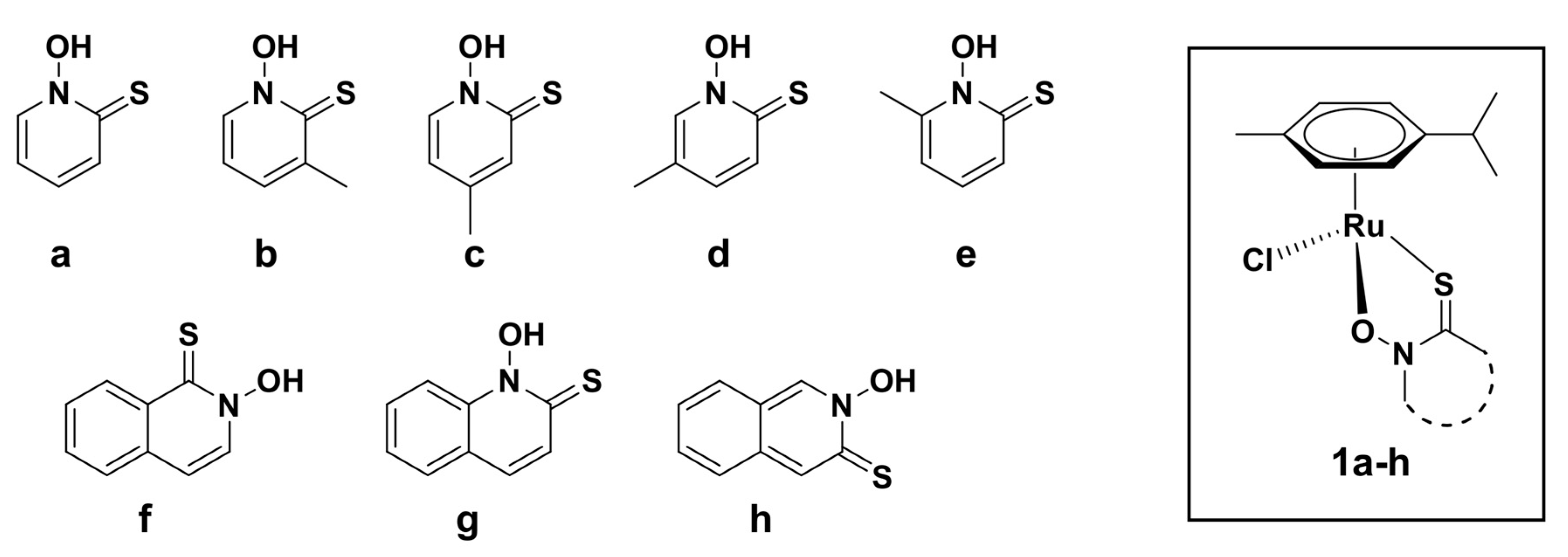

Scheme 1. Pyrithione (a), its methyl (b–e), and bicyclic aromatic analogues (f–h) and their corresponding organoruthenium(II) chlorido complexes (1a–h).
Scheme 1. Pyrithione (a), its methyl (b–e), and bicyclic aromatic analogues (f–h) and their corresponding organoruthenium(II) chlorido complexes (1a–h).
Ijms 21 05628 sch001
Ijms 21 05628 g001 550
Figure 1. Crystal structures of the complexes 1f and 1g. The thermal ellipsoids are drawn at 35% probability level. The hydrogen atoms are omitted for better clarity of presentation.
Figure 1. Crystal structures of the complexes 1f and 1g. The thermal ellipsoids are drawn at 35% probability level. The hydrogen atoms are omitted for better clarity of presentation.
Ijms 21 05628 g001
Ijms 21 05628 g002 550

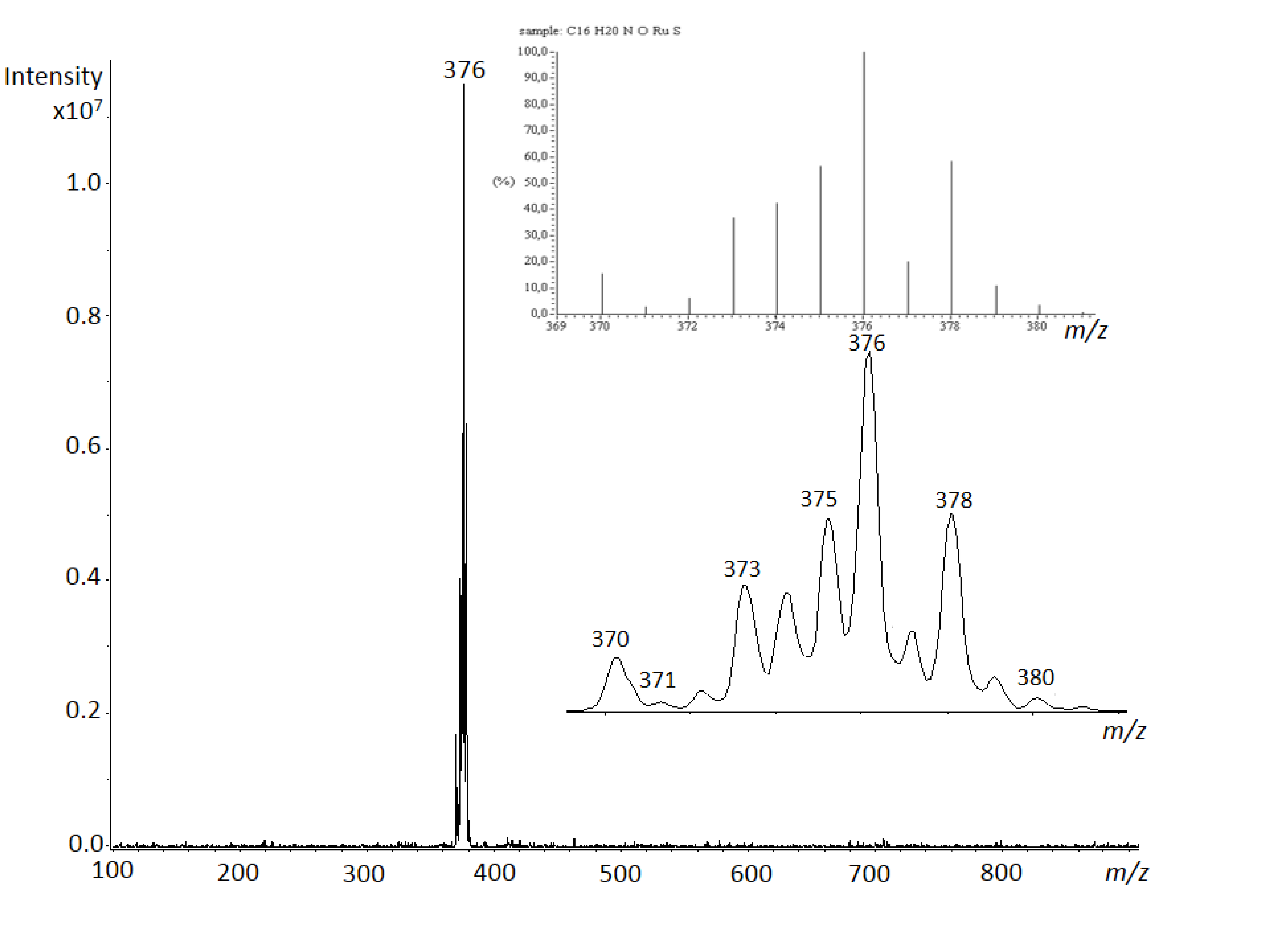

Figure 2. ESI-MS spectrum in positive ion mode by direct infusion of an aqueous solution of compound 1b, with the isotopic cluster corresponding to [M − Cl]+ ion highlighted and compared with the simulated cluster for C16H20NORuS composition.
Figure 2. ESI-MS spectrum in positive ion mode by direct infusion of an aqueous solution of compound 1b, with the isotopic cluster corresponding to [M − Cl]+ ion highlighted and compared with the simulated cluster for C16H20NORuS composition.
Ijms 21 05628 g002
Ijms 21 05628 g003 550

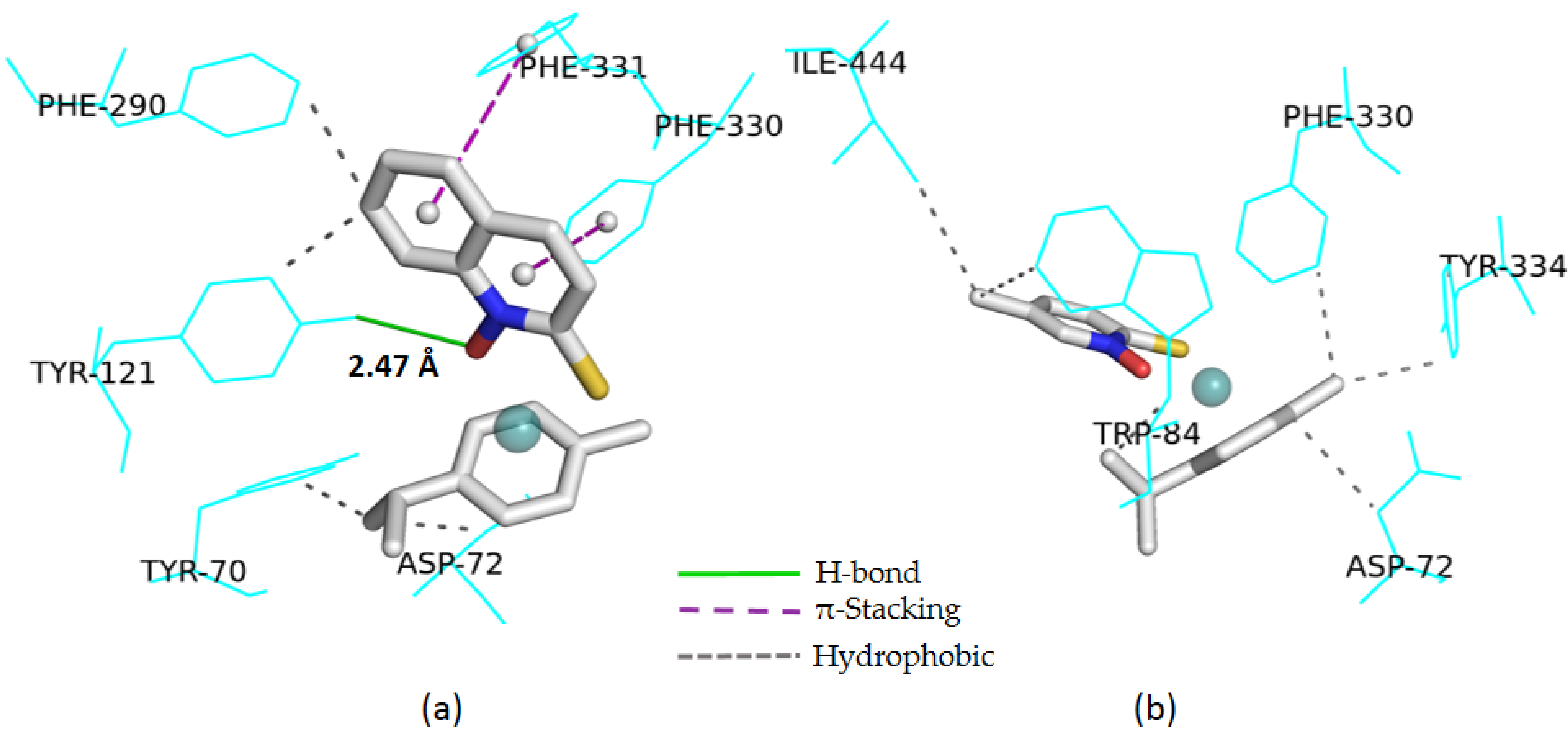

Figure 3. Three-dimensional views of the interactions for the compounds 1g (a) and 1d (b) with TcAChE by docking calculations with indications of all interactions.
Figure 3. Three-dimensional views of the interactions for the compounds 1g (a) and 1d (b) with TcAChE by docking calculations with indications of all interactions.
Ijms 21 05628 g003
Table
Table 1. Inhibition of electric eel acetylcholinesterase (eeAChE) and horse serum butyrylcholinesterase (hsBuChE) by non-complexed ligands and their chlorido complexes tested.
Table 1. Inhibition of electric eel acetylcholinesterase (eeAChE) and horse serum butyrylcholinesterase (hsBuChE) by non-complexed ligands and their chlorido complexes tested.
CompoundeeAChEhsBuChE
IC50 (µM) 1Ki (µM) 2IC50 (µM) 1Ki (µM) 2
a////
b////
c////
d////
e//>100/
f////
g////
h>100/53n.d.
1a7.8 ± 0.815.12.3 ± 0.10.5
1b10.5 ± 0.79.71.2 ± 0.020.4
1c9.5 ± 1.18.52.7 ± 0.80.9
1d6.6 ± 0.59.71.9 ± 0.40.4
1e5.1 ± 0.44.90.7 ± 0.13.4
1f8.1 ± 0.512.31.3 ± 0.10.4
1g4.9 ± 0.15.60.2 ± 0.050.2
1h14.3 ± 2.020.10.7 ± 0.10.2
Neostigmine bromide4.3 ± 0.8/37.3 ± 4.2/
1 IC50 values determined as concentration inducing 50% inhibition of enzyme activity; data are mean ± SEM of three independent measurements. Underlined are IC50 values of the complexes that are lower than that of the referenced 1a. The results of the most active compound 1g are in bold. 2 Ki not determined for the compounds with IC50 value >100 μM, or with no inhibitory activity; / = no activity. n.d. = not determined.
Table
Table 2. Data from docking calculation of the compounds 1a–h with TcAChE.
Table 2. Data from docking calculation of the compounds 1a–h with TcAChE.
Compound 1Interactions
ΔE (Kcal/mol)H-Bond 2Hydrophobic 2π-Stacking 2Salt Bridge 2
1a−7.55-Y70 (3.43); Y121(3.47)
F330(3.57; 3.14)		W84 (4.38; 3.73)-
1b−7.16S122 (3.09)D72 (3.82); F330 (3.34)W84 (4.04)-
1c−7.02-Y70 (3.60); D72 (3.62)
N85 (3.96); F330 (3.92; 3.35);
Y334 (3.38)		W84 (4.62)
F330 (5.09)		-
1d−8.60-D72 (3.62); W84 (3.39; 3.78)
F330 (3.66); Y334 (3.39); I444 (3.96)
W432 (3.77); Y442 (3.67)
I444 (372)		--
1e−6.73-D72 (3.99); W 84 (3.37; 3.41)
F290 (3.73); F330 (3.13)
F331 (3.58)		--
1f−8.31-D72 (3.66); W84 (3.55; 3.87);
F330 (3.23; 3.16); L333 (3.94)
Y334 (2.95; 3.27); W432 (3.08)
I439 (3.52)		W84 (3.81)
F330 (3.63)		-
1g−9.86Y121 (2.47)Y70 (3.02); D72 (3.40)
Y121 (3.46); F290 (3.51)		F330 (4.35)
F331 (5.34)		-
1h−8.28-W84 (3.57; 3.94; 3.97)
F330 (3.63); W432 (3.80)
Y442 (3.51)		W84 (3.61)
F330 (3.84)		-
neostigmine bromide−7.03Y121 (2.93)Y70 (3.72); W279 (3.36)
F330 (3.57)		-D72 (3.95)
1 Structures 1d and 1h minimized by using Gaussian 09 before docking calculation. 2 Distance (in Å) reported in brackets; - = not present.

Share and Cite

MDPI and ACS Style

Kladnik, J.; Ristovski, S.; Kljun, J.; Defant, A.; Mancini, I.; Sepčić, K.; Turel, I. Structural Isomerism and Enhanced Lipophilicity of Pyrithione Ligands of Organoruthenium(II) Complexes Increase Inhibition on AChE and BuChE. Int. J. Mol. Sci. 2020, 21, 5628. https://doi.org/10.3390/ijms21165628

AMA Style

Kladnik J, Ristovski S, Kljun J, Defant A, Mancini I, Sepčić K, Turel I. Structural Isomerism and Enhanced Lipophilicity of Pyrithione Ligands of Organoruthenium(II) Complexes Increase Inhibition on AChE and BuChE. International Journal of Molecular Sciences. 2020; 21(16):5628. https://doi.org/10.3390/ijms21165628

Chicago/Turabian Style

Kladnik, Jerneja, Samuel Ristovski, Jakob Kljun, Andrea Defant, Ines Mancini, Kristina Sepčić, and Iztok Turel. 2020. "Structural Isomerism and Enhanced Lipophilicity of Pyrithione Ligands of Organoruthenium(II) Complexes Increase Inhibition on AChE and BuChE" International Journal of Molecular Sciences 21, no. 16: 5628. https://doi.org/10.3390/ijms21165628

APA Style

Kladnik, J., Ristovski, S., Kljun, J., Defant, A., Mancini, I., Sepčić, K., & Turel, I. (2020). Structural Isomerism and Enhanced Lipophilicity of Pyrithione Ligands of Organoruthenium(II) Complexes Increase Inhibition on AChE and BuChE. International Journal of Molecular Sciences, 21(16), 5628. https://doi.org/10.3390/ijms21165628

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
