Review

Microbiota-Associated Therapy for Non-Alcoholic Steatohepatitis-Induced Liver Cancer: A Review

1
College of Medicine, National Taiwan University, Taipei 100, Taiwan
2
Division of Gastroenterology, National Taiwan University Hospital Bei-Hu Branch, Taipei 108, Taiwan
3
Department of Internal Medicine, National Taiwan University Hospital, Taipei 100, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(17), 5999; https://doi.org/10.3390/ijms21175999
Submission received: 10 July 2020 / Revised: 14 August 2020 / Accepted: 19 August 2020 / Published: 20 August 2020
(This article belongs to the Special Issue Cancer Prevention with Molecular Target Therapies)

Abstract

:
Even though advancement in medicine has contributed to the control of many diseases to date, cancer therapy continues to pose several challenges. Hepatocellular carcinoma (HCC) etiology is multifactorial. Recently, non-alcoholic fatty liver disease (NAFLD) has been considered as an important risk factor of HCC. NAFLD can be divided into non-alcoholic simple fatty liver (NAFL) and non-alcoholic steatohepatitis (NASH) based on histopathological features. Recently, studies have indicated that the gut microbiota is associated with NAFLD and HCC. Therefore, in this review, we have discussed the effects of gut microbiota-related mechanisms, including dysbiosis and gut barrier function, and gut microbiota-derived metabolites on NAFLD and HCC pathogenesis and the potential therapeutic strategies for NAFLD and HCC. With a better understanding of the gut microbiota composition and function, new and improved diagnostic, prognostic, and therapeutic strategies for common liver diseases can be developed.

1. Introduction

With advancements in medicine, many diseases can be controlled, but cancer continues to pose many challenges. Hepatocellular carcinoma (HCC) ranks fifth and second in highest cancer incidence and global cancer-related mortality, respectively [1,2]. Traditionally, chronic viral hepatitis caused by hepatitis B and C viruses (HBV and HCV, respectively) is a major risk factor of HCC [3]. In recent decades, the chronic viral hepatitis disease burden has been gradually controlled by universal implementation of HBV vaccination and dramatic improvement in anti-HBV and anti-HCV treatments [4]. Therefore, the incidence of viral hepatitis-related liver cirrhosis and HCC is expected to decline. Other important causative risk factors of HCC include non-alcoholic fatty liver disease (NAFLD), obesity, diabetes, and alcoholism [5]. Currently, NAFLD is the second most common cause of end-stage liver disease or liver cancer, which requires liver transplantation, in the United States [6,7,8]. It has been estimated that, from 2016 to 2030, the number of NAFLD-induced end-stage liver disease cases and related deaths worldwide will be doubled [9]. Therefore, NAFLD is likely to become the most important cause of HCC in the future.
Generally, NAFLD progression can be divided into four pathological stages, including non-alcoholic simple fatty liver (NAFL), non-alcoholic steatohepatitis (NASH), hepatic cirrhosis, and HCC [10] (Figure 1). Recent epidemiological studies showed that the average prevalence rate of NAFLD appeared to be higher in Asia (27%) than in the United States (24%) and Europe (23%) [7,8,11]. NAFLD-related health issues have attracted global attention since NAFLD is increasingly becoming the most common cause of hepatic cirrhosis and HCC [9,12]. NAFLD patients who remain in the NAFL stage show a much lower risk of developing HCC than NASH patients. Chronic and repetitive hepatocyte damage and repair in steatohepatitis may lead to advanced fibrosis, cirrhosis, and HCC, thus causing mortality within a few decades. Moreover, no FDA approved medication for NAFLD treatment exists presently. Therefore, there is an urgent and unmet need for a better understanding of NAFLD pathogenesis and progression to HCC.
Owing to this anatomical and functional connection, the liver and intestines maintain close functional and bidirectional communication which is subsumed in the “gut–liver axis”. The liver is continually exposed to the products of digestion, absorption, and gut-derived factors through the portal vein [13]. On the other hand, the liver plays an important role in the regulation of the gut microbiota composition via bile acids (BAs) [14]. Recent studies have suggested that dysbiosis, the change in the gut microbiota, may be associated with liver diseases, including NAFLD and HCC [15,16,17]. Increased intestinal permeability, which is associated with dysbiosis, leads to the liver being exposed to intestinal toxic factors and bacteria such as lipopolysaccharides (LPS) [18,19]. Exposure of liver with these factors further induced hepatic inflammation and damage which contributed to HCC pathogenesis. In this review, we have discussed the pathophysiological roles of the gut microbiota and relevant molecules in NAFLD progression to HCC. Some potential diagnostic and therapeutic highlights, which could be implemented for future clinical applications, were included.

2. From NAFL to NASH: The Gut Microbiota-Associated Mechanisms

Although NAFL patients bear lower risk of developing HCC than NASH patients, approximately 10–20% of NAFL patients progress to NASH, with a significantly increasing risk of developing cirrhosis and HCC. Therefore, understanding the mechanistic roles of the gut microbiota that trigger the NAFLD inflammatory status may potentially help in discovering novel microbial and molecular pathways for preventing HCC development.

2.1. NASH and Dysbiosis

Many studies have indicated that gut dysbiosis is associated with NAFLD pathogenesis [20,21,22,23,24,25,26]. Compared to healthy individuals, NASH patients exhibit increased relative abundance of Blautia, Dorea, Lactobacillus, Clostridium, Allisonella, Parabacteroides, and Escherichia spp. [20,21,25,26,27] and decreased relative abundance of Oscillospira, Coprococcus, Faecalibacterium, and Bifidobacterium spp. [20,25,26,27]. A common finding in NASH patients, compared to NAFL patients, is increased relative abundance of Blautia and Bacteroides spp. [23,28] and decreased relative abundance of Prevotella spp. [28]. Furthermore, gut dysbiosis includes not only compositional changes but also metabolic functional changes in the gut microbiome. For example, compositional changes in the gut microbiota lead to an altered short chain fatty acid (SCFA) profile, further affecting host energy absorption [20,25,29]. Gut dysbiosis can result in an increase in gut permeability, disruption of metabolic homeostasis, and changes in the microbiota-associated metabolites, thus eventually contributing to disease initiation and progression.

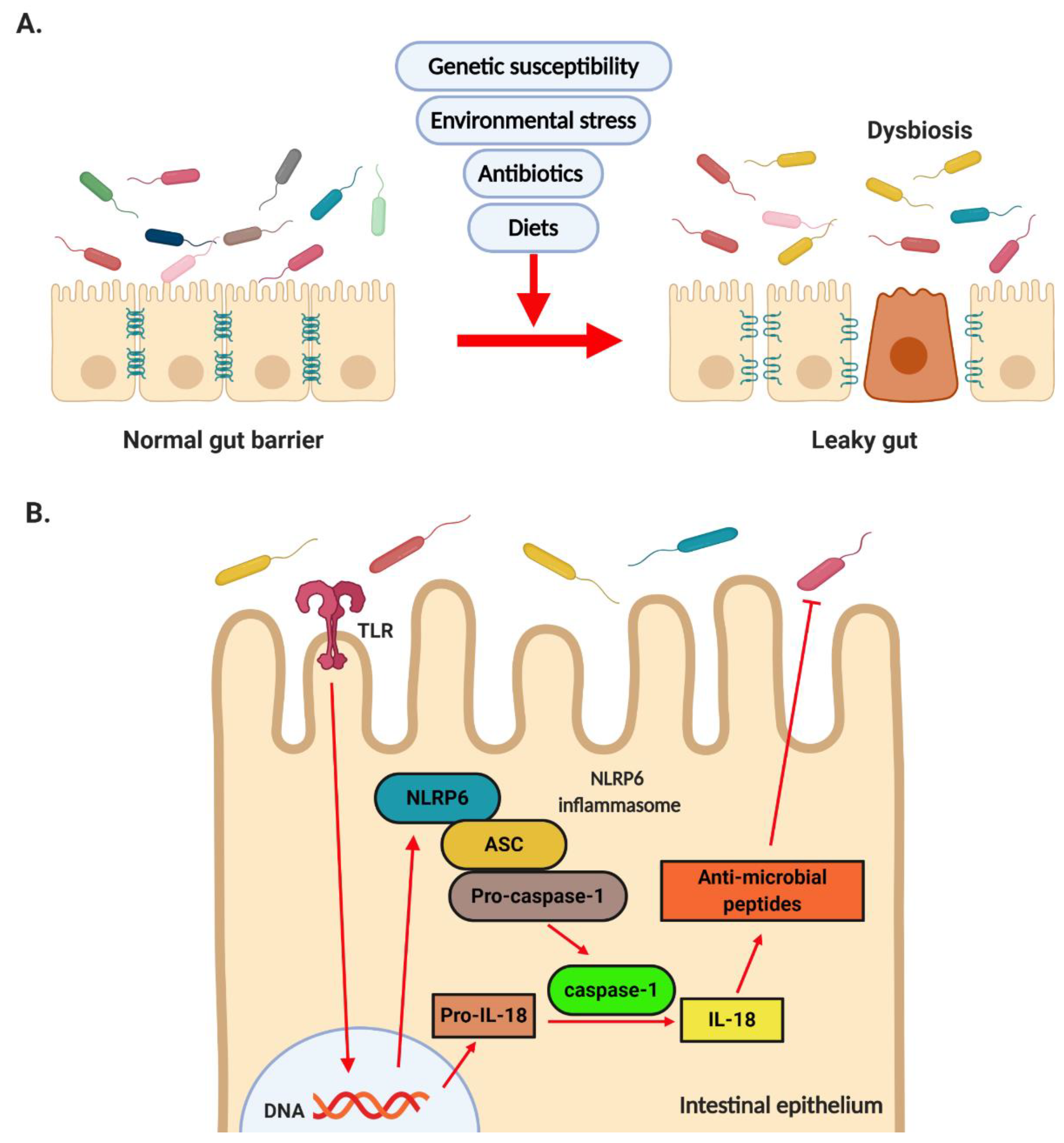

2.2. NASH and Leaky Gut

In previous clinical studies, NASH patients exhibited greater intestinal permeability than simple steatosis patients and healthy individuals [30]. Increased intestinal permeability is caused by decreased expression of zonula occludens-1 (ZO-1), a representative tight junction protein [30,31,32]. Several bacteria, including Lactobacillus, Bifidobacterium, Bacteroidetes, Clostridiales, Oscillibacter, Desulfovibrio spp., and Akkermansia muciniphila, have been associated with intestinal permeability in animal models. Among these bacteria, Lactobacillus, Bifidobacterium, Bacteroidetes, Clostridiales spp., and Akkermansia muciniphila are considered gut barrier-promoting microbes, while Oscillibacter and Desulfovibrio spp. are considered gut barrier-disrupting microbes [33]. Lactobacillus, Bifidobacterium spp. and A. muciniphila induce ZO-1 expression to promote the gut barrier [34,35,36]. On the other hand, Desulfovibrio spp. produce genotoxic hydrogen sulfide (H2S), increasing the intestinal permeability [37]. Bacteroidetes, Verrucomicrobia, Akkermansia, and Lactobacillus spp. were positively correlated with increased expression levels of tight junction proteins, including ZO-1, occludin, and claudin-1, indicating that these bacteria maintained gut barrier function and improved hepatic inflammation and oxidative stress. On the other hand, Firmicutes, Proteobacteria, Butyricimonas, Parabacteroides, and Bilophila spp. exhibited the opposite effect [38]. Modulation of the gut microbiota by Bifidobacterium bifidum ATCC 2952 restored dextran sodium sulfate (DSS)-induced dysbiosis and up-regulated the expression of anti-inflammatory cytokines including interleukin (IL)-10, peroxisome proliferator-activated receptor (PPAR)-γ, and IL-6 in the gut, thereby indicating the important role of the gut microbiota [39]. A recent study, in which fecal microbial transplantation (FMT) from mice on high-fat diets (HFDs) to mice on standard diets was performed, showed the gut barrier damages in these mice, thereby indicating that altered gut microbiota was responsible for increased intestinal permeability [40] (Figure 2A).
Activation of the inflammasome by diverse microbial-, stress-, and danger-associated signals triggers pro-inflammatory cytokines including IL-1β and IL-18, thereby promoting innate immunity [41]. Previous studies have demonstrated that the intestinal epithelial nucleotide-binding oligomerization domain (NOD)-like receptor (NLR) family pyrin domain containing 6 (NLRP6) inflammasome maintains the intestinal barrier and microbial balance by regulating goblet cell mucus secretion [42] and anti-microbial peptide production [43]. NLRP6 is highly expressed in the epithelial cells of the small intestine, colon, and goblet cells and is co-expressed with apoptosis-associated speck-like protein containing a caspase recruitment domain (ASC) and caspase-1 in the intestinal epithelium [43]. A previous study indicated that fructose-fed mice exhibited impaired gut barrier and NLRP6 inflammasome [44]. NLRP6 activation induced the synthesis of anti-microbial peptides, including angiogenin-4, intelectin-1, and resistin-like molecule β, by gut epithelial cells [43]. Furthermore, NLRP6-deficient mice exhibited impaired anti-microbial peptides, resulting in dysbiosis, as indicated by the increased relative abundance of the Prevotellaceae spp. and members of the TM7 phylum and the decreased relative abundance of the Lactobacillus spp. and members of the Firmicutes phylum [45]. Therefore, the gut microbiota–NLRP6 axis plays an important role in maintaining the gut barrier function (Figure 2B).

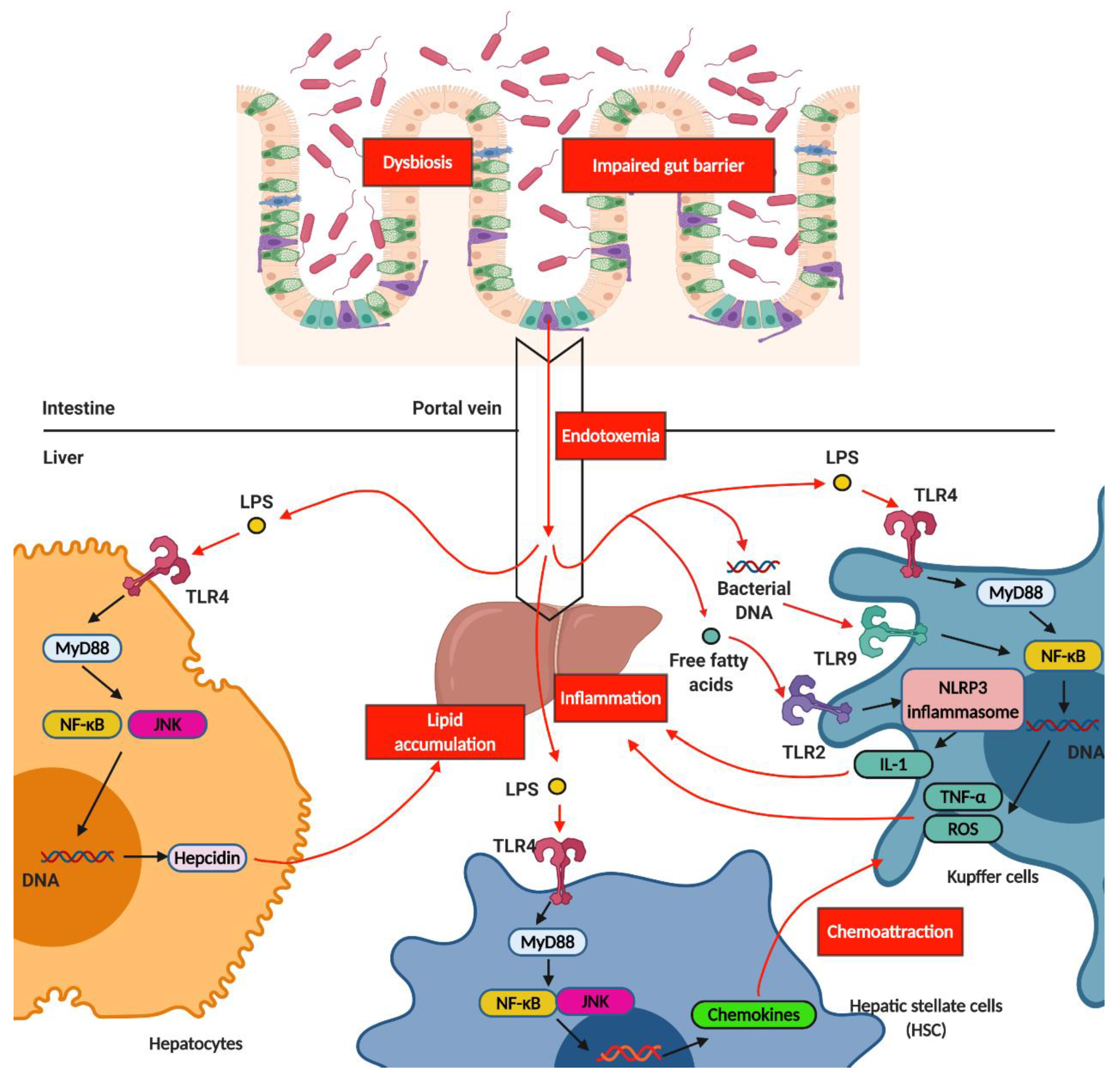

2.3. Gut Microbiota and Hepatic Inflammation

The gut microbiota signals travel through the human body systemically via the liver. Both nutrients and microbe-derived molecules from the intestinal lumen converge in the liver through the portal vein. Modulation of intestinal permeability regulates the entry of microbe-derived molecules into the liver from the gut. Some of these molecules are harmful substances that can cause liver inflammation and induce the pathological process of NASH. For example, in JAM-A-deficient mice (genetically induced gut barrier dysfunction model) and a DSS-induced gut inflammation animal model, mice on high-fat, high-fructose, and cholesterol diets, compared to the control, showed LPS translocation and increased NASH severity [46,47]. LPS-triggered hepatic inflammation occurred through the activation of toll-like receptor 4 (TLR4) in several types of cells, including Kupffer cells, hepatocytes, hepatic stellate cells (HSCs), and liver sinusoidal endothelial cells (LSECs). In Kupffer cells, TLR4 signal activation via myeloid differentiation primary response 88 (MyD88) induced tumor necrosis factor (TNF)-α and reactive oxygen species (ROS), further enhancing hepatic inflammation. The LPS-triggered TLR4 on the HSCs induced the production of various chemokines and adhesion molecules, which in turn induced Kupffer cell chemotaxis. On the other hand, the activation of TLR4 on hepatocytes induced hepcidin production via the MyD88/c-Jun N-terminal kinase (JNK) pathway, which was associated with hepatic lipid accumulation [48]. These results were consistent with those of a previous human study that showed higher levels of antibodies against LPS, produced by Gram-negative bacteria, in NASH patients than in healthy individuals, and this increase paralleled disease severity [49]. In addition to LPS, other pathogen-associated molecular patterns (PAMPs), including peptidoglycan, flagellin, and bacterial RNA and DNA, can enter into the liver due to increased intestinal permeability and trigger inflammatory responses. TLR9 activation by bacterial DNA further induces IL-1β production in Kupffer cells, thus resulting in hepatic steatosis, inflammation, and fibrosis [50]. In addition to TLR, inflammasome proteins, which are activated by NLRs and assembled, recognize PAMPs, leading to IL-1 and IL-18 production and further triggering inflammation [51]. A previous study indicated that NLRP3 inflammasome components were significantly increased in NASH patients compared to in non-NASH NAFLD patients [52]. These results indicated the association between hepatic inflammation and NLRP3 inflammasome. Indeed, the lack of NLRP3 inflammasome attenuated hepatic injury, immune cell infiltration, and choline-deficient (CD) L-amino-defined (CDAA) diet-induced fibrosis, thereby confirming the important role of NLRP3 inflammasome [52]. The increased influx of different classes of lipotoxic lipids and insulin resistance-induced adipokines, in addition to PAMPs, into the liver due to a leaky gut can also trigger hepatic inflammation. Several lipid classes, including saturated non-esterified fatty acids (NEFAs), free cholesterol, sphingolipids, and sphingosine 1-phosphate (S1P), induce liver injury and inflammation [53,54]. For example, saturated NEFAs can bind to and activate hepatocyte death receptor TNF-related apoptosis-inducing ligand (TRAIL) receptor 2 (TRAIL-R2) and damage-associated molecular pattern (DAMP) receptors, such as TLR4, and further trigger downstream activation of the caspase cascade and execute hepatocyte apoptosis [55]. Additionally, accumulating ceramides, one type of sphingolipid, were observed in the HFD animals fed diets enriched with saturated fatty acids [56]. Increased ceramides contributed to ROS generation, and oxidative stress further induced apoptosis and inflammatory cell recruitment to the liver, thus resulting in worsening hepatic inflammation and damage [57]. Generally, lipotoxicity induces endoplasmic reticulum (ER) stress, mitochondrial dysfunction, inflammasome activation, and cell death [58] (Figure 3).

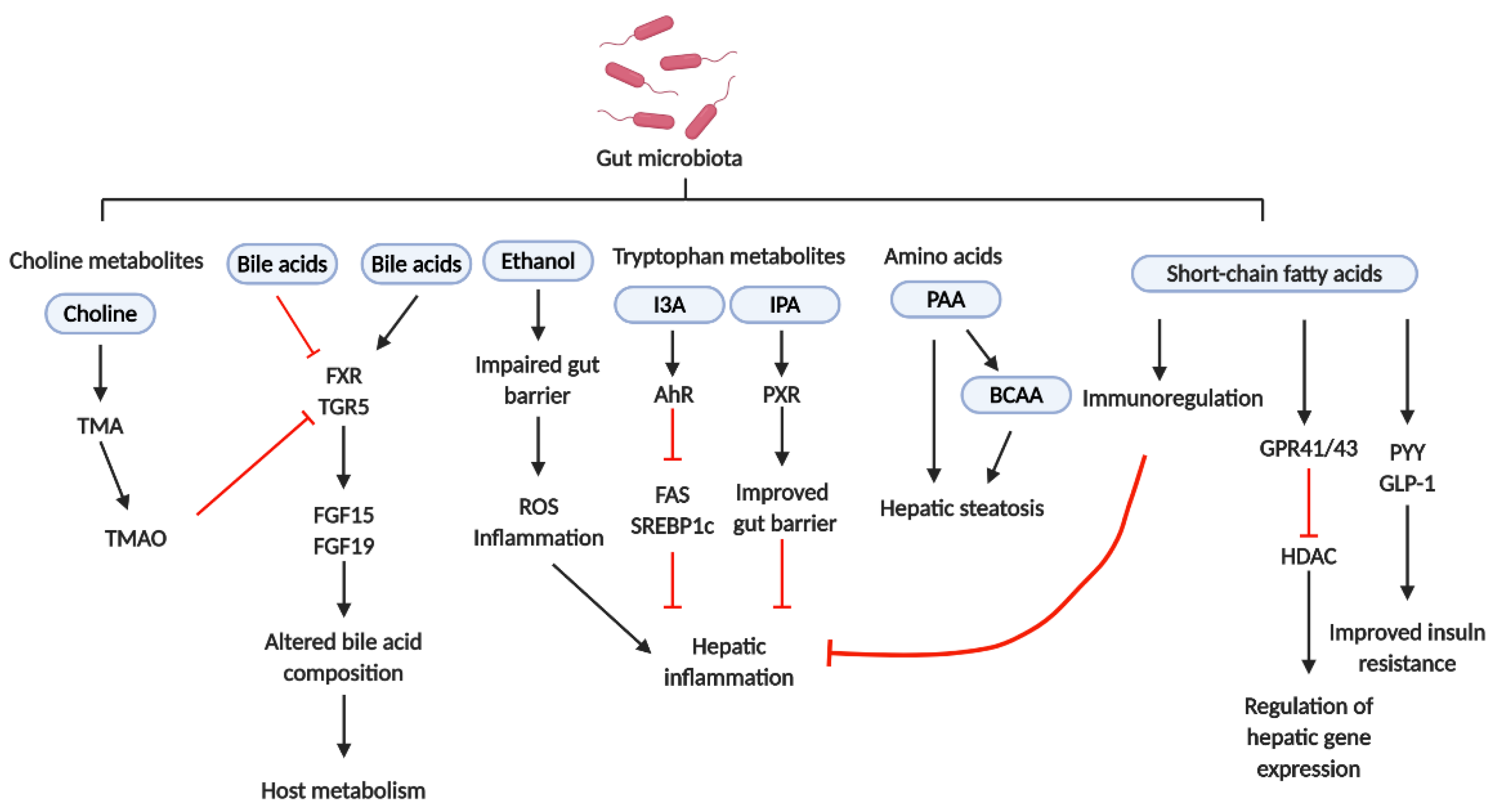

2.4. NASH and Gut Microbiota-Derived Metabolites

Dysbiosis includes changes in not only the gut microbiota composition but also in the microbiota-derived metabolites obtained from dietary nutrients, thereby affecting host metabolic homeostasis. The most important gut microbiota-derived metabolites are SCFAs. SCFAs are produced by the fermentation of dietary fibers by the gut microbiota, including Roseburia, Ruminococcus, Salmonella, Blautia, Eubacterium, Anaerostipes, Coprococcus, Faecalibacterium, Marvinbryantia, and Megasphaera spp. The relative abundance levels of acetate, propionate, and butyrate were the highest [59]. Propionate was associated with peptide-YY and glucagon-like peptide-1 (GLP-1) release using a primary cultured human colonic cell model and further demonstrated that increasing colonic propionate prevents weight gain and insulin resistance in overweight adult humans [60]. In an HFD-induced steatohepatitis mouse model, butyrate promoted CD4+ T cell differentiation into helper T 2 (Th2), Th22, or regulatory T (Treg) cells and inhibited CD4+ T cell differentiation into Th1 or Th17 cells, further preventing hepatic inflammation [61]. SCFAs exerted their biological functions mainly via G-protein coupled receptor (GPR) 41/43 activation or histone deacetylase (HDAC) inhibition. GPR41 and GPR43 were expressed in not only the gut but also the liver, and GPR41 and GPR43 activation attenuated host insulin resistance in murine models [62,63,64]. Butyrate could inhibit HDAC directly and regulate phosphorylation of cyclic adenosine monophosphate (cAMP) response element binding protein (CREB), which is involved in gluconeogenesis, further influencing the gut and liver metabolisms [65]. Thus, SCFAs affected not only the hepatic immune response but also hepatic metabolism.
Amino acid imbalance is often found in NAFLD patients [66,67]. The ratio of branched-chain amino acids (BCAAs) to aromatic amino acids (AAAs) is a diagnostic marker for the severity of liver dysfunction. A decreasing ratio indicates severe liver dysfunction. BCAAs, including valine, leucine, and isoleucine, are essential amino acids for human beings and are involved in liver disease pathophysiology. Cohort studies have indicated that serum BCAA levels are positively correlated with insulin resistance and steatosis [67,68,69]. Further studies showed that Prevotella copri and Bacteroides vulgatus were the main species responsible for the association between BCCA biosynthesis and insulin resistance, and this finding was confirmed in the mouse model [70]. Although several studies indicated that BCAAs could inhibit triglyceride (TG) deposition in hepatocytes, reduce ER stress, and enhance gut barrier function by improving immune response, some inconsistencies in the results indicated that BCAAs caused hepatic damage, associated with abnormal lipolysis, in mice on HFDs [71,72,73]. Phenylacetic acid (PAA) is an AAA-derived metabolite which is produced by the gut microbiota. PAA has been found to induce hepatic steatosis by lowering protein kinase B (Akt) phosphorylation and affect BCAA metabolism by increasing acyl-CoA dehydrogenase short/branched chain (ACADSB) expression in primary hepatocytes and mice, indicating the causal role of PAA in NAFLD [67].
Recent studies have indicated that tryptophan metabolites may affect NAFLD development [59]. Indole and its derivatives, including indoleacrylic acid (IA), indole-3-acetic acid (IAA), indole-3-aldehyde (I3A), indole-3-propionic acid (IPA), and tryptamine, are the main tryptophan-derived gut bacterial products which are mainly produced by Bacteroides, Eubacterium, and Clostridium spp. [59]. Among them, tryptamine and I3A reduced hepatic fatty acid synthase (FAS) and sterol regulatory element-binding protein-1c (SREBP1c) expression via aryl-hydrocarbon receptor (AhR), further reducing Kupffer cell-induced hepatic inflammation [74]. Lower abundance of IPA in obese patients has been reported in previous studies, and IPA supplementation resulted in the reduction of weight gain in the antibiotic-induced dysbiosis animal model [75]. Additionally, IPA improved intestinal barrier function via pregnane X receptor (PXR), which in turn inhibited endotoxin-induced TLR4 signaling and improved tissue inflammation [76,77]. Therefore, tryptophan metabolites appear to be potential therapeutic targets.
Higher levels of ethanol in the blood and breath, accompanied with up-regulation of hepatic alcohol dehydrogenase, aldehyde dehydrogenase, and CYP2E1, were exhibited in NASH patients and ob/ob mice without alcohol consumption [78]. These results indicated that endogenous ethanol might be involved in NAFLD pathogenesis. Endogenous ethanol is obtained by carbohydrate fermentation by gut microbiota, and it stimulates oxidative stress and aggravates liver inflammation in NAFLD [79,80]. Escherichia coli, Enterobacteriaceae spp., and Klebsiella pneumonia have been identified as ethanol-producing bacteria and were found to be relatively abundant in NAFLD patients [79,81]. Ethanol can be further metabolized into acetaldehyde, which induces hepatic injury [82]. Therefore, increasing endogenous ethanol production may deteriorate hepatic inflammation. Ethanol exerts direct toxic effects on the liver, increasing intestinal permeability, which results in endotoxemia, and further triggers the inflammatory response, contributing to liver injury [83]. These findings indicate that endogenous ethanol might play a pivotal role in NASH pathogenesis. However, further investigation is required to determine the exact effects of endogenous ethanol on NAFLD and NASH.
BAs can be divided into primary and secondary BAs. Primary BAs, including cholic acid (CA) and chenodeoxycholic acid (CDCA), are produced using cholesterol in the liver. Primary BAs are converted into more than 20 secondary BAs, including deoxycholic acid (DCA) and lithocholic acid (LCA), by the gut microbiota [84,85]. Furthermore, distinct BA profiles were observed between the germ-free and conventional animals, thereby indicating the direct effects of the gut microbiota on BAs [86]. Adams et al. (2020) showed that increased DCA was associated with not only the increased relative abundance of specific bacterial groups, including Bacteroidaceae and Lachnospiraceae spp., but also advanced fibrosis in NAFLD [87]. At the molecular level, individual BAs act as agonists or antagonists for farnesoid X receptor (FXR) and takeda G-protein-coupled bile acid receptor 5 (TGR5) and affect energy, glucose, and lipoprotein metabolism, indicating that altered BA composition may affect host metabolism by modifying these signals [88]. For example, FXR activation by CA, CDCA, and obeticholic acid (OCA), which is derived from CDCA, stimulated production of fibroblast growth factor 15 (FGF15) in mice or FGF19 in humans. FGF15 and FGF19 further bound to FGF14 in the liver to inhibit BA synthesis, thereby altering the BA pool and exhibiting NASH improvement [89,90,91,92]. On the other hand, increasing CA or DCA may result in dysbiosis owing to their anti-microbial activity, further contributing to NAFLD pathogenesis [93,94]. Additionally, TGR5 activation in the intestine results in GLP-1 release from L cells, further promoting insulin release from pancreatic β–cells [95,96]. Taken together, these results indicate that the gut microbiota-induced alteration of the BA pool plays an important role in NAFLD pathogenesis.
Choline is metabolized to phosphatidylcholine, which is essential for very low-density lipoprotein (VLDL) production and hepatic lipid transfer, in the liver. Most phosphatidylcholine is derived from dietary choline. Therefore, hepatic lipid metabolism is affected by choline deficiency. CD diets are commonly used to induce NAFLD in animal models. Decreased VLDL levels and β-oxidation were observed in mice on CD diets, further resulting in fatty acid and cholesterol accumulation and increased oxidative stress and inflammation in the liver [20,97]. Three major bacterial phyla, including Proteobacteria, Firmicutes, and Actinobacteria, are associated with choline metabolism. These bacteria metabolize dietary choline to trimethylamine (TMA), which is further metabolized to trimethylamine-N-oxide (TMAO) by flavin-containing monooxygenases, in the liver [98]. High circulating TMAO levels have been reported to increase the risk of atherosclerosis and cardiovascular disease [99]. Previous studies also indicated that NAFLD patients exhibited elevated serum TMAO levels, which were positively correlated with the pathological progression of NAFLD [100]. Further research indicated that TMAO modulated BA metabolism and FXR signaling inhibition, contributing to NAFLD pathogenesis [101]. The effects of the gut microbiota-derived metabolites on NAFLD are shown in Figure 4 and Table 1.

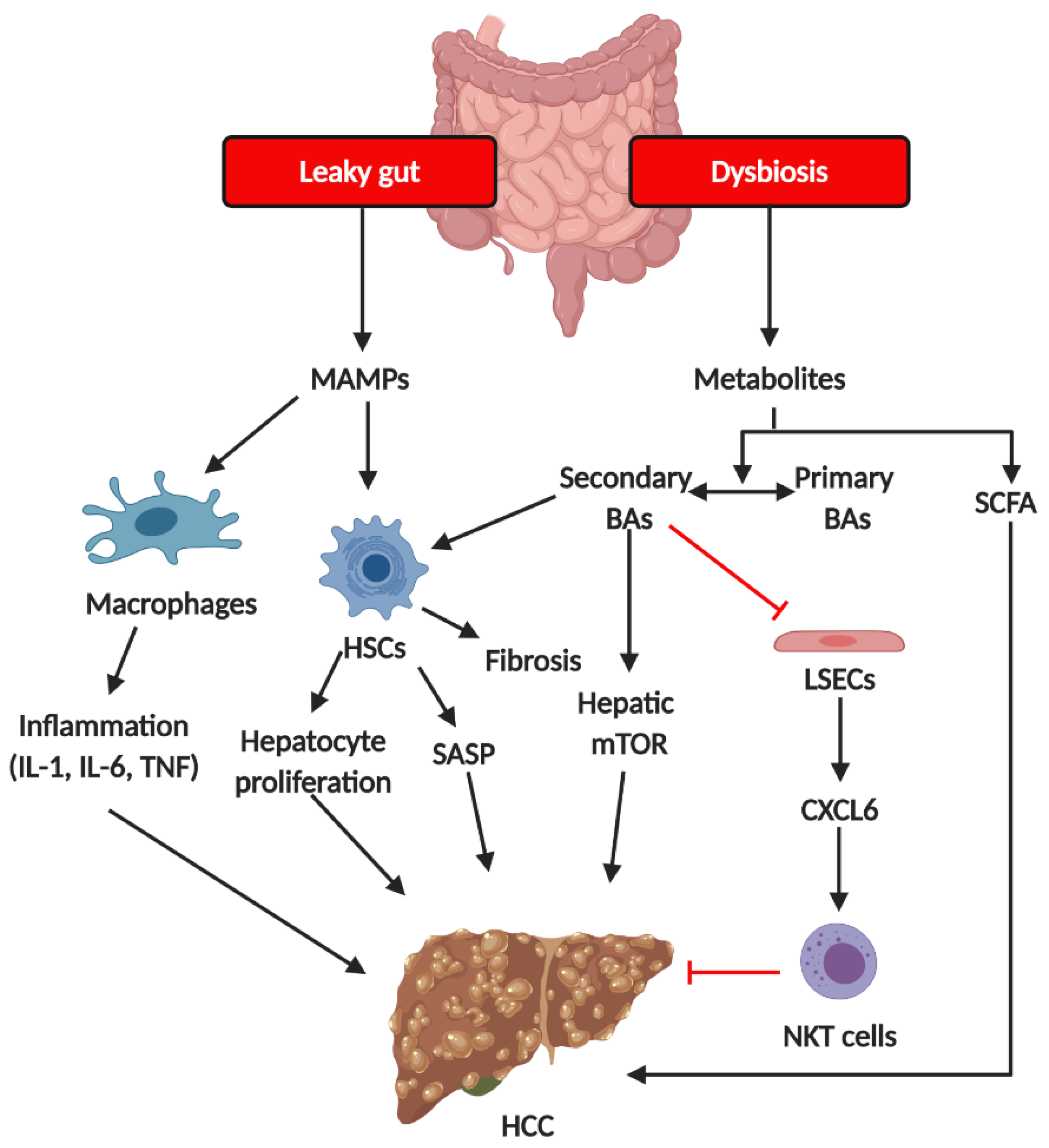

3. From NASH to HCC: The Gut Microbiota-Associated Mechanisms

NASH progression to HCC shows mechanisms similar to those of NAFL progression to NASH. Dysbiosis and a leaky gut result in PAMP and gut microbiota-derived metabolite influx into the liver, thereby further triggering hepatic inflammation and disrupting metabolism homeostasis. Several groups of bacteria were associated with HCC. A previous study showed E. coli overgrowth in the intestines of HCC and cirrhosis patients [102]. Another study indicated that HCC patients, compared to cirrhosis patients, exhibited increased levels of Bacteroides and Ruminococcaceae spp. [103,104] and decreased levels of Akkermensia and Bifidobacterium spp. [104]. At the molecular level, PAMPs, such as LPS, activated signaling of TLRs, including TLR4 and TLR9, and induced cytokine and chemokine production, further inducing immune cell infiltration into the liver. PAMPs also activated HSCs via TLR activation to senescence-associated secretory phenotype (SASP) and induced epiregulin production, further promoting fibrosis development [105,106] (Figure 5). Dysbiosis affects metabolic functions via the gut microbiota-derived metabolites in NASH progression to HCC, like in NAFL progression to NASH. Primary BA conversion to secondary BAs by the gut microbiota is involved in HCC pathogenesis. Dysbiosis promotes HCC by inhibiting primary BA production, further inhibiting LSEC activation. Inhibition of LSEC activation results in chemokine ligand 6 (CXCL6) down-regulation, CXCL6-mediated natural killer T cell recruitment, and further loss of liver tumor growth control [107]. On the other hand, secondary BAs promote HCC development by activating HSC SASP and the hepatic mTOR pathway [108]. Thus, controlling the production of secondary BAs using antibiotics reduces HCC development [109] (Figure 5).

4. Potential Therapeutic Strategies and Non-Invasive Diagnosis

Owing to the higher daily calorie intake and sedentary lifestyle of NAFLD patients, the first step of NAFLD treatment includes weight loss by lifestyle modifications, including diet restriction and increased physical activity [110]. However, hepatic fat accumulation, inflammation, and necrosis are significantly improved only when more than 10% of the body weight is reduced [111,112]. Thus, lifestyle therapy appears to be insufficient for resolving NASH.
In addition to lifestyle interventions, potential NAFLD therapeutic strategies based on the gut microbiota and gut-liver axis have attracted attention in recent years. Antibiotic, prebiotic, and probiotic use can be applied to modulate the gut microbiota and prevent hepatocarcinogenesis. For example, a preclinical mouse model indicated that chronic oral administration of antibiotics decreased secondary bile acid levels, hepatic lipid accumulation, and attenuated hepatic inflammation and fibrosis via modulating the composition of gut microbiota [113,114]. On the contrary, Mahana D. et al. showed different results which indicated that mice treated with antibiotics exhibited severe insulin resistance and NAFLD and the composition of the gut microbiota was shifted from Firmicutes to Bifidobacterium, S24-7, and Prevotella [115]. The function of the gut microbiota is based on community, and a “healthy” microbiome has not been defined yet [116]. Therefore, these inconsistent results may arise from the complex community of gut microbiota. Otherwise, antibiotics may eliminate important species associated with healthy status and the risk of antibiotic resistance poses a larger concern, thereby reducing the efficiency of antibiotic use as a therapeutic strategy. Food ingredients which improve beneficial bacterial growth in the gut are termed prebiotics. In humans, supplementation with prebiotics such as oligofructose decreases the levels of hepatic inflammatory markers [117]. A previous study indicated that prebiotic treatment was negatively associated with endotoxin levels [118]. In addition to human studies, several animal studies have revealed the therapeutic potential of prebiotics. For example, prebiotic treatment reduced hepatic TG accumulation via the inhibition of expression of genes such as FAS, which is involved in the lipogenesis pathway [114]. On the other hand, probiotics are live bacteria which are beneficial to the host. For example, Lactobacillus and Bifidobacterium spp. have been reported to reduce gut inflammation and improve gut barrier function by remodeling the gut microbiota [119]. In humans, administration of Lactobacillus acidophilus reduced AST and ALT levels in NASH patients [120] and several clinical trials of probiotics were reported in other reviews [121]. However, most of the molecular mechanisms by which probiotics exert their functions remain unclear.
FMT is a novel therapeutic strategy which is defined as the transplantation of functional gut microbiota in healthy human feces into patients to alter the recipient’s gut microbiota directly and normalize microbiota composition for therapeutic benefit [122]. Remarkable effectiveness of FMT was shown in patients with recurrent and refractory Clostridium difficile infection and has been confirmed as a clinical technique for treatment according to the 2013 guidelines [123,124,125]. FMT application, as a treatment strategy for extra-gastrointestinal diseases, has been evaluated in recent years. A previous study indicated that mice on HFDs showed decreased hepatic lipid accumulation and pro-inflammatory cytokine levels after FMT [126]. Additionally, FMT elevated the relative abundance of the beneficial bacterial species of Christensenellaceae and Lactobacillus, improved gut barrier function, and increased butyrate production, thereby further ameliorating endotoxemia [126]. In a human study, FMT from lean donors to individuals with metabolic syndrome temporarily increases insulin sensitivity [127]. A phase I clinical study has indicated that FMT with oral capsule restores microbial diversity and function and further reduced the recurrence of hepatic encephalopathy [128,129]. Although these human studies were not targeted toward the therapy of NAFLD, these findings still indicate the therapeutic potential of FMT. However, only a few control trials of FMT have been enrolled to date, and the role of FMT must be further examined because FMT application involves the risk of developing other pathogenic infections [130].
In addition to potential treatments, effective and non-invasive methods for diagnosing NAFLD are another important key to preventing HCC. Unfortunately, broadly applicable and non-invasive methods for diagnosing NAFLD are not available as yet. A recent study by Oh T.G. et al. demonstrated that a core gut microbiome signature can identify cirrhosis across separated cohorts, independent of disease etiology, host genetic, and environmental factors [131]. The identified disease microbiome included the elevated relative abundance of Veillonella parvula, Veillonella atypica, Ruminococcus gnavus, Clostridium bolteae, and Acidaminococcus sp. D21 and decreased abundance of Eubacterium eligens, Eubacterium rectale, and Faecalibacterium prausnitzii [131]. Although the results indicated the improved diagnostic accuracy in several cohorts, the authors claimed that these diagnostic methods need multi-center studies and well-phenotyped patients in order to be validated. However, it still is a promising non-invasive diagnostic method for NAFLD.

5. Conclusions

In general, the current NAFLD therapeutic strategies based on the gut microbiota and gut–liver axis mainly include prebiotic, probiotic, and FMT application. These therapeutic strategies improve NAFLD and HCC by recovering gut homeostasis from a state of dysbiosis, thereby improving gut barrier function to prevent endotoxemia, promoting anti-inflammatory effects and modulating gut microbiota-derived metabolite production. However, a huge gap in the development of therapies by targeting specific gut microbiota species or gut microbiota-derived metabolites remains. Although high-throughput sequencing including 16S rRNA and metagenomic sequencing help the researcher to identify gut microbiotas that are present in a sample without the need for culturing, the results only indicate the correlation of gut microbiota with diseases. Moving from association to causation remains a significant challenge. Specific species of gut microbiota may need to be cultured in order to conduct the causation test. Therefore, there is a strong demand for a culturomic technique. On the other hand, due to the complex community of gut microbiota, multi-omics analysis including transcriptomics, proteomics, and metabolomics may give us a glimpse of the entire disease picture and further contribute to the development of precision medicine. Therefore, advances in the understanding of the gut microbiota will allow the development of improved diagnostic, prognostic, and therapeutic strategies for liver diseases.

Author Contributions

Writing—original draft preparation, Y.-H.C.; writing—review and editing, W.-K.W., M.-S.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We apologize to the authors whose work could not be cited due to space constraints.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

HCChepatocellular carcinoma
NAFLDnon-alcoholic fatty liver disease
NASHnon-alcoholic steatohepatitis
HBVhepatitis B viruses
HCVhepatitis C viruses
SCFAshort chain fatty acid
ZO-1zonula occludens-1
DSSdextran sodium sulfate
IL10interleukin-10
IL6interleukin-6
PPARperoxisome proliferator-activated receptor
FMTfecal microbial transplantation
HFDshigh-fat diets
NLRP6nucleotide-binding oligomerization domain -like receptor family pyrin domain containing 6
ASCapoptosis-associated speck-like protein containing a caspase recruitment domain
TLR4toll-like receptor 4
HSCshepatic stellate cells
LSECsliver sinusoidal endothelial cells
MyD88myeloid differentiation primary response 88
TNF-αtumor necrosis factor-α
ROSreactive oxygen species
JNKc-Jun N-terminal kinase
PAMPspathogen-associated molecular patterns
NEFAsnon-esterified fatty acids
S1Psphingosine 1-phosphate
TRAILTNF-related apoptosis-inducing ligand
DAMPdamage-associated molecular pattern
GPRG-protein coupled receptor
HDAChistone deacetylase
CREBcyclic adenosine monophosphate (cAMP) response element binding protein
BCAAsbranched-chain amino acids
AAAsaromatic amino acids
ACADSBacyl-CoA dehydrogenase short/branched chain
IAindoleacrylic acid
IAAindole-3-acetic acid
I3Aindole-3-aldehyde
IPAindole-3-propionic acid
SREBP1csterol regulatory element-binding protein-1c
AhRaryl-hydrocarbon receptor
PXRpregnane X receptor
CAcholic acid
CDCAchenodeoxycholic acid
DCAdeoxycholic acid
LCAlithocholic acid
FXRfarnesoid X receptor
TGR5takeda G-protein-coupled bile acid receptor 5
OCAobeticholic acid
FGFfibroblast growth factor
VLDLvery low-density lipoprotein
TMAtrimethylamine
TMAOtrimethylamine-N-oxide
CXCL6chemokine ligand 6
