Advanced Bioluminescence System for In Vivo Imaging with Brighter and Red-Shifted Light Emission

by
Mizuki Endo
and
Takeaki Ozawa
*
Department of Chemistry, School of Science, The University of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo 113-0033, Japan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(18), 6538; https://doi.org/10.3390/ijms21186538
Submission received: 21 August 2020 / Revised: 3 September 2020 / Accepted: 4 September 2020 / Published: 7 September 2020
(This article belongs to the Special Issue Bioluminescent and Fluorescent Proteins: Molecular Mechanisms and Modern Applications)
Browse Figures
Versions Notes

Abstract

:
In vivo bioluminescence imaging (BLI), which is based on luminescence emitted by the luciferase–luciferin reaction, has enabled continuous monitoring of various biochemical processes in living animals. Bright luminescence with a high signal-to-background ratio, ideally red or near-infrared light as the emission maximum, is necessary for in vivo animal experiments. Various attempts have been undertaken to achieve this goal, including genetic engineering of luciferase, chemical modulation of luciferin, and utilization of bioluminescence resonance energy transfer (BRET). In this review, we overview a recent advance in the development of a bioluminescence system for in vivo BLI. We also specifically examine the improvement in bioluminescence intensity by mutagenic or chemical modulation on several beetle and marine luciferase bioluminescence systems. We further describe that intramolecular BRET enhances luminescence emission, with recent attempts for the development of red-shifted bioluminescence system, showing great potency in in vivo BLI. Perspectives for future improvement of bioluminescence systems are discussed.

1. Introduction

Quantitative monitoring of individual biomolecular reactions and cellular behaviors is necessary to elucidate the dynamic and complicated functions of biological phenomena. In vivo bioluminescence imaging (BLI) has enabled visualization of biological processes in intact living organisms, providing abundant quantitative, spatiotemporal information that is far beyond the reach of conventional in vitro assays. BLI is based on the catalytic activity of luciferase enzymes, which oxidize the substrate called luciferin to generate an excited-state molecule that emits bioluminescence. Unlike the fluorescence imaging technique, BLI requires no external excitation light that might cause background fluorescence or phototoxicity in analyzed samples. Therefore, one can achieve exquisitely sensitive imaging in opaque heterogeneous tissues. Consequently, BLI has enabled in vivo monitoring of various biological processes such as tumor growth, cancer metastasis, and bacterial infection [1].
Luciferases used in BLI are derived from diverse species that include beetles, sea pansy, copepods, and deep-sea shrimp. The corresponding luciferins hold distinct chemical structures: firefly luciferase (FLuc, Figure 1a) requires d-luciferin (Figure 2a), while marine Renilla luciferase (RLuc, Figure 1b) and Oplophorus luciferase (OLuc) use coelenterazine (Figure 3b). All luciferins require chemical reactions to emit bioluminescence: the oxidation of luciferins by luciferases to yield excited-state oxyluciferin, and relaxation to the ground state with photon emission. Despite their similarity, the color and intensity of the emitted bioluminescence and the dependency on pH and other molecules (e.g., ATP) differ among luciferase–luciferin pairs. Therefore, the selection of appropriate luciferase–luciferin pairs according to the biological process of interest is crucially important for BLI.
Typical natural luciferases emit weak bioluminescence with wavelengths shorter than 650 nm. Therefore, the major obstacles hindering the wider use of in vivo BLI have been the absorption and scattering of emitted bioluminescence by the host tissue. To overcome the defects, many studies have been conducted to yield brighter, red-shifted bioluminescence systems by genetic or chemical engineering. This review briefly explains recent advances in the development of engineered bioluminescence systems. To elucidate the improvements of bioluminescence intensity, we first specifically describe the mutagenic engineering on FLuc, RLuc, and OLuc. Then, we introduce another approach for enhancing bioluminescence intensity using fluorescent proteins, which is based on bioluminescence resonance energy transfer (BRET). Regarding wavelength engineering, we introduce both genetic luciferase manipulation and chemical luciferin engineering. We offer conclusions and perspectives for the future improvement of bioluminescence systems.

2. Development of a Brighter Bioluminescence System

The emitted bioluminescence brightness is affected by the stability of the protein, or by the parameters of the catalytic reaction, such as the quantum yield, catalytic rate, and sensitivity to product inhibition [2]. Therefore, the engineering of luciferase enzymes or luciferin substrates is a rational approach to improve the brightness of bioluminescence systems (Table 1). Intramolecular BRET has also enabled the striking enhancement of bioluminescence intensity (Table 2). This section will specifically assess both approaches to develop a brighter bioluminescence system.

2.1. Engineering on Luciferase and Luciferin

Luciferase isolated from the North American firefly Photinus pyralis, FLuc (61 kDa, Figure 1a), is the most extensively investigated bioluminescence enzyme. FLuc catalyzes a two-step reaction that results in the oxidation of d-luciferin (Figure 2a) with ATP, Mg2+ and oxygen, which yields electronically excited oxyluciferin (OxyLH2). The accompanying bioluminescence emission peaks at 530–635 nm (pH-dependent), with a quantum yield at 0.48 [53,54]. However, BLI using native FLuc entails several shortcomings that include low thermostability and limited intracellular luciferin availability [55]. For example, the half-life of FLuc is less than 10 min at 35 °C [56]. The crystal structure of FLuc shows that the enzyme consists of the N-domain (1–436 a.a.), which is composed of subdomains A (1–190 a.a.) and B (191–436 a.a.), and C domain (443–544 a.a.) [57]. Because the middle subdomain B is less stable, it is the bottleneck that determines the stability of the whole protein [58]. Various mutations in subdomain B have been reported to improve FLuc thermostability, including T214A, A215L, I232A, F295L, and E354K [3,56,59]. The combination of 5 mutations improved FLuc thermostability up to a half-life of 11.5 hrs at 37 °C (Mutant E). Engineering of the protein surface is a general approach for enhancing protein stability [60]. Indeed, mutagenesis on solvent-exposed hydrophobic amino acids in FLuc (x5 FLuc; F14R, L35Q, V182K, I232K, and F465R) enhanced thermostability up to 45 °C with higher pH-tolerance [4]. With the help of those findings, 12 mutations to FLuc (x12 FLuc; F14R, L35Q, A105V, V182K, T214C, I232K, D234G, F295L, E354R, D357Y, S420T, and F465R) further improved the thermostability, which has a half-life of 15 min at 55 °C [6]. Thermostabilizing mutations indeed increase the light output intensity, as seen in the mutant called x5g (F14R, L35Q, V182K, I232K, V241I, G246A, F250S, and F465R) that exhibited 3.69-fold brighter luminescence than FLuc, which enabled in vivo bioluminescence imaging in the striatum of the mouse brain [5]. The increasing affinity and turnover rate for the ATP and d-luciferin substrates overcomes the low light output due to the limited availability of intracellular d-luciferin [61]. For example, mutation of Ile423 to Leu and Met remarkably increased the turnover rates. Mutations on Ile423 may affect the nearby hydrogen bonding between the carboxyl group of Asp422 and the hydroxyl group of AMP [62]. D436G mutation increased the substrate affinity for ATP and d-luciferin, which may because Asp436 inhibits substrate entry to a nearby cavity for ATP [63]. The increase of substrate affinity via L530R mutation might be due to Lys529, which is postulated to form an active site. By combining the thermostabilizing mutations (T214A, A215L, I232A, F295L, and E354K) and catalytic activity improving mutations (LGR; I423L, D436G, and L530R), a novel mutant named YY5 was generated, which has 14-fold higher kcat than FLuc) [3].
Compared to d-luciferin-based ATP-dependent luciferases, luciferases using coelenterazine as their substrate (Figure 3a) present several important benefits as bioluminescent tags in BLI. They are ATP-independent and, in general, only require oxygen. Renilla luciferase (RLuc, Figure 1b), which comprises 311 amino acids, is a well-characterized coelenterazine-based luciferase with low molecular weight (37 kDa) and blue light (480 nm) emission. Although it is attractive for BLI, original RLuc is adversely affected by rapid inactivation, which has limited its biotechnological applications, especially in an in vivo model [21]. To overcome the defect, eight mutations (A55T, C124A, S130A, K136R, A143M, M185V, M253L, and S287L) were introduced, which are called RLuc. The RLuc8 showed a 4.3-fold enhancement in bioluminescence intensity compared to RLuc. Additional mutations (A123S, D154M, E155G, D162E, I163L, and V185L) of RLuc8 generated RLuc8.6-535, which emitted 6.0-fold higher luminescence than RLuc with a longer peak wavelength (535 nm) [22]. The bioluminescence from purified RLuc8.6-535 injected into the thigh musculature of the mouse (depth of ~ 1–2 mm) was detected by cooled CCD. Further improvements were achieved with BRET-based approaches, as introduced in the next section.
Recently, a novel luciferase called NanoLuc (NLuc, Figure 1c) was developed from a small subunit (19 kDa) of another coelenterazine-based OLuc [23]. First, nine mutations (A4E, Q11R, A33K, V44I, A54F, P115E, Q124K, Y138I, and N166R) generated variant C1A4E, which emits 88,000-fold brighter luminescence than the native OLuc small subunit. In parallel with further mutations that stabilize luciferase, a superior coelenterazine substrate was screened by modifications at the C-2, C-6, and C-8 positions of the imidazopyrazinone core. The coevolution approach produced NLuc and its selective substrate, named furimazine (Figure 3b). NLuc exhibited 150-fold greater activity than FLuc or RLuc, with its slow decay in luminescence (signal half-life > 2 h) and high physical thermal stability (up to 55 °C). The bright NLuc luminescence enabled subcellular BLI with 1–5 s exposure for image acquisition. It is particularly interesting that spontaneously interacting fragments of split NLuc were developed at the KD for 700 pM. The resultant 11 amino acid peptide was used for quantifying proteins and monitoring protein trafficking [64,65]. Further mutation generated a brighter NLuc mutant called teLuc (D19S, D85N, and C164H), which emits 2.6-fold brighter bioluminescence than NLuc with diphenylterazine (Figure 3c), or yeLuc (F1L, A14D, L18Q, D19A, S28T, V27L, Q69R, R112Q, L142R, and C164S) which emits 11.5-fold brighter bioluminescence with selenoterazine (Figure 3d) [24].

2.2. BRET-Based Approaches

Főrster resonance energy transfer (RET) is an optical process that transfers energy from a donor to an adjacent acceptor fluorescent molecule [66]. In RET, the excess energy generated upon relaxation of the excited electron in the donor is transmitted to the acceptor as a virtual photon. The transfer is facilitated by the dipole-dipole couplings between the fluorophores, mostly depending on the spectral overlap and intermolecular distance. The efficiency of the energy transfer is dependent on the inverse sixth power of the fluorophore separation [67]. Notably, the distance between the donor and acceptor where the RET efficiency is 50% is called the Főrster distance, which normally falls into the nanometer range in fluorescence resonance energy transfer (FRET). Several marine organisms use unique mechanisms called BRET for bioluminescence emission, where the chemical energy liberated by the oxidization of the substrate is transferred from a luminescent donor to a fluorescent acceptor. The BRET efficiency also depends on intermolecular distance (1–10 nm) and relative orientation due to the similar RET mechanism [68,69].
In luciferase engineering, BRET is typically used for modulating the wavelength of the emitted luminescence; however, the BRET modification sometimes yields enhanced luminescence from the engineered molecules. The first demonstration of intensity enhancement with intramolecular BRET was BAF-Y, an intermolecular BRET probe consisting of RLuc and EYFP [26]. BAF-Y exhibited a 7-fold increase in bioluminescence compared to RLuc. To further increase the luminescence intensity of BAF-Y, RLuc moiety was replaced with RLuc8, named eBAF-Y. eBAF-Y displayed 25-fold bioluminescence than RLuc, the spectrum of which showed a sharp peak at 525 nm. Further engineering of the fusion protein yielded a 2.9 times brighter protein, named Nano-lantern, when compared to eBAF-Y [34]. The increased bioluminescence intensity enabled BLI in freely moving unshaved mice (Figure 4a). A similar approach is also applicable to other luciferases, including the brightest luciferase: NLuc. The N-terminus of NLuc was fused with the C-terminus of EGFP, named GpNLuc LumiFluor. When provided with the corresponding luciferin, GpNLuc LumiFluor exhibited a 45-fold greater luminescence than Nano-lantern [40]. The strong bioluminescence allowed shorter exposure in in vivo BLI and ex vivo flow cytometry, thereby expanding the applicability of bioluminescence systems.

3. Development of Red-Shifted Bioluminescence System

Attempts at in vivo BLI have often been hampered by tissue scattering or absorption of light, leading to low signal-to-noise ratios in acquired images. The scattering in living tissue is mainly due to the Rayleigh scattering, which is caused by cell morphology or intracellular organelle [70,71]. The reduced coefficient, a quantitative parameter that describes wavelength or angular dependence of scattering, decreases with the increasing wavelength from 400 nm at least to 1200 nm in living tissue [72]. As for absorption, hemoglobin and melanin are the main chromophores that absorb light at the visible spectrum. Hemoglobin is a tetrameric protein that holds a heme group composed of a porphyrin ring and an iron ion, which is mainly contained in the red blood cells [73]. The heme iron reversibly binds and transports oxygen in the body. Hemoglobin strongly absorbs UV-light and visible light ranging from 400 nm to 800 nm, while the oxygen-bound oxyhemoglobin does so from 400 nm to 600 nm [74,75]. Melanins, such as eumelanin and pheomelanin, are heterogenous copolymers that act as pigments with potential biological functions, such as protection from solar radiation [76,77]. Their absorption spectrum ranges from 300 nm to 700 nm, with large absorption in the UV region [78]. In the far-red region, water also acts as a chromophore [79]. The vibrational overtone of the O-H bond yields absorption peaks around 970 nm and 1180 nm [80]. The so-called first biological window (NIR-I) spans the wavelength range from around 650 nm to 950 nm, where light is less absorbed by these chromophores in living tissue [81,82]. Therefore, for improving tissue penetration, the bioluminescence needs an emission peak around the red and near-infrared (NIR) regions, where photons are less absorbed or scattered by tissues.
To date, many efforts have been undertaken to generate red-shifted bioluminescence systems. This section presents descriptions of recent works with engineered luciferases and luciferins, which showed red or even NIR bioluminescence (Table 1), and red bioluminescence systems developed using a BRET-based approach (Table 2).

3.1. Engineering on Luciferase and Luciferin

The typical strategy for generating color variants of luciferase is to rationally induce mutations around the active pocket of the luciferase, or randomly induce mutations. The rational alteration of amino acids around the active pocket potentially modifies the chemical form of the excited luminescent substrate, leading to the color-shift in emitted bioluminescence. Beetle luciferases, including FLuc, use d-luciferin as a substrate to emit light ranging in color from green (530 nm) to red (635 nm) [54]. Although the color variation of chemiluminescence in OxyLH2, green (560 nm) and red (620 nm), is explained by keto-enol tautomers [83], both bioluminescence colors were considered to be from keto-constrained OxyLH2 [84]. This indicates that the color of firefly luminescence could be modulated within the keto-form, although the contribution of the enol-form is also proposed [85]. The spectroscopic study revealed that the polarity of the active site environment and the strength of covalent character of O8′···H bond between the excited phenolate anion of keto-form OxyLH2 and a protonated basic moiety in the active site modulates the light-color [86,87]. Of course, the hypothesis mentioned above may oversimplify the color-tuning mechanisms [88], indicating the limitation of rational site-directed mutagenesis.
Some mutagenetic attempts succeeded in generating a red-shifted FLuc bioluminescence system. An arginine residue (Arg218) near the active site is possibly involved in O8′···H interaction with OxyLH2. The site-directed mutagenesis on Arg218 of wild type FLuc (557 nm at pH 7.8) produced red-shifted variants, R218K (572 nm), R218Q (608 nm), and R218A (611 nm) [7]. Arg337 also locates near the binding site, whose mutation induced a red-shift in the emission spectra (R337K 595 nm, R337Q 594 nm). The other amino acid residues around the active sites were also subjected to site-directed mutagenesis. The obtained red-shifted mutants include H245A (604 nm), G315A (607 nm), T343A (617 nm), and A348V (610 nm) [8]. Mutations to amino acid residues not close to the active site may indirectly affect the molecular environment of substrate d-luciferin. The random mutagenesis approach identified red-shifting mutations S284T (615 nm) [9,10]. Structural analysis of similar mutants in Luciola cruciata luciferase (S286N) revealed the transient movement of nearby Ile288 toward the excited OxyLH2, which may be also the case with FLuc [12]. Sometimes, red-shifting mutations are accompanied by losses in thermal stability or catalytic activity. The losses can be alleviated by additional thermostabilizing mutations, as shown in the FLuc variant named Ppy RE9 was created by inducing red-shifting mutations (S284T, R330G), thermostabilizing mutations (T214A, A215L, I232A, F295L, E354I), and mutations that compensated accompanied losses in thermostability and enzyme activity in the red-shift (I351V and F465R). Ppy RE9 emits bioluminescence at 617 nm with ~11.5% of respective light intensity compared to FLuc [11].
The coevolution of luciferases and luciferins is a promising approach for generating an improved bioluminescence system for in vivo BLI. In an attempt to generate red-shifted variants of RLuc8, 22 residues putatively composing the active site were subjected to site-directed mutagenesis [22]. The mutations at eight of these candidate residues yielded detectable red-shifts in the emitted bioluminescence. Further engineering with random mutagenesis on the obtained variants increased the light output or shifted the emission peak, yielding RLuc8.6-535, RLuc8.6-545, and RLuc8.6-547, which emit bioluminescence at 535 nm, 545 nm, and 547 nm, respectively. The use of substrate analog coelenterazine-v (Figure 3e) resulted in a further red-shift in RLuc8.6-535 (570 nm) and RLuc8.6-547 (588 nm). In the case of a bioluminescence system composed of CBR2opt as luciferase and NH2-NpLH2 (Figure 2b) as luciferin, the substrate luciferin was engineered firstly [20]. It has been demonstrated that the extension of the π conjugation in luciferin reduces the HOMO-LUMO energy gap in the light-emitting oxyluciferin, which leads to red-shifted bioluminescence [15,89]. To extend the conjugation, naphthothiazole-based analog was examined as red-shifted substrate luciferin for CBR. Among the candidates, NH2-NpLH2 and OH-NpLH2 (Figure 2c) emitted bioluminescence in the near-infrared region, for which the wavelength reached maximum values at 664 nm and 758 nm, respectively; however, the signal intensities were generally much lower than that of FLuc. To improve the bioluminescence intensity, the putative amino acid residues nearby active pockets (R334 and G351) were subjected to rational site-directed mutation. R334S and G351R mutations with codon optimization generated CBR2opt, which exhibited red-shifted bioluminescence with NH2-NpLH2 (730 nm) with 2–3 fold more luminescence than FLuc.
The coevolution strategy was also applied to FLuc. Phe247 in the luciferin binding pocket is involved in a π-stacking with d-luciferin, whose F247L mutation lowered the affinity for d-luciferin without impairing catalytic activity [8,12]. The F247L mutant improved the maximal sustained light emission from 6′-aminoluciferin (Figure 2d) by 4.9-fold [13]. In the case of the cyclic version of aminoluciferin called CycLuc1 (599 nm, Figure 2e), the F247A mutation gave a dramatically improved light output. The screening of mutants using CycLuc1 identified several mutants with an improved signal, including R218K, T251S, L286M, and S347A. R218K showed the greatest improvement in CycLuc2 (Figure 2f) emission (607 nm). The further engineering of FLuc and CycLuc identified the pair between FLuc variant (R218K, L286M, and S347A) and CycLuc7 (Figure 2g), which produces red bioluminescence (623 nm) with 46% of the initial rate of the pair between FLuc and d-luciferin [14]. As for CycLuc10 (Figure 2h), the single mutation R218K on FLuc gave the most red-shifted bioluminescence (648 nm). Infra-luciferin (Figure 2i), a d-luciferin derivative with increased conjugation, has an emission peak around 670 nm with wild type FLuc [15]. Further mutations (F14R, L35Q, V182K, I232K, S284T, and F465R) gave more red-shifted bioluminescence at the peak of 706 nm. Infra-luciferin also enabled dual color in vivo BLI using FLuc_green (F14R, L35Q, A105V, V182K, T214C, I232K, D234G, V241I, G246A, F250S, E354R, D357Y, S420T, and F465R) and FLuc_Red (F14R, L35Q, A105V, V182K, T214C, I232K, S284T, D234G, E354I, D357Y, S420T, and F465R) [16]. Another water-soluble luciferin derivative called Akalumine-HCl (Figure 2j) originally showed luminescence reaching a maximum value at 677 nm [17]. Considering that FLuc is not enzymatically optimal for Akalumine-HCl, directed evolution with mutagenesis on luciferase genes, such as FLuc, emerald luciferase, and CBR, was performed [18]. The FLuc-based library produced a variant named AkaLuc, which has 28 amino acid mutations on FLuc. AkaLuc significantly improved the luminescence intensity obtained with Akalumine-HCl 7-fold, with a slight blue-shift (650 nm). The generated bioluminescence system AkaBLI enabled examination of single-cell BLI deep brains of naturally behaving marmosets (Figure 4b). The systematic screening system with molecular designing in silico will become a powerful technique for the further exploration of novel luciferase-luciferin pairs. Such techniques have already been demonstrated by identifying the pair of phenol luciferin (PhOH-Luc, Figure 2k) and FLuc mutant G2 (S220N, E311C, and A313G) that showed a broader emission shoulder in 650–850 nm region [19].

3.2. BRET-Based Approaches

The intramolecular BRET-based approach enables the rational design of the red-shifted bioluminescence by fusing the pair of a luminescence donor and fluorescence acceptor. In 1999, the first BRET pair between RLuc and eYFP using coelenterazine (BRET1) was reported, where the emitted light is shifted to 527 nm from 480 nm [27]. The second-generation BRET2 is based on RLuc and GFP2 (GFP variant), which uses DeepBlueC (Figure 3f) as a substrate. BRET2 emits light at 410 nm, which shifts more than 100 nm from the original bioluminescence peak at 395 nm [28]. Based on these findings, the red-shifted bioluminescence system using BRET has been extensively explored. The BRET3 pair between RLuc8 and mOrange shows emission at 564 nm with a 7-fold increase in the intensity compared to BRET1 and BRET2 [29]. Additional BRET pairs have been reported, such as RLuc8 and TagRFP (BRET4), RLuc8.6 and TagRFP (BRET5), or RLuc8.6 and TurboFP635 (BRET6), which emit bioluminescence at 584 nm, 584 nm, or 635 nm, respectively [30,31]. The coelenterazine analog called coelenterazine-v (Figure 3e), which shifts the RLuc8 emission to 515 nm, increased BRET efficiency in the BRET6 pair (BRET6.1), whereas it decreased in the BRET3 pair (BRET3.1). For more red-shifted BRET pairs with RLuc8, BRET pairs with bacterial phytochrome-based NIR fluorescent proteins (iRFPs) were reported [32]. In addition to the absorption peak at 643 nm (iRFP670) or 702 nm (iRFP720), iRFPs have a second absorption peak at around 380 nm called the Soret band, which corresponds to the absorbance of the biliverdin Ivα chromophore [90]. The band made iRFPs favorable acceptors of RLuc8 bioluminescence. Among substrates for these BRET pairs, methoxy-eCoelenterazine (Figure 3g) showed great stability. Because of the 50 nm spectral separation in the emitted luminescence, the BRET pairs enabled multicolor bioluminescence imaging. A recently reported BRET pair between red-shifted variant RLuc8.6-535SG (RLuc8.6-535 with additional S257G mutation) and iRFP with coelenterazine analog BBlue2.3 (Figure 3h) exhibited similar bioluminescence, which reached its maximum value at 717 nm [33]. Color variations for Nano-lantern, where the spatial arrangement of the donor RLuc8∆N3 (S257G) and acceptor Venus∆C10 is optimized, have been reported. The chimeric fusion protein between mTurquoise2∆C10 and RLuc8∆N3 (S257G) emits cyan light (CNL), whereas the one between mKusabiraOrange2 and RLuc8.6-535∆N3 emits orange light (ONL) [35]. Due to their bright bioluminescence, the Nano-lantern color variants enabled multicolor monitoring of subcellular structures, or subcellular Ca2+ changes.
NLuc has been also used as a donor luciferase in BRET pairs, which was termed NanoBRET. The intense bioluminescence of NLuc enabled NanoBRET to be used for microscope imaging, such as NanoBRET with YFP for the widefield high-content microscope [36] and NanoBRET with Venus for the inverted microscope [37]. The increased luminescence of NLuc allows energy transfer to a broad range of fluorescence acceptors, enabling improved spectral separation between the donor and acceptor. For example, NanoBRET with a red fluorescent protein mKate2 (ex. 588 nm/ em. 633 nm) was reported [38]. Inspired by the strategy for Nano-lantern development using RLuc, a second-generation Nano-lantern using NLuc was developed by optimizing the spatial orientation:NLuc∆N3 and mTurquoise2∆C10 (CeNL), NLuc∆N5 and mNeonGreen∆C10 (GeNL), NLuc∆N4 and Venus∆C12 (YeNL), and NLuc∆N5 and tdTomato∆C9 (ReNL) [39]. GeNL was recently used for BLI in plant Arabidopsis thaliana, which was detected even with the naked eye [91]. In the Nano-lantern using mKOκ (OeNL), mKOκ was inserted into the loop region of NLuc to improve BRET efficiency. Similar molecules called LumiFluors were developed by conjugating NLuc with enhanced GFP (GpNLuc) or with a long Stokes shift mOrange (OgNLuc) [40]. Although both LumiFluors showed equivalent signals in vitro, OgNLuc exhibited a higher signal in vivo, showing that red wavelength emissions allow for greater tissue penetration. An orange-red fluorescent protein CyOFP1, whose emission peak is around 589 nm, acted as a BRET acceptor for NLuc. Fusing two CyOFP1s to both the C- and N-termini of NLuc gave new chimera called Antares, whose BRET signal increased by 2-fold [41]. A recently reported furimazine derivative, hydrofurimazine (Figure 3i) or fluorofurimazine (Figure 3j), which has greater solubility and higher maximum possible dose in vivo, enabled similar or even higher brightness in vivo compared to AkaBLI [42]. To improve the BRET signal, the donor NLuc-furimazine in Antares was replaced with teLuc-diphenylterazine, which overlaps better with the absorbance of CyOFP1 [24]. The yielded protein named Antares2 emits red-shifted bioluminescence at 583 nm, without the loss of brightness in cultured cells, compared to teLuc, which emits bioluminescence at 502 nm. In living mouse organs, on the other hand, Antares2 shows an additional 35–90% signal increase over teLuc, which again shows that the redder one is better for deep tissue BLI. The engineered luciferase LumiLuc improved from teLuc with mutations at E4G, L18Q, S19A, V27L, S28T, G67C, G71A, N85D, V90A, R112Q, V119K, and K136T, was also exploited as a BRET donor [25]. The BRET pair between LumiLuc and mScarlet with 8pyDTZ (Figure 3k) used as a substrate emits bioluminescence around 600 nm. Although the bioluminescence peak is shorter than that of NIR, the bright luminescence of LumiLuc-mScarlet enabled ATP-independent in vivo BLI comparable to that of AkaBLI. Further engineering will be required to achieve adequate substrate biodistribution in living animals, which is essential for in vivo BLI [18].
Other luciferases have been also used as BRET donors. Because FLuc emits bioluminescence around 560–620 nm, red fluorescent proteins are a suitable acceptor in BRET combination, such as DsRed (em. 583 nm) [43], mCherry (em. 610 nm) [44], and mKate (em. 635 nm) [45]. Fluorescence dyes can also be exploited as BRET acceptors. For example, Cy3.5 (ex. 581 nm/ em. 596 nm) was used as the acceptor in BRET using FLuc [46]. To bring dyes in close proximity with luciferases, these reports utilized dye-labeled antibodies. In the BRET pair between the FLuc mutant (PpyRE10: T169C, T214A, A215L, I232A, S284T, F295L, R330G, I351V, S399C, and F465R mutations), which emits red light (617 nm), and Alexa Fluor 680 (AF680) or 750 (AF750), dyes were directly labeled onto the cystine residues of PpyRE10 via the maleimide group of the dyes. They emit bioluminescence at 705 nm (AF680) or 783 nm (AF750) with high BRET efficiency, at the ratio of 34 (AF680) and 4 (AF750) [47]. Reportedly, a novel bioluminescence probe was developed to emit NIR-II light (1029 nm) using direct labeling reactions [92]. The probe, named NIR-II-BP, was generated by loading several fluorescence dyes (Cy5, Cy7.5, and FD-1029) into a self-assembled amphiphilic polymer micelle and by subsequent surface labeling with FLuc. The bioluminescence energy of FLuc is transferred via BRET to Cy5 (ex. 652 nm/ em. 672 nm) [93], and subsequently via FRET to Cy7.5 (ex. 788 nm/ em. 808 nm) [94], and FD-1029 (ex. 977 nm/ em. 1029 nm). The light emitted from NIR-II-BP enabled BLI using the second near-infrared region (1000–1700 nm), which detected tiny lymph node metastases (1–2 mm) with high precision. Self-labeling protein tags are alternative choices for labeling dyes in BRET pairs. SNAP-tag is a protein module that forms covalent bonds with O6-benzylguanine derivatives [95]. Another protein tag, HaloTag, reacts with chloroalkane linker bound to dyes [96]. Using SNAP-tag or HaloTag7, various fluorescent dyes, including Alexa Fluor 488, TMR, CPY, and SiR were exploited as acceptor fluorophores for BRET with NLuc [48]. Quantum dots, small inorganic semiconductor nanocrystals, were also utilized as acceptors in various BRET pairs. The high extinction coefficients and comparable quantum yields to fluorescent organic dyes make QDs attractive fluorophores. As BRET partners, QD605, QD655, QD705, and QD800, have been used with RLuc8 [49,50,51]. The BRET pair between the polymer-coated CdSe/ZnS core–shell QD705 and NLuc, which emits strong luminescence at 705 nm, was used for mapping lymph nodes in mouses [52]. The major concern for using QDs in in vivo BLI is the toxicity of inorganic components, such as cadmium. In animal experiments, metal ion release from the surface of QDs leads to their accumulation in the liver, which reduces the viability of hepatocytes [97,98]. Therefore, protective capping of the surface or use of less-toxic components are required to improve biocompatibility in using QDs as BRET acceptors in in vivo BLI.

4. Conclusions and Outlook

BLI enables highly sensitive imaging in living organisms because it requires no external light for light emission. However, bioluminescence systems using native luciferases suffered from their weak luminescence intensity or short emission wavelength. The low signal because of their poor tissue penetration hampered precise monitoring of biomolecular reactions at high spatiotemporal resolution. Herein, we explained that considerable efforts have been undertaken using several approaches to develop brighter and red-shifted bioluminescence systems. The bright bioluminescence system NLuc-furimazine and red-shifted AkaLuc/Akalumine-HCl especially have demonstrated excellent performance in diverse BLI trials. Further modulations, including mutagenesis, luciferin engineering, and intramolecular BRET, will engender much brighter and more red-shifted bioluminescence. For the exploration of new luciferase–luciferin pairs, a screening system with molecular designing in silico will become a useful tool [19,99]. The new bioluminescence system will enable unprecedented in vivo BLI in various biological contexts at high spatiotemporal resolutions.
For in vivo BLI, bioavailability of luciferins is also crucially important. Because luciferins are not autonomously synthesized in most model animals, luciferins are exogenously supplied via several injection routes: intravenous injection, intraperitoneal injection, or subcutaneous injection [100]. Although intraperitoneal injection is generally preferred because of its convenience, the inadvertent intra-bowel injection [101], variations in resorption from the peritoneal cavity to bloodstream [102], or preferential distribution near the peritoneum distort the BLI results [103]. On the other hand, intravenous or subcutaneous administration overcomes the near-peritoneal overestimation with improved reproducibility. In addition to the injection routes, their biodistribution is affected by their chemical properties, such as cell-membrane permeability, or by the blood–brain barrier [104,105,106]. As was shown with AkaBLI, molecular engineering on luciferase–luciferin pairs is a reasonable approach to improving substrate biodistribution in model animals [17,18]. Another approach to overcome the problems in luciferin bioavailability is the use of the autonomous bioluminescence system. Reportedly, autonomous bioluminescence systems enabled bioluminescence emission without an exogenous luciferin supply by expressing enzymes involved in luciferin synthesis, which were derived from bacterial or fungal systems [107,108]. The improvement of the luciferin bioavailability in model animals will ensure more reliable results in in vivo BLI.
Over the past decades, the optical control of protein function with optogenetic approaches has gained wide attention because it enables the spatiotemporal perturbation of a specific biomolecular reaction with high precision. The recent advance enabled deep-tissue-penetrating optogenetics by near-infrared light, using state-of-the-art nanotechnologies such as upconversion nanoparticles [109]. Currently, the signal outputs upon stimulation are monitored by fluorescence probes. However, the excitation light required for the indicators is often absorbed or scattered by tissues and overlapped with stimulation light for an optogenetic system. These difficulties hamper precise quantitative analysis of the perturbed biological system. In contrast, bioluminescence indicators require no excitation light. Therefore, they enable simultaneous perturbation and observation of the biomolecular reactions in living organisms. The further refinement of bioluminescent probes with the improved luciferase–luciferin reaction will lead us to a sophisticated bioluminescence measurement and opto-bioanalysis of numerous and diverse complicated biological phenomena using optical perturbation.

Author Contributions

M.E. and T.O. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by CREST (JPMJCR1752 to T.O.) from Japan Science and Technology (JST), by the Japan Society for the Promotion of Science (JSPS) KAKENHI (Grants-in-Aid for Scientific Research (A) 19H00900, and Innovative Areas JP 19H04952 to T.O., and Grants-in-Aid for Scientific Research (C) JP19K05538 to M.E.).

Conflicts of Interest

The authors declare no conflict of interest associated with this manuscript.

References

  1. Yan, Y.; Shi, P.; Song, W.; Bi, S. Chemiluminescence and Bioluminescence Imaging for Biosensing and Therapy: In Vitro and In Vivo Perspectives. Theranostics 2019, 9, 4047–4065. [Google Scholar] [CrossRef] [PubMed]
  2. Welsh, D.K.; Noguchi, T. Cellular Bioluminescence Imaging. Cold Spring Harb. Protoc. 2012, 2012. [Google Scholar] [CrossRef]
  3. Pozzo, T.; Akter, F.; Nomura, Y.; Louie, A.Y.; Yokobayashi, Y. Firefly Luciferase Mutant with Enhanced Activity and Thermostability. Acs Omega 2018, 3, 2628–2633. [Google Scholar] [CrossRef] [PubMed]
  4. Law, G.H.E.; Gandelman, O.A.; Tisi, L.C.; Lowe, C.R.; Murray, J.A.H. Mutagenesis of solvent-exposed amino acids in Photinus pyralis luciferase improves thermostability and pH-tolerance. Biochem. J. 2006, 397, 305–312. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Aswendt, M.; Vogel, S.; Schäfer, C.; Jathoul, A.; Pule, M.; Hoehn, M. Quantitative in vivo dual-color bioluminescence imaging in the mouse brain. Neurophotonics 2019, 6, 1–11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Jathoul, A.; Law, E.; Gandelman, O.; Pule, M.; Tisi, L.; Murray, J. Development of a pH-Tolerant Thermostable Photinus pyralis Luciferase for Brighter In Vivo Imaging. In Bioluminescence—Recent Advances in Oceanic Measurements and Laboratory Applications; IntechOpen: Rijeka, Croatia, 2012. [Google Scholar]
  7. Branchini, B.R.; Magyar, R.A.; Murtiashaw, M.H.; Portier, N.C. The Role of Active Site Residue Arginine 218 in Firefly Luciferase Bioluminescence. Biochemistry 2001, 40, 2410–2418. [Google Scholar] [CrossRef] [PubMed]
  8. Branchini, B.R.; Southworth, T.L.; Murtiashaw, M.H.; Boije, H.; Fleet, S.E. A Mutagenesis Study of the Putative Luciferin Binding Site Residues of Firefly Luciferase. Biochemistry 2003, 42, 10429–10436. [Google Scholar] [CrossRef]
  9. Bruce, R.B.; Tara, L.S.; Neelum, F.K.; Martha, H.M.; Sarah, E.F. Rational and random mutagenesis of firefly luciferase to identify an efficient emitter of red bioluminescence. Proc. SPIE 2004, 5329. [Google Scholar] [CrossRef]
  10. Branchini, B.R.; Southworth, T.L.; Khattak, N.F.; Michelini, E.; Roda, A. Red- and green-emitting firefly luciferase mutants for bioluminescent reporter applications. Anal. Biochem. 2005, 345, 140–148. [Google Scholar] [CrossRef]
  11. Branchini, B.R.; Ablamsky, D.M.; Davis, A.L.; Southworth, T.L.; Butler, B.; Fan, F.; Jathoul, A.P.; Pule, M.A. Red-emitting luciferases for bioluminescence reporter and imaging applications. Anal. Biochem. 2010, 396, 290–297. [Google Scholar] [CrossRef]
  12. Nakatsu, T.; Ichiyama, S.; Hiratake, J.; Saldanha, A.; Kobashi, N.; Sakata, K.; Kato, H. Structural basis for the spectral difference in luciferase bioluminescence. Nature 2006, 440, 372–376. [Google Scholar] [CrossRef] [PubMed]
  13. Harwood, K.R.; Mofford, D.M.; Reddy, G.R.; Miller, S.C. Identification of mutant firefly luciferases that efficiently utilize aminoluciferins. Chem. Biol. 2011, 18, 1649–1657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Mofford, D.M.; Reddy, G.R.; Miller, S.C. Aminoluciferins Extend Firefly Luciferase Bioluminescence into the Near-Infrared and Can Be Preferred Substrates over d-Luciferin. J. Am. Chem. Soc. 2014, 136, 13277–13282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Jathoul, A.P.; Grounds, H.; Anderson, J.C.; Pule, M.A. A Dual-Color Far-Red to Near-Infrared Firefly Luciferin Analogue Designed for Multiparametric Bioluminescence Imaging. Angew. Chem. Int. Ed. 2014, 53, 13059–13063. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Stowe, C.L.; Burley, T.A.; Allan, H.; Vinci, M.; Kramer-Marek, G.; Ciobota, D.M.; Parkinson, G.N.; Southworth, T.L.; Agliardi, G.; Hotblack, A.; et al. Near-infrared dual bioluminescence imaging in mouse models of cancer using infraluciferin. eLife 2019, 8, e45801. [Google Scholar] [CrossRef] [PubMed]
  17. Kuchimaru, T.; Iwano, S.; Kiyama, M.; Mitsumata, S.; Kadonosono, T.; Niwa, H.; Maki, S.; Kizaka-Kondoh, S. A luciferin analogue generating near-infrared bioluminescence achieves highly sensitive deep-tissue imaging. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef] [Green Version]
  18. Iwano, S.; Sugiyama, M.; Hama, H.; Watakabe, A.; Hasegawa, N.; Kuchimaru, T.; Tanaka, K.Z.; Takahashi, M.; Ishida, Y.; Hata, J.; et al. Single-cell bioluminescence imaging of deep tissue in freely moving animals. Science 2018, 359, 935–939. [Google Scholar] [CrossRef] [Green Version]
  19. Yao, Z.; Zhang, B.S.; Steinhardt, R.C.; Mills, J.H.; Prescher, J.A. Multicomponent Bioluminescence Imaging with a π-Extended Luciferin. J. Am. Chem. Soc. 2020, 142, 14080–14089. [Google Scholar] [CrossRef]
  20. Hall, M.P.; Woodroofe, C.C.; Wood, M.G.; Que, I.; van’t Root, M.; Ridwan, Y.; Shi, C.; Kirkland, T.A.; Encell, L.P.; Wood, K.V.; et al. Click beetle luciferase mutant and near infrared naphthyl-luciferins for improved bioluminescence imaging. Nat. Commun. 2018, 9. [Google Scholar] [CrossRef]
  21. Loening, A.M.; Fenn, T.D.; Wu, A.M.; Gambhir, S.S. Consensus guided mutagenesis of Renilla luciferase yields enhanced stability and light output. Protein Eng. Des. Sel. 2006, 19, 391–400. [Google Scholar] [CrossRef] [Green Version]
  22. Loening, A.M.; Wu, A.M.; Gambhir, S.S. Red-shifted Renilla reniformis luciferase variants for imaging in living subjects. Nat. Methods 2007, 4, 641–643. [Google Scholar] [CrossRef] [PubMed]
  23. Hall, M.P.; Unch, J.; Binkowski, B.F.; Valley, M.P.; Butler, B.L.; Wood, M.G.; Otto, P.; Zimmerman, K.; Vidugiris, G.; Machleidt, T.; et al. Engineered Luciferase Reporter from a Deep Sea Shrimp Utilizing a Novel Imidazopyrazinone Substrate. ACS Chem. Biol. 2012, 7, 1848–1857. [Google Scholar] [CrossRef]
  24. Yeh, H.-W.; Karmach, O.; Ji, A.; Carter, D.; Martins-Green, M.M.; Ai, H. Red-shifted luciferase–luciferin pairs for enhanced bioluminescence imaging. Nat. Methods 2017, 14, 971–974. [Google Scholar] [CrossRef] [PubMed]
  25. Yeh, H.-W.; Xiong, Y.; Wu, T.; Chen, M.; Ji, A.; Li, X.; Ai, H. ATP-Independent Bioluminescent Reporter Variants to Improve in Vivo Imaging. ACS Chem. Biol. 2019, 14, 959–965. [Google Scholar] [CrossRef] [PubMed]
  26. Hoshino, H.; Nakajima, Y.; Ohmiya, Y. Luciferase-YFP fusion tag with enhanced emission for single-cell luminescence imaging. Nat. Methods 2007, 4, 637–639. [Google Scholar] [CrossRef]
  27. Xu, Y.; Piston, D.W.; Johnson, C.H. A bioluminescence resonance energy transfer (BRET) system: Application to interacting circadian clock proteins. Proc. Natl. Acad. Sci. USA 1999, 96, 151–156. [Google Scholar] [CrossRef] [Green Version]
  28. Bertrand, L.; Parent, S.; Caron, M.; Legault, M.; Joly, E.; Angers, S.; Bouvier, M.; Brown, M.; Houle, B.; Ménard, L. The BRET2/ARRESTIN assay in stable recombinant cells: A platform to screen for compounds that interact with g protein-coupled receptors (GPCRS). J. Recept. Signal Transduct. 2002, 22, 533–541. [Google Scholar] [CrossRef]
  29. De, A.; Ray, P.; Loening, A.M.; Gambhir, S.S. BRET3: A red-shifted bioluminescence resonance energy transfer (BRET)-based integrated platform for imaging protein-protein interactions from single live cells and living animals. FASEB J. 2009, 23, 2702–2709. [Google Scholar] [CrossRef]
  30. Dragulescu-Andrasi, A.; Chan, C.T.; De, A.; Massoud, T.F.; Gambhir, S.S. Bioluminescence resonance energy transfer (BRET) imaging of protein–protein interactions within deep tissues of living subjects. Proc. Natl. Acad. Sci. USA 2011, 108, 12060–12065. [Google Scholar] [CrossRef] [Green Version]
  31. Dimri, S.; Basu, S.; De, A. Use of BRET to Study Protein–Protein Interactions In Vitro and In Vivo. In The Nuclear Receptor Superfamily: Methods and Protocols; McEwan, I.J., Ed.; Springer: New York, NY, USA, 2016; pp. 57–78. [Google Scholar]
  32. Rumyantsev, K.A.; Turoverov, K.K.; Verkhusha, V.V. Near-infrared bioluminescent proteins for two-color multimodal imaging. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef]
  33. Nishihara, R.; Paulmurugan, R.; Nakajima, T.; Yamamoto, E.; Natarajan, A.; Afjei, R.; Hiruta, Y.; Iwasawa, N.; Nishiyama, S.; Citterio, D.; et al. Highly bright and stable NIR-BRET with blue-shifted coelenterazine derivatives for deep-tissue imaging of molecular events in vivo. Theranostics 2019, 9, 2646–2661. [Google Scholar] [CrossRef] [PubMed]
  34. Saito, K.; Chang, Y.F.; Horikawa, K.; Hatsugai, N.; Higuchi, Y.; Hashida, M.; Yoshida, Y.; Matsuda, T.; Arai, Y.; Nagai, T. Luminescent proteins for high-speed single-cell and whole-body imaging. Nat. Commun. 2012, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Takai, A.; Nakano, M.; Saito, K.; Haruno, R.; Watanabe, T.M.; Ohyanagi, T.; Jin, T.; Okada, Y.; Nagai, T. Expanded palette of Nano-lanterns for real-time multicolor luminescence imaging. Proc. Natl. Acad. Sci. USA 2015, 112, 4352–4356. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kim, J.; Grailhe, R. Nanoluciferase signal brightness using furimazine substrates opens bioluminescence resonance energy transfer to widefield microscopy. Cytom. Part A 2016, 89, 742–746. [Google Scholar] [CrossRef] [Green Version]
  37. Goyet, E.; Bouquier, N.; Ollendorff, V.; Perroy, J. Fast and high resolution single-cell BRET imaging. Sci. Rep. 2016, 6, 28231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Eyre, N.S.; Aloia, A.L.; Joyce, M.A.; Chulanetra, M.; Tyrrell, D.L.; Beard, M.R. Sensitive luminescent reporter viruses reveal appreciable release of hepatitis C virus NS5A protein into the extracellular environment. Virology 2017, 507, 20–31. [Google Scholar] [CrossRef]
  39. Suzuki, K.; Kimura, T.; Shinoda, H.; Bai, G.; Daniels, M.J.; Arai, Y.; Nakano, M.; Nagai, T. Five colour variants of bright luminescent protein for real-time multicolour bioimaging. Nat. Commun. 2016, 7, 13718. [Google Scholar] [CrossRef]
  40. Schaub, F.X.; Reza, M.S.; Flaveny, C.A.; Li, W.; Musicant, A.M.; Hoxha, S.; Guo, M.; Cleveland, J.L.; Amelio, A.L. Fluorophore-NanoLuc BRET Reporters Enable Sensitive In Vivo Optical Imaging and Flow Cytometry for Monitoring Tumorigenesis. Cancer Res. 2015, 75, 5023–5033. [Google Scholar] [CrossRef] [Green Version]
  41. Chu, J.; Oh, Y.; Sens, A.; Ataie, N.; Dana, H.; Macklin, J.J.; Laviv, T.; Welf, E.S.; Dean, K.M.; Zhang, F.; et al. A bright cyan-excitable orange fluorescent protein facilitates dual-emission microscopy and enhances bioluminescence imaging in vivo. Nat. Biotechnol. 2016, 34, 760–767. [Google Scholar] [CrossRef]
  42. Su, Y.; Walker, J.R.; Park, Y.; Smith, T.P.; Liu, L.X.; Hall, M.P.; Labanieh, L.; Hurst, R.; Wang, D.C.; Encell, L.P.; et al. Novel NanoLuc substrates enable bright two-population bioluminescence imaging in animals. Nat. Methods 2020, 17, 852–860. [Google Scholar] [CrossRef]
  43. Arai, R.; Nakagawa, H.; Kitayama, A.; Ueda, H.; Nagamune, T. Detection of protein-protein interaction by bioluminescence resonance energy transfer from firefly luciferase to red fluorescent protein. J. Biosci. Bioeng. 2002, 94, 362–364. [Google Scholar] [CrossRef]
  44. Iglesias, P.; Costoya, J.A. A novel BRET-based genetically encoded biosensor for functional imaging of hypoxia. Biosens. Bioelectron. 2009, 24, 3126–3130. [Google Scholar] [CrossRef] [PubMed]
  45. Branchini, B.R.; Rosenberg, J.C.; Ablamsky, D.M.; Taylor, K.P.; Southworth, T.L.; Linder, S.J. Sequential bioluminescence resonance energy transfer–fluorescence resonance energy transfer-based ratiometric protease assays with fusion proteins of firefly luciferase and red fluorescent protein. Anal. Biochem. 2011, 414, 239–245. [Google Scholar] [CrossRef] [PubMed]
  46. Yamakawa, Y.; Veda, H.; Kitayama, A.; Nagamune, T. Rapid homogeneous immunoassay of peptides based on bioluminescence resonance energy transfer from firefly luciferase. J. Biosci. Bioeng. 2002, 93, 537–542. [Google Scholar] [CrossRef]
  47. Branchini, B.R.; Ablamsky, D.M.; Rosenberg, J.C. Chemically Modified Firefly Luciferase Is an Efficient Source of Near-Infrared Light. Bioconjug. Chem. 2010, 21, 2023–2030. [Google Scholar] [CrossRef]
  48. Hiblot, J.; Yu, Q.; Sabbadini, M.D.B.; Reymond, L.; Xue, L.; Schena, A.; Sallin, O.; Hill, N.; Griss, R.; Johnsson, K. Luciferases with Tunable Emission Wavelengths. Angew. Chem. Int. Ed. 2017, 56, 14556–14560. [Google Scholar] [CrossRef]
  49. So, M.-K.; Xu, C.; Loening, A.M.; Gambhir, S.S.; Rao, J. Self-illuminating quantum dot conjugates for in vivo imaging. Nat. Biotechnol. 2006, 24, 339–343. [Google Scholar] [CrossRef]
  50. Zhang, Y.; So, M.-k.; Loening, A.M.; Yao, H.; Gambhir, S.S.; Rao, J. HaloTag Protein-Mediated Site-Specific Conjugation of Bioluminescent Proteins to Quantum Dots. Angew. Chem. Int. Ed. 2006, 45, 4936–4940. [Google Scholar] [CrossRef]
  51. Yao, H.; Zhang, Y.; Xiao, F.; Xia, Z.; Rao, J. Quantum Dot/Bioluminescence Resonance Energy Transfer Based Highly Sensitive Detection of Proteases. Angew. Chem. Int. Ed. 2007, 46, 4346–4349. [Google Scholar] [CrossRef]
  52. Kamkaew, A.; Sun, H.; England, C.G.; Cheng, L.; Liu, Z.; Cai, W. Quantum dot–NanoLuc bioluminescence resonance energy transfer enables tumor imaging and lymph node mapping in vivo. Chem. Commun. 2016, 52, 6997–7000. [Google Scholar] [CrossRef] [Green Version]
  53. Kazuki, N.; Yoshiro, I.; Yoshihiro, O. Quantum Yield Measurements of Firefly Bioluminescence Reactions Using a Commercial Luminometer. Chem. Lett. 2010, 39, 291–293. [Google Scholar]
  54. Seliger, H.H.; McElroy, W.D. The colors of firefly bioluminescence: Enzyme configuration and species specificity. Proc. Natl. Acad. Sci. USA 1964, 52, 75–81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Wood, K.V.; Lam, Y.A.; McElroy, W.D. Introduction to beetle luciferases and their applications. J. Biolumin. Chemilumin. 1989, 4, 289–301. [Google Scholar] [CrossRef] [PubMed]
  56. Tisi, L.C.; White, P.J.; Squirrell, D.J.; Murphy, M.J.; Lowe, C.R.; Murray, J.A.H. Development of a thermostable firefly luciferase. Anal. Chim. Acta 2002, 457, 115–123. [Google Scholar] [CrossRef]
  57. Conti, E.; Franks, N.P.; Brick, P. Crystal structure of firefly luciferase throws light on a superfamily of adenylate-forming enzymes. Structure 1996, 4, 287–298. [Google Scholar] [CrossRef]
  58. Frydman, J.; Erdjument-Bromage, H.; Tempst, P.; Hartl, F.U. Co-translational domain folding as the structural basis for the rapid de novo folding of firefly luciferase. Nat. Struct. Biol. 1999, 6, 697–705. [Google Scholar] [CrossRef]
  59. White, P.J.; Squirrell, D.J.; Arnaud, P.; Lowe, C.R.; Murray, J.A.H. Improved thermostability of the North American firefly luciferase: Saturation mutagenesis at position. Biochem. J. 1996, 319, 343–350. [Google Scholar] [CrossRef]
  60. Eijsink, V.G.H.; Bjørk, A.; Gåseidnes, S.; Sirevåg, R.; Synstad, B.; van der Burg, B.; Vriend, G. Rational engineering of enzyme stability. J. Biotechnol. 2004, 113, 105–120. [Google Scholar] [CrossRef]
  61. Fujii, H.; Noda, K.; Asami, Y.; Kuroda, A.; Sakata, M.; Tokida, A. Increase in bioluminescence intensity of firefly luciferase using genetic modification. Anal. Biochem. 2007, 366, 131–136. [Google Scholar] [CrossRef]
  62. Branchini, B.R.; Southworth, T.L.; Murtiashaw, M.H.; Magyar, R.A.; Gonzalez, S.A.; Ruggiero, M.C.; Stroh, J.G. An Alternative Mechanism of Bioluminescence Color Determination in Firefly Luciferase. Biochemistry 2004, 43, 7255–7262. [Google Scholar] [CrossRef]
  63. Sandalova, T.P.; Ugarova, N.N. Model of the active site of firefly luciferase. Biochem. Biokhimiia 1999, 64, 962–967. [Google Scholar]
  64. Schwinn, M.K.; Machleidt, T.; Zimmerman, K.; Eggers, C.T.; Dixon, A.S.; Hurst, R.; Hall, M.P.; Encell, L.P.; Binkowski, B.F.; Wood, K.V. CRISPR-Mediated Tagging of Endogenous Proteins with a Luminescent Peptide. ACS Chem. Biol. 2018, 13, 467–474. [Google Scholar] [CrossRef] [PubMed]
  65. Endo, M.; Miyasaki, M.; Li, Q.; Kawamura, G.; Ozawa, T. A Detection Method for GLUT4 Exocytosis Based on Spontaneous Split Luciferase Complementation. Anal. Sci. 2019, 35, 835–838. [Google Scholar] [CrossRef] [PubMed]
  66. Főrster, T. 10th Spiers Memorial Lecture. Transfer mechanisms of electronic excitation. Discuss. Faraday Soc. 1959, 27, 7–17. [Google Scholar] [CrossRef]
  67. Clegg, R.M. Fluorescence resonance energy transfer. Curr. Opin. Biotechnol. 1995, 6, 103–110. [Google Scholar] [CrossRef]
  68. Drinovec, L.; Kubale, V.; Nøhr Larsen, J.; Vrecl, M. Mathematical models for quantitative assessment of bioluminescence resonance energy transfer: Application to seven transmembrane receptors oligomerization. Front. Endocrinol. (Lausanne) 2012, 3, 104. [Google Scholar] [CrossRef] [Green Version]
  69. Dacres, H.; Wang, J.; Dumancic, M.M.; Trowell, S.C. Experimental Determination of the Förster Distance for Two Commonly Used Bioluminescent Resonance Energy Transfer Pairs. Anal. Chem. 2010, 82, 432–435. [Google Scholar] [CrossRef]
  70. Frangioni, J.V. In vivo near-infrared fluorescence imaging. Curr. Opin. Chem. Biol. 2003, 7, 626–634. [Google Scholar] [CrossRef]
  71. Mourant, J.R.; Freyer, J.P.; Hielscher, A.H.; Eick, A.A.; Shen, D.; Johnson, T.M. Mechanisms of light scattering from biological cells relevant to noninvasive optical-tissue diagnostics. Appl. Opt. 1998, 37, 3586–3593. [Google Scholar] [CrossRef]
  72. Bashkatov, A.N.; Genina, E.A.; Kochubey, V.I.; Tuchin, V.V. Optical properties of human skin, subcutaneous and mucous tissues in the wavelength range from 400 to 2000 nm. J. Phys. D Appl. Phys. 2005, 38, 2543–2555. [Google Scholar] [CrossRef]
  73. Bringas, M.; Petruk, A.A.; Estrin, D.A.; Capece, L.; Martí, M.A. Tertiary and quaternary structural basis of oxygen affinity in human hemoglobin as revealed by multiscale simulations. Sci. Rep. 2017, 7, 10926. [Google Scholar] [CrossRef] [PubMed]
  74. Faber, D.J.; Aalders, M.C.G.; Mik, E.G.; Hooper, B.A.; van Gemert, M.J.C.; van Leeuwen, T.G. Oxygen Saturation-Dependent Absorption and Scattering of Blood. Phys. Rev. Lett. 2004, 93, 028102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Lu, C.-W.; Lee, C.-K.; Tsai, M.-T.; Wang, Y.-M.; Yang, C.C. Measurement of the hemoglobin oxygen saturation level with spectroscopic spectral-domain optical coherence tomography. Opt. Lett. 2008, 33, 416–418. [Google Scholar] [CrossRef] [PubMed]
  76. Cheun, W.L. The Chemical Structure of Melanin. Pigment Cell Res. 2004, 17, 422–423. [Google Scholar] [CrossRef] [PubMed]
  77. Kollias, N.; Sayre, R.M.; Zeise, L.; Chedekel, M.R. New trends in photobiology: Photoprotection by melanin. J. Photochem. Photobiol. B Biol. 1991, 9, 135–160. [Google Scholar] [CrossRef]
  78. George, Z.; Aikaterini, D.; Ioannis, B.; Dimitrios, G.; Argyrios, T.; Efthimios, K. Melanin absorption spectroscopy: New method for noninvasive skin investigation and melanoma detection. BIOMEDO 2008, 13, 1–8. [Google Scholar]
  79. Hale, G.M.; Querry, M.R. Optical Constants of Water in the 200-nm to 200-μm Wavelength Region. Appl. Opt. 1973, 12, 555–563. [Google Scholar] [CrossRef]
  80. Allen, T.; Beard, P.; Hall, A.; Dhillon, A.; Owen, J. Spectroscopic photoacoustic imaging of lipid-rich plaques in the human aorta in the 740 to 1400 nm wavelength range. BIOMEDO 2012, 17, 061209. [Google Scholar] [CrossRef]
  81. Weissleder, R. A clearer vision for in vivo imaging. Nat. Biotechnol. 2001, 19, 316–317. [Google Scholar] [CrossRef]
  82. Smith, A.M.; Mancini, M.C.; Nie, S. Second window for in vivo imaging. Nat. Nanotechnol. 2009, 4, 710–711. [Google Scholar] [CrossRef] [Green Version]
  83. White, E.H.; Rapaport, E.; Hopkins, T.A.; Seliger, H.H. Chemi- and bioluminescence of firefly luciferin. J. Am. Chem. Soc. 1969, 91, 2178–2180. [Google Scholar] [CrossRef] [PubMed]
  84. Branchini, B.R.; Murtiashaw, M.H.; Magyar, R.A.; Portier, N.C.; Ruggiero, M.C.; Stroh, J.G. Yellow-Green and Red Firefly Bioluminescence from 5,5-Dimethyloxyluciferin. J. Am. Chem. Soc. 2002, 124, 2112–2113. [Google Scholar] [CrossRef] [PubMed]
  85. Naumov, P.; Ozawa, Y.; Ohkubo, K.; Fukuzumi, S. Structure and Spectroscopy of Oxyluciferin, the Light Emitter of the Firefly Bioluminescence. J. Am. Chem. Soc. 2009, 131, 11590–11605. [Google Scholar] [CrossRef] [PubMed]
  86. Hirano, T.; Hasumi, Y.; Ohtsuka, K.; Maki, S.; Niwa, H.; Yamaji, M.; Hashizume, D. Spectroscopic Studies of the Light-Color Modulation Mechanism of Firefly (Beetle) Bioluminescence. J. Am. Chem. Soc. 2009, 131, 2385–2396. [Google Scholar] [CrossRef]
  87. Navizet, I.; Liu, Y.-J.; Ferré, N.; Xiao, H.-Y.; Fang, W.-H.; Lindh, R. Color-Tuning Mechanism of Firefly Investigated by Multi-Configurational Perturbation Method. J. Am. Chem. Soc. 2010, 132, 706–712. [Google Scholar] [CrossRef]
  88. Hosseinkhani, S. Molecular enigma of multicolor bioluminescence of firefly luciferase. Cell. Mol. Life Sci. 2011, 68, 1167–1182. [Google Scholar] [CrossRef]
  89. Miura, C.; Kiyama, M.; Iwano, S.; Ito, K.; Obata, R.; Hirano, T.; Maki, S.; Niwa, H. Synthesis and luminescence properties of biphenyl-type firefly luciferin analogs with a new, near-infrared light-emitting bioluminophore. Tetrahedron 2013, 69, 9726–9734. [Google Scholar] [CrossRef]
  90. Shcherbakova, D.M.; Verkhusha, V.V. Near-infrared fluorescent proteins for multicolor in vivo imaging. Nat. Methods 2013, 10, 751–754. [Google Scholar] [CrossRef]
  91. Furuhata, Y.; Sakai, A.; Murakami, T.; Nagasaki, A.; Kato, Y. Bioluminescent imaging of Arabidopsis thaliana using an enhanced Nano-lantern luminescence reporter system. PLoS ONE 2020, 15, e0227477. [Google Scholar] [CrossRef]
  92. Lu, L.; Li, B.; Ding, S.; Fan, Y.; Wang, S.; Sun, C.; Zhao, M.; Zhao, C.-X.; Zhang, F. NIR-II bioluminescence for in vivo high contrast imaging and in situ ATP-mediated metastases tracing. Nat. Commun. 2020, 11, 4192. [Google Scholar] [CrossRef]
  93. Lavis, L.D.; Raines, R.T. Bright Ideas for Chemical Biology. ACS Chem. Biol. 2008, 3, 142–155. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Martinić, I.; Eliseeva, S.V.; Petoud, S. Near-infrared emitting probes for biological imaging: Organic fluorophores, quantum dots, fluorescent proteins, lanthanide(III) complexes and nanomaterials. J. Lumin. 2017, 189, 19–43. [Google Scholar] [CrossRef]
  95. Keppler, A.; Gendreizig, S.; Gronemeyer, T.; Pick, H.; Vogel, H.; Johnsson, K. A general method for the covalent labeling of fusion proteins with small molecules in vivo. Nat. Biotechnol. 2003, 21, 86–89. [Google Scholar] [CrossRef] [PubMed]
  96. Los, G.V.; Encell, L.P.; McDougall, M.G.; Hartzell, D.D.; Karassina, N.; Zimprich, C.; Wood, M.G.; Learish, R.; Ohana, R.F.; Urh, M.; et al. HaloTag: A Novel Protein Labeling Technology for Cell Imaging and Protein Analysis. ACS Chem. Biol. 2008, 3, 373–382. [Google Scholar] [CrossRef] [PubMed]
  97. Derfus, A.M.; Chan, W.C.W.; Bhatia, S.N. Probing the Cytotoxicity of Semiconductor Quantum Dots. Nano Lett. 2004, 4, 11–18. [Google Scholar] [CrossRef] [Green Version]
  98. Santone, K.S.; Acosta, D.; Bruckner, J.V. Cadmium toxicity in primary cultures of rat hepatocytes. J. Toxicol. Environ. Health 1982, 10, 169–177. [Google Scholar] [CrossRef]
  99. Rathbun, C.M.; Porterfield, W.B.; Jones, K.A.; Sagoe, M.J.; Reyes, M.R.; Hua, C.T.; Prescher, J.A. Parallel Screening for Rapid Identification of Orthogonal Bioluminescent Tools. ACS Cent. Sci. 2017, 3, 1254–1261. [Google Scholar] [CrossRef]
  100. Keyaerts, M.; Caveliers, V.; Lahoutte, T. Bioluminescence imaging: Looking beyond the light. Trends Mol. Med. 2012, 18, 164–172. [Google Scholar] [CrossRef]
  101. Baba, S.; Cho, S.Y.; Ye, Z.; Cheng, L.; Engles, J.M.; Wahl, R.L. How Reproducible Is Bioluminescent Imaging of Tumor Cell Growth? Single Time Point versus the Dynamic Measurement Approach. Mol. Imaging 2007, 6. [Google Scholar] [CrossRef]
  102. Keyaerts, M.; Verschueren, J.; Bos, T.J.; Tchouate-Gainkam, L.O.; Peleman, C.; Breckpot, K.; Vanhove, C.; Caveliers, V.; Bossuyt, A.; Lahoutte, T. Dynamic bioluminescence imaging for quantitative tumour burden assessment using IV or IP administration of d-luciferin: Effect on intensity, time kinetics and repeatability of photon emission. Eur. J. Nucl. Med. Mol. Imaging 2008, 35, 999–1007. [Google Scholar] [CrossRef]
  103. Inoue, Y.; Kiryu, S.; Izawa, K.; Watanabe, M.; Tojo, A.; Ohtomo, K. Comparison of subcutaneous and intraperitoneal injection of d-luciferin for in vivo bioluminescence imaging. Eur. J. Nucl. Med. Mol. Imaging 2009, 36, 771–779. [Google Scholar] [CrossRef] [PubMed]
  104. Adams, S.T., Jr.; Miller, S.C. Beyond d-luciferin: Expanding the scope of bioluminescence imaging in vivo. Curr. Opin. Chem. Biol. 2014, 21, 112–120. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. Lee, K.H.; Byun, S.S.; Paik, J.Y.; Lee, S.Y.; Song, S.H.; Choe, Y.S.; Kim, B.T. Cell uptake and tissue distribution of radioiodine labelled d-luciferin: Implications for luciferase based gene imaging. Nucl. Med. Commun. 2003, 24, 1003–1009. [Google Scholar] [CrossRef] [PubMed]
  106. Bakhsheshian, J.; Wei, B.-R.; Chang, K.-E.; Shukla, S.; Ambudkar, S.V.; Simpson, R.M.; Gottesman, M.M.; Hall, M.D. Bioluminescent imaging of drug efflux at the blood–brain barrier mediated by the transporter Abcgproceedings. Natl. Acad. Sci. 2013, 110, 20801–20806. [Google Scholar] [CrossRef] [Green Version]
  107. Kotlobay, A.A.; Sarkisyan, K.S.; Mokrushina, Y.A.; Marcet-Houben, M.; Serebrovskaya, E.O.; Markina, N.M.; Gonzalez Somermeyer, L.; Gorokhovatsky, A.Y.; Vvedensky, A.; Purtov, K.V.; et al. Genetically encodable bioluminescent system from fungi. Proc. Natl. Acad. Sci. USA 2018, 115, 12728–12732. [Google Scholar] [CrossRef] [Green Version]
  108. Gregor, C.; Pape, J.K.; Gwosch, K.C.; Gilat, T.; Sahl, S.J.; Hell, S.W. Autonomous bioluminescence imaging of single mammalian cells with the bacterial bioluminescence system. Proc. Natl. Acad. Sci. USA 2019, 116, 26491–26496. [Google Scholar] [CrossRef] [Green Version]
  109. Yu, N.; Huang, L.; Zhou, Y.; Xue, T.; Chen, Z.; Han, G. Near-Infrared-Light Activatable Nanoparticles for Deep-Tissue-Penetrating Wireless Optogenetics. Adv. Healthc. Mater. 2019, 8. [Google Scholar] [CrossRef]
Ijms 21 06538 g001 550

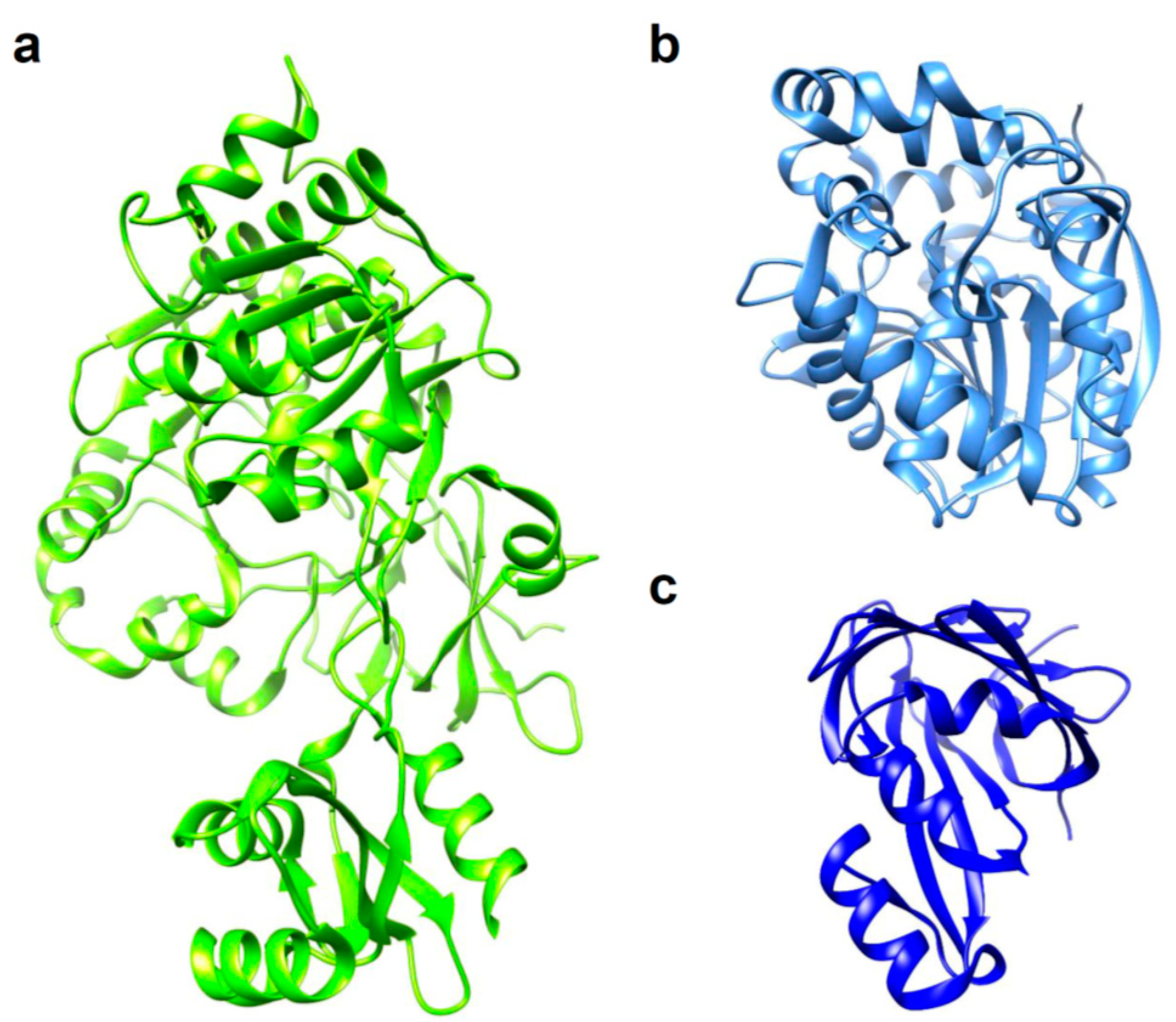

Figure 1. 3D structures of luciferases used in in vivo bioluminescence imaging (BLI). (a) Photinus pyralis firefly luciferase (FLuc); PDB ID: 5DVQ. (b) Renilla reniformis luciferase (RLuc); PDB ID: 2PSD. (c) NanoLuc luciferase (NLuc); PDB ID: 5IBO.
Figure 1. 3D structures of luciferases used in in vivo bioluminescence imaging (BLI). (a) Photinus pyralis firefly luciferase (FLuc); PDB ID: 5DVQ. (b) Renilla reniformis luciferase (RLuc); PDB ID: 2PSD. (c) NanoLuc luciferase (NLuc); PDB ID: 5IBO.
Ijms 21 06538 g001
Ijms 21 06538 g002 550

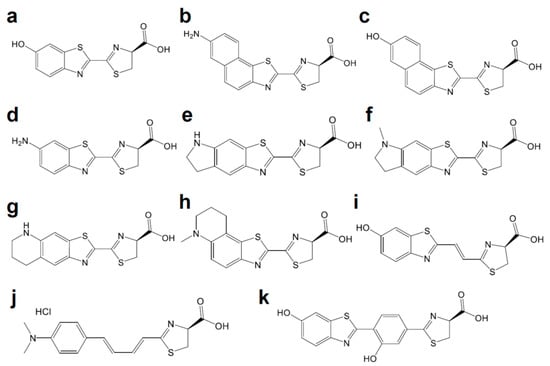

Figure 2. Chemical structures of d-luciferin and its red-shifted derivatives: (a) d-luciferin, (b) NH2-NpLH2, (c) OH-NpLH2, (d) 6′-aminoluciferin, (e) CycLuc1, (f) CycLuc2, (g) CycLuc7, (h) CycLuc10 (i) Infra-luciferin, (j) Akalumine-HCl, (k) PhOH-Luc.
Figure 2. Chemical structures of d-luciferin and its red-shifted derivatives: (a) d-luciferin, (b) NH2-NpLH2, (c) OH-NpLH2, (d) 6′-aminoluciferin, (e) CycLuc1, (f) CycLuc2, (g) CycLuc7, (h) CycLuc10 (i) Infra-luciferin, (j) Akalumine-HCl, (k) PhOH-Luc.
Ijms 21 06538 g002
Ijms 21 06538 g003 550

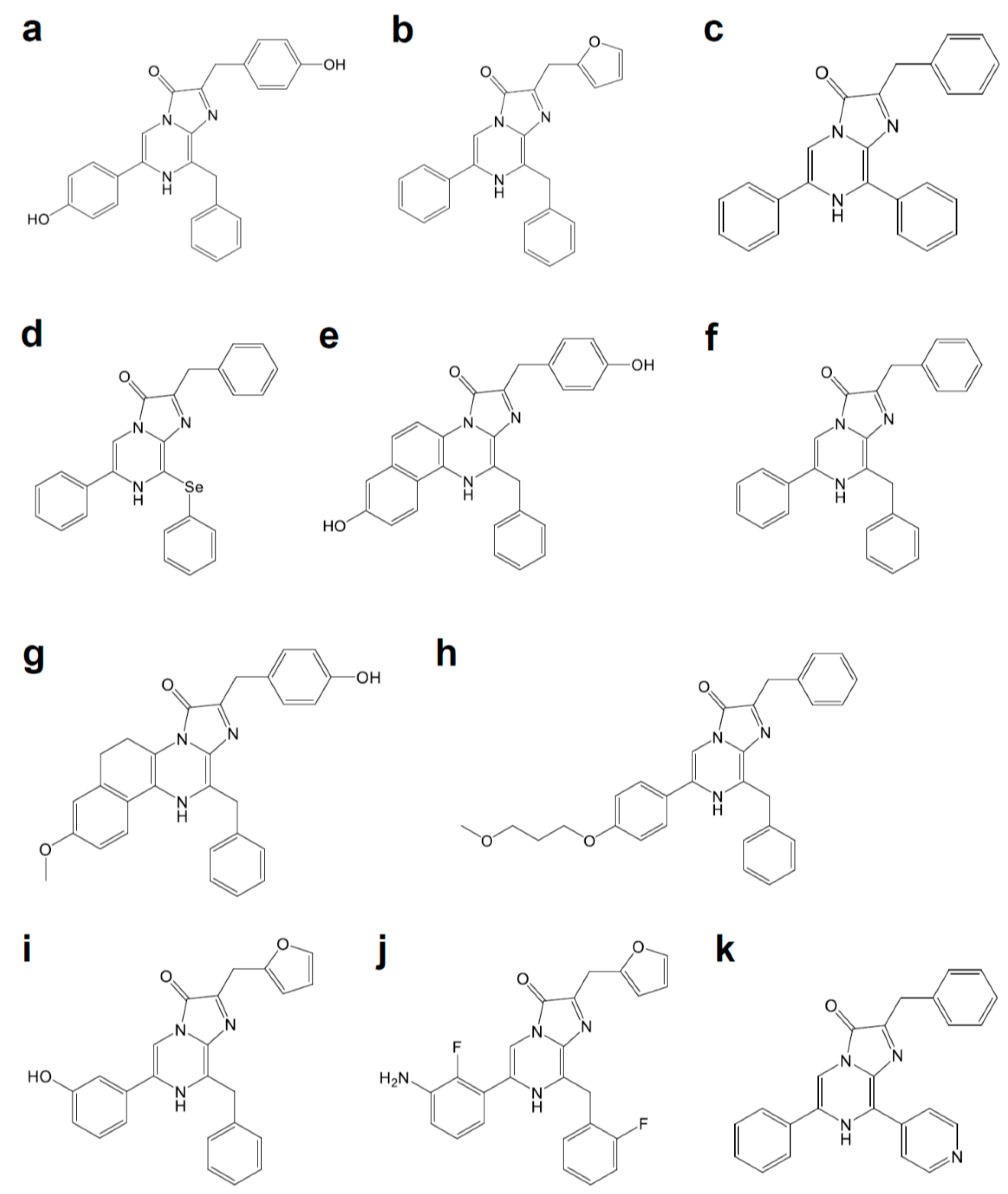

Figure 3. Coelenterazine derivatives for brighter or red-shifted bioluminescence systems: (a) Coelenterazine, (b) Furimazine, (c) Diphenylterazine, (d) Selenoterazine, (e) Coelenterazine-v, (f) DeepBlueC, (g) methoxy-eCoelenterazine, (h) BBlue2.3, (i) Hydrofurimazine, (j) Fluorofurimazine, (k) 8pyDTZ.
Figure 3. Coelenterazine derivatives for brighter or red-shifted bioluminescence systems: (a) Coelenterazine, (b) Furimazine, (c) Diphenylterazine, (d) Selenoterazine, (e) Coelenterazine-v, (f) DeepBlueC, (g) methoxy-eCoelenterazine, (h) BBlue2.3, (i) Hydrofurimazine, (j) Fluorofurimazine, (k) 8pyDTZ.
Ijms 21 06538 g003
Ijms 21 06538 g004 550

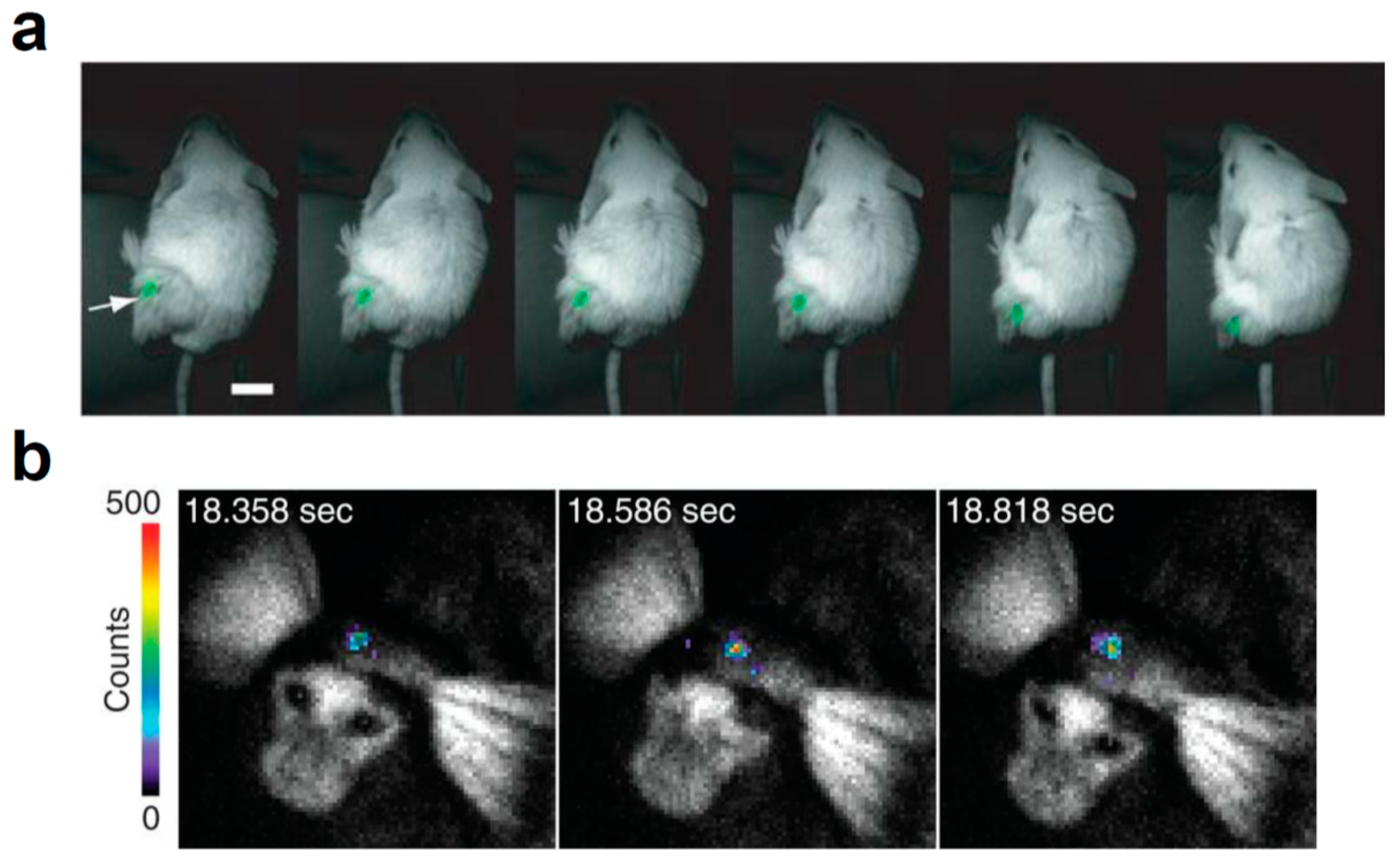

Figure 4. In vivo BLI with brighter or red-shifted bioluminescence systems. (a) Video-rate BLI of Nano-lantern-expressing tumor cells in an unshaved mouse; Scale bar, 1 cm. Reprinted with permission from ref. [34]. White arrow indicates the luminescence signal from Nano-lantern-expressing cells. Copyright 2012 Nature Publishing Group. (b) AkaBLI with 4-year-old female marmoset expressing AkaLuc in the right striatum 12 months after injection. Reprinted with permission from ref. [18]. Copyright 2018 The American Association for the Advancement of Science.
Figure 4. In vivo BLI with brighter or red-shifted bioluminescence systems. (a) Video-rate BLI of Nano-lantern-expressing tumor cells in an unshaved mouse; Scale bar, 1 cm. Reprinted with permission from ref. [34]. White arrow indicates the luminescence signal from Nano-lantern-expressing cells. Copyright 2012 Nature Publishing Group. (b) AkaBLI with 4-year-old female marmoset expressing AkaLuc in the right striatum 12 months after injection. Reprinted with permission from ref. [18]. Copyright 2018 The American Association for the Advancement of Science.
Ijms 21 06538 g004
Table
Table 1. The genetically or chemically engineered bioluminescence system.
Table 1. The genetically or chemically engineered bioluminescence system.
NameOriginModificationLuciferinλmax (nm)ImprovementRefs.
Mutant EFLucT214A, A215L, I232A, F295L, E345Kd-luciferin56027-fold more thermally stable than FLuc[3]
LGRFLucI423L, D436G, L530Rd-luciferin56020-fold lower Km for ATP and d-luciferin, and 4-fold higher kcat than FLuc[3]
YY5FLucT214A, A215L, I232A, F295L, E354K, I423L, D436G, L530Rd-Luciferin56014-fold higher kcat than FLuc[3]
x5 FLucFLucF14R, L35Q, V182K, I232K, and F465Rd-luciferin554Enhanced thermostability up to 45 °C with higher pH-tolerance[4]
x5gFLucF14R, L35Q, V182K, I232K, V241I, G246A, F250S, F465Rd-Luciferin5603.69-fold brighter than FLuc[5]
x12 FLucFLucF14R, L35Q, A105V, V182K, T214C, I232K, D234G, F295L, E354R, D357Y, S420T, and F465Rd-luciferin557Half-life of 15 min at 55 °C[6]
-FLucR218Kd-luciferin572 [7]
-FLucR218Qd-luciferin608 [7]
-FLucR218Ad-luciferin611 [7]
-FLucR337Kd-luciferin595 [7]
-FLucR337Qd-Luciferin594 [7]
-FLucH245Ad-luciferin604 [8]
-FLucG315Ad-Luciferin607 [8]
-FLucT343Ad-luciferin617 [8]
-FLucA348Vd-luciferin610 [8]
-FLucS284Td-Luciferin615 [9,10]
Ppy RE9FLucT214A, A215L, I232A, S284T, F295L, I351V, R330G, E354I, and F465Rd-luciferin617~11.5% respective light intensities compared to FLuc[11]
-FLucF247L6′-aminoluciferinNA aF247L induced 4.9-fold increase in light output[8,12]
-FLucR218KCycLuc1609 [13]
-FLucR218KCycLuc2621 [13]
-FLucR218K, L286M, and S347ACycLuc762346% of the initial rate of the pair between FLuc and d-luciferin[14]
FLucR218KCycLuc10648 [14]
-FLuc-Infra-luciferin670 [15]
-FLucF14R, L35Q, V182K, I232K, S284T and F465RInfra-luciferin706 [15]
FLuc_greenFLucF14R, L35Q, A105V, V182K, T214C, I232K, D234G, V241I, G246A, F250S, E354R, D357Y, S420T, and F465RInfra-luciferin700 [16]
FLuc_redFLuc(F14R, L35Q, A105V, V182K, T214C, I232K, S284T, D234G, E354I, D357Y, S420T, and F465RInfra-luciferin720 [16]
-FLuc-Akalumine-HCl677 [17]
AkaLucFLucT39A, E48Q, I51V, K68R, L86S, Q134R, I136V, Q147R, G175S, N229Y, I231N, F294C, F295L, N308S, H310R, H332R, S347N, I349V, L350M, D357R, A361S, D377V, S456G, N463Y, K524R, L526S, I540T, G545DAkalumine-HCl650 Improved luminescence intensity[18]
Mutant G2FLucS220N, E311C, and A313GPhOH-Luc608Photons in the 650–850 nm region accounted for ∼31% of the total emission[19]
CBR2optCBRR334S, G351Rd-Luciferin730 [20]
RLuc8RLucA55T, C124A, S130A, K136R, A143M, M185V, M253L, S287LCoelenterazine4874.3-fold a brighter than RLuc[21]
RLuc8.6-535RLucA55T, A123S, C124A, S130A, K136R, A143M, D154M, E155G, D162E, I163L, V185L, M185V, M253L, S287LCoelenterazine535
(570 b)		6.0-fold brighter than RLuc[22]
RLuc8.6-545RLucA55T, A123S, C124A, S130A, K136R, A143M, D154K, E155N, D162E, I163L, M185V, M253L, F261W, S287LCoelenterazine545 [22]
RLuc8.6-547RLucA55T, A123S, C124A, S130A, K136R, A143M, D154A, E155G, D162E, I163V, M185V, M253L, F262W, S287LCoelenterazine547
(588 b)		 [22]
C1A4EOLucA4E, Q11R, A33K, V44I, A54F, P115E, Q124K, Y138I, N166RCoelenterazineNA a88,000-fold brighter than OLuc[23]
NLucOLucA4E, Q11R, Q18L, L27V, A33N, K43R, V44I, A54I, F68D, L72Q, M75K, I90V, P115E, Q124K, Y138I, N166RFurimazine460150-fold brighter than either FLuc or RLuc[23]
teLucOLucA4E, Q11R, Q18L, D19S, L27V, A33N, K43R, V44I, A54I, F68D, L72Q, M75K, D85N, I90V, P115E, Q124K, Y138I, C164H, N166RDiphenylterazine5022.6-fold brighter than NLuc[24]
yeLucOLucF1L, A4E, Q11R, A14D, L27V, D19A, V27L, S28T, A33N, K43R, V44I, A54I, F68D, Q69R, L72Q, M75K, I90V, R112Q, P115E, Q124K, Y138I, L142R, C164S, and N166RSelenoterazine52711.5-fold brighter than NLuc[24]
LumiLucOLucA4G, Q11R, D19A, S28T, A33N, K43R, V44I, A54I, G67C, F68D, G71A, L72Q, M75K, I90A, R112Q, P115E, V119K, Q124K, K136T, Y138I, C164H, and N166R8pyDTZ5255-fold brighter than NLuc[25]
a NA: not available. b Measured with coelenterazine-v.
Table
Table 2. The BRET-based bioluminescence system.
Table 2. The BRET-based bioluminescence system.
NameBioluminescence DonorFluorescence AcceptorLuciferinλmax (nm)NoteRefs.
BAF-YRLucEYFPcoelenterazine5257-fold brighter than RLuc[26]
eBAF-YRLuc8EYFPcoelenterazine525 25-fold brighter than RLuc[26]
BRET1RLuceYFPcoelenterazine527 [27]
BRET2RLucGFP2DeepBlueC410 [28]
BRET3RLuc8mOrangecoelenterazine564 [29]
BRET3.1RLuc8mOrangecoelenterazine-v564Decreased BRET efficiency[30]
BRET4RLuc8TagRFPcoelenterazine584 [31]
BRET5RLuc8.6TagRFPcoelenterazine584 [30]
BRET6RLuc8.6TurboFPcoelenterazine635 [30]
BRET6.1RLuc8.6TurboFPcoelenterazine-v635Increased BRET efficiency[30]
-RLuc8iRFP670methoxy-eCoelenterazine643 [32]
-RLuc8iRFP720methoxy-eCoelenterazine702 [32]
iRFP-RLuc8.6-535SGRLuc8.6-535 (S257G)iRFPBBlue2.3717 [33]
Nano-lantern (YNL)RLuc8∆N3(S257G)Venus∆C10coelenterazine5302.9-fold brighter than eBAF-Y[34]
CNLRLuc8∆N3 (S257G)mTurquoise2∆C10coelenterazine470 [35]
ONLRLuc8.6-535∆N3mKusabiraOrange2coelenterazine560 [35]
-NLucYFPfurimazine530 [36]
-NLucVenusfurimazine535 [37]
-NLucmKate2furimazine633 [38]
CeNLNLuc∆N3mTurquoise2∆C10furimazine475 [39]
GeNLNLuc∆N5mNeonGreen∆C10furimazine520 [39]
YeNLNLuc∆N4Venus∆C12furimazine530 [39]
ReNLNLuc∆N5tdTomato∆C9furimazine585 [39]
OeNLNLucmKOκfurimazine565 [39]
GpNLuc LumiFluorNLucEGFPfurimazine50945-fold brighter than Nano-lantern[40]
OgNLuc LumiFluorNLucLSS mOrangefurimazine572 [40]
AntaresNLucCyOFP1furimazine, hydrofurimazine, or fluorofurimazine583Similar or higher brightness in vivo compared to AkaBLI with hydrofurimazine, or fluorofurimazine [41,42]
Antares2teLucCyOFP1diphenylterazine583Additional 35–90% signal increase over teLuc,[24]
-LumiLuc (teLuc with E4G, L18Q, S19A, V27L, S28T, G67C, G71A, N85D, V90A, R112Q, V119K, and K136T mutations)mScarlet8pyDTZ600 [25]
-FLucDsRedd-luciferin583 [43]
- mCherryd-luciferin610 [44]
- mKated-luciferin635 [45]
- Cy3.5d-luciferin596 [46]
-Ppy RE10Alexa Fluor 680d-luciferin705BRET ratio: 34.0[47]
- Alexa Fluor 750d-luciferin783BRET ratio: 4.0[47]
-NLucAlexa Fluor 488furimazine525Via SNAP-tag or HaloTag7[48]
- TMRfurimazine585Via SNAP-tag or HaloTag7[48]
- CPYfurimazine645Via SNAP-tag or HaloTag7[48]
SiRfurimazine670Via SNAP-tag or HaloTag7[48]
-RLuc8QD605coelenterazine605BRET ratio: 0.70[49]
- QD655coelenterazine655BRET ratio: 1.2[49,50,51]
- QD705coelenterazine705BRET ratio: 2.3[49]
- QD800coelenterazine800BRET ratio: 1.32[49]
-NLucQD705furimazine705BRET ratio: 13.3[52]

Share and Cite

MDPI and ACS Style

Endo, M.; Ozawa, T. Advanced Bioluminescence System for In Vivo Imaging with Brighter and Red-Shifted Light Emission. Int. J. Mol. Sci. 2020, 21, 6538. https://doi.org/10.3390/ijms21186538

AMA Style

Endo M, Ozawa T. Advanced Bioluminescence System for In Vivo Imaging with Brighter and Red-Shifted Light Emission. International Journal of Molecular Sciences. 2020; 21(18):6538. https://doi.org/10.3390/ijms21186538

Chicago/Turabian Style

Endo, Mizuki, and Takeaki Ozawa. 2020. "Advanced Bioluminescence System for In Vivo Imaging with Brighter and Red-Shifted Light Emission" International Journal of Molecular Sciences 21, no. 18: 6538. https://doi.org/10.3390/ijms21186538

APA Style

Endo, M., & Ozawa, T. (2020). Advanced Bioluminescence System for In Vivo Imaging with Brighter and Red-Shifted Light Emission. International Journal of Molecular Sciences, 21(18), 6538. https://doi.org/10.3390/ijms21186538

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
