Functional Characterization of a Dendrobium officinale Geraniol Synthase DoGES1 Involved in Floral Scent Formation

Abstract

Floral scent is a key ornamental trait that determines the quality and commercial value of orchids. Geraniol, an important volatile monoterpene in orchids that attracts pollinators, is also involved in responses to stresses but the geraniol synthase (GES) responsible for its synthesis in the medicinal orchid Dendrobium officinale has not yet been identified. In this study, three potential geraniol synthases were mined from the D. officinale genome. DoGES1, which was localized in chloroplasts, was characterized as a geraniol synthase. DoGES1 was highly expressed in flowers, especially in petals. DoGES1 transcript levels were high in the budding stage of D. officinale flowers at 11:00 a.m. DoGES1 catalyzed geraniol in vitro, and transient expression of DoGES1 in Nicotiana benthamiana leaves resulted in the accumulation of geraniol in vivo. These findings on DoGES1 advance our understanding of geraniol biosynthesis in orchids, and lay the basis for genetic modification of floral scent in D. officinale or in other ornamental orchids.

1. Introduction

Plants emit an astonishing number of volatile metabolites during growth and development, and these have various roles, some with biological effects, that are considered beneficial to plants and humans [1]. For ornamental plants, floral volatiles have a dual function, to attract pollinators, and in defense against pests, herbivores, and pathogens [2,3,4]. Orchids, economically important floricultural crops, possess an abundance of floral volatile terpenes. Among them, monoterpenes, especially geraniol, linalool, and their oxygenated derivatives, are predominant components of floral scents [4,5]. Geraniol is an acyclic monoterpene alcohol released from several ornamental plants, such as citronella, geranium, herbs, roses, and orchids (Phalaenopsis bellina and Dendrobium officinale) [5,6,7,8], and is extensively used in fragrance and cosmetics industries because of its pleasant rose-like scent.

Geraniol is synthesized from geranyl pyrophosphate (GPP), the universal five-carbon precursor for the biosynthesis of all monoterpenes, and is catalyzed by a terpene synthase (TPS), which has been designated as geraniol synthase (GES, EC 3.1.7.11) [6,9]. GPP, as an immediate precursor of monoterpenes, is proceeded by a condensation reaction of two C5-isoprene building units, namely isopentenyl diphosphate (IPP) and dimethylallyl diphosphate (DMAPP) [9]. Recent studies have thoroughly characterized two well-established pathways, the cytosolic mevalonic acid (MVA) pathway and the plastidic methylerythritol phosphate (MEP) pathway, that generate IPP and DMAPP, [7,8,9]. Several enzymes, including 1-deoxy-d-xylulose 5-phosphate synthase (DXS), 1-deoxy-d-xylulose 5-phosphate reductoisomerase (DXR), 4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase (HDS), and GPP synthase (GPPS), contribute to GPP biosynthesis [10], providing the GPP substrate for GES to generate geraniol. Taken together, GES is a mono-TPS that specifically catalyzes the formation of geraniol from GPP in the MEP pathway.

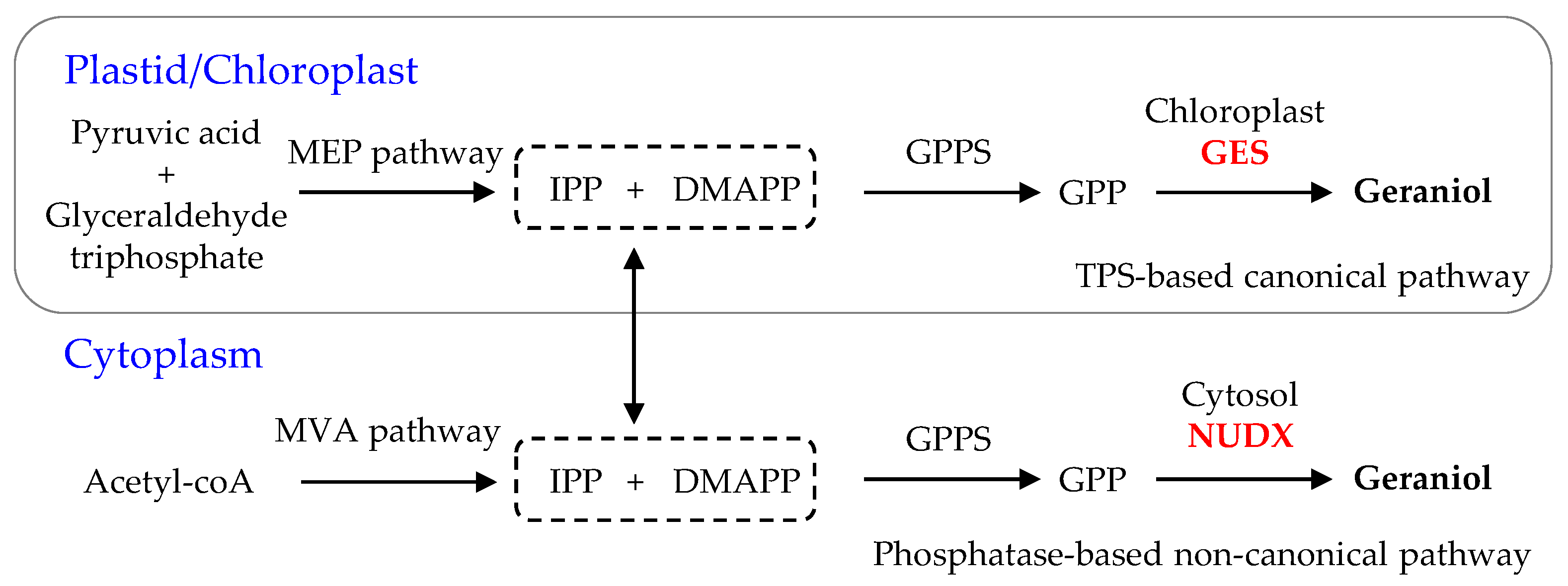

In plants, two kinds of enzymatic reactions can produce geraniol from GPP, either a TPS-based canonical pathway, which is catalyzed by GES in chloroplasts/plastids [6], or a phosphatase-based non-canonical pathway, which is catalyzed by nudix hydrolase (NUDX) in the cytoplasm (Figure 1) [9,11]. Thus far, the GES gene has already been identified and functionally characterized in multiple horticultural plants, including CitTPS16 in Citrus sinensis [12], LoTPS3 in Lathyrus odoratus [13], GES in Ocimum basilicum [6], and PbGDPS in P. bellina [14], all of which can produce geraniol from GPP in vitro. However, no TPS with GES activity has been identified in Rosa rugosa to date. Only one NUDX gene, RhNUDX1, converts GPP into geranyl monophosphate (GP), which is then hydrolyzed to geraniol by a petal-derived phosphatase [11]. In orchids, PbGDPS, which encodes GPP synthase, may play a key role in regulating the biosynthesis of monoterpenes (geraniol and linalool) in P. bellina [14]. In addition, the transcript levels of two TPS genes (PbTPS5 and PbTPS10) are consistent with the production of geraniol and linalool in P. bellina [15], although their functionality has not yet been verified. Although geraniol is an important floral volatile compound in D. officinale, a medicinal orchid [7], the GES gene responsible for geraniol biosynthesis in D. officinale has not yet been characterized.

Herein, using the D. officinale genome database [16,17], and according to phylogenetic analysis and sequence homology, three GES genes (named DoGES1–3), with putative roles in the production of geraniol, were screened. The transcriptional regulatory functions of DoGES1, a member of the TPS family, in response to the accumulation of geraniol in D. officinale was investigated in different plant tissues (roots, stems, leaves, and flowers), harvest times (8:00, 11:00, 14:00, and 17:00), flower organs (petals, sepals, and gynostemium), and flowering periods (budding, semi-open flowers, fully open flowers). An in vitro assay of recombinant protein in Escherichia coli BL21 star (DE3) as well as in vivo transient overexpression in Nicotiana benthamiana indicated that DoGES1 was responsible for geraniol biosynthesis, advancing our understanding of geraniol biosynthesis in D. officinale.

2. Results

2.1. Identification of Candidate GES Genes from the D. officinale Genome

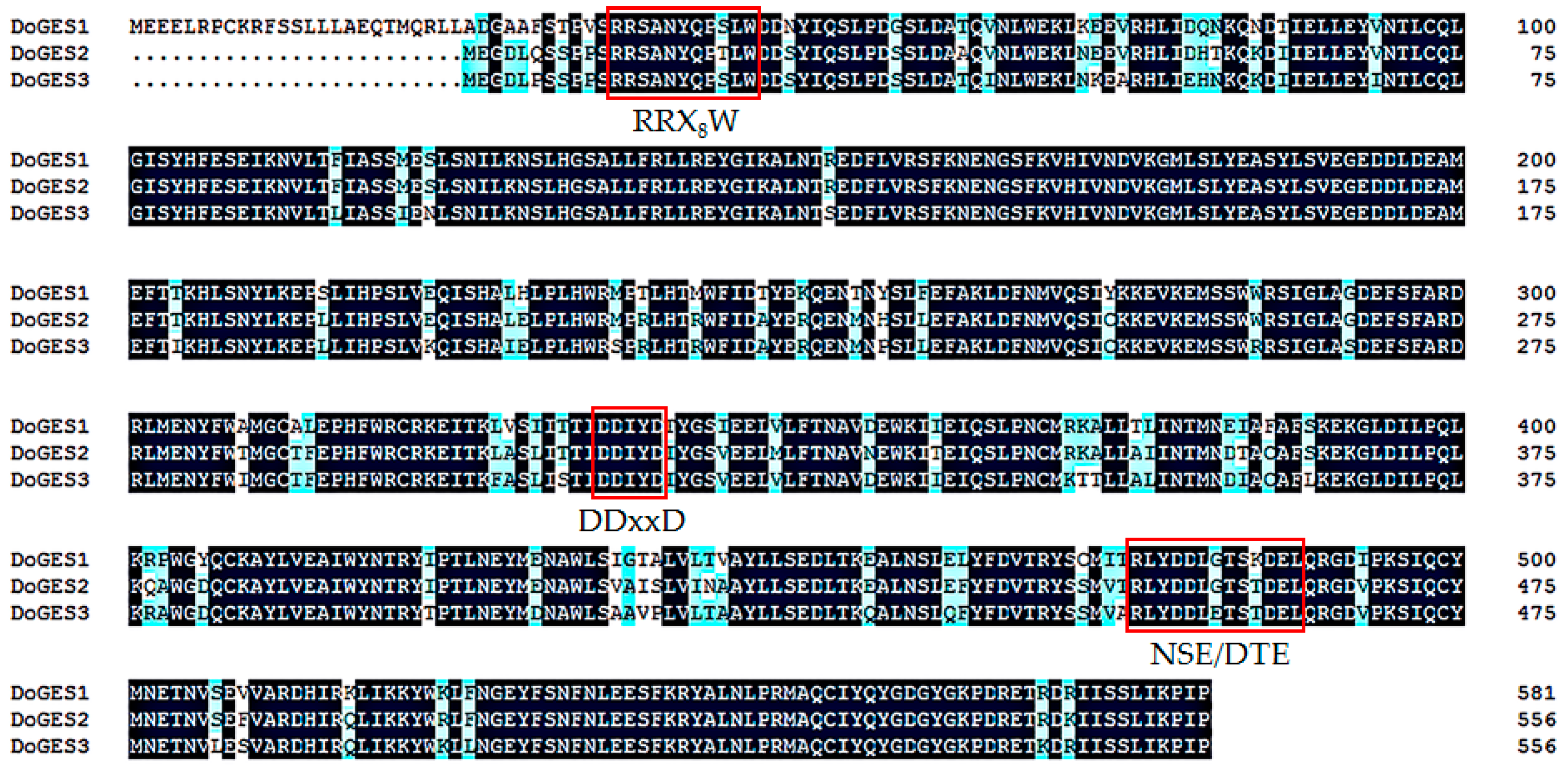

From D. officinale genomic annotation data, three candidate GES sequences with best matches to known GES proteins [6,12,13,15] were retrieved by BLASTN, and named DoGES1, DoGES2, and DoGES3 (Table S1). Multiple sequence alignment demonstrated that three DoGES proteins had highly conserved aspartate-rich motifs (DDxxD) and NSE/DTE motifs at the C-terminal, and an RRX₈W domain at the N-terminal (Figure 2), suggesting that DoGES1-3 were all TPSs. Among them, DDxxD and NSE/DTE were essential for the cofactor Mg²⁺ or Mn²⁺ to catalyze the synthesis of monoterpenes [18,19], and the RRX₈W domain was also involved in the cyclization of monoterpene synthase [20].

2.2. Phylogenetic Analysis of DoGES Proteins in the D. officinale Genome

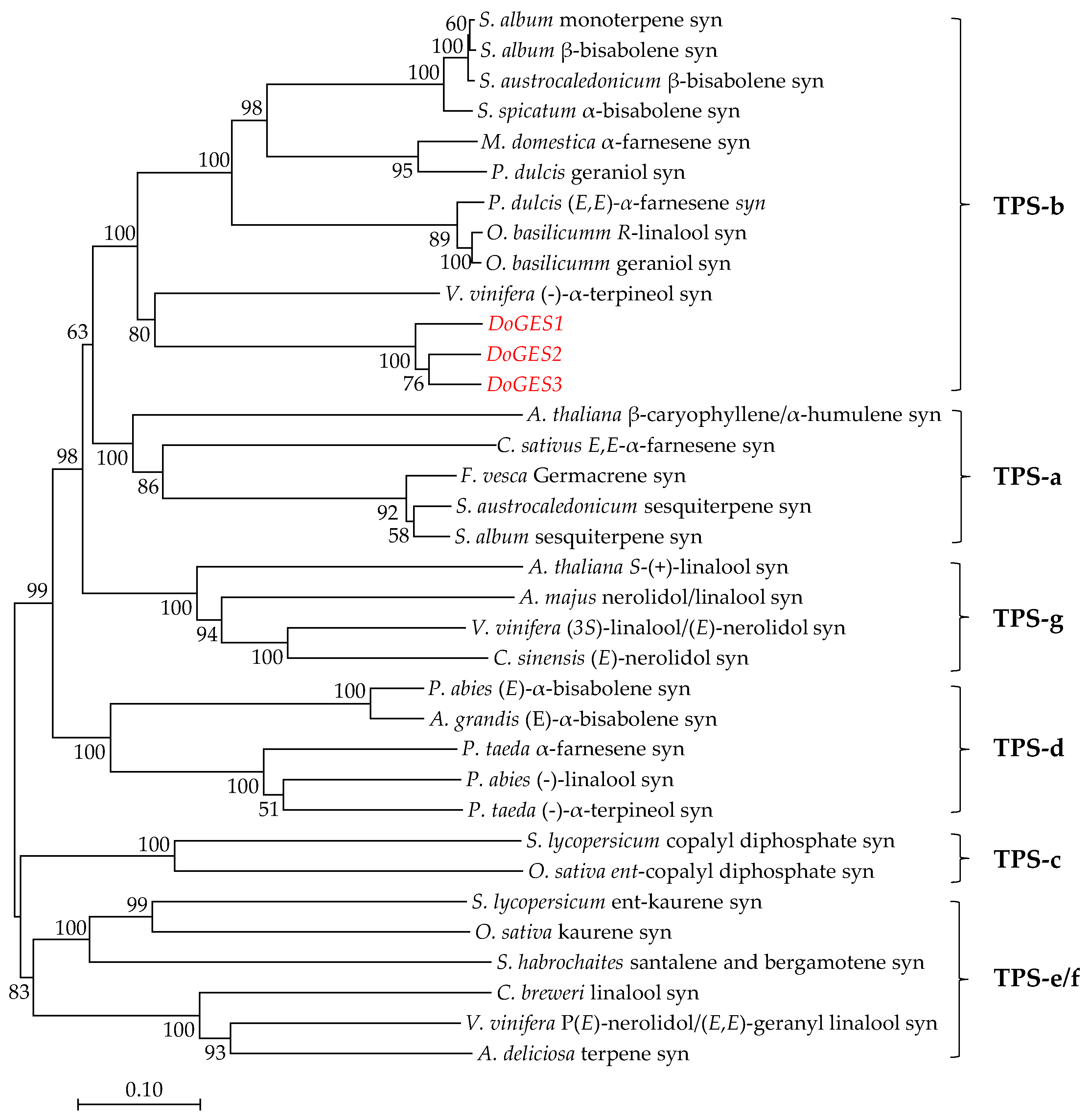

To investigate the evolutionary relationship of DoGES proteins with other reported GES proteins, a phylogenetic tree was generated by the neighbor-joining method (Figure 3; Table S2). All three DoGES proteins clustered in the TPS-b subfamily, which is specific to angiosperms and is responsible for encoding monoterpene synthases [21].

Based on the transcription levels in different tissues (roots, stems, leaves, and flowers), DoGES1 exhibited high expression in flowers, while DoGES2 and DoGES3 were mainly expressed in roots and leaves, respectively (Figure S1). Consequently, DoGES1 was selected for our candidate study gene related to floral scent formation.

2.3. Molecular Cloning and Analysis of DoGES1 from D. officinale Flowers

RNA isolated from D. officinale flowers during the blossoming period were used as template and amplified via nested PCR. Full-length cDNA sequences of DoGES1 have a 1749-bp long open reading frame (ORF) that encodes 582 amino acids with a theoretical isoelectric point of 5.34 and a molecular weight of 67.99 kDa (Figure S2). The DoGES1 sequence was submitted to GenBank Data Libraries under accession number MT875214.

The DoGES1 secondary structure, which was determined using the SOPMA program (http://npsa-pbil.ibcp.fr/), shows that it harbors 69.24% α-helixes, 23.37% random coils, 3.78% β-turns, and 3.61% extended strands. The Chlorop 1.1 tool predicted that DoGES1 contains a 34 amino acid long N-terminal chloroplast transit peptide. To determine the subcellular localization of DoGES1, three subcellular localization tools (AtSubP [22], Plant-mPLoc [23], and pLoc-mPlant [24]) were used. All of them demonstrated that DoGES1 was located in chloroplasts, and was thus likely a mono-TPS in the MEP-pathway, but not in the cytosolic MVA pathway.

2.4. Subcellular Localization of DoGES1

To confirm the intracellular localization of DoGES1, pSAT6-EYFP-DoGES1 was transformed to the mesophyll protoplasts of 4-week-old Arabidopsis thaliana leaves. Yellow fluorescent signals were visualized by confocal laser scanning microscopy. The images indicate that DoGES1 was located in chloroplasts (Figure 4), similar to LiTPS2, which encodes a mono-TPS in lily (Lilium longiflorum ‘Siberia’) [25], indicating that DoGES1 may be responsible for monoterpene synthesis.

2.5. Functional Characterization of Enzyme Encoded by DoGES1 in Escherichia coli

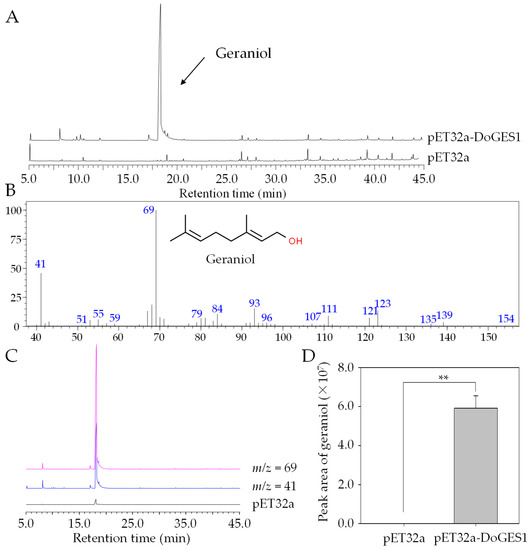

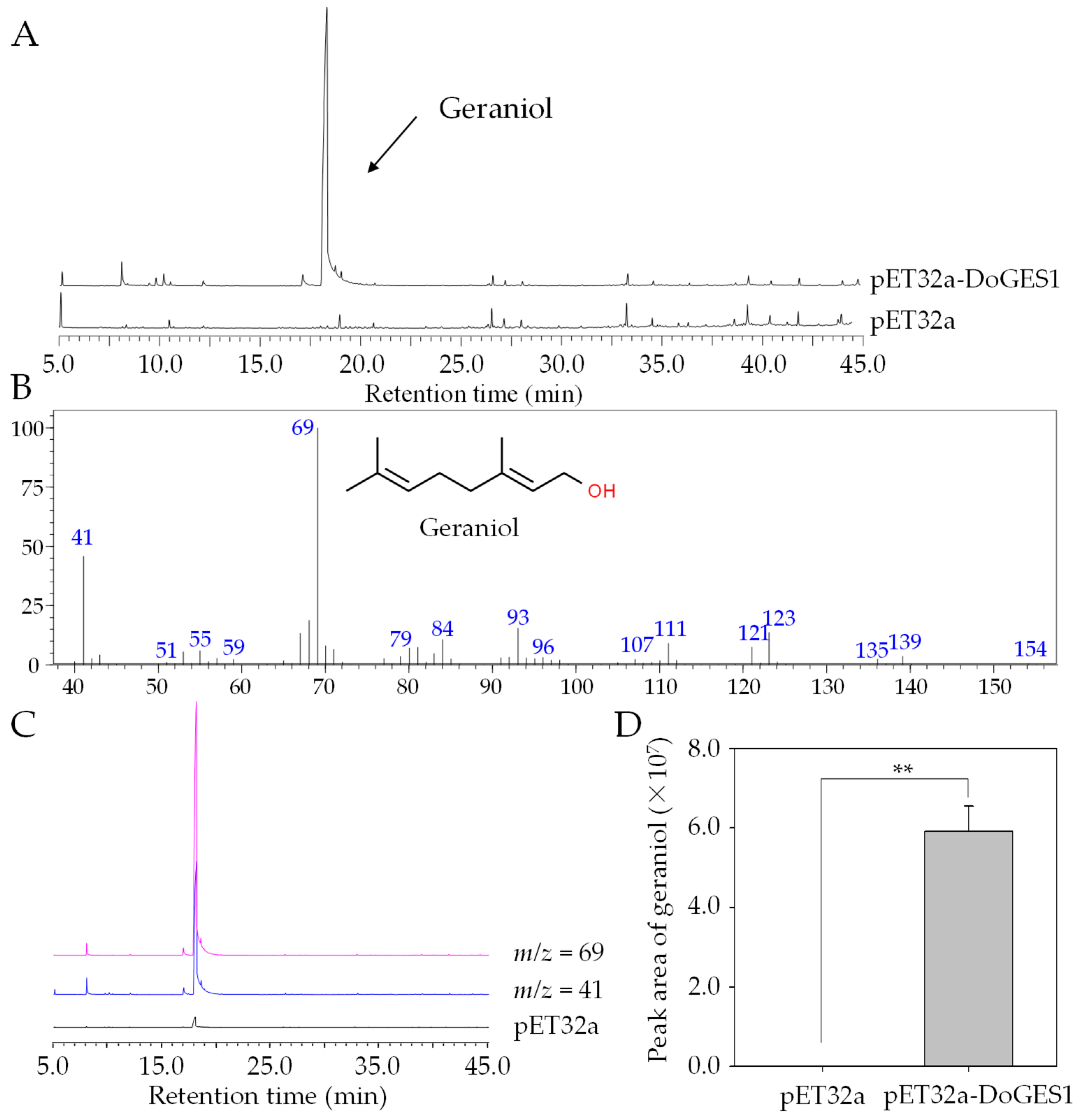

To investigate whether DoGES1 encodes an enzyme that can produce monoterpenes, the full-length ORF sequence of DoGES1 was subcloned into prokaryotic expression vector pET-32a, expressed in E. coli BL21 (DE3), and induced by 1 mM isopropyl-β-d-thiogalactopyranoside (IPTG). Recombinant pET-32a-DoGES1 proteins were purified using affinity chromatography on a Ni-NTA agarose column, and were identified and isolated with a single band matching the expected size of DoGES1 in an SDS-PAGE gel (Figure S3). After incubation with GPP as substrate for the synthesis of monoterpenes, recombinant DoGES1 proteins successfully yielded geraniol with two characteristic fragment m/z 69 and m/z 41 in mass spectra produced by GC–MS (Figure 5), which showed the same mass spectral features of the authentic standard, geraniol. In addition, geraniol was not detected among the protein extracts from an empty vector cell mixture (Figure 5). These results suggest that DoGES1 from D. officinale had the capacity to specifically catalyze the formation of geraniol. Consequently, DoGES1 was classified as a geraniol synthase.

2.6. Ectopic Expression of DoGES1 in N. benthamiana

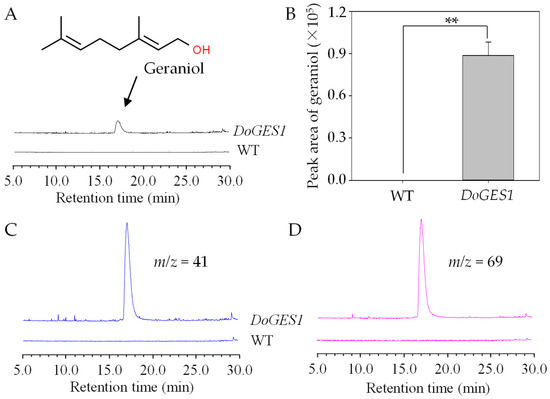

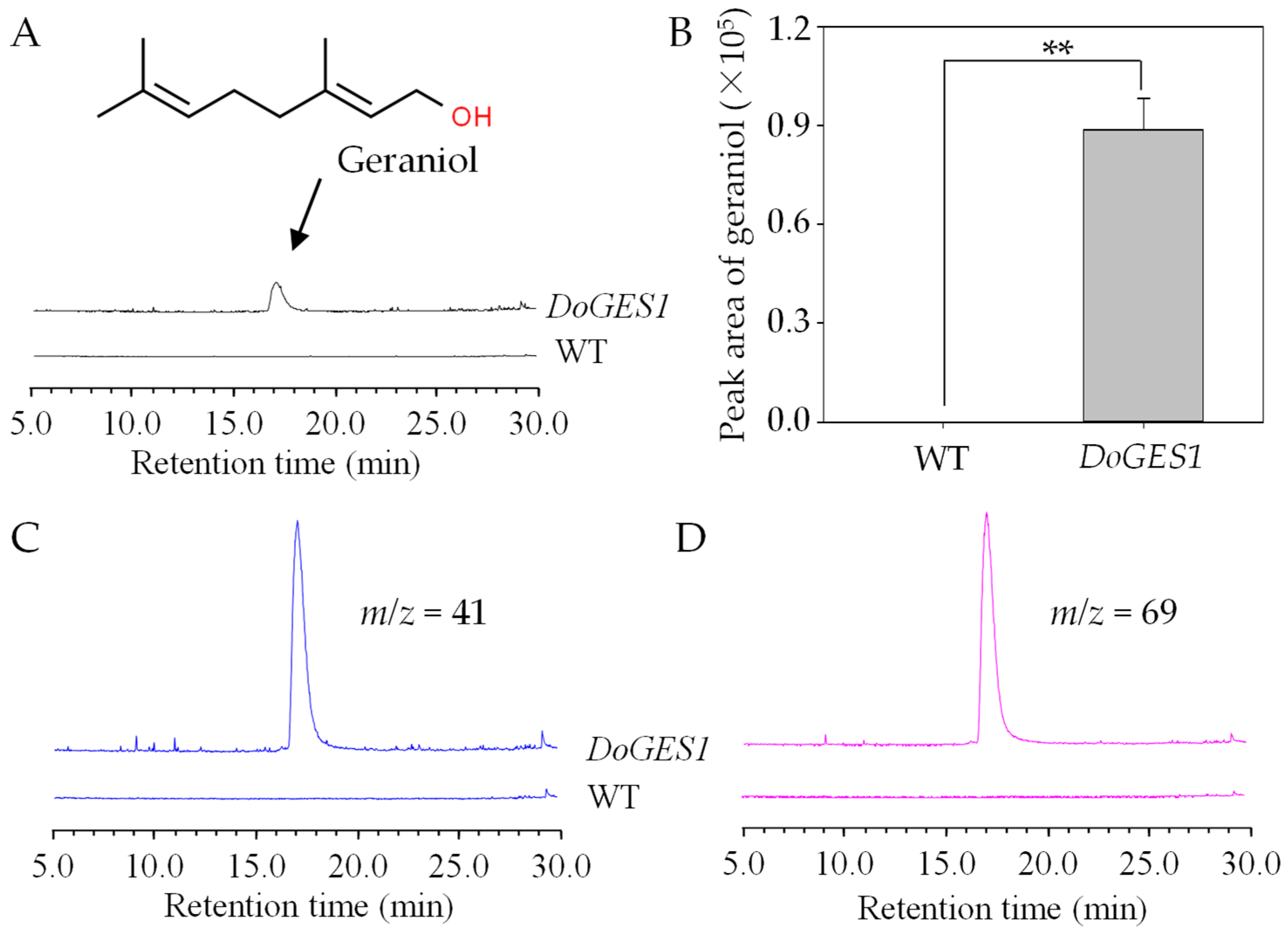

We ectopically expressed DoGES1 under the control of the cauliflower mosaic virus (CaMV) 35S promoter in N. benthamiana leaves. Positive transgenic leaves were screened by PCR for the presence of the DoGES1 gene. DoGES1 was not detected in 6-week-old N. benthamiana leaves transformed with the empty vector pCAMBIA3300, while the positively transformed N. benthamiana leaves were selected for subsequent analysis as a result of the high transcription levels of DoGES1. As expected, a large amount of geraniol was produced in N. benthamiana leaves overexpressing DoGES1 3 days after treatment, whereas geraniol was not observed in the control group (Figure 6). Therefore, DoGES1 seemed to be a single-product enzyme that contributed to the biosynthesis of geraniol.

2.7. Temporal-Spatial Expression Patterns Analysis of DoGES1 in D. officinale

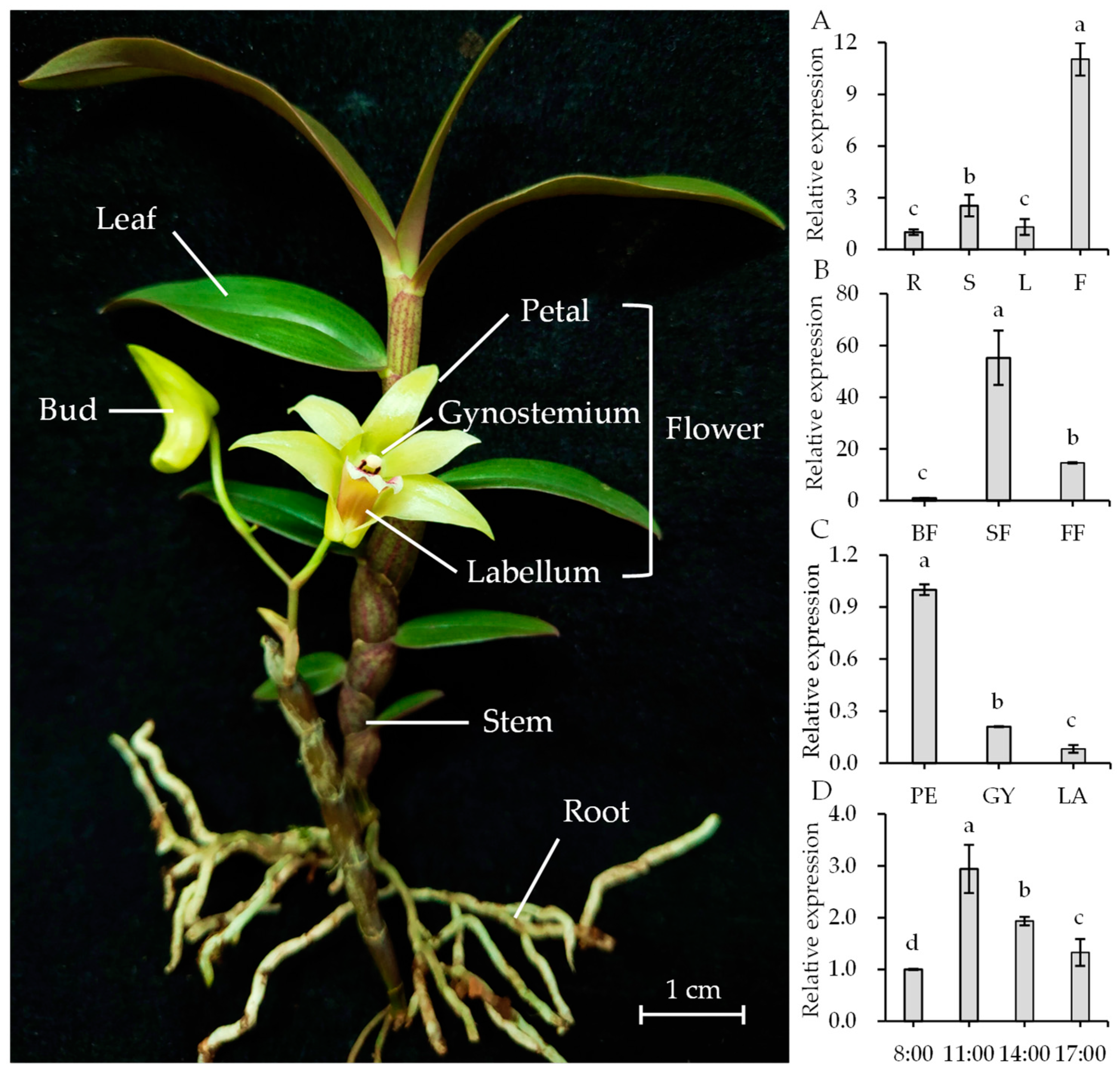

To clarify the expression patterns of DoGES1 in D. officinale, different tissues (roots, stems, leaves, and flowers), developmental stages of flowers (budding, semi-open flowers, fully open flowers), flower organs (petal, gynostemium, and labellum), and flower harvest times (8:00, 11:00, 14:00, and 17:00) were measured using real-time quantitative PCR (RT-qRCR). The results indicate that DoGES1 exhibited the highest transcription levels in flowers, followed by stems, while the roots and the leaves displayed a relatively low level (Figure 7A). As flowers developed, the expression levels of DoGES1 mRNA also varied. DoGES1 was slightly expressed in the bud stage, expression increased enormously in semi-open flowers where it peaked, and dropped notably in the fully open flowers (Figure 7B). Among different flower organs, DoGES1 expression was 4.77- and 12.29-fold higher in petals than in the gynostemium or labellum, respectively (Figure 7C). A comparison of DoGES1 expression at specific times of the day showed that DoGES1 showed higher expression at 11:00 than at 8:00, 14:00, and 17:00 (Figure 7D). Furthermore, geraniol content fluctuated among the harvest time points (from 8:00 to 17:00), with a trend of first increasing and then decreasing; the highest amount was observed at 14:00 (Figure S4). Thus, DoGES1 was upregulated at first, then downregulated and possessed the highest value at 11:00, corresponding to the increase and then decrease in geraniol content at the same harvest time points (from 8:00 to 17:00). These results suggest that floral monoterpenes, such as geraniol encoded by DoGES1, might originate from petals and are emitted at 14:00, with a considerably high release during the budding stage in D. officinale flowers.

2.8. Activation of DoGES1 Gene Expression in Response to Methyl Jasmonate

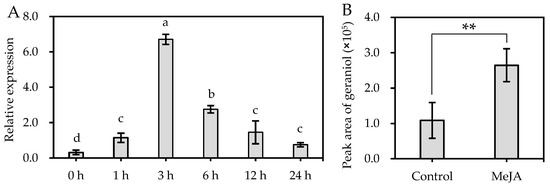

Methyl jasmonate (MeJA), which is involved in responses to various stresses, regulates terpene metabolism [26]. To explore the response of the DoGES1 gene after the application of MeJA, DoGES1 transcript levels were quantified by qRT-PCR. Compared to the non-treated control, DoGES1 was significantly upregulated between 2.41- and 21.49-fold, with the highest expression at 3 h after MeJA treatment (Figure 8A). Furthermore, a significant increase (p < 0.05) in geraniol was induced by MeJA, increasing by 243.47% (Figure 8B). This finding suggests the involvement of DoGES1 in the MeJA-dependent biosynthesis of geraniol.

3. Discussion

Geraniol, an important acyclic monoterpene with a distinctive rose-like scent, is widely used in the flavor and fragrance industries [27]. In plants, there are two biosynthetic pathways of geraniol (Figure 1). One depends on GES, and is a rate-limiting enzyme located in chloroplasts or plastids. The universal five-carbon precursors IPP and DMAPP produce GPP by plastidic GPPS in the MEP pathway, then GPP as substrate is catalyzed by mono-TPS via a common ionization-dependent reaction [28,29]. The GES gene, which was first cloned and functionally identified in sweet basil (O. basilicum), was shown to have the function of geraniol catalysis [6]. Subsequently, GES has been fairly extensively studied in many plant species, such as C. sinensis [12], L. odoratus [13], Gardenia jasminoides [30], N. tabacum [31], and P. bellina [15]. The second pathway for the production of geraniol is a phosphatase-based non-canonical pathway for monoterpene biosynthesis that involves NUDX [9,11]. After comparing the aroma components and the different gene expression profiles in two rose (R. hybrida) varieties, an important cytosolic enzyme, RhNUDX1 [11], was identified. When RhNUDX1 was incubated with GPP, this recombinant protein showed diphosphohydrolase activity and overexpression of RhNUDX1 resulted in the accumulation of geraniol in N. benthamiana. Moreover, RhNUDX1-RNAi rose lines exhibited a relatively lower level of geraniol. Interestingly, A. thaliana NUDX1 efficiently hydrolyzed GPP to GP, but was not responsible for the production of geraniol while GES oversaw geraniol production [32]. Therefore, the proteins in the NUDX family might all be able to bind and act upon hydrolysis of GPP to GP, but only rose RhNUDX1 can promote the generation of geraniol [11], which is attributed to differential GES/NUDX enzyme localization [9,32,33]. Mono-TPS, located in chloroplasts/plastids, uses GPP as substrate, where GPP is also generated. In this study, a 34-aa chloroplast transit peptide was found in the N-terminal of DoGES1, so DoGES1 was targeted to the chloroplast (Figure 4). Therefore, chloroplast DoGES1 may function as the chloroplast/plastid-localized GES, but not as the cytoplasmic NUDX, resulting in the formation of geraniol via the canonical pathway. Similarly, two GES proteins were also located in plastids. Transient expression of Valeriana officinalis VoGES and Lippia dulcis LdGES in N. benthamiana leaves showed that GFP signal was located in the plastid [34], and HcTPS7 from Hedychium coronarium contained an 80 aa peptide in the N-terminal, targeting the protein to plastids [35].

The TPS family is typically divided into seven subfamilies, namely TPS-a, -b, -c, -d, -e/f, -g, and -h based on amino acid sequences and phylogeny [20]. TPS-a mainly codes for sesquiterpene synthase or diterpene synthase in monocotyledonous and dicotyledonous plants, respectively [21]. TPS-b and -g are both primarily involved in monoterpene synthesis, and TPS-b harbors an N-terminal RRX₈W motif that is a key metal binding domain for divalent metal ions, while TPS-g lacks the RRX₈W motif [29]. In the present study, an important TPS gene DoGES1, encoding geraniol synthase, was isolated from D. officinale flowers. It encodes 582 amino acids containing DDxxD and RRX₈W motifs (Figure 2), and was clustered into the TPS-b subfamily (Figure 3), sharing 80% homology with mono-TPS of L. longiflorum ‘Siberia’ LiTPS2 [25]. DoGES1 recombinant protein accepted GPP as a substrate and singly generated geraniol in E. coli (Figure 5), which is associated with O. basilicum GES that utilizes GPP to uniquely generate geraniol in vitro [6]. Furthermore, DoGES1 was ectopically expressed in N. benthamiana leaves, resulting in significantly increased geraniol content in transgenic leaves, compared to the control group (Figure 6). Although some TPS proteins have been shown to catalyze the formation of multiple products [25,30,31], GES is highly specific and produces only geraniol, similar to linalool synthase, which makes a single acyclic monoterpene alcohol, linalool [6,7,19,20]. Therefore, DoGES1 mainly acts as a geraniol synthase in the synthesis of floral volatiles.

In higher plants, the emission of volatile terpenes is often temporal and spatially specific [3,4,36]. For example, PbGDPS, which participates in the generation of geraniol and linalool in P. bellina, was specifically expressed in flowers and highly expressed on the fifth day after flower initiation [4,5,14]. The released of a high content of linalool in Osmanthus fragrans ‘Dangui’ petals is caused by the overexpression of mono-TPS (LIS1 encoding linalool synthase) [37]. Ten species in Maxillariinae (Orchidaceae), such as Maxillaria picta, M. cerifera, and M. marginata, release volatile monoterpenes, mostly from the sepals and at the start of flowering [38]. In D. officinale, DoGES1 was highly expressed in flowers, especially in petals, but had lower expression levels in leaves, stems, and roots (Figure 7). Generally, biosynthesis and emission of volatile compounds are developmentally regulated, usually enriching expression in an initial stage of development such as young leaves, unfertilized flowers, and unripe fruits [9,33]. With the continuous development of flowers, DoGES1 substantially increased from the budding stage and peaked at the semi-open flower stage, decreasing at the fully open flower stage (Figure 6). This implies that GPP also accumulated extensively in semi-open flowers and generated an abundant amount of geraniol that was released in flowers, then, in fully open flowers, geraniol was heavily reduced, attributed to a reduction in the expression of DoGES1.

Environmental factors such as light or temperature normally influence the emission of volatile aroma scent [2]. The emission of P. bellina flower scent was regulated by light and the circadian clock [15]. In constant light (500 μmol·m⁻² s⁻¹), P. violacea emitted mostly monoterpenes whose levels decreased in constant darkness. PbNAC1, which regulates the synthesis of monoterpenes, interacts with long hypocotyl 5 (HY5), which is a positive transcription factor involved in the responsiveness of plants to light [5,39]. DoGES1 demonstrated fluctuations throughout the day, increasing at 8:00, then decreasing from 11:00 to 17:00, peaking at 11:00 (Figure 7), corresponding to the increase and then decrease in geraniol content at the same harvest time points, with the highest value observed at 14:00, suggesting that the emission of monoterpenes may have a diurnal rhythm in D. officinale petals. In addition, the MeJA-induced biosynthesis of terpenes (for example, geraniol) was observed (Figure 8) in D. officinale semi-open flowers, mainly due to the upregulation of DoGES1 expression. The same finding that MeJA treatment resulted in the enhanced expression of 24/36 CsTPS genes and an increase in the amount of monoterpene volatiles such as linalool, geraniol, and their derivatives, was reported in Camellia sinensis leaves [40]. The CGTCA-motif and three MYC motifs in the DoGES1 promoter (Figure S5) can interact with the MYC2 transcription factor of the JA signaling pathway [41]. Thus, cis-elements (CGTCA-motif and MYC) in the MeJA-induced DoGES1 gene may be able to activate the JA signaling pathway, thereby regulating the enhancement of monoterpene (geraniol), although this possibility needs to be further explored.

4. Materials and Methods

4.1. Plant Materials and MeJA Treatment

D. officinale ‘Zhongke 5′ plants were cultivated in a greenhouse under controlled environment conditions as mentioned previously [7] in the South China Botanical Garden, Chinese Academy of Sciences (Guangzhou, China). The roots, stems, leaves, and flowers (including petal, gynostemium, and labellum) from 2-year-old adult D. officinale plants (Figure 7), as well as three different flowering stages (budding, semi-open flowers, and fully open flowers, Figure S6), were sampled and stored at −80 °C. Additionally, the petals of semi-open flowers at different harvest times (8:00, 11:00, 14:00, and 17:00) were sampled and stored at −80 °C. Four-week-old A. thaliana Col-0 for subcellular localization and N. benthamiana plants for ectopic expression experiments were both grown in a growth room at 22 °C with a 16 h photoperiod. For the MeJA treatment, D. officinale flowers during the semi-open flower stage were sprayed with 100 μM MeJA for 0, 1, 3, 6, 12, and 24 h; 0 h was used as the control group. All samples were harvested, frozen in nitrogen liquid, and stored at −80 °C.

4.2. Molecular Cloning of the DoGES1 Gene and Bioinformatics Analysis

Based on the annotated GES gene sequence from the D. officinale genome database, one gene (DoGES1) was screened and cloned. Total RNA from 0.1 g of D. officinale flowers for gene cloning were isolated by the Quick RNA Isolation Kit (Huayueyang, Beijing, China) following the manufacturer’s protocol. The first strand cDNA of DoGES1 was synthesized using the Reverse Transcription System (Promega Co., Madison, WI, USA) according to the manufacturer’s instruction. Full-length ORF sequences of DoGES1 were cloned using the KOD-plus Mutagenesis Kit (Toyobo, Osaka, Japan). The PCR program was as follows: 98 °C for 2 min, 35 cycles of 98 °C for 10 s, 60 °C for 20 s and 72 °C for 30 s, then constant 72 °C for 5 min. PCR products were recovered using the HiPure Gel Pure Micro Kit (Magen, Guangzhou, China). Specific primers are listed in Table S3.

The DoGES1 amino acid sequences were submitted to Clustal X 2.0 to conduct multiple sequence alignment [42]. A phylogenetic tree was constructed by MEGA 7.0 software [43] based on the neighbor-joining computational method [44]. The secondary structure of the DoGES1 protein was determined using the SOPMA program (http://npsa-pbil.ibcp.fr/). In order to study the subcellular localization of the DoGES1 protein, AtSubP [22], Plant-mPLoc [23], and pLoc-mPlant [24], all possessing good accuracy (>70%), were used on their corresponding websites.

4.3. Prokaryotic Expression and Purification of DoGES1 Protein

To express the DoGES1 protein in E. coli, the ORF of DoGES1 was ligated into the pET32a vector using the InFusion^® HD Cloning Kit (Takara, Dalian, China). The recombinant plasmid pET32a-DoGES1 was transformed into E. coli BL21 (DE3) competent cells (TsingKe Bio., Guangzhou, China). The identified positive clones were incubated at 37 °C with shaking at 180 rpm for 8 h in Luria–Bertani liquid medium supplemented with 50 μg mL⁻¹ kanamycin. Culture medium was diluted to OD_600nm between 0.5 and 0.6 and placed at 37 °C. Then, 1 mM isopropyl-β-d-thiogalactopyranoside (IPTG) was added to cultures, which were incubated for 8 h at 18 °C with shaking at 160 rpm. Finally, cell cultures were harvested by centrifugation at 12,000× g for 10 min. The precipitate was resuspended in fresh lysis buffer (10 mM imidazole, 300 mM NaCl, 50 mM NaH₂PO₄, pH 8.0) and lysed by sonication (60 Hz, repeated cycles of 5 s sonication and 5 s suspension) for 40 min. The clear lysate was collected by centrifugation at 10,000× g for 15 min.

Protein was purified with Ni-NTA Agarose (Qiagen, Hilden, Germany), eluted with elution buffer (250 mM imidazole, 300 mM NaCl, 50 mM NaH₂PO₄, pH 8.0), then desalinated in PD-10 desalting columns (GE Healthcare, Chicago, IL, USA) as previously described [7]. Purified DoGES1 protein was examined by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE).

4.4. In Vitro Enzyme Assay of DoGES1

The reaction mixture consisted of 100 µg of DoGES1 protein and 1 mL of MOPSO buffer (10 mM, pH 7.0 containing 5 mM dithiothreitol, 10 mM MgCl₂, and 10 mM GPP as substrate). The mixtures were overlaid with hexane in a total volume of 200 µL and incubated at 30 °C for 1 h. Reaction products were extracted by mixing vigorously for 5 min to obtain the enzymatic products, and 1 µL of the dehydrated extract was collected for gas chromatography-mass spectrometry (GC-MS) analysis.

4.5. Transient Expression of DoGES1 in N. benthamiana

The complete ORF sequences of DoGES1 (excluding the termination codon) were digested with BamHI (Takara) and SacI (Takara), and subcloned into the plant binary expression vector pCAMBIA3300 (CAMBIA, Canberra, Australia). The DoGES1-pCAMBIA3300 recombinant plasmid was transformed into Agrobacterium tumefaciens strain GV3101 cells via the freeze-thaw method as previously described [45]. Six-week-old leaves of N. benthamiana were injected with A. tumefaciens GV3101 cultures, and then maintained at 22 °C in darkness for 3 d. Infected 6-week-old vegetative leaves of N. benthamiana were collected and stored at −80 °C.

4.6. Quantification of Volatile Monoterpenes Using GC-MS

Volatile monoterpenes were analyzed by GC-MS equipped with a 30-m Supelcowax-10 column (0.25 mm diameter × 0.25 µm film thickness). About 500 mg of infected tobacco leaves or D. officinale flowers were blended with 3 mL dichloromethane containing 5 nmol ethyl decanoate (Sigma-Aldrich, St. Louis, MO, USA; CAS number 110-38-3, 98% purity) as the internal standard, and incubated at 25 °C while shaking at 100 rpm for 8 h. The extraction was passed through anhydrous Na₂SO₄ to remove remaining water, and filtered through a 0.22 µm PVDF membrane filter (Anpel Laboratory Technologies Inc., Shanghai, China), then concentrated to 500 µL under a nitrogen flow, and subjected to GC-MS (QP2010 SE, Shimadzu Co., Kyoto, Japan) analysis. The reaction program was carried out following our previously published protocol [7]. Products were identified by comparing mass spectra and retention times against the NIST 2008 mass spectra library (https://chemdata.nist.gov/) and the mass spectrum of the standard, geraniol (Sigma-Aldrich; CAS number 106-24-1, 98% purity).

4.7. Subcellular Location of DoGES1 Protein

The ORF sequence of DoGES1 was cloned into pSAT6-EYFP-N1 at the NcoI site, which was driven by the CaMV 35S promoter. The recombinant DoGES1-YFP plasmid was transformed into 4-week-old A. thaliana protoplasts that were isolated from rosette leaves by PEG-mediated transformation as described previously [46]. After incubation at 22 °C for 14 h in darkness, YFP fluorescence signals were excited at 514 nm and with an emission wavelength of 527 nm using a Leica TCS SP8 STED 3× microscope (Wetzlar, Hesse, Germany).

4.8. Real-Time Quantitative PCR Analysis

To analyze DoGES1 gene expression patterns, qRT-PCR was performed. Total RNA from three flowering periods (budding, semi-open flowers, and fully open flowers), different tissues (roots, stems, leaves, flowers, petals, gynostemium, and labellum), and the flowers from different sampling times (8:00, 11:00, 14:00, and 17:00) were isolated and reverse transcribed, as described above. The total reaction volume was 10 μL containing 0.4 μL of each primer, 1 μL of template cDNA, 5 μL of SYBR Green PCR Master Mix (Novogene, Beijing, China), and 3.2 μL of ddH₂O. The PCR reaction was carried out with the LightCycler^® 480 Instrument (Roche Diagnostics, Mannheim, Germany) as described previously [7]. The relative abundance of DoEF-1α (GenBank accession no.: JF825419) was used as an internal standard and calculated using the 2^−∆∆CT method [47]. Specific primers are shown in Table S3.

5. Conclusions

In the present study, we identified the DoGES1 gene from D. officinale. It contributed to the regulation and production of geraniol biosynthesis. DoGES1 was located in chloroplast, and could utilize GPP to singly produce geraniol in vitro. Separately, N. benthamiana leaves overexpressing DoGES1 considerably accumulated geraniol in vivo, which was consistent with the main monoterpene geraniol in D. officinale flowers. Our work also demonstrated that DoGES1 was highly expressed in the petals during the semi-open flower stage at 11:00, and was activated by exogenous MeJA treatment. These results indicate that DoGES1 could effectively control the biosynthesis of geraniol in D. officinale, laying the foundation for biotechnological modification of floral scent profiles in orchids.
