Chrysoeriol Prevents TNFα-Induced CYP19 Gene Expression via EGR-1 Downregulation in MCF7 Breast Cancer Cells

1
Department of Biological Sciences, Sanghuh College of Lifesciences, Konkuk University, Seoul 05029, Korea
2
Cancer and Metabolism Institute, Konkuk University, Seoul 05029, Korea
3
Division of Bioscience and Biotechnology, BMIC, Konkuk University, Seoul 05029, Korea
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(20), 7523; https://doi.org/10.3390/ijms21207523
Submission received: 27 August 2020 / Revised: 8 October 2020 / Accepted: 9 October 2020 / Published: 12 October 2020
(This article belongs to the Special Issue Dietary Bioactive Compounds and Breast Cancer)

Abstract

:
Estrogen overproduction is closely associated with the development of estrogen receptor-positive breast cancer. Aromatase, encoded by the cytochrome P450 19 (CYP19) gene, regulates estrogen biosynthesis. This study aimed to identify active flavones that inhibit CYP19 expression and to explore the underlying mechanisms. CYP19 expression was evaluated using reverse transcription PCR, quantitative real-time PCR, and immunoblot analysis. The role of transcription factor early growth response gene 1 (EGR-1) in CYP19 expression was assessed using the short-hairpin RNA (shRNA)-mediated knockdown of EGR-1 expression in estrogen receptor-positive MCF-7 breast cancer cells. We screened 39 flavonoids containing 26 flavones and 13 flavanones using the EGR1 promoter reporter activity assay and observed that chrysoeriol exerted the highest inhibitory activity on tumor necrosis factor alpha (TNFα)-induced EGR-1 expression. We further characterized and demonstrated that chrysoeriol inhibits TNFα-induced CYP19 expression through inhibition of extracellular signal-regulated kinase 1/2 (ERK1/2)-mediated EGR-1 expression. Chrysoeriol may be beneficial as a dietary supplement for the prevention of estrogen receptor-positive breast cancer, or as a chemotherapeutic adjuvant in the treatment of this condition.

Graphical Abstract

1. Introduction

Breast cancer is the most common form of cancer diagnosed in women worldwide. Approximately 90% of all breast cancers are sensitive to female hormones, such as estrogen and progesterone, while two-thirds of postmenopausal breast cancers are estrogen-dependent [1]. Estrogen plays a pivotal role in the proliferation of breast epithelial cells. Abnormal local overproduction of estrogen in breast tissues is implicated in breast cancer pathogenesis.
Estrogen biosynthesis is regulated by aromatase, which is encoded by the cytochrome P450 19 gene (CYP19) located on chromosome 15q21.1. CYP19 aromatase, also known as estrogen synthetase or estrogen synthase, catalyzes the aromatization of androgen to estrogen in the endoplasmic reticulum [2]. There is a significant correlation between tumor incidence and aromatase activity in breast tissue [3], and aberrant aromatase expression is closely associated with breast cancer development [1], suggesting the etiological role of estrogen in breast cancer incidence. As the expression of the estrogen receptor (ER) is considerably high in breast tumors, targeting the ER or estrogen deprivation has been recognized as a potential strategy for the treatment or prevention of breast cancer. Indeed, inhibition of estrogen synthesis by aromatase inhibitors or ER antagonists prevents breast cancer development in postmenopausal women [4,5].
Several clinical studies have demonstrated that in the treatment of early to advanced ER-positive breast cancer, estrogen deprivation therapy targeting aromatase is more effective than tamoxifen (Nolvadex, AstraZeneca, Macclesfield, United Kingdom), which functions as a selective estrogen receptor modulator (SERM) [1,6,7,8]. However, over 20% of ER-positive breast cancer patients treated with aromatase inhibitors develop drug resistance [9].
While the underlying mechanisms responsible for the development of resistance to aromatase inhibitors remain elusive, several potential mechanisms have been suggested [10]. A recent study demonstrated that 21.5% of aromatase inhibitor-treated patients exhibited CYP19 amplification [11], suggesting that aromatase upregulation may be associated with drug resistance. Therefore, we hypothesized that the inhibition of aberrant aromatase expression is necessary for estrogen deprivation therapy in the treatment of ER-positive breast cancers, and that natural food ingredients that exert an inhibitory effect on aromatase expression may be beneficial for the chemoprevention of ER-positive breast cancers, or can serve as chemotherapeutic adjuvants in combination with aromatase inhibitors or ER antagonists.
Flavonoids are the most common polyphenolic compounds that are relatively abundant in the human diet, and generally exhibit multiple pharmacological effects, including antioxidant, anti-inflammation, and anti-cancer activities, such as prevention of breast cancer [12,13]. To date, over 5000 natural flavonoids have been characterized. Among them, some flavones (for example, apigenin and eriodictyol) and flavanones (for example, hesperidine and hesperetin) are known to inhibit aromatase activity [14,15,16,17,18]. However, there is limited information regarding the flavonoid compounds that inhibit CYP19 expression.
In premenopausal women, CYP19 aromatase levels are the highest in the ovarian granulosa cells, whereas in postmenopausal women, adipocytes are the primary site of aromatase expression [19]. In breast cancer cells, proinflammatory cytokines, such as tumor necrosis factor alpha (TNFα), upregulate CYP19 expression in breast cancer cells [20,21], suggesting the autocrine stimulation of estrogen in ER-positive breast cancer cells. TNFα is produced by adipocytes, tumor cells, and tumor-associated fibroblasts, and plays a critical role in the development of breast cancer, including cancer cell proliferation, invasion, metastasis, and angiogenesis [22].
In this study, we investigated the role of the transcription factor early growth response gene 1 (EGR-1) in the induction of CYP19 expression in response to TNFα stimulation in ER-positive MCF-7 breast cancer cells. Additionally, we observed that chrysoeriol (4′,5,7-trihydroxy-3′-methoxyflavone) potently reduces the accumulation of TNFα-induced aromatase through the inhibition of EGR-1-mediated CYP19 expression.

2. Results and Discussion

2.1. TNFα Induced CYP19 Expression

The tumor microenvironment plays a critical role in breast cancer development [23]. TNFα is a major inflammatory cytokine in the breast cancer microenvironment [22]. Previous studies have demonstrated that TNFα induces CYP19 aromatase expression in the breast adipose tissue [24,25].
We determined the effect of TNFα on CYP19 expression in MCF-7 cells. MCF-7 cells were treated with 10 ng/mL TNFα for various time periods. Conventional RT-PCR analysis revealed that CYP19 mRNA expression increased within 6 h after TNFα treatment, followed by a gradual decrease through 36 h, whereas the mRNA levels of glyceraldehyde 3-phosphate dehydrogenase (GAPDH) remained unaltered (Figure 1A). Quantitation of mRNA levels using quantitative real-time PCR analysis (qR-PCR) revealed that compared to the basal levels, CYP19 mRNA levels were significantly (all p < 0.001) increased 2.27 ± 0.153-, 3.33 ± 0.321-, 4.43 ± 0.306-, and 2.87 ± 0.252-fold upon TNFα treatment for 6, 12, 24, and 36 h, respectively (Figure 1B). We further confirmed the accumulation of CYP19 aromatase by immunoblot analysis. CYP19 aromatase proteins peaked within 24 h after treatment and remained elevated for at least 36 h (Figure 1C). These results confirmed that TNFα upregulates CYP19 aromatase expression at the transcript level in MCF-7 breast cancer cells.

2.2. TNFα Upregulated EGR-1 Expression in MCF-7 Breast Cancer Cells

The transcription factor EGR-1 is an immediate early response protein that is rapidly induced in response to diverse extracellular signals, such as growth factors, DNA damage, and inflammatory cytokines [26,27,28,29]. Previous studies have demonstrated that EGR-1 expression is upregulated in response to TNFα stimulation in several cell types [30,31,32,33]. Consistent with previous findings, we observed the increase in EGR1 mRNA expression upon TNFα stimulation in MCF7 cells, as revealed by RT-PCR (Figure 2A) and qR-PCR (Figure 2B). Concordant with mRNA levels, immunoblotting studies yielded similar results (Figure 2C). These results demonstrated that EGR-1 expression is upregulated in response to TNFα stimulation in MCF-7 breast cancer cells.
EGR-1 plays an essential role in tumor development in several cancer cells, including breast cancer [34,35,36,37]. The mitogenic chemokine growth-regulated oncogene (GROα), also known as the C-X-C motif ligand 1 (CXCL1) or melanoma growth stimulating activity alpha (MGSA-α), elicits mitogenic properties via EGR-1 induction [36]. In addition, EGR-1 enhances GROα and matrix metalloproteinase-9 (MMP-9) expression in response to TNFα stimulation in HeLa cells [38,39]. However, the role of TNFα-induced EGR-1 expression in CYP19 expression in breast cancer cells remains unknown.

2.3. Silencing of EGR-1 Abrogated TNFα-Induced CYP19 Expression

To investigate whether TNFα-induced EGR-1 expression is linked to CYP19 aromatase expression, we used MCF-7 variant cell lines expressing lentiviral short-hairpin RNA (shRNA) against EGR-1 (shEgr1) or the scrambled control (shCT). The stable knockdown of EGR-1 after TNFα stimulation was confirmed by immunoblot analysis (Figure 3A). RT-PCR analysis revealed that EGR-1 silencing abrogated TNFα-induced CYP19 mRNA expression (Figure 3B). Quantitation of mRNA using qR-PCR revealed that compared to the MCF7/shCT cells, basal CYP19 mRNA levels were significantly reduced to 0.600 ± 0.100-fold, while TNFα-induced CYP19 mRNA levels were significantly reduced from 3.97 ± 0.503-fold to 1.37 ± 0.153-fold in MCF7/shEgr1 cells (Figure 3C). Immunoblot analysis revealed that the level of CYP19 aromatase reduced significantly in MCF7/shEgr1 cells compared to that in MCF7/shCT cells (Figure 3D). These results suggest that EGR-1 plays a critical role in both basal and TNFα-induced CYP19 expression in MCF-7 cells.

2.4. Screening of Natural Flavone and Flavanone Compounds Inhibiting TNFα-Induced EGR-1 Expression

It has been reported that some flavons and flavanones differentially regulate CYP19 expression; hesperetin stimulates, while luteolin inhibits CYP19 aromatase expression [40]. To further identify novel bioactive compounds that inhibit CYP19 expression, we collected 39 commonly occurring natural flavonoids, including 26 flavones and 13 flavanones (Table S1), and tested their effects on TNFα-induced EGR1 promoter activity. MCF-7 cells were transfected with the EGR1 promoter-reporter plasmid p-668egrLuc(–668/+ 1), and the cells were pretreated with the compounds for 30 min before TNFα stimulation. After 18 h, the cells were harvested, and EGR1 promoter–reporter activity was measured. We observed that 3,7-dimethoxyflavone, chrysoeriol, geraldol, kaempferide, tricetin, galangin, quercetagetin, myricetin, naringin, and hesperidin inhibited TNFα-induced EGR1 promoter activity by more than 70%, whereas tectochrysin, 7,8-dimethoxyflavone, negletin, tricetin trimethylether, dimethylpinocembrin, and eriodictyol enhanced EGR1 promoter activity by more than 70% (Table S1). Among them, chrysoeriol (4′,5,7-trihydroxy-3′-methoxyflavone; CAS no. 491-71-4; Figure 4A) exhibited the strongest inhibitory activity (97.0 ± 2.20%). Chrysoeriol is present in lemon, Rooibos tea, pepper, and green vegetables such as celery, and exerts antioxidant, anti-inflammatory, and antitumor effects [41,42,43,44,45]. It has been reported that chrysoeriol inhibits CYP1B1 enzyme activity responsible for hydroxylation of 17β-estradiol in MCF-7 breast cancer cells [46]. However, it is unknown whether chrysoeriol modulates CYP19 expression. Therefore, we selected chrysoeriol and further characterized its mode of action with respect to inhibition of EGR-1-mediated CYP19 expression.

2.5. Chrysoeriol Inhibited TNFα-Induced EGR-1 Expression at the Transcript Level

Chrysoeriol did not affect cell viability (Figure 4B) and cell proliferation (Figure 4B) at concentrations below 20 μM in MCF-7 cells. At these concentrations, we performed a dose-dependent experiment to verify the effect of chrysoeriol on the inhibition of EGR1 promoter activity. Chrysoeriol significantly inhibited TNFα-induced EGR1 promoter activity in a dose-dependent manner (Figure 4D). To further evaluate the inhibitory effect of chrysoeriol on the EGR-1 expression, we measured EGR1 mRNA levels using qR-PCR. CYP19 mRNA levels increased by 2.90 ± 0.458-fold in response to TNFα stimulation, which was significantly reduced by 1.53 ± 0.306-, 1.13 ± 0.252-, and 0.500 ± 0.100-fold in the presence of 5, 10, and 20 μM chrysoeriol, respectively (Figure 4E). Moreover, chrysoeriol significantly prevented the TNFα-induced accumulation of EGR-1 protein in a dose-dependent manner (Figure 4F). At 10 μM, chrysoeriol inhibited 83.3% of TNFα-induced EGR-1 accumulation (from 4.66 ± 0.741-fold to 0.780 ± 0.106-fold). Therefore, the inhibitory effect of chrysoeriol on TNFα-induced EGR1 mRNA and protein expression follows a similar pattern, indicating that chrysoeriol prevents TNFα-induced EGR-1 expression at the transcript level in MCF-7 breast cancer cells.

2.6. Chrysoeriol Inhibited TNFα-Induced CYP19 Expression at the Transcript Level

We next determined whether inhibition of EGR-1 expression by chrysoeriol is functionally linked to the suppression of CYP19 expression. TNFα-induced CYP19 mRNA expression was reduced by chrysoeriol, as revealed by RT-PCR (Figure 5A) and qR-PCR (Figure 5B) analyses. Ten micromoles of chrysoeriol reduced TNFα-induced CYP19 mRNA expression by 64% (from 4.33 ± 0.681-fold to 1.37 ± 0.252-fold). Densitometric analysis of immunoblots revealed that chrysoeriol inhibited TNFα-induced CYP19 aromatase accumulation by approximately 86% (from 10.1 ± 1.95-fold to 1.39 ± 0.0808-fold) (Figure 5C). Immunofluorescence revealed that cells stained with anti-CYP19 aromatase antibody were abundant after TNFα stimulation; however, their numbers reduced substantially in the presence of chrysoeriol (Figure 5D). These results suggest that chrysoeriol reduces TNFα-induced accumulation of CYP19 aromatase expression via suppression of EGR-1 transcriptional ability in MCF-7 cells.

2.7. ERK1/2 MAPK Pathway Mediated TNFα-Induced EGR-1 Expression in MCF-7 Cells

EGR-1 expression is regulated by mitogen-activated protein kinase (MAPK) pathways, including extracellular signal-regulated kinase 1/2 (ERK1/2; MAPK3/MAPK1), c-Jun N-terminal kinase 1/2 (JNK1/2; MAPK8/9), and p38 kinase (MAPK14), in MCF7 breast cancer cells [47]. We confirmed the effect of MAPK pathways on TNFα-induced EGR-1 expression in MCF-7 cells. Serum-starved MCF-7 cells were treated with TNFα, and MAPK activation was determined using phospho-specific antibodies. We observed that TNFα stimulated the phosphorylation of all three MAPKs—ERK1/2 on Thr-201/Tyr-204, JNK1/2 on Thr-183/Tyr-185, and p38 kinase on Thr-180/Tyr-182—within 10 min, compared to the unstimulated basal levels (Figure 6A). Chemical inhibitors were used to assess the potential involvement of MAPK signaling in TNFα-induced EGR-1 expression. Pretreatment of MCF-7 cells with the MAPK/ERK kinase 1/2 (MEK1/2; MAP2K2) inhibitor U0126 reduced the levels of TNFα-induced EGR-1 proteins, whereas the p38 kinase inhibitor SB203580 and the JNK inhibitor SP600125 did not reduce the accumulation of TNFα-induced EGR-1 protein (Figure 6B). Likewise, RT-PCR (Figure 6C) and qR-PCR (Figure 6D) yielded results that were comparable to those from immunoblot analysis. Therefore, ERK1/2 MAPK may play a critical role in TNFα-induced EGR-1 expression in MCF-7 cells.

2.8. Chrysoeriol Inhibited the ERK1/2 MAPK Pathway to Block TNFα-Induced CYP19 Expression in MCF-7 Cells

We next determined the effect of MAPK inhibition on TNFα-induced CYP19 mRNA expression. Pretreatment with U0126 inhibited the ability of TNFα to induce CYP19 mRNA expression, as revealed by RT-PCR (Figure 7A) and qR-PCR (Figure 7B). Notably, SB203580 and SP600125 significantly inhibited TNFα-induced CYP19 mRNA expression as well. These data suggest that all three MAPK pathways are involved in TNFα-induced CYP19 mRNA expression. It seems likely that ERK1/2 mediates EGR-1-dependent CYP19 expression, whereas JNK1/2 and p38 kinase induce CYP19 expression independent of EGR-1.
It has been demonstrated that prostaglandin E2 stimulates all three MAPKs (ERK, JNK, and p38 kinase); however, JNK and p38 kinase, though not ERK, are necessary for CYP19 aromatase expression in adipocyte fibroblasts [48]. In contrast, follicle-stimulating hormone-induced CYP19 aromatase expression is mediated by the phosphatidylinositol 3-kinase signaling pathway, whereas the ERK MAPK pathway inhibits estrogen production in testis Sertoli cells [49]. As CYP19 transcription is controlled in a tissue-specific manner [50], it seems likely that ERK, JNK, and p38 MAPKs might contribute to tissue-specific regulation of CYP19 transcription.
Finally, we sought to address the involvement of the MAPK pathways in chrysoeriol-induced suppression of CYP19 expression. Pretreatment with chrysoeriol significantly abrogated TNFα-induced ERK1/2 phosphorylation in a dose-dependent manner, while the same was not applicable to JNK1/2 and p38 kinase (Figure 7C). These data suggest that chrysoeriol inhibits TNFα-induced CYP19 expression via selective inhibition of ERK1/2-mediated EGR-1 expression.

3. Materials and Methods

3.1. Materials

Natural flavonoid compounds were procured from Indofine Chemical Co. Inc. (Hillsborough, NJ, USA). Human recombinant TNFα, MAP kinase inhibitors (U0126, SB203580, and SP600125), and Hoechst33258 were obtained from Sigma-Aldrich (Saint Louis, MO, USA). The Luciferase Assay System was procured from Promega (Madison, WI, USA). Antibodies against GAPDH (cat. no. sc-32233; dilution 1:1000), JNK1 (cat. no. sc-571; dilution 1:1000), ERK2 (cat. no. sc-154; dilution 1:1000), and EGR-1 (dilution 1:1000; cat. no. sc-189) were purchased from Santa Cruz Biotechnology (Santa Cruz, CA, USA). Anti-phospho-ERK1/2 (Thr202/Tyr204, cat. no. #9101; dilution 1:500), -phospho-p38 (Thr180/Tyr182, cat. no. #9211; dilution 1:500), -p38 (cat. no. 9212; dilution 1:1000), and -phospho-JNK1/2 (Thr183/Tyr185, cat. no. #9251; dilution 1:500) antibodies were from Cell Signaling Technology (Danvers, MA, USA). Anti-CYP19 aromatase antibody (cat. no. MCA2077S; dilution 1:500) was purchased from Bio-Rad (Hercules, CA, USA), and anti-α/β tubulin antibody (cat. no. MA1-19400; dilution 1:200) was from ThermoFisher Scientific (Waltham, MA, USA). In terms of secondary antibodies, horse radish-conjugated anti-rabbit (cat. no. #7074; dilution 1:3000) and -mouse (cat. no. #7076; dilution 1:3000) antibodies were from Cell Signaling Technology, and Alexa Fluor 488- conjugated anti-rabbit (cat. no. A-11094; dilution 1:300) and Alexa Fluor 555-conjugated anti-mouse (cat. no. A-21422; dilution 1:300) antibodies were obtained from Invitrogen (Carlsbad, CA, USA).

3.2. Cell Culture

Human MCF-7 breast cancer cells were procured from the American Type Culture Collection (Manassas, VA, USA). Cells were maintained in Dulbecco’s modified Eagle’s medium/Nutrient Mixture F-12 (ThermoFisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum (Hyclone, Logan, UT, USA) and penicillin–streptomycin (Sigma-Aldrich). MCF-7 cells expressing scrambled control shRNA (shCT) or EGR-1 shRNA (shEgr1) were used as described in a previous report [51].

3.3. Reverse Transcription PCR (RT-PCR)

MCF-7 cells were treated with TNFα or chrysoeriol, and total RNA was extracted using a TRIzol RNA extraction kit (Invitrogen, Carlsbad, CA, USA). One microgram of RNA was reverse-transcribed into complementary DNA (cDNA) using an iScript cDNA synthesis kit (Bio-Rad, Hercules, CA, USA). RT-PCR was performed using the reverse transcriptase enzyme according to the manufacturer’s instructions (Promega). The gene-specific PCR primers used were as follows:
  • EGR1 forward primer, 5′-CAG CAG TCC CAT TTA CTC AG-3′;
  • EGR1 reverse primer, 5′-GAC TGG TAG CTG GTA TTG-3′;
  • CYP19 forward primer, 5′-CAC ACC AGA GAA CCA GGC TAC AAG-3′;
  • CYP19 reverse primer, 5′-TGA ATG TTG CTT TTC CAC CTC C-3′;
  • glyceraldehyde-3-phosphate dehydrogenase (GAPDH) forward primer, 5′-CCA AGG AGT AAG AAA CCC TGG AC-3′;
  • GAPDH reverse primer, 5′-GGG CCG AGT TGG GAT AGG G-3′.
PCR conditions were as follows: hold for 5 min at 94 °C, followed by 30 cycles consisting of denaturation at 94 °C (30 s), annealing at 55 °C (30 s), and elongation at 72 °C (1 min). The amplified products were electrophoresed on a 2% agarose gel using ethidium bromide and were detected under UV light.

3.4. Quantitative Real-Time PCR (qR-PCR)

Quantitation of mRNA levels was conducted using the quantitative real-time PCR (qR-PCR) approach using an iCycler iQ system with an iQ SYBR Green Supermix kit (Bio-Rad, Hercules, CA, USA) according to the manufacturer’s recommendations. Validated commercial qR-PCR primers and SYBR Green-based fluorescent probes specific for CYP19 mRNA (id: qHsaCIP0026454) and GAPDH mRNA (id: qHsaCEP0041396) were obtained from Bio-Rad. PCR conditions were as follows: denaturation at 95 °C for 2 min, followed by 40 cycles using a step program (95 °C for 10 s and 60 °C for 45 s). The relative expression levels of CYP19 mRNA were normalized to those of GAPDH using the software provided by the manufacturer.

3.5. Immunoblotting

Cells were lysed in a buffer consisting of 20 mM Hydroxyethyl piperazine Ethane Sulfonicacid (HEPES, pH 7.2), 1% Triton X-100, 10% glycerol, 150 mM NaCl, 10 μg/mL leupeptin, and 1 mM phenylmethylsulfonyl fluoride. The protein extracts were separated by 10% SDS-PAGE and transferred to nitrocellulose membranes (Bio-Rad). The blots were incubated with the appropriate primary and secondary antibodies and developed using an Amersham ECL Western Blotting Detection Kit (GE Healthcare Life Science, Chicago, IL, USA).

3.6. EGR1 Promoter Reporter Assay

The MCF-7 cells seeded onto 12-well plates were transfected with 0.1 µg of the EGR1 promoter construct p-668egrLuc(–668/+ 1) [52] using Lipofectamine 2000 reagent (Invitrogen) according to the manufacturer’s instructions. To monitor the transfection efficiency, we included a pRL®-null plasmid (50 ng) encoding Renilla luciferase in all transfections. At 48 h post-transfection, the levels of firefly luciferase and Renilla luciferase activities were measured sequentially from the same sample using the Dual-Glo Luciferase Assay System (Promega), as described previously [38]. The relative luciferase activity in the untreated cells was designated 1. The luminescent signal was detected and measured using a dual luminometer Centro LB960 (Berthold Tech, Bad Wildbad, Germany). For the screening of flavonoid compounds inhibiting TNFα-induced EGR1 promoter activity, we calculated the inhibitory activity by the following formula:
Inhibitory   activity   ( % )   =   [ 1 P F p b P T P b ] × 100
where PF = flavonoid-induced EGR1 promoter activity, Pb = unstimulated basal EGR1 promoter activity, and PT = TNFα-induced EGR1 promoter activity.

3.7. Immunofluorescence

MCF-7 cells cultured on coverslips were either treated with phosphate-buffered saline (PBS) or 10 ng/mL TNFα in the presence or absence of chrysoeriol for 24 h, followed by fixation, permeabilization, and incubation with primary antibodies. Samples were probed with primary antibodies against α/β-tubulin and CYP19 aromatase for 2 h, followed by probing with Alexa Fluor 555- (for α/β-tubulin; red signal) and Alexa Fluor 488-conjugated (for CYP19; green signal) secondary antibodies for an additional 30 min. Nuclear DNAs were stained with Hoechst 33258 for 10 min (blue signal). Fluorescent cells were examined under an EVOS FL fluorescence microscope (Advanced Microscopy Group; Bothell, WA, USA).

3.8. Statistical Analysis

The data are plotted as means with SD. Statistical comparisons were performed using a one-way ANOVA followed by Dunnett’s or Sidak’s multiple comparisons test with the GraphPad Prism V8.3.1 software (GraphPad Software, San Diego, CA, USA). A p-value < 0.05 was considered statistically significant.

4. Conclusions

CYP19 aromatase overexpression is associated with malignant phenotypes in the human breast [1]. However, aberrant expression of CYP19 aromatase is not regulated by the proliferation of tumor cells or clinical course; instead, it occurs as a result of interaction between tumor cells and stromal cells [53,54]. Accordingly, we observed that untreated MCF-7 cells expressed low levels of CYP19 aromatase, while TNFα stimulation resulted in an increase in CYP19 mRNA levels. Additionally, we observed that pretreatment with chrysoeriol prior to TNFα treatment substantially prevented TNFα-induced CYP19 expression via the downregulation of ERK MAPK-mediated EGR-1 expression. TNFα is the major inflammatory cytokine produced by adipose tissues, tumor-associated fibroblasts, and various inflammatory cells infiltrating the tumor tissues [22]. It is well established that localized TNFα in the tumor microenvironment promotes inflammation-associated tumors in most solid tumors, including breast cancer [55,56]. Additionally, estrogen induces EGR-1 expression in MCF-7 cells [57]. This gives rise to the possibility that EGR-1-dependent signaling loop and the TNFα-EGR-1–CYP19–estrogen-EGR-1 axis could result in persistent activation of estrogen production, thereby facilitating the development of ER-positive breast cancer in the tumor microenvironment. Besides CYP19 aromatase, EGR-1 enhances paclitaxel-induced multi-drug resistance by upregulation of P-glycoprotein, an ATP-dependent efflux pump [58], and mediates TNFα-induced GROα and MMP-9 expression [38,39]. Furthermore, inhibition of EGR-1 by DNAzyme inhibits fibroblast growth factor-dependent angiogenesis in breast cancer [37]. Therefore, suppression of EGR-1 and CYP19 aromatase expression by dietary chrysoeriol in the breast tumor microenvironment may be beneficial as a preventive agent or as a chemotherapeutic adjuvant against estrogen receptor-positive breast cancer.
Chrysoeriol is present in several foods and vegetables [41,42,43,44,45]. Many dietary phenolics are generally poorly bioavailable, limiting their distribution in systemic tissues of their native form, mainly as glycosides and complex oligomeric structures [59]. In general, methylation protects the flavonoids from widespread conjugation, and methylated flavonoids have improved intestinal absorption and metabolic stability compared to unmethylated forms [60]. Chrysoeriol contains a methoxy group attached to the C3’ atom of the flavonoid backbone. The pharmacokinetics profile of circulating chrysoeriol is not fully characterized yet. However, the oral bioavailability and tissue distribution of chrysoeriol could be indirectly predicted through the study of luteolin (3′,4′,5,7-tetrahydroxyflavone). Luteolin is a common catechol-type flavonoid present in many types of edible plants and medicinal herbs [61], possessing a wide range of biological effects, including anti-inflammatory and anti-cancer activities [62]. However, luteolin is hardly detected and is mainly present in the metabolites of glucuronides and methylated forms in vivo [63]. Glucuronidation by uridine 5′-diphospho-glucuronosyltransferases (UGTs) and methylation by catechol-O-methyltransferases (COMTs) are two main metabolic pathways of luteolin in animals and humans [64,65]. Chrysoeriol is generated by the methoxylation of luteolin at the C3’ atom (luteolin-3′-methoxy ether) by catechol-O-methyltransferase (COMT) [66]. Chrysoeriol has been detected in rat plasma samples after oral administration of luteolin [63] and is broadly distributed to the lungs, kidney, spleen, muscle, and heart, but found to be undetectable in the brain, within 1 h after oral administration [67], suggesting that circulating chrysoeriol can reach various target tissues. The anti-breast cancer efficacy of chrysoeriol in vivo is closely related to its concentration in breast cancer tissues. The distribution of chrysoeriol in the breast tissue has not been well characterized. As the distribution of phenolic metabolites in breast tissue is similar to that observed in plasma [59] and the fact that chrysoeriol exerts chemopreventive cancer effects in mouse mammary organ culture [68], we suggest that circulating chrysoeriol could reach primary breast cancer tissues and exert anti-cancer effects. To provide evidence-based potential of chrysoeriol as a functional food or nutrition supplement in the prevention or treatment of breast cancer, further physiologically relevant in vivo studies, including bioavailability, metabolism, and tissue distribution of dietary chrysoeriol and its derived metabolites, are necessary [59].
In conclusion, the present study demonstrates that chrysoeriol reduces TNFα-induced upregulation of CYP19 aromatase expression via inhibition of ERK MAPK-mediated EGR-1 expression in MCF-7 breast cancer cells. Chrysoeriol might serve as a beneficial supplement or adjuvant for the prevention or treatment of estrogen receptor-positive breast cancer with the potential to inhibit local estrogen production in the tumor microenvironment in breast cancer.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/20/7523/s1, Table S1: Inhibitory effects of flavonoids on TNFα-induced EGR1 promoter activity.

Author Contributions

Y.H.L., Y.L., and S.Y.S. conceived and designed the experiments; D.Y.M., E.J., and S.S.A. carried out molecular and cellular experiments and analyzed the data; Y.L., Y.H.L., and S.Y.S. wrote the manuscript; S.Y.S. supervised the project. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Research Foundation of Korea (NRF), funded by the Korean government (MSIT) under grant number NRF-2019R1A2C1002677 and by the Konkuk University Researcher Fund in 2019.

Acknowledgments

The paper was supported by the KU Research Professor Program of Konkuk University.

Conflicts of Interest

The authors declare that there is no conflict of interest.

Abbreviations

CYP19Cytochrome P450 19 gene
EGR-1Early growth respone-1
EREstrogen receptor
ERKExtracellular signal-regulated kinase
GAPDHGlyceraldehyde 3-phosphate dehydrogenase
JNKc-Jun N-terminal kinase
MAPKMitogen-activated protein kinase
qR-PCRQuantitative real-time polymerase chain reaction
RT-PCRReverse-transcription polymerase chain reaction
TNFαTumor necrosis factor alpha

References

  1. Johnston, S.R.; Dowsett, M. Aromatase inhibitors for breast cancer: Lessons from the laboratory. Nat. Rev. Cancer 2003, 3, 821–831. [Google Scholar] [CrossRef] [PubMed]
  2. Simpson, E.R.; Clyne, C.; Rubin, G.; Boon, W.C.; Robertson, K.; Britt, K.; Speed, C.; Jones, M. Aromatase—A brief overview. Annu. Rev. Physiol. 2002, 64, 93–127. [Google Scholar] [CrossRef] [PubMed]
  3. Miller, W.R.; O’Neill, J. The importance of local synthesis of estrogen within the breast. Steroids 1987, 50, 537–548. [Google Scholar] [CrossRef]
  4. Howell, A.; Cuzick, J.; Baum, M.; Buzdar, A.; Dowsett, M.; Forbes, J.F.; Hoctin-Boes, G.; Houghton, J.; Locker, G.Y.; Tobias, J.S.; et al. Results of the ATAC (Arimidex, Tamoxifen, Alone or in Combination) trial after completion of 5 years’ adjuvant treatment for breast cancer. Lancet 2005, 365, 60–62. [Google Scholar] [PubMed]
  5. Breast International Group (BIG) 1-98 Collaborative Group; Thurlimann, B.; Keshaviah, A.; Coates, A.S.; Mouridsen, H.; Mauriac, L.; Forbes, J.F.; Paridaens, R.; Castiglione-Gertsch, M.; Gelber, R.D.; et al. A comparison of letrozole and tamoxifen in postmenopausal women with early breast cancer. N. Engl. J. Med. 2005, 353, 2747–2757. [Google Scholar]
  6. Bonneterre, J.; Buzdar, A.; Nabholtz, J.M.; Robertson, J.F.; Thurlimann, B.; von Euler, M.; Sahmoud, T.; Webster, A.; Steinberg, M.; Arimidex Writing, C.; et al. Anastrozole is superior to tamoxifen as first-line therapy in hormone receptor positive advanced breast carcinoma. Cancer 2001, 92, 2247–2258. [Google Scholar] [CrossRef]
  7. Baum, M.; Budzar, A.U.; Cuzick, J.; Forbes, J.; Houghton, J.H.; Klijn, J.G.; Sahmoud, T.; Group, A.T. Anastrozole alone or in combination with tamoxifen versus tamoxifen alone for adjuvant treatment of postmenopausal women with early breast cancer: First results of the ATAC randomised trial. Lancet 2002, 359, 2131–2139. [Google Scholar]
  8. Smith, I.E.; Dowsett, M. Aromatase inhibitors in breast cancer. N. Engl. J. Med. 2003, 348, 2431–2442. [Google Scholar] [CrossRef] [Green Version]
  9. Ma, C.X.; Reinert, T.; Chmielewska, I.; Ellis, M.J. Mechanisms of aromatase inhibitor resistance. Nat. Rev. Cancer 2015, 15, 261–275. [Google Scholar] [CrossRef]
  10. Miller, W.R.; Larionov, A.A. Understanding the mechanisms of aromatase inhibitor resistance. Breast Cancer Res. 2012, 14, 201. [Google Scholar] [CrossRef] [Green Version]
  11. Magnani, L.; Frige, G.; Gadaleta, R.M.; Corleone, G.; Fabris, S.; Kempe, M.H.; Verschure, P.J.; Barozzi, I.; Vircillo, V.; Hong, S.P.; et al. Acquired CYP19A1 amplification is an early specific mechanism of aromatase inhibitor resistance in ERalpha metastatic breast cancer. Nat. Genet. 2017, 49, 444–450. [Google Scholar] [CrossRef] [PubMed]
  12. Chiou, Y.S.; Li, S.; Ho, C.T.; Pan, M.H. Prevention of Breast Cancer by Natural Phytochemicals: Focusing on Molecular Targets and Combinational Strategy. Mol. Nutr. Food Res. 2018, 62, e1800392. [Google Scholar] [CrossRef] [PubMed]
  13. Maleki, S.J.; Crespo, J.F.; Cabanillas, B. Anti-inflammatory effects of flavonoids. Food Chem. 2019, 299, 125124. [Google Scholar] [CrossRef] [PubMed]
  14. Kellis, J.T., Jr.; Vickery, L.E. Inhibition of human estrogen synthetase (aromatase) by flavones. Science 1984, 225, 1032–1034. [Google Scholar] [CrossRef]
  15. Kao, Y.C.; Zhou, C.; Sherman, M.; Laughton, C.A.; Chen, S. Molecular basis of the inhibition of human aromatase (estrogen synthetase) by flavone and isoflavone phytoestrogens: A site-directed mutagenesis study. Environ. Health Perspect. 1998, 106, 85–92. [Google Scholar] [CrossRef]
  16. Pouget, C.; Fagnere, C.; Basly, J.P.; Besson, A.E.; Champavier, Y.; Habrioux, G.; Chulia, A.J. Synthesis and aromatase inhibitory activity of flavanones. Pharm. Res. 2002, 19, 286–291. [Google Scholar] [CrossRef]
  17. Wang, Y.; Pan, P.; Li, X.; Zhu, Q.; Huang, T.; Ge, R.S. Food components and environmental chemicals of inhibiting human placental aromatase. Food Chem. Toxicol. 2019, 128, 46–53. [Google Scholar] [CrossRef]
  18. Ye, L.; Chan, F.L.; Chen, S.; Leung, L.K. The citrus flavonone hesperetin inhibits growth of aromatase-expressing MCF-7 tumor in ovariectomized athymic mice. J. Nutr. Biochem. 2012, 23, 1230–1237. [Google Scholar] [CrossRef]
  19. Grodin, J.M.; Siiteri, P.K.; MacDonald, P.C. Source of estrogen production in postmenopausal women. J. Clin. Endocrinol. Metab. 1973, 36, 207–214. [Google Scholar] [CrossRef]
  20. Irahara, N.; Miyoshi, Y.; Taguchi, T.; Tamaki, Y.; Noguchi, S. Quantitative analysis of aromatase mRNA expression derived from various promoters (I.4, I.3, PII and I.7) and its association with expression of TNF-alpha, IL-6 and COX-2 mRNAs in human breast cancer. Int. J. Cancer 2006, 118, 1915–1921. [Google Scholar] [CrossRef]
  21. Sonne-Hansen, K.; Lykkesfeldt, A.E. Endogenous aromatization of testosterone results in growth stimulation of the human MCF-7 breast cancer cell line. J. Steroid Biochem. Mol. Biol. 2005, 93, 25–34. [Google Scholar] [CrossRef] [PubMed]
  22. Balkwill, F. Tumour necrosis factor and cancer. Nat. Rev. Cancer 2009, 9, 361–371. [Google Scholar] [CrossRef] [PubMed]
  23. Ham, M.; Moon, A. Inflammatory and microenvironmental factors involved in breast cancer progression. Arch. Pharm. Res. 2013, 36, 1419–1431. [Google Scholar] [CrossRef] [PubMed]
  24. To, S.Q.; Simpson, E.R.; Knower, K.C.; Clyne, C.D. Involvement of early growth response factors in TNFalpha-induced aromatase expression in breast adipose. Breast Cancer Res. Treat. 2013, 138, 193–203. [Google Scholar] [CrossRef]
  25. Zhao, Y.; Nichols, J.E.; Valdez, R.; Mendelson, C.R.; Simpson, E.R. Tumor necrosis factor-alpha stimulates aromatase gene expression in human adipose stromal cells through use of an activating protein-1 binding site upstream of promoter 1.4. Mol. Endocrinol. 1996, 10, 1350–1357. [Google Scholar]
  26. Milbrandt, J. A nerve growth factor-induced gene encodes a possible transcriptional regulatory factor. Science 1987, 238, 797–799. [Google Scholar] [CrossRef]
  27. Silverman, E.S.; Collins, T. Pathways of Egr-1-mediated gene transcription in vascular biology. Am. J. Pathol. 1999, 154, 665–670. [Google Scholar] [CrossRef] [Green Version]
  28. Sukhatme, V.P.; Cao, X.M.; Chang, L.C.; Tsai-Morris, C.H.; Stamenkovich, D.; Ferreira, P.C.; Cohen, D.R.; Edwards, S.A.; Shows, T.B.; Curran, T.; et al. A zinc finger-encoding gene coregulated with c-fos during growth and differentiation, and after cellular depolarization. Cell 1988, 53, 37–43. [Google Scholar] [CrossRef]
  29. Liu, C.; Rangnekar, V.M.; Adamson, E.; Mercola, D. Suppression of growth and transformation and induction of apoptosis by EGR-1. Cancer Gene Ther. 1998, 5, 3–28. [Google Scholar]
  30. Son, S.W.; Min, B.W.; Lim, Y.; Lee, Y.H.; Shin, S.Y. Regulatory mechanism of TNFalpha autoregulation in HaCaT cells: The role of the transcription factor EGR-1. Biochem. Biophys. Res. Commun. 2008, 374, 777–782. [Google Scholar] [CrossRef]
  31. Cao, X.M.; Guy, G.R.; Sukhatme, V.P.; Tan, Y.H. Regulation of the Egr-1 gene by tumor necrosis factor and interferons in primary human fibroblasts. J. Biol. Chem. 1992, 267, 1345–1349. [Google Scholar] [PubMed]
  32. Grimbacher, B.; Aicher, W.K.; Peter, H.H.; Eibel, H. TNF-alpha induces the transcription factor Egr-1, pro-inflammatory cytokines and cell proliferation in human skin fibroblasts and synovial lining cells. Rheumatol. Int. 1998, 17, 185–192. [Google Scholar] [CrossRef] [PubMed]
  33. Chaudhary, L.R.; Cheng, S.L.; Avioli, L.V. Induction of early growth response-1 gene by interleukin-1 beta and tumor necrosis factor-alpha in normal human bone marrow stromal an osteoblastic cells: Regulation by a protein kinase C inhibitor. Mol. Cell. Biochem. 1996, 156, 69–77. [Google Scholar] [CrossRef] [PubMed]
  34. Virolle, T.; Krones-Herzig, A.; Baron, V.; De Gregorio, G.; Adamson, E.D.; Mercola, D. Egr1 promotes growth and survival of prostate cancer cells. Identification of novel Egr1 target genes. J. Biol. Chem. 2003, 278, 11802–11810. [Google Scholar] [CrossRef] [Green Version]
  35. Baron, V.; Duss, S.; Rhim, J.; Mercola, D. Antisense to the early growth response-1 gene (Egr-1) inhibits prostate tumor development in TRAMP mice. Ann. N. Y. Acad. Sci. 2003, 1002, 197–216. [Google Scholar] [CrossRef]
  36. Wang, B.; Khachigian, L.M.; Esau, L.; Birrer, M.J.; Zhao, X.; Parker, M.I.; Hendricks, D.T. A key role for early growth response-1 and nuclear factor-kappaB in mediating and maintaining GRO/CXCR2 proliferative signaling in esophageal cancer. Mol. Cancer Res. 2009, 7, 755–764. [Google Scholar] [CrossRef] [Green Version]
  37. Fahmy, R.G.; Dass, C.R.; Sun, L.Q.; Chesterman, C.N.; Khachigian, L.M. Transcription factor Egr-1 supports FGF-dependent angiogenesis during neovascularization and tumor growth. Nat. Med. 2003, 9, 1026–1032. [Google Scholar] [CrossRef]
  38. Shin, S.Y.; Kim, J.H.; Baker, A.; Lim, Y.; Lee, Y.H. Transcription factor Egr-1 is essential for maximal matrix metalloproteinase-9 transcription by tumor necrosis factor alpha. Mol. Cancer Res. 2010, 8, 507–519. [Google Scholar] [CrossRef] [Green Version]
  39. Shin, S.Y.; Lee, J.M.; Lim, Y.; Lee, Y.H. Transcriptional regulation of the growth-regulated oncogene alpha gene by early growth response protein-1 in response to tumor necrosis factor alpha stimulation. Biochim. Biophys. Acta 2013, 1829, 1066–1074. [Google Scholar] [CrossRef]
  40. Li, F.; Ye, L.; Lin, S.M.; Leung, L.K. Dietary flavones and flavonones display differential effects on aromatase (CYP19) transcription in the breast cancer cells MCF-7. Mol. Cell. Endocrinol. 2011, 344, 51–58. [Google Scholar] [CrossRef]
  41. Di Gioia, F.; Tzortzakis, N.; Rouphael, Y.; Kyriacou, M.C.; Sampaio, S.L.; Ferreira, I.; Petropoulos, S.A. Grown to be Blue-Antioxidant Properties and Health Effects of Colored Vegetables. Part II: Leafy, Fruit, and Other Vegetables. Antioxidants (Basel) 2020, 9, 97. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Klimek-Szczykutowicz, M.; Szopa, A.; Ekiert, H. Citrus limon (Lemon) Phenomenon-A Review of the Chemistry, Pharmacological Properties, Applications in the Modern Pharmaceutical, Food, and Cosmetics Industries, and Biotechnological Studies. Plants (Basel) 2020, 9, 119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Khan, A.U.; Gilani, A.H. Selective bronchodilatory effect of Rooibos tea (Aspalathus linearis) and its flavonoid, chrysoeriol. Eur. J. Nutr. 2006, 45, 463–469. [Google Scholar] [CrossRef] [PubMed]
  44. Wu, J.Y.; Chen, Y.J.; Bai, L.; Liu, Y.X.; Fu, X.Q.; Zhu, P.L.; Li, J.K.; Chou, J.Y.; Yin, C.L.; Wang, Y.P.; et al. Chrysoeriol ameliorates TPA-induced acute skin inflammation in mice and inhibits NF-kappaB and STAT3 pathways. Phytomedicine 2020, 68, 153173. [Google Scholar] [CrossRef]
  45. Lin, L.Z.; Lu, S.; Harnly, J.M. Detection and quantification of glycosylated flavonoid malonates in celery, Chinese celery, and celery seed by LC-DAD-ESI/MS. J. Agric. Food Chem. 2007, 55, 1321–1326. [Google Scholar] [CrossRef] [Green Version]
  46. Takemura, H.; Uchiyama, H.; Ohura, T.; Sakakibara, H.; Kuruto, R.; Amagai, T.; Shimoi, K. A methoxyflavonoid, chrysoeriol, selectively inhibits the formation of a carcinogenic estrogen metabolite in MCF-7 breast cancer cells. J. Steroid Biochem. Mol. Biol. 2010, 118, 70–76. [Google Scholar] [CrossRef]
  47. Chen, C.C.; Lee, W.R.; Safe, S. Egr-1 is activated by 17beta-estradiol in MCF-7 cells by mitogen-activated protein kinase-dependent phosphorylation of ELK-1. J. Cell Biochem. 2004, 93, 1063–1074. [Google Scholar] [CrossRef]
  48. Chen, D.; Reierstad, S.; Lin, Z.; Lu, M.; Brooks, C.; Li, N.; Innes, J.; Bulun, S.E. Prostaglandin E(2) induces breast cancer related aromatase promoters via activation of p38 and c-Jun NH(2)-terminal kinase in adipose fibroblasts. Cancer Res. 2007, 67, 8914–8922. [Google Scholar] [CrossRef] [Green Version]
  49. McDonald, C.A.; Millena, A.C.; Reddy, S.; Finlay, S.; Vizcarra, J.; Khan, S.A.; Davis, J.S. Follicle-stimulating hormone-induced aromatase in immature rat Sertoli cells requires an active phosphatidylinositol 3-kinase pathway and is inhibited via the mitogen-activated protein kinase signaling pathway. Mol. Endocrinol. 2006, 20, 608–618. [Google Scholar] [CrossRef] [Green Version]
  50. Bulun, S.E.; Takayama, K.; Suzuki, T.; Sasano, H.; Yilmaz, B.; Sebastian, S. Organization of the human aromatase p450 (CYP19) gene. Semin. Reprod. Med. 2004, 22, 5–9. [Google Scholar]
  51. Kim, J.; Jung, E.; Choi, J.; Min, D.Y.; Lee, Y.H.; Shin, S.Y. Leptin is a direct transcriptional target of EGR1 in human breast cancer cells. Mol. Biol. Rep. 2019, 46, 317–324. [Google Scholar] [CrossRef] [PubMed]
  52. Shin, S.Y.; Kim, S.Y.; Kim, J.H.; Min, D.S.; Ko, J.; Kang, U.G.; Kim, Y.S.; Kwon, T.K.; Han, M.Y.; Kim, Y.H.; et al. Induction of early growth response-1 gene expression by calmodulin antagonist trifluoperazine through the activation of Elk-1 in human fibrosarcoma HT1080 cells. J. Biol. Chem. 2001, 276, 7797–7805. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Sasano, H.; Ozaki, M. Aromatase expression and its localization in human breast cancer. J. Steroid Biochem. Mol. Biol. 1997, 61, 293–298. [Google Scholar] [CrossRef]
  54. Miki, Y.; Suzuki, T.; Tazawa, C.; Yamaguchi, Y.; Kitada, K.; Honma, S.; Moriya, T.; Hirakawa, H.; Evans, D.B.; Hayashi, S.; et al. Aromatase localization in human breast cancer tissues: Possible interactions between intratumoral stromal and parenchymal cells. Cancer Res. 2007, 67, 3945–3954. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Balkwill, F. TNF-alpha in promotion and progression of cancer. Cancer Metastasis Rev. 2006, 25, 409–416. [Google Scholar] [CrossRef]
  56. Sethi, G.; Sung, B.; Aggarwal, B.B. TNF: A master switch for inflammation to cancer. Front. Biosci. 2008, 13, 5094–5107. [Google Scholar] [CrossRef] [Green Version]
  57. Pratt, M.A.; Satkunaratnam, A.; Novosad, D.M. Estrogen activates raf-1 kinase and induces expression of Egr-1 in MCF-7 breast cancer cells. Mol. Cell. Biochem. 1998, 189, 119–125. [Google Scholar] [CrossRef]
  58. Tao, W.; Shi, J.F.; Zhang, Q.; Xue, B.; Sun, Y.J.; Li, C.J. Egr-1 enhances drug resistance of breast cancer by modulating MDR1 expression in a GGPPS-independent manner. Biomed. Pharm. 2013, 67, 197–202. [Google Scholar] [CrossRef]
  59. Avila-Galvez, M.A.; Gimenez-Bastida, J.A.; Espin, J.C.; Gonzalez-Sarrias, A. Dietary Phenolics against Breast Cancer. A Critical Evidence-Based Review and Future Perspectives. Int. J. Mol. Sci. 2020, 21, 5718. [Google Scholar] [CrossRef]
  60. Wen, X.; Walle, T. Methylated flavonoids have greatly improved intestinal absorption and metabolic stability. Drug Metab. Dispos. 2006, 34, 1786–1792. [Google Scholar] [CrossRef] [Green Version]
  61. Lopez-Lazaro, M. Distribution and biological activities of the flavonoid luteolin. Mini Rev. Med. Chem. 2009, 9, 31–59. [Google Scholar] [CrossRef] [PubMed]
  62. Lin, Y.; Shi, R.; Wang, X.; Shen, H.M. Luteolin, a flavonoid with potential for cancer prevention and therapy. Curr. Cancer Drug Targets 2008, 8, 634–646. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, L.; Chen, Q.; Zhu, L.; Li, Q.; Zeng, X.; Lu, L.; Hu, M.; Wang, X.; Liu, Z. Metabolic Disposition of Luteolin Is Mediated by the Interplay of UDP-Glucuronosyltransferases and Catechol-O-Methyltransferases in Rats. Drug Metab. Dispos. 2017, 45, 306–315. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Boersma, M.G.; van der Woude, H.; Bogaards, J.; Boeren, S.; Vervoort, J.; Cnubben, N.H.; van Iersel, M.L.; van Bladeren, P.J.; Rietjens, I.M. Regioselectivity of phase II metabolism of luteolin and quercetin by UDP-glucuronosyl transferases. Chem. Res. Toxicol. 2002, 15, 662–670. [Google Scholar] [CrossRef] [PubMed]
  65. Lemanska, K.; van der Woude, H.; Szymusiak, H.; Boersma, M.G.; Gliszczynska-Swiglo, A.; Rietjens, I.M.; Tyrakowska, B. The effect of catechol O-methylation on radical scavenging characteristics of quercetin and luteolin—A mechanistic insight. Free Radic. Res. 2004, 38, 639–647. [Google Scholar] [CrossRef]
  66. Chen, Z.; Chen, M.; Pan, H.; Sun, S.; Li, L.; Zeng, S.; Jiang, H. Role of catechol-O-methyltransferase in the disposition of luteolin in rats. Drug Metab. Dispos. 2011, 39, 667–674. [Google Scholar] [CrossRef] [Green Version]
  67. Deng, C.; Tian, X.; Chao, B.; Wang, F.; Zhang, Y.; Zou, J.; Liu, D. Pharmacokinetics, tissue distribution and excretion of luteolin and its major metabolites in rats: Metabolites predominate in blood, tissues and are mainly excreted via bile. J. Funct. Foods 2017, 35, 332–340. [Google Scholar] [CrossRef]
  68. Jang, D.S.; Park, E.J.; Kang, Y.H.; Hawthorne, M.E.; Vigo, J.S.; Graham, J.G.; Cabieses, F.; Fong, H.H.; Mehta, R.G.; Pezzuto, J.M.; et al. Potential cncer chemopreventive flavonoids from the stems of Tephrosia toxicaria. J. Nat. Prod. 2003, 66, 1166–1170. [Google Scholar] [CrossRef]

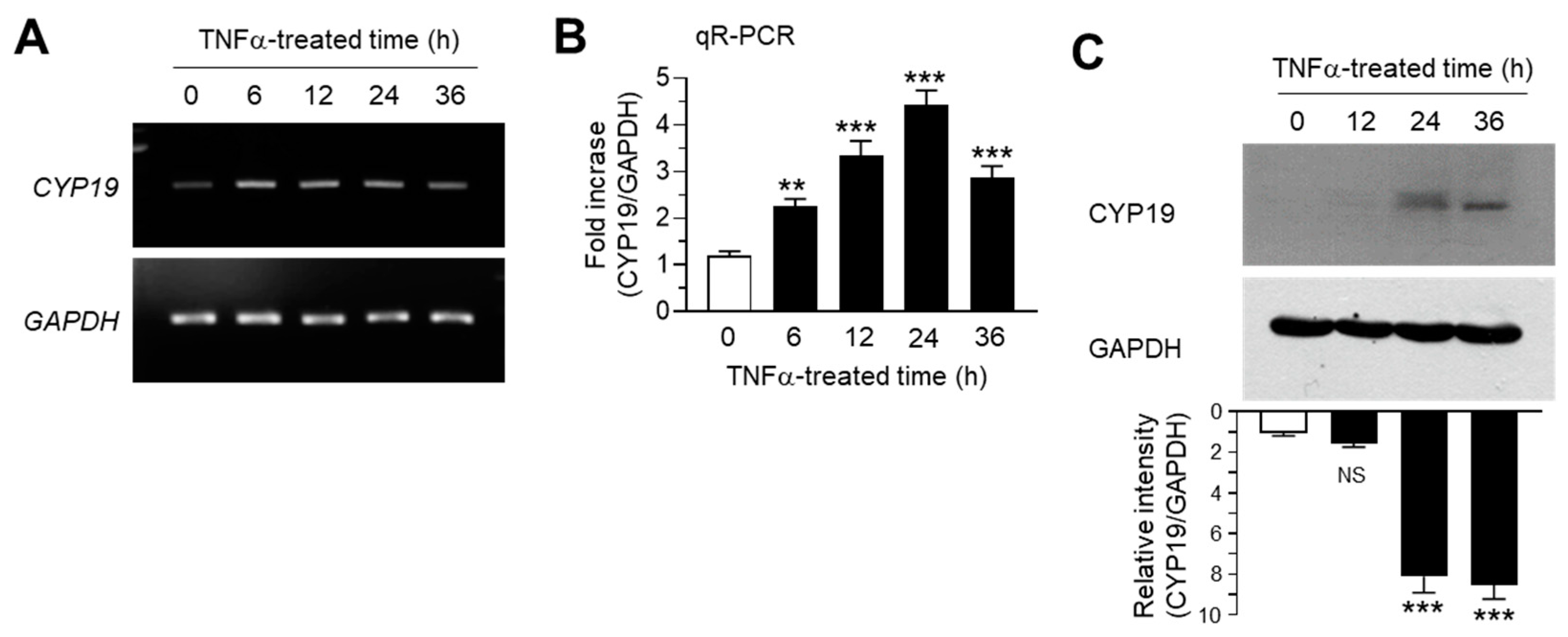

Figure 1. Effect of tumor necrosis factor alpha (TNFα) on cytochrome P450 19 gene (CYP19) expression. MCF-7 cells were treated with 10 ng/mL TNFα for various durations (0–36 h). (A,B) CYP19 mRNA levels were determined using RT-PCR (A) and qR-PCR (B). Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) mRNA levels were used as an internal control. (C) CYP19 aromatase levels were determined by immunoblot analysis. GAPDH levels were used as internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). NS, not significant, ** p < 0.01, *** p < 0.001 versus control (time 0) by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Figure 1. Effect of tumor necrosis factor alpha (TNFα) on cytochrome P450 19 gene (CYP19) expression. MCF-7 cells were treated with 10 ng/mL TNFα for various durations (0–36 h). (A,B) CYP19 mRNA levels were determined using RT-PCR (A) and qR-PCR (B). Glyceraldehyde 3-phosphate dehydrogenase (GAPDH) mRNA levels were used as an internal control. (C) CYP19 aromatase levels were determined by immunoblot analysis. GAPDH levels were used as internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). NS, not significant, ** p < 0.01, *** p < 0.001 versus control (time 0) by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Ijms 21 07523 g001

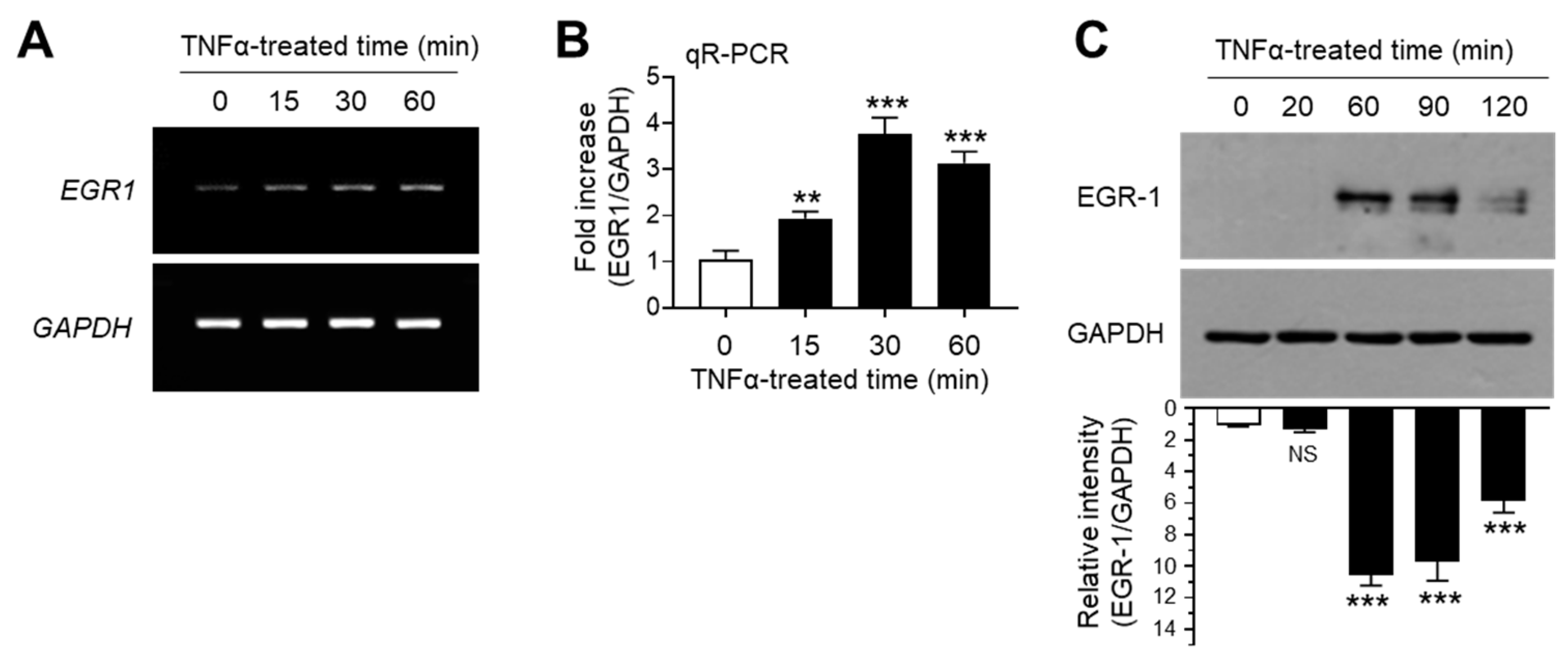

Figure 2. Effect of TNFα on early growth response gene 1 (EGR-1) expression. MCF-7 cells were treated with 10 ng/mL TNFα for various durations (0–60 min). (A,B) EGR1 mRNA levels were determined by RT-PCR (A) and qR-PCR (B). GAPDH mRNA levels were used as an internal control. (C) EGR-1 levels were measured by immunoblot analysis. GAPDH levels were used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). ** p < 0.01, *** p < 0.001 by Dunnett’s multiple comparisons test. NS, not significant; qR-PCR, quantitative real-time PCR.
Figure 2. Effect of TNFα on early growth response gene 1 (EGR-1) expression. MCF-7 cells were treated with 10 ng/mL TNFα for various durations (0–60 min). (A,B) EGR1 mRNA levels were determined by RT-PCR (A) and qR-PCR (B). GAPDH mRNA levels were used as an internal control. (C) EGR-1 levels were measured by immunoblot analysis. GAPDH levels were used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). ** p < 0.01, *** p < 0.001 by Dunnett’s multiple comparisons test. NS, not significant; qR-PCR, quantitative real-time PCR.
Ijms 21 07523 g002

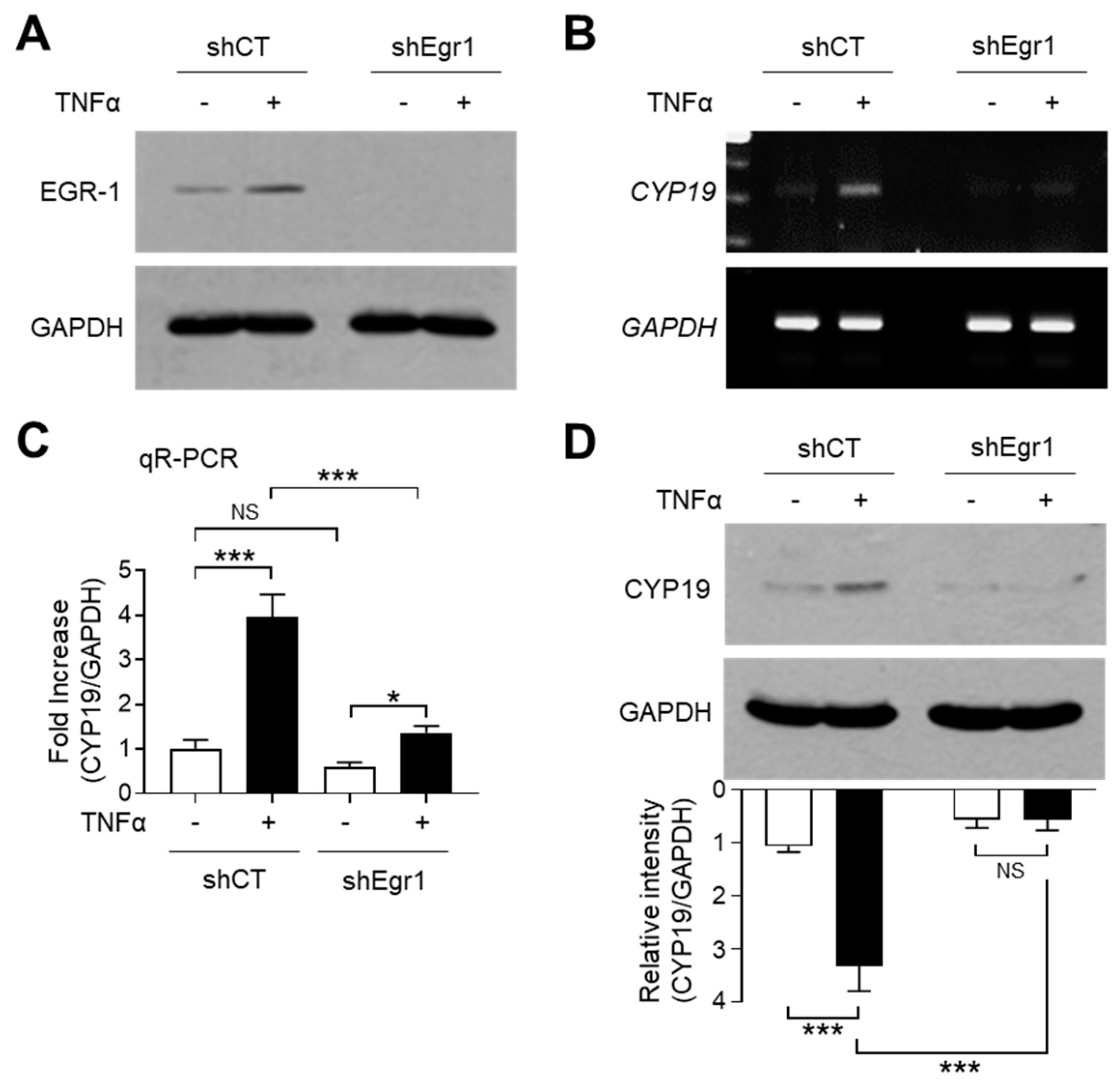

Figure 3. Effect of EGR-1 silencing on CYP19 expression. (A) EGR-1 expression in stably transfected MCF-7 cells expressing scrambled control (shCT) or EGR1 short-hairpin RNA (shEgr1) was verified by immunoblotting. Exponentially growing MCF-7 variant cells were cultured in the presence or absence of 10 ng/mL TNFα for 1 h. The cells were then harvested and analyzed by immunoblotting using anti-EGR-1 antibody. GAPDH was used as an internal control. (BD) MCF-7 cells expressing shCT or shEgr1 were treated with 10 ng/mL TNFα for 24 h. CYP19 mRNA levels were determined by RT-PCR (B) and qR-PCR (C). GAPDH mRNA levels were used as an internal control. CYP19 aromatase levels were measured by immunoblot analysis (D). GAPDH levels were used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). * p < 0.05, *** p < 0.001 by Dunnett’s multiple comparisons test. NS, not significant; qR-PCR, quantitative real-time PCR.
Figure 3. Effect of EGR-1 silencing on CYP19 expression. (A) EGR-1 expression in stably transfected MCF-7 cells expressing scrambled control (shCT) or EGR1 short-hairpin RNA (shEgr1) was verified by immunoblotting. Exponentially growing MCF-7 variant cells were cultured in the presence or absence of 10 ng/mL TNFα for 1 h. The cells were then harvested and analyzed by immunoblotting using anti-EGR-1 antibody. GAPDH was used as an internal control. (BD) MCF-7 cells expressing shCT or shEgr1 were treated with 10 ng/mL TNFα for 24 h. CYP19 mRNA levels were determined by RT-PCR (B) and qR-PCR (C). GAPDH mRNA levels were used as an internal control. CYP19 aromatase levels were measured by immunoblot analysis (D). GAPDH levels were used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). * p < 0.05, *** p < 0.001 by Dunnett’s multiple comparisons test. NS, not significant; qR-PCR, quantitative real-time PCR.
Ijms 21 07523 g003

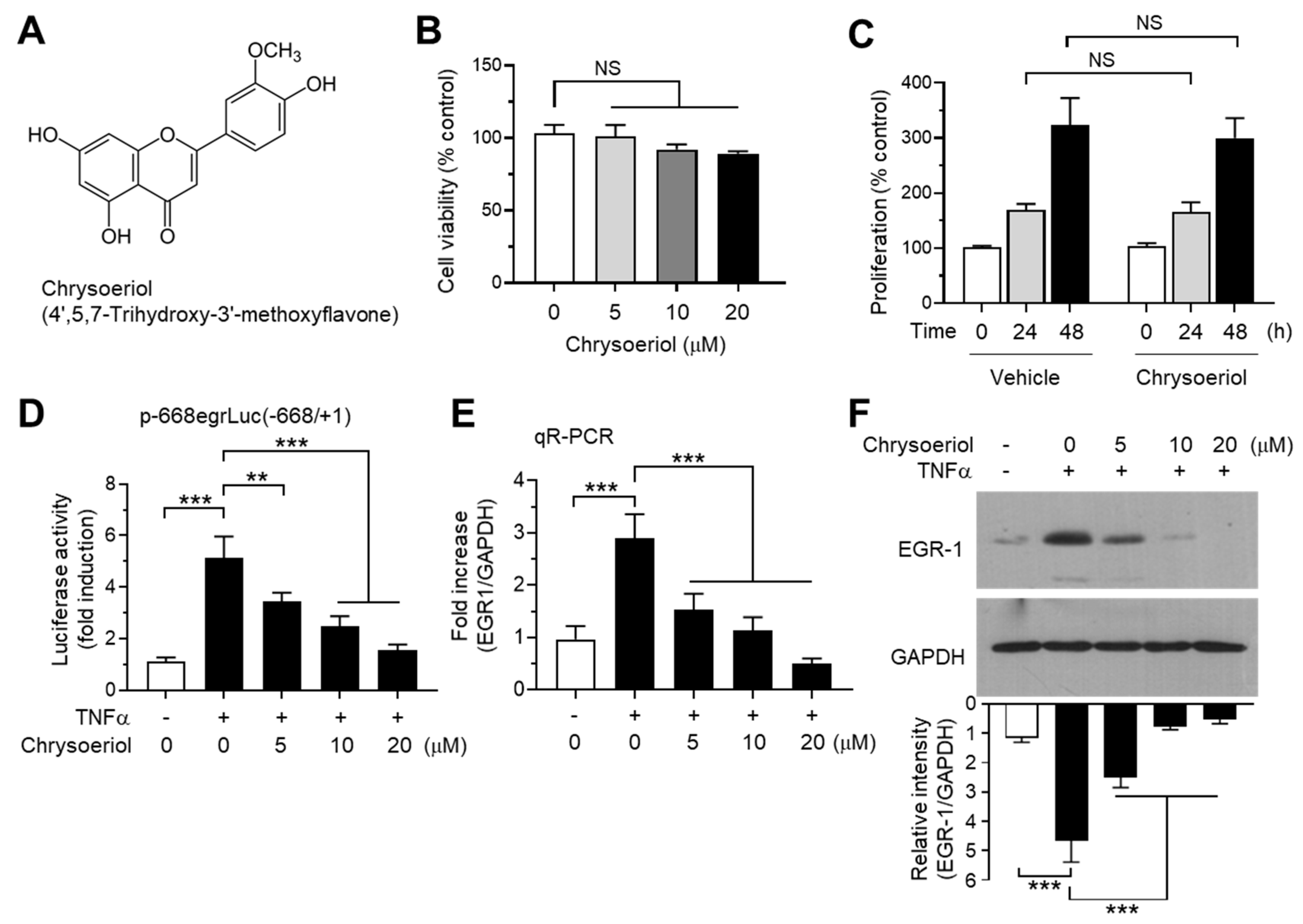

Figure 4. Effect of chrysoeriol on EGR-1 expression. (A) Chemical structure of chrysoeriol. (B) Cell viability assay. MCF-7 cells were treated with vehicle (DMSO) or increasing concentrations of chrysoeriol (0–20 μM) for 24 h, and cell viability was determined using the Cell Counting Kit-8 (CCK-8). Graph bars represent the mean ± SD (n = 3). NS, not significant by Sidak’s multiple comparisons test. (C) MCF-7 cells were treated with vehicle (DMSO) or 20 μM chrysoeriol for different periods (0, 24, and 48 h), and cell proliferation was measured using an ELISA Colorimetric kit for the detection of 5-bromo-2′-deoxyuridine (BrdU) incorporation. Graph bars represent the mean ± SD (n = 3). NS, not significant by Sidak’s multiple comparisons test. (D) MCF-7 cells were transfected with 0.1 µg of EGR1 promoter–reporter p-668egrLuc(–668/ + 1). After 48 h, the cells were treated with 10 ng/mL TNFα in the presence or absence of chrysoeriol (0, 5, 10, 20 μM) for an additional 8 h, and the luciferase reporter activities were measured. (E,F) MCF-7 cells were pretreated with chrysoeriol (0, 5, 10, and 20 μM) for 30 min, followed by treatment with 10 ng/mL TNFα. After 1 h, cells were harvested and the EGR1 mRNA levels or protein levels were measured by qR-PCR (E) or immunoblot analysis (F), respectively. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). ** p < 0.01, *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Figure 4. Effect of chrysoeriol on EGR-1 expression. (A) Chemical structure of chrysoeriol. (B) Cell viability assay. MCF-7 cells were treated with vehicle (DMSO) or increasing concentrations of chrysoeriol (0–20 μM) for 24 h, and cell viability was determined using the Cell Counting Kit-8 (CCK-8). Graph bars represent the mean ± SD (n = 3). NS, not significant by Sidak’s multiple comparisons test. (C) MCF-7 cells were treated with vehicle (DMSO) or 20 μM chrysoeriol for different periods (0, 24, and 48 h), and cell proliferation was measured using an ELISA Colorimetric kit for the detection of 5-bromo-2′-deoxyuridine (BrdU) incorporation. Graph bars represent the mean ± SD (n = 3). NS, not significant by Sidak’s multiple comparisons test. (D) MCF-7 cells were transfected with 0.1 µg of EGR1 promoter–reporter p-668egrLuc(–668/ + 1). After 48 h, the cells were treated with 10 ng/mL TNFα in the presence or absence of chrysoeriol (0, 5, 10, 20 μM) for an additional 8 h, and the luciferase reporter activities were measured. (E,F) MCF-7 cells were pretreated with chrysoeriol (0, 5, 10, and 20 μM) for 30 min, followed by treatment with 10 ng/mL TNFα. After 1 h, cells were harvested and the EGR1 mRNA levels or protein levels were measured by qR-PCR (E) or immunoblot analysis (F), respectively. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). ** p < 0.01, *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Ijms 21 07523 g004

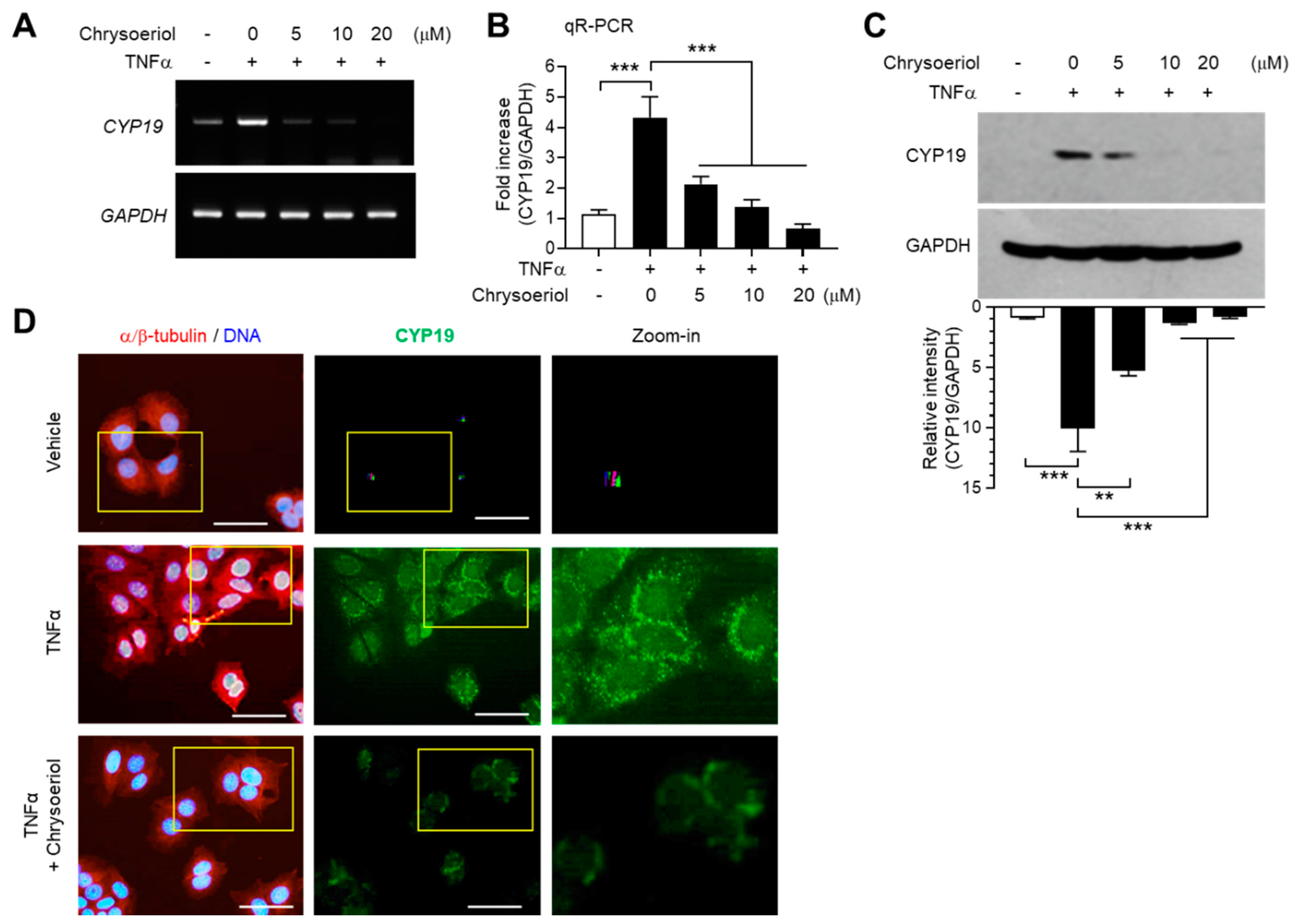

Figure 5. Effect of chrysoeriol on CYP19 expression. (AC) MCF-7 cells were pretreated with chrysoeriol (0–20 μM) for 30 min, followed by treatment with 10 ng/mL TNFα. After 24 h, CYP19 expression was determined by RT-PCR (A), qR-PCR (B), and immunoblot analysis (C). GAPDH was used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). ** p < 0.01, *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR. (D) MCF-7 cells cultured on coverslips were treated with 10 ng/mL TNFα in the absence or presence of 10 μM chrysoeriol, followed by fixation, permeabilization, and incubation with primary antibodies specific to α/β-tubulin and CYP19 aromatase for 2 h. After washing, Alexa Fluor 555 (for α/β-tubulin; red signal) and Alexa Fluor 488 (for CYP19; green signal) secondary antibodies were used to probe the samples for 30 min. Nuclear DNAs were stained with Hoechst 33258 for 10 min (blue signal). Fluorescently labeled cells were viewed under an EVOS FL fluorescence microscope. Nuclear DNA and α/β-tubulin were overlaid (left panels). Yellow boxed regions are zoomed-in on the far right. Scale bars represent 20 μm.
Figure 5. Effect of chrysoeriol on CYP19 expression. (AC) MCF-7 cells were pretreated with chrysoeriol (0–20 μM) for 30 min, followed by treatment with 10 ng/mL TNFα. After 24 h, CYP19 expression was determined by RT-PCR (A), qR-PCR (B), and immunoblot analysis (C). GAPDH was used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). ** p < 0.01, *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR. (D) MCF-7 cells cultured on coverslips were treated with 10 ng/mL TNFα in the absence or presence of 10 μM chrysoeriol, followed by fixation, permeabilization, and incubation with primary antibodies specific to α/β-tubulin and CYP19 aromatase for 2 h. After washing, Alexa Fluor 555 (for α/β-tubulin; red signal) and Alexa Fluor 488 (for CYP19; green signal) secondary antibodies were used to probe the samples for 30 min. Nuclear DNAs were stained with Hoechst 33258 for 10 min (blue signal). Fluorescently labeled cells were viewed under an EVOS FL fluorescence microscope. Nuclear DNA and α/β-tubulin were overlaid (left panels). Yellow boxed regions are zoomed-in on the far right. Scale bars represent 20 μm.
Ijms 21 07523 g005

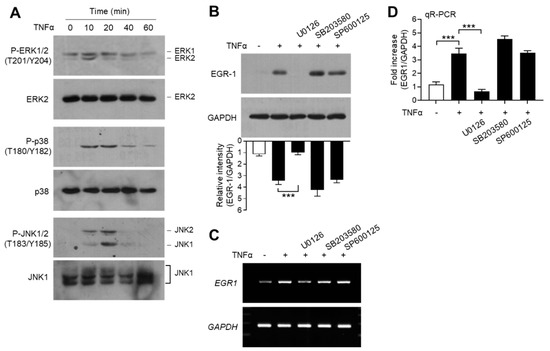

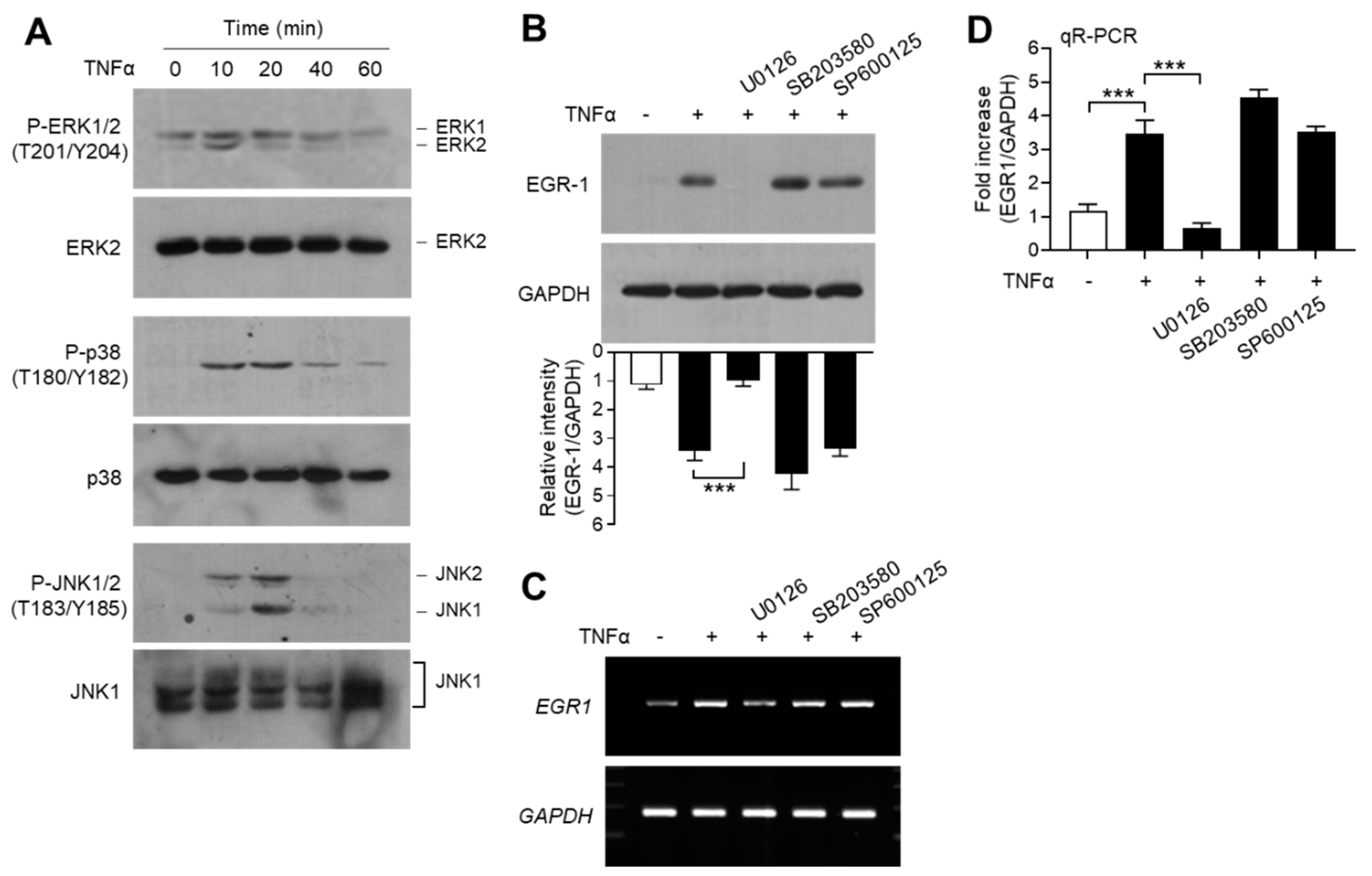

Figure 6. Effect of mitogen-activated protein kinase (MAPK) inhibition on EGR-1 expression. (A) Serum-starved MCF-7 cells (cultured in medium containing 0.5% serum for 24 h) were treated with 10 ng/mL TNFα for various durations (0–60 min). Total protein extracts were analyzed by immunoblotting using antibodies against phospho- extracellular signal-regulated kinase 1/2 (ERK1/2) (Thr202/Tyr204), phospho- c-Jun N-terminal kinase 1/2 (JNK1/2) (Thr183/Tyr185), and phospho-p38 kinase (Thr180/Tyr182). Corresponding total MAPK protein was used as an internal control. (BD) Serum-starved MCF-7 cells were pretreated with 5 μM U0126, 10 μM SP600125, or 10 μM SB203580 for 30 min, followed by treatment with 10 ng/mL TNFα. After 60 min, cells were harvested and EGR-1 expression was examined by immunoblotting (B), RT-PCR (C), and qR-PCR (D). GAPDH was used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Figure 6. Effect of mitogen-activated protein kinase (MAPK) inhibition on EGR-1 expression. (A) Serum-starved MCF-7 cells (cultured in medium containing 0.5% serum for 24 h) were treated with 10 ng/mL TNFα for various durations (0–60 min). Total protein extracts were analyzed by immunoblotting using antibodies against phospho- extracellular signal-regulated kinase 1/2 (ERK1/2) (Thr202/Tyr204), phospho- c-Jun N-terminal kinase 1/2 (JNK1/2) (Thr183/Tyr185), and phospho-p38 kinase (Thr180/Tyr182). Corresponding total MAPK protein was used as an internal control. (BD) Serum-starved MCF-7 cells were pretreated with 5 μM U0126, 10 μM SP600125, or 10 μM SB203580 for 30 min, followed by treatment with 10 ng/mL TNFα. After 60 min, cells were harvested and EGR-1 expression was examined by immunoblotting (B), RT-PCR (C), and qR-PCR (D). GAPDH was used as an internal control. Band intensities were measured using the ImageJ software. Bars represent the mean ± SD (n = 3). *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Ijms 21 07523 g006
Figure 7. Effect of chrysoeriol on the inhibition of MAPK and CYP19 expression. (A,B) Serum-starved MCF-7 cells were pretreated with 5 μM U0126, 10 μM SP600125, or 10 μM SB203580 for 30 min, followed by treatment with 10 ng/mL TNFα. After 24 h, cells were harvested and CYP19 mRNA expression was examined by RT-PCR (A) and qR-PCR (B). GAPDH was used as an internal control. (C) Serum-starved MCF-7 cells were pretreated with chrysoeriol (0, 10, and 20 μM) for 30 min, followed by treatment with 10 ng/mL TNFα. After 10 min (phospho-ERK1/2) or 20 min (phospho-JNK1/2 and phospho-p38), cells were harvested, and immunoblotting was performed using antibodies against phospho-ERK1/2 (Thr202/Tyr204), phospho-JNK1/2 (Thr183/Tyr185), and phospho-p38 kinase (Thr180/Tyr182). Band intensities were measured using the ImageJ software, and phospho-proteins were normalized to corresponding total proteins. Bars represent the mean ± SD (n = 3). NS, not significant; * p < 0.05, *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Figure 7. Effect of chrysoeriol on the inhibition of MAPK and CYP19 expression. (A,B) Serum-starved MCF-7 cells were pretreated with 5 μM U0126, 10 μM SP600125, or 10 μM SB203580 for 30 min, followed by treatment with 10 ng/mL TNFα. After 24 h, cells were harvested and CYP19 mRNA expression was examined by RT-PCR (A) and qR-PCR (B). GAPDH was used as an internal control. (C) Serum-starved MCF-7 cells were pretreated with chrysoeriol (0, 10, and 20 μM) for 30 min, followed by treatment with 10 ng/mL TNFα. After 10 min (phospho-ERK1/2) or 20 min (phospho-JNK1/2 and phospho-p38), cells were harvested, and immunoblotting was performed using antibodies against phospho-ERK1/2 (Thr202/Tyr204), phospho-JNK1/2 (Thr183/Tyr185), and phospho-p38 kinase (Thr180/Tyr182). Band intensities were measured using the ImageJ software, and phospho-proteins were normalized to corresponding total proteins. Bars represent the mean ± SD (n = 3). NS, not significant; * p < 0.05, *** p < 0.001 by Dunnett’s multiple comparisons test. qR-PCR, quantitative real-time PCR.
Ijms 21 07523 g007

Share and Cite

MDPI and ACS Style

Min, D.Y.; Jung, E.; Ahn, S.S.; Lee, Y.H.; Lim, Y.; Shin, S.Y. Chrysoeriol Prevents TNFα-Induced CYP19 Gene Expression via EGR-1 Downregulation in MCF7 Breast Cancer Cells. Int. J. Mol. Sci. 2020, 21, 7523. https://doi.org/10.3390/ijms21207523

AMA Style

Min DY, Jung E, Ahn SS, Lee YH, Lim Y, Shin SY. Chrysoeriol Prevents TNFα-Induced CYP19 Gene Expression via EGR-1 Downregulation in MCF7 Breast Cancer Cells. International Journal of Molecular Sciences. 2020; 21(20):7523. https://doi.org/10.3390/ijms21207523

Chicago/Turabian Style

Min, Dong Yeong, Euitaek Jung, Sung Shin Ahn, Young Han Lee, Yoongho Lim, and Soon Young Shin. 2020. "Chrysoeriol Prevents TNFα-Induced CYP19 Gene Expression via EGR-1 Downregulation in MCF7 Breast Cancer Cells" International Journal of Molecular Sciences 21, no. 20: 7523. https://doi.org/10.3390/ijms21207523

APA Style

Min, D. Y., Jung, E., Ahn, S. S., Lee, Y. H., Lim, Y., & Shin, S. Y. (2020). Chrysoeriol Prevents TNFα-Induced CYP19 Gene Expression via EGR-1 Downregulation in MCF7 Breast Cancer Cells. International Journal of Molecular Sciences, 21(20), 7523. https://doi.org/10.3390/ijms21207523

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
