Relationship between the Electrical Characteristics of Molecules and Fast Streamers in Ester Insulation Oil

by
Kaizheng Wang
,
Feipeng Wang
*,
Ziyi Lou
,
Qiuhuang Han
,
Qi Zhao
,
Kelin Hu
,
Zhengyong Huang
and
Jian Li
State Key Laboratory of Power Transmission Equipment & System Security and New Technology, School of Electrical Engineering, Chongqing University, Chongqing 400044, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(3), 974; https://doi.org/10.3390/ijms21030974
Submission received: 8 January 2020 / Revised: 23 January 2020 / Accepted: 28 January 2020 / Published: 1 February 2020
(This article belongs to the Section Physical Chemistry and Chemical Physics)
Browse Figures
Review Reports Versions Notes

Abstract

:
The effects of C=C, ester and β-H groups on the ionization potential (IP) and electron affinity (EA) of molecules in natural ester insulation oil were investigated by density functional theory (DFT). The major contribution to the highest occupied molecular orbital (HOMO) comes from the carbon atoms adjacent to C=C. Thus, the IPs of triglycerides decrease as the number of C=C double bonds increases. The C=C in alkanes may also lower the IP. However, the β-H in triglycerides has little effect on the IP, and C=C and β-H have only a small effect on the EAs of the triglycerides because of the major contributions of atoms near the ester group in triglycerides to the lowest unoccupied molecular orbital (LUMO). This study calculated the IPs of 53 kinds of molecules in FR3, which are significantly lower compared with those of molecules in mineral oil (MO) and trimethylolpropane triester without C=C. However, the lightning impulse breakdown voltage (LI Vb) of trimethylolpropane triester is still significantly lower than that of MO at the large gap. Therefore, the transition from slow to fast streamers under low lighting impulse voltage is determined by the ester group rather than by C=C and β-H. The ester group may attract more electrons, impacting itself more compared to alkane in MO and facilitating the transition from slow to fast streamers.

1. Introduction

Several billion liters of insulation oils have been widely applied in transformers, resistors, capacitors and thyristors, etc. [1]. An insulation oil acts as both insulation protection and as a heat transfer medium in power equipment; thus, it determines the equipment’s life span. At present, mineral insulation oil (MO) is still widely used in transformers, which are highly important in safe power grid operation. However, many leaks and combustion accidents of the transformer have been attributed to the MO’s low flash point, poor degradation and non-renewability. To improve the safety and reduce the environmental impact of the transformer, alternative insulation oils are demanded [2]. As the promising substitutes for MO, natural ester insulation oil (NEO) has several advantages of renewability and biodegradability and less flammability compared with MO [3]. In addition, NEO is claimed to delay the aging rate of insulation paper and prolong the lifetime of a transformer [4,5,6,7,8,9].
To date, NEO has mainly been applied in medium-voltage transformers; however, there is an increasing interest in applying NEO in large power transformers. Transformer industries have already successfully applied NEO in 420 kV and 238 kV [10]. In face of this application, lightning impulse (LI) breakdown characteristics of NEO need to be further studied [11], which are essential parameters for insulation design.
The LI Vb of ester insulation oil is comparable to that of MO in a quasi-uniform field [12,13,14]. However, in a non-uniform field, the LI Vb of NEO is considerably lower than that of MO for large oil gaps [11,15,16], which limits the application of NEO in large power transformers. Therefore, the underlying mechanisms of this phenomenon have been receiving increasing attention. The comparison of pre-breakdown phenomenon (streamers) characteristics in MO and NEO has been reported [15,17,18,19]. The inception voltage of streamers in NEO is lower under both polarities compared with that of MO in the non-uniform field. Streamer propagation in NEO evolves easily to fast mode, which results in its considerable low LI Vb at large oil gaps [16,20]. Comparisons of discharge parameters between NEO and MO were performed by many researchers. However, the reasons why streamer propagation in NEO evolves more easily to fast mode compared with that in MO is still unknown. Therefore, it is necessary to study the relationship between the electrical characteristics of the molecules and fast streamers in insulation oils.
The IP and EA of molecules are related to the propagation of streamers in insulation oils [21,22]. Thus, density functional theory (DFT) was applied to calculate the IP and EA values of the molecules; DFT is the most widely used theoretical method to simulate the properties of both organic and inorganic molecules [23]. Specifically, the C=C, ester and β-H groups are the important groups in NEO. Therefore, in this work, the effects of the C=C, ester and β-H groups on the IP and EA values of molecules in NEO were investigated. Then, comparisons of the LI Vb and the IP distribution among the synthetic ester, natural ester (FR3) and MO were conducted to discuss the influence of molecular structure on the LI Vb.

2. Results

2.1. Effect of C=C on the Ionization Potential and Electron Affinity

As shown in Figure 1a, the IPs decrease as the number of C=C increases. The IP and EA of ten kinds of triglycerides were calculated: N-SSS, N-SSO, N-SOO, N-OOO, N-SSL, N-SLL, N-LLL, N-SSLn, N-SLnLn and N-LnLnLn. The rate of decline for the IPs of the triglycerides that included monounsaturated fatty acids is slightly higher than that of the triglycerides that included polyunsaturated fatty acids. The difference in IP between the N-SSS and N-LnLnLn is 1.12 eV. The decrease in triglyceride IP caused by an increase in DN is not linear. Initially, the IP decreases almost linearly, but the decline in IP tends to be flat as the number of C=C increase. Figure 1b shows the effect of C=C on the EA of triglycerides. The value of EA fluctuates as DN increases. The influence of C=C on the EA is small, as indicated by the small variation range of EA (0.16 eV).

2.2. Effect of β-hydrogen and Chain Length on the Ionization Potential and Electron Affinity

In triglycerides, the β-hydrogen atom (cf. Figure 2a) is present in the glycerol, which lowers the oxidation stability of the NEO. In the synthetic TME oil, trimethylolpropane is used to replace of glycerol in triglycerides. Thus, the synthesized TME oil is more stable than the NEO. Therefore, β-hydrogen is a crucial group for triglycerides in NEO, and it is necessary to study its influence on the IP and EA.
Although β-hydrogen has a significant effect on the oxidation stability of triglyceride molecules, its effect on the electrical properties of triglyceride molecules is unclear. The IPs and EAs of triglyceride molecules (N-CoCoCo, N-CyCyCy, N-CrCrCr, N-LaLaLa, N-MMM, N-PPP) and trimethylolpropane triester molecules (T-CoCoCo, T-CyCyCy, T-CrCrCr, T-LaLaLa, T-MMM and T-PPP) were calculated. Figure 3 shows the effects of β-hydrogen and the length of the carbon chain on the IP and EA. The number of carbons (CN) was used to represent the chain length of the molecule.
As shown in Figure 3a, β-hydrogen has little effect on IP. At the same CN, the triglycerides with β-hydrogen have a lower IP compared with that of trimethylolpropane triester (without β-hydrogen). The difference in IP between triglycerides and trimethylolpropane triester increases as the CN increases from 21 to 54. As the chain length increases, the IP of the molecule decreases. The IP decreases by approximately 7% as CN increases from 21 to 54. Therefore, the effect of chain length on the IP is significant. As shown in Figure 3b, the EA increases approximately linearly with increasing of the chain length. The EA of triglycerides with β-hydrogen is approximately 0.16 eV higher than that of trimethylolpropane triester without β-hydrogen.

2.3. HOMO and LUMO Characteristics

Koopman’s theorem can be used to roughly estimate the IP and EA of the molecule. According to Koopman’s theorem, the HOMO represents the molecule’s ability to donate an electron, and LUMO, as an electron acceptor, represents the molecule’s ability to obtain an electron; that is, for the isosurface of the HOMO of the molecule, the greater the contribution of the atom to the HOMO, the more likely it is that ionization will occur around it. Therefore, to clarify the influence of C=C and β-hydrogen on the IP and EA, it is necessary to analyze the HOMO and LUMO of the molecules (Figure 4). Stearic, oleic and linoleic fatty acids exist in N-OSLn. Therefore, analyzing the contribution of the atoms of N-OSLn (Figure 4a) can clearly clarify the phenomenon in which the rate of decline for the IPs of the triglycerides with monounsaturated fatty acids is slightly higher than that of triglycerides with polyunsaturated fatty acids (Figure 1a).
It was noticed that the EAs of N-OSLn and T-CyCyCy are negative, which indicates that their anions are unstable. As shown in Figure 4a, the HOMO is localized at the C=C. The Hirshfeld method [24] was used to calculate the HOMO and LUMO compositions. The major contribution to the HOMO comes from the carbon atoms (C100 and C102) adjacent to the C=C in the oleic acid side chain, and whose contributions are 33.45% and 33.43%, respectively. Therefore, the IPs decrease as the number of C=C increases (Figure 1a). The atoms in the linoleic acid side chain make no contribution to the HOMO; this fact can be used to clarify the phenomenon that the rate of decline for the IPs of the triglycerides that include monounsaturated fatty acids is slightly greater than that of the triglycerides that include polyunsaturated fatty acids (cf. Figure 1a).
As shown in Figure 4a, the atoms near the ester group in the linoleic acid side chain provide the main contribution to the LUMO. According to the Hirshfeld method, the contributions of H3 and H8, which near the ester group in the linoleic acid side chain, are 11.9% and 15.1%, respectively. It can be speculated that the EA of triglycerides is determined by the ester group. The atoms near the C=C make no contribution to the LUMO. Therefore, the influence of C=C on the EA is small, as shown in Figure 1b.
Although β-hydrogen significantly lowers the oxidation stability of NEOs, it has little effect on the IP, as shown in Figure 3a. Figure 5 shows the isosurface for the HOMO of N-CoCoCo. The atoms near the ester group from the position of sn-2 of N-CoCoCo without C=C are the major contributors to the HOMO. According to the Hirshfeld method, the major contributions to the HOMO come from C14, O15 and O9, whose contributions are 10.20%, 65.01% and 7.69%, respectively. The contribution of β-hydrogen (H6) is only 0.19%. Therefore, β-hydrogen has little effect of on IP (cf. Figure 3a). Likewise, the atoms near the ester groups at the positions of sn-1 and sn-3 of N-CoCoCo are the major contributors to the LUMO. H3 and H8 make major contributions to the LUMO (H3, 14.44%; H8, 14.42%), while the contribution of β-hydrogen (H6) to LUMO is only 0.55%. Therefore, β-hydrogen and chain length (CN) have little effect of on EA (cf. Figure 3b).
Figure 6 shows The HOMO energies of triglyceride molecules (N-CoCoCo, N-CyCyCy, N-CrCrCr, N-LaLaLa, N-MMM and N-PPP) and trimethylolpropane triester molecules (T-CoCoCo, T-CyCyCy, T-CrCrCr, T-LaLaLa, T-MMM and T-PPP). It is noted that the HOMO energies of the molecules are negative and increase slightly as CN increases, and the triglycerides have a higher HOMO energy compared with that of trimethylolpropane triester at the same CN. Koopman’s theorem holds that the IP of a molecule is equal to the opposite number of the HOMO orbital energy level of the molecule. The basic premise of Koopman’s theorem is that it assumes that the molecular orbital is not affected by the electrons escaping from the molecule; that is, it is assumes that the molecular orbital energy level does not change when the molecule loses an electron. However, in general, when a molecule gains or loses electrons, its HOMO energy is usually strongly affected. Therefore, the IPs obtained by Koopman’s theorem are usually inaccurate. However, Koopman’s theorem does reveal the negative correlation between the IP and the energy of the HOMO. Therefore, the IPs of molecules will increase slightly as CN increases, which clarifies why the IPs of the molecules decrease with an increase in CN and why the triglycerides have a lower IP compared with that of trimethylolpropane triester at the same CN (cf. Figure 3a).

2.4. Ionization Potential Distribution of Different Insulation Oils

Figure 7 shows the distribution of the IP for FR3. It is observed that the triglyceride molecules in FR3 are divided into three groups: triglycerides with three unsaturated acid chains—that is, the positions sn-1, 2 and 3 are all unsaturated fatty acids, such as N-LLL (three unsaturated chains (Three-U)); triglycerides with two unsaturated acid chains, where two of the sn-1, 2, and 3 positions are unsaturated fatty acids, such as N-SLL (Two-U); and triglycerides with one unsaturated acid chain in which one of the sn-1, 2 or 3 positions is an unsaturated fatty acid, such as N-SSL (One-U). The IP range for One-U triglycerides is 7.83 eV to 8.07 eV, at a concentration of 5.3%. The IP range for Two-U triglycerides is 7.37–7.73 eV, at a concentration of 39.5%, which is higher than that of One-U. The concentration for Three-U with a low IP (7.32–7.45 eV) is the highest (55.2%).
According to the above results, it was found that the atoms near C=C were the main contributors to the HOMO. This result indicates that C=C is critical in the IP of the triglyceride. To study the effect of C=C on the LI Vb of NEO, we prepared a new insulation oil (trimethylolpropane triester) without C=C (cf. Figure 8). The IPs of (T-CoCoCo, T-CyCyCy and T-CrCrCr) were calculated. As shown in Table 1, the IPs of the three molecules vary from 8.82 to 9.08 eV, which is significantly higher than that of the triglycerides in FR3.
Pyrene was used as the typical aromatic molecule at a concentration of approximately 5%. Hexadecane was used as the typical alkane molecule at a concentration of approximately 95%. As shown in Table 1, it can be noticed that the IP of the aromatic component accounting for 5% is between 7.14 eV and 7.73 eV, which is in the same range as that of Two-U and Three-U. According to our study, the C=C significantly lowers the IP of the triglyceride. The IP of benzene (C6H6) with three C=C is 9.24 eV [26], which is lower than that of cyclohexane (C6H12, 9.8 eV [27]). Therefore, the C=C in alkanes may also lower the IP. The numbers of C=C and carbons in pyrene are 8 and 16, respectively, while the numbers of C=C and carbons in N-OOO are 3 and 54, respectively. Therefore, we think the result shows that the IP of the aromatic component of MO that is in the same range of Two-U and Three-U is a coincidence.
The IP of the alkane component at a concentration of approximately 95% is about 9.08 eV to 9.15 eV. By comparing the IP distributions of the three insulation oils, it is found that the IPs of the triglycerides in FR3 are significantly lower than those of the alkane component (9.08–9.15 eV) and the trimethylolpropane triester (8.82 to 9.08 eV).
A standard LI voltage 1.2 (±30%)/50 (±20%) µs was applied in point-plane geometries. A tungsten needle electrode with a curvature radius of 100 ± 10 µm was used. The oil gap distance varied from 10 to 100 mm. Although the IP of TME oil is comparable to that of mineral oil, the LI Vb of TME oil is still significantly lower at large gaps (>50 mm) compared with that of MO (Figure 9). The LI Vb of ester insulation oils at a large gap of 100 mm is only half of that of mineral oil. However, there is little difference in LI Vb between FR3 and TME oil without C=C. Therefore, the C=C bond in NEO is not the main factor causing the low LI Vb the at the large gaps. Instead, the ester group in NEOs leads to the low LI Vb of NEO.

2.5. Formation Mechanism of Fast Streamers

According to [28], the streamer propagations are divided into 1st, 2nd, 3rd and 4th modes. The 1st and 2nd modes are slow streamers, but the fast streamers (the 3rd and 4th modes) are likely responsible for LI Vb at large gaps [28]. As shown in Figure 5, the LI Vb of ester insulation oil [22] at the large gaps (>50 mm) is significantly lower than that of MO. Therefore, it is necessary to clarify the formation mechanism of fast streamers in ester insulation oils (TME and natural ester oil).
To date, there is still no systematic research on the initial voltage (V3) of 3rd-mode streamers. When the applied voltage is greater than V3, the velocity of streamer propagation with a strong light emission increases suddenly [20]. The propagation field of the 3rd-mode streamers in NEO at the streamer tip is estimated to be 10–20 MV/cm [16,20], which is far from the field ionization of the insulation oils [29]. At 10–20 MV/cm, impact ionization can take place [30]. Impact ionization may promote the slow streamers to fast streamers.
At 10–20 MV/cm−1, the typical molecules of the insulation oil molecules are ionized by the impact of the electrons. Therefore, the IPs of molecules are less important than their EAs. Thus, it is necessary to compare the LUMO isosurface between the MO and ester oil. As shown in Figure 10, the distribution of atomic contributions to LUMO by hexadecane and pyrene is relatively uniform, which is different from that of triglycerides and trimethylolpropane triester. There are eight atoms in hexadecane whose contributions are greater than 5% (C2, C6, C7, C10, C11, C14, C16 and C17), which is about 31% of the total number of atoms. However, the numbers of atoms in pyrene and hexadecane whose contributions are greater than 0.5% are only two (H21 and H25) and one (H2), respectively. In summary, the major contribution to LUMO comes from the atoms near the ester group. The distribution of atomic contributions in hydrocarbon molecules (MO) is more uniform than that in triglycerides and trimethylolpropane triesters.
Because the major contribution to LUMO comes from the atoms near the ester group, the ester group in ester insulation oil is impacted by more electrons compared to that of the alkane in MO (Figure 11). At large gaps, impact ionization can play a major role in streamer development. For the ester insulation oil, the voltage needed to generate a large number of electrons is lower than that for MO. Therefore, more electrons and positive ions are generated in ester insulation oil, which leads to their relative ease in producing fast streamers.

3. Materials and Methods

3.1. Materials

Triglycerides are the main constituents of NEO. Figure 2a shows the molecular geometry of triglycerides with β-H, which significantly lowers the oxidation stability of NEO [3,31,32]. The D, D’ and D” in the molecule represent the fatty acids, which always contain C=C. The different stereochemical positions (sn-1, 2 or 3) on the glycerol backbone are the locations corresponding to the three fatty acids. N-DD’D” is used to represent the triglycerides, and the “N” stands for natural ester. For example, N-OOO corresponds to the glycerol tri-oleate for the NEO. Table 2 shows the abbreviations for different types of fatty acids.
The electrochemical properties of molecules in the insulation oil determine the characteristics of streamer propagation [33,34,35]. Therefore, it is necessary to investigate the distribution of IP in different insulation oils. NEO (FR3) is prepared from refined soybean oil, which is a mixture of approximately 53 kinds of triglycerides. The concentrations of 53 kinds of triglycerides in soybean oil were measured in [36]. To study the distribution of IP in FR3, the IPs of 53 kinds of triglycerides were calculated by DFT.
Trimethylolpropane triester (TME) was prepared by the authors group, which was synthesized by esterification of the saturated fatty acids and trimethylolpropane [25] (Figure 8). As shown in Figure 2b, the X, X’ and X” in the molecule represent the fatty acids without C=C. T-XX’X” represents the trimethylolpropane triester. For example, T-CyCyCy stands for trimethylolpropane tri-caprylate.
MO is a mixture of various hydrocarbon molecules. Mineral oils mainly consist of hydrocarbon compounds with different structures, such as alkanes (paraffinic and naphthenic hydrocarbons) and aromatics, as shown in Figure 2c. Pyrene was used as the typical aromatic molecule at a concentration of approximately 5% [37]. Hexadecane was used as a typical alkane molecule at a concentration of approximately 95%.

3.2. Methods

DFT has previously been successfully applied to calculate the properties of molecules [21,38]. The Gaussian 09 W software package [39] was used to perform quantum chemical calculations. The Becke, 3-parameter, Lee–Yang–Parr (B3LYP) functional method [40] with the 6-31+G* basis set was used to calculate the molecule properties. The IP of a molecule is defined as the energy required to cause a neutral molecule M to lose one electron and form a positive ion M+. Thus, the IP is expressed as follows:
M→M+ + e; IP = EM+ − EM
First, the ground-state geometries of M in the gas phase were optimized by B3LYP/6-31+G* to obtain the energy EM of the neutral molecule. Second, the optimized molecule was used to calculate the energy EM+. Finally, the IP of the M molecule was calculated according to Equation (1), and the EA of the molecule was calculated according to Equation (2).
EA = EM − EM−
where EM is the energy of the M molecule in the ground-state, and EM− is the energy of the anion M−1 as calculated by B3LYP/6-31+G*.
No prior experimental data existed related to the IP and EA values of triglycerides, trimethylolpropane triester and hexadecane. Therefore, to validate the DFT method, a calculation of vibration frequencies for the functional groups in N-OOO was performed. The relative error between the calculated and measured values [41] is approximately 2% (Table 3). Furthermore, the calculated IP of pyrene is 7.14 eV, which is only about 0.28 eV lower than that of the experimental value (7.42 eV [42]). Thus, B3LYP/6-31+G* was adopted to conduct the further calculations.

4. Conclusions

In this work, the effects of the C=C, ester and β-H groups on the IP and EA of molecules in NEOs was investigated. Comparisons of LI Vb and the IP distribution of synthetic esters, natural esters (FR3) and MO oils were conducted.
  • The major contribution to the highest occupied molecular orbital (HOMO) comes from the carbon atoms adjacent to C=C. Thus, the IPs of triglycerides decrease as the number of C=C double bonds increases. The C=C in alkanes may also lower the IP.
  • The influences of C=C and β-H on the EA of the triglyceride is small, as indicated by the small variations in EA (0.16 eV). This occurs because the contributions of β-H and the atoms near C=C to the LUMO are small. Instead, the atoms near the ester group make a primary contribution to the LUMO.
  • β-H has little effect on the IP of the triglyceride because it makes no contribution to the HOMO. Under the same chain length, the maximum difference between the triglyceride (with β-H) and trimethylolpropane triesters (without β-H) is only 0.6%. As the molecular chain length increases, the ionization potential decreases. The IPs of triglycerides are determined by the C=C and chain length.
  • In this study, the IPs of 53 kinds of molecules in FR3 were calculated. The IPs of molecules of the trimethylolpropane triester molecules are significantly higher compared with those of molecules of FR3. However, the LI Vb of the trimethylolpropane triester is still significantly lower than that of MO at large gaps. Therefore, neither the C=C or β-H but rather the ester group leads to this phenomenon. The atoms near the ester group make the main contribution to the LUMO, which draws more electron impact toward themselves compared to the alkane in MO. This characteristic promotes the transition from slow to fast streamers.

Author Contributions

Conceptualization and methodology, K.W., F.W., J.L. and Z.H.; software, Q.Z., K.W. and K.H.; investigation, K.W. and F.W.; data curation, Q.H. and Z.L.; writing—original draft preparation, K.W.; writing—review and editing, K.W. and F.W. All authors have read and agree to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China, grant number 51425702, National Natural Science Foundation of China (U1537211), National Natural Science Foundation of China (51507017), the Opening Project of Shanghai Key Laboratory of Special Artificial Microstructure Materials and Technology, grant number ammt2017A-3. The computational resources and Gaussian program are provided by National Supercomputing Center in Shenzhen (Gaussian 09 D01: TCP-Linda).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fofana, I. 50 years in the development of insulating liquids. IEEE Electr. Insul. Mag. 2013, 29, 13–25. [Google Scholar] [CrossRef]
  2. Pukel, G.J.; Schwarz, R.; Baumann, F.; Muhr, H.M.; Eberhardt, R.; Wieser, B.; Chu, D. Power transformers with environmentally friendly and low flammability ester liquids. Elektrotech. Inftech. 2013, 1–6. [Google Scholar] [CrossRef]
  3. Ab Ghani, S.; Muhamad, N.A.; Noorden, Z.A.; Zainuddin, H.; Abu Bakar, N.; Talib, M.A. Methods for improving the workability of natural ester insulating oils in power transformer applications: A review. Electr. Power Syst. Res. 2018, 163, 655–667. [Google Scholar] [CrossRef]
  4. Garcia, B.; Garcia, T.; Primo, V.; Burgos, J.C.; Urquiza, D. Studying the loss of life of natural-ester-filled transformer insulation: Impact of moisture on the aging rate of paper. IEEE Electr. Insul. Mag. 2017, 33, 15–23. [Google Scholar] [CrossRef]
  5. Tokunaga, J.; Koide, H.; Mogami, K.; Hikosaka, T. Comparative studies on the aging of thermally upgraded paper insulation in palm fatty acid ester, mineral oil, and natural ester. IEEE Trans. Dielectr. Electr. Insul. 2016, 23, 258–265. [Google Scholar] [CrossRef]
  6. Carcedo, J.; Fernández, I.; Ortiz, A.; Delgado, F.; Renedo, C.J.; Pesquera, C. Aging assessment of dielectric vegetable oils. IEEE Electr. Insul. Mag. 2015, 31, 13–21. [Google Scholar] [CrossRef] [Green Version]
  7. Frimpong, G.K.; Oommen, T.V.; Asano, R. A survey of aging characteristics of cellulose insulation in natural ester and mineral oil. IEEE Electr. Insul. Mag. 2011, 27, 36–48. [Google Scholar] [CrossRef]
  8. Coulibaly, M.; Perrier, C.; Marugan, M.; Beroual, A. Aging behavior of cellulosic materials in presence of mineral oil and ester liquids under various conditions. IEEE Trans. Dielectr. Electr. Insul. 2013, 20, 1971–1976. [Google Scholar] [CrossRef]
  9. McShane, C.P.; Rapp, K.J.; Corkran, J.L.; Gauger, G.A.; Luksich, J. Aging of paper insulation in natural ester dielectric fluid. Trans. Distribu. Conf. Expo. 2001, 2, 675–679. [Google Scholar]
  10. Lu, W.; Liu, Q. Effect of cellulose particles on impulse breakdown in ester transformer liquids in uniform electric fields. IEEE Trans. Dielectr. Electr. Insul. 2015, 22, 2554–2564. [Google Scholar] [CrossRef]
  11. Liu, Q.; Wang, Z.D. Streamer characteristic and breakdown in synthetic and natural ester transformer liquids under standard lightning impulse voltage. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 285–294. [Google Scholar] [CrossRef]
  12. Rapp, K.J.; Corkran, J.; Mcshane, C.P.; Prevost, T.A. Lightning Impulse Testing of Natural Ester Fluid Gaps and Insulation Interfaces. IEEE Trans. Dielectr. Electr. Insul. 2009, 16, 1595–1603. [Google Scholar] [CrossRef]
  13. Wang, X.; Wang, Z.D. Study of dielectric behavior of ester transformer liquids under ac voltage. IEEE Trans. Dielectr. Electr. Insul. 2012, 19, 1916–1925. [Google Scholar] [CrossRef]
  14. Rapp, K.J.; McShane, C.P.; Vandermaar, J.; Vukovic, D.; Tenbohlen, S. Long gap breakdown of natural ester fluid. Int. Conf. High Voltage Eng. Applicat. 2010, 104–107. [Google Scholar]
  15. Reffas, A.; Moulai, H.; Beroual, A. Comparison of dielectric properties of olive oil, mineral oil, and other natural and synthetic ester liquids under AC and lightning impulse stresses. IEEE Trans. Dielectr. Electr. Insul. 2018, 25, 1822–1830. [Google Scholar] [CrossRef]
  16. Duy, C.T.; Lesaint, O.; Denat, A.; Bonifaci, N. Streamer propagation and breakdown in natural ester at high voltage. IEEE Trans. Dielectr. Electr. Insul. 2009, 16, 1–4. [Google Scholar] [CrossRef]
  17. Huang, Z.; Chen, X.; Li, J.; Wang, F.; Zhang, R.; Mehmood, M.A.; Liang, S.; Jiang, T. Streamer characteristics of dielectric natural ester-based liquids under long gap distances. Aip Adv. 2018, 8, 105129. [Google Scholar] [CrossRef] [Green Version]
  18. Peppas, G.D.; Charalampakos, V.P.; Pyrgioti, E.C.; Gonos, I.F. Electrical and optical measurements investigation of the pre-breakdown processes in natural ester oil under different impulse voltage waveforms. IET Sci. Meas. Technol. 2016, 10, 545–551. [Google Scholar] [CrossRef]
  19. Denat, A.; Lesaint, O.; Mc Cluskey, F. Breakdown of liquids in long gaps: Influence of distance, impulse shape, liquid nature, and interpretation of measurements. IEEE Trans. Dielectr. Electr. Insul. 2015, 22, 2581–2591. [Google Scholar] [CrossRef]
  20. Lesaint, O. Prebreakdown phenomena in liquids: Propagation ‘modes’ and basic physical properties. J. Phys. D 2016, 49, 144001. [Google Scholar] [CrossRef]
  21. Smalo, H.S.; Astrand, P.; Ingebrigtsen, S. Calculation of ionization potentials and electron affinities for molecules relevant for streamer initiation and propagation. IEEE Trans. Dielectr. Electr. Insul. 2010, 17, 733–741. [Google Scholar] [CrossRef]
  22. Dung, N.V.; Høidalen, H.K.; Linhjell, D.; Lundgaard, L.E.; Unge, M. Effects of reduced pressure and additives on streamers in white oil in long point-plane gap. J. Phys. D Appl. Phys. 2013, 46, 255501. [Google Scholar] [CrossRef]
  23. Zhan, C.G.; Nichols, J.A.; Dixon, D.A. Ionization Potential, Electron Affinity, Electronegativity, Hardness, and Electron Excitation Energy:  Molecular Properties from Density Functional Theory Orbital Energies. J. Phys. Chem. A 2003, 107, 4184–4195. [Google Scholar] [CrossRef] [Green Version]
  24. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, K.; Wang, F.; Li, J.; Huang, Z.; Lou, Z.; Han, Q.; Zhao, Q.; Hu, K. Synthesis of trimethylolpropane fatty acid triester as a high performance electrical insulating oil. Ind. Crops Prod. 2019, 142, 111834. [Google Scholar] [CrossRef]
  26. Nemeth, G.I.; Selzle, H.L.; Schlag, E.W. Magnetic ZEKE experiments with mass analysis. Chem. Phys. Lett. 1993, 215, 151–155. [Google Scholar] [CrossRef]
  27. Holmes, J.L.; Lossing, F.P. Ionization energies of homologous organic compounds and correlation with molecular size. Org. Mass Spectrom. 1991, 26, 537–541. [Google Scholar] [CrossRef]
  28. Lesaint, O.; Massala, G. Positive streamer propagation in large oil gaps: Experimental characterization of propagation modes. IEEE Trans. Dielectr. Electr. Insul. 1998, 5, 360–370. [Google Scholar] [CrossRef]
  29. Davari, N.; Åstrand, P.O.; Ingebrigtsen, S.; Unge, M. Excitation energies and ionization potentials at high electric fields for molecules relevant for electrically insulating liquids. J. Appl. Phys. 2013, 113, 143707. [Google Scholar] [CrossRef]
  30. Jomni, F.; Aitken, F.; Denat, A. Experimental investigation of transient pressure waves produced in dielectric liquids. J. Acoust. Soc. Am. 2000, 107, 1203–1211. [Google Scholar] [CrossRef]
  31. Oommen, T.V. Vegetable oils for liquid-filled transformers. IEEE Electr. Insul. Mag. 2002, 18, 6–11. [Google Scholar] [CrossRef]
  32. Gryglewicz, S.; Piechocki, W.; Gryglewicz, G. Preparation of polyol esters based on vegetable and animal fats. Bioresour. Technol. 2003, 87, 35–39. [Google Scholar] [CrossRef]
  33. Ingebrigtsen, S.; Lundgaard, L.E.; Åstrand, P.O. Effects of additives on prebreakdown phenomena in liquid cyclohexane: II. Streamer propagation. J. Phys. D Appl. Phys. 2007, 40, 5624–5634. [Google Scholar] [CrossRef]
  34. Ingebrigtsen, S.; Smalo, H.S.; Astrand, P.O.; Lundgaard, L.E. Effects of electron-attaching and electron-releasing additives on streamers in liquid cyclohexane. IEEE Trans. Dielectr. Electr. Insul. 2009, 16, 1524–1535. [Google Scholar] [CrossRef]
  35. Dung, N.V.; Hoidalen, H.K.; Linhjell, D.; Lundgaard, L.E.; Unge, M. Influence of impurities and additives on positive streamers in paraffinic model oil. IEEE Trans. Dielectr. Electr. Insul. 2012, 19, 1593–1603. [Google Scholar] [CrossRef]
  36. Lísa, M.; Holčapek, M. Triacylglycerols profiling in plant oils important in food industry, dietetics and cosmetics using high-performance liquid chromatography–atmospheric pressure chemical ionization mass spectrometry. J. Chromatogr. A 2008, 1198, 115–130. [Google Scholar] [CrossRef] [PubMed]
  37. Lu, W.; Liu, Q.; Wang, Z.D. Pre-breakdown and breakdown mechanisms of an inhibited gas to liquid hydrocarbon transformer oil under negative lightning impulse voltage. IEEE Trans. Dielectr. Electr. Insul. 2017, 24, 2809–2818. [Google Scholar] [CrossRef] [Green Version]
  38. Davari, N.; Åstrand, P.-O.; Unge, M. Density-functional calculations of field-dependent ionization potentials and excitation energies of aromatic molecules. Chem. Phys. 2015, 447, 22–29. [Google Scholar] [CrossRef]
  39. Frisch, M.; Trucks, G.; Schlegel, H.; Scuseria, G.; Robb, M.; Cheeseman, J.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G. Gaussian 09, Rev. D. 01; Gaussian. Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  40. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  41. Christy, A.A.; Xu, Z.; Harrington, P. Thermal degradation and isomerisation kinetics of triolein studied by infrared spectrometry and GC–MS combined with chemometrics. Chem. Phys. Lipids 2009, 158, 22–31. [Google Scholar] [CrossRef] [Green Version]
  42. Lide, D.R. CRC Handbook of Chemistry and Physics; CRC press: Boca Raton, FL, USA, 2004. [Google Scholar]
  43. Kos, A.; Tefelski, D.B.; Kosciesza, R.; Rostocki, A.J.; Roszkiewicz, A.; Ejchart, W.; Jastrzebski, C.; Siegoczynski, R.M. Certain physico-chemical properties of triolein and methyl alcohol-triolein mixture under pressure. Int. J. High Pressure Res. 2007, 27, 39–42. [Google Scholar] [CrossRef]
Ijms 21 00974 g001 550

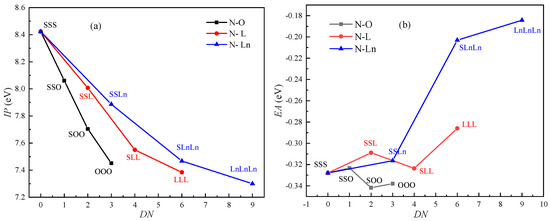

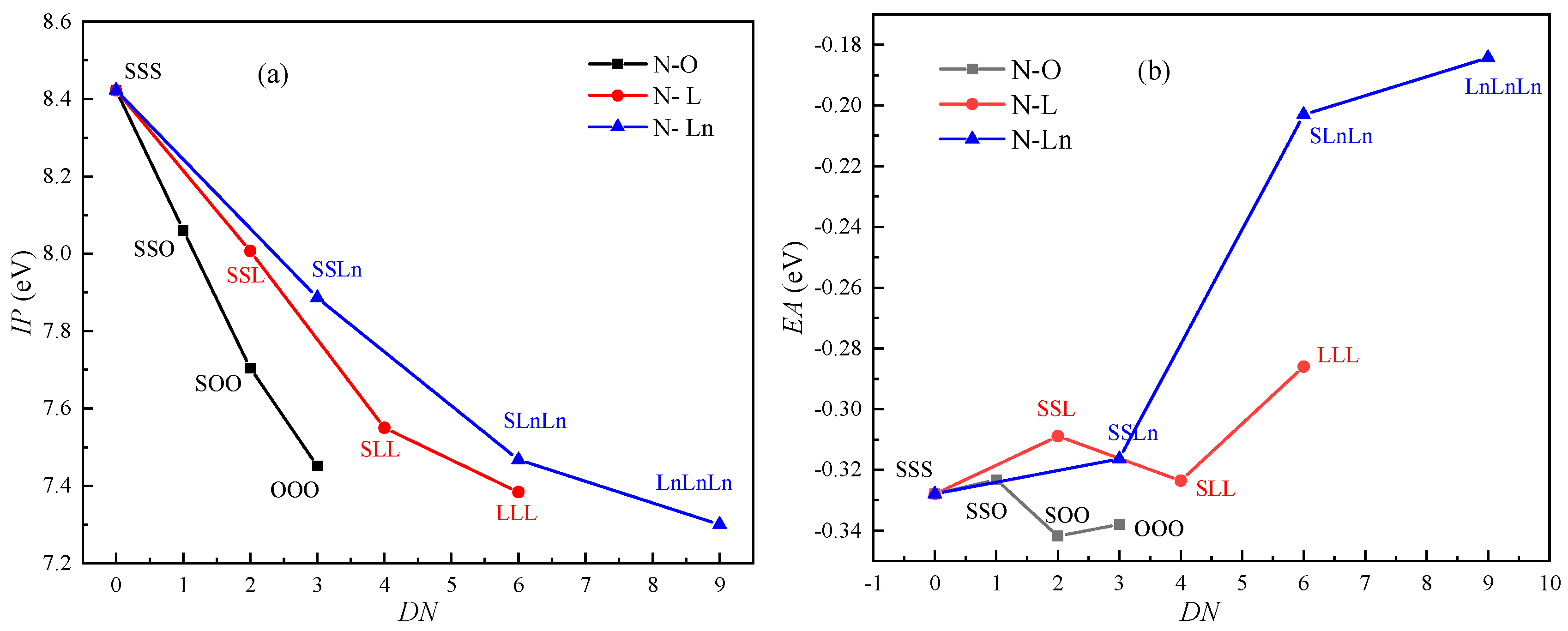

Figure 1. Effect of C=C on the ionization potential (IP) and electron affinity (EA) of triglycerides (DN: the number of C=C): (a) IP; (b) EA.
Figure 1. Effect of C=C on the ionization potential (IP) and electron affinity (EA) of triglycerides (DN: the number of C=C): (a) IP; (b) EA.
Ijms 21 00974 g001
Ijms 21 00974 g002 550

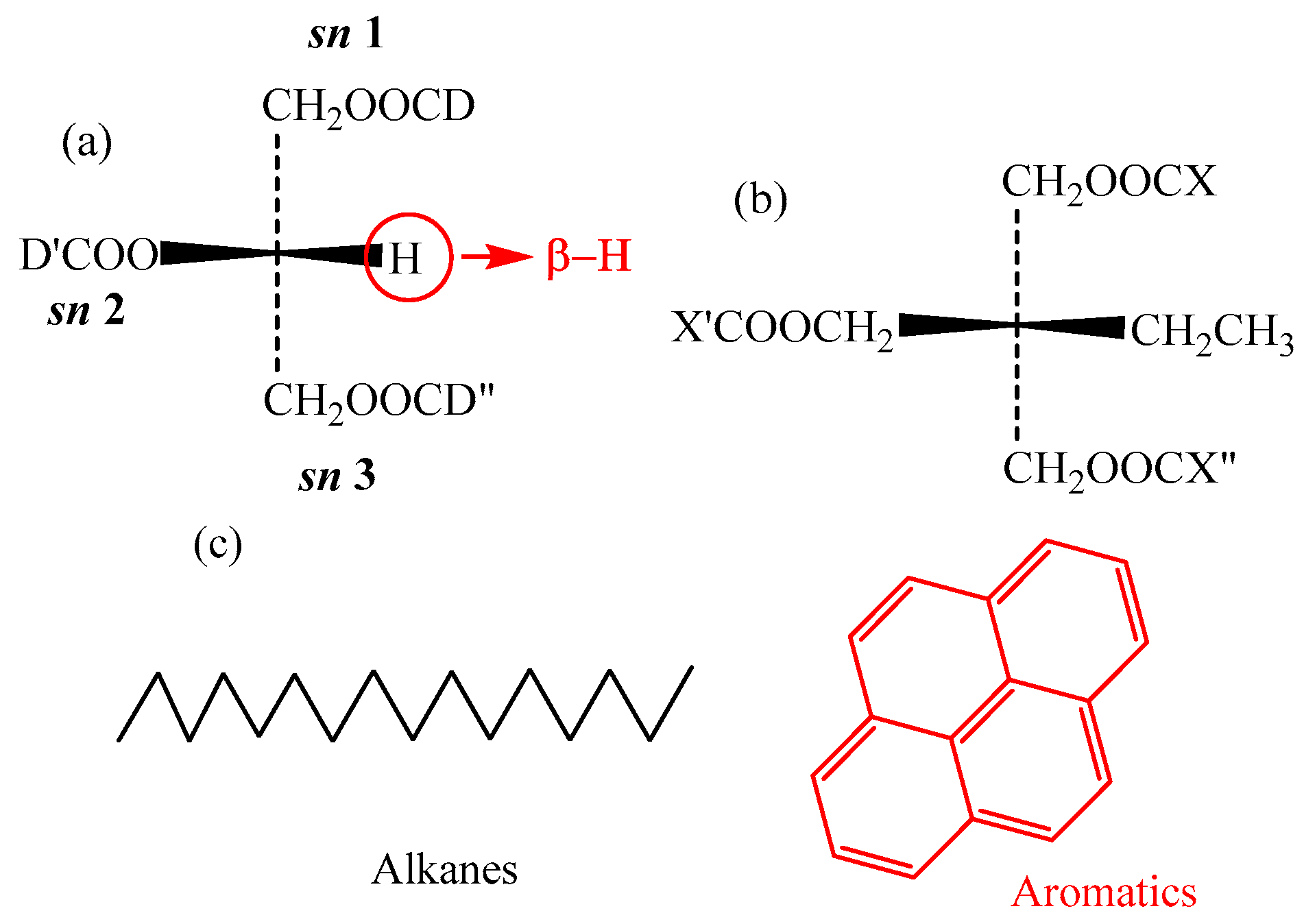

Figure 2. Molecular geometry of different insulation oil: (a) Natural ester insulation oil; (b) trimethylolpropane triester; (c) mineral oil.
Figure 2. Molecular geometry of different insulation oil: (a) Natural ester insulation oil; (b) trimethylolpropane triester; (c) mineral oil.
Ijms 21 00974 g002
Ijms 21 00974 g003 550

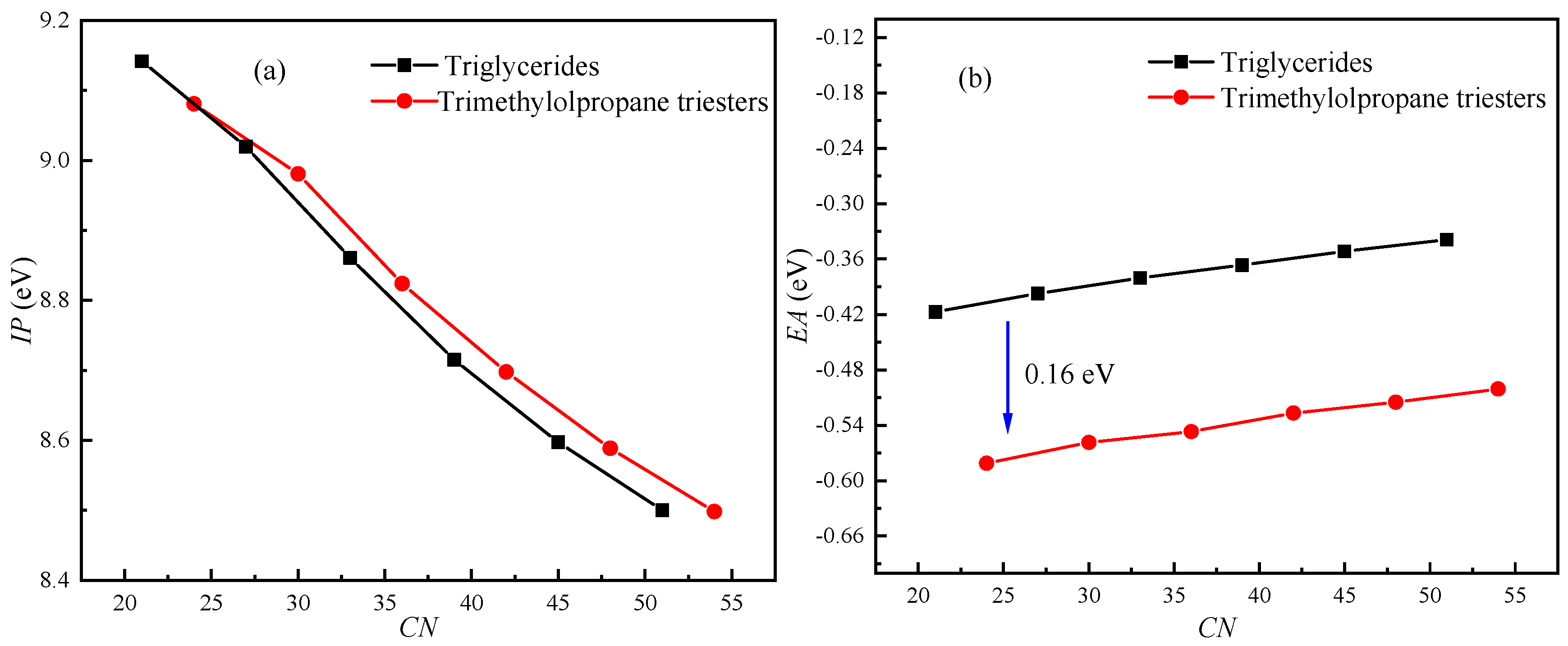

Figure 3. Effects of β-hydrogen and chain length (CN) on IP and EA: (a) IP; (b) EA.
Figure 3. Effects of β-hydrogen and chain length (CN) on IP and EA: (a) IP; (b) EA.
Ijms 21 00974 g003
Ijms 21 00974 g004 550

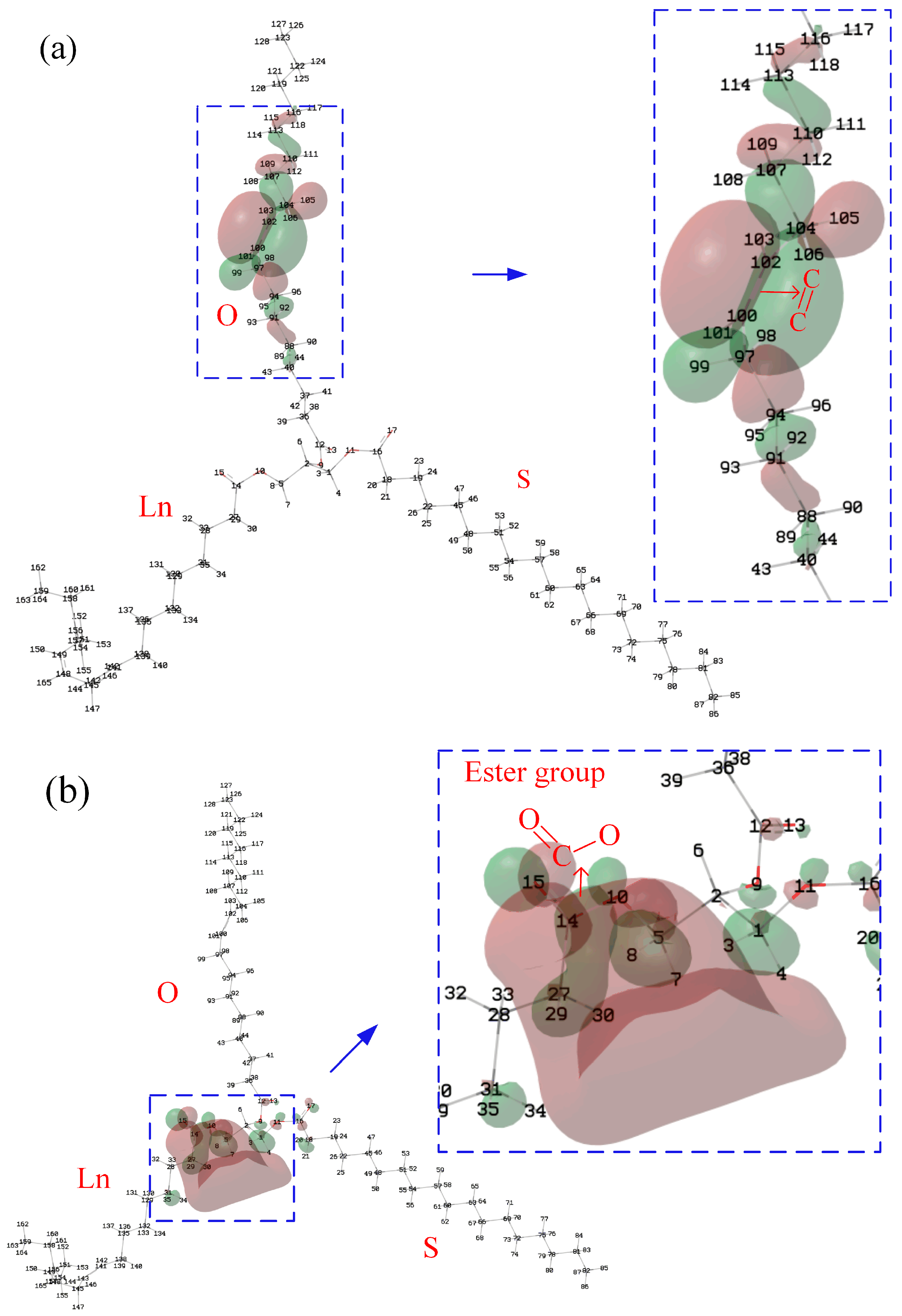

Figure 4. Isosurface of the HOMO and LUMO of N-OSLn: (a) HOMO; (b) LUMO.
Figure 4. Isosurface of the HOMO and LUMO of N-OSLn: (a) HOMO; (b) LUMO.
Ijms 21 00974 g004
Ijms 21 00974 g005 550

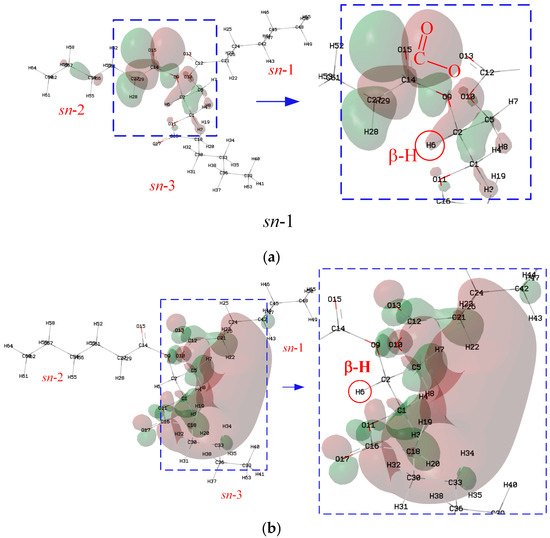

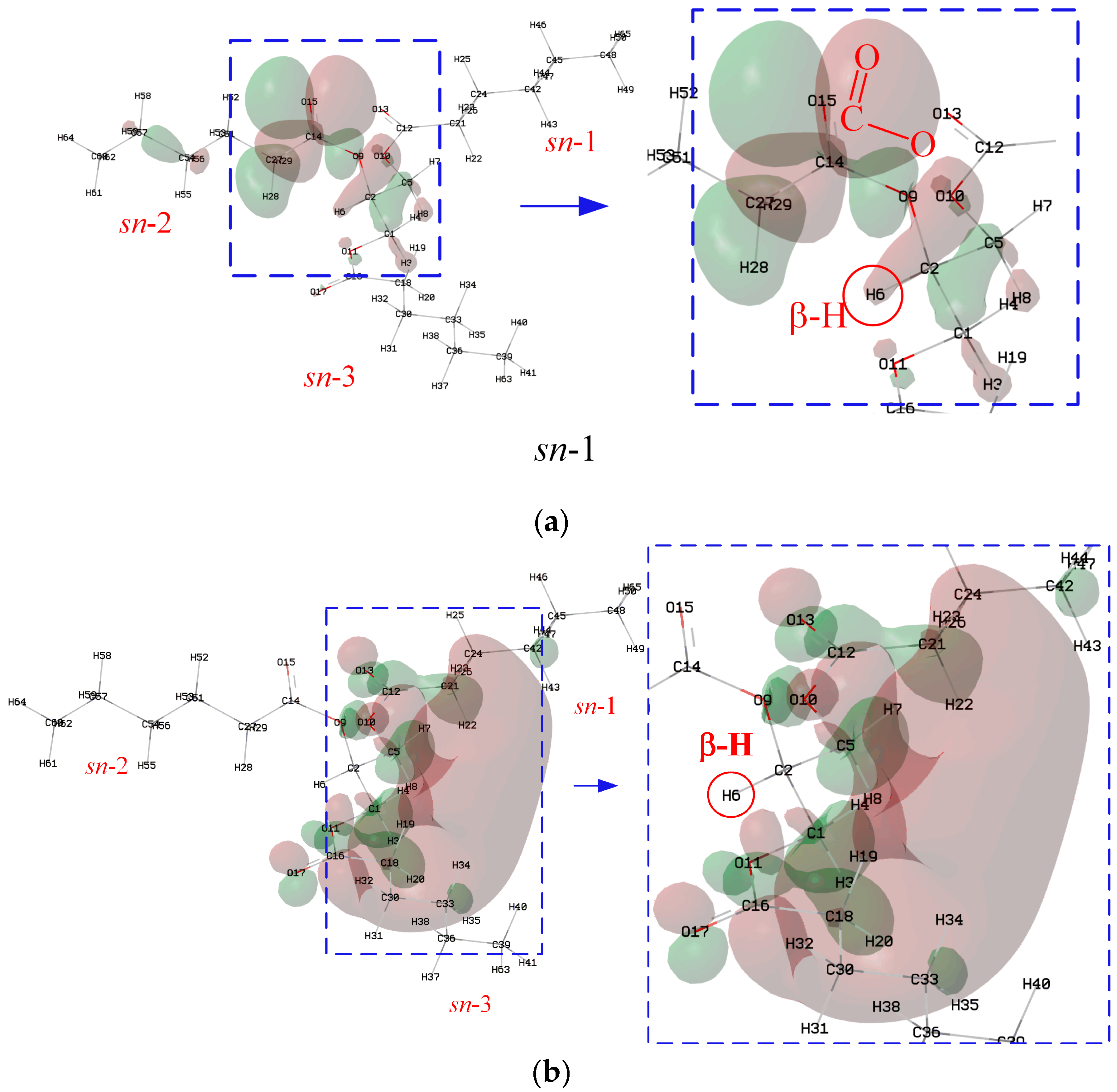

Figure 5. Isosurface of the HOMO and LUMO of N-CoCoCo: (a) HOMO; (b) LUMO.
Figure 5. Isosurface of the HOMO and LUMO of N-CoCoCo: (a) HOMO; (b) LUMO.
Ijms 21 00974 g005
Ijms 21 00974 g006 550

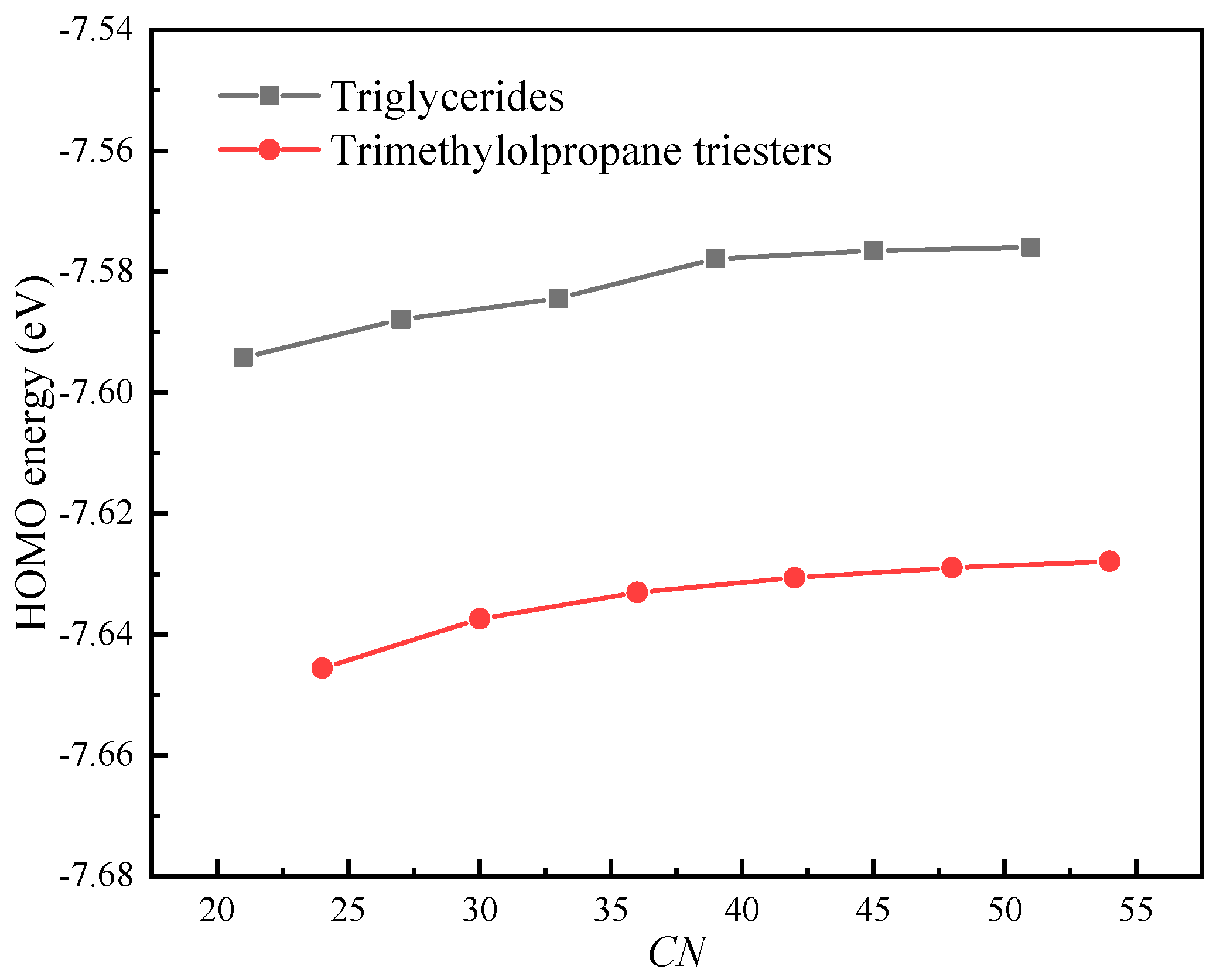

Figure 6. The HOMO energies of molecules.
Figure 6. The HOMO energies of molecules.
Ijms 21 00974 g006
Ijms 21 00974 g007 550

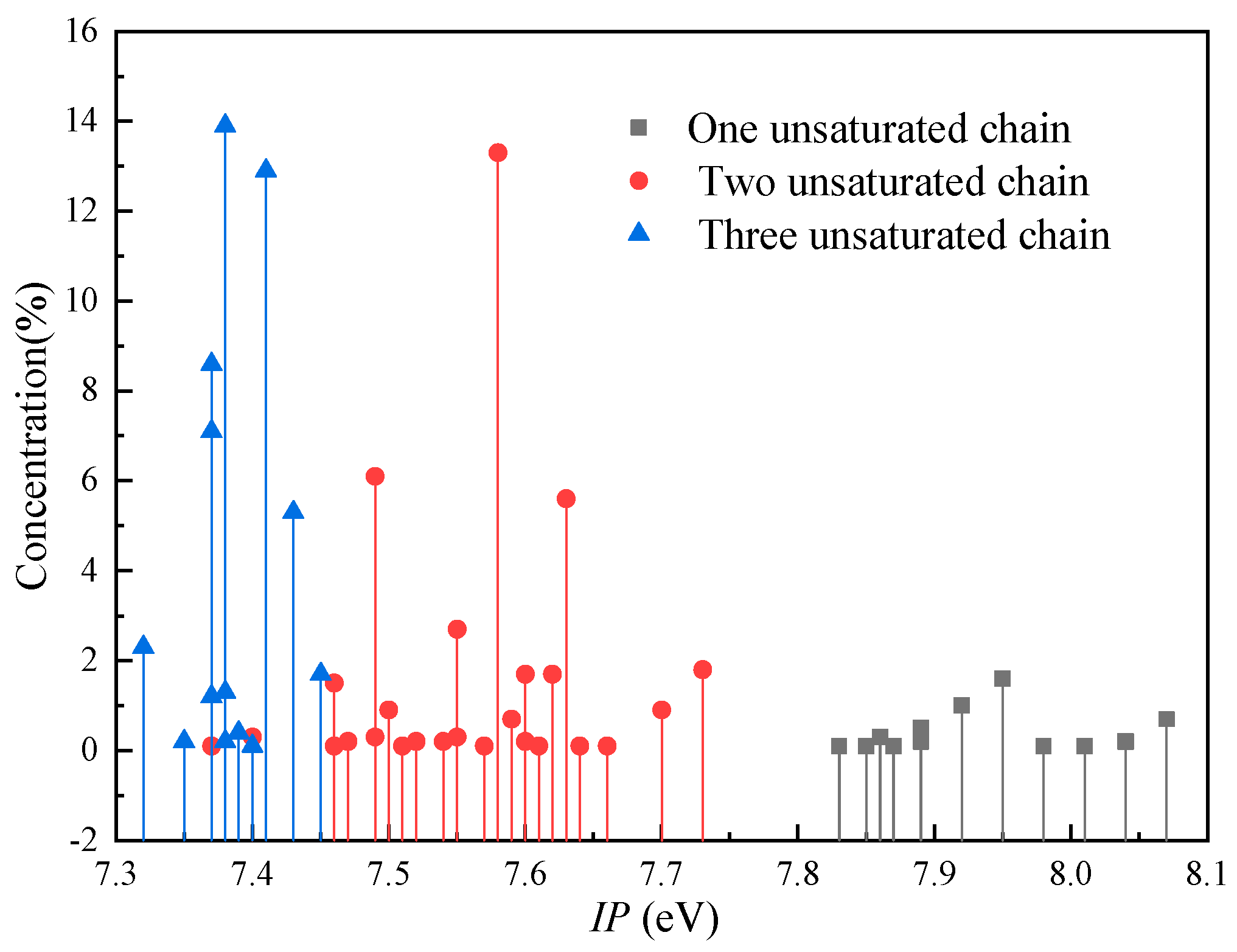

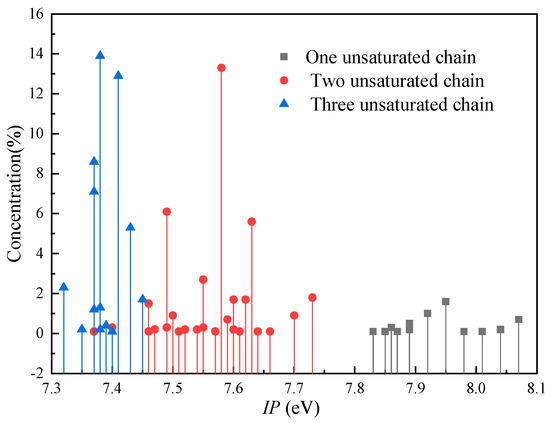

Figure 7. The distribution of the IP of the natural ester oil.
Figure 7. The distribution of the IP of the natural ester oil.
Ijms 21 00974 g007
Ijms 21 00974 g008 550
Figure 8. Reaction between the trimethylolpropane and saturated fatty acids [25].
Figure 8. Reaction between the trimethylolpropane and saturated fatty acids [25].
Ijms 21 00974 g008
Ijms 21 00974 g009 550

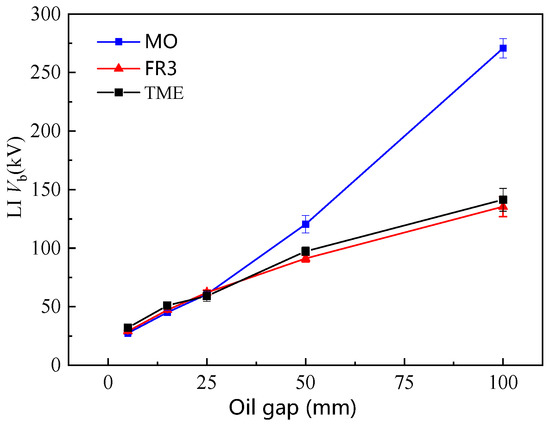

Figure 9. The impulse breakdown voltage at different oil gaps.
Figure 9. The impulse breakdown voltage at different oil gaps.
Ijms 21 00974 g009
Ijms 21 00974 g010 550

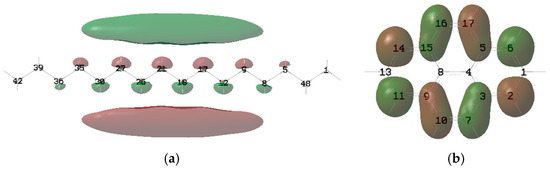

Figure 10. Isosurface of the LUMO of typical molecules of MO: (a) Octane; (b) pyrene.
Figure 10. Isosurface of the LUMO of typical molecules of MO: (a) Octane; (b) pyrene.
Ijms 21 00974 g010
Ijms 21 00974 g011 550

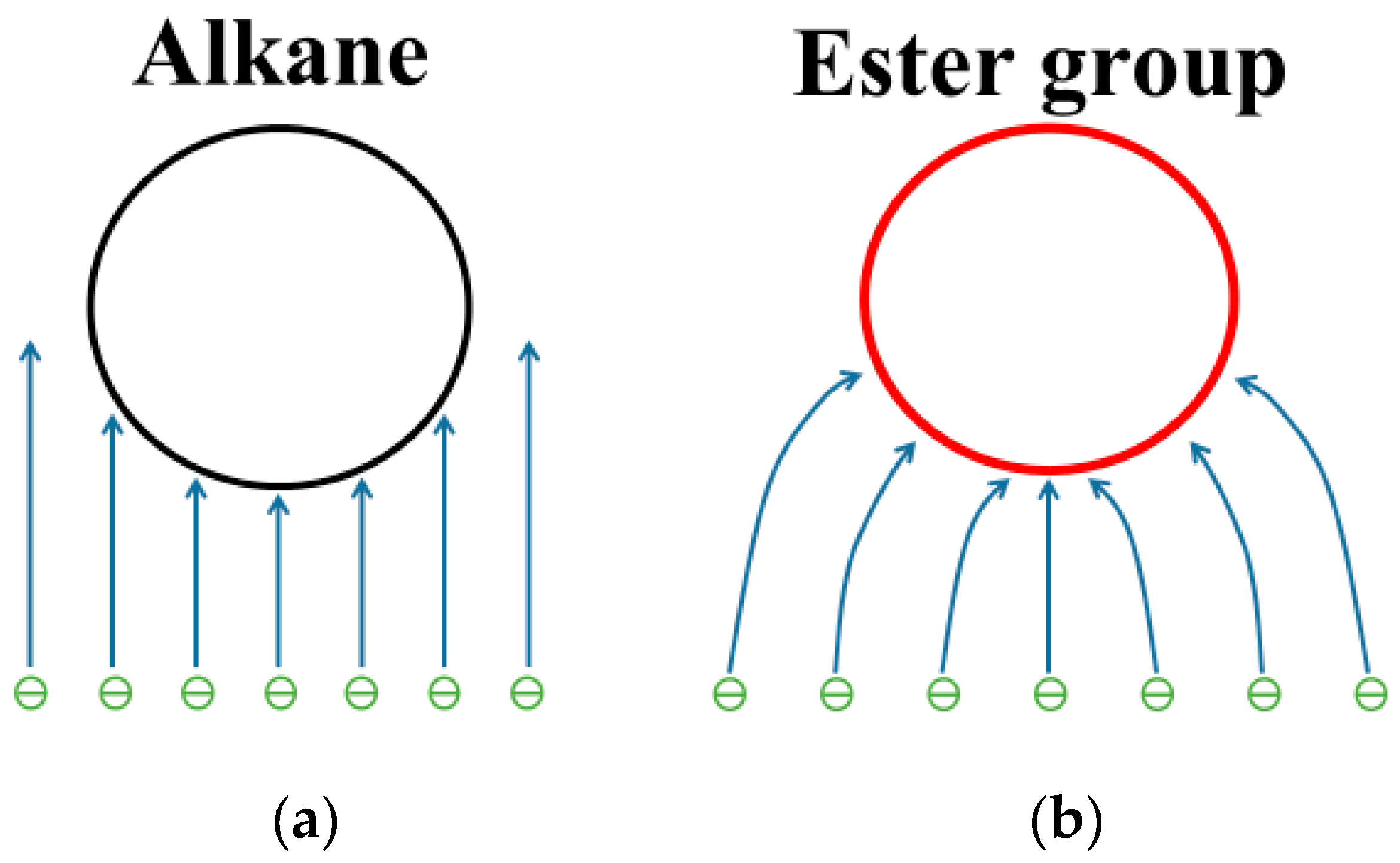

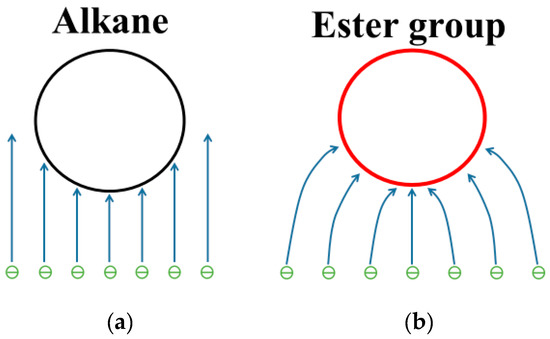

Figure 11. Sketch of the impact ionization in insulation oil: (a) MO; (b) ester insulation oil.
Figure 11. Sketch of the impact ionization in insulation oil: (a) MO; (b) ester insulation oil.
Ijms 21 00974 g011
Table
Table 1. The distribution of the IP of the three insulation oils.
Table 1. The distribution of the IP of the three insulation oils.
IP (eV)FR3MOTME
7.14–7.7394.7%5%0
7.83–8.075.3%00
8.82–9.0800100%
9.08–9.15095%0
Table
Table 2. Abbreviations for different types of fatty acids.
Table 2. Abbreviations for different types of fatty acids.
Fatty AcidSymbolCN:DN1
CaproicCo6:0
CaprylicCy8:0
CapricCr10:0
LauricLa12:0
MyristicM14:0
PalmiticP16:0
StearicS18:0
OleicO18:1
LinoleicL18:2
LinolenicLn18:3
1CN:DN = the number of carbon (CN):the number of C=C (DN).
Table
Table 3. Vibration frequencies of C=O and C=C in triolein.
Table 3. Vibration frequencies of C=O and C=C in triolein.
MethodsVibrational Frequency/cm−1
C=OC=C
sn-1sn-2sn-3sn-1sn-2sn-3
B3LYP/6-31+G*1747.31750.51757.41656.01656.31656.4
Experimental values1746 [41], 1745 [43]1653 [41], 1654 [43]
