Cloning and Functional Analysis of BcMYB101 Gene Involved in Leaf Development in Pak Choi (Brassica rapa ssp. Chinensis)

Abstract

As one of the largest transcription factor families, MYB transcription factors are widely present, and they are involved in a diverse range of physiological activities in plants, such as leaf development. GAMYB genes belong to the R2R3-MYB subfamily, which includes the MYB33/65/101 gene, and these genes are studied well in seed germination and flowering, but their roles in leaf development are poorly understood. In the current study, we isolated a GAMYB transcription factor from pak choi, BcMYB101, and analyzed its characteristics and function. The sequence structure analysis indicated that BcMYB101 has a highly conserved R2R3 DNA-binding domain in the N-terminal region and three GAMYB-specific motifs (Box1, Box2, and Box3). The expression pattern of diverse tissues revealed that BcMYB101 has a higher transcript level in the petiole, leaf, root, and floral organs. Furthermore, the expression level was significantly elevated after GA (gibberellin) treatment, suggesting that the BcMYB101 response was positively regulated by GA. Subcellular localization exhibited that BcMYB101 was only present in the nuclear region, consistent with the characterization of the transcription factor. The overexpression of BcMYB101 elucidated that BcMYB101 increased leaf number and resulted in downward-curling cauline leaves. Moreover, the virus-induced BcMYB101 silencing displayed that BcMYB101 is involved in the regulation of curly leaves. Furthermore, we discovered that BcMYB101 has two trans-activation activities and one interaction protein, BcTCH4, using a trans-activation activity assay and a yeast two-hybrid assay, respectively. In this study, we firstly isolated the BcMYB101 gene and explored its function in leaf development, thereby providing a solid foundation for further research on the regulatory mechanism of leaf shape in Brassica or other species.

1. Introduction

Transcription factors mediate plant growth and development, as well as physiological metabolism, to adapt to changes in the external environment via regulating the expression of target genes at the transcriptional level. Transcription factors can be divided into disparate families based on the structure of the DNA-binding domain, such as the MYB protein, high-mobility group (HMG) protein, basic leucine zipper (bZIP) protein [1], heat-shock protein (HSP), zinc-finger protein [2], MADS-box protein [3], AP2 (APETALA2)/EREBP (ethylene-responsive element binding protein) protein [4], basic helix–loop–helix (bHLH) protein [5], homeodomain protein [6], etc. The MYB superfamily, as one of the largest transcription factor families in plants, plays an important role in diverse biological functions, including the plant hormone and environmental factor response, the coloration of flesh and pericarp [7], cell cycle and cell differentiation regulation [8], anthocyanin formation and secondary metabolism [9], and the morphogenesis of organs such as leaves [4]. The v2MYB gene was the first discovered MYB transcription factor from the leukemia viruses AMV and E26 in bird, and the first plant MYB gene identified was ZmMYBC1 from Zea mays [10]. Interestingly, there are more MYB transcription factors in plants than in animals, and hundreds of MYB transcripts were identified in plants to date. MYB transcripts are a hot topic in the field of botany research, and the research progress is rapid due to the numerous members and diverse functions.

MYB TFs (transcription factors) can be categorized into four subclades depending on the number of MYB domains in Arabidopsis thaliana [11]: (1) 1R-MYB (R1/2, R3), (2) R2R3-MYB, (3) 3R-MYB (R1R2R3-MYB), and (4) 4R-MYB. Among them, R2R3-MYB has the largest number of members. So far, 126 R2R3-MYB members were identified among 339 MYB TFs in Arabidopsis thaliana, and about 109 R2R3-MYB members were identified among 230 MYB TFs in rice [12]. In addition, more than 200 and 80 MYB transcription factors were found in cotton and maize, respectively. Furthermore, the R2R3-MYB proteins are classified into 22 subgroups based on sequence conservation within the C-terminal region, and most of them have a transcriptional activation domain [13]. GAMYB belongs to the 18th subgroup of the R2R3-MYB family, consisting of MYB33, MYB65, MYB81, MYB97, MYB101, MYB104, and MYB120 [11,14]. GAMYB, as a downstream gene of the DELLA protein (a subfamily of the GRAS family), was initially isolated from the aleurone layer in barley, which responds to GA signal transduction [15]. Subsequently, it was isolated and identified in Arabidopsis, rice, oats, Asian cotton, strawberry, tomato, cucumber, and corn [16,17,18,19,20,21,22]. The GAMYB proteins not only share a common R2R3 conserved DNA-binding domain, but they also have unique motifs termed Box1, Box2, and Box3. The GAMYB protein directly binds to specific sequences (binding region) in the promoter of GA-responsive genes and trans-activates them [15]. GAMYB plays an essential role in flower induction, and the expression of GAMYB and LEAFY (LFY) increased with exogenous GA₄ treatment under short-day conditions in Arabidopsis thaliana [23]. Moreover, GAMYB plays a major role in regulating the development of floral organs, thereby affecting the growth of stamens, anthers, and pollen in plants [24,25]. In Arabidopsis, GAMYB-like genes MYB33/65/101 mediate GA signaling in petiole elongation and flowering responses [23]. Three out of seven GAMYB members (MYB97, MYB101, and MYB120) act as male factors involved in pollen tube reception, possibly by regulating the transcription of downstream genes [26]. GAMYB-like genes (MYB33/65) were regulated by miR159 to promote the progression of programmed cell death and to inhibit growth in the aleurone [27]. Additionally, MYB33 and MYB101 transcription factors play a role in improving hypersensitivity to ABA (abscisic acid) and soil drought tolerance in Arabidopsis and tomato [28]. In rice, loss-of-function mutants of OsGAMYB led to the abnormal development of the stamen and anther [24,25]. The OsGAMYB protein is also required for the generation of α-amylase in aleurone layer cells in rice [24].

Brassica and Arabidopsis have a close relationship, with both belonging to the Brassicaceae family. As a member of the genus Brassica, B. rapa subgenomes underwent evolution through genome fractionation from Arabidopsis [29]. Pak-choi (Brassica rapa ssp. Chinensis), belonging to the B. rapa family, is a major leafy vegetable and is widely cultivated in Asia [30]. Leaf morphology is an important agronomic trait with a great impact on pak choi architecture and productivity. MYB101, as a member of the GAMYB-like gene family, together with MYB33/65, regulates the expression of genes that are induced by GA during seed germination [31]. Meanwhile, MYB101/ABS7 also plays a major role in leaf lamina development in Arabidopsis [32]. Despite the functions of GAMYB genes being reported in several species, they are yet to be fully ascertained in pak choi.

Here, we studied a GAMYB-like gene from pak choi, BcMYB101, the protein of which is targeted in the nucleus. We show that BcMYB101 has a highly conserved R2R3 domain and GAMYB-specific motifs (Box1, Box2, and Box3). The spatio-temporal expression profile of BcMYB101 manifested that BcMYB101 was expressed in various tissues, especially in the floral organs, which is consistent with its widely studied function in flower induction and development. Furthermore, the transcript levels of BcMYB101 were gradually increased with the application of GA3, indicating that BcMYB101 can be induced and positively regulated by GA. To investigate the influence of BcMYB101, we performed overexpression and silencing assays of BcMYB101 in Arabidopsis and pak choi, respectively. The results indicated that BcMYB101 possibly participates in the development of curly leaves in pak choi. To further explore the regulatory network of the BcMYB101 protein, we used yeast two-hybrid assays to identify its trans-activation domain and to screen its possible interaction proteins; one candidate protein, BcTCH4, was found to interact with BcMYB101 in yeast. These findings extend our understanding of MYB101 in Cruciferae plants, suggesting that BcMYB101 acts as a nuclear-target protein, involved in gibberellin signaling and leaf development in pak choi.

2. Results

2.1. Identification of BcMYB101 and Sequence Alignment

The BcMYB101 cDNA was isolated from pak choi cultivar “suzhouqing”, encoding a protein of 479 amino acids with a predicted molecular mass of 54.07 kDa and theoretical pI of 5.36. The instability index (II) and grand average of hydropathicity (GRAVY) were computed to be 49.92 and −0.885, respectively, which classified BcMYB101 as an unstable and hydrophilic protein.

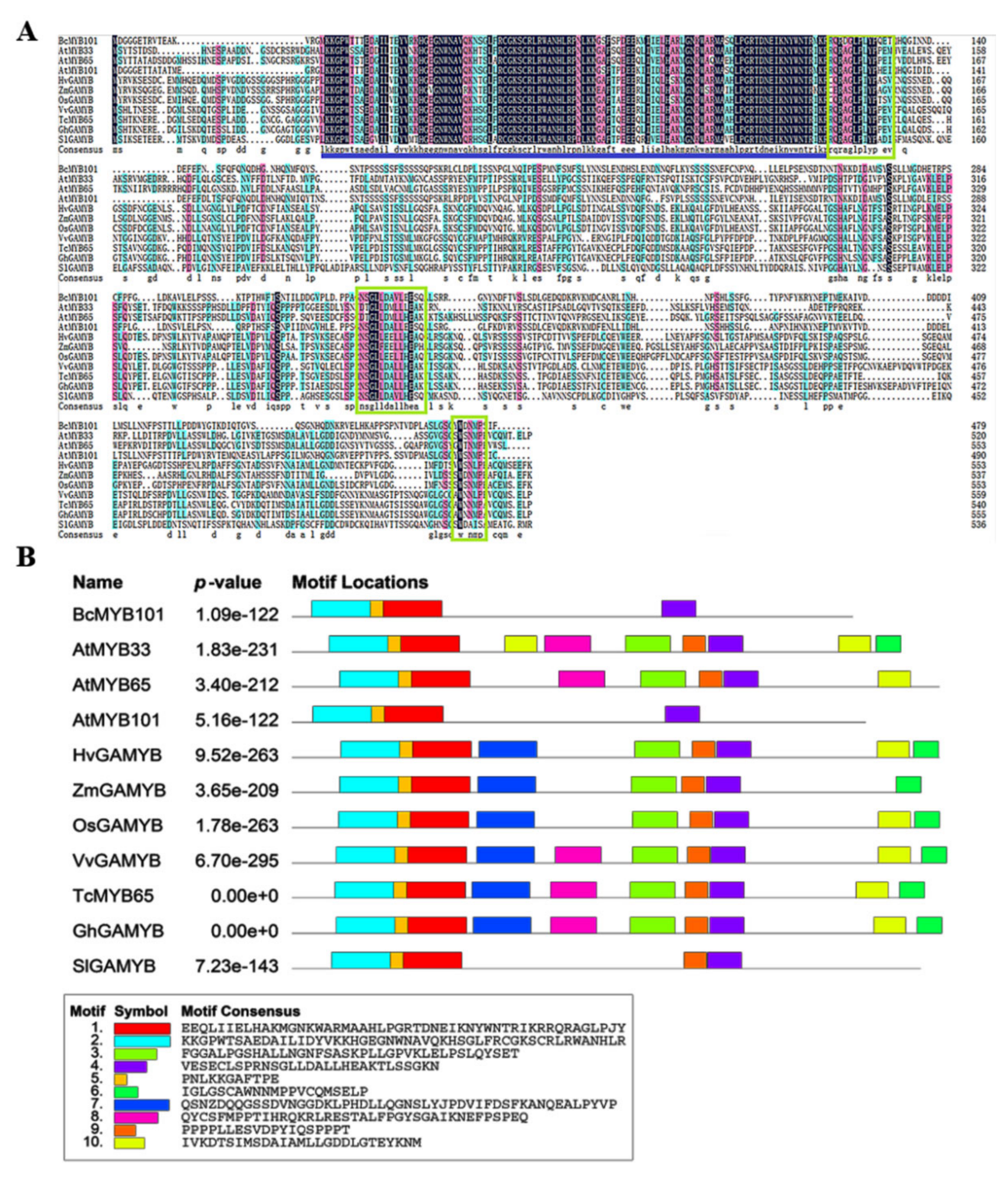

Multiple sequence alignment of the GAMYB and GAMYB-like proteins from Hordeum vulgare, Solanum lycopersicum, Oryza sativa, Zea mays, Vitis vinifera, Gossypium hirsutum, Theobroma cacao, Arabidopsis thaliana, and pak choi showed that the BcMYB101 protein contains a highly conserved R2R3 domain in the N-terminal portion and three GAMYB-specific conserved regions Box1, Box2, and Box3 (Figure 1A). Furthermore, multiple sequence alignment indicated that the BcMYB101 protein shares 24.22%, 24.74%, 24.39%, and 25.26% identity with OsGAMYB from rice, ZmGAMYB from corn, HvGAMYB from barley, and SlGAMYB from tomato, respectively, while it shares more than 60% identity with AtMYB101 from Arabidopsis, thereby further confirming the conservation of Cruciferae plants in evolution. The conserved motif distribution displayed that motif1, motif2, and motif5 in the N-terminal region and motif4 in the C-terminal region were highly conserved in all GAMYB and GAMYB-kike proteins (Figure 1B). Additionally, the secondary structure, predicted using PSIPRED 4.0, exhibited that the BcMYB101 protein mainly comprised alpha helices (115 amino acids, 24%) and random coils (364 amino acids, 76%) (Figure S1).

2.2. Phylogenetic Analysis of GAMYB

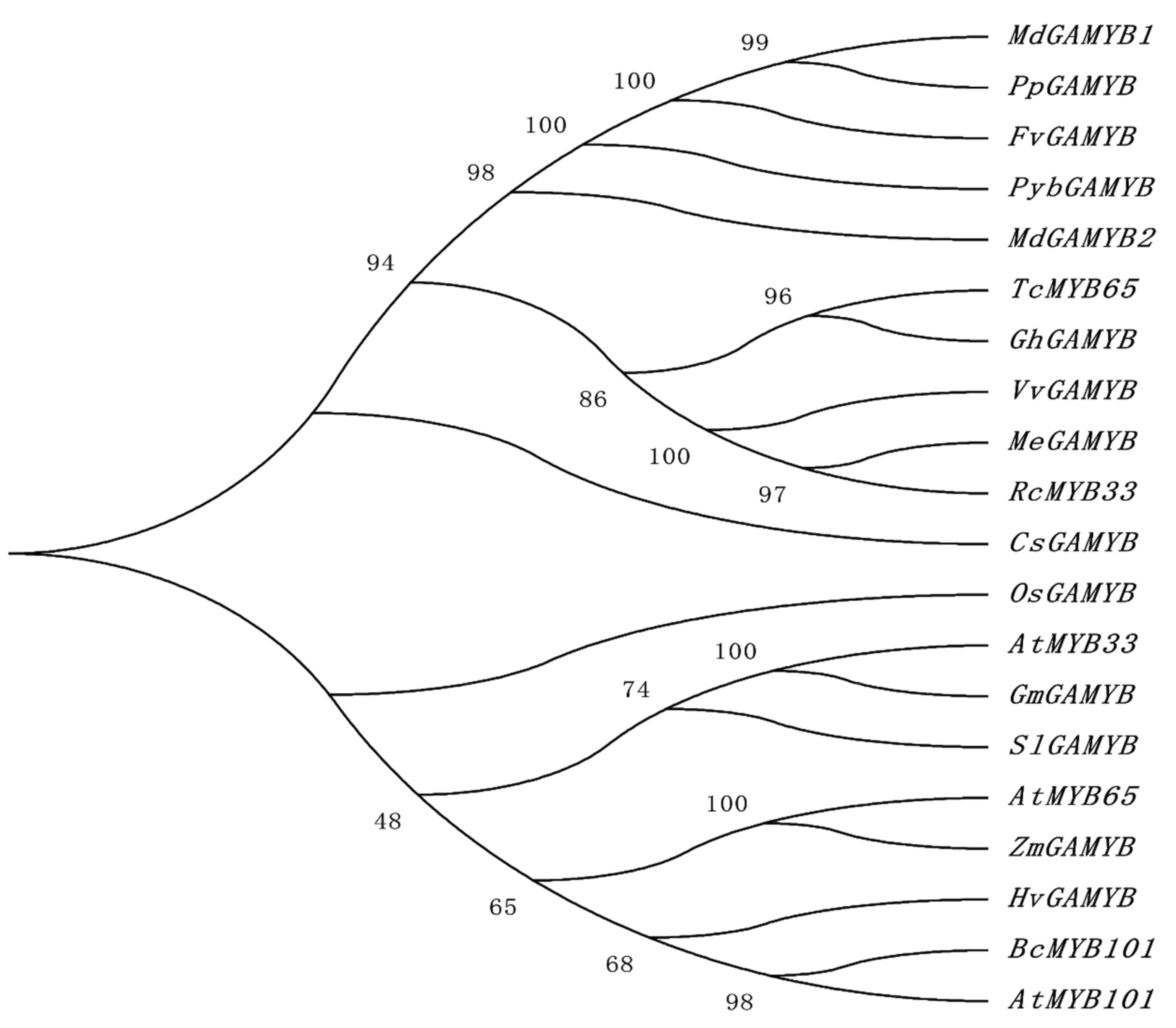

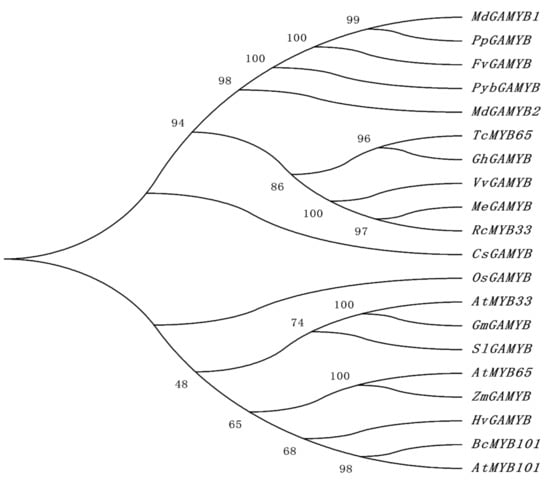

To analyze the phylogenetic relationship of GAMYB and GAMYB-like proteins, an unrooted neighbor-joining (NJ) phylogenetic tree was constructed according to the full-length protein sequences in 17 species, consisting of three monocots H. vulgare, O. sativa, and Z. mays, and fourteen dicots S. lycopersicum, A. thaliana, G. hirsutum, T. cacao, Malus domestica, Fragaria vesca, Manihot esculenta, Ricinus communis, Populus euphratica, Glycine max, Cucumis sativus, Pyrus × bretschneideri, Prunus persica, and pak choi. As shown in the phylogenetic tree (Figure 2), the GAMYB proteins were divided into two larger groups; OsGAMYB and CsGAMYB formed separate branches, suggesting that GAMYB101 genes possibly exhibit functional differentiation in diverse species. Moreover, the result exhibited that GAMYB-like genes in Arabidopsis, soybean, tomato, corn, cereal, and pak choi may have originated from a common ancestral gene, with BcMYB101 having the highest resemblance with AtMYB101.

2.3. Expression Patterns of BcMYB101 Gene

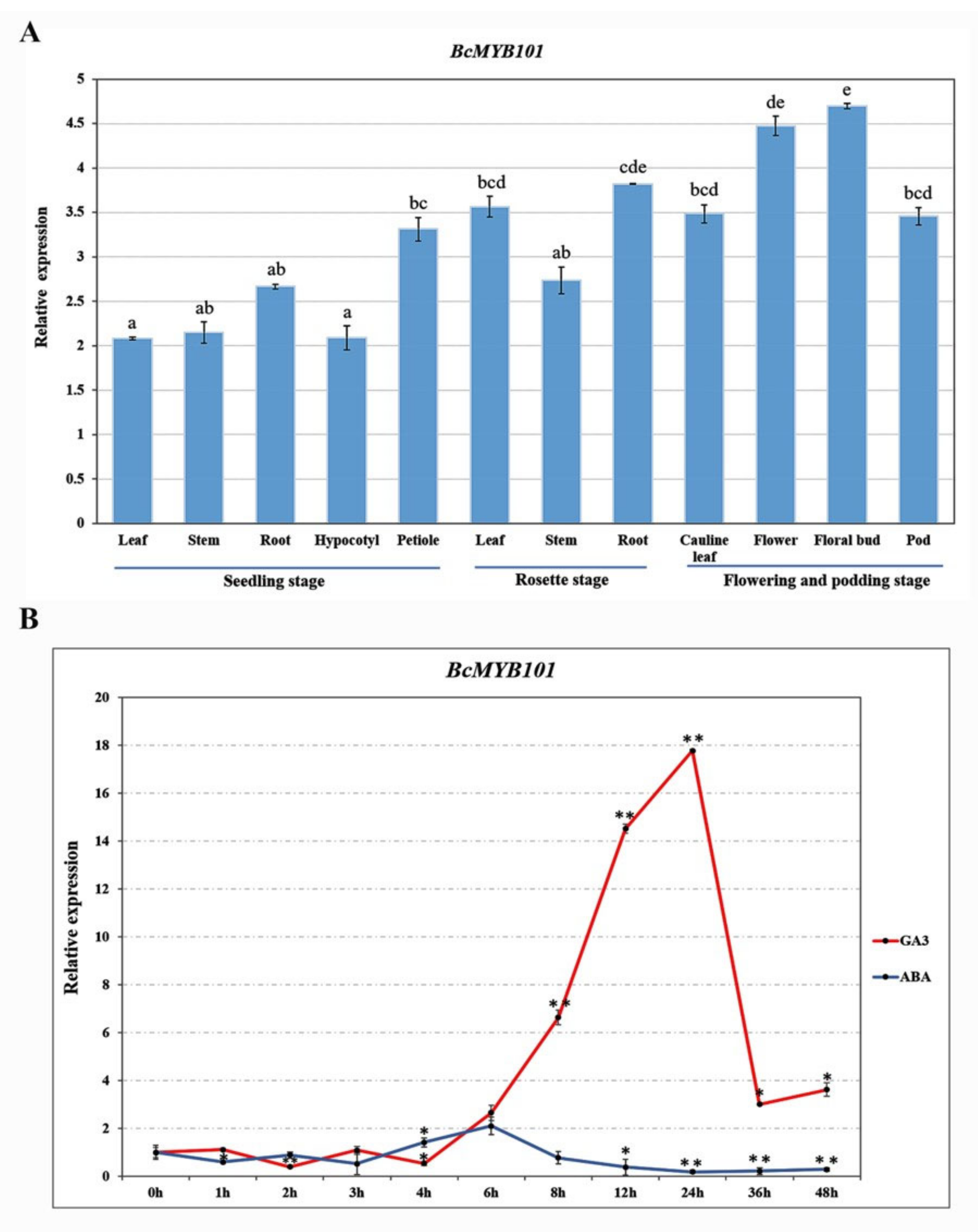

MYB transcription factors extensively participate in the growth and development of roots, stems, leaves, and flowers. To verify the effects of the BcMYB101 gene on pak choi development, its spatio-temporal expression was analyzed with qRT-PCR using total RNA from various tissues at different stages. As shown in Figure 3A, BcMYB101 was widely expressed in different tissues, and a higher transcript level was identified in the petiole, leaf, root, and especially floral organs. Therefore, we speculated that BcMYB101 may be mainly involved in the development of the leaf, petiole, root, and floral organs in pak choi. Additionally, the functional analysis of the BcMYB101 gene promoter identified three conserved sequence (TAACAAR) present in the gibberellin response element (GARE) (Figure S2). Previous reports showed that the GARE plays a major role in mediating both ABA (abscisic acid) and GA regulation [33]. Therefore, we assumed that the BcMYB101 gene responds to the phytohormones GA and ABA, and we studied the BcMYB101 gene expression profile under 100 μM GA3 and ABA treatments using qRT-PCR. As we can see, the transcript levels of BcMYB101 were significantly upregulated and downregulated in the time course of GA3 and ABA application, respectively, especially after 6 h. This result is consistent with GAMYB being a GA-regulated transcriptional factor (Figure 3B).

2.4. Subcellular Localization of BcMYB101 Protein

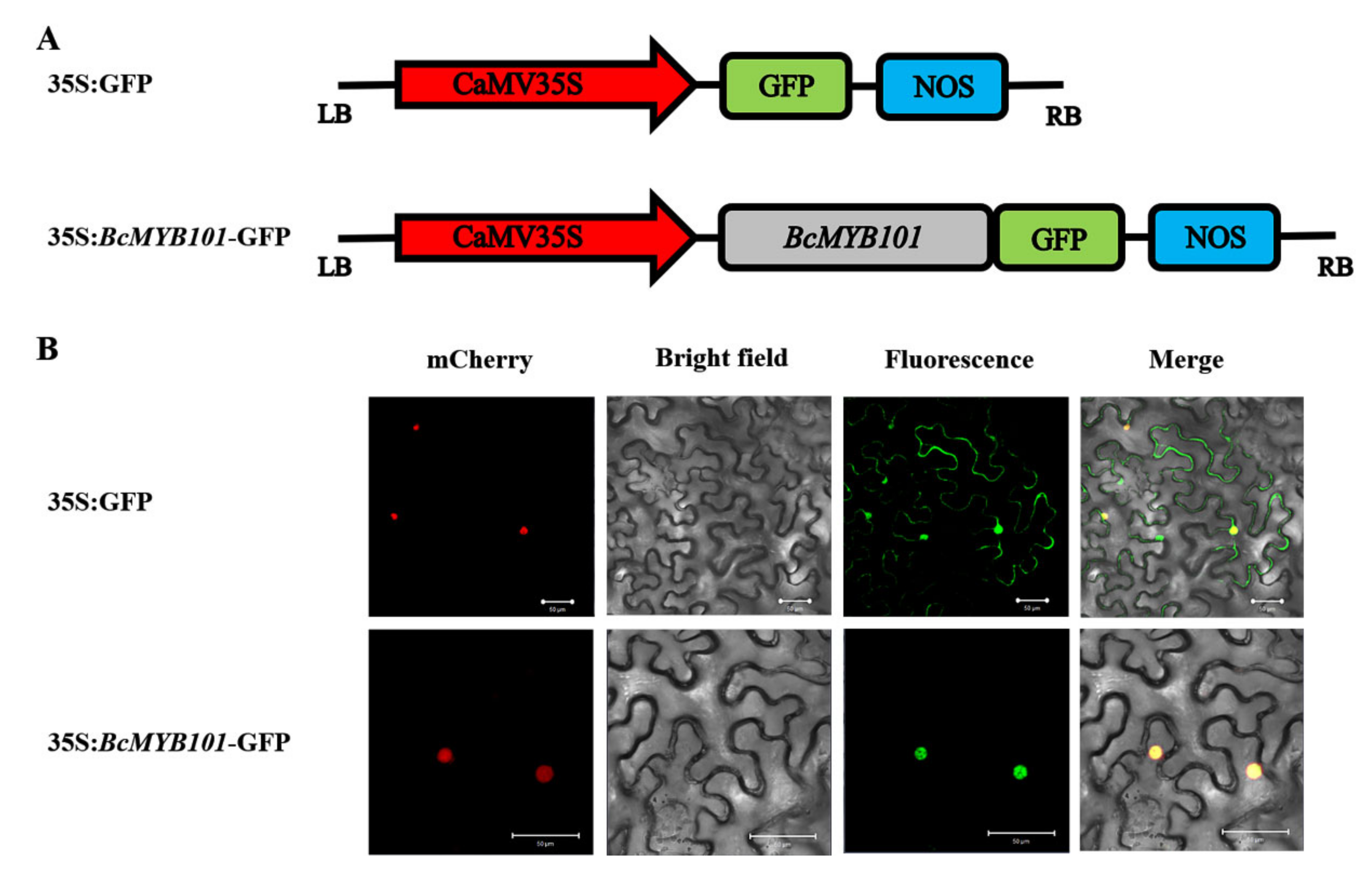

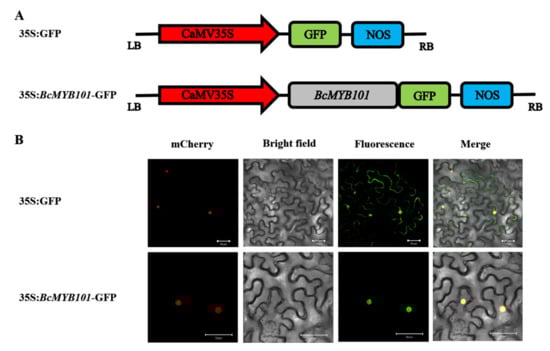

To test whether BcMYB101 is a nuclear protein, we constructed a fusion protein of 35S:BcMYB101-GFP for transient transformation via Agrobacterium injection methodology. The localization image of the BcMYB101 protein was captured with a confocal laser scanning microscope at 48–72 h after Agrobacterium injection. As we can see, the fluorescence of 35S:GFP was displayed in the whole cell, while the 35S:BcMYB101-GFP protein was only enriched in the nucleus of tobacco epidermal cells, which indicated that BcMYB101 is a nuclear-targeted protein with the potential characterization of a transcription factor (Figure 4).

2.5. Transgenic Arabidopsis with BcMYB101 Increased Leaf Number and Caused Downward-Curling Cauline Leaves

To investigate the function of BcMYB101, we firstly transformed BcMYB101 into Arabidopsis to generate overexpression lines. Ten positive lines were identified by PCR amplification using specific primers and GUS (β-glucuronidase) staining, which were termed OE1 to OE10 (Figure S3A,B). We selected three T3 transgenic lines (OE2, OE5, OE6) with more prominent GUS staining for further research. Then, the expression levels of BcMYB101 were identified using qRT-PCR, which showed that the transcript abundance of BcMYB101 was significantly higher in transgenic plants than in the wild-type plant (Figure S3C). The rosette leaf numbers were increased until the time of bolting, and they were counted in overexpression lines #2, #5, and #6. As can be seen, the transgenic plants had significantly more leaves than control plants (Figure 5). An evident downward curling in cauline leaves was observed in the three lines (Figure 5C). These results indicated that BcMYB101 might be involved in the regulation of leaf development.

2.6. Virus-Induced BcMYB101 Silencing Caused Upward-Curling Leaves in Pak Choi

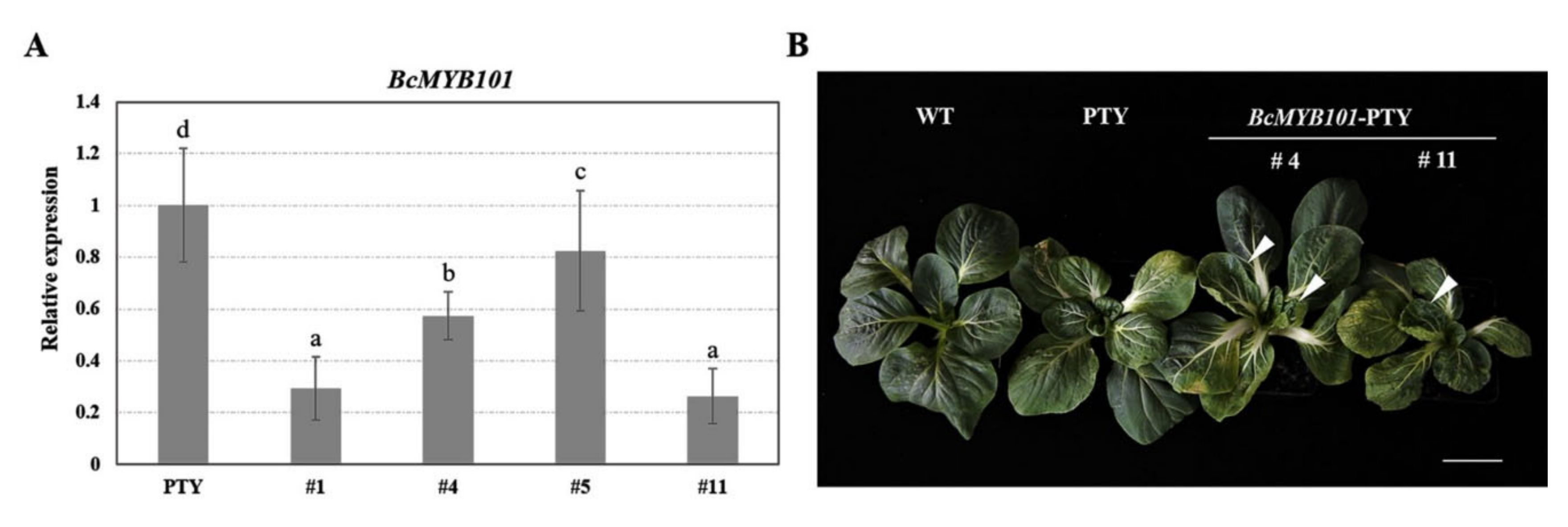

To furtherly verify the influence of BcMYB101 on the leaf development of pak choi, loss-of-function plants were obtained using a virus-induced gene silencing (VIGS) assay. The phenotype of mosaic leaves is emblematic of a silencing plant, and this became increasingly evident in the positive plants of BcMYB101-PTY and PTY after two weeks. The potential loss-of-function plants were collected, and qRT-PCR (real-time PCR) was used for the assessment of the silencing efficiency of BcMYB101. As shown in Figure 6A, the transcript abundance of BcMYB101 decreased by 70.7%, 42.8%, 17.6%, and 73.7% in BcMYB101-silencing plants #1, #4, #5, and #11, respectively, in comparison with the PTY plant. The phenotypic observations showed that BcMYB101-silencing plants exhibited distinct upward-curling leaves, especially the young leaves (Figure 6B). This result elucidated that BcMYB101 has an important role in the formation of curly leaves.

2.7. Trans-Activation Activity Assays of BcMYB101

A previous study showed that 98.7% of OsMYB proteins and 98.47% of AtMYB proteins have transcript activation activity through gene ontology (GO) analysis [34]. In order to verify whether BcMYB101 has transcript activation ability, trans-activation activity assays in yeast were carried out. The ORF of BcMYB101 was inserted into the pGBKT7 vector (BD) containing the GAL4 DNA-binding domain, and the BD-BcMYB101-FL construct was generated. Then, the construct was co-transformed with an empty pGADT7 (AD) vector into yeast competent cells (Y2H Gold strain) and grown on selective solid medium. As expected, all yeast transformants grew on SD/-Trp-Leu medium. Furthermore, yeast transformants harboring BD-BcMYB101 and AD were also able to grow on SD/-Trp-Leu-His-Ade medium, as well as the positive control (pGBKT7-53 + pGADT7-T), suggesting that BcMYB101 has the capacity to activate reporter genes. On the other hand, the negative control (pGBKT7 + pGADT7) failed to activate the reporter genes (Figure 7). This result indicated that BcMYB101 protein has transcriptional activation activity.

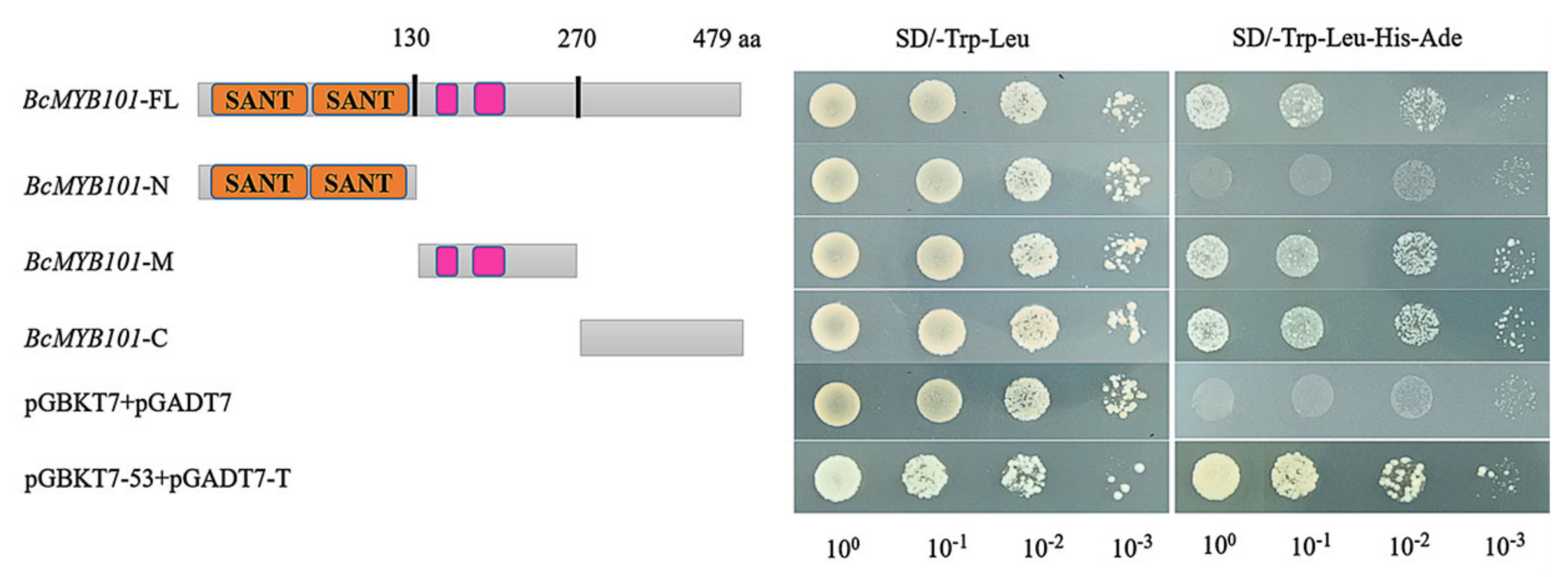

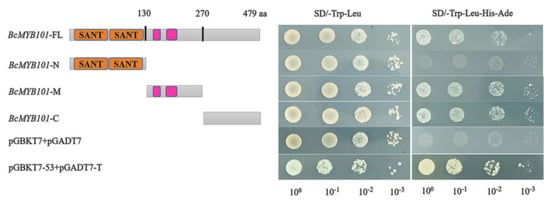

To further explore the transcriptional activation domain (TAD), the full-length BcMYB101 was truncated into three fragments based on its structural features. As shown in Figure 7, only one fragment located in the N-terminal region failed to grow on SD/-Trp-Leu-His-Ade medium, indicating that BcMYB101 has two transcriptional activation domains, which are located in the regions of BcMYB101 from 131 to 270 amino acids, and 271 to 479 amino acids.

2.8. Screening and Validation of Interaction Proteins with BcMYB101

To understand the regulatory network of BcMYB101, we firstly screened the potential interaction proteins using the cDNA library of pak choi. In this study, we obtained 30 positive clones, and four candidate genes (BcARCA, BcGAPC, BcTCH4, and BcTFIIs) were selected for Y2H verification according to functional annotation. In the Y2H assay, we discovered that only transformants containing the AD-BcTCH4 plasmid could grow on both SD/-Trp-Leu and SD/-Trp-Leu-His-Ade plates among the candidate interaction proteins. The result indicated that BcTCH4 can physically interact with BcMYB101 to form a heterodimer (Figure 8).

3. Discussion

The leaf plays important roles in the yield and quality of crops for its important function in photosynthesis. For higher plants, leaf development is one of the basic processes to ensure fine photoautotrophic growth, and this mechanism was established for coordinating the formation of leaf polarity [35]. The leaf morphology development of pak choi, as an important leafy vegetable, will significantly affect its yield and value. In this study, we identified a GAMYB gene associated with leaf morphology from Pak-choi, which we termed BcMYB101 due to its protein structure having most similarity with AtMYB101 in Arabidopsis.

GAMYB transcription factors represent a subgroup of Arabidopsis MYB genes, which were firstly identified in barley [23,33,36]. GAMYBs act as critical promotors in the GA signal transduction pathway, and they play a crucial role in diverse biological process, including flower induction, anther development, seed germination, and stem elongation, regulated by miR159 [24,25,37,38,39]. In Arabidopsis and cereals, GAMYBs are required for GA-mediated programmed cell death in the tapetum during anther maturation and in aleurone tissues during seed germination [27,36,40,41]. In recent studies, three Arabidopsis GAMYB genes, MYB97, MYB101, and MYB120, were proven to be highly expressed mature pollen tubes and pollen grains, sharing overlapping functions in controlling proper pollen tube reception [26]. In general, MYB101 does not accumulate in leaves, and our finding showed that BcMYB101 transcripts had low expression in juvenile leaves, but relatively higher expression in mature leaves. BcMYB101 was significantly expressed in the floral organs, which is consistent with its functions in anther development and flower induction (Figure 3).

Gibberellin (GA), as an important phytohormone, has significant effects on the development of seeds and flowers, as well as stem elongation and leaf expansion [42,43]. GA regulates the expression of miR159 through mediating ubiquitination of the DELLA protein, and it further regulates the cleavage of GAMYB [17,37,41,44,45]. In this study, we investigated the response of BcMYB101 to GA and ABA through hormone treatment using qRT-PCR. The results exhibited that the expression level of BcMYB101 was increasingly upregulated by GA3 and downregulated by ABA. To further understand the mechanism of BcMYB101 response to GA and ABA, different concentrations of GA3 (0/50/100 μM) and ABA (1/5 μM) were used for overexpression lines. When grown on 1/2 MS medium containing 50 μM GA3, the main roots of the BcMYB101 overexpression transgenic line seedlings were slightly longer than that of the wild-type plants, and the transgenic lines had more lateral roots than WT (Figure S4). On the other hand, when grown on 1/2 MS containing 1 μM ABA, the degree of inhibition in terms of root length in transgenic lines was relatively low compared to wild type, with similar results under 5 μM ABA treatment. These results confirmed that BcMYB101 responds to GA and ABA, and it participates in the growth and development of plants.

Several lines of evidence implicated that GAMYB is involved in the process of flower development and seed germination. To explore the function of BcMYB101, we firstly transformed BcMYB101 into Arabidopsis for overexpression. Phenotype observation exhibited that the number of leaves in transgenic plants with BcMYB101 was increased, and the cauline leaves displayed a significant downward curl. Then, to further verify the role of BcMYB101 in leaf development, virus-induced BcMYB101 silencing assays were implement in pak choi. In positive BcMYB101-silencing plants, the phenotype of upward leaf curl was observed. These data demonstrated that BcMYB101 is involved in the regulation of leaf shape development.

In addition, we performed yeast trans-activation assays and revealed that BcMYB101 likely acts as a transcription activator, which is in line with previous findings [26]. Furthermore, we selected four potential interaction proteins (BcARCA/GAPC/TCH4/TFIIs) with BcMYB101 using yeast cDNA library screening and functional annotation (Table S2). Among them, only BcTCH4 had an interaction relationship with BcMYB101, determined via yeast two-hybrid verification, which is involved in cell-wall biogenesis and response to auxin, brassinosteroid, cold, and heat. It is documented that BR is widely involved in the regulation of plant morphology; thus, we speculate that BcMYB101 may participate in the signaling pathway of BR through an interaction with TCH4 to regulate leaf shape development. Nevertheless, the specific functional mechanism remains to be further studied.

4. Materials and Methods

4.1. Plant Materials

The plant seedlings of pak choi cultivars “suzhouqing” used in this study were grown in a phytotron with a 16-h/8-h light/dark cycle at 24 °C/18 °C. To have a better understanding of the expression of BcMYB101 at various stages and in various organs, the leaves, stems, roots, hypocotyls, petioles, flower buds, flowers, and siliques at the seedling, rosette, flowering, and podding stages were collected from each sample with three replications. For different treatments, healthy seedlings with six leaves were selected and sprayed with exogenous phytohormone, consisting of GA (gibberellic acid, 100 μM) and ABA (abscisic acid, 100 μM). The samples were collected after 1 h, 2 h, 3 h, 4 h, 6 h, 8 h, 12 h, 24 h, 36 h, and 48 h (0 h was used as a control).

Arabidopsis thaliana ecotype Colombia was used to transform the overexpression of BcMYB101, grown in a light growth incubator with long-day conditions (16-h/8-h light/dark cycle at 22 °C/18 °C, 75% humidity).

The seeds of Nicotiana benthamiana were sown in a flowerpot containing a matrix, grown in a climatic chamber with a 16-h/8-h light/dark cycle at 24 °C/19 °C, 70% humidity. After two weeks, the seedlings were transformed into trays with 32 holes and used for the transient transformation assay.

4.2. Isolation, Sequence Alignment, and Phylogenetic Analysis

The ORF (open reading frame) of BcMYB101 was cloned from the complementary DNA (cDNA) library of “suzhouqing” tissues using special primers designed based on the full-length sequences from the A. thaliana database (TAIR10, http://arabidopsis.org/index.jsp) and the Chinese cabbage database (BRAD, http://brassicadb.org/brad/) according to a previous report [46]. The ORFs of BcARCA, BcGAPC, BcTCH4, and BcTFIIs were also isolated using the same method. The DNA sequence of BcMYB101 promoter (1524 bp) was isolated from the DNA library. The gene-specific primers are listed in Table S1. The elements of the BcMYB101 promoter were analyzed using the PLACE online software (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/). ExPASy (https://web.expasy.org/protparam/) was used for the prediction of the physicochemical properties of BcMYB101 protein. The secondary structure was predicted using PSIPRED 4.0 (http://bioinf.cs.ucl.ac.uk/psipred/). The conserved motif distribution was analyzed using the MEME Suite, and 10 motifs were identified (Figure 1B).

Multiple sequence alignment was conducted using DNAMAN software, and a phylogenetic tree was constructed by MEGA 7.0 using the neighbor-joining method with 1000 bootstrap replicates.

4.3. Transient Expression of 35S:BcMYB101-GFP Protein

To verify the subcellular localization of BcMYB101, the full fragment of cDNA was amplified from the pEASYBlunt vector and inserted into the entry vector pENTR/D-TOPO. Then, the BcMYB101 was subcloned into the pEarlyGate103 vector after MluI enzyme digestion using the Gateway^® cloning system (Invitrogen, Carlsbad, CA, USA). The recombinant plasmid 35S:BcMYB101-GFP (green fluorescent protein) and empty vector plasmid 35S:GFP were transformed into Agrobacterium tumefaciens (GV3101 strain) and injected into the Nicotiana benthamiana foliar epidermis, respectively. Then, a red nuclear marker plasmid was used to confirm the location of the cell nucleus. Fluorescence was observed using a confocal laser scanning microscope (Zeiss, LSM 780, Jena, Germany) at 48–72 h after Agrobacterium injection.

4.4. Generation of Transgenic Lines in Arabidopsis

To obtain transgenic plants, the full-length cDNA of BcMYB101 was inserted into a binary vector pTCK303; then, the recombinant construct was transformed into Agrobacterium tumefaciens strain GV3101, and Arabidopsis thaliana transformation was performed using the floral dip method [47]. Seeds of transgenic T0/T1/T2 lines were screened and grown on Murashige and Skoog (MS) medium with 20 mg/L hygromycin for 15–20 days, and then the healthy seedlings were transplanted into a square flowerpot. Finally, T3 transgenic lines were used for further observation and verification. The leaf number of wild-type (WT) and transgenic plants with BcMYB101 was counted at the bolting stage, and 20 plants of each line were analyzed. ANOVA (analysis of variance) was used for statistical analysis.

For GA3 and ABA treatment, the seeds of WT and T3 transgenic lines were sterilized and sown on 1/2 MS medium, kept at 4 °C for 24 h, and then transferred to an illumination incubator. To observe the phenotype under GA3 and ABA treatment, seedlings grown on 1/2 MS for five days were transferred to 1/2 MS medium without or with GA3 and ABA, and the seedling phenotypes six days after treatment were observed and photographed. This experiment was conducted three times, and four replicates were employed for each.

4.5. Virus-Induced Gene Silencing (VIGS)-Mediated Silencing of BcMYB101 in Pak Choi

To acquire the silencing plants, the virus-induced gene silencing assay (VIGS) was implemented according to a previous report [48]. The 80-nt BcMYB101-specific palindromic DNA fragment (5′–TTA ACA ATG ATG ACG AGT TTG AGT TTA ATT CAT TTC AAT TAA TTG AAA TGA ATT AAA CTC AAA CTC GTC ATC ATT GTT AA–3′) was primarily designed and synthesized by the GeneScript company (Nanjing, China). The sequence was inserted into the SnaBI site of the PTY vector which was linearized, and the BcMYB101-PTY construct was generated. Thereafter, PTY and BcMYB101-PTY plasmids were wrapped in gold particles and bombarded into two-week-old seedlings of pak choi using gene gun-mediated transformation (1300 psi, PDS-1000/He, Bio-Rad, Hercules, CA, USA). Four or five plants were bombarded for one plasmid, and three replicates were carried out. After two weeks, the virus symptoms on leaves became increasingly obvious with the initiation and expansion of new leaves, and this phenomenon was deemed the characterization for the initial screening of positive silencing plants.

4.6. Trans-Activation Activity Assays

The transcriptional activation activity of BcMYB101 was studied using a yeast two-hybrid system. The full-length cDNA of BcMYB101 was fused to the 3′ end of the GAL4 DNA-binding domain of the pGBKT7 (BD) vector, and BD-BcMYB101-FL was generated. The pGBKT7 (empty) vector and BD-WRKY33 served as a negative and positive control, respectively. The BD-BcMYB101-FL construct was co-transformed with an empty pGADT7 vector (AD) into yeast strain Y2H Gold, and the concrete operation scheme of yeast transformation was operated according to the instruction manual (Clontech, Mountain View, CA, USA).

Afterward, we incised the cDNA of BcMYB101 into three segments (N-terminal, middle, and C-terminal regions) based on its structural characteristics on account of the full-length BcMYB101 having transcriptional activation activity, and we designated these segments as BcMYB101-N, BcMYB101-M, and BcMYB101-C, respectively. Three fragments were amplified from the BD-BcKAN2-FL construct and subcloned into pGBKT7, and the transcriptional activation domains (TADs) were identified as above.

4.7. Yeast Two-Hybrid (Y2H) Assays

To obtain the potential interaction proteins, a cDNA library of pak choi was used for Y2H screening, and BD-BcMYB101-N acted as a bait protein. The BD-BcMYB101-N plasmid was co-transformed with the library plasmid into a yeast complement cell (Y2H Gold strain) and plotted on the SD/-Trp-Leu-His-Ade medium with X-Gal. The positive transformants were sequenced and annotated for further analysis. The detailed operations referred to the product manual of the Yeastmaker™ Yeast Transformation System 2.

We selected four candidate genes for further verification based on functional annotation (Table S2). For the Y2H assay, the CDSs (coding sequences) of candidate genes (BcARCA, BcGAPC, BcTCH4, BcTFIIs) were amplified from the pEASYBlunt simple vector and inserted into the AD vector. Then, the prey plasmids (AD-BcARCA/BcGAPC/BcTCH4/BcTFIIs) were co-transformed with the bait plasmid (BD-BcMYB101-N) into the Y2H Gold strain, and then plotted on both SD-Trp/-Leu and SD-Trp/-Leu/-His/-Ade medium. The primers in this assay are listed in Table S1.

4.8. qRT-PCR Analysis

The total RNA extraction, cDNA synthesis, and qRT-PCR procedure referred to a previous method [49]. A melting curve was used for examining the specificity of all reactions. The Actin genes of Pak-choi and Arabidopsis were used as internal control genes to normalize the transcript levels of BcMYB101 in different tissues and transgenic plants [50]. The relative expression levels were calculated using the 2^−∆∆Ct method [51]. Three biological and technical replicates were employed for each reaction. ANOVA (analysis of variance) and a t-test (two-tail) were used for statistical analysis. All primers used in this study are listed in Table S1.

5. Conclusions

In conclusion, we firstly cloned a GAMYB gene, BcMYB101, from Pak-choi, which have a higher expression levels in leaves, petiole, and floral tissues, and response to GA and ABA. Ectopic expression and virus-induced gene silencing assays demonstrated that BcMYB101 participated in the regulation of leaf shape development. Furthermore, the yeast two-hybrid assays showed that BcMYB101 protein have trans-activation activity and one candidate protein, BcTCH4, was verified have an interacting relationship with BcMYB101 in yeast. These findings extend our understanding of MYB101 in Cruciferae plants and provide a solid foundation for further research on the regulatory mechanism of leaf shape in Brassica or other species.
