The Structure–Properties–Cytotoxicity Interplay: A Crucial Pathway to Determining Graphene Oxide Biocompatibility

by
Marta Dziewięcka
1,*,
Mirosława Pawlyta
2,
Łukasz Majchrzycki
3,
Katarzyna Balin
4,
Sylwia Barteczko
1,
Martyna Czerkawska
1 and
Maria Augustyniak
1
1
Institute of Biology, Biotechnology and Environmental Protection, Faculty of Natural Sciences, University of Silesia in Katowice, Bankowa 9, 40-007 Katowice, Poland
2
Department of Engineering Materials and Biomaterials, Faculty of Mechanical Engineering, Silesian University of Technology, Konarskiego 18A, 44-100 Gliwice, Poland
3
Center for Advanced Technology, Adam Mickiewicz University, Uniwersytetu Poznańskiego 10, 61-614 Poznań, Poland
4
Institute of Physics, University of Silesia, 75 Pulku Piechoty 1A, 41-500 Chorzow, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(10), 5401; https://doi.org/10.3390/ijms22105401
Submission received: 3 May 2021 / Revised: 14 May 2021 / Accepted: 19 May 2021 / Published: 20 May 2021
(This article belongs to the Section Molecular Toxicology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Interest in graphene oxide nature and potential applications (especially nanocarriers) has resulted in numerous studies, but the results do not lead to clear conclusions. In this paper, graphene oxide is obtained by multiple synthesis methods and generally characterized. The mechanism of GO interaction with the organism is hard to summarize due to its high chemical activity and variability during the synthesis process and in biological buffers’ environments. When assessing the biocompatibility of GO, it is necessary to take into account many factors derived from nanoparticles (structure, morphology, chemical composition) and the organism (species, defense mechanisms, adaptation). This research aims to determine and compare the in vivo toxicity potential of GO samples from various manufacturers. Each GO sample is analyzed in two concentrations and applied with food. The physiological reactions of an easy model Acheta domesticus (cell viability, apoptosis, oxidative defense, DNA damage) during ten-day lasting exposure were observed. This study emphasizes the variability of the GO nature and complements the biocompatibility aspect, especially in the context of various GO-based experimental models. Changes in the cell biomarkers are discussed in light of detailed physicochemical analysis.

Graphical Abstract

1. Introduction

Carbon plays a crucial role in the environment. It is a raw material, energy source, and a component of all organisms. Therefore, we can assume that carbon materials are more environmentally friendly than inorganic materials [1]. Carbon allotropes are naturally occurring materials, and graphite has had no toxicity problems for hundreds of years. Graphene, a single graphite layer, is the common building element of other carbon structures and is valuable for technological purposes, mainly due to its excellent mechanical, electronic, and optical properties [2,3]. More recently, understanding graphene’s various chemical properties has facilitated its use in high-performance energy generation and storage devices [4]. The two-dimensional shape of graphene was expected to be harmless at mild concentrations and suitable for biomedical research. While pure graphene has limited processability, its derivatives are more universal, and they inspire interdisciplinary research fields due to their broad applicability [5]. The discovery of graphene’s properties accelerated research on graphene oxide (GO), becoming an independent research area.
Graphene oxide is considered a promising material for applications in many industries due to its excellent water processability, amphiphilicity, covalent and non-covalent surface functionalization, and ability to quench fluorescence [6,7,8,9,10,11]. GO is highly chemically active due to the partial coverage of its elemental planes and edges with various functional groups, mainly hydroxyl and epoxy, ketone, ester, organosulfur, and lactol structures in the dry state. When dispersed in polar solvents such as water, it can hydrolyze to form carboxylic acid groups or sulfate groups heavily modified with various chemicals, as described in the literature [12,13,14].
Since GO is practically not found in nature, it is obtained by modified oxidation processes using any graphite source, such as structured layer graphite, expanded graphite, graphite rod electrodes, kish graphite, and graphite foils [13]. The materials used for the synthesis are diverse in terms of flake size, defect density, and layering, making it difficult to fully control the obtained GO properties. The product is also influenced by the quantity and quality of the reagents used, the reaction temperature, and the post-reaction mixture purification precision [15,16,17]. Reagent contamination remains part of the GO, and post-synthesis treatment can change the surface chemistry, for example, break down the carbon network structure by breaking the C-C bond or modifying the flakes’ side dimensions during the sonication process by cracking the flakes at the grain boundary [13,18]. Excessive oxidation and high temperature can lead to the breakdown of the flakes and the formation of a more complex structure due to the release of CO2 [19,20]. The lattice defects and the functional groups’ quality at the edges of the flakes and aggregation potential may determine the GO’s properties and influence the toxicity directly or indirectly [21]. Under laboratory conditions, certain parameters, such as the degree of oxidation, temperature, and pH value, can be regulated by appropriate synthesis protocols [22,23]. However, post-functionalization of graphene in situ in the body is very difficult to predict and clarify.
For several years, scientists have been trying to assess the toxicity of GO in various experimental models, but the results do not always lead to clear and consistent conclusions [24]. Graphene oxide used in the research is synthesized by multiple methods and generally characterized. In GO-based nanocomposites study, the carrier’s physicochemical properties are not being discussed thoroughly. Determining nanocarriers’ toxicity standards requires an interdisciplinary approach and multidirectional research based primarily on in vivo models. Experimental models must consider concentration/dose and exposure time and consider the GO material’s physicochemical characteristics and its potential interactions in biological buffers [25]. Establishing the structure–properties–cytotoxicity relationship seems fundamental in developing a biocompatible therapeutic system and drawing clear conclusions about toxicity.
With the above in mind, in this study, we attempted to assess the short-term in vivo toxicity of four GO products from various manufacturers in the context of their detailed physicochemical analysis.
The samples were prepared in the same conditions and intentionally “coded” to focus on the physical–chemical–biological relationships rather than the material’s origin. Based on our several years of experience with GO, we used the Acheta domesticus model organism with known physiology and reactions under stress conditions [26,27,28,29,30,31,32,33,34]. The following hypotheses were verified to resolve the relationship between the chemical composition and morphology of GO samples and selected cytotoxicity markers at the cellular level:
  • Graphene oxide from various sources does not cause significant differences in cell viability, oxidative stress level, apoptosis level, and DNA damage in A. domesticus during the 10-day exposure. The effect of all types of GO is similar, and the materials do not differ significantly in terms of physicochemical properties and toxicity.
  • The selected physicochemical properties of GO are significant, and the materials significantly differentiate cell viability, the level of oxidative stress, the degree of apoptosis, and DNA damage at various time points during 10 days of exposure in A. domesticus. This may be due to the GO flakes’ size, aggregation potential, suspension stability, degree of oxidation, or the number of surface defects.

2. Results

2.1. Properties of Graphene Oxide Nanoparticles

2.1.1. Morphological and Structural Analysis of GO Samples

Analyzed samples were chosen to identify the main differences in the GO structure. Sample 2 (S2) and sample 3 (S3) represent well-defined flake-like GO structures (Figure 1(A2,A3)). In contrast, the S1 and S4 samples are highly aggregated materials. Sample S4 forms thick, block-like structures, while S1 tends three-dimensional aggregates of nanometric flakes (Figure 1(A1,A4)).

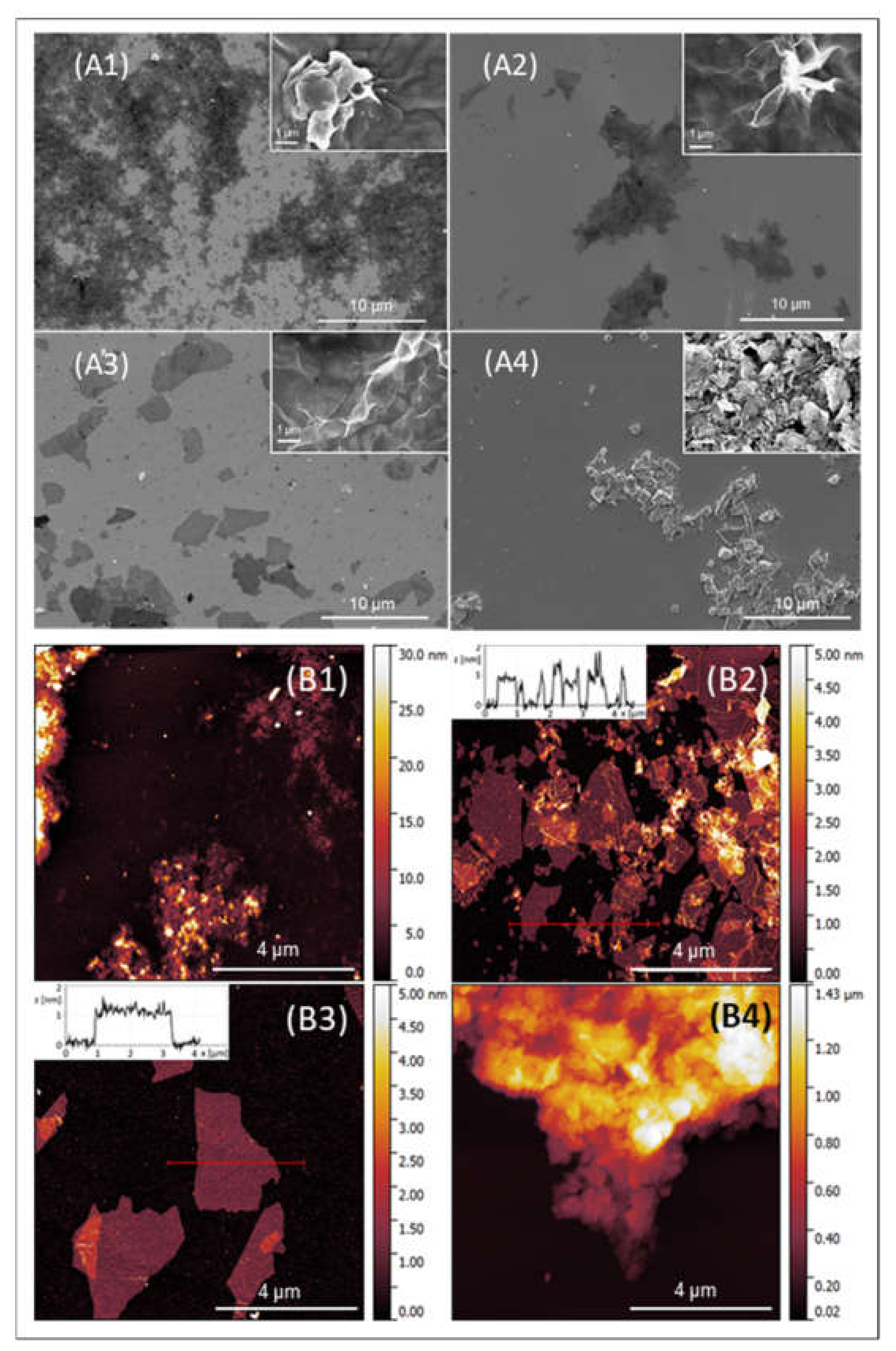

The contrast in the TEM images indicates different thicknesses of the observed structures. S2 and S3 flakes are mostly transparent, which means a lower thickness than with S1, especially with the thickest S4 sample (Figure 2(A1,B1,C1,D1)). A more detailed analysis by AFM shows (see Figure 1(B2,B3)) that both S2 and S3 are mostly single-layer GO flakes, with a typical height of 1.0 nm, which is in line with the typical height of a GO layer in dry conditions [35]. Comprehensive analysis for flakes size performed based on more than 400 flakes for each sample shows that the average flake area of S3 is about 2 µm2, while for S2, the average flake is 0.2 µm2. Contrary to the above, the AFM results of the S4 sample show the height of aggregates even in the range of 1 µm and tens of nanometers in the case of the S1 sample (Figure 1(B1,B4)). No additional contrast in HAADF images (Figure 2(A2,B2,C2,D2)) confirms that the tested material contains only light elements (carbon, oxygen). The bright bands are visible in Figure 2(B2,C2,D2) are related to the carbon layers’ orientation (diffraction contrast).
The most significant differences are visible in the electron diffraction patterns obtained using the selected area electron diffraction (SAED). S1 and S2 samples have the form of circles, the diameters of which correspond to distances of approximately 2.08 Å (the distance between the d101 planes in graphite) and 1.23 Å (the distance between the d110 planes in graphite) (Figure 2 (A3,B3)). This result suggests that the tested carbon materials’ planes do not form a three-dimensional crystal lattice but are arranged randomly to each other. The diffraction reflections of the S3 sample are more evident and do not form clear circles (Figure 2(C3,C4)). According to the RS and AFM results, this may indicate a stronger bond between the carbon layers or a limited number of carbon layers. For sample S4, the electron diffraction characteristic for crystalline graphite was obtained (Figure 2(D3)). On this basis, it can be concluded that this carbon material consists of nanometric three-dimensional graphitized crystallites (based on Raman spectroscopy, it is approximately 16 nm), which is also confirmed by the exemplary HRTEM image (Figure 2(D4)), which shows a dozen or so flat and parallel arranged carbon layers. In the S1 and S2 samples, the number of approximately parallel carbon layers can be comparable (Figure 2(A4,B4)). However, they are not flat, defective, and accidentally rotated against each other.

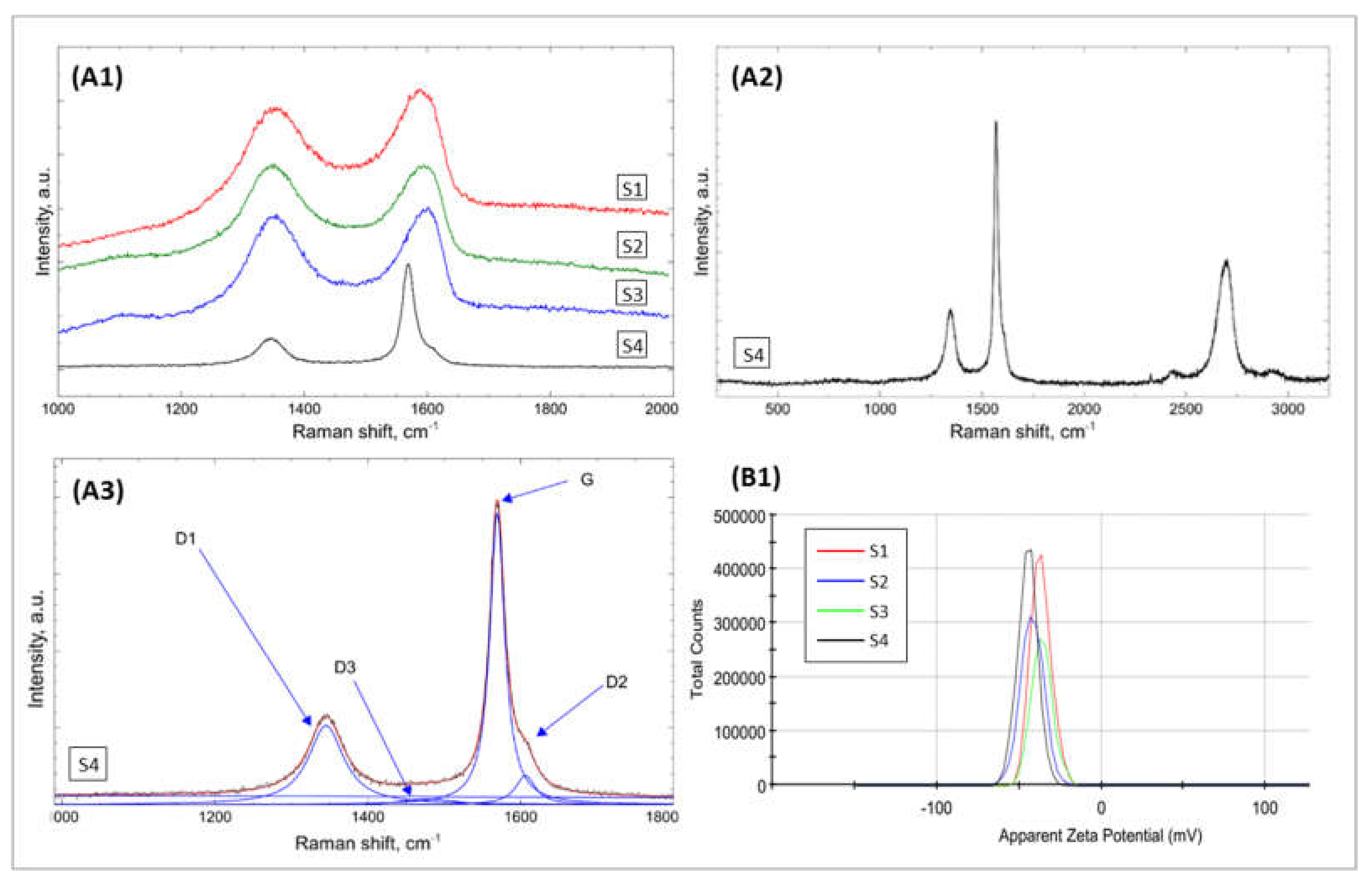

The first-order Raman spectra of the S1–S3 samples are similar. The shape of the spectrum of the S4 sample is different (Figure 3(A1)). The first-order spectrum of sample S4 resembles polycrystalline graphite. Moreover, it is the only sample with visible reflections in the second-order spectrum (Figure 3(A2,A3)). The first-order spectra for samples S1–S3 are similar to black carbon spectra. It means that S1–S3 presented a less ordered structure (than S4) and contained smaller and more damaged layers of carbon. The quantitative analysis of the Raman spectra of the tested materials showed approximately zero shares of the D4 band (the share of the D4 band for the tested materials can be neglected). The positions of the respective bands for tested samples are similar. The most significant differences concern the D3 band position, but this is probably due to this band’s large width. The signal from the undefective graphite lattice is the strongest for the S4 sample. For the three remaining samples, the share of the signal from the defective crystal lattice and amorphous carbon is increased to a similar degree (Table A2).

2.1.2. Chemical Composition Analysis of GO Samples

The chemical composition of tested graphene oxides using the XPS technique indicated, in addition to expected carbon and oxygen, the presence of small amounts of contaminants. In the table below (see Table 1), each tested oxide’s chemical composition is combined with calculated atomic concentration.
The presence of carbon, oxygen, and small amounts of nitrogen, silicon, and sulfur was observed for each sample tested. Additionally, for one of the samples (S1), traces of aluminum were observed. Additional elements (N, Si, S) are present in small quantities, usually below one atomic percent. Only in the S3 sample, the atomic concentration of nitrogen was slightly higher and was at 1.36 at %. It was also observed that the ratio of atomic concentrations of carbon and oxygen is not the same for all tested samples. It is often at about 2.5, but for the S4 sample, this ratio is 17.89; a much higher amount of carbon and the significantly smaller amount of oxygen was detected.
Analysis of the sample’s constituents’ chemical state was based on the deconvolution of the C1s, O1s, N1s, S2p, and Si2p photoemission spectra. The results, including peak position and chemical state atomic concentration, were recalculated according to the total atomic concentration of a particular element and assignment of the particular chemical state combined in Table 2. The chemical state assignment was carried out on the basis of the NIST database [36].
Analysis of the high-resolution C1s spectra indicates carbon in several different chemical states, which is defined through the bond type. In examined graphene oxide, the C-C bond has been detected at a binding energy of about 284.8 eV; this type of bond is dominant in most of the samples, except for the S2 sample. The main contribution to the C1s spectrum gives the peak at 286.79 eV assigned to the C-O bond for that oxide. Such bonds have also been detected for the S1 and S3 samples. Additionally, the C=O bond at about 288.4 eV was detected in S1–S3 samples. In the S4 sample, the shape of the peak is different from that of other examined oxides. Bonds such as C=N at 284.03 eV, C-N at 286.11, C-OH at 285.44 eV, carbonyl bond >C=O at 287.06 eV, O-C=O bond at 289.03, and HO-C=O or π–π* satellite at 291.56 eV have been observed. The percentage contribution of each carbon with a specific bond, together with the atomic concentration computed from values given in Table 1, have been combined in Table A3.

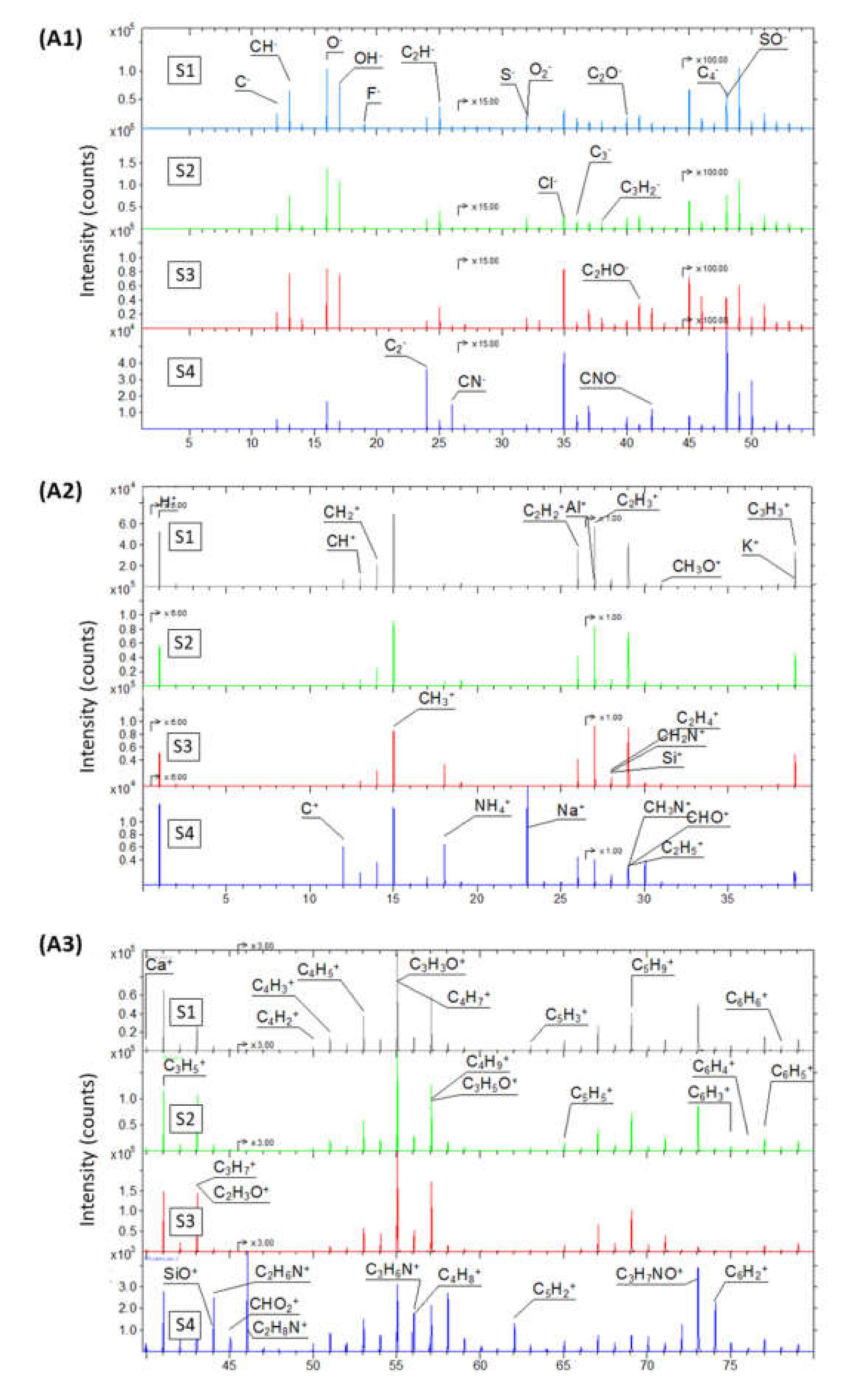

Analysis of negative and positive secondary ion mass spectra confirmed the presence of detected with the use of XPS elements (C, O, Si, S, N, Al), additionally due to higher detection limits of the TOF-SIMS technique H, Na, Mg, F, Cl, K, and Ca were detected. Those elements are present in a small amount can be interpreted as surface contaminants. For the S2 and S4 oxides, there was relatively high Cl-, and for the S4 sample, a high Na+ signal was observed, suggesting that those samples were contaminated to a greater extent than the S1 sample (Figure 4(A1,A2)).
The mass spectra indicate several types of molecular species, namely Cx+, Cx−CxHy+, CxHy−, COx+, CN−,SO-, NHx+, CxHyOz+, CxHyOz−, CxNyOz+,CxNyO−, CxHyNz+, and CxHyNO+. The intensities of secondary ions in S1–S3 secondary ion mass spectra are similar. Secondary ion mass spectra of the S4 sample show different peak patterns; even if the same secondary ions are present, the relative intensity ratios differ from other examined oxides (Figure 4(A3)).
The analysis of suspensions stability evaluations showed that the zeta potential of all GO samples was relatively high, amounting from −36.60 and −39.38 mV. It was an indication of considerable electrical stability of the suspensions (Figure 3(B1)).

2.2. Cytotoxicity Analysis

A ten-day experiment revealed that cell viability, the intensity of oxidative stress, the apoptosis level, and DNA damage in the cells of A. domesticus were dependent on nanoparticles’ concentration in the food and GO ingested type. All GO samples modulated cellular parameters with varying degrees of intensity. Moreover, in both concentrations, the GO samples showed different trends depending on the experiment’s time point across all parameters.

2.2.1. Cell Viability and Oxidative Stress

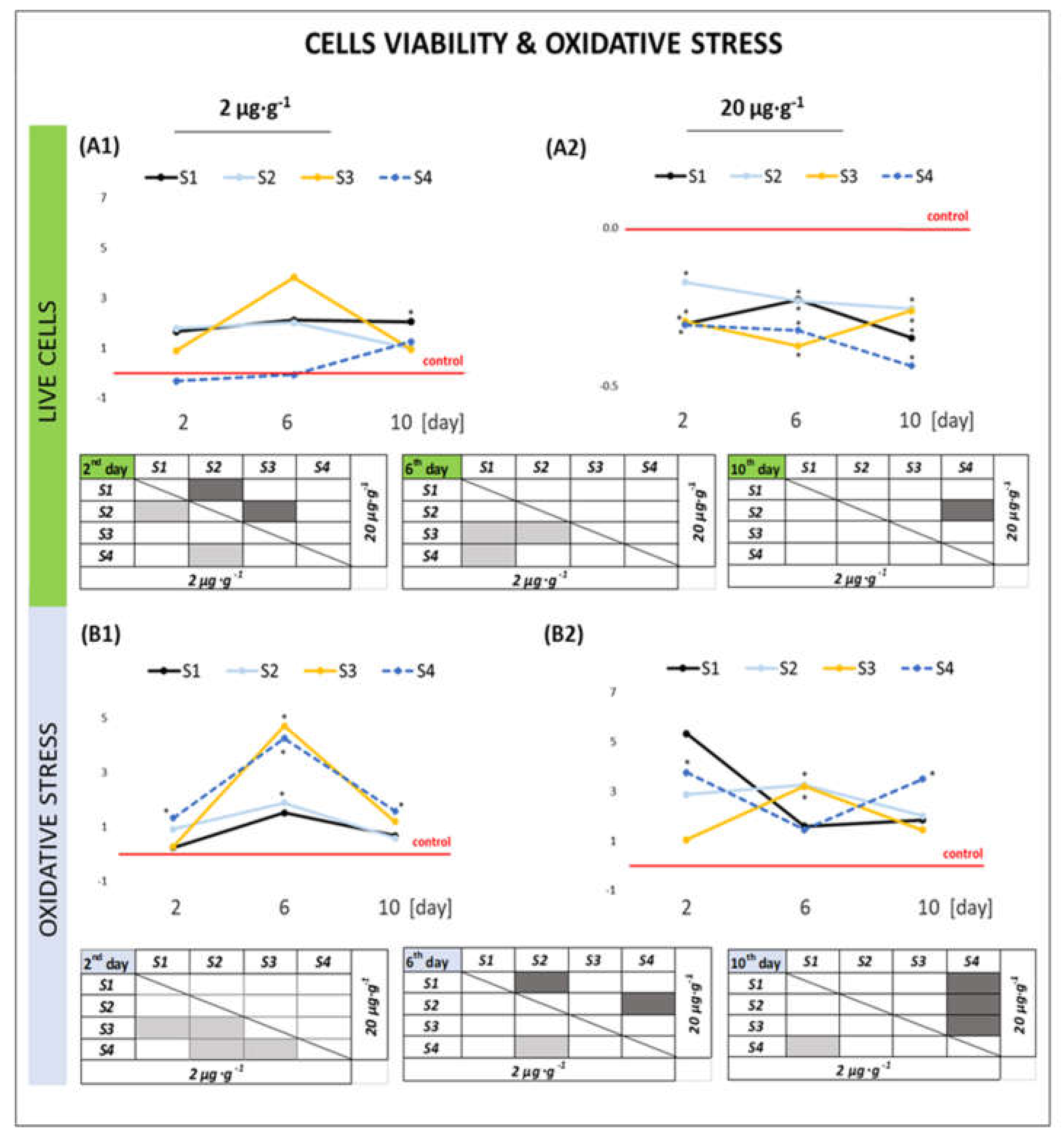

Flow cytometry showed a statistically significant decrease in intestinal cell viability in A. domesticus in the groups treated with the highest concentration of nanoparticles in food (20 µg·g−1 of food). This relationship applied to all experimental groups but to a different extent. The S4 group showed the strongest response among all tested groups (20 µg·g−1 of food), and it was significantly different from the S2 group for the 10 days of the experiment (Figure 5(A2)). All GO groups correspond to the insects from the control; however, minor differences between the tested nanoparticle samples were noted (Figure 5(A1)). The Muse™ Oxidative Stress kit showed that samples S3 and S4 were the strongest in increasing the number of free radicals in the intestine at a lower concentration (2 µg·g−1 of food). In addition, sample S4 was characterized by a twice higher potential to generate free radicals than the other GO samples on the 10th day of the experiment (20 µg·g−1 of food) (Figure 5(B1,B2)).

2.2.2. Apoptosis Level in the Cells

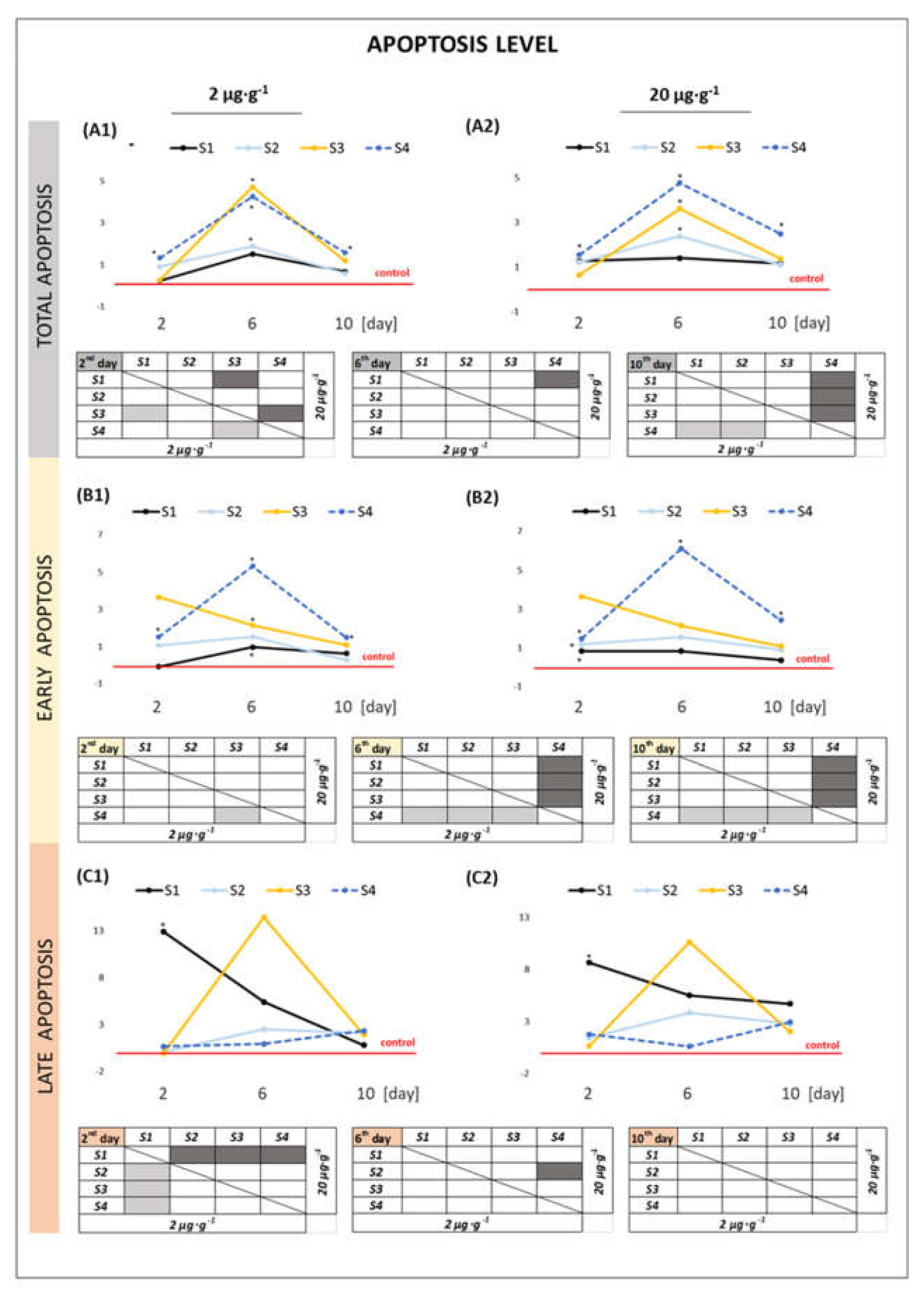

Muse™ Annexin V and Dead Cell assay showed that nanomaterials S2–S4 induced apoptosis strongly than the S1 at both tested concentrations (Figure 6(A1,A2)). Sample S4 differs significantly from the remaining 6 and 10 days of the experiment, where cells in early apoptosis were the most numerous (Figure 6(B1,B2)). The groups treated with the S1 sample showed cells with a significant late-phase apoptosis level, especially during 2 days of the experiment. The S2–S4 samples in food induced an increased degree of early and late apoptosis, but the groups did not differ significantly from the control group (Figure 6(C1,C2)).

2.2.3. DNA Damage

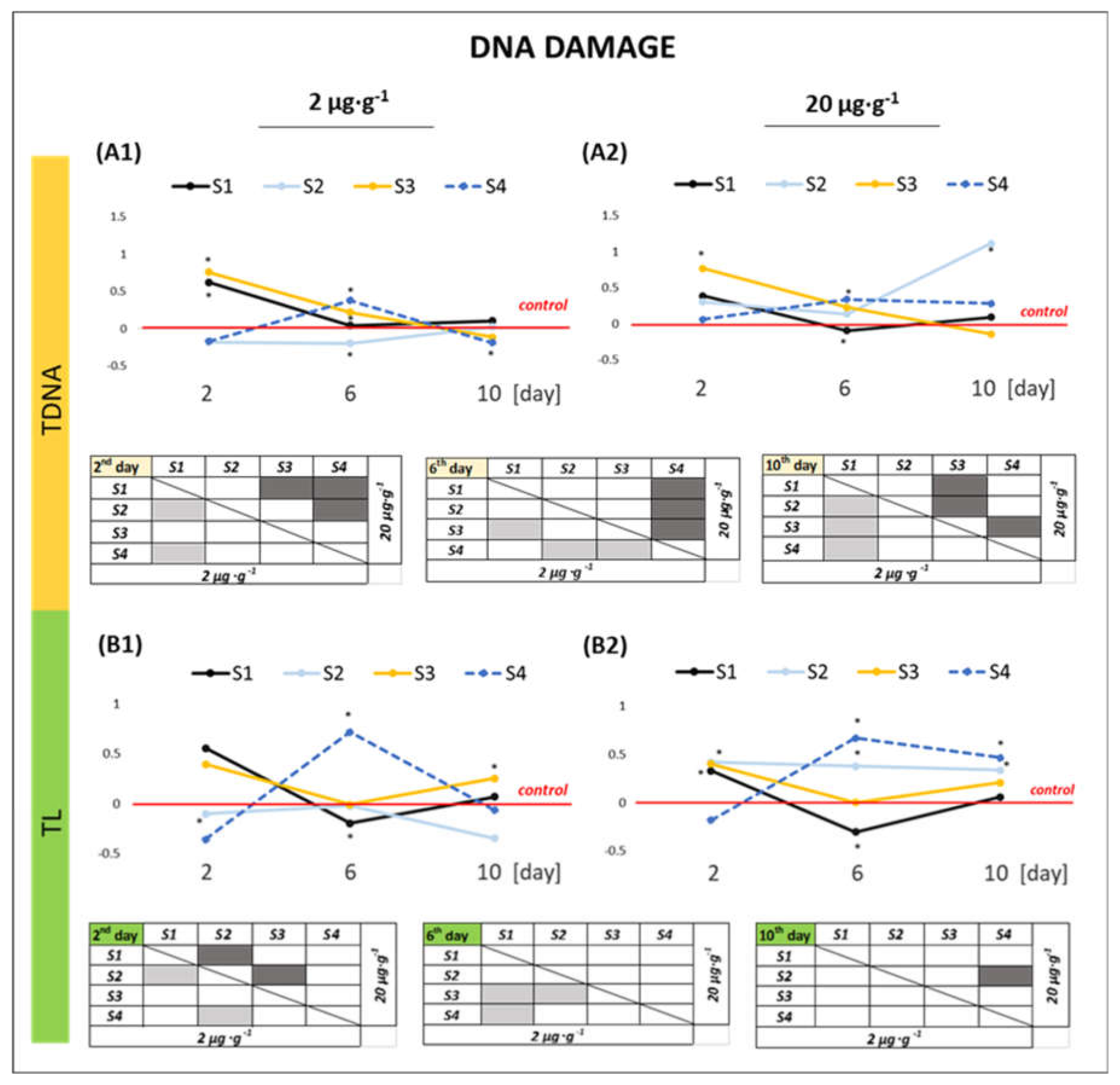

The tested nanoparticles induce a genotoxic effect in insect hemocytes but with a different intensity depending on the time point and the DNA damage parameter measured (Figure 7). The percentage of tail DNA (TDNA) and tail length (TL) in nanometers were used as a parameter to describe DNA damage. The TDNA parameter was significantly higher in the first 6 days of the experiment in groups S1 and S3, and then, it returned to the control level on the last day of the experiment (2 µg·g−1 of food) (Figure 7(A1)). Organisms exposed to S2 and S4 materials in the higher concentration were characterized by a significantly higher TL (tail length) parameter from the 6th day of the experiment and remained at a similar level, also on the last day of the experiment (Figure 7(B2)).

3. Discussion

The literature on nanotechnology abounds with reports describing both the positive and negative effects of GO nanoparticles on various species of organisms [37,38,39,40,41]. In some respects, this study is a different view on the nanotoxicity aspect. The tested GO materials are by definition the same type of nanoparticles, and their effect on the model organism should be similar. However, considering the high reactivity of GO and the importance of physicochemical properties, we assumed that the finished GO products would affect the body with varying degrees, and the mechanism of their toxicity may be different. Physicochemical analyses revealed differences in properties. Many factors may be responsible for the difference in the same types of nanoparticles—for example, the synthesis methods, other methods of purifying the final product, or accidental contamination of the reaction mixture [42,43]. Raman spectroscopy showed that nanoproducts S1, S2, and S4 have a much less ordered crystal lattice structure and contain defective carbon layers characteristic of carbon black. The structure of the S4 material resembled polycrystalline graphite (Figure 2(A2,A3)). The visual examination of the samples prepared for dispersion in water (S1, S2, S4) led to the assumption that the suspensions will be characterized by a different size of flakes and a different potential for the formation of homogeneous solutions (Figure 8).
Presumed differences in the morphology of the samples were confirmed by scanning electron microscopy and atomic force microscopy. Samples S2 and S3 represented well-defined flake structures; sample S4 formed thick, blocky forms, while S1 tended to form three-dimensional aggregates of nanometric flakes (Figure 1(A2–A4)). S2 and S3 were small single-layer flakes, while sample S1 formed aggregates up to several dozen nanometers, and S4 even up to 1 µm (Figure 1(B1–B3)). Any change in the nanoparticle properties (composition and morphology) may reduce or increase their solubility in the dispersing phase (water, biological environment) and, going further, affect their reactivity and toxicity to organisms [44].

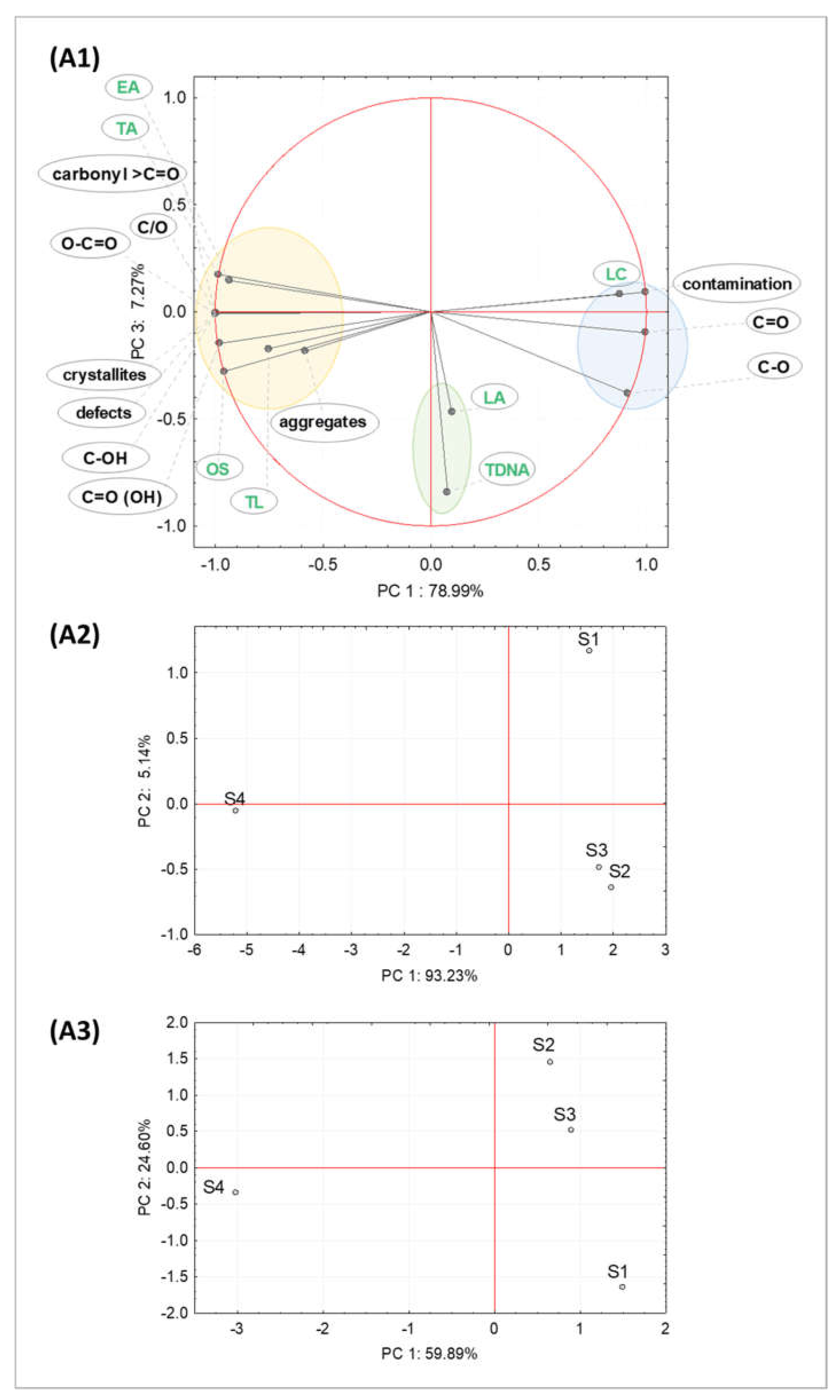

Considering the PCA analysis of biomarkers and physicochemical parameters, principal component 1 (PC 1) explained as much as 78.99% of the overall variability and visibly identified two clusters. The first cluster included data for early apoptosis, total apoptosis, oxidative stress, the tail length of the DNA comet, and most of the chemical and structural properties of the GO. The second cluster (markedly different) comprised data for living cells, the level of contamination of samples, and C=O, C-O groups in the GO surface. Principal component 2 (PC 2) explained 7.27% of the total variability and illustrated the third cluster gathering data for late apoptosis and tail DNA parameters. Visualization of the data on a 2D PCA plot allows for the separation of GO samples regarding their biological effect (Figure 9(A2)) and physicochemical properties (Figure 9(A3)). The most physicochemically different sample S4 (Figure 8(A3)) caused the most different biological effect (Figure 9(A2)). In addition, sample S1 differed from the others in terms of morphology/chemical properties (Figure 9(A3)). This GO sample also had a markedly different effect on biological markers (Figure 9(A2)).

3.1. Effect of GO Samples on Cell Viability and Parameters of Apoptosis

All GO products, with increasing exposure time and concentration, significantly decreased the viability of A. domesticus intestinal cells (Figure 5(A1,A2)). The effect of increased cell death was most visible in the case of contact of the animals with S4 and S1 materials at the concentration of 20 µg−1 (Figure 5(A2)). The results indicate that induced apoptosis was of great importance in the process of cell death. S4 nanoparticles significantly enhanced apoptosis on the 6th day of the experiment at both tested concentrations (Figure 6(A1,A2)). The S4 and S3 materials contributed most to the increase in the number of cells in the early apoptosis phase. In contrast, the S1 material caused the increase in late apoptosis already on the second day of the experiment in both concentrations (2 µ·g−1 and 20 µ·g−1). This tendency was maintained at the highest concentration until the 10th day of the study (Figure 6(C1,C2)). Early apoptosis is defined as an increase in phosphatidylserine lipid expression, detected by annexin V on an intact cell membrane. Late apoptosis is characterized by a loss of integrity through the cell membrane [45]. We can assume that the S1 and S4 materials from all tested GO samples are the most effective in the breakdown of cell membranes. The mechanism of these particles’ toxicity is related to their large size and tendency to aggregate (Figure 1(A1,A4)) (Figure 9(A1)). This hypothesis does not coincide with the results of studies that associate lower toxicity with an increase in nanoparticles’ size [46], but the obtained results are justified by the mechanism of the internalization of nanoparticles with the cell by endocytosis. Small sheets of graphene oxide enter cells through clathrin-dependent endocytosis, while larger ones enter via phagocytosis [47,48,49]. Nanoparticle aggregates are sufficient to induce appropriate reactions on the cell membrane’s surface and activate the transport process. It depends on the type of charge on their surface and is related to, for example, the density of ligands (functional groups) on which the thermodynamic driving force of endocytosis depends [50]. In the case of small GO flakes, there may be times when the number of ligands is insufficient to accomplish the “invasion” process. A similar remark also applies to large structures. The endocytosis process initiation can be triggered either by the clustering of many small nanoparticles on the surface of the cell membrane or by the high density of functional groups on the surface of large structures that act as crosslinking agents capable of aggregating nearby receptors [51]. Moreover, massive reactions of particles with the cell membrane can contribute to the production of reactive oxygen species and generate oxidative stress responsible for the breakdown of membrane lipids, changes in metabolic pathways, mitochondrial and nuclear DNA dysfunction, and finally, cause apoptosis or necrosis of the cell [52].

3.2. Effect of GO Samples on the Level of Oxidative Stress

Interactions between particles and cells play a key role in generating oxidative stress [53]. The free radicals formed can either be directly bound to the GO surface or be included as free units in the dispersing medium (cell environment), especially when the nanoparticle has good solubility and many oxygen functional groups [44,54]. Oxidative stress arises through an impaired electron transport chain, structural damage to cell organelles (including the cell membrane), or depolarization of the mitochondrial membrane [55,56,57]. It is considered that the potential of a nanoparticle to generate oxidative stress is correlated with its size, which determines the number of reactive groups on the surface and its high reactivity ratio. Reduced particle size usually results in structural defects and altered electrical properties. However, it does not have to. Nanoparticles of identical shape and size can lead to diverse cytotoxic responses due to their surface properties, and metals such as iron (Fe), copper (Cu), chromium (Cr), vanadium (V), and silica (Si) bound to the GO surface can accelerate ROS formation through Haber–Weiss and Fenton reactions [54,58]. The obtained results showed that all tested GO materials (S1–S4) in a concentration-dependent manner contributed to the overproduction of free radicals, leading to an antioxidant imbalance in gut cells (Figure 5(B1,B2)). The statistical analysis showed that the materials S4 and S1 initiated the strongest oxidative stress at the concentration of 20 µg−1 and significantly differed from the remaining nanoparticles (Figure 5(B2)) (Figure 9(A2,A3)). As mentioned, these materials had a high aggregation potential, and flakes were of considerable size after sonication. S1 and S4 had lower surface energy and less ionizable surface groups, which enhance hydrophilicity [59]. Therefore, the mechanical interaction with biological structures may be more likely as the mechanism of their toxicity than the release of free radicals in the cell’s environment. However, a change in surface charge density to a more negative effect in the cell’s environment and dissociation of hydroxyl and carboxyl groups due to ionization cannot be excluded. Moreover, the S4 material was a form of polycrystalline graphite, which influenced the functionalization of its surface, a lower degree of oxidation, confirmed by XPS analysis (Table 1 and Table 2), and the presence of impurities with the metal-containing functional groups (Figure 9(A1–A3)). As indicated by PCA analysis, the ten-day lasting exposure to contaminants in the samples could lead to cell viability stimulation. The reason for the observed relationship may be the activation of compensatory mechanisms contributing to the hormesis effect (Figure 9(A1)). Another likely scenario is the higher susceptibility of nanoparticles to reducing digestive enzymes’ environment and organic components in the food. The S1–S3 materials showed a higher crystal lattice defect compared to the S4 material (Table A2), but their planes could be rearranged, and as a result of the reduction of oxo groups, if the C-C bonds were not lost, their structure was restored. Structure defects have become temporary [13]. The incomplete reduction process in the biological environment may result in a significant number of surface defects. In the sample, S4 could intensify the tendency to disturb cell membranes’ integrity, including the mitochondria, leading to the generation of free radicals causing damage to the genetic material [53,57].

3.3. Effect of GO Samples on the Genetic Material of the Cell

Genotoxicity can be initiated either in the primary (direct interaction of the nanoparticle with genetic material) or in a secondary way, through the destruction of DNA due to increased oxidative stress, structural DNA mutations, cell cycle genes, and dysfunction of intracellular information transmission pathways [60]. The smallest particles (up to 10 nm) can pass through the nuclear membrane by diffusion or through numerous nuclear pore complexes and interact directly with DNA. Larger ones get inside the nucleus during cell division (mitosis) when the nuclear membrane disappears [61]. DNA damage in the tested GO may have resulted from the combination of a chain of events of primary and secondary mechanisms. The TDNA parameter showed that at a lower concentration of the sample, S1 and S3 contributed to the increase in DNA damage on the 3rd and 6th day of the experiment, which returned to the control level at the end of the experiment (Figure 7(A3)). At a higher concentration, the genotoxicity of samples S2 and S4 increases on day 6 and remains at a significantly higher level until the end of day 10. Taking into account the morphology and structure of the S4 sample, we can assume that the DNA damage appeared as a result of increased oxidative stress and, as a consequence, significant damage to the DNA of the cells was directed to the apoptotic pathway (Figure 6(A2,B2)), (Figure 9(A1)). S2 nanoparticles (GO single-layer flakes, 1 nm) could interact with the cell both with free radicals’ participation and damage DNA in direct contact after penetrating the nuclear membrane. The concentration of nanoparticles was significant. Genome integrity is strategic for the cell, and many repair mechanisms prevent genetic information loss. The lower concentration of nanoparticles caused minor defects that could be repaired quickly without harming the body. Further analyses are needed to determine whether the S1 and S4 materials during long-term exposure will trigger repair enzymes, lead to mutations causing cell death, or transform into cancer cells.

4. Materials and Methods

4.1. Experimental Model

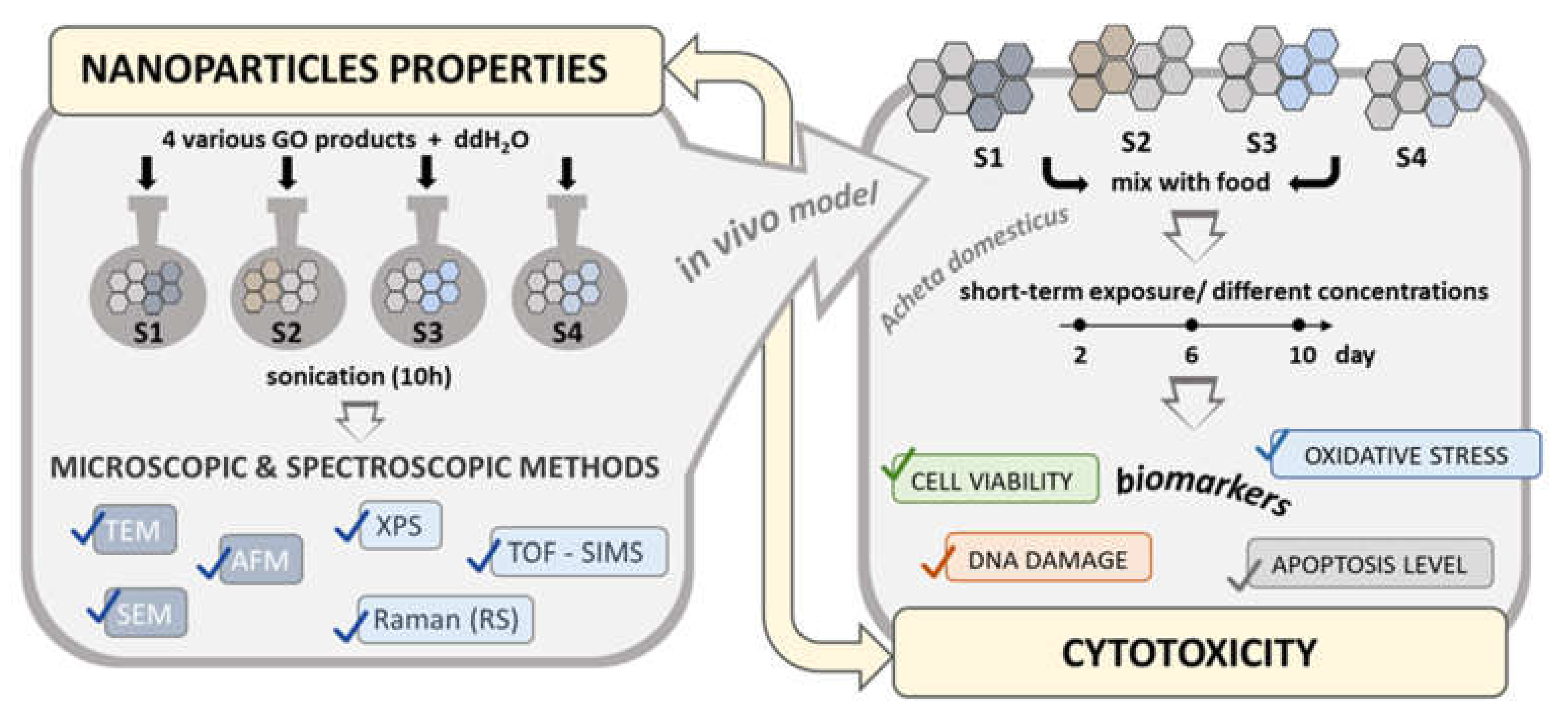

The experiment consisted of two stages. First, four GO nanoparticle suspensions were prepared and characterized using a multi-method approach, including microscopic and spectroscopic techniques. Then, each type of GO was mixed with the ground food and given to animals during the cytotoxicity assessment. A detailed food preparation method and the food composition can be found elsewhere [26,27].
The insects used for the experiment were obtained from a laboratory stock population maintained at the University of Silesia in Katowice (Poland). The adults A. domesticus (about 28 days of imago stage) were divided into experimental groups, including a control group (C) and two contaminated groups with GO: 2 μg·g−1 of food and 20 μg·g−1 of food for each of the nanoparticle suspension. A total of 12 experimental groups were bred in separate plastic boxes (24 cm × 16 cm × 16.5 cm, 30 individuals per each) with access to shelter, food, and fresh water. The insects were given food with GO nanoparticles for 10 days. Randomly, five animals were taken from each group at selected time points (2, 6, and 10 days of exposure) to analyze stress parameters in the gut or hemolymph of insects, depending on the assay (Scheme 1).

4.2. GO Suspensions Preparation

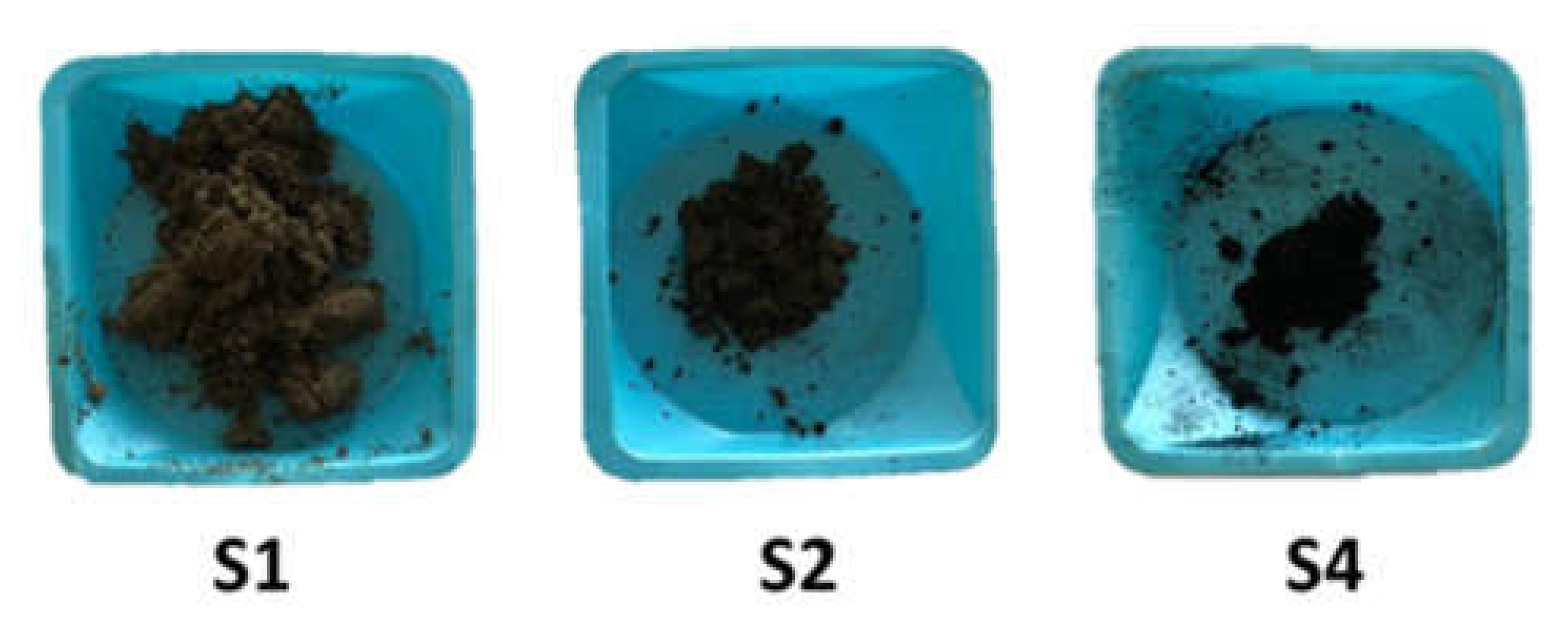

Graphene oxide was purchased from various companies: Sigma Aldrich, USA (Graphene oxide powder; 15–20 sheets), ACS Material, USA (Single Layer Graphene Oxide; H method), MSE PRO, USA (Monolayer Graphene oxide powder), and Nanografi, USA (Graphene oxide dispersion in water; 10 mg·mL−1). For this article’s purposes, nanoparticle samples were coded as samples 1–4 (S1–S4).
GO stock solutions (10 mg·mL−1) added to the food were prepared by ultrasonic homogenization (cycle: 1 amplitude, 100%; model UP-100H, DONSERV) of mixed GO flakes in ultrapure water. The sonication of each GO was performed under the same conditions (10 h, on ice) to obtain a homogeneous mixture of nanoparticles. Graphene oxide obtained from Nanografi was used in the experiment in the form of a manufacturer’s solution. Final products were stored tightly closed in the dark at room temperature.

4.3. Physicochemical Characterization of GO

Morphological and structural analyses: The morphology and structure of samples were characterized by scanning electron microscopy (SEM), atomic force microscopy (AFM), transmission electron microscopy (TEM), and Raman spectroscopy.
For the analysis, highly diluted GO dispersions with a concentration to 8 µg·mL−1 were deposited on the silicon wafer and fresh cleaved mica for SEM and AFM measurements, respectively [62]. Samples were left for drying at room temperature [63]. SEM analyses were realized at high vacuum conditions, with beam accelerating voltage of 2 kV, to ensure good contrast even during single-layered GO imaging. The hard tapping mode cantilever All-In-One Al (Budget Sensors) probe D, with a typical force constant of 40 N/m and resonant frequency 350 kHz, was used for AFM measurements (Agilent 5500, Agilent technologies, Santa Clara, CA, USA). The standard scan frequency was 0.2 Hz [35,62,64].
Samples for TEM observation were prepared by dispersing a small amount of the material in ethanol and putting a droplet of the suspension on a microscope copper grid covered with carbon film and allowed to evaporate the alcohol. Then, samples were dried and purified in a plasma cleaner. TEM investigations were done on a probe Cs-corrected S/TEM Titan 80–300 FEI microscope, equipped with energy dispersion X-ray spectrometer (EDS).
The Raman spectra (Renishaw) were collected at room temperature in the spectral range from 800 to 3500 cm−1 using a 20 mW argon laser (wavelength λ = 514.5 nm). The spectra were obtained with a 5% value of the laser beam power and an exposure time of 60 s. For each sample, three spectra were determined at different locations on the sample. For all GO samples, the first-order Raman spectra display two main peaks (Figure 3(A2)), which are characteristic features of graphitic carbons [65]. The peak at around 1580 cm−1 (called graphitic or G band) is assigned to the C=C stretching vibration mode and observed in aromatic rings of graphitic structures. The D peak at around 1350 cm−1 (so-called disorder mode) is activated by defects and not observed for single-crystal perfect graphite. The origin of the D mode is attributed to the double-resonant Raman scattering [66]. The ratio of both bands intensities ID/IG can be used to calculate the averaged in-plane (measured in the direction of the carbon layers) size of graphitic domains (La) from the formula of Knight and White [67], based on Tuinstra and Koenig [65].
L a = 4.4 I D I G − 1
where ID and IG denote the intensities (area under the curve) of the D and G bands, respectively. For detailed analysis of Raman spectra, the method proposed by Sadezky (deconvultion of experimental spectra into five bands: four Lorentz and one Gauss) was used [68]. Table A1 presents the position of the Raman bands along with the interpretation of their source. The calculations were made with the use of the FITYK program [69].
Surface analysis: The elemental composition of the GO surface was determined using X-ray photoelectron spectroscopy (XPS) PHI 5700 (Physical Electronics Inc., Minnesota, USA) and time of flight–secondary ion mass spectrometry (TOF-SIMS) (ION-TOF GmbH, Munster, Germany) [70,71]. The electrokinetic potential (ζ potential) of the GO suspension (in DI water) was measured at 25 °C using a ZetaSizer Nano ZS system (Malvern Instruments, Malvern, UK) [72].
The XPS measurements were executed using a monochromatic Al Kα radiation of 1486 eV energy to excite photoelectrons from the sample surface [73]. The photoemission spectra were collected in a wide binding energy range (−2–1400 eV) and high-resolution narrow ranges. The narrowed ranges represent the characteristic photoemission lines of individual elements detected on the surface of examined graphene oxides. The analysis was carried out using PHI MultiPak (v.9.6.0.15) software. The XPS peaks were fitted to Voigt functions after performing a Shirley background subtraction. XPS has allowed obtaining information about the samples’ chemical composition with the accuracy of detection of 0.1 atomic percent from the surface with a thickness of about 3 nm.
Further analysis was realized with the TOF-SIMS instrument equipped with a bismuth liquid metal ion gun of the energy of 30 keV and a current of about 1 pA. Positive and negative secondary ions spectra were collected by rastering the ion beam across 500 × 500 µm areas. The analysis was carried out using SurfaceLab 6 software. The positive spectra were calibrated using CH3+, C2H3+, C3H3+, C3H4+, and C3H5+ ions, whereas negative one using C−,CH−, C2−, C2H−, C3−, and C3H−. TOF-SIMS allowed more accurate chemical analysis than XPS (it is associated with a higher detection limit and a smaller sampling depth of about 0.4 nm of the TOF-SIMS technique) [74].

4.4. Cytotoxicity Evaluation

The cytotoxicity of nanoparticles in the insect’s gut was assessed with Muse® Cell Analyzer (Muse® Cell Analyzer; Millipore, Billerica, MA, USA), which uses fluorescence detection and microcapillary cytometry to deliver quantitative single-cell analysis. A cell suspension was prepared by shaking the tissue with a 0.1 M phosphate buffer (pH 7.4) in a homogenizer (Minilys, Bertin Technologies, Montbonnot, France). Determination of early/late cell apoptosis, the proportion between alive and dead cells, and the level of reactive oxygen species (ROS) were performed based on the manufacturer’s diagnostic kits: Muse® Annexin V and Dead Cell Kit and Muse® Oxidative Stress Kit assay, respectively.
Genotoxic effect of GO was measured in hemolymph suspension (in a 1:1 ratio hemolymph and anticoagulant buffer solution) by Single Cell Gel Electrophoresis assay (SCGE). Briefly, 180 slides (total in the study) were incubated with lysis solution (90 min) and electrophoresed, using an alkaline buffer (4 °C, 20 min at 0.3 A, 1000 mL). Finally, the slides were submerged in a neutralization solution and dehydrated in methanol of 99.8%. Slides were stained with DAPI dye and visualized under a fluorescent microscope with Komet 5.5 image analysis system (Kinetic Imaging, Liverpool, UK). More details about comet assay are presented in our previous article [75,76].
All the tests were performed at least five times for each time point in the experimental group.

4.5. Statistical Analysis

Data normality for all biological parameters was tested using the Kolmogorov–Smirnov and Shapiro–Wilk tests. Levene and Brown–Forsythe tests confirmed the homogeneity of variances. Therefore, significant differences were determined by the honest significant difference test (HSD Tukey test, ANOVA; p < 0.05). Principal Component Analysis (PCA) for evaluating the relations among all biological (measured at 10th day of exposure to GO at the concentration of 20 μg·g−1) and physicochemical parameters was performed. Statistical analysis was prepared using Statistica 13.1.

5. Conclusions

The study proved that the tested GO suspensions have different potential to induce cytotoxicity (Figure 9(A2)), and the mechanism of interaction with the cell is difficult to standardize and define. After 6 days of exposure, crucial physiological responses of various nature appeared, including repair mechanisms, which strongly correlated with the properties of GO and the concentration of nanoparticles in the food.
Even subtle differences in the chemical composition and morphology of GO can lead to unforeseen reactions in the organism’s environment. The biocompatibility of GO is a small and susceptible area that can be presented as a resultant of many factors derived from the GO and the organism/cells (Scheme 2). Since GO is a future-oriented platform, its in-depth assessment and characterization of the potential to react with biological material are highly recommended. To explain individual physiological responses and set toxicity standards, we plan more precise analyses.

Author Contributions

M.D.: Conceptualisation, Methodology, Investigation, Formal analysis, Writing—Original Draft, Writing—Review and Editing, Visualization, M.P.: Methodology, Investigation, Formal analysis, Writing—Review and Editing, Visualization. Ł.M.: Methodology, Investigation, Formal analysis, Writing—Review and Editing, K.B.: Methodology, Investigation, Formal analysis, Writing—Review and Editing, S.B.: Investigation, M.C.: Investigation, M.A.: Conceptualisation, Supervision, Writing—Review and Editing, Funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Science Centre (NCN) on the basis of agreement No. UMO-2020/37/B/NZ7/00570 and by the funds granted under the Research Excellence Initiative of the University of Silesia in Katowice.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or supplementary material.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Table
Table A1. The positions of the bands in the Raman first-order spectrum with the corresponding elements of the structure.
Table A1. The positions of the bands in the Raman first-order spectrum with the corresponding elements of the structure.
BandsRaman Shift/cm−1Structure Characteristic for a Vibration Mode
G≈1580ideal graphitic lattice
D1 (D)≈1350disordered graphitic lattice—graphene layer edges
D2≈1620disordered graphitic lattice—surface graphene layers
D3≈1500amorphous carbon
D4≈1200disordered graphitic lattice polyenes, ionic impurities
Table
Table A2. Quantitative analysis of Raman spectra of the tested materials (S1–S4). Parameters of D1, G, D3, and D2 bands were obtained as a result of fitting to four components, according to the model proposed in [37]. Location—band position [cm−1], FWHM—bandwidth in the middle of the height [cm−1], I—intensity (area under the curve) [%]. Average values for three measurements of each sample are shown.
Table A2. Quantitative analysis of Raman spectra of the tested materials (S1–S4). Parameters of D1, G, D3, and D2 bands were obtained as a result of fitting to four components, according to the model proposed in [37]. Location—band position [cm−1], FWHM—bandwidth in the middle of the height [cm−1], I—intensity (area under the curve) [%]. Average values for three measurements of each sample are shown.
Fitting ResultsS1S2S3S4
D1Location1351135013521345
FWHM14012011456
I62606235
GLocation1573157815811569
FWHM68605423
I22201955
D3Location1496151315241478
FWHM12314012882
I7982
D2Location1610161016101606
FWHM38353331
I910117
Table
Table A3. XPS chemical state analysis of nitrogen (N1s), sulfur (S2p), silicon (Si2p), and oxygen (O1s).
Table A3. XPS chemical state analysis of nitrogen (N1s), sulfur (S2p), silicon (Si2p), and oxygen (O1s).
Sample Line Peak Position
[eV] 		Percentage Contribution Atomic Concentration Assignment
S1 N1s399.7353.530.36C-NH-C
N1s401.7446.470.31pyrrolic N-H
S2p3/2168.261000.50sulfate or sulfoamide S-O4
Si2p3/2101.9355.950.33SiOx
Si2p3/2103.7944.050.26SiO2
O1s531.117.082.00O-C=O
O1s532.5286.3224.41C=O
O1s533.966.061.71C-O-C
S2 N1s399.5736.350.13C-N
N1s401.8463.650.24graphitic nitrogen
S2p3/2168.2389.340.24sulfate or sulfoamide S-O4
S2p3/2170.5210.360.03bisulfate group (HSO4−)
Si2p3/2101.921000.32SiOx
O1s531.4412.123.43O-C=O
O1s532.6265.9218.67C-OH
O1s533.9121.966.22C-O-C
S3 N1s400.2540.750.55pyrrolic nitrogen
N1s401.5659.250.81graphitic nitrogen
S2p3/2168.7681.822.93sulfate
S2p3/2169.5418.180.65C-S-C
Si2p3/2102.621000.12silicate
O1s531.4410.752.86O-C=O
O1s532.4667.2017.90C=O
O1s533.7622.045.87C-O-C
S4 N1s400.3190.090.63pyrrolic nitrogen
N1s402.459.910.07N-O
S2p3/2163.777.690.01reduced sulfide -S-
S2p3/2166.4337.790.03-SOn-
S2p3/2168.8654.520.04SOx
Si2p3/299.4143.550.19bulk Si
Si2p3/2101.7630.290.13SiOx
Si2p3/2103.8926.070.11SiO2
O1s531.4417.210.90O-C=O
O1s532.6452.692.76C-OH
O1s533.6814.350.75O-H or C-O-C
O1s534.4615.760.82C(=O)(O–)2

References

  1. Kuhlbusch, T.A.J. Black Carbon and the Carbon Cycle. Science 1998, 280, 1903–1904. [Google Scholar] [CrossRef]
  2. Zhu, Y.; Murali, S.; Cai, W.; Li, X.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and Graphene Oxide: Synthesis, Properties, and Applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef] [PubMed]
  3. Morales-Narváez, E.; Merkoçi, A. Graphene oxide as an optical biosensing platform. Adv. Mater. 2012, 24, 3298–3308. [Google Scholar] [CrossRef] [PubMed]
  4. Dai, L. Functionalization of graphene for efficient energy conversion and storage. Acc. Chem. Res. 2013, 46, 31–42. [Google Scholar] [CrossRef]
  5. Behbudi, G. Mini review of Graphene Oxide for medical detection and applications. Adv. Appl. NanoBio-Technol. 2020, 1, 63–66. [Google Scholar]
  6. Nan, Z.; Hao, C.; Ye, X.; Feng, Y.; Sun, R. Interaction of graphene oxide with bovine serum albumin: A fluorescence quenching study. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 210, 348–354. [Google Scholar] [CrossRef]
  7. Kong, Z.; Daab, M.; Yano, H.; Huang, H.; Breu, J.; Sasaki, T.; Nguyen, S.T.; Huang, J. Visualizing Transparent 2D Sheets by Fluorescence Quenching Microscopy. Small Methods 2020, 4, 2000036. [Google Scholar] [CrossRef]
  8. Georgakilas, V.; Otyepka, M.; Bourlinos, A.B.; Chandra, V.; Kim, N.; Kemp, K.C.; Hobza, P.; Zboril, R.; Kim, K.S. Functionalization of Graphene: Covalent and Non-Covalent Approaches, Derivatives and Applications. Chem. Rev. 2012, 112, 6156–6214. [Google Scholar] [CrossRef]
  9. Tissera, N.D.; Wijesena, R.N.; Perera, J.R.; de Silva, K.M.N.; Amaratunge, G.A.J. Hydrophobic cotton textile surfaces using an amphiphilic graphene oxide (GO) coating. Appl. Surf. Sci. 2015, 324, 455–463. [Google Scholar] [CrossRef]
  10. Lopez, A.; Liu, J. Covalent and Noncovalent Functionalization of Graphene Oxide with DNA for Smart Sensing. Adv. Intell. Syst. 2020, 2, 2000123. [Google Scholar] [CrossRef]
  11. Kuila, T.; Bose, S.; Mishra, A.K.; Khanra, P.; Kim, N.H.; Lee, J.H. Chemical functionalization of graphene and its applications. Prog. Mater. Sci. 2012, 57, 1061–1105. [Google Scholar] [CrossRef]
  12. Nebol’sin, V.A.; Galstyan, V.; Silina, Y.E. Graphene oxide and its chemical nature: Multi-stage interactions between the oxygen and graphene. Surf. Interfaces 2020, 21, 100763. [Google Scholar] [CrossRef]
  13. Nishina, Y.; Eigler, S. Chemical and electrochemical synthesis of graphene oxide—A generalized view. Nanoscale 2020, 12, 12731–12740. [Google Scholar] [CrossRef]
  14. Dimiev, A.M.; Tour, J.M. Mechanism of Graphene Oxide Formation. ACS Nano 2014, 8, 3060–3068. [Google Scholar] [CrossRef]
  15. Yu, H.; Zhang, B.; Bulin, C.; Li, R.; Xing, R. High-efficient Synthesis of Graphene Oxide Based on Improved Hummers Method. Sci. Rep. 2016, 6, 36143. [Google Scholar] [CrossRef] [Green Version]
  16. Kozhemyakina, N.V.; Eigler, S.; Dinnebier, R.E.; Inayat, A.; Schwieger, W.; Hirsch, A. Effect of the Structure and Morphology of Natural, Synthetic and Post-processed Graphites on Their Dispersibility and Electronic Properties. Fullerenes, Nanotub. Carbon Nanostructures 2013, 21, 804–823. [Google Scholar] [CrossRef]
  17. Marcano, D.C.; Kosynkin, D.V.; Berlin, J.M.; Sinitskii, A.; Sun, Z.; Slesarev, A.; Alemany, L.B.; Lu, W.; Tour, J.M. Improved Synthesis of Graphene Oxide. ACS Nano 2010, 4, 4806–4814. [Google Scholar] [CrossRef]
  18. Walter, J.; Nacken, T.J.; Damm, C.; Thajudeen, T.; Eigler, S.; Peukert, W. Determination of the lateral dimension of graphene oxide nanosheets using analytical ultracentrifugation. Small 2015, 11, 814–825. [Google Scholar] [CrossRef]
  19. Dimiev, A.; Kosynkin, D.V.; Alemany, L.B.; Chaguine, P.; Tour, J.M. Pristine Graphite Oxide. J. Am. Chem. Soc. 2012, 134, 2815–2822. [Google Scholar] [CrossRef]
  20. Morimoto, N.; Suzuki, H.; Takeuchi, Y.; Kawaguchi, S.; Kunisu, M.; Bielawski, C.W.; Nishina, Y. Real-Time, In Situ Monitoring of the Oxidation of Graphite: Lessons Learned. Chem. Mater. 2017, 29, 2150–2156. [Google Scholar] [CrossRef] [Green Version]
  21. Qi, Y.; Chen, W.; Liu, F.; Liu, J.; Zhang, T.; Chen, W. Aggregation morphology is a key factor determining protein adsorption on graphene oxide and reduced graphene oxide nanomaterials. Environ. Sci. Nano 2019, 6, 1303–1309. [Google Scholar] [CrossRef]
  22. Park, S.; Ruoff, R.S. Chemical methods for the production of graphenes. Nat. Nanotechnol. 2009, 4, 217–224. [Google Scholar] [CrossRef] [PubMed]
  23. Whitby, R.L.D. Chemical Control of Graphene Architecture: Tailoring Shape and Properties. ACS Nano 2014, 8, 9733–9754. [Google Scholar] [CrossRef] [PubMed]
  24. Peng, Z.; Liu, X.; Zhang, W.; Zeng, Z.; Liu, Z.; Zhang, C.; Liu, Y.; Shao, B.; Liang, Q.; Tang, W.; et al. Advances in the application, toxicity and degradation of carbon nanomaterials in environment: A review. Environ. Int. 2020, 134, 105298. [Google Scholar] [CrossRef] [PubMed]
  25. Tang, H.; Zhang, S.; Huang, T.; Cui, F.; Xing, B. Effects of pH and electrolytes on the sheet-to-sheet aggregation mode of graphene oxide in aqueous solutions. Environ. Sci. Nano 2020, 7, 984–995. [Google Scholar] [CrossRef]
  26. Dziewięcka, M.; Flasz, B.; Rost-Roszkowska, M.; Kędziorski, A.; Kochanowicz, A.; Augustyniak, M. Graphene oxide as a new anthropogenic stress factor—Multigenerational study at the molecular, cellular, individual and population level of Acheta domesticus. J. Hazard. Mater. 2020, 396. [Google Scholar] [CrossRef] [PubMed]
  27. Dziewięcka, M.; Witas, P.; Karpeta-Kaczmarek, J.; Kwaśniewska, J.; Flasz, B.; Balin, K.; Augustyniak, M. Reduced fecundity and cellular changes in Acheta domesticus after multigenerational exposure to graphene oxide nanoparticles in food. Sci. Total Environ. 2018, 635, 947–955. [Google Scholar] [CrossRef] [PubMed]
  28. Dziewięcka, M.; Karpeta-Kaczmarek, J.; Augustyniak, M.; Majchrzycki, Ł.; Augustyniak-Jabłokow, M.A. Evaluation of In Vivo graphene oxide toxicity for Acheta domesticus in relation to nanomaterial purity and time passed from the exposure. J. Hazard. Mater. 2015, 305, 30–40. [Google Scholar] [CrossRef]
  29. Dziewięcka, M.; Karpeta-Kaczmarek, J.; Augustyniak, M.; Rost-Roszkowska, M. Short-term In Vivo exposure to graphene oxide can cause damage to the gut and testis. J. Hazard. Mater. 2017, 328, 80–89. [Google Scholar] [CrossRef]
  30. Karpeta-Kaczmarek, J.; Dziewięcka, M.; Augustyniak, M.; Rost-Roszkowska, M. Effects of short-term exposure of Acheta domesticus to nanodiamonds in food: DNA damage but no histological alteration in tissues. Carbon 2016, 110, 458–468. [Google Scholar] [CrossRef]
  31. Karpeta-Kaczmarek, J.; Andrzej, K.; Augustyniak-jab, M.A.; Dziewi, M.; Augustyniak, M. Chronic toxicity of nanodiamonds can disturb development and reproduction of Acheta domesticus L. Environ. Res. 2018, 166, 602–609. [Google Scholar] [CrossRef]
  32. Flasz, B.; Dziewięcka, M.; Kędziorski, A.; Tarnawska, M.; Augustyniak, M. Multigenerational graphene oxide intoxication results in reproduction disorders at the molecular level of vitellogenin protein expression in Acheta domesticus. Chemosphere. 2021, 280, 130772. [Google Scholar] [CrossRef]
  33. Karpeta-Kaczmarek, J.; Augustyniak, M.; Rost-Roszkowska, M. Ultrastructure of the gut epithelium in Acheta domesticus after long-term exposure to nanodiamonds supplied with food. Arthropod Struct. Dev. 2016, 45, 253–264. [Google Scholar] [CrossRef]
  34. Flasz, B.; Dziewięcka, M.; Kędziorski, A.; Tarnawska, M.; Augustyniak, M. Vitellogenin expression, DNA damage, health status of cells and catalase activity in Acheta domesticus selected according to their longevity after graphene oxide treatment. Sci. Total Environ. 2020, 737. [Google Scholar] [CrossRef]
  35. Arif, T.; Colas, G.; Filleter, T. Effect of Humidity and Water Intercalation on the Tribological Behavior of Graphene and Graphene Oxide. ACS Appl. Mater. Interfaces 2018, 10, 22537–22544. [Google Scholar] [CrossRef]
  36. National Institute of Standards and Technology. X-ray Photoelectron Spectroscopy Database. Version 4.1. Available online: http://srdata.nist.gov/xps/ (accessed on 17 March 2021).
  37. Wang, K.; Ruan, J.; Song, H.; Zhang, J.; Wo, Y.; Guo, S.; Cui, D. Biocompatibility of Graphene Oxide. Nanoscale Res. Lett. 2011, 6, 8. [Google Scholar] [CrossRef] [Green Version]
  38. Jastrzebska, A.M.; Olszyna, A.R. The ecotoxicity of graphene family materials: Current status, knowledge gaps and future needs. J. Nanoparticle Res. 2015, 17. [Google Scholar] [CrossRef]
  39. Akhavan, O.; Ghaderi, E.; Akhavan, A. Size-dependent genotoxicity of graphene nanoplatelets in human stem cells. Biomaterials 2012, 33, 8017–8025. [Google Scholar] [CrossRef]
  40. Nirmal, N.K.; Awasthi, K.K.; John, P.J. Effects of Nano-Graphene Oxide on Testis, Epididymis and Fertility of Wistar Rats. Basic Clin. Pharmacol. Toxicol. 2017, 121, 202–210. [Google Scholar] [CrossRef] [Green Version]
  41. Lv, X.; Yang, Y.; Tao, Y.; Jiang, Y.; Chen, B.; Zhu, X.; Cai, Z.; Li, B. A mechanism study on toxicity of graphene oxide to Daphnia magna: Direct link between bioaccumulation and oxidative stress. Environ. Pollut. 2018, 234, 953–959. [Google Scholar] [CrossRef]
  42. Albert, E.L.; Che Abdullah, C.A.; Shiroshaki, Y. Synthesis and characterization of graphene oxide functionalized with magnetic nanoparticle via simple emulsion method. Results Phys. 2018, 11, 944–950. [Google Scholar] [CrossRef]
  43. Muniyalakshmi, M.; Sethuraman, K.; Silambarasan, D. Synthesis and characterization of graphene oxide nanosheets. Mater. Today Proc. 2020, 21, 408–410. [Google Scholar] [CrossRef]
  44. Subrahmanyam, K.S.; Vivekchand, S.R.C.; Govindaraj, A.; Rao, C.N.R. A study of graphenes prepared by different methods: Characterization, properties and solubilization. J. Mater. Chem. 2008, 18, 1517–1523. [Google Scholar] [CrossRef]
  45. Tabish, T.A.; Pranjol, M.Z.I.; Hayat, H.; Rahat, A.A.M.; Abdullah, T.M.; Whatmore, J.L.; Zhang, S. In Vitro toxic effects of reduced graphene oxide nanosheets on lung cancer cells. Nanotechnology 2017, 28, 504001. [Google Scholar] [CrossRef] [Green Version]
  46. Yang, K.; Gong, H.; Shi, X.; Wan, J.; Zhang, Y.; Liu, Z. In Vivo biodistribution and toxicology of functionalized nano-graphene oxide in mice after oral and intraperitoneal administration. Biomaterials 2013, 34, 2787–2795. [Google Scholar] [CrossRef]
  47. Tu, Z.; Achazi, K.; Schulz, A.; Mülhaupt, R.; Thierbach, S.; Rühl, E.; Adeli, M.; Haag, R. Combination of Surface Charge and Size Controls the Cellular Uptake of Functionalized Graphene Sheets. Adv. Funct. Mater. 2017, 27. [Google Scholar] [CrossRef]
  48. Iversen, T.-G.; Skotland, T.; Sandvig, K. Endocytosis and intracellular transport of nanoparticles: Present knowledge and need for future studies. Nano Today 2011, 6, 176–185. [Google Scholar] [CrossRef]
  49. Canton, I.; Battaglia, G. Endocytosis at the nanoscale. Chem. Soc. Rev. 2012, 41, 2718–2739. [Google Scholar] [CrossRef]
  50. Shang, L.; Nienhaus, K.; Jiang, X.; Yang, L.; Landfester, K.; Mailänder, V.; Simmet, T.; Nienhaus, G.U. Nanoparticle interactions with live cells: Quantitative fluorescence microscopy of nanoparticle size effects. Beilstein J. Nanotechnol. 2014, 5, 2388–2397. [Google Scholar] [CrossRef] [Green Version]
  51. Albanese, A.; Tang, P.S.; Chan, W.C.W. The effect of nanoparticle size, shape, and surface chemistry on biological systems. Annu. Rev. Biomed. Eng. 2012, 14, 1–16. [Google Scholar] [CrossRef] [Green Version]
  52. Wang, A.; Pu, K.; Dong, B.; Liu, Y.; Zhang, L.; Zhang, Z.; Duan, W.; Zhu, Y. Role of surface charge and oxidative stress in cytotoxicity and genotoxicity of graphene oxide towards human lung fibroblast cells. J. Appl. Toxicol. 2013, 33, 1156–1164. [Google Scholar] [CrossRef]
  53. Manke, A.; Wang, L.; Rojanasakul, Y. Mechanisms of nanoparticle-induced oxidative stress and toxicity. Biomed. Res. Int. 2013, 2013, 942916. [Google Scholar] [CrossRef] [Green Version]
  54. Fubini, B.; Hubbard, A. Reactive oxygen species (ROS) and reactive nitrogen species (RNS) generation by silica in inflammation and fibrosis. Free Radic. Biol. Med. 2003, 34, 1507–1516. [Google Scholar] [CrossRef]
  55. Zhang, B.; Wei, P.; Zhou, Z.; Wei, T. Interactions of graphene with mammalian cells: Molecular mechanisms and biomedical insights. Adv. Drug Deliv. Rev. 2016, 105, 145–162. [Google Scholar] [CrossRef] [Green Version]
  56. Jia, P.; Sun, T.; Junaid, M.; Yang, L.; Ma, Y.; Cui, Z.; Wei, D.; Shi, H.; Pei, D. Nanotoxicity of different sizes of graphene (G) and graphene oxide (GO) In Vitro and In Vivo. Environ. Pollut. 2019, 247, 595–606. [Google Scholar] [CrossRef]
  57. Xia, T.; Kovochich, M.; Brant, J.; Hotze, M.; Sempf, J.; Oberley, T.; Sioutas, C.; Yeh, J.I.; Wiesner, M.R.; Nel, A.E. Comparison of the abilities of ambient and manufactured nanoparticles to induce cellular toxicity according to an oxidative stress paradigm. Nano Lett. 2006, 6, 1794–1807. [Google Scholar] [CrossRef]
  58. Knaapen, A.M.; Borm, P.J.A.; Albrecht, C.; Schins, R.P.F. Inhaled particles and lung cancer. Part A Mech. Int. J. Cancer 2004, 109, 799–809. [Google Scholar] [CrossRef]
  59. Hu, X.; Yu, Y.; Hou, W.; Zhou, J.; Song, L. Effects of particle size and pH value on the hydrophilicity of graphene oxide. Appl. Surf. Sci. 2013, 273, 118–121. [Google Scholar] [CrossRef]
  60. Magdolenova, Z.; Collins, A.; Kumar, A.; Dhawan, A.; Stone, V.; Dusinska, M. Mechanisms of genotoxicity. A review of In Vitro and In Vivo studies with engineered nanoparticles. Nanotoxicology 2014, 8, 233–278. [Google Scholar] [CrossRef]
  61. Hackenberg, S.; Friehs, G.; Froelich, K.; Ginzkey, C.; Koehler, C.; Scherzed, A.; Burghartz, M.; Hagen, R.; Kleinsasser, N. Intracellular distribution, geno- and cytotoxic effects of nanosized titanium dioxide particles in the anatase crystal phase on human nasal mucosa cells. Toxicol. Lett. 2010, 195, 9–14. [Google Scholar] [CrossRef]
  62. Wilson, N.R.; Pandey, P.A.; Beanland, R.; Rourke, J.P.; Lupo, U.; Rowlands, G.; Römer, R.A. On the structure and topography of free-standing chemically modified graphene. New J. Phys. 2010, 12, 125010. [Google Scholar] [CrossRef]
  63. Jung, I.; Field, D.A.; Clark, N.J.; Zhu, Y.; Yang, D.; Piner, R.D.; Stankovich, S.; Dikin, D.A.; Geisler, H.; Ventrice, C.A.; et al. Reduction Kinetics of Graphene Oxide Determined by Electrical Transport Measurements and Temperature Programmed Desorption. J. Phys. Chem. C 2009, 113, 18480–18486. [Google Scholar] [CrossRef]
  64. Den Boer, D.; Weis, J.G.; Zuniga, C.A.; Sydlik, S.A.; Swager, T.M. Apparent Roughness as Indicator of (Local) Deoxygenation of Graphene Oxide. Chem. Mater. 2014, 26, 4849–4855. [Google Scholar] [CrossRef]
  65. Tuinstra, F.; Koenig, J.L. Raman Spectrum of Graphite. J. Chem. Phys. 1970, 53, 1126–1130. [Google Scholar] [CrossRef] [Green Version]
  66. Thomsen, C.; Reich, S. Double resonant raman scattering in graphite. Phys. Rev. Lett. 2000, 85, 5214–5217. [Google Scholar] [CrossRef]
  67. Knight, D.S.; White, W.B. Characterization of diamond films by Raman spectroscopy. J. Mater. Res. 1989, 4, 385–393. [Google Scholar] [CrossRef]
  68. Sadezky, A.; Muckenhuber, H.; Grothe, H.; Niessner, R.; Pöschl, U. Raman microspectroscopy of soot and related carbonaceous materials: Spectral analysis and structural information. Carbon 2005, 43, 1731–1742. [Google Scholar] [CrossRef]
  69. Wojdyr, M. Fityk: A general-purpose peak fitting program. J. Appl. Crystallogr. 2010, 43, 1126–1128. [Google Scholar] [CrossRef]
  70. Qureshi, U.A.; Khatri, Z.; Ahmed, F.; Ibupoto, A.S.; Khatri, M.; Mahar, F.K.; Brohi, R.Z.; Kim, I.S. Highly efficient and robust electrospun nanofibers for selective removal of acid dye. J. Mol. Liq. 2017, 244, 478–488. [Google Scholar] [CrossRef]
  71. Benninghoven, A. Chemical Analysis of Inorganic and Organic Surfaces and Thin Films by Static Time-of-Flight Secondary Ion Mass Spectrometry (TOF-SIMS). Angew. Chem. Int. Ed. Engl. 1994, 33, 1023–1043. [Google Scholar] [CrossRef]
  72. Xu, Z.; Gao, H.; Guoxin, H. Solution-based synthesis and characterization of a silver nanoparticle-graphene hybrid film. Carbon 2011, 49, 4731–4738. [Google Scholar] [CrossRef]
  73. Daniyal, W.M.E.M.M.; Fen, Y.W.; Saleviter, S.; Chanlek, N.; Nakajima, H.; Abdullah, J.; Yusof, N.A. X-ray Photoelectron Spectroscopy Analysis of Chitosan-Graphene Oxide-Based Composite Thin Films for Potential Optical Sensing Applications. Polymers 2021, 13, 478. [Google Scholar] [CrossRef]
  74. Tarnawska, D.; Balin, K.; Jastrzebska, M.; Talik, A.; Wrzalik, R. Physicochemical analysis of sediments formed on the surface of hydrophilic intraocular lens after Descemet’s stripping endothelial keratoplasty. Materials 2020, 13, 4145. [Google Scholar] [CrossRef]
  75. Karpeta-Kaczmarek, J.; Dziewięcka, M.; Augustyniak, M.; Rost-Roszkowska, M.; Pawlyta, M. Oxidative stress and genotoxic effects of diamond nanoparticles. Environ. Res. 2016, 148, 264–272. [Google Scholar] [CrossRef]
  76. Augustyniak, M.; Gladysz, M.; Dziewięcka, M. Mutation Research/Reviews in Mutation Research. The Comet assay in insects—Status. Prospect. Benefits Sci. 2016, 767, 67–76. [Google Scholar] [CrossRef]
Ijms 22 05401 g001 550
Figure 1. Microscopic analysis of tested GO samples. (A) SEM analysis: S1 (A1), S2 (A2), S3 (A3), and S4 (A4). Scale bars are 10 µm in leading images and 1 µm nm in the inset of the image. (B) AFM images: S1 (B1), S2 (B2), S3 (B3), and S4 (B4). Scale bars are 4 µm in leading images. An inset on (B2) and (B3) shows a cross-section through graphene oxide flakes at the marked region.
Figure 1. Microscopic analysis of tested GO samples. (A) SEM analysis: S1 (A1), S2 (A2), S3 (A3), and S4 (A4). Scale bars are 10 µm in leading images and 1 µm nm in the inset of the image. (B) AFM images: S1 (B1), S2 (B2), S3 (B3), and S4 (B4). Scale bars are 4 µm in leading images. An inset on (B2) and (B3) shows a cross-section through graphene oxide flakes at the marked region.
Ijms 22 05401 g001
Ijms 22 05401 g002 550
Figure 2. Electron microscopy techniques. Sample 1 (S1): TEM image (A1), STEM-HAADF image (A2), SAED image (A3), and HRTEM (A4). Sample 2 (S2): TEM image (B1), STEM-HAADF (B2). SAED (selected area electron diffraction) image in B area of B1 (B3) and HR-STEM (bright field) image (B4). Sample 3 (S3): TEM image (C1), STEM-HAADF image (C2), and SAED in areas A and B of C1 image, respectively (C3,C4). Sample 4 (S4): TEM image (D1), HRTEM image (D2), SAED (D3), HR-STEM (bright field) image (D4).
Figure 2. Electron microscopy techniques. Sample 1 (S1): TEM image (A1), STEM-HAADF image (A2), SAED image (A3), and HRTEM (A4). Sample 2 (S2): TEM image (B1), STEM-HAADF (B2). SAED (selected area electron diffraction) image in B area of B1 (B3) and HR-STEM (bright field) image (B4). Sample 3 (S3): TEM image (C1), STEM-HAADF image (C2), and SAED in areas A and B of C1 image, respectively (C3,C4). Sample 4 (S4): TEM image (D1), HRTEM image (D2), SAED (D3), HR-STEM (bright field) image (D4).
Ijms 22 05401 g002
Ijms 22 05401 g003 550
Figure 3. Spectroscopic analysis of GO samples. Comparison of the first-order Raman spectra of the S1–S4 samples (A1), first and second-order spectrum of the S4 sample (A2), and first-order Raman spectra of the S1 sample. The solid line shows the best fit of the sum (red) of four components (G, D1, D2, D3) to the experimental results (black) (A3). Electrokinetic potential (ζ potential) of the tested GO samples (B1).
Figure 3. Spectroscopic analysis of GO samples. Comparison of the first-order Raman spectra of the S1–S4 samples (A1), first and second-order spectrum of the S4 sample (A2), and first-order Raman spectra of the S1 sample. The solid line shows the best fit of the sum (red) of four components (G, D1, D2, D3) to the experimental results (black) (A3). Electrokinetic potential (ζ potential) of the tested GO samples (B1).
Ijms 22 05401 g003
Ijms 22 05401 g004 550
Figure 4. Time of Flight-Secondary Ion Mass Spectrometry (TOF-SIMS) of S1–S4 GO samples (A1–A3), negative TOF-SIMS spectra narrowed to the 55 Da mass range (A1), positive TOF-SIMS spectra in 1–40 Da (A2), and 40–80 Da mass range (A3).
Figure 4. Time of Flight-Secondary Ion Mass Spectrometry (TOF-SIMS) of S1–S4 GO samples (A1–A3), negative TOF-SIMS spectra narrowed to the 55 Da mass range (A1), positive TOF-SIMS spectra in 1–40 Da (A2), and 40–80 Da mass range (A3).
Ijms 22 05401 g004
Ijms 22 05401 g005 550
Figure 5. Cell viability (A1,A2) and the level of oxidative stress (B1,B2) in gut cells of A. domesticus after 2, 6, and 10 days of exposure to various suspensions of GO nanoparticles in food (concentrations: 2 μg·g−1 of food and 20 μg·g−1 of food in comparison to the control level (red line). Explanation: The control group results were normalized to 1 in each respective time point. Averages of each experimental group were calculated concerning these normalized values. The tables below the graphs show the statistical differences between tested GO suspensions (S1–S4) for each time point and concentration. Groups that differ statistically from each other are marked in gray (HSD Tukey test, ANOVA; p < 0.05).
Figure 5. Cell viability (A1,A2) and the level of oxidative stress (B1,B2) in gut cells of A. domesticus after 2, 6, and 10 days of exposure to various suspensions of GO nanoparticles in food (concentrations: 2 μg·g−1 of food and 20 μg·g−1 of food in comparison to the control level (red line). Explanation: The control group results were normalized to 1 in each respective time point. Averages of each experimental group were calculated concerning these normalized values. The tables below the graphs show the statistical differences between tested GO suspensions (S1–S4) for each time point and concentration. Groups that differ statistically from each other are marked in gray (HSD Tukey test, ANOVA; p < 0.05).
Ijms 22 05401 g005
Ijms 22 05401 g006 550
Figure 6. Total apoptosis (A1,A2), early apoptosis (B1,B2), and late apoptosis level (C1,C2) in gut cells of A. domesticus during 10 days of exposure to various suspensions of GO nanoparticles in food (concentrations: 2 μg·g−1 of food and 20 μg·g−1 of food in comparison to the control level (red line). Explanation of the chart as in Figure 5.
Figure 6. Total apoptosis (A1,A2), early apoptosis (B1,B2), and late apoptosis level (C1,C2) in gut cells of A. domesticus during 10 days of exposure to various suspensions of GO nanoparticles in food (concentrations: 2 μg·g−1 of food and 20 μg·g−1 of food in comparison to the control level (red line). Explanation of the chart as in Figure 5.
Ijms 22 05401 g006
Ijms 22 05401 g007 550
Figure 7. DNA damage based on TDNA (amount of DNA in the comet tail, %) (A1,A2) and TL (tail length of a comet) (B1,B2) in the hemolymph cells of the insects during 10 days of exposure to various suspensions of GO nanoparticles in food (concentrations: 2 μg·g−1 of food and 20 μg·g−1 of food) in comparison to the control level (red line). Explanation of the chart as in Figure 5.
Figure 7. DNA damage based on TDNA (amount of DNA in the comet tail, %) (A1,A2) and TL (tail length of a comet) (B1,B2) in the hemolymph cells of the insects during 10 days of exposure to various suspensions of GO nanoparticles in food (concentrations: 2 μg·g−1 of food and 20 μg·g−1 of food) in comparison to the control level (red line). Explanation of the chart as in Figure 5.
Ijms 22 05401 g007
Ijms 22 05401 g008 550
Figure 8. Forty mg of S1, S2, and S4 samples.
Figure 8. Forty mg of S1, S2, and S4 samples.
Ijms 22 05401 g008
Ijms 22 05401 g009 550
Figure 9. Principal component analysis (PCA) presenting similarities among the biomarkers measured (20 μg·g−1, 10th day of the experiment) and GO physicochemical parameters. (A1) The PCA plot identifying three markedly different clusters; (A2) 2D plot for all biomarkers measured after exposure to various GO (S1-S4) samples; (A3) 2D plot for all physicochemical parameters of S1-S4 samples. Abbreviations: EA—early apoptosis, TA—total apoptosis, LA—late apoptosis, OS—oxidative stress, TDNA and TL—DNA damage parameters, LC—live cells, S1–S4—tested GO samples.
Figure 9. Principal component analysis (PCA) presenting similarities among the biomarkers measured (20 μg·g−1, 10th day of the experiment) and GO physicochemical parameters. (A1) The PCA plot identifying three markedly different clusters; (A2) 2D plot for all biomarkers measured after exposure to various GO (S1-S4) samples; (A3) 2D plot for all physicochemical parameters of S1-S4 samples. Abbreviations: EA—early apoptosis, TA—total apoptosis, LA—late apoptosis, OS—oxidative stress, TDNA and TL—DNA damage parameters, LC—live cells, S1–S4—tested GO samples.
Ijms 22 05401 g009
Ijms 22 05401 sch001 550
Scheme 1. Experimental design of this study.
Scheme 1. Experimental design of this study.
Ijms 22 05401 sch001
Ijms 22 05401 sch002 550
Scheme 2. Hypothetical relationship between nanoparticles and organism presented as dependency vectors. Explanation: The red vectors are shown as the resultant of black vectors. Black vectors represent nanoparticle/organism properties. Blue vectors represent external factors (modulators of the relation) affecting the nanoparticle/organism. Biocompatibility depends on the toxic potential of nanomaterial and general condition of the organism.
Scheme 2. Hypothetical relationship between nanoparticles and organism presented as dependency vectors. Explanation: The red vectors are shown as the resultant of black vectors. Black vectors represent nanoparticle/organism properties. Blue vectors represent external factors (modulators of the relation) affecting the nanoparticle/organism. Biocompatibility depends on the toxic potential of nanomaterial and general condition of the organism.
Ijms 22 05401 sch002
Table
Table 1. Atomic concentration calculated for detected elements using XPS spectroscopy.
Table 1. Atomic concentration calculated for detected elements using XPS spectroscopy.
ElementAtomic Concentration [at.%]
S1S2S3S4
C69.8870.7268.3293.57
N0.670.371.360.70
O28.2828.3226.635.23
Al0.08---
Si0.590.320.120.43
S0.500.273.580.07
Ratio of atomic concentrations C/O
C/O2.472.52.5717.89
Table
Table 2. XPS chemical state analysis of carbon (C1s).
Table 2. XPS chemical state analysis of carbon (C1s).
Sample Peak Position Percentage Contribution Atomic Concentration Assignment
S1284.7651.6135.55C-C
286.7438.3926.44C-O
288.4810.006.89C=O
S2284.7936.0525.49C-C
286.7552.2636.96C-O
288.4010.697.56C=O
290.300.990.70C=O (OH)
S3284.7959.3740.56C-C
286.7631.0021.18C-O
288.749.626.57C=O
S4284.033.873.59C=N
284.8154.8251.30C-C
285.4413.9913.09C-OH
286.118.668.10C-N
287.066.516.08carbonyl>C=O
289.038.237.70O-C=O
291.563.923.67HO-C=O
or π–π* satellite
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dziewięcka, M.; Pawlyta, M.; Majchrzycki, Ł.; Balin, K.; Barteczko, S.; Czerkawska, M.; Augustyniak, M. The Structure–Properties–Cytotoxicity Interplay: A Crucial Pathway to Determining Graphene Oxide Biocompatibility. Int. J. Mol. Sci. 2021, 22, 5401. https://doi.org/10.3390/ijms22105401

AMA Style

Dziewięcka M, Pawlyta M, Majchrzycki Ł, Balin K, Barteczko S, Czerkawska M, Augustyniak M. The Structure–Properties–Cytotoxicity Interplay: A Crucial Pathway to Determining Graphene Oxide Biocompatibility. International Journal of Molecular Sciences. 2021; 22(10):5401. https://doi.org/10.3390/ijms22105401

Chicago/Turabian Style

Dziewięcka, Marta, Mirosława Pawlyta, Łukasz Majchrzycki, Katarzyna Balin, Sylwia Barteczko, Martyna Czerkawska, and Maria Augustyniak. 2021. "The Structure–Properties–Cytotoxicity Interplay: A Crucial Pathway to Determining Graphene Oxide Biocompatibility" International Journal of Molecular Sciences 22, no. 10: 5401. https://doi.org/10.3390/ijms22105401

APA Style

Dziewięcka, M., Pawlyta, M., Majchrzycki, Ł., Balin, K., Barteczko, S., Czerkawska, M., & Augustyniak, M. (2021). The Structure–Properties–Cytotoxicity Interplay: A Crucial Pathway to Determining Graphene Oxide Biocompatibility. International Journal of Molecular Sciences, 22(10), 5401. https://doi.org/10.3390/ijms22105401

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
