Supramolecular Chromatographic Separation of C60 and C70 Fullerenes: Flash Column Chromatography vs. High Pressure Liquid Chromatography

by
Subbareddy Mekapothula
1,
A. D. Dinga Wonanke
1,
Matthew A. Addicoat
1,
David J. Boocock
2,
John D. Wallis
1 and
Gareth W. V. Cave
1,*
1
School of Science and Technology, Nottingham Trent University, Clifton Lane, Nottingham NG11 8NS, UK
2
The John van Geest Cancer Research Centre, Nottingham Trent University, Clifton Lane, Nottingham NG11 8NS, UK
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(11), 5726; https://doi.org/10.3390/ijms22115726
Submission received: 26 April 2021 / Revised: 17 May 2021 / Accepted: 19 May 2021 / Published: 27 May 2021
(This article belongs to the Special Issue Supramolecular Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
A silica-bound C-butylpyrogallol[4]arene chromatographic stationary phase was prepared and characterised by thermogravimetric analysis, scanning electron microscopy, NMR and mass spectrometry. The chromatographic performance was investigated by using C60 and C70 fullerenes in reverse phase mode via flash column and high-pressure liquid chromatography (HPLC). The resulting new stationary phase was observed to demonstrate size-selective molecular recognition as postulated from our in-silico studies. The silica-bound C-butylpyrogallol[4]arene flash and HPLC stationary phases were able to separate a C60- and C70-fullerene mixture more effectively than an RP-C18 stationary phase. The presence of toluene in the mobile phase plays a significant role in achieving symmetrical peaks in flash column chromatography.

1. Introduction

Since the discovery of fullerenes in 1985 [1,2], there has been an ever increasing scientific and industrial interest in fullerenes due to their remarkable electronic and optoelectronic properties, charge transfer ability, efficient singlet oxygen sensitising ability, strong electron acceptor character, and superconductivity upon doping with alkali metals. These properties make fullerenes and their derivatives particularly useful in the development of biosensors [3,4], skin preparation and cosmetics [5,6], and a range of other medical applications [7,8]. Fullerenes-based nanomaterials have great potential for a plethora of biomedical applications but are limited by the high cost and difficulties in purification. This difficulty is a result of the structural similarities, specifically the exclusive sp2 carbon atoms of the hollow ball-shaped fullerenes [9].
The most commonly used techniques for the separation and purification of fullerenes are crystallisation [10], complexation [11], and chromatographic techniques [12]. Each method has its advantages and disadvantages; for example, complexation methods require the use of pre-engineered molecules, which are expensive and difficult to recycle. Crystallisation, on the other hand, is time consuming and with no facile means for automation.
Many novel liquid chromatographic stationary phases have been designed and synthesised for effective separation and isolation of fullerenes, such as activated carbon for separation of C60/C70 fullerene mixtures [13] and metal organic frameworks (MOFs) for separation of a mixture of eight different fullerenes from C60 up to C84 [14]. There are many reverse-phase stationary phases available for the separation of pristine fullerenes (C60, C70, C76, C78, C82 and C84), i.e., silica functionalised with C18 chains [15], humic acids [16], tetraphenylporhyrin [17], metal-organic frameworks (MOFs) [18] and pyrenebutyric acid [19]. Although columns with these stationary phase materials are available commercially, optimisation is carried out empirically and allows only for qualitative separation of fullerenes [20]. The advancement in the LC separation and purification of fullerenes is typically stationary phase dependent. Consequently, several studies have investigated the use of specific selectors, with one or multiple interaction mechanisms with fullerene molecules, as stationary phases for the LC separation of fullerite [13,14,15,16,17,18,19].
The design of new molecules as specific selectors to provide host–guest systems mediated through non-covalent interactions is one of the vital goals of supramolecular chemistry [21,22]. Calixarenes are referred to as third generation supramolecules, discovered after crown ethers and cyclodextrins. They possess cavities and exhibit versatile complexation abilities with guest molecules [23,24]. Calixarenes’ guest recognition and their ability to form a reversible complex with neutral as well as charged molecules make them excellent tools in analytical chemistry [25,26,27]. There have been preliminary attempts for purification and separation of fullerenes using supramolecular cavitands via cyclodextrins [28,29], calixarene macrocycles [30] and porphyrin nano-barrels [31]. Selective extraction and precipitation of C70 over C60 was achieved using p-halohomooxacalix[3]arenes and calix[5]arene [32]. The drawback of this approach is the significant difficulty encountered in the release and recovery of valuable fullerenes from the complex. A variety of host–guest interaction mechanisms, including hydrophobic, π–π interactions, hydrogen bonding and inclusion interactions, were exploited in the separation process. It was observed that supramolecular chromatographic stationary phases provide multiple mode of interactions in comparison to conventional normal or reversed phase chromatographic stationary phases.
In this paper, we describe the synthesis of the supramolecular cavitand C-bromo-butylpyrogallol[4]arene 2 from C-hydroxybutylpyrogallol[4]arene 1, which itself is synthesised via previously reported microwave irradiation in high yields [33]. Subsequently, C-bromobutylpyrogallol[4]arene 2 was covalently linked to silica gel particles. The new stationary phase 3 was evaluated to study the chromatographic behaviour of C60 and C70-fullerenes using flash column chromatography and high-pressure liquid chromatography (HPLC) in comparison with a reverse phase C18 stationary phase. Moreover, an in-silico study was performed to further gauge the host–guest interactions between the butylpyrogallol[4]arene stationary phase 3 and the two fullerenes.

2. Results and Discussion

C-Alkylpyrogallol[4]arenes (PgCn) are a subgroup of calixarene macrocycles, which share two key features. The first is they comprise twelve hydroxy groups at the upper rim of their cup-like structure, which results in many hydrogen-bonding interactions. Second is the alkyl groups that radiate from the spheroidal assembly, which range in length from ethyl to undecyl [34,35]. This abundance of potential hydrogen bonding sites led to the synthesis of a number of pyrogallol[n]arene derivatives [36,37] to study not only chromatographic applications of pyrogallol[n]arenes but also application in the field of separation science.

2.1. Synthesis of Silica-Bound C-Butylpyrogallol[4]arene Stationary Phase 3a and 3b

C-Hydroxybutylpyrogallo[4]arene 1 was prepared from pyrogallol and 2,3-dihydropyran under microwave irradiation [33] and converted to the tetrabromo derivative 2 with phosphorus tribromide in 64% yield (Scheme 1). The 1H NMR for C-bromobutylpyrogallol[4]arene 2 revealed the presence of two singlet signals for hydroxy protons in the downfield region, as well as multiplet signals for the bridge proton and the methylene protons adjacent to bromine. The multiplet signals for the rest of the aliphatic side chain protons are in good agreement with the proposed structure (Figure 1). The mass spectrometric analysis (ESI-MS) of 2 confirmed the presence of the molecular ion as five m/z peaks, [M]+ to [M+8]+, in an appropriate ratio for a tetrabromo compound (Supplementary Figure S1). The silica-bound C-butylpyrogallol[4]arene HPLC stationary phase is reported as phase 3a, while the silica-bound C-butylpyrogallol[4]arene flash stationary phase is reported as phase 3b.
C-Bromobutylpyrogallol[4]arene 2 was attached to the surface of chromatographic silicas (HPLC or flash) using the previously reported method, as shown in Scheme 1 [21,22]. The resultant chromatographic stationary phases 3a and 3b were washed with methanol: acetone (70:30) to remove any unreacted pyrogallol[4]arene cavitand and dried. The specifications for these functionalised silicas for HPLC and flash column chromatography are reported in Table 1.

2.2. Characterisation of the Silica-Bound C-Butylpyrogallol[4]arene Stationary Phases 3a and 3b

The silica-bound C-butylpyrogallol[4]arene stationary phases 3a and 3b were characterised by thermogravimetric analysis (TGA) to determine the loading of macrocyclic cavitands and by scanning electron microscopy (SEM) to compare the structural morphology of uncoated silica and C-butylpyrogallol[4]arene-bound silicas. The thermogravimetric analysis studies were carried out over a temperature range of 25 to 900 °C at 10 °C per minute, as shown in Figure 2. The TGA results confirmed the mass loading of the C-butylpyrogallol[4]arene on the surface of the functionalised silica gel at 17.5% (0.01613 M) for the HPLC phase 3a and at 14.1% (0.00792 M) for the flash column chromatography phase 3b (Figure 2a,b).
The structural integrities of the silicas modified with C-butylpyrogallol[4]arene for HPLC and flash chromatography, 3a and 3b, were assessed via SEM and demonstrated to be comparable to the starting spherical silica particles, as shown in Figure 3. They were observed to have smooth surfaces without any cracks or well-defined cavities, which are vital for free flow of the mobile phase and analytes [38,39,40,41]. Consequently, we observed a notably low back pressure during the conditioning of the column and chromatographic evaluation processes.

2.3. Supramolecular Chromatographic Separation of C60 and C70 Fullerenes

The HPLC column packing material 3a was packed into a stainless-steel HPLC column by a wet slurry packing method (150 × 4.6 mm i.d.) using methanol as the displacing agent at a constant pressure of 34.5 MPa. The flash column stationary phase material 3b was dry-packed into a flash purification cartridge (12 gm, 62 mm × 12 mm i.d.).

2.3.1. HPLC Separation of C60 and C70-Fullerenes

Chromatographic methods are currently satisfactory for small-scale purification of not only C60 and higher fullerenes from fullerene soot but also for the purification of modified fullerene derivatives. Liquid chromatography (LC) is the major chromatographic technique available for separation of fullerenes due to advances in modern LC chromatographic techniques and instrumental developments, which are readily available to separate fullerenes at the analytical scale.
Since the discovery of fullerenes, to enable these new developments, several p-butyl pyrogallol[4]arenes have been extensively investigated for the isolation of fullerenes via host–guest complexation, such as p-butyl-calix[8]arene [30], 5-nitro-11,17,23,29-tetramethylcalix[5]arene [42] and p-tert-butylcalix[6]arene bearing one O-butanoic acid side chain [43]. A number of chromatographic phases have been reported to separate fullerene mixtures include Lewis base modified magnesia–zirconia [44] monomeric type C30 stationary phase [45], ligand-modified silica stationary phases, such as p-nitrobenzoic acid and naphthyl-acetic acid silica [46]; a core–shell biphenyl stationary phase [47], pyrenebutyric acid bonded silica [48], porphyrins immobilised silica [49], heavy atom containing silica [50] and Phenomenex Cosmosil Buckyprep [51].
However, these calixarene cavitand-bound stationary phases and other modified LC stationary phases have limited use in routine isolation and purification of fullerene mixture due to the requirements of a column with rapid analysis and increased sample loading capacity. It is also important to have green methods for the preparation of macrocycles for use in the separation of fullerenes [33].
The newly synthesised HPLC-silica-bonded C-butylpyrogallol[4]arene stationary phase 3a was primed with water:methanol (1:1) at 0.1 mL/min overnight to condition the column for further chromatographic studies. C60 and C70 fullerenes were used as probes for investigation of the chromatographic performance of the silica-bonded C-butylpyrogallol[4]arene HPLC stationary phase 3a, and their chromatographic performance was compared with a reverse phase C18 column, as shown in Figure 4, using reverse phase mode conditions utilising a mobile phase gradient. As shown in Figure 4a, a 2 µL injection volume of 50 µg of C60 and C70 fullerenes dissolved in toluene (1 mL) was separated on a traditional RP-C18 column via isocratic elution using a modified mobile phase (water:methanol, 40:60) at a flow rate of 1.0 mL min−1 using a photodiode array (PDA) detector at a wavelength of 237 nm [52]. These chromatographic conditions resulted in the elution of C60 and C70 fullerenes at 2.52 and 3.35 min on the RP-C18 column, as shown in Figure 4a.
Subsequently, the same chromatographic conditions were utilised to demonstrate the separation of C60 and C70 fullerenes on the silica-bonded C-butylpyrogallol[4]arene HPLC stationary phase 3a, and resulted in the prominent base-line separation of C60-fullerene at 1.08 min and C70-fullerene at 4.85 min under 10 min, as shown in Figure 4b. The chromatographic results confirm the better separation and resolution of C60 and C70 fullerenes on the silica-bonded C-butylpyrogallol[4]arene HPLC stationary phase 3a compared to using an RP-C18 HPLC column under identical chromatographic conditions.

2.3.2. Flash Column Separation of C60 and C70-Fullerenes

While HPLC is the most effective and powerful chromatographic technique for fullerene purification at the analytical scale, it is impractical for large purification of fullerenes due to its high cost, solvent incompatibility in reverse phase stationary phases, low output quantity, limit in column loadings and injection volumes of the order of 1 mL.
Technical and instrumental advances in flash column chromatography and HPLC has allowed the implementation of a single compact system with a flash column chromatography environment and preparative HPLC pumps, which offers a quaternary gradient and a dedicated purge line. It is possible to achieve large scale purification of fullerenes along with the use of a widely adopted LuerLock series of flash columns capable of withstanding up to 22 bar pressure and flow rates ranging from 4 to 300 mL/min, stainless steel HPLC columns for scouter sample analysis and preparative stainless-steel columns for high-pressure applications [53].
However, flash column chromatography is still limited for the effective and rapid preparative separation of fullerenes due to the requirement of a molecular recognition selector capable of making strong enough interactions with fullerenes. Typical normal phase silica gel interacts with fullerenes via van der Waals interactions resulting in unresolved fullerenes with quick elution even with use of a weak nonpolar solvent like hexane. The same issues arise with reverse phase silica gel.
In order to develop a flash column chromatographic stationary phase with novel selectors, Schipper et al. for the first time reported a silica stationary phase consisting of functionalised bent aromatic molecules (iptycenes). This was shown to be suitable for scalable purification of fullerenes by flash chromatography using a UV detector. In their work, 25 mg of a mixture containing fullerenes C60 and C70 was loaded on the silica functionalised with bent aromatic molecules (12 gm), using hexane as a mobile phase. This resulted in the elution of C60 at 45 min and C70 at 90 min. This clearly shows the bent aromatic molecules provide a large surface area for increased π–π interactions resulting in high resolution and retention times. However, when the mobile phase was changed to hexane: toluene (3:1), there was a reduction in elution times of C60 and C70 to 33 and 59 min. Even though there is significant separation and resolution of fullerenes on this stationary phase at milligram levels, the fullerenes eluted with long retention times, and also some loss of functionalised cavitand has been observed [54].
The flash column chromatographic separation of a mixture of fullerene C60 and C70 was performed on the silica-bound C-butylpyrogallol[4]arene stationary phase 3b. As the chromatographic separation of fullerenes is proportional to the solubility of fullerenes, 25 mg mL−1 of each of the C60 and C70 fullerene standards were dissolved in toluene, and the flash column chromatographic separation of fullerenes on silica-bound C-butylpyrogallol[4]arene stationary phase 3b was carried out using ethyl acetate:toluene (35:65) as a mobile phase. As fullerenes are freely soluble in toluene, a mobile phase combination of ethyl acetate:toluene allows the fullerenes to move freely through the pores of silica-bound C-butylpyrogallol[4]arene stationary phase 3b. This allows a ball and socket type of reversible host–guest size-selective molecular recognition between the upper aromatic rings of the pyrogallol[4]arene cavity and fullerenes. Subsequently, the stationary phase 3b resulted in superior and rapid separation of fullerenes C60 and C70, in 3.20 min and 10.30 min, as shown in Figure 5a,b.
In order to validate the chromatographic performance of the silica-bound C-butylpyrogallol[4]arene stationary phase 3b, we have studied the separation of mixtures of C60 and C70-fullerenes using the same chromatographic conditions. The silica-bound C-butylpyrogallol[4]arene stationary phase 3b separated out the mixture into two discreet bands at the same retention times, as shown in Figure 5c.
Under these chromatographic conditions, the separation mechanism can be classified as a traditional or normal phase separation where the stationary phase is polar and the mobile phase is nonpolar. The silica-bound C-butylpyrogallol[4]arene flash stationary phase 3b is able to separate the same amount (25 mg) of fullerenes C60 and C70 and reduce the retention times from 30 to 90 min to 3–11 min compared to the phase of Schipper et al. This shows the rapid separation ability of this silica-bound C-butylpyrogallol[4]arene stationary phase for the separation of a mixture of fullerenes C60 and C70 with minimal use of solvent.

2.4. Quantum Chemistry Calculations

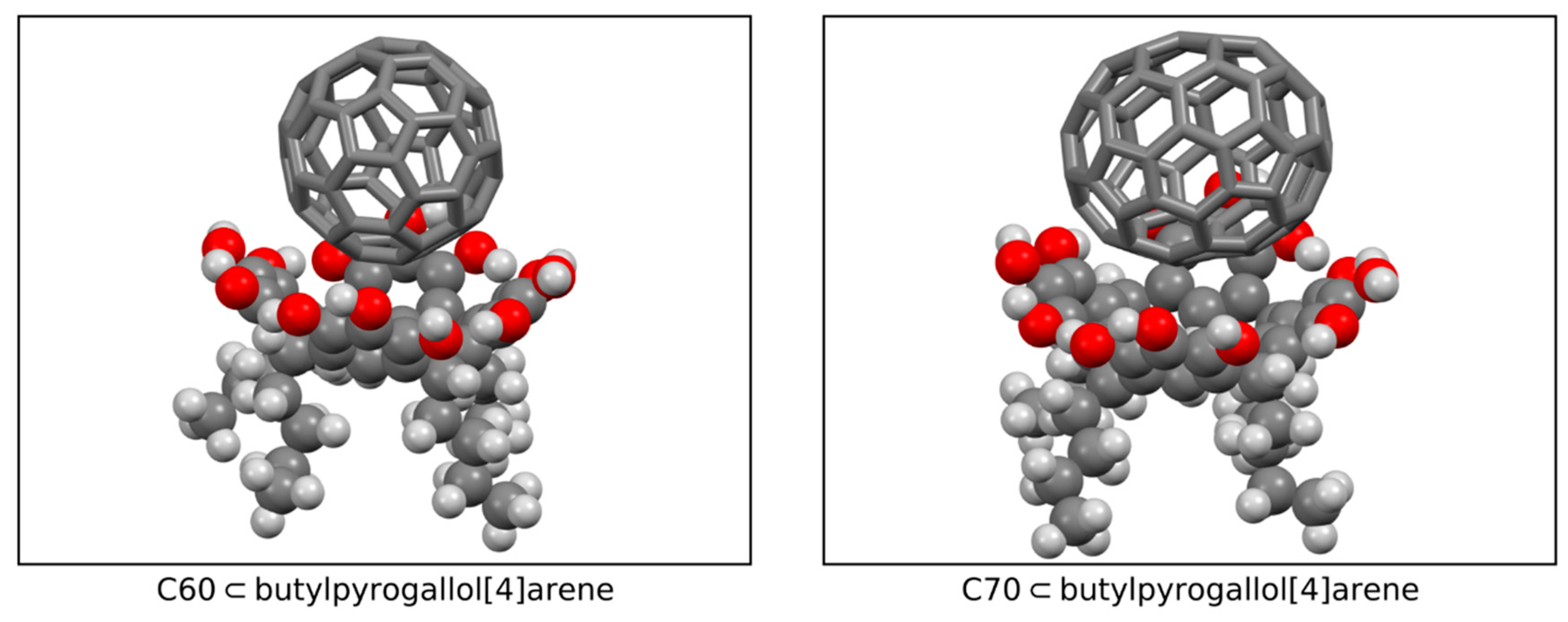

Our in-silico host–guest interaction study was performed in order to further our understanding of the remarkable molecular recognition that results in the favourable chromatographic separation of C60 and C70 using the C-butylpyrogallol[4]arene stationary phases 3a and 3b. The Gibbs free binding energies of the gas and solvent phases for the most strongly binding motifs are presented in Table 2 alongside their chromatographic retention time. Accompanying structures are presented in Figure 6. All calculations were undertaken using the DFTB engine in AMS and employed the mio-1-1 parameter set and UFF dispersion [55,56,57,58,59,60].
The Gibbs free binding energies presented in Table 2 show stronger interactions of C70 with the cavity in comparison to C60. It is important to note that each of these binding motifs are the actual local minima of the potential energy surface, with zero imaginary frequencies. The stronger interaction of the cavity with C70 is in line with experimental chromatographic separation, wherein C70 shows a remarkably higher retention time both in HPLC and flash column chromatography. The interaction of the fullerenes and the cavity is held in place by a series of strong non-covalent interactions; however, these interactions are similar for all fullerenes and consequently cannot be used as a proxy for explaining this favourable chromatographic separation. Rather, we posit that this preferential interaction of the cavity with C70 in comparison to C60 can most likely be attributed to size-selective molecular recognition. To test this hypothesis, we computed additional interaction energies and binding motifs for C50⊂butylpyrogallol[4]arene and C80⊂butylpyrogallol[4]arene for which their solvated Gibbs free binding energies were −123.791 kcal mol−1 and −125.566 kcal mol−1, respectively. This result shows that the interaction of the fullerenes with the cavity increases with the size of the fullerene structure from which we can develop the following interaction strengths between the fullerene and the cavity: C80 > C70 > C60 > C50. Consequently, the C-butylpyrogallol[4]arene cavity seems to be an effective stationary phase for purification of fullerenes and should be trialled for other size-selective chromatographic separations.
Moreover, Gibbs free binding energies were also computed for C60⊂RP-C18 and C70⊂RP-C18 in order to compare between the C-butylpyrogallol[4]arene cavity and RP-C18 as stationary phases for the selective separation of fullerenes. The details of these computations are found in the electronic supporting information (ESI). The change in Gibbs free binding energies presented in Table S1 shows stronger interactions of C70 with RP- C18 in comparison to C60. However, the fullerene⊂RP-C18 interactions are significantly thermodynamically unfavourable. Consequently, C-butylpyrogallol[4]arene, which has a favourable thermodynamics interaction with fullerenes, is a more suitable stationary phase for the selective separation of fullerenes.

3. Materials and Methods

3.1. Reagents and Instruments

All chemicals and solvents were purchased as reagent grade or LC-MS grade used without further purification. Pyrogallol, 2,3-dihydropyran, p-toluenesulphonic acid and phosphorous tribromide were purchased from Sigma Aldrich. Microwave synthesis was carried out using a Biotage® microwave reactor via sealed microwave reaction vials. Reactions were monitored by TLC plates (pre-coated with 60 Å silica gel, F254) purchased from Merck KGaA and visualised by UV light (254, 365 nm) or iodine. Flash column chromatography was performed using silica gel (silica flash P60 from Fluorochem Ltd, Glossop, UK) as the stationary phase for the purification of synthetic compounds. 1H and 13C NMR spectra were recorded on a Jeol 400 MHz NMR ECX-400 spectrometer (Welwyn Garden City, UK) at 25 °C, with chemical shift measured in ppm and referenced by the residual undeuterated solvent peak. Mass spectrometric analysis of compounds was performed using a Waters MS Xevo G2-XS qTOF (Hertfordshire, UK)through direct infusion spray. A Perkin Elmer thermogravimetric analyser TGA4000 (Bucks, UK) was used for thermogravimetric analysis. A Jeol JSM-7100F Field Emission Scanning Electron Microscope (Welwyn Garden City, UK). was used for observing the structural integrity of the new supramolecular stationary phase. Flash column chromatography was carried out using an automated PuriFlash®5.125 (Chester, UK) flash system with pre-packed and dry self-packed flash cartridges. Interchim® (Chester, UK) flash (12 g) cartridges packed with 50 μm silica particles with a surface area of 500 m2/g were used for flash column chromatographic studies. HPLC grade silica (5 μm) with a surface area of 120 Å was purchased from Alfa Aesar Ltd (Heysham, UK). to develop a new HPLC stationary phase.

3.2. Synthesis of C-Hydroxybutyl-Pyrogallol[4]arene 1

C-Hydroxybutylpyrogallol[4]arene 1 was synthesised via the previously reported one-pot microwave-assisted irradiation reaction [33]. 2,3-Dihydro-pyran (0.912 mL, 0.01 moles) was added to a solution of pyrogallol (1.26 g, 0.01 moles) and p-toluenesulphonic acid (0.1g, 0.58 mmol) in ethanol (ca. 10 mL) contained in a sealed CEM pressure vial. The mixture was pre-stirred (30 s) and heated (100 °C) in a Biotage Initiator 60 instrument by microwave irradiation (130 W, 2 min. power cycle, total of 12 min.). Upon cooling to room temperature, the precipitate was collected by vacuum filtration and washed successively with an ethanol and water mixture (4:1, 5 × 60 mL). This yielded the title compound as a white solid in 92% yield (1.90 g, 3.70 mmol). 1H NMR (400 MHz, d6-Acetone) δ = 8.74 (br. s, 8H, OH), 8.18 (s, 4H, OH), 6.78 (s, 4H, Ar-H), 4.71 (s, 4H, (CH2)OH), 4.21 (t, 3J = 7.8 Hz, 4H, CHAr2), 3.61 (t, 3J = 7.8 Hz, 8H, CH2OH), 1.89 (m, 8H, CH2), 1.44 (m, 8H, CH2), 1.18 (m, 8H, CH2) ppm. 13C NMR (101 MHz, d6-Acetone) δ = 139.5, 132.8 124.5, 113.5, 61.0, 39.1, 35.1, 31.7, 24.3 ppm. MS -TOF m/z for C44H56O16 calculated 840.36, found 840.3612 [M]+.

3.3. Synthesis of C-Bromobutylcalix[4]pyrogallolarene 2

C-4-Hydroxybutyl-pyrogallol[4]arene 1 (4.2 g, 5 mmol) was dissolved in DCM (30 mL) and cooled down at 0 °C under nitrogen. Phosphorous tribromide (2.84 mL, 30 mmol, 6.0 equiv) was added dropwise over 10 min and the mixture was stirred until it reached room temperature (1.5 h). The reaction mixture was stirred at 40 °C for 5 h. The reaction mixture was then evaporated under vacuum, and the resulting oil was sonicated in water (30 mL) for 15 min, filtered and dried under vacuum to obtain a pink solid (3.50 g 3.2 mmol, 64%).1H NMR (400 MHz, d6-Acetone) δ = 8.64 (s, 8H, OH), 8.08 (s, 4H, OH), 6.88 (s, 4H, Ar-H, 1H), 4.13 (t, 3J= 7.8 Hz 4H, 7-H), 3.52 (t, 3J = 7.8 Hz 8H, 11-H2), 1.84 (m, 8H, 10-H2), 1.43 (m, 8H, 8-H2) 1.20 (m, 8H, 9-H2) ppm. 13C NMR (101 MHz, d6-Acetone) δ = 145.1, 137.1, 127.2, 119.5, 38.2, 35.2, 33.6, 32.8, 24.8 ppm. ESI-MS m/z calculated for C44H5279Br4O12 was 1088.01, found: 1088.0192, 1090.0216, 1092.0201, 1094.0112 and 1096.0109 [M]+. (13C NMR and mass spectra are in the ESI).

3.4. Preparation of C-Butylpyrogallol[4]arene Bound Silica Gel HPLC Stationary Phase 3a

HPLC grade silica (1 g, AlfaAesar, CAS: 7631-86-9) was stirred overnight at room temperature in a mixture of THF and TEA (1:1, 50 mL). The solvents were evaporated, and the solid residue was dried at room temperature. C-Bromobutyl-calix[4]pyrogallolarene 2 (1 g, 0.915 mmoles) was dissolved in acetone and added to the dried silica in a round-bottomed flask and stirred overnight at room temperature. The acetone was evaporated and the solid product was dried.

3.5. Preparation of C-Butylpyrogallol[4]arene Bound Silica Gel Flash Column Stationary Phase 3b

Silica (12 g Interchim® (Chester, UK) flash) was stirred overnight at room temperature in a mixture of THF and TEA (1:1, 50 mL). The solvent mixture was evaporated, and the solid residue was dried at room temperature. C-Bromobutyl-calix[4]pyrogallolarene 2 (1 g, 0.915 mmoles) was dissolved in acetone (50 mL) and added to the previously dried silica in a round-bottomed flask and the mixture stirred overnight at room temperature. The acetone was evaporated and the solid product was dried and dry-packed into a flash purification cartridge.

3.6. Column Packing

The silica-bound C-butylpyrogallol[4]arene 3a was packed into HPLC stainless steel tubes (150 × 4.6 mm i.d.) by a slurry packing method under a constant packing pressure of 40 MPa, using methanol as both suspension solvent and propulsion solvent. Silica-bound C-butylpyrogallol[4]arene 3b and was dry-packed by tapping into an empty Interchim® (Chester, UK) flash column cartridge (62 × 12 mm i.d.) for flash column chromatography and subsequently primed with methanol: ethyl acetate (4:1) to remove unreacted materials.

3.7. HPLC Separation Procedure

A C-butylpyrogallol[4]arene bonded-silica stationary phase column 3a was equilibrated with methanol:water (80:20). All chromatographic separations were performed on a PerkinElmer Flexar UHPLC system (Bucks, England), consisting of a Flexar fx-15 UHPLC pump, an autosampler injector equipped with 20 μL PEEK sample loop and a Flexar PDA UV detector. Separations were performed at a temperature of 25 °C, a flow rate of 1.0 mL/min, and using a detection wavelength of 237 nm. In order to ensure the reliability of the obtained data, all the separation experiments were repeated five times.

3.8. Flash Column Chromatographic Procedure

A C-butylpyrogallol[4]arene bonded-silica stationary phase column 3b was equilibrated by in-built optimisation conditions. A total of 50 mg of a mixture of C60 and C70 fullerenes was dissolved in toluene (2 mL). The mobile phase used for the analysis was ethyl acetate:toluene (35:65) in isocratic conditions. The flow rate was set to 15 mL/min, and UV detection was set to 200–400 nm. Flash column chromatography was carried out via an automated PuriFlash®5.125 (Chester, UK) flash system. The column was first equilibrated by running through 15 mL of elution solvent. A mixture of analytes in toluene was loaded into the column. Fraction collection volume was set to 13 mL.

3.9. In Silico Study for the Host–Guest Interaction

To gauge the most likely binding motifs and energies between the fullerenes and C-butylpyrogallol[4]arene, 100 fullerenes⊂C-butylpyrogallol[4]arene complexes were generated for each fullerene (C50, C60, C70 and C80) via a semi-stochastic method in order to compute their host–guest interactions. In this semi-stochastic approach, a random structure generation algorithm known as Kick, which was developed by one of the authors, was used [55]. In this method, specified molecular fragments are randomly translated in a chosen virtual box providing chemically sensible translated entities. For this study, the C-butylpyrogallol[4]arene cavity was considered to be the centre of the virtual box with a predefined radius of 2.8 Å, which is the radius of the cavity. The fullerenes were then randomly translated into the box at different spatial positions. This was supplemented by a heuristic approach, where the coordinates of the fullerene were manually translated along the interior of the C-butylpyrogallol[4]arene cavity, using the Gaussview 6.0 visualiser [56]. In this process, new coordinates were obtained by inserting all regions of the optimised fullerene into the C-butylpyrogallol[4]arene cavity. This was done in order to ensure a broad sampling of possible fullerene⊂C-butylpyrogallol[4]arene complexes.
Once the 100 complexes for each fullerene were generated, a geometry optimisation was performed for all these structures using density functional tight binding (DFTB) with the mio-1-1 [57] parameter set including the universal force field, UFF, [58] with dispersion correction UFF-DFTB/mio-1-1 as implemented in the Amsterdam Modelling Suite AMS version adf2019.305 [59]. We then selected 20 energy minima of each of these complexes and performed a vibration frequency calculation in the gas phase in order to verify that they were actual local minima on the potential energy surfaces. Once confirmed that these structures were all local minima, we performed a geometry and frequency optimisation in solvent (toluene) using the implicit generalised Born solvation model with solvent accessible surface area (GBSA) at the same level of theory as in the gas phase [60]. A total of 2030 surface grid points were used in order to ensure smooth solvent phase geometry optimisation with as little numerical noise as possible. All the structures, long range interactions and energies of these 20 energy minima can be freely accessed at http://doi.org/10.5281/zenodo.4147306 (last accessed on 21 May 2021).
The geometry optimised gas and solvent phase Gibbs free binding energies (ΔGBE), were then computed for these 20 energy minima with the formula given in Equation (1):
ΔGBE = G_complex − (G_fullerene + G_cavity)
where G_complex represents the Gibbs free energy of the fullerene⊂C-butylpyrogallol[4]arene complex; G_fullerene and G_cavity represent the Gibbs free energy of the lowest energy (geometry optimised) isolated fullerene and the C-butylpyrogallol[4]arene cavity, respectively, i.e., the computed ΔGBE contain the energy contribution from deforming both the fullerene and the cavity.

4. Conclusions

In conclusion, silica-bound C-butylpyrogallol[4]arene 3 can be effectively synthesised and has demonstrated superior separation resolution of C70-fullerene compared to C60-fullerene via size-selective molecular recognition using flash column chromatography and HPLC. The flash column pyrogallol[4]arene stationary phase 3b showed a significant increase of isolated quantities of fullerenes to milligrams under 15 min in comparison to micrograms separation from the HPLC supramolecular stationary phase 3a. The flash column and HPLC grade silica-bound C-butylpyrogallol[4]arene phase showed superior separation selectivity via size-selective molecular recognition than an RP-C18 column separation selectivity for the mixture of C60 and C70-fullerenes.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22115726/s1.

Author Contributions

All authors contributed to experimental design, S.M. conducted the experiments, and A.D.D.W. performed in-silico modelling calculations. All authors contributed to the analysis of results and writing the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research work was supported by the School of Science and Technology Academic scholarship (NTU-SAT Scholarship), Nottingham Trent University. M.A.A. acknowledges HPC resources on THOMAS via membership of the UK’s HEC Materials Chemistry Consortium, funded by EPSRC (EP/P020194).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available at libinfodirect@ntu.ac.uk.

Acknowledgments

We thank R. J. Ansell at the University of Leeds for his support in packing the HPLC columns. The authors wish to acknowledge the support of Colin Banks from Advion-Interchim PuriFlash Ltd (Montluçon Cedex, France).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kroto, H.W.; Heath, J.R.; O’Brien, S.C.; Curl, R.F.; Smalley, R.E. C60: Buckminsterfullerene. Nature 1985, 318, 162–163. [Google Scholar] [CrossRef]
  2. Balch, A.L.; Olmstead, M.M. Reactions of Transition Metal Complexes with Fullerenes (C60, C70, etc.) and Related Materials. Chem. Rev. 1998, 98, 2123–2166. [Google Scholar] [CrossRef]
  3. Cai, S.; Zhang, W.; Zuckermann, R.N.; Li, Z.; Zhao, X.; Liu, Y. The Organic Flatland—Recent Advances in Synthetic 2D Organic Layers. Adv. Mater. 2015, 27, 5762–5770. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, C.; He, J.; Zhang, Y.; Chen, J.; Zhao, Y.; Niu, Y.; Yu, C. Cerium Dioxide-Doped Carboxyl Fullerene as Novel Nanoprobe and Catalyst in Electrochemical Biosensor for Amperometric Detection of the CYP2C19* 2 Allele in Human Serum. Biosens. Bioelectron. 2018, 102, 94–100. [Google Scholar] [CrossRef]
  5. Krishna, V.; Anand, S.; Maytin, E.; Grobmyer, S. Polyhydroxy-Fullerene Sunscreen Active Agents and Compositions. U.S. Patent US20190053991A1, 21 February 2019. [Google Scholar]
  6. Martins, M.; Azoia, N.G.; Melle-Franco, M.; Ribeiro, A.; Cavaco-Paulo, A. Permeation of Skin with (C60) Fullerene Dispersions. Eng. Life Sci. 2017, 17, 732–738. [Google Scholar] [CrossRef] [Green Version]
  7. Castro, E.; Cerón, M.R.; Garcia, A.H.; Kim, Q.; Etcheverry-Berríos, A.; Morel, M.J.; Díaz-Torres, R.; Qian, W.; Martinez, Z.; Mendez, L. A New Family of Fullerene Derivatives: Fullerene-Curcumin Conjugates for Biological and Photovoltaic Applications. RSC Adv. 2018, 8, 41692–41698. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Krishnan, V.; Kasuya, Y.; Ji, Q.; Sathish, M.; Shrestha, L.K.; Ishihara, S.; Minami, K.; Morita, H.; Yamazaki, T.; Hanagata, N. Vortex-Aligned Fullerene Nanowhiskers as a Scaffold for Orienting Cell Growth. ACS Appl. Mater. Interfaces 2015, 7, 15667–15673. [Google Scholar] [CrossRef] [PubMed]
  9. Neretin, I.S.; Lyssenko, K.A.; Antipin, M.Y.; Slovokhotov, Y.L.; Boltalina, O.V.; Troshin, P.A.; Lukonin, A.Y.; Sidorov, L.N.; Taylor, R. C60F18, a Flattened Fullerene: Alias a Hexa-Substituted Benzene. Angewandte Chemie 2000, 112, 3411–3414. [Google Scholar] [CrossRef]
  10. Amsharov, K.Y.; Holzwarth, J.; Roshchyna, K.; Sharapa, D.I.; Hampel, F.; Hirsch, A. Synthesis, Structural Characterization, and Crystal Packing of the Elusive Pentachlorinated Azafullerene C59NCl5. Chem. Eur. J. 2017, 23, 9014–9017. [Google Scholar] [CrossRef]
  11. Coustel, N.; Bernier, P.; Aznar, R.; Zahab, A.; Lambert, J.; Lyard, P. Purification of C60 by a Simple Crystallization Procedure. J. Chem. Soc. Chem. Commun. 1992, 1402–1403. [Google Scholar] [CrossRef]
  12. Nagata, K.; Dejima, E.; Kikuchi, Y.; Hashiguchi, M. Efficient and Scalable Method for [60]Fullerene Separation from a Fullerene Mixture: Selective Complexation of Fullerenes with DBU in the Presence of Water. Org. Process Res. Dev. 2005, 9, 660–662. [Google Scholar] [CrossRef]
  13. Manolova, N.; Rashkov, I.; Legras, D.; Beguin, F. Separation of C60/C70 Mixture on Activated Carbon and Activated Carbon Fibres. Carbon 1995, 33, 209–213. [Google Scholar] [CrossRef]
  14. Yang, C.; Chen, Y.; Wang, H.; Yan, X. High-Performance Separation of Fullerenes on Metal–Organic Framework MIL-101 (Cr). Chem. Eur. J. 2011, 17, 11734–11737. [Google Scholar] [CrossRef]
  15. Guillaume, Y.C.; Peyrin, E. Geometrical Model for the Retention of Fullerenes in High-Performance Liquid Chromatography. Anal. Chem. 1999, 71, 1326–1331. [Google Scholar] [CrossRef]
  16. Casadei, N.; Thomassin, M.; Guillaume, Y.; André, C. A Humic Acid Stationary Phase for the High Performance Liquid Chromatography Separation of Buckminsterfullerenes: Theoretical and Practical Aspects. Anal. Chim. Acta 2007, 588, 268–273. [Google Scholar] [CrossRef]
  17. Xiao, J.; Meyerhoff, M.E. High-Performance Liquid Chromatography of C60, C70, and Higher Fullerenes on Tetraphenylporphyrin-Silica Stationary Phases using Strong Mobile Phase Solvents. J. Chromatogr. A. 1995, 715, 19–29. [Google Scholar] [CrossRef]
  18. . Yi, H.; Zeng, G.; Lai, C.; Huang, D.; Tang, L.; Gong, J.; Chen, M.; Xu, P.; Wang, H.; Cheng, M. Environment-Friendly Fullerene Separation Methods. Chem. Eng. J. 2017, 330, 134–145. [Google Scholar] [CrossRef]
  19. Boyd, P.D.; Reed, C.A. Fullerene− Porphyrin Constructs. Acc. Chem. Res. 2005, 38, 235–242. [Google Scholar] [CrossRef] [Green Version]
  20. Süß, S.; Michaud, V.; Amsharov, K.; Akhmetov, V.; Kaspereit, M.; Damm, C.; Peukert, W. Quantitative Evaluation of Fullerene Separation by Liquid Chromatography. J. Phys. Chem. C 2019, 123, 16747–16756. [Google Scholar] [CrossRef]
  21. Mekapothula, S.; Addicoat, M.A.; Boocock, D.J.; Wallis, J.D.; Cragg, P.J.; Cave, G.W. Silica Bound Co-Pillar[4+1]Arene as a Novel Supramolecular Stationary Phase. Chem. Commun. 2020, 56, 1792–1794. [Google Scholar] [CrossRef]
  22. Mekapothula, S.; Wonanke, A.D.; Addicoat, M.A.; Wallis, J.D.; Boocock, D.J.; Cave, G.W. A Supramolecular Cavitand for Selective Chromatographic Separation of Peptides using LC-MS/MS: A Combined in Silico and Experimental Approach. New J. Chem. 2021, 45, 141–146. [Google Scholar] [CrossRef]
  23. Gutsche, C.D. Calixarenes: An Introduction; Royal Society of Chemistry: Cambridge, UK, 2008. [Google Scholar]
  24. Kimata, K.; Hosoya, K.; Araki, T.; Tanaka, N. [2-(1-Pyrenyl) Ethyl] Silyl Silica Packing Material for Liquid Chromatographic Separation of Fullerenes. J. Org. Chem. 1993, 58, 282–283. [Google Scholar] [CrossRef]
  25. Li, L.; Liu, M.; Da, S.; Feng, Y. High Performance Liquid Chromatography of Aromatic Carboxylic Acids on p-Tert-Butyl-Calix[8]Arene-Bonded Silica Gel Stationary Phase. Talanta 2004, 62, 643–648. [Google Scholar] [CrossRef]
  26. Śliwka-Kaszyńska, M.; Jaszczołt, K.; Kołodziejczyk, A.; Rachoń, J. 1, 3-Alternate-25,27-Dibenzoiloxy-26, 28-Bis-[3-Propyloxy]-Calix[4]Arene-Bonded Silica Gel as a New Type of HPLC Stationary Phase. Talanta 2006, 68, 1560–1566. [Google Scholar] [CrossRef] [PubMed]
  27. Ludwig, R.; Dzung, N.T.K. Calixarene-Based Molecules for Cation Recognition. Sensors 2002, 2, 397–416. [Google Scholar] [CrossRef]
  28. Cabrera, K.; Wieland, G.; Schäfer, M. High-Performance Liquid Chromatographic Separation of Fullerenes (C60 and C70) using Chemically Bonded γ-Cyclodextrin as Stationary Phase. J. Chromatogr. A 1993, 644, 396–399. [Google Scholar] [CrossRef]
  29. Andersson, T.; Nilsson, K.; Sundahl, M.; Westman, G.; Wennerström, O. C60 Embedded in γ-Cyclodextrin: A Water-Soluble Fullerene. J. Chem. Soc. Chem. Commun. 1992, 8, 604–606. [Google Scholar] [CrossRef]
  30. Atwood, J.L.; Koutsantonis, G.A.; Raston, C.L. Purification of C60 and C70 by Selective Complexation with Calixarenes. Nature 1994, 368, 229–231. [Google Scholar] [CrossRef]
  31. Song, J.; Aratani, N.; Shinokubo, H.; Osuka, A. A Porphyrin Nanobarrel that Encapsulates C60. J. Am. Chem. Soc. 2010, 132, 16356–16357. [Google Scholar] [CrossRef] [PubMed]
  32. Komatsu, N. Preferential Precipitation of C70 Over C60 with p-Halohomooxacalix[3]Arenes. Org. Biomol. Chem. 2003, 1, 204–209. [Google Scholar] [CrossRef] [PubMed]
  33. Funck, M.; Guest, D.P.; Cave, G.W. Microwave-Assisted Synthesis of Resorcin[4]Arene and Pyrogallol[4]Arene Macrocycles. Tetrahedron Lett. 2010, 51, 6399–6402. [Google Scholar] [CrossRef]
  34. Cave, G.W.; Antesberger, J.; Barbour, L.J.; McKinlay, R.M.; Atwood, J.L. Inner Core Structure Responds to Communication between Nanocapsule Walls. Angew. Chem. Int. Ed. 2004, 43, 5263–5266. [Google Scholar] [CrossRef] [PubMed]
  35. Heaven, M.W.; Cave, G.W.; McKinlay, R.M.; Antesberger, J.; Dalgarno, S.J.; Thallapally, P.K.; Atwood, J.L. Hydrogen-Bonded Hexamers Self-Assemble as Spherical and Tubular Superstructures on the Sub-Micron Scale. Angew. Chem. Int. Ed. 2006, 45, 6221–6224. [Google Scholar] [CrossRef] [PubMed]
  36. Cave, G.W.; Dalgarno, S.J.; Antesberger, J.; Ferrarelli, M.C.; McKinlay, R.M.; Atwood, J.L. Investigations into Chain Length Control Over Solid-State Pyrogallol[4]Arene Nanocapsule Packing. Supramol. Chem. 2008, 20, 157–159. [Google Scholar] [CrossRef]
  37. Bassil, D.B.; Dalgarno, S.J.; Cave, G.W.; Atwood, J.L.; Tucker, S.A. Spectroscopic Investigations of Adma Encapsulated in Pyrogallol[4]Arene Nanocapsules. J. Phys. Chem. B. 2007, 111, 9088–9092. [Google Scholar] [CrossRef]
  38. DeStefano, J.; Langlois, T.; Kirkland, J. Characteristics of Superficially-Porous Silica Particles for Fast HPLC: Some Performance Comparisons with Sub-2-µm Particles. J. Chromatogr. Sci. 2008, 46, 254–260. [Google Scholar] [CrossRef] [Green Version]
  39. Hara, T.; Kobayashi, H.; Ikegami, T.; Nakanishi, K.; Tanaka, N. Performance of Monolithic Silica Capillary Columns with Increased Phase Ratios and Small-Sized Domains. Anal. Chem. 2006, 78, 7632–7642. [Google Scholar] [CrossRef] [PubMed]
  40. Majors, R.E. High-Performance Liquid Chromatography on Small Particle Silica Gel. Anal. Chem. 1972, 44, 1722–1726. [Google Scholar] [CrossRef]
  41. Kirkland, J. Superficially Porous Silica Microspheres for the Fast High-Performance Liquid Chromatography of Macromolecules. Anal. Chem. 1992, 64, 1239–1245. [Google Scholar] [CrossRef]
  42. Flídrová, K.; Liška, A.; Ludvík, J.; Eigner, V.; Lhoták, P. Fullerene Recognition by 5-Nitro-11,17,23,29-Tetramethylcalix[5]Arene. Tetrahedron Lett. 2015, 56, 1535–1538. [Google Scholar] [CrossRef]
  43. González-Delgado, A.M.; Giner-Casares, J.J.; Brezesinski, G.; Regnouf-de-Vains, J.; Camacho, L. Langmuir Monolayers of an Inclusion Complex Formed by a New Calixarene Derivative and Fullerene. Langmuir 2012, 28, 12114–12121. [Google Scholar] [CrossRef]
  44. Yu, Q.; Feng, Y.; Shi, Z.; Yang, J. HPLC Separation of Fullerenes on the Stationary Phases of Two Lewis Bases Modified Magnesia–Zirconia. Anal. Chim. Acta 2005, 536, 39–48. [Google Scholar] [CrossRef]
  45. Ohta, H.; Saito, Y.; Nagae, N.; Pesek, J.J.; Matyska, M.T.; Jinno, K. Fullerenes Separation with Monomeric Type C30 Stationary Phase in High-Performance Liquid Chromatography. J. Chromatogr. A 2000, 883, 55–66. [Google Scholar] [CrossRef]
  46. Yu, Q.; Shi, Z.; Lin, B.; Wu, Y.; Feng, Y. HPLC Separation of Fullerenes on Two Charge-Transfer Stationary Phases. J. Sep. Sci. 2006, 29, 837–843. [Google Scholar] [CrossRef] [PubMed]
  47. Carboni, A.; Helmus, R.; Parsons, J.R.; Kalbitz, K.; de Voogt, P. A Method for the Determination of Fullerenes in Soil and Sediment Matrices using Ultra-High Performance Liquid Chromatography Coupled with Heated Electrospray Quadrupole Time of Flight Mass Spectrometry. J. Chromatogr. A 2016, 1433, 123–130. [Google Scholar] [CrossRef]
  48. Coutant, D.E.; Clarke, S.A.; Francis, A.H.; Meyerhoff, M.E. Selective Separation of Fullerenes on Hydroxyphenyl-triphenylporphyrin–silica Stationary Phases. J. Chromatogr. A 1998, 824, 147–157. [Google Scholar] [CrossRef]
  49. Yu, Q.; Lin, B.; He, H.; Shi, Z.; Feng, Y. Preparation of Pyrenebutyric Acid Bonded Silica Stationary Phases for the Application to the Separation of Fullerenes. J. Chromatogr. A 2005, 1083, 23–31. [Google Scholar] [CrossRef]
  50. Kimata, K.; Hirose, T.; Moriuchi, K.; Hosoya, K.; Araki, T.; Tanaka, N. High-Capacity Stationary Phases Containing Heavy Atoms for HPLC Separation of Fullerenes. Anal. Chem. 1995, 67, 2556–2561. [Google Scholar] [CrossRef]
  51. NACALAI TESQUE, INC. [Cosmosil]. 2020. Available online: https://www.nacalai.co.jp/global/cosmosil/index/Buckyprep-D.html (accessed on 27 January 2021).
  52. Jinno, K.; Uemura, T.; Ohta, H.; Nagashima, H.; Itoh, K. Separation and Identification of Higher Molecular Weight Fullerenes by High-Performance Liquid Chromatography with Monomeric and Polymeric Octadecylsilica Bonded Phases. Anal. Chem. 1993, 65, 2650–2654. [Google Scholar] [CrossRef]
  53. Kasprowiak, A.; Cazier-Dennin, F.; Danjou, P. Flash Chromatography System: A Practical Tool for Demonstrating the Influence of Column Characteristics on Chromatographic Resolution. J. Chem. Educ. 2020, 97, 1145–1150. [Google Scholar] [CrossRef]
  54. Selmani, S.; Shen, M.Y.; Schipper, D.J. Iptycene-Functionalized Silica Gel for the Purification of Fullerenes using Flash Chromatography. RSC Adv. 2017, 7, 19026–19029. [Google Scholar] [CrossRef] [Green Version]
  55. Addicoat, M.A.; Metha, G.F. Kick: Constraining a Stochastic Search Procedure with Molecular Fragments. J. Comput. Chem. 2009, 30, 57–64. [Google Scholar] [CrossRef] [PubMed]
  56. Dennington, R.; Keith, T.; Millam, J. GaussView, Version 61; Semichem Inc.: Shawnee Mission, KS, USA, 2016. [Google Scholar]
  57. Elstner, M.; Porezag, D.; Jungnickel, G.; Elsner, J.; Haugk, M.; Frauenheim, T.; Suhai, S.; Seifert, G. Self-Consistent-Charge Density-Functional Tight-Binding Method for Simulations of Complex Materials Properties. Phys. Rev. B 1998, 58, 7260. [Google Scholar] [CrossRef]
  58. Rappé, A.K.; Casewit, C.J.; Colwell, K.; Goddard, W.A., III; Skiff, W.M. UFF, a Full Periodic Table Force Field for Molecular Mechanics and Molecular Dynamics Simulations. J. Am. Chem. Soc. 1992, 114, 10024–10035. [Google Scholar] [CrossRef]
  59. Te Velde, G.T.; Bickelhaupt, F.M.; Baerends, E.J.; Fonseca Guerra, C.; van Gisbergen, S.J.; Snijders, J.G.; Ziegler, T. Chemistry with ADF. J. Comput. Chem. 2001, 22, 931–967. [Google Scholar] [CrossRef]
  60. Onufriev, A.V.; Case, D.A. Generalized Born Implicit Solvent Models for Biomolecules. Ann. Rev. Biophys. 2019, 48, 275–296. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 05726 g001 550
Figure 1. 1H NMR spectrum (400 MHz, d6-DMSO, room temperature) of C-bromobutylpyrogallol[4]arene 2.
Figure 1. 1H NMR spectrum (400 MHz, d6-DMSO, room temperature) of C-bromobutylpyrogallol[4]arene 2.
Ijms 22 05726 g001
Ijms 22 05726 sch001 550
Scheme 1. Preparative route to the C-butylpyrogallol[4]arene bonded chromatographic stationary phase for HPLC (3a) and flash column chromatography (3b).
Scheme 1. Preparative route to the C-butylpyrogallol[4]arene bonded chromatographic stationary phase for HPLC (3a) and flash column chromatography (3b).
Ijms 22 05726 sch001
Ijms 22 05726 g002 550

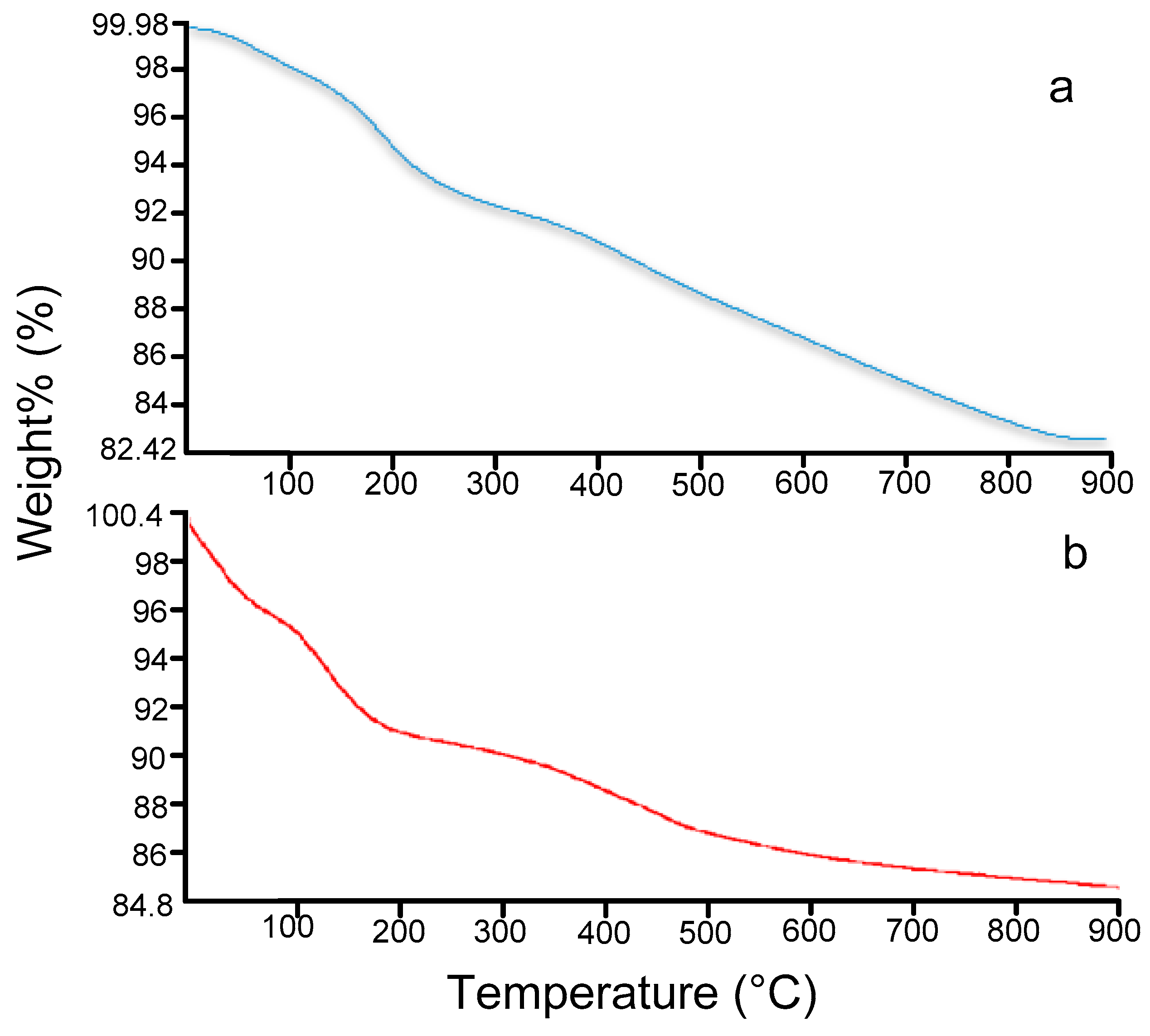

Figure 2. Thermogravimetric analysis of the silica-bound C-butylpyrogallol[4]arene stationary phases: (a) HPLC grade 3a and (b) flash column chromatography grade 3b.
Figure 2. Thermogravimetric analysis of the silica-bound C-butylpyrogallol[4]arene stationary phases: (a) HPLC grade 3a and (b) flash column chromatography grade 3b.
Ijms 22 05726 g002
Ijms 22 05726 g003 550
Figure 3. SEM images showing unfunctionalised flash and HPLC silica at (a) 10 and (c) 1 μm magnification, respectively; and flash and HPLC silica functionalised with C-butylpyrogallol[4]arene stationary phase particles at (b) 10 and (d) 1 μm magnification, respectively.
Figure 3. SEM images showing unfunctionalised flash and HPLC silica at (a) 10 and (c) 1 μm magnification, respectively; and flash and HPLC silica functionalised with C-butylpyrogallol[4]arene stationary phase particles at (b) 10 and (d) 1 μm magnification, respectively.
Ijms 22 05726 g003
Ijms 22 05726 g004 550
Figure 4. HPLC separation of C60 and C70 fullerene standards on (a) RP-C18 and (b) C-butylpyrogallol[4]arene bonded-silica column. Analyte concentration: 50 µg mL−1 in toluene, detection wavelength: 237 nm, mobile phase: water:methanol (40:60), flow rate: 1.0 mL min−1, elution: isocratic, run time: 10 min, column dimensions: 150 × 4.6 mm i.d., column temperature: ambient room temperature.
Figure 4. HPLC separation of C60 and C70 fullerene standards on (a) RP-C18 and (b) C-butylpyrogallol[4]arene bonded-silica column. Analyte concentration: 50 µg mL−1 in toluene, detection wavelength: 237 nm, mobile phase: water:methanol (40:60), flow rate: 1.0 mL min−1, elution: isocratic, run time: 10 min, column dimensions: 150 × 4.6 mm i.d., column temperature: ambient room temperature.
Ijms 22 05726 g004
Ijms 22 05726 g005 550

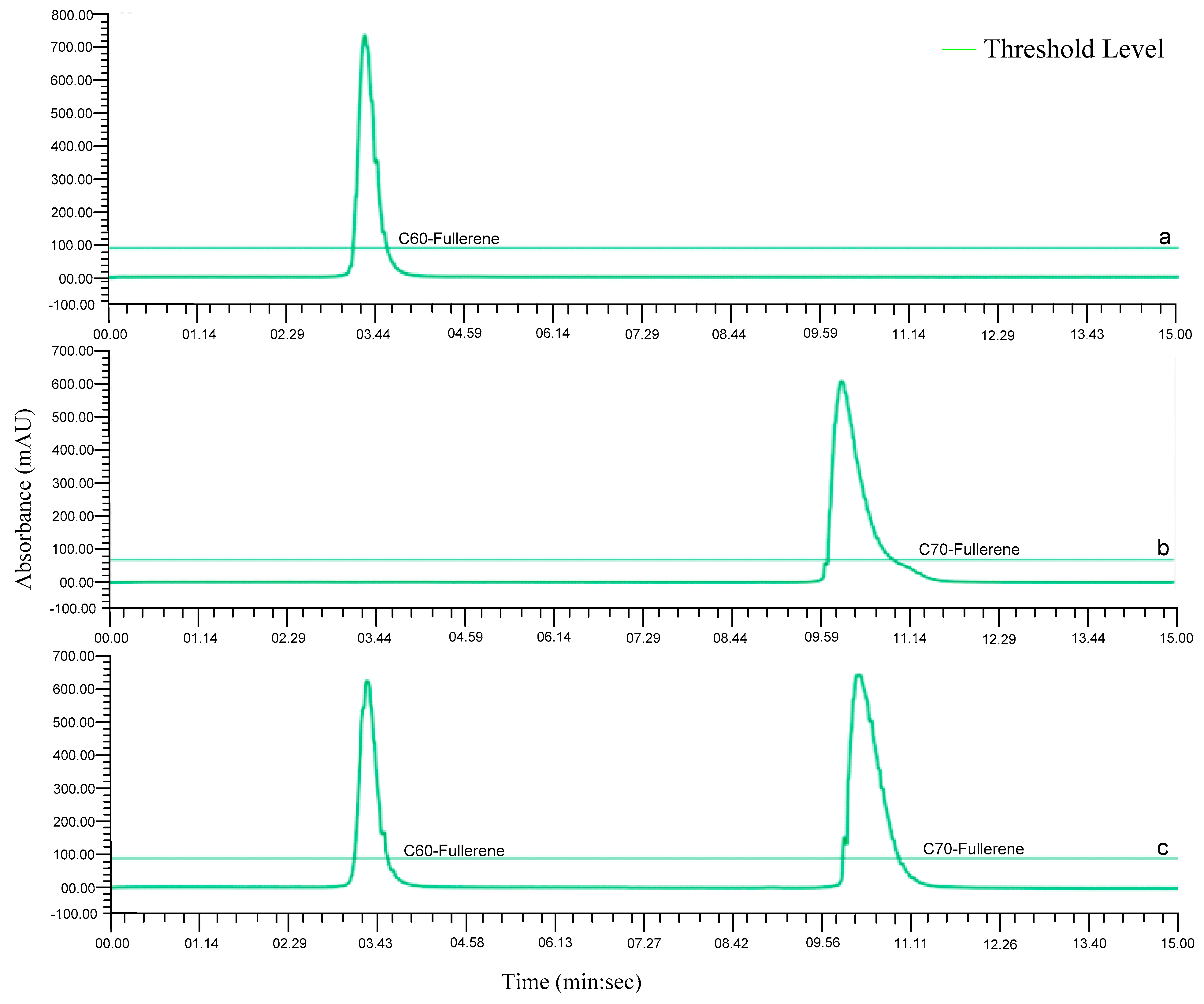

Figure 5. Chromatographic separation of fullerene standards: (a) C60-fullerene, (b) C70-fullerene and (c) an equimolar mixture of C60 and C70-fullerenes (c) on silica-bound C-butylpyrogallol[4]arene stationary phases 3b. Concentration: 25 mg mL−1 detection wavelength: 200-400 nm, mobile phase: ethyl acetate:toluene (35:65), flow rate: 15 mL min−1, elution: isocratic, run time: 15 min, column dimensions: 62 × 412 mm i.d.
Figure 5. Chromatographic separation of fullerene standards: (a) C60-fullerene, (b) C70-fullerene and (c) an equimolar mixture of C60 and C70-fullerenes (c) on silica-bound C-butylpyrogallol[4]arene stationary phases 3b. Concentration: 25 mg mL−1 detection wavelength: 200-400 nm, mobile phase: ethyl acetate:toluene (35:65), flow rate: 15 mL min−1, elution: isocratic, run time: 15 min, column dimensions: 62 × 412 mm i.d.
Ijms 22 05726 g005
Ijms 22 05726 g006 550
Figure 6. Illustration of the calculated binding modes of C60⊂butylpyrogallol[4]arene and C70⊂butylpyrogallol[4]arene. The red, light grey and dark grey spheres represent oxygen, hydrogen, and carbon atoms, respectively.
Figure 6. Illustration of the calculated binding modes of C60⊂butylpyrogallol[4]arene and C70⊂butylpyrogallol[4]arene. The red, light grey and dark grey spheres represent oxygen, hydrogen, and carbon atoms, respectively.
Ijms 22 05726 g006
Table
Table 1. Chromatographic silica specifications for flash column chromatography and HPLC.
Table 1. Chromatographic silica specifications for flash column chromatography and HPLC.
Chromatographic TechniqueShape of Silica GelParticle Size (µm)Surface Area (m2/g)Pore Volume (cc/g)Pore Size
Flash columnspherical505000.70500
HPLCspherical51200.9570
Table
Table 2. Gas and solvent phase DFTB/mio-1-1 Gibbs free binding energies of C60⊂butylpyrogallol[4]arene and C70⊂butylpyrogallol[4]arene alongside HPLC and flash column chromatographic retention times.
Table 2. Gas and solvent phase DFTB/mio-1-1 Gibbs free binding energies of C60⊂butylpyrogallol[4]arene and C70⊂butylpyrogallol[4]arene alongside HPLC and flash column chromatographic retention times.
Guests∆GBE (kcal mol−1)Experimental Chromatography
Gas PhaseSolvent Phase (Toluene)HPLC (min:sec)Flash Column (min:sec)
C60-fullerene−133.385−123.8621:0803:26
C70-fullerene−135.569−125.3554:8510:38
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mekapothula, S.; Wonanke, A.D.D.; Addicoat, M.A.; Boocock, D.J.; Wallis, J.D.; Cave, G.W.V. Supramolecular Chromatographic Separation of C60 and C70 Fullerenes: Flash Column Chromatography vs. High Pressure Liquid Chromatography. Int. J. Mol. Sci. 2021, 22, 5726. https://doi.org/10.3390/ijms22115726

AMA Style

Mekapothula S, Wonanke ADD, Addicoat MA, Boocock DJ, Wallis JD, Cave GWV. Supramolecular Chromatographic Separation of C60 and C70 Fullerenes: Flash Column Chromatography vs. High Pressure Liquid Chromatography. International Journal of Molecular Sciences. 2021; 22(11):5726. https://doi.org/10.3390/ijms22115726

Chicago/Turabian Style

Mekapothula, Subbareddy, A. D. Dinga Wonanke, Matthew A. Addicoat, David J. Boocock, John D. Wallis, and Gareth W. V. Cave. 2021. "Supramolecular Chromatographic Separation of C60 and C70 Fullerenes: Flash Column Chromatography vs. High Pressure Liquid Chromatography" International Journal of Molecular Sciences 22, no. 11: 5726. https://doi.org/10.3390/ijms22115726

APA Style

Mekapothula, S., Wonanke, A. D. D., Addicoat, M. A., Boocock, D. J., Wallis, J. D., & Cave, G. W. V. (2021). Supramolecular Chromatographic Separation of C60 and C70 Fullerenes: Flash Column Chromatography vs. High Pressure Liquid Chromatography. International Journal of Molecular Sciences, 22(11), 5726. https://doi.org/10.3390/ijms22115726

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
