Article

Transcriptomic Analysis Reveals Key Genes Involved in Oil and Linoleic Acid Biosynthesis during Artemisia sphaerocephala Seed Development

by
Shuzhen Nan
†,
Lijing Zhang
*,†,
Xiaowei Hu
,
Xiumei Miao
,
Xiaoxu Han
and
Hua Fu
*
State Key Laboratory of Grassland Agro-Ecosystems, Key Laboratory of Grassland Livestock Industry Innovation, Ministry of Agriculture and Rural Affairs, Engineering Research Center of Grassland Industry, Ministry of Education, College of Pastoral Agriculture Science and Technology, Lanzhou University, Lanzhou 730020, China
*
Authors to whom correspondence should be addressed.
†
Shuzhen Nan and Lijing Zhang contributed equally to this work.
Int. J. Mol. Sci. 2021, 22(16), 8369; https://doi.org/10.3390/ijms22168369
Submission received: 1 July 2021 / Revised: 29 July 2021 / Accepted: 30 July 2021 / Published: 4 August 2021
(This article belongs to the Section Molecular Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Artemisia sphaerocephala seeds are rich in polysaccharides and linoleic acid (C18:2), which have been widely used as traditional medicine and to improve food quality. The accumulation patterns and molecular regulatory mechanisms of polysaccharides during A. sphaerocephala seed development have been studied. However, the related research on seed oil and C18:2 remain unclear. For this study, A. sphaerocephala seeds at seven different development stages at 10, 20, 30, 40, 50, 60, and 70 days after flowering (designated as S1~S7), respectively, were employed as experimental samples, the accumulation patterns of oil and fatty acids (FA) and the underlying molecular regulatory mechanisms were analyzed. The results revealed that oil content increased from 10.1% to 20.0% in the early stages of seed development (S1~S2), and up to 32.0% in mature seeds, of which C18:2 accounted for 80.6% of the total FA. FA and triacylglycerol biosynthesis-related genes jointly involved in the rapid accumulation of oil in S1~S2. Weighted gene co-expression network analysis showed that transcription factors FUS3 and bHLH played a critical role in the seed oil biosynthesis. The perfect harmonization of the high expression of FAD2 with the extremely low expression of FAD3 regulated the accumulation of C18:2. This study uncovered the gene involved in oil biosynthesis and molecular regulatory mechanisms of high C18:2 accumulation in A. sphaerocephala seeds; thus, advancing research into unsaturated fatty acid metabolism in plants while generating valuable genetic resources for optimal C18:2 breeding.

1. Introduction

Vegetable oils are an important component of the human diet that provide energy, as well as a variety of fatty acids (FAs) required to maintain optimal health. Linoleic acid (C18:2, LA) is an essential FA that cannot be synthesized in vivo by humans and mammals; thus, it must be obtained from the diet. Simultaneously, conjugated linoleic acid (CLA) (a natural active substance with immunological functions) is generated in the rumen of ruminants using C18:2 as a substrate. C18:2 and CLA play critical roles in the prevention of cancer and various cardiovascular, inflammatory, and autoimmune diseases [1,2].
Seeds are important storage organs for vegetable oils, which are primarily stored as triacylglycerols (TAG), with variable content in different plant species. The oil content of walnut (Juglans regia) embryo, peanut (Arachis hypogaea), canola (Brassica napus), upland cotton (Gossypium hirsutum), and soybean (Glycine max) were found to be 69.1%, 58.2%, 42.7%, 35.2%, and 15.0~20.2%, respectively [3,4,5,6,7]. The accumulation of seed oil is a complex process, which primarily consists of two parts: FA de novo biosynthesis in plastids and TAG biosynthesis in endoplasmic reticulum (ER) [8,9].
FA de novo biosynthesis primarily occurs in the plastids. Acetyl-CoA carboxylase (ACCase) catalyzes acetyl-CoA to form malonyl-CoA, whereafter malonyl-CoA ACP S-malonytransferase (MAT) further transfers malonly-CoA to malonly-ACP. Subsequently, six continuous condensation reactions are catalyzed by 3-ketoacyl-ACP synthase (KAS), 3-ketoacyl-ACP reductase (KAR), 3-hydroxyacyl-ACP dehydratase (HAD) and enoyl-ACP reductase (EAR) to form palmitic acid-ACP (C16:0-ACP), which can either be converted to free C16:0 by the fatty acyl-ACP thioesterase B (FATB) or further elongated by KASII to stearic acid-ACP (18:0-ACP). The 18:0-ACP can be hydrolyzed to free C18:0 by FATB or be desaturated to oleic acid-ACP (18:1-ACP) by 18:0-ACP desaturase (SAD), whereafter 18:1-ACP is hydrolyzed to free C18:1 by the fatty acyl-ACP thioesterase A (FATA). Free fatty acid (C16:0, C18:0, C18:1) are esterified to FA-CoA by long-chain acyl-CoA synthetase (LACS) and then transported into ER [8,9]. C18:1-CoA can be incorporated into phosphatidylcholine (PC) by lysophosphatidylcholine acyltransferase (LPCAT), and in turn be dehydrogenated to C18:2-PC and linolenic acid-PC (C18:3-PC) by omega-6 desaturase (FAD2) and omega-3 desaturase (FAD3) [10,11].
The different characteristics of vegetable oils depend on the FA composition, 18C unsaturated fatty acid (UFAs) are important constituents of vegetable oils, and the regulatory mechanisms were also different: between species with C18:1 as the main FA component, the up-regulation of KASII and SDA6 resulted in the abundant accumulation of C18:1 in Siberian apricot (Prunus sibirica) [12]. The perfect harmonization of high SAD levels with low FAD2 levels facilitated the accumulation of C18:1 in Camellia oleifera and hickory (Carya cathayensis) [13,14]. The main UFA of Perilla (Perilla frutescens) and tree peony (Paeonia section Moutan) seed oil were C18:3, however, the formation of this trait was regulated by highly expressed FAD3 and FAD8, respectively [15,16]. G. hirsutum and walnut (Juglans regia) with C18:2 as the main FA, the high expression of FAD2 and the very low expression of FAD3 were the key reasons for the formation of G. hirsutum C18:2 [7], while in J. regia, the expression level of FAD3 was higher than that of FAD2, and the reason for the fact that the content of C18:3 was lower than that of C18:2 remains to be further studied [5]. The above results further indicate that the regulatory mechanism for the formation of the same FA trait varied from species to species.
TAG biosynthesis occurs in ER via two pathways: (1) Kennedy pathway (or acyl-CoA-dependent pathway), which involves three sequential acylations of acyl-CoAs to the glycerol-3-phosphate (G3P); (2) acyl-CoA-independent pathway. In the Kennedy pathway, glycerol-3-phosphate acyltransferase (GPAT) transfers a FA of acyl-CoA to the sn-1 hydroxy group of G3P to form lysophosphatidic acid (LPA). Subsequently, lysophosphatidic acid acyltransferase (LPAT) catalyzes the second acylation at the sn-2 hydroxy group of G3P to yield phosphatidic acid (PA). Next, the phosphate in the sn-3 position of the PA is removed by phosphatidic acid phosphatase (PAP), to form diacylglycerol (DAG). Finally, acyl-CoA: diacylglycerol acyltransferase (DGAT) catalyzes the acylation reaction at the sn-3 hydroxy group of DAG to produce TAG [17]. In the acyl-CoA-independent pathway, three pathways allow the flux of FA through PC for the eventual biosynthesis of TAG: (1) Exchange FA between the PC pool and acyl-CoA pool through acyl editing; (2) PDAT directly transfers a FA from the sn-2 position of PC to the sn-3 hydroxyl group of DAG to form TAG; (3) Using PC-derived DAG as substrate for TAG biosynthesis [8,17].
The preference of DGAT and PDAT for TAG biosynthesis varies with plant species. For example, DGAT is more important for the synthesis of TAG in B. napus [18,19,20]. Whereas in soybean, castor bean (Ricinus communis), sunflower (Helianthus annuus) and Arabidopsis thaliana, which primarily uses PC-mediated pathways under the action of PDAT to form TAG [21,22].
In addition, some transcription factors, such as WRINKLED1 (WRI1), FUSCA3 (FUS3), ABSCISIC ACID INSENSITIVE 3 (ABI3), and LEAFY COTYLEDON1, 2 (LEC1, LEC2) play key roles in seed development and oil accumulation. The mutation and overexpression of these genes have an important impact on seed development and oil accumulation [23,24].
Artemisia sphaerocephala is a superdry perennial semi-shrub belonging to the Artemisia genus of the Compositae family, which is a very important windproofing and sand-fixing plant on the mobile semi-stable sand dunes in the arid desert regions of Northwest China [25]. The polysaccharides of A. sphaerocephala seeds account for 39.8% of the dry seed weight [26], which have important physiological and ecological value [27]. It also has antioxidant, antidiabetic, anti-obesogenic, antitumor, and immunomodulatory activities, and can also be used as a food additive to improve food quality [28]. The accumulation patterns and molecular regulatory mechanisms of polysaccharides during seed development of A. sphaerocephala have been initially uncovered [26,29]. It is worth noting that oil content of A. sphaerocephala seeds account for 21.5% of the dry seed weight, of which C18:2 account for 78.6% of the total FA [30], and possess the largest FAD2 gene family with twenty-six members in the plant kingdom [31]. However, the accumulation patterns of seed oil and C18:2 during seed development and the potential molecular regulatory mechanisms involved have not been reported to date.
For this study, A. sphaerocephala seeds were employed as experimental materials, where oil and FA accumulation patterns were determined for seven different stages of seed development. Simultaneously, the molecular mechanism regulating this process were revealed via short-read next-generation RNA sequencing and third-generation single-molecule real-time sequencing. The results of this study will contribute to a deeper understanding of the molecular kinetics behind the biosynthesis of oil and the regulation of FA components in plants, while laying the foundation for the development of excellent genetic resources toward the production of high-quality oils from A. sphaerocephala.

2. Results and Discussion

2.1. Morphological Characteristics and Oil Accumulation during A. sphaerocephala Seed Development

The development of A. sphaerocephala seeds proceeded for 70 days, and seven different development stages at 10, 20, 30, 40, 50, 60, and 70 days after flowering (S1~S7) were investigated. The seed coat gradually changed in color, from light green to dark brown (Figure 1A). The thousand seed weight increased continuously, from 0.15 g at S1 to 1.02 g at S5, followed by a slight reduction to 0.94 g at maturity (Figure 1B). The water content was observed to decrease continuously, from 80.79% to 5.74% (Figure 1C).
The content of seed oil and its accumulation patterns varied with plant species. The oil content of A. sphaerocephala seeds continuously increased from 10.1% to 32.0% with seed development (Figure 1D), which was higher than G. max (~20%) and Zea mays (6.7%) [3,32], but lower than B. napus (42.7%), A. hypogaea (53.8%), and sesame (Sesamum indicum) (41.3%~62.7%) [4,6,33]. Its relatively low oil content in A. sphaerocephala seeds may be related to its high polysaccharides content (39.8%) [26,27].
The development of seeds (from flowering to full maturity of seeds) from P. frutescens, G. hirsutum, B. napus, P. sibirica, and Symplocos paniculata proceeded for 35, 50, 56, 70, and 170 days, respectively. The exception was the seed oil content of P. frutescens and A. sphaerocephala, which increased continuously with seed development as the oil content of other seeds increased gradually, but then decreased slightly at maturity. The maximum increments of seed oil accumulation for the species listed above appeared mostly during the middle and late stages (14~28, 20~30, 28~42, 40~60, and 80~140 days, respectively) [4,7,12,16,34]. This was distinct from the maximum oil increment of A. sphaerocephala seeds during the early stage (S1~S2) (Figure 1E). That is, the highest seed oil accumulation content for A. sphaerocephala appeared at S1~S2 at 9.9%, whereafter the increment decreased at S2~S3, S3~S4, S4~S5, S5~S6, and S6~S7, which were 4.5%, 2.7%, 1.6%, 2.3%, and 0.9%, respectively (Figure 1E). Furthermore, S7 stage had the highest oil content and the water content of less than 10%, indicating which was optimal harvest time. It was consistent with the harvest time for in November of A. sphaerocephala seeds in actual production.

2.2. Characteristics of FA Compositions during A. sphaerocephala Seed Development

As shown in Figure 2A, 18C FAs was the main component of FAs in A. sphaerocephala seed oil, which continuously increased from 80.8% at the early seed development stage to 92.4% in mature seeds. During S1~S7, the saturated fatty acids (SFAs) decreased from 20.8% to 9.2%, which was primarily caused by the C16:0 and behenic acid (C22:0) content decreasing from 12.9% to 6.1%, and from 4.6% to 0.9%, respectively. The UFAs increased from 79.3% to 90.8%, which was mainly due to the continuous increase of the C18:2 content, from 66.7% to 80.6%. It is worth noting that C18:2 rapidly increased from 72.9% to 78.4% from S4~S5. Changes in the SFAs and UFAs primarily occurred from S1~S3, when the SFAs content decreased from 20.8% to 11.0%, and UFAs content increased from 79.3% to 89.0% (Figure 2, Table S1).

2.3. Transcriptomic Analysis and Functional Annotation

Based on the RNA-Seq sequencing of 21 cDNA libraries from A. sphaerocephala seeds at seven different developmental stages were sequenced, a total of 166.6 Gb Clean Data was generated, with GC contents ranging from 42.52% to 45.61%, and Q30 ≥ 92.28% (Table S2). Based on the Pacific Biosciences SMRT sequencing technology, a total of 6,976,910 subreads (7.37 G base) with an average length of 1057 bp and N50 of 1149 bp were obtained. To provide more accurate sequence data, circular consensus sequences (CCS) were generated from reads that were passed at least twice through the insert, where a total of 446,687 CCS with an average length of 1042 bp were obtained. Among these, 329,538 were identified as full-length non-chimeric reads (Flnc) with an average length of 1042. Flnc were clustered using an iterative isoform-clustering algorithm, to obtain 146,134 consensus reads with an average length of 1097 bp and N50 of 1215 bp. Following error correction using the RNA-Seq data derived from the seeds of the seven different seed development stages and removal of redundant sequences via CD-Hit, a yield of 84,239 non-redundant high-quality genes was achieved (Table S3, Figure S1).
All 84,239 genes were annotated by searching NR, NT, Pfam, Swiss-Prot, TrEMBL, KOG, GO, and KEGG databases, and a total of 72,240 genes (85.76%) was annotated (Table S4). Among these, 21,525 (25.55%) genes were annotated and assigned to 118 biological pathways which involved five functional categories in KEGG database (Tables S5 and S6). In the “metabolism” category with the largest number of genes (9823, 45.64%), “energy metabolism”, “carbohydrate metabolism”, and “amino acid metabolism” were the top three enrichment pathways, with 4118 (41.92%), 3700 (37.67%), and 2046 (20.83%), respectively, followed by “lipid metabolism” with 856 (8.71%) (Table S5). In “lipid metabolism”, 168, 149, and 137 genes were enriched in “glycerophospholipid metabolism”, “glycerolipid metabolism”, and “fatty acid biosynthesis”, respectively (Table 1).

2.4. Identification of Candidate Genes Involved in Oil Biosynthesis

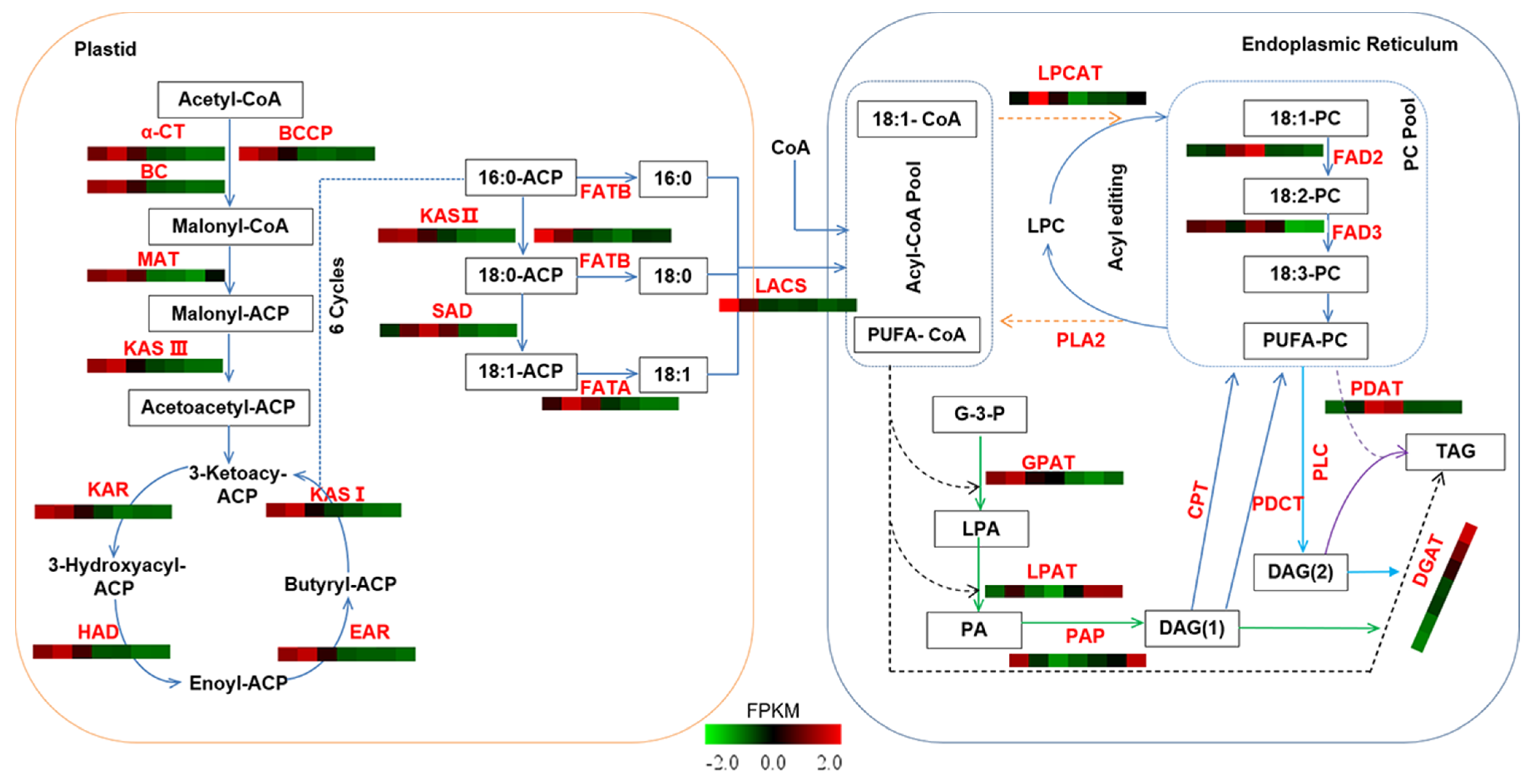

Based on the KEGG pathway enrichment analysis in PacBio full-length transcriptome sequencing of A. sphaerocephala, a biosynthesis pathway of seed oil was constructed (Figure 3). Detailed information on each gene sequence, annotation, and FPKM value are listed in Table S7. and the heat map of a single gene during seed development is shown in Figure S2.

2.5. Regulatory Mechanisms of High Oil Accumulation during Early Seed Development

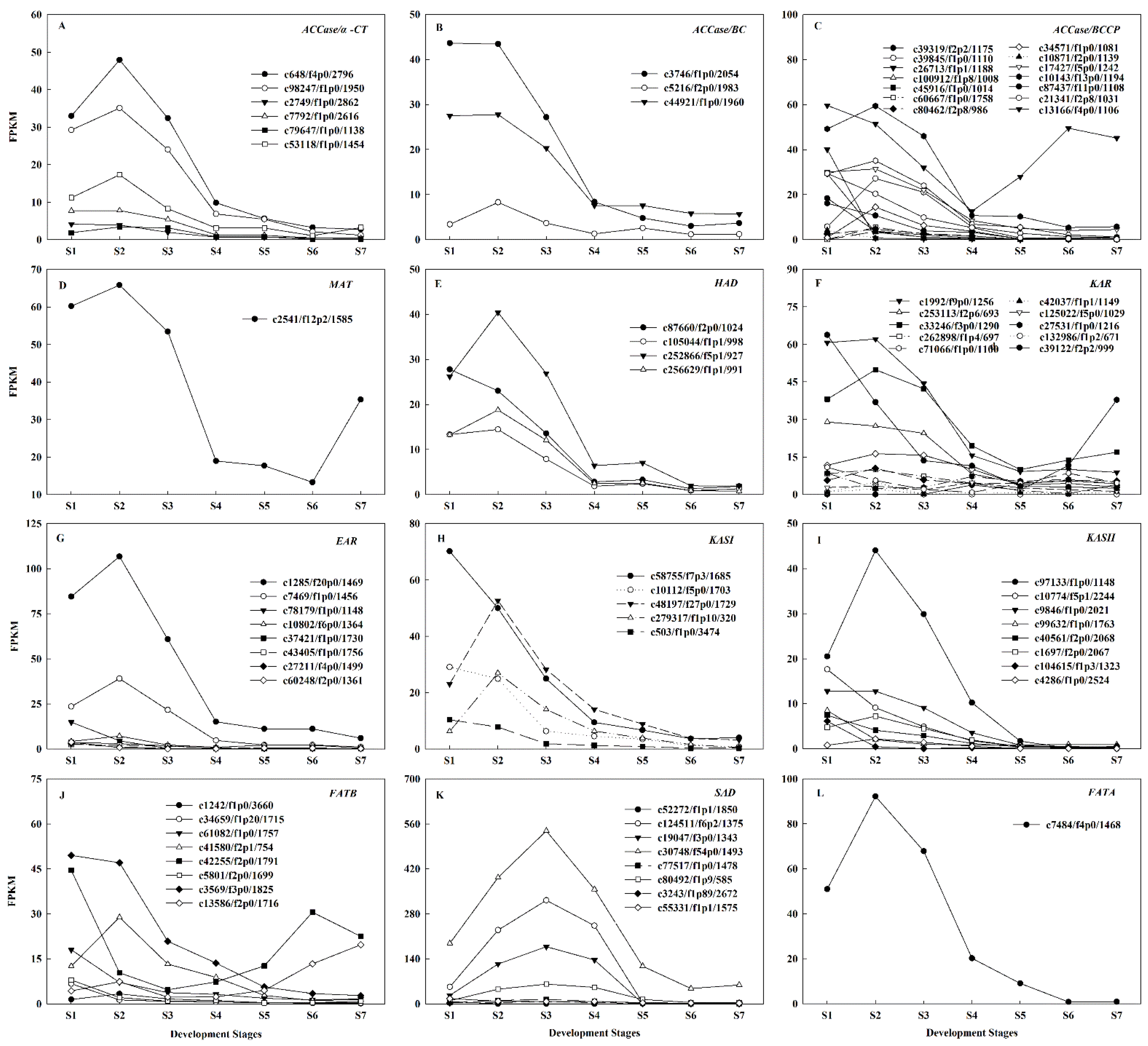

FA de novo biosynthesis begins with the conversion of acetyl-CoA to malonyl-CoA, which is catalyzed by acetyl-CoA carboxylase (ACCase), comprised of four subunits, including α-carboxytransferase (α-CT), β-carboxytransferase (β-CT), biotin carboxylase (BC), and biotin carboxyl carrier protein (BCCP). Subsequently, malonyl-CoA is transferred to the malonyl group by malonyl-CoA ACP S-malonyltransferase (MAT), which is the primary substrate for the subsequent elongation. Next, 3-ketoacyl-ACP reductase (KAR), 3-hydroxyacyl-ACP dehydratase (HAD), enoyl-ACP reductase (EAR), and 3-ketoacyl-ACP synthase I (KASI) are responsible for carbon chain extension. Following six condensation cycles, the 16:0-ACP is produced. In this study, the key genes involved in fatty acid do novo biosynthesis demonstrated similar expression patterns. There were twenty-three ACCases (including six α-CTs, three BCs, and fourteen BCCPs), one MAT, ten KARs, four HADs, eight EARs, and five KASIs, all of which had the high expression levels from S1~S2, total FPKM were 87~115, 74~79, 285~237, 60~65, 224~204, 80~96, 139~164, and 138~162, respectively. This was followed by a dramatic decrease and tended to be stably expressed (Figure 4A–H). The high expression of these genes during S1~S2 were synchronized with the rapid accumulation of oil (Figure 1D), and, in turn, resulted in a significant increase of UFAs (Figure 2B). This may partially explain why oil content rapid accumulation in these early stages, which was similar to the studies of C. cathayensis and C. oleifera [13,14]. KASII is a key enzyme that controls the 16C:18C FAs ratio, whose expression is directly proportional to the content of 18C FAs [7]. The eight KASIIs showed relatively high total expression levels for S1~S2, FPKM ranging from 78.49 to 81.88 (Figure 4I), which formed up to 92.4% of the 18C FAs (Table S1), which was consistent with the results for P. ostii seeds [15].
FATB catalyzes C16:0-ACP and C18:0-ACP to form SFAs. SAD desaturates C18:0-ACP to form C18:1-ACP, which is a substrate that facilitates the formation of UFAs. The total FPKM of eight FATBs decreased rapidly from 145 at S1 to 48 at S3 (Figure 4J). The total FPKM of eight SADs increased rapidly from 307 at S1 to 1128 at S3, of which the FPKM of four SADs (c30748/f54p0/1493, c124511/f6p2/1375, c19047/f3p0/1343 and c80492/f1p9/585) accounted for 90.18%~97.47% of the total expression (Figure 4K). This was consistent with the significantly reduced of C16:0 and C18:0 content, from 12.9% and 1.5% to 7.3% and 1.3%, respectively, and 18C UFAs increased from 79.3% to 88.9% (Table S1). The above results implied that the rapid decline of FATB and the high expression of KASII and SAD generated sufficient C18:1-ACP, which was further used for the biosynthesis of 18C UFAs. Then, FATA hydrolyzes C18:1-ACP to free C18:1. The expression level of only one FATA gradually decreased following the attainment of a peak of 92.21 at S2 (Figure 4L), which was mostly consistent with the increase of C18:1 content, from 10.52% at S1 to 15.59% at S3, and then decreased from S4~S7 (Figure 2A, Table S1).
Seed oils are primarily stored in the form of TAG, and synthesized by acyl CoA dependent (Kennedy pathway) and independent pathways. (1) In the acyl-CoA-dependent pathway, GPAT, LPAT, PAP, and DGAT participate in the biosynthesis of TAG with glycerol-3-phosphate and acyl-CoA as substrates; (2) In the acyl-CoA-independent pathway, some acyl-CoAs will enter the PC pool and be esterified to form acyl-PCs by LPCAT, and then separate into three pathways: (1) released into the acyl-CoA pool to participate in the acyl-CoA dependent pathway; (2) synthesized TAG through PDAT; (3) converted to TAG through DAG by PDCT and CPT [8,17].

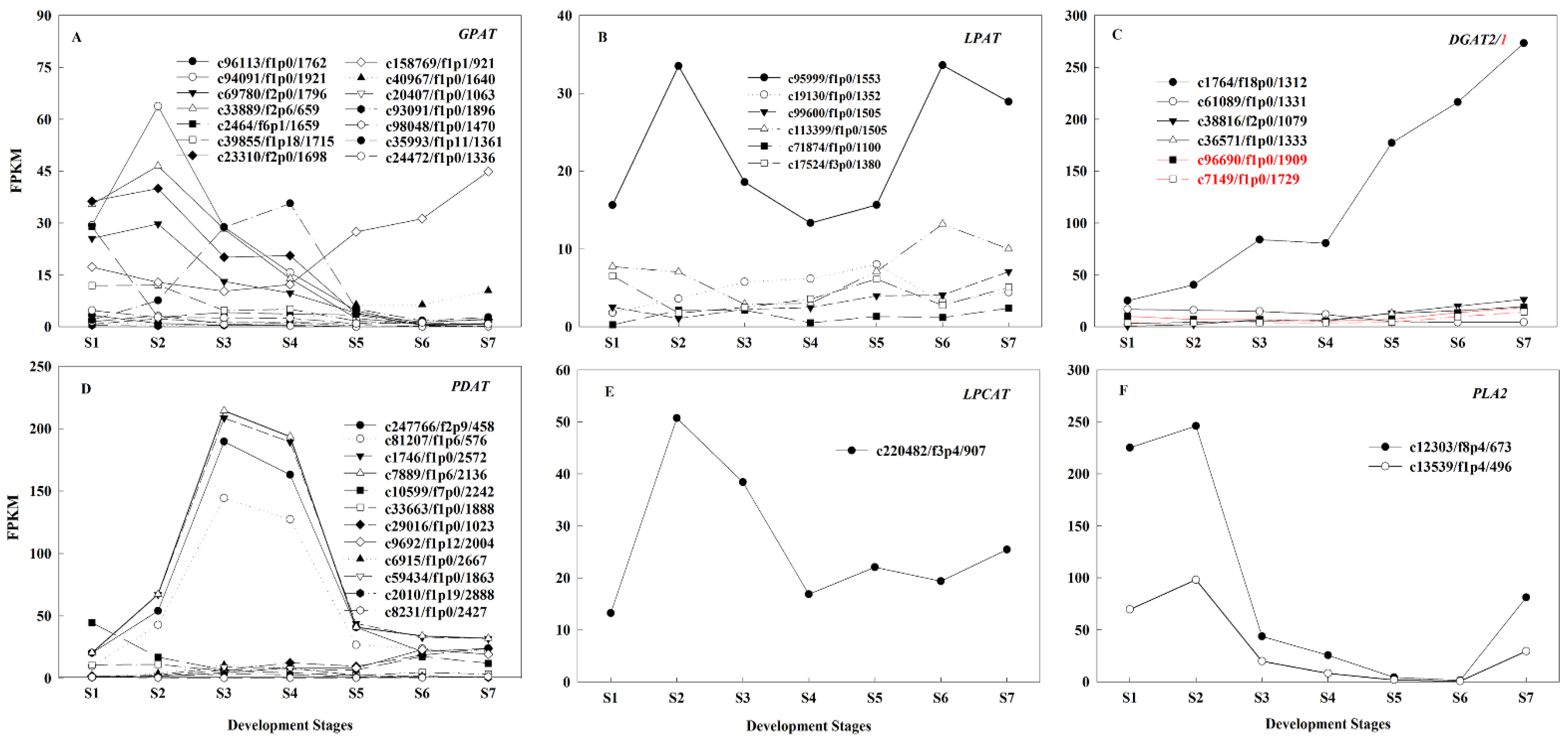

In the acyl-CoA dependent pathway, the expression patterns of fourteen GPATs were diverse. Five GPATs (c94091/f1p0/1921, c33889/f2p6/659, c23310/f2p0/1698, c69780/f2p0/1796, and c39855/f1p18/1715) exhibited higher expression levels during S1~S2, FPKM ranging from 12 to 64, and then significantly decreased. The expression level of GPAT (c35993/f1p11/1361) decreased significantly after attaining a peak of 36 at S4. The GPAT (c158769/f1p1/921) was stably expressed from S1~S4, which FPKM continuously increased from 12 at S4 to 45 at S7 (Figure 5A). The total FPKM of the six LPATs ranged from 34 to 58, of which FPKM of LPAT (c95999/f1p0/1553) was higher (13 to 33), while the remaining DEGs expression levels were relatively low (Figure 5B). In the acyl-CoA independent pathway, one LPCAT and two PLA2s were highly expressed in S2, with total FPKM were 51 and 344, respectively (Figure 5E,F). In summary, the high expression of five GPATs, one LPAT, one LPCAT and two PLA2s from S1~S2 were synchronized with the rapid accumulation of oil (Figure 1D), speculating that they were jointly involved in the rapid accumulation of oil at these early stages. Simultaneously, the high expression of PLA2 caused more PUFA-PC to be transferred to the acyl-coA pool, which, in turn, increased the flux of acyl-CoA-dependent pathways.
DGAT and PDAT are the key enzymes responsible for TAG biosynthesis in the acyl-CoA-dependent and acyl-CoA-independent pathways, respectively, and the relative contribution to TAG biosynthesis varied by species: PDAT had higher expression or higher correlation with seed oil content than DGAT in safflower (Carthamus tinctorius), J. regia, G. hirsutum, Torreya grandis and P. sibirica, indicating it may play a more important role in TAG biosynthesis [5,7,12,35,36]. Whereas in B. napus, DGAT was more important for the biosynthesis of TAG [18,19,20]. In this study, there was six DGATs, the expression level of DGAT (c1764/f18p0/1312) was significantly higher than that of other members, accounting for 41.93~80.50% of the total DGATs expression, and highly expressed from S5~S7 (Figure 5C), where phylogenetic analysis revealed that it was DGAT2 (Figure S3). Twelve PDATs were found, and the expression levels of four PDATs (c247766/f2p9/458, c81207/f1p6/576, c1746/f1p0/2572 and c7889/f1p6/2136) were significantly higher than the others, accounting for 53.54~94.30% of the total expression, and highly expressed from S1~S3 (Figure 5D). Four main PDATs exhibited higher expression levels during S3 and S4, while one main DGAT2 was highly expressed at S5 to S7 (Figure 5C,D), implying that TAG assembly mainly occurred in the middle and late stages, and these two pathways synergistically regulated TAG biosynthesis in A. sphaerocephala seeds. Our results agreed with those of previous studies in C. cathayensis, perilla, and Styrax tonkinensis seeds [13,37,38]. Meanwhile, this was also consistent with the result that the high expression of PLA2 in this study initiated an increase in the flux of the acyl-CoA-dependent pathway. Furthermore, this study did not find the DEG encoding PDCT and CPT, which signified that this pathway did not influence the biosynthesis of TAG during A. sphaerocephala seed development, which was different from the results for perilla [37].

2.6. Regulation Mechanism of High C18:2 Content in Seed Oil

The C18:1, C18:2, and C18:3 content of A. sphaerocephala seeds accounted for 10.0%, 80.6%, and 0.1% of the total FAs, respectively (Table S1). FAD2 and FAD3 catalyze the conversion of C18:1 to C18:2 and C18:2 to C18:3, respectively [10,11].

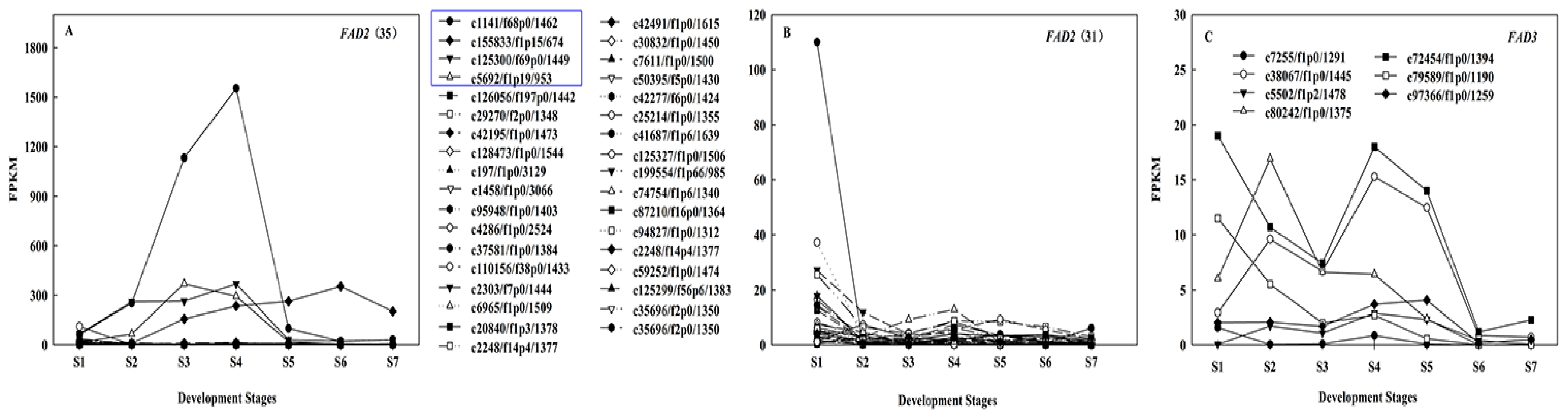

During A. sphaerocephala seed development, there were thirty-five FAD2s, in which the homology of the pairwise sequence alignment was < 99% (Table S8) and seven FAD3s, respectively, where the total expression level of FAD2 was 11.93~218.01 times that of FAD3 (Figure 6). This indicated that the high expression of FAD2 in conjunction with the low expression of FAD3 resulted in the accumulation of C18:2 in A. sphaerocephala seeds. This was basically consistent with the mechanism of C18:2 accumulation in G. hirsutum seeds [7]. The main FA of J. regia was also C18:2, the high expression of FAD3 and FAD2 was the main reason for the enrichment of polyunsaturated fatty acids, but the expression of FAD3 was higher than that of FAD2, and the mechanism of high C18:2 content remains to be further studied [5].
Among thirty-five FAD2s, four FAD2s (c1141/f68p0/1462, c125300/f69p0/1449, c5692/f1p19/953, and c155833/f1p15/674) were highly expressed, where the total FPKM of the four FAD2s increased from 145 at S1 to 2451 at S4, and then decreased to 265 at S7 (Figure 6A), which likely played a critical role in the increase of the C18:2 content, from 66.7% at S1 to 72.8% at S4, and then increased to 80.6% at S7 in A. sphaerocephala seeds (Figure 6A, Table S1). The other thirty-one FAD2s were expressed primarily at S1 (0.41~37.21), after which their expression level declined to a stable low level (FPKM < 6), presumably having a certain effect on the high content of C18:2 at S1 (Figure 6B). It is worth noting that the expression levels of other FAD2s were lower at S6, while the expression level of one FAD2 (c155833/f1p15/674) reached a peak at this stage (Figure 6B), which may play a major role in the continuous conversion of C18:1 to C18:2 during S4~S7.

2.7. Regulation of Transcription Factors on Oil Accumulation

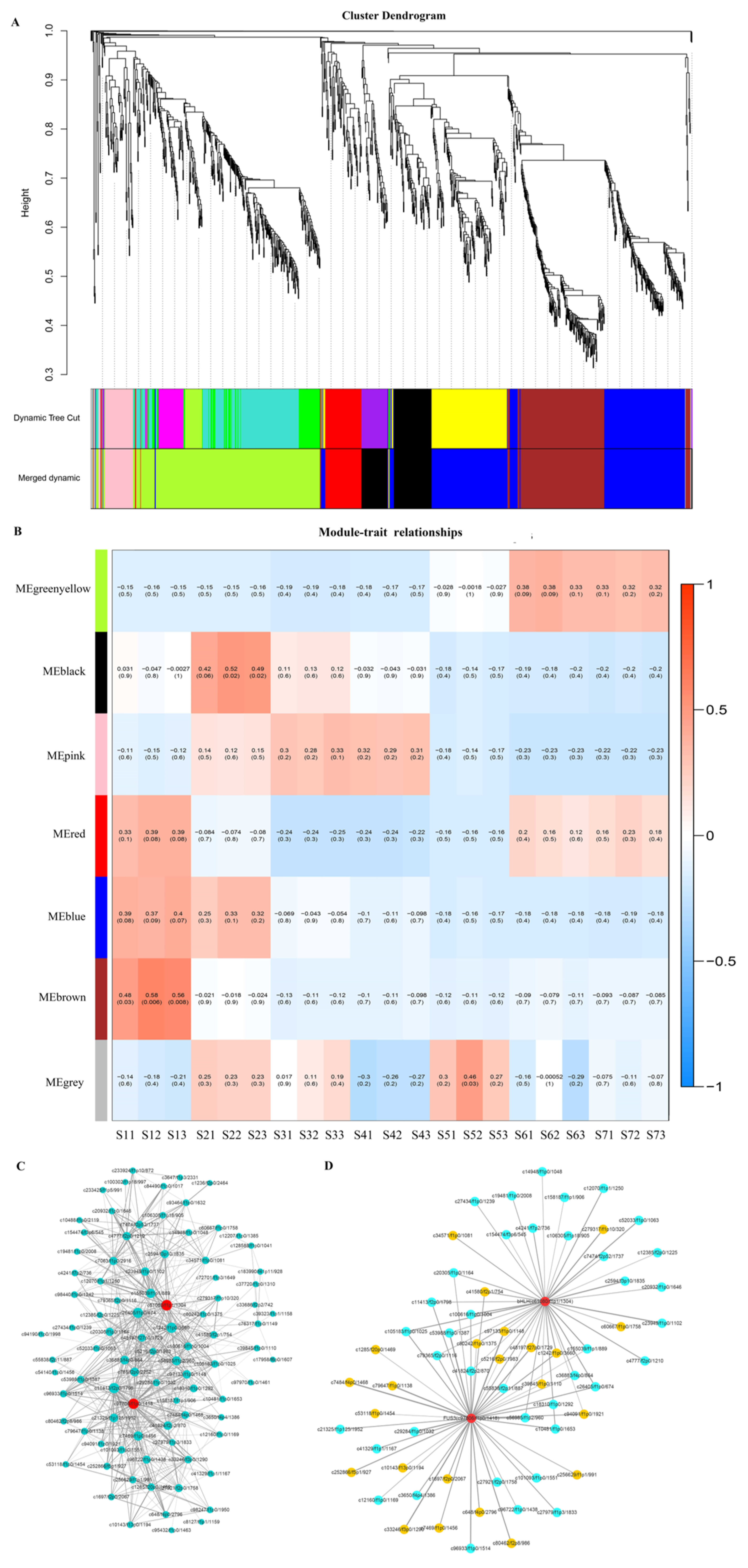

Transcription factors (TFs) played a crucial role in the regulation of FA biosynthesis and the accumulation of oil in plant seeds. The key TFs that regulated the biosynthesis of oil varied by species and different organizations: GRF5, WRI1, FUS3 were hub TFs in the oil biosynthesis regulatory network in B. rape seed [39]. WRI1, MYB and ZIP played key roles in the biosynthesis of oil in C. oleifera [40]; PBS and RAP played a critical role in the oil biosynthesis regulatory network in avocado (Persea americana) mesocarp and seed, respectively [41]. For this study, a total of 1440 differentially expressed TFs belonging to 83 different gene families were identified from the seed transcriptome of A. sphaerocephala at different developmental stages. Among them, the most abundant TF families were AP2-ERF-ERF (115), NAC (109), bZIP (73), C3H (66), and bHLH (63) (Table S9). The genes involved in the biosynthesis of FA and TAG, and TFs were subjected to weighted gene co-expression network analysis (WGCNA), and seven modules were identified and labeled by different colors (Figure 7A and Figure S4A). The seed oil content of A. sphaerocephala accumulated rapidly in S1~S2. The analysis of module-trait correlation relationships showed that the black module had the highest correlation with S2 (r > 0.4, p < 0.05), and the genes in this module were highly expressed in S2 (Figure 7B and Figure S4B), which indicated that this module related to the oil content of A. sphaerocephala. The black module contained 88 TFs, where the most abundant TF families were bHLH (10), AP2/ERF-ERF (8), bZIP (6), AUX/IAA (5), C2H2 (4), and B3 (4) (Figure S4C). Gene co-expression analysis of this module showed that the TFs FUS3 (c97806/f1p0/1418) and bHLH (c61080/f1p1/1304) were the hub genes of this module (Figure 7C). Gene expression analysis revealed which genes had similar expression trends with the genes involved in oil biosynthesis, that is, had the highest expression level at S2 (Figure S4D). Moreover, FUS3 (c97806/f1p0/1418) and bHLH (c61080/f1p1/1304) co-expressed with genes involved in FA biosynthesis, such as α-CT, BC, BCCP, HAD, EAR, KAR, KASII, FATA, and FATB (Figure 7D). The above results indicated that FUS3 and bHLH were the key TFs for the accumulation of oil in A. sphaerocephala seeds.

2.8. Validation of RNA Sequencing Results by RT-qPCR

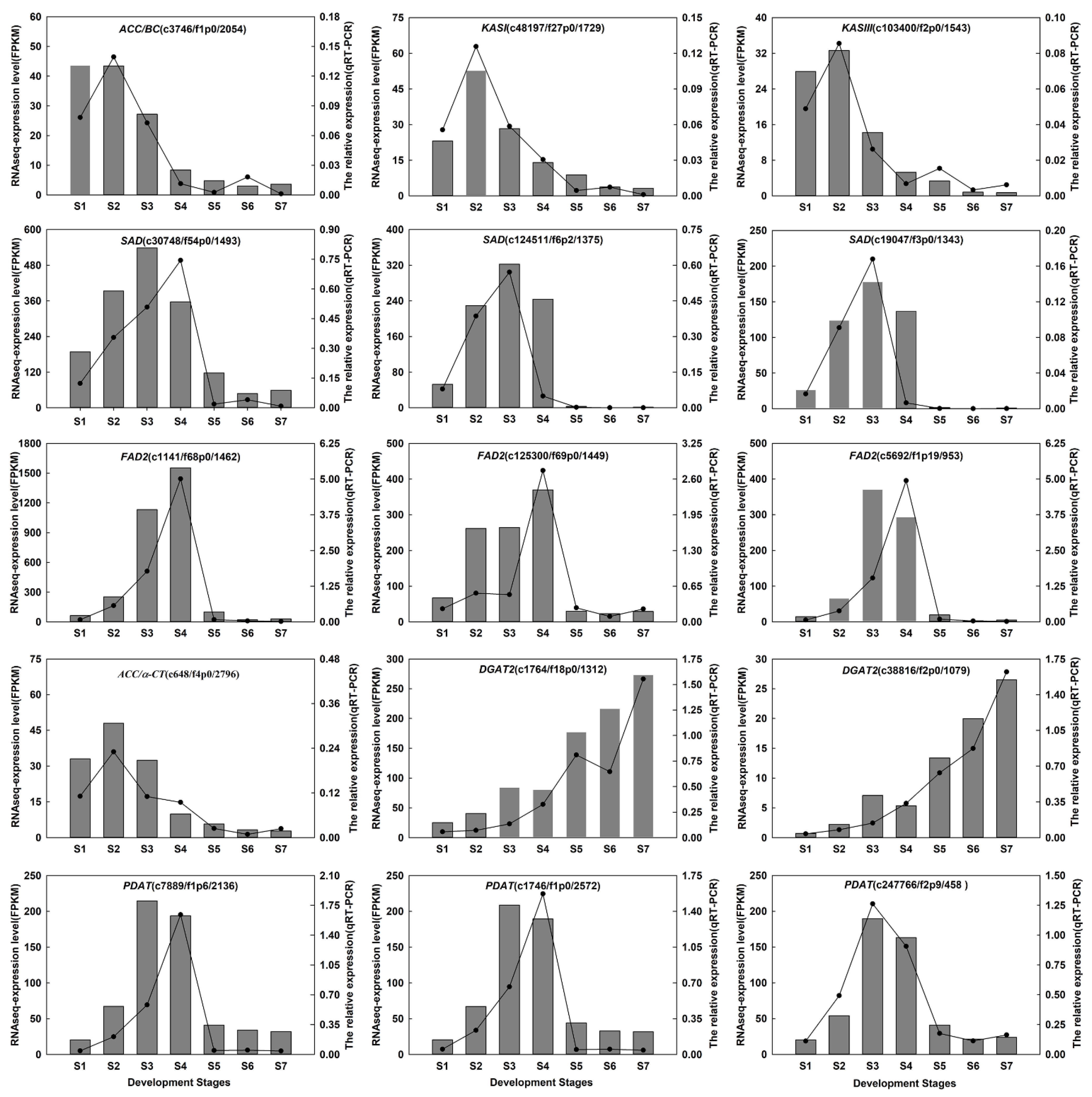

Fifteen genes associated with oil biosynthesis, including ACCase, KAS, SAD, FAD2, FAD7, DGAT2, and PDAT were selected for RT-qPCR validation (Table S10). The results were basically consistent with RNA sequencing (Figure 8), which indicated that the sequencing results were accurate, and the analysis of DEGs in this study was reliable.

3. Materials and Methods

3.1. Plant Materials

Artemisia sphaerocephala seeds were collected in their natural habitat during the seed development period (late August to mid-November 2016) in the Alxa Desert of Inner Mongolia, Northwest China (N: 38°68′, E: 105°61′). Seed pods were harvested in all plant sides, beginning on the 10th day after flowering (DAF) until full maturity, with a ten days interval between each harvest, where finally, seeds from seven different development stages were collected and designated S1 to S7. Seeds from every four plants were uniformly combined to form a single sample, with a total of three repeats. Following the removal of the bran, the seeds (about 40% of the total pods weigh at maturity) were immediately frozen in liquid nitrogen and stored at −80 °C for further use.

3.2. Oil Content Determination and Fatty Acid Analysis

The oil content of the seeds was determined according to the Chinese national standard method (GB 5009.6-2016). Briefly, seeds were oven-dried at 65 °C to constant weight, and then ground into powder. The total oil was extracted from 0.2 g dried powder (W0) at 62.5 °C for 6 h with petroleum ether as a solvent using SZC-C Fat Analyzer (Shanghai Fiber Inspection Instruments Co. Ltd., Shanghai, China). The residue was then dried at 105 °C under vacuum for 2 h and weighed (W1). The oil content was expressed as a percentage of seed oil to dry seed weight, and the calculation formula was as follows: % = (W0 − W1)/W0 × 100%.
Fatty acid methyl esters (FAMEs) were processed, after which its fatty acid composition in oil was analyzed using a GC-MS (6890N-5975C, Agilent Technologies, Santa Clara, CA, USA) equipped with a DB-FFAP chromatography column (30 m × 0.25 mm × 0.5 μm) [42]. Gas chromatography conditions: the carrier gas was high purity helium, purity ≥ 99.999%, the flow rate of the column was 1.00 mL/min. The injector temperature was 200 °C, the shunt ratio was 100:1, and the injection volume was 0.2 μL. The initial temperature of the column temperature was 70 °C, which was heated to 190 °C at 15 °C per minute, maintained for 2 min, and then heated to 230 °C at 5 °C/min and maintained for 12 min. Mass spectrometry conditions: EI ion source, the ion source temperature was 230 °C, GC-MS interface temperature was set at 250 °C, electron energy was 70 eV, and the solvent delay time was 1.5 min. The FAMEs were identified by comparing their peak retention times with those of known standards (Sigma-Aldrich, Shanghai, China), and the FA content was calculated using an area normalization technique.

3.3. RNA Extraction and Assessment

RNA was extracted using the Plant RNA Kit (OMEGA Bio-Tek, Norcross, GA, USA) according to the manufacturer’s instructions. Subsequently, the RNA degradation and contamination were assessed via 1% agarose gel electrophoresis, whereas the RNA purity was quantified using a Nanodrop ND1000 (Thermo Scientific, Waltham, MA, USA) (OD 260/280). The RNA concentration was measured using the Qubit RNA Assay Kit and a Qubit 2.0 Fluorometer (Life Technologies, Carlsbad, CA, USA). Further, the RNA integrity (RIN ≥ 9) was assessed using an Agilent Bioanalyzer 2100 system (Agilent Technologies, Santa Clara, CA, USA).

3.4. Illumina Transcriptome Library Preparation, Sequencing, and Data Analysis

For Illumina sequencing, twenty-one RNAs were enriched with oligo (dT) magnetic beads, and randomly fragmented through the addition of a fragmentation buffer. First-strand cDNA was then synthesized with random hexamers, with fragmented mRNA being employed as a template. Second-strand cDNA was synthesized following the addition of the buffer, dNTPs, RNase H, and DNA polymerase I. The cDNA was subsequently purified with AMPure XP beads. The purified double-stranded cDNA was subjected to end repair, the addition of a poly-A tail, and ligation with sequencing linkers, and the fragment size was selected via AMPure XP beads. Finally, the cDNA library was prepared by PCR-based enrichment. After passing library quality tests, sequencing was performed using an Illumina Hiseq 2500 platform (Illumina, San Diego, CA, USA) with a 150 bp paired-end sequencing length.
Raw data in the fastq format were initially processed using internal Perl scripts. For this step, high-quality clean data were obtained through the removal of adaptor sequences and low-quality reads. Meanwhile, the quality of these clean data was estimated using the content parameters of Q30 and the GC.

3.5. PacBio Iso-Seq Library Construction, Sequencing, and Data Analysis

Equal amounts of total RNA from all 21 samples were equally pooled together to prepare the Iso-Seq library. RNA was reverse-transcribed into cDNA using the SMARTer™ PCR cDNA Synthesis Kit (Clontech Laboratories Inc., Palo Alto, CA, USA). Following the PCR amplification of the enriched cDNA, we performed cDNA fragment screening using the BluePippin Size Selection System protocol and PCR amplification to enrich the full-length cDNA. Subsequently, the synthesized cDNA was subjected to end-repair, ligation with the SMRT dumbbell-shaped linker, and exonuclease digestion to obtain the library. Further, a Qubit 2.0 fluorometer and Agilent 2100 bioanalyzer were employed to confirm accurate quantification and the library size, respectively. Finally, the library was sequenced using the Pacific Biosciences RSII (Pacific Bioscience, Menlo Park, CA, USA) platform to obtain the full-length transcriptome.
Once the sequencing was completed, the raw reads were processed using SMRT Analysis software (version 2.3.0, http://www.pacb.com/products-andservices/analytical-software/smrt-analysis/, accessed on 12 December 2017). The raw polymerase reads were initially partitioned into sub-reads. A circular consensus sequence (CCS) was generated from subread BAM files, parameters: Min passes = 1, Min predicted accuracy = 0.8. Subsequently, CCS reads were classified into full-length non-chimeric (FLNC) reads, full-length chimeric reads, non-full-length reads, and short reads according to the 5′ primer-, 3′ primer-adapters and polyA tail signals; only the CCS reads with all three elements were classified as FLNC. The Iterative Clustering for Error Correction (ICE) method [43] was used to obtain consensus isoforms, and high-quality polished consensus reads were acquired from the original consensus reads corrected with the nFLNC reads.

3.6. Transcriptome Sequence Correction and De-Redundancy

All the isoforms were corrected using Illumina short reads with the Long-Read de Bruijn Graph Error Correction (LoRDEC) tool (http://atgc.lirmm.fr/lordec, accessed on 16 December 2017) [44]. Finally, the redundancies were removed using CD-HIT (version 4.8.1, http://weizhongli-lab.org/cd-hit/, accessed on 16 December 2017) [45] with a sequence similarity of more than 99% to obtain non-redundant high-quality transcripts.

3.7. Functional Annotation and Enrichment Analysis

The DEGs sequences were aligned with the NR, Swiss-Prot, GO, COG, KOG, and KEGG databases, using BLASTX program (http://www.ncbi.nlm.nih.gov/BLAST/, accessed on 20 December 2017) [46] with cutoff E-value ≤ 10−5 to obtain the amino acid sequences of the DEGs. The HMMER software (E-value ≤ 10−10) was compared with the Pfam database to obtain the DEGs annotation information. The GO functional enrichment and KEGG pathway enrichment analyses were implemented via the GOseq R package (version 1.20.0, The Walter and Eliza Hall Institute of Medical Research, Parkville, Australia) on the basis of Wallenius noncentral hypergeometric distribution and KOBAS software (version 2.0, http://kobas.cbi.pku.edu.cn/home.do, accessed on 26 December 2017), respectively [47,48]. GO and KEGG pathways were determined to be over-represented using the Fisher exact test with an adjusted false discovery rate (FDR) correction (FDR ≤ 0.01) [49].

3.8. Quantification of Gene Expression Levels and Identification of DEGs

The expression levels were calculated by RESM (version 1.3.0, http://deweylab.biostat.wisc.edu/rsem/, accessed on 28 December 2017) and normalized by the fragments per kilobase of transcript per million mapped reads (FPKM) values [50]. FDR were used as key indicators for screening DEGs and obtained by correcting the p-value using the Benjamini-Hochberg correction method of hypothesis testing. Differential expression analysis was performed using the DESeq2 R package (version 1.10.1, http://bioconductor.org/packages/stats/bioc/DESeq2/, accessed on 28 December 2017) with a model based on negative binomial distribution [51], with a false discovery rate of ≤ 0.01 and a fold-change ≥ 2 as screening criteria.

3.9. Quantitative Real Time PCR (RT-qPCR) Analysis

The total RNA extraction and assessment were conducted as described in Section 3.3. First-strand cDNA was synthesized using 1 μg total RNA using Prime-ScriptTM RT reagent Kit with gDNA Eraser (Perfect Real Time) (Takara Biotechnology Inc., Dalian, China) following the manufacturer’s protocol. Gene expression levels were determined by RT-qPCR using a SYBR Premix Ex Taq Kit (Takara Biotechnology Inc., Dalian, China) on a QuantStudio 5 Real-Time PCR System (Applied Biosystems, Foster City, CA, USA). The 10 μL RT-qPCR reaction mixtures comprised of 5 μL of SYBR Premix Ex Taq II, 1 μL of cDNA, 0.4 μL of each specific primer, 0.2 μL of ROX Reference Dye II, and 3 μL of DEPC-treated water. The reaction conditions were as follows: 95 °C for 30 s, followed by 40 cycles of 95 °C for 5 s, and then 60 °C for 34 s. The reactions were carried out in triplicate, where UBC9 was employed as the reference gene [52]. The relative expression levels of the genes were calculated using the 2−ΔΔCt method, with the gene primers listed in Table S10.

3.10. Data Analysis

Heatmaps were performed using MEV 4.9 (https://sourceforge.net/projects/mev-tm4/files/mev-tm4/, accessed on 12 July 2020). For phylogenetic analysis, the unrooted phylogenetic tree was constructed using MEGA 7.0 (Arizona State University, Tempe, AZ, USA) with the neighbor joining method, and bootstrap values from 1000 replicates were indicated at each branch. The comparison of amino acid sequences was analyzed using DNAMAN 8.0, and TFs were predicted and classified into different families using the PlantTFDB 5.0 (http://planttfdb.gao-lab.org/, accessed on 1 April 2021). The gene co-expression network was constructed using WGCNA of MBKCloud platform (http://www.biomarker.com.cn/biocloud, accessed on 14 April 2021), the network diagram was drawn by Cytoscape 3.8.0 (https://cytoscape.org/, accessed on 18 April 2021), and the hub genes were identified according to the Degree Centrality algorithm of the plug-in CentiScaPe (version 2.2, Cytoscape App Store-CentiScaPe) in Cytoscape.
Data were subjected to one-way analysis of variance (ANOVA) using SPSS 17.0 (SPSS Inc, Chicago, IL, USA). Duncan’s multiple range tests were employed to determine differences at a significance level of p < 0.01.

4. Conclusions

In summary, the content of seed oil in A. sphaerocephala continuously increased from 10.1% to 32.0% with seed development and showed the highest accumulation from 10 days to 20 days after flowering. The high expression of FA de novo biosynthesis-related genes, encompassed ACCase, MAT, KAS, KAR, EAR, HAD, and TAG biosynthesis-related genes, including GPAT, LPAT, LPCAT, PLA2 during S1~S2, which was crucial for the rapid accumulation of oil in the early seed development stages. The relatively high expression of KASII in S1~S2 and the rapid decrease of FATB resulted in the 18C FA content as high as 92.4% at this stage. The high expression of FAD2 and low expressions of FAD3 resulted in C18:2 accounting for 80.6% of the total FAs. Furthermore, PDAT and DGAT concurrently regulated the biosynthesis of TAG in A. sphaerocephala seeds. WGCNA showed that transcription factors FUS3 and bHLH played a crucial role in the oil biosynthesis of A. sphaerocephala seeds. This study revealed the molecular regulatory mechanisms of the oil accumulation process in A. sphaerocephala seeds, while providing abundant genetic resources for the molecular breeding of oil crops.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22168369/s1.

Author Contributions

Conceptualization, L.Z. and H.F.; Formal analysis, S.N.; Investigation, S.N.; Validation, X.H. (Xiaowei Hu), X.M. and X.H. (Xiaoxu Han); Supervision, H.F.; Funding acquisition, L.Z. and H.F.; Writing—original draft, S.N.; Writing—review & editing, S.N. and L.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Basic Research Program of China (2014CB138703); National Natural Science Foundation of China (31770763); 111 Project (B12002); National Key R&D Program of China (2016YFC0500506); the Program for Chang Jiang Scholars and Innovative Research Team in University (IRT-17R50); and the Fundamental Research Funds for the Central Universities (lzujbky-2017-54).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Raw sequence data from this study have been deposited in the NCBI Short Read Archive database (SRA) (https://www.ncbi.nlm.nih.gov/sra/, accessed on 19 June 2020) under accession number PRJNA638527.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ACCaseacetyl-CoA carboxylase
BCbiotin carboxylase
BCCPbiotin carboxyl carrier protein
α/β-CTα/β-carboxyltransferase
ACPacyl carrier protein
MATmalonyl-CoA ACP S-malonytransferase
KAS3-ketoacyl-ACP synthase
KAR3-ketoacyl-ACP reductase
HAD3-hydroxyacyl-ACP dehydratase
EARenoyl-ACP reductase
SADstearoyl-ACP desaturase
FATfatty acyl-ACP thioesterase
LACSlong chain acyl-CoA
GPATglycerol-3-phosphate acyltransferase
PDATphospholipid: diacylglycerol acyltransferase
LPAT1ysophosphatidic acid acyltransferase
DGATacyl-CoA: diacylglycerol acyltransferase
PDCTphosphatidylcholine:diacylglycerol cholinephosphotransferase
CPTdiacylglycerol cholinephosphotransferas
LPCATlysophosphatidylcholine acyltransferase
PLA2phospholipase A2
PAPphosphate phosphatase
FAD2omega-6 desaturase
FAD3omega-3 desaturase
G-3-PGlycerol-3-phosphate
LPALyso-phosphatidic acid
PAPhosphatidic acid
PCphosphatidylcholine
LPClysophosphatidylcholine
DAG1,2-Diacylglycerol
TAGTriacylglycerol
FAfatty acid
C16:0palmitic acid
C18:0stearic acid
C18:1oleic acid
C18:2linoleic acid
C18:3linolenic acid
C20:0arachidic acid
C22:0behenic acid
CLAconjugated linoleic acid
UFAsunsaturated fatty acid
SFAsSaturated fatty acid
WRI1WRINKLED1
FUS3FUSCA3
ABI3ABSCISIC ACID INSENSITIVE 3
LEC1LEAFY COTYLEDON1

References

  1. Kaur, N.; Chugh, V.; Gupta, A.K. Essential fatty acids as functional components of foods-a review. J. Food Sci. Technol. 2014, 51, 2289–2303. [Google Scholar] [CrossRef] [Green Version]
  2. Den Hartigh, L.J. Conjugated linoleic acid effects on cancer, obesity, and atherosclerosis: A review of pre-clinical and human trials with current perspectives. Nutrients 2019, 11, 370. [Google Scholar] [CrossRef] [Green Version]
  3. Goettel, W.; Xia, E.; Upchurch, R.; Wang, M.L.; Chen, P.; An, Y.Q.C. Identification and characterization of transcript polymorphisms in soybean lines varying in oil composition and content. BMC Genomics 2014, 15, 299. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Wan, H.F.; Cui, Y.X.; Ding, Y.J.; Mei, J.Q.; Dong, H.L.; Zhang, W.X.; Wu, S.Q.; Liang, Y.; Zhang, C.Y.; Li, J.N.; et al. Time-series analyses of transcriptomes and proteomes reveal molecular networks underlying oil accumulation in Canola. Front. Plant Sci. 2017, 7, 2007. [Google Scholar] [CrossRef] [Green Version]
  5. Huang, R.M.; Zhou, Y.; Zhang, J.P.; Ji, F.Y.; Jin, F.; Fan, W.; Pei, D. Transcriptome analysis of Walnut (Juglans regia L.) embryos reveals key developmental stages and genes involved in lipid biosynthesis and polyunsaturated fatty acid metabolism. J. Agric. Food Chem. 2021, 69, 377–396. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, H.; Li, H.F.; Gu, J.Z.; Deng, L.; Ren, L.; Hong, Y.B.; Lu, Q.; Chen, X.P.; Liang, X.Q. Identification of the candidate proteins related to oleic acid accumulation during Peanut (Arachis hypogaea L.) seed development through comparative proteome analysis. Int. J. Mol. Sci. 2018, 19, 1235. [Google Scholar] [CrossRef] [Green Version]
  7. Zhao, Y.P.; Wang, Y.M.; Huang, Y.; Cui, Y.P.; Hua, J.P. Gene network of oil accumulation reveals expression profiles in developing embryos and fatty acid composition in Upland cotton. J. Plant Physiol. 2018, 228, 101–112. [Google Scholar] [CrossRef] [PubMed]
  8. Bates, P.D.; Stymne, S.; Ohlrogge, J. Biochemical pathways in seed oil synthesis. Curr. Opin. Plant Biol. 2013, 16, 358–364. [Google Scholar] [CrossRef] [Green Version]
  9. Li-Beisson, Y.; Shorrosh, B.; Beisson, F.; Andersson, M.X.; Arondel, V.; Bates, P.D.; Baud, S.; Bird, D.; Debono, A.; Durrett, T.P.; et al. Acyl-lipid metabolism. Arab. Book 2013, 11, e0161. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Okuley, J.; Lightner, J.; Feldmann, K.; Yadav, N.; Lark, E.; Browse, J. Arabidopsis FAD2 gene encodes the enzyme that is essential for polyunsaturated lipid-synthesis. Plant Cell 1994, 6, 147–158. [Google Scholar] [CrossRef]
  11. Arondel, V.; Lemieux, B.; Hwang, I.; Gibson, S.; Goodman, H.M.; Somerville, C.R. Map-based cloning of a gene controlling omega-3-fatty-acid desaturation in Arabidopsis. Science 1992, 258, 1353–1355. [Google Scholar] [CrossRef] [PubMed]
  12. Niu, J.; An, J.Y.; Wang, L.B.; Fang, C.L.; Ha, D.L.; Fu, C.Y.; Qiu, L.; Yu, H.Y.; Zhao, H.Y.; Hou, X.Y.; et al. Transcriptomic analysis revealed the mechanism of oil dynamic accumulation during developing Siberian apricot (Prunus sibirica L.) seed kernels for the development of woody biodiesel. Biotechnol. Biofuels 2015, 8, 29. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Huang, J.Q.; Zhang, T.; Zhang, Q.X.; Chen, M.; Wang, Z.J.; Zheng, B.S.; Xia, G.H.; Yang, X.Y.; Huang, C.Y.; Huang, Y.J. The mechanism of high contents of oil and oleic acid revealed by transcriptomic and lipidomic analysis during embryogenesis in Carya cathayensis Sarg. BMC Genomics 2016, 17, 113. [Google Scholar] [CrossRef] [Green Version]
  14. Lin, P.; Wang, K.L.; Zhou, C.F.; Xie, Y.H.; Yao, X.H.; Yin, H.F. Seed transcriptomics analysis in Camellia oleifera uncovers genes associated with oil content and fatty acid composition. Int. J. Mol. Sci. 2018, 19, 118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Li, S.S.; Wang, L.S.; Shu, Q.Y.; Wu, J.; Chen, L.G.; Shao, S.; Yin, D.D. Fatty acid composition of developing tree peony (Paeonia section Moutan DC.) seeds and transcriptome analysis during seed development. BMC Genomics 2015, 16, 208. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Kim, H.U.; Lee, K.R.; Shim, D.; Lee, J.H.; Chen, G.Q.; Hwang, S. Transcriptome analysis and identification of genes associated with omega-3 fatty acid biosynthesis in Perilla frutescens (L.) var. frutescens. BMC Genomics 2016, 17, 474. [Google Scholar] [CrossRef] [Green Version]
  17. Correa, S.M.; Fernie, A.R.; Nikoloski, Z.; Brotman, Y. Towards model-driven characterization and manipulation of plant lipid metabolism. Prog. Lipid Res. 2020, 80, 101051. [Google Scholar] [CrossRef]
  18. Troncoso-Ponce, M.A.; Kilaru, A.; Cao, X.; Durrett, T.P.; Fan, J.; Jensen, J.K.; Thrower, N.A.; Pauly, M.; Wilkerson, C.; Ohlrogge, J.B. Comparative deep transcriptional profiling of four developing oilseeds. Plant J. 2011, 68, 1014–1027. [Google Scholar] [CrossRef] [Green Version]
  19. Tang, M.; Guschina, I.A.; O′Hara, P.; Slabas, A.R.; Quant, P.A.; Fawcett, T.; Harwood, J.L. Metabolic control analysis of developing oilseed rape (Brassica napus cv. Westar) embryos shows that lipid assembly exerts significant control over oil accumulation. New Phytol. 2012, 196, 414–426. [Google Scholar] [CrossRef] [Green Version]
  20. Woodfield, H.K.; Cazenave-Gassiot, A.; Haslam, R.P.; Guschina, I.A.; Wenk, M.R.; Harwood, J.L. Using lipidomics to reveal details of lipid accumulation in developing seeds from oilseed rape (Brassica napus L.). BBA Mol. Cell Biol. Lipids 2018, 1863, 339–348. [Google Scholar] [CrossRef] [PubMed]
  21. Bates, P.D.; Browse, J. The pathway of triacylglycerol synthesis through phosphatidylcholine in Arabidopsis produces a bottleneck for the accumulation of unusual fatty acids in transgenic seeds. Plant J. 2011, 68, 387–399. [Google Scholar] [CrossRef]
  22. Bates, P.D.; Browse, J. The significance of different diacylgycerol synthesis pathways on plant oil composition and bioengineering. Front. Plant Sci. 2012, 3, 147. [Google Scholar] [CrossRef] [Green Version]
  23. Baud, S.; Lepiniec, L. Physiological and developmental regulation of seed oil production. Prog. Lipid Res. 2010, 49, 235–249. [Google Scholar] [CrossRef]
  24. Zafar, S.; Li, Y.L.; Li, N.N.; Zhu, K.M.; Tan, X.L. Recent advances in enhancement of oil content in oilseed crops. J. Biotechnol. 2019, 301, 35–44. [Google Scholar] [CrossRef]
  25. Editorial Board of the Flora of China of Chinese Academy of Sciences. Flora of China; Science Press: Beijing, Chain, 1991; Volume 76, pp. 195–197. [Google Scholar]
  26. Han, X.X.; Zhang, L.J.; Miao, X.M.; Hu, X.W.; Nan, S.Z.; Fu, H. Transcriptome analysis reveals the molecular mechanisms of mucilage biosynthesis during Artemisia sphaerocephala seed development. Ind. Crop. Prod. 2020, 145, 111991. [Google Scholar] [CrossRef]
  27. Yang, X.J.; Baskin, J.M.; Baskin, C.C.; Huang, Z.Y. More than just a coating: Ecological importance.; taxonomic occurrence and phylogenetic relationships of seed coat mucilage. Perspect. Plant Ecol. Evol. Syst. 2012, 14, 434–442. [Google Scholar] [CrossRef]
  28. Kakar, M.U.; Kakar, I.U.; Mehboob, M.Z.; Zada, S.; Soomro, H.; Umair, M.; Iqbal, I.; Umer, M.; Shaheen, S.; Syed, S.F.; et al. A review on polysaccharides from Artemisia sphaerocephala Krasch seeds, their extraction, modification, structure and applications. Carbohyd. Polym. 2021, 252, 117113. [Google Scholar] [CrossRef] [PubMed]
  29. Han, X.X.; Zhang, L.J.; Niu, D.C.; Nan, S.Z.; Miao, X.M.; Hu, X.W.; Li, C.S.; Fu, H. Transcriptome and co-expression network analysis reveal molecular mechanisms of mucilage formation during seed development in Artemisia sphaerocephala. Carbohyd. Polym. 2021, 251, 117044. [Google Scholar] [CrossRef] [PubMed]
  30. Fu, H.; Wang, J.L.; Wang, Z.Q.; Chen, L.P. Fatty acid and amino acid compositions of Artemisia sphaerocephala seed and its influence on mouse hyperlipidemia. Chem. Nat. Compd. 2011, 47, 675–678. [Google Scholar] [CrossRef]
  31. Zhang, L.J.; Hu, X.W.; Miao, X.M.; Chen, X.L.; Nan, S.Z.; Fu, H. Genome-scale transcriptome analysis of the desert shrub Artemisia sphaerocephala. PLoS ONE 2016, 11, e0154300. [Google Scholar] [CrossRef] [Green Version]
  32. Hymowitz, T.J.; Dudley, J.W.; Collins, F.I.; Brown, C.M. Estimations of protein and oil concentration in corn.; soybean.; and oat seed by near-infrared light reflectance1. Crop Sci. 1974, 14, 713. [Google Scholar] [CrossRef]
  33. Uzun, B.; Arslan, C.; Furat, S. Variation in fatty acid compositions.; oil content and oil yield in a germplasm collection of Sesame (Sesamum indicum L.). J. Am. Oil Chem. Soc. 2008, 85, 1135–1142. [Google Scholar] [CrossRef]
  34. Liu, Q.; Sun, Y.P.; Chen, J.Z.; Li, P.W.; Li, C.Z.; Niu, G.H.; Jiang, L.J. Transcriptome analysis revealed the dynamic oil accumulation in Symplocos paniculata fruit. BMC Genomics 2016, 17, 929. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Banas, W.; Sanchez Garcia, A.; Banas, A.; Stymne, S. Activities of acyl-CoA:diacylglycerol acyltransferase (DGAT) and phospholipid:diacylglycerol acyltransferase (PDAT) in microsomal preparations of developing sunflower and safflower seeds. Planta 2013, 237, 1627–1636. [Google Scholar] [CrossRef] [Green Version]
  36. Ding, M.Z.; Lou, H.Q.; Chen, W.C.; Zhou, Y.; Zhang, Z.H.; Xiao, M.H.; Wang, Z.Q.; Yang, Y.; Yang, L.; Zhang, F.C.; et al. Comparative transcriptome analysis of the genes involved in lipid biosynthesis pathway and regulation of oil body formation in Torreya grandis kernels. Ind. Crop. Prod. 2020, 145, 112051. [Google Scholar] [CrossRef]
  37. Liao, B.N.; Hao, Y.J.; Lu, J.X.; Bai, H.Y.; Guan, L.; Zhang, T. Transcriptomic analysis of Perilla frutescens seed to insight into the biosynthesis and metabolic of unsaturated fatty acids. BMC Genomics 2018, 19, 213. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Wu, Q.K.; Cao, Y.Y.; Chen, C.; Gao, Z.Z.; Yu, F.Y.; Guy, R.D. Transcriptome analysis of metabolic pathways associated with oil accumulation in Developing seed kernels of Styrax tonkinensis, a woody biodiesel species. BMC Plant Biol. 2020, 20, 121. [Google Scholar] [CrossRef] [Green Version]
  39. Niu, Y.; Wu, L.M.; Li, Y.H.; Huang, H.L.; Qian, M.C.; Sun, W.; Zhu, H.; Xu, Y.F.; Fan, Y.H.; Mahmood, U.; et al. Deciphering the transcriptional regulatory networks that control size, color, and oil content in Brassica rapa seeds. Biotechnol. Biofuels 2020, 13, 90. [Google Scholar] [CrossRef]
  40. Gong, W.F.; Song, Q.L.; Ji, K.; Gong, S.F.; Wang, L.K.; Chen, L.; Zhang, J.; Yuan, D.Y. Full-length transcriptome from Camellia oleifera seed provides insight into the transcript variants involved in oil biosynthesis. J. Agric. Food Chem. 2020, 68, 14670–14683. [Google Scholar] [CrossRef]
  41. Ge, Y.; Dong, X.S.; Liu, Y.Z.; Yang, Y.; Zhan, R.L. Molecular and biochemical analyses of avocado (Persea americana) reveal differences in the oil accumulation pattern between the mesocarp and seed during the fruit developmental period. Sci. Hortic. 2021, 276, 109717. [Google Scholar] [CrossRef]
  42. Mao, Z.X.; Fu, H.; Nan, Z.B.; Wang, J.; Wan, C.G. Fatty acid content of common vetch (Vicia sativa L.) in different regions of Northwest China. Biochem. Syst. Ecol. 2012, 44, 347–351. [Google Scholar] [CrossRef]
  43. Eid, J.; Fehr, A.; Gray, J.; Luong, K.; Lyle, J.; Otto, G.; Peluso, P.; Rank, D.; Baybayan, P.; Bettman, B.; et al. Real-time DNA sequencing from single polymerase molecules. Science 2009, 323, 133–138. [Google Scholar] [CrossRef] [PubMed]
  44. Salmela, L.; Rivals, E. LoRDEC: Accurate and efficient long read error. Bioinformatics 2014, 30, 3506–3514. [Google Scholar] [CrossRef]
  45. Fu, L.M.; Niu, B.F.; Zhu, Z.W.; Wu, S.T.; Li, W.Z. CD-HIT: Accelerated for clustering the next-generation sequencing data. Bioinformatics 2012, 28, 3150–3152. [Google Scholar] [CrossRef] [PubMed]
  46. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [Green Version]
  47. Xie, C.; Mao, X.; Huang, J.; Ding, Y.; Wu, J.; Dong, S.; Kong, L.; Gao, G.; Li, C.Y.; Wei, L. KOBAS 2.0: A web server for annotation and identification of enriched pathways and diseases. Nucleic Acids Res. 2011, 39, W316–W322. [Google Scholar] [CrossRef] [Green Version]
  48. Young, M.D.; Wakefield, M.J.; Smyth, G.K.; Oshlack, A. Gene ontology analysis for RNA-seq: Accounting for selection bias. Genome Biol. 2010, 11, R14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Zhang, Y.T.; Ntagkas, N.; Fanourakis, D.; Tsaniklidis, G.; Zhao, J.T.; Cheng, R.F.; Yang, Q.C.; Li, T. The role of light intensity in mediating ascorbic acid content during postharvest tomato ripening: A transcriptomic analysis. Postharvest Biol. Technol. 2021, 180, 111622. [Google Scholar] [CrossRef]
  50. Li, B.; Dewey, C.N. RSEM: Accurate transcript quantification from RNA-Seq data with or without a reference genome. BMC Bioinf. 2011, 12, 323. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Genome Biol. 2010, 11, R106. [Google Scholar] [CrossRef] [Green Version]
  52. Hu, X.W.; Zhang, L.J.; Nan, S.Z.; Miao, X.M.; Yang, P.F.; Duan, G.Q.; Fu, H. Selection and validation of reference genes for quantitative real-time PCR in Artemisia sphaerocephala based on transcriptome sequence data. Gene 2018, 657, 39–49. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 08369 g001 550
Figure 1. Morphological characteristics and oil content during seed development stages. (A) morphological characteristics; (B) thousand seed weight; (C) water content; (D) oil content; and (E) increment of oil accumulation. Note: S1~S7 represent 10, 20, 30, 40, 50, 60, and 70 days after flowering, respectively. The upper row represents the pods, and the lower row represents the seeds. Increment of oil accumulation = difference in oil content of two adjacent stages. Different lowercase letters indicate significant differences at p < 0.01.
Figure 1. Morphological characteristics and oil content during seed development stages. (A) morphological characteristics; (B) thousand seed weight; (C) water content; (D) oil content; and (E) increment of oil accumulation. Note: S1~S7 represent 10, 20, 30, 40, 50, 60, and 70 days after flowering, respectively. The upper row represents the pods, and the lower row represents the seeds. Increment of oil accumulation = difference in oil content of two adjacent stages. Different lowercase letters indicate significant differences at p < 0.01.
Ijms 22 08369 g001
Ijms 22 08369 g002 550

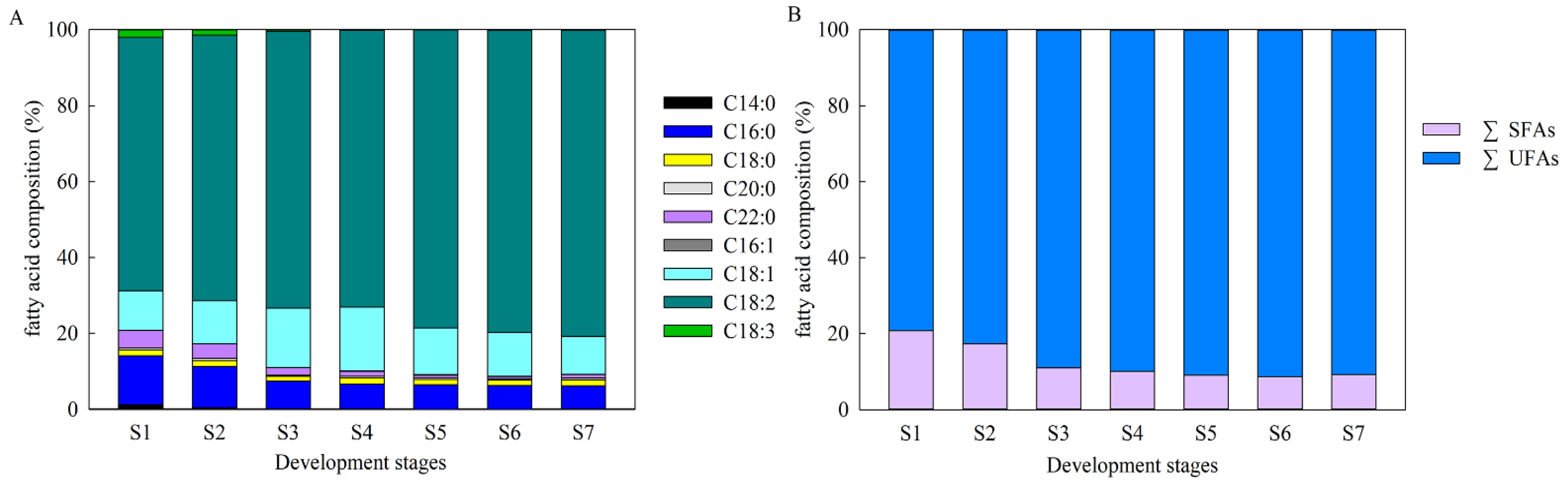

Figure 2. FA composition and content at different A. sphaerocephala seeds developmental stages (%, w/w). (A) Changs in the FA composition during S1~S7; and (B) Changs in the SFAs and UFAs during S1~S7.
Figure 2. FA composition and content at different A. sphaerocephala seeds developmental stages (%, w/w). (A) Changs in the FA composition during S1~S7; and (B) Changs in the SFAs and UFAs during S1~S7.
Ijms 22 08369 g002
Ijms 22 08369 g003 550
Figure 3. Metabolic pathways and gene expression patterns of oil accumulation during seed development of A. sphaerocephala. Note: The seven colored boxes in each horizontal row correspond to the seven developmental stages. The expression level of each gene in the heatmap is the sum of the FPKM of all DEGs encoding the enzyme. The color scale indicates the expression levels (represented by the log2FPKM) of genes. The dotted line represents acyl flux, the green line represents the Kennedy pathway (acyl-CoA dependent pathway), the purple line represents the acyl-CoA independent pathway, the orange line represents acyl editing, and the blue represents PC-derived DAG synthesis, DAG (1) represents the DAG in the de novo biosynthesis, and DAG (2) represents the DAG derived from the PC. Abbreviations: ACCase, acetyl-CoA carboxylase; BC, biotin carboxylase; BCCP, biotin carboxyl carrier protein; α-CT, α-carboxyltransferase; β-CT, β-carboxyltransferase; ACP, acyl carrier protein; MAT, malonyl-CoA ACP S-malonytransferase; KAS, 3-ketoacyl-ACP synthase; KAR, 3-oxoacyl-ACP reductase; HAD, 3-hydroxyacyl-ACP dehydratase; EAR, enoyl-ACP reductase; SAD, stearoyl-ACP desaturase; FAT, fatty acyl-ACP thioesterase; LACS, long chain acyl-CoA; GPAT, glycerol-3-phosphate acyltransferase; PDAT, phospholipid: diacylglycerol acyltransferase; LPAT, 1ysophosphatidic acid acyltransferase; DGAT, acyl-CoA: diacylglycerol acyltransferase; PDCT, phosphatidylcholine:diacylglycerol cholinephosphotransferase; CPT, diacylglycerol cholinephosphotransferas; LPCAT, lysophosphatidylcholine acyltransferase; PLA2, phospholipase A2; PAP, phosphate phosphatase; FAD2, omega-6 desaturase; FAD3, omega-3 desaturase; G-3-P, Glycerol-3-phosphate; LPA, Lyso-phosphatidic acid; PA, Phosphatidic acid; PC, phosphatidylcholine; LPC, lysophosphatidylcholine; DAG, 1,2-Diacylglycerol; TAG, Triacylglycerol.
Figure 3. Metabolic pathways and gene expression patterns of oil accumulation during seed development of A. sphaerocephala. Note: The seven colored boxes in each horizontal row correspond to the seven developmental stages. The expression level of each gene in the heatmap is the sum of the FPKM of all DEGs encoding the enzyme. The color scale indicates the expression levels (represented by the log2FPKM) of genes. The dotted line represents acyl flux, the green line represents the Kennedy pathway (acyl-CoA dependent pathway), the purple line represents the acyl-CoA independent pathway, the orange line represents acyl editing, and the blue represents PC-derived DAG synthesis, DAG (1) represents the DAG in the de novo biosynthesis, and DAG (2) represents the DAG derived from the PC. Abbreviations: ACCase, acetyl-CoA carboxylase; BC, biotin carboxylase; BCCP, biotin carboxyl carrier protein; α-CT, α-carboxyltransferase; β-CT, β-carboxyltransferase; ACP, acyl carrier protein; MAT, malonyl-CoA ACP S-malonytransferase; KAS, 3-ketoacyl-ACP synthase; KAR, 3-oxoacyl-ACP reductase; HAD, 3-hydroxyacyl-ACP dehydratase; EAR, enoyl-ACP reductase; SAD, stearoyl-ACP desaturase; FAT, fatty acyl-ACP thioesterase; LACS, long chain acyl-CoA; GPAT, glycerol-3-phosphate acyltransferase; PDAT, phospholipid: diacylglycerol acyltransferase; LPAT, 1ysophosphatidic acid acyltransferase; DGAT, acyl-CoA: diacylglycerol acyltransferase; PDCT, phosphatidylcholine:diacylglycerol cholinephosphotransferase; CPT, diacylglycerol cholinephosphotransferas; LPCAT, lysophosphatidylcholine acyltransferase; PLA2, phospholipase A2; PAP, phosphate phosphatase; FAD2, omega-6 desaturase; FAD3, omega-3 desaturase; G-3-P, Glycerol-3-phosphate; LPA, Lyso-phosphatidic acid; PA, Phosphatidic acid; PC, phosphatidylcholine; LPC, lysophosphatidylcholine; DAG, 1,2-Diacylglycerol; TAG, Triacylglycerol.
Ijms 22 08369 g003
Ijms 22 08369 g004 550
Figure 4. Gene expression analysis of fatty acid (FA) de novo biosynthesis pathway. Gene expression patterns of ACCases/α-CT (A), ACCases/BC (B), ACCases/BCCP (C), MAT (D), HAD (E), KAR (F), EAR (G), KASI (H), KASII (I), FATB (J), SAD (K), and FATA (L) in developing A. sphaerocephala seeds.
Figure 4. Gene expression analysis of fatty acid (FA) de novo biosynthesis pathway. Gene expression patterns of ACCases/α-CT (A), ACCases/BC (B), ACCases/BCCP (C), MAT (D), HAD (E), KAR (F), EAR (G), KASI (H), KASII (I), FATB (J), SAD (K), and FATA (L) in developing A. sphaerocephala seeds.
Ijms 22 08369 g004
Ijms 22 08369 g005 550
Figure 5. Analysis of gene expression related to triacylglycerols (TAG) biosynthesis pathway. Gene expression patterns of GPAT (A), LPAT (B), DGAT (C), PDAT (D), LPCAT (E), and PLA2 (F) during A. sphaerocephala seed development. Note: The red in (C) indicates DGAT1.
Figure 5. Analysis of gene expression related to triacylglycerols (TAG) biosynthesis pathway. Gene expression patterns of GPAT (A), LPAT (B), DGAT (C), PDAT (D), LPCAT (E), and PLA2 (F) during A. sphaerocephala seed development. Note: The red in (C) indicates DGAT1.
Ijms 22 08369 g005
Ijms 22 08369 g006 550
Figure 6. Analysis of gene expression related to FA desaturation pathway in ER. (A) Gene expression patterns of thirty-five DEGs encoding FAD2; (B) Gene expression patterns of the other thirty-one FAD2s genes, except for four FAD2s with the highest expression levels (blue boxes); (C) Gene expression patterns of seven FAD3.
Figure 6. Analysis of gene expression related to FA desaturation pathway in ER. (A) Gene expression patterns of thirty-five DEGs encoding FAD2; (B) Gene expression patterns of the other thirty-one FAD2s genes, except for four FAD2s with the highest expression levels (blue boxes); (C) Gene expression patterns of seven FAD3.
Ijms 22 08369 g006
Ijms 22 08369 g007 550
Figure 7. Weighted gene co-expression network analysis (WGCNA) of genes during the seed development process. (A) Gene co-expression modules detected by WGCNA. The clustering dendrogram of the genes across all the samples exhibits dissimilarity based on topological overlap, together with the original module colors (dynamic tree cut) and assigned merged module colors (merged dynamic). (B) Module-trait relationships using WGCNA. Each column corresponds a specific stage and each row corresponds to a module eigengene. Each cell contains the corresponding correlation (top number) and p-value (bottom number). (C) Co-expression network between TFs and oil biosynthesis-related genes in black module. Red points represented hub genes. (D) Primary co-expression network for hub genes for FUS3 (c97806/f1p0/1418) and bHLH (c61080/f1p1/1304). Blue points represent gene, yellow points represent TF. The edge width represents the weight value between the two nodes: the higher the value of the weight between the nodes, the wider the edge.
Figure 7. Weighted gene co-expression network analysis (WGCNA) of genes during the seed development process. (A) Gene co-expression modules detected by WGCNA. The clustering dendrogram of the genes across all the samples exhibits dissimilarity based on topological overlap, together with the original module colors (dynamic tree cut) and assigned merged module colors (merged dynamic). (B) Module-trait relationships using WGCNA. Each column corresponds a specific stage and each row corresponds to a module eigengene. Each cell contains the corresponding correlation (top number) and p-value (bottom number). (C) Co-expression network between TFs and oil biosynthesis-related genes in black module. Red points represented hub genes. (D) Primary co-expression network for hub genes for FUS3 (c97806/f1p0/1418) and bHLH (c61080/f1p1/1304). Blue points represent gene, yellow points represent TF. The edge width represents the weight value between the two nodes: the higher the value of the weight between the nodes, the wider the edge.
Ijms 22 08369 g007
Ijms 22 08369 g008 550
Figure 8. qPCR validation of fifteen candidate genes associated with oil biosynthesis during A. sphaerocephala seed development.
Figure 8. qPCR validation of fifteen candidate genes associated with oil biosynthesis during A. sphaerocephala seed development.
Ijms 22 08369 g008
Table
Table 1. Pathways and numbers of genes associated with classification of lipid metabolism.
Table 1. Pathways and numbers of genes associated with classification of lipid metabolism.
DetabasePathway LevelNumber (Percentage (%))
KEGG 21,525 (25.55%)
metabolism 9823 (45.64%)
Lipid metabolism 856 (8.71%)
Glycerolipid metabolism149
Glycerophospholipid metabolism168
Sphingolipid metabolism48
Steroid biosynthesis78
Ether lipid metabolism39
Synthesis and degradation of ketone bodies25
Fatty acid biosynthesis137
Biosynthesis of unsaturated fatty acids293
Arachidonic acid metabolism52
alpha-Linolenic acid metabolism46
Linoleic acid metabolism1
Note: Number represents the number of genes annotated to the database or metabolic pathway, and the percentage in parentheses represents that the percentage of this genes number in metabolic pathway level to the genes number annotated to the upper-level pathway.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nan, S.; Zhang, L.; Hu, X.; Miao, X.; Han, X.; Fu, H. Transcriptomic Analysis Reveals Key Genes Involved in Oil and Linoleic Acid Biosynthesis during Artemisia sphaerocephala Seed Development. Int. J. Mol. Sci. 2021, 22, 8369. https://doi.org/10.3390/ijms22168369

AMA Style

Nan S, Zhang L, Hu X, Miao X, Han X, Fu H. Transcriptomic Analysis Reveals Key Genes Involved in Oil and Linoleic Acid Biosynthesis during Artemisia sphaerocephala Seed Development. International Journal of Molecular Sciences. 2021; 22(16):8369. https://doi.org/10.3390/ijms22168369

Chicago/Turabian Style

Nan, Shuzhen, Lijing Zhang, Xiaowei Hu, Xiumei Miao, Xiaoxu Han, and Hua Fu. 2021. "Transcriptomic Analysis Reveals Key Genes Involved in Oil and Linoleic Acid Biosynthesis during Artemisia sphaerocephala Seed Development" International Journal of Molecular Sciences 22, no. 16: 8369. https://doi.org/10.3390/ijms22168369

APA Style

Nan, S., Zhang, L., Hu, X., Miao, X., Han, X., & Fu, H. (2021). Transcriptomic Analysis Reveals Key Genes Involved in Oil and Linoleic Acid Biosynthesis during Artemisia sphaerocephala Seed Development. International Journal of Molecular Sciences, 22(16), 8369. https://doi.org/10.3390/ijms22168369

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
