R2R3-MYB Transcription Factor SmMYB52 Positively Regulates Biosynthesis of Salvianolic Acid B and Inhibits Root Growth in Salvia miltiorrhiza

by
Rao Yang
1,
Shengsong Wang
1,
Haolan Zou
1,
Lin Li
1,
Yonghui Li
2,
Donghao Wang
1,
Hongxing Xu
1,* and
Xiaoyan Cao
1,*
1
Key Laboratory of the Ministry of Education for Medicinal Resources and Natural Pharmaceutical Chemistry, National Engineering Laboratory for Resource Development of Endangered Crude Drugs in Northwest of China, Shaanxi Normal University, Xi’an 710062, China
2
College of Life Science, Luoyang Normal University, Luoyang 471934, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(17), 9538; https://doi.org/10.3390/ijms22179538
Submission received: 19 July 2021 / Revised: 29 August 2021 / Accepted: 30 August 2021 / Published: 2 September 2021
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Versions Notes

Abstract

:
The dried root of Salvia miltiorrhiza is a renowned traditional Chinese medicine that was used for over 1000 years in China. Salvianolic acid B (SalB) is the main natural bioactive product of S. miltiorrhiza. Although many publications described the regulation mechanism of SalB biosynthesis, few reports simultaneously focused on S. miltiorrhiza root development. For this study, an R2R3-MYB transcription factor gene (SmMYB52) was overexpressed and silenced, respectively, in S. miltiorrhiza sterile seedlings. We found that SmMYB52 significantly inhibited root growth and indole-3-acetic acid (IAA) accumulation, whereas it activated phenolic acid biosynthesis and the jasmonate acid (JA) signaling pathway. Quantitative real-time polymerase chain reaction (qRT-PCR) analyses revealed that SmMYB52 suppressed the transcription levels of key enzyme-encoding genes involved in the IAA biosynthetic pathway and activated key enzyme-encoding genes involved in the JA and phenolic acid biosynthesis pathways. In addition, yeast one-hybrid (Y1H) and dual-luciferase assay showed that SmMYB52 directly binds to and activates the promoters of several key enzyme genes for SalB biosynthesis, including SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1, to promote the accumulation of SalB. This is the first report of a regulator that simultaneously affects root growth and the production of phenolic acids in S. miltiorrhiza.

1. Introduction

The rhizome of Salvia miltiorrhiza, referred to as Danshen in Chinese traditional medicine, contains hydrophilic phenolic acids and lipophilic tanshinones, which are major bioactive constituents that were well-studied over the last few years [1]. Phenolic acids in S. miltiorrhiza primarily include two important naturally bioactive products, rosmarinic acid (RA) and salvianolic acid B (SalB), which play important roles in improving microcirculation and inhibiting platelet aggregation [2,3]. Due to their remarkable pharmacological activities and growing market demand, the regulation of SalB biosynthesis in S. miltiorrhiza recently garnered significant attention [4,5]. SalB biosynthesis involves the phenylpropanoid- and tyrosine-derived pathways [6]. Except for the enzymes engaged in the SalB biosynthetic pathways, the upstream transcription factors (TFs) also have a great impact on the biosynthesis of SalB [7].
MYB (myeloblastosis) TFs with various functions are widely distributed in plants [8], which can be divided into four subfamilies (1R-MYB, R2R3-MYB, 3R-MYB, and 4R-MYB) according to the number and location of MYB repeats [9]. The R2R3-MYB family functions in a variety of plant-specific regulatory networks that control the development, secondary metabolism, stress mechanisms, and responses to biotic and abiotic stresses [8,9,10,11]. In Arabidopsis thaliana, the R2R3-MYB TF gene AtMYB93 can be induced by auxin, and it negatively regulates lateral root development by interacting with lateral-root-promoting ARABIDILLO proteins [12].
In purple carrots, a cluster of R2R3-MYB TFs identified by quantitative trait locus (QTL) affects anthocyanin biosynthesis and modification in the root and petiole [13]. MdMYB28 decreases flavonoid accumulation in apples [14], whereas in pears, overexpressed PpMYB17 increases flavonoid biosynthesis by activating the enzyme-encoding genes [15]. In response to brown planthopper feeding, OsMYB30 is induced in rice and then upregulates the expression of phenylalanine ammonialyase genes, leading to increased biosynthesis and accumulation of salicylic acid and lignin [16]. The ectopic expression of ThMYB8, which is a R2R3-MYB TF from Tamarix hispida, significantly increases root growth, fresh weight, and seed germination rate compared with that of the wild-type under salt stress [17].
In S. miltiorrhiza, a total of 110 R2R3-MYBs were identified and classified into 37 subgroups which serve as critical regulators in the biosynthesis of secondary metabolites [18]. The overexpression of SmMYB1 in S. miltiorrhiza hair root promotes phenolic acid accumulation and activates the expression of genes that encode key enzymes in the phenolic acid and anthocyanin biosynthesis pathways [19]. Similarly, SmMYB2 binds to the promoter of the salvianolic acid biosynthetic gene CYP98A14 and increases the RA and SalB contents [20].
The methyl jasmonate (MeJA)-responsive gene SmMYB97 promotes phenolic acid and tanshinone biosynthesis and is repressed by the JASMONATE ZIM-domain (JAZ) protein SmJAZ8 [21]. Another R2R3-MYB member, SmMYB111, can form a potential ternary transcription complex (SmTTG1-SmMYB111-SmbHLH51) and positively regulates the production of SalB in S. miltiorrhiza [22]. The overexpression of SmMYB36 promotes the accumulation of tanshinone, whereas it inhibits the biosynthesis of phenolic acid and flavonoid in the hairy roots of S. miltiorrhiza [23].
The activation of secondary plant metabolism often promotes defense and initiates growth inhibition and biomass reduction, which are referred to as tradeoffs between growth and defense. Finding the appropriate balance between root development and secondary metabolic accumulation is critical for the cultivation and breeding of S. miltiorrhiza. Most recently, researchers have begun to focus simultaneously on the accumulation of active compounds and the root growth. In laccase genes-knockout lines, the growth of hairy roots was inhibited and the accumulation of RA and SAB was decreased in S. miltiorrhiza [24]. The combination of blue and red LED light was observed to improve the growth of S. miltiorrhiza and promoted the accumulation of phenolic acid [25]. Nevertheless, no reports exist to date that investigate how R2R3-MYB simultaneously regulates root growth and the synthesis of secondary metabolites in S. miltiorrhiza.
Here, we identified SmMYB52 as a regulator of root growth and SalB accumulation in S. miltiorrhiza through gain- and loss-of-function analysis. We found that SmMYB52 positively regulated the biosynthesis of SalB by directly binding to and activating key enzyme genes in the phenolic acid biosynthesis pathway. Meanwhile, the root growth was inhibited with higher SmMYB52 transcript levels, which were possibly due to the effects of SmMYB52 on the biosynthesis of indole-3-acetic acid (IAA) and jasmonate acid (JA). To the best of our knowledge, this is the first report to describe the involvement of R2R3-MYB TF in the regulation of root growth and secondary metabolite accumulation in S. miltiorrhiza. Our results suggested that SmMYB52 is a potential regulator of auxin-JA crosstalk in root development.

2. Results

2.1. SmMYB52 Impedes S. miltiorrhiza Root Growth

SmMYB52, which encodes an R2R3-MYB TF that is closely related to Arabidopsis AtMYB93, showed the highest transcript level in the root [26]. To further explore the function of SmMYB52, SmMYB52-overexpression and SmMYB52-silencing transgenic S. miltiorrhiza plantlets were generated via Agrobacterium-mediated transformation (Figure 1A and Figure S1). The expression levels of SmMYB52 in the selected lines were evaluated by qRT-PCR (Figure 1B). We found that the transgenic lines exhibited obvious differences in root phenotype (Figure 1C). Compared with that of the control plants, the root length, fresh root weight, and dried root weight were significantly decreased in SmMYB52-overexpressing lines (O-1 and O-2). In contrast, SmMYB52-silencing lines (I-1 and I-2) exhibited a significant increase in these phenotypes (Figure 1D). These results indicated that SmMYB52 inhibited root growth in S. miltiorrhiza.

2.2. SmMYB52 Suppresses the Biosynthesis of IAA in S. miltiorrhiza

Since Arabidopsis AtMYB93 is induced by auxin, which is involved in the regulation of root growth [12,27], and is required for normal auxin responses, we hypothesized that SmMYB52 (the homeotic gene of AtMYB93) may respond to auxin treatment and be associated with the biosynthesis of auxin in S. miltiorrhiza. Interestingly, the expression levels of SmMYB52 were significantly suppressed by exogenous IAA treatment at all time-points from 0.5 h to 12 h (Figure 2A). The concentrations of endogenous IAA in the fresh roots of transgenic plantlets and the control were evaluated. The results revealed that compared with that of the control, the IAA levels decreased significantly in the O-1 and O-2 lines but increased considerably in the I-1 and I-2 lines (Figure 2B).
The transcript levels of key enzyme-encoding genes for the IAA biosynthesis pathway were analyzed by qRT-PCR, with the results showing that the expression levels of SmTAA2, SmAIM1, SmAAO1, and SmYUC1 genes were significantly downregulated in O-1 and O-2 lines. In contrast, the expression levels of SmTAA1, SmTAA2, and SmYUC1 were significantly upregulated in the SmMYB52-silencing lines (Figure 2C,D). Furthermore, we found that the promoter regions of these genes contained MYB-binding sites (Figure S2A).

2.3. SmMYB52 Affects the Biosynthesis of JA in S. miltiorrhiza

A previous study reported that JA had a negative effect on adventitious root formation and root development [28]. To explore the relationship between JA and SmMYB52, we analyzed the promoter region of SmMYB52 and found that the CGTAC- and TGACG-motifs, which are MeJA-responsiveness elements, were present (Figure S3). Meanwhile, the exogenous MeJA treatment significantly activated the expression of SmMYB52 in the first 3 h (Figure 3A). The endogenous JA contents of the transgenic lines were also analyzed, and the results indicated that the JA levels in the O-1 and O-2 lines were significantly higher than that of the control. Conversely, those in the I-1 and I-2 lines were significantly lower than in that of the control (Figure 3B).
SmJAR1, SmAOS, SmLOX3, and SmOPR3 are key enzyme-encoding genes involved in the jasmonic acid biosynthesis pathway in S. miltiorrhiza [29]. The qRT-PCR results showed that the expression levels of SmLOX3, SmAOS, and SmJAR1 were significantly upregulated in the SmMYB52-overexpression lines. In contrast, SmLOX3 and SmAOS were significantly downregulated in the SmMYB52-silencing lines (Figure 3C,D).

2.4. SmMYB52 Positively Regulates the Biosynthesis of SalB in S. miltiorrhiza

The application of exogenous MeJA can promote the accumulation of RA and SalB in the hairy roots of S. miltiorrhiza [30]. We speculated that SmMYB52 might regulate the production of secondary metabolites by activating JA biosynthesis. To functionally verify the effects of SmMYB52 on the accumulation of secondary metabolites, we measured the levels of total flavonoid (TF) and total phenolic (TP) in the roots of transgenic plantlets and the control. The results showed that the levels of TP and TF in the SmMYB52-overexpression lines were significantly higher than that of the control, but only slightly decreased in the SmMYB52-silencing lines (Figure 4A,B). Therefore, the overexpression of SmMYB52 promoted the accumulation of TP and TF in S. miltiorrhiza.
Subsequently, we determined the contents of RA and SalB in the roots of the transgenic lines by high-performance liquid chromatography (HPLC). Compared to that of the control, the content of RA in the O-1 and O-2 lines increased 2.3- and 2.1-fold, respectively, while it decreased to 35.3% and 23.9% in I-1 and I-2 lines, respectively (Figure 4C). Similarly, the SalB concentrations increased significantly (2.1–2.2-fold) and decreased (4.5–5.5-fold) in the SmMYB52-overexpression and SmMYB52-silencing lines, respectively (Figure 4D). These results implied that SmMYB52 positively regulated the accumulation of RA and SalB.
To further investigate the possibility that SmMYB52 regulates phenolic acid biosynthesis, we analyzed the transcript levels of 12 phenolic acid biosynthetic genes using qRT-PCR (Figure 5A,B). Among the 12 genes, SmC4H1, Sm4CL9, SmTAT1, SmTAT3, SmHPPR1, SmHPPR2, SmHPPR3, and SmCYP98A14 were significantly upregulated in the SmMYB52-overexpression lines and significantly reduced in the SmMYB52-silencing lines. Overall, these results indicated that SmMYB52 promoted the accumulation of SalB by activating its biosynthetic pathway.

2.5. SmMYB52 Binds Directly to the Promoters of SmTAT1, SmHPPR1, SmC4H1, and Sm4CL9, and Activates their Transcription

MYB TFs typically bind to the cis-elements of the promoters and activate or repress the expression of the enzyme genes to regulate the biosynthesis of secondary metabolites [23]. To explore the potential mechanism of how SmMYB52 regulates the biosynthesis of SalB, we analyzed the promoter sequences of enzyme genes for the phenolic acid biosynthesis pathway and found MYB-binding elements in SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1 (Figure 6A). Y1H assay results indicated that SmMYB52 binds directly to the promoters of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1 (Figure 6B).
The promoter regions of these genes were then fused with the luciferase gene (LUC) to serve as reporters, whereas SmMYB52 functioned as an effector (Figure 6C). A dual-luciferase transient expression assay showed that SmMYB52 activated the transcription of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1 (Figure 6D). Strong firefly luciferase signals were observed when the effector vector and recombinant reporter vector were cotransformed into tobacco leaves (Figure 6E). These findings provided supporting evidence that SmMYB52 binds directly to and activates the promoters of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1 to upregulate the biosynthesis of phenolic acids.

3. Discussion

In the present study, we characterized the function of SmMYB52 in S. miltiorrhiza by generating transgenic plantlets with an enhanced or reduced expression of SmMYB52. SmMYB52-overexpression lines showed obvious phenotype changes with inhibited root growth and significantly increased SalB and RA levels, while SmMYB52-knock down lines exhibited the opposite phenotypes. We concluded that SmMYB52 was a strong regulator for promoting the accumulation of SalB and simultaneously inhibiting root growth.
Our previous study indicated that SmMYB52 tended to cluster with AtMYB93 [26]. The root phenotype in SmMYB52-silencing or SmMYB52-overexpressing lines was consistent with that in Atmyb93 mutants or AtMYB93-overexpression lines [12]. AtMYB93 was induced by auxin [12], while SmMYB52 was unexpectedly suppressed by the exogenous IAA treatment (Figure 2A). The opposite expression responses of SmMYB52 and AtMYB93 to IAA were possibly due to the application of different concentrations of exogenous IAA. In the present study, 100 μM IAA was used to spray the seedlings of S. miltiorrhiza, while the Arabidopsis seedlings were treated with 1 μM or 10 μM IAA. Whether SmMYB52 is induced by low concentrations of IAA should be further investigated.
Auxin plays important roles in the control of root development and structure [31]. There is a dose-dependent effect of IAA on root growth, where very low or very high concentrations have an inhibitory effect on root growth [32]. The concentrations of endogenous auxin vary at different stages of root development, where higher concentrations are required for root induction, including the formation of adventitious roots [33,34]
In this study, the overexpression of SmMYB52 inhibited root growth, which was likely due to the suppression of the biosynthesis of IAA. The IAA biosynthetic pathway (trp-dependent pathway) involves at least five biosynthetic enzyme genes including TAA1, TIR2, TAR1, AIM1, YUC1, and AAO1 [35]. We found that overexpressing SmMYB52 in S. miltiorrhiza significantly decreased the concentration of endogenous auxin by suppressing the transcripts of SmTAA2, SmAIM1, SmAAO1, and SmYUC1 (Figure 2B,D). The overexpression of OsYUCCA1 promoted the accumulation of IAA and the formation of adventitious roots in rice. In contrast, a knockdown of the OsYUCCA1 inhibited root formation and elongation [27]. Similarly, the significantly increased transcripts of SmYUC1 in SmMYB52-silencing lines possibly promoted the IAA level and root growth. Thus, we proposed that SmMYB52 inhibited root growth by suppressing the biosynthesis of IAA in S. miltiorrhiza.
JA is an important hormone that regulates plant growth, the responses to environmental stresses, and is directly involved in root growth [36]. When treated with exogenous MeJA root, growth was inhibited in A. thaliana seedlings. Further, MeJA treatment promoted the production of saikosaponin and inhibited adventitious root development in Bupleurum kaoi [37]. The effects of the exogenous application of MeJA on root growth and active compounds were reported for S. miltiorrhiza [38].
In this study, the overexpression of SmMYB52 inhibited root growth and increased the SalB level, which was similar to the phenotype induced by the exogenous MeJA treatment. We speculated as to whether the endogenous JA level was altered in the roots of the transgenic lines of S. miltiorrhiza. Our results revealed that the JA level was increased in SmMYB52-overexpressing lines, while it was decreased in the SmMYB52-silencing lines (Figure 3B). Thus, the increased level of JA was another factor involved in the reduction of root growth in SmMYB52-overexpressing S. miltiorrhiza. JA biosynthesis involves at least five biosynthetic enzymes genes including JAR1, LOX, AOC, AOS, and OPR3 [39]. Our qRT-PCR results indicated that the overexpression of SmMYB52 significantly increased the level of endogenous JA by promoting the transcripts of SmLOX3, SmAOC, SmOPR3, and SmJAR1 (Figure 3D).
Numerous studies demonstrated that JA-auxin crosstalk is critical for root growth and development [40] Auxin regulates the initiation of adventitious roots by modulating JA homeostasis in Arabidopsis [41], and the JA-mediated inhibition of root development is auxin-dependent [42]. The auxin-inducible genes GH3.3, GH3.5, and GH3.6 might inactivate an inhibitor of adventitious rooting, and the JA level of the gh3.3-1gh3.5-2gh3.6-1 mutant, in which the number of adventitious roots was reduced, was twice that of the wild type [41].
In the present study, SmMYB52 positively regulated the biosynthesis of JA, while it negatively regulated IAA biosynthesis (Figues 2 and 3). We speculated that SmMYB52 may inhibit root growth via synergies between the JA and auxin signaling pathways in S. miltiorrhiza. We found that the MYB-binding sites existed in the promoters of both IAA and JA biosynthesis genes (Figure S2). Whether SmMYB52 directly activates or suppresses their expression by binding to their promoters should be investigated in the future.
In S. miltiorrhiza, some of the R2R3-MYB TFs, including SmMYB1 [19], SmMYB36 [23], SmMYB39 [43], SmMYB97 [21], SmMYB98 [44], and SmMYB111 [22], were reported to regulate the biosynthesis of SalB either positively or negatively. R2R3-MYB TFs typically regulate target genes by directly binding to the elements of the promoters [21]. As key enzyme-encoding genes involved in the SalB biosynthesis pathway, SmTAT1 and SmPAL1 might be directly activated by SmMYB97 [21], whereas SmCYP98A14 could be directly activated by SmMYB1 [19].
Here, we verified that SmMYB52 was a positive regulator for the biosynthesis of RA and SalB (Figure 4C,D). Y1H and dual-luciferase assays showed that SmMYB52 promoted the biosynthesis of SalB by directly binding to and activating the promoters of SmTAT1, SmHPPR1, Sm4CL9, and SmC4H1 (Figure 6). SmMYB52 (a MeJA-responsive TF) not only directly regulates the biosynthesis of SalB, but is also involved in the accumulation of JA, which is recognized as stress hormone and participates in the regulation of secondary metabolites. To our knowledge, this is the first report that focuses not only on the accumulation of active compounds, but also on root growth in S. miltiorrhiza. SmMYB52 plays diverse functions in S. miltiorrhiza, which is a potential regulator of growth-defense trade-offs and auxin-JA crosstalk during root development.
Derived from our results and previous reports, we proposed a working model that SmMYB52 regulates root growth and the biosynthesis of phenolic acids (Figure 7). In this model, MeJA- and auxin-responsive SmMYB52 inhibits root growth by downregulating and upregulating the biosynthesis of IAA and JA, respectively. SmMYB52 regulates the concentration of SalB in two ways: (1) SmMYB52 directly binds to and activates the promoters of some key enzyme-encoding genes, and then positively regulates the biosynthesis of phenolic acids. (2) SmMYB52 participates in SalB biosynthesis via JA-mediated regulation. Further significant research is required to perfect this model, which should include how SmMYB52 regulates the biosynthesis of IAA and JA.

4. Materials and Methods

4.1. Experimental Materials, Growth Conditions, and Phytohormone Treatments

S. miltiorrhiza seeds were sterilized with Hgcl2 and cultured on Murashige and Skoog basal medium (Solarbio, Beijing, China) for the transformation experiments [45]. The identified transgenic lines were continued to cultivate in the 10 cm diameter sterile culture bottles on 400 mL MS medium. Nicotiana benthamiana seedlings were cultured in a growth chamber at 25 ± 2 °C under a 16 h light: 8 h dark photoperiod for 5 weeks prior to a transient expression assay [46].
The leaves of two-month-old S. miltiorrhiza plantlets were treated with MeJA and IAA (Sigma-Aldrich Corp., St. Louis, MO, USA), respectively. According to the previous studies [21,47], the stock solutions of MeJA and IAA were diluted to a final concentration of 100 μM, which were then sprayed at a volume of ~1.5 mL on the leaves of each plantlet. The whole plantlets were collected at the time points of 0, 30 min, 1, 2, 3, 9, and 12 h following phytohormone treatment, after which the total RNA was extracted and converted to 1st-strand cDNA for qRT-PCR (Vazyme, Nanjing, China), and housekeeping gene SmUbiquitin was used as an internal reference. The treatments were performed in three independent biological replicates.
All chemical reagents used in the experiment were obtained from Sigma Chemical Co. (St. Louis, MO, USA). The standard RA and SalB used in the HPLC were purchased from the National Institute for the Control of Pharmaceutical and Biological Products (Beijing, China). All primers are shown in Table S1.

4.2. Construction of Plant Expression Vectors and Plant Transformation

The full-length open reading frame (ORF) of SmMYB52 was amplified using the 207-SmMYB52-F/R primers containing the attB1/attB2 sites, which were then recombined into the donor vector pDONR207 via the standard BP reaction to generate the entry vector pDONR207-SmMYB52, according to the Gateway manufacturer’s protocol (Invitrogen, Carlsbad, CA, USA). Subsequently, SmMYB52 was further recombined into the pEarleyGate 202 via LR reaction to obtain the pEarleyGate 202-SmMYB52 overexpression vector. To silence the SmMYB52 in S. miltiorrhiza, an RNAi vector pSmMYB52-RNAi was synthesized as described previously [22]. Briefly, we designed a pair of amiRNA primers, RNAi-SmMYB52-F/R using P-SAMS software (http://p-sams.carringtonlab.org/) (accessed on 1 August 2018). Then the primers were denatured, cooled, and annealed, and the formed amiRNA cassette was then recombined into the pMDC123SB-AtMIR390a-B/c vector via BsaI and T4 DNA ligase (TaKaRa, Beijing, China). Through Agrobacterium-mediated transformation, SmMYB52-overexpressing and -silencing transgenic plants were acquired as previously described [45]. In parallel, regenerated plantlets without Agrobacterium-mediated transformation were used as a control.

4.3. Selection of Transgenic Plantlets

To identify the positive transgenic lines, the genomic DNA was isolated from the transgenic lines and used as templates to amplify the CaMV35S promoter sequence using primer pairs 35S-F/R and 2 × 35S-F/R for SmMYB52-overexpressing and SmMYB52-silencing lines, respectively. The total RNA was extracted from the roots of two-month-old transgenic and control lines and converted to 1st-strand cDNA. The expression levels of SmMYB52 and the enzyme-encoding genes involved in IAA, JA, and SalB biosynthetic pathways were detected by qRT-PCR, and their relative expression levels were calculated using the 2−ΔΔCt method [48]. After selection, the transgenic lines of the T1 generation were collected as materials for the following assays.

4.4. Determination of IAA and JA Concentrations

The endogenous hormone levels of IAA and JA were calculated using the Plant IAA/JA ELISA Kit (mlbio, Shanghai, China), following the manufacturer’s protocols. Briefly, 0.1 g fresh roots from each of two-month-old transgenic line and the control line were weighed, to which 900 μL of a PBS buffer was added after being fully ground. The homogenates were then centrifuged for 10 min at 6000 rpm, and the supernatants were transferred to new tubes. To standards and samples was added 100 μL enzyme conjugate, and then incubated for 60 min at 37 °C. Subsequently, the substrate was added to the standards and samples and then incubated in the dark for 15 min, after which a stop solution was added to each well. Finally, the optical density (OD) was measured at 450 nm. According to the concentration of the calibration standards and the corresponding absorbance, a standard curve was obtained, and the hormone content of the samples was calculated.

4.5. Detection of Secondary Metabolites

The roots of two-month-old transgenic and control lines were dried to constant weight at 25 ± 2 °C and used for detection. The total levels flavonoid and phenolic were determined via methods as previously described [49].
To extract SalB and RA, a 500 μL solution (methanol: acetone, 7:3, v/v) was added to 100 mg dry root powder for ultrasonic extraction at 30 °C and 100 Hz for 1 h, followed by centrifugation at 6000 rpm for 3 min (Eppendorf, Hamburg, Germany). Afterwards, the supernatant was transferred into a new 1.5 mL centrifuge tube and the extraction was repeated, while the supernatants were combined twice for the determination of phenolic acids. The SalB and RA concentrations were measured via HPLC using an Agilent ZORBAX SB-C18 column (250 × 4.6 mm, 5 μm) with an UltiMate 3000 HPLC System coupled with DAD detector (Thermo Fisher Scientific, Waltham, MA, USA). We used standards of RA, Sal B in HPLC experiments, and the detection wavelength was 280 nm. All separations were carried out at a constant temperature of 30 °C, with the specific process and parameter settings being performed as described previously [22]. The metabolite contents were calculated based on the retention time and peak area of the standards (in the chromatograms).

4.6. Y1H Assays

The full-length SmMYB52 ORF was amplified by PCR using Y1H-SmMYB52-F/R primers that contained EcoRI and BamHI restriction sites, which were then fused to pGADT7-Rec2 with T4 DNA ligase (TaKaRa, Beijing, China). The 1449-bp and 1652-bp promoter regions of SmHPPR1 and SmC4H1, respectively, were amplified and inserted into the pHIS2. The pHIS2–SmTAT1 and pHIS2–Sm4CL9 were constructed in our earlier study [29,50].
According to a previous method [51], these recombinant plasmids were transferred to yeast strain Y187 (Weidi Biotechnology, Shanghai, China), followed by cultivation on SD/-Leu/-Trp medium (DDO) (Solarbio, Beijing, China) for 3 days at 29 °C, and then screened on SD/-Leu/-Trp/-His medium (TDO) (Solarbio, Beijing, China), supplemented with 60 mM 3-amino-1,2,4-triazole (3-AT) (Solarbio, Beijing, China) to determine whether the SmMYB52 interacted with the promoters of key enzyme-encoding genes [21]. The pGADT7-p53+ p53-HIS2 and p53-HIS2+pGADT7 empty vector were served as positive control and negative control, respectively.

4.7. Dual-luciferase Assay

The SmMYB52 was amplified by PCR using 62sk-SmMYB52-F/R primers and inserted into the pGreenII62SK vector, which served as the effector. The promoter regions of SmHPPR1 and SmC4H1 were then inserted into the pGreenII 0800 empty vector. The recombinant vectors of pSmTAT1-pGreenII 0800 LUC and pSm4CL9-pGreenII 0800 LUC were constructed in our previous reports [29,50].
The constructed effector and reporter vectors were then cotransferred into tobacco leaves via Agrobacterium-mediated transformation [29]. Three days following infiltration, the activities of LUC (firefly luciferase) and renilla luciferase (REN) were determined via a dual-luciferase reporter gene assay kit (Beyotime, Shanghai, China), then the promoter activity was calculated according to the the ratio of LUC to REN. In addition, the LUC activity was imaged using IVIS Spectrum (Xenogen, Alameda, CA, USA) via substrate beetle luciferin (Promega, Madison, WI, USA) applied on the leaves of tobacco. The SmMYB52+pGreenII 0800-LUC empty vector served as the negative control, while SmbHLH37+pSmTAT1 served as the positive control [29].

5. Conclusions

In this study, we verified that SmMYB52 was a positive regulator for the biosynthesis of RA and SalB. SmMYB52 promoted the biosynthesis of SalB by directly binding to and activating the promoters of SmTAT1, SmHPPR1, Sm4CL9, and SmC4H1. Meanwhile, according to the phenotypes and the level of endogenous IAA and JA, we found that root growth was inhibited with higher SmMYB52 transcript levels, which were possibly due to the effects of SmMYB52 on the biosynthesis of indole-3-acetic acid (IAA) and jasmonate acid (JA).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms22179538/s1.

Author Contributions

Conceptualization, R.Y., H.X. and X.C.; methodology, H.Z., S.W. and L.L.; formal analysis, R.Y., Y.L., S.W. and D.W.; investigation, R.Y., H.Z. and H.X.; data curation, R.Y., X.C. and S.W.; writing—original draft preparation, R.Y.; writing—review and editing, X.C. and H.X.; project administration, S.W., H.Z. and L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (31870276 and 31900254) and the Fundamental Research Funds for the Central Universities (GK202107003).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, X.; Morris-Natschke, S.L.; Lee, K.-H. New developments in the chemistry and biology of the bioactive constituents of tanshen. Med. Res. Rev. 2007, 27, 133–148. [Google Scholar] [CrossRef]
  2. Zhou, L.; Zuo, Z.; Chow, M.S.S. Danshen: An Overview of Its Chemistry, Pharmacology, Pharmacokinetics, and Clinical Use. J. Clin. Pharmacol. 2005, 45, 1345–1359. [Google Scholar] [CrossRef]
  3. Ma, P.; Liu, J.; Zhang, C.; Liang, Z. Regulation of Water-Soluble Phenolic Acid Biosynthesis in Salvia miltiorrhiza Bunge. Appl. Biochem. Biotechnol. 2013, 170, 1253–1262. [Google Scholar] [CrossRef] [PubMed]
  4. Wu, Y.; Xu, S.; Tian, X.Y. The Effect of Salvianolic Acid on Vascular Protection and Possible Mechanisms. Oxidative Med. Cell. Longev. 2020, 2020, 1–9. [Google Scholar] [CrossRef] [PubMed]
  5. Xiao, Z.; Liu, W.; Mu, Y.-P.; Zhang, H.; Wang, X.-N.; Zhao, C.-Q.; Chen, J.-M.; Liu, P. Pharmacological Effects of Salvianolic Acid B Against Oxidative Damage. Front. Pharmacol. 2020, 11, 572373. [Google Scholar] [CrossRef] [PubMed]
  6. Di, P.; Zhang, L.; Chen, J.; Tan, H.; Xiao, Y.; Dong, X.; Zhou, X.; Chen, W. 13C Tracer Reveals Phenolic Acids Biosynthesis in Hairy Root Cultures of Salvia miltiorrhiza. ACS Chem. Biol. 2013, 8, 1537–1548. [Google Scholar] [CrossRef]
  7. Xiao, Y.; Zhang, L.; Gao, S.; Saechao, S.; Di, P.; Chen, J.; Chen, W. The c4h, tat, hppr and hppd Genes Prompted Engineering of Rosmarinic Acid Biosynthetic Pathway in Salvia miltiorrhiza Hairy Root Cultures. PLoS ONE 2011, 6, e29713. [Google Scholar] [CrossRef]
  8. Kim, J.H.; Nguyen, N.H.; Jeong, C.Y.; Nguyen, N.T.; Hong, S.-W.; Lee, H. Loss of the R2R3 MYB, AtMyb73, causes hyper-induction of the SOS1 and SOS3 genes in response to high salinity in Arabidopsis. J. Plant Physiol. 2013, 170, 1461–1465. [Google Scholar] [CrossRef]
  9. Katiyar, A.; Smita, S.; Lenka, S.K.; Rajwanshi, R.; Chinnusamy, V.; Bansal, K.C. Genome-wide classification and expression analysis of MYB transcription factor families in rice and Arabidopsis. BMC Genom. 2012, 13, 544. [Google Scholar] [CrossRef] [Green Version]
  10. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef]
  11. Stracke, R.; Werber, M.; Weisshaar, B. The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol. 2001, 4, 447–456. [Google Scholar] [CrossRef]
  12. Gibbs, D.; Voß, U.; Harding, S.; Fannon, J.; Moody, L.; Yamada, E.; Swarup, K.; Nibau, C.; Bassel, G.; Choudhary, A.; et al. AtMYB93 is a novel negative regulator of lateral root development in Arabidopsis. New Phytol. 2014, 203, 1194–1207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Xu, Z.; Yang, Q.; Feng, K.; Yu, X.; Xiong, A. DcMYB113, a root-specific R2R3-MYB, conditions anthocyanin biosynthesis and modification in carrot. Plant Biotechnol. J. 2020, 18, 1585–1597. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Ding, T.; Zhang, R.; Zhang, H.; Zhou, Z.; Liu, C.; Wu, M.; Wang, H.; Dong, H.; Liu, J.; Yao, J.-L.; et al. Identification of gene co-expression networks and key genes regulating flavonoid accumulation in apple (Malus × domestica) fruit skin. Plant Sci. 2021, 304, 110747. [Google Scholar] [CrossRef] [PubMed]
  15. Premathilake, A.T.; Ni, J.; Bai, S.; Tao, R.; Ahmad, M.; Teng, Y. R2R3-MYB transcription factor PpMYB17 positively regulates flavonoid biosynthesis in pear fruit. Planta 2020, 252, 1–16. [Google Scholar] [CrossRef] [PubMed]
  16. He, J.; Liu, Y.; Yuan, D.; Duan, M.; Liu, Y.; Shen, Z.; Yang, C.; Qiu, Z.; Liu, D.; Wen, P.; et al. An R2R3 MYB transcription factor confers brown planthopper resistance by regulating the phenylalanine ammonia-lyase pathway in rice. Proc. Natl. Acad. Sci. USA 2020, 117, 271–277. [Google Scholar] [CrossRef]
  17. Liu, Z.-Y.; Li, X.-P.; Zhang, T.-Q.; Wang, Y.-Y.; Wang, C.; Gao, C.-Q. Overexpression of ThMYB8 mediates salt stress tolerance by directly activating stress-responsive gene expression. Plant Sci. 2021, 302, 110668. [Google Scholar] [CrossRef] [PubMed]
  18. Li, C.; Lu, S. Genome-wide characterization and comparative analysis of R2R3-MYB transcription factors shows the complexity of MYB-associated regulatory networks in Salvia miltiorrhiza. BMC Genom. 2014, 15, 277. [Google Scholar] [CrossRef] [Green Version]
  19. Zhou, W.; Shi, M.; Deng, C.; Lu, S.; Huang, F.; Wang, Y.; Kai, G. The methyl jasmonate-responsive transcription factor SmMYB1 promotes phenolic acid biosynthesis in Salvia miltiorrhiza. Hortic. Res. 2021, 8, 1–13. [Google Scholar] [CrossRef]
  20. Deng, C.; Wang, Y.; Huang, F.; Lu, S.; Zhao, L.; Ma, X.; Kai, G. SmMYB2 promotes salvianolic acid biosynthesis in the medicinal herb Salvia miltiorrhiza. J. Integr. Plant Biol. 2020, 62, 1688–1702. [Google Scholar] [CrossRef]
  21. Li, L.; Wang, D.; Zhou, L.; Yu, X.; Yan, X.; Zhang, Q.; Li, B.; Liu, Y.; Zhou, W.; Cao, X.; et al. JA-Responsive Transcription Factor SmMYB97 Promotes Phenolic Acid and Tanshinone Accumulation in Salvia miltiorrhiza. J. Agric. Food Chem. 2020, 68, 14850–14862. [Google Scholar] [CrossRef] [PubMed]
  22. Li, S.; Wu, Y.; Kuang, J.; Wang, H.; Du, T.; Huang, Y.; Zhang, Y.; Cao, X.; Wang, Z. SmMYB111 Is a Key Factor to Phenolic Acid Biosynthesis and Interacts with Both SmTTG1 and SmbHLH51 in Salvia miltiorrhiza. J. Agric. Food Chem. 2018, 66, 8069–8078. [Google Scholar] [CrossRef] [PubMed]
  23. Ding, K.; Pei, T.; Bai, Z.; Jia, Y.; Ma, P.; Liang, Z. SmMYB36, a Novel R2R3-MYB Transcription Factor, Enhances Tanshinone Accumulation and Decreases Phenolic Acid Content in Salvia miltiorrhiza Hairy Roots. Sci. Rep. 2017, 7, 1–15. [Google Scholar] [CrossRef] [Green Version]
  24. Zhou, Z.; Li, Q.; Xiao, L.; Wang, Y.; Feng, J.; Bu, Q.; Xiao, Y.; Hao, K.; Guo, M.; Chen, W.; et al. Multiplexed CRISPR/Cas9-Mediated Knockout of Laccase Genes in Salvia miltiorrhiza Revealed Their Roles in Growth, Development, and Metabolism. Front. Plant Sci. 2021, 12, 647768. [Google Scholar] [CrossRef]
  25. Zhang, S.; Ma, J.; Zou, H.; Zhang, L.; Li, S.; Wang, Y. The combination of blue and red LED light improves growth and phenolic acid contents in Salvia miltiorrhiza Bunge. Ind. Crop. Prod. 2020, 158, 112959. [Google Scholar] [CrossRef]
  26. Peng, J.; Li, K.; Yang, J.; Lu, X.; Cao, X. Cloning, expression analysis and subcellular localization of SmMYB52 gene in Salvia miltiorrhiza. Genom. Appl. Biol. 2021, 40, 802–808. [Google Scholar]
  27. Yamamoto, Y.; Kamiya, N.; Morinaka, Y.; Matsuoka, M.; Sazuka, T. Auxin Biosynthesis by the YUCCA Genes in Rice. Plant Physiol. 2007, 143, 1362–1371. [Google Scholar] [CrossRef] [Green Version]
  28. Pan, R.; Liu, Y.; Buitrago, S.; Jiang, W.; Gao, H.; Han, H.; Wu, C.; Wang, Y.; Zhang, W.; Yang, X. Adventitious root formation is dynamically regulated by various hormones in leaf-vegetable sweetpotato cuttings. J. Plant Physiol. 2020, 253, 153267. [Google Scholar] [CrossRef]
  29. Du, T.; Niu, J.; Su, J.; Li, S.; Guo, X.; Li, L.; Cao, X.; Kang, J. SmbHLH37 Functions Antagonistically With SmMYC2 in Regulating Jasmonate-Mediated Biosynthesis of Phenolic Acids in Salvia miltiorrhiza. Front. Plant Sci. 2018, 9, 1720. [Google Scholar] [CrossRef]
  30. Xiao, Y.; Gao, S.; Di, P.; Chen, J.; Chen, W.; Zhang, L. Methyl jasmonate dramatically enhances the accumulation of phenolic acids in Salvia miltiorrhiza hairy root cultures. Physiol. Plant. 2009, 137, 1–9. [Google Scholar] [CrossRef]
  31. Jing, H.; Strader, L.C. Interplay of Auxin and Cytokinin in Lateral Root Development. Int. J. Mol. Sci. 2019, 20, 486. [Google Scholar] [CrossRef] [Green Version]
  32. Grieneisen, V.; Xu, J.; Marée, A.F.M.; Hogeweg, P.; Scheres, B. Auxin transport is sufficient to generate a maximum and gradient guiding root growth. Nat. Cell Biol. 2007, 449, 1008–1013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Da Costa, C.T.; De Almeida, M.R.; Ruedell, C.M.; Schwambach, J.; Maraschin, F.D.S.; Fett-Neto, A.G. When stress and development go hand in hand: Main hormonal controls of adventitious rooting in cuttings. Front. Plant Sci. 2013, 4, 133. [Google Scholar] [CrossRef] [Green Version]
  34. Pacurar, D.I.; Perrone, I.; Bellini, C. Auxin is a central player in the hormone cross-talks that control adventitious rooting. Physiol. Plant. 2014, 151, 83–96. [Google Scholar] [CrossRef] [PubMed]
  35. Yoshihiro Mano, K.N. The pathway of auxin biosynthesis in plants. J. Exp. Bot. 2012, 63, 2853–2872. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Yan, Y.; Stolz, S.; Chételat, A.; Reymond, P.; Pagni, M.; Dubugnon, L.; Farmer, E.E. A Downstream Mediator in the Growth Repression Limb of the Jasmonate Pathway. Plant Cell 2007, 19, 2470–2483. [Google Scholar] [CrossRef] [Green Version]
  37. Chen, L.R.; Chen, Y.J.; Lee, C.Y.; Lin, T.Y. MeJA-induced transcriptional changes in adventitious roots of Bupleurum kaoi. Plant Sci. 2007, 173, 12–24. [Google Scholar] [CrossRef]
  38. Ge, Q.; Zhang, Y.; Hua, W.-P.; Wu, Y.-C.; Jin, X.-X.; Song, S.-H.; Wang, Z.-Z. Combination of transcriptomic and metabolomic analyses reveals a JAZ repressor in the jasmonate signaling pathway of Salvia miltiorrhiza. Sci. Rep. 2015, 5, 14048. [Google Scholar] [CrossRef] [Green Version]
  39. Turner, J.G.; Ellis, C.; Devoto, A. The Jasmonate Signal Pathway. Plant Cell 2002, 14, S153–S164. [Google Scholar] [CrossRef] [Green Version]
  40. Gomi, K. Jasmonic Acid: An Essential Plant Hormone. Int. J. Mol. Sci. 2020, 21, 1261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Gutierrez, L.; Mongelard, G.; Floková, K.; Pacurar, D.I.; Novak, O.; Staswick, P.; Kowalczyk, M.; Păcurar, M.; Demailly, H.; Geiss, G.; et al. Auxin Controls Arabidopsis Adventitious Root Initiation by Regulating Jasmonic Acid Homeostasis. Plant Cell 2012, 24, 2515–2527. [Google Scholar] [CrossRef] [Green Version]
  42. Wasternack, C.; Hause, B. Jasmonates: Biosynthesis, perception, signal transduction and action in plant stress response, growth and development. An update to the 2007 review in Annals of Botany. Ann. Bot. 2013, 111, 1021–1058. [Google Scholar] [CrossRef]
  43. Zhang, S.; Ma, P.; Yang, D.; Li, W.; Liang, Z.; Liu, Y.; Liu, F. Cloning and Characterization of a Putative R2R3 MYB Transcriptional Repressor of the Rosmarinic Acid Biosynthetic Pathway from Salvia miltiorrhiza. PLoS ONE 2013, 8, e73259. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Hao, X.; Pu, Z.; Cao, G.; You, D.; Zhou, Y.; Deng, C.; Shi, M.; Nile, S.; Wang, Y.; Zhou, W.; et al. SmMYB98 Tanshinone and salvianolic acid biosynthesis are regulated by in hairy roots. J. Adv. Res. 2020, 23, 1–12. [Google Scholar] [CrossRef]
  45. Yan, Y.-P.; Wang, Z.-Z. Genetic transformation of the medicinal plant Salvia miltiorrhiza by Agrobacterium tumefaciens-mediated method. Plant Cell Tissue Organ Cult. 2007, 88, 175–184. [Google Scholar] [CrossRef]
  46. Guo, X.; Niu, J.; Cao, X. Salvia miltiorrhiza Heterologous Expression of MicroRNA408 Enhances Tolerance to Salt Stress in. Int. J. Mol. Sci. 2018, 19, 3985. [Google Scholar] [CrossRef] [Green Version]
  47. Cao, Y.; Chen, R.; Wang, W.-T.; Wang, D.-H.; Cao, X.-Y. SmSPL6 Induces Phenolic Acid Biosynthesis and Affects Root Development in Salvia miltiorrhiza. Int. J. Mol. Sci. 2021, 22, 7895. [Google Scholar] [CrossRef]
  48. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, Y.; Wang, Z.-Z. Phenolic composition and antioxidant activities of two Phlomis species: A correlation study. Comptes Rendus Biol. 2009, 332, 816–826. [Google Scholar] [CrossRef]
  50. Peng, J.-J.; Wu, Y.-C.; Wang, S.; Niu, J.-F.; Cao, X.-Y. SmbHLH53 is relevant to jasmonate signaling and plays dual roles in regulating the genes for enzymes in the pathway for salvianolic acid B biosynthesis in Salvia miltiorrhiza. Gene 2020, 756, 144920. [Google Scholar] [CrossRef] [PubMed]
  51. Huang, X.-S.; Wang, W.; Zhang, Q.; Liu, J.-H. A Basic Helix-Loop-Helix Transcription Factor, PtrbHLH, of Poncirus trifoliata Confers Cold Tolerance and Modulates Peroxidase-Mediated Scavenging of Hydrogen Peroxide. Plant. Physiol. 2013, 162, 1178–1194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 22 09538 g001 550
Figure 1. Acquisition and root phenotypes of transgenic lines. (A) Generation of transgenic plantlets of S. miltiorrhiza. (I) Preculture of S. miltiorrhiza leaves. (II) Callus formation on selection medium following Agrobacterium-mediated transformation. (III) Adventitious buds formed on selection medium. (IV) Generation of transgenic plantlets on 1/2 MS medium. (B) Transcript level of SmMYB52 in transgenic and control lines. O-1, O-2, and O-3 are SmMYB52 overexpression lines; I-1, I-2, and I-3 are SmMYB52 silencing lines. (C) Root phenotypes of transgenic and control lines were cultured on 1/2 MS medium for two months. (D) Root length, fresh root weight, and dried root weight of transgenic and control seedlings. All data are means of three biological replicates, and error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Figure 1. Acquisition and root phenotypes of transgenic lines. (A) Generation of transgenic plantlets of S. miltiorrhiza. (I) Preculture of S. miltiorrhiza leaves. (II) Callus formation on selection medium following Agrobacterium-mediated transformation. (III) Adventitious buds formed on selection medium. (IV) Generation of transgenic plantlets on 1/2 MS medium. (B) Transcript level of SmMYB52 in transgenic and control lines. O-1, O-2, and O-3 are SmMYB52 overexpression lines; I-1, I-2, and I-3 are SmMYB52 silencing lines. (C) Root phenotypes of transgenic and control lines were cultured on 1/2 MS medium for two months. (D) Root length, fresh root weight, and dried root weight of transgenic and control seedlings. All data are means of three biological replicates, and error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Ijms 22 09538 g001
Ijms 22 09538 g002 550
Figure 2. Effects of overexpressing and silencing SmMYB52 on IAA biosynthesis (A) Transcript level of SmMYB52 in response to exogenous IAA treatment. (B) Concentration of endogenous IAA in fresh roots of transgenic and control lines. (C) Proposed IAA biosynthetic pathway (trp-dependent pathway). TAA, Tryptophan aminotransferase of Arabidopsis; TAR, Tryptophan aminotransferase related; YUC, YUCCA; AIM1, Indole-3-acetamide hydrolase; AAO1, Aldehyde oxidase. (D) Transcript levels of key enzyme-encoding genes in IAA biosynthesis pathway. SmTAA1 (SMil_00008622-RA_Salv), SmTAA2 (SMil_00008177-RA_Salv), SmYUC1 (SMil_00002467-RA_Salv), SmAIM1 (SMil_00009945-RA_Salv), and SmAAO1 (SMil_00014441-RA_Salv) were retrieved from the web portal at http://www.ndctcm.org/shujukujieshao/2015-04-23/27.html (accessed on 7 January 2021). All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test ** p < 0.01; * p < 0.05).
Figure 2. Effects of overexpressing and silencing SmMYB52 on IAA biosynthesis (A) Transcript level of SmMYB52 in response to exogenous IAA treatment. (B) Concentration of endogenous IAA in fresh roots of transgenic and control lines. (C) Proposed IAA biosynthetic pathway (trp-dependent pathway). TAA, Tryptophan aminotransferase of Arabidopsis; TAR, Tryptophan aminotransferase related; YUC, YUCCA; AIM1, Indole-3-acetamide hydrolase; AAO1, Aldehyde oxidase. (D) Transcript levels of key enzyme-encoding genes in IAA biosynthesis pathway. SmTAA1 (SMil_00008622-RA_Salv), SmTAA2 (SMil_00008177-RA_Salv), SmYUC1 (SMil_00002467-RA_Salv), SmAIM1 (SMil_00009945-RA_Salv), and SmAAO1 (SMil_00014441-RA_Salv) were retrieved from the web portal at http://www.ndctcm.org/shujukujieshao/2015-04-23/27.html (accessed on 7 January 2021). All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test ** p < 0.01; * p < 0.05).
Ijms 22 09538 g002
Ijms 22 09538 g003 550
Figure 3. Effects of overexpressing and silencing SmMYB52 on JA biosynthesis (A) Transcript level of SmMYB52 in response to exogenous MeJA treatment. (B) Concentration of endogenous JA in fresh roots of transgenic and control lines. (C) Proposed biosynthetic pathway for JA. LOX, Lipoxygenase; AOS, Allene oxide synthase; AOC, Allene oxide cyclase; OPR3, 12-oxophytodienoate reductase 3; JAR1, JA-amino acid synthase. (D) Transcript levels of key enzyme-encoding genes in JA biosynthesis pathway. SmLOX (SMil_00027821-RA_Salv), SmAOS (SMil_00002529-RA_Salv), SmOPR3 (KF220568.1), and SmJAR1 (SMil_00003673-RA_Salv) were retrieved from the web portal at http://www.ndctcm.org/shujukujieshao/2015-04-23/27.html (accessed on 7 January 2021). All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Figure 3. Effects of overexpressing and silencing SmMYB52 on JA biosynthesis (A) Transcript level of SmMYB52 in response to exogenous MeJA treatment. (B) Concentration of endogenous JA in fresh roots of transgenic and control lines. (C) Proposed biosynthetic pathway for JA. LOX, Lipoxygenase; AOS, Allene oxide synthase; AOC, Allene oxide cyclase; OPR3, 12-oxophytodienoate reductase 3; JAR1, JA-amino acid synthase. (D) Transcript levels of key enzyme-encoding genes in JA biosynthesis pathway. SmLOX (SMil_00027821-RA_Salv), SmAOS (SMil_00002529-RA_Salv), SmOPR3 (KF220568.1), and SmJAR1 (SMil_00003673-RA_Salv) were retrieved from the web portal at http://www.ndctcm.org/shujukujieshao/2015-04-23/27.html (accessed on 7 January 2021). All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Ijms 22 09538 g003
Ijms 22 09538 g004 550
Figure 4. Determination of total phenolic (TP), total flavonoid (TF), rosmarinic acid, and salvianolic acid B concentration. (A) Color of root extracts for detection of TP and TF. (B) Concentration of TP and TF in dried roots of two-month-old transgenic and control lines. (C,D) Concentrations of rosmarinic acid and salvianolic acid B, respectively, in the dried roots of two-month-old transgenic and control lines. All data are means of three biological replicates, and error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Figure 4. Determination of total phenolic (TP), total flavonoid (TF), rosmarinic acid, and salvianolic acid B concentration. (A) Color of root extracts for detection of TP and TF. (B) Concentration of TP and TF in dried roots of two-month-old transgenic and control lines. (C,D) Concentrations of rosmarinic acid and salvianolic acid B, respectively, in the dried roots of two-month-old transgenic and control lines. All data are means of three biological replicates, and error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Ijms 22 09538 g004
Ijms 22 09538 g005 550
Figure 5. Transcript levels of enzyme-encoding genes involved in phenolic acid biosynthesis pathway in transgenic and control lines. (A) Proposed pathway for salvianolic acid (SalB) biosynthesis. PAL, Phenylalanine ammonia lyase; C4H, Cinnamate 4-hydroxylase; 4CL, 4-coumarate-CoA ligase; TAT, Tyrosine aminotransferase; HPPR, 4-hydroxyphenylpyruvate reductase; RAS, Rosmarinic acid synthase; CYP, Cytochrome P450-dependent monooxygenase. (B) Transcript levels of key enzyme-encoding genes involved in SalB biosynthetic pathway in roots of two-month-old transgenic and control lines. All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Figure 5. Transcript levels of enzyme-encoding genes involved in phenolic acid biosynthesis pathway in transgenic and control lines. (A) Proposed pathway for salvianolic acid (SalB) biosynthesis. PAL, Phenylalanine ammonia lyase; C4H, Cinnamate 4-hydroxylase; 4CL, 4-coumarate-CoA ligase; TAT, Tyrosine aminotransferase; HPPR, 4-hydroxyphenylpyruvate reductase; RAS, Rosmarinic acid synthase; CYP, Cytochrome P450-dependent monooxygenase. (B) Transcript levels of key enzyme-encoding genes involved in SalB biosynthetic pathway in roots of two-month-old transgenic and control lines. All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01; * p < 0.05).
Ijms 22 09538 g005
Ijms 22 09538 g006 550
Figure 6. SmMYB2 binds to and activates the promoters of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. (A) MYB-binding sites in promoter regions of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. (B) Yeast one-hybrid assay results indicated interactions between SmMYB52 and promoter regions of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. (C) Schematic diagram of constructs used in dual-luciferase assay. (D) Luciferase activity (LUC) analysis implied that SmMYB52 activated transcription of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. Relative LUC activities were normalized to the renilla luciferase (REN) activity. (E) Transient expression assay in tobacco leaf; leaf images were photographed at 48 h following infiltration. SmbHLH37+pSmTAT1 and SmMYB52+pGreenII 0800 LUC served as positive and negative controls, respectively. All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01).
Figure 6. SmMYB2 binds to and activates the promoters of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. (A) MYB-binding sites in promoter regions of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. (B) Yeast one-hybrid assay results indicated interactions between SmMYB52 and promoter regions of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. (C) Schematic diagram of constructs used in dual-luciferase assay. (D) Luciferase activity (LUC) analysis implied that SmMYB52 activated transcription of SmTAT1, Sm4CL9, SmC4H1, and SmHPPR1. Relative LUC activities were normalized to the renilla luciferase (REN) activity. (E) Transient expression assay in tobacco leaf; leaf images were photographed at 48 h following infiltration. SmbHLH37+pSmTAT1 and SmMYB52+pGreenII 0800 LUC served as positive and negative controls, respectively. All data are means of three biological replicates, and the error bar represents SD; statistical significance was evaluated with Student’s t-test (** p < 0.01).
Ijms 22 09538 g006
Ijms 22 09538 g007 550

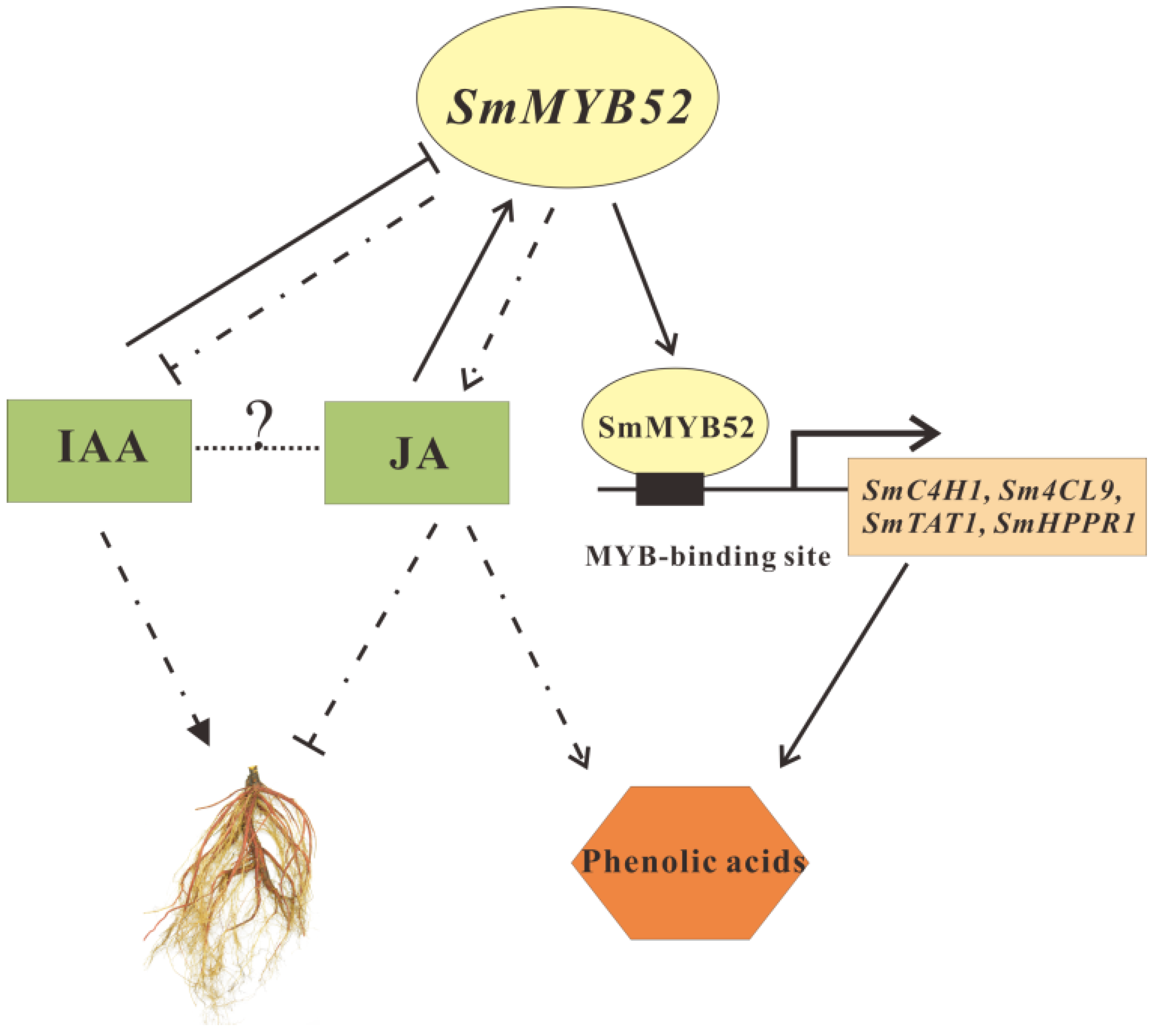

Figure 7. Working model of SmMYB52 regulating root growth and biosynthesis of phenolic acids. Overexpression of SmMYB52 suppresses biosynthesis of IAA and promotes biosynthesis of JA, which results in inhibition of root growth. SmMYB52 activates its target genes (e.g., SmC4H1 and Sm4CL9) to further modulate accumulation of phenolic acids. Arrows represent positive regulation; blunt ends represent negative regulation. Dotted line indicates putative pathway.
Figure 7. Working model of SmMYB52 regulating root growth and biosynthesis of phenolic acids. Overexpression of SmMYB52 suppresses biosynthesis of IAA and promotes biosynthesis of JA, which results in inhibition of root growth. SmMYB52 activates its target genes (e.g., SmC4H1 and Sm4CL9) to further modulate accumulation of phenolic acids. Arrows represent positive regulation; blunt ends represent negative regulation. Dotted line indicates putative pathway.
Ijms 22 09538 g007
