3-Arylaziridine-2-carboxylic Acid Derivatives and (3-Arylaziridin-2-yl)ketones: The Aziridination Approaches

Abstract

Aziridination reactions represent a powerful tool in aziridine synthesis. Significant progress has been achieved in this field in the last decades, whereas highly functionalized aziridines including 3-arylated aziridine-2-carbonyl compounds play an important role in both medical and synthetic chemistry. For the reasons listed, in the current review we have focused on the ways to obtain 3-arylated aziridines and on the recent advances (mainly since the year 2000) in the methodology of the synthesis of these compounds via aziridination.

1. Introduction

The finding of new potential anti-cancer and antiviral drugs, as well as the development of efficient methods for synthesizing them and their appropriate building blocks, is one of the most important problems in medical chemistry. Due to the electrophilic nature of the aziridine ring, derivatives of aziridine-2-carboxylic acid react with various nucleophiles, therefore becoming interesting synthetic substrates in order to create different amino acids, alkanolamines, and heterocyclic compounds [1]. Some derivatives of aziridine-2-carboxylic acid, namely, imexon, azimexon [2], and leakadine [3] were developed as anti-tumour agents and have shown anti-cancer immunomodulatory activity.

It is also known that derivatives of aromatic α,β-unsaturated carboxylic acids, such as caffeic acid [4] and its esters [5] have demonstrated cytotoxic effects and promotion of apoptosis in lung carcinoma cells. Its analogue, p-coumaric acid, has shown an anti-angiogenic effect [6], which is important to stop tumor development. In this light, 3-arylated derivatives of aziridine-2-carboxylic acid 1a,b (Scheme 1) and similar compounds containing an aziridine ring in phenylpropionic acid side chain could be predicted to have anti-cancer properties.

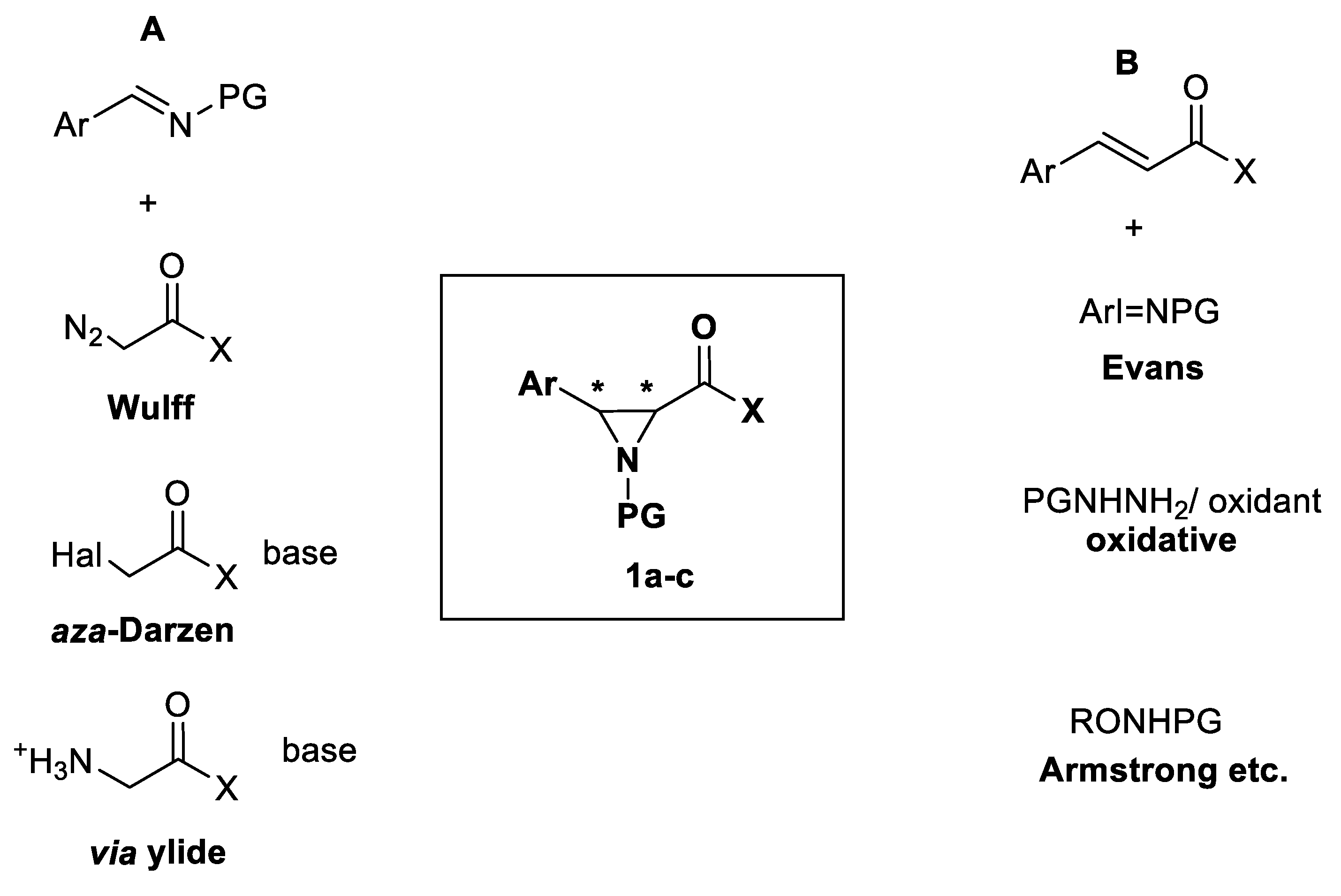

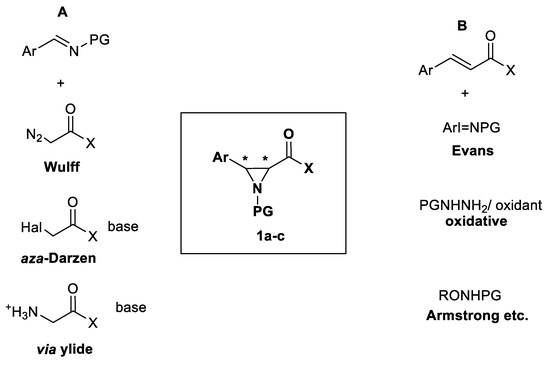

Authors of previous reviews have summarized the recent advances in the synthesis of aziridine-2-carbonyl compounds (Zalubovskis and Ivanova [7]) and in the overall aziridine chemistry and synthesis (Singh [8] and Luisi [9]). The generally known methods to obtain these compounds include aziridination, Gabriel-Cromwell cyclization of aminoalcohols, Diels-Alder cycloaddition to azirines, Baldwin rearrangement, and others. This review is focused on synthesizing 3-aryl substituted aziridines 1a–c (Scheme 1) via aziridination since aziridination has a wide perspective, especially in stereoselective synthesis; it is tolerant towards various functional groups and can be realized in mild conditions which are important for construction of more complex molecules. The structures 1a–c (Scheme 1) have two asymmetric carbons in 2(α-) and 3(β-) positions of aziridine ring, and therefore stereoselectivity of synthetic methods is important. Aziridination has two variations: carbon addition to the imine double bond via carbene sources (Scheme 1A) and nitrogen addition to the olefin double bond via nitrene sources (Scheme 1B).

2. Aziridination of Imines (Path A)

This aziridination approach includes:

• Aziridination of imines with a diazo carbene source (AZ reaction);
• Variations of aza-Darzen reaction;
• Aziridination with ylides.

2.1. Aziridination of Imines with a Diazo Carbene Source (Wulff’s AZ Reaction)

Catalytic asymmetric aziridination (AZ reaction) of imines using a carbene source represents the best explored and most popular group of synthetic methods of 3-arylated aziridines 1a–c (Scheme 1). The most common carbene sources are diazo compounds, e.g., ethyl diazoacetate (EDA) and its analogues.

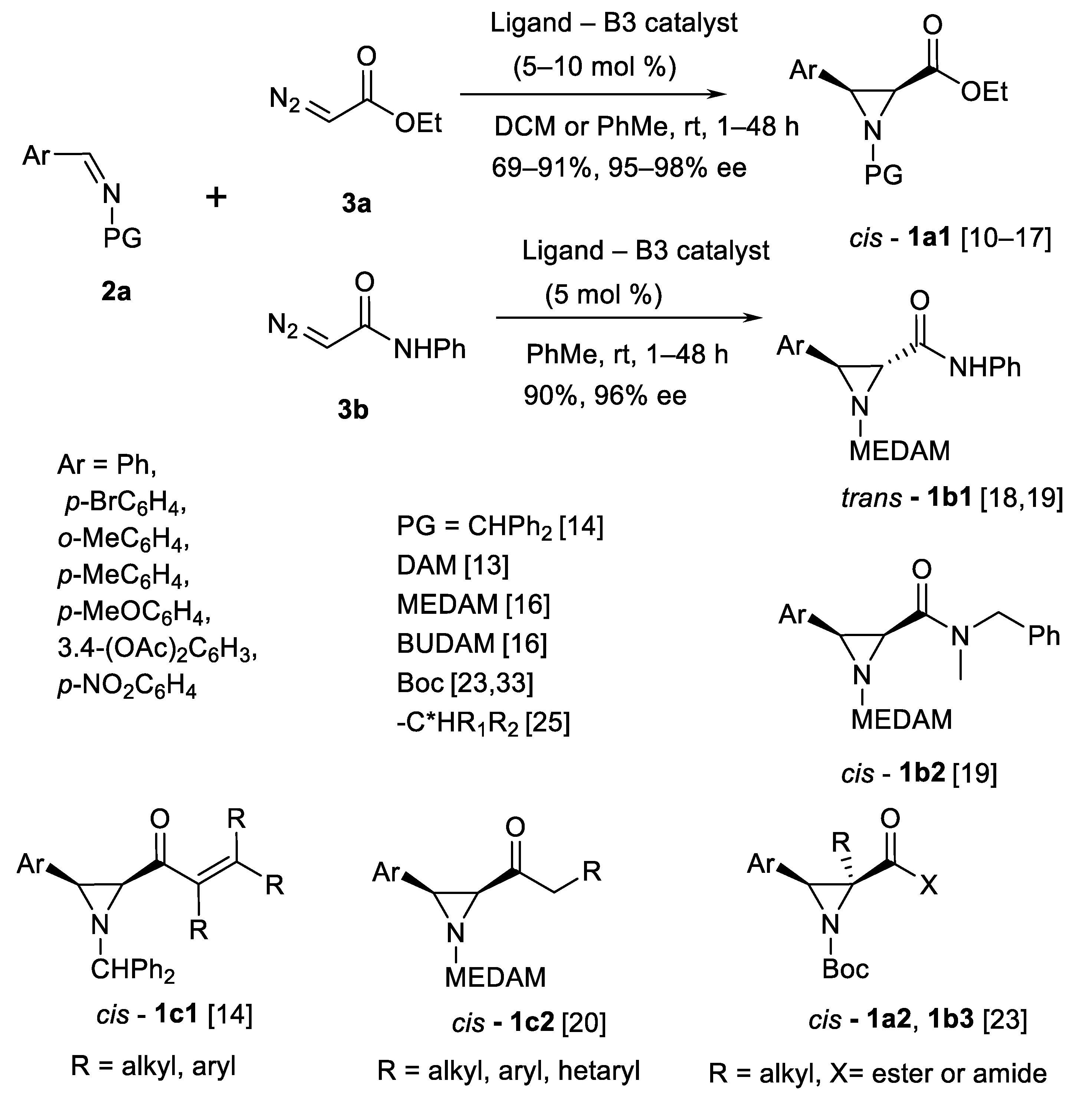

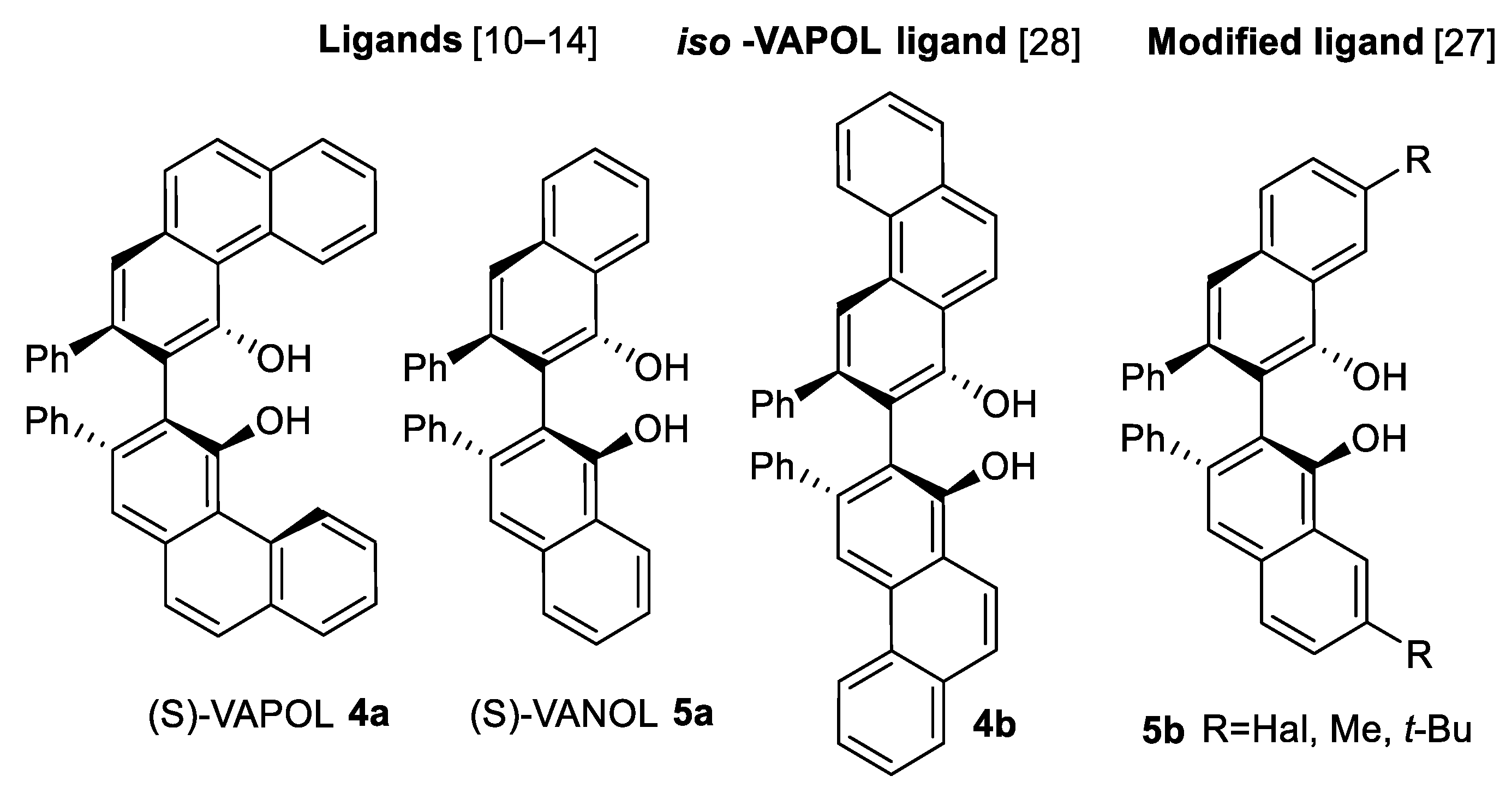

Fundamental series of research in catalytic C=N bound (imine) aziridination with diazo carbene sources (Scheme 2) was made by Wulff’s and Thurston’s teams [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32]. A particularly large number of scientific publications have been prepared by the Wulff’s group [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32]. At first, it was established that the best catalysts for aryl imine 2a (Scheme 2) and ethyl diazoacetate (EDA) 3a (Scheme 2) reactions were complexes of (S)-VAPOL 4a (Scheme 3) and (S)-VANOL 5a ligands (Scheme 3) with B(OPh₃). cis-Aziridine esters 1a1 (Scheme 2) were obtained in good (69–91%) yields and high enantiomeric (ee) purity [10,11,12]. AZ reaction-based synthesis of L-DOPA [10] and (-)-chloroamphenicol [11] and florfenicol [12] have been demonstrated. In the case of dianisylmethyl (DAM) substituent 3-aryl-NH, aziridines were successfully obtained after hydrogenation in 83–100% yields [13]. Instead of ester diazo carbene source 3a, diazoamide 3b (Scheme 2) produced trans-aziridines 1b1 as illustrated in the Scheme 2 [18].

Aziridinyl vinyl ketones 1c1 (Scheme 2) also have been obtained from the corresponding diazo ketones using AZ reaction in presence of (S)-VANOL and (S)-VAPOL-derived boron complex catalysts in 19 examples at 35–90% yields [14]. Series of 3–arylated aziridinyl ketones 1c2 (Scheme 2; seven examples, 62–90% yields, 85–99% ee) have been synthesized in tandem acylation-aziridination of trimethylsilyldiazomethane [20] using (S)-VAPOL and (R)-VANOL ligands. N-Boc-imines 2a (Scheme 2) are more reactive toward diazo compounds and allow to reach trisubstituted aziridines cis-1a2, 1b3 shown in the Scheme 2 [23].

More detailed studies of this AZ reaction were carried out in 2008 [15,16]. The structure of active catalyst was established [15]. This is a pyroborate 6 or 7 (Scheme 4). Reaction with a catalyst 6 and 7 (Scheme 4) has been explored in case of EDA 3a (Scheme 2) and 12 different imines 2a (Scheme 2), ee of the obtained 3-aryl aziridines 1a (Scheme 2) were in the range of 90–95%.

In the subsequent study [16], the active site of the aziridination catalyst “chemzyme” was explored using different N-substituents in the imine 2a (Scheme 2), and authors found that 3.5-dimethyldianisilmethyl (MEDAM) and 3.5-di-tert-butyldianisilmethyl (BUDAM) groups resulted in the best asymmetric inductions in AZ reaction. Further, evidence of cyclic self-assembled boroxinate Brønsted acid ion pair 8 (Scheme 4) acting as an active catalyst in the asymmetric AZ reaction has been reported [17].

Control of diastereo- and enantioselection of chiral VAPOL/VANOL-based polyborate Brønsted acid catalyst-based AZ reactions has been studied [18,19]. In case of diazoamide 3b, trans aziridines (Scheme 2; 1b) can be obtained in reasonably high yields (90%) and enantioselectivity reaching 96% [18]. MEDAM group is the best imine 2a (Scheme 2) N-substituent in this reaction. Also, cis aziridine amides 1b (Scheme 2) are obtained if the amide group is more sterically hindered [19]. Product stereochemistry-determining transition states have been studied both experimentally and in silico to obtain universal methodology of catalytic AZ reaction [19].

The previously described results have been summarized by Mukherjee et al. [21]. The N-substituents have been compared, and it was found that MEDAM imines 2 (Scheme 2) showed 96–97% ee in resulting aziridines 1a,b (Scheme 2). Imines 2a (Scheme 2) derived from seven different aryl aldehydes were examined in aziridine ester 1a and amide 1b (Scheme 2) synthesis.

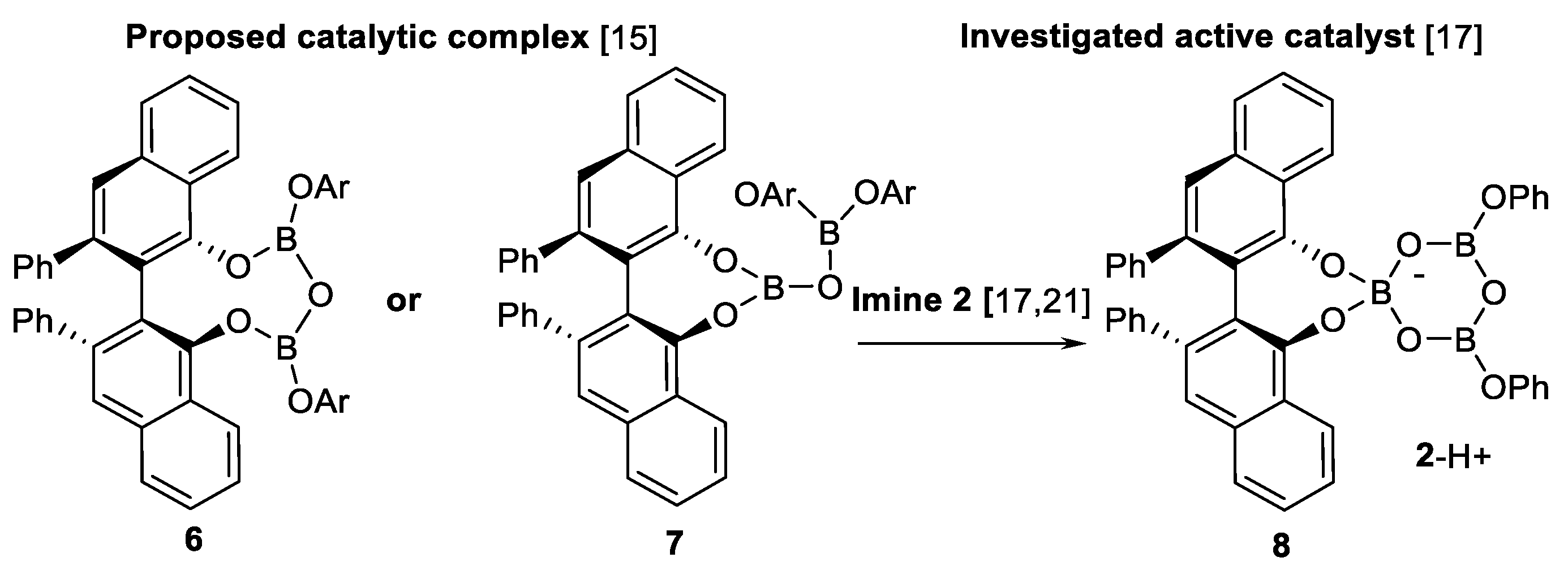

Structure of the self-assembled boroxinate-imine complex 8 (Scheme 4) has been characterized by X-ray diffraction in case of two “chemzyme”-substrate complexes [22]. A practical gram-scale methodology of boroxinate Brønsted acid-catalyzed AZ reaction has been developed [24]. The further steps in developing this asymmetric aziridination tool were experiments with double stereodifferentiation using imines 2 (Scheme 2) obtained from chiral amines (chiral PG) [25] and one-pot five-component reaction protocol: Base-induced formation of boroxinate catalyst 8 (Scheme 4) followed with subsequent addition of diazo compound 3 was replaced with simultaneous addition of all reagents [26].

The further increase of AZ reaction enantioselectivity was realized through insertion of substituents in 7, 7′ positions of biaryl ligand 5b as depicted in the Scheme 3 [27]. Improving of catalyst ligand included developing of iso-VAPOL ligand 4b illustrated in the Scheme 3 [28]. This ligand was an isomer of VAPOL 4a (Scheme 3) but had a chiral pocket of VANOL 5a (Scheme 3) and was available from much cheaper starting materials.

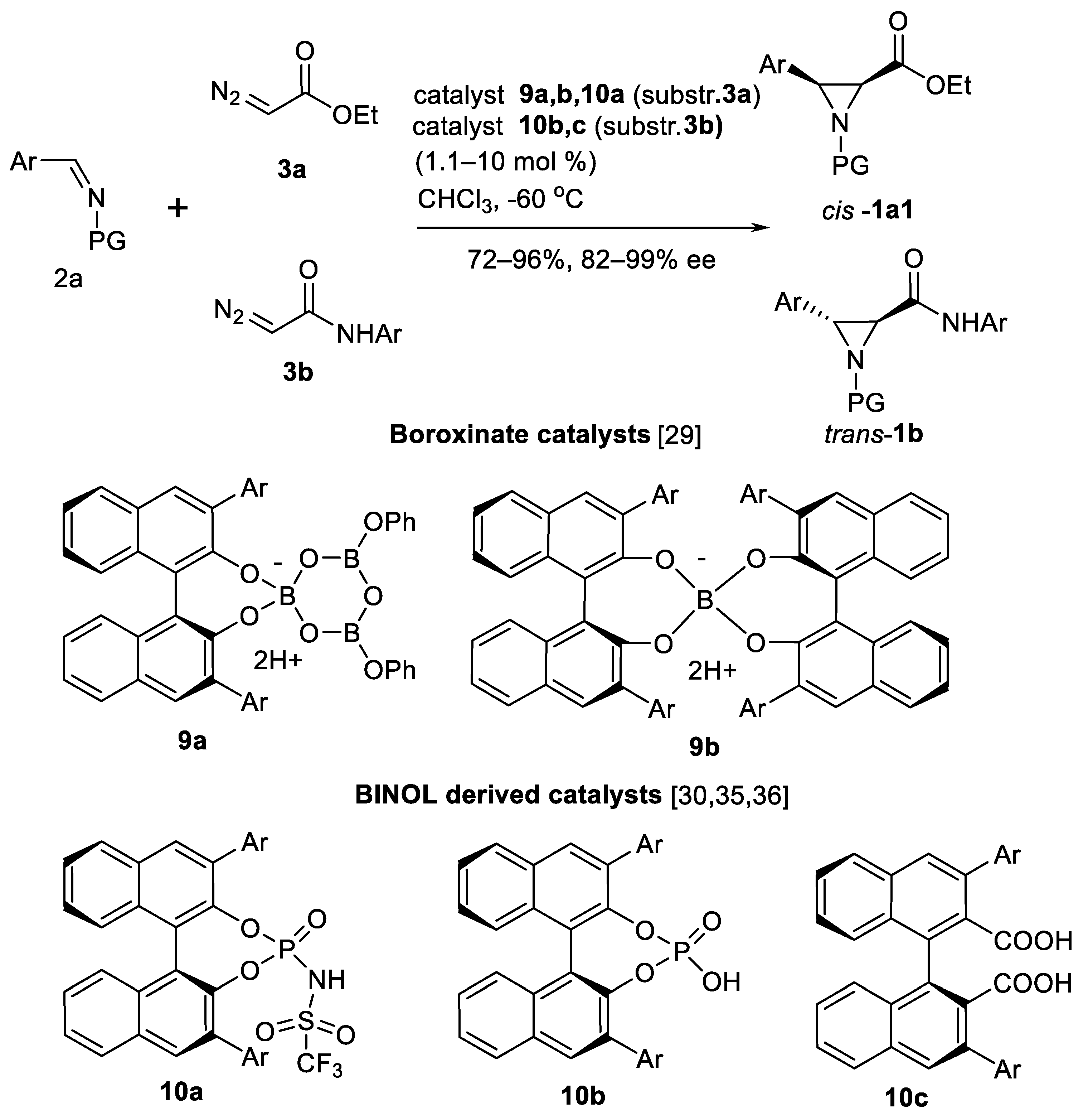

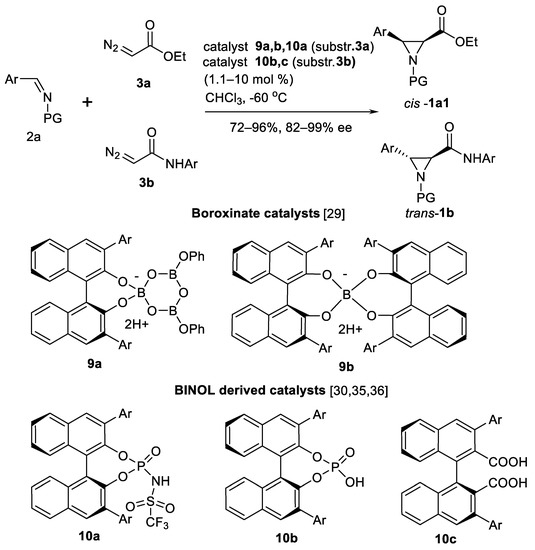

In 2017, Wulff’s group continued to study AZ reaction using closely related BINOL catalysts 9a and 9b represented in the Scheme 5 [29]. Different borate ester structures were investigated. Boroxinate 9a and spiro borate 9b (Scheme 5) yielded opposite asymmetric inductions in aziridine cis-1a1 (Scheme 2) formation.

A series (12 examples) of esters cis-1a1 (Scheme 2) were obtained by Thurston’s group using BINOL-derived Brønsted acid catalyst 10a (Scheme 5) [30]. Multi-component variation of AZ reaction was carried out employing aromatic and heteroaromatic aldehydes. Other examples of multi-component AZ reaction approach involving the above mentioned VAPOL and BOROX catalysts are also known [31,32]. Optimal reaction protocol for aromatic aldehydes in synthesis of aziridines trans-1b (Scheme 2) was found [32].

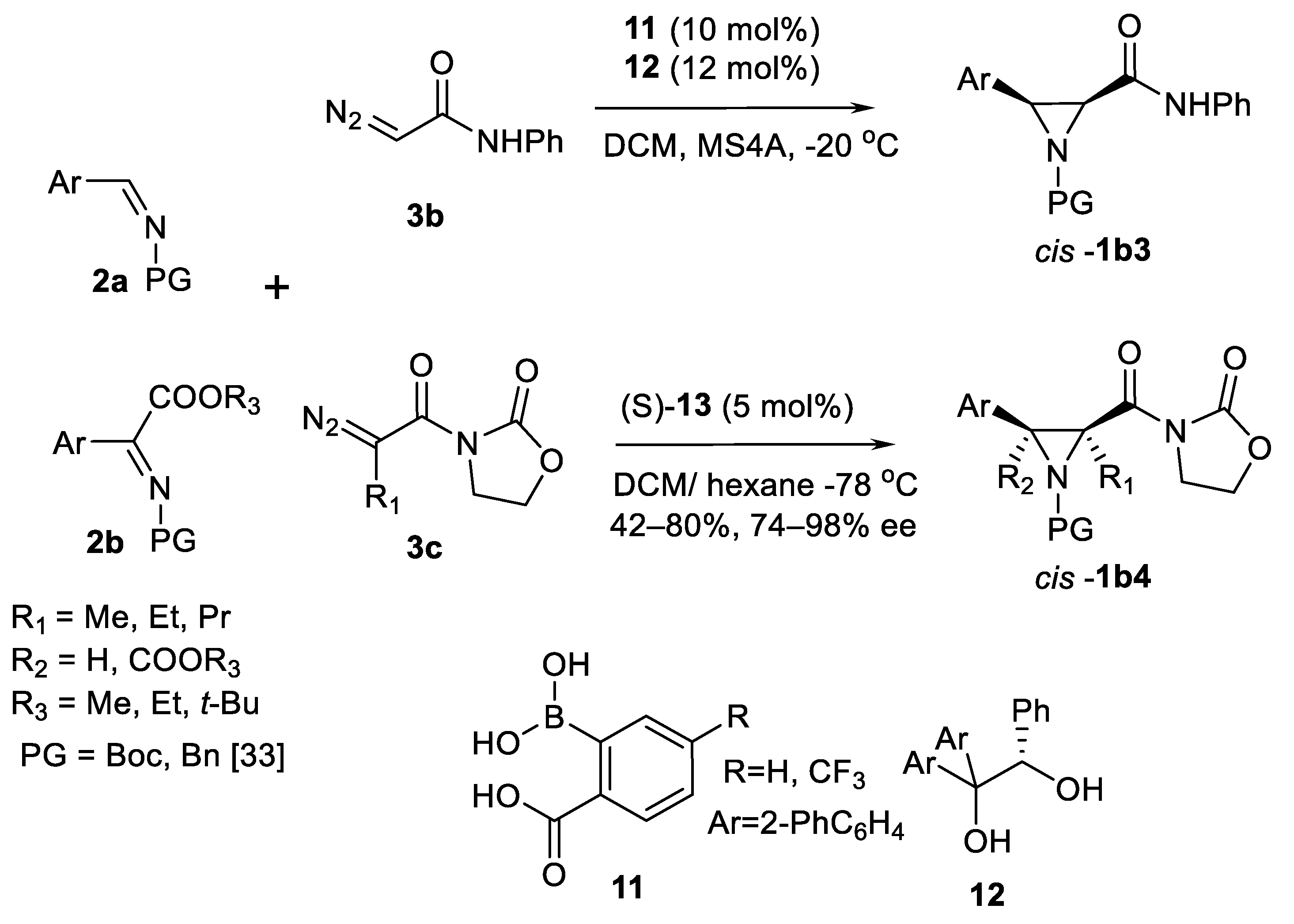

Another boron Brønsted acid catalyst system—arylboronic acid 11 and chiral diol ligand 12 in situ assembled boronate ester (Scheme 6) was developed by Maruoka and co-workers [33]. Aziridine amides cis-1b3 (Scheme 6) were obtained in good yields and high enantioselectivities (22 examples). In case of α-diazoacyl oxazolidinones 3c (Scheme 6) as carbene sources and chiral N-triflyl phosphoramide Brønsted acid catalyst 10a (Ar = Ph) [34] highly substituted oxazolidinone aziridine amides cis-1b4 (Scheme 6) were obtained in good (77–91%) chemical yields and usually >80% ee. Series of different 3–aryl substituents were demonstrated to be useful in these reactions in 24 examples. Reasonable trans-selectivity was reached in this type of reactions with chiral phosphoric acids 10b (Ar = 9-Anthryl) [35] and 10c (Ar = 2.4.6-Me₃-C₆H₂; Scheme 5) [36] as a catalyst to obtain amides trans-1b3 in excellent yields (89–97%) and enantioselectivity (88–98%), shown in 16 examples [35] and 14 examples [36], respectively.

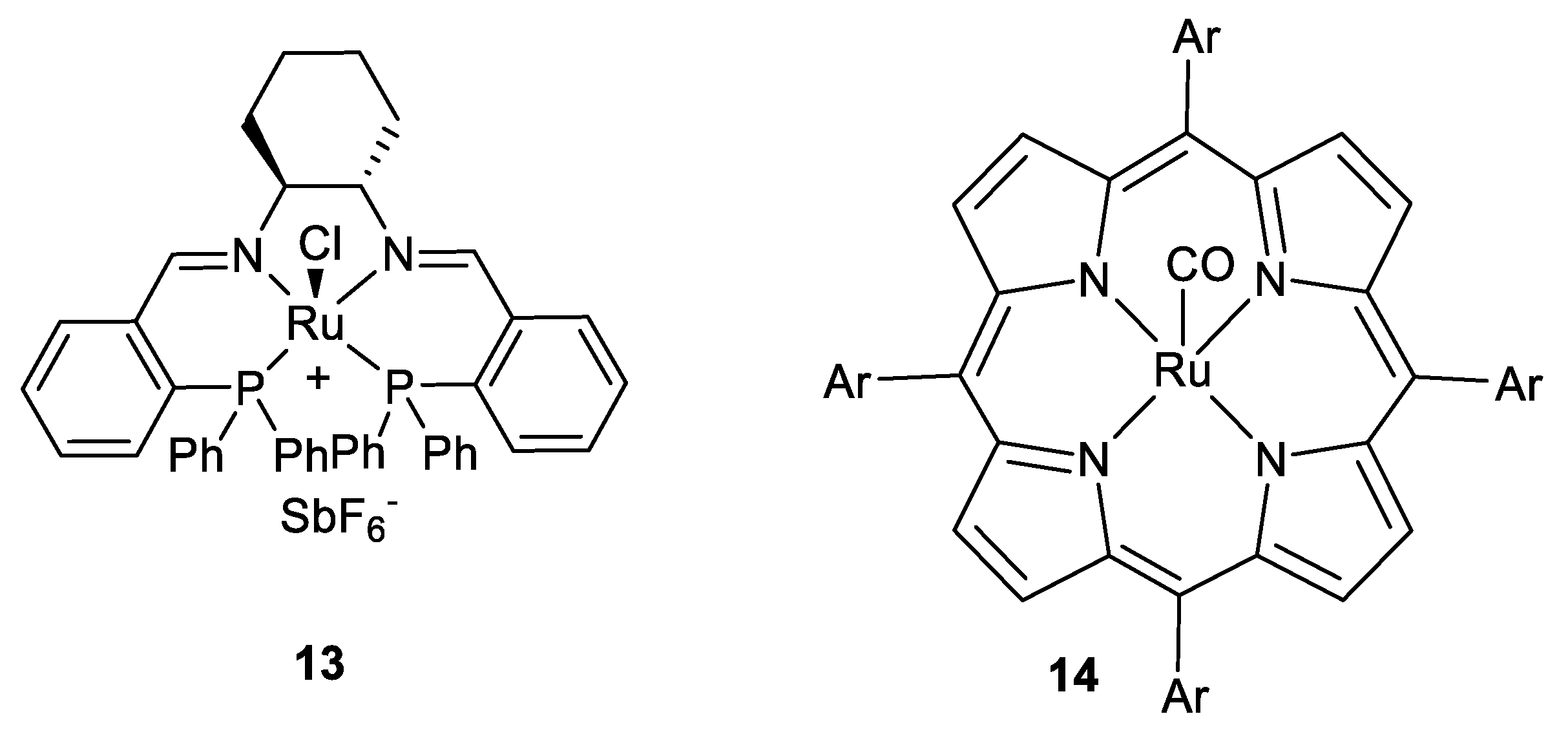

Enantioselective AZ reaction using another type of catalyst, namely, a ruthenium complex 13 (Scheme 7), was investigated by Mezzeti and co-authors [37,38].

Six examples of β-aryl esters cis-1a (PG=CHPh₂) were demonstrated in moderate yields (9–33%) and good ee (75–93%). Another ruthenium complex (Scheme 7; 14) as a catalyst has been used in the same AZ reaction, leading to yields of esters cis-1a (16 examples) up to 86% [39] but the stereoselectivity was moderate, typically 2.5:1. Iron-pyBOX complexes [40] and rhodium-benbox complexes (ten examples [41]) as AZ reaction catalysts at room temperature were reported earlier, but results (yields, ee) were moderately good.

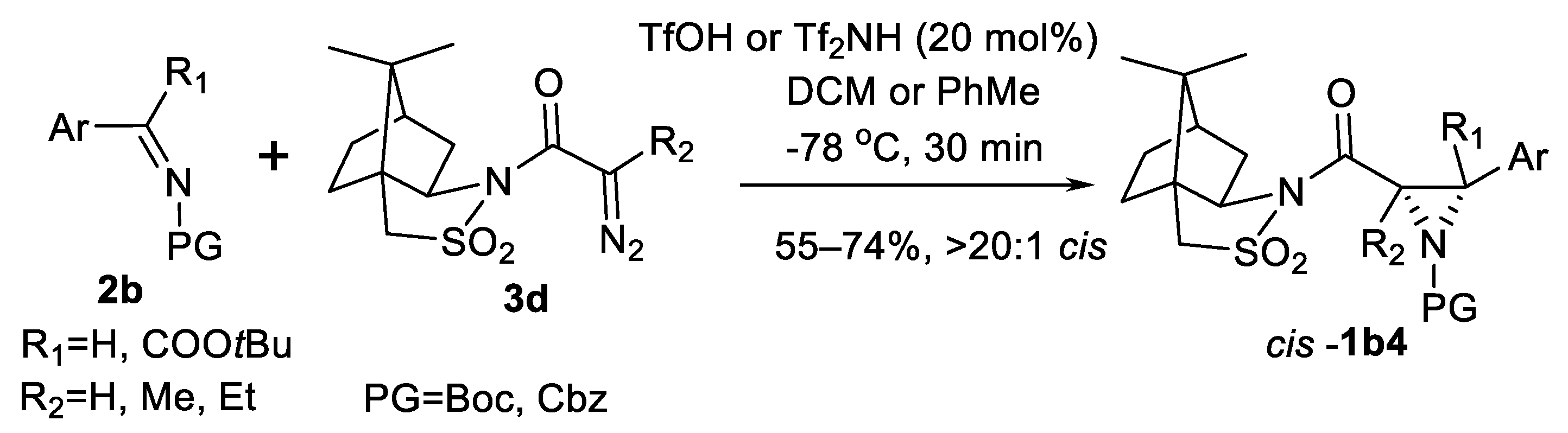

The use of a chiral diazonium compound (Scheme 8) represents an interesting asymmetric variation of AZ reaction [42,43]. Thus, N-α-diazoacyl camphorsultams 3d demonstrate good results in reaction with imines 2b to obtain β-mono- and disubstituted aziridine-2-carboxamides cis-1b4.

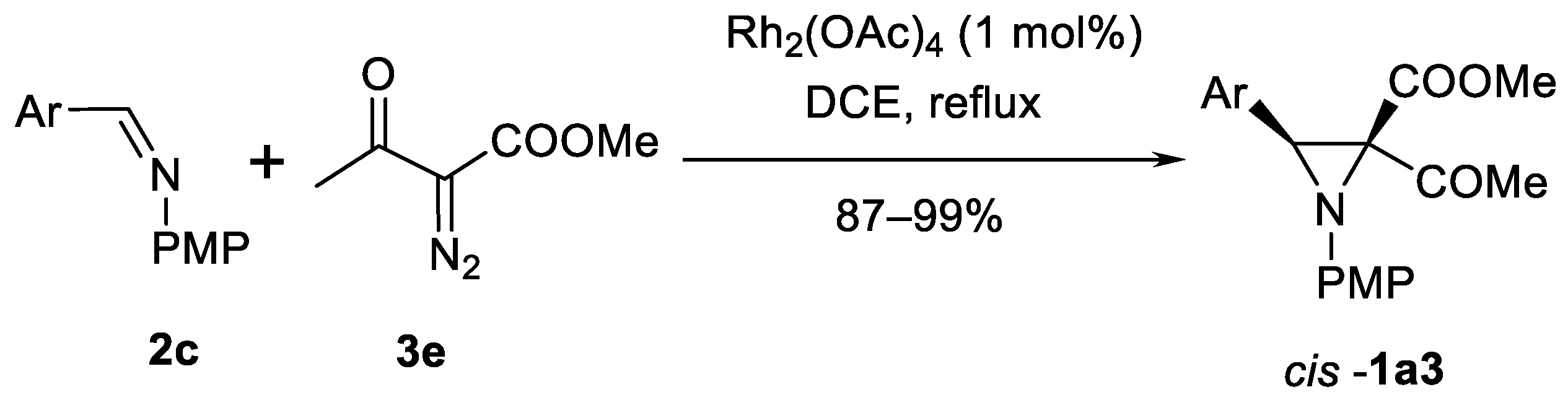

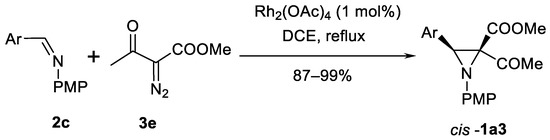

Diazoacetates 3e are useful substrates for synthesis of highly functionalized β-aryl aziridine ketoesters cis-1a3 as shown in the Scheme 9 [44]. Six successful examples with different arylimines were presented. Unfortunately, if Ar = p-NO₂Ph, or 2-pyridyl, no reaction was observed. On the other hand, some examples of products cis-1a3 with another ester groups and 2.2-diesters instead of ketoester were demonstrated.

Ionic liquids have been successfully tested for cis-selective AZ reactions [45,46]. Reactions of aromatic aldimines were carried out in bmim PF₆ at room temperature [45] and in the same liquids in multi-component variation with 2 mol% of Bi(OTf)₃ or 5 mol% of Sc(OTf)₃ catalyst [46] addition. The yields of aziridines cis-1a in both studies exceeded 80%. Ten [45] and twelve [46] examples were demonstrated, respectively.

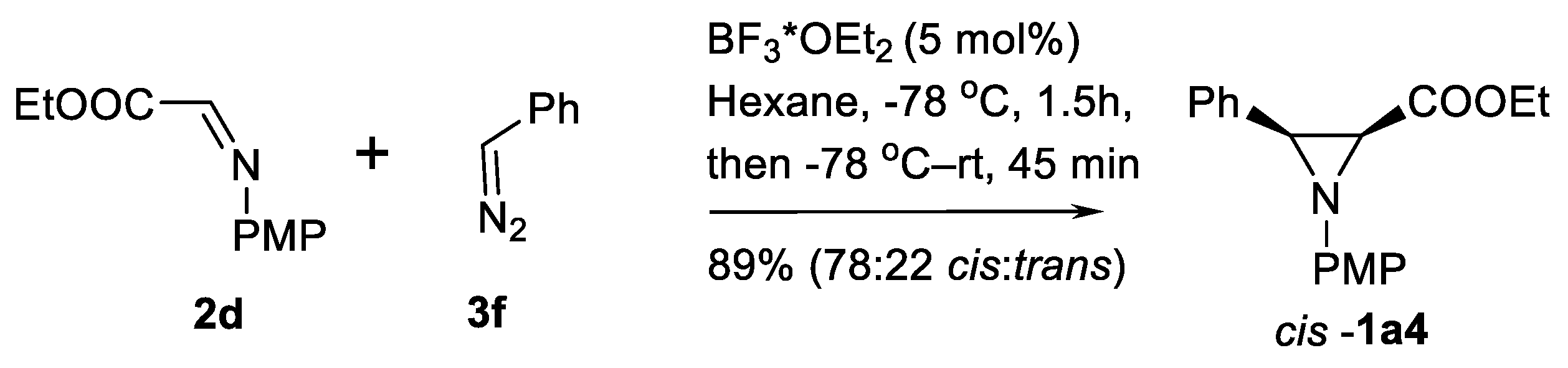

Other simple catalysts for imine C=N bound aziridination with diazo compounds include BF₃*OEt₂ [47,48], montmorillonite K-10 [49], LiClO₄ [50] and Rh₂(OAc)₄ [44,51]. The Lewis acid BF₃*OEt₂-catalyzed reaction of imino ester 2d and phenyldiazomethane 3f produces the aziridine ester cis-1a4 in good yield [47] without enamino- and dimeric byproducts (Scheme 10).

Sugar-derived imine also was successfully aziridinated under BF₃*OEt₂ catalysis [48]. The montmorillonite K-10 catalysis in imine-EDA aziridine-forming reaction is characterised by high cis-selectivity and good yields (15 examples). The demonstrated procedure is very simple, namely, reactions were performed at room temperature with EDA as solvent [49]. A similar method with LiClO₄ catalysis allows to obtain broad spectrum (18 examples) of 3-aryl aziridine esters cis-1a at room temperature in acetonitrile over 4.5–7.5 h at >75% chemical yields and good stereoselectivity [50].

Organocatalytic variations of AZ reaction are also known. In presence of pyridinium salts as Brønsted acid organocatalysts cis-selective synthesis of esters cis-1a was demonstrated [52,53]. The best results show 10 mol% of pyridinium triflate [53]. Synthesis of 21 examples of different 3-aryl aziridine-2-carboxylates 1a bearing substituted phenyls and 2-pyridils in β-position has been demonstrated (70–99% yields). Polymer-supported pyridinium salt also was reported as an effective catalyst (80% yield of product), and three-component one-pot process was performed.

In addition, N-fluoropyridinium triflate (fluoronium ion catalyst) has been described as an organocatalyst in eight examples of these reactions [54], and the reached results were comparable with the previously listed examples. A source of cation radical, tris-(4-bromophenyl) aminium hexacloroantimonate (TBPA⁺ SbCl₆^-), was an effective initiator of EDA 3a addition to aryl imines 2 in 13 examples [55]. tert-Butyl diazoacetate addition to one-pot-generated aldimines 2 under pyridinium triflate catalysis was successfully employed to obtain more complex 3-aryl aziridine structures 1a5, 1a6 shown in the Scheme 11 [56].

An interesting variation of imine aziridination was EDA-aziridination of in situ generated iminium ion [57], generated from α-aminonitriles.

2.2. Aziridination of Imines with Other Carbene Precursors

Other carbene precursors or carbene-like species can be added to imines. These species include:

• Active methylene compounds;
• Enolates derived from α-bromoesters and bases;
• Lithiated enamines;
• Guanidinium, ammonium or sulfonium ylides.

2.2.1. Variations of aza-Darzen Reaction

The most frequently used method is the addition of enolates derived from α-bromoesters to various imines (aza-Darzen reaction variations).

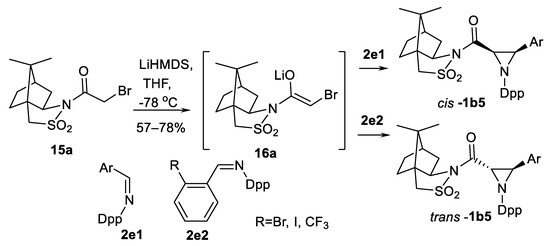

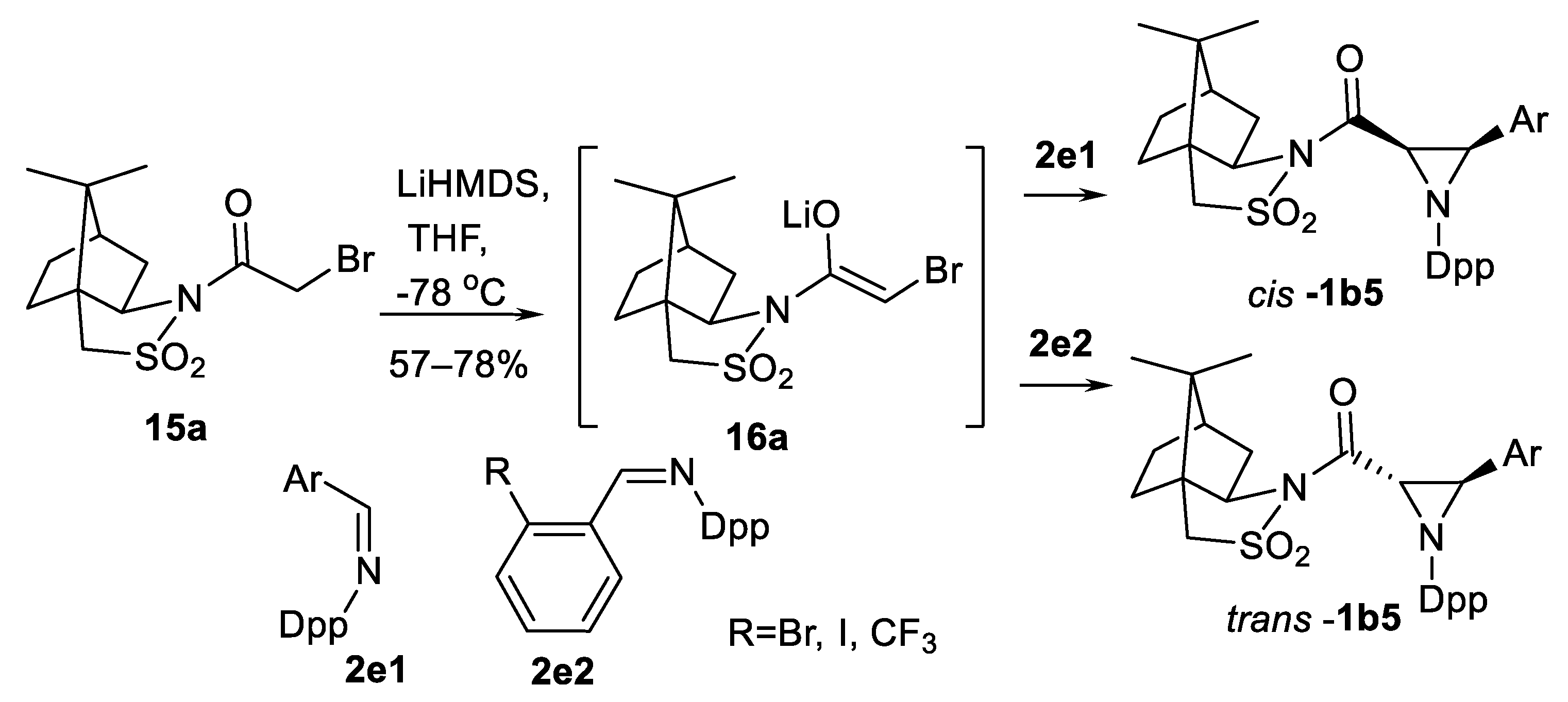

The sources of chirality are chiral N-substituents in imines or enolates. Use of chiral enolates and N-diphenylphosphinylimines were explored by Sweeney and co-authors [58,59]. Thus, enolate 16a, generated from 2R-N-bromoacethylcamphorsultam 15a (Scheme 12) reacts with N-diphenylphosphinyl aldimines 2e1 leading to 3-arylaziridine-2-carboxamides cis-1b5.

Chemical yields are good (57–78%) and stereoselectivity excellent, >95% dr in 14 demonstrated examples [58]. However, in some cases depending of the imine aryl substituent structure (using imines 2e2) inversion of stereochemistry has been observed and aziridines trans-1b5 obtained [59]. The mechanism of reaction and transition states were elucidated.

Another approach to chiral 3-aryl aziridine-2-carboxylic acid derivatives by asymmetric aza-Darzen type reaction is the use of chiral moiety in the imine component.

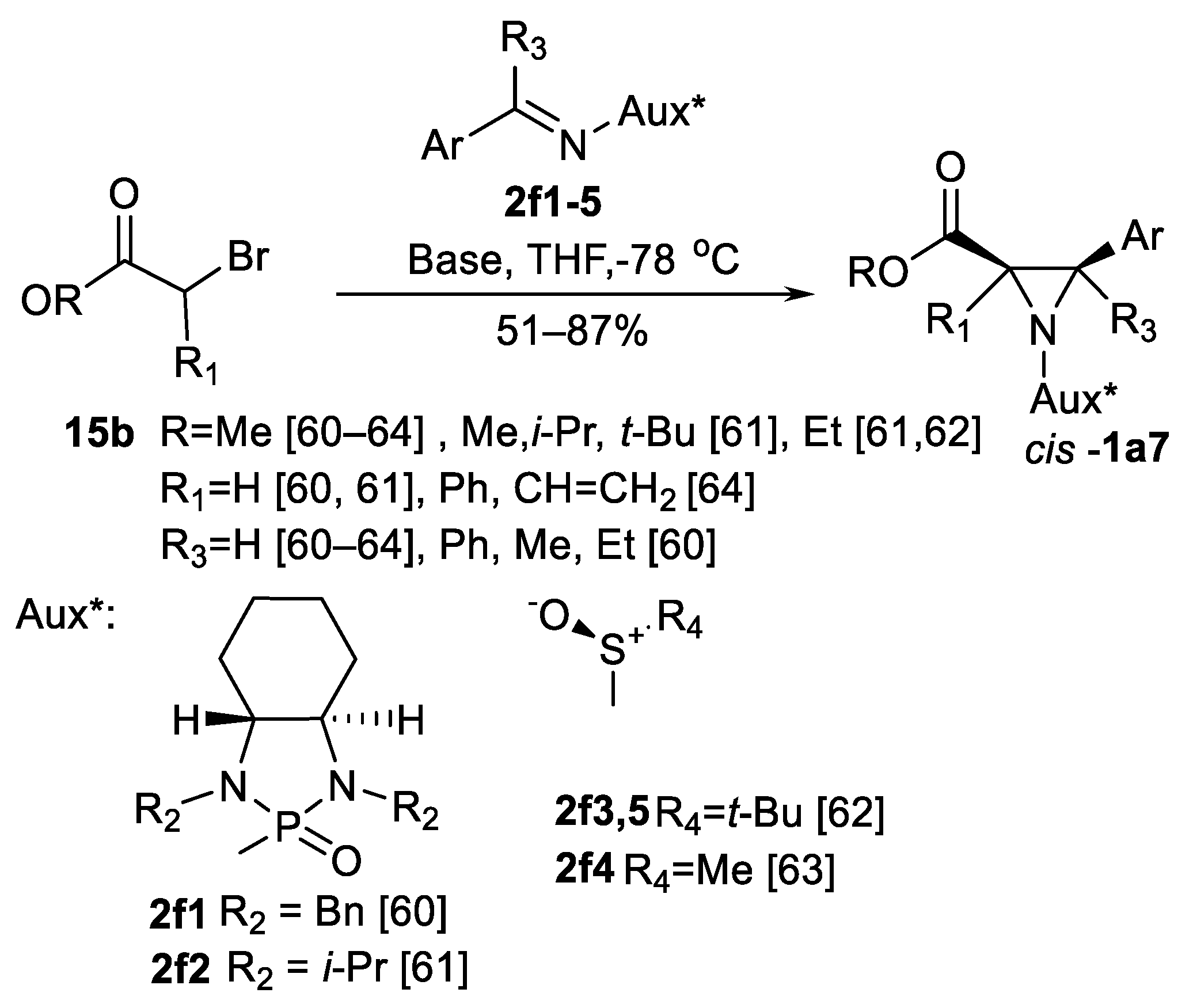

There are chiral N-phosphinyl imines 2f1, 2f2 [60,61] and chiral sulfimines 2f3, 2f4 [62,63,64] presented (Scheme 13). N-phosphinyl imines 2f1 have been successfully used in aza-Darzen reaction with enolates generated from esters 15b in ten examples of aziridines cis-1a7 in 72–82% chemical yields and >80% de [60]. Better results have been achieved by imines 2f2: 17 examples of aziridines cis-1a7 with various 3–aryl substituents and four examples of different esters 1a7 (Ar = Ph) have been obtained in good chemical yields (51–87%) and >98% cis- selectivity [61]. Chiral tert-butanesulfinyl aldimines 2f3, 2f4 and ketimines 2f5 were used in series of aziridines cis-1a7 synthesis [62]. Corresponding 3-aryl and 3.3-diaryl products were obtained in moderately good cis-selectivity (71:29–98:2); eight examples of 3-aryl products cis-1a7 were demonstrated. Isolated examples of S-mesitylsulfinyl imines 2f4 have been employed in aziridine cis-1a7 synthesis [63]. Trisubstituted 3-aryl aziridine-2-carboxylates cis-1a7 were obtained from substituted 2-bromoesters 15b and tert-butane sulfinyl aldimines 2f3 [64] in >60% chemical yields and >98% de (five examples).

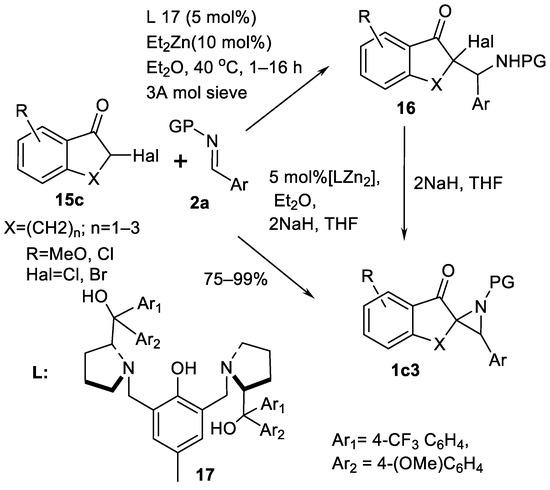

Modified aza-Darzen type protocol allows to obtain trisubstituted spirocyclic 3-aryl aziridinyl ketones 1c3 (Scheme 14) from cyclic halogenated ketones 15c illustrated in the Scheme 14 [65]. Two protocols—one-step direct approach to ketones 1c3 (Scheme 14) and two-step synthesis through an addition product, namely, tertiary halogenide 16 (Scheme 14)—were realized. Chloro- and bromoketones 15c (Scheme 14) were used, and the catalyst was Zn-ligand 17 (Scheme 14) complex. Reactions can be run in gram-scale with small amounts of catalyst. Chemical yields of products (30 examples) are 75–99% in >20:1 dr.

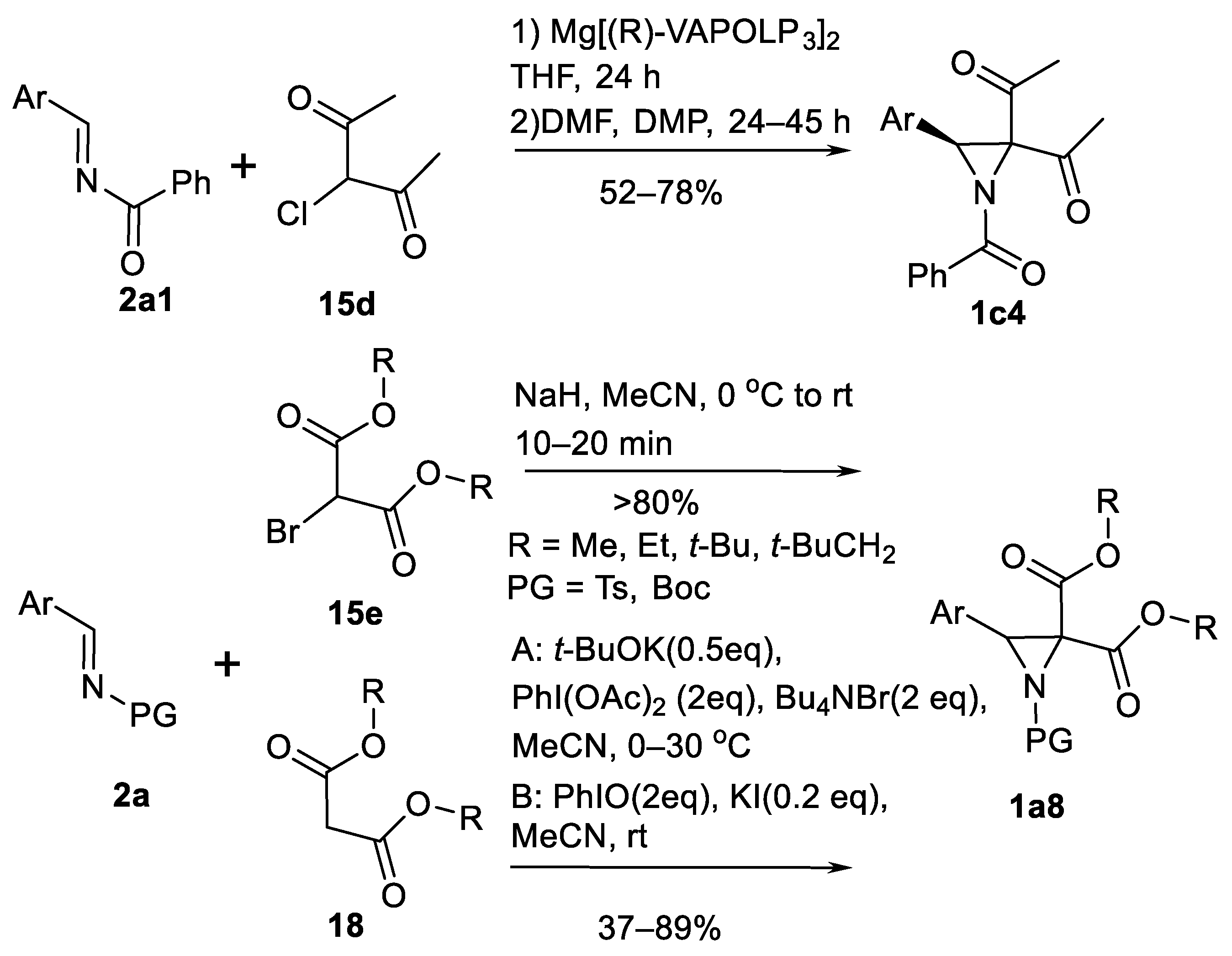

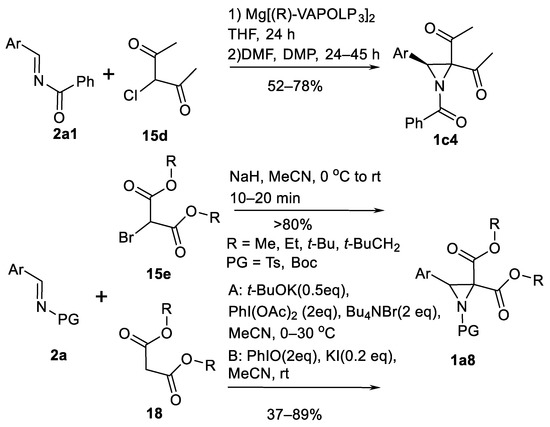

In a similar way, α-chloro-1.3-diketones 1c4 (Scheme 15) were used as enolate precursors in aza-Darzen type synthesis [66] in reactions with N-benzoylarylaldimines 2a1 under (R)-VAPOL magnesium phosphonate salt catalysis (Scheme 15). In case of electron deficient imines 2a (Scheme 15), no strong bases are necessary and aziridines 1c4 (Scheme 15) form in 52–78% yield and 57–92% ee.

3-Arylated aziridine diesters 1a8 (Scheme 15) also can be prepared in aza-Darzen reaction [67]. Racemic aziridines 1a8 (Scheme 15) are obtained in >80% yields from imines 2a (Scheme 15) and bromomalonates 15e (Scheme 15). Useful N-substituent for these reactions was tosyl (24 examples) but N-Boc aziridine diester 1a8 (Scheme 15) also can be prepared from N-Boc imine 2a (Scheme 15). N-tosyl imines 2a (Scheme 15) can react with activated methylene compounds 18 (Scheme 15) in iodine (III) induced aziridinations to form aziridines 1a8 as shown in the Scheme 15 [68,69]. Iodobenzene diacetate—tetrabutylammonium bromide system was reported first [68]. Aziridines 1a8 (Scheme 15) can form from malonates 18 (Scheme 15), acetyl-, cyano- and nitroacetic acid esters to obtain symmetrical and unsymmetrical products 1a8 (Scheme 15) in 37–89% yields. The further study showed that PhIO-KI system is a better oxidative iodine (III) additive for these reactions [69]. In this case, aziridines 1a8 (Scheme 15) are obtained in >75% yields.

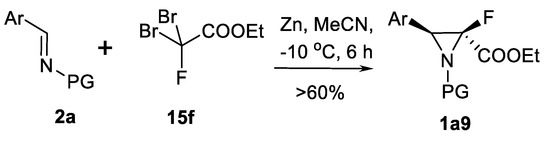

Reformatsky type aza-Darzen reaction variation using imines 2a, inactivated zinc metal and fluorodibromoacetate 15f is successfully used for access to 3-arylated 2-fluoro aziridine-2-carboxylates 1a9 as shown in the Scheme 16 [70].

Yields up to 60% (determined by ¹⁹FNMR) and up to 80% syn products were obtained in ten examples.

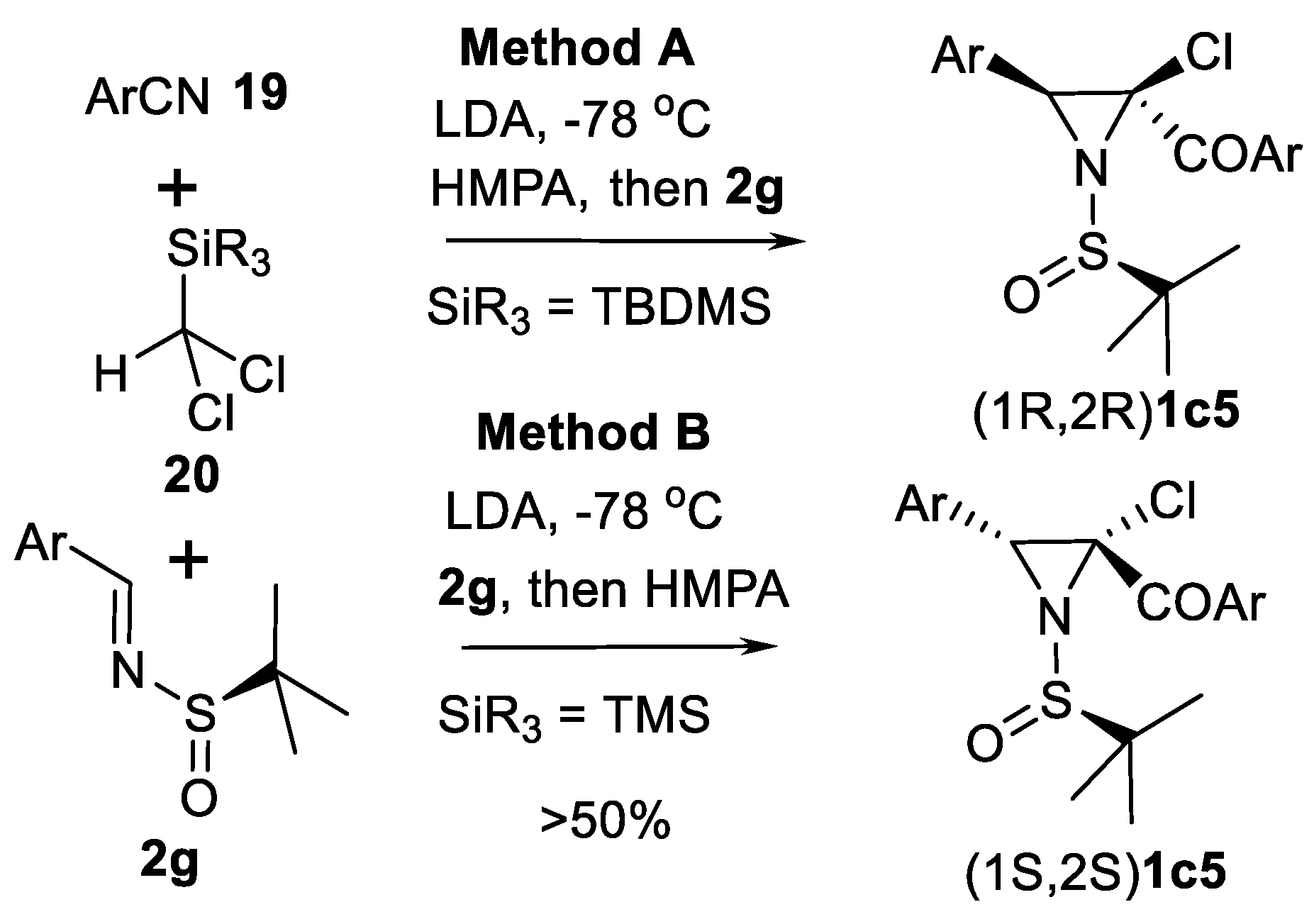

More complicated cascade reactions (Scheme 17) which allowed stereoselective obtaining of 3-arylated 2-chloro aziridines was demonstrated by Xu and co-authors [71]. This cascade coupling included nucleophilic addition of anion generated from silyldichloromethane 20 and nitriles 19 in presence of LDA and subsequent [1,3] -aza-Brooke rearrangement to give α-N-silyl imines in equilibrium with 1-azaenolate equivalents. These species were then trapped by imines 2g in an aza-Darzen type reaction to give aziridines 1c5 in good (up to 50%) yields and up to 10:1 selectivity demonstrated in 19 cases for each method. Remarkably, stereoselectivity strictly depends on the silyl group and the order of addition of 2g and HMPA (method A or B).

2.2.2. Ylides as Carbon Sources

An interesting variation of C=N double-bond aziridination are aziridinations of ylides. The first remarkable reports were made by Ishikava’s group on reactions of guanidinium ylides with aryl aldehydes as a practical route for obtaining of inactivated 3-arylated aziridine-2-carboxylates 1a1 [72,73,74,75,76]. The initial study [72] for the first time reported the formation of guanidinium ylides 21b from guanidinium salts 21a in the presence of base (NaH or tetramethylguanidine) and their reactions with aryl aldehydes to form trans aziridines 1a1 (Scheme 18). In the subsequent publication [73], the potential reaction mechanism and role of the p-substituents in aldehyde aryl ring were explored. The authors concluded that in the case of EDG p-substituted benzaldehydes S_Ni-like mechanism and in case of EWG substituents S_N2-type mechanism took place. Not only trans aziridines 1a1 are available with this method. Procedure of epimerization in β- (C3) position was described [74] using indium chloride catalyst. Aziridinomitosene skeleton synthesis [74], formal synthesis of (-)-podophyllotoxin [75] and synthesis of cyclic dipeptide (-)-benzolactam-V8 [76] has been demonstrated.

Finally, reaction conditions were optimized, the method was expanded to broad spectrum of aryl aldehydes (45 examples) and series of modified guanidine salts were examined to reach a general method for highly substituted 3-arylaziridine-2-carboxylate 1a1 synthesis [77].

Other ylides can work in a similar way. Thus, aziridinations via ammonium [78,79,80] and sulfonium [81,82,83,84] ylides are known. A simple protocol for the reaction of phenacyl bromides 15g with imines 2a2 promoted by tertiary amine (DABCO) via in situ generated ylide (Scheme 19) has been reported [78].

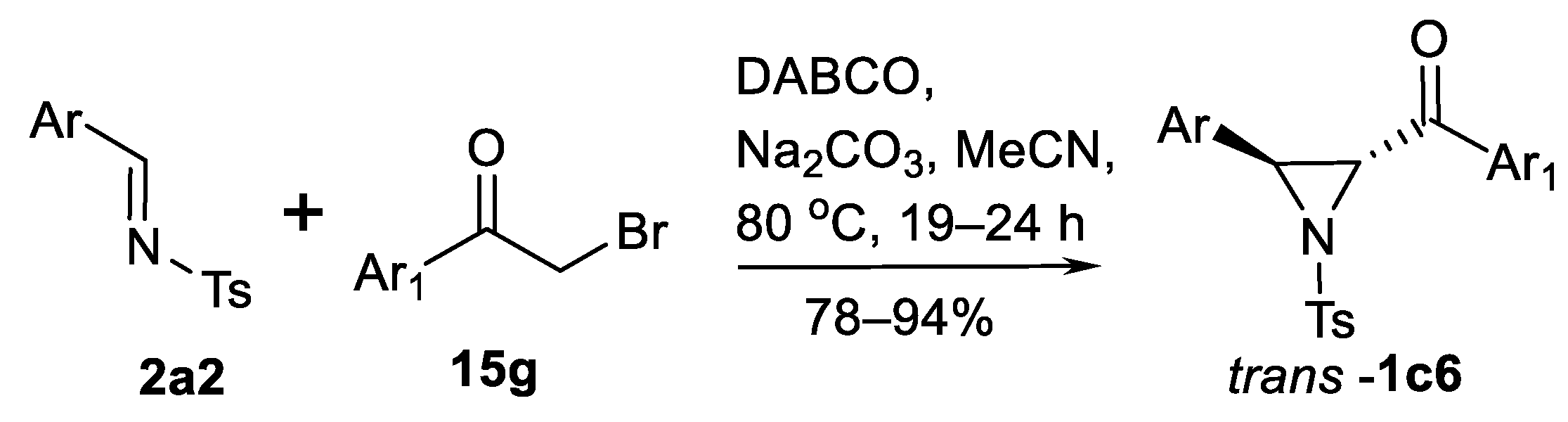

This one-pot aziridination process include quaternization of DABCO, then in situ formation of ammonium ylide in the presence of base and aziridination of imine 2a2 to obtain 3-arylated trans-aziridinyl ketones trans-1c6 in good yields (nine examples) and trans-selectivity. Enantioselective aziridination using chiral DABCO analogue also was demonstrated.

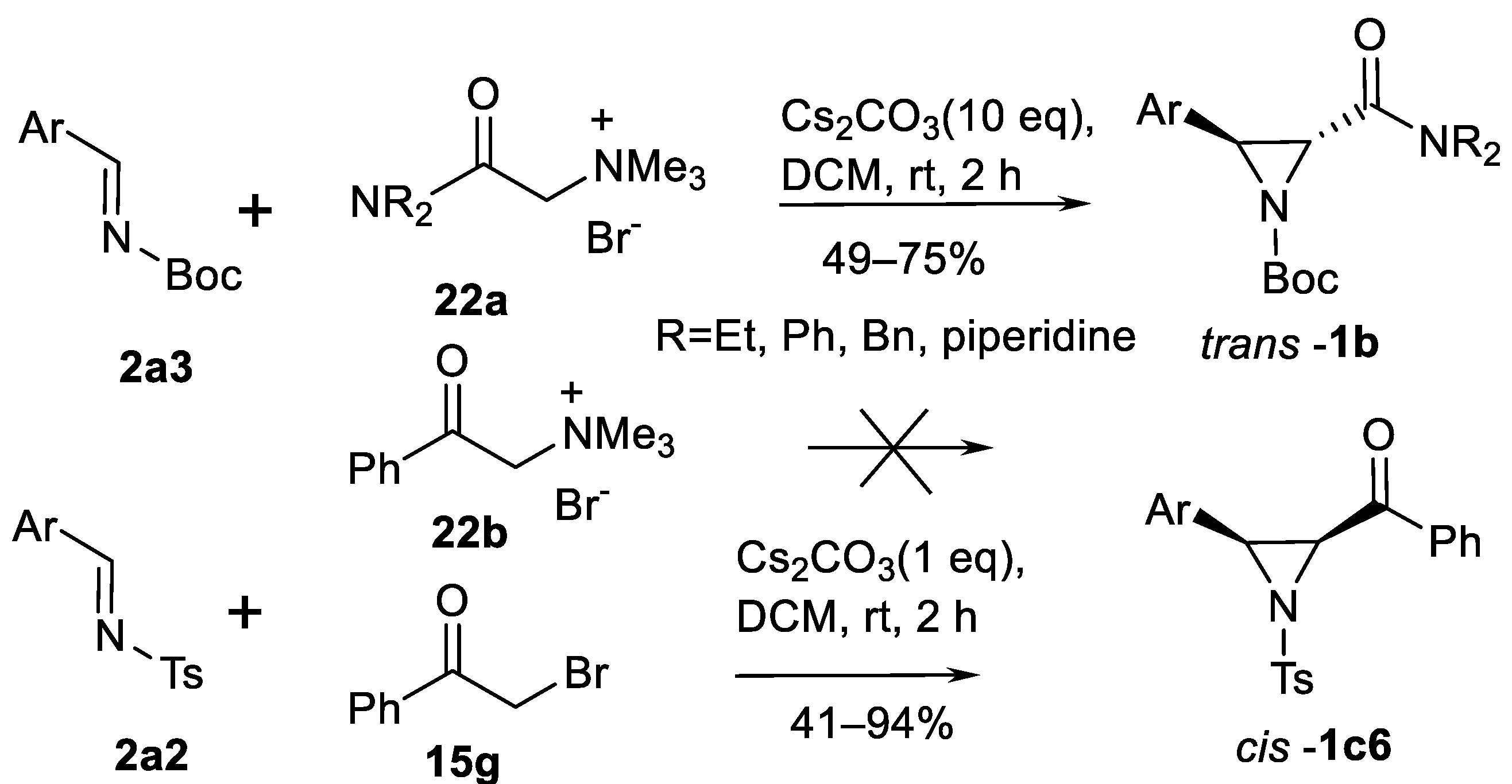

Simple trimethylammonium salts work similarly via amide-stabilized ammonium ylides (forming from salts 22a; Scheme 20) which react with aromatic aldimines 2a3 to form 3-arylated trans-aziridine carboxamides trans-1b [79]. Moderate to good yields and trans-selectivity has been demonstrated in eight examples. Remarkable feature is that ammonium salts 22b do not react with aldimines 2a2 in similar way. However, the classic aza-Darzen process—reaction of imines 2a2 with phenacyl bromide 15g—gives cis–aziridinyl ketones cis-1c6 in high yields.

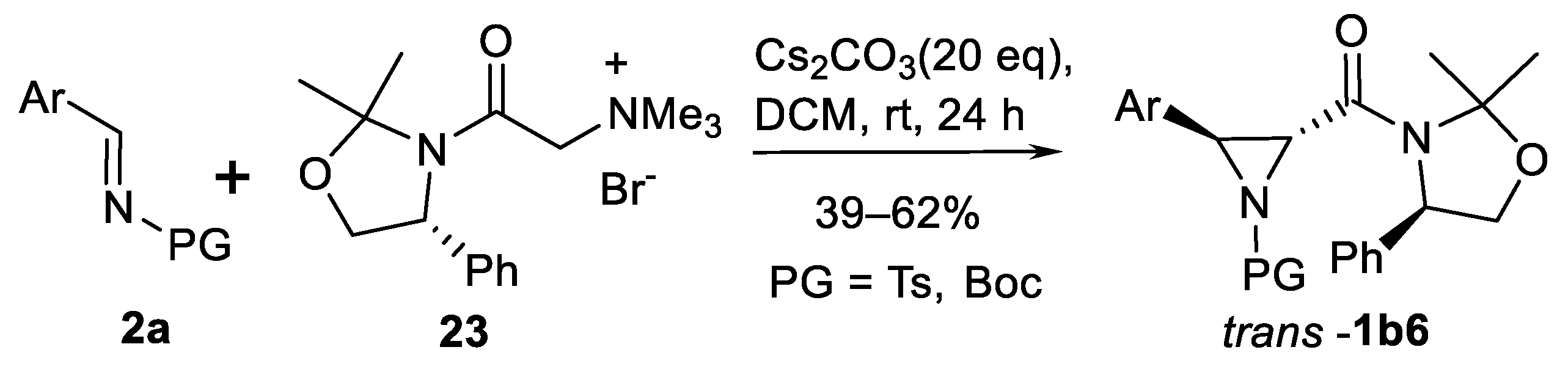

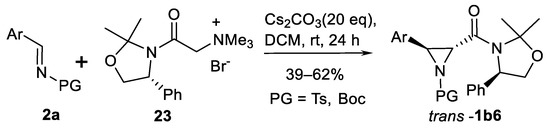

Asymmetric aziridination using stabilized trimethylammonium salts 23 has been demonstrated [80] in six examples (Scheme 21). Aziridine carboxamides trans-1b6 were obtained in good yields.

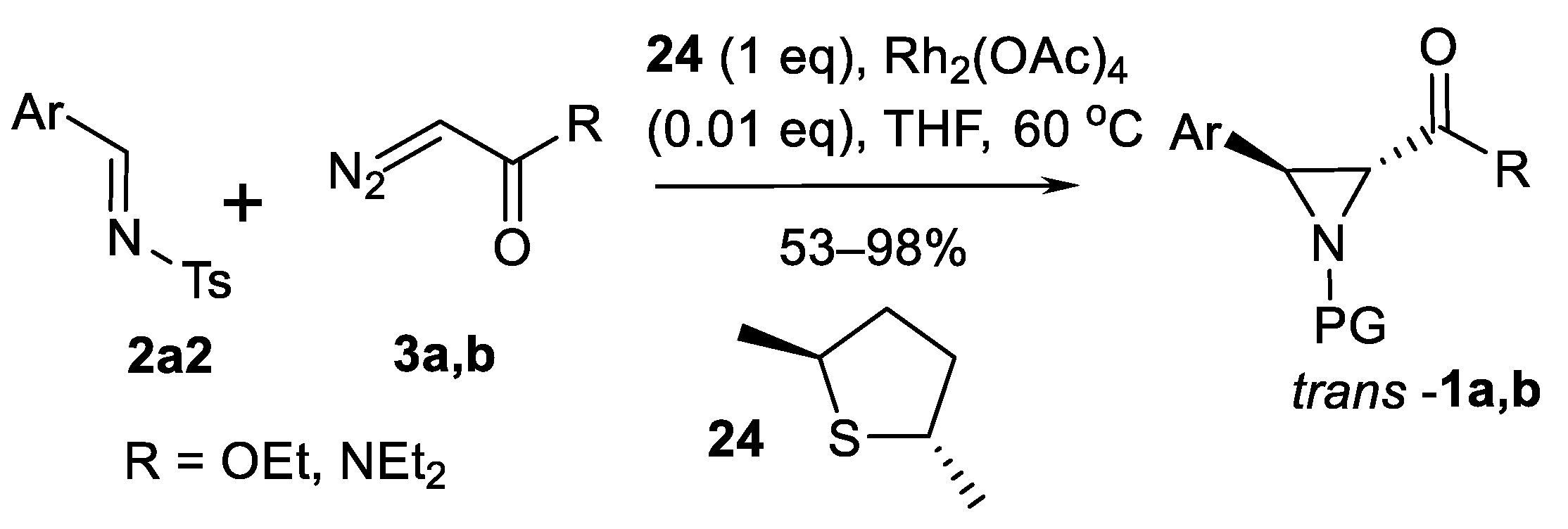

Sulfonium ylide-mediated catalytic asymmetric aziridination of imines were mentioned by Aggarwal’s group [81,82]. Chiral sulfides, for example, 24 and catalytic amounts of metal salts, promote aziridination of imines with diazo compounds via sulphur ylide intermediates (Scheme 22). Five examples of synthesis of aziridines trans-1a, b were demonstrated reaching good yields (53–98%) and moderate enantioselectivity of 30–58% ee [81].

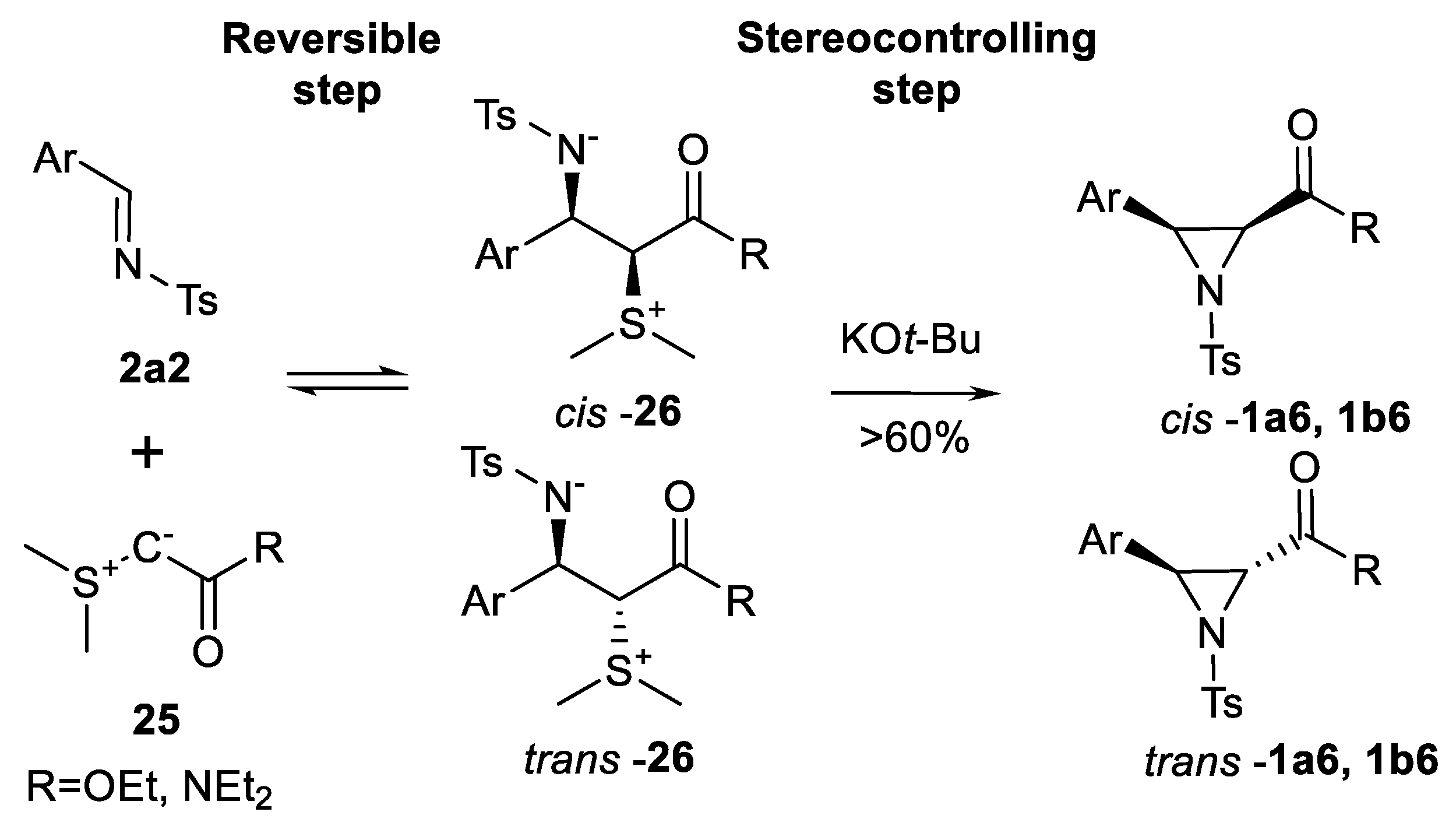

Ester and amide-stabilized sulfur ylides generated form sulfonium salts were explored [82] as sources of aziridines (Scheme 23). It was established that ester and amide-stabilized sulfur ylides 25 react with activated aryl aldimines 2a2 reversibly to form betaines 26 and the stereocontrolling step is represented by the base-controlled aziridine ring closure leading to aziridines 1a6, 1b6.

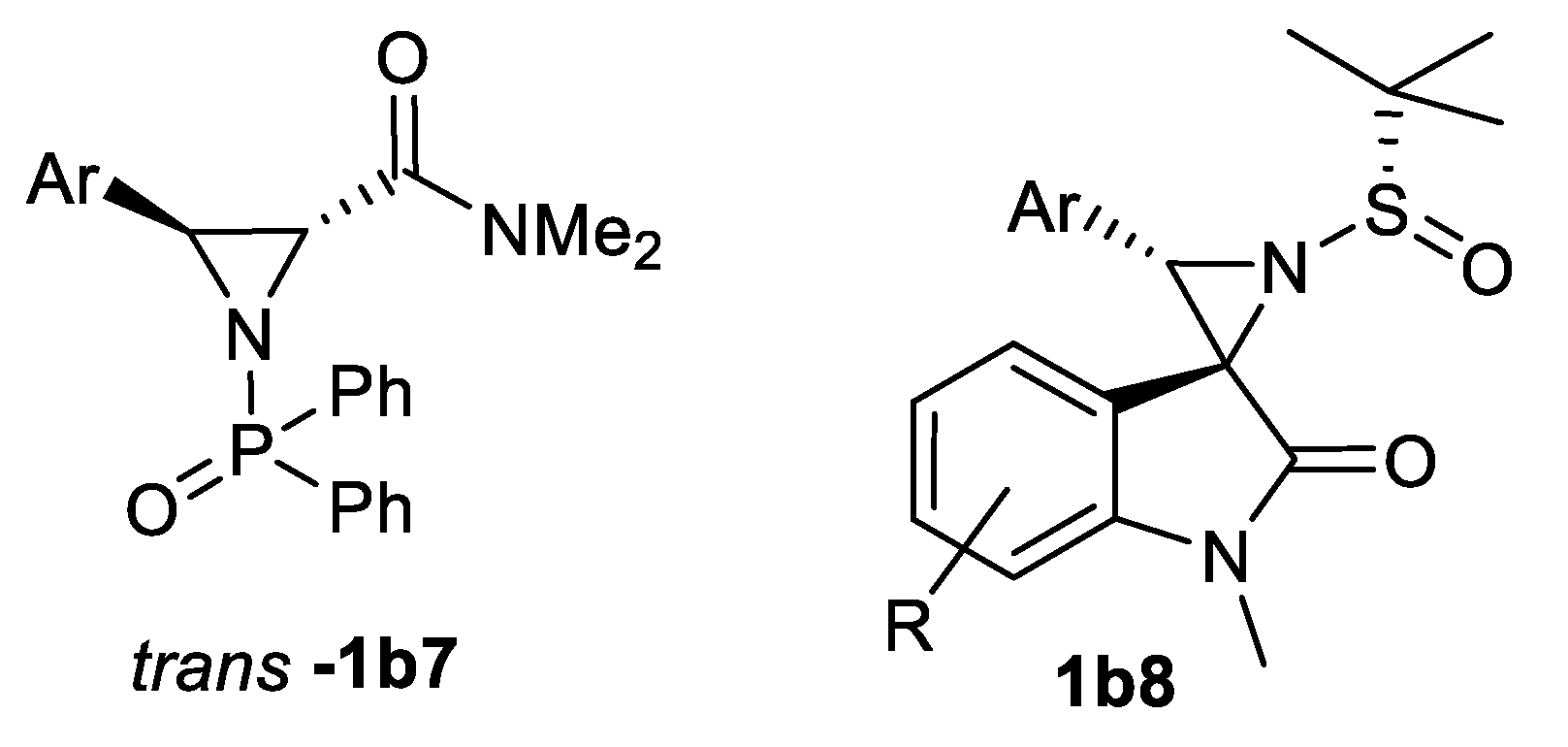

A series of 3-arylated N-diphenylphospinoyl aziridine-2 carboxamides trans-1b7 are synthesized in similar route from amide sulfonium salts via type 25 stabilized ylides [83] as well as series of chiral 3-aryl spiro-aziridine oxindoles 1b8 (11 examples, 60–76%, dr > 99:1) from corresponding imines using ylides generated from sulfonium salts in presence of NaH (Scheme 24) [84]. Therefore, sulfonium ylides as well as the above mentioned guanidinium and ammonium ylides are useful tools in target aziridine synthesis.

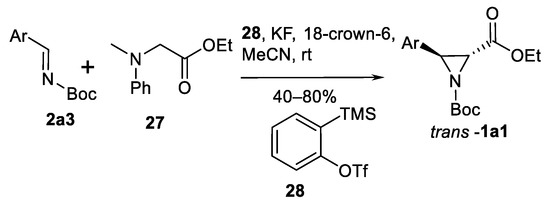

An interesting variation of aziridine synthesis from imines is the benzyne-promoted Darzen-type reaction of tertiary amine 27 as shown in the Scheme 25 [85]. This process was performed in mild conditions (no strong bases, room temperature) in the presence of 2-(trimethylsilyl)phenyl triflate 28, KF and a crown ether. Five different 3-arylated aziridine-2-carboxylates trans-1a1 were obtained in moderate to good yields (40–80%) and good trans-selectivity > 98:2 dr.

3. Aziridination of Olefins (Path B)

This pathway of aziridination includes:

• Evans aziridination with arylsulphonyliminophenyliodinanes;
• Oxidative aziridination with N-aminophtalimide and its analogues;
• Active hydroxylamines as aminating agents.

3.1. Evans Aziridination

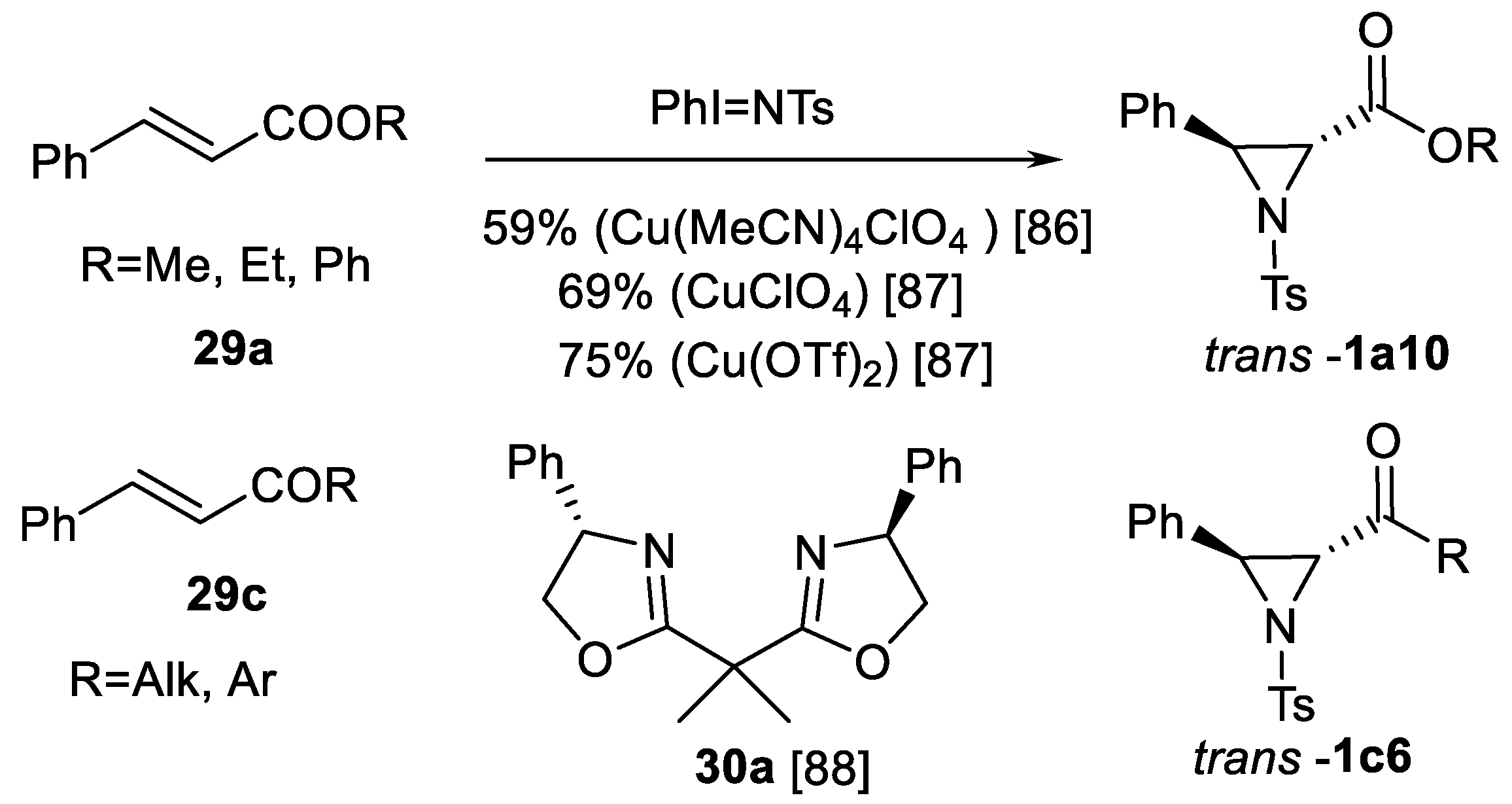

The reaction of olefins with active nitrene species generated from various nitrene precursors represents another well-known and reliably explored method to synthesize aziridine structures 1. The first approach, notable for 3-aryl aziridine-2-carboxylic acid derivative synthesis, is the classical Evans aziridination using PhI=NTs as nitrene precursor, cinnamate type substrates 29 as olefins in the presence of Cu salts as catalysts (Scheme 26) [86,87].

Other nitrene precursors (p-NO₂ and p-OMe benzenesulphonylimino-phenyliodinanes instead of PhI=NTs) may increase yields of 29a type cinnamate aziridinations products 1a10 to 97% in 87% ee using chiral ligand 30a (BOX) [88]. Aziridination using iodosylbenzene in combination with sulfonylamides instead of iminoiodinanes has been reported, but the yields of 1a type esters were only moderately high reaching 40–53% [89].

The further investigations in Evans aziridination included various design of chiral ligands (Scheme 27). Thus, a series of cinnamates were aziridinated using copper-catalyzed asymmetric aziridination with PhI=NTs and chiral salen type ligand 31 (nine examples, yield 60–90%, 61–93% ee) [90] as well as binaphthyldiimine ligand 32 (11 examples, yield 47–92%, 11–97% ee) [91]. A series of cinnamates and chalcones has been successfully aziridinated by PhI=NTs/[Cu(MeCN)₄]PF₆ system in the presence of the same ligands 32 (R and S BINIM-DC) (15 examples, yields 41–87%, 36–97% ee) [92].

Similarly, biaryl Shiff base 33 was used as a ligand (nine examples, yield 32–77%, 89–98% ee) [93]. Aziridine esters trans-1a have been obtained, and structures of copper-ligand 32 complexes [93] and reaction mechanisms [94] have been explored. The improved diimine ligand 34 was used in asymmetric aziridination of cinnamates under 34/Cu(1) catalysis with PhI=NTs as nitrene source (yield 63–99%, >80% ee) or in a one-pot procedure with iodobenzene diacetate-sulfonamide system [95].

The next well-explored group of chiral ligands for Evans-type aziridination of olefins that are used in synthesis of 3-arylaziridine-2-carboxylic acid derivatives 1a are bidentate bis-oxazolinyl type compounds—the analogues of BOX ligand 30a mentioned above [88]. The further development of such ligands are 1.8-bisoxazolinylanthracene (AnBOX) type ligands 30b [96,97] and cyclohexane-linked bis-oxazolines 30c (cHBOX) shown in the Scheme 28 [98]. The AnBOX ligand 30b was successfully used in asymmetric aziridination of chalcone type substrates 29c with PhI=NTs in CuOTf catalysis to obtain aziridinyl ketones trans-1c (nine examples, yields 51–91%, 68–99% ee) [96].

In a subsequent, more detailed study [97] the substrate scope was expanded (22 chalcone and a single cinnamate substrate example, yield 35–92%, 27–99% ee) and the limitations explored. Higher enantioselectivity in the chalcone aziridination has been reached using (S)-cHBOX 30c (11 examples, yield 51–73%, >80% ee) [98].

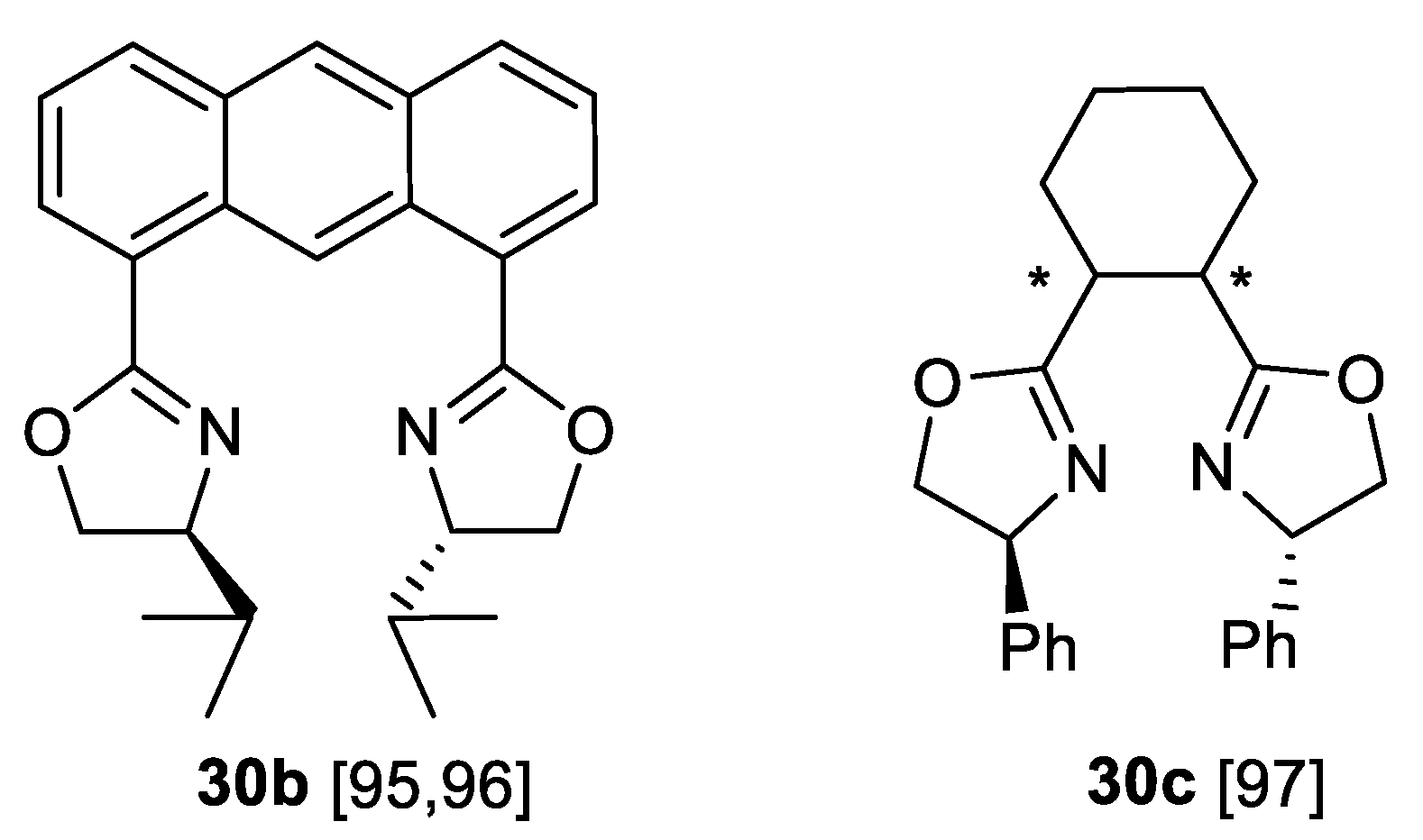

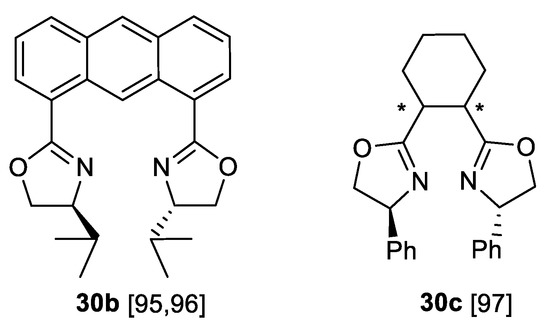

The comparison of BOX 30a, AnBOX 30b and cHBOX 30c ligands in Evans-type chalcone substrate 29c aziridination and the exploration of π-stacking between chalcone and ligand aromatic systems were performed [99]. The results showed that π–interaction between chalcone substrates 29c and the AnBOX ligand’s 30b anthracene backbone was important in order to improve the enantioselectivity of aziridination.

The further improvements of Evans chalcone 29c and cinnamate 29a aziridination included use of Cu(2) and poly/perfluorinated alkoxyaluminate type anion complexes [100], alumina-supported [101] and immobilized magnetic Cu containing nanoparticles [102]. Use of gold instead of copper catalyst has also been reported [103].

In conclusion, Evans aziridination is a practical method for the synthesis of trans-3-arylated aziridine-2-carboxylates 1a and aziridin-2-ylketones 1c from corresponding cinnamates 29a and chalcones 29c, respectively.

3.2. Oxidative Aziridination

Another important method for asymmetric aziridination of alkenes is the reaction with N-aminophthalimide in the oxidative conditions (Pb(OAc)₄ or another oxidant) as a nitrene source. The asymmetric induction can be conducted with chiral moiety in the substrate and with chiral ligand. Thus, use of chiral auxiliary can be illustrated by aziridination of chiral camphor N-enoylpirazolidinone 29b1 to obtain aziridine-2-hydrazide trans-1b9 (Scheme 29) in good yield [104]. Another chiral camphor-based auxiliary-directed aziridination of aziridine esters was demonstrated [105] but this study was focused on only a single example of cinnamate 29a.

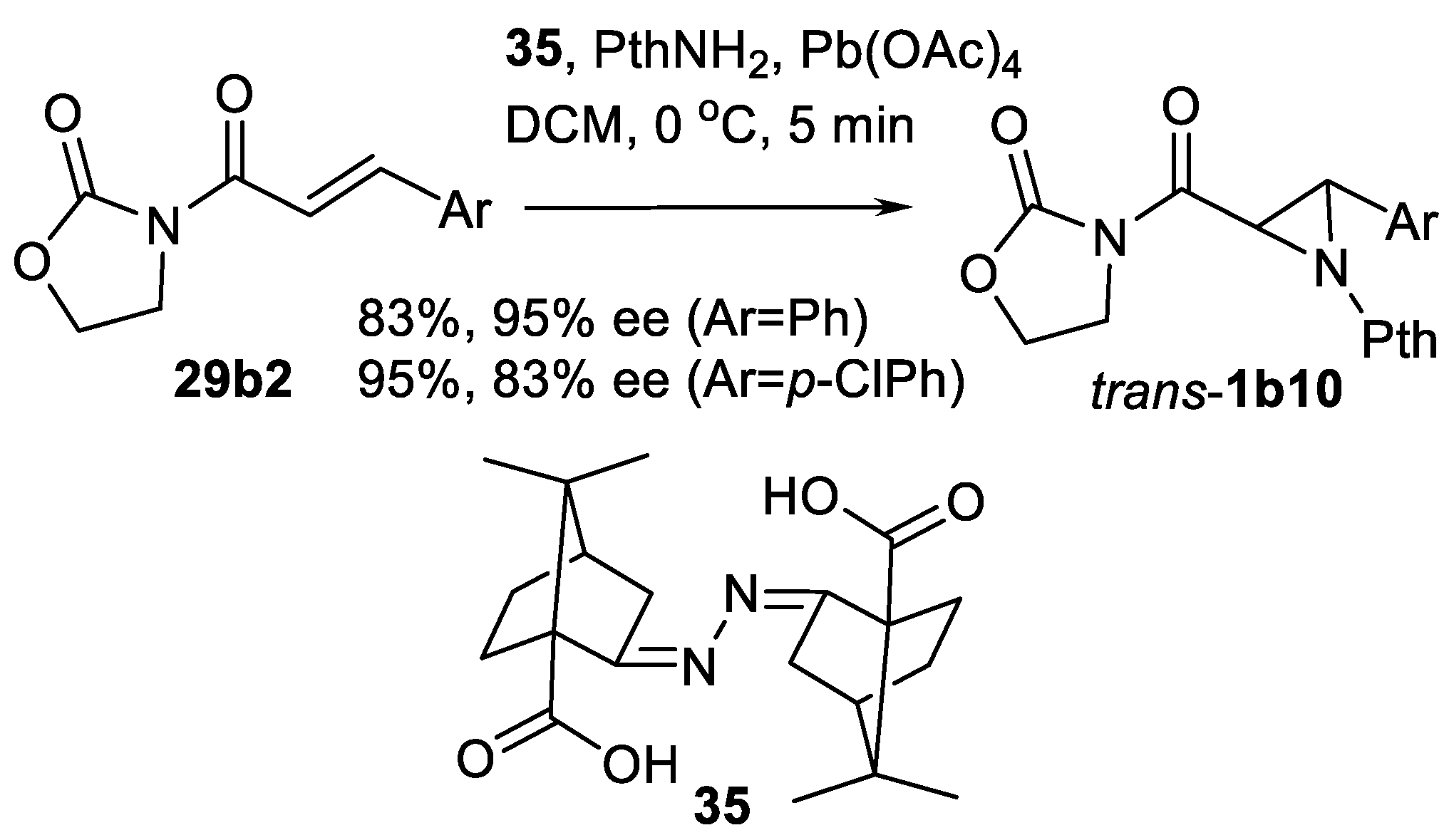

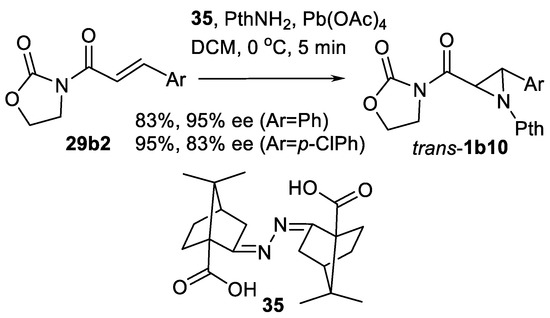

Chiral ligand-mediated variation of this aziridination was studied by the same authors [106]. Reaction of N-enoyl oxazolidinones 29b2 in similar conditions and in presence of ligand 35 lead to aziridine-carboxamides trans-1b10 in good yields and >80% ee (Scheme 30).

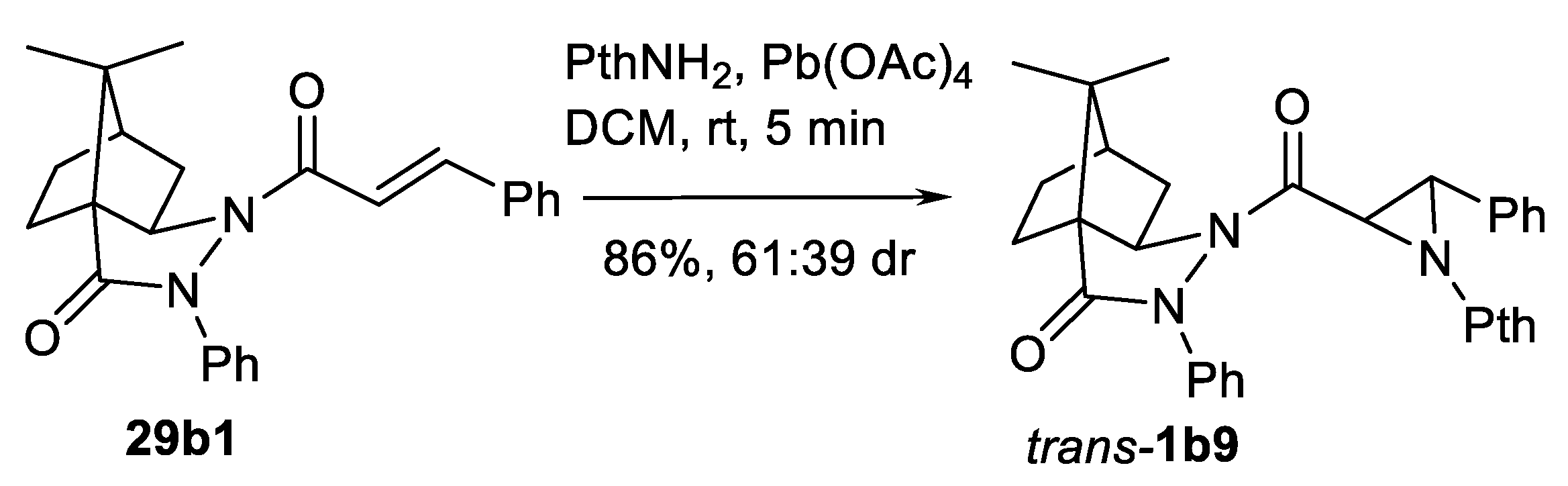

Similar Pb(OAc)₄-mediated aziridination with PthNH₂ as nitrogen source using chalcone and cinnamate type substrates was successfully employed to obtain aziridine intermediates for oxazole synthesis [107,108], spiro-fused N-phthalimidoaziridines [109] and 3(2-allylphenyl)aziridine-2-carboxylates [110] to investigate their thermal transformations.

Other oxidant systems used in this type of alkene aziridination include iodobenzene diacetate [111] and aril iodide-m-CPBA system [112]. Iodobenzene diacetate works well as oxidant in the aziridination of chalcones 29c and cinnamate 29a with N-aminophtalimide (PthNH₂) or 3-amine-3H-benzoxazol-2-one (BoNH₂) as nitrogen sources. Yields of aziridines trans-1a,b (Scheme 31) are excellent [111].

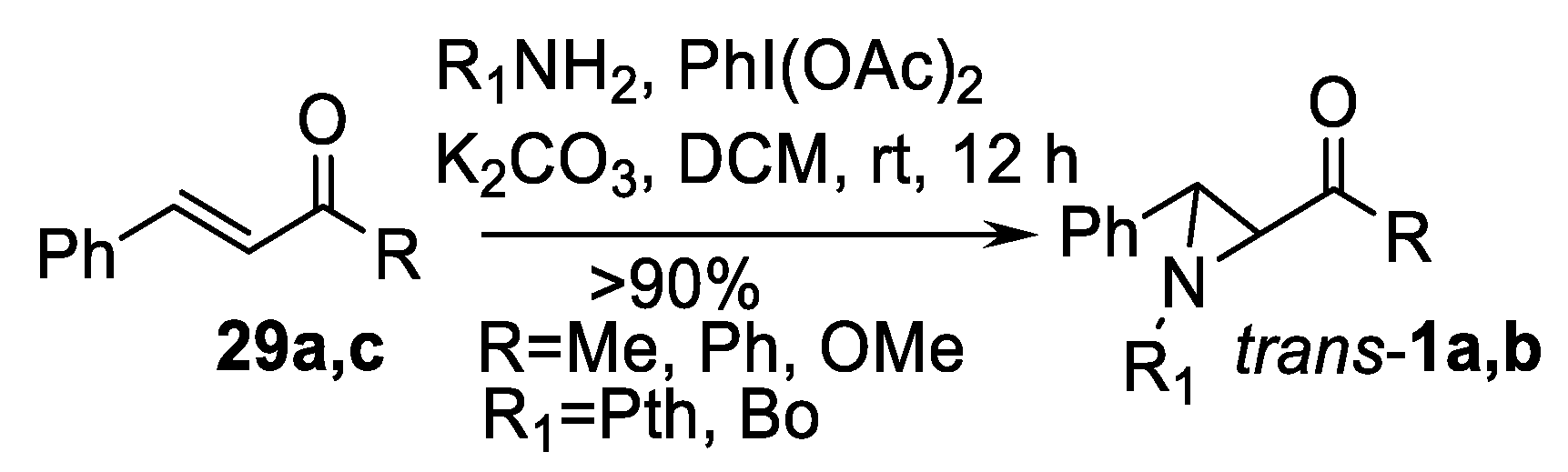

The same transformation using in situ generated oxidant made from m-CPBA and 4-methoxyphenyl iodide was demonstrated [112] and compared with PhI(OAc)₂ oxidant in series of alkene substrates including chalcone 29c. The yields were comparable. Interesting utilization of PthNH₂-PhI(OAc)₂ aziridination was demonstrated by Yudin’s group [113]; this system allowed them to obtain 3-phenyl-2-bromoaziridinylketones cis-1c7 from corresponding α-bromoketones 29c1 in good yields (Scheme 32).

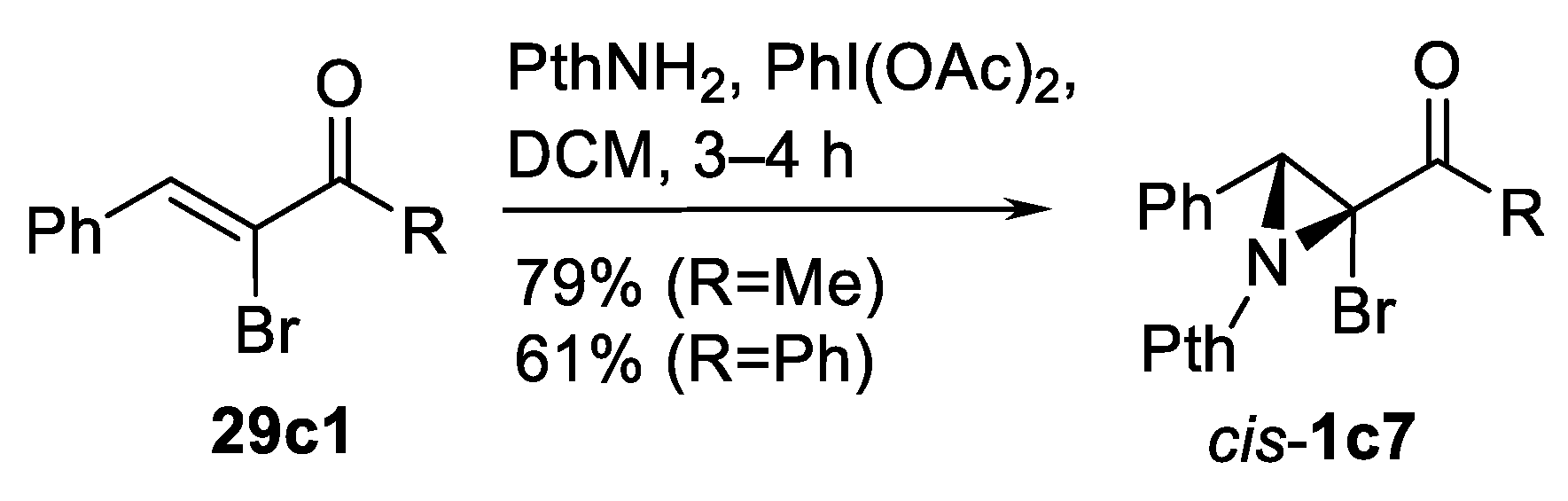

Aziridination of highly functionalized chalcone and cinnamate type substrates with a PthNH₂ nitrogen source and a PhI(OAc)₂ oxidant was utilized for functionalized 3-benzazepine skeleton construction [114] and for obtaining of fluorinated aziridines including 3-C₆F₅ substituted aziridine-2-carboxylate 1a [115]. Example of highly functionalized biaryl aziridinyl ketone 1c8 (Scheme 33) synthesis from corresponding alkene via the PthNH₂/PhI(OAc)₂ system has been demonstrated [116].

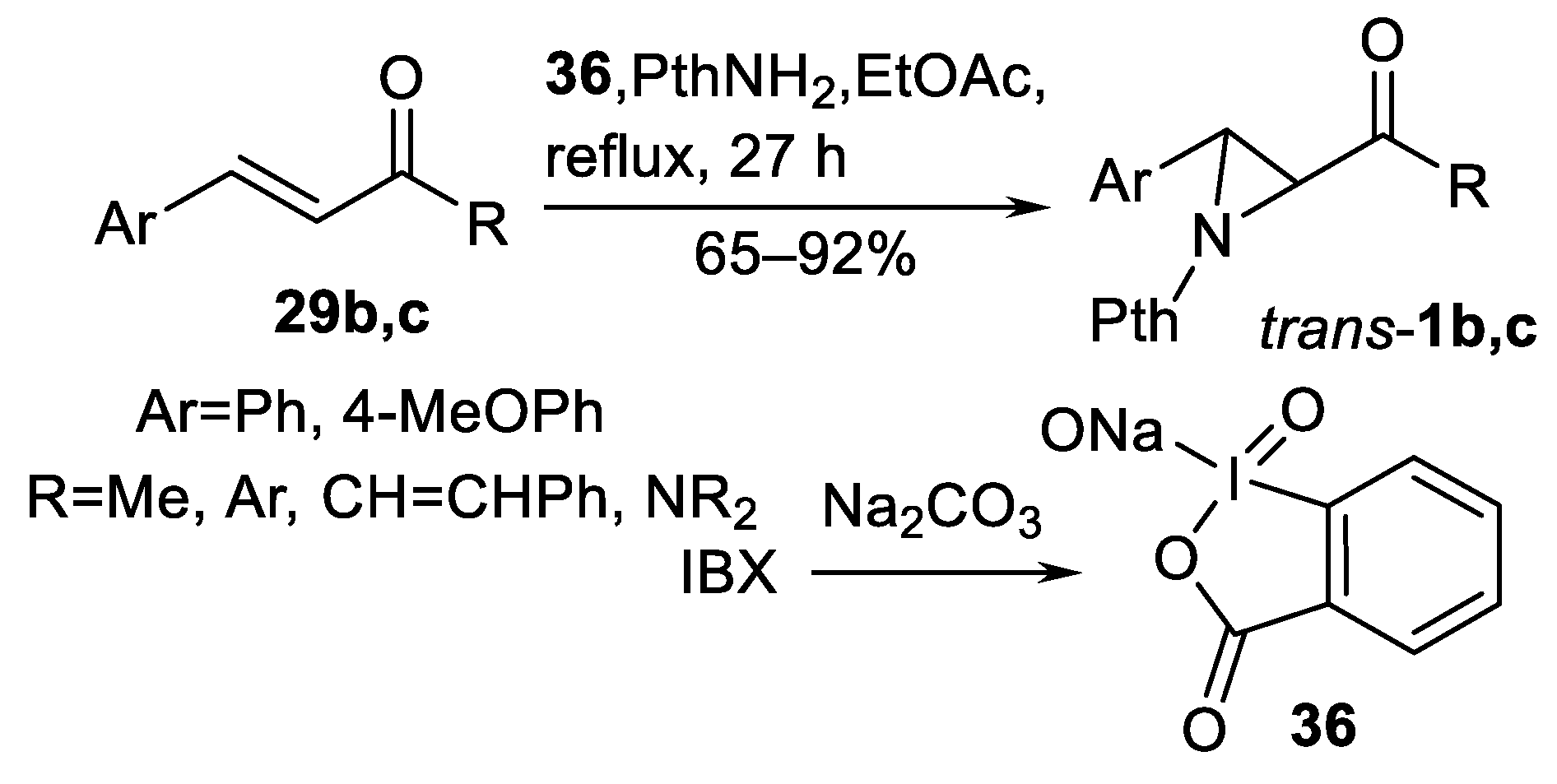

An interesting and perspective oxidant in oxidative aziridination is sodium 2-iodoxybenzoate 36 generated from o-iodoxybenzoic acid (IBX) and Na₂CO₃ (Scheme 34) [117]. Various type 29 substrates including unsaturated ketones 29c and amides 29b has been successfully aziridinated to obtain trans-1b, c type products in 65–92% yields (five examples).

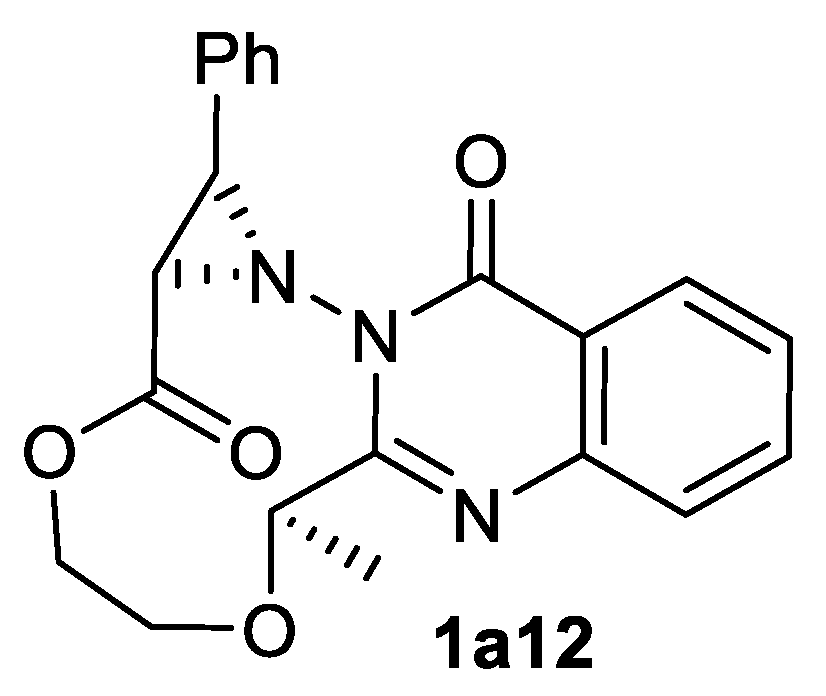

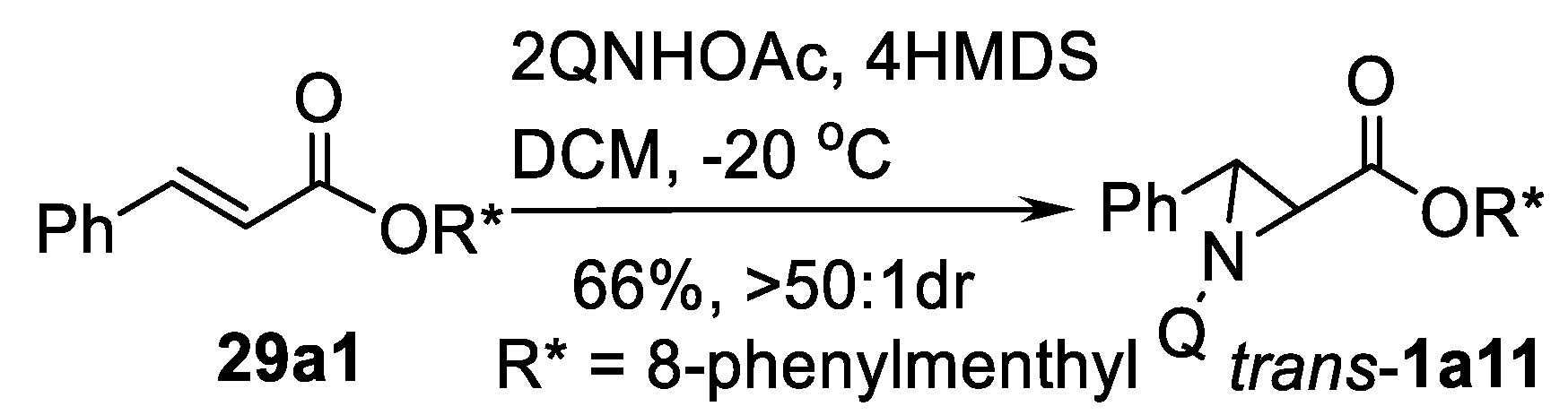

Another nitrogen source for substrate-controlled diastereoselective aziridination is 3-acetoxyaminoquinazolone (QNHOAc) in the presence of hexamethyldisilazane (HMDS) as shown in the Scheme 35 [118].

Aziridine ester trans-1a11 was obtained in good yield and diastereomeric excess from cinnamate 29a1. Intramolecular variation of this process also has been reported in the synthesis of the complex aziridine ester 1a12 depicted in the Scheme 36 [119].

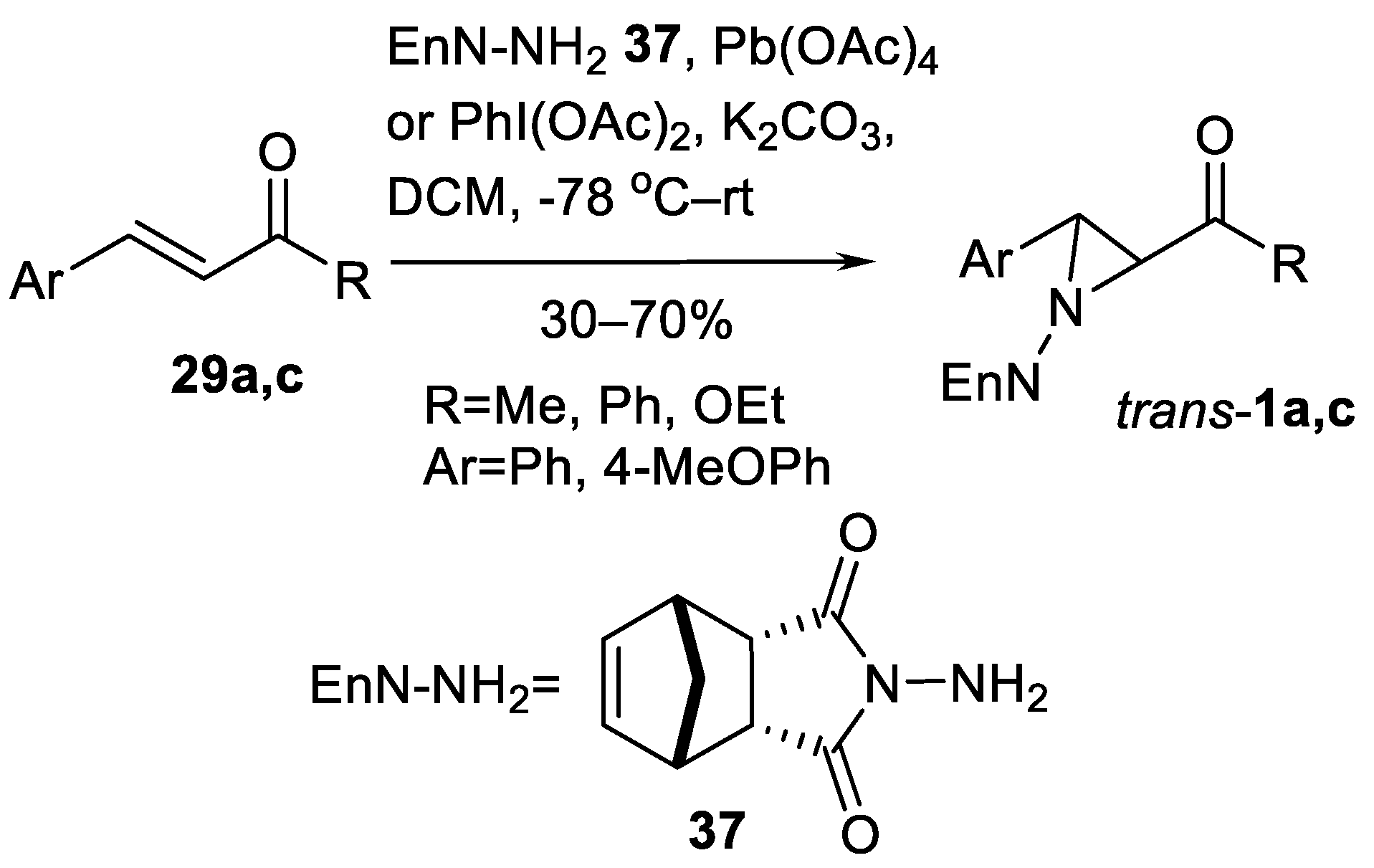

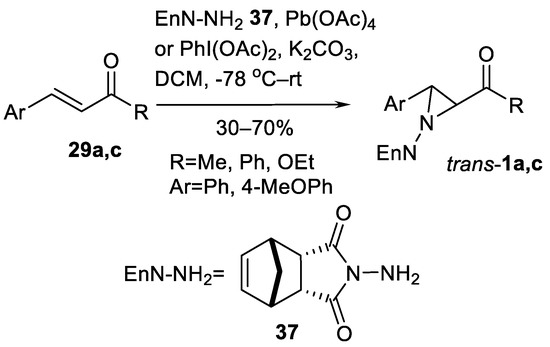

An interesting nitrogen source (N-amino-endo-bicyclo[2.2.1]hept-5-ene-2.3-dicarboxylic acid diimide 37 (EnH-NH₂)) was investigated (Scheme 37) in four examples, leading to the yields of 30–70% [120].

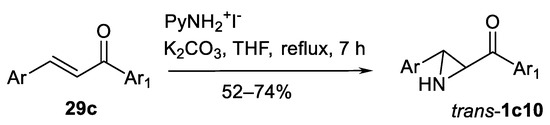

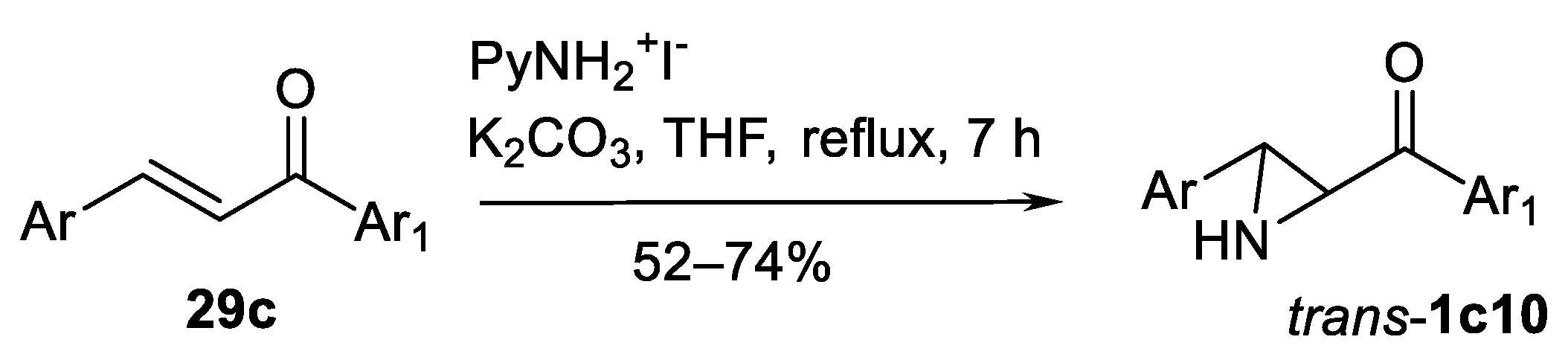

1-aminopyridinium iodide (Scheme 38) represented another original nitrogen source [121].

This NH-transferring agent allows to obtain NH aziridinylketones trans-1c10 from chalcones 29c in 52–74% yield (11 examples) in a stereoselective one-pot process.

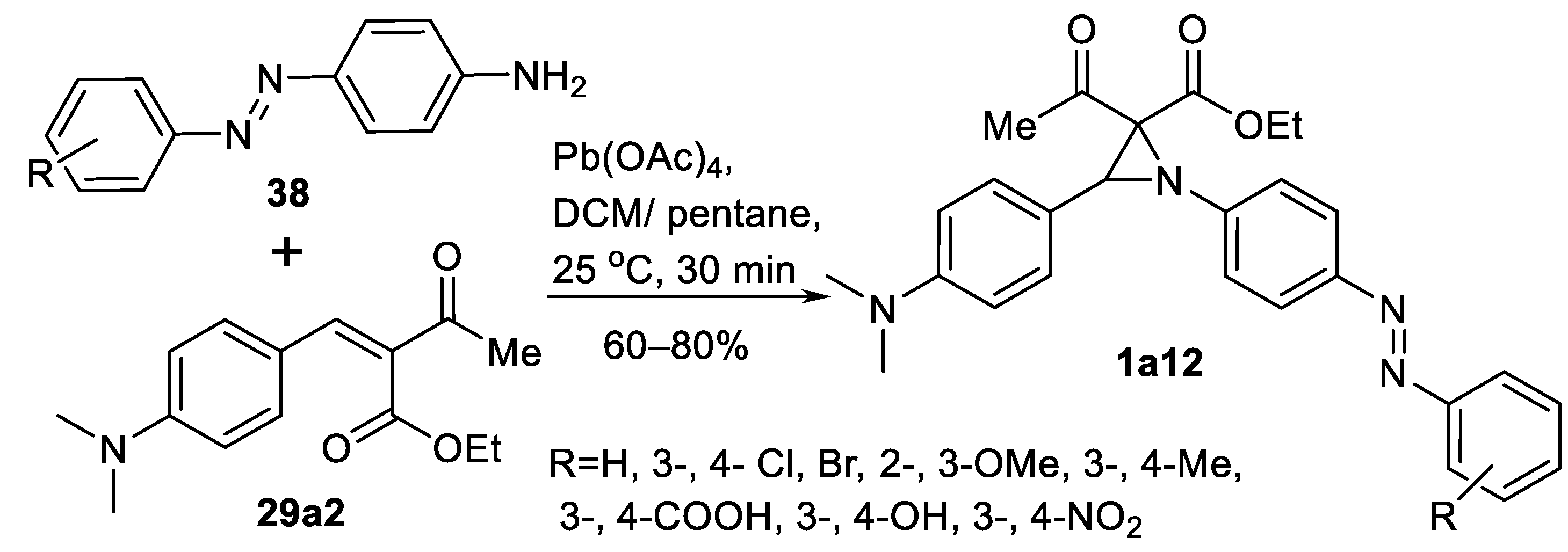

An example of substituted anilines 38 as nitrogen sources in oxidative aziridination of benzilidene dicarbonyl substrate 29a2 to obtain potential antibacterial aziridines 1a12 (Scheme 39) has been reported [122]. Aziridination was carried out at room temperature, and the yields of aziridines 1a12 were good (60–70%) in 15 examples.

Lead or hypervalent iodine oxidants in oxidative aziridination with PthNH₂ as a nitrogen source can be replaced with direct electrochemical oxidation via +1.80 V potential [123]. Methyl cinnamate 29a and chalcone 29c have been aziridinated in yields of type trans-1a,c aziridines 86% and 83%, respectively.

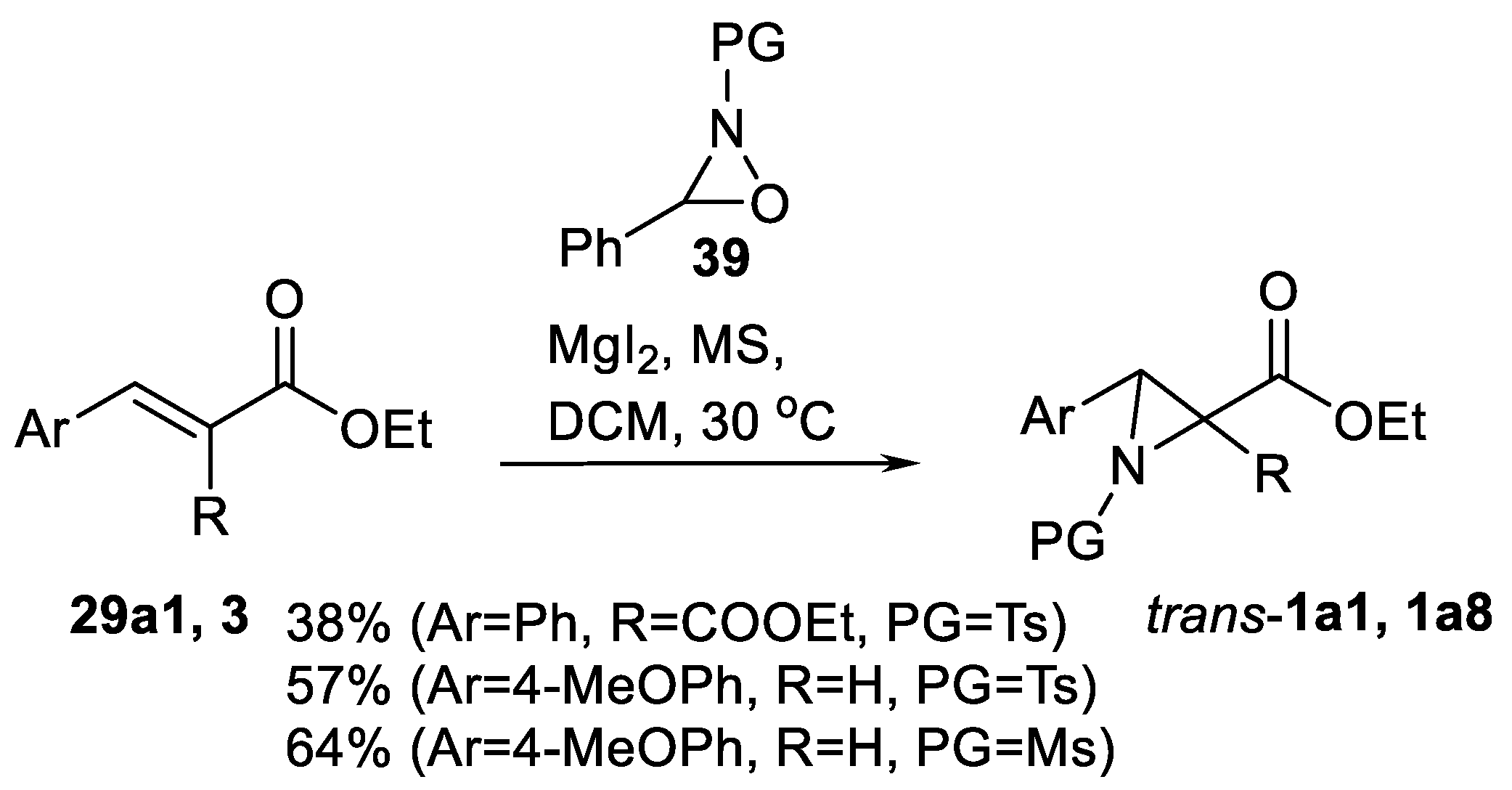

Oxaziridine 39 can be used simultaneously as oxidant and nitrogen source for oxidative nitrogen transfer alkene aziridinations in synthesis of 3-arylaziridine-2-carboxylates 1a1, and diesters 1a8 as shown in the Scheme 40 [124]. The reaction was carried out under mild conditions in presence of MgI₂.

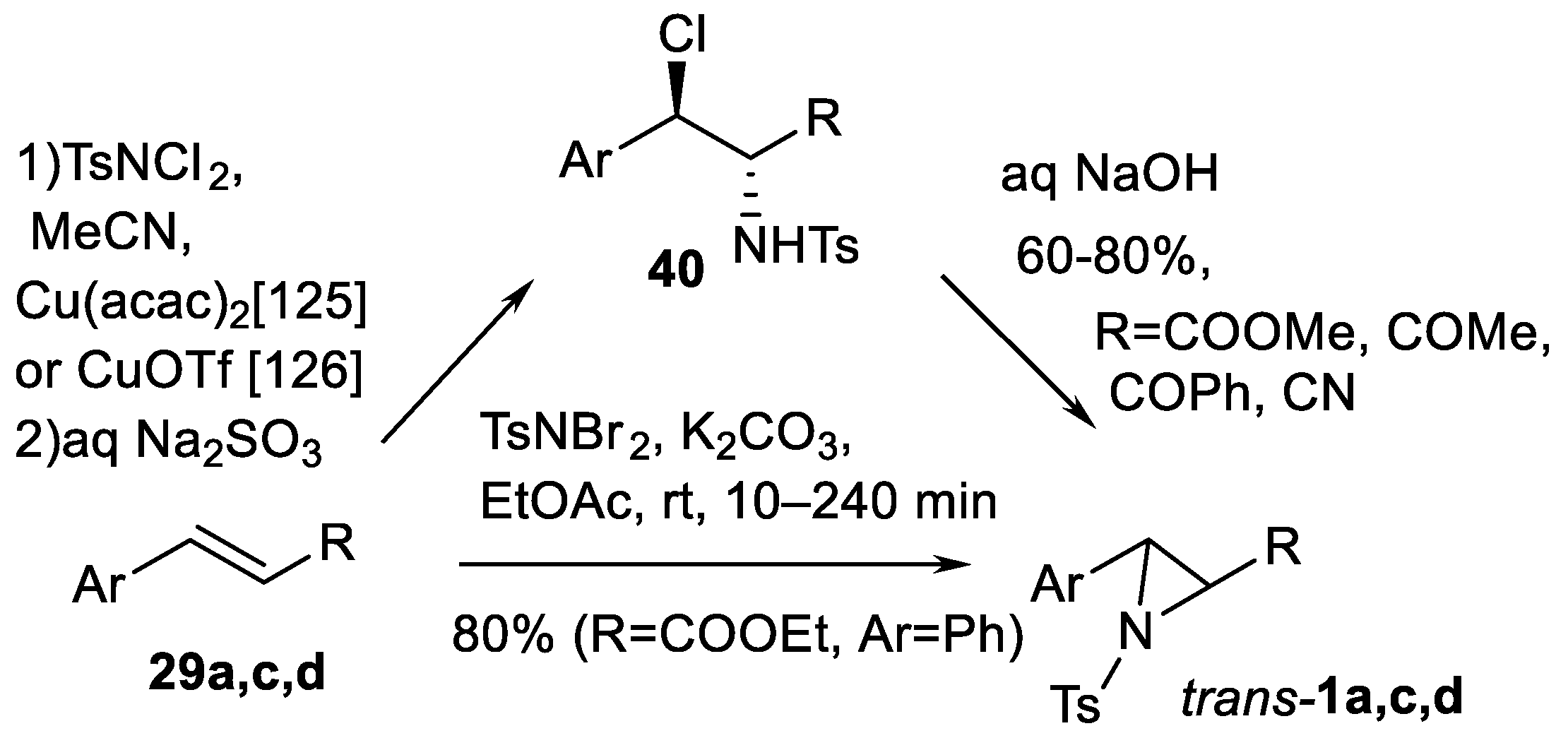

N, N-dihalogene-p-toluenesulfonamides are reported as nitrogen sources for both catalytic [125,126] and non-catalytic [127] aziridinations of cinnamates, cinnamyl amides and chalcone type substrates 29a,c,d (Scheme 41). Interestingly, aziridination with TsNCl₂ was demonstrated as a two-step addition-cyclization process [125,126] via isolable intermediate 40, but the reaction with TsNBr₂ was reported in a one-step nitrene transfer process [127]. The specific use of similar aziridinating agent PhSO₂NBr₂ under Lu(OTf)₃/chiral ligand catalysis for complex tricyclic aziridine synthesis was noted [128].

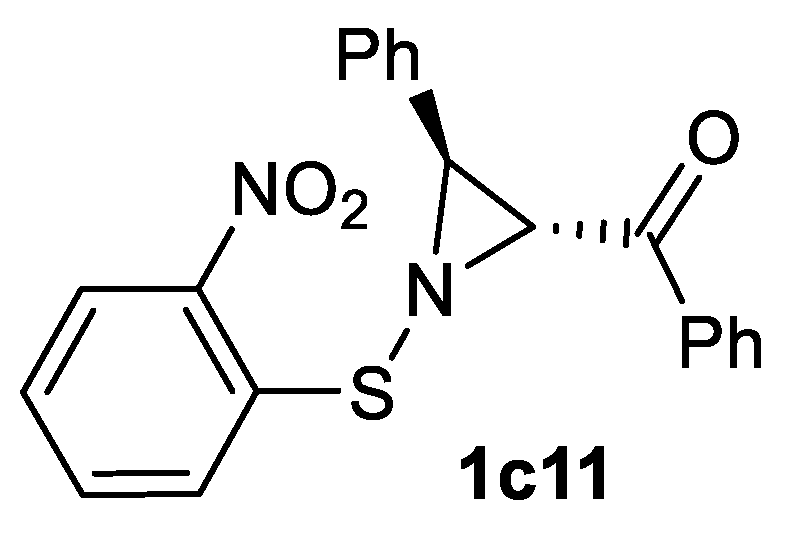

The other nitrene sources are sulfenyl nitrenes generated from N-sulfenylsulfodiimides [129] and bromamine T [130]. Sulfenyl nitrenes allow to obtain N-sulfenylaziridines, a single example of N-sulfenylaziridine 1c11 has been demonstrated (60% yield from chalcone [129]) (Scheme 42).

Bromamine T is moderately effective as nitrene source for cinnamate substrates 29a (Scheme 41) under ultrasound conditions in the presence of CuCl₂ forming aziridine-2-carboxlates trans-1a (30–34% yield) and under microwave in the presence of CuBr₂ forming esters cis+trans-1a (Scheme 41) at 36–38% yield [130].

3.3. Hydroxylamines as Nitrogen Sources

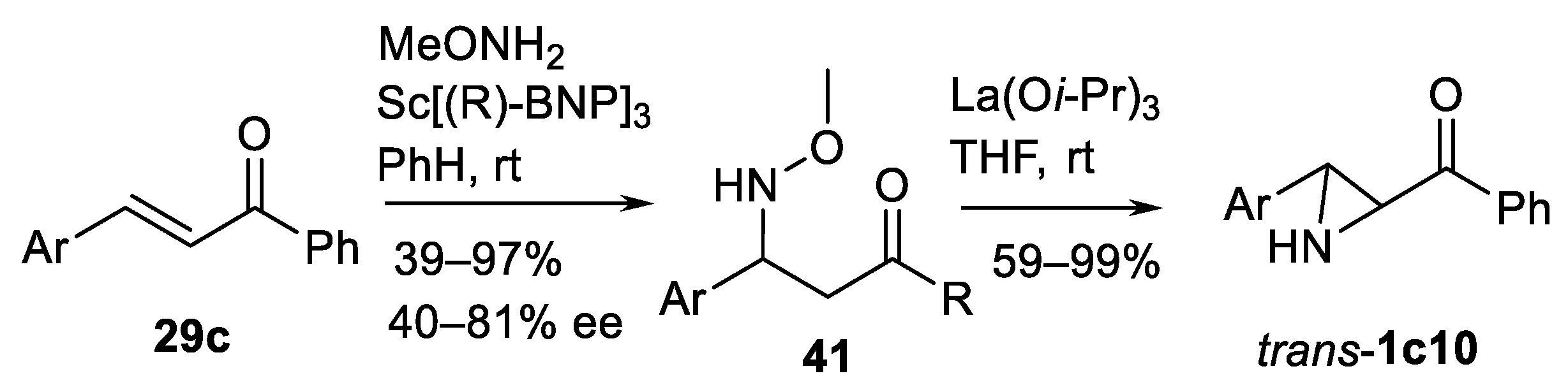

Classically, aziridines can be synthesized from conjugated α,β-unsaturated substrates by the Michael-type addition followed by aziridine ring closure, usually under basic conditions. Thus, chalcone type substrates 29c (Scheme 43) undergo Michael addition of O-methylhydroxylamine under scandium (R)-1.1-binaphtyl-2.2′-diyl phosphate (BNP) complex catalysis and then perform cyclization of intermediate 41 into aziridines trans-1c under lanthanum (3) isopropoxide catalysis as shown in the Scheme 43 [131]. Remarkably, this is a route to 3-arylated NH-aziridin-2-ylketones trans-1c10. In case of racemic intermediate 41, a kinetic resolution using La(Oi-Pr)₃-mediated cyclization into aziridine trans-1c10 in the presence of (R) or (S)-BINOL is possible.

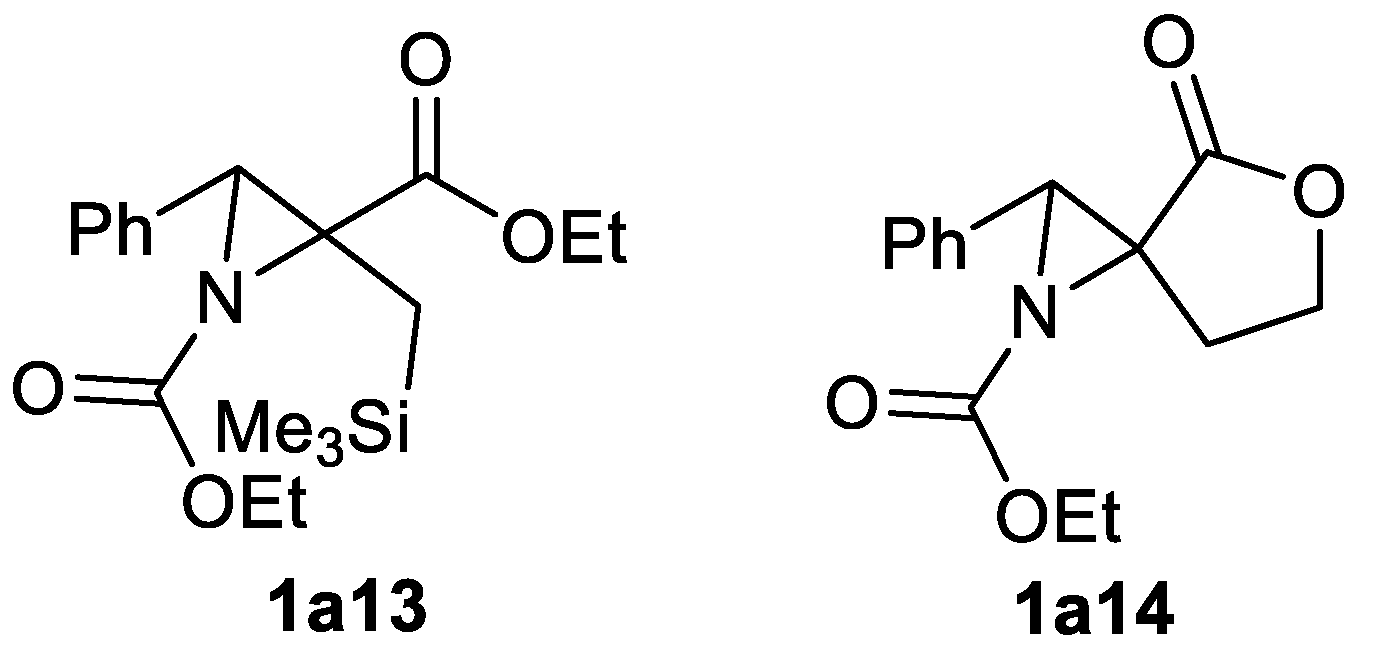

Highly functionalized aziridine ester 1a13 (yield 58%) [132] and lactone 1a14 (yield 60%) [133] can be produced from corresponding α,β–unsaturated 29a type carboxylic ester and lactone, respectively, in reaction with carbamate reagent NsONHCOOEt in the presence of CaO (Scheme 44).

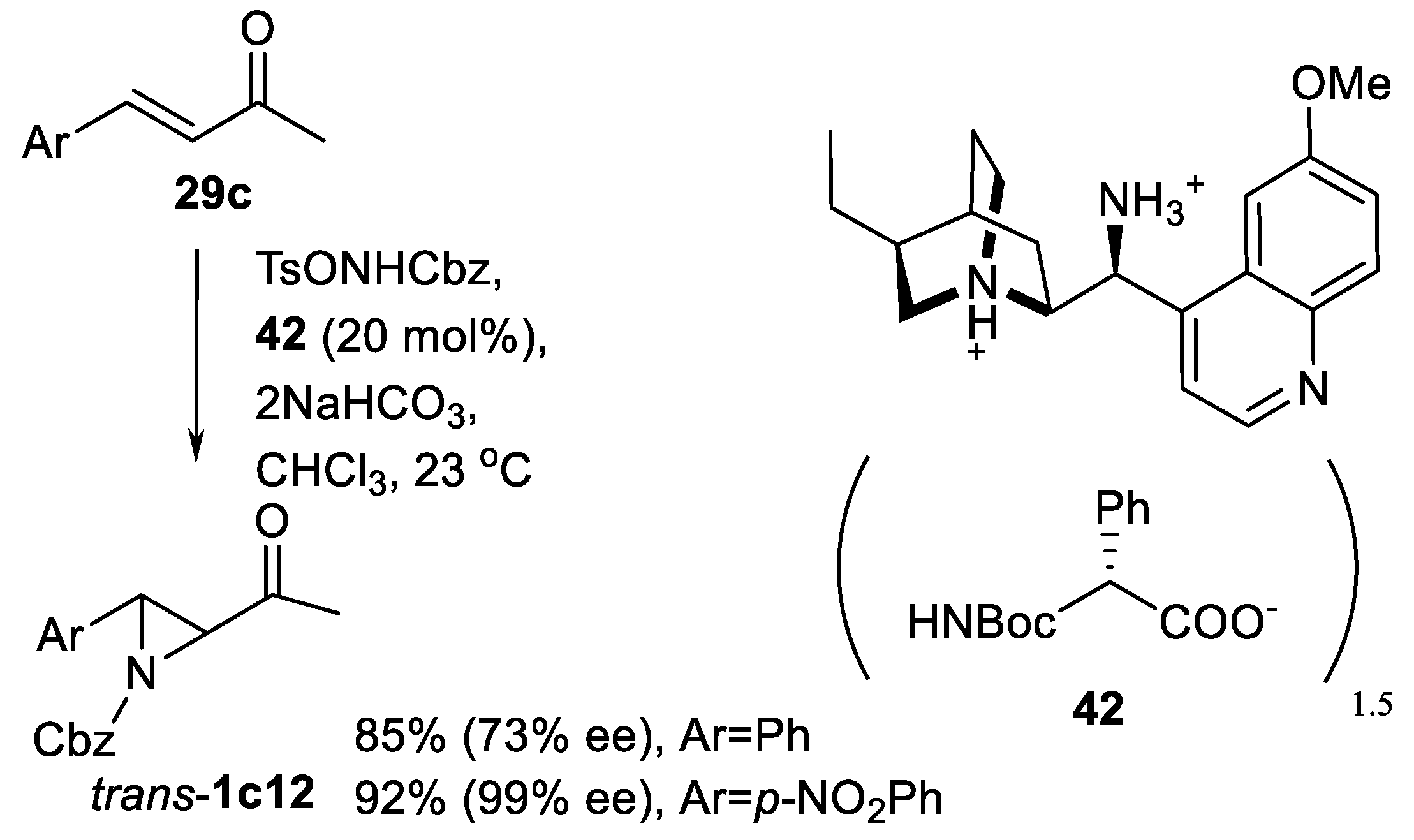

Similar asymmetric organocatalytic aziridination of enones with carbamate reagent TsONHCbz in the presence of catalyst salt 42 (Scheme 45) has been reported [134]. Aziridinyl ketones trans-1c12 were obtained in good yields and ee.

In the same way, employing TsONHBoc reagent and chiral diphenylprolinol triethylsilyl ether 43 organocatalyst, enantioselective organocatalytic aziridination of α,β-unsaturated aldehydes 29d (Scheme 46) can be performed [135].

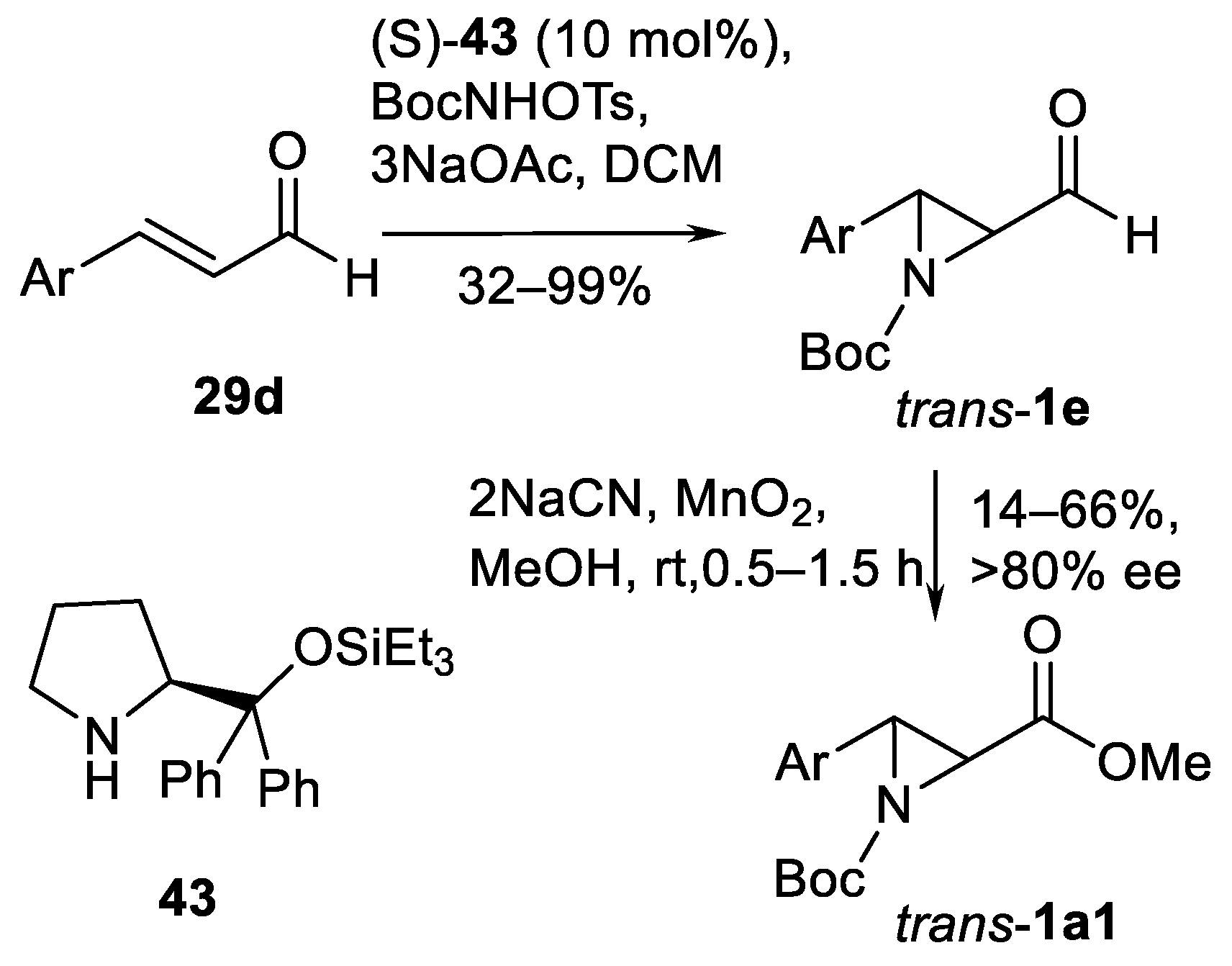

Synthesis of various 3-arylated aziridine aldehydes trans-1e and corresponding esters trans-1a1 (Scheme 46) has been demonstrated in 18 examples showing good yields and enantioselectivity (>80% ee). Aryl substituents include various substituted phenyls, fluorinated phenyls and 3-piridyls. Enantioselective synthesis of (R)-sumanirole employing this aldehyde 29d aziridination method was reported [136]. The syntheses of spiroaziridine oxindoles 1b8 (13 examples, 74–98% yields) are performed using BocONHCbz hydroxylamine in the presence of tetramethylguanidine [137]. An isolated example of inactivated aziridin-2-ylketone trans-1c13 (Scheme 47) (60% yield) in TsONHMe-mediated aziridination under Rh₂(esp)₂ catalysis (Scheme 47) was demonstrated [138].

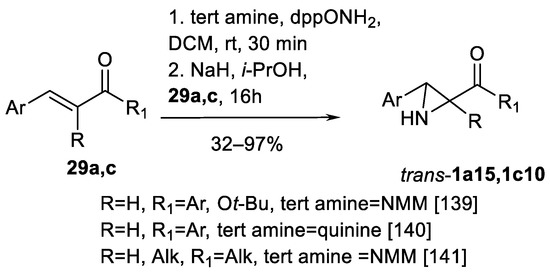

Finally, Armstrong’s aziridination must be noted as a remarkable advance in the direct access to 3-arylated N-unsubstituted aziridin-2-yl ketones trans-1c10 (Scheme 48) and carboxylates trans-1a15. Armstrong’s aziridination implies the use of N,N-ylides generated from N-methylmorpholine, or other tertiary amines in the presence of Ph₂P(O)ONH₂ (dppONH₂) as NH transfer agent (Scheme 48) [139,140,141].

In the initial work [139], chalcones and cinnamates 29a, c were successfully aziridinated to obtain trans-aziridine-2-ketones 1c10 and carboxylates trans-1a15 (Scheme 48) using N-methylmorpholine. The yields were 32–97%; higher yields were obtained by chalcones 29c. Enantioselective variation of this process using quinine as tertiary amine (yields 35–68% and 37–56% ee, eight examples) [140] and aziridination of highly functionalized alkyl arylidene ketones 29c (Scheme 48) (yields 51–81%) has been reported [141].

4. Conclusions

Aziridination has a great synthetic potential in synthesis of 3-arylated aziridine-2-carboxylates, carboxamides and 2-aziridinylketones. The most important, well-explored, and practical in terms of imine C=N bond aziridination are Wulff’s catalytic AZ reaction employing diazo compounds as carbene sources and various catalytic systems.

This method demonstrates a high stereoselectivity in a broad series of examples and allow obtaining both cis and trans aziridine products including nitriles and aldehydes selectively. In C=C bond aziridination, the main approaches include Evans olefin aziridination using PhI=NTs type nitrene sources under Cu catalysis, as well as oxidative aziridination variations.

Notably, Evans aziridination is suitable for aziridination of chalcone and cinnamate type substrates and oxidative methods allows to obtain also 3-arylaziridine-2-carboxamides. Remarkable are several methods which allow to directly access NH aziridines, such as Armstrong’s aziridination.
