Supra-Molecular Assemblies of ORAI1 at Rest Precede Local Accumulation into Puncta after Activation

Abstract

The Ca²⁺ selective channel ORAI1 and endoplasmic reticulum (ER)-resident STIM proteins form the core of the channel complex mediating store operated Ca²⁺ entry (SOCE). Using liquid phase electron microscopy (LPEM), the distribution of ORAI1 proteins was examined at rest and after SOCE-activation at nanoscale resolution. The analysis of over seven hundred thousand ORAI1 positions revealed a number of ORAI1 channels had formed STIM-independent distinct supra-molecular clusters. Upon SOCE activation and in the presence of STIM proteins, a fraction of ORAI1 assembled in micron-sized two-dimensional structures, such as the known puncta at the ER plasma membrane contact zones, but also in divergent structures such as strands, and ring-like shapes. Our results thus question the hypothesis that stochastically migrating single ORAI1 channels are trapped at regions containing activated STIM, and we propose instead that supra-molecular ORAI1 clusters fulfill an amplifying function for creating dense ORAI1 accumulations upon SOCE-activation.

1. Introduction

The molecular processes preceding and optimizing the activation of store-operated calcium entry (SOCE) are difficult to study because they require single molecule resolution, while at the same time, the interaction of a multiple of proteins needs to be examined [1,2]. After several early reports supported tetrameric ORAI1 conformations [3,4,5,6], the current view is that ORAI1 proteins assemble as a hexameric channel complex at rest [7,8,9] and that these hexameric protein complexes are randomly distributed throughout the plasma membrane. Upon Ca²⁺ store depletion, STIM proteins redistribute in the endoplasmic reticulum (ER) membrane towards the cytosolic side of ER plasma membrane contact zones, where typical dense STIM1 accumulations known as puncta are formed [10,11]. In these junctional areas between the ER and plasma membrane, STIM1 proteins approach the plasma membrane on the cytoplasmic side where they interact with ORAI1, resulting in a conformational change that opens the ORAI1 channels. Yet, how the ORAI1 channels translocate to these regions in order to get trapped there is not fully understood. It is assumed that single ORAI1 channels randomly diffuse within the plasma membrane until they arrive at sites of activated STIM1, followed by the binding and activation of ORAI1 Ca²⁺ channels, leading to SOCE [2]. Different mechanisms may play a role, for example, the additional insertion of ORAI1 from intracellular stores into the regions of puncta [12], or potentially a pre-clustering of several hexamers which are then pulled in or trapped at the ER-PM junctions.

By using liquid phase electron microscopy (LPEM) capable of studying ORAI1 proteins in the plasma membrane of intact cells [9,13], we set out to examine the difference in spatial distribution of ORAI1 between cells at rest and upon SOCE-activation. Our aim was to test: (1) if single ORAI1 channels are indeed randomly distributed at rest, (2) to characterize, with nanoscale resolution, how the distribution of ORAI1 differs in activated cells, including their redistribution into puncta. For this purpose, ORAI1 proteins were expressed with a stoichiometric expression of cytosolic green fluorescent protein (GFP) and with a hemagglutinin (HA) tag located in the extracellular loop between transmembrane regions (TM) 3 and 4 in HEK cells and labeled with quantum dots (QDs). A QD provides both a fluorescence label for light microscopy and a nanoparticle label for detection with electron microscopy [9,13]. Figure 1A depicts the dimensions of an ORAI1 hexamer [7] in a hypothetical arrangement of two QDs labels bound to the same ORAI1 hexamer (see also scheme in Figure S1, showing an alternative view of an ORAI1-label configuration). Due to the flexibility of the linker, the center-to-center distance between both QDs may vary between 10 and 35 nm. Spatial patterns of individual QD labels on whole cells were imaged under resting conditions and after two levels of SOCE-activation. The spatial distributions of the labeled ORAI1 proteins were subsequently analyzed with nanometer spatial resolution, as obtained with the LPEM method [9,14].

2. Results

2.1. Preparation of Cells with Labeled ORAI1

For the examination of the two-dimensional (2D) plasma membrane distribution of ORAI1 using LPEM, a HEK cell line was used pre-selected for a low background level of endogenous ORAI1, and endogenous ORAI1 and ORAI2 genes were reduced to negligible levels. Details on this cell line, named CRI_1, are described elsewhere [9]. For experiments with ORAI1 at rest, the cells were grown on microchips, as needed for LPEM [15], transfected with HA-tagged ORAI1, fixed, and labeled with QDs. Figure 1A shows the side view of a scheme of QD655-labeled ORAI1 proteins with all involved proteins and QDs drawn to scale. Note that a QD may contain more conjugated streptavidin proteins than those shown in the scheme, but only one streptavidin per QD can bind to a biotinylated antigen binding fragment (Fab). The HA-tag is located in the extracellular part of each of the six ORAI1 proteins constituting the hexameric ORAI1 channel. In principle, each HA-tag can obtain a bound anti-HA antigen binding fragment (Fab). However, considering the size of the Fab and the narrow space between the six tags in the hexameric conformation, a 100% labeling efficiency is assumed to be impossible. Previously, we determined the labeling efficiency of these QDs for labeling HER2 proteins in whole cancer cells amounts to 27–83% depending on the exact conditions [16]. A hexameric channel with two bound QDs is depicted in the scheme. The labels are placed at two possible spatial arrangements, the most upright position (shown with the two opaque labels), and the most laterally extended positions (shown with the transparent labels). Obviously, any position between these two extremes is also possible, whereby the distance between the center of a QD and the labeled ORAI1 protein extends up to 17 nm. In the scanning transmission electron microscopy (STEM) images, all labels appear from a top view. The center position of a bound QD, therefore, indicates the presence of an underlying ORAI1 protein within a maximal radius of 17 nm, and a pair of QDs bound to the same ORAI1 hexamer exhibit a maximal center-to-center distance of 35 nm.

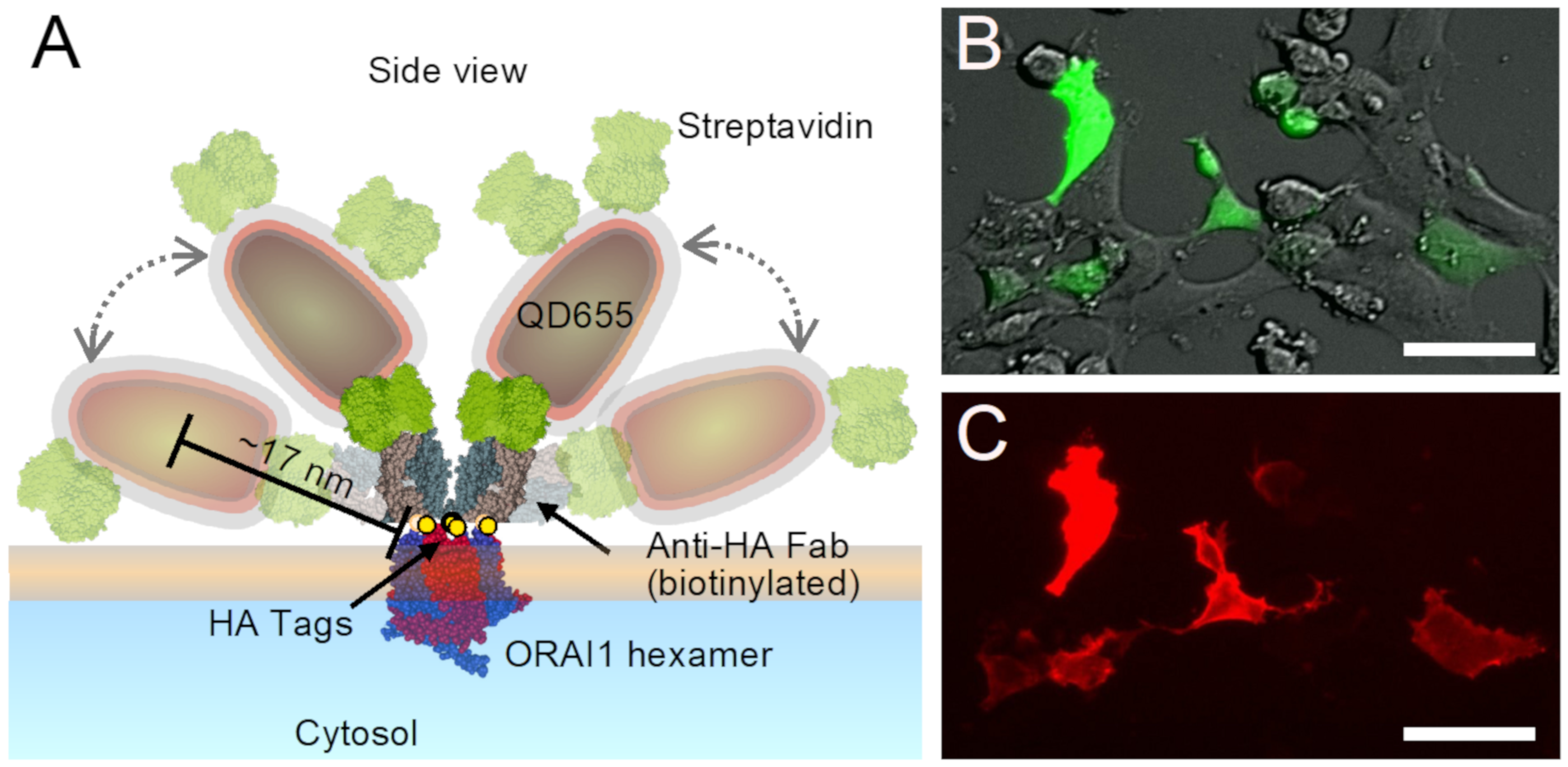

Figure 1B displays a typical light microscopy image from these cells in which several cells expressed ORAI1, which is visible from the GFP fluorescence co-expressed in a 1:1 molar ratio. The same cells displaying GFP fluorescence also show QD fluorescence (Figure 1C), proving the specificity of the HA-ORAI1 tag. ORAI1 remained mostly homogeneously distributed throughout the plasma membrane, which is expected for resting conditions [5].

To study the effect of SOCE-activation, the same cell line was used, but here ORAI1-HA was co-expressed with STIM1 in a 1:3 ratio, and the cells were incubated for 15 min with 1 μM Thapsigargin (Tg) at 37 °C for activation. The 1:3 ratio is known to be optimal for activation of the ORAI channels [17] and was achieved by transfecting the expressing plasmids in this ratio [18]. To examine the effects of a suboptimal STIM1:ORAI1 ratio, a third experimental group was also prepared in which ORAI1 and STIM1 were expressed in a 1:1 ratio, thus achieving a sub-maximal SOCE-activation after Tg incubation.

Control experiments were performed with another HEK cell line (CRI_STIM), lacking both endogenous STIM1 and STIM2 [19] to exclude that endogenous pre-activated STIM1 or STIM2 had an influence on the distribution of ORAI1 [20] (see Figure S2). A second series of control experiments were performed to examine possible influence of endogenous (residual) levels of ORAI1-3 proteins on the observed ORAI1 spatial distribution by expression in a triple ORAI1-3 knock-out cell line (CRI_2, see Figure S3). Thirdly, to ensure that the observed effects after SOCE activation were not specific to or an artifact of Tg incubation, incubation with cyclopiazonic acid (CPA) was tested as an alternative SOCE activator (see Figure S4).

2.2. LPEM Revealed ORAI1 Clusters with Supra-Molecular Dimensions

LPEM experiments of whole cells were carried out to map the positions of individual ORAI1 proteins for the CRI_1 cell line and QD655 labels. Using the QD fluorescence intensities of the light microscopic images (Figure 1C), cells were selected for analysis with STEM. In each experiment, cells from three groups were selected, exhibiting low, medium, or high ORAI1 expression. Note that the average expression level differed between experiments, therefore, the relative expression levels in an experiment were used to define the three groups. STEM images revealing the positions of QD-labeled ORAI1 proteins were thus recorded from dozens of cells, yielding several hundred thousands of single ORAI1 positions (see

Table 1. Data of ORAI1 labeling experiments including the experiment type. Conditions are at rest, at sub-maximal, and at maximal activation.

Experimental Condition	Number of Experiments	Number of Cells	Number of Labels	Label Density/μm2	Analyzed Area (μm2)
ORAI-HA at rest	2	14	157,729	157	1007
ORAI-HA activated by 15 min Tg (with 1:1 STIM1 co-expression)	3	15	245,118	155	1584
ORAI-HA activated by 15 min Tg (with 1:3 STIM1 co-expression)	3	21	370,946	162	2292

).

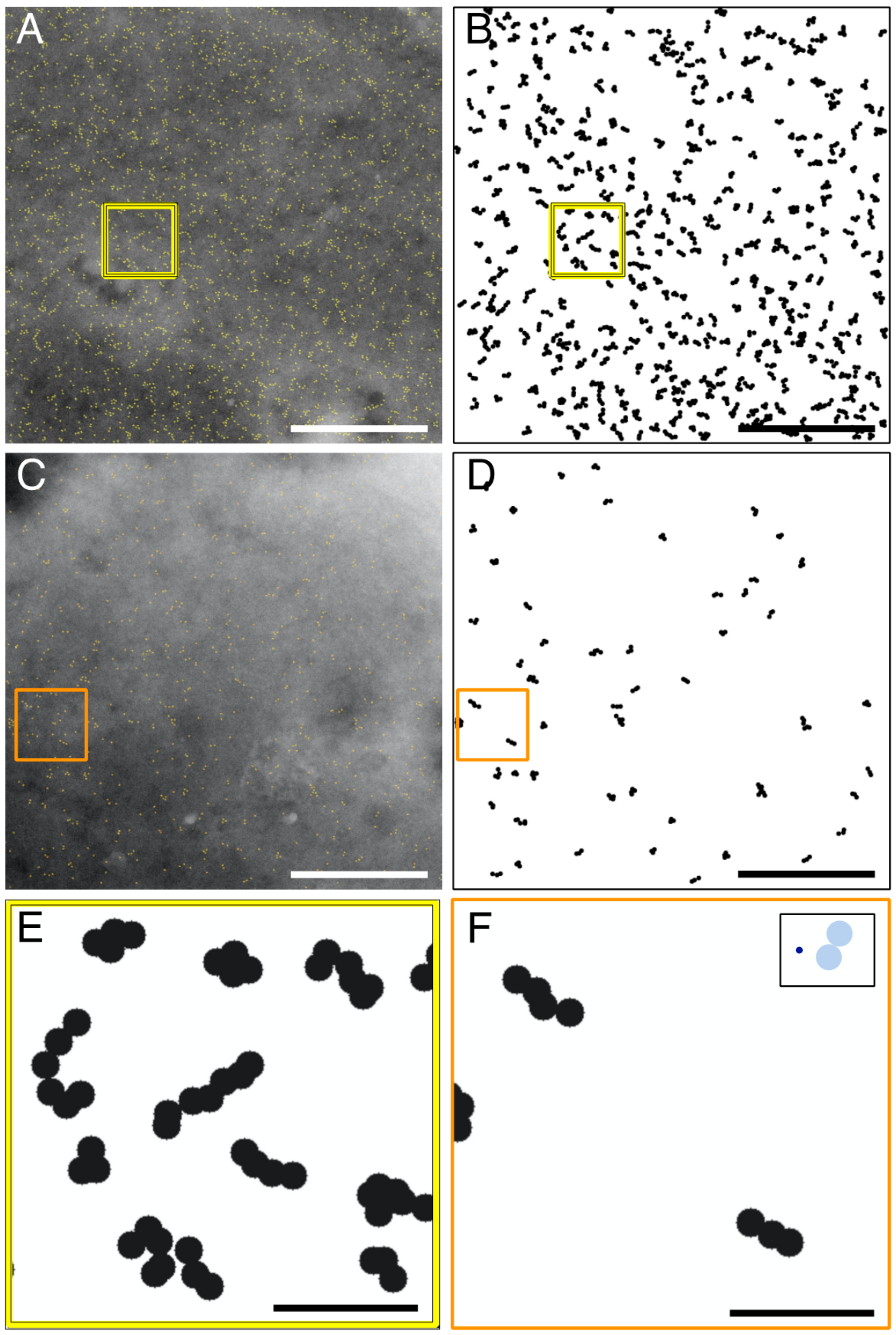

The selected cells covered the full range of ORAI1 expression levels found in our experiments. Figure 2A depicts the typical ORAI1 distribution in a resting cell expressing ORAI1 at high levels, yielding a label density of 274/μm², equivalent to the 90th percentile of the distribution of the label density in all recorded images. Shown here is the original STEM image with an overlay of automatically detected QD labels.

It appeared by eye that the overall ORAI1 distribution was homogeneous, showing scattered labels throughout the whole imaged area. A more detailed view reveals that a large fraction of the labels exhibited distinct clustering in groups of less than 10 labels. It is important to note that even if all labeled target proteins would form oligomers, a fraction of mono-labeled oligomers will always appear due to the labeling efficiency of less than 100% leaving a fraction of non-labeled and thus invisible oligomers [21]. The labeling efficiency is assumed to be ~30% for QD-labeled ORAI1 based on the results of our previous work including dimeric ORAI1 constructs [9]. To enhance the visibility of ORAI distribution patterns, Figure 2B shows the processed and cluster-analyzed image. All QD-positions were marked by black circles of 35 nm diameter representing the area where the underlying labeled ORAI1 protein resided, and only clusters containing more than two circles, that is, more than two labeled ORAI1 proteins, are shown. The processed image reveals that these clusters have a specific range of sizes and mostly elongated or linear shapes. Due to the high density of labels, several clusters appear so close that they touch each other. This close proximity hampered the measurement of their spatial dimensions and shapes. The share of clusters located in close vicinity by random chance is a function of their surface density. To reduce misinterpretation by the software counting adjacent clusters as one and the same, we differentially examined and quantified ORAI1 clusters with more than two labels (clusters >2) in cells with low and with high expression levels. In low ORAI1 expressing cells, the lower density of expressed ORAI1 was expected to lead to more accurate determination of these clusters due to less frequent touching of cluster boundaries. Therefore, a data set from low expressing cells was analyzed separately. An example of such an image with a label density of 74/μm², equivalent to the 18th percentile of the label density, is shown in Figure 2C. The corresponding processed and cluster-analyzed version is shown in Figure 2D. From visual inspection of the image, it appears that clusters >2 mostly exhibit an elongated shape. To compare high-expressing cells with low expressing cells, an example of each group is magnified in Figure 2E,F, respectively. Due to fewer coalescing clusters in low expressing cells, they can be better discerned and more accurately measured; two examples can be discerned in Figure 2F.

To compare the label and cluster dimensions with the dimensions of the underlying, invisible, ORAI1 protein hexamers, the insert in Figure 2F shows a small circle of 7 nm diameter, representing the extracellular part of a hexameric ORAI1 channel. The two circles of 35 nm diameter indicate the maximum distance that can be occupied by two labels bound with the most extended configuration to the same ORAI1 channel (see Figure S1). One can see that most clusters exceed this dimension and thus could not have originated from single ORAI1 channels but must have resulted from underlying clustered channels. Since the membrane proteins had been fixed prior to labeling, it can be reasonably assumed that the clusters larger than 70 nm did not originate from labeled ORAI1 channels that disassembled after labeling, then diffused in the plasma membrane leading to a larger distance. Moreover, a number of clusters contained more than six labels, and many of these clusters formed chains up to 120 nm in length.

To characterize the dimensions of these clusters exhibiting chain-like protein arrangements, they were examined for their aspect ratio and their maximum dimension by measuring the length of their major axis. These measurements were automatically performed on the processed images, showing each label as a 35 nm circle. Touching and coalescing groups of labels were classified as clusters, whereby only clusters containing more than two labels were analyzed.

An important question is if the observed elongated clusters were the result of random orientation or if they reflected an underlying organization of ORAI1 hexamers. To answer this question, images were analyzed of simulated random distributions of labeled hexameric ORAI1 channels. The simulated images were created from sets of individual STEM images recorded from low expressing cells. Label distributions were simulated by individually matching the label density of each image, assuming randomly distributed hexameric ORAI1 channels and a labeling efficiency of 30%. When clusters >2 in QD655 data of low expressing CRI_1 cells at rest were compared with their matching simulation (see Figure S5), they were on average 19% longer and had a 24% larger aspect ratio than those from the simulations (see Figure S6) (both parameters: p < 0.001). A similar comparison of clusters from data from high expressing cells with those found in matching simulations confirmed the differences found in low expressing cells. Here, the values from the STEM images found for the long dimension and for the aspect ratio were respectively 13% and 15% higher than those from the simulations (see Figure S6) (for both parameters: p < 0.001). The smaller difference between data and simulations in the high expression data compared to the low expression data is caused by a partially biased cluster detection through a rise in the fraction of clusters touching each other. A more detailed comparison between the results from low and high expressing cells at rest is provided in the following section (see below).

To examine a possible influence of STIM and ORAI3 proteins on the ORAI1 cluster formation, control experiments were performed in cells lacking endogenous STIM (CRI_STIM cell line) (Figure S2) and in triple ORAI1-3 knock-out cells (CRI_2 cell line, Figure S3). Cluster analysis from both cell lines revealed similarly elongated clusters >2 and a similar fraction of ¾ exceeding the limit of 70 nm, thus matching the findings found in the cells of the mainly used CRI_1 cell line. We can thus exclude that the formation of these supramolecular ORAI1 complexes depends on STIM or ORAI3 proteins.

To examine the effect of the applied QD label on the results from the cluster analysis, similar experiments and analysis of the recorded STEM images were performed using the smaller QD565 as ORAI1 labels (see Figure S6), previously measured to be ~12 nm in diameter. Compared to the bullet-shaped QD655, with outer dimensions of ~14 × 18 nm [9], the smaller dimensions of QD565 result in ~50% less label volume, which has been shown to increase the labeling efficiency of another membrane protein [16]. Comparison of cluster results from STEM data sets of QD565 labeled ORAI1 in resting cells with low expression levels, with their matching simulations, were performed with the main cell line CRI_1 as well as with the CRI_2 cell line. When compared to each other, the two cell lines showed no difference (p = 0.85 for the length and p = 0.14 for aspect ratio). In contrast, comparing the clusters from QD565 STEM images with their matching simulation showed that the clusters in the images were longer by 21% (CRI_1) and 18% (CRI_2), respectively, and had a 26% higher aspect ratio (for both cell lines) than clusters in the matching simulations (all p < 0.0001). These relative differences between clusters >2 in STEM images and simulations match the respective 19% and 24% relative differences in dimension. It can thus be concluded that the supra-molecularly sized ORAI1 clusters were neither randomly appearing structures, nor influenced by the type of QD label or the cell line used. Rather, they must have originated from a biological interaction leading to the spatial organization of ORAI1 hexamers in the plasma membrane.

2.3. SOCE Activation Partially Relocates ORAI1 into Distinct Accumulation Areas

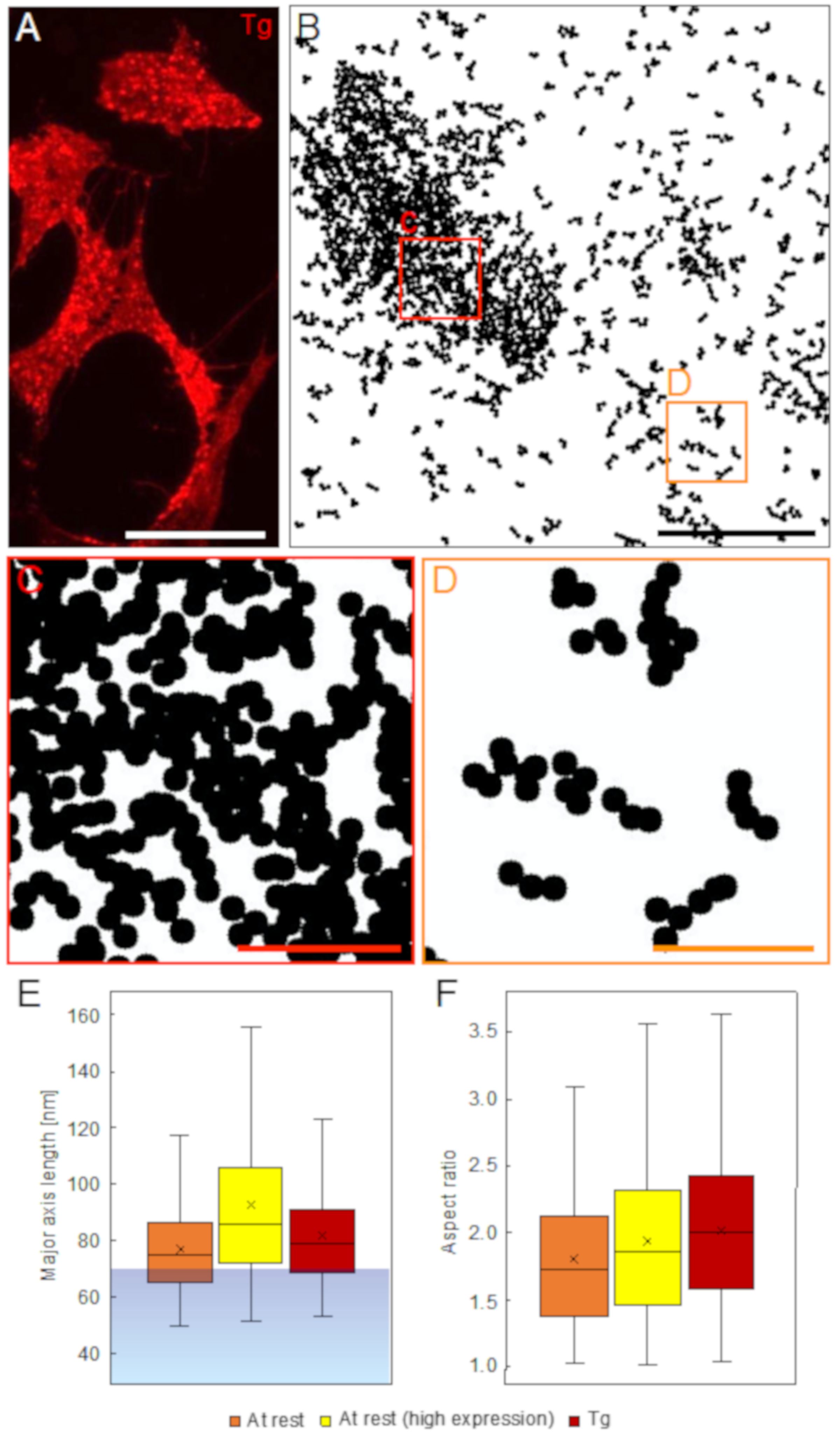

After maximal SOCE-activation, typical bright ORAI1 puncta were seen in the light microscopic images (Figure 3A). LPEM revealed that ORAI1 accumulated in oval areas, presumably ER plasma membrane contact zones.

These regions of condensed ORAI1 accumulations had diameters of 1.3 μm ± 0.5 μm for the major axis, 0.7 μm ± 0.2 μm for the short axis, an aspect ratio of 2.0 ± 0.6, and an area size of 0.9 µm² ± 0.5 µm² as directly measured from STEM images (see Figure S7), matching the size of puncta reported earlier [2]. Similar ORAI1 puncta were also found after SOCE-activation with CPA, though with smaller spatial dimensions and aspect ratios on average (see Figure S4). Figure 3B displays the distribution of all clusters >2 found in a typical STEM image from a maximally SOCE-activated cell. ORAI1 distributions in the puncta were crowded (shown magnified in Figure 3C), but it is still possible to regionally recognize elongated clusters, suggesting that the dense ORAI1 accumulation areas included chain-like supra-molecular ORAI1 clusters. Outside the puncta regions, the spatial distribution of ORAI1 clusters >2 (shown magnified in Figure 3D) resembled those found in the resting cells.

Figure 3E,F show the results of quantitative analysis of clusters >2 data sets for their maximal dimension and their aspect ratio derived from cells at rest, of low and high expressing cells, and from low expressing cells after maximal SOCE-activation as measured outside of the puncta regions. For this latter group, the STEM images were chosen such that they contained little to no puncta. The results in Figure 3E show that independent of the activation status or the expression level, about ¾ of all detected clusters >2 exceeded 70 nm, reaching up to 120 nm of length, and thus point towards the presence of underlying supramolecular arrangements of ORAI1. Note that at rest, high ORAI1 expressing cells seem to have 14% larger cluster dimensions than low expressing cells, whereas, in maximally activated cells with low ORAI1 expression, clusters outside the puncta are only 4% larger (p < 0.001 between all groups). Note also here that larger cluster dimensions in the high expressing cells originate from touching and coalescing clusters in high expressing cells, biasing the automated measurement, which considers several touching clusters as a single cluster unit. The results of the cluster aspect ratio measurement, shown in Figure 3F, reveal a marginal increase of 4% in high expressing versus low expressing cells at rest, but a 14% higher aspect ratio after activation, possibly reflecting a stretching effect, for instance when clusters are drawn towards the puncta. For all comparisons in the quantitative cluster measurements of Figure 3E,F, p < 0.001.

2.4. ORAI1 Patterns under Limiting STIM Conditions

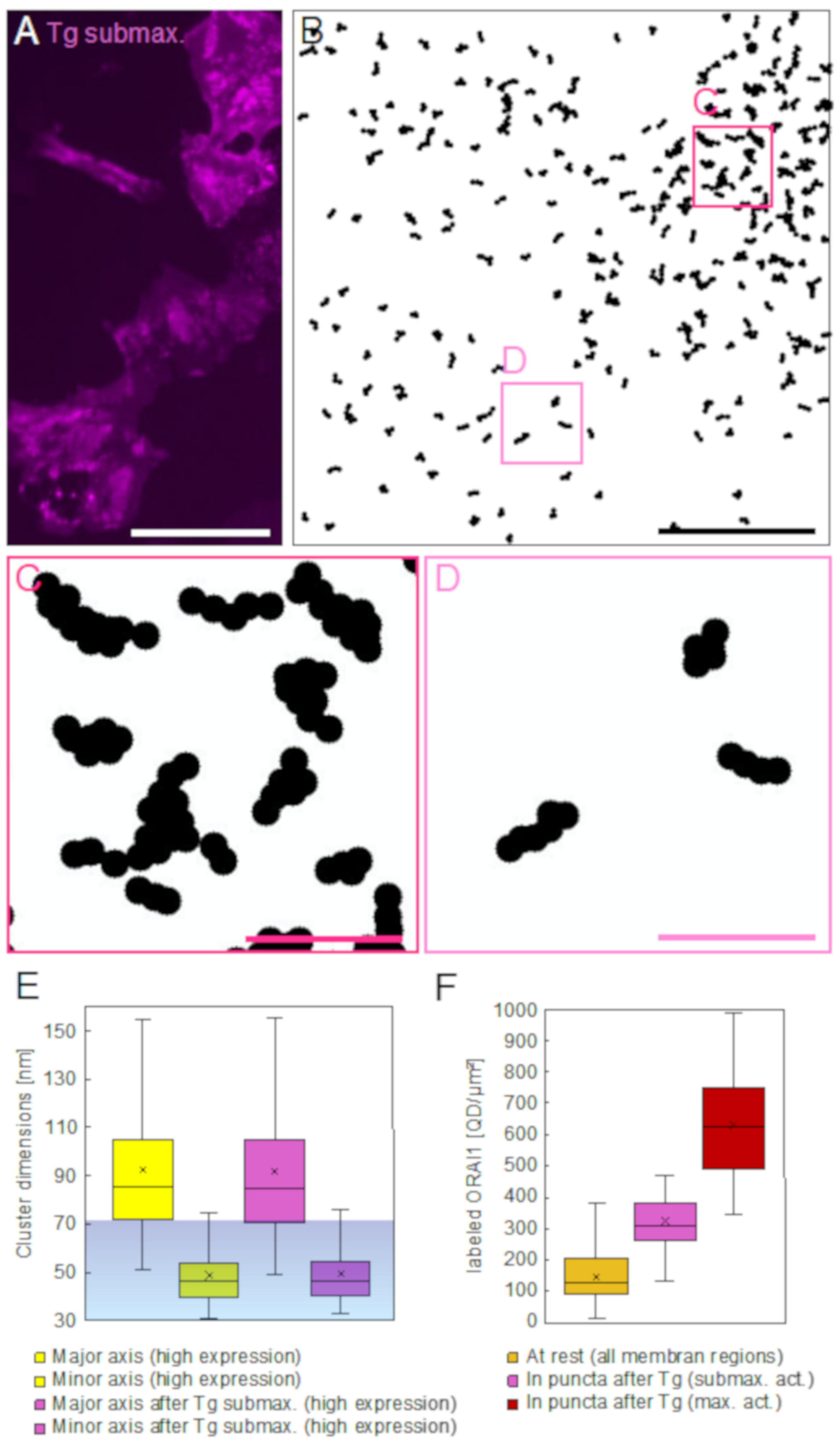

We further examined the ORAI1 distribution within the puncta, also in cells after sub-maximal SOCE-activation, caused by the insufficient abundance of STIM1 proteins after a 1:1 co-expression ratio with ORAI1. In these cells, a somewhat different clustering pattern of ORAI1 emerged compared to the maximal SOCE activation. Accumulated ORAI1 appeared in larger, irregularly shaped, and more diffused patches (Figure 4A).

In the STEM images, the borders of ORAI1 accumulation areas emerged less defined than in maximally activated cells. This effect is visible in Figure 4B, showing the processed and cluster-analyzed version of a typical STEM image from cells with a lowered STIM:ORAI ratio after 15 min of Tg incubation. The right half of the image shows accumulating ORAI1 clusters >2, however, the degree of label crowding was less dense compared to puncta regions in maximally activated cells (Figure 3B). Magnifications of the marked regions in the puncta region in Figure 4B are shown in Figure 4C, and a region outside is shown in Figure 4D. As for the resting cells and the maximally activated cells, also the sub-maximally activated cells showed elongated ORAI1 clusters outside and clearly also inside the accumulation areas. After sub-maximal activation, the free space between the cluster was larger than after maximal activation, better disclosing that small groups of two or three chain-like ORAI1 clusters had aligned in a parallel manner (Figure 4C and Figure S8). These results support the concept that upon activation, dimers of activated STIM1 proteins crosslink neighboring ORAI channels [19], which in this case appear to be pre-arranged as linear complexes. Figure 4E shows that the clusters >2 found outside puncta in sub-maximally activated cells (measured from high expressing cells) were resembled those found in resting cells.

Figure 4F presents the results of a quantitative analysis of the densities of labeled ORAI1 in resting cells and after activation in puncta. Images were analyzed from selected cells displaying similar average densities of 166/µm²$\pm$80/µm² for sub-maximally activated cells and 172/µm²$\pm$55/µm² for maximally activated cells. Sub-maximal activation approximately doubled the average label density from 155/µm² $\pm$87/µm² (yellow), as measured on membrane areas from all resting cells, to 334/µm² $\pm$ 108/µm² inside regions of puncta, and maximal activation had increased the density inside puncta to 640/µm² $\pm$ 193/µm².

To estimate the percentage of ORAI1 proteins relocating into puncta areas after maximum SOCE-activation, 44 STEM images (from 11 cells) with fully depicted puncta areas were analyzed. The remaining 125 STEM images contained only partially depicted or no puncta. In the selected images, the average density of labeled ORAI1 per cell matched the density found in all images from this experimental group (see Table 1 and

Table 2. Measurements of ORAI1 distributions inside and outside puncta after maximally store-operated calcium entry (SOCE) activated cells.

Experimental Condition	Number of Experiments	Number of Cells	Number of Labels	Analyzed Area (μm2)	% Area Occupied by Puncta	Label Density Inside Puncta/μm2	Label Density Outside Puncta/μm2
ORAI-HA activated by 15 min Tg (with 1:3 STIM1 co-expression)	2	11	143,806	510	14	694	139

,

Table 3. List of control experiments performed with other cell lines, other labels, and other methods of SOCE-activation.

Experimental Condition	Number of Experiments	Number of Cells	Number of Labels	Label Density/μm2	Analyzed Area (μm2)
ORAI-HA in CRI_STIM cells, activated by 15 min Tg	2	8	80,887	120	672
ORAI-HA activated by 15 min CPA (with 1:3 STIM1 co-expression)	1	8	153,102	203	753
ORAI-HA at rest, labeled with QD565	1	11	76,126	304	251
ORAI-HA in CRI_2 cells at rest	2	11	91,548	96	953
ORAI-HA in CRI_2 cells at rest, labeled with QD565	4	14	81,303	277	294

shows data obtained on control experiments).

The label densities inside and outside the puncta areas and the size of the puncta area were determined, first from every image, then per cell. The calculated ratio of label density inside/outside puncta was 3.7 $\pm$1 and the fraction of plasma membrane covered by puncta amounted to 14%. It should be noted however that the excluded STEM images contained images without or with only partially depicted puncta; therefore, a value of 14% is slightly overestimated. The true value should lie between 14% and a minimum of 5%, which would apply if only the fully depicted puncta were present. This proposed range of 5–14% fits well within the earlier reported share of 2–13% plasma membrane regions with underlying cortical ER [22]. For calculating the percentage of relocated ORAI1 into puncta, the 3.7 average ratio for label density inside/outside puncta, was applied to the 5–14% share, resulting in 14–24% of all ORAI1 proteins redistributed into puncta after maximal activation. Insertion of additional ORAI1 proteins from intracellular stores into the regions of puncta [12] does not seem likely since the average surface density of ORAI1 was similar between resting and activated cells (see Table 1), and the density of ORAI1 dropped by ~10% in the areas outside of the puncta compared to the overall density in cells at rest. Therefore, it seems rather likely that ORAI1 predominantly relocates from the surrounding plasma membrane into puncta.

2.5. Punctae Are Not the Only Type of Structures in Activated Cells

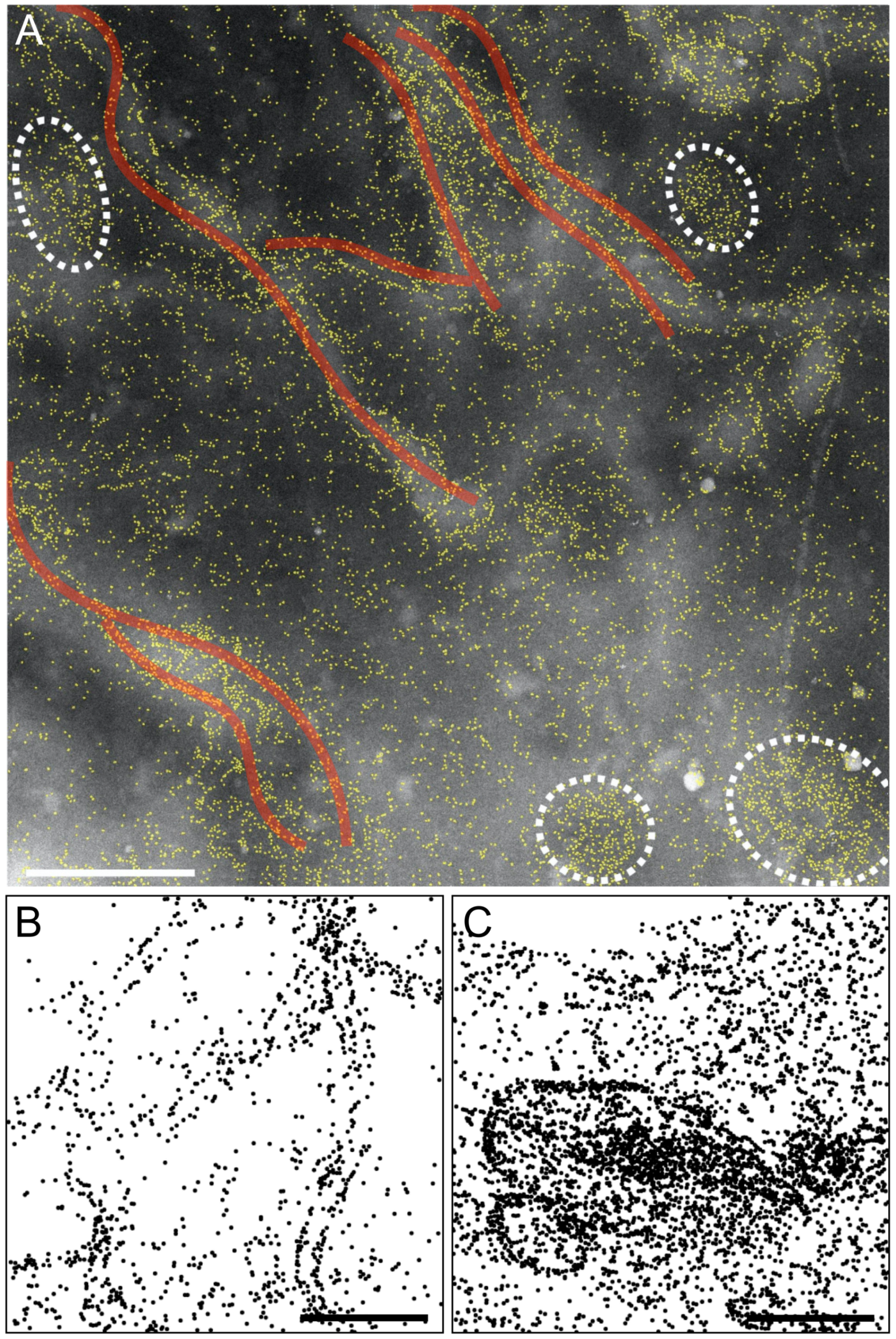

Besides the typical ellipsoid ORAI1 puncta found after SOCE-activation, several other 2D structures were found in the plasma membrane. Figure 5A shows examples of micron-long, parallel running ORAI1 formations (indicated with transparent red lines).

These ORAI1 strand-like patterns meandered in regions corresponding to areas with a brighter background than the surrounding. Since the contrast in STEM increases with mass, the brighter shapes represent thickened cellular regions. In addition, four oval ORAI1 puncta were present. Figure 5B is the label-to-circle processed image recorded from a cell with a low ORAI1 expression, also in this case several micron-long strands can be discerned that run in parallel. This rules out that such 2D-structures were an artifact of highly overexpressed ORAI1. They were found in 27% of the recorded STEM images from maximally SOCE-activated cells. Figure 5C shows examples of ORAI1 puncta differing from the typical ones by their ring-like structures; the largest ring-structure had densely accumulated strands of ORAI1 in its center. These peculiar two-dimensional structures must have been created by an underlying mechanism elicited by SOCE-activation and were also found in experiments using CPA induction of SOCE-activation (see Figure S4).

3. Discussion

Our study aimed to elucidate how the spatial organization of ORAI1 proteins in the plasma membrane changes upon Ca²⁺ channel activation. We have used an HA-tagged ORAI1 protein in combination with a two-step QD labeling approach, resulting in a label-target ratio of <1, thereby excluding any clustering of more than one QD at a single ORAI1 protein [9]. It can also be excluded that the applied QD-labeling protocol induces artificial clustering of membrane proteins. This proof was published for a similar QD-labeling approach of another membrane protein, namely HER2, where randomly distributed QD label positions occurred in a phenotypic distinct subpopulation of HER2 overexpressing cancer cells [23,24]. The proteins were detected in the intact and hydrated cell, using correlative light microscopy and LPEM, yielding the position information of several hundred thousand single-labeled ORAI1 proteins.

The fact that we analyzed only a fraction of ORAI1 proteins, namely those with a bound QD, leaving the majority of all ORAI1 unlabeled, and thus “invisible”, is not hampering or biasing our analysis of the spatial distribution of ORAI1, because we can reasonably assume the labeling process to be stochastic. This randomness allows us to consider the labeled fraction of ORAI1 as representative of all present ORAI1, independently of the relative size of this fraction and the labeling efficiency. Fractional random labeling and microscopic analysis of a representative share of the target proteins are widely used in cell biology to study the spatial localization of single proteins. Mostly, the labeling efficiency, or the share of analyzed fluorescent labels, is even significantly lower than our estimated labeling efficiency [25].

Studying engineered proteins via cell expression systems may raise concerns about potential mismatches between the studied situation and that in native tissue cells, as the protein under investigation may be expressed at a too high level compared to the other endogenous proteins interacting. An imbalance between the ratios of the interacting protein species could in principle also influence the spatial distribution of ORAI1 in the plasma membrane. To evaluate if we had unphysiologically high levels of ORAI1 in our cellular expression system, we calculated the average surface density of the truly present ORAI1 channels. Supposing hexameric channels and applying an estimated labeling efficiency of 30% resulted in an average ORAI1 channel surface density of ~75/μm², the surface density decreased to ~50/μm² in the separately analyzed group of low expressing cells, whereas in the high expressing cells it reached ~120/μm². Comparing this range of values with the published surface density of presumably endogenous ORAI1 channels in regular HEK cells, amounting to 193 ± 91/μm² [26], indicates that our ORAI1 expression levels were in a lower physiological range, at least for HEK cells. Note that endogenous ORAI1 and ORAI2 were almost abolished in the used modified HEK cell line. Nevertheless, one has to be cautious to generally extrapolate our results to cells from other tissues, because large variations in relative expression ratios of ORAI1 and its interacting proteins exist between different tissues and cell types.

In resting cells, we discovered that ORAI1 often assembled in chain-like structures extending up to 130 nm. ORAI1 proteins thus tended to form supra-molecular arrangements. Considering a predominant distance of ~15 nm between adjacent ORAI1 channels in puncta, as measured by electron microscopy [26], the underlying chain-like conformation could contain between two and eight ORAI1 channels. The existence of such multi-channel ORAI1 conformations contradicts the assumption that ORAI1 channels predominantly exist as independent entities, randomly distributed in the plasma membrane [18,26]; those authors further suggested that single channels were freely diffusing within these patches. Although they also used electron microscopy to examine overexpressed ORAI1, the proteins were imaged without labels, and in freeze-fractured cells [26], posing challenges for the discrimination of ORAI against other neighboring membrane proteins, while labeling as used by us ensures specific detection of ORAI and thus provides more reliable information about ORAI’s spatial distribution. Nevertheless, those authors stated the occasional detection of ORAI1 channels in specific arrangements of pairs and short chains.

In the STEM images recorded after SOCE-activation, ORAI1 clusters had been trapped into the regions of puncta where, depending on the availability of STIM proteins, they often aligned side-by-side. This was found after sub-maximal activation, or condensed further until reaching a rather confluent pattern, after maximal activation. Measurements of ORAI1 densities in maximally activated cells, inside and outside puncta, revealed on average a four-fold increase within the regions of puncta achieved by the redistribution of a minor ORAI1 protein fraction, ranging between 14% and 24% of all plasma membrane-bound ORAI1. Our results do not support earlier findings reporting the insertion of ORAI1 from intracellular pools into puncta after SOCE-activation [12]. Such a replenishment of plasma membrane localized ORAI1 would have led to an increase in the average ORAI1 surface density in SOCE-activated cells versus cells at rest; however, the average ORAI1 densities in our experiments remained similar. A possible reason for this discrepancy might be the exclusive use of formaldehyde as a fixation agent in this earlier study, which is known to insufficiently fix membrane proteins [27,28] and to induce artificial redistributions of ORAI1 proteins [29].

In resting cells, Perni et al. reported micron-sized patches with ragged edges, assuming these areas contained dense accumulations of ORAI1 channels [26]. We could not confirm this finding; instead, labeled ORAI1 distributed rather evenly throughout the plasma membrane of resting cells with mono-dispersed and clustered label formations. This discrepancy might lie in differences between the preparation and imaging techniques used, notably the lack of identifying labels, as already mentioned above. Our comparison between the cluster analysis of STEM image data with their density-matching simulations led us to propose that a significant fraction of the ORAI channels formed linear arrangements. For all examined experimental groups, the dimensions and aspect ratios of labeled-ORAI1 clusters >2 in the STEM images were significantly larger (p < 0.001) than those of clusters >2 found in their matching simulations (see Figures S5 and S6). High-order aggregates of non-solubilized ORAI proteins were found earlier with the biochemical technique of Native Gel Electrophoresis using perfluorooctanoic acid (PFO), but these results were interpreted as technical artifacts [5]. Furthermore, ORAI1 diffusion coefficients were reported to exhibit a large range of different values, whereby most ORAI1 proteins had sub-diffusive velocities [2] possibly caused by differently sized molecular ORAI1 assemblies [30], a finding which fits the idea of supra-molecular ORAI1 channel arrangements.

Concerning the larger, peculiar 2D assembly patterns detected in SOCE-activated cells, such as micrometer-long strands and ring-like structures, we were unable to find matching reports in the literature. Perni et al. did confirm the presence of dense ORAI accumulations in puncta after SOCE-activation, but their observations did not include strand- and ring-like 2D structures. This discrepancy is likely due to the small width of these strands, often of a single labeled ORAI1, and the associated difficulty of discerning such small features amongst the other neighboring proteins in the crowded environment of the plasma membrane without using labels.

We propose that a possible function of clustering of ORAI1 in supramolecular arrangements could be a more efficient concentration process of ORAI1 Ca²⁺ channels in puncta upon SOCE activation compared to a mechanism via the collection of single channels. The capturing and dragging of only one ORAI1 protein belonging to a supramolecular cluster will drag all the others with it until the whole cluster reaches the ER plasma membrane contact zone. A confluent filling of the plasma membrane areas located above accumulated STIM in the ER plasma membrane contact zones near supra-molecular ORAI1 clusters, rather than single ORAI1 channels, would not only be faster but would also help in achieving a more homogenous filling. Additionally, this would prevent jamming of ORAI1 channels at the periphery of the puncta, which would hinder and delay filling of the more central areas. An amplifying effect, due to the import of supra-molecular ORAI clusters instead of single ORAI1 channels, would lower the required amount of effectively trapped and transported ORAI1 far below the 14% to 24% of ORAI1 proteins found to be redistributed after maximal SOCE-activation. Such an amplifying effect would, for instance, play an important role in the immune system by accelerating the formation of immune synapses between T cells and antigen-presenting cells [31]. The comparison of ORAI1 distributions in accumulation zones in sub-maximally activated cells revealed less dense accumulations of ORAI1 clusters than in maximally activated cells. Yet, the accumulation areas showed many aligned supra-molecular ORAI1 clusters, further supporting the concept that the import of preformed, supra-molecular ORAI1 clusters contributed to the accumulation of ORAI1 in puncta. The existence of such an amplifying mechanism could be tested in the future, for example, using dynamic nanoscale microscopy provided by advanced super resolution fluorescence microscopy or by LPEM enhanced for time-resolved imaging at ultra-low electron dose, which is albeit not yet available [32].

The existence of supra-molecular protein clusters in the plasma membrane, with similar dimensions and numbers of involved proteins as detected in this study for ORAI1 proteins, possibly points to a general organization principle in the plasma membrane, as such protein arrangements were also found for other membrane proteins, mainly by using super-resolution fluorescence microscopy. After over-expression in HEK cells, for instance, about half of the N-methyl-D-aspartate receptor receptors were found in clusters containing up to 12 receptors [33]. Also, for the family of G-protein coupled receptors, about half of the μ-opioid receptors, and 85% of κ-opioid receptors were reported to reside in clusters with dimensions of 80 nm to 100 nm, comprising on average eight and nine receptors, respectively [34]. Assemblies of 10 or more receptors were also reported for the epidermal growth factor receptor (EGFR) [35], and chains containing six or more receptors for the closely related human epidermal growth factor receptor 2 (HER2) [36], which represents an example in which endogenous proteins were labeled.

It is not known if a linking protein responsible for the organization of supra-molecular ORAI1 clusters exists. STIM proteins fulfill such an ORAI1 binding function and concomitant to binding activate ORAI1 channels in the puncta. Though outside these regions and at rest, clustering of ORAI1 due to STIM can be excluded, as shown by control experiments (see Figure S2). The possible mechanism behind the clustering of ORAI1 could involve homo-oligomerization [37,38], the involvement of cytoskeletal proteins [39,40], or septins, recently shown to be involved in cellular calcium signaling through ORAI1 [30], as well as a range of other known ORAI1-binding proteins [41,42].

4. Materials and Methods

Fetal bovine serum (FBS), 2-mercaptoethanol (ME), Tg, cyclopiazonic acid, and sodium azide, were either from Fisher Scientific, Schwerte, Germany, or Sigma Aldrich, Darmstadt, Germany. ScreenFect^®A Transfection reagent was from Incella GmbH, Eggenstein-Leopoldshafen, Germany. Anti-HA-biotin, high affinity (3F10) from rat IgG1 was from Roche Diagnostics, Mannheim, Germany. Dulbecco’s phosphate buffered saline (DPBS), Modified Eagle’s Medium (MEM), normal goat serum (GS), CellStripper and QD Qdot^® 655, and Qdot^®565 streptavidin conjugates were from Fisher Scientific GmbH, Schwerte, Germany. ROTISOLV^® high pressure liquid chromatography grade pure water, acetone and ethanol, phosphate buffered saline (PBS) 10 × solution, electron microscopy grade glutaraldehyde (GA) 25% solution, D-saccharose, sodium chloride, glycine, biotin free and molecular biology grade albumin fraction V (BSA), and sodium cacodylate trihydrate were from Carl Roth GmbH + Co. KG, Karlsruhe, Germany. Electron microscopy grade formaldehyde (FA) 16% solution was from Science Services GmbH, Munich, Germany. The 0.01% poly-L-Lysine (PLL) solution (mol wt. 70,000–150,000), sodium tetraborate, and boric acid were from Sigma-Aldrich Chemie GmbH, Munich, Germany. CELLVIEW cell culture dishes (35 mm) with four compartments and glass bottoms were from Greiner Bio-One GmbH, Frickenhausen, Germany. Custom designed silicon microchips were purchased from DENSsolutions, Delft, Netherlands. The microchips had outer dimensions of 2.0 × 2.6 × 0.4 mm and each contained a silicon nitride (SiN) membrane window, usually with dimensions of 150 × 400 µm (sometimes larger) along with a membrane of 50 nm thickness. Trivial transfer multilayer graphene was purchased from ACS Material LLC, Pasadena, CA, USA. NaCl₂ crystals were from Plano GmbH, Wetzlar, Germany.

HEK293 cells were obtained from ATCC, Wesel, Germany, and genetically modified using CRISPR/Cas9-mediated gene deletion of endogenous ORAI1-2 genes (named CRI_1), or ORAI1-3 genes (named CRI_2, which were used for controls shown in the Supplementary information), as described in [9]. A HEK cell line lacking endogenous STIM proteins (CRI_STIM) [19] was obtained from Donald L. Gill [19]. An ORAI1 construct with an extracellular nine amino acid HA-tag within the second extracellular loop of ORAI1 was used for labeling the protein with a QD [43]. The cDNA sequence encoding for HA tag is TACCCATATGACGTACCGGATTACGCC which translates to the amino acid sequence YPYDVPDYA. The DNA construct also contained a DNA encoding green fluorescent protein (GFP) but separated by a cleavable peptide sequence (P2A) thus guaranteeing the same expression ratio [13,44]. The ORAI1-GFP DNA construct was transiently expressed in the HEK cells using ScreenFect^®A as described in [9], which also includes the results of functional tests of the transfected ORAI1-HA DNA constructs. All constructs encode human sequences.

4.1. Preparation of Microchips with Transfected HEK Cells

CELLVIEW dishes and microchips with thin SiN windows were used as a support for CRI_1 cells. Preparation of new microchips was performed as described previously [45], briefly, protective photoresist coating on the microchips was removed with acetone and ethanol, the microchips and dishes were plasma-cleaned for 5 min, coated with PLL, and immersed/filled with cell medium (supplemented with 10% FBS and 50 μM ME). Cells grown in a 25 cm² flask were harvested at ~90% confluency and washed once in supplemented cell medium. Cell transfection was performed according to the supplier’s instructions. In experiments with ORAI1 at rest, 0.25 μg ORAI1-HA DNA and 1.5 μL transfection reagent (TR) were used per compartment of a four-compartment dish (35 mm diameter) containing a final volume of 420 μL cell suspension. In experiments with activated ORAI1, 0.17 μg ORAI1-HA DNA, 0.55 μg STIM1-mcherry DNA to yield a 1:3 ratio between ORAI1 and STIM1, or 0.17 μg for each DNA and 2 μL TR for a 1:1 ratio, were used per dish compartment. The respective volumes for single microchips kept in wells of a 96-well plate were 25% of those used for dish compartments. The cell samples were then incubated for 24 h in the CO₂ incubator.

4.2. Labeling of Overexpressed ORAI1-HA at Rest or after Activation

A two-step labeling protocol [13,45] was applied using a biotinylated anti-HA Fab, followed by labeling with 20 nM streptavidin-conjugated QD, as previously described [9]. After transfection, the samples were rinsed with supplemented cell medium pre-warmed to 37 °C. For experiments examining unstimulated ORAI1 distribution, in the following named cells at rest, the samples were briefly rinsed in pre-warmed 0.1 M cacodyl buffer (CB) containing 0.1 M sucrose, pH 7.4, and incubated in 3% formaldehyde/0.2% glutaraldehyde in CB for 10 min at room temperature, thereby assuring fast and permanent fixation of membrane proteins, eliminating their diffusion [27,46,47]. For the examination of activated ORAI, cells were first rinsed twice with pre-warmed medium (MEM, suppl. with 10% FCS and 50 μM ME), then incubated with 1 μM Tg, or 30 μM CPA (both in supplemented medium), for 15 min at 37 °C (in the CO₂ incubator). The activated cells were rinsed once with pre-warmed medium, and once with pre-warmed CB, followed by fixation as described above. Fixation was terminated by rinsing once with CB, three times with PBS, 2 min of incubation in GLY-PBS (0.1% glycine in PBS) for 2 min, followed by a rinse in PBS. The cells were then incubated in 400 ng/mL Anti-HA-Fab-Biotin labeling solution in PBS, first for 1 h at room temperature, followed by 3–6 h at 4 °C. The QD-labeling solutions were prepared by first diluting 1 µM Streptavidin-QD stock solutions 1:5 in 40 mM Borate buffer, pH 8.3, and a further dilution in hBSA-PBS (PBS with 1% BSA) to obtain a 20 nM QD labeling solution. After three times rinsing in PBS, cells were incubated in the streptavidin-QD labeling solutions for 12 min at room temperature. As the presence of BSA in the labeling solutions led to non-specific binding, it was omitted in the processing steps before the QD-incubation. After the QD incubation, the cells were rinsed four times with hBSA-PBS before fluorescence microscopy was performed.

4.3. Fluorescence Microscopy

After QD incubation and before the second fixation step, cells on microchips were imaged with an inverted fluorescence microscope (DMI6000B Leica, Germany) in a pristine, 35 mm cell culture glass-bottom dish filled with 2 mL hBSA-PBS. 20 × and 40 × objectives were used together with four channels, one collecting direct interference contrast (DIC), and three fluorescence channels for, GFP (460–520 nm excitation, 515–560 nm emission), QD655 (340–380 nm excitation, >420 nm emission), and QD565 (540–560 nm excitation, 580–620 emission).

4.4. Processing of Samples for LPEM

To stabilize the cells on the microchips for electron microscopy, the previously labeled samples were further fixed with 2% glutaraldehyde in CB for 10 min at room temperature. After one rinse with CB and three rinses with hBSA-PBS, they were stored in hBSA-PBS supplemented with 0.02% sodium azide at 4 °C until liquid-phase STEM, usually performed within 1–3 weeks. To keep the ORAI channels in their almost native environment, as provided by the imaging of hydrated intact cells, the microchip samples were covered with graphene. Multi-layer (3 to 5 layers) graphene on polymer was cleaned and transferred onto the sample as described previously [14,48]. For the coating of a microchip sample, a graphene sheet of approximately the size of a microchip was detached from its supporting NaCl crystal through immersion in a beaker filled with HPLC-grade water, placed under a binocular. The (wet) microchip was grabbed with a pair of fine-tipped tweezers, rinsed twice with pure water, and immersed in the liquid below the floating graphene. The graphene was then carefully scooped up by slowly drawing the microchip up and out of the water. The tweezers tips, still holding the microchip with the on top swimming graphene sheet, were fixed with a small rubber O-ring, and the other tweezer end was clamped into a small stand so that the microchip would hang free in the air. After a few minutes of drying time, the water on the graphene had evaporated and the graphene was directly adhering to the underlying still hydrated cells. A detailed description of this step can be found elsewhere [14].

4.5. LPEM of QD-Labeled Whole Cells

To observe the individual QD-labeled ORAI1-HA positions, the graphene-coated samples were imaged in a transmission electron microscope (ARM 200, JEOL, Japan), with STEM dark field mode [14]. The following settings were used: electron energy of 200 kV and 175 pA probe current. For orientation purposes, the imaging session started with the recording of two to three overview STEM images, covering the entire SiN-window area of the microchip with cells. These low magnification images were directly compared to the previously recorded fluorescence and DIC images and served to navigate to the selected representative cells chosen for high-magnification imaging. Several images from selected QD-labeled cells were recorded from randomly chosen plasma membrane regions. Note that central areas in the thickest nucleus containing part of the cells were excluded. Images of QD655 labeled cells were recorded with magnifications of mostly 60.000 ×, while 120.000 × was used for QD565 labeled cells (occasionally, other magnifications ranging between 40,000 and 150,000 × were applied), resulting in a pixel size of 1.6 nm and 0.8 nm for QD655 images and QD565 images, respectively. The image size of the 16-bit images was 2048 × 2048 pixels, comprising a scanning area of 10.1 µm² per 60.000 × magnified image, or 2.9 µm² per 120.000 × magnified image. The used pixel dwell-times ranged between 8 and 14 µs. The calculated electron doses for images of cells labeled with QD655 was usually between 40 and 60 e⁻/Ų, cells labeled with the smaller QD565 (shown in the supplementary information) had maximally a dose of 125 e⁻/Ų, which is below the reported limit of radiation damage for such samples [49].

4.6. Particle Detection

In order to obtain the lateral coordinates of the QD labels, all STEM images were first visually screened for infrequently occurring contaminants on the graphene (remnants of the production process) with dimensions and contrast characteristics sometimes hampering the automated label detection. In such cases, ImageJ (version 1.52a, NIH) was used to manually blank the respective contaminant in the image by covering them with a fitting shape, filled with the grey value of the surrounding background. QD labels were detected and localized by applying a dedicated plugin of local design in ImageJ described elsewhere [23]. The main processing steps consisted of a Fourier filter for spatial frequencies between a factor of three smaller and a factor of three higher than the set size (7 nm), and a binarization with an automated threshold with a maximum entropy setting. The particles were automatically detected using the “Find Particles” tool, with a precision corresponding to the pixel size of 1.6 nm. A demonstration of the particle detection technique can be found in an earlier publication, including also an error estimation [16].

For a better visual perception of the arrangement of labeled ORAI in selected images, we implemented another plugin of local design for the purpose of improved visual pattern recognition of the arranged labels. This was achieved by using the x-y center position data from the detected QD labels in a STEM image, and drawing black circles around each center position, on a blank image background of the same dimensions as the STEM image. Each circle thereby indicated the plasma membrane area where the underlying ORAI1 protein and bound labels localized. The size of the circle was determined by the dimensions of the QDs and the flexible linker, including the conjugated streptavidin, and the Anti-HA Fab. As can be seen in the drawn-to-scale model shown in Figure 1 and Figure S1, the maximal distance between the center of a QD and the ORAI1 protein is ~17 nm, so that the diameter of the circle was set to 35 nm.

4.7. Analysis of Supra-Molecular ORAI1 Arrangements and Punctae

For the detection of possible ORAI1 supramolecular arrangements, the processed STEM images, showing the labels as 35 nm diameter black circles, were analyzed with the “Analyze Particles” tool of ImageJ. The size limit was set such that clusters consisting of more than two labels were detected. The result was visually inspected and, if necessary, corrected for a few mistakenly detected clusters with only two circles. All fully depicted clusters >2 were analyzed for their major and minor axis length, as well as for their aspect ratio, with the “Measure” tool.

For the quantitative analysis of ORAI1 distribution in puncta, all recorded images from all maximally SOCE-activated cells were visually inspected in order to identify images displaying puncta. These puncta were defined as regions of locally accumulated labeled ORAI1 with at least two-fold higher label densities than in the surrounding regions, limited by a visually identifiable border towards the surrounding regions of lower ORAI1 density. Accumulated ORAI1 areas of strand- or ring-like shapes were excluded from the analysis, due to the difficulty of defining their borders. Of all recorded images from the group of maximally SOCE activated cells, 58% contained such puncta. With the “Freehand selection” tool in ImageJ, all fully depicted puncta were manually marked at their borders, thus yielding regions of interest (ROIs). The major and minor axis length, as well as their area size of these ROIs, was determined with the “Measure” tool. Thereafter, the labels inside the ROIs were blanked by filling the ROIs with grey background color, and the remaining number of labels in the regions outside the ROIs was again determined using the “Find particles” tool, similarly as done previously for all recorded images (as explained in the previous paragraph). The difference between the number of particles detected outside the ROI and the total number of particles in the respective image yielded the number of particles within the ROI.

4.8. Simulation of Label Distributions Corresponding to Selected STEM Image Data Sets

Spatial label distributions were simulated to discern if the detected label clusters >2 were bound to supramolecular ORAI1 arrangements, consisting of more than one underlying ORAI1 hexamer, or if similar clusters could also derive from randomly distributed hexameric ORAI1. These simulations were based on data recorded from different experimental groups, each consisting of a set of 12 images from cells displaying low ORAI1 expression levels, and a set of six images from cells with high expression levels. For every image, a corresponding simulation was made using the same number of detected particles and the image size but the distribution of the labels was determined by an algorithm based on randomly scattered hexameric ORAI1, labeled with a 30% labeling efficiency, and including effects of spatial hindrance of a newly bound QD to already bound QDs using a model of hard shell QD cores with a surrounding soft shell composed of the coating polymer and streptavidins. These simulated label distributions were processed and analyzed in the same way as the data from the STEM images.

When creating a new particle simulation, as a first step, a given number of virtual ORAI1 proteins were placed randomly within the image. Their positions followed a uniform distribution while overlapping proteins were strictly avoided by limiting the minimum distance between hexamers to 10 nm, representing the largest diameter of the protein complex located intracellularly. Each of the proteins was then loaded with up to six circular labels. The exact number of labels at each protein was determined by a random process modeling of the labeling efficiency. Also, the center-to-center distance between protein and label was generated randomly but restricted to a maximum of 20 nm. The directions of the displacements were generated randomly. Overlap of the hard shell of the labels (5 nm radius) was prohibited, that is, the minimal distance between two label centers was 10 nm.

Additionally, the soft shell of the labels (additional 3.5 nm radius) was modeled by sometimes allowing and sometimes prohibiting an overlap. The probability for accepting a particle’s position when soft shells were overlapping was calculated as:

$$P=1 - e^{-{\left(\frac{s}{l}\right)}^2}$$

(1)

with soft shell thickness l = 3.5 nm, and the randomly generated distance between the hard shells s ϵ [0, 2 × l]. This generated minimal acceptance probability if an overlap of the entire soft shell occurred, that is, the hard shells touched $(s=0)$. For soft shells that were barely touching (s = 2 × l), the probability was maximized.

If a generated label position led to an overlap, as described above, with a previously placed label, a new position was created. If necessary, this was repeated multiple times before the label was discarded entirely, assuming that no valid position would be found in this area. The maximum number of attempts was 50. To avoid any bias, the labels were placed sequentially, starting with the first label of every single protein before continuing with the next ones. Finally, a simulated image was created from these label positions using the previously mentioned ImageJ plugin.

4.9. Statistical Analyses

Statistical significance was performed using the paired Student’s t-test. Differences were considered significant at p < 0.05 and are indicated as follows: * p < 0.05, ** p < 0.01 and *** p < 0.001. All values are expressed as average values with their standard deviation.

5. Conclusions

In conclusion, a number of ORAI1 channels were organized in small elongated clusters of supra-molecular size ranging from 50 nm to 130 nm. After SOCE-activation, 14% to 24% of plasma membrane-bound ORAI1 reorganized into regions (puncta) of high surface density of oval shape. In addition, a variety of other 2D structures appeared, such as micron-long strands and ring-like patterns. We propose that the supra-molecular ORAI clusters serve an amplifying function for SOCE-activation, by reducing the required number of directly trapped ORAI1 proteins for subsequent accumulation in puncta, as needed for fast and efficient activation by STIM1 proteins in order to induce Ca²⁺ influx.
