Article

Genome-Wide Identification of the Xyloglucan endotransglucosylase/Hydrolase (XTH) and Polygalacturonase (PG) Genes and Characterization of Their Role in Fruit Softening of Sweet Cherry

State Key Laboratories of Agrobiotechnology, Department of Pomology, College of Horticulture, China Agricultural University, Beijing 100193, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(22), 12331; https://doi.org/10.3390/ijms222212331
Submission received: 26 October 2021 / Revised: 11 November 2021 / Accepted: 12 November 2021 / Published: 15 November 2021

Abstract

:
Fruit firmness is an important economical trait in sweet cherry (Prunus avium L.) where the change of this trait is related to cell wall degradation. Xyloglucan endotransglycosylase/hydrolase (XTH) and polygalacturonases (PGs) are critical cell-wall-modifying enzymes that occupy a crucial position in fruit ripening and softening. Herein, we identified 18 XTHs and 45 PGs designated PavXTH1-18 and PavPG1-45 based on their locations in the genome of sweet cherry. We provided a systematical overview of PavXTHs and PavPGs, including phylogenetic relationships, conserved motifs, and expression profiling of these genes. The results showed that PavXTH14, PavXTH15 and PavPG38 were most likely to participated in fruit softening owing to the substantial increment in expression during fruit development and ripening. Furthermore, the phytohormone ABA, MeJA, and ethephon significantly elevated the expression of PavPG38 and PavXTH15, and thus promoted fruit softening. Importantly, transient expression PavXTH14, PavXTH15 and PavPG38 in cherry fruits significantly reduced the fruit firmness, and the content of various cell wall components including hemicellulose and pectin significantly changed correspondingly in the transgenic fruit. Taken together, these results present an extensive analysis of XTHs and PGs in sweet cherry and provide potential targets for breeding softening-resistant sweet cherry cultivars via manipulating cell wall-associated genes.

1. Introduction

Softening, which is one of the irreversible ripening results, is a major determinant of shelf life and commercial quality after harvest [1]. Sweet cherries are prominent examples of high-value fruits in which softening can be commercially devastating. During the ripening process, textural changes occur which result from modifications and disassembly of cell wall structure and composition. The primary cell wall is mainly composed of cellulose, hemicellulose, pectin, structural proteins and some phenolics [2]. The solubilization of pectin and depolymerization of xyloglucan is thought to be the main modifications in cell wall responsible for the softening process, which are mediated by a set of hydrolytic enzymes such as xyloglucan endotransglycosylase/hydrolase (XTH) and polygalacturonase (PG) [3,4]. Thus, suppressing the expression of genes involved in cell wall metabolisms by genetic manipulation could be an effective way of delaying fruit softening and maintaining moderate firmness. However, currently little is known regarding the role of cell wall-modification genes in sweet cherry, which severely hampers any attempt to breed softening-resistant sweet cherry cultivars.
Xyloglucan, one of the major components of hemicellulose, has been revealed to play a critical role in the contributions of physical properties of the cell wall during plant growth [5]. Xyloglucan endotransglycosylase/hydrolase (XTH) exhibits the activity of xyloglucan endotransglycosylase that could transform new xyloglucan chains into an existing wall-bound xyloglucan or restructure existing wall-bound xyloglucan into another. On the other hand, XTH also functions as a hydrolase and exhibits xyloglucan hydrolase activity, resulting in the hydrolysis of one xyloglucan molecule. Thus, XTH is thought to be an essential enzyme involved in hemicellulose metabolism [6]. Through genomic analysis, a rising number of XTH genes have been identified in different plant species. In Arabidopsis, 33 XTHs with diverse organ-specific expression patterns were identified, of which five XTHs were mainly expressed in green siliques and two XTHs were expressed preferentially in stems [7]. Recently, it was showed that 26 XTHs in strawberry were identified, and most of them were highly expressed in roots [8]. In addition, a lot of potential XTH genes were also determined in Nicotiana tabacum [9], Glycine max [10], Oryza sativa [11], and Hordeum vulgare [12]. Many studies have explored the function of XTH and discovered its role in regulating fruit softening via modifying fruit cell wall. For instance, overexpression of SlXTH1 decreased the firmness of tomato fruit, possibly through depolymerization of total sugar and xyloglucan [13]. In strawberry, studies revealed that FvXTH9 and FvXTH6 are required for modifying the structure of xyloglucan in the fruit cell wall, and transient expression of FvXTH9 and FvXTH6 accelerated the softening process of strawberry [14]. Another study showed that heterologous overexpression of Persimmon DkXTH8 in tomato significantly promoted fruit softening, and yet exhibited more irregular and twisted cells due to the cell wall restructuring [15]. However, the identification and functional characterization of XTH genes in sweet cherry have not been well clarified yet.
Polygalacturonase (PG) belongs to one of the largest hydrolase families with various spatial-temporal expression profiles during plant development [16]. It has been proved that PG plays a crucial role in pectin degradation and participates in multiple developmental processes such as flower development, fruit softening and leaf abscission [17]. So far, identifications of this gene family have been reported in a wide range of plant species. Of the 45 PG genes determined in peach, only 16 PGs transcripts were detected in ripening fruit, and their expression levels in two peach varieties with different firmness are highly correlated with the softening properties [18]. In pear, a total of 61 PGs were identified and 28 of them showed an increment in expression during fruit storage [4]. In addition, 54 PGs were identified from tomato and divided into five clusters, of which cluster A and B were involved in the development of fruit and abscission zone, while cluster C, D, and F were mainly associated with the flowering development [19]. Similar analysis has been reported in other plant species, including Arabidopsis [20], Brassica rapa [21], kiwifruit [22], mango [23], and grapevine [24]. Functional characterization of the PG gene by genetic and molecular approaches revealed their crucial role in cell wall degradation. For examples, overexpression of PG1 in apple trees resulted in silvery colored leaves and premature leaf shedding due to the reduced cell adhesion in leaf abscission zones [25], while downregulation of PG1 altered firmness, tensile strength, and water loss in apple fruits [26]. In strawberry, suppressing of FaPG1 expression led to reduction of pectin solubilization and thus increment of fruit firmness [27]. Moreover, the Arabidopsis polygalacturonase QRT3 was shown to degrade the cell wall of pollen mother cell during microspore development [28]. Nevertheless, studies of PG genes analysis and exploration of its role in fruit softening of sweet cherry have not been reported yet.
Fruit softening is also notably affected by phytohormones. Abscisic acid (ABA) has been revealed as an essential regulator of non-climacteric fruit ripening and softening. In bilberry, exogenous ABA significantly increased the expression of VmPL, VmRGLyase, Vmβ-GAL1/2, VmXTH, VmCEL, VmEXP1/2/3 and accelerated fruit softening [29]. Change in the expression of ABA degradation related gene FveCYP707A4a influenced the expression of FveCEL2, FvePL, and FvePG, indicating that ABA is involved in the fruit softening of strawberry [30]. Ethylene, as the critical facilitator of climacteric fruit ripening, has also been reported in promote fruit softening in non-climacteric fruit sweet cherry [31], conversely, pre-harvest methyl jasmonate (MeJA) treatments could significantly inhibited the fruit softening of sweet cherry [32], but the specific molecular mechanism is not clear.
Due to the rapid softening of sweet cherry fruit, the shelf life and fruit quality are seriously influenced, and thus the cherry industry is severely restricted [33]. A possible way to tailor fruit firmness might be achieved through modulating cell wall-associated genes such as PGs and XTHs. To this end, we tapped into the genomic resources to identify potential PGs and XTHs which might be responsible for fruit softening in sweet cherry. Through analysis of the phylogenetic relationship, gene structures, and expression pattern during fruit development, we finally focused on three of these genes: PavXTH14, PavXTH15 and PavPG38. Furthermore, transient expression assay confirmed their role in changing fruit softening via degradation of the fruit cell wall. Our results provide an extensive landscape of XTHs and PGs gene families in sweet cherry, and initial functional analysis supports the notion that XTH and PG promote fruit softening in sweet cherry.

2. Results

2.1. Identification of XTH and PG Family Genes in Prunus avium

To determine the XTH and PG family members in sweet cherry, the Arabidopsis XTH and PG protein sequences were used as queries to search against the sweet cherry genome (http://cherry.kazusa.or.jp/ accessed on 5 December 2018) by BLAST. After discarding the redundant proteins which had no characteristic amino acid residues, a total of 18 XTHs and 45 PGs were identified and hereafter named PavXTH1-18 and PavPG1-45 based on their locations in the reference genome (Figure S1). Detailed information of the XTH and PG genes is presented in Table 1 and Table S1, including the gene locus, gene name, protein length, molecular weight (MW), isoelectric point (PI), and signal peptide (SP). The protein length ranged from 150–639 aa for XTHs and 162–1595 aa for PGs, respectively. Additionally, the MW calculated by the ExPASy ranged from 17.43–73.43 kDa for XTHs and 17.15–175.36 kDa for PGs, while the PIs varied from 5.2–9.68 for XTHs and 5.38–9.83 for PGs. Moreover, the majority of the XTH and PG proteins contained signal peptide sequences predicted by SignalP. These variations in structural properties among PavXTHs and PavPGs suggest their multiple functions in sweet cherry.

2.2. Phylogenetic Analysis and Multiple Sequence Alignments of the PavXTH and PavPG Gene Family Members

To further elucidate the evolutionary relationship and functional divergence of the PavXTHs and PavPGs, the rooted phylogenetic tree of 18 PavXTHs and 45 PavPGs of sweet cherry and other plants were constructed using MEGA 6.0 [34] software with a maximum likelihood (ML) method. The phylogenetic analysis showed that PavXTH and PavPG genes can be divided into five clades (Figure 1a). In the phylogenetic tree of PavXTHs, we observed that group I contained the largest number of genes, followed by clade IV and V. Likewise, the PavPG genes are divided into seven clades, among which clade D had the largest number of genes (Figure 1b). We noted that four PavPGs in clade G are phylogenetically close to the Arabidopsis PG gene AtQRT3, indicating that these 4 PavPGs might function similarly with AtQRT3 in the pectin degradation [28]. Multiple sequence alignments by Clustal X software showed that all the PavXTH genes contained highly conserved domain comprising of active catalytic residues and nearby potential N-linked glycosylation site (Figure 2a). Similarly, four conserved domains (motif I to IV) considered to be pivotal for PG hydrolysis activity are identified in most PavPGs apart from PavPG10, PavPG38 and PavPG42 (the closest ortholog of AtQRT3) which lack typical PG domains (Figure 2b).

2.3. Gene Structure, Conserved Motif and Cis-Elements Analysis of PavXTHs and PavPGs

The gene structures of PavXTHs and PavPGs were analyzed using TBtools software [35]. We found that the PavXTHs and PavPGs genes in the same phylogenetic clade show conserved exon–intron structures. The majority of PavXTHs had UTR structure except PavXTH1/3/7/17/18 (Figure S2a) and almost half of the PavPGs had no UTR structure (Figure S2b). To further analyze the conserved motifs in the amino acid sequences of PavXTH and PavPG genes, online tool MEME was used. As shown in Figure S3a, five and eight conserved motifs were identified in PavXTH and PavPG genes, respectively. Notably, motif 1 and motif 2 are almost enriched in all PavXTHs except for PavXTH7 that lacks motif 2. Similarly, motifs in PavPG genes revealed that motifs 1 and 8 are more frequently enriched (Figure S3b).
Genes with similar expression profiles are likely to share common regulatory cis-elements in their promoters, thus we also identified cis-acting elements enrichment by utilizing the promoters of both PavXTH and PavPG genes using the PlantCARE database (Figure 3). This led to the identification of a total of 36 and 38 cis-elements located in PavXTH and PavPG promoters, respectively. Strikingly, the majority of PavXTH and PavPG genes contained the abscisic acid (ABA) responsiveness elements, emphasizing the role of ABA in regulating their expression. The remaining enriched cis-elements included defense response elements, MYB binding site, and other phytohormone-responsive elements such as auxin, MeJA, gibberellin (GA) and salicylic acid. The complexity of cis-elements distribution suggests that PavXTH and PavPG genes may participate in various biotic-abiotic/hormone signaling.

2.4. Identification of PavXTH and PavPG Genes Underlying Involved in Fruit Softening

To further analyze the function of PavXTH and PavPG genes in fruit softening, we examined expression patterns of all these genes in sweet cherry fruit during three developmental periods of BG (big green), YW (yellow white), and FR (full red) by RT-qPCR analysis. As shown in Figure 4a,b, PavXTH and PavPG genes displayed various expression patterns during fruit development. Strikingly, expression levels of PavXTH14, PavXTH15 and PavPG38 were significantly upregulated with fruit development and ripening, indicating that they are the likely candidate genes participating in fruit softening. To investigate the potential correlation of these candidate genes and fruit softening, we compared the properties of fruit firmness and expression patterns of PavXTH14, PavXTH15 and PavPG38 at eight fruit developmental periods. As shown in Figure 5a, a converse trend of change was observed in fruit firmness and candidate gene expression. Particularly, fruit firmness decreased slowly at the early developmental periods, while rapidly decreased from degreening (DG) stage, at which PavXTH14/15 expression starting rising substantially, indicating that DG is the key stage for softening initiation. The high level of PavPG38 appeared in the FR period, suggesting that it mainly acts in the late stage of fruit ripening and softening. Furthermore, we also detected the spatial expression pattern of these candidate genes using different tissues. The results showed that in contrast to the vegetative tissues and flowers, three candidate genes expressed highly in the late FR fruit stage, suggesting their important role in fruit softening (Figure 5b).

2.5. Expression of PavXTH14, PavXTH15 and PavPG38 Gene Expression in Response to Hormones

As fruit ripening and softening is tightly linked to various hormone metabolism, it promoted us to test whether PavXTH and PavPG expression levels are influenced by phytohormone. After treatment with appropriate concentration of ABA, NDGA, MeJA, and ethephon in sweet cherry fruits, RT-qPCR was conducted to analyze the expression of PavXTH14, PavXTH15 and PavPG38 genes. As shown in Figure 6, ABA, MeJA and ethephon significantly promoted fruit softening. Consistently, the expression of PavPG38 and PavXTH15 were also upregulated by ABA, MeJA and ethephon treatments. Interestingly, ABA biosynthesis inhibitor NDGA didn’t exert any effect on fruit softening but significantly suppress the expression of PavPG38 and PavXTH14. In addition, the expression of PavXTH14 didn’t change upon ABA, MeJA and ethephon treatments. All these results suggested that the action of hormones on sweet cherry fruit softening is related to the expression levels of PavPGs and PavXTHs, at least PavPG38 and PavXTH15.

2.6. Transient Overexpression PavXTH14, PavXTH15 and PavPG38 in Cherry Fruits

To investigate the function of candidate genes in fruit softening, we transiently overexpressed PavXTH14, PavXTH15 and PavPG38 in cherry fruits and analyzed its effect on firmness properties (Figure 7b). About 100 fruits were infiltrated for each gene, and after discarding all malformed fruits, 35 fruits were collected for further analysis. To confirm the availability of the transient expression system in cherry fruit, we examined the vector DNA after injecting with Agrobacterium tumefaciens. The positive fragment amplified from transformant suggested successful transformation (Figure 7a). Furthermore, verification of the transcript levels by RT-qPCR showed that expression of PavXTH14, PavXTH15 and PavPG38 in transgenic fruits were significantly higher than that of the empty control (Figure 7b). Strikingly, overexpression of PavXTH14, PavXTH15 and PavPG38 led to significantly reduced fruit firmness (Figure 7c). As pectin and hemicellulose are the main substrates of XTH and PG, we hypothesized that the fruit firmness change would be related to the specific cell wall structure. Therefore, three forms of pectin including covalent pectin (CSP), water-soluble pectin (WSP) and ion-linked pectin (ISP), as well as cellulose and hemicellulose in transgenic fruit were analyzed by m-hydroxydiphenol and anthrone method, respectively (Figure 8). As expected, the content of cellulose didn’t change, confirming that XTH and PG possess substrate specificity. In contrast, the content of hemicellulose significantly decreased in all transgenic fruit, indicating that both XTH and PG could influence the hemicellulose structure. For the analysis of pectin contents, only PavPG38 overexpression fruit resulted in a significant alteration in pectin contents: increment of WSP, while reduction of ISP and CSP, in comparison of empty control and PavXTH14/15 overexpression. These results suggest that PavXTH14, PavXTH15 and PavPG38 function as the activators of fruit softening through modification of pectin and hemicellulose.

3. Discussion

3.1. Characteristics of PavXTH and PavPG Gene Families

Given the significant role of XTH and PG genes in fruit softening identified in the past two decades, it is necessary to determine the potential functions of these genes in softening-prone sweet cherry. In this study, we systematically investigated the various bioinformatic characteristics of PavXTH and PavPG genes in sweet cherry, and a total of 18 XTHs and 45 PGs were identified. The number of XTH and PG genes varies among plant species, which may be attributed to the discrepancy in genome size and complicacy among these species. It has been showed that Arabidopsis AtXTH genes were classified into three clusters based on their evolutionary relationships, and this phylogenetic category has been utilized to a broad range of plant species [7,36,37]. However, the PavXTH genes in sweet cherry were categorized into five groups in our study. One possible explanation is the chromosomal rearrangement and genome duplications during process of evolution in sweet cherry. TmXTH (Gene accession: CAA48324), which was proven to be the first XTH enzyme that can hydrolyze xyloglucan molecule [38,39], was clustered together with PavXTH14 (Figure 1a), suggesting that PavXTH14 may have the potentiality of hydrolase to hydrolyze hemicellulose and thus resulting in fruit softening. The phylogenetic analysis showed that PavPG genes could be divided into seven groups, which is consistent with previous study [40]. Particularly, PavPG10, PavPG38 and PavPG42 in clade G were apparently different from other PavPGs due to the lack of any conserved PG domains. In Arabidopsis, AtQRT3 was confirmed to degrade cell wall of the pollen mother cell during microspore development despite the absence of PG domains [28]. The high homology of AtQRT3 (Gene accession: AY268942) with PavPG10, PavPG38 and PavPG42 (Figure 1b) implying that they might also possess the similar function of PG enzyme to modify the cell wall. In addition, the substantial variations of chromosomal localization, conserved domain, motif, and gene structure in PavXTH and PavPG family members suggesting their multiple functions in micro and macro environments [41].

3.2. Expression Profiles of PavXTH and PavPG Genes

Fruit ripening and softening are complex physiological and biochemical processes that are affected by a set of enzymes related to cell wall modification [42]. Transcriptional expression patterns and abundance of related genes during fruit development and ripening can provide vital clues for understanding their functions. It has been widely reported that the transcript levels of PavXTHs and PavPGs usually increase during fruit ripening, such as apple [43,44], strawberry [45,46], and kiwifruit [22,47]. In this study, we selected three representative periods of sweet cherry fruit to investigate the expression profiles of PavXTHs and PavPGs. The results revealed that PavXTH14, PavXTH15 and PavPG38 were significantly upregulated during fruit development and showed highest expression level in the ripening fruit (Figure 4a,b). Further detailed analysis of their expression pattern across eight fruit development stages showed that they were all upregulated along with fruit development and ripening (Figure 5a). These results provide strong evidence that PavXTH14, PavXTH15 and PavPG38 potentially participate in fruit softening of sweet cherry. In addition, the tissue specific expression analysis implied that PavXTH15 might also function in flower development due to its high expression in the organ of flower (Figure 5b). It should be noted that the role of PG1 in fruit softening has been confirmed in apple [26] and strawberry [27] owing to its high expression level in ripening fruits. However, in our study, PG1 exhibited continuously low expression level across fruit development in sweet cherry (Figure 4b), implying that the function of PG genes is not strongly conservative among species despite they all belong to the Rosaceae plants.
It is reported that phytohormones are integral to fruit development and ripening [48]. For example, ABA has been proved to participate in fruit ripening in sweet cherry [49]. In the present study, ABA could promote fruit softening by elevating the expression of PavPG38 and PavXTH15 (Figure 6). In addition, exogenous MeJA treatments were quite effective in delay of fruit softening of sweet cherry [32]. Nevertheless, our results showed that MeJA increased the expression of PavPG38 and PavXTH15, and thus decreased the fruit firmness (Figure 6). One explanation for this phenotypic difference is that the treatment concentration, duration, and approach are discrepant. For examples, we treated samples by soaking the fruits at YW period into the solution of MeJA for 30 min, while they selected the pre-harvest fruits before YW period to spray the MeJA on the fruit surface. Moreover, ethephon significantly reduced the fruit firmness of sweet cherry (Figure 6), implying the potential function of ethylene in regulation of fruit ripening in non-climacteric fruit.

3.3. PavXTH14, PavXTH15 and PavPG38 Participate in Softening by Disrupting the Fruit Cell Wall

The transient transgenic technology is increasingly applied to the verification of gene functions in fruit research [50,51]. To confirm whether candidate genes are involved in fruit softening, overexpression of these genes in sweet cherry fruit was also performed. As expected, fruits infiltrated with PavXTH14, PavXTH15 and PavPG38 exhibited firmness reduction compared to the control (Figure 7c). Recently, elevating the expression FvXTH9 and FvXTH6 resulted in accelerated fruit softening in strawberry fruit, and FvXTH9 and FvXTH6 were proved to modify the structure of xyloglucan in the cell wall [14]. In addition, overexpression of persimmon DkXTH8 in tomato also led to cell shape changes in the transgenic fruit, intensifying fruit softening [15]. Moreover, downregulation of the FaPG1 in strawberry caused the reduction in pectin solubilization and an increase in pectin covalently bound to the cell wall, thus resulting in delayed fruit softening [27]. All these studies suggested that XTH and PG genes are responsible for controlling fruit softening in different plant species. Consistently, our study also confirmed that PavXTH14, PavXTH15 and PavPG38 promote softening by destroying the fruit cell wall in sweet cherry. The reduced level of hemicellulose and increase of WSP in transgenic fruit indicated the destruction of hemicellulose and pectin (Figure 8), which supported the hypothesis that accelerated fruit softening is due to overexpression of these target genes.

4. Materials and Methods

4.1. Plant Materials and Treatments

The sweet cherry (Prunus avium L.) cultivar ‘Zaodaguo’ was grown under field conditions at Beijing Academy of Forestry and Pomology Sciences, Beijing, China. Fruit samples were collected at eight different developmental periods according to previously described [52]: small green (SG), mid green (MG), big green (BG), degreening (DG), yellow (YW), initial red (IR), full red (FR) and dark red (DR) at about 7, 10, 15, 19, 22, 25, 28, 32 days post anthesis DPA. Fruits were collected for their uniform size, same appearance, and no defects. Thirty fruits were used for firmness measurement and the left were immediately cut and frozen in liquid nitrogen and stored at −80 °C for subsequent analysis. Fruits of each stage were divided into three repeats (each repeat contained ten fruits). For tissue specific expression analysis, the stem, leaf, flower, and fruit were collected from the same tree with three biological repeats (each repeat contained ten tissues).
For phytohormone treatments, fruits at YW period were harvested from the tree and divided into five groups and soaked into water, 0.2 mM ABA, 0.2 mM NDGA, 0.5 mM MeJA, and 0.5 mM ethephon for 30 min. The water treatment was used as the control. All the solution contained 0.1% Tween-20. On the seventh day after treatments, the fruits were sampled for subsequent analysis. Fruits of each treatment (30 fruits) were divided into three repeats (each repeat contained ten fruits).

4.2. Mining of PavXTH and PavPG Genes in the Prunus Avium Genome

The deduced amino acid sequences of 33 XTH genes and 66 PG genes in Arabidopsis thaliana were used as query sequences to search against the sweet cherry genome (http://cherry.kazusa.or.jp/ accessed on 5 December 2018) by BLAST. The candidate genes were filtered and identified using the CDD database (https://www.ncbi.nlm.nih.gov/Structure/cdd/wrpsb.cgi accessed on 5 December 2018) and Pfam database (http://pfam.xfam.org/search accessed on 5 December 2018). The candidates of PavXTH genes that contained the two conserved domains of GH16_XET domain and XET_C domain were regarded to be PavXTH genes. As for PG genes, those genes that contained at least one highly conserved domains of the domain I, II, III, and IV of PG proteins were determined to be PavPG genes besides the homologous genes of AtQRT3 (Gene accession: AY268942). The molecular weights, and isoelectric points (PI) were calculated using the ExPASy (https://web.expasy.org/protparam/ accessed on 5 December 2018). The signal peptide was predicted using the SignalP 4.1 (www.cbs.dtu.dk/services/SignalP/ accessed on 5 December 2018).

4.3. Phylogenetic Analysis, Multiple Sequence Alignment, Genomic Structure, Chromosomal Location, and Motif Analysis

The phylogenetic tree was constructed by the neighbor-joining (NJ) method with 1000 bootstrap replicates in MEGA 6.0 software [34]. Multiple sequence alignments were performed by Clustal X software and Espript online program (http://espript.ibcp.fr/ESPript/ESPript/index.php accessed on 5 December 2018). The gene structure was visualized by TBtools software using the GFF3 file of the sweet cherry genome. The chromosomal locations were derived from sweet cherry genome database (http://cherry.kazusa.or.jp/ accessed on 5 December 2018), and then mapped to chromosomes by TBtools software. The conserved motif was predicted through local MEME Suite (Version 5.0.5).

4.4. Cis-Element Prediction in the PavXTH and PavPG Gene Promoters

The promoter sequences (2 kb upstream from ATG) of PavXTH and PavPG genes were extracted from Prunus avium whole genome scaffolds data (version 1.0), and cis-elements in the promoters were predicted by the PlantCARE online program (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ accessed on 5 December 2018) and visualized by the TBtools software [35].

4.5. Measurement of Fruit Firmness and Cell Wall Materials

The fruit firmness was measured by the TA. XT Texture Analyser (Stable Microsystems, Godalming, UK). A puncture test was carried out by driving cylindrical probes (2 mm diameter) into the fruit flesh after peeling at a constant speed of 1 mm/s to a depth of 2 mm, and the maximum force during the test was recorded as the fruit firmness.
The extraction of cell wall was performed according to the previously method [1], with some modifications, 5 g of fruit flesh was ground with liquid nitrogen, add suitable dose of 95% boiling ethanol, and cook for 30 min. After cooling to room temperature, filtered the homogenate through washed successively with 50 mL 95% boiling ethanol, 50 mL chloroform: methanol (1:1 v/v), and 50 mL acetone. The insoluble substance was dried at 40 °C to get cell wall extract (alcohol insoluble substance, AIS). Weigh the AIS 100 mg, and extract the different components of cell wall in sequence as follows: 5 mL 50 mmol/L sodium acetate (pH 6.5) for water-soluble pectin (WSP); 5 mL 50 mmol/L CDTA (pH 6.5) fort ionic pectin (ISP); 5 mL 50 mM Na2CO3 (containing 20 mM NaBH4) for covalently bound pectin (CSP); 5 mL 4 mol/L KOH (containing 1% NaBH4) for hemicellulose; 1 mL 80% H2SO4 for cellulose. The pectin content was quantified the m-hydroxydiphenol method [53] with galacturonic acid as a standard. The cellulose and hemicellulose contents were quantified by the anthrone method [54] using glucose as standards.

4.6. RT-qPCR Analysis

Total RNA was extracted from various organs using a Plant Total RNA Extraction kit (Huayueyang Biotechnology, Beijing, China). The cDNA was synthesized using a Reverse Transcription kit (TaKaRa Biotechnology, Dalian, China). All primers are listed in Table S2. qRT-PCR was carried out using SYBR Premix Ex Taq (Kangwei Century Biotechnology, Beijing, China) with the Rotor-Gene Real-Time PCR System. All experiments were performed with three biological replicates. The relative expression of each gene was calculated using the 2−ΔΔCt method (relative to PavActin).

4.7. Transient Overexpression in Cherry Fruits

The transient overexpression was carried out according to previous report [51], with slight modifications. The full-length of PavXTH14, PavXTH15 and PavPG38 without the stop codon were amplificated into the pCAMBIA1302 vector and transformed into A. tumefaciens strain EHA105. The A. tumefaciens suspension harboring PavXTH14, PavXTH15 and PavPG38 and the control empty vector was then separately introduced into the fruits at 20 DPA by injecting it until whole fruit was permeated. Approximately 100 fruits were infiltrated for each gene. The inoculated fruits were collected at two weeks after infiltrating. After discarding the malformed fruits, 35 fruits were sampled for following analysis. The sweet cherry cultivar ‘Rainier’ was used for this experiment. The primers are listed in Table S2.

4.8. Statistical Analysis

All statistical analyses were carried out using SPSS 20.0 (Windows; SPSS Inc., Chicago, IL, USA). The significance analysis was determined by the one-way ANOVA followed by Duncan’s multiple range test or Student’s t-test. p < 0.05 was considered the significant difference. p < 0.01 was considered the extremely significant difference.

5. Conclusions

In current study, we determined 18 XTH and 45 PG genes in sweet cherry and comprehensively investigate their phylogenetic relationships, conserved motifs, gene structures and the upstream regulatory cis-elements. We also analyzed the expression patterns of PavXTH and PavPG genes correlated with fruit softening. Finally, PavXTH14, PavXTH15 and PavPG38 were confirmed to participate in fruit softening by transient overexpression of these genes in sweet cherry fruits. Taken together, our genome-wide analysis of the PavXTH and PavPG gene families lays the foundation for further analyzing the roles of XTH and PG genes and provide potential targets for breeding softening-resistant sweet cherry cultivars via manipulating cell wall-associated genes.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222212331/s1.

Author Contributions

Z.Z. and T.L. conceptualized this project and designed the experiments. Z.Z., Y.W., X.P., C.F. and Y.X. performed the genome-wide analysis of XTH and PG gene families. X.Z. (Xiang Zhang), X.Z. (Xin Zhou) and W.W. performed the RNA extraction and gene expression analysis. J.J., B.D. and C.W. performed the transient injection in cherry fruits. Y.S. performed the phytohormone treatments. Z.Z., Y.L. and T.L. wrote and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (grant No. 31972390), the National Key R&D Program of China (grant No. 2019YFD1000102–02), the Construction of Beijing Science and Technology Innovation and Service Capacity in Top Subjects (grant No. CEFF–PXM2019_014207_000032), and the 2115 Talent Development Program of China Agricultural University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The protein sequences of XTHs and PGs gene family members from other plants were retrieved from the GenBank database (https://www.ncbi.nlm.nih.gov/genbank/).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brummell, D.A.; Valeriano, D.C.; Crisosto, C.H.; Labavitch, J.M. Cell wall metabolism during maturation, ripening and senescence of peach fruit. J. Exp. Bot. 2004, 55, 2029–2039. [Google Scholar] [CrossRef] [Green Version]
  2. Vaahtera, L.; Schulz, J.; Hamann, T. Cell wall integrity maintenance during plant development and interaction with the environment. Nat. Plants 2019, 5, 924–932. [Google Scholar] [CrossRef]
  3. Wang, D.; Yeats, T.H.; Uluisik, S.; Rose, J.K.C.; Seymour, G.B. Fruit softening: Revisiting the role of pectin. Trends Plant Sci. 2018, 23, 302–310. [Google Scholar] [CrossRef]
  4. Zhang, S.; Ma, M.; Zhang, H.; Zhang, S.; Qian, M.; Zhang, Z.; Luo, W.; Fan, J.; Liu, Z.; Wang, L. Genome-wide analysis of polygalacturonase gene family from pear genome and identification of the member involved in pear softening. BMC Plant Biol. 2019, 19, 587–599. [Google Scholar] [CrossRef]
  5. Vicente, A.R.; Saladié, M.; Rose, J.K.C.; Labavitch, J.M. The linkage between cell wall metabolism and fruit softening: Looking to the future. J. Sci. Food Agric. 2007, 87, 1435–1448. [Google Scholar] [CrossRef]
  6. Cosgrove, D.J. Growth of the plant cell wall. Nat. Rev. Mol. Cell Biol. 2005, 6, 850–861. [Google Scholar] [CrossRef] [PubMed]
  7. Yokoyama, R.; Nishitani, K. A comprehensive expression analysis of all members of a gene family encoding cell-wall enzymes allowed us to predict cis-regulatory regions involved in cell-wall construction in specific organs of Arabidopsis. Plant Cell Physiol. 2001, 42, 1025–1033. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Opazo, M.C.; Lizana, R.; Stappung, Y.; Davis, T.M.; Herrera, R.; Moya-Leon, M.A. XTHs from Fragaria vesca: Genomic structure and transcriptomic analysis in ripening fruit and other tissues. BMC Genom. 2017, 18, 852–863. [Google Scholar] [CrossRef] [Green Version]
  9. Wang, M.; Xu, Z.; Ding, A.; Kong, Y. Genome-wide identification and expression profiling analysis of the Xyloglucan Endotransglucosylase/Hydrolase gene family in Tobacco (Nicotiana tabacum L.). Genes 2018, 9, 273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Song, L.; Valliyodan, B.; Prince, S.; Wan, J.; Nguyen, H.T. Characterization of the XTH gene family: New insight to the roles in Soybean flooding tolerance. Int. J. Mol. Sci. 2018, 19, 2705. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Yokoyama, R.; Rose, J.K.; Nishitani, K. A surprising diversity and abundance of xyloglucan endotransglucosylase/hydrolases in rice. Classification and expression analysis. Plant Physiol. 2004, 134, 1088–1099. [Google Scholar] [CrossRef] [Green Version]
  12. Fu, M.M.; Liu, C.; Wu, F. Genome-wide identification, characterization and expression analysis of Xyloglucan Endotransglucosylase/Hydrolase genes family in Barley (Hordeum vulgare). Molecules 2019, 24, 1935. [Google Scholar] [CrossRef] [Green Version]
  13. Miedes, E.; Herbers, K.; Sonnewald, U.; Lorences, E.P. Overexpression of a cell wall enzyme reduces xyloglucan depolymerization and softening of transgenic tomato fruits. J. Agric. Food Chem. 2010, 58, 5708–5713. [Google Scholar] [CrossRef]
  14. Witasari, L.D.; Huang, F.C.; Hoffmann, T.; Rozhon, W.; Fry, S.C.; Schwab, W. Higher expression of the strawberry xyloglucan endotransglucosylase/hydrolase genes FvXTH9 and FvXTH6 accelerates fruit ripening. Plant J. 2019, 100, 1237–1253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Han, Y.; Ban, Q.; Li, H.; Hou, Y.; Jin, M.; Han, S.; Rao, J. DkXTH8, a novel xyloglucan endotransglucosylase/hydrolase in persimmon, alters cell wall structure and promotes leaf senescence and fruit postharvest softening. Sci. Rep. 2016, 6, 39155–39170. [Google Scholar] [CrossRef] [PubMed]
  16. Ghiani, A.; Onelli, E.; Aina, R.; Cocucci, M.; Citterio, S. A comparative study of melting and non-melting flesh peach cultivars reveals that during fruit ripening endo-polygalacturonase (endo-PG) is mainly involved in pericarp textural changes, not in firmness reduction. J. Exp. Bot. 2011, 62, 4043–4054. [Google Scholar] [CrossRef] [Green Version]
  17. Pose, S.; Paniagua, C.; Cifuentes, M.; Blanco-Portales, R.; Quesada, M.A.; Mercado, J.A. Insights into the effects of polygalacturonase FaPG1 gene silencing on pectin matrix disassembly, enhanced tissue integrity, and firmness in ripe strawberry fruits. J. Exp. Bot. 2013, 64, 3803–3815. [Google Scholar] [CrossRef]
  18. Qian, M.; Zhang, Y.; Yan, X.; Han, M.; Li, J.; Li, F.; Li, F.; Zhang, D.; Zhao, C. Identification and expression analysis of Polygalacturonase family members during peach fruit softening. Int. J. Mol. Sci. 2016, 17, 1933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Ke, X.; Wang, H.; Li, Y.; Zhu, B.; Zang, Y.; He, Y.; Cao, J.; Zhu, Z.; Yu, Y. Genome-wide identification and analysis of polygalacturonase genes in Solanum lycopersicum. Int. J. Mol. Sci. 2018, 19, 2290. [Google Scholar] [CrossRef] [Green Version]
  20. Gonzalez-Carranza, Z.H.; Elliott, K.A.; Roberts, J.A. Expression of polygalacturonases and evidence to support their role during cell separation processes in Arabidopsis thaliana. J. Exp. Bot. 2007, 58, 3719–3730. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Duan, W.; Huang, Z.; Song, X.; Liu, T.; Liu, H.; Hou, X.; Li, Y. Comprehensive analysis of the polygalacturonase and pectin methylesterase genes in Brassica rapa shed light on their different evolutionary patterns. Sci. Rep. 2016, 6, 25107. [Google Scholar] [CrossRef]
  22. Huang, W.; Chen, M.; Zhao, T.; Han, F.; Zhang, Q.; Liu, X.; Jiang, C.; Zhong, C. Genome-wide identification and expression analysis of polygalacturonase gene family in Kiwifruit (Actinidia chinensis) during fruit softening. Plants 2020, 9, 327. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Dautt-Castro, M.; Lopez-Virgen, A.G.; Ochoa-Leyva, A.; Contreras-Vergara, C.A.; Sortillon-Sortillon, A.P.; Martinez-Tellez, M.A.; Gonzalez-Aguilar, G.A.; Casas-Flores, J.S.; Sanudo-Barajas, A.; Kuhn, D.N.; et al. Genome-wide identification of Mango (Mangifera indica L.) polygalacturonases: Expression analysis of family members and total enzyme activity during fruit ripening. Front. Plant Sci. 2019, 10, 969. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Khan, N.; Fatima, F.; Haider, M.S.; Shazadee, H.; Liu, Z.; Zheng, T.; Fang, J. Genome-wide identification and expression profiling of the polygalacturonase (PG) and pectin methylesterase (PME) genes in Grapevine (Vitis vinifera L.). Int. J. Mol. Sci. 2019, 20, 3180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Atkinson, R.G.; Schroder, R.; Hallett, I.C.; Cohen, D.; MacRae, E.A. Overexpression of polygalacturonase in transgenic apple trees leads to a range of novel phenotypes involving changes in cell adhesion. Plant Physiol. 2002, 129, 122–133. [Google Scholar] [CrossRef] [Green Version]
  26. Atkinson, R.G.; Sutherland, P.W.; Johnston, S.L.; Gunaseelan, K.; Hallett, I.C.; Mitra, D.; Brummell, D.A.; Schroder, R.; Johnston, J.W.; Schaffer, R.J. Down-regulation of POLYGALACTURONASE1 alters firmness, tensile strength and water loss in apple (Malus x domestica) fruit. BMC Plant Biol. 2012, 12, 129–142. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Quesada, M.A.; Blanco-Portales, R.; Posé, S.; García-Gago, J.A.; Jiménez-Bermúdez, S.; Muñoz-Serrano, A.S.; Caballero, J.L.; Pliego-Alfaro, F.; Mercado, J.A.; Muñoz-Blanco, J. Antisense down-regulation of the FaPG1 gene reveals an unexpected central role for polygalacturonase in strawberry fruit softening. Plant Physiol. 2009, 150, 1022–1032. [Google Scholar] [CrossRef] [Green Version]
  28. Rhee, S.Y.; Osborne, E.; Poindexter, P.D.; Somerville, C.R. Microspore separation in the quartet 3 mutants of Arabidopsis is impaired by a defect in a developmentally regulated polygalacturonase required for pollen mother cell wall degradation. Plant Physiol. 2003, 133, 1170–1180. [Google Scholar] [CrossRef] [Green Version]
  29. Karppinen, K.; Tegelberg, P.; Haggman, H.; Jaakola, L. Abscisic Acid regulates anthocyanin biosynthesis and gene expression associated with cell wall modification in ripening Bilberry (Vaccinium myrtillus L.) fruits. Front. Plant Sci. 2018, 9, 1259–1276. [Google Scholar] [CrossRef]
  30. Liao, X.; Li, M.; Liu, B.; Yan, M.; Yu, X.; Zi, H.; Liu, R.; Yamamuro, C. Interlinked regulatory loops of ABA catabolism and biosynthesis coordinate fruit growth and ripening in woodland strawberry. Proc. Natl. Acad. Sci. USA 2018, 115, 11542–11550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Serradilla, M.J.; Falagán, N.; Bohmer, B.; Terry, L.A.; Alamar, M.C. The role of ethylene and 1-MCP in early-season sweet cherry ‘Burlat’ storage life. Sci. Hortic. 2019, 258, 108787–108796. [Google Scholar] [CrossRef]
  32. Saracoglu, O.; Ozturk, B.; Yildiz, K.; Kucuker, E. Pre-harvest methyl jasmonate treatments delayed ripening and improved quality of sweet cherry fruits. Sci. Hortic. 2017, 226, 19–23. [Google Scholar] [CrossRef]
  33. Balbontín, C.; Gutiérrez, C.; Wolff, M.; Figueroa, C.R. Effect of abscisic acid and methyl jasmonate preharvest applications on fruit quality and cracking tolerance of sweet cherry. Chil. J. Agric. Res. 2018, 78, 438–446. [Google Scholar] [CrossRef] [Green Version]
  34. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. Mega6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [Green Version]
  35. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  36. Rose, J.; Janet, B.; Fry, S.C.; Kazuhiko, N. The XTH family of enzymes involved in xyloglucan endotransglucosylation and endohydrolysis: Current perspectives and a new unifying nomenclature. Plant Cell Physiol. 2002, 43, 1421–1435. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Li, Q.; Li, H.; Yin, C.; Wang, X.; Jiang, Q.; Zhang, R.; Ge, F.; Chen, Y.; Yang, L. Genome-wide identification and characterization of Xyloglucan Endotransglycosylase/Hydrolase in Ananas comosus during development. Genes 2019, 10, 537. [Google Scholar] [CrossRef] [Green Version]
  38. Baumann, M.J.; Eklof, J.M.; Michel, G.; Kallas, A.M.; Teeri, T.T.; Czjzek, M.; Brumer, H. Structural evidence for the evolution of xyloglucanase activity from xyloglucan endo-transglycosylases: Biological implications for cell wall metabolism. Plant Cell 2007, 19, 1947–1963. [Google Scholar] [CrossRef] [Green Version]
  39. Mark, P.; Baumann, M.J.; Eklof, J.M.; Gullfot, F.; Michel, G.; Kallas, A.M.; Teeri, T.T.; Brumer, H.; Czjzek, M. Analysis of nasturtium TmNXG1 complexes by crystallography and molecular dynamics provides detailed insight into substrate recognition by family GH16 xyloglucan endo-transglycosylases and endo-hydrolases. Proteins 2009, 75, 820–836. [Google Scholar] [CrossRef] [PubMed]
  40. Chen, H.; Shao, H.; Fan, S.; Ma, J.; Zhang, D.; Han, M. Identification and phylogenetic analysis of the polygalacturonase gene family in Apple. Hortic. Plant J. 2016, 2, 241–252. [Google Scholar] [CrossRef]
  41. Khan, N.; Hu, C.M.; Amjad Khan, W.; Hou, X. Genome-wide identification, classification, and expression divergence of Glutathione-Transferase family in Brassica rapa under multiple hormone treatments. Biomed Res. Int. 2018, 2018, 6023457–6023477. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Fonseca, S.; Monteiro, L.; Barreiro, M.G.; Pais, M.S. Expression of genes encoding cell wall modifying enzymes is induced by cold storage and reflects changes in pear fruit texture. J. Exp. Bot. 2005, 56, 2029–2036. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Zhang, Z.; Wang, N.; Jiang, S.; Xu, H.; Wang, Y.; Wang, C.; Li, M.; Liu, J.; Qu, C.; Liu, W.; et al. Analysis of the Xyloglucan Endotransglucosylase/Hydrolase gene family during apple fruit ripening and softening. J. Agric. Food Chem. 2017, 65, 429–434. [Google Scholar] [CrossRef]
  44. Wei, J.; Ma, F.; Shi, S.; Qi, X.; Zhu, X.; Yuan, J. Changes and postharvest regulation of activity and gene expression of enzymes related to cell wall degradation in ripening apple fruit. Postharvest Biol. Technol. 2010, 56, 147–154. [Google Scholar] [CrossRef]
  45. Opazo, M.C.; Figueroa, C.R.; Henriquez, J.; Herrera, R.; Bruno, C.; Valenzuela, P.D.; Moya-Leon, M.A. Characterization of two divergent cDNAs encoding xyloglucan endotransglycosylase/hydrolase (XTH) expressed in Fragaria chiloensis fruit. Plant Sci. 2010, 179, 479–488. [Google Scholar] [CrossRef]
  46. Paniagua, C.; Ric-Varas, P.; Garcia-Gago, J.A.; Lopez-Casado, G.; Blanco-Portales, R.; Munoz-Blanco, J.; Schuckel, J.; Knox, J.P.; Matas, A.J.; Quesada, M.A.; et al. Elucidating the role of polygalacturonase genes in strawberry fruit softening. J. Exp. Bot. 2020, 71, 7103–7117. [Google Scholar] [CrossRef] [PubMed]
  47. SchroÈder, R.; Atkinson, R.G.; Redgwell, G. Biochemical and molecular characterisation of xyloglucan endotransglycosylase from ripe kiwifruit. Planta 1998, 204, 242–251. [Google Scholar] [CrossRef]
  48. Fenn, M.A.; Giovannoni, J.J. Phytohormones in fruit development and maturation. Plant J. 2021, 105, 446–458. [Google Scholar] [CrossRef]
  49. Luo, H.; Dai, S.; Ren, J.; Zhang, C.; Ding, Y.; Li, Z.; Sun, Y.; Ji, K.; Wang, Y.; Li, Q.; et al. The role of ABA in the maturation and postharvest life of a nonclimacteric sweet cherry fruit. J. Plant Growth Regul. 2013, 33, 373–383. [Google Scholar] [CrossRef]
  50. He, Y.; Liu, H.; Li, H.; Jin, M.; Wang, X.; Yin, X.; Zhu, Q.; Rao, J. Transcription factors DkBZR1/2 regulate cell wall degradation genes and ethylene biosynthesis genes during persimmon fruit ripening. J. Exp. Bot. 2021, 72, 6437–6446. [Google Scholar] [CrossRef]
  51. Fu, D.Q.; Zhu, B.Z.; Zhu, H.L.; Jiang, W.B.; Luo, Y.B. Virus-induced gene silencing in tomato fruit. Plant J. 2005, 43, 299–308. [Google Scholar] [CrossRef] [PubMed]
  52. Shen, X.; Zhao, K.; Liu, L.; Zhang, K.; Yuan, H.; Liao, X.; Wang, Q.; Guo, X.; Li, F.; Li, T. A role for PacMYBA in ABA-regulated anthocyanin biosynthesis in red-colored sweet cherry cv. Hong Deng (Prunus avium L.). Plant Cell Physiol. 2014, 55, 862–880. [Google Scholar] [CrossRef] [PubMed]
  53. Blumenkrantz, N.; Asboe-Hansen, G. New method for quantitative determination of uronic acid. Anal. Biochem. 1973, 54, 484–489. [Google Scholar] [CrossRef]
  54. Dische, Z. Measurement of Cell Wall Neutral Sugars. In Methods in Carbohydrate Chemistry; Whistler, R.L., Wolfrom, M.L., Eds.; Academic Press: New York, NY, USA, 1962; pp. 475–481. [Google Scholar]

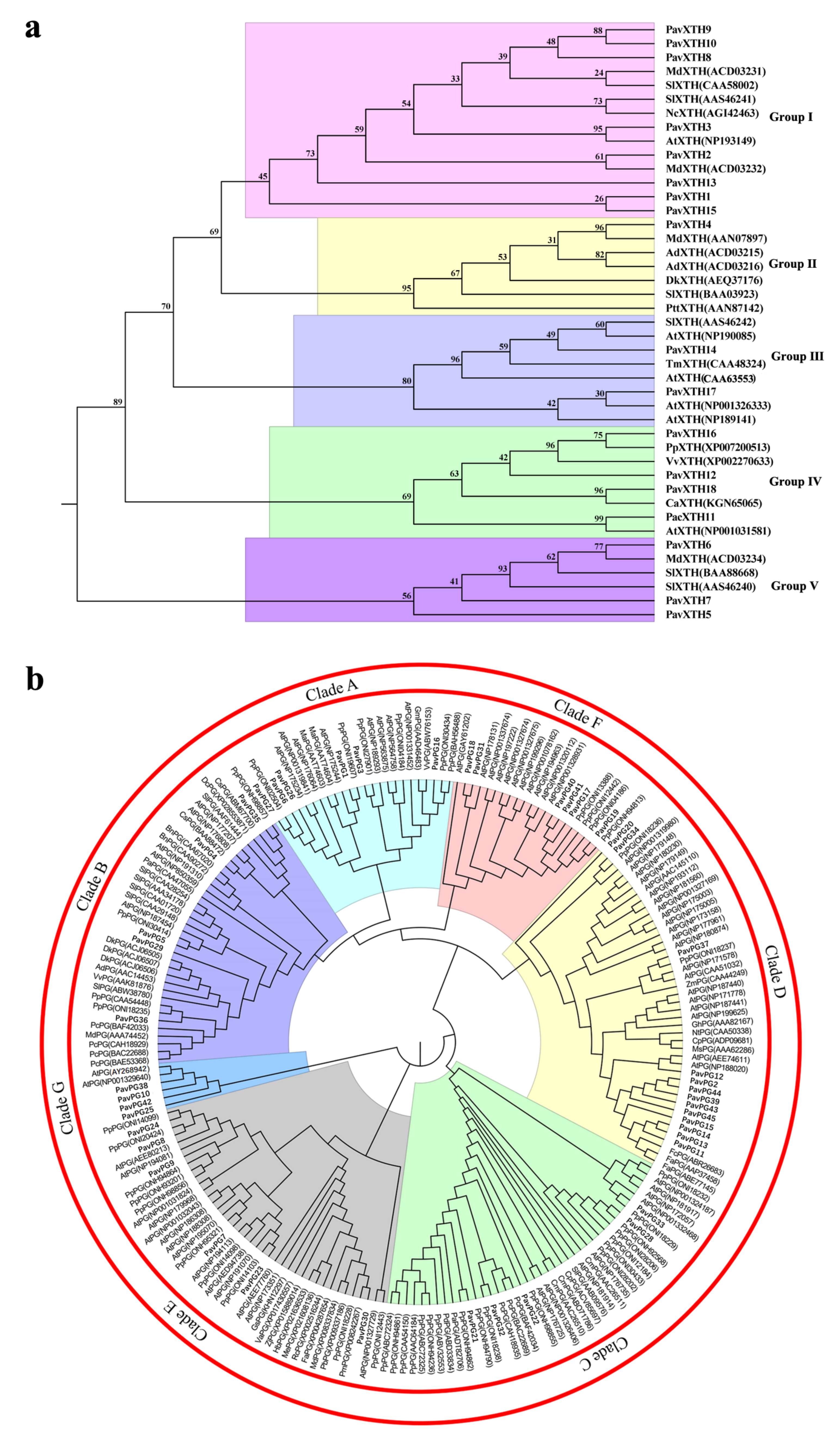

Figure 1. Phylogenetic relationship of XTHs (a) and PGs (b) from sweet cherry and other plants. The phylogenetic tree was constructed using MEGA 6.0 by the Neighbor-Joining method. The protein sequences of XTHs and PGs gene family members from other plants were retrieved from the GenBank database and the gene accessions are presented in the brackets.
Figure 1. Phylogenetic relationship of XTHs (a) and PGs (b) from sweet cherry and other plants. The phylogenetic tree was constructed using MEGA 6.0 by the Neighbor-Joining method. The protein sequences of XTHs and PGs gene family members from other plants were retrieved from the GenBank database and the gene accessions are presented in the brackets.
Ijms 22 12331 g001

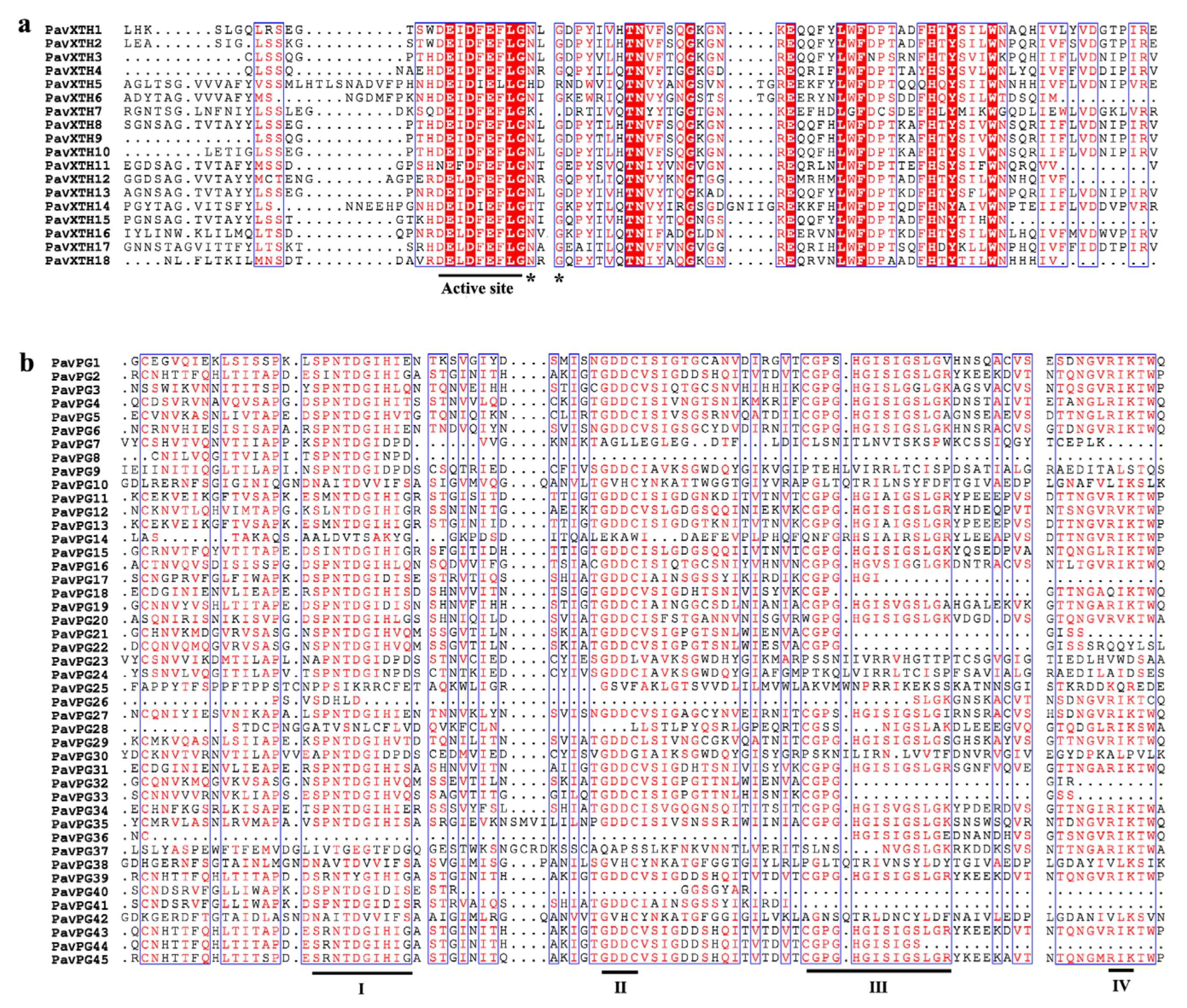

Figure 2. Multiple sequence alignments of the conserved domains of the PavXTHs (a) and PavPGs (b). The sequences were aligned using the Clustal X software and Espript online program. The black lines indicate the conserved domain. N-glycosylation residues are indicated as asterisks.
Figure 2. Multiple sequence alignments of the conserved domains of the PavXTHs (a) and PavPGs (b). The sequences were aligned using the Clustal X software and Espript online program. The black lines indicate the conserved domain. N-glycosylation residues are indicated as asterisks.
Ijms 22 12331 g002

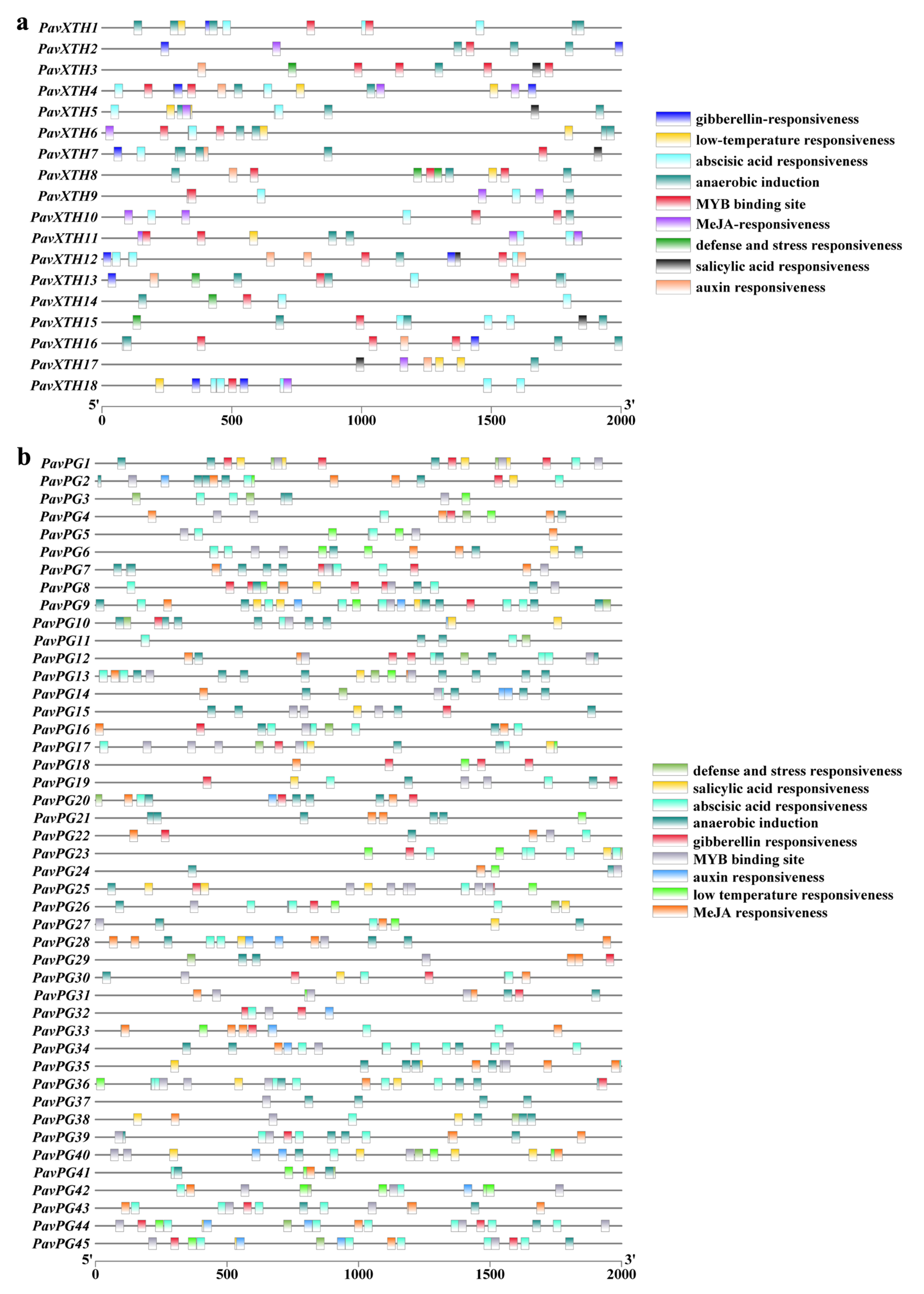

Figure 3. Schematic of the predicted regulatory cis-elements in the promoters of PavXTHs (a) and PavPGs (b) family genes.
Figure 3. Schematic of the predicted regulatory cis-elements in the promoters of PavXTHs (a) and PavPGs (b) family genes.
Ijms 22 12331 g003

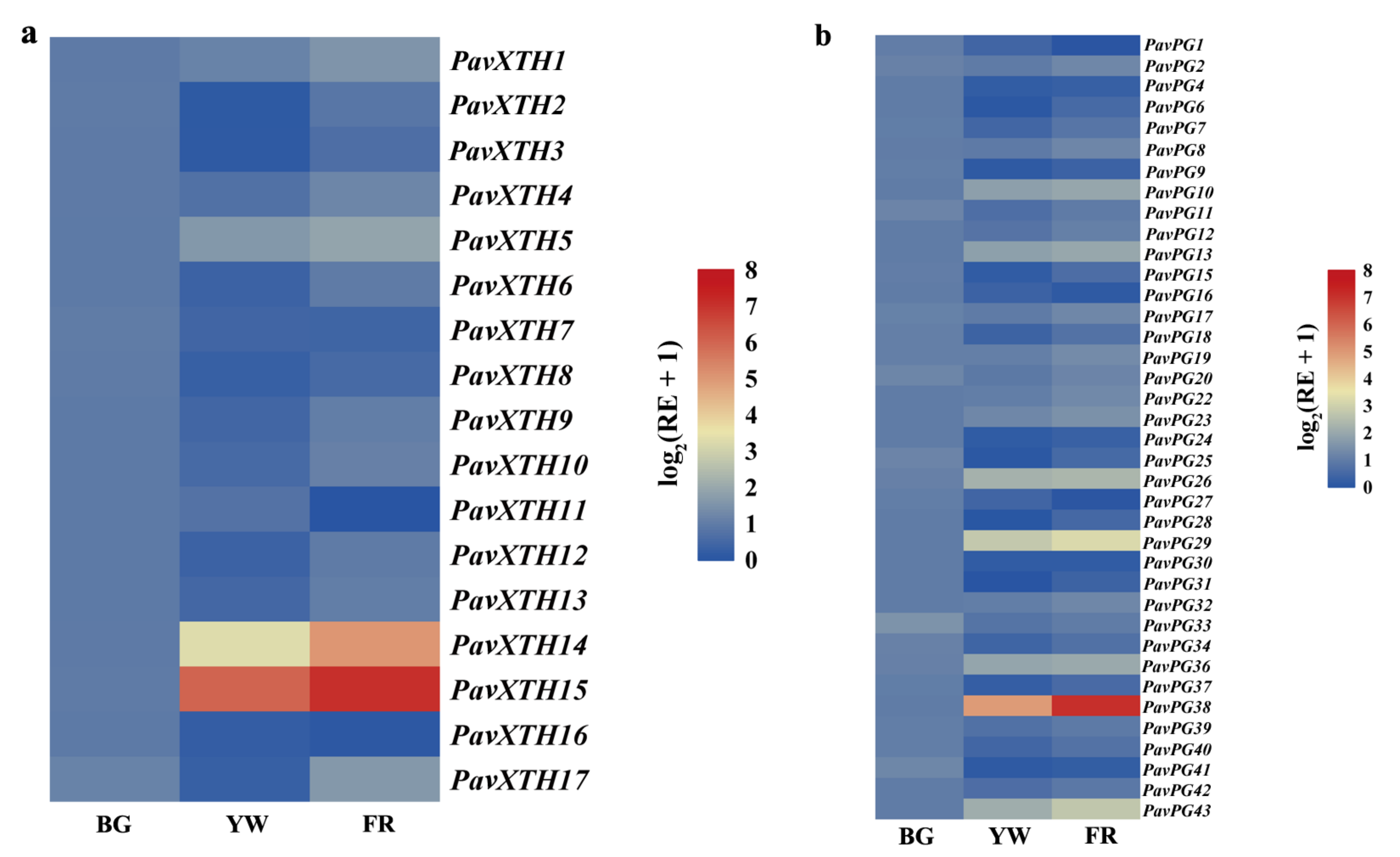

Figure 4. Expression patterns of PavXTHs (a) and PavPGs (b) during fruit development and ripening in sweet cherry. The colors of heatmap cells indicate the expression level of genes with log2 [relative expression (RE) + 1] across different samples by RT-qPCR. PavActin (Gene bank: FJ560908) was used as an internal control. BG, YW and FR refer to the three fruit development periods of BG (big green), YW (yellow white), and FR (full red).
Figure 4. Expression patterns of PavXTHs (a) and PavPGs (b) during fruit development and ripening in sweet cherry. The colors of heatmap cells indicate the expression level of genes with log2 [relative expression (RE) + 1] across different samples by RT-qPCR. PavActin (Gene bank: FJ560908) was used as an internal control. BG, YW and FR refer to the three fruit development periods of BG (big green), YW (yellow white), and FR (full red).
Ijms 22 12331 g004

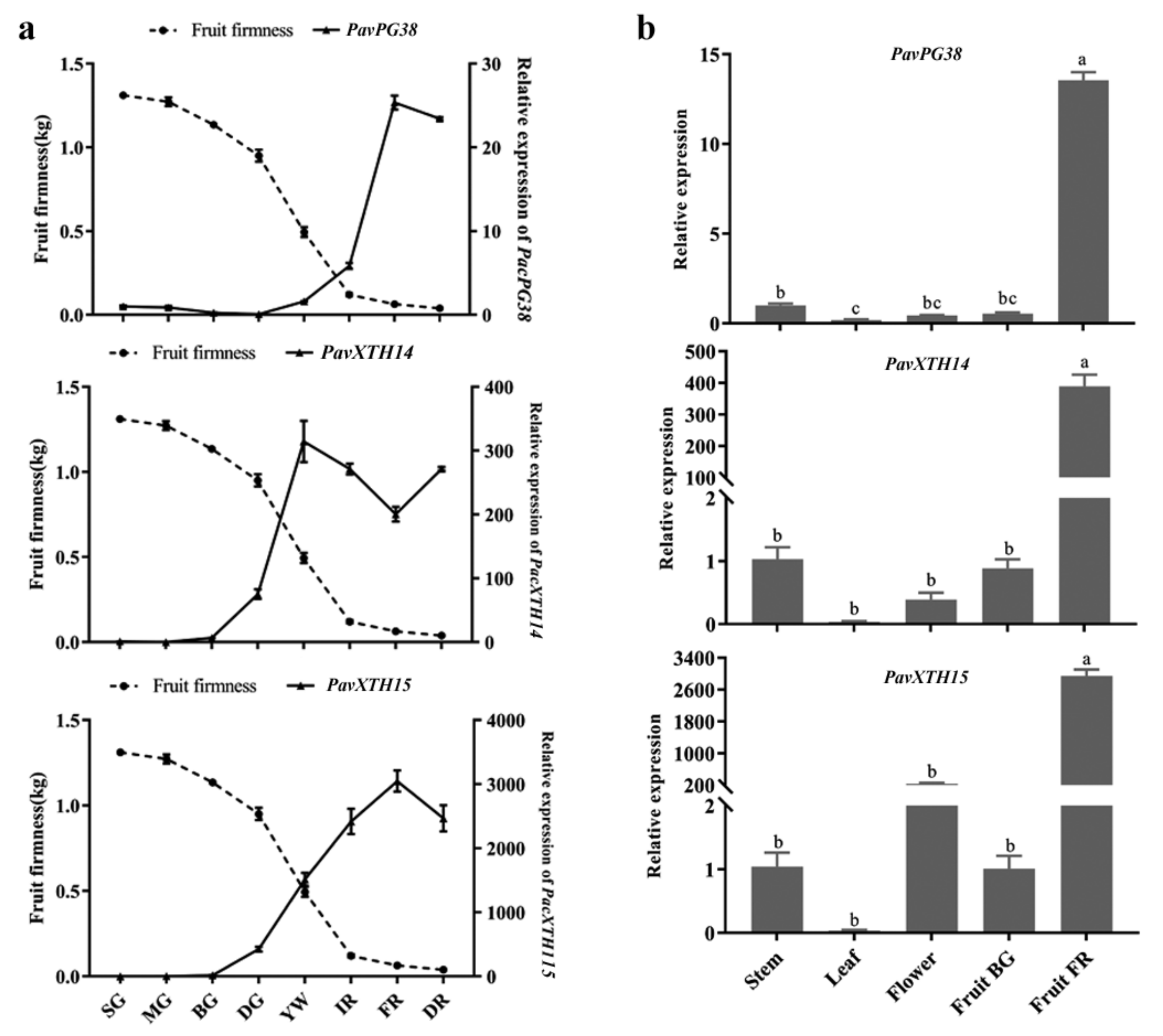

Figure 5. Relative expression of PavPG38, PavXTH14, and PavXTH15 in different fruit development stages and tissues of sweet cherry. (a) Dynamic changes of firmness and expression of PavPG38, PavXTH14, and PavXTH15 during fruit development, including stages of small green (SG), mid green (MG), big green (BG), degreening (DG), yellow (YW), initial red (IR), full red (FR) and dark red (DR). (b) Tissue-specific expression of PavPG38, PavXTH14, and PavXTH15 in stem, leaf, flower, and fruits at stages of BG and FR. PavActin (Gene bank: FJ560908) was used as an internal control. The error bars represent the ± SD of three biological replicates. Different letters refer to significant differences by Duncan’s multiple range test with p < 0.05.
Figure 5. Relative expression of PavPG38, PavXTH14, and PavXTH15 in different fruit development stages and tissues of sweet cherry. (a) Dynamic changes of firmness and expression of PavPG38, PavXTH14, and PavXTH15 during fruit development, including stages of small green (SG), mid green (MG), big green (BG), degreening (DG), yellow (YW), initial red (IR), full red (FR) and dark red (DR). (b) Tissue-specific expression of PavPG38, PavXTH14, and PavXTH15 in stem, leaf, flower, and fruits at stages of BG and FR. PavActin (Gene bank: FJ560908) was used as an internal control. The error bars represent the ± SD of three biological replicates. Different letters refer to significant differences by Duncan’s multiple range test with p < 0.05.
Ijms 22 12331 g005

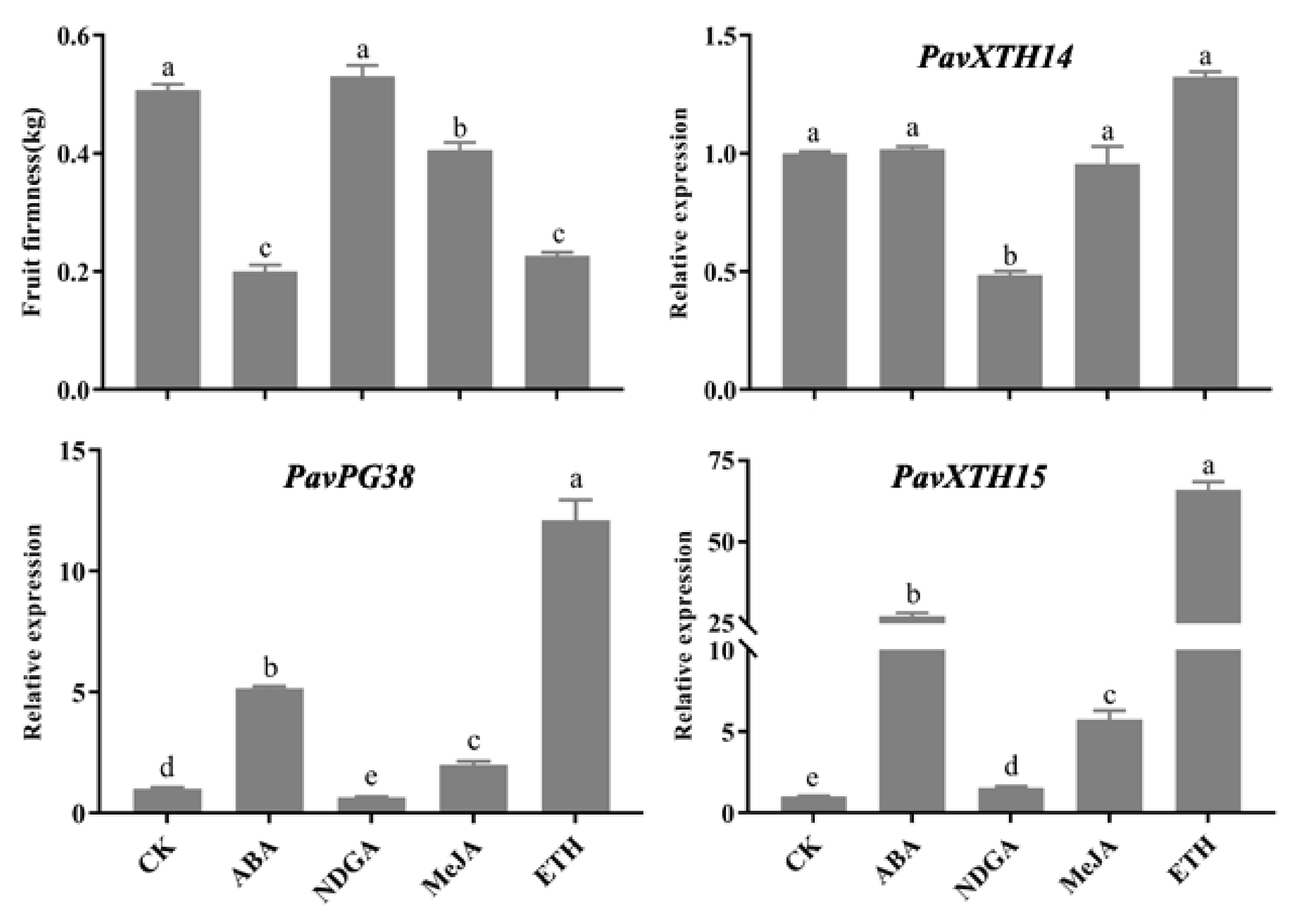

Figure 6. Changes in firmness and expression of PavPG38, PavXTH14, PavXTH15 after ABA, NDGA, MeJA and ETH treatments. ABA, abscisic acid; NDGA, nordihydroguaiaretic acid; MeJA, methyl jasmonate; ETH, ethephon. PavActin (Gene bank: FJ560908) was used as an internal control. The error bars represent the ±SD of three biological replicates. Different letters refer to significant differences by Duncan’s multiple range test with p < 0.05.
Figure 6. Changes in firmness and expression of PavPG38, PavXTH14, PavXTH15 after ABA, NDGA, MeJA and ETH treatments. ABA, abscisic acid; NDGA, nordihydroguaiaretic acid; MeJA, methyl jasmonate; ETH, ethephon. PavActin (Gene bank: FJ560908) was used as an internal control. The error bars represent the ±SD of three biological replicates. Different letters refer to significant differences by Duncan’s multiple range test with p < 0.05.
Ijms 22 12331 g006

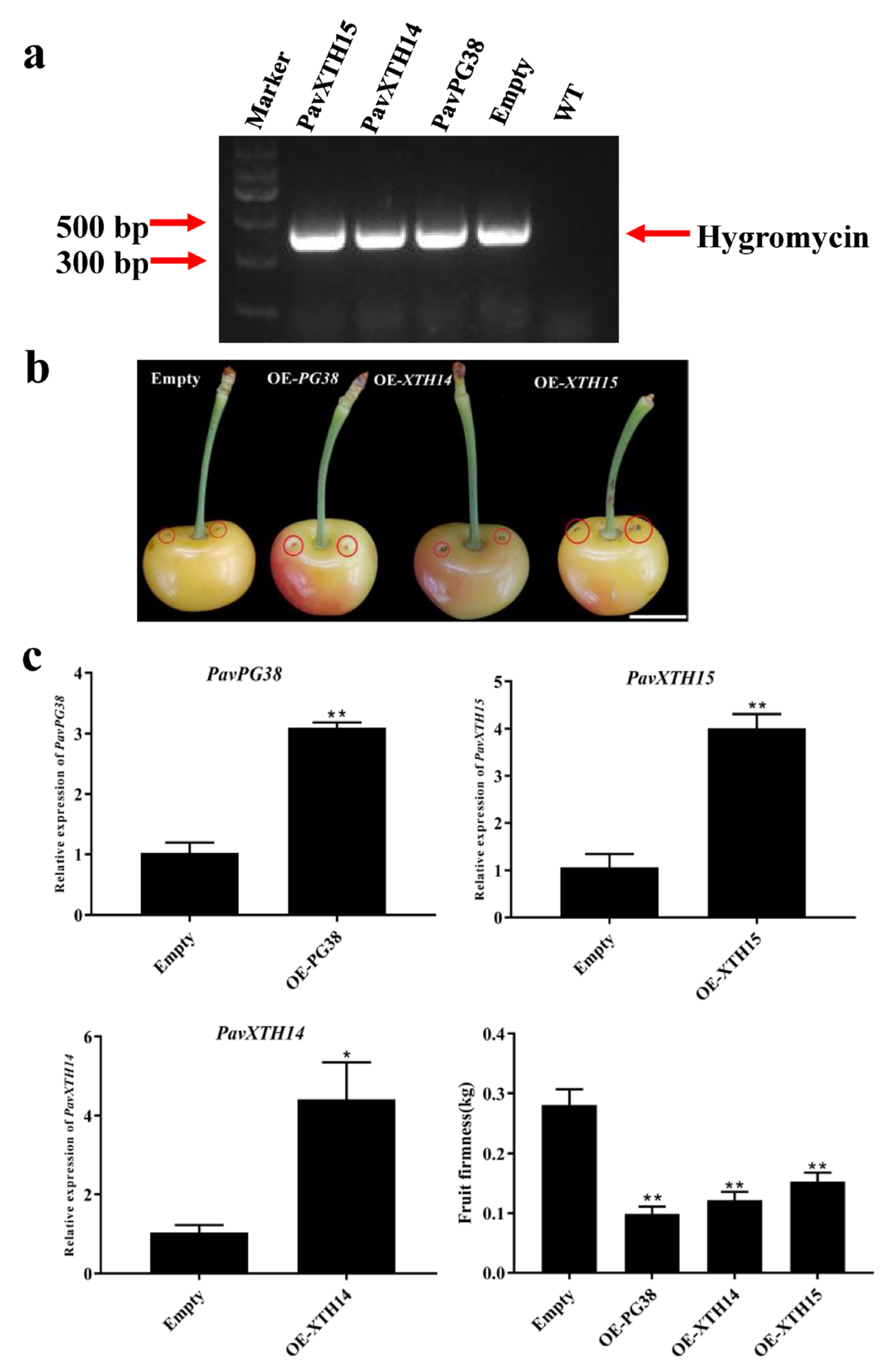

Figure 7. Transient overexpression of PavPG38, PavXTH14, and PavXTH15 in cherry fruits. (a) Amplification of the 392-bp-length hygromycin DNA confirmed the working transgene system. (b) The phenotype of transgenic cherry fruits. The red circles indicate injection sites. (c) The expression of PavPG38, PavXTH14, PavXTH15 and firmness in transgenic and empty control fruits. PavActin (Gene bank: FJ560908) was used as an internal control. The error bars represent the ± SD of three biological replicates. Significant differences in values (* p < 0.05, ** p < 0.01) were determined by Student’s t-test.
Figure 7. Transient overexpression of PavPG38, PavXTH14, and PavXTH15 in cherry fruits. (a) Amplification of the 392-bp-length hygromycin DNA confirmed the working transgene system. (b) The phenotype of transgenic cherry fruits. The red circles indicate injection sites. (c) The expression of PavPG38, PavXTH14, PavXTH15 and firmness in transgenic and empty control fruits. PavActin (Gene bank: FJ560908) was used as an internal control. The error bars represent the ± SD of three biological replicates. Significant differences in values (* p < 0.05, ** p < 0.01) were determined by Student’s t-test.
Ijms 22 12331 g007

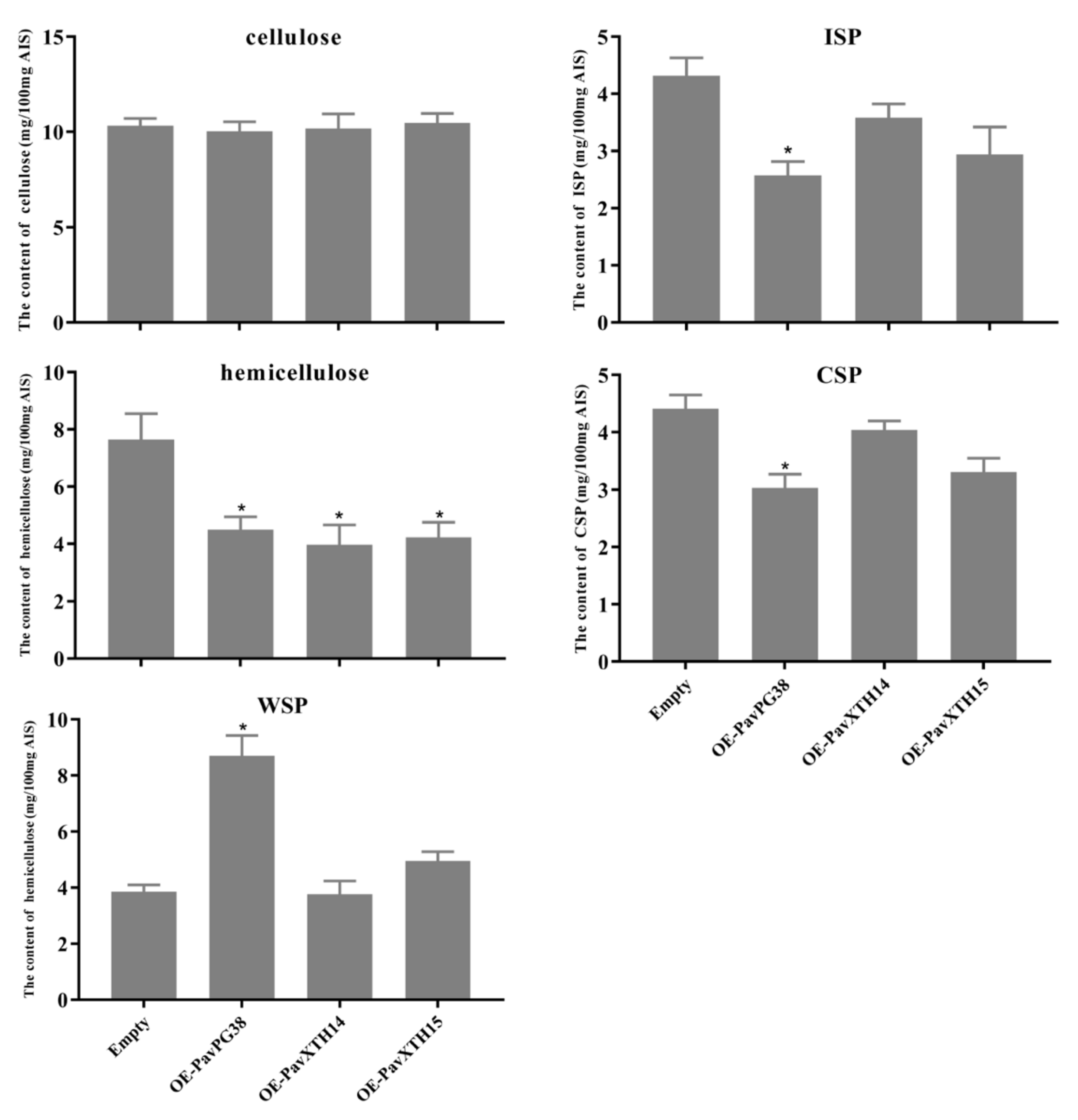

Figure 8. The content of cell wall compositions in transgenic fruit. CSP, WSP, ISP and AIS refer to the covalent pectin, water-soluble pectin, ion-linked pectin, and alcohol insoluble substance. The empty vector was used as a control. Values are the means ± SD from three biological replicates. Significant differences in values (* p < 0.05) were determined by Student’s t-test.
Figure 8. The content of cell wall compositions in transgenic fruit. CSP, WSP, ISP and AIS refer to the covalent pectin, water-soluble pectin, ion-linked pectin, and alcohol insoluble substance. The empty vector was used as a control. Values are the means ± SD from three biological replicates. Significant differences in values (* p < 0.05) were determined by Student’s t-test.
Ijms 22 12331 g008
Table 1. XTH genes identified in Sweet Cherry.
Table 1. XTH genes identified in Sweet Cherry.
BranchGene LocusGene NameDeduced ProteinSignal Peptide
Length (aa)PIMW (kDa)
Pav_sc0000359.1_g040.1.mkPavXTH11506.3417.43-
Pav_sc0000308.1_g610.1.mkPavXTH23725.4742.11+
Pav_sc0003915.1_g020.1.mkPavXTH31769.6820.5-
Pav_sc0000428.1_g530.1.mkPavXTH82828.3931.93+
Pav_sc0000428.1_g520.1.mkPavXTH91939.1422.37-
Pav_sc0000428.1_g510.1.mkPavXTH103165.236.53-
Pav_sc0001289.1_g270.1.mkPavXTH132045.223.18+
Pav_sc0000212.1_g420.1.mkPavXTH151976.0622.31+
Pav_sc0001450.1_g080.1.mkPavXTH42117.225.2-
Pav_sc0000480.1_g990.1.mkPavXTH142936.2232.95+
Pav_sc0000558.1_g1030.1.mkPavXTH176396.4473.43-
Pav_sc0000405.1_g520.1.mkPavXTH112876.8932.51+
Pav_sc0000910.1_g790.1.mkPavXTH122124.9224.4+
Pav_sc0003766.1_g160.1.mkPavXTH162779.4132.62+
Pav_sc0006464.1_g040.1.mkPavXTH181527.917.49-
Pav_sc0000354.1_g310.1.mkPavXTH53147.9535.1+
Pav_sc0000893.1_g780.1.mkPavXTH61684.9819.01+
Pav_sc0001673.1_g050.1.mkPavXTH72155.3424.16-
