Methamphetamine Blocks Adenosine A2A Receptor Activation via Sigma 1 and Cannabinoid CB1 Receptors

by
Mireia Casanovas
1,2,
Irene Reyes-Resina
1,‡,
Alejandro Lillo
3,
Jaume Lillo
1,2,
Raul López-Arnau
4,
Jorge Camarasa
4,
Elena Escubedo
4,
Gemma Navarro
2,3,*,† and
Rafael Franco
2,5,*,†
1
Biology School, Department of Biochemistry and Molecular Biomedicine, University of Barcelona, 08028 Barcelona, Spain
2
Centro de Investigación Biomédica en Red Enfermedades Neurodegenerativas (CiberNed), Instituto de Salud Carlos III, 28031 Madrid, Spain
3
Department of Biochemistry and Physiology, Faculty of Pharmacy and Food Sciences, University of Barcelona, 08028 Barcelona, Spain
4
Department of Pharmacology, Toxicology and Therapeutic Chemistry, Institute of Biomedicine (IBUB), University of Barcelona, 08028 Barcelona, Spain
5
Chemistry School, Department of Biochemistry and Molecular Biomedicine, University of Barcelona, 08028 Barcelona, Spain
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
Current address: RG Neuroplasticity, Leibniz Institute for Neurobiology, Brenneckestr. 6, 39118 Magdeburg, Germany.
Int. J. Mol. Sci. 2021, 22(5), 2743; https://doi.org/10.3390/ijms22052743
Submission received: 14 February 2021 / Accepted: 1 March 2021 / Published: 9 March 2021
(This article belongs to the Section Molecular Neurobiology)
Browse Figures
Versions Notes

Abstract

:
Methamphetamine is, worldwide, one of the most consumed drugs of abuse. One important side effect is neurodegeneration leading to a decrease in life expectancy. The aim of this paper was to check whether the drug affects one of the receptors involved in neurodegeneration/neuroprotection events, namely the adenosine A2A receptor (A2AR). First, we noticed that methamphetamine does not affect A2A functionality if the receptor is expressed in a heterologous system. However, A2AR becomes sensitive to the drug upon complexes formation with the cannabinoid CB1 receptor (CB1R) and the sigma 1 receptor (σ1R). Signaling via both adenosine A2AR and cannabinoid CB1R was affected by methamphetamine in cells co-expressing the two receptors. In striatal primary cultures, the A2AR–CB1R heteromer complex was detected and methamphetamine not only altered its expression but completely blocked the A2AR- and the CB1R-mediated activation of the mitogen activated protein kinase (MAPK) pathway. In conclusion, methamphetamine, with the participation of σ1R, alters the expression and function of two interacting receptors, A2AR, which is a therapeutic target for neuroprotection, and CB1R, which is the most abundant G protein-coupled receptor (GPCR) in the brain.

1. Introduction

Methamphetamine is one of the most consumed drugs of abuse in developed countries. It causes significant health and socio-economic problems that impact on sufferers, families, and the civil Society as a whole. Cocaine and methamphetamine share their ability to increase the brain levels of one of the main neurotransmitters, dopamine. Seemingly, the two drugs share some of the mechanisms that lead to addiction, but they also display differential trends.
Five dopamine receptors have been identified so far: D1, D2, D3, D4 and D5. They belong to the superfamily of G protein-coupled receptor (GPCRs) and, in mammals, they are expressed in neural cells but also in many other cell types. In the central nervous system, these receptors mediate the effects of dopamine in almost any higher function: from cognition to motor control. Plastic changes affecting the expression of dopamine receptors in the neurons of the reward circuits are concomitant with drug addiction and relapse. Dopamine action is counterbalanced by adenosine, a neuromodulator whose receptors, A1, A2A, A2B and A3, in addition to being GPCRs, are widely distributed in the central nervous system (CNS). Among adenosine receptors, A2A is arising as a target for neuroprotection. There are several studies, both in vitro and in animal models of neurodegenerative diseases, that show that antagonists of this receptor have neuroprotective potential. These results add to the epidemiological finding that natural antagonists of adenosine receptors, such as caffeine, theophylline or theobromine, reduce the risk of suffering from Parkinson’s or Alzheimer’s diseases [1,2,3,4,5,6,7,8,9].
In the basal ganglia, dopamine and adenosine receptors interact to form functional complexes. Interestingly, we have previously discovered a functional complex that mediates the motor effects of cannabinoids formed by A2A, D2 and a cannabinoid receptor, CB1 [10,11,12]. Endocannabinoids are neuromodulators acting on two GPCRs, cannabinoid CB1 and CB2 receptors (CB1R and CB2R), which are expressed in different systems of the mammalian body. Some effects of natural phytocannabinoids are mediated by these receptors, that are differentially expressed in the CNS: the CB1 is more abundant in neurons and the CB2 is more abundant in non-neuronal cells. Although trans(-)Δ9-tetrahydrocannabinol (Δ9-THC), the most well-known compound of Cannabis sativa, has psychotropic effects, its potential to induce addiction is controversial. Accordingly, the role of cannabinoid receptors in addiction is not well understood.
Relevant for this project was (i) the discovery that Δ9-THC blocks methamphetamine-induced neurotoxicity [13,14] and (ii) the recent discovery that an allosteric modulator of the CB1R, cannabidiol [15], suppresses the cognitive effect of Δ9-THC via the A2A/CB1 receptor heteromer [16].
It is known that, to exert some of its noxious effects, cocaine binds to the sigma 1 receptor (σ1R), which does not belong to the GPCR family and has no known endogenous agonist [17,18,19,20,21]. Intriguingly, methamphetamine alters the functionality of the σ1R, although the underlying mechanism remains obscure [22,23,24,25,26]. The aim of this paper was to investigate whether methamphetamine, in a σ1R-dependent or -independent fashion, was able to alter the interaction and functionality of the heteromer formed by A2A and CB1 receptors (A2A–CB1Het) in both a heterologous expression system and primary cultures of striatal neurons.

2. Results

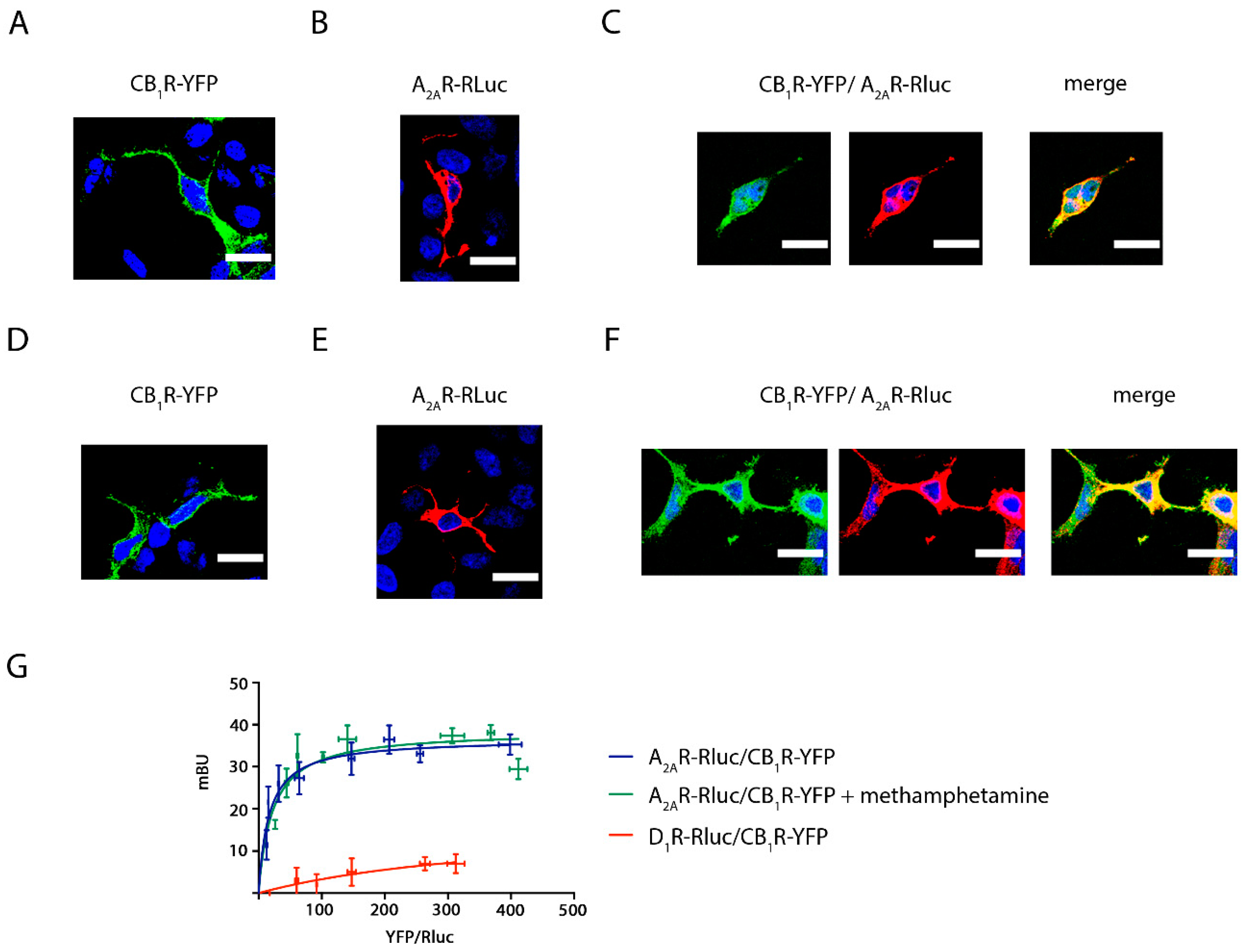

2.1. Methamphetamine Does Not Disrupt the Formation of A2A and CB1 Receptor Complexes in a Heterologous Expression System

The effect of methamphetamine on receptor expression was first assessed in transfected HEK-293T cells. Immunocytochemistry assays showed that the membrane expression level of CB1R was not altered when cells were pre-treated for 1 h with methamphetamine (1 μM) (Figure 1A,D). Similar results were observed in HEK-293T cells expressing A2AR (Figure 1B,E). When analyzing HEK-293T cells expressing equal amounts of CB1R and A2AR, the two receptors colocalized at the plasma membrane level (yellow in Figure 1C) and methamphetamine pretreatment did not induce any significant change in colocalization (Figure 1F).
A closer inspection using bioluminescence resonance energy transfer (BRET) showed a saturation curve, thus confirming the formation of complexes of A2AR-Rluc and CB1R-YFP (BRETmax = 37 ± 2; BRET50 = 17 ± 4), and a lack of effect of methamphetamine (BRETmax = 39 ± 3; BRET50 = 22 ± 9). A linear relationship was found for the negative control performed using plasmids encoding for receptors that do not heteromerize, D1R-Rluc and CB1R-YFP (Figure 1G).

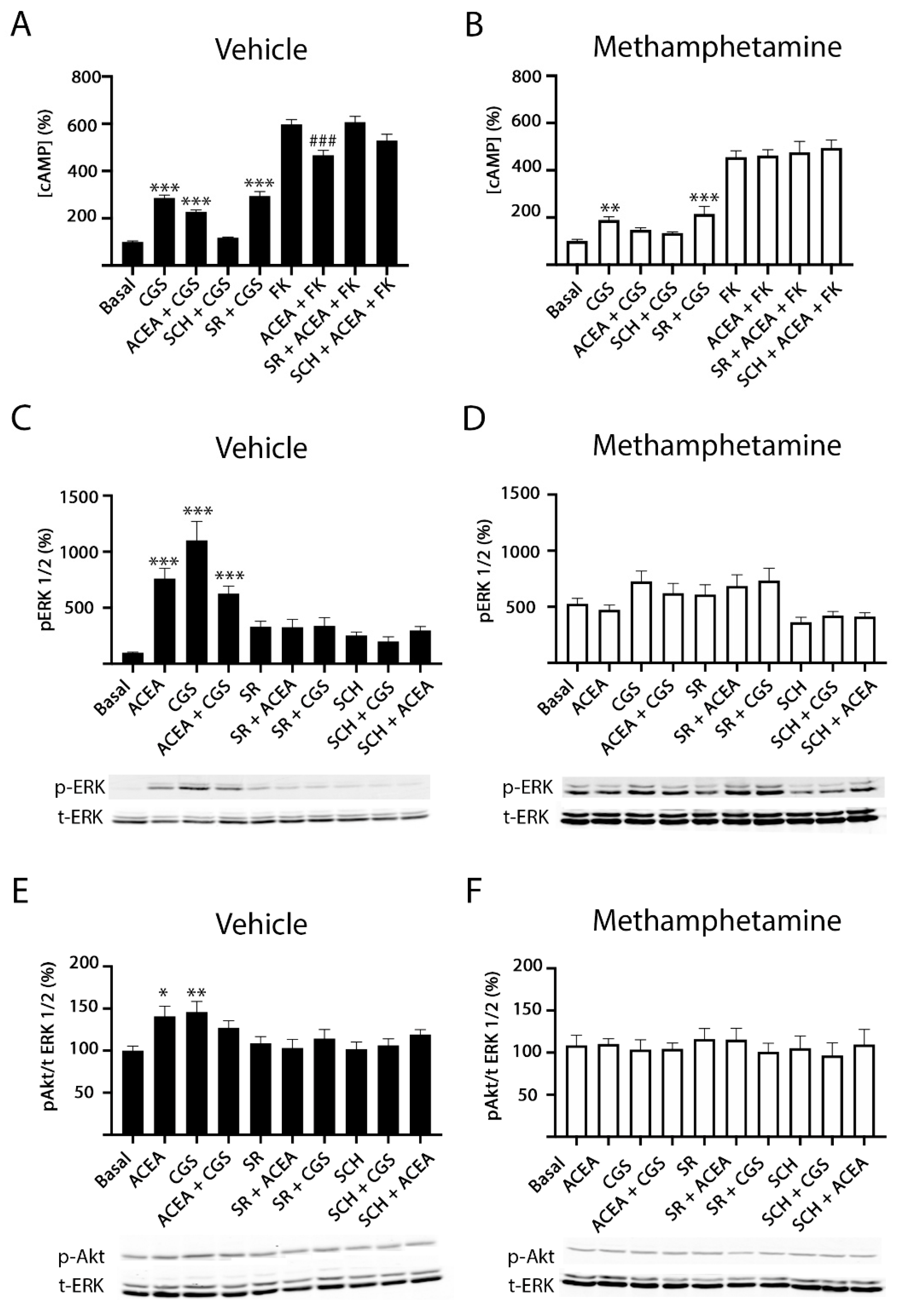

2.2. Methamphetamine Blocks CB1R Function in HEK-293T Cells Expressing the A2A–CB1Het

HEK-293T cells transfected with the cDNA for A2A and CB1 receptors, i.e., expressing heteromers formed by the two receptors (A2A–CB1Hets), were pre-treated with selective antagonists (SCH 58261 for A2AR or SR 141716A for CB1R) prior to treatment with selective agonists (CGS 21680 for A2AR and/or arachidonyl-2′-chloroethylamide -ACEA- for CB1R) and the following signaling outputs were analyzed: cytosolic cAMP and Ca2+ level determination, ERK1/2 and Akt phosphorylation, β-arrestin 2 recruitment and dynamic mass redistribution (DMR).
Due to A2AR coupling to the Gs protein, which activates adenylyl cyclase, and CB1R coupling to the Gi protein, which inhibits adenylate cyclase, we analyzed the effect of agonists, alone or in combination, in naïve cells and in cells pretreated with forskolin (0.5 µM, 15 min, FK), the activator of the adenylyl cyclase. The A2AR agonist, CGS 21680, induced a significant increase in cAMP (around 3-fold compared to basal condition), while treatment with the CB1R agonist, ACEA, induced a significant decrease over forskolin cAMP level increases (Figure 2A). These results indicate that both A2AR and CB1R can be activated when forming A2AR–CB1R complexes and are able to couple to their respective cognate G proteins. An often-found feature of heteromers is cross-antagonism, i.e., the antagonist of one receptor also blocks the signal mediated by the partner receptor within the heteromer. When cotransfected cells were pre-treated with the selective antagonists before agonist stimulation, it was observed that the A2AR antagonist counteracted A2AR signaling, while it had a slight effect over CB1R activation. A qualitatively similar result was obtained using the CB1R antagonist, i.e., blockade of activation of the cognate receptor, CB1R, but not of A2AR activation (Figure 2A). When a similar experiment was undertaken in cells treated for 1 h with methamphetamine before stimulation with selective agonists, CB1R signaling was negligible (Figure 2B). After methamphetamine action, cross-antagonism was still undetectable. It should be noted that ACEA does not affect basal cAMP production and that, at the concentration used, CGS does not affect forskolin-induced cAMP production.
In cells expressing A2A–CB1Hets, both agonists, CGS 21680 and ACEA, increased ERK1/2 and Akt phosphorylation. Moreover, when the same cells were simultaneously coactivated with both agonists, the effect was lower than the sum of individual effects at the same ligand concentration (Figure 2C,E). Interestingly, the A2AR antagonist not only blocked the CGS 21680- but also the ACEA-induced effect. Such cross-antagonism was also detected when cells were treated with the selective CB1R antagonist. Under the same assay conditions, pretreatment with methamphetamine completely blocked CB1R function and decreased A2AR-mediated function (Figure 2D,F).

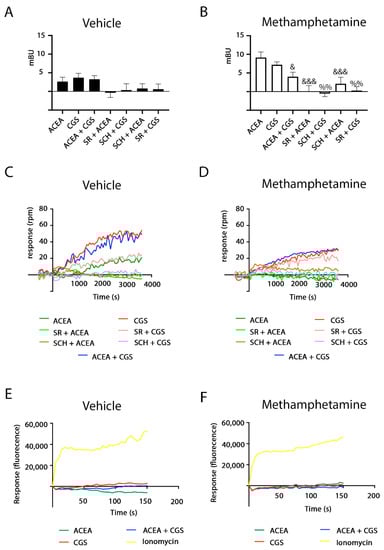

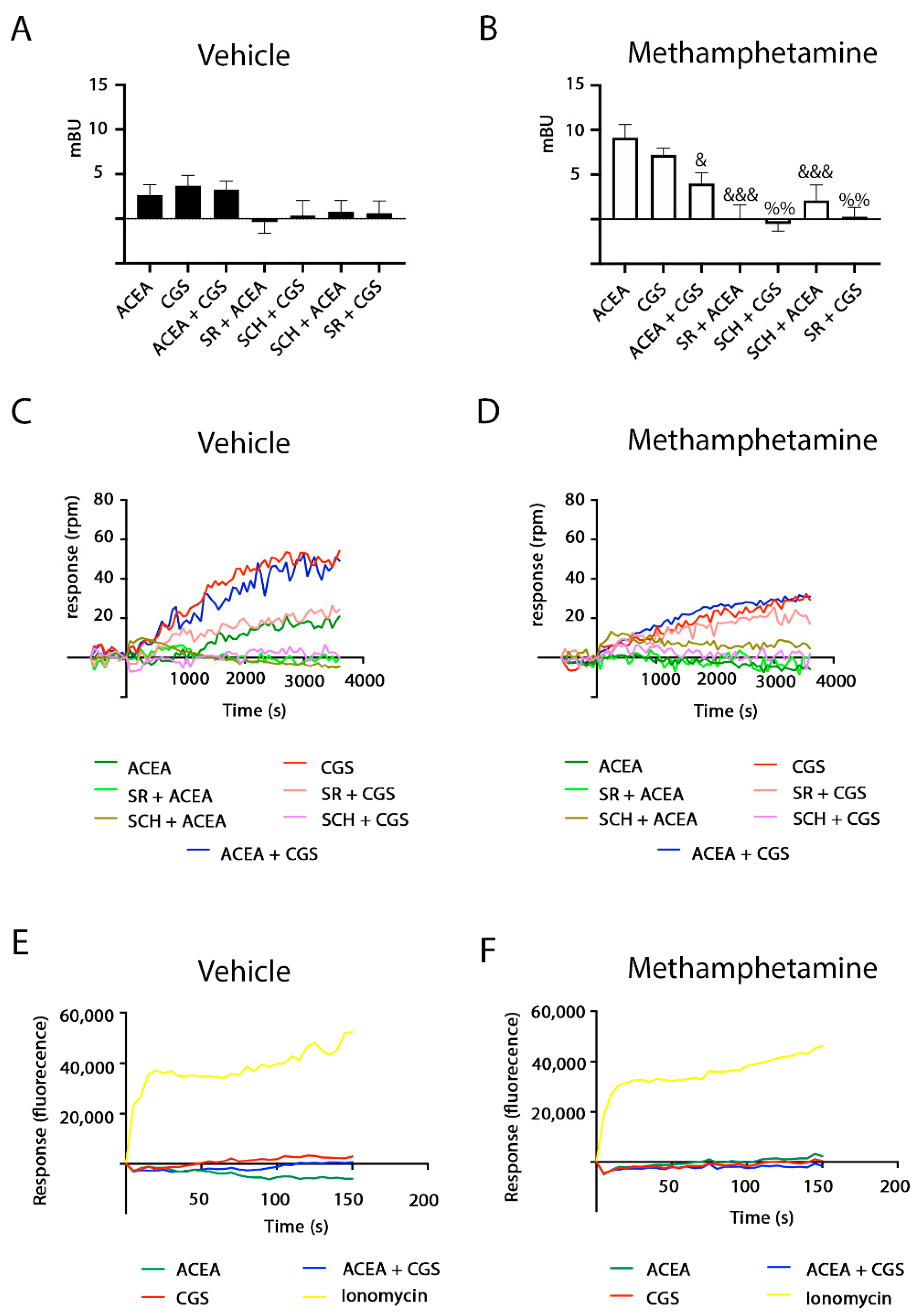

After receptor activation, most GPCRs recruit β-arrestin before internalization. Interestingly, when analyzing β-arrestin recruitment in HEK-293T cells coexpressing A2AR and CB1R, it was observed that recruitment was very small (Figure 3A). However, β-arrestin recruitment was potentiated in cells pretreated with methamphetamine (Figure 3B).
Dynamic mass redistribution (DMR) is a technique that allows detection of G protein-mediated signaling in living cells by measuring cytoskeleton movements derived from receptor activation [27,28,29,30]. Selective agonists led to a significant signal although simultaneous treatment with agonists did not lead to summation of effects. The use of the output signal in the presence of antagonists underscored cross-antagonism (Figure 3C). Analysis by DMR of A2AR activation showed that it was partially inhibited by methamphetamine pre-treatment, while CB1R activation was completely blocked by the drug of abuse (Figure 3D).
In agreement with A2AR coupling to Gs and CB1R coupling to Gi protein, neither activation of A2AR, nor of CB1R led to significant alterations in cytoplasmic Ca2+ levels (Figure 3E). Although some drugs are able to produce a shift in the G protein-coupled to a given GPCR, methamphetamine did not promote Gq coupling to A2AR or to CB1R receptors (Figure 3F).

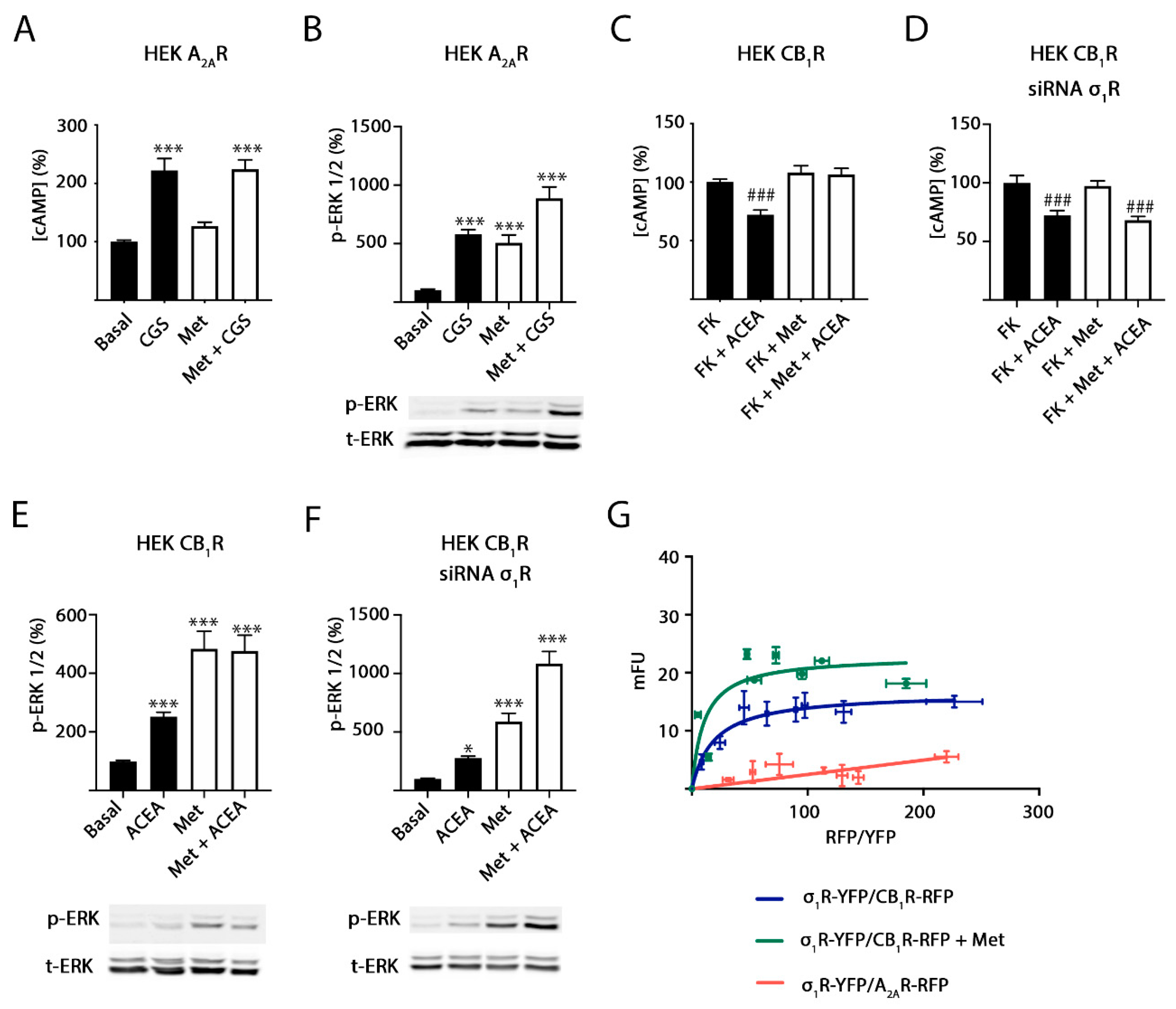

2.3. Methamphetamine Action in Cells Expressing A2A or CB1 Receptors

It should be noted that the σ1R, which mediates the action of some drugs of abuse, is endogenously expressed in HEK-293T cells [20,21,31,32]. Hence, we next addressed the mechanisms by which methamphetamine alters signaling in cells expressing A2A or CB1 receptors. We first analyzed data from HEK-293T cells expressing only the A2AR. In cAMP level determination assays, the CGS 21680-induced increase in cAMP levels was not affected by pretreatment with methamphetamine (Figure 4A). This result was different from that observed in Figure 2A,B, where in HEK-293T cells expressing A2A–CB1Hets, methamphetamine pretreatment partially blocked A2AR signaling. Data from MAPK pathway activation shows that methamphetamine per se is able to activate this signaling pathway; combined treatment of the drug of abuse and CGS 21680 resulted in an additive-like response, i.e., the drug did not disrupted the link of A2AR activation to the MAPK pathway (Figure 4B). Hence, it appears that the action of methamphetamine on the A2AR depends on CB1R expression and, likely, on A2A–CB1Het expression.
In contrast, the effect of methamphetamine on CB1R-mediated signaling is not dependent on A2AR expression. In fact, ACEA effects on forskolin-induced increases of cAMP levels (Figure 4C) and on MAPK pathway activation (Figure 4E) were blocked by methamphetamine. To further explain the mechanism by which methamphetamine may block CB1R action, we focused on the σ1 receptor (σ1R), which is a transmembrane receptor that does not belong to the GPCR family. It is a target of cocaine and its functionality in rodents is altered upon methamphetamine treatment [22,26,33]. Interestingly, the methamphetamine blockade of CB1R signaling was mediated by the σ1R as it disappeared when a siRNA designed for σ1R silencing was used (Figure 4D,F). In terms of ERK phosphorylation, the methamphetamine action was not further increased by the activation of the CB1R (Figure 4E). However, a summation effect was obtained in cells in which the σ1R was silenced (Figure 4F). Altogether, the results suggest that the σ1R mediates the inhibition of the CB1R to the MAPK and cAMP pathways exerted by methamphetamine and that σ1R and CB1R could physically interact. We performed fluorescence resonance energy transfer (FRET) assays using cells expressing a constant amount of cDNA for σ1R-YFP and increasing amounts of cDNA for CB1R-RFP. The interaction is possible as deduced from the saturation curve (Figure 4G). FRET parameters were: FRETmax = 17 ± 1 and FRET50 = 19 ± 5. The interaction was maintained in cells pretreated with methamphetamine although with a significant alteration in FRET parameters (FRETmax = 23 ± 3, FRET50 = 10 ± 5). On the one hand, these results indicate that the drug produces an increase in CB1R-σ1R complexes or a structural reorganization leading to an approximation of the two fluorescent proteins. On the other hand, in agreement with the lack of effect of methamphetamine on the A2AR when the CB1R is not present, FRET assays showed a linear nonspecific signal, i.e., a lack of interaction between σ1R-YFP and A2AR-RFP (Figure 4G, red line).

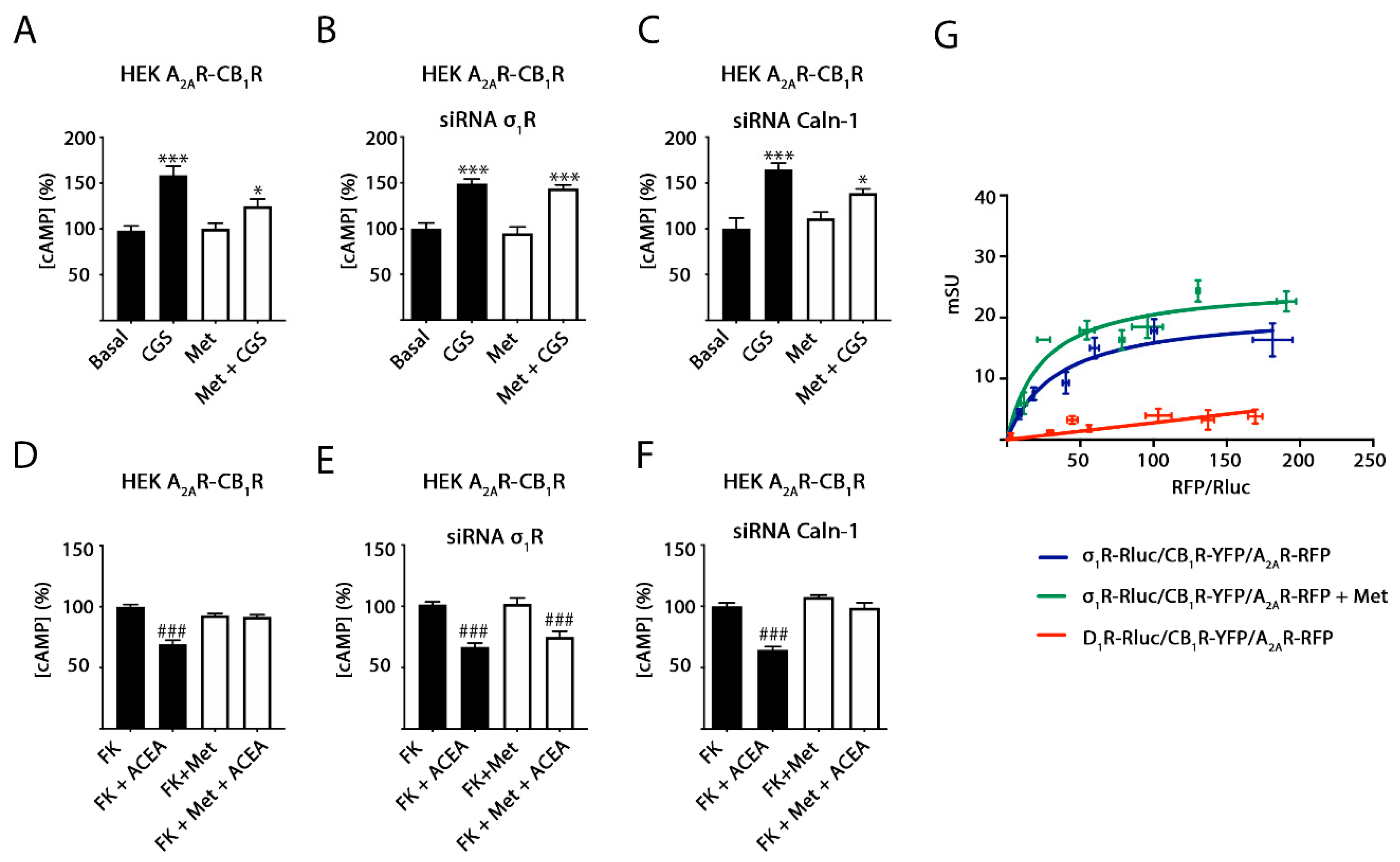

2.4. σ1 Receptor Involvement in Methamphetamine Action in Cells Expressing A2A–CB1Hets

Experiments similar to those described in the previous section were performed in cotransfected cells, that is, in cells expressing A2A–CB1Hets. Figure 5A shows that the activation of the A2AR with CGS 21680 was significantly altered by methamphetamine pretreatment. Therefore, alteration of A2AR-mediated signaling is dependent upon CB1R expression and A2A–CB1 receptor heteromerization (Figure 5). Furthermore, the σ1R was required as the effect of the drug on A2AR-mediated signaling disappeared in cells in which the σ1R was silenced (Figure 5B) but not in cells treated with a siRNA designed for calneuron-1 silencing (Figure 5C). These results suggest that a functional complex formed by the three receptors is expressed in these cells. In contrast, the results obtained using the agonist of the CB1R were similar to those found in cells only expressing the cannabinoid receptor (Figure 5D–F). To test the hypothesis of trimer formation, we took advantage of a technique that allows to detect interactions of three different proteins, namely sequential resonance energy transfer (SRET). These experiments were performed in HEK-293T cells expressing σ1R-Rluc, CB1R-YFP and transfected with increasing amounts of cDNA for A2AR-RFP. Saturation of the SRET curve (Figure 5G) indicates that the three proteins interact (the dopamine D1 receptor was used as a negative control). The SRET signal did not significantly change upon treatment with methamphetamine (SRETmax = 21 ± 2 and SRET50 = 34 ± 12 in the absence of the drug and SRETmax = 25 ± 3 and SRET50 = 24 ±10 in the presence of methamphetamine). As the A2AR is unable to interact with σ1R (Figure 4G), it is hypothesized that the trimer is formed by the CB1R ability to bind to both A2AR and σ1R.

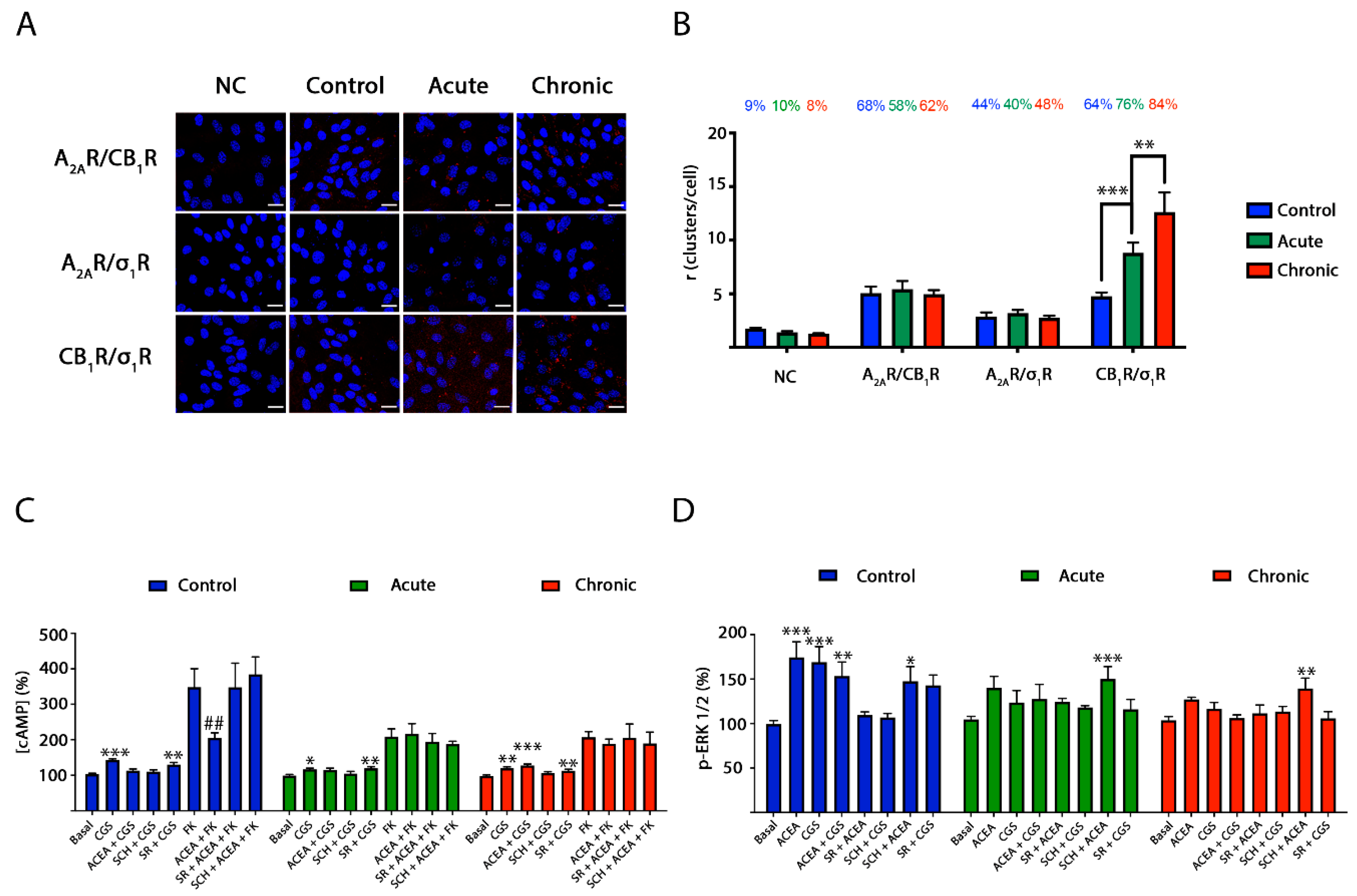

2.5. CB1R-σ1R Expression Is Altered When Striatal Primary Cultures of Neurons Are Treated with Methamphetamine

The in situ proximity ligation assay (PLA) is instrumental in detecting in natural sources complexes formed by two membrane proteins [34,35]. PLA was determined in primary cultures of striatal neurons. Heteromers are detected as red dots surrounding Hoechst-stained nuclei. Sixty-eight percent of neurons expressed red dots when analyzing CB1R–A2AR complexes by using anti-A2AR and anti-CB1R antibodies, with around five red dots per cell expressing dots (Figure 6A,B). Moreover, when analyzing CB1R–σ1R complexes, similar values were observed: 64% of neurons showed red clusters with around five red dots per cell expressing dots. When A2AR–σ1R complexes were analyzed, 44% of neurons showed red clusters with around 3 red dots per cell expressing dots. Due to the fact that A2AR does not interact with σ1R (Figure 4G), it seems likely that a significant amount of neurons are expressing A2A–CB1–σ1R heterotrimers. Unfortunately, PLA is unable to detect complexes formed by three proteins.
PLA experiments were also performed in striatal neurons treated with 1 µM methamphetamine for two hours (acute) or for one week (chronic). On the one hand, the drug in either acute or chronic treatment did not affect the expression of A2AR–CB1R and of A2AR–σ1R complexes. On the other hand, the expression of CB1R–σ1R complexes was significantly increased upon acute treatment (76% of neurons expressing red dots and around 10 red dots per cell expressing dots) and even more after the chronic regime (84% of neurons expressing red dots and around 13 red dots per cell expressing dots) (Figure 6A,B).

2.6. Blockade by Methamphetamine of CB1R–A2AR Complex Signaling in Striatal Neurons

First, in signaling assays performed in striatal neurons, the A2A–CB1Het print, namely cross-antagonism, was detected (Figure 6). In addition, the non-additive effect observed in the heterologous expression system was detected (Figure 6). After demonstrating A2A–CB1Het expression by PLA (see previous section) and by detection of the heteromer print, further assays were performed to evaluate how methamphetamine may affect signaling in these cells. Primary cultures of striatal neurons were treated for two hours (acute) or for one week (chronic) with methamphetamine prior to assessing the effect of A2AR or CB1R agonists on cAMP levels and MAPK pathway activation. Interestingly, it was first observed that ACEA-induced decreases of cAMP levels were partially inhibited by acute and chronic methamphetamine treatments (Figure 6C), while ERK1/2 phosphorylation was completely blocked (Figure 6D). Similarly, CGS 21680-induced increases in cAMP levels were partially blocked after acute and chronic methamphetamine treatments, while ERK1/2 phosphorylation was completely blunted (Figure 6C,D). These results show that the drug, likely via interaction with σ1R in a heteromer context, partially reduces G-protein-mediated signaling while completely abolishing MAPK pathway activation. Interestingly, the effect on A2AR signaling to the MAPK pathway did not occur in the presence of a CB1R antagonist.

3. Discussion

Cannabinoids and adenosine are two important neuromodulators in the central nervous system (CNS). Two of their receptors have attracted interest due to their potential as therapeutic targets. On the one hand, the CB1R is, reportedly, the most abundant GPCR in the CNS and is mainly expressed in neurons [36,37,38]. Its potential is limited as some of their agonists, such as the natural Cannabis sativa-derived compound Δ9-THC, lead to psychotropic effects, while its antagonists may have serious side effects [39]. On the other hand, the A2AR receptor is heavily expressed in the brain striatum where it regulates dopamine neurotransmission. In addition, (i) it is expressed in other brain areas, in both neurons and glia [40], and (ii) there is cumulative evidence of its participation in neurodegenerative/neuroprotection events. Importantly, a first in class A2AR antagonist, istradefylline, has been approved for the therapy of Parkinson’s disease (NouriastTM in Japan and NourianzTM in the USA) [41,42,43,44,45,46]. This approval puts the A2AR on the front line to combat neurodegeneration and/or to afford neuroprotection.
The mechanisms of neurodegeneration due to methamphetamine consumption are not well understood yet. It should be noted that the σ1R is a common factor in cocaine and methamphetamine addiction [26]. It is well established that cocaine binds to this atypical transmembrane receptor, which is structurally different to GPCRs, occurs as a homotrimer and has no known endogenous agonist [47,48,49]. In animals treated with methamphetamine, the alterations involve σ1R-mediated events. About 15 years ago it was reported that locomotor effects of the drug could be reverted if animals were administered antisense probes that reduced the expression of the σ1R receptor in the brain; similar results were obtained using the commercially available antagonists [22]. Our first hypothesis, namely that the σ1R could interact with the A2AR and mediate effects of the drug on the receptor was not proven. Not only did the two receptors not interact, but methamphetamine did not directly affect A2AR functionality. However, CB1R is required for methamphetamine altering A2AR signaling.
Previous experience has shown us that the σ1R may interact with GPCRs to form complexes that mediate some of the relevant central effects exerted by cocaine. For instance, an interaction between σ1, orexin and corticotropin-releasing factor receptors are the target of cocaine in the ventral tegmental area [50]. Remarkably, the anorexic effect of cocaine is, at least in part, due to the formation of a complex between the σ1R and the ghrelin receptor that allows the blockade of ghrelin action [31]. Our next hypothesis was then to consider interactions of the σ1R with GPCR heteromers, whose functionality is different from that exerted by individual receptors [51,52,53]. In fact, biased signaling may be achieved by GPCR heteromers and/or by complexes formed by GPCRs and other proteins [54]. We here demonstrate that σ1R may interact with the CB1R so that σ1R, CB1R and A2AR may form trimers.
Although the A2AR may interact with several other GPCRs (see www.gpcr-hetnet.com/, accessed on 7 March 2021), we were interested in interactions with the receptors of cannabinoids and, in particular, with the most abundant GPCR among CNS neurons, the CB1R. Actually, the interaction of these two GPCRs in an heterologous expression system and, among others, in the striatum and in CA1 neurons in the hippocampus, has been reported [10,16,55,56,57,58]. Then, we aimed at finding whether the σ1R could interact with the CB1R and, upon confirming this possibility, whether methamphetamine acting on σ1R could alter A2AR-mediated signaling via the A2A–CB1Het. The results not only confirmed the hypothesis but showed a strong effect upon the A2AR in co-transfected HEK-293 cells and in primary cultures of striatal neurons. Alterations by the drug in cAMP-dependent signaling are important but less than those in the MAPK pathway. In fact, the A2A–CB1Het is coupled to both Gs and Gi and both are altered, thus leading to a counterbalancing effect. In contrast, the effect of the drug on the MAPK pathway was in the same direction for both receptors, i.e., blocking the activation of the pathway. In addition, the results indicate that methamphetamine acts on a functional unit formed by the three receptors but with the A2AR being unable to bind to σ1R and with the CB1R able to bind both σ1 and A2A receptors.
In summary, methamphetamine alters A2AR-mediated signaling in striatal neurons but only if the CB1R is present and the A2A–CB1Het is expressed. Failure to properly activate the MAPK signaling pathway in neurons unrolls the neurodegenerative mechanism due to the lack of those transcription factors that favor the expression of neuroprotective molecules (see [59] for review).

4. Materials and Methods

4.1. Reagents

Forskolin and receptor ligands CGS 21680 hydrochloride, ACEA, SCH 58261 and SR 141716A were purchased from Tocris Bioscience (Bristol, UK). Ionomycin and methamphetamine hydrochloride were purchased from MERK (St. Louis, MO, USA). siRNAs were purchased from ThermoFisher Scientific (Waltham, MA, USA).

4.2. Expression Vectors

cDNAs for the human version of cannabinoid CB1, adenosine A2A, dopamine D1 and σ1 receptors without the stop codon were obtained by PCR and subcloned to a Rluc-containing vector (pRluc-N1; PerkinElmer, Wellesley, MA, USA), to an enhanced yellow fluorescent protein-containing vector (pEYEP-N1; Clontech, Heidelberg, Germany) or to a cherry (RFP)-containing vector (pcDNA 3.1 Cherry) using sense and antisense primers harboring unique restriction sites for HindIII and BamHI to generate A2AR-Rluc, D1R-Rluc, CB1R-YFP, D1R-YFP, A2AR-RFP and CB1R-RFP or for BamHI and KpnI to generate σ1R-Rluc and σ1R-YFP fusion proteins.

4.3. Cell Culture and Transfection

HEK-293T cells were grown in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 2 mM L-glutamine, 100 U/mL penicillin/streptomycin, MEM Non-Essential Amino Acids Solution (1/100) and 5% (v/v) heat inactivated fetal bovine serum (FBS) (all from Gibco, Paisley, Scotland, UK). Cells were maintained in a humid atmosphere of 5% CO2 at 37 °C and were passaged when they were 80–90% confluent (number of passages < 18). Cells were transiently transfected with the corresponding cDNAs using the Polyethylenimine (PEI) (MERK, St. Louis, MO, USA) method as previously described [28,60] or with siRNA using the lipofectamine 2000 (ThermoFisher Scientific, Waltham, MA, USA) method following the instructions of the supplier cells were incubated with transfection reagents in serum-free medium; 4 h later the medium was replaced by complete medium. Experiments were carried out 48 h later.
To prepare mouse neuronal primary cultures, striatum from embryos (E19) was removed and neurons were isolated as described by Hradsky et al., 2013 [61]. In brief, striatum was digested with trypsin for 15 min at 37 °C. Trypsinization was stopped by several washes with HBSS (137 mM NaCl, 5 mM KCl, 0.34 mM Na2HPO4, 0.44 mM KH2PO4, 1.26 mM CaCl2, 0.4 mM MgSO4, 10 mM HEPES pH 7.4). Cells were brought to a homogeneous suspension by passage through 0.9 mm and 0.5 mm needles and through a 100 μm-pore mesh. Finally, cells were grown in neurobasal medium supplemented with 2 mM L-glutamine, 100 U/mL penicillin/streptomycin, MEM Non-Essential Amino Acids Solution (1/100) (all from Invitrogen, Paisley, Scotland, UK) and 2% (v/v) B27 supplement (Gibco, Paisley, Scotland, UK) for 12 days. For cAMP assays, cells were grown on 6-well plates at a density of 500,000 cells/well, for ERK 1/2 phosphorylation assays, cells were plated in 96-well plates at a density of 50,000 cells/well and for the proximity ligation assay, neurons were plated in coverslips in 12-well plates at a density of 100,000 cell/well. Cell counting was assessed using trypan blue and a countless II FL automated cell counter (ThermoFisher Scientific, Waltham, MA, USA).
The animal handling and protocols were conducted in accordance with the European Council Directive 2010/63/UE and the current Spanish legislation (RD53/2013). The ethics committee of the University of Barcelona were in charge of law implementation.

4.4. Immunocytochemistry

HEK-293T cells expressing A2AR-Rluc and/or CB1R-YFP seeded in coverslips were treated for one hour with vehicle or 1 µM methamphetamine, fixed in 4% paraformaldehyde for 15 min and washed twice with phosphate-buffered saline (PBS) containing 20 mM glycine to quench the aldehyde groups before permeabilization with PBS-glycine containing 0.2% Triton X-100 (5 min). Cells were treated for 1 h with PBS containing 1% bovine serum albumin (BSA), labelled with a primary mouse monoclonal anti-Rluc (1/100; EMD Millipore, Darmstadt, Germany, Ref. MAB4400) antibody for 1 h, and subsequently treated for 1 h with an anti-mouse Cy3-conjugated IgG (red) (1/200; Jackson Immuno Research, West Grove, PA, USA, Ref. 715-166-150) antibody. Nuclei were stained with Hoechst (1/100; MERK, St. Louis, MO, USA, Ref. B1155). Samples were washed several times and mounted with 30% Mowiol (Calbiochem, San Diego, CA, USA). CB1R-YFP expression was detected by YFP own fluorescence (green). Images were obtained in a Leica SP2 confocal microscope (Leica Microsystems, Mannheim, Germany) equipped with an apochromatic 63X oil-immersion objective (N.A. 1.4), and 405 nm, 488 nm and 561 nm laser lines.

4.5. Resonance Energy Transfer Assays

For bioluminescence resonance energy transfer (BRET) assays, HEK-293T cells were transiently co-transfected with constant amount of cDNAs encoding for receptor-Rluc fusion proteins and increasing amounts of cDNAs corresponding to receptor-YFP fusion proteins. Forty-eight hours post-transection, cells were detached using 0.1% glucose HBSS buffer and the cell suspension was adjusted to 20 µg/µL of protein using a Bradford assay kit (Bio-Rad, Munich, Germany) and BSA for standardization. Cells were treated with 1 µM methamphetamine or vehicle 1 h prior to each quantification. To quantify protein-YFP expression, cells were distributed in 96-well black plates with a clear bottom (Porvair, Wrexham, Wales, UK) and fluorescence was read in a Mithras LB 940 (Berthold Technologies, Bad Wildbad, Germany) equipped with a high-energy xenon flash lamp, using a 10-nm bandwidth excitation filter at 485 nm and 530 nm emission filter readings. For BRET measurements, cells were distributed in 96-well white plates with a clear bottom (Porvair) and readings were collected 1 min after the addition of 5 µM coelenterazine H (PJK GMBH, Kleinblittersdorf, Germany) using a Mithras LB 940, which allows the integration of the signals detected in the short-wavelength filter at 485 nm and the long-wavelength filter at 530 nm. To quantify protein-Rluc expression, luminescence readings were performed 10 min after 5 µM coelenterazine H addition using a Mithras LB 940 reader.
For fluorescence resonance energy transfer (FRET) assays, HEK-293T cells were transiently co-transfected with a constant amount of cDNAs encoding for receptor-YFP and increasing amounts of cDNAs corresponding to receptor-Cherry (RFP). Forty-eight hours after transfection, cells were detached using HBSS buffer with 0.1% glucose and cell suspension was adjusted to 20 µg/µL of protein using a Bradford assay kit (Bio-Rad, Munich, Germany) and bovine serum albumin (BSA) for standardization. Cells were treated with 1 µM methamphetamine or vehicle 1 h prior to each quantification. Cells were distributed in 96-well black plates with a clear bottom (Porvair). To quantify protein-YFP expression and protein-cherry expression, fluorescence was red in a FluoStar Optima Fluorimeter (BMG Labtechnologies, Offenburg, Germany) equipped with a high-energy xenon flash lamp, using a 10-nm bandwidth excitation filters at 485 nm (for YFP) and 540 nm (for RFP) and emission filters at 530 nm (for YFP) and 590 nm (for Cherry) readings. For FRET measurements, fluorescence was read in a FluoStar Optima Fluorimeter equipped with a high-energy xenon flash lamp, which allows the integration of the signals detected in the short-wavelength filter at 530 nm and the long-wavelength filter at 590 nm.
Net BRET and net FRET were defined as [(long-wavelength emission)/(short-wavelength emission)] − Cf where Cf corresponds to [(long-wavelength emission)/(short-wavelength emission)] for the donor construct expressed alone in the same experiment (Rluc for BRET and YFP for FRET). The GraphPad Prism software (San Diego, CA, USA) was used to fit the data. BRET and FRET are expressed as milli BRET units, mBU (net BRET × 1000) or milli FRET units, mFU (net FRET × 1000), respectively. The relative amount of BRET or FRET is given as a function of 1000 × the ratio between the fluorescence of the acceptor (YFP for BRET or Cherry for FRET) and the activity of the donor (Rluc for BRET or YFP for FRET).
For sequential resonance energy transfer (SRET) assays (see [12]), HEK-293T cells were transiently co-transfected with constant amounts of cDNA coding for the BRET donor (receptor-Rluc), the first acceptor (receptor-YFP) and increasing amounts of cDNA corresponding to the second acceptor (receptor-RFP). After 48 h, cells were detached using HBSS buffer with 0.1% glucose and cell suspension was adjusted to 20 µg/µL of protein using a Bradford assay kit (Bio-Rad, Munich, Germany) and bovine serum albumin (BSA) for standardization. Cells were treated with 1 µM methamphetamine or vehicle 1 h prior to each quantification. To quantify protein-RFP expression, fluorescence was read in a FluoStar Optima Fluorimeter (BMG Labtechnologies) using a 10-nm bandwidth excitation filter at 540 nm and an emission filter at 590 nm. Receptor fluorescence expression was determined as the fluorescence of the sample minus the fluorescence of cells expressing only receptor-Rluc and receptor-YFP. To quantify receptor-Rluc expression, luminescence readings were performed 10 min after 5 μM coelenterazine H addition using a Mithras LB 94 reader (Berthold Technologies). For SRET measurements, the cell suspension was treated with 5 μM coelenterazine H for 1 min and the SRET signal was determined using a Mithras LB 940 reader (485 nm) (short wavelength emission) and FluoStar Optima Fluorimeter (590 nm) (long wavelength emission). Net SRET was defined as [(long wavelength emission)/(short wavelength emission)] − Cf, where Cf corresponds to long wavelength emission/short wavelength emission for cells expressing only protein-Rluc and protein-YFP. SRET curves were fitted assuming a single phase by non-linear regression equation using the Graphpad Prism software (San Diego, CA, USA). SRET values are given as milli SRET units (mSU: 1000 × net SRET). The relative amount of SRET is given as a function of 1000 × the ratio between the fluorescence of the FRET acceptor (RFP) and the activity of the BRET donor (Rluc).

4.6. Cytosolic cAMP Determination

HEK-293T cells were transfected with the cDNA encoding for A2AR and/or for CB1R, and when indicated, with the siRNA for σ1R or for caln-1. Neuronal primary cultures were pretreated with 1 µM methamphetamine or vehicle for 2 h (acute treatment) or for one week (chronic treatment). Transfected HEK-293T cells were pretreated (20 min) with 1 µM methamphetamine or vehicle. Two hours before initiating the experiment, culture medium for transfected HEK-293T or primary neurons was replaced by serum-starved DMEM medium. Cells were detached, resuspended in DMEM medium containing 50 µM zardaverine (Tocris Bioscience, Bristol, UK) and plated (4000 cells/well) in white ProxiPlate 384-well microplates (PerkinElmer, Waltham, MA, USA). HEK-293T cells or neurons were treated with the corresponding antagonists (SCH 58261 for A2AR or SR 141716A for CB1R) or vehicle and stimulated (15 min) with the corresponding agonists (CGS 21680 for A2AR and/or ACEA for CB1R) or vehicle before adding 0.5 µM forskolin (15 min). Readings were performed after 1-h incubation at room temperature. Homogeneous time-resolved fluorescence energy transfer (HTRF) measurements were performed using the Lance Ultra cAMP kit (PerkinElmer, Waltham, MA, USA). Fluorescence at 665 nm was analyzed on a PHERAstar Flagship microplate reader equipped with an HTRF optical module (BMG Lab technologies, Offenburg, Germany). The effect of ligands was given in percentage with respect to the reference value.

4.7. Extracellular Signal-Regulated Kinase (ERK) and Protein Kinase B (Akt) Phosphorylation Assays

HEK-293T cells were transfected with the cDNA encoding for A2AR and/or for CB1R, and when indicated, with the siRNA of σ1R. Two to four hours before initiating the experiment, the culture medium was replaced by serum-starved DMEM medium. Cells were incubated at 37 °C with 1 µM methamphetamine (30 min) or vehicle, followed with the corresponding antagonist (SCH 58261 for A2AR or SR 141716A for CB1R) (20 min) and stimulated (7 min) with the corresponding agonists (CGS 21680 for A2AR and/or ACEA for CB1R). After the indicated incubation period, the reaction was stopped by placing cells onto ice. Then, cells were washed twice with cold PBS and lysed by the addition of ice-cold lysis buffer (50 mM Tris-HCl pH 7.4, 50 mM NaF, 150 mM NaCl, 45 mM ß-glycerolphosphate, 1% Triton X-100, 20 µM phenyl-arsine oxide, 0.4 mM NaVO4 and protease inhibitor mixture (MERK, St. Louis, MO, USA)). Cellular debris were removed by centrifugation at 13,000× g for 10 min at 4 °C, and protein was adjusted to 1 mg/mL by the bicinchoninic acid method (ThermoFisher Scientific, Waltham, MA, USA) using a commercial bovine serum albumin dilution (BSA) (ThermoFisher Scientific) for standardization. Finally, cells were denatured by placing them at 100 °C for 5 min. Akt and ERK1/2 phosphorylation were determined by western blot. Equivalent amounts of protein (20 µg) were subjected to electrophoresis (10% SDS-polyacrylamide gel) and transferred onto PVDF membranes (Immobilon-FL PVDF membrane, MERK, St. Louis, MO, USA) for 90 min. Then, the membranes were blocked for 1 h at room temperature (constant shaking) with Odyssey Blocking Buffer (LI-COR Biosciences, Lincoln, NE, USA) and labelled with a mixture of primary mouse anti-phospho-ERK 1/2 antibody (1:2000, MERK, Ref. M8159), primary rabbit anti-ERK 1/2 antibody (1:40,000, MERK, Ref. M5670), which recognizes both phosphorylated and non-phosphorylated ERK 1/2, and primary rabbit anti-phosphoAkt antibody (1:2500, Signalway Antibody, Baltimore, MA, USA, Ref. 11054) overnight at 4 °C with shaking. Then, the membranes were washed three times with PBS containing 0.05% tween and visualized by the addition of a mixture of IRDye 800 anti-mouse antibody (1:10,000, MERK, Ref. 926-32210) and IRDye 680 anti-rabbit antibody (1:10,000, MERK, Ref. 926-68071) for 2 h at room temperature. Membranes were washed 3 times with PBS-tween 0.05% and once with PBS and left to dry. Bands were analyzed using Odyssey infrared scanner (LI-COR Biosciences). Band densities were quantified using the scanner software, and the level of phosphorylated ERK 1/2 and Akt was normalized using the total ERK 1/2 protein band intensities. Results obtained are represented as the percent over basal (non-stimulated cells).
To determine the ERK 1/2 phosphorylation in striatal neuronal primary cultures, 50,000 neurons/well were plated in transparent 96-well microplates and kept in the incubator for 12 days. Neurons were pretreated with 1 µM methamphetamine for 2 h (acute treatment) or for one week (chronic treatment) or vehicle. Two to four hours before initiating the experiment, the medium was substituted by serum-starved DMEM medium. Then, neurons were pre-treated at room temperature for 15 min with the specific antagonist (SCH 58261 for A2AR or SR141716A for CB1R) or vehicle, and finally stimulated for 10 min with the specific agonists (CGS 21680 for A2AR and/or ACEA for CB1R). Neurons were then washed twice with cold PBS before the addition of 30 µL lysis buffer (20 min treatment in constant agitation). Subsequently, 10 µL of each supernatant were placed in white ProxiPlate 384-well microplates (PerkinElmer, Waltham, MA, USA) and the ERK 1/2 phosphorylation was determined using the AlphaScreen®SureFire® kit (PerkinElmer) following the instructions of the supplier and using an EnSpire® Multimode Plate Reader (PerkinElmer). The effect of ligands is given as percentage over the reference values.

4.8. Dynamic Mass Redistribution (DMR) Assays

Cell mass redistribution induced upon receptor activation was detected by illuminating the underside of a biosensor with a polychromatic light and measuring the changes in the wavelength of the reflected monochromatic light, which was a sensitive function of the index of refraction. The magnitude of this wavelength shift (in picometers) was directly proportional to the amount of dynamic mass redistribution (DMR). HEK-293T cells co-transfected with the cDNA coding for A2AR and for CB1R were seeded in 384-well sensor microplates (Corning® Epic® 384-well Cell Assay Microplate) (MERK, St. Louis, MO, USA) to obtain a 70–80% confluent monolayer constituted by approximately 10,000 cells per well. Before the assay, cells were washed twice with assay buffer (HBSS with 20 mM HEPES pH 7.15 containing 0.1% DMSO) and maintained for 2 h at 24 °C in the same buffer (30 µL/well). Then, the sensor plate was scanned, and a baseline optical signature was recorded for 10 min before adding 10 µL of the specific antagonists (SCH 58261 for A2AR or SR141716A for CB1R) in the presence or in the absence of 1 µM methamphetamine and recorded for 30 min, followed by the addition of 10 µL of the specific agonists (CGS 21680 for A2AR and/or ACEA for CB1R) and monitoring for another 60 min. All of the tested compounds were dissolved in the assay buffer. The cell signaling signature was determined using an EnSpire® Multimode Plate Reader (PerkinElmer, Waltham, MA, USA) by a label-free technology. Results were analyzed using the EnSpire Workstation Software v 4.10 (PerkinElmer).

4.9. Determination of Cytoplasmic Calcium Ion Levels

HEK-293T cells were co-transfected with the cDNAs coding for A2AR, CB1R and GCaMP6 calcium sensor. At 48 h post-transfection, cells were detached using Mg2+ Locke’s buffer (154 mM NaCl, 5.6 mM KCl, 3.6 mM NaHCO3, 2.3 mM CaCl2, 5.6 mM glucose and 5 mM HEPES, pH 7.4) supplemented with 10 µM glycine, and the cell suspension was adjusted to 40 µg/µL of protein using a Bradford assay kit (Bio-Rad, Munich, Germany) and BSA for standardization. Cells were plated in 96-well black with clear bottom microplates (Porvair) and pretreated with 1 µM methamphetamine or vehicle for 1 h before treatment with the specific antagonists (SCH 58261 for A2AR or SR 141716A for CB1R) for 10 min, followed by the addition of the specific receptor agonists (CGS 21680 for A2AR and/or ACEA for CB1R) or 1 µM ionomycin a few seconds before readings. Fluorescence emission intensity of the GCaMP6 was recorded at 515 nm upon excitation at 488 nm on the EnSpire® Multimode Plate Reader (PerkinElmer, Waltham, MA, USA) for 150 s every 5 s.

4.10. ß-Arrestin 2 Recruitment

HEK-293T cells were co-transfected with the cDNA coding for A2A-YFP, CB1R and ß-arrestin 2-Rluc. At 48 h post-transection, cells were detached using 0.1% glucose HBSS buffer and the cell suspension was adjusted to 30 µg/µL of protein using a Bradford assay kit (Bio-Rad, Munich, Germany) and BSA for standardization. Cells were plated in 96-well black with clear bottom plates (Porvair) and pretreated with 1 µM methamphetamine or vehicle for 30 min before treatment with the specific antagonists (SCH 58261 for A2AR or SR 141716A for CB1R) for 10 min. Coelenterazine H (5 µM) (PJK GMBH, Kleinblittersdorf, Germany) was added before stimulation with the specific agonists (CGS 21680 for A2AR and/or ACEA for CB1R) for 2 min. Then, BRET between ß-arrestin 2-Rluc and A2AR-YFP was determined as described above (see Resonance Energy Transfer Assays).

4.11. Proximity Ligation Assays (PLA)

Striatal neuronal primary cultures grown on glass coverslips were pretreated with 1 µM methamphetamine for 2 h (acute treatment) or for one week (chronic treatment) or vehicle. In brief, neurons were fixed in 4% paraformaldehyde for 15 min, washed with PBS containing 20 mM glycine to quench the aldehyde groups, and permeabilized with the same buffer containing 0.05% Triton X-100 for 5 min. After 1 h incubation at 37 °C with blocking solution, the neurons were treated with specific antibodies against A2A, CB1 or σ1 receptors. The following combinations of antibodies were used: mouse monoclonal anti-A2AR (1/100, Santa Cruz Biotechnology, Dallas, Paisley, UK, Ref. 32261) and rabbit polyclonal anti-CB1R (1/100; ThermoFisher Scientific, Waltham, MA, USA, Ref. PA1-745), rabbit polyclonal anti-A2AR (1/100, ThermoFisher Scientific, Ref. PA1-042) and mouse monoclonal anti-σ1R (1/100, Santa Cruz Biotechnology, Ref. 137075) or rabbit polyclonal anti-CB1R (1/100, ThermoFisher Cientific) and mouse monoclonal anti-σ1R (1/100, Santa Cruz Biotechnology). Cells were processed using the PLA probes detecting mouse and rabbit antibodies (1/100, Duolink II PLA probe anti-rabbit plus and Duolink II PLA probe anti-mouse, MERK, St. Louis, MO, USA) in the presence of Hoechst (1/100, MERK). Preparations were mounted using 30% Mowiol (Calbiochem, San Diego, CA, USA). Negative controls were performed by omitting one of the primary antibodies. Images were obtained in a Leica SP2 confocal microscope (Leica Microsystems, Mannheim, Germany) equipped with apochromatic 63X oil-immersion objectives (N.A. 1.4), and 405 and 561 nm laser lines. For each field of view, a stack of two channels (one per staining) and 3 to 4 Z stacks with a step size of 1 µm were acquired. The number of cells containing one or more red spots versus total cells (blue nucleus) and, in spot-containing cells, the ratio r (number of red spots/cell), were determined using the Duolink Image tool software (MERK).

4.12. Statistical Analysis

Graph data are the mean ± SEM (n = 6 at least). GraphPad Prism software version 8 (San Diego, CA, USA) was used for the data fitting and statistical analysis. A one-way or two-way ANOVA followed by the post-hoc Bonferroni’s test were used when comparing multiple values. Significant differences were considered when the p value was <0.05.

Author Contributions

Conceptualization, G.N. and R.F.; methodology, G.N., M.C., I.R.-R., J.L. and A.L.; validation, R.F., I.R.-R. and G.N.; formal analysis, M.C., G.N., I.R.-R. and R.F.; investigation, M.C., I.R.-R., J.L. and A.L.; resources, J.C., R.L.-A. and E.E.; data curation, R.F. and I.R.-R. writing—original draft preparation, M.C., R.F., I.R.-R. and G.N.; writing—review and editing, J.C., M.C., I.R.-R., A.L., J.L., R.L.-A., E.E., G.N. and R.F.; supervision G.N. and R.F.; funding acquisition, G.N. and R.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Spanish Ministry of Economy and Competitiveness (SAF2017-84117-R and RTI2018-09204-B-I00; they may include FEDER funds) and partially supported by the AARFD-17-503612 grant from the US Alzheimer’s Association.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to privacy restrictions.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

A2ARAdenosine A2A receptor
BRETBioluminescence Resonance Energy Transfer
BSABovine Serum Albumin
CB1RCannabinoid CB1 receptor
CB2RCannabinoid CB2 receptor
CGSCGS 21680
CNSCentral nervous system
D1RDopamine D1 receptor
DMEMDulbeco’s Modified Eagle’s Medium
DMRDynamic Mass Redistribution
GPCRG Protein-Coupled Receptor
FBSFetal Bovine Serum
FKForskolin
FRETFluorescence Resonance Energy Transfer
HTRFHomogeneous time-resolved fluorescence energy transfer
MetMethamphetamine
MAPKMitogen activated protein kinase
PBSPhosphate-buffered saline
PLAProximity Ligation Assay
SCHSCH 58261
SRSR 141716A
SRETSequential Resonance Energy Transfer
∆9-THC ∆9-Tetrahydrocannabinol
σ1RSigma 1 receptor
