Nanobody Paratope Ensembles in Solution Characterized by MD Simulations and NMR

by
Monica L. Fernández-Quintero
1,
Eugene F. DeRose
2,
Scott A. Gabel
2,
Geoffrey A. Mueller
2,* and
Klaus R. Liedl
1,*
1
Department of General, Inorganic and Theoretical Chemistry, Center for Molecular Biosciences Innsbruck (CMBI), University of Innsbruck, Innrain 80-82, A-6020 Innsbruck, Austria
2
Genome Integrity and Structural Biology Laboratory, National Institute of Environmental Health Sciences, 111 T.W. Alexander Dr. MD-MR-01, Research Triangle Park, NC 27709, USA
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(10), 5419; https://doi.org/10.3390/ijms23105419
Submission received: 30 March 2022 / Revised: 2 May 2022 / Accepted: 10 May 2022 / Published: 12 May 2022
(This article belongs to the Section Molecular Biophysics)
Browse Figures
Versions Notes

Abstract

:
Variable domains of camelid antibodies (so-called nanobodies or VHH) are the smallest antibody fragments that retain complete functionality and therapeutic potential. Understanding of the nanobody-binding interface has become a pre-requisite for rational antibody design and engineering. The nanobody-binding interface consists of up to three hypervariable loops, known as the CDR loops. Here, we structurally and dynamically characterize the conformational diversity of an anti-GFP-binding nanobody by using molecular dynamics simulations in combination with experimentally derived data from nuclear magnetic resonance (NMR) spectroscopy. The NMR data contain both structural and dynamic information resolved at various timescales, which allows an assessment of the quality of protein MD simulations. Thus, in this study, we compared the ensembles for the anti-GFP-binding nanobody obtained from MD simulations with results from NMR. We find excellent agreement of the NOE-derived distance maps obtained from NMR and MD simulations and observe similar conformational spaces for the simulations with and without NOE time-averaged restraints. We also compare the measured and calculated order parameters and find generally good agreement for the motions observed in the ps–ns timescale, in particular for the CDR3 loop. Understanding of the CDR3 loop dynamics is especially critical for nanobodies, as this loop is typically critical for antigen recognition.

1. Introduction

Camelids such as camels, dromedaries, llamas, alpacas, guanacos, and vicuñas contain heavy-chain-only antibodies, which consist of a stable and soluble single-antigen-binding variable domain [1,2,3]. Single-domain antibodies (VHHs), also known as nanobodies®, have received increasing attention as highly versatile proteins with a high affinity for a variety of targets, and their flexibility has opened the door for a new generation of therapeutics [4,5]. Nanobodies have been proposed as treatments for various diseases and infections, including: autoimmune diseases, allergies, and for use as antivirals. The term nanobody originates from a trademark introduced by the company Ablynx in 2003 and became a general classification for these single-immunoglobulin domain proteins, reflecting their small size compared to antibodies, which are more than 10 times larger [6]. Nanobodies are potent alternatives to conventional antibodies, because of their small size, refolding capacity, stability, specificity, and natural origin [4,7,8]. Structurally, nanobodies are still functional without a light-chain counterpart found in typical antibodies, as they lack the hydrophobic interface, which is usually required to pair with a light chain in IgG-type antibodies [9]. Thus, the amino acid sequences of naturally occurring VHH antibodies are expected to contain adaptations to compensate for the absence of the paired light-chain variable domain. Nevertheless, it has been shown that VHH sequences share a high degree of similarity (~80%) with conventional human variable heavy-chain domains (VH). However, the less hydrophobic interface in VHH originates from several residue substitutions (mainly hydrophilic residues), namely L11S, V37F/Y, G44E, L45R/C, and W47G (following the Kabat nomenclature [10]), that discriminate the conventional VH from VHH. These residue substitutions are believed to enhance the stability in the absence of the light chain and result in favorable biophysical characteristics, such as stability and low aggregation risk [11,12]. However, the amino acid residues at the positions that determine the typical immunoglobulin fold are all well-conserved in the VHH [13,14].
The VHH domain consists of four framework regions (FR1, FR2, FR3, FR4), which are separated by three hypervariable loops, known as the complementarity-determining region loops (CDRs), namely the CDR1, CDR2, and CDR3 loops (Figure 1). The antigen-binding site, the paratope, is formed not exclusively by the CDR loops but also by neighboring framework residues, which contribute to recognizing and binding the antigen. VHHs contain a canonical disulfide bond connecting the β-strands of framework regions 1 and 3. Various camelid antibodies also have an additional disulfide bond connecting either the end of the CDR1 loop with the CDR3 loop (camels) or the beginning of the CDR2 loop with the CDR3 loop (llamas). Furthermore, the CDR3 loop of VHHs can be substantially longer compared to conventional IgG and possesses the unique ability to form long extensions to reach cavities and buried binding sites with high shape complementarity [15]. Thus, the CDR3 loop of VHHs plays a critical role in recognizing and binding the antigen [16]. However, due to the high diversity in the length, sequence, and structure of the CDR3 loop, structure prediction remains challenging [17]. Recent studies using molecular dynamics (MD) simulations found that one single static structure is not sufficient to functionally understand the antigen-binding site, and suggested to characterize the paratopes as ensembles in solution [18,19,20]. We previously showed that antigen recognition follows a conformational selection-type binding to the dominant structure in solution, which is frequently not reflected by a single structure due to crystal packing effects in the apo form [18,21].
MD simulations are a powerful tool to study biomolecular movements in atomistic detail on timescales ranging from picoseconds to milliseconds. Various studies have already validated MD simulations against quantitative experimental data of protein structure and dynamics to further improve the MD method itself, as well as to mechanistically interpret the experimental data [22,23,24]. NMR data of proteins in solution are uniquely suited to observe different timescales of protein dynamics and to assess the quality of protein MD simulations [25,26,27]. In this study, we tested the applicability of recently honed MD methods to characterize the conformational diversity of an anti-GFP binding nanobody by combining molecular dynamics simulations with experimental data from NMR spectroscopy in order to better understand nanobody structures and dynamics.

2. Results

To characterize the conformational diversity of the CDR loops of the anti-GFP nanobody [28,29] in solution, we used a protocol using bias-exchange meta-dynamics in combination with classical MD simulations (resulting in 15.4 µs of MD simulations) to overcome the limitations of conformational sampling imposed by high-energy barriers [19,30,31]. These simulations will be referred to as “simulated MD ensemble”. Additionally, we used experimental nuclear magnetic resonance (NMR) nuclear Overhauser effect (NOE) data in combination with molecular dynamics simulations to understand the dynamics and the respective timescales of conformational rearrangements for the anti-GFP nanobody [28,29]. The time averaging and 1/r6 dependence of the interatomic distances on intensity provides accurate information for assessing MD sampling. The simulation performed with NOE restraints will be referred to as “simulated NMR ensemble”. Figure 1 illustrates the structure of the nanobody, highlighting the three CDR loops, and displays the complex structure of the nanobody with GFP. Figure 1B shows that the CDR3 loop plays a critical role in antigen recognition and binding, while the CDR1 and CDR2 loops do not interact with the antigen. To visualize the conformational spaces and to reconstruct the free energy landscape of the CDR1, CDR2, and CDR3 loops, and the paratope, we performed a time-lagged independent component analysis [32] (tICA) of the accumulated 15.4 µs of MD simulations and the simulation including the time-averaged NOE restraints, based on the backbone torsions of the respective CDR loops in the same coordinate system. The free energy surfaces and the respective conformational ensembles are illustrated in Figure 2. What can immediately be seen is that the conformational space is confined to a single dominant minimum, revealing structural rearrangements in the low-nanosecond timescale. The transition timescales have been estimated based on the tICA free energy landscape, which takes the number of conformational transitions into account [33]. In agreement with our observations from the simulated MD ensemble (Figure 2), we found by comparing our results with the NMR ensemble (including the time-averaged NOE restraints) that most of the movements occurred in the ps–ns timescale. Additionally, we also performed MD simulations with NOE restraints to compare the respective ensembles in solution (Figure 2). While we covered a very similar conformational space, the observed dynamics including the NOE restraints resulted in a more restricted conformational space.
The NOE restraints were obtained with the following strategy. Since a crystal structure was already known, the goal was not to test the limits of NMR structure techniques, but rather to provide as many calibrated NOEs as accurately as possible. To do this, 171 NOEs were manually assigned with the aid of the crystal structure 3OGO [28]. A round zero of structure calculations provided a loose ensemble of starting structures that were used by CYANA to assign the remaining NOEs using an iterative strategy. A total of 1194 upper-limit restraints were determined by CYANA.
The CYANA calculated structures had 1.5 Å RMSD for the residues 3–113. Table 1 shows that Ramachandran space was never violated, only a handful of NOEs were occasionally violated in the ensemble, and eight van der Waals close contacts were noted. These statistics show that the NMR restraints are not in conflict with standard protein geometry. Figure 3 shows that the NMR ensemble matches the 3OGO structure well (Figure 3), with 1.4 Å RMSD over 110 Cα-atoms, indicating that the accuracy of the ensemble is on a par with the precision. The biggest difference in the NMR versus the 3OGO crystal structure is in the displacement of the exterior loop residues 57–69. In this loop, the backbone angles are very similar, but the NMR loop is slightly displaced from the beta sheets of the nanobody, likely due to a paucity of long-range restraints on the exterior of the protein. The structure demonstrates that the upper-limit restraints calibrated from the NOE intensities accurately reflect the nanobody structure, as determined by crystallography.
Apart from directly comparing the obtained conformational spaces (Figure 2), we also compared the experimental NOE upper limits with the calculated NOEs from the simulated MD ensemble (Figure 4A). The results show the presence of highly similar NOEs between the simulated MD ensemble and the experiment. To compare the order parameters (S2) from our simulated MD ensemble with the experimentally determined ones, we performed 1 µs of classical MD simulations by using the dominant paratope ensemble structure as a starting structure. We calculated S2 from the obtained classical MD trajectory by using pytraj [34] and present the comparison with the experimentally determined order parameters in Figure 4B. While we found few residues in the CDR1 loop with dynamic discrepancies, we observed an overall good agreement between the calculated and experimentally measured order parameters.

3. Discussion

In this study, we characterized the conformational diversity of an anti-GFP nanobody [28] with molecular dynamics simulations and NMR. Figure 2 compares the conformational landscapes of the simulated MD ensemble and simulated NMR ensemble for the individual CDR loops and the whole paratope in a combined coordinate system. We observe that the NOE restricted MD simulation results in a decidedly more restricted conformational space compared to the simulated MD ensemble trajectories. It is therefore worth discussing any bias in the method to measure and calibrate the NOE restraints. The iterative assignment and calibration of NOEs by CYANA is designed to converge on a single structural ensemble with a low RMSD, as incorrect assignments and erroneous distances are removed. This strategy mimics manual NMR analysis and other auto-assignment methods. The point is that rare conformations that might be present in the NOE data are likely pruned, and the resulting structures are closer to a global minimum. Therefore, it is reasonable that the ensembles restrained by NOEs are a narrow subset of the simulated MD ensemble. Attempts to include rare conformations in NMR structure calculations utilize the measurement of exact NOEs (eNOEs) and better algorithms that account for spin diffusion and multiple states [35,36]. However, measuring exact NOEs requires significantly more spectrometer time (up to six additional 3D spectra are recommended [35]) and the methods are not as amenable to automated assignment. Enhanced sampling with classical MD simulations in addition to traditional NMR structure analysis likely represent a viable alternative procedure to examine rare states.
In comparison to various antibodies [20,37] and other single-domain formats (e.g., VNARs, T-cell, and β-variable domains) [31,38,39,40], this anti-GFP nanobody shows limited conformational diversity, indicating a high specificity for the GFP protein. Even though this antibody already seems quite matured, describing the antigen-binding site as a conformational ensemble in solution is necessary to provide a quantitative understanding of the binding interface [38].
Rare states can also be detected by NMR on timescales of ms to sub-ms [41]. However, the CPMG experiments did not detect any convincing dispersions (data not shown). On a faster timescale of ns–ps, NMR can directly assess molecular motions on fast timescales. Comparison of these measurements with MD is common and generally shows good correlations between measured and simulated order parameters [42,43]. Similarly, in the case of this nanobody, there is generally good agreement between the measured and calculated order parameters, especially for the CDR3 loop, again suggesting that our MD simulations capture realistic molecular motions. Capturing the flexibility of the CDR3 loop is particularly important for nanobodies, as this loop is mainly involved in recognizing and binding to the antigen [12,15,16,44]. Admittedly, there were very few residues in the CDR1 loop with significant dynamic excursions, so the analysis of large motions is slightly biased toward a few interesting loop residues. Figure 4A shows the calculated and experimentally determined NOEs and confirms the good agreement of both methods. In contrast to other single-domain antibodies, which showed substantial conformational rearrangements in the micro-to-millisecond timescale, this anti-GFP nanobody is confined to one single minimum with structural changes in the ps–ns timescale [31,38].

4. Methods

4.1. Structure Preparation

As starting structures for our simulations, we used the crystal structure of the anti-GFP nanobody with the PDB accession code 3OGO [28].
The starting structure was prepared and protonated in MOE using the Protonate3D tool [45,46]. Charge neutrality was ensured by using the uniform background plasma approach in AMBER [47,48]. Using the tleap tool of the AmberTools20 package, the crystal structure was soaked in cubic water boxes of TIP3P water molecules with a minimum wall distance of 10 Å to the protein [47,49,50,51]. The structures were described with the AMBER force field 14SB [52]. The nanobody was carefully equilibrated using a multistep equilibration protocol [53,54].

4.2. Metadynamics Simulations

To enhance the sampling of the conformational space, we performed 500 ns of well-tempered bias-exchange meta-dynamics simulations in GROMACS with the PLUMED 2 implementation [55,56,57]. As an enhanced sampling technique, we chose meta-dynamics because it allowed us to focus the enhanced sampling on predefined collective variables (CV) [58,59,60]. The sampling is accelerated by a history-dependent bias potential, which is constructed in the space of the CVs. As collective variables, we used a well-established protocol, boosting a linear combination of sine and cosine of the ψ torsion angles of all six CDR loops calculated with functions MATHEVAL and COMBINE implemented in PLUMED 2 [21,39,61]. As discussed previously, the ψ torsion angle comprehensively captures conformational transitions [62]. The underlying method presented here has been validated in various studies against a large number of experimental results. The simulations were performed at 300 K in an NpT ensemble to be as close to the experimental conditions as possible and to obtain the correct density distributions of both protein and water. We used a Gaussian height of 10.0 kJ/mol and a width of 0.3 rad. Gaussian deposition occurred every 1000 steps and a bias factor of 10 was used. The resulting trajectory was clustered with the program cpptraj using the average linkage hierarchical clustering algorithm with a root mean square deviation cutoff criterion of 1.2 Å, resulting in a large number of clusters [63]. The cluster representatives for the nanobody were equilibrated and simulated for 100 ns using the AMBER 20 simulation package [47].

4.3. Molecular Dynamics Simulations

MD simulations were performed in an NpT ensemble using the pmemd.cuda module of AMBER 20 [64]. Bonds involving hydrogen atoms were restrained with the SHAKE algorithm, allowing a timestep of 2.0 femtoseconds. Atmospheric pressure (1 bar) of the system was set by weak coupling to an external bath using the Berendsen algorithm [65]. The Langevin thermostat was used to maintain the temperature during simulations at 300 K [66,67].
With the obtained trajectories, we performed a time-lagged independent component analysis (tICA) using the python library PyEMMA 2 [68], employing a lag time of 10 nanoseconds. tICA was applied to identify the slowest movements of nanobody CDR loops and consequently to obtain a kinetic discretization of the sampled conformational space.

4.4. NOE Restraints Simulations—NMR Ensemble

The NOE distances were derived from intramolecular magnetic interactions which are inversely proportional (1/r6) to the distances between protons. The NOE values were utilized as determined by CYANA, see below. The structure was minimized, equilibrated, and then simulated for 1 μs using the available 1194 NOE distance restraints, including time-averaged constraints in an NpT ensemble using pmemd.cuda, following the same parameters as described in the “Molecular Dynamics Simulations” Section [69,70]. A time constant for the memory function for the distance restraints of 100 ps was chosen.

4.5. Expression

BL21(DE3) E. coli were grown to an OD ~4 in 1 L of 2XYT media at 37 °C. Cells were pelleted, then brought up in 1 L of M9 minimal media which was labeled with either 15NH4Cl or 15NH4Cl and U-13C-glucose. Cells had a 1 h equilibration time while shaking at 25 °C. The temperature was lowered to 18 °C and cells were induced with 0.5 mM of IPTG. Protein was expressed overnight (12–18 h). Cells were pelleted and frozen for later purification. The expressed protein sequence was: MAQVQLVESGGALVQPGGSLRLSCAASGFPVNRYSMRWYRQAPGKEREWVAGMSSAGDRSSYEDSVKGRFTISRDDARNTVYLQMNSLKPEDTAVYYCNVNVGFEYWGQGTQVTVSSHHHHHH.

4.6. Purification

Frozen cells were thawed and re-suspended in 15 mL of a lysis buffer containing 1 M NaCl, 50 mM HEPES (pH 7.6), 10 mM imidazole, 1 mM MgSO4, 18 mM B-mercaptoethanol, 1 mL B-PER (Thermo Scientific), and an EDTA-free protease inhibitor cocktail tablet (Roche). Cells were lysed by sonication (3 cycles × 2 min/cycle) on ice. The lysate was centrifuged at 28,000× g for 30 min at 4 °C. The supernatant was syringe-filtered to produce a clear lysate. The lysate was loaded onto an IMAC column packed with Ni+2-charged NTA-resin (Amersham). Protein was then eluted from the column with a buffer consisting of 0.5 M NaCl, 50 mM HEPES (pH 7.6), and a stepped gradient of imidazole of 10, 25, and 300 mM, where the protein eluted in the 300 mM imidazole fraction. The protein was further purified using a Superdex 26/60 S75 preparative-grade gel filtration column (GE Amersham) with a buffer consisting of 150 mM NaCl, 25 mM HEPES (pH 7.4), 1 mM DTT, and 0.25 mM sodium azide.

4.7. NMR Data Acquisition

The NMR backbone and side-chain peaks were assigned using standard NMR techniques [71]. The peaks were remarkably well-dispersed, facilitating a straightforward attribution of spectral coordinates to individual atoms. The NOE spectra were analyzed in conjunction with the 3OGO structure, which allowed the rapid assignment of the beta-strand interactions that were used to assign H-bond pseudo-NOEs and other long-range NOEs. A total of 38 H-bonds and 171 NOEs were input as initial restraints for structure calculations with CYANA [72]. The H-bond H–O interactions were set with upper limits of 2.5 Å, and the NOE upper limits were set at 5 or 7 Å for leucine or valine methyl. These ‘round-zero’ structures had, as expected, low convergence, with a 3–4 Å RMSD. The 10 lowest energy round-zero structures were used as initial structures in a subsequent round of CYANA calculations that included all the unassigned peaks (4224) and the manually assigned NOEs. The peak intensities and ppm coordinates were converted to NOE upper limits in CYANA’s iterative structure determination approach. The NOE upper limits (1194) after the final iteration of CYANA were used for comparison with the MD trajectories. Details of the structural convergence and structure quality are shown in Table 1.
Relaxation data were acquired using common pulse sequences for T1, T2, {1H-15N}-NOE, and relaxation dispersion at 600 and 800 MHz [41,73,74]. The T1, T2, and {1H,15N}-NOE data were analyzed using the program RELAX to choose the best motional model for order parameters [75,76]. Relaxation dispersion data were analyzed with GUARDD [77].

5. Conclusions

We showed that the CDR loop ensembles obtained with and without time-averaged NOE restraints were in good agreement, which was reflected in the very similar covered conformational space, with the same dominant minimum in solution. In line with the NMR data, we observed that most of the movements for the CDR loops of this nanobody occurred in the low-nanosecond timescale. This is also in line with the good accordance of the order parameters, especially for the CDR3 loop. Thus, we showed that our MD ensemble characterizes and captures the relevant CDR loop conformations in solution that are important for antigen recognition.

Author Contributions

M.L.F.-Q. performed and analyzed MD simulations and drafted the manuscript. S.A.G. purified proteins and prepared NMR samples. E.F.D. acquired and analyzed NMR data. G.A.M. analyzed NMR and structural data. K.R.L. supervised the research. All authors contributed to writing the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Open Access Funding of the Austrian Science Fund (FWF) via the grants P30565, P30737, P34518, and DOC 30. This research was also supported in part by the Intramural Research Program of the NIH, National Institute of Environmental Health Sciences (Project Z01-ES102906 to G.A.M.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The PDB code for this deposition is 7V0V. The BMRB code for this deposition is 31020.

Acknowledgments

The computational results presented here have been achieved (in part) using the Vienna Scientific Cluster (VSC) and the LEO HPC infrastructure of the University of Innsbruck. We acknowledge PRACE for awarding us access to Piz Daint at CSCS, Switzerland.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hamers-Casterman, C.; Atarhouch, T.; Muyldermans, S.; Robinson, G.; Hammers, C.; Songa, E.B.; Bendahman, N.; Hammers, R. Naturally Occurring Antibodies Devoid of Light Chains. Nature 1993, 363, 446–448. [Google Scholar] [CrossRef] [PubMed]
  2. Vincke, C.; Muyldermans, S. Introduction to Heavy Chain Antibodies and Derived Nanobodies. In Single Domain Antibodies: Methods and Protocols; Saerens, D., Muyldermans, S., Eds.; Humana Press: Totowa, NJ, USA, 2012; pp. 15–26. ISBN 978-1-61779-968-6. [Google Scholar]
  3. Muyldermans, S. Nanobodies: Natural Single-Domain Antibodies. Annu. Rev. Biochem. 2013, 82, 775–797. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Revets, H.; De Baetselier, P.; Muyldermans, S. Nanobodies as Novel Agents for Cancer Therapy. Expert Opin. Biol. Ther. 2005, 5, 111–124. [Google Scholar] [CrossRef] [PubMed]
  5. Bannas, P.; Hambach, J.; Koch-Nolte, F. Nanobodies and Nanobody-Based Human Heavy Chain Antibodies As Antitumor Therapeutics. Front. Immunol. 2017, 8, 1603. [Google Scholar] [CrossRef]
  6. Wolfson, W. Ablynx Makes Nanobodies from Llama Bodies. Chem. Biol. 2006, 13, 1243–1244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Steeland, S.; Vandenbroucke, R.E.; Libert, C. Nanobodies as Therapeutics: Big Opportunities for Small Antibodies. Drug Discov. Today 2016, 21, 1076–1113. [Google Scholar] [CrossRef]
  8. Harmsen, M.M.; De Haard, H.J. Properties, Production, and Applications of Camelid Single-Domain Antibody Fragments. Appl. Microbiol. Biotechnol. 2007, 77, 13–22. [Google Scholar] [CrossRef] [Green Version]
  9. Muyldermans, S.; Atarhouch, T.; Saldanha, J.; Barbosa, J.A.R.G.; Hamers, R. Sequence and Structure of VH Domain from Naturally Occurring Camel Heavy Chain Immunoglobulins Lacking Light Chains. Protein Eng. Des. Sel. 1994, 7, 1129–1135. [Google Scholar] [CrossRef]
  10. Kabat, E.A.; National Institutes of Health (U.S.); Columbia University. Sequences of Proteins of Immunological Interest; U.S. Department of Health and Human Services, Public Health Service, National Institutes of Health: Bethesda, MD, USA, 1991.
  11. Chiu, M.L.; Goulet, D.R.; Teplyakov, A.; Gilliland, G.L. Antibody Structure and Function: The Basis for Engineering Therapeutics. Antibodies 2019, 8, 55. [Google Scholar] [CrossRef] [Green Version]
  12. Hoey, R.J.; Eom, H.; Horn, J.R. Structure and Development of Single Domain Antibodies as Modules for Therapeutics and Diagnostics. Exp. Biol. Med. 2019, 244, 1568–1576. [Google Scholar] [CrossRef]
  13. Lesk, A.M.; Chothia, C. Evolution of Proteins Formed by β-Sheets: II. The Core of the Immunoglobulin Domains. J. Mol. Biol. 1982, 160, 325–342. [Google Scholar] [CrossRef]
  14. Chothia, C.; Gelfand, I.; Kister, A. Structural Determinants in the Sequences of Immunoglobulin Variable Domain. J. Mol. Biol. 1998, 278, 457–479. [Google Scholar] [CrossRef] [PubMed]
  15. Zavrtanik, U.; Lukan, J.; Loris, R.; Lah, J.; Hadži, S. Structural Basis of Epitope Recognition by Heavy-Chain Camelid Antibodies. J. Mol. Biol. 2018, 430, 4369–4386. [Google Scholar] [CrossRef] [PubMed]
  16. Akiba, H.; Tamura, H.; Kiyoshi, M.; Yanaka, S.; Sugase, K.; Caaveiro, J.M.M.; Tsumoto, K. Structural and Thermodynamic Basis for the Recognition of the Substrate-Binding Cleft on Hen Egg Lysozyme by a Single-Domain Antibody. Sci. Rep. 2019, 9, 15481. [Google Scholar] [CrossRef]
  17. Regep, C.; Georges, G.; Shi, J.; Popovic, B.; Deane, C.M. The H3 Loop of Antibodies Shows Unique Structural Characteristics. Proteins Struct. Funct. Bioinforma. 2017, 85, 1311–1318. [Google Scholar] [CrossRef] [Green Version]
  18. Fernández-Quintero, M.L.; Pomarici, N.D.; Math, B.A.; Kroell, K.B.; Waibl, F.; Bujotzek, A.; Georges, G.; Liedl, K.R. Antibodies Exhibit Multiple Paratope States Influencing VH–VL Domain Orientations. Commun. Biol. 2020, 3, 589. [Google Scholar] [CrossRef]
  19. Fernández-Quintero, M.L.; Georges, G.; Varga, J.M.; Liedl, K.R. Ensembles in Solution as a New Paradigm for Antibody Structure Prediction and Design. mAbs 2021, 13, 1923122. [Google Scholar] [CrossRef]
  20. Fernández-Quintero, M.L.; Kroell, K.B.; Hofer, F.; Riccabona, J.R.; Liedl, K.R. Mutation of Framework Residue H71 Results in Different Antibody Paratope States in Solution. Front. Immunol. 2021, 12, 243. [Google Scholar] [CrossRef]
  21. Fernández-Quintero, M.L.; Kraml, J.; Georges, G.; Liedl, K.R. CDR-H3 Loop Ensemble in Solution—Conformational Selection upon Antibody Binding. mAbs 2019, 11, 1077–1088. [Google Scholar] [CrossRef]
  22. Allison, J.R. Assessing and Refining Molecular Dynamics Simulations of Proteins with Nuclear Magnetic Resonance Data. Biophys. Rev. 2012, 4, 189–203. [Google Scholar] [CrossRef] [Green Version]
  23. Papaleo, E.; Camilloni, C.; Teilum, K.; Vendruscolo, M.; Lindorff-Larsen, K. Molecular Dynamics Ensemble Refinement of the Heterogeneous Native State of NCBD Using Chemical Shifts and NOEs. PeerJ 2018, 6, e5125. [Google Scholar] [CrossRef] [PubMed]
  24. Kümmerer, F.; Orioli, S.; Harding-Larsen, D.; Hoffmann, F.; Gavrilov, Y.; Teilum, K.; Lindorff-Larsen, K. Fitting Side-Chain NMR Relaxation Data Using Molecular Simulations. J. Chem. Theory Comput. 2021, 17, 5262–5275. [Google Scholar] [CrossRef] [PubMed]
  25. Maragakis, P.; Lindorff-Larsen, K.; Eastwood, M.P.; Dror, R.O.; Klepeis, J.L.; Arkin, I.T.; Jensen, M.Ø.; Xu, H.; Trbovic, N.; Friesner, R.A.; et al. Microsecond Molecular Dynamics Simulation Shows Effect of Slow Loop Dynamics on Backbone Amide Order Parameters of Proteins. J. Phys. Chem. B 2008, 112, 6155–6158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Charlier, C.; Khan, S.N.; Marquardsen, T.; Pelupessy, P.; Reiss, V.; Sakellariou, D.; Bodenhausen, G.; Engelke, F.; Ferrage, F. Nanosecond Time Scale Motions in Proteins Revealed by High-Resolution NMR Relaxometry. J. Am. Chem. Soc. 2013, 135, 18665–18672. [Google Scholar] [CrossRef] [PubMed]
  27. Kleckner, I.R.; Foster, M.P. An Introduction to NMR-Based Approaches for Measuring Protein Dynamics. Biochim. Biophys. Acta 2011, 1814, 942–968. [Google Scholar] [CrossRef] [Green Version]
  28. Kubala, M.H.; Kovtun, O.; Alexandrov, K.; Collins, B.M. Structural and Thermodynamic Analysis of the GFP:GFP-Nanobody Complex. Protein Sci. 2010, 19, 2389–2401. [Google Scholar] [CrossRef] [Green Version]
  29. Kirchhofer, A.; Helma, J.; Schmidthals, K.; Frauer, C.; Cui, S.; Karcher, A.; Pellis, M.; Muyldermans, S.; Casas-Delucchi, C.S.; Cardoso, M.C.; et al. Modulation of Protein Properties in Living Cells Using Nanobodies. Nat. Struct. Mol. Biol. 2010, 17, 133–138. [Google Scholar] [CrossRef]
  30. Biswas, M.; Lickert, B.; Stock, G. Metadynamics Enhanced Markov Modeling of Protein Dynamics. J. Phys. Chem. B 2018, 122, 5508–5514. [Google Scholar] [CrossRef]
  31. Fernández-Quintero, M.L.; Seidler, C.A.; Liedl, K.R. T-Cell Receptor Variable β Domains Rigidify During Affinity Maturation. Sci. Rep. 2020, 10, 4472. [Google Scholar] [CrossRef]
  32. Pérez-Hernández, G.; Noé, F. Hierarchical Time-Lagged Independent Component Analysis: Computing Slow Modes and Reaction Coordinates for Large Molecular Systems. J. Chem. Theory Comput. 2016, 12, 6118–6129. [Google Scholar] [CrossRef]
  33. Chodera, J.D.; Noé, F. Markov State Models of Biomolecular Conformational Dynamics. Curr. Opin. Struct. Biol. 2014, 25, 135–144. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. David, A.; Case, H.N.; Daniel, R.; Roe, J.S. PYTRAJ: Interactive Data Analysis for Molecular Dynamics Simulations; Rutgers University: New Brunswick, NJ, USA, 2016. [Google Scholar]
  35. Nichols, P.J.; Born, A.; Henen, M.A.; Strotz, D.; Celestine, C.N.; Güntert, P.; Vögeli, B. Extending the Applicability of Exact Nuclear Overhauser Enhancements to Large Proteins and RNA. ChemBioChem 2018, 19, 1695–1701. [Google Scholar] [CrossRef] [PubMed]
  36. Nichols, P.J.; Born, A.; Henen, M.A.; Strotz, D.; Orts, J.; Olsson, S.; Güntert, P.; Chi, C.N.; Vögeli, B. The Exact Nuclear Overhauser Enhancement: Recent Advances. Molecules 2017, 22, 1176. [Google Scholar] [CrossRef] [PubMed]
  37. Fernández-Quintero, M.L.; Kroell, K.B.; Bacher, L.M.; Loeffler, J.R.; Quoika, P.K.; Georges, G.; Bujotzek, A.; Kettenberger, H.; Liedl, K.R. Germline-Dependent Antibody Paratope States and Pairing Specific VH-VL Interface Dynamics. Front. Immunol. 2021, 12, 2741. [Google Scholar] [CrossRef] [PubMed]
  38. Fernández-Quintero, M.L.; Seidler, C.A.; Quoika, P.K.; Liedl, K.R. Shark Antibody Variable Domains Rigidify Upon Affinity Maturation—Understanding the Potential of Shark Immunoglobulins as Therapeutics. Front. Mol. Biosci. 2021, 8, 226. [Google Scholar] [CrossRef]
  39. Fernández-Quintero, M.L.; Loeffler, J.R.; Kraml, J.; Kahler, U.; Kamenik, A.S.; Liedl, K.R. Characterizing the Diversity of the CDR-H3 Loop Conformational Ensembles in Relationship to Antibody Binding Properties. Front. Immunol. 2019, 9, 3065. [Google Scholar] [CrossRef]
  40. Fernández-Quintero, M.L.; Loeffler, J.R.; Bacher, L.M.; Waibl, F.; Seidler, C.A.; Liedl, K.R. Local and Global Rigidification Upon Antibody Affinity Maturation. Front. Mol. Biosci. 2020, 7, 182. [Google Scholar] [CrossRef]
  41. Mulder, F.A.A.; Skrynnikov, N.R.; Hon, B.; Dahlquist, F.W.; Kay, L.E. Measurement of Slow (Μs−ms) Time Scale Dynamics in Protein Side Chains by 15N Relaxation Dispersion NMR Spectroscopy:  Application to Asn and Gln Residues in a Cavity Mutant of T4 Lysozyme. J. Am. Chem. Soc. 2001, 123, 967–975. [Google Scholar] [CrossRef]
  42. Sharp, K.A. Chapter One-Companion Simulations and Modeling to NMR-Based Dynamical Studies of Proteins. In Methods in Enzymology; Wand, A.J., Ed.; Academic Press: Cambridge, MA, USA, 2019; Volume 615, pp. 1–41. ISBN 0076-6879. [Google Scholar]
  43. Gu, Y.; Li, D.-W.; Brüschweiler, R. NMR Order Parameter Determination from Long Molecular Dynamics Trajectories for Objective Comparison with Experiment. J. Chem. Theory Comput. 2014, 10, 2599–2607. [Google Scholar] [CrossRef]
  44. Mitchell, L.S.; Colwell, L.J. Comparative Analysis of Nanobody Sequence and Structure Data. Proteins Struct. Funct. Bioinforma. 2018, 86, 697–706. [Google Scholar] [CrossRef]
  45. Labute, P. Protonate3D: Assignment of Ionization States and Hydrogen Coordinates to Macromolecular Structures. Proteins 2009, 75, 187–205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Molecular Operating Environment (MOE); 1010 Sherbrooke St. West, Suite #910; MOE: Montreal, QC, Canada, 2020.
  47. Case, D.A.; Belfon, K.; Ben-Shalom, I.Y.; Brozell, S.R.; Cerutti, D.S.; Cheatham, T.E., III; Cruzeiro, V.W.D.; Darden, T.A.; Duke, R.E.; Giambasu, G.; et al. AMBER 2020; University of California, San Francisco: San Francisco, CA, USA, 2020. [Google Scholar]
  48. Hub, J.S.; de Groot, B.L.; Grubmüller, H.; Groenhof, G. Quantifying Artifacts in Ewald Simulations of Inhomogeneous Systems with a Net Charge. J. Chem. Theory Comput. 2014, 10, 381–390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. El Hage, K.; Hédin, F.; Gupta, P.K.; Meuwly, M.; Karplus, M. Valid Molecular Dynamics Simulations of Human Hemoglobin Require a Surprisingly Large Box Size. eLife 2018, 7, e35560. [Google Scholar] [CrossRef] [PubMed]
  50. Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of Simple Potential Functions for Simulating Liquid Water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
  51. Gapsys, V.; de Groot, B.L. Comment on “Valid Molecular Dynamics Simulations of Human Hemoglobin Require a Surprisingly Large Box Size”. eLife 2019, 8, e44718. [Google Scholar] [CrossRef]
  52. Maier, J.A.; Martinez, C.; Kasavajhala, K.; Wickstrom, L.; Hauser, K.E.; Simmerling, C. Ff14SB: Improving the Accuracy of Protein Side Chain and Backbone Parameters from Ff99SB. J. Chem. Theory Comput. 2015, 11, 3696–3713. [Google Scholar] [CrossRef] [Green Version]
  53. Wallnoefer, H.G.; Handschuh, S.; Liedl, K.R.; Fox, T. Stabilizing of a Globular Protein by a Highly Complex Water Network: A Molecular Dynamics Simulation Study on Factor Xa. J. Phys. Chem. B 2010, 114, 7405–7412. [Google Scholar] [CrossRef]
  54. Wallnoefer, H.G.; Liedl, K.R.; Fox, T. A Challenging System: Free Energy Prediction for Factor Xa. J. Comput. Chem. 2011, 32, 1743–1752. [Google Scholar] [CrossRef]
  55. Tribello, G.A.; Bonomi, M.; Branduardi, D.; Camilloni, C.; Bussi, G. PLUMED 2: New Feathers for an Old Bird. Comput. Phys. Commun. 2014, 185, 604–613. [Google Scholar] [CrossRef] [Green Version]
  56. Abraham, M.J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J.C.; Hess, B.; Lindahl, E. GROMACS: High Performance Molecular Simulations through Multi-Level Parallelism from Laptops to Supercomputers. SoftwareX 2015, 1–2, 19–25. [Google Scholar] [CrossRef] [Green Version]
  57. Pronk, S.; Páll, S.; Schulz, R.; Larsson, P.; Bjelkmar, P.; Apostolov, R.; Shirts, M.R.; Smith, J.C.; Kasson, P.M.; van der Spoel, D.; et al. GROMACS 4.5: A High-Throughput and Highly Parallel Open Source Molecular Simulation Toolkit. Bioinformatics 2013, 29, 845–854. [Google Scholar] [CrossRef] [PubMed]
  58. Domene, C.; Barbini, P.; Furini, S. Bias-Exchange Metadynamics Simulations: An Efficient Strategy for the Analysis of Conduction and Selectivity in Ion Channels. J. Chem. Theory Comput. 2015, 11, 1896–1906. [Google Scholar] [CrossRef] [PubMed]
  59. Barducci, A.; Bussi, G.; Parrinello, M. Well-Tempered Metadynamics: A Smoothly Converging and Tunable Free-Energy Method. Phys. Rev. Lett. 2008, 100, 020603. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Laio, A.; Gervasio, F.L. Metadynamics: A Method to Simulate Rare Events and Reconstruct the Free Energy in Biophysics, Chemistry and Material Science. Rep. Prog. Phys. 2008, 71, 126601. [Google Scholar] [CrossRef]
  61. Fernández-Quintero, M.L.; Pomarici, N.D.; Loeffler, J.R.; Seidler, C.A.; Liedl, K.R. T-Cell Receptor CDR3 Loop Conformations in Solution Shift the Relative Vα-Vβ Domain Distributions. Front. Immunol. 2020, 11, 1440. [Google Scholar] [CrossRef]
  62. Ramachandran, G.N.; Ramakrishnan, C.; Sasisekharan, V. Stereochemistry of Polypeptide Chain Configurations. J. Mol. Biol. 1963, 7, 95–99. [Google Scholar] [CrossRef]
  63. Roe, D.R.; Cheatham, T.E. PTRAJ and CPPTRAJ: Software for Processing and Analysis of Molecular Dynamics Trajectory Data. J. Chem. Theory Comput. 2013, 9, 3084–3095. [Google Scholar] [CrossRef]
  64. Salomon-Ferrer, R.; Götz, A.W.; Poole, D.; Le Grand, S.; Walker, R.C. Routine Microsecond Molecular Dynamics Simulations with AMBER on GPUs. 2. Explicit Solvent Particle Mesh Ewald. J. Chem. Theory Comput. 2013, 9, 3878–3888. [Google Scholar] [CrossRef]
  65. Berendsen, H.; van Postma, J.P.M.; van Gunsteren, W.; DiNola, A.; Haak, J.R. Molecular-Dynamics with Coupling to An External Bath. J. Chem. Phys. 1984, 81, 3684–3690. [Google Scholar] [CrossRef] [Green Version]
  66. Doll, J.D.; Myers, L.E.; Adelman, S.A. Generalized Langevin Equation Approach for Atom/Solid-Surface Scattering: Inelastic Studies. J. Chem. Phys. 1975, 63, 4908–4914. [Google Scholar] [CrossRef]
  67. Adelman, S.A.; Doll, J.D. Generalized Langevin Equation Approach for Atom/Solid-surface Scattering: General Formulation for Classical Scattering off Harmonic Solids. J. Chem. Phys. 1976, 64, 2375–2388. [Google Scholar] [CrossRef]
  68. Scherer, M.; Trendelkamp-Schroer, B.; Paul, F.; Pérez-Hernández, G.; Hoffmann, M.; Plattner, N.; Wehmeyer, C.; Prinz, J.-H.; Noé, F. PyEMMA 2: A Software Package for Estimation, Validation, and Analysis of Markov Models. J. Chem. Theory Comput. 2015, 11, 5525–5542. [Google Scholar] [CrossRef] [PubMed]
  69. Zagrovic, B.; van Gunsteren, W.F. Comparing Atomistic Simulation Data with the NMR Experiment: How Much Can NOEs Actually Tell Us? Proteins Struct. Funct. Bioinforma. 2006, 63, 210–218. [Google Scholar] [CrossRef] [Green Version]
  70. Palmer, A.G. NMR Characterization of the Dynamics of Biomacromolecules. Chem. Rev. 2004, 104, 3623–3640. [Google Scholar] [CrossRef] [PubMed]
  71. Ghosh, D.; Mueller, G.A.; Schramm, G.; Edwards, L.L.; Petersen, A.; London, R.E.; Haas, H.; Gupta Bhattacharya, S. Primary Identification, Biochemical Characterization, and Immunologic Properties of the Allergenic Pollen Cyclophilin Cat R 1. J. Biol. Chem. 2014, 289, 21374–21385. [Google Scholar] [CrossRef] [Green Version]
  72. Herrmann, T.; Güntert, P.; Wüthrich, K. Protein NMR Structure Determination with Automated NOE Assignment Using the New Software CANDID and the Torsion Angle Dynamics Algorithm DYANA. J. Mol. Biol. 2002, 319, 209–227. [Google Scholar] [CrossRef] [Green Version]
  73. Mueller, G.A.; Pari, K.; DeRose, E.F.; Kirby, T.W.; London, R.E. Backbone Dynamics of the RNase H Domain of HIV-1 Reverse Transcriptase. Biochemistry 2004, 43, 9332–9342. [Google Scholar] [CrossRef]
  74. Farrow, N.A.; Muhandiram, R.; Singer, A.U.; Pascal, S.M.; Kay, C.M.; Gish, G.; Shoelson, S.E.; Pawson, T.; Forman-Kay, J.D.; Kay, L.E. Backbone Dynamics of a Free and a Phosphopeptide-Complexed Src Homology 2 Domain Studied by 15N NMR Relaxation. Biochemistry 1994, 33, 5984–6003. [Google Scholar] [CrossRef]
  75. d’Auvergne, E.J.; Gooley, P.R. The Use of Model Selection in the Model-Free Analysis of Protein Dynamics. J. Biomol. NMR 2003, 25, 25–39. [Google Scholar] [CrossRef]
  76. Bieri, M.; d’Auvergne, E.J.; Gooley, P.R. RelaxGUI: A New Software for Fast and Simple NMR Relaxation Data Analysis and Calculation of Ps-Ns and Μs Motion of Proteins. J. Biomol. NMR 2011, 50, 147–155. [Google Scholar] [CrossRef]
  77. Kleckner, I.R.; Foster, M.P. GUARDD: User-Friendly MATLAB Software for Rigorous Analysis of CPMG RD NMR Data. J. Biomol. NMR 2012, 52, 11–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 23 05419 g001 550

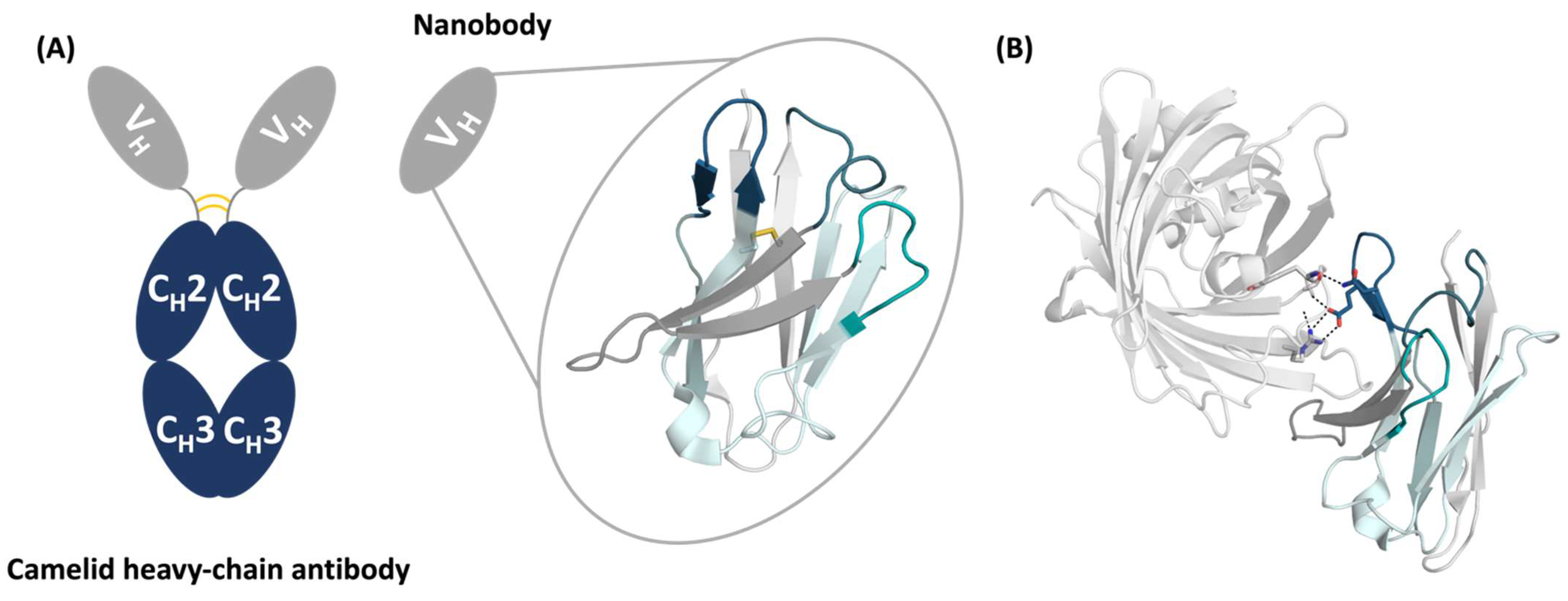

Figure 1. Structure of the anti-GPF nanobody with and without the antigen present. (A) Schematic representation of a heavy-chain-only antibody and a nanobody with the structure (PDB accession code: 3OGO). The CDR1, CDR2, and CDR3 loops are colored in teal, deep-teal, and dark blue, respectively. The conserved disulfide bridge is indicated in yellow. The FR1, FR2, FR3, and FR4 are illustrated in light grey, dark-grey, aquamarine, and turquoise, respectively. (B) Structure of the anti-GFP binding nanobody in complex with GFP. The dashed lines show interactions of the CDR3 loop with the antigen.
Figure 1. Structure of the anti-GPF nanobody with and without the antigen present. (A) Schematic representation of a heavy-chain-only antibody and a nanobody with the structure (PDB accession code: 3OGO). The CDR1, CDR2, and CDR3 loops are colored in teal, deep-teal, and dark blue, respectively. The conserved disulfide bridge is indicated in yellow. The FR1, FR2, FR3, and FR4 are illustrated in light grey, dark-grey, aquamarine, and turquoise, respectively. (B) Structure of the anti-GFP binding nanobody in complex with GFP. The dashed lines show interactions of the CDR3 loop with the antigen.
Ijms 23 05419 g001
Ijms 23 05419 g002 550

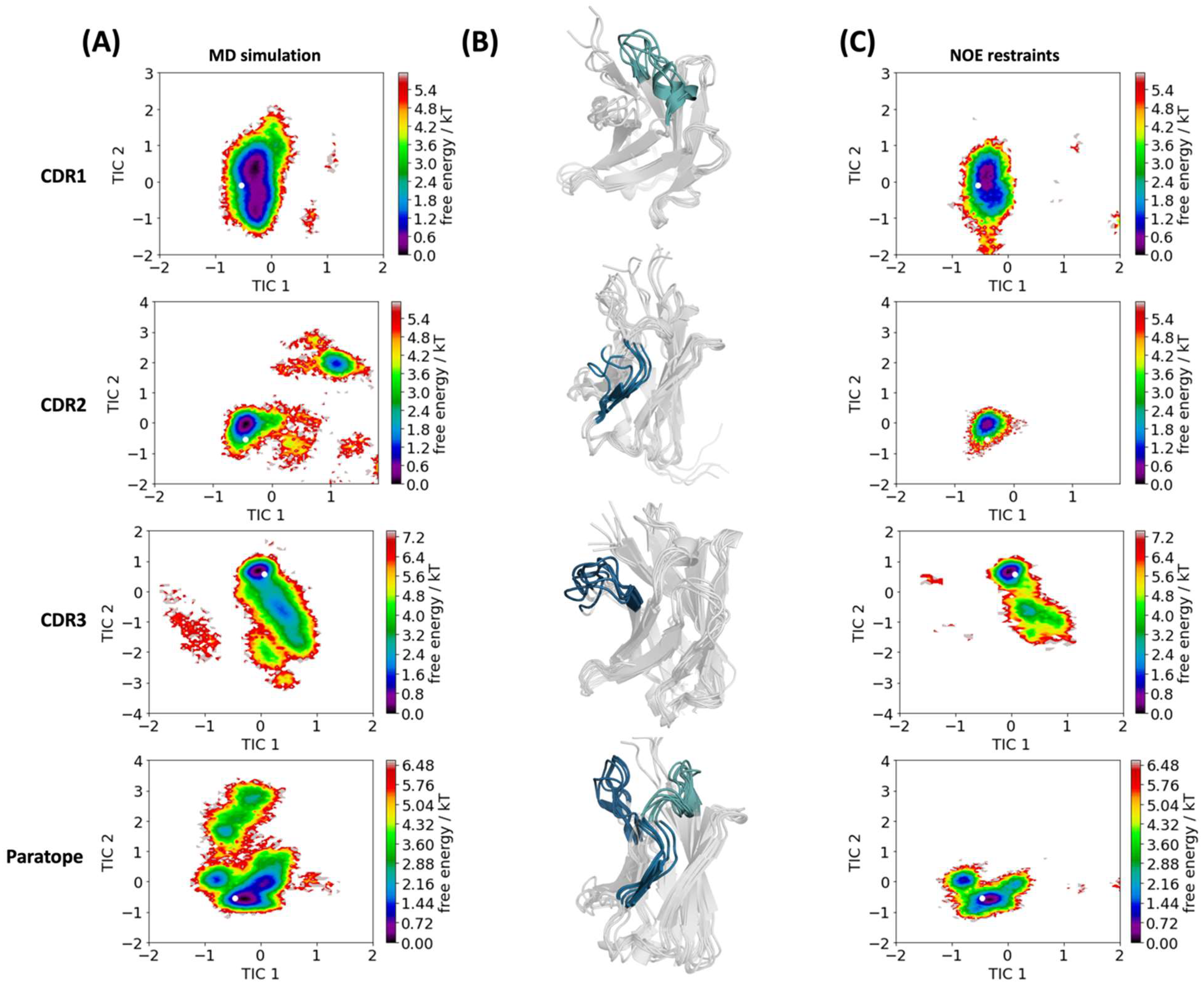

Figure 2. Free energy surfaces of the simulated MD ensemble (A) and the simulated NMR ensemble (C). Combined tICA of the simulated MD ensemble and the simulated NMR ensemble was performed to generate kinetic coordinate systems for each CDR loop and the whole paratope. tIC1 and tIC2 represent the directions of the two slowest movements of the system. The crystal structure is projected into these coordinate systems and illustrated as a white dot. (B)The respective structure representatives of the simulated MD ensembles are shown in the middle, focusing on the respective CDR loops.
Figure 2. Free energy surfaces of the simulated MD ensemble (A) and the simulated NMR ensemble (C). Combined tICA of the simulated MD ensemble and the simulated NMR ensemble was performed to generate kinetic coordinate systems for each CDR loop and the whole paratope. tIC1 and tIC2 represent the directions of the two slowest movements of the system. The crystal structure is projected into these coordinate systems and illustrated as a white dot. (B)The respective structure representatives of the simulated MD ensembles are shown in the middle, focusing on the respective CDR loops.
Ijms 23 05419 g002
Ijms 23 05419 g003 550

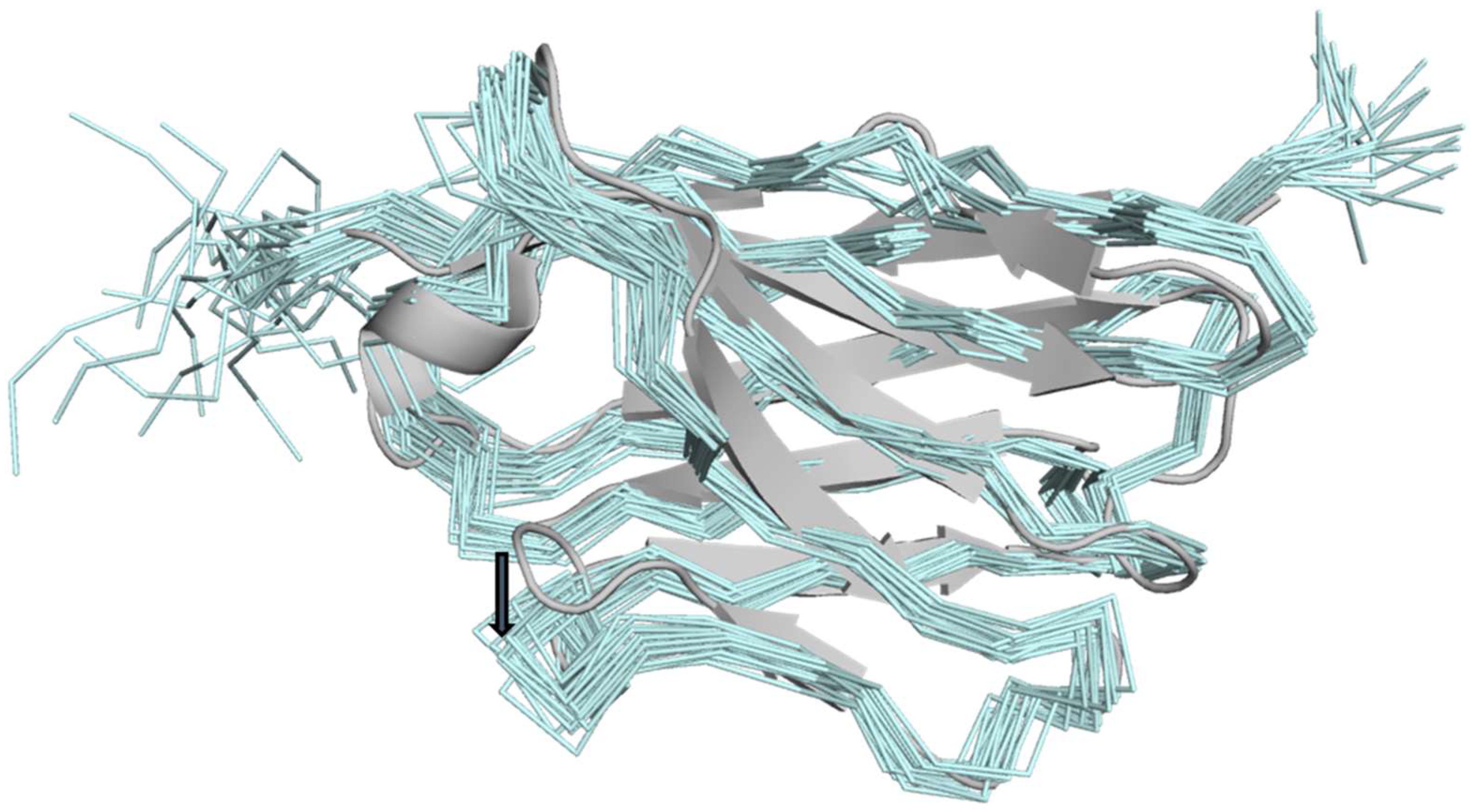

Figure 3. NMR ensemble compared to 3OGO. The NMR ensemble of 20 structures calculated by CYANA (aquamarine) is compared to the crystal structure 3OGO (grey). A dark-grey arrow indicates the displacement of residues 57–69.
Figure 3. NMR ensemble compared to 3OGO. The NMR ensemble of 20 structures calculated by CYANA (aquamarine) is compared to the crystal structure 3OGO (grey). A dark-grey arrow indicates the displacement of residues 57–69.
Ijms 23 05419 g003
Ijms 23 05419 g004 550

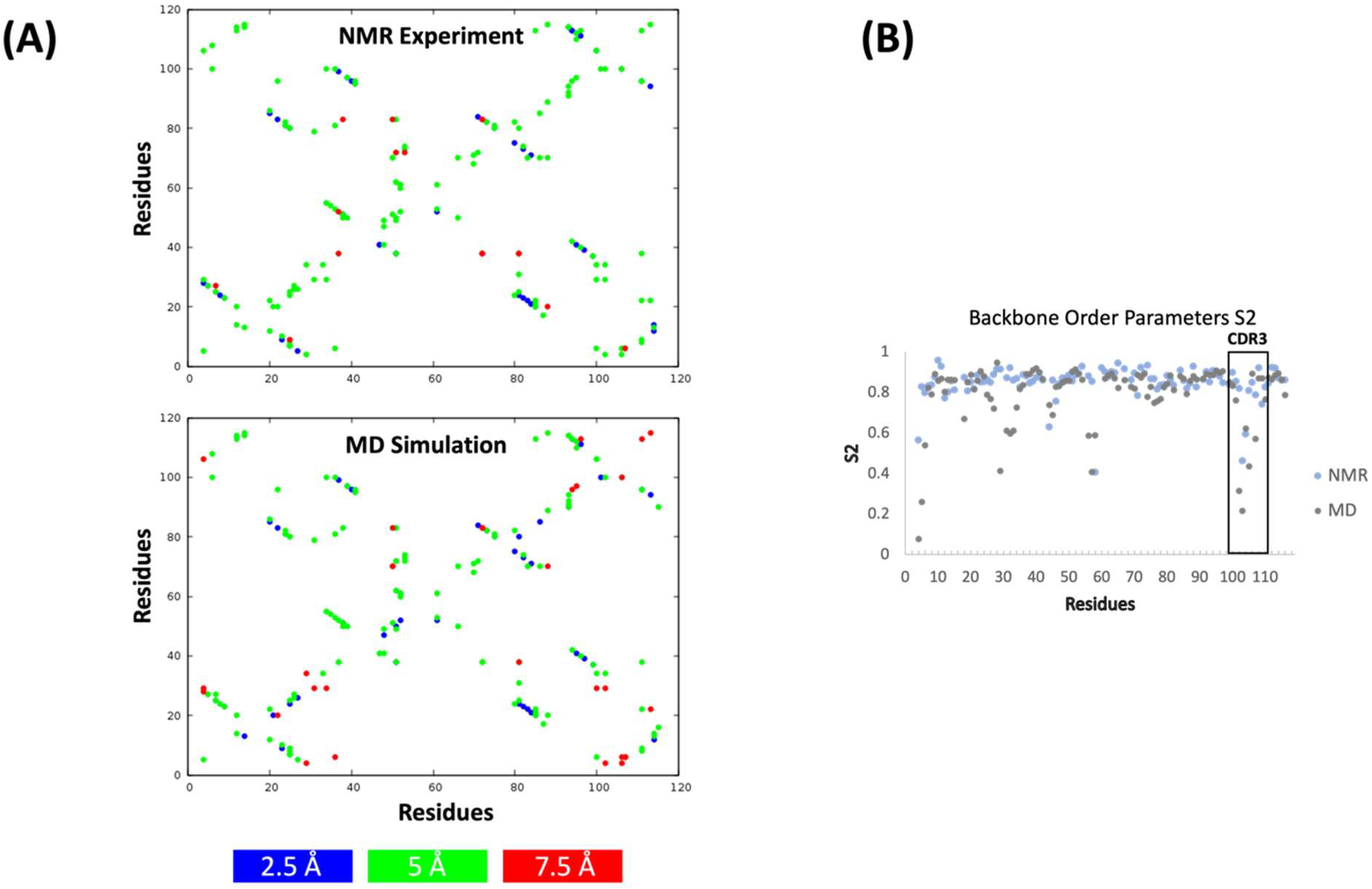

Figure 4. Calculated and experimentally measured NOE distances and order parameters (S2) for the anti-GFP nanobody. (A) Experimental upper NOE limits are shown on top, calculated NOE limits are shown at the bottom. (B) Experimental S2 and calculated S2 are colored in light-blue and grey, respectively.
Figure 4. Calculated and experimentally measured NOE distances and order parameters (S2) for the anti-GFP nanobody. (A) Experimental upper NOE limits are shown on top, calculated NOE limits are shown at the bottom. (B) Experimental S2 and calculated S2 are colored in light-blue and grey, respectively.
Ijms 23 05419 g004
Table
Table 1. Summary of restraints used for NMR structure determination and structure refinement statistics (20 structures) of experimental restraints.
Table 1. Summary of restraints used for NMR structure determination and structure refinement statistics (20 structures) of experimental restraints.
NOE Assigned by CYANA1194
Manually assigned NOEs171
H-Bond restraints38
Dihedral restraints194
Backbone RMSD (residues 3–113)1.5 Å
Ramachandran Space
Most Favored80.3 %
Additionally Allowed19.2 %
Generously Allowed0.5 %
Disallowed0
Violations
NOE (<0.2 Å)19
Dihedrals3
VDW close contacts8
