Transcriptomic Response of the Diazotrophic Bacteria Gluconacetobacter diazotrophicus Strain PAL5 to Iron Limitation and Characterization of the fur Regulatory Network

Abstract

Gluconacetobacter diazotrophicus has been the focus of several studies aiming to understand the mechanisms behind this endophytic diazotrophic bacterium. The present study is the first global analysis of the early transcriptional response of exponentially growing G. diazotrophicus to iron, an essential cofactor for many enzymes involved in various metabolic pathways. RNA-seq, targeted gene mutagenesis and computational motif discovery tools were used to define the G. diazotrophicus fur regulon. The data analysis showed that genes encoding functions related to iron homeostasis were significantly upregulated in response to iron limitations. Certain genes involved in secondary metabolism were overexpressed under iron-limited conditions. In contrast, it was observed that the expression of genes involved in Fe-S cluster biosynthesis, flagellar biosynthesis and type IV secretion systems were downregulated in an iron-depleted culture medium. Our results support a model that controls transcription in G. diazotrophicus by fur function. The G. diazotrophicus fur protein was able to complement an E. coli fur mutant. These results provide new insights into the effects of iron on the metabolism of G. diazotrophicus, as well as demonstrate the essentiality of this micronutrient for the main characteristics of plant growth promotion by G. diazotrophicus.

1. Introduction

Iron is an essential micronutrient for most microorganisms. However, it presents problems such as toxicity and solubility [1]. Iron bioavailability is low in cultivated soils, in the rhizosphere, as well as in plants; therefore, there is strong competition among microorganisms to fill these niches [2]. This evidence points toward iron as an important element in bacterial attachment, biofilm formation, competitive rhizosphere colonization, and colonization of host plant tissues [3,4,5,6].

Gluconacetobacter diazotrophicus species is a Gram-negative bacterium belonging to the α-proteobacteria, and its main feature is its capacity for biological nitrogen fixation (BNF). This bacterium was originally isolated from the stems and roots of different varieties of sugarcane [7]. In addition, its ability to colonize Arabidopsis thaliana, sorghum, sweet potato, pineapple, coffee, elephant grass and rice has been reported [8,9,10,11,12,13,14].

The benefits of G. diazotrophicus in promoting sugarcane growth opened the possibility of using this diazotrophic bacteria as a sugarcane inoculant. A new perspective on the study and exploration of this biotechnological potential is the result of the genome publication of this bacterium [15], which allowed a better understanding of the role played by this bacterium in the plant–bacteria interaction.

G. diazotrophicus iron homeostasis study is of interest for several reasons. First, iron is an important nutrient, serving as a cofactor for proteins involved in respiration, the tricarboxylic acid (TCA) cycle, enzyme catalysis, gene regulation, BNF and DNA biosynthesis, in addition to being essential for host tissue colonization [3,5,16]. Iron not only acts as a cofactor in G. diazotrophicus, but also as an important element for growth, nitrogenase activity and biofilm formation [17,18].

In many bacteria, the Ferric-uptake regulator (fur) is involved in the coordinated regulation of gene expression in response to iron availability. Fur utilizes Fe²⁺ as a cofactor, represses the expression of iron uptake and metabolism genes under iron sufficiency and causes downregulation in the absence of Fe²⁺ under conditions of iron restriction. Fur-Fe²⁺ also has been reported to be involved in the positive regulation of expression of genes involved in iron storage proteins, superoxide dismutase, and catalase [19].

In addition, ferric iron binding transcription factor XibR, which belongs to the NtrC family of proteins in Xanthomonas campestris, plays a dual role in iron metabolism, suppresses siderophore expression under iron-replete conditions, and positively regulates the expression of outer membrane receptors for iron/iron complex uptake [20]. Like fur and DtxR, IdeR binds iron and then interacts with a specific sequence in the operator regions of iron-regulated genes to control their transcription. Generally, IdeR acts as a global regulator coordinating iron homeostasis, morphological differentiation, central metabolism, secondary metabolism, and oxidative stress responses [21].

We have previously demonstrated, using a G. diazotrophicus mutant for the tonB gene, that the TonB complex of G. diazotrophicus has a role in the transport of Fe³⁺-siderophore complexes and may have an essential function in the endophytic lifestyle of this organism [18]. The aim of the present work was to determine the transcriptional response of G. diazotrophicus to iron availability and to investigate the role of the ferric uptake regulator Fur in G. diazotrophicus iron homeostasis. For this purpose, we applied RNA-seq, RT-qPCR, lacZ reporter fusions, fur insertional mutants and computer-aided genome searches to characterize the G. diazotrophicus fur regulon. The results of this work increased our understanding of the responses to iron deficiency in G. diazotrophicus.

2. Results

2.1. Differentially Expressed Gene Identification and Iron-Activated and Repressed Genes by Functional Category

To further advance our knowledge related to iron-regulated genes in the G. diazotrophicus strain PAL5, the changes induced in the transcriptome of iron-starved PAL5 following iron treatment were investigated. The transcriptional profile of PAL5 in the presence and absence of iron generated an average of approximately 14 million reads for both treatments, with approximately 2 million mapped only to the genome of PAL5 (NCBI accession number NC_010125.1, NC_010124.1 and NC_010123.1) when cultured in iron-starved PAL5 cells induced by iron (Table S1).

The biological replicates showed a remarkably high correlation level within each treatment with regard to the ORF-mapped read counting (r² > 0.99) (Figure S1). In the transcriptomic analysis, 324 genes were identified, representing 9.28% of the PAL5 genome. These included 96 (2.75%) upregulated and 228 (6.53%) downregulated genes, at least a 1.2-fold change, after exposure to iron-limiting conditions (Table S2).

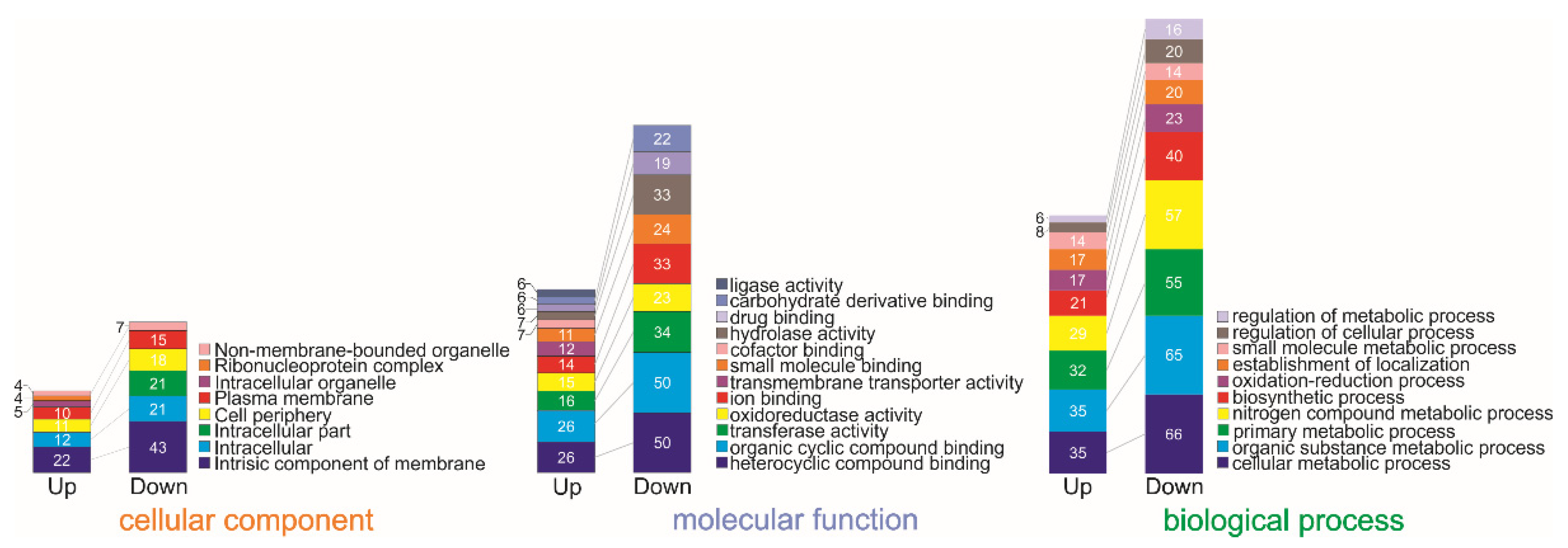

In total, 56 Gene Ontology (GO) terms were assigned to 324 genes. Most of the GO terms were attributed to molecular function (39.3%), followed by biological process (35.7%) and cell sharing (25%). The terms GO were derived from 30 different functional groups (GO subcategories, level 3) (Figure 1). The largest subgroups within the biological process superclass were assigned to “cellular metabolic process,” “organic substance metabolic process,” “primary metabolic process” and “nitrogen compound metabolic process,” while within the molecular function superclass were “heterocyclic compound binding,” “organic cyclic compound binding,” “transferase activity,” “oxidoreductase activity,” and “ion binding.” The majority within the cellular component superclass were assigned the categories “intrinsic component of membrane”, “intracellular” and “intracellular part”.

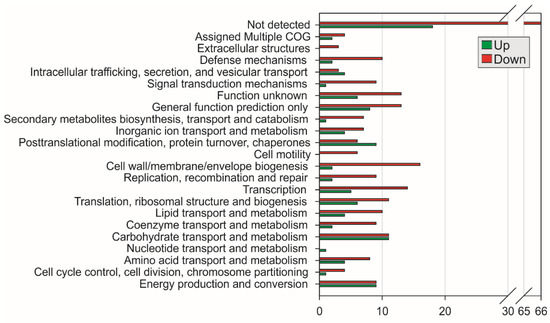

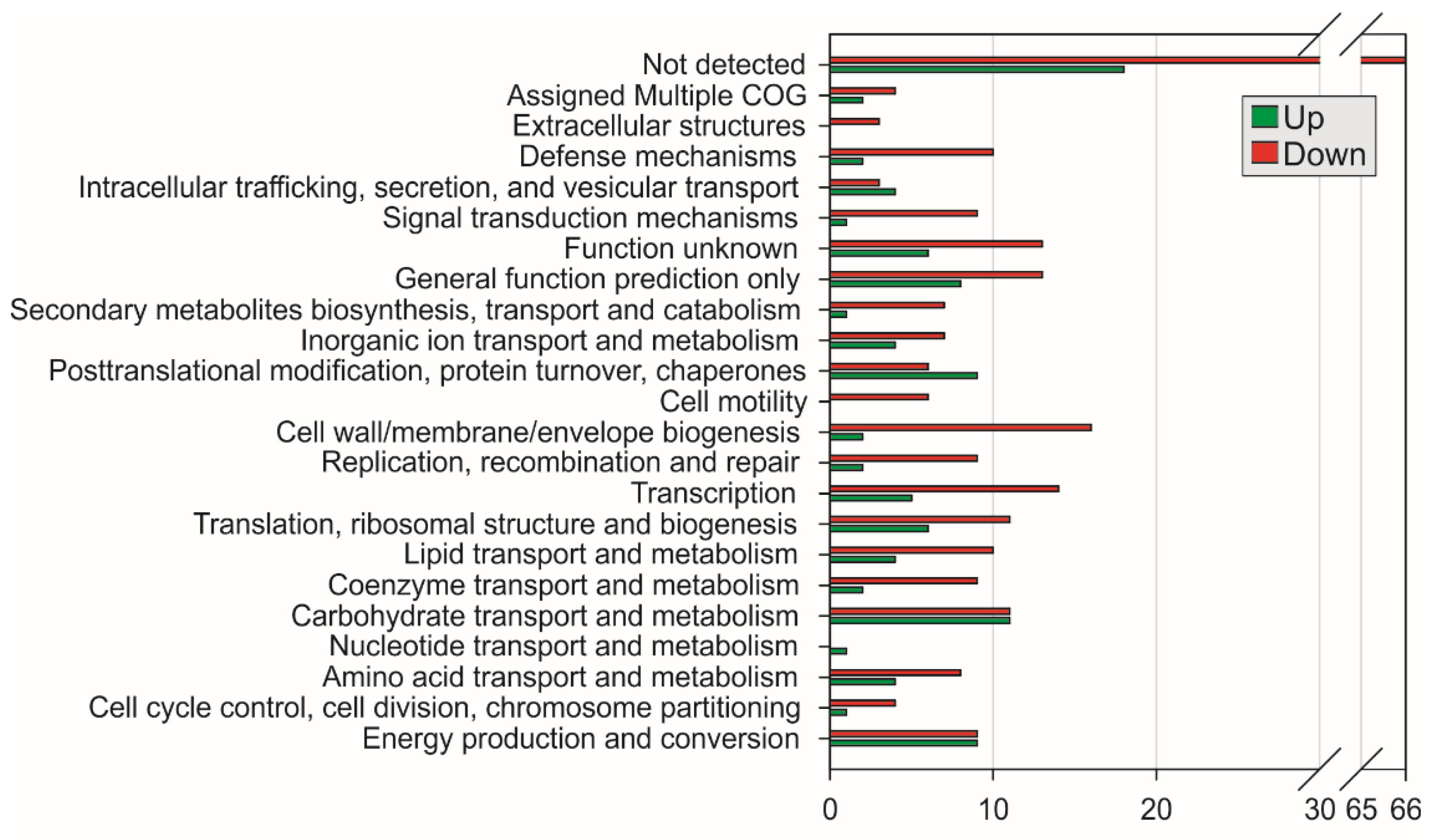

Regarding COG, most upregulated genes belong to the functional classes of function unknown, carbohydrate transport and metabolism, energy production and conversion. (Figure 2). On the other hand, downregulated genes belong to the cell wall/membrane/envelope biogenesis, transcription, general function prediction only, and function unknown. (Figure 2). A large group of genes belonging to the category of not detected have been identified.

2.2. Main Metabolic Changes in Bacterial Adaptation to Iron-Limiting Conditions

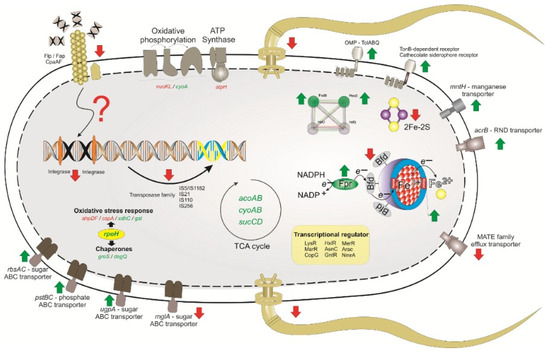

Many genes undergoing transcriptional changes were known or predicted to be involved in iron homeostasis (Figure 3). When comparing gene expression between LGI-P media without or with added iron, the results showed that iron stimulus controls genes that are important for metabolic activities in PAL5 (Table S2).

Three genes coding for TonB-dependent siderophore receptors were differentially expressed, the gene fiu, a catecholized siderophore receptor, was upregulated and two copies of the CirA (GDI_3807 and GDI_1948) were downregulated in the transcriptome analysis. Cultivation in the presence of iron also upregulated genes encoding biopolymer transport proteins (exbB and tolC), omp (GDI_0807), fpr (GDI_2217) that codes for ferredoxin reductase, and one ortholog of the NRAMP family transporters known in bacteria as mntH (GDI_0654). It also downregulated genes encoding bacterioferritin (GDI_3449), Fdx (2Fe-2S Ferredoxin), CoxS [(2Fe-2S)-binding protein] and HybA (4Fe-4S ferredoxin).

The results for the major facilitator superfamily (MFS) transporter include the tppB gene, which encodes putative tripeptide permease and GDI_0037 that was downregulated. However, only the galP gene that encodes for a galactose-proton symporter was overexpressed. In addition, several genes coding for efflux pumps of resistance-nodulation-division (RND) multidrugs were upregulated. These include the operon genes for mdtABC and acrAB, which were downregulated and overexpressed, respectively.

Among the overexpressed ATP-binding cassette (ABC) transporter genes, there were three for saccharide, polyol and lipid transporters (ugpA, rbsA and rbsC), two for phosphate and amino acid transporters (pstB and pstC) and one peptide and one nickel transporter (GDI_0466). Among the downregulated transporters, there were one cell division transporter (GDI_3296), one for amino acid transporters (GDI_3296), and one for oligopeptide and nickel transport systems (GDI_0248).

The trbB (GDI_2745) and trbD (GDI_2912) genes involved in assembling the filament of type IV secretion systems (T4SS) were suppressed after iron treatment. Curiously, members of the peroxiredoxin family of antioxidant peroxidases encoded in the G. diazotrophicus genome, bcp (GDI_2772), ahpD (GDI_0576) alkyl hydroperoxide reductase and ahpF (GDI_0773) alkyl hydroperoxide reductase subunit F, were downregulated under this condition, as were transcripts for cspA (GDI_3810), which codes for a cold heat shock protein. In contrast, transcripts for thioredoxin, thioredoxin reductase (GDI_3513), GroS, gsT, xdhC and degQ gene were upregulated in the presence of iron. RNA polymerase for a specialized set of genes in response to ecophysiological signals, such as rpoH, was also upregulated.

Genes encompassing energy generation encoding pyruvate dehydrogenase E1 alpha and beta subunits (GDI_1939, GDI_1940) and phosphoenolpyruvate dikinase (GDI_1318) were upregulated in the presence of iron. The sucCD genes (GDI_2951; GDI_2952) involved in TCA, proponoate and C-5 Branched were also upregulated. In addition, the cyoA gene (GDI_2035), which codes for cytochrome ubiquinol oxidase subunit II, and cyoB (GDI_2101), which codes for cytochrome-c oxidase, showed positive regulation. However, the nuoI NADH-quinone oxidoreductase subunit I (GDI_3032), nuoK NADH-quinone oxidoreductase subunit B (GDI_3310) and atpH ATP synthase subunit delta (GDI_0693) involved in oxidative phosphorylation were downregulated.

Altogether, 10 related cell wall genes were downregulated. Among the downregulated genes, two copies of the rfaG genes coding for glycosyltransferases were found, as well as two copies of mltE genes coding for lytic transglycosylase, lpxK a-tetraacyldisaccharide 4’-kinase, mrcA a penicillin-binding protein 1A, asmA, wcaG an epimerase and ompA a peptidoglycan-associated lipoprotein. A gene encoding a Lipid A core-O-antigen ligase (rfaL) was upregulated.

Genes involved in bacterial chemotaxis and flagellar structure fliQ (GDI_1658), flhB (GDI_1660), fliG (GDI_1677) and fliP (GDI_1681) were widely downregulated in the strain PAL5 cultured in absence of iron. In addition, under the tested conditions, the type I pilus components cpaA, cpaF and GDI_1704 (putative Flp/Fap pilin component) were downregulated. Interestingly, only one cheD gene, a putative chemotaxis protein, cheY, was upregulated.

Genes involved in regulation, clustering Fe-S and BNF were differentially expressed. The ntrX (GDI_2263), nrfA (GDI_2262), HesB and fxdB genes (GDI_2370) were all downregulated, as were the nifH (GDI_0436) and nifK (GDI_0438) genes.

Seven transposase genes belonging to five different families (IS5/IS1182, IS21, IS110, and IS256) were upregulated. Transcriptional regulators were modulated, where 19 genes (6 LysR, 2 MarR, CopG, HxlR, AsnC, GntR, MerR, Arac, NmrA) were differentially expressed, 14 of which were downregulated in the presence of iron.

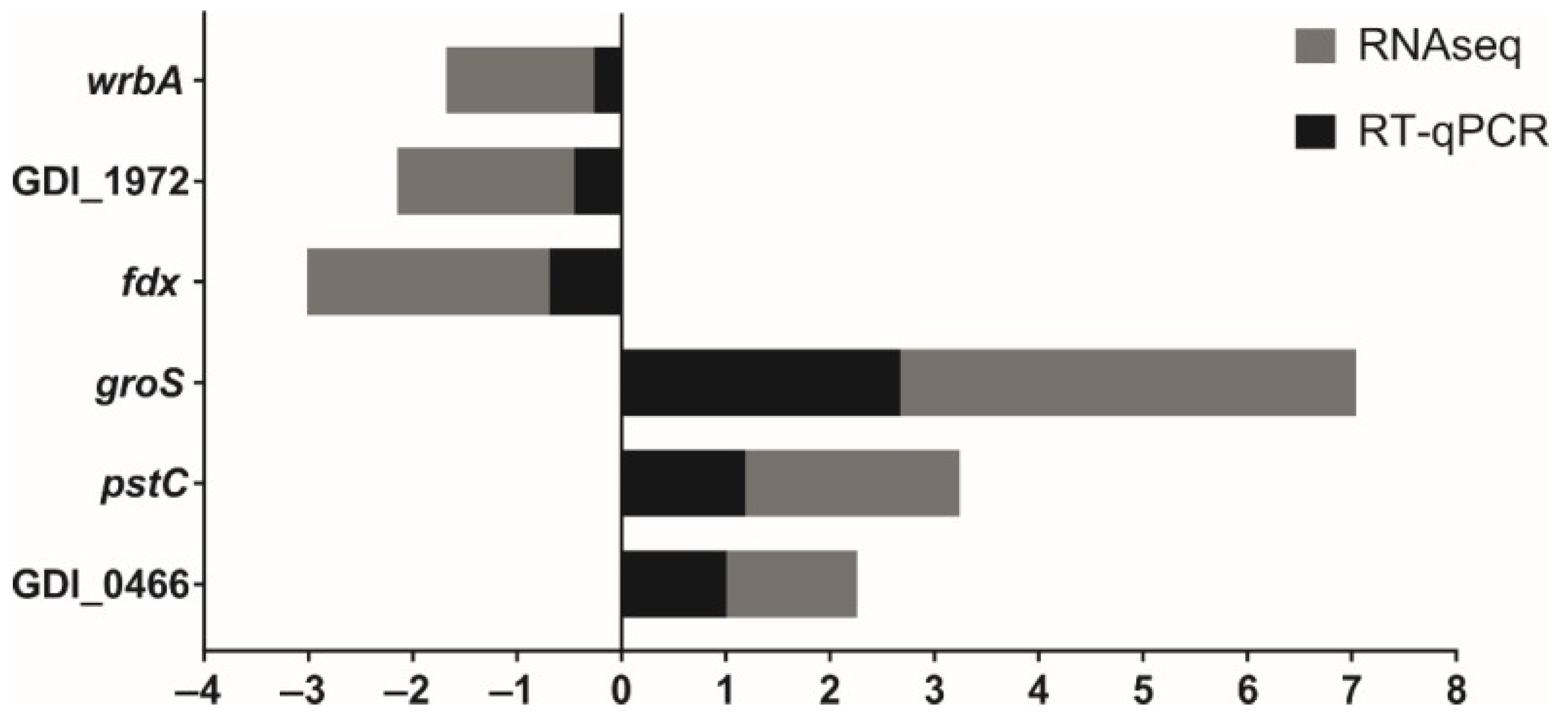

The data obtained by RNA-seq were validated by RT-qPCR using random genes and differentially expressed (wrbA, GDI_1972, GDI_0466, fdx, groS, pstC) when cultured in iron-limiting conditions. The reference genes rhO and rpoD were used as internal controls (Figure 4).

2.3. Identification of fur Box Sequences in the G. diazotrophicus Genome

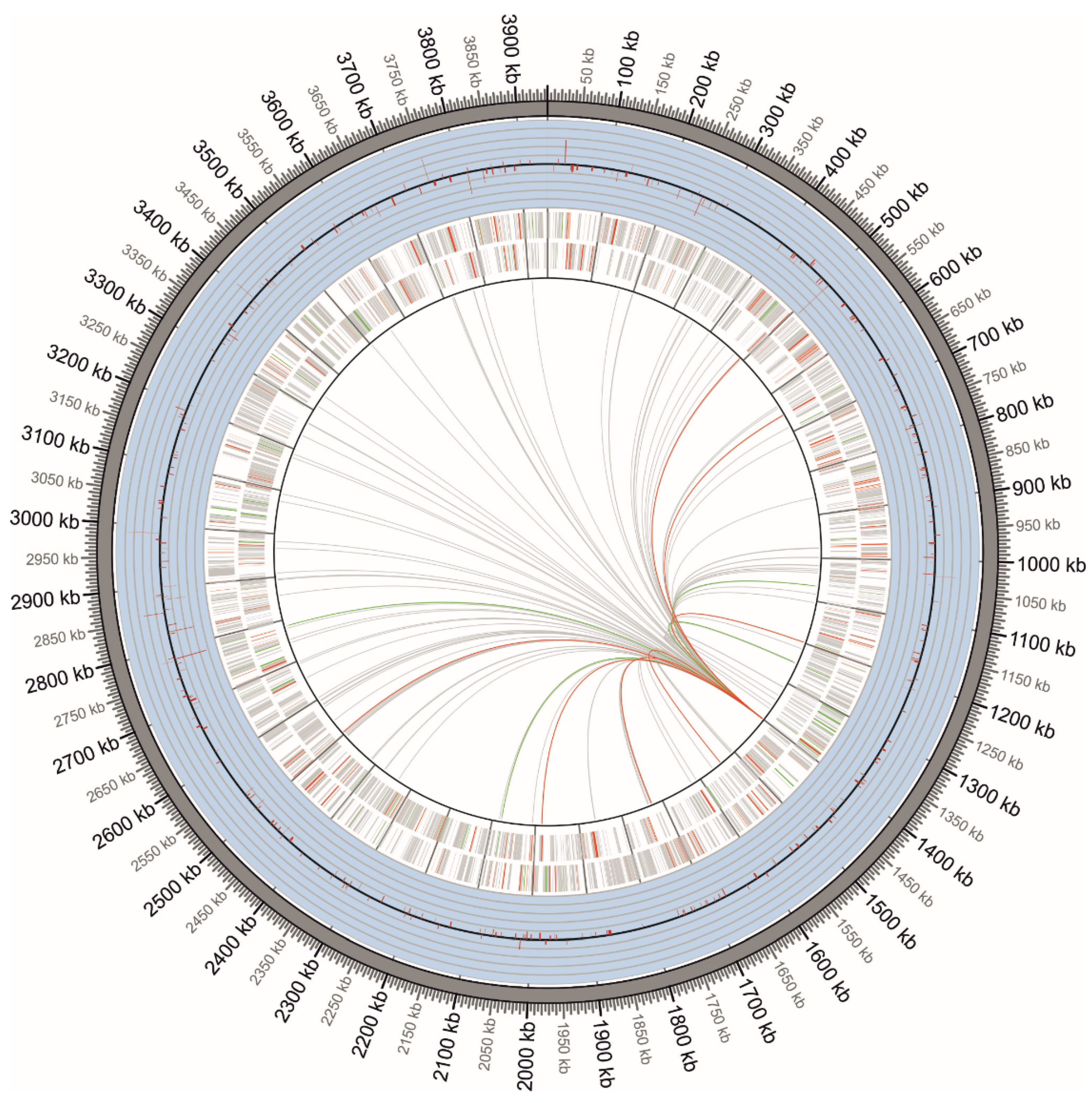

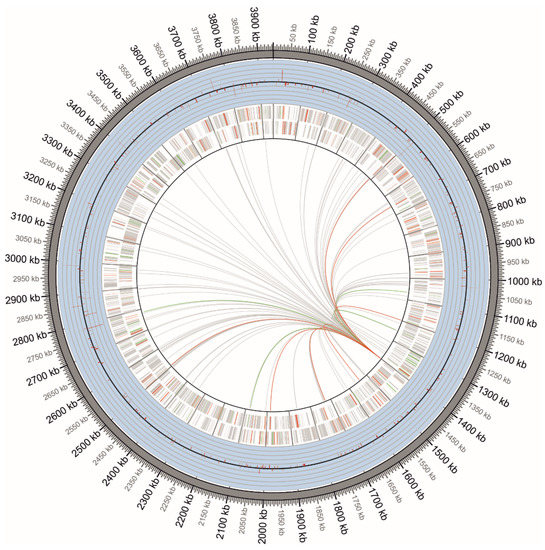

To identify genes directly regulated by fur, different weight matrices were used to locate potential fur-binding sites in the G. diazotrophicus genome. Several potential fur-binding sites were detected (Table S3). Candidate G. diazotrophicus fur-binding sites derived from both bioinformatic prediction routines and RNA-seq were aligned and used to derive the corresponding logos (Figure 5). To obtain a more realistic estimate of the total number of genes regulated by fur, the genes associated with fur binding sites were analyzed regarding their presence in the transcriptome in response to iron availability (Figure 6).

Predicted fur-binding sites were identified upstream of several genes and/or operons encoding proteins involved in iron acquisition and transportation (GDI_3807, GDI_0553, GDI_0207 GDI_1223, tonB, feuA, feuB), NADH dehydrogenase (nuoA, nuoB, nuoCD, nuoE, nuoF, nuoG, nuoH, nuoI, nuoJ, nuoK, nuoL, nuoM, nuoN, lao), succinate dehydrogenase (sdh), aconitate hydratase (acnA), cytochrome c oxidase (cyoA, cyoB), tryptophan biosynthesis (tprB, trpA, aldA) and enzyme nitrogenase (nifA, nifB, nifD, nifH) and LysR transcriptional regulator (GDI_0187).

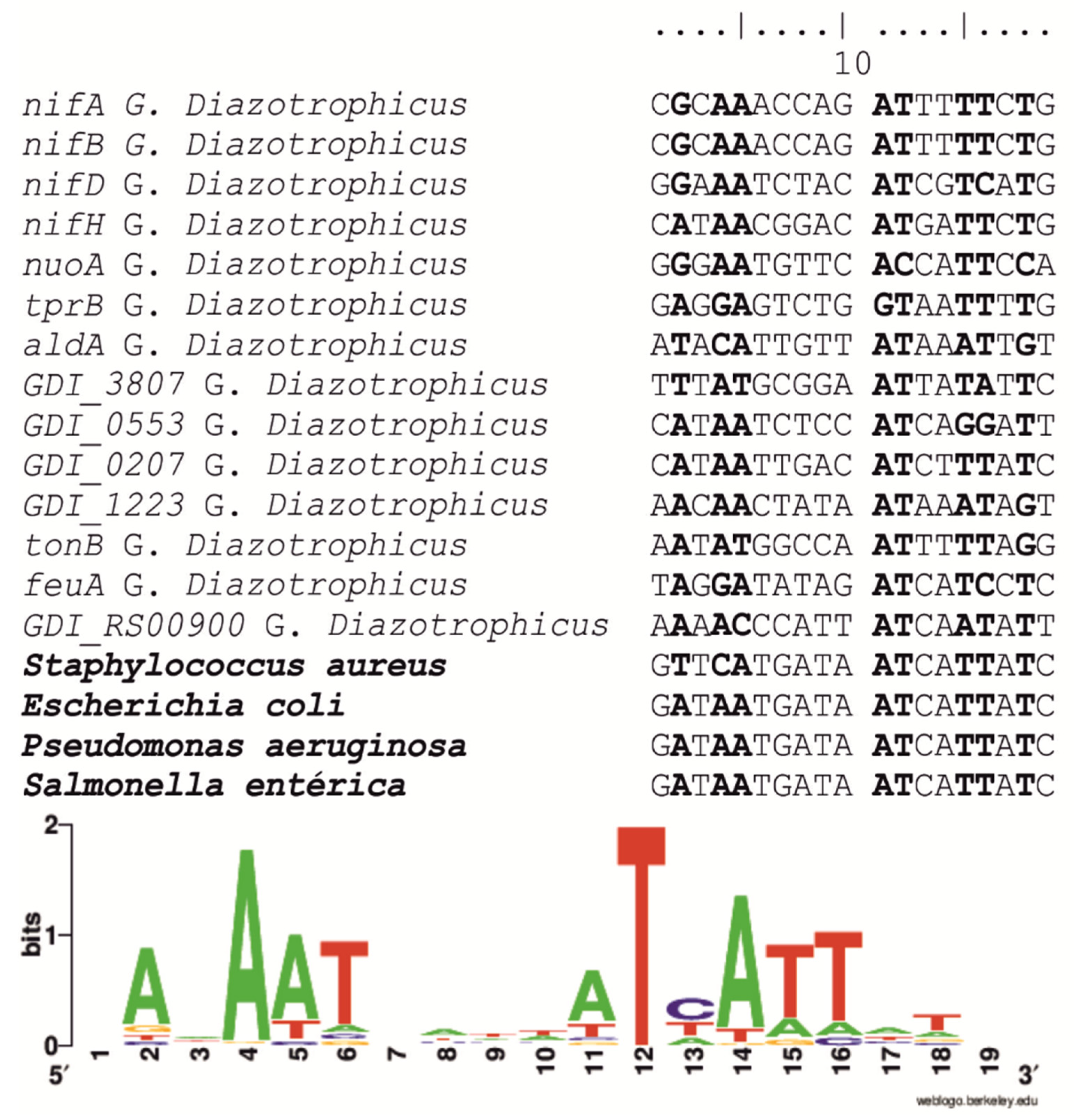

The DNA sequence logos derived from all predicted fur-binding sites are represented in Figure 4. The consensus sequence contains a 19-bp palindromic motif (9-1-9 inverted repeat) that is highly similar to the previously described fur-box [22].

2.4. Production of Siderophores in Response to Iron Limitations

According to the data in Figure 7, G. diazotrophicus PAL5 showed an increase in the production of siderophores when cultivated in the LGI-P medium without the presence of iron (47% siderophores). On the other hand, the level of siderophores drastically reduced in the presence of 37 µM FeCl3 (16 % siderophores).

2.5. fur Insertional Mutants and Complementation of an E. coli fur Mutant by G. diazotrophicus fur Homologs

To address the physiological role played by fur in G. diazotrophicus, attempts to generate fur-null bacterial mutants were made but unsuccessful, suggesting that mutation in the fur gene (single copy) is lethal to the PAL5 strain. However, complementation of E. coli H1780 with pGGdfur (from strain PAL5) rescued the fur defect of this strain and resulted in repression of the transcribed fiu-lacZ reporter gene (Figure 8).

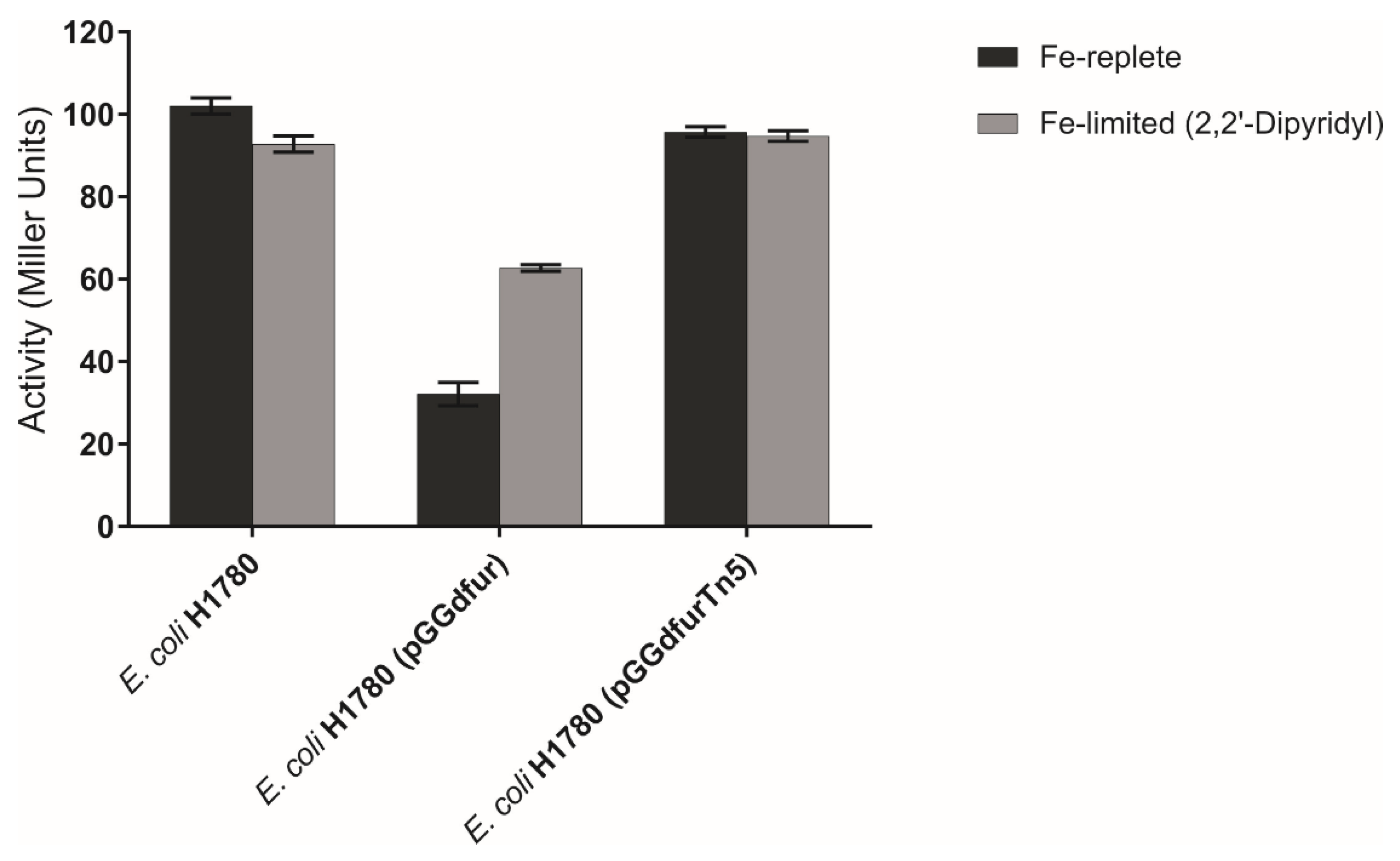

Since the complementation of the E. coli H1780 fur mutant strain is related to the transcription of the fiu-lacZ reporter gene, the β-Galactosidase activity was measured accurately (Figure 9). The results showed that the β-Galactosidase activity is much higher in constructs that lack functional Fur protein E. coli H1780 and E. coli H1780 (pGGdfurTn5). The E. coli H1780 (pGGdfur), the functional Fur protein, when in the presence of iron, forms the Fur-Fe²⁺ complex and blocks the transcription of the fiu-lacZ gene and the enzyme is not encoded. In the absence of iron, due to the addition of 2,2′-dipyridyl, an iron-chelating agent, the enzyme activity was higher, as there was no iron available in the medium, and Fur-Fe²⁺ complex transcription was not blocked.

3. Discussion

3.1. Iron Availability Promotes Changes in the G. diazotrophicus Transcriptome

Iron homeostasis is extremely important to bacteria and is believed to be required to enable plant growth promotion; however, the existing information on iron homeostasis is insufficient to understand this phenomenon. de Paula Soares et al. [18] showed that iron homeostasis plays an essential function in the endophytic lifestyle.

First, to define the iron G. diazotrophicus limitation stimulus, we compared the growth curve of PAL5 wild-type cells treated with 37 μM FeCl₃ with that of wild-type cells treated with 0 μM FeCl₃ for 48 h. Our results from the differential expression experiments showed that most of these genes related to iron homeostasis in PAL5 were completely repressed (227 genes) and the other induced partially (96 genes) under iron-limiting conditions, reflecting the rigid regulation of these genes (Table S2). This pattern of gene expression in the first 30 min after adding iron, preceded by a long period of iron starvation, appears to reveal the modulation of essential genes that respond quickly to iron hunger and allow the expression of the right genes to restore iron homeostasis in the cell.

3.2. Metabolic Pathways and Iron Uptake

As expected, in our in vitro assays in which G. diazotrophicus grew under iron-limiting conditions, catecholate siderophore-mediated acquisition systems (fiu) and TonB-dependent receptors (e.g., cirA) appeared to be the most successful strategies for overcoming iron limitations. Similar expression profiles of fiu and cirA were observed in Herbaspirillum seropedicae under iron-limiting conditions [23]. It is important to highlight the induction of the exbB gene that is part of the tonB-exbB-exbD operon; the TonB–ExbB–ExbD protein complex participates in the active transport of iron–siderophore complexes, nickel complex, carbohydrates and vitamin B12 across the outer membrane [24]. The transcription of tonB and exbD genes in G. diazotrophicus was also upregulated upon iron limitation but missed the cut-off criteria. In previous experiments, we used RT-qPCR to measure tonB-exB-exbD gene transcription in iron-limited conditions and provided evidence that the TonB complex of G. diazotrophicus plays a role in the transport of Fe³⁺-siderophore complexes [18].

In addition to TonB-ExbB-ExbD, some bacteria have an analogous system called TolA-TolQ-TolB [25]. The genes that code for the tolQ and tolB proteins are structurally and functionally similar to exbB and exbD, respectively, and were upregulated in the presence of iron. It is noteworthy that the tolQ gene had a high number of transcripts in the transcriptomic analysis. Interestingly, the omp gene, which is part of the same operon as the tolB gene, was highly expressed in both analyses, with a greater number of transcripts in the absence of iron. TolA-TolQ-TolR, in addition to providing necessary energy for the transport of colicins and cobalamin in E. coli, may also be involved in the absorption of sugars, polyols and amino acids [26].

The adaptive response of PAL5 to iron starvation included the under expression of defense systems genes. Among the genes repressed by iron limitation are multidrug resistance (MDR) efflux pumps. Our hypothesis is that the repression of these genes is part of the bacterial response to the negative energy balance caused by the long period of unavailable iron. The activity of an efflux pump depends on the different types of energy sources that each MDR system uses [27].

Most of the TonB-dependent transporters in the PAL5 strain, however, do not appear to be involved in the assimilation of iron, but rather in the intake of sugars, lipids, peptides, proteins and drugs across the cytoplasmic membrane. Apparently, there was a balance in the activation or repression of genes related to carbon and transport systems in PAL5 cells. However, a larger number of ABC-type sugar transporters were upregulated after the addition of iron. A sugar ABC transporter periplasmic protein was upregulated in H. seropedicae under iron starvation conditions [23]. This balance could be an artifact of the bacteria saving energy, since their metabolism is very active and the initial iron deficiency, an enzymatic cofactor for many central carbon metabolic reactions, affects the energetic balance, resulting in low activity of carbon metabolism.

This study demonstrated that the bfd gene that codes for bacterioferrin associated with iron homeostasis (2Fe-2S) (GDI_3449) was expressed more in the absence of iron. In contrast, the fpr gene (GDI_2217) that codes for ferredoxin reductase was expressed more in the presence of iron. Similar results were observed for Pseudomonas aeruginosa [28,29]. The Bfd accepts the electrons from the Fpr and transfers them to the Fe³⁺ which is stored in the heme-containing bacterioferrins, allowing the release and mobilizing Fe²⁺ to the cytosol [30,31].

Iron has chemical properties that can pose challenges, such as the generation of the hydroxyl radical [32]. Our data suggest that G. diazotrophicus does not suffer oxidative stress after 30 minutes of iron being made available, since no induction of superoxide dismutase (sodA) or catalase type E (katE) was observed. In addition, genes with well-known roles in defense against oxidative stress were also downregulated, including bcp (GDI_2772), ahpD (GDI_0576) alkyl hydroperoxide reductase and ahpF (GDI_0773) alkyl hydroperoxide reductase subunit F. Other genes, such as gsT, were upregulated but with low levels of transcription. It is possible that the concentration of iron used in this study was not sufficient to induce oxidative stress or that G. diazotrophicus had not yet responded to oxidative stress during the period examined.

Interestingly, heat shock genes were also upregulated by iron limitation, as were some genes encoding peptidases containing metals as cofactors, which is consistent with previous observations in Shewanella oneidensis [33], Caulobacter crescentus [34] and Piscirickettsia salmonis [35]. Induction of these genes might be directly mediated by the heat shock sigma factor RpoH (σ³²), because their own rpoH gene is upregulated in iron limitation [34], which corroborates the induction of the rpoH gene observed in our results. In G. diazotrophicus, nothing is known about the transcriptional regulation of rpoH, but since rpoH expression is largely constitutive, it is likely that transcriptional regulation plays a significant role in response to stress that destabilizes and denatures proteins.

Most genes with positive iron effects appear to be involved in energy metabolism, such as subunits of respiratory chain complexes (e.g., CyoA, CyoB), enzymes in the TCA (e.g., SucC, SucD), and glycolysis (e.g., AcoA, AcoB). Many of these proteins are used as part of a prosthetic group, such as the Fe-S cluster proteins, cytochromes, NADH dehydrogenases and succinyl-CoA synthetase. The assimilation of iron and the induction of genes essential for energy metabolism within the first few minutes of iron becoming available probably reflect essential nutritional needs. In fact, it has previously been observed that iron-containing proteins are upregulated under the iron conditions available in E. coli [36], Campylobacter jejuni [37], P. aeruginosa [29] and H. seropedicae [23]. Unexpectedly, NADH-quinone oxidoreductases (nuoL and nuoK), encoding proteins involved in oxidative phosphorylation, were downregulated by iron limitation. Although the reason why these genes were suppressed by iron starvation is not yet clear, it is reasonable to assume that these NADH-quinone oxidoreductases are necessary and upregulated only in the final phase of the cell respiration process after the first stages of glycolysis and TCA.

A drastic alteration in the expression of genes involved in cell wall or cell membrane biogenesis was observed. Genes encoding glycosyltransferases (rfaG), penicillin-binding protein (mrcA), lytic transglycosylase (mltE) and peptidoglycan-associated lipoprotein (ompA) were downregulated. The synthesis of bacterial cell wall peptidoglycan requires glycosyltransferase enzymes to transfer the disaccharide-peptide from lipid II onto the growing glycan chain and later growth for bacterial [38]. Under similar conditions of iron restriction, Riemerella anatipestifer CH-1 [39] and Clostridioides difficile [40] also showed changes in the genes involved in cell wall biogenesis. On the other hand, OmpA production is stimulated under iron-rich conditions, which suggests its potential role in iron metabolism, as observed in Acinetobacter baumannii [41].

It is unclear exactly how G. diazotrophicus couples flagellar gene expression with iron levels; however, previous studies have shown that several genes (flaA, flaB, fliD) appear to be directly regulated by the ferric uptake regulator Fur protein [40,42]. When bound to Fe²⁺, this intracellular iron sensor is capable of binding to fur boxes at operator sequences, blocking the transcription of genes involved in many cellular processes besides iron uptake. According to Rouws et al. [43] the flgA gene is involved in flagella biosynthesis, motility and biofilm-forming capacity in G. diazotrophicus. Repression of motility and chemotaxis genes by iron has been noticed in Sinorhizobium meliloti [44], Acinetobacter baumannii [45], Pseudomonas fluorescens Pf- 5 [46], C. crescentus [34] and Aliivibrio salmonicida [47].

Genes involved in regulation, clustering Fe-S and BNF were found in our analysis. General NtrBC nitrogen regulation systems are signal transduction systems that detect and regulate nitrogen status. The ntrX gene that codes for the sigma-54-dependent Fis family transcriptionally showed a high number of transcripts in the absence of iron. Interestingly, a regulator of nifA (nrfA) [48], showed a higher number of transcripts in the absence of iron. HesB, a protein that has the Fe-S_biosyn domain and appears to be involved in the biogenesis of the Fe-S cluster, is regulated in the absence of iron. The fxdB gene, which is important for nitrogenase activity, was highly upregulated in the absence of iron. The nifH and nifK genes involved in the formation of the enzyme complex nitrogenase were identified as downregulated after the initial 30 minutes of available iron. A close relationship between iron homeostasis and BNF has been reported for nitrogen-fixing H. seropedicae [49,50], Cyanobacterium Anabaena sp. [51] and G. diazotrophicus [18]. The high content of iron found in many key proteins involved in nitrogen metabolism [52], limits this iron-uptake process. Therefore, the existence of regulatory interactions between iron and nitrogen metabolisms, probably orchestrated by fur [51], may also be a mechanism used by G. diazotrophicus to modulate nitrogen fixation in response to iron availability. fur gene was upregulated upon iron limitation but missed the cut-off criteria. The Fur protein is a key regulator in iron metabolism and in a previous study, transcript levels of the fur gene were downregulated in the presence of iron in PAL5 [18].

T4SS related to conjugation machinery, which generally involves a single-step secretion system and the use of a pilus [53], were downregulated. T4SS is an important component of adaptation, allowing horizontal gene transfer. In this respect, the involvement of transposases in the mobility of DNA is a major factor in the evolution of prokaryotes. Interestingly, seven genes belonging to five families of transposases (IS5/IS1182, IS21, IS110 and IS256 families) were also identified in our analyses as downregulated. These results suggest that iron plays a major role in the adaptation and evolution of G. diazotrophicus.

Our expression data indicate that plasticity of transcriptional machinery in G. diazotrophicus is represented by the repertoire of regulatory families modulated by iron. More specifically, we found that the LysR, MarR, CopG, HxlR, AsnC, GntR, MerR, Arac and NmrA families are mostly downregulated. Transcriptional regulators of the MarR and LuxR families in Xylella fastidiosa, MarR and GntR in H. seropedicae are modulated by iron [23,54]. However, some transcriptional regulators have been related to a wide diversity of functions. For example, the LysR-type transcriptional regulator (LTTR) family can be involved in metabolism, cell division, quorum sensing, virulence, motility, BNF, oxidative stress responses, toxin production, attachment and secretion, to name a few [55]. It is still unclear how totally different regulatory families play a very important role in the speciation of these organisms [56], nor how iron affects regulation.

3.3. fur Regulatory Network

Transcriptomic results showed that 8.6% of the PAL5 genome is regulated in response to growth under iron-replete versus iron-depleted conditions. A similar result was obtained in Neisseria gonorrhoeae [57]. In silico analysis showed that 112 genes or operons were predicted to contain a fur box.

Among the genes within the fur box sequences identified in the regulatory region, some encode tonB-dependent receptors, such as feuA and feuB. In G. diazotrophicus, feuABC is organized in an operon and encodes proteins involved in the ABC-type iron transport system [17]. Also noteworthy is the presence of a fur box sequence in the regulatory region of the gene group tonB-exbB-exbD1-exbD2, between sites −35 and −10, more precisely at 300 bp of the codon initiator of the tonB gene [18]. Interestingly, we detected the presence of a fur box sequence upstream of a set of 15 genes probably organized in operon (nuoA-nuoN and lao), which constitute a putative NADH-ubiquinone oxidoreductase and L-amino acid oxidase, chain components of electron transport dependent on NADH, together with cytochrome C.

The occurrence of a fur box upstream of a series of nif genes suggests that fur acts in G. diazotrophicus as a regulator in the use of iron as a cofactor for the formation of the iron-protein and iron-molybdenum subunits of the enzyme nitrogenase. These results corroborate those observed in Acidithiobacillus ferrooxidans and Shewanella oneidensis, where fur positively regulates two important genes, nifS, an important cysteine desulfurase in the assembly of the Fe-S set and nifX a BNF protein important in the formation of the Fe-Mo subunit [58,59].

Our search for fur boxes in the genome of G. diazotrophicus yielded a substantial number of putative boxes that were differentially expressed by transcriptomic analyses. fur binding site prediction suggests that fur acts mainly as a direct transcriptional repressor in G. diazotrophicus, controlling siderophore uptake or other functions likely to be associated with iron metabolism, such as NADH-dependent electron transport and secondary metabolism. In addition, there is evidence that fur acts on G. diazotrophicus by coordinating the expression of genes involved in essential aspects of endophytic colonization and plant growth promotion. Our results are consistent with those of previous studies on fur-mediated regulation in C. crescentus [60], A. ferrooxidans [59], N. gonorrhoeae [61] and Neisseria meningitidis [62].

3.4. Molecular Characterization of fur from G. diazotrophicus

The generation of fur mutants was successfully performed in E. coli, V. cholerae, Shigella flexneri, N. meningitidis and Burkholderia multivorans [63,64,65,66,67]. However, in P. aeruginosa, P. putida, Vibrio anguillarum, Neisseria gonorrhoeae, N. meningitidis, Nitrosomonas europaea and some Gram-negative bacteria, mutation in the fur gene failed, as this event seems to be lethal [68,69,70,71]. The presence of only one copy of the fur gene in the G. diazotrophicus PAL5 genome may explain the essentiality of this gene for the viability of these bacteria in site-directed mutation events.

Furthermore, the ability of the functional Fur protein of G. diazotrophicus to complement the E. coli H1780 fur mutant and the presence of fur box sequences in several genes reinforce the importance of Fur as a regulatory protein involved in a variety of cellular processes, including iron uptake and homeostasis, a response to oxidative stress and energy metabolism. Our results indicate that the fur gene encodes a functional Fur protein from G. diazotrophicus since it was able to complement E. coli H1780 cells, restoring the Fur phenotype of this strain. Similar results were found for Nitrosomonas europaea and Bradyrhizobium japonicum, where clones with a functional Fur protein were able to complement the E. coli H1780 fur mutant [71,72].

The accumulation of siderophores produced by G. diazotrophicus PAL5 in the LGI-P medium in the absence of iron was observed in H. seropedicae, where this limitation led to a reduction in the ability of the bacterium to transport the Fe³⁺-siderophore complex into the cell [73].

4. Materials and Methods

4.1. Bacterial Growth

Gluconacetobacter diazotrophicus PAL5 was obtained from the Diazotrophic Bacteria Culture Collection at the Biological Research Centre Johanna Döbereiner belonging to Embrapa Agrobiologia, Brazil. G. diazotrophicus wild type was grown in LGI-P liquid media [7].

The PAL5 strain was cultured in 5 mL of modified LGI-P medium at 30 °C and 180 rpm for approximately 48 h. After this period, a pre-inoculum (1.0 × 10⁶ cells) was suspended in 100 µL of saline solution [0.7% NaCl (w/v)] and inoculated in flasks containing 250 mL of modified LGI-P medium without the addition of FeCl₃. The Erlenmeyer flask was then incubated at 30 °C and 180 rpm until the cell density reached the exponential growth phase (0.6 O.D.₆₀₀/mL) (Optic density at wavelength 600 nm). Subsequently, cultures were split into aliquots of 25 mL, put into 250 mL flasks and treated with FeCl₃ (37 µM) or left untreated. This was done to ensure that all cells were in the same growth phase for transcriptome sequencing (RNA-seq) analysis. After 30 min of incubation, the cells were collected (5000 rpm, 10 min, 4 °C) and stored at −70 °C.

4.2. RNA-Seq Profiling Experiment

Total RNA was isolated with Trizol in accordance with the manufacturer’s protocol (Life Technologies, Carlsbad, CA, USA) and treated with DNase I (Epicentre, Madison, WI, USA) to remove genomic DNA contamination. RNA purity was quantified using Qubit (Life Technologies). Seven micrograms of total RNA were used for ribosomal RNA (rRNA) depletion with MICROBExpress^TM kit (Thermo Fisher Scientific Inc., Idstein, Germany). The efficiency of depletion was evaluated in agarose gel electrophoresis (1%), followed by quantification of the total RNA with an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). A total of 500 ng mRNA was used for the construction of a sequencing library using the standard protocol of the SOLid Total RNAseq Kit (Life Technologies). The libraries were barcoded using the SOLiD Transcriptome Multiplexing Kit (Life Technologies). The emulsion PCR and sequencing were performed according to the Ion One Touch^TM 200 Template Kit v2 DL and the Ion PI^TM Sequencing 200 Kit v2 using the standard Life Technologies protocols, respectively. The Ion Proton Semiconductor Sequence (Life Technologies) was used to sequence 12 libraries generated from three biological replicates from each independent treatment.

4.3. Mapping, Clustering and Quality Control

FASTQ files generated from sequencing were imported into CLC Bio’s Genomics Workbench v. 6.5 (Aarhus, Denmark). Sequences were then aligned with the genome sequence of G. diazotrophicus PAL5 (access number NC_010125.1) [15], via CLC Genomics Workbench version 7.5.1 program (Aarhus, Denmark). Reads containing ≤ 20 bp, and those mapping to rRNA 5S, 16S and 23S genes, were all discarded. The following parameters were used: the reads were trimmed for 20 bp, minimum 90% alignment with the reference sequence and 80% identity for inclusion as mapped read and the number of hits equal 1.

The genes were considered expressed if more than three times the coverage was present. They were considered to be differentially expressed genes when the fold change was bigger than 1.2 or smaller than −1.2 and the p-value was smaller than 0.05 by t’ test. Visualizations were performed using Circos [74]. Gene ontology analysis was performed using the bioinformatics tool Blast2GO (https://www.blast2go.com/) (accessed on 10 May 2022) [75]. The genes were function classified by COG (Clusters if Orthologous Groups of proteins, (http://www.ncbi.nlm.nih.gov/COG) (accessed on 10 May 2022) [76].

4.4. Real-Time Quantitative (RT-qPCR) Validation

The isolated RNA sequencing samples were also used to perform a real-time quantitative (RT-qPCR) analysis. The cDNAs were synthesized using a Superscript™ III Reverse Transcriptase kit (Invitrogen, CA, USA). Gene expression was quantified using the GoTaq^® qPCR Master Mix (Promega, WI, USA) on a 7500 Fast Real-Time PCR System (Applied Biosystems, Foster City, CA, USA). Primer3 plus software [77] was used to design the primers. The rhO and rpoD genes were used as reference genes for RT-qPCR [78] and the relative gene expression was determined using qBase v.1.3.5 [79]. The Cq values from the genes evaluated in this study were obtained from Miner software (http://miner.ewindup.info/) (accessed on 10 May 2022). The PCR reaction consisted of 7.5 μL of GoTaq^® qPCR Master Mix. Different concentrations of forward and reverse primers (Table S4) and 5.0 μL of 1:20 diluted cDNA template in a total volume of 15 μL were used. Cycling was performed using the default conditions of the 7500 Software v 2.0.5: 2 min at 95 °C, followed by 40 cycles of 20s at 95 °C and 30s at different temperatures. All RT-qPCR assays were carried out using three technical replication and non-template controls, as well as three independent cDNA syntheses.

4.5. In Silico Searching for fur Binding Sites (fur Boxes)

The genome of G. diazotrophicus [15] was used for in silico fur Boxes searching with the Virtual Footprint online framework program [80]. The searches were carried out using the pre-existing E. coli (64-mer) and P. aeruginosa (16-mer) matrix [81]. The matrix was used to search the genome of G. diazotrophicus using a 19 bp sliding window. To further reduce the number of false positives, this initial pool of fur box candidates was culled by including only those that: (i) were located <600 nt from the proposed initiation of translation of the potential target gene and (ii) exhibited conservation of key nucleotides known to be protected by fur binding. Logos were generated using the web-based application available at http://weblogo.berkeley.edu/logo.cgi (accessed on 10 May 2022) [82].

4.6. Generation of fur Insertional Mutants of G. diazotrophicus

Two constructs carrying single Tn5 insertions at different positions inside the fur gene were selected and introduced into G. diazotrophicus, as described [18]. Putative transformants were selected in Dygs plates containing the selective antibiotics kanamycin (200 µg mL⁻¹) and/or ampicillin (400 µg mL⁻¹) [82,83].

4.7. Evaluation of the Production of Siderophores

The chromeazurol (CAS) assay was described by Schwyn and Neilands [84]. Briefly, 60.5 mg of CAS was dissolved in 50 mL of deionized water and mixed with 10 mL of a Fe³⁺ solution (1 mmol·L⁻¹ FeCl₃·6H₂O, 10 mmol·L⁻¹ HCl). While stirring, this solution was slowly mixed with 72.9 mg of hexadecyltrimethylammonium bromide (HDTMA), previously dissolved in 40 mL water. The resulting dark-blue solution was autoclaved, cooled to 50/60 °C, mixed with 900 mL sterile LGI-P and subsequently inoculated with bacterial strains and incubated in the dark (28 °C for 5 days).

4.8. Fur Titration Assays (FURTA)

Plasmids (Table S5) were introduced into E. coli H1780 (fur inactivated) strains [64] and lacZ expression was assessed by visualization of a change in colony color from white to red on MacConkey lactose plates (BD Difco™, Rockville, MD, USA) supplemented with 30 μM ferrous ammonium sulfate. Plates were examined after 24 h of growth at 37 °C. The assays were performed in triplicate for each sample. Evaluation of the activity of the β-Galactosidase enzymes to E. coli H1780 strains, H1780 (pGGdfur) and H1780 (pGGdfurTn5), was carried out after they were grown in two different conditions: medium minimum M9 liquid supplemented with iron and minimum M9 liquid medium with low iron availability due to the addition of 2 2′dipyridyl (2,2′-DIP).

5. Conclusions

In this study, the transcriptomic analysis provided an overview of the physiological strategies that G. diazotrophicus strain PAL5 employs for survival in iron-limiting conditions. Interestingly, the early transcriptional response of G. diazotrophicus goes beyond uptake and storage systems, encompassing T4SS, flagella, pili, chemotaxis, BNF and some transport proteins. This suggests that iron-sensing might be important in the early stages of plant colonization, in competition against other endophytes and in effective plant growth promotion. This characterized the fur transcriptional regulator and the identification of its regulon in the PAL5 strain, pointing to a model where fur controls the transcription of genes involved in iron homeostasis. The data in this study were useful for identifying genes involved in iron utilization in G. diazotrophicus and for shedding light on the adaptation mechanisms of iron-limited environments.
