Design and Synthesis of Benzene Homologues Tethered with 1,2,4-Triazole and 1,3,4-Thiadiazole Motifs Revealing Dual MCF-7/HepG2 Cytotoxic Activity with Prominent Selectivity via Histone Demethylase LSD1 Inhibitory Effect

by
Mosa Alsehli
1,
Ateyatallah Aljuhani
1,
Saleh K. Ihmaid
2,3,
Shahenda M. El-Messery
4,
Dina I. A. Othman
4,
Abdel-Aziz A. A. El-Sayed
5,6,
Hany E. A. Ahmed
2,7,*,
Nadjet Rezki
1,* and
Mohamed R. Aouad
1
1
Chemistry Department, College of Sciences, Taibah University, Al-Madinah Al-Munawarah 41477, Saudi Arabia
2
Pharmacognosy and Pharmaceutical Chemistry Department, College of Pharmacy, Taibah University, Al-Madinah Al-Munawarah 42353, Saudi Arabia
3
Pharmaceutical Chemistry Department, Faculty of Pharmacy, Jadara University, Irbid 21110, Jordan
4
Department of Pharmaceutical Organic Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
5
Biology Department, Faculty of Science, Islamic University of Madinah, Al-Madinah Al-Munawarah 42351, Saudi Arabia
6
Zoology Department, Faculty of Science, Zagazig University, Zagazig 44519, Egypt
7
Pharmaceutical Organic Chemistry Department, Faculty of Pharmacy, Al-Azhar University, Cairo 35511, Egypt
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(15), 8796; https://doi.org/10.3390/ijms23158796
Submission received: 18 June 2022 / Revised: 30 July 2022 / Accepted: 1 August 2022 / Published: 8 August 2022
(This article belongs to the Special Issue Malignant Melanoma: Molecular Mechanism and New Agents for Prevention and Therapy)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, an efficient multistep synthesis of novel aromatic tricyclic hybrids incorporating different biological active moieties, such as 1,3,4-thiadiazole and 1,2,4-triazole, was reported. These target scaffolds are characterized by having terminal lipophilic or hydrophilic parts, and their structures are confirmed by different spectroscopic methods. Further, the cytotoxic activities of the newly synthesized compounds were evaluated using in vitro MTT cytotoxicity screening assay against three different cell lines, including HepG-2, MCF-7, and HCT-116, compared with the reference drug Taxol. The results showed variable performance against cancer cell lines, exhibiting MCF-7 and HepG-2 selectivities by active analogs. Among these derivatives, 1,2,4-triazoles 11 and 13 and 1,3,4-thiadiazole 18 were found to be the most potent compounds against MCF-7 and HepG-2 cancer cells. Moreover, structure–activity relationship (SAR) studies led to the identification of some potent LSD1 inhibitors. The tested compounds showed good LSD1 inhibitory activities, with an IC50 range of 0.04–1.5 μM. Compounds 27, 23, and 22 were found to be the most active analogs with IC50 values of 0.046, 0.065, and 0.074 μM, respectively. In addition, they exhibited prominent selectivity against a MAO target with apparent cancer cell apoptosis, resulting in DNA fragmentation. This research provides some new aromatic-centered 1,2,4-triazole-3-thione and 1,3,4-thiadiazole analogs as highly effective anticancer agents with good LSD1 target selectivity.

1. Introduction

Cancer is a serious medical problem and one of the leading causes of mortality in the globe [1,2]. Although survival rates for some cancers have improved in recent decades as a result of early detection and the introduction of novel medicines, effective therapeutic options for the successful treatment of advanced tumors remain inadequate [3]. Clinical data suggest that a lack of early detection is responsible for around 80% of cancer-related fatalities [4,5]. Traditional cancer treatments, such as radiation and chemotherapy, are no longer effective because they kill normal and malignant cells at similar rates, resulting in substantial damage and very little to moderate therapeutic gains [6,7]. Nowadays, a variety of organic molecules are designed for this purpose using different types of molecular hybridization protocols to attach a structural feature or modify functional groups into old or new chemical moieties [8]. Nitrogen-based heterocycles are particularly important in the development of anticancer drugs since they appear in nearly three-quarters of the heterocyclic anticancer medicines authorized by the FDA [9]. Specifically, benzoheterocyclic and triazole compounds have a wide range of biological applications and have been highlighted as one of the most promising drug scaffolds in pharmacology [10]. Five-membered nitrogen heterocyclic systems are among the most valuable nitrogen containing heterocycles having the ability to induce cell death in various cancer cell lines [11,12]. Because of their numerous biological actions, such as anti-inflammatory and antiproliferative properties, 1,2,4-triazole derivatives have become medicinal medicines in recent decades [13]. This nucleus provides appropriate water solubility and flexibility and interacts with certain enzymes involved in cancer development due to its ion chelating properties and the ability to form hydrogen bonding through its –NH– group [14]. Furthermore, having a triazole moiety increases liver microsomal stability and antitumor activity [15,16]. On the other hand, 1,3,4-thiadiazole derivatives have attracted considerable interest owing to their wide spectrum of biological activity, including antimicrobial, antituberculosis, anticonvulsant, anti-inflammatory, anticancer, and antiulcer properties [17,18,19,20,21,22,23,24,25,26,27,28,29]. The lysine-specific histone demethylase 1A (LSD1, also known as KDM1A) removes methyl marks on histone H3 lysine 4 (H3K4) in a flavin adenine dinucleotide (FAD)-dependent way among epigenetic targets [30]. LSD1 plays a variety of functions in physiological and pathological processes, including cancer [31], infections [32], and immunological regulation [33]. Because LSD1 is overexpressed in a number of human cancers (acute myeloid leukemia, neuroblastoma, retinoblastoma, prostate cancer, breast cancer, lung cancer, and bladder cancer and melanoma types) [32,33,34], the protein has emerged as an important target for the development of specific inhibitors as a new class of antitumor agents (Figure 1) [35,36]. It has been reported that LSD1 has the ability to suppress melanoma through an increase in repetitive element expression, including ERVs, and decreases the expression of RNA-induced silencing complex (RISC) components. Significantly, this leads to dsRNA stress and activation of type 1 interferon, which stimulates anti-tumor T cell immunity and restrains tumor growth [33]. Other mechanism for LSD1 in melanoma is geometric regulation of the histone state, which succeeds in direct melanoma reprogramming and hence affects growth [37].

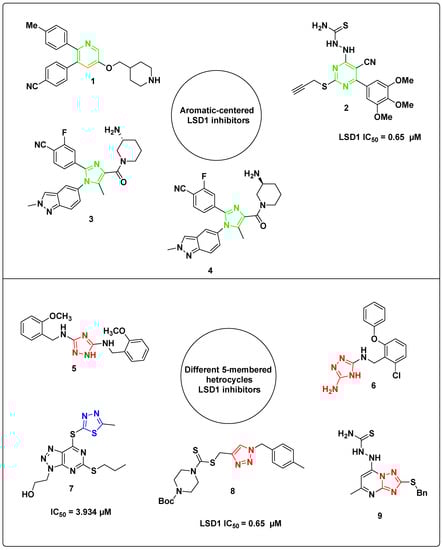

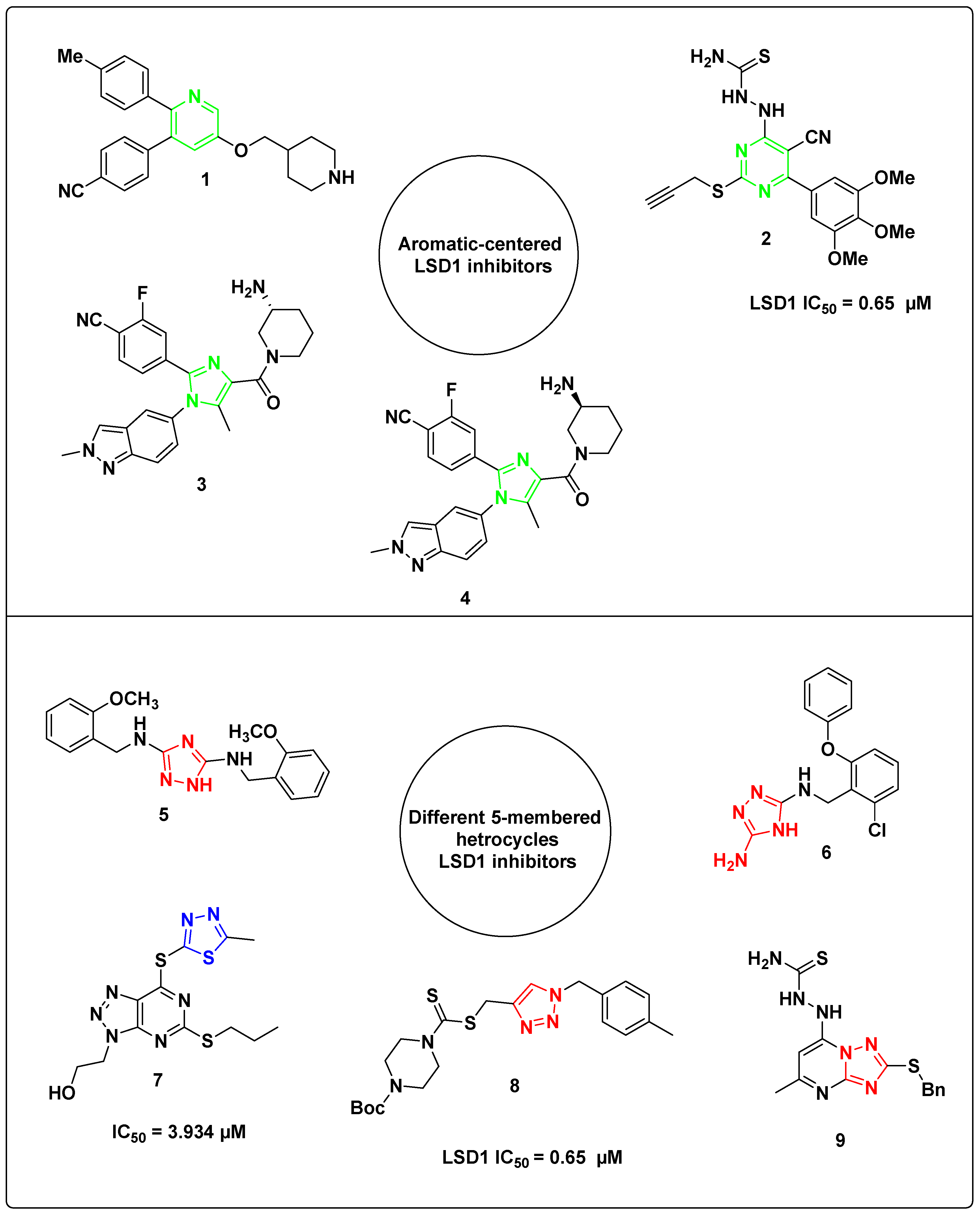

As part of our research work toward the synthesis of heterocycles with broad biological activities [21,22,23,24,25,26,27,28,29,38], this work aims to synthesize a library of some new aromatic-centered homologues tethered with two different active motifs: 1,2,4-triazole-3-thione and 1,3,4-thiadiazole. The design is based upon the chemical study of LSD1 inhibitors [39,40,41,42,43] in Figure 1 through the molecular hybridization of a central aromatic system with pyridine, pyrimidine, and imidazole rings in compounds 1–4. Compounds 5–9 are embedded with five-membered aromatic systems, triazole and thiadiazole, which show good affinity and potency against LSD1. However, gathering all SAR analysis of these leads as reported LSD1 inhibitors motivated us to introduce our target scaffold composed of an aromatic ring with three homogenous trisubstitutions with corresponding triazole or thiadiazole heterocycles. The molecular docking of target compounds revealed the good placement within the LSD1 pocket, and their anticancer activity against different cancers was investigated. Moreover, the inhibitory activity evaluation against LSD1 has been investigated as a proposed mechanism of their anticancer activity. These analogues offer a lot of therapeutic promise for cancer treatment, as well as other epigenetically driven diseases.

2. Results and Discussion

2.1. Chemistry

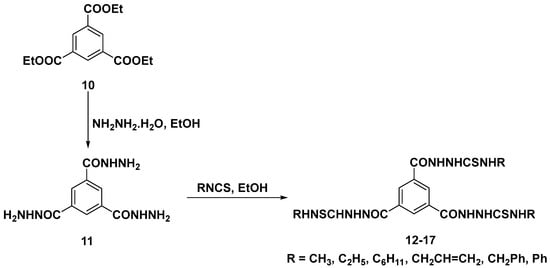

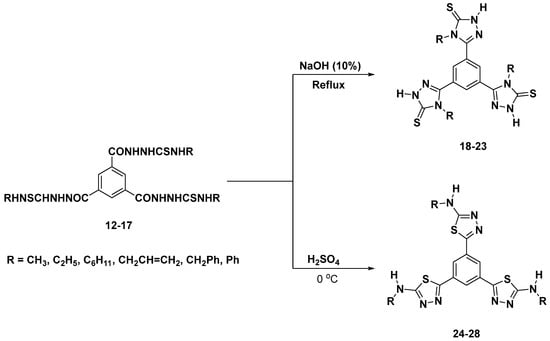

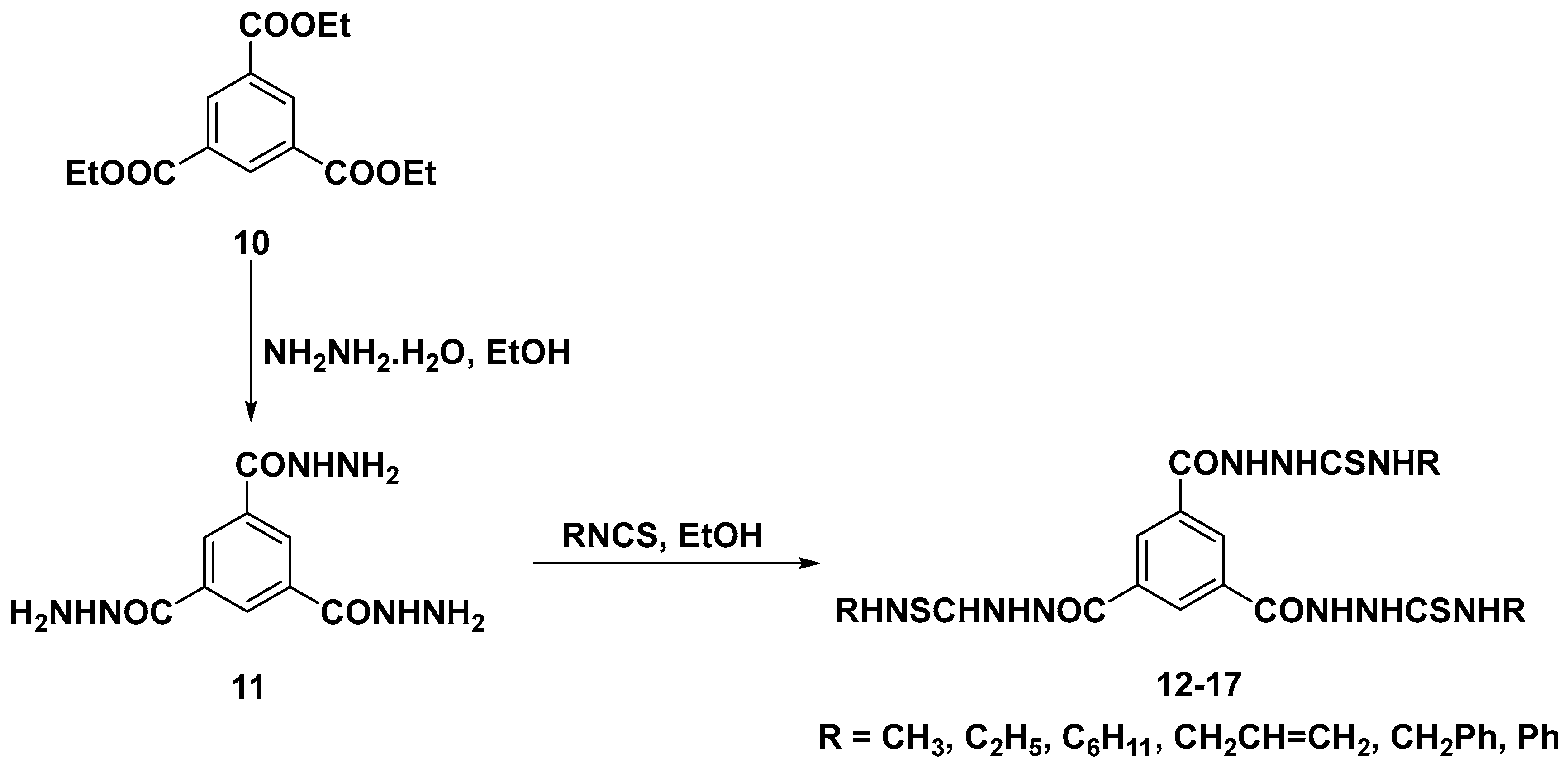

The synthetic pathways adopted in this study are depicted in Scheme 1 and Scheme 2. The targeted triheterocyclic molecules were multistep-synthesized starting from benzene-1,3,5-tricarbohydrazide 11 as precursor. Compound 11 was successfully prepared in 94% yield through treatment of triethyl benzene-1,3,5-tricarboxylate 10 (reported compound [44]) with hydrazine hydrate for 4 h in refluxing ethanol (Scheme 1). The resulting acid hydrazide 11 was confirmed clearly through the appearance of a new absorption band near 3250–3390 cm−1 belonging to the hydrazide side chains (–NHNH2) in its IR spectrum. Additionally, the 1H and 13C NMR spectra of our hydrazide 11 were characterized by the absence of the aliphatic ethoxy protons and carbons of the corresponding tris-ester 10. New signals were also observed at 9.86 and 4.59 ppm assignable to the hydrazide NH and NH2 protons, respectively. The three aromatic protons resonated as one singlet at 8.33 ppm. In addition, the three amidic carbonyl (C=O) carbons were recorded at 165.47 ppm in the 13C NMR spectrum.
The condensation of the tris-acid hydrazide 11 with a variety of alkyl/aryl isothiocyanate under refluxing ethanol afforded the corresponding tris-acid thiosemicarbazides 12–17 (87–90% yields) (Scheme 1). Compounds 12–17 were fully characterized by IR and NMR analysis. All IR spectra confirm the proposed structures by the appearance of new bands around 1280–1300 cm−1 attributed to the thiocarbonyl group (C=S). Their 1H NMR spectra showed new diagnostic signals at 8.60–10.95 ppm assigned to the thiosemicarbazide NH protons (CONH and NHCSNH) with no observed NH2 protons. Particularly, the 1H-NMR spectrum of compound 12 revealed the presence of a singlet at 3.39 ppm related to the three equivalent methyl groups. The signal belonging to the same methyl carbons were observed at 31.44 ppm in its 13C-NMR spectrum. In addition, the three thiocarbonyl carbons (C=S) resonated at 182.70 ppm, while the aromatic carbons were recorded at 130.84 and 133.34 ppm, see the Figures S1–S20 in Supplementary Materials.
Then, dehydrative intramolecular cyclization was carried out to get the targeted tris-1,2,4-triazole-3-thiones 18–23. Thermal intramolecular cyclodehydration of the acid thiosemicarbazides 12–17 in basic media (10% NaOH) gave the corresponding 1,2,4-triazole-3-thiones 18–23 in 85–88% yields (Scheme 2). The structures of the resulting triazoles 18–23 were elucidated from their spectral analysis. Their IR spectra showed common characteristic absorption peaks at 3280–3340 cm−1 assigned to (NH), 1615–1630 cm−1 (C=N), and 1290–1310 cm−1 (C=S), which supported the formation of triazole rings. It is worth mentioning that there is a possible tautomerism of the resulting tris-1,2,4-triazoles 18–23, which could exist in two tautomeric forms: a thiol form and a thione form. On the basis of the obtained NMR spectra, it was recognized that the thione form is the most stable form in which these derivatives exist [45]. The 1H-NMR spectra of compounds 18–23 revealed the absence of the characteristic NH protons of their thiosemicarbazide precursors 12–17 and the presence of distinguishable triazolic NH singlets around 12.90–14.25 ppm, which is clear evidence for the success of the intramolecular cyclization reaction forming the three 1,2,4-triazole cores in the thione form. In addition, the signals belonging to the C=S carbons were recorded at 166.12–190.51 ppm supporting the prevalence of the thione isomers.

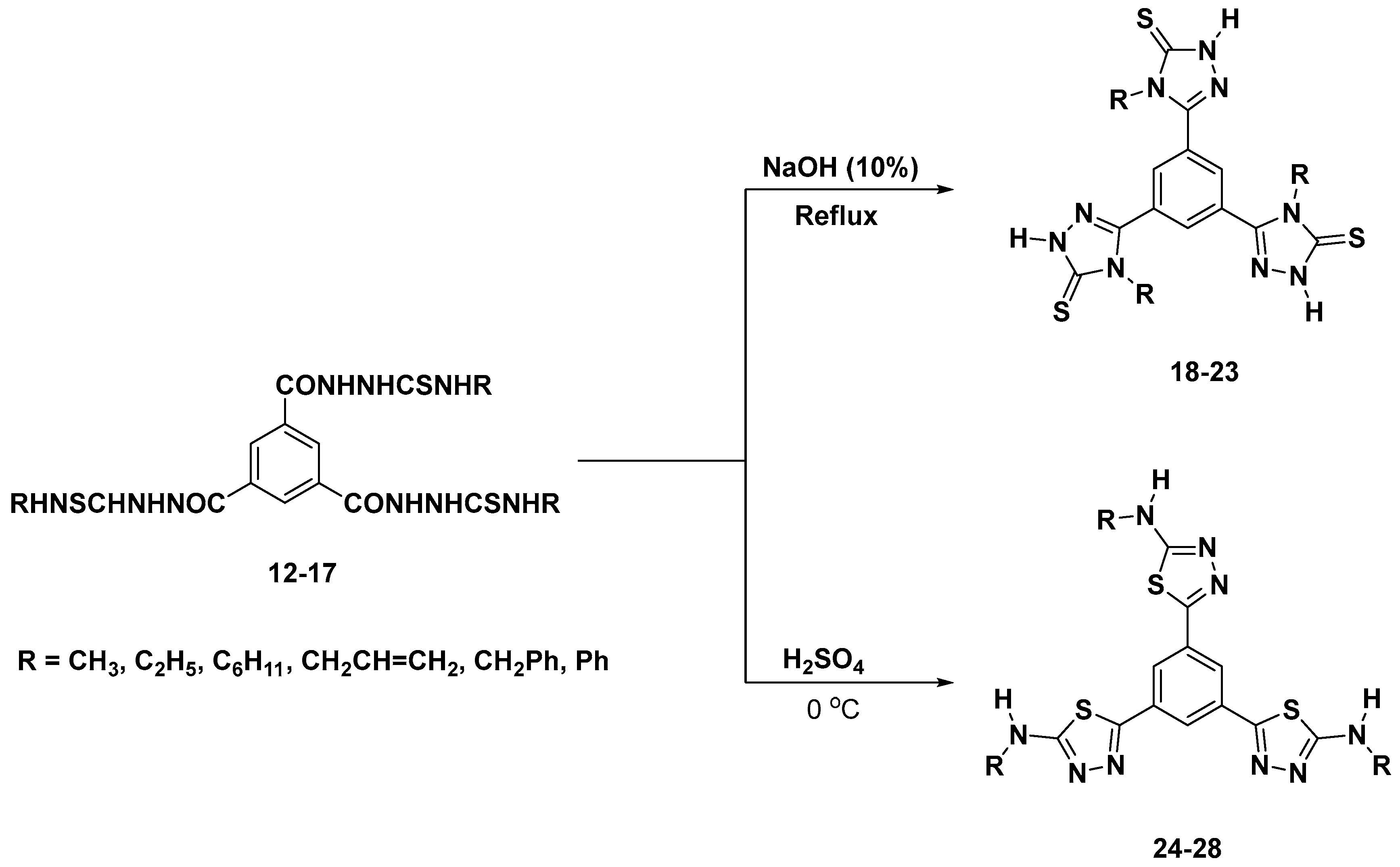

On the other hand, the action of sulfuric acid on the thiosemicarbazide intermediates 12–17 at 0 °C (Scheme 2) furnished the desired 2-amino-1,3,4-thiadiazoles 24–28 in good yields (83–85%).
The structures of the newly designed tris-thiadiazoles 24–28 were deduced from their spectroscopic results, which disclosed the appearance of characteristic absorption bands near 1600–1620 cm−1 assigned to the C=N group and the disappearance of the absorption bands of the thiocarbonyl (C=S) and carbonyl (C=O) groups in their IR spectra. The 1H and 13C-NMR spectra also confirmed the absence of the signals attributed to the characteristic protons and carbons of their corresponding thiosemicarbazide precursors 3–8 (i.e., –CONH and –NHCSNH–) around 8.60–10.95 ppm and 164.87–190.76 ppm. In addition, their 1H-NMR spectra revealed the presence of the diagnostic exocyclic NH protons at position 2 of the 1,3,4-thiadiazole ring at 6.99–7.63 ppm. All these results confirmed the acid-catalyzed intramolecular ring closure of thiosemicarbazide intermediates 12–17, which afforded the desired tris-1,3,4-thiadiazoles 24–28. All compounds were precipitated and recrystallized, affording yellowish to white colors and crystalline powders.

2.2. Biological Screening

2.2.1. In Vitro Antitumor Activity

All the newly synthesized compounds were evaluated for their in vitro anticancer effect via the standard MTT method against a panel of three different human cancer cell lines: breast (MCF-7), colon (HCT-116), and liver (HepG2) [22,24,26]. As shown in Table 1, the obtained results revealed that the tested compounds 19, 21, 22, 24, 27, and 28 exhibited very strong potency against a tested breast cancer cell line with an IC50 ranging from 1.52 to 9.60 μM, in which compound 27 exhibited the most active candidate with an IC50 of 1.52 μM compared with the reference drug Taxol (IC50 = 7.80 μM). Moreover, compounds 20 and 26 showed strong activity against breast cell lines with an IC50 of 13.7–17.1 μM, respectively. In addition, compounds 21, 22, and 23 exhibited very strong potency against a tested colon cancer cell line with an IC50 ranging from 2.01 to 5.27 μM, where compound 23 exhibited the most active candidate with an IC50 of 2.01 μM compared with Taxol’s IC50 at 7.96 μM. Furthermore, compounds 20, 24, 26,and 27 showed strong activity against the same cell line with an IC50 ranging from 10.1–18.1 μM. For a liver cancer cell line, the obtained results revealed that the tested compounds 20, 21, 22, 23, and 24 exhibited very strong potency with an IC50 ranging from 2.36 to 8.23 μM, in which compound 21 exhibited the most active candidate with an IC50 of 2.36 μM compared with Taxol’s IC50 = 4.44 μM. Moreover, compound 25 showed strong activity against the same cell line with IC50 =13.0 μM. Moreover, compound 18 showed moderate activity against all the tested cell lines with IC50 ranging from 23.9 to 38.6 μM.
On the other hand, compounds 28 and 26 showed the lowest potency and least inhibitory activity against HCT116 with IC50 = 110.0 μM and HepG2 cell lines with IC50 = 95.7 μM. In order to investigate whether the newly synthesized compounds exhibited selective activity against cancer and normal cells, compounds 22 (nonselective)and 27 (MCF-7 selective) were selected for screening their cytotoxic activity on a normal human lung fibroblast(WI38) cell line to determine its therapeutic safety. As shown in Table 1, they displayed low cytotoxicity against a normal (WI38) cell line with IC50 =16.0 and 85 µM compared with Taxol with IC50 = 11.8 µM.

2.2.2. LSD1 Demethylase Inhibition Assay

LSD1 demethylase has also been linked to various pathological processes, such as the development of cancer [46,47]. LSD1 inhibition may result in H3K4 remethylation and silencing of H3K4-enriched active genes. As shown in Table 2, compounds 18–28 were selected for LSD1 inhibition assay against GSK-LSD1 as a reference drug control [48]. The results demonstrated that most of the tested compounds 22, 23, and 27 exhibited very strong LSD1 inhibitory activity with an IC50 value of 0.074, 0.065, and 0.046 µM, respectively. Meanwhile, the compounds 19, 20, 21, 24, 25, 26, and 28 showed moderate LSD1 inhibitory activity with an IC50 ranging from 0.13 to 0.31 μM. Compound 18 showed weak LSD1 inhibitory activity with an IC50 value of 1.51 µM.

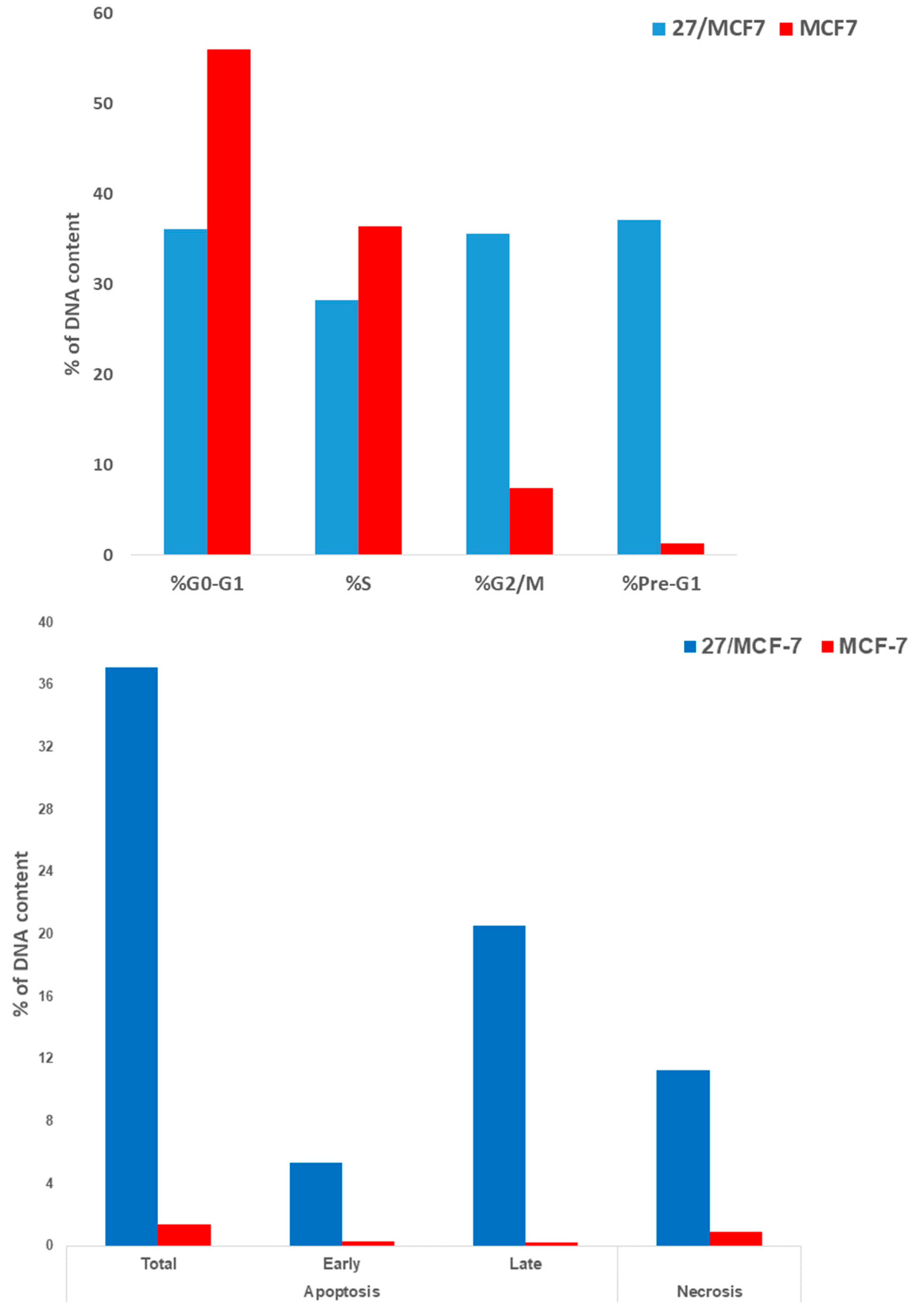

2.2.3. Cell Cycle Analysis

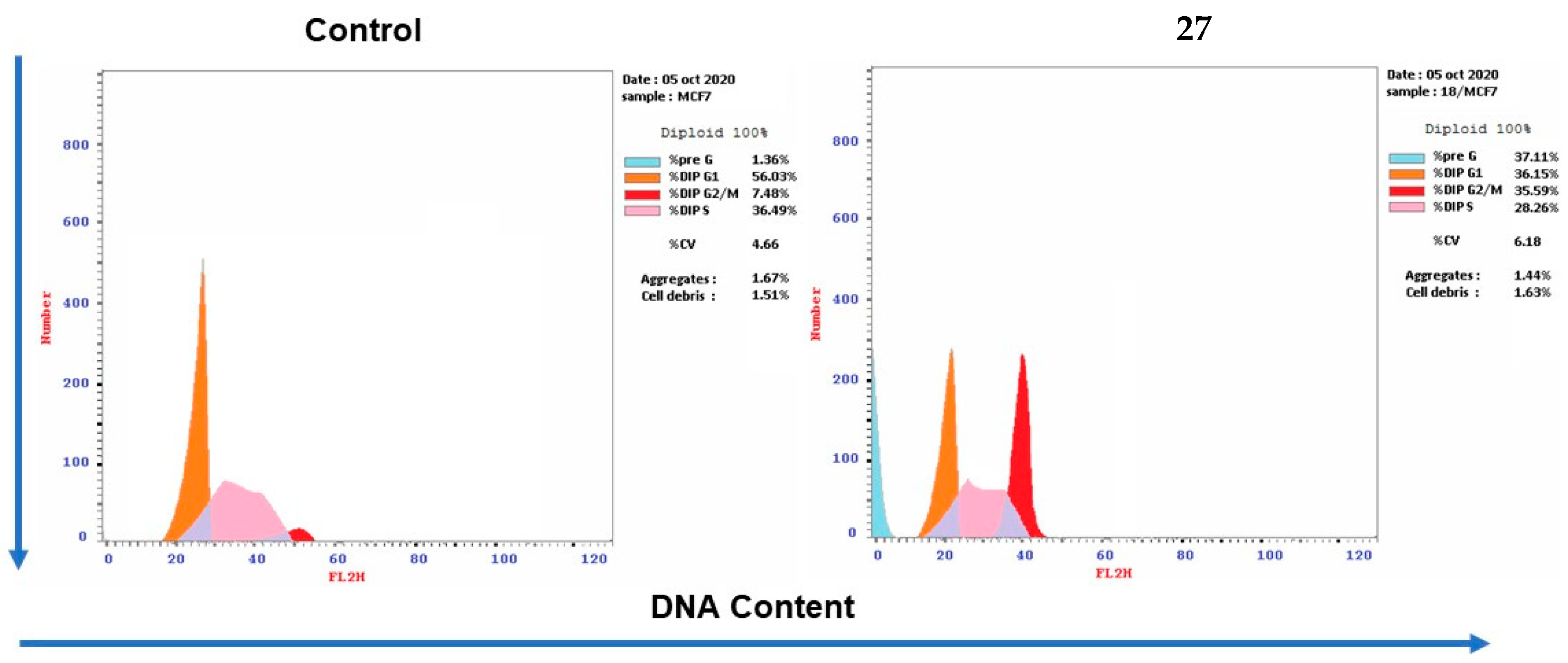

The cell cycle is a series of growth and development processes that culminate in DNA replication and cell division [49]. G1 phase, S phase (synthesis), G2 phase, and M phase are the four different phases. We chose our promising chemical 27 based on the results of the MTT assay (Table 1) to further examine its effect on the apoptotic process and investigate its ability to play an active role in cell cycle progression in MCF-7 cells. MCF-7 cells were treated for 24 h with compound 27 at a concentration of 2.0 M, and flow cytometry was performed in the presence of annexin V-FITC/PI. Furthermore, when compared with the control, the distribution of cells in the G1 and S phases was significantly reduced in all evaluated cells (Figure 2). Cells treated with compound 27 had higher DNA content at the G2-M phase (35.59% versus 7.48% for the control) and the Pre-G1 phase (37.11% versus 1.36% for the control), revealing cell growth arrest at these two phases corresponding to the sum of annexin V-positive/PI-negative staining and double-positive staining cells (Table 3) (early and late apoptosis, respectively).

2.2.4. Apoptosis Detection Using Annexin V-Fluorescein Isothiocyanate (FITC)/PI Dual Staining Assay

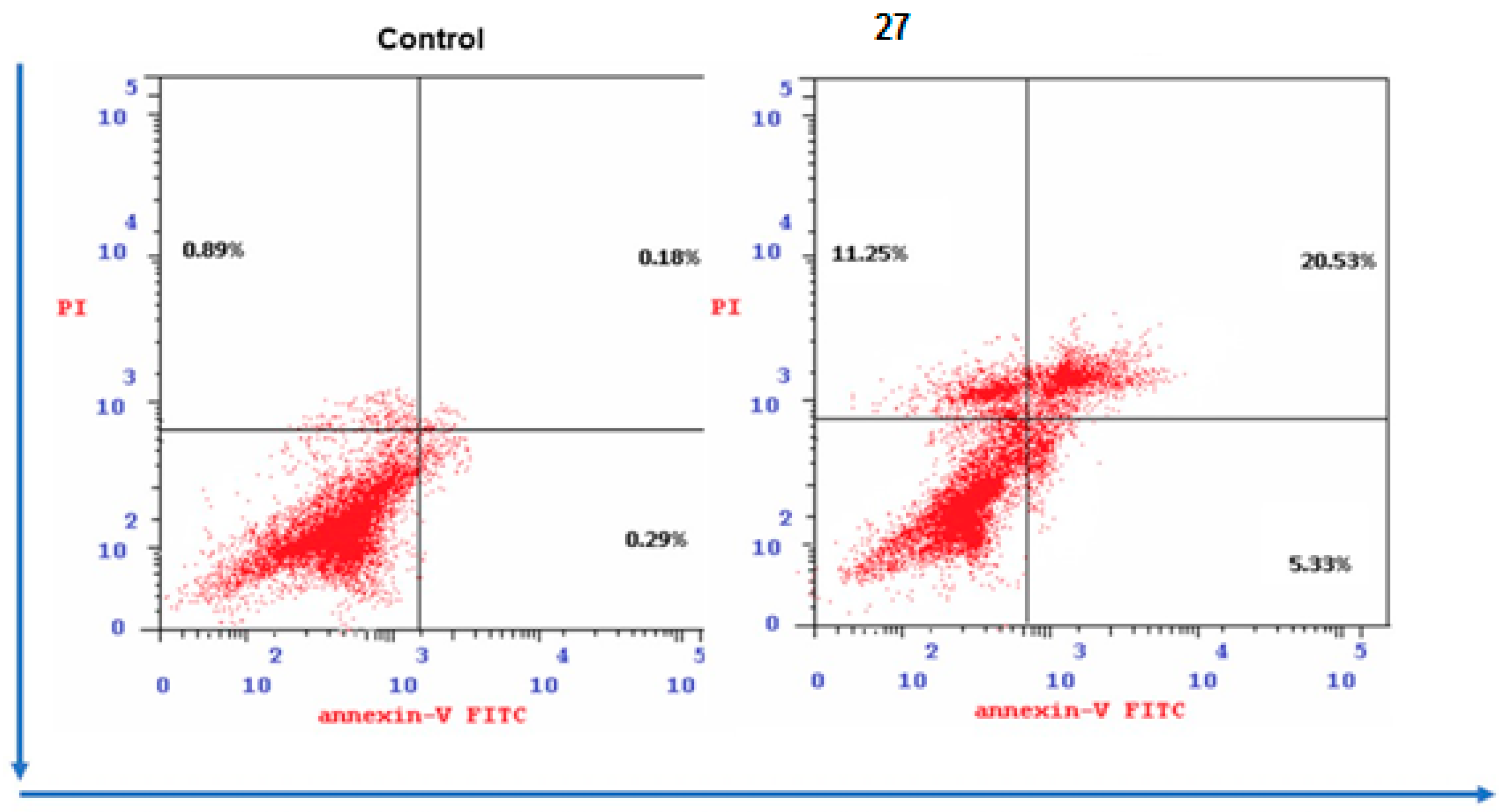

This test used the breast MCF-7 cell line to assess the percentage of apoptosis caused by compound 27, in which MCF-7 cells were treated with compound 27 at 2.0 µM concentration for 24 h to measure the percentage of apoptosis induced by compound 27. Compound 27 was found to cause early apoptosis (5.33%) in MCF-7 cells and enhance late apoptosis (20.53%) by 114-fold when compared with untreated cells. As a result, it is possible to deduce that compound 27 causes apoptosis at a rate of 37.11% (Table 4 and Figure 3 and Figure 4). These findings are in line with statistics derived from DNA content.
Figure 3 also exhibited the findings of fluorescence-activated cell sorting analysis performed after MCF-7 cells were treated with our compound 27. Each sample’s histogram was separated into four quadrants to show viable (lower left quadrant), necrotic (higher left quadrant), apoptotic (lower right quadrant), and necrotic/late apoptotic (upper right quadrant) cells [22,38]. The Annexin V Apoptosis Detection Kit is based on the finding that apoptotic cells can transport phosphatidylserine (PS) from the plasma membrane’s inner surface to the cell surface. As a result, the presence of PS on the cell surface is regarded as an important technique for detecting apoptotic cells. PS can be easily detected by labeling with a fluorescent compound of annexin V, a protein with a high affinity for PS, and then analyzing the results by flow cytometry. When annexin V and PI staining are performed simultaneously, the kit can distinguish between apoptosis and necrosis. Only when the plasma membrane is completely damaged may PI enter the cell. This allows early apoptotic cells (negative for PI but positive for PS) to be distinguished from late apoptotic and necrotic cells (positive for both PI and PS). As shown in the cell cycle study of MCF-7, our tested compound 27 had a pre-G1 peak, indicating apoptosis. Cells were tested using annexin V and PI double-staining flow cytometry, which detect both PS residues and DNA, respectively, to validate the potential to trigger apoptosis. They were then cultured for 24 h before being examined. The tested compound was able to produce considerable levels of cell death in a dose-dependent manner, according to analyses of early and late apoptosis (Table 4, Figure 2 and Figure 3). MCF-7 cells treated with compound 27 had an increased number of early and late apoptotic cells when compared with the control. Compound 27 treatment of MCF-7 cells for 24 h resulted in 37.11% apoptotic cells compared with 1.36% apoptotic cells in the untreated control, as shown in Figure 4. In cancer therapy, the most effective and safe anticancer agents often disrupt the equilibrium between cell growth and apoptosis, causing cells to undergo apoptotic induction [50]. These findings demonstrate that compound 27 inhibits cell development by inducing cell apoptosis.

2.2.5. DNA Fragmentation

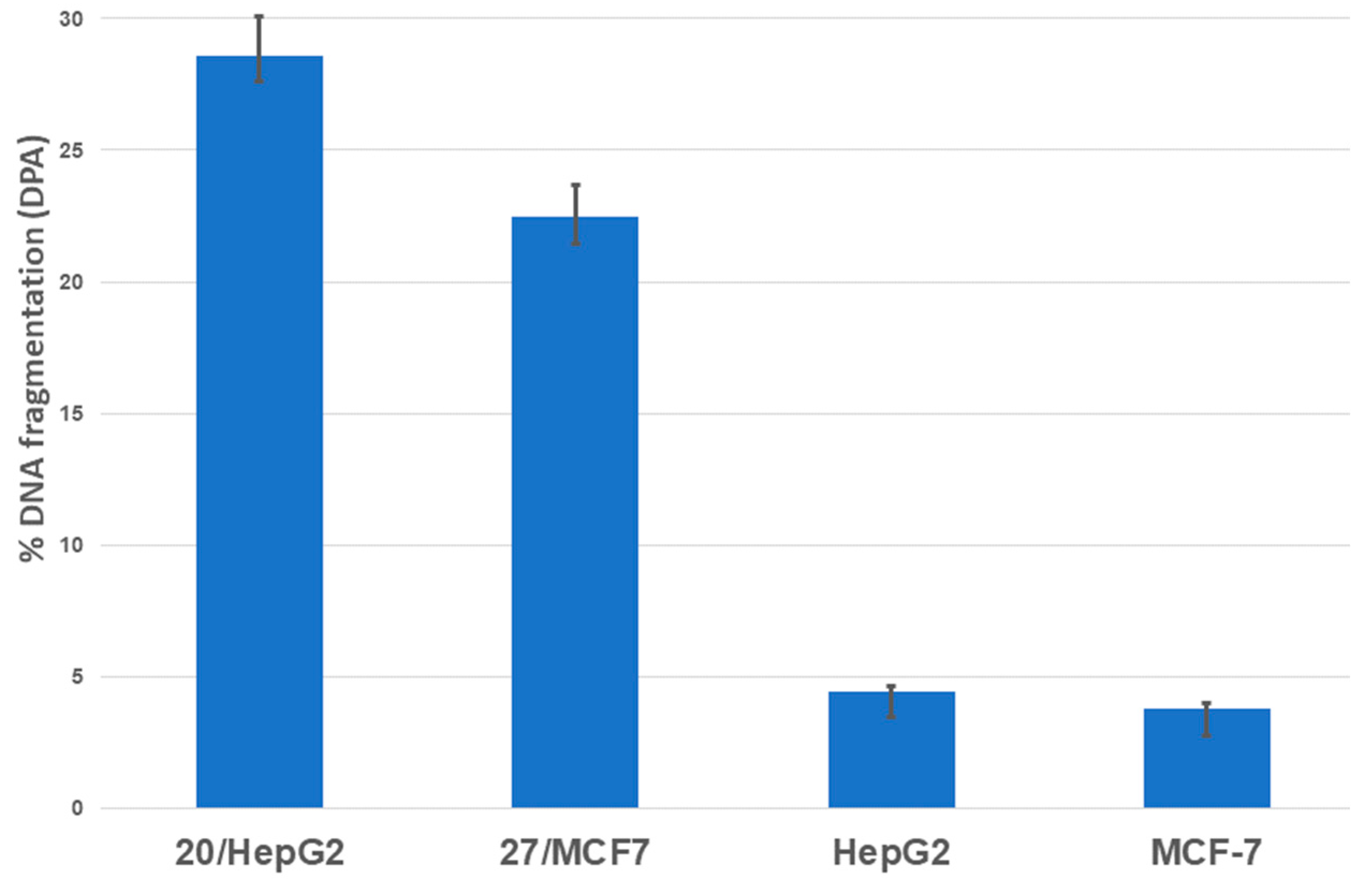

Apoptosis is characterized by DNA fragmentation, which occurs in all stages of the process [51]. The percentage of fragmented DNA released into the cytoplasm from apoptotic nuclei was determined using a diphenylamine test. In the HepG2 and MCF-7 cells treated with selective compounds 20 and 27, the relative quantity of DNA fragments is displayed in Figure 5. In all cells treated with these compounds 20 and 27 (approximately 28.5 ± 1.5% and 23 ± 1.2%, respectively), the percentage of DNA fragmentation rose significantly as compared with the untreated control (about 4.7 ± 0.2%), with no significant differences found between tested cells. These findings corroborated the apoptotic findings, indicating that the treatment of HepG2 and MCF-7 cells with compounds 20 and 27 caused cell membrane breakdown, followed by chromosomal DNA fragmentation.

2.2.6. Target MAO Selectivity Analysis

Here, the potent selective compound 27 was screened for measuring target selectivity against high structural similar membrane-bound human hMAO-A and hMAO-B at 10 µM in the presence of tyramine at 2 × KM (0.8 mM for MAO-A and 0.32 mM for MAO-B) (Table 5). The data of the inhibitory assay revealed the molecular selectivity of 27 derivative for LSD1 over the MAO isoforms compared with the selective reference MAO drugs, as shown Table 5.

2.2.7. Molecular Modeling Study

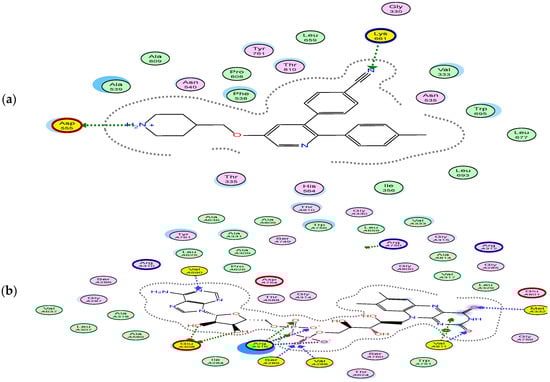

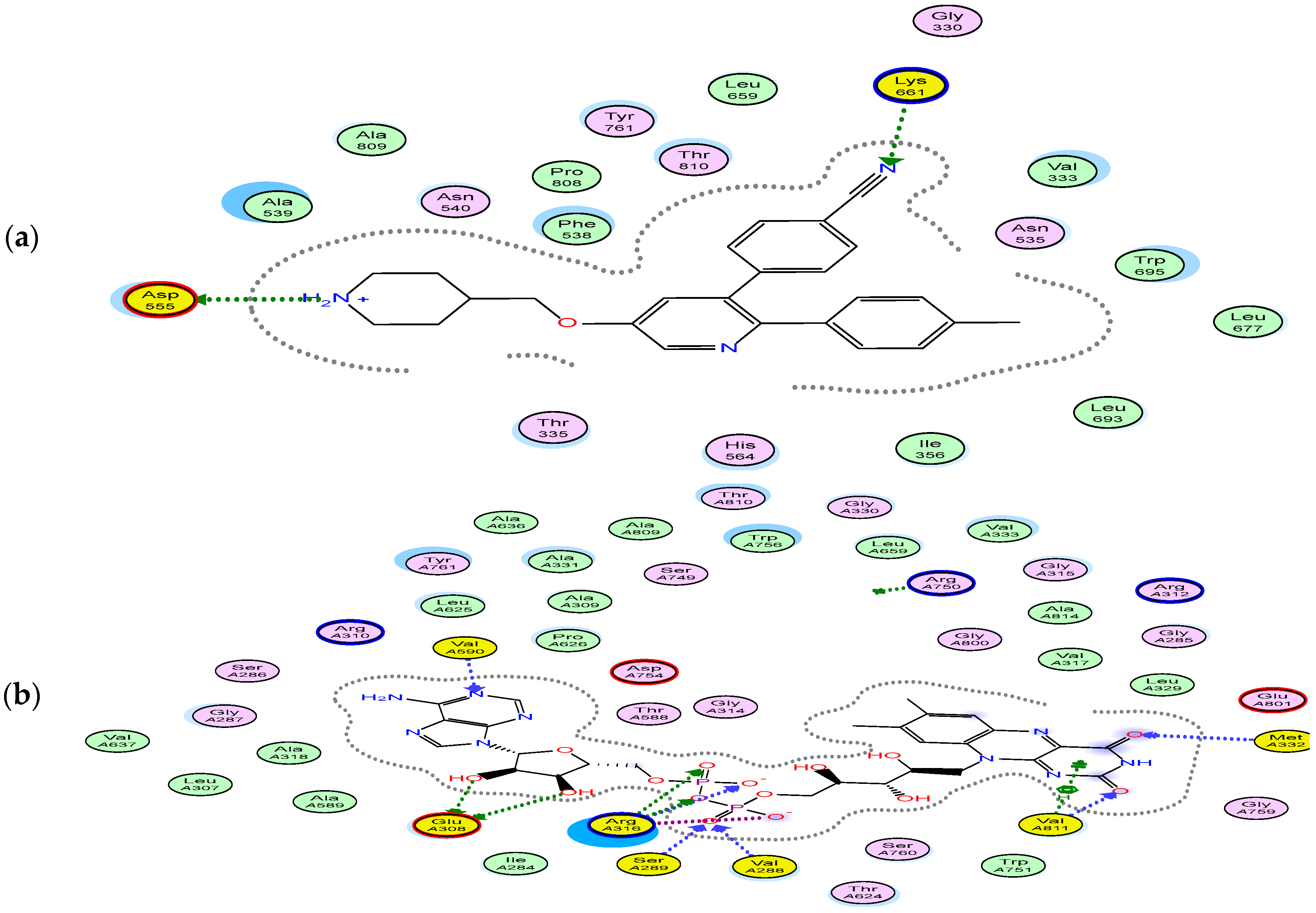

To gain insights into the mechanism of LSD1 inhibition and to elucidate the binding mode, in a comparative molecular modeling study, active derivatives 22 and 23 and 27 against compound 18, which represents the least LSD1 inhibitory activity, were further subjected to a molecular modeling study to demonstrate the binding mode and the type of interaction at the molecular level. To date, there are a number of X-ray crystal structures of LSD1 in a complex with small-molecule and/or peptide inhibitors deposited in the RCSB protein database [53]. The crystal structure (PDB code: 5YJB) cocrystallized with 4-[5-(piperidin-4-ylmethoxy)-2-(p-tolyl)pyridin-3-yl]benzonitrile, which bears a 4-piperidinylmethoxy group, a 4-methylphenyl group, and a 4-cyanophenyl group on a pyridine ring, showing that its cyano group forms a hydrogen bond with Lys661, which is a critical residue in the lysine demethylation reaction located deep in the catalytic center of LSD1 [54,55].
It was recently reported to be a reversible LSD1 inhibitor with a Ki of 29 nM [55]. The aforementioned crystal structure of PDB: 5YJB with its specified reference was carefully chosen for our docking study due to the similarity of its 3D ligand core structure to our compounds specifically meaning the three rings around a central heterocyclic ring core. This reference ligand showed a tight binding via the interaction with a network of hydrogen binding with Lys661 and Asp 555. It was reported that it was located above the plane of the isoalloxazine ring of FAD [56] (Figure 6a).
The isoalloxazine ring of FAD was fitted into the large hydrophobic region, forming multiple H-bond interactions with Val 881, Val 333, and Met 332 and a p-H interaction with Trp751 (Figure 6b) [56,57].

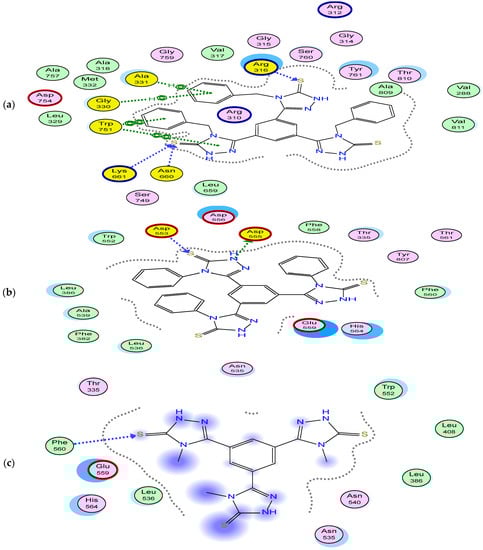

2.2.8. Molecular Docking Study

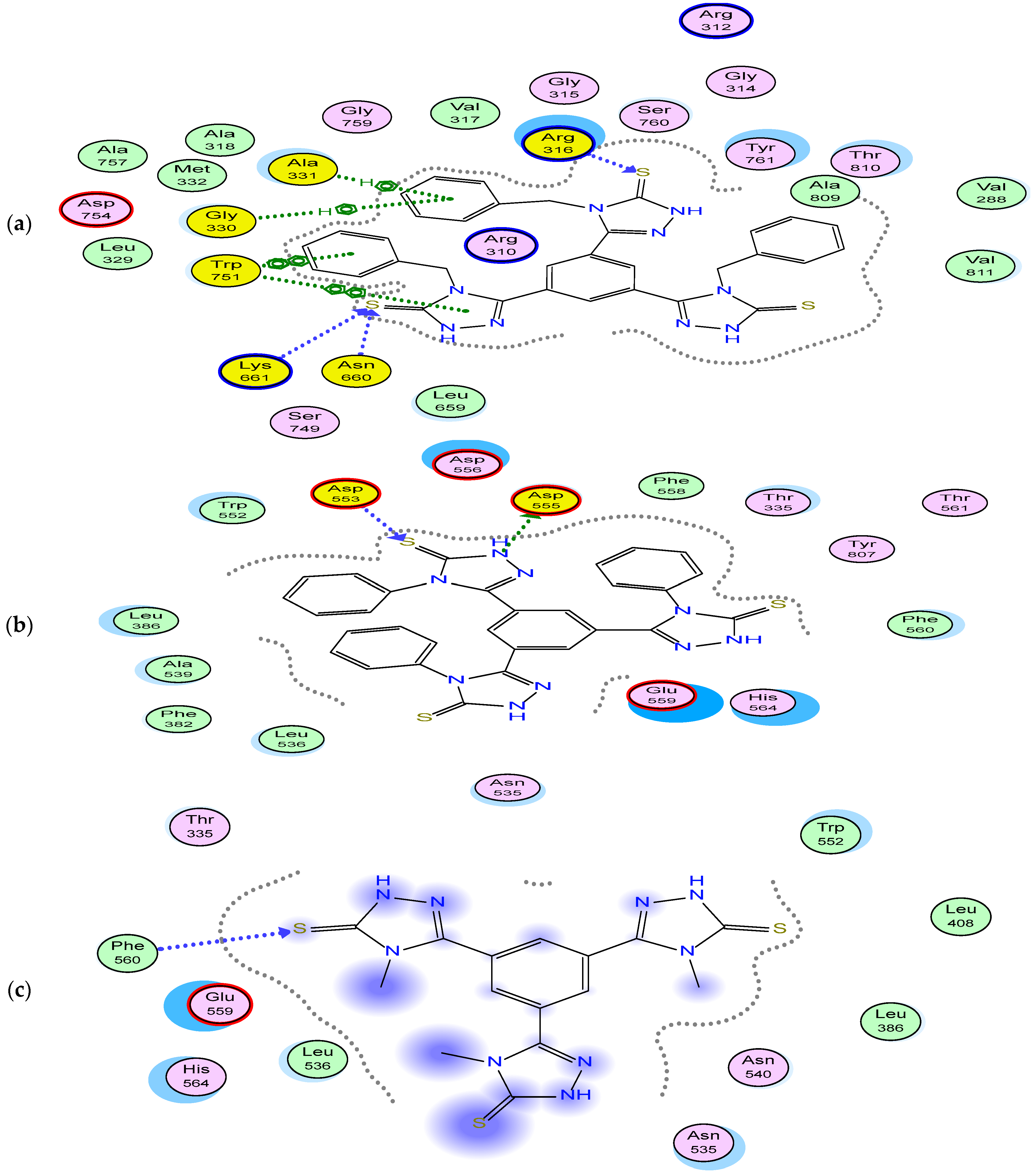

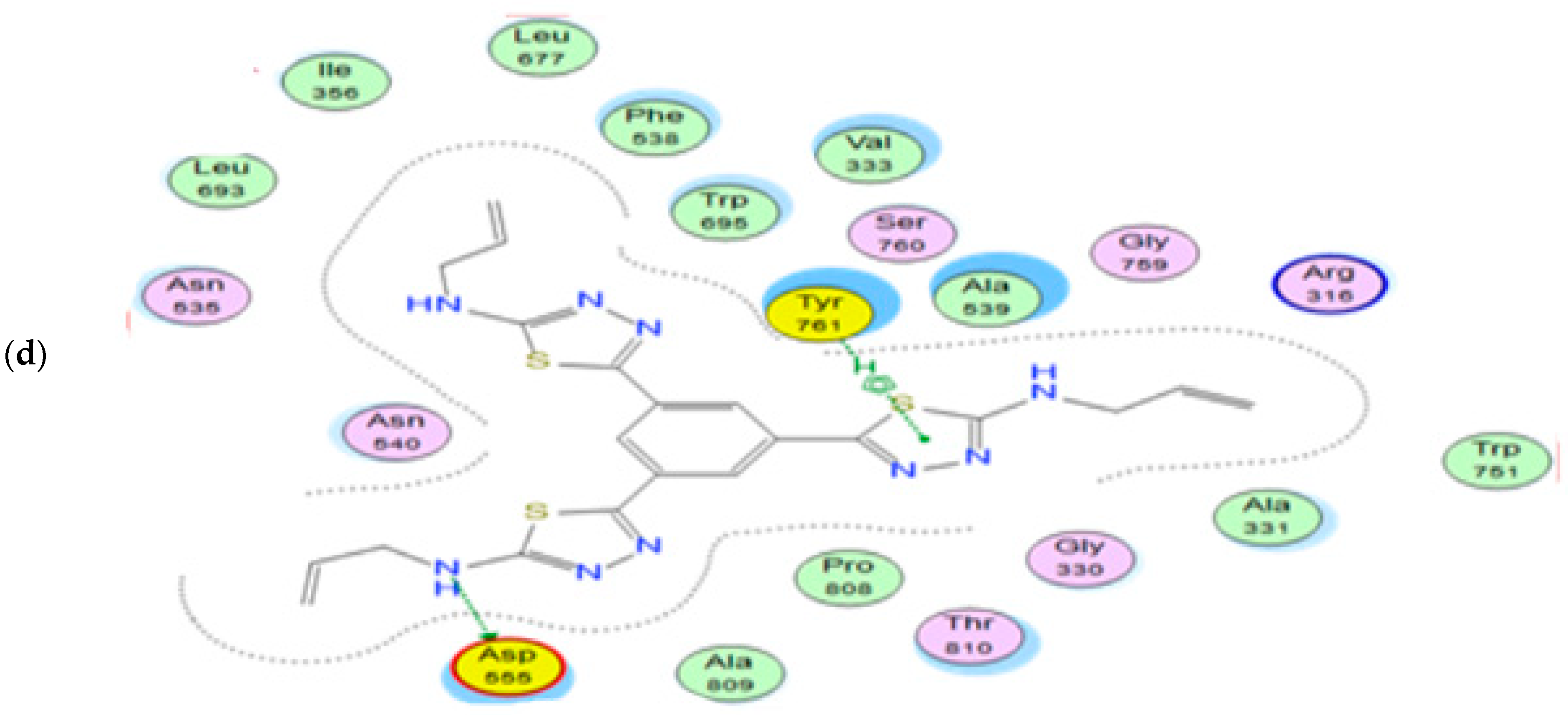

The investigated triazoles 22 and 23 (LSD1 inhibition IC50 = 46.35 nM, 65.11 nM) and the inactive triazole 18 IC50 = 1491 nM were docked into the active site of LSD1 and the results were tabulated on Table 6.
Compound 22 is well positioned to interact with one of its sulfur atoms with the most critically important amino acid, Lys661, for LSD1 inhibition [58], in addition to Asp 660 amino acid residue with hydrogen bonding interaction. It has also very similar binding patterns with surrounding residues, such as FAD interactions, which is illustrated as follows: one of the triazole rings and aromatic rings via arene–arene interaction with Try751 amino acid, in addition to arene–cationic interactions with Gly330 and Ala331, retains good stacking against the shelf-like hydrophobic surface. Moreover, hydrogen bonding interactions was observed in Arg316 via a second sulfur atom. The binding energy of the compound 22 was estimated by −17.15 Kcal/mol (Figure 7a).
Compound 23 is well positioned to interact with an additional critical amino acid residue for the LSD1 inhibition of Asp 555 via hydrogen bonding interaction with an N-triazole atom, with a binding energy of −15.94 Kcal/mol in a similar manner to a cocrystallized ligand (Table 6). Additional hydrogen bonding interaction was observed by a sulfur atom to Asp553 amino acid (Figure 7b). On the contrary, compound 18 lacks any binding with any key amino acids important for LSD1 inhibition, which may interpret its failure to have any LSD1 inhibition activity (Figure 7c). Moreover, the synthesized 1,3,4-thiadiazole 27 LSD1 inhibition with IC50 = 46.35 nM has shown effective binding to key amino acid Asp 555 essential for inhibition via hydrogen bonding interaction with a terminal amino group on a thiadiazole ring in addition to arene binding to a Try 761 residue indicating good fit, such as a FAD molecule (Figure 7d) (Table 6).

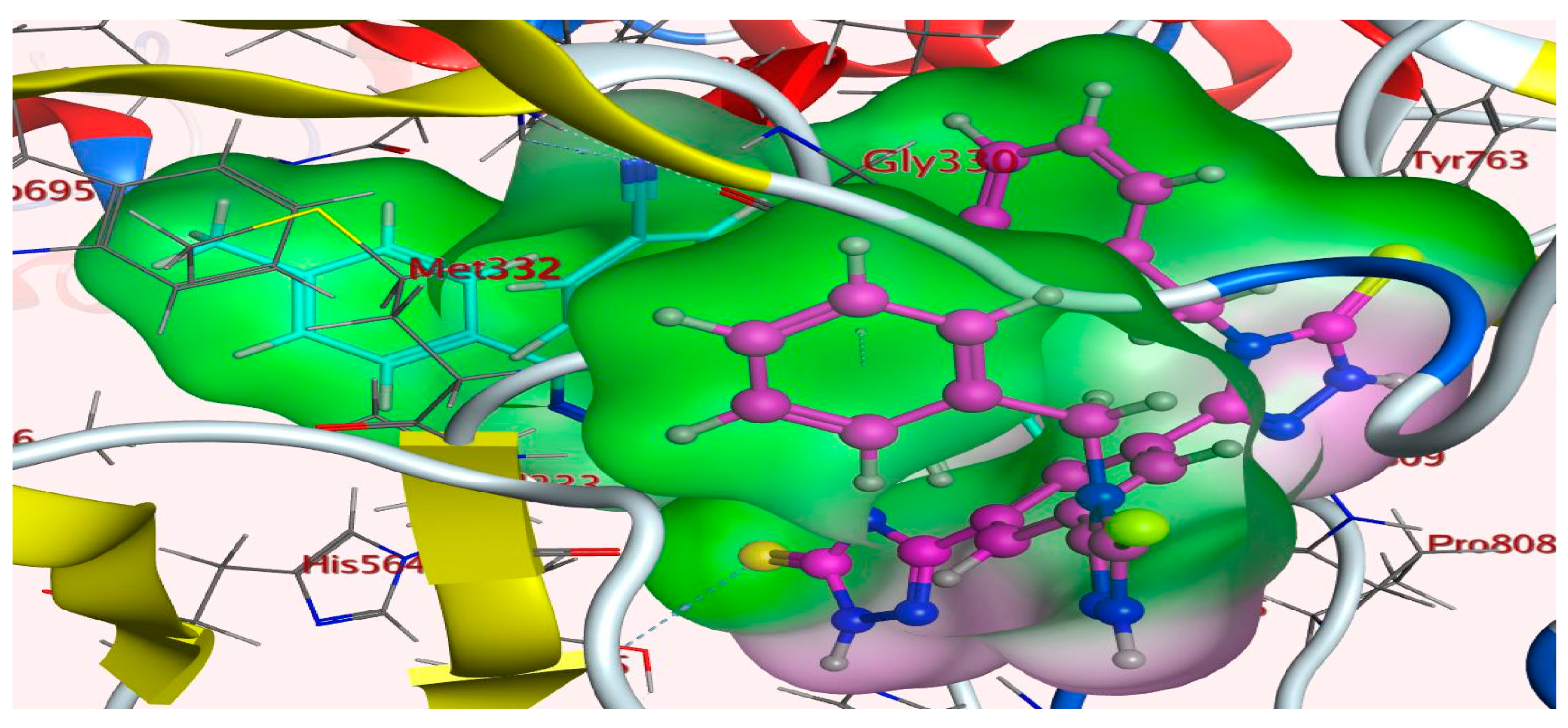

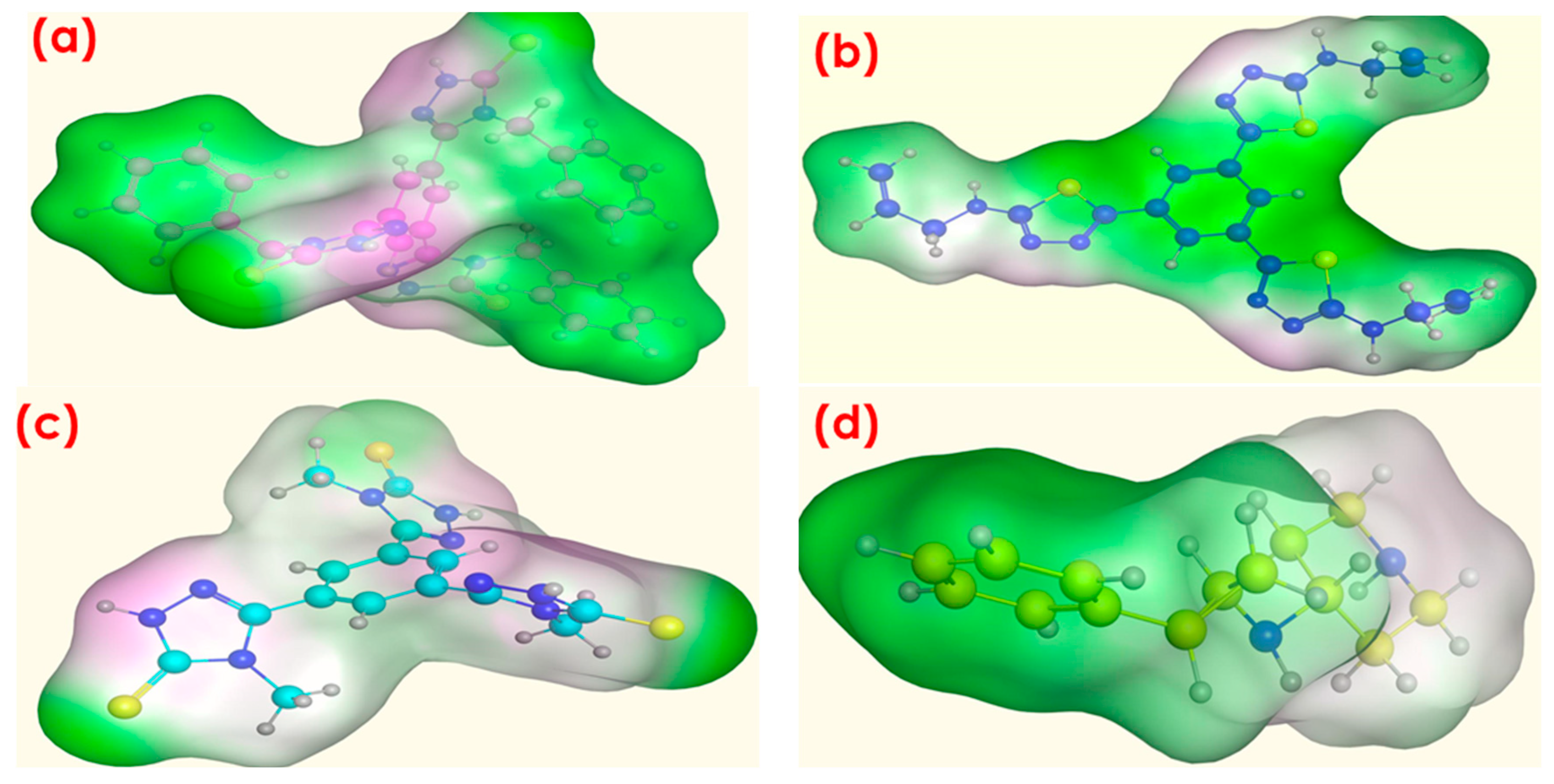

2.2.9. Surface Mapping

The physicochemical features of the substituent group had an effect on the activity of the compounds. Hydrophobicity, in particular, was discovered to be linked to anticancer action. A surface map of the active region inside the LSD1 receptor was downloaded from the Protein Data Bank website, illustrating the active site’s hydrophobicity. Further investigations were conducted, and compound 22 was discovered in a hydrophobic surface mapping investigation (pink) occupying almost the same region with a cocrystallized ligand (cyan) (Figure 8).
In addition, compound 22 displayed stronger lipophilic characteristics (greener patches) and was therefore able to make more contact with the enzyme’s lipophobic pocket (Figure 9a). Moreover, compound 22,such as the reference compound GSK (Figure 9d), has a more flat shape, allowing the chemical to adopt a conformation that makes use of a more hydrophobic area inside the pocket. On the contrary, compound 18 surface mapping (Figure 9c) showed a distinct difference from compounds 22 and 27 (Figure 9b) and the reference compound in lacking sufficient hydrophobicity required for bonding and LSD1 inhibition. The results of the hydrophobic mapping and conformations show that hydrophobicity plays a specific function in the putative protein-binding location.

2.2.10. Computational Pharmacokinetic Analysis

The success of a drug candidate is determined not only by its good potential but also by a satisfactory ADME profile. Because a wide variety of experimental media and high-throughput in vitro ADME screens are available, it has the capacity to predict some important properties in silico and is valuable for the analysis of the good qualities of the molecules. Nowadays, it is recommended that the employment of computational ADME should be done as early as possible in the drug discovery process so as to reduce the number of safety issues [59]. Lipinski’s rule of five is helpful in describing molecular properties of a drug candidate, which is necessary to evaluate the important pharmacokinetic parameters, such as ADME. The rule is helpful in the drug design and development of a potential drug molecule [59,60]. The search engine further gave a compiled result on the lipophilicity and hydrophilicity of these molecules. Log P, a measure of the lipophilicity of a molecule, is the logarithm of the ratio of the concentration of a drug substance in two solvents in a unionized form. The aqueous solubility of a compound significantly affects its absorption and distribution characteristics. On the other hand, low water solubility often leads to bad absorption, and therefore, the general aim is to avoid poorly soluble compounds. Although the compound 27 exhibited a good hydrophilic–lipophilic balance and the same predicted bioavailability (Table 7), the 27 derivative with high lipophilicity was expected to show decent GI absorption. In addition, we calculated the total polar surface area (TPSA) since it is another key property that is related to drug bioavailability. Thus, passively absorbed molecules with TPSA > 140 are thought to have low oral bioavailability, which is quite perfect for our compound 27.
It is also clear that our compounds 27 and 18 cannot be transferred into a CNS system compared with a reference drug that can permeate through the blood–brain barrier (BBB) and be affected by P-glycoprotein. In the present study, the synthesized ligand 27 was found to be in good agreement with the given criteria and can be said to possess good oral bioavailability.

3. Methods and Materials

3.1. General Chemistry

All reagents and solvents used were of the highest quality of analytical reagent grade and were used without further purification. Fine chemicals and solvents were purchased from BDH Chemicals Ltd. and Sigma-Aldrich. Melting points were measured on a Stuart Scientific SMP1 and are uncorrected. The progress of the reactions and purity of the synthesized compounds were determined by thin layer chromatography (TLC) using UV fluorescent silica gel Merck 60 F254 plates, and the spots were visualized using a UV lamp (254 nm). A PerkinElmer 1430 series FTIR spectrometer was used for the identification of functional groups in the range of 400–4000 cm−1. The NMR spectra were run with a Bruker spectrometer (400 MHz) with TMS as an internal reference. Elemental analyses were performed using a GmbH-Vario EL III Elementar Analyzer.
Synthesis and characterization of benzene-1,3,5-tricarbohydrazide (11)
A solution of triethyl benzene-1,3,5-tricarboxylate (10) (10 mmol) and hydrazine hydrate (45 mmol) in ethanol (50 mL) was refluxed for 4 h until the consumption of the starting material (as monitored using TLC). After cooling to room temperature, ethanol was removed under reduced pressure, and the resulting solid was recrystallized from ethanol to afford white powder. Yield: 94%; mp: 301–302 °C (lit. mp: 300 °C [61]); Rf = 0.42 (chloroform: methanol, 5:2). IR (KBr, υ): 3250–3390 (NH, NH2), 3080 (C-Har), 1690 cm−1 (C=O). 1H NMR (400 MHz, DMSO-d6): δH 4.59 (6H, s, 3 × NH2), 8.33 (3H, s, 3 × Harom), 9.86 (3H, s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 128.51, 134.31 (Carom); 165.47 (3 × C=O). Anal. Calcd. for C9H12N6O3: C, 42.86; H, 4.80; N, 33.32. Found: C, 42.72; H, 4.74; N, 33.40.
General procedure for the synthesis of acid thiosemicarbazides 12–17
A mixture of benzene-1,3,5-tricarbohydrazide (11) (10 mmol) and the appropriate isothiocyanate derivatives (30 mmol) in ethanol (50 mL) was heated under reflux for 6 h until the consumption of the starting material as monitored by TLC. The reaction mixture was cooled; the obtained precipitate was filtered and recrystallized from ethanol to afford the targeted acid thiosemicarbazides 12–17.
Characterization of 2,2′,2″-(benzene-1,3,5-tricarbonyl)tris(N-methylhydrazine-1-carbothioamide) (12)
White powder, yield 90%; mp 202–203 °C; Rf = 0.28 (chloroform: methanol, 5:2). IR (KBr, υ): 3270–3380 (NH), 3080 (C-Har), 2930 (C-Hal), 1680 (C=O), 1280 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 3.39 (9H, s, 3 × CH3), 8.15 (3H, s, 3 × Harom), 8.60 (3H, s, 3 × NH), 9.46 (3H, s, 3 × NH), 10.54 (3H, s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 31.44 (3 × CH3); 130.84, 133.34 (Carom); 165.59 (3 × C=O); 182.70 (3 × C=S). Anal. Calcd. For C15H21N9O3S3: C, 38.21; H, 4.49; N, 26.73. Found: C, 38.33; H, 4.41; N, 26.77.
Characterization of2,2′,2″-(benzene-1,3,5-tricarbonyl)tris(N-ethylhydrazine-1-carbothioamide) (13)
White powder, yield 89%; mp 209–210 °C; Rf = 0.27 (chloroform: methanol, 5:2). IR (KBr, υ): 3260–3370 (NH), 3070 (C-Har), 2960 (C-Hal), 1690 (C=O), 1290 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 1.07–1.10 (9H, m, 3 × CH3), 3.45–3.52 (6H, m, 3 × CH2), 8.19 (2.60H, s, Harom), 8.32 (0.40H, s, Harom), 8.61 (3H, s, 3 × NH), 9.39 (2.80H, s, NH), 9.86 (0.45H, s, NH), 10.51 (2.75H, s, NH). 13C NMR (100 MHz, DMSO-d6): δC 14.98 (3 × CH3); 39.00 (3 × CH2); 128.52, 130.81, 133.37, 134.29 (Carom); 165.48 (3 × C=O); 181.72 (3 × C=S). Anal. Calcd. for C18H27N9O3S3: C, 42.09; H, 5.30; N, 24.54. Found: C, 42.35; H, 5.23; N, 24.42.
Characterization of2,2′,2″-benzenetricarbonyltris(N-cyclohexylhydrazine carbothioamide) (14)
White powder, yield 87%; mp 190–191 °C; Rf = 0.25 (chloroform: methanol, 5:2). IR (KBr, υ): 3240–3365 (NH), 3080 (C-Har), 2920 (C-Hal), 1695 (C=O), 1295 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 1.05–1.08 (6H, m, 3 × CH2), 1.27–1.33 (12H, m, 6 × CH2), 1.57–1.83 (12H, m, 6 × CH2), 4.35–4.39 (3H, m, 3 × CH), 8.33–8.68 (6H, m, 3 × Harom, 3 × NH), 9.28 (3H, bs, 3 × NH), 9.84 (1H, s, NH), 10.03 (2H, s, 2 × NH). 13C NMR (100 MHz, DMSO-d6): δC 25.35, 25.63, 32.44 (15 × CH2); 56.50 (3 × CH); 128.51, 130.36, 130.57, 130.68, 134.31, 134.67 (Carom); 164.87, 165.47, 165.81 (3 × C=O, 3 × C=S). Anal. Calcd. for C30H45N9O3S3: C, 53.31; H, 6.71; N, 18.65. Found: C, 53.44; H, 6.75; N, 18.58.
Characterization of 2,2′,2″-(benzene-1,3,5-tricarbonyl)tris(N-allylhydrazine-1-carbothioamide) (15)
White powder, yield 88%; mp 215–216 °C; Rf = 0.24 (chloroform: methanol, 5:2). IR (KBr, υ): 3250–3390 (NH), 3090 (C-Har), 2900 (C-Hal), 1680 (C=O), 1280 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 4.13 (6H, s, 3 × NHCH2), 5.07 (3H, d, J = 8 Hz, 3 × =CH), 5.17 (3H, d, J = 16 Hz, 3 × =CH), 5.81–5.87 (3H, m, 3 × CH2CH=), 8.37 (3H, bs, 3 × Harom), 8.61 (3H, s, 3 × NH), 9.50 (3H, s, 3 × NH), 10.57 (3H, s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 46.35 (3 × NHCH2); 115.89, 130.86, 133.35, 135.42 (C=C, Carom); 165.53 (3 × C=O); 190.14 (3 × C=S). Anal. Calcd. for C21H27N9O3S3: C, 45.89; H, 4.95; N, 22.93. Found: C, 45.80; H, 4.88; N, 22.86.
Characterization of2,2′,2″-(benzene-1,3,5-tricarbonyl)tris(N-benzylhydrazine-1-carbothioamide) (16)
White powder, yield 87%; mp 176–177 °C; Rf = 0.22 (chloroform: methanol, 5:2). IR (KBr, υ): 3230–3370 (NH), 3070 (C-Har), 2930 (C-Hal), 1690 (C=O), 1300 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 4.67 and 4.68 (2H, 2s, CH2), 4.81 (2H, s, CH2), 4.94 (2H, s, CH2), 7.24–7.46 (18H, m, 3 × C6H5 and 3 × NH), 8.68 (1.5H, s, Harom), 8.80 (1.5H, bs, Harom), 9.63 (3H, s, 3 × NH), 10.68 (3H, s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 65.96, 66.70 (3 × CH2); 127.11, 127.46, 127.49, 127.54, 127.64, 127.82, 127.87, 128.54, 128.69, 128.75, 128.84, 129.35, 130.98, 133.37, 135.19, 138.37, 138.74, 139.79 (Carom); 165.68 (3 × C=O); 188.61, 190.76 (3 × C=S). Anal. Calcd. for C33H33N9O3S3: C, 56.63; H, 4.75; N, 18.01. Found: C, 56.43; H, 4.70; N, 18.11.
Characterization of 2,2′,2″-(benzene-1,3,5-tricarbonyl)tris(N-phenylhydrazine-1-carbothioamide) (17)
White powder, yield 90%; mp 163–165 °C; Rf = 0.20 (chloroform: methanol, 5:2). IR (KBr, υ): 3250–3390 (NH), 3080 (C-Har), 1680 (C=O), 1285 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 7.16–7.43 (15H, m, 3 × C6H5), 8.71–8.74 (3H, m, 3 × Harom), 9.93 (6H, bs, 6 × NH), 10.77–10.95 (3H, 3s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 125.72, 126.74, 128.55, 133.40, 133.50, 133.95, 133.98, 139.64 (Carom); 165.37, 165.53, 165.79 (3 × C=O); 181.41, 181.52 (3 × C=S). Anal. Calcd. for C30H27N9O3S3: C, 54.78; H, 4.14; N, 19.16. Found: C, 54.86; H, 4.18; N, 19.10.
General procedure for the synthesis of 1,2,4-triazole-3-thiones 18–23
The appropriate acid thiosemicarbazide 12–17 (1 mmol) was dissolved in 10% aqueous solution of sodium hydroxide (30 mL). The mixture was allowed to react at reflux for 6 h, cooled, filtered, and acidified with hydrochloric acid. The crude product was collected by filtration and recrystallized from ethanol to afford the targeted 1,2,4-triazoles 18–23.
Characterization of 3,3′,3″-(benzene-1,3,5-triyl)tris(4-methyl-1H-1,2,4-triazole-5(4H)-thione) (18)
White powder, yield 88%; mp 279–281 °C; Rf = 0.69 (chloroform: methanol, 5:2). IR (KBr, υ): 3320 (NH), 3060 (C-Har), 2970 (C-Hal), 1620 (C=N), 1300 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 3.59 and 3.61 (9H, 2s, 3 × CH3), 8.25 (1.25H, s, Harom), 8.33 (0.50H, s, Harom), 8.40 (1.25H, s, Harom), 14.07, and 14.09 (3H, 2s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 32.11, 32.13 (3 × CH3); 127.92, 128.20, 130.85, 131.55, 132.49, 133.00 (Carom); 150.49, 150.57 (C=N); 166.26, 168.32, 168.35 (C=S). Anal. Calcd. for C15H15N9S3: C, 43.15; H, 3.62; N, 30.19. Found: C, 43.30; H, 3.69; N, 30.32.
Characterization of 3,3′,3″-(benzene-1,3,5-triyl)tris(4-ethyl-1H-1,2,4-triazole-5(4H)-thione) (19)
White powder, yield 87%; mp 266–268 °C; Rf = 0.68 (chloroform: methanol, 5:2). IR (KBr, υ): 3340 (NH), 3080 (C-Har), 2930 (C-Hal), 1630 (C=N), 1290 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 1.17–1.22 (9H, m, 3 × CH3), 4.06–4.16 (6H, m, 3 × CH2), 8.23 (0.75H, s, Harom), 8.27 (0.75H, s, Harom), 8.38 (1.50H, s, Harom), 14.06, and 14.09 (3H, 2s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 13.83, 13.85 (3 × CH3); 39.75, 39.81 (3 × CH2); 128.05, 128.46, 131.12, 131.65, 132.61, 133.17 (Carom); 149.94, 150.08 (C=N); 166.16, 167.68 (C=S). Anal. Calcd. for C18H21N9S3: C, 47.04; H, 4.61; N, 27.43. Found: C, 47.18; H, 4.68; N, 27.55.
Characterization of 3,3′,3″-(benzene-1,3,5-triyl)tris(4-cyclohexyl-1H-1,2,4-triazole-5(4H)-thione) (20)
White powder, yield 85%; mp 251–252 °C; Rf = 0.65 (chloroform: methanol, 5:2). IR (KBr, υ): 3310 (NH), 3050 (C-Har), 2910 (C-Hal), 1615 (C=N), 1300 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 0.88–0.94 (4H, m, 2 × CH2), 1.15–1.21 (6H, m, 3 × CH2), 1.54–1.99 (20H, m, 10 × CH2), 4.32–4.35 (3H, m, 3 × CH), 8.06 (0.50H, s, Harom), 8.09 (1H, s, Harom), 8.28 (1H, s, Harom), 8.65 (0.50H, s, Harom), 14.00, and 14.03 (3H, 2s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 25.14, 25.16, 25.92, 26.02, 30.36, 30.72 (15 × CH2); 57.66 (3 × CH); 128.00, 128.82, 132.36, 132.41, 132.46, 133.01, 134.05, 134.36, 134.54, 135.54 (Carom); 149.88, 150.23 (C=N); 166.12, 166.22, 166.33, 167.03 (C=S). Anal. Calcd. for C30H39N9S3: C, 57.94; H, 6.32; N, 20.27. Found: C, 57.80; H, 6.27; N, 20.38.
Characterization of 3,3′,3″-(benzene-1,3,5-triyl)tris(4-allyl-1H-1,2,4-triazole-5(4H)-thione) (21)
White powder, yield 87%; mp 287–288 °C; Rf = 0.64 (chloroform: methanol, 5:2). IR (KBr, υ): 3280 (NH), 3070 (C-Har), 2930 (C-Hal), 1620 (C=N), 1290 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 4.76 (6H, bs, 3 × NHCH2), 4.85 (3H, d, J = 16 Hz, 3 × =CH), 5.11 (3H, d, J = 8 Hz, 3 × =CH), 5.76–5.85 (3H, m, 3 × CH2CH=), 8.16 (3H, s, 3 × Harom), 14.20 (3H, s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 46.35 (3 × NHCH2); 117.87, 128.13, 130.63, 131.98 (C=C, Carom); 150.15 (C=N); 168.25 (C=S). Anal. Calcd. for C21H21N9S3: C, 50.89; H, 4.27; N, 25.43. Found: C, 50.77; H, 4.31; N, 25.35.
Characterization of 3,3′,3″-(benzene-1,3,5-triyl)tris(4-benzyl-1H-1,2,4-triazole-5(4H)-thione) (22)
White powder, yield 85%; mp 240–241 °C; Rf = 0.62 (chloroform: methanol, 5:2). IR (KBr, υ): 3315 (NH), 3040 (C-Har), 2945 (C-Hal), 1615 (C=N), 1310 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 6.71 and 6.74 (6H, 2s, 3 × CH2), 8.28–8.87 (18H, m, Harom), 12.90, 13.13 and 13.29 (3H, 3s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 67.22, 67.28 (3 × CH2); 124.70,126.68, 126.82, 127.70,128.60, 130.27, 130.30, 134.25, 138.66, 138.75, 144.61, 145.16, 147.18, 147.34, 147.77, 147.85, 148.11 (Carom); 159.70, 160.05 (C=N); 190.30, 190.51 (C=S). Anal. Calcd. for C33H27N9S3: C, 61.37; H, 4.21; N, 19.52. Found: C, 61.56; H, 4.29; N, 19.41.
Characterization of 3,3′,3″-(benzene-1,3,5-triyl)tris(4-phenyl-1H-1,2,4-triazole-5(4H)-thione) (23)
White powder, yield 87%; mp 229–230 °C; Rf = 0.60 (chloroform: methanol, 5:2). IR (KBr, υ): 3300 (NH), 3070 (C-Har), 1620 (C=N), 1290 cm−1 (C=S). 1H NMR (400 MHz, DMSO-d6): δH 7.10–7.30 (5H, m, Harom), 7.42–7.58 (10H, m, Harom), 7.80 (2H, s, Harom), 8.07 (0.70H, s, Harom), 8.44 (0.30H, s, Harom), 14.16, 14.21, and 14.25 (3H, 3s, 3 × NH). 13C NMR (100 MHz, DMSO-d6): δC 127.06, 127.15, 127.28, 128.86, 129.02, 129.13, 129.95, 130.08, 130.75, 131.60, 131.98, 132.09, 132.20, 133.03, 134.12, 134.48, 134.72 (Carom); 149.03, 149.32, 149.55 (C=N); 165.68, 166.05, 169.20, 169.30, 169.39 (C=S). Anal. Calcd. for C30H21N9S3: C, 59.68; H, 3.51; N, 20.88. Found: C, 59.80; H, 3.45; N, 20.80.
General procedure for the synthesis of 1,3,4-thiadiazole-3-thiones 24–28
A solution of acid thiosemicarbazide 12–15 and 17 (1 mmol) in cold concentrated sulfuric acid (30 mL) was stirred for 30 min at 0 °C. Then, the mixture was allowed to reach room temperature. After stirring for an additional 16 h, the resulting solution was poured into ice-cold water and treated with ammonium hydroxide solution until pH was adjusted to 8. The resulting product was filtered, washed with water, dried, and recrystallized from ethanol, yielding the targeted thiadiazoles 24–28.
Characterization of 5,5′,5″-(benzene-1,3,5-triyl)tris(N-methyl-1,3,4-thiadiazol-2-amine) (24)
Off-white powder, yield 85%; mp 247–248 °C; Rf = 0.59 (chloroform: methanol, 5:2). IR (KBr, υ): 3280 (NH), 3050 (C-Har), 2900 (C-Hal), 1610 cm−1 (C=N). 1H NMR (400 MHz, DMSO-d6): δH 2.97 (7H, s, CH3), 3.93 (2H, s, CH3), 7.12 (3H, bs, 3 × NH), 8.07 (0.5H, s, Harom), 8.09 (1H, bs, Harom), 8.23 (1H, s, Harom), 8.24 (0.5H, bs, Harom). 13C NMR (100 MHz, DMSO-d6): δC 31.89 (CH3); 53.17 (CH3); 124.31, 127.29, 127.51, 131.89, 132.76, 132.99 (Carom); 154.33, 154.60, 165.50, 170.35, 170.39 (C=N). Anal. Calcd. for C15H15N9S3: C, 43.15; H, 3.62; N, 30.19. Found: C, 43.25; H, 3.69; N, 30.28.
Characterization of 5,5′,5″-(benzene-1,3,5-triyl)tris(N-ethyl-1,3,4-thiadiazol-2-amine) (25)
Off-white powder, yield 84%; mp 233–234 °C; Rf = 0.57 (chloroform: methanol, 5:2). IR (KBr, υ): 3310 (NH), 3080 (C-Har), 2930 (C-Hal), 1600 cm−1 (C=N). 1H NMR (400 MHz, DMSO-d6): δH 1.23 (9H, t, J = 4 Hz, 3 × CH3), 3.93–3.98 (6H, m, 3 × CH2), 6.99 (1H, s, NH), 7.11 (1H, s, NH), 7.24 (1H, s, NH), 8.05 (0.5H, s, Harom), 8.22 (2H, s, Harom), 8.25 (0.5H, bs, Harom). 13C NMR (100 MHz, DMSO-d6): δC 14.64 (3 × CH3); 53.18 (3 × CH2); 124.41, 127.35, 127.54, 131.90, 132.69, 132.91 (Carom); 154.18, 154.43, 165.49, 169.37, 169.42 (C=N). Anal. Calcd. for C18H21N9S3: C, 47.04; H, 4.61; N, 27.43. Found: C, 47.18; H, 4.68; N, 27.33.
Characterization of 5,5′,5″-(benzene-1,3,5-triyl)tris(N-cyclohexyl-1,3,4-thiadiazol-2-amine) (26)
Off-white powder, yield 83%; mp 218–219 °C; Rf = 0.56 (chloroform: methanol, 5:2). IR (KBr, υ): 3290 (NH), 3020 (C-Har), 2960 (C-Hal), 1600 cm−1 (C=N). 1H NMR (400 MHz, DMSO-d6): δH 0.83–0.94 (4H, m, 2 × CH2), 1.19–1.39 (12H, m, 6 × CH2), 1.57–2.03 (14H, m, 7 × CH2), 3.52–3.58 (3H, m, 3 × CH), 7.59–7.63 (3H, m, 3 × NH), 8.04–8.26 (3H, m, Harom). 13C NMR (100 MHz, DMSO-d6): δC 24.75, 25.14, 25.76, 30.76, 31.78, 32.49 (15 × CH2); 54.42 (3 × CH); 124.31, 132.98 (Carom); 154.25, 155.18, 168.58, 169.63, (C=N). Anal. Calcd. for C30H39N9S3: C, 57.94; H, 6.32; N, 20.27. Found: 57.78; H, 6.25; N, 20.17.
Characterization of 5,5′,5″-(benzene-1,3,5-triyl)tris(N-allyl-1,3,4-thiadiazol-2-amine) (27)
Off-white powder, yield 84%; mp 259–260 °C; Rf = 0.54 (chloroform: methanol, 5:2). IR (KBr, υ): 3320 (NH), 3030 (C-Har), 2940 (C-Hal), 1620 cm−1 (C=N). 1H NMR (400 MHz, DMSO-d6): δH 4.70–4.77 (6H, m, 3 × NHCH2), 4.85–4.91 (3H, m, 3 × =CH), 5.19 (3H, d, J = 8 Hz, 3 × =CH), 5.84–5.91 (3H, m, 3 × CH2CH=), 7.25 (3H, bs, 3 × NH), 8.09 (1.5H, bs, Harom), 8.21 (1H, s, Harom), 8.26 (0.5H, bs, Harom). 13C NMR (100 MHz, DMSO-d6): δC 50.48, 52.90 (3 × NHCH2); 124.21, 127.21, 127.65, 131.56, 132.34, 132.63, 132.94 (C=C, Carom); 154.14, 154.36, 154.40, 154.61, 165.26, 166.40, 169.63, 169.67 (C=N). Anal. Calcd. for C21H21N9S3: C, 50.89; H, 4.27; N, 25.43. Found: C, 50.70; H, 4.33; N, 25.32.
Characterization of 5,5′,5″-(benzene-1,3,5-triyl)tris(N-phenyl-1,3,4-thiadiazol-2-amine) (28)
Off-white powder, yield 85%; mp 204–205 °C; Rf = 0.51 (chloroform: methanol, 5:2). IR (KBr, υ): 3280 (NH), 3050 (C-Har), 1610 cm−1 (C=N). 1H NMR (400 MHz, DMSO-d6): 7.12–7.33 (8H, m, 3 × NH, Harom), 7.62–7.67 (10H, m, Harom). 13C NMR (100 MHz, DMSO-d6): δC 127.23, 127.31, 128.89, 128.95, 129.34, 129.89, 130.11, 130.89, 131.78, 132.58, 132.83, 133.43, 134.52, 134.86, 135.09, 149.67, 149.91 (Carom); 154.89, 155.67, 166.87, 169.78, 167.18 (C=N). Anal. Calcd. for C30H21N9S3: C, 59.68; H, 3.51; N, 20.88. Found: C, 59.51; H, 3.57; N, 20.76.

3.2. Cytotoxicity Assay

The in vitro cytotoxic testing of novel derivatives was performed against different three cancer cell lines, HepG2, MCF-7, and HCT116, using standard MTT assay as previously reported [22,62,63,64].

3.3. LSD1 Enzymatic Inhibitory Activity Assay

The inhibition of LSD1 activity by our tested compounds was evaluated according to a previously reported procedure [65,66,67,68] and as mentioned in the assay kit in Supplementary Materials.

3.4. Cell Cycle Analysis and Apoptosis Detection

Using the annexin V-FITC and PI apoptosis kit (eBioscienceTM, San Diego, CA, USA), the apoptosis detection was performed. MCF cells were plated onto a six-well plate at a 600,000 cells/mL density and then treated with compound 27 at 10 Mg/mL after 24 h of incubation, and the assay was completed as previously described [38,69].

3.5. Apoptosis Assay

The MCF-7 cells were treated with tested compounds 27 for 24 h and stained with annexin V-FITC/PI to detect externalization of PS from cell membrane and analyze apoptotic and necrotic cell population as previously described [70,71].

3.6. DNA Fragmentation

DNA fragmentation was quantitatively determined using a diphenylamine (DPA) reagent according to the method of Boraschi and Maurizi [72,73,74].

3.7. Cell Cycle Analysis

Cell cycle arrest and distribution was assessed, using the Propidium Iodide Flow Cytometry Kit (ab139418, Abcam, USA, CA, USA), followed by flow cytometry analysis according to the previous methodology [75].

3.8. MAO Activity Screening

The coupled assay approach was used to evaluate MAO activity in which the product, H2O2, acts with horseradish peroxidase to convert 10-acetyl-3,7-dihydroxyphenoxazine to the fluorescent resorufin. The percent inhibition was computed from the top and bottom of the resultant curve using the equation for a three-parameter curve in GraphPad Prism v. 4, (Graphstats, New York, NY, USA) [52,76,77,78].

3.9. Statistical Analysis

All experiments were carried out in triplicate, and each data point represented the overall mean of at least two independent experiments. The findings were expressed as mean ± standard deviation (SD). The results were analyzed using GraphPad Prism (version 4, Graphstats, New York, NY, USA) and Microsoft Office Excel software to carry out the statistical analysis. One-way analysis of variance technique, followed by Tukey’s test, was applied to observe the significance between the groups. The entire statistical analysis was carried out at p ≤ 0.05.

3.10. Molecular Docking

MOE (Chemical Computing Group Inc. software 2014, Montreal, QC, Canada, accessed on 20 January 2014) was used to build the 3D structures of some selected substituted compounds in their neutral forms, which represented the best and worst LSD1 inhibitors. The lowest energy conformers of novel analogues ‘global-minima’ were docked into the binding pocket of PDB: 5YJB without the original ligand (8 WC) from Brookhaven National Laboratory’s Protein Data Bank. After adding the hydrogens, the enzyme structure was refined using a technique that gradually reduced and decreased the restrictions on the enzyme until the RMSD gradient was 0.01 kcal/mol A. The molecular mechanics force field ‘AMBER’ was used to perform energy minimization. Energy minimizations (EM) were carried out for each selected candidate using 1000 steps of steepest descent, followed by conjugate gradient minimization to an RMSD energy gradient of 0.01 Kcal/mol. The difference between the energy of the complex and the individual energies of the enzyme and ligand was used to compute the binding energy [59,79]. Molecular Operating Environment software (Montreal, QC, Canada, accessed on 20 January 2014) was used to perform a flexible alignment experiment on the chemicals under investigation (MOE of Chemical Computing Group Inc. on a Core i7 2.3 GHz workstation). A radius of 10.0 Å was used to detect the enzyme’s active site. The partial atomic charges for each analogue were assigned using the program’s semiempirical mechanical computation “AM1” method [80]. The conformational search was carried out. All of the conformers were reduced until the RMSD deviation was less than 0.01 Kcal/mol, and then surface mapping was performed, using the following color codes: pink, hydrogen bond; blue, mild polar.

4. Conclusions

LSD1 (KDM1A) is one of the most well-studied KDMs, with higher levels seen in a variety of malignancies [81]. As a result, LSD1 is a promising target for the development of cancer therapies. In this study, a series of aryl-centered trisubstituted systems enriched with a 1,2,4 triazole and 1,3,4-thiadiazole framework were designed, synthesized, and evaluated for cytotoxic activity using MTT assay against different three cancer cell lines. In addition, the design succeeded in introducing a novel scaffold, which was evaluated for LSD1 inhibitory activity. Most of the synthesized derivatives had potency with IC50 at a submicromolar value and selectivity performance comparable to reference inhibitors. Compound 27 with 1,3,4-thiadiazole core was the most promising potent LSD1 inhibitor with a IC50 value of 0.046 µM. Moreover, a detailed mechanistic analysis on the cancer cell lines revealed that when compared with the positive control medication, the majority of the compounds had stronger antiproliferative activity. In MCF-7 and HepG2 cancer cells, compound 27 also enhanced apoptosis, produced cell cycle arrest at the G2/M phase, and caused DNA fragmentation. Molecule 27 appears to offer a lot of potential as a novel multi-triazole-based lead compound for the identification of new anticancer medicines that target the LSD1 enzyme, based on our findings. We intend to keep optimizing this molecule in order to create chemical entities with great anticancer activity.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23158796/s1.

Author Contributions

M.R.A., H.E.A.A. and M.A. conceived and designed the experiments; A.A., N.R., M.R.A. and S.K.I. performed the experiments; M.A., A.-A.A.A.E.-S. and H.E.A.A. implemented the biological stud;. S.M.E.-M. and D.I.A.O. performed all surface molecular modeling and contributed in docking experiment analysis; all authors analyzed the data, wrote the paper, edited the English language, discussed the results, and commented on the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Deanship of Scientific Research at Taibah University, Al-Madinah Al-Munawarah, Saudi Arabia, Project Number RC-442/54.

Acknowledgments

The authors gratefully acknowledge support from the Deanship of Scientific Research at Taibah University, Al-Madinah Al-Munawarah, Saudi Arabia, Project Number RC-442/54.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Sener, S.F.; Grey, N. The global burden of cancer. J. Surg. Oncol. 2005, 92, 1–3. [Google Scholar] [CrossRef] [PubMed]
  2. Salminen, E.; Izewska, J.; Andreo, P. IAEA’s role in the global management of cancer-focus on upgrading radiotherapy services. Acta Oncol. 2005, 44, 816–824. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Garraway, L.A.; Jänne, P.A. Circumventing Cancer Drug Resistance in the Era of Personalized Medicine. Cancer Discov. 2012, 2, 214–226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Denny, L. REVIEW: The prevention of cervical cancer in developing countries. BJOG Int. J. Obstet. Gynaecol. 2005, 112, 1204–1212. [Google Scholar] [CrossRef] [PubMed]
  5. Ferlay, J.; Soerjomataram, I.; Dikshit, R.; Eser, S.; Mathers, C.; Rebelo, M.; Parkin, D.M.; Forman, D.; Bray, F. Cancer incidence and mortality worldwide: Sources, methods and major patterns in GLOBOCAN 2012. Int. J. Cancer 2015, 136, E359–E386. [Google Scholar] [CrossRef]
  6. Konstantinopoulos, P.A.; Papavassiliou, A.G. Seeing the future of cancer-associated transcription factor drug targets. JAMA 2011, 305, 2349–2350. [Google Scholar] [CrossRef]
  7. Chohan, T.A.; Qayyum, A.; Rehman, K.; Tariq, M.; Akash, M.S.H. An insight into the emerging role of cyclin-dependent kinase inhibitors as potential therapeutic agents for the treatment of advanced cancers. Biomed. Pharmacother. 2018, 107, 1326–1341. [Google Scholar] [CrossRef]
  8. Pawełczyk, A.; Sowa-Kasprzak, K.; Olender, D.; Zaprutko, L. Molecular Consortia—Various Structural and Synthetic Concepts for More Effective Therapeutics Synthesis. Int. J. Mol. Sci. 2018, 19, 1104. [Google Scholar] [CrossRef] [Green Version]
  9. Kerru, N.; Gummidi, L.; Maddila, S.; Gangu, K.K.; Jonnalagadda, S.B. A Review on Recent Advances in Nitrogen-Containing Molecules and Their Biological Applications. Molecules 2020, 25, 1909. [Google Scholar] [CrossRef]
  10. Bozorov, K.; Zhao, J.; Aisa, H.A. 1,2,3-Triazole-containing hybrids as leads in medicinal chemistry: A recent overview. Bioorg. Med. Chem. 2019, 27, 3511–3531. [Google Scholar] [CrossRef]
  11. Sidhu, J.S.; Singla, R.; Mayank; Jaitak, V. Indole Derivatives as Anticancer Agents for Breast Cancer Therapy: A Review. Anti-Cancer Agents Med. Chem. 2015, 16, 160–173. [Google Scholar] [CrossRef] [PubMed]
  12. Martins, P.; Jesus, J.; Santos, S.; Raposo, L.R.; Roma-Rodrigues, C.; Baptista, P.V.; Fernandes, A.R. Heterocyclic Anticancer Compounds: Recent Advances and the Paradigm Shift towards the Use of Nanomedicine’s Tool Box. Molecules 2015, 20, 16852–16891. [Google Scholar] [CrossRef] [PubMed]
  13. Tahlan, S.; Kumar, P.; Ramasamy, K.; Mani, V.; Mishra, R.K.; Majeed, A.B.A.; Narasimhan, B. Synthesis, antimicrobial, anticancer evaluation and QSAR studies of N′-substituted benzylidene/2-hydroxynaphthalen-1-ylmethylene/3-phenylallylidene/5-oxopentylidene-4-(2-oxo-2-(4H-1,2,4-triazol-4-yl) methylamino)benzohydrazides. Arab. J. Chem. 2017, 10, S2009–S2017. [Google Scholar] [CrossRef] [Green Version]
  14. Aliabadi, A.; Mohammadi-Frarni, A.; Azizi, M.; Ahmadi, F. Design, Synthesis and Cytotoxicity Evaluation of N-(5-Benzylthio)-4H-1,2,4-Triazol-3-YL)-4-Fluorobenzamide Derivatives as Potential Anticancer Agents. Pharm. Chem. J. 2016, 49, 694–699. [Google Scholar] [CrossRef]
  15. Kommagalla, Y.; Cornea, S.; Riehle, R.D.; Torchilin, V.P.; Degterev, A.; Ramana, C.V. Optimization of the anti-cancer activity of the phosphatidylinositol-3 kinase pathway inhibitor PITENIN-1: Switching thiourea with 1,2,3-triazole. MedChemComm 2014, 5, 1359–1363. [Google Scholar] [CrossRef] [Green Version]
  16. Liao, L.; Jiang, C.; Chen, J.; Shi, J.; Li, X.; Wang, Y.; Wen, J.; Zhou, S.; Liang, J.; Lao, Y.; et al. Synthesis and biological evaluation of 1,2,4-triazole derivatives as potential neuroprotectant against ischemic brain injury. Eur. J. Med. Chem. 2020, 190, 112114. [Google Scholar] [CrossRef]
  17. Supuran, C.T.; Briganti, F.; Tilli, S.; Chegwidden, W.; Scozzafava, A. Carbonic anhydrase inhibitors: Sulfonamides as antitumor agents? Bioorg. Med. Chem. 2001, 9, 703–714. [Google Scholar] [CrossRef]
  18. Liang, G.; Yang, S.; Zhou, H.; Shao, L.; Huang, K.; Xiao, J.; Huang, Z.; Li, X. Synthesis, crystal structure and anti-inflammatory properties of curcumin analogues. Eur. J. Med. Chem. 2009, 44, 915–919. [Google Scholar] [CrossRef]
  19. Jain, A.K.; Sharma, S.; Vaidya, A.; Ravichandran, V.; Agrawal, R.K. 1,3,4-Thiadiazole and its Derivatives: A Review on Recent Progress in Biological Activities. Chem. Biol. Drug Des. 2013, 81, 557–576. [Google Scholar] [CrossRef]
  20. Kamoutsis, C.; Fesatidou, M.; Petrou, A.; Geronikaki, A.; Poroikov, V.; Ivanov, M.; Soković, M.; Ćirić, A.; Carazo, A.; Mladěnka, P. Triazolo Based-Thiadiazole Derivatives. Synthesis, Biological Evaluation and Molecular Docking Studies. Antibiotics 2021, 10, 804. [Google Scholar] [CrossRef]
  21. Rezki, N.; Mayaba, M.M.; Al-blewi, F.F.; Aouad, M.R.; El Ashry, E.S.H. Click 1,4-regioselective synthesis, characterization, and antimicrobial screening of novel 1,2,3-triazoles tethering fluorinated 1,2,4-triazole and lipophilic side chain. Res. Chem. Intermed. 2017, 43, 995–1011. [Google Scholar] [CrossRef]
  22. Rezki, N.; Almehmadi, M.A.; Ihmaid, S.; Shehata, A.M.; Omar, A.M.; Ahmed, H.E.; Aouad, M.R. Novel scaffold hopping of potent benzothiazole and isatin analogues linked to 1,2,3-triazole fragment that mimic quinazoline epidermal growth factor receptor inhibitors: Synthesis, antitumor and mechanistic analyses. Bioorg. Chem. 2020, 103, 104133. [Google Scholar] [CrossRef]
  23. Rezki, N. Green Microwave Synthesis and Antimicrobial Evaluation of Novel Triazoles. Org. Prep. Proced. Int. 2017, 49, 525–541. [Google Scholar] [CrossRef]
  24. Aouad, M.R.; Soliman, M.A.; Alharbi, M.O.; Bardaweel, S.K.; Sahu, P.K.; Ali, A.A.; Messali, M.; Rezki, N.; Al-Soud, Y.A. Design, Synthesis and Anticancer Screening of Novel Benzothiazole-Piperazine-1,2,3-Triazole Hybrids. Molecules 2018, 23, 2788. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Aouad, M.R.; Mayaba, M.M.; Naqvi, A.; Bardaweel, S.K.; Al-Blewi, F.F.; Messali, M.; Rezki, N. Design, synthesis, in silico and in vitro antimicrobial screenings of novel 1,2,4-triazoles carrying 1,2,3-triazole scaffold with lipophilic side chain tether. Chem. Cent. J. 2017, 11, 1–13. [Google Scholar] [CrossRef] [Green Version]
  26. Aouad, M.R.; Almehmadi, M.A.; Rezki, N.; Al-Blewi, F.F.; Messali, M.; Ali, I. Design, click synthesis, anticancer screening and docking studies of novel benzothiazole-1,2,3-triazoles appended with some bioactive benzofused heterocycles. J. Mol. Struct. 2019, 1188, 153–164. [Google Scholar] [CrossRef]
  27. Alraqa, S.Y.; Alharbi, K.; Aljuhani, A.; Rezki, N.; Aouad, M.R.; Ali, I. Design, click conventional and microwave syntheses, DNA binding, docking and anticancer studies of benzotriazole-1,2,3-triazole molecular hybrids with different pharmacophores. J. Mol. Struct. 2020, 1225, 129192. [Google Scholar] [CrossRef]
  28. Almehmadi, M.A.; Aljuhani, A.; Alraqa, S.Y.; Ali, D.I.; Rezki, N.; Aouad, M.R.; Hagar, M. Design, synthesis, DNA binding, modeling, anticancer studies and DFT calculations of Schiff bases tethering benzothiazole-1,2,3-triazole conjugates. J. Mol. Struct. 2020, 1225, 129148. [Google Scholar] [CrossRef]
  29. Al-Blewi, F.F.; Almehmadi, M.A.; Aouad, M.R.; Bardaweel, S.K.; Sahu, P.K.; Messali, M.; Rezki, N.; El Ashry, E.S.H. Design, synthesis, ADME prediction and pharmacological evaluation of novel benzimidazole-1,2,3-triazole-sulfonamide hybrids as antimicrobial and antiproliferative agents. Chem. Cent. J. 2018, 12, 110. [Google Scholar] [CrossRef]
  30. Shi, Y.; Lan, F.; Matson, C.; Mulligan, P.; Whetstine, J.R.; Cole, P.A.; Casero, R.A.; Shi, Y. Histone Demethylation Mediated by the Nuclear Amine Oxidase Homolog LSD1. Cell 2004, 119, 941–953. [Google Scholar] [CrossRef] [Green Version]
  31. Amente, S.; Lania, L.; Majello, B. The histone LSD1 demethylase in stemness and cancer transcription programs. Biochim. Biophys. Acta (BBA)-Gene Regul. Mech. 2013, 1829, 981–986. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Hill, J.M.; Quenelle, D.C.; Cardin, R.D.; Vogel, J.L.; Clement, C.; Bravo, F.J.; Foster, T.P.; Bosch-Marce, M.; Raja, P.; Lee, J.S.; et al. Inhibition of LSD1 reduces herpesvirus infection, shedding, and recurrence by promoting epigenetic suppression of viral genomes. Sci. Transl. Med. 2014, 6, 265ra169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sheng, W.; LaFleur, M.W.; Nguyen, T.H.; Chen, S.; Chakravarthy, A.; Conway, J.R.; Li, Y.; Chen, H.; Yang, H.; Hsu, P.-H.; et al. LSD1 Ablation Stimulates Anti-tumor Immunity and Enables Checkpoint Blockade. Cell 2018, 174, 549–563.e19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Punnia-Moorthy, G.; Hersey, P.; Al Emran, A.; Tiffen, J. Lysine Demethylases: Promising Drug Targets in Melanoma and Other Cancers. Front. Genet. 2021, 12, 680633. [Google Scholar] [CrossRef]
  35. Kutz, C.J.; Holshouser, S.L.; Marrow, E.A.; Woster, P.M. 3,5-Diamino-1,2,4-triazoles as a novel scaffold for potent, reversible LSD1 (KDM1A) inhibitors. MedChemComm 2014, 5, 1863–1870. [Google Scholar] [CrossRef] [Green Version]
  36. Qin, Y.; Vasilatos, S.N.; Chen, L.; Wu, H.; Cao, Z.; Fu, Y.; Huang, M.; Vlad, A.M.; Lu, B.; Oesterreich, S.; et al. Inhibition of histone lysine-specific demethylase 1 elicits breast tumor immunity and enhances antitumor efficacy of immune checkpoint blockade. Oncogene 2018, 38, 390–405. [Google Scholar] [CrossRef]
  37. Lee, J.; Molley, T.G.; Seward, C.H.; Abdeen, A.A.; Zhang, H.; Wang, X.; Gandhi, H.; Yang, J.-L.; Gaus, K.; Kilian, K.A. Geometric regulation of histone state directs melanoma reprogramming. Commun. Biol. 2020, 3, 341. [Google Scholar] [CrossRef]
  38. Omar, A.M.; Bajorath, J.; Ihmaid, S.; Mohamed, H.M.; El-Agrody, A.M.; Mora, A.; El-Araby, M.E.; Ahmed, H.E. Novel molecular discovery of promising amidine-based thiazole analogues as potent dual Matrix Metalloproteinase-2 and 9 inhibitors: Anticancer activity data with prominent cell cycle arrest and DNA fragmentation analysis effects. Bioorg. Chem. 2020, 101, 103992. [Google Scholar] [CrossRef]
  39. Nie, Z.; Shi, L.; Lai, C.; Severin, C.; Xu, J.; Del Rosario, J.R.; Stansfield, R.K.; Cho, R.W.; Kanouni, T.; Veal, J.M.; et al. Structure-based design and discovery of potent and selective lysine-specific demethylase 1 (LSD1) inhibitors. Bioorg. Med. Chem. Lett. 2018, 29, 103–106. [Google Scholar] [CrossRef]
  40. Wang, S.; Zhao, L.J.; Zheng, Y.C.; Shen, D.D.; Miao, E.F.; Qiao, X.P.; Zhao, L.J.; Liu, Y.; Huang, R.; Yu, B.; et al. Design, synthesis and biological evaluation of [1,2,4]triazolo[1,5-a]pyrimidines as potent lysine specific demethylase 1 (LSD1/KDM1A) inhibitors. Eur. J. Med. Chem. 2017, 125, 940–951. [Google Scholar] [CrossRef]
  41. Fang, Y.; Yang, C.; Yu, Z.; Li, X.; Mu, Q.; Liao, G.; Yu, B. Natural products as LSD1 inhibitors for cancer therapy. Acta Pharm. Sin. B 2020, 11, 621–631. [Google Scholar] [CrossRef] [PubMed]
  42. Fang, Y.; Liao, G.; Yu, B. LSD1/KDM1A inhibitors in clinical trials: Advances and prospects. J. Hematol. Oncol. 2019, 12, 129–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Li, Z.; Ding, L.; Li, Z.; Wang, Z.; Suo, F.; Shen, D.; Zhao, T.; Sun, X.; Wang, J.; Liu, Y.; et al. Development of the triazole-fused pyrimidine derivatives as highly potent and reversible inhibitors of histone lysine specific demethylase 1 (LSD1/KDM1A). Acta Pharm. Sin. B 2019, 9, 794–808. [Google Scholar] [CrossRef] [PubMed]
  44. Al-Zaydi, K.M.; Nhari, L.M.; Borik, R.M.; Elnagdi, M.H. Green technologies in organic synthesis: Self-condensation of enamines, enaminones and enaminoesters under microwave irradiation in ionic liquid. Green Chem. Lett. Rev. 2010, 3, 93–99. [Google Scholar] [CrossRef]
  45. Dutta, B.; De, R.; Chowdhury, J. Prototropic tautomerism of 4-Methyl 1,2,4-Triazole-3-Thione molecule in solvent water medium: DFT and Car–Parrinello molecular dynamics study. Chem. Phys. 2015, 463, 30–37. [Google Scholar] [CrossRef]
  46. Lee, K.-H.; Kim, B.-C.; Jeong, S.-H.; Jeong, C.W.; Ku, J.H.; Kwak, C.; Kim, H.H. Histone Demethylase LSD1 Regulates Kidney Cancer Progression by Modulating Androgen Receptor Activity. Int. J. Mol. Sci. 2020, 21, 6089. [Google Scholar] [CrossRef]
  47. Sehrawat, A.; Gao, L.; Wang, Y.; Bankhead, A.; McWeeney, S.K.; King, C.J.; Schwartzman, J.; Urrutia, J.; Bisson, W.H.; Coleman, D.J.; et al. LSD1 activates a lethal prostate cancer gene network independently of its demethylase function. Proc. Natl. Acad. Sci. USA 2018, 115, E4179–E4188. [Google Scholar] [CrossRef] [Green Version]
  48. Callegari, K.; Maegawa, S.; Bravo-Alegria, J.; Gopalakrishnan, V. Pharmacological inhibition of LSD1 activity blocks REST-dependent medulloblastoma cell migration. Cell Commun. Signal. 2018, 16, 60. [Google Scholar] [CrossRef] [Green Version]
  49. de Santana, T.I.; Barbosa, M.d.O.; Gomes, P.A.T.d.M.; da Cruz, A.C.N.; da Silva, T.G.; Leite, A.C.L. Synthesis, anticancer activity and mechanism of action of new thiazole derivatives. Eur. J. Med. Chem. 2018, 144, 874–886. [Google Scholar] [CrossRef]
  50. Coppola, J.M.; Ross, B.D.; Rehemtulla, A. Noninvasive Imaging of Apoptosis and Its Application in Cancer Therapeutics. Clin. Cancer Res. 2008, 14, 2492–2501. [Google Scholar] [CrossRef] [Green Version]
  51. Doddakunche, S.P.; Chandagirikoppal, K.V.; Kambappa, V.; Somasagara, R.R.; Byregowda, R.; Sunil, K.Y.C.; Sathees, R.C.; Kanchugarakoppal, R.S. Synthesis and Antileukemic Activity of 1-((S)-2-Amino-4,5,6,7-tetrahydrobenzo[d]thiazol-6-yl)-3-(substituted phenyl)urea Derivatives. Bull. Chem. Soc. Jpn. 2010, 83, 689–697. [Google Scholar]
  52. Amer, A.; Hegazi, A.H.; Alshekh, M.K.; Ahmed, H.E.A.; Soliman, S.M.; Maniquet, A.; Ramsay, R.R. Design, synthesis, molecular modelling and in vitro screening of monoamine oxidase inhibitory activities of novel quinazolyl hydrazine derivatives. R. Soc. Open Sci. 2020, 7, 200050. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Maes, T.; Carceller, E.; Salas, J.; Ortega, A.; Buesa, C. Advances in the development of histone lysine demethylase inhibitors. Curr. Opin. Pharmacol. 2015, 23, 52–60. [Google Scholar] [CrossRef] [PubMed]
  54. Niwa, H.; Sato, S.; Hashimoto, T.; Matsuno, K.; Umehara, T. Crystal Structure of LSD1 in Complex with 4-[5-(Piperidin-4-ylmethoxy)-2-(p-tolyl)pyridin-3-yl]benzonitrile. Molecules 2018, 23, 1538. [Google Scholar] [CrossRef] [Green Version]
  55. Wu, F.; Zhou, C.; Yao, Y.; Wei, L.; Feng, Z.; Deng, L.; Song, Y. 3-(Piperidin-4-ylmethoxy)pyridine Containing Compounds Are Potent Inhibitors of Lysine Specific Demethylase 1. J. Med. Chem. 2015, 59, 253–263. [Google Scholar] [CrossRef]
  56. Potter, A.J.; Ray, S.; Gueritz, L.; Nunns, C.L.; Bryant, C.J.; Scrace, S.F.; Matassova, N.; Baker, L.; Dokurno, P.; Robinson, D.A.; et al. Structure-guided design of α-amino acid-derived Pin1 inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 586–590. [Google Scholar] [CrossRef]
  57. Forneris, F.; Binda, C.; Adamo, A.; Battaglioli, E.; Mattevi, A. Structural Basis of LSD1-CoREST Selectivity in Histone H3 Recognition. J. Biol. Chem. 2007, 282, 20070–20074. [Google Scholar] [CrossRef] [Green Version]
  58. Zhang, X.; Huang, H.; Zhang, Z.; Yan, J.; Wu, T.; Yin, W.; Sun, Y.; Wang, X.; Gu, Y.; Zhao, D.; et al. Design, synthesis and biological evaluation of novel benzofuran derivatives as potent LSD1 inhibitors. Eur. J. Med. Chem. 2021, 220, 113501. [Google Scholar] [CrossRef]
  59. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 1997, 23, 3–25, Reprinted in Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
  60. Veber, D.F.; Johnson, S.R.; Cheng, H.-Y.; Smith, B.R.; Ward, K.W.; Kopple, K.D. Molecular Properties That Influence the Oral Bioavailability of Drug Candidates. J. Med. Chem. 2002, 45, 2615–2623. [Google Scholar] [CrossRef]
  61. Davis, M.C. Tricarbamate of 1,3,5-Triaminobenzene via Curtius Rearrangement of Trimesic Acid and Subsequent Nitration. Synth. Commun. 2007, 37, 1457–1462. [Google Scholar] [CrossRef]
  62. Demirci, F.; Başer, K.H.C. Bioassay Techniques for Drug Development by Atta-ur-Rahman, M. Iqbal Choudhary (HEJRIC, University of Karachi, Pakistan), William, J. Thomsen (Areana Pharmaceuticals, San Diego, CA). Harwood Academic Publishers, Amsterdam, The Netherlands. 2001. xii + 223 pp. 15.5 × 23.5 cm. $79.00. ISBN 90-5823-051-1. J. Nat. Prod. 2002, 65, 1086–1087. [Google Scholar]
  63. Demchenko, A.P. Beyond annexin V: Fluorescence response of cellular membranes to apoptosis. Cytotechnology 2012, 65, 157–172. [Google Scholar] [CrossRef] [Green Version]
  64. Denizot, F.; Lang, R. Rapid colorimetric assay for cell growth and survival. Modifications to the tetrazolium dye procedure giving improved sensitivity and reliability. J. Immunol. Methods 1986, 89, 271–277. [Google Scholar] [CrossRef]
  65. Zheng, Y.C.; Duan, Y.C.; Ma, J.L.; Xu, R.M.; Zi, X.; Lv, W.L.; Wang, M.M.; Ye, X.W.; Zhu, S.; Mobley, D.; et al. Triazole-dithiocarbamate based selective lysine specific demethylase 1 (LSD1) inactivators inhibit gastric cancer cell growth, invasion, and migration. J. Med. Chem. 2013, 56, 8543–8560. [Google Scholar] [CrossRef] [Green Version]
  66. Willmann, D.; Lim, S.; Wetzel, S.; Metzger, E.; Jandausch, A.; Wilk, W.; Jung, M.; Forne, I.; Imhof, A.; Janzer, A.; et al. Impairment of prostate cancer cell growth by a selective and reversible lysine-specific demethylase 1 inhibitor. Int. J. Cancer 2012, 131, 2704–2709. [Google Scholar] [CrossRef]
  67. Tortorici, M.; Borrello, M.T.; Tardugno, M.; Chiarelli, L.R.; Pilotto, S.; Ciossani, G.; Vellore, N.A.; Bailey, S.G.; Cowan, J.; O’Connell, M.; et al. Protein Recognition by Short Peptide Reversible Inhibitors of the Chromatin-Modifying LSD1/CoREST Lysine Demethylase. ACS Chem. Biol. 2013, 8, 1677–1682. [Google Scholar] [CrossRef]
  68. Binda, C.; Valente, S.; Romanenghi, M.; Pilotto, S.; Cirilli, R.; Karytinos, A.; Ciossani, G.; Botrugno, O.A.; Forneris, F.; Tardugno, M.; et al. Biochemical, Structural, and Biological Evaluation of Tranylcypromine Derivatives as Inhibitors of Histone Demethylases LSD1 and LSD2. J. Am. Chem. Soc. 2010, 132, 6827–6833. [Google Scholar] [CrossRef]
  69. Ihmaid, S.K.; Aljuhani, A.; Alsehli, M.; Rezki, N.; Alawi, A.; Aldhafiri, A.J.; Salama, S.A.; Ahmed, H.E.; Aouad, M.R. Discovery of triaromatic flexible agents bearing 1,2,3-Triazole with selective and potent anti-breast cancer activity and CDK9 inhibition supported by molecular dynamics. J. Mol. Struct. 2021, 1249, 131568. [Google Scholar] [CrossRef]
  70. van Engeland, M.; Nieland, L.J.; Ramaekers, F.C.; Schutte, B.; Reutelingsperger, C.P. Annexin V-affinity assay: A review on an apoptosis detection system based on phosphatidylserine exposure. Cytometry 1998, 31, 1–9. [Google Scholar] [CrossRef]
  71. Vermes, I.; Haanen, C.; Steffens-Nakken, H.; Reutellingsperger, C. A novel assay for apoptosis Flow cytometric detection of phosphatidylserine expression on early apoptotic cells using fluorescein labelled Annexin V. J. Immunol. Methods 1995, 184, 39–51. [Google Scholar] [CrossRef] [Green Version]
  72. Gercel-Taylor, C. Diphenylamine Assay of DNA Fragmentation for Chemosensitivity Testing. In Chemosensitivity: Volume II; Humana Press: Totowa, NJ, USA, 2005; Volume 111, pp. 79–82. [Google Scholar] [CrossRef]
  73. Ríhová, Z.; Sefc, L.; Necvas, E. Methods used in the detection of apoptosis. Cas. Lek. Ceskych 2001, 140, 168–172. [Google Scholar]
  74. Boraschi, D.M. Quantitation of DNA fragmentation with diphenylamine. In Apoptosis—A Laboratory Manual of Experimental Methods; Boraschi, D., Bossù, P., Cossarizza, A., Eds.; GCI Publications: L’Aquila, Italy, 1998; Chapter 9. [Google Scholar]
  75. Rosner, M.; Schipany, K.; Hengstschläger, M. Merging high-quality biochemical fractionation with a refined flow cytometry approach to monitor nucleocytoplasmic protein expression throughout the unperturbed mammalian cell cycle. Nat. Protoc. 2013, 8, 602–626. [Google Scholar] [CrossRef] [PubMed]
  76. Herraiz, T.; Flores, A.; Fernández, L. Analysis of monoamine oxidase (MAO) enzymatic activity by high-performance liquid chromatography-diode array detection combined with an assay of oxidation with a peroxidase and its application to MAO inhibitors from foods and plants. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2018, 1073, 136–144. [Google Scholar] [CrossRef]
  77. Zhou, M.; Panchuk-Voloshina, N. A One-Step Fluorometric Method for the Continuous Measurement of Monoamine Oxidase Activity. Anal. Biochem. 1997, 253, 169–174. [Google Scholar] [CrossRef]
  78. Tan, A.K.; Ramsay, R.R. Substrate-specific enhancement of the oxidative half-reaction of monoamine oxidase. Biochemistry 1993, 32, 2137–2143. [Google Scholar] [CrossRef]
  79. Profeta, S., Jr.; Allinger, N. Molecular mechanics calculations on aliphatic amines. J. Am. Chem. Soc. 1985, 107, 1907–1918. [Google Scholar] [CrossRef]
  80. Cornell, W.D.; Cieplak, P.; Bayly, C.I.; Gould, I.R.; Merz, K.M.; Ferguson, D.M.; Spellmeyer, D.C.; Fox, T.; Caldwell, J.W.; Kollman, P.A. A Second Generation Force Field for the Simulation of Proteins, Nucleic Acids, and Organic Molecules. J. Am. Chem. Soc. 1995, 117, 5179–5197. [Google Scholar] [CrossRef] [Green Version]
  81. Schulte, J.H.; Lim, S.; Schramm, A.; Friedrichs, N.; Koster, J.; Versteeg, R.; Ora, I.; Pajtler, K.; Klein-Hitpass, L.; Kuhfittig-Kulle, S.; et al. Lysine-Specific Demethylase 1 Is Strongly Expressed in Poorly Differentiated Neuroblastoma: Implications for Therapy. Cancer Res. 2009, 69, 2065–2071. [Google Scholar] [CrossRef] [Green Version]
Ijms 23 08796 g001 550
Figure 1. Reported aromatic planar system targeting LSD1 as anticancer agents.
Figure 1. Reported aromatic planar system targeting LSD1 as anticancer agents.
Ijms 23 08796 g001
Ijms 23 08796 sch001 550
Scheme 1. Synthesis of tris-acid hydrazide 11 and tris-acid thiosemicarbazides 12–17.
Scheme 1. Synthesis of tris-acid hydrazide 11 and tris-acid thiosemicarbazides 12–17.
Ijms 23 08796 sch001
Ijms 23 08796 sch002 550
Scheme 2. Synthesis of tris-1,2,4-triazoles 18–23 and tris-1,3,4-thidiazoles 24–28.
Scheme 2. Synthesis of tris-1,2,4-triazoles 18–23 and tris-1,3,4-thidiazoles 24–28.
Ijms 23 08796 sch002
Ijms 23 08796 g002 550
Figure 2. (Up),percent of DNA content in compound 27-treated cells versus the control at different cell cycle phases. (Down)percent of apoptotic cells in compound 27-treated cells versus control (total, early, late, and necrosis).
Figure 2. (Up),percent of DNA content in compound 27-treated cells versus the control at different cell cycle phases. (Down)percent of apoptotic cells in compound 27-treated cells versus control (total, early, late, and necrosis).
Ijms 23 08796 g002
Ijms 23 08796 g003 550
Figure 3. Determination of cell cycle arrest by flow cytometry. Effect of compound 27 on the cell cycle distribution of the MCF-7 cell line.
Figure 3. Determination of cell cycle arrest by flow cytometry. Effect of compound 27 on the cell cycle distribution of the MCF-7 cell line.
Ijms 23 08796 g003
Ijms 23 08796 g004 550
Figure 4. Evaluation of apoptosis induced by compound 27 treatment. Flow cytometry analysis for Annexin V-FITC/PI staining, Right: compound 27-treated MCF-7 cells compared to Left: control MCF-7 cell.
Figure 4. Evaluation of apoptosis induced by compound 27 treatment. Flow cytometry analysis for Annexin V-FITC/PI staining, Right: compound 27-treated MCF-7 cells compared to Left: control MCF-7 cell.
Ijms 23 08796 g004
Ijms 23 08796 g005 550
Figure 5. Statistical analysis of the DNA fragmentation percentage of MCF-7 and HepG2 cells after incubation with compounds 20 and 27 for 24 h IC50 value. The data are reported as the mean ± SD of three independent experiments in triplicate.
Figure 5. Statistical analysis of the DNA fragmentation percentage of MCF-7 and HepG2 cells after incubation with compounds 20 and 27 for 24 h IC50 value. The data are reported as the mean ± SD of three independent experiments in triplicate.
Ijms 23 08796 g005
Ijms 23 08796 g006 550
Figure 6. (a) 2D binding mode and residues involved in the recognition of cocrystallized ligand (LSD1 inhibitor) from 5YJB PDB Lys661 and Asp 555. (b) 2D binding mode and residues involved in the recognition of FAD; Try 761, Arg 310, Arg 316, Val 333, Met 332, Glu A801, Ser 209, Glu 309, and Val 590 (with yellow highlight).
Figure 6. (a) 2D binding mode and residues involved in the recognition of cocrystallized ligand (LSD1 inhibitor) from 5YJB PDB Lys661 and Asp 555. (b) 2D binding mode and residues involved in the recognition of FAD; Try 761, Arg 310, Arg 316, Val 333, Met 332, Glu A801, Ser 209, Glu 309, and Val 590 (with yellow highlight).
Ijms 23 08796 g006
Ijms 23 08796 g007a 550Ijms 23 08796 g007b 550
Figure 7. Two-dimensional binding mode and residues involved in the recognition of compounds (a) 22, (b) 23, (c) 18, and (d) 27 ligands.
Figure 7. Two-dimensional binding mode and residues involved in the recognition of compounds (a) 22, (b) 23, (c) 18, and (d) 27 ligands.
Ijms 23 08796 g007aIjms 23 08796 g007b
Ijms 23 08796 g008 550
Figure 8. Surface map for the most active derivative 22 inside an active site.
Figure 8. Surface map for the most active derivative 22 inside an active site.
Ijms 23 08796 g008
Ijms 23 08796 g009 550
Figure 9. Surface map for the most active derivative (a) 22 and (b) 27, (c) the least active 18, and (d) the reference compound GSK. Pink, hydrogen bond; blue, mild polar; green, hydrophobic.
Figure 9. Surface map for the most active derivative (a) 22 and (b) 27, (c) the least active 18, and (d) the reference compound GSK. Pink, hydrogen bond; blue, mild polar; green, hydrophobic.
Ijms 23 08796 g009
Table
Table 1. MTT Cytotoxicity data of target compounds 18–28.
Table 1. MTT Cytotoxicity data of target compounds 18–28.
In Vitro Cytotoxicity IC50 (μM) [a]
Compound No.RMCF-7HCT116HepG2SelectivityWI38
1,2,4 Triazole
18CH323.9 ± 0.5238.6 ± 0.7526.1 ± 0.76Less activeND
19C2H59.66 ± 0.7621.6 ± 0.1655.3 ± 0.44MCF-7 SelectiveND
20C6H1113.7 ± 0.4110.1 ± 0.372.65 ± 0.69HepG2
Selective		ND
21CH2CH=CH25.83 ± 0.183.56 ± 0.222.36 ± 0.34NonselectiveND
22CH2-Phenyl2.65 ± 0.235.27 ± 0.168.23 ± 0.85Nonselective16 ± 0.52
23Phenyl26.1 ± 0.692.01 ± 0.915.49 ± 0.38HCT116/HepG2 SelectiveND
1,3,4-Thiadiazole
24CH39.2 ± 0.3118.1 ± 1.056.47 ± 0.69MCF-7/HCT116 SelectiveND
25C2H528.1 ± 1.128.9 ± 0.3213.0 ± 0.71HepG2 SelectiveND
26C6H1117.1 ± 3.117.6 ± 0.7195.7 ± 3.1Less activeND
27CH2CH=CH21.52 ± 1.0210.3 ± 0.1524.7 ± 1.01MCF-7 Selective>85
28Phenyl2.34 ± 2.3110 ± 0.8525.6 ± 0.18MCF-7 SelectiveND
Taxol-7.8 ± 0.427.96 ± 0.384.44 ± 0.24Nonselective11.8 ± 0.44
[a] IC50 is the mean of three separate experiments± SD and represents the concentration of the compound (µM) producing 50% cell growth inhibition after 72 h of drug exposure, as determined by the MTT assay.
Table
Table 2. LSD1 Inhibitory data of target compounds 18–28.
Table 2. LSD1 Inhibitory data of target compounds 18–28.
Compound NoIC50, µM aLog p-Value
181.51 ± 0.0753.06
190.17 ± 0.0084.5
200.1371 ± 0.0068.51
210.32 ± 0.0165.01
220.074 ± 0.0027.59
230.065 ± 0.0037.41
240.45 ± 0.0223.36
250.14 ± 0.0074.53
260.311 ± 0.0158.54
270.046 ± 0.0035.03
280.21 ± 0.018.47
GSK-LSD10.024 ± 0.0051.88
a The data are presented as a mean S.D. All of the tests were carried out at least three times.
Table
Table 3. Evaluation of DNA content and apoptosis induced by compound 27 on MCF-7 cell lines versus control a.
Table 3. Evaluation of DNA content and apoptosis induced by compound 27 on MCF-7 cell lines versus control a.
Compound No.DNA ContentComment
%G0-G1%S%G2-M%Pre G1
27/MCF-735.1528.2635.5937.11pre G1 Apoptosis and cell cycle arrest at G2-M
MCF-756.0336.497.481.36-
a The values of control were extracted from two different experiments.
Table
Table 4. Apoptotic activity of compound 27.
Table 4. Apoptotic activity of compound 27.
Compound NoApoptosisNecrosis
TotalEarlyLate
27/MCF-737.115.3320.5311.25
MCF-71.360.290.180.89
Table
Table 5. Target MAO selectivity assay of compound 27.
Table 5. Target MAO selectivity assay of compound 27.
IDIC50 (μM) a
LSD1 DemethylasehMAO-AhMAO-B
270.0736 ± 3.74687.12 ± 2.359>100
Safinamide *-16.05 ± 2.320.08 ± 1.52
Harmine *-0.009 ± 0.00111.6 ± 3.1
a IC50 values ± S.D. for two independent experiments. * These data were taken from a reported work [52].
Table
Table 6. Docking energies and binding of selected compounds.
Table 6. Docking energies and binding of selected compounds.
Compound No.Docking EnergyAmino Acid Residues/Types of Bonding
22−17.15 Kcal/molGly330 and Ala331 hydrogen bonding interactions, Arg316 via a second sulfur atom
23−15.94 Kcal/molAsp 555 via hydrogen bonding
18−5.66 Kcal/mol-
27−16.34 Kcal/molAsp 555 essential for inhibition via hydrogen bonding
Asp 555 essential for inhibition via hydrogen bonding
Table
Table 7. Physicochemical descriptors and ADME parameters.
Table 7. Physicochemical descriptors and ADME parameters.
ParameterTarget Compounds
2718GSK-LSD1
Molecular weight495.65417.53216.32
No. of rotatable bonds1233
No. of H-bond acceptors632
No. of H-bond donors332
Molar refractivity138.49109.4570.35
TPSA198.15197.1024.06
LogP value5.013.051.91
LogS solubility−5.82−3.47−2.44
GI absorptionHighLow High
BBB permeantNoNoYes
P-gp substrateNoNoYes
CYP1A2 inhibitorNoNoNo
CYP2C19 inhibitorNoNoNo
CYP2C9 inhibitorYesNoNo
CYP2D6 inhibitorNoNoYes
CYP3A4 inhibitorYesYesNo
Log Kp (skin permeation)−5.69−8.09
Lipinski rule of 5Yes; 0 violationsYes; 0 violationsYes; 0 violations
Bioavailability score0.550.550.55
It was calculated using a free web page, http://www.swissadme.ch/index.php, accessed on 20 February 2021.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alsehli, M.; Aljuhani, A.; Ihmaid, S.K.; El-Messery, S.M.; Othman, D.I.A.; El-Sayed, A.-A.A.A.; Ahmed, H.E.A.; Rezki, N.; Aouad, M.R. Design and Synthesis of Benzene Homologues Tethered with 1,2,4-Triazole and 1,3,4-Thiadiazole Motifs Revealing Dual MCF-7/HepG2 Cytotoxic Activity with Prominent Selectivity via Histone Demethylase LSD1 Inhibitory Effect. Int. J. Mol. Sci. 2022, 23, 8796. https://doi.org/10.3390/ijms23158796

AMA Style

Alsehli M, Aljuhani A, Ihmaid SK, El-Messery SM, Othman DIA, El-Sayed A-AAA, Ahmed HEA, Rezki N, Aouad MR. Design and Synthesis of Benzene Homologues Tethered with 1,2,4-Triazole and 1,3,4-Thiadiazole Motifs Revealing Dual MCF-7/HepG2 Cytotoxic Activity with Prominent Selectivity via Histone Demethylase LSD1 Inhibitory Effect. International Journal of Molecular Sciences. 2022; 23(15):8796. https://doi.org/10.3390/ijms23158796

Chicago/Turabian Style

Alsehli, Mosa, Ateyatallah Aljuhani, Saleh K. Ihmaid, Shahenda M. El-Messery, Dina I. A. Othman, Abdel-Aziz A. A. El-Sayed, Hany E. A. Ahmed, Nadjet Rezki, and Mohamed R. Aouad. 2022. "Design and Synthesis of Benzene Homologues Tethered with 1,2,4-Triazole and 1,3,4-Thiadiazole Motifs Revealing Dual MCF-7/HepG2 Cytotoxic Activity with Prominent Selectivity via Histone Demethylase LSD1 Inhibitory Effect" International Journal of Molecular Sciences 23, no. 15: 8796. https://doi.org/10.3390/ijms23158796

APA Style

Alsehli, M., Aljuhani, A., Ihmaid, S. K., El-Messery, S. M., Othman, D. I. A., El-Sayed, A.-A. A. A., Ahmed, H. E. A., Rezki, N., & Aouad, M. R. (2022). Design and Synthesis of Benzene Homologues Tethered with 1,2,4-Triazole and 1,3,4-Thiadiazole Motifs Revealing Dual MCF-7/HepG2 Cytotoxic Activity with Prominent Selectivity via Histone Demethylase LSD1 Inhibitory Effect. International Journal of Molecular Sciences, 23(15), 8796. https://doi.org/10.3390/ijms23158796

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
