Novel Thieno [2,3-b]pyridine Anticancer Compound Lowers Cancer Stem Cell Fraction Inducing Shift of Lipid to Glucose Metabolism

by
Matij Pervan
1,†,
Sandra Marijan
1,†,
Anita Markotić
1,
Lisa I. Pilkington
2,
Natalie A. Haverkate
2,
David Barker
2,3,
Jóhannes Reynisson
4,
Luka Meić
5,
Mila Radan
5,‡ and
Vedrana Čikeš Čulić
1,*,‡
1
Department of Medical Chemistry and Biochemistry, University of Split School of Medicine, 21000 Split, Croatia
2
School of Chemical Sciences, The University of Auckland, Auckland 1010, New Zealand
3
MacDiarmid Institute for Advanced Materials and Nanotechnology, Wellington 6140, New Zealand
4
School of Pharmacy and Bioengineering, Keele University, Staffordshire ST5 5BG, UK
5
Department of Biochemistry, Faculty of Chemistry and Technology, University of Split, 21000 Split, Croatia
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
‡
These authors contributed equally to this work.
Int. J. Mol. Sci. 2022, 23(19), 11457; https://doi.org/10.3390/ijms231911457
Submission received: 26 August 2022 / Revised: 23 September 2022 / Accepted: 25 September 2022 / Published: 28 September 2022
(This article belongs to the Special Issue Cellular and Molecular Biology of Cancer Stem Cells)
Browse Figures
Review Reports Versions Notes

Abstract

:
Due to the role of cancer stem cells (CSCs) in tumor resistance and glycosphingolipid (GSL) involvement in tumor pathogenesis, we investigated the effect of a newly synthesized compound (3-amino-N-(3-chloro-2-methylphenyl)-5-oxo-5,6,7,8-tetrahydrothieno[2,3-b]quinoline-2-carboxamide 1 on the percentage of CSCs and the expression of six GSLs on CSCs and non-CSCs on breast cancer cell lines (MDA-MB-231 and MCF-7). We also investigated the effect of 1 on the metabolic profile of these cell lines. The MTT assay was used for cytotoxicity determination. Apoptosis and expression of GSLs were assessed by flow cytometry. A GC–MS-coupled system was used for the separation and identification of metabolites. Compound 1 was cytotoxic for both cell lines, and the majority of cells died by treatment-induced apoptosis. The percentage of CSCs was significantly lower in the MDA-MB-231 cell line. Treatment with 1 caused a decrease of CSC IV6Neu5Ac-nLc4Cer+ MDA-MB-231 cells. In the MCF-7 cell line, the percentage of GalNAc-GM1b+ CSCs was increased, while the expression of Gg3Cer was decreased in both CSC and non-CSC. Twenty-one metabolites were identified by metabolic profiling. The major impact of the treatment was in glycolysis/gluconeogenesis, pyruvate and inositol metabolism. Compound 1 exhibited higher potency in MBA-MB-231 cells, and it deserves further examination.

1. Introduction

Cancer is a leading cause of death in almost every country of the world. Among all cancers, breast cancer is present in 11.7% of new cases in both sexes, while in women the incidence is 24.5%, with a mortality rate of 15.5% [1].
Triple negative breast cancer, TNBC, is an aggressive and heterogeneous disease, defined by the lack of receptors for estrogen (ER), progesterone (PR) and receptor 2 for epidermal factor (HER2), and accounts for 10–25% of all breast cancers. Due to the lack of targeted molecular therapy, this type of cancer is the most aggressive, with the worst prognosis [2,3].
Cancer stem cells (CSC) are a small, proliferating subpopulation of cancer cells that have the ability to self-renew and reform a primary tumor [4].
Breast cancer stem cells (BCSCs), defined by the CD44+/CD24− phenotype, show unique characteristics, including tumorigenicity, self-renewal, differentiation, metastatic potential and, most importantly, therapeutic resistance to most antitumor therapies, and it is believed that BCSCs are responsible for tumor recurrence and metastasis [5,6,7,8].
Glycosphingolipids (GSL) are glycolipids that make up the plasma membranes of mammalian cells, but they are also found in intracellular organelles [9]. They consist of hydrophobic ceramides and hydrophilic carbohydrate residues. Based on their basic carbohydrate structures, GSLs are classified into numerous series, including ganglio- and globo-series, which have been analyzed in this study [10].
Because of the diversity of GSLs that form cell membranes, and due to their communication that takes place through these lipid barriers, their biological and chemical properties have been of interest in cancer research for some time. Gangliosides play a key role in embryogenesis, the immune system, cell growth, development and death, tumor progression and pathogen–host interaction. As they are involved in tumor pathogenesis, some gangliosides can be found in tumor tissue, but not in normal healthy tissue [11]. Research shows that ganglioside metabolism in a tumor plays a significant role in its formation and progression [12].
Cellular tumor malignancy is defined by several key phenotypes: apoptosis, cell motility, tyrosine kinase activity for epidermal growth factor receptor, angiogenesis and cell adhesion. Each of these phenotypes is regulated by a different glycosylation status [13].
Increased α2-6 sialylation is associated with increased metastasis and resistance to chemo- and radiotherapy of colorectal cancer [14], and inhibition of the first step of glycosphingolipid synthesis inhibits the colon cancer cell cycle [15].
There are only a few studies about the expression profile of GSL on CSC. Liang et al. reported that the level of Gb3Cer in breast CSC is significantly reduced while GD2, GD3, GM2 and GD1a acidic GSL (gangliosides) are increased in CSCs compared to non-stem breast cancer cells [16]. Levels of glycosyltransferase (ST3GAL5, B4GALNT1, ST8SIA1 and ST3GAL2) mRNAs, involved in those ganglioside syntheses, are increased too. Furthermore, a deletion of the glycosyltransferase-encoding genes for the key enzyme in globo-sides synthesis enhances chemoresistance and increases of number of CD24low/CD44high cells in epithelial cancer cells [17]. Cheung et al. showed that the expression of the enzyme galactosyltransferase (β3GalT5) in breast cancer stem cells and cancer cells is essential for cancer cell survival [18].
The newly synthesized (E)-3-amino-5-(3-(3-bromophenyl)acryloyl)-N-(3-chloro-2-methylphenyl)-6-methylthieno [2,3-b]pyridine-2-carboxamide (Compound) [19] belongs to the group of thieno [2,3-b]pyridine, a family of compounds that were discovered by virtual screening [20], targeting phosphoinositide specific phospholipase C (pi-PLC) and which have been found to have antitumor activity on numerous tumor cell lines [21]. Whilst pi-PLC is a known target, other cellular targets are believed to be involved [22]. Previous examples of these compounds we have produced [23,24,25] have generally utilized a cycloalkyl ring fused at the 5,6-positions of the pyridine ring of the thieno [2,3-b]pyridine to induce improved activity. This increase in activity is proposed to be the result of increased overall lipophilicity and improved interactions of the compounds in a lipophilic pocket of the pi-PLC enzyme. Compound 1 utilized an alternative approach using a tethered propyl-aryl group, which has greater rotation freedom than the cycloalkyl derivatives, to interact with the lipophilic pocket, and resulted in improved antiproliferative activity [19]. Importantly, this class of compound has specifically been shown to inhibit of the growth of triple-negative breast cancer cell lines in nanomolar concentrations [19,26].
Considering the role of CSCs in tumor recurrence, metastasis and drug resistance, we aimed to investigate the effect of a newly synthesized thieno [2,3-b]pyridine compound, from the same family of compounds as previously reported [27], on CSC glycosphingolipid expression. The four gangliosides GM2, GalNacGM1b, IV3Neu5Ac-nLc4Cer and IV6Neu5Ac-nLc4Cer, and two neutral GSLs (Gg3Cer and Gb4Cer), were examined. The final step in Gg3Cer synthesis is the catalyzation with glycosyltransferase B4GALNT1, of which deletion was shown to cause a phenotype change from CSC to a non-CSC [16]. GSL expression was compared between CSCs and non-CSCs.
Metabolic profiling of cancer cells has a growing role in the elucidation of the molecular basis of cancer development, progression and prognosis. It represents a powerful approach for the characterization of phenotypes and the distinction of specific metabolic states due to environmental alterations. The early observations by Dr Otto Warburg revealed that fundamental metabolic differences exist between malignant tumor cells and adjacent normal cells [28]. The molecular phenotyping of different cancer cell lines and monitoring of their response to different drug treatments can help in the search of new candidate biomarkers and to elucidate new therapeutic targets. These observations suggest that targeting the peculiar metabolic pathways in cancer might be an effective strategy for cancer therapy [29].
In this study, we investigated the effect of a newly synthesized thieno [2,3-b]pyridine compound on the metabolic profile of two breast cancer cell lines with different hormone receptor expressions: MDA-MB-231 (triple negative) and MCF-7 (ER+, PR+, HER2-). A GC–MS coupled system was used for separation and identification of metabolites.

2. Results

2.1. Cell Viability

Cells were treated with different concentrations of compound 1 for 24, 48 and 72 h in the MDA-MB-231 (1A) and in the MCF-7 cell line (1B), and cell metabolism was evaluated by the 3-(4,5-dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide (MTT) assay. Cell viabilities are shown in Figure 1. In the MDA-MB-231 cell line, Compound 1 was shown to be cytotoxic in 0.05 µM concentration after only 24 h of treatment. However, cytotoxicity increased proportionally with increasing concentration and time of treatment. Less than 50% of cells were live after 48 and 72 h of treatment with the concentration 2.5 µM of Compound 1. Maximal cytotoxicity was achieved for 72 h after treatment with ten times higher concentration (25 µM) of 1. In the MCF-7 cell line, Compound 1 was slightly less effective, but cytotoxicity increased proportionally with concentration and time of treatment, with less than 50% live cells after 72 h of treatment with concentration 0.1 µM. The maximum cytotoxic effect in this cell line was after 72 h after treatment with 7.5 µM of 1.
The inhibitory concentration for 50% of cells (IC50) for the MDA-MB-231 cell line after 48 h of treatment was 2.082 µM, whilst for the MCF7 cell line it was 2.053 µM.

2.2. Apoptosis Rate

To determine the type of cell death induced by 48 h treatment with 2 µM (the average IC50 for both cell lines) of compound 1, we determined early (Annexin-V+PI− subpopulation), late (Annexin-V+PI+ subpopulation) and percentage of total apoptosis. The treatment induced an increase of the percentage of apoptotic cells in both cell lines, as shown in Figure 2. In the MDA-MB-231 cell line, compound 1-treated cells showed a significant increase in early (A), late (B) and total (C) apoptosis, while in the MCF-7 cell line, the increase was found in late (F) and total (G) apoptosis compared with non-treated cells.

2.3. Mammosphere Formation

To determine whether the cancer stem cells are sensitive to compound 1, the number of mammospheres formed after 7 days of treatment was counted (Figure 3A,B). After treatment with compound 1, the number of mammospheres was reduced in both cell lines, but significantly only in MCF-7 (Figure 3B). However, the effect of compound 1 was observed in the size and shape of the mammospheres—in both cell lines mammospheres formed in wells with the compound 1 were significantly smaller with an irregular shape (Figure 3C,D).

2.4. Cancer Stem Cells

To investigate whether compound 1 contributes to the reduction of the cancer stem cells (CSC) number, we determined CD44+/CD24− subpopulation in both the cell lines. Treatment with 1 resulted in a statistically significant decrease of the cancer stem cells in the MDA-MB-231 cell line, known to have a higher CSC population than other breast cancer cell lines (Figure 4A). The number of CSC in the MCF7 cell line also decreased after treatment with 1, but not in a statistically significant manner (Figure 4B).

2.5. Expression of Terminally Sialylated Gangliosides on CSCs and Non-CSCs

Sialylation is involved in cell fate processes during development, reprogramming and tumor progression [30,31]. Therefore, the expression of terminally sialylated gangliosides at CSCs (CD44+/CD24− subpopulation) and non-CSCs (CD44+/CD24+, CD44−/CD24− and CD44−/CD24+ subpopulation; abbreviated as non-CD44+/CD24−) was studied, with the aim of determining whether the cytotoxic effects of 1 are mediated via different GSL membrane contents. The expression of each GSL per one cell is represented with the geometric mean fluorescence intensity (GMI). The portion of the cells that are GSL positive is an interesting parameter, but it is of less impact in comparison to GMI. Treatment with 1 resulted only in a significant percentage decrease of CSC IV6Neu5Ac-nLc4Cer-positive cells in the MDA-MB-231 cell line (Figure 5A). Expression of IV3Neu5Ac-nLc4Cer was not affected by treatment with compound 1 in both cell lines, as shown in Figure 5.

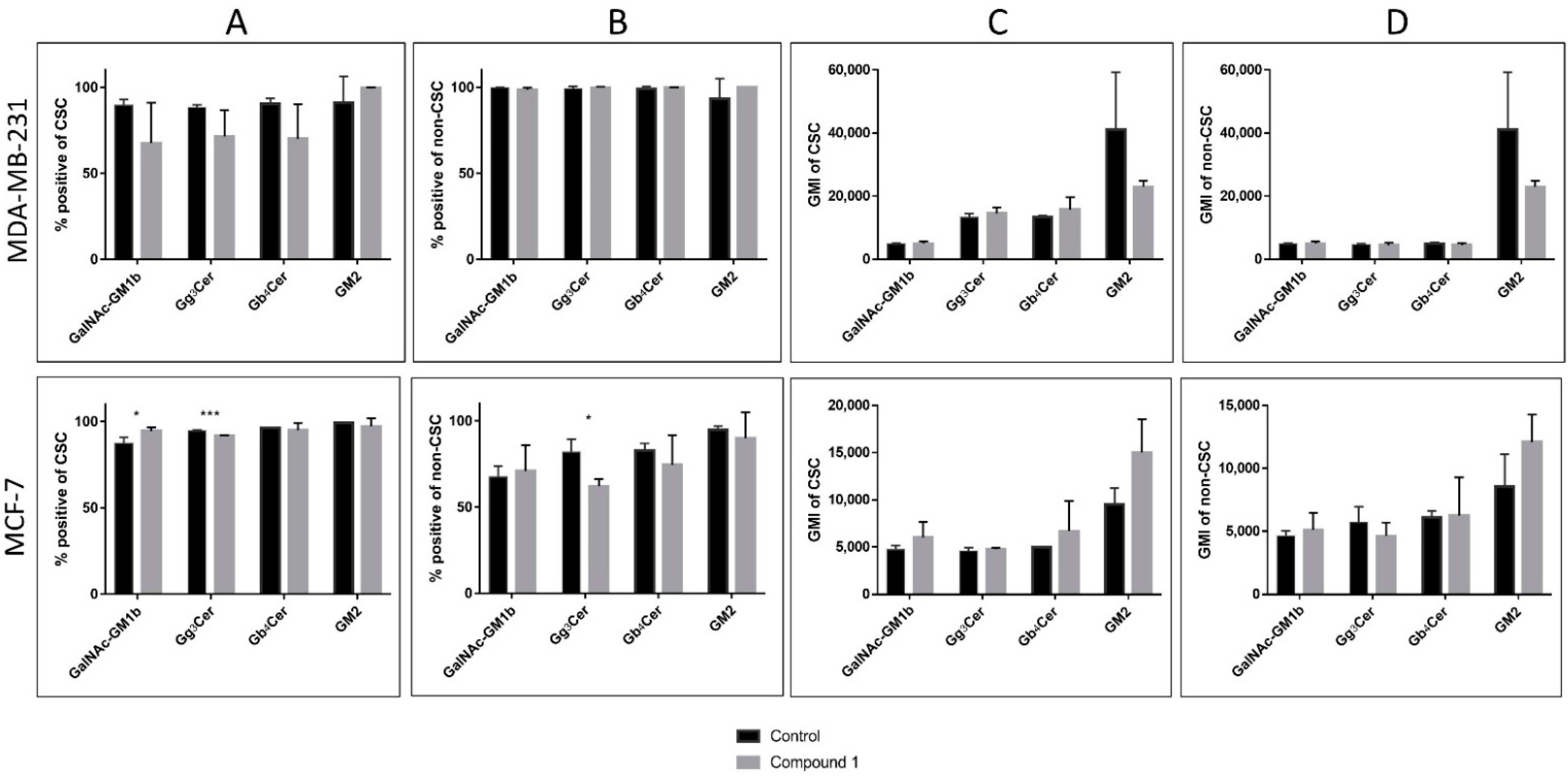

2.6. Expression of Gangliosides and Neutral GSLs with Terminal GalNAc Residue on CSCs and Non-CSCs

The expression of these glycosphingolipids was not affected by treatment with compound 1 in the MDA-MB-231 cell line (Figure 6, upper row). In the MCF-7 cell line, the percentage of GalNAc-GM1b-positive cells was significantly increased within the CSC cell subpopulation (CD44+/CD24−), whilst the percentage of Gg3Cer-positive cells was decreased within both subpopulations, CSC and non-CSC (Figure 6, lower row).

2.7. Comparative Metabolic Profiling of Breast CSC Using GC–MS

The aim of this study was to compare the metabolic response of MDA-MB-231 and MCF-7 breast cancer cells induced by compound 1. Metabolic profiling was performed using GC–MS, and 21 metabolites were identified (Table 1). Only compounds listed in the Human Metabolome Database (HMDB 4.0) were selected. Ultimately, entries with more than 50% of missing values were excluded from the study. The objective was to identify the effect of compound 1 on each metabolite and to find metabolites that were significantly different between treated and control cells. The test of statistical significance revealed that the results for MDA-MB-231 cells are more significant than for MCF-7 cells. As listed in Table 1, 6 metabolites were significantly different (p < 0.05) from the control in MDA-MB-231 cells and just one metabolite in MCF-7 cells. One-way analysis of variance (ANOVA) was used for statistical significance among MDA-MB-231 and MCF-7 cells. Three significant features (pyruvate, myo-inositol and lactate) were found using the given threshold (p < 0.05) for the one-way ANOVA and post hoc Tukey test. PCA results showed that compound 1 treatment causes metabolic alternations in both cell lines. PCA score plots (Figure 7) visualize the clustering of treated group versus control. PC1 accounts for 67% and 50% of the variation in the data in MDA-MB-231 and MCF-7 line, respectively. The score plots showed that the control group and treated group could be clearly distinguished.

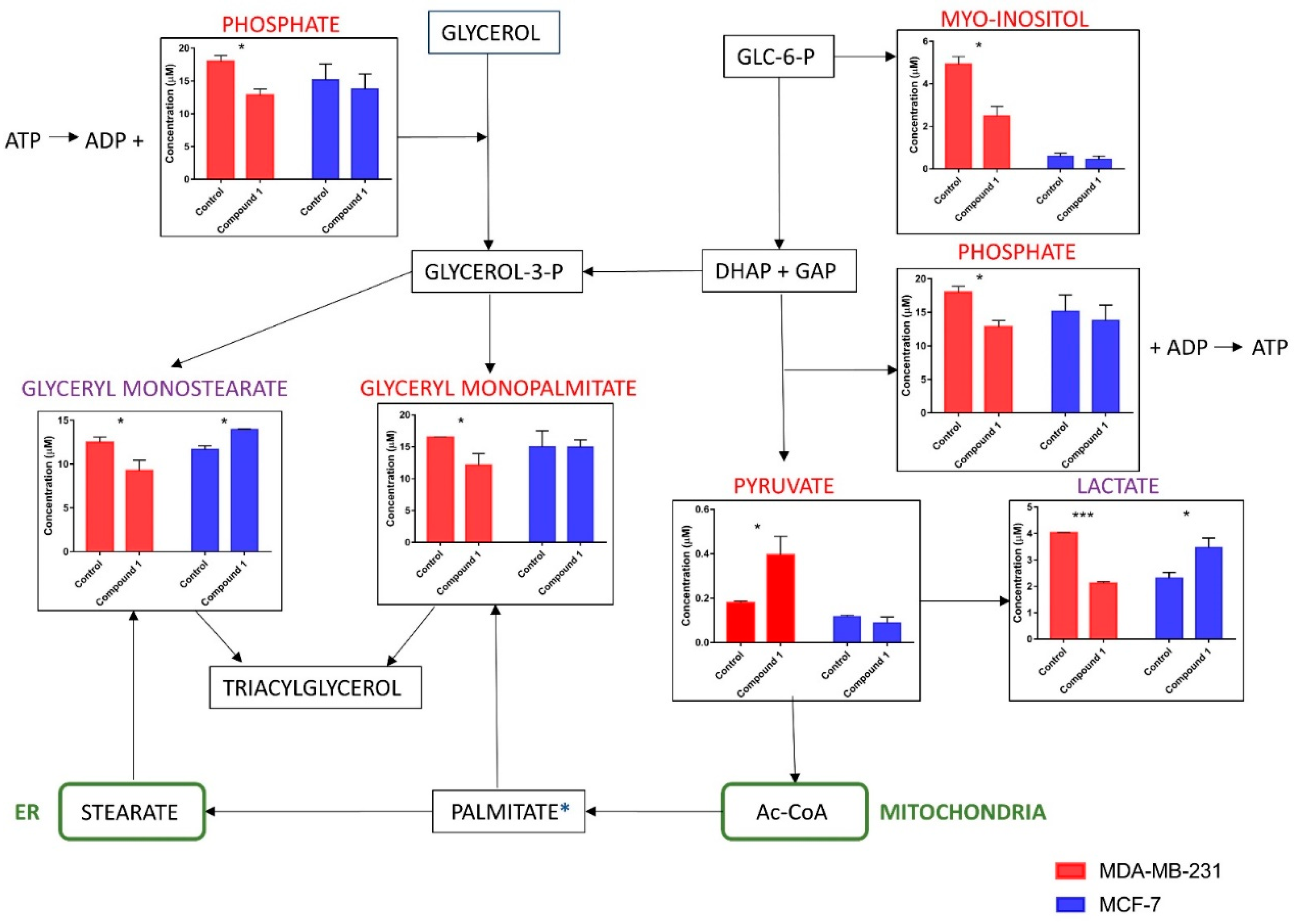

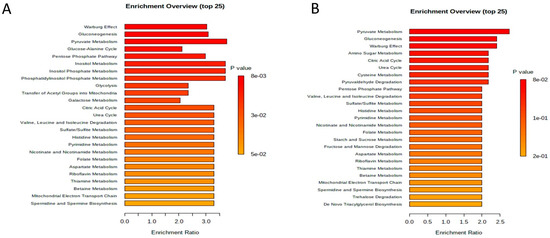

Quantitative enrichment analysis was employed to identify patterns of metabolite concentrations and to help elucidate possible biological mechanisms. Results were considered statistically significant with p < 0.05, and no statistical difference was established for MCF-7 cells. The results of the analysis indicate that treatment had a major impact in glucose/energy metabolism, specifically in glycolysis/gluconeogenesis, the pyruvate metabolism, Warburg effect and inositol metabolism (Figure 8).

3. Discussion

It is well known that cancer is linked to other chronic medical conditions [34]. For example, patients diagnosed with metabolic syndrome show an increased incidence and aggressiveness of tumor formation [35]. In this study, metabolic profiling of two different breast cancer cell lines revealed that compound 1 increased pyruvate and decreased lactate, phosphate, myo-inositol, glycerol monopalmitate and glycerol monostearate in MDA-MB-231 cells. An inverse effect was noticed for two metabolites in MCF-7 cells: increased lactate and glyceryl-monostearate (Figure 9).
Compound 1 was more cytotoxic to MDA-MB-231 cells, and the results showed that it shifted glycolysis to the aerobic pathway (increased pyruvate, decreased lactate), as seen by the significant reduction in the number of cancer stem cells, which prefer anaerobic glycolysis. The opposite could be observed in MCF-7 cells, where the compound increased lactate, indicating a shift to anaerobic glycolysis. The decrease of phosphate after compound 1 treatment in MDA-MB-231 cells could be caused by the increased binding of phosphate ions to their transporters in the inner mitochondrial membrane during aerobic glycolysis. The binding of phosphates to its transporters is favored with hydrogen ions present in intermembrane mitochondrial space during aerobic glycolysis.
Inverse compound 1 effect upon the glycerol-monostearate concentration in MDA-MB-231 in relation to MCF-7 cells could be developed due to different growth factor receptors, present in two cell lines. Genes involved in lipid metabolism are highly enriched in diverse models of cellular transformation and are thereby linked to cancer [34]. These genes are for OLR1, oxidized low-density lipoprotein receptor 1; SNAP23, crucial protein for storage of neutral lipids in lipid droplets and translocation of GLUT4 to the plasma membrane [36]; VAMP4, protein-driving lipid droplet forming, together with SNAP23; SCD1, stearoyl-CoA desaturase-1; and SREBP1, master lipogenesis regulator, sterol regulatory element binding protein 1. SREBP1 is targeted to inhibit lipid metabolism, thereby obstructing epithelial–mesenchymal transition in breast cancer [37]. Fatty acid synthase plays an important role in cancer pathogenesis [38]. Growth factor-dependent or independent autophosphorylation of receptor tyrosine kinases leads to signal transduction cascades. MCF-7 cells express estrogen, progesterone and androgen receptors while MDA-MD-231 cells express only androgen receptors [39]. However, progesterone can transmit its signal in MDA-MB-231 cells by binding to progesterone receptor membrane component 1, which has been shown to regulate some cancer hallmarks [40]. Steroid hormones including estradiol, progestins and androgens trigger transduction mechanisms that ultimately stimulate fatty acid synthase expression through the modulation of the transcription factor sterol regulatory element-binding protein 1c (SREBP1c), which binds to and activates sterol regulatory elements in the promoter region of fatty acid synthase [38]. The lowering of glycerol monopalmitate and glycerol monostearate in MDA-MB-231 cells by compound 1 indicates its influence upon the reversal of lipid to glucose metabolism. This shift includes the inhibition of the pentose phosphate pathway, which is the source of reductive power (NADPH) for palmitate and stearate synthesis, and the inhibition of citrate transport from mitochondria in the cytosol [38]. Fatty acid synthesis requires cleavage of the citrate in cytosol to yield acetyl-CoA, the precursor of palmitate and stearate.
Compound 1 treatment did not influence glycosphingolipid expression per one cell, but the percentage of IV6NeuAc-nLc4-positive cells was decreased in MDA-MB-231 CSC, while MCF-7 CSC involved increased GalNAc-GM1b+ and decreased Gg3Cer+ subpopulation percentage. Gg3Cer+ subpopulation was also decreased within the non-CSC of the MCF-7 cell line, which is in accordance with finding of Liang et al. After the knockdown of ST8SIA1 and B4GALNT1, they found significantly reduced expression of GD2 and GD3 gangliosides and phenotype change from CSC to a non-CSC [16]. Namely, Gg3Cer-neutral GSL is also synthesized with B4GALNT1 (Figure 10). Terminally α2-6-sialylated gangliosides of the neolactose series IV6NeuAc-nLc4 are recognized earlier as receptors for rViscumin, which is used as an adjuvant cancer therapy [41]. Recently, we described increased IV6NeuAc-nLc4 expression in both CSCs and non-CSCs of the MDA-MB-231 cell line after treatment with a different compound that belongs also to the thieno [2,3-b]pyridine group of molecules [27]. Gg3Cer has been detected in murine lymphosarcoma cell lines [42] and in myeloid leukemia cells as major neutral glycosphingolipid [43].
The finding of an increased GalNAc-GM1b+ and decreased Gg3Cer+ subpopulation percentage in MCF-7 CSC indicates that the addition of neuraminic acid (Neu5Ac) and two sugar residues (GalNAcβ1-4Galβ1) to Gg3Cer favors the survival of MCF-7 CSC (Figure 10).
The gene-coding GalNAc-transferase (GALNT2-SRD5A3) that binds glycosyl residues to glycoproteins belongs to a family of genetic alteration-driven genes and drug target genes acting as prognostic biomarkers in breast cancer [45]. GALNT2 gene-coding O-GalNAC transferase 2, which synthesizes Tn-antigen in core O-glycosylation (mucin type) glycoproteins, is associated with high cholesterol and triglyceride levels [46]. Investigation by Pucci et al. point to GALNT2 as one of the most consistent malignancy-associated enzymes together with B4GALNT1, B4GALT5, B3GNT5 and ST3GAL2 [44]. B4GALT5 and B4GALNT1 are involved in steps of Gg3Cer (called also asialo GM2) and GalNAc-GM1b synthesis, as shown in Figure 10.
GalNAc-GM1b is a ganglioside, acidic glycosphingolipid that contains sialic acid. ST3GAL2 catalyzes sialic acid transfer to Gg4Cer (called also asialo GM1). GalNAc-GM1b is described as minor in four human uterine cervical carcinoma-derived cell lines [47]. Sphingosine and ceramide (Figure 10) can be composed of different fatty acids—for example, stearic acid—with 18 carbon atoms [48], but mostly from palmitic acid (C16), which is the major fatty acid present in metabolism [49]. Recently, Cruz et al. showed beneficial effects of ceramide use in nanomedicine, targeting it in combination with doxorubicin, within liposomes, to MDA-MB-231 cells [50]. MCF cells are able to escape from the ceramide-related apoptosis by the activation of ganglioside synthesis [51]. In our study, compound 1 significantly increased early and late apoptosis in MDA-MB-231 cells, but only late apoptosis in MCF-7 cells. Only MCF-7 CSC showed an increased percentage of ganglioside GalNac-GM1b+ cells. We can assume that those cells contained lower ceramide levels and are thereby less sensitive to early apoptosis. Again, as well as for the aforementioned Gg3Cer, there is accordance of the GalNac-GM1b finding with the results of Liang et al. [16]. They found an increased level of mRNA coding ST3GAL2 glycosyltransferase, involved in GalNac-GM1b synthesis, in CSCs compared to non-stem breast cancer cells (Figure 10).
In conclusion, compound 1 exhibited higher potency in MBA-MB-231 cells, the triple negative breast cancer cell line, and it deserves further examinations in in vitro and in vivo models.

4. Materials and Methods

4.1. Chemistry and Cell Line

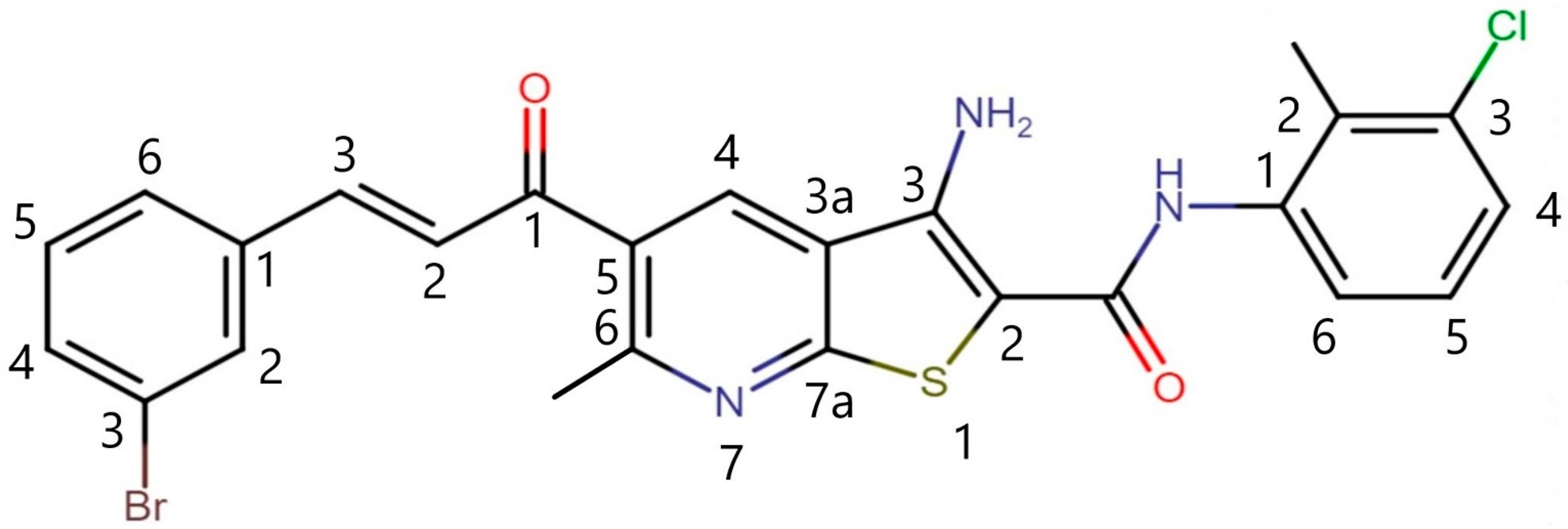

(E)-3-Amino-5-(3-(3-bromophenyl)acryloyl-N-(3-chloro-2-methylphenyl)-6-methylthieno [2,3-b]pyridine-2-carboxamide (compound 1) (Figure 11) was prepared as reported [19] and dissolved in a minimum amount of dimethyl sulfoxide (DMSO) prior to dilution in buffer. Cancer cell lines MDA-MB-231 and MCF-7 were grown in a humidified incubator at 37 °C and 5% CO2 in Dulbecco’s Modified Eagle Medium (DMEM, Sigma-Aldrich, Steinheim, Germany), enriched with 10% fetal bovine serum and 1% antibiotics.

4.2. Cytotoxic Activity Assay

To estimate cell viability, MTT was assessed [52]. Equal numbers of cells were seeded in three replicates. After overnight incubation, cells were treated with complete media or individual solutions of 1 at 0.05, 0.1, 0.25, 0.5, 1, 2.5, 5, 7.5, 10 and 25 µM in complete media, in three repetitions, for 4, 24, 48 and 72 h. Following treatment, cells were incubated with 0.5 mg/mL MTT in media for 2 h, after the media was ousted and DMSO was added. Absorbance was measured at 570 nm [53].

4.3. Flow Cytometric Analyses

Equal numbers of cells were plated in 6-well plates and treated with 2 µM 1 and then analyzed for apoptosis and glycosphingolipid expression. Subsequently, the cells were trypsinized, collected and washed twice with phosphate buffered saline (PBS), resuspended in 100 µL of the binding buffer containing 5 µL Annexin-V-FITC and 5 µL of PI (Annexin-V-FITC Apoptosis Detection Kit I, BD Biosciences, San Jose, CA, USA), incubated for 15 min at room temperature in the dark and analyzed by flow cytometry (BD Accuri C6, BD Biosciences, San Jose, CA, USA). Using the FlowLogic Software (Inivai, Mentone, VIC, Australia), the percentages of apoptotic cells (Annexin-V-positive cells) were determined and presented as mean ± standard deviation (SD).
Both cell lines treated with 1 for 48 h, as well as the controls, were stained with anti-CD44-FITC (BD Biosciences, San Jose, CA, USA), anti-CD24-phycoerythrin (PE, eBioscience, Inc., San Diego, CA, USA) and anti-GSL antibodies. The primary antibodies against Gb4Cer, IV3Neu5Ac-nLc4Cer, IV6Neu5Ac-nLc4Cer, GM2, Gg3Cer (gangliotriaosylceramide, GalNAcβ1-4Galβ1-4Glcβ1-1Cer) and GalNAc-GM1b were chicken polyclonal antibodies being produced and characterized by the laboratory of Dr. J. Müthing [54].
Secondary antibodies conjugated with eFluor 660 fluorochrome (Abcam, Cambridge, UK) were used for detection of the binding of primary anti-GSL antibodies.
Data acquisition was performed on a BD Accuri C6 cytometer and analyzed with FlowLogic Software. CD44+CD24− cells were gated and CSC were determined. Glycosphingolipids Gb4Cer, IV3Neu5Ac-nLc4Cer, IV6Neu5Ac-nLc4Cer, GM2, Gg3Cer and GalNAc-GM1b were determined on CSCs (CD44+CD24−) and non-CSCs (non CD44+CD24−) in both cell lines.

4.4. Mammosphere Forming Assay

Cells derived from MDA-MB-231 and MCF-7 cell lines were seeded in 6-well low attachment suspension culture plates (Corning® Costar® Ultra-Low Attachment Multiple Well Plate, Thermo Fisher Scientific, Waltham, MA, USA) at a density of 3.5 × 104 viable cells/well. Cells were grown in 2 mL MammoCult Medium Human Kit, enriched with Proliferation Supplement 0.1 mg/mL, Heparin Solution 4 µg/mL, Hydrocortisone Stock Solution 0.48 µg/mL (all StemCell Technologies, Vancouver, BC, Canada) and antibiotics (1% penicillin/streptomycin, Sigma-Aldrich, Steinheim, Germany) for control, and with addition of 2 µM 1 in enriched media for tested cells. Mammospheres larger than 50 μm were counted after 7 days of incubation using a Motic AE31E Inverted Microscope (Thermo Fisher Scientific, Waltham, MA, USA).

4.5. Quenching, Harvesting and Extraction of Cells for Metabolite Analysis

Metabolic extraction solvents were of LC–MS grade. Methanol and chloroform were obtained from Gram-Mol, Zagreb, Croatia. Reagents for derivatization included methoxyamine hydrochloride, pyridine and N-Methyl-N-(trimethylsilyl) trifluoroacetamide, and ribitol was used as an internal standard (all Sigma Aldrich, Steinheim, Germany).

4.6. Sample Collection for Metabolite Analysis

Cells were grown for 48 h in 6-well plates culture flask to near confluence. The culture medium was discarded, and cells were gently washed with 2 mL PBS and then quenched using cold methanol (3 + 1 mL). In an attempt to effectively quench the metabolism of cells, combined quenching and extraction step was performed, without cell scraping. 20 μL of ribitol (Sigma Aldrich, Steinheim, Germany) was added as an internal standard, and the sample was dried in a vacuum rotational evaporator (Laborota 4000-efficient, Heidolph, Schwabach, Germany).

4.7. Sample Derivatization and GC–MS Analysis

The derivatization process involved addition of 25 μL solution consisting of 20 mg/mL methoxyamine hydrochloride in pyridine, followed by constant shaking for 60 min at 50 °C and the addition of MSTFA (N-Methyl-N-(trimethylsilyl)trifluoroacetamide, Sigma Aldrich, Steinheim, Germany) + 1% TMCS (Trimethylchlorosilane, Sigma Aldrich, Steinheim, Germany), with incubation at 50 °C for 30 min for complete derivatization. The sample was dissolved in 100 μL pyridine.
The samples were analyzed using an Agilent 8890 GC system coupled with triple quad spectrometer system MS 7000D GC/TQ. The column was HP-5 MS (30m × 0.25 mm × 0.25 μm, Agilent, Santa Clara, CA, USA) with an oven program set on 60 °C maintained for 2 min, then increased to 210 °C at rate of 10 °C/min, ramped to 240 °C at rate of 5 °C/min and then ramped to 315 °C at a rate of 25 °C/min, and then held at 315 °C for 3 min.

4.8. GC-MS Data Preprocessing and Statistical Analysis

Agilent MassHunter Qualitative Analysis software was used for spectral processing (including peak picking, alignment, annotation and integration). Metabolites were identified using the NIST library. The intensity value for each metabolite was normalized to ribitol internal standard signal. A total of 21 metabolites were identified in cell culture samples.
MetaboAnalyst, a platform dedicated to metabolomics data analysis, was used to establish a panel of differentially expressed metabolites across these two cell lines.
Statistical significance analysis was performed using t-test. One-way ANOVA was used to compare the effect of 1 on both cell lines. Principal component analysis (PCA) was used as an unsupervised clustering method. Metabolic set enrichment analysis (MSEA) was employed to establish a link between metabolic fingerprints and metabolite concentration changes.
The IC50 values were calculated using GraphPad Prism 7.0 (San Diego, CA, USA). For statistical analyses of apoptosis and glycosphingolipids expression, t-test with unequal variances, one-way ANOVA followed by post hoc Tukey test or Kruskal–Wallis, followed by Dunn’s post hoc test, were performed using statistical software GraphPad Prism 7.0 (San Diego, CA, USA), with the significance set at p < 0.05.

Author Contributions

Conceptualization, M.R. and V.Č.Č.; methodology, M.P., S.M., L.I.P. and M.R.; software, L.M. and V.Č.Č.; validation, L.M., M.R.; formal analysis, S.M., L.I.P., L.M.; investigation, M.P., S.M., N.A.H., M.R. and V.Č.Č.; resources, D.B., M.R. and V.Č.Č.; data curation, M.R. and V.Č.Č.; writing—original draft preparation, M.P., S.M., A.M., M.R. and V.Č.Č.; writing—review and editing, A.M., N.A.H., J.R. and V.Č.Č.; supervision, L.I.P., D.B., J.R. and V.Č.Č. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Acknowledgments

We express our warmest thanks to J. Müthing, Institute for Hygiene, University of Münster, Germany, for his kind gift of all primary antibodies against different glycosphingolipids.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Vray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Chang-Qing, Y.; Jie, L.; Shi-Qi, Z.; Kun, Z.; Zi-Qian, G.; Ran, X.; Hui-Meng, L.; Ren-Bin, Z.; Gang, Z.; Da-Chuan, Y.; et al. Recent treatment progress of triple negative breast cancer. Prog. Biophys. Mol. Biol. 2020, 151, 40–53. [Google Scholar] [CrossRef] [PubMed]
  3. Ensenyat-Mendez, M.; Llinàs-Arias, P.; Orozco, J.I.J.; Íñiguez-Muñoz, S.; Salomon, M.P.; Sesé, B.; DiNome, M.L.; Marzese, D.M. Current Triple-Negative Breast Cancer Subtypes: Dissecting the Most Aggressive Form of Breast Cancer. Front. Oncol. 2021, 11, 681476. [Google Scholar] [CrossRef]
  4. Reya, T.; Morrison, S.J.; Clarke, M.F.; Weissman, I.L. Stem Cells, Cancer, and Cancer Stem Cells. Nature 2021, 414, 105–111. [Google Scholar] [CrossRef] [PubMed]
  5. Chang, J.C. Cancer Stem Cells: Role in Tumor Growth, Recurrence, Metastasis, and Treatment Resistance. Medicine 2016, 95 (Suppl. S1), S20–S25. [Google Scholar] [CrossRef]
  6. Tseng, C.-N.; Hong, Y.-R.; Chang, H.-W.; Yu, T.-J.; Hung, T.-W.; Hou, M.-F.; Yuan, S.-S.F.; Cho, C.-L.; Liu, C.-T.; Chiu, C.-C.; et al. Brefeldin A Reduces Anchorage-Independent Survival, Cancer Stem Cell Potential and Migration of MDA-MB-231 Human Breast Cancer Cells. Molecules 2014, 19, 17464–17477. [Google Scholar] [CrossRef]
  7. Batlle, E.; Clevers, H. Cancer stem cells revisited. Nat. Med. 2017, 23, 1124–1134. [Google Scholar] [CrossRef]
  8. Gaio, E.; Conte, C.; Esposito, D.; Reddi, E.; Quaglia, F.; Moret, F. CD44 Targeting Mediated by Polymeric Nanoparticles and Combination of Chlorine TPCS2a-PDT and Docetaxel-Chemotherapy for Efficient Killing of Breast Differentiated and Stem Cancer Cells In Vitro. Cancers 2020, 12, 278. [Google Scholar] [CrossRef]
  9. Gillard, B.K.; Thurmon, L.T.; Marcus, D.M. Variable subcellular localization of glycosphingolipids. Glycobiology 1993, 3, 57–67. [Google Scholar]
  10. Yu, R.K.; Tsai, Y.T.; Ariga, T.; Yanagisawa, M. Structures, Biosynthesis, and Functions of Gangliosides—An Overview. J. Oleo Sci. 2011, 60, 537–544. [Google Scholar] [CrossRef]
  11. Ségui, B.; Andrieu-Abadie, N.; Jaffrézou, J.-P.; Benoist, H.; Levade, T. Sphingolipids as modulators of cancer cell death: Potential therapeutic targets. Biochim. Biophys. Acta Biomembr. 2006, 1758, 2104–2120. [Google Scholar] [CrossRef] [Green Version]
  12. Groux-Degroote, S.; Rodriguez-Walker, M.; Dewald, J.H.; Daniotti, J.L.; Delannoy, P. Gangliosides in Cancer Cell Signaling. Prog. Mol. Biol. Transl. Sci. 2018, 156, 197–227. [Google Scholar] [PubMed]
  13. Hakomori, S. Glycosylation defining cancer malignancy: New wine in an old bottle. Proc. Natl. Acad. Sci. USA 2002, 99, 10231–10233. [Google Scholar] [CrossRef] [PubMed]
  14. Park, J.-J.; Lee, M. Increasing the α 2, 6 Sialylation of Glycoproteins May Contribute to Metastatic Spread and Therapeutic Resistance in Colorectal Cancer. Gut Liver 2013, 7, 629–641. [Google Scholar] [CrossRef] [PubMed]
  15. Jennemann, R.; Volz, M.; Bestvater, F.; Schmidt, C.; Richter, K.; Kaden, S.; Müthing, J.; Gröne, H.-J.; Sandhoff, R. Blockade of Glycosphingolipid Synthesis Inhibits Cell Cycle and Spheroid Growth of Colon Cancer Cells In Vitro and Experimental Colon Cancer Incidence In Vivo. Int. J. Mol. Sci. 2021, 22, 539. [Google Scholar]
  16. Liang, Y.J.; Ding, Y.; Levery, S.B.; Lobaton, M.; Handa, K.; Hakomori, S.I. Differential Expression Profiles of Glycosphingolipids in Human Breast Cancer Stem Cells Vs. Cancer Non-Stem Cells. Proc. Natl. Acad. Sci. USA 2013, 110, 4968–4973. [Google Scholar] [CrossRef] [PubMed]
  17. Jacob, F.; Alam, S.; Konantz, M.; Liang, C.Y.; Kohler, R.S.; Everest-Dass, A.V.; Huang, Y.L.; Rimmer, N.; Fedier, A.; Schotzau, A.; et al. Transition of Mesenchymal and Epithelial Cancer Cells Depends on Alpha1-4 Galactosyltransferase-Mediated Glycosphingolipids. Cancer Res. 2018, 78, 2952–2965. [Google Scholar] [CrossRef]
  18. Cheung, S.K.; Chuang, P.K.; Huang, H.W.; Hwang-Verslues, W.W.; Cho, C.H.; Yang, W.B.; Shen, C.N.; Hsiao, M.; Hsu, T.L.; Chang, C.F.; et al. Stage-Specific Embryonic Antigen-3 (Ssea-3) and Beta3galt5 Are Cancer Specific and Significant Markers for Breast Cancer Stem Cells. Proc. Natl. Acad. Sci. USA 2016, 113, 960–965. [Google Scholar] [CrossRef]
  19. Haverkate, N.A.; Leung, E.; Pilkington, L.I.; Barker, D. Tethered Aryl Groups Increase the Activity of Anti-Proliferative Thieno[2,3-B]Pyridines by Targeting a Lipophilic Region in the Active Site of Pi-Plc. Pharmaceutics 2021, 13, 2020. [Google Scholar] [CrossRef]
  20. Reynisson, J.; Court, W.; O’Neill, C.; Day, J.; Patterson, L.; McDonald, E.; Workman, P.; Katan, M.; Eccles, S.A. The Identification of Novel Plc-Gamma Inhibitors Using Virtual High Throughput Screening. Bioorg. Med. Chem. 2009, 17, 3169–3176. [Google Scholar] [CrossRef]
  21. Reynisson, J.; Jaiswal, J.K.; Barker, D.; D’Mello, S.A.N.; Denny, W.A.; Baguley, B.C.; Leung, E.Y. Evidence That Phospholipase C Is Involved in the Antitumour Action of Nsc768313, a New Thieno[2,3-B]Pyridine Derivative. Cancer Cell. Int. 2016, 16, 18. [Google Scholar] [CrossRef] [PubMed]
  22. Zafar, A.; Sari, S.; Leung, E.; Pilkington, L.I.; van Rensburg, M.; Barker, D.; Reynisson, J. GPCR Modulation of Thieno[2,3-b]pyridine Anti-Proliferative Agents. Molecules 2017, 22, 2254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Leung, E.; Pilkington, L.; van Rensburg, M.; Jeon, C.Y.; Song, M.; Arabshahi, H.J.; De Zoysa, G.; Sarojini, V.; Denny, W.A.; Reynisson, J.; et al. Synthesis and cytotoxicity of thieno[2,3-b]quinoline-2-carboxamide and cycloalkyl[b]thieno[3,2-e]pyridine-2-carboxamide derivatives. Bioorg. Med. Chem. 2016, 24, 1142–1154. [Google Scholar] [CrossRef] [PubMed]
  24. Leung, E.; Hung, J.M.; Barker, D.; Reynisson, J. The Effect of a Thieno[2,3-B]Pyridine Plc-Γ Inhibitor on the Proliferation, Morphology, Migration and Cell Cycle of Breast Cancer Cells. MedChemComm 2014, 5, 99–106. [Google Scholar] [CrossRef]
  25. Hung, J.M.; Arabshahi, H.J.; Leung, E.; Reynisson, J.; Barker, D. Synthesis and Cytotoxicity of Thieno[2,3-B]Pyridine and Furo[2,3-B]Pyridine Derivatives. Eur. J. Med. Chem. 2014, 86, 420–437. [Google Scholar] [CrossRef]
  26. Haverkate, N.A.; van Rensburg, M.; Kumara, S.; Reynisson, J.; Leung, E.; Pilkington, L.I.; Barker, D. Improving the Solubility of Anti-Proliferative Thieno[2,3-B]Quinoline-2-Carboxamides. Bioorg. Med. Chem. 2021, 37, 116092. [Google Scholar] [CrossRef]
  27. Marijan, S.; Markotic, A.; Mastelic, A.; Rezic-Muzinic, N.; Pilkington, L.I.; Reynisson, J.; Culic, V.C. Glycosphingolipid Expression at Breast Cancer Stem Cells after Novel Thieno[2,3-B]Pyridine Anticancer Compound Treatment. Sci. Rep. 2020, 10, 11876. [Google Scholar] [CrossRef]
  28. Liang, Q.; Wang, C.; Li, B.; Zhang, A.-H. Metabolic fingerprinting to understand therapeutic effects and mechanisms of silybin on acute liver damage in rat. Pharmacogn. Mag. 2015, 11, 586–593. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Yang, J.M. Altered Energy Metabolism in Cancer: A Unique Opportunity for Therapeutic Intervention. Cancer Biol. Ther. 2013, 14, 81–89. [Google Scholar] [CrossRef]
  30. Badr, H.A.; AlSadek, D.M.; Mathew, M.P.; Li, C.-Z.; Djansugurova, L.B.; Yarema, K.J.; Ahmed, H. Nutrient-deprived cancer cells preferentially use sialic acid to maintain cell surface glycosylation. Biomaterials 2015, 70, 23–36. [Google Scholar] [CrossRef]
  31. Li, F.; Ding, J. Sialylation Is Involved in Cell Fate Decision During Development, Reprogramming and Cancer Progression. Protein Cell 2019, 10, 550–565. [Google Scholar] [CrossRef] [PubMed]
  32. Chester, M.A. Iupac-Iub Joint Commission on Biochemical Nomenclature (Jcbn). Nomenclature of Glycolipids—Recommendations 1997. Eur. J. Biochem. 1998, 257, 293–298. [Google Scholar] [PubMed]
  33. Svennerholm, L. Chromatographic Separation of Human Brain Gangliosides. J. Neurochem. 1963, 10, 613–623. [Google Scholar] [CrossRef] [PubMed]
  34. Hirsch, H.A.; Iliopoulos, D.; Joshi, A.; Zhang, Y.; Jaeger, S.A.; Bulyk, M.; Tsichlis, P.N.; Liu, X.S.; Struhl, K. A Transcriptional Signature and Common Gene Networks Link Cancer with Lipid Metabolism and Diverse Human Diseases. Cancer Cell 2010, 17, 348–361. [Google Scholar] [CrossRef]
  35. Giovannucci, E. Metabolic Syndrome, Hyperinsulinemia, and Colon Cancer: A Review. Am. J. Clin. Nutr. 2007, 86, s836–s842. [Google Scholar] [CrossRef]
  36. Olofsson, S.-O.; Andersson, L.; Håversen, L.; Olsson, C.; Myhre, S.; Rutberg, M.; Mobini, R.; Li, L.; Lu, E.; Borén, J.; et al. The formation of lipid droplets: Possible role in the development of insulin resistance/type 2 diabetes. Prostaglandins Leukot. Essent. Fat. Acids 2011, 85, 215–218. [Google Scholar] [CrossRef]
  37. Wu, C.L.; Xu, L.L.; Peng, J.; Zhang, D.H. Al-MPS Obstructs EMT in Breast Cancer by Inhibiting Lipid Metabolism via miR-215-5p/SREBP1. Endocrinology 2022, 163, bqac040. [Google Scholar] [CrossRef]
  38. Menendez, J.; Lupu, R. Fatty acid synthase and the lipogenic phenotype in cancer pathogenesis. Nat. Cancer 2007, 7, 763–777. [Google Scholar] [CrossRef]
  39. Subik, K.; Lee, J.-F.; Baxter, L.; Strzepek, T.; Costello, D.; Crowley, P.; Xing, L.; Hung, M.-C.; Bonfiglio, T.; Hicks, D.G.; et al. The Expression Patterns of ER, PR, HER2, CK5/6, EGFR, Ki-67 and AR by Immunohistochemical Analysis in Breast Cancer Cell Lines. Breast Cancer Basic Clin. Res. 2010, 4, 35–41. [Google Scholar] [CrossRef]
  40. Cantonero, C.; Salido, G.M.; Rosado, J.A.; Redondo, P.C. PGRMC1 Inhibits Progesterone-Evoked Proliferation and Ca2+ Entry Via STIM2 in MDA-MB-231 Cells. Int. J. Mol. Sci. 2020, 21, 7641. [Google Scholar] [CrossRef]
  41. Muthing, J.; Burg, M.; Mockel, B.; Langer, M.; Metelmann-Strupat, W.; Werner, A.; Neumann, U.; Peter-Katalinic, J.; Eck, J. Preferential Binding of the Anticancer Drug Rviscumin (Recombinant Mistletoe Lectin) to Terminally Alpha2-6-Sialylated Neolacto-Series Gangliosides. Glycobiology 2002, 12, 485–497. [Google Scholar] [CrossRef] [PubMed]
  42. Taki, T.; Ishikawa, D.; Ogura, M.; Nakajima, M.; Handa, S. Ganglioside GD1alpha functions in the adhesion of metastatic tumor cells to endothelial cells of the target tissue. Cancer Res. 1997, 57, 1882–1888. [Google Scholar] [PubMed]
  43. Taki, T.; Maeda, H.; Arai, K.; Matsumoto, M.; Kon, K.; Ando, S. Appearance of a novel type of ganglioside (GD1.ALPHA.) in a differentiation-resistant clone of mouse myeloid leukemia cells, M1-R1. Cell Struct. Funct. 1988, 13, 61–72. [Google Scholar] [CrossRef] [PubMed]
  44. Pucci, M.; Duca, M.; Malagolini, N.; Dall’Olio, F. Glycosyltransferases in Cancer: Prognostic Biomarkers of Survival in Patient Cohorts and Impact on Malignancy in Experimental Models. Cancers 2022, 14, 2128. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, L.; Yu, L.; Shi, J.; Li, F.; Zhang, C.; Xu, H.; Yin, X.; Wang, L.; Lin, S.; Litvinova, A.; et al. Functional regulations between genetic alteration-driven genes and drug target genes acting as prognostic biomarkers in breast cancer. Sci. Rep. 2022, 12, 10641. [Google Scholar] [CrossRef]
  46. Kathiresan, S.; Melander, O.; Guiducci, C.; Surti, A.; Burtt, N.P.; Rieder, M.J.; Cooper, G.M.; Roos, C.; Voight, B.F.; Havulinna, A.S.; et al. Six New Loci Associated with Blood Low-Density Lipoprotein Cholesterol, High-Density Lipoprotein Cholesterol or Triglycerides in Humans. Nat. Genet. 2008, 40, 189–197. [Google Scholar] [CrossRef]
  47. Tanaka, K.; Miyazawa, M.; Mikami, M.; Aoki, D.; Kiguchi, K.; Iwamori, M. Enhanced expression of unique gangliosides with GM2-determinant in human uterine cervical carcinoma-derived cell lines. Glycoconj. J. 2016, 33, 745–754. [Google Scholar] [CrossRef]
  48. Chigorno, V.; Negroni, E.; Nicolini, M.; Sonnino, S. Activity of 3-ketosphinganine synthase during differentiation and aging of neuronal cells in culture. J. Lipid Res. 1997, 38, 1163–1169. [Google Scholar] [CrossRef]
  49. Glueck, M.; Koch, A.; Brunkhorst, R.; Bouzas, N.F.; Trautmann, S.; Schaefer, L.; Pfeilschifter, W.; Pfeilschifter, J.; Vutukuri, R. The atypical sphingosine 1-phosphate variant, d16:1 S1P, mediates CTGF induction via S1P2 activation in renal cell carcinoma. FEBS J. 2022, 289, 5670–5681. [Google Scholar] [CrossRef]
  50. Cruz, A.F.; Fonseca, N.A.; Malheiro, A.R.; Melo, J.B.; Gaspar, M.M.; Fernandes, R.; Moura, V.; Simões, S.; Moreira, J.N. Targeted liposomal doxorubicin/ceramides combinations: The importance to assess the nature of drug interaction beyond bulk tumor cells. Eur. J. Pharm. Biopharm. 2022, 172, 61–77. [Google Scholar] [CrossRef]
  51. Shammout, O.D.A.; Ashmawy, N.S.; Shakartalla, S.B.; Altaie, A.M.; Semreen, M.H.; Omar, H.A.; Soliman, S.S.M. Comparative sphingolipidomic analysis reveals significant differences between doxorubicin-sensitive and -resistance MCF-7 cells. PLoS ONE 2021, 16, e0258363. [Google Scholar] [CrossRef]
  52. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  53. Ross, A.E.; Emadi, A.; Marchionni, L.; Hurley, P.J.; Simons, B.W.; Schaeffer, E.M.; Vuica-Ross, M. Dimeric naphthoquinones, a novel class of compounds with prostate cancer cytotoxicity. Br. J. Urol. 2011, 108, 447–454. [Google Scholar] [CrossRef] [PubMed]
  54. Meisen, I.; Peter-Katalinić, J.; Müthing, J. Direct Analysis of Silica Gel Extracts from Immunostained Glycosphingolipids by Nanoelectrospray Ionization Quadrupole Time-of-Flight Mass Spectrometry. Anal. Chem. 2004, 76, 2248–2255. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 11457 g001 550

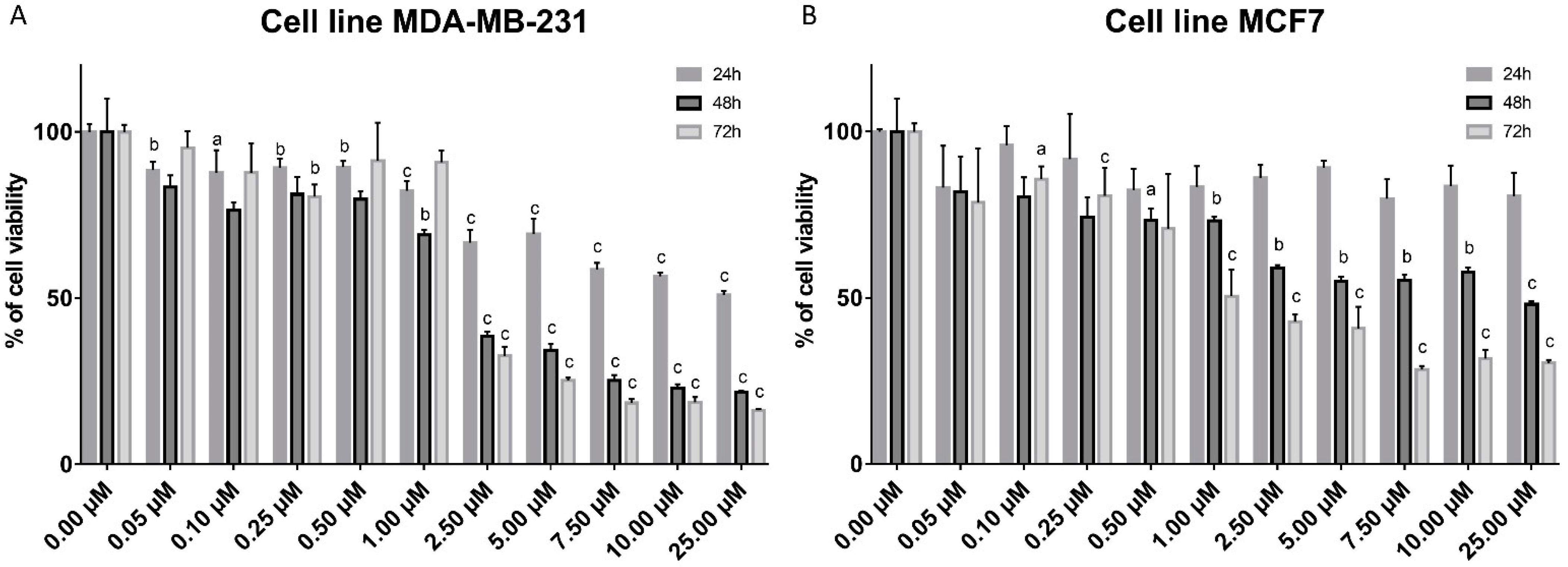

Figure 1. Cell viability after compound 1 treatment. Notes: Cells were treated with a different concentration of compound 1 for 24, 48 and 72 h in the MDA-MB-231 (A) and in the MCF-7 cell line (B), and cell metabolism was evaluated by the 3-(4,5-dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide (MTT) assay. Data are expressed as a mean from the experiment performed in triplicate ± SD. Columns, mean of viable cells; bars, SD (standard deviation); a, p < 0.05; b, p < 0.01; c, p < 0.001. SD, standard deviation.
Figure 1. Cell viability after compound 1 treatment. Notes: Cells were treated with a different concentration of compound 1 for 24, 48 and 72 h in the MDA-MB-231 (A) and in the MCF-7 cell line (B), and cell metabolism was evaluated by the 3-(4,5-dimethylthiazolyl-2)-2,5-diphenyltetrazolium bromide (MTT) assay. Data are expressed as a mean from the experiment performed in triplicate ± SD. Columns, mean of viable cells; bars, SD (standard deviation); a, p < 0.05; b, p < 0.01; c, p < 0.001. SD, standard deviation.
Ijms 23 11457 g001
Ijms 23 11457 g002 550

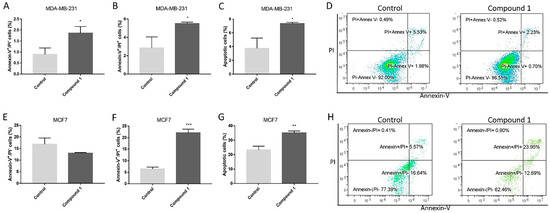

Figure 2. Apoptosis after compound 1 treatment. Notes: Percentage and dot plots of early, late and total apoptotic cells without and with 1 treatment for 48 h in the MDA-MB-231 (A–D) and in the MCF-7 cell line (E–H). Data represented are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of cells; bars, SD; * p < 0.05; ** p < 0.01 *** p < 0.001. SD, standard deviation.
Figure 2. Apoptosis after compound 1 treatment. Notes: Percentage and dot plots of early, late and total apoptotic cells without and with 1 treatment for 48 h in the MDA-MB-231 (A–D) and in the MCF-7 cell line (E–H). Data represented are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of cells; bars, SD; * p < 0.05; ** p < 0.01 *** p < 0.001. SD, standard deviation.
Ijms 23 11457 g002
Ijms 23 11457 g003 550

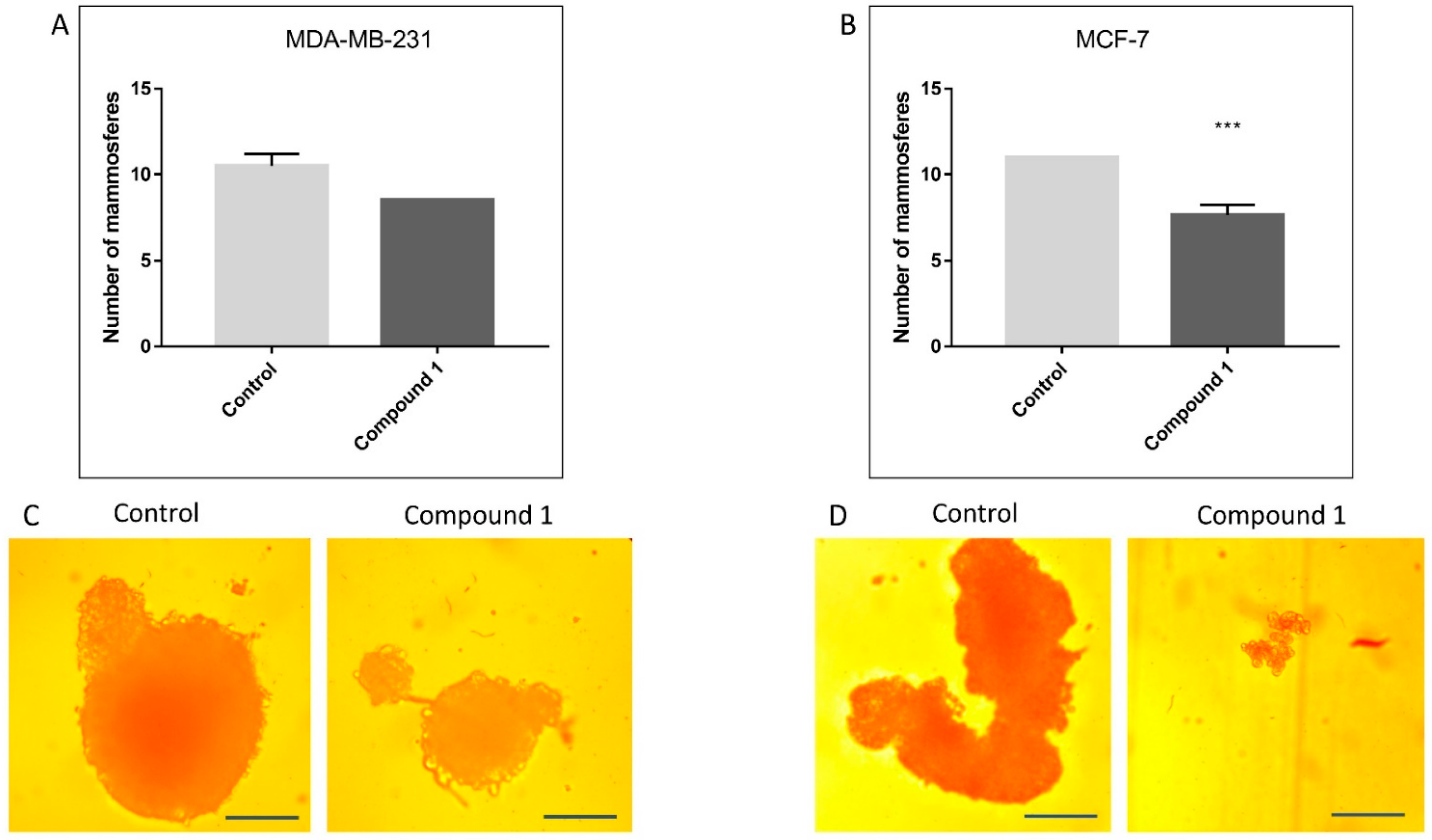

Figure 3. Mammosphere formation after compound 1 treatment. Notes: Number of mammospheres without and with compound 1 treatment for 7 days in the MDA-MB-231 (A) and in the MCF-7 cell line (B), and photos with ×100 magnification (scale bar, 200 μm) in the MDA-MB-231 (C) and in the MCF-7 cell line (D). Mammospheres with a size over 50 μm were evaluated. Data represented are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of cells; bars, SD; *** p < 0.001. SD, standard deviation.
Figure 3. Mammosphere formation after compound 1 treatment. Notes: Number of mammospheres without and with compound 1 treatment for 7 days in the MDA-MB-231 (A) and in the MCF-7 cell line (B), and photos with ×100 magnification (scale bar, 200 μm) in the MDA-MB-231 (C) and in the MCF-7 cell line (D). Mammospheres with a size over 50 μm were evaluated. Data represented are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of cells; bars, SD; *** p < 0.001. SD, standard deviation.
Ijms 23 11457 g003
Ijms 23 11457 g004 550

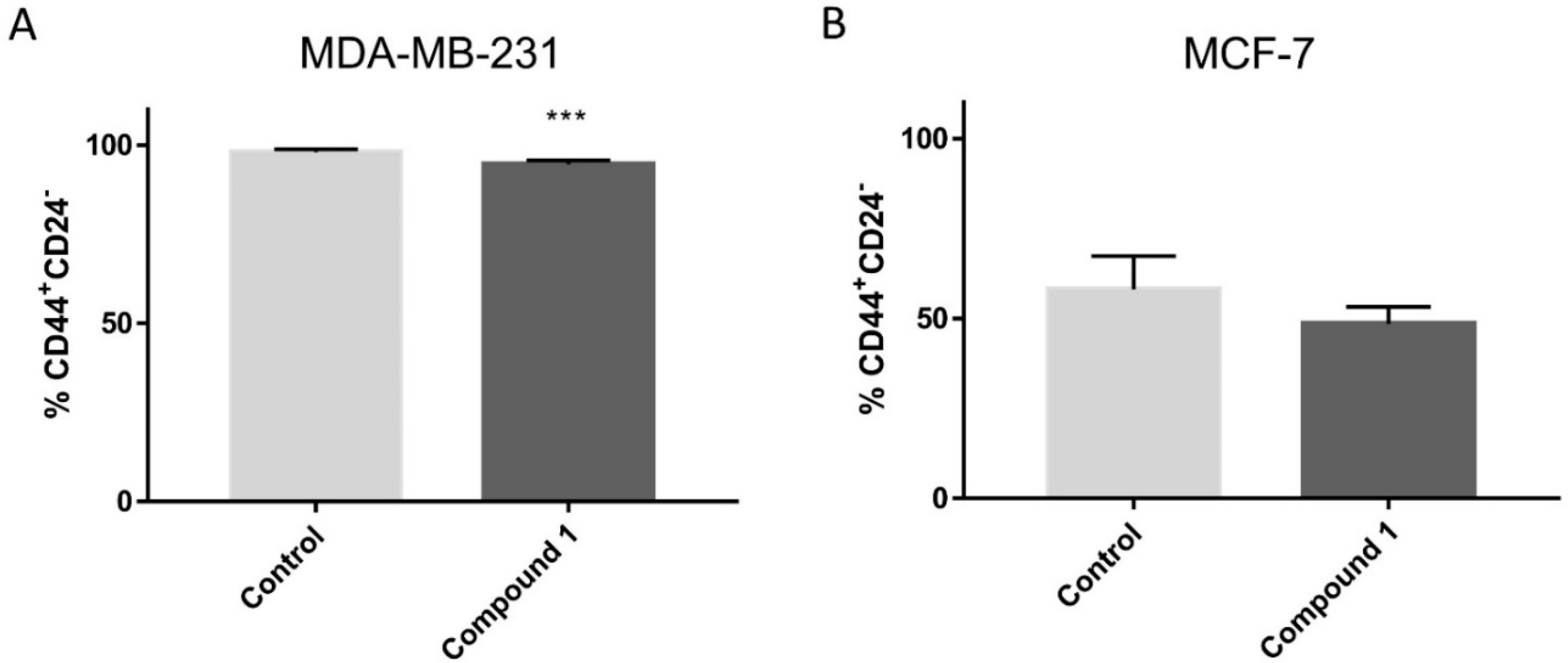

Figure 4. CSCs after compound 1 treatment. Notes: Percentage of CD44+CD24− CSCs after treatment with compound 1 for 48 h in MDA-MB 231 (A) and in the MCF-7 cell line (B). Data represented are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of cells; bars, SD; *** p < 0.001. CSCs cancer stem cells; SD, standard deviation.
Figure 4. CSCs after compound 1 treatment. Notes: Percentage of CD44+CD24− CSCs after treatment with compound 1 for 48 h in MDA-MB 231 (A) and in the MCF-7 cell line (B). Data represented are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of cells; bars, SD; *** p < 0.001. CSCs cancer stem cells; SD, standard deviation.
Ijms 23 11457 g004
Ijms 23 11457 g005 550

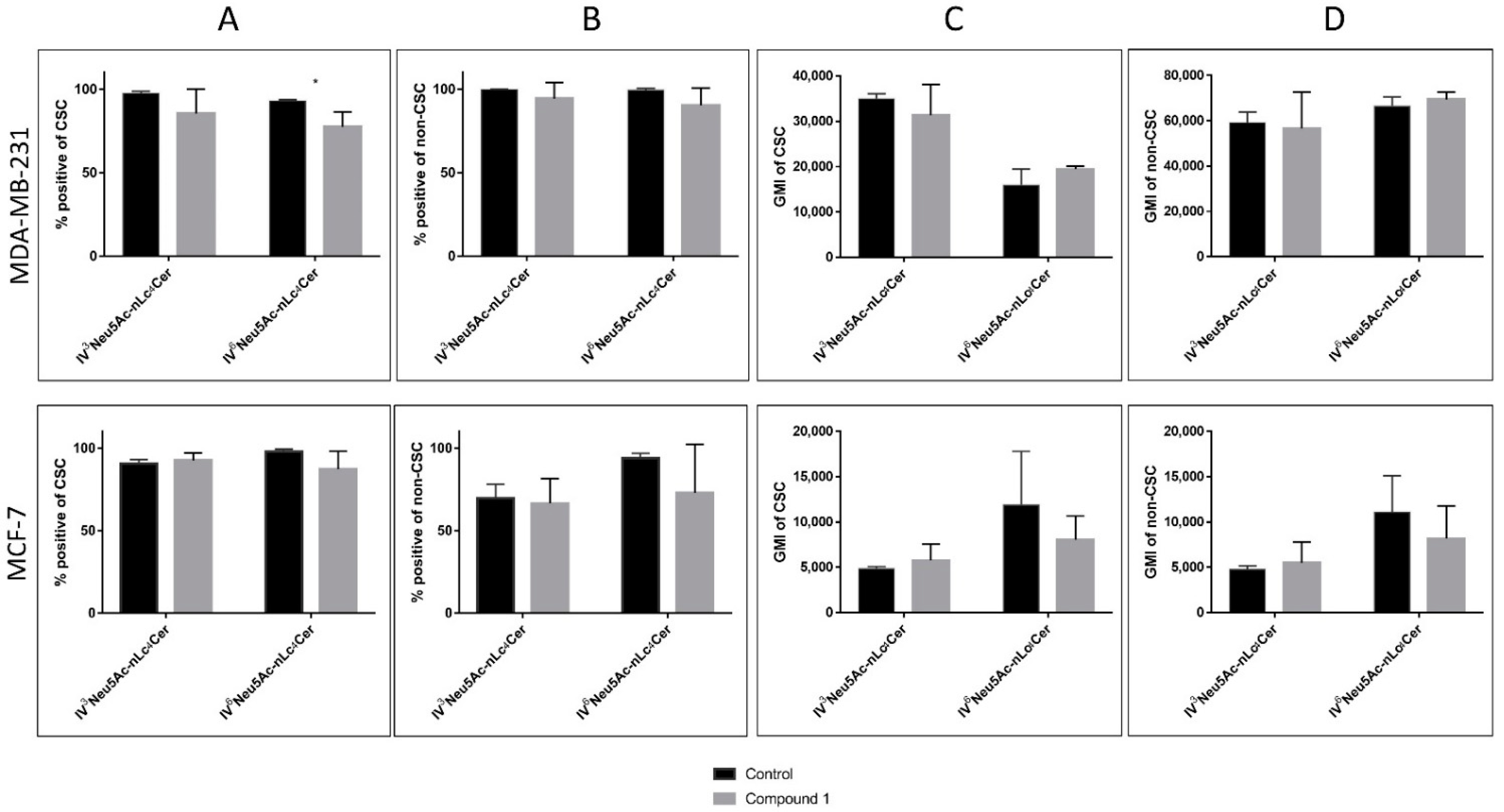

Figure 5. Percentage and geometric mean fluorescence intensity of terminally sialylated ganglioside-positive cell subpopulations. Notes: Percentage of CSCs in the MDA-MB-231 and in the MCF-7 (A), and non-CSCs in MDA-MB 231 and in the MCF-7 (B). Geometric mean fluorescence intensity of CSCs in MDA-MB 231 and in the MCF-7 (C), and non-CSCs in the MDA-MB-231 and in MCF-7 cell lines (D) after treatment with compound 1 in duration of 48 h. Data are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of viable cells; bars, SD; * p < 0.05. CSC, CD44+/CD24− cells; non-CSC, CD44+/CD24+, CD44−/CD24− and CD44−/CD24+ cells; GMI, geometric mean fluorescence intensity; SD, standard deviation. The designation of the gangliosides follows the IUPAC-IUB recommendations [32] and the nomenclature of Svennerholm [33]: Neu5Ac, N-acetylneuraminic acid; nLc4Cer, neolactotetraosylceramide; IV3Neu5Ac-nLc4Cer; IV6Neu5Ac-nLc4Cer.
Figure 5. Percentage and geometric mean fluorescence intensity of terminally sialylated ganglioside-positive cell subpopulations. Notes: Percentage of CSCs in the MDA-MB-231 and in the MCF-7 (A), and non-CSCs in MDA-MB 231 and in the MCF-7 (B). Geometric mean fluorescence intensity of CSCs in MDA-MB 231 and in the MCF-7 (C), and non-CSCs in the MDA-MB-231 and in MCF-7 cell lines (D) after treatment with compound 1 in duration of 48 h. Data are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of viable cells; bars, SD; * p < 0.05. CSC, CD44+/CD24− cells; non-CSC, CD44+/CD24+, CD44−/CD24− and CD44−/CD24+ cells; GMI, geometric mean fluorescence intensity; SD, standard deviation. The designation of the gangliosides follows the IUPAC-IUB recommendations [32] and the nomenclature of Svennerholm [33]: Neu5Ac, N-acetylneuraminic acid; nLc4Cer, neolactotetraosylceramide; IV3Neu5Ac-nLc4Cer; IV6Neu5Ac-nLc4Cer.
Ijms 23 11457 g005
Ijms 23 11457 g006 550
Figure 6. Percentage and geometric mean fluorescence intensity of cell subpopulations positive for ganglioside and neutral GSLs with terminal GalNAc residue. Notes: Percentage of CSCs in the MDA-MB-231 and in the MCF-7 (A), and non-CSCs in MDA-MB 231 and in the MCF-7 cell lines (B). Geometric mean fluorescence intensity of CSCs in MDA-MB 231 and in the MCF-7 (C), and non-CSCs in the MDA-MB-231 and in MCF-7 cell lines (D) after treatment with compound 1 in duration of 48 h. Data are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of viable cells; bars, SD, * p < 0.05, *** p < 0.001. CSC, CD44+/CD24− cells; non-CSC, CD44+/CD24+, CD44−/CD24− and CD44−/CD24+ cells; globotetraosylceramide or Gb4Cer, GalNAcβ1-3Galα1-4Galβ1-4Glcβ1-1Cer; gangliotriaosylceramide or Gg3Cer, GalNAcβ1-4Galβ1-4Glcβ1-1Cer; GM2, II3Neu5AcGg3Cer; GalNAc-GM1b, IV3Neu5Ac-Gg5Cer; GM1b, IV3Neu5Ac-Gg4Cer; gangliotetraosylceramide or Gg4Cer, Galβ1-3GalNAcβ1-4Galβ1-4Glcβ1-1Cer; GMI, geometric mean fluorescence intensity; SD, standard deviation.
Figure 6. Percentage and geometric mean fluorescence intensity of cell subpopulations positive for ganglioside and neutral GSLs with terminal GalNAc residue. Notes: Percentage of CSCs in the MDA-MB-231 and in the MCF-7 (A), and non-CSCs in MDA-MB 231 and in the MCF-7 cell lines (B). Geometric mean fluorescence intensity of CSCs in MDA-MB 231 and in the MCF-7 (C), and non-CSCs in the MDA-MB-231 and in MCF-7 cell lines (D) after treatment with compound 1 in duration of 48 h. Data are expressed as a mean from experiment performed in triplicate ± SD. Columns, mean of viable cells; bars, SD, * p < 0.05, *** p < 0.001. CSC, CD44+/CD24− cells; non-CSC, CD44+/CD24+, CD44−/CD24− and CD44−/CD24+ cells; globotetraosylceramide or Gb4Cer, GalNAcβ1-3Galα1-4Galβ1-4Glcβ1-1Cer; gangliotriaosylceramide or Gg3Cer, GalNAcβ1-4Galβ1-4Glcβ1-1Cer; GM2, II3Neu5AcGg3Cer; GalNAc-GM1b, IV3Neu5Ac-Gg5Cer; GM1b, IV3Neu5Ac-Gg4Cer; gangliotetraosylceramide or Gg4Cer, Galβ1-3GalNAcβ1-4Galβ1-4Glcβ1-1Cer; GMI, geometric mean fluorescence intensity; SD, standard deviation.
Ijms 23 11457 g006
Ijms 23 11457 g007 550
Figure 7. PCA of metabolic profile of MDA-MB-231 and MCF-7 cells. Notes: PCA of metabolic profile of MDA-MB-231 (A) and MCF-7 cell lines (B) after treatment with compound 1 in duration of 48 h. PCA, principal component analysis.
Figure 7. PCA of metabolic profile of MDA-MB-231 and MCF-7 cells. Notes: PCA of metabolic profile of MDA-MB-231 (A) and MCF-7 cell lines (B) after treatment with compound 1 in duration of 48 h. PCA, principal component analysis.
Ijms 23 11457 g007
Ijms 23 11457 g008 550
Figure 8. Metabolomic set enrichment analysis of MDA-MB-231 and MCF-7 cells. Notes: Metabolomic set enrichment analysis showing the most changed functional metabolism of MDA-MB-231 (A) and MCF-7 cell lines (B) after treatment with compound 1 in duration of 48 h. Molecular pathways were ranked according to the probability (p-value) of finding a particular number of significantly changed metabolites in the compound list of a certain pathway.
Figure 8. Metabolomic set enrichment analysis of MDA-MB-231 and MCF-7 cells. Notes: Metabolomic set enrichment analysis showing the most changed functional metabolism of MDA-MB-231 (A) and MCF-7 cell lines (B) after treatment with compound 1 in duration of 48 h. Molecular pathways were ranked according to the probability (p-value) of finding a particular number of significantly changed metabolites in the compound list of a certain pathway.
Ijms 23 11457 g008
Ijms 23 11457 g009 550
Figure 9. The relative concentrations of the metabolites. Notes: The relative concentrations of the metabolites involved in the glycolytic pathway and triacylglycerol pathway (part) in MDA-MB-231 cells (red) and MCF-7 cells (blue) after treatment with compound 1 in duration of 48 h. Data are expressed as the mean value ± SD of three independent experiments. Columns, mean of cells; bars, SD; * p < 0.05; *** p < 0.001; SD, standard deviation; purple text indicates metabolites concentrations changed after treatment in both cell lines; ER, endoplasmatic reticulum; ADP, adenosine diphosphate; ATP, adenosine triphosphate; GLC-6-P, glucose-6-phosphate; glycerol-3-P, glycerol-3-phosphate; DHAP, dihydroxyacetone phosphate; GAP, glyceraldehyde 3-phosphate; Ac-CoA, acetyl-coenzyme A.
Figure 9. The relative concentrations of the metabolites. Notes: The relative concentrations of the metabolites involved in the glycolytic pathway and triacylglycerol pathway (part) in MDA-MB-231 cells (red) and MCF-7 cells (blue) after treatment with compound 1 in duration of 48 h. Data are expressed as the mean value ± SD of three independent experiments. Columns, mean of cells; bars, SD; * p < 0.05; *** p < 0.001; SD, standard deviation; purple text indicates metabolites concentrations changed after treatment in both cell lines; ER, endoplasmatic reticulum; ADP, adenosine diphosphate; ATP, adenosine triphosphate; GLC-6-P, glucose-6-phosphate; glycerol-3-P, glycerol-3-phosphate; DHAP, dihydroxyacetone phosphate; GAP, glyceraldehyde 3-phosphate; Ac-CoA, acetyl-coenzyme A.
Ijms 23 11457 g009
Ijms 23 11457 g010 550
Figure 10. Pathway of Gg3Cer and GalNAc-GM1b glycosphingolipid synthesis in MDA-MB-231 cells. The designation of the glycosphingolipids and their core structures follow the IUPAC-IUB recommendations [32]. Only transferases B4GALNT1, B4GALT5 and ST3GAL2, which are among the most consistently malignancy-associated enzymes [44], are marked at corresponding steps of synthesis. The relative concentrations of the metabolites.
Figure 10. Pathway of Gg3Cer and GalNAc-GM1b glycosphingolipid synthesis in MDA-MB-231 cells. The designation of the glycosphingolipids and their core structures follow the IUPAC-IUB recommendations [32]. Only transferases B4GALNT1, B4GALT5 and ST3GAL2, which are among the most consistently malignancy-associated enzymes [44], are marked at corresponding steps of synthesis. The relative concentrations of the metabolites.
Ijms 23 11457 g010
Ijms 23 11457 g011 550
Figure 11. The structure of the newly synthesized anticancer agent (compound 1). Note: Compound 1, (E)-3-amino-5-(3-(3-bromophenyl)acryloyl)-N-(3-chloro-2-methylphenyl)-6-methylthieno [2,3-b]pyridine-2-carboxamide.
Figure 11. The structure of the newly synthesized anticancer agent (compound 1). Note: Compound 1, (E)-3-amino-5-(3-(3-bromophenyl)acryloyl)-N-(3-chloro-2-methylphenyl)-6-methylthieno [2,3-b]pyridine-2-carboxamide.
Ijms 23 11457 g011
Table
Table 1. List of identified compounds in the MDA-MB-231 and MCF-7 cell line.
Table 1. List of identified compounds in the MDA-MB-231 and MCF-7 cell line.
No.RT
(min)		MetaboliteMDA-MB-231MCF-7
p ValueFold Changep Value Fold Change
16.1Pyruvic acid0.04 *2.190.150.76
26.3L-Lactic acid<0.001 *0.530.03 *1.50
37.5Oxalic acid0.81.090.10.56
49.2Serine
59.4Threonine
69.5Phosphate0.03 *0.710.50.91
79.9Glycine0.280.440.30.63
811.5D-Alanine
912.4Pyroglutamic acid
1012.8L-Proline0.10.750.760.89
1116.3Erythrose0.10.69
1216.44-Hydroxycinnamic acid0.081.220.11.09
1316.9D-Fructose0.30.52
1417.2D-Glucose0.50.960.40.88
1517.4Mannose0.91.070.70.96
1618.5Palmitic acid0.60.800.40.8
1719.5Myo-inositol0.03 *0.710.30.76
1819.9Octadecanol0.40.990.41.07
1921.0Stearic acid0.30.710.51.42
2025.8Glyceryl monopalmitate0.05 *0.730.90.99
2128.5Glyceril monostearate0.04 *0.740.02 *1.2
Notes: The intensity value for each metabolite normalized to ribitol internal standard signal in MDA-MB-231 cells and MCF-7 cells after treatment with compound 1 in duration of 48 h. Fold change represents the ratio of the mean value of signal intensity (of three independent experiments) of treated over non-treated cells. p values are obtained by Student t test (features with > 50% missing values were excluded); RT (retention time); * statistically significant change.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pervan, M.; Marijan, S.; Markotić, A.; Pilkington, L.I.; Haverkate, N.A.; Barker, D.; Reynisson, J.; Meić, L.; Radan, M.; Čikeš Čulić, V. Novel Thieno [2,3-b]pyridine Anticancer Compound Lowers Cancer Stem Cell Fraction Inducing Shift of Lipid to Glucose Metabolism. Int. J. Mol. Sci. 2022, 23, 11457. https://doi.org/10.3390/ijms231911457

AMA Style

Pervan M, Marijan S, Markotić A, Pilkington LI, Haverkate NA, Barker D, Reynisson J, Meić L, Radan M, Čikeš Čulić V. Novel Thieno [2,3-b]pyridine Anticancer Compound Lowers Cancer Stem Cell Fraction Inducing Shift of Lipid to Glucose Metabolism. International Journal of Molecular Sciences. 2022; 23(19):11457. https://doi.org/10.3390/ijms231911457

Chicago/Turabian Style

Pervan, Matij, Sandra Marijan, Anita Markotić, Lisa I. Pilkington, Natalie A. Haverkate, David Barker, Jóhannes Reynisson, Luka Meić, Mila Radan, and Vedrana Čikeš Čulić. 2022. "Novel Thieno [2,3-b]pyridine Anticancer Compound Lowers Cancer Stem Cell Fraction Inducing Shift of Lipid to Glucose Metabolism" International Journal of Molecular Sciences 23, no. 19: 11457. https://doi.org/10.3390/ijms231911457

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
