Identification and Fine Mapping of the Recessive Gene BK-5, Which Affects Cell Wall Biosynthesis and Plant Brittleness in Maize

Abstract

The cellulose of the plant cell wall indirectly affects the cell shape and straw stiffness of the plant. Here, the novel brittleness mutant brittle stalk-5 (bk-5) of the maize inbred line RP125 was characterized. We found that the mutant displayed brittleness of the stalk and even the whole plant, and that the brittleness phenotype existed during the whole growth period from germination to senescence. The compressive strength was reduced, the cell wall was thinner, and the cellulose content was decreased compared to that of the wild type. Genetic analysis and map-based cloning indicated that bk-5 was controlled by a single recessive nuclear gene and that it was located in a 90.2-Kb region on chromosome 3 that covers three open reading frames (ORFs). Sequence analysis revealed a single non-synonymous missense mutation, T-to-A, in the last exon of Zm00001d043477 (B73: version 4, named BK-5) that caused the 951th amino acid to go from leucine to histidine. BK-5 encodes a cellulose synthase catalytic subunit (CesA), which is involved with cellulose synthesis. We found that BK-5 was constitutively expressed in all tissues of the germinating stage and silking stage, and highly expressed in the leaf, auricula, and root of the silking stage and the 2-cm root and bud of the germinating stage. We found that BK-5 mainly localized to the Golgi apparatus, suggesting that the protein might move to the plasma membrane with the aid of Golgi in maize. According to RNA-seq data, bk-5 had more downregulated genes than upregulated genes, and many of the downregulated genes were enzymes and transcription factors related to cellulose, hemicellulose, and lignin biosynthesis of the secondary cell wall. The other differentially expressed genes were related to metabolic and cellular processes, and were significantly enriched in hormone signal transduction, starch and sucrose metabolism, and the plant–pathogen interaction pathway. Taken together, we propose that the mutation of gene BK-5 causes the brittle stalk phenotype and provides important insights into the regulatory mechanism of cellulose biosynthesis and cell wall development in maize.

1. Introduction

Plant cell walls are renewable and play an important role in maintaining cell shape and straw stiffness. More importantly, as the skeleton of plants, cell walls greatly affect the lodging resistance of plants, which affects the crop yield [1]. The plant cell wall is mainly composed of three parts: the middle lamella, the primary wall, and the secondary wall. The main common components of the cell wall include cellulose, hemicellulose, pectin, and lignin, with cellulose being the main constituent of the cell wall in most plant species [2,3]. Cellulose is synthesized by the cellulose synthase complex (CSC) on the plasma membrane (PM). The CSC complex exhibits a six-fold symmetry and is known as a “rosette.” Each CSC contains 18–24 cellulose synthase catalytic subunits (CESA) [4]. All discovered CESA proteins are 986–1088 amino acids in length and have the same overall structure, including two N-terminal transmembrane domains (TMDs), six C-terminal TMDs, N-terminal zinc finger domains, and a cytoplasmic catalytic domain between TMD2 and TMD3 [5]. Synthase complexes composed of different CESA subtypes are responsible separately for the cellulose of primary and secondary cell walls.

In fact, in Arabidopsis, the synthesis of cellulose in the primary cell wall is carried out by the complex formed by AtCESA1, AtCESA3, and AtCESA6 [6,7], discovered through a variety of mutants [8,9,10,11,12], and by AtCESA2, AtCESA5, and AtCESA9 [13,14], which are classified as AtCESA6-related CESA isoforms due to their similar expression pattern [7]. The cellulose of the secondary wall in Arabidopsis is deposited by a complex composed of AtCESA4, AtCESA7, and AtCESA8 [15,16,17,18], whereas in rice, the complex is composed of OsCESA4, OsCESA7, and OsCESA9 [19]. In rice, the mutations of these CesA genes produce the brittle culm phenotype [20,21,22,23,24,25,26,27,28,29,30,31,32,33], such as mutants s1-60 [34], fc16 [35], fc17 [36], and tos17 [19]. In total, ten CesA genes have been found in Arabidopsis thaliana [37,38,39], thirteen in maize, and eleven in rice [40,41], with more genes discovered in barley [42], poplar [43], cotton [44], and many other species.

In maize, there are few studies on the identification and functional analysis of CesA genes. Instead, the focus has been on the sequence and expression pattern of the CesA gene family [45]. Researchers have isolated 12 CesA genes from maize and have divided them into groups according to expression and sequence. ZmCESA1, 7, and 8 form one group, whereas ZmCESA3 and 5 form a second group. ZmCESA10, 11, and 12 may interact with each other to form a functional enzyme complex [46]. Additionally, ZmCESA2 and 6 exhibit their own independent gene expression pattern. In addition to CesA genes, maize also has CesA-like (Csl) genes that are proposed to synthesize other essential non-cellulosic polysaccharides that comprise plant cell walls [47,48,49]. At present, 56 members of the Csl gene family have been identified in the maize genome and classified into nine subfamilies: CslA, CslB, CslC, CslD, CslE, CslF, CslG, CslH, and CslJ [49]. Most of them have a relatively high expression level in root and tassel tissues, as revealed by transcriptome data.

Functionally, mazie CesA genes also have many brittleness mutants. brittle stalk-2 (bk2-ref) mutant has a mutation in BK2, which encodes a Cobra-like protein that is homologous to the rice BC1. It affects stalk strength in maize by interfering with the deposition of cellulose in the secondary cell wall in fiber cells and dramatically reduces tissue mechanical strength [46,50]. In addition, brittle stalk-4 (bk4) is also related to stalk strength and is characterized by highly brittle aerial parts [51]. Because of their influence on the content of cellulose and sugars in the cell wall, these brittleness genes are of great research value for understanding the mechanism of cellulose formation in the plant cell wall.

In this study, we characterized the brittle stalk-5 (bk-5) mutant of the maize inbred line RP125, obtained from an ethylene methyl sulfonate (EMS) mutant library. We found that this mutant displayed brittleness of the stalk and the whole plant, was easy to break, had a thinner cell wall, and had decreased cellulose content compared to the wild type. Genetic analysis indicated that bk-5 was controlled by a single recessive nuclear gene. Using map-based cloning, we identified the mutation site of bk-5 that caused the various downstream morphological and physiological changes. The BK-5 gene encodes a cellulose synthase catalytic subunit (CESA) protein. It was constitutively expressed in all the tissues of the germinating stage and silking stage, and it was mainly localized in the Golgi apparatus, suggesting the protein might move to plasma membrane with the aid of Golgi in maize.

2. Results

2.1. Phenotypic Characterization of bk-5

Under natural conditions, we observed that the whole plant of brittle stalk-5 (bk-5) mutant was more brittle than that of the wild type throughout the growth period. In addition, the leaves of the bk-5 mutant were destroyed or broken off the mature stage under natural conditions (Figure 1a). This phenotype also existed in the early seedling stage (Supplementary Figure S1a). In stem-breaking experiments, in which the same part of the jointing stage stem was bent with the same force, the bk-5 stem was completely broken with a fracture that was neat and smooth, whereas the wild-type stem stayed connected without fracture (Figure 1b and Figure S1b,c). We further found that the bk-5 plants were also badly destroyed by the strong wind in the natural field (Supplementary Figure S2). Therefore, we measured the compressive strength of the stem and found that the stem of the mutant bk-5 was 39% weaker (p < 0.01) than that of the wild type (Figure 1c). For unbroken plants, the plant height of bk-5 was 19% smaller (p < 0.01) than the wild type, while the ear height was unchanged (Figure 1a and Figure S1d), signaling that the shortening was caused by the upper part of the plant.

All these phenotypes would likely affect the yield under field planting conditions. Therefore, we assessed the phenotypes of the ear and kernel and found no significant change in their appearance. However, the ear and kernel were slightly smaller than those of the wild type (Supplementary Figure S3a–c). Investigating further, we found that the ear length of bk-5 was 14% smaller (p < 0.01) and ear thickness was 15% smaller (p < 0.01) than those of the wild type (Supplementary Figure S3d), as well as the kernel length and kernel width. The kernel thickness of bk-5 had no significant change (Supplementary Figure S3e), but the ear weight was 28% smaller (p < 0.01) and 100-grain weight was 7% smaller (p < 0.05) than those of the wild type (Supplementary Figure S3f). In conclusion, we found that bk-5′s brittleness and reduced compressive strength existed during the whole growth period, and affected the plant’s development, ears, and grain yield.

2.2. Changes in the Cell Wall Composition

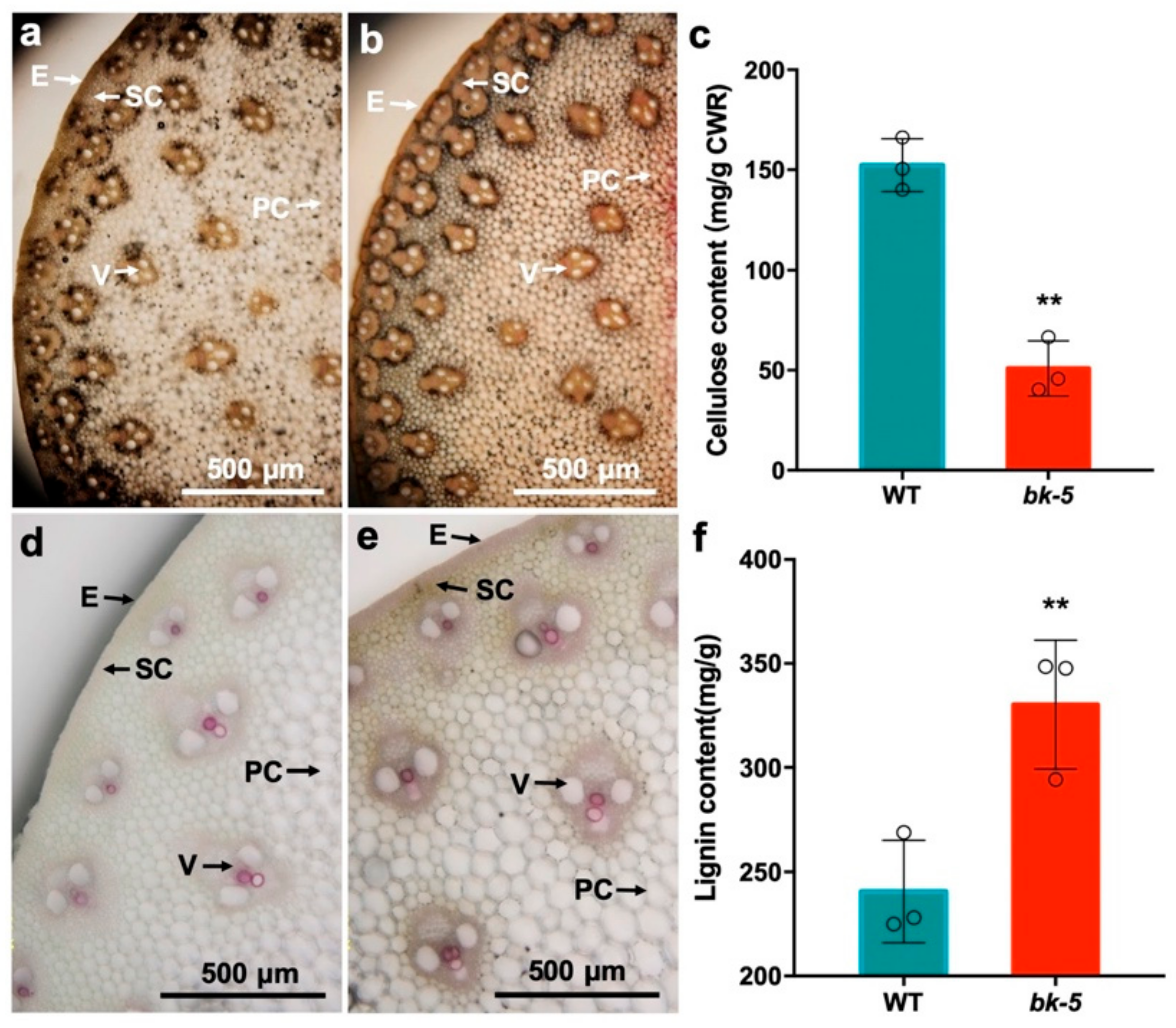

The reduced compressive strength and cell wall thickness suggested that the cell wall composition in the mutant plant was altered. Cell walls mainly include cellulose, hemicellulose, pectin, and lignin, with cellulose being the main constituent. Therefore, we stained the cell wall of the jointing stage for cellulose, hemicellulose, pectin, and lignin, and found that the total cellulose and hemicellulose content was lower than that of the wild type (Figure 2a,b). To quantify this reduction, we extracted the cell wall cellulose from bk-5 and wild-type stalks and found that the cellulose content of bk-5 was 67% lower (p < 0.01) than that of the wild type (Figure 2c). On the other hand, the lignin staining in bk-5 was darker pink than in the wild type (Figure 2d,e), indicating that the content of lignin in bk-5 was higher. Interestingly, the determination of lignin showed that the lignin content of bk-5 was 37% higher than that of the wild type, which further confirmed the result of lignin staining (Figure 2f). These results indicate that the low compressive strength of bk-5 was mainly caused by the decreased cellulose content, suggesting the mutated gene plays an important role in cellulose biosynthesis.

2.3. The Cell Wall Defect in bk-5

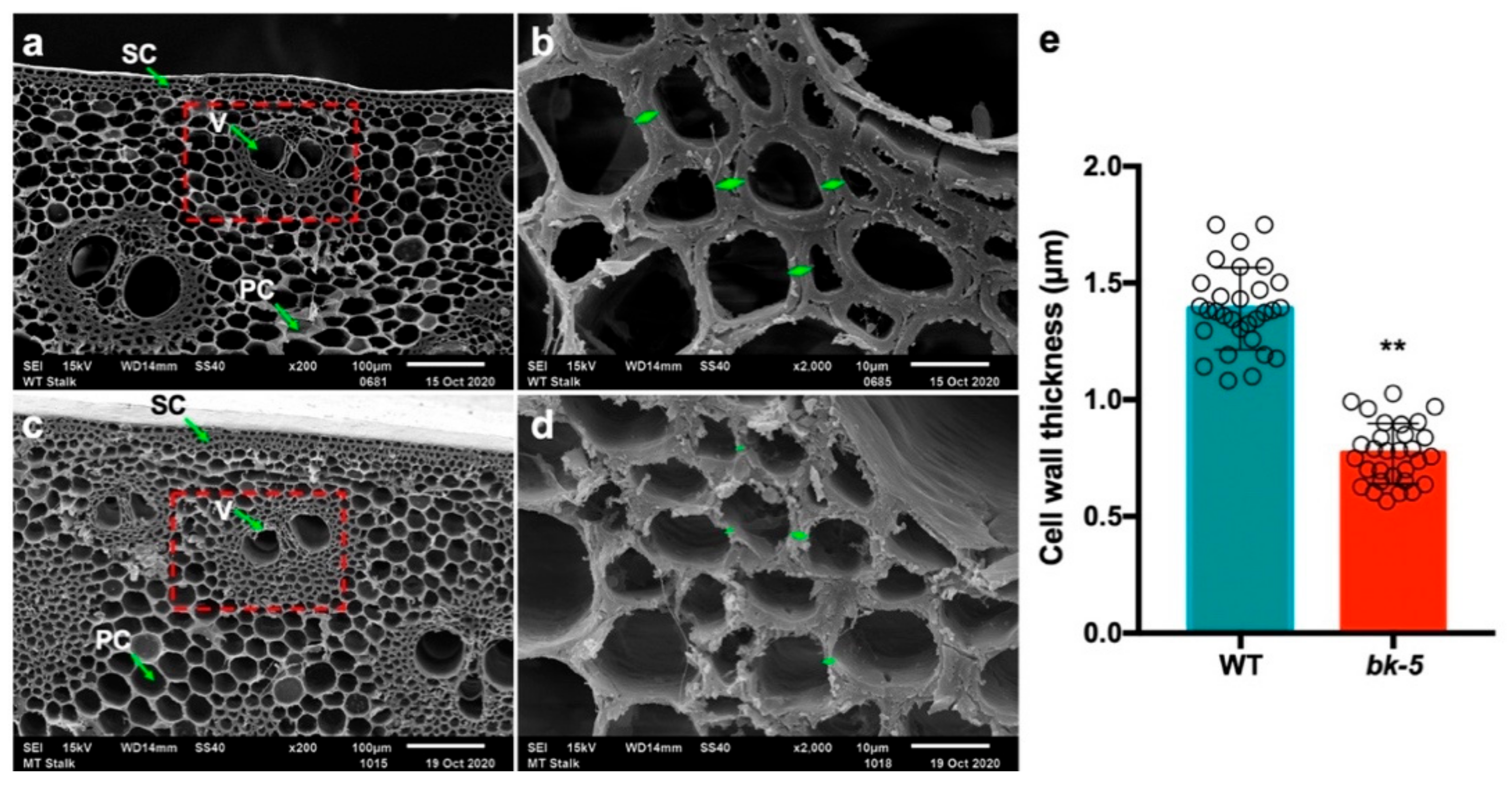

The reduced compressive strength in bk-5 might derive from changes in cell wall structure. Thus, we examined the cross section of stalks at the jointing stage using a scanning electron microscope. In the wild-type plant, the cell walls of the vascular bundle, which provide the main structural support for the plant body, are strikingly thick, and the cell wall structure is complete and smooth (Figure 3a,b). By contrast, in bk-5, no significant thickening of the vascular bundle’s cell walls was observed, and the cell wall structure was incomplete and rough (Figure 3c,d). Furthermore, we quantified the cell wall thickness of bk-5 and wild-type vascular bundle cells near the sclerenchyma layers and found that the vascular bundle cell wall thickness of bk-5 was significantly lower than that of wild type (Figure 3e). On the other hand, no obvious difference in sclerenchyma cells and parenchyma cells were observed (Figure 3a,c) between the wild type and bk-5. These results demonstrate that the reduced compressive strength in bk-5 was due to the defect in the vascular bundle cell wall.

2.4. Genetic Analysis and Fine Mapping of bk-5

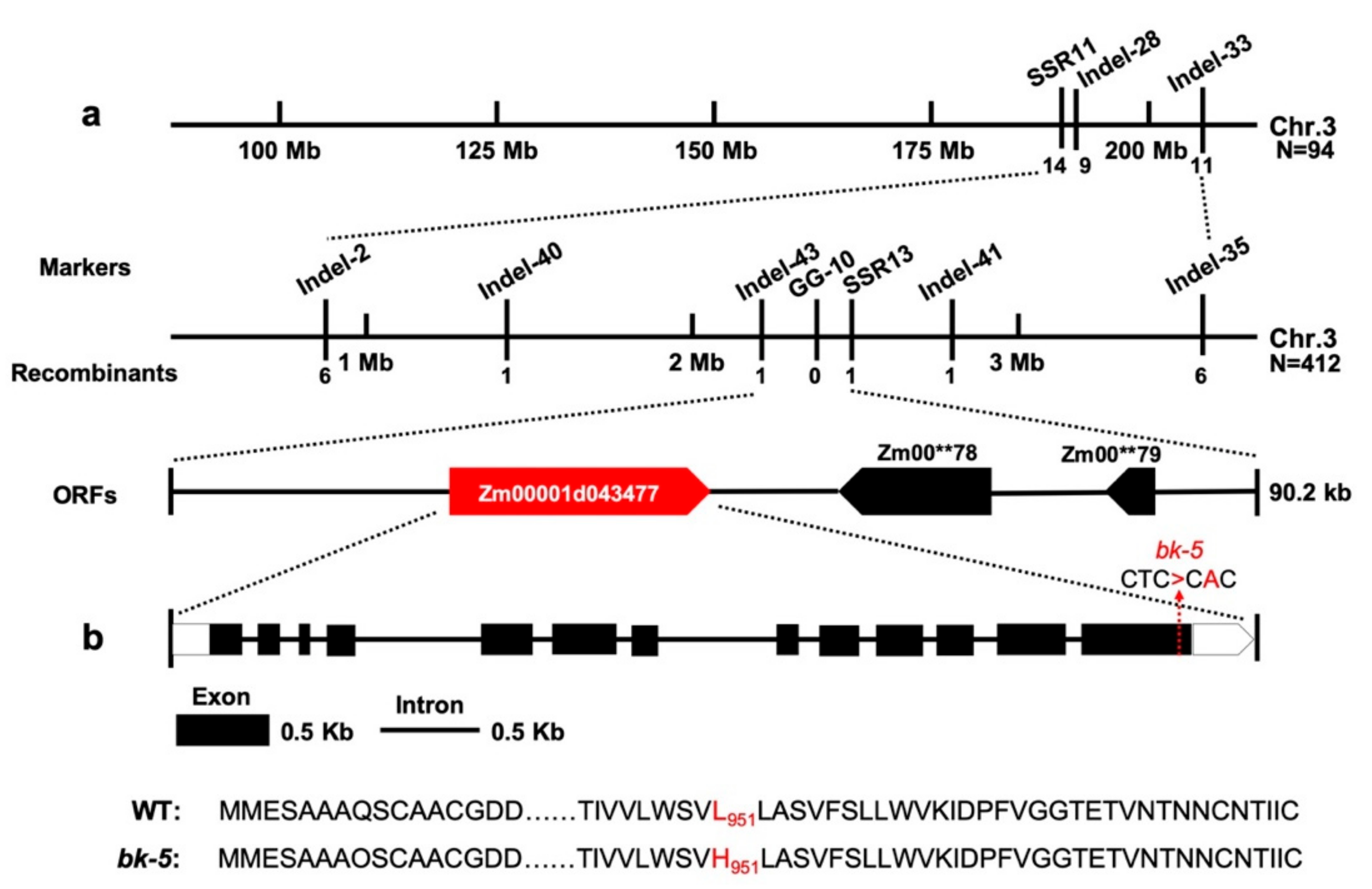

When the bk-5 mutant was crossed with WT RP125 and the F1 plants were selfed to make the F2 seeds, mutated kernels segregated on F2 ears with a 1:3 ratio, suggesting that the phenotype was controlled by a single recessive mutation (Supplementary Table S1). In a preliminary screening, the DNA of twenty brittle individuals and twenty normal individuals from a segregating F2 population were separately pooled, along with pools of B73 and bk-135, and screened with 158 simple sequence repeat (SSR) and insertion/deletion (indel) markers (Supplementary Figure S4). Using these pairs of SSR markers and 94 B73 × bk-5 F2 individuals, we preliminarily mapped bk-5 between the flanking markers SSR11 and Indel-33 on chromosome 3 to a region about 16.3 Mb long (Figure 4a, Supplementary Table S2). Based on the published RP125 genome [52], more SSR/indel molecular markers were developed and an additional 412 mutants were also used to fine-map the mutation to a 90.2-Kb region (Figure 4a, Supplementary Table S3). Based on the reference genome, three putative open reading frames (ORFs) were located within this region (Figure 4a). Direct Sanger sequencing of all the ORFs within the mapped region in the bk-5 mutant and sequence analysis between the bk-5 and WT RP125 genomes revealed a single non-synonymous missense mutation in the last exon of Zm00001d043477 (B73: version 4) (Figure 4a,b). The mutation was a T-to-A substitution that changed the 951th amino acid from leucine (L) to histidine (H). Three additional allelic mutants with similar phenotypes and carrying molecular lesions in the same site, with the same mutation (T-to-A), were identified from our EMS mutant collection (Figure 4b and Figure S5), thus confirming that the correct gene was cloned.

2.5. Sequence Alignment of the BK-5 Gene

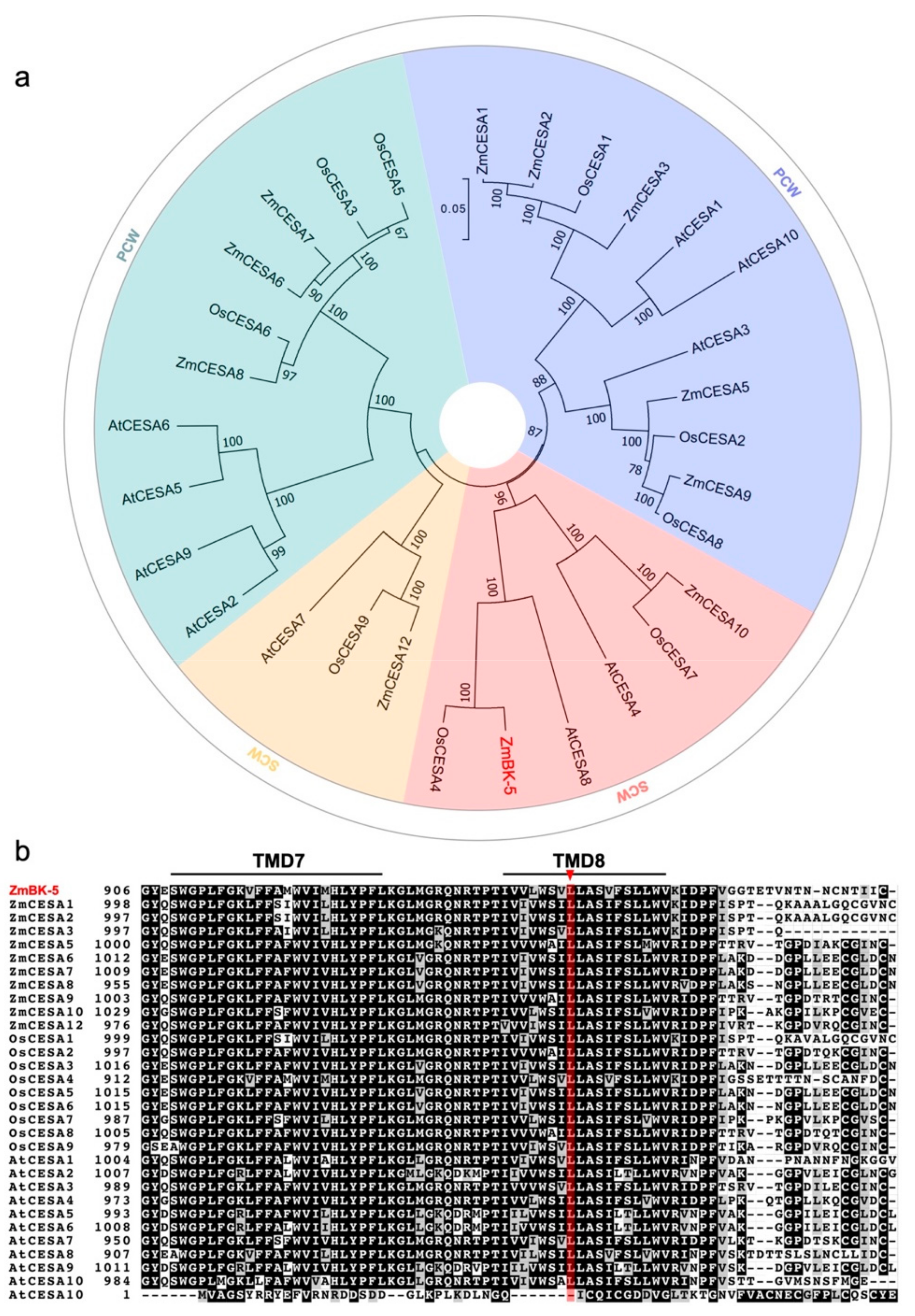

The BK-5 protein has 983 amino acids and eight putative transmembrane domains (TMDs): two domains clustered near the hydroxyl terminus and six domains clustered near the carboxyl terminus (Supplementary Figure S6). There is a RING-type zinc finger in the N-terminal region, which might mediate the interaction between BK-5 and other CESA subunits. To identify the homologs of the BK-5 gene in other plant species, the related protein sequences were downloaded from the NCBI database and compared using phylogenetic analysis and protein alignment. We found that BK-5 was predicted to encode a cellulose synthase catalytic subunit (CESA) protein belonging to the CESA family and that BK-5 shared a high sequence similarity with its homologs in maize and other species. Significantly, it has a high protein sequence similarity to two CESA proteins, OsCESA4 (92.06%) and AtCESA8 (72.33%), in Oryza sativa and Arabidopsis thaliana (Figure 5a), both of which are involved in synthesizing the cellulose of the secondary cell wall, i.e., a function of BK-5. In addition, multiple sequence alignment revealed that BK-5’s sequence is highly conserved among different species. Furthermore, the missense mutation of the bk-5 mutant is in a highly conserved site in TMD8 of the CESA motif (Figure 5b).

2.6. Tissue-Specific Expression Profiles and Subcellular Localization Pattern

Because BK-5 affects plant brittleness when it is mutated, we checked the BK-5 expression level in different tissues of the whole plant at the germinating stage and silking stage. RT-qPCR revealed that BK-5 was highly expressed in the 2-cm germ and radicle of the germinating stage (Figure 6a). In the silking stage, BK-5 was constitutively expressed in all the tissues, including the stem, ligule, ear leaf, flag leaf, sheath, auricle, root, bract, ear, silk, cob, and shank. It was at an especially high expression level in ear leaf, auricle, and root (Figure 6b). To look at its subcellular localization, we fused BK-5 with enhanced GFP (eGFP) to construct a plasmid, 35S: BK-5-eGFP. This plasmid and a control were transiently expressed in maize protoplasts. Confocal microscopy showed that the green fluorescence of BK-5-eGFP was mainly co-localized with the Golgi-mCherry marker and partially localized in cytosol, while the empty eGFP protein was mainly expressed in the cytosol (Figure 6c). These results indicate that the BK-5 protein is mainly located in the Golgi apparatus, suggesting that it may moves to plasma membrane with the aid of Golgi. This result is consistent with other CESA proteins.

2.7. RNA-seq Analysis of bk-5

To identify transcripts that are differentially expressed between bk-5 and RP125, we employed RNA-seq on the middle part of the eighth leaf in the jointing stage. A total of 26,774 genes were detected, of which 427 were differentially expressed, with 124 genes upregulated and 303 genes downregulated in bk-5 (Dataset 1). Heatmap more intuitively showed the differential expression of genes between wild-type and bk-5, the heatmap hierarchical clustering corroborates that the replicates of the varieties clustered together (Supplementary Figure S7), and there was no significant variability between replicates. According to the evolutionary analysis above, the cellulose synthase catalytic subunits encoded by BK-5 was related to the synthesis of the secondary cell wall (SCW). The main components of SCW are cellulose, hemicellulose, and lignin. In the RNA-seq data, many transcription factors regulating secondary wall synthesis were significantly downregulated in bk-5 (such as NAC and MYB), the main transcription factors regulating cellulose and lignin synthesis, as well as the WRKY and Zinc finger protein, and transcription factors regulating lignin synthesis (Figure 7a). In addition, many SCW biosynthesis-related transferase enzymes were downregulated in bk-5, most of them being glycosyltransferases (GTFs) (Figure 7b). As the main enzymes for the synthesis of cellulose and hemicellulose, GTFs are very important for the biosynthesis of SCW. Interestingly, we found that many CYP450 family proteins involved in basic metabolism and secondary metabolism were also significantly downregulated in bk-5 (Figure 7c). we randomly selected one gene in each series for quantitative verification, and found that its expression was down regulated in bk-5 in varying degrees, which was consistent with the data of RNA-seq (Supplementary Figure S8). In short, the downregulated enzymes and transcription factors were related to cell wall development and the brittle phenotype of bk-5.

We conducted a gene ontology (GO) enrichment analysis (biological process, cellular component, and molecular function) and found that 60–70% of the annotated DEGs (422 genes) belonged to seven categories: the GO biological process categories of “metabolic process” and “cellular process”; the GO cellular component categories of “cell part”, “cell”, and “organelle”; and the GO molecular function categories of “binding” and “catalytic activity” (Supplementary Figure S9a). In terms of metabolic pathways, many DEGs had a role in plant hormone signal transduction (13), followed by starch and sucrose metabolism (7), and plant–pathogen interaction (6) (Supplementary Figure S9b). Thus, the mutation in BK-5 affected these pathways, which directly or indirectly affect the mutant brittleness phenotype.

3. Discussion

Compressive strength is an important agronomic trait in maize production, and it is mainly decided by the cellulose content of plant cell walls. Improving the compressive strength can enhance lodging resistance of maize and increase the crop yield, while reducing the compressive strength causes the brittleness phenotype of the culm or stalk. In practice, it is difficult to find enhancing mutants, but mutants with reduced mechanical strength can be easily found. So far, many brittleness mutants have been identified in Arabidopsis and rice, such as the irregular xylem (irx1, irx2, irx3, irx5) series of mutants in Arabidopsis and the brittle culm (bc3, bc5, bc6, bc7, bc10, bc11, bc12, bc13, bc14, bc15, bc17, bc18, bc88) series of mutants in rice [9,10,11,12,16,17,18,20,21,22,23,24,25,26,27,28,29,30,31,32,33]. Biochemical and molecular characterization of these mutants revealed that the brittleness phenotype was caused by defects in cellulose synthesis, particularly in the CesA genes. There are 10, 11, and 13 genes of the CesA family in Arabidopsis, rice, and maize, respectively [37,38,39,40,41], and their structures and functions have been widely reported in Arabidopsis and rice. For example, AtCESA1, AtCESA3, and AtCESA6 are related to the synthesis of cellulose in the primary wall [6,7], and OsCESA4, OsCESA7, and OsCESA9 participate in the synthesis of the secondary cell wall [19]. However, there are few studies on the identification and function of CesA genes in maize just brittle stalk2 (bk2) and bk4 have been reported [46,50,51]. Other studies mostly focus on sequence analysis and expression pattern research [45]. Maize also has the cellulose synthase-like (ZmCSL) gene family, and studies of that family also focus on annotation and expression in the maize mesocotyl [48,49,53]. Therefore, there are likely many CesA genes in maize that remain to be found and studied.

The cellulose of the plant cell wall indirectly affects cell shape and straw stiffness, thus influencing crop yield. The brittle stalk mutants are valuable to the study of cell wall cellulose synthesis and lodging resistance. In this report, we characterized a novel maize brittle stalk mutant, bk-5, which is brittle during the whole growth period from germination to senescence. First, we observed the phenotype of stems and leaves of bk-5 in different developmental stages, such as the germination stage, the early seedling stage, the jointing stage, the silking stage, and the mature stage. The brittle phenotype could be observed as early as in the bud of the germination stage, and the constitutive expression of BK-5 in different stages of the plants also corresponded to the appearance of the phenotype, showing it has a serious impact on the whole growth period. Second, the phenotypic variation also affected yield-related traits, such as plant height, ear size and weight, grain length, grain width, grain thickness, and 100-grain weight. The result is consistent with previous reports that mutations in CesA genes reduce rice height and yield [30,34,36]. Third, we found that the low compressive strength of bk-5 was mainly caused by the decreased cellulose content, and we also observed that the lignin content showed a significant increase, suggesting that the lignin may also play an important role in plant brittleness. Interestingly, we also observed that cellulose decreased with lignin increased in brittle culm series mutants of rice, such as bc7, bc10, and bc11 [24,25,26]. Generally, cellulose and lignin are in dynamic equilibrium in plants. A reduction in one will inevitably affect the content of the other, showing a compensatory balance mechanism. However, we pay more attention to the brittleness of the plant, which mainly depends on the content of cellulose, and the content of lignin is more related to the hardness of the plant. In the future, we will pay more attention to the effect of lignin on mechanical strength and brittleness. Lastly, we found the reduction in compressive strength in bk-5 was due to the defect in the vascular bundle cell wall, with no obvious differences present in the sclerenchyma cells and parenchyma cells of the maize stalk. That is surprising given that mutations in rice CESA proteins cause defects in sclerenchyma and parenchyma cells in the bc11 and s1-60 mutant strains [30,34].

CESA is the key enzyme for cellulose synthesis. There are 13 known CESA proteins in maize. This report characterizes a novel CESA protein (BK-5) that is highly conserved among different species and has high sequence similarity with its well-studied homolog, OsCESA4, in rice. They share domains and motifs, such as zinc fingers and eight TMDs, with all plant CESAs [5]. To verify the correlation between gene and phenotype, we identified three allelic mutants from our EMS mutant library. Surprisingly, these had the same mutation site and same mutation as bk-5. We speculate that the high mutation rate of this site may be due to the genetic background of RP125. This site is evolutionarily conserved. The substitution of the leucine residue with a histidine residue at the eighth TMD of BK-5 might change the conformational structure of the protein and disrupt its function, leading to an easily identifiable brittle stalk phenotype.

The BK-5 protein mainly localized to the Golgi apparatus but was also present in the cytoplasm, which may be related to the dynamic protein transfer process, in that it is transcribed in the nucleus, processed in the intimal system, and finally transported to the plasma membrane to function. Most cell wall-related proteins are synthesized in the endoplasmic reticulum (ER). Cellulose synthase complexes (CSCs) mature in the Golgi apparatus then translocate to the plasma membrane (PM) to synthesize cellulose. Therefore, most known CESA proteins are located in the plasma membrane and Golgi apparatus. In rice, cellulose synthases (such as bc11, OsCESA4) are assembled into CSCs in the Golgi then translocated to the PM. The PM-localized CSCs are responsible for cellulose biosynthesis, while the Golgi-localized glycosyltransferases (such as bc10) and hydrolases catalyze the synthesis of noncellulosic polysaccharides and glycoproteins [54,55].

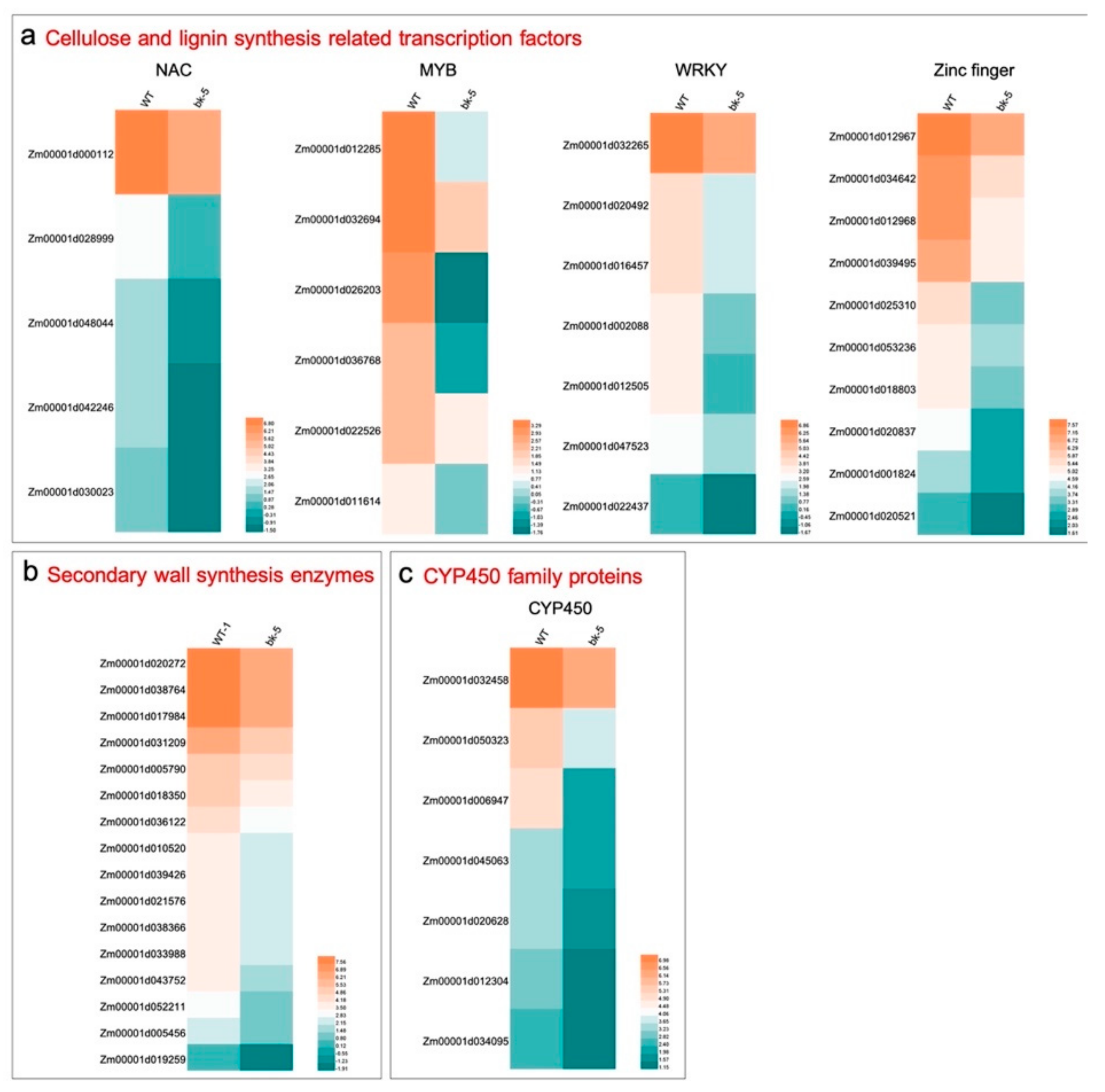

In our RNA-seq data, many enzymes and transcription factors related to cellulose, hemicellulose, and lignin biosynthesis of SCW were significantly downregulated in the bk-5 mutant. In the GO and KEGG pathway analyses, multiple genes were associated with hormone signal transduction, carbohydrate metabolism, and plant–pathogen interaction. As the first physical barrier against pathogen invasion, the plant cell wall also participates in sensing external pressure and transmitting corresponding signals to stimulate defense responses. Cell wall components are crucial to plant immunity, such that cellulose, hemicellulose, pectin, and lignin have different roles in plant disease resistance [56,57]. Therefore, mutations in genes related to cell wall biosynthesis or modification may change plant disease resistance.

In conclusion, the identification of the BK-5 gene not only gives a new perspective of genes involved in cellulose biosynthesis, cell wall development, and plant stalk growth in maize, but is also helpful to the development of potential maize varieties through the marker-assisted selection approach using markers developed in this study. Improving the compressive strength will have a significant impact on enhancing lodging resistance and increasing the crop yield.
