Anthocyanin Accumulation Provides Protection against High Light Stress While Reducing Photosynthesis in Apple Leaves

by
Shanshan Zhao
1,
Jeremie A. Blum
2,
Fangfang Ma
3,4,
Yuzhu Wang
1,
Ewa Borejsza-Wysocka
2,
Fengwang Ma
1,
Lailiang Cheng
2,* and
Pengmin Li
1,*
1
State Key Laboratory of Crop Stress Biology for Arid Areas/Shaanxi Key Laboratory of Apple, College of Horticulture, Northwest A&F University, Xianyang 712100, China
2
Horticulture Section, School of Integrative Plant Science, Cornell University, Ithaca, NY 14853, USA
3
Donald Danforth Plant Science Center and Agricultural Research Service, US Department of Agriculture, St. Louis, MO 63132, USA
4
State Key Laboratory of Crop Biology, College of Horticulture Science and Engineering, Shandong Agricultural University, Tai’an 271018, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(20), 12616; https://doi.org/10.3390/ijms232012616
Submission received: 1 October 2022 / Revised: 15 October 2022 / Accepted: 19 October 2022 / Published: 20 October 2022
(This article belongs to the Special Issue Molecular Mechanism of Photosynthetic Acclimation and Photoprotection)
Browse Figures
Review Reports Versions Notes

Abstract

:
The photoprotective role of anthocyanin remains controversial. In this study, we explored the effects of anthocyanin on photosynthesis and photoprotection using transgenic ‘Galaxy Gala’ apple plants overexpressing MdMYB10 under high light stress. The overexpression of MdMYB10 dramatically enhanced leaf anthocyanin accumulation, allowing more visible light to be absorbed, particularly in the green region. However, through post-transcriptional regulation, anthocyanin accumulation lowered leaf photosynthesis in both photochemical reaction and CO2 fixation capacities. Anthocyanin accumulation also led to a decreased de-epoxidation state of the xanthophyll cycle and antioxidant capacities, but this is most likely a response to the light-shielding effect of anthocyanin, as indicated by a higher chlorophyll concentration and lower chlorophyll a/b ratio. Under laboratory conditions when detached leaves lost carbon fixation capacity due to the limitation of CO2 supply, the photoinhibition of detached transgenic red leaves was less severe under strong white, green, or blue light, but it became more severe in response to strong red light compared with that of the wild type. In field conditions when photosynthesis was performed normally in both green and transgenic red leaves, the degree of photoinhibition was comparable between transgenic red leaves and wild type leaves, but it was less severe in transgenic young shoot bark compared with the wild type. Taken together, these data show that anthocyanin protects plants from high light stress by absorbing excessive visible light despite reducing photosynthesis.

1. Introduction

Anthocyanins comprise a group of water-soluble pigments synthesized by the flavonoid metabolic pathway and are responsible for the red, purple, and blue colors of plant leaves, fruits, flowers, and other tissues. The biosynthesis of anthocyanin begins with 4-coumaroyl-CoA and is catalyzed by key enzymes, including chalcone synthase (CHS), chalcone isomerase (CHI), flavanone 3-hydroxylase (F3H), flavonoid 3′-hydroxylase (F3′H), dihydroflavonol 4-reductase (DFR), anthocyanin synthase (ANS), and UDP-glycose: flavonoid glycosyltransferase (UFGT). In most plants, the MYB-bHLH-WD40 complex regulates the expression of genes encoding these enzymes [1,2,3,4]. After synthesis, anthocyanin is transported and stored in vacuoles.
Anthocyanin has an absorption spectrum in visible light, especially in the green light region. Like red and blue light, green light may also efficiently drive photosynthesis, especially at a high photosynthetic photon flux density [5,6]. Therefore, it is generally accepted that epidermal anthocyanin may protect plants from photoinhibition/photodamage by lowering the light intensity irradiation of chloroplasts under high light stress [7,8,9,10]. However, in approximately 30% of published reports, the physiological responses of red and green leaves to high light were either comparable, or red leaves performed worse than their green counterparts [7]. The difference in genetic backgrounds between green and red plants might partly account for this inconsistency [7,11]. However, it should be noted that green light can regulate the expression of many genes, as well as the growth and development of plants [9,12,13,14,15]. Attenuation of blue light by anthocyanin may also alter gene expression in plants [11]. Thus, in addition to reducing the light intensity irradiation of plant cells, anthocyanin accumulation might also affect plant resistance to high light stress by changing the light quality.
Under high light stress, the absorbed light energy cannot be consumed in a timely manner by photosynthesis, and photoprotective mechanisms, such as thermal dissipation, are enhanced to consume the excess excited light energy [16,17]. If the excess excited light energy is still not dissipated in a timely manner, then the production of reactive oxygen species (ROS) may be triggered, which are then scavenged by antioxidant systems to reduce the photooxidative stress [18,19]. Therefore, if anthocyanin has certain negative effects on photosynthesis, thermal dissipation, antioxidant systems, or other photoprotective mechanisms, it may counteract the positive effect via anthocyanin shielding and the subsequent resistance of plants to high light stress. Indeed, relatively lower levels of key photosynthetic enzymes and photoprotective capacities have been reported in red plants compared with their green counterparts [20,21,22,23]. However, the effects of anthocyanin on photosynthesis and photoprotective mechanisms remain controversial, because photosynthesis, the xanthophyll cycle, or antioxidant systems were also found to be comparable or even enhanced in red tissues [7,11,24,25].
As anthocyanin may react with oxidants or ROS in vitro, it is implied that anthocyanin may also scavenge ROS in vivo to protect plants from oxidative stress [23,26,27]. Nevertheless, unlike anthocyanin, which is only present in certain specialized plants, antioxidant systems, such as the ascorbate-glutathione cycle, are ubiquitous in the plant kingdom. Moreover, compared with anthocyanin, which is mainly localized in vacuoles, the antioxidant system is situated in more direct positions against the excess accumulation of ROS [18,19,20,25]. It has been reported that chloroplast-derived ROS are not associated with anthocyanin accumulation under high light stress [28]. Whether anthocyanins may scavenge ROS in vivo is still debated.
In recent years, red-flesh apple breeding programs have attracted more attention. Usually, the leaves of red-flesh apple genotypes are also rich in anthocyanins. However, it is unclear whether the accumulated anthocyanin may affect photosynthesis or photoinhibition of apple leaves. In the present study, the ‘Galaxy Gala’ apple plant and its transgenic lines with abundant anthocyanin, which share the same genetic background with the exception of anthocyanin, were used to explore the effects of anthocyanin on photosynthesis and photoprotection under high light stress.

2. Results

2.1. Effects of MdMYB10 Overexpression on Anthocyanin Accumulation

The overexpression of MdMBY10 enhanced the expression of chalcone synthase (MdCHS), chalcone isomerase (MdCHI), flavanone 3-hydroxylase (MdF3H), flavonoid 3′-hydroxylase (MdF3′H), dihydroflavonol 4-reductase (MdDFR), anthocyanin synthase (MdANS), UDP-glycose: flavonoid glycosyltransferase (MdUFGT), and glutathione S-transferase (MdGST), the key genes involved in anthocyanin synthesis and transfer in transgenic leaves (Figure 1). As a result, the overexpression of MdMYB10 caused the leaves to accumulate abundant anthocyanin content and become red. Regarding the other flavonoid compounds, the content of phlorizin was not altered, whereas that of flavonol was increased by approximately 30% in MdMYB10 overexpression leaves (Figure S2). Moreover, quercetin-3-O-glycosides showed distinct change patterns in transgenic leaves, with the contents of three of them (quercetin-3-O-galactoside, quercetin-3-O-xyloside, and quercetin-3-O-arabinoside) increasing while two of them (quercetin-3-O-glucoside and quercetin-3-O-rhamnoside) decreased. The overexpression of MdMYB10 also increased the accumulation of anthocyanin in young branch barks (Figure S3).

2.2. Effects of Anthocyanin Accumulation on Photosynthesis

Dark respiratory rate was comparable between WT and transgenic red leaves (Figure 2A). When the photon flux density (PFD) was higher than 150 μmol m−2 s−1, the net photosynthetic rate was significantly lower in transgenic red leaves compared with WT leaves (Figure 2A). Under saturated PFD, the photosynthetic rate was approximately 70% in transgenic compared with WT plants. Apparent quantum yield was also lower in transgenic red leaves. With the increase in intercellular CO2 concentration, photosynthetic rates increased in transgenic and WT leaves (Figure 2B). When the intercellular CO2 concentration was approximately 500 μmol mol−1, the photosynthetic rates reached the maximum in transgenic and WT leaves. Apparent carboxylation efficiency was significantly lower in transgenic compared with WT plants.
Based on the leaf reflection spectra, MdMYB10 overexpression leaves showed more absorption in visible light, especially in green light (550–600 nm, Figure 3A). Stomatal phenotypes were similar between transgenic and WT plants (Figure S4). The synthesis of anthocyanin increased the contents of chlorophylls, especially chlorophyll b. As a result, the chlorophyll a/b ratio decreased in transgenic red leaves (Figure 3B).
The chlorophyll a fluorescence transient and the 820 nm modulated reflection curves were also altered by the accumulation of anthocyanin (Figure 4). Compared with WT, transgenic leaves showed higher fluorescence signals from the O to I step but a slower decrease in the 820 nm reflection from MRo to MRmin, indicating that the photosynthetic electron transport capacity between the two photosystems was lower in transgenic red leaves [29].
Regarding the differentially expressed genes between transgenic and WT leaves, KEGG enrichment analysis revealed that many pathways were affected by anthocyanin synthesis, including primary and secondary metabolism, transcription, translation, membrane transport, and signal transduction, among others (Table S2). However, none of the gene involved in photosynthesis showed different expression levels between transgenic and WT leaves (Table S1). Interestingly, the activities of Rubisco, GAPDH, PRK, A6PR and SPS, key enzymes involved in photosynthesis, were significantly lower in MdMYB10 overexpression leaves (Figure 5; Table S5). To further assay the effects of anthocyanin accumulation on photosynthesis, a targeted metabolomics assay was performed via LC-MS/MS to quantify the changes in metabolites directly involved in the Calvin cycle. The produced photosynthates, including sorbitol, sucrose, and intermediate products such as 3-phosphoglycerate, sorbitol-6-phosphate, sucrose-6-phosphate, adenosine diphosphate glucose, ribulose-1,5-bisphosphate, and others, were all decreased in transgenic red leaves compared with WT leaves (Figure 5; Table S4). Thus, the decreased contents of these metabolites further confirmed that the overall photosynthetic capacity was impaired in the transgenic lines.
Concerning the expression of genes involved in respiration and other carbohydrate metabolism, 23 genes were upregulated, and 11 were downregulated (Figure 5, Table S3). With respect to the levels of genes involved in amino acid metabolism, 15 genes were upregulated, and 8 were downregulated. For metabolites involved in carbon metabolism, the contents of 15 kinds of non-structural carbohydrates and organic acids were decreased, including 2-phosphoglycerate, aconitate, 2-oxoglutarate, malate, myo-inositol, glucose, ribose, erythritol, phosphoenolpyruvate, glycerate, xylitol, isocitrate, shikimate, citrate, and succinate, while those of the other 12 kinds of metabolites, such as xylulose, pyruvate, maltose, galactose, maltitol, fumarate, rhamnose, quinate, maleic acid, fructose, or xylose, remained unchanged in transgenic red leaves compared with WT leaves (Figure 5, Table S4). For nitrogen metabolism, nine kinds of free amino acids had reduced contents, including histidine, glycine, proline, isoleucine, γ-aminobutyrate, leucine, phenylalanine, serine, and alanine, whereas the contents of glutamine and asparagine were significantly higher in transgenic red leaves. Other amino acids, such as methionine, valine, arginine, tyrosine, threonine, glutamate, ornithine, and aspartate, showed comparable contents in WT and transgenic leaves.

2.3. Effects of Anthocyanin Accumulation on Photoprotection

Without high light treatment, the accumulation of anthocyanin did not affect the xanthophyll cycle pool size and its de-epoxidation (Figure 6). Upon exposure to strong red or green light, the pool size remained unchanged, whereas the de-epoxidation level was significantly lower in transgenic red leaves compared with WT leaves.
The accumulation of anthocyanin did not affect the activities of APX, MDHAR, and DHAR (Figure 7). However, the activities of SOD and GR and the contents of ascorbate and glutathione were decreased in transgenic compared with WT leaves. Under strong red or green light treatment, the activities of antioxidant enzymes and the contents of ascorbate and glutathione changed in similar patterns in WT and transgenic red leaves, except that the activity of MDHAR showed a greater decrease in transgenic leaves following exposure to red light.
The stomata of apple leaves are mainly distributed on the abaxial side. In this study, when treated under different high light stresses, the abaxial surface of apple leaves was closely attached to wet gauze. In this way, the stomata were sealed with water and the carbon fixation capacity of detached leaves was almost fully inhibited due to the limitation of CO2 supply (Under this condition, the Fv/Fm values decreased in similar patterns in transgenic red leaves and WT leaves with strong UV-B and UV-A irradiation (Figure 8A). However, the values of Fv/Fm decreased at a slower rate in transgenic red leaves compared with WT leaves upon exposure to strong white, green, or blue light (Figure 8A and Figure S5). Moreover, the values of Fv/Fm decreased at a faster rate in red leaves following exposure to strong red light.
In field conditions, the values of Fv/Fm were slightly but significantly higher in red leaves than in WT leaves in the morning (Figure 8B). However, the values became comparable between WT and transgenic leaves in the afternoon. For young branch barks, the values of Fv/Fm were higher in transgenic red barks than in WT in the morning (Figure 8C). In the afternoon, the values of Fv/Fm remained unchanged in transgenic red barks but decreased significantly in WT.

3. Discussion

The findings of the present study clearly showed that anthocyanin played two opposing roles in photoprotection under high light stress. On the one hand, anthocyanin accumulation may shade chloroplasts by absorbing visible light, especially green light (Figure 3A), causing leaves to absorb less light energy and thus having a positive effect on photoprotection. On the other hand, the accumulation of anthocyanin could also decrease photosynthesis and the thermal dissipation dependent on the xanthophyll cycle, especially the former (Figure 2, Figure 4, Figure 5 and Figure 6), the major pathways in the consumption of absorbed light energy. This phenomenon had a negative effect on photoprotection. In field conditions when photosynthesis performed normally in both green and transgenic red leaves, the positive and negative effects of anthocyanin on photoprotection might be comparable. The photoinhibition degree was then similar in green and red leaves (Figure 8B). Under laboratory conditions, as carbon fixation capacity was almost fully inhibited in detached leaves due to the limitation of CO2 supply, the positive effect of anthocyanin was far greater than the negative effect. Consequently, light attenuation by anthocyanin could alleviate the degree of photoinhibition under white, green, or blue light stress conditions (Figure 8A). Under red light stress without any light attenuation by anthocyanin, the lower thermal dissipation in red leaves (Figure 6) might partly account for the more severe photoinhibition in transgenic red leaves in contrast to WT (Figure 8A). The decreased thermal dissipation was most likely a response to the light-shielding effect of anthocyanin, as indicated by higher chlorophyll concentration and lower chlorophyll a/b ratio (Figure 3). Young branch bark contains chlorophylls and has a normal photochemical reaction capacity. However, the carbon fixation capacity of branch bark is very low similar to other non-leaf green tissues. Under field conditions, the observation that exposed young branch barks of MdMYB10 overexpression plants lacked any photoinhibition in contrast to WT (Figure 8C) also supports the two opposing roles of anthocyanin in photoprotection under high light stress.
Compared with that in their green counterpart, the reduced photosynthesis in transgenic red leaves might be related to the lower photochemical reaction and CO2 fixation capacities (Figure 2, Figure 4 and Figure 5). A stomatal effect could be excluded, as the phenotypes of stomata were similar between the transgenic and WT leaves (Figure S4). In previous studies, it has been reported that green light might regulate gene expression in plants [12,13]. Moreover, anthocyanin content can also alter the gene expression in plants by attenuating blue light [11]. While purple leaves display an overexpression of genes that promote chlorophyll biosynthesis and light harvesting, genes involved in the stability/repair of photosystems were substantial overexpressed in green leaves [11]. Compared with that in WT, the changes in the expression of more than 1000 genes in transgenic red leaves (Table S1) could be mainly attributed to the visible light attenuation by anthocyanin. Moreover, the comparable expression of genes involved in photosynthesis between transgenic and WT leaves (Table S1) indicated that anthocyanin accumulation might decrease photosynthesis in apple leaves by regulating photosynthetic genes at the post-transcriptional level. Indeed, the KEGG enrichment analysis revealed that expressions of transcription, translation, membrane transport, and signal transduction genes were changed in the transgenic red leaves (Table S3). The lower production of photosynthates resulted in lower contents of carbon and nitrogen metabolites in transgenic red leaves (Figure 5), as both carbon and nitrogen metabolism depend on the carbon skeleton supply from photosynthates. The greater accumulation of glutamine and asparagine in transgenic red leaves (Figure 5) further support this notion, as glutamine and asparagine have a relatively lower carbon/nitrogen ratio compared with glutamate and aspartate. Previous studies have also found that anthocyanin accumulation increases the asparagine content in pear peel [30].
Using Arabidopsis and mutants deficient in anthocyanin synthesis, it has been reported that the light attenuation role of anthocyanin is more important than its antioxidant role in photoprotection under long-term high light treatment [10]. In the present study, although anthocyanin accumulation decreased the antioxidant capacity in apple leaves (Figure 7), it might not be involved in ROS scavenging in vivo under high light stress, as the antioxidant systems changed in similar patterns in transgenic red leaves and WT leaves after green or red high light treatment (Figure 7). This is a reasonable supposition as the major production of ROS occurs at the chloroplast under high light stress [19], while anthocyanin is mainly stored in vacuoles.
In previous studies, flavonoids were shown to protect plants from strong UV irradiation stress [31,32]. In the present study, however, the accumulated anthocyanin neither changed the leaf reflection spectrum in the UV range (Figure 3) nor protected the leaves from strong UV stress under either field or laboratory conditions (Figure 8). We speculate that several reasons might account for these observations. First, the different results were attributed to the different compounds, plants, or UV treatments. Second, in addition to anthocyanin, the changes in other metabolites (Figure 5) might also affect the absorption of UV light. Third, we used Fv/Fm, an indicator for the status of the photosynthetic apparatus, especially photosystem II [29], to reflect the UV damage to leaves in this study. However, the chloroplast might not be the most sensitive organelle in plants in response to UV stress. Thus, the UV stress damage might not be reflected by the Fv/Fm values over time. Further studies are needed to clarify this phenomenon.
In general, anthocyanin may protect plants from high light stress by absorbing excessive visible light despite reducing photosynthesis. However, anthocyanin cannot protect plants from high UV light stress.

4. Materials and Methods

4.1. Plant Materials and Treatments

A transcription factor, MdMYB10, which has been demonstrated to regulate the synthesis of anthocyanin in apple plants [2], was overexpressed in ‘Galaxy Gala’ (WT) to obtain the plants with anthocyanin accumulation. Transformation of ‘Galaxy Gala’ was performed as previously described [33,34]. Briefly, ‘Galaxy Gala’ shoots were subcultured on proliferation medium [35] at 4-week intervals, and were then transferred to leaf expansion medium (MS supplemented with 0.1 mg/L naphthyleneacetic acid and 8.3 mg/L 6-(γ,γ-dimethylallylamino) purine 4 weeks before transformation. The youngest unfolded leaf was exercised from in vitro shoots, and the leaf was wounded using a pair of non-traumatic forceps [36] and co-cultivated with EHA105 (pCH32) harboring the binary vector pSAK277-MdMYB10 [2]. After co-cultivation, the leaves were washed with distilled water containing half-strength MS salt mixture and cefotaxim sodium (500 mg/L) to remove excess inoculum and placed on regeneration medium containing 100 ppm kanamycin. The regenerated shoots were propagated in vitro. Wood buds of two transgenic lines (L8 and L9) and wild type (WT) were grafted onto M9-T337 rootstock and grown in the field for 2 years. During the growth period, no blossoms were found on any of the trees. The trees were subjected to standard horticultural management with pest and disease control.
For the high light treatment with artificial light sources, fully expanded leaves were sampled in the morning, punched into leaf discs (diameter 1.5 cm). The abaxial surface of leaf discs was closely attached to four layers of wet gauze, and then treated under high light for 0, 1, 2, and 3 h at room temperature. The UV-B, UV-A, blue, green, and red lights were provided by custom-made LED-light sources, with a wavelength of approximately 280, 370, 450, 520, and 670 nm, respectively (Figure S1). A custom-made light source with mixed red, green, and blue LED-light beads was considered as white light. During the treatments, the light intensities used to irradiate leaf discs were approximately 90 μW cm−2 for UV-B, 3000 μW cm−2 for UV-A, and 2000 μmol m−2 s−1 for visible light. For each treatment at each sampling time, five replicates were used for the chlorophyll a fluorescence transient and 820 nm modulated reflection measurements with M-PEA (Hansatech, Norfolk, UK) as described by Gao et al. [29]. The wavelength of the red light source of M-PEA is 627 ± 10 nm, which is not absorbed by anthocyanin, thereby excluding any possible interference of anthocyanin in the measurements [37]. The maximum quantum yield of photosystem II (Fv/Fm) was calculated as Fv/Fm = (Fm − Fo)/Fm, where Fm and Fo are the maximum and minimum chlorophyll fluorescence intensity, respectively. Before performing the measurements, leaves were dark-adapted for 1 h. The leaf samples were also collected and stored at −80 °C for biochemical analysis. Fully expanded leaves and new young branches were also collected from the southern canopy of the plants in the field at 8:00 in the morning or 14:00 in the afternoon, transferred to the laboratory, and then immediately used for measurements of chlorophyll a fluorescence transients after dark adaption. During plant growth, the maximum solar UV-B, UV-A, and visible light intensity were 60 μW cm−2, 1100 μW cm−2, and 1800 μmol m−2 s−1, respectively, on sunny days.

4.2. Metabolite Content and Enzyme Activity Analysis

Anthocyanin, chlorophyll, and xanthophyll cycle pigments were extracted and assayed as described by Zhang et al. [38]. A 20A HPLC (Shimadzu, Kyoto, Japan) was used for the anthocyanin and xanthophyll cycle pigment content assay, and a UV-2450 spectrophotometer (Shimadzu) was used for the chlorophyll content determination. Isolated cyanidin-3-O-galactoside with a purity over 98% at different concentrations was used to generate a standard curve to calculate the concentration of anthocyanin in plants.
Non-structural carbohydrates, organic acids, and free amino acids were assayed as described by Li et al. [39], using an Agilent 7890A GC/5975C MS (Agilent Technology, Palo Alto, CA) and an Agilent 1100 HPLC equipped with a fluorescence detector (Agilent Technology), respectively. Sugar phosphates and other highly polar intermediates were determined on an AB Sciex QTRAP 4000 Mass Spectrometer (Applied Biosystems/MDS Sciex, Waltham, MA) linked to a Shimadzu HPLC according to Ma et al. [40].
Contents of ascorbate and glutathione as well as the activity of superoxide dismutase (SOD), ascorbate peroxidase (APX), monodehydroascorbate reductase (MDHAR), dehydroascorbate reductase (DHAR), and glutathione reductase (GR) were assayed as described by Zhang et al. [38]. The activity of ribulose-1,5-bisphosphate carboxylase/oxygenase (Rubisco), glyceraldehyde-3-phosphate dehydrogenase (GAPDH), phosphoribulokinase (PRK), sucrose phosphate synthase (SPS), and aldose-6-phosphate reductase (A6PR) were assayed according to previous method [41].

4.3. Photosynthesis, Leaf Reflection Spectra, and Stomatal Phenotype Assay

On sunny days in June, light-response and CO2-reponse curves of photosynthetic rates were measured from 9:00 to 11:00 a.m. using a LI-6800 portable photosynthesis system (Li-Cor Biosciences, Lincoln, NE, USA). For light-response curves measurement, the photosynthetic irradiation light (red:blue = 90:10) was provided by the light source of the LI-6800, changing the intensity from high to low in the following sequence: 1800, 1400, 1000, 750, 500, 250, 150, 100, and 50 μmol m−2 s−1. Respiration was measured without any irradiation of the leaves. Apparent quantum yield was calculated from the initial slope of the light-response curves. The CO2 concentration was set as 400 μmol mol−1. For CO2-response curves measurement, the CO2 concentrations were changed in the following sequence: 400, 300, 200, 100, 400, 550, 700, 900, 1200, and 1400 μmol mol−1. The light intensity was set at 1600 μmol m−2 s−1. Fully expanded leaves were kept in each intensity or CO2 concentration for at least 3 min until the photosynthetic rates became stable. Leaf reflection spectra were assayed using a UV-2600 spectrophotometer equipped with an IS-2600 plus integrated sphere (Shimadzu). The phenotypic assay of stomata was carried out as described by Li et al. [42] using an Olympus BX-63 microscope (Olympus Corp., Tokyo, Japan) with cellSens Entry software (Tokyo, Japan).

4.4. RNA-Seq Analysis

Total RNA was isolated from fully expanded leaves using the SDS-phenol method [43] and subjected to Novogene in Beijing (https://en.novogene.com (accessed on 3 December 2019)) for library construction and RNA sequencing with an Illumina NovaSeq 6000. The clean data for each sample were mapped to the GDDH13 genome [44] with Hisat2, and the corresponding read counts were analyzed by Deseq2 to select differentially expressed genes. The resulting p values were adjusted using Benjamini and Hochberg’s approach for controlling the false discovery rate, padj < 0.05 and the absolute value of log2(fold change) ≥ 1 were set as the threshold for significantly different expression. Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways of differentially expressed genes were determined using the clusterProfiler R package at the website https://www.kegg.jp/kegg/pathway (accessed on 15 March 2020).

4.5. Statistical Analysis

All data are presented as means ± SE and were analyzed with the t-test or least significant difference (LSD) test using SPSS 16.0 software (SPSS, Chicago, IL, USA). Heatmap representations were produced using the TBtools [45].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms232012616/s1.

Author Contributions

S.Z., L.C. and P.L. designed the work; E.B.-W. performed the transformation of MdMYB10. S.Z., J.A.B. and F.M. (Fangfang Ma) compared transgenic plants and wild type. S.Z., Y.W., F.M. (Fengwang Ma), L.C. and P.L. assayed the results. S.Z. and P.L. drafted the manuscript. F.M. (Fangfang Ma) and L.C. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Key R&D Program (2018YFD1000200) and the National Natural Science Foundation (31972366) of China.

Data Availability Statement

All data that support the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

We thank Liru Jian (the State Key Laboratory of Crop Stress Biology for Arid Areas, Northwest A&F University) for her helping with the photosynthesis and leaf reflection spectrum analyses. We also thank Andrew Alan (The New Zealand Institute for Plant and Food Research Limited) for providing the pSAK277-MdMYB10 vector.

Conflicts of Interest

All authors declare that they have no conflict of interest. This article does not contain any studies with human participants or animals performed by any of the authors.

References

  1. Allan, A.C.; Hellens, R.P.; Laing, W.A. MYB transcription factors that colour our fruit. Trends Plant Sci. 2008, 13, 99–102. [Google Scholar] [CrossRef] [PubMed]
  2. Espley, R.V.; Hellens, R.P.; Putterill, J.; Stevenson, D.E.; Kutty-Amma, S.; Allan, A.C. Red colouration in apple fruit is due to the activity of the MYB transcription factor, MdMYB10. Plant J. 2007, 49, 414–427. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Espley, R.V.; Brendolise, C.; Chagné, D.; Kutty-Amma, S.; Green, S.; Volz, R.; Putterill, J.; Schouten, H.J.; Gardiner, S.E.; Hellens, R.P.; et al. Multiple repeats of a promoter segment causes transcription factor autoregulation in red apples. Plant Cell 2009, 21, 168–183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Henry-Kirk, R.A.; Plunkett, B.; Hall, M.; McGhie, T.; Allan, A.C.; Wargent, J.J.; Espley, R.V. Solar UV light regulates flavonoid metabolism in apple (Malus x domestica). Plant Cell Environ. 2018, 41, 675–688. [Google Scholar] [CrossRef]
  5. Liu, J.; van Iersel, M.W. Photosynthetic Physiology of Blue, Green, and Red Light: Light Intensity Effects and Underlying Mechanisms. Front. Plant Sci. 2021, 12, 328. [Google Scholar] [CrossRef]
  6. Sun, J.; Nishio, J.N.; Vogelmann, T.C. Green light drives CO2 fixation deep within leaves. Plant Cell Physiol. 1998, 39, 1020–1026. [Google Scholar] [CrossRef]
  7. Gould, K.S.; Jay-Allemand, C.; Logan, B.A.; Baissac, Y.; Bidel, L.P. When are foliar anthocyanins useful to plants? Re-evaluation of the photoprotection hypothesis using Arabidopsis thaliana mutants that differ in anthocyanin accumulation. Environ. Exp. Bot. 2018, 154, 11–22. [Google Scholar] [CrossRef]
  8. Agati, G.; Guidi, L.; Landi, M.; Tattini, M. Anthocyanins in photoprotection: Knowing the actors in play to solve this complex ecophysiological issue. New Phytol. 2021, 232, 2228–2235. [Google Scholar] [CrossRef]
  9. Hughes, N.M.; George, C.O.; Gumpman, C.B.; Neufeld, H.S. Coevolution and photoprotection as complementary hypotheses for autumn leaf reddening: A nutrient-centered perspective. New Phytol. 2022, 233, 22–29. [Google Scholar] [CrossRef]
  10. Zheng, X.T.; Yu, Z.C.; Tang, J.W.; Cai, M.L.; Chen, Y.L.; Yang, C.W.; Chow, W.S.; Peng, C.L. The major photoprotective role of anthocyanins in leaves of Arabidopsis thaliana under long-term high light treatment: Antioxidant or light attenuator? Photosynth Res. 2021, 149, 25–40. [Google Scholar] [CrossRef]
  11. Landi, M.; Agati, G.; Fini, A.; Guidi, L.; Sebastiani, F.; Tattini, M. Unveiling the shade nature of cyanic leaves: A view from the “blue absorbing side” of anthocyanins. Plant Cell Environ. 2021, 44, 1119–1129. [Google Scholar] [CrossRef] [PubMed]
  12. Bian, Z.H.; Cheng, R.F.; Wang, Y.; Yang, Q.C.; Lu, C.G. Effect of green light on nitrate reduction and edible quality of hydroponically grown lettuce (Lactuca sativa L.) under short-term continuous light from red and blue light-emitting diodes. Environ. Exp. Bot. 2018, 153, 63–71. [Google Scholar] [CrossRef] [Green Version]
  13. Rajalingam, N.; Lee, Y.H. Effects of green light on the gene expression and virulence of the plant pathogen Pseudomonas cichorii JBC1. Eur. J. Plant Pathol. 2018, 150, 223–236. [Google Scholar] [CrossRef]
  14. Smith, H.L.; McAusland, L.; Murchie, E.H. Don’t ignore the green light: Exploring diverse roles in plant processes. J. Exp. Bot. 2017, 68, 2099–2110. [Google Scholar] [CrossRef] [Green Version]
  15. Zhang, T.; Folta, K.M. Green light signaling and adaptive response. Plant Signal. Behav. 2012, 7, 75–78. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Demmig-Adams, B.; Adams, W.I.; Logan, B.A.; Verhoeven, A.S. Xanthophyll cycle-dependent energy dissipation and flexible photosystem II efficiency in plants acclimated to light stress. Aust. J. Plant Physiol. 1995, 22, 249–260. [Google Scholar] [CrossRef]
  17. Niyogi, K.K. Photoprotection revisited: Genetic and molecular approaches. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1999, 50, 333–359. [Google Scholar] [CrossRef]
  18. Apel, K.; Hirt, H. Reactive oxygen species: Metabolism, oxidative stress, and signal transduction. Annu. Rev. Plant Biol. 2004, 55, 373–399. [Google Scholar] [CrossRef] [Green Version]
  19. Asada, K. The water-water cycle in chloroplasts: Scavenging of active oxygens and dissipation of excess photons. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1999, 50, 601–639. [Google Scholar] [CrossRef]
  20. Chen, C.; Li, H.; Zhang, D.; Li, P.; Ma, F. The role of anthocyanin in photoprotection and its relationship with the xanthophyll cycle and the antioxidant system in apple peel depends on the light conditions. Physiol. Plant. 2013, 149, 354–366. [Google Scholar] [CrossRef]
  21. Kytridis, V.P.; Karageorgou, P.; Levizou, E.; Manetas, Y. Intra-species variation in transient accumulation of leaf anthocyanins in Cistus creticus during winter: Evidence that anthocyanins may compensate for an inherent photosynthetic and photoprotective inferiority of the red-leaf phenotype. J. Plant Physiol. 2008, 165, 952–959. [Google Scholar] [CrossRef] [PubMed]
  22. Manetas, Y.; Drinia, A.; Petropoulou, Y. High contents of anthocyanins in young leaves are correlated with low pools of xanthophyll cycle components and low risk of photoinhibition. Photosynthetica 2002, 40, 349–354. [Google Scholar] [CrossRef]
  23. Yu, Z.C.; Zheng, X.T.; Lin, W.; He, W.; Shao, L.; Peng, C.L. Photoprotection of Arabidopsis leaves under short-term high light treatment: The antioxidant capacity is more important than the anthocyanin shielding effect. Plant Physiol. Biochem. 2021, 166, 258–269. [Google Scholar] [CrossRef] [PubMed]
  24. Hughes, N.M.; Burkey, K.O.; Cavender-Bares, J.; Smith, W.K. Xanthophyll cycle pigment and antioxidant profiles of winter-red (anthocyanic) and winter-green (acyanic) angiosperm evergreen species. J. Exp. Bot. 2012, 63, 1895–1905. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Li, P.M.; Castagnoli, S.; Cheng, L.L. Red ‘Anjou’ pear has a higher photoprotective capacity than green ‘Anjou’. Physiol. Plant. 2008, 134, 486–498. [Google Scholar] [CrossRef]
  26. Gould, K.S.; McKelvie, J.; Markham, K.R. Do anthocyanins function as antioxidants in leaves? Imaging of H2O2 in red and green leaves after mechanical injury. Plant Cell Environ. 2002, 25, 1261–1269. [Google Scholar] [CrossRef]
  27. Neill, S.O.; Gould, K.S.; Kilmartin, P.A.; Mitchell, K.A.; Markham, K.R. Antioxidant activities of red versus green leaves in Elatostema rugosum. Plant Cell Environ. 2002, 25, 539–547. [Google Scholar] [CrossRef]
  28. Zhang, J.; Chen, C.; Zhang, D.; Li, H.; Li, P.; Ma, F. Reactive oxygen species produced via plasma membrane NADPH oxidase regulate anthocyanin synthesis in apple peel. Planta 2014, 240, 1023–1035. [Google Scholar] [CrossRef] [PubMed]
  29. Gao, J.; Li, P.; Ma, F.; Goltsev, V. Photosynthetic performance during leaf expansion in Malus micromalus probed by chlorophyll a fluorescence and modulated 820 nm reflection. J. Photochem. Photobiol. B Biol. 2014, 137, 144–150. [Google Scholar] [CrossRef]
  30. Li, P.; Zhang, Y.; Einhorn, T.C.; Cheng, L. Comparison of phenolic metabolism and primary metabolism between green ‘Anjou’ pear and its bud mutation, red ‘Anjou’. Physiol. Plant. 2014, 150, 339–354. [Google Scholar] [CrossRef]
  31. Liu, X.L.; Wang, L.; Wang, X.W.; Yan, Y.; Yang, X.L.; Xie, M.Y.; Hu, Z.; Shen, X.; Ai, H.; Lin, H.H.; et al. Mutation of the chloroplast-localized phosphate transporter OsPHT2;1 reduces flavonoid accumulation and UV tolerance in rice. Plant J. 2020, 102, 53–67. [Google Scholar] [CrossRef] [PubMed]
  32. Righini, S.; Rodriguez, E.J.; Berosich, C.; Grotewold, E.; Casati, P.; Ferreyra, M.L.F. Apigenin produced by maize flavone synthase I and II protects plants against UV-B-induced damage. Plant Cell Environ. 2019, 42, 495–508. [Google Scholar] [CrossRef] [PubMed]
  33. Norelli, J.L.; Aldwinckle, H.S.; Destéfano-Beltrán, L.; Jaynes, J.M. Transgenic ‘Mailing 26’ apple expressing the attacin E gene has increased resistance to Erwinia amylovora. Euphytica 1994, 77, 123–128. [Google Scholar] [CrossRef]
  34. Borejsza-Wysocka, E.E.; Norelli, J.L.; Aldwinckle, H.S.; Ko, K. Transformation of authentic M.26 apple rootstock for enhanced resistance to fire blight. Acta Hortic. 1999, 489, 259–266. [Google Scholar] [CrossRef]
  35. Murashige, T.; Skoog, F. A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiol. Plant. 1962, 15, 473–497. [Google Scholar] [CrossRef]
  36. Norelli, J.; Mills, J.; Aldwinckle, H. Leaf wounding increases efficiency of Agrobacterium-mediated transformation of apple. HortScience 1996, 31, 1026–1027. [Google Scholar] [CrossRef] [Green Version]
  37. Li, P.M.; Cheng, L.; Peng, T.; Gao, H.Y. CO2 assimilation and chlorophyll fluorescence in green versus red Berberis thunbergii leaves measured with different quality irradiation. Photosynthetica 2009, 47, 11–18. [Google Scholar] [CrossRef]
  38. Zhang, J.; Niu, J.; Duan, Y.; Zhang, M.; Liu, J.; Li, P.; Ma, F. Photoprotection mechanism in the ‘Fuji’ apple peel at different levels of photooxidative sunburn. Physiol. Plant. 2015, 154, 54–65. [Google Scholar] [CrossRef]
  39. Li, P.; Ma, F.; Cheng, L. Primary and secondary metabolism in the sun-exposed peel and the shaded peel of apple fruit. Physiol. Plant. 2013, 148, 9–24. [Google Scholar] [CrossRef]
  40. Ma, F.; Jazmin, L.J.; Young, J.D.; Allen, D.K. Isotopically nonstationary 13C flux analysis of changes in Arabidopsis thaliana leaf metabolism due to high light acclimation. Proc. Natl. Acad. Sci. USA 2014, 111, 16967–16972. [Google Scholar] [CrossRef]
  41. Cheng, L.; Zhou, R.; Reidel, E.J.; Sharkey, T.D.; Dandekar, A.M. Antisense inhibition of sorbitol synthesis leads to up-regulation of starch synthesis without altering CO2 assimilation in apple leaves. Planta 2005, 220, 767–776. [Google Scholar] [CrossRef] [PubMed]
  42. Li, S.; Zhang, J.; Liu, L.; Wang, Z.; Li, Y.; Guo, L.; Li, Y.; Zhang, X.; Ren, S.; Zhao, B.; et al. SlTLFP8 reduces water loss to improve water-use efficiency by modulating cell size and stomatal density via endoreduplication. Plant Cell Environ. 2020, 43, 2666–2679. [Google Scholar] [CrossRef] [PubMed]
  43. Malnoy, M.; Reynoird, J.P.; Mourgues, F.; Chevreau, E.; Simoneau, P. A method for isolating total RNA from pear leaves. Plant Mol. Biol. Rep. 2001, 19, 69. [Google Scholar] [CrossRef]
  44. Daccord, N.; Celton, J.M.; Linsmith, G.; Becker, C.; Choisne, N.; Schijlen, E.; van de Geest, H.; Bianco, L.; Micheletti, D.; Velasco, R.; et al. High-quality de novo assembly of the apple genome and methylome dynamics of early fruit development. Nat. Genet. 2017, 49, 1099–1106. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
Ijms 23 12616 g001 550

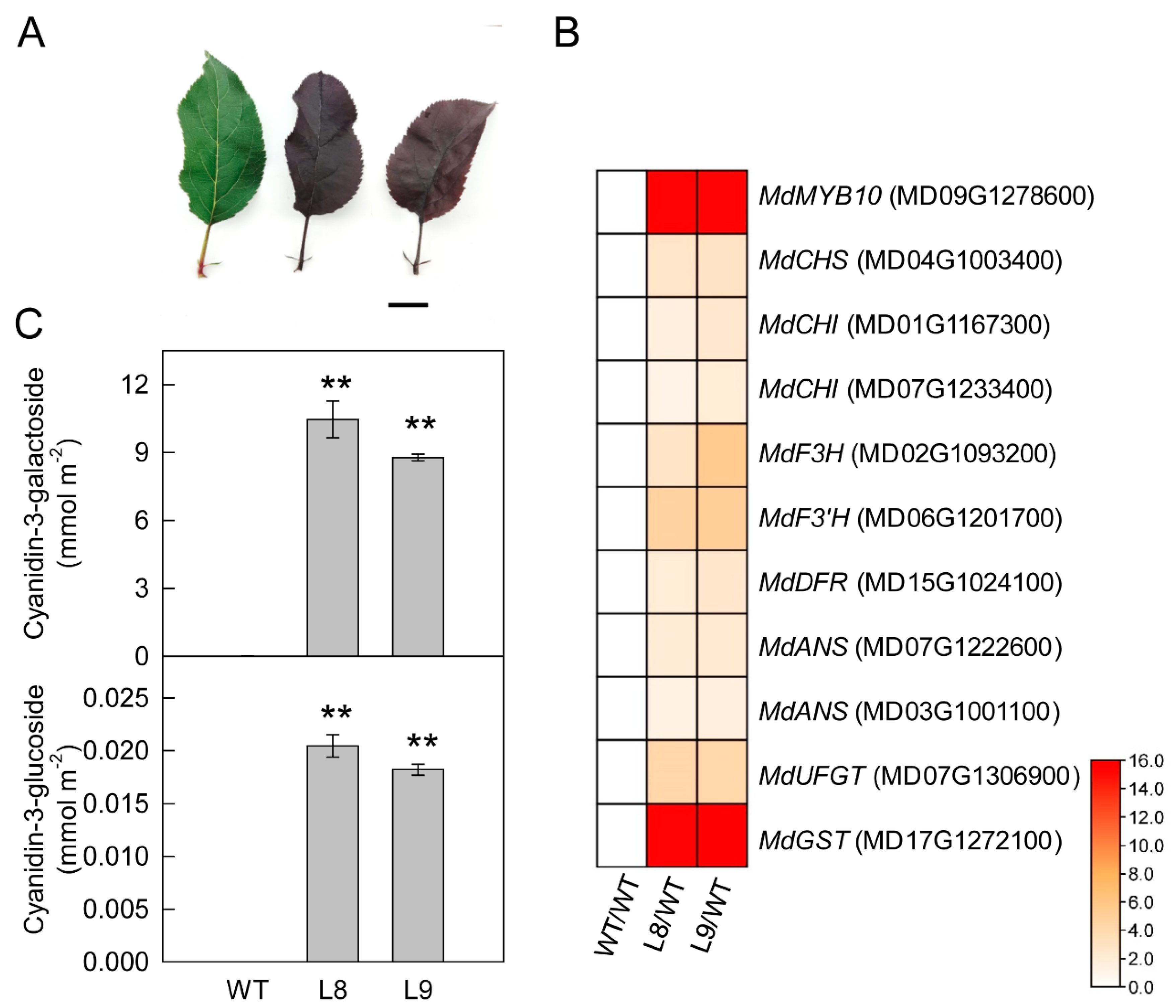

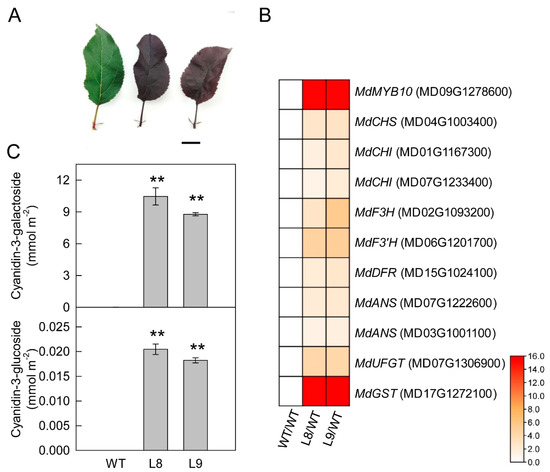

Figure 1. Leaf phenotypes (A), differentially expressed genes involved in anthocyanin synthesis (B), and contents of anthocyanins (C) in the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Panel A, scale bar = 2 cm; Panel B, data were extracted from the RNA-sequence assay between transgenic lines and wild type, the RNA-sequence data are shown in Supplemental Table S1, with three biological replicates; Panel C, five biological replicates were performed for each point. For the statistical analysis, “**” above the bars indicates a significant difference at p < 0.01, t-test. CHS, chalcone synthase; CHI, chalcone isomerase; F3H, flavanone 3-hydroxylase; F3′H, flavonoid 3′-hydroxylase; DFR, dihydroflavonol 4-reductase; ANS, anthocyanin synthase; UFGT, UDP-glycose: flavonoid glycosyltransferase; GST, glutathione S-transferase.
Figure 1. Leaf phenotypes (A), differentially expressed genes involved in anthocyanin synthesis (B), and contents of anthocyanins (C) in the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Panel A, scale bar = 2 cm; Panel B, data were extracted from the RNA-sequence assay between transgenic lines and wild type, the RNA-sequence data are shown in Supplemental Table S1, with three biological replicates; Panel C, five biological replicates were performed for each point. For the statistical analysis, “**” above the bars indicates a significant difference at p < 0.01, t-test. CHS, chalcone synthase; CHI, chalcone isomerase; F3H, flavanone 3-hydroxylase; F3′H, flavonoid 3′-hydroxylase; DFR, dihydroflavonol 4-reductase; ANS, anthocyanin synthase; UFGT, UDP-glycose: flavonoid glycosyltransferase; GST, glutathione S-transferase.
Ijms 23 12616 g001
Ijms 23 12616 g002 550

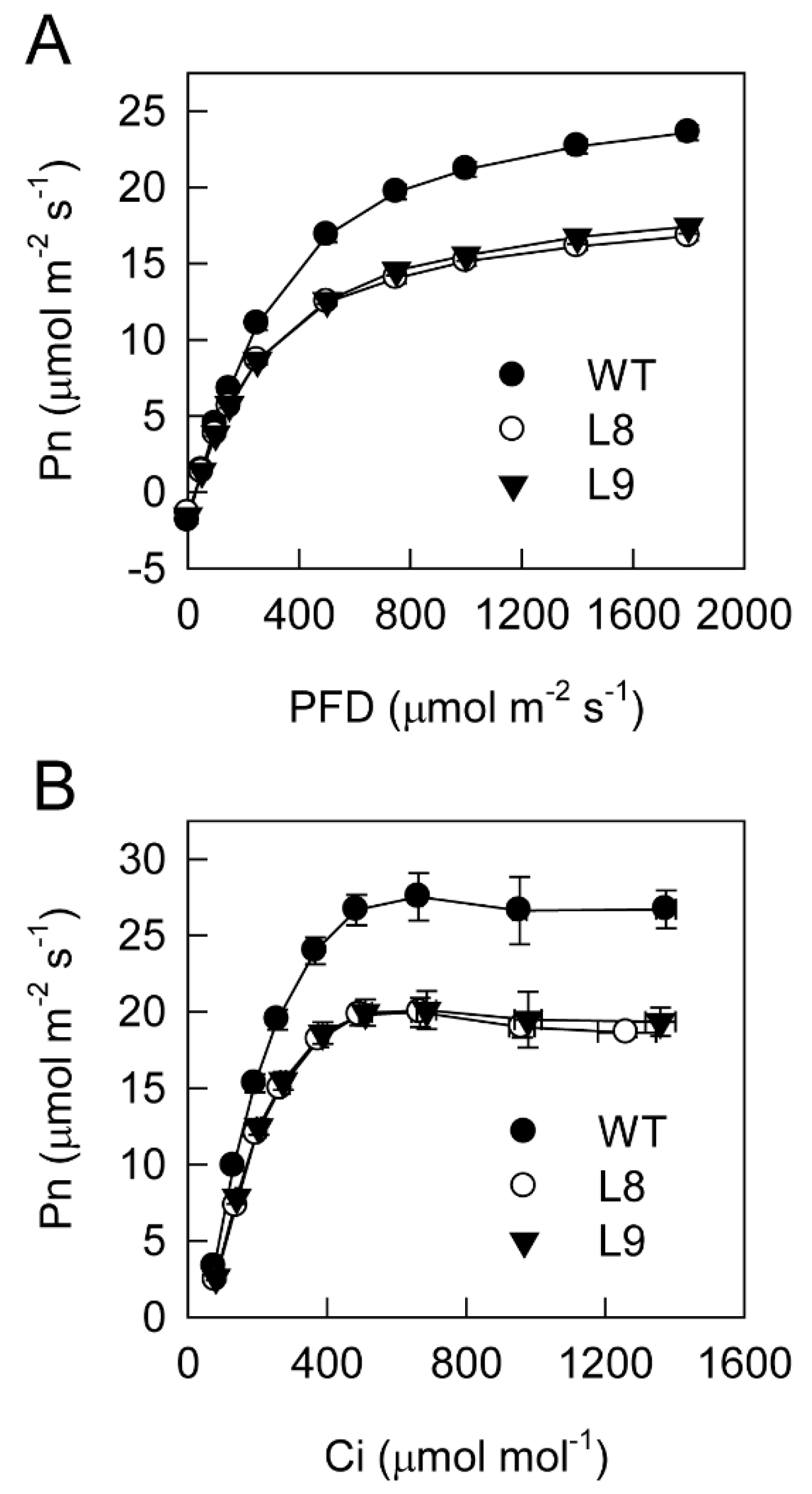

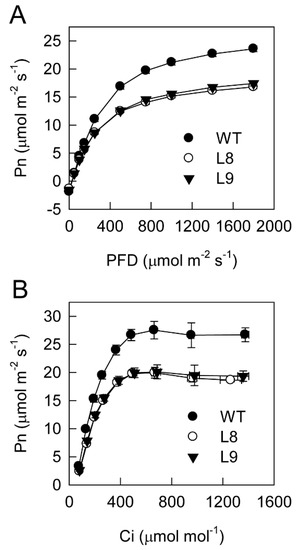

Figure 2. Photosynthesis light response (A) and CO2 response (B) curves for the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Five biological replicates were performed for each point. Pn, Net photosynthetic rate; PFD, photon flux density; Ci, intercellular CO2 concentration.
Figure 2. Photosynthesis light response (A) and CO2 response (B) curves for the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Five biological replicates were performed for each point. Pn, Net photosynthetic rate; PFD, photon flux density; Ci, intercellular CO2 concentration.
Ijms 23 12616 g002
Ijms 23 12616 g003 550

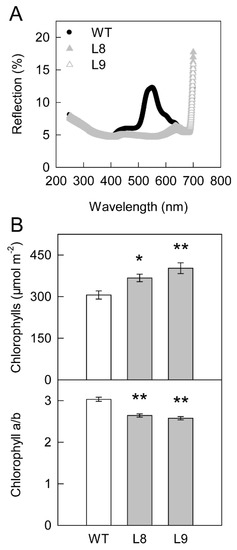

Figure 3. Leaf reflection spectra (A) and chlorophyll content, as well as the ratio of chlorophyll a to b (B) in leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Five biological replicates were performed for each point. For statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Figure 3. Leaf reflection spectra (A) and chlorophyll content, as well as the ratio of chlorophyll a to b (B) in leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Five biological replicates were performed for each point. For statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Ijms 23 12616 g003
Ijms 23 12616 g004 550

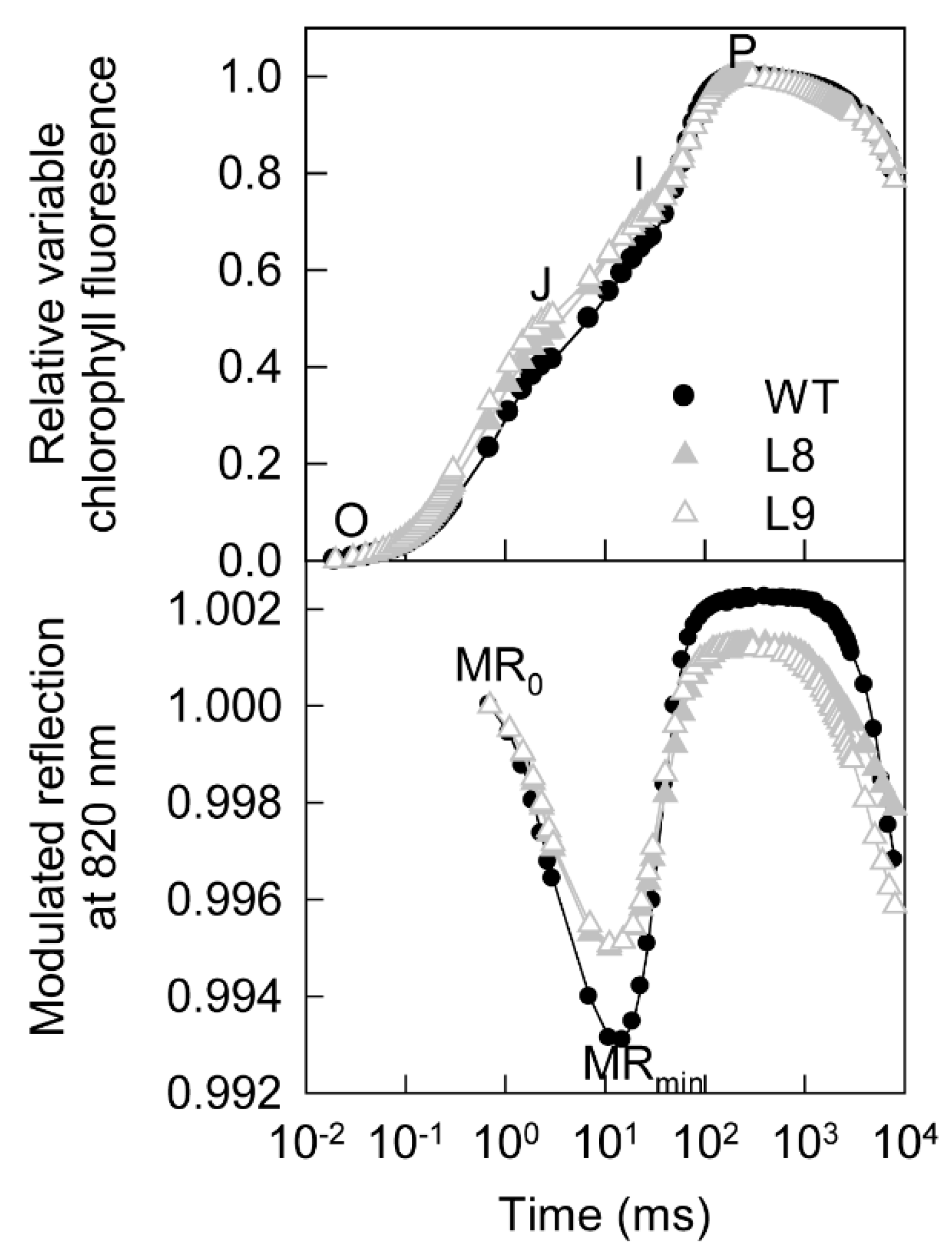

Figure 4. Relative variable chlorophyll fluorescence transient [(Ft − Fo)/(Fm − Fo)] and modulated 820 nm reflection (MRt/MRo) curves for the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Five biological replicates were performed for each point.
Figure 4. Relative variable chlorophyll fluorescence transient [(Ft − Fo)/(Fm − Fo)] and modulated 820 nm reflection (MRt/MRo) curves for the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. Five biological replicates were performed for each point.
Ijms 23 12616 g004
Ijms 23 12616 g005 550

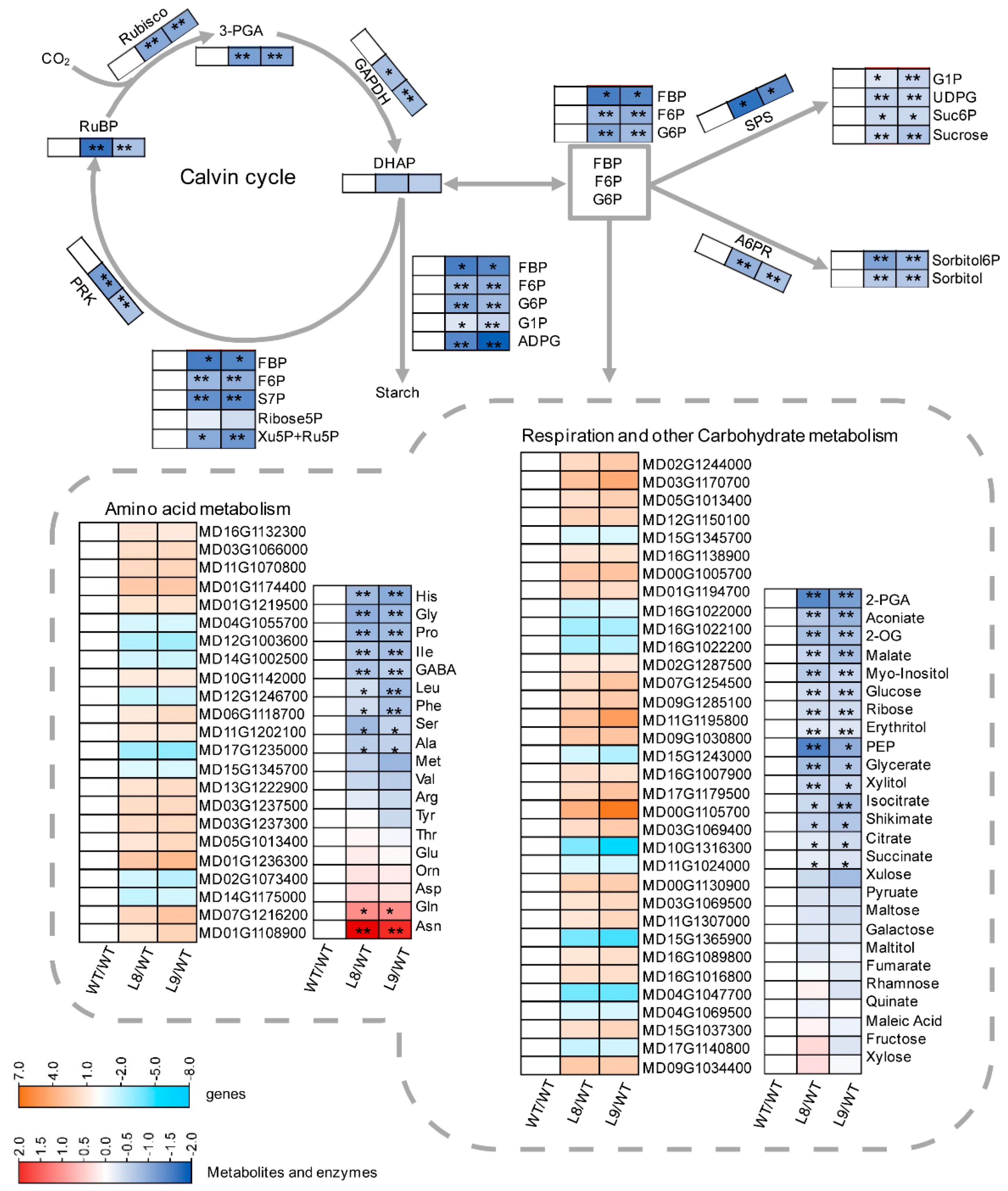

Figure 5. Comparison of expressions of key genes, activities of key enzymes, and contents of key metabolites involved in photosynthesis and other related metabolisms between the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. As none of the gene involved in photosynthesis showed different expression levels between transgenic and WT leaves (Table S1), only genes involved in respiration and other carbon and nitrogen metabolism were shown in Figure 5. For the expression of each gene, please see Supplemental Tables S1 and S3. The absolute values of metabolites and enzyme activities are shown in Supplemental Tables S4 and S5. Rubisco, ribulose-1,5-bisphosphate carboxylase/oxygenase; GAPDH, glyceraldehyde-3-phosphate dehydrogenase; PRK, phosphoribulokinase; A6PR, aldose-6-phosphate reductase; 3-PGA, 3-phosphoglycerate; DHAP, dihydroxyacetone phosphate; FBP, fructose-1,6-bisphosphate; F6P, fructose-6-phosphate; S7P, Sedoheptulose 7-phosphate; Ribose5P, ribose 5 phosphate; XU5P, xylulose-5-phosphate; RU5P, ribulose 5-phosphate; RUBP, ribulose-1,5-bisphosphate; G6P, glucose-6-phosphate; G1P, glucose-1-phosphate; ADPG, adenosine diphosphate glucose; UDPG, uridine diphosphate glucose; Suc6P, sucrose-6-phosphate; sorbitol-6-P, sorbitol-6-phosphate; 2-PGA, 2-phosphoglycerate; 2-OG, 2-oxoglutarate; PEP, phosphoenolpyruvate. WT/WT, L8/WT, and L9/WT denote the values of the log2 fold change between genotypes. For the transcriptome assay, three biological replicates were performed; for the enzyme activities and metabolomics assay, five biological replicates were conducted. For the statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Figure 5. Comparison of expressions of key genes, activities of key enzymes, and contents of key metabolites involved in photosynthesis and other related metabolisms between the leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with overexpression of MdMYB10. As none of the gene involved in photosynthesis showed different expression levels between transgenic and WT leaves (Table S1), only genes involved in respiration and other carbon and nitrogen metabolism were shown in Figure 5. For the expression of each gene, please see Supplemental Tables S1 and S3. The absolute values of metabolites and enzyme activities are shown in Supplemental Tables S4 and S5. Rubisco, ribulose-1,5-bisphosphate carboxylase/oxygenase; GAPDH, glyceraldehyde-3-phosphate dehydrogenase; PRK, phosphoribulokinase; A6PR, aldose-6-phosphate reductase; 3-PGA, 3-phosphoglycerate; DHAP, dihydroxyacetone phosphate; FBP, fructose-1,6-bisphosphate; F6P, fructose-6-phosphate; S7P, Sedoheptulose 7-phosphate; Ribose5P, ribose 5 phosphate; XU5P, xylulose-5-phosphate; RU5P, ribulose 5-phosphate; RUBP, ribulose-1,5-bisphosphate; G6P, glucose-6-phosphate; G1P, glucose-1-phosphate; ADPG, adenosine diphosphate glucose; UDPG, uridine diphosphate glucose; Suc6P, sucrose-6-phosphate; sorbitol-6-P, sorbitol-6-phosphate; 2-PGA, 2-phosphoglycerate; 2-OG, 2-oxoglutarate; PEP, phosphoenolpyruvate. WT/WT, L8/WT, and L9/WT denote the values of the log2 fold change between genotypes. For the transcriptome assay, three biological replicates were performed; for the enzyme activities and metabolomics assay, five biological replicates were conducted. For the statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Ijms 23 12616 g005
Ijms 23 12616 g006 550

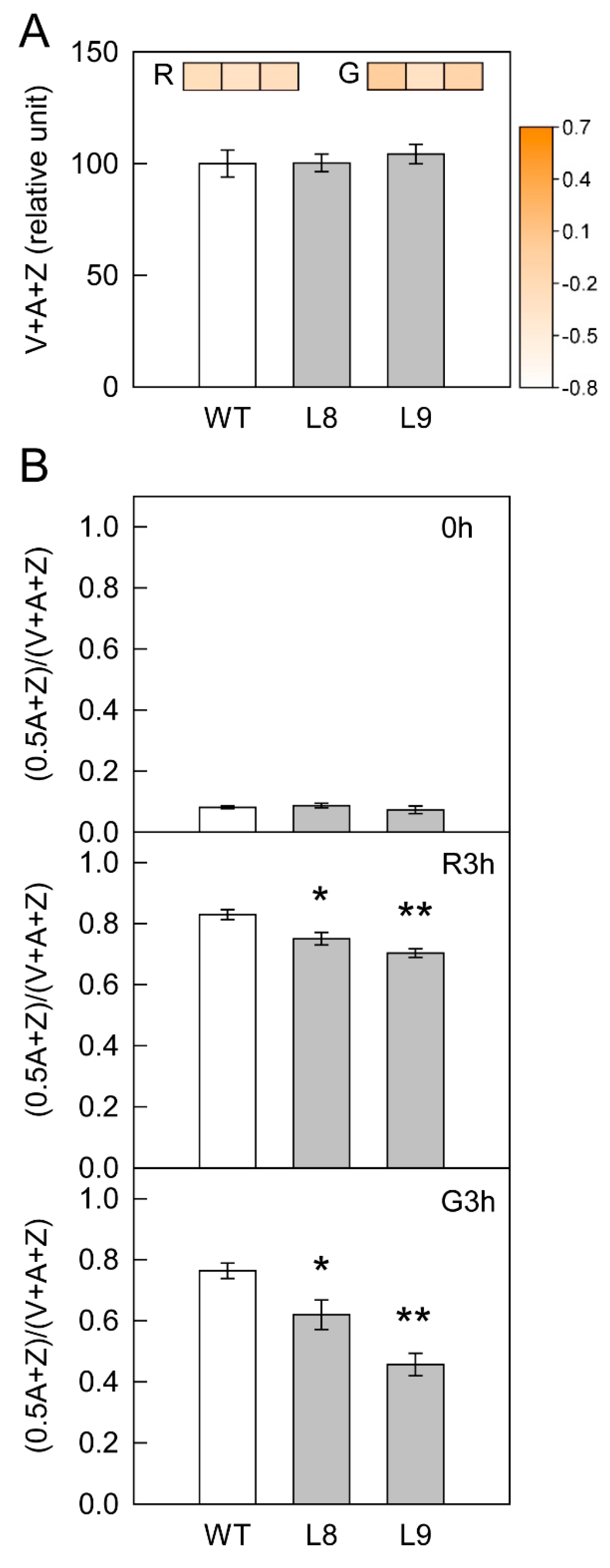

Figure 6. Xanthophyll cycle pool size (V + A + Z) (A) and its de-epoxidation [(0.5A + Z)/(V + A + Z)] (B) in leaves of ‘Galaxy Gala’ (WT) and its MdMYB10 overexpression transgenic lines (L8, L9) before and after strong red or green light treatment. Panel A, the inserted heat maps with blocks from left to right are the values of the log2 fold change of the xanthophyll cycle pool size of WT, L8, and L9 before and after strong red (R) or green (G) light treatment, respectively. Five biological replicates were performed for each point; Panel B, ‘0 h’, ‘R3h’ and ‘G3h’ represented before (0 h) and after strong green (G3h) or red (R3h) light treatment for 3 h, respectively. For the statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Figure 6. Xanthophyll cycle pool size (V + A + Z) (A) and its de-epoxidation [(0.5A + Z)/(V + A + Z)] (B) in leaves of ‘Galaxy Gala’ (WT) and its MdMYB10 overexpression transgenic lines (L8, L9) before and after strong red or green light treatment. Panel A, the inserted heat maps with blocks from left to right are the values of the log2 fold change of the xanthophyll cycle pool size of WT, L8, and L9 before and after strong red (R) or green (G) light treatment, respectively. Five biological replicates were performed for each point; Panel B, ‘0 h’, ‘R3h’ and ‘G3h’ represented before (0 h) and after strong green (G3h) or red (R3h) light treatment for 3 h, respectively. For the statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Ijms 23 12616 g006
Ijms 23 12616 g007 550
Figure 7. Antioxidant enzyme activity (A) and metabolite content (B) in leaves of ‘Galaxy Gala’ (WT) and its MdMYB10 overexpression transgenic lines (L8, L9) before and after strong red or green light treatment. The inserted heat maps with blocks from left to right are the values of the log2 fold change in enzyme activity or metabolite content of WT, L8, and L9 before and after strong red (R) or green (G) light treatment, respectively. Five biological replicates were performed for each point. SOD, superoxide dismutase; APX, ascorbate peroxidase; MDHAR, monodehydroascorbate reductase; DHAR, dehydroascorbate reductase; GR, glutathione reductase. Five biological replicates were performed for each point. For the statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Figure 7. Antioxidant enzyme activity (A) and metabolite content (B) in leaves of ‘Galaxy Gala’ (WT) and its MdMYB10 overexpression transgenic lines (L8, L9) before and after strong red or green light treatment. The inserted heat maps with blocks from left to right are the values of the log2 fold change in enzyme activity or metabolite content of WT, L8, and L9 before and after strong red (R) or green (G) light treatment, respectively. Five biological replicates were performed for each point. SOD, superoxide dismutase; APX, ascorbate peroxidase; MDHAR, monodehydroascorbate reductase; DHAR, dehydroascorbate reductase; GR, glutathione reductase. Five biological replicates were performed for each point. For the statistical analysis, “*” or “**” indicates a significant difference at p < 0.05 or p < 0.01, respectively, t-test.
Ijms 23 12616 g007
Ijms 23 12616 g008 550

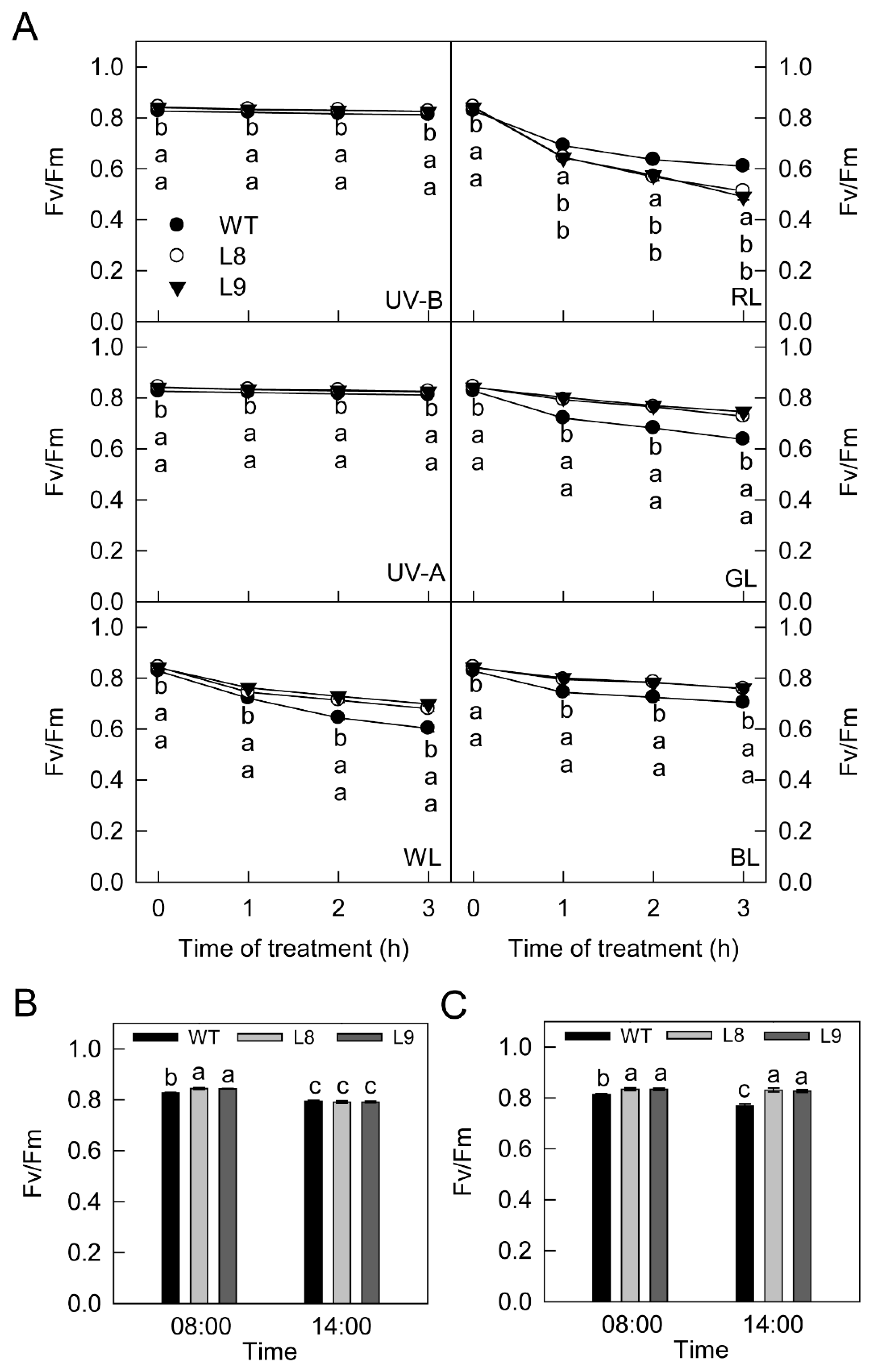

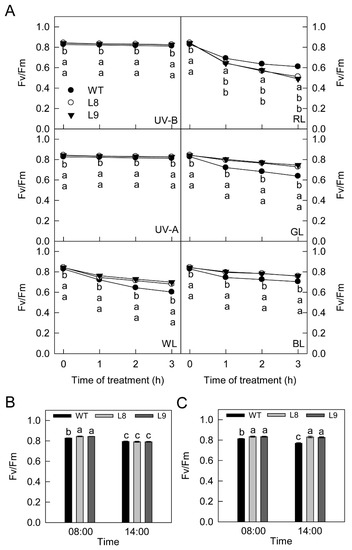

Figure 8. The maximum quantum yield of photosystem II (Fv/Fm) in leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with MdMYB10 overexpression after treatment with different artificial light sources under laboratory conditions (A) or exposure to sunlight in the field (B), and in young branch barks of wild type and transgenic lines exposed to sunlight in the field (C). WL, white light, RL, red light; GL, green light; BL, blue light. The relative changes in Fv/Fm in Panel A are shown in Supplemental Figure S5. Five biological replicates were performed for each point, with two leaves or branches from one plant assayed for each replicate. For the statistical analysis, different lowercase letters below symbols or above bars indicate a significant difference at p < 0.01, LSD.
Figure 8. The maximum quantum yield of photosystem II (Fv/Fm) in leaves of ‘Galaxy Gala’ (WT) and its transgenic lines (L8, L9) with MdMYB10 overexpression after treatment with different artificial light sources under laboratory conditions (A) or exposure to sunlight in the field (B), and in young branch barks of wild type and transgenic lines exposed to sunlight in the field (C). WL, white light, RL, red light; GL, green light; BL, blue light. The relative changes in Fv/Fm in Panel A are shown in Supplemental Figure S5. Five biological replicates were performed for each point, with two leaves or branches from one plant assayed for each replicate. For the statistical analysis, different lowercase letters below symbols or above bars indicate a significant difference at p < 0.01, LSD.
Ijms 23 12616 g008
