TBPEH-TBPB Initiate the Radical Addition of Benzaldehyde and Allyl Esters

by
Binlong Sun
,
Xiaoyu Tian
,
Sen Yang
,
Yingying Wang
,
Yingying Shao
,
Xinhao Fu
,
Wenyuan Wang
,
Minting Tu
,
Yang Chen
,
Junhui Wu
,
Changyuan Wu
and
Chengxia Tan
*
College of Chemical Engineering, Zhejiang University of Technology, Hangzhou 310014, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(22), 13704; https://doi.org/10.3390/ijms232213704
Submission received: 18 October 2022 / Revised: 2 November 2022 / Accepted: 4 November 2022 / Published: 8 November 2022
(This article belongs to the Section Biochemistry)
Browse Figures
Versions Notes

Abstract

:
Tert-butylperoxy-2-ethylhexanoate (TBPEH) and tert-butyl peroxybenzoate (TBPB) promote the radical acylation of allyl ester with benzaldehyde to synthesize new carbonyl-containing compounds under solvent-free and metal-free conditions. This reaction is compatible with electron-donating and halogen groups and has excellent atom utilization and chemical selectivity. Furthermore, the synthetic compounds can further apply to the preparation of lactone, piperidine, tetrazole and oxazole.

1. Introduction

The functionalization of alkenes is an important part of organic synthesis, which is widely used in various fields, such as synthetic drugs, natural products, and advanced materials [1,2,3,4,5,6,7]. Among them, the acylation of alkenes is a hotspot in chemical synthesis. For instance, the free radical addition reaction in the synthesis of glufosinate-ammonium by Hoechst company [8,9], which involved the alkene radical phosphorylation of the key intermediate 1-cyanoallyl acetate (ACA), was found to have the advantages of high rate, simple conditions and high atom economy. Moreover, the cyanohydrin [10,11,12,13,14,15,16,17] and carbon-carbon double bond [18,19,20,21,22,23] structure possessed by this compound have a wide range of applications in the chemical field and pharmaceutical synthesis, which determines its excellent practicability and ductility. However, few studies were conducted on 1-cyanoallyl acetate-related responses.
What’s worth mentioning, though, is that the addition of benzaldehyde and olefins has attracted much attention because many asymmetric ketones or complex molecular skeletons that are difficult to synthesize by traditional methods can be constructed by the addition reaction of benzaldehydes with alkenes [24,25,26,27].
Hence, inspired by those mentioned above, according to the process conditions of glufosinate-ammonium and without changing the structure of cyanohydrin, the method development and structural modification of 1-cyanoallyl acetate were studied by taking benzaldehyde as the acylation reagent and TBPEH-TBPB as the initiators. Furthermore, the addition reactions of benzaldehyde with different kinds of allyl esters, like allyl hexanoate and allyl acetoacetate, were developed.
Herein, we report the radical addition reaction of 1-cyanoallyl acetate with benzaldehyde under metal-free conditions. In addition, we extensively studied the reactions of benzaldehyde with different kinds of allyl esters, like allyl hexanoate and allyl acetoacetate. Finally, compounds 3a–3y, 4a–4u and 5a–5o were synthesized in one step, which can further apply to the preparation of lactone, piperidine, tetrazole and oxazole [28,29,30,31,32].

2. Results and Discussion

2.1. Synthesis of Target Compounds

The synthetic pathway to target compound 3 is shown in Scheme 1.
Initially, we screened our approach by optimizing the reaction conditions of benzaldehyde 1a and 1-cyanallyl acetate 2a, and the influence of different reaction conditions on the yields is shown in Table 1. We found that peroxide, solvent and temperature affected the reaction critically. In the beginning, the radical addition initiated by TBPEH showed a higher yield than that by TBHP, TBPB and other initiators (entries 1–3). The temperature was further screened, and it was found that lowering the temperature had a significant effect on the yield (entry 4). Subsequently, it was surprising that when we mixed TBPEH and TBPB under the same condition, the desired compound 3a was isolated with a yield of 43% (entry 5). It was supposed that TBPEH plays the role of medium-temperature initiator and TBPB plays the role of high-temperature initiator, which means TBPEH decomposes and releases heat after being heated so that TBPB decomposes rapidly at a lower temperature [33,34]. Meanwhile, TBPB is decomposed to generate benzoyl radical, which is conducive to the reaction. Moreover, the corresponding product 3a was afforded in 57% yield when the amount of TBPEH and TBPB was increased to 2 equiv. (entry 6). In addition, DMF and DMSO were selected as the solvents, but no target compounds were detected (entries 7–8). When the amount of benzaldehyde 1a was reduced to 1.5 equiv., the yield of the desired product decreased to 26% (entry 9). From the subsequent reaction mechanism, it can be seen that benzaldehyde 1a is the main source of H+, so 2 equiv. of benzaldehyde is needed, at least. According to Scheme 1, entry 6 was selected as the optimal condition.
Next, we further explored the substrate scope of benzaldehydes under optimal conditions (Figure 1). We found that benzaldehydes substituted with electron-donating groups (R, OR) and halogens (F, Cl, Br) were suitable for this reaction, while the electron-donating groups contributed to the yields. This can be explained by the electron-donating effect, as the electron-donating groups made acyl radicals easier to generate, and the yield was higher than the benzaldehyde substituted with the electron-withdrawing group. For example, the order of yields was 3o (4-OCH3) > 3a (H) > 3y (4-Br). As the results progressed, it was found that the strong electron-withdrawing groups (CN, NO2) were completely incompatible with this system. Besides the electronic effect of various functional groups, the position of the substitutes on the benzene ring also has a great influence on the yields. Due to the steric effect, the yield of ortho-position groups is lower than that of meta-position and para-position. In case as follow, compounds 3b (ortho-, 40%), 3c (meta-, 48%) and 3d (para-, 61%). Additionally, 1-cyanoallyl acetate can hardly react with those benzaldehydes substituted with larger groups on the ortho position, such as 2-Br. In short, this reaction had high atom utilization and good chemical selectivity. Acyl radicals were always added at the 1-position of the alkenyl group. This special selectivity can be attributed to the anti-Markovnikov addition initiated by peroxides [35].
Subsequently, taking steric effect and application into consideration, the radical additions of substituted benzaldehyde with allyl hexanoate and allyl acetoacetate were performed under optimal conditions. The results are shown in Figure 2 and Figure 3, respectively. Compared to 1-cyanoallyl acetate, there was a slight yield increase in the reactions of allyl hexanoate (longer chain) with various substituted benzaldehyde, which may be due to the absence of the electron-withdrawing group (-CN). As for allyl acetoacetate, by-products formed, and the yields decreased. In the meantime, the steric effect was more obvious, and allyl acetoacetate could hardly react with ortho-substituted benzaldehyde. Overall, the electronic effect and steric effect of various substituents on the benzene ring still showed the same corresponding effects.

2.2. Mechanism

When benzaldehyde 1a and 1-cyanoallyl acetate 2a were reacted with 2,2,6,6-tetramethyl-1-piperidinyloxy (TEMPO) under the standard conditions [36,37], the TEMPO-trapped product 6a (detected by GC-Mass analysis) was obtained, and the formation of 3a was completely inhibited. It clearly supports that this reaction was a free radical reaction.
On the basis of these results and previous reports [20,38], we, therefore, proposed a possible mechanism, as shown in Scheme 2. The first step involves TBPEH and TBPB cleavage initiated by thermal conditions to give tert-butoxy radical, which then abstracts aldehydic hydrogen of 1a to obtain benzoyl radical A. The addition of A to an alkene forms intermediate B, which in turn abstracts a hydrogen radical from another aldehyde to give compound 3a.

3. Experimental Section

3.1. General Information

1H and 13C NMR spectra were recorded on a Bruker 500 MHz spectrometer in CDCl3 with TMS as the internal standard. GC-Mass spectra were determined on an Agilent 7890B spectrometer. High-resolution electrospray mass spectra (HR–ESI–MS) were determined using a UPLC H-CLASS/QTOF G2-XS mass spectrometer (Waters, Milford, MA, USA). All products were identified by 1H and 13C NMR and HRMS. The starting materials were purchased from Macklin, Rhawm, Adamas or TCI and used without further purification. The characterization data for all synthesized compounds are provided in the Supporting Information file (Figures S1–S184).

3.2. Synthesis

3.2.1. General Synthesis of Compounds 3a–3y

Substituted benzaldehydes (0.4 mmol), 1-cyanoallyl acetate (0.2 mmol), tert-butyl peroxybenzoate (0.4 mmol) and tert-butylperoxy-2-ethylhexanoate (0.4 mmol) were added to a flask. The mixture was reacted at 110 °C for 30 min. TLC was used to track the reaction progress. After the reaction was completed, it was separated by column chromatography to give the corresponding compound 3a–3y.
1-cyano-4-oxo-4-phenylbutyl acetate (3a): Yellow liquid, yield 57%. 1H NMR (500 MHz, Chloroform-d) δ 8.06–7.90 (m, 2H), 7.66–7.59 (m, 1H), 7.54–7.47 (m, 2H), 5.53 (t, J = 6.5 Hz, 1H), 3.35–3.16 (m, 2H), 2.50–2.34 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.28, 168.99, 136.22, 133.63, 128.80, 128.03, 116.62, 60.46, 33.08, 26.65, 20.36. HRMS calculated for C13H13NO3 (M + Na)+ 254.0788, found 254.0793.
1-cyano-4-oxo-4-(o-tolyl) butyl acetate (3b): Yellow liquid, yield 40%. 1H NMR (500 MHz, Chloroform-d) δ 7.70 (d, J = 7.5 Hz, 1H), 7.42 (td, J = 7.5, 1.0 Hz, 1H), 7.34–7.25 (m, 2H), 5.52 (t, J = 6.5 Hz, 1H), 3.21–3.14 (m, 2H), 2.53 (s, 3H), 2.42–2.33 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 200.74, 168.99, 138.64, 136.70, 132.24, 131.91, 128.63, 125.86, 116.59, 60.44, 35.63, 26.78, 21.51, 20.34. HRMS calculated for C14H15NO3 (M + Na)+ 268.0944, found 268.0950.
1-cyano-4-oxo-4-(m-tolyl) butyl acetate (3c): Yellow liquid, yield 48%. 1H NMR (500 MHz, Chloroform-d) δ 7.87–7.70 (m, 2H), 7.44–7.36 (m, 2H), 5.52 (t, J = 6.5 Hz, 1H), 3.28–3.19 (m, 2H), 2.44 (s, 3H), 2.42–2.36 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.45, 168.95, 138.61, 136.26, 134.34, 128.63, 128.51, 125.22, 116.61, 60.47, 33.11, 26.68, 21.33, 20.32. HRMS calculated for C14H15NO3 (M + Na)+ 268.0944, found 268.0945.
1-cyano-4-oxo-4-(p-tolyl) butyl acetate (3d): Yellow liquid, yield 61%. 1H NMR (500 MHz, Chloroform-d) δ 7.96–7.78 (m, 2H), 7.35–7.21 (m, 2H), 5.51 (t, J = 6.5 Hz, 1H), 3.32–3.12 (m, 2H), 2.44 (s, 3H), 2.42–2.36 (m, 2H), 2.14 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 196.87, 168.97, 144.49, 133.77, 129.43, 128.12, 116.65, 60.50, 32.92, 26.70, 21.68, 20.34. HRMS calculated for C14H15NO3 (M + Na)+ 268.0944, found 268.0950.
1-cyano-4-(4-ethylphenyl)-4-oxobutyl acetate (3e): Yellow liquid, yield 64%. 1H NMR (500 MHz, Chloroform-d) δ 7.90 (d, J = 8.5 Hz, 2H), 7.37–7.27 (m, 2H), 5.51 (t, J = 6.5 Hz, 1H), 3.31–3.14 (m, 2H), 2.73 (q, J = 7.5 Hz, 2H), 2.47–2.32 (m, 2H), 2.14 (s, 3H), 1.28–1.25 (m, 3H); 13C NMR (126 MHz, Chloroform-d) δ 196.92, 168.97, 150.65, 133.98, 128.25, 128.23, 116.64, 60.50, 32.94, 28.96, 26.70, 20.32, 15.15. HRMS calculated for C15H17NO3 (M + Na)+ 282.1101 found 282.1107.
1-cyano-4-(2,3-dimethylphenyl)-4-oxobutyl acetate (3f): Yellow liquid, yield 40%. 1H NMR (500 MHz, Chloroform-d) δ 7.38 (d, J = 7.5 Hz, 1H), 7.30 (d, J = 7.0 Hz, 1H), 7.18 (t, J = 7.5 Hz, 1H), 5.52 (t, J = 6.5 Hz, 1H), 3.19–3.05 (m, 2H), 2.42–2.35 (m, 2H), 2.33 (s, 6H), 2.16 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 202.91, 168.93, 138.91, 138.54, 135.36, 132.82, 125.35, 125.17, 116.53, 60.39, 36.79, 26.79, 20.41, 20.31, 16.43. HRMS calculated for C15H17NO3 (M + Na)+ 282.1101 found 282.1110.
1-cyano-4-(2,6-dimethylphenyl)-4-oxobutyl acetate (3g): Yellow liquid, yield 43%. 1H NMR (500 MHz, Chloroform-d) δ 7.20 (t, J = 7.5 Hz, 1H), 7.05 (d, J = 7.5 Hz, 2H), 5.54 (t, J = 6.5 Hz, 1H), 3.00–2.91 (m, 2H), 2.46–2.32 (m, 2H), 2.24 (s, 6H), 2.17 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 207.56, 168.87, 141.34, 132.34, 128.96, 127.89, 116.42, 60.28, 39.05, 26.07, 20.29, 19.07. HRMS calculated for C15H17NO3 (M + Na)+ 282.1101 found 282.1109.
1-cyano-4-(3,4-dimethylphenyl)-4-oxobutyl acetate (3h): Yellow liquid, yield 59%. 1H NMR (500 MHz, Chloroform-d) δ 7.75 (s, 1H), 7.71 (dd, J = 8.0, 2.0 Hz, 1H), 7.25 (d, J = 8.0 Hz, 1H), 5.52 (t, J = 6.5 Hz, 1H), 3.31–3.10 (m, 2H), 2.44–2.36 (m, 2H), 2.34 (s, 6H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.11, 168.95, 143.19, 137.13, 134.18, 129.95, 129.11, 125.72, 116.64, 60.52, 32.92, 26.75, 20.31, 20.02, 19.75. HRMS calculated for C15H17NO3 (M + Na)+ 282.1101 found 282.1105.
1-cyano-4-(3,5-dimethylphenyl)-4-oxobutyl acetate (3i): Yellow liquid, yield 50%. 1H NMR (500 MHz, Chloroform-d) δ 7.58 (d, J = 1.5 Hz, 2H), 7.25 (s, 1H), 5.52 (t, J = 6.5 Hz, 1H), 3.28–3.16 (m, 2H), 2.40 (s, 6H), 2.38–2.36 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.60, 168.94, 138.43, 136.35, 135.20, 125.78, 116.63, 60.50, 33.15, 26.71, 21.20, 20.32. HRMS calculated for C15H17NO3 (M + Na)+ 282.1101 found 282.1108.
1-cyano-4-mesityl-4-oxobutyl acetate (3j): Yellow liquid, yield 36%. 1H NMR (500 MHz, Chloroform-d) δ 6.87 (d, J = 1.0 Hz, 2H), 5.53 (t, J = 6.5 Hz, 1H), 2.98–2.89 (m, 2H), 2.42–2.32 (m, 2H), 2.30 (s, 3H), 2.20 (s, 6H), 2.16 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 207.76, 168.88, 138.86, 138.65, 132.42, 128.62, 116.43, 60.30, 39.17, 26.16, 21.01, 20.30, 19.06. HRMS calculated for C16H19NO3 (M + Na)+ 296.1257, found: 296.1266.
1-cyano-4-(4-isopropylphenyl)-4-oxobutyl acetate (3k): Yellow liquid, yield 58%. 1H NMR (500 MHz, Chloroform-d) δ 7.92 (d, J = 8.0 Hz, 2H), 7.35 (d, J = 8.5 Hz, 2H), 5.52 (t, J = 6.5 Hz, 1H), 3.30–3.12 (m, 2H), 3.07–2.88 (m, 1H), 2.50–2.31 (m, 2H), 2.15 (s, 3H), 1.29 (d, J = 7.0 Hz, 6H); 13C NMR (126 MHz, Chloroform-d) δ 196.87, 168.93, 155.21, 134.13, 128.27, 126.84, 116.61, 60.50, 34.27, 32.93, 26.73, 23.61, 20.30. HRMS calculated for C16H19NO3 (M + Na)+ 296.1257, found: 296.1263.
1-cyano-4-(4-isobutylphenyl)-4-oxobutyl acetate (3l): Yellow liquid, yield 62%. 1H NMR (500 MHz, Chloroform-d) δ 7.90 (d, J = 8.3 Hz, 2H), 7.27 (d, J = 8.5 Hz, 2H), 5.52 (t, J = 6.5 Hz, 1H), 3.30–3.11 (m, 2H), 2.56 (d, J = 7.2 Hz, 2H), 2.47–2.33 (m, 2H), 2.15 (s, 3H), 1.96–1.85 (m, 1H), 0.93 (d, J = 6.6 Hz, 6H); 13C NMR (126 MHz, Chloroform-d) δ 196.92, 168.93, 148.21, 134.03, 129.46, 127.99, 116.61, 60.51, 45.39, 32.93, 30.08, 26.73, 22.29, 20.30. HRMS calculated for C17H21NO3 (M + Na)+ 310.1414, found 310.1412.
4-(4-(tert-butyl) phenyl)-1-cyano-4-oxobutyl acetate (3m): Yellow liquid, yield 67%. 1H NMR (500 MHz, Chloroform-d) δ 7.92 (d, J = 9.0 Hz, 2H), 7.51 (d, J = 8.5 Hz, 2H), 5.52 (t, J = 6.5 Hz, 1H), 3.31–3.14 (m, 2H), 2.47–2.35 (m, 2H), 2.15 (s, 3H), 1.36 (s, 9H); 13C NMR (126 MHz, Chloroform-d) δ 196.90, 168.96, 157.44, 133.67, 127.99, 125.71, 116.64, 60.50, 35.18, 32.94, 31.05, 26.70, 20.33. HRMS calculated for C17H21NO3 (M + Na)+ 310.1414, found 310.1423.
1-cyano-4-(3-methoxyphenyl)-4-oxobutyl acetate (3n): Yellow liquid, yield 46%. 1H NMR (500 MHz, Chloroform-d) δ 7.56 (dt, J = 7.5, 1.0 Hz, 1H), 7.52–7.49 (m, 1H), 7.41 (t, J = 8.0 Hz, 1H), 7.16 (m, 1H), 5.52 (t, J = 6.5 Hz, 1H), 3.88 (s, 3H), 3.32–3.15 (m, 2H), 2.47–2.32 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.08, 168.92, 159.96, 130.17, 129.75, 126.17, 120.59, 119.97, 112.37, 60.42, 55.48, 33.19, 26.73, 20.31. HRMS calculated for C14H15NO4 (M + Na)+ 284.0893, found 284.0901.
1-cyano-4-(4-methoxyphenyl)-4-oxobutyl acetate (3o): Yellow liquid, yield 62%. 1H NMR (500 MHz, Chloroform-d) δ 7.96 (d, J = 9.0 Hz, 2H), 6.96 (d, J = 9.0 Hz, 2H), 5.51 (t, J = 6.5 Hz, 1H), 3.89 (s, 3H), 3.28–3.07 (m, 2H), 2.42–2.34 (m, 2H), 2.14 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 194.73, 167.95, 162.87, 129.31, 128.34, 115.64, 112.91, 59.55, 54.51, 31.65, 25.80, 19.31. HRMS calculated for C14H15NO4 (M + Na)+ 284.0893, found 284.0900.
1-cyano-4-(2-ethoxyphenyl)-4-oxobutyl acetate (3p): Yellow liquid, yield 48%. 1H NMR (500 MHz, Chloroform-d) δ 7.76 (dd, J = 8.0, 2.0 Hz, 1H), 7.55–7.43 (m, 1H), 7.01 (t, J = 7.5 Hz, 1H), 6.97 (d, J = 8.5 Hz, 1H), 5.48 (t, J = 6.5 Hz, 1H), 4.17 (q, J = 7.0 Hz, 2H), 3.30 (td, J = 7.0, 2.0 Hz, 2H), 2.35 (q, J = 7.0 Hz, 2H), 2.14 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.22, 167.99, 157.34, 133.09, 129.52, 126.14, 119.60, 115.72, 111.36, 63.18, 59.68, 37.59, 19.32, 13.74. HRMS calculated for C15H17NO4 (M +Na)+ 298.1050, found 298.1057.
1-cyano-4-(3-ethoxyphenyl)-4-oxobutyl acetate (3q): Yellow liquid, yield 47%. 1H NMR (500 MHz, Chloroform-d) δ 7.56–7.53 (m, 1H), 7.50–7.48 (m, 1H), 7.40 (t, J = 8.0 Hz, 1H), 7.16–7.12 (m, 1H), 5.52 (t, J = 6.5 Hz, 1H), 4.17–4.06 (m, 2H), 3.26–3.19 (m, 2H), 2.43–2.36 (m, 2H), 2.15 (s, 3H), 1.46 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.13, 168.95, 159.29, 137.52, 129.74, 120.42, 120.34, 116.58, 113.08, 63.77, 60.43, 33.18, 26.70, 20.33, 14.72. HRMS calculated for C15H17NO4 (M + Na)+ 298.1050, found 298.1059.
1-cyano-4-(4-ethoxyphenyl)-4-oxobutyl acetate (3r): Yellow liquid, yield 53%. 1H NMR (500 MHz, Chloroform-d) δ 7.95 (d, J = 9.0 Hz, 2H), 6.95 (d, J = 9.0 Hz, 2H), 5.52 (t, J = 6.5 Hz, 1H), 4.26–4.02 (m, 2H), 3.32–3.03 (m, 2H), 2.46–2.29 (m, 2H), 2.15 (s, 3H), 1.46 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 195.72, 168.97, 163.29, 130.31, 129.12, 114.32, 63.83, 60.55, 32.62, 26.79, 20.33, 14.63. HRMS calculated for C15H17NO4 (M + Na)+ 298.1050, found 298.1058.
1-cyano-4-(4-isopropoxyphenyl)-4-oxobutyl acetate (3s): Yellow liquid, yield 60%. 1H NMR (500 MHz, Chloroform-d) δ 7.94 (d, J = 9.0 Hz, 2H), 6.93 (d, J = 9.0 Hz, 2H), 5.51 (t, J = 6.5 Hz, 1H), 4.67 (p, J = 6.0 Hz, 1H), 3.26–3.12 (m, 2H), 2.44–2.33 (m, 2H), 2.15 (s, 3H), 1.39 (d, J = 6.0 Hz, 6H); 13C NMR (126 MHz, Chloroform-d) δ 195.70, 168.98, 162.39, 130.34, 128.86, 116.67, 115.23, 70.21, 60.56, 32.59, 26.79, 21.87, 20.33. HRMS calculated for C16H19NO4 (M + Na)+ 312.1206, found 312.1210.
1-cyano-4-oxo-4-(4-propoxyphenyl) butyl acetate (3t): Yellow liquid, yield 56%. 1H NMR (500 MHz, Chloroform-d) δ 7.95 (d, J = 9.0 Hz, 2H), 6.95 (d, J = 9.0 Hz, 2H), 5.51 (s, 1H), 4.00 (t, J = 7.0 Hz, 2H), 3.20–3.17 (m, 2H), 2.45–2.32 (m, 2H), 2.14 (s, 3H), 1.85 (q, J = 6.5 Hz, 2H), 1.07 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 195.74, 168.98, 163.50, 130.29, 129.07, 114.34, 69.80, 60.55, 32.62, 26.79, 22.42, 20.33, 10.43. HRMS calculated for C16H19NO4 (M + Na)+ 312.1206, found 312.1208.
1-cyano-4-oxo-4-(3-phenoxyphenyl) butyl acetate (3u): Yellow liquid, yield 51%. 1H NMR (500 MHz, Chloroform-d) δ 7.70 (dt, J = 7.5, 1.0 Hz, 1H), 7.60 (t, J = 2.0 Hz, 1H), 7.46 (t, J = 8.0 Hz, 1H), 7.43–7.35 (m, 2H), 7.25 (m, 1H), 7.21–7.14 (m, 1H), 7.09–7.00 (m, 2H), 5.51 (t, J = 6.5 Hz, 1H), 3.37–3.04 (m, 2H), 2.56–2.27 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 196.63, 168.90, 157.98, 137.95, 130.13, 129.99, 123.99, 123.67, 122.64, 119.19, 117.75, 60.37, 33.24, 26.63, 20.30. HRMS calculated for C19H17NO4 (M + Na)+ 346.1050 found 346.1057.
1-cyano-4-(3-fluorophenyl)-4-oxobutyl acetate (3v): Yellow liquid, yield 31%. 1H NMR (500 MHz, Chloroform-d) δ 7.79–7.74 (m, 1H), 7.69–7.64 (m, 1H), 7.53–7.46 (m, 1H), 7.35–7.29 (m, 1H), 5.53 (t, J = 6.5 Hz, 1H), 3.33–3.14 (m, 2H), 2.47–2.35 (m, 2H), 2.16 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 194.97, 167.89, 162.90, 137.25 (d, J = 6.4 Hz), 129.48 (d, J = 7.6 Hz), 122.74, 119.64 (d, J = 21.4 Hz), 115.47, 113.77 (d, J = 22.4 Hz), 59.32, 32.28, 25.55, 19.30. HRMS calculated for C13H12FNO3 (M + Na)+ 272.0693, found 272.0699.
4-(3-bromophenyl)-1-cyano-4-oxobutyl acetate (3w): Yellow liquid, yield 35%. 1H NMR (500 MHz, Chloroform-d) δ 8.11 (t, J = 2.0 Hz, 1H), 7.91 (m, 1H), 7.74 (m, 1H), 7.39 (t, J = 8.0 Hz, 1H), 5.53 (t, J = 6.5 Hz, 1H), 3.22 (m, 2H), 2.40 (m, 2H), 2.16 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 195.88, 168.89, 137.90, 136.44, 131.08, 130.36, 126.51, 123.15, 116.47, 60.30, 33.21, 26.52, 20.31. HRMS calculated for C13H12BrNO3 (M + Na)+ 331.9893, found 331.9901.
4-(4-chlorophenyl)-1-cyano-4-oxobutyl acetate (3x): Yellow liquid, yield 37%. 1H NMR (500 MHz, Chloroform-d) δ 7.92 (d, J = 8.5 Hz, 2H), 7.48 (d, J = 8.5 Hz, 2H), 5.52 (t, J = 6.0 Hz, 1H), 3.31–3.11 (m, 2H), 2.48–2.31 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 196.00, 168.89, 140.13, 134.53, 129.40, 129.11, 116.50, 60.36, 33.07, 26.58, 20.29. HRMS calculated for C13H12ClNO3 (M + Na)+ 288.0398 found 288.0405.
4-(4-bromophenyl)-1-cyano-4-oxobutyl acetate (3y): Yellow liquid, yield 42%. 1H NMR (500 MHz, Chloroform-d) δ 7.85 (d, J = 8.5 Hz, 2H), 7.65 (d, J = 8.5 Hz, 2H), 5.52 (t, J = 6.0 Hz, 1H), 3.29–3.11 (m, 2H), 2.46–2.34 (m, 2H), 2.15 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 196.19, 168.88, 134.92, 132.11, 129.48, 128.85, 116.49, 60.34, 33.05, 26.56, 20.30. HRMS calculated for C13H12BrNO3 (M + Na)+ 331.9893, found 331.9899.

3.2.2. General Synthesis of Compounds 4a–4u and 5a–5o

The synthesis of compounds 4a–4u and 5a–5o was similar to that of 3a–3y.
4-oxo-4-phenylbutyl hexanoate (4a): Colorless liquid, yield 61%. 1H NMR (500 MHz, Chloroform-d) δ 7.98 (dd, J = 8.0, 1.0 Hz, 2H), 7.67–7.52 (m, 1H), 7.48 (t, J = 8.0 Hz, 2H), 4.19 (t, J = 6.5 Hz, 2H), 3.08 (t, J = 7.0 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.07 (m, 2H), 1.65–1.62 (m, 2H), 1.33–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 199.07, 173.81, 136.85, 133.08, 128.60, 127.97, 63.52, 34.89, 34.26, 31.31, 24.64, 23.30, 22.28, 13.86. HRMS calculated for C16H22O3 (M + Na)+ 285.1461, found 285.1469.
4-oxo-4-(o-tolyl)butyl hexanoate (4b): Yellow liquid, yield 43%. 1H NMR (500 MHz, Chloroform-d) δ 7.65 (d, J = 8.0 Hz, 1H), 7.43–7.35 (m, 1H), 7.27 (d, J = 15.5 Hz, 2H), 4.17 (t, J = 6.5 Hz, 2H), 3.00 (t, J = 7.5 Hz, 2H), 2.51 (s, 3H), 2.30 (t, J = 7.5 Hz, 2H), 2.14–2.03 (m, 2H), 1.68–1.57 (m, 2H), 1.32–1.30 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 203.10, 173.83, 138.06, 137.82, 131.99, 131.29, 128.33, 125.67, 63.48, 37.76, 34.27, 31.31, 24.65, 23.41, 22.29, 21.27, 13.87. HRMS calculated for C17H24O3 (M + Na)+ 299.1618. found 299.1620.
4-oxo-4-(m-tolyl)butyl hexanoate (4c): Yellow liquid, yield 52%. 1H NMR (500 MHz, Chloroform-d) δ 7.79–7.74 (m, 2H), 7.42–7.33 (m, 2H), 4.19 (t, J = 6.5 Hz, 2H), 3.06 (t, J = 7.5 Hz, 2H), 2.43 (s, 3H), 2.30 (t, J = 7.5 Hz, 2H), 2.11 (p, J = 7.0 Hz, 2H), 1.63 (p, J = 7.5 Hz, 2H), 1.33–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 199.34, 173.86, 138.44, 136.93, 133.87, 128.53, 128.50, 125.24, 63.58, 34.97, 34.31, 31.35, 24.68, 23.37, 22.33, 21.38, 13.91. HRMS calculated for C17H24O3 (M + Na)+ 299.1618, found 299.1621.
4-oxo-4-(p-tolyl)butyl hexanoate (4d): Colorless liquid, yield 67%. 1H NMR (500 MHz, Chloroform-d) δ 7.87 (d, J = 8.5 Hz, 2H), 7.29–7.27 (m, 2H), 4.18 (t, J = 6.0 Hz, 2H), 3.05 (t, J = 7.0 Hz, 2H), 2.43 (s, 3H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.05 (m, 2H), 1.65–1.61 (m, 2H), 1.33–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.73, 173.82, 143.86, 134.39, 129.26, 128.10, 63.57, 34.76, 34.27, 31.31, 24.64, 23.38, 22.29, 21.60, 13.87. HRMS for C17H24O3 (M + Na)+ 299.1618, found 299.1623.
4-(4-ethylphenyl)-4-oxobutyl hexanoate (4e): Colorless liquid, yield 61%. 1H NMR (500 MHz, Chloroform-d) δ 7.90 (d, J = 8.5 Hz, 2H), 7.30 (d, J = 8.0 Hz, 2H), 4.18 (t, J = 6.0 Hz, 2H), 3.05 (t, J = 7.0 Hz, 2H), 2.72 (q, J = 7.5 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.05 (m, 2H), 1.66–1.61 (m, 2H), 1.33–1.29 (m, 4H), 1.29–1.26 (m, 3H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.76, 173.82, 150.05, 134.60, 128.09, 63.58, 34.77, 34.27, 31.31, 28.92, 24.64, 23.38, 22.29, 15.16, 13.87. HRMS calculated for C18H26O3 (M + Na)+ 313.1774, found 313.1777.
5-(2,3-dimethylphenyl)-5-oxopentan-2-yl hexanoate (4f): Yellow liquid, yield 55%. 1H NMR (500 MHz, Chloroform-d) δ 7.32 (d, J = 7.5 Hz, 1H), 7.26 (d, J = 7.5 Hz, 1H), 7.16 (t, J = 8.0 Hz, 1H), 4.17 (t, J = 6.5 Hz, 2H), 2.94 (t, J = 7.0 Hz, 2H), 2.32 (s, 3H), 2.31 (s, 3H), 2.31–2.28 (m, 2H), 2.13–2.01 (m, 2H), 1.69–1.59 (m, 2H), 1.36–1.28 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 205.32, 173.81, 140.03, 138.28, 134.82, 132.22, 125.22, 124.87, 63.43, 38.90, 34.26, 31.31, 24.64, 23.38, 22.29, 20.36, 16.38, 13.86. HRMS calculated for C18H26O3 (M + Na)+ 313.1774, found 313.1775.
4-(3,4-dimethylphenyl)-4-oxobutyl hexanoate (4g): Colorless liquid, yield 35%. 1H NMR (500 MHz, Chloroform-d) δ 7.75 (s, 1H), 7.70 (dd, J = 80, 2.0 Hz, 1H), 7.23 (d, J = 7.5 Hz, 1H), 4.18 (t, J = 6.5 Hz, 2H), 3.04 (t, J = 7.5 Hz, 2H), 2.33 (s, 6H), 2.32–2.28 (m, 2H), 2.14–2.05 (m, 2H), 1.66–1.59 (m, 2H), 1.33–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 199.02, 173.83, 142.57, 136.92, 134.80, 129.80, 129.12, 125.72, 63.60, 34.76, 34.28, 31.32, 24.64, 23.42, 22.29, 19.97, 19.75, 13.87. HRMS calculated for C18H26O3 (M + Na)+ 313.1774, found: 313.1778.
4-(3,5-dimethylphenyl)-4-oxobutyl hexanoate (4h): Colorless liquid, yield 59%. 1H NMR (500 MHz, Chloroform-d) δ 7.58 (s, 2H), 7.22 (s, 1H), 4.18 (t, J = 6.0 Hz, 2H), 3.05 (t, J = 7.5 Hz, 2H), 2.39 (s, 6H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.03 (m, 2H), 1.68–1.58 (m, 2H), 1.36–1.28 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 199.52, 173.84, 138.22, 136.98, 134.70, 125.78, 63.58, 34.97, 34.28, 31.31, 24.64, 23.37, 22.29, 21.21, 13.87. HRMS calculated for C18H26O3 (M + Na)+ 313.1774, found 313.1780.
4-(4-(tert-butyl)phenyl)-4-oxobutyl hexanoate (4i): Colorless liquid, yield 70%. 1H NMR (500 MHz, Chloroform-d) δ 7.92 (d, J = 8.5 Hz, 2H), 7.49 (d, J = 8.5 Hz, 2H), 4.18 (t, J = 6.5 Hz, 2H), 3.05 (t, J = 7.5 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.10 (p, J = 7.0 Hz, 2H), 1.69–1.57 (m, 2H), 1.36 (s, 9H), 1.31 (m, 4H), 0.90 (t, J = 6.5 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.77, 173.83, 156.84, 134.28, 127.95, 125.53, 63.58, 35.10, 34.76, 34.27, 31.31, 31.07, 24.64, 23.38, 22.29, 13.87. HRMS calculated for C19H28O3 (M + Na)+ 341.2087, found 341.2088.
4-(4-isobutylphenyl)-4-oxobutyl hexanoate (4j): Colorless liquid, yield 65%. 1H NMR (500 MHz, Chloroform-d) δ 7.89 (d, J = 8.0 Hz, 2H), 7.24 (d, J = 8.5 Hz, 2H), 4.18 (t, J = 6.5 Hz, 2H), 3.05 (t, J = 7.0 Hz, 2H), 2.54 (d, J = 7.0 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.17–2.04 (m, 2H), 2.00–1.81 (m, 1H), 1.67–1.55 (m, 2H), 1.34–1.29 (m, 4H), 0.92 (d, J = 7.0 Hz, 6H), 0.91–0.87 (m, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.76, 173.79, 147.57, 134.65, 129.30, 127.96, 63.57, 45.37, 34.76, 34.26, 31.31, 30.08, 24.64, 23.38, 22.30, 13.86. HRMS calculated for C19H28O3 (M + Na)+ 341.2087, found 341.2093.
4-(3-methoxyphenyl)-4-oxobutyl hexanoate (4k): Yellow liquid, yield 52%. 1H NMR (500 MHz, Chloroform-d) δ 7.55 (m, 1H), 7.52–7.49 (m, 1H), 7.39 (t, J = 8.0 Hz, 1H), 7.15–7.10 (m, 1H), 4.19 (t, J = 6.0 Hz, 2H), 3.87 (s, 3H), 3.06 (t, J = 7.5 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.04 (m, 2H), 1.69–1.56 (m, 2H), 1.34–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.92, 173.83, 159.87, 138.21, 129.58, 120.60, 119.50, 112.35, 63.50, 55.43, 35.01, 34.26, 31.31, 24.64, 23.35, 22.29. HRMS calculated for C17H24O4 (M + Na)+ 315.1567, found 315.1576.
4-(4-methoxyphenyl)-4-oxobutyl hexanoate (4l): Colorless liquid, yield 56%. 1H NMR (500 MHz, Chloroform-d) δ 7.96 (d, J = 9.0 Hz, 2H), 6.95 (d, J = 8.5 Hz, 2H), 4.18 (t, J = 6.0 Hz, 2H), 3.89 (s, 3H), 3.02 (t, J = 7.0 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.17–2.04 (m, 2H), 1.66–1.57 (m, 2H), 1.34–1.28 (m, 4H), 0.90 (t, J = 6.5 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.64, 173.83, 163.49, 130.23, 129.96, 113.73, 63.62, 55.45, 34.51, 34.28, 31.32, 24.65, 23.47, 22.30, 13.88. HRMS calculated for C17H24O4 (M + Na)+ 315.1567, found 315.1577.
4-(2-ethoxyphenyl)-4-oxobutyl hexanoate (4m): Yellow liquid, yield 46%. 1H NMR (500 MHz, Chloroform-d) δ 7.71 (dd, J = 7.5, 2.0 Hz, 1H), 7.49–7.38 (m, 1H), 7.00 (t, J = 7.5 Hz, 1H), 6.95 (d, J = 8.5 Hz, 1H), 4.19–4.12 (m, 4H), 3.10 (t, J = 7.5 Hz, 2H), 2.29 (t, J = 7.5 Hz, 2H), 2.06 (p, J = 6.5 Hz, 2H), 1.67–1.60 (m, 2H), 1.49 (t, J = 7.0 Hz, 3H), 1.34–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 201.63, 173.86, 157.95, 133.39, 130.33, 128.32, 120.55, 112.29, 64.07, 63.86, 40.30, 34.29, 31.31, 24.65, 23.58, 22.28, 14.75, 13.86. HRMS calculated for C18H26O4 (M + Na)+ 329.1723, found 329.1730.
4-(3-ethoxyphenyl)-4-oxobutyl hexanoate (4n): Yellow liquid, yield 57%. 1H NMR (500 MHz, Chloroform-d) δ 7.56–7.51 (m, 1H), 7.50–7.48 (m, 1H), 7.37 (t, J = 8.0 Hz, 1H), 7.14–7.08 (m, 1H), 4.18 (t, J = 6.0 Hz, 2H), 4.10 (q, J = 7.0 Hz, 2H), 3.05 (t, J = 7.0 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.05 (m, 2H), 1.66–1.58 (m, 2H), 1.45 (t, J = 7.0 Hz, 3H), 1.35–1.28 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.94, 172.82, 158.21, 137.17, 128.55, 119.43, 118.88, 112.09, 62.70, 62.51, 34.00, 33.26, 30.31, 23.64, 22.35, 21.29, 13.73, 12.87. HRMS calculated for C18H26O4 (M + Na)+ 329.1723, found 329.1726.
4-(4-ethoxyphenyl)-4-oxobutyl hexanoate (4o): Colorless liquid, yield 60%. 1H NMR (500 MHz, Chloroform-d) δ 7.94 (d, J = 9.0 Hz, 2H), 6.93 (d, J = 9.0 Hz, 2H), 4.18 (t, J = 6.5 Hz, 2H), 4.11 (q, J = 7.0 Hz, 2H), 3.02 (t, J = 7.5 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.16–2.01 (m, 2H), 1.68–1.55 (m, 2H), 1.46 (t, J = 7.0 Hz, 3H), 1.34–1.28 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.66, 173.83, 162.92, 130.23, 129.77, 114.17, 63.74, 63.63, 34.48, 34.27, 31.31, 24.64, 23.48, 22.29, 14.64, 13.87. HRMS calculated for C18H26O4 (M + Na)+ 329.1723, found 329.1729.
4-(4-isopropoxyphenyl)-4-oxobutyl hexanoate (4p): Colorless liquid, yield 63%. 1H NMR (500 MHz, Chloroform-d) δ 7.93 (d, J = 8.5 Hz, 2H), 6.91 (d, J = 9.0 Hz, 2H), 4.66 (p, J = 6.0 Hz, 1H), 4.18 (t, J = 6.5 Hz, 2H), 3.01 (t, J = 7.5 Hz, 2H), 2.29 (t, J = 7.5 Hz, 2H), 2.17–1.99 (m, 2H), 1.70–1.54 (m, 2H), 1.38 (d, J = 6.0 Hz, 6H), 1.33–1.29 (m, 4H), 1.26 (s, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.64, 173.84, 162.01, 130.26, 129.51, 115.11, 70.11, 63.64, 34.45, 34.27, 31.31, 24.64, 23.49, 22.29, 21.89, 13.87. HRMS calculated for C19H28O4 (M + Na)+ 343.1880, found 343.1883.
4-oxo-4-(3-phenoxyphenyl)butyl hexanoate (4q): Yellow liquid, yield 57%. 1H NMR (500 MHz, Chloroform-d) δ 7.72–7.67 (m, 1H), 7.62–7.58 (m, 1H), 7.44 (t, J = 8.0 Hz, 1H), 7.41–7.34 (m, 2H), 7.25–7.19 (m, 1H), 7.19–7.14 (m, 1H), 7.05–7.01 (m, 2H), 4.17 (t, J = 6.0 Hz, 2H), 3.04 (t, J = 7.5 Hz, 2H), 2.29 (t, J = 7.5 Hz, 2H), 2.17–2.01 (m, 2H), 1.67–1.55 (m, 2H), 1.34–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 198.42, 173.80, 157.81, 156.59, 138.61, 129.94, 123.84, 123.27, 122.68, 119.10, 117.88, 63.43, 35.04, 34.24, 31.31, 24.63, 23.25, 22.28, 13.87. HRMS calculated for C22H26O4 (M + Na)+ 377.1723 found 377.1732.
4-(3-fluorophenyl)-4-oxobutyl hexanoate (4r): Yellow liquid, yield 47%. 1H NMR (500 MHz, Chloroform-d) δ 7.77–7.74 (m, 1H), 7.68–7.63 (m, 1H), 7.51–7.43 (m, 1H), 7.31–7.28 (m, 1H), 4.19 (t, J = 6.0 Hz, 2H), 3.06 (t, J = 7.0 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.17–2.03 (m, 2H), 1.66–1.57 (m, 2H), 1.33–1.30 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 196.77, 172.80, 161.89 (d, J = 248.1 Hz), 137.91 (d, J = 6.0 Hz), 129.28 (d, J = 7.6 Hz), 122.70 (d, J = 2.8 Hz), 119.10 (d, J = 21.5 Hz), 113.75 (d, J = 22.3 Hz), 62.36, 34.08, 33.24, 30.31, 23.63, 22.19, 21.28, 12.86. HRMS calculated for C16H21FO3 (M + Na)+ 303.1367 found 303.1375.
4-(4-chlorophenyl)-4-oxobutyl hexanoate (4s): Colorless liquid, yield 49%. 1H NMR (500 MHz, Chloroform-d) δ 7.91 (d, J = 8.5 Hz, 2H), 7.45 (d, J = 8.5 Hz, 2H), 4.18 (t, J = 6.5 Hz, 2H), 3.04 (t, J = 7.0 Hz, 2H), 2.29 (t, J = 7.5 Hz, 2H), 2.17–2.03 (m, 2H), 1.68–1.55 (m, 2H), 1.34–1.28 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.81, 173.80, 139.57, 135.13, 129.38, 128.93, 63.40, 34.89, 34.24, 31.30, 24.63, 23.21, 22.28, 13.87. HRMS calculated for C16H21ClO3 (M + Na)+ 319.1071, found 319.1078.
4-(3-bromophenyl)-4-oxobutyl hexanoate (4t): Yellow liquid, yield 42%. 1H NMR (500 MHz, DMSO-d6) δ 8.10 (t, J = 1.5 Hz, 1H), 7.92–7.87 (m, 1H), 7.75–7.68 (m, 1H), 7.37 (t, J = 8.0 Hz, 1H), 4.18 (t, J = 6.5 Hz, 2H), 3.05 (t, J = 7.0 Hz, 2H), 2.30 (t, J = 7.5 Hz, 2H), 2.11 (p, J = 6.5 Hz, 2H), 1.67–1.59 (m, 2H), 1.33–1.30 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.67, 173.80, 138.55, 135.95, 131.10, 130.21, 126.48, 123.01, 63.34, 35.01, 34.25, 31.31, 24.63, 23.17, 22.29, 13.88. HRMS calculated for C16H21BrO3 (M + Na)+ 363.0566, found 363.0571.
4-(4-bromophenyl)-4-oxobutyl hexanoate (4u): Colorless liquid, yield 55%. 1H NMR (500 MHz, Chloroform-d) δ 7.84 (d, J = 8.5 Hz, 2H), 7.62 (d, J = 8.5 Hz, 2H), 4.18 (t, J = 6.5 Hz, 2H), 3.04 (t, J = 7.5 Hz, 2H), 2.29 (t, J = 7.5 Hz, 2H), 2.17–2.02 (m, 2H), 1.67–1.55 (m, 2H), 1.33–1.29 (m, 4H), 0.90 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 197.99, 173.79, 135.53, 131.93, 129.49, 128.27, 63.38, 34.87, 34.24, 31.31, 24.63, 23.20, 22.29, 13.87. HRMS calculated for C16H21BrO3 (M + Na)+ 363.0566, found 363.0570.
4-oxo-4-phenylbutyl 3-oxobutanoate (5a): Colorless liquid, yield 42%. 1H NMR (500 MHz, Chloroform-d) δ 8.06–7.90 (m, 2H), 7.62–7.55 (m, 1H), 7.52–7.45 (m, 2H), 4.28 (t, J = 6.0 Hz, 2H), 3.47 (s, 2H), 3.11 (t, J = 7.0 Hz, 2H), 2.28 (s, 3H), 2.19–2.08 (m, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.43, 198.96, 167.04, 136.77, 133.14, 128.63, 127.99, 64.66, 50.02, 34.66, 30.17, 23.08. HRMS calculated for C14H16O4 (M + Na)+ 271.0941 found 271.0948.
4-oxo-4-(m-tolyl)butyl 3-oxobutanoate (5b): Colorless liquid, yield 41%. 1H NMR (500 MHz, Chloroform-d) δ 7.87–7.68 (m, 2H), 7.48–7.32 (m, 2H), 4.27 (t, J = 6.5 Hz, 2H), 3.47 (s, 2H), 3.08 (t, J = 7.0 Hz, 2H), 2.43 (s, 3H), 2.28 (s, 3H), 2.13 (p, J = 6.5 Hz, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.49, 199.21, 167.07, 138.43, 136.80, 133.91, 128.51, 128.50, 125.22, 64.70, 50.02, 34.71, 30.17, 23.12, 21.33. HRMS calculated for C15H18O4 (M + Na)+ 285.1097 found 285.1104.
4-oxo-4-(p-tolyl)butyl 3-oxobutanoate (5c): Colorless liquid, yield 46%. 1H NMR (500 MHz, Chloroform-d) δ 7.88 (d, J = 8.0 Hz, 2H), 7.28 (d, J = 3.0 Hz, 2H), 4.27 (t, J = 6.5 Hz, 2H), 3.47 (s, 2H), 3.07 (t, J = 7.0 Hz, 2H), 2.42 (s, 3H), 2.27 (s, 3H), 2.18–2.06 (m, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.48, 198.64, 167.06, 143.94, 134.30, 129.30, 128.12, 64.73, 50.02, 34.53, 30.16, 23.16, 21.61. HRMS for C15H18O4 (M + Na)+ 285.1097, found 285.1104.
4-(3,5-dimethylphenyl)-4-oxobutyl 3-oxobutanoate (5d): Colorless liquid, yield 42%. 1H NMR (500 MHz, Chloroform-d) δ 7.58 (s, 2H), 7.22 (s, 1H), 4.27 (t, J = 6.5 Hz, 2H), 3.47 (s, 2H), 3.06 (t, J = 7.5 Hz, 2H), 2.39 (s, 6H), 2.28 (s, 3H), 2.18–2.03 (m, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.49, 199.42, 167.08, 138.26, 136.89, 134.78, 127.84, 125.80, 64.74, 50.02, 34.75, 30.17, 23.16, 21.22. HRMS calculated for C16H20O4 (M + Na)+ 299.1254, found 299.1259.
4-(4-ethylphenyl)-4-oxobutyl 3-oxobutanoate (5e): Colorless liquid, yield 49%. 1H NMR (500 MHz, Chloroform-d) δ 7.91 (d, J = 8.0 Hz, 2H), 7.30 (d, J = 8.5 Hz, 2H), 4.27 (t, J = 6.5 Hz, 2H), 3.47 (s, 2H), 3.07 (t, J = 7.0 Hz, 2H), 2.72 (q, J = 7.5 Hz, 2H), 2.28 (s, 3H), 2.13 (p, J = 7.0 Hz, 2H), 1.27 (t, J = 7.5 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 200.50, 198.68, 167.07, 150.13, 134.51, 130.29, 128.23, 128.12, 64.74, 50.02, 34.55, 30.16, 28.92, 23.16, 15.16. HRMS calculated for C16H20O4 (M + Na)+ 299.1254, found 299.1261.
5-(4-isopropylphenyl)-5-oxopentan-2-yl 3-oxobutanoate (5f): Colorless liquid, yield 50%. 1H NMR (500 MHz, Chloroform-d) δ 7.92 (d, J = 8.5 Hz, 2H), 7.33 (d, J = 8.5 Hz, 2H), 4.27 (t, J = 7.0 Hz, 2H), 3.47 (s, 2H), 3.07 (t, J = 7.0 Hz, 2H), 3.02–2.89 (m, 1H), 2.28 (s, 3H), 2.15–2.07 (m, 2H), 1.28 (d, J = 7.0 Hz, 6H); 13C NMR (126 MHz, Chloroform-d) δ 200.50, 198.66, 167.07, 154.69, 134.65, 130.33, 128.26, 126.71, 126.57, 64.74, 50.02, 34.54, 34.24, 30.17, 23.64, 23.16. HRMS calculated for C17H22O4 (M + Na)+ 313.1410 found 313.1418.
4-(4-(tert-butyl)phenyl)-4-oxobutyl 3-oxobutanoate (5g): Colorless liquid, yield 59%. 1H NMR (500 MHz, Chloroform-d) δ 7.92 (d, J = 8.5 Hz, 2H), 7.50 (d, J = 8.5 Hz, 2H), 4.27 (t, J = 6.0 Hz, 2H), 3.47 (s, 2H), 3.08 (t, J = 7.0 Hz, 2H), 2.28 (s, 3H), 2.13 (p, J = 6.5 Hz, 2H), 1.36 (s, 9H); 13C NMR (126 MHz, Chloroform-d) δ 200.50, 198.68, 167.07, 156.92, 134.20, 127.98, 125.57, 64.74, 50.02, 35.10, 34.54, 31.07, 30.17, 23.16. HRMS calculated for C18H24O4 (M + Na)+ 327.1567 found 327.1569.
4-(4-methoxyphenyl)-4-oxobutyl 3-oxobutanoate (5h): Colorless liquid, yield 55%. 1H NMR (500 MHz, Chloroform-d) δ 7.96 (d, J = 8.5 Hz, 2H), 6.94 (d, J = 9.0 Hz, 2H), 4.26 (t, J = 6.5 Hz, 2H), 3.88 (s, 3H), 3.46 (s, 2H), 3.04 (t, J = 7.0 Hz, 2H), 2.27 (s, 3H), 2.11 (p, J = 7.0 Hz, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.54, 197.57, 167.07, 163.53, 132.24, 130.27, 113.76, 64.77, 55.46, 50.02, 34.27, 30.17, 23.24. HRMS calculated for C15H18O5 (M + Na)+ 301.1046 found 301.1053.
4-(4-ethoxyphenyl)-4-oxobutyl 3-oxobutanoate (5i): Colorless liquid, yield 43%. 1H NMR (500 MHz, Chloroform-d) δ 7.95 (d, J = 9.0 Hz, 2H), 6.93 (d, J = 9.0 Hz, 2H), 4.27 (t, J = 6.0 Hz, 2H), 4.11 (q, J = 7.0 Hz, 2H), 3.47 (s, 2H), 3.04 (t, J = 7.0 Hz, 2H), 2.28 (s, 3H), 2.19–2.06 (m, 2H), 1.46 (t, J = 7.0 Hz, 3H); 13C NMR (126 MHz, Chloroform-d) δ 200.50, 197.54, 167.06, 162.96, 130.26, 129.68, 114.20, 64.79, 63.75, 50.03, 34.25, 30.17, 23.25, 14.65. HRMS calculated for C16H20O5 (M + Na)+ 315.1203 found 315.1208.
4-(4-isopropoxyphenyl)-4-oxobutyl 3-oxobutanoate (5j): Colorless liquid, yield 58%. 1H NMR (500 MHz, Chloroform-d) δ 7.94 (d, J = 9.0 Hz, 2H), 6.92 (d, J = 9.0 Hz, 2H), 4.71–4.58 (m, 1H), 4.26 (t, J = 6.5 Hz, 2H), 3.47 (s, 2H), 3.03 (t, J = 7.5 Hz, 2H), 2.28 (s, 3H), 2.11 (p, 2H), 1.38 (d, J = 6.5 Hz, 6H); 13C NMR (126 MHz, Chloroform-d) δ 200.51, 197.52, 167.08, 162.09, 130.32, 129.47, 115.17, 70.15, 64.83, 50.06, 34.25, 30.19, 23.30, 21.92. HRMS calculated for C17H22O5 (M + Na)+ 329.1359, found 329.1365.
4-oxo-4-(3-phenoxyphenyl)butyl 3-oxobutanoate (5k): Colorless liquid, yield 40%. 1H NMR (500 MHz, Chloroform-d) δ 7.71 (d, J = 7.5 Hz, 1H), 7.60 (t, J = 2.0 Hz, 1H), 7.45 (t, J = 8.0 Hz, 1H), 7.40–7.34 (m, 2H), 7.22 (dd, J = 8.0, 2.5 Hz, 1H), 7.16 (t, J = 7.5 Hz, 1H), 7.03 (d, J = 7.5 Hz, 2H), 4.26 (t, J = 6.5 Hz, 2H), 3.46 (s, 2H), 3.06 (t, J = 7.0 Hz, 2H), 2.27 (s, 3H), 2.15–2.08 (m, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.38, 198.31, 167.02, 157.82, 156.59, 138.54, 129.94, 123.83, 123.34, 122.73, 119.12, 117.85, 64.57, 49.99, 34.82, 30.15, 23.04. HRMS calculated for C20H20O5 (M + Na)+ 363.1203, found 363.1209.
4-(3-fluorophenyl)-4-oxobutyl 3-oxobutanoate (5l): Colorless liquid, yield 28%. 1H NMR (500 MHz, Chloroform-d) δ 7.80–7.75 (m, 1H), 7.70–7.63 (m, 1H), 7.51–7.44 (m, 1H), 7.31–7.28 (m, 1H), 4.28 (t, J = 6.5 Hz, 2H), 3.48 (s, 2H), 3.09 (t, J = 7.0 Hz, 2H), 2.28 (s, 3H), 2.14 (p, J = 7.0 Hz, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.43, 197.71, 167.02, 138.83 (d, J = 6.2 Hz), 130.31 (d, J = 7.6 Hz), 123.76 (d, J = 2.8 Hz), 120.16 (d, J = 21.4 Hz), 114.75 (d, J = 22.2 Hz), 99.64 (d, J = 87.8 Hz), 64.48, 50.02, 34.85, 30.20, 22.98. HRMS calculated for C14H15FO4 (M + Na)+ 289.0847, found 289.0854.
4-(4-chlorophenyl)-4-oxobutyl 3-oxobutanoate (5m): Colorless liquid, yield 33%. 1H NMR (500 MHz, Chloroform-d) δ 7.93 (d, J = 8.5 Hz, 2H), 7.46 (d, J = 9.0 Hz, 2H), 4.28 (t, J = 6.5 Hz, 2H), 3.48 (s, 2H), 3.08 (t, J = 7.5 Hz, 2H), 2.28 (s, 3H), 2.13 (p, J = 6.5 Hz, 2H); 13C NMR (126 MHz, Chloroform-d) δ 197.77, 167.02, 139.62, 135.06, 129.43, 128.96, 64.50, 50.03, 34.64, 30.22, 23.01. HRMS calculated for C14H15ClO4 (M + Na)+ 305.0551, found 305.0563.
4-(3-bromophenyl)-4-oxobutyl 3-oxobutanoate (5n): Colorless liquid, yield 31%. 1H NMR (500 MHz, Chloroform-d) δ 8.11 (t, J = 1.5 Hz, 1H), 7.94–7.88 (m, 1H), 7.75–7.66 (m, 1H), 7.37 (t, J = 7.5 Hz, 1H), 4.27 (t, J = 6.0 Hz, 2H), 3.48 (s, 2H), 3.08 (t, J = 7.0 Hz, 2H), 2.28 (s, 3H), 2.13 (p, J = 6.5 Hz, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.38, 197.58, 167.00, 138.49, 135.98, 131.08, 130.23, 126.54, 123.01, 64.44, 50.00, 34.77, 30.19, 22.98. HRMS calculated for C14H15BrO4 (M + Na)+ 349.0046, found 349.0056.
4-(4-bromophenyl)-4-oxobutyl 3-oxobutanoate (5o): Colorless liquid, yield 37%. 1H NMR (500 MHz, Chloroform-d) δ 7.85 (d, J = 8.5 Hz, 2H), 7.63 (d, J = 8.5 Hz, 2H), 4.28 (t, J = 6.0 Hz, 2H), 3.48 (s, 2H), 3.07 (t, J = 7.0 Hz, 2H), 2.28 (s, 3H), 2.13 (p, J = 6.5 Hz, 2H); 13C NMR (126 MHz, Chloroform-d) δ 200.43, 197.94, 167.00, 135.47, 131.95, 129.54, 128.33, 64.49, 50.02, 34.63, 30.20, 23.01. HRMS calculated for C14H15BrO4 (M + Na)+ 349.0046, found 349.0053.

4. Conclusions

In summary, we developed a simple method to prepare the new compound 1-cyano-4-oxo-4-phenylacetate by radical addition of benzaldehyde and 1-cyanoallyl acetate under the initiation of TBPEH and TBPB. Moreover, the addition reactions of benzaldehyde with different kinds of allyl esters, like allyl hexanoate and allyl acetoacetate, were studied, showing the same electronic effect and steric effect. Furthermore, a reasonable mechanism is proposed. This reaction is compatible with electron-donating and halogen groups, and a total of 61 new compounds (aromatic ketone esters) were synthesized in moderate yields under solvent-free and metal-free conditions, which can be further applied to the preparation of lactone, piperidine, tetrazole and oxazole. It also has excellent atomic utilization and chemical selectivity. Further studies on free radical addition to synthesizing various functionalized ketones are ongoing in our laboratory.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms232213704/s1. Figures S1–S51: 1H NMR spectra and 13C NMR spectra of 3a–3y; Figures S52–S93: 1H NMR spectra and 13C NMR spectra of 4a–4u; Figures S94–S123: 1H NMR spectra and 13C NMR spectra of 5a–5o; Figures S124–S184: ESI-HRMS spectra of compounds 3,4,5.

Author Contributions

B.S., X.T., Y.W., Y.S., X.F., W.W., M.T., Y.C., J.W., C.W. carried out experimental work, B.S. prepared the manuscript, C.T. designed the material and supervised the project. C.T. and S.Y. revised the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Wynca Group and Siga Co. Ltd. R & D Program, grant numbers KYY-HX-20180412 and KYY-HX-20210049.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We acknowledge Feiyao Tan for the revised manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Xu, X.-D.; Cao, T.-T.; Meng, Y.-N.; Zhou, G.; Guo, Z.; Li, Q.; Wei, W.-T. Metal-Free Regioselective Radical Cyclization of 1,6-Enynes with Carbonyl Compounds. ACS Sustain. Chem. Eng. 2019, 7, 13491–13496. [Google Scholar] [CrossRef]
  2. Xiao, Y.M.; Liu, Y.; Mai, W.P.; Mao, P.; Yuan, J.W.; Yang, L.R. A Novel and Facile Synthesis of Chroman-4-one Derivatives via Cascade Radical Cyclization Under Metal-free Condition. Chemistryselect 2019, 4, 1939–1942. [Google Scholar] [CrossRef]
  3. Suchand, B.; Satyanarayana, G. Palladium-Catalyzed Direct Acylation: One-Pot Relay Synthesis of Anthraquinones. Synthesis-Stuttgart 2019, 51, 769–779. [Google Scholar] [CrossRef]
  4. Chu, J.H.; Chiang, M.F.; Li, C.W.; Su, Z.H.; Lo, S.C.; Wu, M.J. Palladium-Catalyzed Late-Stage ortho-C-H Bond Aroylation of Anilines Using 4-Methoxy-2-pyridinyl as a Removable Directing Group. Organometallics 2019, 38, 2105–2119. [Google Scholar] [CrossRef]
  5. Boora, R.; Kumar, G.R.; Reddy, B.V.S. Metal-free oxidative acylation/cyclization of N-methacryloyl-2-phenylbenzoimidazole with aryl aldehydes: An easy access to benzimidazo 2,1-a isoquinolin-6(5H)-ones. Org. Biomol. Chem. 2019, 17, 9627–9630. [Google Scholar] [CrossRef]
  6. Manna, M.K.; Bairy, G.; Jana, R. Dual visible-light photoredox and palladium(II) catalysis for dehydrogenative C2-acylation of indoles at room temperature. Org. Biomol. Chem. 2017, 15, 5899–5903. [Google Scholar] [CrossRef]
  7. Siddaraju, Y.; Lamani, M.; Prabhu, K.R. A Transition Metal-Free Minisci Reaction: Acylation of Isoquinolines, Quinolines, and Quinoxaline. J. Org. Chem. 2014, 79, 3856–3865. [Google Scholar] [CrossRef] [PubMed]
  8. Mildenberger, S.L.H. Process for the Preparation of Phosphorus-Containing Cyanohydrin Derivatives. U.S. Patent 4599207A, 8 July 1986. [Google Scholar]
  9. Mundnich, M.F.R. Phosphorus-Containing Cyanohydrine Derivatives. U.S. Patent 4521348A, 4 June 1985. [Google Scholar]
  10. Bhatia, S.K.; Mehta, P.K.; Bhatia, R.K.; Bhalla, T.C. An isobutyronitrile-induced bienzymatic system of Alcaligenes sp MTCC 10674 and its application in the synthesis of alpha-hydroxyisobutyric acid. Bioprocess Biosyst. Eng. 2013, 36, 613–625. [Google Scholar] [CrossRef]
  11. Sharma, V.; Kelly, G.T.; Watanabe, C.M.H. Exploration of the Molecular Origin of the Azinomycin Epoxide: Timing of the Biosynthesis Revealed. Org. Lett. 2008, 10, 4815–4818. [Google Scholar] [CrossRef]
  12. Robertson, J.; Hall, M.J.; Green, S.P. Stereospecific α-methallylation of hydroxyaldehydes by silatropic ene cyclisation. Tetrahedron 2009, 65, 5541–5551. [Google Scholar] [CrossRef]
  13. Lu, C.; Yin, Y.; Meng, F.; Dun, Y.; Pei, K.; Wang, C.; Xu, X.; Wu, F. Discovery of (E)-1-amino-4-phenylbut-3-en-2-ol derivatives as novel neuraminidase inhibitors. Bioorg. Med. Chem. Lett. 2018, 28, 2003–2007. [Google Scholar] [CrossRef] [PubMed]
  14. Deleuze-Masquéfa, C.; Gerebtzoff, G.; Subra, G.; Fabreguettes, J.-R.; Ovens, A.; Carraz, M.; Strub, M.-P.; Bompart, J.; George, P.; Bonnet, P.-A. Design and synthesis of novel imidazo[1,2-a]quinoxalines as PDE4 inhibitors. Bioorg. Med. Chem. 2004, 12, 1129–1139. [Google Scholar] [CrossRef]
  15. Li, C.C.; Chang, X.Y.; Huo, L.Q.; Tan, H.B.; Xing, X.Y.; Xu, C. Hydration of Cyanohydrins by Highly Active Cationic Pt Catalysts: Mechanism and Scope. Acs Catal. 2021, 11, 8716–8726. [Google Scholar] [CrossRef]
  16. Kanda, T.; Naraoka, A.; Naka, H. Catalytic Transfer Hydration of Cyanohydrins to α-Hydroxyamides. J. Am. Chem. Soc. 2019, 141, 825–830. [Google Scholar] [CrossRef] [PubMed]
  17. Toukoniitty, E.; Mäki-Arvela, P.; Kuzma, M.; Villela, A.; Neyestanaki, A.K.; Salmi, T.; Sjöholm, R.; Leino, R.; Laine, E.; Murzin, D.Y. Enantioselective Hydrogenation of 1-Phenyl-1,2-propanedione. J. Catal. 2004, 201, 281–291. [Google Scholar] [CrossRef]
  18. Zhu, S.-L.; Zhou, P.-X.; Xia, X.-F. Metal-free oxidative functionalization of C(sp3)–H of ketones and alcohols for the synthesis of isoquinolinonediones. RSC Adv. 2016, 6, 63325–63330. [Google Scholar] [CrossRef]
  19. Hu, W.; Sun, S.; Cheng, J. Formal [3 + 2] Reaction of α,α-Diaryl Allylic Alcohols with sec-Alcohols: Proceeding with Sequential Radical Addition/Migration toward 2,3-Dihydrofurans Bearing Quaternary Carbon Centers. J. Org. Chem. 2016, 81, 4399–4405. [Google Scholar] [CrossRef] [PubMed]
  20. Jhuang, H.S.; Reddy, D.M.; Chen, T.H.; Lee, C.F. DTBP/TBHP-Promoted Hydroacylation of Unactivated Alkenes. Asian J. Org. Chem. 2016, 5, 1452–1456. [Google Scholar] [CrossRef]
  21. Aycock, R.A.; Pratt, C.J.; Jui, N.T. Aminoalkyl Radicals as Powerful Intermediates for the Synthesis of Unnatural Amino Acids and Peptides. ACS Catal. 2018, 8, 9115–9119. [Google Scholar] [CrossRef]
  22. Tian, Y.F.; Ge, Y.X.; Zheng, L.P.; Yan, Q.Q.; Ren, Y.M.; Wang, Z.G.; Zhang, K.L.; Wang, Z.Q.; Zhao, J.C.; Li, Z.J. A Free Radical Cascade Difunctionalization of o-Vinylanilides with Simple Ketones and Esters. Asian J. Org. Chem. 2019, 8, 2188–2191. [Google Scholar] [CrossRef]
  23. Shang, J.-Q.; Wang, S.-S.; Fu, H.; Li, Y.; Yang, T.; Li, Y.-M. Oxidative radical cascade cyclization involving C(sp3)–C(sp3), C(sp3)–C(sp2) and C(sp2)–N bonds formation: Direct construction of cyano and methyl substituted polyheterocycles. Org. Chem. Front. 2018, 5, 1945–1949. [Google Scholar] [CrossRef]
  24. Gottschalk, P.; Neckers, D.C. Low temperature free-radical reactions initiated with tert-butyl p-benzoylperbenzoate. Selective acyl radical additions to substituted olefins. J. Org. Chem. 1985, 50, 3498–3502. [Google Scholar] [CrossRef]
  25. Imai, M.; Tanaka, M.; Nagumo, S.; Kawahara, N.; Suemune, H. Nitrile-Promoted Rh-Catalyzed Intermolecular Hydroacylation of Olefins with Salicylaldehyde. J. Org. Chem. 2007, 72, 2543–2546. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, Q.; Qiao, Y.F.; Huang, M.; Liang, H.D.; Zhou, R.J. Highly selective Synthesis of 1-Phenylpentane-1, 4-Diones, and (E)-5-Hydroxy-5-phenylpent-3-en-2-ones Catalyzed by Organophosphorus Compounds. Heteroat. Chem. 2010, 20, 425–430. [Google Scholar] [CrossRef]
  27. Jun, C.H.; Lee, D.Y.; Lee, H.; Hong, J.B. A highly active catalyst system for intermolecular hydroacylation. Angew. Chem. Int. Ed. 2000, 39, 3070–3072. [Google Scholar] [CrossRef]
  28. Murphy, S.K.; Dong, V.M. Enantioselective Ketone Hydroacylation Using Noyori’s Transfer Hydrogenation Catalyst. J. Am. Chem. Soc. 2013, 135, 5553–5556. [Google Scholar] [CrossRef] [PubMed]
  29. Shao, W.; Lux, M.; Breugst, M.; Klussmann, M. Radical addition of ketones and cyanide to olefins via acid catalyzed formation of intermediate alkenyl peroxides. Org. Chem. Front. 2019, 6, 1796–1800. [Google Scholar] [CrossRef] [Green Version]
  30. Wang, M.; Huan, L.T.; Zhu, C. Cyanohydrin-Mediated Cyanation of Remote Unactivated C(sp(3))-H Bonds. Org. Lett. 2019, 21, 821–825. [Google Scholar] [CrossRef] [PubMed]
  31. Evans, C.E.; Si, Y.Y.; Matarlo, J.S.; Yin, Y.; French, J.B.; Tonge, P.J.; Tan, D.S. Structure-Based Design, Synthesis, and Biological Evaluation of Non-Acyl Sulfamate Inhibitors of the Adenylate-Forming Enzyme MenE. Biochemistry 2019, 58, 1918–1930. [Google Scholar] [CrossRef] [PubMed]
  32. Zhang, Q.J.; Sun, P.; Zheng, G.J.; Wang, Y.P.; Wang, X.J.; Wei, H.G.; Xiang, W.S. Design and Synthesis of 3-(2-Ethyl-4-{2- 2-(4-fluorophenyl)-5-methyloxazol-4-yl lethoxy}phenyl)p ropanoic Acid: A Novel Triple-acting PPAR alpha, -gamma, and -delta Agonist. Chem. Lett. 2012, 41, 406–408. [Google Scholar] [CrossRef]
  33. Xue, Y.; Shi, N.; Sun, F.; Lu, Z. Study on thermal decomposition kinetics and self-accelerating decomposition temperature of tert-butyl peroxybenzoate(TBPB). Chem. Res. Appl. 2012, 24, 630–634. [Google Scholar]
  34. Ni, Q.; Zhou, Q.; Ni, L.; Dong, Q. Study on curing characteristics of unsaturated polyester resin with TBPB/TBPO. Fiber Reinf. Plast./Compos. 2014, 7, 47–49. [Google Scholar]
  35. Mayo, F.R.; Walling, C. The Peroxide Effect in the Addition of Reagents to Unsaturated Compounds and in Rearrangement Reactions. Chem. Rev. 1940, 27, 351–412. [Google Scholar] [CrossRef]
  36. Braslau, R.; OAnderson, M.; Rivera, F.; Jimenez, A.; Haddad, T.; Axon, J.R. Acyl hydrazines as precursors to acyl radicals. Tetrahedron 2002, 58, 5513–5523. [Google Scholar] [CrossRef]
  37. Chen, C.; Crich, D.; Papadatos, A. The chemistry of acyl tellurides: Generation and trapping of acyl radicals, including aryltellurium group transfer. J. Am. Chem. Soc. 1992, 114, 8313–8314. [Google Scholar] [CrossRef]
  38. Xiao, Y.; Liu, Z.-Q. Free Radical Addition of Nitrile, Ketone, and Ester to Alkyne and the Selectivity Discussion. Org. Lett. 2019, 21, 8810–8813. [Google Scholar] [CrossRef]
Ijms 23 13704 sch001 550

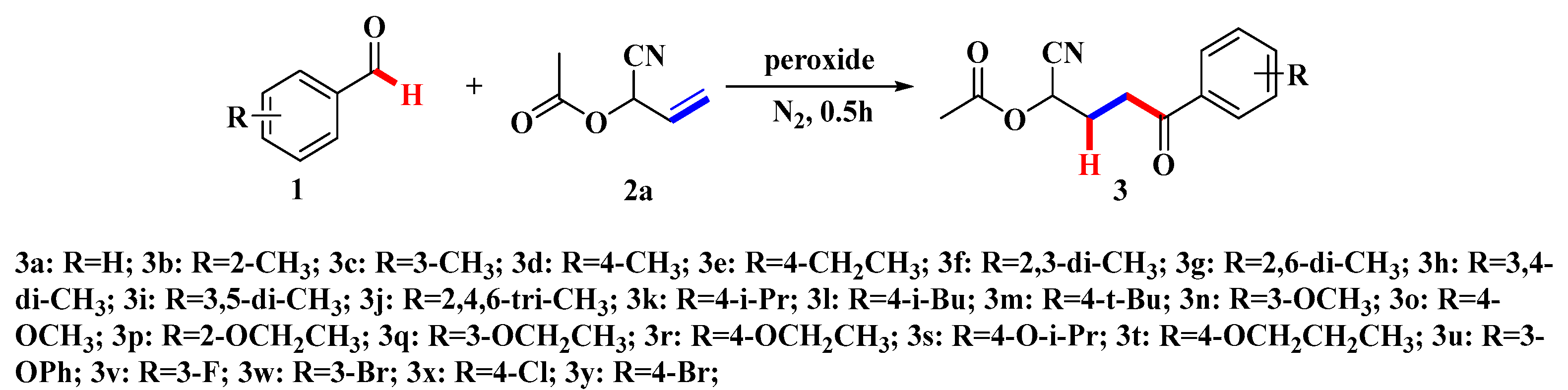

Scheme 1. Synthetic route of compounds 3.
Scheme 1. Synthetic route of compounds 3.
Ijms 23 13704 sch001
Ijms 23 13704 g001 550

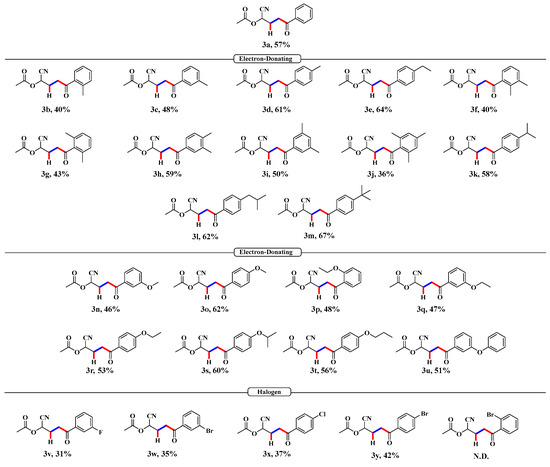

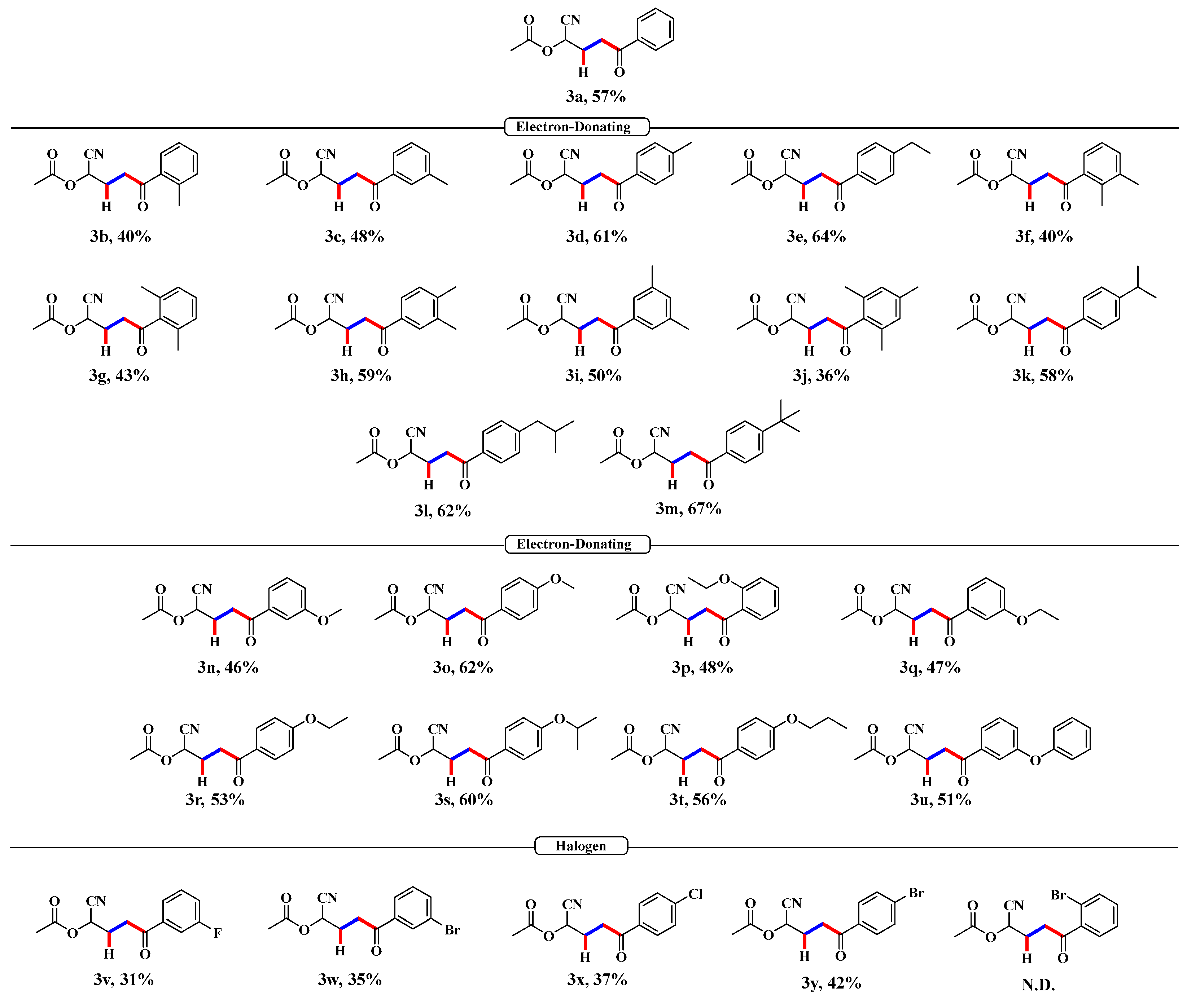

Figure 1. The substrate scope of benzaldehyde.
Figure 1. The substrate scope of benzaldehyde.
Ijms 23 13704 g001
Ijms 23 13704 g002 550

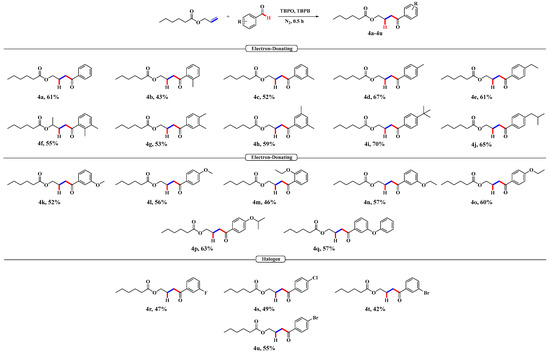

Figure 2. The radical additions of allyl hexanoate with substituted benzaldehyde.
Figure 2. The radical additions of allyl hexanoate with substituted benzaldehyde.
Ijms 23 13704 g002
Ijms 23 13704 g003 550

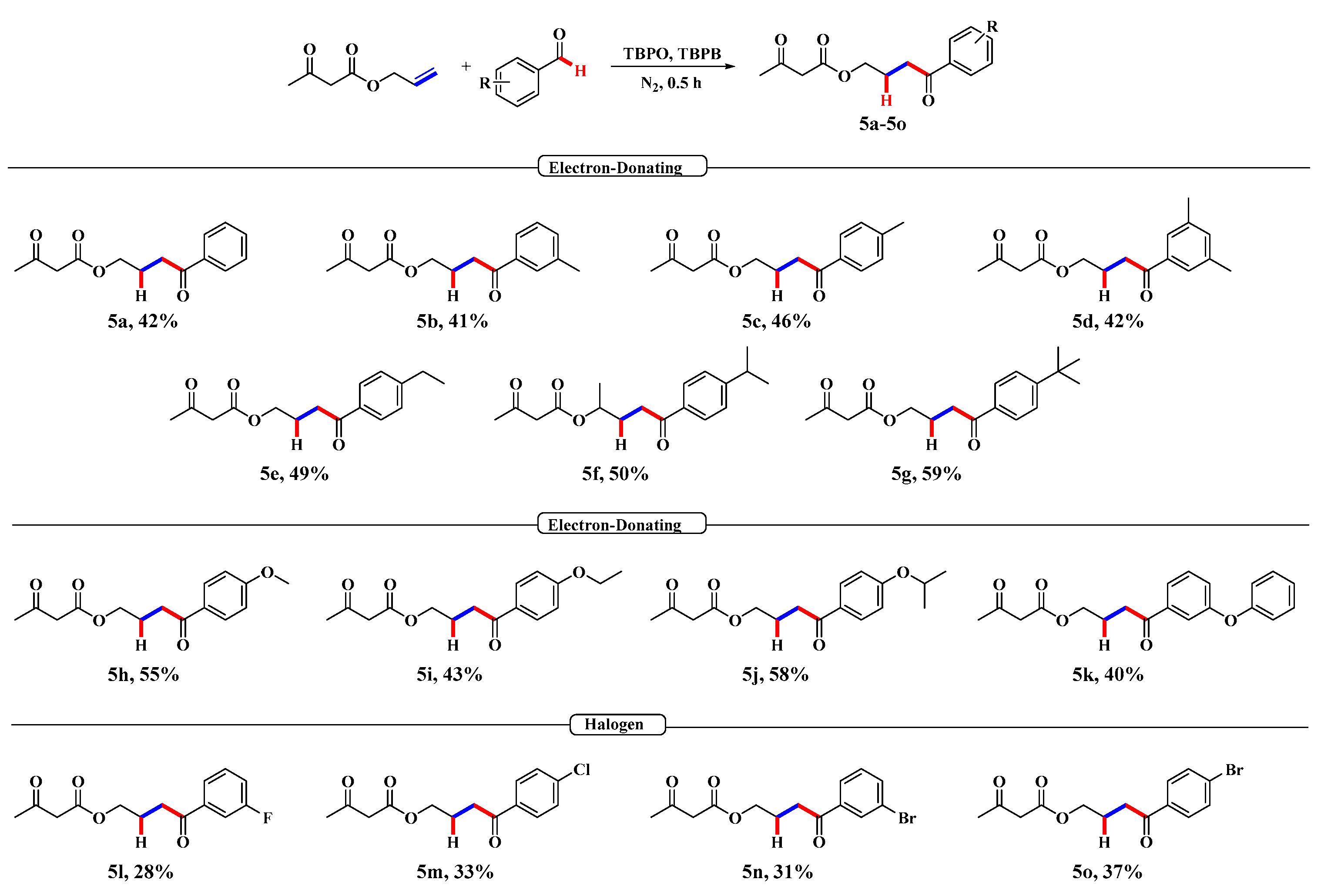

Figure 3. The radical additions of allyl acetoacetate with substituted benzaldehyde.
Figure 3. The radical additions of allyl acetoacetate with substituted benzaldehyde.
Ijms 23 13704 g003
Ijms 23 13704 sch002 550

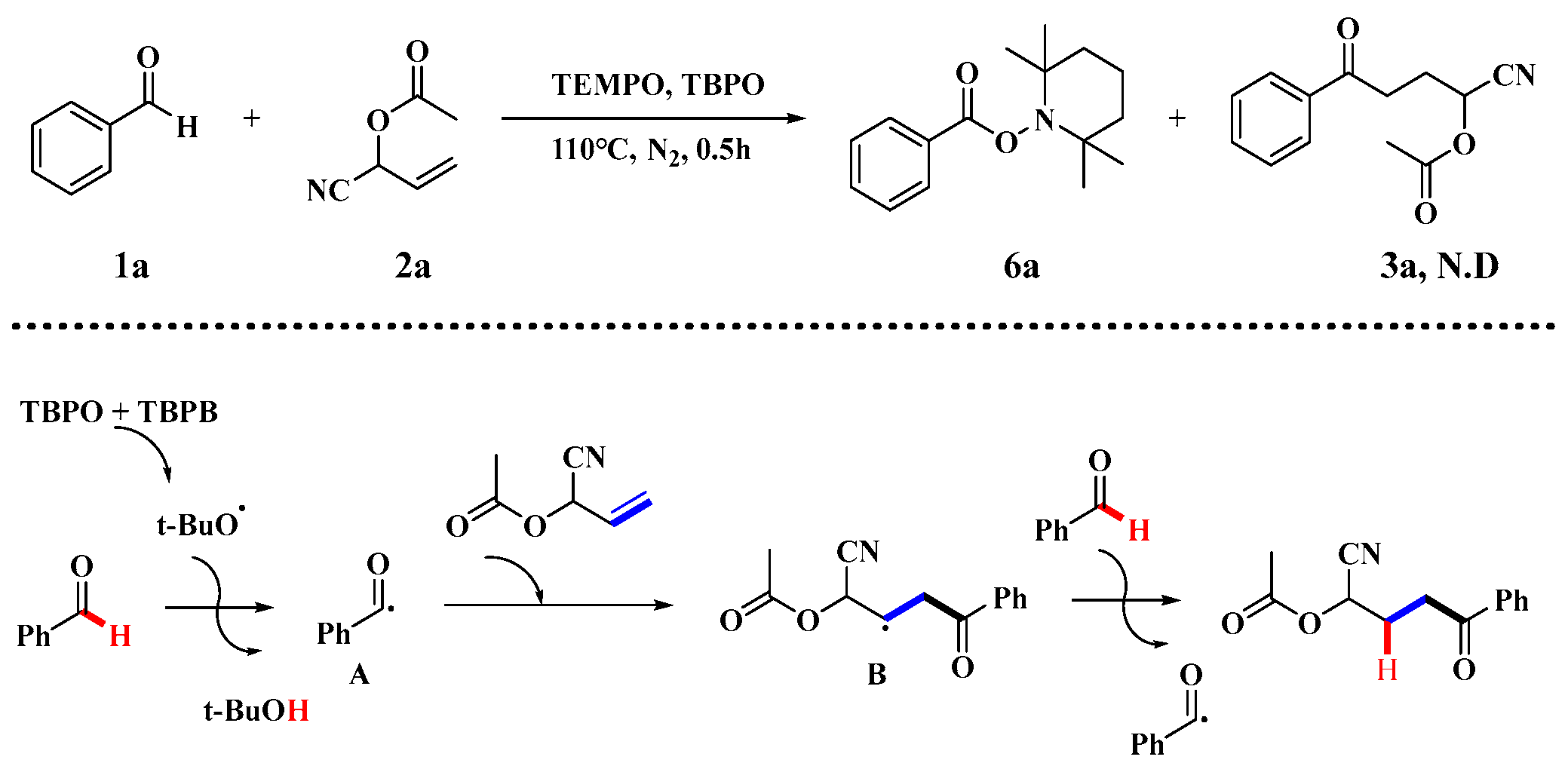

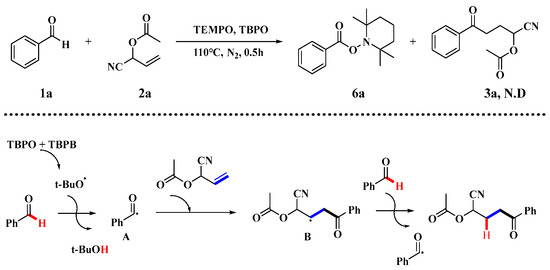

Scheme 2. Plausible mechanism.
Scheme 2. Plausible mechanism.
Ijms 23 13704 sch002
Table
Table 1. Effects of reaction conditions on the yields of compound 3a a.
Table 1. Effects of reaction conditions on the yields of compound 3a a.
Ijms 23 13704 i001
EntryPeroxide (equiv.)SolventTemp (°C)Yield (%) b
1TBHP (2)-130<10
2TBPB (2)-13024
3TBPEH (2)-12032
4TBPEH (2)-11028
5TBPEH (1)
TBPB (1)		-11043
6TBPEH (2)
TBPB (2)		-11057
7TBPEH (2)DMF1200
8TBPEH (2)DMSO1200
9 cTBPEH (2)-12026
a Reaction conditions: benzaldehyde 1a (0.4 mmol), 1-cyanoallyl acetate 2a (0.2 mmol, 1 equiv.), N2, 0.5 h. b Isolated Yield. c benzaldehyde 1a (0.3 mmol). TBHP = tert-butyl hydroperoxide; TBPB = tert-butyl peroxybenzoate; TBPEH = tert-butylperoxy-2-ethylhexanoate.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sun, B.; Tian, X.; Yang, S.; Wang, Y.; Shao, Y.; Fu, X.; Wang, W.; Tu, M.; Chen, Y.; Wu, J.; et al. TBPEH-TBPB Initiate the Radical Addition of Benzaldehyde and Allyl Esters. Int. J. Mol. Sci. 2022, 23, 13704. https://doi.org/10.3390/ijms232213704

AMA Style

Sun B, Tian X, Yang S, Wang Y, Shao Y, Fu X, Wang W, Tu M, Chen Y, Wu J, et al. TBPEH-TBPB Initiate the Radical Addition of Benzaldehyde and Allyl Esters. International Journal of Molecular Sciences. 2022; 23(22):13704. https://doi.org/10.3390/ijms232213704

Chicago/Turabian Style

Sun, Binlong, Xiaoyu Tian, Sen Yang, Yingying Wang, Yingying Shao, Xinhao Fu, Wenyuan Wang, Minting Tu, Yang Chen, Junhui Wu, and et al. 2022. "TBPEH-TBPB Initiate the Radical Addition of Benzaldehyde and Allyl Esters" International Journal of Molecular Sciences 23, no. 22: 13704. https://doi.org/10.3390/ijms232213704

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
