Article

Biochemical and Structural Insights into the Winged Helix Domain of P150, the Largest Subunit of the Chromatin Assembly Factor 1

by
Joëlle Ayoub
1,2,3,
Martina Buonanno
1,
Anna Di Fiore
1,
Giuseppina De Simone
1,* and
Simona Maria Monti
1,*
1
Institute of Biostructures and Bioimaging, Consiglio Nazionale delle Ricerche (IBB-CNR), Via Mezzocannone, 16, 80134 Naples, Italy
2
Department of Environmental, Biological and Pharmaceutical Sciences and Technologies, University of Campania Luigi Vanvitelli, 81100 Caserta, Italy
3
Medical Laboratory-Molecular Biology, Saint George Hospital Medical Center, Rmeil-Youssef Sursok Street, Beirut 166378, Lebanon
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(4), 2160; https://doi.org/10.3390/ijms23042160
Submission received: 11 January 2022 / Revised: 11 February 2022 / Accepted: 12 February 2022 / Published: 15 February 2022
(This article belongs to the Section Molecular Biology)
Browse Figures
Versions Notes

Abstract

:
The Chromatin Assembly Factor 1 is a heterotrimeric complex responsible for the nucleosome assembly during DNA replication and DNA repair. In humans, the largest subunit P150 is the major actor of this process. It has been recently considered as a tumor-associated protein due to its overexpression in many malignancies. Structural and functional studies targeting P150 are still limited and only scarce information about this subunit is currently available. Literature data and bioinformatics analysis assisted the identification of a stable DNA binding domain, encompassing residues from 721 to 860 of P150 within the full-length protein. This domain was recombinantly produced and in vitro investigated. An acidic region modulating its DNA binding ability was also identified and characterized. Results showed similarities and differences between the P150 and its yeast homologue, namely Cac-1, suggesting that, although sharing a common biological function, the two proteins may also possess different features.

1. Introduction

From yeast to human, genomic DNA is well packaged into a compact and ordered entity named nucleosome, the single unit of chromatin [1,2]. This repeating entity is formed by double-stranded DNA (145–147 bp) wrapped around an octamer of histones (a duplicate of H2A, H2B, H3, and H4) [3]. Nucleosomes undertake additional condensation stages to form the final level of compactness, leading to the chromatid of chromosome [4,5]. Despite the compactness, chromatin is known to be a dynamic structure able to unwrap during cellular processes (transcription, DNA replication, and repair) [6,7,8]. The transition between the wrapping and unwrapping state of the nucleosomes requires the involvement of different complexes known as histone chaperones [7]. Firstly described as preventers of histone–DNA aggregation, these proteins are able to bind histones, shield their positive charges, and avoid the unspecific DNA interactions [9,10,11]. More recently, histone chaperones were found to play an important role in guiding the specific nucleosome assembly path [12]. Most of them are conserved in eukaryotes and are classified based on their binding capacities (H3/H4 or H2A/H2B chaperones) [13,14]. Chromatin assembly reaction occurs in two steps: the addition of H3–H4 dimers onto the DNA occurs during the first step, while H2A–H2B dimers are added later on during the process [15,16]. One of the major actor orchestrating the addition of H3/H4 histones during DNA replication and repair is the Chromatin Assembly Factor 1 (CAF-1) [17,18,19,20], a three-subunit protein complex functionally conserved within eukaryotes [21,22,23]. The role of CAF-1 is not only restricted to nucleosome assembly, but also to chromatin silencing and heterochromatin integrity [16,24,25]. Due to its involvement into nuclear processes, CAF-1 affects cell fate decision and epigenetic control of gene expression [26]. In agreement with its role in DNA replication and repair, CAF-1 protein levels correlate with cell proliferation and cancer prognosis [27,28,29,30] and its dysregulation has been linked to human diseases [31,32].
CAF-1 has been found in H. sapiens, D. melanogaster, M. musculus, C. elegans, S. cerevisiae, and A. Thaliana and consists of three subunits in a 1:1:1 ratio in all these species [21,22,23,33,34]. In humans, the subunits forming CAF-1 were named according to the molecular weight based on their gel migration, i.e., P150, P60, and P48 [17], whereas the same counterparts in yeast were referred to as Cac-1, Cac-2, and Cac-3 (Cac, chromatin-assembly complex) [35].
Among the three subunits, yeast Cac-1 has been the most investigated, and the reported results highlight its importance from a functional point of view. This protein, which consists of 606 residues, contains Cac-2 [36,37,38] and Cac-3 interacting domains [36,37,39], a proliferating cell nuclear antigen (PCNA) interacting region [40,41], in addition to DNA [36,42] and histone binding domains [36,38] (Figure 1). A first DNA binding domain, identified within a K/E/R rich domain (KER) [43], is located at the N-terminal part of the protein and predicted to adopt a coiled-coil structure. While no specific DNA sequence was identified for the binding, an optimal DNA length of at least 40 bp was suggested [43]. A second DNA binding domain, with a micromolar binding affinity, was identified in the C-terminal region of Cac-1, encompassing residues 520–606. This region was found to adopt a winged helix domain (WHD) structure characterized by four helices, two antiparallel strands, and a long wing loop. It has structural similarities with some WHD-containing proteins [44,45,46,47], but also some structural differences compared to canonical ones, such as the presence of a fourth helix [42]. Cac-1 WHD binds DNA in a sequence-independent manner consistently with its transitory functional role. Moreover, it binds different lengths of DNA through electrostatic interactions occurring between its positively charged residues and DNA phosphate groups [42]. Investigation on mutagenized WHD revealed its involvement, together with PCNA, in recruiting and stabilizing CAF-1 at the replication forks in yeast and mouse cells [42]. Finally, the histone binding domain, which contains part of an acidic stretch enriched in E/D (ED) amino acids [36,48], is involved in the interaction with histones [49,50]. Remarkably, this region has a regulatory mechanism on WHD, thus affecting the DNA binding ability of Cac-1 [38].
Here, we focused our attention on P150 (also referred as CHAF1A), the largest subunit of the human CAF-1 complex. This protein was first cloned by Kaufman and coworkers in 1995 [51] and later sequenced by Dong and coworkers [52]. It consists of 956 amino acids and is subject to phosphorylation [53]. Similarly to the yeast homologue, P150 has a leading role in nucleosome assembly as highlighted upon depletion and mutation experiments [26]. From a functional point of view, the P150 sequence can be divided into two main regions: the N-terminal one, encompassing residues 1 to 310 which is involved in nucleolar functions [27], and the region encompassing residues 311 to 956, which is necessary and sufficient for nucleosome assembly [51] (Figure 1). P150 N-terminal region is necessary for the localization of different proteins such as nucleophosmin and nucleolin, and its loss is lethal in vivo [27]. It contains four major identified regions: a PEST domain [51,54], three domains interacting respectively with HP1 (Heterochromatin Protein 1) [55,56,57], SUMO proteins (Small Ubiquitin-like MOdifier) [26,58], and PCNA (proliferating cell nuclear antigen) [59] (Figure 1). Notably, residues 1–310 and 855–956 corresponding to the N- and C- terminal parts of P150 are absent in Cac-1. On the contrary, the region 311–854 of P150 is conserved in the yeast homologue, where it maintains the same function [51]. Differently from Cac-1, for which many studies have been so far carried out [9,60,61,62], structural and functional studies targeting P150 are still very limited. However, most of the described Cac-1 regions were conserved in P150, allowing the identification of the homologous domains in the human protein (Figure 1) [43].
Recently, Zhang and coworkers identified a DNA-binding domain in human and mouse P150, corresponding to the Cac-1 WHD, and proved its ability to bind 58 dsDNA [42]. Here, following a multidisciplinary approach, we further investigated this domain and identified a regulatory region of its DNA binding activity. Results highlighted both similarities and differences between the P150 and Cac-1, suggesting that, although sharing a common biological function, the two proteins could adopt a different mechanism of action.

2. Results

2.1. Design and Chemico-Physical Characterization of P150 WHD Domain

Zhang and coworkers identified the region 727–854 of human P150 as the one corresponding to Cac-1 WHD [42]. Interestingly, Phyre 2 [63], an online software able to predict and analyze protein 3D structures, identified residues 723–824 of P150 as belonging to a stable WHD similar to the one present in the Cockayne syndrome group B protein 1 [64]. Taking together these findings, in order to cover the whole P150 WHD, the protein region encompassing residues 721–860 (hereafter referred as P150721–860) was designed, cloned, expressed, and subsequently purified (Figure S1A). Briefly, P150721–860 gene was cloned into pETM13 vector, allowing the expression of the protein with a His tag at its C-terminal part. Optimized expression in LB was achieved in E. coli BL21(DE3)pLysS strain at 16 °C with 1 mM isopropyl-thio-D-glactosidase (IPTG). Upon three steps of purification, a purity level greater than 95% with a final yield of 2.5 mg/L of growth medium was achieved. Mass spectrometry analyses were carried out to confirm protein identity and purity. Results (Figure 2A) showed one main peak at 16,967 Da corresponding to P150721–860 lacking the starting N-terminal methionine (MWtheoretical = 16,967 Da). This excision, due to the methionylamino peptidase [65], is a widely described phenomenon for recombinant proteins expressed in E. coli [66,67].
The secondary structure content of P150721–860 was assessed by circular dichroism (CD). Results showed negative molar ellipticity values at 208 nm and 222 nm in addition to a positive ellipticity below 198 nm (Figure 2B) indicative of the presence of 𝛼-helices. The reduced magnitude of the negative ellipticity at 222 nm highlighted the contribution of β-sheets [68], thus suggesting the occurrence of both 𝛼-helical and β-sheet secondary structures, as expected for WHD proteins [42,69]. Thermal stability was assessed by CD following changes in ellipticity at 222 nm when heating up the protein from 20 °C to 90 °C. Experiments revealed a melting point at 40 °C (Figure S2A). Notably, the secondary structure of P150721–860 was almost fully recovered once the sample returned to its initial temperature (Figure S2B).
The quaternary structure of P150721–860 was investigated by SEC-MALS-QELS [70], revealing that in solution, the protein is a monomer with a molecular weight of 17.5 KDa (±0.1%) (Figure 3) in agreement with previously reported results by Mattiroli and coworkers for the isolated Cac-1 WHD [38]. On the contrary, Liu and coworkers showed, by fluorescence anisotropy, that Cac-1 forms a dimer in solution through the C-terminus experiments, and highlighted the influence of buffer composition on the oligomerization state of the protein [48]. Thus, to explore putative effects of ionic strengths on the quaternary structure of P150721–860, LS analyses were carried out at different concentration of NaCl [71,72]. Our results showed that either at 150 mM or 500 mM NaCl, P150721–860 is monomeric (Figure S3).

2.2. P150721–860 Binds dsDNA

Electrophoretic mobility shift assay (EMSA) was carried out to explore the propensity of P150721–860 to bind DNA. Firstly, we investigated whether P150721–860 showed preferences in binding DNA with different base composition (AT- or GC-rich) or length (16 and 58 dsDNA). Obtained results highlighted that P150721–860 is able to bind dsDNA no matter the composition (Figure S4) and length (Figure S5), consistently with previously reported results performed on Cac-1 [42].
Subsequently, by fitting the data using a nonlinear regression, a KD value of 10.4 ± 0.5 µM was estimated (Figure 4), in agreement with the DNA dissociation constant determined for Cac-1 WHD [42]. The stoichiometry of binding was evaluated by light scattering experiments. Upon incubation of an excess of P150721–860 over 58 bp dsDNA (molar ratio of 3.2:1, P150721–860: dsDNA 58 bp), a complex in a 1:1 molar ratio was clearly identified (Figure 3).

2.3. ED Domain Modulates DNA Binding to P150721–860

In yeast, the ED region enriched in glutamic and aspartic acids constitutes part of the histone binding interface of Cac-1 [38,43,48]. In absence of histones, the acidic residues of this region make intramolecular interactions with the basic residues of WHD, masking the DNA binding activity of CAF-1 [36,38]. As revealed by inspecting the sequence, this acidic region is also present in P150 located at the N-terminal part of the WHD here investigated (Figure 1). With the aim to explore whether the described inhibitory mechanism is preserved in P150, a new construct was designed extending the length of P150721–860 at the N-terminal region to incorporate the acidic domain. Accordingly, a new construct, hereby named as P150575–860, was obtained cloning residues from 575 to 860 of P150 in pETM13 (Figure S1B). The recombinant protein was successfully produced in E. coli, purified, and investigated for its ability to bind DNA. EMSA was carried out incubating the same quantities of 58 bp dsDNA with increased quantities of P150575–860. Results showed that no complex formation was detected, highlighting that, despite the presence of the WHD, the DNA binding activity of P150 is hindered by the presence of the ED stretch. These data confirm that, similarly to what was observed for Cac-1, in the human subunit, the ED domain modulates the DNA binding activity of WHD (Figure S6).

3. Discussion

During DNA replication and DNA repair, the histone chaperone CAF-1 actively orchestrates nucleosome assembly, interacting with replisome and depositing H3–H4 directly onto newly synthetized DNA [73,74]. CAF-1 plays pivotal roles in maintaining genome stability; thus, any dysregulation of the complex and its subunits can likely cause alteration in the genome. Nevertheless, biochemical and structural studies on the proteins of the complex are rather limited, with few functional studies carried out only recently [36,38,42]. These investigations led to the development of models suggesting how the three different subunits work in the assembly. Notably, most of these studies have been carried out on S. cerevisiae proteins and results were then translated to the human system [36,38,42,43].
Here, we report the first detailed biochemical and structural characterization of a P150 DNA binding region and its regulatory mechanism. Starting from preliminary data previously obtained by Liu’s group [42], we expressed and purified the putative WHD of P150, namely P150721–860. We demonstrated, by light scattering experiments, that in solution, P150721–860 keeps a monomeric structure independently of ion strength. Literature data on this point are rather controversial; indeed, Mattiroli and coworkers, in agreement with our results, reported a monomeric structure for the isolated Cac-1 WHD [38], whereas the crystallographic structure of the same protein determined by Liu and coworkers highlighted a dimeric arrangement [48]. Interestingly, the same authors reported that homodimerization does not occur when changing buffer composition [48].
Consistently with its biological role, P150721–860 binds DNA with different base composition (AT- and GC-rich) and lengths (dsDNA 16 and 58 bp) with a binding affinity in the micromolar range, in accordance with values already reported for WH proteins such as isolated Cac-1 (KD = 2 µM) [42], Ash2L (KD = 12 µM) [75], FoxM1 (KD = 7 µM) [76], and Rtt106 (KD > 20 µM) [77]. The absence of a sequence specificity and the low DNA binding affinity are in line with the necessity of a conserved mechanism of CAF-1 to bind replicated or repaired DNA rather than specific DNA sequences [42]. Binding stoichiometry between P150721–860 and 58 bp dsDNA was evaluated in vitro giving a 1:1 molar ratio, in contrast to that observed for Cac-1, which binds an 18 bp dsDNA in a molar ratio of 2:1 (Cac-1:DNA) [38]. Taken together, these findings suggest that WHD from human and yeast may share similarities and differences, as revealed also by the structural comparison of the two proteins. Indeed, a secondary structure prediction of P150721–860, carried out with the online program PHD (accessed date 10 December 2021, https://npsa-prabi.ibcp.fr/cgi-bin/npsa_automat.pl?page = /NPSA/npsa_phd.html), reveals that, although this protein retains the typical elements of the WHD present in Cac-1, significant differences are also present. In particular, P150721–860 contains a big insertion between predicted helices α2 and α3 with respect to Cac-1 WHD; moreover, it is longer and contains, at the C-terminus, an additional coil region followed by a β-strand (Figure 5). The observed biochemical and structural differences between the human and the yeast protein could also reflect variations in the mechanism of action, but this topic needs to be further investigated. In this context, it is also worth noting that the full-length P150 contains an additional sequence (residues 861–956) whose function has to be completely unveiled (Figure 1).
The binding ability of P150721–860 to DNA is modulated by an acidic region which precedes the WHD. Accordingly, an enlarged construct comprehensive of the ED-rich region, namely P150575–860, is not able to bind DNA. It is assumed that the negatively charged residues of the ED domain sequestrate the WHD, making it inaccessible to DNA binding [43]. Similarly to what happens in yeast, it can be hypothesized that in the whole human CAF-1 complex, the presence of H3–H4 histones, which engages the acidic ED domain, makes the WHD free to interact with DNA [43].
In conclusion, we investigated, for the first time, the biochemical and structural features of the P150721–860 DNA binding region. Results indicated the typical features of a WHD containing both alpha and beta secondary structure elements. P150721–860 directly interacts with dsDNA [43] in vitro and its binding is modulated by the presence of an acidic stretch encompassing region 575–720. The detected protein/DNA binding ratio is 1:1, different from what was observed in yeast, and this could be indicative of a different mechanism of action between the human and the yeast protein in vivo. This hypothesis is supported by the presence in P150 of a C-terminal region which is completely absent in the yeast homologue and whose role still needs to be defined. Further experiments are currently underway in our lab to provide insights into this C-terminal region

4. Materials and Methods

4.1. P150721–860 and P150575–860 Design, Cloning, Expression, and Purification

P150721–860 and P150575–860 cDNAs (GeneArt, ThermoFisher Scientific), optimized for expression in E. coli, were amplified by PCR using forward and reverse primers as listed in Table 1. Amplified cDNAs were cloned into pETM13 vector (kind gift from EMBL Heidelberg) using NcoI and XhoI enzymes (New England Biolabs, NEB). This vector was chosen for its feature to encode a six-histidine tag (His-tag) at the C-terminus. The integrity of the sequence was assessed by DNA sequencing upon appropriate digestion with restriction enzymes.
Each recombinant protein (P150721–860 or P150575–860) was expressed by transforming E. coli BL21(DE3)pLysS strain (kind gift from EMBL Heidelberg) with the corresponding plasmid. Cells were grown in LB and induced with 1 mM IPTG at 16 °C or 22 °C for the expression of P150721–860 and P150575–860, respectively. After an overnight culture, cells were pelleted by centrifugation (7500 rpm for 20 min at 4 °C). Identically for both proteins, pellets were resuspended in 20 mM Tris-HCl, 500 mM NaCl, pH 7.5 supplemented with PMSF (1 mM), DNaseI (5 µg/mL), lysozyme (0.1 mg/mL), and 1 μg/mL of the following protease inhibitors (aprotinin, leupeptin, and pepstatin). Cells were then sonicated on ice and centrifuged (13,500 rpm for 20 min at 4 °C). Supernatant was purified at room temperature on ÄKTA FPLC (GE Healthcare). P150721–860 was purified by two affinity chromatography steps (TALON and heparin) and a Superdex 75 size exclusion chromatography (SEC), while P150575–860 purification consisted of a TALON affinity chromatography and SEC. Protein quality was assessed by 20% SDS-PAGE and ESI-TOF MS analysis (Agilent Technologies, Cernusco Sul Naviglio, Italy). Deconvolution was carried out by means of the Agilent MassHunter Qualitative software.

4.2. ESI–TOF-MS Analyses

A C4 Biobasic 50 × 2.1 mm ID column (ThermoFisher Monza, Italy) was used to load P150721–860 and P150575–860 proteins with a flowrate of 0.2 mL/min. ESI–TOF-MS analyses were carried out on an Agilent 1290 Infinity LC System coupled to an Agilent 6230 time-of-flight (TOF) LC/MS system (Agilent Technologies, Cernusco Sul Naviglio, Italy). The LC module Agilent 1290 was coupled to a photodiode array (PDA) detector and a 6230 time-of-flight MS detector, along with a binary solvent pump degasser, column heater, and autosampler. Chromatographic separation was performed using, as solvent A, 0.01% TFA in H2O (v/v), and as solvent B, 0.01% TFA in CH3CN (v/v). A fully reduced sample with 10 mM DTT was also analyzed. Deconvolution was carried out by means of the Agilent MassHunter Qualitative software.

4.3. Circular Dichroism

Circular dichroism (CD) experiments were carried out as previously described [79,80]. Spectra were recorded using a Jasco J-815 spectropolarimeter (Jasco, Essex, UK), equipped with a Peltier temperature control system in the far-UV range 190–260 nm. Measurements were run at 20 °C with three accumulations, using a 1 mm quartz cell. Experiments were performed using 7 µM of P150721–860 in 1 mM Tris-HCl, pH 7.5. Raw spectra were corrected for buffer contribution, converted to mean molar ellipticity per residue (θ) (deg cm2 dmol−1), and visualized using GraphPad software. For thermal stability experiments, P150721–860 was heated from 20 to 100 °C with a temperature increase of 1 °C/min and spectrum recorded at 222 nm, as above described. The molar ellipticity values at 222 nm were plotted as function of the temperature using GraphPad software. Additionally, the three spectra (5 °C, 90 °C, and 5 °C after heating) were recorded as previously described once the fixed temperature was reached within ± 0.1 °C set by a Peltier device.

4.4. Light Scattering

SEC–MALS–QELS (size exclusion chromatography–multi-angle light-scattering–quasi-elastic light scattering) analyses were carried out as previously described [81]. Briefly, the sample was loaded on a Superdex 75 10/300 GL (GE Healthcare) mounted in line with a multi-angle detector (mini-DAWN TREOS, Wyatt Technology) and a refraction index detector (Shodex RI 101). The first two runs were performed by injecting either P150721–860 or 58 dsDNA, 475 µg and 330 µg, respectively. The third run consisted of mixing together the previously mentioned quantities achieving a 3.2:1 molar ratio (protein: DNA) incubating the mixture on ice for 45 min before loading the column. Runs were performed in 20 mM Tris-HCl, 150 mM NaCl, and pH 7.5 at room temperature. When specified, LS was carried out in 20 mM Tris-HCl, 500 mM NaCl, pH 7.5. Data analysis was carried out using ASTRA 5.3.4.14 software (Wyatt Technology Corporation).

4.5. Electrophoretic Mobility Shift Assay

The 16 and 58 bp oligonucleotides (Table 2) used for binding assays were from Stazione Zoologica Anton Dohrn (Naples, Italy). Two strands of complementary ssDNA were annealed in 10 mM Tris-HCl, 50 mM NaCl, 1 mM EDTA, and Ph 7.5 buffer to form dsDNA. Protein dilutions were mixed with dsDNA in 20 Mm Tris-HCl, 100 Mm NaCl, 1 Mm DTT, and pH 7.5. In detail, when staining with ethidium bromide (EtBr) (Sigma), 21 µM of 16 pb dsDNA were mixed with P150721–860 in 0–15 molar ratio. Similar quantities were used in the AT- and GC-rich binding experiments. In the case of 58 dsDNA, 2 µM of DNA were mixed with P150721–860 or P150575–860 in 0–25 molar ratio. When staining with Sybr Gold, 1 µM of dsDNA was mixed with P150721–860 in 0–80 molar ratio. Binding reaction was incubated 45 min on ice. Gel loading dye, purple (6X, no SDS, New England Biolabs) and glycerol (final concentration of 5%), were added to the mixture, prior to the loading into a 6% PAGE pre-run in 0.5X TBE buffer. The pre-run and the run were performed at 75 V on ice, for 30 and 45 min, respectively. Gels were stained either with ethidium bromide (EtBr) or with Sybr Gold (Thermofisher) prior to visualization with UV light. Each fraction bound was calculated by quantifying the density of each lane by ImageJ [82]. The obtained data were analyzed by nonlinear regression equation with hill slope using the GraphPad Software. Results come from at least three experiments.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23042160/s1.

Author Contributions

S.M.M., G.D.S. and J.A. conceived the manuscript; S.M.M. and G.D.S. wrote the manuscript, J.A. performed the experiments; all authors prepared the figures. J.A., M.B. and A.D.F. conceived and participated in revision of the paper. All authors commented on the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by MIUR-PRIN2017 (grant 201744BN5T), MIUR-PON “Ricerca e Innovazione” 2014–2020 (grant MOLIM ONCOBRAIN LAB) and Regione Campania PO FESR 2014–2020 (grant eMORFORAD). J.A. is supported by INCIPIT international PhD program cofounded by Marie Sklodowska–Curie Actions (Horizon 2020).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

We are grateful to Maurizio Amendola for technical assistance and Florinda Pignatiello for administrative project support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luger, K.; Dechassa, M.L.; Tremethick, D.J. New insights into nucleosome and chromatin structure: An ordered state or a disordered affair? Nat. Rev. Mol. Cell Biol. 2012, 13, 436–447. [Google Scholar] [CrossRef] [Green Version]
  2. Annunziato, A. DNA packaging: Nucleosomes and Chromatin. Nat. Educ. 2008, 1, 26. [Google Scholar]
  3. Luger, K.; Mäder, A.W.; Richmond, R.K.; Sargent, D.F.; Richmond, T.J. Crystal structure of the nucleosome core particle at 2.8 Å resolution. Nature 1997, 389, 251–260. [Google Scholar] [CrossRef] [PubMed]
  4. McGinty, R.K.; Tan, S. Histone, Nucleosome, and Chromatin Structure. In Fundamentals of Chromatin; Workman, J.L., Abmayr, S.M., Eds.; Springer: New York, NY, USA, 2014; pp. 1–28. ISBN 978-1-4614-8624-4. [Google Scholar]
  5. McGinty, R.K.; Tan, S. Nucleosome Structure and Function. Chem. Rev. 2015, 115, 2255–2273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Widom, J. Structure, dynamics, and function of chromatin in vitro. Annu. Rev. Biophys. Biomol. Struct. 1998, 27, 285–327. [Google Scholar] [CrossRef] [PubMed]
  7. Li, G.; Levitus, M.; Bustamante, C.; Widom, J. Rapid spontaneous accessibility of nucleosomal DNA. Nat. Struct. Mol. Biol. 2005, 12, 46–53. [Google Scholar] [CrossRef] [PubMed]
  8. Luger, K. Dynamic nucleosomes. Chromosom. Res. 2006, 14, 5–16. [Google Scholar] [CrossRef]
  9. Loyola, A.; Almouzni, G. Histone chaperones, a supporting role in the limelight. Biochim. Biophys. Acta-Gene Struct. Expr. 2004, 1677, 3–11. [Google Scholar] [CrossRef]
  10. Das, C.; Tyler, J.K.; Churchill, M.E.A. The histone shuffle: Histone chaperones in an energetic dance. Trends Biochem. Sci. 2010, 35, 476–489. [Google Scholar] [CrossRef] [Green Version]
  11. Avvakumov, N.; Nourani, A.; Côté, J. Histone Chaperones: Modulators of Chromatin Marks. Mol. Cell 2011, 41, 502–514. [Google Scholar] [CrossRef]
  12. Elsässer, S.J.; D’Arcy, S. Towards a mechanism for histone chaperones. Biochim. Biophys. Acta 2013, 1819, 211–221. [Google Scholar] [CrossRef] [Green Version]
  13. Laskey, R.A.; Honda, B.M.; Mills, A.D.; Finch, J.T. Nucleosomes are assembled by an acidic protein which binds histones and transfers them to DNA. Nature 1978, 275, 416–420. [Google Scholar] [CrossRef]
  14. Laskey, R.A.; Earnshaw, W.C. Nucleosome assembly. Nature 1980, 286, 763–767. [Google Scholar] [CrossRef]
  15. Smith, S.; Stillman, B. Stepwise assembly of chromatin during DNA replication in vitro. EMBO J. 1991, 10, 971–980. [Google Scholar] [CrossRef]
  16. Krude, T. Chromatin: Nucleosome assembly during DNA replication. Curr. Biol. 1995, 5, 1232–1234. [Google Scholar] [CrossRef] [Green Version]
  17. Smith, S.; Stillman, B. Purification and characterization of CAF-I, a human cell factor required for chromatin assembly during DNA replication in vitro. Cell 1989, 58, 15–25. [Google Scholar] [CrossRef]
  18. Kadyrova, L.Y.; Rodriges Blanko, E.; Kadyrov, F.A. Human CAF-1-dependent nucleosome assembly in a defined system. Cell Cycle 2013, 12, 3286–3297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Ruiz-Carrillo, A.; Wangh, L.J.; Allfrey, V.G. Processing of newly synthesized histone molecules. Science 1975, 190, 117–128. [Google Scholar] [CrossRef] [PubMed]
  20. Stillman, B. Chromatin assembly during SV40 DNA replication in vitro. Cell 1986, 45, 555–565. [Google Scholar] [CrossRef]
  21. Kamakaka, R.T.; Bulger, M.; Kaufman, P.D.; Stillman, B.; Kadonaga, J.T. Postreplicative chromatin assembly by Drosophila and human chromatin assembly factor 1. Mol. Cell. Biol. 1996, 16, 810–817. [Google Scholar] [CrossRef] [Green Version]
  22. Quivy, J.P.; Grandi, P.; Almouzni, G. Dimerization of the largest subunit of chromatin assembly factor 1: Importance in vitro and during Xenopus early development. EMBO J. 2001, 20, 2015–2027. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Takami, Y.; Ono, T.; Fukagawa, T.; Shibahara, K.; Nakayama, T. Essential role of chromatin assembly factor-1-mediated rapid nucleosome assembly for DNA replication and cell division in vertebrate cells. Mol. Biol. Cell 2007, 18, 129–141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Quivy, J.P.; Gérard, A.; Cook, A.J.L.; Roche, D.; Almouzni, G. The HP1-p150/CAF-1 interaction is required for pericentric heterochromatin replication and S-phase progression in mouse cells. Nat. Struct. Mol. Biol. 2008, 15, 972–979. [Google Scholar] [CrossRef] [PubMed]
  25. Quivy, J.P.; Roche, D.; Kirschner, D.; Tagami, H.; Nakatani, Y.; Almouzni, G. A CAF-1 dependent pool of HP1 during heterochromatin duplication. EMBO J. 2004, 23, 3516–3526. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Tchénio, T.; Casella, J.-F.; Heidmann, T. A Truncated Form of the Human CAF-1 p150 Subunit Impairs the Maintenance of Transcriptional Gene Silencing in Mammalian Cells. Mol. Cell. Biol. 2001, 21, 1953–1961. [Google Scholar] [CrossRef] [Green Version]
  27. Smith, C.L.; Matheson, T.D.; Trombly, D.J.; Sun, X.; Campeau, E.; Han, X.; Yates, J.R.; Kaufman, P.D. A separable domain of the p150 subunit of human chromatin assembly factor-1 promotes protein and chromosome associations with nucleoli. Mol. Biol. Cell 2014, 25, 2866–2881. [Google Scholar] [CrossRef]
  28. Polo, S.E.; Theocharis, S.E.; Grandin, L.; Gambotti, L.; Antoni, G.; Savignoni, A.; Asselain, B.; Patsouris, E.; Almouzni, G. Clinical significance and prognostic value of chromatin assembly factor-1 overexpression in human solid tumours. Histopathology 2010, 57, 716–724. [Google Scholar] [CrossRef] [Green Version]
  29. Staibano, S.; Mascolo, M.; Mancini, F.P.; Kisslinger, A.; Salvatore, G.; Di Benedetto, M.; Chieffi, P.; Altieri, V.; Prezioso, D.; Ilardi, G.; et al. Overexpression of chromatin assembly factor-1 (CAF-1) p60 is predictive of adverse behaviour of prostatic cancer. Histopathology 2009, 54, 580–589. [Google Scholar] [CrossRef]
  30. Mascolo, M.; Vecchione, M.L.; Ilardi, G.; Scalvenzi, M.; Molea, G.; Di Benedetto, M.; Nugnes, L.; Siano, M.; De Rosa, G.; Staibano, S. Overexpression of Chromatin Assembly Factor-1/p60 helps to predict the prognosis of melanoma patients. BMC Cancer 2010, 10, 63. [Google Scholar] [CrossRef] [Green Version]
  31. Barbieri, E.; De Preter, K.; Capasso, M.; Chen, Z.; Hsu, D.M.; Tonini, G.P.; Lefever, S.; Hicks, J.; Versteeg, R.; Pession, A.; et al. Histone chaperone CHAF1A inhibits differentiation and promotes aggressive neuroblastoma. Cancer Res. 2014, 74, 765–774. [Google Scholar] [CrossRef] [Green Version]
  32. Burgess, R.J.; Zhang, Z. Histone chaperones in nucleosome assembly and human disease. Nat. Struct. Mol. Biol. 2013, 20, 14–22. [Google Scholar] [CrossRef] [Green Version]
  33. Tyler, J.K.; Collins, K.A.; Prasad-Sinha, J.; Amiott, E.; Bulger, M.; Harte, P.J.; Kobayashi, R.; Kadonaga, J.T. Interaction between the Drosophila CAF-1 and ASF1 Chromatin Assembly Factors. Mol. Cell. Biol. 2001, 21, 6574–6584. [Google Scholar] [CrossRef] [Green Version]
  34. Song, Y.; He, F.; Xie, G.; Guo, X.; Xu, Y.; Chen, Y.; Liang, X.; Stagljar, I.; Egli, D.; Ma, J.; et al. CAF-1 is essential for Drosophila development and involved in the maintenance of epigenetic memory. Dev. Biol. 2007, 311, 213–222. [Google Scholar] [CrossRef] [Green Version]
  35. Kaufman, P.D.; Kobayashi, R.; Stillman, B. Ultraviolet radiation sensitivity and reduction of telomeric silencing in Saccharomyces cerevisiae cells lacking chromatin assembly factor-I. Genes Dev. 1997, 1, 345–357. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Sauer, P.V.; Timm, J.; Liu, D.; Sitbon, D.; Boeri-Erba, E.; Velours, C.; Mücke, N.; Langowski, J.; Ochsenbein, F.; Almouzni, G.; et al. Insights into the molecular architecture and histone H3-H4 deposition mechanism of yeast Chromatin assembly factor 1. eLife 2017, 6, e23474. [Google Scholar] [CrossRef]
  37. Mattiroli, F.; Gu, Y.; Balsbaugh, J.L.; Ahn, N.G.; Luger, K. The Cac2 subunit is essential for productive histone binding and nucleosome assembly in CAF-1. Sci. Rep. 2017, 7, 46274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Mattiroli, F.; Gu, Y.; Yadav, T.; Balsbaugh, J.L.; Harris, M.R.; Findlay, E.S.; Liu, Y.; Radebaugh, C.A.; Stargell, L.A.; Ahn, N.G.; et al. DNA-mediated association of two histone-bound complexes of yeast Chromatin Assembly Factor-1 (CAF-1) drives tetrasome assembly in the wake of DNA replication. eLife 2017, 6, e22799. [Google Scholar] [CrossRef] [PubMed]
  39. Krawitz, D.C.; Kama, T.; Kaufman, P.D. Chromatin assembly factor I mutants defective for PCNA binding require Asf1/Hir proteins for silencing. Mol. Cell. Biol. 2002, 22, 614–625. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Ben-Shahar, T.R.; Castillo, A.G.; Osborne, M.J.; Borden, K.L.B.; Kornblatt, J.; Verreault, A. Two Fundamentally Distinct PCNA Interaction Peptides Contribute to Chromatin Assembly Factor 1 Function. Mol. Cell. Biol. 2009, 9, 6353–6365. [Google Scholar] [CrossRef] [Green Version]
  41. Moggs, J.G.; Grandi, P.; Quivy, J.-P.; Jónsson, Z.O.; Hübscher, U.; Becker, P.B.; Almouzni, G. A CAF-1–PCNA-Mediated Chromatin Assembly Pathway Triggered by Sensing DNA Damage. Mol. Cell. Biol. 2000, 20, 1206–1218. [Google Scholar] [CrossRef] [Green Version]
  42. Zhang, K.; Gao, Y.; Li, J.; Burgess, R.; Han, J.; Liang, H.; Zhang, Z.; Liu, Y. A DNA binding winged helix domain in CAF-1 functions with PCNA to stabilize CAF-1 at replication forks. Nucleic Acids Res. 2016, 44, 5083–5094. [Google Scholar] [CrossRef] [Green Version]
  43. Panne, D.; Sauer, P.V.; Gu, Y.; Liu, W.H.; Mattiroli, F.; Luger, K.; Churchill, M.E.A. Mechanistic insights into histone deposition and nucleosome assembly by the chromatin assembly factor-1. Nucleic Acids Res. 2018, 46, 9907–9917. [Google Scholar] [CrossRef] [Green Version]
  44. Pike, A.C.W.; Shrestha, B.; Popuri, V.; Burgess-Brown, N.; Muzzolini, L.; Costantini, S.; Vindigni, A.; Gileadi, O. Structure of the human RECQ1 helicase reveals a putative strand-separation pin. Proc. Natl. Acad. Sci. USA 2009, 106, 1039–1044. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Gajiwala, K.S.; Chen, H.; Cornille, F.; Roques, B.P.; Reith, W.; Mach, B.; Burley, S.K. Structure of the winged-helix protein hRFX1 reveals a new mode of DNA binding. Nature 2000, 403, 916–921. [Google Scholar] [CrossRef] [PubMed]
  46. Zheng, N.; Fraenkel, E.; Pabo, C.O.; Pavletich, N.P. Structural basis of DNA recognition by the heterodimeric cell cycle transcription factor E2F-DP. Genes Dev. 1999, 13, 666–674. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Kitano, K.; Kim, S.Y.; Hakoshima, T. Structural Basis for DNA Strand Separation by the Unconventional Winged-Helix Domain of RecQ Helicase WRN. Structure 2010, 18, 177–187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Liu, W.H.; Roemer, S.C.; Zhou, Y.; Shen, Z.-J.; Dennehey, B.K.; Balsbaugh, J.L.; Liddle, J.C.; Nemkov, T.; Ahn, N.G.; Hansen, K.C.; et al. The Cac1 subunit of histone chaperone CAF-1 organizes CAF-1-H3/H4 architecture and tetramerizes histones. eLife 2016, 5, 18023. [Google Scholar] [CrossRef]
  49. Chu, X.; Wang, Y.; Gan, L.; Bai, Y.; Han, W.; Wang, E.; Wang, J. Importance of electrostatic interactions in the association of intrinsically disordered histone chaperone Chz1 and histone H2A.Z-H2B. PLoS Comput. Biol. 2012, 8, e1002608. [Google Scholar] [CrossRef] [Green Version]
  50. Ramos, I.; Fernández-Rivero, N.; Arranz, R.; Aloria, K.; Finn, R.; Arizmendi, J.M.; Ausió, J.; Valpuesta, J.M.; Muga, A.; Prado, A. The intrinsically disordered distal face of nucleoplasmin recognizes distinct oligomerization states of histones. Nucleic Acids Res. 2014, 42, 1311–1325. [Google Scholar] [CrossRef] [Green Version]
  51. Kaufman, P.D.; Kobayashi, R.; Kessler, N.; Stillman, B. The p150 and p60 subunits of chromatin assemblyfactor I: A molecular link between newly synthesized histories and DNA replication. Cell 1995, 81, 1105–1114. [Google Scholar] [CrossRef] [Green Version]
  52. Dong, H.; Lin, W.; Zhang, C.K.; Xiong, H.; Fu, G.; Jin, W.R.; Chen, R.; Chen, Z.; Qi, Z.T.; Huang, G.M. Genomic sequence and expression analyses of human chromatin assembly factor 1 p150 gene. Gene 2001, 264, 187–196. [Google Scholar] [CrossRef]
  53. Keller, C.; Krude, T. Requirement of cyclin/Cdk2 and protein phosphatase 1 activity for chromatin assembly factor 1-dependent chromatin assembly during DNA synthesis. Biol. Chem. 2000, 275, 35512–35521. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Volk, A.; Crispino, J.D. The role of the chromatin assembly complex (CAF-1) and its p60 subunit (CHAF1b) in homeostasis and disease. Biochim. Biophys. Acta-Gene Regul. Mech. 2015, 1849, 979–986. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Thiru, A.; Nietlispach, D.; Mott, H.R.; Okuwaki, M.; Lyon, D.; Nielsen, P.R.; Hirshberg, M.; Verreault, A.; Murzina, N.V.; Laue, E.D. Structural basis of HP1/PXVXL motif peptide interactions and HP1 localisation to heterochromatin. EMBO J. 2004, 23, 489–499. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lomberk, G.; Wallrath, L.L.; Urrutia, R. The Heterochromatin Protein 1 family. Genome Biol. 2006, 7, 228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Reese, B.E.; Bachman, K.E.; Baylin, S.B.; Rountree, M.R. The Methyl-CpG Binding Protein MBD1 Interacts with the p150 Subunit of Chromatin Assembly Factor 1. Mol. Cell. Biol. 2003, 23, 3226–3236. [Google Scholar] [CrossRef] [Green Version]
  58. Geiss-Friedlander, R.; Melchior, F. Concepts in sumoylation: A decade on. Nat. Rev. Mol. Cell Biol. 2007, 8, 947–956. [Google Scholar] [CrossRef]
  59. Shibahara, K.I.; Stillman, B. Replication-dependent marking of DNA by PCNA facilitates CAF-1-coupled inheritance of chromatin. Cell 1999, 96, 575–585. [Google Scholar] [CrossRef] [Green Version]
  60. Ramakrishnan, V.; Finch, J.T.; Graziano, V.; Lee, P.L.; Sweet, R.M. Crystal structure of globular domain of histone H5 and its implications for nucleosome binding. Nature 1993, 362, 219–223. [Google Scholar] [CrossRef]
  61. Clark, K.L.; Halay, E.D.; Lai, E.; Burley, S.K. Co-crystal structure of the HNF-3/fork head DNA-recognition motif resembles histone H5. Nature 1993, 364, 412–420. [Google Scholar] [CrossRef]
  62. Over, R.S.; Michaels, S.D. Open and closed: The roles of linker histones in plants and animals. Mol. Plant 2014, 7, 481–491. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Kelley, L.A.; Mezulis, S.; Yates, C.M.; Wass, M.N.; Sternberg, M.J.E. The Phyre2 web portal for protein modeling, prediction and analysis. Nat. Protoc. 2015, 10, 845–858. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Takahashi, T.S.; Sato, Y.; Yamagata, A.; Goto-Ito, S.; Saijo, M.; Fukai, S. Structural basis of ubiquitin recognition by the winged-helix domain of Cockayne syndrome group B protein. Nucleic Acids Res. 2019, 47, 3784–3794. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Liao, Y.-D.; Jeng, J.-C.; Wang, C.-F.; Wang, S.-C.; Chang, S.-T. Removal of N-terminal methionine from recombinant proteins by engineered E. coli methionine aminopeptidase. Protein Sci. 2004, 13, 1802–1810. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Hirel, P.H.; Schmitter, J.M.; Dessen, P.; Fayat, G.; Blanquet, S. Extent of N-terminal methionine excision from Escherichia coli proteins is governed by the side-chain length of the penultimate amino acid. Proc. Natl. Acad. Sci. USA 1989, 86, 8247–8251. [Google Scholar] [CrossRef] [Green Version]
  67. Chaudhuri, T.K.; Horii, K.; Yoda, T.; Arai, M.; Nagata, S.; Terada, T.P.; Uchiyama, H.; Ikura, T.; Tsumoto, K.; Kataoka, H.; et al. Effect of the extra N-terminal methionine residue on the stability and folding of recombinant α-lactalbumin expressed in Escherichia coli. J. Mol. Biol. 1999, 285, 1179–1194. [Google Scholar] [CrossRef] [Green Version]
  68. Janes, R.W. PDB2CD visualises dynamics within protein structures. Eur. Biophys. J. 2017, 46, 607–616. [Google Scholar] [CrossRef] [Green Version]
  69. Teichmann, M.; Dumay-Odelot, H.; Fribourg, S. Structural and functional aspects of winged-helix domains at the core of transcription initiation complexes. Transcription 2012, 3, 2–7. [Google Scholar] [CrossRef] [Green Version]
  70. Bulatov, E.; Martin, E.M.; Chatterjee, S.; Knebel, A.; Shimamura, S.; Konijnenberg, A.; Johnson, C.; Zinn, N.; Grandi, P.; Sobott, F.; et al. Biophysical studies on interactions and assembly of full-size E3 ubiquitin ligase: Suppressor of cytokine signaling 2 (SOCS2)-elongin BC-cullin 5-ring box protein 2 (RBX2). J. Biol. Chem. 2015, 290, 4178–4191. [Google Scholar] [CrossRef] [Green Version]
  71. Ceschini, S.; Lupidi, G.; Coletta, M.; Pon, C.L.; Fioretti, E.; Angeletti, M. Multimeric self-assembly equilibria involving the histone-like protein H-NS. A thermodynamic study. J. Biol. Chem. 2000, 275, 729–734. [Google Scholar] [CrossRef] [Green Version]
  72. Valenzuela-Soto, E.M.; Velasco-García, R.; Mújica-Jiménez, C.; Gaviria-González, L.L.; Muñoz-Clares, R.A. Monovalent cations requirements for the stability of betaine aldehyde dehydrogenase from Pseudomonas aeruginosa, porcine kidney and amaranth leaves. Chem.-Biol. Interact. 2003, 143–144, 139–148. [Google Scholar] [CrossRef]
  73. Groth, A.; Rocha, W.; Verreault, A.; Almouzni, G. Chromatin Challenges during DNA Replication and Repair. Cell 2007, 128, 721–733. [Google Scholar] [CrossRef] [Green Version]
  74. Hoek, M.; Stillman, B. Chromatin assembly factor 1 is essential and couples chromatin assembly to DNA replication in vivo. Proc. Natl. Acad. Sci. USA 2003, 100, 12183–12188. [Google Scholar] [CrossRef] [Green Version]
  75. Chen, Y.; Wan, B.; Wang, K.C.; Cao, F.; Yang, Y.; Protacio, A.; Dou, Y.; Chang, H.Y.; Lei, M. Crystal structure of the N-terminal region of human Ash2L shows a winged-helix motif involved in DNA binding. EMBO Rep. 2011, 12, 797–803. [Google Scholar] [CrossRef] [Green Version]
  76. Littler, D.R.; Alvarez-Fernández, M.; Stein, A.; Hibbert, R.G.; Heidebrecht, T.; Aloy, P.; Medema, R.H.; Perrakis, A. Structure of the FoxM1 DNA-recognition domain bound to a promoter sequence. Nucleic Acids Res. 2010, 38, 4527–4538. [Google Scholar] [CrossRef] [Green Version]
  77. Liu, Y.; Huang, H.; Zhou, B.O.; Wang, S.S.; Hu, Y.; Li, X.; Liu, J.; Zang, J.; Niu, L.; Wu, J.; et al. Structural analysis of Rtt106p reveals a DNA binding role required for heterochromatin silencing. J. Biol. Chem. 2010, 285, 4251–4262. [Google Scholar] [CrossRef] [Green Version]
  78. Hooft, R.W.W.; Vriend, G.; Sander, C.; Abola, E.E. Errors in protein structures. Nature 1996, 381, 272–272. [Google Scholar] [CrossRef] [PubMed]
  79. Ascione, G.; de Pascale, D.; De Santi, C.; Pedone, C.; Dathan, N.A.; Monti, S.M. Native expression and purification of hormone-sensitive lipase from Psychrobacter sp. TA144 enhances protein stability and activity. Biochem. Biophys. Res. Commun. 2012, 420, 542–546. [Google Scholar] [CrossRef]
  80. Buonanno, M.; Langella, E.; Zambrano, N.; Succoio, M.; Sasso, E.; Alterio, V.; Di Fiore, A.; Sandomenico, A.; Supuran, C.T.; Scaloni, A.; et al. Disclosing the Interaction of Carbonic Anhydrase IX with Cullin-Associated NEDD8-Dissociated Protein 1 by Molecular Modeling and Integrated Binding Measurements. ACS Chem. Biol. 2017, 12, 1460–1465. [Google Scholar] [CrossRef] [PubMed]
  81. Langella, E.; Buonanno, M.; Vullo, D.; Dathan, N.; Leone, M.; Supuran, C.T.; De Simone, G.; Monti, S.M. Biochemical, biophysical and molecular dynamics studies on the proteoglycan-like domain of carbonic anhydrase IX. Cell. Mol. Life Sci. 2018, 75, 3283–3296. [Google Scholar] [CrossRef] [PubMed]
  82. Rueden, C.T.; Schindelin, J.; Hiner, M.C.; DeZonia, B.E.; Walter, A.E.; Arena, E.T.; Eliceiri, K.W. ImageJ2: ImageJ for the next generation of scientific image data. BMC Bioinform. 2017, 18, 529. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 02160 g001 550

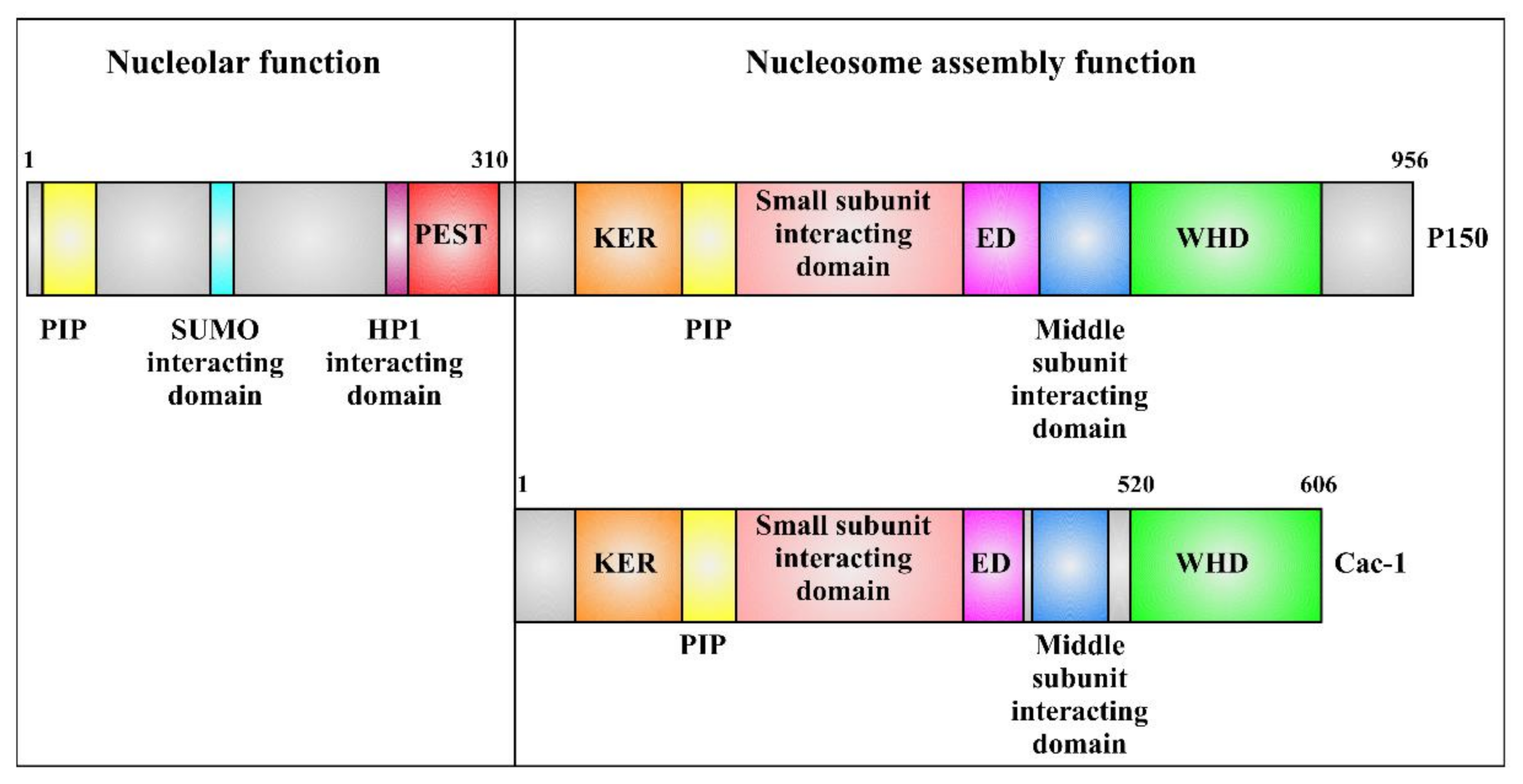

Figure 1. Schematic representation of P150 and Cac-1 components. The N-terminal region of P150 (residues 1–310) contains a PCNA interacting peptide (PIP) that has a strong activity in vitro, a SUMO protein interacting domain, an HP1 interacting region, and a PEST domain. The C-terminal region of P150 (residues 311–956) shows a domain organization similar to Cac-1. Both proteins contain a KER region, a PIP which is mainly responsible for maintaining the in vivo interaction with PCNA [40], the small subunit interacting domain, the ED sequence, the middle subunit interacting domain, and a WHD [43].
Figure 1. Schematic representation of P150 and Cac-1 components. The N-terminal region of P150 (residues 1–310) contains a PCNA interacting peptide (PIP) that has a strong activity in vitro, a SUMO protein interacting domain, an HP1 interacting region, and a PEST domain. The C-terminal region of P150 (residues 311–956) shows a domain organization similar to Cac-1. Both proteins contain a KER region, a PIP which is mainly responsible for maintaining the in vivo interaction with PCNA [40], the small subunit interacting domain, the ED sequence, the middle subunit interacting domain, and a WHD [43].
Ijms 23 02160 g001
Ijms 23 02160 g002 550

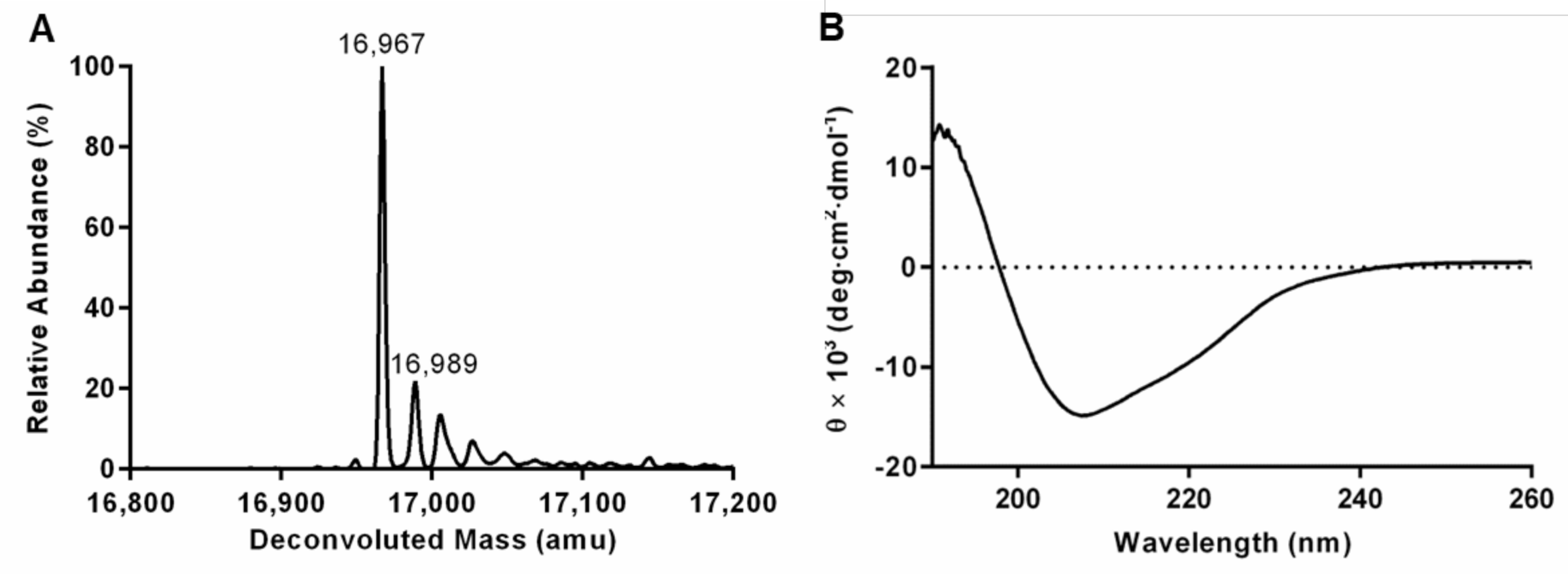

Figure 2. Biochemical features of P150721–860. (A) Deconvoluted mass spectrum of P150721–860. The experimental molecular weight corresponds to the polypeptide lacking the initial methionine and comprehensive of the (His)6-tag. (B) Far-UV CD spectrum of P150721–860 recorded in 1 mM Tris-HCl, pH 7.5, at a protein concentration of 7 µM at 20 °C.
Figure 2. Biochemical features of P150721–860. (A) Deconvoluted mass spectrum of P150721–860. The experimental molecular weight corresponds to the polypeptide lacking the initial methionine and comprehensive of the (His)6-tag. (B) Far-UV CD spectrum of P150721–860 recorded in 1 mM Tris-HCl, pH 7.5, at a protein concentration of 7 µM at 20 °C.
Ijms 23 02160 g002
Ijms 23 02160 g003 550

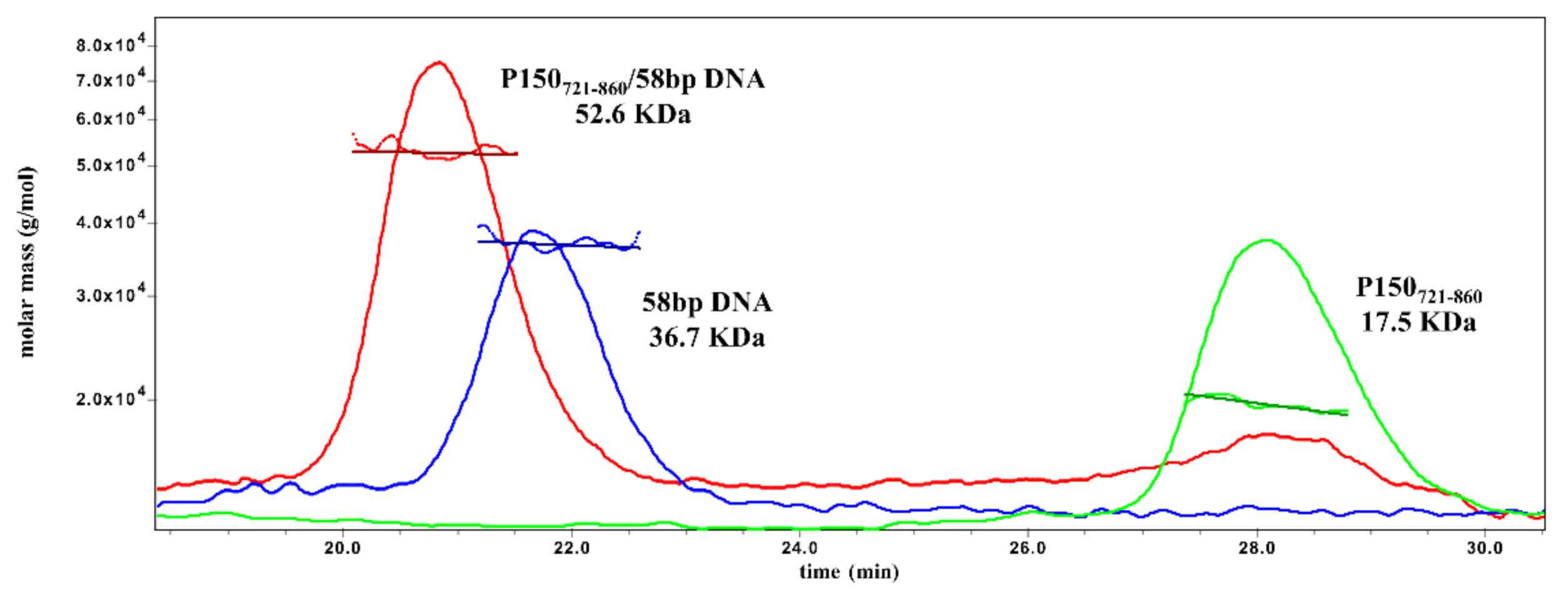

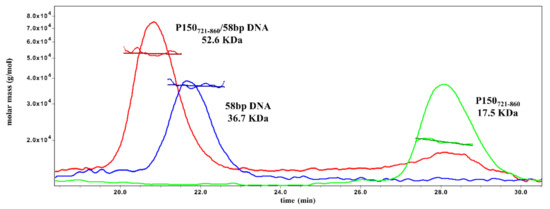

Figure 3. Molar mass of P150721–860, ds58 DNA, and P150721–860 /ds58 DNA complex by SEC-MALS-QELS analysis. Overlay of light scattering chromatograms of recombinant P150721–860 (green line), ds58 DNA (blue line), and P150721–860/ds58 DNA complex (red line) samples. The molar mass of each sample is reported. Runs were performed in 20 mM Tris-HCl, 150 mM NaCl, pH 7.5.
Figure 3. Molar mass of P150721–860, ds58 DNA, and P150721–860 /ds58 DNA complex by SEC-MALS-QELS analysis. Overlay of light scattering chromatograms of recombinant P150721–860 (green line), ds58 DNA (blue line), and P150721–860/ds58 DNA complex (red line) samples. The molar mass of each sample is reported. Runs were performed in 20 mM Tris-HCl, 150 mM NaCl, pH 7.5.
Ijms 23 02160 g003
Ijms 23 02160 g004 550

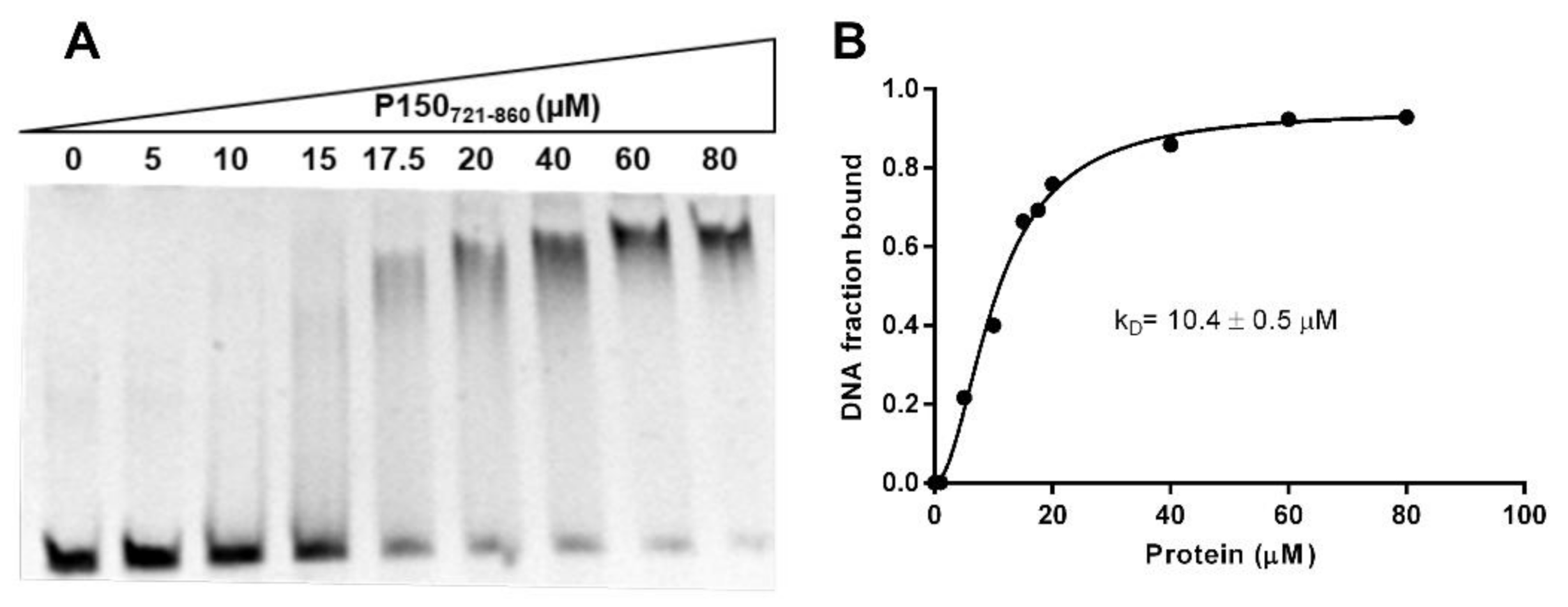

Figure 4. DNA binding ability of P150721–860 to 58 bp dsDNA assessed by EMSA. (A) 1 µM 58 bp dsDNA was incubated with increasing concentration of P150721–860. Gel was stained with Sybr Gold prior to visualization with UV light. (B) The density value of each band quantified by ImageJ was analyzed by Graph Pad-Prism, Version 7.
Figure 4. DNA binding ability of P150721–860 to 58 bp dsDNA assessed by EMSA. (A) 1 µM 58 bp dsDNA was incubated with increasing concentration of P150721–860. Gel was stained with Sybr Gold prior to visualization with UV light. (B) The density value of each band quantified by ImageJ was analyzed by Graph Pad-Prism, Version 7.
Ijms 23 02160 g004
Ijms 23 02160 g005 550
Figure 5. Schematic representation of P150 and Cac-1 WHD secondary structure. Helices and strands of P150 WHD (A) have been predicted by the PHD program, whereas those of Cac-1 WHD (B) have been calculated with Whatcheck [78] using the crystallographic coordinates (PDB accession code 5JBM) [48]. Helices and strands are represented as cyan cylinders and yellow arrows, respectively. Primary sequences are also shown.
Figure 5. Schematic representation of P150 and Cac-1 WHD secondary structure. Helices and strands of P150 WHD (A) have been predicted by the PHD program, whereas those of Cac-1 WHD (B) have been calculated with Whatcheck [78] using the crystallographic coordinates (PDB accession code 5JBM) [48]. Helices and strands are represented as cyan cylinders and yellow arrows, respectively. Primary sequences are also shown.
Ijms 23 02160 g005
Table
Table 1. List of the primers with the restriction site underlined.
Table 1. List of the primers with the restriction site underlined.
Name of the ConstructPrimers (F: Forward; R: Reverse)
P150721–860FCGCGCGCCATGGGCCAGACCCCGAAAGCAAGC
RCGCGCGCTCGAGACCGGTGCTCGGAACG
P150575–860FCGCGCGCCATGGGCAACAAAAAAACCGCACTGATTCGTG
RCGCGCGCTCGAGACCGGTGCTCGGAACG
Table
Table 2. List of single-strand DNA sequences.
Table 2. List of single-strand DNA sequences.
DNA Length Sequence (5′-3′)
16 bpTGCTACCGATCGATAC
16 bp GC rich ATCGCCCGCGCACGCA
16 bp AT rich ATAATCGATATTCGTT
58 bp ATACATTTTATGACTGGAAACTTTTTTGTACAA
CACTCCAATAAACATTTTGATTTTA
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ayoub, J.; Buonanno, M.; Di Fiore, A.; De Simone, G.; Monti, S.M. Biochemical and Structural Insights into the Winged Helix Domain of P150, the Largest Subunit of the Chromatin Assembly Factor 1. Int. J. Mol. Sci. 2022, 23, 2160. https://doi.org/10.3390/ijms23042160

AMA Style

Ayoub J, Buonanno M, Di Fiore A, De Simone G, Monti SM. Biochemical and Structural Insights into the Winged Helix Domain of P150, the Largest Subunit of the Chromatin Assembly Factor 1. International Journal of Molecular Sciences. 2022; 23(4):2160. https://doi.org/10.3390/ijms23042160

Chicago/Turabian Style

Ayoub, Joëlle, Martina Buonanno, Anna Di Fiore, Giuseppina De Simone, and Simona Maria Monti. 2022. "Biochemical and Structural Insights into the Winged Helix Domain of P150, the Largest Subunit of the Chromatin Assembly Factor 1" International Journal of Molecular Sciences 23, no. 4: 2160. https://doi.org/10.3390/ijms23042160

APA Style

Ayoub, J., Buonanno, M., Di Fiore, A., De Simone, G., & Monti, S. M. (2022). Biochemical and Structural Insights into the Winged Helix Domain of P150, the Largest Subunit of the Chromatin Assembly Factor 1. International Journal of Molecular Sciences, 23(4), 2160. https://doi.org/10.3390/ijms23042160

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
